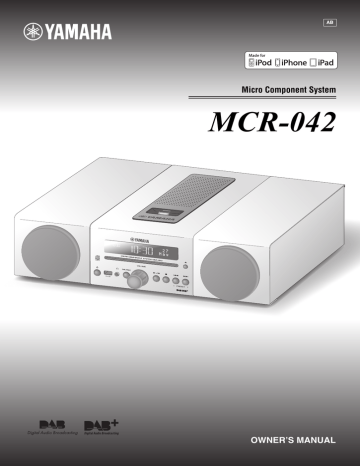

Yamaha | MCR-042 | Owner's Manual | Yamaha MCR-042 Owner's manual

AB
Micro Component System
MCR-042
27
May
OWNER’S MANUAL
CAUTION: READ THIS BEFORE OPERATING YOUR UNIT.
1 To assure the finest performance, please read this manual
carefully. Keep it in a safe place for future reference.
2 Install this unit in a well ventilated, cool, dry, clean place away from direct sunlight, heat sources, vibration, dust,
moisture and cold. For proper ventilation, allow the
following minimum clearances.
Top: 15 cm (6 in)
Rear: 10 cm (4 in)
Sides: 10 cm (4 in)
3 Locate this unit away from other electrical appliances,
motors, or transformers to avoid humming sounds.
4 Do not expose this unit to sudden temperature changes
from cold to hot, and do not locate this unit in an
environment with high humidity (i.e. a room with a
humidifier) to prevent condensation inside this unit, which
may cause an electrical shock, fire, damage to this unit,
and/or personal injury.
5 Avoid installing this unit where foreign object may fall
onto this unit and/or this unit may be exposed to liquid
dripping or splashing. On the top of this unit, do not place:
– Other components, as they may cause damage and/or
discoloration on the surface of this unit.
– Burning objects (i.e. candles), as they may cause fire,
damage to this unit, and/or personal injury.
– Containers with liquid in them, as they may fall and liquid
may cause electrical shock to the user and/or damage to
this unit.
6 Do not cover this unit with a newspaper, tablecloth,
curtain, etc. in order not to obstruct heat radiation. If the
temperature inside this unit rises, it may cause fire,
damage to this unit, and/or personal injury.
7 Do not plug in this unit to a wall outlet until all
connections are complete.
8 Do not operate this unit upside-down. It may overheat,
possibly causing damage.
9 Do not use force on switches, knobs and/or cords.
10 When disconnecting the power cable from the wall outlet,
grasp the plug; do not pull the cable.
11 Do not clean this unit with chemical solvents; this might
damage the finish. Use a clean, dry cloth.
12 Only voltage specified on this unit must be used. Using
this unit with a higher voltage than specified is dangerous
and may cause fire, damage to this unit, and/or personal
injury. Yamaha will not be held responsible for any
damage resulting from use of this unit with a voltage other
than specified.
13 To prevent damage by lightning, keep the power cable
disconnected from a wall outlet or this unit during a
lightning storm.
14 Do not attempt to modify or fix this unit. Contact qualified
Yamaha service personnel when any service is needed.
The cabinet should never be opened for any reasons.
15 When not planning to use this unit for long periods of time
(i.e. vacation), disconnect the AC power plug from the
wall outlet.
16 Be sure to read the “TROUBLESHOOTING” section on
common operating errors before concluding that this unit
is faulty.
17 Before moving this unit, press
to set the system to off,
and disconnect the AC power plug from the wall outlet.
i En
18 Condensation will form when the surrounding
temperature changes suddenly. Disconnect the power
cable from the outlet, then leave this unit alone.
19 When using this unit for a long time, this unit may become
warm. Turn the system off, then leave this unit alone for
cooling.
20 Install this unit near the wall outlet and where the AC
power plug can be reached easily.
21 The batteries shall not be exposed to excessive heat such
as sunshine, fire or the like. When you dispose of
batteries, follow your regional regulations.
– Keep the batteries in a location out of reach of children.
Batteries can be dangerous if a child were to put in his or
her mouth.
– If the batteries grow old, the effective operation range of
the remote control decreases considerably. If this happens,
replace the batteries with new one as soon as possible.
– Do not use old batteries together with new ones.
– Do not use different types of batteries (such as alkaline
and manganese batteries) together. Read the packaging
carefully as these different types of batteries may have the
same shape and color.
– Exhausted batteries may leak. If the batteries have leaked,
dispose of them immediately. Avoid touching the leaked
material or letting it come into contact with clothing, etc.
Clean the battery compartment thoroughly before
installing new batteries.
– If you plan not to use the unit for a long period of time,
remove the batteries from the unit. Otherwise, the batteries
will wear out, possibly resulting in a leakage of battery
liquid that may damage the unit.
– Do not throw away batteries with general house waste.
Dispose of them correctly in accordance with your local
regulations.
22 Excessive sound pressure from earphones and headphones
can cause hearing loss.
This unit is not disconnected from the AC power source as
long as it is connected to the wall outlet, even if this unit
itself is turned off by
. In this state, this unit is designed
to consume a very small quantity of power.
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR
MOISTURE.
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
There is a chance that placing this unit too close to a CRTbased (Braun tube) TV set might impair picture color.
Should this happen, move this unit away from the TV set.
LASER
Type
Wave length
Output Power
Semiconductor laser GaAS/GaAlAs
790 nm
7 mW
CONTENTS
CONNECTIONS ........................................................2
NAMES OF PARTS AND THEIR FUNCTIONS ........4
Top panel/Front panel ....................................................4
Front panel display.........................................................4
Remote control...............................................................5
Playing music from your iPod.........................................7
Using repeat/shuffle playback (remote control only) ......8
LISTENING TO CD AND USB DEVICES .................9
LISTENING TO DAB STATIONS ............................11
Preparing for DAB reception ........................................11
Selecting DAB stations.................................................12
Presetting DAB stations (remote control only) .............13
Selecting an FM station................................................15
Presetting FM stations (remote control only) ...............16
Selecting preset FM stations ........................................17
LISTENING TO EXTERNAL SOURCES ................18
USEFUL FUNCTIONS ............................................19
Using the Option menu ................................................19
Using the sleep timer ...................................................19
Using the alarm function ..............................................20
USING THE “DTA Controller” APPLICATION
FOR THE iPod/iPhone/iPad .........................................20
Setting the alarm ..........................................................21
Operations while the alarm sound is playing................22
TROUBLESHOOTING ............................................23
NOTES ON DISCS AND USB DEVICES ................26
SPECIFICATIONS...................................................27
Italiano
• Play back music from external devices such as your iPod/iPhone/iPad, audio/data CDs, USB devices, or external devices
via the AUX jack, and listen to the DAB/FM.
• Use your favorite music or a beep tone as an alarm. When the set time arrives, the music you select is played at the volume
that you specify, giving you the ideal start to your day (IntelliAlarm function).
• You can take advantage of more sophisticated alarm functionality by using the free “DTA Controller” application for the
iPod touch/iPhone/iPad (☞ P. 20).
• You can easily store and recall 30 of your favorite DAB/FM stations.
• Bass, middle, and treble can be adjusted to your taste.
Svenska
Features
Deutsch
Listening to a CD............................................................9
Listening to a USB device ............................................10
Using repeat/shuffle playback (remote control only) ....10
LISTENING TO FM STATIONS ..............................15
Français
ADJUSTING THE CLOCK (OPTION MENU) ...........6
LISTENING TO YOUR iPod......................................7
Selecting preset DAB stations......................................14
Checking the signal strength of DAB station
(Option menu) ..............................................................14
English
Connecting the speakers and antenna ..........................2
Connecting the power cable...........................................2
Other connections ..........................................................3
 About this manual
Remote control
(uses a CR2032 type
Lithium battery)
Speaker cable
(1.5 m (4.9') x 2)
Dock cover
Русский
 How to use the remote control
DAB/FM antenna
 Replacing the battery in the remote control
While pushing the release tab in direction
battery holder in direction .
Nederlands
Supplied accessories
Español
• References to the iPod appearing in this manual also include the iPhone.
• If an operation can be performed using either the buttons on the unit itself or from the remote control, the explanation will
focus on operation using the remote control.
•
indicates precautions for use of the unit and its feature limitations.
•
indicates supplementary explanations for better use.
, slide out the
Within 6 m (20')
CR2032 type
Lithium battery
Battery insulation sheet:
Remove before using.
1 En
CONNECTIONS
Connecting the speakers and antenna
Connect the speakers and antenna.
If you use a commercially available outdoor antenna instead of the supplied antenna, reception may be better.
If DAB/FM reception is poor, try changing the height or direction or placement of the antenna to find a location that has better
reception.
Do not connect this unit’s power cable until you’ve finished connecting all cables.
 Speakers
• You must peel off the insulation (covering) from the tip of the speaker cable to
expose the conductor.
• Check the connections; make sure that left and right (L, R) and polarity (red: +,
black: –) are connected correctly. If connections are incorrect, the sound will be
unnatural and the low frequencies may be insufficient. There might not be any
sound at all if connections are incorrect.
• Take care that the conductors of the speaker cable do not touch each other, and that
the conductors do not touch any other metal part. Such conditions can damage this
unit or the speakers.
• Use only the supplied speakers. Using other speakers may result in unnatural sound.
• If you’re using this unit nearby a CRT display and you notice distorted color or
noise in the display, move the speakers farther away from the display.
To the AC
wall outlet
 DAB/FM antenna
Be sure to stretch out the antenna.
Connecting the power cable
When you’ve completed all connections, connect this unit’s power cable to an AC outlet.
Rear panel
2 En
Twist the bare wires
tightly so the individual
strands are not splayed.
CONNECTIONS
Other connections
 iPod
iPod dock
• Be sure to use a dock adaptor that is compatible with your iPod. If you do not use the adaptor or the
adaptor is not compatible, the connection could be loose or poor, which could cause damage to the
connector. For details on dock adaptor information, please visit Apple’s official website.
• If an iPod in a protective case is forcibly connected, the connector may be damaged. Remove the
protective case before connection.
• When the iPod is not in use, install the dock cover to protect the connector.
Deutsch
• Your iPod will be recharged while it is connected to the dock. However if USB is selected as the
audio source, the iPod will not be recharged.
• Your iPod can also play back music and charge while connected to the USB port. To do this, select
USB as the audio source (☞ P. 10).
• You can remove the iPod during playback.
Français
Dock
adaptor
English
Connect your iPod to the iPod dock on the top panel. For details on compatible iPod models, refer to “SPECIFICATIONS”
(P. 27).
 iPad
Make sure to use a Dock Connector to USB Cable that is supplied with your iPad.
Italiano
• When you turn the system on and set the audio source to USB, the iPad
connected to this unit will be recharged.
• You can remove the iPad during playback.
Svenska
Connect your iPad to the front panel USB port. For details on compatible iPad models, refer to “SPECIFICATIONS” (P. 27).
Connect your USB device to the USB port on the front panel. For details on playable files, refer to “NOTES ON DISCS AND
USB DEVICES” (P. 26).
When you turn on the system and set the audio source to USB, the USB device connected to this
unit will be recharged.
Using a commercially available 3.5 mm mini-plug cable, connect your external device to the AUX jack on the rear panel of
this unit.
Rear panel
AUX IN
3 En
Русский
 External devices
Nederlands
Stop playback before disconnecting the USB device.
Español
 USB device
NAMES OF PARTS AND THEIR FUNCTIONS
Top panel/Front panel
1
2
k
3
4
5 6 7
a iPod dock
8
9
g SOURCE
Connect your iPod here (☞ P. 3, 6, 7).
Be sure to use a dock adaptor that is compatible with
your iPod (☞ P. 3).
Switch the audio source to be played.
Pressing this repeatedly will change the selection in the
following order.
CD iPod USB DAB FM AUX back to CD
b Front panel display
The clock and other information is displayed here.
h VOLUME knob
Adjust the volume.
c Disc slot
Insert a CD here (☞ P. 9).
d
j
i Audio control buttons
Use these to operate the iPod/CD/USB device.
(Power)
Press to turn the system on/off.
:
:
e USB port
/
Connect your USB device/iPod/iPhone/iPad here
(☞ P. 3, 10).
f
Play/Pause
Stop
: Skip, Search backward/forward (press and hold
down)
j PRESET /
(Headphone jack)
Use these buttons to select a radio station (preset) that
you’ve stored (☞ P. 17).
Connect headphones here.
k
(Eject button)
Eject the CD (cannot be operated while the option menu
(☞ P. 19) is displayed).
Front panel display
1
23
4
5
~~~~~~
~~~~~~
87 6
a Alarm time
This indicates the alarm time (☞ P. 21).
b Repeat/shuffle indicator
Displays the playback mode (☞ P. 8, 10).
c Secondary indicator
Turns on if a secondary station is playing when you
listen to a DAB station.
d Multi-function indicator
Displays various information, including the clock time,
information about the currently-playing track, and the
frequency of the radio station.
4 En
e Remote control signal receiver
Make sure that this sensor is not obstructed (☞ P. 1).
f Sleep indicator
Turns on if the sleep timer has been set (☞ P. 19).
g Alarm indicator
Turns on if the alarm has been set (☞ P. 21).
h Weekly alarm indicator
Shows alarm information specified using the free “DTA
Controller” application for the iPod touch/iPhone/iPad
(☞ P. 20).
NAMES OF PARTS AND THEIR FUNCTIONS
Remote control
a Remote control signal transmitter
b
c SNOOZE/SLEEP
3
Set the sleep timer or switch the alarm to snooze mode
(☞ P. 19, 22).
d ALARM
Switches the alarm on/off (☞ P. 22).
e Source buttons
5
r
q
f MENU
Switch the iPod menu item/Return to the previous menu
(☞ P. 7).
Switch the playback folder when playing music on data
CDs or USB devices (☞ P. 9, 10).
Select items or edit numerical values (☞ P. 7, 19).
h ENTER
Confirm a selected item or value.
Use these to operate the iPod/CD/USB device.
Stop
Play/Pause
:
/
: Skip, Search backward/forward (press and hold
down)
j
(Repeat)/
(Shuffle)
Play music on an iPod, CD or USB device in repeat/
shuffle mode (☞ P. 8, 10).
/
Tune the DAB/FM (☞ P. 15, 16).
l PRESET /
Select a DAB/FM station that you stored (☞ P. 16, 17).
Nederlands
k TUNING
iPod control buttons
Español
k
m
Italiano
i Audio control buttons
:
l
Svenska
g FOLDER 

/
p
o
n
Deutsch
Switch the audio source to be played. If you press one of
these while the system is off, the system will
automatically turn on.
Press RADIO repeatedly to switch between DAB/FM.
9
j
Français
4
8
(Power)
Press to turn the system on/off.
2
6
7
English
1
m MEMORY
Русский
Store a DAB/FM station (☞ P. 16).
n MUTE
Mute or unmute the sound.
o VOLUME + / –
Adjust the volume.
p DISPLAY
Switch the information shown in the front panel display
(☞ P. 6, 7, 9, 10, 15).
q +10
Skip ten songs ahead of the currently-playing song.
When playing a data CD or a USB device, this button
skips ten songs within the current folder.
r OPTION
Display the option menu (☞ P. 19).
5 En
ADJUSTING THE CLOCK (OPTION MENU)
You’ll use the option menu (☞ P. 19) to set this unit’s date and time.
 To copy the time from your iPod
1 Press OPTION.
The option menu will appear.
1
2 Press 

/ to select “CLOCK SET,” and then
press ENTER.
2
The display will indicate “CLOCK YEAR,” and the
numerical value to be set will blink.
3 Set your iPod in the iPod dock (☞ P. 3).
The time will be copied from your iPod to this unit.
Press ENTER to confirm the items in the order of year
month
day
hour
minute.
When clock setting has finished, the display will indicate
“Completed!”
3
Dock adaptor
(☞ P. 3)
• By pressing DISPLAY you can select the time format (12hour/24-hour).
• The time will not be copied if the iPod is already connected or
if the audio source is set to USB.
The time settings will be reset if the unit remains unpowered for
about one hour.
 Setting the clock manually
1 Press OPTION.
The option menu will appear.
1
2
2 Press 

/ to select “CLOCK SET,” and then
press ENTER.
3
The display will indicate “CLOCK YEAR,” and the
numerical value to be set will blink.
3 Set the date and time.
The clock is shown as below.
(24-hour)
26
Apr
Jan
Feb
Mar
Apr
May
Jun
January
February
March
April
May
June
Nov
Dec
Jul
Aug
Sep
Oct
July
August
September
October
November December
Press ▲/▼ to edit each numerical value, and then press
ENTER to confirm the setting.
Set the items in the order of year
month
day
hour
minute.
When clock setting has finished, the display will indicate
“Completed!”
The clock will be set to 0 second the moment you
complete the clock settings.
• While making these settings, you can press DISPLAY to
select the time format (12-hour/24-hour).
• If you decide to cancel without changing the setting, press
OPTION before confirming the change.
The time settings will be reset if the unit remains unpowered for
about one hour.
6 En
??
LISTENING TO YOUR iPod
Playing music from your iPod
English
• For details on compatible iPod models, refer to “SPECIFICATIONS” (P. 27).
• Your iPod can also play back music and charge while connected to the USB port. To do this, select USB as the audio source
(☞ P. 10).
1 Press the iPod source button to switch the
audio source to iPod.
1
3 Play the iPod.
Playback can be controlled with either the remote
control, iPod or the front panel on this unit (☞ P. 4, 5).
2
Svenska
Dock adaptor
(☞ P. 3)
Deutsch
• If you’ve selected an audio source other than USB, performing
the following operations will automatically switch the audio
source to iPod and start playback even if the system is turned off.
− Connect your iPod in the playback state to the iPod dock.
− Play back the connected iPod.
• If USB is selected as the audio source, the iPod will not be
recharged.
• You can remove the iPod during playback.
• If iPod is selected as the audio source, this unit will automatically
turn the system off when 60 minutes have elapsed without a
device being connected to the iPod dock nor any operation
performed.
Français
2 Set your iPod in the iPod dock (☞ P. 3).
Italiano
Español
 iPod menu operations (remote control only)
You can use the remote control to operate your iPod.
Switch menu items/Return to the previous menu
▲/▼:
Move between items in the menu
ENTER:
Confirm
Nederlands
MENU:
If you press DISPLAY on the remote control while a song is playing or paused, the information shown on the front panel
display will be switched in the following order.
Elapsed song playback time
Song name
Album name
Artist name
7 En
Русский
 Display information (remote control only)
LISTENING TO YOUR iPod
Using repeat/shuffle playback (remote control only)
The playback status is shown by the repeat/shuffle indicator in the front panel display.
 Repeat playback
 Shuffle playback
Press
(repeat) repeatedly to
select one of the following
playback modes.
No display:
:
Off
One
:
All
Press
(shuffle) repeatedly to
select one of the following
playback modes.
No display:
:
:
The operation or display of repeat/shuffle may differ, depending on the type or software version of iPod used.
8 En
Off
Songs
Albums
LISTENING TO CD AND USB DEVICES
− Audio CD:
from the first track of the CD.
− Data CD*/USB device: from the first track of the folder contains the track you listened to last time.
Français
• This unit automatically turns off the system if no operation has been performed for 60 minutes after CD/USB device
playback is stopped.
English
The unit will operate as follows when playing back tracks/files on CD/USB devices.
• If the CD/USB device being played is stopped, the track that you listened will start playback from the beginning of the
track the next time you play.
• If you press while playback is stopped, tracks will play as follows the next time playback begins:
* “Data CD” is a CD that contains MP3/WMA files.
For details on playable discs and files, refer to “NOTES ON DISCS AND USB DEVICES” (P. 26).
Deutsch
Listening to a CD
1 Press the CD source button to switch the
audio source to CD.
1
If a CD is already inserted, playback will start.
Svenska
2 Insert a CD into the disc slot.
Playback starts automatically.
Playback can be controlled with either the remote
control, or the front panel on this unit (☞ P. 4, 5).
Italiano
Insert the CD with the label side facing upward.
Folders and files on a data CD are played in alphabetical order.
2
While a data CD is playing, you can use the remote control’s FOLDER ▲/▼
buttons to select the folder.
Español
 Skipping folders (remote control only)
Nederlands
 Display information (remote control only)
Audio CD
Data CD
Elapsed song playback time
Elapsed song playback time
Remaining song playback time
Song name*
Song name*
Album name*
Album name*
Artist name*
Artist name*
File name
Folder name
* Shown only if this data is included in the song.
9 En
Русский
The folder number (only for a data CD) or the song/file number is shown for
several seconds when starting playback or skipping tracks.
If you press DISPLAY on the remote control while a song is playing or paused, the
information shown on the front panel display will be switched in the following order.
LISTENING TO CD AND USB DEVICES
Listening to a USB device
1 Press the USB source button to switch the
audio source to USB.
1
If a USB device is already connected, playback will start.
2 Connect a USB device to the USB port.
Playback starts automatically.
Playback can be controlled using either the remote control,
the front panel on this unit, or the USB device (☞ P. 4, 5).
• Folders and files will play in the order in which they were written.
• Your iPod/iPhone/iPad can also play back music and charge while
connected to the USB port.
2
Stop playback before disconnecting the USB device.
 Skipping folders (remote control only)
While a USB device is playing, you can use the remote control’s FOLDER ▲/▼
buttons to select the folder.
 Display information (remote control only)
The folder/file number is shown for several seconds when starting playback or
skipping tracks.
If you press DISPLAY on the remote control while a song is playing or paused, the
information shown on the front panel display will be switched in the following order.
Elapsed song playback time
Song name*
Album name*
Artist name*
File name
Folder name
* Shown only if this data is included in the song.
Using repeat/shuffle playback (remote control only)
The playback status is shown by the repeat/shuffle indicator in the front panel display.
 Repeat playback
 Shuffle playback
Press
(repeat) repeatedly to
select one of the following
playback modes.
No display: Repeat mode off
:
1 track
:
All tracks within the folder (data CD/
USB device only)
:
10 En
All tracks
Press
(shuffle) repeatedly to
select one of the following
playback modes.
No display: Shuffle mode off
:
All tracks within the folder (data CD/
USB device only)
:
All tracks
LISTENING TO DAB STATIONS
Press the RADIO source button to switch the
audio source to DAB.
If the initial scan is performed, stored DAB station information
and preset DAB stations are cleared.
Svenska
The initial scan starts. During the scan, the degree of
progress is displayed on the front panel display.
When scan is completed, the number of receivable DAB
stations appear on the front panel display.
Deutsch
Before tuning into DAB stations, an initial scan must be performed. When you select the DAB for the first time, the initial
scan is performed automatically.
To listen to a DAB station, connect the antenna as described in “Connecting the speakers and antenna” (P. 2).
Français
Preparing for DAB reception
English
DAB (Digital Audio Broadcasting) and DAB+ use digital signals for clearer sound and more stable reception compared to
analog signals.
DAB+ is based on the original DAB standard but uses a more efficient audio codec.
DAB and DAB+ are broadcast in blocks of data called “ensembles” containing up to several radio stations that are
simultaneously broadcast.
DAB and DAB+ can also include an extensive amount of text information, enabling you to select a station by name.
Other information, such as the ensemble name or the status of the digital signal, can be displayed on the front panel display.
“DAB” described in this manual may also refer to “DAB+”.
Italiano
 Performing the initial scan again (Option menu)
1 Press OPTION.
The option menu will appear.
1
3
2 Press 
/  to select DAB INIT SCAN, and
then press ENTER.
The display will indicate “Press ENTER”.
Español
2
3 Press ENTER.
The initial scan starts.
Nederlands
Русский
11 En
LISTENING TO DAB STATIONS
Selecting DAB stations
1 Press the RADIO source button to switch
the audio source to DAB.
2 Press TUNING
station.
/
to select the DAB
While receiving DAB, DAB station information is
shown on the front panel display.
If the unit does not receive a DAB signal, “Off Air” is
displayed instead of the DAB station name.
1
a Secondary indicator:
Some stations have sub (secondary) stations.
If a secondary station is playing, the secondary
indicator is displayed.
2
b Signal strength indicator:
1
Shows current signal strength.
2
c DAB station name
10:30
DAB01STATION1
4
d Preset number
3
 Display information (remote control only)
If you press DISPLAY on the remote control, the information shown on the front
panel display will be switched in the following order.
STATION LABEL, PRESET NUMBER
DLS (Dynamic Label Segment)
ENSEMBLE LABEL
CHANNEL/FREQ (Channel label and frequency)
SIGNAL QUALITY
AUDIO FORMAT (Audio format, DRC)
 DAB frequency information
This unit can receive Band III only.
Frequency
Channel label
Frequency
Channel label
Frequency
174.928
5A
197.648
8B
220.352
11C
176.640
5B
199.360
8C
222.064
11D
178.352
5C
201.072
8D
223.936
12A
180.064
5D
202.928
9A
225.648
12B
181.936
6A
204.640
9B
227.360
12C
183.648
6B
206.352
9C
229.072
12D
185.360
6C
208.064
9D
230.784
13A
187.072
6D
209.936
10A
232.496
13B
188.928
7A
211.648
10B
234.208
13C
190.640
7B
213.360
10C
235.776
13D
192.352
7C
215.072
10D
237.488
13E
194.064
7D
216.928
11A
239.200
13F
195.936
8A
218.640
11B
12 En
Channel label
LISTENING TO DAB STATIONS
Presetting DAB stations (remote control only)
Use the preset function to store your favorite 30 stations.
to select a station that
English
1 Press TUNING /
you want to preset.
1
2 Press MEMORY.
2 4
The display will indicate “PRESET MEMORY,” and
the preset number will blink.
3 Press PRESET / to select the preset
number that you want to store.
• The lowest preset number that has not been stored will be
selected first.
• If you want to cancel the presetting, press .
• If you select a preset number in which a station has already
been stored, it will be overwritten by the new station.
Deutsch
10:30
DAB01STATION1
Français
3
4 Press MEMORY.
 Deleting a stored preset (Option menu)
2 Press OPTION.
1
The option menu will appear.
3 Press 
/  to select PRESET DELETE, and
then press ENTER.
2 6
5
4 Press 
/  to select the preset number that
you want to delete.
Español
3 4
Italiano
1 Press the RADIO source button to switch
the audio source to DAB.
Svenska
This stores the DAB station.
When presetting has finished, the display will indicate
“Completed!”
If you want to cancel the deleting, press OPTION.
When deleting has finished, the display will indicate
“Deleted!”.
6 Press OPTION to exit the option menu.
Nederlands
5 Press ENTER to complete the operation.
Русский
13 En
LISTENING TO DAB STATIONS
Selecting preset DAB stations
1 Press the RADIO source button to switch
the audio source to DAB.
2 Press PRESET / to select the DAB
station that you want to hear.
You can only select presets that have been stored.
1
2
Checking the signal strength of DAB station (Option menu)
1 Press the RADIO source button to switch
the audio source to DAB.
1
2 Press OPTION.
The option menu will appear.
2 5
3 4
3 Press 
/  to select TUNE AID, and then
press ENTER.
4 Press 
/  to select the DAB station.
The signal strength will appear.
5 Press OPTION to exit the option menu.
14 En
LISTENING TO FM STATIONS
Selecting an FM station
1 Press the RADIO source button to switch the
audio source to FM.
English
To listen to a FM station, connect the antenna as described in “Connecting the speakers and antenna” (P. 2).
2 Tune FM stations
1
Français
Automatic tuning: Press and hold TUNING
/ .
Manual tuning: Press TUNING
/
repeatedly.
If you tune to a station manually while receiving FM, the sound
will be monaural.
Deutsch
2
 Display information (remote control only)
Preset number and frequency
Reception status*
Svenska
If you press DISPLAY on the remote control, the information shown on the front panel display will be switched in the
following order.
* Example of reception status indication.
TUNED/STEREO: A strong FM stereo broadcast is being received.
A monaural FM broadcast is being received (even if the FM
broadcast is stereo, reception will be monaural if the signal is weak).
Not TUNED:
No broadcast is being received.
PS (Program Service)
Español
Displaying Radio Data System information (U.K model only)
If you press DISPLAY on the remote control while Radio Data System information is being received, the information shown
on the front panel display will be switched in the following order.
Italiano
TUNED/MONO:
PTY (Program Type)
Nederlands
RT (Radio Text)
CT (Clock Time)
Reception status
Preset number and frequency
15 En
Русский
If the signal transmission of the Radio Data System station is too weak, this unit may not be able to receive Radio Data System information
completely. In particular, RT (Radio Text) information uses a lot of bandwidth, so it may be less available compared to other types of
information.
LISTENING TO FM STATIONS
Presetting FM stations (remote control only)
Use the preset function to store your favorite 30 stations.
 Auto preset
This method tunes automatically, and automatically presets only the stations that have good reception.
1 Press and hold down MEMORY.
1 2
“AUTO PRESET” will appear and “Press MEMORY”
will blink.
2 Press MEMORY.
Auto preset will begin.
When presetting has finished, the display will indicate
“Completed!”
AUTO PRESET
Press MEMORY
When you perform auto preset, all stored stations are cleared
and the new stations are stored.
If you want to stop auto preset before it is completed, press
.
 Manual preset
1 Press TUNING /
you want to preset.
1
to tune a station that
2 Press MEMORY.
2 4
3
The display will indicate “PRESET MEMORY,” and the
preset number will blink.
3 Press PRESET / to select the preset
number that you want to store.
PRESETMEMORY
FM0187.50MHz
• The lowest preset number that has not been stored will be
selected first.
• If you want to cancel the presetting, press .
• If you select a preset number in which a station has already
been stored, it will be overwritten by the new station.
4 Press MEMORY.
When presetting has finished, the display will indicate
“Completed!”
 Deleting a stored preset (Option menu)
1 Press OPTION.
The option menu will appear.
2 Press 
/  to select PRESET DELETE, and
then press ENTER.
1 5
2 3
4
3 Press 
/  to select the preset number that
you want to delete.
If you want to cancel the deleting, press OPTION.
4 Press ENTER to complete the operation.
When deleting has finished, the display will indicate
“Deleted!”.
5 Press OPTION to exit the option menu.
16 En
LISTENING TO FM STATIONS
Selecting preset FM stations
2 Press PRESET / to select the FM station
that you want to hear.
English
1 Press the RADIO source button to switch the
audio source to FM.
Français
You can only select presets that have been stored.
1
2
Deutsch
Svenska
Italiano
Español
Nederlands
Русский
17 En
LISTENING TO EXTERNAL SOURCES
Rear panel
1 Using a commercially available 3.5 mm miniplug cable, connect your external device to the
AUX jack on the rear panel of this unit.
AUX IN
1
• Turn off the system before connecting the audio cable.
• Turn down the volume of the unit and your external audio
device before connection.
2 Press
2
to turn the system on.
3 Press the AUX source button to switch the
audio source to AUX.
4 Start playback on the connected external
audio device.
3
18 En
USEFUL FUNCTIONS
Using the Option menu
(eject button) cannot be operated while the option menu is displayed.
Option menu
Setting or range
PRESET DELETE Deletes a stored preset (shown only if the audio source is DAB/FM).
English
When you press OPTION, the option menu will appear in the front panel display, allowing you to make the following settings.
See page
13, 16
Checks the signal strength of DAB station (shown only if the audio source is DAB).
14
DIMMER
Adjusts the brightness of the front panel display (*1: bright, 2: medium, 3: dim).
-
EQ LOW
Adjusts the tonal character (low frequencies) (–10 - 0* - +10 dB).
-
EQ MID
Adjusts the tonal character (mid frequencies) (–10 - 0* - +10 dB).
-
EQ HIGH
Adjusts the tonal character (high frequencies) (–10 - 0* - +10 dB).
-
BALANCE
Adjusts the volume balance of the left and right speakers (L+10 - CENTER* - R+10).
-
POWER SAVING
Switches the system-off state.
NORMAL:
Show the clock
An iPod can be charged in the iPod Dock, and the alarm will operate
-
No clock display
ECO*:
(power saving mode) An iPod can be charged in the iPod Dock, but the alarm will not operate
AUTO POWER
OFF
You can specify the time after which the system will turn off automatically.
If no operation occurs for the duration you specify, the system will turn off automatically
(TIME 12H*: 12 hours, TIME 8H: 8 hours, TIME 4H: 4 hours, OFF: the system will not turn off).
CLOCK SET
Sets the date and time.
6
ALARM SET
Sets the alarm.
21
Svenska
11
DAB TUNE AID
Deutsch
Performs the initial scan (shown only if the audio source is DAB).
Français
DAB INIT SCAN
-
Italiano
* Default setting
 Procedure for settings
The option menu will appear.
2 Press / to select the menu item that you
want to set, and then press ENTER.
1 4
2 3
If you want to continue making other settings, repeat the
procedure from step 2 .
Nederlands
3 Press / to edit the setting, and then press
ENTER to confirm the setting.
Español
1 Press OPTION.
4 Press OPTION to exit the option menu.
Using the sleep timer
When the specified time has elapsed, the system will turn off automatically.
Press repeatedly
Press SNOOZE/SLEEP repeatedly to specify the
time after which the system will turn off.
You can specify 30, 60, 90, 120 or OFF.
When you select a time, the sleep timer is turned on, and the
sleep indicator ( ) is shown in the front panel display.
If you press SNOOZE/SLEEP while the sleep timer is activated,
the sleep timer setting will be canceled.
19 En
Русский
If you decide to cancel without changing the setting, press
OPTION before confirming the change.
USEFUL FUNCTIONS
Using the alarm function
The unit includes an alarm function (IntelliAlarm) that plays back audio sources or a set of beep (internal alarm sound) at the
set time using a variety of different methods. The alarm function has the following features.
 3 types of alarms
Select from 3 alarm types, combining music and beep sounds.
SOURCE+BEEP
SOURCE
BEEP
The selected audio source and the beep sound are played at the set time. Source playback begins to fade in 3
minutes before the set time and the volume gradually increases to the set volume. Then, at the set time, the beep
sound is activated.
The selected audio source is played at the set time. The volume fades in gradually and increases to the set
volume.
The beep sound is played at the set time.
 Various audio sources
You can choose from iPod, audio CD, data CD, USB device, or DAB/FM. The following playback methods can also be
selected depending on the audio source:
Playback
method
Source
Function
Playlist*
iPod
Resume
Audio CD
Data CD/USB device
DAB/FM
Selected track
Resume
Folder
Resume
Preset station
Resume
A specific playlist stored on the iPod is played back repeatedly. To play a playlist, create a
playlist with the name “ALARM Yamaha DTA” in advance.
When entering the playlist name, use single-byte spaces to separate words, and enter
single-byte characters, taking care that uppercase/lowercase letters are used correctly.
If the “ALARM Yamaha DTA” playlist cannot be found within the iPod, the unit
resumes play from the last track you played.
The selected track is played repeatedly.
The track you listened to last time is played back.
The selected folder is played repeatedly.
The track you listened to last time is played back.
The selected preset station is played.
The DAB/FM station you listened to last time is played back.
* For information on creating a playlist, refer to the instructions for your iPod or iTunes.
 Snooze
The snooze function can be enabled to replay the alarm after 5 minutes (☞ P. 22).
USING THE “DTA Controller” APPLICATION FOR THE iPod/iPhone/iPad
By using the free “DTA Controller” application for the iPod touch/iPhone/iPad, you can make detailed alarm settings that
cannot be made using this unit by itself. For each day of the week, you can specify the alarm time (Weekly Alarm), and adjust
the IntelliAlarm as desired
The front panel display shows information for the weekly alarm you’ve set.
MON
TUE
WED
THU
FRI
SAT
SUN
Monday
Tuesday
Wednesday
Thursday
Friday
Saturday
Sunday
For details, refer to the description of “DTA Controller” in the product website.
20 En
USEFUL FUNCTIONS
Setting the alarm
 Setting the alarm time and alarm type (Option menu)
English
The alarm will not function when the unit is in power saving (☞ P. 19). To use the alarm function, set the Option menu item POWER
SAVING to NORMAL.
1 Press OPTION.
2 Press / to select “ALARM SET”, and then press ENTER.
The alarm indicator (
2 3
) and numerical value you’re setting will blink.
Français
The option menu will appear.
1
3 Set the alarm.
Set items 1-5 described below.
Items
Setting or range
1 ALARM SELECT * This can be selected after you’ve used the “DTA
4
9:12
Completed!
Alarm indicator
Select from SOURCE+BEEP, SOURCE or BEEP. For
details, refer to “3 types of alarms” (P. 20).
If you selected BEEP, proceed to item 5.
4 SOURCE
Play back music from your iPod (refer to
“Various audio sources” (P. 20)).
Play back music from a CD.
Specify the track number (data CD: folder
number) (RESUME, 1-99).
USB:
Play back music from a USB device.
Specify the folder number (RESUME, 1-999).
DAB/FM: Play a DAB/FM station.
Specify the preset number (RESUME, 1-30).
minutes.
iPod:
(If you selected
SOURCE+BEEP or CD:
SOURCE as the
alarm type)
If you choose RESUME when specifying the track/folder/
preset number, the last-played track/folder/station will be
played (resume playback).
5 VOLUME
Specifies the volume (5-60) of the alarm.
4 Complete the settings.
When you set the VOLUME for item 5, the display will indicate
“Completed!” and your settings will be confirmed.
The alarm will be turned on and the alarm indicator (
) will light.
If you press OPTION or turn off the system while making alarm settings, the settings
will be cancelled.
21 En
Русский
If the selected source cannot be played back at the time set
for the alarm (e.g., the iPod is not connected), the beep
sound is played back.
Nederlands
Make settings in the order of hours
3 ALARM TYPE
Español
2 ALARM TIME
Italiano
ONE DAY: An alarm that sounds only once at the
specified time.
WEEKLY: An alarm whose time can be specified for
each day of the week (settable only using
“DTA Controller”).
If you’ve chosen WEEKLY, this completes the alarm
setting.
Svenska
Controller” to set the alarm (☞ P. 20).
If you’re not using the “DTA Controller”, proceed to item
2.
Alarm time
Deutsch
Press / to select a numerical value, and press ENTER to confirm it.
USEFUL FUNCTIONS
 Switching the alarm on/off
Press ALARM to turn the alarm on/off.
When the alarm is on, the alarm indicator (
) will light,
and the alarm time will be shown. If you press ALARM
again, the alarm indicator (
) and the alarm will turn
off.
If the Option menu item POWER SAVING is set to ECO, the
alarm will not function (☞ P. 19).
Operations while the alarm sound is playing
When the set time arrives, the selected alarm sound will play. During playback, the following operations are available.
 To pause the alarm (Snooze)
Press SNOOZE/SLEEP.
Snooze will stop the alarm and play it again 5 minutes later.
• If SOURCE + BEEP is set as the alarm type, you can press
SNOOZE/SLEEP once to stop the beep sound, and twice to stop
the audio source.
Five minutes after the audio source is stopped, it will start fading
in again and the beep sound will resume.
• Buttons on the unit other than the
will also function as the
snooze button.
 To turn the alarm off
Press ALARM or
.
• You can also stop the alarm by holding down SNOOZE/SLEEP.
• If you don’t stop the alarm, it will stop automatically after 60
minutes and the system will turn off.
• The alarm setting will be saved even if the alarm is turned off.
If the alarm is turned on again by pressing ALARM, the alarm
will sound with the previous alarm settings.
22 En
TROUBLESHOOTING
General
Problem
Cause
Solution
The volume might be set to the minimum level,
or muted.
Adjust the volume level.
The source may be incorrect.
Select the correct source.
The speakers may not be connected securely.
Check the connections (☞ P. 2).
Headphones are connected.
Remove the headphones.
The volume of a connected external device is not
loud enough.
Raise the volume of the external device.
The sleep timer may be set (☞ P. 19).
Turn the system on and play the source again.
The automatic system-off function may have
operated.
When the time specified for AUTO POWER OFF in the
option menu has elapsed (☞ P. 19) or when 60 minutes
have elapsed without any operation being performed after
stopping USB device or CD playback, the unit will turn the
system off automatically.
Sound is cracked/distorted or
there is abnormal noise.
Input source volume is excessive, or volume of
this unit is excessive (especially Bass).
Adjust volume with VOLUME, or use the option menu
(☞ P. 19) to adjust the bass range. If an external device is
playing back, lower the volume of the external device.
The unit does not operate
properly.
The unit may have received a strong electrical
shock such as lightning or excessive static
electricity, or power supply may have dropped.
Restart the system by holding down the
seconds.
A digital or high-frequency
equipment produces noises.
The unit may be placed too close to the digital or
high-frequency equipment.
Place the unit farther away from the equipment.
The clock setting has been
cleared.
The unit was left for about one hour with the
power cable disconnected from the wall outlet.
Plug the power cable into the wall outlet firmly, and set the
clock again (☞ P. 6).
The iPod does not play back at
the alarm time even if the alarm
source is set to iPod.
The iPod is not set in the iPod dock.
Set the iPod in the iPod dock (☞ P. 3).
Alarm does not sound.
The unit is set to power saving mode.
In the option menu, set POWER SAVING to NORMAL
(☞ P. 19).
The automatic system-off function may have
operated.
When the time specified for AUTO POWER OFF in the
option menu has elapsed (☞ P. 19) or when 60 minutes
have elapsed without any operation being performed after
stopping USB device or CD playback, the unit will turn the
system off automatically.
Nederlands
Русский
23 En
Español
The unit turns the system off
unexpectedly.
Italiano
The front panel display indicates
“ALARM not work” and can’t
set the alarm.
for about 10
Svenska
The system turns on but
immediately shuts off.
Deutsch
Sound suddenly turns off.
Français
The speakers make no sound.
English
If there is a problem with the unit, check the following list first. If you cannot resolve the problem with the suggested
solutions or if the problem is not listed below, turn off and unplug the system, and consult the nearest authorized Yamaha
dealer or service center.
TROUBLESHOOTING
iPod
Problem
No sound.
The iPod does not charge up.
The front panel display indicates
“iPod Unknown” when you
connect the iPod.
Cause
Solution
The iPod is not set in the iPod dock firmly.
Remove the iPod from the unit, and then set it in the iPod
dock again (☞ P. 3).
The headphones of the iPod are connected.
Remove the Headphones.
The iPod software version has not been updated.
Download the latest iTunes software to update the iPod
software version to the latest.
The iPod is not set in the iPod dock firmly.
Remove the iPod from the unit, and then set it in the iPod
dock again (☞ P. 3).
USB is selected as the audio source.
Select something other than USB as the audio source.
The iPod being used is not supported by the unit. Use a supported iPod (☞ P. 27).
Disc playback
Problem
Disc cannot be inserted.
Cause
Solution
Another disc is already inserted.
Unload the disc with
.
You are attempting to insert a disc that cannot be
used by this unit.
Use a disc supported by the unit (☞ P. 26).
Some button operations do not
work.
The disc loaded into the unit may not be
compatible.
Use a disc supported by the unit (☞ P. 26).
Playback does not start
immediately after pressing
(stops immediately).
The disc may be dirty.
Wipe the disc clean (☞ P. 26).
The disc loaded into the unit may not be
compatible.
Use a disc supported by the unit (☞ P. 26).
If the unit was moved from a cold to warm place,
condensation may have formed on the disc
reading lens.
Wait for an hour or two until the unit adjusts to the room
temperature, and try again.
The front panel display indicates
“no operation”, and a disc cannot
be inserted or unloaded.
The option menu is displayed. Alternatively, the
alarm is playing.
Press OPTION to exit the option menu. Alternatively,
press ALARM to stop the alarm.
When you insert a disk, the front
panel display indicates “CD No
Disc” or “CD Unknown.”
The disc loaded into the unit may not be
compatible.
Use a disc supported by the unit (☞ P. 26).
The disc may be dirty.
Wipe the disc clean (☞ P. 26).
The disc does not contain playable files.
Use a disc contains playable files (☞ P. 26).
The disc was inserted upside down.
Insert the disc with the label facing upward.
USB device playback
Problem
MP3/WMA file in the USB device
does not play.
When you connect a USB device,
the front panel display indicates
“USB OverCurrent,” and then
the front panel display goes
blank.
24 En
Cause
Solution
The USB device is not recognized.
Turn the system off and reconnect the USB device to the
unit.
If the solutions above do not resolve the problem, the USB
device is not playable on the unit (☞ P. 26).
The USB device does not contain playable files.
Use a USB device contains playable files (☞ P. 26).
An incompatible USB device was connected to
the unit. Alternatively, the USB device is not
connect firmly to the unit.
Turn the system off and reconnect the USB device to the
unit.
If it does not resolve the problem, the USB device is not
playable on the unit (☞ P. 26).
TROUBLESHOOTING
DAB reception
Cannot tune into any DAB
stations.
Cause
Solution
Perform the initial scan operations (☞ P. 11).
There is no DAB coverage in your area.
Check with your dealer or WorldDMB Online at
“http://www.worlddab.org” for a listing of the DAB
coverage in your area.
The DAB signals are too weak.
Change the height, direction, or placement of the antenna.
The DAB signals are too weak.
There is no DAB coverage in your area.
Check with your dealer or WorldDMB Online at
“http://www.worlddab.org” for a listing of the DAB
coverage in your area.
The DAB station reception is
weak.
The DAB signals are too weak.
Change the height, direction, or placement of the antenna.
There is noise interference (e.g.
hiss, crackle, or jitter).
The antenna needs to be repositioned.
The DAB station information
does not appear or is inaccurate.
The DAB station may be temporarily out of
service, or the DAB station information is not
provided by the DAB broadcaster.
Deutsch
The initial scan operations are
not successful and “Not Found”
appears on the front panel
display.
Français
The initial scan operations were not performed.
English
Problem
The DAB signals are too weak.
Contact the DAB broadcaster.
Svenska
FM reception
Too much noise.
Cause
Solution
Make sure the antenna is connected properly (☞ P. 2) or
use a commercially available outdoor antenna.
The antenna is too close to the unit or to an
electronic device.
Position the antenna as far away as possible from the unit
or the electronic device.
Too much noise during stereo
broadcast.
The radio station you selected may be far from
your area, or the radio wave reception is weak in
your area.
Try manual tuning to improve the signal quality (☞ P. 15)
or use a commercially available outdoor antenna.
Even with an outdoor antenna,
radio wave reception is weak.
(Sound is distorted.)
Multipath reflection or other radio interferences
may have occurred.
Change the height, direction, or placement of the antenna
(☞ P. 2).
Nederlands
Remote control
Problem
Cause
Solution
For information on the remote control operation range,
refer to “How to use the remote control” (P. 1).
The remote control signal receiver on the unit
(☞ P. 4) may be exposed to direct sunlight or
lighting (inverted fluorescent lamps).
Change the lighting or orientation of the unit.
The battery may be worn out.
Replace the battery with a new one (☞ P. 1).
There are obstacles between the remote control
signal receiver on the unit (☞ P. 4) and the
remote control.
Remove the obstacles.
25 En
Русский
The remote control does not work The remote control may be operated outside its
properly.
operation range.
Español
The antenna may be connected improperly.
Italiano
Problem
NOTES ON DISCS AND USB DEVICES
CD information
This unit is designed for use with audio CD, CD-R*, and
CD-RW* with the logos followings.
* ISO 9660 format CD-R/RW
This unit can play back discs bearing any of the logo marks above.
A disc logo mark is printed on the disc and the disc jacket.
• Do not load any other type of disc into this unit. Doing so may
damage this unit.
• CD-R/RW cannot be played back unless finalized.
• Some discs cannot be played back depending on the disc
characteristics or recording conditions.
• Do not use any non-standard shaped discs such as a heart-shaped
disc.
• Do not use discs with many scratches on their surface.
• Do not load a cracked, warped, or glued disc.
• Do not use 8-cm discs.
Handling a disc
• Do not touch the surface of the
disc. Hold a disc by its edge (and
the center hole).
• Do not use a pencil or pointed
marker to write on the disc.
• Do not put a tape, seal, glue, etc., on a disc.
• Do not use a protective cover to prevent scratches.
• Do not load more than one disc into this unit at one time.
This can cause damage to both this unit and the discs.
• Do not insert any foreign objects into the disc slot.
• Do not expose a disc to direct
sunlight, high temperature,
high humidity, or a lot of dust. Caution
• If a disc becomes dirty, wipe it
with a clean, dry cloth from the
center out to the edge. Do not
use record cleaner or paint
thinner.
• To avoid malfunction, do not
use a commercially available
lens cleaner.
26 En
USB device information
This unit supports USB mass storage class devices (e.g.,
flash memories or portable audio players) using FAT16 or
FAT32 format.
• Some devices may not work properly even if they meet the
requirements.
• Do not connect devices other than USB mass storage class
devices (such as USB chargers or USB hubs), PCs, card readers,
an external HDD, etc.
• Yamaha will not be held responsible for any damage to or data
loss on the USB device occurring while the device is connected
to this unit.
• Playability of and power supply to all kind of USB devices are
not guaranteed.
• USB devices with encryption cannot be used.
About MP3 or WMA files
• The unit can play back:
File
Bitrate (kbps)
Sampling
frequency (kHz)
MP3
8-320**
16-48
WMA
16-320**
22.05-48
** Both constant and variable bitrates are supported.
• The maximum numbers of files/folders that can be played on the
unit are as follows.
Data CD
USB
Maximum total number of file
512
9999
Maximum folder number
255
999
Maximum file number per folder
511
255
• Copyright-protected files cannot be played back.
SPECIFICATIONS
 PLAYER SECTION
[As of July, 2012]
Tuning range
• DAB/DAB+ ...............................................174 to 240 MHz (Band III)
• Compatible iPhone models
......................... iPhone 4S, iPhone 4, iPhone 3GS, iPhone 3G, iPhone
 SPEAKER SECTION
• Compatible iPad models .............. iPad (3rd generation), iPad 2, iPad
• Type ................................................................... Full range bass reflex
non magnetic shielding type
An iPod may not be detected by the unit or some features may not be
compatible, depending on the model or software version of the iPod.
• FM ......................................................................87.50 to 108.00 MHz
• Driver.......................................................11 cm (4-1/2") cone type ×1
• Frequency response .................................... 50 Hz to 20 kHz (–10 dB)
• Media............................................................................ CD, CD-R/RW
• Dimensions (W × H × D)
...........................................129 (5-1/8") × 126(5") × 251 (9-7/8") mm
• Audio format ..................................................Audio CD, MP3, WMA
• Weight..........................................................................1.7 kg (3.7 lbs.)
USB
• Audio format .................................................................... MP3, WMA
 GENERAL
AUX
• Power supply ..................................................... AC 230-240 V, 50 Hz
 AMPLIFIER SECTION
• Power consumption ..................................................................... 30 W
• System off consumption
.................................. 3.0 W or less (NORMAL)/0.5 W or less (ECO)
• Dimensions (W × H × D)
.............................................. 180 (7-1/8") × 127 (5") × 278 (11") mm
• Headphones
................ 3.5 mm (1/8") STEREO mini jack (Impedance 16 to 32 Ω)
• Weight..........................................................................2.7 kg (6.0 lbs.)
• Equalizer characteristics
EQ Low (Bass)/EQ Mid (Middle)/EQ High (Treble) .............. ±10 dB
Specifications are subject to change without notice.
iPod, iPhone, iPad
Information for Users on Collection and Disposal
of Old Equipment and Used Batteries
Русский
27 En
Nederlands
These symbols on the products, packaging, and/or
accompanying documents mean that used electrical
and electronic products and batteries should not be
mixed with general household waste.
For proper treatment, recovery and recycling of old
products and used batteries, please take them to
applicable collection points, in accordance with your
national legislation and the Directives 2002/96/EC
and 2006/66/EC.
By disposing of these products and batteries
correctly, you will help to save valuable resources
and prevent any potential negative effects on human
health and the environment which could otherwise
arise from inappropriate waste handling.
For more information about collection and recycling
of old products and batteries, please contact your
local municipality, your waste disposal service or the
point of sale where you purchased the items.
[Information on Disposal in other Countries
outside the European Union]
These symbols are only valid in the European Union.
If you wish to discard these items, please contact
your local authorities or dealer and ask for the correct
method of disposal.
Note for the battery symbol (bottom two
symbol examples):
This symbol might be used in combination with a
chemical symbol. In this case it complies with the
requirement set by the Directive for the chemical
involved.
Español
“Made for iPod”, “Made for iPhone” and “Made for iPad” mean that an
electronic accessory has been designed to connect specifically to iPod,
iPhone or iPad, respectively, and has been certified by the developer to
meet Apple performance standards.
Apple is not responsible for the operation of this device or its
compliance with safety and regulatory standards. Please note that the
use of this accessory with iPod, iPhone or iPad may affect wireless
performance.
iPad, iPhone, iPod, iPod classic, iPod nano, iPod touch and iTunes are
trademarks of Apple Inc., registered in the U.S. and other countries.
Italiano
• Maximum output power ..........15 W + 15 W (6 Ω 1 kHz, 10 % THD)
Svenska
• Input connector...............................3.5 mm (1/8") STEREO mini jack
Deutsch
CD
Français
• Compatible iPod models
..................................... iPod touch (1st, 2nd, 3rd and 4th generations)
iPod nano (2nd, 3rd, 4th, 5th and 6th generations)
English
iPod (Digital connection)
 TUNER SECTION
■ For U.K. customers
If the socket outlets in the home are not suitable for the plug
supplied with this appliance, it should be cut off and an appropriate
3 pin plug fitted. For details, refer to the instructions described
below.
The plug severed from the mains lead must be destroyed, as a plug
with bared flexible cord is hazardous if engaged in a live socket
outlet.
■ Special Instructions for U.K. Model
IMPORTANT
THE WIRES IN MAINS LEAD ARE COLOURED IN
ACCORDANCE WITH THE FOLLOWING CODE:
Blue: NEUTRAL
Brown: LIVE
As the colours of the wires in the mains lead of this
apparatus may not correspond with the coloured markings
identifying the terminals in your plug, proceed as follows:
The wire which is coloured BLUE must be connected to the
terminal which is marked with the letter N or coloured
BLACK. The wire which is coloured BROWN must be
connected to the terminal which is marked with the letter L
or coloured RED.
Make sure that neither core is connected to the earth
terminal of the three pin plug.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
LASER SAFETY
This unit employs a laser. Due to possible eye injury, only a
qualified service person should remove the cover or attempt to
service this device.
DANGER
This unit emits visible laser radiation when open. Avoid direct eye
exposure to beam. When this unit is plugged into the wall outlet,
do not place your eyes close to the opening of the disc slot and
other openings to look into inside.
28 En
The laser component in this product is capable of emitting
radiation exceeding the limit for Class 1.
© 2012 Yamaha Corporation
Printed in Malaysia ZD94920-1
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
