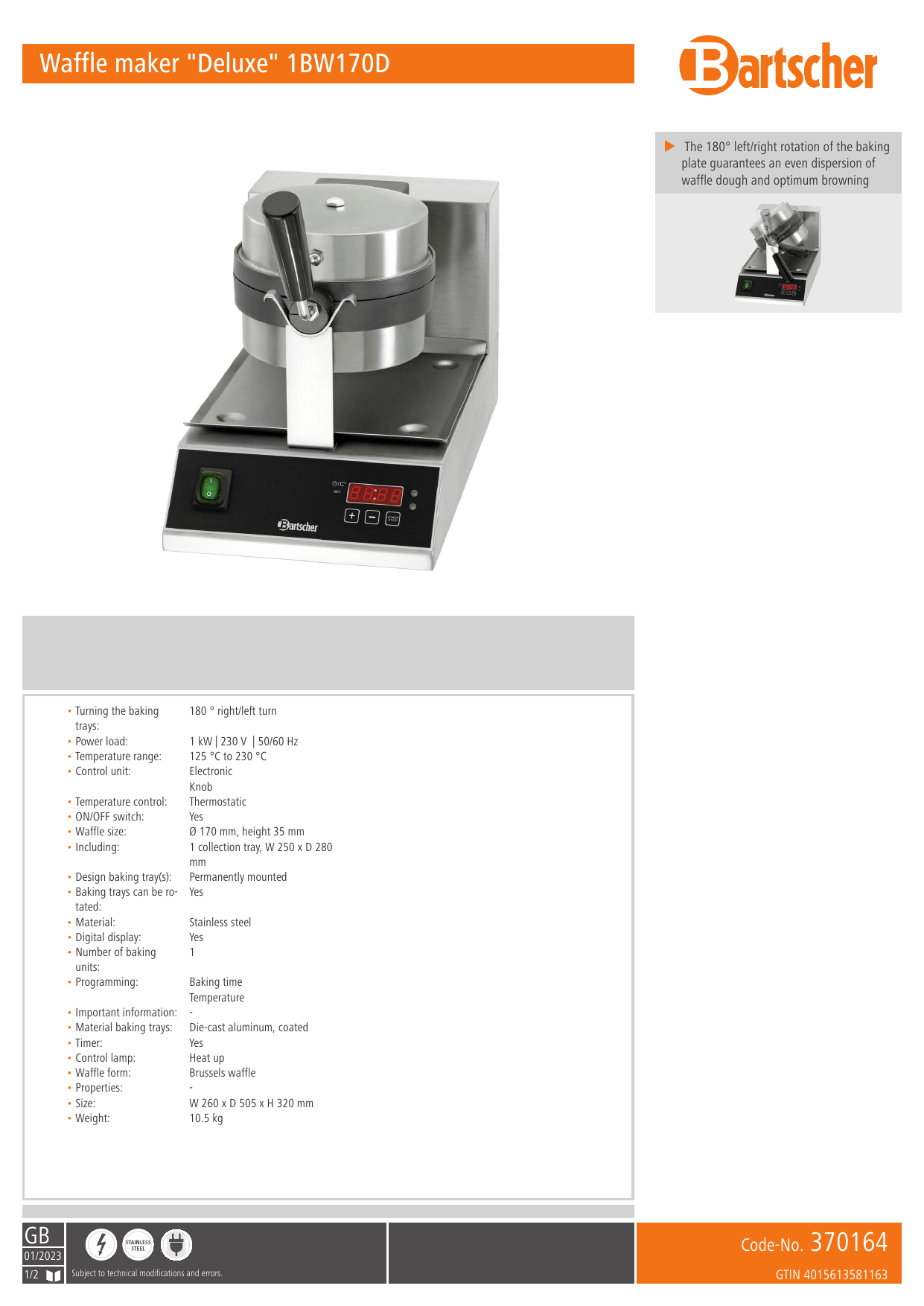

Bartscher 370164 Waffle maker "Deluxe" 1BW170D Data sheet

Waffle maker "Deluxe" 1BW170D
� The 180° left/right rotation of the baking
plate guarantees an even dispersion of
waffle dough and optimum browning
• Turning the baking
trays:
• Power load:
• Temperature range:
• Control unit:
180 ° right/left turn
1 kW | 230 V | 50/60 Hz
125 °C to 230 °C
Electronic
Knob
• Temperature control:
Thermostatic
• ON/OFF switch:
Yes
• Waffle size:
Ø 170 mm, height 35 mm
• Including:
1 collection tray, W 250 x D 280
mm
• Design baking tray(s): Permanently mounted
• Baking trays can be ro­ Yes
tated:
• Material:
Stainless steel
• Digital display:
Yes
• Number of baking
1
units:
• Programming:
Baking time
Temperature
• Important information: • Material baking trays: Die-cast aluminum, coated
• Timer:
Yes
• Control lamp:
Heat up
• Waffle form:
Brussels waffle
• Properties:
• Size:
W 260 x D 505 x H 320 mm
• Weight:
10.5 kg
.
GB
01/2023
1/2
Code-No.
Subject to technical modifications and errors.
370164
GTIN 4015613581163
Waffle maker "Deluxe" 1BW170D
Backing spray 500ml
• Content / can:
• Material:
• Designed for:
• Important information:
• Order quantity unit:
• Size:
• Weight:
Add on Products
Serving scoop 800ml
500 ml
100 % vegetable oils
Greasing forms, baking trays, pans and waffle
irons
2 boxes (1 box of 6 cans)
W 65 x D 65 x H 240 mm
0.37 kg
• Filling quantity:
• Dosing opening:
• Properties:
• Including:
• Material:
• Important information:
• Size:
• Weight:
800 ml
Ø 8 mm
Simple cleaning
Stand
Stainless steel
W 140 x D 260 x H 240 mm
0.45 kg
.
.
GB
01/2023
2/2
Code-No. 173060
Code-No. 101929
GTIN 4015613498508
GTIN 4015613711553
Subject to technical modifications and errors.
