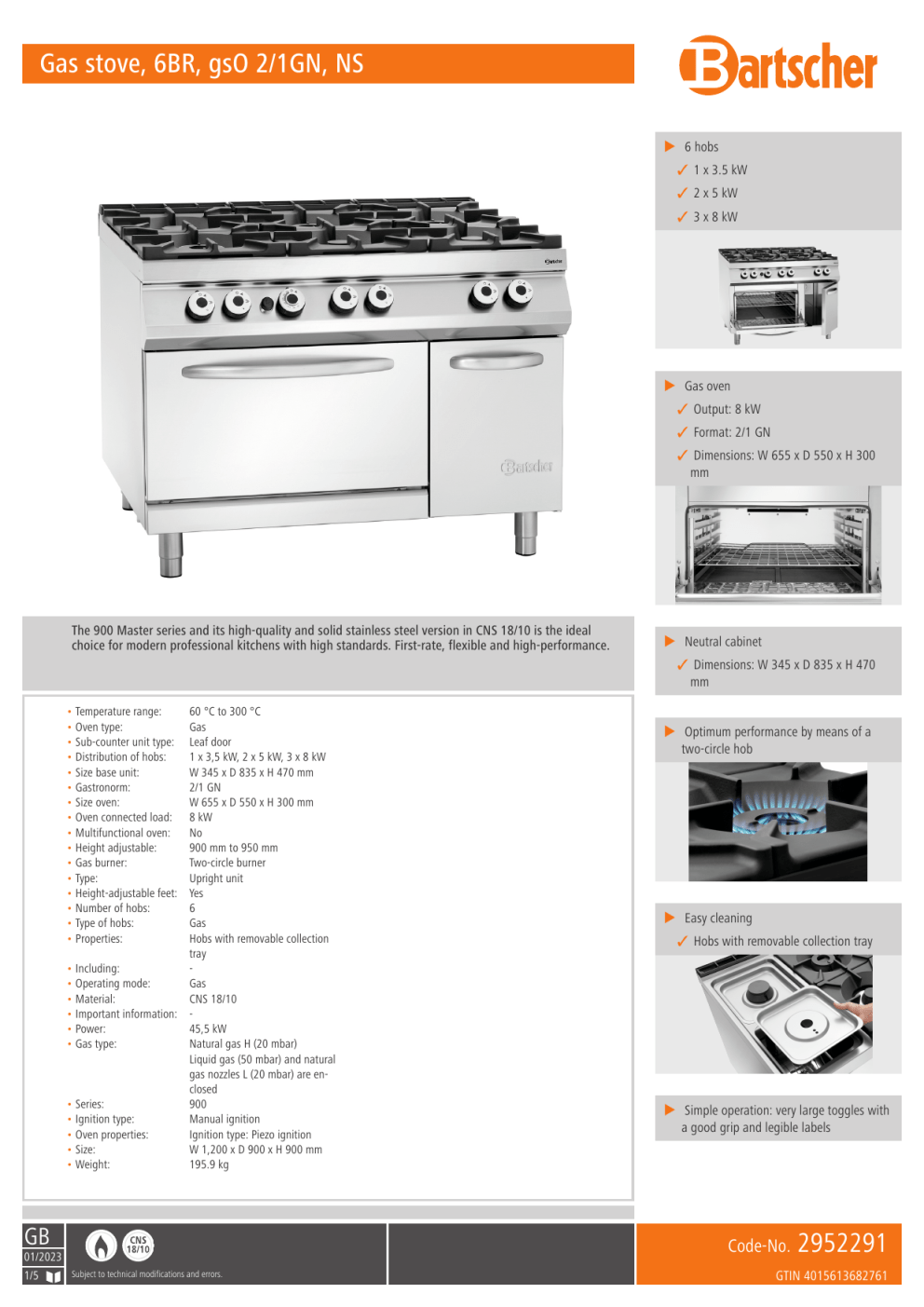

Bartscher 2952291 Gas stove, 6BR, gsO 2/1GN, NS Data sheet

Gas stove, 6BR, gsO 2/1GN, NS
� 6 hobs
✓ 1 x 3.5 kW
✓ 2 x 5 kW
✓ 3 x 8 kW
� Gas oven
✓ Output: 8 kW
✓ Format: 2/1 GN
✓ Dimensions: W 655 x D 550 x H 300
mm
The 900 Master series and its high-quality and solid stainless steel version in CNS 18/10 is the ideal
choice for modern professional kitchens with high standards. First-rate, flexible and high-performance.
� Neutral cabinet
✓ Dimensions: W 345 x D 835 x H 470
mm
• Temperature range:
• Oven type:
• Sub-counter unit type:
• Distribution of hobs:
• Size base unit:
• Gastronorm:
• Size oven:
• Oven connected load:
• Multifunctional oven:
• Height adjustable:
• Gas burner:
• Type:
• Height-adjustable feet:
• Number of hobs:
• Type of hobs:
• Properties:
60 °C to 300 °C
Gas
Leaf door
1 x 3,5 kW, 2 x 5 kW, 3 x 8 kW
W 345 x D 835 x H 470 mm
2/1 GN
W 655 x D 550 x H 300 mm
8 kW
No
900 mm to 950 mm
Two-circle burner
Upright unit
Yes
6
Gas
Hobs with removable collection
tray
• Including:
• Operating mode:
Gas
• Material:
CNS 18/10
• Important information: • Power:
45,5 kW
• Gas type:
Natural gas H (20 mbar)
Liquid gas (50 mbar) and natural
gas nozzles L (20 mbar) are en­
closed
• Series:
900
• Ignition type:
Manual ignition
• Oven properties:
Ignition type: Piezo ignition
• Size:
W 1,200 x D 900 x H 900 mm
• Weight:
195.9 kg
� Optimum performance by means of a
two-circle hob
� Easy cleaning
✓ Hobs with removable collection tray
� Simple operation: very large toggles with
a good grip and legible labels
.
GB
01/2023
1/5
Code-No.
Subject to technical modifications and errors.
2952291
GTIN 4015613682761
Gas stove, 6BR, gsO 2/1GN, NS
Grill plate 900-R
• Roasting surface design:
• With juice groove:
• Material:
• Important information:
• Size:
• Weight:
Add on Products
Frying plate 900-G
Ribbed
Yes
Cast iron
W 390 x D 390 x H 17 mm
10.6 kg
.
• Roasting surface design:
• With juice groove:
• Material:
• Important information:
• Size:
• Weight:
Smooth
Yes
Cast iron
W 390 x D 390 x H 19 mm
10.8 kg
.
Code-No. 296051
Code-No. 296056
GTIN 4015613676920
GTIN 4015613676937
Support ring for small pots
Swivel castors 4S900
• Important information:
• Size:
• Weight:
• Swivel casters:
4 swivel casters, 2 with brake
• Diameter casters:
125 mm
• Load-bearing capacity max., each: 100 kg
W 260 x D 260 x H 18 mm
0.3 kg
.
• Material:
• Important information:
• Size:
• Weight:
Plastic
Rubber coated
W 145 x D 155 x H 160 mm
3.3 kg
.
GB
01/2023
2/5
Code-No. 296086
Code-No. 295088
GTIN 4015613676906
GTIN 4015613680804
Subject to technical modifications and errors.
Gas stove, 6BR, gsO 2/1GN, NS
Tray 2/1GN, 20 mm
• Important information:
• Stackable:
• Design:
• Reinforced edge:
• Depth container:
• Gastronorm:
• Content:
• Surface:
• Norm:
• Series:
• Properties:
Tray 2/1GN, 40 mm
Yes
No perforation
Yes
20 mm
2/1 GN
6,9 litre(s)
Silk matt
EN 631
Top Line
-
• Stackable:
• Design:
• Reinforced edge:
• Properties:
• Depth container:
• Gastronorm:
• Material:
• Important information:
• Surface:
• Norm:
• Series:
GB
01/2023
3/5
Yes
No perforation
Yes
40 mm
2/1 GN
CNS 18/10
Silk matt
EN 631
Top Line
Code-No. A101181
Code-No. A101182
GTIN 4015613271699
GTIN 4015613271705
Tray 2/1GN, 65 mm
• Stackable:
• Design:
• Reinforced edge:
• Properties:
• Depth container:
• Gastronorm:
• Material:
• Important information:
• Content:
• Surface:
• Norm:
Add on Products
Thermometer D3000 KTP
Yes
No perforation
Yes
65 mm
2/1 GN
CNS 18/10
18,5 litre(s)
Silk matt
EN 631
• Control unit:
• Puncture depth:
• Application area:
• Temperature range:
• Design:
• With temperature sensor:
• Designed for:
Electronic
120 mm
Canteens
Refrigeration cell
Freezer cell
Refrigerated rooms
-50 °C to 300 °C
Digital
Yes
Core temperature measurements
Code-No. A101183
Code-No. 293043
GTIN 4015613271712
GTIN 4015613664255
Subject to technical modifications and errors.
Gas stove, 6BR, gsO 2/1GN, NS
Power cleaner F1L, set of 2
Intensive power cleaner F1L, set of 2
• Designed for:
• Order quantity unit:
• Content:
• Ph level:
• HACCP compliant:
• Chlorine-free:
• Phosphate-free:
• Including:
• Content:
• Model:
• Ph level:
• HACCP compliant:
• Chlorine-free:
• Phosphate-free:
Stubborn dirt, especially in kitchens
Grill and combi steamer cleaning (without
cleaning system)
2 x 1 litre
Liquid
High concentrate
13,5
Yes
Yes
Yes
• Colour:
• Can be washed:
• Heat resistant to:
• Length:
• Properties:
• Material:
• Important information:
• Size:
• Weight:
• Important information:
1 box (2 bottles)
2 x 1 litre
14
Yes
Yes
Yes
1 spray head
1 spray lance
Attention: Not suitable for surfaces sensitive to
alkali such aluminium
Exclusively available in Germany and Austria
Code-No. 173078
Code-No. 173080
GTIN 4015613731926
GTIN 4015613731933
Oven gloves 300
Oven gloves 370
Black
No
250 °C
300 mm
With flame protection
With hanger
Fabric density: 640 g/m²
Cotton 100 % (exterior)
Do not wash to maintain flame protection
W 200 x D 300 x H 35 mm
0.23 kg
.
GB
Add on Products
• Properties:
• Colour:
• Can be washed:
• Heat resistant to:
• Length:
• Material:
• Important information:
• Size:
• Weight:
With flame protection
With hanger
Fabric density: 640 g/m²
Black
No
250 °C
370 mm
Cotton 100 % (exterior)
Do not wash to maintain flame protection
W 220 x D 370 x H 35 mm
0.28 kg
.
01/2023
4/5
Code-No. A500510
Code-No. A500511
GTIN 4015613735467
GTIN 4015613735474
Subject to technical modifications and errors.
Gas stove, 6BR, gsO 2/1GN, NS
Oven gloves 420
• Properties:
• Colour:
• Can be washed:
• Heat resistant to:
• Length:
• Material:
• Important information:
• Size:
• Weight:
Oven gloves 600
With flame protection
With hanger
Fabric density: 640 g/m²
Black
No
250 °C
420 mm
Cotton 100 % (exterior)
Do not wash to maintain flame protection
W 235 x D 420 x H 35 mm
0.36 kg
.
GB
Add on Products
• Properties:
• Colour:
• Can be washed:
• Heat resistant to:
• Length:
• Material:
• Important information:
• Size:
• Weight:
With flame protection
With hanger
Fabric density: 640 g/m²
Black
No
250 °C
600 mm
Cotton 100 % (exterior)
Do not wash to maintain flame protection
W 230 x D 600 x H 35 mm
0.51 kg
.
01/2023
5/5
Code-No. A500512
Code-No. A500513
GTIN 4015613735481
GTIN 4015613735498
Subject to technical modifications and errors.
