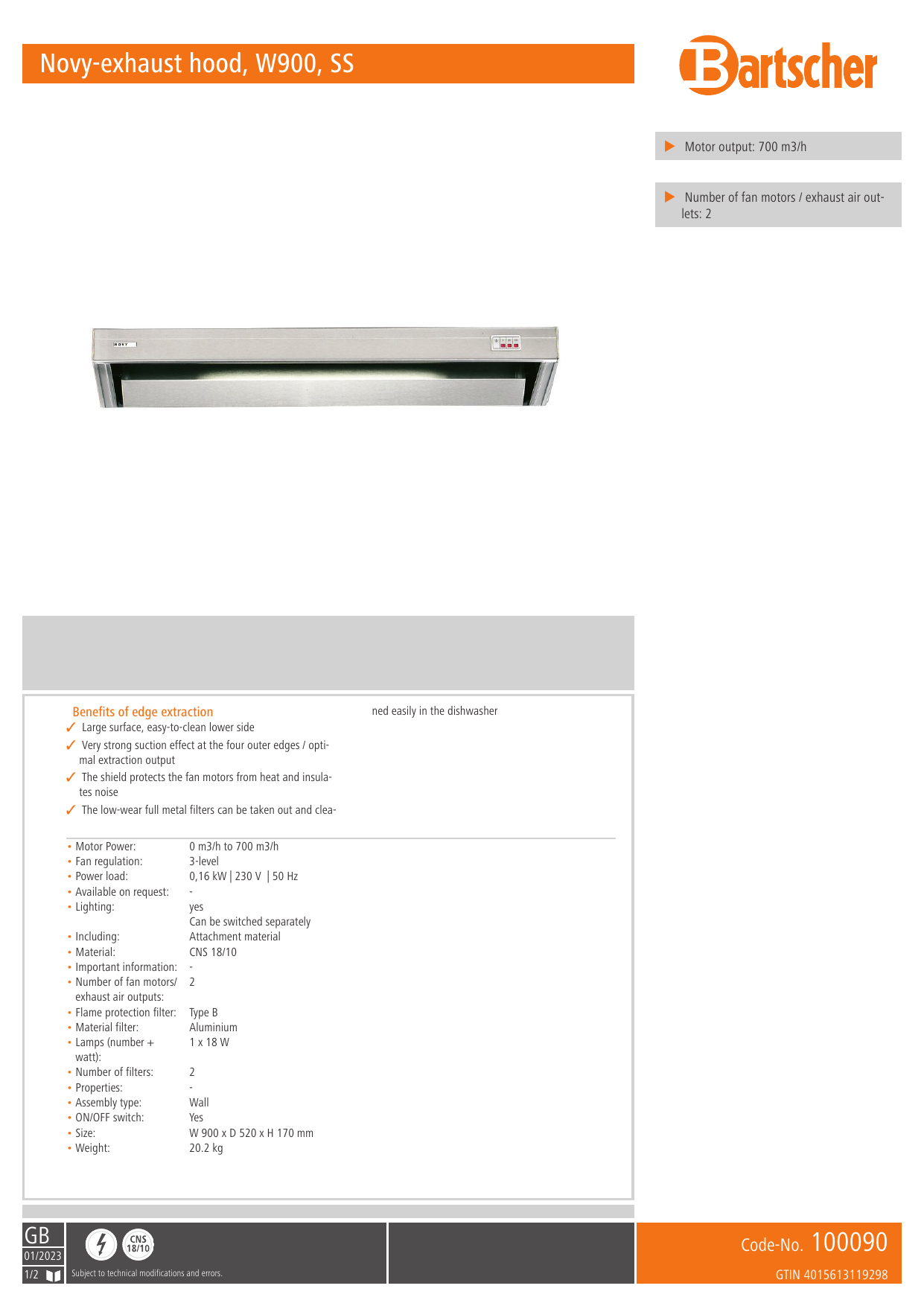

Bartscher 100090 Novy-exhaust hood, W900, SS Data sheet

Novy-exhaust hood, W900, SS
� Motor output: 700 m3/h
� Number of fan motors / exhaust air out­
lets: 2
Benefits of edge extraction
ned easily in the dishwasher
✓ Large surface, easy-to-clean lower side
✓ Very strong suction effect at the four outer edges / opti­
mal extraction output
✓ The shield protects the fan motors from heat and insula­
tes noise
✓ The low-wear full metal filters can be taken out and clea­
• Motor Power:
• Fan regulation:
• Power load:
• Available on request:
• Lighting:
0 m3/h to 700 m3/h
3-level
0,16 kW | 230 V | 50 Hz
yes
Can be switched separately
• Including:
Attachment material
• Material:
CNS 18/10
• Important information: • Number of fan motors/ 2
exhaust air outputs:
• Flame protection filter: Type B
• Material filter:
Aluminium
• Lamps (number +
1 x 18 W
watt):
• Number of filters:
2
• Properties:
• Assembly type:
Wall
• ON/OFF switch:
Yes
• Size:
W 900 x D 520 x H 170 mm
• Weight:
20.2 kg
.
GB
01/2023
1/2
Code-No.
Subject to technical modifications and errors.
100090
GTIN 4015613119298
Novy-exhaust hood, W900, SS
Intensive power cleaner F1L, set of 2
Adapter for hoods 900 and 1000 mm
• Order quantity unit:
• Content:
• Ph level:
• HACCP compliant:
• Chlorine-free:
• Phosphate-free:
• Including:
• Properties:
• Important information:
GB
Add on Products
01/2023
2/2
1 box (2 bottles)
2 x 1 litre
14
Yes
Yes
Yes
1 spray head
1 spray lance
Attention: Not suitable for surfaces sensitive to
alkali such aluminium
Exclusively available in Germany and Austria
• Important information:
• Material:
• Size:
• Weight:
Connection of two outputs (Ø 125 mm) on an
output (Ø 150 mm)
Metal
Galvanised
W 300 x D 150 x H 250 mm
1.4 kg
.
Code-No. 173080
Code-No. 100103
GTIN 4015613731933
GTIN 4015613119342
Subject to technical modifications and errors.
