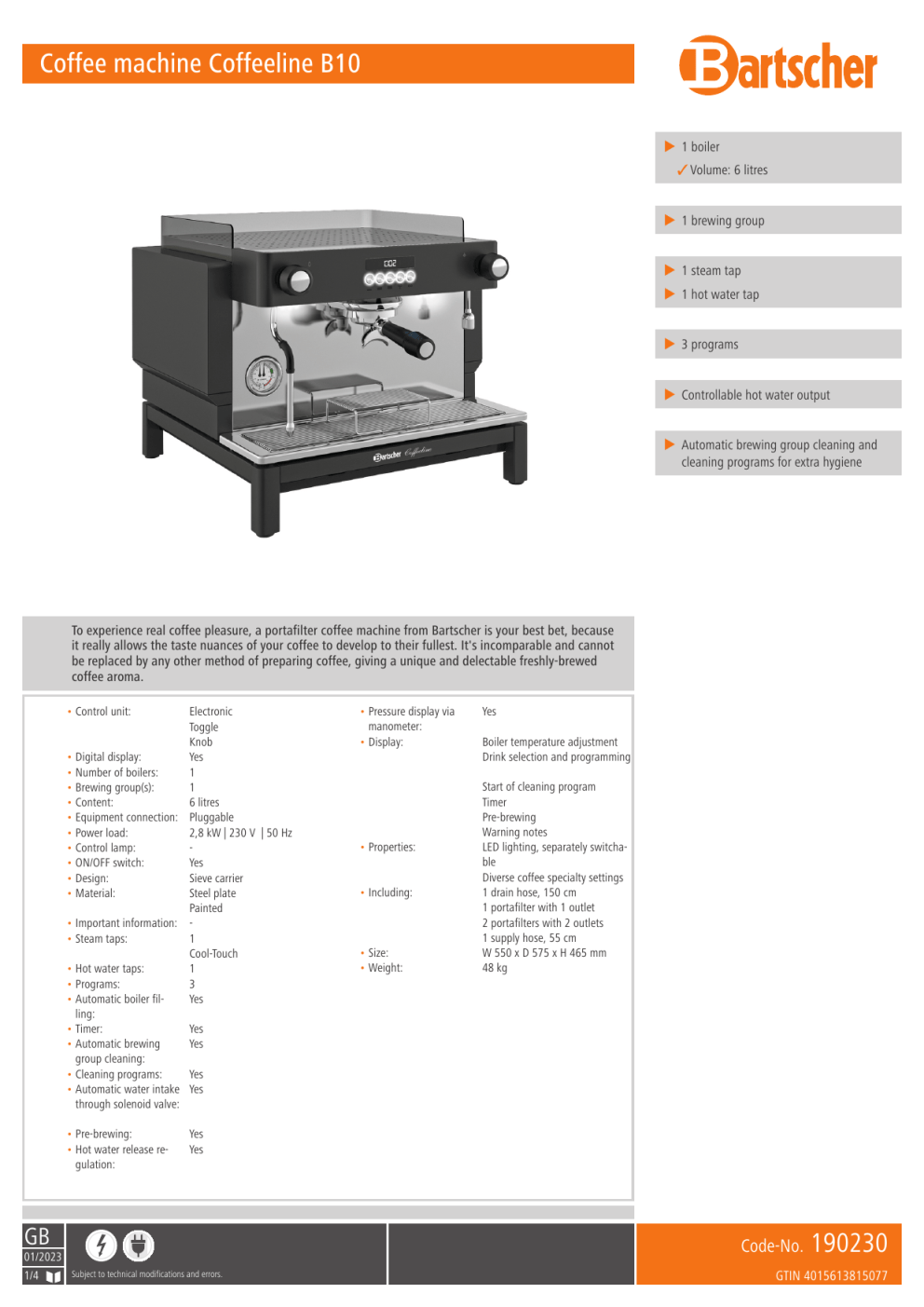

Bartscher 190230 Coffee machine Coffeeline B10 Data sheet

Coffee machine Coffeeline B10
� 1 boiler
✓ Volume: 6 litres
� 1 brewing group
� 1 steam tap
� 1 hot water tap
� 3 programs
� Controllable hot water output
� Automatic brewing group cleaning and
cleaning programs for extra hygiene
To experience real coffee pleasure, a portafilter coffee machine from Bartscher is your best bet, because
it really allows the taste nuances of your coffee to develop to their fullest. It's incomparable and cannot
be replaced by any other method of preparing coffee, giving a unique and delectable freshly-brewed
coffee aroma.
• Control unit:
Electronic
Toggle
Knob
• Digital display:
Yes
• Number of boilers:
1
• Brewing group(s):
1
• Content:
6 litres
• Equipment connection: Pluggable
• Power load:
2,8 kW | 230 V | 50 Hz
• Control lamp:
• ON/OFF switch:
Yes
• Design:
Sieve carrier
• Material:
Steel plate
Painted
• Important information: • Steam taps:
1
Cool-Touch
• Hot water taps:
1
• Programs:
3
• Automatic boiler fil­
Yes
ling:
• Timer:
Yes
• Automatic brewing
Yes
group cleaning:
• Cleaning programs:
Yes
• Automatic water intake Yes
through solenoid valve:
• Pre-brewing:
• Hot water release re­
gulation:
• Properties:
• Including:
• Size:
• Weight:
Yes
Boiler temperature adjustment
Drink selection and programming
Start of cleaning program
Timer
Pre-brewing
Warning notes
LED lighting, separately switcha­
ble
Diverse coffee specialty settings
1 drain hose, 150 cm
1 portafilter with 1 outlet
2 portafilters with 2 outlets
1 supply hose, 55 cm
W 550 x D 575 x H 465 mm
48 kg
.
Yes
Yes
GB
01/2023
1/4
• Pressure display via
manometer:
• Display:
Code-No.
Subject to technical modifications and errors.
190230
GTIN 4015613815077
Coffee machine Coffeeline B10
Add on Products
Portafilter Coffeeline 2110
Portafilter Coffeeline 2120
• Important information:
• Material:
• Model:
2-cup outlet
• Approx. content of ground coffee: 21 g
• Material:
Plastic
Brass
Chrome-plated
• Important information:
• Including:
• Size:
W 220 x D 80 x H 70 mm
• Weight:
0.62 kg
Plastic
Brass
Chrome-plated
• Model:
1-cup outlet
• Approx. content of ground coffee: 21 g
• Including:
• Size:
W 220 x D 80 x H 70 mm
• Weight:
0.62 kg
.
.
Code-No. 190234
Code-No. 190235
GTIN 4015613815145
GTIN 4015613815152
Portafilter Coffeeline 2100
Tamper aluminium
• Approx. content of ground coffee: 21 g
• Material:
Plastic
Brass
Chrome-plated
• Important information:
• Including:
1 sieve
• Model:
Bottomless
• Size:
W 70 x D 220 x H 45 mm
• Weight:
0.43 kg
• Diameter:
• Material:
• Important information:
• Size:
• Weight:
57 mm
Aluminium
W 57 x D 57 x H 92 mm
0.22 kg
.
.
GB
01/2023
2/4
Code-No. 190236
Code-No. 190179
GTIN 4015613815978
GTIN 4015613656380
Subject to technical modifications and errors.
Coffee machine Coffeeline B10
Coffee grounds drawer S285
Coffee grinder Tauro Digital
• Material:
• Properties:
• Display:
• Control unit:
• Grinding fineness:
• Important information:
• Content coffee grounds:
• Size:
• Weight:
Stainless steel
Can be expanded flexibly
Very easy to mount
Approx. 55 portions
W 280 x D 425 x H 85 mm
4.7 kg
.
• Power load:
• Protection class:
• Overheating protection:
• ON/OFF switch:
• Designed for:
• Rpm max.:
• Content bean container:
Code-No. 190233
Code-No. 190225
GTIN 4015613806228
Water meter W3B-1
• Water connection:
• Water pressure:
• Colour:
• Water intake temperature from:
• Water intake temperature to:
• Designed for:
• Colour:
• Designed for:
• Water intake temperature from:
• Water intake temperature to:
• Water connection:
• Water pressure:
• Operated via:
• Including:
01/2023
3/4
Yes
Electronic
Manual
Stepless control
0,275 kW | 230 V | 50/60 Hz
IP21
Yes
Yes
Filter holder coffee machines
1650 r. / min.
1 kg
GTIN 4015613815114
Water filter system K3600L
• Output capacity:
• Material:
• Important information:
• Design:
GB
Add on Products
3/8"
3 bar
White
2 °C
30 °C
Coffee machines
Combined steamer
3,600 litres / at 10° KH (carbonate hardness)
Plastic
Disposable system
Steel grey
Water filter system K3600L
2 °C
30 °C
1/4"
3 bar
Batteries ( 2 x AA )
2 AA batteries
1/4“ to ⅛" adapter
1/4“ adapter for 10 mm Ø plastic hose
Wall holder for control panel
Code-No. 109847
Code-No. 109849
GTIN 4015613743899
GTIN 4015613744117
Subject to technical modifications and errors.
Coffee machine Coffeeline B10
Add on Products
Water filter system K1500L EW
Water meter W1-8B
• Output capacity:
• Designed for:
• Design:
• Water intake temperature from:
• Water intake temperature to:
• Operated via:
• Material:
• Important information:
• Colour:
• Material:
• Important information:
• Properties:
1,500 litres / at 10° KH (carbonate hardness)
Coffee machines
Disposable system
For horizontal and vertical installation
Polypropylene
Multiple use filter head
6 level controllable flow rate
Ion selective filter medium: Reduced carbonate
hardness, reduced TDS content
• Designed for:
• Water connection:
• Water pressure:
• Including:
4 °C
30 °C
Batteries ( 2 x AA )
Plastic
Grey
Black
Water filter system K1500L
3/8"
1 - 8 bar
2 AA batteries
Code-No. 109879
Code-No. 109898
GTIN 4015613710891
GTIN 4015613792798
Milk frother induction MSI400
• Power load:
• Temperature range:
• Automatic turn-off:
• ON switch:
• Mixing bowl:
• Design:
• Material:
• Important information:
• Properties:
0,6 kW | 230 V | 50/60 Hz
0 °C to 70 °C
Yes
Yes
Detachable
Stainless steel with plastic lid
Induction
Stainless steel
4 non-slip feet made of silicone
Beaker, lid, mixing disks, dishwasher-suitable
Code-No. 190129
GTIN 4015613613413
GB
01/2023
4/4
Subject to technical modifications and errors.
