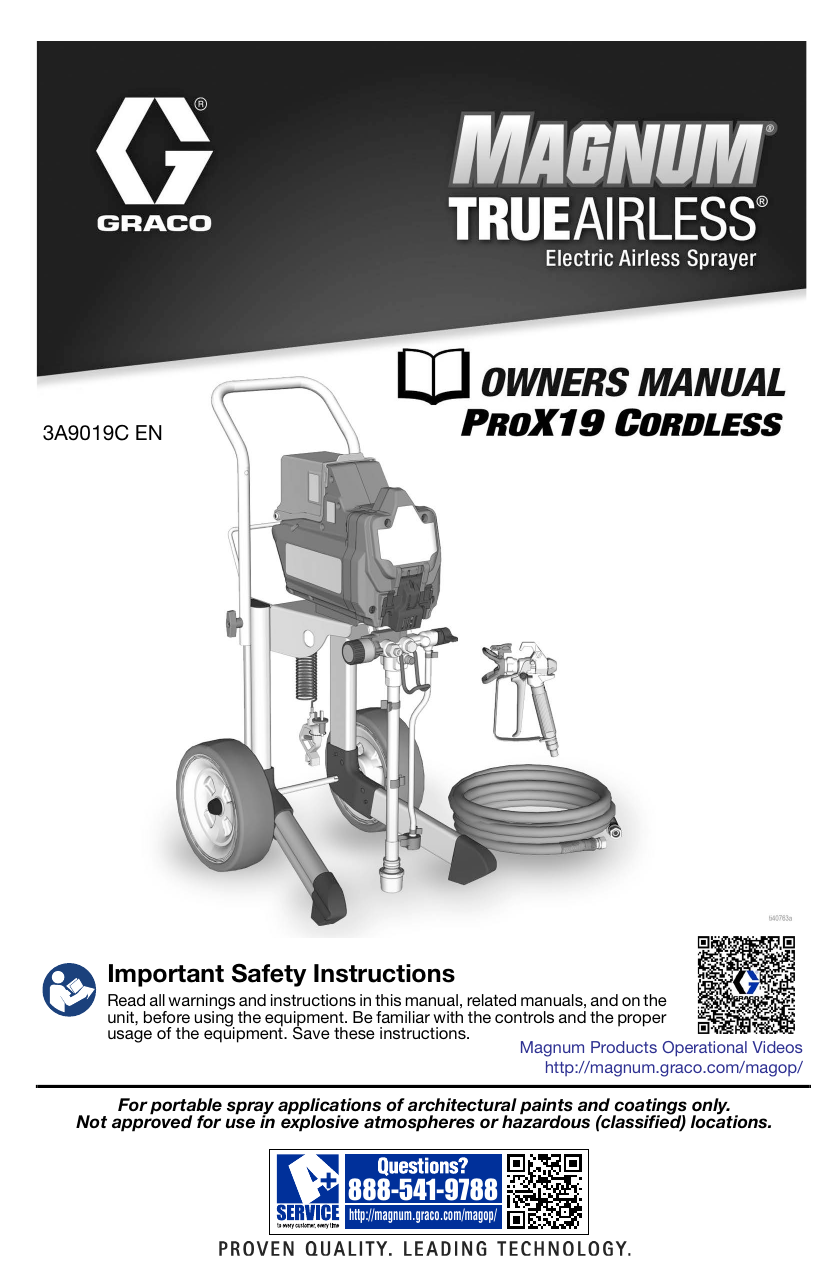

Graco 3A9019C, Magnum, TrueAirless, electric airless sprayer, ProX19 cordless Owner's Manual

3A9019C EN
Important Safety Instructions
Read all warnings and instructions in this manual, related manuals, and on the
unit, before using the equipment. Be familiar with the controls and the proper
usage of the equipment. Save these instructions.
Magnum Products Operational Videos
http://magnum.graco.com/magop/
For portable spray applications of architectural paints and coatings only.
Not approved for use in explosive atmospheres or hazardous (classified) locations.
888-541-9788
http://magnum.graco.com/magop/
Before You Spray
Before You Spray
Review Warnings for Important Safety Information
Important! Read carefully and practice good safety habits.
Related Manuals
312830
3A3172
SG Spray Guns
ProXChange™ Pump
Magnum Products Operational Videos
http://magnum.graco.com/magop/
Models
3000 psi (207 bar, 20.7 MPa) Maximum Working Pressure
Charger Voltage
(VAC)
Model
Cart
25U478
120
110474
Certified to
CAN/CSA C22.2
No. 68
Conforms to
UL 1450
ProX19
CAN478
Online Resources
Visit Our Website:
Operational Videos:
Manuals:
Parts Online:
magnum.graco.com
magnum.graco.com/magop/
magnum.graco.com/support/#manuals
magnum.graco.com/partsonline/
TheProX19 is compatible with the following DEWALT® FLEXVOLT 60V batteries:
•
•
•
DCB606 - 60V/2ah (20V/6ah)
DCB609 - 60V/3ah (20V/9ah)
DCB612 - 60V/4ah (20V/12ah)
Related DEWALT Manuals
Manual
N463494
2
Description
DEWALT DCB118 Fast Charger Manual
Region
USA/CA
3A9019C EN
Contents
Contents
Before You Spray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Important Grounding Information . . . . . . . . . . . . . . . . . . . . . . . 4
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Know Your Sprayer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
ProX19 Cart Sprayer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Know Your Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Grounding Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
(Oil-Based or Flammable Materials) . . . . . . . . . . . . . . . . . . . 10
Pails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Battery Installation and Removal . . . . . . . . . . . . . . . . . . . . . 13
Start Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Pressure Relief Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Flush Storage Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Strain the Paint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Fill Pump (Prime Pump) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Fill Gun and Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Refill Paint Pail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Blockages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Spraying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Adjust Pressure Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Spray Pattern Quality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Spray Techniques . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Trigger the Gun . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Aim Gun . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Align Spray Pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Spray Tip and Pressure Selection . . . . . . . . . . . . . . . . . . . . . 22
Clear Spray Tip Clog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Spray Tip Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Cleanup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Clean from a Pail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Cleanup with Power Flush Valve . . . . . . . . . . . . . . . . . . . . . . 27
Clean InstaClean Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Clean the Gun and Gun Filter . . . . . . . . . . . . . . . . . . . . . . . . 29
3A9019C EN
3
Contents
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Short Term Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Long Term Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Lacquer Conversion Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Cleaning Fluid Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . 32
Quick Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Airless Hoses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Spray Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Storage/Priming Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Inlet Valve Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Pump Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
ProX19 Cordless Cart Sprayer Parts . . . . . . . . . . . . . . . . . . . . 43
ProX19 Cordless Cart Sprayer Parts List . . . . . . . . . . . . . . . 44
ProXChange Pump Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
ProXChange Pump Parts List . . . . . . . . . . . . . . . . . . . . . . . . 46
Wiring Diagram - 60VDC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Graco Standard Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Graco Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
4
3A9019C EN
Important Grounding Information
Important Grounding Information
The following information is intended to help you understand when to use the grounding wire and clamp
provided with your sprayer.
Please read the information on the material container label to determine if it is oil-based or flammable. Ask
for a Safety Data Sheet (SDS) from your supplier. The container label and SDS will explain the contents of
the material and the specific precautions related to it.
Paints, coatings and clean-up materials generally fit into one of the following 3 basic types:
Grounding
Wire and
Clamp
Required?
Type of Material
No
WATER-BASED: The container label should indicate that the material
can be cleaned up with soap and water.
Yes
OIL-BASED: The container label should indicate that the material is
COMBUSTIBILE and can be cleaned up with mineral spirits or
non-flammable paint thinner. Use oil-based material outdoors or in a
well-ventilated indoor area with a flow of fresh air. See the safety
warnings in this manual. Follow Grounding Instructions, page 11, when
using this type of material.
Yes
FLAMMABLE: This type of material contains flammable solvents such
as xylene, toluene, naphtha, MEK, lacquer thinner, acetone, denatured
alcohol, and turpentine. The container label should indicate that this
material is FLAMMABLE. Use flammable materials outdoors or in a
well-ventilated area with a flow of fresh air. Follow Grounding
Instructions, page 11, when using this type of material.
NOTE: To spray flammable materials, you must install the Lacquer Conversion Kit, page 32.
3A9019C EN
5
Warnings
Warnings
The following warnings are for the setup, use, grounding, maintenance, and repair of this
equipment. The exclamation point symbol alerts you to a general warning and the hazard
symbols refer to procedure-specific risks. When these symbols appear in the body of this
manual or on warning labels, refer back to these Warnings. Product-specific hazard symbols
and warnings not covered in this section may appear throughout the body of this manual where
applicable.
WARNING
FIRE AND EXPLOSION HAZARD
Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. To
help prevent fire and explosion:
•
•
•
•
•
•
•
•
•
Do not spray flammable or combustible materials near an open flame or sources of
ignition such as cigarettes, motors, and electrical equipment.
Do not use a paint or a solvent containing halogenated hydrocarbons.
Keep spray area well-ventilated. Keep a good supply of fresh air moving through the area.
Sprayer generates sparks. Keep pump assembly in a well-ventilated area at least 20 feet
(6.1 m) from the spray area when spraying, flushing, cleaning, or servicing. Do not spray
pump assembly.
Do not smoke in the spray area or spray where sparks or flame is present.
Do not operate light switches, engines, or similar spark producing products in the spray
area.
Keep area clean and free of paint or solvent containers, rags, and other flammable
materials.
Know the contents of the paints and solvents being sprayed. Read all Safety Data Sheets
(SDSs) and container labels provided with the paints and solvents. Follow the paint and
solvent manufacturer’s safety instructions.
Keep a working fire extinguisher in the work area.
Oil-based or Flammable Materials
Paint or solvent flowing through the equipment is able to result in static electricity. Static
electricity creates a risk of fire or explosion in the presence of paint or solvent fumes. To help
prevent fire and explosion when using oil-based or flammable materials:
•
•
•
•
6
Connect the grounding wire and clamp to a true earth ground.
If there is static sparking or if you feel a shock, stop operation immediately. Do not use
sprayer until you identify and correct the problem.
All parts of the spray system, including the pump, hose assembly, spray gun, and objects
in and around the spray area shall be properly grounded to protect against static
discharge and sparks. Use Graco conductive or grounded high-pressure airless paint
sprayer hoses. Follow Grounding Instructions, page 11.
Verify that all containers and collection systems are grounded to prevent static discharge.
Do not use pail liners unless they are anti-static or conductive.
3A9019C EN
WARNING
Warnings
SKIN INJECTION HAZARD
High-pressure spray is able to inject toxins into the body and cause serious injury that can
result in amputation. In the event that injection occurs, get immediate surgical treatment.
•
•
•
•
•
•
•
•
•
•
•
Do not aim the gun at, or spray any person or animal.
Keep hands and other body parts away from the discharge. For example, do not try to
stop leaks with any part of the body.
Always use the spray tip guard. Do not spray without spray tip guard in place.
Use Graco spray tips.
Use caution when cleaning and changing spray tips. In the case where the spray tip clogs
while spraying, follow the Pressure Relief Procedure for turning off the unit and relieving
the pressure before removing the spray tip to clean.
Equipment maintains pressure after power is shut off. Do not leave the equipment
energized or under pressure while unattended. Follow the Pressure Relief Procedure
when the equipment is unattended or not in use, and before servicing, cleaning, or
removing parts.
Check hoses and parts for signs of damage. Replace any damaged hoses or parts.
This system is capable of producing 3000 psi (207 bar, 20.7 MPa). Use Graco parts or
accessories that are rated a minimum of 3000 psi (207 bar, 20.7 MPa).
Always engage the trigger lock when not spraying. Verify the trigger lock is functioning
properly.
Verify that all connections are secure before operating the unit.
Know how to stop the unit and bleed pressure quickly. Be thoroughly familiar with the
controls.
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Always wear appropriate gloves, eye protection, and a respirator or mask when spraying.
Do not operate or spray near children. Keep children away from equipment at all times.
Do not overreach or stand on an unstable support. Keep effective footing and balance at
all times.
Stay alert and watch what you are doing.
Do not operate the unit when fatigued or under the influence of drugs or alcohol.
Do not kink or over-bend the hose.
Do not expose the hose to temperatures or to pressures in excess of those specified by
Graco.
Do not use the hose as a strength member to pull or lift the equipment.
Do not spray with a hose shorter than 25 feet.
Always replace cracked, broken or missing parts immediately with genuine Graco parts.
See Parts, page 43.
Do not alter or modify equipment. Alterations or modifications may void agency approvals
and create safety hazards.
Use only in dry locations. Do not expose to water or rain.
Use in well-lit areas.
Make sure all equipment is rated and approved for the environment in which you are using it.
Do not operate or clean sprayer with the battery shield open.
3A9019C EN
7
Warnings
WARNING
PRESSURIZED ALUMINUM PARTS HAZARD
Use of fluids that are incompatible with aluminum in pressurized equipment can cause serious
chemical reaction and equipment rupture. Failure to follow this warning can result in death,
serious injury, or property damage.
• Do not use 1,1,1-trichloroethane, methylene chloride, other halogenated hydrocarbon
solvents or fluids containing such solvents.
• Do not use chlorine bleach.
• Many other fluids may contain chemicals that can react with aluminum. Contact your
material supplier for compatibility.
BATTERY AND CHARGER COMPATIBILITY HAZARD
• Only use DEWALT brand 60V Max batteries and battery chargers with this tool.
• READ ALL INSTRUCTIONS included with this tool regarding the safety and usage of
DEWALT batteries and battery chargers.
• Do not wash or spray down battery.
• Do not clean the battery with anything other than a cloth moistened with water.
MOVING PARTS HAZARD
Moving parts can pinch, cut, or amputate fingers and other body parts.
•
•
•
Keep clear of moving parts.
Do not operate equipment with protective guards or covers removed.
Equipment can start without warning. Before checking, moving, or servicing equipment,
follow the Pressure Relief Procedure and disconnect all power sources.
TOXIC FLUID OR FUMES HAZARD
Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin,
inhaled, or swallowed.
• Read Safety Data Sheets (SDSs) to know the specific hazards of the fluids you are using.
• Store hazardous fluid in approved containers, and dispose of it according to applicable
guidelines.
PERSONAL PROTECTIVE EQUIPMENT
Wear appropriate protective equipment when in the work area to help prevent serious injury,
including eye injury, hearing loss, inhalation of toxic fumes, and burns. Protective equipment
includes but is not limited to:
•
•
8
Protective eyewear, and hearing protection.
Respirators, protective clothing, and gloves as recommended by the fluid and
solvent manufacturer.
3A9019C EN
Know Your Sprayer
Know Your Sprayer
ProX19 Cart Sprayer
A
B
C
D
E
F
G
H
J
K
L
M
N
O
P
Power - ON/OFF Switch
Pressure Control Knob
Prime/Spray Valve
Spray Tip
PushPrime Button
Suction Tube
Drain Tube (with diffuser)
Airless Spray Gun
Spray Tip Guard
Gun Trigger Lock
Gun Fitting
Gun Filter (inside handle)
ProXChange™ Pump (behind Easy Access
Door)
Inlet Valve
Airless Hose Connection
3A9019C EN
Q
R
Airless Hose
InstaClean™ Filter (inside fluid outlet)
Pail Hanger
Inlet Screen
Battery
Easy Access Door
Pump Removal Tool
Outlet Valve
Inlet Valve Removal Tool
Battery Cover
Ground Wire w/ Clamp
Outlet Ground Adapter
Model/Serial Tag (Not shown, located on bottom of unit.)
See Quick Reference, page 33 for more
information.
S
T
U
V
X
Y
Z
AA
AB
AC
9
Know Your Controls
Know Your Controls
The ON/OFF power switch controls the main
power to your sprayer. The power button is
illuminated when ON.
The Pressure Control knob increases or
decreases the pressure and flow of the paint.
The Prime/Spray Valve directs the fluid to
either the Drain Tube or the hose and gun. It
is used to prime the sprayer, which means to
evacuate the air out of the pump, hose, and
gun.
Your gun will not spray if there is air in the
system. It is necessary to prime the pump,
hose, and gun any time air enters the Suction
Tube.
The Spray Tip is the key to airless spray
technology. High pressure paint pumped
through the very small hole in the Spray Tip
comes out as a spray.
The Spray Tip has the ability to be reversed
and quickly clear clogs.
10
3A9019C EN
Grounding Instructions
Grounding Instructions
(Oil-Based or Flammable Materials)
Fluid hoses: Use only electrically conductive
hoses with a maximum of 300 ft. (91 m)
combined hose length to ensure grounding
continuity.
The equipment must be grounded to reduce the
risk of static sparking. A static spark can cause
fumes to ignite or explode. A good ground
provides an escape wire for the electric current.
Spray gun: Grounded through connection to a
properly grounded fluid hose and pump.
Pails
Oil-based or flammable fluids: follow local
codes and regulations. Use only conductive
metal pails, placed on a grounded surface
such as concrete.
Do not place pail on a non-conductive
surface such as paper or cardboard which
interrupts grounding continuity.
The sprayer is equipped with a grounding wire
and clamp. The clamp must be connected to a
true earth ground when spraying or flushing
oil-based or flammable materials, see
Important Grounding Information, page 5.
A water pipe can be used as a true earth
ground. Connect the grounding wire and clamp
to a metal water pipe.
A properly grounded electrical outlet can also
be used as a true earth ground. Use the
provided outlet adapter.
Plug the adapter in to a grounded outlet.
Connect the grounding wire and clamp to the
metal stud on the adapter. If the ground wire is
not long enough to reach a grounded electrical
outlet, use a 3-wire grounded extension cord
between the adapter and outlet.
Always ground a metal pail: connect a
ground wire to the pail. Clamp one end to the
pail and the other end to a true earth ground
such as a water pipe.
ti24584a
3A9019C EN
11
Grounding Instructions
To maintain ground continuity when
sprayer is flushed or pressure is relieved:
hold metal part of spray gun firmly to the side
of a grounded metal pail then trigger the gun.
12
3A9019C EN
Setup
Setup
Assemble Your Sprayer
1.
2.
Connect airless hose to airless hose
connection (P) on sprayer. Use wrench
to tighten securely.
Connect the other end of the hose to the
gun. Use two wrenches to tighten
securely to gun (see image below).
NOTE: It is important to use two wrenches
when connecting the hose to the gun, both
for ease of installation and to ensure a tight
connection.
If hose is already connected, make sure
connections are tight.
3A9019C EN
To avoid serious injury from skin injection,
do not put your hand in front of the Spray
Tip when installing or removing the Spray
Tip or Spray Tip Guard.
3.
Assure Spray Tip is properly inserted
into the Spray Tip Guard, and the Spray
Tip Guard assembly is tightened
securely to gun. See Spray Tip
Installation, page 23.
13
Setup
Battery Installation and Removal
Always start with a fully charged battery.
Do not splash or immerse battery or
charger in water. See battery and charger
information shipped with the sprayer.
2.
Install battery by aligning the battery
pack with the rails inside the sprayer and
sliding it in until the battery pack is firmly
seated. Ensure that it does not
disengage.
Replace and charge battery only in a
well-ventilated area and away from
flammable or combustible materials,
including paints and solvents.
Remove and install battery into the sprayer
as follows:
1.
14
Remove the used battery, if in place.
3A9019C EN
Start Up
Start Up
Pressure Relief Procedure
3.
Turn pressure control knob to lowest setting.
4.
Put Drain Tube into a waste pail and turn
Prime/Spray Valve down to PRIME position
to relieve pressure.
5.
Hold the gun firmly to a pail. Point gun into
pail. Disengage the trigger lock and trigger
the gun to relieve pressure.
6.
Engage the trigger lock.
Follow the Pressure Relief
Procedure whenever you see this
symbol.
This equipment stays pressurized until
pressure is manually relieved. To help
prevent serious injury from pressurized
fluid, such as skin injection or splashed
fluid, follow the Pressure Relief
Procedure whenever sprayer is stopped
and before sprayer is cleaned or checked,
and before equipment is serviced.
1.
2.
Engage the trigger lock. Always engage
the trigger lock when sprayer is stopped
to prevent the gun from being triggered
accidentally.
Turn ON/OFF switch to the OFF
position. Button is not illuminated when
OFF.
7.
If you suspect that pressure has not been
fully relieved, see Blockages, page 19.
NOTE: Leave Prime/Spray Valve in the PRIME
position until you are ready to spray.
3A9019C EN
15
Start Up
Flush Storage Fluid
7.
Align setting indicator with the START
setting on the pressure control knob.
Submerge Suction Tube into pail filled
with water if spraying water-based
material, or mineral spirits or compatible
flushing solvents if spraying oil-based or
flammable material. When flushing
oil-based or flammable materials, follow
Grounding Instructions, page 11.
8.
Turn ON/OFF switch to ON position.
Button is illuminated when ON.
4.
Turn Prime/Spray Valve down to PRIME
position.
9.
When sprayer starts pumping, flushing
fluid will flow up the Suction Tube and
out the Drain Tube. Allow fluid to flow
out of Drain Tube, into waste pail, for 30
to 60 seconds.
5.
Install battery, see Battery Installation
and Removal, page 14.
It is important that you flush storage fluid
from the sprayer before using it.
1.
2.
3.
6.
16
Make certain ON/OFF switch is OFF.
Button is not illuminated when OFF.
Separate Drain Tube (smaller) from
Suction Tube (larger). Place Drain Tube
in a waste pail.
Press the PushPrime button twice to
loosen Inlet Valve ball.
3A9019C EN
Start Up
10. Turn the ON/OFF switch to OFF
position. Button is not illuminated when
OFF.
NOTE: If flushing fluid fails to come out of the
Drain Tube, see Storage/Priming Tool,
page 34.
Fill Pump (Prime Pump)
The Prime/Spray Valve directs the fluid to
either the Drain Tube or the hose and gun. It
is used to prime the sprayer, which means to
evacuate the air out of the pump, hose, and
gun.
Your gun will not spray if there is air in the
system. It is necessary to prime the pump,
hose, and gun any time air enters the suction
tube.
1. Move Suction Tube to paint pail and
submerge Suction Tube in paint. When
spraying oil-based or flammable
materials, follow Grounding
Instructions, page 11.
Strain the Paint
Disposable paint strainer bags are used to
remove coarse particles and debris from
new or previously opened paint or stain,
and are available where paint is sold. To
avoid priming problems and Spray Tip
clogs it is recommended to strain all paints
and stains before spraying. Stretch a disposable paint strainer bag over a clean pail
and pour the paint through the strainer.
2.
3.
4.
Turn ON/OFF switch to ON position.
Wait to see paint coming out of Drain
Tube.
Turn ON/OFF switch to OFF position.
NOTE: If paint does NOT flow up the Suction
Tube and out the Drain Tube, see Flush
Storage Fluid, page 16.
ti26894a
3A9019C EN
17
Start Up
Fill Gun and Hose
1.
Rotate Spray Tip to UNCLOG position
and ensure the Spray Tip Guard is tight.
2.
Hold gun against waste pail. Point gun
into waste pail.
a.
Disengage trigger lock (A).
c.
Turn Prime/Spray Valve horizontal
to SPRAY position (C).
b.
d.
3.
18
Pull and hold gun trigger (B).
Turn ON/OFF switch to ON
position (D). Power switch is
illuminated when ON.
4.
Release trigger. Engage trigger lock.
High-pressure spray is able to inject
toxins into the body and cause serious
bodily injury. Do not stop leaks with hand
or rag.
NOTE: Inspect for leaks. If leaking occurs,
perform Pressure Relief Procedure, page
15, then tighten all fittings and repeat Fill
Pump (Prime Pump), page 17.
5.
Transfer Drain Tube to paint pail and clip
to Suction Tube.
6.
Rotate Spray Tip back to SPRAY
position and ensure the Spray Tip Guard
is tight.
Trigger gun into waste pail until only
paint comes out of the gun.
3A9019C EN
Refill Paint Pail
Start Up
When the paint pail runs low and the gun
stops spraying, refill the paint pail and repeat
the Fill Pump (Prime Pump) procedure,
then the Fill Gun and Hose procedure.
You are now ready to spray!
NOTE: It is normal for the motor to stop once
the sprayer is primed and under pressure. If
the motor continues to run, the sprayer is not
primed. Repeat the Fill Pump (Prime Pump)
and Fill Gun and Hose processes.
Blockages
If paint does not come out of the gun, or if
you have performed the pressure relief procedure and you suspect pressure has not
been fully relieved:
1.
2.
3.
VERY SLOWLY loosen the hose
connection to the gun and disconnect
the airless spray hose from the gun.
Turn Prime/Spray Valve horizontal to
SPRAY position.
While holding hose firmly, point end of
hose into paint pail and turn ON/OFF
switch to ON position. Button is
illuminated when ON.
a.
b.
4.
If fluid does not flow out of hose,
replace the hose and continue to
step 4.
If fluid flows out of hose, see
Clean the Gun and Gun Filter,
page 29.
Reassemble the hose and gun, and
repeat Fill Gun and Hose, page 18.
3A9019C EN
19
Spraying
Spraying
Start
1.
Turn pressure control knob to START
position. When spraying oil-based or
flammable materials, follow Grounding
Instructions, page 11.
2.
Disengage trigger lock.
Adjust Pressure Control
To select a setting, align symbol on pressure control knob with setting indicator on sprayer.
1. For best spray results with lowest overspray, adjust pressure control to “START” setting.
2. Test the spray pattern on a test area or piece of cardboard.
3. If needed, increase Pressure Control Knob setting to minimum setting that results in an acceptable
spray pattern.
Spray Pattern Quality
A good spray pattern is evenly distributed as it hits
the surface.
•
•
•
•
20
Spray should be atomized (evenly
distributed, no gaps at edges).
Increase Pressure Control Knob setting if
needed until spray is even and without gaps
at edges.
Spray Tip may be worn or a smaller tip may
be needed. See Spray Tip and Pressure
Selection, page 22.
Material may need to be thinned. If material
needs to be thinned follow manufacturer’s
recommendations.
3A9019C EN
Spraying
Spray Techniques
Use a piece of scrap cardboard to practice
these basic spraying techniques before you
begin spraying the surface.
•
•
Hold gun 12 in. (30 cm) from surface and
aim straight at surface. Tilting gun to
direct spray angle causes an uneven
finish.
Flex wrist to keep gun pointed straight.
Fanning gun to direct spray at angle
causes uneven finish.
Aim Gun
Aim center of spray of gun at bottom edge of
previous stroke, overlapping each stroke by
half.
Align Spray Pattern
High-pressure spray is able to inject
toxins into the body and cause serious
bodily injury. Do not stop leaks with hand
or rag.
1.
2.
3.
Relieve pressure. Perform Pressure
Relief Procedure, page 15. Engage
trigger lock.
Align guard horizontally to spray a
horizontal pattern.
Align guard vertically to spray a vertical
pattern.
Trigger the Gun
Pull trigger after starting stroke. Release
trigger before end of stroke. Gun must be
moving when trigger is pulled and released.
3A9019C EN
21
Spraying
Spray Tip and Pressure Selection
Spray Tips come in a variety of sizes for
spraying a wide range of materials. Your
sprayer includes a 515 Spray Tip for use with
most paints on large surfaces such as walls
and ceilings. If you are spraying stain or need
a different spray fan width, refer to the Spray
Tip chart below to select the best Spray Tip
for your project. Additional Spray Tip sizes
are available where paint sprayers are sold.
1.
2.
Tip Number Calculation:
•
•
The first digit is half of the fan width
(#5 x 2 = 10 inch fan width).
The last two digits are the size of the
tip opening in thousandths of an
inch.
What material are you spraying?
•
The thicker the material, the larger
Spray Tip size you will need.
What spray fan width is needed for your
project?
•
•
Narrow spray fan for smaller
projects
Wider spray fan for larger projects
Fan Width
Material
Stain and Sealer
Semi Transparent
Stain
Solid Stain
Interior
Paint/Primer
Exterior
Paint/Primer
•
•
22
4 in Fan 6 in Fan 8 in Fan 10 in Fan 12 in Fan
Width
Width
Width
Width
Width
209
211
211
211
309
311
311
313
311
313
315
411
411
413
411
413
415
417
415
417
515
517
515
517
519
521
619
621
As you spray, the Spray Tip wears and as a result, the hole size gets larger. Starting with
a Spray Tip hole size smaller than the maximum will allow you to spray longer within the
compatibility of the sprayer.
Spray Tips wear with use and need periodic replacement.
3A9019C EN
Spraying
Clear Spray Tip Clog
2.
Engage trigger lock. Rotate Spray Tip
back to SPRAY position. Disengage
trigger lock and continue spraying.
SPRAY
In the event that particles or debris clog the
Spray Tip, the Spray Tip can be reversed to
quickly and easily clear particles without
disassembling the sprayer.
See Strain the Paint, page 17 for additional
information.
1. Engage trigger lock. Rotate Spray Tip to
UNCLOG position. Ensure spray tip
remains fully seated, pushed all the way
into the Spray Tip Guard. Disengage
trigger lock. Trigger gun at waste area to
clear clog.
UNCLOG
Spray Tip Installation
To avoid serious injury from skin injection
do not put your hand in front of the spray
tip when installing or removing the spray
tip and spray tip guard.
To prevent Spray Tip leaks make certain
Spray Tip and Spray Tip Guard are installed
properly.
1.
2.
3.
Perform Pressure Relief Procedure,
page 15.
Engage trigger lock.
Verify Spray Tip Guard parts are
assembled in the order shown.
NOTE: If Spray Tip is difficult to rotate when
turning to the UNCLOG position perform,
Pressure Relief Procedure, page 15, then
turn Prime/Spray Valve horizontal to SPRAY
position and repeat step 1.
3A9019C EN
23
Spraying
a.
c.
Use Spray Tip to align gasket and
seal in the Spray Tip Guard.
4.
b.
24
Turn the arrow shaped handle on
the Spray Tip forward to the SPRAY
position.
Screw Spray Tip Guard assembly onto
the gun and tighten.
Spray Tip must be pushed all the
way into the Spray Tip Guard.
Rotate Spray Tip while pushing
down.
3A9019C EN
Cleanup
Cleaning the sprayer after each use helps
ensure a more trouble-free start-up the next
time the sprayer is used.
Cleanup
3.
4.
5.
Remove Spray Tip Guard assembly from
gun and place in waste pail.
Lift Suction Tube and Drain Tube from
paint pail. Let paint drain into the pail.
Separate Drain Tube (smaller) from
Suction Tube (larger).
To avoid serious injury from fire and
explosion when using oil-based or
flammable materials:
•
•
•
•
•
•
•
Do not spray solvents through the spray
tip. Always remove tip guard and spray
tip before flushing. Clean tip guard and
spray tip in a bucket of compatible
solvent.
Clean in a well-ventilated area. Keep a
good supply of fresh air moving through
the area.
When flushing with solvents, always
ground the sprayer and waste container.
For short term shutdown periods
(overnight to two days), refer to Short
Term Storage, page 30.
For cleanup after using water-based
materials only (by use of a garden hose),
refer to Cleanup with Power Flush Valve,
page 27.
For cleanup from pails, refer to Clean from
a Pail, below.
For cleanup after using oil-based or
solvent-based flammable materials, follow
Grounding Instructions, page 11, and
see Cleaning Fluid Compatibility, page
32.
Clean from a Pail
1.
2.
ti27
7124a
6.
7.
8.
Place empty waste and flushing fluid pails
side by side.
Place Suction Tube in flushing fluid. For
water-based paints, use water. For
non-water-based paints, use mineral
spirits, paint thinner, or compatible
flushing fluid. Place Drain Tube in waste
pail.
Turn Pressure Control Knob to the START
position.
Perform Pressure Relief Procedure,
page 15.
Remove battery, see Battery Installation
and Removal, page 14.
3A9019C EN
25
Cleanup
9.
Turn Prime/Spray valve down to PRIME
position.
e.
Continue to hold gun trigger until
you see paint diluted with flushing
fluid starting to come out of gun.
15. While continuing to trigger gun, quickly
move gun to redirect spray into waste
pail. Continue triggering gun into waste
pail until flushing fluid dispensed from
gun is relatively clear.
10. Install battery, see Battery Installation
and Removal, page 14.
11. Turn ON/OFF switch to ON position.
Button is illuminated when ON.
12. Flush until approximately 1/3 of the
flushing fluid is emptied from the pail.
13. Turn ON/OFF switch to OFF position.
Button is not illuminated when OFF.
NOTE: Step 14 is for returning paint in hose
to paint pail. One 50 ft (15.2 m) hose holds
approximately 1 quart (1 liter) of paint.
14. To recover paint in hose, point gun into
paint pail while holding gun firmly to the
pail.
a.
b.
c.
d.
Disengage trigger lock (A).
Pull and hold gun trigger (B).
Turn Prime/Spray Valve horizontal
to SPRAY position (C).
Turn ON/OFF switch to ON
position (D). Button is illuminated
16. Turn pressure control knob to the lowest
setting.
17. Stop triggering gun. Engage the trigger
lock.
ti25196b
18. Turn Prime/Spray Valve down to PRIME
position.
19. Turn ON/OFF switch to OFF position.
Button is not illuminated when OFF.
20. Remove battery, see Battery
Installation and Removal, page 14.
21. Follow Short Term Storage or Long
Term Storage, page 30.
when ON.
26
3A9019C EN
Cleanup with Power Flush
Valve
(Water-based materials only)
Power flushing is a faster method of cleanup.
It can only be used after spraying
water-based coatings.
1.
2.
Cleanup
7.
8.
Perform Pressure Relief Procedure,
page 15.
4.
5.
Turn on water. Open Power Flush Valve.
Rinse paint off Suction Tube, Drain Tube
and inlet screen. Close Power Flush
Valve.
Engage trigger lock. Remove Spray Tip
Guard assembly from gun and place in
waste pail.
9.
3.
Screw Power Flush Valve (included with
sprayer) to garden hose. Close Power
Flush Valve.
Place empty waste and paint pails side
by side.
Unscrew inlet screen from Suction
Tube. Place inlet screen in waste pail.
Connect garden hose to Power Flush
Valve on Suction Tube. Leave Drain
Tube in waste pail.
Lift Suction Tube and Drain Tube from
paint pail. Let paint drain into the pail.
Place suction and Drain Tube in waste
pail.
10. Install battery, see Battery Installation
and Removal, page 14.
11. Turn ON/OFF switch to ON position.
Button is illuminated when ON.
6.
Turn pressure control knob to the
START position.
12. Open Power Flush Valve.
13. Circulate water through sprayer, into
waste pail, for 20 seconds.
14. Turn ON/OFF switch to OFF position.
Button is not illuminated when OFF.
NOTE: Step 15 is for returning paint in hose
to paint pail. One 50 ft (15.2 m) hose holds
approximately 1 quart (1 liter) of paint.
3A9019C EN
27
Cleanup
15. To recover paint in hose, point gun into
paint pail while holding gun firmly to the
pail.
a.
b.
c.
d.
e.
Disengage trigger lock (A).
Pull and hold gun trigger (B).
Turn Prime/Spray Valve horizontal
to SPRAY position (C).
Turn ON/OFF switch to ON
position (D). Button is illuminated
when ON.
Continue to hold gun trigger until
you see paint diluted with flushing
fluid starting to come out of gun.
17. Turn pressure control knob to the lowest
setting.
18. Stop triggering gun. Engage the trigger
lock.
19. Turn Prime/Spray Valve down to PRIME
position.
20. Turn ON/OFF switch to OFF position.
Button is not illuminated when OFF.
21. Remove battery, see Battery
Installation and Removal, page 14.
22. Follow Short Term Storage or Long
Term Storage, page 30.
16. While continuing to trigger gun, quickly
move gun to redirect spray into waste
pail. Continue triggering gun into waste
pail until flushing fluid dispensed from
gun is relatively clear.
28
3A9019C EN
Cleanup
Clean InstaClean Filter
The InstaClean Filter prevents debris from
entering paint hose. After each use, remove
and clean it to ensure peak performance.
1.
2.
3.
4.
Perform Pressure Relief Procedure,
page 15.
Clean the Gun and Gun
Filter
1.
2.
Disconnect airless spray hose (A) from
sprayer.
Remove InstaClean filter (C).
3.
B
A
4.
ti27179a
Clean gun filter with water or flushing
fluid and a brush every time you flush the
system. Replace gun filter if damaged.
Remove Spray Tip Guard assembly and
clean with water or flushing fluid and a
brush.
Check InstaClean Filter (C) for debris. If
needed, clean filter with water or
flushing fluid and a soft brush.
a.
6.
Remove the gun handle by unscrewing
the handle from the gun head.
Unscrew fluid outlet (B).
C
5.
Perform Pressure Relief Procedure,
page 15.
b.
Install closed (square) end of
InstaClean Filter (C) in sprayer.
Screw fluid outlet (B) into sprayer.
Tighten outlet valve and reconnect hose
(A) to sprayer. Use two wrenches to
tighten securely.
5.
6.
3A9019C EN
See Spray Tip Installation, page 23 to
properly reinstall Spray Tip Guard
assembly.
Wipe paint off outside of gun using a soft
cloth moistened with water or flushing
fluid.
29
Storage
Storage
With proper storage, the sprayer will be
ready to use the next time it is needed.
4.
Engage trigger lock.
ti25196b
Short Term Storage
(up to 2 days)
1.
Remove battery, see Battery
Installation and Removal, page 14.
2.
Leave Suction Tube and Drain Tube in
paint pail.
5.
Leave gun attached to hose.
7.
Wipe paint off outside of gun using a soft
cloth moistened with water or flushing
fluid.
6.
Remove Spray Tip and Spray Tip Guard
and clean with water or flushing fluid
and a brush.
Long Term Storage
(more than 2 days)
ti27185a
3.
Cover paint and pail tightly with plastic
wrap.
Pump ArmorTM fluid protects the sprayer
against freezing and corrosion.
• Do not store the sprayer full of water.
• Do not allow water to freeze in sprayer.
• Do not store sprayer under pressure.
• Store sprayer indoors.
1.
2.
Perform Cleanup, page 25.
Remove Pump Armor bottle cap and foil
seal.
ti27186a
30
3A9019C EN
Storage
3.
If needed, unscrew Inlet Screen from
Suction Tube. Turn Prime/Spray Valve
down to PRIME position.
4.
Place drain tube in waste pail. Turn
pressure control to the START position.
5.
Install battery, see Battery Installation
and Removal, page 14.
6.
While holding the Suction Tube above
the sprayer, pour approximately 2
ounces (1/4 cup) of Pump Armor into
Suction Tube and turn Power Switch
ON. Button is illuminated when ON.
7.
When Pump Armor is flushed through
the sprayer and out the Drain Tube, turn
Power Switch OFF. Replace and tighten
child-proof cap for storage.
8.
Screw Inlet Screen back to Suction
Tube. Ensure that spray gun and hose
stay attached to sprayer.
9.
Turn Spray/Prime Valve horizontal to
SPRAY position for storage.
10. Turn ON/OFF switch to OFF position.
Button is not illuminated when OFF.
Remove battery, see Battery
Installation and Removal, page 14.
11. Secure a plastic bag around Suction
Tube and Drain Tube to catch any drips.
ti27190a
3A9019C EN
31
Reference
Reference
Lacquer Conversion Kit
To spray flammable materials, you must
purchase a lacquer conversion kit. Contact
customer service for lacquer conversion kit
part number.
Follow Grounding Instructions, page 11,
when spraying oil-based or flammable
materials.
Cleaning Fluid
Compatibility
•
•
•
NOTICE
Spraying flammable materials without
installing the lacquer conversion kit will
damage your sprayer.
•
•
32
When spraying water-based materials,
flush the system thoroughly with water.
When spraying oil-based or flammable
materials, flush the system thoroughly
with mineral spirits or compatible
flushing solvent. When flushing with
solvents, always follow Grounding
Instructions, page 11.
To spray water-based materials after
spraying oil-based or flammable
materials and flushing with mineral
spirits or compatible solvents, flush the
system thoroughly with water first. The
water flowing out of drain tube should
be clear and solvent-free before you
begin spraying the water-based
material.
To spray oil-based or flammable
materials after spraying water-based
materials and flushing with water, flush
the system thoroughly with mineral
spirits or a compatible flushing solvent
first. The solvent flowing out of the drain
tube should not contain any water.
When flushing with solvents always
follow Grounding Instructions, page
11.
To avoid fluid splashing back on your
skin or into your eyes, always aim gun at
inside wall of pail.
3A9019C EN
Reference
Quick Reference
Page
10
Name
A
B
Power - ON/OFF Switch
Pressure Control Knob
C
Prime/Spray Valve
D
Spray Tip
E
F
G
H
J
K
L
M
N
PushPrime Button
Suction Tube
Drain Tube (with diffuser)
Airless Spray Gun
Spray Tip Guard
Gun Trigger Lock
Gun Fitting
Gun Filter (inside handle)
ProXChange™ Pump
O
P
Q
R
Inlet Valve
Airless Hose Connection
Airless Hose
InstaClean Filter
S
T
U
V
Pail Hanger
Inlet Screen
Battery
Easy Access Door
X
Pump Removal Tool
Y
Z
Outlet Valve
Inlet Valve Removal Tool
Power Flush Valve
AA
AB
AC
Battery Cover
Ground Wire w/ Clamp
Outlet Ground Adapter
3A9019C EN
Description
Turns sprayer ON and OFF.
Increases (clockwise) and decreases
(counter-clockwise) fluid pressure in pump, hose, and
spray gun. To select function, align symbol on pressure
control knob with setting indicator.
• In PRIME position directs fluid to Drain Tube.
• In SPRAY position directs pressurized fluid to paint
hose.
• Automatically relieves system pressure in
overpressure situations.
• Atomizes fluid being sprayed, forms spray pattern and
controls fluid flow according to hole size.
• Reverse position unclogs plugged Spray Tips
without disassembly.
Taps the inlet ball when pushed to loosen it.
Draws fluid from paint pail into pump.
Drains fluid in system during priming and pressure relief.
Dispenses fluid.
Reduces risk of fluid injection injury.
Prevents accidental triggering of spray gun.
Threaded connection for Airless Hose.
Filters fluid entering spray gun to reduce Spray Tip clogs.
Pumps and pressurizes fluid and delivers it to Airless
Hose.
Allows paint to flow from paint bucket into the sprayer.
Threaded connection for airless hose.
Transports high-pressure fluid from pump to spray gun.
• Filters fluid coming out of pump to reduce Spray Tip
clogs and improve finish.
• Self cleans only during pressure relief.
For transporting pail by its handle.
Prevents debris from entering pump.
Power source for sprayer.
Permits quick access to the pump. Open pump door by
pulling out on the tabs while sliding door up.
Cut out in the frame provides the tools to quickly remove
the pump packing without additional tools.
Allows paint to flow from the sprayer to the gun.
Cut out in the frame provides the tools to quickly remove
the inlet valve without additional tools.
Connects garden hose to Suction Tube for power
flushing water-based fluids.
Protects the battery.
Provides means to maintain good ground continuity.
Provides a means to attach grounding wire clamp to
grounded electrical outlet.
33
Maintenance
Maintenance
Routine maintenance is important to ensure proper operation of your sprayer.
1.
2.
Maintenance Activity
Inspect motor shroud openings for
blockage every time you spray.
Clean/inspect inlet screen, InstaClean
filter, and gun filter every time you
spray. Replace if the filter cannot be
cleaned or is damaged.
NOTICE
Storage/Priming Tool
Perform these steps if you are experiencing
difficulty priming your sprayer.
1.
2.
Protect the internal drive parts of this
sprayer from water. Openings in shroud
allow cooling of mechanical parts and
electronics inside. If water gets into these
openings, the sprayer could malfunction or
be permanently damaged.
Perform Pressure Relief Procedure,
page 15.
Remove Pump Armor bottle cap. Insert
small fluid tube into bottom of
Storage/Prime Tool, and thread tool
onto the bottle. NOTE: For best results,
make sure the bottle is full of Pump
Armor.
Airless Hoses
Check hose for damage every time you
spray. Do not attempt to repair hose if hose
jacket or fittings are damaged. Do not use
hoses shorter than 25 ft. (7.6 m). Wrench
tighten, using two wrenches.
Spray Tips
•
•
34
Always clean Spray Tips with
compatible cleaning fluid and brush
after spraying.
Tips may require replacement after 15
gallons (57 liters) or they may last
through 60 gallons (227 liters)
depending on abrasiveness of paint.
See Spray Pattern Quality, page 20.
3.
Remove sprayer Suction Tube. Insert
tool into the inlet and push up firmly until
it stops.
3A9019C EN
4.
Squeeze Pump Armor bottle until Pump
Armor flows into the Drain Tube.
Maintenance
Inlet Valve Removal
An integrated tool is included in the frame to
remove the inlet valve assembly from the
pump. If you suspect that the inlet valve is
clogged or stuck, remove the valve
assembly and clean or replace.
1.
2.
5.
Perform Pressure Relief Procedure,
page 15.
Insert pump inlet into frame and loosen
the inlet valve. Remove inlet valve.
Remove tool. Replace and tighten
child-proof cap for storage.
3.
Remove inlet valve. Clean and reinstall.
NOTICE
6.
Reinstall the sprayer Suction Tube.
Ensure that the tube is snug on the inlet
and the clamp is engaged.
3A9019C EN
Do not lose the ball and spring inside the
inlet valve assembly. It may fall out when the
inlet valve is removed. Pump will not prime
without the ball and spring.
35
Maintenance
4.
Perform a power flush. See Cleanup
with Power Flush Valve, page 27 and
Cleaning Fluid Compatibility, page 32
.
2.
3.
Now lift the door so that it swings out of
the way.
1
High-pressure spray is able to inject
toxins into the body and cause serious
bodily injury. Do not stop leaks with hand
or rag.
5.
Pull tabs on sides of the easy access
door towards you while pushing the
entire door up.
Inspect for leaks. If leaks occur, perform
Pressure Relief Procedure, page 15,
then tighten all fittings and repeat step 3.
2
Pump Repair
3
When pump packings wear, paint will begin
to leak down outside of pump. Purchase a
pump repair kit and install according to
instructions provided with kit, before your
next job. See ProXChange Pump Parts
List, page 46, or consult a Graco/MAGNUM
authorized retailer, distributor, or service
center.
ti27463a
4.
Slide pump assembly off the mounting
pins.
Each time the pump kit is replaced, check
pump inlet and outlet valves for wear or
damage. Replace if worn or damaged.
Always replace inlet and outlet valves every
second time the pump kit is replaced.
Pump Removal
Remove airless hose, suction tube, and drain
tube. Always perform Pressure Relief
Procedure, page 15 before starting any
pump repairs.
1.
1.
36
Perform Pressure relief procedure, see
Pressure Relief Procedure, page 15.
Remove battery, see Battery
Installation and Removal, page 14.
3A9019C EN
ProXChange Removal Tool
a.
An integrated tool is included in the frame to
remove the ProXChange packing assembly.
See ProXChange Pump manual for complete
repair instructions.
Maintenance
Move pump rod up or down until
cap is level with the opening in the
yoke.
ti27037a
b.
Pump Installation
1.
2.
Slide pump assembly onto the
mounting pins.
Push on pump rod to slide pump
assembly back on to mounting
pins.
Swing Easy Access Door closed while
pushing the entire door down.
1
2
3
ti27478a
3.
4.
Install hose, suction tube, and drain
tube.
Install battery, see Battery Installation
and Removal, page 14.
NOTE: Door must be fully closed and latched
before sprayer will operate.
3A9019C EN
37
Troubleshooting
Troubleshooting
3.
Check everything in this
Troubleshooting Table before you bring
the sprayer to an authorized service
center.
Have a Question?
1.
2.
Follow Pressure Relief Procedure,
page 15, before checking or repairing.
Solutions at the beginning of each
problem listed are the most common.
Problem
Motor does not run:
(verify battery is installed and
charged, and ON/OFF switch is on)
38
Call Us Toll-Free: 1-888-541-9788
or visit us at:
www.magnum.graco.com
ti24021a
Cause
Solution
Easy Access Door not fully closed
Verify that Easy Access Door is
closed and latched. See step 2 of
Pump Installation, page 37.
Pressure control is set at zero
pressure.
Turn pressure control knob clockwise
to increase pressure setting.
Battery has insufficient charge.
Charge battery.
Battery is defective.
Replace battery.
Pump is seized
(Paint has hardened in pump
or water is frozen in pump.)
Turn ON/OFF switch off and remove
battery.
If frozen do NOT try to start sprayer
until it is completely thawed or it may
damage the motor, control board
and/or drive train.
Place sprayer in warm area for
several hours. Check for free moving
pump by removing shroud and
spinning fan.
If not frozen, check for hardened
paint in pump. If paint has hardened
in pump. See Pump Repair, page 36.
If motor does not turn with pump
removed, consult a Graco/ Magnum
authorized retailer, distributor, or
service center.
Motor or control is damaged.
Consult a Graco/ Magnum authorized
retailer, distributor, or service center.
3A9019C EN
Problem
Sprayer runs, but pump does not
prime or looses prime while in use.
(Pump cycles but does not pull paint
into Suction Tube or build pressure.)
Cause
Troubleshooting
Solution
Prime/Spray Valve is in SPRAY
position.
Turn Prime/Spray Valve down to
PRIME position until paint exits Drain
Tube.
Inlet screen is clogged or Suction
Tube is not completely immersed in
paint.
Clean debris off inlet screen and
make sure Suction Tube is
completely immersed in paint.
Inlet or outlet valve ball is stuck or
dirty.
Press PushPrime button twice to
loosen inlet valve and reprime
sprayer. See Fill Pump (Prime
Pump), page 17.
See Storage/Priming Tool, page 34.
Then reprime pump.
Remove inlet and/or outlet valves and
clean, replace and reprime. See Fill
Pump (Prime Pump), page 17.
•
•
3A9019C EN
Make certain to not lose the ball
and spring of the inlet valve
assembly or the sprayer will not
function. See Inlet Valve
Removal, page 35.
Make certain the outlet ball
moves free in the housing
before replacing.
Suction Tube is leaking.
Inspect Suction Tube connection for
cracks or vacuum leaks.
Debris in paint causing obstruction.
Strain the paint. See Strain the
Paint, page 17.
Prime/Spray Valve is worn or
obstructed with debris.
Take sprayer to Graco/MAGNUM
authorized service center.
39
Troubleshooting
Problem
Pump is primed, but can not achieve
good spray pattern.
Spray gun stopped spraying while
trigger is pulled.
Cause
Solution
Spray Tip may be partially clogged.
See Clear Spray Tip Clog, page 23.
Reversible Spray Tip is in UNCLOG
position.
Rotate arrow-shaped handle on
Spray Tip so it points forward to
SPRAY position. See page 23.
Debris in paint causing obstruction.
Strain the paint. See Clear Spray Tip
Clog, page 23.
Pressure is set too low.
Align pressure control knob setting
indicator to desired spray setting.
See Clear Spray Tip Clog, page 23.
InstaClean Filter is clogged.
Clean or replace InstaClean filter. See
Clean InstaClean Filter, page 29.
Spray gun filter is clogged.
Clean or replace gun filter. See Clear
Spray Tip Clog, page 23.
Spray Tip selected is too large for
capability of sprayer.
Replace Spray Tip. See Spray
Techniques, page 21.
Spray Tip is worn beyond the
capability of sprayer.
Replace Spray Tip. See Spray
Techniques, page 21.
Spray Tip gasket and seal worn or
missing.
Replace gasket and seal. See Spray
Techniques, page 21.
Inlet screen is clogged or Suction
Tube is not immersed in paint.
Clean debris off inlet screen and
make sure Suction Tube is immersed
in paint.
Battery has insufficient charge for tip
support.
Charge battery or reduce tip size.
Inlet valve or outlet valve is worn or
clogged with debris.
Check for worn or contaminated inlet
valve or outlet valve.
- Prime sprayer with paint
- Trigger gun momentarily
- When trigger is released, pump
should cycle momentarily and stop
- If pump continues to cycle, pump
valves may be worn or
contaminated with debris
- See Storage/Priming Tool, page
34.
- Clean and reinstall valves.
- Replace valves with appropriate
kits. For kit part numbers, see
ProXChange Pump Parts List,
page 46.
Material is too thick.
Thin material. Follow manufacturers
recommendations.
Airless hose is too long (if extra
section was added).
Remove section of airless hose.
Spray Tip is clogged.
See Clear Spray Tip Clog, page 23
Sprayer lost prime.
Reprime sprayer. See Fill Pump
(Prime Pump), page 17.
See Troubleshooting, page 38.
40
3A9019C EN
Troubleshooting
Problem
When paint is sprayed, it runs down
the wall or sags.
Cause
Material is going on too thick.
Solution
Move gun faster.
Choose a Spray Tip with smaller hole
size.
Choose Spray Tip with wider fan.
Make sure gun is far enough from
surface.
When paint is sprayed, coverage is
inadequate.
Material is going on too thin.
Move gun slower.
Choose Spray Tip with larger hole
size.
Choose Spray Tip with narrower fan.
Make sure gun is close enough to
surface.
Fan pattern varies dramatically while
spraying.
Pressure control switch is worn and
Take sprayer to Graco/MAGNUM
causing excessive pressure variation. authorized service center.
Cannot trigger spray gun.
Spray gun trigger lock is engaged.
Rotate trigger lock to disengage
trigger lock.
Paint is coming out of pressure
control switch.
Pressure control switch is worn.
Take sprayer to Graco/MAGNUM
authorized service center.
Paint is leaking through Drain Tube.
Sprayer is over pressurizing.
Take sprayer to Graco/MAGNUM
authorized service center.
Paint leaks down outside of pump.
Pump packings are worn.
Replace pump. See .
Motor is hot and runs intermittently.
Motor automatically shuts off due to
excessive heat. Damage can occur if
cause is not corrected.
Vent holes in enclosure are plugged
or sprayer is covered.
Keep vent holes clear of obstructions
and overspray and keep sprayer
open to air.
Sprayer makes no sound when pressure control is ON and ON/OFF
switch is ON (illuminated).
Battery has insufficient charge.
Charge battery.
Motor needs to be replaced.
Take sprayer to Graco/Magnum
authorized retailer, distributor, or
service center.
ON/OFF switch light blinks two times
when pressure control is ON.
Indicates incorrect voltage.
Replace battery with charged battery.
Battery has reached end of life.
Replace battery.
Motor damaged, replace motor
assembly.
3A9019C EN
ON/OFF switch light blinks three
times when pressure control is ON.
Indicates battery temperature is too
hot or too cold.
Allow battery to cool down or warm
up to room temperature.
ON/OFF switch light blinks four times
when pressure control is ON.
Indicates locked rotor condition.
Replace pump and/or motor
assembly.
ON/OFF switch light blinks five times
when pressure control is ON.
Indicates motor temperature is too
hot.
Allow motor to cool down to room
temperature.
41
Troubleshooting
Problem
Cause
ON/OFF switch does not illuminate
when pressed.
ON/OFF switch is constantly illuminated (does not turn off).
Online Resources
Indicates battery is not installed, has
insufficient charge, or is damaged.
Install battery correctly, ensure
battery is fully charged, or replace
battery.
Control board is damaged.
Replace control board.
Power switch is damaged.
Replace power switch.
Control board is damaged.
Replace control board.
Visit Our Website:
magnum.graco.com
Manuals:
magnum.graco.com/support/#manuals
Operational Videos:
Parts Online:
42
Solution
magnum.graco.com/magop/
magnum.graco.com/partsonline/
3A9019C EN
ProX19 Cordless Cart Sprayer Parts
ProX19 Cordless Cart Sprayer Parts
Ref.
Torque
1
110-120 in-lb (12-14 N•m)
3
8-10 in-lb (0.9-1.2 N•m)
2
4
30-35 in-lb (3.5-4.0 N•m)
45-55 in-lb (5-6 N•m)
3A9019C EN
Ref.
Torque
5
23-27 in-lb (2.6-3.0 N•m)
7
180-220 in-lb (20.3-24.0 N•m)
6
8
80-90 in-lb (9-10.2 N•m)
55-65 in-lb (6.2-7.3 N•m)
43
ProX19 Cordless Cart Sprayer Parts
ProX19 Cordless Cart Sprayer Parts List
Ref. Part
1
2
4
5
6
7
8
20A066
17J863
17J864
17G541
16W362
17J874
20A979
9
118444
10
17J866
10a
10b
10c
11
11a
11b
12
128551
17F262
17F233
19D610
13
17K186
13a
13b
14
16W517
15J699
17K185
14a
15
16W505
20A542
16
17
18
17K546
112612
115498
19
20
22
17J430
117501
260212
23
24
26
16H353
20A865
24V073
26a
16H348
26b
26c
26d
26e
115099
288716
244035
115489
44
115478
Description
KIT, motor, includes 22
KIT, gear and yoke
KIT, yoke
PLATE, motor, mount
AXLE, cart
KIT, pump complete
SHIELD, motor, blue
includes 9, 48, and labels
SCREW, mach, hwhd
10-24 x 0.5 in.
COVER, front includes 9,
10a, 10b, 10c, 12
CABLE, jumper, PC
COVER, wire
COVER, pump, locking
SWITCH, ON/OFF
O-RING, power switch
NUT, power switch
SCREW, mach, Torx,
pan hd
LEG, left, includes 13a,
13b
CAP, tube, left
CAP, tube
LEG, right, includes 14a,
13b
CAP, tube, right
KIT, control board 120V
includes 52
WHEEL includes 17
CAP, hub
SCREW, mach, slot, hex
whd
HOOK, pail
SCREW, plastite
SCREW, hwh, thread
forming
HANDLE, cart
RACK, hose
TUBE, suction, assembly
includes 26a, 26b, 26c,
26d, 26e, 26f, 26g, 26h
TUBE, suction
includes 26b
WASHER, hose
STRAINER, inlet
DEFLECTOR, barbed
CLAMP, drain tube
Qty.
1
1
1
1
1
1
1
3
1
1
1
1
1
1
1
1
1
2
1
2
1
2
2
1
1
3
8
1
1
1
1
1
1
1
2
Ref. Part
26f
26h
26g
27
28
30
31
34
35
195400
116295
195108
17J819
16D576
120788
115480
17K516
247340
36
37
243012
115648
38
17S980
46
112798
47
237686
48
115477
49
20A980
50
19D421
51
52
20A010
119236
53
25V553
53a
56 ▲ 20A915
57
20A309
60
64
20A981
20A982
17Y794
65 ▲ 15G026
70
20A864
74
25U292
75 ▲ 179960
Description
CLIP, spring
CLAMP, tube
TUBE, drain
PLUG, hole, 1 in.
LABEL, made in USA
SCREW, carriage
KNOB, T-handle
LABEL, A+
HOSE, cpld,
1/4 in. x 50 ft
GUN, spray, SG3
VALVE, power flush (not
shown)
FLUID, pump armor, 8 oz
(not shown)
SCREW, thd forming,
hex hd
WIRE, ground assy with
clamp
SCREW, mach, torx, pan
hd.
KIT, cover, battery,
includes 50, 51, 52, 57
GASKET, door, battery
shield
BUTTON, door, hinge
SCREW, mach, torx, pan
hd.
KIT, spring and pin,
includes 53a
SPRING, button assy
LABEL, warning
LABEL, brand, Dewalt
GUIDE, Magnum quick
guide, 60V
US
CAN
TAG, hang, tip (not
shown)
TAG, warning, hose, (not
shown)
LABEL, front
ADAPTER, ground plug
CARD, medical alert (not
shown)
Qty.
1
1
1
1
1
2
2
1
1
1
1
1
1
1
8
1
1
1
3
1
1
1
2
1
1
1
1
1
1
▲ Replacement safety labels, tags, and cards are
available at no cost.
3A9019C EN
ProXChange Pump Parts
ProXChange Pump Parts
Ref.
Torque
1
140-160 in-lb (16-18 N•m)
3
30-35 ft-lb (40-48 N•m)
2
4
5
30-35 in-lb (3.4-4.0 N•m)
220-250 in-lb (25-28 N•m)
320-380 in-lb (36-43 N•m)
3A9019C EN
45
ProXChange Pump Parts
ProXChange Pump Parts List
Ref. Part
1
17G447
2
17D364
3
128336
4
105445
5
117501
i
6
6a
7
17J876
17J877
124582
17J878
7a
7b
8
9
10
11
12
16P303
17G540
235014
224807
187625
111600
288747
46
Description
Qty.
HOUSING, pump
1
GUIDE, ball
1
SPRING, compression 1
BALL, 0.5 in.
1
SCREW, mach, slot
2
HWH
KIT, inlet housing
ProX17, ProX19
1
ProX21
1
O-ring
1
KIT, PushPrime
1
includes 7a, 7b
PACKING, O-ring
1
LABEL, PushPrime
1
VALVE, drain, assy
1
BASE, valve
1
HANDLE, valve, drain 1
PIN, grooved
1
KIT, filter
1
Ref. Part
Description
13 120776 PACKING, O-ring
14 24Y327 KIT, repair outlet
includes 12,13
15 17J880 KIT, outlet valve repair
includes 42
16 128323 SPRING, valve
21 16D531 PACKING, O-ring
25 24Y472 KIT, repair, piston
pump
28 17J881 KIT, pressure control
includes 5, 28a, 28b,
28c, 29, 30
28a 15A464 LABEL, control
28b 17V191 LABEL, control
28c 106555 O-ring
29 17F227 BRACKET, electrical
connector
30 17F229 KIT, shield, wire
42 122486 PACKING, O-ring
Qty.
1
1
1
1
1
1
1
1
1
1
1
1
1
3A9019C EN
Wiring Diagram - 60VDC
Wiring Diagram - 60VDC
3A9019C EN
47
Technical Specifications
Technical Specifications
ProX19 Cordless
Sprayer
Maximum fluid working pressure
Maximum Delivery
Maximum Spray Tip Size
Fluid Outlet npsm
Power Requirements
Dimensions
Height
Length
Width
Weight
Storage temperature range ◆❖
Operating temperature range ✓
Noise
Sound Pressure
Sound Power
Materials of Construction
Wetted materials on all models
US
Metric
3000 psi
207 bar, 20.7 MPa
0.38 gpm
1.4 lpm
0.019 in.
0.48 mm
1/4 in.
1/4 in.
See page 2 for battery compatibility
36.7 in.
20.2 in.
17.2 in.
46.0 lb.
–30° to 160°F
40° to 115°F
93.0 cm
51.3 cm
43.7 cm
20.9 kg
–35° to 71°C
4° to 46°C
83 dBa**
93 dBa**
stainless steel, brass, leather, ultra-high molecular weight
polyethylene (UHMWPE), carbide, nylon, aluminum, PVC,
polypropylene, fluoroelastomer, plated steel
Notes
* Startup pressures and displacement per cycle may vary based on suction condition,
discharge head, air pressure, and fluid type.
** Sound pressure measured 3 feet (1 meter) from equipment. Sound power measured per
ISO-9614.
All trademarks or registered trademarks are the property of their respective owners.
◆ When pump is stored with non-freezing fluid, pump damage will occur if water or latex paint
freezes in pump.
❖ Damage to plastic parts may result if impact occurs in low temperature conditions.
✓ Changes in paint viscosity at very low or very high temperatures can affect sprayer
performance.
California Proposition 65
CALIFORNIA RESIDENTS
WARNING: Cancer and reproductive harm –
www.P65warnings.ca.gov.
48
3A9019C EN
Graco Standard Warranty
Graco Standard Warranty
Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing
its name to be free from defects in material and workmanship on the date of sale to the original
purchaser for use. With the exception of any special, extended, or limited warranty published by Graco,
Graco will, for a period of twelve months from the date of sale, repair or replace any part of the
equipment determined by Graco to be defective. This warranty applies only when the equipment is
installed, operated and maintained in accordance with Graco’s written recommendations.
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any
malfunction, damage or wear caused by faulty installation, misapplication, abrasion, corrosion,
inadequate or improper maintenance, negligence, accident, tampering, or substitution of non-Graco
component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the
incompatibility of equipment with structures, accessories, equipment or materials not supplied by
Graco, or the improper design, manufacture, installation, operation or maintenance of structures,
accessories, equipment or materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an
authorized Graco distributor for verification of the claimed defect. If the claimed defect is verified, Graco
will repair or replace free of charge any defective parts. The equipment will be returned to the original
purchaser transportation prepaid. If inspection of the equipment does not disclose any defect in
material or workmanship, repairs will be made at a reasonable charge, which charges may include the
costs of parts, labor, and transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO WARRANTY OF MERCHANTABILITY OR
WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above.
The buyer agrees that no other remedy (including, but not limited to, incidental or consequential
damages for lost profits, lost sales, injury to person or property, or any other incidental or consequential
loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the
date of sale.
GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, IN CONNECTION WITH
ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD BUT NOT MANUFACTURED
BY GRACO. These items sold, but not manufactured by Graco (such as electric motors, switches, hose,
etc.), are subject to the warranty, if any, of their manufacturer. Graco will provide purchaser with
reasonable assistance in making any claim for breach of these warranties.
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from
Graco supplying equipment hereunder, or the furnishing, performance, or use of any products or other
goods sold hereto, whether due to a breach of contract, breach of warranty, the negligence of Graco, or
otherwise.
FOR GRACO CANADA CUSTOMERS
The Parties acknowledge that they have required that the present document, as well as all documents,
notices and legal proceedings entered into, given or instituted pursuant hereto or relating directly or
indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la rédaction du
présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires exécutés,
donnés ou intentés, à la suite de ou en rapport, directement ou indirectement, avec les procédures
concernées.
3A9019C EN
49
Graco Information
Graco Information
For the latest information about Graco products, visit www.graco.com.
For patent information, see www.graco.com/patents.
TO PLACE AN ORDER, contact your Graco distributor or call 1-800-690-2894 to identify the
nearest distributor.
50
3A9019C EN
Graco Information
3A9019C EN
51
All written and visual data contained in this document reflects the latest product information available at
the time of publication. Graco reserves the right to make changes at any time without notice.
Original instructions. This manual contains English. MM 3A9019
Graco Headquarters: Minneapolis
International Offices: Belgium, China, Japan, Korea
GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA
Copyright 2021, Graco Inc. All Graco manufacturing locations are registered to ISO 9001.
www.graco.com
Revision C, January 2023

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
