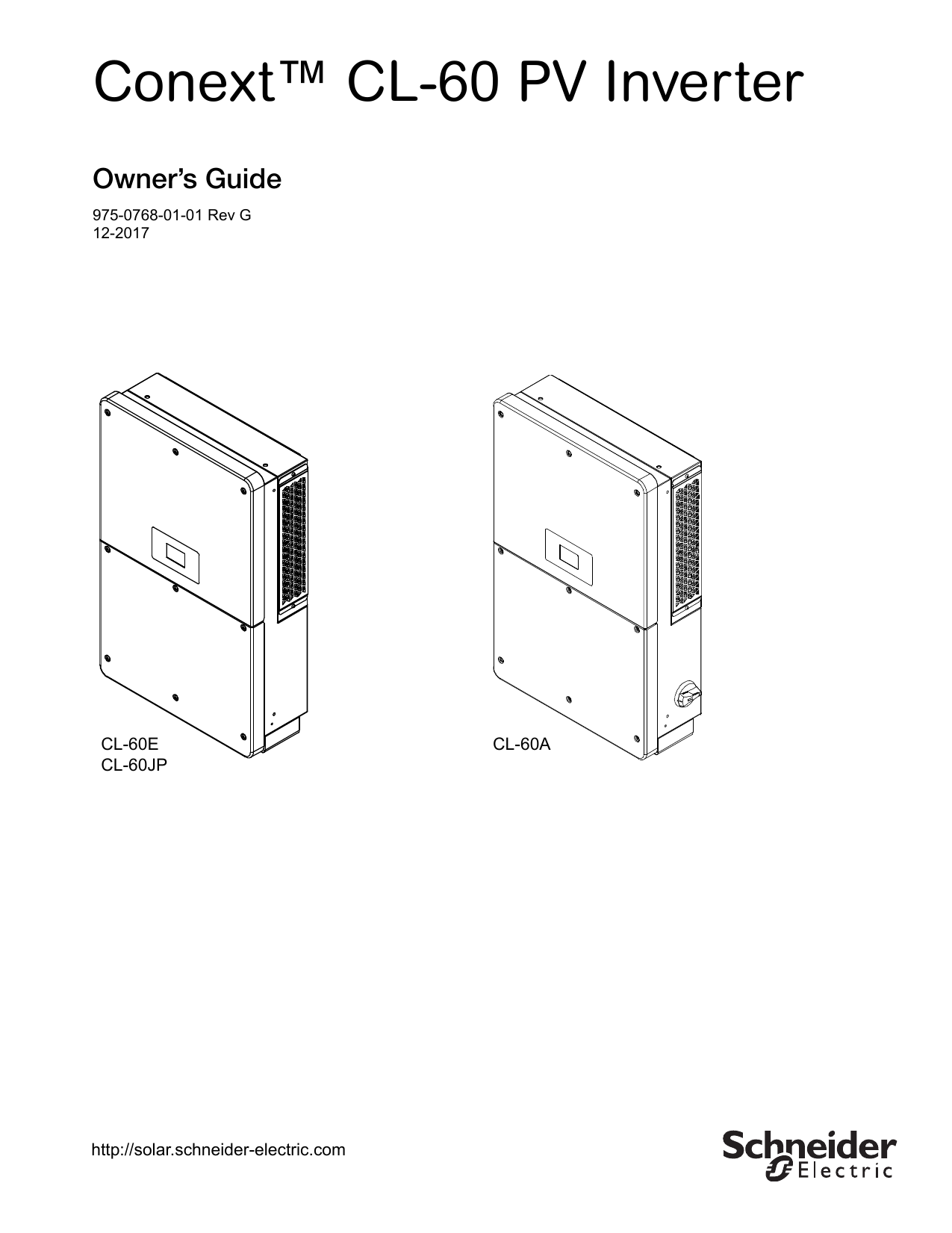

Conext™ CL-60 PV Inverter
Owner’s Guide
975-0768-01-01 Rev G
12-2017
CL-60E
CL-60JP
http://solar.schneider-electric.com
CL-60A
Conext™ CL-60 PV Inverter
Owner’s Guide
http://solar.schneider-electric.com
Copyright © 2017 Schneider Electric. All Rights Reserved. All trademarks are owned by Schneider Electric Industries SAS
or its affiliated companies. Other 3rd party trademarks are owned by their respective companies.
Exclusion for Documentation
UNLESS SPECIFICALLY AGREED TO IN WRITING, SELLER
(A) MAKES NO WARRANTY AS TO THE ACCURACY, SUFFICIENCY OR SUITABILITY OF ANY TECHNICAL OR OTHER INFORMATION PROVIDED
IN ITS MANUALS OR OTHER DOCUMENTATION;
(B) ASSUMES NO RESPONSIBILITY OR LIABILITY FOR LOSSES, DAMAGES, COSTS OR EXPENSES, WHETHER SPECIAL, DIRECT, INDIRECT,
CONSEQUENTIAL OR INCIDENTAL, WHICH MIGHT ARISE OUT OF THE USE OF SUCH INFORMATION. THE USE OF ANY SUCH INFORMATION
WILL BE ENTIRELY AT THE USER’S RISK; AND
(C) REMINDS YOU THAT IF THIS MANUAL IS IN ANY LANGUAGE OTHER THAN ENGLISH, ALTHOUGH STEPS HAVE BEEN TAKEN TO
MAINTAIN THE ACCURACY OF THE TRANSLATION, THE ACCURACY CANNOT BE GUARANTEED. APPROVED CONTENT IS CONTAINED WITH
THE ENGLISH LANGUAGE VERSION WHICH IS POSTED AT SOLAR.SCHNEIDER-ELECTRIC.COM.
Document Number: 975-0768-01-01
Revision: Rev G
Date: 12-2017
Product Part Numbers:
PVSCL60A (CL-60A—North American version)
PVSCL60E (CL-60E—IEC version)
PVSCL60JP (CL-60JP—Japanese version)
Contact Information: http://solar.schneider-electric.com
Please contact your local Schneider Electric Sales Representative or visit our website at:
http://solar.schneider-electric.com/tech-support/
About This Guide
Purpose
The purpose of this Owner’s Guide is to explain the procedures for operating,
configuring, maintaining, and troubleshooting the Conext CL-60 PV Inverter.
Scope
The Guide provides safety guidelines and general information for installing and
operating the Conext CL-60, as well as information about configuring,
monitoring, and troubleshooting the unit. It does not include information on how
to use other Schneider Electric and third-party products.
Audience
The Guide is intended for use by anyone who plans to design, construct, install,
or operate a system involving the CL-60. The installation information in this guide
is intended for qualified personnel. Qualified personnel have training,
knowledge, and experience in:
975-0768-01-01 Rev G
•
Installing electrical equipment and PV power systems (up to 1000 volts)
•
Applying all applicable installation codes
•
Analyzing and reducing the hazards involved in performing electrical work
•
Selecting and using Personal Protective Equipment (PPE)
v
About This Guide
Organization
This Guide is organized into:
Chapter 1, “Introduction”
Chapter 2, “Installation”
Chapter 3, “Electrical Connections”
Chapter 4, “Commissioning”
Chapter 5, “LCD Display Operation”
Chapter 6, “Troubleshooting”
Chapter 7, “Disconnecting, Dismantling, and Disposing the CL-60”
Chapter 8, “Specifications”
Abbreviations and Acronyms
AFD
Arc Fault Detection device
EMI
Electromagnetic Interference
G
GND
Ground (also referred as Protective Earth)
HMI
Human-Machine Interface
IGBT
Insulated Gate Bipolar Transistor
LAN / WAN
Local Area Network / Wide Area Network
LCD
Liquid Crystal Display (used for HMI displays)
LED
Light Emitting Diode (used for indicator lights)
NFPA
National Fire Protection Association
PE
Protective Earth (also referred as Ground)
PPE
Personal Protective Equipment
PV
Photovoltaic (or Solar)
SPD
Surge Protection Device
Related Information
You can find more information about Schneider Electric, as well as its products
and services at http://solar.schneider-electric.com.
vi
975-0768-01-01 Rev G
Important Safety Instructions
READ AND SAVE THESE INSTRUCTIONS - DO NOT DISCARD
This document contains important safety instructions that must be followed
during installation procedures (if applicable). Read and keep this Owner’s Guide
for future reference.
Read these instructions carefully and look at the equipment (if applicable) to
become familiar with the device before trying to install, operate, service or
maintain it. The following special messages may appear throughout this bulletin
or on the equipment to warn of potential hazards or to call attention to information
that clarifies or simplifies a procedure.
The addition of either symbol to a “Danger” or “Warning” safety
label indicates that an electrical hazard exists which will result
in personal injury if the instructions are not followed.
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that follow
this symbol to avoid possible injury or death.
DANGER
DANGER indicates an imminently hazardous situation, which, if not avoided,
will result in death or serious injury.
WARNING
WARNING indicates a potentially hazardous situation, which, if not avoided,
can result in death or serious injury.
CAUTION
CAUTION indicates a potentially hazardous situation, which, if not avoided,
can result in moderate or minor injury.
NOTICE
NOTICE indicates important information that you need to read carefully.
975-0768-01-01 Rev G
vii
Safety
Please Note
Electrical equipment must be installed, operated, serviced, and maintained only
by qualified personnel. No responsibility is assumed by Schneider Electric for
any consequences arising out of the use of this material.
A qualified person is one who has skills and knowledge related to the
construction, installation, and operation of electrical equipment and has received
safety training to recognize and avoid the hazards involved.
Safety Information
1. Before using this product, read all instructions and cautionary markings on
the unit and all appropriate sections of this manual.
2. Use of accessories not recommended or sold by the manufacturer may result
in a risk of fire, electric shock, or injury to persons.
3. The manufacturer recommends that all wiring be done by a certified
technician or electrician to ensure adherence to the local and national
electrical codes applicable in your jurisdiction.
4. To avoid a risk of fire and electric shock, make sure that existing wiring is in
good condition and that wire is not undersized. Do not operate the
equipment with damaged or substandard wiring.
5. Do not operate the equipment if it has been damaged in any way.
6. Do not disassemble the Conext CL-60 except where noted for connecting
wiring and cabling. See your warranty for instructions on obtaining service.
Attempting to service the unit yourself may result in a risk of electrical shock
or fire.
7. To reduce the risk of electrical shock, disconnect the power supply from the
equipment before attempting installation, and any maintenance (including
cleaning or working on any components connected to the equipment).
Internal capacitors remain charged for ten minutes after all power is
disconnected.
8. The equipment must be grounded. Use the protective grounding conductor
provided with the AC input conductors.
9. This product is designed for outdoor use and is rated IP65 and Type 4X.
10. To reduce the chance of short-circuits, always use insulated tools when
installing or working with this equipment. Do not leave tools inside.
11. Remove personal metal items such as rings, bracelets, necklaces, and
watches when working with electrical equipment.
12. Do not open nor disassemble the top half of the unit. There are no userserviceable parts inside.
13. To disconnect the unit from DC power, turn the DC switch to OFF and then
remove all PV string connectors from the DC terminals.
viii
975-0768-01-01 Rev G
Safety
DANGER
ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH HAZARDS
•
Apply appropriate personal protective equipment (PPE) and follow safe
electrical work practices.
• This equipment must only be installed and serviced by qualified electrical
personnel.
• Never energize the inverter with the covers removed.
• Do not open fuse holders under load. The fuse must be de-energized from
all sources before servicing.
• The inverter is energized from multiple sources. Before removing covers
identify all source, de-energize, lock-out, and tag-out and wait 10 minutes.
• Always use a properly rated voltage sensing device to confirm all circuits
are de-energized.
• Replace all devices and covers before turning on power to this equipment.
• The DC conductors of this photovoltaic system are ungrounded and may
be energized.
Failure to follow these instructions will result in death or serious injury.
Access to live parts shall be limited to suitably qualified electrical personnel. See
installation instructions before connecting to the supply.
NOTICE
EQUIPMENT DAMAGE
• All cables connected to the CL-60 must run through the cable glands on
the unit.
• This unit is susceptible to damage from EMI and nearby lightning strikes
unless a surge protection device (a lightning arrestor) is installed.
• Turn Off all devices before connecting cables.
• Use the CL-60’s DC switch as its On/Off switch.
• To isolate the CL-60, follow “Lock-Out Tag-Out (LOTO) Procedure” on
page xi.
Failure to follow these instructions can damage equipment or affect
network performance.
975-0768-01-01 Rev G
ix
Safety
Storage Information
Store the inverter properly when the inverter is not to be installed immediately.
1. Inverter must be packed inside its original carton with the desiccant bags
inside.
2. Store the inverter with its front panel facing up. The carton should lay flat and
parallel to the ground.
3. Seal the carton with standard packaging tape.
4. Store the inverter in a dry and clean place to protect it against dust and
moisture.
5. Temperature: -30 to 85 °C (-22 to 185 ºF)
Relative humidity: 0 to 100%.
6. Do not stack more than two inverters on top of another.
7. Keep the inverter away from chemically corrosive materials.
8. Periodically check for any visible damages to the carton and inspect the
inverter right away if the carton shows signs of penetration during the storage
period. Replace the carton, if necessary.
NOTE: A thorough and professional inspection may be required before
installing the inverter after more than six months in storage. Contact a local
Schneider Electric sales representative for information on how to arrange the
inspection.
IMPORTANT: Storage beyond two years voids the warranty.
x
975-0768-01-01 Rev G
Safety
Lock-Out Tag-Out (LOTO) Procedure
Lock-out refers to the practice of preventing de-energized circuits from being reenergized by putting locks on the disconnecting devices, holding them open.
Tag-out refers to the practice of attaching a tag to the disconnect-device locks
warning others not to operate the disconnect device and containing information
relating to the lock-out, such as the person responsible, the reason, and the date
and time. Combined these two practices are called the lock-out and tag-out
(LOTO) procedure.
DANGER
ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH HAZARDS
•
Apply appropriate personal protective equipment (PPE) and follow safe
electrical work practices.
• This equipment must only be installed and serviced by qualified electrical
personnel.
• Never energize the inverter with the covers removed.
• Always use a properly rated voltage sensing device to confirm all circuits
are de-energized.
• Replace all devices and covers before turning on power to this equipment.
• The inverter is energized from multiple sources. Before opening the cover
identify the power source (see A), de-energize (see B), lock-out and tagout (see C), and wait ten minutes for circuits to discharge (see D).
Failure to follow these instructions will result in death or serious injury.
LOTO
CL-60
DC Disconnect Device
AC Panel
Breaker
Mains
DC Switch
PV string
LOTO
Figure 1-1 Single Line Diagram for CL-60
A
1. Identify any disconnect device upstream from the CL-60 unit.
B
2. Open the disconnect device that connects to the CL-60 to cut off DC power.
C
3. Turn the CL-60’s DC Switch to OFF position.
4. Lock-out and tag out the external DC disconnect device.
5. Remove all PV string connectors from the DC terminals.
975-0768-01-01 Rev G
xi
Safety
A
6. Identify the AC Panel Breaker downstream from the CL-60 unit.
B
7. Open the AC Panel door.
8. Turn Off the AC Panel Breaker (open the switch) that connects to the CL-60
to cut off AC power.
9. Close the AC Panel door.
C
10. Lock-out and tag out the AC Panel.
D
11. Wait ten minutes for the circuits in the CL-60 to discharge.
12. Check that the inverter is in zero energy state before performing work.
13. Open the CL-60 enclosure and commence service and maintenance
activities.
xii
975-0768-01-01 Rev G
Contents
Important Safety Instructions
Safety Information - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - viii
Storage Information - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - x
Lock-Out Tag-Out (LOTO) Procedure - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -xi
1
Introduction
Conext CL-60 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–2
Physical Features - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–4
Dimensions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–5
Inverter Dimensions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–5
Packaging Box Dimensions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–5
Product Label - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–6
LCD Display - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–7
DC Switch - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–8
Technical Features - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–9
CL-60 Circuit Diagram - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–9
Standard Features - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–9
Derating Feature - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–10
2
Installation
Pre-Installation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2–2
Planning the Installation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2–2
Installation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2–3
What’s In The Box - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2–3
Material and Tools - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2–4
Location Information - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2–4
Install and Mount the CL-60 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2–8
Torque Values - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2–15
3
Electrical Connections
Precautions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Planning the Electrical Connections - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Cabling and Wiring - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Material and Tools - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Terminal and Cable Entry Points (for CL-60E/CL-60JP) - - - - - - - - - - - - - - - - - - - - - - - - - - Terminal and Cable Entry Points (for CL-60A) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - AC Side Cable Connection - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - AC Side Requirements - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - AC Circuit Breaker - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Residual Current Device - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
975-0768-01-01 Rev G
3–2
3–2
3–3
3–3
3–5
3–6
3–7
3–7
3–7
3–7
xiii
Contents
Multiple Inverters in Parallel Connection - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3–8
Grid Connection - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3–9
PV Array Connection - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3–15
PV Input Configuration - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3–15
PV Input Connection - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3–17
Grounding the Inverter - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3–22
Grounding System Overview - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3–22
Second Protective Earth Terminal - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3–23
Communication Connection - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3–24
Overview - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3–24
RS-485 Communication System - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3–25
Ethernet Connection - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3–29
4
Commissioning
Inspection Before Commissioning - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4–2
Commissioning Procedure - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4–2
5
LCD Display Operation
Description of the Selection Buttons - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5–2
Menu Tree - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5–3
Main Screen - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5–4
Contrast Adjustment- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5–6
Checking Running Information - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5–6
Checking History Information - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5–8
Checking Running Records - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5–8
Checking Fault (Event) Records - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5–9
Checking History Event Records - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5–9
Checking Energy Records - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5–10
Starting/Stopping - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5–11
Password Entry - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5–12
System Parameter Setting- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5–13
Language Setting - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5–13
Time Setting - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5–14
Total Energy Deviation Adjustment - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5–15
Load Default (Factory Reset) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5–16
Checking Firmware Version - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5–17
Running Parameter Setting - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5–18
Main Screen of Run-param - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5–18
Active/Reactive Power Parameters - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5–22
Reactive Power Regulation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5–22
Pf Mode - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5–23
Qt Mode - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5–23
Off Mode - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5–23
Q(P) Mode (when the country selection is not “IT”) - - - - - - - - - - - - - - - - - - - - - - - - - - 5–23
xiv
975-0768-01-01 Rev G
Contents
Q(U) Mode (when the country selection is not “IT”) - - - - - - - - - - - - - - - - - - - - - - - - - Reactive Power Setting for Italy - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Italy Q(P) Mode - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Italy Q(U) Mode - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Save P/Q-set - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Time Parameters - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Derating Parameters - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ISO Parameters - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - LVRT Parameter - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - MPPT Scan Parameter - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Altitude Parameter - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Protection Parameter Setting - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Country Setting - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Single-stage Protection Parameter Setting - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Multi-stage Protection Parameter Setting - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Protection Recovery Setting - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Protection Parameter Confirmation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Communication Parameter Setting - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Advanced Setting Parameter Setting - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
6
5–24
5–26
5–26
5–27
5–29
5–29
5–30
5–30
5–31
5–31
5–32
5–33
5–33
5–36
5–36
5–37
5–37
5–38
5–39
Troubleshooting
Troubleshooting - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6–2
LED Indicator - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6–3
LCD Screen - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6–4
Maintenance - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6–10
Routine Maintenance - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6–10
Maintenance Instructions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6–11
Fan Maintenance - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6–11
Replacing the Fuse - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6–13
Replacing an Expended DC SPD - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6–14
Cleaning the Air Inlet and Outlet - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6–15
7
Disconnecting, Dismantling, and Disposing the CL-60
Disconnecting the CL-60- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7–2
Dismantling the CL-60- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7–4
Disposing the CL-60 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7–5
8
Specifications
Product Specifications - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 8–2
975-0768-01-01 Rev G
xv
xvi
1
Introduction
Chapter 1 contains general information about:
• Conext CL-60
• Physical Features
• Technical Features
975-0768-01-01 Rev G
1–1
Introduction
Conext CL-60
The Conext CL-60 (also referred to as CL-60 PV Inverter) is a transformerless
three-phase PV string inverter that is designed to be an integral part of any utility
grid-connected PV Power System.
The Conext CL-60 is designed to convert DC power generated from the PV array
into AC power that is compatible with utility grade AC power. The following
diagram illustrates its fundamental application.
WARNING
ELECTRICAL SHOCK HAZARD
•
Do not connect the inverter to a PV string where the positive and negative
terminals of the PV strings need to be grounded.
•
Do not connect any local load between the inverter and the AC circuit
breaker.
•
Use the inverter ONLY in a grid-connected PV system.
Failure to follow these instructions can result in death or serious injury.
PV Array
CL-60
without grounding
Transformer
Utility Grid
TT, TN-C, TN-S,
TN-C-S, IT
Figure 1-1 Fundamental Application
1–2
975-0768-01-01 Rev G
Conext CL-60
TN-S
TN-C
transformer
TN-C-S
transformer
transformer
L1
L1
L1
L2
L2
L2
L3
L3
L3
N
PEN
N
PE
PE
PE
PE
CL 60
PE
CL 60
CL 60
IT
TT
transformer
transformer
L1
L1
L2
L2
L3
L3
N
PE
PE
CL 60
CL 60
Figure 1-2 Type of Grid Connections
Grid Connection
Conditions
More than one CL-60 PV Inverter can be connected to the PV system if the total
capacity of the PV system (PV array) exceeds the capacity of a single inverter.
Each inverter in the multiple setup connects individually to a PV string at the
inverter’s DC input side. Then the inverter’s AC output side connects to the AC
mains (the grid).
NOTICE
EQUIPMENT DAMAGE
Follow local regulations when installing a connection to a either a TT or TN
system. An additional external Type B RCD (residual current detection) device
rated 300 mA continuous may be required and combined with additional
automatic disconnect devices.
Failure to follow these instructions can result in equipment damage.
975-0768-01-01 Rev G
1–3
Introduction
Physical Features
3
1
6
7
8
3
5
3
2
3
4
9
11
10
Figure 1-3 CL-60 Components (CL-60E shown)
Item
Description
1
LCD Display is the main HMI for viewing operational information and
changing parameter values for settings.
2
Electrical connection area includes the DC terminals, AC terminals,
and RS-485 communication terminals.
3
Hole Inserts for Screw-in Handles are used for seating the screw-in
handles. The handles are used for moving, handling, and mounting the
PV Inverter.
4
PE second terminal
5
Air ventilation is equipped with fans to draw hot air out.
6
Backplate is used to hang the PV Inverter onto the wall.
7
Fans (3x) with protective grate are used for forced-air cooling inside
the inverter enclosure.
8
DC switch is a protective component for safely disconnecting DC
power from the PV Array but only up to the terminals.
For full disconnection, disconnect power from the PV disconnect
device. See “Single Line Diagram for CL-60” on page xi.
1–4
9
Warning Label Read before installing, maintaining, and servicing the
unit.
10
Rating Label contains the unit’s electrical specifications and regulatory
markings.
11
CL-60A has an AC Switch in the area shown.
975-0768-01-01 Rev G
Physical Features
Dimensions
Inverter Dimensions
625 mm
24.6 in
250 mm
9.8 in
991 mm
39 in
Unit weight:
66.0 kg
147 lbs
Figure 1-4 Conext CL-60 Dimensions (CL-60E shown)
Packaging Box Dimensions
Gross weight:
76.0 kg
168 lbs
Height:
375 mm / 14.8 in
Width:
770 mm / 30.3 in
Length:
1160 mm / 45.7 in
Figure 1-5 Conext CL-60 Packaging Box Dimensions
975-0768-01-01 Rev G
1–5
Introduction
Product Label
product name
product ratings
product part number
serial number
certification and
regulatory
markings
manufacturing
date
Figure 1-6 Example of a Conext CL-60 Product Label
1–6
975-0768-01-01 Rev G
Physical Features
LCD Display
The LCD Display is the main interface of the CL-60 PV Inverter. It is made up of
two LED indicators, two buttons, and the screen itself.
1
2
3
NOTE: Condensation may
appear behind the LCD
display. This occurrence is
normal in cold climate
conditions. The
condensation dissipates
soon after the unit starts
producing power or when
ambient temperature settles
above the dew point.
Figure 1-7 LCD Display
Item
1
2
Description
LED Indicators – RUN
and ALERT
.
Indicates the present operational state of the PV Inverter.
Selection Buttons – ESC (and down)
and
OK (and next)
.
Use for navigating the LCD interface, selecting settings, and
changing parameters of settings.
3
LCD Screen. Displays the present state of the PV Inverter,
operational and alarm information, and present settings.
Table 1-1 Description of LED Indicators
LED Indicators
Description
RUN - On
The PV Inverter is in operation.
ALERT - Off
RUN - Off
ALERT - On
RUN - Off
ALERT - Off
RUN - flashing
ALERT - Off
975-0768-01-01 Rev G
A ground fault (or any event) is
detected or a protection feature is
enabled.
The PV Inverter is not in operation
or a communication fault is
detected between the DSP and
the LCD Display.
The PV Inverter is communicating
a warning.
1–7
Introduction
DC Switch
The DC Switch is both the main power switch and a protective component which
is used to safely disconnect DC power between the PV array and the PV Inverter
whenever necessary to do so.
The PV Inverter operates automatically (without the need of switching On or Off)
when DC input and AC output requirements are continuously met. Turn the DC
switch to the Off position only to stop PV Inverter operation when a ground fault
condition is detected or when there is a non-ground fault condition to stop
inverter operation such as maintenance and servicing.
WARNING
ELECTRIC SHOCK HAZARD
• Do not perform maintenance and servicing without totally disconnecting
the DC source from the inverter. The DC switch does not de-energize the
DC fuse circuits. The fuse circuits remain live even if the DC switch is
turned to the Off position.
• To remove power to the inverter, disconnect power from the PV disconnect
device. See “Single Line Diagram for CL-60” on page xi.
• Alternatively, to remove power to the inverter, open all MC4 type connectors
using a special tool for disconnection.
Failure to follow these instructions can result in death or serious injury.
NOTE: For CL-60A, the DC switch is provided with a lockable twisting knob to
meet the NFPA 70E standard.
1–8
975-0768-01-01 Rev G
Technical Features
Technical Features
CL-60 Circuit Diagram
Figure 1-8 shows the main circuit of the PV Inverter.
Maximum Power Point Tracking (MPPT) is utilized to optimize harvesting DC
power from the PV array with different PV input conditions.
The PV Inverter circuit converts DC power into AC power and feeds it to the utility
grid through the inverter’s AC terminal. The protection circuit is equipped to
ensure the device’s safe operation and personal safety.
The DC switch is used to disconnect DC power from the PV Array safely.
The inverter provides standard RS-485 ports for communication.
Relay
DC bus
Inversion
circuit
DC
DC EMI
Filter
AC
EMI
Filter
AC
Reactor
L1
L2
L3
N
PE
Fan
DSP+CPLD
DC
+ -
+ DC In
DC fuse
L1 L2 L3 N PE
L1 L2 L3 N
- DC switch
- 8 inputs (1@ for 2 combined strings)
- 30A fuses in both polarities
Current detection
- type 2 DC
SPD
- type 3 AC SPD
- AC switch
DC
switch
DC SPD
L1 L2 L3 N
- DC switch
- 14 strings
- 15A fuses in positive polarity
detection polarity
- monitoring Current
in negative
- type 2 DC SPD
- type 3 AC SPD
DC
switch
DC fuse
CL-60A Wiring Box contents
AC SPD
DC
+ -
AC
switch
CL-60E/CL-60JP Wiring Box contents
LCD/RS485
DC SPD
Auxiliary
power circuit
+ DC In
L1 L2 L3 N PE
Figure 1-8 Conext CL-60 Circuit Diagram
Standard Features
Inverter Function The device’s main function is to convert DC current into gridcompatible AC current then feed this current into the grid.
Data Storage and LCD Display The onboard memory stores information such
as fault detection and displays them on the screen of the integrated LCD Display.
Device Configuration The LCD Display provides the main interface for
accessing device settings and changing them for optimal operation of the
inverter.
975-0768-01-01 Rev G
1–9
Introduction
Communication Interface Features a standard RS-485 port which can be
connected with a monitoring device such as a power meter,
Protection Features The unit is equipped with the following features for
preventing inverter damage, other equipment damage, and personal injury
hazards.
•
Short-circuit protection
•
Ground insulation resistance detection
•
Inverter output voltage monitoring
•
Inverter output frequency detection
•
Residual current protection
•
DC injection of AC output current surveillance
•
Anti-islanding protection
•
Ambient temperature monitoring
•
DC over-voltage protection
•
Over-current protection
•
Power module over-temperature protection
•
Fan failure protection
•
Arc fault detection and protection (for CL-60A)
Derating Feature
Output derating is a way to protect the inverter from overload or potential fault
detections. These situations prompt the PV Inverter to initiate power derating:
•
Altitude higher than 3000 meters
•
Internal temperature is too high (including ambient temperature and
internal components temperature)
NOTE: For example, installing the inverter in an enclosed
space may hasten derating.
•
Grid voltage is too low
•
External power class adjustment
•
Grid frequency is too high (see NOTE)
NOTE: Valid only when the country selected is DE or IT.
•
High grid voltage with a simultaneous low PV voltage.
Power Limit Setting Inverter output power can be adjusted via the LCD
Display or a remote grid dispatch from the utility company. The corresponding
operating state will be displayed on the LCD screen.
1–10
975-0768-01-01 Rev G
Technical Features
Over-temperature Derating High ambient temperature, a blocked fan, or poor
ventilation will initiate inverter power derating.
When the temperature inside the unit exceeds the upper limit, the inverter will derate
its power output until the internal temperature drops within the allowable range.
CL-60A Temperature derating curve
˄Vac=380V˅
CL-60E Temperature Derating Curve
˄Vac=400V˅
Apparent power˄KVA˅
Apparent Power˄KVA˅
66
63.36
60
60
Vmpp=600V
Vmpp=600V
55
Vmpp=710V
Vmpp=850V
50
55
Vmpp=710V
Vmpp=850V
50
45
45
Ambient Temp (°C)
40
35
40
45
50
55
Ambient Temp (°C)
40
35
60
40
45
50
55
60
not to scale
NOTE: The lower limit of the over-temperature derating is 75% of nominal power.
If both the module and internal temperatures reach power derating conditions, the
inverter will derate the power output based on the lower temperature between the two.
Figure 1-9 Over-Temperature Derating
Grid Under-voltage Derating When grid voltage is low, the inverter will derate
the output power to make sure the output current is within the allowable range.
Once the grid voltage is within Vmin (215V), the inverter will derate its output
power.
P[Vmin…266V] = Pn × (Vgrid / 230V)
Pn
Working area
Vmin
215V
Vmax
Figure 1-10 Grid Under-Voltage Derating
975-0768-01-01 Rev G
1–11
Introduction
PV Over-voltage Derating The inverter regularly scans the PV voltage every 25
minutes and forces the PV to derate to test whether the maximum power point is
less than 860 volts.
At 66 KVA, if the maximum power point is higher than 860 volts, then the inverter
will return to the higher voltage limit before it starts derating.
Output voltage max when PV voltage < 860
Output voltage max when PV voltage < 890
Output voltage max when PV voltage < 950
Figure 1-11 PV Over-Voltage Derating
1–12
975-0768-01-01 Rev G
2
Installation
Chapter 2 contains information about:
• Pre-Installation
• Installation
975-0768-01-01 Rev G
2–1
Installation
Pre-Installation
Before installing the Conext CL-60, read all instructions and cautionary markings
in this Guide.
NOTE: Obtain all necessary permits prior to starting the installation.
Installations must meet all local codes and standards. Installation of this
equipment should only be performed by skilled personnel such as qualified
electricians and Certified Renewable Energy (RE) System installers.
Planning the Installation
2–2
•
Read this entire chapter before beginning the installation. It is important to
plan the installation from beginning to end.
•
Assemble all tools and materials needed for the installation.
975-0768-01-01 Rev G
Installation
Installation
DANGER
ELECTRIC SHOCK AND FIRE HAZARD
•
Do not connect the PV Inverter to a live power source prior to cabling and
wiring found in Chapter 3, “Electrical Connections”. The inverter can be
energized from two sources namely, DC from the PV array and AC from the
grid.
•
Do not connect any powered device to the PV Inverter during installation.
Failure to follow these instructions will result in death or serious injury.
What’s In The Box
The following materials are supplied in the Conext CL-60 package:
First Row
Second Row
•
A CL-60 unit
•
B Wall-mounting backplate
•
C CL-60 USB drive contains the CL-60 Owner’s Guide
•
D CL-60 Quick Install Guide including extra multi-lingual product labels
•
E Metal frame M10x45 fasteners (6x)
•
F M4x16 backplate screws (2x)
•
G Screw-in handles (4x)
•
H MC4 DC cable connectors (14x pairs) for the CL-60E/CL-60JP
Amphenol® H4 DC cable connectors (8x pairs) for the CL-60A
•
I AC cable gland (for the CL-60E/CL-60JP)
A
B
E
F
G
C
H
D
I
NOTE: Use only these
fasteners when mounting
the inverter.
Figure 2-1 What’s In the Box
975-0768-01-01 Rev G
2–3
Installation
Material and Tools
The following materials and tools are not supplied but are required to complete
the installation:
•
•
•
•
•
Personal protective equipment (PPE)
Screwdriver and drill set (powered and/or manual)
Six (M10x65) screws (for fastening wall-mounting backplate to the wall)
Calibrated professional digital multimeter
Crimping tool from Multi-Contact (http://www.multi-contact-usa.com/ for CL60E/CL-60JP) and Amphenol (https://www.amphenol.com/ for CL-60A)
Location Information
DANGER
ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH HAZARDS
•
Apply appropriate personal protective equipment (PPE) and follow safe
electrical work practices.
• This equipment must only be installed and serviced by qualified electrical
personnel.
• Never energize the inverter with the covers removed.
• Do not open fuse holders under load. The fuse must be de-energized from
all sources before servicing.
• The inverter is energized from multiple sources. Before removing covers
identify all source, de-energize, lock-out, and tag-out and wait 10 minutes.
See “Lock-Out Tag-Out (LOTO) Procedure” on page xi.
• Always use a properly rated voltage sensing device to confirm all circuits
are de-energized.
• Replace all devices and covers before turning on power to this equipment.
• The DC conductors of this photovoltaic system are ungrounded and may
be energized.
Failure to follow these instructions will result in death or serious injury.
Environment
The CL-60 is IP65 rated (CL-60E/CL-60JP) and Type 4X rated (CL-60A). It is
suitable for outside installation.
The ambient temperature should be within the range of –25 to 60 °C (–13 to
140 °F) to prevent automatic power derating in over-temperature conditions.
Relative humidity at the installation site can be from 0 to 100%.
Allow for at least 600 mm (~24 inches) clearance on all sides of the inverter.
When installing another inverter next to it (or several inverters around it), increase
the clearance between inverters from all sides to 800 mm (~32 inches).
See Figure 2-2, “Clearances and Ambient Temperature” on page 2–5.
2–4
975-0768-01-01 Rev G
Installation
600mm
~24”
-25
-13
600mm
~24”
800mm
~32”
between other
objects
between
CL-60s
+60 °C
+140 °F
600mm
~24”
Figure 2-2 Clearances and Ambient Temperature
Fire Safety
WARNING
IGNITION AND FIRE HAZARD
•
This equipment is not ignition protected. To prevent fire or explosion, do
not install this product in locations that require ignition-protected
equipment. This includes any confined space containing lead acid
batteries, or flammable chemicals such as, natural gas (NG), liquid
petroleum gas (LPG) or gasoline (Benzine/Petrol).
•
Do not install in a confined space with machinery powered by flammable
chemicals, or storage tanks, fittings, or other connections between
components of fuel or flammable chemical systems.
•
Do not install the CL-60 on a wooden/plastic/plaster wall.
•
Do not install the CL-60 near readily flammable materials such as cloth,
paper, straw, or plastic sheeting. Keep flammable materials from all sides
including the front of the CL-60.
Failure to follow these instructions can result in death or serious injury.
Flammable or combustible materials are defined as “any material containing
wood, compressed paper, cellulose, plant fibers, plastics, liquids, or other
material that will ignite and burn, whether flame-proofed or not” according to
NFPA 70E. Flammable liquids are defined as “any liquid whose flash point does
not exceed 100 °F (38 °C).” Examples of flammable liquids are gasoline,
methanol, and ether.
When choosing a wall or flat surface to install the CL-60, choose a wall or flat
surface that is not considered a flammable material such as concrete, brick, or
metal.
975-0768-01-01 Rev G
2–5
Installation
Handling
Precautions
CAUTION
HEAVY LOAD HAZARD
•
Do not handle and lift the unit by yourself. Use two people to move, lift,
and mount the unit.
•
Always use proper lifting techniques during installation including using the
provided screw-in handles.
•
When handling the inverter, install all four screw-in handles to both sides of
the inverter first and make sure they are seated correctly in their slots.
•
Do not substitute the screw-in handles with something else. Use only the
provided screw-in handles.
•
Use mechanical or motorized hand trucks and/or lifts whenever possible
to aid in proper handling.
Failure to follow these instructions can result in moderate or minor injury.
Storage
Considerations
If the inverter cannot be installed immediately after delivery at the installation site,
consider storing the inverter inside its original carton and setting it aside away
from potential damage. For more guidelines, see “Storage Information” on
page x.
Location Hazards
In order to avoid other potential hazards follow the instructions in the WARNING
below.
WARNING
ELECTRICAL SHOCK, FIRE, AND PHYSICAL INJURY HAZARD
•
Install the CL-60 on a concrete wall or metal frame which can support the weight
(66 kg /147 lbs) of the unit over time. When installing multiple units, make sure
the wall or metal frame can support the total weight of the units over time.
•
Install the unit upright at 90° vertical angle in relation to the floor. The unit
can also be installed horizontally flat and parallel to the floor. When
installing on a slope, the top of the unit must be higher than its bottom.
•
Install the unit at the recommended height of 1.2 m (4 ft.) for easy access
to the terminals and ports.
•
Avoid installing the CL-60 in completely uncovered locations where
persistent rain and moisture spray can eventually penetrate the enclosure.
Install under a covered structure.
•
Install a separate and external surge protection device to protect the CL60’s power module and communication ports.
Failure to follow these instructions can result in death or serious injury.
2–6
975-0768-01-01 Rev G
Installation
NOTICE
EQUIPMENT DAMAGE
•
Avoid installing the CL-60 in direct sunlight or near other heat sources like
the exhausts of inverters and generators, steam exhausts from boilers and
dryers, and engine compartments. Install in shaded locations.
•
Choose a location and an installation layout that minimizes potentially
induced voltage spikes that might damage the electronics.
Failure to follow these instructions can result in equipment damage.
0°
Allowed
90°
<90°
Not allowed
Figure 2-3 Mounting Orientations
975-0768-01-01 Rev G
2–7
Installation
Install and Mount the CL-60
512 mm
~20.2 in
2x M4x7
90 mm
~3.5 in
6x M10
74 mm
~2.9 in
26 mm
~1 in
425 mm
~16.7 in
524 mm
~20.6 in
544 mm
~21.4 in
32 mm
~1.2 in
NOTE: Whenever possible, use only
the supplied fasteners when mounting
the inverter.
NOTE: To install the inverter onto a
concrete wall, use the recommended
M10x65 screws (not supplied).
Figure 2-4 Wall-mounting Backplate Dimensions
To install on a concrete or brick wall in an upright position:
1. Remove the wall-mounting backplate and the two M4x12 backplate screws
from the CL-60 packaging.
2. Follow all preceding precautions and warnings starting on page 2–3.
3. Unpack the backplate from the box and use the backplate to mark the
location of the holes on the wall. See Figure 2-5, “Mark and Pre-drill Wall” on
page 2–9.
DANGER
EXPLOSION HAZARD
Check that there are no plumbing or gas pipes or electrical conduits behind
the wall when marking for holes and before drilling.
Failure to follow these instructions will result in death or serious injury.
2–8
975-0768-01-01 Rev G
Installation
4. Pre-drill the mounting surface, if necessary. See Figure 2-5, “Mark and Predrill Wall” on page 2–9.
Figure 2-5 Mark and Pre-drill Wall
5. Unpack the screw-in handles and install them as shown. Screw in the
handles until they are fully seated in the inserts. See Figure 2-6, “Install
Screw-in Handles” on page 2–9.
Figure 2-6 Install Screw-in Handles
6. Fasten the wall-mounting backplate to the wall with six M10x65 screws (not
supplied). Use a torque of 35 Nm (25.8 lbf-ft) to fasten the screws and the
backplate.
975-0768-01-01 Rev G
2–9
Installation
7. Mount (hang) the inverter manually onto the backplate.
after hanging the inverter to the
backplate, lock it with the two M4 screws
(supplied)
use the handles to
mount the inverter
to the backplate
for illustration
purposes only
Figure 2-7 Mounting the CL-60
8. Lock the inverter to the backplate by fastening the two screws (M4x16) as
shown. See Figure 2-7.
9. Remove the screw-in handles from the sides of the inverter and store them
away from the top of the inverter or inside the inverter enclosure.
2–10
975-0768-01-01 Rev G
Installation
To install on a metal frame in an upright position:
1. Remove the backplate, its corresponding metal frame fasteners, and the two
M4x12 backplate screws from the CL-60 packaging. Use only the provided
metal frame fasteners for attaching to a metal frame structure.
2. Follow all preceding precautions and warnings starting on page 2–3.
3. Use the backplate to mark the metal frame with the location of the holes to be
drilled. See Figure 2-8.
4. Pre-drill the mounting surface, if necessary. See Figure 2-8.
Use a drill bit appropriate for a bolt of size M10.
Figure 2-8 Mark and Pre-drill Metal Frame
5. Unpack the screw-in handles and install them as shown. Screw in the
handles until they are fully seated in the inserts. See Figure 2-6, “Install
Screw-in Handles” on page 2–9 for an illustration.
6. Fasten the backplate to the metal frame using the metal frame fasteners that
came with the CL-60 packaging. Use a torque of 35 Nm (25.8 lbf-ft) to fasten
the nut and the backplate.
metal frame
backplate
hex nut (M10)
spring washer
bolt (M10x45)
flat washer
NOTE: Whenever possible, use only
the supplied fasteners when mounting
the inverter.
Figure 2-9 Securing the Backplate to the Metal Frame
7. Mount (hang) the inverter manually onto the backplate. See Figure 2-7,
“Mounting the CL-60” on page 2–10 for a similar illustration.
8. Lock the inverter to the backplate by fastening the two screws (M4x16). See
Figure 2-7, “Mounting the CL-60” on page 2–10 for a similar illustration.
9. Remove the screw-in handles from the sides of the inverter. See Figure 2-7,
“Mounting the CL-60” on page 2–10 for a similar illustration.
975-0768-01-01 Rev G
2–11
Installation
To install on a horizontally flat metal or concrete surface:
WARNING
ELECTRICAL SHOCK AND FIRE HAZARD
•
Do not install the unit within 800 mm (31.5 inches) of vegetation (weeds,
grass) and other flammable materials. See the definition of flammable
materials in “Fire Safety” on page 2–5.
•
Provide a minimum distance of 450 mm (~18 inches) between the PV
Inverter’s back and the ground (the floor).
•
Install the backplate even though the inverter is not going to hang on it.
The backplate provides stability for the inverter.
•
Be careful to check that there are no plumbing or gas pipes or electrical
conduits underneath the flat surface you are marking for holes.
Failure to follow these instructions can result in death or serious injury.
1. Remove the wall-mounting backplate and its corresponding fasteners from
the CL-60 packaging.
2. Follow all preceding precautions and warnings starting on page 2–3.
3. Unpack the backplate from the box and use the backplate to mark the flat
surface with the location of the holes to be drilled. See Figure 2-5, “Mark and
Pre-drill Wall” on page 2–9.
4. Pre-drill the mounting surface, if necessary. Use a drill bit appropriate for a
bolt of size M10.
for illustration
purposes only
450mm
~18”
ground (floor)
Figure 2-10 Ground Clearance and Fastening the Backplate
5. Unpack the screw-in handles and install them as shown. Screw in the
handles until they are fully seated in the inserts. See Figure 2-6, “Install
Screw-in Handles” on page 2–9.
2–12
975-0768-01-01 Rev G
Installation
6. Fasten the backplate to the flat metal surface (using the metal frame
fasteners that came with the CL-60 packaging, if necessary) or concrete
surface (using M10x65 screws which are not provided). Use a torque of 35
Nm (25.8 lbf-ft) to fasten the nut and the backplate.
7. Lay the inverter manually onto the backplate to lock its position. Handle the
inverter by the screw-in handles.
for illustration
purposes only
450 mm
~18 in.
Figure 2-11 Mounting to a Flat Surface
8. Lock the inverter to the backplate by fastening the two screws (M4x16). See
Figure 2-7, “Mounting the CL-60” on page 2–10 for a similar illustration.
9. Remove the screw-in handles from the sides of the inverter. See Figure 2-7,
“Mounting the CL-60” on page 2–10 for a similar illustration.
975-0768-01-01 Rev G
2–13
Installation
To install on a sloped metal or concrete surface:
Examples of sloped surfaces are rooftops and uneven terrain.
WARNING
ELECTRICAL SHOCK AND FIRE HAZARD
•
Do not install the unit on a slope in which the top part of the inverter is
lower than its bottom. See Figure 2-12 below.
•
Be careful to check that there are no plumbing or gas pipes or electrical
conduits underneath the surface you are marking for holes.
Failure to follow these instructions can result in death or serious injury.
◆ Follow the same procedures in the previous section “To install on a
horizontally flat metal or concrete surface:” on page 2–12.
for illustration
purposes only
top
bottom
bottom
top
within 90º angle
Figure 2-12 Installing on Sloped Surfaces
2–14
975-0768-01-01 Rev G
Installation
Torque Values
CAUTION
FIRE HAZARD
Tighten fasteners such as screws, nuts, bolts, and cable glands (used for
routing field wiring and current carrying cable) according to the
recommendations in the table below. Incorrect torque may cause a fire.
Failure to follow these instructions can result in moderate or minor injury.
NOTICE
EQUIPMENT DAMAGE
Tighten fasteners such as wall screws, metal frame nuts, and panel screws
according to the recommendations in the table below. Over torquing may
damage the head of the fastener. Under torquing may loosen the installation
over time.
Failure to follow these instructions can result in equipment damage.
Table 2-1 Summary of Torque Values
975-0768-01-01 Rev G
Type
Description
Nm (IEC)
ft-lb (NA)
cable gland
for communication cables
such as RS-485 Ethernet
cable
3.75
2.8
cable gland
for smaller AC cable
12–13
8.8–9.6
cable gland
for larger AC cable
16–17
11.8–12.5
connector screw
RS-485 wire connector
0.2
0.15
fastener
transparent protection
panel
0.8 ±0.1
0.6 ±0.1
fastener
lower enclosure panel
4.3 ±0.2
3.2 ±0.15
fastener
to lock the CL-60 unit to
the mounting backplate
2.7–4.8
2–3.5
fastener (metal)
metal frame-mounting
backplate nut
35
25.8
fastener (wall)
wall-mounting backplate
expansion
35
25.8
terminal gland
MC4 DC terminal
2.5–3
1.8–2.2
terminal screw
AC terminal block
8–12
5.9–8.9
terminal screw
PE (ground) terminal
block
4.3 ±0.2
3.2 ±0.15
2–15
Installation
•THIS PAGE INTENTIONALLY BLANK•
2–16
975-0768-01-01 Rev G
3
Electrical
Connections
Chapter 3 contains information about:
• Precautions
• Cabling and Wiring
• Communication Connection
975-0768-01-01 Rev G
3–1
Electrical Connections
Precautions
Before connecting the Conext CL-60 to electrical cables, wires, and
communication cables, read all instructions and cautionary markings in this
Guide.
NOTE: Obtain all necessary permits prior to starting the installation.
Installations must meet all local codes and standards. Installation of this
equipment should only be performed by skilled personnel such as qualified
electricians and Certified Renewable Energy (RE) System installers.
Planning the Electrical Connections
3–2
•
Read this entire chapter before making electrical connections to and from the
unit. It is important to plan the installation from beginning to end.
•
Assemble all tools and materials needed for the installation.
975-0768-01-01 Rev G
Cabling and Wiring
Cabling and Wiring
DANGER
ELECTRIC SHOCK AND FIRE HAZARD
•
All wiring must be done by qualified personnel to ensure compliance with
all applicable installation codes and regulations.
•
Do not connect the PV Inverter to a live power source prior to finishing all
cabling and wiring. The inverter can be energized from two sources
namely, DC from the PV array and AC from the grid.
•
Do not connect any powered device to the PV Inverter during cabling and
wiring.
Failure to follow these instructions will result in death or serious injury.
Material and Tools
The following materials and tools are not supplied but are required to complete
the installation:
•
•
•
•
•
•
•
•
•
•
•
AC power cable (4-wire/5-wire)
Crimping tool from Multi-Contact (http://www.multi-contact-usa.com/ for CL60E/CL-60JP) and Amphenol (https://www.amphenol.com/ for CL-60A)
DC power cable (color-coded - red for (+), black for (-))
one AC conduit hub (for 2” trade size knockout) - CL-60A only
one (or two) conduit hubs (for 3/4” trade size knockouts) - CL-60A only
RS-485 cable(s) for Modbus/RS-485 device connections
Wire stripper, RJ45 crimper, connector tool spanner
Screwdriver set, pliers
CAT6/5/e network cable(s) for Modbus/RS-485 PV Inverter and Ethernet TCP/
IP connections
Laptop computer (PC or Mac)
Network router for LAN and internet connectivity
Once the Conext CL-60 is installed at the site, it is now ready to be connected to
the PV array and the utility grid.
975-0768-01-01 Rev G
3–3
Electrical Connections
DANGER
ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH HAZARDS
•
Apply appropriate personal protective equipment (PPE) and follow safe
electrical work practices.
• This equipment must only be installed and serviced by qualified electrical
personnel.
• Never energize the inverter with the covers removed.
• Do not open fuse holders under load. The fuse must be de-energized from
all sources before servicing.
• The inverter is energized from multiple sources. Before removing covers
identify all source, de-energize, lock-out, and tag-out and wait 10 minutes.
See “Lock-Out Tag-Out (LOTO) Procedure” on page xi.
• Always use a properly rated voltage sensing device to confirm all circuits
are de-energized.
• Replace all devices and covers before turning on power to this equipment.
• The DC conductors of this photovoltaic system are ungrounded and may
be energized.
Failure to follow these instructions will result in death or serious injury.
3–4
975-0768-01-01 Rev G
Cabling and Wiring
Terminal and Cable Entry Points (for CL-60E/CL-60JP)
The CL-60E’s electrical connection terminals are located inside the inverter
wiring box and the cable entry points are at the bottom of the unit.
1
2
Front
View
3
5
4
6
7
8
Bottom
View
10
9
Figure 3-1 Terminals and Cable Entry Points
Table 3-1 Description of Terminals and Cable Entry Points
975-0768-01-01 Rev G
No.
Description
No.
Description
1
DC switch
6
DC input MC4 terminals
2
DC SPD
7
Communication cable glands
3
AC crimping terminal
8
AC cable gland (large)
4
DC fuse board
9
Second PE (ground) location
5
Communication circuit board
10
Waterproof air valve
3–5
Electrical Connections
Terminal and Cable Entry Points (for CL-60A)
The CL-60A’s electrical connection terminals are located inside the inverter
wiring box and the cable entry points are at the bottom of the unit.
1
2
Front
View
3
6
4
5
7
8
9
Bottom
View
NOTE: Leave the knockout caps on the unit
if you are not routing a cable through.
11
10
Figure 3-2 Terminals and Cable Entry Points
Table 3-2 Description of Terminals and Cable Entry Points
3–6
No.
Description
No.
Description
1
DC switch
7
DC input Amphenol H4
terminals
2
DC SPD
8
3/4” trade size knockouts
3
AC crimping terminal
9
2” trade size knockout
4
AC switch
10
Second PE (ground) location
5
DC fuse board with integrated
Arc fault detector
11
Waterproof air valve
6
Communication circuit board
975-0768-01-01 Rev G
Cabling and Wiring
AC Side Cable Connection
AC Side Requirements
NOTE: Connection to the utility grid must be done only after receiving approval
from the local company.
Before connecting to the grid, verify that both the grid voltage and frequency
meet the requirements of the CL-60’s voltage and frequency settings. Contact the
local utility company for a solution if the grid does not meet the specifications. For
information on the settings, see “Product Specifications” on page 8–2.
AC Circuit Breaker
An independent three- or four-pole circuit breaker must be installed downstream
from the inverter before the grid connection. This is to ensure that the inverter can
be disconnected safely from the grid.
Inverter
CL-60E
CL-60JP
Recommended
AC circuit breaker
120A
CL-60A
NOTICE
EQUIPMENT DAMAGE
•
Do not connect multiple PV Inverters to a single circuit breaker.
•
Do not connect loads between the PV Inverter and the circuit breaker.
Failure to follow these instructions can result in damage to the inverter
and other connected equipment.
Residual Current Device
With an integrated comprehensive residual current monitoring component, the
inverter is capable of distinguishing a ground fault current from normal
capacitive leakage current. This allows the inverter to disconnect from the grid as
soon as the ground fault is detected.
975-0768-01-01 Rev G
3–7
Electrical Connections
Multiple Inverters in Parallel Connection
Follow either of the two scenarios when attempting to connect several inverters in
parallel to the grid.
Scenario 1
Several inverters are in parallel connection to the 3-phase low voltage grid.
L1
L2
L3
N
PE
inverter 1
...
inverter 2
inverter n
Requirements If the number of the grid-connected PV Inverters exceed 40,
contact a local Schneider Electric Sales Application Engineer (SAE).
Scenario 2
Several inverters are in parallel connection to the low voltage side of the MV
transformer. The high voltage side is connected to the MV grid.
low voltage
high voltage
U2
U1
V2
V1
W2
W1
N
MV Transformer
inverter 1
inverter 2
...
inverter n
Requirements If the number of the grid-connected PV Inverters exceed 40,
contact a local Schneider Electric Sales Application Engineer (SAE).
The nominal power of the MV transformer’s low voltage side matches the
inverter’s output power.
NOTE: It is recommended to use a transformer with a short circuit impedance
of less than 6%.
3–8
975-0768-01-01 Rev G
Cabling and Wiring
Grid Connection
The AC terminal block on the bottom of the CL-60E inverter accommodates an
AC connection for a 3-phase-5-wire grid connection (L1, L2, L3, N and PE).
The AC terminal block on the bottom of the CL-60A inverter accommodates an
AC connection for a 3-phase-4-wire grid connection (L1, L2, L3, and GND).
AC Cable Requirements
Select AC cables according to the following factors:
•
Grid impedance should correspond to the specifications below to avoid
accidental short-circuit or output power derating.
Max. grid impedance [Ohm]
2
1.5
1
0.5
0
230
975-0768-01-01 Rev G
235
240
245
250
255
AC voltage without loads[V]
260
265
•
When calculating voltage drop, a cable with a higher cross section area
could be selected to ensure power loss within a 1% limit. Check that the
AC cable outer diameter is suitable for the AC terminals of the inverter.
•
Ambient temperature
•
Cable layout (that is, inside wall, underground, free air, etc.)
•
UV resistance
•
Cable resistance / length
3–9
Electrical Connections
AC Cable
Connection
To connect the PV Inverter to the grid:
DANGER
ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH HAZARD
•
Apply appropriate personal protective equipment (PPE) and follow safe
electrical work practices.
• This equipment must only be installed and serviced by qualified electrical
personnel.
• Never energize the inverter with the covers removed.
• Do not open fuse holders under load. The fuse must be de-energized from
all sources before servicing.
• The inverter is energized from multiple sources. Before removing covers
identify all source, de-energize, lock-out, and tag-out and wait 10 minutes.
• Always use a properly rated voltage sensing device to confirm all circuits
are de-energized.
• Replace all devices and covers before turning on power to this equipment.
• The DC conductors of this photovoltaic system are ungrounded and may
be energized.
• Do not connect to the AC circuit breaker until all inverter electrical
connections are completed.
Failure to follow these instructions will result in death or serious injury.
1. Open the AC circuit breaker (turn it OFF) and perform the “Lock-Out Tag-Out
(LOTO) Procedure” on page xi.
2. Remove the six screws on the front cover of the wiring box to access the
terminals.
3–10
975-0768-01-01 Rev G
Cabling and Wiring
3. Strip the cables as shown below. Example below is for a five-wire cable.
3
1
4
PE
L1
L2
L3
N
For illustration
purposes only.
2
NOTE: For AC cables with stranded wires, use cold-press terminal lugs for
termination. Always use lugs that grip the shape of the wires on AC cables. Always
use the proper lugs according to the type of metal of the wires on AC cables.
The cross-section diameter of the AC cable must be selected carefully in order to
prevent accidental disconnections of the inverter from the grid due to high
impedance of the cable.
975-0768-01-01 Rev G
No.
Description
Remark
1
Protective layer
External diameter of the cable:
Proper range 25 to 40 mm (~1 to 1.5 in)
2
Length of insulation to
be stripped off
24 mm (~1 in)
3
Insulation layer
-
4
Cross section of AC
cable
Range: 25 to 95 mm2
Recommended value: 50 mm2
5
Type
Aluminum or copper
•
Use a smaller AC cable gland (supplied), if the selected AC cable has an
external diameter of between 25 to 30.5 mm (~1 to 1.25 in).
For replacement instructions, see “To replace the larger AC cable gland with
the smaller AC cable gland:” on page 3–14.
•
Use a larger AC cable gland (pre-installed), if the selected AC cable has an
external diameter of between 30.5 to 40 mm (~1.25 to 1.5 in).
There is no need to replace this AC cable gland.
3–11
Electrical Connections
The following table lists the recommended maximum length of the AC cable
based on its cross-section diameter.
Cross-section of the
AC cable (mm2)
Max. length of the AC
cables (m) Cu
25
0-50
35
50-100
50
>100
4. Select the corresponding AC cable gland based on the actual AC cable
diameter.
Remove or install the two selected AC cable glands at the bottom of the
wiring box using the torque guidelines below.
•
Smaller AC cable gland (supplied for the CL-60E/CL-60JP): Torque of
12-13 Nm (~9.2 lbf-ft)
•
Larger AC cable gland (pre-installed for the CL-60E/CL-60JP): Torque of
16-17 Nm (~12.2 lbf-ft)
NOTICE
INVERTER DAMAGE
For the CL-60A, acquire and use a NEMA 4/4X-rated AC conduit hub as
required that will fit a 2” trade size knockout.
Failure to follow these instructions may cause leakage and damage to the
inverter.
5. Connect the AC cable’s wires to their corresponding terminals.
3–12
975-0768-01-01 Rev G
Cabling and Wiring
6. Pull the cable away from the terminals gently to make sure the wires do not
disconnect from their terminals.
CL-60E/CL-60JP
PE | N | L3 | L2 | L1
CL-60A
L3 | L2 | L1
GND
For illustration
purposes only.
NOTICE
EQUIPMENT DAMAGE
•
Observe and strictly follow the AC terminal layout. The PV Inverter will not
work normally if the phase wire is connected to the PE terminal.
•
Do not insert wires without stripping the insulation layer. Damaged wires
may affect the normal operation of the inverter.
Failure to follow these instructions may cause inverter damage.
975-0768-01-01 Rev G
3–13
Electrical Connections
AC Cable Gland
Replacement
Instructions for CL60E/CL-60JP
To replace the larger AC cable gland with the smaller AC cable gland:
1. Remove the pre-installed larger AC cable gland.
remove the sealing nut
with a torque of 16-17
Nm (~12.2 lbf-ft)
2. Set the sealing and lock nuts aside for reuse.
sealing nut
pre-installed
AC cable gland
(large)
lock nut
3. Store the pre-installed AC cable gland (large).
4. Install the supplied AC cable gland (small) onto the unit.
sealing nut
replace the sealing nut
with a torque of 12-13 Nm
(~9.2 lbf-ft)
supplied AC cable
gland (small)
lock nut
5. Proceed with “AC Cable Connection” steps.
3–14
975-0768-01-01 Rev G
Cabling and Wiring
PV Array Connection
DANGER
ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH HAZARDS
•
Apply appropriate personal protective equipment (PPE) and follow safe
electrical work practices.
• This equipment must only be installed and serviced by qualified electrical
personnel.
• Never energize the inverter with the covers removed.
• Do not open fuse holders under load. The fuse must be de-energized from
all sources before servicing.
• The inverter is energized from multiple sources. Before removing covers
identify all source, de-energize, lock-out, and tag-out and wait 10 minutes.
• Always use a properly rated voltage sensing device to confirm all circuits
are de-energized.
• Replace all devices and covers before turning on power to this equipment.
• The DC conductors of this photovoltaic system are ungrounded and may
be energized.
Failure to follow these instructions will result in death or serious injury.
DANGER
ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH HAZARDS
•
Be careful when handling cables from PV arrays. PV arrays produce
electrical energy when exposed to light.
• Check that the PV impedance to ground is within specifications before
connecting the PV array to the inverter.
Failure to follow these instructions will result in death or serious injury.
PV Input Configuration
The CL-60 PV Inverter has a PV input area and is equipped with a built-in
Maximum Power Point Tracker (MPPT).
NOTICE
EQUIPMENT DAMAGE
•
Check and make sure that the voltage capacity rating of each PV array is
less than 1000 V.
•
Check that the maximum short circuit current on the DC side is within
specifications.
Failure to follow these instructions may cause inverter damage.
975-0768-01-01 Rev G
3–15
Electrical Connections
To make full use of the DC input power, PV modules should be homogenous. This
means that each module in the PV string must be of the same type and the same
number of PV cells. All the PV strings should have identical tilt and orientation.
Before connecting a PV string to the inverter, the following electrical parameters
must be met.
Total DC power limit
Max. open-circuit
voltage limit for each
input
Short-circuit current
limit
67500 Wa
1000 V
140 A
a.Multiply by a factor of 1.35 for over-panelling.
Considering the negative voltage temperature coefficient of PV cells, more
attention should be paid to the open-circuit voltage of PV strings when the
ambient temperature is the lowest. For example, consider the YL250P-29bPV
module.
Item
Parameter
PV module model
YL250P-29b
Power
250W
Open-circuit voltage (STC)
37.6V
Short-circuit current (STC)
8.92A
Open-circuit voltage temperature
coefficient ()
-0.32%/°C
No. of PV modules in a PV string
23
Under the STC condition, where ambient temperature is 25 °C, the open-circuit
voltage of PV cells is
37.6 V × 23 = 864.8 V < 1000V
Suppose that the lowest temperature is -25 °C, the open-circuit voltage of PV
cells is
23 × 37.6 V × [1 + β × (min. ambient temperature – STC temperature)] = 23 × 37.6 V × [1 + (0.32%/°C) × (-25°C – 25°C)] = 990V < 1000V (meets the operational requirement)
Therefore, the PV string should be designed to meet the open-circuit voltage
requirement even under the lowest ambient temperature condition.
3–16
975-0768-01-01 Rev G
Cabling and Wiring
PV Input Connection
DC input cables are connected to the PV input terminals of the inverter. DC
cables from the PV string should be equipped and terminated with MC4
connectors (CL-60E/CL-60JP only) or Amphenol H4 connectors (CL-60A only).
NOTE: To maintain the IP65 / Type 4X protection rating, use only the supplied DC
connectors (MC4 or H4). When replacing lost connectors, they have to match the
same supplied connectors. Using other connectors will invalidate the warranty.
Table 3-3 DC Cable Requirements
Crosssectional area
Cable External
diameter
Max input
Max. withstand current for
voltage
each PV string
CL-60E
CL-60JP
4 to 6 mm2
6 to 9 mm
1000 V
15 Aa
CL-60A
12 to10 AWG
6 to 9 mm
1000 V
30 Ab
(2 combined
strings)
Model
a.The recommended current of each DC input should be less than 12 A. Otherwise, the fuse may blow.
b.The recommended current of each DC input should be less than 24 A. Otherwise, the fuse may blow.
DC Cable
Connection
To connect DC input cables to the inverter:
DANGER
ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH HAZARD
•
Apply appropriate personal protective equipment (PPE) and follow safe
electrical work practices.
• This equipment must only be installed and serviced by qualified electrical
personnel.
• Never energize the inverter with the covers removed.
• Do not open fuse holders under load. The fuse must be de-energized from
all sources before servicing.
• The inverter is energized from multiple sources. Before removing covers
identify all source, de-energize, lock-out, and tag-out and wait 10 minutes.
• Always use a properly rated voltage sensing device to confirm all circuits
are de-energized.
• Replace all devices and covers before turning on power to this equipment.
• The DC conductors of this photovoltaic system are ungrounded and may
be energized.
• Do not connect to the DC circuit breaker until all inverter electrical
connections are completed.
Failure to follow these instructions will result in death or serious injury.
975-0768-01-01 Rev G
3–17
Electrical Connections
1. Strip off 7 mm (~¼ inch) of insulation layer from all DC cables. Use a
standard wire stripper.
7mm
2. Terminate the cable ends with their matching crimp pins (supplied with the
DC connector) as shown.
CAUTION
FIRE HAZARD
Use only the recommended crimping tool from Multi-Contact (http://www.multicontact-usa.com/ for CL-60E) and Amphenol (https://www.amphenol.com/ for
CL-60A). Any other crimping tool may create improperly crimped cables and
wires which can cause sparks and a short circuit.
Failure to follow these instructions can result in moderate or minor injury.
Positive (+)
crimp pin
Negative (–)
crimp pin
Positive (+) red
cable
Negative (–)
black cable
NOTE: Do not
interchange the
crimp pins.
3. Lead and route the cable through the cable gland of the DC connector.
4. Insert the crimp pin into the insulator cap until it snaps into place.
3–18
975-0768-01-01 Rev G
Cabling and Wiring
5. Pull the cable away from the insulator cap to make sure the cable does not
disconnect from the cap.
Positive (+) insulator cap
Negative (–) insulator cap
crimp pin
crimp pin
cable
gland
cable
gland
NOTE: MC4 connectors
shown here.
6. Tighten the cable gland onto the insulator cap with a torque of 2.5-3 Nm
(2 lbf-ft). Use a pair of connector tool spanners, if available.
7. Check to make sure the polarities of the PV string’s DC cables are correct.
The DC cable must match its insulator cap (positive cable = positive
insulator cap, negative cable = negative insulator cap).
NOTE: The inverter will not function properly if the DC polarities are reversed.
8. Turn the CL-60’s DC switch to OFF position.
OFF
ON
975-0768-01-01 Rev G
3–19
Electrical Connections
9. Double check the polarity of the DC cables and then check the open-circuit
voltage and make sure it does not exceed the inverter’s input limit of 1000 V
(even under the lowest operating temperature).
880.0
+
-
NOTE: Use a calibrated
professional digital multimeter.
NOTICE
EQUIPMENT DAMAGE
•
Check the positive and negative polarity of the PV cells. After confirming
the correct polarities, insert the DC connectors into the PV input terminals
of the inverter.
•
Check every PV array in the string and avoid reversing the polarities.
Failure to follow these instructions may damage the inverter and other
connected equipment.
10. Insert the positive and negative DC connectors into the PV input terminals on
the inverter until a clear clicking sound is heard.
11. Repeat the steps for each PV string in the PV array.
12. Seal the unused DC terminals with waterproof plugs.
NOTE: For CL-60E/CL-60JP inverters, use an external 15 A in-line fuse
connector (see Figure 3-3 on page 3–21) on the negative line, if required by
local installation codes (such as in the UK, France, and Australia). For CL-60A
inverters, use a Y-type connector with 15 A in-line fuses (see Figure 3-4 on page
3–21), one in each branch.
3–20
975-0768-01-01 Rev G
Cabling and Wiring
Connectors
The following are illustrations and product information of the different connectors.
Figure 3-3 In-line fuse connector
An in-line fuse connector (see Figure 3-3) is available to purchase from
Multi-Contact for PV Inverter Inverters. To order, use the following part number:
•
Part No.: 55000128-0050UR
•
Description: PV-K/ILF 15/6N0050-UR in-line fuse harness
Figure 3-4 Y-type connectors with in-line 15A fuse
Y-type connectors with in-line 15A fuse (see Figure 3-4) are available from
Amphenol ([email protected]) for CL-60A Inverters. Use the following
part numbers to order:
975-0768-01-01 Rev G
•
H4YY-PV-686077-001
•
H4YX-PV-686078-001
•
213015 ASSY-Fuse, 1000V, 15A, CNCTR, M-F
3–21
Electrical Connections
Grounding the Inverter
WARNING
ELECTRIC SHOCK HAZARD
Do not ground either DC positive or negative poles of the PV string. The
Conext CL-60 PV Inverter does not isolate the PV from the grid.
Failure to follow these instructions can result in death or serious injury.
Grounding System Overview
In this PV system, all non-current carrying metal parts and device enclosure
should be grounded (such as the PV array frame and the inverter enclosure).
When there is only one inverter in the PV system, the PE cable must be
grounded.
When there are multiple inverters in the PV system, they can be grounded at
multiple points. Connect the PE cables of all the inverters and the mounting metal
frames of the PV array to the equipotential cable (depends on the situation at the
site) in order to establish an equipotential connection. See Figure 3-5.
Figure 3-5 Grounding of Single or Multiple PV Inverters
3–22
975-0768-01-01 Rev G
Cabling and Wiring
Second Protective Earth Terminal
The Conext CL-60 PV Inverter is equipped with a second protective earth (PE)
terminal as specified in IEC/EN 62109-1.
Position of Second
PE Terminal
There is a second PE terminal on the right side of the inverter. Perform a PE
connection, if necessary.
Figure 3-6 Second PE Terminal
Cable Connection
To connect a PE cable to the PE terminal:
◆ Follow the illustration below.
cable connector
parts are not
supplied
flat washer
spring washer
screw M6x12
ground cable 16 mm2 (5 AWG)
Figure 3-7 PE Terminal Connection
975-0768-01-01 Rev G
3–23
Electrical Connections
Communication Connection
Overview
The Conext CL-60 PV Inverter has two waterproof communication connection
terminals inside the wiring box. There are RS-485 A/B terminals, an RS-485
interface and an Ethernet interface which are provided on the communication
circuit board of the wiring box. A 120 terminating resistor can be connected
between the A and B communication cable through the dip switch.
Figure 3-8 Communication Configuration
PV Inverter operational information can be transferred to a local data logging
device through an RS-485 or Ethernet-based communication connection using
the Conext CL EasyConfig Tool.
NOTE: Before proceeding, plan and prepare the correct type of RS-485
communication cables and the RJ45 plug.
The RS-485 cables should be either of these two:
•
shielded twisted pair cable
•
shielded twisted pair Ethernet cable
A converter such as the RS-485-232 converter is needed to convert signals
between the PV Inverter and the computer.
A network interface is an optional function. Contact http://solar.schneiderelectric.com for information.
3–24
975-0768-01-01 Rev G
Communication Connection
RS-485 Communication System
For A Single PV
Inverter
One RS-485 cable is needed for this connection.
Figure 3-9 RS-485 Single Inverter Connection
Table 3-4 RS-485 Single Inverter Connection
Communication connection
(RS-485 bus connection or RS-485RJ45 connection)
PV Inverter
RS-485 bus
RJ45
Terminating
Resistor
Single inverter
out only
out only
No
RS485in
RS485 out
OFF
ON
A B GND
For Multiple
Inverters
A number of RS-485 cables is needed for multiple connections. A simple formula
of X = n – 1, where X is the number of RS-485 cables needed and n is the total
number of PV Inverters. The inverters are inter-connected by daisy chain and the
first and last inverters in the chain must be terminated with a 120 resistor. The
shielding layer of the RS-485 cable should be single-point grounded.
The total length of RS-485 communication cable should be less than 1000 m.
975-0768-01-01 Rev G
3–25
Electrical Connections
Table 3-5 RS-485 Multiple Inverter Connections
Communication connection
(RS-485 bus connection or RS-485RJ45 connection)
Terminating
Resistor
PV Inverter
RS-485 bus
RJ45
n15
n15
Inverter 1
out only
out only
No
Yes
RS485in
RS485 out
OFF
ON
OFF
ON
A B GND
Inverter 2 to n–1
in and out
in and out
No
No
OFF
ON
Inverter n
in and out
in and out
No
Yes
OFF
ON
3–26
OFF
ON
OFF
ON
975-0768-01-01 Rev G
Communication Connection
RS-485
Communication
Connection
To connect an RS-485 cable to the terminal:
1. Lead and route the network cable through a communication cable gland to
the communication circuit board.
NOTICE
INVERTER DAMAGE
For the CL-60A, acquire and use a NEMA 4/4X-rated conduit hub as required
that will fit a 3/4” trade size knockout.
Failure to follow these instructions may cause leakage and damage to the
inverter.
2. Strip off the insulation layer of the communication cable. Connect the A, B,
and GND wires of the RS-485 communication cable to their corresponding
terminals which are labeled on the communication circuit board.
3. Applies to multiple inverters. Repeat steps 1 and 2 according to the position
of the inverter (refer to Table 3-5 on page 3–26). For a single inverter refer
only to Table 3-4 on page 3–25.
4. Pull cable/s out gently to make sure they do not disconnect from the terminal.
5. Switch the terminating resistor to ON or OFF, according to the position of the
inverter in the case of multiple inverters (refer to Table 3-5 on page 3–26). For
a single inverter refer only to Table 3-4 on page 3–25.
6. Tighten the sealing lock to seal off the vacant terminals to prevent dust and
moisture from penetrating the inverter.
7. Replace the front cover of the inverter enclosure, if there is no other
connection procedures to be done.
8. Connect the other end of the communication cables to their respective
devices. Refer to the manuals of 3rd party devices.
9. Confirm that there is a communication connection between the
interconnected devices and set the communication parameters.
NOTE: If more than one inverter is connected to computer or logging device, set
the RS-485 communication parameters from the LCD Display. For more
information, see “Communication Parameter Setting” on page 5–38.
NOTE: Contact a local Schneider Electric sales representative and order a
TeSys TCSMCNAM3M002P or equivalent.
RS232/RS485/RS422
975-0768-01-01 Rev G
3–27
Electrical Connections
RJ45-RS-485
Communication
Connection
To connect an RS-485 RJ45 cable to the ports:
1. Lead and route the network cable through a communication cable gland to
the communication circuit board.
2. Use an Ethernet crimper to crimp the cables and terminate it with an RJ45
plug according to TIA/EIA 568B.
With the Ethernet cable, Pin 4(blue cable) defines the RS-485+ A while Pin 5
(white-blue cable) defines the RS-485– B.
Figure 3-10 RS-485 RJ45 Pin Wiring Schematic
3. Connect the RJ45 plug into the RS-485 in/RS-485 out terminal on the
communication circuit board.
4. Applies to multiple inverters. Repeat steps 1 to 3 according to the position
of the inverter (refer to Table 3-5 on page 3–26) to connect the other RS-485
cables to the RS-485 out/RS-485 in terminal. For a single inverter refer only
to Table 3-4 on page 3–25.
5. Pull cable/s out gently to make sure they do not disconnect from the terminal.
6. Switch the terminating resistor to ON or OFF, according to the position of the
inverter in the case of multiple inverters (refer to Table 3-5 on page 3–26). For
a single inverter refer only to Table 3-4 on page 3–25.
7. Tighten the sealing lock to seal off the vacant terminals to prevent dust and
moisture from penetrating the inverter.
8. Replace the front cover of the inverter enclosure, if there is no other
connection procedures to be done.
9. For the wires which connect to the logging devices, use the Ethernet wire
stripper to strip the insulation layer and connect the RS-485 A and B cables
to data logging device or RS-485-232 converter. Pin 4 (blue cable) defines
RS-485(+) pos A while Pin 5 (white-blue cable) defines RS-485(–) neg B.
Refer to the manuals of 3rd party devices.
10. Confirm that there is a communication connection between the
interconnected devices and set the communication parameters.
NOTE: If more than one inverter is connected to the computer or logging device,
set the RS-485 communication parameters from the LCD Display. For more
information, see “Communication Parameter Setting” on page 5–38.
3–28
975-0768-01-01 Rev G
Communication Connection
NOTE: The CL Easy Config Tool and the RS-485-232 converter are optional
parts. You may also purchase a TeSys TCSMCNAM3M002P converter from an
authorized Schneider Electric distributor.
pin 5
RS232/RS485/RS422
pin 4
Ethernet Connection
Connect the PV Inverter to a computer through Ethernet network ports. Ethernet
communication can be set up as either single, daisy chain, or star topology.
The following illustrations show the various network configurations.
Inverter
computer
Router/switch
remote monitoring
Figure 3-11 Single PV Inverter Network Connection
975-0768-01-01 Rev G
3–29
Electrical Connections
Inverter 1
computer
Inverter 2
Router/switch
remote monitoring
Inverter n
Figure 3-12 Communication Connection in Star Topology
Router/switch
Inverter 1
Inverter 2
Inverter n
computer
remote monitoring
Figure 3-13 Multiple PV Inverters Network Connection in Daisy Chain Topology
NOTE: Damage to one device on the daisy chain network can affect
communications between all devices on the network.
Inverter
computer
Figure 3-14 Direct Network Connection of a Single PV Inverter
3–30
975-0768-01-01 Rev G
Communication Connection
Inverter 1
Inverter 2
Inverter n
computer
Figure 3-15 Direct Network Connection of Multiple PV Inverters
NOTE: The maximum number of inverters which can be connected in the daisy
chain depends on the converter, data logging device, and other factors. Refer to
the manual of the converter or data logging device to obtain the manufacturer’s
limit number.
The length of each network cable should be less than 100 m.
Only qualified personnel should be allowed to set or change Ethernet
connectivity parameters.
Ethernet
Connection
Procedure
To establish an Ethernet connection:
1. Lead and route the network cable through a communication cable gland to
the communication circuit board.
Remove or install the communication cable glands at the bottom of the wiring
box using the torque guidelines for CL-60E: Torque of 3.5 Nm (~9.2 lbf-ft).
NOTICE
INVERTER DAMAGE
For the CL-60A, acquire and use a NEMA 4/4X-rated conduit hub as required
that will fit a 3/4” trade size knockout.
Failure to follow these instructions may cause leakage and damage to the
inverter.
2. Use an Ethernet crimper to crimp the cables and terminate it with an RJ45
plug according to TIA/EIA 568B.
Figure 3-16 Ethernet RJ45 Pin Wiring Schematic
3. Connect the RJ45 plug into the NET in/NET out terminal on the
communication circuit board.
975-0768-01-01 Rev G
3–31
Electrical Connections
4. Applies to multiple inverters. Repeat steps 1 to 3 according to the position
of the inverter (refer to Table 3-5 on page 3–26) to connect the other Ethernet
cables to the NET in/NET out terminal. For a single inverter refer only to
Table 3-4 on page 3–25.
5. Pull cable/s out gently to make sure they do not disconnect from the terminal.
6. Tighten the sealing lock to seal off the vacant terminals to prevent dust and
moisture from penetrating the inverter.
7. Replace the front cover of the inverter enclosure, if there is no other
connection procedures to be done.
8. For the wires which connect to the logging or switch devices, use the
Ethernet wire stripper to strip the insulation layer and terminate the cable with
an RJ45 plug and then connect to the other devices. Refer to the manuals of
3rd party devices.
9. Confirm that there is a communication connection between the
interconnected devices and set the communication parameters.
NOTE: If more than one inverter is connected to the computer or logging device,
set the Ethernet communication parameters from the LCD Display. For more
information, see “Communication Parameter Setting” on page 5–38.
3–32
975-0768-01-01 Rev G
4
Commissioning
Chapter 4 contains information about:
• Inspection Before Commissioning
• Commissioning Procedure
975-0768-01-01 Rev G
4–1
Commissioning
Inspection Before Commissioning
Check the following before starting the PV Inverter.
❑ The PV Inverter is accessible for operation, maintenance, and service.
❑ Check to confirm that the inverter is stable and fixed on the wall/metal frame.
❑ Check for ventilation.
❑ Check for and remove any object such as tools and extra screws on top of
the PV Inverter.
❑ Check that the PV Inverter and its accessories are connected securely.
❑ The cables are routed through the cable glands and protected against
potential mechanical damage. Do not overtighten the sealing locks.
❑ The AC circuit breaker is installed and the cables are properly connected.
❑ The AC terminals are properly torqued according to recommended torque
settings (see “Summary of Torque Values” on page 2–15). Check both top
and bottom terminals and adjust accordingly.
❑ The PV cables with MC4 DC cable connectors (for the CL-60E/CL-60JP) and
Amphenol® H4 DC cable connectors (for the CL-60A) are properly
connected to the DC input terminals of the inverter.
❑ The terminals which are not being used inside the wiring box are sealed.
❑ For the CL-60A, check if the communication and AC cable knockouts were
installed with NEMA 4/4X-rated conduit hubs as required that will fit a 3/4”
trade size and 2” trade size knockouts, respectively.
❑ The product warning label and rating label are affixed permanently and not
peeling off from the product.
Commissioning Procedure
Make sure that “Inspection Before Commissioning” is done before operating
the inverter.
1. Close (turn On) the AC circuit breaker.
2. Close (turn On) the DC disconnect device from the PV string (or array).
3. Rotate the DC switch to the ON position.
4. Observe the LCD Display.
Suppose there is sufficient sunlight and enough DC power, the PV arrays
shall initialize and supply DC power to the PV Inverter.
The LCD Display is activated when DC voltage exceeds the inverter’s startup
voltage.
5. Press
4–2
to choose the country code. Press
to confirm.
975-0768-01-01 Rev G
Commissioning Procedure
A WARNING message appears.
NOTE: Read the warning message and proceed accordingly. Select the
country code according to the installation country of the inverter.
Each country code represents corresponding local protective parameters
that have been preset before delivery. Before country setting, there is a
warning screen.
After setting the country code, proceed with setting other parameters in
accordance with the specific requirements of the local grid. Check
thoroughly if the set parameters meet the local grid requirement.
NOTICE
EQUIPMENT DAMAGE
Reset the protection parameters as dictated in “Protection Parameter Setting”
on page 5–33 if the country code was not set correctly during commissioning.
Failure to follow these instructions can result in equipment damage.
6. Press
to choose the Grid Code. Press
to confirm.
Depending on the country code set in the previous step, the grid code
screens shall vary. Refer to the table below for information.
Country Code Grid Code Screen
Description
GR
GR_L = inland Greece
Grid codes
GR_L
GR_IS = island of
Greece
GR_IS
DE
Grid codes
LV
LV = low-voltage grid
MV = medium-voltage
grid
MV
TK
Grid codes
applies to Turkey
AG
YG
975-0768-01-01 Rev G
4–3
Commissioning
Country Code Grid Code Screen
Description
TH
applies to Thailand
Grid codes
220V
230V
Other
Grid codes
50Hz
applies to countries
with these two grid
frequencies
60Hz
7. Press
to choose the local Pro-Stage. Press
Pro-Stage
Pro-Stage
Single-stage
Multi-stage
8. Press
to move the cursor and then press
and time. Press
Time
to confirm.
For detailed
information, see
“Protection Parameter
Setting” under “Multistage Protection
Parameters
Explanation” on
page 5–36.
to set the local date
to confirm.
Time
YY/MM/DD
Date: 15/01/31
Set the inverter time to
local time. Incorrect
time setting will affect
the data logging.
Time: 10:06:13
4–4
975-0768-01-01 Rev G
Commissioning Procedure
9. Check and confirm all the settings. Press
to confirm. Press
to
exit and reset.
Setting
confirmation
--
Setting confirmation
Countries
Pro-Stage
Grid codes
Date
DE
Single-stage
LV
2015/01/31
Confirm above settings?
10. Observe the status of the LED indicators and the LCD Main Screen. The PV
Inverter now enters into the startup process.
--
--
001
P-ac
P(%)
110
E-day
E-tot
50
0
5
t
8 11 14 17 20 23
State
110.0%
If commissioning succeeds, the RUN
60.000 kW
kW
h
15.6 kWh
497600 kWh
kW
Run h
2015 /01/31 10:30
LED indicator will light up and
Run will be displayed on State.
If commissioning does not succeed, the ALERT
up and Fault will be displayed on the screen. Press
LED indicator will light
to view Current
Fault information. Remove the cause of the detected event and then repeat
the “Commissioning Procedure”.
975-0768-01-01 Rev G
4–5
Commissioning
•THIS PAGE INTENTIONALLY BLANK•
4–6
975-0768-01-01 Rev G
5
LCD Display
Operation
Chapter 5 contains information about:
• Description of the Selection Buttons
• Menu Tree
• Main Screen
• Contrast Adjustment
• Checking Running Information
• Checking History Information
• Starting/Stopping
• Password Entry
• System Parameter Setting
• Running Parameter Setting
• Protection Parameter Setting
• Communication Parameter Setting
975-0768-01-01 Rev G
5–1
LCD Display Operation
Description of the Selection Buttons
The CL-60 PV Inverter has two selection buttons for looking up information and
configuring the settings (changing the parameters). The two buttons have
multiple functions.
Button
Operation
Description
Press for less than two
seconds
Move upwards or
downwards or scroll
among set values.
Press for more than two
seconds
Return to the previous
menu or cancel the
command.
Press for less than two
seconds
Move left or right, or turn
pages.
Press for more than two
seconds
Enter into the sub-menu
or confirm the command.
NOTE:
5–2
•
After one minute of no button activity, the LCD backlight turns off.
•
After two minutes of no button activity, the interface system returns to the
default screen (the Main Screen).
975-0768-01-01 Rev G
Menu Tree
Menu Tree
Figure 5-1 Menu Tree
975-0768-01-01 Rev G
5–3
LCD Display Operation
Main Screen
After commissioning is finished, the LCD Display will show the Main Screen.
Device address
001
P-ac
P(%)
110
60.000 kW Present power
kW
h
Today’s energy
15.6 kWh
E-day
Power curve
E-tot
50
0
5
t
8 11 14 17 20 23
info icons +
active power limit
Total energy
497600 kWh
kW
Inverter state
Run h
State
110.0%
(see Table 5-1)
2015 /01/31 10:30 Date and Time
Figure 5-2 Main Screen (Default Screen)
Table 5-1 Description of the Inverter States
State
Description
Run
After being energized, the inverter tracks the PV arrays’
maximum power point (MPP) and converts the DC power into
AC power. This is the normal operational mode.
Standby
The inverter enters Standby mode when DC Input is
insufficient. In this mode, the inverter will wait within the
Standby duration (set by user, see “Main Screen of Runparam” on page 5–18).
Stop
Inverter operation is stopped.
Key-stop
The inverter will stop operation manually via the LCD Menu. In
this way, the inverter’s internal DSP stops. To restart the
inverter, manually start from the LCD Menu.
Start…
The inverter is initializing and synchronizing with the grid.
Upd-fail
Firmware upgrade failure.
Fault
If a ground fault (or any event) is detected, the inverter will
automatically stop operation, disconnect the AC relay, and display
the ground fault (or event) code on the LCD Display with the
ALERT
indicator on.
Once the ground fault (or event) is removed in recovery time
(to set, see “Main Screen of Run-param” on page 5–18), the
inverter will automatically resume running.
5–4
Warning
Warning information is detected.
Dispatch
Happens when the inverter’s output power is lowered by active
control method. This means that the user is selectively
reducing output power as opposed to being forced, such as,
when derating.
975-0768-01-01 Rev G
Main Screen
If the inverter detects a ground fault or any event, press
or
to view
the event code. To know the meaning of the code, see “LCD Screen” on page 6–
4.
Table 5-2 Info Icons Description
Icon
Description
Inverter is in firmware update
process.
Inverter in power derating state.
Fans are operational.
Inverter is operating in warning
state.
975-0768-01-01 Rev G
5–5
LCD Display Operation
Contrast Adjustment
1. Press
to enter into the contrast adjustment screen.
50%
2. Press
value.
to increase the setting value and press
3. Press
to confirm the contrast setting.
to decrease the
Contrast adjustment range: 0 to 100%
Recommended value: 50% or 60%.
Checking Running Information
The Main Screen displays some basic information about the inverter. For more
detailed information, operate as follows:
Main Screen (Press
) -> Menu -> Run-inform (Press
)
The LCD Display will show the detailed running information.
Scroll pages by pressing
/
.
DC power input: the total PV input
power.
Vdc[V]: DC voltage of each input.
Idc[A]: DC current of each input.
Pdc[W]: DC power of each input.
DC current info: total current for each
DC line.
5–6
DC‐1: 0.00 A
DC‐6: 0.00 A
DC‐ 11: 0.00 A
DC‐2: 0.00 A
DC‐7: 0.00 A
DC‐12: 0.00 A
DC‐3: 0.00 A
DC‐8: 0.00 A
DC‐13: 0.00 A
DC‐4: 0.00 A
DC‐9: 0.00 A
DC‐14: 0.00 A
DC‐5: 0.00 A
DC‐10: 0.00 A
975-0768-01-01 Rev G
Checking Running Information
Vac[V]: Phase voltage
Iac[A]: Phase current
R
S
T
Pac[W]: AC output of each phase
Vac[V]
230.0
230.0
230.0
F[Hz]: Frequency of each phase
Iac[A]
6.0
6.0
6.0
NOTE: CL-60E/CL-60JP models show
Line-to-Neutral (L-N) phase voltages.
Pac[W]
0000
0000
0000
F[Hz}
00.00
00.00
00.00
R‐S
S‐T
T‐R
Vac[V]
0.0
0.0
0.0
Iac[A]
0.0
0.0
0.0
R
S
T
0.0
0.0
0.0
CL-60A models show Line-to-Line (LL) phase voltages.
F[Hz}
CO2-reduce: Total CO2 emission
reduction due to the inverter’s energy
output.
E-month: Energy generated this
month.
h-Total: Total running hours of the
inverter.
T-today: Inverter running time today.
Temp: Internal temperature of the
inverter.
ISO: DC string input cable insulation
resistance to the ground.
P-W: Inverter output active power.
S-Va: Inverter output apparent power.
Country: Inverter selected country
code (see “Country Setting” on
page 5–33)
Grid code: Inverter selected grid code
(see “Grid Codes” on page 5–35)
975-0768-01-01 Rev G
5–7
LCD Display Operation
Checking History Information
Checking Running Records
Main Screen (Press
(Press
) -> Menu (Press
twice, Press
, Press
) -> Run-record (Press
) -> His-inform
)
On the Run-record screen, scroll
pages by pressing
, and press
to select the date you want to
view. Confirm by pressing
.
LCD Display shows the running
records. Press
and press
to turn pages
to view the records of
the selected date.
CL-60E/CL-60JP
CL-60A
5–8
975-0768-01-01 Rev G
Checking History Information
Checking Fault (Event) Records
Main Screen (Press
(Press
) -> Menu (Press
) -> Flt-record (Press
, Press
) -> His-inform
)
On the Flt-record screen, scroll pages
forward by pressing
, and press
to scroll pages backward.
NOTE: The inverter can only store the 100 most recent fault (event) records.
Checking History Event Records
Main Screen (Press
) -> Menu (Press
(Press
) -> Evt-record (Press
, Press
, Press
) -> His-inform
)
On the Evt-record screen, scroll
pages forward by pressing
press
, and
to scroll pages backward.
NOTE: The inverter can only store the 100 most recent event records.
975-0768-01-01 Rev G
5–9
LCD Display Operation
Checking Energy Records
Main Screen (Press
) -> Menu (Press
(Press
) -> Energy-record (Press
, Press
, Press
) -> His-inform
)
The LCD Display shows the energy
records. Press
: to view various
energy records such as power curve,
daily energy histogram, monthly
energy histogram, and annual energy
histogram.
Power curve: shows the power output
from 5am to 11pm in a single day.
Each point in the curve is the
percentage of present power and
nominal power. Press
or
to view the power curve of the latest 7
days.
Daily energy histogram: shows the
power output every day in the current
month. Press
or
to view
the daily energy of the latest 12
months.
Monthly energy histogram: shows the
power output every month in a year.
Press
or
to view the
monthly energy of the latest 15 years.
5–10
975-0768-01-01 Rev G
Starting/Stopping
Annual energy histogram: shows the
power output every year. Press
or
to view the annual energy of
the latest 90 years.
Starting/Stopping
Main Screen (Press
) -> Menu (Press
twice) -> Start/Stop (Press
)
Start/Stop
Press
to choose Start/Stop and
press
to confirm the choice.
Press
to confirm.
Start
Confirm start inverter ?
Stop
Confirm stop inverter ?
975-0768-01-01 Rev G
5–11
LCD Display Operation
Password Entry
Parameter setting is password-protected. To set the parameters, you should
enter the correct password.
1. Press
to enter the Menu Screen.
2. Press
to move the cursor to Set-param and confirm by pressing
.
A password confirmation screen appears.
3. Press
111111.
to move cursor right and press
to input the password
4. Press
to confirm the password and enter the Set-param sub-menu.
Set-param
Sys-param
Run-param
Pro-param
Com-param
Advanced Settings
5–12
975-0768-01-01 Rev G
System Parameter Setting
System Parameter Setting
There are various user-configurable system parameters. Configure the system
parameters after entering the correct password.
Language Setting
Main Screen (Press
) -> Menu (Press
(Press
) -> Enter password (Press
Press
) -> Languages (Press
If Auto is selected for languages, the
three times) -> Set-param
) -> Sys-param (Press
,
)
Sys‐param
inverter system language will be the
Languages
language of the country selected.
Time
Energy‐adj
Load default
Firmware version
Languages
English
Francaise
Spanish
975-0768-01-01 Rev G
5–13
LCD Display Operation
Time Setting
Incorrect time may cause problems in data logging. Adjust the inverter’s time
setting according to local time.
Main Screen (Press
(Press
) -> Menu (Press
) -> Sys-param (Press
Press
to move the cursor and
press
to change value.
Press
to confirm.
, Press
three times) -> Set-param
) -> Time (Press
)
NOTE: If the inverter’s internal clock is required to be highly accurate then a
separate program may be required to synchronize the internal clock with a
network time server.
Contact technical support at: http://solar.schneider-electric.com/tech-support, if
there is still time deviation after calibration.
5–14
975-0768-01-01 Rev G
System Parameter Setting
Total Energy Deviation Adjustment
If the accumulative value E-total in the inverter is different from the value in the
external metering device, adjust energy by setting Energy-adj.
Main Screen (Press
) -> Menu (Press
three times) -> Set-param
(Press
) -> Enter Password (Press
) -> Sys-param (Press
Press
twice) -> Energy-adj (Press
)
Press
to move the cursor and
press
to change value.
Press
to confirm.
,
The positive symbol “+” can be
changed to the negative symbol “-”.
The adjustment range is from -9999 to
+9999 kWh.
(Energy-adj value)= (Real measured
value) - (E-tot reading value).
975-0768-01-01 Rev G
5–15
LCD Display Operation
Load Default (Factory Reset)
NOTE: All historical information will be permanently deleted. All parameters will
return to their default values except the protective parameters and time, once
the Load default operation is performed.
Main Screen (Press
) -> Menu (Press
three times) -> Set-param
(Press
) -> Enter Password (Press
) -> Sys-param (Press
Press
three times) -> Load Default (Press
,
)
Sys‐param
Press
to confirm.
Confirm resume setting?
5–16
975-0768-01-01 Rev G
System Parameter Setting
Checking Firmware Version
Main Screen (Press
) -> Menu (Press
three times) -> Set-param
(Press
) -> Enter Password (Press
) -> Sys-param (Press
Press
four times) -> Firmware version (Press
)
Inverter shows detailed firmware
information, including LCD version
and DSP version.
The firmware version information is
read-only.
,
CL‐60E
A1612160390
MDSP_CL‐60E_V11_V1_E
LCD_CL‐60E_V11_V03_U_M
CL-60E
CL‐60A
A1608180127
CL-60A
975-0768-01-01 Rev G
MDSP_CL‐60A_V11_V1_D
LCD_CL‐60A_V11_V03_S_M
5–17
LCD Display Operation
Running Parameter Setting
Main Screen of Run-param
Main Screen (Press
) -> Menu (Press
(Press
) -> Enter Password (Press
Press
) -> Run-param (Press
three times) -> Set-param
) -> Sys-param (Press
,
)
On the Run-param screen, press
to select one item and press
to enter the setting interface.
For each item, Press
to move
the cursor and press
to set the
appropriate value.
Press
to confirm.
NOTE: The Run-param screen varies
depending on the selected country. In this
example, the country selected is Italy.
5–18
975-0768-01-01 Rev G
Running Parameter Setting
NOTE: he Run-param screen varies depending on the selected country. The
following screens in the table are for reference only.
Table 5-3 Description of Running Parameters
Parameter
P-Q param
975-0768-01-01 Rev G
Description
Default
Range
P-W limits
Inverter active 110.0%
power
limitation
0 to 110%
Rate limit
Set the active
power
change rate.
When it is set
to ON, the
rate can be
raised or
lowered
(decline).
OFF
OFF/ ON
Power raise
When Rate
limit is ON, set
the active
power rise
rate.
100%/min
8 to 100%/min
Power
Decline
6000%/min
When Rate
limit is ON, set
the active
power decline
rate.
Fault slowup
Set the power
rise rate when
a fault is
removed.
When it is ON,
the active
power raise
rate can be
set.
ON
OFF/ ON
Slowup rate
Set the active
power raise
rate.
100%/min
8 to 100%/min
Save P-W
Setting
Set whether to OFF
save the
active power
setting.
OFF/ ON
Save Q-Var
setting
Set whether to ON
save the
reactive
power setting.
[Pt] / [Qt] /
[Off] / [Q(P)] /
[Q(U)] / ON
8 to 6000%/
min
5–19
LCD Display Operation
Table 5-3 Description of Running Parameters
Parameter
P-Q param
Time param
Derating param
5–20
Description
Default
Range
Q-Var switch
Set the
reactive
power
regulation
function.
OFF
OFF/ ON
PF
Inverter
output power
factor
+1.000
-1.000 to 0.800/ +0.800
to +1.000
Q-Var limits
Inverter
reactive
power
limitation
0.0%
0 to +100%/ 0
to -100%
Standby time
Time from
inverter
Standby to
Startup
20s
20 to 255s
Recover time
Time from
when inverter
fault is
removed to
Standby
30s
[IT: 300s]
0-900s
OFF
Set the
Derating
param to OFF
or ON. If it is
ON, the
inverter will
operate with
power
derating when
grid
frequency
exceeds the
set value.
OFF/ ON
975-0768-01-01 Rev G
Running Parameter Setting
Table 5-3 Description of Running Parameters
Parameter
Iso param
Description
ISO
ON
Set the ISO
protection
function to ON
or OFF. When
it is ON, the
inverter will
not connect to
the grid when
resistance to
the ground is
below the set
value.
ISO pro value Set the
resistance to
the ground.
975-0768-01-01 Rev G
Default
100K
Range
OFF/ ON
-
LVRT param
OFF
Set the LVRT
to OFF or ON.
When it is ON,
the inverter
can keep the
grid
connection for
a certain time
from when
grid fault
occurs and
provide
reactive
power for grid
recovery.
OFF/ ON
MPPT scan
Set to either
manual or
interval scan.
Manual
Manual/
Interval
Altitude
Set to the
inverter’s
operating
altitude.
3000 m
up to 4000 m,
derating at
> 3000 m
5–21
LCD Display Operation
Active/Reactive Power Parameters
Main Screen (Press
) -> Menu (Press
(Press
) -> Enter Password (Press
(Press
) -> P-Q param (Press
Save P‐W setting
[OFF]
Save Q‐Var setting
[ON]
three times) -> Set-param
, Press
) -> Run-param
)
Reactive Power Regulation
Inverter provides reactive power regulation function. Use the Q-Var switch
parameter to activate this function and select proper regulation mode.
Table 5-4 Explanation of Reactive Power Regulation Switch
5–22
Regulation Mode
Explanation
Pf
The reactive power can be regulated by the
parameter PF (Power Factor).
Qt
The reactive power can be regulated by the
parameter Q-Var limits (in %).
Off
The PF is limited to +1.000, and the “Q-Var
limits” is limited to 0.0%.
Q(P)
The PF changes with the output power of the
inverter.
Q(U)
The reactive power changes with the grid
voltage.
975-0768-01-01 Rev G
Running Parameter Setting
Pf Mode
The reactive power can be regulated by the parameter PF on the Run-param
screen.
Qt Mode
The reactive power can be regulated by the parameter Q-Var limits (in %) on the
Run-param screen.
Off Mode
Reactive power cannot be regulated. The PF is limited to +1.000, and the Q-Var
limit is limited to 0.0%.
Q(P) Mode (when the country selection is not “IT”)
PF changes with the inverter output
power.
If the country selection is not IT (Italy),
after selecting Q(P) Mode, Press
to enter the Run-param-Q(P)
submenu.
For each item, Press
to move
the cursor and press
to set the
appropriate value.
Press
to confirm.
Table 5-5 Q(P) Mode Parameters Explanation
Parameter
Explanation
Default
Range
Upper PF Cap
Power factor of
point P1 in the
Q(P) mode curve
1
0.9 to 1
Lower Powera
Output power of
point P1 in the
Q(P) mode curve
(in %)
50%
0% to 50%
Lower PF Ind
Power factor of
point P2 in the
Q(P) mode curve
0.9
0.9 to 1
Upper Powera
Output power of
point P2 in the
Q(P) mode curve
(in %)
100%
50% to 100%
a.Lower Power < Upper Power
975-0768-01-01 Rev G
5–23
LCD Display Operation
General Q (P) curve
COS Ф
Default Q(P) curve
COS Ф
P1
Upper PF
Cap
Capacitive
P/Pn
1
Lower Power
Power
Upper Power
L2
Lower PF
Ind
Upper PF
Cap =1
Lower Power
=50%
P1
Power
Upper Power
=100% P/Pn
Inductive
P2
Lower PF Ind
=0.9
P2
Figure 5-3 Reactive Power Regulation Curve in Q(P) Mode
Q(U) Mode (when the country selection is not “IT”)
The reactive power ratio changes with
the grid voltage.
If the country selection is not IT (Italy),
after selecting Q(U) Mode, Press
to enter the Run-param-Q(U)
submenu.
For each item, Press
to move
the cursor and press
to set the
appropriate value.
Press
to confirm.
Table 5-6 Q(U) Mode Parameters Explanation
5–24
Parameter
Explanation
Default
Range
Lower Q/Sn Ind
Inductive Q/Sn
value of point P4
in the Q(U) mode
curve
25%
0% to 50%
Upper Q/Sn Cap
Capacitive Q/Sn
value of point P1
in the Q(U) mode
curve
25%
0% to 50%
975-0768-01-01 Rev G
Running Parameter Setting
Table 5-6 Q(U) Mode Parameters Explanation
Parameter
Explanation
Default
Range
Lower U Limit
Grid voltage limit
(in %) of point P1
in the Q(U) mode
curve
80%
80% to 90%
Upper U Limit
Grid voltage limit
(in %) of point P4
in the Q(U) mode
curve
115%
110% to 115%
U1 Limita
Grid voltage limit
(in %) of point P2
in the Q(U) mode
curve
95%
95% to 100%
U2 Limita
Grid voltage limit
(in %) of point P3
in the Q(U) mode
curve
105%
100% to 105%
Hysteresisa
Hysteresis voltage
3%
width (in %)
0% to 5%
a.U1 Limit + Hysteresis < U2 Limit - Hysteresis
Q/Sn
Upper
Q/Sn Ind
P1
Hysteresis
P2
Lower U limit
U1 Limit
U2 Limit
P3
Upper U limit
Grid
voltage
Hysteresis
Lower
Q/Sn Cap
P4
Figure 5-4 Reactive Power Regulation Curve in Q(U) Mode
975-0768-01-01 Rev G
5–25
LCD Display Operation
Reactive Power Setting for Italy
If the Country selected is IT (Italy), several LCD Menus and operation methods
are different especially Run-param.
Italy Q(P) Mode
Power factor changes with the output
power of the inverter.
Select Q(P) mode and Press
to
enter into the Run-para-Q(P) submenu.
Press
to move the cursor; Press
to enter the editing mode, then
the selected parameter will be
shaded.
Press
to increase one-step
value; Press
to decrease one-
step value.
Press
to confirm the setting and
exit from the editing mode.
Table 5-7 Italy Q(P) Mode Parameters Explanation
Parameter
Explanation
Default
Range
Step
PAa
Active power at
point A (in %)
20%
20 to 100%
1%
PBa
Active power at
point B (in %)
50%
20 to 100%
1%
PCa
Active power at
point C (in %)
100%
20 to 100%
1%
Pf max
Power factor at
point C
0.9
0.9 to 1
0.01
Uinb
Enter Q(P)
regulation mode
when grid voltage
is above Uin
105%
100 to 110%
1%
Uoutb
Exit from the Q(P)
regulation mode
when grid voltage
is below Uout
100%
90 to 100%
1%
a.PA < PB  PC
b.Uin > Uout
5–26
975-0768-01-01 Rev G
Running Parameter Setting
cos
0.9(0.95(*))
Inductive
Default Curve
Capacitive
Deviation
No Regulation
cos = ± 0,98
0.9(0.95(*))
Depends on the capacity of the inverter .
Figure 5-5 Reactive Power Regulation Curve in IT Q(P) Mode
Italy Q(U) Mode
The reactive power ratio changes with
the grid voltage.
Select Q(U) mode and Press
to
enter into the Run-para-Q(U) submenu.
Press
to move the cursor; Press
to enter the editing mode, then
the selected parameter will be
shaded.
Press
value; Press
to increase one-step
to decrease one-
step value.
Press
to confirm the setting and
exit from the editing mode.
975-0768-01-01 Rev G
5–27
LCD Display Operation
Table 5-8 Italy Q(U) Mode Parameters Explanation
Parameter
Explanation
Default
Range
Step
a
Grid voltage at
point D (in %)
90%
90 to 110%
1%
V1ia
Grid voltage at
point C (in %)
92%
90 to 110%
1%
V2sa
Grid voltage at
point A (in %)
108%
90 to 110%
1%
V1sa
Grid voltage at
point B (in %)
110%
90 to 110%
1%
Qmax
The max. ratio of
reactive power (in
%)
90%
50 to 100%
1%
Pinb
Enter the Q(U)
regulation mode
when power is
above Pin
20%
20 to 100%
1%
Poutb
Exit from the Q(U)
regulation mode
when power is
below Pout
9%
1 to 20%
1%
Curve
Curve type
A
A/B
-
V2i
a.V2i < V1i < V1s < V2s
b.Pin > Pout
A
Inductive
A
B
B
-
Inductive
-
Capacitive
Capacitive
C
C
D
D
A: Default
B
Figure 5-6 Reference Reactive Power Regulation Curve in IT Q(U) Mode
5–28
975-0768-01-01 Rev G
Running Parameter Setting
Save P/Q-set
On the Save P/Q-set screen, press
to move the arrow to one item.
Press
to move the cursor and
Press
to set.
Press
to confirm.
Select ON to save the values set after
power down.
Select OFF to restore default values
ater power down.
Time Parameters
Main Screen (Press
) -> Menu (Press
param(Press
) -> Enter password (Press
param (Press
, Press
CL-60E/CL-60JP
975-0768-01-01 Rev G
three times) -> Set, Press
twice) -> Time-param (Press
) -> Run)
CL-60A
5–29
LCD Display Operation
Derating Parameters
Main Screen (Press
) -> Menu (Press
param(Press
) -> Enter password (Press
param (Press
, Press
three times) -> Set, Press
) -> Run-
three times) -> Derating param (Press
)
Derating param
Fre‐Derating
[ON/OFF]
F1
50.00 Hz
P1
100 %
F2
50.20 Hz
P2
100 %
F3
52.00 Hz
P3
100 %
ISO Parameters
Main Screen (Press
5–30
) -> Menu (Press
three times) -> Set-
param(Press
) -> Enter password (Press
param (Press
four times) -> ISO param (Press
, Press
) -> Run-
)
975-0768-01-01 Rev G
Running Parameter Setting
LVRT Parameter
Main Screen (Press
) -> Menu (Press
three times) -> Set-
param(Press
) -> Enter password (Press
param (Press
, Press
, Press
) -> Run-
five times) -> LVRT param (Press
)
Zero power mode
Zero power mode
Zero power mode
Zero power mode
Zero power mode
207.0V
001.50s
069.0V
000.62s
MPPT Scan Parameter
Main Screen (Press
) -> Menu (Press
three times) -> Set-
param(Press
) -> Enter password (Press
param (Press
six times) -> MPPT Scan (Press
, Press
) -> Run-
)
MPPT Scan
Manual scan
Interval scan
975-0768-01-01 Rev G
5–31
LCD Display Operation
Altitude Parameter
Main Screen (Press
) -> Menu (Press
three times) -> Set-
param(Press
) -> Enter password (Press
param (Press
seven times) -> Altitude (Press
, Press
) -> Run-
)
Altitude
Altitude
5–32
2000m
975-0768-01-01 Rev G
Protection Parameter Setting
Protection Parameter Setting
Protection parameters are designed for the threshold value that can trigger the
protection function of the inverter.
Main Screen (Press
) -> Menu (Press
three times) -> Set-
param(Press
) -> Enter password (Press
param (Press
)
Press
to move cursor and Press
, Press
twice) -> Pro-
to enter the password.
NOTE: The user can only check the parameter in this screen. The default values
of the protection parameters have been preset as per grid code of the
corresponding country.
To set the protection parameter, use the password: 111111
Country Setting
To make the protection parameters
setting convenient, the inverter
provides built-in protection
parameters for certain countries.
Press
to choose the country and
press
to confirm.
If the country selected is not in the list,
choose Other and then input the
protection parameters manually.
CL-60E/CL-60JP
CL-60A
975-0768-01-01 Rev G
5–33
LCD Display Operation
Table 5-9 Country Code Description
Country Code
Country
Language
GB
Great Britain
English
DE
Germany
English
FR
France
French
IT
Italy
English
ES
Spain
English
AT
Austria
English
AU
Australia
English
CZ
Czech
English
BE
Belgium
French
DK
Denmark
English
GR
Greece
English
NL
Netherlands
English
PT
Portugal
English
CN
China
English
CL-60E
SE
Sweden
English
RO
Romania
English
TH
Thailand
English
TK
Turkey
English
JP
Japan
Japanese
Other
Country not mentioned
above
English
CA
Canada
English
US
USA
English
US_HAW
USA - Hawaii
English
Other
Country not mentioned
above
English
CL-60A
NOTE: When the country code selected is TH, TK, DE, GR or Other, the grid
code specific to these country codes will appear on the LCD Display as shown
below. Press
5–34
to choose grid code and press
to confirm.
975-0768-01-01 Rev G
Protection Parameter Setting
Grid Codes
Grid codes
Grid codes
GR_L
LV
GR_IS
MV
NOTE: When Country Code is GR.
NOTE: When Country Code is DE.
Grid codes
Grid codes
AG
220V
YG
230V
NOTE: When Country Code is TK.
NOTE: When Country Code is TH.
Grid codes
50Hz
60Hz
NOTE: When Country Code is Other.
If the country code selected is not the
Pro-Stage
five country codes above, there is no
need to choose a grid code. The ProStage screen will appear.
Single-stage
Multi-stage
Choose Single-stage or Multi-stage.
975-0768-01-01 Rev G
Press
to choose a setting and
press
to confirm.
5–35
LCD Display Operation
Single-stage Protection Parameter Setting
The following screen appears if
Single-stage is selected.
Press
to select a parameter,
Press
to move the cursor and
Press
to set.
Press
to confirm.
Multi-stage Protection Parameter Setting
The following screens appear if Multistage is selected.
Press
to select a parameter,
Press
to move the cursor and
Press
to set.
Press
to confirm.
Table 5-10 Multi-stage Protection Parameters Explanation
5–36
Parameter
Explanation
Max-V. prot
Over-voltage protection
-Max-V. grid
-Max-V. time
-Max-V. grid
-Max-V. time
Stage  Grid over-voltage (U>)
Stage  Grid over-voltage (U>) tripping time
Stage  Grid over-voltage (U>>)
Stage  Grid over-voltage (U>>) tripping time
Min-V. prot
Under-voltage protection
-Min-V. grid
-Min -V. time
-Min -V. grid
-Min -V. time
Stage  Grid under-voltage (U<)
Max-F. prot
Over-frequency protection
-Max-F. grid
-Max-F. time
-Max-F. grid
-Max-F. time
Stage  Grid over-frequency (f>)
Stage  Grid over-frequency (f>>) tripping time
Min-F. prot
Under-frequency protection
Stage  Grid under-voltage (U<) tripping time
Stage  Grid under–voltage (U<<)
Stage  Grid under–voltage (U<<) tripping time
Stage  Grid over-frequency (f>) tripping time
Stage  Grid over-frequency (f>>)
975-0768-01-01 Rev G
Protection Parameter Setting
Table 5-10 Multi-stage Protection Parameters Explanation
Parameter
Explanation
-Min-F. grid
-Min -F. time
-Min -F. grid
-Min -F. time
Stage Grid under-frequency (f<)
Stage  Grid under-frequency (f<) tripping time
Stage  Grid under-frequency (f<<)
Stage  Grid under-frequency (f<<) tripping time
Protection Recovery Setting
After setting the protection
parameters, the inverter goes to the
protection recovery screen.
Table 5-11 Description of Protection Recovery Parameters
Parameter
Description
Vmax-recover
Max. protection recovery voltage
Vmin-recover
Min. protection recovery voltage
Fmax-recover
Max. protection recovery
frequency
Fmin-recover
Min. protection recovery
frequency
Protection Parameter Confirmation
The setting confirmation interface will
appear once the protection
parameters are entered.
Press
to confirm the parameter
selection and press
to reset the
protection parameters.
NOTE: The Setting Confirmation screen
varies depending on the selected country.
In this example, the country selected is
Other.
975-0768-01-01 Rev G
5–37
LCD Display Operation
Communication Parameter Setting
Main Screen (Press
(Press
) -> Menu (Press
) -> Enter Password (Press
param (Press
three times) -> Set-param
, Press
three times) -> Com-
.
Press
to move the cursor and
Press
to set.
Press
to confirm.
Device address range: 1-247.
Baud rate can be set to 9600 bps or
19200 bps.
Parity can be set to NO, ODD or
EVEN.
Stop bit can be set to 1 or 2.
Ethernet param
DHCP
5–38
[OFF]
IP
192.168.001.100
Sub net
255.255.255.000
Gateway
192.168.001.001
975-0768-01-01 Rev G
Advanced Setting Parameter Setting
Advanced Setting Parameter Setting
Main Screen (Press
(Press
) -> Menu (Press
) -> Enter Password (Press
Advanced Settings (Press
three times) -> Set-param
, Press
four times) ->
.
Press
to move the cursor and
Press
to set.
PVS detect setting
975-0768-01-01 Rev G
5–39
LCD Display Operation
Arc Fault Detection - AFD
(CL-60A only)
10-minute Max-V setting
Grid unbalance setting
Switch type setting
5–40
975-0768-01-01 Rev G
6
Troubleshooting
Chapter 6 contains information about:
• Troubleshooting
• Maintenance
975-0768-01-01 Rev G
6–1
Troubleshooting
Troubleshooting
DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
•
Apply appropriate personal protective equipment (PPE) and follow safe
electrical work practices.
• This equipment must only be installed and serviced by qualified electrical
personnel.
• Never energize the inverter with the covers removed.
• Do not open fuse holders under load. The fuse must be de-energized from
all sources before servicing.
• The inverter is energized from multiple sources. Before removing covers
identify all source, de-energize, lock-out, and tag-out and wait 10 minutes.
• Always use a properly rated voltage sensing device to confirm all circuits
are de-energized.
• Replace all devices and covers before turning on power to this equipment.
• The DC conductors of this photovoltaic system are ungrounded and may
be energized.
Failure to follow these instructions will result in death or serious injury.
Access to live parts shall be limited to suitably qualified electrical personnel.
NOTE: Some of the solutions presented in the troubleshooting section may
require you to open the CL-60 enclosure temporarily while still receiving power
from an AC source. Follow the DANGER safety message above prior to opening
the CL-60 enclosure.
6–2
975-0768-01-01 Rev G
Troubleshooting
LED Indicator
Problem
Symptom
Check...
Solution
The CL-60
appears to be
non-operational.
LED indicators
and LCD screen
are Off.
... the downstream AC circuit
breaker to see that it is closed
(turned On).
Perform the “Lock-Out TagOut (LOTO) Procedure” on
page xi.
... the AC wiring connections
on the AC circuit breaker and
the inverter terminals.
Revisit the instructions and
perform “Cabling and Wiring”
on page 3–3 and
“Commissioning Procedure”
on page 4–2 again.
... the upstream DC circuit
breaker to see that it is closed
(turned On).
See NOTE on page 6–3.
... the DC switch on the
inverter is turned to ON
position.
... the polarity of the PV arrays
and that they match the
cables leading to the inverter
terminals.
The CL-60 is
RUN
LED
energized but one
indicator
is
Off
or more of the
LED indicators
are showing
symptoms.
... the AC wiring connections
on the AC circuit breaker and
the inverter terminals.
Perform the “Lock-Out TagOut (LOTO) Procedure” on
page xi.
... whether the DC input
voltage exceeds the startup
voltage of the inverter.
Revisit the instructions and
perform “AC Side Cable
Connection” on page 3–7 and
“PV Array Connection” on
page 3–15 again.
See NOTE on page 6–3.
Alert
LED
indicator is On
... the LCD screen for a
message.
See “LCD Screen” on page 6–
4 for a solution.
If the problem persists, see
NOTE on page 6–3.
RUN
LED
indicator is
flashing
... the LCD screen for a
warning message.
See “LCD Screen” on page 6–
4 for a solution.
See NOTE on page 6–3.
NOTE: If the problem persists, contact technical support at:
http://solar.schneider-electric.com/tech-support.
975-0768-01-01 Rev G
6–3
Troubleshooting
LCD Screen
When a ground fault (or event) is detected, the LCD screen displays the
message on the LCD screen. Press
to view multiple screens.
Event
Code Description
The grid voltage exceeds the
inverter’s allowable range.
Protection time and protection
thresholds depend on the
country’s requirements.
Measure the grid voltage. Follow
the DANGER message at the
beginning of this chapter.
003
Grid transient voltage exceeds the
allowable range.
This is a short term event caused
by the grid. Wait for the inverter to
recover automatically. See NOTE
on page 6–9.
004
The grid voltage is below the
inverter’s allowable lower limit.
Protection time and protection
thresholds depend on the
country’s requirements.
Measure the grid voltage. Follow
the DANGER message at the
beginning of this chapter.
005
The grid voltage is too low.
This is a short term event caused
by the grid. Wait for the inverter to
recover automatically. See NOTE
on page 6–9.
006
The AC output current exceeds
the inverter’s protection limit.
Wait for the inverter to recover
automatically when the AC output
current falls below the protection
limit. See NOTE on page 6–9.
007
Transient AC over current
Wait for the inverter to recover
automatically.
008
The grid frequency exceeds the
inverter’s allowable upper limit.
Measure the grid frequency.
Follow the DANGER message at
the beginning of this chapter.
002
009
6–4
Solution
The grid frequency exceeds the
inverter’s allowable lower limit.
If the grid voltage exceeds the
inverter’s allowable range, contact
the utility company for
suggestions.
If the grid voltage exceeds the
inverter’s allowable range, contact
the utility company for
suggestions.
If the grid frequency exceeds the
inverter’s allowable range, contact
the utility company for
suggestions.
975-0768-01-01 Rev G
Troubleshooting
Event
Code Description
010
Islanding
Solution
Check whether the AC circuit
breaker is connected.
Check whether AC cables are all
properly connected.
Check whether the grid is in
service.
See NOTE on page 6–9.
011
The DC component of the AC
current exceeds the inverter’s
limit.
Wait for the inverter to recover
automatically. See NOTE on
page 6–9.
012
Current leakage is detected.
Check for signs at the PV array
site for a possible ground fault.
See NOTE on page 6–9.
013
A grid condition event is detected. If the grid voltage exceeds the
inverter’s allowable range, contact
the utility company for
suggestions.
If the problem persists but the grid
voltage is within the inverter’s
allowable range, contact technical
support at: http://solar.schneiderelectric.com/tech-support
014
The average grid voltage keeps
exceeding the allowable range for
over 10 minutes.
Wait for the inverter to recover
automatically. See NOTE on
page 6–9.
015
Grid impedance exceeds
inverter’s limit.
Check that the AC cables used
are specified correctly according
to local electrical regulations.
Wait for the inverter to recover
automatically.
See NOTE on page 6–9.
975-0768-01-01 Rev G
016
AC output overload
Wait for the inverter to recover
automatically. See NOTE on
page 6–9.
017
Grid voltage imbalance
Wait for the inverter to recover
automatically. Test the grid voltage
to confirm the imbalance. See
NOTE on page 6–9.
6–5
Troubleshooting
Event
Code Description
Solution
019
The transient bus voltage is high.
Wait for the inverter to recover
automatically. See NOTE on
page 6–9.
020
The bus voltage is high.
Wait for the inverter to recover
automatically. See NOTE on
page 6–9.
021
PV input over current
Check the PV configuration and
connection.
023
PV configuration mode has
Check the PV configuration.
changed during normal operation.
Restart the inverter.
024
Neutral point deviation is
detected.
Wait for the inverter to recover
automatically when the deviation
falls within the allowable range.
Test the neutral for proper voltage
and connection. See NOTE on
page 6–9.
025
Transient unbalance of voltage
neutral point
Wait for the inverter to recover
automatically when the deviation
falls within the allowable range.
See NOTE on page 6–9.
026
Bus voltage is fluctuating.
Wait for the inverter to recover
automatically. See NOTE on
page 6–9.
036
Module temperature is too high.
Verify that the AC output power is
not continually exceeding nominal
power.
If it is, reduce the load and do not
exceed nominal power
requirements.
037
Ambient temperature is too high.
Check the functionality of the fans.
Replace any broken fan if
necessary.
Clean air outlet grills.
See NOTE on page 6–9.
038
6–6
An event is detected in the relay.
Wait for the inverter to recover
automatically. See NOTE on
page 6–9.
975-0768-01-01 Rev G
Troubleshooting
Event
Code Description
Solution
039
Inverter insulation resistance fault
(ISO-flt)
Wait for the inverter to recover
automatically. Test for insulation
faults in the wiring. See NOTE on
page 6–9.
040
IGBT saturation event
Wait for the inverter to recover
automatically. See NOTE on
page 6–9.
041
Current leakage sampling channel
event
Wait for the inverter to recover
automatically. See NOTE on
page 6–9.
042
Current imbalance
Wait for the inverter to recover
automatically. See NOTE on
page 6–9.
043
The ambient temperature falls
below -25 °C (-13 °F)
Stop operating the inverter and
disconnect it from all power
sources.
Wait for the ambient temperature
to rise within the allowable range
and then restart the inverter.
975-0768-01-01 Rev G
044
DC/AC inversion circuit event
Wait for the inverter to recover
automatically. See NOTE on
page 6–9.
045
PV boost circuit event
Wait for the inverter to recover
automatically. See NOTE on
page 6–9.
047
PV configuration mode set on the
display does not match the
design.
Disconnect the inverter from all
power sources.
048
Phase-R current sampling channel
event
049
Phase-S current sampling channel
event
Wait for the inverter to recover
automatically. See NOTE on
page 6–9.
050
Phase-T current sampling channel
event
051
Hardware Over-voltage/ Overcurrent protection
See “PV Array Connection” on
page 15 to reconnect the PV
strings and reselect PV
configuration mode.
Wait for the inverter to recover
automatically. See NOTE on
page 6–9.
6–7
Troubleshooting
Event
Code Description
070
Fan event
Solution
Stop operating the inverter,
disconnect from all power
sources.
Remove and replace the broken
fan.
Contact technical support at:
http://solar.schneiderelectric.com/tech-support.
071
AC side SPD event
072
DC side SPD event
Replace the SPD. For DC SPD,
see “Replacing an Expended DC
SPD” on page 6–14.
Remove and replace the
expended SPD.
073
PV string fuse has blown
Stop operating the inverter,
disconnect from all power
sources.
Remove and replace the blown
fuse. See “Replacing the Fuse” on
page 6–13.
6–8
074
LCD communication event
An event has occurred in the
internal communication of the
inverter. However, the inverter
continues feeding into the grid.
See NOTE on page 6–9.
075
Solar irradiation is not sufficient for
inverter operation
Wait for sufficient sunlight.
076
PV overload condition
Check the PV system design and
adjust the connection of PV inputs.
078
PV power event warning
Check the PV input terminals for
loose connections. Tighten the
connections according to torque
specifications found in “PV Array
Connection” on page 3–15. See
NOTE on page 6–9.
087
AFD block
Wait for the inverter to recover
automatically. Test the PV string
connectors for signs of damage.
See NOTE on page 6–9.
If this event recurs when
irradiation is sufficient, check the
PV system design and adjust the
connection of PV inputs.
975-0768-01-01 Rev G
Troubleshooting
Event
Code Description
Solution
088
Arc fault warning
Check the current and press
to remove the warning.
089
AFD function warning
Restart the AFD function through
the LCD display.
532–
547
PV reverse polarity warning
Check the PV input terminals and
cables for reverse polarity
connections. Perform the
instructions on “PV Array
Connection” on page 3–15. See
NOTE on page 6–9.
548–
563
PV output current event
Check the PV array site for loose
connections. Check that the PV
cells are clean and not covered by
debris. See NOTE on page 6–9.
NOTE: If the problem persists, contact technical support at:
http://solar.schneider-electric.com/tech-support.
975-0768-01-01 Rev G
6–9
Troubleshooting
Maintenance
Routine Maintenance
Component
Maintenance
Frequency
CL-60 unit
Check the temperature
and dust accumulation
on the inverter. Clear the
inverter enclosure of any
leaves, sand, and dust
build up and other
debris, if necessary.
Every six months to a
year (depending on air
quality in the local area)
Check if the air inlet and
outlet are clear of any
debris. Clean the air inlet
and outlet, if necessary.
Fans
Check whether there are
visible cracks on the fan
blades.
Once a year
Check for unusual noise
when the fan is turning.
Clean or replace the fans
if necessary (see “Fan
Maintenance” on
page 6–11).
SPD
Check the fuse and DC
SPD.
Every six months
Replace the fuse (see
“Replacing the Fuse” on
page 6–13) and DC SPD
whenever necessary.
6–10
975-0768-01-01 Rev G
Maintenance
Maintenance Instructions
Fan Maintenance
Fans inside the PV Inverter are used to cool the inverter during operation. If the
fans do not operate normally, the inverter may not be cooled down and
operational efficiency may decrease. Therefore, it is necessary to maintain the
fans and keep them clean and free of debris. If necessary, replace broken fans.
Contact your local Schneider Electric Sales Representative at: http://
solar.schneider-electric.com.
DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
•
Apply appropriate personal protective equipment (PPE) and follow safe
electrical work practices.
• This equipment must only be installed and serviced by qualified electrical
personnel.
• Never energize the inverter with the covers removed.
• Do not open fuse holders under load. The fuse must be de-energized from
all sources before servicing.
• The inverter is energized from multiple sources. Before removing covers
identify all source, de-energize, lock-out, and tag-out and wait 10 minutes.
See “Lock-Out Tag-Out (LOTO) Procedure” on page xi.
• Always use a properly rated voltage sensing device to confirm all circuits
are de-energized.
• Replace all devices and covers before turning on power to this equipment.
• The DC conductors of this photovoltaic system are ungrounded and may
be energized.
Failure to follow these instructions will result in death or serious injury.
1. Perform the steps in “Disconnecting the CL-60” on page 7–2.
2. Remove the screws holding the fan assembly to the enclosure as shown.
When the fan assembly is removed the fans’ power wires will also get pulled
out of the enclosure.
975-0768-01-01 Rev G
6–11
Troubleshooting
3. Press on the locking button on the fans’ power connectors and pull the
connectors outward from each other.
4. Remove the fans from the inverter.
5. Clean the fan with soft brush or vacuum cleaner (or replace the broken fans).
NOTE: Do not use pressurized air (compressed air) to clean the fan. This will
force debris inside the enclosure.
6. Reassemble the fans (including plugging in the power connectors) back into
the inverter.
7. Perform “Commissioning Procedure” on page 4–2.
6–12
975-0768-01-01 Rev G
Maintenance
Replacing the Fuse
To replace the blown fuse due to an over current condition:
1. Open the AC circuit breaker (turn it OFF) and perform the “Lock-Out Tag-Out
(LOTO) Procedure” on page xi, if not yet done.
2. Open the upstream DC disconnect (turn it OFF).
3. Turn the DC switch of the PV Inverter to OFF position.
4. Pull the DC cable from the MC4 (or H4) connector.
Avoid using standard pliers. Use the proper MC4 (or H4) tool to disconnect
the DC cable from the terminals.
5. Wait about ten minutes until the capacitors inside the inverter have
discharged.
6. Remove the six screws on the front cover of the lower wiring box then put
away the front cover. For torque, see “Torque Values” on page 2–15.
7. Measure the AC voltage to ground at the AC terminal to confirm that the AC
output voltage of the inverter at the AC circuit breaker is zero.
8. Measure the DC voltage at the DC terminal to confirm that it is zero.
9. Identify the blown fuse from the fuse holder using a multimeter.
10. Remove the blown fuse using a suitable fuse holder remover.
DC Fuse
CL-60A: Littelfuse® SPF012, Fast-Acting 12 A, 1000 VDC
CL-60E: Bussman GMA15A, Fast-Acting 15 A, 1000 VDC
11. Insert the new fuse into the fuse holder. The replacement fuse has to be of
the same type and rating. If not, procure the correct fuse.
12. Reassemble the inverter’s front cover. For torque, see “Torque Values” on page 2–15.
13. Perform “Commissioning Procedure” on page 4–2.
975-0768-01-01 Rev G
6–13
Troubleshooting
Replacing an Expended DC SPD
To replace the DC SPD (surge protection device):
1. Open the AC circuit breaker (turn it OFF) and perform the “Lock-Out Tag-Out
(LOTO) Procedure” on page xi, if not yet done.
2. Open the upstream DC disconnect (turn it OFF).
3. Turn the DC switch of the PV Inverter to OFF position.
4. Pull the DC cable from the MC4 (or H4) connector.
Avoid using standard pliers. Use the proper MC4 (or H4) tool to disconnect
the DC cable from the terminals.
5. Wait about ten minutes until the capacitors inside the inverter have
discharged.
6. Remove the six screws on the front cover of the lower wiring box then put
away the front cover. For torque, see “Torque Values” on page 2–15.
7. Measure the AC voltage to ground at the AC terminal to confirm that the AC
output voltage of the inverter at the AC circuit breaker is zero.
8. Measure the DC voltage at the DC terminal to confirm that it is zero.
9. Identify the expended DC SPD cartridge by the red indicator (see picture
below).
10. Remove the expended DC SPD cartridge by pulling the cartridge out of its
housing using your index finger and thumb to grab the top and bottom
edges.
X
DC SPD Manufacturer Part Number
CITEL DS50PVS-1000
11. Insert the new SPD into the housing in the same but opposite direction as
step 10. The replacement SPD has to be of the same type and rating. If not,
procure the correct SPD.
12. Reassemble the inverter’s front cover. For torque, see “Torque Values” on
page 2–15.
13. Perform “Commissioning Procedure” on page 4–2.
6–14
975-0768-01-01 Rev G
Maintenance
Cleaning the Air Inlet and Outlet
Heat is generated in the process of running the inverter. The inverter adopts a
controlled forced-air cooling method.
In order to maintain good ventilation, make sure that the air inlet and outlet grates
are not blocked and they are clear of any debris.
Clean the air inlet and outlet grates with a soft brush or a vacuum cleaner, if
necessary.
NOTE: Do not use pressurized air (compressed air) to clean the grates. This will
force debris inside the enclosure.
975-0768-01-01 Rev G
6–15
Troubleshooting
•THIS PAGE INTENTIONALLY BLANK•
6–16
975-0768-01-01 Rev G
7
Disconnecting,
Dismantling, and
Disposing the CL60
Chapter 7 contains information about:
• Disconnecting the CL-60
• Dismantling the CL-60
• Disposing the CL-60
975-0768-01-01 Rev G
7–1
Disconnecting, Dismantling, and Disposing the CL-60
Disconnecting the CL-60
For maintenance work or any service work, the CL-60 PV Inverter must be
disconnected from all power sources.
DANGER
ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH HAZARD
•
Apply appropriate personal protective equipment (PPE) and follow safe
electrical work practices.
• This equipment must only be installed and serviced by qualified electrical
personnel. Access to live parts shall be limited to suitably qualified
electrical personnel. See installation instructions before connecting to the
supply.
• Never operate energized with the CL-60 enclosure opened.
• Before opening the inverter’s enclosure identify the power source, deenergize, lock-out, and tag-out and wait ten minutes for circuits to
discharge. See “Lock-Out Tag-Out (LOTO) Procedure” on page xi.
• Always use a properly rated voltage sensing device to confirm all circuits
are de-energized.
Failure to follow these instructions will result in death or serious injury.
To disconnect the inverter from DC and AC power sources:
NOTE: Follow steps 1 and 2 in sequence exactly.
1. Open the AC circuit breaker (turn it OFF) and perform the “Lock-Out Tag-Out
(LOTO) Procedure” on page xi, if not yet done.
2. Open the upstream DC disconnect device (turn it OFF).
3. Turn the DC switch of the PV Inverter to OFF position.
4. Pull all the DC cables from the MC4 (or H4) connectors.
Avoid using standard pliers. Use the proper MC4 (or H4) tool to disconnect
the DC cables from the terminals.
5. Wait about ten minutes until the capacitors inside the inverter have
discharged.
6. Remove the six screws on the front cover of the lower wiring box then put
away the front cover.
7–2
975-0768-01-01 Rev G
Disconnecting the CL-60
7. Measure the AC voltage to ground at the AC terminal to confirm that the AC
output voltage of the inverter at the AC circuit breaker is zero.
8. Remove the AC cables from the terminals.
9. Remove the DC cables from the terminals.
975-0768-01-01 Rev G
7–3
Disconnecting, Dismantling, and Disposing the CL-60
Dismantling the CL-60
To dismantle the PV Inverter:
1. Reverse the steps found in “RS-485 Communication Connection” or “RJ45RS-485 Communication Connection” on page 3–28 or “Ethernet Connection
Procedure” on page 3–31.
2. Reverse the steps found in “AC Cable Connection” on page 3–10, “DC Cable
Connection” on page 3–17, and “Cable Connection” on page 3–23.
3. Reverse the steps found in “Install and Mount the CL-60” starting on page 2–
8.
4. Store the PV Inverter according to the guidelines below.
•
Inverter must be packed inside its original carton with the desiccant
bags inside.
•
Store the inverter with its front panel facing up. The carton should lay flat
and parallel to the ground.
•
Seal the carton with standard packaging tape.
•
Store the inverter in a dry and clean place to protect it against dust and
moisture. See notice below.
•
Relative temperature: -30 to 85 °C (-22 to 185 ºF)
Relative humidity: 0 to 100%.
•
Do not stack more than two inverters (carton) together.
•
Keep the inverter away from chemically corrosive materials.
•
Periodically check for any visible damages to the carton and inspect the
inverter right away if the carton shows signs of penetration during the
storage period. Replace the carton, if necessary.
NOTE: A thorough and professional inspection may be required before reinstalling the inverter after more than six months in storage. Contact an
authorized installer.
7–4
975-0768-01-01 Rev G
Disposing the CL-60
Disposing the CL-60
The end user of the CL-60 is responsible for the proper disposal of the PV
Inverter.
As a general rule, do not dispose of or discard the CL-60 along with ordinary
household garbage or organic waste.
Always follow regional, national, and /or local waste disposal directives
concerning disposing, discarding, or recycling of equipment containing
electronic and electrical components such as the CL-60.
975-0768-01-01 Rev G
7–5
Disconnecting, Dismantling, and Disposing the CL-60
•THIS PAGE INTENTIONALLY BLANK•
7–6
975-0768-01-01 Rev G
8
Specifications
Chapter 8 contains information about:
• DC Side - Technical Specification
• AC Side - Technical Specification
• General Specifications
• User Interface and Communications
• Regulatory Approvals
975-0768-01-01 Rev G
8–1
Specifications
Product Specifications
DC Side
Conext CL-60E (IEC)
Conext CL-60JP (Japan)
Conext CL-60A (NA)
DC Max. input voltage
1000 V
1000 V
Full power MPPT voltage
range (PF=1) (VDC)
570 - 850 V
550 - 850 V
Operating voltage range
at nominal AC voltage
570 - 950 V
550 - 950 V
Start voltage (VDC)
620 V
620 V
Max. array short circuit
current (ADC)
140 A
140 A
Max. array input current
(ADC)
120 A
120 A
Number of MPPT /
Max. Number of inputs
per MPPT
1 / 14
1 / 8 (Y connector
adopted for up to 14
strings using 7 inputs)
DC connectors /
Max. current per input
(ADC)
MC4 /
12 A (mating part
included)
Amphenol® H4 /
25 A (mating part
included)
DC fuse
14 pairs (+/-), string
monitoring included
8 pairs (+/-), string
monitoring included
DC switch /
DC SPD /
AFD
Yes /
Type II DIN rail surge
arrester /
None
Yes /
Type II DIN rail surge
arrester /
Yes, AC Side
AC Side
Conext CL-60E (IEC)
Conext CL-60JP (Japan)
Conext CL-60A (NA)
Max. AC output power
(PF=1, nominal AC
voltage)
60 kW
63.4 kW
Max. output fault current
(AC) and duration
--
2150 Apk, 102 Arms,
155 ms
Max. Apparent power
(nominal AC voltage)
66 kVA
63.4 kVA
3/N/PE 400 V/230 V /
380 V /
310 – 480 V
295 - 456 V
50 Hz & 60 Hz /
45 to 55 Hz & 55 to 65 Hz
60 Hz /
55 to 65 Hz
AC nominal output
voltage (VAC) /
AC Voltage range
A(VAC)
Frequency /
Frequency range
8–2
975-0768-01-01 Rev G
Product Specifications
Conext CL-60E (IEC)
Conext CL-60JP (Japan)
Conext CL-60A (NA)
Max. Output current
(AAC)
96 A
96 A
Power factor
0.8 lead to 0.8 lag
adjustable
0.8 lead to 0.8 lag
adjustable
THD at nominal power
< 3%
<3%
AC connection
Screw clamp terminal, AL
- CU type cable
compatible
Screw clamp terminal,
AL - CU type cable
compatible
AC disconnect
Not included
Included
AC connection
4 wire grounded WYE and
ungrounded DELTA
4 wire grounded WYE
and ungrounded DELTA
AC Side
NA Utility Interconnection Voltage and Frequency
Trip Limits and Trip Times
Conext CL-60A (NA)
Parameter
Default Trip Value
Default Trip Time (sec)
Voltage Very High
457.2 VAC
0.16
Voltage High
420.8 VAC
1
Voltage Low
335.3 VAC
2
Voltage Very Low
190.5 VAC
0.16
Frequency Very High
60.5 Hz
0.16
Frequency High
60.5 Hz
0.16
Frequency Low
59.3 Hz
0.16
Frequency Very Low
57 Hz
0.16
NOTE: Accuracy for voltage and frequency is as follows:
• Voltage: ±4.0 V (L-L)
• Frequency: ±0.1 Hz
• Time: 1% but not less than 50 ms
975-0768-01-01 Rev G
General Specifications
Conext CL-60E (IEC)
Conext CL-60JP (Japan)
Conext CL-60A (NA)
Peak efficiency
Euro efficiency
CEC efficiency
98.7%
98.5%
n/a
98.7%
n/a
98.0%
Power consumption at
night time
<1W
<1W
8–3
Specifications
Conext CL-60E (IEC)
Conext CL-60JP (Japan)
Conext CL-60A (NA)
Enclosure rating
IP 65 (electronics),
IP 20 (rear portion)
Type 4X (electronics),
Type 3R (rear portion)
Protective class
I
--
OVC
III (mains), II (PV)
--
Inverter gross weight
(including box)
76 kg
168 lbs
Inverter box dimensions
(L x W x H)
1160 x 770 x 375 mm
45.7 x 30.3 x 14.8 in
Inverter net weight
66 kg
147 lbs
Inverter dimensions
(L x W x H)
958 x 652 x 250 mm
38.9 x 25.7 x 9.8 in
Ambient air temperature
for operation
-25 to 60ºC,
derating > 50ºC
-13ºF to 140ºF,
derating > 122ºF
Max. Operating altitude
4000 m,
derating > 3000 m
13123 ft,
derating > 9842 ft
Relative temperature (in
storage)
-30 to 85 ºC
-22 to 185 ºF
Relative humidity (%)
0 to 100% condensing
0 to 100% condensing
Audible noise
55 dBA ±3 dBA
55 dBA ±3 dBA
Inverter mounting
Wall mounting, vertical
wall to 0º flat mounting
Wall mounting, vertical
wall to 0º flat mounting
User Interface and
Communications
Conext CL-60E (IEC)
Conext CL-60JP (Japan)
Conext CL-60A (NA)
User interface
Graphic LCD display, 2 LEDs, 2 buttons
and EasyConfig Tool
General Specifications
Communication interface RS485-Modbus, Modbus-TCP (Daisy chain capability
for both: Modbus RS485 Serial or Modbus TCP over
Ethernet).
Communication protocol - SunSpec compatible &
certied
8–4
975-0768-01-01 Rev G
Product Specifications
Regulatory Approvals
Conext CL-60E (IEC)
Conext CL-60JP (Japan)
Conext CL-60A (NA)
Certifications
VDE0126-1-1,
EN62109-1,
EN62109-2, G59/3,
BDEW, VDE-AR-N 4105,
Emissions: IEC/EN 610006-3
Immunity: IEC/EN 610006-2, UTE C15-712-1,
IEC 61683, IEC 61727,
IEC 62116
AS 3100*,
AS 4777.1* and
AS4777.2*, CEI 021*
CSAus, UL 1741, IEEE
1547, IEEE1547.1, CSA
C22.2#107.1-01-2001,
FCC Part 15 Sub-part B,
Class B Limits
Environmental
RoHS, REACH and 4K4H
RoHS
*pending
975-0768-01-01 Rev G
8–5
8–6
Schneider Electric
http://solar.schneider-electric.com
As standards, specifications, and designs change
from time to time, please ask for confirmation of the
information given in this publication.
© 2017 Schneider Electric. All rights reserved.
975-0768-01-01 Rev G
Printed in:

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
