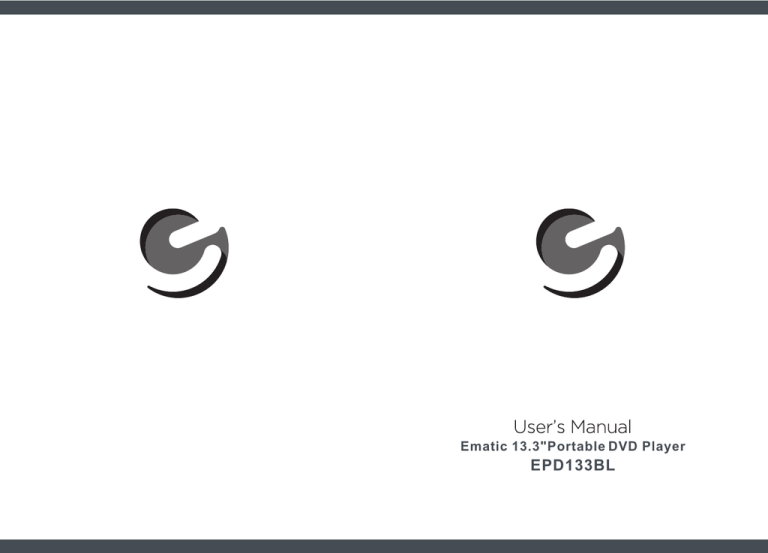

User Manual

Ematic 13.3"Portable DVD Player

EPD133BL

Table Of Contents

Safety Precautions 1

Package 3

Main Unit Controls 4

System Connection 5

The Remote Control 7

Basic operation 9

System Setup 13

Specification 17

Troubleshooting 18

Safety Precautions

Thank you for choosing our portable DVD player. Please read the manual carefully prior to use and keep it for future reference.

CAUTION

Hi-voltage, Do Not Open

Use care to avoid electric shock

Warning: To reduce the risk of fire or electric shock, do not expose this device to rain or moisture.

1) Please read the instruction manual carefully and follow all the requirements of safe

operation.

2) Do not use this unit near water. Do not place the unit over any container with liquid

inside.

3) Do not install near any heat sources such as radiators, heat registers,stoves,or other

apparatus (including amplifiers) that produce heat.

4) Unplug this unit during lightning storms or when unused for long time.

5) About Cleaning: Unplug the system,use only a moist cloth to clean.Do not use liquid

detergent or aerosol.

6) Only use accessories specified by the manufacturer.

7) Refer all servicing to qualified service personnel when the unit has been damaged,

such as damaged power supply chords or plugs, spilt liquid in the device, exposure to

moisture, or if the device is not operating normally. Do not try to repair the device by

yourself due to the risk of high voltage and electric shock.

8) Do not use irregular shaped discs such as heart or star-shaped discs as they may

cause the unit to malfunction.

1

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Main Features

High brightness color 13.3" LCD screen

Compatible with disc of DVD, VCD, MP3, CD, JPEG etc

Built-in stereo speaker

Built-in rechargeable Lithium polymer battery

Support PAL or NTSC system

Support Multi-language OSD,speed forward/backward, repeat function

2

Package

DVD Player

Remote Control with battery

AC/DC Power Adapter

User Manual

1

1

1

1

Removal Of Waste Battery

Main PCB

Batter y

Bat ter y

To remove the battery: a. Unscrew the screws at the back of the unit.

b. Pull out the screws on the Main PCB board by the screwdriver to unpack the PCB board

and then the battery can be seen.

c. Remove the battery socket from the board.

Swiveling LCD screen

3

Main Unit Controls

6

7

8

3

4

5

1

2

12

13

14

15

16

17

18

9 10 11

1. SETUP button

2. MENU button

3. STOP button

4. PLAY/PAUSE button

5. MUTE button

6.

( )/ ( )/ ( ) / ( )

7. OK button

8. USB/CARD button

9. Volume- button

10. Volume+ button

11. OPEN knob

12. DC IN 9-12V

13. Power ON/OFF switch

14. AV OUT

15. Earphone jack

16. SD/MMC slot

17. USB jack

18. Rating label position

4

System Connection

Powering and installation

Plug one end of the AC/DC power adaptor into the DC IN 9-12V jack on the right of the unit, then plug the other end into the AC power receptacle. Please refer to the following illustration.

Connecting to TV

You can also connect the unit to a TV to enjoy high quality picture and stereo sound.

Please refer to the following illustration:

AV CABLE

Not supplied

AUDIO IN VIDEO IN

TV

Please use AV cable to connect the machine and the TV. Make sure it is connected correctly.

5

Connecting with external Speaker

The unit can be connected to external speakers. Please see the following illustration.

TV

AV CABLE

Not supplied

VIDEO IN AUDIO IN

AMPLIFIER

Left front speaker

Center speaker

Right front speaker

SUBWOOFER

Left rear speaker Right rear speaker

Note:

5.1 channel will only be available after connecting to AMP.

6

The Remote Control

1

7

8

9

2

3

4

5

6

10

11

12

13

14

15

16

20

17

18

19

EPD133BL

1. Number button

2. TITLE(To display title information)

3. AUDIO(To select audio language)

4. SETUP(To go to or exit setup menu)

11. ZOOM(To zoom in/out the image

during the playback)

12. MENU(To enter or exit root menu)

13. SUBTITLE(To select subtitle language

when playing DVD disc)

5. Previous/Next button(To go

to previous/next chapter or scene

during playing)

6. Fast forward/backward

button(To scan forward/backward

at 2,4,8,16,or 32 times)

14. ANGLE(To change viewing angle

when playing disc with multi-angle)

15. A-B(Repeat a specific portion from

point A to B, press it again to cancel

repeat playing)

7. OSD(To display disc information

during playing such as elapsed and

remaining time)

16. REPEAT(To repeat playing title,

chapter or track)

17. RETURN(To return to the main menu)

8. PLAY/PAUSE

9. STOP(press once to stop playback, then

press to resume playback from the

point where you stopped; press stop

button twice to stop playback completely)

18. MUTE(To mute the volume)

19. VOL +/- (To adjust the volume)

20. ENTER(To confirm)

10. MODE(To select the source)

7

The Use of Remote Control

Please put the battery into the remote control as shown below.

1

2

CR2025 CR2025

When using remote control,make sure the infrared window is pointed to infrared receiving window of the machine.The distance between machine and remote control must be within

3 metres.Please refer to the following illustration.

Basic Operation

DVD

MPEG4

SVCD VCD CD

MP3

Playing disc of DVD, MPEG4, SVCD, VCD, CD, MP3.

1. After connecting power to the unit, turn on the unit by sliding the ON/OFF switch to ON,

the source menu will be displayed on the screen:

Press " " to enter DVD mode or Media mode and press OK button to confirm.

When selecting "MODE", ensure to insert USB or SD/MMC card properly.

2. Open the disc door and insert a disc into the door with the label side facing up.

3. Close the disc door.The unit will load the disc and start playing.

4. Press“ ”once to stop playback; press“ ”to resume playback from the point

where you stopped;press“ ”twice to stop playback completely.

5. During playback,press“ ”to pause; press it again to resume playback.

6. When the playing is finished, please turn off the power by sliding ON/OFF switch to OFF.

7. For some DVD disc with Title or Chapter menu, press“MENU”button to enter menu

page, and use“ ”to select. Press ENTER to confirm.

Note:

Please do not disconnect USB devices or remove SD/MMC cards while they are in use.

Functional failure may occur if removed incorrectly.

30

0

30

0

EPD133BL

Note:

1. To avoid malfunction, DO NOT place the device near a damp environment.

2. Do not expose the infrared receiving window to direct sunlight.

3. Replace with a new battery if the remote control isn't working properly.

Play/pause

EPD133BL

Title

Cursor button

ENTER

EPD133BL

Menu

8 9

Fast forward and fast backward

DVD MPEG4 SVCD VCD CD

When playing disc of DVD,MPEG4,SVCD,VCD,CD, the machine can search forward or backward.

1. Press“ ”,the unit will search forward. Press it repeatedly ,the machine will play

at 2, 4,8, 16, 32 times of speed.

2X 4X

32X 16X 8X

2. Press“ ”, the unit will search backward.

Press it repeatedly,the machine will play at

2,4,8,16,32 times of speed.

2X 4X

Search forward

Search backward

EPD133BL

32X 16X

Repeat playing

DVD

MPEG4 SVCD VCD CD MP3

8X

When playing disc of DVD, MPEG4, SVCD, VCD, CD, MP3 user can repeat playing one chapter, title or the whole disc.

For DVD disc, press "repeat" button to repeat playing one Chapter; press it again to repeat playing Title; press it the third time to repeat playing the whole disc.

Chapter Title All

Repeat off

For MP3 disc, press "repeat" button to repeat playing present file;press it again to repeat playing the folder;press it the third time to cancel repeat function.

one folder

Repeat off

For CD/VCD disc, press " repeat" button repeatedly to repeat the track and the whole disc.

Track

All

Repeat off

10

Repeat playing of favorite scene

DVD

MPEG4 SVCD VCD CD MP3

When playing disc of DVD,MPEG4,SVCD,VCD,CD,MP3,user can repeatedly play a specific section.

During playback,press“A-B”button at a point A,then press

A this button again in point B,the unit will automatically repeat playing the part between“A-B”

AB

Press it the third time,the unit will return to normal playback.

Number

Zoom in/out

A-B

Angle

Angle

EPD133BL DVD

While playing DVD disc with multi-angle, press“Angle”button to change the display angle.

Note:

The function is available only for discs with multi-angle.

2X

Zoom in/ out

3X

DVD MPEG4 SVCD VCD

When playing disc of DVD, MPEG4, SVCD, VCD user can zoom in or zoom out the image.

4X

1 /2X

During playback, press "Zoom" button, the image will be enlarged; press it again the image will be enlarged again; press it fourth time, the image will zoom out, press it repeatedly and the image will return to normal status.

1 /3X

1 /4X

When the image is enlarged,user can press“ / / / ”to move the image.

11

Playing JPEG file in data disc

1. Place a JPEG disc into the tray, the unit will start reading and play.

2. Press “ ” to select a JPEG file and press "ENTER" button to confirm.

Note: you can press "MENU" to return to the folder list. Press " " or "ENTER" to

preview the file selected.

3. To rotate the picture counter-clockwise, press " "; Press " " to rotate the picture

clockwise.

4. Press "OSD" button when viewing pictures, you can select different refresh modes as

follows:

1. from top to bottom

2. from bottom to top

3. from left side to right side

4. from right side to left side

5. from left top to right bottom

6. from right top to left bottom

7. from left bottom to right top

8. from right bottom to left top

9. from horizontal center to both sides

10.from vertical center to both sides

11.from top and bottom to center

12.from right and left to center

13.from four window's top side to bottom side

14.from four window's left side to right side

15.from 4 edges to center

5. During viewing files,“ ”may appear when pressing“Angle”or“Subtitle”or “Audio”

or“A-B”or“Title”etc; in this situation these options are unavailable to operate.

6. When viewing JPEG files,press“ ”,pictures will be displayed in thumbnail mode,

press“ ”or“ENTER”button to select one picture to view.

Playing MP3 files in data disc

1.Place MP3 disc into the disc door. Press “ ” or “ENTER”button to choose an MP3

file;Press “ ” or“ENTER”button to play the file selected.

00 36 03 43

Dir 001

\Ctyy\

Mp3

......

TRACK01

Mp3

TRACK02

Mp3 TRACK03

Mp3 TRACK04

Mp3 TRACK05

12

System Setup

GENERAL AUDIO

- - General Setup Page - -

VIDEO

ANGLE MARK

OSD LANG

CAPTIONS

SCREEN SAVER

LAST MEMORY

On

ENG

OFF

ON

OFF

PREFERENCE

GOTO GENERAL SETUP PAGE

Press "Setup" button,the main menu will be displayed on the screen

In the main Page, Press " " button to highlight the item.

Press "ENTER" button to access.

Press "ENTER" button to confirm your selection.

Press Setup button to exit.

General Setup Page

GENERAL AUDIO

- - General Setup Page - -

VIDEO

ANGLE MARK

OSD LANG

CAPTIONS

SCREEN SAVER

LAST MEMORY

On

ENG

OFF

ON

OFF

4:3 PS

4:3 LB

16:9

PREFERENCE

SET TV DISPLAY MODE

TV display:

Enter this option, user can set screen display format (Nomal/PS, Nomal/LB, Wide)

The default is "Wide".

Note:

The function depends on the display ratio

with which the DVD disc is recorded.

GENERAL AUDIO

- - General Setup Page - -

VIDEO

ANGLE MARK

OSD LANG

CAPTIONS

SCREEN SAVER

LAST MEMORY

On

ENG

OFF

ON

OFF

ON

OFF

PREFERENCE

Angle Mark:

Enter this option to set the angle during playback.

Optional setting: ON, OFF.

The default is: ON.

SET Angle Ma rk

GENERAL AUDIO

- - General Setup Page - -

VIDEO

ANGLE MARK

OSD LANG

CAPTIONS

SCREEN SAVER

LAST MEMORY

On

ENG

OFF

ON

OFF

ENGLISH

FRENCH

GERMAN

ITALIAN

PREFERENCE

OSD Language:

In the option user can set OSD menu language (English, French, German, Italian).

The default: English.

Set OSD Language

13

GENERAL AUDIO

- - General Setup Page - -

VIDEO

ANGLE MARK

OSD LANG

CAPTIONS

SCREEN SAVER

LAST MEMORY

On

ENG

OFF

ON

OFF

ON

OFF

PREFERENCE

CAPTIONS:

In the option user can set CAPTIONS.

The default: OFF.

Closed Caption

GENERAL AUDIO

- - General Setup Page - -

VIDEO

ANGLE MARK

OSD LANG

CAPTIONS

SCREEN SAVER

LAST MEMORY

On

ENG

OFF

ON

OFF

ON

OFF

PREFERENCE

Screen Saver

Enter this option to set whether to activate the screen saver function.

The default is ON.

Screen Saver

GENERAL AUDIO

- - General Setup Page - -

VIDEO

ANGLE MARK

OSD LANG

CAPTIONS

SCREEN SAVER

LAST MEMORY

On

ENG

OFF

ON

OFF

ON

OFF

SET LAST MEMORY STATE

PREFERENCE

LAST MEMORY:

Enter this option to select LAST MEMORY.

The default: OFF.

Audio Setup Page

GENERAL AUDIO

- - Audio Setup Page - -

DUAL MONO

DYNAMIC

VIDEO

STEREO

L-MONO

R-MONO

PREFERENCE

MIX MONO

DUAL MONO:

Enter this option to select DUAL MONO.

The default: STEREO.

DUAL MONO(1+1)SETUP

14

GENERAL AUDIO

- - Audio Setup Page - -

DUAL MONO

DYNAMIC

VIDEO PREFERENCE

½

¼

FULL

¾

OFF

Set DRC To FULL

DYNAMIC:

Enter this option to select DYNAMIC.

The default: FULL.

Video Setup Page

General Audio

- - Video Setup Page - -

Brightness

Contrast

Sharpness

Hue

Saturation

00

00

MID

00

00

Video Preference

Enter this option, user can adjust picture quality of video output. There are items available to be adjusted:

Brightness, Contrast, Hue and Saturation.

For all these items the default is 00.

GO TO VIDEO SEUP PAGE

Preference Page

GENERAL AUDIO

- - Preference Page - -

TV TYPE

AUDIO

SUBTITLE

DISC MENU

PARENTAL

PASSWORD

DEFAULT

VIDEO

NTSC

ENG

ENG

ENG

Set TV Standard

PREFERENCE

PAL

NTSC

TV Type:

Enter this option to select TV type

(PAL, NTSC)

The default is NTSC.

GENERAL AUDIO

- - Preference Page - -

TV TYPE

AUDIO

SUBTITLE

DISC MENU

PARENTAL

PASSWORD

DEFAULT

VIDEO

NTSC

ENG

ENG

ENG

PREFERENCE

ENGLISH

FRENCH

GERMAN

ITALIAN

Preferred Audio Language

Audio:

Enter this option, user can select preferred audio language for DVDs.

The default is English.

Note

The audio language depend on the

material on each disc.

User can also change the audio language

duri ng pl ayback by pressing the Audio button.

15

GENERAL AUDIO

- - Preference Page - -

TV TYPE

AUDIO

SUBTITLE

DISC MENU

PARENTAL

PASSWORD

DEFAULT

VIDEO

NTSC

ENG

ENG

ENG

PREFERENCE

ENGLISH

FRENCH

GERMAN

ITALIAN

OFF

Preferred Subtitle Language

Subtitle

Select your preferred language to show the subtitles on the screen.

The default is English.

The subtitle languages depend on the information available on each disc, You can also change the subtitle language during playback by press the SUBTITLE button.

GENERAL AUDIO

- - Preference Page - -

TV TYPE

AUDIO

SUBTITLE

DISC MENU

PARENTAL

PASSWORD

DEFAULT

VIDEO

NTSC

ENG

ENG

ENG

PREFERENCE

ENGLISH

FRENCH

GERMAN

ITALIAN

OFF

Preferred Nenu Language

Disc Menu

This function allows you to choose the menu language stored on the disc.

The default is English.

Note: the disc menu languages depend on the information available on the disc.

GENERAL AUDIO

- - Preference Page - -

TV TYPE

AUDIO

SUBTITLE

DISC MENU

PARENTAL

PASSWORD

DEFAULT

VIDEO

NTSC

ENG

ENG

ENG

Set Parental Control

PREFERENCE

1 KD SAFE

2 G

3 PG

4 PG 13

5 PGR

6 R

7 Nc17

8 ADULT

Parental:

Enter this option to set the parental control level to some unsuitable disc scenes being watched by the children.

Optional parental control levels: KID SAFE,

G, PG, PG 13, PGR, R, NC17, ADULT.

The default is ADULT.

GENERAL AUDIO

- - Preference Page - -

TV TYPE

AUDIO

SUBTITLE

DISC MENU

PARENTAL

PASSWORD

DEFAULT

VIDEO

NTSC

ENG

ENG

ENG

Change Password

PREFERENCE

CHANGE

Enter this option, you can set a password

(four numbers).

All parental Control features are password protected.

The default is 8888.

GENERAL AUDIO

- - Preference Page - -

TV TYPE

AUDIO

SUBTITLE

DISC MENU

PARENTAL

PASSWORD

DEFAULT

VIDEO

NTSC

ENG

ENG

ENG

Load Factory setting

PREFERENCE

RESET

Default:

Select this item and press "OK" button to reset all settings to the original factory setting.

16

Specification

Compatible disc: DVD/VCD/CD/MP3/MPEG4

Signal system: PAL/NTSC

Panel size: 13.3 inch

Picture resolution: 1366X768

Frequency response: 20 Hz to 20 kHz

Video output: 1 Vp-p/75Ohm, unbalanced

Audio output: 1.4Vrms/10kOhm

Audio S/N: Better than 80dB

Dynamic range: Better than 85dB

Laser: Semiconductor Laser, Wave Length: 650nm/795nm

Power source: DC 9-12V

Power consumption: 13.5 W

Operating temperature: 0~113°F

Weight: 1.3kg

Dimensions (W x D x H): 14.29x9.76x1.77 in

Battery Type: Li Polymer

Note:

1. The quality and speed for reading JPEG photos depend on the resolution and

compression ratio of the photos. Some JPEG photos may not be played due to the

disc quality and the formats.

2. Some DVD+R/RW, DVD-R/RW, CD-R/RW discs may not be played due to the quality

on burning conditions.

Rechargeable battery use

The DVD player features Li polymer battery for portable power supply.The battery has no“Memory Effect”and thus can be recharged safely regardless of whether the battery is fully or partially discharged.The battery charges within 3 hours, When fully charged, the battery can last about 2 hours using earphones.

Precautions related to Battery Recharge

The power switch must be in the OFF position to charge the battery.The Red light will indicate that the battery is charging.When the DVD player is fully charged the light will turn to yellow.

Using and Maintaining Rechargeable Battery

1. The normal working temperature is:0 °C ~40 °C ;

2. Always unplug AC/DC power supply for the unit when not in use;

3. Heat will be created during playback which is normal,Avoid playing while unattended.

4. Do not drop or impact the unit. Avoid heat souces and damp areas.

Caution:Danger of explosion if battery is incorrectly replaced. Replace only with the

same or equivalent type.

17

Troubleshooting

PROBLEM SOLUTION

No sound or distorted sound

Make sure the machine is connected properly.

Make sure all cables are securely inserted into the appropriate jacks.

Can't advance through a movie

The icon appears on screen

You can't advance through the opening credits and warning information that appears at the beginning of movies because the disc is programmed to prohibit that action.

The feature or action cannot be completed at this time because:

1.The disc's software restricts it.

2.The disc's software doesn't support the

feature (e.g.,angles)

3.The feature is not available at the moment.

4.You've requested a title or chapter number

that is out of range.

Picture is distorted

The disc might be damaged.Try another disc; it is normal for some distortion to appear during forward or reverse scan.

No forward or reverse scan

Some discs have sections that prohibit rapid scanning or chapter skip;If you try to skip through the warning information and credits at the beginning of a movie,you won't be able to.This part of the movie is often programmed to prohibit skipping through it.

If at any time in the future you should need to dispose of this product please note that waste electrical products should not be disposed of with household waste.Please recycle where facilities exist.Check with your Local Authority or retailer for recycling advice.(Waste Electrical and Electronic equipment

Directive)

Due to continuous improvement of the unit, no prior notice will be given regarding changes on above features and specifications.

18

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
