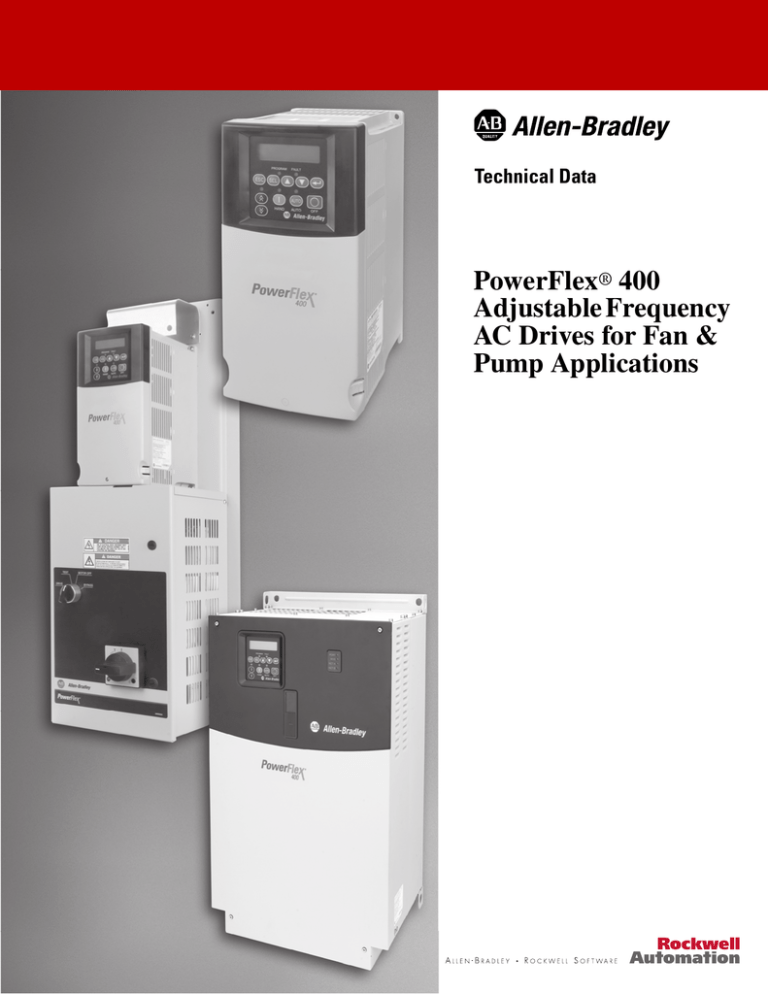

PowerFlex® 400 Adjustable Frequency AC
Technical Data
PowerFlex® 400
Adjustable Frequency
AC Drives for Fan &
Pump Applications
Product Description
Providing users with easy installation in mechanical fan and
pump systems, the Allen-Bradley PowerFlex® 400 AC drive
offers a wide range of built-in features allowing for seamless
building system integration. Available in power ratings of 3.0350HP @ 480VAC and 3.0-50HP @ 240V AC, the PowerFlex 400
is designed to meet global OEM, contractor and end-user
demands for flexibility, space savings and ease-of-use. The
PowerFlex 400 is a cost-effective solution for speed control in
variable torque fan and pump applications.
Table of Contents
Description
Page
PowerFlex 400 Standard Product
Product Overview
Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
I/O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Operator Keypad and Programming . . . . . . . . . . . . . . . . . . . . . . 3
Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
PC Programming Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Application Features
Configurable Keypad Hand-Off-Auto Functions . . . . . . . . . . . . . 5
Connectivity to Building Fire and Life Safety Systems. . . . . . . . 5
Proportional, Integral, Differential Control Loop . . . . . . . . . . . . 6
Product Selection Guide
Catalog Number Explanation . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
PowerFlex 400 Standard Drives . . . . . . . . . . . . . . . . . . . . . . . . . 9
User Installed Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Installation Considerations
Power Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Power Terminal Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Control Wiring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Specifications
Drive Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Parameter List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Approximate Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
PowerFlex 400 Packaged Product
Packaged Product Overview
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Main Input Disconnect / Circuit Breaker . . . . . . . . . . . . . . . . . 35
3 Contactor Full Feature Bypass with Disconnect / Circuit Breaker35
3 Contactor Basic Bypass with Disconnect . . . . . . . . . . . . . . . 35
Product Selection Guide
Catalog Number Explanation . . . . . . . . . . . . . . . . . . . . . . . . . . 36
PowerFlex 400 NEMA/UL Type 1 Enclosure (Position d = A) . . 37
Factory Installed Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
2
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
Product Overview
Packaging
• IP20, NEMA/UL Type 1 - For conventional mounting inside or
outside a control cabinet in a 45°C (113°F) ambient.
• Flange Type - Frame C ratings through 15 kW (20 HP) @ 380480V AC and 7.5 kW (10 HP) @ 200-240V AC allow for mounting
heatsink through back of an enclosure, thus removing a large
portion of the heat inside a cabinet. The backside is rated IP66,
NEMA/UL Type 4X/12 for both indoor and outdoor use.
• Installation flexibility is enhanced by the UL Plenum rating
allowing for direct mounting in an air handling system.
I/O
9 10 11 12 13 14 15 16 17 18 19 20 R1 R2 R3 R4 R5 R6
Digital Common
Opto Common
+ 24VDC
Analog Input #1
SRC
+ 10VDC
SNK
8
Digital Input 4 (Comm Port)
Control Board
7
Digital Input 3 (Clear Fault)
AI2
10V 20MA
6
Digital Input 2 (Local)
AI1
10V 20MA
5
Digital Input 1 (Purge)
AO2
10V 20MA
Digital Common
AO1
10V 20MA
Software Enable
4
Auto
Run/FWD
3
Hand
Function Loss
2
+ –
Speed Ref. Input
1
Purge
Interlocks
Auto Start
Freeze/Fire
Stats
• Three (3) semi-programmable and four (4) fully programmable
digital inputs provide application versatility.
• Two (2) programmable form C relay outputs and one (1) opto
output can be used to indicate various drive or motor conditions.
• Two (2) analog outputs are DIP Switch selectable for either
voltage (0-10V) or current (0-20 mA). These scalable, 10-bit
outputs are suitable for metering or as a speed reference for
another drive.
• Two (2) analog inputs (one unipolar and one bipolar) are DIP
switch selectable for either voltage or current. One input is
isolated from the rest of the drive I/O.
• Six (6) programmable form A relay outputs are available via user
installed Auxiliary Relay Board (Frames D through H only).
Analog Common #1
Analog Output #1 (Frequency 0-10V)
Analog Output #2 (Output Current 0-10V)
Analog Input #2
Analog Common #2
Opto Output (At Frequency)
RJ-45 Shield
#1 Relay N.O. (Ready/Fault)
#1 Relay Common
#1 Relay N.C.
#2 Relay N.O. (Motor Running)
#2 Relay Common
#2 Relay N.C.
Operator Keypad and Programming
•
•
•
•
•
•
Integral keypad features 2 line, 16 character LCD display.
LED indicators provide system configuration and fault status.
Configurable Hand/Off/Auto function buttons.
Digital increase/decrease speed control.
Parameter names are displayed as text.
Parameters are grouped into files based upon function, making
programming fast and easy.
3
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
Product Overview
Communications
• Supports Drive Serial Interface (DSI)
communication modules (DeviceNet™,
EtherNet/IP™, PROFIBUS™ DP,
LonWorks®, BACnet®) and accessories.
• Embedded Modbus RTU, P1-FLN and
Metasys N2 protocols are parameter
selectable and require no additional
hardware or software.
• Integral RS485 communications can be
used for programming from a PC. It can also
be used in a multi-drop network
configuration. A serial converter module
provides connectivity to any controller with a
DF1 port.
PC Programming Software
Through the use of a Serial Converter Module and DriveExplorer™
or DriveTools™ SP software, programming can be greatly simplified.
DriveExplorer Software
• View and modify drive and adapter parameters in a method similar to
the file management capability of Microsoft Windows Explorer.
• Operate the drive via an on-screen Control Bar, which is a tool that
allows you to start, stop, and change the speed reference of the drive.
• Save, restore and print parameter information.
• Compare current parameters with factory defaults or previously saved
parameter values.
• Edit, upload and download parameters.
DriveTools SP Software
• Online and offline programming capability.
• In-grid and dialog-based parameter editing.
• Immediate visual indication of drive and communication status when
viewing online drive.
• Integrated HTML Help architecture.
4
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
Application Features
Configurable Keypad Hand-Off-Auto Functions
Parameter P042 [Auto Mode] defines the operating configuration of the
control keys.
Hand-Off-Auto Configuration
Hand Mode:
Start command and speed reference come from the integral
keypad. Auto key switches control from Hand mode to Auto
mode in a bumpless transfer as long as there is an active run
command.
Auto Mode:
Start command is defined by P036 [Start Source] (keypad,
terminal block, comm port) and speed reference is defined
by P038 [Speed Reference] (analog inputs, preset frequency,
comm port). Start/Hand key switches control and speed
reference to the integral keypad in a bumpless transfer.
Local/Remote Configuration
Local Mode: Start command and speed reference come from the integral keypad. Auto key stops the drive and the drive
switches to Remote mode.
Remote Mode:Start command is defined by P036 [Start Source] and speed reference is defined by P038 [Speed
Reference]. Auto key stops the drive and the drive switches to Local mode.
Auto/Manual Configuration
Manual Mode:Start command is defined by P036 [Start Source] and the speed reference comes from the integral keypad.
Auto key toggles frequency control to Auto mode in a bumpless transfer.
Auto Mode:
Start command is defined by P036 [Start Source] and speed reference is defined by P038 [Speed
Reference]. Auto key switches frequency control to the integral keypad in a bumpless transfer.
Connectivity to Building Fire and Life Safety Systems
Purge
The PowerFlex 400 drive has an input which can be wired to a fire control panel or other fire/life safety systems allowing
control of the drive to be overridden. A purge input will start the drive at a programmable purge speed regardless of the
selected start source. Purge can occur and is operational at any time whether the drive is running or stopped. A purge
command will take precedence over a stop command from the comm port/network and over a “SW Enable” command from
the terminal block.
Fire/Freeze Status
The PowerFlex 400 drive can be tied into fire alarm systems or interlocked with cooling coils via a “Function Loss” input on
the drive. Upon opening of the input, the drive will immediately coast to a stop if running and issue a fault. The drive will
only be allowed to restart once the alarm state is cleared and the drive fault is reset.
5
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
Application Features
Proportional, Integral, Differential Control Loop
The PowerFlex 400 has a built-in PID (Proportional, Integral, Differential) control loop. The PID loop is used to maintain a
process variable, such as pressure or flow, at a desired set point. The PID loop works by subtracting the PID feedback from
a reference and generating an error value. The PID loop reacts to the error, based on the PID gains, and outputs a frequency
to try to reduce the error value to zero.
PID Reference = Desired Static Pressure
PID Feedback = Pressure Transducer Signal
Heating
Outside Air
Damper
Air Flow
Cooling
P
Dampers
Supply Fan
Recirculation
Damper
Room
Room
Room
Return Fan
Exhaust Air
Damper
Air Flow
PID Reference = Output Frequency from Supply VFD
P
PID Feedback = Pressure Transducer Signal
Damper Control
The PowerFlex 400 allows damper control logic to be imbedded within the drive reducing cost associated with external
control hardware and software. A system Run command can be wired directly into one of the drive inputs. Relay outputs
can be used to energize the damper to either open or close. A damper limit switch can be wired back to the drive providing
indication that the damper is in the proper position and that it is safe for the drive to run at commanded speed.
Damper Position Command
System Run Command
Damper Limit Switch
Outside Air
Damper
Air Flow
Supply Fan
6
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
Product Selection Guide
Auxiliary Motor Control
The PowerFlex 400 has a built in Auxiliary Motor Control feature. This feature allows operation of up to three (3) linestarted motors in addition to the motor controlled directly by the PowerFlex 400 drive. System output can vary from 0%
(auxiliary motors off and drive-controlled motor at zero speed) to 400% (3 auxiliary motors and drive-controlled motor at full
speed). When Auxiliary Motor Control is enabled, the internal PID controller in the PowerFlex 400 uses a reference and
feedback signal to adjust the speed of the drive controlled motor such that the feedback signal follows the reference
signal. When demand exceeds the first motors capacity, the PowerFlex 400 Auxiliary Motor Control automatically starts an
auxiliary motor. The speed of the drive controlled motor is reduced to account for the auxiliary motors additional output to
the system. If demand continues to increase, the PowerFlex Auxiliary Motor Control starts additional motors using the
same process. When demand decreases, an auxiliary motor is stopped and the PowerFlex Auxiliary Motor Control
increases the speed of the drive controlled motor to account for lost system output. A Motor Interlock input identifies
motors that are out of service and causes them to skipped over to the next available motor.
An AutoSwap function also can be used which allows equal wear to be placed on each motor by periodically swapping the
drive controlled and auxiliary motors. Each motor in the system will over time be connected to the PowerFlex 400 drive and
also directly to the AC line. During an AutoSwap, the motor directly connected to the PowerFlex 400 drive is stopped and
the contactor is opened. The contactor of the next motor that will be controlled by the PowerFlex 400 drive is opened if
running across the AC line. A contactor is closed connecting this motor directly to the PowerFlex 400 drive and is started.
An additional motor is line started if required.
One External Motor
without AutoSwap
One External Motor
with AutoSwap
Three-Phase Power
Three-Phase Power
PID Reference
PID Reference
PID Feedback
PID Feedback
M1D
M1L
M2L
M2D
M2L
M2L
M1
M2
M1D
M1
M1L
M2D
M2L
M2
7
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
Product Selection Guide
Catalog Number Explanation
Position Number
1-3
4
5
6-8
9
10
11
12
22C
–
D
038
A
1
0
3
b
c
d
e
f
g
a
a
c1
d
Drive
Rating
Enclosure
Code
Type
22C
PowerFlex 400
Code
200…240V Input
b
Voltage Rating
Code
Voltage
Ph.
B
240V ac
3
D
480V ac
3
Code
Amps
kW (Hp)
Frame
012
12
2.2 (3.0)
C
017
17.5
3.7 (5.0)
C
024
24
5.5 (7.5)
C
033
33
7.5 (10)
C
049
49
11 (15)
D
065
65
15 (20)
D
075
75
18.5 (25)
D
090
90
22 (30)
D
120
120
30 (40)
E
145
145
37 (50)
E
Enclosure
N
Panel Mount - IP20,
NEMA/UL Type Open
A
Panel Mount - IP30,
NEMA/UL Type 1
F
Flange Mount - IP20,
NEMA/UL Type Open ‡
Frame C drives only available with IP20,
NEMA/UL Type Open enclosure. Field installed
conversion kit available to achieve IP30,
NEMA/UL Type 1 rating.
Frame D, E and F drives only available with
IP30, NEMA/UL Type 1 enclosure.
‡ Frame C drives only.
c2
e
Rating
HIM
380…480V Input
Code
Interface Module
1
Fixed Keypad
Code
Amps
kW (Hp)
Frame
6P0
6.0
2.2 (3.0)
C
010
10.5
4.0 (5.0)
C
012
12
5.5 (7.5)
C
017
17
7.5 (10)
C
022
22
11 (15)
C
030
30
15 (20)
C
038
38
18.5 (25)
D
045
45.5
22 (30)
D
g
060
60
30 (40)
D
Version
072
72
37 (50)
E
Code
Version
088
88
45 (60)
E
3
RS485
105
105
55 (75)
E
142
142
75 (100)
E
170
170
90 (125)
F
208
208
110 (150)
F
260
260
132 (200)
G
310
310
160 (250)
G
370
370
200 (300)
H
460
460
250 (350)
H
f
Emission Class
Code
Rating
0
Not Filtered
8
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
Product Selection Guide
PowerFlex 400 Standard Drives
200-240V AC, Three Phase Drives
Drive Ratings
Catalog Number
kW
HP
Output
Frame
Current ➋ Size
2.2
3.7
5.5
7.5
11
15
18.5
22
30
37
3.0
5.0
7.5
10
15
20
25
30
40
50
12A
17.5A
24A
33A
49A
65A
75A
90A
120A
145A
C
C
C
C
D
D
D
D
E
E
Rating
Panel Mount
Flange Mount
IP20, NEMA/UL Open Type ➊
IP20, NEMA/UL Open Type ➊
IP20, NEMA/UL Open Type ➊
IP20, NEMA/UL Open Type ➊
IP30, NEMA/UL Type 1
IP30, NEMA/UL Type 1
IP30, NEMA/UL Type 1
IP30, NEMA/UL Type 1
IP30, NEMA/UL Type 1
IP30, NEMA/UL Type 1
22C-B012N103
22C-B017N103
22C-B024N103
22C-B033N103
22C-B049A103
22C-B065A103
22C-B075A103
22C-B090A103
22C-B120A103
22C-B145A103
22C-B012F103
22C-B017F103
22C-B024F103
22C-B033F103
–
–
–
–
–
–
380-480V AC, Three Phase Drives
Drive Ratings
Catalog Number
kW
HP
Output
Frame
Current ➋ Size
Rating
Panel Mount
Flange Mount
2.2
4.0
5.5
7.5
11
15
18.5
22
30
37
45
55
75
90
110
132
160
200
250
3.0
5.0
7.5
10
15
20
25
30
40
50
60
75
100
125
150
200
250
300
350
6.0A
10.5A
12A
17A
22A
30A
38A
45.5A
60A
72A
88A
105A
142A
170A
208A
260A
310A
370A
460A
IP20, NEMA/UL Open Type ➊
IP20, NEMA/UL Open Type ➊
IP20, NEMA/UL Open Type ➊
IP20, NEMA/UL Open Type ➊
IP20, NEMA/UL Open Type ➊
IP20, NEMA/UL Open Type ➊
IP30, NEMA/UL Type 1
IP30, NEMA/UL Type 1
IP30, NEMA/UL Type 1
IP30, NEMA/UL Type 1
IP30, NEMA/UL Type 1
IP30, NEMA/UL Type 1
IP30, NEMA/UL Type 1
IP30, NEMA/UL Type 1
IP30, NEMA/UL Type 1
IP30, NEMA/UL Type 1
IP30, NEMA/UL Type 1
IP30, NEMA/UL Type 1
IP30, NEMA/UL Type 1
22C-D6P0N103
22C-D010N103
22C-D012N103
22C-D017N103
22C-D022N103
22C-D030N103
22C-D038A103
22C-D045A103
22C-D060A103
22C-D072A103
22C-D088A103
22C-D105A103
22C-D142A103
22C-D170A103
22C-D208A103
22C-D260A103
22C-D310A103
22C-D370A103
22C-D460A103
22C-D6P0F103
22C-D010F103
22C-D012F103
22C-D017F103
22C-D022F103 ➌
22C-D030F103 ➌
–
–
–
–
–
–
–
–
–
–
–
–
–
C
C
C
C
C
C
D
D
D
E
E
E
E
F
F
G
G
H
H
➊ IP30, NEMA/UL Type 1 can be achieved for panel mount drives with top cover and optional conduit box kit installed. Field installed conversion kit specified under
User Installed Options.
➋ Drive terminals are sized according to UL. Depending on operating ambient and wire used, some local or national codes may require a larger wire size than what the
power terminals can accept. Multiple conductors, 90°C wire, and/or lugs may be required. Refer to the PowerFlex 400 User Manual for details on terminal block wire
ranges.
➌ 11 and 15 kW (15 and 20 HP) Frame C flange mount drives require external DC series bus inductor.
9
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
Product Selection Guide
User Installed Options
IP30, NEMA/UL Type 1 Conversion Kit
Description
Drive Frame
IP30, NEMA/UL Type 1 Kit
C
Description: Field installed kit. Converts drive to IP30, NEMA/UL Type 1 enclosure. Includes conduit box with
mounting screws and plastic top panel.
IP30, NEMA/UL Type 1 Kit with Communication Option
C
Description: Field installed kit. Converts drive to IP30, NEMA/UL Type 1 enclosure. Includes communication
option conduit box with mounting screws and plastic top panel.
Catalog Number
22-JBAC
22-JBCC
Human Interface Module Option Kits and Accessories
Description
Remote Human Interface Module (HIM) – Panel Mount
Description: LCD Display, Remote Panel Mount, Digital Speed Control, CopyCat capable, IP66, NEMA/UL Type 4X/12) indoor
use only, Includes 2.0 meter cable.
Note: Remote HIM display and keypad are different than PowerFlex 400 integral keypad. See the PowerFlex 400 User Manual
for details.
Remote Human Interface Module (HIM) – Handheld
Description: LCD Display, Remote Handheld, Digital Speed Control, Full Numeric Keypad, CopyCat capable, IP30, NEMA/UL
Type 1), Includes 1.0 meter cable, Panel Mount with optional Bezel Kit.
Note: Remote HIM display and keypad are different than PowerFlex 400 integral keypad. See the PowerFlex 400 User Manual
for details.
Bezel Kit
Description: Panel Mount for LCD Display, Remote Handheld unit, IP30, NEMA/UL Type 1).
DSI HIM Cable
Description: DSI HIM to RJ45 cable.
1.0 Meter (3.3 Feet)
2.9 Meter (9.51 Feet)
Catalog Number
22-HIM-C2S
22-HIM-A3
22-HIM-B1
22-HIM-H10
22-HIM-H30
PC Programming Software
Item
Description
DriveTools SP Software
“Windows” based software package that provides an intuitive means for monitoring or configuring Allen-Bradley 9303-4DTE01ENE
drives and communications adapters online and offline.
Compatibility: Windows 98, ME, NT, 4.0 (Service Pack 3 or later), 2000 and XP.
“Windows” based software package that provides an intuitive means for monitoring or configuring Allen-Bradley 9306-4EXP01ENE
drives and communications adapters online and offline.
Compatibility: Windows 98, ME, NT, 4.0 (Service Pack 3 or later), 2000 and XP. ➊
DriveExplorer Software
Catalog Number
➊ See www.ab.com/drive/ for support devices.
Spare Parts
Description
Catalog Number
PowerFlex 400 Fan Replacement Kit
Description: (1) Fan, 3-10 HP @ 200-240V AC and 3-10 HP @ 380-480V AC
PowerFlex 400 Fan Replacement Kit
Description: (1) Fan, 15-20 HP @ 380-480V AC
SK-U1-FAN1-C1
SK-U1-FAN1-C2
Other Options
Description
Auxiliary Relay Board
Description: Field installed kit. Expands drive output capabilities.
10
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
Catalog Number
AK-U9-RLB1
Product Selection Guide
Communication Option Kits
Description
Serial Converter Module (RS485 to RS232)
Description: Provides serial communication via DF1 protocol for use with DriveExplorer and DriveExecutive software.
Includes: DSI to RS232 serial converter, 1203-SFC serial cable, 22-RJ45CBL-C20 cable, and DriveExplorer Lite CD.
Serial Cable
Description: 2.0 meter serial cable with a locking low profile connector to connect to the serial converter and a 9-pin subminiature D female connector to connect a computer.
Null Cable Converter
Description: For use when connecting the serial converter to DriveExplorer on a handheld PC.
DSI Cable
Description: 2.0 meter RJ45 to RJ45 cable, male to male connectors.
Splitter Cable
Description: RJ45 one to two port splitter cable.
Terminating Resistors
Description: RJ45 120 Ohm resistors (2 pieces)
Terminal Block
Description: RJ45 two position terminal block (5 pieces)
BACnet® MS/TP RS-485 Communication Adapter
Note: Requires a Communication Adapter Cover when used with Frame C PowerFlex 400 drives (Ordered Separately).
ControlNet™ Communication Adapter
Note: Requires a Communication Adapter Cover when used with Frame C PowerFlex 400 drives (Ordered Separately).
DeviceNet Communication Adapter
Note: Requires a Communication Adapter Cover when used with Frame C PowerFlex 400 drives (Ordered Separately).
EtherNet/IP™ Communication Adapter
Note: Requires a Communication Adapter Cover when used with Frame C PowerFlex 400 drives (Ordered Separately).
LonWorks™ Communication Adapter
Note: Requires a Communication Adapter Cover when used with Frame C PowerFlex 400 drives (Ordered Separately).
PROFIBUS™ DP Communication Adapter
Note: Requires a Communication Adapter Cover when used with Frame C PowerFlex 400 drives (Ordered Separately).
External DSI Communications Kit
Description: External mounting kit for 22-COMM communication options
External Comms Power Supply
Description: Optional 100-240V ac Power Supply for External DSI Communications Kit
Communication Adapter Cover
Description: Houses the Communication Adapter for Frame C drives.
Note: This cover adds 25 mm (0.98 in.) to the overall depth of the drive and is only required for Frame C PowerFlex 400 drives.
Serial Flash Firmware Kit
Description: Use a PC to update drive firmware.
Catalog No.
22-SCM-232
1203-SFC
1203-SNM
22-RJ45CBL-C20
AK-U0-RJ45-SC1
AK-U0-RJ45-TR1
AK-U0-RJ45-TB2P
22-COMM-B
22-COMM-C
22-COMM-D
22-COMM-E
22-COMM-L
22-COMM-P
22-XCOMM-DC-BASE
20-XCOMM-AC-PS1
22C-CCC ➊
AK-U9-FLSH1
➊ If IP30, MENA/UL Type 1 is required, must also order 22-JBCC (Frame C drives only).
11
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
Installation Considerations
Input and Output Line Reactors (Loose)
208V, 60 Hz, Three-Phase
PowerFlex 400 Ratings
kW
3% Impedance
2.2
3.7
5.5
7.5
11
15
18.5
22
30
37
5% Impedance
2.2
3.7
5.5
7.5
11
15
18.5
22
30
37
HP
Amps
Catalog Number
IP00 (NEMA/UL Type Open) IP11 (NEMA/UL Type 1)
3.0
5.0
7.5
10
15
20
25
30
40
50
12
18
25
35
45
55
80
80
100
130
1321-3R12-A
1321-3R18-A
1321-3R25-A
1321-3R35-A
1321-3R45-A
1321-3R55-A
1321-3R80-A
1321-3R80-A
1321-3R100-A
1321-3R130-A
1321-3RA12-A
1321-3RA18-A
1321-3RA25-A
1321-3RA35-A
1321-3RA45-A
1321-3RA55-A
1321-3RA80-A
1321-3RA80-A
1321-3RA100-A
1321-3RA130-A
3.0
5.0
7.5
10
15
20
25
30
40
50
12
18
25
35
45
55
80
80
100
130
1321-3R12-B
1321-3R18-B
1321-3R25-B
1321-3R35-B
1321-3R45-B
1321-3R55-B
1321-3R80-B
1321-3R80-B
1321-3R100-B
1321-3R130-B
1321-3RA12-B
1321-3RA18-B
1321-3RA25-B
1321-3RA35-B
1321-3RA45-B
1321-3RA55-B
1321-3RA80-B
1321-3RA80-B
1321-3RA100-B
1321-3RA130-B
HP
Amps
Catalog Number
IP00 (NEMA/UL Type Open) IP11 (NEMA/UL Type 1)
3.0
5.0
7.5
10
15
20
25
30
40
50
12
18
25
35
45
55
80
80
100
130
1321-3R12-A
1321-3R18-A
1321-3R25-A
1321-3R35-A
1321-3R45-A
1321-3R55-A
1321-3R80-A
1321-3R80-A
1321-3R100-A
1321-3R130-A
1321-3RA12-A
1321-3RA18-A
1321-3RA25-A
1321-3RA35-A
1321-3RA45-A
1321-3RA55-A
1321-3RA80-A
1321-3RA80-A
1321-3RA100-A
1321-3RA130-A
3.0
5.0
7.5
10
15
20
25
30
40
50
12
18
25
35
45
55
80
80
100
130
1321-3R12-B
1321-3R18-B
1321-3R25-B
1321-3R35-B
1321-3R45-B
1321-3R55-B
1321-3R80-B
1321-3R80-B
1321-3R100-B
1321-3R130-B
1321-3RA12-B
1321-3RA18-B
1321-3RA25-B
1321-3RA35-B
1321-3RA45-B
1321-3RA55-B
1321-3RA80-B
1321-3RA80-B
1321-3RA100-B
1321-3RA130-B
240V, 60 Hz, Three-Phase
PowerFlex 400 Ratings
kW
3% Impedance
2.2
3.7
5.5
7.5
11
15
18.5
22
30
37
5% Impedance
2.2
3.7
5.5
7.5
11
15
18.5
22
30
37
12
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
Installation Considerations
Input and Output Line Reactors (Loose)
480V, 60 Hz, Three-Phase
PowerFlex 400 Ratings
kW
3% Impedance
2.2
4.0
5.5
7.5
11
15
18.5
22
30
37
45
55
75
90
110
132
160
200
250
5% Impedance
2.2
4.0
5.5
7.5
11
15
18.5
22
30
37
45
55
75
90
110
132
160
200
250
HP
Amps
Catalog Number
IP00 (NEMA/UL Type Open) IP11 (NEMA/UL Type 1)
3.0
5.0
7.5
10
15
20
25
30
40
50
60
75
100
125
150
200
250
300
350
8.0
12
12
18
25
35
35
45
55
80
80
100
130
160
200
250
320
400
500
1321-3R8-C
1321-3R12-B
1321-3R12-B
1321-3R18-B
1321-3R25-B
1321-3R35-B
1321-3R35-B
1321-3R45-B
1321-3R55-B
1321-3R80-B
1321-3R80-B
1321-3R100-B
1321-3R130-B
1321-3R160-B
1321-3R200-B
1321-3RB250-B
1321-3RB320-B
1321-3RB400-B
1321-3R500-B
1321-3RA8-C
1321-3RA12-B
1321-3RA12-B
1321-3RA18-B
1321-3RA25-B
1321-3RA35-B
1321-3RA35-B
1321-3RA45-B
1321-3RA55-B
1321-3RA80-B
1321-3RA80-B
1321-3RA100-B
1321-3RA130-B
1321-3RA160-B
1321-3RA200-B
1321-3RAB250-B
1321-3RAB320-B
1321-3RAB400-B
1321-3RA500-B
3.0
5.0
7.5
10
15
20
25
30
40
50
60
75
100
125
150
200
250
300
350
8.0
12
12
18
25
35
35
45
55
80
80
100
130
160
200
250
320
400
500
1321-3R8-D
1321-3R12-C
1321-3R12-C
1321-3R18-C
1321-3R25-C
1321-3R35-C
1321-3R35-C
1321-3R45-C
1321-3R55-C
1321-3R80-C
1321-3R80-C
1321-3R100-C
1321-3R130-C
1321-3R160-C
1321-3R200-C
1321-3RB250-C
1321-3RB320-C
1321-3RB400-C
1321-3R500-C
1321-3RA8-D
1321-3RA12-B
1321-3RA12-C
1321-3RA18-C
1321-3RA25-C
1321-3RA35-C
1321-3RA35-C
1321-3RA45-C
1321-3RA55-C
1321-3RA80-C
1321-3RA80-C
1321-3RA100-C
1321-3RA130-C
1321-3RA160-C
1321-3RA200-C
1321-3RAB250-C
1321-3RAB320-C
1321-3RAB400-C
1321-3RA500-C
Amps
12
17.5
24
33
Inductance (mH)
0.92
0.63
0.85
0.75
Catalog Number
IP00 (NEMA/UL Type Open)
1321-DC12-1
1321-DC18-1
1321-DC32-1
1321-DC40-1
Amps
6.0
10.5
12
17
22
30
Inductance (mH)
3.68
2.1
3.75
1.75
2.68
2.00
Catalog Number
IP00 (NEMA/UL Type Open)
1321-DC9-2
1321-DC12-2
1321-DC18-4
1321-DC25-4
1321-DC32-2
1321-DC40-4
DC Series Bus Inductors (Loose)
200-240V, 60 Hz, Three-Phase
PowerFlex 400 Ratings
kW
2.2
3.7
5.5
7.5
HP
3.0
5.0
7.5
10
380-480V, 60 Hz, Three-Phase
PowerFlex 400 Ratings
kW
2.2
4.0
5.5
7.5
11
15
HP
3.0
5.0
7.5
10
15
20
13
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
Installation Considerations
EMC Filters (Loose)
200-240V, 50/60 Hz, Three-Phase
PowerFlex 400 Ratings
kW
HP
2.2
3.0
3.7
5.0
5.5
7.5
7.5
10
11
15
15
20
18.5
25
22
30
30
40
37
50
Catalog Number
Amps
12
17.5
24
33
49
65
75
90
120
145
22-RF034-CS
22-RF034-CS
22-RF034-CS
22-RF034-CS
22-RFD070
22-RFD100
22-RFD100
22-RFD150
22-RFD150
22-RFD180
380-480V, 50/60 Hz, Three-Phase
PowerFlex 400 Ratings
kW
HP
2.2
3.0
4.0
5.0
5.5
7.5
7.5
10
11
15
15
20
18.5
25
22
30
30
40
37
50
45
60
55
75
75
100
90
125
110
150
132
200
160
250
200
300
250
350
Catalog Number
Amps
6.0
10.5
12
17
22
30
38
45.5
60
72
88
105
142
170
208
260
310
370
460
22-RF018-CS
22-RF018-CS
22-RF018-CS
22-RF018-CS
22-RF026-CS
22-RFD036
22-RFD050
22-RFD050
22-RFD070
22-RFD100
22-RFD100
22-RFD150
22-RFD180
22-RFD208
22-RFD208
22-RFD323
22-RFD480
22-RFD480
22-RFD480
14
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
Installation Considerations
Isolation Transformers (Loose)
208V AC, 3 Phase, 60 Hz Secondary
PowerFlex 400 Ratings
IP32 (NEMA/UL Type 3R) Isolation Transformer
Catalog Number
kW
HP
Amps
kVA
208 Volt Primary
2.2
4.0
5.5
7.5
11
15
18.5
3.0
5.0
7.5
10
15
20
25
12
17.5
24
33
49
65
75
5.0
7.5
11
14
20
27
34
1321-3TW005-XX
1321-3TW007-XX
1321-3TW011-XX
1321-3TW014-XX
1321-3TW020-XX
1321-3TW027-XX
1321-3TW034-XX
230V AC, 3 Phase, 60 Hz Secondary
PowerFlex 400 Ratings
IP32 (NEMA/UL Type 3R) Isolation Transformer
Catalog Number
kW
HP
Amps
kVA
230 Volt Primary
460 Volt Primary
575 Volt Primary
2.2
3.7
5.5
7.5
11
15
18.5
22
30
37
3.0
5.0
7.5
10
15
20
25
30
40
50
12
17.5
24
33
49
65
75
90
120
145
5.0
7.5
11
14
20
27
34
40
51
63
1321-3TW005-AA
1321-3TW007-AA
1321-3TW011-AA
1321-3TW014-AA
1321-3TW020-AA
1321-3TW027-AA
1321-3TW034-AA
1321-3TW040-AA
1321-3TW051-AA
1321-3TH063-AA
1321-3TW005-BA
1321-3TW007-BA
1321-3TW011-BA
1321-3TW014-BA
1321-3TW020-BA
1321-3TW027-BA
1321-3TW034-BA
1321-3TW040-BA
1321-3TW051-BA
1321-3TH063-BA
1321-3TW005-CA
1321-3TW007-CA
1321-3TW011-CA
1321-3TW014-CA
1321-3TW020-CA
1321-3TW027-CA
1321-3TW034-CA
1321-3TW040-CA
1321-3TW051-CA
–
460V AC, 3 Phase, 60 Hz Secondary
PowerFlex 400 Drive Ratings
IP32 (NEMA/UL Type 3R) Isolation Transformer
Catalog Number
kW
HP
Amps
kVA
230 Volt Primary
460 Volt Primary
575 Volt Primary
2.2
4.0
5.5
7.5
11
15
18.5
22
30
37
45
55
75
90
110
132
160
200
250
3.0
5.0
7.5
10
15
20
25
30
40
50
60
75
100
125
150
200
250
300
350
6.0
8.7
12
17
22
30
38
45.5
60
72
88
105
142
170
208
260
310
370
460
5.0
7.5
11
14
20
27
34
40
51
63
75
93
118
145
175
200
245
305
390
1321-3TW005-AB
1321-3TW007-AB
1321-3TW011-AB
1321-3TW014-AB
1321-3TW020-AB
1321-3TW027-AB
1321-3TW034-AB
1321-3TW040-AB
1321-3TW051-AB
1321-3TH063-AB
1321-3TH075-AB
1321-3TH093-AB
1321-3TH118-AB
1321-3TH145-AB
1321-3TH175-AB
1321-3TH220-AB
1321-3TH275-AB
1321-3TH330-AB
1321-3TH440-AB
1321-3TW005-BB
1321-3TW007-BB
1321-3TW011-BB
1321-3TW014-BB
1321-3TW020-BB
1321-3TW027-BB
1321-3TW034-BB
1321-3TW040-BB
1321-3TW051-BB
1321-3TH063-BB
1321-3TH075-BB
1321-3TH093-BB
1321-3TH118-BB
1321-3TH145-BB
1321-3TH175-BB
1321-3TH220-BB
1321-3TH275-BB
1321-3TH330-BB
1321-3TH440-BB
1321-3TW005-CB
1321-3TW007-CB
1321-3TW011-CB
1321-3TW014-CB
1321-3TW020-CB
1321-3TW027-CB
1321-3TW034-CB
1321-3TW040-CB
1321-3TW051-CB
–
–
–
–
–
–
–
–
–
–
15
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
Installation Considerations
Power Wiring
PowerFlex 400 drives have the following built in protective features to help simplify installation.
• Ground fault protection while starting and running ensures reliable operation
• Electronic motor overload protection increases motor life
• 6kV transient protection provides increased robustness for 380-480V system voltages
There are many other factors that must be considered for optimal performance in any given application. The block diagram below
highlights the primary installation considerations. Consult the PowerFlex 400 User Manual, Publication 22C-UM001… available online
at www.ab.com/manuals/dr, for detailed recommendations on input power conditioning, CE conformance (EMC filtering), FCC
Compliance, reflected wave protection, motor cable types and motor cable distances.
Block Diagram
Branch Circuit Protective Devices – See Specifications on page 21
Input Power Conditioning – See Input and Output Line Reactors on page 12
Line (EMC) Filter – See page 14
Integral Keypad
Power Terminal Block – (Inside Cover)
Reflected Wave Protection – (Consult the appropriate User Manual)
Motor Cable Type and Length Recommendations –
(Consult the appropriate User Manual)
Class 10 Overload Protection – Provided by the PowerFlex drive
Motor – See publication MOTORS-CA001...
16
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
Installation Considerations
Power Terminal Block
Terminal Block Specifications
Name
Frame
Power Terminal Block
I/O Terminal Block
Wire Size Range ➊
Description
Maximum
Minimum
Recommended
Torque
C
All power terminals
8.4 mm2 (8 AWG)
1.3 mm2 (16 AWG)
3.7 N-m (33 lb.-in.)
D
All power terminals
33.6 mm2 (2 AWG)
8.4 mm2 (8 AWG)
5.1 N-m (45 lb.-in.)
3.5 mm2 (12 AWG)
5.6 N-m (49.5 lb.-in.)
E
480V
37-45 kW
(50-60 HP)
All power terminals
33.6 mm2 (2 AWG)
E
240V
30-37 kW
(40-50 HP)
480V
55-75 kW
(75-100 HP)
All power terminals
107.2 mm2 (4/0 AWG)
53.5 mm2 (1/0 AWG)
19.5 N-m (173 lb.-in.)
F
All power terminals
152.5 mm2 (300 MCM) 85.0 mm2 (3/0 AWG)
19.5 N-m (173 lb.-in.)
G
All power terminals
152.5 mm2 (300 MCM) 85.0 mm2 (3/0 AWG)
29.4 N-m (260 lb.-in.)
H
All power terminals
253.0 mm2 (500 MCM) 127.0 mm2 (250 MCM) 40.0 N-m (354 lb.-in.)
All
Signal and control connections 1.3 mm2 (16 AWG)
0.13 mm2 (26 AWG)
0.5-0.8 N-m (4.4-7 lb.-in.)
➊ Maximum/minimum sizes that the terminal block will accept - these are not recommendations. If national or local codes require sizes outside this range, lugs may be
used.
Frame C
Terminal (1)
R/L1, S/L2, T/L3
U/T1
V/T2
W/T3
Description
3-Phase Input
To Motor U/T1
To Motor V/T2
To Motor W/T3
P2, P1
DC Bus Inductor Connection
Drives are shipped with a jumper between
Terminals P2 and P1. Remove this jumper only
when a DC Bus Inductor will be connected. Drive
will not power up without a jumper or inductor
connected.
DC Bus Connection (Frame C and H Drives)
DC Bus Connection (Frame D, E, F and G Drives)
Not Used
Safety Ground - PE
DC–, DC+
P2, DC–
BR+, BR–
(1)
Frame D
R/L1 S/L2 T/L3 U/T1 V/T2 W/T3 P2 P1
=
Switch any two
motor leads to
change forward
direction.
Important: Terminal screws may become loose during shipment. Ensure that all terminal
screws are tightened to the recommended torque before applying power to the drive.
R/L1 S/L2 T/L3
P1
P2 DC– U/T1 V/T2 W/T3
DC– DC+ BR+ BR–
Frame E: 480V, 37-45kW (50-60HP)
R/L1 S/L2 T/L3
P1 P2 DC–
U/T1 V/T2 W/T3
Frame E: 240V, 30-37kW (40-50HP)
480V, 55-75kW (75-100HP)
Frame F
R/L1 S/L2 T/L3
R/L1 S/L2
T/L3 P1 P2
DC–
U/T1 V/T2
P1
P2 DC– U/T1 V/T2 W/T3
W/T3
Frame G
R/L1 S/L2 T/L3
P1
P2
DC– U/T1 V/T2 W/T3
Frame H
R/L1
S/L2
T/L3
DC+
DC–
U/T1
V/T2
W/T3
17
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
Installation Considerations
Control Wiring
• The control logic is 24V DC and can be set for either Sink or Source control via a DIP switch setting.
• Control terminal screws are sized for a conventional blade screw driver.
• I/O Terminals 1, 2 and 3 are semi-programmable and dedicated for Stop, Start, Reverse, and SW Enable inputs.
These I/O Terminals can be programmed for 2- or 3-Wire operation to meet application requirements.
• I/O Terminals 5, 6, 7 and 8 are fully programmable and provide added flexibility. Programmable functions include Local
Control, Second Accel/Decel, Clear Fault, Preset Frequencies, RS485 Control, Auxiliary Fault, and Purge.
• Speed can be controlled via (2) analog inputs. Both inputs can be configured for either voltage or current and can be used
for applications such as PID. Voltage input can be programmed for bipolar operation.
• The drive is shipped with a jumper installed between I/O Terminals 01 and 11. This jumper can be removed when using
I/O Terminal 01 as a Stop or Enable input.
1 of 7 Digital Input Circuits
Stop/
Function Loss
03
SNK
ENBL
SRC
04
05
SNK
06
SRC
07
08
09
#1 Relay N.O.
#1 Relay Common
#1 Relay N.C.
10
#2 Relay Common
#2 Relay N.C.
Start/Run FWD
Direction/Run REV
Digital Common
Digital Input 1
Digital Input 2
Digital Input 3
Digital Input 4
Digital Common
Opto Common
R1
+24V
11
R2
R3
Earth Referenced
Frames D & E
+10V
12
0-10V
#2 Relay N.O.
Typical
SNK Wiring
01
02
Enable
Jumper
Typical
SRC Wiring
0-20mA
R4
13
14
0-10V
R5
15
R6
0-20mA
Isolated
0-10V
0-20mA
16
17
18
19
30V DC
50mA
Non-inductive
AO1
10V 20MA
AO2
10V 20MA
AI1
10V 20MA
20
AI2
10V 20MA
+24V DC Source
+10V DC Source
Analog Input 1 (AI1)
Analog Common 1
Analog Output 1 (AO1)
Pot must be
1-10k ohm
2 Watt Min.
Analog Output 2 (AO2)
Analog Input 2 (AI2)
Analog Common 2
Opto Output
RS485 Shield
RS485
(DSI)
18
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
Common
24V
Installation Considerations
Control I/O Terminal Designations
No.
Signal
Default
Description
Param.
01
Coast
03
Direction/Run REV
Rev Disabled
04
Digital Common
–
05
06
07
08
09
Digital Input 1
Digital Input 2
Digital Input 3
Digital Input 4
Digital Common
Purge ➊
Local
Clear Fault
Comm Port
–
10
Opto Common
–
11
+24V DC
–
12
+10V DC
–
13
Analog Input 1
0-10V
14
Analog Common 1
–
15
Analog Output 1
OutFreq 0-10
16
Analog Output 2
OutCurr 0-10
17
Analog Input 2
0-10V
18
Analog Common 2
–
19
Opto Output
At Frequency
Factory installed jumper or a normally closed input must be present for the drive to start.
Program with P036 [Start Source].
HAND Mode: Command comes from Integral Keypad. AUTO Mode: I/O Terminal 02 is active.
Program with P036 [Start Source].
To enable reverse operation, program with A166 [Reverse Disable].
Program with P036 [Start Source].
For digital inputs. Tied to I/O Terminal 09.
Electronically isolated with digital inputs from analog I/O and opto output.
Program with T051 [Digital In1 Sel].
Program with T052 [Digital In2 Sel].
Program with T053 [Digital In3 Sel].
Program with T054 [Digital In4 Sel].
For digital inputs. Tied to I/O Terminal 04.
Electronically isolated with digital inputs from analog I/O and opto output.
For opto-coupled outputs. Electronically isolated with opto output from analog I/O and digital
inputs.
Drive supplied power for digital inputs.
Referenced to Digital Common. Max. Output: 100mA.
Drive supplied power for 0-10V external potentiometer.
Referenced to Analog Common. Max. Output: 15mA.
External 0-10V (unipolar), 0-20mA or 4-20mA input supply or potentiometer wiper. Default input
is 0-10V.
For current (mA) input, set AI1 DIP Switch to 20mA. Program with T069 [Analog In 1 Sel].
Input Impedance:100k ohm (Voltage Mode)
250 ohm (Current Mode)
Common for Analog Input 1 and Analog Output 1 and 2. Electrically isolated from digital I/O and
opto output.
Default analog output is 0-10V.
For current (mA) value, set AO1 DIP Switch to 20mA. Program with T082 [Analog Out1 Sel].
Maximum Load:4-20mA = 525 ohm (10.5V)
0-10V = 1k ohm (10mA)
Default analog output is 0-10V.
For a current (mA) value, set AO2 DIP Switch to 20mA. Program with T085 [Analog Out2 Sel].
Maximum Load:4-20mA = 525 ohm (10.5V)
0-10V = 1k ohm (10mA)
Optically isolated external 0-10V (unipolar), ±10V (bipolar), 0-20mA or 4-20mA input supply or
potentiometer wiper. Default input is 0-10V.
For current (mA) input, set AI2 DIP Switch to 20mA. Program with T073 [Analog In 2 Sel].
Input Impedance:100k ohm (Voltage Mode)
250 ohm (Current Mode)
For Analog Input 2. Electronically isolated from digital I/O and opto output. With Analog Input
2, provides one fully isolated analog input channel.
Program with T065 [Opto Out Sel].
P036
02
Stop /
Function Loss
Start/Run FWD
20
RS485 (DSI) Shield –
–
P036, P037
P036, P037,
A166
T051
T052
T053
T054
P038
T069, T070,
T071, T072
P038, T051T054, A152
T082, T084,
T085, T086,
T087
T073, T074,
T075, T076
T065, T066,
T068
Terminal connected to Safety Ground - PE when using the RS485 (DSI) Communication Port.
➊ Refer to the PowerFlex 400 User Manual, publication 22C-UM001…, for Important information regarding Stop commands and the [Digital Inx Sel] Purge option.
No.
Signal
Default
Description
Param.
R1
R2
R3
R4
R5
R6
#1 Relay N.O.
#1 Relay Common
#1 Relay N.C.
#2 Relay N.O.
#2 Relay Common
#2 Relay N.C.
Ready/Fault
–
Ready/Fault
Motor Running
–
Motor Running
Normally open contact for No. 1 output relay.
Common for output relay.
Normally closed contact for No. 1 output relay.
Normally open contact for No. 2 output relay.
Common for output relay.
Normally closed contact for No. 2 output relay.
T055
Selection DIP Switches:
Analog Input (AI1 & AI2)
Analog Output (AO1 & AO2)
0-10V
Sink/Source DIP Switch
Source (SRC)
Sets analog output to either voltage or current.
Settings must match: AI1 & T069 [Analog In 1 Sel]
AI2 & T073 [Analog In 2 Sel]
AO1 & T082 [Analog Out1 Sel]
AO2 & T085 [Analog Out2 Sel]
Inputs can be wired as Sink (SNK) or Source (SRC) via DIP Switch setting.
T055
T060
T060
19
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
Specifications
User Installed Relay Board Terminal Designations
No.
Signal
Default
Description
Param.
3A
3B
4A
4B
5A
5B
6A
6B
7A
7B
8A
8B
#3 Relay N.O.
#3 Relay Common
#4 Relay N.O.
#4 Relay Common
#5 Relay N.O.
#5 Relay Common
#6 Relay N.O.
#6 Relay Common
#7 Relay N.O.
#7 Relay Common
#8 Relay N.O.
#8 Relay Common
Ready/Fault
–
Ready/Fault
–
Ready/Fault
–
Ready/Fault
–
Ready/Fault
–
Ready/Fault
–
Normally open contact for Number 3 Output Relay
Common for Number 3 Output Relay
Normally open contact for Number 4 Output Relay
Common for Number 4 Output Relay
Normally open contact for Number 5 Output Relay
Common for Number 5 Output Relay
Normally open contact for Number 6 Output Relay
Common for Number 6 Output Relay
Normally open contact for Number 7 Output Relay
Common for Number 7 Output Relay
Normally open contact for Number 8 Output Relay
Common for Number 8 Output Relay
R221
20
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
R224
R227
R230
R233
R236
Specifications
Drive Specifications
Drive Ratings
Catalog Number
Output Ratings
Input Ratings
kW (HP)
Voltage
Range
Amps
45°C
50°C
200 - 240V AC – 3-Phase Input, 0 - 230V 3-Phase Output
22C-B012N103
2.2 (3.0)
12
12
180-265
22C-B017N103
3.7 (5.0)
17.5
17.5
180-265
22C-B024N103
5.5 (7.5)
24
24
180-265
22C-B033N103
7.5 (10)
33
33
180-265
22C-B049A103
11 (15)
49
49
180-265
22C-B065A103
15 (20)
65
65
180-265
22C-B075A103
18.5 (25)
75
75
180-265
22C-B090A103
22 (30)
90
81
180-265
22C-B120A103
30 (40)
120
120
180-265
22C-B145A103
37 (50)
145
130
180-265
380 - 480V AC – 3-Phase Input, 0 - 460V 3-Phase Output
22C-D6P0N103
2.2 (3.0)
6
6
340-528
22C-D010N103
4.0 (5.0)
10.5
10.5
340-528
22C-D012N103
5.5 (7.5)
12
12
340-528
22C-D017N103
7.5 (10)
17
17
340-528
22C-D022N103
11 (15)
22
22
340-528
22C-D030N103
15 (20)
30
27
340-528
22C-D038A103
18.5 (25)
38
38
340-528
22C-D045A103
22 (30)
45.5
45.5
340-528
22C-D060A103
30 (40)
60
54
340-528
22C-D072A103
37 (50)
72
72
340-528
22C-D088A103
45 (60)
88
88
340-528
22C-D105A103
55 (75)
105
105
340-528
22C-D142A103
75 (100)
142
128
340-528
22C-D170A103
90 (125)
170
170
340-528
22C-D208A103
110 (150) 208
208
340-528
22C-D260A103
132 (200) 260
260
340-528
22C-D310A103
160 (250) 310
290
340-528
22C-D370A103
200 (300) 370
370
340-528
22C-D460A103
250 (350) 460
410
340-528
Branch Circuit Protection
Power Dissipation
kVA
Amps
Fuses
140M Motor
Protectors ➊
Contactors
IP20 Open Watts
6.5
8.8
10.9
14.4
21.3
28.3
32.5
38.3
51.6
62.4
15.5
21
26.1
34.6
51
68
78
92
124
150
20
30
35
45
70
90
100
125
175
200
140M-F8E-C16
140M-F8E-C25
140M-F8E-C32
140M-F8E-C45
140-CMN-6300
140-CMN-9000
140-CMN-9000
–
–
–
100-C23
100-C37
100-C37
100-C45
100-C60
100-C85
100-D95
100-D110
100-D180
100-D180
146
207
266
359
488
650
734
778
1055
1200
6.3
10.9
11.9
15.3
19.2
25.8
33.3
39.1
53.3
60.7
74.9
89
124.8
142
167
196
242
304
387
7.5
13
14.2
18.4
23
31
40
47
64
73
90
107
150
170
200
235
290
365
465
10
20
20
25
30
40
50
60
80
100
125
150
200
250
250
300
400
500
600
140M-D8E-C10
140M-D8E-C16
140M-D8E-C16
140M-D8E-C20
140M-F8E-C32
140M-F8E-C32
140M-F8E-C45
140-CMN-6300
140-CMN-9000
140-CMN-9000
140M-K5F-D12
140M-K5F-D16
140M-M5F-D20
140M-M5F-D25
140M-P5F-D32
–
–
–
–
100-C09
100-C16
100-C23
100-C23
100-C30
100-C37
100-C60
100-C60
100-C85
100-C85
100-D110
100-D140
100-D180
100-D250
100-D250
100-D300
100-D420
100-D420
100-D630
105
171
200
267
329
435
606
738
764
1019
1245
1487
2043
2617
3601
3711
4208
4916
6167
➊ Refer to the Bulletin 140M Motor Protectors Selection Guide, publication 140M-SG001… to determine the frame and breaking capacity required for your application.
21
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
Specifications
Category
Agency
Certification
Specification
C
UL
®
US
Listed to UL508C and CAN/CSA-22.2
Listed to UL508C for plenums
Certified to AS/NZS, 1997 Group 1, Class A
Protection
Environment
Electrical
Control
Marked for all applicable European Directives
EMC Directive (89/336)
EN 61800-3, EN 50081-1, EN 50082-2
Low Voltage Directive (73/23/EEC)
EN 50178, EN 60204
The drive is also designed to meet the appropriate portions of the following specifications:
NFPA 70 - US National Electrical Code
NEMA ICS 3.1 - Safety standards for Construction and Guide for Selection, Installation and Operation of Adjustable Speed Drive Systems.
IEC 146 - International Electrical Code.
Bus Overvoltage Trip:
200-240V AC Input: 405V DC bus voltage (equivalent to 290V AC incoming line)
380-460V AC Input: 810V DC bus voltage (equivalent to 575V AC incoming line)
Bus Undervoltage Trip:
200-240V AC Input: 210V DC bus voltage (equivalent to 150V AC incoming line)
380-480V AC Input: 390V DC bus voltage (equivalent to 275V AC incoming line)
Power Ride-Thru:
100 milliseconds
Logic Control Ride-Thru:
0.5 seconds minimum, 2 seconds typical
Electronic Motor Overload Protection:
I2t protection - 110% for 60 seconds (Provides Class 10 protection)
Overcurrent:
200% hardware limit, 300% instantaneous fault
Ground Fault Trip:
Phase-to-ground on drive output
Short Circuit Trip:
Phase-to-phase on drive output
Altitude:
1000 m (3300 ft) max. without derating. Above 1000 m (3300 ft) derate 3% for every 305 m (1000 ft).
Maximum Surrounding Air Temperature
without derating:
IP20, NEMA/UL Type Open:
–10 to 50 degrees C (14 to 122 degrees F)
IP30, NEMA/UL Type 1:
–10 to 45 degrees C (14 to 113 degrees F)
Cooling Method:
Fan: All drive ratings
Storage Temperature:
–40 to 85 degrees C (–40 to 185 degrees F)
Atmosphere:
Important: Drive must not be installed in an area where the ambient atmosphere contains volatile or
corrosive gas, vapors or dust. If the drive is not going to be installed for a period of time, it must be stored in
an area where it will not be exposed to a corrosive atmosphere.
Relative Humidity:
0 to 95% non-condensing
Shock (operating):
15G peak for 11ms duration (±1.0 ms)
Vibration (operating):
1G peak, 5 to 2000 Hz
Seismic Rating
Meets the seismic requirements of the 2003 International Building Code as specified by AC156.
Voltage Tolerance:
200-240V ±10%
380-480V ±10%
Frequency Tolerance:
48-63 Hz
Input Phases:
Three-phase input provides full rating. Single-phase operation provides 35% rated current.
Displacement Power Factor:
0.98 across entire speed range
Efficiency:
97.5% at rated amps, nominal line voltage
Transistor Type:
Isolated Gate Bipolar (IGBT)
Internal DC Bus Choke:
200-240V AC Input:
11-37 kW (15-50 HP) Panel Mount
380-480V AC Input:
11-110 kW (15-150 HP) Panel Mount
Internal AC Line Reactor
380-480V AC Input:
132-250 kW (200-350 HP)
Method:
Sinusoidal PWM, Volts/Hertz
Carrier Frequency
Frames C and D:
2-10 kHz, Drive rating based on 4 kHz
Frames E and F:
2-8 kHz, Drive rating based on 4 kHz
Frequency Accuracy
Digital Input:
Within ±0.05% of set output frequency
Analog Input:
Within 0.5% of maximum output frequency, 10-Bit resolution
Analog Output:
±2% of full scale, 10-Bit resolution
Speed Regulation - Open Loop with Slip
±1% of base speed across a 60:1 speed range
Compensation:
Output Frequency:
0-320 Hz (programmable)
Stop Modes:
Multiple programmable stop modes including - Ramp, Coast, DC-Brake, Ramp-to-Hold and S Curve.
Accel/Decel:
Two independently programmable accel and decel times. Each time may be programmed from 0 - 600
seconds in 0.1 second increments.
Intermittent Overload:
110% Overload capability for up to 1 minute
Electronic Motor Overload Protection
Class 10 protection with speed sensitive response.
22
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
Specifications
Category
Control Inputs
Control Outputs
Specification
Digital:
Quantity:
Analog:
Type
Source Mode (SRC):
Sink Mode (SNK):
Quantity:
Relay:
Specification
Resolution:
0 to 10V DC Analog:
4-20mA Analog:
External Pot:
Quantity:
Opto:
Analog:
Keypad
Communication
Display:
Languages:
Type:
Supported
Protocols
(Standard):
Supported
Protocols
(Optional):
Software
(Optional):
(3) Semi-programmable
(4) Programmable
18-24V = ON, 0-6V = OFF
0-6V = ON, 18-24V = OFF
(1) Isolated, –10 to 10V or 4-20mA
(1) Non-isolated, 0 to 10V or 4-20mA
10-bit
100k ohm input impedance
250 ohm input impedance
1-10k ohm, 2 Watt minimum
(2) Programmable Form C
(6) Optional Programmable Form A (Drive Frames D through H Only)
Specification
Resistive Rating:
3.0A at 30V DC, 3.0A at 125V, 3.0A at 240V AC
Inductive Rating:
0.5A at 30V DC, 0.5A at 125V, 0.5A at 240V AC
(1) Programmable
Quantity:
Specification:
30V DC, 50mA Non-inductive
Quantity:
(2) Non-Isolated, 0-10V or 4-20mA
Specification
Resolution:
10-bit
0 to 10V DC Analog:
1k ohm minimum
4-20mA Analog:
525 ohm maximum
Integral 2 line by 16 character LCD with (5) LED Indicators
English, Français, Español, Italiano, Deutsch, Português, Nederlands
Serial (RS485)
Drive Serial Interface (DSI)
Modbus RTU
Metasys N2
P1-Floor Level Network (FLN)
BACnet
DeviceNet
EtherNet/IP
PROFIBUS DP
ControlNet
LonWorks
Windows Based
Pocket PC/Windows Mobile 2003
23
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
Specifications
Parameter List
Parameter
Parameter Name
Number
Basic Display Group
b001
Output Freq
b002
Commanded Freq
b003
Output Current
b004
Output Voltage
b005
DC Bus Voltage
b006
Drive Status
b007
Fault 1 Code
b008
Process Display
b010
Output Power
b011
Elapsed MWh
b012
Elapsed Run Time
b013
Torque Current
b014
Drive Temp
b015
Elapsed kWh
Basic Program Group
P031
Motor NP Volts
P032
Motor NP Hertz
P033
Motor OL Current
P034
Minimum Freq
P035
Maximum Freq
P036
Start Source
Description
Factory Default
Output frequency present at T1, T2 & T3 (U, V & W)
Value of the active frequency command
Output current present at T1, T2 & T3 (U, V & W)
Output voltage present at T1, T2 & T3 (U, V & W)
Present DC bus voltage level
Present operating condition of the drive
A code that represents a drive fault
The output frequency scaled by parameter A160 [Process Factor]
Output power present at T1, T2 & T3 (U, V & W)
Accumulated output energy of the drive
Accumulated time that the drive has output power since the last A195 [Reset Meters]
Displays the torque portion of the output current
Present operating temperature of the drive power section
0.0 to 100.0 kWh
Read Only
Read Only
Read Only
Read Only
Read Only
Read Only
Read Only
Read Only
Read Only
Read Only
Read Only
Read Only
Read Only
Read Only
Based on Drive Rating
60 Hz
Drive Rated Amps
0.0 Hz
60 Hz
2-Wire Level Sensitive
P037
Stop Mode
P038
Speed Reference
P039
Accel Time 1
20 to drive rated volts
15 to 320 Hz
0.0 Amps to (Drive Rated Amps x 2) in units of 0.1 Amps
0.0 to 320.0 Hz
0.0 to 320.0 Hz
7 settings; Keypad, 3-Wire, 2-Wire, 2-Wire Level Sensitive, 2-Wire High Speed, Comm Port,
2-Wire Level Sensitive with Enable
8 settings; Ramp Clear Fault, Coast Clear Fault, DC Brake Clear Fault, DC Brake w/Shutoff Clear
Fault, Ramp, Coast, DC Brake, DC Brake w/Shutoff
6 settings; Drive Keypad, Internal Freq, Analog Input 1, Analog Input 2, Preset Freq,
Communications Port
0.00 to 600.00 seconds
P040
Decel Time 1
0.00 to 600.00 seconds
P041
Reset To Defalts
P042
Auto Mode
P043
Motor OL Ret
Terminal Block Group
T051
Digital In1 Sel
T052
Digital In2 Sel
T053
Digital In3 Sel
T054
Digital In4 Sel
T055
Relay Out1 Sel
T056
T058
T059
T060
Relay Out1 Level
Relay 1 On Time
Relay 1 Off Time
Relay Out2 Sel
T061
T063
T064
T065
Relay Out2 Level
Relay 2 On Time
Relay 2 Off Time
Opto Out Sel
T066
T068
T069
Opto Out Level
Opto Out Logic
Analog In 1 Sel
T070
T071
T072
Analog In 1 Lo
Analog In 1 Hi
Analog In 1 Loss
Used to reset drive to factory default settings
4 settings; No Function, Hand-Off-Auto, Local/Remote, Auto/Manual
2 settings; Disabled, Enabled
29 settings; Not Used, Purge, Auto Mode, Local, Comm Port, PID Disable, PID Hold, PID Reset,
Preset Freq, Aux Fault, Clear Fault, RampStop Clear Fault, CoastStop Clear Fault, DCInjStop
Clear Fault, Anlg1 InCtrl, Anlg2 InCtrl, MOP Up, MOP Down, Acc & Dec 2, Current Lmt2, Force
DC, Mtr I-Lock 1, Mtr I-Lock 2, Mtr I-Lock 3, Mtr I-Lock 4, Cmd Reverse, Logic In 1, Logic In 2,
Damper Input
19 settings; Ready/Fault, At Frequency, MotorRunning, Hand Active, Motor Overld, Ramp Reg,
Above Freq, Above Cur, Above DCVolt, Above Anlg 2, Above PF Ang, Anlg In Loss, ParamControl,
Retries Exst, NonRec Fault, Reverse, Logic In 1, Logic In 2, Aux Motor
0.0 to 9999
0.0 to 600.0 Secs
0.0 to 600.0 Secs
19 settings; Ready/Fault, At Frequency, MotorRunning, Hand Active, Motor Overld, Ramp Reg,
Above Freq, Above Cur, Above DCVolt, Above Anlg 2, Above PF Ang, Anlg In Loss, ParamControl,
Retries Exst, NonRec Fault, Reverse, Logic In 1, Logic In 2, Aux Motor
0.0 to 9999
0.0 to 600.0 Secs
0.0 to 600.0 Secs
18 settings; Ready/Fault, At Frequency, MotorRunning, Hand Active, Motor Overld, Ramp Reg,
Above Freq, Above Cur, Above DCVolt, Above Anlg 2, Above PF Ang, Anlg In Loss, ParamControl,
Retries Exst, NonRec Fault, Reverse, Logic In 1, Logic In 2
0.0 to 9999
2 settings; NO (Normally Open), NC (Normally Closed)
6 settings; Current Mode (0-20 mA), Current Mode (4-20 mA), Voltage Mode - Unipolar (0-10V),
Current Mode Square Root (0-20 mA), Current Mode Square Root (4-20 mA), Voltage Mode
Square Root - Unipolar (0-10V)
0.0 to 100.0%
0.0 to 100.0%
7 settings; Disabled, Fault, Stop, Zero Ref, Min Freq Ref, Max Freq Ref, Preset Freq0
24
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
Coast, CF (Clear Fault)
Analog In1
20.00 Secs (0.3-150 HP)
60.00 Secs (200-350 HP)
20.00 Secs (0.3-150 HP)
60.00 Secs (200-350 HP)
Ready/Idle
Hnd-Off-Auto
Disabled
Purge
Local
Clear Fault
Comm Port
Ready/Fault
0.0
0.0 Secs
0.0 Secs
MotorRunning
0.0
0.0 Secs
0.0 Secs
At Frequency
0.0
NO (Normally Open)
Voltage Mode - Unipolar
(0-10V)
0.0%
100.0%
Disabled
Specifications
Parameter
Number
T073
Parameter Name
Description
Analog In 2 Sel
8 settings; Current Mode (0-20 mA), Current Mode (4-20 mA), Voltage Mode - Unipolar (0-10V),
Voltage Mode - Bipolar (-10 to +10V), Current Mode Square Root (0-20 mA), Current Mode
Square Root (4-20 mA), Voltage Mode Square Root - Unipolar (0-10V), Voltage Mode Square
Root - Bipolar (-10 to +10V)
0.0 to 100.0%
0.0 to 100.0%
7 settings; Disabled, Fault, Stop, Zero Ref, Min Freq Ref, Max Freq Ref, Preset Freq0
4 settings; Disabled, Analog In 1, Analog In 2, Commanded Freq
0.0 to 100.0%
0.0 to 600.0 Secs
0.0 to 100.0%
0.0 to 600.0 Secs
24 settings; OutFreq 0-10, OutCurr 0-10, OutTorq 0-10, OutVolt 0-10, OutPowr 0-10, Setpnt 010, TstData 0-10, OutFreq 0-20, OutCurr 0-20, OutTorq 0-20, OutVolt 0-20, OutPowr 0-20, Setpnt
0-20, TstData 0-20, OutFreq 4-20, OutCurr 4-20, OutTorq 4-20, OutVolt 4-20, OutPowr 4-20,
Setpnt 4-20, TstData 4-20, MinFreq 0-10, MinFreq 0-20, MinFreq 4-20
0.0 to 800%
0.0 to 100.0%
24 settings; OutFreq 0-10, OutCurr 0-10, OutTorq 0-10, OutVolt 0-10, OutPowr 0-10, Setpnt 010, TstData 0-10, OutFreq 0-20, OutCurr 0-20, OutTorq 0-20, OutVolt 0-20, OutPowr 0-20, Setpnt
0-20, TstData 0-20, OutFreq 4-20, OutCurr 4-20, OutTorq 4-20, OutVolt 4-20, OutPowr 4-20,
Setpnt 4-20, TstData 4-20, MinFreq 0-10, MinFreq 0-20, MinFreq 4-20
0.0 to 800%
0.0 to 100.0%
0.0 to 20.0 Secs
0 to 14
Voltage Mode - Unipolar
(0-10V)
7 settings; English, Francais, Espanol, Italiano, Deutsch, Portugues, Nederlands
7 settings; RTU 8-N-1, RTU 8-E-1, RTU 8-O-1, RTU 8-N-2, RTU 8-E-2, RTU 8-O-2,
MetaSys N2, P1 8-N-1, P1 8-E-1, P1 8-O-1
6 settings; 1200, 2400, 4800, 9600, 19.2K, 38.4K
1 to 247
6 settings; Fault, Coast Stop, Stop, Continu Last, Run Preset 0, Kypd Inc/Dec
0.1 to 60.0 Secs
2 settings; Save, RAM Only
7 settings; Keypad, 3-Wire, 2-Wire, 2-Wire Level Sensitive, 2-Wire High Speed, Comm Port,
2-Wire Level Sensitive with Enable
6 settings; Drive Keypad, Internal Freq, Analog Input 1, Analog Input 2, Preset Freq,
Communications Port
English
RTU 8-N-1
T074
T075
T076
T077
T078
T079
T080
T081
T082
Analog In 2 Lo
Analog In 2 Hi
Analog In 2 Loss
Sleep-Wake Sel
Sleep Level
Sleep Time
Wake Level
Wake Time
Analog Out1 Sel
T083
T084
T085
Analog Out1 High
Anlg Out1 Setpt
Analog Out2 Sel
T086
Analog Out2 High
T087
Anlg Out2 Setpt
T088
Anlg Loss Delay
T089
Analog In Filter
Communications Group
C101
Language
C102
Comm Format
C103
C104
C105
C106
C107
C108
Comm Data Rate
Comm Node Addr
Comm Loss Action
Comm Loss Time
Comm Write Mode
Start Source 2
C109
Speed Ref 2
Advanced Program Group
A141
Purge Frequency
A142
Internal Freq
A143
Preset Freq 0
A144
Preset Freq 1
A145
Preset Freq 2
A146
Preset Freq 3
A147
Accel Time 2
A148
Decel Time 2
A149
S Curve %
A150
PID Trim Hi
A151
PID Trim Lo
A152
PID Ref Sel
A153
A154
A155
A156
A157
Factory Default
0.0 to 320.0 Hz
0.00 to 320.00 Hz
0.0 to 320.0 Hz
PID Feedback Sel
PID Prop Gain
PID Integ Time
PID Diff Rate
PID Setpoint
0.00 to 600.00 Secs
0.01 to 600.00 Secs
0 to 100%
0.0 to 320.0 Hz
0.0 to 320.0 Hz
9 settings; PID Disabled, PID Setpoint, Analog In 1, Analog In 2, Comm Port, Setpnt Trim,
A-In 1 Trim, A-In 2 Trim, Comm Trim
3 settings; Analog In 1, Analog In 2, Comm Port
0.00 to 99.99
0.0 to 999.9 Secs
0.00 to 99.99 (1/Secs)
0.0 to 100.0%
0.0%
100.0%
Disabled
Disabled
10.0%
0.0 Secs
15.0%
0.0 Secs
OutFreq 0-10
100%
0.0%
OutCurr 0-10
100%
0.0%
0.0 Secs
0
9600
100
Fault
5.0 Secs
Save
2-Wire Level Sensitive
Analog Input 1
5.0 Hz
60.00 Hz
0.0 Hz
5.0 Hz
10.0 Hz
20.0 Hz
30.00 Secs
30.00 Secs
20%
60.0 Hz
0.0 Hz
PID Disabled
Analog In 1
1.00
2.0 Secs
0.00 (1/Secs)
0.0%
25
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
Specifications
Parameter
Number
A158
A159
A160
A163
A164
A165
A166
A167
A168
A169
A170
Parameter Name
Description
PID Deadband
PID Preload
Process Factor
Auto Rstrt Tries
Auto Rstrt Delay
Start At PowerUp
Reverse Disable
Flying Start En
PWM Frequency
PWM Mode
Boost Select
0.0 to 10.0%
0.0 to 320.0 Hz
0.1 to 999.9
0 to 9
0.0 to 160.0 Secs
2 settings; Disabled, Enabled
2 settings; Rev Enabled, Rev Disabled
2 settings; Disabled, Enabled
2.0 to 10.0 kHz (Frame C and D drives); 20 to 8.0 kHz (Frame E, F, G and H drives)
2 settings; Space Vector, 2-Phase
16 settings Frames C-F; Custom V/Hz, 30.0 VT, 35.0 VT, 40.0 VT, 45.0 VT, 0.0 no IR, 0.0, 2.5,
5.0, 7.5, 10.0, 12.5, 15.0, 17.5, 20.0, “Kepco” Curve
16 settings Frames G-H; Custom V/Hz, 30.0 VT, 35.0 VT, 40.0 VT, 45.0 VT, 0.0 no IR, 0.0, 0.2,
0.5, 0.8, 1.0, 2.0, 3.0, 4.0, 5.0, “Kepco” Curve
0.0 to 25.0%
0.0 to 100.0%
0.0 to 320.0 Hz
20 to Drive Rated Volts
0.0 to 10.0 Hz
0.0 to 99.9 Secs
0.0 to (Drive Rated Amps x 1.5)
0.0 to 99.9 Secs
0.0 to (Drive Rated Amps x 1.5)
2.5%
25.0%
15.0 Hz
Drive Rated Volts
2.0 Hz
0.0 Secs
(Drive Rated Amps x 0.05)
0.0 Secs
(Drive Rated Amps x 1.1)
3 settings; No Derate, Min Derate, Max Derate
4 settings; Disable, Reduce CLim, Reduce PWM, Both-PWM 1st
0.0 to (Drive Rated Amps x 1.8)
0.0 to Drive Rated Amps
0 to 9999 Secs
6 settings; 60 Seconds, 120 Seconds, 240 Seconds, 360 Seconds, 480 Seconds, Flt Disabled
2 settings; Disabled, Enabled
0 to 320 Hz
0.0 to 30.0 Hz
0 to 320 Hz
0.0 to 30.0 Hz
0 to 320 Hz
0.0 to 30.0 Hz
4 settings; Disabled, Electrical, Mechanical, Both
3 settings; Ready/Idle, Reset MWh, Reset Time
1024 to 65535
3 settings; Ready/Idle, Reset Fault, Clear Buffer
4 settings; Unlocked, Locked-All parameters, Locked-Edit via network, Locked-P035 & A170 only
2 to 40
0.1 to (Drive Rated Amps x 2)
No Derate
Both-PWM 1st
0.0
0.0
0 Secs
60 Seconds
Enabled
0 Hz
0.0 Hz
0 Hz
0.0 Hz
1 Hz
0.0 Hz
Electrical
Ready/Idle
1024
Ready/Idle
Unlocked
4
Drive Rated Amps
19 settings; Ready/Fault, At Frequency, MotorRunning, Hand Active, Motor Overld, Ramp Reg,
Above Freq, Above Cur, Above DCVolt, Above Anlg 2, Above PF Ang, Anlg In Loss, ParamControl,
Retries Exst, NonRec Fault, Reverse, Logic In 1, Logic In 2, Aux Motor
Aux Motor
0.0 to 9999
0.0
2 settings; Disabled, Enabled
6 settings; 1 Aux Mtr, 2 Aux Mtr, 3 Aux Mtr, 1 Mtr + Swap, 2 Mtr + Swap, 3 Mtr + Swap
0.0 to 320.0 Hz
Disabled
1 Aux Mtr
50.0 Hz
A171
Start Boost
A172
Break Voltage
A173
Break Frequency
A174
Maximum Voltage
A175
Slip Hertz @ FLA
A176
DC Brake Time
A177
DC Brake Level
A178
DC Brk [email protected]
A179
Current Limit 1
A180
Current Limit 2
A181
Motor OL Select
A182
Drive OL Mode
A183
SW Current Trip
A184
Load Loss Level
A185
Load Loss Time
A186
Stall Fault Time
A187
Bus Reg Mode
A188
Skip Frequency 1
A189
Skip Freq Band 1
A190
Skip Frequency 2
A191
Skip Freq Band 2
A192
Skip Frequency 3
A193
Skip Freq Band 3
A194
Compensation
A195
Reset Meters
A196
Testpoint Sel
A197
Fault Clear
A198
Program Lock
A199
Motor NP Poles
A200
Motor NP FLA
Aux Relay Card Group
R221
Relay Out3 Sel
R224
Relay Out4 Sel
R227
Relay Out5 Sel
R230
Relay Out6 Sel
R233
Relay Out7 Sel
R236
Relay Out8 Sel
R222
Relay Out3 Level
R225
Relay Out4 Level
R228
Relay Out5 Level
R231
Relay Out6 Level
R234
Relay Out7 Level
R237
Relay Out8 Level
R239
Aux Motor Mode
R240
Aux Motor Qty
R241
Aux 1 Start Freq
R244
Aux 2 Start Freq
R247
Aux 3 Start Freq
Factory Default
26
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
0.0%
0.0 Hz
30.0
0
1.0 Secs
Disabled
Rev Disabled
Disabled
4.0 kHz
2-Phase
45.0, VT
Specifications
Parameter
Parameter Name
Number
R242
Aux 1 Stop Freq
R245
Aux 2 Stop Freq
R248
Aux 3 Stop Freq
R243
Aux 1 Ref Add
R246
Aux 2 Ref Add
R249
Aux 3 Ref Add
R250
Aux Start Delay
R251
Aux Stop Delay
R252
Aux Prog Delay
R253
Aux AutoSwap Tme
R254
Aux AutoSwap Lvl
Advanced Display Group
d301
Control Source
d302
Contrl In Status
d303
Comm Status
d304
PID Setpnt Displ
d305
Analog In 1
d306
Analog In 2
d307
Fault 1 Code
d308
Fault 2 Code
d309
Fault 3 Code
d310
Fault 1 Time-hr
d311
Fault 1 Time-min
d312
Fault 2 Time-hr
d313
Fault 2 Time-min
d314
Fault 3 Time-hr
d315
Fault 3 Time-min
d316
Elapsed Time-hr
d317
Elapsed Time-min
d318
Output Powr Fctr
d319
Testpoint Data
d320
Control SW Ver
d321
Drive Type
d322
Output Speed
d323
Output RPM
d324
Fault Frequency
d325
Fault Current
d326
Fault Bus Volts
d327
Status @ Fault
Description
Factory Default
0.0 to 320.0 Hz
25.0 Hz
0.0 to 100.0%
0.0%
0.0 to 999.9 Secs
0.0 to 999.9 Secs
0.00 to 60.00 Secs
0.0 to 999.9 Hr
0.0 to 100.0%
5.0 Secs
3.0 Secs
0.50 Secs
0.0 Hr
50.0%
0 to 99
0 to 1
0 to 1111
0.0 to 100.0%
0.0 to 120.0%
Read Only
Read Only
Read Only
0.0%
0.0%
0 to 122
Read Only
0 to 32767 Hr
0.0 to 60.0 Min
0 to 32767 Hr
0.0 to 60.0 Min
0 to 32767 Hr
0.0 to 60.0 Min
0 to 32767
0.0 to 60.0 Min
0.0 to 180.0 deg
0 to FFFF
1.00 to 99.99
Used by Rockwell Automation Field service personnel
0.0 to 100.0%
0 to 24000 RPM
0.00 to 320.00 Hz
0.0 to (Drive Rated Amps x 2)
0 to 820 VDC
0 to 1
Read Only
Read Only
Read Only
Read Only
Read Only
Read Only
Read Only
Read Only
Read Only
Read Only
Read Only
Read Only
Read Only
Read Only
Read Only
Read Only
Read Only
27
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
Specifications
Approximate Dimensions
Ratings are in kW and (HP).
Frame
240V AC – 3-Phase
C
2.2 (3.0)
3.7 (5.0)
5.5 (7.5)
7.5 (10)
D
11 (15)
15 (20)
30 (40)
37 (50)
–
–
–
18.5 (25)
22 (30)
E
F
G
H
480V AC – 3-Phase
2.2 (3.0)
4.0 (5.0)
5.5 (7.5)
18.5 (25.0)
22.0 (30.0)
37.0 (50.0)
45.0 (60.0)
90 (125)
132 (200)
200 (300)
7.5 (10)
11 (15)
15 (20)
30 (40)
55 (75)
75 (100)
110 (150)
160 (250)
250 (350)
Panel Mount Drive
130.0 (5.1)
180.0 (7.1)
116.0 (4.57)
107.0 (4.21)
66.0 (2.60)
∅ 28.5
(1.12)
24.0 (0.94)
∅ 22.2
(0.87)
320
(12.6)
260
(10.2)
246
(9.7)
152.2
(5.99)
111.2
(4.38)
Frame C
(Shown with IP30, NEMA/UL Type 1 conversion kit.)
250.0 (9.84)
192.0 (7.56)
175.5 (6.91)
132.0 (5.20)
71.6 (2.82)
226.0 (8.90)
∅ 9.0
(0.35)
∅ 28.5
(1.12)
∅ 22.2
(0.87)
436.2
(17.17)
132.7
(5.22)
383.4
(15.09)
167.4
(6.59)
156.3
(6.15)
Frame D
28
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
206.1 (8.11)
Specifications
370.0 (14.57)
∅ 8.5
(0.33)
335.0 (13.19)
315.2 (12.41)
240.2 (9.46)
130.2 (5.13)
55.2 (2.17)
259.2 (10.21)
∅ 28.5
(1.12)
∅ 22.2
(0.87)
605.5
(23.84)
234.9
(9.25)
204.9
(8.07)
174.9
(6.89)
567.4
(22.34)
Frame E
425.0 (16.73)
264.0 (10.39)
∅ 13.0
(0.51)
381.0 (15.00)
165.8 (6.53)
370.0 (14.57)
287.5 (11.32)
137.5 (5.41)
55.0 (2.17)
∅ 74.8
(2.94)
850.0
(33.46)
∅ 22.0
(0.87)
678.0
(26.69)
647.5
(25.49)
228.5
(9.00)
199.0
(7.83)
169.0
(6.65)
381.0 (15.00)
280.0 (11.02)
Frame F
29
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
Specifications
425.0 (16.73)
381.0 (15.00)
367.5 (14.47)
302.5 (11.91)
264.0 (10.39)
92.0
(3.62)
122.5 (4.82)
21.5
(0.85)
57.5 (2.26)
892.0
(35.12)
244.6
(9.62)
819.5
(32.26)
199.6
(7.85)
Frame G
529.2 (20.83)
358.6 (14.12)
480.0 (18.90)
489.6 (19.28)
413.7 (16.29)
115.5 (4.55)
39.6 (1.56)
117.5
(4.63)
22.3
(0.88)
1119.0
(44.06)
1363.8
(53.69)
310.2
(12.21)
255.2
(10.05)
Frame H
30
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
Specifications
Flange Mount Drive
130.3
(5.13)
300
(11.81)
138.2
(5.44)
5.3
(0.21)
164
(6.46)
8
(0.31)
105.8
(4.17)
307.5
(12.11)
230.6
(9.08)
291.5
(11.48)
325
(12.8)
153.8
(6.06)
76.9
(3.03)
90
(3.54)
22B-CCC
180
(7.09)
8
(0.31)
Frame C — Flange Mount
EMC Line Filters
Dimensions are in millimeters and (inches)
Catalog Numbers: 22-RF018-CS, 22-RF026-CS, 22-RF034-CS
32
(1.26)
60
(2.36)
130
90 (5.12)
(3.54)
297
(11.69)
309
(12.17)
297
(11.69)
17
(0.67)
30
(1.18)
5.5 (0.22)
31
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
Specifications
Catalog Numbers: 22-RFD036, 22-RFD050, 22-RFD070, 22-RFD100, 22-RFD150, 22-RFD180
A
D
C
F
B
E
G
Catalog
Number
22-RFD036
22-RFD050
22-RFD070
22-RFD100
22-RFD150
22-RFD180
A
B
C
D
E
F
G
74 (2.91)
93 (3.66)
93 (3.66)
93 (3.66)
126 (4.96)
126 (4.96)
272 (10.71)
312 (12.28)
312 (12.28)
312 (12.28)
312 (12.28)
312 (12.28)
161 (6.34)
190 (7.48)
190 (7.48)
190 (7.48)
224 (8.82)
224 (8.82)
60 (2.36)
79 (3.11)
79 (3.11)
79 (3.11)
112 (4.41)
112 (4.41)
258 (10.16)
298 (11.73)
298 (11.73)
298 (11.73)
298 (11.73)
298 (11.73)
7.5 (0.30)
13.5 (0.53)
13.5 (0.53)
13.5 (0.53)
19.5 (0.77)
27 (1.06)
7 (0.28)
7 (0.28)
7 (0.28)
7 (0.28)
7 (0.28)
7 (0.28)
Catalog Number: 22-RFD208
M10
938
(36.93)
1000
(39.37)
900
(35.43)
80
(3.15)
913
(35.94)
M10
6.5
(0.26)
110
(4.33)
300
(11.81)
32
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
Specifications
Catalog Numbers: 22-RFD323 and 22-RFD480
A
C
D
F
6
(0.24)
G
B
E
G
G
ø9
(0.35)
x8
10
(0.39)
50
60
60
(1.97) (2.36) (2.36)
12.5
(0.49)
45°
aa
3
(0.12)
aa
M11
64
(2.52)
18
(0.71)
M12
250
(11.81)
Catalog
Number
22-RFD323
22-RFD480
Ø 10.8
(0.43)
25
(0.98)
A
B
C
D
E
F
G
300 (11.81)
300 (11.81)
735 (28.94)
882 (34.72)
145 (5.71)
145 (5.71)
275 (10.83)
275 (10.83)
689 (27.13)
836 (32.91)
64 (2.52)
64 (2.52)
180 (7.09)
240 (9.45)
33
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
Specifications
Human Interface Module (HIM) Dimensions
NEMA/UL Type 1 Bezel – Dimensions are in millimeters and (inches)
Catalog Number: 22-HIM-B1
93
(3.66)
25.2
(0.99)
11.1
(0.44)
NEMA/UL Type 4X/12 Remote (Panel Mount) Small HIM
– Dimensions are in millimeters and (inches)
Catalog Number: 22-HIM-C2S
25,0
(0.98)
93,0
(3.66)
180,0
(7.08)
180
(7.09)
2.0m
2m
67
(2.64)
67
(2.64)
60
(2.36)
60
(2.36)
154
(6.06)
4.8
(0.19)
154
(6.06)
4.8
(0.19)
77
(3.03)
77
(3.03)
19.1
(0.75)
19.1
(0.75)
23.5
(0.93)
23.5
(0.93)
34
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
Configured Drives Programs
Description
The Configured Drives program allows users to create Disconnect and Contactor Bypass packages based on their specific needs and
requirements. A limited factory installed option set is offered to optimize package configurations while providing a versatile and costeffective solution. Configurations feature wall mount construction and are available in different NEMA/UL ratings.
Main Input Disconnect / Circuit Breaker
• Door interlocked main input device
– Disconnect switch with Class J fuses
– Thermal magnetic molded case circuit breaker
• High AIC Rating for direct connection to high capacity power
distribution lines
– 100,000 AIC rating with fused disconnect
– 65,000 AIC rating with circuit breaker
3 Contactor Full Feature Bypass with Disconnect / Circuit Breaker
• Door interlocked main input device
– Disconnect switch with Class J fuses
– Thermal magnetic molded case circuit breaker
• 3 contactor manual bypass with Drive/Drive Test/Bypass modes
• Bypass control and status display with indicating LEDs
• Class 20 motor overload protection in bypass circuit
• Selector switch for Hand/Off/Auto
• Remote start capability when in bypass mode
3 Contactor Basic Bypass with Disconnect
• Door interlocked main input disconnect
• 3 contactor manual bypass with Drive/Off/Drive Test/Bypass modes
• User-powered (24V AC) “Drive/Bypass” enable relay is provided for
remote shut down
35
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
Product Selection Guide
Catalog Number Explanation
Position
1-3
4
23C –
a
5
6-8
9
10
11
12
13
14
15
16
17
18
19+
D
038
A
1
0
3
N
N
B
A
N
N
-LR
b
c
d
e
f
g
h
i
j
k
l
m
n
a
d
Drive
Enclosure
Code
Type
23C
PowerFlex 400
Code
b
Voltage Rating
Code
Voltage
Ph.
X
208V ac
3
D
480V ac
3
Enclosure
A
NEMA/UL Type 1
H
NEMA/UL Type 12 with Fan and
Filter
X
NEMA/UL Type 3R ‡
E
NEMA/UL Type 4 ‡
‡ Designed for maximum ambient temperature of
40° C with no direct sunlight exposure.
c1
e
Rating
HIM
208V, 60Hz Input
Code
i
Amps
kW (Hp)
Frame
j
Package
Code
Description
A
Main Input Disconnect
B
3 Contactor Full Feature Bypass
with Disconnect
C
3 Contactor Basic Bypass with
Disconnect
N
Main Input Circuit Breaker
3 Contactor Full Feature Bypass
with Circuit Breaker
Interface Module
1
Fixed Keypad
Available only with NEMA/UL Type 1 enclosure
(Position d = A).
Available with all ratings in NEMA/UL Type 12,
3R, or 4 enclosures (Position d = H, X, or E)
and 160-250 kW (250-350 Hp) ratings in
NEMA/UL Type 1 enclosures (Position d = A).
2.2 (3.0)
C
017
16.8
3.7 (5.0)
C
f
024
24
5.5 (7.5)
C
Emission Class
033
30.8
7.5 (10)
C
Code
Rating
049
46.2
11 (15)
D
0
Not Filtered
065
64
15 (20)
D
075
75
18.5 (25)
D
090
88
22 (30)
D
120
114
30 (40)
E
145
143
37 (50)
E
Code
Reserved
Code
12
c2
Rating
N
M
012
Configured drive amp ratings may differ from
stand-alone drive ratings. Configured drives
sized per NEC motor amps.
Code
k
g
Version
Code
Version
Control
Code
Description
A
Single Motor
3
RS485
B
BACnet Adapter
C
ControlNet Adapter
D
DeviceNet Adapter
Code
Rating
E
EtherNet/IP Adapter
N
Reserved
Rating
L
LonWorks Adapter
460V, 60Hz Input
P
PROFIBUS DP Adapter
l
m
Code
Rating
N
Reserved
Amps
kW (Hp)
Frame
6P0
4.8
2.2 (3.0)
C
010
7.6
4.0 (5.0)
C
Code
Rating
012
11
5.5 (7.5)
C
N
Reserved
017
14
7.5 (10)
C
022
21
11 (15)
C
Code
Description
030
27
15 (20)
C
-LR
3% Input Line Reactor §
038
34
18.5 (25)
D
-E5
Space Heater - Local Power ♣
045
40
22 (30)
D
060
52
30 (40)
D
072
65
37 (50)
E
088
77
45 (60)
E
105
96
55 (75)
E
142
124
75 (100)
E
170
156
90 (125)
F
208
180
110 (150)
F
260
240
132 (200)
G
310
302
160 (250)
G
370
361
200 (300)
H
460
414
250 (350)
H
h
n
Options
§ 3% Input Line Reactor not available for all
package styles. Consult product selection
tables for additional detail.
♣ Available with NEMA/UL Type 3R and 4
enclosures only.
Configured amp ratings may differ from standalone drive ratings. Configured drives sized per
NEC motor amps.
36
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
Product Selection Guide
PowerFlex 400 NEMA/UL Type 1 Enclosure (Position d = A)
208V ac, Main Input Disconnect
Drive Ratings
kW
2.2
3.7
5.5
7.5
11
15
18.5
22
30
37
HP
3.0
5.0
7.5
10
15
20
25
30
40
50
Fused Disconnect (Position j = A)
Output Current
Amps (40°C)
12
16.8
24
30.8
46.2
64
75
88
114
143
Frame
Size
C
C
C
C
D
D
D
D
E
E
Catalog Number
23C-X012A103NNAANN
23C-X017A103NNAANN
23C-X024A103NNAANN
23C-X033A103NNAANN
23C-X049A103NNAANN
23C-X065A103NNAANN
23C-X075A103NNAANN
23C-X090A103NNAANN
23C-X120A103NNAANN
23C-X145A103NNAANN
208V ac, 3 Contactor Full Feature Bypass with Disconnect
Drive Ratings
kW
2.2
3.7
5.5
7.5
11
15
18.5
22
30
37
HP
3.0
5.0
7.5
10
15
20
25
30
40
50
Fused Disconnect (Position j = B)
Output Current
Amps (40°C)
12
16.8
24
30.8
46.2
64
75
88
114
143
Frame
Size
C
C
C
C
D
D
D
D
E
E
Catalog Number
23C-X012A103NNBANN
23C-X017A103NNBANN
23C-X024A103NNBANN
23C-X033A103NNBANN
23C-X049A103NNBANN
23C-X065A103NNBANN
23C-X075A103NNBANN
23C-X090A103NNBANN
23C-X120A103NNBANN
23C-X145A103NNBANN
460V ac, Main Input Disconnect/Circuit Breaker
Drive Ratings
kW
2.2
4.0
5.5
7.5
11
15
18.5
22
30
37
45
55
75
90
110
132
160
200
250
HP
3.0
5.0
7.5
10
15
20
25
30
40
50
60
75
100
125
150
200
250
300
350
Fused Disconnect (Position j = A) Circuit Breaker (Position j = M)
Output Current
Amps (40°C)
4.8
7.6
11
14
21
27
34
40
52
65
77
96
124
156
180
240
302
361
414
Frame
Size
C
C
C
C
C
C
D
D
D
E
E
E
E
F
F
G
G
H
H
Catalog Number
23C-D6P0A103NNAANN
23C-D010A103NNAANN
23C-D012A103NNAANN
23C-D017A103NNAANN
23C-D022A103NNAANN
23C-D030A103NNAANN
23C-D038A103NNAANN
23C-D045A103NNAANN
23C-D060A103NNAANN
23C-D072A103NNAANN
23C-D088A103NNAANN
23C-D105A103NNAANN
23C-D142A103NNAANN
23C-D170A103NNAANN
23C-D208A103NNAANN
23C-D260A103NNAANN
–
–
–
Catalog Number
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
23C-D310A103NNMANN
23C-D370A103NNMANN
23C-D460A103NNMANN
37
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
Product Selection Guide
460V ac, 3 Contactor Full Feature Bypass with Disconnect/Circuit Breaker
Drive Ratings
kW
2.2
4.0
5.5
7.5
11
15
18.5
22
30
37
45
55
75
90
110
132
160
200
250
HP
3.0
5.0
7.5
10
15
20
25
30
40
50
60
75
100
125
150
200
250
300
350
Fused Disconnect (Position j = B) Circuit Breaker (Position j = N)
Output Current
Amps (40°C)
4.8
7.6
11
14
21
27
34
40
52
65
77
96
124
156
180
240
302
361
414
Frame
Size
C
C
C
C
C
C
D
D
D
E
E
E
E
F
F
G
G
H
H
Catalog Number
23C-D6P0A103NNBANN
23C-D010A103NNBANN
23C-D012A103NNBANN
23C-D017A103NNBANN
23C-D022A103NNBANN
23C-D030A103NNBANN
23C-D038A103NNBANN
23C-D045A103NNBANN
23C-D060A103NNBANN
23C-D072A103NNBANN
23C-D088A103NNBANN
23C-D105A103NNBANN
23C-D142A103NNBANN
23C-D170A103NNBANN
23C-D208A103NNBANN
23C-D260A103NNBANN
–
–
–
Catalog Number
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
23C-D310A103NNNANN
23C-D370A103NNNANN
23C-D460A103NNNANN
460V ac, 3 Contactor Basic Bypass with Disconnect
Drive Ratings
kW
2.2
4.0
5.5
7.5
11
15
18.5
22
30
37
45
55
75
HP
3.0
5.0
7.5
10
15
20
25
30
40
50
60
75
100
Fused Disconnect (Position j = C)
Output Current
Amps (40°C)
4.8
7.6
11
14
21
27
34
40
52
65
77
96
124
Frame
Size
C
C
C
C
C
C
D
D
D
E
E
E
E
Catalog Number
23C-D6P0A103NNCANN
23C-D010A103NNCANN
23C-D012A103NNCANN
23C-D017A103NNCANN
23C-D022A103NNCANN
23C-D030A103NNCANN
23C-D038A103NNCANN
23C-D045A103NNCANN
23C-D060A103NNCANN
23C-D072A103NNCANN
23C-D088A103NNCANN
23C-D105A103NNCANN
23C-D142A103NNCANN
38
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
Product Selection Guide
PowerFlex 400 NEMA/UL Type 12 Enclosure (Position d = H)
208V ac, Main Input Disconnect/Circuit Breaker
Drive Ratings
kW
2.2
3.7
5.5
7.5
11
15
18.5
22
30
37
HP
3.0
5.0
7.5
10
15
20
25
30
40
50
Fused Disconnect (Position j = A) Circuit Breaker (Position j = M)
Output Current
Amps (40°C)
12
16.8
24
30.8
46.2
64
75
88
114
143
Frame
Size
C
C
C
C
D
D
D
D
E
E
Catalog Number
23C-X012H103NNAANN
23C-X017H103NNAANN
23C-X024H103NNAANN
23C-X033H103NNAANN
23C-X049H103NNAANN
23C-X065H103NNAANN
23C-X075H103NNAANN
23C-X090H103NNAANN
23C-X120H103NNAANN
23C-X145H103NNAANN
Catalog Number
23C-X012H103NNMANN
23C-X017H103NNMANN
23C-X024H103NNMANN
23C-X033H103NNMANN
23C-X049H103NNMANN
23C-X065H103NNMANN
23C-X075H103NNMANN
23C-X090H103NNMANN
23C-X120H103NNMANN
23C-X145H103NNMANN
208V ac, 3 Contactor Full Feature Bypass with Disconnect/Circuit Breaker
Drive Ratings
kW
2.2
3.7
5.5
7.5
11
15
18.5
22
30
37
HP
3.0
5.0
7.5
10
15
20
25
30
40
50
Fused Disconnect (Position j = B) Circuit Breaker (Position j = N)
Output Current
Amps (40°C)
12
16.8
24
30.8
46.2
64
75
88
114
143
Frame
Size
C
C
C
C
D
D
D
D
E
E
Catalog Number
23C-X012H103NNBANN
23C-X017H103NNBANN
23C-X024H103NNBANN
23C-X033H103NNBANN
23C-X049H103NNBANN
23C-X065H103NNBANN
23C-X075H103NNBANN
23C-X090H103NNBANN
23C-X120H103NNBANN
23C-X145H103NNBANN
Catalog Number
23C-X012H103NNNANN
23C-X017H103NNNANN
23C-X024H103NNNANN
23C-X033H103NNNANN
23C-X049H103NNNANN
23C-X065H103NNNANN
23C-X075H103NNNANN
23C-X090H103NNNANN
23C-X120H103NNNANN
23C-X145H103NNNANN
460V ac, Main Input Disconnect/Circuit Breaker
Drive Ratings
kW
2.2
4.0
5.5
7.5
11
15
18.5
22
30
37
45
55
75
90
110
HP
3.0
5.0
7.5
10
15
20
25
30
40
50
60
75
100
125
150
Fused Disconnect (Position j = A) Circuit Breaker (Position j = M)
Output Current
Amps (40°C)
4.8
7.6
11
14
21
27
34
40
52
65
77
96
124
156
180
Frame
Size
C
C
C
C
C
C
D
D
D
E
E
E
E
F
F
Catalog Number
23C-D6P0H103NNAANN
23C-D010H103NNAANN
23C-D012H103NNAANN
23C-D017H103NNAANN
23C-D022H103NNAANN
23C-D030H103NNAANN
23C-D038H103NNAANN
23C-D045H103NNAANN
23C-D060H103NNAANN
23C-D072H103NNAANN
23C-D088H103NNAANN
23C-D105H103NNAANN
23C-D142H103NNAANN
23C-D170H103NNAANN
23C-D208H103NNAANN
Catalog Number
23C-D6P0H103NNMANN
23C-D010H103NNMANN
23C-D012H103NNMANN
23C-D017H103NNMANN
23C-D022H103NNMANN
23C-D030H103NNMANN
23C-D038H103NNMANN
23C-D045H103NNMANN
23C-D060H103NNMANN
23C-D072H103NNMANN
23C-D088H103NNMANN
23C-D105H103NNMANN
23C-D142H103NNMANN
23C-D170H103NNMANN
23C-D208H103NNMANN
39
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
Product Selection Guide
460V ac, 3 Contactor Full Feature Bypass with Disconnect/Circuit Breaker
Drive Ratings
kW
2.2
4.0
5.5
7.5
11
15
18.5
22
30
37
45
55
75
90
110
HP
3.0
5.0
7.5
10
15
20
25
30
40
50
60
75
100
125
150
Fused Disconnect (Position j = B) Circuit Breaker (Position j = N)
Output Current
Amps (40°C)
4.8
7.6
11
14
21
27
34
40
52
65
77
96
124
156
180
Frame
Size
C
C
C
C
C
C
D
D
D
E
E
E
E
F
F
Catalog Number
23C-D6P0H103NNBANN
23C-D010H103NNBANN
23C-D012H103NNBANN
23C-D017H103NNBANN
23C-D022H103NNBANN
23C-D030H103NNBANN
23C-D038H103NNBANN
23C-D045H103NNBANN
23C-D060H103NNBANN
23C-D072H103NNBANN
23C-D088H103NNBANN
23C-D105H103NNBANN
23C-D142H103NNBANN
23C-D170H103NNBANN
23C-D208H103NNBANN
Catalog Number
23C-D6P0H103NNNANN
23C-D010H103NNNANN
23C-D012H103NNNANN
23C-D017H103NNNANN
23C-D022H103NNNANN
23C-D030H103NNNANN
23C-D038H103NNNANN
23C-D045H103NNNANN
23C-D060H103NNNANN
23C-D072H103NNNANN
23C-D088H103NNNANN
23C-D105H103NNNANN
23C-D142H103NNNANN
23C-D170H103NNNANN
23C-D208H103NNNANN
PowerFlex 400 NEMA/UL Type 3R Enclosure (Position d = X)
208V ac, Main Input Disconnect/Circuit Breaker
Drive Ratings
kW
2.2
3.7
5.5
7.5
11
15
18.5
22
30
37
HP
3.0
5.0
7.5
10
15
20
25
30
40
50
Fused Disconnect (Position j = A) Circuit Breaker (Position j = M)
Output Current
Amps (40°C)
12
16.8
24
30.8
46.2
64
75
88
114
143
Frame
Size
C
C
C
C
D
D
D
D
E
E
Catalog Number
23C-X012X103NNAANN
23C-X017X103NNAANN
23C-X024X103NNAANN
23C-X033X103NNAANN
23C-X049X103NNAANN
23C-X065X103NNAANN
23C-X075X103NNAANN
23C-X090X103NNAANN
23C-X120X103NNAANN
23C-X145X103NNAANN
Catalog Number
23C-X012X103NNMANN
23C-X017X103NNMANN
23C-X024X103NNMANN
23C-X033X103NNMANN
23C-X049X103NNMANN
23C-X065X103NNMANN
23C-X075X103NNMANN
23C-X090X103NNMANN
23C-X120X103NNMANN
23C-X145X103NNMANN
208V ac, 3 Contactor Full Feature Bypass with Disconnect/Circuit Breaker
Drive Ratings
kW
2.2
3.7
5.5
7.5
11
15
18.5
22
30
37
HP
3.0
5.0
7.5
10
15
20
25
30
40
50
Fused Disconnect (Position j = B) Circuit Breaker (Position j = N)
Output Current
Amps (40°C)
12
16.8
24
30.8
46.2
64
75
88
114
143
Frame
Size
C
C
C
C
D
D
D
D
E
E
Catalog Number
23C-X012X103NNBANN
23C-X017X103NNBANN
23C-X024X103NNBANN
23C-X033X103NNBANN
23C-X049X103NNBANN
23C-X065X103NNBANN
23C-X075X103NNBANN
23C-X090X103NNBANN
23C-X120X103NNBANN
23C-X145X103NNBANN
Catalog Number
23C-X012X103NNNANN
23C-X017X103NNNANN
23C-X024X103NNNANN
23C-X033X103NNNANN
23C-X049X103NNNANN
23C-X065X103NNNANN
23C-X075X103NNNANN
23C-X090X103NNNANN
23C-X120X103NNNANN
23C-X145X103NNNANN
40
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
460V ac, Main Input Disconnect/Circuit Breaker
Drive Ratings
kW
2.2
4.0
5.5
7.5
11
15
18.5
22
30
37
45
55
75
90
110
HP
3.0
5.0
7.5
10
15
20
25
30
40
50
60
75
100
125
150
Fused Disconnect (Position j = A) Circuit Breaker (Position j = M)
Output Current
Amps (40°C)
4.8
7.6
11
14
21
27
34
40
52
65
77
96
124
156
180
Frame
Size
C
C
C
C
C
C
D
D
D
E
E
E
E
F
F
Catalog Number
23C-D6P0X103NNAANN
23C-D010X103NNAANN
23C-D012X103NNAANN
23C-D017X103NNAANN
23C-D022X103NNAANN
23C-D030X103NNAANN
23C-D038X103NNAANN
23C-D045X103NNAANN
23C-D060X103NNAANN
23C-D072X103NNAANN
23C-D088X103NNAANN
23C-D105X103NNAANN
23C-D142X103NNAANN
23C-D170X103NNAANN
23C-D208X103NNAANN
Catalog Number
23C-D6P0X103NNMANN
23C-D010X103NNMANN
23C-D012X103NNMANN
23C-D017X103NNMANN
23C-D022X103NNMANN
23C-D030X103NNMANN
23C-D038X103NNMANN
23C-D045X103NNMANN
23C-D060X103NNMANN
23C-D072X103NNMANN
23C-D088X103NNMANN
23C-D105X103NNMANN
23C-D142X103NNMANN
23C-D170X103NNMANN
23C-D208X103NNMANN
460V ac, 3 Contactor Full Feature Bypass with Disconnect/Circuit Breaker
Drive Ratings
kW
2.2
4.0
5.5
7.5
11
15
18.5
22
30
37
45
55
75
90
110
HP
3.0
5.0
7.5
10
15
20
25
30
40
50
60
75
100
125
150
Fused Disconnect (Position j = B) Circuit Breaker (Position j = N)
Output Current
Amps (40°C)
4.8
7.6
11
14
21
27
34
40
52
65
77
96
124
156
180
Frame
Size
C
C
C
C
C
C
D
D
D
E
E
E
E
F
F
Catalog Number
23C-D6P0X103NNBANN
23C-D010X103NNBANN
23C-D012X103NNBANN
23C-D017X103NNBANN
23C-D022X103NNBANN
23C-D030X103NNBANN
23C-D038X103NNBANN
23C-D045X103NNBANN
23C-D060X103NNBANN
23C-D072X103NNBANN
23C-D088X103NNBANN
23C-D105X103NNBANN
23C-D142X103NNBANN
23C-D170X103NNBANN
23C-D208X103NNBANN
Catalog Number
23C-D6P0X103NNNANN
23C-D010X103NNNANN
23C-D012X103NNNANN
23C-D017X103NNNANN
23C-D022X103NNNANN
23C-D030X103NNNANN
23C-D038X103NNNANN
23C-D045X103NNNANN
23C-D060X103NNNANN
23C-D072X103NNNANN
23C-D088X103NNNANN
23C-D105X103NNNANN
23C-D142X103NNNANN
23C-D170X103NNNANN
23C-D208X103NNNANN
41
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
PowerFlex 400 NEMA/UL Type 4 Enclosure (Position d = E)
208V ac, Main Input Disconnect/Circuit Breaker
Drive Ratings
kW
2.2
3.7
5.5
7.5
11
15
18.5
22
30
37
HP
3.0
5.0
7.5
10
15
20
25
30
40
50
Fused Disconnect (Position j = A) Circuit Breaker (Position j = M)
Output Current
Amps (40°C)
12
16.8
24
30.8
46.2
64
75
88
114
143
Frame
Size
C
C
C
C
D
D
D
D
E
E
Catalog Number
23C-X012E103NNAANN
23C-X017E103NNAANN
23C-X024E103NNAANN
23C-X033E103NNAANN
23C-X049E103NNAANN
23C-X065E103NNAANN
23C-X075E103NNAANN
23C-X090E103NNAANN
23C-X120E103NNAANN
23C-X145E103NNAANN
Catalog Number
23C-X012E103NNMANN
23C-X017E103NNMANN
23C-X024E103NNMANN
23C-X033E103NNMANN
23C-X049E103NNMANN
23C-X065E103NNMANN
23C-X075E103NNMANN
23C-X090E103NNMANN
23C-X120E103NNMANN
23C-X145E103NNMANN
208V ac, 3 Contactor Full Feature Bypass with Disconnect/Circuit Breaker
Drive Ratings
kW
2.2
3.7
5.5
7.5
11
15
18.5
22
30
37
HP
3.0
5.0
7.5
10
15
20
25
30
40
50
Fused Disconnect (Position j = B) Circuit Breaker (Position j = N)
Output Current
Amps (40°C)
12
16.8
24
30.8
46.2
64
75
88
114
143
Frame
Size
C
C
C
C
D
D
D
D
E
E
Catalog Number
23C-X012E103NNBANN
23C-X017E103NNBANN
23C-X024E103NNBANN
23C-X033E103NNBANN
23C-X049E103NNBANN
23C-X065E103NNBANN
23C-X075E103NNBANN
23C-X090E103NNBANN
23C-X120E103NNBANN
23C-X145E103NNBANN
Catalog Number
23C-X012E103NNNANN
23C-X017E103NNNANN
23C-X024E103NNNANN
23C-X033E103NNNANN
23C-X049E103NNNANN
23C-X065E103NNNANN
23C-X075E103NNNANN
23C-X090E103NNNANN
23C-X120E103NNNANN
23C-X145E103NNNANN
460V ac, Main Input Disconnect/Circuit Breaker
Drive Ratings
kW
2.2
4.0
5.5
7.5
11
15
18.5
22
30
37
45
55
75
90
110
HP
3.0
5.0
7.5
10
15
20
25
30
40
50
60
75
100
125
150
Fused Disconnect (Position j = A) Circuit Breaker (Position j = M)
Output Current
Amps (40°C)
4.8
7.6
11
14
21
27
34
40
52
65
77
96
124
156
180
Frame
Size
C
C
C
C
C
C
D
D
D
E
E
E
E
F
F
Catalog Number
23C-D6P0E103NNAANN
23C-D010E103NNAANN
23C-D012E103NNAANN
23C-D017E103NNAANN
23C-D022E103NNAANN
23C-D030E103NNAANN
23C-D038E103NNAANN
23C-D045E103NNAANN
23C-D060E103NNAANN
23C-D072E103NNAANN
23C-D088E103NNAANN
23C-D105E103NNAANN
23C-D142E103NNAANN
23C-D170E103NNAANN
23C-D208E103NNAANN
Catalog Number
23C-D6P0E103NNMANN
23C-D010E103NNMANN
23C-D012E103NNMANN
23C-D017E103NNMANN
23C-D022E103NNMANN
23C-D030E103NNMANN
23C-D038E103NNMANN
23C-D045E103NNMANN
23C-D060E103NNMANN
23C-D072E103NNMANN
23C-D088E103NNMANN
23C-D105E103NNMANN
23C-D142E103NNMANN
23C-D170E103NNMANN
23C-D208E103NNMANN
42
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
460V ac, 3 Contactor Full Feature Bypass with Disconnect/Circuit Breaker
Drive Ratings
kW
2.2
4.0
5.5
7.5
11
15
18.5
22
30
37
45
55
75
90
110
HP
3.0
5.0
7.5
10
15
20
25
30
40
50
60
75
100
125
150
Fused Disconnect (Position j = B) Circuit Breaker (Position j = N)
Output Current
Amps (40°C)
4.8
7.6
11
14
21
27
34
40
52
65
77
96
124
156
180
Frame
Size
C
C
C
C
C
C
D
D
D
E
E
E
E
F
F
Catalog Number
23C-D6P0E103NNBANN
23C-D010E103NNBANN
23C-D012E103NNBANN
23C-D017E103NNBANN
23C-D022E103NNBANN
23C-D030E103NNBANN
23C-D038E103NNBANN
23C-D045E103NNBANN
23C-D060E103NNBANN
23C-D072E103NNBANN
23C-D088E103NNBANN
23C-D105E103NNBANN
23C-D142E103NNBANN
23C-D170E103NNBANN
23C-D208E103NNBANN
Catalog Number
23C-D6P0E103NNNANN
23C-D010E103NNNANN
23C-D012E103NNNANN
23C-D017E103NNNANN
23C-D022E103NNNANN
23C-D030E103NNNANN
23C-D038E103NNNANN
23C-D045E103NNNANN
23C-D060E103NNNANN
23C-D072E103NNNANN
23C-D088E103NNNANN
23C-D105E103NNNANN
23C-D142E103NNNANN
23C-D170E103NNNANN
23C-D208E103NNNANN
Factory Installed Options
Internal Communication Adapters
Description
RS485
BACnet
ControlNet
DeviceNet
EtherNet/IP
LonWorks
PROFIBUS DP
Catalog Code (Position 12)
3
B
C
D
E
L
P
Options
Description
3% Input Line Reactor
Enclosure Space Heater
Catalog Code (Position 12)
-LR ➊
-E5 ➋
➊ 3% input line reactor not available for all package styles.
➋ Available with NEMA/UL Type 3R and 4 enclosures only.
43
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
www.rockwellautomation.com
Power, Control and Information Solutions Headquarters
Americas: Rockwell Automation, 1201 South Second Street, Milwaukee, WI 53204-2496 USA,Tel: (1) 414.382.2000, Fax: (1) 414.382.4444
Europe/Middle East/Africa: Rockwell Automation, Vorstlaan/Boulevard du Souverain 36, 1170 Brussels, Belgium,Tel: (32) 2 663 0600, Fax: (32) 2 663 0640
Asia Pacific: Rockwell Automation, Level 14, Core F, Cyberport 3, 100 Cyberport Road, Hong Kong,Tel: (852) 2887 4788, Fax: (852) 2508 1846
Publication 22C-TD001C-EN-P — January 2007
Supersedes 22C-TD001B-EN-P – February 2005
Copyright ® 2007 Rockwell Automation. All rights reserved. Printed in USA.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
