Shenzhen Kingbird Network Technology CO.,LTD

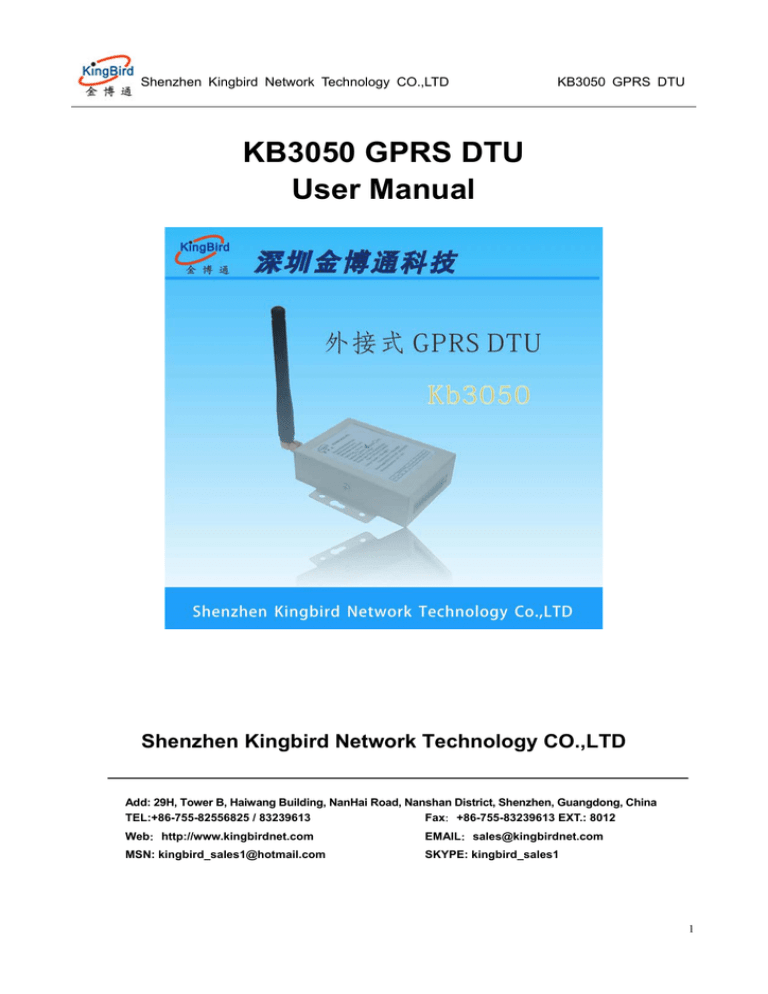

KB3050 GPRS DTU
KB3050 GPRS DTU
User Manual
Shenzhen Kingbird Network Technology CO.,LTD
Add: 29H, Tower B, Haiwang Building, NanHai Road, Nanshan District, Shenzhen, Guangdong, China
TEL:+86-755-82556825 / 83239613
Fax:+86-755-83239613 EXT.: 8012
Web:http://www.kingbirdnet.com
EMAIL:[email protected]
MSN: [email protected]
SKYPE: kingbird_sales1
1
Shenzhen Kingbird Network Technology CO.,LTD
KB3050 GPRS DTU
1 Brief Introduction
Thanks for you to use our products!
1.1 Brief Introduction
KB3050 GPRS DTU (Data Terminal Unit) is wireless data transmitting terminal of
GPRS/SMS and embedded with High reliable ARM7 CPU.
Based on the public net, KB3050 GPRS DTU transmit widely, stably and reliably,
KB3050 GPRS DTU is widely used in unattended operation device, Remote AMR, remote
data acquisition, remote AMR, remote scheduling and so on. Due to this product is
designed for industry integrated, we adopt special designs in the temperature scope,
shaking, EMC and interface multiform and so on, to keep it good stability in the severe
atmosphere, ensure high quality for your device.
Aim at different scope user’s requirements to supply different define GPRS Terminal
unit, it needs taking industry characteristics for developing on hardware & software and
system integration. GPRS mobile net can supply TCP/IP connection; GPRS DTU can be
use for internet connection, data transmitting application and so on. KB3050 GPRS DTU
(Data Terminal Unit) is special GPRS wireless device that send the data from COM port
through GPRS mobile data network.
KB3050 GPRS DTU is used in electric power automatic system, industry monitoring,
traffic management, atmosphere, pro-environment, pipe network monitoring, finance,
securities departments and so on. Consider the networking request from different
application scope, achieve Virtual data private network in network structure. It is applicable
to small and medium data transmitting of the Center to multi-points, multi-points scatter.
1.2 Product Feature
8B


Standard industrial products, EMC anti-jamming design, strong adaptiveness.
Independent research and developing, embedded 32 bit ARM7-CPU with real-time
operating system.
 Embedded Watchdog chip, provide multiple Reset mechanism, can be controlled
by software, achieve industrial security mechanism perfectly.
 Working Frequency adopt 900MHz/1800MHz which is suit for most countries all
over the world except North America and South America;
 Advanced and strict data communication protocol, with the function of correction
and encryption. Never lose package when data transmission, can achieve pictures
over than 100K and Flash animation files transmission, no Mosaic happened.
2
Shenzhen Kingbird Network Technology CO.,LTD
KB3050 GPRS DTU

Various working mode: DTU (default), Modem, SMS Modem. DTU mode is GPRS
data transmission which can get the data from device’s COM port
(RS232/RS485/TTL) and transmit to the server in Internet. It also can receive SMS
Message when DTU mode (it needs to switch IO port to SMS when send message).
SMS Modem is SMS transmission mode, user can set to type A (with protocol) or
type B (transparent). When set to Modem, compatible standard AT command
(GSM07.05 and 07.07). user can write AT command software to realize the
function user need.
 DTU and SMS Modem can switch through User configuration software and also
can change the working modem through IO port. Set the parameter of Modem
mode must after it is power-on.
 SMS Modem feature:
 Various networking ways: Under SMS Modem, the device with protocol (A) can
network with the device without protocol (B), the device with protocol (A) also can
network with the device with protocol (A).
 Under SMS Modem, KB3050 can receive and send the MAX data 1024 bytes a
time.
 Under SMS Modem, support Sending and Receiving Data form: hex, ASCⅡ, UCS2.
User is advised to set this parameter through our configuration software before use
it.
 Various networking ways: KB3050 can work with NET Converter KB2000 and
KB3050 (it is convenient to use GPRS without internet). This can achieve
networking of peer to peer, center to multi-points.
 Plug and play: when work with KB2000 or KB3050 of our product, no need to
develop any software and hardware, can build large SCADA system.
 Automatical IP register mechanism, can achieve various server modes, build
complete super large SCADA system.
 Remote sleep and awake: User can use appointed cell phone number to dial or
send message can sleep or awake DTU, it is convenient for user to save a lot of
GPRS Flow Fee when no need to use DTU.
 Remote modify DTU parameters: Support that SMS and data service center modify
DTU parameters.
 IO switching value function: Two channels input, two channels IO output. Remote
control and reading. Alarm status threshold, automatic alarm signal report function.
 Strong communication backup function: Support automatic switching between main
server and backup server, support TCP and UDP automatic switchover (now don’t
have TCP and UDP automatic switching function). It will connect to backup server
when main server has problem, and will take UDP to communication once TCP off
line.
 Strong server software support, application for many years, strong function.
 Support special APN, data center support fixed IP and DDNS.
 Working temperature range: -40℃-80℃, communication is not effected at -40℃.
3
Shenzhen Kingbird Network Technology CO.,LTD
KB3050 GPRS DTU
1.3 Safe Use
KB3050 GPRS DTU Completely complied with national radio product safety technical
regulations.
Warm Tip: You must not touch the antenna with your hands or body. During 15 seconds
after KB3050 DTU started, Please keep away from the antenna. If the antenna is damaged,
you must replace it in time, assorted and qualified cable and antenna.
1.4 EMI
Now most electric device all has electromagnetic pulse hardening, but some old device
may have no, under RF power radiation, it may go wrong. When you use KB3050 GPRS
DTU, please check the device nearby have electromagnetic pulse hardening or not.
1.5 Appearance and Interface
KB3050 GPRSS DTU has three physical interfaces:
. The first is 10 pins main interface: RS232/RS485/TTL (5V)/CMOS (3.3V), Power
supply, Modem COM port
. The second is SMA RF interface: For the antenna
. The third is embed SIM socket: For SIM card
. Size: 82mm(L)*59mm(W)*25.2mm(H)
. Weight: 170g
4
Shenzhen Kingbird Network Technology CO.,LTD
KB3050 GPRS DTU
2 Technical Specification
3 KB3050 GPRS DTU Technical Parameters
2.1 GSM/GPRS:
Frequency Band: EGSM900MHz/DCS1800MHz
GPRS Multi-slot Class 12
GPRS Mobile Station Class B
GPRS Coding: CS1~CS4
Output Power: Class 4 (2W) at GSM850MHz and GSM900MHz
Class 1 (1W) at DCS1800MHz and PCS1900MHz
Sensitivity: <-107 dBm (typ.) at GSM900 MHz
<-107 dBm (typ.) at DCS1800MHz
Compatible standard AT command(GSM07.05 and 07.07)
Support extend command
Support SMS、USSD、CSD
Embed TCP/IP Protocol
2.2
Basic Function:
Embed TCP/IP Protocol
Embed standard AT command(GSM07.05 and 07.07)
Support extend command
Support SMS、USSD、CSD
Transparent data transmitting
Support IP address or domain name
Support special APN
5
Shenzhen Kingbird Network Technology CO.,LTD
2.3
KB3050 GPRS DTU
User Interface
1.
User Interface: Interface as follow (From left to right):
1
2
3
4
5
6
7
8
9
10
VCC
GND
UTXD/A
URXD/B
Output1
Input1
UGND
Output2
Status
Input2
Pin No.
Definition
Description
1
VCC
Power: DC5~24V
2
GND
Ground
3
UTXD
TXD(DTU COM/RS485: A)
RS232,TTL:RXD; RS485:A
4
URXD
RXD(DTU COM/RS485: B)
RS232,TTL:TXD; RS485:B
Output1
Output NO.1 of IO; User can set it as
RTS hardware flow control port
(Default: Output1)
Input1/RST
Input No.1 of IO; User can set it as
RST reset pin (Default: Input1)
UGND
Ground (COM)
Output2
Output No.1 of IO; User can set it as
CTS hardware flow control port
(Default: Output2)
Status
Online is high,offline is low
SW/Input2
Input No.2 of IO; High is DTU, low is
SMS, user can set it as Input 2 of
IO(Default: SW)
5
6
7
8
9
10
For User
RS232,TTL, RS485:Data groud
Red LED: power light, will light after power-on.
Green LED: Communications light, when KB3050 connect Server OK, it will often
light green, otherwise, it will flash.
6
Shenzhen Kingbird Network Technology CO.,LTD
KB3050 GPRS DTU
2.SIM Card Interface
SIM Card Interface is on the side of the antenna. When you plug in the SIM card,
please note the direction and front /back side. First please push the point nearby, the
drawer socket will go out automatically. Then take out the drawer socket and put the SIM
card into it, at last push the whole drawer socket(IC side of SIM card face down) into the
hole of DTU. Just as below picture:
Notes: Please don’t plug or move SIM card after power-on, if you need to plug and move, please
put equipment blackouts first.
2.4
Electric Specificity
Work Voltage: 5V~24V DC (7-60V can be custom made)
Power:
Standby: < [email protected]
Communicating: < [email protected]
Peak point current: [email protected]
2.5
Circumstances Specificity
Working Temperature:
Storage Temperature:
Relative Humidity:
-40℃~80℃
-45℃~125℃
20%~ 95%(No Condensation)
3 Terminal Setting
3.1 Overview
KB3050 GPRS MODEM must correct installation just can achieve design functions,
usually equipment installation must be approved in our company under guidance of
7
Shenzhen Kingbird Network Technology CO.,LTD
KB3050 GPRS DTU
qualified engineers.
Note: please don't charged when install KB3050 GPRS MODEM.
3.2 Unpack
For transportation safety, usually KB3050 GPRS MODEM needs reasonable
packaging, when you please keep unpacking packaging materials used for future need
transshipment. KB3050 GPRS MODEM includes the following parts:
KB3050 GPRS MODEM
1Unit (Packaging depend on order quantity)
Electronic instructions (CD-ROM)
1 copy
Small chuck antenna or club-shaped antenna (SMA interface)
1 root
5V / 2A industrial power adapter
1
KB3050 special cable
1
When unpacking the case, check the specific items according to the packing of user's
ordering contract.
3.3 Antennas and SIM card installed
Antenna support SMA female pedestal, spin the left from MODEM and lock it.
Insert SIM card from the antenna side of KB3050, please note that SIM card metal
surface outwards, make sure insert the SIM card to drawer with stuck feeling, to avoid SIM
card fall off when SIM card not insert in place or handling equipment vibration. Remove SIM
card, click the left little point of SIM card with pointed thing, SIM seats can pop up.
Note: Please don't charged operation when connection with the antenna and install
SIM card, please don’t power-on KB3050 first.
3.4 Serial cable connection
KB3050 GPRS MODEM
The cables interface type and connections of KB3050 as figure 3.2 show:
KB3050
User’s termianl
TXD
RXD
GND
3.2 Serial connection schemes
KB3050 user data interface cable connectors is green connectors, spacing: 3.5 mm,
8
Shenzhen Kingbird Network Technology CO.,LTD
KB3050 GPRS DTU
10Pin.
3.5 Inspect network situation
Connect cable and antenna, insert into effective SIM card, power-on KB3050, the
power light of MODEM will flash, after 10 seconds later, the power light will always light, it
means KB3050 into a normal work condition and connect with network successfully.
Note:
Before power-on, must confirm KB3050 connect with cable correct;
Before power-on, make sure to connect the antenna, to avoid RF impedance mismatch
and damage module.
4 Working mode switch
KB3050 default value is DTU modem, the way of switch working mode as below:
1. Switch to SMS modem: it has two ways, when under DTU mode, can change the
device type to SMS modem when set DTU parameters. Another way is that switch the IO
port (put the Pin 10 to low) to change the working mode.
2. Switch to Modem mode: when run the product, put AT command: AT+QLOCPU=0
to change working mode to Modem.
3. Switch to DTU mode: it has two ways, when under SMS Modem, can switch the IO
port (put the Pin 10 to high) to change the working mode to DTU. Another way is under
Modem, put AT command: AT+QLOCPU=1 to change working mode to DTU when run the
product.
More information please visit our website
http://www.kingbirdnet.com
9
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
