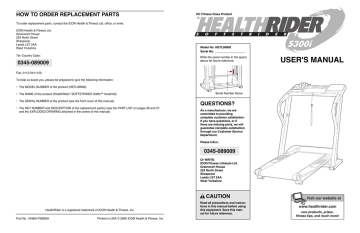

HOW TO ORDER REPLACEMENT PARTS
HC Fitness Class Product
¨
To order replacement parts, contact the ICON Health & Fitness Ltd. office, or write:
ICON Health & Fitness Ltd.
Greenwich House
223 North Street
Sheepscar
Leeds LS7 2AA
West Yorkshire
Model No. HETL09900
Serial No.
Tel: Country Code:
Write the serial number in the space
above for future reference.
0345-089009
USER'S MANUAL
Fax: 0113-2411120
To help us assist you, please be prepared to give the following information:
¥ The MODEL NUMBER of the product (HETL09900).
¥ The NAME of the product (HealthRider¨ SOFTSTRIDER S300iª treadmill).
¥ The SERIAL NUMBER of the product (see the front cover of this manual).
¥ The KEY NUMBER and DESCRIPTION of the replacement part(s) (see the PART LIST on pages 26 and 27
and the EXPLODED DRAWING attached in the centre of this manual).
Serial Number Decal
QUESTIONS?
As a manufacturer, we are
committed to providing
complete customer satisfaction.
If you have questions, or if
there are missing parts, we will
guarantee complete satisfaction
through our Customer Service
Department.
Please CALL:
0345-089009
Or WRITE:
ICON Fitness Lifestyle Ltd.
Greenwich House
223 North Street
Sheepscar
Leeds LS7 2AA
West Yorkshire
CAUTION
HealthRider is a registered trademark of ICON Health & Fitness, Inc.
Part No. 164854 R0800A
Printed in USA © 2000 ICON Health & Fitness, Inc.
Read all precautions and instructions in this manual before using
this equipment. Save this manual for future reference.
Visit our website at
www.healthrider.com
new products, prizes,
fitness tips, and much more!
¨
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
TROUBLE-SHOOTING AND MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
Key
No. Qty.
Description
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
#
12Ó Audio Wire
Latch Warning Decal
Upright
Shock
Lift Frame Spacer
Nylon Washer
Ground Screw
Ground Washer
Ground Nut
Motor Pivot Bushing
Endcap Insert
Motor Pivot Spacer
Filter
Splitter
Power Cord Set
8Ó Green Wire, 2 Ring
1
1
1
1
2
3
1
1
1
1
2
1
1
1
1
1
Key
No. Qty.
#
#
#
#
#
#
#
#
#
#
1
1
1
1
3
1
1
1
2
1
Description
4Ó Green Wire, F/Ring
4Ó Black Wire, 2 Female
8Ó Black Wire, 2 Ring
10Ó Blue Wire, 2F
10Õ White WIre, 2F
4Ó Blue Wire, 2F
7Ó Green Wire, M/R
4Ó Black Wire, M/F
8Ó Green Wire, F/Ring
User's Manual
*Includes all parts shown in the box.
#These parts are not illustrated
Specifications are subject to change without notice.
Note: An EXPLODED DRAWING is attached in the centre of this manual. Please save the EXPLODED DRAWING
for future reference.
2
27
PART LISTÑModel No. HETL09900
R0800A
IMPORTANT PRECAUTIONS
To locate the parts listed below, refer to the EXPLODED DRAWING attached in the centre of this manual.
26
Key
No. Qty.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34*
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
1
5
6
7
1
6
4
2
2
2
1
2
2
2
1
1
1
1
2
16
2
1
1
1
1
1
1
1
1
2
1
1
1
1
16
1
1
1
1
1
1
1
1
1
4
1
1
1
1
1
WARNING:
Description
Key
No. Qty.
Description
Motor Hood
Hood Screw
Platform Screw
Platform Washer
Latch Catch
Latch Catch Screw/Hand Grip Screw
Isolator
Power Bracket Washer
Belt Guide
Frame Pivot Bolt
Front Roller/Pulley
Incline Motor Spacer
Incline Motor Bolt
Incline Motor Nut
Incline Motor
Front Roller Adj. Nut
Pulse Mounting Plate
Front Roller Adj. Bolt
Side Hood Tab
Hood Tab Screw/Reed Switch Screw
Wheel Spacer
Front Hood Tab
Reed Switch Clip
Motor
2-lb. Hand Weight
Reed Switch
Motor Belt
Pulley/Flywheel/Fan
Motor Tension Bolt
Motor Tension Washer
Motor Star Washer
Motor Tension Nut
Motor Pivot Bolt
Motor/Pulley/Flywheel/Fan
Screw
Choke
Choke Plate
Circuit Breaker
On/Off Switch
Receptacle
1Ó Grommet
Outlet Bracket
Controller
Power Supply w/clips
Plastic Stand-Off
Electronics Bracket
Belly Pan
Upright Wire Harness
Right Foot Grip
Walking Belt
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
Frame
Rear Wheel
Rear Wheel Bolt
Rear Roller Guard
Rear Wheel Nut
Rear Roller
Right Endcap
Rear Roller Adj. Washer
Rear Roller Adj.Bolt
Left Endcap
Allen Wrench
Walking Platform
Handrail Grip
Stop Bracket
Crossbar Bolt
Crossbar Washer
Lock Knob
Lock Knob Sleeve
Lock Spring
Lock Pin Collar
Pin Clip
Lock Pin
Crossbar
Console Base Screw
Console Base Cover
Cover Screw
Pulse Sensor Cover
Sensor Cover Screw
Key/Clip
Console Base
Book Holder Lens
Console
Lift Frame
Releasable Tie
Magnet
Cable Tie
8Ó Power Wire
8Ó Cable Tie
Jack
10Õ iFIT.com Wire
Lift Frame Bolt
Walk Board Spacer
Lift Frame Nut/Wheel Nut
Base Pad
Left Foot Grip
Upright Base Cap
Static Warning Decal
Wheel Bolt
Base Wheel
Wheel Insert
1
2
2
2
2
1
1
2
2
1
1
1
2
1
2
2
1
1
1
1
1
1
1
3
1
8
1
2
1
1
1
1
1
3
1
2
1
5
1
1
2
4
5
5
1
2
2
2
2
2
To reduce the risk of burns, fire, electric shock, or injury to persons, read the
following important precautions and information before operating the treadmill.
1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
2. Use the treadmill only as described in this
manual.
conductor, 1mm2 (14 gauge) cord that is no
longer than 1.5 meters (5 feet).
12. Keep the power cord and the surge protector
away from heated surfaces.
3. Place the treadmill on a level surface, with
eight feet of clearance behind it. Do not place
the treadmill on any surface that blocks air
openings. To protect the floor or carpet from
damage, place a mat under the treadmill.
13. Never move the walking belt whilst the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See
BEFORE YOU BEGIN on page 5 if the treadmill is not working properly.)
4. When choosing a location for the treadmill,
make sure that the location and position permit access to a plug.
14. Never start the treadmill whilst you are standing on the walking belt. Always hold the
handrails whilst using the treadmill.
5. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
15. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
6. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
16. Do not use the hand weights at speeds higher
than a walk. Using hand weights and not holding the handrails may compromise your ability
to maintain your balance. Exercises using
hand weights should be attempted only by experienced users.
7. Keep children under the age of 12 and pets
away from the treadmill at all times.
8. The treadmill should not be used by persons
weighing more than 250 pounds (115 kgs).
Never allow more than one person on the
treadmill at a time.
9. Wear appropriate exercise clothing when
using the treadmill. Do not wear loose clothing that could become caught in the treadmill.
Athletic support clothes are recommended
for both men and women. Always wear athletic shoes. Never use the treadmill with bare
feet, wearing only stockings, or in sandals.
10. When connecting the power cord (see page
7), plug the power cord into an earthed circuit. When replacing the fuse, an ASTA approved BS1362 type should be fitted to the
fuse carrier. A 13 amp fuse should be used.
No other appliance should be on the same
circuit.
11. If an extension cord is needed, use only a 3-
17. Never leave the treadmill unattended whilst it
is running. Always remove the key, unplug
the power cord and move the on/off switch to
the off position when the treadmill is not in
use. (See the drawing on page 5 for the location of the on/off switch.)
18. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 6, and HOW TO MOVE
THE TREADMILL on page 21.) You must be
able to safely lift 45 pounds (20 kg) in order
to raise, lower, or move the treadmill.
19. When folding or moving the treadmill, make
sure that the storage latch is fully closed.
20. Inspect and tighten all parts of the treadmill
every three months.
21. Never drop or insert any object into any opening.
3
22.
DANGER: Always unplug the power
cord immediately after use, before cleaning
the treadmill, and before performing the
maintenance and adjustment procedures described in this manual. Never remove the
motor hood unless instructed to do so by an
authorised service representative. Servicing
other than the procedures in this manual
should be performed by an authorised service representative only.
23. When using iFIT.com CDÕs and videos, an
electronic ÒchirpingÓ sound will alert you
when the speed and/or incline of the treadmill
is about to change. Always listen for the
ÒchirpÓ and be prepared for speed and/or incline changes. In some instances, the speed
and/or incline may change before the personal trainer describes the change.
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right. Move slowly as you stretchÑnever bounce.
24. When using iFIT.com CDÕs and videos, you
can manually override the speed and incline
settings at any time by pressing the speed
and incline buttons. However, when the next
ÒchirpÓ is heard, the speed and/or incline will
change to the next settings of the CD or
video program.
1. Toe Touch Stretch
25. Always remove iFIT.com CDÕs and videos
from your CD player or VCR when you are not
using them.
2. Hamstring Stretch
26. The treadmill is intended for in-home use
only. Do not use the treadmill in any
commercial, rental, or institutional setting.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS
The decals shown below have been placed on your treadmill. If a decal is missing, or if it is not legible,
please call our Customer Service Department at 0345-089009 to order a free replacement decal. Apply the
decal in the location shown. Note: The large decal is shown at 38% of actual size.
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach
down toward your toes as far as possible. Hold for 15 counts,
then relax. Repeat 3 times. Stretches: Hamstrings, back of knees
and back.
1
Sit with one leg extended. Bring the sole of the opposite foot toward you and rest it against the inner thigh of your extended leg.
Reach toward your toes as far as possible. Hold for 15 counts,
then relax. Repeat 3 times for each leg. Stretches: Hamstrings,
lower back and groin.
2
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your back
foot flat on the floor. Bend your front leg, lean forward and move
your hips toward the wall. Hold for 15 counts, then relax. Repeat
3 times for each leg. To cause further stretching of the achilles
tendons, bend your back leg as well. Stretches: Calves, achilles
tendons and ankles.
3
4
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp
one foot with your other hand. Bring your heel as close to your
buttocks as possible. Hold for 15 counts, then relax. Repeat 3
times for each leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward.
Pull your feet toward your groin area as far as possible. Hold for
15 counts, then relax. Repeat 3 times. Stretches: Quadriceps
and hip muscles.
4
5
25
BEFORE YOU BEGIN
CONDITIONING GUIDELINES
WARNING:
Before beginning this
or any exercise program, consult your physician. This is especially important for individuals over the age of 35 or individuals with preexisting health problems.
The following guidelines will help you to plan your exercise program. For more detailed exercise information, obtain a reputable book or consult your physician.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. The chart below shows recommended heart rates for fat burning and aerobic exercise.
During the first few minutes of exercise, your body
uses easily accessible carbohydrate calories for energy. Only after the first few minutes does your body
begin to use stored fat calories for energy. If your goal
is to burn fat, adjust the speed and incline of the treadmill until your heart rate is near the lowest number in
your training zone.
For maximum fat burning, adjust the speed and incline
of the treadmill until your heart rate is near the middle
number in your training zone.
Aerobic Exercise
Congratulations for purchasing the SOFTSTRIDER
S300iª treadmill by HealthRider¨. The SOFTSTRIDER
S300i offers an impressive array of features to help
you achieve your fitness goals in the convenience of
your home. From the advanced console to the cushioned walking belt, the SOFTSTRIDER S300i is designed to make each workout more effective and enjoyable. And when youÕre not exercising, the SOFTSTRIDER S300i can be folded away, taking less than
half the floor space of conventional treadmills.
using the SOFTSTRIDER S300i treadmill. If you
have additional questions, please call our our
Customer Service Department at 0345-089009.To help
us assist you, please note the product model number
and serial number before calling. The model number is
HETL09900. The serial number can be found on a
decal attached to the treadmill (see the front cover of
this manual for the location).
Before reading further, please familiarise yourself with
the parts that are labelled in the drawing below.
For your benefit, read this manual carefully before
If your goal is to strengthen your cardiovascular system, your exercise must be Òaerobic.Ó Aerobic exercise
is activity that requires large amounts of oxygen for
prolonged periods of time. This increases the demand
on the heart to pump blood to the muscles, and on the
lungs to oxygenate the blood. For aerobic exercise,
adjust the speed and incline of the treadmill until your
heart rate is near the highest number in your training
zone.
Hand Weights
Book Holder
Chest Pulse Sensor Holder*
Console
Water Bottle Holder
Handrail
WORKOUT GUIDELINES
Key/Clip
Each workout should include the following three parts:
To find the proper heart rate for you, first find your age
near the bottom of the chart (ages are rounded off to
the nearest ten years). Next, find the three numbers
above your age. The three numbers define your Òtraining zone.Ó The lower two numbers are recommended
heart rates for fat burning; the higher number is the
recommended heart rate for aerobic exercise.
HOW TO MEASURE YOUR HEART RATE
To measure your heart
rate, stop exercising and
place two fingers on your
wrist as shown. Take a sixsecond heartbeat count,
and multiply the result by
ten to find your heart rate.
(A six-second count is used
because your heart rate drops quickly when you stop
exercising.) If your heart rate is too high or too low, adjust the speed or incline of the treadmill.
A Warm-upÑStart each workout with 5 to 10 minutes
of stretching and light exercise. A proper warm-up increases your body temperature, heart rate and circulation in preparation for exercise.
Training Zone ExerciseÑAfter warming up, increase
the intensity of your exercise until your pulse is in your
training zone for 20 to 60 minutes. (During the first few
weeks of your exercise program, do not keep your
pulse in your training zone for longer than 20 minutes.)
Breathe regularly and deeply as you exerciseÑnever
hold your breath.
Lock Knob
RIGHT SIDE
On/Off
Switch
Walking Belt
Circuit
Breaker
Foot Rail
A Cool-downÑFinish each workout with 5 to 10 minutes of stretching to cool down. This will increase the
flexibility of your muscles and will help prevent post-exercise problems.
Exercise Frequency
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest between workouts. After a few months, you may complete up to five workouts each week if desired. The key
to success is to make exercise a regular and enjoyable
part of your everyday life.
BACK
Rear Roller
Adjustment Bolts
Cushioned
Walking Platform
Power
Cord
*For information about the optional chest
pulse sensor, see page 20.
Fat Burning
To burn fat effectively, you must exercise at a relatively
low intensity level for a sustained period of time.
24
Water bottle is not included.
5
ASSEMBLY
Assembly requires two people. Place the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until the treadmill is assembled. No tools are required.
PROBLEM
SOLUTION
4. The walking belt is
off-centre or slips
when walked on
a. If the walking belt has shifted to the
a
left, first remove the key and UNPLUG
THE POWER CORD. Using the allen
wrench, turn the left rear roller adjustment
bolt clockwise, and the right bolt counterclockwise, 1/4 of a turn each. Be careful
not to overtighten the walking belt. Plug in
the power cord, insert the key and run the
treadmill for a few minutes. Repeat until the walking belt is centered.
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a
small amount of lubricant may be transferred to the top of the walking belt, the sides of the walking platform, or
the shipping carton. This does not affect treadmill performance. If there is lubricant on top of the walking belt or
on the sides of the walking platform, wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
If you have additional questions, please call our our Customer Service Department at 0345-089009.
1. With the help of a second person, carefully raise the
Uprights (103) until the Base Wheels (99) are resting on
the floor as shown.
b. If the walking belt has shifted to the
b
right, first remove the key and UNPLUG
THE POWER CORD. Using the allen
wrench, turn the left rear roller adjustment
bolt counterclockwise, and the right bolt
clockwise, 1/4 of a turn each. Be careful
not to overtighten the walking belt. Plug in
the power cord, insert the key and run the
treadmill for a few minutes. Repeat until the walking belt is centered.
1
103
c. If the walking belt slips when walked
c
on, first remove the key and UNPLUG
THE POWER CORD. Using the allen
wrench, turn both rear roller adjustment
bolts clockwise, 1/4 of a turn. When the
walking belt is correctly tightened, you
should be able to lift the edges of the
walking belt 7 to 10 cm off the walking
platform. Be careful to keep the walking belt centered. Plug in the power cord, insert the key and run the treadmill for a few minutes. Repeat until the walking belt
is properly tightened.
99
2. Next, make sure that the Lock Knob Sleeve (68) is fully
inserted into the left Upright (103).
2
Remove the Lock Knob (67) from the Lock Pin (72). Make
sure that the Lock Pin Collar (70) and the Lock Spring
(69) are on the Lock Pin. Insert the Lock Pin into the left
Upright (103) and tighten the Lock Knob onto it.
103
5. The displays of the
console do not function properly
a. Remove the key from the console and UNPLUG THE POWER CORD. Next, remove
3 mm
the screws from the hood and carefully re28
2
move the hood. Locate the Reed Switch
85
26
(26) and the Magnet (85) on the left side of
the Pulley (28). Turn the Pulley until the
Top
Magnet is aligned with the Reed Switch.
View
Make sure that the gap between the
Magnet and the Reed Switch is about
3 mm. If necessary, loosen the Reed
Switch Screw (2) and move the Reed Switch slightly. Retighten the Screw. Re-attach the hood, and run the treadmill for a few minutes to check for a correct speed
reading.
6. Bubbles form in the
walking belt
a. Due to variations in humidity and temperature, there is a possibility that
bubbles may form in the walking belt. Although the bubbles will disappear with
time, you may unplug the power cord, carefully insert a needle into the bubbles,
and push the air out of the bubbles.
69
70
72
67
68
3. Make sure that all parts are tightened before you use the treadmill. Place a mat beneath the treadmill
to protect the floor or carpet. For your benefit, we recommend that you familiarise yourself with the
TROUBLE-SHOOTING AND MAINTENANCE section on pages 22 and 23.
6
23
TROUBLE-SHOOTING AND MAINTENANCE
OPERATION AND ADJUSTMENT
Most treadmill problems can be solved by following the instructions below.f further assistance is needed,
please call our Customer Service Department at 0345-089009.
THE PERFORMANT LUBETM WALKING BELT
Your treadmill features a walking belt coated with PERFORMANT LUBETM, a high-performance lubricant. IMPORTANT: Never apply silicone spray or other substances to the walking belt or the walking platform. They will
deteriorate the walking belt and cause excessive wear.
PROBLEM
SOLUTION
1. The power does not
turn on
a. Make sure that the power cord is plugged into a properly earthed outlet. (See
HOW TO PLUG IN THE POWER CORD on page 8.) If an extension cord is
needed, use only a 3-conductor, 14-gauge (1mm2) cord that is no longer than 1.5
meters (5 feet). Important: The treadmill is not compatible with GFCI-equipped
outlets.
`
b. Make sure that the key is fully inserted into the console.
c. Check the circuit breaker located on the frame near
the power cord. If the switch protrudes as shown, the
circuit breaker has tripped. To reset the circuit
breaker, wait for five minutes and then press the
switch back in.
d. Check the on/off switch located on the frame near
the power cord. The switch must be in the on position.
Tripped
Ti
d
Reset
Reset
On
Position
HOW TO PLUG IN THE POWER CORD
1
This product must be earthed. If it should malfunction or break
down, earthing provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped
with a cord having an equipment-earthing conductor and a earthing plug.
Two power cords are included. Select the one that will fit your
outlet. Refer to drawing 1. Plug the indicated end of the
power cord into the socket on the treadmill. Refer to drawing
2. Plug the power cord into an appropriate outlet that is properly installed and earthed in accordance with all local codes
and ordinances. Note: In Italy, an adaptor (not included) must
be used between the power cord and the outlet. Important: The
treadmill is not compatible with GFCI-equipped outlets.
2
Socket on treadmill
Outlet
DANGER:
2. The power turns off
during use
a. Check the circuit breaker located on the treadmill frame near the power cord (see
1. c. above). If the circuit breaker has tripped, wait for five minutes and then press
the switch back in.
b. Make sure that the power cord is plugged in.
Improper connection of the
equipment-earthing conductor can result in an increased risk of electric shock. Check with a qualified
electrician or serviceman if you are in doubt as to
whether the product is properly earthed. Do not modify the plug provided with the productÑif it will not fit
the outlet, have a proper outlet installed by a qualified
electrician.
c. Remove the key from the console and then reinsert it.
d. Make sure that the on/off switch is in the on position (see 1. d. above).
3. The walking belt
slows when walked
on
22
a. Make sure that only an appropriate surge protector is used (see 1. a. above).
b. If the walking belt is overtightened,
b
7Ð10 cm
treadmill performance may decrease and
the walking belt may be permanently
damaged. Remove the key and UNPLUG THE POWER CORD. Using the
included allen wrench, turn both rear
roller adjustment bolts counterclockwise
1/4 of a turn. When the walking belt is
properly tightened, you should be able to
lift the edges of the walking belt 7 to 10
Rear Roller Adjustment Bolts
cm off the walking platform. Be careful to
keep the walking belt centered. Plug in
the power cord, insert the key and run the treadmill for a few minutes. Repeat until
the walking belt is properly tightened.
7
HOW TO FOLD AND MOVE THE TREADMILL
J
M
1
2
3
4
N
A
D
R
E
P Q
F
G
Note: If there is a thin
sheet of clear plastic
on the face of the
console, remove it.
H
FEATURES OF THE CONSOLE
The treadmill console offers an impressive selection of
features to help you get the most from your exercise.
When the console is in the manual mode, the speed
and incline of the treadmill can be changed with a
touch of a button. As you exercise, the four displays
will show your workout time, the number of calories
you have burned, the distance you have walked, the
incline level of the treadmill, and the speed of the walking belt. If you purchase an optional handgrip pulse
sensor or chest pulse sensor, the console will also
show your heart rate.
The console also offers four preset workout programs.
Each program automatically controls the speed and incline of the treadmill as it guides you through an effective workout. The included hand weights can be used for
upper body exercise as well. If you purchase the optional chest pulse sensor, the consoleÕs two pulse programs can also be used. Each program controls the
speed and incline of the treadmill to keep your heart rate
within a preset range during your workouts.
The console also features advanced iFIT.com technology. iFIT.com technology is like having a personal
trainer right in your home. Using the included audio
cable, you can connect the treadmill to your home
stereo, portable stereo, or computer and play special
iFIT.com CD programs (CDÕs are available separately).
iFIT.com CD programs automatically control the speed
8
1
Before folding the treadmill, adjust the incline to the
lowest position. If this is not done, the treadmill may be
permanently damaged. Next, unplug the power cord.
Caution: You must be able to safely lift 45 pounds (20 kg)
in order to raise, lower, or move the treadmill.
L
C
B
HOW TO FOLD THE TREADMILL FOR STORAGE
O
K
I
and incline of the treadmill as a personal trainer guides
you through every step of your workout. High-energy
music provides added motivation. Each CD features
two programs designed by certified personal trainers.
In addition, you can connect the treadmill to your VCR
and TV and play iFIT.com video programs (videocassettes are available separately). Video programs offer
the same benefits as iFIT.com CD programs, but add
the excitement of working out with a class and an
instructorÑthe hottest new trend at health clubs.
1. Hold the treadmill in the locations shown at the right. To decrease the possibility of injury, bend your legs and keep
your back straight. As you raise the treadmill, make
sure to lift with your legs rather than your back. Raise
the treadmill about halfway to the vertical position.
2. Move your right hand to the position shown and hold the
treadmill firmly. Using your left hand, pull the lock knob to
the left and hold it. Raise the treadmill until all parts of the
treadmill are past the latch pin. Release the lock knob.
Make sure that the lock knob is fully released so the
latch pin is securely holding the catch.
To protect the floor or carpet from damage, place a
mat under the treadmill. Keep the treadmill out of
direct sunlight. Do not leave the treadmill in the storage position in temperatures above 30¡ Celsius.
2
Latch
Pin
Lock
Knob
Catch
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the
storage position as described above. Make sure that the
latch pin is securely holding the catch.
With the treadmill connected to your computer, you
can also go to our new internet site at www.iFIT.com
and access basic programs that interactively control
the speed and incline of your treadmill to help you
achieve your specific exercise goals. Or, use iFIT.com
audio and video programs directly from our internet
site. Visit www.iFIT.com for complete details.
1. Hold the handrails and place one foot on the base.
To purchase iFIT.com CDÕs, iFIT.com videocassettes,
call 0345-089009. For information about the optional
handgrip pulse sensor or chest pulse sensor, see page
20.
3. Place one foot on the base, and carefully lower the treadmill until it is resting in the storage position.
To use the manual mode of the console, follow the
steps beginning on page 10. To use a preset program,
see page 12. To use a pulse program, see page 13.
To use iFIT.com CD or video programs, see page
17. To use iFIT.com programs directly from our internet site, see page 19.
HOW TO LOWER THE TREADMILL FOR USE
2. Tilt the treadmill back until it rolls freely on the wheels.
Carefully move the treadmill to the desired location. To reduce the risk of injury, use extreme caution whilst moving the treadmill. Do not attempt to move the treadmill
over an uneven surface.
Base
Front Wheels
1. Refer to drawing 2 above. Hold the treadmill with your right hand as shown. Using your left hand, pull the lock
knob to the left and hold it. Pivot the treadmill down until all parts of the treadmill are past the pin. Slowly release
the lock knob.
2. Refer to drawing 1 above. Hold the treadmill firmly with both hands, and lower the treadmill to the floor. To decrease the possibility of injury, bend your legs and keep your back straight.
21
THE INFORMATION MODE/DEMO MODE
THE OPTIONAL CHEST PULSE SENSOR
DESCRIPTION OF THE CONSOLE
The console features an information mode that keeps
track of the total number of hours that the treadmill has
been operated and the total number of miles that the
walking belt has moved. The information mode also allows you to switch the console from miles per hour to
kilometres per hour. In addition, the information mode
allows you to turn on and turn off the demo mode.
An optional chest pulse sensor adds even more
features to the console. The chest pulse sensor continuously monitors your heart rate during your workouts
and allows you to use the consoleÕs two pulse programs. To purchase the optional chest pulse sensor, call 0345-089009.
Refer to the drawing on page 8 to identify the features
described below.
B. Hand weight holderÑThese compartments hold the
included hand weights.
To select the information mode, hold down one of the
Stop buttons whilst inserting the key into the console.
When the information mode is selected, the following
information will be shown:
C. Book holderÑThis holder allows you to read a good
book or enjoy your favourite magazine whilst you
get in shape.
The Time/Segment Time
display will show the total
number of hours that the
treadmill has been used.
D. Incline buttonsÑThese buttons control the incline of
the treadmill. The incline range is 1.5% to 10%.
THE OPTIONAL HANDGRIP PULSE SENSOR
The Distance/Incline display
will show the total number of
miles that the walking belt
has moved.
An ÒE,Ó for English miles, or
an ÒM,Ó for metric kilometres,
will appear in the Speed display. Press the Speed ▲
button to change the unit of
measurement.
IMPORTANT: The
Calories/Pulse display
should be blank. If a ÒdÓ
appears in the display, the
console is in the ÒdemoÓ
mode. This mode is intended to be used only
when a treadmill is displayed in a store. When the console is in the demo mode, the power cord can be
plugged in, the key can be removed from the console,
and the displays and indicators on the console will automatically light in a preset sequence, although the buttons on the console will not operate. If a ÒdÓ appears
in the Calories/Pulse display when the information
mode is selected, press the Speed ▼ button so the
Calories/Pulse display is blank.
A. Water bottle holderÑThis holder keeps your water
bottle handy during your workouts (no water bottle
is included).
An optional handgrip pulse sensor
allows you to conveniently measure
your heart rate before you begin exercising, during
your workout, and
after you finish. To
purchase the optional handgrip
sensor, call 0345089009.
WARNING: The chest pulse sensor and the handgrip pulse sensor are not
medical devices. Various factors, including
your movement, may affect the accuracy of
heart rate readings. The sensors are intended
only as exercise aids in determining heart rate
trends in general.
E. Speed buttonsÑThese buttons control the speed of
the walking belt. The speed range is 0.5 mph to 10
mph.
F. Stop buttonsÑThese buttons are used to stop the
walking belt. Note: Pressing either button will stop
the walking belt.
G. Start buttonÑThis button is used to start the walking
belt.
H. Waistband clipÑThis clip is designed to be worn on
the waistband of your clothes. If the key is pulled
from the console, the walking belt will automatically
stop.
I. KeyÑThis key turns the console on and off.
J. Time/Segment Time displayÑWhen the manual
mode or an iFIT.com program is selected, this display will show the elapsed time. When a preset program or a pulse program is selected, the display will
show both the time remaining in the program and
the time remaining in the current segment of the
program. The display will alternate between one
number and the other every seven seconds.
L. Calories/Pulse displayÑThis display shows the approximate number of calories you have burned.
When the optional chest pulse sensor is worn, the
display will also show your heart rate. The display
will alternate between one number and the other
every seven seconds. If the optional handgrip pulse
sensor is used, the display will show your heart rate
continuously whilst your hands are on the pulse
sensor.
M. Distance/Incline displayÑThis display shows the
distance you have walked and the incline level of
the treadmill. The display will alternate between one
number and the other every seven seconds. Note:
Each time the Incline buttons are pressed, the display will change to show the incline setting.
N. Speed displayÑThis display shows the speed of
the walking belt.
O. Enter button and ▲ and ▼ buttonsÑThese buttons
are used to enter your age when pulse programs
are used.
P. Select Workout buttonÑThis button is used to select
the manual mode, the four preset programs, the two
pulse programs, and iFIT.com programs. Note: If
the walking belt is moving when the Select Workout
button is pressed, the walking belt will slow to a
stop and the displays will be reset.
Q. Mode indicatorsÑThese indicators show whether
the manual mode, a preset program, a pulse program, or an iFIT.com program is selected.
R. Program profilesÑThese profiles show how the target heart rate will change during pulse programs
and how the speed and incline of the treadmill will
change during preset programs.
Note: The console can display exercise feedback
in either miles or kilometres (see SPEED DISPLAY
on page 11). For simplicity, all instructions in this
section refer to miles.
K. Cross Training indicatorÑDuring the preset programs 2 and 4, this indicator will periodically flash.
The included hand weights can be used whilst the
indicator is flashing to add upper body
exercise to your workouts.
To exit the information mode, remove the key from the
console.
20
9
WARNING: To reduce the risk of
serious injury, read the following precautions
before operating the console.
HOW TO USE THE MANUAL MODE
1
¥ Always attach the clip (see ÒHÓon page 8) to
your waistband when using the treadmill. If
the key is pulled from the console, the walking belt will stop.
2
¥ To reduce the risk of electric shock, keep
liquids away from the console and place only
a sealed water bottle in the console.
¥ Do not use the hand weights at speeds higher
than a walk. Using hand weights and not holding the handrails may compromise your ability
to maintain your balance. Exercises using
hand weights should be attempted only by experienced users.
3
As you exercise, adjust the speed of the walking
belt as desired by pressing the Speed buttons.
Each time one of the
buttons is pressed, the
speed will change by
0.1 mph. If one of the
buttons is held down,
the speed will change in increments of 0.5 mph.
To stop the walking belt, press either of the Stop
buttons. The four displays will pause and the
Time/Segment Time display will begin to flash. To
restart the walking belt, press the Start button or
the Speed ▲ button. To stop the walking belt and
reset the displays, press a Stop button, remove
the key, and then reinsert the key.
HOW TO TURN ON THE POWER
2
3
10
Plug in the power cord (see HOW TO PLUG IN
THE POWER CORD on page 7).
Locate the on/off
switch on the front of
the treadmill near the
power cord. Make
sure that the on/off
switch is in the on
position.
On
Position
Stand on the foot
rails of the treadmill.
Find the clip attached
to the key and slide
the clip onto the
waistband of your
clothing. Next, insert
the key into the console. After a moment, the four
displays and various indicators will light.
Press the Start button or the Speed ▲ button
to start the walking belt.
A moment after the button is pressed, the walking
belt will begin to move at 1.0 mph. Hold the handrails and begin walking.
¥ If you have heart problems, or if you are over
60 years of age and have been inactive, do
not use the pulse programs. If you are taking
medication regularly, consult your physician
to find whether the medication will affect
your exercise heart rate. Note: The pulse programs require an optional chest pulse sensor.
1
Select the manual mode.
When the key is inserted, the manual
mode will be selected
and the MÐindicator will
light. If a program has
been selected, press
the Select Workout button repeatedly to select the manual mode.
¥ The treadmill is capable of high speeds.
Adjust the speed in small increments.
4
7
Return to the treadmill and stand on the foot
rails. Find the clip attached to the key and slide
the key onto the waistband of your clothing.
Insert the key into the console.
See HOW TO TURN ON THE POWER at the left.
¥ Do not stand on the walking belt when turning on the power or starting the walking belt.
HOW TO USE PROGRAMS DIRECTLY FROM
OUR INTERNET SITE
Adjust the incline of the treadmill.
To vary the intensity of your exercise, adjust the
incline of the treadmill
as desired with the
Incline buttons. Each
time one of the buttons
is pressed, the incline
will change by 0.5%.
Note: After the buttons
are pressed, it may take a moment for the treadmill
to reach the selected incline setting.
When the on-screen countdown ends, the program
will begin and the walking belt will begin to move.
Hold the handrails, step onto the walking belt, and
begin walking.
Our new internet site at www.iFIT.com allows you to
access a selection of programs that interactively control your treadmill to help you achieve your specific exercise goals. In addition, you can play iFIT.com audio
and video programs directly from the internet.
During the program, an electronic ÒchirpingÓ sound
will alert you when the speed and/or incline of the
treadmill is about to change. CAUTION: Always
listen for the ÒchirpÓ and be prepared for speed
and/or incline changes.
To use programs from our internet site, the treadmill
must be connected to your home computer. See HOW
TO CONNECT YOUR COMPUTER on page 16. In
addition, you must have an internet connection and
an internet service provider. A list of specific system
requirements will be found on our internet site.
If the speed or incline settings are too high or too
low, you can manually override the settings at any
time by pressing the Speed or Incline buttons on
the console. However, when the next ÒchirpÓ is
heard, the speed and/or incline will change to
the next settings of the program.
Follow the steps below to use a program from our
internet site.
1
Insert the key into the console.
To stop the walking belt at any time, press a Stop
button on the console. The Time/Segment Time
display will begin to flash. To restart the program,
press the Start button. After a moment, the walking belt will begin to move at 1.0 mph. When the
next ÒchirpÓ is heard, the speed and incline will
change to the next settings of the program.
See HOW TO TURN ON THE POWER on page 10.
2
Select the iFIT.com mode.
When the key is inserted, the manual
mode will be selected
and the MÐindicator will
light. To use a program
from our internet site,
press the Program
Select button repeatedly until the iFIT.com indicator lights.
3
Go to your computer and start an internet
connection.
4
Start your web browser, if necessary, and go to
our internet site at www.iFIT.com.
5
Follow the desired links on our internet site to
select a program.
When the program is completed, the walking belt
will stop and the Time/Segment Time display will
begin to flash. Note: To use another program,
press a Stop button and go to step 5.
Note: If the speed or incline of the treadmill
does not change when a ÒchirpÓ is heard, make
sure that the iFIT.com indicator is lit and that
the Time/Segment Time display is not flashing.
In addition, make sure that the audio cable is
properly connected, that it is fully plugged in,
and that it is not wrapped around a power cord.
8
Follow your progress with the four displays.
See step 5 on page 11.
Read and follow the on-line instructions for using a
program.
6
Follow the on-line instructions to start the
program.
9
When the program has ended, remove the key.
See step 6 on page 12.
When you start the program, an on-screen countdown will begin.
19
During the CD or video program, an electronic
ÒchirpingÓ sound will alert you when the speed
and/or incline of the treadmill is about to change.
CAUTION: Always listen for the ÒchirpÓ and be
prepared for speed and/or incline changes. In
some instances, the speed and/or incline may
change before the personal trainer describes
the change.
Note: If the speed or incline of the treadmill
does not change when a ÒchirpÓ is heard:
¥ make sure that the iFIT.com indicator is lit and
that the Time/Segment Time display is not
flashing. If the Time/Segment Time display is
flashing, press the Start button or the Speed
▲ button on the console.
¥ adjust the volume of your CD player or VCR. If
the volume is too high or too low, the console
may not detect the program signals
If the speed or incline settings are too high or too
low, you can manually override the settings at any
time by pressing the Speed or Incline buttons on
the console. However, when the next ÒchirpÓ is
heard, the speed and/or incline will change to
the next settings of the CD or video program.
To stop the walking belt at any time, press a Stop
button on the console. The Time/Segment Time
display will begin to flash. To restart the program,
press the Start button. After a moment, the walking belt will begin to move at 1.0 mph. When the
next ÒchirpÓ is heard, the speed and incline
will change to the next settings of the CD or
video program. The program can also be
stopped by pressing the Stop button on your CD
player or VCR.
When the CD or video program is completed, the
walking belt will stop and the Time/Segment Time
display will begin to flash. Note: To use another
CD or video program, press a Stop button or remove the key and go to step 1 on page 17.
¥ make sure that the audio cable is properly
connected, that it is fully plugged in, and that
it is not wrapped around a power cord
¥ if you are using your portable CD player and
the CD skips, set the CD player on the floor or
another flat surface instead of on the console.
5
Time/Segment Time
displayÑWhen the
manual mode or an
iFIT.com program is
selected, this display
will show the elapsed
time. When a preset
program or a pulse program is selected, the display
will show both the time remaining in the program
and the time remaining in the current segment of
the program. The display will alternate between
one number and the other every seven seconds.
Note: The speed can be
displayed in either miles
per hour (mph) or kilometres per hour (kph).
To see which unit of
measurement is selected, first hold down
one of the Stop buttons whilst inserting the key
into the console. The Speed display will show an
ÒEÓ for English miles or an ÒMÓ for metric kilometres. Press the Speed ▲ button to change the unit
of measurement. When the desired unit of measurement is selected, remove and then reinsert the
key.
Note: The Cross Training indicator below the display will periodically flash during the preset programs 2 and 4. Whilst the indicator is flashing, the
included hand weights can be used for upper body
exercise as you walk on the treadmill.
When the program is completed, remove the
key.
See step 6 on page 12.
CAUTION: Always remove iFIT.com CDÕs and
videocassettes from your CD player or VCR
when you are finished using them.
Calories/Pulse
displayÑThis display
shows the approximate
number of calories you
have burned. When the
optional chest pulse
sensor is worn, the display will also show your heart rate. The display
will alternate between one number and the other
every seven seconds. If the optional handgrip
pulse sensor is used, the display will show your
heart rate continuously whilst your hands are on
the pulse sensor.
Distance/Incline
displayÑThis display
shows the distance you
have walked and the
incline level of the
treadmill. The display
will alternate between
one number and the other every seven seconds.
Note: Each time the Incline buttons are pressed,
the display will change to show the incline setting.
18
Speed displayÑThis
display shows the speed
of the walking belt.
Follow your progress with the four displays.
Follow your progress with the four displays.
See step 5 on page 11.
6
5
6
When you are finished exercising, stop the
walking belt and remove the key.
Step onto the foot rails, press one of the Stop buttons, and adjust the incline of the treadmill to the
minimum setting. The incline must be at the minimum setting when the treadmill is raised to the
storage position or the treadmill will be damaged. Next, remove the key from the console and
put it in a safe place. Note: If the displays and indicators on the console remain lit after the key
is removed, the console is in the ÒdemoÓ
mode. Refer to page 20 and turn off the demo
mode.
When you are finished using the treadmill, move
the on/off switch near the power cord to the off
position and unplug the power cord.
11
The program will continue in this way until the
Time/Segment Time display counts down to zero.
The walking belt will then slow to a stop.
HOW TO USE THE PRESET PROGRAMS
1
Insert the key into the console.
If the speed or incline setting for the current segment is too high or too low, you can manually
override the setting by pressing the Speed or
Incline buttons on the console. However, when
the next segment begins, the treadmill will automatically adjust to the speed and incline settings for the next segment.
See HOW TO TURN ON THE POWER on page 10.
2
Select one of the four preset programs.
When the key is
inserted, the
manual mode
will be selected
and the manual
indicator will
light. To select
one of the preset programs,
press the Select
Workout button repeatedly until one of the four
preset program indicators lights.
The profiles on the console show how the speed
and incline of the treadmill will change during the
preset programsÑthe white profiles show speed
settings and the green lines show incline settings.
The numbers at the left ends of the profiles show
the speed and incline ranges for the programs.
For example, during the preset program 1, the
speed of the walking belt will be from 2 mph to 4
mph and the incline will be from 1.5% to 6%. The
Time/Segment Time display will show how long
the selected program will last.
3
Press the Start button or the Speed ▲ button
to start the program.
A moment after the button is pressed, the treadmill will automatically adjust to the first speed and
incline settings for the program. Hold the handrails
and begin walking.
Each program is divided into several time
segments of different
lengths. The Time/
Segment Time display
will show both the time
remaining in the program and the time remaining in the current segment. One speed setting and one incline setting
are programmed for each segment. When only
three seconds remain in the first segment of the
program, a series of tones will sound and the
treadmill will automatically adjust to the speed and
incline settings for the second segment.
12
To stop the program temporarily, press one of the
Stop buttons. All displays will pause and the Time/
Segment Time display will begin to flash. To
restart the program, press the Start button or the
Speed ▲ button. To end the program, press a Stop
button, remove the key, and then reinsert the key.
HOW TO CONNECT YOUR VCR
Note: If your VCR has an unused AUDIO OUT jack,
see instruction A below. If the AUDIO OUT jack is
being used, see instruction B. If you have a TV
with a built-in VCR, see instruction B. If your VCR
is connected to your home stereo, see HOW TO
CONNECT YOUR HOME STEREO on page 16.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the included adaptor.
Plug the adaptor into the AUDIO OUT jack on your
VCR.
A
ANT. IN
VIDEO AUDIO
IN
RF OUT
CH
3 4
OUT
HOW TO USE IFIT.COM CD AND VIDEO
PROGRAMS
To use iFIT.com CDÕs or videocassettes, the treadmill
must be connected to your portable CD player, portable
stereo, home stereo, computer with CD player, or
VCR. See HOW TO CONNECT THE TREADMILL TO
YOUR CD PLAYER, VCR, OR COMPUTER on page
15. Note: To purchase iFIT.com CDÕs or iFIT.com
videocassettes, call 0345-089009.
Follow the steps below to use an iFIT.com CD or video
program.
1
Insert the key into the console.
See HOW TO TURN ON THE POWER on page 10.
AUDIO OUT
RIGHT
4
Use the hand weights, if desired.
If you have selected preset program 2 or 4, the
Cross Training Indicator
in the Time/Segment
Time display will periodi
cally flash. Whilst the indicator is flashing, use
the included hand weights for upper body exercise
as you walk on the treadmill.
5
Follow your progress with the four displays.
Refer to step 5 on page 11.
6
When the program has ended, remove the key.
Step onto the foot rails and make sure that the incline of the treadmill is at the minimum setting. The
incline must be at the minimum setting when
the treadmill is raised to the storage position.
Next, remove the key from the console and put it in
a safe place. Note: If the displays and indicators
on the console remain lit after the key is removed, the console is in the ÒdemoÓ mode.
Refer to page 20 and turn off the demo mode.
When you are finished using the treadmill, move
the on/off switch near the power cord to the off
position and unplug the power cord.
LEFT
2
Audio
Cable
adaptor
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the included adaptor.
Plug the adaptor into an RCA adaptor (available at
electronics stores). Next, remove the wire that is
currently plugged into the AUDIO OUT jack on your
VCR and plug the wire into the unused side of the
RCA adaptor. Plug the RCA adaptor into the AUDIO
OUT jack on your VCR.
B
ANT. IN
VIDEO AUDIO
IN
RF OUT
CH
3 4
OUT
RCA adaptor
Audio
Cable
adaptor
Wire removed from
AUDIO OUT jack
Select the iFIT.com mode.
When the key is inserted, the manual
mode will be selected
and the manual indicator will light. To use
iFIT.com CDÕs or videocassettes, press the
Select Workout button repeatedly until the
iFIT.com indicator lights.
3
Insert the iFIT.com CD or videocassette.
If you are using an iFIT.com CD, insert the CD
into your CD player. If you are using an iFIT.com
videocassette, insert the videocassette into your
VCR.
4
Press the PLAY button on your CD player or
VCR.
A moment after the button is pressed, your personal trainer will begin guiding you through your
workout. Simply follow your personal trainerÕs
instructions. Note: If the Time/Segment Time display is flashing, press the Start button or the
Speed ▲ button on the console. The treadmill will
not respond to a CD or video program whilst the
Time/Segment Time display is flashing.
17
HOW TO CONNECT YOUR HOME STEREO
HOW TO CONNECT YOUR COMPUTER
Note: If your stereo has an unused LINE OUT jack,
see instruction A below. If the LINE OUT jack is
being used, see instruction B.
Note: If your computer has a 3.5mm LINE OUT jack,
see instruction A. If your computer has only a
PHONES jack, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the included adaptor.
Plug the adaptor into the LINE OUT jack on your
stereo.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the LINE OUT jack on
your computer.
HOW TO USE THE PULSE PROGRAMS
A
1
CD
LINE OUT
Audio
Cable
LINE OUT
Audio
Cable
3
adaptor
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the included adaptor.
Plug the adaptor into an RCA adaptor (available at
electronics stores). Next, remove the wire that is
currently plugged into the LINE OUT jack on your
stereo and plug the wire into the unused side of the
RCA adaptor. Plug the RCA adaptor into the LINE
OUT jack on your stereo.
B
CD
Amp
The profiles on the console show how the target
heart rate will change during the programs. The
Time/Segment Time display will show how long
the selected program will last.
B
PHONES
4
3.5mm
Y-adaptor
LINE OUT
Headphones/Speakers
Audio
Cable
RCA
adaptor
adaptor
Wire removed from
LINE OUT jack
Select one of the two pulse programs.
For example, if you are 30 years old, your maximum possible heart rate is 190 (220 minus 30
equals 190). Therefore, if Pulse program 1 is selected, the maximum heart rate setting can be from
123 to 161 (65% of 190 is 123; 85% of 190 is 161).
When the key is
inserted, the
manual mode
will be selected
and the manual
indicator will
light. To select
one of the pulse programs, press the Select
Workout button repeatedly until one of the two
pulse program indicators lights.
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into a 3.5mm Y-adaptor
(available at electronics stores). Plug the Y-adaptor
into the PHONES jack on your computer. Plug your
headphones or speakers into the other side of the
Y-adaptor.
Audio
Cable
VCR
Put on the chest pulse sensor.
You must wear the chest pulse sensor in order to
use a pulse program. To put on the chest pulse
sensor, follow the instructions included with the
chest pulse sensor.
LINE OUT
Amp
Insert the key into the console.
See HOW TO TURN ON THE POWER on page 10.
VCR
Enter a maximum heart rate setting.
After you have
entered your
age, another
number will
begin to flash in
the CALORIES/
PULSE display.
This number is the maximum heart rate setting for
the program. If Pulse program 1 is selected, the
maximum heart rate setting can be from 65% to
85% of your maximum possible heart rate (your
maximum possible heart rate is 220 minus your
age); if Pulse program 2 is selected, the maximum
heart rate setting can be from 65% to 80% of your
maximum possible heart rate. Note: Your maximum possible heart rate is an estimate only.
Note: The pulse programs can be used only when
the optional chest pulse sensor is worn. See page
20 for information about the chest pulse sensor.
2
A
5
Enter your age.
When a pulse
program is selected, an age
setting will begin
to flash in the
CALORIES/
PULSE display.
If you have already entered your age, simply press
the Enter button. To enter your age, press the ▲
and ▼ buttons. The buttons can be held down to
enter your age quickly. When your age is shown,
press the Enter button.
If you want to change the maximum heart rate setting, press the ▲ and ▼ buttons. The buttons can
be held down to change the setting quickly. When
the desired setting is shown, press the Enter button.
6
Press the Start button or the Speed ▲ button
to start the program.
A moment after the button is pressed, the treadmill will automatically adjust to the first speed and
incline settings for the program. Hold the handrails
and begin walking.
Each program is divided
into several time segments of different
lengths. The Time/
Segment Time display
will show both the time
remaining in the program and the time remaining in the current segment. One target heart rate setting is programmed
for each segment. When only three seconds remain in the first segment of the program, a series
of tones will sound and the next segment will
begin. As you exercise, the speed and/or incline of
the treadmill will automatically change as needed
to keep your heart rate near the current target
heart rate setting.
The program will continue until the Time/Segment
Time display counts down to zero. The walking
belt will then slow to a stop.
16
13
If your heart rate is not detected during the program, the speed and incline of the treadmill may
automatically decrease until your heart rate is detected. If this happens, see the instructions included with the chest pulse sensor.
If the speed or incline setting for the current segment is too high or too low, you can adjust the setting with the Speed or Incline buttons. However, if
you decrease the speed, the incline will automatically increase; if you increase the speed, the incline will decrease. If you increase the incline, the
speed will decrease; if you decrease the incline,
the speed will increase. The treadmill will always
attempt to keep your heart rate near the target
heart rate setting for the current segment. Note:
When the incline reaches the lowest setting, the
speed cannot be increased any further. When the
incline reaches the highest setting, the speed cannot be decreased any further.
To stop the program temporarily, press one of the
Stop buttons. All displays will pause and the Time/
Segment Time display will begin to flash. To
restart the program, press the Start button or the
Speed ▲ button. To end the program, press a Stop
button, remove the key, and then reinsert the key.
7
Follow your progress with the four displays.
Refer to step 5 on page 11.
8
When the program has ended, remove the key.
See step 6 on page 12.
HOW TO CONNECT THE TREADMILL TO
YOUR CD PLAYER, VCR, OR COMPUTER
To use iFIT.com CDÕs, the treadmill must be connected to your portable CD player, portable stereo,
home stereo, or computer with CD player. See pages
15 and 16 for connecting instructions. To use
iFIT.com videocassettes, the treadmill must be connected to your VCR. See page 17 for connecting instructions. To use iFIT.com programs directly from
our internet site, the treadmill must be connected to
your home computer. See page 16 for connecting instructions.
HOW TO CONNECT YOUR PORTABLE STEREO
Note: If your stereo has an RCA-type AUDIO OUT
jack, see instruction A below. If your stereo has a
3.5mm LINE OUT jack, see instruction B. If your
stereo has only a PHONES jack, see instruction C.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the included adaptor. Plug
the adaptor into an AUDIO OUT jack on your stereo.
A
AUDIO OUT
HOW TO CONNECT YOUR PORTABLE CD PLAYER
RIGHT
LEFT
Note: If your CD player has separate LINE OUT and
PHONES jacks, see instruction A below. If your CD
player has only one jack, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the LINE OUT jack on
your CD player. Plug your headphones into the
PHONES jack.
A
Audio
Cable
adaptor
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the LINE OUT jack on
your stereo.
PHONES LINE OUT
LINE OUT
PHONES
B
LINE OUT
Headphones
Audio
Cable
Audio
Cable
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into a 3.5mm Y-adaptor
(available at electronics stores). Plug the Y-adaptor
into the PHONES jack on your CD player. Plug your
headphones into the other side of the Y-adaptor.
C. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into a 3.5mm Y-adaptor
(available at electronics stores). Plug the Y-adaptor
into the PHONES jack on your stereo. Plug your
headphones into the other side of the Y-adaptor.
B
C
PHONES
PHONES
Audio
Cable
3.5mm
Y-adaptor
PHONES
Audio
Cable
3.5mm
Y-adaptor
Headphones
14
Headphones
15
EXPLODED DRAWINGÑModel No. HETL09900
29 30 106
31
110
112
27 93
28
37
106
32
36
110
2
2
R0800A
38
2
33
39
8
20
26
35
24
23
40
34*
42
83
8 2
22
105
2
44
20
1
101
35
13
2
18
14
19
95
87
43
46
45
4
64
20
3
14
16
4
15
3
35
105
10
19
85
4
92
13
12
113
20
7
20
47
35
5
11
6
62
3
20
20
9
3
4
54
10
49
3
61
4
92
50
7
7
4
92
20
3
60
92
2
4
7
54
9
53
51
52 21
4 58
55
59
57
56
21
REMOVE AND SAVE THIS EXPLODED
DRAWING FOR FUTURE REFERENCE.
52
58
111
20
55
4
59
2
53
To identify the parts shown on this exploded drawing, refer to the PART
LIST on pages 26 and 27 of the USERÕS MANUAL.
EXPLODED DRAWINGÑModel No. HETL09900
R0800A
76
75
76
81
25
82
76
63
65
66
17
74
76
80
74
76
6
77
74
73
78
48
107*
67
63
70
79
76
83
66
65
68
69
71
72
114
104
103
6
93
96
97
84
90
93
98
94
88
92
92
20 91
89
91
86
94
99
100
95
94
93
107
108
109
20
96
48
93
94
20
41
97
100
102
99
98
76
94
20
115
