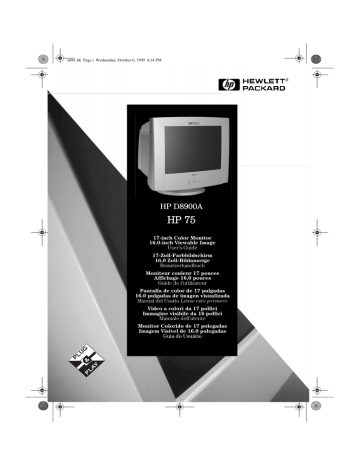

HP D8900A

talb1.bk Page i Wednesday, October 6, 1999 4:14 PM

PLUG

&

PLA

Y

H P D 8 9 00

H P 7 5

17-inch Color Monitor

16.0-inch Viewable Image

User’s Guide

17-Zoll-Farbbildschirm

16,0 Zoll-Bildanzeige

Benutzerhandbuch

Moniteur couleur 17 pouces

Affichage 16,0 pouces

Guide de l’utilisateur

Pantalla de color de 17 pulgadas

16.0 pulgadas de imagen visualizada

Manual del Usario Léase esto primero

Video a colori da 17 pollici

Immagine visibile da 16 pollici

Manuale dell’utente

Monitor Colorido de 17 polegadas

Imagem Visível de 16.0 polegadas

Guia do Usuário

talb1.bk Page ii Wednesday, October 6, 1999 4:14 PM

N o c e

The information contained in this document is subject to change without notice.

Hewlett-Packard makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.

Hewlett-Packard shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.

Hewlett-Packard assumes no responsibility for the use or reliability of its software on equipment that is not furnished by Hewlett-Packard.

This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent of Hewlett-Packard Company.

n w e ss

Inhaltliche Änderungen vorbehalten.

Hewlett-Packard übernimmt keine Garantie welcher Art auch immer für diese Ausrüstung, einschließlich der (doch nicht begrenzt auf die) Qualitätsgarantie und die Garantie bezüglich Eignung für einen bestimmten Zweck.

Hewlett-Packard haftet nicht für in dieser Dokumentation enthaltene Fehler oder für unbeabsichtigte oder indirekte Schäden in

Verbindung mit der Lieferung, der Leistung oder der Benutzung der Ausrüstung.

Hewlett-Packard übernimmt keine Haftung fur den Betrieb oder die Zuverlässigkeit seiner Software, wenn diese auf Hardware benutzt wird, die nicht von Hewlett-Packard geliefert wurde.

Dieses Dokument enthalt proprietäre Informationen, die durch das Copyright geschützt sind. Alle Rechte vorbehalten. Dieses Dokument darf ohne vorherige schriftliche Genehmigung der Hewlett-Packard Company weder ganz noch teilweise fotokopiert, reproduziert oder

übersetzt werden.

A v ss e m e n

Les informations contenues dans ce document peuvent être modifiées sans préavis.

Hewlett-Packard ne donne aucune garantie de quelque sorte que ce soit concernant, sans que ce soit limitatif, les garanties implicites de qualité commerciale de ce matériel, ou la bonne adaptation de celui-ci à un usage particulier.

Hewlett-Packard n’est pas responsable des erreurs pouvant apparaître dans ce manuel et n’est pas non plus responsable des dommages directs ou indirects résultant de l’équipement, des performances et de l’utilisation de ce matériel.

Hewlett-Packard ne saurait être tenu pour responsable de l’utilisation et de la fiabilité de son logiciel sur des matériels non fournis par

Hewlett-Packard.

Les informations contenues dans ce document sont originales et protégées par copyright. Tous droits réservés. L’acheteur s’interdit en conséquence de les photocopier, de les reproduire ou de les traduire dans toute autre langue, sauf accord préalable et écrit de Hewlett-

Packard.

A v ss o....

La información contenida en este documento está sujeta a cambios sin previo aviso.

Hewlett-Packard no ofrece ningún tipo de garantía con respecto a este material, incluyendo, pero sin limitarse a, las garantías implícitas de comerciabilidad e idoneidad para un fin determinado.

Hewlett-Packard no asume responsabilidad alguna por los posibles errores contenidos o por los daños casuales o emergentes relacionados con el suministro, funcionamiento o uso de este material.

Hewlett-Packard no asume responsabilidad alguna por el uso o fiabilidad de su software en equipos que no hayan sido fabricados por

Hewlett-Packard.

Este documento contiene información patentada, protegida por las leyes del copyright. Reservados todos los derechos. Ninguna parte de este documento puede ser fotocopiada, reproducida o traducida a otro idioma sin la autorización previa y por escrito de Hewlett-Packard

Company.

A vv ss o

Le informazioni contenute in questo documento sono soggette a cambiamento senza preavviso.

Hewlett-Packard non rilascia garanzie di alcun tipo riguardo a questo materiale, comprese le garanzie implicite di commerciabilità e di idoneità per uno scopo particolare.

Hewlett-Packard non sarà ritenuta responsabile per errori contenuti in questo documento, né per danni accidentali o conseguenti alla fornitura, alle prestazioni o all’uso di questo materiale.

Hewlett-Packard non si assume alcuna responsabilità riguardo all’uso o all’affidabilità del proprio software su apparecchiature di altri produttori.

Questo documento contiene informazioni di proprietà protette da copyright. Tutti i diritti sono riservati. Nessuna parte di questo documento può essere fotocopiata, riprodotta o tradotta in un’altra lingua senza un precedente consenso scritto di Hewlett-Packard

Company.

Nota

As informações contidas neste documento estão sujeitas a alteração sem notificação prévia.

A Hewlett-Packard não oferece nenhum tipo de garantia com relação a este material, incluindo, mas não limitada às, garantias implícitas de comercialização e conveniência para um propósito específico.

A Hewlett-Packard não será responsável por erros aqui contidos ou por danos incidentais ou conseqüenciais relacionados ao fornecimento, desempenho ou utilização deste material.

A Hewlett-Packard não se responsabiliza pelo uso ou confiabilidade se seu software em equipamentos que não sejam fornecidos pela

Hewlett-Packard.

Este documento contém informações proprietárias protegidas por direitos autorais. Todos os direitos são reservados. Nenhuma parte deste documento pode ser fotocopiada, reproduzida ou traduzida para outro idioma sem o consentimento prévio por escrito da Hewlett-

Packard Company

Hewlett-Packard France 38053 Grenoble Cedex 9 France© 1999 Hewlett-Packard Company

talb1.bk Page iii Wednesday, October 6, 1999 4:14 PM

English .............................................................. Chapter 1

Deutsch ............................................................. Kapitel 2

Français ............................................................ Chapitre 3

Español ............................................................. Capítulo 4

Italiano.............................................................. Capitolo 5

Português .......................................................... Capítulo 6

English iii

talb1.bk Page iv Wednesday, October 6, 1999 4:14 PM iv English

talb1.bk Page 1 Wednesday, October 6, 1999 4:14 PM

1

Main Features

• High resolution, multi-synchronous color monitor

• 0.26 mm dot pitch for excellent graphics

• Anti-glare, multilayer coating to minimize reflection

• Image adjustment by on screen display menus

• Recommended video mode of 1024

×

768 at 85 Hz

HP D8900A HP 75

17-inch Color Monitor

16.0-inch Viewable Image

User’s Guide

talb1.bk Page 2 Wednesday, October 6, 1999 4:14 PM

HP 17” Color Monitor User’s Guide

Important Safety Instructions

Important Safety Instructions

Before you plug in your new monitor, read these important safety instructions.

WARNING

Connect the monitor only to a grounded power outlet. Use the power cord supplied with the monitor or one with a properly grounded plug.

Ensure the cable meets your country’s standards for safety.

To completely disconnect power at the monitor, remove the power cord from the power outlet. Ensure that the power outlet is easily accessible.

Make sure the power to your computer is “off” before connecting or disconnecting any monitor peripheral.

To reduce the risk of electric shock, do not remove cover (or back).

There are no user serviceable parts inside. Refer servicing to qualified service personnel.

The monitor is quite heavy (the weight is shown in the technical specifications). We recommend you ask the assistance of a second person when lifting or moving it.

Safety Warning for USA

If the power cord is not supplied with your monitor, select the proper power cord according to your national electric safety codes.

USA: use a UL Listed Type SVT or Type SJT detachable power cord.

2 English English

talb1.bk Page 3 Wednesday, October 6, 1999 4:14 PM

HP 17” Color Monitor User’s Guide

Setting Up Your Monitor

CAUTION

Setting Up Your Monitor

Before you connect any cables, or install your HP monitor, refer to the safety instructions at the beginning of this manual. Refer to the user manual which accompanies your computer and video adapter to ensure this equipment is correctly installed.

2222

1111

3333

CAUTION

Supported Video Modes

Your monitor supports the video modes shown in the table below.

Screen Resolution Image Refresh Rate

640

×

400

640

×

480

800

×

600

70 Hz

75 Hz, 85 Hz

75 Hz, 85 Hz

1024

×

768 70 Hz, 75 Hz, 85 Hz

1280

×

1024 75

Selecting a video mode on your computer with a screen resolution/image refresh rate combination higher than 1280

×

1024 at

75Hz can damage your monitor.

English

English

3

talb1.bk Page 4 Wednesday, October 6, 1999 4:14 PM

HP 17” Color Monitor User’s Guide

Supported Video Modes

Using Your Monitor

Access the brightness and contrast features directly using the

and buttons respectively, and adjusting as required.

NOTE

Advanced

Access Function

Exit Menu

1 Press the button to activate the on screen menu (OSD).

2 Use the or buttons

to scroll to the menu item you require. (For menu items refer to the table on the next page)

3 Press the button to access the selected menu.

4 Use or to make your adjustments as required.

5 Press to save the new settings and return to the previous menu.

Your monitor is automatically demagnetized each time it is switched ON.

This ensures color purity. To maintain color purity, we recommend that each week you switch the monitor off for at least 30 minutes before switching it on again.

4 English English

HP 17” Color Monitor User’s Guide

Supported Video Modes

Use the table below to determine which menu item you require:

Brightness

Menu Item

Contrast

H-Position

V-Position

H-Size

V-Size

Pincushion

Display Timing

Use to Adjust...

Brightness (image black level)

Contrast (image white level)

Horizontal Position

Vertical Position

Horizontal Size

Vertical Size

If the vertical edges appear to curl inwards or outwards

Displays current setting for horizontal frequency, refresh rate and resolution when highlighted.

Press to display supported resolutions and refresh rates.

Color temperature of your monitor

Advanced

Moire

Degauss

Recall

Geometry

Trapezoid

Color

Temperature

Language

Halftone

V-Moire

H-Moire

Pinbalance

Parallelogram

Rotation

V-Linearity

Language setting of the OSD

Set your monitor’s OSD to semi-transparent mode

Reduce the effects of vertical screen ripple in the displayed image

Reduce the effects of horizontal screen ripple in the displayed image

Remove unwanted magnetism that can result in color impurity

1

Revert to preset factory settings. Select prompted.

Y when

If the vertical edges appear to curl to the left or right.

If the vertical edges appear to be tilted to the left or right.

If the displayed image appears to be rotated.

If the displayed image appears to be compressed at the top or the bottom.

If the vertical edges do not appear parallel.

1.

Degaussing is accompanied by a brief instability of the displayed image and a slight humming sound.

English

English

5

talb1.bk Page 6 Wednesday, October 6, 1999 4:14 PM

HP 17” Color Monitor User’s Guide

Supported Video Modes

Technical Specifications

PICTURE TUBE

Size 17-inch flat screen/ high contrast/

16.0-inch viewable image

0.26 mm Dot pitch

Face Plate Anti-glare, anti-static, multi-layer coating

Fixed Video Cable With 15-pin mini D-SUB Connector

INTERFACE

SCANNING FREQUENCY

MAX. RESOLUTION

(H

×

V

)

Horizontal

Vertical

1600

×

1200 (60Hz)

WARM-UP TIME

30 to 86kHz

50 to 160 Hz

30 minutes to reach optimum performance level

PIXEL CLOCK

150 MHz

IMAGE SIZE

POWER MANAGEMENT

Standard Size: 306(H)

×

230(V)mm

Maximum Size: 325(H)

×

242(V)mm

On 100W (max) Constant green LED

Standby mode 45W (max) Green blinking LED

Suspend mode 7W (typical)

15W (max)

Green blinking LED

Active Off 5W (max)

Off 5W (max)

Green blinking LED

LED is Off

POWER SOURCE

AC 100 to 240 V, 50/60Hz

Current 1.2 A

Temperature

0

°

C to 40

°

C

OPERATING

ENVIRONMENT

Humidity

Temperature

10% RH through 80% RH (without condensation)

-20

°

C to 45

°

C

STORAGE

ENVIRONMENT

Humidity 5% RH through 95% RH (without condensation)

CABINET DIMENSIONS 420(W)

×

452(H)

×

432(D) mm (with Stand)

WEIGHT

16.2 kg (Net)

TILT/SWIVEL STAND

HARDWARE

WARRANTY

1

Tilt Angle

Swivel Angle

3 years - unless the original enduser customer has otherwise agreed to a shorter of warranty at the time of purchase.

- 5

° to +13

°

+45

°/

-45

°

On-site service for first year, and return to an HP or repair-authorized service center for the following two years.

1.

See terms and conditions in the HP Hardware Warranty booklet provided separately.

6 English English

talb1.bk Page 7 Wednesday, October 6, 1999 4:14 PM

HP 17” Color Monitor User’s Guide

Regulatory Information

Regulatory Information

Notice for the USA: FCC Statement

Federal Communications Commission (FCC) Radio

Frequency Interference Statement (USA Only)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protections against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try one of more of the following measures:

Relocate the radio or television antenna.

Move the computer away from the radio or television.

Plug the computer into a different electrical outlet, so that the computer and the radio or television are on separate electrical circuits.

Make sure that all your peripheral devices are also FCC Class B certified.

Make sure you use only shielded cables to connect peripheral devices to your computer.

Consult your computer dealer, Hewlett-Packard, or an experienced radio/television technician for help.

WARNING

Hewlett-Packard’s system certification tests were conducted with HP-supported peripheral devices and HP shielded cables, such as those you received with your system. Cables used with this computer must be properly shielded to comply with the requirements of the FCC.

Changes or modifications not expressly approved by Hewlett-Packard could void the user’s authority to operate the equipment.

Notice for MPR

Your HP 17.0-inch Color Monitor has been tested according to MPR 1990:8 for Emission properties and meets the guidelines as given by MPR 1990:10 (2.01 - 2.04)

Notice for Korea

Notice for Japan

Notice for Canada

This Class “B” digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la Classe B est conforme a la norme NMB-003 du Canada.

English

English

7

talb1.bk Page 8 Wednesday, October 6, 1999 4:14 PM

HP 17” Color Monitor User’s Guide

Regulatory Information

8 English English

talb1.bk Page vii Wednesday, October 6, 1999 4:14 PM

DECLARATION OF CONFORMITY

According to ISO/IEC Guide 22 and CEN/CENELEC 45014

Manufacturer’s Name: HEWLETT-PACKARD France

Manufacturer’s Address: 5, Avenue Raymond Chanas - EYBENS

38053 GRENOBLE CEDEX 09

FRANCE

declares, that the product:

Product Name:

Model Number:

HP 75 17-inch Color Monitor

D8900A conforms to the following product specifications:

SAFETY

- International: IEC 60950:1991 + A1 + A2 +A3 +A4 / GB4943-1995

- Europe: EN 60950:1992 + A1 + A2+A3 + A4

EMC -

- EN 50082-1:1992

IEC 801-2:1992 / prEN 55024-2:1992 - 4kV CD, 8 kV AD

IEC 801-3:1984 - 3V/m

IEC 801-4:1988 / prEN 55024-4:1992 - 1 kV Power Lines

1)

- IEC 555-2:1982 + A1:1985 / EN 60555-2:1987

- IEC 61000-3-3:1994 / EN 61000-3-3:1995

- GB9254-1988

- FCC Title 47 CFR, Part 15 Class B

2)

- ICES-003, Issue 2

- VCCI-B

- AS/NZ 3548:1992

Supplementary information: The product herewith complies with the requirements of the following Directives and carries the

CE-marking accordingly:

EMC Directive 89/336/EEC and the Low Voltage Directive 73/23/EEC, both amended by the Directive 93/68/EEC.

1)

The product was tested in a typical configuration with Hewlett-Packard Personal Computer Systems.

2)

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause undesired operation.

Grenoble, July 1999

Jean Marc JULIA

Quality Manager

For Compliance Information ONLY, contact:

USA contact: Hewlett Packard Company, Corporate Product Regulations Manager, 3000 Hanover Street, Palo Alto, CA 94304.

(Phone (415) 857-1501)

talb1.bk Page viii Wednesday, October 6, 1999 4:14 PM

Paper Not Bleached with Chlorine

Part Number: D8900-90030

Printed 05/99 in Korea

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Languages
