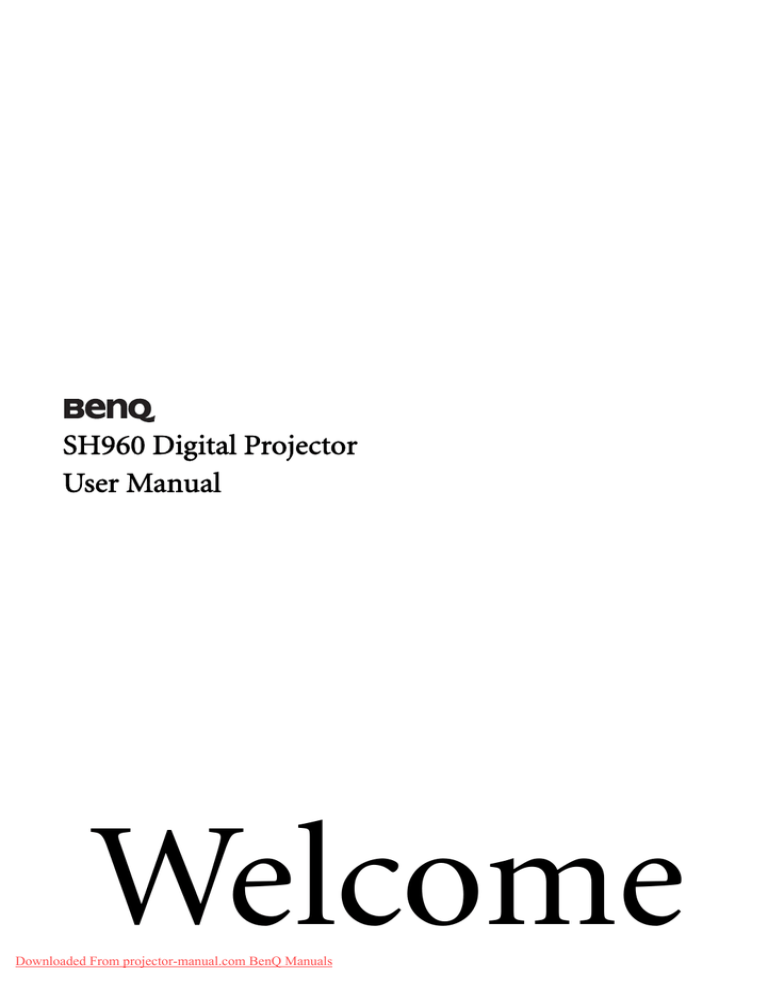

SH960 Digital Projector

User Manual

Welcome

Downloaded From projector-manual.com BenQ Manuals

Table of contents

Important safety instructions ..... 3

Overview ...................................... 6

Shipping contents ..................................6

Remote control batteries .......................7

Remote control operation.....................7

Projector features...................................8

Projector exterior view ..........................9

Controls and functions........................10

Control panel ............................................10

Remote control .........................................11

Positioning your projector........ 12

Choosing a location.............................12

Obtaining a preferred projected image size .............................................13

Projection dimensions..............................14

Shifting the projection lens ......................16

Connecting with video equipment.................................. 17

Preparations ..............................................17

Connecting HDMI devices.......................17

Connecting component-video devices ....18

Connecting S-Video or video devices......18

Connecting a computer............................19

Connecting a monitor ..............................19

Using the projector.................... 20

Turning the projector on ....................20

Selecting an input source ....................21

Using the menus ..................................22

Securing the projector .........................22

Using a security cable lock........................22

Utilizing the password function...............23

Adjusting the projected image ............25

Adjusting the projection angle ................25

Auto-adjusting the image .........................25

Fine-tuning the image size and clarity.....25

Correcting picture distortion ...................26

Using the preset and user modes ........27

2 Table of contents

Downloaded From projector-manual.com BenQ Manuals

Fine-tuning the picture quality...........29

Advanced picture quality controls......30

Selecting the aspect ratio .....................33

Hiding the image .................................35

Freezing the image...............................35

Utilizing FAQ function .......................35

Adjusting the sound ............................36

Controlling the projector through a Lan environment ..............................37

Operating in a high altitude environment ........................................40

Displaying more than one image source simultaneously .........................41

Turning the projector off ....................42

On-Screen Display (OSD) menus ......43

Additional information ............. 51

Care of the projector ...........................51

Lamp information ...............................52

Getting to know the lamp hour ............... 52

Extending lamp life .................................. 52

Timing of replacing the lamp .................. 53

Replacing the lamp................................... 53

Indicators .............................................56

Troubleshooting ..................................57

Specifications .......................................58

Warranty and Copyright information................................ 62

Thank you for your purchase of this quality BenQ projector! It has been designed to provide you with an enjoyable home theater viewing experience. For the best results, please read this manual through carefully as it is your guide through the control menus and operation.

Important safety instructions

Your projector is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this product, it is important that you follow the instructions mentioned in this manual and marked on the product.

1. Please read this user manual before you operate your projector. Keep this manual in a safe place for future reference.

2. Always place the projector on a level, horizontal surface during operation.

- Do not place the projector on an unstable cart, stand, or table as it may fall and be damaged;

- Do not place inflammables near the projector;

- Do not use if tilted at an angle of more than 10 degrees left to right, nor at angle of more than 15 degrees front to back.

4. Do not place the projector in any of the following environments:

- space that is poorly ventilated or confined. Allow at least 50 cm clearance from walls and free flow of air around the projector;

- locations where temperatures may become excessively high, such as the inside of a car with all windows closed;

- locations where excessive humidity, dust, or cigarette smoke may contaminate optical components, shorten the projector’s lifespan and darken the screen;

3. Do not store the projector on end vertically. Doing so may cause the projector to fall over, causing injury or resulting in damage.

- locations near fire alarms;

- locations with an ambient temperature above 35°C/95°F;

- locations where altitude is higher than

1500 meters/4920 feet above sea level.

4920-

9840 feet

Important safety instructions 3

Downloaded From projector-manual.com BenQ Manuals

5. Do not block the vents holes while the projector is on (even in standby mode):

- Do not cover the projector with any item;

- Do not place the projector on a blanket, bedding or any other soft surface.

9. Do not look straight into the projector lens during operation. It may harm your sight.

6. In areas where the mains power supply voltage may fluctuate by

10 volts, it is recommended that you connect your projector through a power stabilizer, surge protector or uninterruptible power supply

(UPS) as appropriate to your situation.

10. Do not operate the projector lamp beyond the rated lamp life. Excessive operation of lamps beyond the rated life could cause a lamp to break on rare occasions.

7. Do not step on the projector or place any objects upon it.

11. The lamp becomes extremely hot during operation. Allow the projector to cool for approximately 45 minutes prior to removing the lamp assembly for replacement.

8. Do not place liquids near or on the projector.

Liquids spilled into the projector will void your warranty. If the projector does become wet, disconnect it from the power point and call

BenQ to have the projector repaired.

12. This projector is capable of displaying inverted images for ceiling mount installation.

Use only BenQ's Ceiling Mount Kit for mounting.

4 Important safety instructions

Downloaded From projector-manual.com BenQ Manuals

13. Never attempt to replace the lamp assembly until the projector has cooled down and is unplugged from the power supply.

Moisture condensation

Never operate the projector immediately after moving it from a cold location to a hot location.

When the projector is exposed to such a change in temperature, moisture may condense on the crucial internal parts. To prevent the projector from possible damage, do not use the projector for at least 2 hours when there is a sudden change in temperature.

14. When you think service or repair is required, take the projector only to a suitably qualified technician.

Avoid volatile liquids

Do not use volatile liquids, such as insecticide or certain types of cleaner, near the projector. Do not have rubber or plastic products touching the projector for a long time. They will leave marks on the finish. If cleaning with a chemically treated cloth, be sure to follow the cleaning product’s safety instructions.

15. Do not attempt to disassemble this projector.

There are dangerous high voltages inside which may cause death if you should come into contact with live parts. The only user serviceable part is the lamp which has its own removable cover. See page 53 .

Under no circumstances should you ever undo or remove any other covers. Refer servicing only to suitably qualified professional service personnel.

Disposal

This product contains the following materials which are harmful to human bodies and environment.

• Lead, which is contained in solder.

• Mercury, which is used in the lamp.

To dispose of the product or used lamps, consult your local environment authorities for regulations.

Notice

Please keep the original packing for possible future shipment. If you need to pack your projector after use, adjust the projection lens to an appropriate position, put the lens cushion around the lens, and fit the lens cushion and projector cushion together to prevent damage during transportation.

Downloaded From projector-manual.com BenQ Manuals

Important safety instructions 5

Overview

Shipping contents

Carefully unpack and verify that you have the items below. Some of the items may not be available depending on your region of purchase. Please check with your place of purchase.

Some of the accessories may vary from region to region.

The warranty card is only supplied in some specific regions. Please consult your dealer for detailed information.

Projector Remote control Batteries

Warranty card

User manual CD Quick start guide

Power cable VGA cable

6 Overview

Downloaded From projector-manual.com BenQ Manuals

Remote control batteries

1. To open the battery cover, turn the remote control over to view its back, push on the finger grip on the cover and slide it up in the direction of the arrow as illustrated. The cover will slide off.

2. Remove any existing batteries (if necessary) and install two new AAA batteries observing the battery polarities as indicated in the base of the battery compartment. Positive (+) goes to positive and negative (-) goes to negative.

3. Refit the cover by aligning it with the case and sliding it back up into position. Stop when it clicks into place.

Notes on handling batteries

• Do not mix old batteries with new ones, or mix different types of batteries.

• Avoid leaving the remote control and batteries in an excessive hot or humid environment like the kitchen, bathroom, sauna, sunroom, or in a closed car.

• Dispose of used batteries according to the battery manufacturer’s instructions and local environment regulations for your region.

• If the remote control will not be used for an extended period of time, remove the batteries to avoid damage to the control from possible battery leakage.

Remote control operation

• Make sure that there is nothing positioned between the remote control and the infrared (IR) sensors on the projector that might obstruct the

IR beam from the remote control reaching the projector.

up to 8 m

• The effective range of the remote control is up to 8 meters, and at an angle within 30 degrees of the IR beam. Always aim straight at the projector, however most screens will also reflect the IR beam to the projector.

Ceiling mounting the projector

We want you to have a pleasant experience using your BenQ projector, so we need to bring this safety matter to your attention to prevent damage to person and property.

If you intend to mount your projector on the ceiling, we strongly recommend that you use a proper fitting

BenQ projector ceiling mount kit and that you ensure it is securely and safely installed.

If you use a non-BenQ brand projector ceiling mount kit, there is a safety risk that the projector may fall from the ceiling due to an improper attachment through the use of the wrong gauge or length screws.

You can purchase a BenQ projector ceiling mount kit from the place you purchased your BenQ projector.

BenQ recommends that you also purchase a separate Kensington lock compatible security cable and attach it securely to both the Kensington lock slot on the projector and the base of the ceiling mount bracket. This will perform the secondary role of restraining the projector should its attachment to the mounting bracket become loose.

Overview 7

Downloaded From projector-manual.com BenQ Manuals

Projector features

• Full HD compatible

The projector is compatible with Standard Definition TV (SDTV) 480i, 480p, 576i, 576p, and High

Definition TV (HDTV) 720p, 1080i and 1080p formats, with the 1080p format providing a true 1:1 image reproduction.

The projector provides excellent picture quality due to its high resolution, excellent home theater brightness, super high contrast ratio, vivid color and rich gray-scale reproduction.

The projector features super high brightness to achieve excellent picture quality in ambient light conditions, outperforming ordinary projectors.

The projector features a 6-segment color wheel to produce realistic color depth and range unattainable with lesser segment color wheels.

When viewed in a darkened environment, the automatic gamma control provides excellent gray-scale display which reveals details in shadows and in night or darkened scenes.

The intuitive control over lens shift lever provides flexibility in setting-up your projector.

• Wide variety of inputs and video formats

The projector supports a wide variety of inputs for connection to your video and PC equipment, including component video, S-Video, and composite video, as well as HDMI, PC, and an output trigger for connection to automated screen and environment lighting systems.

To reach a higher standard of performance, the projector incorporates Expert Mode settings in its OSD menus, which requires professional calibration service from authorized installers.

• Panamorph lenses compatible

The projector is compatible with Panamorph lenses that allow you to convert 16:9 projectors to 2.35:1 aspect ratio.

8 Overview

Downloaded From projector-manual.com BenQ Manuals

Projector exterior view

Front and upper side view

1

2

3

4

5

6

7

8

1. Control panel (See "Control panel" on page 10

for details.)

2. Lamp cover

3. Vent (heated air exhaust)

4. Projection lens

5. Kensington lock slot

6. Vent (cold air intake)

7. Front IR sensor

8. Lens shift lever

Rear view

See

"Connecting with video equipment" on page 17 for connection details.

9

10

11

12

13 14 15 16 17 18 19 20 21

9. AC Power cable inlet

10. Rear IR sensor

11. Audio input jack

Audio output jack

12. RJ45 LAN input jack

13. HDMI port

14. USB port

15. RS-232 control port

Used to interface with a PC or home theater control/automation system.

16. RGB signal output jack

17. 12VDC output terminal

Used to trigger external devices such as an electric screen or light control, etc. Consult your dealer for how to connect these devices.

18. RGB (PC)/Component video (YPbPr/YCbCr) signal input jack

19. Component Video inputs (RCA) support Y/P

B

/P

R

or Y/C

B

/C

R

video signal

20. Composite Video input (RCA)

21. S-Video input (mini 4-pin DIN)

Under view

22

22. Adjustable feet

23. Ceiling mount holes

23

23

Downloaded From projector-manual.com BenQ Manuals

22

Overview 9

Controls and functions

Control panel

7. Arrow/Keystone keys (Left / , Up / ,

1

2

3

4

6

8

7

10

5

7

9

11

12

13

7

14

7

1. Focus ring

Adjusts the focus of the projected image.

2. Zoom ring

Adjusts the size of the projected image.

3. TEMPerature warning light

Lights up or flashes if the projector's temperature becomes too high.

4. POWER indicator light

Lights up or flashes when the projector is operating.

5. MODE

Sequentially selects a predefined picture setting available for each input.

Moves the current On-Screen Display (OSD) menu selection in the direction of the arrow being pressed when the OSD menu is activated.

Manually corrects distorted pictures resulting from an angled projection.

8. MENU/EXIT

Toggles the On-Screen Display (OSD) menu on and off.

Goes back to previous OSD menus, exits and saves any changes made using the On-Screen

Display (OSD) menu.

9. ENTER

Enacts the selected On-Screen Display (OSD) menu item.

10. BLANK

Used to hide the screen image.

11. LAMP indicator light 1, 2

Lights up or flashes when the projector lamp has developed a problem.

12. ASPECT

Selects the display aspect ratio.

13. AUTO

Automatically determines the best picture timings for the displayed image.

14. SOURCE

Performs the same action as the source selection keys (HDMI, VIDEO, S-VIDEO,Component 1,

Component 2, PC) on the remote control.

Switches sequentially through input sources.

6.

POWER

Performs the same action as POWER on the remote control.

Toggles the projector between standby and on.

10 Overview

Downloaded From projector-manual.com BenQ Manuals

Remote control

1

2

3

4

12

6. MODE/ENTER

Sequentially selects a predefined picture setting available for each input.

Enacts the selected On-Screen Display (OSD) menu item.

7. LASER

Emits visible laser pointer light for presentation purposes.

8. TEST PATTERN

Displays the test pattern.

5

6

7

8

9

10

11

13

14

15

16

9.

Starts the FAQ function.

10. FREEZE

Freezes the projected image.

11. ASPECT

Selects the display aspect ratio.

12. AUTO

Automatically determines the best picture timings for the displayed image.

13. BRIGHTNESS

Adjusts brightness.

1.

ON/OFF

Toggles the projector between standby mode and on.

14. VOLUME+/VOLUME-

Adjusts the sound level.

15. MUTE

Toggles projector audio between on and off.

2. Source selection keys (COMPONENT, VIDEO,

S-VIDEO, HDMI, PC, SOURCE)

Selects an input source for display.

The COMPONENT key toggles between

Component 1 and Component 2.

3. MENU/EXIT

Turns on the On-Screen Display (OSD) menu.

Goes back to previous OSD menu, exits and saves menu settings.

4. BLANK

Used to hide the screen image.

16. CONTRAST

Adjusts contrast.

Operating the LASER pointer

The Laser Pointer is a presentation aid for professionals. It emits red colored light when you press it.

The laser pointer is not a toy. Parents should be mindful of the dangers of laser energy and keep this remote control out of the reach of children.

5. Arrow/Keystone keys (Left / , Up / ,

Do not look into the laser light window or shine the laser light beam on yourself or others. See the warning messages on the back of the remote control prior to using it.

Moves the current On-Screen Display (OSD) menu selection in the direction of the arrow being pressed when the OSD menu is activated.

Manually corrects distorted pictures resulting from an angled projection.

Overview 11

Downloaded From projector-manual.com BenQ Manuals

Positioning your projector

Choosing a location

Your projector is designed to be installed in one of four possible installation locations.

Your room layout or personal preference will dictate which installation location you select. Take into consideration the size and position of your screen, the location of a suitable power outlet, as well as the location and distance between the projector and the rest of your equipment.

1. Floor Front:

Select this location with the projector placed near the floor in front of the screen. This is the most common way to position the projector for quick setup and portability.

3. Floor Rear:

Select this location with the projector placed near the floor behind the screen.

Note that a special rear projection screen is required.

*Set Floor Rear after you turn the projector on.

2. Ceiling Front:

Select this location with the projector suspended from the ceiling in front of the screen.

Purchase the BenQ Projector Ceiling Mount Kit from your dealer to mount your projector on the ceiling.

*Set Ceiling Front after you turn the projector on.

4. Ceiling Rear:

Select this location with the projector suspended from the ceiling behind the screen.

Note that a special rear projection screen and the

BenQ Projector Ceiling Mount Kit are required for this installation location.

*Set Ceiling Rear after you turn the projector on.

*To set the projector position:

1.

Press MENU/EXIT and then press / until the System Setup menu is highlighted.

2.

Press / to highlight Projector Position and press / until the correct position is selected.

System Setup

Language

Splash Screen

Projector Position

Auto Power Off

Sleep Timer

Background Color

Menu Settings

Input Source

Quick Auto Search

Closed Caption

Standby Monitor Out

S-Video

English

BenQ

Floor Front

Disable

Disable

Blue

Off

Off

EXIT Back

12 Positioning your projector

Downloaded From projector-manual.com BenQ Manuals

Obtaining a preferred projected image size

The distance from the projector lens to the screen, the zoom setting, and the video format each factors in the projected image size.

This projector is equipped with a movable lens. See "Shifting the projection lens" on page 16 for details.

You can see the diagrams on pages

14

and 15

for the vertical offset values in the dimension tables that are measured when the lens is shifted fully up or down.

If you are using a 120-inch, 4:3-aspect-ratio screen, please refer to

"The screen aspect ratio is 4:3 and the projected picture is 4:3" . The average projection distance is 494 cm.

If you have a 16:9-aspect-ratio screen and your measured projection distance was 4.5 m (450 cm), please refer to

"The screen aspect ratio is 16:9 and the projected picture is 16:9" . The closest match in the

"Average" column is 449 cm. Looking across this row shows that a 100-inch screen is required.

Checking the min and max projection distance values in the columns of

"Projection distance <D> [cm]" on page 14 indicates that the 4.5 m measured projection distance will also fit the 90 and 110-inch size

screens. The projector can be adjusted (using the zoom control) to display on these different screen sizes at the projection distance. Be aware that these different screens have different vertical offset values.

If you place the projector in a different position (to that recommended), you will have to tilt it down or up to center the image on the screen. In these situations, some image distortion will occur. Use the Keystone

function to correct the distortion. See "Correcting picture distortion" on page 26

for details.

Downloaded From projector-manual.com BenQ Manuals

Positioning your projector 13

Projection dimensions

Installation for a 16:9 ratio screen

Floor Installation

<A>

<B>

<F>

<G>

Ceiling Installation

<A>

<B>

<E>

<D>

<E>

<C>

<D>

<F>: Screen <G>: Center of lens

<G>

<F>

<C>

<F>: Screen <G>: Center of lens

The screen aspect ratio is 16:9 and the projected picture is 16:9

Screen dimensions

Diagonal

<A>

[inch (mm)]

Height

<B>

[cm]

Width

<C>

[cm]

Projection distance <D> [cm]

Min distance

(with max zoom)

Average

Max distance

(with min zoom)

30 (762)

40 (1016)

50 (1270)

60 (1524)

70 (1778)

80 (2032)

90 (2286)

100 (2540)

110 (2794)

120 (3048)

130 (3302)

140 (3556)

150 (3810)

160 (4064)

170 (4318)

180 (4572)

190 (4826)

200 (5080)

250 (6350)

300 (7620)

37

50

62

75

87

100

112

125

137

149

162

174

187

199

212

224

237

249

311

374

66

89

111

133

155

177

199

221

243

266

288

310

332

354

376

398

421

443

553

664

108

144

180

215

251

287

323

359

495

431

467

503

539

575

610

646

682

718

898

1077

135

180

224

269

314

359

404

449

494

539

583

628

673

718

763

808

853

898

1122

1346

162

215

269

323

377

431

485

539

592

646

700

754

808

862

916

969

1023

1077

1346

1616

The above numbers are approximate and may be slightly different from the actual measurements. Only the recommended screen sizes are listed. If your screen size is not in the table above, please contact your dealer for assistance.

Lowest/

Highest lens position <E>

[cm]

23

25

26

28

17

19

20

22

30

31

39

47

11

12

14

16

4.7

6

8

9

14 Positioning your projector

Downloaded From projector-manual.com BenQ Manuals

Installation for a 4:3 ratio screen

The illustrations and table below are provided for those users who already have 4:3 aspect ratio screens or intend to purchase 4:3 aspect ratio screens to view 4:3 ratio projected images.

Floor Installation

<A>

<B>

<F>

Ceiling Installation

<A>

<E>

<D>

<G>

<C>

<E>

<D>

<F>: Screen <G>: Center of lens

<G>

<F>

<C>

<B>

<F>: Screen <G>: Center of lens

The screen aspect ratio is 4:3 and the projected picture is 4:3

Screen dimensions

Diagonal

<A>

[inch (mm)]

30

40

50

60

70

(762)

(1016)

(1270)

(1524)

(1778)

80

90

(2032)

(2286)

100 (2540)

110 (2794)

120 (3048)

130 (3302)

140 (3556)

150 (3810)

160 (4064)

170 (4318)

180 (4572)

190 (4826)

200 (5080)

250 (6350)

300 (7620)

Height

<B>

[cm]

46

61

76

91

107

122

137

152

168

183

198

213

229

244

259

274

290

305

381

457

Width

<C>

[cm]

61

81

102

122

142

163

183

203

224

244

264

284

305

325

345

366

386

406

508

610

Projection distance <D> [cm] Lowest/

Min distance

(with max zoom)

Average

Max distance

(with min zoom)

Highest lens position

<E>

[cm]

494

536

577

618

330

371

412

453

124

165

206

247

288

659

700

742

783

824

1030

1236

395

428

461

494

264

297

330

363

99

132

165

198

231

527

560

593

626

659

824

989

11.4

12.9

14.3

15.7

17.1

18.6

20.0

21.4

4.3

5.7

7.1

8.6

10.0

22.9

24.3

25.7

27.1

28.6

35.7

42.9

593

643

692

742

395

445

494

544

148

198

247

297

346

791

840

890

939

989

1236

1483

Image height <H>

[cm]

34.3

45.7

57.2

68.6

80.0

91.4

102.9

114.3

125.7

137.2

148.6

160.0

171.5

182.9

194.3

205.7

217.2

228.6

285.8

342.9

The above numbers are approximate and may be slightly different from the actual measurements. Only the recommended screen sizes are listed. If your screen size is not in the table above, please contact your dealer for assistance.

Positioning your projector 15

Downloaded From projector-manual.com BenQ Manuals

Shifting the projection lens

The lens shift control provides flexibility for installing your projector. It allows the projector to be positioned off the center of the screen.

The lens shift is expressed as a percentage of the projected image height or width. It is measured as an offset from the projected image’s vertical or horizontal center. You can use the lever to shift the projection lens in any direction within the allowable range depending on your desired image position.

To use the lens shift lever:

1. Release the lever by turning it counterclockwise.

2. Move the lever to adjust the projected image position.

3. Lock the lever by turning it clockwise.

• When the screen position is fixed

Projector

Screen

Range of placement

• When the projector position is fixed

100%

25%

-25%

-100%

41.3%

Center of lens

41.3%

• Please do not over-tighten the lever.

• Lens shift adjustment will not result in a degraded picture quality. In the unlikely event that the image

distortion is produced, see "Adjusting the projected image" on page 25

for details.

16 Positioning your projector

Downloaded From projector-manual.com BenQ Manuals

Connecting with video equipment

You can connect the projector to any type of video equipment, such as a VCR, DVD player, digital tuner, cable or satellite decoder, video game console or digital camera. You can also connect it to a desktop or laptop PC or Apple Macintosh system. You need only connect the projector to a source device using just one of the connecting methods, however each provides a different level of video quality. The method you choose will most likely depend upon the availability of matching terminals on both the projector and the

Video source device as described below:

Terminal name

HDMI

Component

Video

Terminal appearance

S-Video

Video

PC (D-SUB)

Reference

"Connecting HDMI devices" on page 17

"Connecting component-video devices" on page 18

"Connecting S-Video or video devices" on page 18

"Connecting S-Video or video devices" on page 18

"Connecting a computer" on page 19

Picture quality

Best

Better

Good

Normal

Better

Preparations

When connecting a signal source to the projector, be sure to:

1. Turn off all equipment before making any connections.

2. Use only the correct type cables for each source with proper type plugs.

3. Ensure that all cable plugs are firmly fitted to the equipment jacks.

Note that all cables shown in the following connection diagrams may not be supplied with the projector

(See

"Shipping contents" on page 6

for details). Most cables are commercially available from electronics stores.

Connecting HDMI devices

HDMI (High-Definition Multimedia Interface) supports uncompressed video data transmission between compatible devices like DTV tuners, DVD players and displays over a single cable. It provides pure digital viewing and listening experience. You should use an HDMI cable when making connection between the projector and HDMI devices.

HDMI device: DVD player, digital tuner, etc.

To make sure you select a correct input source type for the HDMI signal, see

"HDMI Settings" on page 49

for details.

HDMI cable

Connecting with video equipment 17

Downloaded From projector-manual.com BenQ Manuals

Connecting component-video devices

Be sure to match the corresponding colors between the cables and the terminals. The RCA type component video jacks are provided for connection to video output devices. The audio connections are provided for informational purposes only. You can also connect the separate audio cable to a suitable audio amplifier.

AV equipment: DVD player, digital tuner, etc.

Component video cable

Audio cable

Speakers

Audio cable

Connecting S-Video or video devices

You need only connect S-Video or composite Video cable from the same device, never both at the same time. The audio connections are provided for informational purposes only. You can also connect the separate audio cable to a suitable audio amplifier.

S-Video cable

AV equipment or

Video cable

Audio cable

Speakers

Audio cable

• If you have already made a Component Video connection between the projector and the video source device, you need not connect to this device again using an S-Video or composite Video connection as this makes an unnecessary second connection of poorer picture quality. You need only connect using a composite Video connection if both Component Video and S-Video are not supplied on the video source device (for example, with some analog video cameras).

• If the selected video image is not displayed after the projector is turned on and the correct video source has been selected, please check that the video source device is turned on and operating correctly. Also check that the signal cables have been connected correctly.

18 Connecting with video equipment

Downloaded From projector-manual.com BenQ Manuals

Connecting a computer

Connect the projector to a computer with a VGA cable.

Laptop or desktop computer

VGA cable

Audio cable

Speakers

Audio cable

Many laptops do not turn on their external video ports when connected to a projector. Usually a key combination like Fn + F3 or CRT/LCD key turns the external display on/off. Locate a function key labeled

CRT/LCD or a function key with a monitor symbol on the laptop. Press Fn and the labeled function key simultaneously. Refer to your laptop

'

s documentation to discover your laptop

'

s key combination.

Connecting a monitor

If you want to view your presentation close-up on a monitor as well as on the screen and the MONITOR

OUT jack is available on your projector, you can connect the MONITOR OUT signal output jack on the projector.

or

VGA cable

VGA to DVI cable

• The MONITOR OUT only works when an appropriate D-Sub input is made to the PC jack.

• If you wish to use this connection method when the projector is in standby mode, make sure the

Standby Monitor Out function is turned on in the Advanced Setup menu. See

"Standby Monitor Out" on page 48 for details.

Downloaded From projector-manual.com BenQ Manuals

Connecting with video equipment 19

Using the projector

Preparations

1. Plug in and turn all of the connected equipment on.

2. If not already in, plug the supplied power cable into the AC inlet on the rear of the projector.

3. Plug the power cable into a wall power outlet and turn the wall switch on.

Please use the original accessories (e.g. power cable) only with the device to avoid possible dangers such as electric shock and fire.

Turning the projector on

Follow the steps below.

1. Make sure the Power light is orange after power has been applied.

2. Press POWER ( ) on the projector or ON on the remote control to start the projector. As soon as the lamp lights up, a "Power On

Tone" will be heard.

To turn of the ring tone, see

"Turning off the Power On/Off Ring

Tone" on page 36

for details.

3. The fans will start operating, and a start-up image will be displayed on the screen for a few seconds while it warms up.

The projector will not respond to further commands while it is warming up.

4. If the projector is activated for the first time, select your OSD language following the on-screen instructions.

5. If you are prompted for a password, press the arrow keys to enter a six-digit password. See "Utilizing the password function" on page 23 for details.

6. Press one of the Source keys on the remote control, or press SOURCE on the projector repeatedly until your desired signal is selected. See

"Selecting an input source" on page 21

for details.

7. If the horizontal frequency of the input source exceeds the range of the projector, the message "No

Signal" will be displayed on the screen. This message will remain on-screen until you change the input source to an appropriate one.

If you attempt to re-start the projector shortly after shutdown, the fans may run for a few minutes to cool down. Press Power again to start the projector after the fans stop and the Power indicator light turns orange.

20 Using the projector

Downloaded From projector-manual.com BenQ Manuals

Selecting an input source

The projector can be connected to multiple equipment at the same time. When the projector is first turned on, it will attempt to reconnect with the input source which was in use when the projector was last shut down.

To select the video source:

• Using the remote control or projector

Press one of the Source keys on the remote control, or press SOURCE repeatedly until your desired signal is selected.

• Using the OSD menu

1. Press MENU/EXIT and then press / until the System Setup menu is highlighted.

selection bar is displayed.

3. Press / repeatedly until your desired signal is selected and press

ENTER.

Once detected, the selected source information will be displayed on the screen for seconds. If there are multiple pieces of equipment connected to the projector, you can go back to the source selection bar again to search for other signals.

• If you want the projector to automatically search for the signals, select On in the System Setup > Quick Auto Search menu.

• If you want to use the PIP function, see

"Displaying more than one image source simultaneously" on page 41 for details.

System Setup

Language

Splash Screen

Projector Position

Auto Power Off

Sleep Timer

Background Color

Menu Settings

Input Source

Quick Auto Search

Closed Caption

Standby Monitor Out

S-Video

HDMI

Video

S-Video

Component 1

Component 2

PC

English

BenQ

Floor Front

Disable

Disable

Blue

ENTER

On

Off

EXIT Back

NOTE: When automatically searching for a valid input source, the projector cycles through the available signals following the sequence from top to bottom as the source selection bar shows.

Changing Color Space

In the unlikely event that you connect the projector to a DVD player via the projector's HDMI input and the projected picture displays wrong colors, please change the color space to YUV.

1. Press MENU/EXIT and then press / until the Display menu is highlighted.

This function is only available when the HDMI input port is in use.

Downloaded From projector-manual.com BenQ Manuals

Using the projector 21

Using the menus

The projector is equipped with multilingual On-Screen Display (OSD) menus for making various adjustments and settings.

Below is the overview of the OSD menu.

Main menu icon

Main menu

Highlight

Sub-menu

Picture -- Basic

Picture Mode

Load Settings From

Brightness

Contrast

Color

Tint

Sharpness

Reset Picture Settings

Rename User Mode

+ 50

+ 50

+ 50

0

+ 3

Cinema

Status

Current input source

S-Video EXIT Back

To use the OSD menus, please set the OSD menu to your familiar language.

Press EXIT to go back to the previous page or to exit.

1. Press MENU/EXIT to turn the OSD menu on.

Picture -- Basic

Picture Mode

Load Settings From

Brightness

Contrast

Color

Tint

Sharpness

Reset Picture Settings

Rename User Mode

+ 50

+ 50

+ 50

0

+ 3

Cinema

S-Video EXIT Back

2. Use / to highlight the System Setup menu.

System Setup

Language

Splash Screen

Projector Position

Auto Power Off

Sleep Timer

Background Color

Menu Settings

Input Source

Quick Auto Search

Closed Caption

Standby Monitor Out

S-Video

English

BenQ

Floor Front

Disable

Disable

Blue

Off

Off

EXIT Back

3. Press Language and press

/ to select a preferred language.

System Setup

Language

Splash Screen

Projector Position

Auto Power Off

Sleep Timer

Background Color

Menu Settings

Input Source

Quick Auto Search

Closed Caption

Standby Monitor Out

S-Video

English

BenQ

Floor Front

Disable

Disable

Blue

Off

Off

EXIT Back

4. Press MENU/EXIT twice* to leave and save the settings.

*The first press leads you back to the main menu and the second press closes the OSD menu.

Securing the projector

Using a security cable lock

The projector has to be installed in a safe place to prevent theft. Otherwise, purchase a lock, such as the

Kensington lock, to secure the projector. You can locate a Kensington lock slot on the projector. See item 5

on page

9 for details.

A Kensington security cable lock is usually a combination of key(s) and the lock. Refer to the lock's documentation for finding out how to use it.

22 Using the projector

Downloaded From projector-manual.com BenQ Manuals

Utilizing the password function

For security purposes and to help prevent unauthorized use, the projector includes an option for setting up password security. The password can be set through the On-Screen Display (OSD) menu. Once the password is set and this function is selected, the projector is password-protected. Users who do not know the correct password can not use the projector.

You will be inconvenienced if you activate the password functionality and subsequently forget the password. Print out this manual (if necessary) and write the password you used in this manual, and keep the manual in a safe place for later recall.

Setting a password

Once a password has been set and activated, the projector cannot be used unless the correct password is entered every time the projector is started.

1. Press MENU/EXIT and then press / until the Advanced Setup menu is highlighted.

2. Press to highlight Password and press ENTER. The Password page is displayed.

3. Highlight Password and press / to select On. The Input Password page is displayed.

4. As the picture indicates, the four arrow keys ( , , , ) respectively represent 4 digits (1, 2, 3, 4). According to the password you desire to set, press the arrow keys on the remote control or projector to enter six digits for the password.

If the function is used for the first time, enter the default password (1,

1, 1, 1, 1, 1) of the projector by pressing the arrow key six times.

Once the password is set, the OSD menu returns to the Password page.

IMPORTANT: The digits being input will be displayed as asterisks onscreen. Write your selected password down here in this manual in advance or right after the password is entered so that it is available to you should you ever forget it.

Password: __ __ __ __ __ __

Advanced Setup

Lamp Settings

HDMI Settings

Baud Rate

High Altitude Mode

Audio Settings

Password

Lan Control Settings

Reset All Settings

Direct Power On

Signal Power On

Expert Mode

S-Video

Password

Password

Change Password

Input Password

115200

Off

ENTER

Off

Off

EXIT Back

On

EXIT Back

5. To leave the OSD menu, press MENU/EXIT.

EXIT Clear

If you forget the password

If the password function is activated, you will be asked to enter the six-digit password every time you turn on the projector. If you enter the wrong password, the password error message is displayed lasting for three seconds, and the Input Password page follows. You can retry by entering another six-digit password, or if you did not record the password in this manual, and you absolutely do not remember it, you can use the password recall procedure. See

"Entering the password recall procedure" on page 24 for details.

If you enter an incorrect password 5 times in succession, the projector will automatically shut down in a short time.

Using the projector 23

Downloaded From projector-manual.com BenQ Manuals

Entering the password recall procedure

1. Make sure the Input Password page is displayed on screen. Press

MODE. The projector will display a coded number on the screen.

2. Write down the number and turn off your projector.

3. Seek help from the local BenQ service center to decode the number.

You may be required to provide proof of purchase documentation to verify that you are an authorized user of the projector.

Recall Password

Please write down the recall code, and contact your nearest BenQ

Customer Center.

Recall code:

0 2 1 2

Changing the password

1. Press MENU/EXIT and then press / until the Advanced Setup menu is highlighted.

EXIT Back

3. Highlight Change Password and press ENTER. The Input Current Password page is displayed.

4. Enter the old password.

• If the password is correct, the message "Input New Password" is displayed.

• If the password is incorrect, the password error message is displayed lasting for three seconds, and the message "Input Current Password" is displayed for your retry. You can press MENU/EXIT to cancel the change or try another password.

5. Enter a new password.

IMPORTANT: The digits being input will be displayed as asterisks on-screen. Write your selected password down here in this manual in advance or right after the password is entered so that it is available to you should you ever forget it.

Password: __ __ __ __ __ __

Keep this manual in a safe place.

6. Confirm the new password by re-entering the new password.

7. You have successfully assigned a new password to the projector. Remember to enter the new password next time the projector is started.

8. To leave the OSD menu, press MENU/EXIT.

Disabling the password function

To disable password protection, go back to the Advanced Setup >

Password > Password menu. Highlight Password and select Off by pressing / . The message "Input Password" is displayed. Enter the current password.

• If the password is correct, the OSD menu returns to the Password page with "Off" shown in the row of Password. You will not have to enter the password next time when turning on the projector.

• If the password is incorrect, the password error message is displayed lasting for three seconds, and the message "Input

Password" is displayed for your retry. You can press MENU/EXIT to cancel the change or try another password.

Note that though the password function is disabled, you need to keep the old password in hand should you ever need to re-activate the password function by entering the old password.

Password

Password

Change Password

Off

EXIT Back

24 Using the projector

Downloaded From projector-manual.com BenQ Manuals

Adjusting the projected image

Adjusting the projection angle

There are four adjuster feet on the bottom of the projector. These can be used if necessary to change the projection angle. Screw the feet in or out as appropriate to aim and level the projection angle.

If the screen and the projector are not perpendicular to each other, the projected image becomes vertical trapezoidal. To correct this problem, see

"Correcting picture distortion" on page 26 for details.

Auto-adjusting the image

In some cases, you may need to optimize the picture quality. To do this, press AUTO. Within 3 seconds, the built-in Intelligent Auto Adjustment function will re-adjust the values of Frequency and Clock to provide the best picture quality.

The current source information will be displayed in the corner of the screen for 3 seconds.

This function is only available when a PC signal (analog RGB) is selected.

Fine-tuning the image size and clarity

1. Adjust the projected picture to the size that you need using the zoom ring.

2. Sharpen the picture by rotating the focus ring.

Downloaded From projector-manual.com BenQ Manuals

Using the projector 25

Correcting picture distortion

Keystoning occurs when the projector is not perpendicular to the screen and is where the projected picture displays visible as a trapezoid shape like either of the following:

• Two parallel sides (left and right, or top and bottom) but is noticeably wider on either side.

To correct the picture’s shape, you can perform the following steps.

1. Adjust the projection angle. Move the projector to be in front of the center of the screen with the center of the lens level with the screen.

2. If the picture is stilled distorted, or the projector is unable to be positioned as described above, you will need to manually correct the picture.

• Using the remote control or projector i. Press one of the Arrow/Keystone keys (Left / , Up / ,

Right / , Down / ) to display the Keystone page.

ii. See step iv below for further operation.

• Using the OSD menu i. Press MENU/EXIT and then press / until the Display menu is highlighted.

ii. Press to highlight Keystone and press ENTER. The Keystone page is displayed.

iii. Highlight 2D Keystone and press ENTER. The keystone correction page is displayed.

iv. Press the key whose keystone icon is opposite to the shape of the projected picture. Continue pressing the same key or press the other keys until you are satisfied with the shape.

The values on the lower portion of the page change while pressing. When the values reach their maximum or minimum with repeated key presses, the picture’s shape will stop changing.

You will not be able to change the picture further in that direction.

Display

Aspect Ratio

Keystone

Position

Overscan Adjustment

Color Space Conversion

PIP

PC & Component YPbPr Tuning

Blank Timer

Test Pattern

0

S-Video

Keystone

2D Keystone

Anamorphic

ENTER

RGB

Disable

EXIT Back

ENTER

Two parallel sides

EXIT Back

Press

/

.

No parallel sides

Press

/

.

Keystone

Press

/

.

Press

/

.

1 0

EXIT Back

26 Using the projector

Downloaded From projector-manual.com BenQ Manuals

Using the preset and user modes

Selecting a preset mode

The projector is preset with several pre-defined picture modes so that you can choose one to suit your operating environment and input source picture type.

To select a picture mode that suits your need:

• Using the OSD menu

1. Press MENU/EXIT and then press / until the Picture -- Basic menu is highlighted.

3. Press / until your desired mode is selected.

These modes consist of preset values suitable for various projection situations as described below:

Picture -- Basic

Picture Mode

Load Settings From

Brightness

Contrast

Color

Tint

Sharpness

Reset Picture Settings

Rename User Mode

+50

+50

+50

0

+ 3

Cinema

• Cinema: Is appropriate for playing colorful movies, video clips from digital cameras or DVs through the PC input for best viewing in a blackened (little light) environment.

S-Video

EXIT Back

• Dynamic: Maximizes the brightness of the projected image. This mode is suitable for environments where extra-high brightness is required, such as using the projector in well lit rooms.

• Presentation: Is designed for presentations. The brightness is emphasized in this mode to match PC and notebook coloring.

• sRGB: Maximizes the purity of RGB colors to provide true-to-life images regardless of brightness setting. It is most suitable for viewing photos taken with an sRGB compatible and properly calibrated camera, and for viewing PC graphic and drawing applications such as AutoCAD.

• User 1/User 2: Recalls the customized settings. See

"Setting the User 1/User 2 mode" on page 28 for

details.

Fine-tuning the selected picture mode

The pre-defined picture mode settings can be altered via the available items shown in the Picture -- Basic and Picture -- Advanced menus.

To fine-tune the picture mode:

1. Press MENU/EXIT and then press / until the Picture -- Basic or Picture -- Advanced menu is highlighted.

2. Press to highlight the item you want to adjust and press / to set your desired value. Your selection is automatically stored in the projector and associated with that input source.

See "Fine-tuning the picture quality" on page 29 and

"Advanced picture quality controls" on page 30

for details.

Each time you change the picture mode, the projector also changes the setting to the one which was last set for that particular picture mode on that particular input. If you change the input source, the most recently used picture mode and settings for that input and resolution will be restored.

Using the projector 27

Downloaded From projector-manual.com BenQ Manuals

Setting the User 1/User 2 mode

There are two user-definable modes if the current available picture modes are not suitable for your need.

You can use one of the picture modes (except the selected User mode) as a starting point and customize the settings.

1. In the Picture -- Basic menu, highlight Picture Mode and press /

to select User 1 or User 2 mode.

2. Press to highlight Load Settings From.

This function is only available when User 1 or User 2 mode is selected up in the Picture Mode sub-menu item.

Picture -- Basic

Picture Mode

Load Settings From

Brightness

Contrast

Color

Tint

Sharpness

Reset Picture Settings

Rename User Mode

+50

+50

+50

0

+ 3

User 1

ENTER

3. Press ENTER to display the Load Settings From page.

4. Press to highlight a picture mode that is closest to your need and press ENTER.

5. Press to select a sub-menu item to be changed and adjust the value with

/ . See "Fine-tuning the picture quality" on page 29

and "Advanced picture quality controls" on page 30

for details.

6. When all settings have been done, press MENU/EXIT to save and leave the settings.

S-Video

Load Settings From

Expert Mode 1

Expert Mode 2

Cinema

Dynamic

Presentation sRGB

User 1

User 2

EXIT Back

ENTER

EXIT Back

Renaming user modes

You can change User 1 and User 2 to the names easy to be identified or understood by the users of this projector. The new name can be up to 12 characters including English letters (A-Z, a-z), digits (0-9), and space (_).

To rename user modes:

1. In the Picture -- Basic menu, highlight Rename User Mode and press ENTER to display the Rename

User Mode page.

2. Press / to highlight the item you want to rename and press ENTER. The first letter will be highlighted by a white box.

3. Press / to select the first character.

4. Press to move along until the new name is set and press ENTER to confirm.

5. Repeat steps 2-4 if you want to change the other names.

Resetting the picture mode

All of the adjustments you’ve done in the Picture -- Basic and Picture -- Advanced menus can be returned to the factory preset values with a key press on the highlight of Reset.

To reset the picture mode to the preset factory values:

1. In the Picture -- Basic menu, highlight Picture Mode and press / to select the picture mode

(including User 1 or User 2) you want to reset.

2. Press to highlight Reset Picture Settings and press ENTER. The confirmation message is displayed.

3. Press / Reset and press ENTER. The picture mode will return to the factory preset settings.

4. Repeat steps 1-3 if you want to reset other picture modes.

The following settings will still remain: Color Temperature, Color Temperature User_ Fine Tuning,

Gamma Selection, Film Mode, 3D Comb Filter.

• Do not to be confused with the Reset Picture Settings function here with the Reset All Settings in the

Advanced Setup menu. The Reset All Settings function returns most of the settings to the factory

preset values system wide. See "Reset All Settings" on page 49

for details.

28 Using the projector

Downloaded From projector-manual.com BenQ Manuals

Fine-tuning the picture quality

No matter what picture mode you have selected, you are able to fine-tune those settings to fit every presentation purpose. Those adjustments will be saved to the preset mode you are at when you exit the

OSD menu.

Adjusting Brightness

Highlight Brightness in the Picture -- Basic menu and adjust the values by pressing / on the projector or remote control.

The higher the value, the brighter the picture. And the lower the setting, the darker the picture. Adjust this control so the

30 black areas of the picture appear just as black and that detail in the dark areas is visible.

Adjusting Contrast

Highlight Contrast in the Picture -- Basic menu and adjust the values by pressing / on the projector or remote control.

The higher the value, the greater the contrast. Use this to set the peak white level after you have previously adjusted the

Brightness setting to suit your selected input and viewing environment.

30

50

50

70

70

Adjusting Color

Highlight Color in the Picture -- Basic menu and adjust the values by pressing / on the projector or remote control.

Lower setting produces less saturated colors; setting to the minimum value makes the image black and white. If the setting is too high, colors on the image will be overpowering, which makes the image unrealistic.

Adjusting Tint

Highlight Tint and adjust the values by pressing / on the projector or remote control.

The higher the value, the more reddish the picture becomes. The lower the value, the more greenish the picture becomes.

Adjusting Sharpness

Highlight Sharpness and adjust the values by pressing / on the projector or remote control.

The higher the value, the sharper the picture becomes. The lower the value, the softer the picture becomes.

3 5 7

The Brightness, Contrast functions can also be accessible by pressing

BRIGHTNESS, CONTRAST on the remote control to display the adjustment bar and then you can press / to adjust the values.

U s i n g t h e p r o j e c t o r 2 9

Downloaded From projector-manual.com BenQ Manuals

Advanced picture quality controls

There are more advanced functions in the Picture -- Advanced menu to be adjusted to your preference. To save the settings, just press MENU/EXIT to leave the OSD menu.

Setting Black Level

Highlight Black Level and press / on the projector or remote control to select 0 IRE or 7.5 IRE.

The grayscale video signal is measured in IRE units. In some areas which use NTSC TV standard, the grayscale is measured from 7.5 IRE (black) to

100 IRE (white); however, in other areas where PAL equipment or

Japanese NTSC standards are used, the grayscale is measured from 0 IRE

(black) to 100 IRE (white). We suggest that you check the input source to see if it is with 0 IRE or 7.5 IRE, then select accordingly.

Picture -- Advanced

Black Level

Clarity Control

Color Temperature

Color Temperature User_ Fine Tuning

Gamma Selection

Brilliant Color

3D Color Management

Film Mode

3D Comb Filter

0 IRE

T1

2

On

On

S-Video

EXIT Back

Controlling image clarity

You may have static or noisy projected pictures.

To achieve better picture clarity:

1. Highlight Clarity Control and press ENTER on the projector or remote control to display the Clarity Control page.

2. Press / to select the item you want to adjust and press / to set the desired value.

• Noise Reduction: Reduces electrical image noise caused by different media players. The higher the setting, the less the noise.

• Detail Enhancement: Sharpens the image. The higher the setting, the more details the image reveals.

• Luma Transmission (Luminance Transmission Improvement):

Enhances picture brightness. The higher the setting, the more distinct the effect.

• Chroma Transmission (Chroma Transmission Improvement):

Reduces color smear. The higher the setting, the more distinct the effect.

Picture -- Advanced

Black Level

Clarity Control

Color Temperature

Color Temperature User_ Fine Tuning

Gamma Selection

Brilliant Color

3D Color Management

Film Mode

3D Comb Filter

0 IRE

ENTER

T1

2

On

On

On

S-Video

Clarity Control

Noise Reduction

Detail Enhancement

Luma Transmission

Chroma Transmission

0

+3

0

0

EXIT Back

EXIT Back

Selecting a color temperature

*

Highlight Color Temperature and select a preferred setting by pressing /

on the projector or remote control.

There are several color temperature settings available.

1. T1: Maintains normal colorings for white.

2. T2: Makes pictures appear bluish white.

3. T3: With the lamp’s original color temperature and higher brightness.

Picture -- Advanced

Black Level

Clarity Control

Color Temperature

Color Temperature User_ Fine Tuning

Gamma Selection

Brilliant Color

3D Color Management

Film Mode

3D Comb Filter

0 IRE

T1

2

On

On

On

S-Video

EXIT Back

This setting is suitable for environments where high brightness is required, such as projecting pictures in well lit rooms.

4. T4: Makes pictures appear reddish white.

5. User 1/User 2/User 3: Recalls the settings customized in the Color Temperature User_ Fine Tuning

menu. See "Setting a preferred color temperature" on page 31 for details.

*About color temperatures:

There are many different shades that are considered to be "white" for various purposes. One of the common methods of representing white color is known as the “color temperature”. A white color with a low color temperature appears to be reddish white. A white color with a high color temperature appears to have more blue in it.

30 Using the projector

Downloaded From projector-manual.com BenQ Manuals

Setting a preferred color temperature

To set a preferred color temperature:

1. Highlight Color Temperature and select User 1, User 2, or User 3 by pressing / on the projector or remote control.

Color Temp User 1 Fine Tuning

Red Gain

Green Gain

Blue Gain

Red Offset

Green Offset

Blue Offset

+50

+50

+50

+50

+50

+50

ENTER. The Color Temperature User_ Fine Tuning page is displayed.

EXIT Back

The menu name "User_" corresponds with the setting selected in Color Temperature.

3. Press / to highlight the item you want to change and adjust the values by pressing / .

• Red Gain/Green Gain/Blue Gain: Adjusts the contrast levels of Red, Green, and Blue.

• Red Offset/Green Offset/Blue Offset: Adjusts the brightness levels of Red, Green, and Blue.

4. To save and leave the settings, press MENU/EXIT.

Selecting a Gamma setting

Highlight Gamma Selection and select a preferred setting by pressing /

on the projector or remote control.

Gamma refers to the relationship between input source and picture brightness.

Picture -- Advanced

Black Level

Clarity Control

Color Temperature

Color Temperature User_ Fine Tuning

Gamma Selection

Brilliant Color

3D Color Management

Film Mode

3D Comb Filter

0 IRE

T1

2

On

On

On

Select these values according to your preference.

S-Video

EXIT Back

Increases the average brightness of the picture. Best for a lit environment, meeting room or family room.

Best for viewing movies in a darkened environment.

Best for viewing movies which are mostly composed of dark scenes.

High Brightness

Low Contrast

Low Brightness

High Contrast

1 2 3 4 5 6 7 8

Adjusting Brilliant Color

This feature utilizes a new color-processing algorithm and system level enhancements to enable higher brightness while providing truer, more vibrant colors in picture. When set to "Off", Brilliant Color is disabled.

Picture -- Advanced

Black Level

Clarity Control

Color Temperature

Color Temperature User_ Fine Tuning

Gamma Selection

Brilliant Color

3D Color Management

Film Mode

3D Comb Filter

0 IRE

T1

2

On

On

On

S-Video EXIT Back

Using the projector 31

Downloaded From projector-manual.com BenQ Manuals

Color Management

In most installation situations, color management will not be necessary, such as in classroom, meeting room, or lounge room situations where lights remain on, or where building external windows allow daylight into the room.

Only in permanent installations with controlled lighting levels such as boardrooms, lecture theaters, or home theaters, should color management be considered. Color management provides fine color control adjustment to allow for more accurate color reproduction, should you require it.

Proper color management can only be achieved under controlled and reproducible viewing conditions.

You will need to use a colorimeter (color light meter), and provide a set of suitable source images to measure color reproduction. These tools are not provided with the projector, however, your projector supplier should be able to provide you with suitable guidance, or even an experienced professional installer.

The 3D Color Management provides six sets (RGBCMY) of colors to be adjusted to favorite colors. When you select each color, you can independently adjust its color range and saturation according to your preference.

To adjust and store the settings:

1. In the Picture -- Advanced menu, highlight 3D Color Management and press ENTER. The 3D Color Management page is displayed.

2. Highlight Primary Color and press / to select a color from among

Red, Yellow, Green, Cyan, Blue, and Magenta.

highlight / to select the color range you wish to make adjustment. The bigger the range, the more proportions of its two adjacent colors the color contains.

Please refer to the illustration to the right for how the colors relate to each other. For example, if you select Red and set its range at 0, only pure red is selected. Increasing its range will include both the red color close to yellow and red color close to magenta.

Press to highlight Saturation and adjust the color saturation level by pressing / .

If you select Red and set its range at 0, only the saturation of the pure red will be affected.

Picture -- Advanced

Black Level

Clarity Control

Color Temperature

Color Temperature User_ Fine Tuning

Gamma Selection

Brilliant Color

3D Color Management

Film Mode

3D Comb Filter

S-Video

3D Color Management

Primary Color

Range

Saturation

+15

+15

Red

Yellow

0 IRE

T1

2

On

ENTER

On

On

EXIT Back

Magenta

EXIT Back

Green

Saturation is the amount of that color in a video picture. Lower settings produce less saturated colors; a setting of “0” removes that color from the image entirely. If the saturation is too high, that color will be overpowering and unrealistic.

Magenta

Cyan

Blue

4. To leave and save the settings, press MENU/EXIT.

Setting Film Mode

This feature helps improve picture quality when projecting video image from a film-sourced DVD.

Picture -- Advanced

Black Level

Clarity Control

Color Temperature

Color Temperature User_ Fine Tuning

Gamma Selection

Brilliant Color

3D Color Management

Film Mode

3D Comb Filter

0 IRE

T1

2

On

On

On

S-Video EXIT Back

32 Using the projector

Downloaded From projector-manual.com BenQ Manuals

Setting 3D Comb Filter

This feature separates composite signal to Y (brightness) signal and C

(color) signal, and can help produce clearer and sharper images with correct colors in place.

This function is only available when a Video signal is selected

Picture -- Advanced

Black Level

Clarity Control

Color Temperature

Color Temperature User_ Fine Tuning

Gamma Selection

Brilliant Color

3D Color Management

Film Mode

3D Comb Filter

0 IRE

T1

2

On

On

On

Selecting the aspect ratio

Video EXIT Back

The "aspect ratio" is the ratio of the image width to the image height. Digital TV is usually in 16:9 ratio, which is the default for this projector, and most analog TV signals and DVDs are in 4:3 ratio.

With the advent of digital signal processing, digital display devices like this projector can dynamically stretch and scale the image output to a different aspect than that of the image input source. Images can be stretched in a linear manner so the whole of the image is stretched equally, or non-linearly, which distorts the image.

To change the projected picture ratio (no matter what aspect the source is):

• Using the control button

1. Press ASPECT to show the current setting.

2. Press ASPECT repeatedly to select an aspect ratio to suit the format of the video signal and your display requirements.

• Using the OSD menu

1. Press MENU/EXIT and then press / until the Display menu is highlighted.

3. Press / to select an aspect ratio to suit the format of the video signal and your display requirements.

Display

Aspect Ratio

Keystone

Position

Overscan Adjustment

0

Color Space Conversion

PIP

PC & Component YPbPr Tuning

Blank Timer

Test Pattern

Anamorphic

RGB

Disable

EXIT Back

S-Video

About the aspect ratio

1. Anamorphic (ANA): Scales an image so that it is displayed in the center of the screen with a 16:9 aspect ratio. This setting stretches and resizes linearly, except that it treats the vertical and horizontal dimensions independently. It stretches the height of the source image until it reaches the full projected height, and stretches the width of the source image until it reaches the full projected width. This may alter the projected aspect, depending upon the original aspect of the source image.

Anamorphic is most suitable for images which are already in a 16:9 aspect, like high definition TV, as it displays them without aspect alteration.

2. 4:3: Scales a picture so that it is displayed in the center of the screen with a 4:3 aspect ratio. This is most suitable for 4:3 pictures like computer monitors, standard definition TV and 4:3 aspect DVD movies, as it displays them without aspect alteration.

16:9 picture

4:3 picture

Using the projector 33

Downloaded From projector-manual.com BenQ Manuals

3. Letter Box (LB): Scales a picture to fit the projector’s native resolution in its horizontal width and resize the picture’s height to the 3/4 of the projection width. This may produce a picture greater in height than can be displayed, so part of the picture is lost (not displayed) along the top and bottom edges of the projection. This is suitable for the display of movies which are presented in letter box format (with black bars on the top and bottom).

16:9 picture

Letter Box format picture

4. Wide: Stretches the picture horizontally in a non-linear manner, that is, the edges of the picture are stretched more than the center of the picture to prevent distortion of the central part of the picture. This is suitable for occasions where you want to stretch the width of a 4:3 aspect picture to the width of a 16:9 aspect screen. It does not alter the height.

Some widescreen movies have been produced with their width squashed down to the width of a 4:3 aspect, and are best viewed when restretched back to their original width using this setting.

4:3 picture

5. Real: This setting displays the image in a one-to-one pixel mapping without alteration or resize in the center of the projection. This is most suitable for use with PC source inputs.

• The black portions are inactive areas and the white portions are active areas.

• OSD menus can be displayed on those unused black areas.

4:3 picture

Using Panamorph lenses (optional)

Panamorph lenses allow you to convert 16:9 projectors to the full 2.35:1 aspect ratio of most motion pictures, showing the best movies without letterbox bars at top and bottom of images while increasing resolution by 33% and brightness by 20%.

Pressing LB on the remote control

Using

Panamorph lens

2.35:1 aspect ratio image

2.35:1 aspect ratio image using the entire resolution of the 16:9 display

2.35:1 aspect ratio image in a 2.35:1 display area

You may need a 2.35:1 screen to display the 2.35:1 images. For more information, please go to www.panamorph.com or contact the place you purchased the projector.

34 Using the projector

Downloaded From projector-manual.com BenQ Manuals

Hiding the image

In order to draw the audience's full attention to the presenter, you can use

BLANK to hide the screen image. When this function is activated with an audio input connected, the audio can still be heard.

You can set the blank time in the

Display > Blank Timer menu to let the projector return the image automatically after a period of time when there is no action taken on the blank screen. The length of time can be set from

5 to 30 minutes in 5-minute increments.

If the preset time spans are not suitable for your personation, select

Disable.

No matter Blank Timer is activated or not, you can press any key on the projector or remote control to restore the picture.

Once BLANK is pressed, the projector lamp enters Dual-Reliable mode automatically.

Freezing the image

Press FREEZE on the remote control to freeze the image. The word

"FREEZE" will be displayed in the upper left corner of the screen. To release the function, press any key on the projector or remote control.

If your remote control has the following keys, please note that they cannot be pressed to release the function: LASER, #1, #4, PAGE UP/PAGE DOWN.

Even if an image is frozen on the screen, the pictures are running on the video or other device. If the connected devices have active audio output, you will still hear the audio even though the image is frozen onscreen.

Utilizing FAQ function

The Information menu contains possible solutions to problems regarding image quality, installation, special feature operation and service information.

To get the FAQ information:

1. Press MENU/EXIT to open the OSD menu and press

/ to highlight the Information menu.

Service.

3. Press ENTER.

4. Press / to select a problem and press ENTER for possible solutions.

5. To leave and save the settings, press MENU/EXIT.

Using the projector 35

Downloaded From projector-manual.com BenQ Manuals

Adjusting the sound

The sound adjustments made as below will have an effect on the projector speaker(s). Be sure you have

made a correct connection to the projector audio input. See "Connecting with video equipment" on page 17

for how the audio input is connected.

Muting the sound

To temporarily turn off the sound:

1. Press MENU/EXIT to open the OSD menu and press / to highlight the Advanced Setup menu.

3. Highlight Mute and press / to select On.

If available, you can also press MUTE on the remote control to toggle projector audio between on and off.

Adjusting the sound level

To adjust the sound level, press VOLUME+

/

VOLUME- on the remote control, or:

1. Repeat steps 1-2 above.

Turning off the Power On/Off Ring Tone

To turn off the ring tone:

1. Repeat steps 1-2 above.

The only way to change Power On/Off Ring Tone is setting On or Off here. Setting the sound mute or changing the sound level will not affect the Power On/Off Ring Tone.

Setting the lamp mode

This projector is capable of dual-lamp projection and provides several lamp modes for different purposes:

Dual-Brightest

(Two lamps are used in normal mode)

Lamp mode User Benefit

• Delivering super-bright and clear images

• Suitable for high-ambient-light environments

• Allowing continuous and non-stop operation under critical situations

Dual-Reliable

(Two lamps are used in economic mode)

• Extending the lamp life

• Allowing continuous and non-stop operation under critical situations

Single-Alternative

(The lamp with shorter operating hours is selected automatically and used in normal mode)

• Extending the total operation time

• Reducing lamp replacement frequency

Single-Eco

(The lamp with shorter operating hours is selected automatically and used in economic mode)

• Extending the lamp life

• Extending the total operation time

• Reducing lamp replacement frequency

Suitable environment

Large, well lit meeting rooms or auditoriums

Mid-large boardrooms

Normal sized rooms

Small to normal sized rooms

You can perform the following steps to choose a lamp mode according to your preference.

1. Press MENU/EXIT and then press / until the Advanced Setup menu is highlighted.

4. Press to highlight your preferred lamp mode and press ENTER.

5. A confirmation message displays. Highlight Yes and press ENTER.

36 Using the projector

Downloaded From projector-manual.com BenQ Manuals

• If one lamp fails, the projector enters Single-Alternative mode automatically. Dual-Brightest, Dual-

Reliable and

Single-Eco

settings are not available.

• After switching from Dual-Brightest/Dual-Reliable mode to Single-Alternative/Single-Eco mode or vice versa, wait for 90 seconds before you can adjust the lamp mode again.

• A slight variation in the picture brightness and colors may be observed during the very short time of switching lamp modes.

Controlling the projector through a Lan environment

Lan Control Settings allow you to manage the projector from a computer using a web browser when the computer and the projector are properly connected to the same local area network.

Configuring the Lan Control Settings

If you are in a DHCP environment:

1. Take a RJ45 cable and connect one end to the RJ45 LAN input jack of the projector and the other end to the RJ45 port.

2. Press MENU/EXIT and then press / until the Advanced Setup menu is highlighted.

displayed.

highlight

RJ45

.

Discovery is On, the projector can be detected by AMX controller.

8. Please wait for around 15 - 20 seconds, and then re-enter the Lan Control Settings page.

9. The Projector IP Address, Subnet Mask, Default Gateway, and DNS Server settings will be displayed.

Note down the IP address displayed in the Projector IP Address row.

If the Projector IP Address still does not display, contact your ITS administrator.

If you are in a non-DHCP environment:

1. Repeat steps 1-4 above.

3. Contact your ITS administrator for information on the Projector IP Address,

Subnet Mask

, Default

Gateway, and DNS Server settings.

4. Press to select the item you want to modify and press ENTER.

5. Press / to move the cursor and then press / to enter the value.

6. To save the setting, press ENTER. If you do not want to save the setting, press MENU/EXIT.

Using the projector 37

Downloaded From projector-manual.com BenQ Manuals

Controlling the projector remotely through a web browser

Once you have the correct IP address for the projector and the projector is on or in standby mode, you can use any computer that is on the same local area network to control the projector.

1. Enter the address of the projector in the address bar of your browser and click Go.

2. The remote network operation page opens. This page allows you to operate the projector as if you were using the remote control or control panel on the projector.

ii i i ii

• Auto

• ( )

• Blank

• Source

• ( )

See

"Remote control" on page 11 for details.

• ( ) • ( )

• Enter

Activates the selected On-Screen Display (OSD) menu item.

To switch input source, click on your desired signal.

The source list varies according to the connectors available on the projector. ''Video 1'' stands for the Video signal; ''S-Video 1'' stands for the S-Video signal.

38 Using the projector

Downloaded From projector-manual.com BenQ Manuals

The tools page allows you to manage the projector, configure the Lan control settings and secure access of remote network operation on this projector.

v i ii iii iv

i. You can name the projector, keep track of its location and the person in charge of it.

ii. You can adjust the Lan Control Settings.

iii. Once set, access to the remote network operation on this projector has been password-protected.

iv. Once set, access to the tools page has been password-protected.

After making the adjustments, press the Send button and the data will be saved in the projector.

v. Press Exit to go back to the remote network operation page.

Please pay attention to the limitation of input length (including space and other punctuation keys) in the list blow:

Category Item

Crestron Control

Projector

Network Configuration

User Password

Admin Password

Input Length

IP Address

IP ID

Port

Projector Name

Location

Assigned To

DHCP (Enabled)

IP Address

Subnet Mask

Default Gateway

DNS Server

Enabled

New Password

Confirm

Enabled

New Password

Confirm

Maximum Number of

Characters

15

15

15

(N/A)

20

20

(N/A)

20

20

9

9

(N/A)

15

15

2

5

10

Using the projector 39

Downloaded From projector-manual.com BenQ Manuals

The info page displays the information and status of this projector.

Press Exit to go back to the remote network operation page.

For more information, visit http://www.crestron.com

& www.crestron.com/getroomview .

Operating in a high altitude environment

We recommend that you activate High Altitude Mode when your environment is higher than 1500 meters

(around 4920 feet) above sea level, or whenever the projector will be used for extended periods of time

(>10 hours) without shutdown.

To activate High Altitude Mode:

1. Press MENU/EXIT and then press / until the Advanced Setup menu is highlighted.

4. Highlight Yes and press ENTER.

Operation under High Altitude Mode may cause a higher decibel operating noise level because of increased fan speed necessary to improve overall system cooling and performance.

If you use this projector under other extreme conditions excluding the above, it may display auto shut-down symptoms, which is designed to protect your projector from over-heating. In cases like this, you should switch to High Altitude Mode to solve these symptoms. However, this is not to state that this projector can operate under any and all harsh or extreme conditions.

Advanced Setup

Lamp Settings

HDMI Settings

Baud Rate

Test Pattern

High Altitude Mode

Audio Settings

Password

Lan Control Settings

Reset All Settings

Expert Mode

Signal Power On

S-Video

WARNING

High Altitude Mode is used when the environment is higher than 1500m.

Do you want to turn the

High Altitude Mode on?

Yes No

115200

On

Off

EXIT Back

40 Using the projector

Downloaded From projector-manual.com BenQ Manuals

Displaying more than one image source simultaneously

Your projector is capable of displaying pictures simultaneously from two input sources, which can be used to enhance your presentation in an interesting way. Ensure the signals you want to display are correctly connected to the projector.

To display the PIP window:

1. Press MENU/EXIT and then press / until the Display menu is highlighted.

3. Highlight PIP and press / to select On.

The projector will select two currently active signals to display and the last viewed picture will be displayed on the big screen as a main source.

Display

Aspect Ratio

Keystone

Position

Overscan Adjustment

0

Color Space Conversion

PIP

PC & Component YPbPr Tuning

Blank Timer

Test Pattern

Anamorphic

RGB

ENTER

Disable

The PIP function is effective at below source combinations.

Source 1

HDMI

Component 1/2

PC

CVBS

Source 2

S-Video

V

V

V

V

V

V

S-Video

PIP

PIP

Main Source

Second Source

Active Window

Position

Size

EXIT Back

On

Main

Top-Right

Large

EXIT Back

4. To change the Main Source or Second Source, press to highlight

Main Source or Second Source and press ENTER. The source selection bar is displayed.

5. Use / to highlight the source you want to display for the main

(bigger) or second (smaller) window, and press ENTER to save the setting and go back to the PIP page.

6. To make OSD settings to one of the two sources (main or second), highlight Active Window and press / to select the source you want to make adjustments.

The settings made on the OSD menus will only take effect on the active window. The following OSD menu function cannot work on the active windows for the PIP: Quick Auto Search.

7. To change the position of the smaller picture, highlight Position and press / repeatedly until a suitable position is selected.

8. To resize the small picture, highlight Size and press / to set the PIP size among Small or Large.

9. To save the settings and leave the OSD menu, press MENU/EXIT.

Downloaded From projector-manual.com BenQ Manuals

Using the projector 41

Turning the projector off

To turn the projector off, press POWER ( ) on the projector or ON

on the remote control and a warning message appears. Press

POWER/ON ( ) again.

• The Power indicator light flashes orange and the fans run for about two minutes to cool the lamp. The projector will not respond to any commands until the cooling process is complete.

• Then, the Power indicator light is a steady orange once the cooling process has finished and fans stop.

• If the projector will not be used for an extended period, unplug the power cable from the power outlet.

• To protect the lamp, the projector will not respond to any commands during the cooling process.

• Actual lamp life may vary due to different environmental conditions and usage.

• If you attempt to re-start the projector shortly after shutdown, the fans may run for a few minutes to cool down. Press Power/ON again to start the projector after the fans stop and the Power indicator light turns orange.

42 Using the projector

Downloaded From projector-manual.com BenQ Manuals

On-Screen Display (OSD) menus

On-Screen Display (OSD) structure

Please note that the on-screen display (OSD) menus vary according to the signal type selected.

Main menu

Picture --

Basic

Picture --

Advanced

Picture Mode

Load Settings From

Brightness

Contrast

Color

Sub-menu Options

Cinema/Dynamic/Presentation/sRGB/User 1/User 2

Tint

Sharpness

Reset Picture Settings

Rename User Mode

0–100

0–100

0–100

-20–+20

0–8

Black Level

Clarity Control

Color Temperature

Color Temperature

User_ Fine Tuning

Gamma Selection

Brilliant Color

3D Color Management

Film Mode

Noise Reduction

Detail Enhancement

Luma Transmission

Chroma Transmission

Red Gain

Green Gain

Blue Gain

Red Offset

Green Offset

Blue Offset

Primary Color

Range

Saturation

0 IRE/7.5 IRE

0/1/2/3

0-5

0/1/2

0/1/2

T1/T2/T3/T4/User 1/User 2/User 3

0–100

0–100

0–100

0–100

0–100

0–100

1-8

On/Off

Red/Yellow/Green/Cyan/Blue/Magenta

0–100

0–100

On/Off

3D Comb Filter On/Off

Downloaded From projector-manual.com BenQ Manuals

Using the projector 43

Main menu

Display

Sub-menu

Aspect Ratio

Keystone

Position

Overscan Adjustment

Color Space Conversion

PIP

PIP

Main Source

Second Source

Active Window

PC & Component

YPbPr Tuning

Position

Size

H. Size

Phase

Auto

Blank Timer

Test Pattern

Language

Options

Anamorphic/4:3/Letter Box/Wide/Real

2D Keystone

0/1/2/3

Auto/RGB/YUV

On/Off

HDMI/Video/S-Video/Component 1/

Component 2/PC

Main/PIP

Top-Right/Bottom-Left/Bottom-Right/Top-

Left

Large/Small

Disable/5 min/10 min/15 min/20 min/25 min/

30 min

Splash Screen

Projector Position

Auto Power Off

System Setup

Sleep Timer

Background Color

Menu Settings

Input Source

Quick Auto Search

Closed Caption

Standby Monitor Out

Menu Display Time

Menu Position

Reminder Message

Closed Caption Enable

Caption Version

BenQ/Blue/Black

Floor Front/Ceiling Front/Floor Rear/Ceiling

Rear

Disable/5 min/10 min/15 min/20 min/25 min/

30 min

Disable/30 min/60 min/90 min/120 min/150 min/180 min

Black/Purple/Blue

5 sec/10 sec/15 sec/20 sec/25 sec/30 sec

Center/Top-Left/Top-Right/Bottom-Right/

Bottom-Left

On/Off

HDMI/Video/S-Video/Component 1/

Component 2/PC

On/Off

On/Off

CC1/CC2/CC3/CC4

On/Off

44 Using the projector

Downloaded From projector-manual.com BenQ Manuals

Main menu

Advanced

Setup

Information

Sub-menu Options

Lamp Settings

HDMI Settings

Baud Rate

High Altitude Mode

Audio Settings

Password

Lan Control Settings

Reset All Settings

Direct Power On

Signal Power On

Expert Mode

FAQ-Image and Installation

FAQ-Features and Service

Source

Picture Mode

Resolution

Lamp Mode

Equivalent Lamp Hour #1

Equivalent Lamp Hour #2

Lamp Mode

Dual-Brightest/Dual-Reliable/Single-

Alternative

Reset Lamp Timer 1

Reset Lamp Timer 2

Equivalent Lamp Hour #1

Equivalent Lamp Hour #2

HDMI Format

Auto

PC Signal

Video Signal

2400/4800/9600/14400/19200/38400/57600/

115200

On/Off

Mute

Volume

On/Off

Power On/Off Ring Tone On/Off

Password On/Off

Change Password

Control By

DHCP

Projector IP Address

(inputs current password)

RS232/RJ45

On/Off

Subnet Mask

Default Gateway

DNS Server

AMX Device Discovery

Apply

On/Off

Enter

On/Off

On/Off

(inputs current password)

Note that the menu items are available when the projector detects at least one valid signal. If there is no equipment connected to the projector or no signal detected, limited menu items are accessible.

Using the projector 45

Downloaded From projector-manual.com BenQ Manuals

Picture -- Basic menu

Function

Picture Mode

Load Settings From

Brightness

Contrast

Color

Tint

Sharpness

Reset Picture

Settings

Rename User Mode

Description

Pre-defined picture modes are provided so you can optimize your projector

picture set-up to suit your program type. See "Selecting a preset mode" on page 27 for details.

Selects a preset mode that most suits your need for the picture quality and

further fine-tune the picture based on the selections listed below. See "Setting the

User 1/User 2 mode" on page 28 for details.

Adjusts the brightness of the picture. See

"Adjusting Brightness" on page 29 for

details.

Adjusts the degree of difference between dark and light in the picture. See

"Adjusting Contrast" on page 29

for details.

Adjusts the color saturation level -- the amount of each color in a video picture.

See

"Adjusting Color" on page 29 for details.

Adjusts the red and green color tones of the picture. See "Adjusting Tint" on page 29 for details.

Adjusts the picture to make it look sharper or softer. See "Adjusting Sharpness" on page 29

for details.

Returns all settings in the Picture -- Basic and Picture -- Advanced menus to the factory preset values. See

"Resetting the picture mode" on page 28

for details.

Renames User 1, User 2, or sRGB. See "Renaming user modes" on page 28 for

details.

Picture -- Advanced menu

Function

Black Level

Clarity Control

Color Temperature

Description

Sets the picture grayscale as 0 IRE or 7.5 IRE. See

"Setting Black Level" on page 30 for details.

Adjusts the picture clarity. See

"Controlling image clarity" on page 30 for details.

There are several color temperature settings available. See

"Selecting a color temperature*" on page 30

for details.

Color Temperature

User_ Fine Tuning

See

"Setting a preferred color temperature" on page 31

for details.

Gamma Selection

Brilliant Color

3D Color

Management

Film Mode

3D Comb Filter

See

"Selecting a Gamma setting" on page 31

for details.

See

"Adjusting Brilliant Color" on page 31

for details.

See

"Color Management" on page 32 for details.

See

"Setting Film Mode" on page 32 for details.

See

"Setting 3D Comb Filter" on page 33

for details.

46 Using the projector

Downloaded From projector-manual.com BenQ Manuals

Display menu

Function

Aspect Ratio

Keystone

Position

Overscan Adjustment

Description

There are several options to set the picture’s aspect ratio depending on your input source. See

"Selecting the aspect ratio" on page 33

for details.

Corrects any keystoning of the picture. See

"Correcting picture distortion" on page 26 for details.

Displays the position adjustment page. To move the projected picture, use the directional arrow keys. The values shown on the lower position of the page change with every key press you made until they reach their maximum or minimum. They will return to their factory preset values whenever the projector is re-started.

This function is only available when the Component 1, Component 2, or PC signal is selected.

Conceals the poor picture quality in the four edges. You can also manually press

/ to decide how much to be concealed. Setting 0 means the picture is 100% displayed. The greater the value, the more portion of the picture is concealed while the screen remains filled and geometrically accurate.

Color Space

Conversion

See

"Changing Color Space" on page 21

for details.

PIP

PC & Component

YPbPr Tuning

Blank Timer

Test Pattern

Turns the PIP window on or off and makes related adjustments. See

"Displaying more than one image source simultaneously" on page 41

for details.

H. Size

Adjusts the horizontal width of the picture.

Phase

Adjusts the clock phase to reduce picture distortion.

Auto

Adjusts the phase, and frequency automatically

These functions are only available when the

Component 1, Component 2, or PC signal is selected.

Sets the image blank time when the Blank feature is activated, once elapsed the

image will return to the screen. See "Hiding the image" on page 35

for details.

Press

ENTER

to display the grid test pattern. It helps you adjust the image size and focus and check that the projected image is free of distortion.

The function is only available when the projector detects no input signal.

Downloaded From projector-manual.com BenQ Manuals

Using the projector 47

System Setup menu

Function

Language

Splash Screen

Projector Position

Auto Power Off

Sleep Timer

Background Color

Menu Settings

Input Source

Quick Auto Search

Closed Caption

Standby Monitor Out

Description

Sets the language for the On-Screen Display (OSD) menus. See "Using the menus" on page 22

for details.

Allows you to select which logo screen will be displayed during projector startup. You can choose BenQ logo screen, Blue screen or Black screen.

The projector can be installed on a ceiling or behind a screen, or with one or more mirrors. See

"Choosing a location" on page 12 for details.

Prevents unnecessary projection when no signal is detected for a long time. See

"Setting Auto Power Off " on page 52 for details.

Sets the auto-shutdown timer. The timer can be set to a value between 30 minutes and 3 hours.

Allows you to choose the color of the background screen that will be displayed when there is no input source detected.

Menu Display Time

Sets the length of time the OSD will remain active after your last key press. The range is from 5 to 30 seconds in 5-second increments.

Menu Position

Sets the On-Screen Display (OSD) menu position.

Reminder Message

Sets whether to display the OSD messages about the status of detecting signals.

Selects an input source to be projected. See "Selecting an input source" on page 21 for details.

Sets whether the projector searches automatically for input sources. If the source scan is On, the projector will scan for input sources until it acquires a signal. If the function is not activated, the projector selects the last used input source.

Closed Caption Enable

Activates the function by selecting On when the selected input signal carries closed captions.

• Captions: An on-screen display of the dialogue, narration, and sound effects of TV programs and videos that are closed captioned (usually marked as

"CC" in TV listings).

Caption Version

Selects a preferred closed captioning mode. To view captions, select CC1, CC2,

CC3, or CC4 (CC1 displays captions in the primary language in your area).

These functions are only available when the Video or S-Video signal is selected.

Selecting On enables the function. The projector can output a VGA signal when it is in standby mode and the PC jack is correctly connected to devices. See

"Connecting a monitor" on page 19 for how to make the connection.

Enabling this function slightly increases the standby power consumption.

48 Using the projector

Downloaded From projector-manual.com BenQ Manuals

Advanced Setup menu

Function

Lamp Settings

HDMI Settings

Description

Lamp Mode

Selects the projector lamp power among Dual-Brightest, Dual-Reliable and

Single-Alternative modes.

Reset Lamp Timer 1/Reset Lamp Timer 2

Once the lamp is renewed, select Reset to return the lamp timer to "0". See

"Resetting the lamp timer" on page 55 for details.

Equivalent Lamp Hour #1/Equivalent Lamp Hour #2

Shows the lamp hour information. See

"Getting to know the lamp hour" on page 52 for details.

Selects an input source type for the HDMI signal. Auto is the default and recommended setting. You can also manually select the source type. The different source types carry different standards for the brightness level.

This function is only available when the HDMI signal is selected.

Baud Rate

High Altitude Mode

Audio Settings

Password

Lan Control Settings

Reset All Settings

Direct Power On

Signal Power On

Expert Mode

Selects a baud rate that is identical with your computer’s so that you can connect the projector using a suitable RS-232 cable and update or download the projector’s firmware. This function is intended for qualified service personnel.

A mode for operation in areas like high altitude or high temperature. See

"Operating in a high altitude environment" on page 40 for details.

See

"Adjusting the sound" on page 36 for details.

Password

Limits use of the projector to only those who know the correct password. See

"Utilizing the password function" on page 23 for details.

Change Password

You will be asked to enter the current password before changing to a new one.

See

"Utilizing the password function" on page 23 for details.

See

"Controlling the projector through a Lan environment" on page 37 for

details.

Returns all settings to the factory preset values.

The following settings will still remain: names of user modes,

Keystone, Language, Projector Position, High Altitude Mode,

Password, and Expert Mode.

Sets whether to turn the projector directly on without pressing the POWER key on the projector or ON on the remote control when the projector is plugged in.

Sets whether to turn the projector directly on without pressing the POWER key on the projector or ON on the remote control when the projector is in standby mode and the signal is feed through the VGA cable.

The Expert Mode menu is password protected and only accessible by authorized calibrators. The ISF (Imaging Science Foundation) has developed carefully crafted, industry-recognized standards for optimal video performance and has implemented a training program for technicians and installers to use these standards to obtain optimal picture quality from BenQ video display devices.

Accordingly, we recommend that setup and calibration be performed by an ISF certified installation technician.

For more information, please go to www.imagingscience.com or contact the place you purchased the projector.

Using the projector 49

Downloaded From projector-manual.com BenQ Manuals

Information menu

This menu shows you the current operating status of the projector.

Some picture adjustments are available only when certain input sources are in use. Unavailable adjustments are not shown on the screen.

Function

FAQ-Image and

Installation

FAQ-Features and

Service

Source

Picture Mode

Resolution

Lamp Mode

Equivalent Lamp

Hour #1

Equivalent Lamp

Hour #2

Shows the current signal source.

Shows the selected mode in the Picture -- Basic > Picture Mode menu.

Shows the native resolution of the input signal.

Shows the selected lamp mode in the Advanced Setup >

Lamp Mode

menu.

Shows the total lamp time used.

Description

Displays possible solutions to problems you may encounter.

50 Using the projector

Downloaded From projector-manual.com BenQ Manuals

Additional information

Care of the projector

Your projector needs little maintenance. The only thing you have to do on a regular basis is keep the lens clean. Never remove any parts of the projector except the lamp. Contact your dealer or local customer service center if the projector fails to operate as expected.

Cleaning the lens

Clean the lens whenever you notice dirt or dust on the surface. Before you attempt to clean the lens, turn the projector off, unplug the power cable, and leave it several minutes to cool completely.

1. Use a canister of compressed air to remove dust. (Available from building hardware or photographic suppliers.)

2. If there is stubborn dirt or smudge marks, use a proper photographic lens brush or moisten a clean soft lens cloth with lens cleaner to gently wipe the lens surface.

3. Never use any type of abrasive pad, alkaline/acid cleaner, scouring powder, or volatile solvent, such as alcohol, benzene, thinner or insecticide. Using such materials or maintaining prolonged contact with rubber or vinyl materials may result in damage to the projector surface and cabinet material.

Never touch the lens with your finger or rub the lens with abrasive materials. Even paper towels can damage the lens coating. Only ever use a proper photographic lens brush, cloth, and cleaning solution. Do not attempt to clean the lens while the projector is switched on or is still hot from previous use.

Cleaning the projector case

Before you attempt to clean the case, turn the projector off, unplug the power cable, and leave it several minutes to cool completely.

1. To remove dirt or dust, wipe the case with a soft, dry, lint-free cloth.

2. To remove stubborn dirt or stains, moisten a soft cloth with water and a neutral detergent. Then wipe the case.

Never use wax, alcohol, benzene, thinner or other chemical detergents. These can damage the case.

Storing the projector

If you need to store the projector for an extended time, please:

1. Make sure the temperature and humidity of the storage area are within the recommended range for the projector. Please refer to the Spec. page in this manual or consult your dealer about the range.

2. Retract the adjuster feet.

3. Remove the batteries from the remote control.

4. Pack the projector in its original packing or equivalent.

Transporting the projector

It is recommended that you ship the projector with its original packing or equivalent.

Additional information 51

Downloaded From projector-manual.com BenQ Manuals

Lamp information

Getting to know the lamp hour

When the projector is in operation, the duration (in hours) of lamp usage is automatically calculated by the built-in timer.

To obtain the lamp hour information:

1. Press MENU/EXIT and then press / until the Advanced Setup menu is highlighted.

Settings page is displayed.

3. The lamp hour information is shown in the row of Equivalent Lamp

Hour #1/Equivalent Lamp Hour #2.

4. To leave the menu, press MENU/EXIT.

Extending lamp life

Advanced Setup

Lamp Settings

HDMI Settings

Baud Rate

High Altitude Mode

Audio Settings

Password

Lan Control Settings

Reset All Settings

Direct Power On

Signal Power On

Expert Mode

S-Video

Lamp Settings

Lamp Mode

Reset Lamp Timer 1

Reset Lamp Timer 2

Equivalent Lamp Hour #1

Equivalent Lamp Hour #2

ENTER

115200

Off

Off

Off

EXIT Back

Dual-Reliable

50 hours

50 hours

The projection lamp is a consumable item. To keep the lamp life as long as possible, you can do the following settings via the OSD menu.

EXIT Back

• Setting Lamp Mode as Dual-Reliable

Using Dual-Reliable mode reduces system noise and power consumption. If the Dual-Reliable mode is selected, the light output will be reduced and result in darker projected pictures.

Setting the projector in Dual-Reliable mode also extends the lamp life. To set Dual-Reliable mode, go to the

Advanced Setup > Lamp Settings > Lamp Mode menu and press / .

• Setting Auto Power Off

This function allows the projector to turn off automatically if no input source is detected after a set period of time.

To set Auto Power Off, go to the System Setup > Auto Power Off menu and press / to select a time period. The time period can be set from 5 to 30 minutes in 5-minute increments. If the preset time lengths are not suitable for your presentation, select Disable. The projector will not automatically shut down in a certain time period.

System Setup

Language

Splash Screen

Projector Position

Auto Power Off

Sleep Timer

Background Color

Menu Settings

Input Source

Quick Auto Search

Closed Caption

Standby Monitor Out

S-Video

English

BenQ

Floor Front

Disable

Disable

Blue

On

Off

EXIT Back

52 Additional information

Downloaded From projector-manual.com BenQ Manuals

Timing of replacing the lamp

When the Lamp indicator lights up red or a message appears suggesting it is time to replace the lamp, please install a new lamp or consult your dealer. An old lamp may cause a malfunction in the projector and in some instances the lamp may explode. Go to http://lamp.BenQ.com

for a replacement lamp.

The Lamp indicator light and Temperature warning light will light up if the lamp becomes too hot. Turn the power off and let the projector cool for 45 minutes. If the Lamp or Temp indicator still lights up after

turning the power back on, please contact your dealer. See "Indicators" on page 57

for details.

The following Lamp warning displays will remind you to change the lamp.

Message Status

Install a new lamp for optimal performance. If the projector is normally run with Dual-Reliable selected (See

"Getting to know the lamp hour" on page 52 ), you may continue to operate the projector

until the next hour lamp warning appears.

Press ENTER to dismiss the message.

WARNING

NOTICE: Order replacement lamp

Lamp > XXXX hrs

Order a new lamp at lamp.benq.com

OK

It is strongly recommended that you replace the lamp at this age. The lamp is a consumable item. The lamp brightness diminishes with use.

This is normal lamp behavior. You can replace the lamp whenever you notice that the brightness level has significantly diminished.

Press ENTER to dismiss the message.

WARNING

NOTICE: Replace lamp soon

Lamp > XXXX hrs

Order a new lamp at lamp.benq.com

OK

The lamp MUST be replaced before the projector will operate normally.

Press ENTER to dismiss the message.

WARNING

NOTICE: Replace lamp now

Lamp > XXXX hrs

Lamp-usage time exceeded

Replace lamp (refer to User’s Manual) then reset lamp timer.

Order a new lamp at lamp.benq.com

OK

"XXXX" shown in the above messages are numbers that vary depending on different models.

Replacing the lamp

• To reduce the risk of electrical shock, always turn the projector off and disconnect the power cable before changing the lamp.

• To reduce the risk of severe burns, allow the projector to cool for at least 45 minutes before replacing the lamp.

• To reduce the risk of injuries to fingers and damage to internal components, use caution when removing lamp glass that has shattered into sharp pieces.

• To reduce the risk of injuries to fingers and/or compromising image quality by touching the lens, do not touch the empty lamp compartment when the lamp is removed.

• This lamp contains mercury. Consult your local hazardous waste regulations to dispose of this lamp in a proper manner.

Additional information 53

Downloaded From projector-manual.com BenQ Manuals

1.

Turn the power off and disconnect the projector from the power outlet. Turn off all connected equipment and disconnect all other cables. See

"Turning the projector off " on page 42

for details.

2.

Loosen the screw on the lamp cover.

5.

Loosen the screw that hold the lamp to the projector. Disconnect the lamp connector from the projector.

3.

Remove the lamp cover.

6.

Lift the handle so that it is perpendicular to the lamp. Use the handle to slowly pull the lamp out of the projector.

4.

Identify the lamp you want to replace by looking at the top of the lamp.

2

1

Notes

• Pulling it too quickly may cause the lamp to break and scatter broken glass in the projector.

To reduce the risk of injuries to fingers and damage to internal components, use caution when removing lamp glass that has shattered.

• Do not place the lamp in locations where water might splash on it, children can reach it, near or above heat sources, or near flammable materials.

• Do not insert your hand into the projector when the lamp is removed. If you touch the optical components inside, it could cause blurred images.

54 Additional information

Downloaded From projector-manual.com BenQ Manuals

7.

Insert the replacement lamp. Make sure it is pushed fully and firmly in place.

10. Replace the lamp cover.

8.

Tighten the screw securing the lamp box.

Reconnect the lamp connector.

9.

Ensure the handle is fully locked in place.

11. Tighten the screws on the lamp cover.

12. Reapply power and turn the projector back on.

Notes

• Please be careful to not over-tighten the screws.

• Loose screws may cause a bad connection, which could result in malfunction.

Resetting the lamp timer

Do not reset the lamp timer if the lamp has not been replaced as this could cause damage.

Downloaded From projector-manual.com BenQ Manuals

Additional information 55

1. After the start-up logo, press MENU/EXIT and then press / until the Advanced Setup menu is highlighted.

Settings page is displayed.

3. Highlight Reset Lamp Timer 1/Reset Lamp Timer 2 and press ENTER.

A warning message is displayed asking if you want to reset the lamp timer. Highlight Reset and press ENTER. The lamp time will be reset to "0".

Advanced Setup

Lamp Settings

HDMI Settings

Baud Rate

High Altitude Mode

Audio Settings

Password

Lan Control Settings

Reset All Settings

Direct Power On

Signal Power On

Expert Mode

S-Video

Lamp Settings

Lamp Mode

Reset Lamp Timer 1

Reset Lamp Timer 2

Equivalent Lamp Hour #1

Equivalent Lamp Hour #2

ENTER

115200

Off

Off

Off

EXIT Back

ENTER

50 hours

50 hours

WARNING

Reset Lamp Timer?

Reset Cancel

EXIT Back

56 Additional information

Downloaded From projector-manual.com BenQ Manuals

Indicators

Light

POWER TEMP LAMP1 LAMP2

Power events

Orange Off Off Off

Stand-by mode.

Green

Flashing

Off Off Off

Powering up.

Green Off Off Off

Status & Description

Orange

Flashing

Off Off Off

Normal operation.

1. The projector needs 90 seconds to cool down as it was abnormally shut down without the normal cooling down process. Or

2. The projector needs to cool for 90 seconds after the power is turned off.

Orange

Flashing

Orange

Flashing

Red

Off

Off

Off

Off

Red

Red

Off

Off

Off

The projector has shutdown automatically. If you try to restart the projector, it will shutdown again. Please contact your dealer for assistance.

Lamp events

Off

Off

Off

Orange

Off

Off

Off

Off

Red

Off

Red

Red

Off

Red

Red

Off

Lamp 1 failed. The projector has entered Single-Alternative mode automatically. Replace lamp 1 as soon as possible.

Lamp 2 failed. The projector has entered Single-Alternative mode automatically. Replace lamp 2 as soon as possible.

The projector has shutdown automatically. If you try to restart the projector, it will shutdown again. Please contact your dealer for assistance.

Thermal events

Off

Off

Off

Off

Off

Off

Off

Orange

Orange

Orange

Off

Red

Red

Red

Red

Red

Red

Red

Red

Red

Red

Orange

Off

Red

Green

Orange

Off

Off

Off

Red

Green

Orange

Red

Off

Off

Off

Off

Red

Green

Orange

Off

Off

Off

Off

The projector has shutdown automatically. If you try to restart the projector, it will shutdown again. Please contact your dealer for assistance.

Downloaded From projector-manual.com BenQ Manuals

Additional information 57

Troubleshooting

Problem

The projector does not turn on.

No picture.

Image is unstable.

Picture is blurred.

Remote control does not work correctly.

Cause

There is no power from the power cable.

Remedy

Plug the power cable into the AC inlet on the rear of the projector, and plug the power cable into to the power outlet. If the power outlet has a switch, make sure that it is switched on.

(See page 20.)

Attempting to turn the projector on again during the cooling process.

The lamp cover is not securely attached.

The video source is not turned on or connected correctly.

Turn the video source on and check that the signal cable is connected correctly.

(See page

17.)

The projector is not correctly connected to the input source device.

Check the connection.

(See page 17.)

The input source has not been correctly selected.

The batteries are out of power.

Select the correct input source with the Source keys on the remote control or SOURCE on the projector.

(See page 21.)

The connection cables are not securely connected to the projector or the signal source.

The projection lens is not correctly focused.

The projector and the screen are not aligned properly.

Correctly connect the cables to the appropriate terminals.

(See page 17.)

Adjust the focus of the lens using the focus ring.

(See page 25.)

Adjust the projection angle and direction as well as the height of this projector if necessary.

(See page 25.)

Replace both of the batteries with new ones.

(See page 7.)

There is an obstacle between the remote control and the projector.

You are too far away from the projector.

Wait until the cooling down process has completed.

Correctly attach the lamp cover.

Remove the obstacle.

Stand within 8 meters (26.2 feet) of the projector.

(See page 7.)

(See page 53.)

(See page 7.)

58 Additional information

Downloaded From projector-manual.com BenQ Manuals

Specifications

All specifications are subject to change without notice.

Optical

Projection system

DMD chip

Lens

Projection screen size

Lamp

Electrical

Compatibility

Single-chip DLP™ system.

0.65" DLP (1920 x 1080)

F = 2.48 to 2.81, f = 24.1 to 36.15 mm

28" to 300"

330W

PC: 640 x 480 to 1920 x 1200

Video: NTSC, PAL, SECAM, YPbPr (480i/480p/576i/576p/720p/

1080i/1080p), HDTV (720p/1080i/1080p)

Typ. = 60% NTSC (Target Color Gamut = HDTV Rec. 709) Color Space

Terminals

Input

Output

Control

Analog RGB: D-Sub 15-pin (female) x 1

HDMI (V. 1.3) x 1

Component Video (Y/C

B

/C

R

, Y/P

B

/P

R

) x 1

Component Video (Y/C

B

/C

R

, Y/P

B

/P

R

) x 1 (shared with RGB input)

Composite Video x 1

S-Video x 1

Audio in x 1

12VDC (Max. 0.5 A)

Analog RGB: D-Sub 15-pin (female) x 1

Audio out x 1

Speaker: 5W x 2

Serial Connector: RS232 9 pin (male)

Mini B type USB x 1

IR receiver x 2

LAN x 1

General characteristics

Projector weight

Power

Power consumption

Operating temperature

Operating humidity

Operating altitude

Storage temperature

Storage humidity

< 11 kg (24.3 lbs)

VAC 100-240V, 10 A, 50-60Hz

Max. 940 W; Standby < 1 W

0 °C to 40 °C (without condensation)

10% - 90% (without condensation)

0-1499 m at 0°C-35°C

1500-3000 m at 0°C-30°C (with High Altitude Mode on)

-20°C- 60°C/-4°F to 140°F

10% - 90%

Additional information 59

Downloaded From projector-manual.com BenQ Manuals

Dimensions

443 mm x 354.7 mm x 167 mm (W x D x H)

354.7

Ceiling mount installation

Ceiling mount screws:

M6 x 8 (Max. L = 8 mm)

72.52

24

266

298

167

443

106 88

128

Unit: mm

211.7

424.4

151.2

324.1

173

60 Additional information

Downloaded From projector-manual.com BenQ Manuals

Timing chart

Supported timing for PC input

Format Resolution

640 x 480

720 x 400

800 x 600

1024 x 768

1152 x 864

*1024 x 576

*1024 x 600

1152 x 864

1280 x 768

1280 x 800

1280 x 1024

640 x 480

720 x 400

800 x 600

1024 x 768

1152 x 864

Notebook Timing

Notebook Timing

1152 x 864

1280 x 768

1280 x 800

1280 x 1024

1280 x 960

1360 x 768

1280 x 960

1360 x 768

1440 x 900 1440 x 900

1400 x 1050

1600 x 1200

1680 x 1050

1920 x 1080 (CEA-

861)

640 x [email protected]

(MAC13)

832 x [email protected]

(MAC16)

1024 x [email protected]

(MAC19)

1152 x [email protected]

(MAC21)

1400 x 1050

1600 x 1200

1680 x 1050

1920 x 1080

640 x [email protected]

832 x [email protected]

1024 x [email protected]

1152 x [email protected]

* Only for the PC (analog RGB) inputs

Refresh rate

(Hz)

59.94

75.025

85.024

60

85.002

60.015

59.887

74.984

84.842

75

59.87

74.893

84.837

59.81

74.934

84.88

60.02

59.978

60

59.954

85.061

60.004

70.069

75.029

84.997

75.00

60

64.995

72.809

75

85.008

70.087

56.250

60.317

72.188

75

59.939/60

66.667

74.546

75.02

75.06

H. Frequency

(KHz)

31.469

79.976

91.146

60

85.938

47.712

55.935

70.635

80.43

67.5

47.776

60.289

68.633

49.702

62.795

71.554

63.981

65.317

75

65.29

53.674

48.363

56.476

60.023

68.667

67.500

35.82

41.467

37.861

37.5

43.269

31.469

35.156

37.879

48.077

46.875

67.432/67.5

Pixel Frequency

(MHz)

25.175

135

157.5

108

148.5

85.5

106.5

136.75

157

108

79.5

102.25

117.5

83.5

106.5

122.5

108

121.75

162

146.25

31.5

31.5

36

28.3221

36.000

40

50

49.5

56.25

65

75

78.75

94.5

108.000

46.996

51.419

148.35/148.5

35 30.24

49.722

60.241

68.68

57.28

80

100

Additional information 61

Downloaded From projector-manual.com BenQ Manuals

Supported timing for HDMI (HDCP) input

Format Resolution Refresh rate (Hz)

480i 720 x 480 59.94/60

480p

576i

576p

720/50p

720/60p

1080/50i

1080/60i

1080/24P

1080/25P

1080/30P

1080/50P

1080/60P

720 x 480

720 x 576

720 x 576

1280 x 720

1280 x 720

1920 x 1080

1920 x 1080

1920 x 1080

1920 x 1080

1920 x 1080

1920 x 1080

1920 x 1080

59.94/60

50

50

50

59.939/60

50

59.939/60

23.976/24

25

29.97/30

50

59.939/60

H. Freq. (KHz)

15.734/15.75

31.469/31.5

15.625

31.25

37.5

44.955/45

28.125

33.716/33.75

26.973/27

28.125

33.716/33.75

56.25

67.432/67.5

Pixel Freq. (MHz)

27/27.027

27/27.027

27

27

74.25

74.175/74.25

74.25

74.175/74.25

74.175/74.25

74.25

74.175/74.25

148.5

148.35/148.5

Supported timing for EDTV and HDTV (via Component inputs)

Format Resolution Refresh rate (Hz) H. Freq. (KHz)

480i

480p

576i

576p

720/50p

720/60p

1080/50i

1080/60i

1080/24P

1080/25P

1080/30P

1080/50P

1080/60P

720 x 480

720 x 480

720 x 576

720 x 576

1280 x 720

1280 x 720

1920 x 1080

1920 x 1080

1920 x 1080

1920 x 1080

1920 x 1080

1920 x 1080

1920 x 1080

59.94/60

59.94/60

50

50

50

59.939/60

50

59.939/60

23.976/24

25

29.97/30

50

59.939/60

15.734/15.75

31.469/31.5

15.625

31.25

37.5

44.955/45

28.125

33.716/33.75

26.973/27

28.125

33.716/33.75

56.25

67.432/67.5

Supported timing for Video and S-Video inputs

Format

NTSC M/J

NTSC 4.43

PAL-B/D/G/H/I/N

PAL M

PAL Nc

PAL 60

SECAM

Resolution

-

-

-

-

-

-

-

Refresh rate

(Hz)

59.94/60

59.94/60

50

59.94/60

50

59.94/60

50

H. Freq. (KHz)

15.734/15.75

15.734/15.75

15.625

15.734/15.75

15.625

15.734/15.75

15.625

Pixel Freq. (MHz)

13.5

13.5

27

27

74.25

74.175/74.25

74.25

74.175/74.25

74.175/74.25

74.25

74.175/74.25

148.5

148.35/148.5

Pixel Freq.

(MHz)

3.58

4.43

4.43

3.58

3.58

4.43

4.25/4.41

62 Additional information

Downloaded From projector-manual.com BenQ Manuals

Warranty and Copyright information

Warranty

BenQ warrants this product against any defects in material and workmanship, under normal usage and storage.

Proof of purchase date will be required with any warranty claim. In the event this product is found to be defective within the warranty period, BenQ’s only obligation and your exclusive remedy shall be replacement of any defective parts (labor included). To obtain warranty service, immediately notify the dealer from which you purchased the product of any defects.

Important: The above warranty shall be void if the customer fails to operate the product in accordance with BenQ’s written instructions, especially the ambient humidity must be in-between 10% and 90%, temperature in-between 0

°C and 35°C, altitude lower than 3000 meters, and avoiding to operate the projector in a dusty environment

. This warranty gives you specific legal rights, and you may have other rights which vary from country to country.

For other information, please visit www.BenQ.com.

Copyright

Copyright © 2011 by BenQ Corporation. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of BenQ Corporation.

All trademarks and registered trademarks are the property of their respective owners.

Disclaimer

BenQ Corporation makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Further, BenQ Corporation reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation of BenQ Corporation to notify any person of such revision or changes.

Downloaded From projector-manual.com BenQ Manuals

Warranty and Copyright information 63

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
