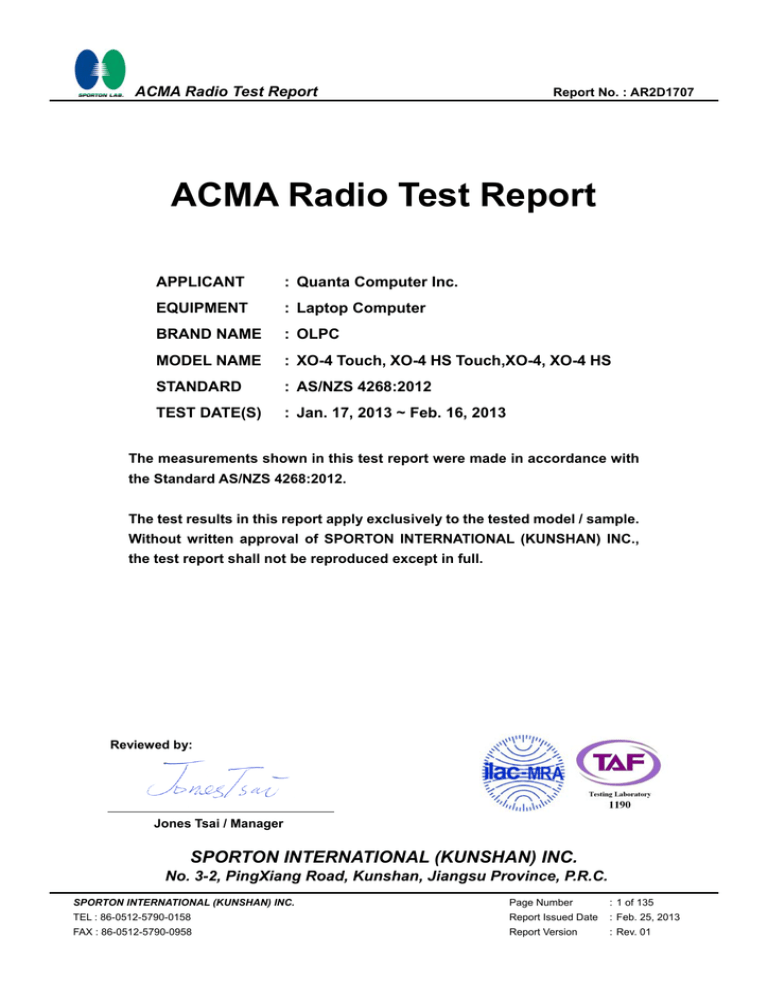

Report No. : AR2D1707

ACMA Radio Test Report

APPLICANT : Quanta Computer Inc.

BRAND NAME : OLPC

MODEL NAME : XO-4 Touch, XO-4 HS Touch,XO-4, XO-4 HS

TEST DATE(S) : Jan. 17, 2013 ~ Feb. 16, 2013

The measurements shown in this test report were made in accordance with the Standard AS/NZS 4268:2012.

The test results in this report apply exclusively to the tested model / sample.

Without written approval of SPORTON INTERNATIONAL (KUNSHAN) INC., the test report shall not be reproduced except in full.

Reviewed by:

Jones Tsai / Manager

SPORTON INTERNATIONAL (KUNSHAN) INC.

No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C.

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 1 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

Table of Contents

REVISION HISTORY .......................................................................................................................................... 3

SUMMARY OF TEST RESULIT ........................................................................................................................ 4

1.

GENERAL DESCRIPTION OF EQUIPMENT UNDER TEST ..................................................................... 5

1.1

Applicant ............................................................................................................................................ 5

1.2

Manufacturer ...................................................................................................................................... 5

1.3

Feature of Equipment under Test ...................................................................................................... 6

1.4

Testing Facility ................................................................................................................................... 8

1.5

Applied Standards ............................................................................................................................. 8

1.6

Description of Test System ................................................................................................................ 8

1.7

Test Condition .................................................................................................................................... 8

2.

TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 9

2.1

RF Power ........................................................................................................................................... 9

2.2

Test Mode ........................................................................................................................................ 12

2.3

Connection Diagram of Test System ............................................................................................... 16

2.4

Test Software ................................................................................................................................... 17

3.

TRANSMITTER PARAMETERS ............................................................................................................... 18

3.1

Equivalent Isotropic Radiated Power (SUBCLAUSE 8.1) ............................................................... 18

3.2

Transmitter Spurious Emissions (SUBCLAUSE 8.2) ...................................................................... 25

3.3

Emission Bandwidth (SUBCLAUSE 8.3) ......................................................................................... 49

3.4

Transmitter Frequency Range (SUBCLAUSE 8.4) ......................................................................... 66

3.5

Radiated Power Spectral Density (SUBCLAUSE 8.4) .................................................................... 77

3.6

Additional Requirements (Table 1 AUSTRALIAN REQUIREMETS NOTES) ............................... 111

4.

RECEIVER PARAMETERS ..................................................................................................................... 125

4.1

Receiver Spurious Emissions (SUBCLAUSE 9.1) ........................................................................ 125

5.

SETUP PHOTOGRAPHS OF RADIATED EMISSION TEST ................................................................. 128

6.

LIST OF MEASURING EQUIPMENT ...................................................................................................... 134

7.

UNCERTAINTY EVALUATION ............................................................................................................... 135

APPENDIX A. PHOTOGRAPHS OF EUT

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 2 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

REVISION HISTORY

REPORT NO. VERSION DESCRIPTION

AR2D1707 Rev. 01 Initial issue of report

Report No. : AR2D1707

ISSUED DATE

Feb. 25, 2013

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 3 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

SUMMARY OF TEST RESULIT

CLAUSE

8.2

8.4

TEST PARAMETER PASS/FAIL REMARK

Transmitter Parameters

Transmitter Spurious Emissions

PASS

PASS

-

Under limit 3.84 dB at 77.050 MHz

PASS -

PASS -

Radiated Power Spectral Density PASS

PASS

-

-

Receiver Parameters

PASS

Under limit 2.10 dB at 244.920 MHz

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 4 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

1. General Description of Equipment under Test

1.1 Applicant

Quanta Computer Inc.

No.188, Wen Hwa 2nd Rd., Kuei Shan Hsiang, Tao Yuan Shien, TaiWan

1.2 Manufacturer

Quanta Computer Inc.

No.188, Wen Hwa 2nd Rd., Kuei Shan Hsiang, Tao Yuan Shien, TaiWan

Report No. : AR2D1707

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 5 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

1.3 Feature of Equipment under Test

Equipment

Brand Name

Model Name

WLAN Module

Tx / Rx Frequency Range

Channel Spacing

Maximum EIRP Average Power

Duty Cycle

Product Feature & Specification

Laptop Computer

OLPC

XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

Trade Name: Liteon

Model Name: WCBN603MH

Bluetooth : 2400 MHz ~ 2483.5 MHz

802.11b/g/n : 2400 MHz ~ 2483.5 MHz

802.11a/n : 5150 MHz ~ 5250 MHz, 5725 MHz ~ 5850 MHz

Bluetooth : 1 MHz

802.11b/g/n : 5 MHz

802.11a/n : 20 MHz

Bluetooth BDR (1Mbps) : 4.84 dBm

<2400 MHz ~ 2483.5 MHz>

802.11b : 12.64 dBm

802.11g : 12.60 dBm

802.11n HT20 : 12.83 dBm

802.11n HT40 : 13.87 dBm

<5150 MHz ~ 5250 MHz>

802.11a : 14.81

dBm

802.11a/n HT20 : 15.42 dBm

802.11a/n HT40 : 14.97 dBm

<5725 MHz ~ 5850 MHz>

802.11a : 14.10 dBm

802.11a/n HT20 : 14.15

dBm

802.11a/n HT40 : 14.96 dBm

Bluetooth BDR (1Mbps) : 78.45 %

<2400 MHz ~ 2483.5 MHz>

802.11b : 100.00%

802.11g : 100.00%

802.11n HT20 : 100.00%

802.11n HT40 : 100.00%

<5150 MHz ~ 5250 MHz>

802.11a : 100.00%

802.11a/n HT20 : 100.00%

802.11a/n HT40 : 100.00%

<5725 MHz ~ 5850 MHz>

802.11a : 100.00 dBm

802.11a/n HT20 : 100.00 dBm

802.11a/n HT40 : 100.00 dBm

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 6 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

Antenna Type

Type of Modulation

EUT Stage

Product Feature & Specification

Bluetooth : Monopole Antenna with gain 1.37 dBi

<2400 MHz ~ 2483.5 MHz>

802.11b/g/n : Monopole Antenna with gain 0.12 dBi

<5150 MHz ~ 5250 MHz>

802.11a/n : Monopole Antenna with gain 0.05 dBi

<5725 MHz ~ 5850 MHz>

802.11a/n : Monopole Antenna with gain -0.48 dBi

Bluetooth BDR (1Mbps) : GFSK

Bluetooth EDR (2Mbps) : π/4-DQPSK

Bluetooth EDR (3Mbps) : 8-DPSK

802.11b : DSSS (DBPSK / DQPSK / CCK)

802.11a/g/n : OFDM (BPSK / QPSK / 16QAM / 64QAM)

Identical Prototype

Remark:

1. There are four models of this project. The differences between them are summary below:

Sample List Model Name

Sample 1 XO-4 Touch

Configuration

Child Product with touch screen

Sample 2

Sample 3

Sample 4

XO-4 HS Touch

XO-4

XO-4 HS

ITE Product with touch screen

Child Product without touch screen

ITE Product without touch screen

2. The above EUT's information was declared by manufacturer. Please refer to the specifications or user's manual for more detailed description.

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 7 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

1.4 Testing Facility

Test Site

Test Site Location

Test Site No.

SPORTON INTERNATIONAL (KUNSHAN) INC.

No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C.

TEL: +86-0512-5790-0158

FAX: +86-0512-5790-0958

Sporton Site No. :

05CH01-KS; 03CH01-KS ; TH01-KS

1.5 Applied Standards

According to the specifications of the manufacturer, the EUT must complies with the requirements of

AS/NZS 4268:2012.

Note: All test items were verified and recorded according to the standards and without any deviation during the test.

1.6 Description of Test System

Item Equipment Trade Name Model Name FCC ID Data Cable Power Cord

5. iPod

6. TV

GWINSTEK GPS-3030D N/A

Apple

Sony

N/A Unshielded, 1.8 m

PP42L N/A N/A

AC I/P:

Unshielded, 0.8 m

DC O/P:

Shielded, 1.8 m

N/A SH100 N/A N/A

A1199 FCC DoC Shielded, 1.0 m N/A

KLV32V300A FCC DoC N/A Unshielded, 1.8 m

1.7 Test Condition

Extreme Voltage DC 5.0V and DC 7.5V

Normal Temperature for 2.4G 25℃

Normal Temperature for 5G 25℃

Extreme Temperature for 2.4G -20℃ and 55℃

Extreme Temperature for 5G -10℃ and 55℃

Note: The manufacturer declared that the EUT could work properly between voltage 5.0V~7.5V.

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 8 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

2. Test Configuration of Equipment under Test

2.1 RF Power

a. During testing, the interface cables and equipment positions were varied according to AS/NZS

4268:2012. b. Preliminary tests were performed in different data rate and recorded the RF power output in the following tables:

Channel Frequency

Duty cycle (%)

1 Mbps /

GFSK

-0.87

1.00

1.16

78.45

Bluetooth RF Power (dBm)

Data Rate / Modulation

π

2 Mbps /

/4-DQPSK

-4.87

3 Mbps /

8-DPSK

-4.56

-3.84 -3.63

-3.34 -3.67

33.23 32.59

Channel

Frequency

(MHz)

1 Mbps

2.4GHz 802.11b RF Power (dBm)

DSSS Data Rate

2 Mbps 5.5 Mbps 11 Mbps

CH 13 2472 MHz

12.52

12.45 12.46 12.48

2.4GHz 802.11g RF Power (dBm)

Channel

Frequency

(MHz)

6

Mbps

9

Mbps

12

Mbps

OFDM Data Rate

18

Mbps

24

Mbps

36

Mbps

48

Mbps

54

Mbps

CH 01 2412 MHz 11.20

10.99

10.98

11.14

11.08 10.98 10.92

10.74

CH 07 2442 MHz

12.48

12.42

12.39

12.36

12.34 12.28 12.04

12.23

CH 13 2472 MHz 12.38

12.12

12.17

12.35

12.32 12.24 9.18 11.85

Duty cycle (%) 100.00 100.00 100.00 100.00 100.00 100.00 100.00 100.00

2.4GHz 802.11n HT20 RF Power (dBm)

Channel

Frequency

(MHz)

6.5

Mbps

13

Mbps

19.5

Mbps

OFDM Data Rate

26

Mbps

39

Mbps

52

Mbps

58.5

Mbps

65

Mbps

CH 01 2412 MHz 11.48

11.44

11.25

11.08

10.98 11.04 10.95

10.89

CH 07 2442 MHz

12.71

12.54

12.48

12.35

12.18 12.08 11.92

11.88

CH 13 2472 MHz 12.28

12.22

12.19

12.10

12.24 12.22 12.18

11.93

Duty cycle (%) 100.00 100.00 100.00 100.00 100.00 100.00 100.00 100.00

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 9 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

Channel

2.4GHz 802.11n HT40 Conducted Power (dBm)

Frequency

(MHz)

13.5

Mbps

27

Mbps

40.5

Mbps

OFDM Data Rate

54

Mbps

81

Mbps

108

Mbps

121.5

Mbps

135

Mbps

2422 MHz 11.72

11.24

11.15

11.08

11.13 11.17 11.21

11.26

CH 03

CH 07

CH 11

2442 MHz

2462 MHz

Duty cycle (%)

12.74

13.06

12.53

12.82

100.00 100.00

11.93

13.12

11.89

12.72

12.31 12.38 12.32

12.77 12.62 13.13

12.22

13.17

100.00 100.00 100.00 100.00 100.00 100.00

Channel

5GHz band 1 802.11a RF Output Power (dBm)

Frequency

(MHz)

6

Mbps

9

Mbps

12

Mbps

OFDM Data Rate

18

Mbps

24

Mbps

36

Mbps

48

Mbps

54

Mbps

5180 MHz 11.90

11.84

11.87

11.87

11.84 11.95 11.54

11.57

CH 36

CH 48 5240 MHz

13.28

13.13

13.24

13.18

13.08 12.68 12.64

12.59

Duty cycle (%) 100.00 100.00

100.00 100.00 100.00 100.00 100.00 100.00

Channel

Frequency

(MHz)

6

Mbps

5GHz band 4 802.11a RF Output Power (dBm)

9

Mbps

12

Mbps

OFDM Data Rate

18 24

Mbps Mbps

36

Mbps

48

Mbps

54

Mbps

CH 149 5745 MHz 13.49

13.32

13.23

13.44

13.32 13.30 13.46

13.35

CH 157 5785 MHz 14.40

14.34

14.28

14.32

14.35 14.28 14.12

14.37

CH 165 5825 MHz

14.58

14.55

14.45

14.38

14.45 14.37 14.21

14.54

Duty cycle (%)

100.00 100.00

100.00 100.00 100.00 100.00 100.00 100.00

Channel

Frequency

(MHz)

6.5

Mbps

5GHz band 1 802.11n HT20 RF Output Power (dBm)

13

Mbps

19.5

Mbps

OFDM Data Rate

26 39

Mbps Mbps

52

Mbps

58.5

Mbps

65

Mbps

5180 MHz

13.31

13.27

13.04

12.98

13.04 13.09 13.07

13.02

CH 36

CH 48 5240 MHz 13.08

13.04

12.98

12.88

12.97 12.78 12.68

12.64

Duty cycle (%) 100.00 100.00

100.00 100.00 100.00 100.00 100.00 100.00

5GHz band 4 802.11n HT20 RF Output Power (dBm)

Channel

Frequency

(MHz)

6.5

Mbps

13

Mbps

19.5

Mbps

OFDM Data Rate

26

Mbps

39

Mbps

52

Mbps

58.5

Mbps

65

Mbps

CH 149 5745 MHz 12.79

12.66

12.70

12.76

12.68 12.59 12.71

12.70

CH 157 5785 MHz 14.21

14.18

14.05

14.17

14.10 13.96 14.09

14.08

CH 165 5825 MHz

14.43

14.39

14.38

14.36

14.23 14.03 14.15

14.21

Duty cycle (%)

100.00 100.00

100.00 100.00 100.00 100.00 100.00 100.00

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 10 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

Channel

5GHz band 1 802.11n HT40 RF Output Power (dBm)

Frequency

(MHz)

13.5

Mbps

27

Mbps

40.5

Mbps

OFDM Data Rate

54

Mbps

81

Mbps

108

Mbps

121.5

Mbps

135

Mbps

5190 MHz

13.17

13.11

13.12

13.08

13.12 13.11 13.14

13.09

CH 38

CH 46 5230 MHz 12.98

12.93

12.94

12.84

12.72 12.68 12.64

12.62

Duty cycle (%) 100.00 100.00

100.00 100.00 100.00 100.00 100.00 100.00

5GHz band 4 802.11n HT40 RF Output Power (dBm)

Channel

Frequency

(MHz)

13.5

Mbps

27

Mbps

40.5

Mbps

OFDM Data Rate

54

Mbps

81

Mbps

108

Mbps

121.5

Mbps

135

Mbps

CH 151 5755 MHz 13.95

13.85

13.71

13.78

13.80 13.83 13.75

13.82

CH 159 5795 MHz

14.38

14.29

14.22

14.32

14.33 14.20 14.25

14.30

Duty cycle (%)

100.00 100.00

100.00 100.00 100.00 100.00 100.00 100.00

c. All the test data for each data rate were verified, but only the worst case was reported. d. The data rates of WLAN 802.11b/g/n were set in 1Mbps for 802.11b, 6Mbps for 802.11g, 6.5 Mbps for 802.11n HT20 and 135 Mbps for 802.11n HT40 due to the highest RF output power. e. The data rates of 5150 MHz ~ 5250 MHz were set in 6Mbps for 802.11a, 6.5Mbps for 802.11n

HT20, and 13.5Mbps for 802.11n HT40 with both antennas transmit due to the highest RF output power. f. The data rates of 5725 MHz ~ 5850 MHz were set in 6Mbps for 802.11a, 6.5Mbps for 802.11n

HT20, and 13.5Mbps for 802.11n HT40 with both antennas transmit due to the highest RF output power. g. Data rate Bluetooth BDR (1Mbps) was chosen to be tested due to the highest RF output power.

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 11 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

2.2 Test Mode

Frequency range of radiation was investigated from 25 MHz to 12750 MHz.

Pre-scanned tests were conducted to determine the final configuration from all possible combinations.

The following tables are showing the test modes as the worst cases and recorded in this report.

RF

Tx

Rx

Test Modes

Bluetooth BDR (1Mbps)

GFSK

CH00 (2402MHz) in Laptop Mode with Adapter 1 for Sample 1

CH78 (2480MHz) in Laptop Mode with Adapter 1 for Sample 1

CH78 (2480MHz) in Tablet Mode with Adapter 1 for Sample 1

CH78 (2480MHz) in Laptop Mode with Adapter 2 for Sample 2

CH78 (2480MHz) in Laptop Mode with Adapter 3 for Sample 3

CH78 (2480MHz) in Laptop Mode with Adapter 4 for Sample 4

CH00 (2402MHz) in Laptop Mode with Adapter 1 for Sample 1

CH78 (2480MHz) in Laptop Mode with Adapter 1 for Sample 1

CH78 (2480MHz) in Tablet Mode with Adapter 1 for Sample 1

RF

Tx

Rx

Test Modes

802.11b

(2400 MHz ~ 2483.5 MHz)

DSSS

CH01 (2412MHz) in Laptop Mode with Adapter 1 for Sample 1

CH13 (2472MHz) in Laptop Mode with Adapter 1 for Sample 1

CH13 (2472MHz) in Tablet Mode with Adapter 1 for Sample 1

CH01 (2412MHz) in Laptop Mode with Adapter 1 for Sample 1

CH13 (2472MHz) in Laptop Mode with Adapter 1 for Sample 1

CH13 (2472MHz) in Tablet Mode with Adapter 1 for Sample 1

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 12 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

RF

Tx

Rx

Test Modes

802.11g

(2400 MHz ~ 2483.5 MHz)

OFDM

CH01 (2412MHz) in Laptop Mode with Adapter 1 for Sample 1

CH13 (2472MHz) in Laptop Mode with Adapter 1 for Sample 1

CH13 (2472MHz) in Tablet Mode with Adapter 1 for Sample 1

CH01 (2412MHz) in Laptop Mode with Adapter 1 for Sample 1

CH13 (2472MHz) in Laptop Mode with Adapter 1 for Sample 1

CH13 (2472MHz) in Tablet Mode with Adapter 1 for Sample 1

RF

Tx

Rx

Test Modes

802.11n HT20

(2400 MHz ~ 2483.5 MHz)

OFDM

CH01 (2412MHz) in Laptop Mode with Adapter 1 for Sample 1

CH13 (2472MHz) in Laptop Mode with Adapter 1 for Sample 1

CH13 (2472MHz) in Tablet Mode with Adapter 1 for Sample 1

CH01 (2412MHz) in Laptop Mode with Adapter 1 for Sample 1

CH13 (2472MHz) in Laptop Mode with Adapter 1 for Sample 1

CH13 (2472MHz) in Tablet Mode with Adapter 1 for Sample 1

RF

Tx

Rx

Test Modes

802.11n HT40

(2400 MHz ~ 2483.5 MHz)

OFDM

CH03 (2422MHz) in Laptop Mode with Adapter 1 for Sample 1

CH11 (2462MHz) in Laptop Mode with Adapter 1 for Sample 1

CH11 (2462MHz) in Tablet Mode with Adapter 1 for Sample 1

CH03 (2422MHz) in Laptop Mode with Adapter 1 for Sample 1

CH11 (2462MHz) in Laptop Mode with Adapter 1 for Sample 1

CH11 (2462MHz) in Tablet Mode with Adapter 1 for Sample 1

Report No. : AR2D1707

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 13 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

Test Modes

RF

802.11a

(5150 MHz ~ 5250 MHz)

OFDM

Tx CH48 (5240MHz) in Laptop Mode with Adapter 1 for Sample 1

Rx

CH48 (5240MHz) in Laptop Mode with Adapter 1 for Sample 1

RF

Tx

Test Modes

802.11a

(5725 MHz ~ 5850 MHz)

OFDM

CH149 (5745MHz) in Laptop Mode with Adapter 1 for Sample 1

CH157 (5785MHz) in Laptop Mode with Adapter 1 for Sample 1

CH165 (5825MHz) in Laptop Mode with Adapter 1 for Sample 1

RF

Tx

Rx

Test Modes

802.11n HT20

(5150 MHz ~ 5250 MHz)

OFDM

CH36 (5180MHz) in Laptop Mode with Adapter 1 for Sample 1

CH36 (5180MHz) in Tablet Mode with Adapter 1 for Sample 1

CH36 (5180MHz) in Laptop Mode with Adapter 1 for Sample 1

CH36 (5180MHz) in Tablet Mode with Adapter 1 for Sample 1

RF

Tx

Test Modes

802.11n HT20

(5725 MHz ~ 5850 MHz)

OFDM

CH149 (5745MHz) in Laptop Mode with Adapter 1 for Sample 1

CH157 (5785MHz) in Laptop Mode with Adapter 1 for Sample 1

CH165 (5825MHz) in Laptop Mode with Adapter 1 for Sample 1

CH149 (5745MHz) in Tablet Mode with Adapter 1 for Sample 1

RF

Tx

Rx

Test Modes

802.11n HT40

(5150 MHz ~ 5250 MHz)

OFDM

CH38 (5190MHz) in Laptop Mode with Adapter 1 for Sample 1

CH38 (5190MHz) in Laptop Mode with Adapter 1 for Sample 1

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 14 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

RF

Tx

Test Modes

802.11n HT40

(5725 MHz ~ 5850 MHz)

OFDM

CH151 (5755MHz) in Laptop Mode with Adapter 1 for Sample 1

CH159 (5795MHz) in Laptop Mode with Adapter 1 for Sample 1

Remark:

1. The worse cases of the Transmitter Radiated Spurious Emission (RSE) were Bluetooth CH78 (in

Laptop Mode with Adapter 4 for Sample 4), 802.11b CH13 (in Laptop Mode), 802.11g CH13 (in

Laptop Mode), 802.11n HT20 CH13 (in Laptop Mode), 802.11n HT40 CH11 (in Laptop Mode),

802.11a (5150 MHz ~ 5250 MHz) CH48 (in Laptop Mode), 802.11a (5725 MHz ~ 5850 MHz)

CH165 (in Laptop Mode), 802.11n HT20 (5150 MHz ~ 5250 MHz) CH36 (in Laptop Mode),

802.11n HT20 (5725 MHz ~ 5850 MHz) CH149, 802.11n HT 40 (5150 MHz ~ 5250 MHz) CH38, and 802.11n HT40 (5725 MHz ~ 5850 MHz) CH151 Tx modes; only the test data of these modes were reported.

2. The Receiver Radiated Spurious Emission (RSE) is not obviously related to the different modulation, so only the data of the worst case of 802.11g CH13 (in Tablet Mode) Rx mode was reported.

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 15 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

2.3 Connection Diagram of Test System

<Bluetooth Tx/Rx Mode>

Report No. : AR2D1707

<WLAN Tx/Rx Mode>

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 16 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

Remark: The EUT is set in Tablet PC and Laptop PC configurations during test.

2.4 Test Software

For Bluetooth function, turn on “Terminal” program to make the EUT into the engineering modes to contact with Bluetooth base station for continuous transmitting and receiving signals.

For WLAN function, turn on “Terminal” program, the EUT will get into the engineering modes; then, entry instruction under CMD program in the notebook, the EUT will contact with WLAN AP for continuous transmitting and receiving signals.

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 17 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

3. Transmitter Parameters

3.1 Equivalent Isotropic Radiated Power (SUBCLAUSE 8.1)

3.1.1 Measuring Instruments

See list of measuring instruments of this test report.

3.1.2 Test Procedure

1. Placing the EUT in thermal chamber.

2. The transmitter output port was connected to the power meter.

3. Connecting the charger to power supply.

4. Setting thermal chamber temperature and power supply voltage at suitable value.

5. The power is equal to the reading on power meter plus cable loss.

6. Repeating step 4 and 5 at different condition and different channel.

3.1.3 Test Setup Layout

EUT

Power supply

Charger

Thermal Chamber

Power Meter

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 18 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

3.1.4 Test Results

EUT Mode :

Bluetooth BDR (1Mbps)

Temperature :

Test Engineer : Zhi Lu

Antenna Gain : 1.37dBi

Cable loss

15.00dB

20~21℃

Relative Humidity : 40~41%

Duty Cycle :

Duty Factor :

78.45%

1.05dB

T nom (℃)

T min (℃)

T max (℃)

TEST CONDITIONS

25 V

-20

55

V max(V)

V min(V)

V max(V)

V min(V)

Measurement uncertainty

7.5

5.0

7.5

5.0

TRANSMITTER POWER EIRP (AVERAGE)

(dBm)

CH 00

2402 MHz

0.50

CH 39

2441 MHz

2.37

CH 78

2480 MHz

2.53

4.77

4.84

4.15

4.10

4.71

4.66

2.93

2.90

1.5dB

4.75

4.79

2.10

2.17

Note:

Measured average power has offset cable loss and duty factor.

For example: cable loss = 15.00 dB, Duty Factor = 1.05 dB, and antenna gain = 1.37 dBi at Ch00, 2402MHz,

EIRP = -0.87 dBm (measured average power) + 1.37 dBi (antenna gain) = 0.50 dBm

LIMITS: SUBCLAUSE

Under all Test Conditions 36dBm

Limit kept Yes V No

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 19 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

EUT Mode :

802.11b

Test Engineer : Zhi Lu

Temperature :

20~21℃

Relative Humidity : 40~41%

Antenna Gain : 0.12dBi

Cable loss

13.80dB

Duty Cycle :

Duty Factor :

100.00%

0.00dB

TEST CONDITIONS

TRANSMITTER POWER EIRP (AVERAGE)

(dBm)

CH 01

2412 MHz

CH 07

2442 MHz

CH 13

2472 MHz

T nom (℃)

25

T min (℃)

T max (℃)

-20

55

V 11.34 11.96 11.69

V 11.36 12.03 11.74

V 11.30 11.14 11.66

V 11.34 11.17 11.68

1.5dB Measurement uncertainty

LIMITS: SUBCLAUSE

Under all Test Conditions 36dBm

Limit kept Yes V No

EUT Mode :

802.11g

Temperature :

20~21℃

Test Engineer : Zhi Lu

Antenna Gain : 0.12dBi

Relative Humidity : 40~41%

Duty Cycle :

100.00%

Cable loss

13.80dB

Duty Factor :

0.00dB

TRANSMITTER POWER EIRP (AVERAGE)

(dBm)

TEST CONDITIONS

CH 01

2412 MHz

CH 07

2442 MHz

CH 13

2472 MHz

T nom (℃)

25 V 11.32 12.60 12.50

V 11.40 11.50 11.58

T min (℃)

-20

V 11.44 11.51 11.66

T max (℃)

55

V max(V)

V min(V)

Measurement uncertainty

LIMITS: SUBCLAUSE

Under all Test Conditions

7.5

5.0

10.16

10.20

9.66

9.69

1.5dB

36dBm

10.21

10.27

Limit kept Yes V No

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 20 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

EUT Mode :

802.11n HT20

Test Engineer : Zhi Lu

Antenna Gain : 0.12dBi

Cable loss

13.80dB

Temperature :

20~21℃

Relative Humidity : 40~41%

Duty Cycle :

100.00%

Duty Factor :

0.00dB

TEST CONDITIONS

T nom (℃)

25 V

T min (℃)

-20

V max(V)

V min(V)

7.5

5.0

T max (℃)

55

V max(V)

V min(V)

Measurement uncertainty

LIMITS: SUBCLAUSE

Under all Test Conditions

7.5

5.0

TRANSMITTER POWER EIRP (AVERAGE)

(dBm)

CH 01

2412 MHz

11.60

CH 07

2442 MHz

12.83

CH 13

2472 MHz

12.40

12.17

12.18

10.27

10.29

12.05

12.10

10.16

10.20

1.5dB

11.66

11.74

9.40

9.44

36dBm

Limit kept Yes V No

EUT Mode :

802.11n HT40

LIMITS: SUBCLAUSE

Under all Test Conditions

Temperature :

20~21℃

Test Engineer : Zhi Lu

Antenna Gain : 0.12dBi

Cable loss

13.80dB

Relative Humidity : 40~41%

Duty Cycle :

Duty Factor :

100.00%

0.00dB

TEST CONDITIONS

TRANSMITTER POWER EIRP (AVERAGE)

(dBm)

CH 03

2422 MHz

CH 07

2442 MHz

CH 11

2462 MHz

11.38 12.34 13.29

T nom (℃)

25 V

T min (℃)

T max (℃)

-20

55

V 12.16 13.74 13.81

V 12.30 13.78 13.87

V max(V)

V min(V)

Measurement uncertainty

7.5

5.0

10.50

10.53

11.07

11.09

1.5dB

11.71

11.74

36dBm

Limit kept Yes V No

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 21 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

EUT Mode :

802.11a

Test Engineer : Zhi Lu

Antenna Gain : 0.05dBi

Cable loss

13.80dB

Temperature :

20~21℃

Relative Humidity : 40~41%

Duty Cycle :

Duty Factor :

100.00%

0.00dB

TEST CONDITIONS

T nom (℃)

25 V nom(V) 6.5

T min (℃)

T max (℃)

-10

55

V max(V) 7.5

V min(V) 5.0

V max(V) 7.5

V min(V) 5.0

Measurement uncertainty

Note: EIRP = measured average power + antenna gain

LIMITS: SUBCLAUSE

Under all Test Conditions

TRANSMITTER POWER EIRP (AVERAGE)

(dBm)

CH 36

5180 MHz

CH048

5240 MHz

11.95 13.33

14.11

14.13

11.37

11.33

14.78

14.81

12.67

12.64

1.5dB

23dBm

Limit kept Yes V No

EUT Mode :

802.11a

Temperature :

20~21℃

Test Engineer : Zhi Lu

Antenna Gain : -0.48dBi

Cable loss

13.80dB

Relative Humidity : 40~41%

Duty Cycle :

Duty Factor :

100.00%

0.00dB

TEST CONDITIONS

T nom (℃)

25 V nom(V) 6.5

T min (℃)

T max (℃)

-10

55

V max(V) 7.5

V min(V) 5.0

V max(V) 7.5

V min(V) 5.0

Measurement uncertainty

Note: EIRP = measured average power + antenna gain

LIMITS: SUBCLAUSE

Under all Test Conditions

TRANSMITTER POWER EIRP (AVERAGE)

(dBm)

CH 149

5745MHz

13.01

CH 157

5785MHz

13.92

CH 165

5825MHz

14.10

13.44

13.48

11.95

12.01

13.87

13.80

12.06

12.09

1.5dB

36dBm

13.36

13.39

11.47

11.51

Limit kept Yes V No

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 22 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

EUT Mode :

802.11n HT20

Test Engineer : Zhi Lu

Antenna Gain : 0.05dBi

Cable loss

13.80dB

Temperature :

20~21℃

Relative Humidity : 40~41%

Duty Cycle :

Duty Factor :

100.00%

0.00dB

TEST CONDITIONS

T nom (℃)

25 V nom(V) 6.5

T min (℃)

T max (℃)

-10

55

V max(V) 7.5

V min(V) 5.0

V max(V) 7.5

V min(V) 5.0

Measurement uncertainty

Note: EIRP = measured average power + antenna gain

LIMITS: SUBCLAUSE

Under all Test Conditions

TRANSMITTER POWER EIRP (AVERAGE)

(dBm)

CH 36

5180 MHz

CH 48

5240 MHz

13.36 13.13

14.87

14.93

12.68

12.66

15.37

15.42

13.12

13.10

1.5dB

23dBm

Limit kept Yes V No

EUT Mode :

802.11n HT20

Temperature :

20~21℃

Test Engineer : Zhi Lu

Antenna Gain : -0.48dBi

Cable loss

13.80dB

Relative Humidity : 40~41%

Duty Cycle :

Duty Factor :

100.00%

0.00dB

TEST CONDITIONS

T nom (℃)

25 V nom(V) 6.5

T min (℃)

T max (℃)

-10

55

V max(V) 7.5

V min(V) 5.0

V max(V) 7.5

V min(V) 5.0

Measurement uncertainty

Note: EIRP = measured average power + antenna gain

LIMITS: SUBCLAUSE

Under all Test Conditions

TRANSMITTER POWER EIRP (AVERAGE)

(dBm)

CH 149

5745MHz

12.31

CH 157

5785MHz

13.73

CH165

5825MHz

13.95

13.43

13.45

11.86

11.84

14.15

14.04

11.80

11.70

1.5dB

36dBm

13.40

13.73

11.68

11.59

Limit kept Yes V No

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 23 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

EUT Mode :

802.11n HT40

Test Engineer : Zhi Lu

Antenna Gain : 0.05dBi

Cable loss

13.80dB

Temperature :

20~21℃

Relative Humidity : 40~41%

Duty Cycle :

Duty Factor :

100.00%

0.00dB

TEST CONDITIONS

T nom (℃)

25 V nom(V) 6.5

T min (℃)

T max (℃)

-10

55

V max(V) 7.5

V min(V) 5.0

V max(V) 7.5

V min(V) 5.0

Measurement uncertainty

Note: EIRP = measured average power + antenna gain

LIMITS: SUBCLAUSE

Under all Test Conditions

TRANSMITTER POWER EIRP (AVERAGE)

(dBm)

CH 38

5190MHz

13.22

CH 46

5230MHz

12.99

13.90

13.92

12.11

12.03

14.92

14.97

12.64

12.59

1.5dB

23dBm

Limit kept Yes V No

EUT Mode :

802.11n HT40

Test Engineer : Zhi Lu

Antenna Gain : -0.48dBi

Cable loss

13.80dB

Temperature :

20~21℃

Relative Humidity : 40~41%

Duty Cycle :

Duty Factor :

100.00%

0.00dB

TEST CONDITIONS

T nom (℃)

25 V nom(V) 6.5

T min (℃)

T max (℃)

-10

55

V max(V) 7.5

V min(V) 5.0

V max(V) 7.5

V min(V) 5.0

Measurement uncertainty

Note: EIRP = measured average power + antenna gain

LIMITS: SUBCLAUSE

Under all Test Conditions

TRANSMITTER POWER EIRP (AVERAGE)

(dBm)

CH 151

5755MHz

13.47

CH 159

5795MHz

13.90

14.13

14.15

12.46

12.44

13.94

14.96

11.98

11.95

1.5dB

36dBm

Limit kept Yes V No

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 24 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

3.2 Transmitter Spurious Emissions (SUBCLAUSE 8.2)

3.2.1 Measuring Instruments

See list of measuring instruments of this test report.

3.2.2 Test Procedures

1. The EUT was placed on a rotatable table with 1.5m height.

2. The receiving antenna with horizontal and vertical polarization is 3m away from EUT and keeps the antenna height at 1.5m.

3. Setting EUT in continuous Tx.

4. The table was rotated to search the highest radiation.

5. Repeating step 3 and 4 for different channel.

3.2.3 Test Setup

<Below 1GHz>

<Above 1GHz>

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 25 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

3.2.4 Test Result

Test Mode :

Adapter 4 for Sample 4

Test Engineer : Lucky Pan

Test Distance :

3m (Below 1GHz)

1.5m (Above 1GHz)

Report No. : AR2D1707

21~22℃

Relative Humidity : 41~42%

Polarization :

Horizontal

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 26 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Test Mode :

Adapter 4 for Sample 4

Test Engineer : Lucky Pan

Test Distance :

3m (Below 1GHz)

1.5m (Above 1GHz)

Report No. : AR2D1707

21~22℃

Relative Humidity : 41~42%

Polarization :

Vertical

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 27 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Test Mode :

Adapter 1 for Sample 1

Test Engineer : Lucky Pan

Test Distance :

3m (Below 1GHz)

1.5m (Above 1GHz)

Report No. : AR2D1707

21~22℃

Relative Humidity : 41~42%

Polarization :

Horizontal

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 28 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Test Mode :

Adapter 1 for Sample 1

Test Engineer : Lucky Pan

Test Distance :

3m (Below 1GHz)

1.5m (Above 1GHz)

Report No. : AR2D1707

21~22℃

Relative Humidity : 41~42%

Polarization :

Vertical

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 29 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Test Mode :

Adapter 1 for Sample 1

Test Engineer : Lucky Pan

Test Distance :

3m (Below 1GHz)

1.5m (Above 1GHz)

Report No. : AR2D1707

21~22℃

Relative Humidity : 41~42%

Polarization :

Horizontal

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 30 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

Test Mode :

CH13 (2472MHz) in Laptop Mode with Adapter

1 for Sample 1

Temperature :

Test Engineer : Lucky Pan

21~22℃

Relative Humidity : 41~42%

Test Distance :

3m (Below 1GHz)

1.5m (Above 1GHz)

Polarization :

Vertical

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 31 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Test Mode :

Adapter 1 for Sample 1

Test Engineer : Lucky Pan

Test Distance :

3m (Below 1GHz)

1.5m (Above 1GHz)

Report No. : AR2D1707

21~22℃

Relative Humidity : 41~42%

Polarization :

Horizontal

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 32 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

Test Mode :

CH13 (2472MHz) in Tablet Mode with Adapter

1 for Sample 1

Temperature :

Test Engineer : Lucky Pan

21~22℃

Relative Humidity : 41~42%

Test Distance :

3m (Below 1GHz)

1.5m (Above 1GHz)

Polarization :

Vertical

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 33 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Test Mode :

Adapter 1 for Sample 1

Test Engineer : Lucky Pan

Test Distance :

3m (Below 1GHz)

1.5m (Above 1GHz)

Report No. : AR2D1707

21~22℃

Relative Humidity : 41~42%

Polarization :

Horizontal

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 34 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Test Mode :

Adapter 1 for Sample 1

Test Engineer : Lucky Pan

Test Distance :

3m (Below 1GHz)

1.5m (Above 1GHz)

Report No. : AR2D1707

21~22℃

Relative Humidity :

41~42%

Polarization :

Vertical

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 35 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Test Mode :

Adapter 1 for Sample 1

Test Engineer : Lucky Pan

Test Distance :

3m (Below 1GHz)

1.5m (Above 1GHz)

Report No. : AR2D1707

21~22℃

Relative Humidity : 41~42%

Polarization :

Horizontal

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 36 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

Test Mode :

CH48 (5240MHz) in Laptop Mode with Adapter

1 for Sample 1

Temperature :

Test Engineer : Lucky Pan

21~22℃

Relative Humidity : 41~42%

Test Distance :

3m (Below 1GHz)

1.5m (Above 1GHz)

Polarization :

Vertical

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 37 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

Test Mode :

Adapter 1 for Sample 1

Test Engineer : Lucky Pan

Test Distance :

3m (Below 1GHz)

1.5m (Above 1GHz)

Remark :

Polarization :

5825 MHz is fundamental signal which can be ignored.

21~22℃

Relative Humidity : 41~42%

Horizontal

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 38 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

Test Mode :

Adapter 1 for Sample 1

Test Engineer : Lucky Pan

Test Distance :

3m (Below 1GHz)

1.5m (Above 1GHz)

Remark :

Polarization :

5825 MHz is fundamental signal which can be ignored.

21~22℃

Relative Humidity :

41~42%

Vertical

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 39 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Test Mode :

Adapter 1 for Sample 1

Test Engineer : Lucky Pan

Test Distance :

3m (Below 1GHz)

1.5m (Above 1GHz)

Report No. : AR2D1707

21~22℃

Relative Humidity : 41~42%

Polarization :

Horizontal

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 40 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Test Mode :

Adapter 1 for Sample 1

Test Engineer : Lucky Pan

Test Distance :

3m (Below 1GHz)

1.5m (Above 1GHz)

Report No. : AR2D1707

21~22℃

Relative Humidity : 41~42%

Polarization :

Vertical

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 41 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

Test Mode :

CH149 (5745MHz) in Laptop Mode with

Adapter 1 for Sample 1

Temperature :

Test Engineer : Lucky Pan

21~22℃

Relative Humidity : 41~42%

Test Distance :

3m (Below 1GHz)

1.5m (Above 1GHz)

Remark :

Polarization :

Horizontal

1. 5745 MHz is fundamental signal which can be ignored.

2. 5724.9 MHz is not within a restricted band, and its limit line is 20dB below the highest emission level.

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 42 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

Test Mode :

CH149 (5745MHz) in Laptop Mode with

Adapter 1 for Sample 1

Temperature :

Test Engineer : Lucky Pan

21~22℃

Relative Humidity : 41~42%

Test Distance :

3m (Below 1GHz)

1.5m (Above 1GHz)

Remark :

Polarization :

Vertical

1. 5745 MHz is fundamental signal which can be ignored.

2. 5725 MHz is not within a restricted band, and its limit line is 20dB below the highest emission level.

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 43 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

Test Mode :

CH38 (5190MHz) in Laptop Mode with

Adapter 1 for Sample 1

Temperature :

Test Engineer : Lucky Pan

21~22℃

Relative Humidity : 41~42%

Test Distance :

3m (Below 1GHz)

1.5m (Above 1GHz)

Polarization :

Horizontal

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 44 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

Test Mode :

CH38 (5190MHz) in Laptop Mode with

Adapter 1 for Sample 1

Temperature :

Test Engineer : Lucky Pan

21~22℃

Relative Humidity : 41~42%

Test Distance :

3m (Below 1GHz)

1.5m (Above 1GHz)

Polarization :

Vertical

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 45 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

Test Mode :

CH151 (5755MHz) in Laptop Mode with

Adapter 1 for Sample 1

Temperature :

Test Engineer : Lucky Pan

21~22℃

Relative Humidity : 41~42%

Test Distance :

3m (Below 1GHz)

1.5m (Above 1GHz)

Remark :

Polarization :

Horizontal

1. 5755 MHz is fundamental signal which can be ignored.

2. 5723.75 MHz is not within a restricted band, and its limit line is 20dB below the highest emission level.

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 46 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

Test Mode :

CH151 (5755MHz) in Laptop Mode with

Adapter 1 for Sample 1

Temperature :

Test Engineer : Lucky Pan

21~22℃

Relative Humidity : 41~42%

Test Distance :

3m (Below 1GHz)

1.5m (Above 1GHz)

Remark :

Polarization :

Vertical

1. 5755 MHz is fundamental signal which can be ignored.

2. 5723.9 MHz is not within a restricted band, and its limit line is 20dB below the highest emission level.

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 47 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

LIMITS: Clause 8.2

Narrowband spurious emission:

Frequency Range

47MHz to 74MHz

87.5MHz to 118MHz

174MHz to 230MHz

470MHz to 862MHz

Below 1GHz

Above 1GHz

Limit kept

Report No. : AR2D1707

Limit when operating

-54dBm

-36dBm

-30dBm

Yes V No

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 48 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

3.3 Emission Bandwidth (SUBCLAUSE 8.3)

3.3.1 Measuring Instruments

See list of measuring instruments of this test report.

3.3.2 Test Procedure

For Bluetooth (20dB Bandwidth Measurement)

1. The transmitter output was connected to the spectrum analyzer by a low loss cable.

2. Set RBW of spectrum analyzer to 30 kHz and VBW to 300 kHz.

3. The Hopping Channel bandwidth is defined as the total spectrum the power of which is higher than peak power minus 20 dB.

For WLAN (6dB Bandwidth Measurement)

1. The RF output of EUT was connected to the spectrum analyzer by a low loss cable. The path loss was compensated to the results for each measurement.

2. Make the measurement with the spectrum analyzer's resolution bandwidth (RBW) = 1-5% or

DTS BW, not to exceed 100kHz.Set the Video bandwidth (VBW) ≥ 3 * RBW. In order to make an accurate measurement. The 6 dB bandwidth must be greater than 500 KHz.

3. The marker-delta reading at this point is the 6 dB bandwidth of the emission.

3.3.3 Test Setup Layout

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 49 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

3.3.4 Test Result of Emission Bandwidth

EUT Mode :

Bluetooth BDR (1Mbps)

Temperature :

Test Engineer : Zhi Lu

20~21℃

Relative Humidity : 40~41%

Antenna Gain : 1.37dBi

Channel

CH 00

CH 39

CH 78

1 PK

MAXH

Measured Frequency

10

0

(MHz)

Duty Cycle :

1

78.45%

20 dB Bandwidth

(MHz)

0.968 2402 MHz

2441 MHz 0.964

2480 MHz 0.964

20 dB Bandwidth Plot on Bluetooth Channel 00

*

RBW 30 kHz

*

VBW 300 kHz

SWT 2.5 ms Ref 20 dBm

*

Att 20 dB

Marker 1 [T1 ]

-1.65 dBm

2.401956000 GHz

20 Offset 15 dB ndB [T1] 20.00 dB

BW 968.000000000 kHz

Temp 1 [T1 ndB]

-21.86 dBm

A

2.401512000 GHz

Temp 2 [T1 ndB]

-22.15 dBm

LVL

2.402480000 GHz

-10

T1 T2

-20

-30

-40

-50

-60

-70

-80

Center 2.402 GHz 200 kHz/ Span 2 MHz

Date: 31.JAN.2013 03:54:29

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 50 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

20 dB Bandwidth Plot on Bluetooth Channel 39

*

RBW 30 kHz

*

VBW 300 kHz

Marker 1 [T1 ]

-2.97 dBm

*

Att 20 dB Ref 20 dBm SWT 2.5 ms 2.440952000 GHz

20

Offset 15 dB

1 PK

MAXH

10

0

-10

1 ndB [T1] 20.00 dB

BW 964.000000000 kHz

Temp 1 [T1 ndB]

-23.02 dBm

A

2.440512000 GHz

Temp 2 [T1 ndB]

-22.69 dBm

LVL

2.441476000 GHz

T2

-20 T1

-30

-40

-50

-60

-70

-80

Center 2.441 GHz 200 kHz/ Span 2 MHz

Report No. : AR2D1707

Date: 31.JAN.2013 03:54:39

20 dB Bandwidth Plot on Bluetooth Channel 78

*

RBW 30 kHz

*

VBW 300 kHz

Marker 1 [T1 ]

-3.60 dBm

*

Att 20 dB Ref 20 dBm SWT 2.5 ms 2.480040000 GHz

20

Offset 15 dB

1 PK

MAXH

10

0

1 ndB [T1] 20.00 dB

BW 964.000000000 kHz

Temp 1 [T1 ndB]

-23.70 dBm

A

2.479512000 GHz

Temp 2 [T1 ndB]

-23.51 dBm

LVL

2.480476000 GHz

-10

-20

-30

-40

-50

-60

-70

-80

Center 2.48 GHz

T1

200 kHz/

T2

Span 2 MHz

Date: 31.JAN.2013 03:55:34

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 51 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

EUT Mode :

802.11b

Test Engineer : Zhi Lu

Antenna Gain : 0.12dBi

Channel

CH 01

CH 07

CH 13

Measured Frequency

(MHz)

2412 MHz

2442 MHz

Temperature :

Duty Cycle :

6 dB Bandwidth

(MHz)

10.00

10.04

9.72

20~21℃

Relative Humidity : 40~41%

100.00%

2472 MHz

6 dB Bandwidth Plot on 802.11b Channel 01

*

RBW 100 kHz

*

VBW 300 kHz

Delta 2 [T1 ]

-0.14 dB

*

Att 20 dB Ref 20 dBm SWT 5 ms 10.000000000 MHz

20

Offset 13.8 dB

Marker 1 [T1 ]

-19.47 dBm

2.406980000 GHz

A

10

1 PK

MAXH

0

LVL

-10

D1 -13.81 dBm

1

D2 -19.81 dBm

-20

2

Limit

> 0.5MHz

> 0.5MHz

> 0.5MHz

-30

-40

-50

-60

-70

-80

Center 2.412 GHz 2 MHz/ Span 20 MHz

Date: 24.JAN.2013 05:38:55

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 52 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

6 dB Bandwidth Plot on 802.11b Channel 07

*

RBW 100 kHz

*

VBW 300 kHz

Delta 2 [T1 ]

-0.17 dB

*

Att 20 dB Ref 20 dBm SWT 5 ms 10.040000000 MHz

20

Offset 13.8 dB

Marker 1 [T1 ]

-17.40 dBm

2.436980000 GHz

A

10

1 PK

MAXH

0

LVL

-10

D1 -11.61 dBm

1

D2 -17.61 dBm

2

-20

-30

-40

-50

-60

-70

-80

Center 2.442 GHz 2 MHz/ Span 20 MHz

Report No. : AR2D1707

Date: 24.JAN.2013 05:47:33

6 dB Bandwidth Plot on 802.11b Channel 13

*

RBW 100 kHz

*

VBW 300 kHz

Delta 2 [T1 ]

0.16 dB

*

Att 20 dB Ref 20 dBm SWT 5 ms 9.720000000 MHz

20

Offset 13.8 dB

Marker 1 [T1 ]

-21.43 dBm

2.466960000 GHz

A

10

1 PK

MAXH

0

LVL

-10

-20

D1 -15.61 dBm

1

D2 -21.61 dBm

2

-30

-40

-50

-60

-70

-80

Center 2.472 GHz 2 MHz/ Span 20 MHz

Date: 4.FEB.2013 18:51:37

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 53 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

EUT Mode :

802.11g

Test Engineer : Zhi Lu

Antenna Gain : 0.12dBi

Channel

Measured Frequency

(MHz)

CH 01

CH 07

CH 13

2412 MHz

2442 MHz

2472 MHz

Temperature :

20~21℃

Relative Humidity : 40~41%

Duty Cycle :

100.00%

6 dB Bandwidth

(MHz)

16.56

16.56

16.56

6 dB Bandwidth Plot on 802.11g Channel 01

Ref 20 dBm

*

Att 20 dB

*

RBW 100 kHz

*

VBW 300 kHz

SWT 5 ms

Delta 2 [T1 ]

0.13 dB

16.560000000 MHz

20

Offset 13.8 dB

Marker 1 [T1 ]

-20.94 dBm

2.403700000 GHz

A

10

1 PK

MAXH

0

LVL

-10

-20

1

D1 -15.5 dBm

D2 -21.5 dBm

2

Limit

> 0.5MHz

> 0.5MHz

> 0.5MHz

-30

-40

-50

-60

-70

-80

Center 2.412 GHz 2 MHz/ Span 20 MHz

Date: 24.JAN.2013 05:55:10

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 54 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

6 dB Bandwidth Plot on 802.11g Channel 07

Ref 20 dBm

*

Att 20 dB

*

RBW 100 kHz

*

VBW 300 kHz

SWT 5 ms

Delta 2 [T1 ]

0.52 dB

16.560000000 MHz

20

Offset 13.8 dB

Marker 1 [T1 ]

-21.36 dBm

2.433700000 GHz

A

10

1 PK

MAXH

0

LVL

-10

-20

1

D1 -15.7 dBm

D2 -21.7 dBm

2

-30

-40

-50

-60

-70

-80

Center 2.442 GHz 2 MHz/ Span 20 MHz

Report No. : AR2D1707

Date: 24.JAN.2013 05:57:30

6 dB Bandwidth Plot on 802.11g Channel 13

Ref 20 dBm

*

Att 20 dB

*

RBW 100 kHz

*

VBW 300 kHz

SWT 5 ms

Delta 2 [T1 ]

-0.70 dB

16.560000000 MHz

20 Offset 13.8 dB

10

Marker 1 [T1 ]

-21.25 dBm

2.463700000 GHz

A

1 PK

MAXH

0

LVL

-10

-20

1

D1 -16.26 dBm

D2 -22.26 dBm

2

-30

-40

-50

-60

-70

-80

Center 2.472 GHz 2 MHz/ Span 20 MHz

Date: 24.JAN.2013 06:00:15

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 55 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

EUT Mode :

802.11n HT20

Test Engineer : Zhi Lu

Antenna Gain : 0.12dBi

Channel

Measured Frequency

(MHz)

CH 01

CH 07

CH 13

2412 MHz

2442 MHz

2472 MHz

Temperature :

20~21℃

Relative Humidity : 40~41%

Duty Cycle :

100.00%

6 dB Bandwidth

(MHz)

17.80

17.80

17.80

6 dB Bandwidth Plot on 802.11g Channel 01

Ref 20 dBm

*

Att 20 dB

*

RBW 100 kHz

*

VBW 300 kHz

SWT 5 ms

Delta 2 [T1 ]

-0.24 dB

17.800000000 MHz

20

Offset 13.8 dB

Marker 1 [T1 ]

-19.74 dBm

2.403100000 GHz

A

10

1 PK

MAXH

0

LVL

-10

-20

1

D1 -14.4 dBm

D2 -20.4 dBm

2

Limit

> 0.5MHz

> 0.5MHz

> 0.5MHz

-30

-40

-50

-60

-70

-80

Center 2.412 GHz 2 MHz/ Span 20 MHz

Date: 24.JAN.2013 06:03:48

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 56 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

6 dB Bandwidth Plot on 802.11g Channel 07

Ref 20 dBm

*

Att 20 dB

*

RBW 100 kHz

*

VBW 300 kHz

SWT 5 ms

Delta 2 [T1 ]

0.02 dB

17.800000000 MHz

20

Offset 13.8 dB

Marker 1 [T1 ]

-20.25 dBm

2.433100000 GHz

A

10

1 PK

MAXH

0

LVL

-10

-20

1

D1 -14.85 dBm

D2 -20.85 dBm

2

-30

-40

-50

-60

-70

-80

Center 2.442 GHz 2 MHz/ Span 20 MHz

Report No. : AR2D1707

Date: 24.JAN.2013 06:06:27

6 dB Bandwidth Plot on 802.11g Channel 13

Ref 20 dBm

*

Att 20 dB

*

RBW 100 kHz

*

VBW 300 kHz

SWT 5 ms

Delta 2 [T1 ]

-0.79 dB

17.800000000 MHz

20 Offset 13.8 dB

10

Marker 1 [T1 ]

-21.15 dBm

2.463100000 GHz

A

1 PK

MAXH

0

LVL

-10

-20

1

D1 -15.99 dBm

D2 -21.99 dBm

2

-30

-40

-50

-60

-70

-80

Center 2.472 GHz 2 MHz/ Span 20 MHz

Date: 24.JAN.2013 06:08:45

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 57 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

EUT Mode :

802.11n HT40

Test Engineer : Zhi Lu

Antenna Gain : 0.12dBi

Channel

Measured Frequency

(MHz)

CH 03

CH 07

CH 11

2422 MHz

2442 MHz

2462 MHz

Temperature :

20~21℃

Relative Humidity : 40~41%

Duty Cycle :

100.00%

6 dB Bandwidth

(MHz)

36.48

36.40

36.48

6 dB Bandwidth Plot on 802.11g Channel 03

Ref 20 dBm

*

Att 20 dB

*

RBW 100 kHz

*

VBW 300 kHz

SWT 5 ms

Delta 2 [T1 ]

-0.98 dB

36.480000000 MHz

20

Offset 13.8 dB

Marker 1 [T1 ]

-20.18 dBm

2.403800000 GHz

A

10

1 PK

MAXH

0

LVL

-10

1

-20

D1 -15.37 dBm

D2 -21.37 dBm

2

Limit

> 0.5MHz

> 0.5MHz

> 0.5MHz

-30

-40

-50

-60

-70

-80

Center 2.422 GHz 4 MHz/ Span 40 MHz

Date: 4.FEB.2013 17:39:24

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 58 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

6 dB Bandwidth Plot on 802.11g Channel 07

Ref 20 dBm

*

Att 20 dB

*

RBW 100 kHz

*

VBW 300 kHz

SWT 5 ms

Delta 2 [T1 ]

-2.02 dB

36.400000000 MHz

20

Offset 13.8 dB

Marker 1 [T1 ]

-15.90 dBm

2.423800000 GHz

A

10

1 PK

MAXH

0

LVL

-10

1

D1 -13.86 dBm

D2 -19.86 dBm

2

-20

-30

-40

-50

-60

-70

-80

Center 2.442 GHz 4 MHz/ Span 40 MHz

Report No. : AR2D1707

Date: 4.FEB.2013 17:48:45

6 dB Bandwidth Plot on 802.11g Channel 11

Ref 20 dBm

*

Att 20 dB

*

RBW 100 kHz

*

VBW 300 kHz

SWT 5 ms

Delta 2 [T1 ]

0.45 dB

36.480000000 MHz

20 Offset 13.8 dB

10

Marker 1 [T1 ]

-20.39 dBm

2.443720000 GHz

A

1 PK

MAXH

0

LVL

-10

1

-20

D1 -15.47 dBm

D2 -21.47 dBm

2

-30

-40

-50

-60

-70

-80

Center 2.462 GHz 4 MHz/ Span 40 MHz

Date: 4.FEB.2013 17:55:55

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 59 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

EUT Mode :

802.11a

Test Engineer : Zhi Lu

Antenna Gain : -0.48dBi

Channel

Measured Frequency

(MHz)

CH 149

CH 157

CH 165

5745 MHz

5785 MHz

5825 MHz

Temperature :

20~21℃

Relative Humidity : 40~41%

Duty Cycle :

100.00%

6 dB Bandwidth

(MHz)

16.52

16.56

16.56

6 dB Bandwidth Plot on 802.11a Channel 149

Ref 20 dBm

*

Att 20 dB

*

RBW 100 kHz

*

VBW 300 kHz

SWT 20 ms

Delta 2 [T1 ]

-0.09 dB

16.520000000 MHz

20

Offset 13.8 dB

Marker 1 [T1 ]

-5.11 dBm

5.736700000 GHz

A

10

1 PK

MAXH

0

1

D1 0.27 dBm

D2 -5.73 dBm

2

LVL

-10

Limit

> 0.5MHz

> 0.5MHz

> 0.5MHz

-20

-30

-40

-50

-60

-70

-80

Center 5.745 GHz 2 MHz/ Span 20 MHz

Date: 30.JAN.2013 02:17:33

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 60 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

6 dB Bandwidth Plot on 802.11a Channel 157

Ref 20 dBm

*

Att 20 dB

*

RBW 100 kHz

*

VBW 300 kHz

SWT 20 ms

Delta 2 [T1 ]

-0.73 dB

16.560000000 MHz

20

Offset 13.8 dB

Marker 1 [T1 ]

-4.18 dBm

5.776700000 GHz

A

10

1 PK

MAXH

0

1

D1 0.9 dBm

D2 -5.1 dBm

2

LVL

-10

-20

-30

-40

-50

-60

-70

-80

Center 5.785 GHz 2 MHz/ Span 20 MHz

Report No. : AR2D1707

Date: 30.JAN.2013 02:05:34

6 dB Bandwidth Plot on 802.11a Channel 165

Ref 20 dBm

*

Att 20 dB

*

RBW 100 kHz

*

VBW 300 kHz

SWT 20 ms

Delta 2 [T1 ]

-0.48 dB

16.560000000 MHz

20 Offset 13.8 dB

10

Marker 1 [T1 ]

-4.06 dBm

5.816700000 GHz

A

1 PK

MAXH

0

1

D1 1.28 dBm

D2 -4.72 dBm

2

LVL

-10

-20

-30

-40

-50

-60

-70

-80

Center 5.825 GHz 2 MHz/ Span 20 MHz

Date: 30.JAN.2013 02:08:48

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 61 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

EUT Mode :

802.11n HT20

Test Engineer : Zhi Lu

Antenna Gain : -0.48dBi

Channel

Measured Frequency

(MHz)

CH 149

CH 157

CH 165

5745 MHz

5785 MHz

5825 MHz

Temperature :

20~21℃

Relative Humidity : 40~41%

Duty Cycle :

100.00%

6 dB Bandwidth

(MHz)

17.80

17.80

17.80

6 dB Bandwidth Plot on 802.11 n HT20 Channel 149

Ref 20 dBm

*

Att 20 dB

*

RBW 100 kHz

*

VBW 300 kHz

SWT 20 ms

Delta 2 [T1 ]

0.50 dB

17.800000000 MHz

20

Offset 13.8 dB

Marker 1 [T1 ]

-4.77 dBm

5.736060000 GHz

A

10

1 PK

MAXH

0

1

D1 1.2 dBm

2

LVL

D2 -4.8 dBm

-10

Limit

> 0.5MHz

> 0.5MHz

> 0.5MHz

-20

-30

-40

-50

-60

-70

-80

Center 5.745 GHz 2 MHz/ Span 20 MHz

Date: 30.JAN.2013 02:22:00

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 62 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

6 dB Bandwidth Plot on 802.11 n HT20 Channel 157

Ref 20 dBm

*

Att 20 dB

*

RBW 100 kHz

*

VBW 300 kHz

SWT 20 ms

Delta 2 [T1 ]

-0.01 dB

17.800000000 MHz

20

Offset 13.8 dB

Marker 1 [T1 ]

-3.33 dBm

5.776060000 GHz

A

10

1 PK

MAXH

0 1

D1 1.96 dBm

2

D2 -4.04 dBm

LVL

-10

-20

-30

-40

-50

-60

-70

-80

Center 5.785 GHz 2 MHz/ Span 20 MHz

Report No. : AR2D1707

Date: 30.JAN.2013 02:26:12

6 dB Bandwidth Plot on 802.11 n HT20 Channel 165

Ref 20 dBm

*

Att 20 dB

*

RBW 100 kHz

*

VBW 300 kHz

SWT 20 ms

Delta 2 [T1 ]

-0.21 dB

17.800000000 MHz

20 Offset 13.8 dB

10

Marker 1 [T1 ]

-2.58 dBm

5.816060000 GHz

A

1 PK

MAXH

0

1

D1 2.57 dBm

2

D2 -3.43 dBm

LVL

-10

-20

-30

-40

-50

-60

-70

-80

Center 5.825 GHz 2 MHz/ Span 20 MHz

Date: 30.JAN.2013 02:31:15

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 63 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

EUT Mode :

802.11n HT40

Test Engineer : Zhi Lu

Antenna Gain : -0.48dBi

Channel

Measured Frequency

(MHz)

CH 151

CH 159

5755 MHz

5795 MHz

Temperature :

20~21℃

Relative Humidity : 40~41%

Duty Cycle :

100.00%

6 dB Bandwidth

(MHz)

36.60

36.56

6 dB Bandwidth Plot on 802.11 n HT40 Channel 151

Ref 20 dBm

*

Att 20 dB

*

RBW 100 kHz

*

VBW 300 kHz

SWT 20 ms

Delta 2 [T1 ]

-0.65 dB

36.600000000 MHz

20

Offset 13.8 dB

Marker 1 [T1 ]

-6.63 dBm

5.736680000 GHz

A

10

1 PK

MAXH

0

1

D1 -1.39 dBm

D2 -7.39 dBm

2

LVL

-10

Limit

> 0.5MHz

> 0.5MHz

-20

-30

-40

-50

-60

-70

-80

Center 5.755 GHz 4 MHz/ Span 40 MHz

Date: 30.JAN.2013 02:34:06

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 64 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

6 dB Bandwidth Plot on 802.11 n HT40 Channel 159

Ref 20 dBm

*

Att 20 dB

*

RBW 100 kHz

*

VBW 300 kHz

SWT 20 ms

Delta 2 [T1 ]

-0.49 dB

36.560000000 MHz

20

Offset 13.8 dB

Marker 1 [T1 ]

-5.70 dBm

5.776720000 GHz

A

10

1 PK

MAXH

0

1

D1 -0.72 dBm

2

LVL

D2 -6.72 dBm

-10

-20

-30

-40

-50

-60

-70

-80

Center 5.795 GHz 4 MHz/ Span 40 MHz

Report No. : AR2D1707

Date: 30.JAN.2013 02:37:01

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 65 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

3.4 Transmitter Frequency Range (SUBCLAUSE 8.4)

3.4.1 Measuring Instruments

See list of measuring instruments of this test report.

3.4.2 Test Procedure

1. Placing the EUT in thermal chamber.

2. The transmitter output port was connected to the spectrum analyzer.

3. Connecting the charger to power supply.

4. The settings on spectrum analyzer are 100 kHz RBW and 100 kHz VBW.

5. Setting thermal chamber temperature and power supply voltage at suitable value.

6. Recording or f

H

according subclause 8.4.

7. Repeating step 5 and 6 at different conditions and different channel.

3.4.3 Test Setup Layout:

EUT

Power supply

Charger

Thermal Chamber

Spectrum Analyzer

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 66 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

3.4.4 Test Result of Transmitter Frequency Range

EUT Mode :

Bluetooth BDR (1Mbps)

Temperature :

Test Engineer : Zhi Lu

Antenna Gain : 1.37dBi

20~21℃

Relative Humidity : 40~41%

Duty Cycle :

78.45%

T nom (℃)

T min (℃)

T max (℃)

TEST CONDITIONS

25

-20

55

V nom (V)

V max (V)

V min (V)

V max (V)

V min (V)

6.5

7.5

5.0

7.5

5.0

Measured frequencies (lowest and highest)

Measurement uncertainty

FREQUENCY (MHz) at which

–80 dBm/Hz occurs

CH 00

2402 MHz

CH 78

2480 MHz

2401.34

2401.36

2401.36

2401.34

2401.34 f

L

= 2401.34

2480.62

2480.64

2480.64

2480.62

2480.62 f

H

= 2480.64

1 x 10

-5

LIMITS : SUBCLAUSE 8.4.1.1

Under all Test Conditions f

L

2400.0 MHz f

H

< 2483.5 MHz

Limit kept Yes V No

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 67 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

EUT Mode :

Bluetooth EDR (2Mbps)

Temperature :

Test Engineer : Zhi Lu

20~21℃

Relative Humidity : 40~41%

Antenna Gain : 1.37dBi

Duty Cycle :

33.23%

T nom (℃)

T min (℃)

T max (℃)

TEST CONDITIONS

25

-20

55

V nom (V)

V max (V)

V min (V)

V max (V)

V min (V)

6.5

7.5

5.0

7.5

5.0

Measured frequencies (lowest and highest)

Measurement uncertainty

FREQUENCY (MHz) at which

–80 dBm/Hz occurs

CH 00

2402 MHz

CH 78

2480 MHz

2401.30 2480.66

2401.30

2401.30

2401.30

2401.30 f

L

= 2401.30

2480.66

2480.66

2480.66

2480.66 f

H

= 2480.66

1 x 10

-5

LIMITS : SUBCLAUSE 8.4.1.1

Under all Test Conditions f

L

2400.0 MHz f

H

< 2483.5 MHz

Limit kept Yes V No

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 68 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

EUT Mode :

Bluetooth EDR (3Mbps)

Temperature :

Test Engineer : Zhi Lu

Antenna Gain : 1.37dBi

20~21℃

Relative Humidity : 40~41%

Duty Cycle :

32.59%

T nom (℃)

T min (℃)

T max (℃)

TEST CONDITIONS

25

-20

55

V nom (V)

V max (V)

V min (V)

V max (V)

V min (V)

6.5

7.5

5.0

7.5

5.0

Measured frequencies (lowest and highest)

Measurement uncertainty

FREQUENCY (MHz) at which

–80 dBm/Hz occurs

CH 00

2402 MHz

CH 78

2480 MHz

2401.32

2401.32

2401.32

2401.30

2401.30 f

L

= 2401.30

2480.68

2480.68

2480.68

2480.68

2480.68 f

H

= 2480.68

1 x 10

-5

LIMITS : SUBCLAUSE 8.4.1.1

Under all Test Conditions f

L

2400.0 MHz f

H

< 2483.5 MHz

Limit kept Yes V No

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 69 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

EUT Mode :

802.11b

Test Engineer : Zhi Lu

Antenna Gain : 0.12dBi

TEST CONDITIONS

T nom (℃)

25 V nom (V) 6.5

T min (℃)

-20

V max (V)

V min (V)

V max (V)

7.5

5.0

7.5

T max (℃)

55

V min (V) 5.0

Measured frequencies (lowest and highest)

Measurement uncertainty

LIMITS : SUBCLAUSE 8.4.1.1

Under all Test Conditions

Temperature :

20~21℃

Relative Humidity : 40~41%

Duty Cycle :

100.00%

FREQUENCY (MHz) at which

–80 dBm/Hz occurs

CH 01

2412 MHz

2404.32

CH 13

2472 MHz

2480.04

2403.78

2403.72

2403.84

2403.84 f

L

2403.72 f

2480.28

2480.28

2479.92

2479.92

H

= 2480.28

1 x 10

-5 f f

L

H

2400.0 MHz

< 2483.5 MHz

Limit kept Yes V No

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 70 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

EUT Mode :

802.11g

Test Engineer : Zhi Lu

Antenna Gain : 0.12dBi

TEST CONDITIONS

T nom (℃)

25 V nom (V) 6.5

T min (℃)

T max (℃)

-20

55

V max (V)

V min (V)

V max (V)

V min (V)

7.5

5.0

7.5

5.0

Measured frequencies (lowest and highest)

Measurement uncertainty

LIMITS : SUBCLAUSE 8.4.1.1

Under all Test Conditions

Limit kept

Report No. : AR2D1707

Temperature :

20~21℃

Relative Humidity : 40~41%

Duty Cycle :

100.00%

FREQUENCY (MHz) at which

–80 dBm/Hz occurs

CH 01

2412 MHz

CH 13

2472 MHz

2403.18

2403.00

2403.00

2403.24

2403.24 f

L

2403.00

2480.76

2480.82

2480.82

2480.34

2480.34 f

H

= 2480.82

1 x 10

-5

Yes f f

L

H

< 2483.5 MHz

V

2400.0 MHz

No

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 71 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

EUT Mode :

802.11n HT20

Test Engineer : Zhi Lu

Antenna Gain : 0.12dBi

TEST CONDITIONS

T nom (℃) 25 V 6.5

T min (℃) -20

V max(V)

V min(V)

T max (℃) 55

V max(V)

V min(V)

7.5

5.0

7.5

5.0

Measured frequencies (lowest and highest)

Measurement uncertainty

LIMITS : SUBCLAUSE 8.4.1.1

Temperature :

20~21℃

Relative Humidity : 40~41%

Duty Cycle :

100.00%

TRANSMITTER POWER EIRP (AVERAGE)

(dBm)

CH 01

2412 MHz

CH 13

2472 MHz

2402.58 2481.36

2402.52 2481.42

2402.52 2481.42

2402.58 2481.36 f

L

2402.58 2481.36

2402.52 f

H

= 2481.42

1.5dB

Under all Test Conditions f

L

2400.0 MHz f

H

< 2483.5 MHz

Limit kept Yes V No

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 72 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

EUT Mode :

802.11n HT40

Test Engineer : Zhi Lu

Antenna Gain : 0.12dBi

TEST CONDITIONS

T nom (℃) 25 V 6.5

T min (℃) -20

V max(V)

V min(V)

T max (℃) 55

V max(V)

V min(V)

7.5

5.0

7.5

5.0

Measured frequencies (lowest and highest)

Measurement uncertainty

LIMITS : SUBCLAUSE 8.4.1.1

Temperature :

20~21℃

Relative Humidity : 40~41%

Duty Cycle :

100.00%

TRANSMITTER POWER EIRP (AVERAGE)

(dBm)

CH 03

2422 MHz

2403.34

CH 11

2462 MHz

2480.63

2403.25

2403.25

2403.43

2403.43 f

L

2403.25

2480.81

2480.81

2480.54

2480.54 f

H

= 2480.81

1.5dB

Under all Test Conditions f

L

2400.0 MHz f

H

< 2483.5 MHz

Limit kept Yes V No

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 73 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

EUT Mode :

802.11a

Test Engineer : Zhi Lu

Antenna Gain : 0.05dBi

TEST CONDITIONS

T nom (℃)

T min (℃)

T max (℃)

25

-10

55

V nom (V)

V max (V)

V min (V)

V max (V)

V min (V)

6.5

7.5

5.0

7.5

5.0

Measured frequencies (lowest and highest)

Measurement uncertainty

LIMITS : SUBCLAUSE 8.4.1.1

Under all Test Conditions

Temperature :

20~21℃

Relative Humidity : 40~41%

Duty Cycle :

100.00%

Measured Frequency

(MHz)

CH 36

5180MHz

5171.60

CH 48

5240MHz

5188.32 5231.60 5248.32

5171.68

5171.68

5171.60

5171.60

5188.40

5188.40

5188.32

5188.32 f

L

5171.60

5231.68

5231.68

5231.60

5231.60 f

H

5248.40

5248.40

5248.32

5248.32

= 5239.96

1 x 10

-5 f f

L

H

5150.0 MHz

< 5350.0 MHz

Yes V No Limit kept

EUT Mode :

802.11a

Test Engineer : Zhi Lu

Antenna Gain : -0.48dBi

Temperature :

20~21℃

Relative Humidity : 40~41%

Duty Cycle :

100.00%

TEST CONDITIONS

Measured Frequency

(MHz)

CH 149

5745MHz

5735.70

CH 165

5825MHz

5834.42 T nom (℃) 25 V nom (V)

LIMITS : SUBCLAUSE 8.4.1.1

6.5

Under all Test Conditions f f

L

H

5725.0 MHz

< 5850.0 MHz

Yes V No Limit kept

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 74 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

EUT Mode :

802.11n HT20

Test Engineer : Zhi Lu

Antenna Gain : 0.05dBi

Temperature :

20~21℃

Relative Humidity :

40~41%

Duty Cycle :

100.00%

TEST CONDITIONS

T nom (℃)

25

V nom (V) 6.5

T min (℃)

T max (℃)

-10

55

V max (V)

V min (V)

V max (V)

V min (V)

7.5

5.0

7.5

5.0

Measured frequencies (lowest and highest)

Measurement uncertainty

LIMITS : SUBCLAUSE 8.4.1.1

Under all Test Conditions

Measured Frequency

(MHz)

CH 36

5180MHz

5171.04 5188.96

CH 48

5240MHz

5231.04 5248.96

5171.04

5171.04

5171.04

5171.04

5189.04

5189.04

5188.96

5188.96 f

L

5180.00

1 x 10

-5

5231.04

5231.04

5230.96

5231.04 f

H

5249.04

5249.04

5248.96

5248.96

= 5240.00 f f

L

H

5150.0 MHz

< 5350.0 MHz

Limit kept Yes V No

EUT Mode :

802.11n HT20

Test Engineer : Zhi Lu

Antenna Gain : -0.48dBi

TEST CONDITIONS

T nom (℃) 25 V nom (V)

LIMITS : SUBCLAUSE 8.4.1.1

6.5

Under all Test Conditions

Temperature :

20~21℃

Relative Humidity : 40~41%

Duty Cycle :

100.00%

Measured Frequency

(MHz)

CH 149

5745MHz

5735.52

CH 165

5825MHz

5834.94 f f

L

H

5725.0 MHz

< 5850.0 MHz

Yes V No Limit kept

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 75 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

EUT Mode :

802.11n HT40

Test Engineer : Zhi Lu

Antenna Gain : 0.05dBi

Temperature :

20~21℃

Relative Humidity : 40~41%

Duty Cycle :

100.00%

TEST CONDITIONS

T nom (℃)

25

V nom (V) 6.5

T min (℃)

T max (℃)

-10

55

V max (V)

V min (V)

V max (V)

V min (V)

7.5

5.0

7.5

5.0

Measured frequencies (lowest and highest)

Measurement uncertainty

LIMITS : SUBCLAUSE 8.4.1.1

Under all Test Conditions

Measured Frequency

(MHz)

CH38

5190MHz

5171.60 5208.40

CH46

5230MHz

5211.60 5248.40

5171.60

5171.52

5171.60

5171.60

5208.40

5208.40

5208.40

5208.40 f

L

5190.00

1 x 10

-5

5211.76 5248.40

5211.60 5248.40

5211.52 5248.40

5211.52 5248.40 f

H

= 5229.96 f f

L

H

5470.0 MHz

< 5725.0 MHz

Yes V No Limit kept

EUT Mode :

802.11n HT40

Test Engineer : Zhi Lu

Antenna Gain : -0.48dBi

Temperature :

20~21℃

Relative Humidity : 40~41%

Duty Cycle :

100.00%

TEST CONDITIONS

Measured Frequency

(MHz)

CH 151

5755MHz

5735.83

CH 159

5795MHz

5814.17 T nom (℃) 25 V nom (V)

LIMITS : SUBCLAUSE 8.4.1.1

6.5

Under all Test Conditions f f

L

H

5725.0 MHz

< 5850.0 MHz

Yes V No Limit kept

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 76 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

3.5 Radiated Power Spectral Density (SUBCLAUSE 8.4)

3.5.1 Measuring Instruments

See list of measuring instruments of this test report.

3.5.2 Test Procedure

For the 2.4-2.4835GHz, and 5.725–5.850 GHz bands

1. The RF output of EUT was connected to the spectrum analyzer by RF cable and attenuator. The path loss was compensated to the results for each measurement.

2. Set to the maximum power setting and enable the EUT transmit continuously.

3. Make the measurement with the spectrum analyzer's resolution bandwidth (RBW) = 3 kHz. Video bandwidth VBW = 10 kHz In order to make an accurate measurement, set the span to 1.5 times

DTS Channel Bandwidth. (6dB BW)

4. Detector = peak, Sweep time = auto couple, Trace mode = max hold, Allow trace to fully stabilize.

Use the peak marker function to determine the maximum power level.

For the 5.15–5.25GHz bands

1. Measure and record the results in the test report.

2. The transmitter output port was connected to spectrum analyzer directly and IF port of spectrum analyzer was connected to power meter.

3. The spectrum analyzer’s resolution bandwidth was set at 1MHz RBW and 3MHz VBW under fundamental frequency.

4. The maximum radiated spectral power density, EIRP density, is determined by the conducted power density plus antenna gain with 10log (1/x), where x is the duty cycle of the EUT in continuously transmitting mode.

3.5.3 Test Setup Layout

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 77 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

3.5.4 Test Result of Radiated Power Spectral Density

EUT Mode :

802.11b

Test Engineer : Zhi Lu

Antenna Gain : 0.12 dBi

Cable loss

13.80dB

Channel

Measured

Frequency

(MHz)

Measured

PSD/100kHz

(dBm)

CH 01

CH 07

CH 13

2412 MHz

2442 MHz

2472 MHz

-13.99

-11.77

-13.03

Temperature :

20~21℃

Relative Humidity : 40~41%

Duty Cycle :

100.00%

Duty Factor :

0.00dB

Measured

PSD/3kHz

(dBm)

-32.10

-29.83

-30.97

Radiated Peak Power

Spectral Density

(e.i.r.p) (dBm)

-31.98

Limit

(e.i.r.p)

< 14dBm per 3kHz

-29.71

-30.85

< 14dBm per 3kHz

< 14dBm per 3kHz

Note:

1. Measured power density (dBm) has offset with cable loss.

2. The Measured power density (dBm)/ 100kHz is reference level and used as 20dBc down for Conducted Band Edges limit line.

3. Radiated Peak Power Spectral Density (e.i.r.p) (dBm)) = Measured PSD/3kHz (dBm) + Antenna gain (dBi).

PSD 100kHz Plot on 802.11b Channel 01

Marker 1 [T1 ]

Ref 20 dBm

*

Att 20 dB

*

RBW 100 kHz

*

VBW 300 kHz

SWT 5 ms

-13.99 dBm

2.411475000 GHz

20

Offset 13.8 dB

A

10

1 PK

MAXH

0

LVL

-10

1

-20

-30

-40

-50

-60

-70

-80

Center 2.412 GHz 1.5 MHz/ Span 15 MHz

Date: 24.JAN.2013 05:39:25

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 78 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

PSD 100kHz Plot on 802.11b Channel 07

Ref 20 dBm

*

Att 20 dB

*

RBW 100 kHz

*

VBW 300 kHz

SWT 5 ms

Marker 1 [T1 ]

-11.77 dBm

2.441472900 GHz

20 Offset 13.8 dB

10

1 PK

MAXH

0

A

LVL

1

-10

-20

-30

-40

-50

-60

-70

-80

Center 2.442 GHz 1.506 MHz/ Span 15.06 MHz

Report No. : AR2D1707

Date: 24.JAN.2013 05:48:03

PSD 100kHz Plot on 802.11b Channel 13

Ref 20 dBm

*

Att 20 dB

*

RBW 100 kHz

*

VBW 300 kHz

SWT 5 ms

Marker 1 [T1 ]

-13.03 dBm

2.471475120 GHz

20

Offset 13.8 dB

10

1 PK

MAXH

0

A

LVL

1

-10

-20

-30

-40

-50

-60

-70

-80

Center 2.472 GHz 1.458 MHz/ Span 14.58 MHz

Date: 24.JAN.2013 05:52:31

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 79 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

PSD 3kHz Plot on 802.11b Channel 01

Ref 20 dBm

*

Att 20 dB

*

RBW 3 kHz

*

VBW 10 kHz

SWT 1.7 s

20

Offset 13.8 dB

Marker 1 [T1 ]

-32.10 dBm

2.411205000 GHz

10

1 PK

MAXH

0

A

LVL

-10

-20

-30

-40

-50

-60

-70

-80

Center 2.412 GHz

1

1.5 MHz/ Span 15 MHz

Report No. : AR2D1707

Date: 24.JAN.2013 05:39:15

PSD 3kHz Plot on 802.11b Channel 07

Ref 20 dBm

*

Att 20 dB

*

RBW 3 kHz

*

VBW 10 kHz

SWT 1.7 s

20 Offset 13.8 dB

Marker 1 [T1 ]

-29.83 dBm

2.441262060 GHz

10

1 PK

MAXH

0

A

LVL

-10

-20

-30

1

-40

-50

-60

-70

-80

Center 2.442 GHz 1.506 MHz/ Span 15.06 MHz

Date: 24.JAN.2013 05:47:53

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 80 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

PSD 3kHz Plot on 802.11b Channel 13

Ref 20 dBm

*

Att 20 dB

*

RBW 3 kHz

*

VBW 10 kHz

SWT 1.65 s

20 Offset 13.8 dB

Marker 1 [T1 ]

-30.97 dBm

2.471227260 GHz

10

1 PK

MAXH

0

A

LVL

-10

-20

-30

1

-40

-50

-60

-70

-80

Center 2.472 GHz 1.458 MHz/ Span 14.58 MHz

Report No. : AR2D1707

Date: 24.JAN.2013 05:52:21

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 81 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

EUT Mode :

802.11g

Test Engineer : Zhi Lu

Antenna Gain : 0.12dBi

Cable loss

13.80dB

Channel

Measured

Frequency

(MHz)

Measured

PSD/100kHz

(dBm)

CH 01

CH 07

CH 13

2412 MHz

2442 MHz

2472 MHz

-15.75

-15.89

-16.58

Temperature :

20~21℃

Relative Humidity : 40~41%

Duty Cycle :

100.00%

Duty Factor :

0.00dB

Measured

PSD/3kHz

(dBm)

-29.62

-30.00

-30.48

Radiated Peak Power

Spectral Density

(e.i.r.p) (dBm)

-29.50

Limit

(e.i.r.p)

< 14dBm per 3kHz

-29.88

-30.36

< 14dBm per 3kHz

< 14dBm per 3kHz

Note:

1. Measured power density (dBm) has offset with cable loss.

2. The Measured power density (dBm)/ 100kHz is reference level and used as 20dBc down for Conducted Band Edges limit line.

3. Radiated Peak Power Spectral Density (e.i.r.p) (dBm)) = Measured PSD/3kHz (dBm) + Antenna gain (dBi).

PSD 100kHz Plot on 802.11g Channel 01

Marker 1 [T1 ]

Ref 20 dBm

*

Att 20 dB

*

RBW 100 kHz

*

VBW 300 kHz

SWT 5 ms

-15.75 dBm

2.409466320 GHz

20

Offset 13.8 dB

A

10

1 PK

MAXH

0

LVL

-10

1

-20

-30

-40

-50

-60

-70

-80

Center 2.412 GHz 2.484 MHz/ Span 24.84 MHz

Date: 24.JAN.2013 05:55:41

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 82 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

PSD 100kHz Plot on 802.11g Channel 07

Ref 20 dBm

*

Att 20 dB

*

RBW 100 kHz

*

VBW 300 kHz

SWT 5 ms

Marker 1 [T1 ]

-15.89 dBm

2.439863760 GHz

20 Offset 13.8 dB

10

1 PK

MAXH

0

A

LVL

-10

1

-20

-30

-40

-50

-60

-70

-80

Center 2.442 GHz 2.484 MHz/ Span 24.84 MHz

Report No. : AR2D1707

Date: 24.JAN.2013 05:58:01

PSD 100kHz Plot on 802.11g Channel 13

Ref 20 dBm

*

Att 20 dB

*

RBW 100 kHz

*

VBW 300 kHz

SWT 5 ms

Marker 1 [T1 ]

-16.58 dBm

2.464249920 GHz

20

Offset 13.8 dB

10

1 PK

MAXH

0

A

LVL

-10

1

-20

-30

-40

-50

-60

-70

-80

Center 2.472 GHz 2.484 MHz/ Span 24.84 MHz

Date: 24.JAN.2013 06:00:45

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 83 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

PSD 3kHz Plot on 802.11g Channel 01

Ref 20 dBm

*

Att 20 dB

*

RBW 3 kHz

*

VBW 10 kHz

SWT 2.8 s

20

Offset 13.8 dB

Marker 1 [T1 ]

-29.62 dBm

2.409814080 GHz

10

1 PK

MAXH

0

A

LVL

-10

-20

-30

-40

-50

-60

-70

-80

Center 2.412 GHz

1

2.484 MHz/ Span 24.84 MHz

Report No. : AR2D1707

Date: 24.JAN.2013 05:55:31

PSD 3kHz Plot on 802.11g Channel 07

Ref 20 dBm

*

Att 20 dB

*

RBW 3 kHz

*

VBW 10 kHz

SWT 2.8 s

20 Offset 13.8 dB

Marker 1 [T1 ]

-30.00 dBm

2.441056080 GHz

10

1 PK

MAXH

0

A

LVL

-10

-20

-30

1

-40

-50

-60

-70

-80

Center 2.442 GHz 2.484 MHz/ Span 24.84 MHz

Date: 24.JAN.2013 05:57:51

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 84 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

PSD 3kHz Plot on 802.11g Channel 13

Ref 20 dBm

*

Att 20 dB

*

RBW 3 kHz

*

VBW 10 kHz

SWT 2.8 s

20 Offset 13.8 dB

Marker 1 [T1 ]

-30.48 dBm

2.469814080 GHz

10

1 PK

MAXH

0

A

LVL

-10

-20

-30

1

-40

-50

-60

-70

-80

Center 2.472 GHz 2.484 MHz/ Span 24.84 MHz

Report No. : AR2D1707

Date: 24.JAN.2013 06:00:35

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 85 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

EUT Mode :

802.11n HT20

Test Engineer : Zhi Lu

Antenna Gain : 0.12dBi

Cable loss

13.80dB

Channel

Measured

Frequency

(MHz)

Measured

PSD/100kHz

(dBm)

CH 01

CH 07

CH 13

2412 MHz

2442 MHz

2472 MHz

-15.27

-15.62

-16.47

Temperature :

20~21℃

Relative Humidity : 40~41%

Duty Cycle :

100.00%

Duty Factor :

0.00dB

Measured

PSD/3kHz

(dBm)

-27.85

-28.23

-29.64

Note:

1. Measured power density (dBm) has offset with cable loss.

2. The Measured power density (dBm)/ 100kHz is reference level and used as 20dBc down for Conducted Band Edges limit line.

3. Radiated Peak Power Spectral Density (e.i.r.p) (dBm)) = Measured PSD/3kHz (dBm) + Antenna gain (dBi).

PSD 100kHz Plot on 802.11n HT20 Channel 01

Marker 1 [T1 ]

Ref 20 dBm

*

Att 20 dB

*

RBW 100 kHz

*

VBW 300 kHz

SWT 5 ms

-15.27 dBm

2.411359200 GHz

20

Offset 13.8 dB

A

10

1 PK

MAXH

0

LVL

-10

1

-20

Radiated Peak Power

Spectral Density

(e.i.r.p) (dBm)

-27.73

Limit

(e.i.r.p)

< 14dBm per 3kHz

-28.11

-29.52

< 14dBm per 3kHz

< 14dBm per 3kHz

-30

-40

-50

-60

-70

-80

Center 2.412 GHz 2.67 MHz/ Span 26.7 MHz

Date: 24.JAN.2013 06:04:18

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 86 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

PSD 100kHz Plot on 802.11n HT20 Channel 07

Ref 20 dBm

*

Att 20 dB

*

RBW 100 kHz

*

VBW 300 kHz

SWT 5 ms

Marker 1 [T1 ]

-15.62 dBm

2.448621600 GHz

20 Offset 13.8 dB

10

1 PK

MAXH

0

A

LVL

-10

1

-20

-30

-40

-50

-60

-70

-80

Center 2.442 GHz 2.67 MHz/ Span 26.7 MHz

Report No. : AR2D1707

Date: 24.JAN.2013 06:06:58

PSD 100kHz Plot on 802.11n HT20 Channel 13

Ref 20 dBm

*

Att 20 dB

*

RBW 100 kHz

*

VBW 300 kHz

SWT 5 ms

Marker 1 [T1 ]

-16.47 dBm

2.469116400 GHz

20

Offset 13.8 dB

10

1 PK

MAXH

0

A

LVL

-10

1

-20

-30

-40

-50

-60

-70

-80

Center 2.472 GHz 2.67 MHz/ Span 26.7 MHz

Date: 24.JAN.2013 06:09:15

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 87 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

PSD 3kHz Plot on 802.11n HT20 Channel 01

Ref 20 dBm

*

Att 20 dB

*

RBW 3 kHz

*

VBW 10 kHz

SWT 3 s

Marker 1 [T1 ]

-27.85 dBm

2.409783900 GHz

20

Offset 13.8 dB

10

1 PK

MAXH

0

A

LVL

-10

-20

-30

-40

-50

-60

-70

-80

Center 2.412 GHz

1

2.67 MHz/ Span 26.7 MHz

Report No. : AR2D1707

Date: 24.JAN.2013 06:04:08

PSD 3kHz Plot on 802.11n HT20 Channel 07

Ref 20 dBm

*

Att 20 dB

*

RBW 3 kHz

*

VBW 10 kHz

SWT 3 s

Marker 1 [T1 ]

-28.23 dBm

2.439783900 GHz

20 Offset 13.8 dB

10

1 PK

MAXH

0

A

LVL

-10

-20

-30

1

-40

-50

-60

-70

-80

Center 2.442 GHz 2.67 MHz/ Span 26.7 MHz

Date: 24.JAN.2013 06:06:48

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 88 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

PSD 3kHz Plot on 802.11n HT20 Channel 13

Ref 20 dBm

*

Att 20 dB

*

RBW 3 kHz

*

VBW 10 kHz

SWT 3 s

Marker 1 [T1 ]

-29.64 dBm

2.469783900 GHz

20 Offset 13.8 dB

10

1 PK

MAXH

0

A

LVL

-10

-20

-30

1

-40

-50

-60

-70

-80

Center 2.472 GHz 2.67 MHz/ Span 26.7 MHz

Report No. : AR2D1707

Date: 24.JAN.2013 06:09:06

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 89 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

EUT Mode :

802.11n HT40

Test Engineer : Zhi Lu

Antenna Gain : 0.12dBi

Cable loss

13.80dB

Channel

Measured

Frequency

(MHz)

Measured

PSD/100kHz

(dBm)

CH 03

CH 07

CH 11

2422 MHz

2442 MHz

2462 MHz

-15.32

-13.97

-15.63

Temperature :

20~21℃

Relative Humidity : 40~41%

Duty Cycle :

100.00%

Duty Factor :

0.00dB

Measured

PSD/3kHz

(dBm)

-24.13

-24.58

-26.90

Note:

1. Measured power density (dBm) has offset with cable loss.

2. The Measured power density (dBm)/ 100kHz is reference level and used as 20dBc down for Conducted Band Edges limit line.

3. Radiated Peak Power Spectral Density (e.i.r.p) (dBm)) = Measured PSD/3kHz (dBm) + Antenna gain (dBi).

PSD 100kHz Plot on 802.11n HT40 Channel 03

Marker 1 [T1 ]

Ref 20 dBm

*

Att 20 dB

*

RBW 100 kHz

*

VBW 300 kHz

SWT 10 ms

-15.32 dBm

2.426049280 GHz

20

Offset 13.8 dB

A

10

1 PK

MAXH

0

LVL

-10

1

-20

Radiated Peak Power

Spectral Density

(e.i.r.p) (dBm)

-24.01

Limit

(e.i.r.p)

< 14dBm per 3kHz

-24.46

-26.78

< 14dBm per 3kHz

< 14dBm per 3kHz

-30

-40

-50

-60

-70

-80

Center 2.422 GHz 5.472 MHz/ Span 54.72 MHz

Date: 4.FEB.2013 17:39:58

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 90 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

PSD 100kHz Plot on 802.11n HT40 Channel 07

Ref 20 dBm

*

Att 20 dB

*

RBW 100 kHz

*

VBW 300 kHz

SWT 10 ms

Marker 1 [T1 ]

-13.97 dBm

2.438232600 GHz

20 Offset 13.8 dB

10

1 PK

MAXH

0

A

LVL

-10

1

-20

-30

-40

-50

-60

-70

-80

Center 2.442 GHz 5.46 MHz/ Span 54.6 MHz

Report No. : AR2D1707

Date: 4.FEB.2013 17:49:19

PSD 100kHz Plot on 802.11n HT40 Channel 11

Ref 20 dBm

*

Att 20 dB

*

RBW 100 kHz

*

VBW 300 kHz

SWT 10 ms

Marker 1 [T1 ]

-15.63 dBm

2.452040960 GHz

20

Offset 13.8 dB

10

1 PK

MAXH

0

A

LVL

-10

1

-20

-30

-40

-50

-60

-70

-80

Center 2.462 GHz 5.472 MHz/ Span 54.72 MHz

Date: 4.FEB.2013 17:56:29

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 91 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

PSD 3kHz Plot on 802.11n HT40 Channel 03

Ref 20 dBm

*

Att 20 dB

*

RBW 3 kHz

*

VBW 10 kHz

SWT 6.2 s

Marker 1 [T1 ]

-24.13 dBm

2.422000000 GHz

20

Offset 13.8 dB

10

1 PK

MAXH

0

A

LVL

-10

-20

-30

-40

-50

-60

-70

-80

Center 2.422 GHz

1

5.472 MHz/ Span 54.72 MHz

Report No. : AR2D1707

Date: 4.FEB.2013 17:39:49

PSD 3kHz Plot on 802.11n HT40 Channel 07

Ref 20 dBm

*

Att 20 dB

*

RBW 3 kHz

*

VBW 10 kHz

SWT 6.2 s

Marker 1 [T1 ]

-24.58 dBm

2.442000000 GHz

20 Offset 13.8 dB

10

1 PK

MAXH

0

A

LVL

-10

-20

-30

1

-40

-50

-60

-70

-80

Center 2.442 GHz 5.46 MHz/ Span 54.6 MHz

Date: 4.FEB.2013 17:49:09

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 92 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

PSD 3kHz Plot on 802.11n HT40 Channel 11

Ref 20 dBm

*

Att 20 dB

*

RBW 3 kHz

*

VBW 10 kHz

SWT 6.2 s

Marker 1 [T1 ]

-26.90 dBm

2.462000000 GHz

20 Offset 13.8 dB

10

1 PK

MAXH

0

A

LVL

-10

-20

-30

1

-40

-50

-60

-70

-80

Center 2.462 GHz 5.472 MHz/ Span 54.72 MHz

Report No. : AR2D1707

Date: 4.FEB.2013 17:56:19

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 93 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

EUT Mode :

802.11a

Test Engineer : Zhi Lu

Antenna Gain : 0.05dBi

Cable loss

13.80dB

Channel

Measured

Frequency

(MHz)

Conducted

Power Density

(dBm/MHz)

Temperature :

20~21℃

Relative Humidity : 40~41%

Duty Cycle :

100.00%

Duty Factor :

0.00dB

EIRP Density

(dBm/MHz)

Power Density

(W/MHz)

Limit

(mW/MHz)

CH36 5180MHz 0.59 0.64 0.001 10

CH48 5240MHz 1.83 1.88 0.002 10

Note:

1. Measured power density (dBm) has offset with cable loss.

2. Maximum Spectral Power Density EIRP(dBm) = Measured power density (dBm) + Antenna gain (dBi) + duty factor.

PSD Plot on 802.11a Channel 36

Ref 20 dBm

*

Att 20 dB

*

RBW 1 MHz

*

VBW 3 MHz

SWT 60 s

20

Offset 13.8 dB

Marker 1 [T1 ]

0.59 dBm

5.181500000 GHz

A

10

1 RM *

VIEW

0

1

LVL

-10

-20

-30

-40

-50

-60

-70

-80

Center 5.18156 GHz 300 kHz/ Span 3 MHz

Date: 28.JAN.2013 20:43:10

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 94 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

PSD Plot on 802.11a Channel 48

Ref 20 dBm

*

Att 20 dB

*

RBW 1 MHz

*

VBW 3 MHz

SWT 60 s

20 Offset 13.8 dB

10

1 RM *

VIEW

0

1

Marker 1 [T1 ]

1.83 dBm

5.241512000 GHz

A

LVL

-10

-20

-30

-40

-50

-60

-70

-80

Center 5.24132 GHz 300 kHz/ Span 3 MHz

Report No. : AR2D1707

Date: 28.JAN.2013 20:39:54

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 95 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

EUT Mode :

802.11n HT20

Test Engineer : Zhi Lu

Antenna Gain : 0.05dBi

Cable loss

13.80dB

Channel

Measured

Frequency

(MHz)

Conducted

Power Density

(dBm/MHz)

Temperature :

20~21℃

Relative Humidity : 40~41%

Duty Cycle :

100.00%

Duty Factor :

0.00dB

EIRP Density

(dBm/MHz)

Power Density

(W/MHz)

Limit

(mW/MHz)

CH036 5180MHz -2.78 -2.73 0.001 10

CH048 5240MHz 0.77 0.82 0.001 10

Note:

1. Measured power density (dBm) has offset with cable loss.

2. Maximum Spectral Power Density EIRP(dBm) = Measured power density (dBm) + Antenna gain (dBi) + duty factor.

PSD Plot on 802.11n HT20 Channel 36

Ref 20 dBm

*

Att 20 dB

*

RBW 1 MHz

*

VBW 3 MHz

SWT 60 s

20 Offset 13.8 dB

Marker 1 [T1 ]

-2.78 dBm

5.185700000 GHz

10

1 RM *

VIEW

1

0

A

LVL

-10

-20

-30

-40

-50

-60

-70

-80

Center 5.1872 GHz 300 kHz/ Span 3 MHz

Date: 28.JAN.2013 20:32:55

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 96 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

PSD Plot on 802.11n HT20 Channel 48

Ref 20 dBm

*

Att 20 dB

*

RBW 1 MHz

*

VBW 3 MHz

SWT 60 s

20 Offset 13.8 dB

Marker 1 [T1 ]

0.77 dBm

5.236544000 GHz

10

1 RM *

VIEW

0

1

A

LVL

-10

-20

-30

-40

-50

-60

-70

-80

Center 5.23694 GHz 300 kHz/ Span 3 MHz

Report No. : AR2D1707

Date: 28.JAN.2013 20:36:24

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 97 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

EUT Mode :

802.11n HT40

Test Engineer : Zhi Lu

Antenna Gain : 0.05dBi

Cable loss

13.80dB

Channel

Measured

Frequency

(MHz)

Conducted

Power Density

(dBm/MHz)

Temperature :

20~21℃

Relative Humidity : 40~41%

Duty Cycle :

Duty Factor :

100.00%

0.00dB

EIRP Density

(dBm/MHz)

Power Density

(W/MHz)

CH 38

CH 46

5190MHz

5230MHz

-2.78

-2.42

-2.73

-2.37

0.001

0.001

Limit

(mW/MHz)

Note:

1. Measured power density (dBm) has offset with cable loss.

2. Maximum Spectral Power Density EIRP(dBm) = Measured power density (dBm) + Antenna gain (dBi) + duty factor.

10

10

PSD Plot on 802.11n HT40 Channel 38

Ref 20 dBm

*

Att 20 dB

*

RBW 1 MHz

*

VBW 3 MHz

SWT 60 s

20

Offset 13.8 dB

Marker 1 [T1 ]

-2.78 dBm

5.203356000 GHz

10

1 RM *

VIEW

0

1

A

LVL

-10

-20

-30

-40

-50

-60

-70

-80

Center 5.20356 GHz 300 kHz/ Span 3 MHz

Date: 28.JAN.2013 20:14:56

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 98 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

PSD Plot on 802.11n HT40 Channel 46

Ref 20 dBm

*

Att 20 dB

*

RBW 1 MHz

*

VBW 3 MHz

SWT 60 s

20 Offset 13.8 dB

Marker 1 [T1 ]

-2.42 dBm

5.233582000 GHz

10

1 RM *

VIEW

0

1

A

LVL

-10

-20

-30

-40

-50

-60

-70

-80

Center 5.23294 GHz 300 kHz/ Span 3 MHz

Report No. : AR2D1707

Date: 28.JAN.2013 20:11:14

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 99 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

EUT Mode :

802.11a

Test Engineer : Zhi Lu

Antenna Gain : -0.48dBi

Cable loss

13.80dB

Channel

Measured

Frequency

(MHz)

Measured

PSD/100kHz

(dBm)

CH 149 5745 MHz

CH 157 5785 MHz

CH 165 5825 MHz

-0.16

0.43

0.83

Temperature :

20~21℃

Relative Humidity : 40~41%

Duty Cycle :

Duty Factor :

100.00%

0.00dB

Measured

PSD/3kHz

(dBm)

-10.05

-10.73

-10.48

Radiated Peak Power

Spectral Density

(e.i.r.p) (dBm)

-10.53

Limit

(e.i.r.p)

< 14dBm per 3kHz

-11.21

-10.96

< 14dBm per 3kHz

< 14dBm per 3kHz

Note:

1.

2.

Measured power density (dBm) has offset with cable loss.

The Measured power density (dBm)/ 100kHz is reference level and used as 20dBc down for Conducted Band Edges limit

3. line.

Radiated Peak Power Spectral Density (e.i.r.p) (dBm)) = Measured PSD/3kHz (dBm) + Antenna gain (dBi).

PSD 100kHz Plot on 802.11a Channel 149

Ref 20 dBm

*

Att 20 dB

*

RBW 100 kHz

*

VBW 300 kHz

SWT 20 ms

Marker 1 [T1 ]

-0.16 dBm

5.742844140 GHz

20 Offset 13.8 dB

A

10

1 PK

MAXH

0

1

LVL

-10

-20

-30

-40

-50

-60

-70

-80

Center 5.745 GHz 2.478 MHz/ Span 24.78 MHz

Date: 30.JAN.2013 02:18:04

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 100 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

PSD 100kHz Plot on 802.11a Channel 157

Ref 20 dBm

*

Att 20 dB

*

RBW 100 kHz

*

VBW 300 kHz

SWT 20 ms

Marker 1 [T1 ]

0.43 dBm

5.782838920 GHz

20 Offset 13.8 dB

10

1 PK

MAXH

0

1

A

LVL

-10

-20

-30

-40

-50

-60

-70

-80

Center 5.785 GHz 2.484 MHz/ Span 24.84 MHz

Report No. : AR2D1707

Date: 30.JAN.2013 02:06:05

PSD 100kHz Plot on 802.11a Channel 165

Ref 20 dBm

*

Att 20 dB

*

RBW 100 kHz

*

VBW 300 kHz

SWT 20 ms

Marker 1 [T1 ]

0.83 dBm

5.823360560 GHz

20

Offset 13.8 dB

10

1 PK

MAXH

0

1

A

LVL

-10

-20

-30

-40

-50

-60

-70

-80

Center 5.825 GHz 2.484 MHz/ Span 24.84 MHz

Date: 30.JAN.2013 02:09:19

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 101 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

PSD 3kHz Plot on 802.11a Channel 149

Ref 20 dBm

*

Att 20 dB

*

RBW 3 kHz

*

VBW 10 kHz

SWT 2.8 s

Marker 1 [T1 ]

-10.05 dBm

5.744950440 GHz

20 Offset 13.8 dB

10

1 PK

MAXH

0

A

LVL

1

-10

-20

-30

-40

-50

-60

-70

-80

Center 5.745 GHz 2.478 MHz/ Span 24.78 MHz

Report No. : AR2D1707

Date: 30.JAN.2013 02:17:54

PSD 3kHz Plot on 802.11a Channel 157

Ref 20 dBm

*

Att 20 dB

*

RBW 3 kHz

*

VBW 10 kHz

SWT 2.8 s

Marker 1 [T1 ]

-10.73 dBm

5.784950320 GHz

20 Offset 13.8 dB

10

1 PK

MAXH

0

A

LVL

1

-10

-20

-30

-40

-50

-60

-70

-80

Center 5.785 GHz 2.484 MHz/ Span 24.84 MHz

Date: 30.JAN.2013 02:05:55

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 102 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

PSD 3kHz Plot on 802.11a Channel 165

Ref 20 dBm

*

Att 20 dB

*

RBW 3 kHz

*

VBW 10 kHz

SWT 2.8 s

Marker 1 [T1 ]

-10.48 dBm

5.824950320 GHz

20 Offset 13.8 dB

10

1 PK

MAXH

0

A

LVL

1

-10

-20

-30

-40

-50

-60

-70

-80

Center 5.825 GHz 2.484 MHz/ Span 24.84 MHz

Report No. : AR2D1707

Date: 30.JAN.2013 02:09:09

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 103 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

EUT Mode :

802.11n HT20

Test Engineer : Zhi Lu

Antenna Gain : -0.48dBi

Cable loss

13.80dB

Channel

Measured

Frequency

(MHz)

Measured

PSD/100kHz

(dBm)

CH 149 5745 MHz

CH 157

5785 MHz

CH 165

5825 MHz

0.86

1.34

2.34

Temperature :

Relative Humidity :

Duty Cycle :

Duty Factor :

Measured

PSD/3kHz

(dBm)

-11.50

-11.05

-10.90

20~21℃

40~41%

100.00%

0.00dB

Radiated Peak Power

Spectral Density

(e.i.r.p) (dBm)

-11.98

-11.53

-11.38

Limit

(e.i.r.p)

< 14dBm per 3kHz

< 14dBm per 3kHz

< 14dBm per 3kHz

Note:

1. Measured power density (dBm) has offset with cable loss.

2. The Measured power density (dBm)/ 100kHz is reference level and used as 20dBc down for Conducted Band Edges limit line.

3. Radiated Peak Power Spectral Density (e.i.r.p) (dBm)) = Measured PSD/3kHz (dBm) + Antenna gain (dBi).

PSD 100kHz Plot on 802.11n HT20 Channel 149

Marker 1 [T1 ]

Ref 20 dBm

*

Att 20 dB

*

RBW 100 kHz

*

VBW 300 kHz

SWT 20 ms

0.86 dBm

5.742089700 GHz

20

Offset 13.8 dB

A

10

1 PK

MAXH

0

1

LVL

-10

-20

-30

-40

-50

-60

-70

-80

Center 5.745 GHz 2.67 MHz/ Span 26.7 MHz

Date: 30.JAN.2013 02:22:31

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 104 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

PSD 100kHz Plot on 802.11n HT20 Channel 157

Ref 20 dBm

*

Att 20 dB

*

RBW 100 kHz

*

VBW 300 kHz

SWT 20 ms

Marker 1 [T1 ]

1.34 dBm

5.782116400 GHz

20 Offset 13.8 dB

10

1 PK

MAXH

0

1

A

LVL

-10

-20

-30

-40

-50

-60

-70

-80

Center 5.785 GHz 2.67 MHz/ Span 26.7 MHz

Report No. : AR2D1707

Date: 30.JAN.2013 02:26:43

PSD 100kHz Plot on 802.11n HT20 Channel 165

Ref 20 dBm

*

Att 20 dB

*

RBW 100 kHz

*

VBW 300 kHz

SWT 20 ms

Marker 1 [T1 ]

2.34 dBm

5.822089700 GHz

20

Offset 13.8 dB

10

1 PK

MAXH

0

1

A

LVL

-10

-20

-30

-40

-50

-60

-70

-80

Center 5.825 GHz 2.67 MHz/ Span 26.7 MHz

Date: 30.JAN.2013 02:31:46

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 105 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

PSD 3kHz Plot on 802.11n HT20 Channel 149

Ref 20 dBm

*

Att 20 dB

*

RBW 3 kHz

*

VBW 10 kHz

SWT 3 s

Marker 1 [T1 ]

-11.50 dBm

5.744973300 GHz

20 Offset 13.8 dB

10

1 PK

MAXH

0

A

LVL

1

-10

-20

-30

-40

-50

-60

-70

-80

Center 5.745 GHz 2.67 MHz/ Span 26.7 MHz

Report No. : AR2D1707

Date: 30.JAN.2013 02:22:21

PSD 3kHz Plot on 802.11n HT20 Channel 157

Ref 20 dBm

*

Att 20 dB

*

RBW 3 kHz

*

VBW 10 kHz

SWT 3 s

Marker 1 [T1 ]

-11.05 dBm

5.784946600 GHz

20 Offset 13.8 dB

10

1 PK

MAXH

0

A

LVL

1

-10

-20

-30

-40

-50

-60

-70

-80

Center 5.785 GHz 2.67 MHz/ Span 26.7 MHz

Date: 30.JAN.2013 02:26:33

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 106 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

PSD 3kHz Plot on 802.11n HT20 Channel 165

Ref 20 dBm

*

Att 20 dB

*

RBW 3 kHz

*

VBW 10 kHz

SWT 3 s

Marker 1 [T1 ]

-10.90 dBm

5.822757200 GHz

20 Offset 13.8 dB

10

1 PK

MAXH

0

A

LVL

1

-10

-20

-30

-40

-50

-60

-70

-80

Center 5.825 GHz 2.67 MHz/ Span 26.7 MHz

Report No. : AR2D1707

Date: 30.JAN.2013 02:31:36

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 107 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

EUT Mode :

802.11n HT40

Test Engineer : Zhi Lu

Antenna Gain : -0.48dBi

Cable loss

13.80dB

Channel

Measured

Frequency

(MHz)

Measured

PSD/100kHz

(dBm)

CH 151 5755 MHz

CH 159

5795 MHz

-1.63

-1.21

Temperature :

Relative Humidity : 40~41%

Duty Cycle :

100.00%

Duty Factor :

0.00dB

Measured

PSD/3kHz

(dBm)

-11.37

-11.30

20~21℃

Radiated Peak Power

Spectral Density

(e.i.r.p) (dBm)

-11.85

-11.78

Limit

(e.i.r.p)

< 14dBm per 3kHz

< 14dBm per 3kHz

Note:

1. Measured power density (dBm) has offset with cable loss.

2. The Measured power density (dBm)/ 100kHz is reference level and used as 20dBc down for Conducted Band Edges limit line.

3. Radiated Peak Power Spectral Density (e.i.r.p) (dBm)) = Measured PSD/3kHz (dBm) + Antenna gain (dBi).

PSD 100kHz Plot on 802.11n HT40 Channel 151

Marker 1 [T1 ]

Ref 20 dBm

*

Att 20 dB

*

RBW 100 kHz

*

VBW 300 kHz

SWT 20 ms

-1.63 dBm

5.738365300 GHz

20

Offset 13.8 dB

A

10

1 PK

MAXH

0

1

LVL

-10

-20

-30

-40

-50

-60

-70

-80

Center 5.755 GHz 5.49 MHz/ Span 54.9 MHz

Date: 30.JAN.2013 02:34:40

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 108 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

PSD 100kHz Plot on 802.11n HT40 Channel 159

Ref 20 dBm

*

Att 20 dB

*

RBW 100 kHz

*

VBW 300 kHz

SWT 20 ms

Marker 1 [T1 ]

-1.21 dBm

5.778383480 GHz

20 Offset 13.8 dB

10

1 PK

MAXH

0

1

A

LVL

-10

-20

-30

-40

-50

-60

-70

-80

Center 5.795 GHz 5.484 MHz/ Span 54.84 MHz

Report No. : AR2D1707

Date: 30.JAN.2013 02:37:35

PSD 3kHz Plot on 802.11n HT40 Channel 151

Ref 20 dBm

*

Att 20 dB

*

RBW 3 kHz

*

VBW 10 kHz

SWT 6.2 s

Marker 1 [T1 ]

-11.37 dBm

5.754945100 GHz

20

Offset 13.8 dB

10

1 PK

MAXH

0

A

LVL

1

-10

-20

-30

-40

-50

-60

-70

-80

Center 5.755 GHz 5.49 MHz/ Span 54.9 MHz

Date: 30.JAN.2013 02:34:30

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 109 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

PSD 3kHz Plot on 802.11n HT40 Channel 159

Ref 20 dBm

*

Att 20 dB

*

RBW 3 kHz

*

VBW 10 kHz

SWT 6.2 s

Marker 1 [T1 ]

-11.30 dBm

5.794945160 GHz

20 Offset 13.8 dB

10

1 PK

MAXH

0

A

LVL

1

-10

-20

-30

-40

-50

-60

-70

-80

Center 5.795 GHz 5.484 MHz/ Span 54.84 MHz

Report No. : AR2D1707

Date: 30.JAN.2013 02:37:25

Remark: Maximum spectral power density is not applicable to FHSS device.

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 110 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

3.6 Additional Requirements

(Table 1 AUSTRALIAN REQUIREMETS NOTES)

3.6.1 Band Edges Measurement

3.6.1.1 Measuring Instruments

See list of measuring instruments of this test report.

3.6.1.2 Test Procedure

For Bluetooth

1. The transmitter output was connected to the spectrum analyzer via a low lose cable.

2. Set RBW = 300KHz (

 1% span=30MHz ), VBW = 300KHz ( RBW). Band edge emissions must be at least 20 dB down from the highest emission level within the authorized band as measured with a 300KHz RBW.

3. The band edges was measured and recorded.

For WLAN

1. The transmitter output was connected to the spectrum analyzer via a low lose cable.

2. Set RBW = 100 KHz, VBW=300 KHz, Peak Detector. Unwanted Emissions measured in any

100 kHz bandwidth outside of the authorized frequency band shall be attenuated by at least

20 dB relative to the maximum in-band peak PSD level in 100 kHz.

3. The band edges was measured and recorded.

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 111 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

3.6.1.3 Test Result

EUT Mode :

Bluetooth BDR (1Mbps)

Temperature :

20~21℃

Test Engineer : Zhi Lu

Channel

CH 00

CH 78

Measured Frequency

(MHz)

2402 MHz

Relative Humidity : 40~41%

Fundamental Signal

(dBm)

Mark 1

(dBm)

2480 MHz

Band Edges Measurement Plot on Bluetooth Channel 00

*

RBW 300 kHz

*

VBW 300 kHz

SWT 2.5 ms Ref 20 dBm

*

Att 20 dB

Marker 1 [T1 ]

-50.93 dBm

2.400000000 GHz

20 Offset 15 dB

Frequency of Mark 1

(MHz)

A

10

1 PK

MAXH

0

D1 0.85 dBm

LVL

-10

D2 -19.15 dBm

-20

-30

-40

-50

-60

-70

-80

Start 2.375 GHz 3 MHz/

1

F1

Stop 2.405 GHz

Date: 31.JAN.2013 03:58:41

Band Edges Measurement Plot on Bluetooth Channel 78

*

RBW 300 kHz

*

VBW 300 kHz

SWT 2.5 ms Ref 20 dBm

*

Att 20 dB

Marker 1 [T1 ]

-51.55 dBm

2.498940000 GHz

20

Offset 15 dB

A

10

1 PK

MAXH

0

D1 -1.05 dBm

LVL

-10

-20

D2 -21.05 dBm

-30

-40

-50

1

-60

-70

-80

Start 2.475 GHz

F1

3 MHz/ Stop 2.505 GHz

Date: 31.JAN.2013 03:59:44

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 112 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

EUT Mode :

802.11b

Temperature :

20~21℃

Test Engineer : Zhi Lu

Channel

CH 01

CH 13

Measured Frequency

(MHz)

2412 MHz

Relative Humidity : 40~41%

Fundamental Signal

(dBm)

Mark 1

(dBm)

Frequency of Mark 1

(MHz)

-13.99 -47.51 2395.46

2472 MHz -13.03 -47.13 2487.51

Band Edges Measurement Plot on 802.11b Channel 01

Marker 1 [T1 ]

*

RBW 100 kHz

*

VBW 300 kHz

SWT 15 ms Ref 20 dBm

*

Att 20 dB

-47.51 dBm

2.395455000 GHz

20 Offset 13.8 dB

A

10

1 PK

MAXH

0

LVL

-10

-20

-30

-40

D2 -33.99 dBm

1

-50

-60

-70

-80

Start 2.31 GHz 13.5 MHz/

F2

Stop 2.445 GHz

Date: 24.JAN.2013 05:39:41

Band Edges Measurement Plot on 802.11b Channel 13

Marker 1 [T1 ]

*

RBW 100 kHz

*

VBW 300 kHz

SWT 15 ms Ref 20 dBm

*

Att 20 dB

-47.13 dBm

2.487510000 GHz

20

Offset 13.8 dB

A

10

1 PK

MAXH

0

LVL

-10

-20

-30

-40

D2 -33.03 dBm

-50

-60

-70

-80

Start 2.43 GHz

F1

1

13.5 MHz/ Stop 2.565 GHz

Date: 24.JAN.2013 05:52:47

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 113 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

EUT Mode :

802.11g

Temperature :

20~21℃

Test Engineer : Zhi Lu

Channel

CH 01

CH 13

Measured Frequency

(MHz)

2412 MHz

Relative Humidity : 40~41%

Fundamental Signal

(dBm)

Mark 1

(dBm)

Frequency of Mark 1

(MHz)

-15.75 -48.19 2341.46

2472 MHz -16.58 -46.23 2483.87

Band Edges Measurement Plot on 802.11g Channel 01

*

RBW 100 kHz

*

VBW 300 kHz

SWT 15 ms Ref 20 dBm

*

Att 20 dB

Marker 1 [T1 ]

-48.19 dBm

2.341455000 GHz

20

Offset 13.8 dB

A

10

1 PK

MAXH

0

LVL

-10

-20

-30

-40

D2 -35.75 dBm

1

-50

-60

-70

-80

Start 2.31 GHz 13.5 MHz/

F2

Stop 2.445 GHz

Date: 24.JAN.2013 05:55:57

Band Edges Measurement Plot on 802.11g Channel 13

*

RBW 100 kHz

*

VBW 300 kHz

SWT 15 ms Ref 20 dBm

*

Att 20 dB

Marker 1 [T1 ]

-46.23 dBm

2.483865000 GHz

20 Offset 13.8 dB

A

10

1 PK

MAXH

0

LVL

-10

-20

-30

-40

-50

D2 -36.58 dBm

-60

-70

-80

Start 2.43 GHz

1

F1

13.5 MHz/ Stop 2.565 GHz

Date: 24.JAN.2013 06:01:01

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 114 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

EUT Mode :

802.11n HT20

Temperature :

20~21℃

Test Engineer : Zhi Lu

Channel

CH 01

CH 13

Measured Frequency

(MHz)

2412 MHz

Relative Humidity : 40~41%

Fundamental Signal

(dBm)

Mark 1

(dBm)

Frequency of Mark 1

(MHz)

-15.27 -47.96 2397.89

2486.43 2472 MHz -16.47 -46.60

Band Edges Measurement Plot on 802.11n HT20 Channel 01

*

RBW 100 kHz

*

VBW 300 kHz

SWT 15 ms Ref 20 dBm

*

Att 20 dB

Marker 1 [T1 ]

-47.96 dBm

2.397885000 GHz

20

Offset 13.8 dB

A

10

1 PK

MAXH

0

LVL

-10

-20

-30

-40

D2 -35.27 dBm

-50

-60

-70

-80

Start 2.31 GHz 13.5 MHz/

1

F2

Stop 2.445 GHz

Date: 24.JAN.2013 06:04:35

Band Edges Measurement Plot on 802.11n HT20 Channel 13

*

RBW 100 kHz

*

VBW 300 kHz

SWT 15 ms Ref 20 dBm

*

Att 20 dB

Marker 1 [T1 ]

-46.60 dBm

2.486430000 GHz

20

Offset 13.8 dB

A

10

1 PK

MAXH

0

LVL

-10

-20

-30

-40

-50

D2 -36.47 dBm

-60

-70

-80

Start 2.43 GHz

F1

1

13.5 MHz/ Stop 2.565 GHz

Date: 24.JAN.2013 06:09:32

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 115 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

EUT Mode :

802.11n HT40

Temperature :

20~21℃

Test Engineer : Zhi Lu

Channel

CH 03

CH 11

Measured Frequency

(MHz)

2422 MHz

Relative Humidity : 40~41%

Fundamental Signal

(dBm)

Mark 1

(dBm)

Frequency of Mark 1

(MHz)

-15.32 -47.74 2351.31

2488.73 2462 MHz -15.63 -47.30

Band Edges Measurement Plot on 802.11n HT40 Channel 03

*

RBW 100 kHz

*

VBW 300 kHz

SWT 15 ms Ref 20 dBm

*

Att 20 dB

Marker 1 [T1 ]

-47.74 dBm

2.351310000 GHz

20

Offset 13.8 dB

A

10

1 PK

MAXH

0

LVL

-10

-20

-30

-40

D2 -35.32 dBm

1

-50

-60

-70

-80

Start 2.31 GHz 13.5 MHz/

F2

Stop 2.445 GHz

Date: 4.FEB.2013 17:40:15

Band Edges Measurement Plot on 802.11n HT40 Channel 11

*

RBW 100 kHz

*

VBW 300 kHz

Marker 1 [T1 ]

-47.30 dBm

*

Att 20 dB Ref 20 dBm SWT 15 ms 2.488725000 GHz

20 Offset 13.8 dB

A

10

1 PK

MAXH

0

LVL

-10

-20

-30

-40

D2 -35.63 dBm

-50

-60

-70

-80

Start 2.43 GHz

F1

1

13.5 MHz/ Stop 2.565 GHz

Date: 4.FEB.2013 17:56:45

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 116 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

EUT Mode :

802.11a

Temperature :

20~21℃

Test Engineer : Zhi Lu

Channel

CH 149

CH 165

Measured Frequency

(MHz)

5745 MHz

Relative Humidity : 40~41%

Fundamental Signal

(dBm)

Mark 1

(dBm)

Frequency of Mark 1

(MHz)

-0.16 -36.82 5725.00

5850.40 5825 MHz 0.83 -39.08

Band Edges Measurement Plot on 802.11a Channel 149

*

RBW 100 kHz

*

VBW 300 kHz

SWT 20 ms Ref 20 dBm

*

Att 20 dB

Marker 1 [T1 ]

-36.82 dBm

5.725000000 GHz

20

Offset 13.8 dB

A

10

1 PK

MAXH

0

LVL

-10

-20 D2 -20.16 dBm

-30

-40

-50

-60

-70

-80

Start 5.675 GHz

1

F2

10 MHz/ Stop 5.775 GHz

Date: 30.JAN.2013 02:18:20

Band Edges Measurement Plot on 802.11a Channel 165

*

RBW 100 kHz

*

VBW 300 kHz

SWT 20 ms Ref 20 dBm

*

Att 20 dB

Marker 1 [T1 ]

-39.08 dBm

5.850400000 GHz

20 Offset 13.8 dB

A

10

1 PK

MAXH

0

LVL

-10

-20

D2 -19.17 dBm

-30

-40

-50

-60

-70

-80

Start 5.775 GHz 10 MHz/

1

F1

Stop 5.875 GHz

Date: 30.JAN.2013 02:09:35

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 117 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

EUT Mode :

802.11n HT20

Temperature :

20~21℃

Test Engineer : Zhi Lu

Channel

CH 149

CH 165

Measured Frequency

(MHz)

5745 MHz

Relative Humidity : 40~41%

Fundamental Signal

(dBm)

Mark 1

(dBm)

Frequency of Mark 1

(MHz)

0.86 -32.08 5724.70

5850.20 5825 MHz 2.34 -37.31

Band Edges Measurement Plot on 802.11n HT20 Channel 149

*

RBW 100 kHz

*

VBW 300 kHz

SWT 20 ms Ref 20 dBm

*

Att 20 dB

Marker 1 [T1 ]

-32.08 dBm

5.724700000 GHz

20 Offset 13.8 dB

A

10

1 PK

MAXH

0

LVL

-10

-20

D2 -19.14 dBm

1

-30

-40

-50

-60

-70

-80

Start 5.675 GHz

F2

10 MHz/ Stop 5.775 GHz

Date: 30.JAN.2013 02:22:47

Band Edges Measurement Plot on 802.11n HT20 Channel 165

*

RBW 100 kHz

*

VBW 300 kHz

SWT 20 ms Ref 20 dBm

*

Att 20 dB

Marker 1 [T1 ]

-37.31 dBm

5.850200000 GHz

20 Offset 13.8 dB

A

10

1 PK

MAXH

0

LVL

-10

D2 -17.66 dBm

-20

-30

-40

-50

-60

-70

-80

Start 5.775 GHz 10 MHz/

1

F1

Stop 5.875 GHz

Date: 30.JAN.2013 02:32:02

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 118 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

EUT Mode :

802.11n HT40

Temperature :

20~21℃

Test Engineer : Zhi Lu

Channel

CH 151

CH 159

Measured Frequency

(MHz)

5755 MHz

Relative Humidity : 40~41%

Fundamental Signal

(dBm)

Mark 1

(dBm)

Frequency of Mark 1

(MHz)

-1.63 -28.15 5723.70

5852.80 5795 MHz -1.21 -40.67

Band Edges Measurement Plot on 802.11n HT40 Channel 149

*

RBW 100 kHz

*

VBW 300 kHz

SWT 20 ms Ref 20 dBm

*

Att 20 dB

Marker 1 [T1 ]

-28.15 dBm

5.723700000 GHz

20

Offset 13.8 dB

A

10

1 PK

MAXH

0

LVL

-10

-20

D2 -21.63 dBm

-30

-40

-50

-60

-70

-80

Start 5.675 GHz

1

F2

10 MHz/ Stop 5.775 GHz

Date: 30.JAN.2013 02:34:56

Band Edges Measurement Plot on 802.11 n HT40 Channel 165

*

RBW 100 kHz

*

VBW 300 kHz

SWT 20 ms Ref 20 dBm

*

Att 20 dB

Marker 1 [T1 ]

-40.67 dBm

5.852800000 GHz

20 Offset 13.8 dB

A

10

1 PK

MAXH

0

LVL

-10

-20

D2 -21.21 dBm

-30

-40

-50

-60

-70

-80

Start 5.775 GHz 10 MHz/

F1

1

Stop 5.875 GHz

Date: 30.JAN.2013 02:37:51

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 119 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

3.6.2 Number of Channel Measurement

3.6.2.1 Limits of Number of Hopping Frequency

Frequency hopping systems in the 2400-2483.5 MHz band shall use at least 75 channels.

3.6.2.2 Measuring Instruments

See list of measuring instruments of this test report.

3.6.2.3 Test Procedure

1. The RF output of EUT was connected to the spectrum analyzer by a low loss cable.

2. The modulation types of EUT are irrelevant to number of hopping channels deviation.

3. The EUT must have its hopping function enabled. Use the following spectrum analyzer settings:

4. Span = the frequency band of operation; RBW

 1% of the span; VBW  RBW; Sweep = 500 ms;

Detector function = peak; Trace = max hold.

5. The number of hopping frequency used is defined as the device has the numbers of total channel.

3.6.2.4 Test Setup

3.6.2.5 Test Result of Number of Hopping Frequency

EUT Mode :

Bluetooth BDR (1Mbps)

Temperature :

Test Engineer : Zhi Lu

Number of Hopping Channels

(Channel)

20~21℃

Relative Humidity : 40~41%

Adaptive

Frequency

Hopping

(Channel)

Limits

(Channel)

Pass/Fail

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 120 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Number of Hopping Channel Plot on Channel 00 - 78

*

RBW 1 MHz

*

VBW 1 MHz

SWT 500 ms Ref 20 dBm

*

Att 20 dB

20

Offset 15 dB

10

1 PK

MAXH

0

A

LVL

-10

-20

-30

-40

-50

-60

-70

-80

Start 2.4 GHz 4.1 MHz/ Stop 2.441 GHz

Report No. : AR2D1707

Date: 31.JAN.2013 04:16:58

Ref 20 dBm

20

Offset 15 dB

10

1 PK

MAXH

0

-10

*

Att 20 dB

*

RBW 1 MHz

*

VBW 1 MHz

SWT 500 ms

-20

-30

-40

-50

-60

-70

-80

Start 2.441 GHz 4.25 MHz/ Stop 2.4835 GHz

A

LVL

Date: 31.JAN.2013 04:28:37

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 121 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

3.6.3 Hopping Channel Separation Measurement

3.6.3.1 Limit of Hopping Channel Separation

Frequency hopping systems operating in the 2400-2483.5 MHz band may have hopping channel carrier frequencies that are separated by 25 kHz or two-thirds of the 20 dB bandwidth of the hopping channel, whichever is greater.

3.6.3.2 Measuring Instruments

See list of measuring instruments of this test report.

3.6.3.3 Test Procedures

1. The RF output of EUT was connected to the spectrum analyzer by a low loss cable.

2. The EUT should be transmitting at its maximum data rate as the worst cases.

3. Use the following spectrum analyzer settings:

Span = wide enough to capture the peaks of two adjacent channels; RBW

 1% of the span;VBW

 RBW; Sweep = auto; Detector function = peak; Trace = max hold.

4. Use the marker-delta function to determine the separation between the peaks of the adjacent channels.

3.6.3.4 Test Setup

3.6.3.5 Test Result of Hopping Channel Separation

EUT Mode :

Test Engineer : Zhi Lu

Channel

Bluetooth BDR (1Mbps)

Temperature :

Measured Frequency

(MHz)

20~21℃

Relative Humidity : 40~41%

Frequency Separation

(MHz)

Limits

(MHz)

Pass/Fail

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 122 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

3.6.4 Dwell Time Measurement

3.6.4.1 Limit of Dwell Time

The average time of occupancy on any channel shall not be greater than 0.4 seconds within a period of 0.4 seconds multiplied by the number of hopping channels employed.

3.6.4.2 Measuring Instruments

See list of measuring instruments of this test report.

3.6.4.3 Test Procedures

1. The RF output of EUT was connected to the spectrum analyzer by a low loss cable.

2. The EUT should be transmitting at its maximum data rate as the worst cases.

3. The EUT must have its hopping function enabled. Use the following spectrum analyzer settings:

Span = zero span, centered on a hopping channel; RBW = 1 MHz; VBW

 RBW;

Sweep = as necessary to capture the entire dwell time per hopping channel;

Detector function = peak; Trace = max hold.

4. Use the marker-delta function to calculate the dwell time.

3.6.4.4 Test Setup

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 123 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

3.6.4.5 Test Result of Dwell Time

EUT Mode :

Bluetooth BDR (1Mbps)

Temperature :

20~21℃

Test Engineer : Zhi Lu

Package Mode

Hops Over

Occupancy

Time(hops)

Relative Humidity : 40~41%

Package

Transfer Time

(μs)

Dwell Time

(sec)

Limits

(sec)

DH5 106.67 2942

0.31

Pass/Fail

0.4 Pass

EUT Mode :

Bluetooth AFH

Temperature :

20~21℃

Test Engineer : Zhi Lu

Package

Mode

Hops Over

Occupancy

Time (hops)

Relative Humidity : 40~41%

Package

Transfer Time

(μs)

Dwell Time

(s)

Limit

(s)

Pass/Fail

DH5 53.33 2942 0.16 0.4 Pass

Remark:

1. In normal mode, hopping rate is 1600hops/s with 6 slots in 79 hopping channels.

With channel hopping rate (1600 / 6 / 79) in Occupancy Time Limit (0.4 x 79) (s),

Hops Over Occupancy Time comes to (1600 / 6 / 79) x (0.4 x 79) = 106.67 hops.

2. In AFH mode, hopping rate is 800hops/s with 6 slots in 20 hopping channels.

With channel hopping rate (800 / 6 / 20) in Occupancy Time Limit (0.4 x 20) (s),

Hops Over Occupancy Time comes to (800 / 6 / 20) x (0.4 x 20) = 53.33 hops.

3. Dwell Time(s) = Hops Over Occupancy Time (hops) x Package Transfer Time

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 124 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

4. Receiver Parameters

4.1 Receiver Spurious Emissions (SUBCLAUSE 9.1)

4.1.1 Measuring Instruments

See list of measuring instruments of this test report.

4.1.2 Test Procedures

1. The EUT was placed on a turntable with 1.5m height.

2. The receiving antenna with horizontal and vertical polarization is 3m away from EUT and keeps the antenna height at 1.5m.

3. Setting EUT in continuous Rx.

4. The table was rotated to search the highest radiation.

5. Repeating set 3 and 4 for different channel.

4.1.3 Test Setup

<Below 1GHz>

<Above 1GHz>

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 125 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

4.1.4 Test Result

Test Mode :

CH13 (2472MHz) in Tablet Mode with

Adapter 1 for Sample 1

Test Engineer : Lucky Pan

Test Distance :

3m (Below 1GHz)

1.5m (Above 1GHz)

Report No. : AR2D1707

Temperature :

21~22℃

Relative Humidity : 41~42%

Polarization :

Horizontal

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 126 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Test Mode :

CH13 (2472MHz) in Tablet Mode with

Adapter 1 for Sample 1

Test Engineer : Lucky Pan

Test Distance :

3m (Below 1GHz)

1.5m (Above 1GHz)

Report No. : AR2D1707

Temperature :

21~22℃

Relative Humidity :

41~42%

Polarization :

Vertical

LIMITS : Clause 9.1.1

Narrowband spurious emission:

Frequency Range

30MHz to 1 GHz

Above 1 GHz to 12,75 GHz

Limit kept

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Limit when in received mode

-57dBm

-47dBm

Yes V No

Page Number : 127 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

5. Setup Photographs of Radiated Emission Test

Bluetooth Tx/Rx Mode

Laptop Mode with Adapter 1 for Sample 1

Report No. : AR2D1707

Tablet Mode with Adapter 1 for Sample 1

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 128 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Laptop Mode with Adapter 2 for Sample 2

Report No. : AR2D1707

Laptop Mode with Adapter 3 for Sample 3

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 129 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Laptop Mode with Adapter 4 for Sample 4

Report No. : AR2D1707

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 130 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

WLAN Tx/Rx Mode

Laptop Mode with Adapter 1 for Sample 1

Report No. : AR2D1707

Tablet Mode with Adapter 1 for Sample 1

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 131 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Laptop Mode with Adapter 1 for Sample 1 (5GHz band 4)

LF

Report No. : AR2D1707

HF

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 132 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Tablet Mode with Adapter 1 for Sample 1 (5GHz band 4)

LF

Report No. : AR2D1707

HF

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 133 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Report No. : AR2D1707

6. List of Measuring Equipment

Instrument Manufacturer Model No. Serial No.

Characteristics

Calibration

Date

Test Date Due Date Remark

Spectrum

Analyzer

Power Meter

Power Sensor

DC Power supply

R&S

Agilent

Agilent

FSP40

E4416A

E9327A

100319

MY45101555

MY44421198

GWINSTEK GPS-3030D E1884515

9kHz~40GHz

N/A

N/A

N/A

Dec. 29, 2012

Aug. 22, 2012

Aug. 22, 2012

Aug. 22, 2012

Jan. 17, 2013~

Feb. 04, 2013 Dec. 28, 2013

Jan. 17, 2013~

Feb. 04, 2013 Aug. 21, 2013

Jan. 17, 2013~

Feb. 04, 2013 Aug. 21, 2013

Jan. 17, 2013~

Feb. 04, 2013 Aug. 21, 2013

Conducted

(TH01-KS)

Conducted

(TH01-KS)

Conducted

(TH01-KS)

Conducted

(TH01-KS)

Conducted

(TH01-KS)

Thermal

Chamber

Ten Billion TTC-B3S TBN-960502 N/A

Dec. 29, 2012

Jan. 17, 2013~

Feb. 04, 2013 Dec. 28, 2013

Spectrum

Analyzer

100399

Jun. 01, 2012

Feb. 16, 2013 May 31, 2013

Radiation

(05CH01-KS)

Bilog Antenna SCHAFFNER

DRG ETS-Lindgren 3117 00075957

Amplifier

Amplifier

EMI Test

Receiver

Spectrum

Analyzer

Wireless

Agilent

CBL6112D

FPA6592G

8449B

23183

060007

25MHz~2GHz

30MHz~2GHz

3008A02370 1GHz~26.5GHz Dec. 29, 2012 Feb. 16, 2013 Dec. 28, 2013

100400

Dec. 07, 2012 Feb. 16, 2013 Dec. 06, 2013

Dec. 07, 2012 Feb. 16, 2013 Dec. 06, 2013

Dec. 29, 2012 Feb. 16, 2013 Dec. 28, 2013

Nov. 08, 2012 Feb. 16, 2013 Nov. 07, 2013

Jun. 01, 2012

Feb. 16, 2013 May 31, 2013

Radiation

(05CH01-KS)

Radiation

(05CH01-KS)

Radiation

(05CH01-KS)

Radiation

(05CH01-KS)

Radiation

(03CH01-KS)

Radiation

(03CH01-KS)

Bilog Antenna SCHAFFNER

Loop Antenna

Double Ridge

Horn Antenna

R&S

CBL6112D

HFH2-Z2

23182

860004/

001

25MHz~2GHz

Dec. 07, 2012 Feb. 16, 2013 Dec. 06, 2013

9 kHz~30 MHz

00075959

Jul. 03, 2012

Jan. 06, 2012

Feb. 16, 2013 Jul. 02, 2014

Feb. 16, 2013 Jan. 05, 2014

Radiation

(03CH01-KS)

Radiation

(03CH01-KS)

Radiation

(03CH01-KS)

Amplifier

Amplifier

Active Horn

Antenna com-power

Agilent com-power

SHF-EHF Horn Schwarzbeck

PA-103A

8449B

AHA-118

BBHA 9170

161069

3008A02370 1GHz~26.5GHz Dec. 29, 2012 Feb. 16, 2013 Dec. 28, 2013

701023

9170249

1MHz~1GHz Jun. 01, 2012

Feb. 16, 2013 May 31, 2013

1GHz~18GHz Nov. 07, 2012 Feb. 16, 2013 Nov. 06, 2013

15GHz~40GHz Nov. 23, 2012 Feb. 16, 2013 Nov. 22, 2013

Radiation

(03CH01-KS)

Radiation

(03CH01-KS)

Radiation

(03CH01-KS)

Radiation

(03CH01-KS)

Bluetooth Base

Station

R&S CBT 100783

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

N/A Aug. 17, 2012

Jan. 17, 2013~

Feb. 16, 2013 Aug. 16, 2013

-

Page Number : 134 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

7. Uncertainty Evaluation

Uncertainty of Radiated Emission Evaluation (30 MHz ~ 1000 MHz)

Measuring Uncertainty for a Level of Confidence of 95%

(U = 2Uc(y))

Uncertainty of Radiated Emission Evaluation (1GHz ~ 40GHz)

Measuring Uncertainty for a Level of Confidence of 95%

(U = 2Uc(y))

Report No. : AR2D1707

3.16

4.72

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 135 of 135

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

ACMA Radio Test Report

Appendix A. Photographs of EUT

Please refer to Sporton report number EP2D1707 as below.

Report No. : AR2D1707

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : A1 of A1

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

1.

Photographs of EUT

External Photograph of EUT

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

Sample 1 for XO-4 Touch

Report No.: EP2D1707

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 1 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 2 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 3 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 4 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 5 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 6 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 7 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 8 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

Sample 2 for XO-4 HS Touch

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 9 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 10 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 11 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 12 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 13 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 14 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 15 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 16 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

Sample 3 for XO-4

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 17 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 18 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 19 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 20 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 21 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 22 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 23 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 24 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

Sample 4 for XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 25 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 26 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 27 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 28 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 29 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 30 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 31 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 32 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

2. Photograph of Accessory

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

List of Accessory:

AC Adapter 1

AC Adapter 2

AC Adapter 3

AC Adapter 4

Battery

Brand Name

Model Name

Brand Name

Model Name

Brand Name

Model Name

Brand Name

Model Name

Brand Name

Model Name

Specification of Accessory

DARFON

BB0J-C

Bestec

NA0241WAA

DARFON

BX24-1203(X=U or P)

Bestec

BT-AG250SDF

OLPC

CL1

Remark: For accessories equipped with this EUT, please refer to the following photos.

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 33 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

Sample 1 for XO-4 Touch with All Adapters

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 34 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

Sample 2 for XO-4 HS Touch with All Adapters

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 35 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

Sample 3 for XO-4 with All Adapters

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 36 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

Sample 4 for XO-4 HS with All Adapters

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 37 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

AC Adapter 1

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 38 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

AC Adapter 2

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 39 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

AC Adapter 3

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 40 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

AC Adapter 4

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 41 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

Battery

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 42 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

3. Internal Photograph of EUT

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

Sample 1 for XO-4 Touch

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 43 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 44 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

WLAN Antenna

Bluetooth Antenna

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 45 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 46 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 47 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 48 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 49 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 50 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 51 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 52 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 53 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 54 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 55 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 56 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 57 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 58 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 59 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

Sample 2 for XO-4 HS Touch

Bluetooth Antenna

WLAN Antenna

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 60 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 61 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 62 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 63 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 64 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 65 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 66 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 67 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 68 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 69 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 70 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 71 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 72 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 73 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 74 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

Sample 3 for XO-4

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 75 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 76 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

Bluetooth Antenna

WLAN Antenna

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 77 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 78 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 79 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 80 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 81 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 82 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 83 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 84 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 85 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 86 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 87 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 88 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 89 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

Sample 4 for XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 90 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

Bluetooth Antenna

WLAN Antenna

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 91 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 92 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 93 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 94 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 95 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 96 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 97 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 98 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 99 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 100 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 101 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 102 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 103 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

WLAN Module

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 104 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 105 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 106 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 107 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

WLAN Antenna <Tx / Rx>

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 108 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Photographs of EUT

Report No.: EP2D1707

Brand Name: OLPC; Model Name: XO-4 Touch, XO-4 HS Touch, XO-4, XO-4 HS

Bluetooth Antenna <Tx / Rx>

SPORTON INTERNATIONAL (KUNSHAN) INC.

TEL : 86-0512-5790-0158

FAX : 86-0512-5790-0958

Page Number : 109 of 109

Report Issued Date : Feb. 25, 2013

Report Version : Rev. 01

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
