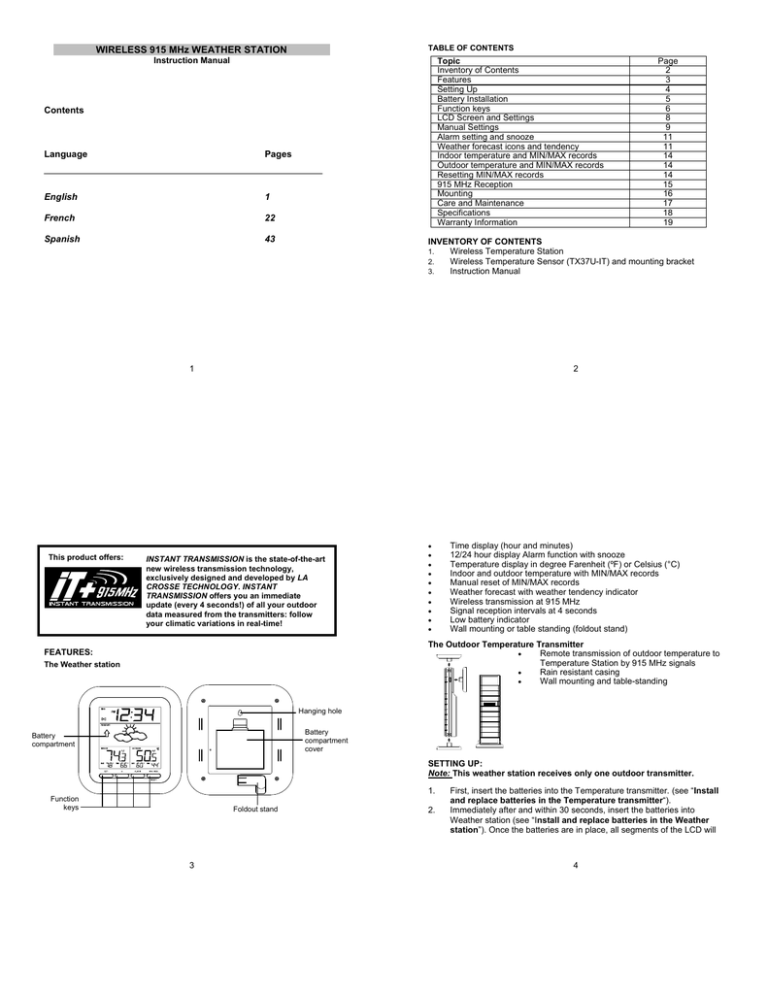

WIRELESS 915 MHz WEATHER STATION

WIRELESS 915 MHz WEATHER STATION
TABLE OF CONTENTS
WIRELESS 915 MHz WEATHER STATION
Instruction Manual
Topic
Inventory of Contents
Features
Setting Up
Battery Installation
Function keys
LCD Screen and Settings
Manual Settings
Alarm setting and snooze
Weather forecast icons and tendency
Indoor temperature and MIN/MAX records
Outdoor temperature and MIN/MAX records
Resetting MIN/MAX records
915 MHz Reception
Mounting
Care and Maintenance
Specifications
Warranty Information
Contents
Language
Pages
English
1
French
22
Spanish
43
INVENTORY OF CONTENTS
1.
Wireless Temperature Station
2.
Wireless Temperature Sensor (TX37U-IT) and mounting bracket
3.
Instruction Manual
1
This product offers:
Page
2
3
4
5
6
8
9
11
11
14
14
14
15
16
17
18
19
2
INSTANT TRANSMISSION is the state-of-the-art
new wireless transmission technology,
exclusively designed and developed by LA
CROSSE TECHNOLOGY. INSTANT
TRANSMISSION offers you an immediate
update (every 4 seconds!) of all your outdoor
data measured from the transmitters: follow
your climatic variations in real-time!










Time display (hour and minutes)
12/24 hour display Alarm function with snooze
Temperature display in degree Farenheit (ºF) or Celsius (°C)
Indoor and outdoor temperature with MIN/MAX records
Manual reset of MIN/MAX records
Weather forecast with weather tendency indicator
Wireless transmission at 915 MHz
Signal reception intervals at 4 seconds
Low battery indicator
Wall mounting or table standing (foldout stand)
The Outdoor Temperature Transmitter

Remote transmission of outdoor temperature to
Temperature Station by 915 MHz signals

Rain resistant casing

Wall mounting and table-standing
FEATURES:
The Weather station
Hanging hole
Battery
compartment
cover
Battery
compartment
SETTING UP:
Note: This weather station receives only one outdoor transmitter.
1.
Function
keys
Foldout stand
3
2.
First, insert the batteries into the Temperature transmitter. (see “Install
and replace batteries in the Temperature transmitter“).
Immediately after and within 30 seconds, insert the batteries into
Weather station (see “Install and replace batteries in the Weather
station”). Once the batteries are in place, all segments of the LCD will
4
3.
4.
light up briefly. Following the time as 12:00 and the weather icon will be
displayed. If these are not displayed after 60 seconds, remove the
batteries and wait for at least 10 seconds before reinserting them.
After inserting the batteries, the Weather station will start receiving data
from the transmitter. The outdoor temperature and the signal reception
icon should then be displayed on the Weather station. If this does not
happen after 3 minutes, the batteries will need to be removed from both
units and reset from step 1.
In order to ensure sufficient 915 MHz transmission however, this should
under good conditions be a distance no more than 100 meters (330
feet) between the final position of the Weather Station and the
transmitter (see notes on “Mounting” and “915 MHz Reception”).
HOW TO INSTALL AND REPLACE BATTERIES IN THE TEMPERATURE
STATION
The Weather Station uses 3 x AA, IEC LR6, 1.5V batteries. When batteries
will need to be replaced, the
low battery icon will appear on
the LCD. To install and replace
the batteries, please follow the
steps below:
1.
2.
3.
Lift up the battery
compartment cover.
Insert batteries observing
the correct polarity (see
marking).
Replace compartment
cover.
HOW TO INSTALL AND REPLACE BATTERIES IN THE TEMPERATURE
TRANSMITTER
The Temperature Transmitter uses 2 x AA, IEC LR6,
1.5V battery. To install and replace the batteries,
please follow the steps below:
1.
2.
3.
Remove the battery compartment cover at the
back of the transmitter.
Insert the batteries, observing the correct polarity
(see marking).
Replace the battery compartment cover on the
unit.
Note:
In the event of changing batteries in any of the units, all units need to be reset
by following the setting up procedures. This is because a security code is
assigned by the transmitter at start-up and this code must be received and
stored by the Weather station in the first 3 minutes of power being supplied to
it.
BATTERY CHANGE:
It is recommended to replace the batteries in all units regularly to ensure
optimum accuracy of these units (Battery life See Specifications below).
Please participate in the preservation of the environment.
Return used batteries to an authorized depot.
FUNCTION KEYS:
Weather station:
The weather station has four easy to use function keys.
5
6
LCD SCREEN AND SETTINGS:
Time
Alarm icon
SET key
+ key
ALARM key
MIN/MAX RESET key
SET key

Press the key to enter manual setting modes: time, 12/24 hour time
display, and temperature unit (ºC/ºF) setting

Stop the alarm
+ key


To make adjustment for various settings
Stop the alarm
ALARM key

Enter the alarm setting mode

Switch the alarm ON/ OFF

Stop the alarm
Weather
forecast icon
Weather
tendency
indicator
Low battery
indicator
(transmitter)
Outdoor
Reception
Signal icon*
Low battery
indicator
(weather
station)
Outdoor
Temperature
in °C/ °F
Indoor
Temperature
in °C/ °F
MIN/MAX outdoor
temperature
MIN/MAX indoor
temperature
MIN/MAX RESET key

Press and hold to reset the MIN/MAX temperature records

Activate the snooze

Exit manual setting modes
* When the outdoor signal is successfully received by the Weather Station,
this icon will be switched on. (If not successful, the icon will not be shown in
LCD) So user can easily see whether the last reception was successful (icon
on) or not (icon off).
For a better display clarity, the LCD screen is split into 3 sections.
Section 1 - TIME AND ALARM

Display of time
7
8

Display the alarm icon will be shown when the alarm is turned on. Or
when the snooze function is activated, the alarm icon will be flashing.
Section 2 - WEATHER FORECAST AND WEATHER TENDENCY ICONS

Display of the weather to be expected in form of three weather symbols
and two weather tendency indicators in form of an arrow, which change
their appearance depending on the air pressure development
Section 3 – INDOOR AND OUTDOOR TEMPERATURE

Display the current indoor temperature with MIN/MAX records

Display of low battery indicator (weather station)

Display the current outdoor temperature with MIN/MAX records

A signal reception symbol will be shown indicating that receiver is
receiving outdoor temperature

Display of low battery indicator (transmitter)
MANUAL SETTINGS:
The following manual settings can be done in the setting mode:

Time

12/24 time format

Temperature unit setting
2.
3.
4.
Use the + key to adjust the hours and then press SET key to go to the
minute setting.
The minute will be flashing. Press the + key to just the minutes.
Confirm with the SET key and the enter the 12/24 hour time display
setting
12/24 HOUR TIME DISPLAY SETTING
The time can be set to display in 12h or 24h time format. Default setting 12h
time format. To change the setting:
Flashing
1.
2.
3.
The current time format starts flashing
Use the + key to select 12h or 24h time display.
Confirm with the SET key and enter the Temperature unit setting.
TEMPERATURE UNIT SETTING (ºF/ºC):
The temperature unit can set to display temperature data in degree
Fahrenheit (ºF) or Celsius (ºC); default setting is ºF. To change the setting:
Press and hold the SET key for about 3 seconds to advance to the setting
mode:
MANUAL TIME SETTING
To set the clock:
Minutes (flashing)
Hours (flashing)
1.
Flashing
1.
2.
3.
The current temperature value starts flashing.
Use the + key to change the unit.
Confirm with the SET key and exit the setting mode.
The hour digits start flashing in the time display section.
9
10
ALARM SETTING
Alarm time
Alarm icon (ON)
To set alarm:
1.
Press and hold ALARM for about 3 seconds until the alarm time display
flashes.
2.
The hour digit and the alarm icon will be flashing. Press the + key to
adjust the hour.
3.
Press ALARM button once and minute digit will be flashing. User shall
then press + button to set the minute.
4.
Press ALARM button once to confirm the setting.
5.
To activate/ deactivate the alarm function, press the ALARM button
once. The display of the alarm icon represents that the alarm is "ON".
Note: The duration of alarm sounding is 85 seconds
TO ACTIVATE THE SNOOZE FUNCTION AND STOPPING THE ALARM:
1.
When the alarm is sounding, press the MIN/MAX RESET key to
activate the snooze function. The alarm will stop and re-activate after
the snooze interval of 10 minutes.
2.
To stop the alarm completely, press any keys other than the MIN/MAX
RESET key.
WEATHER FORECAST AND TENDENCY
THE WEATHER FORECASTING ICONS :
There are 3 weather icons in the second section of LCD which can be
displayed in any of the following combinations :
11
Sunny
Cloudy with
sunny intervals
Rainy
For every sudden or significant change in the air pressure, the weather icons
will update accordingly to represent the change in weather. If the icons do not
change, then it means either the air pressure has not changed or the change
has been too slow for the Weather station to register. However, if the icon
displayed is a sun or raining cloud, there will be no change of icon if the
weather gets any better (with sunny icon) or worse (with rainy icon) since the
icons are already at their extremes.
The icons display weather forecasts in terms of getting better or worse, and
not necessarily sunny or rainy as each icon indicates. For example, if the
current weather is cloudy and the rainy icon is displayed, it does not mean
that the product is faulty because it is not raining. It simply means that the air
pressure has dropped and the weather is expected to get worse but not
necessarily rainy.
Note :
After setting up, readings for weather forecasts should be disregarded for the
next 48-60 hours. This will allow sufficient time for the Weather Station to
collect air pressure data at a constant altitude and therefore result in a more
accurate forecast.
Common to weather forecasting, absolute accuracy cannot be guaranteed.
The weather forecasting feature is estimated to have an accuracy level of
about 75% due to the varying areas the Weather Station has been designed
12
for use in. In areas that experience sudden changes in weather (for example
from sunny to rain), the Weather Station will be more accurate compared to
use in areas where the weather is stagnant most of the time (for example
mostly sunny).
If the Weather Station is moved to another location significantly higher or
lower than its initial standing point (for example from the ground floor to the
upper floors of a house), remove the batteries and re-insert them after about
30 seconds. By doing this, the Weather Station will not mistake the new
location as being a possible change in air-pressure when really it is due to the
slight change of altitude. Again, disregard weather forecasts for the next 4860 hours as this will allow time for operation at a constant altitude.
THE WEATHER TENDENCY INDICATOR
Working together with the weather icons are the weather tendency indicators
(located on the left and right hand side of the weather icons). When the
indicator points upwards, it means that the air-pressure is increasing and the
weather is expected to improve, but when indicator points downwards, the
air-pressure is dropping and the weather is expected to become worse.
Taking this into account, you will see how the weather has changed and how
it is expected to change. For example, if the indicator is pointing downwards
together with cloud and sun icons, then the last noticeable change in the
weather was when it was sunny (sun icon only). Therefore, the next change
in the weather will be the cloud with rain icons since the indicator is pointing
downwards.
Note :
Once the weather tendency indicator has registered a change in the air
pressure, it will remain permanently visualized on the LCD.
INDOOR TEMPERATURE AND MIN/MAX RECORDS
The indoor temperature and indoor MIN/MAX records are displayed on the
last section of the LCD.
Indoor icon
Indoor
Temperature
MAX record
Note: The MIN/MAX indoor temperature range is 15ºF to 99ºF with 1ºF
resolution (-9ºC to + 38ºC with 1°C resolution).
OUTDOOR TEMPERATURE AND MIN/MAX RECORDS
The outdoor temperature and outdoor MIN/MAX records are displayed on the
last section of the LCD.
Outdoor icon
In normal display mode, press and hold the MIN/MAX RESET key for 3
seconds. This will reset the indoor and outdoor MIN/MAX temperatures.
LOW BATTERY INDICATOR
Low battery indicator is displayed on the LCD when the batteries require
changing.
915 MHz RECEPTION CHECK
The Weather station should receive the temperature data within 3 minutes
after set-up. If the temperature data is not received 3 minutes after setting up
(not successfully continuously, the outdoor display shows “- - -” ), please
check the following points:
1.
The distance of the Weather station or transmitter should be at least 1.5
to 2 meters (5 to 6.5 feet) away from any interfering sources such as
computer monitors or TV sets.
2.
Avoid positioning the Weather station onto or in the immediate proximity
of metal window frames.
3.
Using other electrical products such as headphones or speakers
operating on the same signal frequency (915MHz) may prevent correct
signal transmission and reception.
4.
Neighbors using electrical devices operating on the 915MHz signal
frequency can also cause interference.
Note:
When the 915MHz signal is received correctly, do not re-open the battery
cover of either the transmitter or Weather station, as the batteries may spring
free from the contacts and force a false reset. Should this happen
accidentally then reset all units (see Setting up above) otherwise
transmission problems may occur. The transmission range is about 100 m
from the transmitter to the Weather station (in open space). However, this
depends on the surrounding environment and interference levels. If no
15
Outdoor reception
signal icon
Outdoor
Temperature
MAX record
MIN record
Note: The MIN/MAX outdoor temperature resolution range is -40ºF to 140ºF
with 1ºF resolution (-40ºC to + 60ºC with 1°C resolution).
RESETTING THE INDOOR AND OUTDDOR MIN/MAX RECORDS
Note: All the MIN/MAX records will be reset at the same time.
13
1.
MIN record
14
reception is possible despite the observation of these factors, all system units
have to be reset (see Setting up).
POSITIONING THE TEMPERATURE STATION:
The Weather Station may be hung onto wall easily or free standing.
To wall mount
Choose a sheltered place. Avoid direct rain and sunshine.
Before wall mounting, please check that the outdoor
temperature values can be received from the desired
locations.
1.
2.
Fix a screw (not supplied) into the desired wall,
leaving the head extended out the by about 5mm.
Fold the stand and hang the station onto the screw.
Remember to ensure that it locks into place before
releasing.
Free standing
With the foldout stand, the weather station can be placed
onto any flat surface.
16
POSITIONING THE TEMPERATURE TRANSMITTER:
The Transmitter is supplied with a holder that may be
attached to a wall with the two screws supplied. The
Transmitter can also be position on a flat surface by
securing the stand to the bottom to the Transmitter.





To wall mount:
1. Secure the bracket onto a desired wall using the
screws and plastic anchors.
2. Clip the remote temperature sensor onto the bracket.
Note:
Before permanently fixing the transmitter wall base,
place all units in the desired locations to check that the
outdoor temperature reading is receivable. In event that
the signal is not received, relocate the transmitters or
move them slightly as this may help the signal reception.
CARE AND MAINTENANCE:

Extreme temperatures, vibration and shock should be avoided as these
may cause damage to the unit and give inaccurate forecasts and
readings.

Precautions shall be taken when handling the batteries. Injuries, burns,
or property damage may be resulted if the batteries are in contact with
conducting materials, heat, corrosive materials or explosives. The
17
Indoor temperature checking interval : every 16 seconds
Outdoor data reception
: every 4 seconds
Power consumption:
Weather station
: 3 x AA, IEC, LR6, 1.5V
Temperature transmitter
: 2 x AA, IEC, LR6, 1.5V
Battery life cycle (Alkaline batteries recommended) : Appr. 24 months
Dimensions (L x W x H) :
Weather station
: 5.33” x 1.10” x 5.56” / 135.4 x 28 x 141.4mm
Temperature transmitter : 1.50” x 0.83” x 5.05” / 38.2 x 21.2 x 128.3mm
WARRANTY
La Crosse Technology, Ltd provides a 1-year limited warranty on this product
against manufacturing defects in materials and workmanship.
This limited warranty begins on the original date of purchase, is valid only on
products purchased and used in North America and only to the original
purchaser of this product. To receive warranty service, the purchaser must
contact La Crosse Technology, Ltd for problem determination and service
procedures. Warranty service can only be performed by a La Crosse
Technology, Ltd authorized service center. The original dated bill of sale
must be presented upon request as proof of purchase to La Crosse
Technology, Ltd or La Crosse Technology, Ltd’s authorized service center.
La Crosse Technology, Ltd will repair or replace this product, at our option
and at no charge as stipulated herein, with new or reconditioned parts or
products if found to be defective during the limited warranty period specified
above. All replaced parts and products become the property of La Crosse
Technology, Ltd and must be returned to La Crosse Technology, Ltd.
Replacement parts and products assume the remaining original warranty, or
ninety (90) days, whichever is longer. La Crosse Technology, Ltd will pay all
expenses for labor and materials for all repairs covered by this warranty. If
necessary repairs are not covered by this warranty, or if a product is
19


batteries shall be taken out from the unit before the product is to be
stored for a long period of time.
Immediately remove all low powered batteries to avoid leakage and
damage. Replace only with new batteries of the recommended type.
When cleaning the display and casings, use a soft damp cloth only. Do
not use solvents or scouring agents as they may mark the LCD and
casings.
Do not submerge the unit in water.
Special care shall be taken when handling a damaged LCD display.
The liquid crystals can be harmful to user's health.
Do not make any repair attempts to the unit. Return them to their
original point of purchase for repair by a qualified engineer. Opening
and tampering with the unit may invalidate their guarantee.
Never touch the exposed electronic circuit of the device as there is a
danger of electric shock should it become exposed.
Do not expose the units to extreme and sudden temperature changes,
this may lead to rapid changes in forecasts and readings and thereby
reduce their accuracy.
SPECIFICATIONS:
Recommended operating temperature range: 32ºF to 122ºF / 0ºC to 50ºC
Temperature measuring range:
Indoor
: 14.2ºF to +99.9ºF with 0,2ºF resolution
-9.9ºC to +37.8ºC with 0.1ºC resolution
(*Note: the max. indoor temperature measuring range in
degree Fahrenheit is less than in degree Celsius)
(“OF.L” displayed if outside this range)
Outdoor : -39.8°F to +139.8°F with 0.2°F resolution
-39.9ºC to +59.9ºC with 0.1ºC resolution
(“OF.L” displayed if outside this range)
18
examined which is not in need or repair, you will be charged for the repairs or
examination. The owner must pay any shipping charges incurred in getting
your La Crosse Technology, Ltd product to a La Crosse Technology, Ltd
authorized service center. La Crosse Technology, Ltd will pay ground return
shipping charges to the owner of the product to a USA address only.
Your La Crosse Technology, Ltd warranty covers all defects in material and
workmanship with the following specified exceptions: (1) damage caused by
accident, unreasonable use or neglect (including the lack of reasonable and
necessary maintenance); (2) damage occurring during shipment (claims must
be presented to the carrier); (3) damage to, or deterioration of, any accessory
or decorative surface; (4) damage resulting from failure to follow instructions
contained in your owner’s manual; (5) damage resulting from the
performance of repairs or alterations by someone other than an authorized La
Crosse Technology, Ltd authorized service center; (6) units used for other
than home use (7) applications and uses that this product was not intended or
(8) the products inability to receive a signal due to any source of interference.
This warranty covers only actual defects within the product itself, and does
not cover the cost of installation or removal from a fixed installation, normal
set-up or adjustments, claims based on misrepresentation by the seller or
performance variations resulting from installation-related circumstances.
LA CROSSE TECHNOLOGY, LTD WILL NOT ASSUME LIABILITY FOR
INCIDENTAL, CONSEQUENTIAL, PUNITIVE, OR OTHER SIMILAR
DAMAGES ASSOCIATED WITH THE OPERATION OR MALFUNCTION OF
THIS PRODUCT. THIS PRODUCT IS NOT TO BE USED FOR MEDICAL
PURPOSES OR FOR PUBLIC INFORMATION. THIS PRODUCT IS NOT A
TOY. KEEP OUT OF CHILDREN’S REACH.
This warranty gives you specific legal rights. You may also have other rights
specific to your State. Some States do no allow the exclusion of
consequential or incidental damages therefore the above exclusion of
limitation may not apply to you.
20
For warranty work, technical support, or information contact:
La Crosse Technology, Ltd
2817 Losey Blvd. S.
La Crosse, WI 54601
Phone: 608.782.1610
Fax: 608.796.1020
e-mail:
[email protected]
(warranty work)
[email protected]
(information on other products)
web:
www.lacrossetechnology.com
Question? Instructions? Please visit:
www.lacrossetechnology.com/9133
All rights reserved. This handbook must not be reproduced in any form, even in excerpts,
or duplicated or processed using electronic, mechanical or chemical procedures without
written permission of the publisher.
This handbook may contain mistakes and printing errors. The information in this handbook
is regularly checked and corrections made in the next issue. We accept no liability for
technical mistakes or printing errors, or their consequences.
All trademarks and patents are acknowledged.
21
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
