User`s manual ACS250 drives (0.5…10 hp) (115V

User`s manual ACS250 drives (0.5…10 hp) (115V

ABB Micro drives

User’s manual

ACS

250 drives (0.5…10 hp) (115V-480V Variants)

1

ABB Micro drives

List of related manuals

Option manuals and guides

ACS250 user’s manual for 600V variants

Code (English)

3AUA0000138354

You can find manuals and other product documents in PDF format on the Internet. Go to www.abb.com/drives and select Document Library.

You can browse the library or enter selection criteria, for example a document code, in the search field. For manuals not available in the

Document library, contact your local ABB representative

3

© 2012 ABB Oy. All Rights Reserved.

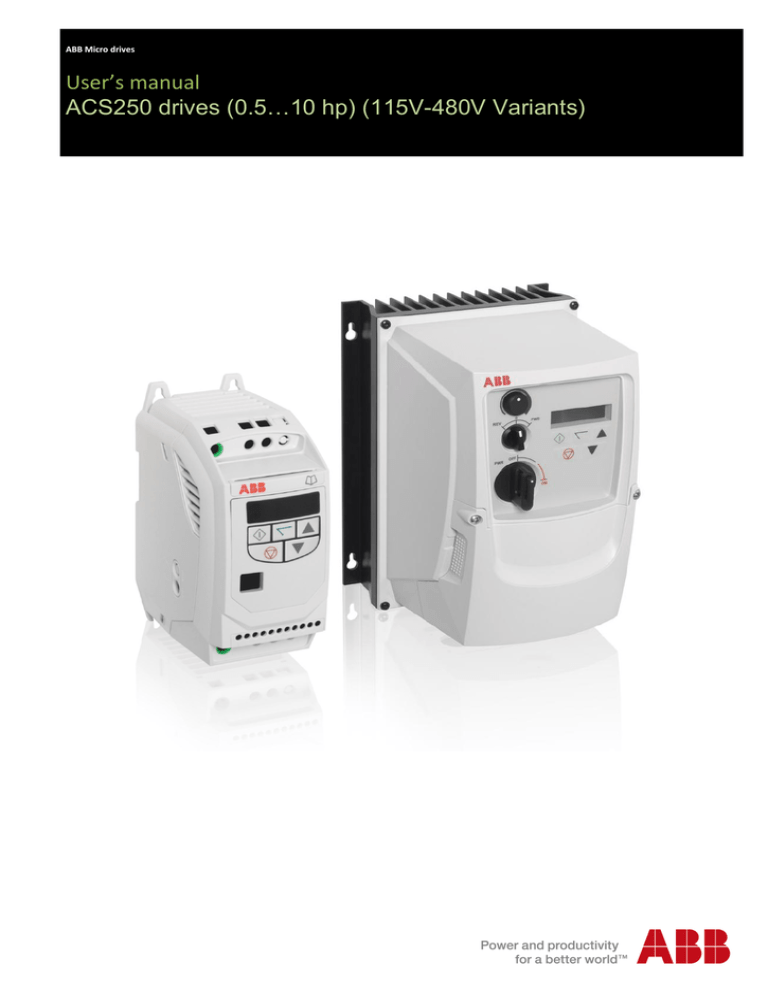

ACS250 drives

0.5…10 hp

User’s manual

3AUA0000137830 Rev A

EN

EFFECTIVE: 2013-05-29

4

5

1. Table of Contents

1.

Table of Contents __________________________________________________________________ 5

ACS250 – IP20 (115V) EASY START-UP GUIDE _________________________________________ 7

ACS250 – IP66 (115-480V Switched Variants) EASY START-UP GUIDE ____________________________ 8

ACS250 – IP66 (115-480V Non-Switched Variants) EASY START-UP GUIDE ________________________ 9

2.

Safety ___________________________________________________________________________ 11

2.1. What this chapter contains______________________________________________________________ 11

2.2. Use of warnings _______________________________________________________________________ 11

2.3. Safety in installation and maintenance ____________________________________________________ 11

2.4. Safety in start-up and operation _________________________________________________________ 12

3.

General Information and Ratings _____________________________________________________ 14

3.1. Type designation key __________________________________________________________________ 14

3.2. Drive Model Numbers – IP20 ____________________________________________________________ 15

3.3. Drive Model Numbers – IP66 ____________________________________________________________ 15

4.

Mechanical Installation_____________________________________________________________ 16

4.1. General _____________________________________________________________________________ 16

4.2. Mechanical Dimensions and Mounting – IP20 Open Units _____________________________________ 16

4.3. Guidelines for Enclosure Mounting – IP20 Units _____________________________________________ 16

4.4. Mechanical Dimensions – IP66 (Nema 4X) Enclosed Units _____________________________________ 17

4.5. Guidelines for Mounting Enclosed Units ___________________________________________________ 17

4.6. Gland Plate and Lock Out _______________________________________________________________ 18

4.7. Removing the Terminal Cover ___________________________________________________________ 18

5.

Power Wiring _____________________________________________________________________ 19

5.1. Grounding the Drive ___________________________________________________________________ 19

5.2. Wiring Precautions ____________________________________________________________________ 20

5.3. Connection Diagram ___________________________________________________________________ 21

5.4. Drive & Motor Connections _____________________________________________________________ 22

5.5. Motor Terminal Box Connections _________________________________________________________ 22

5.6. Using the REV/Off/FWD Selector Switch (IP66 Switched Version Only) __________________________ 23

6.

Control Wiring ____________________________________________________________________ 24

6.1. Control Terminal Connections ___________________________________________________________ 24

6.2. RJ45 Data Connection __________________________________________________________________ 24

7.

Operation ________________________________________________________________________ 25

7.1. Managing the Keypad __________________________________________________________________ 25

7.2. Changing Parameters __________________________________________________________________ 25

7.3. Resetting to Factory Default Settings ______________________________________________________ 25

8.

Quick Start-up and Control __________________________________________________________ 26

8.1. Quick Start-up Terminal Control _________________________________________________________ 26

6

8.2. Quick Start-up Keypad Control ___________________________________________________________ 27

9.

Application Macros ________________________________________________________________ 28

9.1. Overview of macros ___________________________________________________________________ 28

10.

Parameters ______________________________________________________________________ 31

10.1. Parameter Structure ___________________________________________________________________ 31

10.2. Parameters in the Short parameter mode __________________________________________________ 32

10.3. Read Only Status parameters ____________________________________________________________ 34

10.4. Parameters in the Long parameter mode __________________________________________________ 35

10.5. Adjusting the Voltage / Frequency (V/f) characteristics _______________________________________ 40

10.6. Motor Thermistor Connection ___________________________________________________________ 40

10.7. Preventing un-authorized parameter editing. _______________________________________________ 41

11.

Modbus RTU Communications _______________________________________________________ 42

11.1. Introduction _________________________________________________________________________ 42

11.2. Modbus RTU Specification ______________________________________________________________ 42

11.3. RJ45 Connector Configuration ___________________________________________________________ 42

11.4. Modbus Telegram Structure _____________________________________________________________ 42

11.5. Modbus Register Map __________________________________________________________________ 42

11.6. Modbus Parameter Register Map ________________________________________________________ 43

12.

Technical Data ____________________________________________________________________ 44

12.1. Environmental ________________________________________________________________________ 44

12.2. Input/Output Current ratings and fuses ___________________________________________________ 44

12.3. Overload ____________________________________________________________________________ 44

12.4. Additional Information for UL Compliance _________________________________________________ 45

12.5. Derating Information __________________________________________________________________ 45

12.6. Mains Line input Reactors ______________________________________________________________ 46

13.

Trouble Shooting __________________________________________________________________ 47

13.1. Fault Code Messages ___________________________________________________________________ 47

ACS250 – IP20 (115V)

AC SupplyVoltage

(50/60Hz)

Earth

L1

L

L2

N

L3

Fuses

EASY START-UP GUIDE

Supply Voltage :

- 115 Volts

- 1 Phase

-

Check the drive rating information on page 44

Fuses, Cable Sizes :

-

Fuse Rating recommendation values given on page 44

-

Cable size recommendation values given on page 44

- Always follow local and national codes of practice

7

M

Keypad operation can be found in sections 7 and 8

Control Terminals :

Based on the default, out of box settings –

- Connect a Start/Stop switch between terminals 1& 2

- Close the switch to start

- Open the switch to stop

- To vary the speed from minimum (0Hz) to maximum

(60Hz) Connect a 10kΩ potentiometer to terminals 5,6

& 7.

1 2 5 6 7

Stop - Run

10kΩ

Speed Pot

Motor Cable Sizes

-

Cable size recommendation values given on page 44

Motor Connections

- Check for Star or Delta connection according to the

motor voltage rating (See page 22)

Motor Nameplate Details

- Enter the motor rated voltage in parameter 9905

- Enter the motor rated current in parameter 9906

- Enter the motor rated frequency in parameter 9907

8

ACS250 – IP66 (115-480V Switched Variants)

Local Speed Potentiometer

The local speed potentiometer will adjust the output frequency from minimum

(Parameter 2007, default setting = 0Hz) to maximum (Parameter 2008, default setting = 60Hz)

EASY START-UP GUIDE

Mechanical Mounting

- Information can be

found on page 17

Run Reverse / Off / Run Forward Switch

With the factory parameter settings, this switch allows the drive to be started in the forward and reverse operating directions. Alternative switch functions can be programmed, such as

Local/Remote, hand / Off/ Auto, see

page 23.

Keypad operation can be

found in sections 7 and 8

Local Power disconnect with lock out provision

Fuses, Cable Sizes :

-

Fuse Rating recommendation values given on page 44

-

Cable size recommendation values given on page 44

- Always follow local and national codes of practice

Fuses

Motor Cable Sizes

- Cable size recommendation values

given on page 44

Supply Voltage :

- 115, 230, 400, 480 Volts

- 1 or 3 Phase

- Check the drive rating

information on page 44

Motor Connections

- Check for Star or Delta connection according to the motor voltage rating

(See page 22)

Motor Nameplate Details

- Enter the motor rated voltage in parameter 9905

- Enter the motor rated current in parameter 9906

- Enter the motor rated frequency in parameter 9907

ACS250 – IP66 (115-480V Non-Switched Variants) EASY START-UP GUIDE

9

Mechanical Mounting

- Information can be found

on page 17

Keypad operation can be

found in sections 7 and 8

-

- Check the drive rating

-

- Always follow local and national codes of practice

Fuses

Supply Voltage :

- 115, 230, 400, 480 Volts

- 1 or 3 Phase

- Check the drive rating

information on page 44

Motor Cable Sizes

- Cable size recommendation values

given on page 44

Motor Connections

- Check for Star or Delta connection according to the motor voltage

rating (See page 22)

Motor Nameplate Details

- Enter the motor rated voltage in parameter 9905

- Enter the motor rated current in parameter 9906

- Enter the motor rated frequency in parameter 9907

Declaration of Conformity

The manufacturer hereby states that the ACS250 product range conforms to the relevant safety provisions of the Low Voltage Directive

2006/95/EC and the EMC Directive 2004/108/EC and has been designed and manufactured in accordance with the following harmonised

European standards:

EN 61800-5-1: 2003 Adjustable speed electrical power drive systems. Safety requirements. Electrical, thermal and energy.

EN 61800-3 2 nd

Ed: 2004 Adjustable speed electrical power drive systems. EMC requirements and specific test methods

EN 55011: 2007 Limits and Methods of measurement of radio disturbance characteristics of industrial, scientific and medical (ISM) radio-frequency equipment (EMC)

Specifications for degrees of protection provided by enclosures EN60529 : 1992

Electromagnetic Compatibility

All drives are designed with high standards of EMC in mind.

It is the responsibility of the installer to ensure that the equipment or system into which the product is incorporated complies with the EMC legislation of the country of use. Within the European Union, equipment into which this product is incorporated must comply with the EMC

Directive 2004/108/EC. When using an ACS250 with an external filter, compliance with the following EMC Categories, as defined by EN61800-

3:2004 can be achieved:

Drive Type / Rating

First Environment Category C1

EMC Category

First Environment Category C2 Second Environment Category C3

ACS250-_ _U… Use External EMC Filter Use External EMC Filter Use External EMC Filter

Note

Compliance with EMC standards is dependent on a number of factors including the environment in which the drive is installed, motor switching frequency, motor, cable lengths and installation methods adopted.

For shielded motor cable lengths greater than 100m and up to 200m, an output dv/dt filter must be used (please refer to http://www.abb.com/ProductGuide for further details).

All rights reserved. No part of this User Guide may be reproduced or transmitted in any form or by any means, electrical or mechanical including photocopying, recording or by any information storage or retrieval system without permission in writing from the publisher.

ABB Drives Ltd © 2012

The manufacturer accepts no liability for any damage caused during or resulting from transport, receipt of delivery, installation or commissioning. The manufacturer also accepts no liability for damage or consequences resulting from inappropriate, negligent or incorrect installation, incorrect adjustment of the operating parameters of the drive, incorrect matching of the drive to the motor, incorrect installation, unacceptable dust, moisture, corrosive substances, excessive vibration or ambient temperatures outside of the design specification.

The contents of this User Guide are believed to be correct at the time of printing. In the interest of a commitment to a policy of continuous improvement, the manufacturer reserves the right to change the specification of the product or its performance or the contents of the User

Guide without notice.

This User Guide is for use with version 1.10 Software.

User Guide Revision A

This user guide is the “original instructions” document. All non-English versions are translations of the “original instructions”.

The manufacturer adopts a policy of continuous improvement and while every effort has been made to provide accurate and up to date information, the information contained in this User Guide should be used for guidance purposes only and does not form the part of any contract.

2. Safety

2.1. What this chapter contains

This chapter contains the safety instructions which you must follow when installing, operating and servicing the drive. If ignored, physical injury or death may follow, or damage may occur to the drive, motor or driven equipment. Read the safety instructions before you work on the unit.

2.2. Use of warnings

Warnings caution you about conditions which can result in serious injury or death and/or damage to the equipment and advice on how to avoid the danger. The following warning symbols are used in this manual:

Electricity warning warns of hazards from electricity which can cause physical injury and/or damage to the equipment.

General warning warns about conditions, other than those caused by electricity, which can result in physical injury and/or damage to the equipment.

11

2.3. Safety in installation and maintenance

These warnings are intended for all who work on the drive, motor cable or motor.

Electricity safety

WARNING! Ignoring the instructions can cause physical injury or death, or damage to the equipment.

Only qualified electricians are allowed to install and maintain the drive!

Never work on the drive, motor cable or motor when input power is applied. After disconnecting the input power, always wait for 10 minutes to let the intermediate circuit capacitors discharge before you start working on the drive, motor or motor cable.

Always ensure by measuring with a multimeter (impedance at least 1 Mohm) that:

1. There is no voltage between the drive input phases L1, L2 and L3 and the ground.

2. There is no voltage between terminals + and BR and the ground.

Do not work on the control cables when power is applied to the drive or to the external control circuits. Externally supplied control circuits may carry dangerous voltage even when the input power of the drive is switched off.

Do not make any insulation or voltage withstand tests on the drive.

Be sure the system is properly grounded before applying power. Do not apply AC power before you ensure that all grounding instructions have been followed. Electrical shock can cause serious or fatal injury.

Note:

Even when the motor is stopped, dangerous voltage is present at the power circuit terminals L1, L2, L3 and U, V, W and + and BR.

12

General safety

WARNING! Ignoring the following instructions can cause physical injury or death, or damage to the equipment.

The drive is not field repairable. Never attempt to repair a malfunctioning drive; contact your local ABB representative or

Authorized Service Centre for replacement.

Make sure that dust from drilling does not enter the drive during the installation. Electrically conductive dust inside the drive may cause damage or lead to malfunction.

Ensure sufficient cooling.

2.4. Safety in start-up and operation

These warnings are intended for all who plan the operation, start up or operate the drive.

WARNING! Ignoring the following instructions can cause physical injury or death, or damage to the equipment.

Before adjusting the drive and putting it into service, make sure that the motor and all driven equipment are suitable for operation throughout the speed range provided by the drive. The drive can be adjusted to operate the motor at speeds above and below the speed provided by connecting the motor directly to the power line.

Do not activate automatic fault reset functions if dangerous situations can occur. When activated, these functions reset the drive and resume operation after a fault.

Do not control the motor with an AC contactor or disconnecting device (disconnecting means); use instead the control panel start and stop keys and or external commands (I/O). The maximum allowed number of charging cycles of the DC capacitors (that is, power-ups by applying power) is two per minute.

Note:

When parameter 1103 PRIMARY COMMAND SOURCE MODE is not set to 1 or 2, the stop key on the control panel will not stop the drive. To stop the drive open terminal 2 of the drive control terminals.

13

Danger: Indicates a risk of electric shock, which, if not avoided, could result in damage to the equipment and

Danger: Indicates a potentially hazardous situation other than electrical, which if not avoided, could result possible injury or death. in damage to property.

The ACS250 variable speed drive is intended for professional installation and commissioning into complete equipment or systems as part of a fixed installation. If installed incorrectly it may present a safety hazard. The ACS250 uses high voltages and currents, carries a high level of stored electrical energy, and is used to control mechanical plant that may cause injury. Close attention is required to system design and electrical installation to avoid hazards in either normal operation or in the event of equipment malfunction. Only qualified electricians are allowed to install and maintain this product.

System design, installation, commissioning and maintenance must be carried out only by personnel who have the necessary training and experience. They must carefully read this safety information and the instructions in this Guide and follow all information regarding transport, storage, installation and use of the ACS250, including the specified environmental limitations.

Do not perform any flash test or voltage withstand test on the ACS250. Any electrical measurements required should be carried out with the ACS250 disconnected.

Electric shock hazard! Disconnect and ISOLATE the ACS250 before attempting any work on it. High voltages are present at the terminals and within the drive for up to 10 minutes after disconnection of the electrical supply. Always ensure by using a suitable multimeter that no voltage is present on any drive power terminals prior to commencing any work.

Where supply to the drive is through a plug and socket connector, do not disconnect until 10 minutes have elapsed after turning off the supply.

Ensure correct grounding connections. The ground cable must be sufficient to carry the maximum supply fault current which normally will be limited by the fuses. Suitably rated fuses should be fitted in the mains supply to the drive, according to any local legislation or codes.

Do not carry out any work on the drive control cables when power is applied to the drive or to the external control circuits.

Within the European Union, all machinery in which this product is used must comply with the Machinery Directive 2006/42/EC,

Safety of Machinery. In particular, the machine manufacturer is responsible for providing a main switch and ensuring the electrical equipment complies with EN60204-1.

The level of integrity offered by the ACS250 control input functions – for example stop/start, forward/reverse and maximum speed is not sufficient for use in safety-critical applications without independent channels of protection. All applications where malfunction could cause injury or loss of life must be subject to a risk assessment and further protection provided where needed.

The driven motor can start at power up if the enable input signal is present.

The STOP function does not remove potentially lethal high voltages. ISOLATE the drive and wait 10 minutes before starting any work on it. Never carry out any work on the Drive, Motor or Motor cable when the input power is still applied.

The ACS250 can be programmed to operate the driven motor at speeds above or below the speed achieved when connecting the motor directly to the mains supply. Obtain confirmation from the manufacturers of the motor and the driven machine about suitability for operation over the intended speed range prior to machine start up.

Do not activate the automatic fault reset function on any systems whereby this may cause a potentially dangerous situation.

The ACS250 has an Ingress Protection rating of IP20 or IP66 depending on the model. IP20 units must be installed in a suitable enclosure.

ACS250s are intended for indoor use only.

When mounting the drive, ensure that sufficient cooling is provided. Do not carry out drilling operations with the drive in place, dust and metal shavings from drilling may lead to damage.

The entry of conductive or flammable foreign bodies should be prevented. Flammable material should not be placed close to the drive

Relative humidity must be less than 95% (non-condensing).

Ensure that the supply voltage, frequency and number of phases correspond to the rating of the ACS250 as delivered.

Never connect the mains power supply to the Output terminals U, V, W.

Do not install any type of automatic switchgear between the drive and the motor

Wherever control cabling is close to power cabling, maintain a minimum separation of 4 in. (100 mm) and arrange crossings at 90 degrees

Ensure that all terminals are tightened to the appropriate torque setting

Do not attempt to carry out any repair of the drive. In the case of suspected fault or malfunction, contact your local ABB representative for further assistance.

14

3. General Information and Ratings

This chapter contains information about the ACS250 including how to identify the drive.

3.1. Type designation key

The type designation contains information on the specification and configuration of the drive. You find the type designation label attached to the drive. The first digits from the left express the basic configuration, for example ACS250-03U-08A8-4.

The explanations of the type designation label selections are described below.

ACS250-03 U-08A8-4+B063+F278

ACS250 product series

1-phase/3 phase

01 = 1-phase input

03 = 3-phase input

EMC Filter

E = Filtered

U = Non-Filtered

Output Current Rating

In format xxAy, where xx indicates the integer part and y the fractional part,

For example, 08A8 means 8.8 A.

Input Voltage Range

1 = 110…115 V AC

2 = 200…240 V AC

4 = 380…480VAC

IP66 Enclosure

Input Switch Assembly

(Speed potentiometer, run/stop and mains disconnect switch)

3.2. Drive Model Numbers – IP20

Mechanical Dimensions and Mounting information are shown in section 4.

Further Electrical Specifications are shown in section 12.2.

Model Number

Power

(HP)

Output

Current

(A)

Input switch assembly

1-phase 110V…115V AC (+/-10%) - 3 Phase 230V Output

ACS250-01U-02A3-1 0.5

ACS250-01U-04A3-1

ACS250-01U-05A8-1

1

1.5

2.3

4.3

5.8

No

No

No

3.3. Drive Model Numbers – IP66

Mechanical Dimensions and Mounting information are shown in section 4.

Further Electrical Specifications are shown in section 12.2.

Model Number

Power

(HP)

Output

Current

(A)

Input switch assembly

1-phase 110V…115V AC (+/-10%) - 3 Phase 230V Output

ACS250-01U-02A3-1+B063

ACS250-01U-02A3-1+B063+F278

ACS250-01U-04A3-1+B063

ACS250-01U-04A3-1+B063+F278

ACS250-01U-05A8-1+B063

ACS250-01U-05A8-1+B063+F278

0.5

0.5

1

1

1.5

1.5

2.3

2.3

4.3

4.3

5.8

5.8

No

Yes

No

Yes

No

Yes

1-phase 200…240V AC (+/-10%) - 3 Phase Output

ACS250-01U-02A3-2+B063

ACS250-01U-02A3-2+B063+F278

ACS250-01U-04A3-2+B063

ACS250-01U-04A3-2+B063+F278

ACS250-01U-07A0-2+B063

ACS250-01U-07A0-2+B063+F278

ACS250-01U-07A0-2+B063+D150

ACS250-01U-07A0-2+B063+F278+D150

ACS250-01U-10A5-2+B063

ACS250-01U-10A5-2+B063+F278

3-phase 200…240V AC (+/-10%) - 3 Phase Output

2

2

2

2

0.5

0.5

1

1

3

3

ACS250-03U-02A3-2+B063

ACS250-03U-02A3-2+B063+F278

ACS250-03U-04A3-2+B063

ACS250-03U-04A3-2+B063+F278

ACS250-03U-07A0-2+B063

ACS250-03U-07A0-2+B063+F278

ACS250-03U-10A5-2+B063

ACS250-03U-10A5-2+B063+F278

ACS250-03U-18A0-2+B063

ACS250-03U-18A0-2+B063+F278

3-phase 380…480V AC (+/-10%) - 3 Phase Output

2

2

3

3

0.5

0.5

1.0

1.0

5

5

ACS250-03U-02A2-4+B063

ACS250-03U-02A2-4+B063+F278

ACS250-03U-04A1-4+B063

ACS250-03U-04A1-4+B063+F278

ACS250-03U-04A1-4+B063+D150

ACS250-03U-04A1-4+B063+F278+D150

ACS250-03U-05A8-4+B063

ACS250-03U-05A8-4+B063+F278

ACS250-03U-09A5-4+B063

ACS250-03U-09A5-4+B063+F278

ACS250-03U-14A0-4+B063

ACS250-03U-14A0-4+B063+F278

ACS250-03U-18A0-4+B063

ACS250-03U-18A0-4+B063+F278

5

5

7.5

7.5

10

10

2

2

3

3

1

1

2

2

9.5

9.5

14

14

18

18

2.2

2.2

4.1

4.1

4.1

4.1

5.8

5.8

2.3

2.3

4.3

4.3

7

7

10.5

10.5

18

18

7

7

7

7

2.3

2.3

4.3

4.3

10.5

10.5

No

Yes

No

Yes

No

Yes

No

Yes

No

Yes

No

Yes

No

Yes

No

Yes

No

Yes

No

Yes

No

Yes

No

Yes

No

Yes

No

Yes

No

Yes

No

Yes

No

Yes

Internal DB transistor

No

No

Yes

Internal DB transistor

Yes

Yes

Yes

Yes

Yes

Yes

No

No

No

No

Yes

Yes

Yes

Yes

No

No

No

No

Yes

Yes

Yes

Yes

Yes

Yes

No

No

No

No

No

No

Yes

Yes

Yes

Yes

No

No

No

No

Yes

Yes

Frame Size

E1

E1

E2

Frame Size

E2

E2

E3

E3

E3

E3

E2

E2

E2

E2

E1

E1

E1

E1

E2

E2

E2

E2

E1

E1

E1

E1

E3

E3

E1

E1

E2

E2

E1

E1

E1

E1

E2

E2

E1

E1

E1

E1

E2

E2

15

16

4. Mechanical Installation

4.1. General

Carefully Unpack the ACS250 and check for any signs of damage. Notify the shipper immediately if any exist.

Check the drive rating label to ensure it is of the correct type and power requirements for the application.

Store the ACS250 in its box until required. Storage should be clean and dry and within the temperature range –40°C to +60°C

The ACS250 should be mounted in a vertical position only on a flat, flame resistant vibration free mounting using the integral holes.

The ACS250 must be installed in a pollution degree 1 or 2 environment only.

Do not mount flammable material close to the ACS250

Ensure that the minimum cooling air gaps, as detailed in sections 4.3 and 4.5 are left clear

Ensure that the ambient temperature range does not exceed the permissible limits for the ACS250 given on page 44.

Provide suitable clean, moisture and contaminant free cooling air sufficient to fulfil the cooling requirements of the ACS250

according to sections 4.3 and 12.1.

4.2. Mechanical Dimensions and Mounting – IP20 Open Units

J

I

A

D

C

B

Drive

Frame

Size

1

2

NOTE

mm

A in

H

G mm

B in mm

C in mm

D

E in mm

H

E in mm

F in mm

G in mm

H in mm

I

F in mm

J in

Weight

Kg Ib

173 6.81 160 6.30 109 4.29 162 6.38 5 0.20 123 4.84 82 3.23 50 1.97 5.5 0.22 10 0.39 1.0 2.20

221 8.70 207 8.15 137 5.39 209 8.23 5.3 0.21 150 5.91 109 4.29 63 2.48 5.5 0.22 10 0.39 1.7 3.75

Maximum Control Terminal Torque Settings of 0.5 Nm (4.5 lb-in)

Maximum Power Terminal Torque Settings of 1 Nm (9 lb-in)

4.3. Guidelines for Enclosure Mounting – IP20 Units

Installation should be in a suitable enclosure, according to EN60529 or other relevant local codes or standards.

Enclosures should be made from a thermally conductive material.

Where vented enclosures are used, there should be free space clearance above and below the drive to ensure good air circulation – see the diagram below for minimum free space clearance. Air should be drawn in below the drive and expelled above the drive.

In any environments where the conditions require it, the enclosure must be designed to protect the ACS250 against ingress of airborne dust, corrosive gases or liquids, conductive contaminants (such as condensation, carbon dust, and metallic particles) and sprays or splashing water from all directions.

High moisture, salt or chemical content environments should use a suitably sealed (non-vented) enclosure.

The enclosure design and layout should ensure that the adequate ventilation paths and clearances are left to allow air to circulate through the drive heatsink. ABB Drives recommend the following minimum mounting clearance requirements for drives mounted in non-ventilated metallic enclosures:-

Drive

X Y Z

X

Z

Frame

Size

Above &

Below

Either

Side

Between mm in mm in mm in

1 50 1.97 50 1.97 33 1.30

2

75 2.95 50 1.97 46 1.81

Y

X

Y

Note :

Dimension Z assumes that the drives are mounted side-by-side with no clearance.

Typical drive heat losses are 3% of operating load conditions.

Above are guidelines only and the operating ambient temperature of the drive MUST be maintained at all times.

17

4.4. Mechanical Dimensions – IP66 (Nema 4X) Enclosed Units

D

B

A

J

I

E

H

F

G

Drive

Frame

Size

1

2

3

NOTE

mm

A in mm

B in mm

D in mm

E in mm

F in mm

G in mm

H I J in mm in mm in

Weight kg Ib

232.0 9.13 207.0 8.15 189.0 7.44 25.0 0.98 179.0 7.05 161.0 6.34 148.5 5.85 4.0 0.16 8.0 0.31 2.95 6.50

257.0 10.12 220.0 8.67 200.0 7.87 28.5 1.12 186.5 7.34 188.0 7.40 176.0 6.93 4.2 0.17 8.5 0.33 4.20 9.26

310.0 12.2 276.5 10.89 251.5 9.90 33.4 1.31 228.7 9.00 210.5 8.29 197.5 7.78 4.2 0.17 8.5 0.33

7.7 17

The size 3 product has 4 symmetrical mounting points

Maximum Control Terminal Torque Settings of 0.5 Nm (4.5 lb-in)

Maximum Power Terminal Torque Settings of 1 Nm (9 lb-in)

4.5. Guidelines for Mounting Enclosed Units

Before mounting the drive, ensure that the chosen location meets the

environmental condition requirements for the drive shown in section 12.1

The drive must be mounted vertically, on a suitable flat surface

The minimum mounting clearances as shown in the table below must be observed

The mounting site and chosen mountings should be sufficient to support the weight of the drives

The Enclosed ACS250s can be installed side-by-side with their heatsink flanges touching. This gives adequate ventilation space between drives.

If the ACS250 is to be installed above another drive or any other heatproducing device, the minimum vertical spacing (X) is 150mm (5.9 inches) above and below.

X

X

18

4.6. Gland Plate and Lock Out

The use of a suitable gland system is required to maintain the appropriate IP / Nema rating. The gland plate has pre moulded cable entry holes for power and motor connections suitable for use with glands as shown in the following table. Where additional holes are required, these can be drilled to suitable size. Please take care when drilling to avoid leaving any particles within the product.

Cable Gland recommended Hole Sizes & types:

Moulded Hole Size UL Gland Size Metric Gland Size

Frame Size 1

Frame Size 2 & 3

Flexible Conduit Hole Size

0.866in (22mm)

1.11in (28.2mm)

Drill Size

PG13.5

PG21

UL Gland Size

M20

M25

Metric

Frame Size 1 1.125in (28mm) ¾ in 21

Frame Size 2 & 3

1.375in (35mm) 1 in 27

UL rated ingress protection ("Type " ) is only met when cables are installed using a UL recognized bushing or fitting for a flexibleconduit system which meets the required level of protection ("Type")

For conduit installations the conduit entry holes require standard opening to the required sizes specified per the NEC

Not intended for rigid conduit system

Local Power Isolator Lock out

On the switched models the Local Power disconnect switch can be locked in the ‘Off’ position using a 20mm standard shackle padlock (not supplied).

IP66 / Nema 12 Unit Lock Out IP66 / Nema 4X Unit Lock Out

4.7. Removing the Terminal Cover

To access the connection terminals, the drive front cover needs to be removed as shown.

IP66 / Nema 4X Units

Removing the 2 screws on the front of the product allows access to the connection terminals, as shown below.

5. Power Wiring

5.1. Grounding the Drive

This manual is intended as a guide for proper installation. ABB Drives Ltd cannot assume responsibility for the compliance or the non-compliance to any code, national, local or otherwise, for the proper installation of this drive or associated equipment.

A hazard of personal injury and/or equipment damage exists if codes are ignored during installation.

This ACS250 contains high voltage capacitors that take time to discharge after removal of the main supply. Before working on the drive, ensure isolation of the main supply from line inputs. Wait ten (10) minutes for the capacitors to discharge to safe voltage levels. Failure to observe this precaution could result in severe bodily injury or loss of life.

Only qualified electrical personnel familiar with the construction and operation of this equipment and the hazards involved should install, adjust, operate, or service this equipment. Read and understand this manual and other applicable manuals in their entirety before proceeding. Failure to observe this precaution could result in severe bodily injury or loss of life.

5.1.1. Recommended installation for EMC compliance

19

Metal Back-Panel

Site Ground Bus-Bar bonded to Metal Back-Panel panel which is bonded to main power ground.

RFI Filter

Option

Ensure Filter chassis is making metal-metal contact with

Mounting panel.

Avoid long parallel runs of motor cables with other cables.

X

Twisted-Pair shielded cables for analog control and motor feedback signals.

=/>100mm

Where control cables must cross power cables make sure they are arranged at an angle as near to 90 degrees as possible.

Whenever possible use Shielded motor cablesmaintaining shield as far as possible along the cable.

U V W

PE

360° bonding

EMC cable gland

(Best-Practice)

(Shield to Motor

Chassis)

U V W

PE

20

5.1.2. Grounding Guidelines

The ground terminal of each ACS250 should be individually connected DIRECTLY to the site ground bus bar (through the filter if installed).

ACS250 ground connections should not loop from one drive to another, or to, or from any other equipment. Ground loop impedance must confirm to local industrial safety regulations. To meet UL regulations, UL approved ring crimp terminals should be used for all ground wiring connections.

The drive Safety Ground must be connected to system ground. Ground impedance must conform to the requirements of national and local industrial safety regulations and/or electrical codes. The integrity of all ground connections should be checked periodically.

5.1.3. Protective Earth Conductor

The Cross sectional area of the PE Conductor must be at least equal to that of the incoming supply conductor.

5.1.4. Safety Ground

This is the safety ground for the drive that is required by code. One of these points must be connected to adjacent building steel (girder, joist), a floor ground rod, or bus bar. Grounding points must comply with national and local industrial safety regulations and/or electrical codes.

The safety ground terminal provides a grounding point for the motor cable shield. The motor cable shield connected to this terminal (drive end) should also be connected to the motor frame (motor end). Use a shield terminating or EMI clamp to connect the shield to the safety ground terminal.

5.1.5. Motor Ground

The motor ground must be connected to one of the ground terminals on the drive.

5.1.6. Ground Fault Monitoring

As with all inverters, a leakage current to earth can exist. The ACS250 is designed to produce the minimum possible leakage current while complying with worldwide standards. The level of current is affected by motor cable length and type, the effective switching frequency, the earth connections used and the type of RFI filter installed. If a GFCI (Ground Fault Current interrupter) is to be used, the following conditions apply: -

The device must be suitable for protecting equipment with a DC component in the leakage current

Individual GFCI’s should be used for each ACS250

The ACS250 product range has input supply voltage surge suppression components fitted to protect the drive from line voltage transients, typically originating from lightening strikes or switching of high power equipment on the same supply.

5.2. Wiring Precautions

Connect the ACS250 according to sections 5.3 and 5.4, ensuring that motor terminal box connections are correct. There are two connections in

general: Star and Delta. It is essential to ensure that the motor is connected in accordance with the voltage at which it will be operated. For

more information, refer to section 5.5.

Type MC continuous corrugated aluminium armour cable with symmetrical grounds or shielded power cable is recommended for the motor cables if metallic conduit is not used.

The power cables must be rated for 75˚C (167˚F).

5.2.1. Compatibility with IT (ungrounded) and corner-grounded TN systems

WARNING! EMC filters should not be used when installing the drive on an IT system (an ungrounded power system or highresistance-grounded power system, otherwise the system will be connected to ground potential through the EMC capacitors. This may cause danger or damage to the EMC filter.

If you have an IT (ungrounded) system or corner-grounded TN system, disconnect the internal Varistor screw as shown below.

VAR

5.3. Connection Diagram

5.3.1. IP66 (Nema 4X) Switched Units

5.3.2. IP20 & IP66 (Nema 4X) Non- Switched Units

+DC BR

+DC BR

Power Connections

A Incoming Power Source

B External Fuse

C Optional Input Choke

D Optional Input Filter

E Internal Mains Disconnect

F Optional Brake Resistor

G Shielded Motor Cable

I Relay Output

J

K

Control Connections

Internal Forward / Off /

Reverse Switch

Internal Speed Control Pot

8 Analog Output

0 – 10 Volts

0 Volt 9

10 Relay Output

11

‘Drive Ready’ = Closed

Power Connections

A Incoming Power Source

B

C

External Mains Disconnect

External Fuse

D Optional Input Choke

E

F

Optional Input Filter

Optional Brake Resistor

G Shielded Motor Cable

I Relay Output

1

2

3

4

Control Connections

+ 24 Volt (100mA) User Output

Digital Input 1

Drive Run / Stop

Digital Input 2

Forward / Reverse

Digital Input 3

Analog / Preset Speed

+ 10 Volt Output 5

6

7

8

Analog Input 1

0 – 10 Volt

0 Volt

Analog Output

0 – 10 Volts

0 Volt 9

10 Relay Output

11

‘Drive Ready’ = Closed

21

22

5.4. Drive & Motor Connections

For 1 phase supply, power should be connected to L1/L, L2/N. For 3 phase supplies power should be connected to L1, L2, L3. Phase sequence is not important. The Motor should be connected to U, V, W

For drives that have a dynamic brake transistor an optional external braking resistor will need be connected to +DC and BR when required.

The brake resistor circuit should be protected by a suitable thermal protection circuit. The “–DC”, “+” and “BR” connections are blanked off by plastic tabs when sent from the factory. The plastic tabs can be removed if/when required.

Size 1 Connections

IP20 IP66 (Nema 4X)

Size 2 & 3 Connections

IP20 IP66 (Nema 4X)

5.5. Motor Terminal Box Connections

Most general purpose motors are wound for operation on dual voltage supplies. This is indicated on the nameplate of the motor. This operational voltage is normally selected when installing the motor by selecting either STAR or DELTA connection. STAR always gives the higher of the two voltage ratings. Example Motor nameplate shown below (380V Delta illustrated):

5.6. Using the REV/Off/FWD Selector Switch (IP66 Switched Version Only)

By adjusting the parameter settings the ACS250 can be configured for multiple applications and not just for Forward or Reverse.

This could typically be for Hand/Off/Auto applications (also known as Local/Remote) for Industrial fan and pump industries.

23

Run Reverse

STOP

Preset Speed 1

Run Reverse

Run in Auto

Run in Speed

Control

Run in Preset Speed

Control

Run in Hand

Run in Hand

Switch Position

STOP

STOP

STOP

STOP

STOP

STOP

STOP

STOP

STOP

Run Forward

Run Forward

Run Forward

Run Forward

Run in Hand

Run in PI Control

Run in PI Control

Run in Auto

Run in Auto

Parameters to Set

1103 9902

0

0

0

0

0

5

5

3

3

0

5,7

1

6, 8

4

1

0, 2, 4,5,

8..12

6

3

Notes

Factory Default Configuration

Run Forward or Reverse with speed controlled from the Local POT

Run forward with speed controlled from the local POT

Run Reverse - disabled

Run Forward with speed controlled from the

Local POT

Preset Speed 1 provides a ‘Jog’ Speed set in parameter 1202

Run Forward or Reverse with speed controlled from the Local POT

Run in Hand – Speed controlled from the

Local POT

Run in Auto 0 Speed controlled using Analog input 2 e.g. from PLC with 4-20mA signal.

In Speed Control the speed is controlled from the Local POT

In PI Control, Local POT controls PI set point

In Preset Speed Control, parameter 1202 sets the Preset Speed

In PI Control, POT can control the PI set point

(Parameter 4010=1)

Hand – speed controlled from the Local POT

Auto – Speed Reference from Modbus

Hand – Speed reference from Preset Speed 1

(Parameter 1202)

Auto – Speed Reference from Modbus

24

6. Control Wiring

6.1. Control Terminal Connections

Default Connections Control Terminals

1 +24V +24V Output

2

3

4

5

6

7

8

DI1

DI2

DI/AI 3

+10V

DI/AI4

COM

AO

Digital Input 1

Digital Input 2

Digital/Analog

Input 3

+10V Output

Digital/Analog

Input 4

0V

Analog Output /

Digital Output

0V

Description

+24V, 100mA.

Positive logic

“Logic 1” input voltage range: 8V … 30V DC

“Logic 0” input voltage range: 0V … 4V DC

Digital: 8 to 30V

Analog: 0 to 10V, 0 to 20mA or 4 to 20mA

+10V, 10mA, 1kΩ minimum

Analog: 0 to 10V, 0 to 20mA or 4 to 20mA

Digital: 8 to 30V

User ground connected to terminal 9

Analog: 0 to 10V, 20mA maximum

Digital: 0 to 24V

User ground connected to terminal 7 9 AGND

10 ROC Relay Common

11 RNO Relay Contact

6.2. RJ45 Data Connection

For MODBUS RTU register map information

please refer to page 42

When using MODBUS control the Analog and

Digital Inputs can be configured as shown in

section 9.1.3

Contact 250Vac, 6A / 30Vdc, 5A

5

6

7

8

1

2

3

4

No Connection

No Connection

0 Volts

-RS485 (PC)

+RS485 (PC)

+24 Volt

-RS485 (Modbus RTU)

+RS485 (Modbus RTU)

Warning:

This is not an Ethernet connection. Do not connect directly to an Ethernet port.

7. Operation

7.1. Managing the Keypad

The drive is configured and its operation monitored via the keypad and display.

Used to display real-time information, to access and exit

NAVIGATE parameter edit mode and to store parameter changes.

(press for >1 second to toggle between status and parameter mode)

UP

Used to increase speed in real-time mode or to increase parameter values in parameter edit mode

DOWN

Used to decrease speed in real-time mode or to decrease parameter values in parameter edit mode

RESET /

STOP

Used to reset a tripped drive.

When in Keypad mode is used to Stop a running drive.

START

When in keypad mode, used to Start a stopped drive or to reverse the direction of rotation if bi-directional keypad mode is enabled

7.2. Changing Parameters

25

7.3. Resetting to Factory Default Settings

To reset factory default parameters, press , and for >2s. The display shows



. Press the button to acknowledge and reset the drive.

26

8. Quick Start-up and Control

8.1. Quick Start-up Terminal Control

When delivered, the drive is in the factory default state, meaning that it is set to operate in terminal control mode (Parameter 9902

DIGITAL INPUTS FUNCTION SELECT = 0 and 1103 PRIMARY COMMAND SOURCE MODE = 0) and all parameters have the default values as

indicated in section 10.

1. Perform Mechanical and Electrical installation as per section 4 and 5.

2. Connect a control switch between the control terminals 1 and 2 ensuring that the contact is open (drive disabled).

3. Connect a potentiometer (1kΩ min to 10 kΩ max) between terminals 5 and 7, and the wiper to terminal 6.

4. With the potentiometer set to zero, switch on the supply to the drive. The display will show



.

5. Press and hold the navigate key for >1s to enter parameter view mode and enter motor data from motor nameplate into parameter

9905 MOTOR RATED VOLTAGE, 9906 MOTOR RATED CURRENT, and parameter 9907 MOTOR RATED FREQUENCY.

6. Close the control switch, terminals 1-2. The drive is now ‘enabled’ and the output frequency/speed are controlled by the potentiometer. The display shows zero speed in Hz (



.

) with the potentiometer turned to minimum.

7. Turn the potentiometer to maximum. The motor will accelerate to 60Hz (the default value of parameter 2008 MAXIMUM

FREQUENCY / SPEED LIMIT) under the control of the accelerating ramp time parameter 2202 ACCELERATION RAMP TIME. The display shows 60Hz (



.

) at max speed.

8. To display motor current (A), briefly press the (Navigate) key.

9. Press again to return to speed display.

10. To stop the motor, either turn the potentiometer back to zero or disable the drive by opening the control switch (terminals 1-2).

If the enable/disable switch is opened the drive will decelerate to stop at which time the display will show



. If the potentiometer is turned to zero with the enable/disable closed the display will show



.



(0.0Hz), if left like this for 60 seconds the drive will go into standby mode, display shows



, waiting for a speed reference signal.

27

8.2. Quick Start-up Keypad Control

To allow the ACS250 to be controlled from the keypad in a forward direction only, set parameter 1103 PRIMARY COMMAND SOURCE

MODE =1:

1. Perform Mechanical and Electrical installation as per section 4 and 5.

2. Connect a control switch between the control terminals 1 and 2 ensuring that the contact is open (drive disabled).

3. Switch on the supply to the drive, Press and hold the navigate key for > 1 to enter parameter view mode and set parameter 1103

Primary Command Source Mode = 1

4. Enable the drive by closing the switch between control terminals 1 & 2. The display will show



.

5. Press the key. The display shows



.

.

6. Press to increase speed.

7. The drive will run forward, increasing speed until is released.

The rate of acceleration is controlled by the setting of parameter 2202 ACCELERATION RAMP TIME, check this before starting.

8. Press to decrease speed. The drive will decrease speed until is released. The rate of deceleration is limited by the setting in

2203 DECELERATION RAMP TIME.

9. Press the key. The drive will decelerate to rest at the rate set in parameter 2203 DECELERATION RAMP TIME.

10. The display will finally show



at which point the drive is disabled

11. To preset a target speed prior to enable, press the key while the drive is stopped. The display will show the target speed, use the

& keys to adjust as required then press the key to return the display to



.

12. Pressing the key will start the drive accelerating to the target speed.

To allow the ACS250 to be controlled from the keypad in a forward and reverse direction, set parameter 1103 PRIMARY COMMAND

SOURCE MODE =2:

13. Operation is the same as when parameter 1103 PRIMARY COMMAND SOURCE MODE =1 for start, stop and changing speed.

14. Press the key. The display changes to



.

.

15. Press to increase speed

16. The drive will run forward, increasing speed until is released. Acceleration is limited by the setting in parameter 2202

ACCELERATION RAMP TIME. The maximum speed is the speed set in parameter 2008 MAXIMUM FREQUENCY / SPEED LIMIT.

17. To reverse the direction of rotation of the motor, press the key again.

28

9. Application Macros

9.1. Overview of macros

Application macros are pre-programmed parameter sets. While starting up the drive, the user selects the macro best suited for the purpose with parameter 9902 DIGITAL INPUTS FUNCTION SELECT and 1103 PRIMARY COMMAND SOURCE MODE.

1103 (control Mode) Selected Speed Reference

0 : Terminal Mode

1 : Keypad Mode (uni-directional)

Analog input 1

Digital Potentiometer

2 : Keypad Mode (bi-directional)

4 : Fieldbus Control

5 : User PI mode

Digital Potentiometer

Speed reference via Fieldbus

PI controller output

9.1.1. Terminal Mode 1103 PRIMARY COMMAND SOURCE MODE = 0.

9902

0

1

2

3

4

5

6

7

8

9

10

11

Digital input 1 (T2)

Open: Stop (disable)

Closed: Run (enable)

Open: Stop (disable)

Closed: Run (enable)

Open: Stop (disable)

Closed: Run (enable)

Open: Stop (disable)

Closed: Run (enable)

Open: Stop (disable)

Closed: Run (enable)

Open: Fwd Stop

Closed: Fwd Run

Open: Stop (disable)

Closed: Run (enable)

Open: Stop (disable)

Closed: Fwd Run (enable)

Open: Stop (disable)

Closed: Run (enable)

Open: Stop (disable)

Closed: Forward Run

(enable)

Normally Open (NO)

Momentary close to run

Normally Open (NO)

Momentary close to run

Digital input 2 (T3)

Open : Forward run

Closed : Reverse run

Open: Analog speed ref

Closed : Preset speed 1/2

Digital Input 2 Digital Input 3

Digital input 3 (T4)

Open : Analog speed ref

Closed : Preset speed 1

Open: Preset speed 1

Closed : Preset speed 2

Preset Speed

Open

Closed

Open

Closed

Open

Open

Closed

Closed

Open : Analog speed ref

Closed : Preset speed 1

Preset Speed 1

Preset Speed 2

Preset Speed 3

Preset Speed 4

External trip input :

Open: Trip,

Closed: Run

Open : Analog input 1

Closed : Analog input 2

Analog input (T6)

Analog input 1 reference

Analog input 1 reference

Open: Preset speeds 1-4

Closed : Max Speed

(parameter 2008)

Analog input 1 reference

Analog input 2 reference Analog input 1 reference

Open: Reverse Stop

Closed: Reverse Run

Open : Analog speed ref

Closed : Preset speed 1

Analog input 1 reference

Open : Forward

Closed : Reverse

Open: Stop (disable)

Closed: Rev Run (enable)

Open : Forward

Closed : Reverse

Open: Stop (disable)

Closed: Reverse Run

(enable)

Normally Closed (NC)

Momentary open to stop

Normally Closed (NC)

Momentary open to stop

External trip input :

Open: Trip,

Closed: Run

External trip input :

Open: Trip,

Closed: Run

Analog input 1 reference

Analog input 1 reference

Digital Input 3 Analog Input 1 Preset Speed

Open

Closed

Open

Open

Open

Closed

Preset Speed 1

Preset Speed 2

Preset Speed 3

Closed Closed Preset Speed 4

Digital Input 3 Analog Input 1 Preset Speed

Open

Closed

Open

Open

Open

Closed

Preset Speed 1

Preset Speed 2

Preset Speed 3

Closed Closed

Open : Analog speed ref

Closed: Preset speed 1

Preset Speed 4

Analog input 1 reference

Normally Open (NO)

Momentary close to rev

Analog input 1 reference

Comments

12

NOTE

Open: Stop (disable)

Closed: Run (enable)

Open: Fast Stop (disable)

Closed: Run (enable)

Open : Analog speed ref

Closed : Preset speed 1

Negative Preset Speeds will be inverted if Run Reverse selected

9902=0

9902 = 1

Analog input 1 reference

9902=2

4 Preset speeds selectable.

Analog input used as digital input Closed status: 8V <

Vin < 30V

Connect external motor thermistor PTC type or similar to digital input 3

Switches between analog inputs 1 and 2

Closing digital inputs 1 and

2 together carries out a fast stop (Parameter 2206)

Connect external motor thermistor PTC type or similar to digital input 3

Closing digital inputs 1 and

2 together carries out a fast stop (Parameter 2206)

Closing digital inputs 1 and

2 together carries out a fast stop (

Parameter

2206)

Closing digital inputs 1 and

3 together carries out a fast stop (Parameter 2206)

+24 Volt +24 Volt +24 Volt

Run (Enable) Run (Enable)

For / Rev

Analog / Preset

+ 10 Volts

Reference

0 Volts

Analog speed input with 1 preset speed and fwd/rev switch

Run (Enable)

Analog / Preset

Preset1 / Preset2

+ 10 Volts

Reference

0 Volts

Analog speed input with 2 preset speeds

Preset Speeds 1 – 4

Select

Preset / Max

4 preset speeds and max speed select switch.

Effectively giving 5 preset speeds

9902=3

+24 Volt

9902=4

+24 Volt

Run (Enable)

Analog / Preset 1

External Trip

+ 10 Volts

Reference

Run (Enable)

Local / Remote

(Hand / Auto)

Remote (Auto)

Reference

+ 10 Volts

Local (Hand)

Reference

0 Volts

Analog speed input with 1 preset speed and motor thermistor trip

0 Volts

Local or remote analog speeds

(2 analog inputs)

9.1.2. Keypad Mode 1103 PRIMARY COMMAND SOURCE MODE = 1 or 2.

9902 Digital input 1 (T2)

0, 1,

5,

8..12

Open: Stop (disable)

Closed: Run (enable)

2

Open: Stop (disable)

Closed: Run (enable)

3

Open: Stop (disable)

Closed: Run (enable)

4

6

Open: Stop (disable)

Closed: Run (enable)

Open: Stop (disable)

Closed: Run (enable)

7

Digital input 2 (T3)

Closed : remote UP pushbutton

Closed : remote UP pushbutton

Closed : remote UP pushbutton

Closed : remote UP pushbutton

Open : Forward run

Closed : Reverse run

Open: Forward Stop

Closed: Forward Run

9902=0

+24 Volt

Open: Reverse Stop

Closed: Reverse Run

Digital input 3 (T4)

Closed : remote DOWN push-button

Closed : remote DOWN push-button

External trip input :

Open: Trip, Closed: Run

Open : Keypad speed ref

Closed : Analog input 1

External trip input :

Open: Trip, Closed: Run

External trip input :

Open: Trip, Closed: Run

9902=11

+24 Volt

Run Forward

Comments

Stop

Run Reverse

+ 10 Volts

Reference

29

0 Volts

Push button fwd/rev/stop with fast stop using

2 nd

deceleration ramp

Analog input (T6)

Open : Forward

+24V : Reverse

Open : Keypad speed ref

+24V : Preset speed 1

Closed : remote DOWN push-button

Analog input 1

Open : Keypad speed ref

+24V : Preset speed 1

Open : Keypad speed ref

+24V : Preset speed 1

Connect external motor thermistor PTC type or similar to digital input 3

Connect external motor thermistor PTC type or similar to digital input 3

Closing digital inputs 1 and 2 together carries out a fast stop (2206)

Run (Enable)

Increase Speed

Reduce Speed

+ 10 Volts

Forward / Reverse

0 Volts

Remote push button speed control with fwd/rev

NOTE

By default if the enable signal is present the drive will not Enable until the START button is pressed. To automatically enable the drive when the enable signal is present set Parameter 1100 KEYPAD MODE RESTART FUNCTION = 2 or 3. This then disables the use of the START & STOP buttons

9.1.3. Modbus Control Mode 1103 PRIMARY COMMAND SOURCE MODE = 4.

9902 Digital input 1 (T2)

0..2,

4..5,

Open: Stop (disable)

Closed: Run (enable)

8..12

3

Open: Stop (disable)

Closed: Run (enable)

6

Open: Stop (disable)

Closed: Run (enable)

7

Open: Stop (disable)

Closed: Run (enable)

Digital input 2 (T3)

No effect

Open : Master speed ref

Closed : Preset speed 1

Open : Master speed ref

Closed : Analog input

Open : Master speed ref

Closed : keypad speed ref

Digital input 3 (T4)

No effect

External trip input :

Open: Trip, Closed: Run

External trip input :

Open: Trip, Closed: Run

External trip input :

Open: Trip, Closed: Run

Analog input (T6)

No effect

No effect

Analog input reference

No effect

Comments

Run and stop commands given via the RS485 link and Digital input 1 must be closed for the drive to run.

Connect external motor thermistor

PTC type or similar to digital input 3

Master Speed Ref - start and stop controlled via RS485. Keypad Speed

Ref - drive auto runs if digital input 1 closed, depending on

Parameter

1100 setting

For further information on the MODBUS RTU Register Map information and communication setup please refer to section 11.

30

9.1.4. PI Mode 1103 PRIMARY COMMAND SOURCE MODE = 5.

9902 Digital input 1 (T2)

0, 2,

9..12

Open: Stop (disable)

Closed: Run (enable)

1

Open: Stop (disable)

Closed: Run (enable)

Digital input 2 (T3)

Open : PI control

Closed : Preset speed 1

Open : PI control

Closed : Analog input 1

Digital input 3 (T4)

PI feedback analog input

PI feedback analog input

Analog input (T6)

Analog input 1

Analog input 1

3, 7

4

5

6

8

Open: Stop (disable)

Closed: Run (enable)

Normally Open (NO)

Momentary close to run

Normally Open (NO)

Momentary close to run

Normally Open (NO)

Momentary close to run

Open: Stop (disable)

Closed: Run (enable)

PI Mode 1103=5, 9902=0

+24 Volt

Run (Enable)

PI / Preset Speed 1

PI Feedback

0 Volt

Remote closed loop PI feedback control with Local Preset speed 1

Open : PI control

Closed : Preset speed 1

Normally Closed (NC)

Momentary open to stop

Normally Closed (NC)

Momentary open to stop

Normally Closed (NC)

Momentary open to stop

Open : Forward run

Closed : Reverse run

External trip input :

Open: Trip, Closed: Run

PI feedback analog input

PI Feedback Analog Input Analog Input 1

Open: PI Control

Closed: Preset Speed 1

Open: External Trip

Closed: Run

PI Feedback Analog Input

PI Feedback Analog Input

PI feedback analog input Analog input 1

PI Mode 1103=5, 9902=1

+24 Volt

Run (Enable)

PI / Local (Hand)

PI Feedback

+10 Volt

Local (Hand) Ref

0 Volt

Remote closed loop PI feedback control with

Local Analog speed input

Comments

Analog Input 1 can provide an adjustable PI setpoint, by setting Parameter 4010 = 1

Analog Input 1 can provide an adjustable PI setpoint, by setting Parameter 4010 = 1

Connect external motor thermistor PTC type or similar to digital input 3

Normally Open (NO)

Momentary close to run

Normally Open (NO)

Momentary close to run

Normally Open (NO)

Momentary close to run

Analog Input 1 can provide an adjustable PI setpoint, by setting Parameter 4010 = 1

PI Mode 1103=5, 9902=3

+24 Volt

Run (Enable)

PI / Preset Speed 1

External Trip

PI Feedback

0 Volt

Remote closed loop PI feedback control with

Local Preset speed 1 and motor thermistor trip

NOTE

By default the PI reference is set for a digital reference level set in Parameter 4011 PI DIGITAL REFERENCE (SETPOINT).

When using an Analog reference set Parameter 4010 PI DIGITAL REFERENCE (SETPOINT ) = 1 (analog) and connect reference signal to analog input

1 (T6).

The default settings for proportional gain (parameter 4001), integral gain (Parameter 4002) and feedback mode (Parameter 4005) are suitable for most fan and pump applications.

The analog reference used for PI controller can also be used as the local speed reference when parameter 9902 DIGITAL INPUTS FUNCTION

SELECT =1.

31

10. Parameters

10.1. Parameter Structure

The parameters within the drive are split into 2 groups, group 1 is titled “Short Parameter mode” displayed as “Par S” on the drive display and group 2 is titled “Long Parameter mode” displayed as “Par L” on the drive display.

“Par S” group brings together the most commonly used parameters to aid quick setup.

“Par L” group includes all of the drive parameters.

10.1.1. Group Navigation.

10.1.2. Parameter Structure table.

PAr S H

PAr L H

Parameter No.

0000

0401

1100

1103

1202

1203

1204

1205

4011

4016

5302

9902

9905

9906

9907

9908

3400

4001

4002

4005

4010

Long parameter group (1611 =

"101")>>(Currently selected via keyapd "PAR L" on

ACS150)

32

10.2. Parameters in the Short parameter mode

The following table describes the parameters that are visible in the Short parameter mode. See page 25 for how to select the

parameter mode. All parameters are presented in detail in section 10.4.

Parameters in the Short parameter mode

No. Name/Value

99 START-UP DATA

9902 DIGITAL INPUTS

FUNCTION SELECT

Description

Application macros.

Defines the function of the digital inputs depending on the control mode setting in

Parameter 1103 PRIMARY COMMAND SOURCE MODE. See Application macros on page 28.

9905 MOTOR RATED VOLTAGE This parameter should be set to the rated (nameplate) voltage of the motor (Volts).

Def

1

Drive Rating

Dependent

110V/230V rated drives

0…250V

400 V rated drives

Voltage

Note : The stress on the motor insulation is always dependant on the drive supply voltage.

This also applies in the case where the motor voltage rating is lower than the rating of the

0…500V drive and the supply of the drive.

9906 MOTOR RATED CURRENT This parameter should be set to the rated (nameplate) current of the motor.

Drive Rating

Dependent

0.2* drive rated output current…1.0* drive rated output current

9907 MOTOR RATED

FREQUENCY

25…500Hz

Current

This parameter should be set to the rated (nameplate) frequency of the motor

Frequency

60Hz

04 FAULT HISTORY

0401 TRIP HISTORY LOG

11 REFERENCE SELECT

1103 PRIMARY COMMAND

SOURCE MODE

0: TERMINAL CONTROL.

1: UNI-DIRECTIONAL

KEYPAD CONTROL

2: BI-DIRECTIONAL

KEYPAD CONTROL.

3: MODBUS NETWORK

CONTROL.

4 : MODBUS NETWORK

CONTROL.

5 : PI CONTROL

6 : PI ANALOG

SUMMATION CONTROL.

12 CONSTANT SPEEDS

Fault history (read only)

Displays the last four fault codes for the drive. Refer to page 47 for further information.

The drive can accept a variety of references in addition to the conventional analog input, potentiometer and keypad signals.

The drive responds directly to signals applied to the control terminals.

The drive can be controlled in the forward direction only using an external or remote Keypad

The drive can be controlled in the forward and reverse directions using an external or remote

Keypad. Pressing the keypad START button toggles between forward and reverse.

Control via Modbus RTU (RS485) using the internal accel / decel ramps

Control via Modbus RTU (RS485) interface with accel / decel ramps updated via Modbus

User PI control with external feedback signal

PI control with external feedback signal and summation with analog input 1

1202 PRESET / JOG FREQUENCY

/ SPEED 1

2007…-2008

1203 PRESET / JOG FREQUENCY

/ SPEED 2

2007…-2008

1204 PRESET / JOG FREQUENCY

/ SPEED 3

2007…-2008

Constant speeds. Constant speed activation overrides the external speed reference. Constant speed selections are ignored if the drive is in the local control mode.

Refer to section 9.1 for how to make constant speed selections from the drive control

terminals.

Preset Speeds / Frequencies selected by digital inputs depending on the setting of Parameter

9902 DIGITAL INPUTS FUNCTION SELECT.

If Parameter 9908 MOTOR RATED SPEED = 0, the values are entered as Hz. If Parameter 9908

> 0, the values are entered as Rpm.

Setting a negative value will reverse the direction of motor rotation.

Defines constant speed 1 (that is the drive output frequency)

Output Frequency

Defines constant speed 2 (that is the drive output frequency)

Output Frequency

Defines constant speed 3 (that is the drive output frequency)

Output Frequency

-

0: Terminal

Control

5.0Hz/RPM

10.0Hz/RPM

25.0Hz/RPM

33

Parameters in the Short parameter mode

No. Name/Value

13 ANALOG INPUTS

Description

Anolog input signal offset

1301 ANALOG INPUT 1 OFFSET Sets an offset, as a percentage of the full scale range of the input, which is applied to the analog input signal

-500…500 % Value in percent of the full scale range of the input

Example: If the analog input signal format is 0-10V, offset = 20% .

An analog input signal level of 7 Volts gives the following result :-

Analog input level (%) = 7/10 = 70%

20 LIMITS

Result = 70-20 (%) = 50%

Maximum frequency

2008 MAXIMUM FREQUENCY /

SPEED LIMIT

2007…500.0 Hz

Maximum output frequency or motor speed limit – Hz or rpm.

If parameter 9908 MOTOR RATED SPEED >0, the value entered / displayed is in Rpm

Maximum frequency

21 START/STOP

2102 STOP MODE

Stop mode of the motor

Selects the motor stop function

2203

0 : RAMP TO STOP

1 : COAST TO STOP

2 : RAMP TO STOP

3 : COAST TO STOP

22 ACCEL/DECEL

2202 ACCELERATION RAMP

TIME

0.00…600.0 s

DECELERATION RAMP

TIME

0.00…600.0 s

Def

0.0%

60.0 Hz

When the enable signal is removed, the drive will ramp to stop, with the rate controlled by parameter 2203 DECEL RAMP TIME as described above. In this mode, the drive brake transistor is disabled

When the enable signal is removed, the drive output is immediately disabled, and the motor will coast (freewheel) to stop. If the load can continue to rotate due to inertia, and the drive may possibly be re-enabled while the motor is still rotating, the spin start function

(Parameter 2101 SPIN START ENABLE) should be enabled. In this mode, the drive brake transistor is disabled.

When the enable signal is removed, the drive will ramp to stop, with the rate controlled by

Parameter 2203 DECEL RAMP TIME as described above. The ACS250 Brake chopper is also enabled in this mode.

When the enable signal is removed, the drive output is immediately disabled, and the motor will coast (freewheel) to stop. If the load can continue to rotate due to inertia, and the drive may possibly be re-enabled while the motor is still rotating, the spin start function

(Parameter 2101 SPIN START ENABLE) should be enabled. The drive brake chopper is enabled in this mode, however it will only activate when required during a change in the drive frequency setpoint, and will not activate when stopping.

Acceleration and deceleration times

Acceleration ramp time from 0 to base speed (Parameter 9907 MOTOR RATED FREQUENCY) in seconds.

Time

Deceleration ramp time from base speed (Parameter 9907 MOTOR RATED FREQUENCY) to standstill in seconds. When set to zero, fastest possible ramp time without trip is activated.

Time

0 = Ramp to stop

5.0 s

5.0 s

34

10.3. Read Only Status parameters

10.3.1. Read Only Status parameter access and navigation.

The user must be in the Long Parameter group to gain access to the Read only status parameters, See section 10.1.1 for how to navigate to the

Long Parameter group.

In the Long Parameter Group when the user scrolls to parameter “0000, pressing will display “0104”, the User can then scroll to the required Read only status parameter (as listed in the table above). Pressing once more will then display the value of that particular Read only status parameter.

For those parameters which have multiple values (e.g. software ID parameter 3301), pressing the and keys will display the different values within that parameter.

Pressing returns to the next level up. If is then pressed again (without pressing or ), the display changes to the next level up

(main parameter level, i.e. Parameter 0000”).

The following table includes the descriptions of all Read Only status parameters.

Actual signals

No. Name/Value Description

01 OPERATING DATA

0104 Motor Current

0107 DC BUS VOLTAGE

0109 APPLIED MOTOR VOLTAGE

0110 INTERNAL HEATSINK

TEMPERATURE

0111 SPEED REFERENCE INPUT

Basic signals for monitoring the drive (read-only).

For selection of an actual signal to be displayed on the control panel, see parameter 3405 DISPLAY

SCALING SOURCE.

8 most recent values prior to trip, updated every 250ms

Displays the instantaneous DC Bus Voltage internally within the drive in V DC. (0…1000V dc)

Displays the instantaneous output voltage from the drive to the motor V AC. (0…600V AC)

Temperature of heatsink in

°

C (-20 … 100 °C)

0120 ANALOG INPUT 1 APPLIED SIGNAL

LEVEL

0121 ANALOG INPUT 2 APPLIED SIGNAL

LEVEL

04 FAULT HISTORY

Displayed in Hz if Parameter 9908 MOTOR RATED SPEED = 0, otherwise displayed in RPM. (-2008

2008)

Displays the signal level applied to analog input 1 (Terminal 6) in % after scaling and offsets have been applied.

Displays the signal level applied to analog input 2 (Terminal 4) in % after scaling and offsets have been applied.

0140 HOURS RUN METER Not affected by resetting factory default parameters.

(0 to 99 999 hours)

0145 THERMISTOR TEMPERATURE LOG 8 most recent values prior to trip, updated every 500ms.

(-20 … 120 °C)

0160 DIGITAL INPUT STATUS Binary value.

Displays the status of the drive inputs, starting with the left hand side digit = Digital Input 1 etc.

Fault history (read-only)

0402 RUN TIME SINCE LAST TRIP (1) Run-time clock stopped by drive disable (or trip), reset on next enable only if a trip occurred. Reset also on next enable after a drive power down. (0 to 99 999 hours)

0406 DC BUS VOLTAGE LOG 8 most recent values prior to trip, updated every 250ms. (0 … 1000V)

0415

0416

RUN TIME SINCE LAST TRIP (2)

RUN TIME SINCE LAST DISABLE

Run-time clock stopped by drive disable (or trip), reset on next enable only if a trip occurred (undervolts not considered a trip) – not reset by power down / power up cycling unless a trip occurred prior to power down.( 0 to 99 999 hours)

Run-time clock stopped on drive disable, value reset on next enable. (0 to 99 999 hours)

0417 DRIVE EFFECTIVE SWITCHING

FREQUENCY

33 INFORMATION

Actual drive effective output switching frequency. This value maybe lower than the selected frequency in parameter 2606 EFFECTIVE SWITCHING FREQUENCY if the drive is too hot. The drive will automatically reduce the switching frequency to prevent an over temperature trip and maintain operation. (4 to 32 kHz)

Firmware package version, serial number etc..

3301 SOFTWARE ID, IO & MOTOR CTRL e.g. “1.00”, “47AE”

Version number and checksum.

“1” on LH side indicates I/O processor,

“2“ indicates motor control

3303 DRIVE SERIAL NUMBER

3304 DRIVE IDENTIFIER

000000 … 999999

00-000 … 99-999

Unique drive serial number e.g. 540102 / 32 / 005

Drive rating (Drive rating, drive type e.g. 0.37, 1 230,3P-out)

35

10.4. Parameters in the Long parameter mode

The following table includes the complete descriptions of all parameters that are visible only in the Long parameter mode. See page 31

for how to select the parameter mode.

Parameters in the Long parameter mode

Index Name/Selection Description

0000 Read only parameters access

Press the button when in this parameter to access the read only parameters as listed on

04

FAULT HISTORY

0401 TRIP HISTORY LOG

page 34.

Fault history (read-only)

Displays the last four fault codes for the drive. Refer to page 47

for further information. Press UP or DOWN to step through all four. The most recent trip is always displayed first. The Under Voltage (F0006) trip is only stored once.

11 REFERENCE SELECT

1100 KEYPAD MODE RESTART

FUNCTION

The drive can accept a variety of references in addition to the conventional analog input, potentiometer and keypad signals.

This parameter is active only when operating in Keypad Control Mode (parameter 1103

PRIMARY COMMAND SOURCE MODE = 1 or 2).

Def

-

-

1 :

PREVIOUS

SPEED,

KEYPAD

START

1103

0 MINIMUM SPEED,

KEYPAD START

1 : PREVIOUS SPEED,

KEYPAD START

2 : MINIMUM SPEED,

TERMINAL ENABLE

3 : PREVIOUS SPEED,

TERMINAL ENABLE

PRIMARY COMMAND

SOURCE MODE

0: TERMINAL CONTROL.

Keypad Start and Stop keys are active, and control terminals 1 and 2 must be linked together.

The drive will always start at the Minimum Frequency / Speed (parameter 2007 )

Keypad Start and Stop keys are active, and control terminals 1 and 2 must be linked together.

The drive will always start at the last operating Frequency / Speed

Allows the drive to be started from the control terminals directly, and the keypad Start and

Stop keys are ignored.

The drive will always start at the Minimum Frequency / Speed (parameter 2007)

Allows the drive to be started from the control terminals directly, and the keypad Start and

Stop keys are ignored. The drive will always start at the last operating Frequency / Speed.

The drive responds directly to signals applied to the control terminals.

0: Terminal

Control

The drive can be controlled in the forward direction only using an external or remote Keypad

12

1: UNI-DIRECTIONAL

KEYPAD CONTROL

2: BI-DIRECTIONAL

KEYPAD CONTROL.

3: MODBUS NETWORK

CONTROL.

4 : MODBUS NETWORK

CONTROL.

5 : PI CONTROL

6 : PI ANALOG

SUMMATION CONTROL.

CONSTANT SPEEDS

The drive can be controlled in the forward and reverse directions using an external or remote

Keypad. Pressing the keypad START button toggles between forward and reverse.

Control via Modbus RTU (RS485) using the internal accel / decel ramps

Control via Modbus RTU (RS485) interface with accel / decel ramps updated via Modbus

User PI control with external feedback signal

PI control with external feedback signal and summation with analog input 1

Constant speeds. Constant speed activation overrides the external speed reference. Constant speed selections are ignored if the drive is in the local control mode.

Refer to section 9.1 for how to make constant speed selections from the drive control

terminals.

Preset Speeds / Frequencies selected by digital inputs depending on the setting of Parameter

9902 DIGITAL INPUTS FUNCTION SELECT.

If Parameter 9908 MOTOR RATED SPEED = 0, the values are entered as Hz. If Parameter 9908

> 0, the values are entered as Rpm.

Setting a negative value will reverse the direction of motor rotation.

Defines constant speed 1 (that is the drive output frequency) 0.0Hz/RPM 1202 PRESET / JOG FREQUENCY

/ SPEED 1

2007…-2008 Output Frequency

Defines constant speed 2 (that is the drive output frequency) 0.0Hz/RPM 1203 PRESET / JOG FREQUENCY

/ SPEED 2

2007…-2008

1204 PRESET / JOG FREQUENCY

/ SPEED 3

2007…-2008

Output Frequency

Defines constant speed 3 (that is the drive output frequency)

Output Frequency

Defines constant speed 4 (that is the drive output frequency)

0.0Hz/RPM

0.0Hz/RPM 1205 PRESET / JOG FREQUENCY

/ SPEED 4

2007…-2008 Output Frequency

36

Parameters in the Long parameter mode

Index Name/Selection Description

13 ANALOG INPUTS

1300 ANALOG INPUT 1 SIGNAL

FORMAT



Selects the type of reference source into terminal 6.









0 to 10 Volt Signal(Uni-polar).The drive will remain at 0.0Hz if the analog reference after scaling and offset are applied is <0.0%.

0 to 10 Volt Signal (Bi-polar). The drive will operate the motor in the reverse direction of rotation if the analog reference after scaling and offset are applied is <0.0%

0 to 20mA Signal

4 to 20mA Signal, the ACS250 will trip and show the fault code  if the signal level falls below 3mA

4 to 20mA Signal, the ACS250 will ramp to stop if the signal level falls below 3mA





20 to 4mA Signal, the ACS250 will trip and show the fault code  if the signal level falls below 3mA

20 to 4mA Signal, the ACS250 will ramp to stop if the signal level falls below 3mA

1301 ANALOG INPUT 1 OFFSET Sets an offset, as a percentage of the full scale range of the input, which is applied to the analog input signal

-500…500 % Value in percent of the full scale range of the input

Example: If the analog input signal format is 0-10V, offset = 20% .

An analog input signal level of 7 Volts gives the following result :-

Analog input level (%) = 7/10 = 70%

Result = 70-20 (%) = 50%

1302 ANALOG INPUT 1 SCALING Scales the analog input by this factor, (as a percentage of the full scale range of this input).

0.0…500.0 % Example: If parameter 1300 ANALOG INPUT 1 FORMAT is set for 0 – 10V, and the scaling factor is set to 200.0%, a 5 volt input will result in the drive running at maximum speed as set in parameter 2008 MAX SPEED LIMIT

1304 ANALOG INPUT 2 SIGNAL

FORMAT







0 to 10 Volt Signal

0 to 20mA Signal





4 to 20mA Signal, the ACS250 will trip and show the fault code  if the signal level falls below 3mA

4 to 20mA Signal, the ACS250 will ramp to stop if the signal level falls below 3mA

14



RELAY OUTPUTS

20 to 4mA Signal, the ACS250 will trip and show the fault code  if the signal level falls below 3mA

20 to 4mA Signal, the ACS250 will ramp to stop if the signal level falls below 3mA

Status information indicated through relay output and relay operating delays

1401 OUTPUT RELAY FUNCTION

SELECT

0 : DRIVE ENABLED

(RUNNING)

1 : DRIVE READY

2 : AT TARGET FREQUENCY

(SPEED)

3: DRIVE TRIPPED

4 : OUTPUT FREQUENCY

>= LIMIT

5 : OUTPUT CURRENT >=

LIMIT

6 : OUTPUT FREQUENCY <

LIMIT

7 : OUTPUT CURRENT <

LIMIT

Selects the function assigned to the relay output. The relay has two output terminals, Logic 1 indicates the relay is active, and therefore terminals 10 and 11 will be linked together.

Logic 1 when the motor is enabled

Logic 1 when power is applied to the drive and no fault exists

Logic 1 when the output frequency matches the setpoint frequency

Logic 1 when the drive is in a fault condition

Logic 1 when the output frequency exceeds the adjustable limit set in 3200 RELAY

THRESHOLD LEVEL

Logic 1 when the motor current exceeds the adjustable limit set in 3200 RELAY THRESHOLD

LEVEL

Logic 1 when the output frequency is below the adjustable limit set in 3200 RELAY

THRESHOLD LEVEL

Logic 1 when the motor current is below the adjustable limit set in 3200 RELAY THRESHOLD

LEVEL

Def



0.0%

100.0



1 : Drive

Ready

37

Parameters in the Long parameter mode

Index Name/Selection Description

15

ANALOG/DIGITAL

OUTPUTS

Analog output signal processing

1501

ANALOG OUTPUT

FUNCTION SELECT

Selects the type of output signal information indicated from terminal 8.

Note :

When using settings 0 – 7 the output is a digital format (Logic 1 = 24V).

When using settings 8-9 the output is an analog format.

0 : DRIVE ENABLED

(RUNNING).

1 : DRIVE READY.

Logic 1 when the ACS250 is enabled (Running)

Logic 1 When no Fault condition exists on the drive

2 : AT TARGET FREQUENCY

(SPEED).

3: DRIVE TRIPPED.

4 : OUTPUT FREQUENCY

>= LIMIT

5 : OUTPUT CURRENT >=

LIMIT

6 : OUTPUT FREQUENCY <

LIMIT

7 : OUTPUT CURRENT <

LIMIT.

8 : OUTPUT FREQUENCY

(MOTOR SPEED).

9 : OUTPUT (MOTOR)

CURRENT.

SYSTEM CONTROLS 16

1602 PARAMETER ACCESS

UNLOCK

0…65535

1603 PARAMETER ACCESS CODE

DEFINITION

0…65535

Logic 1 when the output frequency matches the setpoint frequency

Logic 1 when the drive is in a fault condition

Logic 1 when the output frequency exceeds the adjustable limit set in parameter 3200 RELAY

THRESHOLD LEVEL

Logic 1 when the motor current exceeds the adjustable limit set in parameter 3200 RELAY

THRESHOLD LEVEL

Logic 1 when the output frequency is below the adjustable limit set in parameter 3200 RELAY

THRESHOLD LEVEL

Logic 1 when the motor current is below the adjustable limit set in parameter 3200 RELAY

THRESHOLD LEVEL

0 to parameter 2008 MAXIMUM FREQUENCY / SPEED LIMIT

0 to 200% of parameter 9906 MOTOR RATED CURRENT

Parameter lock etc.

If Parameter 1603 has had a value entered, then the matching value needs to be entered here in order to give read-write access to the parameters.

See page 41 for more details

To make all parameters Read only, enter a value in this parameter.

See page 41 for more details

20 LIMITS

Drive operation limits

2007 MINIMUM FREQUENCY /

SPEED LIMIT

0.0 HZ…2008

2008

MAXIMUM FREQUENCY /

Minimum output frequency or motor speed limit – Hz or rpm.

If parameter 9908 MOTOR RATED SPEED >0, the value entered / displayed is in Rpm

Minimum frequency

Maximum output frequency or motor speed limit – Hz or rpm.

SPEED LIMIT

2007…500.0 Hz

2020 BRAKE CHOPPER ENABLE

If parameter 9908 MOTOR RATED SPEED >0, the value entered / displayed is in Rpm

Maximum frequency

0 : DISABLED

1 : ENABLED WITH

SOFTWARE PROTECTION.

2 : ENABLED WITHOUT

SOFTWARE PROTECTION.

21 START/STOP

2101 FLYING START (Size E2 &

E3 ONLY) / DC INJECTION

TIME ON START (Size E1

ONLY)

0 : DISABLED

1 : ENABLED.

Enables the internal brake chopper with software protection for a 200W continuous rated resistor

Enables the internal brake chopper without software protection. An external thermal protection device should be fitted.

Start and Stop modes of the motor

Starting the drive connected to a rotating motor.

Def

0.0 Hz

8 : OUTPUT

FREQUENCY

(MOTOR

SPEED).

0

0

60.0 Hz

0 :

DISABLED

0 : Disabled

When enabled, on start up the drive will attempt to determine if the motor is already rotating, and will begin to control the motor from its current speed. A short delay may be observed when starting motors which are not turning/On Size E1 only this parameter Sets a time for which DC current is injected into the motor to ensure it is stopped when the drive is enabled.

38

Parameters in the Long parameter mode

Index Name/Selection Description

2102 STOP MODE

0 : RAMP TO STOP

1 : COAST TO STOP

2 : RAMP TO STOP

3 : COAST TO STOP

2104 DC INJECTION TIME ON

STOP

0.0…25.0 s

2108 TERMINAL MODE RESTART

FUNCTION





 to 

22 ACCEL/DECEL

2202 ACCELERATION RAMP

TIME

0.00…600.0 s

2203 DECELERATION RAMP

TIME

0.00…600.0 s

2206 2nd DECELERATION RAMP

TIME (FAST STOP)

0.00…25.0 s

25 CRITICAL SPEEDS

2500 SKIP FREQUENCY

HYSTERESIS BAND

0.0…2008

2501 SKIP FREQUENCY

0.0…2008

26 MOTOR CONTROL

Selects the motor stop function

Def

0 = Ramp to stop

When the enable signal is removed, the drive will ramp to stop, with the rate controlled by parameter 2203 DECEL RAMP TIME as described above. In this mode, the drive brake transistor is disabled

When the enable signal is removed, the drive output is immediately disabled, and the motor will coast (freewheel) to stop. If the load can continue to rotate due to inertia, and the drive may possibly be re-enabled while the motor is still rotating, the spin start function

(Parameter 2101 SPIN START ENABLE) should be enabled. In this mode, the drive brake transistor is disabled.

When the enable signal is removed, the drive will ramp to stop, with the rate controlled by

Parameter 2203 DECEL RAMP TIME as described above. The ACS250 Brake chopper is also enabled in this mode.

When the enable signal is removed, the drive output is immediately disabled, and the motor will coast (freewheel) to stop. If the load can continue to rotate due to inertia, and the drive may possibly be re-enabled while the motor is still rotating, the spin start function

(Parameter 2101 SPIN START ENABLE) should be enabled. The drive brake chopper is enabled in this mode, however it will only activate when required during a change in the drive frequency setpoint, and will not activate when stopping.

Defines the time for which a DC current is injected into the motor once the output frequency reaches 0.0Hz. The voltage level is the same as the boost level set in parameter 2603.

Defines the behaviour of the drive relating to the enable digital input and also configures the

Automatic Restart function.

Following Power on or reset, the drive will not start if Digital Input 1 remains closed. The

Input must be closed after a power on or reset to start the drive.

Following a Power On or Reset, the drive will automatically start if Digital Input 1 is closed.

Following a trip, the drive will make up to 5 attempts to restart at 20 second intervals. The drive must be powered down to reset the counter . The numbers of restart attempts are counted, and if the drive fails to start on the final attempt, the drive will fault and will require the user to manually reset the fault.

Acceleration and deceleration times

0.0



Acceleration ramp time from 0 to base speed (Parameter 9907 MOTOR RATED FREQUENCY) in seconds.

Time

5.0 s

Deceleration ramp time from base frequency (Parameter 9907 MOTOR RATED FREQUENCY) to standstill in seconds. When set to zero, fastest possible ramp time without trip is activated.

When set to 0.00, the value of 2206 is used.

Time

5.0 s

This parameter allows an alternative deceleration ramp down time to be programmed into the ACS250, which can be selected by digital inputs (dependent on the setting of Parameter

9902 DIGITAL INPUTS FUNCTION SELECT or selected automatically in the case of a mains power loss if parameter 2102 STOP MODE = 2.

When set to 0.00, the drive will coast to stop.

0.00

Speed bands with which the drive is not allowed to operate.

The Skip Frequency function is used to avoid the ACS250 operating at a certain output frequency, for example at a frequency which causes mechanical resonance in a particular machine.

The drive output frequency will ramp through the defined band at the rates set in parameter 0.0 Hz/Rpm

2202 and 2203 respectively, and will not hold any output frequency within the defined band.

If the frequency reference applied to the drive is within the band, the drive output frequency will remain at the upper or lower limit of the band.

Defines the centre point of the skip frequency band, and is used conjunction with parameter

2500 SKIP FREQUENCY HYSTERESIS BAND

Motor control variables

2601 ENERGY OPTIMIZER

0 : DISABLED

1 : ENABLED

Only active when enhanced V/F motor control mode is selected (parameter 9903 MOTOR

CONTROL MODE = 2)

The Energy Optimizer attempts to reduce the overall energy consumed by the drive and motor when operating at constant speeds and light loads. The output voltage applied to the motor is reduced. The Energy Optimizer is intended for applications where the drive may operate for some periods of time with constant speed and light motor load, whether constant or variable torque.

0 : Disabled

39

Parameters in the Long parameter mode

Index Name/Selection

2603 V/F MODE VOLTAGE

BOOST

Description

order to improve low speed and starting torque. Excessive voltage boost levels may result in increased motor current and temperature, and force ventilation of the motor may be

Voltage boost is used to increase the applied motor voltage at low output frequencies, in required.

A suitable setting can usually be found by operating the motor under low load or no load conditions at approximately 5Hz, and adjusting parameter 2603 until the motor current is no more than 80% of the rated full load current.

0.0…20.0 %

2606 EFFECTIVE SWITCHING

FREQUENCY

4…32 kHz

2610 V/F CHARACTERISTIC

ADJUSTMENT VOLTAGE

Sets maximum effective switching frequency of the drive. If “rEd” is displayed, the switching frequency has been reduced to the level in Parameter 0417 INTERNAL EFFECTIVE SWITCHING

FREQUENCY due to excessive drive heat sink temperature.

Refer to parameter 0417 INTERNAL EFFECTIVE SWITCHING FREQUENCY for further information regarding operation at higher switching frequency.

Used in conjunction with parameter 2611 V/F CHARACTERISTIC ADJUSTMENT FREQUENCY

0 V…250/500

2611 V/F CHARACTERISTIC

ADJUSTMENT FREQUENCY

This parameter in conjunction with parameter 2610 V/F CHARACTERISTIC ADJUSTMENT

VOLTAGE sets a frequency point at which the voltage set in parameter 2611 V/F

CHARACTERISTIC ADJUSTMENT FREQUENCY is applied to the motor. Care must be taken to

avoid overheating and damaging the motor when using this feature. See section 10.5 for

0.0 Hz…Value set in 9907

30 FAULT FUNCTIONS

further information.

Programmable protection functions

3005 THERMAL OVERLOAD

VALUE RETENTION

0 : DISABLED

1 : ENABLED

32 SUPERVISION

Alternative means of protecting the motor from thermal overload must be applied (e.g. PTC thermistor)

The drive will retain the motor thermal overload value following a mains power cycle.

Signal supervision. The drive monitors whether certain user selectable variables are within the user-defined limits. The user may set limits for speed, current etc. Supervision status can be monitored with relay output. See parameter group 14 RELAY OUTPUTS.

3200 RELAY THRESHOLD LEVEL Adjustable threshold level used in conjunction with settings 4 to 7 of parameter 1401

OUTPUT RELAY FUNCTION SELECT

0.0…200.0 %

34 PANEL DISPLAY

3400 DISPLAY SPEED SCALING

FACTOR

0.000…6.000

40 PROCESS PI SETUP

4001 PI PROPORTIONAL GAIN

Selection of actual signals to be displayed on the drives front panel e.g. to display conveyer speed in metres per second based on the output frequency

Allow the user to display an alternative output unit scaled from an existing parameter,. This function is disabled if set to 0.000.

Process PI control parameter set

4002

0.0…30.0

PI INTEGRAL TIME

CONSTANT

0.0…30.0 S

4005 PI OPERATING MODE

0 : DIRECT OPERATION

1 : INVERSE OPERATION

PI Controller Proportional Gain. Higher values provide a greater change in the drive output frequency in response to small changes in the feedback signal. Too high a value can cause instability

PI Controller Integral Time. Larger values provide a more damped response for systems where the overall process responds slowly

Use this mode if an increase in the motor speed should result in an increase in the feedback signal

Use this mode if an increase in the motor speed should result in a decrease in the feedback signal

4010 PI REFERENCE (SETPOINT)

SOURCE SELECT

0

1

4011 PI DIGITAL REFERENCE

(SETPOINT)

0.0…100.0 %

4016 PI FEEDBACK SIGNAL

SOURCE SELECT

0

1

2

Selects the source for the PID Reference / Setpoint

Digital Preset Setpoint. Parameter 4011 PI Digital Reference (Setpoint) is used

Analog Input 1 Setpoint

When parameter 4010 PID REFERENCE (SETPOINT) SOURCE SELECT = 0, this parameter sets the preset digital reference (setpoint) used for the PID Controller

Analog Input 2(Terminal 4)

Analog Input 1(Terminal 6)

Motor Current

Def

3.0 %

Drive Rating

Dependent

0 V

0.0 Hz

0 :

DISABLED

100.0 %

0.000

1.0

1.0 s

0

0

0 %

0

40

Parameters in the Long parameter mode

Index Name/Selection Description

53 COMMUNICATIONS

PARAMETERS

5302 SERIAL

COMMUNICATIONS

CONFIGURATION

99 START-UP DATA

This parameter has three sub settings used to configure the Modbus RTU Serial

Communications. The Sub Parameters are :

Drive Address : Adr 0 to Adr 63

Baud Rate : 9.6kbps to 115.2kbps

Watchdog Timeout : 0 (Disabled, 300, 3000 milliseconds

Application macros. Definition of motor set-up data.

As shown in the table below Parameter 9902 has a number of pre-programmed parameter

9902 DIGITAL INPUTS

FUNCTION SELECT sets (and terminal functions) which the user selects to best suit the application requirements.

Defines the function of the digital inputs depending on the control mode setting in

Parameter 1103 PRIMARY COMMAND SOURCE MODE. See Application macros on page 28.

9905 MOTOR RATED VOLTAGE This parameter should be set to the rated (nameplate) voltage of the motor (Volts).

110V/230V rated drives

0…250V

400 V rated drives

0…500V

Voltage

Note : The stress on the motor insulation is always dependant on the drive supply voltage.

This also applies in the case where the motor voltage rating is lower than the rating of the drive and the supply of the drive.

9906 MOTOR RATED CURRENT This parameter should be set to the rated (nameplate) current of the motor.

Def

1

1

Drive Rating

Dependent

Drive Rating

Dependent

0.2* drive rated output current…1.0* drive rated output current

9907 MOTOR RATED

FREQUENCY

25…500Hz

9908 MOTOR RATED SPEED

Current

This parameter should be set to the rated (nameplate) frequency of the motor

Frequency

This parameter can optionally be set to the rated (nameplate) rpm of the motor. When set to the default value of zero, all speed related parameters are displayed in Hz, and the slip compensation for the motor is disabled. Entering the value from the motor nameplate enables the slip compensation function, and the ACS250 display will now show motor speed in estimated rpm. All speed related parameters, such as Minimum and Maximum Speed,

Preset Speeds etc. will also be displayed in Rpm.

0…30000 Rpm

10.5. Adjusting the Voltage / Frequency (V/f) characteristics

9905

2610

Frequency

2611 9907

60Hz

0 Rpm

The V/f characteristic is defined by several parameters as follows :-

Parameter 9905 : Motor Rated Voltage

Parameter 9907 : Motor Rated Frequency

The voltage set in parameter 9905 is applied to the motor at the frequency set Under normal operating conditions, the voltage is linearly reduced at any point below the motor rated frequency to maintain a constant motor torque output as shown by the line ‘A’ on the graph.

By using parameters parameter 2610 and 2611, the voltage to be applied at a particular frequency can be directly set by the user, thereby altering the V/F characteristic.

Reducing the voltage at a particular frequency reduces the current in the motor and hence the torque and power, hence this function can be used in fan and pump applications where a variable torque output is desired by setting the parameters as follows :-

Parameter 2610 = 9905 / 4

Parameter 2611 = 9907 / 2

This function can also be useful if motor instability is experienced at certain frequencies, if this is the case increase or decrease the voltage (Parameter 2610) at the speed of instability (Parameter 2611).

For applications requiring energy saving, typically HVAC and pumping, the energy optimiser (Parameter 2601) parameter can be enabled. This automatically reduces the applied motor voltage on light load.

10.6. Motor Thermistor Connection

1 : + 24 Volt

4 : External Trip

The motor thermistor should be connected between terminals 1 and 4 as shown. A setting of Parameter 9902 where Digital Input 3 is programmed for ‘External Trip’ must be used. The current flow through the thermistor is automatically controlled to prevent a failure.

41

10.7. Preventing un-authorized parameter editing.

This function can be used to prevent an un-authorised person from changing the drive parameter values; this function is disabled when delivered from the factory.

Relevant Parameters

1602

Parameter Access Unlock

0…65535

Parameter Access code

1603

0…65535

Locking Parameter Access

Go to Parameter 1603 (Long Parameter group) and enter in your chosen parameter access code.

Press the button to exit and parameter 1603 will then be hidden and all parameters will be “Read only” (except for

Parameter 1602 which will remain “Read Write”.

Unlocking Parameter Access

Enter into Parameter 1602 the same value as 1603 (as chosen in “Locking Parameter Access” above).

All parameters will now be “Read Write” and parameter 1603 will become visible and show the value which was originally programmed as the parameter access code.

To disable this feature set parameter 1603 PARAMETER ACCESS CODE to zero and then 1602 PARAMETER ACCESS UNLOCK to zero.

42

11. Modbus RTU Communications

11.1. Introduction

The ACS250 can be connected to a Modbus RTU network via the RJ45 connector on the front of the drive.

11.2. Modbus RTU Specification

Protocol

Error check

Baud rate

Data format

Physical signal

User interface

Modbus RTU

CRC

9600bps, 19200bps, 38400bps, 57600bps, 115200bps (default)

1 start bit, 8 data bits, 1 stop bits, no parity.

RS 485 (2-wire)

RJ45 (see page 24 for more information)

11.3. RJ45 Connector Configuration

Connection details are shown on page 24.

11.4. Modbus Telegram Structure

The ACS250 supports Master / Slave Modbus RTU communications, using the 03 Read Holding Registers and 06 Write Single Holding

Register commands. Many Master devices treat the first Register address as Register 0; therefore it may be necessary to convert the

Register Numbers detail in section 11.6 by subtracting 1 to obtain the correct Register address. The telegram structure is as follows:-

Command 03 – Read Holding Registers Command 06 – Write Single Holding Register

Master Telegram

Slave Address

Length

1 Byte

Slave Response

Slave Address

Length

1 Byte

Master Telegram

Slave Address

Length

1 Byte

Slave Response

Slave Address

Length

1 Byte

Function Code (03)

1 st

Register Address

No. Of Registers

1 Byte

2 Bytes

Starting Address 1 Byte

1

2 Bytes 2 st nd

Function Code (06)

Register Value 2 Bytes Register Address

Register Value 2 Bytes Value

1 Byte

2 Bytes

2 Bytes

Function Code (06)

Register Address

Register Value

1 Byte

2 Bytes

2 Bytes

CRC Checksum 2 Bytes Etc...

CRC Checksum

CRC Checksum

2 Bytes

2 Bytes CRC Checksum 2 Bytes

11.5. Modbus Register Map

Register

Number

1

Par.

Type

Supported

Commands

03,06

Low Byte

Function

High Byte

Range Explanation

2

4

6

-

-

-

-

-

R/W

R/W

R/W

R

R

R

R

03,06

03,06

03

03

03

03

Drive Control Command 0..3 16 Bit Word.

Bit 0 : Low = Stop, High = Run Enable

Bit 1 : Low = Decel Ramp 1 (parameter 2203),

High = Decel Ramp 2 (Parameter 2206)

Bit 2 : Low = No Function, High = Fault Reset

Bit 3 : Low – No Function, High = Coast Stop

Request

Modbus Speed reference setpoint 0..5000 Setpoint frequency x10, e.g. 100 = 10.0Hz

Acceleration and Deceleration Time 0..60000 Ramp time in seconds x 100, e.g. 250 = 2.5 seconds

Error code Drive status

Low Byte = Drive Error Code, see page 47

Output Motor Frequency

High Byte = Drive Status as follows :-

0 : Drive Stopped

1: Drive Running

2: Drive Tripped

0..20000 Output frequency in Hz x10, e.g. 100 = 10.0Hz 7

8

11

20

21

22

23

0120

0121

0111

0107

R

R

R

R

03

03

03

03

Output Motor Current

Digital input status

Analog Input 1 value

Analog Input 2 value

Speed Reference Value

DC bus voltage

0..480

0..15

0..1000

0..1000

0..1000

0..1000

Output Motor Current in Amps x10, e.g. 10 = 1.0 Amps

Indicates the status of the 4 digital inputs

Lowest Bit = 1 Input 1

Analog input % of full scale x10, e.g. 1000 = 100%

Analog input % of full scale x10, e.g. 1000 = 100%

Displays the setpoint frequency x10, e.g. 100 = 10.0Hz

DC Bus Voltage in Volts

24 0110 R 03 Drive temperature 0..100 Drive heatsink temperature in ºC

All user configurable parameters are accessible as Holding Registers, and can be Read from or Written to using the appropriate Modbus

command. To access drive parameters refer to section 11.6 for parameter register map.

Depending on the operating mode of the drive – some parameters cannot be changed while the drive is enabled for example.

Modbus RTU supports sixteen bit integer values, hence where a decimal point is used in the drive parameter; the register value will be multiplied by a factor of ten, E.g. Read Value of parameter 2008 MAXIMUM FREQUENCY / SPEED LIMIT = 500, therefore this is 50.0Hz

11.6. Modbus Parameter Register Map

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

Register No Parameter No

129 0401

130

131

132

143

144

145

146

147

148

149

150

151

152

153

154

133

134

135

136

137

138

139

140

141

142

155

1100

1103

1202

1603

2007

2008

2020

2101

2102

2104

2108

2202

2203

2206

2500

1203

1204

1205

1300

1301

1302

1304

1401

1501

1602

2501

2601

2603

2606

2610

2611

3005

3200

3400

4001

4002

4005

4010

4011

4016

5302

9902

9905

9906

9907

9908

Description

TRIP HISTORY LOG

KEYPAD MODE RESTART FUNCTION

PRIMARY COMMAND SOURCE MODE

PRESET / JOG FREQUENCY / SPEED 1

PRESET / JOG FREQUENCY / SPEED 2

PRESET / JOG FREQUENCY / SPEED 3

PRESET / JOG FREQUENCY / SPEED 4

ANALOG INPUT 1 SIGNAL FORMAT

ANALOG INPUT 1 OFFSET

ANALOG INPUT 1 SCALING

ANALOG INPUT 2 SIGNAL FORMAT

OUTPUT RELAY FUNCTION SELECT

ANALOG OUTPUT FUNCTION SELECT

PARAMETER ACCESS UNLOCK

PARAMETER ACCESS CODE DEFINITION

MINIMUM FREQUENCY / SPEED LIMIT

MAXIMUM FREQUENCY / SPEED LIMIT

BRAKE CHOPPER ENABLE

SPIN START (Size E2 & E3 ONLY) / DC INJECTION TIME ON START (Size E1 ONLY)

STOP MODE

DC INJECTION TIME ON STOP

TERMINAL MODE RESTART FUNCTION

ACCELERATION RAMP TIME

DECELERATION RAMP TIME

2nd DECELERATION RAMP TIME (FAST STOP)

SKIP FREQUENCY HYSTERESIS BAND

SKIP FREQUENCY

ENERGY OPTIMISER

V/F MODE VOLTAGE BOOST

EFFECTIVE SWITCHING FREQUENCY

V/F CHARACTERISTIC ADJUSTMENT VOLTAGE

V/F CHARACTERISTIC ADJUSTMENT FREQUENCY

THERMAL OVERLOAD VALUE RETENTION

RELAY THRESHOLD LEVEL

DISPLAY SPEED SCALING FACTOR

PI PROPORTIONAL GAIN

PI INTEGRAL TIME CONSTANT

PI Operating Mode

PI Reference (Setpoint) Source Select

PI Digital Reference (Setpoint)

PI Feedback Signal Source Select

SERIAL COMMUNICATIONS CONFIGURATION

DIGITAL INPUTS FUNCTION SELECT

Motor Rated Voltage

Motor Rated Current

Motor Rated Frequency

MOTOR RATED SPEED

43

44

12. Technical Data

12.1. Environmental

NOTE

Operational ambient temperature range (IP20) Open Drives :

(IP66) Enclosed Drives:

Storage ambient temperature range :

Maximum altitude

Maximum humidity

:

:

-10 … 50°C (frost and condensation free)

-10 ... 40°C (frost and condensation free)

-40 … 60°C

2000m. Derate above 1000m : 1% / 100m

95%, non-condensing

For UL compliance: the average ambient temperature over a 24 hour period for 200-240V, 3HP (IP20) drives is 45°C.

Also Refer to section 12.5 for Output current Derating Information.

12.2. Input/Output Current ratings and fuses

The following tables provide the output current rating information for the various ACS250 models. ABB Drives always recommend that selection of the correct ACS250 is based upon the motor full load current at the incoming supply voltage.

Cable dimensioning for nominal rated currents is shown in the table below together with the corresponding fuse types for short-circuit protection of the input power cable.

The rated fuse currents given in the table are the maximums for the mentioned fuse types. If smaller fuse ratings are used, check that the fuse rms current rating is larger than the nominal input current. If 150% output power is needed, multiply nominal input current by 1.5.

Check that the operating time of the fuse is below 0.5 seconds. The operating time depends on the fuse type, the supply network impedance as well as the cross sectional area, material and length of the supply cable. In case the 0.5 seconds operating time is exceeded with the gG or T fuses, ultra rapid (aR) fuses in most cases reduce the operating time to an acceptable level.

Note: Larger fuses must not be used when the input power cable is selected according to this table.

Model Number

Power

(HP)

Nominal

Input Current

(A)

Nominal

Input Current with 3% Line

Choke (A)

Fuse

(A)

Supply and PE

Cable Size

Nominal

Output

Current

(A)

Motor Cable Size

Maximum

Motor

Cable

Length

Recommended

Brake Resistance

(Ω)

Frame

Size gG

UL Class CC or J mm

2

AWG mm

2

AWG Mtrs

1-phase 110V…115V AC (+/-10%) - 3 Phase 230V Output

ACS250-01U-02A3-1

ACS250-01U-04A3-1

0.5

1

11

19

10

18

ACS250-01U-05A8-1 1.5 25 23

1-phase 200…240V AC (+/-10%) - 3 Phase Output

ACS250-01U-02A3-2

ACS250-01U-04A3-2

0.5

1.0

6.4

8.5

5.0

7.5

ACS250-01U-07A0-2 2.0 15.2 13.5

16

25

32

10

16

25

15

25

35

10

15

20

2.5

4

6

1.5

2.5

4

14

10

8

14

12

10

2.3

4.3

5.8

2.3

4.3

7

1.5

1.5

1.5

1.5

1.5

1.5

14

14

14

14

14

14

100

100

100

100

100

100

N/A

N/A

50

N/A

N/A

50

E1

E1

E2

E1

E1

E2

ACS250-01U-10A5-2 3.0 19.5

3-phase 200…240V AC (+/-10%) - 3 Phase Output

17.3

ACS250-03U-02A3-2

ACS250-03U-04A3-2

ACS250-03U-07A0-2

ACS250-03U-10A5-2

ACS250-03U-18A0-2

0.5

1.0

2.0

3.0

5.0

3.8

4.5

7

10.5

18

3-phase 380…480V AC (+/-10%) - 3 Phase Output

3.1

3.5

5.5

8.6

15

25

6

10

10

16

25

25

6

10

10

15

30

4

1.5

1.5

1.5

2.5

4

8

14

14

14

12

8

10.5

2.3

4.3

7

10.5

18

1.5

1.5

1.5

1.5

1.5

2.5

14

14

14

14

14

10

100

100

100

100

100

100

35

N/A

N/A

50

35

20

E2

ACS250-03U-02A2-4

ACS250-03U-04A1-4

ACS250-03U-05A8-4

ACS250-03U-09A5-4

ACS250-03U-14A0-4

ACS250-03U-18A0-4

1

2

3

5

7.5

10

2.9

5.1

7.5

11.2

19

21

2.2

4.1

5.5

9.0

16

17

10

10

10

16

25

40

6

6

10

15

20

25

1.5

1.5

1.5

2.5

4

10

14

14

14

12

10

8

2.2

4.1

5.8

9.5

14

18

1.5

1.5

1.5

1.5

1.5

2.5

14

14

14

14

12

10

100

100

100

100

100

100

N/A

200

150

100

75

50

Note

For UL compliance, Motor Cable to be 75°C Copper.

Note

Other fuse types can be used if they meet the ratings and the melting curve of the fuse does not exceed the melting curve of the fuse mentioned in this table.

E1

E2

E2

E2

E3

E3

E1

E1

E2

E2

E3

12.3. Overload

The ACS250 can deliver 150% of the drive nominal output current for 60 seconds and 175% for 2 seconds.

45

12.4. Additional Information for UL Compliance

ACS250 is designed to meet the UL requirements. In order to ensure full compliance, the following must be fully observed.

For an up to date list of UL compliant products, please refer to UL listing NMMS.E211945

The drive can be operated within an ambient temperature range as stated in section 12.1

For IP20 units, the drive must be installed in a cabinet to fulfil the requirements for shielding from contact and environment contamination.

For IP66 units, indoor installation in an environment free from icing and condensation.

UL Listed ring terminals / lugs must be used for all bus bar and grounding connections.

Input Power Supply Requirements

Supply Voltage 110-115 Volts RMS for 110 Volt rated drives, + /- 10% variation allowed.

Imbalance

200 – 240 Volts RMS for 230 Volt rated drives, + /- 10% variation allowed.

380 – 480 Volts RMS for 400 Volt rated drives, + / - 10% variation allowed.

Maximum 3% voltage variation between phase – phase voltages allowed

All ACS250 units have phase imbalance monitoring. A phase imbalance of > 3% will result in the drive tripping. For input supplies which have supply imbalance greater than 3% (typically the Indian sub- continent & parts of Asia Pacific

Frequency including China) ABB recommends the installation of input line reactors.

50 – 60Hz + / - 5% Variation

Short Circuit Capacity Voltage Rating Min HP Max HP

115V 0.5 1.5

Maximum supply short-circuit current

100kA rms (AC)

230V

400 / 460V

0.5

1

5

10

100kA rms (AC)

100kA rms (AC)

All the drives in the above table are suitable for use on a circuit capable of delivering not more than the above specified maximum short-circuit Amperes symmetrical with the specified maximum supply voltage.

Incoming power supply connection must be according to section 5.3

All ACS250 units are intended for indoor installation only and within controlled environments which meet the condition limits shown in section

12.1

Branch circuit protection must be installed according to the relevant national codes. Fuse ratings and types are shown in section 12.2

Suitable Power and motor cables should be selected according to the data shown in section 12.2

Power cable connections and tightening torques are shown in section 4.

ACS250 provides motor overload protection in accordance with the National Electrical Code (US).

Where a motor thermistor is not fitted, or not utilized, It is recommended that the Thermal Overload Memory Retention is enabled by setting 3005 THERMAL OVERLOAD VALUE RETENTION = 1

Where a motor thermistor is fitted and connected to the drive, connection must be carried out according to the information shown

in section 10.6.

12.5. Derating Information

Derating of the drive maximum continuous output current capacity is required when

Operating at ambient temperature in excess of 40°C / 104°F.

Operating at Altitude in excess of 1000m/ 3281 ft.

Operation with Effective Switching Frequency higher than the minimum setting.

The following derating factors should be applied when operating drives outside of these conditions.

12.5.1. Derating for Ambient Temperature

Enclosure Type Maximum Temperature

Without Derating.

(UL Approved)

Derate by

IP20

IP66

50°C / 122°F

40°C / 104°F

12.5.2. Derating for Altitude

Enclosure Type

IP20

IP66

Maximum Altitude

Without Derating

1000m / 3281ft

1000m / 3281ft

Derate by

N/A

2.5% per °C (1.8°F)

1% per 100m / 328 ft

1% per 100m / 328 ft

Maximum Permissable

(UL Approved)

2000m / 6562 ft

2000m / 6562 ft

Maximum Permissable

Operating Ambient

Temperature with Derating (Non

UL Approved)

50°C

50°C

Maximum Permissable

(Non-UL Approved)

4000m / 13123 ft

4000m / 13123 ft

12.5.3. Derating for Switching Frequency

Enclosure Type

IP20

IP66

4kHz

N/A

N/A

8kHz

N/A

10%

Switching Frequency (Where available)

12kHz 16kHz

20% 30%

25% 35%

24kHz

40%

50%

32kHz

50%

50%

46

12.5.4. Example of applying Derating Factors

A 5Hp, 400V/460V IP66 drive is to be used at an altitude of 2000 metres above sea level, with 12kHz switching frequency and 45°C ambient temperature.

From the table above, we can see that the rated current of the drive is 9.5 Amps at 40°C,

Firstly, apply the swicthing frequency derating, 12kHz, 25% derating

9.5 Amps x 75% = 7.1 Amps

Now, apply the derating for higher ambient temperature, 2.5% per °C above 40°C = 5 x 2.5% = 12.5%

7.1 Amps x 87.5% = 6.2 Amps

Now apply the derating for altitude above 1000 metres, 1% per 100m above 1000m = 10 x 1% = 10%

7.9 Amps x 90% = 5.5 Amps continuous current available.

If the required motor current exceeds this level, it will be neccesary to either

- Reduce the switching frequency selected

- Use a higher power rated drive and repeat the calculation to ensure sufficient output current is available.

12.6. Mains Line input Reactors

An optional Line reactor is recommended to be installed on drives where any of the following site conditions occur:- o The incoming supply impedance is low or the fault level / short circuit current is high. o If the transformer kVA rating is more than 10x the kVA rating of the drive or ensure that the per drive source

Impedance is less than 0.5%. o The supply is prone to dips or brown outs. o An imbalance exists on the supply (3 phase drives). o The power supply to the drive is via a busbar and brush gear system (typically overhead Cranes). o Reduction in Harmonics generated by the drive.

In all other installations, it is good practice to install a line reactor as added protection of the drive against power supply faults.

12.6.1.

Selecting a Line Reactor

The chosen Line reactor should be in the region of 3% impedance; higher values can be used but will result in less voltage (and less torque) to the motor as full load is reached.

The continuous current rating should be at least the value of the drives input current rating, with a peak current rating of at least 2 times the continuous current rating.

47

13. Trouble Shooting

13.1. Fault Code Messages

Fault

Code

No.

0x01

Description Corrective Action



0x00

Drive is ready and in a stopped condition. The motor is not energised. No enable signal is present to start the drive



0X0A

Factory Default parameters have been loaded Press the STOP key, drive is ready to configure for particular application





0x03

0x04

Instantaneous Over current on the drive output.

Excess load or shock load on the motor.

Motor thermal overload protection trip. The drive has tripped after delivering >100% of value in 9906 for a period of time to prevent damage to the motor.

Fault occurs immediately on drive enable or run command

Check the output wiring connections to the motor and the motor for short circuits phase to phase and phase to earth.

Fault occurs during motor starting

Check the motor is free to rotate and there are no mechanical blockages. If the motor has a brake fitted, check the brake is releasing correctly. Check for the correct star-delta motor wiring. Ensure the motor nameplate current is correctly entered in parameter

9906. Increase the acceleration time in parameter 2202. Reduce the motor boost voltage setting in parameter 2603

Fault occurs when motor operating at constant speed

Investigate overload or malfunction.

Fault occurs during motor acceleration or deceleration

The accel/decel times are too short requiring too much power. If parameter 2202 or 2203 cannot be increased, a bigger drive may be required

Ensure the correct motor nameplate current value is entered in parameter 9906. Check for correct Star or Delta wiring configuration. Check to see when the decimal points are flashing (which indicates the output current > parameter 9906 value) and either increase acceleration ramp (parameter 2202) or decrease motor load. Check the total motor cable length is within the drive specification. Check the load mechanically to ensure it is free, and that no jams, blockages or other mechanical faults exist

 Brake channel over current (excessive current in the brake resistor)















0x02

0x05

0x06

0x07

0x08

0x09

0x10

Brake resistor thermal overload. The drive has tripped to prevent damage to the brake resistor

Hardware Over Current

Over voltage on DC bus

Under voltage on DC bus

Heatsink over temperature

Under temperature

Faulty thermistor on heatsink.

 0x0B External trip

(on digital input 3)

Check the cabling to the brake resistor and the brake resistor for short circuits or damage.

Ensure the resistance of the brake resistor is equal to or greater than the minimum value

for the relevant drive shown in the table in section 12.2

Only occurs if parameter 2020 = 1. The internal software protection for the brake resistor has activated to prevent damage to the brake resistor.

Increase the deceleration time (parameter 2203) or 2 nd

deceleration time (parameter

2206). Reduce the load inertia

For Other Brake Resistors

Ensure the resistance of the brake resistor is equal to or greater than the minimum value

for the relevant drive shown in the table in section 12.2. Use an external thermal

protection device for the brake resistor. In this case, parameter 2020 may be set to 2

Check the wiring to motor and the motor for phase to phase and phase to earth short circuits. Disconnect the motor and motor cable and retest. If the drive trips with no motor connected, it must be replaced and the system fully checked and retested before a replacement unit is installed.

Check the supply voltage is within the allowed tolerance for the drive. If the fault occurs on deceleration or stopping, increase the deceleration time in parameter 2203 or install a suitable brake resistor and activate the dynamic braking function with parameter 2020

The incoming supply voltage is too low. This trip occurs routinely when power is removed from the drive. If it occurs during running, check the incoming power supply voltage and all components in the power feed line to the drive.

The drive is too hot. Check the ambient temperature around the drive is within the drive specification. Ensure sufficient cooling air is free to circulate around the drive.

Increase the panel ventilation if required. Ensure sufficient cooling air can enter the drive, and that the bottom entry and top exit vents are not blocked or obstructed.

Trip occurs when ambient temperature is less than -10°C. The temperature must be raised over -10°C in order to start the drive.

Refer to your local ABB representative



0x0C

Comms loss trip

E-trip requested on control input terminals. Some settings of parameter 9902

DIGITAL

INPUTS FUNCTION SELECT require a normally closed contactor to provide an external means of tripping the drive in the event that an external device develops a fault. If a motor thermistor is connected check if the motor is too hot.

Check communication link between drive and external devices. Make sure each drive in the network has its unique address.

Drive intended for use with a 3 phase supply has lost one input phase.  0x0E Input phase loss trip



0x0F

Flying start failed



0x11

Internal memory fault.

Spin start function failed to detect the motor speed.

Parameters not saved, defaults reloaded.

Try again. If problem recurs, refer to your local ABB representative

Check input current in range defined by parameter 1300.



0x12 Analog input current out of range



-

Internal drive Fault



-

Internal drive Fault

Refer to your local ABB representative

Refer to your local ABB representative

48

Contact us

ABB Oy

AC Drives

P.O. Box 184

FI-00381 HELSINKI

FINLAND

Telephone +358 10 22 11

Fax: +358 10 22 22681 www.abb.com/drives

ABB Inc.

Automation Technologies

Drives & Motors

16250 West Glendale Drive

New Berlin, WI 53151

USA

Telephone 262 785-3200

1-800-HELP-365

Fax: 262 780-5135 www.abb.us/drives



3AUA0000137830A

Canada Headquarters, Low

Voltage Drives

ABB Inc.

Low Voltage Drives

2117, 32nd Avenue

Lachine, Quebec H8T 3J1

Tel(Drives): (800) 215-3006

Tel(General): (800) 567-0283

Fax: (514) 420-3137 www.abb.ca/drives

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
