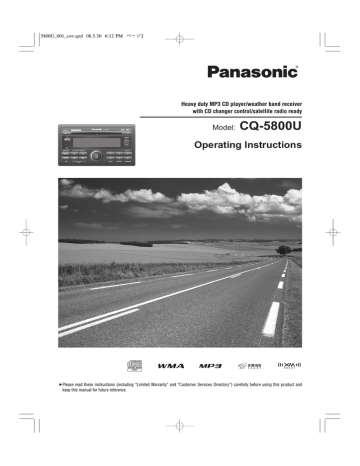

5800U_001_cov.qxd 08.5.30 6:12 PM ページ2
Heavy duty MP3 CD player/weather band receiver
with CD changer control/satellite radio ready
Model:
CQ-5800U
Operating Instructions
TEXT
¡Please read these instructions (including “Limited Warranty” and “Customer Services Directory”) carefully before using this product and
keep this manual for future reference.
5800U_OI_01_eng.qxd 08.5.30 6:51 PM ページ2
Safety Information
■ Read the operating instructions for the unit and all other
components of your car audio system carefully before using
the system. They contain instructions about how to use the
system in a safe and effective manner. Panasonic assumes
no responsibility for any problems resulting from failure to
observe the instructions given in this manual.
Warning
This pictograph intends to alert you to the presence of important operating instructions and
installation instructions. Failure to heed the
instructions may result in severe injury or
death.
Warning
Observe the following warnings when using
this unit.
❑ The driver should not operate the system while
driving.
Operating the system will distract the driver from looking
ahead of the vehicle and can cause accidents. Always stop
the vehicle in a safe location and use the parking brake
before operating the system.
❑ Use the proper power supply.
This product is designed for operation with a negative
grounded 12 V DC battery system. Never operate this
product with other battery systems, especially a 24 V DC
battery system.
❑ Protect the Deck Mechanism.
Do not insert any foreign objects into the slot of this unit.
❑ Do not disassemble or modify the unit.
Do not disassemble, modify the unit or attempt to repair
the product yourself. If the product needs to be repaired,
consult your dealer or an authorized Panasonic
Servicenter.
❑ Do not use the unit when it is out of order.
If the unit is out of order (no power, no sound) or in an
abnormal state (has foreign objects in it, is exposed to
water, is smoking, or smells), turn it off immediately and
consult your dealer.
❑ Any NOAA broadcast weather report, including cur-
rent and forecasts, may not reflect your actual
weather conditions at your exact time and location. You should always pay attention to your actual weather conditions to make safe decisions
accordingly.
■ This manual uses pictographs to show you how to use the
product safely and to alert you to potential dangers resulting
from improper connections and operations. The meanings of
the pictographs are explained below. It is important that you
fully understand the meanings of the pictographs in order to
use this manual and the system properly.
Caution
This pictograph intends to alert you to the presence of important operating instructions and
installation instructions. Failure to heed the
instructions may result in injury or material damage.
Observe the following warnings when
installing.
❑ Disconnect the lead from the negative (–) battery
terminal before installation.
Wiring and installation with the negative (–) battery terminal connected may cause electrical shock and injury due to
a short circuit.
Some cars equipped with the electrical safety system have
specific procedures of battery terminal disconnection.
FAILURE TO FOLLOW THE PROCEDURE MAY LEAD TO
THE UNINTENDED ACTIVATION OF THE ELECTRICAL
SAFETY SYSTEM RESULTING IN DAMAGE TO THE VEHICLE AND PERSONAL INJURY OR DEATH.
❑ Never use safety-related components for installation, grounding, and other such functions.
Do not use safety-related vehicle components (fuel tank,
brake, suspension, steering wheel, pedals, airbag, etc.) for
wiring or fixing the product or its accessories.
❑ Installing the product on the air bag cover or in a
location where it interferes with airbag operation
is prohibited.
❑ Check for piping, gasoline tank, electric wiring,
and other items before installing the product.
If you need to open a hole in the vehicle chassis to attach
or wire the product, first check where the wire harness,
gasoline tank, and electric wiring are located. Then open
the hole from outside if possible.
❑ Never install the product in a location where it interferes with your field of vision.
❑ Never have the power cord branched to supply
other equipment with power.
❑ After installation and wiring, you should check the
normal operation of other electrical equipment.
The continuation of their using in abnormal conditions may
cause fire, electrical shock or a traffic accident.
❑ In the case of installation to an airbag equipped
car, confirm warnings and cautions of the vehicle
manufacturer before installation.
❑ Make sure the leads do not interfere with driving
or getting in and out of the vehicle.
❑ Insulate all exposed wires to prevent short circuiting.
2
CQ-5800U
5800U_OI_01_eng.qxd 08.5.30 6:51 PM ページ3
Caution
Observe the following cautions when using
this unit.
❑ Keep the sound volume at an appropriate level.
Keep the volume level low enough to be aware of road and
traffic conditions while driving.
❑ Do not insert or allow your hand or fingers to be
caught in the unit.
To prevent injury, do not get your hand or fingers caught in
moving parts or in the disc slot. Especially watch out for
infants.
❑ This unit is designed for use exclusively in automobiles.
❑ Do not operate the unit for a prolonged period with
the engine turned off.
Operating the audio system for a long period of time with
the engine turned off will drain the battery.
❑ Do not expose the unit to direct sunlight or excessive heat.
Otherwise these will raise the interior temperature of the
unit, and it may lead to smoke, fire, or other damage to the
unit.
❑ Do not use the product where it will be exposed to
water, moisture, or dust.
Exposure of the unit to water, moisture, or dust may lead
to smoke, fire, or other damage to the unit. Make especially
sure that the unit does not get wet in car washes or on
rainy days.
❑ To ensure safety, never attempt to preset stations
while you are driving.
❑ Depending upon the transmission condition of
electro-magnetic waves, the geographical reasons
and/or the weather conditions, you may not
receive the NOAA radio partially or at all.
❑ Make sure that your weather radio can receive
properly before driving, especially, before use in a
critical condition.
❑ Set the volume level to low enough before the AUX
connection is completed.
Failure to observe this, the loud noise may come out and
damage your speakers and your hearing. Direct connection
of the speaker/headphone output of an external device
without any attenuator may distort sound or damage the
connected external device.
Observe the following cautions when
installing.
❑ Refer wiring and installation to qualified service
personnel.
Installation of this unit requires special skills and experience. For maximum safety, have it installed by your dealer.
Panasonic is not liable for any problems resulting from
your own installation of the unit.
❑ Follow the instructions to install and wire the product.
Not following the instructions to properly install and wire
the product could cause an accident or fire.
❑ Take care not to damage the leads.
When wiring, take care not to damage the leads. Prevent
them from getting caught in the vehicle chassis, screws,
and moving parts such as seat rails. Do not scratch, pull,
bend or twist the leads. Do not run them near heat sources
or place heavy objects on them. If leads must be run over
sharp metal edges, protect the leads by winding them with
vinyl tape or similar protection.
❑ Use the designated parts and tools for installation.
Use the supplied or designated parts and appropriate tools
to install the product. The use of parts other than those
supplied or designated may result in internal damage to the
unit. Faulty installation may lead to an accident, a malfunction or fire.
❑ Do not block the air vent or the cooling plate of the
unit.
Blocking these parts will cause the interior of the unit to
overheat and will result in fire or other damage.
❑ Do not install the product where it is exposed to
strong vibrations or is unstable.
Avoid slanted or strongly curved surfaces for installation. If
the installation is not stable, the unit may fall down while
driving and this can lead to an accident or injury.
❑ Installation Angle
The product should be installed in a horizontal position
with the front end up at a convenient angle, but not more
than 30˚.
The user should bear in mind that in some areas there may
be restrictions on how and where this unit must be
installed. Consult your dealer for further details.
❑ Wear gloves for safety. Make sure that wiring is
completed before installation.
❑ To prevent damage to the unit, do not connect the
power connector until the whole wiring is completed.
❑ Do not connect more than one speaker to one set
of speaker leads. (except for connecting to a
tweeter)
Caution
• PLEASE FOLLOW THE LAWS AND REGULATIONS OF YOUR STATE, PROVINCE OR COUNTRY FOR WIRING,
INSTALLATION, AND USE OF THIS UNIT AND THE DEVICES TO BE CONNECTED.
Find the model number and serial number on either the back or bottom of the unit. Please record them in the space
below and retain this booklet as a permanent record of your purchase to help with identification in case of theft.
MODEL NUMBER
DATE PURCHASED
CQ-5800U
SERIAL NUMBER
FROM
CQ-5800U
3
5800U_OI_01_eng.qxd 08.5.30 6:51 PM ページ4
Safety Information (continued)
The following applies only in the U.S.A.
Warning
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK OR
PRODUCT DAMAGE, DO NOT EXPOSE THIS APPLIANCE TO
RAIN, SPLASHING, DRIPPING OR MOISTURE.
Part 15 of the FCC Rules
FCC Warning:
Any unauthorized changes or modifications to this equipment
would void the user's authority to operate this device.
Caution
THIS PRODUCT IS A CLASS I LASER PRODUCT.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE
OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN
MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR BY
YOURSELF. REFER SERVICING TO QUALIFIED
PERSONNEL.
Laser Products:
Wave length: 790 nm
Laser power: No hazardous radiation is emitted with safety
protection.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, AND
ANNOYING INTERFERENCE, USE ONLY THE INCLUDED
COMPONENTS.
Customer Services Directory
U.S.A.
Obtain Product Information and Operating Assistance; locate
your nearest Dealer or Servicenter; purchase Parts and
Accessories; or make Customer Service and Literature requests
by visiting our Web Site at:
http://www.panasonic.com/support
or, contact us via the web at:
http://www.panasonic.com/contactinfo
You may also contact us directly at:
1-800-211-PANA (7262),
Monday-Friday 9 am-9 pm; Saturday-Sunday 10 am-7 pm, EST.
For hearing or speech impaired TTY users,
TTY : 1-877-833-8855
Accessory Purchases:
Purchase Parts, Accessories and Instruction Books online for all
Panasonic Products by visiting our Web Site at:
http://www.pasc.panasonic.com
or, send your request by E-mail to:
[email protected]
4
CQ-5800U
You may also contact us directly at:
1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only) (MondayFriday 9 am to 8 pm, EST.)
Panasonic Services Company
20421 84th Avenue South, Kent, WA 98032
(We accept Visa, MasterCard, Discover Card, American Express,
and Personal Checks)
For hearing or speech impaired TTY users,
TTY : 1-866-605-1277
Service in Puerto Rico
Panasonic Puerto Rico, Inc.
Panasonic Sales Company
Factory Servicenter:
Ave. 65 de Infantería, Km. 9.5, San Gabriel Industrial Park,
Carolina, Puerto Rico 00985
Phone (787) 750-4300, Fax (787) 768-2910
5800U_OI_01_eng.qxd 08.5.30 6:51 PM ページ5
Limited Warranty
Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so
the exclusions may not apply to you.
U.S.A.
PANASONIC CONSUMER ELECTRONICS COMPANY,
DIVISION OF PANASONIC CORPORATION OF NORTH AMERICA
One Panasonic Way, Secaucus, New Jersey 07094
This warranty gives you specific legal rights and you may also have other
rights which vary from state to state. If a problem with this product develops
during or after the warranty period, you may contact your dealer or
Servicenter. If the problem is not handled to your satisfaction, then write to
warrantor’s Consumer Affairs Department at the addresses of the warrantor.
PANASONIC SALES COMPANY,
DIVISION OF PANASONIC PUERTO RICO, INC.
Ave. 65 de infanteria, Km. 9.5, San Gabriel Industrial Park
Carolina, Puerto Rico 00985
PARTS AND SERVICE WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY ARE YOUR RESPONSIBILITY.
PANASONIC AUTO PRODUCTS
LIMITED WARRANTY
LIMITED WARRANTY COVERAGE
If your product does not work properly because of defects in materials and
workmanship.
Panasonic Consumer Electronics Company or Panasonic Sales Company
(collectively referred to as “the warrantor”) will, for the length of the period
indicated in the chart below, which starts with the date of original purchase
(“warranty period”), at its option either (a) repair your product with new or
refurbished parts, or (b) replace it with a new or refurbished product. The
decision to repair or replace will be made by the warrantor.
Categories
Parts
Audio Components (except items listed
One (1) Year
below)
MXE Series Audio Components (except
Two (2) Years
items listed below)
One (1) Year
Speakers
Defective Car Audio Speakers under warranty must be exchanged at the place of
purchase. Contact your Dealer for details.
Accessories (in exchange for defective
items)
Labor
One (1) Year
Customer’s Record
Model
No.
Serial
No.
Dealer’s
No.
Code
No.
Dealer’s
Address
Date of
Purchase
Two (2) Years
Not Applicable
Ninety (90) Days Not Applicable
During the “Labor” warranty period, there will be no charge for labor. During
the “Parts” warranty period, there will be no charge for parts. You must carry
in or mail in your product prepaid during the warranty period. If nonrechargeable batteries are included, they are not warranted. This warranty
only applies to products purchased and serviced in the United States or
Puerto Rico. This warranty is extended only to the original purchaser of a
new product which was not sold “as is”. A purchase receipt or other proof of
the original purchase date is required for warranty service.
CARRY-IN OR MAIL-IN SERVICE
For Carry-In or Mail-In Service in the United States, call 1-800-211-PANA
(7262) or visit
Panasonic Web Site: http://www.panasonic.com
For assistance in Puerto Rico, call Panasonic Sales Company (787)-7504300 or fax (787)-768-2910.
LIMITED WARRANTY LIMITS AND EXCLUSIONS
This warranty ONLY COVERS failures due to defects in materials and workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage.
The warranty ALSO DOES NOT COVER damages which occurred during
shipment, failures which are caused by products not supplied by the warrantor, failures which result from accident, misuse, abuse, neglect, bug infestation, mishandling, misapplication, alteration, faulty installation, set-up
adjustment, maladjustment of consumer control, improper maintenance,
improper antenna, inadequate signal reception or pickup, power line surge,
improper voltage supply, lightning, modification, commercial use (such as
use in hotels, offices, restaurants, or other business uses) or rental use of
the product, or service by anyone other than the technician from Factory
Servicenter or other authorized service centers, or damage that is attributable to acts of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED WARRANTY COVERAGE”. THE WARRANTOR IS NOT LIABLE FOR
INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE
OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. (As examples, this excludes damages for lost time, cost of having someone remove or re-install an installed unit if applicable, travel to and from the
servicer, and loss of media, data or other memory contents. The items listed
are not exclusive, but are for illustration only.) ALL EXPRESS AND IMPLIED
WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE
LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.
CQ-5800U
5
5800U_OI_01_eng.qxd 08.5.30 6:51 PM ページ6
Before Reading These Instructions
Panasonic welcomes you to our ever growing family of electronic product owners. We know that this product will
bring you many hours of enjoyment. Our reputation is built on precise electronic and mechanical engineering, manufactured with carefully selected components and assembled by people who take pride in their work. Once you discover the quality, reliability, and value we have built into this product, you too will be proud to be a member of our
family.
Accessories
1. Operating Instructions ..................................................................................................1
2. Supplied Hardware.............................................................................1 set (➡ page 29)
Contents
Safety Information . . . . . . . . . . . . . . . . . . . . . .2
Customer Services Directory . . . . . . . . . . . . . . .4
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . .5
Before Reading These Instructions . . . . . . . . . . .6
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Front AUX terminal, Sound Control, USB Connector
Connectable devices . . . . . . . . . . . . . . . . . . . . .7
CD Changer, XM Satellite Radio, Sirius Satellite Radio, iPod®,
Expansion Module (hub unit)
Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . .8
First time power on, Clock adjustment
Controls Layout . . . . . . . . . . . . . . . . . . . . . . . .9
Main unit
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Power, Source Selection, Volume, Mute, Display Change
Sound Controls . . . . . . . . . . . . . . . . . . . . . . . .11
SQ (Sound Quality) , Audio Modes (Bass/Treble/Balance/Fader)
Radio
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Band, Frequency adjustment, Auto Preset Memory (APM),
Preset station selection, Manual Preset Memory, Tuning in a
Weather Band Station
CD/MP3/WMA Player . . . . . . . . . . . . . . . . . . . .14
Disc loading/ejection, Track/File selection, Folder selection
(MP3/WMA), Pause, Display change, Scan, Repeat, Random
USB (MP3/WMA) . . . . . . . . . . . . . . . . . . . . . .16
USB device connection, File selection, Folder selection,
Pause, Display change, Scan, Repeat, Random
iPod Control . . . . . . . . . . . . . . . . . . . . . . . . . .18
Song selection, Pause, Playing Mode selection, Repeat,
Random
XM Satellite Radio Control . . . . . . . . . . . . . . . .20
Getting Started, Band, Channel Selection, Preset channel
selection, Display change, Manual Preset Memory, Selection
by Category
Sirius Satellite Radio Control . . . . . . . . . . . . . .22
What is Sirius Satellite Radio?, Getting Started, Band, Channel
Selection, Preset channel selection, Manual Preset Memory,
Display change, Selection by Category, Parental channel
lock/unlock setting, Parental channel unlock setting (Tuned
channel), Parental lock ON/OFF setting, Pass code change,
Pass code initialization
6
CQ-5800U
CD Changer Control . . . . . . . . . . . . . . . . . . . . .26
Disc selection, Track selection, Display change, Scan, Repeat,
Random
Installation . . . . . . . . . . . . . . . . . . . . . . . . . .27
Electrical Connections . . . . . . . . . . . . . . . . . . .32
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . .36
If You Suspect Something Wrong, Common, Radio, CD,
MP3/WMA, USB, XM Satellite Radio Control, Product
Servicing
Error Display Messages . . . . . . . . . . . . . . . . . .40
CD/MP3/WMA, CD changer, USB, iPod Control, XM Satellite
Radio Control, Sirius Satellite Radio Control
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . .43
Cleaning this Unit, Caution
Notes on MP3/WMA . . . . . . . . . . . . . . . . . . . .44
Cautions as to compressed audio files, Cautions as to the
display of this unit, Cautions as to compressed audio files,
Common
Notes on Discs . . . . . . . . . . . . . . . . . . . . . . . .46
How to hold the disc, Unusable discs, Disc insert, Disc
cleaning, Notes on CD-Rs/RWs
Specifications . . . . . . . . . . . . . . . . . . . . . . . .47
General, FM Stereo Radio, AM Radio, Weather Band Radio,
CD Player
5800U_OI_01_eng.qxd 08.5.30 6:51 PM ページ7
Features
Front AUX terminal
Your mobile audio player and other devices are connectable to
this unit without any difficulty.
Sound Control
USB Connector
The USB connector is equipped on the front panel.
Connection of a USB memory (not included) to the USB
connector via a USB extension cable (not included) allows users
to enjoy MP3/WMA files stored on the USB memory (not
included) in the car.
SQ (Sound Quality)
You have four preset modes (FLAT, ROCK, POP and VOCAL).
Connectable devices
Various optional components allow users to obtain availability
of wide range of system upgrade. Upgrading the system
delivers relaxed AV space in a car.
CD Changer
You can connect the optional Panasonic CD changer unit (CXDP880). For details, refer to the operating instructions for the
CD changer unit. (a page 26)
XM Satellite Radio
You can connect the optional XM Direct2 (CNP2000UC*) with
optional connection cable (CNPPAN1)*. For details, refer to the
operating instructions for the XM receiver. (a page 20)
*This product is made by other media companies. (Not
Panasonic product.)
About XM
The direct satellite-to-receiver broadcasting technology is used
to provide listeners with crystal clear sound smoothly from
coast to coast. XM is over 130 channels of sheer variety: digitalquality music, news, sports, comedy, traffic & weather, talk,
children’s programs, and more.
The XM name and related logos are trademarks of XM Satellite
Radio Inc.
Sirius Satellite Radio
You can connect the optional Sirius Satellite Radio receiver
(SC-C1) with optional Interface Adaptor (CA-LSR01U)*. (a
page 22)
instruction of Satellite Operation Controls in the Operating
Instructions and Guide will not be applied.
© SIRIUS Satellite Radio Inc. “SIRIUS” and related marks are
trademarks of SIRIUS Satellite Radio Inc.
iPod®
The optional adapter (Direct Cable for iPod: CA-DC300U) allows
users to connect the optional iPod series.
The iPod equipped with a dock connector is exclusively connectable. Further information about the controllable iPod is
described on page 18.
*iPod is a trademark of Apple Inc., registered in the U.S. and
other countries.
Expansion Module (hub unit)
You can connect the optional Expansion Module (hub unit) (CYEM100U). Connection of the Expansion Module allows you to
simultaneously connect optional devices mentioned before as
well as other AV devices. For details, refer to the operating
instructions for the Expansion Module.
Connectable devices
¡ CD changer (max. 1)
¡ iPod (max. 2)
¡ XM Satellite Radio (max. 1)
¡ Sirius Satellite Radio (max. 1)
Note: Market conditions regarding optional devices vary with
countries and regions. For further information, consult your
dealer.
Sirius Satellite Broadcast service
Sirius Satellite coverage is only available in the United States
(except Hawaii and Alaska) and a part of Canada. The
CQ-5800U
7
5800U_OI_01_eng.qxd 08.5.30 6:51 PM ページ8
Preparation
First time power on
1 Turn the key in the ignition until the accessory
indicator lights.
2 Press [SRC] (PWR).
Clock adjustment
5 Adjust the minute.
The 12-hour system is used for the clock.
1
[d] :Sets ahead.
[s] :Sets back.
Press [DISP] (CLK).
(Clock display)
Minute entered
2 Hold down [DISP] (CLK) for 2 sec. or more.
Hour blinks
6 Press [DISP].
Completed
3
Adjust the hour.
[d] :Sets ahead.
[s] :Sets back.
Hour entered
4 Press [DISP] (CLK).
Minute blinks
8
CQ-5800U
Notes:
¡ “ADJUST” is displayed before adjusting the clock.
¡ Hold down [d] or [s] to change numbers rapidly.
¡ When you want to readjust the time, repeat steps 2 to 6.
5800U_OI_01_eng.qxd 08.5.30 6:51 PM ページ9
Controls Layout
Main unit
SRC Source (a page 10)
PWR Power (a page 10)
MUTE (a page 10)
SQ Sound Quality (a page 11)
Disc slot
u (Eject)
(a page 14)
AUX
From line output of
external sound/audio
device (ex. Siliconaudio player, HDD
player, etc.)
USB Connector
(a page 16)
DISP Display (a page 10, etc.)
CLK Clock (a page 8)
BAND (a page 12, 20, 22)
APM Auto Preset Memory
(a page 12)
y / 5 Pause/Play
(a page 14,16, 18)
VOL (a page 10)
PUSH SEL Select
(a page 11, 22)
Preset Buttons [1] to [6]
(a page 12, 20, 23)
SCROLL (a page 14, etc.)
SCAN/REPEAT/RANDOM
(a page 14,16,18,26)
TUNE/SEEK s/d (a page 12, 20, 22)
FILE (Track/File) s/d (a page 14, 16, 18, 26)
FOLDER/DISC ▲/▼ (a page 14, 16, 18, 26)
CQ-5800U
9
5800U_OI_01_eng.qxd 08.5.30 6:51 PM ページ10
General
Power
Mute
Turn the key in the ignition until the accessory indicator lights.
Power on: Press [SRC](PWR).
Press [MUTE] to mute the sound completely.
Press [MUTE] again to cancel.
Power off: Hold down [SRC](PWR) for more than 1 second.
Source Selection
The source changes as follows every time [SRC] (Source)
is pressed.
Radio
FM, AM, WB
(a page 12)
Disc player
CD, MP3/WMA
(a page 14)
Volume
Turn the knob clockwise to increase volume, and counterclockwise to decrease volume.
USB
MP3/WMA
(a page 16)
Volume level (0 to 40)
(default:18)
Up
AUX
Device connected to
the AUX terminal of
this unit
System-up Connector
Device connected to the System-up Connector of this unit
When optional devices are connected:
Shift to connected devices
When an expansion module is connected:
The devices connected to the ports 1 to 4 are activated
in sequence after shifting to AUX1 (devices connected to
the AUX terminal of the expansion module).
Down
Display Change
Press [DISP] to switch to the clock display.
When the power is off:
clock display (default)
No display
Note: “ADJUST” is displayed when the clock is not adjusted.
(a page 8)
10
CQ-5800U
5800U_OI_01_eng.qxd 08.5.30 6:51 PM ページ11
Sound Controls
SQ (Sound Quality)
SQ is a function that can call up various sound types at the
touch of button in accordance with your listening music type.
Press [SQ] for more than 2 seconds to select the sound type as
follows:
(FLAT) flat frequency response:
does not emphasize any part.
(default)
(ROCK) speedy and heavy sound:
exaggerates bass and treble.
(POP) wide-ranged and deep sound:
slightly emphasizes bass and treble.
(VOCAL) clear sound:
emphasizes middle tone and slightly
emphasizes treble.
SQ indicator
Audio Modes (Bass/Treble/Balance/Fader)
1 Push [SEL] to select the audio mode. 2 Turn [VOL] (volume) clockwise or counterclockwise to change each level.
(Volume)
q: Up
w: Down
(Bass)
q: Increased
w: Decreased
(Setting Range: 0 to 40, Default: 18)
(Setting Range: –12 dB to +12 dB by 2 dB,
Default: 0 dB)
(Treble)
q: Increased
w: Decreased
(Setting Range: –12 dB to +12 dB by 2 dB,
Default: 0 dB)
(Balance)
q: Right enhanced
w: Left enhanced
(Setting Range: 15 levels each and 0 (center),
Default: CNT)
(Fader)
(Setting Range: 15 levels each and 0 (center),
Default: CNT)
q: Front enhanced
w: Rear enhanced
Note: If no operation takes place for more than 5 seconds in audio
mode (2 seconds in volume mode), the display returns to the regular
mode.
CQ-5800U
11
5800U_OI_01_eng.qxd 08.5.30 6:51 PM ページ12
Radio
Band
Caution
Press [BAND] to change the band.
To ensure safety, never attempt to preset stations
while you are driving.
Weather Band
(FM stereo) indicator
lights while receiving an FM stereo signal.
(a page 13)
Frequency adjustment
[TUNE/SEEK s]: Lower
[TUNE/SEEK d]: Higher
Note: Hold down for 0.5 sec. or more and release for station
search.
Auto Preset Memory (APM)
Press and hold [BAND] (APM: auto preset memory) for more
than 2 seconds.
• The 6 stations with good reception will be automatically saved
in the memory under preset buttons from [1] to [6].
• Once set, the preset stations are sequentially scanned for 5
seconds each.
• Press one of the buttons from [1] to [6] to stop sequentially
scan.
Note: New stations overwrite existing saved stations.
Preset station selection
Press the corresponding preset button from [1] to [6] to tune in
a preset station.
Manual Preset Memory
1 Use manual or seek tuning to find a station.
2 Press and hold one of the preset buttons
from [1] to [6] until the display blinks once.
Preset Number
blinks once
Note: New stations overwrite existing saved stations.
12
CQ-5800U
5800U_OI_01_eng.qxd 08.5.30 6:51 PM ページ13
Tuning in a Weather Band Station
1 Press [BAND] to select WB (Weather Band).
(a page 12)
2 Press any of the buttons [1] to [6] to monitor
the preset station.
Note: The weather band (CH1-6) has been preset. CH7 is
selected by pressing [s] or [d].
Warning
Any NOAA broadcast weather report, including current and
forecasts, may not reflect your actual weather conditions at
your exact time and location. You should always pay
attention to your actual weather conditions to make safe
decisions accordingly.
Weather Band Stations
National Weather Radio Broadcasts from over 380 Iocations
throughout the U.S. on seven VHF/FM frequencies.
Tune to weather band to receive continuous weather
information 24 hours a day on one of the following frequencies.
1. 162.550 MHz
2. 162.400 MHz
3. 162.475 MHz
4. 162.425 MHz
5. 162.450 MHz
6. 162.500 MHz
7. 162.525 MHz
Weather Band Frequency (channel) Number
Weather Band Frequency
Occasionally the frequency of an existing or planned station
must be changed because of unexpected radio frequency
interfere with adjacent NOAA weather Radio Stations and/or
with other Government or commercial Operations within the
area. If you have a question concerning NOAA Weather Radio,
please contact your nearest National Weather Service Office.
CQ-5800U
13
5800U_OI_01_eng.qxd 08.5.30 6:51 PM ページ14
CD/MP3/WMA Player
Cautions
¡ Do not insert a disc when the
indicator lights.
¡ This unit does not support 8 cm {3"} discs.
¡ Do not use irregularly shaped discs. (a page 46)
¡ Do not use discs that have a seal or label attached.
¡ Do not insert foreign matter into the disc slots.
¡ Refer to the section on “Notes on CD-Rs/RWs”
(a page 46).
Pause
¡ Refer to the section on “Notes on MP3/WMA”. (a page 44)
¡ This unit does not support a MIX mode CD (a CD containing
both CD-DA and compressed audio data). In case of using
such a CD, problems may occur such as anacoustic playback.
Disc loading/ejection
Press [BAND] (h / 5).
Press again to cancel.
(Repeat)/
Loading
Load a disc in with the printed side facing up.
Notes:
• The power will be turned on automatically when a disc is loaded.
• Playback will start automatically after the player recognized the
loaded disc as an ordinary music CD or MP3/WMA disc.
(Random)/
indicator
Ejection
Press [u] to eject the disc.
(DISC) indicator
Text Scroll
Display change
(a page 15)
Track/File selection
[FILE d]: Next track/file
[FILE s]: Preceding track/file (press twice)
Note: Hold down for fast forward/reverse.
Folder selection (MP3/WMA)
[FOLDER ▲]: Next folder
[FOLDER ▼]: Preceding folder
14
CQ-5800U
Scan, Repeat, Random (a page 15)
5800U_OI_01_eng.qxd 08.5.30 6:51 PM ページ15
Display change
Press [DISP] to change the display.
Notes:
¡ For scrolling text, press [3] (SCROLL).
¡ “NO TEXT” is displayed when there is no information on the disc.
CD-DA
MP3/WMA
Track number/
Play time
Folder number/File
number
Disc title*
Play time
Track title*
Folder name/
Album*
Clock
File name/
Title, artist*
* CD TEXT Display
Disc title and Track title name are displayed.
Clock
* ID3 Tag ON/OFF
Hold down [3] (SCROLL) for more than 2 seconds.
TAG ON: album title and song title/artist name are displayed.
TAG OFF: folder name/file name are displayed. (Default)
Scan, Repeat, Random
Scan play
Random play
The first 10 seconds of each track/file is played in sequence.
Press [4] (SCAN). Track/file number blinks.
Press again to cancel.
All the available tracks/files are played in a random sequence.
lights.
Press [6] (RANDOM).
Press again to cancel.
Folder scan play (MP3/WMA)
Folder random play (MP3/WMA)
From the next folder, the first 10 seconds of the first file in each
folder is played in sequence.
Hold down [4] (SCAN) for more than 2 seconds.
lights and folder number blinks.
Hold down again to cancel.
All the available files in current folder are played in a random
sequence.
Hold down [6] (RANDOM) for more than 2 seconds.
lights.
Hold down again to cancel.
,
Repeat play
The current track/file is repeated.
Press [5] (REPEAT).
lights.
Press again to cancel.
Folder repeat play (MP3/WMA)
The current folder is repeated.
Hold down [5] (REPEAT) for more than 2 seconds.
lights.
Hold down again to cancel.
,
CQ-5800U
15
5800U_OI_01_eng.qxd 08.5.30 6:51 PM ページ16
USB (MP3/WMA)
Compatible USB devices
Cautions
¡ Do not connect a USB device directly to this unit. If a USB
device is connected directly to this unit and an accident
occurs, or if the brakes are applied suddenly, the driver or
passenger may bump into the USB device and may be
injured.
¡ Connect your USB device to your car audio using a standard USB extension cable (5 m or less).
¡ Position the USB device and USB extension cable so that
they do not interfere with your driving.
¡ Do not connect any USB device other than a USB memory
or a USB audio player. Do not connect multiple USB
devices to the USB connector. Supplying power to multiple USB devices from the connector could cause overheating and smoking.
Pause
¡ USB Mass Storage Class
For details as to whether your USB memory/USB Audio is
compatible with USB Mass Strage Class, please contact
the USB memory/USB Audio manufacturer.
¡ USB Standard Compatibility 1.1/2.0 Full Speed
¡ File System FAT12/16/32
¡ Maximum current less than 500 mA
¡ Capacity less than 4 GB (1 partition)
USB device connection
Press [BAND] (h / 5).
Press again to cancel.
indicator
lights when a USB device is loaded
(Repeat)/
indicator
(Random)/
Open the USB connector cover and connect a USB device to this
unit.
Notes:
¡ When connecting (disconnecting) a USB device, turn down
the volume of the unit.
¡ When connecting a USB device, make sure the connector is
pushed all the way into the socket.
Text Scroll
Display change
(a page 17)
File selection
Scan, Repeat, Random (a page 17)
[FILE d]: Next file
[FILE s]: Preceding file (press twice)
Note: Hold down for fast forward/reverse.
Folder selection
[FOLDER ▲]: Next folder
[FOLDER ▼]: Preceding folder
16
CQ-5800U
5800U_OI_01_eng.qxd 08.5.30 6:51 PM ページ17
Notes:
¡ Refer to the section on “Notes on MP3/WMA”. (a page 44)
¡ Do not leave the USB device for long periods of time in places inside the car where the temperature rises too high.
¡ This unit may not operate correctly if a cable other than a USB standard cable is used.
¡ To prevent dirt and dust from adhering to the USB connector, close the cover of this unit when not in use.
¡ Back up any important data beforehand. We cannot accept responsibility for any lost data.
¡ The use of USB devices that contain data files other than MP3/WMA format is not recommended.
¡ A file with a play time exceeding 1 000 minutes will not play correctly to the end of the track.
¡ Playback or display may not be possible depending on the type of USB device or the condition of the recording.
¡ Depending on the connected USB memory, the order in which the files are played back may differ from the order in which the
files were stored.
¡ Connection of an iPod to the USB connector of this unit is not supported.
Display change
Scan, Repeat, Random
Press [DISP] to change the display.
Notes:
¡ For scrolling text, press [3] (SCROLL).
¡ “NO TEXT” is displayed when there is no information on the
USB device.
Folder number/
File number
Play time
Scan play
The first 10 seconds of each file is played in sequence.
Press [4] (SCAN). File number blinks.
Press again to cancel.
Folder scan play
From the next folder, the first 10 seconds of the first file in each
folder is played in sequence.
Hold down [4] (SCAN) for more than 2 seconds.
lights and folder number blinks.
Hold down again to cancel.
Repeat play
Folder name/ Album*
The current file is repeated.
Press [5] (REPEAT).
Press again to cancel.
lights.
Folder repeat play
File name/
Title, artist*
The current folder is repeated.
Hold down [5] (REPEAT) for more than 2 seconds.
lights.
Hold down again to cancel.
,
Random play
Clock
All the available files are played in a random sequence.
lights.
Press [6] (RANDOM).
Press again to cancel.
Folder random play
* ID3 Tag ON/OFF
Hold down [3] (SCROLL) for more than 2 seconds.
TAG ON: album title and song title/artist name are displayed.
TAG OFF: folder name/file name are displayed. (Default)
All the available files in current folder are played in a random
sequence.
Hold down [6] (RANDOM) for more than 2 seconds.
lights.
Hold down again to cancel.
CQ-5800U
,
17
5800U_OI_01_eng.qxd 08.5.30 6:51 PM ページ18
iPod Control
Notes:
The iPod equipped with a dock connector is exclusively connectable. Further information about the controllable iPod is
described below.
¡Controllable iPod/software version
¡4th generation iPod/ver. 3.1.1
¡5th generation iPod/ver. 1.1.2 (Video playback is not supported.)
¡iPod Photo/ver. 1.2.1
¡iPod mini/ver. 1.4.1
¡iPod nano/ver. 1.2
* Operation check has been completed with software available
at the end of October, 2007. We do not guarantee the operation with our future products or upgraded software.
¡ The shuffle function of iPod corresponds to the RANDOM
function of this unit.
¡ Please make sure to detach the iPod after turning off the car
engine (turning the ACC to OFF). The iPod may not shut down
while still connected, which may result in battery depletion.
¡ Please do not connect iPod accessories such as an iPod
remote control or headphones while connecting iPod with
the unit. The unit may not operate correctly.
¡ Connect this unit after turning down the volume of the iPod.
¡ “PAUSE” appears until the iPod is recognized after connecting the iPod, turning on the power of the main unit, or performing source selection on the main unit side. This indicates there is nothing wrong with the main unit.
¡ We do not guarantee all the operations of connectable devices.
Preparation:
Connect the iPod using the optional adapter (Direct Cable for iPod: CA-DC300U)
Pause
Press [BAND] (h / 5).
Press again to cancel.
Playing Mode selection (a page 19)
indicator
lights when CA-DC300U is loaded
(Repeat)/
(Random)
indicator
Text Scroll
Display change
(a page 19)
Song selection
[FILE d]: Next song
[FILE s]: Preceding song (press twice)
Note: Hold down for fast forward/reverse.
18
CQ-5800U
Repeat, Random (a page 19)
5800U_OI_01_eng.qxd 08.5.30 6:51 PM ページ19
Display change
Playing Mode selection
Press [DISP] to change the display.
Notes:
¡ For scrolling text, press [3] (SCROLL).
¡ “NO TEXT” is displayed when there is no information on the
iPod.
Song number/
Total song
(iPod number*)
Play time (iPod number*)
Song title
The type with which playback data is classified is selectable.
1 Press [▲] to call up the play mode selection
screen.
2 Turn [VOL] to select the play mode.
PLAYLIST: Playback by playlist (default)
ARTIST:
Playback by artist
ALBUM:
Playback by album
GENRE
Playback by genre
Notes:
¡ When the [▲] button is pressed, the regular screen
appears.
¡ “NO SONG” will appear if no song exists.
3 Press [PUSH SEL] to determine the selection.
4 Turn [VOL] to select the portion to play.
Album name
Note: When the [▲] button is pressed, the previous screen
appears.
5 Press [PUSH SEL] to determine the selection.
Artist name
Repeat, Random
Repeat play
Clock
* appears when 2 iPods are connected.
The current song is repeated.
Press [5] (REPEAT).
lights.
Press again to cancel.
Note: The all Repeat Play function of iPod is always activated
and cannot be canceled from this unit.
Random play (Shuffle)
All the available songs are played in a random sequence.
lights.
Press [6] (RANDOM).
Press again to cancel.
Album random play
All the playable albums are played in a random sequence.
Hold down [6] (RANDOM) for more than 2 seconds.
blinks.
Hold down again to cancel.
CQ-5800U
19
5800U_OI_01_eng.qxd 08.5.30 6:52 PM ページ20
XM Satellite Radio Control
Preparation:
¡Connect the optional XM Direct2 (CNP2000UC) with optional Connection Cable (CNPPAN1).
Getting Started
It is required to sign up to become an XM Satellite Radio
subscriber. After checking your XM Satellite Radio ID, sign up
on the XM’s website or by calling them.
1 Check of XM Satellite Radio ID
2 Activate the XM Satellite Radio. Select either
of the below to sign up.
¡ Web site: http://www.xmradio.com/activation
¡ Phone number: 1-800-852-9696
¡ Write down the ID indicated on the carton of your
XM receiver XM Direct2 (CNP2000UC).
¡ Check the ID shown by tuning your XM Radio to
channel 0.
Band
Caution
Press [BAND] to change the band.
To ensure safety, never attempt to preset stations
while you are driving.
Selection by Category
(a page 21)
(Satellite) indicator
indicates the satellite receiver is ready.
Display change
(a page 21)
Channel Selection
[TUNE s]: Lower
[TUNE d]: Higher
Notes:
¡ “RADIO ID” is displayed with channel 0.
¡ “UPDATING” is displayed during the update of the identification code.
¡ “LOADING” is displayed during the acquisition of audio data
or information.
20
CQ-5800U
Preset channel selection
Press the corresponding preset button from [1] to [6] to tune in
a preset channel.
5800U_OI_01_eng.qxd 08.5.30 6:52 PM ページ21
Notes:
¡ You can connect the optional XM Direct2 (CNP2000UC*) with
optional Connection Cable (CNPPAN1*).
* This products is made by other media companies. (Not
Panasonic products.)
¡ Toll free number
XM Tuner P/N: XM Direct2
Call 1-800-XM-RADIO (96-72346)
Extension cord P/N: CNPPAN1
Call 1-800-942-TERK (8375)
Manual Preset Memory
Display change
Press [DISP] to change the display.
Band number/
Channel number
1 Use [TUNE s/d] to find a channel.
2 Press and hold one of the preset buttons
from [1] to [6] until the display blinks once.
Preset Number
Channel name
blinks once
Artist name
Song title
Selection by Category
You can toggle the category on and off every time you hold down
[BAND] for 2 sec. or more. If the category is set to on, the unit
operates as follows for each button:
Channel selection
[TUNE s]: Preceding channel in current category
[TUNE d]: Next channel in current category
Category name
Category selection
[▲]: Preceding category
[▼]: Next category
Clock
lights when category is set to on.
CQ-5800U
21
5800U_OI_01_eng.qxd 08.5.30 6:52 PM ページ22
Sirius Satellite Radio Control
Sirius Satellite broadcast service
Sirius Satellite coverage is only available in the United States (except Hawaii and Alaska) and a part of Canada. The instruction of
Satellite Operation Controls in the Operating Instructions and Guide will not be applied.
Preparation:
¡Connect the optional Sirius Satellite Radio receiver (SC-C1).
What is Sirius Satellite Radio?
Over 120 channels of the best entertainment and
completely commercial-free music for your car,
home or office.
Only SIRIUS has more than 65 original music channels, from
today’s hits to R&B oldies to classical masterpieces. From
authentic Country and real Bluegrass to cool Jazz, hot Latin,
Reggae, Rock and many more. Best of all, it’s all completely
commercial-free.
SIRIUS also has more than 55 channels of world-class sports,
news and entertainment. Included as part of your subscription,
you get up to 16 NFL games a week, up to 40 NBA games a week
and up to 40 NHL games a week. (Games are broadcasted during
their respective seasons.) Coupled with great sports news from
ESPN, the SIRIUS sports offering is unrivaled. And don’t forget a
host of other great news and entertainment, like NPR, CNBC, Fox
News, Radio Disney and E!Entertainment Radio.
With SIRIUS, the emphasis is on the music and entertainment
you want. The music is hosted by SIRIUS Jockeys, who are true
experts. They back-up the music with compelling information
about the song being played, and they understand that sometimes it’s best to just let the music speak for itself.
Rely on SIRIUS rocket science for superior coverage.
Only SIRIUS has three powerful satellites that fly directly over
the U.S. ensuring coast-to-coast coverage with high elevation
angles. This gives the satellites a “clear line of sight” to your car
or home, with much less concern for buildings, trees or other
objects that might block conventional satellite signals.
Once you experience more than 120 channels of digital entertainment, you’ll never want to leave your car. For more information,
visit www.sirius.com.
Getting Started
It is required to sign up to become a Sirius Satellite Radio subscriber. After checking your Sirius Satellite Radio ID, sign up on the
Sirius’s website or by calling them.
SR ID Confirmation
Activation of the Sirius Satellite Radio
This shows the ID required for having contact with SIRIUS
Satellite Radio.
Note: You can also see ID number by selecting channel 0.
Select either of the below to sign up
¡ Web site: http://home.sirius.com/webCUWI
¡ Phone number: 1-888-539-SIRIUS (7474)
1 Press the knob [PUSH SEL] for more than 2
seconds.
2 Press the knob [PUSH SEL].
3 Press [DISP] to return to the Sirius band display mode.
22
CQ-5800U
5800U_OI_01_eng.qxd 08.5.30 6:52 PM ページ23
Band
Caution
Press [BAND] to change the band.
To ensure safety, never attempt to preset stations
while you are driving.
Selection by Category (a page 24)
Parental channel lock/unlock setting (a page 24)
(Satellite) indicator
indicates the satellite receiver is ready.
PASS CODE
input
Display change
(a page 24)
Channel Selection
[TUNE s]: Lower
[TUNE d]: Higher
Notes:
¡ “RADIO ID” is displayed with channel 0.
¡ UPDATING” is displayed during the update of the identification code.
¡ When you select a locked channel, “LOCKED” is displayed
(a page 24).
Parental Lock ON/OFF Setting (a page 25)
Preset channel selection
Press the corresponding preset button from [1] to [6] to tune in
a preset channel.
Manual Preset Memory
1 Use [TUNE s/d] to find a channel.
2 Press and hold one of the preset buttons
from [1] to [6] until the display blinks once.
Preset Number
blinks once
CQ-5800U
23
5800U_OI_01_eng.qxd 08.6.3 5:16 PM ページ24
Sirius Satellite Radio Control (continued)
Display change
Parental channel lock/unlock setting
Press [DISP] to change the display.
Band number/
Channel number
Channel name
This function allows users to lock unfavorite channels and to
release locking.
1 Hold down [▼] for 2 sec. or more.
2 Press button [1] to [6] to enter the 4-digit
pass code number. (Default: 1111)
Artist/composer
name
Song title
Category name
Notes:
¡ The input pass code number will be converted into an
asterisk ( ) when you enter the pass code.
¡ To suspend lock/unlock setting, press [DISP].
3 Press [BAND] to confirm the pass code.
4 Press [TUNE s/d] to select a channel to
be locked or unlocked.
5 Press [BAND] to Lock/Unlock the channel.
indicates the
channel is locked.
Clock
6 Press [DISP] to confirm the channel and
return to the Sirius band display mode.
Selection by Category
You can toggle the category on and off every time you hold down
[BAND] for 2 sec. or more. If the category is set to on, the unit
operates as follows for each button:
Channel selection
[TUNE s]: Preceding channel in current category
[TUNE d]: Next channel in current category
Category selection
[▲]: Preceding category
[▼]: Next category
Parental channel unlock setting (Tuned channel)
This function allows users to release locking for tuned channel.
(“LOCKED” is displayed).
1 Hold down [▲] for 2 sec. or more.
2 Press button [1] to [6] to enter the 4-digit
pass code number. (Default: 1111)
Notes:
¡ The input pass code number will be converted into an
asterisk ( ) when you enter the pass code.
¡ To suspend lock/unlock setting, press [DISP].
3 Press [BAND] to confirm the pass code.
The tuned channel is unlocked.
lights when category is set to on.
24
CQ-5800U
5800U_OI_01_eng.qxd 08.6.3 5:16 PM ページ25
Parental lock ON/OFF setting
This function allows users to lock unfavorite channels and to
release locking. (default: ON)
1 Push the knob [PUSH SEL] for 2 sec. or
more.
2 Press button [1] to [6] to enter the 4-digit
pass code number. (Default: 1111)
Notes:
¡ The input pass code number will be converted into an
asterisk ( ) when you enter the pass code.
¡ To suspend lock on/off setting, press [DISP].
Pass code change
The pass code is changeable (default: 1111)
1 Hold down [▼] for 2 sec. or more.
2 Press button [1] to [6] to enter the 4-digit
pass code number. (Default: 1111)
Notes:
¡ The input pass code number will be converted into an asterisk ( ) when you enter the pass code.
¡ To suspend pass code change setting, press [DISP].
3 Press [BAND] to confirm the pass code.
4 Hold down [BAND] for 2 sec. or more.
5 Press button [1] to [6] to enter the new 4digit pass code number twice.
3
4 Turn [VOL] (volume) clock-
Press [BAND] to confirm the pass code.
wise or counterclockwise to
change each level.
Pass code initialization
q: ON
The pass code is restored to the factory default, “1111”.
w: OFF
1 Hold down [▼] for 2 sec. or more.
5 Press [DISP] to confirm the setting and
return to the Sirius band display mode.
2 Hold down [DISP] for 10 sec. or more.
¡ Hold down the button even after the screen changed.
(Regular screen)
CQ-5800U
25
5800U_OI_01_eng.qxd 08.5.30 6:52 PM ページ26
CD Changer Control
Notes :
¡ CD changer functions are designed for optional Panasonic
CD changer unit (CX-DP880, sold separately).
¡ This unit does not support the following through the CD
changer.
• CD-RW playback. (except when CX-DP880 is connected)
• MP3/WMA playback.
• CD text display.
¡ Pausing does not function in the CD changer mode.
Preparation:
Connect the CD changer, and load a magazine (CDs).
(Repeat)/
Display change
(Random) indicator
Scan, Repeat, Random
Scan play
Press [DISP] to change the display.
Track number/
Play time/
Disc number
Clock
The first 10 seconds of each track is played in sequence.
Press [4] (SCAN). Track number blinks.
Press again to cancel.
Disc scan play
From the next disc, the first 10 seconds of the first track in each
disc is played in sequence.
Hold down [4] (SCAN) for more than 2 seconds. Disc number
blinks.
Hold down again to cancel.
Repeat play
The current track/file is repeated.
lights.
Press [5] (REPEAT).
Press again to cancel.
Disc selection
[DISC ▲]: Next disc
[DISC ▼]: Preceding disc
Track selection
[d]: Next track
[s]: Preceding track (press twice)
Note: Hold down for fast forward/reverse.
Disc repeat play
The current disc is repeated.
Hold down [5] (REPEAT) for more than 2 seconds.
Hold down again to cancel.
blinks.
Random play
All the available tracks are played in a random sequence.
Press [6] (RANDOM).
lights.
Press again to cancel.
Disc random play
All the available tracks in current disc are played in a random
sequence.
blinks.
Hold down [6] (RANDOM) for more than 2 seconds.
Hold down again to cancel.
26
CQ-5800U
5800U_OI_01_eng.qxd 08.5.30 6:52 PM ページ27
Installation
WARNING
❐ This installation information is designed for experienced installers and is not intended
for non-technical individuals. It does not contain warnings or cautions of potential dangers involved in attempting to install this product.
Any attempt to install this product in a vehicle by anyone other than a qualified installer
could cause damage to the electrical system and could result in serious
personal injury or death.
❐ If your vehicle is equipped with air bag and/or anti-theft systems, specific procedures
may be required for connection and disconnection of the battery to install this product.
Before attempting installation of this electronic component, contact your vehicle dealer
or manufacturer to determine the required procedure and strictly follow their instructions.
FAILURE TO FOLLOW THE PROCEDURE MAY RESULT IN THE UNINTENDED DEPLOY-MENT
OF AIR BAGS OR ACTIVATION OF THE ANTI-THEFT SYSTEM RESULTING IN DAMAGE TO
THE VEHICLE AND PERSONAL INJURY.
❐ Overview
This product should be installed by a professional.
However, if you plan to install this product yourself, your first step
is to decide where to install it. The instructions in these pages will
guide you through the remaining steps:
(Please refer to the “WARNING” statement above.)
• Identify and label the car wires.
• Connect the vehicle wires to the wires of the power connector.
• Install the unit in the dashboard.
• Check the operation of the unit.
If you encounter problems, please consult your nearest professional installer.
❐ Dashboard Specifications
THICKNESS
MIN. 4.75 mm {3/16”}
MAX. 5.56 mm {7/32”}
111.6 mm {4 3/8”}
182 mm {7 3/16”}
Caution
This unit operates with a 12 V DC negative ground auto battery
system only. Do not attempt to use it in any other system.
Doing so could cause serious damage.
Before you begin installation, look for the item which is packed
with your unit.
• Installation Hardware…Needed for in-dash installation.
CQ-5800U
27
5800U_OI_01_eng.qxd 08.5.30 6:52 PM ページ28
Installation (continued)
❐ Preparation
Warning
If your vehicle is equipped with air bag and/or anti-theft systems, specific procedures may be required for connection and
disconnection of the battery to install this product.
Before attempting installation of this electronic component,
contact your vehicle dealer or manufacturer to determine the
required procedure and strictly follow their instructions.
FAILURE TO FOLLOW THE PROCEDURE MAY RESULT IN
THE UNINTENDED DEPLOYMENT OF AIR BAGS OR ACTIVATION OF THE ANTI-THEFT SYSTEM RESULTING IN DAMAGE
TO THE VEHICLE AND PERSONAL INJURY.
• Disconnect the cable from the negative (–) battery terminal (see
warning and caution below).
• Remove Mounting Collar w from the main unit temporarily,
which are already mounted at shipment.*
• Unit should be installed in a horizontal position with the front
end up at a convenient angle, but not more than 30˚.
0 – 30°
❐ Dashboard Installation
Installation Opening
This unit can be installed in any dashboard having an opening as
shown below. The dashboard should be 4.75 mm {3/16”} – 5.56
mm {7/32”} thick in order to be able to support the unit.
Caution
Various settings that have been stored in the memory in other
on-board equipment (vehicle navigation etc.) may be lost if
the battery terminals are disconnected.
Therefore, we recommend to make a record of or to back up
the settings before disconnecting the terminals.
After completing installation of the main unit, set the equipment again according to the record.
28
CQ-5800U
111.6 mm
{4 3/8”}
182 mm
{7 3/16”}
5800U_OI_01_eng.qxd 08.5.30 6:52 PM ページ29
❏ Installation Hardware
For Installation
No.
q
Item
Trim Plate
Diagram
Qty.
1
<YFC054C091ZA>
w
Mounting Collar*
1
<YFX214C437ZA>
e
Rear Support Strap
1
Note:
¡The number in parenthesis underneath each accessory
part name is the part number for maintenance and service.
¡Accessories and their parts numbers are subject to modification without prior notice due to improvements.
¡Use the supplied screws for installation exclusively. In
case of losing any of them, please order the specific
screw.
<YFG044C002ZA>
r
Lock Cancel Plate
2
t
Hex. Bolt
(5 mmø × 25 mm)
1
y
Hex. Nut (5 mmø)
2
u
Plain washer (5 mmø)
2
i
Spring Washer (5 mmø)
2
o
Toothed Lock Washer
(5 mmø)
1
<ZZBIS5800U>
CQ-5800U
29
5800U_OI_01_eng.qxd 08.5.30 6:52 PM ページ30
Installation (continued)
Mounting and removing the Main Unit
❏ Mounting Procedures (When using Mounting Collar w)
Note:
¡The car model, installation conditions and combination
of the units used may impose some restrictions on operating position.
IMPORTANT
When this unit is installed in dashboard, ensure that there
is sufficient air flow around the unit to prevent damage
from overheating. Do not block any ventilation holes on the
unit.
q Insert the Mounting Collar w into the dash-
q
board, and bend the mounting tabs out with a
screwdriver.
w Establish the rear connection of the unit.
After fixing Power Connector, fix the rear of the
unit to the car body by either method (a) or (b).
e Insert the unit into Mounting Collar w.
Secure the clamp plate of Mounting Collar w to
the hook.
w
e
r
t
Snapping point
r Insert Trim Plate q.
t After installation reconnect the negative (–)
battery terminal.
Method for Fixing the Rear of the Unit
(a) Using the rear support strap e
uPlain Washer
iSpring Washer
yHex. Nut
Fire Wall of Vehicle
tHex. Bolt
(5 mmø x 25 mm)
Rubber cushion (option)
Rear support bracket
(provided on the vehicle)
oToothed Lock Washer
yHex. Nut (5 mmø)
iSpring Washer
uPlain Washer
eRear Support Strap
Mounting Bolt (5 mmø)
wMounting Collar
30
(b) Using the rubber cushion (option)
CQ-5800U
Mounting bolt
(5 mmø)
w Mounting collar
5800U_OI_01_eng.qxd 08.5.30 6:52 PM ページ31
❏ Removing Procedures
q Remove the trim plate q.
q
w Lock release.
q Insert the lock cancel plate r until you hear a
click.
w Pull the unit out.
e Pull the unit out with both hands.
CQ-5800U
31
5800U_OI_01_eng.qxd 08.5.30 6:52 PM ページ32
Electrical Connections
Caution
• This wiring information is for experienced technical individual, for safety reason, please your dealer wire this connection.
• This product is designed to operate with a 12 V DC, negative ground battery system.
• To prevent damage to the unit, be sure to follow the connection diagram below.
• Do not insert the power connector into the unit until the wiring is completed.
• Be sure to insulate any exposed wires from a possible short-circuit from the vehicle chassis. Bundle all cables and keep cable
terminals free from touching any metal parts.
• Remember, if your vehicle has a drive computer or a navigation computer, the data of its memory maybe erased when the battery terminals are disconnected.
❐ Wiring Diagram
External Remote Control Lead
When using non-Panasonic external remote control, refer to the
manufacture for their product before connecting.
CD Receiver
CQ-5800U
Antenna
10 12
9
11
7
5
8
6
14 16
13 15
3
4
1
2
(Rear Side)
Power Connector
The power connector does not come
along with the unit. If need, please
consult your dealer.
Detail of power connector
NO.
1
2
3
4
5
6
7
8
FUNCTION
BATTERY +12 V
GROUND
———
———
———
POWER +12 V ACC
———
———
NO.
9
10
11
12
13
14
15
16
FUNCTION
REAR SP R (–)
REAR SP R (+)
FRONT SP R (–)
FRONT SP R (+)
FRONT SP L (–)
FRONT SP L (+)
REAR SP L (–)
REAR SP L (+)
(Red) Accessory Power(ACC)
(+12 V DC, negative ground
only)
ACC
(Black) Ground Lead
(Connect to a clean, bare
metallic part of your vehicle)
(Yellow) Battery Lead
Ground
Battery
(Connect to vehicle battery)
Illumination
(Gray/Black)
(White/Black)
(white)
Left Speaker
(Front)
32
CQ-5800U
(Gray)
Right Speaker
(Front)
(Green/Black)
(Orange) Illumination Lead
(Not used)
(Violet/Black)
(Green)
Left Speaker
(Rear)
(Violet)
Right Speaker
(Rear)
5800U_OI_01_eng.qxd 08.5.30 6:52 PM ページ33
Connection with CD Changer (CX-DP880)
CD Changer
CX-DP880 (option)
Power Connector
(Supplied with CX-DP880)
(R) (Red)
RCA Cord
Ground Lead (Black)
To a clean, bare metallic part of the car
chassis
Battery Lead (Yellow)
To the car battery, continuous
+12 V DC
DIN Cord (Black)
(L) (White)
CHANGER IN
DIN Connector
Conversion Cable for DVD/CD
Changer (CA-CC30U, option)
System-up connector
CQ-5800U
(Rear)
CQ-5800U
33
5800U_OI_01_eng.qxd 08.5.30 6:52 PM ページ34
Electrical Connections (continued)
Connection with XM Satellite Radio (CNP2000UC)
XM Direct2
CNP2000UC* (option)
Protocol Interface Adapter
XM Direct2 Panasonic Connection Cable
CNPPAN1* (option)
Mini-Micro
Car Antenna
System-up Connector
XM MiniTuner
& Dock
CQ-5800U
(Rear)
* Please understand that Panasonic is not liable for modification of specifications, shape, name, and the like of the
optional XM receiver and digital adapter without prior notice because they are not manufactured by Panasonic.
Connection with Sirius Satellite Radio (SC-C1)
Sirius Satellite Radio (Sirius Connect Vehicle Tuner)
SC-C1* (option)
SC OUTPUT Connector
Interface Adapter for Sirius Satellite Radio
(CA-LSRO1U*, option)
SC AUDIO cord
(Supplied with SC-C1)
System-up Connector
Power Connector
(Supplied with CA-LSRO1U)
CQ-5800U
(Rear)
* Please understand that Panasonic is not liable for modification of specifications, shape, name and the like of the
optional Sirius Radio receiver and interface adapter without prior notice because they are not manufactured by
Panasonic.
34
CQ-5800U
5800U_OI_01_eng.qxd 08.5.30 6:52 PM ページ35
Connection with Expansion Module (CY-EM100U)
Head unit/Expansion Module
Connecting cable
(Supplied with CY-EM100U)
System-up
Connector
CQ-5800U
(Rear)
Expansion Module
CY-EM100U (option)
CD Changer
CX-DP880 (option)
iPod
(L) (White)
CHANGER IN
(R) (Red)
Direct Cable for iPod
(CA-DC300U, option)
Conversion Cable for
CD Changer (CACC30U, option)
CQ-5800U
35
5800U_OI_01_eng.qxd 08.5.30 6:52 PM ページ36
Troubleshooting
If You Suspect Something Wrong
Check and take steps as described below.
If the described suggestions do not solve the problem, it is
recommended to take the unit to your nearest authorized Panasonic
Servicenter. The product should be serviced only by qualified personnel.
Please refer the checking and the repair to professionals. Panasonic
shall not be liable for any accidents arising out of neglect of checking the
unit or your own repair after your checking.
Never take measures especially for those other than indicated by italic letters in “Possible Solution” described below because those are
too dangerous for users to handle themselves.
Warning
¡ Do not use the unit in an irregular condition, for
example, without sound, or with smoke or a foul
smell, which can cause ignition or electric shock.
Immediately stop using the unit and consult your
dealer.
¡ Never try to repair the unit by yourself because it is
dangerous to do so.
Common
Problem
Possible cause a Possible solution
The power cord (battery, power and ground) is connected in the wrong way.
a Check the wiring.
No power to the unit
Fuse blows out.
a Eliminate the cause of fuse blowout and replace the fuse with new one.
Consult your dealer.
MUTE is set to ON.
a Set MUTE to OFF.
Sound is not generated.
There is contact between the external mute lead and the chassis.
a Connect the external mute lead correctly. If the lead is unused, insulate it.
The wiring of speaker lines are not correct, or a break or poor contact arises.
a Check the wiring in accordance with the wiring diagram.
Noise
There is an electromagnetic-wave generator such as a cellular phone near the unit or
its electrical lines.
a Keep an electromagnetic-wave generator such as a cellular phone away from
the unit and the wiring of the unit. In case that noise cannot be eliminated
due to the wiring harness of the car, consult your dealer.
The contact of the ground lead is poor.
a Make sure that the ground lead is connected to an unpainted part of the chassis securely.
Noise is made in step with
engine revolutions.
Some operations are not
executable.
36
CQ-5800U
Alternator noise comes from the car.
a Change the wiring position of the ground lead.
a Mount a noise filter on the power supply.
Some operations are not executable in particular modes such as menu mode.
a Read the operating instructions carefully and cancel the mode. If the unit is
still out of order, consult your dealer.
5800U_OI_01_eng.qxd 08.5.30 6:52 PM ページ37
BALANCE/FADER setting is not appropriate.
a Readjust BALANCE/FADER.
No sound from speaker(s)
The speaker channels are
reversed between right and
left.
The sound field is not clear in
the stereo mode. Central
sound does not settled.
The power fails
unintentionally.
There is a break, a short circuit, poor contact or wrong wiring regarding the speaker
wiring.
a Check the speaker wiring.
The speaker wiring is confused between right and left.
a Perform the speaker wiring in accordance with the wiring diagram.
The plus and minus terminals at right and left channels of speakers are connected
reversely.
a Perform the speaker wiring in accordance with the wiring diagram.
The safety device works.
a Consult your dealer, or your nearest Panasonic Servicenter.
Radio
Poor reception or noise
Antenna installation or wiring of antenna cable is faulty.
a Check whether the antenna mounting position and its wiring are correct. In
addition, check to see whether the antenna ground is securely connected to
the chassis.
No power is supplied to the antenna amplifier (when using a film antenna, etc.).
a Check the wiring of the antenna battery lead.
The number of auto preset
stations is less than 6.
The number of receivable stations is less than 6.
a Move to an area where receivable stations number is maximum, and try presetting.
Preset stations cannot be
stored.
The contact of the battery lead is poor, or the battery lead is not always powered.
a Make sure that the battery lead is connected securely, and preset stations
again.
CQ-5800U
37
5800U_OI_01_eng.qxd 08.5.30 6:52 PM ページ38
Troubleshooting (continued)
CD
No playback or disc ejected
Sound skipping or noise
Sound skipping due to
vibration
The disc is inserted upside down.
a Insert a disc correctly.
There is a flaw or foreign material on the disc.
a Remove the foreign material, or use a flawless disc.
There is a flaw or foreign material on the disc.
a Remove the foreign material, or use a flawless disc.
The unit is not sufficiently secured.
a Secure the unit to the console box.
The unit is tilted at over 30˚ in the front-to-end direction.
a Make the angle 30˚ or less.
Something such as a peeled label obstructs the disc coming out.
a Consult your dealer.
Disc unejectable
The microcontroller in the unit operates abnormally due to noise or other factors.
a Unplug the power cord and plug it again. In case the unit is still out of order,
consult your dealer.
MP3/WMA
No playback or disc ejected
The CD-R/RWs that are
playable on other devices are
not playable on this unit.
Sound skipping or noise
The disc has unplayable formatted data.
a Check the file format.
The playability of some CD-Rs/RWs may depend on the combination of media,
recording software and recorder to be used even if these CD-Rs/RWs are playable
on other devices such as a PC.
a Make CD-R/RWs in different combination of media, recording software and
recorder after referring to the description about the compressed audio player.
There is a flaw or foreign material on the disc.
a Remove the foreign material, or use a flawless disc.
Playing VBR (Variable Bit Rate) files may cause sound skipping.
a Play Non-VBR files.
Note: Refer to “Notes on MP3/WMA”. (a Page 44)
38
CQ-5800U
5800U_OI_01_eng.qxd 08.5.30 6:52 PM ページ39
USB
The USB device and USB extension cable are not connected correctly.
a Connect the USB device and USB extension cable correctly.
Music is not played back even
if the USB device is
connected.
There is no music stored in a format that is supported on this unit.
a Check if there is any music data that can be played stored on the USB device.
The file system of the USB device is not compatible with this unit.
a Use a USB device with a FAT12/16/32 file system.
The current consumption of the USB device exceeds 500 mA.
a Use a USB device with a current consumption lower than 500 mA.
“READING” is displayed but
music is not played back.
A USB hub is connected.
a Do not use a USB hub.
Too many recorded folders/files exist.
a When there are too many recorded folders/files, it may take a long time to
read all of the files.
XM Satellite Radio Control
Channel unselectable
No contact with XM Satellite radio Inc.
a Refer to page 20 of this book and the XM’s website to sign up for XM Radio
service.
Product Servicing
If the suggestions in the charts do not solve the problem, we recommend that you take it to your nearest authorized
Panasonic Servicenter. The product should be serviced only by a qualified technician.
CQ-5800U
39
5800U_OI_01_eng.qxd 08.5.30 6:52 PM ページ40
Error Display Messages
CD/MP3/WMA
Display
Possible cause a Possible solution
The disc is dirty, or is upside down.
a Check the disc.
The disc has scratches.
a Check the disc.
No operation by some cause.
a Unplug the power cord and plug it again. In case the unit is still out of order,
consult your dealer.
The player for some reason cannot read the file you are trying to play. (File recorded
in an unsupported file system, compression scheme, data format, file name extension, damaged data, etc.)
a Select a file that the player can read. Check the type of data recorded on the
disc. Create a new disc if necessary.
A WMA file can be copyrighted.
a The file protected by copyright is not playable.
No disc in the player.
a Insert disc into the disc slot.
CD changer
The disc is dirty, or is upside down.
a Check the disc.
The disc has scratches.
a Check the disc.
No operation by some cause.
a Eject the magazine. If failure persists, press the reset switch on the disc
changer. If normal operation is not restored, call the store where you purchased the unit or the nearest Panasonic Servicenter to ask for repairs.
No disc is in the CD Changer (magazine).
a Insert discs into the changer (magazine).
The changer has become disconnected from the unit in the changer mode.
a Verify the wiring.
40
CQ-5800U
5800U_OI_01_eng.qxd 08.5.30 6:52 PM ページ41
USB
A USB device is not connected or the connected device cannot be recognized.
a Use the type of USB memory that is suitable for this unit.
Your USB device has no playable file.
a Download playable file to your USB device.
A USB device the capacity of which exceeds the acceptable current was connected.
For some reason, an over-current was detected.
a Use a USB device that has a consumption current of less than 500 mA.
a Switch the source, and select the USB mode again.
a Check that the USB connector section is not dirty, and that there is no foreign
material.
No operation by some cause.
a Turn off the power and turn on the power again, or turn the key to the ACC OFF
position and turn the key to ACC ON position again. If this does not solve the
problem, unplug the power cord and plug it in again. In case the unit is still
out of order, consult your dealer.
The player for some reason cannot read the file you are trying to play. (File recorded
in an unsupported file system, compression scheme, data format, file name
extension, damaged data, etc.)
a Confirm that the USB extension cable is firmly connected, and reconnect if
not. Select a file that the player can read. Check the type of data stored in the
USB device. Format the USB device if necessary.
A WMA file can be copyrighted.
a The file protected by copyright is not playable.
iPod Control
The iPod cable was disconnected in the iPod mode.
a Reconnect the iPod cable.
Your iPod has no playable music.
a Download playable music to your iPod.
CQ-5800U
41
5800U_OI_01_eng.qxd 08.5.30 6:52 PM ページ42
Error Display Messages (continued)
XM Satellite Radio Control
Cannot receive XM satellite radio.
a Verify the wiring.
XM antenna unconnected.
a Connect the XM antenna.
XM broadcasts unreceivable because of poor receiving conditions.
a Move to an area where XM broadcasts can be received well.
Channel not in service
a This channel is not currently in service. Tune to another channel.
Sirius Satellite Radio Control
Cannot receive Sirius Satellite Radio
a Verify the wiring.
Sirius antenna unconnected.
a Connect the Sirius antenna.
User’s registration has not been carried out.
a Complete user’s registration.
A channel that is not included in the agreement was selected.
a Select a channel that is included in the agreement. Refer to the operating
instructions for Sirius receiver with regard to the agreement.
The subscription information was updated.
a Wait for 3 minutes in the Sirius mode.
Your location is out of receivable areas (e.g. in a tunnel), or the unit is decoding a
selected broadcast. The display appears also while the connections are being
checked after the power has been turned on.
a Wait until getting out of the unreceivable area or completing the decoding.
42
CQ-5800U
5800U_OI_01_eng.qxd 08.5.30 6:52 PM ページ43
The selected channel is invalid.
a Select a channel which can be received instead.
Hardware error messages.
a Check the Hardware carefully.
Maintenance
Cleaning this Unit
Your product is designed and manufactured to ensure a
minimum of maintenance. Use a dry soft cloth for routine
exterior cleaning. Never use benzine, thinner or other solvents.
To remove stubborn stains
1 Moisten the soft cloth in dishwashing
soap diluted with water and wring well.
2 Wipe lightly. Go over the same surface
with a dry cloth.
Alcohol
Alcohol
Pesticide
Pesticide
Wax
Wax
Thinner
Thinner
Benzine
Benzine
Note:
¡Since there is the possibility of water drops getting
inside of the unit, do not directly apply cleanser to the
surface.
¡Do not scratch the screen with your nails or other hard
objects. The resulting scratches or marks will obscure
the images.
Caution
¡If water drops or similar wet substances get inside the
unit, it may cause a malfunction.
Caution
This product is designed without a fuse inside due to fuses already exist in your vehicle. We would recommend to use fuses
of the specified rating (15 A). Using fuses that exceed the prescribed capacity could cause this product to start smoking,
ignite or other malfunction.
If your vehicle is without the fuse or a circuit breaker to protect this unit, please your dealer add the specified fuse 15 A or a
circuit breaker at the BATTERY lead of your vehicle's harness. Please see page 32 to find out where "BATTERY +12V" is for
your dealer adding the fuse or the circuit breaker.
Refer fuse replacement to qualified service personnel. When the fuse blows out, eliminate the cause and have it replaced
with the fuse prescribed for this unit by a qualified service engineer. Incorrect replacement of the fuse may lead to smoke,
fire, and damage to the product.
CQ-5800U
43
5800U_OI_01_eng.qxd 08.5.30 6:52 PM ページ44
Notes on MP3/WMA
Both of MP3 (MPEG Audio Layer-3) and WMA (Windows Media™ Audio) is a format for compressed audio file. These formats allow
users to save all the files contained in approximately 10 pieces of existing CDs on one piece of CD-R/RW.
Note: Each of encoding software is not included with this unit.
*MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.
Cautions as to compressed audio files
Common
MP3
¡ High bit rate and high sampling frequency are recommended
for high quality sounds.
¡ Selecting VBR (Variable Bit Rate) is not recommended
because playing time is not displayed properly and sound
may be skipped.
¡ The playback sound quality differs depending on the encoding
circumstances. For details, refer to the user manual of your
own encoding software and writing software.
¡ Be sure to put an extension compatible with the format.
¡ It is recommended to set the bit rate to “128 kbps or more”
and “fixed”.
WMA
¡ It is recommended to set the bit rate to “64 kbps or more”
and “fixed”.
¡ Do not set the copy protect attribute on the WMA file to
enable this unit to play back.
Compression formats
Compression method
Bit rate
VBR
Sampling frequency
MPEG 1 audio layer 3 (MP3)
32 k – 320 kbps
Yes
32, 44.1, 48 kHz
MPEG 2 audio layer 3 (MP3)
8 k – 160 kbps
Yes
16, 22.05, 24 kHz
MPEG 2.5 audio layer 3 (MP3)
8 k – 160 kbps
Yes
8, 11.025, 12 kHz
Windows Media Audio Ver. 2, 7, 8, 9*
64 k – 160 kbps
Yes
32, 44.1, 48 kHz
* WMA 9 Professional/LossLess/Voice are not supported.
Caution
Never put an extension indicating compressed audio (such as “.mp3” and “.wma”) to files other than compressed audio files. This may not only produce noise from the speaker damage, but also damage your
hearing.
Cautions as to the display of this unit
Display Information
ASCII character set
¡ CD-TEXT
Disc title
Track title
¡ MP3 (ID3 tag)
Album name,
Title name/artist name
¡ MP3/WMA
Folder name,
File name
¡ WMA (WMA tag)
Album name,
Title name/artist name
Displayable characters
¡ Displayable length of file name/folder name: within 30 characters. (Unicoded file and folder names are reduced by half in
the number of displayable characters.)
¡ Name files and folders in accordance with the standard of
each file system. Refer to the instructions of writing software
for details.
¡ ASCII character set and special characters in each language
can be displayed.
44
CQ-5800U
A to Z, a to z, digits 0 to 9, and the following symbols:
(space) ! ” # $ % & ’ ( ) * + , - . / : ; < = > ? @ [ \ ] ˆ _ ` { | }
~
Notes:
¡ Characters may be garbled depending on encoding software
to be used
¡ Undisplayable characters and symbols will be converted into
an asterisk ( ).
*
Windows Media, and the Windows
logo are trademarks, or registered
trademarks of Microsoft Corporation
in the United States and/or other
countries/regions.
5800U_OI_01_eng.qxd 08.5.30 6:52 PM ページ45
Cautions as to compressed audio files
Compressed audio file writing
¡ Do not save an audio file (CD-DA file) and a compressed
audio file on the same disc. Failure to observe this may
result in difficulty in playing.
¡ If compressed audio files formatted with two or more types
are saved on the same disc, each format shall have a different folder.
¡ Do not write files other than compressed audio files.
¡ Playability may depend on the combination of writing software and disc writer to be used.
¡ This unit does not support the play list function.
¡ Write files in a disc-at-once manner unless otherwise needed.
¡ You can shorten the duration between data read and playback
by decreasing the quantity of files or folders, or the depth of
the hierarchy.
Supported file systems
■ CD-media
ISO 9660 Level 1/Level 2, Apple Extension to ISO 9660,
Joliet, Romeo
Note: Apple HFS, UDF 1.50, Mix CD and CD Extra are not
supported.
■ USB-device
File system is FAT12/16/32
Folder selection order/file playback order
■ CD-media/USB-device
Root Folder
(Root Directory)
1
2
q
Folder Selection
4
3
e
w
5
6
–
8
t
7
Tree 2
1
r
8
Tree 1
In the order
File Selection
In the order
–
y
q
Tree 3
y
Tree 4
Tree 8
(Max.)
Maximum number of files/folders
¡ Maximum number of files
CD-media: 999
USB device: 65 535
¡ Maximum number of files in one folder
CD-media: 255
USB device: 999
¡ Maximum depth of trees: 8
¡ Maximum number of folders: 255 (Root folder is included.)
Notes:
¡ This unit counts the number of folders irrespective of the
presence or absence of a compressed audio file.
¡ If the selected folder does not contain any compressed audio
file, the nearest compressed audio file in the order of playback
will play.
¡ Playback order of this unit may be different from that of other
compressed audio players even if the same disc is used
¡ “ROOT” appears when displaying the root folder name.
Common
Copyright
It is prohibited by copyright laws to copy, distribute and deliver
copyrighted materials such as music without the approval of
copyright holder except enjoying yourself personally.
No warranty
Above description complies with our investigations as of
December 2007. It has no warranty for reproducibility and
displayability of MP3/WMA.
CQ-5800U
45
5800U_OI_01_eng.qxd 08.5.30 6:52 PM ページ46
Notes on Discs
How to hold the disc
Disc insert
¡Do not touch the underside of the disc.
¡Do not scratch the disc.
¡Do not bend disc.
¡When not in use, keep disc in the case.
Printed side
Unusable discs
Do not use discs that fit any of the descriptions given
below. Using these discs may damage the discs or
cause the unit to malfunction.
¡Special discs in a shape which is not round
¡Partly or wholly transparent disc
Wholly transparent disc*
Partly transparent disc
The surfaces of new discs tend to be slippery. Therefore,
when using such a disc for the first time, it may not load
satisfactorily even when it has been inserted into the unit.
At a time like this, insert the disc into the unit as far as it
will go until it is loaded properly.
¡When inserting a disc into or ejecting and removing it
from the unit, insert it straight in or eject and remove
it straight out in parallel with the unit. Otherwise, the
disc may be scratched or marked in the process.
¡When inserting a disc, do not put one disc on another.
Failure to observe this may cause the discs to be
jammed.
Do not leave discs in the following places:
¡Direct sunlight
¡Near car heaters
¡Dirty, dusty and damp areas
¡On seats and dashboards
Disc cleaning
Use a dry, soft cloth to wipe from the center outward.
Do not attach any seals or labels to your discs.
Do not write on the disc label in a heavy pen or ballpoint
pen.
*Wholly semi-transparent disc may not be played back.
¡Discs with adhered labels, etc. on them
<Correct>
Disc with adhered stickers
or tape
Labels created by a printer
Protective films or sheets
Disc accessories (stabilizers, etc.)
¡Damaged or deformed discs
Shoddily made discs
Discs with cracks,
scratches or parts missing
<Wrong>
Notes on CD-Rs/RWs
¡You may have trouble playing back some CD-R/RW
discs recorded on CD recorders (CD-R/RW drives),
either due to their recording characteristics or dirt, fingerprints, scratches, etc. on the disc surface.
¡CD-R/RW discs are less resistant to high temperatures
and high humidity than ordinary music CDs. Leaving
them inside a car for extended periods may damage and
make playback impossible.
¡The unit may not successfully playback a CD-R/RW that
was made by the combination of writing software, a CD
recorder (CD-R/RW drives) and a disc if they are incompatible with one another.
¡This player does not play CD-R/RW discs if the session
is not closed.
¡Be sure to observe the handling instructions of CDR/RW discs.
¡This player does not play CD-R/RW discs which contain
other than CD-DA or MP3/WMA data.
Discs with burrs
Please remove the burrs
before use.
46
CQ-5800U
5800U_OI_01_eng.qxd 08.5.30 6:52 PM ページ47
Specifications
General
Power Supply:
Current consumption:
Maximum Power Output:
Tone adjustment range:
Bass:
Treble:
Power Output:
Suitable Speaker Impedance:
Dimensions (W x H x D):
Weight:
USB connector
USB standard compatibility
File system
Maximum supply current
Playable audio format
Recommended capacity
Front AUX input
Input impedance
Allowable external input
Connector
12 V DC (11 V-16 V) test Voltage 14.4 V, Negative ground
Less than 2.5 A (CD mode, 0.5 W 4-speaker)
45 W x 4 channels at 400 Hz, Volume Control maximum
± 12 dB at 100 Hz
± 12 dB at 10 kHz
18 W per channel into 4 ohms, 40 to 30 000 Hz at 3 % THD
4-8 Ω
178 x 100 x 155 mm {7” x 3 15/16 ” x 6 1/8”}
1.6 kg {3.5 lbs. 56.4 oz.}
1.1/2.0 full speed
FAT12/16/32
500 mA
MP3/WMA
Less than 4 GB (1 partition)
10 kΩ
2.0 V
3.5 mmø Stereo mini pin
FM Stereo Radio
Frequency Range:
Useable Sensitivity:
50 dB Quieting Sensitivity:
Frequency Response:
Alternate Channel Selectivity:
Stereo Separation:
Signal/Noise Ratio:
87.9-107.9 MHz
12 dBf. (1.1 µV/ 75 Ω, S/N 30 dB)
17 dBf. (1.8 µV/ 75 Ω)
30-15 000 Hz ±3 dB
75 dB
35 dB at 1 kHz
70 dB (Mono)
AM Radio
Frequency range:
Usable sensitivity:
530 kHz–1 710 kHz
28 dB/µV (S/N 20 dB)
Weather Band Radio
Frequency range:
Usable sensitivity:
Signal/Noise Ratio (40 dB/µV):
162.400 –162.550 MHz
3 dB/µV (S/N 20 dB)
50 dB
CD Player
Sampling Frequency:
DA Converter:
Error Correction System:
Pick-Up Type:
Light Source:
Wavalength:
Frequency Response:
Signal to Noise Ratio:
Wow and Flutter:
Channel Separation:
8 times oversampling
1 bit/4 DAC System
Spot size detection method
3-beam
Semiconductor laser
790 nm
20 - 20,000 Hz (±1 dB)
85 dB
Below measurable limits
75 dB
Above specifications comply with EIA standards.
Note: Specifications and the design are subject to modification
without notice due to improvements in technology.
Power Output:
18 W RMS x 4 Channels at 4 Ω and ≤ 1%
THD+N
Signal to Noise Ratio:
85 dBA (reference: 1 W into 4 Ω)
CQ-5800U
47
