720-730.book Page i Thursday, October 30, 2003 11:32 AM

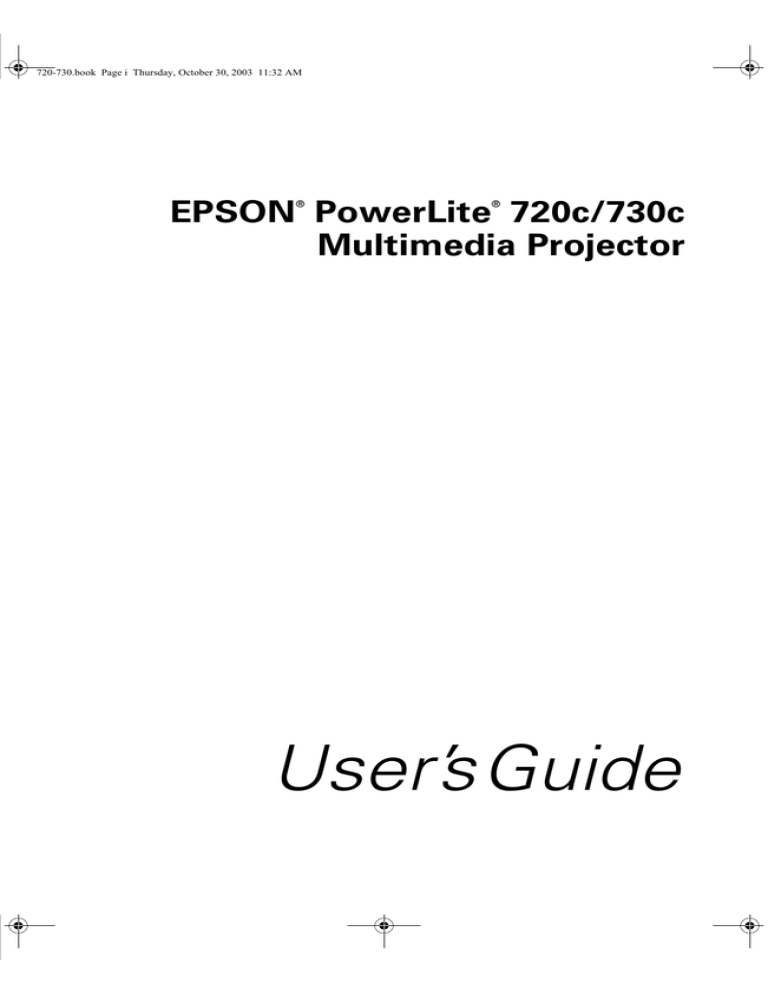

EPSON PowerLite 720c/730c
Multimedia Projector
®
®
User’s Guide
720-730.book Page ii Thursday, October 30, 2003 11:32 AM
Important Safety Information
WARNING: Never look into the projector lens when the lamp is turned on; the bright light can damage your eyes.
Never let children look into the lens when it is on. Never open any cover on the projector, except the lamp and
filter covers. Dangerous electrical voltages inside the projector can severely injure you. Except as specifically
explained in this User’s Guide, do not attempt to service this product yourself. Refer all servicing to qualified service
personnel.
WARNING: The projector and its accessories come packaged in plastic bags. Keep plastic bags away from small
children to avoid any risk of suffocation.
Caution: When you replace the lamp, never touch the new lamp with your bare hands; the invisible residue left by
the oil on your hands may shorten the lamp life. Use a cloth or glove to handle the new lamp.
Copyright Notice
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in
any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior
written permission of SEIKO EPSON CORPORATION. The information contained herein is designed only for
use with this EPSON product. EPSON is not responsible for any use of this information as applied to other
products.
Neither SEIKO EPSON CORPORATION nor its affiliates shall be liable to the purchaser of this product or third
parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident, misuse,
or abuse of this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the
U.S.) failure to strictly comply with SEIKO EPSON CORPORATION’s operating and maintenance instructions.
SEIKO EPSON CORPORATION shall not be liable for any damages or problems arising from the use of any
options or any consumable products other than those designated as Original EPSON Products or EPSON
Approved Products by SEIKO EPSON CORPORATION.
EPSON is a registered trademark of SEIKO EPSON CORPORATION.
EPSON Connection, EPSON Store, and Extra Care are service marks; SizeWise is a trademark; and PrivateLine,
Presenters Club, and PowerLite are registered trademarks of Epson America, Inc.
Pixelworks, DNX, and the DNX logo are trademarks of Pixelworks, Inc.
General Notice: Other product names used herein are for identification purposes only and may be trademarks of
their respective owners. EPSON disclaims any and all rights in those marks.
Copyright © 2003 by Epson America, Inc.
Printed on recycled paper
ii
9/03
CPD-13915R3
720-730.book Page iii Thursday, October 30, 2003 11:32 AM
Contents
Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Getting the Most from Your Projector . . . . . . . . . . . . . . . . .
Using Your Documentation . . . . . . . . . . . . . . . . . . . . . . . .
Getting More Information . . . . . . . . . . . . . . . . . . . . . .
Registration and Warranty . . . . . . . . . . . . . . . . . . . . . . . . . .
Unpacking the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . .
Additional Components . . . . . . . . . . . . . . . . . . . . . . . .
Optional Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . .
1
2
Setting Up the Projector . . . . . . . . . . . . . . . . . . . . .
1
2
3
3
4
5
6
7
Positioning the Projector . . . . . . . . . . . . . . . . . . . . . . . . . .
Connecting to a Laptop Computer . . . . . . . . . . . . . . . . . .
Connecting the Computer Cable . . . . . . . . . . . . . . . .
Connecting the Cable for Remote Mouse Control . . .
Amplifying Computer Audio . . . . . . . . . . . . . . . . . . .
Connecting to Video Sources . . . . . . . . . . . . . . . . . . . . . .
Connecting the RCA Video Cable . . . . . . . . . . . . . . .
Connecting an S-Video Cable . . . . . . . . . . . . . . . . . . .
Connecting a Component Video Cable . . . . . . . . . . .
9
10
12
12
13
14
15
16
17
18
Using the Projector . . . . . . . . . . . . . . . . . . . . . . . . .
Turning On Your Equipment . . . . . . . . . . . . . . . . . . . . . .
Turning On the Projector . . . . . . . . . . . . . . . . . . . . . .
What To Do If You See a Blank Screen . . . . . . . . . . .
19
20
20
22
iii
720-730.book Page iv Thursday, October 30, 2003 11:32 AM
Adjusting the Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Focusing and Zooming Your Image . . . . . . . . . . . . . . . 25
Adjusting the Height of Your Image . . . . . . . . . . . . . . . 26
Adjusting the Image Shape . . . . . . . . . . . . . . . . . . . . . . 27
Shutting Down the Projector . . . . . . . . . . . . . . . . . . . . . . . . 28
3
4
iv
Using the Remote Control . . . . . . . . . . . . . . . . . . . 31
Using the Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . 32
Controlling the Picture and Sound . . . . . . . . . . . . . . . . . . . 32
Switching Between Picture Sources . . . . . . . . . . . . . . . . 32
Turning Off the Picture and Sound . . . . . . . . . . . . . . . 33
Stopping Action . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Zooming Your Image . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Using the Remote Control as a Wireless Mouse . . . . . . . . . 34
Replacing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Fine-tuning the Projector. . . . . . . . . . . . . . . . . . . . 37
Using the Projector’s Menu System . . . . . . . . . . . . . . . . . . . 38
Changing Menu Settings . . . . . . . . . . . . . . . . . . . . . . . 39
Adjusting the Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Repositioning the Image . . . . . . . . . . . . . . . . . . . . . . . . 40
Adjusting Image Appearance . . . . . . . . . . . . . . . . . . . . . 40
Adjusting the Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Creating Your Own Startup Screen . . . . . . . . . . . . . . . . . . . 43
Capturing the Image . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Selecting When the Image Displays . . . . . . . . . . . . . . . 44
Customizing Projector Features . . . . . . . . . . . . . . . . . . . . . . 45
Setting Advanced Features . . . . . . . . . . . . . . . . . . . . . . 46
Viewing Lamp Usage and Other Information . . . . . . . . . . . 48
Restoring the Default Settings . . . . . . . . . . . . . . . . . . . . . . . 49
720-730.book Page v Thursday, October 30, 2003 11:32 AM
5
6
A
Maintaining and Transporting
the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Cleaning the Lens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cleaning the Projector Case . . . . . . . . . . . . . . . . . . . . . . . .
Cleaning and Replacing the Air Filter . . . . . . . . . . . . . . . . .
Replacing the Lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Resetting the Lamp Timer . . . . . . . . . . . . . . . . . . . . . . . . .
Transporting the Projector . . . . . . . . . . . . . . . . . . . . . . . . .
52
52
53
54
56
57
Solving Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using On-Screen Help . . . . . . . . . . . . . . . . . . . . . . . . . . . .
What To Do When the Lights Flash . . . . . . . . . . . . . . . . . .
Solving Problems with the Image or Sound . . . . . . . . . . . . .
Solving Problems with the Remote Control . . . . . . . . . . . .
Where To Get Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Telephone Support Services . . . . . . . . . . . . . . . . . . . . .
59
60
61
63
69
70
70
Appendix A: Connecting to Additional
Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Installing the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connecting to a PC Desktop Computer . . . . . . . . . . . . . .
Connecting the Computer Cable . . . . . . . . . . . . . . . . .
Connecting the Mouse Cable . . . . . . . . . . . . . . . . . . . .
Connecting the Audio Cable . . . . . . . . . . . . . . . . . . . .
Connecting to a Desktop Macintosh . . . . . . . . . . . . . . . . . .
Connecting the Computer Cable . . . . . . . . . . . . . . . . .
Connecting the Mouse Cable . . . . . . . . . . . . . . . . . . . .
Connecting the Audio Cable . . . . . . . . . . . . . . . . . . . .
Connecting to a High-End Workstation . . . . . . . . . . . . . . .
74
74
75
76
77
78
79
80
81
81
v
720-730.book Page vi Thursday, October 30, 2003 11:32 AM
B
C
Appendix B: Notices . . . . . . . . . . . . . . . . . . . . . . . . . 83
Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . 83
Remote Control Information . . . . . . . . . . . . . . . . . . . . . . . 85
Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . 86
FCC Compliance Statement . . . . . . . . . . . . . . . . . . . . . . . . 87
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Appendix C: Technical Specifications . . . . . . . 91
General. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Projection Lamp. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Mouse Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Environmental . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Compatible Video Formats . . . . . . . . . . . . . . . . . . . . . . . . . 93
Computer Video Port Pin Assignments . . . . . . . . . . . . . . . . 95
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
vi
720-730.book Page 1 Thursday, October 30, 2003 11:32 AM
-
Welcome
The EPSON
® PowerLite®
720c and 730c are micro-portable
projectors that offer up to 2000 ANSI lumens of brightness. From
boardrooms to auditoriums, your full-color presentations and videos
will be bright and visible even in ordinary indoor lighting.
Images are displayed at a resolution of 1024 × 768 pixels. Three
0.9-inch LCDs provide a 400:1 contrast ratio for incredibly vivid
images and clear text. Support for S-Video contributes to
theater-quality performance.
With EPSON’s patented SizeWise™ technology, the projector
supports computer displays ranging from VGA through UXGA.
You can connect the projector to a wide range of computers, including
PCs and laptops, Apple® Macintosh,® Power Macintosh® series
(including G3 and G4 systems), PowerBook® computers, many
iMac® and iBook® series systems, and high-end workstations such as
the Sun® SPARCstation.™
You can use any of the following video sources: HDTV, VCR, DVD
player, gaming consoles, such as Microsoft® Xbox,™ Sony®
PlayStation® 2, and Nintendo GameCube,™ camcorder, digital
camera, or laser disc player, supporting NTSC, PAL, or SECAM
video.
Welcome 1
720-730.book Page 2 Thursday, October 30, 2003 11:32 AM
Getting the Most from Your Projector
Depending on your presentation, you can take advantage of any or all
of these options:
■
Connecting to a laptop or other computer
If you want to connect to a PC laptop or Macintosh PowerBook
or iBook, see the Quick Setup sheet or see page 12 of this guide.
To connect to a desktop computer or workstation, see
Appendix A.
■
Connecting to video sources
You can connect a DVD player, VCR, camcorder, laser disc
player, digital camera, or any other video source to your projector.
You can connect both computer and video sources at the same
time and easily switch between them. See page 15 for instructions.
■
note
Using the remote control
The remote control lets you switch from computer to video
source, zoom, and many other projector features. For details, see
Chapter 3.
Most of the projector’s
features can only be utilized
with the remote control. To
avoid losing the remote
control, place it in the remote
control storage compartment
at the back of the projector.
By connecting an additional cable, you can also use the remote
control as a wireless mouse. This lets you click through
computer-based presentations (such as PowerPoint®) from up to
20 feet away. For more information, see page 34.
■
Including sound in your presentation
If your presentation includes sound, you can connect an optional
audio cable to use the projector’s built-in speaker. For details, see
page 14 (for laptops) or Appendix A (for other systems).
2
Welcome
720-730.book Page 3 Thursday, October 30, 2003 11:32 AM
Using Your Documentation
To connect the projector to your laptop and get your presentation
running fast, see the Quick Setup sheet that came in your owner’s kit
or see page 12 of this guide.
This book contains all the information you need to set up and use
your projector. Please follow these guidelines as you read through it:
■
Warnings must be followed carefully to avoid bodily injury.
■
Cautions must be observed to avoid damage to your equipment.
■
Notes contain important information about your projector.
Getting More Information
Need tips on giving presentations? How about quick steps for setting
up your projector? Here’s where you can look for help:
■
www.presentersonline.com
Includes a library of articles covering presentation tips, tricks, and
technology. The site provides templates, clip art and sound clips,
as well as Presenters Services to use on the road. Even more
resources and services are available if you register to join the
Presenters Club®—and it’s free.
■
Owner’s kit
Includes your Quick Setup sheet, warranty brochures, and
EPSON PrivateLine® Support card. Store this User’s Guide in the
envelope and keep the envelope with your projector at all times.
■
Quick Setup sheet
Gives you all the instructions you need to get your projector set
up and connected to a laptop or PowerBook computer.
■
Built-in help system
Provides assistance for common problems. Available from the
Help button on the projector. See page 60 for details.
■
support.epson.com
Download FAQs and e-mail your questions to EPSON support.
Welcome 3
720-730.book Page 4 Thursday, October 30, 2003 11:32 AM
If you still need help after checking this User’s Guide and the sources
listed above, you can use the EPSON PrivateLine Support service to
get help fast. Call (800) 637-7661 and enter the PIN on the card in
your owner’s kit. See page 70 for more information.
Registration and Warranty
Your projector comes with a basic carry-in warranty and an
international warranty that let you project with confidence anywhere
in the world. For details, see page 88 and the warranty brochure
included in your owner’s kit.
In addition, EPSON offers free Extra CareSM Road Service. In the
unlikely event of an equipment failure, you won’t have to wait for
your unit to be repaired. Instead, EPSON will ship you a replacement
unit anywhere in the United States or Canada, usually via overnight
delivery. See the brochure in your owner’s kit for details.
To register, complete the registration form in your owner’s kit and
mail it to EPSON. Or register your product online at:
http://epsonwebreg.info2.net/
Registering also lets you receive special updates on new accessories,
products, and services.
4
Welcome
720-730.book Page 5 Thursday, October 30, 2003 11:32 AM
Unpacking the Projector
After unpacking the projector, make sure you have all the parts shown
below:
ge up
n Pa
dow
Page
r
Powe
S-Video
Com
/Video
puter
Menu
Color
A/V Mu
te
Mode
Freeze
E-Zoom
Enter
ESC
Auto
remote control
projector
power cord
computer cable
documentation
RCA AV cable
soft carrying case
USB mouse cable
Save all packaging in case you need to ship the projector. Always use
the original packaging (or equivalent) when you need to send the
projector to another location.
If you are moving the projector by hand, use the carrying case
included with the projector.
Welcome 5
720-730.book Page 6 Thursday, October 30, 2003 11:32 AM
Additional Components
Depending on how you plan to use the projector, you may need
additional components:
6
Welcome
■
To receive an S-Video signal, you need an S-Video cable. (One is
usually provided with your video device.)
■
To receive a component video signal from a VCR or other video
device, you need a D-sub 15-pin to component video cable
(available from EPSON; see page 7).
■
To amplify your computer’s audio through the projector’s sound
system, you need a computer audio cable (male-to-male 3.5-mm
stereo miniplug cable). See your computer or electronics dealer to
obtain this cable.
■
Some older PowerBooks and Macintosh desktop models may
need the Macintosh adapter set shown on page 79 (available from
EPSON; see page 7). Older iMac systems may need a special
adapter to provide a VGA output port; see your computer dealer.
720-730.book Page 7 Thursday, October 30, 2003 11:32 AM
Optional Accessories
To enhance your use of the projector, EPSON provides the following
optional accessories:
Product
Product number
Replacement lamp and air filter
V13H010L18
Samsonite® wheeled soft case
Soft shoulder bag
Notebook/projector soft shoulder bag
ELPKS24
ELPKS31
ELPKS32
Distribution amplifier
ELPDA01
Component video cable (VGA to component video)
ELPKC19
Macintosh adapter set (includes monitor adapter
and desktop adapter)
ELPAP01
Presentation audio system
ELPPAS1
Wireless microphone and two satellite speakers
ELPCVSII
50-inch portable screen
60-inch Insta-Theatre screen
80-inch Insta-Theatre screen
ELPSC06
ELPSC07
ELPSC08
High resolution document imager
Motion presentation camera
High resolution document camera
ELPDC02
ELPDC03
V12H064020
Kensington® security lock
ELPSL01
You can purchase these accessories from your dealer, by calling
EPSON at (800) 873-7766, or by visiting the EPSON StoreSM
at www.epsonstore.com (U.S. sales only). In Canada, please call
(800) 463-7766 for dealer referral.
Welcome 7
720-730.book Page 8 Thursday, October 30, 2003 11:32 AM
8
Welcome
720-730.book Page 9 Thursday, October 30, 2003 11:32 AM
1
Setting Up the Projector
T
his chapter tells you how to set up the projector and connect it to a
laptop computer or video source. If you need to connect the projector
to a desktop or workstation computer, see Appendix A.
You’ll find instructions for the following in this chapter:
■
Positioning the projector
■
Connecting to a laptop computer
■
Connecting to video sources
Setting Up the Projector 9
720-730.book Page 10 Thursday, October 30, 2003 11:32 AM
Positioning the Projector
Before connecting the projector, you need to decide where to place it.
The location you choose depends on the size of the room and what
you are projecting.
caution
Don’t hold or lift the
projector by the lens, or
you may damage it.
note
It’s easier to position the
projector when the screen is
directly in front of the room.
If the screen is placed
diagonally in a corner, it’s
much more difficult to aim
the projector correctly at the
screen and get a rectangular
image.
■
Place the projector on a sturdy, level surface, between
3.2 and 38.5 feet from the screen.
■
Make sure there is plenty of space for ventilation around and
under the projector.
■
Make sure the projector is within 6 feet of an electrical outlet or
extension cord and within 5 feet of your computer and/or video
source.
■
Place the projector directly in front of the center of the screen,
facing the screen squarely. Otherwise, your image will not be
rectangular.
Most presenters find it convenient to place the projector in front of
the audience, leaving as much space as possible between the projector
and the screen to get a good-sized image. This lets the presenter stand
in the front of the room, face the audience, and remain close enough
to the equipment to be able to control it.
Use the figure below as a guideline to help you determine how far
from the screen to place the projector. Image size generally increases
with distance, but may vary depending on how you position the zoom
ring and whether you have adjusted the image size with other settings.
33.2 to 38.5 feet
10
Setting Up the Projector
6.5 to 7.5 feet
3.2 to 3.7 feet
720-730.book Page 11 Thursday, October 30, 2003 11:32 AM
If you place the projector below the level of the screen, you’ll have to
tilt it up by extending the feet as shown. Tilting the projector upward
causes the image to lose its rectangular shape, but the Auto Keystone
feature corrects the distortion automatically. If the image does not
regain its rectangular shape, the Auto Keystone feature may have been
disabled. To turn it on or for more information on keystone
correction refer to the next chapter.
If you place the projector level with the bottom of the screen, the
image will be rectangular and you won’t have to adjust it. If you place
the projector higher than the bottom of the screen, the image will still
be rectangular, but you won’t be able to fill the whole screen with the
image.
note
After positioning the
projector, you may want to
connect a Kensington
MicroSaver anti-theft device
to the lock port on the
projector’s left side. You can
purchase this from EPSON;
see page 7.
Setting Up the Projector 11
720-730.book Page 12 Thursday, October 30, 2003 11:32 AM
Connecting to a Laptop Computer
note
To connect to desktops and
other computer systems, see
Appendix A. If you have an
iBook with an RCA videoout port, follow the
instructions for connecting to
a video device on page 16.
You can connect the PowerLite projector to any computer that has a
standard video output (monitor) port, including PC notebook and
laptop computers, Macintosh PowerBooks and iBooks, and hand-held
devices.
Connecting the Computer Cable
Before you start, make sure your computer and the projector are
turned off.
1. Connect one end of the computer cable to the projector’s
Computer/Component Video port.
2. Connect the other end of the computer cable to your laptop’s
video-out or monitor port.
If you’re using a PowerBook or iBook and you can’t connect the
cable, you may need to use the Macintosh desktop adapter as
shown on page 79 (available from EPSON; see page 7).
note
3. Tighten the screws on the connectors.
Laptop configurations vary.
See your computer manual
for the location of the ports
needed to connect your
projector.
If you don’t need to make any other connections, you can plug in
your projector and turn it on. See page 20 for instructions.
12
Setting Up the Projector
720-730.book Page 13 Thursday, October 30, 2003 11:32 AM
Connecting the Cable for Remote Mouse
Control
Using the remote control as a wireless mouse lets you click through
slideshow-style presentations, such as PowerPoint, from up to 20 feet
away (for details, see page 34). This gives you more flexibility in
delivering your presentation, since you won’t need to stand near your
computer.
1. Locate the USB mouse cable and connect one end of the cable to
the projector’s USB port.
2. Connect the other end of the cable to the external mouse port or
USB port on your laptop, as shown.
3. If necessary, configure your laptop to work with an external
mouse.
If you don’t need to make any other connections, you can plug in
your projector and turn it on. See page 20 for instructions.
Setting Up the Projector 13
720-730.book Page 14 Thursday, October 30, 2003 11:32 AM
Amplifying Computer Audio
Your laptop probably has its own sound system; however, it may not
be adequate for your presentation. If you need more volume, you can
connect a computer audio cable to take advantage of the projector’s
built-in amplifier and speaker. You can obtain a computer audio cable
(3.5-mm stereo miniplug cable) from a computer or electronics dealer.
1. Connect one end of the audio cable to the Audio In jack on the
projector.
2. Connect the other end of the audio cable to your laptop’s
headphone jack or
audio-out jack. (Jack locations vary; see
your computer manual if you’re not sure which jack to use.)
If you don’t need to make any other connections, you can plug in
your projector and turn it on. See page 20 for instructions.
14
Setting Up the Projector
720-730.book Page 15 Thursday, October 30, 2003 11:32 AM
Connecting to Video Sources
You can connect a DVD player, VCR, camcorder, laser disc player,
gaming consoles, such as Microsoft Xbox, Sony PlayStation 2, and
Nintendo GameCube, digital camera, or any other compatible video
source to your projector.
The projector supports HDTV, NTSC, PAL, and SECAM, and
automatically detects the video format.
The projector can receive composite video, S-Video, and component
video. The type of cable you use depends on whether you have
composite video, S-Video, or component video.
■
For composite video, use the included RCA AV cable included
with the projector.
■
For component video, you will need the optional EPSON
component video cable (ELPKC19).
■
For S-Video, use the S-Video cable supplied with your video
device or obtain one from you electronics dealer.
note
The projector does not
support TV antenna cable
F connectors.
To play audio from your
video equipment, you will
need a special adapter cable.
See your projector dealer to
obtain the correct cable.
Follow the instructions below for your type of connection.
Setting Up the Projector 15
720-730.book Page 16 Thursday, October 30, 2003 11:32 AM
Connecting the RCA Video Cable
Before starting, make sure the projector and your DVD player or
other video source are turned off.
1. Connect one end of the yellow RCA plug to the projector’s Video
jack.
2. Connect the other end of the plug to the video-out jack on your
video source.
16
Setting Up the Projector
720-730.book Page 17 Thursday, October 30, 2003 11:32 AM
Connecting an S-Video Cable
If your video source has an S-Video jack, you can use it to project a
higher quality video image. However, you’ll need an S-Video cable,
which may be included with your video source, or may be purchased.
Before starting, make sure the projector and your DVD player or
other video source are turned off.
1. Insert one end of an S-Video cable into the projector’s S-Video
port.
2. Insert the other end into the S-Video output port of your video
source.
Setting Up the Projector 17
720-730.book Page 18 Thursday, October 30, 2003 11:32 AM
Connecting a Component Video Cable
If your video source has component video connectors, you can use
them to project a higher quality video image. However, you’ll need a
component video cable, which can be purchased from EPSON
(ELPKC19).
Before starting, make sure the projector and your DVD player or
other video device are turned off.
1. Connect the large end of the component video cable to the
projector’s Computer/Component Video port.
2. Insert the three ends of the component video cable into the R, G,
and B ports on your video source.
3. After you turn on the projector, use the Video menu to set the
Input Signal to YCbCr or YPbPr. See page 40 for more
information.
18
Setting Up the Projector
720-730.book Page 19 Thursday, October 30, 2003 11:32 AM
2
Using the Projector
Once you’ve set up the projector, you’re ready to turn it on, adjust
the image, and give your presentation.
Although you can operate the projector without it, the remote control
lets you use additional features. See Chapter 3 for instructions on
using the remote. This chapter covers the following:
■
Turning on the projector and other equipment
■
Adjusting the image
■
Shutting down the projector
Using the Projector 19
720-730.book Page 20 Thursday, October 30, 2003 11:32 AM
Turning On Your Equipment
Make sure your projector and other equipment are set up and
connected correctly, as described in Chapter 1 or Appendix A. Then
turn on your projector, as described below, followed by any
equipment you’ve connected to it. You can turn on your computer
and video equipment in any order, but if you have both a computer
and video source connected, you may have to switch to the desired
source as described on page 21.
Turning On the Projector
Follow these steps to plug in and turn on the projector:
1. Connect one end of the power cord to the projector’s power inlet.
caution
Do not use the projector with
the lens cap in place. The
heat generated by the lens can
damage the cap.
2. Connect the other end to an electrical outlet.
The power light on top of the projector turns orange, indicating
that the projector is receiving power but not yet turned on.
3. Remove the lens cap.
20
Using the Projector
720-730.book Page 21 Thursday, October 30, 2003 11:32 AM
4. Press the red Power button on top of the projector or on the
remote control.
Page down Page up
Computer
Menu
S-Video/Video
A/V Mute
Power
Color Mode
Freeze
E-Zoom
projector
remote control
power light
The power light flashes green as the projector warms up, and the
projection lamp comes on in about 30 seconds. The power light
stays green.
5. Do one of the following:
■
warning
Never look into the lens when
the lamp is on. This can
damage your eyes, and is
especially dangerous for
children.
If you’re using a computer, turn it on or restart it. In a few
moments, you should see your computer display projected.
(Windows® only: If you see a message saying that it has found
a plug-and-play monitor, click Cancel.)
■
If you’re projecting a video, press the Source button on top
of the projector to switch to your video source, and press the
Play button on your DVD player or other device.
If a projected image fails to appear, see the next section for help.
Once you see your image, turn to page 25 for instructions on focusing
and making other image adjustments.
When you’re done with your presentation, shut down the projector as
described on page 28. Shutting down the projector correctly prevents
premature lamp failure and possible damage from overheating.
Using the Projector 21
720-730.book Page 22 Thursday, October 30, 2003 11:32 AM
What To Do If You See a Blank Screen
If you see a blank screen or a blue screen with the message No Signal
after turning on your computer or video source, try the following:
■
Make sure the cables are connected correctly, as described on
page 12 (for laptops) or in Appendix A (for other systems).
■
Make sure the power light is green and not flashing and the lens
cover is off.
■
Try restarting your computer.
■
Press the Source button on top of the projector to select the
correct source. (Allow a few seconds for the projector to sync up
after pressing the button.)
If you’re using a PC laptop:
■
Hold down the Fn key and press the function key that lets you
display on an external monitor. It may have an icon such as
or it may be labelled CRT/LCD. Allow a few seconds for the
projector to sync up after pressing it. Check your laptop’s manual
or online help for details.
On most systems, the
or CRT/LCD key lets you toggle
between the LCD screen and the projector, or display on both at
the same time.
■
22
Using the Projector
Depending on your computer’s video card, you might need to use
the Display utility in the Control Panel to make sure that both the
LCD screen and external monitor port are enabled. See your
computer’s documentation or online help for details.
720-730.book Page 23 Thursday, October 30, 2003 11:32 AM
If you’re using a Macintosh laptop with OS 9.x:
You may need to set up your system to display on the projector screen
as well as the LCD screen. Follow these steps:
1. From the Apple menu, select Control Panels, then click
Monitors or Monitors and Sound.
2. Click the Arrange icon.
click here
drag one
monitor icon on
top of the other
3. Drag one monitor icon on top of the other.
If the Arrange option isn’t available, you may need to select one of
the Simulscan resolution settings:
1. Click the Monitor icon, if necessary.
click here
select a
Simulscan
resolution
2. Select a Simulscan resolution as shown. (Allow a few seconds for
the projector to sync up after making the selection.)
Using the Projector 23
720-730.book Page 24 Thursday, October 30, 2003 11:32 AM
If you’re using a Macintosh laptop with OS X:
You may need to set up your system to display on the projector screen
as well as the LCD screen. Follow these steps:
1. From the Apple menu, select System Preferences, then click
Displays.
2. Select the VGA Display dialog box, click the Arrange tab, and
make sure Mirror Displays is checked.
click here
select Mirror
Displays
24
Using the Projector
720-730.book Page 25 Thursday, October 30, 2003 11:32 AM
Adjusting the Image
Once you see your image, you’ll need to make certain adjustments:
■
To focus or zoom your image, see below.
■
If the image is too high or too low, you can reposition it.
See page 26.
■
If the image isn’t square, see page 27.
Focusing and Zooming Your Image
Rotate the focus ring to sharpen the image.
focus ring
Rotate the zoom ring to reduce or enlarge the image.
zoom ring
You can also change the image size by moving the projector closer to
or farther away from the screen. You can use the E-Zoom buttons on
the remote control to zoom in on a portion of the image. See page 33
for instructions.
Using the Projector 25
720-730.book Page 26 Thursday, October 30, 2003 11:32 AM
Adjusting the Height of Your Image
If the image is too low, you can raise it by extending the projector’s feet.
caution
Do not hold the projector
by the lens; this can
damage it.
1. Stand behind the projector. Press the blue foot release levers and
lift the front of the projector. This unlocks the feet.
thumb wheel
2. Once the image is positioned where you want it, release the levers
to lock the feet in position.
3. To fine-tune the height of the image, rotate the thumb wheels
attached to the projector’s feet.
If the image is no longer rectangular after raising it, see the next
section.
26
Using the Projector
720-730.book Page 27 Thursday, October 30, 2003 11:32 AM
Adjusting the Image Shape
If the projected image isn’t rectangular or has a “keystone” shape, do
one or more of the following:
■
If your image looks like
or
, you’ve placed the
projector off to one side of the screen, at an angle. Move it directly
in front of the center of the screen, facing the screen squarely.
■
If your image looks like
or
, the Auto Keystone feature
has been disabled. You can correct this by turning on the Auto
Keystone feature or by manually adjusting the keystone correction
value. Follow the directions below:
■
■
Menu
Page down Page up
Computer
To turn on Auto Keystone, press the Menu button on the
remote control. Use the directional buttons to select the
Setting menu, then press Enter. Use the directional buttons
to highlight Auto Keystone and to turn the feature on. Press
the Enter button to save your changes, then exit the menu by
pressing the Menu button.
To manually adjust the keystone correction value, press the
or
side of the Keystone button on the projector to
correct the shape of the image. After correction, your image
will be slightly smaller.
Menu
S-Video/Video
A/V Mute
Power
Color Mode
Freeze
E-Zoom
Enter
Auto
Enter
ESC
directional buttons
You can also perform electronic keystone correction using the
projector’s Setting menu. See page 45.
Using the Projector 27
720-730.book Page 28 Thursday, October 30, 2003 11:32 AM
Shutting Down the Projector
note
When the projector has not
received any input signals for
30 minutes, it automatically
turns off the projector lamp
and enters “sleep mode.” This
conserves electricity, cools the
projector, and extends the life
of the lamp. If you are done
using the projector, unplug
the power cord. If you want
to start projecting again, press
the Power button.
When you’ve finished using the projector, follow the recommended
procedure to shut it down. This extends the life of the lamp and
protects the projector from possible overheating.
1. If you’re using a computer, shut it down first.
2. To turn off the projector, press the Power button on the
projector or remote control. You see a confirmation message. (If
you don’t want to turn it off, press any other button.)
Page down Page up
Computer
Menu
S-Video/Video
A/V Mute
Power
Color Mode
Freeze
E-Zoom
3. Press the Power button again. The power light flashes orange for
about forty five seconds as the projector cools down. When the
projector has cooled, the orange light stays on and the exhaust fan
shuts off.
If you want to turn the projector on again, wait until the orange
light stops flashing. Then press the Power button.
4. Retract the front feet as shown.
caution
To avoid damaging the
projector or lamp, never
unplug the power cord
when the power light is
green or flashing orange.
28
Using the Projector
720-730.book Page 29 Thursday, October 30, 2003 11:32 AM
5. Replace the lens cap and unplug the power cord.
6. If you’re using a VCR or other video source, turn it off after you
turn off the projector.
7. Disconnect all equipment, and store the projector in the soft case
that came with it or in a protective case.
Using the Projector 29
720-730.book Page 30 Thursday, October 30, 2003 11:32 AM
30
Using the Projector
720-730.book Page 31 Thursday, October 30, 2003 11:32 AM
3
Using the Remote Control
T
he remote control lets you access your projector’s features from
anywhere in the room—up to 20 feet away. You can use it to turn
the projector on and off, zoom in on a portion of your image, and
control various other features of the projector.
If you’re using a computer and you’ve connected the mouse cable (as
described in Chapter 1 or Appendix A), you can use the remote
control as a wireless mouse.
This chapter covers the following information:
■
Using the remote control
■
Controlling the picture and sound
■
Using the remote control as a wireless mouse
Using the Remote Control 31
720-730.book Page 32 Thursday, October 30, 2003 11:32 AM
Using the Remote Control
Before using the remote control, pull out the tape from the battery
tray as shown below.
tape
When using the remote control, stand within 20 feet of the projector.
Point the remote control either at the front or back of the projector or
at the screen (the projector’s front sensor can detect signals bounced
off the screen). Press the button for the function you want to use. See
the following pages for instructions.
Controlling the Picture and Sound
You can use the remote control to select your source, temporarily turn
off the picture and sound, freeze the action, or zoom in on the picture.
Make sure you have set up your projector and connected any
equipment as described in Chapter 1 or Appendix A.
Computer
S-Video/Video
Page down Page up
Computer
Menu
S-Video/Video
A/V Mute
Power
Color Mode
Switching Between Picture Sources
If you’ve connected your projector to a computer and a video source,
you can use the buttons on the remote control to switch between the
different sources.
Freeze
E-Zoom
■
Press the Computer button to select your computer source.
■
Press the S-Video/Video button to select an S-Video or standard
composite video source.
Enter
Auto
32
ESC
After you select a source, the screen goes dark for a moment before the
image appears.
Using the Remote Control
720-730.book Page 33 Thursday, October 30, 2003 11:32 AM
Turning Off the Picture and Sound
You can use the A/V Mute button on the remote control to turn off
the image and sound and darken your screen. This is useful if you
want to temporarily re-direct your audience’s attention without the
distraction of a bright screen.
■
To turn off the picture and sound, press the A/V Mute button.
The screen goes dark.
■
To turn the image and sound back on, press the button again.
note
You can also have an image,
such as a company logo,
display on the screen
whenever you press the
A/V Mute button. See
page 43 for instructions.
Stopping Action
You can use the remote control to stop the action in your video or
computer image.
■
■
Press the Freeze button to stop the action and keep the current
image on the screen. The sound will continue.
Freeze
Page down Page up
Press the Freeze button again to re-start it.
Computer
Menu
Zooming Your Image
1. Press the + button to zoom in on your image.
■
A/V Mute
Color Mode
Freeze
E-Zoom
You can zoom in on a portion of the image using the E-Zoom buttons
on the remote control.
■
S-Video/Video
Power
Enter
Auto
Press the button repeatedly to enlarge it up to four times in
24 steps.
zoom out
ESC
Esc
zoom in
Press and hold the button to zoom in to the size you want.
2. Use the directional buttons to pan around the screen if necessary.
3. Press the – button to zoom out. You can press the button
repeatedly, or press and hold to zoom all the way out. You can
also press the Esc button to return to the original size.
Using the Remote Control 33
720-730.book Page 34 Thursday, October 30, 2003 11:32 AM
Using the Remote Control as a Wireless
Mouse
Freeze
When you use the remote control as a wireless mouse, you can control
your computer or click through slideshow-style presentations (such as
PowerPoint) from up to 20 feet away. This gives you more flexibility,
since you won’t need to stand near your computer to change slides, for
example.
ESC
To control your computer with the remote, make sure you have
connected the mouse cable between the projector and your computer
as described on page 13 (for laptops) or in Appendix A (for other
systems).
directional buttons
Page down Page up
Computer
Menu
S-Video/Video
A/V Mute
Power
Color Mode
E-Zoom
Enter
Auto
Enter
■
To move the mouse pointer on the screen, aim the remote at the
screen and use the directional buttons to move the cursor.
■
To click (or left-click), press the Enter button.
■
To right-click, press the Esc button.
■
To double-click, press down twice on the Enter button.
■
To click and drag, press down on the Enter button and use the
directional buttons to move where you want to drag.
■
To change slides in a PowerPoint presentation in Slide Show
mode, press the Page up or Enter button on the remote control
to advance a slide and press the Page down button or Esc on the
remote control to go back a slide.
Esc
note
The Page up and Page down
buttons work only when the
USB mouse cable is
connected.
34
Using the Remote Control
720-730.book Page 35 Thursday, October 30, 2003 11:32 AM
Replacing the Battery
Follow these steps to replace the battery:
1. Press the tab towards the center of the remote and slide the
battery tray out of the remote control.
tab
caution
When replacing batteries,
take the following
precautions:
Replace the battery as soon
as it runs out. If the battery
leaks, wipe away battery
fluid with a soft cloth. If
fluid gets on your hands,
wash them immediately.
■
Do not expose batteries to
heat or flame.
■
2. Remove the old battery and insert a CR2025 watch battery as
shown.
Dispose of used batteries
according to local regulations.
■
Remove the battery if you
won’t be using the projector
for a long period of time.
■
3. Slide the battery tray back into the remote.
Using the Remote Control 35
720-730.book Page 36 Thursday, October 30, 2003 11:32 AM
36
Using the Remote Control
720-730.book Page 37 Thursday, October 30, 2003 11:32 AM
4
Fine-tuning the Projector
Y
ou can use the projector’s remote control to access on-screen menus
to adjust the image, sound, and other features. You can also create
your own startup screen, and find out how long your lamp has been in
use. This chapter covers the following information:
■
Using the menu system
■
Adjusting the image
■
Adjusting the sound
■
Creating your own startup screen
■
Customizing projector features
■
Viewing lamp usage and other information
■
Restoring the default settings
Fine-tuning the Projector 37
720-730.book Page 38 Thursday, October 30, 2003 11:32 AM
Using the Projector’s Menu System
The seven projector menus let you adjust and customize the projector
features from the remote control:
38
■
The Video menu controls the look and quality of the projected
image. It lets you adjust the image position and fine-tune settings
such as Brightness, Sharpness, and Contrast.
■
The Audio menu controls the volume level and tone settings.
■
The Setting menu allows you to set or adjust features such as
Auto Keystone correction, blank screen color, A/V Mute display
option, and power management system.
■
The User’s Logo menu lets you capture and store a custom image
or logo which you can then use as a startup screen or with the
A/V Mute option.
■
The Advanced menu lets you specify additional projector settings,
including menu language, startup screen, color setting, and rear or
ceiling projection.
■
The About menu provides information about lamp status and
computer or video settings.
■
The Reset All menu lets you restore the factory defaults for all the
projector settings.
Fine-tuning the Projector
720-730.book Page 39 Thursday, October 30, 2003 11:32 AM
Changing Menu Settings
Use the buttons on the remote control to access the menus and change
settings. Follow these steps:
1. To display the menu screen, press the Menu button on the
remote control. You see the menu screen:
Menu
directional buttons
Page down Page up
Computer
Menu
menu options
menus
: Select
A/V Mute
Color Mode
Freeze
E-Zoom
Enter
Position
Adjust
Tracking
: 0000
:
Sync .
0
+
Brightness :
0
:
Contrast
+
0
+
Sharpness :
0
Color Mode
Select [Meeting
]
Input Signal : RGB YUV( YCbCr YPbPr)
Auto Set up : ON OFF
Reset
Execute
Video
Audio
Setting
User's Logo
Advanced
About
Reset All
S-Video/Video
Power
Auto
ESC
: Enter
The seven menus are listed on the left, and the options available
for the highlighted menu are shown on the right.
2. Press up or down on the directional buttons to scroll through the
menu list.
3. When the menu you want is highlighted, press the Enter button
to select it. The highlight moves to the first option for that menu.
4. Use the directional buttons to scroll through the list of options.
(If a computer or video source isn’t connected, certain options
may be unavailable.)
note
If you want to go back to the
default settings on any
menu, select Reset, press
Enter, select Yes, and then
press Enter.
5. Use the directional buttons and Enter button to change the
setting for the selected option. Enabled settings have a green
highlight.
6. Press the Esc button to return to the main menu. Your changes
are saved automatically.
7. Press Esc again (or the Menu button) to exit the menu system.
Fine-tuning the Projector 39
720-730.book Page 40 Thursday, October 30, 2003 11:32 AM
Adjusting the Image
The Video menu lets you make adjustments to the projected image.
The options available in the menu depend on which image source is
selected: computer or video.
Repositioning the Image
note
Follow these steps to fine-tune the image position:
If you have repositioned the
image, you can use the
Auto button on the remote
control to restore the default
settings.
1. Press the Menu button. You see the main menu.
2. Press Enter to select the Video menu.
3. Press Enter to select the Position option. You see the Position
adjustment screen.
4. Use the directional buttons to move the image left, right, up, or
down.
5. When the image is positioned the way you want, press Esc.
Adjusting Image Appearance
Follow these steps to adjust the appearance of your image:
1. Press the Menu button. You see the main menu.
2. Press Enter to select the Video menu.
3. Use the directional buttons to set the following options:
■
Tracking (computer images only)
Removes unwanted vertical lines from a computer image by
matching the projector’s internal clock to various computer
signals.
■
Sync (computer images only)
Corrects fuzziness or screen flicker by synchronizing the
projector with the tracking signal sent from the computer.
■
Auto Setup (computer images only)
Leave this setting ON to automatically optimize the computer
image. Turn it off if you want to save adjustments you have
made to the video settings.
40
Fine-tuning the Projector
720-730.book Page 41 Thursday, October 30, 2003 11:32 AM
■
Color (video only)
Adjusts the depth or intensity of the image.
■
Tint (video only)
Adjusts the balance of green to magenta in the image.
■
Video Signal (video only)
Leave this setting at Auto unless you are using a 60-Hz PAL
system (select PAL60).
■
Aspect Ratio (video only)
Set to 4:3 for letterbox video content and to 16:9 for
widescreen video content.
■
Brightness
Lightens or darkens the overall image.
■
Contrast
Adjusts the difference between light and dark areas.
■
Sharpness
Sharpens or softens the image.
■
Color Mode
Corrects the vividness of image color. You can select from the
following six settings, and save a different one for each
computer and/or video source:
sRGB: To use the sRGB standard for computer displays (the
default when projecting from a computer with analog video)
Normal: For presentations in bright rooms
Meeting: For projecting without color enhancement
Presentation: For presentations in dark rooms
Theater: For optimizing movie images with natural color
(the default for video or S-Video display)
Game: For optimizing video games.
Fine-tuning the Projector 41
720-730.book Page 42 Thursday, October 30, 2003 11:32 AM
■
Input Signal
Leave this setting on RGB when a computer is connected to
the Computer/Component Video port. When a component
video source is connected, choose YCbCr or YPbPr,
depending on the type of signals produced by your source.
(You can tell which setting is correct by the quality of the
projected image.)
4. When the image is set correctly, press Esc or Menu. Your settings
are automatically saved.
Adjusting the Sound
You can use the Audio menu to adjust the sound volume or tone.
1. Press the Menu button. You see the main menu.
2. Use the directional buttons to highlight Audio. You see the
following:
Video
Audio
Setting
User's Logo
Advanced
About
Reset All
: Select
Volume
:
10
-
+
Tone
:
0
-
+
Reset
Execute
: Enter
3. Press Enter to select the Audio menu.
4. Use the directional buttons to set the following options:
■
Volume
■
Tone (treble/bass balance)
5. When you’re finished adjusting the sound, press Esc or Menu.
42
Fine-tuning the Projector
720-730.book Page 43 Thursday, October 30, 2003 11:32 AM
Creating Your Own Startup Screen
You can transfer any image on your computer to the projector, and
then use it as the screen displayed when the projector is not receiving a
signal. You can also set it to be displayed when you press the
A/V Mute button, or as a startup screen. The image can be a company
logo, slogan, photograph, or any other image you want to use.
Capturing the Image
Start by displaying the image you want to use on the projector. You
can use an image from either a computer or video source such as a
VCR or digital camera. Then follow these steps to capture the image
and transfer it to the projector:
1. Press the Menu button on the remote control. You see the main
menu.
2. Use the directional buttons to highlight the User’s Logo menu.
Video
Audio
Setting
User's Logo
Advanced
About
Reset All
: Select
Execute
: Execute
3. Press Enter to select it. You see a message like the one at the right.
4. Select YES and press Enter. A selection box displays over the
image.
User's Logo
Do you use the present image as a
user's logo?
YES
NO
: Select
: Execute
5. Use the directional buttons to select the area of the image you
want to use. Once you have selected the area, press Enter.
: Return
Fine-tuning the Projector 43
720-730.book Page 44 Thursday, October 30, 2003 11:32 AM
User's Logo
Do you use this image?
YES
6. When you see the message “Do you use this image?” select YES
and press Enter. If you want to change the area selected, select
NO, press Enter and repeat steps 4 through 6.
NO
7. Use the directional buttons on the remote control to select a zoom
rate (display size), and then press Enter.
: Return
: Select
: Execute
8. When you see the message “Do you save the user logo?,” select
YES and press Enter. Saving the logo may take a few minutes. Do
not use the projector or other sources (computer, video, speaker,
etc.) while the logo is being saved.
9. When you see the message “Saving the user’s logo is completed,”
press Esc or Menu.
Selecting When the Image Displays
note
You can also set up your
image as a startup screen.
Use the Advanced menu to
enable the startup screen; see
page 46.
After your image is saved, you can set it up as the no-signal message
and/or the screen that’s displayed when you press the A/V Mute
button.
1. Press the Menu button to display the main menu (if not already
displayed).
2. Use the directional buttons to highlight Setting.
3. Press Enter to select the Setting menu.
4. Use the directional buttons to highlight No-Signal Msg.
5. Use the directional buttons to select Logo; then press the Enter
button. This sets your image as the screen displayed when the
projector is not receiving a signal.
6. If you want to set up your image as the A/V Mute display, use the
directional buttons to move down to A/V Mute.
7. Use the directional buttons to select Logo; then press the Enter
button. This sets your image as the screen displayed when you
press the A/V Mute button.
8. When you’re finished, press Esc or Menu.
To test your setting, press the A/V Mute button to display your image.
Press it again to turn off the image.
44
Fine-tuning the Projector
720-730.book Page 45 Thursday, October 30, 2003 11:32 AM
Customizing Projector Features
You can use the Setting menu to disable the projector’s sleep mode,
adjust the image shape, and customize several other features.
1. Press the Menu button.
2. Use the directional buttons to highlight Setting. You see the
features and their settings on the right side:
:
Keystone
Auto Keystone :
Video
Audio
Setting
User's Logo
Advanced
About
Reset All
: Select
No-Signal Msg. :
Prompt
:
0
ON OFF
:
Sleep Mode
Reset
:
Black Blue Logo
OFF
ON OFF
Color Mode Prompt :
A/V Mute
+
ON OFF
Black Blue Logo
: ON OFF
Execute
: Enter
3. Press Enter to select the Setting menu.
4. Use the directional buttons and Enter button to set the following
options:
■
Keystone
Adjusts a distorted image from a trapezoid shape to
rectangular.
■
Auto Keystone
Automatically adjusts a distorted image from a trapezoid to
rectangular when the projector’s feet are extended or
retracted.
■
No-Signal Msg.
Selects the screen color and message to display when the
projector is not receiving a signal. The logo setting displays an
image that you have transferred to the projector. See page 43
for instructions on transferring an image to use as the
no-signal message.
Fine-tuning the Projector 45
720-730.book Page 46 Thursday, October 30, 2003 11:32 AM
■
Prompt
Turns off the identifying text that appears briefly when you
switch from computer input to a video source.
■
Color Mode Prompt
Turns off the identifying text that appears briefly when you
switch color modes.
■
A/V Mute
Selects the screen color or image to display when you press
the A/V Mute button. The logo setting displays an image that
you have transferred to the projector. See page 43 for
instructions on transferring an image to use for the A/V Mute
display.
■
Sleep Mode
Enables or disables the power management system, which
turns the lamp off when the projector has not received any
input signals for 30 minutes.
5. When you’re finished, press Esc or Menu.
Setting Advanced Features
You can use the Advanced menu to configure the projector for rear
projection or ceiling mounting, and adjust several other features.
1. Press the Menu button.
2. Use the directional buttons to highlight Advanced. You see the
features and their settings on the right side:
Video
Language
Audio
Startup Screen
Setting
Color Adjustment
User's Logo
Color Temp.
Advanced
Rear Proj .
About
Ceiling
Reset All
Link 21L
Reset
: Select
46
Fine-tuning the Projector
Select [English]
: ON OFF
:
: Enter
RGB
: ON OFF
: ON OFF
: ON OFF
Execute
Adjust
720-730.book Page 47 Thursday, October 30, 2003 11:32 AM
3. Press Enter to select the Advanced menu.
4. Use the directional buttons and Enter button to set the following
options:
■
Language
Select from nine languages to be used for the projector
menus.
■
Startup Screen
Turn on to display the image or logo you have captured
whenever the projector starts. See page 43 for more
information.
■
Color Adjustment
Color Temp: Adjusts the whiteness of the screen.
RGB: Adjusts the individual RGB values.
■
Rear Proj.
Turn on to project from behind a transparent screen.
■
Ceiling
Turn on when the projector is mounted upside-down from
the ceiling.
■
Link 21L
Turn on to use the EMP Link 21L software to control the
projector. This software can be downloaded from the
EPSON website at support.epson.com.
note
The USB mouse feature will
not work when the Link 21L
feature is turned on.
5. When you’re finished, press Esc or Menu.
Fine-tuning the Projector 47
720-730.book Page 48 Thursday, October 30, 2003 11:32 AM
Viewing Lamp Usage and Other
Information
Use the About menu to view information about the display settings of
your computer and the number of hours the lamp has been used.
note
If you access the About
menu when the projector
display is set to video, you
only see the lamp life and
the video signal setting.
1. Press the Menu button. You see the main menu.
2. Use the Enter button to select About.
You see the lamp usage hours and computer display settings on
the right:
Video
Lamp
Audio
Reset Lamp Timer
Setting
Video Source
: Computer
User's Logo
Input Signal
: Analog-RGB
Advanced
Frequency
: H ---.--kHz
V ---.--Hz
SYNC Polarity
: H -----V ------
SYNC Mode
Resolution
: -----: 0x 0
Refresh Rate
: 0.0 Hz
About
Reset All
: Select
note
The lamp usage timer doesn’t
register until you’ve used the
lamp for at least 10 hours.
48
: 0H
Execute
: Enter
The life span of the lamp is about 1500 hours. If the number
shown is close to 1500, make sure you have a spare lamp handy.
3. When you’re finished, press Esc or Menu.
Fine-tuning the Projector
720-730.book Page 49 Thursday, October 30, 2003 11:32 AM
Restoring the Default Settings
The Reset All option lets you return all the projector settings to their
default values.
Video
Audio
Setting
User's Logo
Advanced
About
Reset All
: Select
Execute
: Execute
Select Reset All and press the Enter button on the remote control to
display the confirmation screen. Select YES to reset all the default
settings or NO to cancel.
Fine-tuning the Projector 49
720-730.book Page 50 Thursday, October 30, 2003 11:32 AM
50
Fine-tuning the Projector
720-730.book Page 51 Thursday, October 30, 2003 11:32 AM
5
Maintaining and
Transporting the Projector
Y
our projector needs little maintenance. All you need to do on a
regular basis is keep the lens clean. Any dirt or smears on the lens may
show up on your projected image.
warning
Before you clean any part
of the projector, turn it
off and unplug the power
cord. Never open any
cover on the projector,
except the lamp and filter
covers. Dangerous
electrical voltages in the
projector can injure you
severely. Do not try to
service this product
yourself, except as
specifically explained in
this User’s Guide. Refer
all other servicing to
qualified service
personnel.
You also need to periodically clean the air filter on the side of the
projector. A clogged air filter can block ventilation needed to cool the
projector and cause overheating.
The only parts you should replace are the lamp and air filter. If any
other part needs replacing, contact your dealer or a qualified servicer.
This chapter covers the following:
■
Cleaning the lens
■
Cleaning the projector case
■
Cleaning and replacing the air filter
■
Replacing the lamp
■
Resetting the lamp timer
■
Transporting the projector
Maintaining and Transporting the Projector 51
720-730.book Page 52 Thursday, October 30, 2003 11:32 AM
Cleaning the Lens
Clean the lens whenever you notice dirt or dust on the surface.
caution
■
Use a canister of compressed air to remove dust.
■
To remove dirt or smears on the lens, use lens-cleaning paper. If
necessary, moisten a soft cloth with lens cleaner and gently wipe
the lens surface.
Do not use glass cleaner
to clean the lens.
Cleaning the Projector Case
Before you clean the case, first turn off the projector and unplug the
power cord.
52
■
To remove dirt or dust, wipe the case with a soft, dry, lint-free
cloth.
■
To remove stubborn dirt or stains, moisten a soft cloth with water
and a mild detergent. Then wipe the case.
■
Do not use wax, alcohol, benzene, paint thinner, or other
chemical detergents. These can damage the case.
Maintaining and Transporting the Projector
720-730.book Page 53 Thursday, October 30, 2003 11:32 AM
Cleaning and Replacing the Air Filter
Clean the air filter on the side of the projector after every 100 hours of
use. If it is not cleaned periodically, it can become clogged with dust,
preventing proper ventilation. This can cause overheating and damage
the projector. To clean the air filter, follow these steps:
1. Turn off the projector, allow it to cool down, and unplug the
power cord.
2. To prevent dust from falling into the projector, place the
projector as shown below.
3. To clean the filter, EPSON recommends using a small vacuum
cleaner designed for computers and other office equipment. If you
don’t have one, gently clean the filter using a very soft brush (such
as an artist’s camel-hair brush).
If the dirt is difficult to remove or if the filter is torn, replace it.
Contact your dealer or call EPSON at (800) 873-7766 to obtain a
new one. In Canada, please call (800) 463-7766 to locate a dealer.
4. If you need to replace the filter, lift the tab and pull it upward to
remove the filter.
note
When you get a replacement
lamp for your projector, a
new air filter is included.
You should replace the filter
when you replace the lamp.
5. To install the new filter, first insert the tabs, then press down on
the opposite end of the filter until it clicks in place.
Maintaining and Transporting the Projector 53
720-730.book Page 54 Thursday, October 30, 2003 11:32 AM
Replacing the Lamp
note
You can check to see how
many hours the lamp has
been used. See page 48.
The projection lamp typically lasts for about 1500 hours of use. It is
time to replace the lamp when:
■
The projected image gets darker or starts to deteriorate.
■
The
■
The message LAMP REPLACE appears on the screen when the
lamp comes on (after about 1400 hours of use). To maintain
projector brightness and image quality, replace the lamp as soon
as possible.
warning light is red, flashing red, or flashing orange.
Contact your dealer or call EPSON at (800) 873-7766 in the United
States for a replacement lamp. Request part number V13H010L18. In
Canada, please call (800) 463-7766 to locate a dealer.
warning
Let the lamp cool before
replacing it. If the lamp
breaks, handle the shards
carefully to avoid injury.
Follow these steps to replace the lamp:
1. Turn off the projector, wait for the cool down period to end, then
unplug the power cord.
2. Allow the projector to cool down for at least half an hour (if it has
been on).
3. Turn the projector upside-down to access the lamp compartment.
4. Press the two tabs and remove the lamp cover.
)
54
Maintaining and Transporting the Projector
720-730.book Page 55 Thursday, October 30, 2003 11:32 AM
5. Use a screwdriver to loosen the two screws holding the lamp in
place. (You can’t remove the screws.)
caution
Do not touch the glass
portion of the lamp assembly.
Touching the glass could
result in premature lamp
failure.
6. Hold the lamp by the top, as shown, and pull the lamp straight
out.
warning
This product includes a lamp
component that contains
mercury. Please consult your
state and local regulations
regarding proper disposal and
do not place in a waste
stream.
7. Gently insert the new lamp.
8. Once the lamp is fully inserted, tighten its screws.
9. Replace the lamp cover.
Maintaining and Transporting the Projector 55
720-730.book Page 56 Thursday, October 30, 2003 11:32 AM
Resetting the Lamp Timer
You must reset the lamp timer after replacing the lamp to clear the
LAMP REPLACE warning message. Follow the directions below to
reset the lamp timer:
1. Press the Menu button. You see the main menu.
2. Use the directional buttons to highlight About. You see the
following:
Video
Lamp
Audio
Reset Lamp Timer
: 0H
Setting
Video Source
: Computer
User's Logo
Input Signal
: Analog-RGB
Advanced
Frequency
: H ---.--kHz
V ---.--Hz
SYNC Polarity
: H -----V ------
SYNC Mode
Resolution
: -----: 0x 0
Refresh Rate
: 0.0 Hz
About
Reset All
: Select
Execute
: Enter
3. Press Enter to select the About menu.
4. Press Enter to select the Reset Lamp Timer option. You see the
following:
Reset Lamp Timer
Execute?
YES
NO
5. Use the directional buttons to select Yes and press Enter.
6. Press Esc to return to the main menu.
7. Press Esc again (or the Menu button) to exit the menu system.
56
Maintaining and Transporting the Projector
720-730.book Page 57 Thursday, October 30, 2003 11:32 AM
Transporting the Projector
The projector contains many glass and precision parts. If you need to
transport it, please follow these packing guidelines to prevent damage
to the projector:
■
When shipping the projector for repairs, use the original
packaging material if possible. If you do not have the original
packaging, use equivalent materials, placing plenty of cushioning
around the projector.
■
When transporting the projector as freight or checked luggage,
first put it in the supplied carrying case, then pack it in a firm box,
using cushioning around the case.
■
When you are hand-carrying the projector, be sure to use the
supplied carrying case.
note
EPSON shall not be liable
for any damages incurred
during transportation.
Maintaining and Transporting the Projector 57
720-730.book Page 58 Thursday, October 30, 2003 11:32 AM
58
Maintaining and Transporting the Projector
720-730.book Page 59 Thursday, October 30, 2003 11:32 AM
6
Solving Problems
This chapter helps you solve problems with your projector, and tells
you how to contact technical support for problems you can’t solve
yourself. This chapter explains the following:
■
Using the projector’s on-screen help system
■
What to do when the projector’s status lights flash
■
Solving problems with the image or sound
■
Solving problems with the remote control
■
Contacting technical support
Solving Problems 59
720-730.book Page 60 Thursday, October 30, 2003 11:32 AM
Using On-Screen Help
If the image doesn’t look right or your audio isn’t working, you can
get help by pressing the green ? Help button on top of the projector.
The following choices are available:
■
Help for the image
■
Help for the sound
■
Language selection
Follow these steps to get help:
1. Press the green ? Help button on the projector. You see the help
menu.
2. Press the left side of the Select (Keystone) button on the
projector to highlight one of the options. Then press the Enter
(Source) button on the projector to select it.
3. Press the left side of the Select (Keystone) button on the
projector to highlight the problem you want to solve. Then press
the Enter (Source) button to view the solution(s).
4. Highlight a solution (if this choice is available). Then press the
Enter (Source) button to select the solution.
Highlight Return and press the Enter (Source) button if you
need to back up.
If the solution is to adjust one of the settings, press the left side of
the Select (Keystone) button on the projector to adjust it.
5. To exit the Help system, press the green ? Help button.
If none of the suggestions solves your problem, see additional
solutions to problems in the following sections.
60
Solving Problems
720-730.book Page 61 Thursday, October 30, 2003 11:32 AM
What To Do When the Lights Flash
The lights on top of the projector indicate the projector’s status and
let you know when a problem occurs.
power light
warning light
If the projector is not working correctly, first turn it off and unplug it.
Then plug the power cord back in and turn on the projector. If this
does not solve the problem, check the status lights on top of the
projector and try the solutions recommended below.
Status Lights
Power
light
Warning
light
Status
Description
Flashing red
Flashing red
Internal error
There is an internal error in the projector. Turn
the projector off and unplug it. Contact EPSON
for help.
Red
Flashing red
Fan error/
Temperature
sensor error/
Lamp error
There is a problem with the cooling fan,
temperature sensor, or lamp. Turn off the
projector and unplug it. Contact EPSON for
help.
Flashing red
Flashing red
(quickly)
Lamp failure
The lamp is burned out. Replace it as
described on page 54.
Off
Red
Overheating
The projector has overheated and turned itself
off. Let it cool for a few minutes, then turn it
back on. Make sure there is plenty of space
around and under the projector for ventilation.
If it continues to overheat, you may need to
change the air filter. See page 53 for
instructions.
Solving Problems 61
720-730.book Page 62 Thursday, October 30, 2003 11:32 AM
Power
light
Warning
light
Flashing orange
Status
Description
Flashing orange
(quickly)
High
temperature
warning
The projector is too hot. Make sure the
temperature surrounding the projector does
not exceed 95 °F and there is plenty of space
around and under the projector for ventilation.
Clean the air filter, if necessary. See page 53
for instructions.
Green
Flashing orange
Lamp warning
The lamp is almost burned out. This is a good
time to replace it. See page 54 for instructions.
Orange
Off
Sleep mode
The projector is in sleep mode. You can unplug
it or press the PPower button to turn it on.
Flashing green
Off
Warming up
The projector is warming up. Wait for the
image to appear.
Green
Off
Operating
The projector is operating normally.
Flashing orange
Off
Cooling down
The projector is cooling down. Wait for the
light to become solid before unplugging it.
62
Solving Problems
720-730.book Page 63 Thursday, October 30, 2003 11:32 AM
Solving Problems with the Image or
Sound
No image appears on the screen.
■
Check that the power light is green, not flashing, and the lens cap
is off.
■
The projector may be in sleep mode. If the power light is orange,
press the P Power button to turn the projector on.
■
If the power was switched off and then on again, the projector
may still be cooling down. Wait until the power light stops
flashing and remains orange; then press the P Power button
again.
■
Make sure the Brightness setting on the Video menu is correct.
See page 41 for more information. Try selecting the Reset All
setting to return all setup menus to their default values.
■
Press the A/V Mute button to make sure the picture has not been
turned off temporarily.
■
The attached computer may be in sleep mode or displaying a
black screen saver. Try pressing a key on the computer.
You see a blue screen with the message No Signal displayed.
■
Make sure the cables are connected correctly, as described in
Chapter 1 or Appendix A.
■
Try restarting your computer.
■
If you’ve connected a computer and one or more video sources,
you may need to press the Source button (on the projector) or
the Computer or S-Video/Video button (on the remote control)
to select the correct source. Allow a few seconds for the projector
to sync up after pressing the button.
Solving Problems 63
720-730.book Page 64 Thursday, October 30, 2003 11:32 AM
If you’re using a PC laptop:
■
Hold down the Fn key and press the function key that lets you
display on an external monitor. It may have an icon such as
, or it may be labelled CRT/LCD. Allow a few seconds for
the projector to sync up after pressing it. Check your laptop’s
manual or online help for details.
On most systems, the
or CRT/LCD key lets you toggle
between the LCD screen and the projector, or display on both at
the same time.
■
Depending on your computer’s video card, you might need to use
the Display utility in the Control Panel to make sure that both the
LCD screen and external monitor port are enabled. See your
computer’s documentation or online help for details.
If you’re using a PowerBook or iBook with
Macintosh OS 9.x:
1. From the Apple menu, select Control Panels, then click
Monitors or Monitors and Sound.
2. Click the Arrange icon.
3. Drag one monitor icon on top of the other. This lets you
display on the projector screen as well as the LCD screen.
4. If the Arrange icon isn’t available, click the Monitor icon.
5. Select one of the listed Simulscan resolutions. (Allow a few
seconds for the projector to sync up after making the
selection.)
If you’re using a PowerBook or iBook with
Macintosh OS X:
1. From the Apple menu, select System Preferences, then
click Display.
2. Select the VGA Display dialog box, click the Arrange tab,
then put a check mark in Mirror Displays.
64
Solving Problems
720-730.book Page 65 Thursday, October 30, 2003 11:32 AM
The message Not Supported is displayed.
Make sure your computer’s resolution doesn’t exceed UXGA and the
frequency is supported by the projector (see page 93). If necessary,
change your computer’s resolution setting as described below.
Only part of the computer image is displayed.
■
Make sure the image Position setting is correct on the Video
menu. See page 40 for more information.
■
Make sure your computer’s resolution setting is correct. Ideally, it
should be 1024 × 768 to match the projector’s native resolution.
If this option isn’t available, select one of the other compatible
video formats listed on page 93.
■
■
Windows:
Right-click the desktop, select Properties, click the Settings
tab, and select a different resolution.
■
Macintosh OS 9.x:
On the Apple menu, choose Control Panels, then click
Monitors or Monitors and Sound. Select a different
resolution.
■
Macintosh OS X:
On the Apple menu, choose System Preferences, then
click Display. Select a different resolution.
You also may need to modify existing presentation files if you
created them for a different resolution. See your software
documentation for specific information.
Solving Problems 65
720-730.book Page 66 Thursday, October 30, 2003 11:32 AM
The image isn’t rectangular, but trapezoid-shaped.
■
Make sure the projector isn’t placed off to one side of the screen,
at an angle, or the image won’t be rectangular. Place the projector
directly in front of the center of the screen, facing the screen
squarely.
■
If you’ve tilted the projector upward by extending the legs, the
image will be broader at the top. Turn on Auto Keystone
correction as described on page 45 or hold down the
or
side of the Keystone button on top of the projector until the
image is rectangular.
The image contains static or noise.
66
Solving Problems
■
If you’re using a computer cable longer than 6 feet, or an
extension cable, the image quality may be reduced.
■
Keep your computer and video cables separated from the power
cord as much as possible to prevent interference.
■
The video signal may be split between the computer and the
projector. If you notice a decline in the projected image quality
when the image is displayed simultaneously on your laptop
computer and the projector, turn off the laptop’s LCD display.
720-730.book Page 67 Thursday, October 30, 2003 11:32 AM
The image is blurry.
■
Adjust the focus using the focus ring.
■
There may be dirt or smears on the lens. Clean the lens as
described on page 52.
■
Make sure the lens is not fogged by condensation. You may need
to wait before using the projector after moving it from a cold
environment.
■
Adjust the Sharpness setting on the Video menu (see page 40).
When you change video settings, you should be able to see the
effect on the screen immediately. If you’re projecting from a
computer, you may also need to adjust the Tracking and Sync as
described in the next section. If you don’t like the new settings,
you can always select Reset to return to the factory default
settings.
You see vertical stripes or the image still looks blurry after
trying the solutions in the previous section.
■
If you’re projecting from a computer and displaying an image that
contains a lot of fine detail, you may notice one or more vertical
stripes or bands, or some of the characters may look heavy or
blurred. Press the Auto button on the remote control. This resets
the projector’s tracking and sync settings.
■
If further adjustment is needed, you can fine-tune the Tracking
and Sync settings manually using the Video menu as described
on page 40.
1. Fill the screen with an image containing fine detail when
making these adjustments. For example, in Windows you can
select a pattern to appear as your desktop background. If this
option isn’t available, try projecting black text on a white
background.
2. Adjust the Tracking to eliminate vertical stripes.
3. Adjust the Sync to increase the sharpness of the image.
Solving Problems 67
720-730.book Page 68 Thursday, October 30, 2003 11:32 AM
The colors of the image are not right.
note
Because of the different
technologies used, your
projected image may not
exactly match the colors on
your laptop or computer
monitor.
■
If you’re displaying a computer image, use the Color Mode
option in the projector’s Video menu to adjust the color. If you’re
displaying video, adjust the Color, Tint, and Gamma settings on
the Video menu.
■
Try adjusting the Color Temp setting on the Advanced menu.
■
Check your computer display settings to correct the color balance.
There is no sound.
68
Solving Problems
■
Try turning up the volume (see page 42).
■
If you’re using a VCR or other video source, make sure the
volume on your VCR is not turned all the way down or muted.
Also, make sure the cables are connected correctly, as described in
Chapter 1.
■
If your presentation includes computer audio, make sure the
volume control on your computer is not turned all the way down
or muted. Make sure the audio cable is securely connected to both
the projector and your computer’s
headphone jack or
audio out jack. See page 14 (for laptops) or Appendix A (for
other systems).
■
Make sure the Windows volume controls on your computer are
not turned all the way down or set to Mute. Check this by
clicking the volume control in your Windows System Tray (lower
right corner of the screen).
■
Make sure the A/V Mute button is not enabled.
■
The wrong source may be selected. Press the Source button on
the projector—or the Computer or S-Video/Video button on
the remote control—to select the correct source.
720-730.book Page 69 Thursday, October 30, 2003 11:32 AM
Solving Problems with the Remote
Control
The projector doesn’t respond to remote control commands.
■
Make sure the tape has been removed from the battery tray as
described on page 32.
■
Make sure you are within 20 feet of the projector, and within
range of the projector’s front or back sensor (approximately 30° to
the left or right and 15° above or below).
■
The remote control battery may not be installed correctly or may
be low on power. Change the battery as described on page 32.
■
Dim the room lights and turn off any fluorescents. Make sure the
projector is not in direct sunlight. Strong lighting, especially
fluorescent lights, may affect the projector’s infrared receivers.
■
Turn off any nearby equipment that emits infrared energy, such
as a radiant room heater.
You can’t control the mouse pointer with the remote
control.
■
Make sure the mouse cable is securely connected to both your
computer’s mouse port or USB port and the projector’s mouse
port. For details, see page 13 (for laptops) or Appendix A (for
other systems).
■
Turn off Link 21L in the Advanced menu (see page 46).
■
To use the USB mouse connection on a PC, your system must
have a “clean” installation of Windows 98, Windows Me,
Windows XP or Windows 2000. The connection may not work
correctly if your system was upgraded from Windows 95.
Solving Problems 69
720-730.book Page 70 Thursday, October 30, 2003 11:32 AM
Where To Get Help
EPSON provides technical assistance through electronic support
services 24 hours a day, as listed in the following table.
Service
Access
World Wide Web
From the Internet, you can reach EPSON’s
product support page at
http://support.epson.com. After selecting
your product, you can access troubleshooting
information, download product
documentation, and receive technical advice
through e-mail.
Presenters Online
Access tips, templates, and training for
developing successful presentations at
http://www.presentersonline.com
Telephone Support Services
To use the EPSON PrivateLine Support service, call (800) 637-7661
and enter the PIN on the EPSON PrivateLine Support card included
in your owner’s kit. This is the fastest way of speaking to a live
representative, and it’s free. This service is available 6 AM to 6 PM,
Pacific Time, Monday through Friday, for the duration of your
warranty period.
You may also speak with a projector support specialist by dialing one
of these numbers:
■
U.S.: (562) 276-4394, 6 AM to 6 PM, Pacific Time, Monday
through Friday
■
Canada: (905) 709-3839, 6 AM to 6 PM, Pacific Time, Monday
through Friday
Toll or long distance charges may apply.
70
Solving Problems
720-730.book Page 71 Thursday, October 30, 2003 11:32 AM
Before you call, please have the following information ready:
■
Product name (EPSON PowerLite 720c or EPSON
PowerLite 730c)
■
Product serial number (located on the bottom of the projector)
■
Computer or video configuration
■
Description of the problem
You can purchase screens, carrying cases, or other accessories
from EPSON at (800) 873-7766 or by visiting the EPSON Store at
www.epsonstore.com (U.S. sales only). In Canada, please call
(800) 463-7766 for dealer referral.
Solving Problems 71
720-730.book Page 72 Thursday, October 30, 2003 11:32 AM
72
Solving Problems
720-730.book Page 73 Thursday, October 30, 2003 11:32 AM
A
Appendix A: Connecting to
Additional Equipment
T
his appendix explains how to connect the projector to a desktop
computer or Macintosh, or a high-end workstation.
The following information is covered:
■
Installing the projector
■
Connecting to a PC desktop computer
■
Connecting to a desktop Macintosh
■
Connecting to a high-end workstation
Appendix A: Connecting to Additional Equipment 73
720-730.book Page 74 Thursday, October 30, 2003 11:32 AM
Installing the Projector
The projector can be installed for three different viewing setups:
front projection, ceiling mounting, or rear projection onto a
semi-transparent screen.
To project from overhead, you’ll need to select Ceiling in the
projector’s Advanced menu. To project from the rear, select Rear
Proj. See page 46 for more information.
If you’re ceiling-mounting the projector and you place it above screen
level, you’ll have to tilt it down to position the image on-screen. This
causes the image to lose its rectangular shape. You can then correct the
distortion by using the Keystone or Auto Keystone function in the
projector’s menu system (see page 45).
If you place the projector’s lens so it’s level with the top of the screen,
the image will be rectangular and you won’t have to adjust it. If you
place the lens lower than the top of the screen, you’ll have to tilt the
projector upward if you want to fill the whole screen with the image.
Connecting to a PC Desktop Computer
You can connect the projector to any IBM®-compatible PC. This
section includes instructions for the following:
■
Connecting the computer cable
■
Connecting the mouse cable (if you want to use the remote
control as a mouse)
■
Connecting an optional audio cable (if you’ll be projecting
with audio)
When you connect the projector to a desktop computer, you cannot
view your display on the computer monitor.
Follow the steps in each section for the cables you need to connect.
Before beginning, turn off the projector and computer if they are on.
74
Appendix A: Connecting to Additional Equipment
720-730.book Page 75 Thursday, October 30, 2003 11:32 AM
Connecting the Computer Cable
1. Disconnect the monitor cable from the video port on the back of
the computer.
2. Connect one end of the computer cable to the projector’s
Computer/Component Video port.
3. Connect the other end of the computer cable to the computer’s
video port.
4. Tighten the screws on the connectors.
Appendix A: Connecting to Additional Equipment 75
720-730.book Page 76 Thursday, October 30, 2003 11:32 AM
Connecting the Mouse Cable
To use the remote control as a mouse, follow the steps below.
1. Connect the square end of the USB mouse cable to the projector’s
USB port, as shown.
2. Disconnect your mouse from the port on the back of your
computer and replace it with the other end of the cable. (Your
computer’s mouse will be disabled while you are using the remote
as a mouse.)
3. If necessary, configure your computer to work with a USB mouse.
76
Appendix A: Connecting to Additional Equipment
720-730.book Page 77 Thursday, October 30, 2003 11:32 AM
Connecting the Audio Cable
If your presentation includes sound and you want to use the
projector’s built-in speakers, you can use a computer audio cable. The
required cable (3.5-mm stereo miniplug cable) is available from
computer or electronics dealers.
1. Connect one end of the audio cable to the Audio In jack on the
projector.
2. Connect the other end of the audio cable to the speaker or
audio out port on the computer’s sound card.
Appendix A: Connecting to Additional Equipment 77
720-730.book Page 78 Thursday, October 30, 2003 11:32 AM
Connecting to a Desktop Macintosh
You can connect the projector to a desktop Macintosh. This section
includes instructions for the following:
■
Connecting the computer video cable
■
Connecting the mouse cable (if you want to use your remote
control as a mouse)
■
Connecting an optional audio cable (if you’ll be projecting with
audio)
note
Macintosh configurations
vary. See your computer
manual for the location of the
ports needed to connect your
projector. Older models may
require a Macintosh adapter,
which you may purchase
from EPSON; see page 7.
78
When you connect the projector to a desktop Macintosh, you cannot
view your display on the Macintosh monitor.
Follow the steps in each section for the cables you need to connect.
Before beginning, turn off the projector and computer if they are on.
Appendix A: Connecting to Additional Equipment
720-730.book Page 79 Thursday, October 30, 2003 11:32 AM
Connecting the Computer Cable
Follow these steps to connect the computer cable. You may not need
to use the adapter as shown.
1. Disconnect the monitor cable from the video port on the back of
the Macintosh.
2. Connect one end of the computer cable to the projector’s
Computer/Component Video port, as shown.
3. Connect the other end of the computer cable to the video port on
the Macintosh.
4. If it doesn’t fit, you may have to use a Macintosh desktop adapter,
which you can buy from EPSON (see page 7).
To use the adapter, remove its cover as
shown and set its DIP switches according
to the resolution you want to use, such as
16-inch mode. See your Macintosh
documentation for instructions.
Replace the cover and connect the
adapter to the free end of the computer
video cable. Then plug the cable (with
the adapter) into the video port on your
Macintosh.
5. Tighten the screws on the connectors.
Appendix A: Connecting to Additional Equipment 79
720-730.book Page 80 Thursday, October 30, 2003 11:32 AM
Connecting the Mouse Cable
To use the remote control as a mouse, follow the steps below.
If the Macintosh has a built in USB port, you can use the USB mouse
cable that came with the projector.
1. Connect one end of the mouse cable to the projector’s USB port.
2. Disconnect your Macintosh’s mouse cable. Connect the other end
of the projector’s mouse cable to a USB port on your Macintosh.
80
Appendix A: Connecting to Additional Equipment
720-730.book Page 81 Thursday, October 30, 2003 11:32 AM
Connecting the Audio Cable
If your presentation includes sound and you want to use the
projector’s built-in speakers, you can use a computer audio cable. The
required cable (3.5-mm stereo miniplug cable) is available from
computer or electronics dealers.
1. Connect one end of the audio cable to the Audio In port on the
projector.
2. Connect the other end of the audio cable to the speaker or
audio-out jack on the Macintosh.
Connecting to a High-End Workstation
Your PowerLite projector is capable of remapping input resolutions
up to 1600 × 1200 pixels. Since 1280 × 1024 pixels is the default
resolution for most leading workstations, your projector is ideal for
displaying workstation video output.
There is no standard for workstation video output. Workstations that
follow the SXGA standard and use the HD15 (standard VGA)
connector won’t need an adapter cable or any special connection
device. However, your system may vary; contact your computer dealer
if you need help connecting your workstation.
Appendix A: Connecting to Additional Equipment 81
720-730.book Page 82 Thursday, October 30, 2003 11:32 AM
82
Appendix A: Connecting to Additional Equipment
720-730.book Page 83 Thursday, October 30, 2003 11:32 AM
B
Appendix B: Notices
This appendix includes safety instructions and other important information
about your EPSON PowerLite 720c/730c.
Important Safety Instructions
Follow these safety instructions when setting up and using the projector:
■
Do not place the projector on an unstable cart, stand, or table.
■
Do not use the projector near water or sources of heat.
■
Use attachments only as recommended.
■
Use the type of power source indicated on the projector. If you are not
sure of the power available, consult your dealer or power company.
■
Place the projector near a wall outlet where the plug can be easily
unplugged.
Placez le projecteur près d’une prise de contacte où la fiche peut être
débranchée facilement.
■
Insert the projector’s two-wire plug into an electrical outlet. Do not hold
the plug with wet hands.
■
Take the following precautions for the plug. Failure to comply with
these precautions could result in sparks or fire: Do not insert the plug
into an outlet with dust present. Insert the plug firmly into the outlet.
■
Do not overload wall outlets, extension cords, or integral convenience
receptacles. This can cause fire or electric shock.
■
Do not place the projector where the cord can be walked on. This may
result in fraying or damage to the plug.
■
Unplug the projector from the wall outlet before cleaning. Use a damp
cloth for cleaning. Do not use liquid or aerosol cleaners.
■
Do not block the slots and openings in the projector case. They provide
ventilation and prevent the projector from overheating. Do not operate
the projector on a sofa, rug, or other soft surface, or in a closed-in
cabinet unless proper ventilation is provided.
Appendix B: Notices 83
720-730.book Page 84 Thursday, October 30, 2003 11:32 AM
84
Appendix B: Notices
■
Never push objects of any kind through cabinet slots. Never spill liquid
of any kind into the projector.
■
Except as specifically explained in this User’s Guide, do not attempt to
service this product yourself. Refer all servicing to qualified service
personnel. Opening or removing covers may expose you to dangerous
voltages and other hazards.
■
This product includes a lamp component that contains mercury. Please
consult your state and local regulations regarding proper disposal and do
not place in a waste stream.
■
Unplug the projector during lightning storms or when it will not be used
for extended periods.
■
Do not place the projector and remote control on top of heat-producing
equipment or in a hot location.
■
Unplug the projector from the wall outlet and refer servicing to qualified
service personnel under the following conditions: When the power cord
or plug is damaged or frayed. If liquid has been spilled into the
projector, or if it has been exposed to rain or water. If it does not operate
normally when you follow the operating instructions, or if it exhibits a
distinct change in performance, indicating a need for service. If it has
been dropped or the housing has been damaged.
■
If you use the projector in a country other than where you purchased it,
use the correct power cord for that country.
■
Do not stand on the projector or place heavy objects on it.
■
Do not attempt to remove the lamp immediately after use. Allow the
lamp to cool for approximately one hour before removing it.
■
Do not use the projector outside of the required temperature range (41
to 95 °F). Doing so may cause an unstable display and an excessive load
on the fan, leading to projector damage.
■
Do not store the projector outside of the required temperature range (14
to 140 °F) or in direct sunlight for long periods of time. Doing so may
cause damage to the case.
■
Do not use the projector with the lens cap in place. The heat generated
by the lens may damage the cap.
■
The liquid crystal display panel contains more than 99.99% active
pixels. However, 0.01% of the pixels may be missing or constantly
illuminated.
720-730.book Page 85 Thursday, October 30, 2003 11:32 AM
Remote Control Information
You can operate the projector by remote control via a line-of-sight infrared
(IR) receiver at the front and rear of the projector. The projector may not
respond to remote control commands under the following conditions:
■
There is an object between the remote control IR emitter and the IR
receiver on the projector.
■
Ambient light is too bright.
■
Certain types of fluorescent lighting are used.
■
A strong light source shines into the IR receiver.
■
Other equipment that emits infrared energy, such as a radiant room
heater, is in the room.
These conditions commonly cause problems for most infrared-controlled
equipment. Try the following:
■
The remote control unit’s battery may be low on power; replace it.
■
Dim the ambient lighting and/or turn off any fluorescent lights.
■
Close any window coverings and/or move the projector out of direct
sunlight.
■
Turn off other equipment that emits infrared energy.
If the remote control still does not work correctly, you can always run your
computer-based presentation directly from the computer.
Appendix B: Notices 85
720-730.book Page 86 Thursday, October 30, 2003 11:32 AM
Declaration of Conformity
According to 47CFR, Part 2 and 15 Class B Personal Computers and
Peripherals; and/or CPU Boards and Power Supplies used with Class B
Personal Computers:
We:
Located at:
Tel:
Epson America, Inc.
3840 Kilroy Airport Way
MS: 3-13
Long Beach, CA 90806
(562) 290-5254
Declare under sole responsibility that the product identified herein, complies
with 47CFR Part 2 and 15 of the FCC rules as a Class B digital device. Each
product marketed, is identical to the representative unit tested and found to
be compliant with the standards. Records maintained continue to reflect the
equipment being produced can be expected to be within the variation
accepted, due to quantity production and testing on a statistical basis as
required by 47CFR §2.909. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may
cause undesired operation.
Trade Name:
EPSON
Type of Product: Projector
Model:
86
Appendix B: Notices
EMP-730/720, ELP-730/720
720-730.book Page 87 Thursday, October 30, 2003 11:32 AM
FCC Compliance Statement
For United States Users
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio or television reception.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause interference to radio and television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the
following measures:
■
Reorient or relocate the receiving antenna.
■
Increase the separation between the equipment and receiver.
■
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
■
Consult the dealer or an experienced radio/TV technician for help.
WARNING
The connection of a non-shielded equipment interface cable to this
equipment will invalidate the FCC Certification of this device and may cause
interference levels which exceed the limits established by the FCC for this
equipment. It is the responsibility of the user to obtain and use a shielded
equipment interface cable with this device. If this equipment has more than
one interface connector, do not leave cables connected to unused interfaces.
Changes or modifications not expressly approved by the manufacturer could
void the user’s authority to operate the equipment.
For Canadian Users
This Class B digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
Cet appareil numérique de la classe B respecte toutes les exigences du Règlement
sur le materiel brouilleur du Canada.
Appendix B: Notices 87
720-730.book Page 88 Thursday, October 30, 2003 11:32 AM
Warranty
Epson America, Inc. Limited Warranty
Basic Two-Year Warranty and 90-Day Lamp Warranty
What Is Covered: Epson America, Inc. (“EPSON”) warrants to the first end
user customer of the EPSON product enclosed with this limited warranty
statement that the product, if purchased and used in the United States or
Canada, conforms to the manufacturer’s specifications and will be free from
defects in workmanship and materials for a period of two (2) years from the
date of original purchase (except that the warranty period is 90 days for
projector lamps).
What EPSON Will Do To Correct Problems: If you elect carry-in warranty
service, please bring the product securely packaged in its original container or
an equivalent, along with proof of the date of original purchase, to your
EPSON Dealer or EPSON Customer Care Center. EPSON will, at its
option, repair or replace on an exchange basis the defective unit, without
charge for parts or labor. When warranty service involves the exchange of the
product or of a part, the item replaced becomes EPSON property. The
exchanged product or part may be new or previously repaired to the EPSON
standard of quality. Exchange or replacement products or parts assume the
remaining warranty period of the product covered by this limited warranty.
However, each replacement lamp carries the limited 90-day warranty stated
above.
What This Warranty Does Not Cover: This warranty covers only normal
consumer use in the United States and Canada. For lamps, 24-hour-per-day
use causes unusual strain and is not considered normal use. This warranty
does not cover consumables (e.g., fuses), other than lamps. EPSON is not
responsible for warranty service should the EPSON label or logo or the rating
label or serial number be removed or should the product fail to be properly
maintained or fail to function properly as a result of misuse, abuse, improper
installation, neglect, improper shipping, damage caused by disasters such as
fire, flood, and lightning, improper electrical current, software problems,
interaction with non-EPSON products, or service other than by an EPSON
Authorized Servicer. Postage, insurance, or shipping costs incurred in
presenting your EPSON product for carry-in warranty service are your
responsibility. If a claimed defect cannot be identified or reproduced in
service, you will be held responsible for costs incurred.
THE WARRANTY AND REMEDY PROVIDED ABOVE ARE
EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS OR IMPLIED
WARRANTIES INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS
88
Appendix B: Notices
720-730.book Page 89 Thursday, October 30, 2003 11:32 AM
FOR A PARTICULAR PURPOSE. SOME LAWS DO NOT ALLOW
THE EXCLUSION OF IMPLIED WARRANTIES. IF THESE LAWS
APPLY, THEN ALL EXPRESS AND IMPLIED WARRANTIES ARE
LIMITED TO THE WARRANTY PERIOD IDENTIFIED ABOVE.
UNLESS STATED HEREIN, ANY STATEMENTS OR
REPRESENTATIONS MADE BY ANY OTHER PERSON OR FIRM
ARE VOID. EXCEPT AS PROVIDED IN THIS WRITTEN
WARRANTY, NEITHER EPSON AMERICA, INC. NOR ITS
AFFILIATES SHALL BE LIABLE FOR ANY LOSS, INCONVENIENCE,
OR DAMAGE, INCLUDING DIRECT, SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES, RESULTING FROM THE USE OR
INABILITY TO USE THE EPSON PRODUCT, WHETHER
RESULTING FROM BREACH OF WARRANTY OR ANY OTHER
LEGAL THEORY. IF THE REMEDY ABOVE FAILS, EPSON’S
ENTIRE LIABILITY SHALL BE LIMITED TO A REFUND OF THE
PRICE PAID FOR THE EPSON PRODUCTS COVERED BY THIS
LIMITED WARRANTY.
In Canada, warranties include both warranties and conditions.
Some jurisdictions do not allow limitations on how long an implied warranty
lasts and some jurisdictions do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitations and exclusions
may not apply to you.
This warranty gives you specific legal rights, and you may also have other
rights, which vary from jurisdiction to jurisdiction.
To locate the Authorized EPSON Servicer nearest you, call the
EPSON ConnectionSM at (800) 637-7661 + PIN or (562) 276-4394 in
the U.S. and (905) 709-3839 in Canada or write to: Epson America, Inc.,
P.O. Box 93012, Long Beach, CA 90809-3012.
Appendix B: Notices 89
720-730.book Page 90 Thursday, October 30, 2003 11:32 AM
90
Appendix B: Notices
720-730.book Page 91 Thursday, October 30, 2003 11:32 AM
C
Appendix C: Technical
Specifications
General
Type of display
720c: Poly-silicon TFT active matrix
730c: Poly-silicon TFT active matrix with
MLA (Micro Lens Array)
Size of LCD panels
Diagonal: 0.9 inches (22.9 mm)
Lens
F=1.9 to 2.1, f=31 to 36 mm
Resolution
1024 × 768 pixels (native format)
Color reproduction
Full color, 16.77 million colors
Brightness
720c: 1500 lumens (ANSI)
730c: 2000 lumens (ANSI)
Contrast ratio
400:1
Image size
30 to 300 inches
Projection distance
3.2 to 38.5 feet (.96 to 11.7 meters)
Projection methods
Front, rear, upside-down (ceiling mount)
Internal sound system
1 W monaural
Optical aspect ratio
4:3 (horizontal : vertical)
Zoom ratio
1:1.16
Noise level
39 dB
Keystone correction
angle
±
15° vertical (maximum)
Pixelworks DNX™ ICs are used in this projector.
Appendix C: Technical Specifications 91
720-730.book Page 92 Thursday, October 30, 2003 11:32 AM
Projection Lamp
Type
UHE (Ultra High Efficiency)
Power consumption
150 W
Lamp life
About 1500 hours
Part number
V13H010L18
Remote Control
Range
20 feet (6 meters)
Battery
CR2025 lithium
Mouse Compatibility
Supports USB
Dimensions
Height
2.8 to 3.1 inches (70 to 78.5 mm)
Width
10.9 inches (276 mm)
Depth
7.5 inches (190 mm)
Weight
4.3 lb (1.9 kg)
Electrical
92
Rated frequency
50/60 Hz
Power supply
100 to 120 VAC, 3.1 A
200 to 240 VAC, 1.5 A
Power consumption
Operating: 225 W
Standby: 5.5 W
Appendix C: Technical Specifications
720-730.book Page 93 Thursday, October 30, 2003 11:32 AM
Environmental
Temperature
Operating: 41 to 95 °F (5 to 35 °C)
Storage: 14 to 140 °F (–10 to 60 °C)
Humidity
Operating: 20 to 80% RH,
non-condensing
Storage: 10 to 90% RH,
non-condensing
Safety
United States
FCC 47CFR Part15B Class B (DoC)
UL1950 Rev. 3
Canada
ICES-003 Class B
CSA C22.2 No. 950-95 (cUL)
CE Marking
Directive 73/23/EEC, 89/336/EEC
EN 55022, EN 55024
Compatible Video Formats
The projector supports NTSC, PAL, and SECAM international video
standards, as well as the monitor display formats listed below.
To project images output from a computer, the computer’s video card
must be set at a refresh rate (vertical frequency) that’s compatible with
the projector; see the following table for compatible formats. As noted
below, some images are automatically resized to display in one of the
projector’s “native” formats (such as XGA). In addition, the
frequencies of some computers may not allow images to display
correctly; see your computer’s documentation for details.
Mode
Refresh Rate (Hz)
Resolution
VGAEGA
70
640 × 350*
VGA—60
VESA—72
VESA—75
VESA—85
60
72
75
85
640 × 480*
640 × 480*
640 × 480*
640 × 480*
Appendix C: Technical Specifications 93
720-730.book Page 94 Thursday, October 30, 2003 11:32 AM
Mode
Refresh Rate (Hz)
Resolution
SVGA—56
SVGA—60
SVGA—72
SVGA—75
SVGA—85
56
60
72
75
85
800 × 600*
800 × 600*
800 × 600*
800 × 600*
800 × 600*
XGA—43i
XGA—60
XGA—70
XGA—75
XGA—85
43
60
70
75
85
1024 × 768
1024 × 768
1024 × 768
1024 × 768
1024 × 768
SXGA1—70
SXGA1—75
SXGA1—85
70
75
85
1152 × 864*
1152 × 864*
1152 × 864*
SXGA2—60
SXGA2—75
SXGA2—85
60
75
85.94
1280 × 960*
1280 × 960*
1280 × 960*
SXGA3—43i
SXGA3—60
SXGA3—75
SXGA3—85
43
60
75
85
1280 × 1024*
1280 × 1024*
1280 × 1024*
1280 × 1024*
UXGA—48i
UXGA—60
48
60
1600 × 1200*
1600 × 1200*
MAC13
MAC16
MAC19—60
MAC19
MAC21
67
75
59
75
75
640 × 480*
832 × 624*
1024 × 768
1024 × 768
1152 × 870*
NTSC
NTSC 4:3
PAL
M-PAL
N-PAL
PAL—60
SECAM
60
60
50
60
50
60
50
—
—
—
—
—
—
—
HDTV (480i)
HDTV (480p)
HDTV (720p)
HDTV (1080i)
HDTV (1080i)
60
60
60
60
50
640 × 480*
640 × 480*
1280 × 720*
1920 × 1080*
1920 × 1080*
*The
94
image is resized using EPSON’s SizeWise Technology.
Appendix C: Technical Specifications
720-730.book Page 95 Thursday, October 30, 2003 11:32 AM
Computer Video Port Pin Assignments
The Computer port is a female video RGB, 15-pin micro-D-style
connector. Here are its pin assignments:
Pin no.
Computer port
1
Red video
2
Green video
3
Blue video
4
GND
5
GND
6
Red GND
7
Green GND
8
Blue GND
9
Reserved
10
Synchronous GND
11
GND
12
SDA
13
Horizontal sync / composite sync
14
Vertical sync
15
SCL
Appendix C: Technical Specifications 95
720-730.book Page 96 Thursday, October 30, 2003 11:32 AM
96
Appendix C: Technical Specifications
720-730.book Page 97 Thursday, October 30, 2003 11:32 AM
Index
A
A/V Mute button, 33, 44, 46
A/V Mute setting, 46
About menu, 38, 48
Accessories, 7, 71
Adapters, Macintosh, 7, 79
Advanced menu, 38, 46 to 47
Air filter, cleaning and replacing, 53
Anti-theft device, 7, 11
Aspect ratio, 91
Audio
adjusting tone, 42
adjusting volume, 42
connecting desktop, 77, 81
connecting laptop, 14
menu, 38, 42
problems, troubleshooting, 68
turning off (using A/V Mute), 33
Auto button, 40
Auto Keystone correction, 27, 38, 45
Auto Setup setting, 40
AV cable, 15 to 18
Cleaning
air filter, 53
lens, 52
projector case, 52
Color
adjusting, 47
problems, 68
Color Mode Prompt setting, 46
Color Mode setting, 41
Component video cable, 6, 7, 15, 18
Composite video cable, 15
Computer button, 32, 63, 68
Computer cable, 5, 12, 75, 79
Computer connector pin assignments, 95
Computers supported, 1
Connecting projector
to a desktop Macintosh, 78 to 81
to a desktop PC, 74 to 77
to a high-end workstation, 81
to a laptop, 12 to 14
to a video source, 15 to 18
Connector pin assignments, 95
Contrast setting, 40
B
D
Bass, adjusting, 42
Battery, installing, 35
Blank screen, 22 to 24
Blurry image, 67
Brightness, 1, 91
Brightness setting, 40
Declaration of Conformity, 86
Default settings, restoring, 38, 39, 49
Desktop adapter, Macintosh, 79
Desktop computer, connecting to, 74 to 81
Digital camera, connecting to, 15 to 17
Distance from projector to screen, 10, 91
DVD player, connecting to, 15 to 18
C
Cables, 5 to 7
Camcorder, connecting to, 15 to 17
Carrying case, 5, 7, 57
Ceiling mount, 47, 74
E
Electrical specifications, 92
Enter button, 34
Environmental specifications, 93
Index 97
720-730.book Page 98 Thursday, October 30, 2003 11:32 AM
EPSON
accessories, 7, 71
PrivateLine Support, 4, 70 to 71
technical support, 3 to 4, 70 to 71
Esc button, 34
E-Zoom buttons, 33
F
FCC compliance statement, 87
Filter, see Air filter
Focusing, 25
Foot release levers, 26
Freeze button, 33
H
Height of image, adjusting, 26
Help, 3 to 4, 70 to 71
Help button, 60
Help system, using, 60
I
iBook, connecting to, 12
iMac, connecting to, 6
adjusting, 25 to 27, 40 to 42
capturing and saving in projector, 43 to 44
correcting shape of, 27, 45, 66
focusing, 25
height, adjusting, 26
positioning, 26, 40
problems with, troubleshooting, 63 to 68
raising, 26
shape, correcting, 27, 45, 66
size and projection distance, 10, 91
size range, 91
turning off (using A/V Mute), 33
zooming, 25, 33
Installing projector, 74
K
Kensington anti-theft device, 7, 11
Keystone button, 27
Keystone correction, 27, 45, 66, 91
98
Index
L
Lamp
automatic shutoff, 28
number of hours used, 48
replacing, 54 to 55
specifications, 92
status light, 61 to 62
Language setting, 47, 60
Laptop computer
connecting to, 12 to 14
displaying on, 22, 64
Laser disc player, connecting to, 15 to 18
Lens
cap, 20
cleaning, 52
specifications, 91
Lights, status, 61 to 62
Logo, saving on projector, 43 to 44
M
Macintosh, connecting to, 78 to 81
Manuals, 3 to 4
Menus
About, 38, 48
Advanced, 38, 46 to 47
Audio, 38, 42
changing settings, 38 to 39
Reset All, 38, 49
Setting, 38, 45 to 46
User’s Logo, 38, 43 to 44
using, 38 to 39
Video, 38, 40 to 42
Monitor adapter, Macintosh, 79
N
No-Signal Msg setting, 44, 45
O
Options for projector, 7
720-730.book Page 99 Thursday, October 30, 2003 11:32 AM
P
R
Picture, see Image
Pin assignments, connector, 95
Positioning image, 26, 40
Positioning the projector, 10 to 11, 74
Power
button, 21
consumption, 92
saving, 28, 46
status light, 61 to 62
supply, 92
PowerBook, connecting to, 12 to 14
Presenters Online, 3, 70
PrivateLine Support, 4, 70 to 71
Problems
color, 68
image, 63 to 68
remote control, 69, 85
sound, 68
USB, 69
Projection lamp, see Lamp
Projector
carrying case, 5, 7, 57
cleaning, 51 to 53
distance from screen, 10, 91
feet, adjusting height with, 26
installing, 74
lamp specifications, 92
options, 7
positioning, 10 to 11, 74
resolution, 1, 91
shutting off, 28 to 29
specifications, 91 to 95
transporting, 57
troubleshooting, 59 to 68
turning off, 28 to 29
turning on, 20 to 21
unpacking, 5
viewing information about, 48
Prompt setting, 46
Raising image, 26
RCA AV cable, 5, 15, 16
Rear-screen projection, 47, 74
Registration, 4
Remote control
problems, 69, 85
replacing battery, 35
specifications, 92
troubleshooting, 69, 85
using, 31 to 34
wireless mouse, using as, 34
Replacing lamp, 54 to 55
Reset All menu, 38, 49
Resetting menu options, 49
Resolution, 1, 91
S
Safety instructions, 83 to 84
Screen image, see Image
Screen, distance from projector, 10, 91
Screens, portable, 7
Setting menu, 38, 45 to 46
Sharpness setting, 41
Sleep mode, 28, 46
Sound
adjusting tone, 42
adjusting volume, 42
problems, troubleshooting, 68
turning off (using A/V Mute), 33
see also Audio
Source button, 22
Source, selecting, 32
Speaker, specifications, 91
Index 99
720-730.book Page 100 Thursday, October 30, 2003 11:32 AM
Specifications
brightness, 1, 91
electrical, 92
environmental, 93
general, 91
lamp, 92
lens, 91
remote control, 92
resolution, 1, 91
safety, 93
Startup Screen setting, 47
Startup screen, creating, 43 to 44
Status lights, 61 to 62
Stopping action, 33
Support, see Technical support
S-Video cable, 6, 15, 17
S-Video/Video button, 32
Sync, adjusting, 40
T
Technical support, 3 to 4, 70 to 71
Temperature
requirements, 93
status light, 61 to 62
Tint setting, 41
Tone setting, 42
Tracking, adjusting, 40
Transporting projector, 57
Treble, adjusting, 42
Troubleshooting
image and sound problems, 63 to 68
projector problems, 59 to 68
remote control problems, 69
Turning off picture (using A/V Mute), 33
Turning off projector, 28 to 29
Turning on projector, 20 to 21
U
Unpacking projector, 5
USB mouse cable, 5
User’s Logo menu, 38, 43 to 44
100
Index
V
VCR, connecting to, 15 to 18
Video
display settings, viewing, 48
formats, supported, 1, 93 to 94
menu, 38, 40 to 42
selecting source, 32
Video port pin assignments, 95
Video Signal setting, 41
Video sources, connecting to, 15 to 18
Volume
adjusting, 42
setting, 42
W
Warning lights, 61 to 62
Warranty, 4, 88 to 89
Workstations, connecting projector to, 81
Z
Zoom ratio, 91
Zooming image, 25, 33
