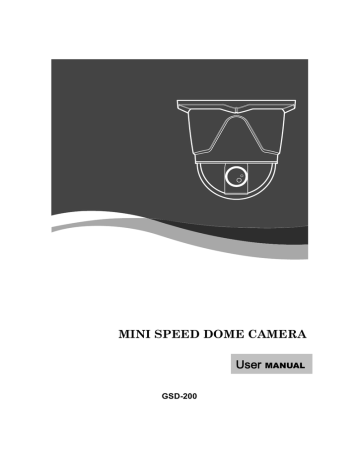

MINI SPEED DOME CAMERA

MINI SPEED DOME CAMERA

MINI SPEED DOME CAMERA

User

MANUAL

GSD-200

TABLE OF CONTENTS

1. CATION

------------------------------------------------------- 3

2. INTRODUCTION OF PRODUCT

-------------------------------5

1). DESCRIPTION AND FEATURES

-----------------------------5

2). INSTALLING AND CONNECTING

---------------------------- 6

2-1. NAME AND FUNCTION OF EACH PART

-------------------6

2-2. INSTALLATION

--------------------------------------7

2-3. CONNECTION DIAGRAM

--------------------------------8

3. DIRECTIONS FOR USE

-----------------------------------------9

1). DIP SWITCH SETTING

---------------------------------------9

2). HOW TO CHANGE PROTOCOL

-------------------------------10

3). HOW TO SET ADDRESS DIP SWITCHES

----------------------11

4). HOW TO USE OSD MENU

----------------------------------12

4-1. HOW TO CONTROL OSD MENU

--------------------------12

4-2. FUNCTIONAL DESCRIPTIONS ON EACH MENU

------------13

4-3. SETTING FUNCTIONS BY KEYBOARD

---------------------23

4-4. OSD MESSAGE DESCRIPTION

---------------------------27

4. TROUBLE SHOOTING

------------------------------------------29

5. DIMENSIONS

&

ASSEMBLES

------------------------------------30

6. CONFIGURALTION

---------------------------------------------31

7. SPECIFICATIONS

----------------------------------------------33

1. CAUTION

Thank you

for purchasing mini speed dome camera GMS-200.

Please operate the product after being fully aware of the manual.

Pease contact us if you have any queries or face any problems.

DO NOT CONTROL PAN, TILT BY FORCE

Do not move the inside Pan/Tilt motor by force after removing dome cover.

It can cause damages.

HANDLE WITH CARE OF CAMERA LENS AND DOME

Be careful of handle with dome cover

Please use a soft fabric due to a scratch when you clean the cover.

EXTERNAL SHOCK

Damages can be occurred through the carelessness

Or shock when you take out the module.

Dimensions

UNIT:mm

CAUTION IN USE.

Do not disassemble the unit and put alien substances in the unit.

It can cause troubles

.

Ensure power switch-off before the installation.

Ensure power switch-off and check the voltage the camera before the installation.

Do not give the unit a shock and an operation.

Giving a strong shock or an excessive power on the button, terminal can cause troubles

.

This product has been designed and manufactured in accordance with the harmonized European standards, following the provisions of the below stated directives.

Electromagnetic Compatibility Directive 89/336/EEC(EN61000-3-2:1995, EN61000-3-3:1995,

EN50081-1:1992, EN50082-1:1997)

This devise complies with part 15 of the fcc rules operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received including interference that may cause undesired operation

2. INSTRUCTION OF PRODUCT

1) DESCRIPTION AND FEATURES

- Description -

This camera has been designed elegantly for buildings, department stores that need to be in harmony with the interior as a high speed dome camera, including various observation functions.

It moreover is effective for true Day & Night.

- Features

-

High magnification zoom lens

Max 100 times zoom

(optical x10 zoom, digital x10 zoom)

Horizontal resolution min. 520 TVL

Color: min.520 TVL, B/W: min.570 TVL

horizontal resolution

Low light and Day & Night

The result of improving sensitivity

0.0007Lux (DSS Control)

ICR Day & Night allows the filter to change

B/W mode (0.1 Lux) in the night.

Additional functions

PTZ trace:

Memorize P/T/Z move for 120 seconds then operate the registered trace.

Auto swing:

Repeat pan and tilt between two preset positions.

Group:

12 Preset positions are chained in one Group.

(Max 12 Groups available)

Tour:

Max 12 Groups are bound.

410k Pixel CCD CAMERA

SONY CCD chip with high resolution and low illumination condition.

250 Preset positions

A maximum of 250 preset positions can be programmed. The preset function enables to set where you want on monitor at any time.

4ch alarm inputs

It can be directly connected to sensor and used with presets owing to built-in 4-channel sensor input terminals.

It can be also operated together with other equipment owing to built-in alarm output.

Auto Tilt move

The unit can track the object moving automatically until 180° in vertical.

OSD (On Screen Display)

Provides character information displayed on the monitor, such as the camera ID address, camera name, preset number, sequence status, and sets various functions of camera easily on the OSD menu screen.

Privacy Zones

For the privacy, it can be programmed for masking zone up to 4 locations on the

OSD menu screen.

Audio out (Option)

Built-in mono microphone without Amplifier.

2). INSTALLATION AND CONNECTION

2-1. NAME AND FUNCTION OF EACH PART

104 ¢ BUBBLE

CAMERA COVER

P/T BASE

BOTTOM COVER

CAMERA BODY COVER

CAMERA BASE

MAIN BASE

CAMERA BODY

2-2. INSTALLATION

Make 4 holes after attaching ceiling guide where the camera is set.

Take out the cables from the ceiling.

Take apart 4 bands of camera body cover

Set up DIP switch

(Reference to XXP)

Connect with cables.

Tighten 4 screws.

Attach the camera body cover

Completion

2-3. CONNECTION DIAGRAM

AC24V/500mA(GMS-200iS)

DC12V/1A (GMS-200S)

VIDEO IN AUDIO IN

CAMERA 1~128

DC JACK

Violet(N/O)

Gray(COM)

Black(GND)

Brown(CH1)

Red(CH2)

Yellow(CH3)

Green(CH4)

RS-485

Sensor 1

4 ALARM INPUT

VIDEO INPUT

Sensor 4

AUDIO

CAMERA 129

~

CAMERA 255

3. DIRECTIONS FOR USE

1) DIP SWITCH SETTING

Set the camera numbers in the state of

ADDR, set communication speed, protocol in the state of INIT.

-This part is each address of

camera.-

It shows the status of Power

On/Off. Green LED is On while power is alive. In the status of operation, red LED is off.

-TERMINALATION RESISTOR (DIP SW NO1)

~Turn the last camera on the data line as a switch to turn on/off the terminal resistor on.

Turn the DIP SW of some of the farthest cameras on in the case of the data lines distributed to several directions.

* The first default is off.

(.*** The first default is ADDRESS.**)

-Set the communication speed and Protocol

(Demand for the technical inquiry) up in the state of the INITAIL.

-Select PAL / NTSC system.

-ADDRESS/ INITIAL SELECT (DIP SW NO3)

~Set ADDRESS DIP SW in the status of ADDRESS

(*Reference to next page*)

-POWER ON/OFF (DIP SW NO4)

Set DIP SW only in the status of Power off.

Then turn on the power after setting DIP SW.

2) HOW TO CHANGE PROTOCOL

Set up this part.

The switch that selects Protocol. The switch that selects Baud Rate.

.

Change No.3 at S2 to INIT if want to change Protocol.

① Please make Power off.

② Switch Protocol that wants to change on as above table.

③ Make Power on, then set Protocol and Baud rate are appealed.

④ Make Power off, if every setting is right. Then it is done.

⑤ Change No.3 of S2 to ADDR before Power on, then make Power on after setting the address of the camera.

⑥ Try it again with the information as above the table, if something is wrong.

3) HOW TO SET ADDRESS DIP SWITCHES

Use DIP switches No.1 to No.8 for address, it can be set 1 program to 255 program.

RX NO

1

DIP SWITCH (HEX)

1 2 3 4 5 6 7

ON OFF OFF OFF OFF OFF OFF

RX NO DIP SWITCH (HEX)

(DEC)

33

1 2 3 4 5 6

ON OFF OFF OFF OFF ON

7

OFF

34 OFF ON OFF OFF OFF ON OFF

4 OFF ON OFF OFF OFF OFF

5 ON ON OFF OFF OFF OFF

6 OFF ON ON OFF OFF OFF OFF

7 ON ON ON

8 OFF ON OFF OFF OFF

9 ON ON OFF OFF OFF

10 OFF ON OFF ON OFF OFF OFF

11 ON ON ON OFF OFF OFF

12 OFF ON ON OFF OFF OFF

13 ON ON ON OFF OFF OFF

14 OFF ON ON ON OFF OFF OFF

15 ON ON ON ON OFF OFF OFF

16 OFF ON OFF OFF

17 ON ON OFF OFF

18 OFF ON OFF OFF ON OFF OFF

19 ON ON ON OFF OFF

20 OFF ON OFF ON OFF OFF

21 ON ON OFF ON OFF OFF

22 OFF ON ON OFF ON OFF OFF

23 ON ON ON OFF ON OFF OFF

24 OFF

25 ON

26 OFF ON OFF

27 ON ON

28 OFF

29 ON

32 OFF

ON ON OFF OFF

ON ON OFF OFF

ON ON OFF OFF

ON ON OFF OFF

ON ON ON OFF OFF

ON ON ON OFF OFF

30 OFF ON ON ON ON OFF OFF

31 ON ON ON ON ON OFF OFF

ON OFF

36 OFF OFF ON OFF OFF ON OFF

38 OFF ON

39 ON ON OFF OFF ON OFF

40 OFF OFF OFF ON OFF ON OFF

42 OFF ON OFF ON OFF ON OFF

44 OFF OFF ON ON OFF ON OFF

46 OFF ON

ON OFF OFF ON OFF

ON ON OFF ON OFF

47 ON ON ON OFF ON OFF

48 OFF OFF OFF OFF ON ON OFF

50 OFF ON OFF OFF ON ON OFF

52 OFF OFF ON OFF ON ON OFF

54 OFF ON ON OFF ON ON OFF

55 ON ON OFF ON ON OFF

56 OFF OFF OFF ON ON ON OFF

57 ON ON ON OFF

58 OFF ON OFF ON ON ON OFF

59 ON ON ON OFF

60 OFF OFF ON ON ON ON OFF

61 ON ON ON OFF

62 OFF ON ON ON ON ON OFF

63 ON ON ON ON ON OFF

64 OFF OFF OFF OFF OFF OFF ON

-No.1 is changed to No.64 and the last No.64 is changed No.128 when No.7 DIP SW is on.

-No.1 is changed to No.129 when No.7 DIP SW is off and No.8 DIP SW is on.

-No.1 is changed to No.193 and user can set up to maximum 255 ADDRESS when No.7, 8 DIP SW are on.

4) HOW TO USE OSD MENU

4-1. HOW TO CONTROL OSD MENU

OSD (ON SCREEN DISPLAY) CONTROL

It is the function to call up the Menu

*User can not only set Preset, Group, Tour, Swing, Trace functions of the camera up by the menu, but also set them up by shortening keys. (Refer to 4-3 content)

ACCESSING

OSD MENU

1) The menu is displayed on the screen with the key tone when user presses No.1

and menu key.

OSD Menu Control

<< CAMERA SETUP p1 >>

1. ID Set : Press F/F Key

2. OSD Display : ID + Status

3. Back Light : Off

4. AGC level : Low

5. Shutter speed : Auto

6. Sharpness level : 003

7. Brightness : 005

8. Flickerless : Manual

-NEXT MENU PAGE

RELEASE OSD MENU

Cursor Moving :

Feed Letters :

Select Menu :

Changing Setting :

4-2. FUNCTIONAL DESCRIPTIONS ON EACH MENU

1. ID SET

It is the function to set ID of the camera.

Move to No.1 menu and the screen moves as following when user presses F/F key.

User can choose letters that they want, if user control a joystick up / down / right / left, and user can reselect the previous letters, if user presses Z/I, Z/O or turn the head of the joystick to right/left.

" ● "” is not displayed on the screen as a blank letter, user can input letters in Japanese and in Chinese if user moves the joystick down continuously.

2. OSD DISPLAY

Set up whether sets ID and STATUS to display on the screen in normal operating.

► ID + Status: ‘ID’ and ‘Status’ displayed on the screen

► ID only: Only ‘ID’ displayed on the screen.

► Status only: Only ‘Status’ displayed on the screen

► All off: Nothing displayed on the screen.

<< CAMERA SETUP p1 >>

1. ID Set : Press F/F Key

2. OSD Display : ID + Status

3. Back Light : Off

4. AGC level : Low

5. Shutter speed : Auto

6. Sharpness level : 003

7. Brightness : 005

8. Flickerless : Manual

Ex).

-NEXT MENU PAGE

3. Back Light

Set up backlight compensation mode.

► On: It compensates a dark subject to a light

object by BACK LIGHT function.

(Low, Middle, High)

Off: Release BACK LIGHT compensation mode

<< CAMERA SETUP p1 >>

1. ID Set : Press F/F Key

2. OSD Display : ID + Status

3. Back Light : Off

4. AGC level : Low

5. Shutter speed : Auto

6. Sharpness level : 003

7. Brightness : 005

8. Flickerless : Manual

-NEXT MENU PAGE

4. AGC level

AGC(Automatic Gain Control)- It adjusts the amount of video amplification to maintain a full 1-volt peak-to-peak video signal output automatically.

► Range: Low, Middle, High

<< CAMERA SETUP p1 >>

1. ID Set : Press F/F Key

2. OSD Display : ID + Status

3. Back Light : Off

4. AGC level : Low

5. Shutter speed : Auto

6. Sharpness level : 003

7. Brightness : 005

8. Flickerless : Manual

-NEXT MENU PAGE

5. Shutter speed

As a setting shutter speed mode, it can be distinguished a fast moving subject easily by means of shutter speed up.

* The illumination of the camera decreases if shutter speed is getting up.

* The default value is ‘AUTO’

* It can be worked in the status of Flickerless ‘off’.

Range: AUTO, 1/120, 1/250, 1/500,....1/60000

6. Sharpness level

Compensation of the shape of a object.

► Rage: 0 ~ 10 , Default value : 03

<< CAMERA SETUP p1 >>

1. ID Set : Press F/F Key

2. OSD Display : ID + Status

3. Back Light : Off

4. AGC level : Low

5. Shutter speed : Auto

6. Sharpness level : 003

7. Brightness : 005

8. Flickerless : Manual

-NEXT MENU PAGE

7. Brightness

Control brightness of the screen.

► Range: 0 ~ 99 , Default value: 50

<< CAMERA SETUP p1 >>

1. ID Set : Press F/F Key

2. OSD Display : ID + Status

3. Back Light : Off

4. AGC level : Low

5. Shutter speed : Auto

6. Sharpness level : 003

7. Brightness : 005

8. Flickerless : Manual

-NEXT MENU PAGE

8. Flickerless

Tremble on the screen is removed in the status of Flickerless ‘ON’, the shutter speed, at the same, is Fixed in 1/120 sec in NTSC and in

1/100 sec in PAL.

<< CAMERA SETUP p1 >>

1. ID Set : Press F/F Key

2. OSD Display : ID + Status

3. Back Light : Off

4. AGC level : Low

5. Shutter speed : Auto

6. Sharpness level : 003

7. Brightness : 005

8. Flickerless : Manual

-NEXT MENU PAGE

Move the joystick down then choose “NEXT

MENU PAGE” on the screen to move next page.

<< CAMERA SETUP p1 >>

1. ID Set : Press F/F Key

2. OSD Display : ID + Status

3. Back Light : Off

4. AGC level : Low

5. Shutter speed : Auto

6. Sharpness level : 003

7. Brightness : 005

8. Flickerless : Manual

-NEXT MENU PAGE

9. SSNR level

It can remarkably reduce noise of minimum illumination by super noise removable technique and also file size becomes smaller while

DVR is being recorded by the effective reducetion of noise.

► Range: Off, Low, Middle, High

<< CAMERA SETUP p2 >>

9. SSNR level : Middle

10. White balance : Outdoor

11. Focus mode : Oneshot

12. Zoom MAX Limit : x20

13. DSS CONTROL : Off

14. DAY & NIGHT : Auto

- PREV MENU PAGE

- NEXT MENU PAGE

10. White balance

It prevents from that white color is changed as illumination, user can set it up in 2 ways.

► INDOOR, OUTDOOR

<< CAMERA SETUP p2 >>

9. SSNR level : Middle

10. White balance : Outdoor

11. Focus mode : Oneshot

12. Zoom MAX Limit : x20

13. DSS CONTROL : Off

14. DAY & NIGHT : Auto

- PREV MENU PAGE

- NEXT MENU PAGE

11. Focus mode

Change Focus mode to hand-worked or

Auto.

► OneShot : Auto Focusing mode works during non-working after zoom is worked..

► Auto : It adjusts the focus automatically

As it monitors the screen.

► Manual : User can control the focus by handworked..

<< CAMERA SETUP p2 >>

9. SSNR level : Middle

10. White balance : Outdoor

11. Focus mode : Oneshot

12. Zoom MAX Limit : x20

13. DSS CONTROL : Off

14. DAY & NIGHT : Auto

- PREV MENU PAGE

- NEXT MENU PAGE

12. Zoom MAX Limit

It is used when user corrects and limits the extensional range of the focus as a function to set the maximum value of zoom.

► Off, x20 ~ x100

The camera is reset when user is out of Menu mode after end the setting, and the changed magnification is registered in the camera.

<< CAMERA SETUP p2 >>

9. SSNR level : Middle

10. White balance : Outdoor

11. Focus mode : Oneshot

12. Zoom MAX Limit : x20

13. DSS CONTROL : Off

14. DAY & NIGHT : Auto

- PREV MENU PAGE

- NEXT MENU PAGE

13. DSS CONTROL

An object becomes clear as the field value gets higher in illumination, whereas a moving object becomes dim.

► Default value: Off, 2 ~ 128 field

14. DAY & NIGHT

The function is used to distinguish an object

In the dark condition.

► Auto : Day & Night mode is worked automatically, if it is dark.

► On : Change into DAY & NIGHTY mode by

hand-worked

► Off : Set DAY & NIGHTY mode ‘Off’

15. Select Alarm

It selects whether it moves the preset point automatically or it moves by MOTION function when being alarmed.

► Motion, Sensor

<< CAMERA SETUP p3>>

15. Select Alarm : Sensor

16. Motion Detection : Off

17. PRESET & RUN PAGE

18. TRACE SET PAGE

19. ALARM CH ON/OFF

20. ALARM PRESET SET PAGE

21. PRIVACY ZONE SET PAGE

- PREV MENU PAGE

- NEXT MENU PAGE

16. Motion Detection

Set Motion ‘On’ after move the camera where user wants. It displays the message

‘Motion Detected’ on the screen when the moving

of an object is sensed on the same screen.

<< CAMERA SETUP p3 >>

15. Select Alarm : Sensor

16. Motion Detection : Off

17. PRESET & RUN PAGE

18. TRACE SET PAGE

19. ALARM CH ON/OFF

20. ALARM PRESET SET PAGE

21. PRIVACY ZONE SET PAGE

- PREV MENU PAGE

- NEXT MENU PAGE

17. PRESET & RUN PAGE

<< CAMERA SETUP p3 >>

It is a function to set and operate Preset,

Group,Tour.

User can see the screen when moves the joystick to Right/Left after fixing the cursor on the menu.

15. Select Alarm : Sensor

16. Motion Detection : Off

17. PRESET & RUN PAGE

18. TRACE SET PAGE

19. ALARM CH ON/OFF

20. ALARM PRESET SET PAGE

21. PRIVACY ZONE SET PAGE

<< PRESET SETUP PAGE>>

- PREV MENU PAGE

- NEXT MENU PAGE

① Preset set CH:

Set Preset No. and title.

- Preset No.: Set it by moving the joystick to Right/Left

- Preset Title: It displays “SET ID” when presses F/F key after setting Preset No.

* The setting steps are the same as “ID Set” at the part 4-2-1.

<< PRESET SET & RUN PAGE >>

- Preset set CH : 001

- Preset PTZ SET

- Preset Swing SET

- Group SET CH : 001

<< SET CH:001[PRESET:001] >>

!#$%&()*+`-./0123456789

:;<=>[email protected]

RSTUVWXYZ[\]^_,abcdefghijkl mnopqrstuvwxyz

- RETURN MENU PAGE

Zoom In/Out , OSD Shift

Press SAVE F/F , ESC F/N

Press F/F Set Mode

<< PRESET SET & RUN PAGE >>

- Preset set CH : 001

- Preset PTZ SET

- Preset Swing SET

- Group SET CH : 001

- RETURN MENU PAGE

Press F/F Set Mode

PRESET : 001

[SAVE] [DELETE] [ESC]

F/F Save Return, F/N Select

② Preset PTZ: Set preset points.

Select the main menu with the joystick, then press F/F key for next page. Select [SAVE] with

F/N key after setting the Preset point by using the joystick and In/Out function, then the data is saved if user presses F/F key, then it is moved to the previous screen automatically from the menu.

① Set preset point ② Move to menu ③ Check

●[SAVE]: Previous screen after saving

[DELETE]: Remove

[ESC]: Cancel

*Repeat the same way after changing the number of Preset, if user set another Preset.

<< PRESET SET & RUN PAGE >>

- Preset set CH : 001

- Preset PTZ SET

- Preset Swing SET

- Run Function : UNDEF

- RETURN MENU PAGE

Press F/F Set Mode

③ Preset Swing SET : Set Preset Swing.

Move next SWING page for the setting, when pressing F/F key in the state of selection of the menu.

▪ The preset must be set before the setting because

Swing is a function to repeat an auto observation of 2 Preset points user select in Preset set

<< SWING SETUP PAGE >>

- P/T Swing : Undef (TILT/PAN)

- Start Preset : 000 (1~250)

- End Preset : 000 (1~250)

- Swing Time : 000 (1~127)

- Swing Speed : 000 (1~64)

Press F/F Save, F/N(ESC)

•P/T Swing: TILT - Observe up and down,

PAN - Observe right and left

•Start Preset: Preset number of the location to be

started an observation

•End Preset: Preset number of the location to be

ended an observation

•Swing Time: Dwell time after moving

•Swing Speed: Moving speed

: Selection of

Up/down menu

: Change of

A setting

<< PRESET SET & RUN PAGE >>

- Preset set CH : 001

- Preset PTZ SET

- Preset Swing SET

- Group SET CH : 001

- Tour SET Group

- Run Function : UNDEF

- RETURN MENU PAGE

Press F/F Set Mode

▷▶

<< GROUP SET CH:01 >>

[P] [S] [T] [P] [S] [T]

000 000 000 000 000 000

000 000 000 000 000 000

000 000 000 000 000 000

000 000 000 000 000 000

000 000 000 000 000 000

000 000 000 000 000 000

Press F/F Save, F/N(ESC)

④ GROUP SET: User can set maximum 12 groups

Select a channel then move to next page after pressing F/F key

• The Preset point in the Group that 12 Preset points are set is observed repeatedly and in order with regular speed and time.

● [P]: Set Preset points (1~250)

● [S]: Moving speed (1~64)

● [T]: Dwell time

① Set Preset ② Next setting ⑥ Out of menu

③ Set moving speed ④ Next setting after saving

⑤ Set dwell time

<< PRESET SET & RUN PAGE >>

- Preset set CH : 001

- Preset PTZ SET

- Preset Swing SET

- Group SET CH : 001

- Tour SET Group

- Run Function : UNDEF

- RETURN MENU PAGE

Press F/F Set Mode

⑤ Tour SET Group : User can set continual Group

motion that can be put 12 Groups in 1 Tour

Move to the setting page if user presses F/F key

on this menu.

▪ The Group user wants to set must be set first.

Setting is only possible when Preset is set first in the state of setting of Swing, Group, Tour, otherwise, it displays the message “Sorry Undefined”

.

⑥ Run Function: Operate one of SWING/ GROUP/

TOUR/ TRACE. (It is operated automatically after the end of OSD menu.)

<< PRESET SET & RUN PAGE >>

- Preset set CH : 001

- Preset PTZ SET

- Preset Swing SET

- Group SET CH : 001

- Tour SET Group

- Run Function : UNDEF

- RETURN MENU PAGE

Press F/F Set Mode

▷▶

T01: 01 T02:00 T03:00 T04:00

T05:00 T06:00 T07:00 T08:00

T09:00 T10:00 T11:00 T12:00

Press F/F Save, F/N(ESC)

Set the value of “00” part of T01~T12 to Group channel that User wants, then the setting is saved when user is out of the menu after pressing F/F key.

①Select Group ②Set next ③Out of menu saving channel Channel after channel

*Set / Stop order with a control keyboard without menu on the screen.

Preset

Swing

Group

Tour

<< TOUR SETUP PAGE >>

RUN

1~250 +

1(PAN) or +

2(TILT)

1~12 +

STOP

or or or

▪ User can look at how to set TRACE at “18. TRACE SET PAGE”

⑦ RETURN MENU PAGE : Move to a higher menu page when control the joystick Right/Left in the selection of this menu.

18. TRACE SET PAGE

Set TRACE.

User can regenerate and save a change of

The unrestricted location of ZOOM In/Out and a position of the camera by hand-worked control with a joystick

▪ It displays the screen when moves the joystick to

Right/Left after fixing the cursor on the menu

▪ How to set TRACE.

Move to [SET] after pressing .

Check – Control scenes that user wants by hand-

worked with a joystick after the message

“Set Trace: OO%” on the middle of the

screen. If user finishes this part

Move to [SAVE] with

It goes a higher menu after being saved data when pressing with a display of the message “Save TRACE”.

<< CAMERA SETUP p3 >>

15. Select Alarm : Sensor

16. Motion Detection : Off

17. PRESET & RUN PAGE

18. TRACE SET PAGE

19. ALARM CH ON/OFF

20. ALARM PRESET SET PAGE

21. PRIVACY ZONE SET PAGE

- PREV MENU PAGE

- NEXT MENU PAGE

<< P/T/Z TRACE SET >>

[SET] [SAVE] [DELETE] [ESC]

F/F Save Return, F/N Select

▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬

19. ALARM CH ON/OFF

What is ALARM function?: It operate to observe the location of the camera which is memorized previously in the situation of the warning signal or trespassers by using a sensor.

- CH On/Off: Alarm Input – Each channel can be ON/OFF

- Alarm Relay: It can be set On or not when ALARM OUTPUT

PORT operate wrong.

<< CAMERA SETUP p3 >>

15. Select Alarm : Sensor

16. Motion Detection : Off

17. PRESET & RUN PAGE

18. TRACE SET PAGE

19. ALARM CH ON/OFF

20. ALARM PRESET SET PAGE

21. PRIVACY ZONE SET PAGE

- PREV MENU PAGE

- NEXT MENU PAGE

- Active Alarm: It selects ACTIVE OPEN or ACTIVE CLOSE by tangency when something is wrong. It is ACTIVE when

ALARM INPUT is OPEN in ACTIVE OPEN, it is ACTIVE when

ALARM INPUT is CLOSE in ACTIVE CLOSE.

- Resume Time Set :

It can select the waiting time that the camera move to the

Place alarming to observe where wrong signal is sensed.

User can set it for 1sec to 180sec and operate GROUP,

TOUR, SWING again in a preset time. SWING, GROUP,

TOUR are operated in a preset time when user stops the

operating joystick in the case of not connecting with the

ALARM. Press SWING, GROUP, TOUR keys without stopping

of the joystick to stop the operating completely.

(*Stopping the operating with the joystick affects the

SET function.)

<< ALARM CHANNEL ON/OFF >>

- CH1 :Off -CH2 :Off

- CH3 :Off -CH4 :Off

- Alarm Relay :Off

- Active Alarm :Close

- Resume timeset :Off

- RETURN MENU PAGE

20. ALARM PRESET SET PAGE

• The camera can move to a preset point automatically when

something is wrong in each ALRAM CHANNEL.

• Set a preset point firstly to move if anything wrong, then

use that sets the preset number into each ALARM

CHANNEL.

• PRESET is out of connecting in ALARM CHANNEL No.“0”.

<< CAMERA SETUP p3>>

15. Select Alarm : Sensor

16. Motion Detection : Off

17. PRESET & RUN PAGE

18. TRACE SET PAGE

19. ALARM CH ON/OFF

20. ALARM PRESET SET PAGE

21. PRIVACY ZONE SET PAGE

- PREV MENU PAGE

- NEXT MENU PAGE

• User can select PRESET number 1 to 250 and set it.

• Home Position Preset

Master user can observe a previous area automatically

when another user move the camera’s sight to other area.

(It is possible 1 to 250)

▪ Home Position Time

It sets waiting time of Home Position Preset.

The camera moves to observe a preset area in a set time

Master set after observing another area, in the operating of

Home Position Time. (It is possible 1 to 180sec. Set a

concurrent control of Home Position Preset and Home

Position Time for using this function.)

<< ALARM PRESET SET >>

- CH : 001 - CH : 002

- CH : 003 - CH : 004

- Home Position Preset : 001 ~250

- Home Position Time : OFF /001~180

As above the setting menu, ALARM setting MENU can not set only in CAMERA SET MENU MODE, but also a keyboard in direct.

- RETURN MENU PAGE

21. PRIVACY ZONE SET PAGE

Up to 4 privacy zones can be configured for the protection of privacy.

▪ How to set.

In <PRIVACY ZONE SET>, move to the channel that user wants by joystick and press F/F key, then the screen will be turned over.

<< CAMERA SETUP p3 >>

15. Select Alarm : Sensor

16. Motion Detection : Off

17. PRESET & RUN PAGE

18. TRACE SET PAGE

19. ALARM CH ON/OFF

20. ALARM PRESET SET PAGE

21. PRIVACY ZONE SET PAGE

- PREV MENU PAGE

- NEXT MENU PAGE

① : Select channels

② : Select Set/On/Off/Del

Set : Set a new privacy On : Display privacy areas

Off : Hide privacy areas Del : Delete privacy areas

Display only “Set” on channel where PRIVACY ZONE Is not set.

<< PRIVACY ZONE SET >>

- CH1 : BLANK - CH2 : BLANK

- CH3 : BLANK - CH3 : BLANK

- PREV MENU PAGE

ENTER (F/F), Select L/R, Change

③ : check, next page

④ fix the black square on the middle of area that user wants to hide with using the joystick (Z/I, Z/O Key), then go back to the previous page on the screen (F/F Key) after fixing the size of the square.

ENTER(F/F),Save ESC(F/N),ESC

Set Privacy : 01

Select Extension / Reduction Check

a position of the BOX

⑤ The Channel is changed from Blank to OFF. ∇

The black box is displayed when pressing F/F key

after changing it to ‘ON’ as left picture.

<< PRIVACY ZONE SET >>

- CH1 : ON - CH2 : BLANK

- CH3 : BLANK - CH4 : BLANK

Move to the channel Change to ‘ON’ Check

⑥ Out of OSD MENU

- PREV MENU PAGE

ENTER ( F / F ), Select L/R,Change

22. AUTO TILT MOVE

The PAN is turned in a 180° degree arc

Automatically when the angle of the camera moves down to the maximum degree, therefore, it is possible to track objects continuously.

23. SMART PANTILT

It is a function that PANTILT speed is getting slower as Zoom in. It is hard to observe objects with the high PANTILT speed in operating of Zoom

In This function makes the speed less automatically for the effective observation.

<< CAMERA SETUP p4 >>

22. Auto Tilt Move : Off

23. Smart pan Tilt : On

24. Manual P/T Speed : Medium

25. Language : English

26. FACTORY RESET WARNING!

-PREV MENU PAGE

24. MANUAL P/T SPEED

User can control the maximum speed in controlling of up and down. It can be set

Low, Medium, Max and one turn (360°/sec) is possible in Max.

<< CAMERA SETUP p4 >>

22. Auto Tilt Move : Off

23. Smart pan Tilt : On

24. Manual P/T Speed : Medium

25. Language : English

26. FACTORY RESET WARNING!

-PREV MENU PAGE

25. LANGUAGE

English : ENGLISH

Portugu- : PORTUGU

Polish : POLISH

<< CAMERA SETUP p4 >>

22. Auto Tilt Move : Off

23. Smart pan Tilt : On

24. Manual P/T Speed : Medium

25. Language : English

26. FACTORY RESET WARNING!

-PREV MENU PAGE

26. FACTORY RESET WARNING

Please be careful of that all setting data of

OSD MENU are reset into the first default when operates FACTORY RESET WARNING.

The setting data of Preset, Swing, Group, Tour,

Trace, also is deleted all.

<< CAMERA SETUP p4 >>

22. Auto Tilt Move : Off

23. Smart pan Tilt : On

24. Manual P/T Speed : Medium

25. Language : English

26. FACTORY RESET WARNING!

-PREV MENU PAGE

4-3. SETTING FUNCTIONS BY KEYBOARD

1. Preset setting

User can set Preset point up to 250.

① Preset Input

Preset setting can be set 1 to 250 sequentially after moves the camera to the place to will be memorized

② Preset Move

Move to the fixed point if user presses P-SET button after pressing Preset number that user wants.

③ Delete a separate Preset

Go on in order as follow when the sound is

heard in 3 sec after pressing

.

3 sec)

▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬

④ Delete all Preset

Go on in order as follow when the sound is

heard in 3 sec after pressing

( waiting for 3 sec)

▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬

2. Swing setting

① Swing Input

Set the dwell time. (1~127sec) Set the move speed (1~64 steps)

▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬

② Swing setting ③ End Swing

(Run Pan) (Run Tilt)

▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬

3. Group setting

① Start Group setting mode

Set Preset No. again in continual input.

Set a GROUP again from the first after ending with , , if user wants to finish Preset input in one Group to input another Group.

② Run Group ③ Stop Group

▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬

4. Tour setting

① Tour set mode

② Start / End Tour ③ Delete Tour

▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬

5. Spiral Function

It is a function to observe objects automatically in the spiral direction.

① Spiral On ② Off

6. PTZ Trace

It memorizes P/T/Z motions for 200sec then operates them at the same Trace.

① Start / End Trace ② Off

▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬

② Set Trace ③ Delete Trace

4-4. OSD MESSAGE DESCRIPTION

1. PRESET MESSAGE

CAM-001

It is CAMERA ID and it can be changed in ID

SET MODE.

CAM-001 CAM-001

Set PST 001

User can check that

Preset No.1 is saved as an appeared message in Preset set

PRESET 001

It appears when moving to the preset No.1

Clear PST 001

It appears when user deletes

PRESET No.1. The message ‘All clear PRESET’ is displayed when user delete PRESER data all at once.

2. SWING MESSAGE

CAM-001

[SWING] PRESET:001

It shows that is RUN SWING mode in SWING Run.

3. GROUP MESSAGE

CAM-001

CAM-001 CAM-001

GP:01 P002,T001,S64

Save Group 01 [GROUP: 01] PRESET:001

As the message in the time of operation of GROUP SET,

“GP:01” means group No.1,

“P002” means PRESET No.2,

“T001” means waiting time is

1sec and “S64” means move speed is 64

4. TOUR MESSAGE

CAM-001

As the message in the time of completion of GROUP

SET, it is displayed. GROUP

No.1 was saved.

.

It is displayed in the time of operation of GROUP RUN, it shows GROUP No.1 will move to No.1

CAM-001 CAM-001

Set Tour GP:01

[TOUR&GP:01] PRESET:001 Clear tour&GRP

As the message in the time of operation of Tour set,

“GP:01” means GROUP No.1

and it shows that GROUP

No.1 was saved.

As the message in the time of operation of Tour RUN, it will show that moving to

PRESET No.1 in GRIOUP

No.1.

It shows the data in GROUP and TOUR saved was deleted.

5. Spiral SEQ MESSAGE

CAM-001 -RUN SPIRAL : It is the Message in the time of operation of SPIRAL SEQUENCE.

It observe all area of an object in three dimensions that SPIRAL

SEQUENCE CAMERA moves to upper then down slowly in a spiral direction.

Set Tour GP:01

4. TROUBLE SHOOTING

CAUTION IN USE

• Make sure that turn the power switch off before installation.

• Avoid the places where is the high/low temperature and humid.

• Use a power supply of AC24 / 1.5A output

• Please be careful of that you connect respective wires without mismatching in installation.

• Supply to power sources after checking the state of insulation of cables which is connected to the exterior

• Please keep the product from a strong shock or vibration which is the cause of troubles.

Checking in under using

Check the product as following, if something is wrong in installation or using.

TROUBLE SHOOTING CHECK POINT

Power is not turned on.

Does the electric power supply into the product well?

MEASURE

Check the POWER LED is “ON” at the BOTTOM

COVER.

Check the status of DATA CABLE, if it is not lit.

In operating, does the LED beside

POWER SW light on red?

Does not work in Power On.

Check ADDRESS and DIP SW of communication speed setting, if it is not lit.

Have you selected to RS485 or RS422 right?

Check the status of OPTION DIP SW No.2

Poor condition of PAN/TILT

Have you turned the ending terminal register ‘ON’?

A image is not clear or black lines are displayed on the screen.

The message ‘P/T POSITION

ERROR’ is displayed continuously.

Is the power adapter AC24V, 1.5A over?

Is the camera pressed by something heavy or put it between others?

The message ‘SORRY NOT

MEMORY’ is displayed continuously.

ALARM RELAY is not changed to ‘ON’ in the state of being alarmed.

Have you set the related functions?

Have you set the ALARM RELAY ‘ON’ in the SET MODE?

In abnormal condition, even if the sensor is well.

Turn ‘ON’ the ending terminal register of the camera which is set in farthest away.

Exchange the adapter to for an adapter which has higher current.

Check that a rotation of the camera’s body works smoothly and remove a object that hinders the operation of the camera.

Please refer to the manual book and setting the function you want.

Make sure ALARM RELAY ‘ON’ in the SET

MODE.

Is it correct ALARM ACTIVE setting status and the sensor is either opened or closed?

Have you set ALARM PRESET in the SET MODE?

Fit ALARM ACTIVE MODE setting with the connection of the SENDOR in the SET

MODE.(It means either sensor is opened or closed)

Check the status of the ALARM PRESET setting in the SET MODE.

PRESET point is different or out of moving when the

ALARM occurs. The warning does not work from the keyboard when the ARLAM occurs.

Have you used the exclusive control keyboard?

YES.

The warning is only reacted to the exclusive control keyboard.

Make sure ALARM “ON” of the camera.

5. ASSEMBLES

measurement

Mount assemble

It can be connected with bracket by using mount.

unit : mm

① Connect MOUNT with Wall bracket ② Fix 4 screws. ③ Connect Camera body cover.

④ Completion

PRODUCT STRUCTURE

SUB KEYBOARD SETTING

1 2 3 255

GMS-200

MONITOR MONITOR

DVR

(P/T CONTROL

)

JUNKTION BOX JUNKTION BOX

G S S - 2 0 0

CONTROL KEYBOARD

(MAIN)

OR

GSS-5000

CONTROL KEYBOARD

(SUB8)

: Control line

: Video line

SETTING ONE KEYBOARD

GSS-200

GSS-5000

: Control line

: Video line

7. SPECIFICATION

MODEL

Signal system

Image sensor

Effective pixels

Horizontal resolution

Lens

Digital zoom

Angle of view

Minimum illumination

Luminance S/N ratio

Video output

Focus mode

SSNR

Back Light

Shutter speed

Sharpness control

Motion Detection

Alarm in/out

Pan/Tilt angle

Pan speed

Preset point

Preset Speed

Privacy zones masking

Operating temperature

Communiction system

OSD

Operating humidity

Dimensions

Weight

Construction

Power consumption

Power supply

GSD-200

NTSC PAL

410K Pixel, 1/4 " SONY Super HAD CCD

768(H) X 494(V), 752(H) X 582(V),

More than 500 TVL B/W 570 TVL

10x Optical zoom, f=3.3 - 33mm, F1.8

10x (Total zoom 100x)

Approx 51.2° (Wide) , Approx 5.58° (Tele)

0.7Lux , 0.02Lux(D&N) , 50IRE

More than 50dB

1 Vp-p Composite video out 75Ω

Auto / Manual / Oneshot

Off / Low / Middle / High

Off / Low / Middle / High

Auto / 1/128 ~ 1/120,000 sec

Level (0 – 10)

On/Off

4 Inputs / 1 Relay Output

360° Endless / 92°

0.1° ~ 240°/sec (64 Levels)

250 Presets

Max 360°/sec (64 Levels)

4 Zones

-10°C ~ 50°C (-14°F ~ -122°F)

RS-485 / 422

Built-in

Less than 90%RH

151.4 mm(Diameter) x 138(Height) mm

About 0.5Kg

PC body , Clear vandal bubble (PC)

6W

AC24V / 500mA , DC12V / 1A

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
