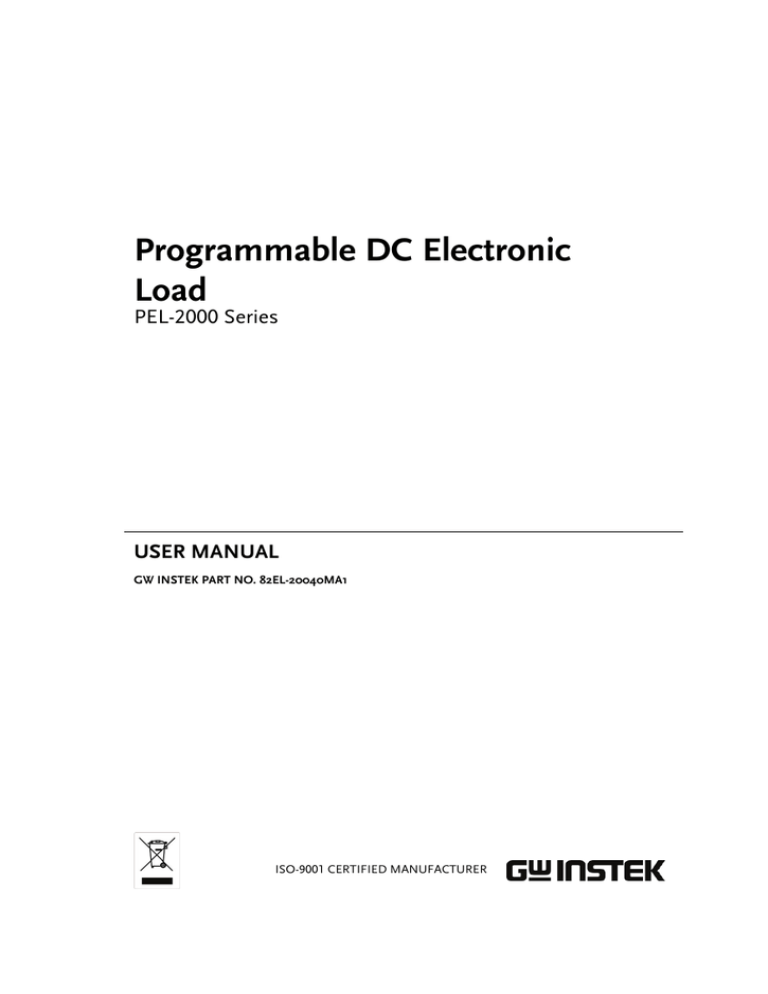

Programmable DC Electronic Load

Programmable DC Electronic Load

Programmable DC Electronic

Load

PEL-2000 Series

USER MANUAL

GW INSTEK PART NO. 82EL-20040MA1

ISO-9001 CERTIFIED MANUFACTURER

March 2010

This manual contains proprietary information, which is protected by copyright. All rights are reserved. No part of this manual may be photocopied, reproduced or translated to another language without prior written consent of the Good Will company.

The information in this manual was correct at the time of printing.

However, Good Will continues to improve products and reserves the right to change specification, equipment, and maintenance procedures at any time without notice.

Good Will Instrument Co., Ltd.

No. 7-1, Jhongsing Rd., Tucheng City, Taipei County 236, Taiwan.

Table of Contents

Table of Contents

S AFETY INSTRUCTIONS ................................................... 5

G ETTING STARTED ......................................................... 10

Main Features ...................................... 12

Series Overview ................................... 13

Package Contents and Accessories....... 15

Measurement Overview ....................... 16

Front Panel Overview ........................... 17

Display Overview – Mainframe ............ 22

Rear Panel Overview ............................ 25

Front Panel Overview – Load Module ... 28

LED Display Overview – Load Module .. 32

Installation .......................................... 35

Load Connections ................................ 43

Frame Link Connection ........................ 54

Channel Control Connection ................ 56

Go/NoGo Connection .......................... 59

O PERATING DESCRIPTION ............................................. 60

Operating Mode Description ............... 61

Run Program ........................................ 71

Sequence ............................................. 74

Parallel Dynamic Loading .................... 78

Configurations Description .................. 79

Interface and File System ..................... 89

T UTORIALS ..................................................................... 96

Local loads .......................................... 97

Single Channel Load ............................ 99

Programming ..................................... 101

Sequences .......................................... 103

3

PEL-2000 Series User Manual

Frame Link ......................................... 104

Channel Control ................................. 106

General Configuration Options .......... 108

O PERATION ................................................................... 109

Local Mode Operation ....................... 112

Mainframe Basic Operation ............... 119

Channel Configuration ....................... 160

Mainframe Configuration ................... 180

Interface Configuration (settings) ...... 195

Save / Recall ...................................... 201

I NTERFACE .................................................................... 232

Interface Configuration ...................... 233

F AQ ............................................................................... 241

A PPENDIX ..................................................................... 242

Fuse Replacement .............................. 242

Battery Replacement .......................... 243

Firmware Update ............................... 244

Calibration ......................................... 245

Range Chart ....................................... 246

Default Settings ................................. 251

Specifications .................................... 253

Dimensions ....................................... 261

EC Declaration of Conformity ............. 263

I NDEX ............................................................................ 264

4

S

AFETY INSTRUCTIONS

This chapter contains important safety instructions that you must follow when operating the PEL-2002/PEL-2004, and when keeping it in storage. Read the following before operating the

PEL-2002/2004 to ensure your safety and to keep the PEL-2000 series in the best possible condition.

Safety Symbols

These safety symbols may appear in this manual or on the PEL-

2002/2004.

WARNING

Warning: Identifies conditions or practices that could result in injury or loss of life.

CAUTION

Caution: Identifies conditions or practices that could result in damage to THE PEL-2002/2004 or to other properties.

DANGER High Voltage

Attention Refer to the Manual

Protective Conductor Terminal

Earth (ground) Terminal

5

PEL-2000 Series User Manual

Do not dispose electronic equipment as unsorted municipal waste. Please use a separate collection facility or contact the supplier from which this instrument was purchased.

Safety Guidelines

General

Guideline

CAUTION

Do not place any heavy object on the PEL-

2002/2004.

Avoid severe impact or rough handling that leads to damaging the PEL-2002/2004.

Do not discharge static electricity to the PEL-

2002/2004.

Do not block or obstruct the cooling fan vent openings.

Do not perform measurement at circuits directly connected to Mains (Note below).

Do not disassemble the PEL-2002/2004 unless you are qualified as service personnel.

The equipment is not for measurements performed for CAT II, III and IV.

(Measurement categories) EN 61010-1:2001 specifies the measurement categories and their requirements as follows. The

PEL-2002/2004 falls under category I.

 Measurement category IV is for measurement performed at the source of low-voltage installation.

 Measurement category III is for measurement performed in the building installation.

 Measurement category II is for measurement performed on the circuits directly connected to the low voltage installation.

 Measurement category I is for measurements performed on circuits not directly connected to Mains.

6

Power Supply

WARNING

AC Input voltage: 115V/230V switchable,

50/60Hz

The power supply voltage should not fluctuate more than 15%.

Connect the protective grounding conductor of the AC power cord to an earth ground, to avoid electrical shock.

Fuse

WARNING

Fuse type: T3.15A/250V

Make sure the correct type of fuse is installed before power up.

To avoid fire, only replace the fuse with the specified type and rating.

Disconnect the power cord before fuse replacement.

Make sure the cause of a fuse blowout is fixed before replacing the fuse.

Battery

WARNING

Battery type: CR17345 (See page 243).

When replacing the battery ensure that the correct make and model are used.

Cleaning the

PEL-2000

Disconnect the power cord before cleaning.

Use a soft cloth dampened in a solution of mild detergent and water. Do not spray any liquid.

Do not use chemicals or cleaners containing harsh material such as benzene, toluene, xylene, and acetone.

7

Operation

Environment

Storage environment

Disposal

PEL-2000 Series User Manual

Location: Indoor, no direct sunlight, dust free, almost non-conductive pollution (Note below)

Temperature: 0°C to 40°C

Altitude: Up to 2000m

Transient Overvoltage on the main supply is

2500V.

(Pollution Degree) EN 61010-1:2001 specifies the pollution degrees and their requirements as follows. THE PEL-2002/2004 falls under degree 2.

Pollution refers to “addition of foreign matter, solid, liquid, or gaseous (ionized gases), that may produce a reduction of dielectric strength or surface resistivity”.

 Pollution degree 1: No pollution or only dry, non-conductive pollution occurs. The pollution has no influence.

 Pollution degree 2: Normally only non-conductive pollution occurs. Occasionally, however, a temporary conductivity caused by condensation must be expected.

 Pollution degree 3: Conductive pollution occurs, or dry, nonconductive pollution occurs which becomes conductive due to condensation which is expected. In such conditions, equipment is normally protected against exposure to direct sunlight, precipitation, and full wind pressure, but neither temperature nor humidity is controlled.

Location: Indoor

Relative Humidity: < 80%

Temperature: −10°C to 70°C

Do not dispose this instrument as unsorted municipal waste. Please use a separate collection facility or contact the supplier from which this instrument was purchased. Please make sure discarded electrical waste is properly recycled to reduce environmental impact.

8

Power cord for the United Kingdom

When using the PEL-2002/2004 in the United Kingdom, make sure the power cord meets the following safety instructions.

NOTE: This lead/appliance must only be wired by competent persons

WARNING: THIS APPLIANCE MUST BE EARTHED

IMPORTANT: The wires in this lead are coloured in accordance with the following code:

Green/ Yellow: Earth

Blue: Neutral

As the colours of the wires in main leads may not correspond with the coloured marking identified in your plug/appliance, proceed as follows:

The wire which is coloured Green & Yellow must be connected to the Earth terminal marked with either the letter E, the earth symbol or coloured

Green/Green & Yellow.

The wire which is coloured Blue must be connected to the terminal which is marked with the letter N or coloured Blue or Black.

The wire which is coloured Brown must be connected to the terminal marked with the letter L or P or coloured Brown or Red.

If in doubt, consult the instructions provided with the equipment or contact the supplier.

This cable/appliance should be protected by a suitably rated and approved

HBC mains fuse: refer to the rating information on the equipment and/or user instructions for details. As a guide, a cable of 0.75mm2 should be protected by a

3A or 5A fuse. Larger conductors would normally require 13A types, depending on the connection method used.

Any exposed wiring from a cable, plug or connection that is engaged in a live socket is extremely hazardous. If a cable or plug is deemed hazardous, turn off the mains power and remove the cable, any fuses and fuse assemblies. All hazardous wiring must be immediately destroyed and replaced in accordance to the above standard.

9

PEL-2000 Series User Manual

G

ETTING STARTED

This chapter describes the features and functions of the

PEL-2002/2004, including the front and rear panel appearance, panel installation and connection types. Use the Tutorial section for quick access to step by step instructions on the main functions.

Main Features ................................................................. 12

Series Overview ............................................................... 13

Package Contents and Accessories .................................. 15

Measurement Overview ................................................... 16

Front Panel Overview ...................................................... 17

Display Overview – Mainframe ........................................ 22

10

Rear Panel Overview ........................................................ 25

Front Panel Overview – Load Module ............................... 28

LED Display Overview – Load Module ............................. 32

Installation ..................................................................... 35

Load Module Installation ..................... 35

GPIB Installation ................................. 38

Rack Mount Installation ....................... 39

Channel Number .................................. 40

Power Up & Self Test ........................... 41

Load Connections ........................................................... 43

Precautions and Procedures ................ 43

Remote (Sense) Connection ................. 48

Single Load Connections ...................... 50

Parallel Load Connections.................... 52

Frame Link Connection .................................................... 54

Channel Control Connection ............................................ 56

Go/NoGo Connection ..................................................... 59

11

PEL-2000 Series User Manual

Main Features

Description

The PEL-2002 and 2004 are multichannel programmable DC electronic load mainframes.

The PEL-2002 mainframe is able to hold 2 load modules, whilst the PEL-2004 is able to hold 4. The flexible module configuration allows the mainframes to either sink multiple loads independently or large loads when used in parallel.

The PEL-2000 series support three operation modes: constant current (CC), constant voltage

(CV and CV+CC) and constant resistance (CR).

Constant current and constant resistance mode can operate in either static or dynamic mode.

Feature Overview

Flexible operation with removable load modules

Multiple independent isolated channels

High performance, up to 5 digit resolution

High slew rate enabling a high response speed

High capacity when frame linked

Different load module types can be used in the same mainframe

Supports rack mount installation (PEL-2004)

Supports frame link connections, with up to 4 slave units

Color LCD display

120 different sets of programmable sequences

Accurate load simulation using Sequences

4 panel setups

USB flash drive support

12

Interface

USB

RS-232C

GPIB (optional)

Series Overview

The PEL-2000 series comprises of two different Mainframes: the PEL-

2002 and the PEL-2004. The Mainframes differ by the number of load modules that can be accommodated. The PEL-2002 has two load module slots whilst the PEL-2004 has 4. There are 4 different load module models, the PEL-2020, PEL-2030, PEL-2040 and PEL-2041.

PEL-2020

DC Electronic Load

PEL-2030

DC Electronic Load

R

30W

PEL-2040 PEL-2041

PEL-2004 DC Electronic Load

L

R / L

DISPLAY

LOAD

V sense

STATIC/

DYNA.

SHORT

V sense

R L

R / L

DISPLAY

LOAD

V sense

STATIC/

DYNA.

SHORT

V sense

R

A / B

STATIC/

DYNA.

DISPLAY

LOAD

SHORT

V sense

L R L R

A / B

DISPLAY

LOAD

STATIC/

DYNA.

SHORT

V sense

P1

1

P0

0

P7

7

P4

4

F1

LOCAL

CHAN

F2 F3 F4

P8

8

P5

5

P2

2

CAL.

FUNC

P3

3

LOCK

CLEAR

P9

9

P6

6

FILE

PRESET

ENTER

F5

UTILITY

HELP

SHIFT

LOAD

PEL-2020 PEL-2030 PEL-2040 PEL-2041

13

PEL-2020

L

R

DC Electronic Load

20A / 80V , 100W PEL-2040

PEL-2002 DC Electronic Load

L

R / L

DISPLAY

LOAD

V sense

STATIC/

DYNA.

SHORT

V sense

R

A / B

STATIC/

DYNA.

DISPLAY

LOAD

SHORT

V sense

L R

P7

7

P4

4

P1

1

P0

0

F1

LOCAL

CHAN

F2

P8

8

P5

5

P2

2

CAL.

FUNC

P9

9

P6

6

P3

3

LOCK

CLEAR

F3 F4

FILE

PRESET

ENTER

F5

UTILITY

HELP

SHIFT

LOAD

PEL-2000 Series User Manual

PEL-2020 PEL-2040

The 4 different load module models each differ in the amount of current, voltage and power and the amount of channels that the load module can accommodate. The procedures in this manual will be load module model independent unless specifically stated. Below is a table showing the basic differences between each load module model. For detailed specifications, please see page 253.

Load Module Channels Power (W)

CH L/R

Current (A)

Range

Low/High

Voltage (V)

PEL-2020

(100Wx2)

2 100/100 2/20 1-80

PEL-2030

(30/250W)

2 30/250 5/4/40 1-80

PEL-2040 1 350 7/70 1-80

PEL-2041 1 350 1/10 2.5-500

14

Package Contents and Accessories

The PEL-2000 electronic load generator has a number of standard and optional accessories that can be ordered. For more information please visit the GW Instek website at www.gwinstek.com

or consult your authorized distributor for details.

Description Standard

Accessories

Power Cable Mains power cable (region dependent)

User Manual

GTL-120

GTL-121

PEL-2000 Series Electronic DC load User Manual

(region dependent)

Load cables 2X red, 2X black (per load module)

Remote sense cables , 1X red, 1X black (per load module)

Description

Load Module

Options

PEL-2020

PEL-2030

PEL-2040

PEL-2041

PEL-001

Optional

Accessories

GPIB interface (Factory installed)

Description

GTL-232 RS-232C

GTL-246 USB

GTL-248 GPIB cable

15

PEL-2000 Series User Manual

Measurement Overview

The PEL-2000 series has a number of different operating modes that are completely configurable. All the modes have customizable

Go/NoGo limits, range limits, timers, slew rates, alarms and protection limits. To make tests, Programs and Sequences can be created.

Function

Description

Constant Current

Mode (CC)

In constant current mode, the PEL-2002/2004 will sink a constant amount of current, regardless of the voltage.

Constant Voltage

Mode (CV)

Under constant voltage mode, the voltage remains unchanged, regardless of the current.

Constant

Resistance Mode

(CR)

In constant resistance mode, the resistance load will remain unchanged as the voltage and current remain proportional.

Programmable

Sequences

(Prog.)

The PEL 2000 series supports programming sequences. With up to 120 different memory settings in 12 programs with 10 sequences.

Sequences (Seq.)

Used to create load profiles to accurately simulate a load. Sequences can be created for each channel.

16

Front Panel Overview

PEL-2002

LCD display

DC Electronic Load

Function keys

System Keys

Number Pad

USB input

LCD display

Function keys

P7

7

P4

4

P1

1

P0

0

F1

LOCAL

CHAN

F2 F3

P8

8

P5

5

P2

2

CAL.

FUNC

P9

9

P6

6

P3

3

LOCK

CLEAR

FILE

F4

PRESET

ENTER

F5

UTILITY

HELP

SHIFT

LOAD

ON /

OFF

Selector

Knob

Operation keys

Power

320 by 240, TFT LCD display.

Assigned to the menu functions on the bottom of the display.

17

System Keys

PEL-2000 Series User Manual

CHAN/LOCAL is used to select the load channel. Combined with the shift key, Local is used to activate/deactivate local control

(during remote control via the interface or frame link connections).

Brings up the

Channel Menu.

Used to activate local control mode during remote control via the interface

Used to access the Program or

Sequence menu.

Used to access the File menu.

Brings up the Help menu and utility menu.

Provides help for the last function

/key pressed.

Activates the

Utility Menu.

18

Number pad

Note

USB Input

Enter numerical values, or to save/recall presets (P0-P9).

Number values.

Preset numbers P0-

P9.

Decimal point and Calibration key

Decimal point.

Activate calibration mode.

Please note, calibration mode is not supported.

Please see your distributor for calibration needs.

LOCK

CLEAR

Clears current values. Alternative function locks the keys and the

Selector knob.

LOCK

CLEAR

Clears the current value.

Locks all the keys and Selector knob.

USB flash memory slot.

19

Selector Knob

Operation Keys

PEL-2000 Series User Manual

Used to select operations and to increase/decrease values.

When turned left or right moves the cursor in menus or changes the selected item or value.

When pushed down, acts as the

Enter key.

Saves and recalls preset settings and values.

When pressed in combination with the number pad, Presets P0-P9 can be recalled or saved.

Inactive

PRESET

Active. Used in combination with the number pad and/or shift key.

Press to recall a channel preset

Hold to save a channel preset

Press to recall all channel presets.

Hold to save all channel presets.

20

Power

The shift key is used to access alternate functions assigned to select keys

Inactive

Active. When active the shift key can be used to access the

Local and Utility menus.

Confirms selections.

Turns the current load/channel on or off

Load is currently off. (unlit)

Load is currently on.

(orange light)

Turns the unit on or into standby mode.

Standby mode.

On.

21

PEL-2000 Series User Manual

Display Overview – Mainframe

Mainframe Status

Panel

The Mainframe Status Panel displays the status of the Mainframe interface, programs and alarm status.

Frame Link

Status

FRM

FRS

Indicates Frame Link is turned on and that the mainframe is set as either a master (FRM) or slave

(FRS) unit.

22

Load Type

LOAD

LOAD

PROG

PROG

SEQ

SEQ

The Load Type Icon indicates if a Sequence

(SEQ) or Program

(PROG) is turned on. If not then LOAD is displayed as default.

When any Load type is running, their icon will turn orange.

Interface Status

RS232

GPIB

The interface status icon displays which interface type is set.

USB

Current

Operation

Channel Status

Panel

The Current Operation Channel Status panel generally displays the status of the current channel.

Channel *CH1~

*CH8

Displays the current channel.

An asterisk * denotes independent mode for the channel.

23

PEL-2000 Series User Manual

Static /

Dynamic

Range

Go/NoGo

Response

Speed

Channel

Control

CR

CV mode.

Displays whether the channel is in

Static or Dynamic mode.

High

Low

Displays High or Low range.

SPEC If Go/NoGo is turned on, SPEC will be displayed.

Slow

Fast

EXT

In CV mode the response speed will be shown,

Slow or Fast.

When Channel Control is set to External, EXT will be displayed.

Date and Time

Main Screen

Main

Conf s_edit

File s_loop

= Chan menu

= ChanConfigure menu

= ChanSeq.Edit menu

= File menu

= ChanSeq.EditLoop

menu

The date is displayed as

Month/Day/Year and the time is set as a 24-hour time notation.

Main display screen

Menu Icons

F1~F5 Each Menu Icon is controlled by the F1~F5 function keys directly below.

24

Rear Panel Overview

PEL-2004

PEL-2002

Go/NoGo

Output

RS232C

GPIB

USB-B terminal

USB-A terminal

RS232C

Frame Control 1,2

GPIB

GO / NG OUTPUT

1

2

SER. NO. LB

FRAME CONT

REPLACE FUSE

AS SPECIFIED

FUSE RATING

115V

T 3.15A

250V

230V

WARNING

TO AVOID ELECTRIC SHOCK THE POWER CORD PROTECTIVE

GROUNDING CONDUCTOR MUST BE CONNECTED TO GROUND.

FOR CONTINUED FIRE PROTECTION. REPLACE FUSE ONLY WITH

250V FUSE OF THE SPECIFIED TYPE AND RATING.

NO OPERATOR SERVICEABLE COMPONENTS INSIDE.

DO NOT REMOVE COVERS. REFER SERVICING TO QUALIFIED PERSONNEL.

DISCONNECT POWER CORD

BEFORE REPLACING FUSE

AC

120 VA MAX

50/60 Hz

STRIP GAUGE

10.0 mm CH CONT 4

AWG 24

1 1

CH CONT 3

1

CH CONT 2 CH CONT 1

1

Power switch,

Power Socket, Fuse

Go/NoGo

Output

Channel

Control, 1~4

The Go/NoGo Output terminal outputs a pass

(high)/fail (low) voltage for each channel.

See page 239, 59 for details.

25

RS232 port/

GPIB port

USB-A(host)/

USB-B (device) port

Frame Control

Port

Power Switch

26

PEL-2000 Series User Manual

The RS232 and GPIB port is used for remote control connections.

RS-232C: DB-9 pin male

GPIB: 24-pin female

See pages 233, 234 for remote control details.

The USB-B (device) port, like the RS232/GPIB port is used for remote control. Like the front panel, the USB-A port is used for data storage.

See page 89 for interface details.

The Frame Control port is used for Frame Link connections. Mainframes are daisy-chained together. There are two Frame control ports.

1: Slave

2: Master

Connection type: MIL 20-pin connector.

For details about frame link connections see page 54, 236.

External Power Switch

Power Socket/

Fuse

Channel

Control port

(1~8)

The power supply socket accepts the AC mains Voltage.

The fuse holder is located below the power socket.

Power: 50/60 Hz (180 VA)

Fuse: T3.15A/250V

For fuse replacement details see page 242.

Each channel has a dedicated

Channel control port to enable external monitoring and control. The channel control port has 6 wire sockets that are screw-less and self clamping.

Required wire gauge: 24

AWG

For connection or specification details see pages

56 & 235.

27

PEL-2000 Series User Manual

Front Panel Overview – Load Module

PEL-2020

L

R

DC Electronic Load

20A / 80V , 100W

20A / 80V , 100W

LED display

R/L A/B Key

Display Key

Load Key

V Sense L

L

R / L

DISPLAY

LOAD

V sense

STATIC/

DYNA.

SHORT

MAX

80V DC

V sense

MAX

80V DC

R

Static/

Dynamic

Key

Selector

Knob

Short Key

V Sense R

Terminals

(Left)

Terminals

(Right)

MAX

80V DC

L

MAX

80V DC

R

LED display

Right/Left Key or

A/B Key

2x5 digit custom LED display.

The L/R key is used to switch between the right and left load channel on a dual channel load module. The A/B key is used to switch between A&B Values for single channel load modules.

28

Display Key

Load Key

Left Voltage

Sense

Right Voltage

Sense

Positive and

Negative

Terminals Left

LOAD

Used to alternate the display output on the load module.

Current

Voltage

Power

Load time

Activates the load for the active channel. (Right or Left)(A or B)

The voltage sense terminals are used when precise measurement is needed. V Sense terminals are used to compensate for voltage drops across the main terminals caused by the resistance of the load wires.

It is automatically activated when connected to a DUT.

The terminals for both the left and right side of a load can draw differing amounts depending on the load module specifications.

29

Positive and

Negative

Terminals Right

Static/Dynamic

Selector Key

Selector Knob

(Load)

PEL-2000 Series User Manual

For 2 channel load modules, the left terminals are used for the 1 st channel and the right terminals are used for the 2 nd

channel.

On single channel load modules, the left terminals are the lower (-) potential terminals, whilst the right terminals are the positive (+) potential terminals.

The STATIC/DYNA. Key manually switches the load from Static

(manual) to Dynamic loads.

Dynamic loads are only supported in CC and CR mode.

For more information see page 61 &

65.

The load Selector Knob is used to edit and vary parameters for the active channel on the local load.

Depending on the Mainframe setup, the Selector Knob will either only update the load (locally) or will update both the local module and the mainframe*. The Selector knob can also be configured to display measured or set values on the local load module**.

* For more information on “Knob Type”, see page 188.

** For more information on “Slave Knob”, see page 192.

30

Short Key

The SHORT key is used to manually short circuit the active channel on the local active load.

When a load is off, the SHORT key will toggle the Short key type.

Hold: Hold the

SHORT key to short the channel load.

Toggle: Press the

SHORT key to toggle shorting the load on or off.

Load on: Pressing or holding the

SHORT key will short the load, depending on the short type selected.

31

PEL-2000 Series User Manual

LED Display Overview – Load Module

1&2. Channel

Display

3&7. Channel

Number Indicator

or Left and right channel indicator.

5 digit display.

Indicates the channel number

(1-8).

Indicates if the load is active on the load module. (Dual channel load modules)

Indicates if the load is on for single channel load modules.

32

4. Mode Indicator

The Mode Indicator LEDs will indicate what the current mode or settings are on the active channel(s).

or Value A or B for a single channel load module. Applies to CR, CV, and CC static mode only.

Constant Current Mode (CC) mode activated.

Constant Voltage Mode (CV) mode activated.

Constant Resistance Mode (CR). modules when both left (L) and right (R) channel information is displayed.

Press the Display button repeatedly to show information for both channels.

Lights up when Go/NoGo is activated and the load passes (GO) the Go/NoGo limits.

or L or R will light up when the left or right channel is selected.

Lights up when in Static mode.

Lights up when in Dynamic mode.

33

5&6. Channel

Unit Indicators

PEL-2000 Series User Manual

Lights up when a load is shorted.

Lights up when Go/NoGo is activated and the load fails (NG) the Go/NoGo limits.

The Unit Indicators display current the unit.

Voltage

Resistance

Current

Power

34

Installation

The installation chapter describes how to load the different load modules, install the optional GPIB card, the rack mount kit and how to determine each channel number.

Load Module Installation

WARNING

To avoid static electricity, please use appropriate antistatic work practices.

Module installation

The PEL-2004 and 2002 can accommodate 4 and 2 load modules, respectively. Module loads can have

1 or 2 channels. Installation of load modules is the same for both models.

Steps

1. Ensure the PEL mainframe is turned off from the rear panel.

Disconnect the power cord.

2. Slide the module onto the rails of an empty load slot.

35

PEL-2000 Series User Manual

3. Use the supplied screw to fix the module to the load slot, located under the load terminals.

36

4. Install any additional modules as described above.

5. If there are any slots empty, install the supplied panel cover (GW Instek part number:

63FP-AG106501). The panel cover will improve safety and increase air flow.

6. Use the supplied screws to fix the panel cover(s) over the load slot.

37

PEL-2000 Series User Manual

GPIB Installation

WARNING

To avoid static electricity, please use appropriate antistatic work practices.

GPIB Card installation

The PEL-2004 and 2002 has GPIB as an option (GW

Instek part no. PEL-001).

Steps 1. Ensure the mainframe is disconnected from mains power.

2. Remove the screws from the GPIB cover plate and remove the cover plate from the rear panel.

3. Slide the GPIB card into the slot and push gently until the back plate is flush with the rear panel.

1

2

4. Use the screws that were removed from step 1 to secure the GPIB card.

38

Rack Mount Installation

Background

The PEL-2004 can be used in a standard 19” rack mount enclosure with the optional rack mount kit

(GW Instek part no. 11EL-20040201). Each unit requires a rack height of 4U with a 1U space for ventilation top and bottom. The rear of the rack mount enclosure must be free of obstruction to allow heat to dissipate from the mainframe(s).

Steps

1. Screw the rack mount brackets as shown below using the supplied bolts.

PEL-2004

2. Insert into a standard 19” rack enclosure with at least 1U of space top and bottom for ventilation.

39

PEL-2000 Series User Manual

Channel Number

Description

The channel number for a module load is determined by which slot it occupies on the mainframe chassis. There can be 1 or 2 channels per slot, depending on the load module type.

The PEL2002 has two slots; The PEL-2004 has 4 slots. Channel 1 is the farthest away from the main display panel and channel 8 (PEL2004) or channel

4 (PEL2002) is the closest to the main display panel.

Below the PEL-2004 has all 4 slots occupied with the PEL-2020, 2030, 2040 & 2041series load modules (LM), respectively. The PEL-2020 & 2030 have 2 channels per load module, the PEL-2040 &

2041 have only 1. So the channel determination is:

LM1: CH1,CH2; LM2: CH3,CH4; LM3: CH5; LM4:

CH6.

PEL-2020

L

R

DC Electronic Load

20A / 80V , 100W

20A / 80V , 100W PEL-2030

L

R

DC Electronic Load

5A / 80V , 30W

40A / 80V , 250W PEL-2040

DC Electronic Load

70A / 80V , 350W PEL-2041

DC Electronic Load

10A / 500V , 350W

PEL-2004 DC Electronic Load

R / L

DISPLAY

LOAD

SHORT

V sense

L

MAX

80V DC

V sense

MAX

80V DC

R

R / L

DISPLAY SHORT

LOAD

V sense

L

MAX

80V DC

V sense

MAX

80V DC

R

A / B

DISPLAY

LOAD

SHORT

V sense

MAX

80V DC

MAX

L

MAX

R

MAX

L

MAX

R

MAX

80V DC

A / B

DISPLAY

LOAD

SHORT

V sense

MAX

500V DC

MAX

500V DC

P7

7

P4

4

P1

1

P0

0

F1

LOCAL

CHAN

F2 F3

5

P2

2

CAL.

P8

8

P5

FUNC

P9

9

P6

6

P3

3

LOCK

CLEAR

F4

FILE

PRESET

ENTER

F5

UTILITY

HELP

SHIFT

LOAD

CH1

CH2

CH3

CH4

CH5 CH6

40

Power Up & Self Test

Panel operation

1. Connect the power cord to the power socket.

2. Turn the external power switch on.

3. Hold the power button on the front panel to turn on the power.

The power button turns green from red (standby).

WARNING

Ensure that the power outlet has a ground socket. The power outlet will have a ground connection if it is a 3 socket type.

Upon turning on, the Mainframe will perform a self-test. The self-test checks the System, followed by any attached channels.

41

PEL-2000 Series User Manual

When the system check happens, the load modules will display each channel as it is checked, then display the current mode.

4. If any of the System checks fails, please power down the load generator and reinstall the appropriate load module(s).

5. To turn off the load generator, hold the power button for a few seconds.

The PEL mainframe will return to standby mode.

42

Load Connections

Precautions and Procedures

Intoduction

The PEL-2000 load generator supports a number of different load configurations for flexible operation.

 Single DUT, single load

 Single DUT, parallel load

 Multiple DUTs, multiple loads

 Multiple DUTs, multiple mainframe loads

 Single DUT, parallel mainframes

 DC loads

 Low voltage connections

The PEL-2000 also supports a number of different control methods and interfaces. The connections used are described here:

 Frame link

 Channel control

 Go/NoGo

Wire Gauge considerations

Before connecting the PEL-2000, wire gauge must be taken into account. Load wires must be large enough to resist overheating when a short-circuit condition occurs as well as maintain a good regulation. The size, polarity and length of a wire are all factors in determining if a wire will withstand short circuiting.

43

PEL-2000 Series User Manual

Wire Selection

Wires that are selected must be large enough to withstand a short circuit and limit voltage drops to no more than 2V per wire. Use the table below to help make a suitable selection.

24

22

20

18

16

14

12

10

7.64

10.0

13.1

17.2

22.6

30.4

40.6

55.3

Load Line

Inductance

Considerations

When using the PEL-2000 load generator, voltage drop and voltage generated due to load line inductance and current change must be taken into account. Extreme changes in voltage may exceed the minimum or maximum voltage limits.

Exceeding the maximum voltage limit may damage the PEL-2000.

To determine the voltage generated, the following equation can be used.

E = L x (∆ I / ∆ T)

E= voltage generated

L=load line inductance

∆ I= change of current (A)

∆ T= time (us)

Load line inductance (L) can be approximated as

1uH per 1 meter of wire. (∆ I / ∆ T) is the slew rate in A/us.

44

The diagram above shows how changes in current can affect voltage.

Limiting Load line inductance

Load line inductance can be reduced by ensuring load wires are as short as possible and by twisting positive and negative load wires together. Current change can be limited by limiting the slew rate when switching.

“Twisted pair” will be shown on any connection diagram where the load wires should be twisted together.

45

PEL-2000 Series User Manual

Load module considerations

The PEL-2000 supports single and dual channel load modules.

Single channel load modules have one bank of negative terminals and one bank of positive terminals. Each terminal pair has a 40A capacity.

For higher loads, each terminal can be wired in parallel to increase capacity.

Dual channel load modules have one bank of positive and negative terminals for each channel.

Single Channel Load

Module

Dual Channel Load

Module

Left channel Right channel

Connection

Steps

CAUTION

MAX MAX

80V DC 80V DC

L R

Follow the procedure below for all load connections.

Ensure that power is off from the load generator and the DUT before making any connections.

1. Carefully lift the terminal covers.

2. Connect the positive (+) terminal on the load module to the high potential output of the

DUT.

3. Connect the negative (-) load terminal to the low potential output of the DUT.

46

4. Close the terminal cover securely. Ensure the wires are secured properly and that the wires are not exposed when the cover is in place.

WARNING

Ensure that the wires are tied or twisted together to prevent noise and inductance.

CAUTION

Ensure the polarity is correct before proceeding with any connections. Using the wrong polarity could result in reverse voltage damage.

DUT

Ensure the input voltage doesn’t exceed specifications.

Exceeding the voltage specifications could result in damage to the instrument.

47

PEL-2000 Series User Manual

Remote (Sense) Connection

Background

The electronic load modules have two voltage sense contacts: Vsense L(black), Vsense R(red).

Voltage sense can be used to help compensate for long cable length. The longer the cable, the higher the potential resistance and inductance, therefore a short cable is best. Twisting the cable can help reduce induced inductance and using the Vsense terminals compensates the voltage drop seen across the load leads, especially leads with higher resistance. This is useful when used in CV or CR mode.

WARNING

VsenseR (red) must have a higher (+) potential than

VsenseL (black).

Connection

The diagram below shows how a DUT can be connected using voltage sense. Note that the sense wires are also twisted pairs.

Note

Input

The wire gauge for the sense wires should be no smaller than 16 gauge.

The voltage sense terminals must use a wire gauge of 16 to 14.

48

Remote Sense

Terminal connection

The voltage sense terminals use a screw-less clamp connector. The clamp must be opened prior to inserting a wire. Use a small screwdriver to push the clamp release mechanism. Insert both wires then release the clamp mechanism.

49

PEL-2000 Series User Manual

Single Load Connections

Dual Channel

Load Module

Connection

A dual channel load module can be used to sink two loads concurrently.

Single Channel

Load Module

Connection

On a single channel load module, the left terminals are both negative (-), whilst the right terminals are both positive (+). Note this also applies to the voltage sense terminals.

CAUTION

For loads exceeding 40A, both positive and both negative terminals must be used in parallel.

50

DC Connection

For purely DC operation, a resistor and capacitor can be connected in parallel to the electronic load to reduce oscillation. The capacitor and resistor values are dependent on the load settings. Ensure the capacitor ripple current is within allowable limits.

Low Voltage

Connection

Using the load generator with low voltage loads is generally limited to over 1 volt (load module dependent). In order to support low voltage loads, an auxiliary power supply is needed to boost the voltage to a range suitable for the load generator.

Precautions:

 Take into account the combined power of the load and auxiliary power supply.

 Make sure the auxiliary power supply is able to provide enough current.

 Take into account any noise or irregularities from the auxiliary supply.

The diagram below shows a typical connection.

WARNING

Using an auxiliary power supply may induce reverse current. The PEL-2000 series has reverse voltage protection. For details see the protection section on page 79.

51

PEL-2000 Series User Manual

Parallel Load Connections

Parallel load modules

When the power output of a DUT exceeds the power rating of a channel or load module, the channel terminals, load modules or mainframes can be used in parallel to dissipate more power when used in CC mode. Each channel will sink the amount of current specified. The total power sunk is the sum of all channels/modules. The amount of power can vary from each channel. For example if

CH1 is 25A and CH2 is 20A, then the total current sunk is 45A. Parallel loads are supported for both static and dynamic loads (see page 78 for a description on parallel dynamic loading).

Parallel load

Note

DUT

-

+

-

+

-

+

-

+

-

+

Single Channel

Load Module

Single Channel

Load Module

Single Channel

Load Module

Single Channel

Load Module

Please note that when using different load modules in parallel, the slew rates may differ. See the specifications for more details, page 253.

52

Parallel loads using framelink connections

The PEL-2000 mainframes can also be connected in parallel. Please note, when using a frame link connection there is a delay between the master and the slave. Please see page 54 for details.

DUT

Master

Slave

DUT

Slave

DUT

Multi-output power supply load

Slave

DUT

Slave

DUT

The PEL-2000 is also able to sink a number of loads concurrently from multiple DUTs or sink a number of loads from the same DUT (i.e. multiple output power supply).

-

+

+

-

-

+

-

+

Twisted

Pair

Twisted

Pair

Twisted

Pair

Twisted

Pair

-

+

-

+

-

+

-

+

R

R

L

L

Dual channel

Load Module

Dual channel

Load Module

53

PEL-2000 Series User Manual

Frame Link Connection

Background

Frame link control involves connecting multiple mainframes using the frame link connections. Up to 4 slave mainframes can be connected to the master mainframe. The first mainframe (master) can be used to control the other slave frames.

There is a delay time of 2ms between the master and first slave mainframe, and 4ms, 6ms, and 8ms to the second, third, and fourth slave mainframes, respectively. The connectors used are standard

MIL 20-pin connectors. For pin arrangement see page 236.

Frame Link

Connection

GPIB

RS232C

SER. NO. LB

(FRM)

1

FRAME CONT

2

1

FRAME CONT

REPLACE FUSE

AS SPECIFIED

FUSE RATING

115V T 3.15A

230V 250V

WARNING

TO AVOID ELECTRIC SHOCK THE POWER CORD PROTECTIVE

GROUNDING CO NDUCTOR MUST BE CONNECTED TO GROUND.

FOR CONTINUED FIRE PROTECTION. REPLACE FUSE ONLY WITH

250V FUSE OF THE SPECIFIED TYPE AND RATING.

NO OPERATOR SERVICEABLE COMPONENTS INSIDE.

DO NOT REMOVE COVERS. REFER SERVICING TO QUALIFIED PERSONNEL.

AC

DISCONNECT POWER CORD

BEFORE REPLACING FUSE

2

1

CH CONT 8 CH CONT 7 CH CONT 6

1

CH CONT 5

2

1 1

STRIP GAUGE

10.0 mm

AWG 24

1

CH CONT 4

Output

CH CONT 3 CH CONT 2 CH CONT 1

1 1 1

GPIB

RS232C

SER. NO. LB

(FRS)

1

2

FRAME CONT

1

1

FRAME CONT

REPLACE FUSE

AS SPECIFIED

FUSE RATING

115V T 3.15A

230V 250V

WARNING

TO AVOID ELECTRIC SHOCK THE POWER CORD PROTECTIVE

GROUNDING CO NDUCTOR MUST BE CONNECTED TO GROUND.

FOR CONTINUED FIRE PROTECTION. REPLACE FUSE ONLY WITH

250V FUSE OF THE SPECIFIED TYPE AND RATING.

NO OPERATOR SERVICEABLE COMPONENTS INSIDE.

DO NOT REMOVE COVERS. REFER SERVICING TO QUALIFIED PERSONNEL.

AC

DISCONNECT POWER CORD

BEFORE REPLACING FUSE

1

2

CH CONT 8 CH CONT 7 CH CONT 6 CH CONT 5

2

1 1 1

STRIP GAUGE

10.0 mm

AWG 24

Input

1

CH CONT 4

Output

CH CONT 3 CH CONT 2 CH CONT 1

1 1 1

RS232C

GPIB

(FRS)

1

2

SER. NO. LB

FRAME CONT 1

2

REPLACE FUSE

AS SPECIFIED

FUSE RATING

115V T 3.15A

250V

230V

WARNING

TO AVOID ELECTRIC SHOCK THE POWER CORD PROTECTIVE

GROUNDING CO NDUCTOR MUST BE CONNECTED TO GROUND.

FOR CONTINUED FIRE PROTECTION. REPLACE FUSE ONLY WITH

250V FUSE OF THE SPECIFIED TYPE AND RATING.

NO OPERATOR SERVICEABLE COMPONENTS INSIDE.

DO NOT REMOVE COVERS. REFER SERVICING TO QUALIFIED PERSONNEL.

DISCONNECT POWER CORD

BEFORE REPLACING FUSE

AC

180 VA MAX

50/60 Hz

CH CONT 8

1

CH CONT 7 CH CONT 6

1 1 1

CH CONT 5

1

FRAME CONT

Input

AWG 24

CH CONT 4 CH CONT 3 CH CONT 2 CH CONT 1

1 1 1 1

54

The first mainframe that is connected is the master frame; any additional frames are slave units. The ribbon cable connects to the master from connector

2, and the slave from connector 1. Each successive slave unit is connected in a cascading manner the same way.

Ensure the Mainframes are turned off before connecting the ribbon cables. Push the cable into the frame link connector. Ensure the arrows line up. The latches will close when the connection is complete. To remove, pull the latches out and connector will come out.

Insertion

Removal

WARNING

Ensure all the mainframes are off and disconnected from mains power before connecting.

55

PEL-2000 Series User Manual

Channel Control Connection

Background

The Channel Control connecters are located on the rear panel of each mainframe. There are two channel control connectors for each load slot, one for each channel, if applicable. The channel control connector is used to externally:

Turn on/off loads.

Supply a reference voltage.

Monitor the load input.

For further details on channel control and the interface see pages 85, 235.

RS232C

GPIB

GO / NG OUTPUT

1

2

SER. NO. LB

FRAME CONT

FUSE RATING

115V

230V

T 3.15A

250V

WARNING

GROUNDING CONDUCTOR M UST BE CONNECTED TO GROUND.

FOR CONTINUED FIRE PROTECTION. REPLACE FUSE ONLY WITH

250V FUSE OF THE SPECIFIED TYPE AND RATING.

NO OPERATOR SERVICEABLE COMPONENTS INSIDE.

DO NOT REMOVE COVERS. REFER SERVICING TO QUALIFIED PERSONNEL.

DISCONNECT POWER CORD

BEFORE REPLACING FUSE

AC

180 VA MAX

50/60 Hz

CH CONT 8

1 1

CH CONT 7 CH CONT 6 CH CONT 5

1 1

STRIP GAUGE

10.0 mm

AWG 24

CH CONT 4 CH CONT 3 CH CONT 2 CH CONT 1

1 1 1 1

The Channel Control input/output pin layout is shown below.

56

External Voltage

Connection

The external voltage reference input must be between 0~10V.

WARNING

Ensure the external voltage reference is stable and has low noise. The External Voltage should be no more than 10V.

Load on connection

No more than 12 volts may be used as an external voltage. More than 12 volts may damage the load generator.

To turn a load on, an active low voltage (0-1V) must be applied across Load On (pin 5) and GND

(pin 1), similarly an active high voltage (4-5V) must be applied to turn a load off. The Load On input must be TTL.

57

PEL-2000 Series User Manual

Voltage and

Current Monitor

Output

The Voltage Monitor Output (VMON) and Current

Monitor Output (IMON) output the load input voltage and load input current as a percentage of rating current/voltage. Where 0 volts = 0% rating and 10 volts = 100% load input rating voltage or current.

The voltage monitor output is across pins 1 & 3, and the current monitor output is across pins 1 &

2. Pin 6 outputs a +15V reference voltage.

Below shows the pin configuration of the voltage and current monitor outputs.

Connector

Connection

The channel control connector is a screw less clamp connector. The internal clamp mechanism must be opened before a wire can be inserted. To open the internal clamp, push the button above the wire socket, to close, release the button. Ensure at least 10mm is striped from the wire. The diagram below shows the wire insertion procedure.

58

WARNING

All connections to the channel control connector must use a 24 AWG wire gauge.

Go/NoGo Connection

Background

The Go/NoGo port is a 15 socket port. Each channel has a dedicated line for a Go/NoGo output. The ports are open-collector with active low (1.1V) indicating a pass and active high (30V) as fail (an alarm). The Go/NoGo terminal is a DB-

15 female.

For more details on the Go/NoGo interface see page 239.

59

60

PEL-2000 Series User Manual

O

PERATING

DESCRIPTION

Operating Mode Description ........................................... 61

Constant Current Mode ........................ 61

Constant Resistance Mode ................... 65

Constant Voltage Mode ........................ 68

Run Program ................................................................... 71

Sequence ........................................................................ 74

Parallel Dynamic Loading ................................................ 78

Configurations Description.............................................. 79

Protection Modes ................................. 79

Operating Configurations ..................... 81

Channel Control ................................... 85

Interface and File System ................................................ 89

Interface .............................................. 89

File System .......................................... 89

File Format .......................................... 94

Operating Mode Description

There are three basic operating modes: constant current (CC),

Constant Resistance (CR), and Constant Voltage (CV/CV+CC). All channels operate using any of the modes. Each mode has a number of configurable options including slew rate, levels, protection modes, Go/NoGo and extensive save options.

Constant Current Mode

Background

In Constant Current Mode the load units will sink the amount of current programmed. Regardless of the voltage, the current will stay the same. There are two ranges in CC mode: High and Low. There are two main modes in CC mode: Static and

Dynamic. Static mode can be used for stability tests and dynamic mode can be used to test transient load conditions.

Go/NoGo is supported for both High and Low range as well as Static and Dynamic mode.

CC Mode

Load Current

Load Input Voltage

61

PEL-2000 Series User Manual

Range

Static Functions

Static mode tests the stability of the voltage output from a power source. Single channel load modules can have two 2 current levels A (A Vaue) & B (B

Value). A & B have the same range. Pressing the

A/B key on the module load will cycle through the

A and B states. Alternatively, the mainframe can select A or B Value.

Dual channel load modules only have one current level (A Value) per channel in static mode.

Static Mode:

Single Channel

Load module.

There are two selectable ranges for constant current mode: high and low range.

Low range has a higher resolution, but a lower range. If the current exceeds the Low Range, High range must be used.

Dynamic

Functions

Dynamic load functions allow you to set load levels (Level1, Level2), load time (Timer1, Timer2), and the slew rate (rising, falling). Depending on the settings, the load will switch automatically between levels 1 and 2.

Dynamic loading can be used for charge discharge cycle testing etc.

62

Slew rate

The slew rate is the rate at which the current will increase to a set level. There are two slew rates: rising slew rate & falling slew rate. In CC mode the slew rate is defined as A/uS.

Go/NoGo

As can be seen above, the rising and falling slew rate need not be the same.

Using Go/NoGo, the Center, High and Low voltage limits can be set for both Static and

Dynamic modes. A delay time of up to 1 second can also be set.

63

PEL-2000 Series User Manual

CC Mode: Static:Go/NoGo

Current

Load

Current

NoGo Go NoGo

Voltage

GO is specified as between the Low and High

Go/NoGo limits. NoGo is specified as outside the

Go/NoGo limits.

64

Constant Resistance Mode

Background

In Constant Resistance Mode the load units will linearly sink current and voltage to match a set resistance. CR mode has two different values

(single load modules), two different ranges and rising and falling slew rates. Like CC mode,

Constant resistance mode supports both dynamic and static loads. As with the other modes,

Go/NoGo is supported.

CR Mode

Load Input

Voltage

Res ista nce

Load Current

Resistance Range

There are two ranges: High and Low. The Low range is used for low voltage ranges, whilst the

High range uses high voltage ranges. The current range always remains in High range, regardless of the selected voltage range.

Static Functions

A/B range

For static mode, single channel load modules have two resistance levels, A & B Value. The A/B key can be used to switch between these resistance levels. Dual channel load modules only have one resistance level, A Value.

65

Single Load

Module

PEL-2000 Series User Manual

Dynamic

Functions

CR mode supports Dynamic loading. Dynamic load has two resistance levels (Level 1&2), and two timers (Timer 1&2) to switch between the resistance levels. Rising and falling slew rates can be set to determine the speed at which the load generator switches between load levels.

Slew Rate

Go/NoGo

The rising and falling slew rate (A/uS) determines the speed at which the load levels change from A to B Value (Static mode) or from Level1 to 2

(Dynamic mode) and vice versa.

Go/NoGo is also supported. Center, High and

Low limits can be set as either percentages or voltage values. A delay time of up to 1 second can also be set.

66

67

PEL-2000 Series User Manual

Constant Voltage Mode

Background

In Constant Voltage Mode the load units will sink current whilst keeping the voltage constant.

Single channel load modules support 2 values (A

Value, B Value) and have an adjustable cut-off current limit. Dual channel load modules only have A value.

Response speed can also be set to fast (Fast) or slow

(Slow). The response speed relates to the slew rate of the current response.

Constant voltage mode only operates in high range.

Go/NoGo functionality is also supported either as a percentage or as a current value.

Voltage levels

Two voltage levels can be set: A & B (single channel load module).

68

CV + CC

Voltage

CV Mode

A value

B value

Time

When using CV mode, a current limit can be set for

CV + CC mode.

When the voltage input is greater than A Value

(load voltage) then the channel will operate in CV mode if the input current is less than the current limit. When the input current exceeds the current limit, the channel will operate in CC mode.

When the voltage input is less than A Value (load voltage) current stops flowing.

69

PEL-2000 Series User Manual

Response Speed

Response speed can be set to fast or slow. Fast response and slow response is determined by the load module specifications. Slow response speeds are suitable for large loads as quick current changes will induce induction which can cause large voltage drops. The PEL series will try to rectify any voltage drops. However if voltage drops are too large, they may cause the load generator to go into oscillation. Large voltage drops caused by line voltage induction may damage the machine.

Range Fast Slow

1kHz 100Hz

Go/NoGo

Go/NoGo testing can be with either current

(Ampere) values (High, Low) or percentage values

(Center, High %, Low %). A delay time of up to 1 second can also be set.

70

Run Program

Background

The Program function on the PEL-2000 series supports a total of 12 different programs at any one time with 10 sequences to each program. Up to 12 programs can be chained together. The Program function is able to create a number of Go/NoGo tests.

Program

Sequence

A program sequence is simply a single load test. A program is a battery of each of these tests run in succession. Each sequence loads the settings for each channel from Memory Data (Memory MXXX).

The Memory Data stores settings such as the operating mode and range for each channel. Each sequence loads all channels at the same time, unless programmed otherwise. Sequences for each channel run synchronously.

Each Sequence has a number of configuration options that apply to all the channels equally.

Sequence Item Parameter Range

Run

On-Time

Off-Time

Short-time

Auto – Skip – Manual

0.1 ~ 60.0

Off – 0.1 ~ 60.0

Off – 0.1 ~ On-time

71

Program

P/F-Time

Short Channel

PEL-2000 Series User Manual

Off – 0.1 ~ (On-time+Off-time)-0.1

CH1 ~ CH8

Sequences are run sequentially to create a Program.

There are 10 Sequences in each Program.

If less than 10 Sequences are desired for a Program, any additional Sequences can be skipped (not run).

Sequence 2 & 3 are skipped.

Program Chain

Any of the 12 programs can be chained together to create a Program Chain. Unlike Program

Sequences, Program Chains need not be run sequentially in numerical order. Any program can be chained to any program. It is possible to chain programs into an infinite loop to continue a program indefinitely.

Above, a program chain running sequences out-oforder.

72

Go/NoGo Results

If Go/NoGo limits have been configured, the

Pass/Fail results for each channel will be displayed for all the sequences and programs.

73

PEL-2000 Series User Manual

Sequence

Background

The Sequence function is used to create high resolution load simulations. Each Sequence can be configured to create a unique load profile to accurately simulate loads in real time. Sequences are only applicable for CC (Static) and CR (Static) modes.

Note: Sequences are not to be confused with the sequences used to create a program. They are not the same and cannot be used interchangeably.

Sequences (SEQ memory) cannot be used in

Programs and Programs cannot load Sequences.

Load Profiling

The Sequence function is able to simulate a load to a high resolution. Each channel is able to change its load sink within 100us per point independently.

When used in parallel, multiple loads can be sunk concurrently to simulate the loads placed on multiple output power sources.

The diagram below shows the load profile of a

DUT at start-up.

74

Points

Up to 120 points can be used with each Sequence.

Each point can have a different duration, slew rate and value.

A new point can be inserted or deleted at any stage of a Sequence. Any new points that are inserted will have a value averaged from its neighbors as default.

Loop

A new point is inserted after Point 3.

Sequences can be programmed to loop a number of times starting from any point in the sequence.

From Point3 the sequence is looped two times.

75

On end load

PEL-2000 Series User Manual

If more than one Sequence is programmed on the mainframe, the On End Load function allows a

Sequence to configure its load on or off at the end of its sequence until the last sequence ends. After the last sequence ends, all loads are turned off.

This function is ineffective if only one Sequence is active. This is as the On End Load time and the time of the last sequence will be the same.

Trig Out

The Trigger Out function allows a trigger sequence signal to be output from a channel via PIN 4 on

Frame Link connector 1 when using Sequences.

The Trig Out function is used from the Channel

Duration menu.

76

As can be seen above, a trigger sequence signal is output for every rising edge point.

Channel Duration

Time Setting

The Channel Duration Time Setting feature allows the point time duration of one Sequence to be imported by another Sequence. If the receiving sequence doesn’t have enough points, more will be created (without values).

For example, the sequences for CH1 and CH2 are shown below. CH1 has a total of 6 points with long durations, whilst CH2 has only 2 points, looped 5 times. The points from CH2 are also significantly shorter in duration.

Below shows the resulting sequence when CH1 imports CH2. CH1 imports the duration time settings and number of points from CH2, but not the value data.

77

PEL-2000 Series User Manual

Parallel Dynamic Loading

Background

The PEL-2000 series of DC electronic loads support parallel dynamic loading. This simply means that when the load modules of a mainframe are connected in parallel and set to dynamic mode, they can perform dynamic tests synchronously following the same clock. Under dynamic mode, load current or resistance is pulsed between two preset levels. When used in parallel, higher powered outputs can be tested. This ability gives the PEL-2000 series the flexibility to perform dynamic tests over a wide range or power outputs.

For connection details see the Parallel Load

Connections section on page 52.

The diagram below shows how two load modules are able to sink a higher load when used in parallel under dynamic mode.

78

Configurations Description

There are a number of different configurations for the PEL series including protection modes, operating configurations, and file system configurations. The Configuration Description section describes what the different configurations are used for and how they can be relevant to different operations.

Protection Modes

Background

The PEL 2000 series include a number of protection modes: Over Current Protection, Over Voltage

Protection and Over Power Protection.

The protection modes are useful to protect both the load modules and the DUT(s). A buzzer can be set to notify when a protection setting has been tripped. When a protection feature is activated and has been tripped then the load unit will display an alarm. The Mainframe will also display an alarm.

When an alarm has been tripped the load will stop sinking current/voltage. There are three Over load protection settings: ON, OFF and Clear.

03/02/09

10 : 30

Alarm

CH1

CC

Dyna

High

Protection

Other Go-NoGo

Conf

79

PEL-2000 Series User Manual

Over Current

Protection

I

When a load unit is operating in CR or CV mode, the unit may need over current protection to prevent excessive current being sunk. Over current protection stops the load from sinking more current than its recommended limit which can cause damage to the unit.

CV Mode: OCP CR Mode: OCP

V

OCP level

Over Voltage

Protection

Res ista nce

V

I

OCP level

Over voltage protection is used to limit the amount of voltage sunk. If the OVP trips, the PEL series load will stop sinking voltage.

CC Mode: OVP

Load Current

Over Power

Protection

Load Input Voltage

Over power protection is used when the power range exceeds the specifications of the load. When

OPP is tripped power will cease to be sunk.

80

Reverse voltage

Protection

Reverse voltage protection prevents reverse voltage damage to the PEL-2000 series up to the specified rating. When Reverse voltage protection has been tripped an alarm tone will sound until the reverse voltage is removed.

Under voltage

Protection

For more details please see the specifications.

Under voltage protection will turn off the load when the voltage drops below a set limit.

Operating Configurations

Background

CC Vrange

There are number of operating configuration settings. Configuration settings are for the following:

CC Vrange, Von Voltage, Von Latch, Short Key, CH

Cont, Independent load sync, D-time and Step resolution settings.

CC Vrange (page 165) is used to set the voltage range as High or Low for CC mode. CC voltage range is dependent on the load module specifications.

81

PEL-2000 Series User Manual

Von Voltage

Von Voltage is the voltage limit at which the load will start to sink current. There are two operation modes for Von Voltage: Von latched:ON and Von latched:OFF.

Latched: ON will sink current when Von has been tripped, and will continue to sink current even if the voltage drops below the Von Voltage.

Von Latched: OFF will sink current when Von has been tripped, but will stop sinking current when the voltage drops below the Von Voltage setting.

As can be seen in the diagram below, when Von-Latch is set to off, the load module will start to sink current when the Von-voltage limit has been tripped. It will stop sinking current when the output drops below the

Von voltage limit.

82

Short

Note

CH CONT

Independent

When short mode is on, the load unit can simulate a short circuit.

Shorting can be individually set for each channel when programming sequences.

To initiate a short circuit manually, the short key is used. It can be used at any time during an operation. It will not affect the settings. After a short circuit has finished, the load unit will resume the previous operation.

The short key can be set to toggle or hold. When pressed in toggle mode, shorts are toggled on and off. When pressed in hold mode, the key needs to be held to short the load.

A short circuit may trip a protection mode if too much current is sunk.

Channel Control. When Channel control is activated (External) it can be used to monitor the voltage and current output of the load as well as turn loads on or off remotely from the Channel

Control (CH CONT) connectors located on the rear panel.

For more information about channel control, see external voltage control on page 85.

The Independent setting will allow the load modules to be controlled independently from the mainframe.

83

PEL-2000 Series User Manual

Load D-Time

Load Delay time is used to delay activating a load

(up to 10 seconds) after the load key has been pressed. However the Load D-Time setting will only work for loads that are initiated manually or when the PEL series mainframe is configured to

Auto load (page 182) at run time.

Step Resolution

Each channel voltage, current and resistance setting can have the step resolution configured.

For example if the step resolution for CCH (CC high range) is .5 A, then the resolution can be incremented in .5A steps;

8.08.59.09.5

The step resolution parameters apply to the following:

CCH Step – CC high range

CCL Step – CC low range

CRH Step – CR high range

CRL Step – CR low range

CV Step – CV high range

Step Resolution

Range

The step resolution range is dependent on the load module and the range:

Max resolution: channel range/4000

Min resolution: channel range/2

84

Channel Control

Background

External channel control is used with the Channel

Control connectors. Each channel control connector can activate each load, monitor voltage and current and has an external voltage reference input. The voltage and current monitors output 0~100% of the rated current/voltage as a voltage of 0~10V.

RS232C

GPIB

GO / NG OUTPUT

1

2

SER. NO. LB

FRAME CONT

REPLACE FUSE

AS SPECIFIED

FUSE RATING

115V

230V

WARNING

TO AVOID ELECTRIC SHOCK THE POWER CORD PROTECTIVE

GROUNDING CONDUCTOR MUST BE CONNECTED TO GROUND.

FOR CONTINUED FIRE PROTECTION. REPLACE FUSE ONLY WITH

250V FUSE OF THE SPECIFIED TYPE AND RATING.

NO OPERATOR SERVICEABLE COMPONENTS INSIDE.

DO NOT REMOVE COVERS. REFER SERVICING TO QUALIFIED PERSONNEL.

AC

180 VA MAX

50/60 Hz

CH CONT 8 CH CONT 7 CH CONT 6 CH CONT 5

1 1 1 1

STRIP GAUGE

10.0 mm

AWG 24

CH CONT 4 CH CONT 3 CH CONT 2 CH CONT 1

1 1 1 1

External Voltage

Reference

A voltage reference of 0-10V is used to represent 0-

100% of the rating voltage/current of a load module. As seen below the external voltage reference and the rating voltage/current have a linear relationship. By varying the reference voltage between 0~10V the voltage/current setting will be changed accordingly.

85

PEL-2000 Series User Manual

To determine the Percent Rating (voltage or current load input), use the following formula;

Load Input

External

10

Voltage

 

Rating VorA

Where “Rating Vor A” is the rating voltage/current of the load module.

Current Monitor

The load current input can be externally monitored using the IMON pin of a channel control connector.

The IMON pin outputs a voltage of 0~10V to represent the input current of as percentage

(0~100%) of rating current.

To determine the Current Monitor Output

(IMON) , use the following formula;

IMON

Load input

Rating current

A

10

V

Where “Rating A” is the rating current of the load module.

86

Voltage Monitor

The input voltage, like the load input current can be externally monitored with the channel control connectors. The VMON pin of the channel control connector outputs a voltage of 0~10V to represent the load input voltage as a percentage (0~100%) of the rating voltage.

To determine the Voltage Monitor Output

(VMON) , use the following formula;

VMON

Load input voltage

10

V

Rating V

Where “Rating V” is the rating voltage of the load module.

87

PEL-2000 Series User Manual

Turning on the

Load

A load is turned on when Load On input is set to

On (active low). A load is turned off when the Load

On input is set to Off (active high).

When a load is turned on from the channel control interface, the load can be turned off from the mainframe, local module and via remote control.

However the opposite is not true; when a load is turned off using the channel control interface, the load cannot be turned on via the mainframe, local module or via remote control.

For connections and configurations, see pages 56 and 235 respectively.

88

Interface and File System

Interface

Background

The PEL series support RS232, GPIB and USB remote frame control. Only one type of connection is supported at any one time. For more information on remote control please see the GW Instek website at www.gwinstek.com

or see your local distributor about the PEL-2000 programming manual.

For connection options and configurations see the options below.

RS-232 configuration.

RS-232 pin connection.

GPIB configuration.

GPIB pin configuration.

USB configuration.

Page 196

Page 233

Page 198

Page 234

Page 199

File System

Background

The PEL series is able to save and recall a number of different data types for each channel:

Presets

Memory

Setup

SEQ (Sequence)

All data types can be saved and recalled to internal memory or saved to a USB flash drive. Each channel has its own dedicated memory for each

89

Preset Data

PEL-2000 Series User Manual

data type. Thus files are saved/recalled for each channel and each data type.

Preset data can be saved into 10 memory slots for each channel. Preset data contains the mode, range, CV response speed and Go/NoGo settings.

Internal Format

External Format

P0~P9

20X0X_XX.P

Preset Contents Preset data contains the following data;

CHAN

Mode

 Range

Static/Dynamic

CV response speed

Go/NoGo  SPEC Test

 High

Center

Entry Mode

Low

Memory Data

Each channel can save up to 120 different Memory data types (M001~M120) into internal memory.

Memory data contains general channel settings and is used when programming sequences.

Memory data can be stored both internally and externally to USB. Preset data and Memory data store the same contents.

Internal Format

External Format

M001~M120

20X0X_XX.M

Memory Contents Memory data contains the following data;

CHAN

Mode

Range

Go/NoGo  SPEC Test

 High

Center

Static/Dynamic

CV response speed

Entry Mode

Low

90

SEQ Data

SEQ data contains Sequence data. SEQ data can only be saved to and from USB. SEQ refers to

Sequence data, not Program sequences.

Internal Format

External Format

N/A (Internal buffer)

20X0X_XX.A

SEQ Contents SEQ data contains the following data;

Seq.Edit

Loop

No. (Points)

Slewrate

Duration time

Repeat

On End Load

Value

Slewrate

Start of Loop

CC Vrange

Setup Data

Setup data can be saved to 4 internal memory slots.

Setup data contains Memory data, Program

Sequence, Chain data, configuration settings and operation settings for every channel. Setup data can be saved to Internal memory or to USB.

Internal Format

External Format

Setup Memory 1~4

200X0_XX.S

Setup Contents Setup data contains the following data;

Program

Chain

PROG

Memory

On-Time

P/F-Time

Short Channel

Start

SEQ (program sequence no.)

Run

Off-Time

Short-Time

Program

Sequence

(P01~P12)

91

Save: Internal memory

Save: External memory

PEL-2000 Series User Manual

Run

CHAN

Active Channel

(CH01~08)

Mode

Range

Go/NoGo  SPEC Test

High

Center

Static/Dynamic

CV response speed

Entry Mode

Low

When saving data to internal memory, either the current channel or all the channel data can be saved. Not all data types can save the current channel or all the channel data.

Data Type Current Ch

Preset •

Memory •

SEQ

Setup

All Ch

• (single save) •

─ •

Only SEQ, Memory and Preset data can be saved for a single channel to USB. All four data types

(SEQ, Memory, Setup, Preset) can save all channels to USB.

Data Type Current Ch All Ch

Preset •

Memory •

SEQ • •

Setup ─ •

92

Save/Recall USB

In order to save data from a single channel to USB, data must first be saved to the internal memory.

After data is saved to internal memory, all the files can be saved to USB.

To recall saved files, the reverse is also true. Files must be recalled from the USB flash drive to internal memory. Then from internal memory the data can be recalled to each channel*.

*Excluding SEQ data.

Save/Recall All

The SEQ, Preset, Memory or Setup data can be saved from every channel into USB. SEQ, Preset and Memory data is saved into a directory

(ALL0000-ALL0099) with a file for each channel, whilst Setup data is saved in a single file.

93

PEL-2000 Series User Manual

To recall saved files, the reverse is not true. Files must be recalled to each channel separately.

File Format

Single Channel Filename format

Memory data

Preset data

SEQ data

1: PEL series Load module type:

2020 = PEL-2020

2030 = PEL-2030

2040 = PEL-2040

2: Channel

R = Right

L = Left

0 = Single channel or not used

3: Save file number:

0 ~99

Incremented after each consecutive save.

4: File extension

M = Memory data

P = Preset data

A= SEQ data

94

All Channel Directory Format

All Channel

Memory data

Preset data

SEQ data

Setup Data

File Format

1: All Channel common directory name

2: Directory number:

0000 ~ 0099

1: PEL series Load module type:

P020 = 2020

P030 = 2030

P040 = 2040

2: Channel

R = Right

L = Left

0 = Single channel

3: Channel number:

C1 = CH1

C2 = CH2

Etc.

00 = All channels

(Setup data)

4: File extension

M = Memory data

P = Preset data

A= SEQ data

S= Setup data

95

96

PEL-2000 Series User Manual

T

UTORIALS

(Step by Step Operations)

Local loads ...................................................................... 97

Single Channel Load ........................................................ 99

Programming ................................................................. 101

Sequences ...................................................................... 103

Frame Link ..................................................................... 104

Channel Control ............................................................. 106

General Configuration Options ....................................... 108

TUTORIALS

Local loads

Local mode operation is useful to quickly test loads using the load module control panel rather than the mainframe control panel.

Local load modules can be configured to operate independently to the mainframe. This can be useful when settings need to remain unchanged on the mainframe. Note however that the local modules cannot change the modes (CC, CV, CR), only the values.

Step

1. Setup

2. Channel selection

Description

Ensure the channel load is set up as desired.

Ensure the correct channel or

Value (A/B) is selected by using the R/L or A/B key.

3. Measurement

Mode selection

If in CC or CR mode, Static or

Dynamic mode can be selected.

Details

Pages 35, 43

Page 113

4. Run the Load

Press the LOAD key to start/end loading the device under test.

Optional

5. Short configuration

Configure the SHORT key to hold/toggle short circuit configuration.

6. Display

7. Shorting the load

8. Independent load

To change the display output, use the DISPLAY key.

To short the load, use the SHORT key when the load is on.

The local load modules can be set to independent load.

CC Pages 114,

126

CR Pages 129,

132

Page 115

Page 116

Page 117

Page 116

Page 171

97

PEL-2000 Series User Manual

9. Independent control

10. Configure

Slave Knob

Settings

Load module Selector knobs can be configured to be independent to the mainframe.

Display Measured or Set Values with the selector knob.

Page 188

Page 192

98

TUTORIALS

Single Channel Load

Single channel loads are used to manually test a DUT quickly or to configure channel settings for Program Sequences using the mainframe panel.

Step

1. Setup

5. Range selection

6. Mode selection

Description

Choose the appropriate load module and make sure it is installed.

Details

Page 35

2. Connection

Connect the terminals to the DUT. Page 43

3. Channel selection

Select the load channel on the mainframe.

Page 119

4. Measurement mode selection

Select measurement mode (CC,

CV, CR).

CC Page 122

CV Page 134

CR Page 128

Set the range to high or low (CC,

CR mode).

Choose Static or Dynamic mode

(CC & CR mode only).

CC Page 123

CR Page 128

CC Pages 123,

126

7. Dynamic levels

(CC,CR)

8. Static Values

(CC, CV,CR)

Set the dynamic levels, slew rate and timers. Applicable to CC &

CR mode only.

Set the A(B) Value, slew rate (CC,

CR) and current limit (CV)

CR Pages 129,

132

CC Page 124

CR Page 130

CC Page 126

CR Page 132

CV Page 135

99

PEL-2000 Series User Manual

9. Go/NoGo

Set the Go/NoGo configurations, if applicable.

Page 177

10. Protection

Modes

11. Run

Configure the protection modes.

Activate the load by pressing the load key.

Optional

12. Configuration

There are number of configurations that apply to all channels. For details see the

Configuration Tutorial.

Page 162

Page 108

100

TUTORIALS

Programming

When creating a Program Sequence or Chain, all channels are used at the same time unless programmed otherwise. Program

Sequences use the channel settings stored from Memory Data.

Program sequences are primarily used to perform a battery of pass/fail tests on DUTs.

Step

1. Setup

Description

Choose the appropriate load module(s).

Details

Page 35

2. Connection

Connect the terminals to the DUT. Page 43

3. Channel selection

Select the load channel(s) on the mainframe.

Page 119

4. Channel setup

See the “Single channel load” tutorial to configure a single channel. Do not activate the load.

5. Save channel

Save the configured channel.

Page 99

Page 201

6. Multiple channels

10. Program

Chains

If multiple channels need to be configured, follow steps 1-5 for any remaining channels.

7. Program menu

Enter the Program menu.

8. Configure the sequence

Configure the first program.

9. Save sequences

Save the Program in the FUNC

Program menu.

Page 138

If required, Program chains can be created.

Page 143

11. Save Program

Save the chain in the Chain menu.

101

PEL-2000 Series User Manual

12. Save Setup

Save everything to the internal

13. Run

Setup memory.

Run the Program

Sequence/Chain.

Page 206

Page 145

102

TUTORIALS

Sequences

Sequences are used to accurately simulate loads. As each Sequence is independent, Sequences are ideally suited to test multiple output power sources.

Step

1. Setup

5. Sequence loop

Description

Choose the appropriate load module(s).

Details

Page 35

2. Connection

Connect the terminals to the DUT. Page 43

3. Channel selection

Select a load channel with the mainframe.

Page 119

4. Channel setup

Create a sequence. Page 151

Create a sequence loop if necessary.

Page 153

6. Multiple channels

7. Channel

Duration menu

8. Run

If multiple channels need to be configured, follow steps 1-5 for any remaining channels.

Edit the sequence channel duration information. Ensure that the channels containing Sequences are not set to OFF.

Page 155

Run the Sequence(s) Page 157

103

PEL-2000 Series User Manual

Frame Link

Frame link connections are used connect up to four slave main frames to a master main frame. When using frame link connections it is possible to perform a number of operations in parallel under the control of the master unit.

DUT

DUT

DUT

DUT

Step

1. Setup

Description

Connect the mainframes together.

2. Configure

Configure the Frame CONT to ON for all mainframes.

Details

Page 54

Page 187

At first both the master and slaves are independent.

FRM (Frame Master) can be seen on the top panel of the each mainframe. When a mainframe is connected as a slave unit, the FRM icon will change to FRS (Frame

Slave). The front panel keys are disabled on slave units when in slave mode (FRS).

Master/Independent

3. Program

See the tutorial sections for programming or channel configuration.

Pages 99, 101

104

Note

TUTORIALS

4. Run

Run the loads. To run the loads, press the LOAD key on the master mainframe. To stop, press again.

When the LOAD key is pressed all loads will be active.

Options

5. Load Preset memory

Load preset memory on the mainframe and all frame-linked slaves.

6. Load Setup

Memory

7. Set slave to independent

Load setup memory on the mainframe and all frame-linked slaves

Press shift + CHAN on the slave unit to enable local control on a slave unit.

Page 230

Page 229

When a load is run or memory is recalled from the master mainframe, the slave unit will return to mainframe control.

105

PEL-2000 Series User Manual

Channel Control

The Channel Control connectors on the rear panel can be used to control and monitor the status of up to 8 channels. For more information on channel control, see page 85.

Step

1. Setup

Description

Ensure the load and PEL series mainframe is turned off.

Details

2.

Choose the appropriate load module(s).

Page 35

3. Connection

Connect the terminals to the DUT. Page 43

4.

Connect the channel control connectors on the rear panel.

Page 56 & 235

5.

Turn on the PEL series mainframe and DUT (load).

6. Configure

Select the Mode* and Range* via the front panel.

CC Pages 122,

123

CV Page 134

7.

8. Run

Activate channel control for each channel that will be used for external control, i.e., set CH CONT to External.

Page 170

Run the load. Turn the load on by either outputting an active low signal to the appropriate channel control connector or use the mainframe LOAD key*.

Page 56 & 85

106

9. Monitor

10. End

TUTORIALS

Use IMON and VMON to monitor the current and voltage of load outputs.

To turn the load off, output an active high signal to the channel control connector, or press the

LOAD key on the load module or mainframe**.

Page 85

* Mode and Range cannot be configured via the Channel

Control (CH CONT) interface. Mode and Range can only be configured via the front panel.

** The LOAD key cannot always be used to turn on/off the load. See page 85 for details.

107

PEL-2000 Series User Manual

General Configuration Options

There are number of different options for each channel. The different options are described below.

Options Description

1. CC Vrange

Configure the CC Voltage range from high or low.

Details

Page 165

2. Von Voltage

Configure the Von Voltage settings. Page 167

3. Short key

Configure the short key to toggle or hold.

Page 168

Page 170

Page 171

4. CH CONT

Turn channel control on/off

5. Independent load

Turn the load module control to dependent (via mainframe) or independent control.

6. Delay Time

Configure the load delay time for each channel. (0-10 seconds).

7. Clear All

Protection

Clear all the Protection Alarms.

8. Time

Configure date time settings.

9. Display

Adjust display settings.

10. Control type

Configure the Knob control.

11. Slave Knob

Setting

12. Alarm

13. Step resolution

14. Sound

Display Measured or Set values with the selector knob.

Configure alarm settings.

Configure the step resolution.

Applicable to CC high and low range, CR high and low range and

CV high range.

Turn the sound on/off for the mainframe IU.

Page 173

Page 165

Page 183

Page 184

Page 188

Page 192

Page 190

Page 175

Page 184

108

OPERATION

O

PERATION

The PEL series operation is described in the chapters below. The sections are broken down into small operations. For thorough examples on the operation of the load generator, please see the tutorial section on page 97.

Local Mode Operation .................................................... 112

Selecting a Channel ........................... 113

Selecting Static/Dynamic ................... 114

Turning on the Load ........................... 115

Shorting ............................................. 116

Display Output View .......................... 117

Editing CC /CR/CV A/B Value ............. 118

Mainframe Basic Operation ............................................ 119

Help Menu ......................................... 120

Channel Selection .............................. 121

Select CC Mode ................................. 122

Select CC Range ................................. 123

Select CC Dynamic Mode ................... 123

Editing CC Dynamic Parameters ........ 124

Select CC Static Mode ........................ 126

Editing CC Static Parameters ............. 126

Set to CR Mode .................................. 128

Select CR Range ................................. 128

Select CR Dynamic Mode ................... 129

Editing CR Dynamic Parameters ........ 130

Select CR Static Mode ........................ 132

109

PEL-2000 Series User Manual

Editing CR Static Parameters ............. 132

Select CV Mode .................................. 134

Editing CV Parameters ....................... 135

Select CV Response Speed ................. 137

Creating a Program Sequence ............ 138

Program Chains ................................. 143

Running a Program ............................ 145

Edit Sequence .................................... 151

Create Sequence Loop ........................ 153

Channel Duration Time Settings ........ 155

Run Sequence .................................... 157

Channel Configuration ................................................... 160

Accessing the Configuration Menu ..... 161

Setting (OCP/OVP/OPP/UVP) ........... 162

Protection Clear ................................. 165

Setting the CC Voltage Range ............. 165

Adjusting the Von Voltage and Latch .. 167

Configuring the Short key ................... 168

Configuring Channel Control .............. 170

Configuring the Independent Setting . 171

Configuring the Load Delay Time ....... 173

Configuring Step Resolution .............. 175

Go/NoGo ........................................... 177

Mainframe Configuration ............................................... 180

Accessing System Information ........... 181

Accessing the Load Menu .................. 182

Configuring the Date and Time .......... 183

Adjusting the Speaker ........................ 184

Adjusting the display settings ............ 185

Adjusting the Frame Control .............. 187

110

OPERATION

Adjusting the Knob Control Type ........ 188

Configuring Alarm Sound ................... 190

Configuring Go/NoGo Alarm Sound .. 191

Adjusting Slave Knob Settings ........... 192

View Language Settings ..................... 194

Interface Configuration (settings) ................................... 195

Configuring RS232 Connection .......... 196

Configuring the GPIB Address ........... 198

Configuring USB Remote Connection . 199

Save / Recall .................................................................. 201

Saving/Recalling Channels ................. 202

Saving/Recalling Preset memory ........ 204

Saving/Recalling Setup Memory ........ 206

Setting the Default USB Path/File ...... 208

Saving Setups to USB Memory ........... 213

Saving/Recalling Memory Data to USB216

Saving/Recalling Presets to USB ........ 220

Saving/Recalling Sequences to USB ... 224

Quick Preset Recall/Save ................... 228

Recall Setup Memory (Frame link). .... 229

Recall Preset Memory (Frame link) .... 230

Recall Factory Defaults ....................... 231

111

PEL-2000 Series User Manual

Local Mode Operation

Each channel can be edited by its local load module. Depending on the configuration, local changes can be reflected on the mainframe.

For this section all operations refer to knobs and buttons on the local load module panels, unless stated otherwise.

Local Mode Operation .................................................... 112

Selecting a Channel ........................... 113

Selecting Static/Dynamic ................... 114

Turning on the Load ........................... 115

Shorting ............................................. 116

Display Output View .......................... 117

Editing CC /CR/CV A/B Value ............. 118

112

OPERATION

Selecting a Channel

Background

Single Channel

Panel operation

Each channel can be individually selected by using its load module panel. Changing channels on a load module only applies to dual channel load modules.

Press any key on a load module to select its channel.

Dual Channel

Panel Operation

For dual channel load modules, press any key on a load module that has the desired channel. Press the

R/L key to cycle between the channels on the load module. L or R will be displayed on the bottom left hand to indicate which channel (left or right side) is active on the load module.

Note

On single channel modules, pressing the A/B key repeatedly will change the level from A or B when in

Static mode.

113

PEL-2000 Series User Manual

Selecting Static/Dynamic

Background

Each load channel can be individually switched from Static to Dynamic using the local load module.

1. Select a channel on the load module.

Page 113

Panel operation

2. Press the STATIC/DYNA. key to switch from dynamic to static mode and vice versa.

Note

All changes will be shown on the display and depending on the configuration, reflected on the mainframe.

114

OPERATION

Turning on the Load

Background

Loads can be individually selected to be turned on using local operation.

1. Select a channel on the load module.

Panel operation

2. Press the LOAD key to turn on the load.

Note

When a channel load is activated, the load on symbol will be displayed under the channel number.

Page 113

Range

Left channel

Right channel

Single channel

Turning the load off

3. Press the LOAD key.

115

PEL-2000 Series User Manual

Shorting

Background

The short key can be set to toggle or hold.

1. Ensure the load is off.

2. Select a channel on the load module.

Panel operation

3. Press the SHORT key to change between shorting modes.

Page 113

When the load is on, the SHORT key needs to be held to short.

When the load is on, the SHORT key can be used to toggle shorting on/off.

116

Shorting

4. Press LOAD to turn on the load.

OPERATION

5. a. Press the SHORT key (toggle mode).

Or b. Hold the SHORT key (hold mode).

Display Output View

Background

The DISPLAY key can be used to switch the display output to different views.

Panel operation

1. Press the DISPLAY key repeatedly to switch between the different views.

Voltage

Current

Power

Load on time.

117

PEL-2000 Series User Manual

Editing CC /CR/CV A/B Value

Background

The Selector Knob can be used to change the A

Value and B Value (single channel load module) when in static mode.

Panel Operation

1. Ensure the mode is in static mode.

Page 114

2. Choose a channel (or choose A or B Value) by pressing the R/L or A/B key.

3. Turn the Selector knob to edit the A/B Value for the selected mode.

Note

When the Slave Knob is set to “Measured”, the selector knob must be pressed first to display the values on the load module display.

118

OPERATION

Mainframe Basic Operation

For the Mainframe Basic Operation section, all operations refer to the knobs and keys on the main configuration panel, unless otherwise stated.

Mainframe Basic Operation ............................................ 119

Help Menu ......................................... 120

Channel Selection .............................. 121

Select CC Mode ................................. 122

Select CC Range ................................. 123

Select CC Dynamic Mode ................... 123

Editing CC Dynamic Parameters ........ 124

Select CC Static Mode ........................ 126

Editing CC Static Parameters ............. 126

Set to CR Mode .................................. 128

Select CR Range ................................. 128

Select CR Dynamic Mode ................... 129

Editing CR Dynamic Parameters ........ 130

Select CR Static Mode ........................ 132

Editing CR Static Parameters ............. 132

Select CV Mode ................................. 134

Editing CV Parameters ....................... 135

Select CV Response Speed ................. 137

Creating a Program Sequence ............ 138

Program Chains ................................. 143

Running a Program ............................ 145

Edit Sequence .................................... 151

Create Sequence Loop ........................ 153

Channel Duration Time Settings ........ 155

Run Sequence .................................... 157

119

PEL-2000 Series User Manual

Help Menu

Background

When any function key has been pressed or when a menu has been opened, the HELP key can be used to display a detailed description.

1. Press a function or system key on the front panel or open a menu.

Mainframe

Channel selection

2. Press the HELP key to display the built-in help.

3. Use the scroll wheel to scroll down if necessary.

03/02/09

10 : 30

120

Help

On Help

A detailed description of the function or menu item is shown.

4. Press F5 to exit.

F5

OPERATION

Channel Selection

Background

There are up to 2 channels per load module, depending on the model. The main display can be used to control each channel individually.

5. Press the CHAN button.

Mainframe

Channel selection

6. Select a channel by turning the

Variable knob.

The channel selection appears highlighted in orange on the top right of the screen.

03/02/09

10 : 30

CH1

CC

Dyna

High

Mode

CC

Range

High

Dynamic

7. Press the Selector knob or Enter to confirm.

Main

121

PEL-2000 Series User Manual

Select CC Mode

Background The PEL 2000 series load generators operate in three different modes: Constant Current (CC),

Constant Resistance (CR), and Constant Voltage

(CV).

When a channel is active, the F1 key can be used to switch between each operating mode.

Mode

CC

Mode

CR

Mode

CV

Panel Operation

1. Select a channel using the

CHAN button and selector knob.

2. Press F1 repeatedly until CC mode is displayed in the display panel.

Changing the operating mode will only affect the current (active) channel. Other channels will not be affected by any changes.

122

OPERATION

Select CC Range

Background

Constant current mode can run in high and low range. Maximum range is dependent on the load module.

Ensure the menu is in CC Mode. See page 122.

Panel Operation

1. Press the F2 (Range) key repeatedly until High or Low range is selected.

Note

Range

High

Range

Low

Changing the range will only affect the current (active) channel. Other channels will not be affected by any changes.

Note, not all load modules support dual ranges. If only one range is supported, it is usually high range.

Select CC Dynamic Mode

Background

Constant current mode can be set to dynamic or static mode. Dynamic mode is used to automatically set varying load rates.

Ensure the menu is in CC Mode. See page 122.

123

PEL-2000 Series User Manual

Panel Operation

1. Press the F3 key until Dynamic

Range mode is selected.

Note

Changing from static to dynamic mode will only affect the current (active) channel.

Editing CC Dynamic Parameters

Background

Dynamic Constant Current Mode has two operating current levels, slew rates and timers.

Slew rates determine the speed at which the load will change from one level to the next.

The timers determine how long the load module/channel will stay at level 1 or level 2.

Ensure the menu is in CC Dynamic Mode. See page

123.

Parameters

Level2 0~rating A

SlewRate Load module dependent

SlewRate

Timer1 0.025~30000.0 ms

Timer2 0.025~30000.0 ms

124

Panel Operation

1. Use the Selector knob to highlight Level1.

03/02/09

10 : 30

OPERATION

CH1

CC

Dyna

High

Note

Main

Mode

CC

Range

High

Dynamic

2. Press the Selector knob to edit the selected level, then turn to increase or decrease the value.

OR

Use the number pad to enter a number.

3. Press the Selector knob or Enter to confirm selection.

4. Repeat steps 1-3 for the remaining parameters.

Level1 & Level2 can be set for both High and Low

Range.

125

PEL-2000 Series User Manual

Select CC Static Mode

Background

Constant current mode can be set to dynamic or static mode. Static mode is for manually varying the load for single channel load modules or to set a static load on dual channel modules.

Ensure the menu is in CC Mode. See page 121.

Panel Operation

1. Press the F3 key until Static mode is selected.

Note

Changing from static to dynamic mode will only affect the current (active) channel.

Editing CC Static Parameters

CC Values

When using a single channel load module, Static

Constant Current Mode has two operating current values A&B. If a dual channel load is used, only one current value is available per channel:

A Value.

Ensure the menu is in CC Static Mode. See page 126.

Parameters

A Value 0~rating A

B Value 0~rating A

SlewRate Load module dependent

SlewRate

126

Panel Operation

1. Use the Selector knob to highlight A Value.

03/02/09

10 : 30

OPERATION

CH1

CC

Static

High

Note

Main

Mode

CC

Range

High

Static

2. Press the Selector knob to edit the selected value, then turn to increase or decrease the value.

OR

Use the number pad to enter a number.

Seq.

Edit

3. Press the selector knob or Enter to confirm selection.

4. Repeat steps 1-3 for the remaining parameters.

A & B Value have the same Range: High or Low.

127

PEL-2000 Series User Manual

Set to CR Mode

Background

The PEL 2000 series load operates in three different modes, Constant Current (CC), Constant Voltage

(CV), Constant Resistance (CR). Constant

Resistance mode will maintain a constant resistive load, using variable current and voltage levels.

When a channel is active, the F1 key can be used to switch between each operating mode.

Panel Operation

1. Press the CHAN button and use the selector knob to select a channel.

Note

2. Press F1 until CR mode is displayed in the display panel.

Changing the operating mode will only affect the current (active) channel. Other channels will not be affected by any changes.

Select CR Range

Background

Constant Resistance mode can run in high and low range. Range is dependent on the load module.

Ensure the menu is in CR Mode. See page 128.

128

Panel Operation

1. Press the F2 (Range) key repeatedly until High or Low range is selected.

Range

High

Range

Low

The range will be reflected in both the bottom menu system and the

Current Operation Channel Status panel.

Low range

High range

Low

High

OPERATION

CH1

CR

Dyna

Low

Note

Main

Changing the range will only affect the current (active) channel. Other channels will not be affected by any changes.

All resistance values and slew rates are dependent on

Range, i.e., A Value in low range can be different from

A Value in high range.

Select CR Dynamic Mode

Background

Constant Resistance mode can be set to dynamic or static mode. Dynamic mode is used to automatically set varying load rates.

Ensure the menu is in CR Mode. See page 128.

129

PEL-2000 Series User Manual

Panel Operation

1. Press F3 until Dynamic Range mode is selected.

Note

Changing from static to dynamic mode will only affect only the current (active) channel.

Editing CR Dynamic Parameters

CC levels

Dynamic Constant Resistance Mode has two operating resistance Levels, slew rates and timers.

Slew rates determine the speed at which the load will change from one level to the next.

The timers determine how long the load module/channel will stay at level 1 or level 2. See the CR operating description for details about slew rates and timers, page 65

Ensure the menu is in CR Dynamic Mode. See page

129.

Parameters

Level1

Level2

SlewRate Load module dependent

Minimum ~ rating Ω

Minimum ~ rating Ω

SlewRate

Timer1 0.025~30000.0ms

Timer2 0.025~30000.0ms

130

Panel Operation

1. Use the Selector knob to highlight Level1.

03/02/09

10 : 30

OPERATION

CH1

CR

Dyna

Low

Note

Main

Mode

CR

Range

Low

Dynamic

2. Press the Selector knob to edit the selected level, then turn to increase or decrease the value.

OR

Use the number pad to enter a number.

3. Press the Selector knob or Enter to confirm selection.

4. Repeat steps 1-3 for the remaining parameters.

Level1 & Level2 can be set for both High and Low

Range.

131

PEL-2000 Series User Manual

Select CR Static Mode

Background

Constant Resistance mode can be set to dynamic or static mode. Static mode is for manually varying the load for single channel load modules or to set a static load on dual channel modules.

Ensure the menu is in CR Mode. See page 128.

Panel Operation

1. Press the F3 key until Static mode is selected.

Note

Changing from static to dynamic mode will only affect the current (active) channel.

Editing CR Static Parameters

Background

Single channel load modules have two resistance levels, A Value & B Value. Dual channel load modules have only one resistance level per channel, A Value.

Ensure the menu is in CR Static Mode. See page 132.

Parameters

132

A Value

B Value

0~rating

0~rating

SlewRate Load module dependent

SlewRate

Panel Operation

1. Use the Selector knob to highlight A Value.

03/02/09

10 : 30

OPERATION

CH1

CR

Static

Low

Note

Main

Mode

CR

Range

Low

Static

Seq.

Edit

2. Press the Selector knob to edit A

Value /B Value, then turn to increase or decrease the value.

OR

Use the number pad to enter a number.

3. Press the selector knob or Enter to confirm selection.

4. Repeat steps 1-3 for B Value (if applicable), rising and falling

SlewRate.

A/B Value and rising/falling SlewRate can be set for both High and Low Range.

133

PEL-2000 Series User Manual

Select CV Mode

Background

The PEL 2000 series electronic load operates in three different modes, Constant Current (CC),

Constant Resistance (CR), and Constant Voltage

(CV).

When a channel is active, the F1 key can be used to switch between each operating mode.

Mode

CC

Mode

CR

Mode

CV

Panel Operation

1. Press the CHAN button and use the selector knob to select a channel.

2. Press F1 until CV mode is displayed in the display panel.

Changing the operating mode will only affect the current (active) channel. Other channels will not be affected by any changes.

CV mode only operates in High range.

134

OPERATION

Editing CV Parameters

Background

Constant Voltage mode can be set to a maximum limit (Curr Limit). Using the current limit enables limiting the current draw.

When using CV mode on single channel load modules, two voltage levels can be sunk, A Value and B Value. On a dual channel load module, only one voltage level can be sunk per channel: A

Value.

Ensure the menu is in CV Mode. See page 134.

Parameters

A Value 0~rating V

B Value 0~rating V

Curr Limit Load module dependent

Panel Operation

1. Use the Selector knob to highlight A Value.

135

Note

03/02/09

10 : 30

PEL-2000 Series User Manual

CH1

CV

Static

High

Slow

Main

Mode

CV

Response

Slow

2. Press the Selector knob to edit the selected value, then turn to increase or decrease the value.

OR

Use the number pad to enter a number.

3. Press the selector knob or Enter to confirm selection.

4. Repeat steps 1-3 for the remaining parameters.

When setting the current limit, please ensure that the current limit is within the test device’s limits.

136

OPERATION

Select CV Response Speed

Background

Constant voltage mode has fast and slow response speeds. Quick current changes can induce line voltage, making it more difficult for the PEL load generator to maintain a constant current. In these types of conditions, slow response speed is recommended.

Maximum current range is dependent on the load module type.

Ensure the menu is in CV Mode. See page 134.

Panel Operation

1. Press F3 (Response) to switch between Fast and Slow response speeds.

Note

Response speed settings will be reflected in the Current Operation

Channel Status panel.

Slow Slow response speed

Fast response speed

Fast

Changing the response speed will only affect the current (active) channel. Other channels will not be affected by any changes.

137

PEL-2000 Series User Manual

Creating a Program Sequence

Background

The PEL series has a total of 12 different programs and 10 sequences to each program. That totals to

120 different configurations.

Each Sequence in each program uses the settings saved from Memory Data (Memory MXXX).

Memory Data contains settings such as the mode and range for each channel. Different Sequences can use the same Memory Data repeatedly. Each

Sequence loads all channels at the same time, unless programmed otherwise.

Sequence1

CH1 M001

CH2 M001

CH3 M001

Run

On-Time

Off-Time

CH4 M001

CH5 M001

CH6 M001

CH7 M001

CH8 M001

Short-Time

P/F-Time

Short CH1

Short CH8

Sequences are run sequentially to create a

Program. There are 10 Sequences in each Program.

If less than 10 Sequences are desired for a Program, any additional Sequences can be skipped (not run).

Sequence 2 & 3 are skipped.

138

Parameters

Sequence

Settings

OPERATION

Memory M001~M120

Run Skip-Auto-Manual

On-Time 0.1 ~ 60.0 S

Off-Time Off – 0.1 ~ 60.0 seconds

P/F Time Off – 0.1 ~ (On-Time+Off-Time)-0.1

Short-Time Off – 0.1 ~ On-Time

1. Press the FUNC key then F1

(Program) to access the Program menu.

03/02/09

10 : 30

Chain

Active

Channel

Save

2. Use the Selector Knob to highlight PROG:.

Recall

Default

Configure

139

PEL-2000 Series User Manual

3. Press the selector knob to edit

PROG:, then turn to select the program number.

OR

Use the number pad to enter a program number.

Program: 01 ~12

4. Press Enter or push the selector knob to confirm.

5. Repeat steps 2-4 to choose the sequence number (SEQ:).

Sequence: 01 ~ 10

As sequences are executed sequentially, start at SEQ:

01.

03/02/09

10 : 30

140

Chain

Active

Channel

Save

Recall

Default

Configure

6. Repeat steps 2-4 to configure the following for the current

Program Sequence:

Memory: M001 ~M120

OPERATION

Choose which Memory data will be used for the sequence. CH1 MXXX ~

CH8 MXXX.

Run: Skip – Auto - Manual

Choose whether to run the sequence in the program automatically, skip the sequence or manually start the sequence.

On-Time: 0.1 ~ 60.0 seconds

Determines how long the sequence will run for (seconds).

Off-Time: Off – 0.1 ~ 60.0 seconds

Sets how long the sequence will stay off for (in seconds) between each sequence.

Assuming Short time is not set to OFF,

Off-Time will always run after On-

Time.

Short Time: Off – 0.1 ~ On-Time (seconds)

Determines how long a short circuit will last (seconds). However the shorting time cannot be longer than the On-time.

Short Time will start at the same time as

On-time.

P/F Time: Off – 0.1 ~ (On-Time+Off-Time)-0.1

(seconds)

141

PEL-2000 Series User Manual

The Pass(P)/Fail(F) Time can be set to

0.1 seconds less than the total test time.

The total test time is defined as:

On-Time + Off-Time (seconds)

If Go/NoGo is turned on but the pass fail time is off, then Go/NoGo test will continue, but there will not be a specified pass/fail time window.

Short Channel: Off – 1~ 8 (CH1~CH8)

Each channel can be individually set to simulate a short circuit (CH1~8) or can have shorting disabled (Off).

When Short Channel is set to Off, the channel is enabled.

7. Repeat the above steps for all ten sequences for the same (current) program.

Save Sequence

8. Press F3 (Save) to save all the sequence data for the current program.

Note

Note the program data is not yet saved into Setup

Memory. If you wish to save the Program to Setup

Memory see page 204.

Recall Default

9. To recall the Default Program settings, press F4.

Note

If the Default is recalled, all data will be lost. This does not include the internal Setup Memory. To see the default settings, see page 251.

142

OPERATION

Program Chains

Background

On the PEL 2000, there are up to 12 different programs containing 10 sequences.

If 10 sequences in a Program Sequence prove to be inadequate for testing, the PEL2000 series can chain different programs together, effectively making a larger Program Sequence. .

Unlike Program Sequences, Program Chains do not need to be run in numerical order. Up to 12

Program Sequences can be chained together

Panel operation

1. Create 1 or more Program

Sequences.

2. If Program Sequences were created in a different session, ensure the programs have been loaded from Setup Memory.

3. Press the FUNC key, then

Program (F1), followed by Chain

(F1).

Page 138

Page 204

143

03/02/09

10 : 30

PEL-2000 Series User Manual

144

Edit

Start

Save

Recall

Default

4. Use the selector knob to edit

Start and confirm which

Program Sequence (PXX) will start the program chain. Any

Program (P01~P12) can be used to start a Program Chain.

5. Use the Selector knob to scroll down to P01 (Program 1).

6. Use the Selector knob to choose the program that will execute after P01 (P02~P12).

OR

Select (Off) to end the Program

Chain after (P01).

OR

Select (P01) to execute after P01, this will create a continuously looping Program Chain.

P01  Off – P01~P12

OPERATION

7. Repeat the above procedure to

P02~P12 to complete the program chain.

Save Program

Chain

The Program Chain ends at the first Program (PXX) that is followed by Off. It is possible to create continuously looping program chains.

8. Press F3(Save) to save the program chain.

Note

Note the Program Chain data is not yet saved into

Setup Memory. If you wish to save the Program Chain to Setup Memory see page 204.

Recall Default

9. To recall the Default program chain, press F4.

Note

If the Default is recalled, Start will revert to P01 and all program sequences will be set to Off.

Previous Menu

10. Press F5 (Previous Menu) to return the Sequence menu.

Running a Program

Background

Once a Program Chain/Program Sequence has been created, it can be executed. As Program

Sequences apply to all the channels, any channels that don’t need to be active (load off) can be programmed in the Active Channel menu. At

Default, all channels are set to (load) Off.

EXT will be shown next to any channels set to external channel control.

Panel operation

1. Create 1 or more Program

Sequences.

Page 138.

2. Create a Program Chain.

Page 143.

145

PEL-2000 Series User Manual

3. Press the FUNC key, Program

(F1) and Active Channel (F2).

Channel 1 (CH01) will be highlighted. Note CH1 has

CH CONT set to External

03/02/09

10 : 30

Prog

Off

Save

Recall

Default

4. Edit the channel using the

Selector knob.

CH 01~08: ON (activate channel) – OFF (not activated)

5. Press Enter or push the selector knob to confirm the selection.

6. If needed, repeat steps 4-5 for the remainder of the channels.

Note

If all channels are Active OFF, a program cannot be run as there will be no channels active.

Save Program

7. To save press F3.

Recall Default

8. To recall default settings press

F4

Note

If the Default is recalled, all channels will revert to

Active OFF.

146

OPERATION

Previous Menu

9. Press F5 (Previous Menu) to return to the Sequence menu.

Turn Program

On/Off

10. Press F1 (Prog) to turn On or Off the current Program.

Pressing F1 will cycle from

Program On to Off.

Prog

Off

Prog

On

11. PROG will appear on the mainframe status panel when the program is turned on.

Run Program

12. Press the load key on the mainframe to start the Program.

13. The Run Program screen appears.

03/02/09

10 : 30

Start

LOAD

ON /

OFF

Stop Next Configure

147

Note

PEL-2000 Series User Manual

As each sequence or program is completed the screen will update to display the active sequence/program.

Notice that if a channel has been set up with

Go/NoGo limits, a pass (GO) or fail (NG) will be displayed on the main display as well as the local load module display.

The program icon will become orange when a program has started.

If the Active=OFF for all the channels then “No Active

Channel” will be displayed instead of channel numbers.

Each active load module will display the output as the program runs.

14. If Run was configured to manual in any of the program sequences, press F2 (Next) to continue the program sequence, otherwise the program will continue automatically.

15. Press F1 (Stop) at any time to abort the program when it is running.

148

03/02/09

10 : 30

Start

OPERATION

Detail

When the program has finished, the physical channels that have run will be displayed, a PASS or FAIL will be displayed if Go/NoGo testing has been set.

16. When the program has finished, press F1 to see any result details.

03/02/09

10 : 30

Start

The Program (P) and Sequence (S) numbers for the

Program are displayed on the left hand side and the

Go/NoGo (G/N) results are displayed on the right hand side for each channel in the program.

149

PEL-2000 Series User Manual

Use the Selector knob to scroll down to view the remainder of the list if necessary.

17. Press F5 to exit at any time.

Upon exiting, the previous menu before running the program will load.

150

OPERATION

Edit Sequence

Background

The Sequence function can be configured to create a unique load profile to accurately simulate loads in real time for single or multiple loads. For details see page 74.

Each Sequence is composed of a number of points with customizable current/resistance, slew rate and duration times. Each sequence can be looped an infinite amount of times. Sequences are only applicable for CC (Static) and CR (Static) modes.

Parameters

SlewRate Load module dependent

SlewRate

Duration Time 0.0001~60,000 seconds

Panel operation

1. Choose a channel and mode.

2. Press the CHAN key, F4 (Seq.

Edit) to enter the Sequence Edit menu.

03/02/09

10 : 30

Page 119, 122

CH1

CC

Static

High

Add

Point

Delete

Point

Loop s_edit

151

Add Point

Note

Delete Point

Edit previous point

PEL-2000 Series User Manual

3. Use the Selector knob to highlight Value.

4. Press the Selector knob to edit the Value, then turn to increase or decrease the value.

OR

5. Use the number pad to enter a number.

6. Press the Selector knob or Enter to confirm selection.

7. Repeat for rising and falling

Slew Rate and Duration Time.

8. To add an extra point after the current point, press Add Point

(F1).

Range 001~120

Add Point will insert a new point directly after the current point. The value of the current/resistance of the inserted point will be the average of the point before and after. All other settings will remain unchanged.

9. To delete the current point, press

Delete Point (F2).

10. Use the selector knob to change the current point number.

152

OPERATION

Note

The Point number can only be changed if more points have already been added.

Save Sequence

11. Press Save (F3) to save the sequence.

Note

The save icon will only appear after a change has been made in the menu.

Create Sequence Loop

Background

Sequences can be looped a number of times. The loops can be started at any point in the sequence.

The Start of Loop function determines which point will start each repeating loop.

The On End Load function will set the load to on or off at the end of a sequence until the end of the last sequence.

CC Vrange sets the range in CC mode for

Sequences.

See page 74 for more details.

Ensure the menu is in the Seq. Edit menu and that a sequence has been created. See page 151

Parameters

Repeat 1~9999/0=Infinite

Start of Loop 001~ last point

On End Load OFF / ON

CC Vrange High/Low

Panel operation

1. Press Loop (F4) to enter the Loop menu.

153

03/02/09

10 : 30

PEL-2000 Series User Manual

CH1

CC

Static

High

Save Loop s_loop

2. Use the Selector knob to highlight Repeat.

3. Press the Selector knob to edit

Repeat, then turn to increase or decrease the value.

OR

4. Use the number pad to enter a number.

5. Press the Selector knob or Enter to confirm selection.

6. Repeat for the remaining parameters.

7. Press Save (F3) to save the loop.

OR ENTER

154

OPERATION

Channel Duration Time Settings

Background

Each sequence can have the timing duration data of another sequence. For example CH1’s sequence can import the timing duration settings of CH2’s sequence.

This is useful to quickly compare two different loads to the same timing characteristics. See page

74 for more details.

Each channel’s sequence can be turned off by configuring the channel Setting to OFF. If a channel uses the same channel number, i.e CH 01

 01, then the duration time settings will not be altered for that channel.

One channel must output a Trigger Sequence

Signal via PIN4 of the frame link connector if a sequence is run. For more details see page 74.

Parameter

Any channels with channel control (CH CONT) set to external will be shown on the right side as EXT.

CH 01~08

Range

OFF ~ maximum channels

TRIG OUT

Ensure at least one sequence has been created and saved. Page 151

Panel operation

1. Press FUNC, then Sequence (F2) to enter the Channel Duration

Time menu.

155

03/02/09

10 : 30

PEL-2000 Series User Manual

Trigger Out

Channel

Seq.

Off

Define

TRIG OUT

Save Configure

Note CH1is used as the trigger source. CH2 has CH

CONT set to external.

2. Use the Selector knob to highlight a channel.

3. Press the Selector knob to edit the channel, and then turn to choose which channel’s Duration

Time Setting to import.

Range Ch 01~08 / OFF

4. Press the Selector knob or Enter to confirm selection.

5. Press Define TRIG OUT (F2) if you want the currently selected channel to output the Trigger sequence signal.

6. Repeat for any other channel.

156

7. Press Save (F3) to save the settings.

OPERATION

Run Sequence

Background

Like Programs, Sequences must be turned “ON” before they can be run.

When running a Sequence, the front panel function keys, number pad, operation keys and selector knob are disabled for the specific channel(s). The load module panel is also disabled (bar the display key) for the specific channel.

Channels that do not have a Sequence can still be edited by changing channels via the CHAN key or by using the local load module.

Ensure at least one Sequence has been created and saved.

Page 151

Ensure the Channel Duration Time

Settings have also been configured and that no Sequence (CH01~08) that you wish to run are set to OFF.

Page 155

Panel operation

1. Press FUNC, then Sequence (F2) to enter the Channel Duration

Time Setting menu.

157

03/02/09

10 : 30

PEL-2000 Series User Manual

Seq.

Off

Define

TRIG OUT

Save

2. Press Seq. (F1) to turn on the

Sequences.

3. SEQ will be displayed on the

Mainframe Status panel.

Configure

4. Press the LOAD key to run all the Sequences.

5. Run SEQ Mode will be displayed on the bottom of the display for the specific channels.

LOAD

ON /

OFF

158

03/02/09

10 : 30

OPERATION

Stop the load

Turn off SEQ

Note

6. Press the LOAD key again or wait for the Sequence (if not infinitely looped) to end/stop the load.

7. Press Seq. (F1) to turn OFF the

Sequence(s) when the load is not running.

LOAD

ON /

OFF

All UI keys/dials will be disabled for all channels that run a Sequence, bar the function keys and R/L keys.

159

PEL-2000 Series User Manual

Channel Configuration

The Channel Configuration chapter describes the configuration options for individual channels. Any configuration settings that are changed only apply to the current channel, other channels will not be changed.

Channel Configuration ................................................... 160

Accessing the Configuration Menu ..... 161

Setting (OCP/OVP/OPP/UVP) ........... 162

Protection Clear ................................. 165

Setting the CC Voltage Range ............. 165

Adjusting the Von Voltage and Latch .. 167

Configuring the Short key ................... 168

Configuring Channel Control .............. 170

Configuring the Independent Setting . 171

Configuring the Load Delay Time ....... 173

Configuring Step Resolution .............. 175

Go/NoGo ........................................... 177

160

OPERATION

Accessing the Configuration Menu

Background

The configuration menu is used to access instrument settings and properties as well as set the protection levels for each channel.

Panel operation

1. Select the channel to be configured by pressing the

CHAN key and using the

Selector knob.

2. Press the F5 (Configure) key to enter the configuration

(Protection) menu.

03/02/09

10 : 30

CH1

CC

Dyna

High

Protection Other Go-NoGo

Conf

161

PEL-2000 Series User Manual

Setting (OCP/OVP/OPP/UVP)

Background

Over Protection is used to set the voltage, current or power limit. In the event that the current, voltage or power exceeds the over protection settings, the load module alarm will show an error message and beep an alarm.

When tripped, Under Voltage Protection (UVP) will turn off the load. UVP trips when the load voltage drops below a set limit.

Only when the protection settings are set to On

(XXP Setting -On) will the protection modes be active.

Parameters

All protection settings can be set to 2% higher than specification rating.

OCP Level

OCP Setting

OVP Level

OVP Setting

OPP Level

OPP Setting

0~Rating A +2%

ON/OFF/Clear

0~RatingV+2%

ON/OFF/Clear

0~RatingW+2%

ON/OFF/Clear

UVP Level

UVP Setting

0~RatingV+2%

Clear

Panel operation

Ensure the menu is the configuration menu. See page 160.

162

03/02/09

10 : 30

OPERATION

CH1

CC

Dyna

High

Protection

Other Go-NoGo

1. Use the Selector knob to highlight OCP Level.

2. Press the Selector knob to edit the selected level, then turn to increase or decrease the value.

OR

3. Use the number pad to enter a number.

Conf

4. Press the Selector knob or Enter to confirm selection.

5. Use the Selector knob to highlight OCP Setting.

163

PEL-2000 Series User Manual

6. Use the selector knob to turn

ON, OFF or CLEAR the OCP

Setting.

7. Repeat steps 1-5 for :

OVP Level

OVP Setting

OPP Level

OPP Setting

UVP Level

UVP Setting

Clearing an Alarm When any of the protection settings are tripped, Alarm will be shown on the Mainframe Status Panel and an alarm tone will sound by default.

8. Turn the load off by pressing the

Load key and turn off the load input.

LOAD

ON /

OFF

9. Change the XXP Setting to Clear to clear the alarm.

Note

See pages 59 and 239 to output alarms via the

Go/NoGo output terminal.

The configuration settings only apply to the current channel.

164

OPERATION

Protection Clear

Background

When any of the protection circuits have been tripped, the Protection Clear function can be used to reset the alarms.

Panel operation

Ensure the menu is in the configuration menu. See page 160.

1. Turn the load off by pressing the load key if necessary.

2. Use the selector knob to scroll down to Protection Clear.

LOAD

ON /

OFF

Note

3. Press the Selector knob or Enter to clear all.

The configuration settings only apply to the current channel, other channels will not be affected.

Setting the CC Voltage Range

Background

The Constant Current Voltage range can be set to high or low.

CC Vrange High/Low

Parameter

Panel operation

Ensure the menu is in the configuration menu. See page 160.

165

PEL-2000 Series User Manual

1. Press the F2(Other) key to enter the Other menu.

03/02/09

10 : 30

CH1

CC

Dyna

High

Note

Conf

Protection

Other Go-NoGo

2. Use the Selector knob to highlight CC Vrange.

3. Press the Selector knob to edit

CC Vrange, then turn to increase or decrease the range.

4. Press the Selector knob or Enter to confirm selection.

OR

ENTER

The configuration settings only apply to the current channel.

166

OPERATION

Adjusting the Von Voltage and Latch

Background

Parameters

The Von Voltage is the voltage point at which the load module will start to sink current. When Von latch is set to ON, the load will continue to sink current after being tripped, even if the voltage drops below the Von Voltage level. The step resolution of Von Voltage is load module dependent.

Von Voltage 0.0~Rating volts

Von Latch ON/OFF

Panel operation

Ensure the menu is in the configuration menu. See page 160.

1. Press the F2(Other) key to enter the Other menu.

03/02/09

10 : 30

CH1

CC

Dyna

High

Protection Other Go-NoGo

2. Use the Selector knob to highlight Von Voltage.

Conf

167

Note

PEL-2000 Series User Manual

3. Press the Selector knob to edit the selected value, then turn to increase or decrease the value.

OR

Use the number pad to enter a number.

4. Press the Selector knob or Enter to confirm selection.

5. Repeat steps 3 to 5 to turn Von

Latch ON or OFF

For details about Von and Latch settings please see page 81.

The configuration settings only apply to the current channel, other channels will not be affected.

Configuring the Short key

Background

The Short Key is used to simulate a short circuit.

The Short key can be configured to toggle (press

SHORT on the load module to toggle ON or OFF) or to Hold (the SHORT key is held to short the load.

Parameter

Short Key Hold/Toggle

Panel operation

Ensure the menu is in the configuration menu. See page 160.

168

1. Press the F2(Other) key to enter the Other menu.

03/02/09

10 : 30

OPERATION

CH1

CC

Dyna

High

Note

Conf

Protection

Other Go-NoGo

2. Use the Selector knob to highlight Short Key.

3. Press the Selector knob to edit the selected setting, turn to change the setting.

4. Press the Selector knob or Enter to confirm selection.

The short key can only be used when the load is on.

169

PEL-2000 Series User Manual

Configuring Channel Control

Background

When Channel Control (CH CONT) is set to

External, it will disable editing the active channel load. Instrument buttons and knobs can still be used to access the menu for the active channel or to edit other channels that do not have channel control active. This prevents settings on the active channel from being changed on the local machine.

See pages 56 & 85 for details.

Parameter

CH CONT Panel/External

Panel operation

Ensure the menu is in the configuration menu. See page 160.

1. Press the F2(Other) key to enter the Other menu.

03/02/09

10 : 30

CH1

CC

Dyna

High

Protection

Other Go-NoGo

2. Use the Selector knob to highlight CH CONT.

Conf

170

3. Press the Selector knob to edit the selected setting, turn to change the setting from Panel to

External.

OPERATION

4. Press the Selector knob or Enter to confirm selection.

Channel control is now activated. To turn Channel Control off, CH CONT must be set to Panel again. When

Channel Control is active, EXT will be displayed on the side panel for the active channel.

Note

Channel Control can only be activated on the active channel; other channels will not be affected.

Configuring the Independent Setting

Background

Parameter

The Independent setting allows a channel to be load independent from the mainframe. What this means is that a load module with Independent set to ON can only load from the local load module. If the LOAD ON/OFF key is pressed from the mainframe, the channel with Independent set to

ON will be unaffected by the mainframe, except when running a program.

Independent ON/ OFF

171

PEL-2000 Series User Manual

Panel operation

Ensure the menu is in the configuration menu. See page 160.

1. Press the F2(Other) key to enter the Other menu.

03/02/09

10 : 30

CH1

CC

Dyna

High

Protection

Other Go-NoGo

2. Use the Selector knob to highlight Independent.

3. Press the Selector knob to edit the selected setting, turn to change the setting.

4. Press the Selector knob or Enter to confirm selection.

Conf

172

Note

OPERATION

When a channel has been set to independent, an asterisk will be shown next to the channel number indicator in the Current Operation Channel Status panel.

The configuration settings only apply to the current channel, other channels will not be affected.

*CH1

CC

Dyna

High

Conf

Configuring the Load Delay Time

Background

The mainframe can delay loading a channel by up to 10 seconds. However the Delay Time is only applicable for manual loading. Delay Time is not applicable to Programs or Sequences.

Load D-Time 0~10 S

Parameter

Panel operation

Ensure the menu is the configuration menu. See page 160.

1. Press the F2(Other) key to enter the Other menu.

173

Note

03/02/09

10 : 30

PEL-2000 Series User Manual

S

CH1

CC

Dyna

High

Conf

Protection

Other Go-NoGo

2. Use the Selector knob to highlight Load D-Time.

Note: Load D-Time is below

Independent, off-screen.

3. Press the Selector knob to edit the selected setting, turn to change the setting.

OR

Use the number pad to enter a number.

4. Press the Selector knob or Enter to confirm selection.

The Delay Time only applies to the current channel; other channels will not be affected.

Delay time only applies when the load is manually turned on or during start up with the Auto Load On setting (page 182).

174

OPERATION

Configuring Step Resolution

Background

The CC, CV and CR step resolution settings can be edited in the configuration menu. The minimum and maximum step resolution of each channel is dependent on the load module. For more information on step resolution see page 81.

Minimum* Maximum* Unit

CCH Step HR/4000 HR/2 Amperes A

Parameters

CCL Step LR/4000

CRH Step HR/4000

LR/2

HR/2

Amperes A

Siemens

Siemens

CRL Step LR/4000 LR/2

CV Step HR/4000 HR/2

* HR = High range, LR = Low range

Panel operation

Ensure the menu is the configuration menu. See page 160.

Voltage V

1. Press the F2(Other) key to enter the Other menu.

03/02/09

10 : 30

S

CH1

CC

Dyna

High

Protection

Other Go-NoGo

Conf

175

Note

PEL-2000 Series User Manual

2. Use the Selector knob to scroll down to highlight CCH Step.

Note: CCH Step is off-screen when entering Other menu.

3. Press the Selector knob to edit the selected setting, turn to change the setting.

OR

Use the number pad to enter a number.

4. Press the Selector knob or Enter to confirm selection.

5. Repeat steps 2-4 to edit the step resolution of:

CCL Step

CRH Step

CRL Step

CV Step

The Step resolution settings only apply to the active channel, other channels will not be affected.

176

OPERATION

Go/NoGo

Background Go/NoGo mode is used to set threshold limits.

When a load is within the limit(s) it is considered to be “Go”, when the load has exceeded the limit it is considered to be “NoGo”.

Go/NoGo limits can be set as either absolute values (Entry Mode set to “Value”) or as a percentage offset from a nominal (Center) value

(Entry Mode set to “Percent”).

Go/NoGo can be used in both high and low ranges, as well as CC, CV, and CR modes. The

Go/NoGo status can be read using the rear

Go/NoGo output.

A delay time can also be imposed for up to 1 second.

Note

Parameters

Any Go/NoGo configuration only applies to the current channel with the same mode and range.

CC Mode

CR Mode

Value Percent

High: V High: %

Low: V Low: %

Center: V

CV Mode High: A

Low: A

High: %

Low: %

Center: A

Delay Time 0.0~1.0 seconds

Panel Operation Ensure the menu is in the Configuration menu. See page160.

177

PEL-2000 Series User Manual

Choose Absolute/

Percentage limits

1. Press (F3) Go-NoGo to access the

Go/NoGo menu.

2. Use the selector knob to edit

Entry Mode.

3. Choose Value for absolute limits or Percent for percentage offset limits.

F3

Or

4. The menu changes according to the selection.

03/02/09

10 : 30

CH1

CC

Dyna

High

03/02/09

10 : 30

Conf

Protection Other Go-NoGo Protection Other

5. Use the Selector knob and number pad to edit Delay time,

High, Low and Center (Percent mode only).

Go-NoGo

CH1

CC

Dyna

High

Conf

6. Press the selector knob or Enter to confirm each value.

178

OPERATION

Turn Go/NoGo

On/Off

7. Use the Selector knob to edit

Spec Test.

8. Choose ON to turn on

Go/NoGo.

9. Choose OFF to turn off

Go/NoGo.

When SPEC test is set to ON, SPEC will be displayed in the Current

Operation Channel Status panel.

CH1

CC

Static

High

SPEC

Slow

Conf

179

PEL-2000 Series User Manual

Mainframe Configuration

The Mainframe Configuration chapter describes configuration settings that apply to all channels and general interface settings.

Mainframe Configuration ............................................... 180

Accessing System Information ........... 181

Accessing the Load Menu .................. 182

Configuring the Date and Time .......... 183

Adjusting the Speaker ........................ 184

Adjusting the display settings ............ 185

Adjusting the Frame Control .............. 187

Adjusting the Knob Control Type ........ 188

Configuring Alarm Sound ................... 190

Configuring Go/NoGo Alarm Sound .. 191

Adjusting Slave Knob Settings ........... 192

View Language Settings ..................... 194

180

OPERATION

Accessing System Information

Background

Parameters

The System Information displays the mainframe and load module(s) serial numbers.

MainFrame Ver: Mainframe firmware version and date (month/day).

PEL-200X SN: Mainframe Serial number.

SlotX(Y)Ver: The version number of the Xth load module occupying the Xth slot with channel number Y.

PEL-20XX SN: The serial number and module model of the Xth load module

Y designates the first channel of each installed load module. For example if two dual channel load modules are installed, then Ch1&3 will be used for the firmware and serial number.

Panel operation

1. Press the Shift Key then the Help key to access the Utility menu/System Info menu.

03/02/09

10 : 30

System

Info

Load Interface Time Set

181

182

PEL-2000 Series User Manual

Accessing the Load Menu

Background

The PEL series is able to automatically start loading from the last program or load setting.

If Auto Load On is set to Load, the last load setup used before the machine was reset will automatically start to load upon startup.

Parameters

If Program is set as the Auto Load On configuration, the last program executed will start upon the next start up.

Auto Load

Auto Load On

ON/OFF

Load/Program

Panel operation

1. Press the Shift Key then the Help key to access the Utility menu.

2. Press F2 (Load).

03/02/09

10 : 30

O

System

Info

Load Interface Time Set

3. Press the Selector knob, then turn to choose Auto Load.

4. Press the Selector knob or Enter to confirm selection.

5. Scroll to Auto Load On and repeat the steps.

OPERATION

Configuring the Date and Time

Background

The PEL series is able to display the time and date on the Mainframe Status panel, it is also used to tag files that are saved.

Time information is displayed on the top-left hand side.

Month Day

Parameters

Minute

Panel operation

1. Press the Shift Key then the Help key to access the Utility menu.

2. Press F4 (Time Set Menu) to access the Time Set Menu.

183

03/02/09

10 : 30

PEL-2000 Series User Manual

System

Info

Load Interface

3. Use the Selector knob to highlight Month.

Time Set

4. Press the Selector knob, then turn to increase or decrease the

Month.

5. Press the Selector knob or Enter to confirm selection.

6. Repeat steps 3-5 for the Day,

Year, Hour and Minute.

Adjusting the Speaker

Background

Parameter

The PEL series has an internal speaker for both the mainframe and load modules. The speaker function turns On/Off the sound for the UI (key presses and scrolling). The speaker setting will not alter the sound for protection alarms or Go/NoGo alarms.

Speaker ON/OFF

184

Panel operation

1. Press the Shift Key then the Help key to access the Utility menu.

2. Press F5 (Other Menu).

03/02/09

10 : 30

OPERATION

System

Info

Load Interface Time Set

3. Use the Selector knob to highlight Speaker.

4. Press the Selector knob to edit

Speaker, then turn to change from On to Off and vice versa.

5. Press the Selector knob or Enter to confirm selection.

Adjusting the display settings

Background

The PEL series has a TFT LCD display. The display brightness and contrast can be controlled via the utility menu.

185

PEL-2000 Series User Manual

Parameters

Brightness 50~90

Contrast 3~13

50(low) 90(bright)

3(low) 13(high)

Panel operation

1. Press the Shift Key then the Help key to access the Utility menu.

2. Press F5 (Other Menu).

03/02/09

10 : 30

186

System

Info

Load Interface Time Set

3. Use the Selector knob to highlight Contrast.

4. Press the Selector knob to edit contrast, then turn to increase or decrease the value.

5. Press the Selector knob or Enter to confirm selection.

6. Repeat steps 3-5 for the

Brightness.

OPERATION

Adjusting the Frame Control

Background

Frame control is used to control a number of different frame linked mainframes (slaves) with a master mainframe. For information on frame control, frame control interface and connection see pages 54 & 236.

Panel operation

1. Connect the mainframes using a frame link connection.

Page 54.

2. On the master mainframe, press the Shift Key then the Help key to access the Utility menu.

3. Press F5 (Other Menu).

03/02/09

10 : 30

System

Info

Load Interface Time Set

4. Use the Selector knob to highlight FrameCONT.

187

PEL-2000 Series User Manual

5. Press the Selector knob to edit, then turn to turn Frame CONT

(frame control) ON or OFF.

03/02/09

10 : 30

System

Info

Load Interface Time Set

When Frame CONT is set to ON the mainframe will display FRM (Master) or FRS (Slave) on the top of the display.

6. Repeat the above steps for any connected slave mainframe units.

Frame control is now ready for both master and slave mainframes.

Adjusting the Knob Control Type

Background

The load module control knobs can be set to operate independently to the mainframe.

With the Knob type set to Updated, dependent operation is activated. Both the local (load module) selector knob and mainframe selector knob can change the resistance (CR mode), current (CC mode) and voltage (CV mode). Changes from local mode are updated on the mainframe and vice

188

versa.

OPERATION

With the Knob type set to Old, independent operation is activated. Local operation changes do not change the setting/values on the mainframe.

Knob Type Updated/Old

Parameter

Panel operation

1. Press the Shift Key then the Help key to access the Utility menu.

2. Press F5 (Other Menu).

03/02/09

10 : 30

System

Info

Load Interface Time Set

3. Use the Selector knob to move the cursor down to Knob Type

(below the initial screen).

4. Press the Selector knob to highlight Knob Type, then turn to change to Old/Updated.

5. Press the Selector Knob or Enter to confirm selection.

189

PEL-2000 Series User Manual

Configuring Alarm Sound

Background

The PEL series has two different types of alarms, one located on the mainframe (Alarm Tone M) and one for each load module (Alarm Tone S).

Alarm Tone(M)/(S) can individually be set ON or

OFF.

Panel operation

1. Press the Shift Key then the Help key to access the Utility menu.

2. Press F5 (Other Menu).

03/02/09

10 : 30

System

Info

Load Interface Time Set

3. Use the selector knob to highlight Alarm Tone(M)

190

4. Press the Selector knob to select the master alarm (Alarm

Tone(M)), turn to edit and press to confirm selection.

5. Repeat the steps to edit the slave alarm (Alarm Tone(S)).

OPERATION

Configuring Go/NoGo Alarm Sound

Background

When any Go/NoGo limits are tripped from any channel, a tone can be set as an alarm.

The Go-NoGo tone alarm settings apply to all channels.

Go/NoGo Tone ON/OFF

Parameter

Panel operation

1. Press the Shift Key then the Help key to access the Utility menu.

2. Press F5 (Other Menu).

191

03/02/09

10 : 30

PEL-2000 Series User Manual

System

Info

Load Interface Time Set

3. Use the Selector knob to move the cursor down to Go-NoGo

Tone (below the initial screen).

4. Press the Selector knob to highlight Go-NoGo Tone, then turn to change to ON/OFF.

5. Press the Selector Knob or Enter to confirm selection.

Adjusting Slave Knob Settings

Background

Channel loads can be edited using the local load module or the Mainframe. When using the local load module selector knob (slave knob) to edit a load, the load module display can be set to two different types: SetValue and Measured.

When a load is ON, SetValue will always display the set value (A Value, B Value) on the local load

192

OPERATION

module display whilst “Measure” will show the actual measured value when editing the load.

These settings apply to all channels.

The “Measure” setting can be temporarily disabled by pressing the local load module selector knob to display the “SetValue” instead of the “Measure” value in the local load module display.

Slave Knob Measure/SetValue

Parameter

Panel operation

1. Press the Shift Key then the Help key to access the Utility menu.

2. Press F5 (Other Menu).

03/02/09

10 : 30

System

Info

Load Interface Time Set

3. Use the Selector knob to move the cursor down to Rotate Knob

(below the initial screen).

4. Press the Selector knob to highlight Rotate Knob, then turn to change to Measure/SetValue.

193

PEL-2000 Series User Manual

5. Press the Selector Knob or Enter to confirm selection.

View Language Settings

Background

The language settings can be viewed in the

Utilities menu.

Panel operation

1. Press the Shift Key then the Help key to access the Utility menu.

2. Press F5 (Other Menu).

03/02/09

10 : 30

194

System

Info

Load Interface Time Set

3. Use the Selector knob to move the cursor down to Language

(below the initial screen).

OPERATION

Interface Configuration (settings)

The Interface Configuration chapter describes configuration settings that apply when using the PEL-2000 with a remote connection. There are three interface options for remote control:

RS232, GPIB and USB. Only one interface can be used at a time. For more details about remote control and interface connections, see the Interface section on page 232.

Interface Configuration (settings) ................................... 195

Configuring RS232 Connection .......... 196

Configuring the GPIB Address ........... 198

Configuring USB Remote Connection . 199

195

196

PEL-2000 Series User Manual

Configuring RS232 Connection

Background

When using RS232 a number of parameters need to be set. These include Baud rate, Stop Bit and

Parity. When setting RS232 parameters, ensure they match that of the host machine.

Baud Rate 2400/4800/9600/19200/38400

Parameters

Stop Bit 1~2

Parity None/Odd/Even

Panel operation

1. Press the Shift Key then the Help key to access the Utility menu.

2. Press F3(Interface Menu).

03/02/09

10 : 30

USB

O

System

Info

Load Interface Time Set

3. If the Interface mode is not

RS232, use the Selector knob to edit Interface.

4. Choose RS232.

5. Press the Selector knob to confirm.

6. The RS232 Menu appears.

03/02/09

10 : 30

OPERATION

RS232

O

Note

System

Info

Load Interface Time Set

7. Use the Selector knob to edit

Baud rate, Stop Bit and Parity.

The Baud Rate, Stop Bit and Parity must match that of the host machine.

197

198

PEL-2000 Series User Manual

Configuring the GPIB Address

Background

When using GPIB, an address must be specified.

Panel operation 1. Press the Shift Key then the Help key to access the Utility menu.

2. Press F3(Interface Menu).

03/02/09

10 : 30

USB

O

System

Info

Load Interface Time Set

3. If the Interface mode is not GPIB, use the Selector knob to edit

Interface.

4. Choose GPIB.

5. Press the Selector knob or Enter to confirm selection.

6. The GPIB menu appears.

03/02/09

10 : 30

OPERATION

GPIB

O

Note

System

Info

Load Interface Time Set

7. Use the selector knob to edit the

GPIB address.

The GPIB Address must match that of the host machine.

Configuring USB Remote Connection

Background

Of the three interface options, USB is the easiest to use.

Panel operation

1. Press the Shift Key then the Help key to access the Utility menu.

2. Press F3(Interface Menu).

199

03/02/09

10 : 30

PEL-2000 Series User Manual

RS232

O

System

Info

Load Interface Time Set

3. If the Interface mode is not USB, use the Selector knob to edit

Interface.

4. Choose USB.

5. Press the Selector knob to confirm.

6. The Interface will become USB.

03/02/09

10 : 30

USB

OR

ENTER

O

System

Info

Load Interface Time Set

200

OPERATION

Save / Recall

Save / Recall .................................................................. 201

Saving/Recalling Channels ................. 202

Saving/Recalling Preset memory ........ 204

Saving/Recalling Setup Memory ........ 206

Setting the Default USB Path/File ...... 208

Saving Setups to USB Memory ........... 213

Saving/Recalling Memory Data to USB216

Saving/Recalling Presets to USB ........ 220

Saving/Recalling Sequences to USB ... 224

Quick Preset Recall/Save ................... 228

Recall Setup Memory (Frame link). .... 229

Recall Preset Memory (Frame link) .... 230

Recall Factory Defaults ....................... 231

201

202

PEL-2000 Series User Manual

Saving/Recalling Channels

Background

The PEL 2000 series can save data for up to 120 different channel configurations. Each channel is represented by 120 memory slots using the onboard memory.

Memory is used in program sequences or for individual channel setups. For further details on memory, see page 89.

Panel operation

1. Press the File key.

2. Press F1 repeatedly until the

Media Memory menu appears.

03/02/09

10 : 30

CH1

CC

Dyna

High

Media

Memory

Save Recall

3. Use the Selector Knob to edit

Channel Data and Data Type.

4. Choose Current and Memory.

File

Configure

OPERATION

5. Press the Selector knob to edit

Memory (M001-M120)

OR

Use the number pad to enter a number.

03/02/09

10 : 30

CH1

CC

Dyna

High

Note

Media

Memory

Save

6. Press F3 to Save or F4 to Recall the memory settings.

Recall

Save

File

Configure

OR

Recall

7. A message will indicate when a save has been successful

The display will revert to the channel menu after recalling memory. Remember the memory is only saved/recalled for the current channel.

203

PEL-2000 Series User Manual

Saving/Recalling Preset memory

Background

The PEL 2000 series can store up to 10 presets for each channel. The presets can be saved or recalled either individually for each channel (Channel

Data: Current) or at the same time (Channel Data:

All), using the All option.

For further details on memory, see page 89.

Panel operation

1. Press the File key.

2. Press F1 repeatedly until the

Media Memory menu appears.

03/02/09

10 : 30

CH1

CC

Dyna

High

Media

Memory

Save Recall

3. Use the Selector Knob to edit

Channel Data and Data Type.

4. To save or recall only the active channel, choose Current and

Preset. To save or recall all the presets choose All and Preset.

File

Configure

204

Save / Recall

Current Channel

Save / Recall All

Channels

5. Press the Selector knob to edit

Preset (P0-P9)

OR

Use the number pad to enter a number.

03/02/09

10 : 30

OPERATION

CH1

CC

Dyna

High

Media

Memory

Save

6. Press F3 to Save or F4 to Recall the Presets.

Recall

Save

File

Configure

OR

Recall

7. A message will be displayed when the save is complete.

205

206

Note

PEL-2000 Series User Manual

The display will revert to the channel menu after recalling memory.

Saving/Recalling Setup Memory

Background

The PEL 2000 series can store up to 4 different setups using the onboard memory. Each setup can be saved from the file menu. Using Setup Memory, each channel will be saved. For further details on memory, see page 89.

Panel operation

1. Press the File key.

2. Press F1 repeatedly until the

Media Memory menu appears.

03/02/09

10 : 30

CH1

CC

Dyna

High

Media

Memory

Save

3. Use the Selector Knob to edit

Channel Data and Data Type.

4. Choose All and Setup.

Recall

File

Configure

OPERATION

5. Press the Selector knob to edit

Setup Memory (1~4)

OR

Use the number pad to enter a number.

03/02/09

10 : 30

CH1

CC

Dyna

High

Media

Memory

Save

6. Press F3 to Save or F4 to Recall the Setup Memory.

Recall

Save

File

Configure

OR

Recall

7. A message will be displayed when the save/recall is complete.

207

PEL-2000 Series User Manual

Setting the Default USB Path/File

Background

Panel operation

1. Insert a USB flash drive into the front panel USB slot.

2. Press the File key.

When saving files to a USB memory stick the files will be saved into the root directory if a file path has not been set.

3. Press F1 repeatedly until the

Media USB menu appears.

4. Press F5 (File Utility).

208

OPERATION

03/02/09

10 : 30

Select Default

Path

Select

New

Folder

Rename Delete

The top section (window) shows the current USB path.

There are 5 options:

 Select; Selects the current USB path as the default file path to save. (Step 5)

 New Folder; Creates a new folder (Step 7)

 Rename; Renames the current folder/path (Step

13)

 Delete; deletes the current file/path name. (Step

20)

5. Use the Selector knob to highlight the new path directory

6. Press F1(Select) to select the new default directory path.

209

03/02/09

10 : 30

PEL-2000 Series User Manual

Create New

Folder

Select

New

Folder

Rename Delete

The new path will be shown in upper Path box in green.

7. To create a new directory, Press

F2(New Folder)

The On-Screen keyboard (OSK) appears. The directory has an 8 character size limit.

8. Use the Selector knob to scroll left and right through the keys.

210

9. When a key is highlighted use the selector knob, F1 or

Enter to confirm a key entry.

10. Use F2 (Back Space) to delete any previous entries/mistakes.

11. Press F3 (Save) to save the directory name.

12. Press F5 (Previous menu) to continue to the previous menus

Rename Folder

13. Use the Selector knob to highlight the file/directory that needs to be renamed.

OPERATION

03/02/09

10 : 30

Select

New

Folder

14. Press F3(Rename)

Rename Delete

211

PEL-2000 Series User Manual

The On Screen Keyboard appears

15. Use the Selector knob to scroll left and right through the keys.

16. When a key is highlighted use the selector knob, F1 or

Enter to confirm a key entry.

17. Use F2 (Back Space) to delete any previous entries/mistakes.

18. Press F3 (Save) to save the directory name.

19. Press F5 (Previous menu) to continue to the previous menus

Delete File Name

20. Use the Selector knob to highlight a file/directory.

21. Press (F4) delete.

212

22. To confirm deletion, press F4 again.

03/02/09

10 : 30

OPERATION

Select

New

Folder

Rename Delete

Saving Setups to USB Memory

Background

Setup data contains all the channel data including

Memory, Presets and Program Sequences.

There are four setups in internal memory. When saving to USB, all four setups will be saved.

Conversely, when recalled, all four setups will be recalled to main memory.

Parameters

The file extension *.S is used for Setup data only.

Save File 200X0_XX.S

Update File 200X0_XX.S

Panel operation

1. Insert a USB flash drive into the front panel USB slot.

2. Ensure the USB path has been set.

Page 208.

213

PEL-2000 Series User Manual

3. Press the File key.

4. Press F1 repeatedly until the

Media USB menu appears.

03/02/09

10 : 30

CH1

CC

Dyna

High

Media

USB

Save

5. Use the Selector Knob to edit

Save Chan and Data Type.

6. Choose All and Setup.

Recall

File

214

03/02/09

10 : 30

OPERATION

CH1

CC

Dyna

High

Save/ Recall

Setups to USB

File

Media

USB

Save Recall

The screen will update to only show Setup files (*.S) that are available to save/recall in the default path directory.

7. Use the Selector Knob to edit

Save File or Recall File. Rotating the selector knob will scroll through all the available setup files (*.S).

8. Choose a file name (20XXX_XX.S).

9. Press F3 (Save) to save the setup data or F4 (Recall) to recall the setup data.

10. A screen message will appear when the save/recall has completed.

Save

OR

Recall

Note

Setups can only be saved if they have been saved to internal memory first. For details on how to save to internal memory see page 204.

215

PEL-2000 Series User Manual

Saving/Recalling Memory Data to USB

Background

There are two options to save or recall Memory data to a USB flash drive:

Save Chan Current: Saves the active Channel’s

Memory data(M001~M120) into the default file path (20XXX_XX.M).

Save Chan All: Every channel’s Memory data

(CH1 M001~120 ~ CH8 M001~M120) will be saved into a directory (ALL00XX) as separate files for each channel (P0X0X_C1.M ~ P0X0X_C8.M).

Recall File: Recalls the selected file to the active channel’s Memory (MXXX). It is not possible to update all the channels at once, only one channel at a time can be recalled.

The file extension *.M is used for Memory data only.

Parameters

For more information about the file structures see page 89.

Save All Ch Directory ALL0000 ~ ALL0099

Save File File: 20XXX_XX.M

Update File File: 20XXX_XX.M

Panel operation

1. Insert a USB flash drive into the front panel USB slot.

2. Ensure the USB path has been set.

Page 208.

216

3. Press the File key.

4. Press F1 repeatedly until the

Media USB menu appears.

OPERATION

03/02/09

10 : 30

CH1

CC

Dyna

High

Media

USB

Save

Save all Channels

5. Use the Selector knob to edit

Save Chan and Data Type.

6. Choose All, and Memory

Recall

File

217

03/02/09

10 : 30

PEL-2000 Series User Manual

CH1

CC

Dyna

High

Note

File

Media

USB

Save

The screen updates to show Save Folder. Note it is not possible to recall all channels at once, only save.

7. Use the Selector Knob to edit

Save Folder.

8. Choose a directory name

(ALL0000~ALL0099).

Any used directories will not be available. It is not possible to over-write older directories. They must be deleted first.

9. Press F3 (Save)

10. A screen message will be displayed when complete.

Save /Recall File

11. Use the Selector Knob to edit

Save Chan and Data Type.

12. Choose Current and Memory.

218

03/02/09

10 : 30

OPERATION

CH1

CC

Dyna

High

Note

File

Media

USB

Save Recall

13. Use the selector knob to edit

Save or Recall File.

14. Choose a file name.

15. Press F3(Save) to save or

F4(Recall) to recall the current channel. (MXXX)

16. A save or recall message will be displayed when complete.

Save

OR

Recall

Remember only data that has been saved to internal memory will be saved to USB. Only the active channel will be saved.

If you try to recall data that originated from a different load module than the active channel, an error message will appear. The filename must reflect the active channel’s load module type.

219

PEL-2000 Series User Manual

Saving/Recalling Presets to USB

Background

There are two options to save or recall Channel

Presets to a USB flash drive:

Save Chan Current: Saves the active Channel’s

Presets (P0~P9) into the default file path

(20XXX_XX.P).

Save Chan All: Every channel’s Presets (CH1 P0~P9

~ CH8 P0~P9) will be saved into a directory

(ALL00XX) as separate files for each channel

(P0X0X_C1.P ~ P0X0X_C8.P)

Recall: Recalls the selected file to the active channel’s Presets (P0~P9). It is not possible to update all the channels at once, only one channel at a time can be recalled.

The file extension *.P is used for channel Presets only.

Parameter

For more information about the file structures see page 89.

Save All Ch Directory: ALL0000 ~ ALL0099

Save File File: 20XXX_XX.P

Update File File: 20XXX_XX.P

Panel operation

1. Insert a USB flash drive into the front panel USB slot.

2. Ensure the USB path has been set.

Page 208.

220

3. Press the File key.

4. Press F1 repeatedly until the

Media USB menu appears.

OPERATION

03/02/09

10 : 30

CH1

CC

Dyna

High

Save all Channel

Presets

Media

USB

Save

5. Use the Selector knob to edit

Save Chan and Data Type.

6. Choose All, and Preset

Recall

File

221

03/02/09

10 : 30

PEL-2000 Series User Manual

CH1

CC

Dyna

High

File

Media

USB

Save

The screen updates to show Save Folder. Note it is not possible to recall all presets at once, only save.

7. Use the Selector Knob to edit

Save Folder.

8. Choose a directory name

(ALL0000~ALL0099).

Note

Any used directories will not be available. It is not possible to over- write older directories. They must be deleted first.

9. Press F3 (Save)

10. A screen message will be displayed when the save is complete.

Save/Recall Preset

(current channel)

11. Use the Selector Knob to edit

Save Chan and Data Type.

12. Choose Current and Preset.

222

03/02/09

10 : 30

OPERATION

CH1

CC

Dyna

High

Note

File

Media

USB

Save Recall

13. Use the selector knob to edit

Save File or Recall file.

14. Choose a file name.

15. Press F3 (Save) to save or F4

(Recall) to recall the Channel

Presets. (PXX)

16. A message will be displayed when the save or recall has completed.

Save

OR

Recall

Remember only data that has been saved to internal memory will be saved to USB. Only the active channel presets will be saved.

If you try to recall data that originated from a different load module than the active channel, an error message will appear. The filename must reflect the active channel’s load module type.

223

PEL-2000 Series User Manual

Saving/Recalling Sequences to USB

Background

There are two options to save or recall Sequences to a USB flash drive. Sequences can either be saved from all channels or from the current channel only.

Save All: Every channels’ sequences will be saved into a directory (ALL00XX) as separate files for each channel (20XXX_C1.A~ 20XXX_C8.A).

Save Current: The current channel’s sequence will be saved into the default directory (20XXX_XX.A)

Recall: Sequences can only be recalled for the current channel. It is not possible to recall all channels’ Sequences at once.

The file extension *.A is used for Sequences only.

Parameters

For more information about the file structures see page 89.

Save All SEQ Directory: ALL0000 ~ ALL0099

File: 20XXX_C1.A

Save Current SEQ File: 20XXX_XX.A

Recall Current SEQ File: 20XXX_XX.A

Panel operation

1. Insert a USB flash drive into the front panel USB slot.

2. Ensure the USB path has been set.

3. Press the File key.

Page 208.

224

4. Press F1 repeatedly until the

Media USB menu appears.

OPERATION

03/02/09

10 : 30

CH1

CC

Dyna

High

Save all Channel

SEQ

Media

USB

Save

5. Use the Selector knob to edit

Save Chan and Data Type.

6. Choose All, and SEQ

Recall

File

225

03/02/09

10 : 30

PEL-2000 Series User Manual

CH1

CC

Dyna

High

Note

File

Media

USB

Save

The screen updates to show Save Folder. Note it is not possible to recall all SEQ data at once, only save.

7. Use the Selector Knob to edit

Save Folder.

8. Choose a directory name

(ALL0000~ALL0099).

Any used directories will not be available. It is not possible to over-write older directories. They must be deleted first.

9. Press F3 (Save)

10. A screen message will be displayed when saving.

Save/Recall SEQ

(current channel)

11. Use the Selector Knob to edit

Save Chan and Data Type.

12. Choose Current and SEQ.

226

03/02/09

10 : 30

OPERATION

CH1

CC

Dyna

High

Note

File

Media

USB

Save Recall

13. Use the selector knob to edit

Save File or Recall File.

14. Choose a file name.

15. Press F3 (Save) to save or F4

(Recall) to recall the current channel’s sequence.

16. A message will be displayed when the file is saved/recalled.

Remember a sequence must first be saved to (internal) memory before it can be saved to USB.

If you try to recall data that originated from a different load module than the active channel, an error message will appear. The filename must reflect the active channel’s load module type.

227

PEL-2000 Series User Manual

Quick Preset Recall/Save

Background

The PEL 2000 series mainframes have up to 10

Channel Presets (P0~P9). Quick recalling or saving presets will only be applicable to the active channel. For example, P1 on CH1 is not the same as P1 on CH2.

Presets P0 ~ P9 (current channel)

Parameter

Panel Operation

1. Remove any USB devices from the front panel.

2. Select the channel you want to save Channel Presets to.

Page 119.

Save Current

Channel Preset

3. To save a Channel Preset, press the Preset key and hold one of the number keys (0-9) for a short time until a beep is heard.

0 = P0

1= P1 etc.

Save All Channel

Presets

4. To save All Channel Presets, press the Shift key, the Preset key and hold one of the number keys (0-9) for a short time until a beep is heard.

0 = P0

5. 1= P1 etc.

6. Press the Preset key again to deactivate it.

The Preset will be saved to the one of 10 presets depending on the number pressed.

228

OPERATION

Recall Current

Channel Preset

7. Press the Preset key and one of the number keys.

0 = P0

1= P0 etc.

Recall All Channel

Presets

8. Press the Shift key, the Preset key and one of the number keys.

0 = P0

9. 1= P0 etc.

10. Press the Preset key again to deactivate it.

PRESET

Only the active channel’s Channel preset will be recalled.

PRESET

Recall Setup Memory (Frame link).

Background

A master mainframe can command all mainframes

(master and slave) to recall setup memory from their internal memory. No setup data will be recalled from the master mainframe to the slave units.

Parameter

Setup memory 1~4.

Panel Operation

1. On the Master mainframe, follow the procedure for recalling setup memory for all channels.

Page 206

All mainframes will update setup memory upon recall

229

PEL-2000 Series User Manual

Recall Preset Memory (Frame link)

Background

A master mainframe can command all units to recall preset memory from their internal memory.

Only the first three preset memories (P0~P2) can be recalled.

Parameters

Panel Operation:

Quick Keys

Channel presets can be recalled via the file menu or using the quick recall feature using the number pad.

Presets P0 ~ P2 (current channel)

1. Remove any USB devices from the front panel.

2. On the master mainframe, press the Shift and Preset key.

3. Press one of the number keys

(0-2).

0 = P0

1= P1 etc

The screen will flash momentarily when the presets are recalled.

Panel Operation:

File menu

4. On the master mainframe follow the procedure to recall preset memory for all channels.

Page 204

The screen will flash momentarily when the presets are recalled.

230

Recall Factory Defaults

Background

The Factory defaults can be recalled at any time.

For details on the factory defaults please see the default settings in the appendix, page 251

Panel Operation

1. Press the File key.

2. Press F1 repeatedly until the

Media Default menu appears.

03/02/09

10 : 30

CH1

CC

Dyna

High

Media

Default

3. Press Recall (F4) to recall the factory default settings.

Recall

4. Wait a short time for the settings to be recalled.

File

Configure

231

232

PEL-2000 Series User Manual

I

NTERFACE

The Interface chapter details the pin configuration of the RS232,

GPIB, Frame Link, Channel Control and Go/NoGo interfaces.

Interface Configuration .................................................. 233

Configure RS-232C interface ............... 233

Configure GPIB interface .................... 234

Configure Channel Control interface .. 235

Configure Frame Link Interface .......... 236

Configure Go/NoGo Interface ............ 239

USB Interface Connection .................. 240

Interface Configuration

Configure RS-232C interface

RS-232C configuration

Connector

Baud rate

DB-9, Male

9600

INTERFACE

Connect the RS-232C cable

(GW Instek part no. GTL-232) to the rear panel port: DB-9 male connector.

Pin assignment

1

6 9

5

2: RxD (Receive data)

3: TxD (Transmit data)

5: GND

1, 4, 6,7, 8, 9: No connection

PC connection

Use the Null Modem connection as shown in the diagram below.

PEL series PC

Pin 2 RxD

Pin 3 TxD

Pin 5 GND

Pin 2 RxD

Pin 3 TxD

Pin 5 GND

233

PEL-2000 Series User Manual

Configure GPIB interface

Connection

Pin assignment

Connect the GPIB cable to the rear panel port: 24-pin female connector.

Pin13

Data line 5

Pin14

Data line 6

Pin15

Data line 7

Pin16

Data line 8

Pin17

REN

Pin18

Ground

Pin19

Ground

Pin20

Ground

Pin21

Ground

Pin22

Ground

Pin23

Ground

Pin12 Pin24

Signal ground

GPIB constraints

Maximum 15 devices altogether, 20m cable length, 2m between each device

At least 2/3 of the devices turned On

No loop or parallel connection

234

INTERFACE

Configure Channel Control interface

Channel control configuration

Connector

Wire Gauge

Screwless connector.

22-28 AWG (24 AWG recommended).

Wire connection

10 mm strip gauge for connection.

Pin Assignment

Input

0-10V.

1 GND

Negative potential of the load input terminal.

2 I MON (OUTPUT)

Load input current monitor; where 0V = 0% of input current and 10V = 100% of input current.

3 V MON (OUTPUT)

Load input voltage monitor; where 0V = 0% of input voltage and 10V = 100% of input voltage.

4 Ext Voltage ref

(INPUT)

External voltage reference;

Where 0V=0% of rating voltage/current and 10V =

100% of rating voltage/current.

The external voltage reference is for CC and CV mode.

235

5 Load On

6 +15V

Channel Control

Interface

Constraints

Mode/Range

PEL-2000 Series User Manual

Load On Input.

Load on = Active low, 0-1V

Load off = Active high, 4-5V.

(Using the + load polarity in conjunction with a 10kΩ pull up resistor)

Internal power output. Max

50mA.

Mode and Range configuration is only selected via the front panel.

Configure Frame Link Interface

Connection

Pin assignment

(Frame link connector 1)

Connect the Frame link cable

(MIL 20 pin connector) to the rear panel port: 20-pin male connector.

Recall Preset memory 0

(All channels)

Recall Preset memory 1

(All channels)

Recall Preset memory 2

(All channels)

Recall Setup memory 1

(All channels)

Recall Setup memory 2

(All channels)

236

Pin assignment

(Frame link connector 2)

INTERFACE

Recall Setup memory 3

(All channels)

Recall Setup memory 4

(All channels)

Enable Load (On/Off), recall Preset memory (0-

3) and Setup memory (1-

4)

Output, load on status.

Output alarm activated.

Sync signal, Recall Preset memory 0 (All channels)

Sync signal, Recall Preset memory 1 (All channels)

Sync signal, Recall Preset memory 2 (All channels)

237

PEL-2000 Series User Manual

Pin5

Sync signal, Recall Setup memory 1 (All channels)

Pin6

Sync signal, Recall Setup memory 2 (All channels)

Pin7

Sync signal, Recall Setup memory 3 (All channels)

Pin8

Sync signal, Recall Setup memory 4 (All channels)

Sync._Load

On/Off

Sync signal, Enable Load

(On/Off), recall Preset memory (0-3) and Setup memory (1-4)

Sync signal, Load

On/Off

Sync signal, Output, load on status.

Sync signal, Output alarm activated.

238

Connection

Frame Link constraints

Configure Go/NoGo Interface

Connection

Use a DSUB (DB-15 Female) connector to connect to the

Go/NoGo port.

The Go/NoGo port is an output only port.

Pin assignment

INTERFACE

Input: active low (0-1V), active high (4-5V)

Inputs (5V, 10kΩ pull-up resistor)

Open collector outputs (Load status, Alarm

Status, +5V) maximum 30VDC with 1.1V saturation voltage (100mA).

When enable is on (active low), the following is disabled from the mainframe: activating loads and recalling preset or setup memory.

Maximum 5 (1 master + 4 slave units) devices can be linked altogether with a maximum cable length of 30cm for each cable.

All the connected devices must be turned on.

No loop or parallel connections

Pin9

Ch5_GO/NG

Pin10

GND

Pin3 Pin11

Ch6_GO/NG

Pin12

GND

239

PEL-2000 Series User Manual

Pin13

Ch7_GO/NG

Pin14

GND

Pin15

Ch8_GO/NG

Connection Type

Open collector output maximum 30VDC with 1.1V saturation voltage (100mA).

30 V DC (high) Pass (Go) or SPEC Test:

OFF

1.1 V DC (low) Fail (NoGo)

USB Interface Connection

Connection

For USB remote connection, use the USB-B port on the mainframe rear panel.

240

F

AQ

Q1. The load voltage indicated on the load module is below expected.

A1. Ensure the load leads are as short as possible, twisted and use the appropriate wire gauge. Ensure that voltage sense is used, this can help alleviate the voltage drop across the load the leads.

Q2. When I try to start a program sequence, it will not run. “No Active

Channel” is displayed.

A2. Ensure the channel(s) is activated (not set to OFF) in the

FUNCProgramActive Channel menu.

Q3. When trying to save to USB, the USB memory stick is unresponsive.

A3. Try restarting the PEL mainframe. If this fails to solve the problem, ensure the USB memory is cleanly formatted.

Q4. When I try to clear an alarm, it doesn’t work.

A4. Before clearing an alarm or using the Protection Clear All function, the load must be turned off. After the load is off, the alarm(s) can be cleared.

Q5. Settings aren’t saved to internal memory.

A5. If settings can’t be saved to internal memory, the internal battery may be flat. See page 243 for details.

For more information, contact your local dealer or GWInstek at www.gwinstek.com

/ [email protected]

241

FAQ

PEL-2000 Series User Manual

A

PPENDIX

Fuse Replacement

Step

1. Turn off the power at the wall socket and rear panel. Remove the power cord.

2. Remove the fuse socket using a minus driver.

3. Replace the fuse in the holder.

Rating

242

T3.15A, 250V

APPENDIX

Battery Replacement

Background

The onboard battery is used to power the real time clock and memory.

Step

1. Remove the screws from the rear feet (X4).

2. Remove the three screws from the side panels

(X6).

3. Pull and case back slightly and lift to remove.

4. Remove the retaining strap from the battery socket and replace the battery.

3

1

4

2

Rating

Disposal

(CR17345) Lithium manganese dioxide battery.

DL123 (Duracell Ultra 123) 1400mAh, 3.0V

(Nominal)

Do not dispose the battery as unsorted municipal waste. Please use a separate collection facility or contact the supplier from which the battery was purchased.

243

PEL-2000 Series User Manual

Firmware Update

Background

The PEL-2000 firmware can be easily updated using a USB memory stick. For the latest firmware please see your local GW Instek distributor or download the latest firmware from www.gwinstek.com

.

File: P2KXXXX.UPG

File Name

Note

Panel operation

1. Insert a USB flash drive into the front panel USB slot.

2. Press the File key.

Copy the firmware file (*.UPG) into the root directory of a USB stick before proceeding with the firmware update.

3. Press F1 repeatedly until the

Media USB menu appears.

4. Press F5 (File Utility).

5. Use the selector knob to scroll down to the firmware file

(*.UPG) and press the selector knob, enter or F1.

6. Press F1 to confirm the firmware upgrade.

7. Wait for the firmware upgrade to finish, a message will be displayed upon completion.

244

APPENDIX

WARNING

8. Turn the power Off and On from the front panel to reset the load generator.

Do not turn the load generator off or remove the USB memory when the firmware is being read or upgraded.

Calibration

Background

The PEL-2000 load generator should be calibrated at least on a yearly basis.

GWInstek does not support End-User calibration.

Please see your distributor for calibration details.

245

Range Chart

PEL-2020

Low Range

100W

50

40

30

20

10

0

90

80

70

60

0

PEL-2000 Series User Manual

PEL-2020 Low Range Chart

0.5

1

Current

1.5

PEL-2020 High Range Chart

2 2.5

PEL-2020

High Range

100W

90

80

70

60

50

40

30

20

10

0

0 5 10

Current

15 20 25

246

APPENDIX

PEL-2030

Left Channel

30W

PEL-2030

Right Channel

Low Range

250W

PEL-2030 Left Channel Chart

90

80

70

60

50

40

30

20

10

0

0 1 2 3

Current

4 5 6

PEL-2030 Right Channel. Low Range Chart

90

80

70

60

50

40

30

20

10

0

0 0.5

1 1.5

2 2.5

Current

3 3.5

4 4.5

247

PEL-2000 Series User Manual

PEL-2030

Right Channel

High Range

250W

PEL-2030 Right Channel. High Range Chart

90

80

70

60

50

40

30

20

10

0

0 5 10 15 20 25

Current

30 35 40 45

248

APPENDIX

PEL-2040

Low Range

350W

PEL-2040

High Range

350W

PEL-2040 Low Range Chart

90

80

70

60

50

40

30

20

10

0

0 1 2 3 4

Current

5 6 7 8

PEL-2040 High Range Chart

50

40

30

20

10

0

0

90

80

70

60

10 20 30 40

Current

50 60 70 80

249

PEL-2041

Low Range

350W

PEL-2041

High Range

350W

PEL-2000 Series User Manual

600

500

400

300

200

100

0

0

PEL-2041 Low Range Chart

600

500

400

300

200

100

0

0 0.2

0.4

0.6

Current

0.8

1 1.2

PEL-2041 High Range Chart

2 4 6

Current

8 10 12

250

APPENDIX

Default Settings

Menu Item

CC Mode

Mode: Static

CR Mode

A/B Value: Min A

Rising Slew Rate: Max Falling Slew Rate: Max

Mode: Static A Value: Max Ω

CV Mode

Rising Slew Rate: Max Falling Slew Rate: Max

Response: Slow A Value: Max V

Curr Limit: Max A

OCP Level: Max OCP Setting: OFF

Chan-

Protection

OVP Level: Max

OPP Level: Max

UVP Level: Off

OVP Setting: OFF

OPP Setting: OFF

UVP Setting: Clear

Protection Clear: All

Chan- Other

CC Vrange: High

Von Latch: Off

CH CONT: OFF

Load D-Time: 0.0s

CRH Step: Min

CV Step: Min

Chan- Seq.

Edit

Von Voltage: 0V

Short Key: Toggle

Independent: OFF

CCH Step: Min

CRL Step: Min

A Value: 0 Rising/Falling SlewRate:

Max

Duration Time: 0.001s

Repeat: Infinity Times Start of Loop: 001 Step

Chan- Seq.

Edit - Loop

Chan-

Go/NoGo

On End Load: OFF

Spec Test: Off

CC Vrange: High

Entry Mode: Value

251

High: Max

FUNC-

Program

PROG: 01

Memory: 001

On-Time: 0.1s

P/F-Time: Off

Short Channel: All channels

FUNC- Chain

Start: 01

FUNC- Run

CH 01~08: Active Off

FUNC-

Sequence

CH01~08: Time Setting

Off

Utility- Load

Auto Load: Off

Utility-

Interface

USB

Utility- Other

Speaker: Off

Brightness: 70

Alarm (M): On

Knob Type: Updated

Slave Knob: SetValue

PEL-2000 Series User Manual

Low: Min

SEQ: 01

Run: Skip

Off-Time: Off

On-Time: 0.1s

P01~P12: Off

SEQ: Off

Auto Load On: Prog

Contrast: 8

Frame CONT: NA

Alarm (S): Off

Go_NoGo Tone: Off

Language: English

252

APPENDIX

Specifications

MODULE SLOTS

PEL-2002

2

PEL-2004

4

GENERAL

Operating Environment

Temperature

Altitude

Location

0°C to 40°C

Up to 2000m

Indoor, no direct sunlight, dust free, almost non conductive pollution.

Storage Environment

Temperature

Relative

Humidity

Location

Power Supply

-10°C to 70°C

< 80%

Indoor

AC 115V±15%/230V±15% switchable, 50/60Hz,

Transient overvoltage on the main supply is 2500V.

Fuse T3.15A/250V

Battery CR17345

Pollution degree

Measurement

2

1

Category

253

PEL-2000 Series User Manual

CHANNELS

PEL-2020 (100Wx2)

2

CHANNEL Left/Right Left/Right

RANGE Low High

POWER

CURRENT

VOLTAGE

MIN.OPERATING

VOLTAGE(dc)

100W

0~2A

1.0V at 2A

1~80V

100W

0~20A

1.0V at 20A

STATIC MODE

CONSTANT CURRENT MODE

Range

Resolution

0~2A

0.5mA

0~20A

5mA

Accuracy ±(0.1%set + 0.1%F.S.) ±(0.1%set + 0.2%F.S).

CONSTANT RESISTANCE MODE

Range 0.075Ω~300Ω(100W/16V)

3.75Ω~15KΩ(100W/80V)

Resolution

Accuracy

12bits

300Ω : ±( 0.2%set(

℧) + 0.1℧)

15KΩ: ±(0.1%set(

℧) + 0.02℧) with ≥ 2.5V at input

CONSTANT VOLTAGE MODE

Range

Resolution

Accuracy

1~80V

20mV

±(0.05%set + 0.1%F.S.)

Range 0~20A

Resolution

Accuracy

5mA

±(0.1%set + 0.2%F.S.)

DYNAMIC MODE

CONSTANT CURRENT MODE

T1&T2 0.025mS ~ 10mS / Res : 1uS

10mS ~ 30S / Res : 1mS

Accuracy

Slew Rate

Slew Rate

Resolution

1uS / 1mS ± 100ppm

0.32 ~ 80mA/uS 3.2 ~ 800mA/uS

0.32mA/uS 3.2mA/uS

Slew Rate setting

Accuracy

Current

Current

Resolution

±(10% + 15us)

0~2A

0.5mA

±(10% + 15us)

0~20A

5mA

254

APPENDIX

SHORT CIRCUIT

Current(CC)

Voltage(CV)

Resistance(CR)

INPUT

RESISTANCE

(LOAD OFF)

±0.4% F.S.

MEASUREMENT

VOLTAGE READBACK

Range

Resolution

Accuracy

CURRENT READBACK

Range

Resolution

Accuracy

Over Power Protection

Range

Resolution

Accuracy

Over Current Protection

Range

Resolution

Accuracy

Over Voltage Protection

Range

Resolution

Accuracy

Over

Temperature

Protection

Rated Power Protection:

Value

Accuracy

0~16V

0.5mV

0~80V

2.5mV

±(0.05%set + 0.05% F.S.)

0~2A

0.0625mA

0~20A

0.625mA

±(0.1%set + 0.1% F.S.)

PROTECTIVE

1~102W

0.5W

±(2%set + 0.25% F.S.)

0.25~20.4A

0.05A

±(2%set + 0.25% F.S.)

1~81.6V

0.2V

±(2%set + 0.25% F.S.)

ؒ85Ԩ

GENERAL

110W

±2%set

ؒ2.2/2A

0V

ؒ3.75Ω

800KΩ(Typical)

ؒ22/20A

0V

ؒ0.075Ω

255

CHANNELS

CHANNEL Left

PEL-2000 Series User Manual

PEL-2030 (30W/250W)

2

Right Right

POWER

CURRENT

VOLTAGE

MIN.OPERATING

VOLTAGE(dc)

30W

0~5A

1.0V at 5A

250W

0~4A

1~80V

1.0V at 4A

250W

0~40A

1.0V at 40A

STATIC MODE

CONSTANT CURRENT MODE

Range

Resolution

Accuracy

0~5A

1mA

±(0.1%set +

0.1%F.S)

0~4A

1mA

±(0.1%set +

0.1%F.S)

CONSTANT RESISTANCE MODE

Range 0.3Ω~1.2KΩ

(30W/16V)

15Ω~60KΩ

(30W/80V)

Resolution

Accuracy

0~40A

10mA

±(0.1%set +

0.2%F.S)

0.0375Ω~150Ω(250W/16V)

1.875Ω~7.5KΩ(250W/80V)

12bits

12KΩ : ±

(0.2%set(

℧) + 0.1℧)

60K

Ω: ±

150Ω : ±(0.2%set(

℧) + 0.1℧)

7.5KΩ: ±(0.1%set(

℧) + 0.02℧) with

≥ 2.5V at input

(0.1%set(

℧) +

0.02

℧) with ≥ 2.5V at input

CONSTANT VOLTAGE MODE

Range

Resolution

1~80V

20mV

Accuracy ±(0.05%set + 0.1%F.S.)

Range 0~5A 0~40A

Resolution

Accuracy

1mA

±(0.1%set +

0.1%F.S.)

10mA

±(0.1%set + 0.2%F.S.)

256

APPENDIX

DYNAMIC MODE

CONSTANT CURRENT MODE

T1&T2 0.025mS ~ 10mS / Res : 1uS

10mS ~ 30S / Res : 1mS

Accuracy

Slew Rate

1uS / 1mS + 100ppm

0.8 ~ 200mA/uS 0.64 ~ 160mA/uS

0.8mA/uS 0.64mA/uS

6.4 ~

1600mA/uS

6.4mA/uS Slew Rate

Resolution

Slew Rate setting

Accuracy

±(10% + 15us) ±(10% + 15us) ±(10% + 15us)

Current

Current

Resolution

Current Accuracy

0~5A

1mA

0~4A

1mA

±0.4% F.S.

0~40A

10mA

MEASUREMENT

VOLTAGE READBACK

Range

Resolution

Accuracy

0~16V 0~80V

0.5mV 2.5mV

0~16V

0.5mV

±(0.05%set + 0.05% F.S.)

CURRENT READBACK

Range

Resolution

Accuracy

0~5A

0.15625mA

0~4A

0.125mA

±(0.1%set + 0.1% F.S.)

0~80V

2.5mV

0~40A

1.25mA

PROTECTIVE

Over Power Protection

Range

Resolution

Accuracy

0.9~30.6W

0.15W

±(2%set +

0.25%F.S)

Over Current Protection

Range 0.0625~5.1A

Resolution

Accuracy

0.0125A

±(2%set +

Over Voltage Protection

0.25%F.S)

Range

Resolution

Accuracy

1~81.6V

0.2V

±(2%set +

0.25%F.S)

1.25~255W

1.25W

±(2%set + 0.25%F.S)

0.5~40.8A

0.1A

±(2%set + 0.25%F.S)

1~81.6V

0.2V

±(2%set + 0.25%F.S)

257

PEL-2000 Series User Manual

Over

Temperature

Protection

ؒ85Ԩ

Rated Power Protection:

Value

Accuracy

33W

±2%set

275W

±2%set

GENERAL

SHORT CIRCUIT

Current(CC)

ؒ5.5/5A

Voltage(CV) 0V

Resistance(CR)

ؒ15Ω ؒ0.3Ω

INPUT

RESISTANCE

(LOAD OFF)

ؒ4.4/4A

0V

ؒ1.875Ω

800KΩ(Typical)

ؒ44/40A

0V

ؒ0.0375Ω

258

APPENDIX

CHANNELS

RANGE

POWER

PEL-2040

1

PEL-2041

1

Low High Low High

350W 350W 350W 350W

CURRENT 0~7A 0~70A 0~1A 0~10A

VOLTAGE 1~80V 2.5~500V

MIN.OPERATING

VOLTAGE(dc)

1.0V at 7A 1.0V at 70A 2.5V at 1A 2.5V at 10A

STATIC MODE

CONSTANT CURRENT MODE

Range

Resolution

Accuracy

0~7A

1mA

±(0.1%set +

0.1%F.S)

0~70A

10mA

±(0.1%set +

0.2%F.S)

CONSTANT RESISTANCE MODE

Range 0.025Ω~100Ω(350W/16V)

Resolution

Accuracy

1.25Ω~5KΩ(350W/80V)

12bits

100Ω : ±(0.2%set(

℧) + 0.1℧)

0~1A

0.2mA

±(0.1%set +

0.1%F.S)

0~10A

2mA

±(0.1%set +

0.2%F.S)

1.25Ω~5KΩ(350W/125V)

50Ω~200KΩ(350W/500V)

12bits

5KΩ : ±(0.2%set(

℧) + 0.02℧)

5KΩ: ±(0.1%set(

℧) + 0.02℧) with ≥ 2.5V at input

200KΩ: ±(0.1%set(

℧) +

0.01

℧) with ≥ 5V at input

CONSTANT VOLTAGE MODE

Range

Resolution

Accuracy

1~80V

20mV

2.5~500V

100mV

±(0.05%set + 0.1%F.S.) ±(0.05%set + 0.1%F.S.)

Range 0~70A 0~10A

Resolution 10mA 2mA

Accuracy ±(0.1%set + 0.2%F.S.)

DYNAMIC MODE

±(0.1%set + 0.2%F.S.)

CONSTANT CURRENT MODE

T1&T2

Accuracy

Slew Rate

Slew Rate

Resolution

0.025mS ~ 10mS / Res :

10mS ~ 30S / Res : 1mS

1uS / 1mS ± 100ppm

0.001 ~

0.28A/uS

1uS

0.01 ~

2.8A/uS

0.025mS ~ 10mS / Res :

0.16 ~

40mA/uS

1uS

10mS ~ 30S / Res : 1mS

1uS / 1mS ± 100ppm

1.6 ~

400mA/uS

0.001A/uS 0.01A/uS 0.16mA/uS 1.6mA/uS

Slew Rate setting

Accuracy

±(10% +

15us)

±(10% +

15us)

±(10% +

15us)

±(10% +

15us)

259

PEL-2000 Series User Manual

Current

Current

Resolution

0~7A 0~70A 0~1A 0~10A

1mA 10mA 0.2mA 2mA

±0.4% F.S. ±0.4% F.S.

MEASUREMENT

VOLTAGE READBACK

Range

Resolution

Accuracy

0~16V

0.5mV

0~80V

2.5mV

0~125V

4mV

0~500V

16mV

±(0.05%set + 0.05% F.S.) ±(0.05%set + 0.05% F.S.)

CURRENT READBACK

Range

Resolution

Accuracy

0~7A

0.175mA

0~70A

1.75mA

0~1A

0.032mA

0~10A

0.32mA

±(0.1%set + 0.1% F.S.) ±(0.1%set + 0.1% F.S.)

PROTECTIVE

Over Power Protection

Range

Resolution

Accuracy

1.75~357W

1.75W

±(2%set + 0.25%F.S)

Over Current Protection

Range

Resolution

0.875~71.4A

0.175A

Accuracy ±(2%set + 0.25%F.S)

Over Voltage Protection

Range

Resolution

Accuracy

Over

1~81.6V

0.2V

±(2%set + 0.25%F.S)

ؒ85Ԩ

Temperature

Protection

Rated Power Protection:

1.75~357W

1.75W

±(2%set + 0.25%F.S)

0.125~10.2A

0.025A

±(2%set + 0.25%F.S)

2.5~500V

1.25V

±(2%set + 0.25%F.S)

ؒ85Ԩ

Value

Accuracy

385W

±2%set

GENERAL

±2%set

385W

±2%set

SHORT CIRCUIT

Current(CC)

Voltage(CV)

Resistance(CR)

INPUT

RESISTANCE

(LOAD OFF)

ؒ7.7/7A

0V

ؒ77/70A

0V

ؒ1.25Ω ؒ0.025Ω

800KΩ(Typical)

ؒ1.1/1A

0V

ؒ50Ω

ؒ11/10A

0V

ؒ1.25Ω

800KΩ(Typical)

260

Dimensions

PEL-2002/PEL-2004

APPENDIX

261

PEL-2020/PEL-2030/PEL-2040/PEL2041

PEL-2000 Series User Manual

262

APPENDIX

EC Declaration of Conformity

We

GOOD WILL INSTRUMENT CO., LTD.

(1) No.7-1, Jhongsing Rd., Tucheng City, Taipei County, Taiwan

(2) No. 69, Lu San Road, Suzhou City (Xin Qu), Jiangsu Sheng, China declare, that the below mentioned product

Type of Product: Programmable Electronic Load

Model Number: PEL-2004, PEL-2002, PEL-2020, PEL-2030, PEL-2040, PEL-2041 are herewith confirmed to comply with the requirements set out in the Council

Directive on the Approximation of the Law of Member States relating to

Electromagnetic Compatibility (2004/108/EC) and Low Voltage Directive

(2006/95/EC).

For the evaluation regarding the Electromagnetic Compatibility and Low Voltage

Directive, the following standards were applied:

◎ EMC

Electrical equipment for measurement, control and laboratory use–– EMC requirements (2004/108/EC)

Harmonized Standard EN 61326-1:2006

Conducted & Radiated Emission

CISPR11: 2003+A1:2004+A2:2006

Current Harmonics

EN 61000-3-2: 2006

Voltage Fluctuations

EN 61000-3-3: 2008

-------------------------

-------------------------

-------------------------

-------------------------

Electrostatic Discharge

IEC 61000-4-2: 2008

Radiated Immunity

IEC 61000-4-3: 2008

Electrical Fast Transients

IEC 61000-4-4: 2004+Corr.1: 2006 +Corr.2: 2007

Surge Immunity

IEC 61000-4-5: 2005

Conducted Susceptibility

IEC 61000-4-6: 2003+A1: 2004 +A2 :2006

Power Frequency Magnetic Field

IEC 61000-4-8: 2001

Voltage Dip/ Interruption

IEC 61000-4-11: 2004

◎ Safety

Low Voltage Equipment Directive 2006/95/EC

Safety Requirements IEC/EN 61010-1: 2001

263

PEL-2000 Series User Manual

264

I

NDEX

Alarm configuration ............ 190

All Chan save/recall description ........................... 93

Battery disposal .................... 243

Battery replacement ............. 243

Baud rate configuration ....... 196

Brightness & contrast ........... 185

Calibration ............................. 245

Calibration key ....................... 19

CC vrange mode description 81

CC+CV mode ......................... 69

Channel configuration

CC voltage range ................. 165

Go/NoGo mode .................. 177

Go/NoGo On/Off .............. 179

Independent setting ............ 171

Load delay time ................... 173

Protection All Clear ............ 165

SPEC test ON/OFF ............. 179

Step resolution ..................... 175

Channel configuration

Configuration menu ........... 161

OCP/OCV/OPP ................. 162

Channel configuration

Von voltage configuration . 167

Channel configuration

Short ...................................... 168

Channel configuration channel control .................... 170

Channel control configuration170, 235

Channel control connection .. 56

Channel control description .. 85

Channel control mode description ........................... 83

Channel duration time settings mode description . 77

Cleaning the instrument .......... 7

Clear key .................................. 19

Configuration mode description ........................... 79

Connection

Channel control ..................... 56

Frame link .............................. 54

Go/NoGo control .................. 59

Remote sense.......................... 48

Wire gauge ............................. 44

Wire Inductance .................... 44

Connection procedure ........... 46

Constant Resistance mode description ........................... 65

Constant voltage + constant current mode description .. 69

Constant voltage mode description ........................... 68

Date and time configuration 183

Default Settings .................... 251

Delay time mode description 84

Dimensions ............................ 261

Display key .............................. 29

Display settings .................... 185

Disposal instructions ............... 8

Dynamic constant current mode description ................ 62

Dynamic loads Constant

Resistance mode description66

EC Declaration of Conformity263

EN61010 measurement category ........... 6

Pollution degree ...................... 8

Enter key .................................. 21

Environment operation .................................. 8

Storage ...................................... 8

External memory save description ........................... 92

External voltage mode description ........................... 85

Features .................................... 12

File format mode description 94

Firmware update ................... 244

Frame control congifuration 187

Frame Link configuration .... 236

Frame link connection ............ 54

Front panel overview.............. 17

Function Keys .......................... 17

Fuse rating ......................................... 7

Fuse replacement .................. 242

Go/NoGo Alarm Sound ...... 191

Go/NoGo connection ............. 59

Go/NoGo constant current mode description ................ 63

Go/NoGo constant Resistance mode description ................ 66

Go/NoGo constant voltage mode description ................ 70

Go/NoGo interface configuration ..................... 239

GPIB card installation ............. 38

GPIB configuration ....... 198, 234

Independent configuration .. 171

Independent mode description83

Installation

GPIB card ............................... 38

Load module .......................... 35

Rack mount ............................ 39

Interface configuration ......... 233

Baud Rate ............................. 196

GPIB ...................................... 198

Interface menu ..................... 195

RS232 ..................................... 196

INDEX

USB configuration ............... 199

Internal memory save description ........................... 92

Knob configuration ............... 188

Language Settings ................. 194

List of features ......................... 12

Load (module )key .................. 29

Load connections .................... 43

Load Connections

Auxiliary voltage connection51

DC Connection ....................... 51

Dual channel load module ... 50

Low voltage connections ...... 51

Multiple output power source53

Parallel load modules ............ 52

Parallel loads .......................... 52

Parallel mainframes ............... 53

Precautions ............................. 43

Single channel load module . 50

Single load .............................. 50

Load delay time configuration173

Load D-Time mode description ........................... 84

Load key ................................... 21

Load Menu ............................. 182

Load module installation ....... 35

Load module Overview ......... 28

Load profiling description ..... 74

Load terminals ......................... 29

Load wire induction ............... 44

Load wiring .............................. 45

Local operation

A&B Value ............................ 113

Channel selection ................. 113

Display .................................. 117

Dynamic ................................ 114

Editing the load .................... 118

Load ....................................... 115

Operation .............................. 112

R/L keys ............................... 113

Shorting ................................. 116

Static ...................................... 114

Lock key ................................... 19

265

Mainframe configuration alarm sound ......................... 190

Brightness & contrast .......... 185

Configuration menu ........... 180

Date & time .......................... 183

Frame control ....................... 187

Go/NoGo Tone ................... 191

Knob type ............................. 188

Lanuage ................................ 194

Load menu ........................... 182

Slave Knob ........................... 192

Speaker ................................. 184

System Info .......................... 181

Utility menu ......................... 181

Mainframe operation

CC Dynamic mode .............. 123

CC Mode .............................. 122

CC Range ............................. 123

CC Static mode .................... 126

CC Static Values

.................... 126

Channel duration time settings ............................. 155

Channel Selection ......... 120, 121

CR Range ............................. 128

CR Static Parameters ......... 132

CR Dynamic mode .............. 129

CR mode ............................... 128

CR Static mode .................... 132

CV Current limit ................ 135

CV mode

................................ 134

CV response speed .............. 137

CV Voltage values ............... 135

Edit Sequence ...................... 151

Program chain ..................... 143

Program Execution ............. 145

Program Sequences ............. 138

Programming ....................... 138

Recall default chain ............. 145

Recall default sequence ...... 142

Run Sequence ...................... 157

Save chain ............................ 145

Save Program chain ............ 145

Save sequence ...................... 142

Sequence loop ...................... 153

266

PEL-2000 Series User Manual

Trig out ................................. 155

Measurement types .......... 15, 16

Memory data description ...... 90

Number pad ............................ 19

Operating configurations mode description ................ 81

Operating Description ........... 60

Operating Modes

Channel duration time settings ............................... 77

Configuration ......................... 79

Configuration - Over current protection ........................... 80

Configuration - Over power protection ........................... 80

Configuration - Over voltage protection ........................... 80

Constant current – Go/NoGo63

Constant current – Slew rate 63

Constant current -Dynamic .. 62

Constant current -static ........ 62

Constant Resistance .............. 65

Constant Resistance –

Dynamic loading ............... 66

Constant Resistance – Slew rate ...................................... 66

Constant Resistance

Go/NoGo ........................... 66

Constant Voltage ................... 68

Constant Voltage – Response speed ................................... 70

Constant Voltage + Constant

Current Mode .................... 69

Constant Voltage –Go/NoGo70

Constant Voltage -levels ....... 68

External Voltage Control ...... 85

File format .............................. 94

File System ............................. 89

Go/NoGo ............................... 73

Interface .................................. 89

Memory data .......................... 90

Operating Configuration s –

Von Voltage ....................... 82

Operating Configurations .... 81

Operating Configurations –

CC vrange .......................... 81

Operating Configurations – independent ....................... 83

Operating Configurations –

Load D-Time ...................... 84

Operating Configurations -

Short .................................... 83

Operating Configurations –

Step Resolution .................. 84

Parallel Dynamic Loading .... 78

Preset data .............................. 90

Program Chain ...................... 72

Reverse voltage protection ... 81

Run Program .......................... 71 save/recall All Chan ............. 93

SEQ data ................................. 91

Sequences ............................... 74

Setup data ............................... 91

Trig Out .................................. 76

USB save/recall ..................... 93

Operation

Contents ................................ 109

Local load ............................. 112

Operation Environment ........... 8

Operation keys ........................ 20

Over Current mode description ........................... 80

Over power mode description80

Over protection configuration ........................ 162

Over voltage mode description ........................... 80

Overview .................................. 13

Display Overview ................. 22

Front panel ............................. 17

LED display............................ 32

Load module .......................... 28

Rear Panel ............................... 25

Parallel Dynamic loading description ........................... 78 pass/fail test multiple step tutorial ............ 97

INDEX

Power key ................................. 21

Power supply

Safety information ................... 7

Power up .................................. 41

Power up sequence ................. 41

Preset data description ........... 90

Preset key ................................. 20

Program Chain mode description ........................... 72

Program mode description .... 71

Protection All clear................ 165

Quick save Presets to internal memory .............................. 228

R/L key .................................... 28

Rack mount installation ......... 39

Range Chart ........................... 246

Recall factory defaults .......... 231

Recall Memory data to USB . 216

Recall Presets - Framelink .... 230

Recall Setups - Framelink ..... 229

Remote sense connections ...... 48

Response speed constant voltage mode description .. 70

Reverse voltage protection..... 81

RS232 configuration .............. 196

RS-232C configuration .......... 233

Safety Instructions ..................... 5

Safety symbols ........................... 5

Save Memory data ................ 202

Save Memory data to USB ... 216

Save Preset memory ............. 204

Save presets to USB ............... 220

Save Sequences to USB ......... 224

Save setup memory ............... 206

Save setup to USB ................. 213

Save to internal memory202, 208

Save to internal setup memory206

Save/Recall default USB path .................. 208

FrameLink Preset Recall ..... 230

FrameLink Setup Recall ...... 229

Preset memory ..................... 204

267

Quick save Presets to internal memory ............................ 228

Recall factory defaults ........ 231

Recall Memory data to USB 216

Save Memory data to USB . 216

Save Preset Memory ........... 204

Save presets to USB ............. 220

Save SEQ (Sequences) to USB224

Save setup to USB ............... 213

Save to internal Memory .... 208

Save to setup Memory ........ 206

Setup memory ..................... 206

USB path ............................... 208

Save/Recall

File menu .............................. 201

Memory data ....................... 202

Save to internal Memory .... 202

Selector Knob .......................... 20

Selector knob-loadmodule .... 30

SEQ data description ............. 91

Sequence editing/creating .. 151

Sequence mode description .. 74

Sequences mode description . 71 service contance point .......... 241

Setup data description ........... 91

Shift key ................................... 21

Short configuration .............. 168

Short key .................................. 31

Shorting mode description .... 83

Slave Knob Settings .............. 192

Slew rage constant current mode description ................ 63

Slew rate Constant Resistance mode description ................ 66

Speaker Settings .................... 184

Specifications ........................ 253

PEL-2020

................................ 254

PEL-2030

................................ 256

PEL-2040

................................ 259

PEL-2041

................................ 259

268

PEL-2000 Series User Manual

Static constant current mode description ........................... 62

Static/ Dynamic key .............. 30

Step resolution ...................... 175

Step Resolution mode description ........................... 84

Storage Environment ............... 8

System Info ............................ 181

System Keys ............................ 18

Terminals ................................. 29

Trig out .................................. 155

Trig out mode description ..... 76

Turorials

Channel control ................... 106

Frame link ............................ 104

General configuration options108

Local load ............................... 97

Program ................................ 103

Single load .............................. 99

Tutorials

Basic Operation ...................... 96

Twisted pair description ....... 45

UK power cord ......................... 9

USB configuration ................ 199

USB path ................................ 208

USB remote interface connection ......................... 240

USB save/recall description . 93

Utility Menu .......................... 181

Voltage levels constant voltage mode description .. 68

Voltage sense terminal ........... 29

Von voltage configuration .. 167

Von voltage mode description82

Wire Connections ................... 43

Wire gauge .............................. 43

Wire induction ........................ 44

Wiring procedure ................... 46

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
