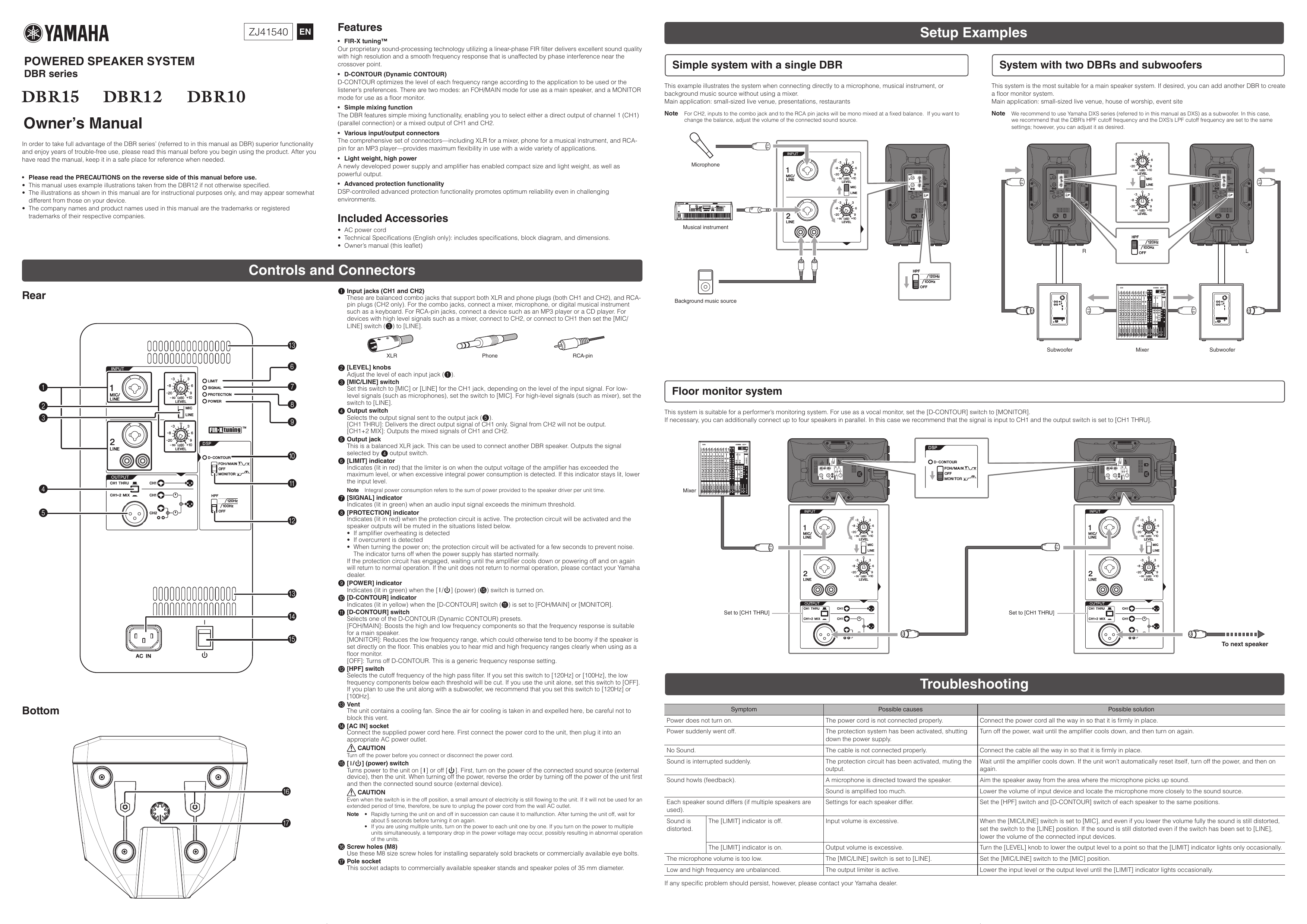

DBR series
• FIR-X tuning™
Our proprietary sound-processing technology utilizing a linear-phase FIR filter delivers excellent sound quality
with high resolution and a smooth frequency response that is unaffected by phase interference near the
crossover point.
D-CONTOUR optimizes the level of each frequency range according to the application to be used or the
listener’s preferences. There are two modes: an FOH/MAIN mode for use as a main speaker, and a MONITOR
mode for use as a floor monitor.
• Simple mixing function
The DBR features simple mixing functionality, enabling you to select either a direct output of channel 1 (CH1)
(parallel connection) or a mixed output of CH1 and CH2.
Owner’s Manual
In order to take full advantage of the DBR series’ (referred to in this manual as DBR) superior functionality
and enjoy years of trouble-free use, please read this manual before you begin using the product. After you
have read the manual, keep it in a safe place for reference when needed.
• Please read the PRECAUTIONS on the reverse side of this manual before use.
• This manual uses example illustrations taken from the DBR12 if not otherwise specified.
• The illustrations as shown in this manual are for instructional purposes only, and may appear somewhat
different from those on your device.
• The company names and product names used in this manual are the trademarks or registered
trademarks of their respective companies.
Setup Examples
Simple system with a single DBR
System with two DBRs and subwoofers
This example illustrates the system when connecting directly to a microphone, musical instrument, or
background music source without using a mixer.
Main application: small-sized live venue, presentations, restaurants
This system is the most suitable for a main speaker system. If desired, you can add another DBR to create
a floor monitor system.
Main application: small-sized live venue, house of worship, event site
Note For CH2, inputs to the combo jack and to the RCA pin jacks will be mono mixed at a fixed balance. If you want to
Note We recommend to use Yamaha DXS series (referred to in this manual as DXS) as a subwoofer. In this case,
change the balance, adjust the volume of the connected sound source.
• Various input/output connectors
The comprehensive set of connectors—including XLR for a mixer, phone for a musical instrument, and RCApin for an MP3 player—provides maximum flexibility in use with a wide variety of applications.
• Light weight, high power
A newly developed power supply and amplifier has enabled compact size and light weight, as well as
powerful output.
we recommend that the DBR’s HPF cutoff frequency and the DXS’s LPF cutoff frequency are set to the same
settings; however, you can adjust it as desired.
• Advanced protection functionality
DSP-controlled advanced protection functionality promotes optimum reliability even in challenging
Included Accessories
• AC power cord
• Technical Specifications (English only): includes specifications, block diagram, and dimensions.
• Owner’s manual (this leaflet)
Musical instrument
Controls and Connectors
1 Input jacks (CH1 and CH2)
These are balanced combo jacks that support both XLR and phone plugs (both CH1 and CH2), and RCApin plugs (CH2 only). For the combo jacks, connect a mixer, microphone, or digital musical instrument
such as a keyboard. For RCA-pin jacks, connect a device such as an MP3 player or a CD player. For
devices with high level signals such as a mixer, connect to CH2, or connect to CH1 then set the [MIC/
LINE] switch (3) to [LINE].
Background music source
2 [LEVEL] knobs
Adjust the level of each input jack (1).
3 [MIC/LINE] switch
Set this switch to [MIC] or [LINE] for the CH1 jack, depending on the level of the input signal. For lowlevel signals (such as microphones), set the switch to [MIC]. For high-level signals (such as mixer), set the
switch to [LINE].
4 Output switch
Selects the output signal sent to the output jack (5).
[CH1 THRU]: Delivers the direct output signal of CH1 only. Signal from CH2 will not be output.
[CH1+2 MIX]: Outputs the mixed signals of CH1 and CH2.
5 Output jack
This is a balanced XLR jack. This can be used to connect another DBR speaker. Outputs the signal
selected by 4 output switch.
6 [LIMIT] indicator
Indicates (lit in red) that the limiter is on when the output voltage of the amplifier has exceeded the
maximum level, or when excessive integral power consumption is detected. If this indicator stays lit, lower
the input level.
Integral power consumption refers to the sum of power provided to the speaker driver per unit time.
Floor monitor system
This system is suitable for a performer’s monitoring system. For use as a vocal monitor, set the [D-CONTOUR] switch to [MONITOR].
If necessary, you can additionally connect up to four speakers in parallel. In this case we recommend that the signal is input to CH1 and the output switch is set to [CH1 THRU].
7 [SIGNAL] indicator
Indicates (lit in green) when an audio input signal exceeds the minimum threshold.
8 [PROTECTION] indicator
Indicates (lit in red) when the protection circuit is active. The protection circuit will be activated and the
speaker outputs will be muted in the situations listed below.
• If amplifier overheating is detected
• If overcurrent is detected
• When turning the power on; the protection circuit will be activated for a few seconds to prevent noise.
The indicator turns off when the power supply has started normally.
If the protection circuit has engaged, waiting until the amplifier cools down or powering off and on again
will return to normal operation. If the unit does not return to normal operation, please contact your Yamaha
9 [POWER] indicator
Indicates (lit in green) when the [ / ] (power) (E) switch is turned on.
0 [D-CONTOUR] indicator
Indicates (lit in yellow) when the [D-CONTOUR] switch (A) is set to [FOH/MAIN] or [MONITOR].
A [D-CONTOUR] switch
Selects one of the D-CONTOUR (Dynamic CONTOUR) presets.
[FOH/MAIN]: Boosts the high and low frequency components so that the frequency response is suitable
for a main speaker.
[MONITOR]: Reduces the low frequency range, which could otherwise tend to be boomy if the speaker is
set directly on the floor. This enables you to hear mid and high frequency ranges clearly when using as a
floor monitor.
[OFF]: Turns off D-CONTOUR. This is a generic frequency response setting.
B [HPF] switch
Selects the cutoff frequency of the high pass filter. If you set this switch to [120Hz] or [100Hz], the low
frequency components below each threshold will be cut. If you use the unit alone, set this switch to [OFF].
If you plan to use the unit along with a subwoofer, we recommend that you set this switch to [120Hz] or
C Vent
The unit contains a cooling fan. Since the air for cooling is taken in and expelled here, be careful not to
block this vent.
D [AC IN] socket
Connect the supplied power cord here. First connect the power cord to the unit, then plug it into an
appropriate AC power outlet.
To next speaker
Possible causes
Possible solution
The power cord is not connected properly.
Connect the power cord all the way in so that it is firmly in place.
Power suddenly went off.
The protection system has been activated, shutting
down the power supply.
Turn off the power, wait until the amplifier cools down, and then turn on again.
No Sound.
The cable is not connected properly.
Connect the cable all the way in so that it is firmly in place.
] (power) switch
Turns power to the unit on [ ] or off [ ]. First, turn on the power of the connected sound source (external
device), then the unit. When turning off the power, reverse the order by turning off the power of the unit first
and then the connected sound source (external device).
Sound is interrupted suddenly.
The protection circuit has been activated, muting the
Wait until the amplifier cools down. If the unit won’t automatically reset itself, turn off the power, and then on
Sound howls (feedback).
A microphone is directed toward the speaker.
Aim the speaker away from the area where the microphone picks up sound.
Sound is amplified too much.
Lower the volume of input device and locate the microphone more closely to the sound source.
Even when the switch is in the off position, a small amount of electricity is still flowing to the unit. If it will not be used for an
extended period of time, therefore, be sure to unplug the power cord from the wall AC outlet.
Each speaker sound differs (if multiple speakers are
Settings for each speaker differ.
Set the [HPF] switch and [D-CONTOUR] switch of each speaker to the same positions.
Sound is
The [LIMIT] indicator is off.
Input volume is excessive.
When the [MIC/LINE] switch is set to [MIC], and even if you lower the volume fully the sound is still distorted,
set the switch to the [LINE] position. If the sound is still distorted even if the switch has been set to [LINE],
lower the volume of the connected input devices.
The [LIMIT] indicator is on.
Output volume is excessive.
Turn the [LEVEL] knob to lower the output level to a point so that the [LIMIT] indicator lights only occasionally.
The microphone volume is too low.
The [MIC/LINE] switch is set to [LINE].
Set the [MIC/LINE] switch to the [MIC] position.
Low and high frequency are unbalanced.
The output limiter is active.
Lower the input level or the output level until the [LIMIT] indicator lights occasionally.
E[ /
Set to [CH1 THRU]
Power does not turn on.
Turn off the power before you connect or disconnect the power cord.
Set to [CH1 THRU]
• Rapidly turning the unit on and off in succession can cause it to malfunction. After turning the unit off, wait for
about 5 seconds before turning it on again.
• If you are using multiple units, turn on the power to each unit one by one. If you turn on the power to multiple
units simultaneously, a temporary drop in the power voltage may occur, possibly resulting in abnormal operation
of the units.
F Screw holes (M8)
Use these M8 size screw holes for installing separately sold brackets or commercially available eye bolts.
G Pole socket
This socket adapts to commercially available speaker stands and speaker poles of 35 mm diameter.
If any specific problem should persist, however, please contact your Yamaha dealer.
Installation Examples
• Before doing any installation or construction work, consult with your Yamaha dealer.
• For optimum safety, the installation should be checked thoroughly at regular intervals. Some fittings may deteriorate
over extended periods of time due to wear and/or corrosion.
• When choosing the installation location, suspension wire and mounting hardware, make sure all are strong enough to
support the weight of the speaker.
• Make sure to take measures to prevent the speaker from falling down in the event of a installation failure.
• When installing the safety wire to the wall, install it higher than the wire’s attachment point on the speaker, with as little
slack as possible. If the wire is too long, and the speaker happens to fall, the wire may snap as a result of too much
Pullback point (only for DBR15 and DBR12)
Attach the bracket to two screw holes at the bottom of the unit using commercially available screws
• Insert the screw or eye bolt through the
washer to attach them.
Upper rear of the unit
Apply thread-locking
Pullback point
(M8 screw hole)
Installation using eye bolts
Attach commercially-available eye bolts (M8 x 15 mm) to the screw holes located at the bottom (two locations)
and on the upper rear (one location, only for DBR15 and DBR12). Keep in mind that you will need two points
at the bottom to suspend the unit.
Note Make sure to use eye bolts according to the standards and safety regulations in your area.
Using the BWS251-300 or BWS251-400 wall mounting
M8 eye bolt
The tilt angle depends on the position relation between the speaker
and the wall. The maximum downward tilt angle is shown in the
following chart.
Maximum tilt angle
(Pullback point for
DBR15 and DBR12 only)
Max. 45°
Maximum tilt
The strength of an eye bolt differs depending on the suspension angle. Make sure to use eye bolts within a
range of 0 to 45 degrees from a right angle (as shown).
Within 45° from a right angle
Using the BCS251 ceiling bracket
Max. 45°
(Pullback point for DBR15
and DBR12 only)
Max. 45°
Incorrect: Do not suspend the eye bolts as shown in the illustrations below.
Only one suspension point
More than 45° from a right angle
More than 45°
More than 45°
Max. 45°
Note In order to prevent the unit from falling down, attach the safety wire as
shown in the illustration.
General Specifications
System Type
2-way, Bi-amp Powered Speaker, Bass-reflex Type
Frequency Range (-10dB)
49 Hz–20 kHz
Coverage Angle (Horizontal x Vertical)
H90° x V60° Constant Directivity Horn
Measured Maximum SPL (Peak) IEC Noise@1m
Power Rating
Power Consumption
52 Hz–20 kHz
55 Hz–20 kHz
132 dB SPL
131 dB SPL
129 dB SPL
2.1 kHz
2.1 kHz
1000 W (LF: 800 W, HF: 200 W)
325 W (LF: 260 W, HF: 65 W)
60 W
15" Cone, 2.5" Voice Coil
1.4" Voice Coil, Compression Driver
12" Cone, 2" Voice Coil
10" Cone, 2" Voice Coil
1" Voice Coil, Compression Driver
Dimensions (WxHxD, Including Rubber Feet)
455 x 700 x 378 mm (17.9" x 27.6" x 14.9")
376 x 601 x 348 mm (14.8" x 23.7" x 13.7")
308 x 493 x 289 mm (12.1" x 19.4" x 11.4")
Net Weight
19.3 kg (42.6 lbs)
15.8 kg (34.8 lbs)
10.5 kg (23.2 lbs)
Side x 2
Pole Socket
φ35 mm Bottom x 1
Rigging Points
Bottom x 2, Rear x 1 (Fit for M8 x 15 mm)
I/O Connectors
Top x 1
Bottom x 2 (Fit for M8 x 15 mm)
BBS251, BCS251, BWS251-300, BWS251-400
Optional Speaker Brackets
hazards. These precautions include, but are not limited
to, the following:
Power supply/power cord
• Do not place the power cord near heat sources such
as heaters or radiators, and do not excessively bend or
otherwise damage the cord, place heavy objects on it,
or place it in a position where anyone could walk on, trip
over, or roll anything over it.
• Only use the voltage specified as correct for the device.
The required voltage is printed on the name plate of the
• Use only the supplied power cord/plug.
• Check the electric plug periodically and remove any dirt
or dust which may have accumulated on it.
• Be sure to connect to an appropriate outlet with a
protective grounding connection. Improper grounding
can result in electrical shock, damage to the device(s), or
even fire.
Do not open
• This device contains no user-serviceable parts. Do not
open the device or attempt to disassemble the internal
parts or modify them in any way. If it should appear to be
malfunctioning, discontinue use immediately and have it
inspected by qualified Yamaha service personnel.
Water warning
• Do not expose the device to rain, use it near water or in
damp or wet conditions, or place on it any containers
(such as vases, bottles or glasses) containing liquids
which might spill into any openings. If any liquid such
as water seeps into the device, turn off the power
immediately and unplug the power cord from the AC
outlet. Then have the device inspected by qualified
Yamaha service personnel.
• Never insert or remove an electric plug with wet hands.
Fire warning
• Do not put burning items, such as candles, on the unit.
A burning item may fall over and cause a fire.
If you notice any abnormality
• When one of the following problems occur, immediately
turn off the power switch and disconnect the electric
plug from the outlet. Then have the device inspected by
Yamaha service personnel.
– The power cord or plug becomes frayed or damaged.
– It emits unusual smells or smoke.
– Some object has been dropped into the device.
– There is a sudden loss of sound during use of the
• If this device should be dropped or damaged,
immediately turn off the power switch, disconnect
the electric plug from the outlet, and have the device
inspected by qualified Yamaha service personnel.
Always follow the basic precautions listed below to
avoid the possibility of physical injury to you or others,
or damage to the device or other property. These
precautions include, but are not limited to, the following:
Power supply/power cord
• When removing the electric plug from the device or an
outlet, always hold the plug itself and not the cord. Pulling
by the cord can damage it.
• Remove the electric plug from the outlet when the device
is not to be used for extended periods of time, or during
electrical storms.
• Do not place the device in an unstable position where it
might accidentally fall over.
• Do not block the vents. This device has ventilation holes at
the rear to prevent the internal temperature from becoming
too high. In particular, do not place the device on its
side or upside down. Inadequate ventilation can result in
overheating, possibly causing damage to the device(s),
or even fire.
• When installing the device:
– Do not cover it with any cloth.
– Do not install it on a carpet or rug.
– Do not use the device in a confined, poorly-ventilated
Inadequate ventilation can result in overheating, possibly
causing damage to the device(s), or even fire. Make sure
that there is adequate space around the device: at least
30cm above, 30cm at the sides and 30cm behind.
• Do not use the speaker’s handles for suspended
installation. Doing so can result in damage or injury.
• Do not hold the bottom of the device when transporting or
moving it. In doing so, you may pinch your hands under
the device, and result in injury.
• Do not press the rear panel of the device against the wall.
Doing so may cause the plug to come in contact with the
wall and detach from the power cord, resulting in short
circuiting, malfunction, or even fire.
Yamaha cannot be held responsible for damage caused
by improper use or modifications to the device, or data
that is lost or destroyed.
To avoid the possibility of malfunction/ damage to the
product, damage to data, or damage to other property,
follow the notices below.
Handling and maintenance
• Do not expose the device to excessive dust or vibration,
or extreme cold or heat (such as in direct sunlight, near a
heater, or in a car during the day), in order to prevent the
possibility of panel disfiguration, unstable operation, or
damage to the internal components.
• Do not place vinyl, plastic or rubber objects on the device,
since this might discolor the panel.
• When cleaning the device, use a dry and soft cloth. Do not
use paint thinners, solvents, cleaning fluids, or chemicalimpregnated wiping cloths.
• Condensation can occur in the device due to rapid,
drastic changes in ambient temperature—when the device
is moved from one location to another, or air conditioning
is turned on or off, for example. Using the device while
condensation is present can cause damage. If there is
reason to believe that condensation might have occurred,
leave the device for several hours without turning on the
power until the condensation has completely dried out.
• When turning on the AC power in your audio system,
always turn on the device LAST, to avoid speaker
damage. When turning the power off, the device should
be turned off FIRST for the same reason.
• Interference From Cell Phones
Using a cell phone near the speaker system can induce
noise. If this occurs, move the cell phone further away
from the speaker system.
• Air blowing out of the bass reflex ports is normal, and
often occurs when the speaker is handling program
material with heavy bass content.
• Always turn the power off when the device is not in use.
• XLR-type connectors are wired as follows (IEC60268
standard): pin 1: ground, pin 2: hot (+), and pin 3: cold (-).
This product, when installed as indicated in the
instructions contained in this manual, meets FCC
requirements. Modifications not expressly approved
by Yamaha may void your authority, granted by the
FCC, to use the product.
2. IMPORTANT: When connecting this product to
accessories and/or another product use only high
quality shielded cables. Cable/s supplied with
this product MUST be used. Follow all installation
instructions. Failure to follow instructions could void
your FCC authorization to use this product in the
3. NOTE: This product has been tested and found
to comply with the requirements listed in FCC
Regulations, Part 15 for Class “B” digital devices.
Compliance with these requirements provides a
reasonable level of assurance that your use of
this product in a residential environment will not
result in harmful interference with other electronic
devices. This equipment generates/uses radio
frequencies and, if not installed and used according
to the instructions found in the users manual, may
cause interference harmful to the operation of
other electronic devices. Compliance with FCC
regulations does not guarantee that interference
will not occur in all installations. If this product is
found to be the source of interference, which can
be determined by turning the unit “OFF” and “ON”,
please try to eliminate the problem by using one of
the following measures:
Relocate either this product or the device that is
being affected by the interference.
Utilize power outlets that are on different branch
(circuit breaker or fuse) circuits or install AC line
In the case of radio or TV interference, relocate/
reorient the antenna. If the antenna lead-in is 300
ohm ribbon lead, change the lead-in to co-axial type
If these corrective measures do not produce
satisfactory results, please contact the local retailer
authorized to distribute this type of product. If
you can not locate the appropriate retailer, please
contact Yamaha Corporation of America, Electronic
Service Division, 6600 Orangethorpe Ave, Buena
Park, CA90620
The above statements apply ONLY to those
products distributed by Yamaha Corporation of
America or its subsidiaries.
(3 wires)
* This applies only to products distributed by YAMAHA
(class B)
For details of products, please contact your nearest Yamaha representative or the authorized distributor listed below.
2.1 kHz
465 W (LF: 400 W, HF: 65 W)
• Do not place the device in a location where it may come
into contact with corrosive gases or salt air. Doing so may
result in malfunction.
• Before moving the device, remove all connected cables.
• When setting up the device, make sure that the AC outlet
you are using is easily accessible. If some trouble or
malfunction occurs, immediately turn off the power switch
and disconnect the plug from the outlet. Even when the
power switch is turned off, electricity is still flowing to the
product at the minimum level. When you are not using the
product for a long time, make sure to unplug the power
cord from the wall AC outlet.
• Always consult qualified Yamaha service personnel if the
device installation requires construction work, and make
sure to observe the following precautions.
– Choose mounting hardware and an installation location
that can support the weight of the device.
– Avoid locations that are exposed to constant vibration.
– Use the required tools to install the device.
– Inspect the device periodically.
• Before connecting the device to other devices, turn off the
power for all devices. Before turning the power on or off
for all devices, set all volume levels to minimum.
• Remove the power plug from the AC outlet when cleaning
the device.
Handling caution
• Do not insert your fingers or hands in any gaps or
openings on the device (vents, etc.).
• Avoid inserting or dropping foreign objects (paper,
plastic, metal, etc.) into any gaps or openings on the
device (vents, etc.) If this happens, turn off the power
immediately and unplug the power cord from the AC
outlet. Then have the device inspected by qualified
Yamaha service personnel.
• Do not rest your weight on the device or place heavy
objects on it, and avoid use excessive force on the
buttons, switches or connectors.
• Do not use the device for a long period of time at a high
or uncomfortable volume level, since this can cause
permanent hearing loss. If you experience any hearing
loss or ringing in the ears, consult a physician.
• Do not operate the device if the sound is distorting.
Prolonged use in this condition could cause overheating
and result in fire.
• Do not pull the cables connected to the microphones, etc.
Connecting the Plug and Cord
IMPORTANT. The wires in this mains lead are coloured
in accordance with the following code:
As the colours of the wires in the mains lead of this
apparatus may not correspond with the coloured
markings identifying the terminals in your plug
proceed as follows:
The wire which is coloured GREEN-and-YELLOW
must be connected to the terminal in the plug which is
marked by the letter E or by the safety earth symbol
or colored GREEN or GREEN-and-YELLOW.
The wire which is coloured BLUE must be connected
to the terminal which is marked with the letter N or
coloured BLACK.
The wire which is coloured BROWN must be
connected to the terminal which is marked with the
letter L or coloured RED.
700 W (LF: 500 W, HF: 200 W)
74 W
Please keep this manual in a safe place for future
Using the BBS251 baton bracket
Baton diameter
φ 34 - φ 51
Always follow the basic precautions listed below to
avoid the possibility of serious injury or even death from
Yamaha cannot be held responsible for damage or injury caused by insufficient strength of the support
structure or improper installation.
Installation using separately sold Yamaha speaker
Securing the screws and eye
• When the unit is shipped from the factory, a seal is stuck
on the pullback point (screw hole). Make sure to peel off
the seal when using the pullback point.
• The DBR10 does not have a pullback point.
INPUT1: Combo x1, INPUT2: Combo x 1 + RCA-pin x 2
Information for Users on Collection and Disposal of Old Equipment
This symbol on the products, packaging, and/or accompanying documents means that used electrical
and electronic products should not be mixed with general household waste.
For proper treatment, recovery and recycling of old products, please take them to applicable collection
points, in accordance with your national legislation and the Directives 2002/96/EC.
By disposing of these products correctly, you will help to save valuable resources and prevent any
potential negative effects on human health and the environment which could otherwise arise from
inappropriate waste handling.
For more information about collection and recycling of old products, please contact your local
municipality, your waste disposal service or the point of sale where you purchased the items.
[For business users in the European Union]
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for
further information.
[Information on Disposal in other Countries outside the European Union]
This symbol is only valid in the European Union. If you wish to discard these items, please contact your
local authorities or dealer and ask for the correct method of disposal.
Şş İ
XLR3-32 x 1 (CH1 Paralell Through or CH1+CH2 Mix)
Input Sensitivity (Level: Center)
INPUT1: LINE: +10 dBu, MIC: -22 dBu, INPUT2: +10 dBu
Maximum Input Level
INPUT1: LINE: +24 dBu, MIC: -8 dBu, INPUT2: +24 dBu
0 dBu is referenced to 0.775 Vrm
Specifications and descriptions in this owner’s manual are for information purposes only. Yamaha Corp. reserves the right to change or modify products or specifications at any time without prior notice. Since specifications,
equipment or options may not be the same in every locale, please check with your Yamaha dealer.
In Finland: Laite on liitettävä suojamaadoituskoskettimilla
varustettuun pistorasiaan.
In Norway: Apparatet må tilkoples jordet stikkontakt.
In Sweden: Apparaten skall anslutas till jordat uttag.
이 기기는 가정용(B급) 전자파적합기기로서 주로 가정에서
사용하는 것을 목적으로 하며, 모든 지역에서 사용할 수
(class b korea)
(class I hokuo)
Yamaha Pro Audio global web site
Yamaha Downloads
© 2014 Yamaha Corporation
Published 02/2023
Was this manual useful for you? Yes No
Thank you for your participation!

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project

Download PDF
