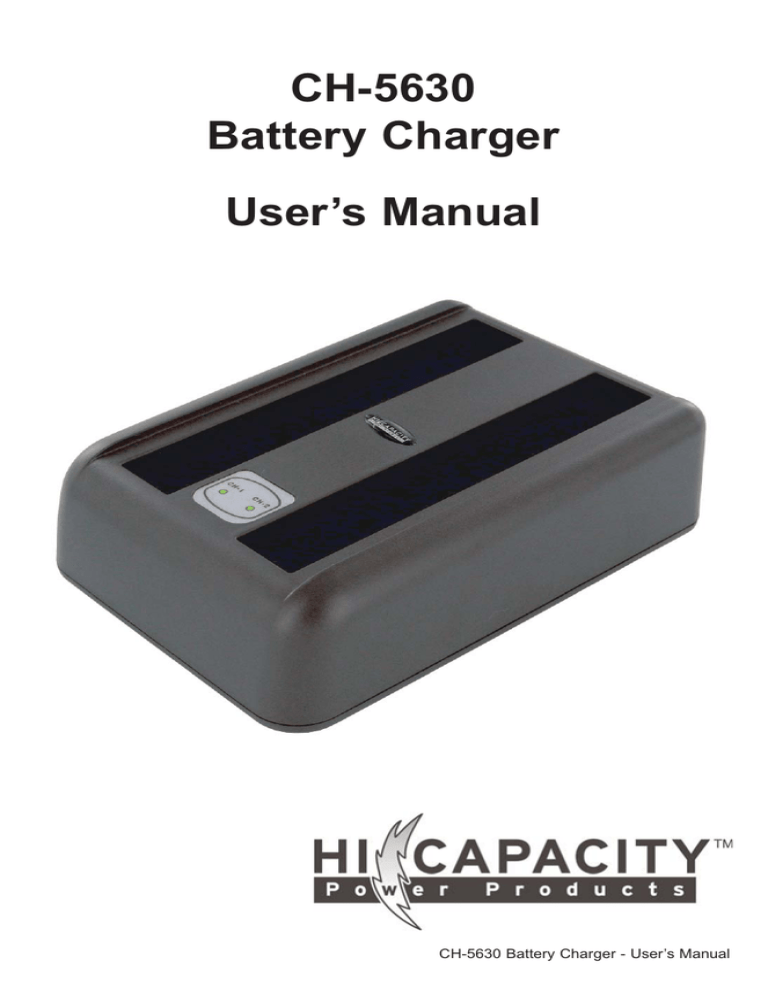

CH-5630
Battery Charger
User’s Manual
CH-5630 Battery Charger - User’s Manual
1. Introduction
This advanced battery charger is designed to charge the Dell 75UYF, 1691P, 5081P and
other Dell C series notebook battery packs. It provides an excellent way of charging
these battery packs safely and conveniently outside of the notebook. The charger has
two bays and is capable of charging two battery packs sequentially. An LED display in
each bay provides information on the charging status.
2. Safety Instructions
This battery charger is designed and built to the highest safety standards and will protect
the user from shock and other hazards when used as directed. The charger contains
high voltage circuits; it is therefore important for users to read the following instructions
carefully.
•
Do not attempt to charge non-rechargeable batteries like alkaline, carbon-zinc, or
non-rechargeable lithium.
•
Remove all batteries from the charger before plugging the AC adapter into the wall
socket.
•
Make sure battery contacts are clean and there is no debris in the charger.
•
Do not short-circuit the charger's contacts with metal objects.
•
Use only with the AC adapter provided.
•
Make sure the battery is placed tightly in the bay to ensure a good connection.
•
Pay attention to the charging status LED and discontinue charging if it shows an
error signal (refer to section 3.3).
•
Always store the charger in a cool and dry place.
3. Operation
3.1. To power the battery charger, connect the DC tip into the back of the charger and
plug the AC connector of the adapter into a properly grounded outlet. Both LEDs will
blink red only once, indicating that the charger is ready to use.
3.2. Insert a battery pack into either bay to begin charging. If two batteries are inserted,
the second battery will begin charging after the first battery has completed charging.
The battery's charging time will vary according to its charge status and capacity.
www.Hi-Capacity.com - CH-5630
3.3. LED Status
LED state
Solid Red
Solid Green
Blinking Red
Meaning
Charging
Fully Charged. Charging is complete
* Pack voltage < 10V OR Pack temperature> 117.5ºF (47.5°C) OR
Constant charging time for one battery > 120mins (Remove and
re-insert to confirm)
* Note: The continuously blinking red LED indicates that one of the above fault conditions may exist. First remove the battery from the charger bay and re-insert it to confirm
that a fault condition exists. While the LED is blinking red, the charger is not charging the
battery. If the LED continues to blink red, remove the battery from the charger bay and
disconnect the AC power from the charger.
4. Certification
This battery charger complies with part 15 of the FCC rules.
5. Specifications
Charging Rate: 2.6A Max. per bay
Charging Time: 1.5~2.5 hours per battery
Power Requirement: 20V, 3.6A Max, 72W AC/DC Adapter
Operating Temperature: 32 – 104ºF (0 – 40ºC)
Safety Protection: Over-temperature /current/voltage protection
Physical Dimensions: 6.7 x 4.7 x 2.2 inches (170x120x55mm)
6. Warranty
This battery charger is guaranteed for one year from the date of purchase against
defects in materials and workmanship. If the charger develops such a defect during the
warranty period the charger will be repaired or replaced at manufacturer's option. This
warranty does not cover damage caused by misuse and everyday wear and tear.
Defective chargers should be returned to the dealer from which they were purchased.
Under no circumstances will the manufacturer be liable for any of the following: loss or
damage to personal property; any damage caused to the charger by repair attempts not
authorized by manufacturer; any other incidental or consequential damages caused by
the user or improper use of this product.
