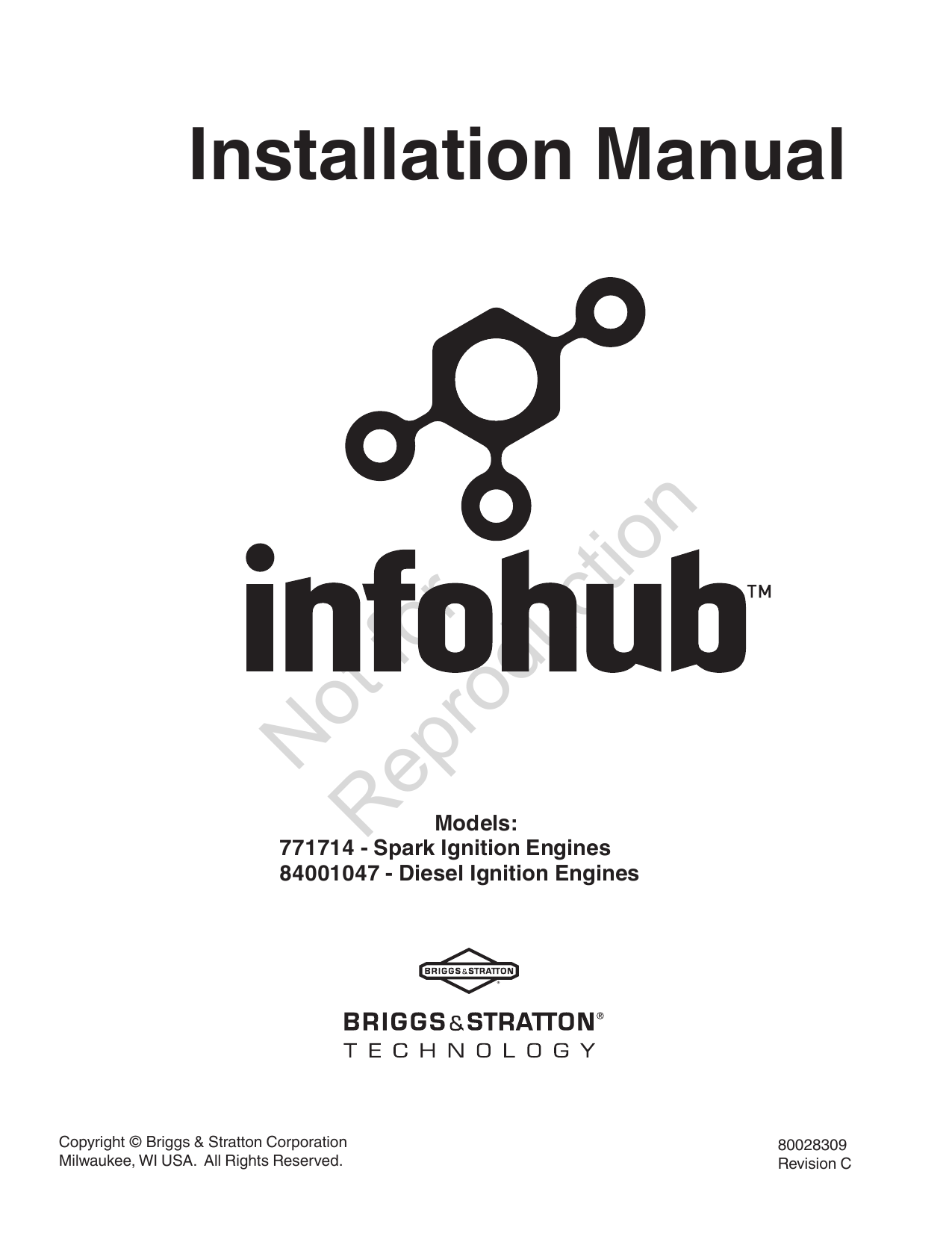

Simplicity INFOHUB COMMERCIAL TURF Installation Manual

N
o
R tf
ep o
r
ro
du
ct
io
n
Installation Manual
Models:
771714 - Spark Ignition Engines
84001047 - Diesel Ignition Engines
Copyright © Briggs & Stratton Corporation
Milwaukee, WI USA. All Rights Reserved.
80028309
Revision C
Contents
Registration and Activation.........................................2
Minimum System Requirements - User Portal............3
Service Parts..............................................................3
Installation: Spark Ignition Engines ............................4
Installation: Diesel Ignition Engines............................4
InfoHub™ LEDS..........................................................5
Global Position System (GPS) Capabilities................5
FCC User Information.................................................5
Warranty Information..................................................6
Registration and Activation
Access the InfoHub™ Portal at www.infohubct.com. New
users will need to purchase a subscription by selecting the
“New User & Module Registration” link at the
www.infohubct.com login screen. Existing users wishing to
update subscriptions with additional modules are required
to do so by selecting the “New User & Module Registration”
link at the www.infohubct.com login screen as well.
You will be required to read and comply with the InfoHub
Subscription Service Agreement prior to activation of the
subscription, and the Terms of Use and Privacy Policy prior
to accessing the InfoHub portal.
Visit www.turf.briggsinfohub.com to preview those policies.
For registration and activation support, call the InfoHub
support team at 1-833-463-6482.
Always read the engine and equipment manual(s) before
starting, operating, or servicing your engine or equipment
to avoid personal injury.
WARNING
CAUTION
Allow the machine to cool before installation.
WARNING
This product can expose you to chemicals including used
engine oil, which is known to the State of California to
cause cancer, and carbon monoxide, which is known
to the State of California to cause birth defects or other
reproductive harm. For more information go to
www.P65Warnings.ca.gov.
2
NOTICE: For new account holders, InfoHub Portal login
details for www.infohubct.com will be sent to the email
address referenced when creating a new subscription.
N
o
R tf
ep o
r
ro
du
ct
io
When removing or installing battery cables, disconnect the
negative cable FIRST and reconnect it LAST. If not done in this
order, the positive terminal can be shorted to the frame by a tool.
Prior to installation, record the InfoHub and Equipment
information in the tables below. The ESN and P/N
are required to establish a new or update an existing
subscription. All information is required to correctly assign
the proper module to the proper piece of equipment in the
InfoHub portal.
n
WARNING
InfoHub
ESN:
P/N:
Equipment ID:
Equipment
Brand:
Equipment Type:
Model Number:
Serial Number:
Current Hours:
www.infohubct.com
Minimum System Requirements User Portal
Supported Browsers and Versions
•
•
•
•
•
Chrome - Version 59.0+
Firefox - Version 54.0+
Safari - Version 10.0+
IE - Version 11.0+
Edge - Version 15.0+
•
1280 x 720
•
Intel® Core™ i3 or equivalent
•
Internet access
Service Parts
InfoHub™ Module, (Qty. 1)
Part #771716
Minimum Display Resolution
Computer Requirements
•
4GB of RAM
Special Settings
Pop-ups are required for reporting.
URL used for iFrame tool must support iFrames.
N
o
R tf
ep o
r
ro
du
ct
io
n
•
•
Sensor Harness - Spark Ignition Engines, (Qty. 1)
Part #771715
Sensor Harness - Diesel Ignition Engines, (Qty. 1)
Part # 84001048
1-Amp Fuse, (Qty. Pack of 5)
Part #771811
NOTICE Use only the 1-amp fuse specified above, or
equivalent.
www.infohubct.com
3
Install the InfoHub™ system according to the instructions
below. Make sure to follow the instructions completely
before use. Save these instructions for future reference.
Instructions are also available on
www.briggsinfohub.com/support.html. If you need
assistance with installation, call 1-833-463-6482.
1. Find a suitable mounting location within harness length of
the battery for the InfoHub module (A, Figure 1). For optimal
GPS signal, make sure that the label on the module faces
down while maximizing the line of sight of the module to
the sky. Make sure that the LEDs (inset, Figure 1) can be
easily seen. The LEDs indicate the status of the InfoHub
hardware.
NOTICE: When cleaning the equipment, do not pressure
wash the InfoHub module. Instead, clean the module by
hand.
NOTICE: Make sure that the module will not interfere with
equipment that could cause damage to the device or wire harness.
2. Locate a switched ignition power source on the
equipment. Sensor requires a 5-30VDC signal input
when the engine is running. Recommended sources
include the fuse panel, the ignition switch, fuel shut off
solenoid, or fuel pump.
3. Install appropriate terminal end (ring terminal, fuse tap,
crimp) to the white wire on the diesel sensor, using care
to only attach to the white wire. Do not alter the areas of
the sensor that are in heat shrink or sheathed (the sensor
area outside of the 22ga. wire shown in the image below
(C, Figure 2)).
4. Attach the diesel harness to the vehicle system then
use plastic tie straps to fasten the sensor harness to the
engine harness or other suitable mounting location so
that the harness is protected from being pulled from its
connection.
5. Coil excess length of sensor harness and secure using
plastic tie wraps.
6. Connect the 8-pin connector on the sensor harness to
the 8-pin connector on the module harness.
7. Connect the ring terminals to the 12-VDC battery posts.
Connect the red wire
to the positive battery
terminal (+). Then,
connect the black wire
to the negative battery
terminal (-). To prevent
snagging or chafing of
the wires, use plastic tie
wraps.
NOTICE: DO NOT reverse
the terminals while
connecting to the battery.
C
Reverse polarity conditions
could result in damage to
the sensor wire harness or
the fuse.
Figure 2
N
o
R tf
ep o
r
ro
du
ct
io
Install the InfoHub™ system according to the instructions
below. Make sure to follow the instructions completely
before use. Save these instructions for future reference.
Instructions are also available on
www.briggsinfohub.com/support.html. If you need
assistance with installation, call 1-833-463-6482.
1. Find a suitable mounting location within harness length of
the battery for the InfoHub module (A, Figure 1). For optimal
GPS signal, make sure that the label on the module faces
down while maximizing the line of sight of the module to
the sky. Make sure that the LEDs (inset, Figure 1) can be
easily seen. The LEDs indicate the status of the InfoHub
hardware.
NOTICE: When cleaning the equipment, do not pressure
wash the InfoHub module. Instead, clean the module by
hand.
NOTICE: Make sure that the module will not interfere with
equipment that could cause damage to the device or wire harness.
2. Tightly wind the red wire of the sensor wire harness
(B) around the spark plug wire at least three times.
3. With a plastic tie wrap, fasten the sensor harness to the
engine harness or other suitable mounting location so
that the red wire is protected from being pulled from the
spark plug wire.
4. Connect the 8-pin connector on the sensor harness to
the 8-pin connector on the module harness.
5. Connect the ring terminals to the 12-VDC battery posts.
Connect the red wire to the positive battery terminal (+).
Then, connect the black wire to the negative battery
terminal (-). To prevent snagging or chafing of the wires,
use plastic tie wraps.
NOTICE: DO NOT reverse the terminals while connecting
to the battery. Reverse polarity conditions could result in
damage to the sensor wire harness or the fuse.
Installation: Diesel Ignition
Engines
n
Installation: Spark Ignition
Engines
B
A
Figure 1
4
www.infohubct.com
Status LED lights (D, Figure 3) on the side of the InfoHub
module can provide valuable information about the
operation of the device.
D
Figure 3
LED Condition Green (GPS)
OFF*
GPS OFF
Slow Blink
Cannot acquire
(1x Per Second) GPS signal.
Fast Blink
Attempting to
(4x Per Second) acquire GPS
signal.
3 Blinks + 1
Pause
Not Applicable.
Solid
GPS Acquired.
Orange
(Communication)
Modem OFF
Cannot acquire communication signal.
Attempting to acquire
communication signal.
Registered, but no
inbound acknowledgment.
Communication
acquired.
* Under Normal conditions both the GPS &
Communications LED’s are off if the equipment has not
been moved or started for an extended period of time.
If the equipment is started and/or moved, both lights
should come on and indicate current state. If the lights
do not come on, power to the device has been lost. The
devices are configurable. The modem functionality and
LED status lights can be disabled. If your equipment is
in regular use, and the LEDs are not present when the
device is connected to your battery, please reference
www.infohubct.com or contact technical support to verify
configuration.
www.infohubct.com
The InfoHub™ system contains Global Position System
(GPS) capabilities. The GPS technology provides geolocation capabilities which can be used to identify the
specific location of a person operating equipment. The GPS
technology also enables geo-fencing capabilities which
enable triggering responses when the equipment enters
or leaves a particular area and can be used to identify a
person’s location relative to predetermined boundaries.
Certain federal and state laws, rules and regulations may
require you to notify employees, or other persons who you
permit to operate or use your equipment, that the equipment
contains the InfoHub system, and that the InfoHub system
collects information about their physical location.
FCC User Information
THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO
COMPLY WITH THE LIMITS FOR A CLASS B DIGITAL
DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.
THESE LIMITS ARE DESIGNED TO PROVIDE
REASONABLE PROTECTION AGAINST HARMFUL
INTERFERENCE IN A RESIDENTIAL INSTALLATION. THIS
EQUIPMENT GENERATES, USES AND CAN RADIATE
RADIO FREQUENCY ENERGY, AND IF NOT INSTALLED
AND USED IN ACCORDANCE WITH THE INSTRUCTIONS,
MAY CAUSE HARMFUL INTERFERENCE TO RADIO
COMMUNICATIONS. HOWEVER, THERE IS NO
GUARANTEE THAT INTERFERENCE WILL NOT
OCCUR IN A PARTICULAR INSTALLATION. IF THIS
EQUIPMENT DOES CAUSE HARMFUL INTERFERENCE
TO RADIO OR TELEVISION RECEPTION, WHICH CAN BE
DETERMINED BY TURNING THE EQUIPMENT OFF AND
ON, THE USER IS ENCOURAGED TO TRY TO CORRECT
THE INTERFERENCE BY ONE OR MORE OF THE
FOLLOWING MEASURES:
N
o
R tf
ep o
r
ro
du
ct
io
Should you need technical assistance, you may need to
provide the LED status information to customer support
(1-833-463-6482).
Under standard configurations, GPS and Communications
LED lights are enabled using the chart below.
Global Position System (GPS)
Capabilities
n
InfoHub™ LEDS
• REORIENT OR RELOCATE THE RECEIVING
ANTENNA.
• INCREASE THE SEPARATION BETWEEN THE
EQUIPMENT AND RECEIVER.
• CONNECT THE EQUIPMENT INTO AN OUTLET ON
A CIRCUIT DIFFERENT FROM THAT TO WHICH
THE RECEIVER IS CONNECTED.
• CONSULT THE DEALER OR AN EXPERIENCED
RADIO/TV TECHNICIAN FOR HELP.
5
Warranty Information
BRIGGS & STRATTON INTERNET CONNECTED PRODUCTS WARRANTY POLICY
LIMITED WARRANTY
Briggs & Stratton warrants that, during the warranty period specified below, it will repair or replace, free of charge, any part that is defective in material or workmanship or both.
Transportation, installation and removal charges for product submitted for repair or replacement under this warranty must be borne by purchaser. This warranty is effective for
and is subject to the time periods and conditions stated below. For warranty service, find the nearest Authorized InfoHub™ Service Dealer in our dealer locator map at www.turf.
briggsinfohub.com The purchaser must contact the Authorized InfoHub Service Dealer, and then make the product available to the Authorized Service Dealer for inspection and
testing.
THERE ARE NO OTHER EXPRESS WARRANTY OR IMPLIED WARRANTIES, INCLUDING THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR
PURPOSE, OR THAT USE OF THE PRODUCT WILL BE AVAILABLE UNINTERRUPTED, TIMELY, SECURE OR ERROR FREE. THE WARRANTY IS LIMITED TO
WARRANTY PERIOD LISTED BELOW, OR TO THE EXTENT PERMITTED BY LAW. LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES ARE EXCLUDED
TO THE EXTENT EXCLUSION IS PERMITTED BY LAW. Some states or countries do not allow limitations on how long an implied warranty lasts, and some states or
countries do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation and exclusion may not apply to you. This warranty gives you
specific legal rights and you may also have other rights which vary from state to state or country to country.**
WARRANTY PERIOD
Item
Accessory/Attachment
Consumer Use
Commercial Use
12 months
12 months
n
** In Australia - Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and
for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality
and the failure does not amount to a major failure. For warranty service, find the nearest Authorized Service Dealer in our dealer locator map at BRIGGSandSTRATTON.COM, or
by calling 1300 274 447, or by emailing or writing to [email protected], Briggs & Stratton Australia Pty Ltd, 1 Moorebank Avenue, NSW, Australia, 2170.
N
o
R tf
ep o
r
ro
du
ct
io
The warranty period begins on the date of purchase by the first retail or commercial consumer. “Consumer use” means personal residential household use by a retail consumer.
“Commercial use” means all other uses, including use for commercial, income producing or rental purposes. Once a product has experienced commercial use, it shall thereafter
be considered as a commercial use product for purposes of this warranty.
To ensure prompt and complete warranty coverage, register your product at the website shown above or at www.onlineproductregistration.com.
Save your proof of purchase receipt. If you do not provide proof of the initial purchase date at the time warranty service is requested, the manufacturing date of the product will
be used to determine the warranty period. Product registration is not required to obtain warranty service on Briggs & Stratton® products.
ABOUT YOUR WARRANTY
Warranty service is available only through participating Authorized InfoHub™ Service Dealers. Most warranty repairs are handled routinely, but sometimes requests for warranty
service may not be appropriate. This warranty covers only defects in materials or workmanship. It does not cover damage caused by improper installation, use or abuse, improper
maintenance or repair, or normal wear and tear.
Improper Use and Abuse - The proper, intended use of this product is described in the Installation Manual. Using the product in a way not described in the Installation Manual
or using the product after it has been damaged will not be covered under this warranty. Warranty coverage will also not be provided if the serial number on the product has been
removed or the product has been altered or modified in any way, or if the product has evidence of abuse such as impact damage or water/chemical corrosion damage.
Operating Conditions - Use of the internet connected product may be inhibited by inability to obtain and maintain a network connection, send or receive GPS, satellite or
wireless connections, electromagnetic interference, environmental or atmospheric conditions, cyber security attacks, or other conditions beyond our control. Respectively we
make no warranty concerning coverage or distance or conditions beyond our control of which inhibits usable signals transmitted and received by our product.
Improper Installation, Maintenance or Repair - This product must be installed and maintained according to the procedures and schedules provided in the Installation Manual,
and serviced or repaired using genuine Briggs & Stratton® parts or equivalent. Damage caused by improper installation, lack of maintenance or use of non-original parts is not
covered by this warranty.
Normal Wear and Tear - Like most mechanical devices, your product is subject to wear even when properly maintained. This warranty does not cover repairs when normal use
has exhausted the life of a part or the equipment. Maintenance and wear items such as filters, belts, cutting blades, and brake pads (except engine brake pads) are not covered
by this warranty due to wear characteristics alone, unless the cause is due to defects in materials or workmanship.
Other Exclusions - This warranty excludes damage due to accident, abuse, modifications, alterations, improper servicing, freezing or chemical deterioration. Attachments or
accessories that were not originally packaged with the product are also excluded. This warranty does not include used, reconditioned, second-hand, or demonstration equipment
or engines. This warranty also excludes failures due to acts of God and other force majeure events beyond the manufacturer’s control.
80028536 (Rev. A)
6
www.infohubct.com
N
o
R tf
ep o
r
ro
du
ct
io
n
This page was intentionally left blank
www.infohubct.com
7
N
o
R tf
ep o
r
ro
du
ct
io
n
This page was intentionally left blank
8
www.infohubct.com

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
