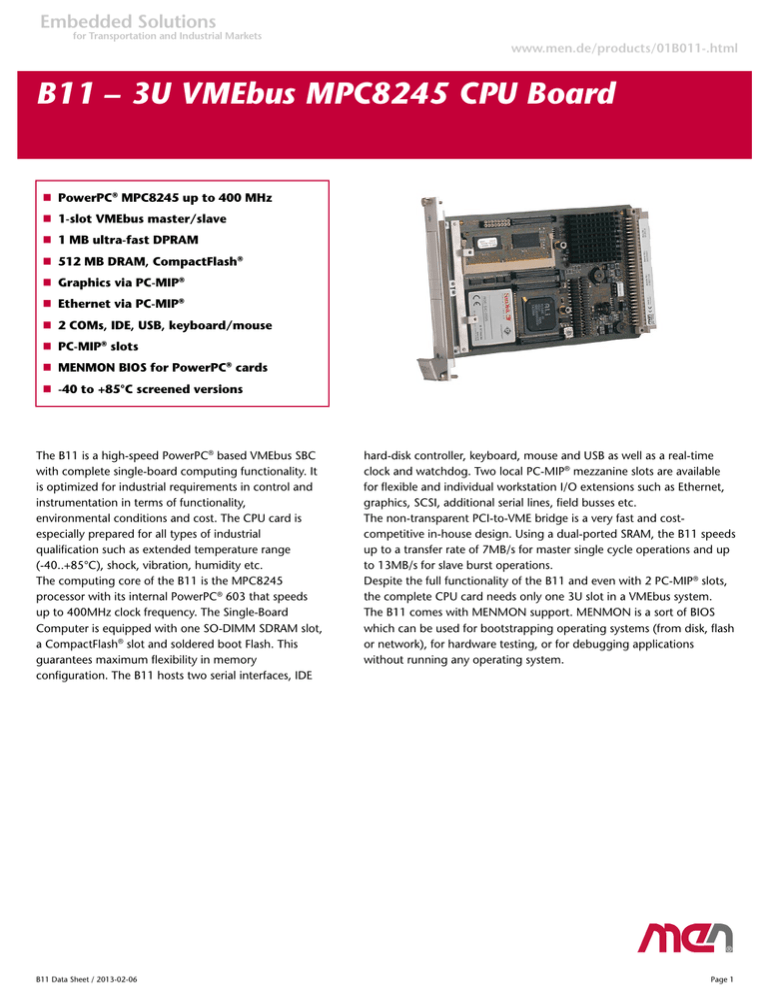

B11 – 3U VMEbus MPC8245 CPU Board
n PowerPC® MPC8245 up to 400 MHz
n 1-slot VMEbus master/slave
n 1 MB ultra-fast DPRAM
n 512 MB DRAM, CompactFlash®
n Graphics via PC-MIP®
n Ethernet via PC-MIP®
n 2 COMs, IDE, USB, keyboard/mouse
n PC-MIP® slots
n MENMON BIOS for PowerPC® cards
n -40 to +85°C screened versions
The B11 is a high-speed PowerPC® based VMEbus SBC
with complete single-board computing functionality. It
is optimized for industrial requirements in control and
instrumentation in terms of functionality,
environmental conditions and cost. The CPU card is
especially prepared for all types of industrial
qualification such as extended temperature range
(-40..+85°C), shock, vibration, humidity etc.
The computing core of the B11 is the MPC8245
processor with its internal PowerPC® 603 that speeds
up to 400MHz clock frequency. The Single-Board
Computer is equipped with one SO-DIMM SDRAM slot,
a CompactFlash® slot and soldered boot Flash. This
guarantees maximum flexibility in memory
configuration. The B11 hosts two serial interfaces, IDE
B11 Data Sheet / 2013-02-06
hard-disk controller, keyboard, mouse and USB as well as a real-time
clock and watchdog. Two local PC-MIP® mezzanine slots are available
for flexible and individual workstation I/O extensions such as Ethernet,
graphics, SCSI, additional serial lines, field busses etc.
The non-transparent PCI-to-VME bridge is a very fast and costcompetitive in-house design. Using a dual-ported SRAM, the B11 speeds
up to a transfer rate of 7MB/s for master single cycle operations and up
to 13MB/s for slave burst operations.
Despite the full functionality of the B11 and even with 2 PC-MIP® slots,
the complete CPU card needs only one 3U slot in a VMEbus system.
The B11 comes with MENMON support. MENMON is a sort of BIOS
which can be used for bootstrapping operating systems (from disk, flash
or network), for hardware testing, or for debugging applications
without running any operating system.
Page 1
Embedded Solutions
for Transportation and Industrial Markets
www.men.de/products/01B011-.html
Diagram
B11 Data Sheet / 2013-02-06
Page 2
Embedded Solutions
for Transportation and Industrial Markets
www.men.de/products/01B011-.html
Technical Data
CPU
n
PowerPC®
o MPC8245
o 300MHz
Memory
n
32KB L1 Cache integrated in MPC8245
Up to 256MB SDRAM system memory
o One 144-pin SO-DIMM slot for SDRAM modules
2MB Flash
Serial EEPROM 2KB for factory settings
CompactFlash® card interface
o Via onboard IDE
o Type I
o True IDE
n
n
n
n
Mass Storage
n
Fast IDE ports
o One IDE hard-disk/CD-ROM port via onboard connector
®
o One IDE port for local CompactFlash
I/O
n
USB
o One USB 1.1 port
o Accessible via I/O connector
o OHCI implementation
o Data rates up to 12Mbit/s
Two UARTs (COM1/COM2)
o Accessible via I/O connector
o Physical interface using SA-Adapter via 10-pin ribbon cable on I/O connector
o RS232..RS485, isolated or not: for free use in system (e.g. cable to front)
o 16-byte transmit/receive buffer
o Handshake lines: CTS, RTS; DCD, DSR, DTR; RI
PS/2 keyboard/mouse
o Accessible via I/O connector
n
n
Mezzanine Slots
n
Two PC-MIP® slots
®
o Compliant with PC-MIP specification
o Type I/II slots
Miscellaneous
n
Real-time clock
Watchdog and hardware monitor for onboard temperature control
Hex switch for user settings
n
n
Local PCI Bus
n
n
VMEbus
n
n
n
n
n
n
n
n
Electrical Specifications
n
n
B11 Data Sheet / 2013-02-06
32-bit/33-MHz, 3.3V V(I/O)
Compliant with PCI Specification 2.1
Slot-1 function with auto-detection
Master
o D08(EO):D16:A24:A16:RMW
o Transfer rate max. 7MB/s
Slave
o D08(EO):D16:A24:BLT
o Transfer rate max. 30MB/s
Interrupter D08(O):I(7-1):ROAK
Interrupt handler D08(O):IH(7-1)
Single level 3 fair requester / arbiter
Bus timer, arbitration timer
Utility functions
Supply voltage/power consumption:
o +5V (-3%/+5%), 6W
MTBF: 124,000h @ 50°C (derived from MIL-HDBK-217F)
Page 3
Embedded Solutions
for Transportation and Industrial Markets
www.men.de/products/01B011-.html
Technical Data
Mechanical Specifications
n
n
Environmental Specifications
Dimensions: standard single Eurocard, 100mm x 160mm
Weight: 138g
n
Temperature range (operation):
o 0..+60°C or -40..+85°C
o Airflow: min. 10m³/h
Temperature range (storage): -40..+85°C
Relative humidity range (operation): max. 95% non-condensing
Relative humidity range (storage): max. 95% non-condensing
Altitude: -300m to + 3,000m
Shock: 15g/11ms
Bump: 10g/16ms
Vibration (sinusoidal): 2g/10..150Hz
Conformal coating on request
Safety
n
PCB manufactured with a flammability rating of 94V-0 by UL recognized manufacturers
EMC
n
Tested according to EN 55022 (radio disturbance), IEC1000-4-2 (ESD) and IEC1000-4-4 (burst)
BIOS
n
MENMON
Software Support
n
Linux
VxWorks®
QNX®
OS-9®
For more information on supported operating system versions and drivers see Downloads.
n
n
n
n
n
n
n
n
n
n
n
n
B11 Data Sheet / 2013-02-06
Page 4
Embedded Solutions
for Transportation and Industrial Markets
www.men.de/products/01B011-.html
Configuration & Options
Standard Configurations
Article No.
CPU Type
Clock
System RAM
CFlash
Boot Flash
Operation
Temperature
01B011-00
MPC8245
300 MHz
0 MB
0 MB
2 MB
0..+60°C
01B011-01
MPC8245
300 MHz
0 MB
0 MB
2 MB
-40..+85°C
01B011-03
MPC8245
400 MHz
0 MB
0 MB
2 MB
0..+60°C
Options
CPU
n
n
Memory
n
n
n
Operation Temperature
n
n
Type
o MPC8245
Clock
o 300 MHz
o 400 MHz
System RAM
o 64 MB, 128 MB, 256 MB or 512 MB
CompactFlash®
o 0 MB up to maximum available
Boot Flash
o 2 MB
0..+60°C
-40..+85°C
Please note that some of these options may only be available for large volumes. Please ask our sales staff for more information.
B11 Data Sheet / 2013-02-06
Page 5
Embedded Solutions
for Transportation and Industrial Markets
www.men.de/products/01B011-.html
Ordering Information
Standard B11 Models
Memory
SA-Adapters
01B011-00
MPC8245/300MHz (from hardware rev. 01.xx), 2MB Flash, 0..+60°C
01B011-01
MPC8245/300MHz (from hardware rev. 01.xx), 2MB Flash, -40..+85°C screened
01B011-03
MPC8245/400MHz, 2MB Flash, 0..+60°C
0751-0045
CompactFlash® card, 4 GB, Type I, fixed bit set, -40..+85°C
0751-0055
CompactFlash® card, 8 GB, Type I, fixed bit set, -40..+85°C
0751-0060
CompactFlash® card, 16 GB, -40..+85°C
0751-0061
CompactFlash® card, 2 GB, Type I, fixed bit set, -40 to +85°C
0752-0031
256MB DRAM 0..+60°C for 01B011-00
0752-0210
256MB DRAM -40..+85°C for 01B011-01
You can find a more detailed overview of possible carrier board/SA-Adapter combinations along with
software support in our option matrix (PDF).
08SA01-00
RS232, not optically isolated, 0..+60°C
08SA01-03
For F1N/B11: RS232, not optically isolated, for direct mounting on CPU board, 0..+60°C
(N.B.: Standard adapters can only be mounted using MEN's mounting kit)
08SA02-00
RS422/485, half duplex, optically isolated, 0..+60°C
08SA02-01
RS422/485, full duplex, optically isolated, 0..+60°C
08SA02-07
RS422/485, full duplex, optically isolated, -40..+85°C screened
08SA03-00
1 RS232, optically isolated, 0..+60°C
08SA03-01
1 RS232, optically isolated, -40..+85°C screened
Systems & Card Cages
MEN delivers turn-key systems completely installed (hardware, operating system, accessories), wired and
tested. Different rack sizes, power supplies and backplanes on request.
For details please contact your local sales representative.
Software: Linux
This product is designed to work under Linux. See below for all available separate software packages.
This product is designed to work under ELinOS Embedded Linux by SYSGO. For more information and
product support please contact www.sysgo.com.
13Z014-90
Software: VxWorks®
This product is designed to work under VxWorks®. For details regarding supported/unsupported board
functions please refer to the corresponding software data sheets.
10F001N60
Software: QNX®
VxWorks® BSP (MEN) for A15, F1N, B11, A12, D3, SC13 and Kahlua Box
This product is designed to work under QNX®. For details regarding supported/unsupported board functions
please refer to the corresponding software data sheets.
10F001N40
B11 Data Sheet / 2013-02-06
Linux device driver (MEN) for PCI-to-VME bridge on A12, A13, A14, A15, A17, A19, A20,
A21B/A21C and B11
QNX® BSP (MEN) for F1N, B11, A12, A15, D3, SC13 and Kahlua Box
Page 6
Embedded Solutions
for Transportation and Industrial Markets
www.men.de/products/01B011-.html
Ordering Information
Software: OS-9®
Software: Firmware/BIOS
This product is designed to work under OS-9®. For details regarding supported/unsupported board functions
please refer to the corresponding software data sheets.
10F001N01
OS-9®(000) V.2.2/3.x BSP (object code, MEN) for F1N, B11, A12, D3, SC13 and Kahlua
Box
10F001N02
OS-9®(000) V4.2 BSP (object code, MEN) for F1N, B11, A12, A15, D3, SC13 and Kahlua
Box
MENMON is MEN's firmware/BIOS for PowerPC® platforms.
14B011-00
Software: Miscellaneous
MENMON (Firmware) for B11 (object code)
XiBase9, a graphical user interface for Linux and OS-9® from XiSys, is running on the MEN graphics controller
PC-MIP® and PMC modules P1, P17 and P517 in combination with the PowerPC®-based single-board
computers A11, A12, D3, F1N, B11 and SC13 (further SBCs on request). For more information, purchase and
support please go to www.xisys.de.
For operating systems not mentioned here contact MEN sales.
Documentation
Compare Chart 3U VMEbus CPU and I/O cards Download
20B011-00
B11 User Manual
21APPN003
Application Note: Using P1/P501 Graphics on MEN 824x/ALI boards under ELinOS
