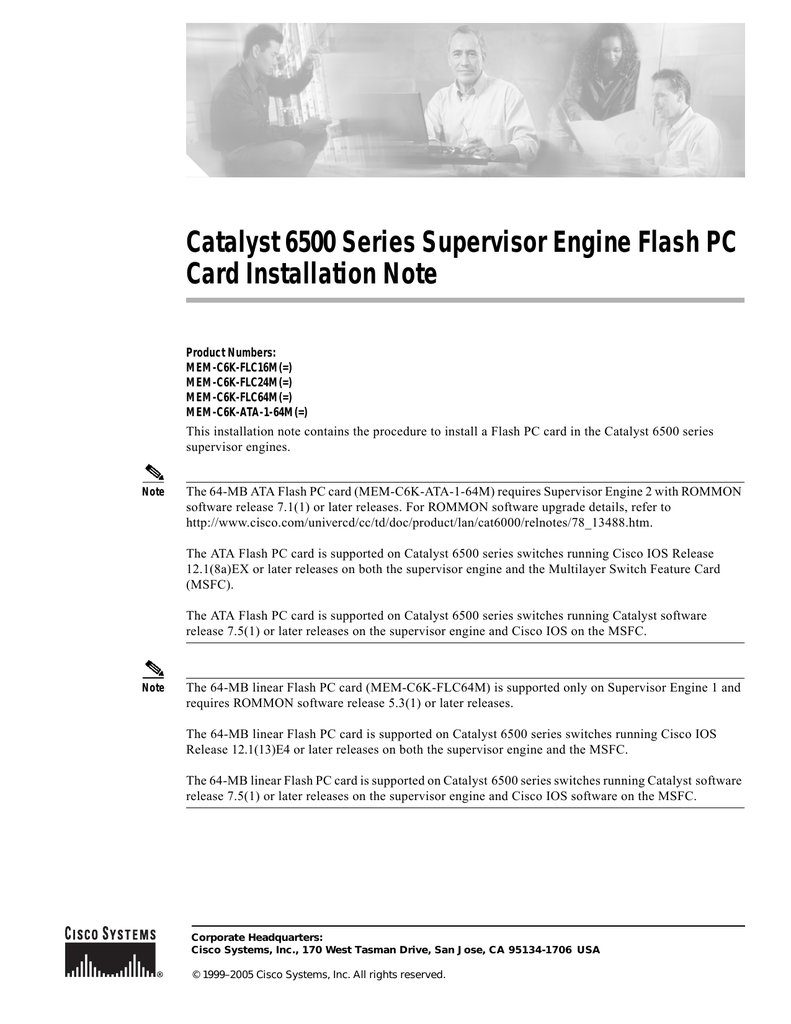

Catalyst 6500 Series Supervisor Engine Flash PC
Card Installation Note
Product Numbers:
MEM-C6K-FLC16M(=)
MEM-C6K-FLC24M(=)
MEM-C6K-FLC64M(=)
MEM-C6K-ATA-1-64M(=)
This installation note contains the procedure to install a Flash PC card in the Catalyst 6500 series
supervisor engines.
Note
The 64-MB ATA Flash PC card (MEM-C6K-ATA-1-64M) requires Supervisor Engine 2 with ROMMON
software release 7.1(1) or later releases. For ROMMON software upgrade details, refer to
http://www.cisco.com/univercd/cc/td/doc/product/lan/cat6000/relnotes/78_13488.htm.
The ATA Flash PC card is supported on Catalyst 6500 series switches running Cisco IOS Release
12.1(8a)EX or later releases on both the supervisor engine and the Multilayer Switch Feature Card
(MSFC).
The ATA Flash PC card is supported on Catalyst 6500 series switches running Catalyst software
release 7.5(1) or later releases on the supervisor engine and Cisco IOS on the MSFC.
Note
The 64-MB linear Flash PC card (MEM-C6K-FLC64M) is supported only on Supervisor Engine 1 and
requires ROMMON software release 5.3(1) or later releases.
The 64-MB linear Flash PC card is supported on Catalyst 6500 series switches running Cisco IOS
Release 12.1(13)E4 or later releases on both the supervisor engine and the MSFC.
The 64-MB linear Flash PC card is supported on Catalyst 6500 series switches running Catalyst software
release 7.5(1) or later releases on the supervisor engine and Cisco IOS software on the MSFC.
Corporate Headquarters:
Cisco Systems, Inc., 170 West Tasman Drive, San Jose, CA 95134-1706 USA
© 1999–2005 Cisco Systems, Inc. All rights reserved.
Contents
Contents
This installation note contains the following sections:
•
Supervisor Engine Flash PC Cards, page 2
•
Preventing Electrostatic Discharge Damage, page 3
•
Installing and Removing a Flash PC Card, page 3
•
Using Flash PC Cards, page 6
•
Additional Documentation, page 8
•
Obtaining Documentation, page 8
•
Documentation Feedback, page 9
•
Cisco Product Security Overview, page 9
•
Obtaining Technical Assistance, page 10
•
Obtaining Additional Publications and Information, page 12
Supervisor Engine Flash PC Cards
The supervisor engine Flash PC cards conform with the PCMCIA format. These models are available:
Note
•
16-MB MEM-C6K-FLC16M
•
24-MB MEM-C6K-FLC24M
•
64-MB MEM-C6K-FLC64M
•
MEM-C6K-ATA-1-64M
The 16-MB MEM-C6K-FLC16M and 24-MB MEM-C6K-FLC24M linear Flash PC cards are formatted
for the Catalyst 6500 series supervisor engines and are ready to use.
The MEM-C6K-ATA-1-64M and 64-MB MEM-C6K-FLC64M Flash PC cards are not formatted. You
must format these cards (See Table 1 on page 7 Commands for Using and Managing Flash DevicesTable 1for
a description of the format command.) When you enter the dir disk0: or dir slot0: commands, an
unformatted Flash PC card returns a “bad device block info” or “invalid magic number” error message.
Note
Supervisor Engine 1 and Supervisor Engine 2 do not support the same Flash PC card format. To use a
Flash PC card with Supervisor Engine 2, you must format the card with Supervisor Engine 2. To use a
Flash PC card with Supervisor Engine 1, you must format the card with Supervisor Engine 1.
You can use Flash PC cards to store and boot software images, or they can be used as servers to store
software images for other systems. You can configure each supervisor engine with one Flash PC card in
slot 0. Figure 1 shows the front panel of a supervisor engine with the single PCMCIA slot, slot 0.
Catalyst 6500 Series Supervisor Engine Flash PC Card Installation Note
2
78-6507-06
Preventing Electrostatic Discharge Damage
Figure 1
Supervisor Engine Flash PC Card Slot
CONSOLE port
Switch load
display
PCMCIA LED
LINK LEDs
WS-X6K-SUP1
SUPERVISOR I
Status LEDs
CONSOLE PORT MODE
switch
PCMCIA slot
16057
PORT 2
K
EJECT
LIN
1%
PORT 1
PCMCIA
K
CONSOLE
Load
LIN
ST
AT
U
S
SY
ST
EM
AC
TIV
E
PW
R
M
G
R
M
ES
T
ET
Switch
CONSOLE 100%
PORT
MODE
1000BASE-X GBIC Uplink Ports
RESET button
For information about using the PCMCIA Flash PC cards, see the “Using Flash PC Cards” section on
page 6.
Preventing Electrostatic Discharge Damage
Follow these guidelines to prevent electrostatic discharge (ESD) damage:
Caution
•
Always use an ESD wrist or ankle strap, and ensure that it makes good skin contact.
•
Connect the equipment end of the strap to the ESD connector on the switch.
•
Place a removed Flash PC card on an antistatic surface or in a static shielding bag. If the card will
be returned to the factory, immediately place it in a static shielding bag.
•
Avoid contact between the card and clothing. The wrist strap only protects the card from ESD
voltages on the body; ESD voltages on clothing can still cause damage.
For safety, periodically check the resistance value of the antistatic strap. The measurement should be
between 1 and 10 megohms.
Installing and Removing a Flash PC Card
Before you install a Flash PC card, verify that the card’s write-protect switch is off. When the card is
oriented with the printing side up and the edge connector end away from you, the write-protect switch
is located on the front edge of the card, as shown in Figure 2.
Note
Not all Flash PC cards have the write-protect switch.
Catalyst 6500 Series Supervisor Engine Flash PC Card Installation Note
78-6507-06
3
Installing and Removing a Flash PC Card
Figure 2
Locating the Flash PC Card Write Protection Switch
Flash PC card
shown with write
protection off
H2352
Flash PC card
write protection
Flash PC card
To install and remove a Flash PC card (see Figure 3), perform these steps:
Note
You can insert and remove the Flash PC card with the power on.
Step 1
Connect an ESD-preventive strap to the ESD connector on the switch.
Step 2
Face the front panel of the switch, and hold the Flash PC card with the connector end toward the slot, as
shown in Figure 3a.
Step 3
Insert the card into the slot until it completely seats in the connector at the back of the slot and the eject
button pops out toward you, as shown in Figure 3b.
Note
The card does not insert all the way inside the slot; a portion of the card remains outside the slot.
Do not attempt to force the card past this point.
Step 4
To eject a Flash PC card, press the ejector button until the card is free of the connector at the back of the
slot, as shown in Figure 3c.
Step 5
Remove the card from the slot and place it in an antistatic bag.
Catalyst 6500 Series Supervisor Engine Flash PC Card Installation Note
4
78-6507-06
Installing and Removing a Flash PC Card
Figure 3
Installing and Removing a Flash PC Card
WS-X5530
EM
ST US
SY TAT
S
N
FA
2
PS
1
T
E
100%
SE
TIV
RE
AC
T
1
O
SL
PS
T
0
O
SL
SUPERVISOR ENGINE I I
I
CONSOLE
AUX
Switch
PCMCIA
Load
EJECT
a
WS-X5530
EM
ST US
SY TAT
S
N
FA
T
E
100%
SE
TIV
RE
AC
2
PS
1
PS
T
1
O
SL
T
0
O
SL
SUPERVISOR ENGINE I I
I
CONSOLE
AUX
Switch
PCMCIA
Load
EJECT
b
WS-X5530
EM
ST US
SY TAT
S
N
FA
2
PS
1
T
E
TIV
AC
100%
SE
RE
SUPERVISOR ENGINE I I
I
T
1
O
SL
PS
T
0
O
SL
CONSOLE
AUX
Switch
Load
PCMCIA
EJECT
14233
c
Catalyst 6500 Series Supervisor Engine Flash PC Card Installation Note
78-6507-06
5
Using Flash PC Cards
Using Flash PC Cards
Note
An MS-DOS formatted ATA Flash PC card or linear Flash PC card can be accessed successfully
(including the dir command) with the Catalyst and Cisco IOS operating systems but will not boot from
ROMMON.
Note
The 16-MB MEM-C6K-FLC16M and 24-MB MEM-C6K-FLC24M linear Flash PC cards are formatted
for the Catalyst 6500 series supervisor engines and are ready to use.
The MEM-C6K-ATA-1-64M and 64-MB MEM-C6K-FLC64M Flash PC cards are not formatted. You
must format these cards (see Table 1 on page 7 for a description of the format command.) When you enter
the dir disk0: or dir slot0: commands, an unformatted Flash PC card returns a “bad device block info” or
“invalid magic number” error message.
Note
Supervisor Engine 1 and Supervisor Engine 2 do not support the same Flash PC card format. To use a
Flash PC card with Supervisor Engine 2, you must format the card with Supervisor Engine 2. To use a
Flash PC card with Supervisor Engine 1, you must format the card with Supervisor Engine 1.
Table 1 Table 1Table 1Table 1shows many of the commands that are available for using and managing
Flash devices, including the Flash PC cards. To perform specific tasks, use these commands either alone
or combined with other commands. For example, to copy a file from a TFTP server to a Flash PC card,
set the BOOT environment variable so that the system will boot from this new image and then verify the
boot sequence as shown in the following steps:
Note
The following commands listed in Table 1 are not applicable to the ATA Flash (disk0:) PC card:
undelete, squeeze, show flash devices, show flash, and verify.
Note
The ATA Flash PC card is accessed through disk0: and the 16-MB, 24-MB, and 64-MB Flash PC cards
are accessed through slot0:. The following procedure uses slot0:.
Step 1
Copy a file from a TFTP server to the Flash PC card in slot0:
Console (enable) copy tftp slot0:
Step 2
Set the BOOT environment variable so that the system boots from slot0:
Console (enable) set boot system flash slot0:cat6000-sup-5-1-1-CSX.bin prepend
Step 3
Display the contents of the BOOT environment variable:
Console (enable) show boot
For complete descriptions of these commands and how to use them, refer to the Catalyst 6500 Series
Software Configuration Guide and the Catalyst 6500 Series Command Reference publication.
Catalyst 6500 Series Supervisor Engine Flash PC Card Installation Note
6
78-6507-06
Using Flash PC Cards
Table 1
Commands for Using and Managing Flash Devices
Task
Command
Copy a Flash file to a TFTP server, another
Flash device, or to the running
configuration.
copy m/device:filename {tftp | flash | m/device:filename |
config}
Copy a file from a TFTP server to a Flash
device or to the running configuration.
copy tftp {flash | m/device:filename | config}
Copy a file from Flash memory to a TFTP
server or to a Flash device, or to the
running configuration.
copy flash {tftp | m/device:filename | config}
Copy the running configuration to another
Flash device or to a TFTP server.
copy config {flash | m/device:filename | tftp}
Set the BOOT environment variable.
set boot system flash device:[filename] [prepend]
[mod_num]
Format a Flash PC device.
format [spare spare-number] [m/]device1: [[device2:]
[monlib-filename]]
Specify the boot field in the configuration
register, which determines the boot
method the switch will use at the next
startup.
set boot config-register boot {rommon | bootflash |
system} [mod_num]
Display the contents of the BOOT
environment variable.
show boot [mod_num]
Clear a specific image from the BOOT
environment variable.
clear boot system flash device:[filename] [mod_num]
Clear the entire BOOT environment
variable.
clear boot system all [mod_num]
Display a list of files on a Flash device.
dir [[m/]device:][filename] [all | deleted | long]
Set the default Flash device for the system. cd [[m/][bootflash: | slot0:]]
Verify the default Flash device for the
system.
pwd [mod_num]
Delete a file on a Flash device.
delete [[m/]device:]filename
Undelete a file on a Flash device.
undelete index [[m/]device:]
Permanently remove all deleted files on a
Flash device.
squeeze [m/]device:
Identify the supported Flash devices on the
system.
show flash devices
Display information about the Flash PC.
show flash [[m/]device:] [all | chips | filesys]
Verify the checksum of a file on a Flash
device.
verify [[m/]device:] filename
Catalyst 6500 Series Supervisor Engine Flash PC Card Installation Note
78-6507-06
7
Additional Documentation
Additional Documentation
Refer to the following documents for additional information on supervisor engine Flash devices:
•
Release Notes for Catalyst 6500 Series and Cisco 7600 Series Internet Router Supervisor
Engine 2 ROMMON
•
Catalyst 6500 Series Software Configuration Guide
•
Catalyst 6500 Series Command Reference
Obtaining Documentation
Cisco documentation and additional literature are available on Cisco.com. Cisco also provides several
ways to obtain technical assistance and other technical resources. These sections explain how to obtain
technical information from Cisco Systems.
Cisco.com
You can access the most current Cisco documentation at this URL:
http://www.cisco.com/techsupport
You can access the Cisco website at this URL:
http://www.cisco.com
You can access international Cisco websites at this URL:
http://www.cisco.com/public/countries_languages.shtml
Product Documentation DVD
Cisco documentation and additional literature are available in the Product Documentation DVD package,
which may have shipped with your product. The Product Documentation DVD is updated regularly and
may be more current than printed documentation.
The Product Documentation DVD is a comprehensive library of technical product documentation on
portable media. The DVD enables you to access multiple versions of hardware and software installation,
configuration, and command guides for Cisco products and to view technical documentation in HTML.
With the DVD, you have access to the same documentation that is found on the Cisco website without
being connected to the Internet. Certain products also have .pdf versions of the documentation available.
The Product Documentation DVD is available as a single unit or as a subscription. Registered Cisco.com
users (Cisco direct customers) can order a Product Documentation DVD (product number
DOC-DOCDVD=) from Cisco Marketplace at this URL:
http://www.cisco.com/go/marketplace/
Catalyst 6500 Series Supervisor Engine Flash PC Card Installation Note
8
78-6507-06
Documentation Feedback
Ordering Documentation
Beginning June 30, 2005, registered Cisco.com users may order Cisco documentation at the Product
Documentation Store in the Cisco Marketplace at this URL:
http://www.cisco.com/go/marketplace/
Nonregistered Cisco.com users can order technical documentation from 8:00 a.m. to 5:00 p.m.
(0800 to 1700) PDT by calling 1 866 463-3487 in the United States and Canada, or elsewhere by
calling 011 408 519-5055. You can also order documentation by e-mail at
[email protected] or by fax at 1 408 519-5001 in the United States and Canada,
or elsewhere at 011 408 519-5001.
Documentation Feedback
You can rate and provide feedback about Cisco technical documents by completing the online feedback
form that appears with the technical documents on Cisco.com.
You can send comments about Cisco documentation to [email protected].
You can submit comments by using the response card (if present) behind the front cover of your
document or by writing to the following address:
Cisco Systems
Attn: Customer Document Ordering
170 West Tasman Drive
San Jose, CA 95134-9883
We appreciate your comments.
Cisco Product Security Overview
Cisco provides a free online Security Vulnerability Policy portal at this URL:
http://www.cisco.com/en/US/products/products_security_vulnerability_policy.html
From this site, you can perform these tasks:
•
Report security vulnerabilities in Cisco products.
•
Obtain assistance with security incidents that involve Cisco products.
•
Register to receive security information from Cisco.
A current list of security advisories and notices for Cisco products is available at this URL:
http://www.cisco.com/go/psirt
If you prefer to see advisories and notices as they are updated in real time, you can access a Product
Security Incident Response Team Really Simple Syndication (PSIRT RSS) feed from this URL:
http://www.cisco.com/en/US/products/products_psirt_rss_feed.html
Catalyst 6500 Series Supervisor Engine Flash PC Card Installation Note
78-6507-06
9
Obtaining Technical Assistance
Reporting Security Problems in Cisco Products
Cisco is committed to delivering secure products. We test our products internally before we release them,
and we strive to correct all vulnerabilities quickly. If you think that you might have identified a
vulnerability in a Cisco product, contact PSIRT:
•
Emergencies — [email protected]
An emergency is either a condition in which a system is under active attack or a condition for which
a severe and urgent security vulnerability should be reported. All other conditions are considered
nonemergencies.
•
Nonemergencies — [email protected]
In an emergency, you can also reach PSIRT by telephone:
Tip
•
1 877 228-7302
•
1 408 525-6532
We encourage you to use Pretty Good Privacy (PGP) or a compatible product to encrypt any sensitive
information that you send to Cisco. PSIRT can work from encrypted information that is compatible with
PGP versions 2.x through 8.x.
Never use a revoked or an expired encryption key. The correct public key to use in your correspondence
with PSIRT is the one linked in the Contact Summary section of the Security Vulnerability Policy page
at this URL:
http://www.cisco.com/en/US/products/products_security_vulnerability_policy.html
The link on this page has the current PGP key ID in use.
Obtaining Technical Assistance
Cisco Technical Support provides 24-hour-a-day award-winning technical assistance. The Cisco
Technical Support & Documentation website on Cisco.com features extensive online support resources.
In addition, if you have a valid Cisco service contract, Cisco Technical Assistance Center (TAC)
engineers provide telephone support. If you do not have a valid Cisco service contract, contact your
reseller.
Cisco Technical Support & Documentation Website
The Cisco Technical Support & Documentation website provides online documents and tools for
troubleshooting and resolving technical issues with Cisco products and technologies. The website is
available 24 hours a day, at this URL:
http://www.cisco.com/techsupport
Access to all tools on the Cisco Technical Support & Documentation website requires a Cisco.com user
ID and password. If you have a valid service contract but do not have a user ID or password, you can
register at this URL:
http://tools.cisco.com/RPF/register/register.do
Catalyst 6500 Series Supervisor Engine Flash PC Card Installation Note
10
78-6507-06
Obtaining Technical Assistance
Note
Use the Cisco Product Identification (CPI) tool to locate your product serial number before submitting
a web or phone request for service. You can access the CPI tool from the Cisco Technical Support &
Documentation website by clicking the Tools & Resources link under Documentation & Tools. Choose
Cisco Product Identification Tool from the Alphabetical Index drop-down list, or click the Cisco
Product Identification Tool link under Alerts & RMAs. The CPI tool offers three search options: by
product ID or model name; by tree view; or for certain products, by copying and pasting show command
output. Search results show an illustration of your product with the serial number label location
highlighted. Locate the serial number label on your product and record the information before placing a
service call.
Submitting a Service Request
Using the online TAC Service Request Tool is the fastest way to open S3 and S4 service requests. (S3
and S4 service requests are those in which your network is minimally impaired or for which you require
product information.) After you describe your situation, the TAC Service Request Tool provides
recommended solutions. If your issue is not resolved using the recommended resources, your service
request is assigned to a Cisco engineer. The TAC Service Request Tool is located at this URL:
http://www.cisco.com/techsupport/servicerequest
For S1 or S2 service requests or if you do not have Internet access, contact the Cisco TAC by telephone.
(S1 or S2 service requests are those in which your production network is down or severely degraded.)
Cisco engineers are assigned immediately to S1 and S2 service requests to help keep your business
operations running smoothly.
To open a service request by telephone, use one of the following numbers:
Asia-Pacific: +61 2 8446 7411 (Australia: 1 800 805 227)
EMEA: +32 2 704 55 55
USA: 1 800 553-2447
For a complete list of Cisco TAC contacts, go to this URL:
http://www.cisco.com/techsupport/contacts
Definitions of Service Request Severity
To ensure that all service requests are reported in a standard format, Cisco has established severity
definitions.
Severity 1 (S1)—Your network is “down,” or there is a critical impact to your business operations. You
and Cisco will commit all necessary resources around the clock to resolve the situation.
Severity 2 (S2)—Operation of an existing network is severely degraded, or significant aspects of your
business operation are negatively affected by inadequate performance of Cisco products. You and Cisco
will commit full-time resources during normal business hours to resolve the situation.
Severity 3 (S3)—Operational performance of your network is impaired, but most business operations
remain functional. You and Cisco will commit resources during normal business hours to restore service
to satisfactory levels.
Severity 4 (S4)—You require information or assistance with Cisco product capabilities, installation, or
configuration. There is little or no effect on your business operations.
Catalyst 6500 Series Supervisor Engine Flash PC Card Installation Note
78-6507-06
11
Obtaining Additional Publications and Information
Obtaining Additional Publications and Information
Information about Cisco products, technologies, and network solutions is available from various online
and printed sources.
•
Cisco Marketplace provides a variety of Cisco books, reference guides, documentation, and logo
merchandise. Visit Cisco Marketplace, the company store, at this URL:
http://www.cisco.com/go/marketplace/
•
Cisco Press publishes a wide range of general networking, training and certification titles. Both new
and experienced users will benefit from these publications. For current Cisco Press titles and other
information, go to Cisco Press at this URL:
http://www.ciscopress.com
•
Packet magazine is the Cisco Systems technical user magazine for maximizing Internet and
networking investments. Each quarter, Packet delivers coverage of the latest industry trends,
technology breakthroughs, and Cisco products and solutions, as well as network deployment and
troubleshooting tips, configuration examples, customer case studies, certification and training
information, and links to scores of in-depth online resources. You can access Packet magazine at
this URL:
http://www.cisco.com/packet
•
iQ Magazine is the quarterly publication from Cisco Systems designed to help growing companies
learn how they can use technology to increase revenue, streamline their business, and expand
services. The publication identifies the challenges facing these companies and the technologies to
help solve them, using real-world case studies and business strategies to help readers make sound
technology investment decisions. You can access iQ Magazine at this URL:
http://www.cisco.com/go/iqmagazine
or view the digital edition at this URL:
http://ciscoiq.texterity.com/ciscoiq/sample/
•
Internet Protocol Journal is a quarterly journal published by Cisco Systems for engineering
professionals involved in designing, developing, and operating public and private internets and
intranets. You can access the Internet Protocol Journal at this URL:
http://www.cisco.com/ipj
Catalyst 6500 Series Supervisor Engine Flash PC Card Installation Note
12
78-6507-06
Obtaining Additional Publications and Information
•
Networking products offered by Cisco Systems, as well as customer support services, can be
obtained at this URL:
http://www.cisco.com/en/US/products/index.html
•
Networking Professionals Connection is an interactive website for networking professionals to
share questions, suggestions, and information about networking products and technologies with
Cisco experts and other networking professionals. Join a discussion at this URL:
http://www.cisco.com/discuss/networking
•
World-class networking training is available from Cisco. You can view current offerings at
this URL:
http://www.cisco.com/en/US/learning/index.html
Catalyst 6500 Series Supervisor Engine Flash PC Card Installation Note
78-6507-06
13
Obtaining Additional Publications and Information
This document is to be used in conjunction with the Catalyst 6500 Series Software Configuration Guide and the Catalyst 6500 Series Command Reference publications.
CCSP, CCVP, the Cisco Square Bridge logo, Follow Me Browsing, and StackWise are trademarks of Cisco Systems, Inc.; Changing the Way We Work, Live, Play, and Learn, and
iQuick Study are service marks of Cisco Systems, Inc.; and Access Registrar, Aironet, ASIST, BPX, Catalyst, CCDA, CCDP, CCIE, CCIP, CCNA, CCNP, Cisco, the Cisco Certified
Internetwork Expert logo, Cisco IOS, Cisco Press, Cisco Systems, Cisco Systems Capital, the Cisco Systems logo, Cisco Unity, Empowering the Internet Generation,
Enterprise/Solver, EtherChannel, EtherFast, EtherSwitch, Fast Step, FormShare, GigaDrive, GigaStack, HomeLink, Internet Quotient, IOS, IP/TV, iQ Expertise, the iQ logo, iQ
Net Readiness Scorecard, LightStream, Linksys, MeetingPlace, MGX, the Networkers logo, Networking Academy, Network Registrar, Packet, PIX, Post-Routing, Pre-Routing,
ProConnect, RateMUX, ScriptShare, SlideCast, SMARTnet, StrataView Plus, TeleRouter, The Fastest Way to Increase Your Internet Quotient, and TransPath are registered
trademarks of Cisco Systems, Inc. and/or its affiliates in the United States and certain other countries.
All other trademarks mentioned in this document or Website are the property of their respective owners. The use of the word partner does not imply a partnership relationship
between Cisco and any other company. (0502R)
Copyright © 1999–2005, Cisco Systems, Inc.
All rights reserved.
Catalyst 6500 Series Supervisor Engine Flash PC Card Installation Note
14
78-6507-06
