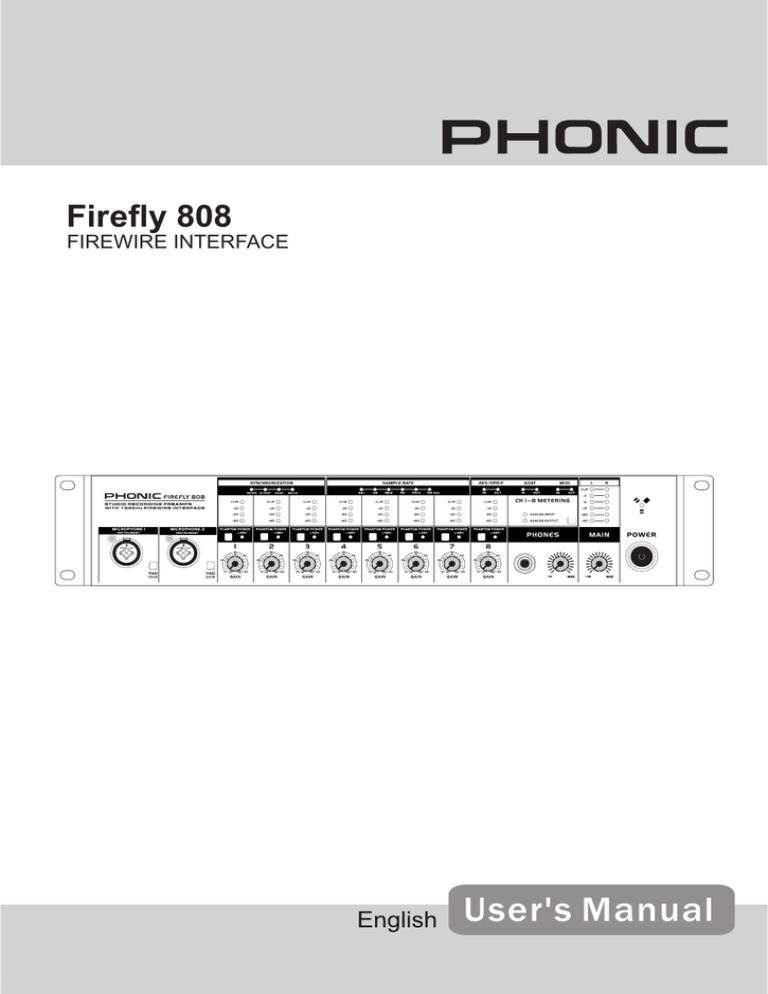

Firefly 808
Firefly 808
FIREWIRE INTERFACE
IMPORTANT SAFETY INSTRUCTIONS
The apparatus shall not be exposed to dripping or splashing and that no objects
with liquids, such as vases,
shall be placed on the apparatus. The MAINS plug is used as the disconnect device, the disconnect device shall
remain readily operable.
Warning: the user shall not place this apparatus in the
can be easily accessible.
area during the operation so that the mains switch
1. Read these instructions before operating this
apparatus.
CAUTION
2. Keep these instructions for future reference.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
3. Heed all warnings to ensure safe operation.
. Follow all instructions provided in this document.
. Do not use this apparatus near water or in locations
where condensation may occur.
6. Clean only with dry cloth. Do not use aerosol or liquid
cleaners. Unplug this apparatus before cleaning.
7. Do not block any of the ventilation openings. Install
in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
.
9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide
blade or the third prong is provided for your safety. If
the provided plug does not into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plug, convenience receptacles,
and the point where they exit from the apparatus.
11. Only use attachments/accessories
manufacturer.
by the
12. Use only with a cart, stand, tripod, bracket, or
table
by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus
combination to avoid injury from tipover.
13. Unplug this apparatus during lighting
storms or when unused for long
periods of time.
1. Refer all servicing to
service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK)
NO USER SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED PERSONNEL
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within the
product’
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature
accompanying the appliance.
WARNING: To reduce the risk of
or electric shock, do
not expose this apparatus to rain or moisture.
CAUTION: Use of controls or adjustments or performance
of procedures other than those
may result in
hazardous radiation exposure.
FIREFLY 808
FIREWIRE INTERFACE
INTRODUCTION .....................................................................................................................4
FEATURES ..............................................................................................................................4
QUICK START / SET UP...........................................................................................................5
FRONT PANEL DESCRIPTION ...............................................................................................6
REAR PANEL DESCRIPTION ................................................................................................7
FIREWIRE INTERFACE .........................................................................................................9
SYSTEM REQUIREMENTS ........................................................................................9
DRIVER INSTALLATION ...........................................................................................9
CHANNEL ASSIGNMENT ...........................................................................................13
CUBASE LE ...............................................................................................................13
FIREWIRE DEVICE CONTROL PANEL...................................................................14
FIREFLY 808 MIXER SOFTWARE.............................................................................16
STAND ALONE MODE ..........................................................................................................18
APPLICATION ........................................................................................................................19
DIMENSIONS ........................................................................................................................22
SPECIFICATIONS ..................................................................................................................23
BLOCK DIAGRAM .......................................................................................................................24
APPENDIX ......................................................................................................................................25
Phonic preserves the right to improve or alter any information within this document without prior notice.
V1.0 JUL 18th,2007
INTRODUCTION
FEATURES
Congratulations on your purchase of one of the
newest members of the FireWire products family
from Phonic, the Firefly 808. We know how to make
the best audio gear for you and we know your need
to create great recordings and productions. The
Firefly 808 features a eight mic/line inputs (with
+48V phantom power), digital AES/EBU I/O and
word sync, ADAT I/O, MIDI I/O, S/PDIF I/O, and
all of these with a FireWire interface for digitally
transferring your audio to your computer in high
resolution audio (up to 192kHz) that meets today
modern productions standards.
FireWire (IEEE 1394) audio interface
We know how eager you are to get started – wanting
to get the mixer out and hook it all up is probably
your number one priority right now – but before you
do, we strongly urge you to take a look through this
manual. Inside, you will find important facts and
figures on the set up, use and applications of your
Firefly 808. If you do happen to be one of the many
people who refuse to read user manuals, then we
just urge you to at least glance at the Instant Setup
section. After glancing at or reading through the
manual (we applaud you if you do read the entire
manual), please store it in a place that is easy for
you to find, because chances are there’s something
you missed the first time around.
24-bit resolution, up to 192k Hz sampling rate
18 simultaneous inputs and outputs FireWire
audio interface
8 microphone preamps w/ trim control and
individual phantom power switches
8 analog line Inputs including 2 Instrument
Inputs
8 channels of optical ADAT I/O (4 ch. via 96k
dual SMUX)
S/PDIF I/O, AES/EBU I/O, MIDI I/O and word
clock I/O
Headphone output and Main output with volume
control for monitoring purpose
Channel meters on channel 1 to 8 for input or
output
Synchronization, sampling rate, digit I/O and
MIDI in/out indicators
Dual FireWire ports for daisy chaining and
direct connection to Mac or PC
Stand-alone mixer functionality for field and
studio use without computer
Instrument input, pad switch, balanced TRS
send jacks on Inputs 1 and 2
Compatible with Windows XP and Mac OSX
Steinberg Cubase LE DAW software included
FIREFLY 808
Quick Start
Setup
1. Connect the Firefly with the supplied FireWire
cable to a free port on your computer
1. If you have experience connecting our FireWire
products you’ll find this setup familiar and
easy.
2. Connect the supplied AC into the power inlet
connector at the rear back of the Firefly 808.
Turn the unit on using the power switch at the
front face of the unit.
3. Install all drivers included with your Firefly at
your computer and select the Firefly
4. Connect one microphone on the frontal XLR
input connector, take a look at the mic LED
meter and configure it to a good recording
level.
5. Open your audio software and configure it so
you can see the Firefly as your input/output
device
6. Use your headphones to monitor if your input
and output audio on the Firefly.
7. Now you are ready to start designing high
resolution audio productions and ready to
find out all the advantages of your brand new
Firefly.
2. Turn on your computer and be sure to have a
FireWire port available.
3. Connect your Firefly to an AC power outlet with
the provided AC cable.
4. Connect the supplied FireWire cable to a port
on the back of your Firefly, and connect the
other end to your computer. You only need
to connect a single FireWire cord to your
computer – the other port on the Firefly is to
allow you to daisy chain the Firefly with other
FireWire-enabled devices.
5. Turn the unit on using the switch located on the
back panel.
6. Your computer will automatically recognize the
Firefly, and you will need to install the drivers
that were included with your unit (this is for PC
users only – Mac users need only make sure
the Firefly is set as their preferred audio input/
output device). Follow the onscreen installation
instructions for the Firefly 808, and turn the unit
off and on when prompted to. After installation
is complete, you should be able to view and
edit your Firefly’s channel properties in the
Firefly Control Panel.
7. Your next and final thing to do would be to
activate the Firefly in your DAW software.
Within the “devices”, “tools” or “properties”
pull-down menu, you should find an option that
allows you to view your inputs. Activate the
Firefly here, and you’ll be good to go!
FIREFLY 808
Front Panel Description
1.
Power Button
7.
FireWire LED
All the audio signals that are mixed inside the Firefly
808 can be monitored with headphones through this
jack. You can also use the corresponding control to
adjust the signal level.
Push this button in to turn the Firefly 808 on. When
the unit is on, the power button will light up.
2.
This LED will light up when a connection to the
computer is established through the FireWire
interface.
1
2
8.
Headphone Output Jack and Gain Control
Main Level Control
This control adjusts the final level of the audio sent
through the main left and right outputs, the signal
of which is taken either from the FireWire return
signal or the various analog and digital inputs.
7
3.
Channel 1 and 2 Inputs
These two combo jacks allow users to connect
either balanced XLR 3-pin connectors, for dynamic
or condenser microphones, or ¼” TRS phone jacks
for instruments such as electric or bass guitars.
NOTE: When plugging line-level signals into the
combo jacks, disengage the PAD button to lower
the signal level somewhat.
4.
Input Gain Controls 1 - 8
Turn these knobs clockwise to increase the
microphone/line input gain for the corresponding
channels. You have 50dB of gain to work with, but
be sure not to adjust it to a level that will make the
input meter hit the “clip” point. A good region to be
in is about -6dB – this will give you a greater signal
level with enough headroom to avoid clipping.
5.
PAD selector
This button controls the input sensitivity for channels
1 and 2. Pushing this button in will attenuate the
input signal by 20dB, allowing you to connect a
microphone or instrument to the combo input jack.
6.
8
+48V Phantom Power
Pushing one of these buttons will activate the
+48V phantom power for the corresponding
channel, allowing you to use condenser or ribbon
microphones (or other devices that require +48V)
to work properly. Activation of phantom power will
be accompanied by an illuminated LED. If you are
not sure if your mic uses phantom power, please
refer to the microphone user’s manual.
9.
LED Level Meter
This stereo 6-segment LED meter displays the
signal level of sum of all 8 analog input channels.
User’s are advised to keep this meter sitting around
the -6dB mark to make the best use of audio possible
without causing any unnecessary clipping.
10. Channel LED Level Meters
The input/output signal levels from analog inputs/
outputs 1 to 8 are shown in these 4-segment LED
meters. Whether these meters display the input or
output level is dependant on the input/output select
button. Users are advised to try and keep their
signal level around the -20, -10 marks, as to avoid
distortion and clipping.
11. Input/Output Select Switch and Indicator
This button determines whether the LED level meter
will display the input or output signal of the Firefly
808’s input/output channels. This button is an easy
way to compare input/output levels. Depending
which setting is currently active, an LED will light
up next to the corresponding setting (“analog input”
or “analog output”).
9
6
10
3
11
FIREFLY 808
Rear Panel Description
12. Synchronization Indicators
17. Line Input Channel 1 and 2
Firefly 808 can be synchronized with any WCLK
sync device, enabling you to use it for your audio/
video recording studios as well as cinema and video
production that requires high resolution audio.
When the Firefly 808 is synchronized one of these
LEDs will light up to indicate which kind of sync the
Firefly 808 is currently using. If you use the control
software to adjust to a device not connected to the
Firefly, the corresponding light will flash briefly and
return back to the previous setting.
These input jacks allow users to connect line-level
devices, the signal of which is fed through the
FireWire interface, and sent directly out the channel
1 and 2 sends.
18. Channel 1 and 2 Sends
These outputs act as direct sends of the channel 1
and 2 inputs, allowing the signal to be used in other
devices.
12
17
18
19. Input Channels 3 to 8
13. Sampling Rate Indicator
When Firefly 808 gets synchronized, one of these
LEDs will light up to show the sampling rate of the
device the Firefly is synchronized with, and the
Firefly will automatically be set to that rate.
13
Each of these channels features a balanced 1/4”
TRS Line Inputs and can be used to connect any
line level device like CD players, DAT recorders.
You can even connect an analog mixer that does
not have FireWire interface to allow you to send
that signal to the computer. Also present are 3-pin
XLR mic input connectors for use with condenser
or dynamic microphones.
20. Main Outputs
14. AES/SPDIF LED Indicator
These input and output LEDs will light up when the
AES/EBU or S/PDIF interface is in use.
15. ADAT LED Indicator
You can use your optical devices in conjunction with
the Firefly 808. When the ADAT optical connection
is in use, the input and output LEDs will activate to
let you know the connection is successful.
16. MIDI Indicator
These 1/4” TRS outputs will allow users to send
the main stereo mix of the Firefly 808’s return
signal to external devices. The signals from
analog channels 1, 3, 5 and 7 are sent to the left
output, where the 2, 4, 6 and 8 signals are sent
to the right output. When the FireWire interface
is in use, users are able to use the Firefly Mixer
software's crossfader to select the degree of the
FireWire return signal and the analog input signal
that is sent to these outputs. The main outputs can
be connected to active speakers, monitors, or other
mixers, depending on your needs.
When using the MIDI interface, these input and
output LEDs will light up.
1
1
16
20
FIREFLY 808
19
26
21
21. Analog Outputs
25. FireWire Ports
This are balanced 1/4” TRS line outputs with line
level signal (+4dBu). Users are able to use these
outputs to get a stereo output channel from each
pair of odd and even numbered outputs, or even
a surround mix (5.2 or 6.2). Analog outputs 1 and
2 can be used to send a stereo mix of your analog
inputs or return signal, which is ideal for use with
subwoofers (if making a 5.2 or 6.2 system) or just
for monitoring the signal.
22. AES/EBU In/Out
This is a standard XLR AES/EBU digital interface
that lets you connect your digital AES-enabled
devices to your Firefly. The IN or OUT LED on the
front of the Firefly will light up when the inputs and
outputs are in use.
23. S/PDIF / AES IN Switch
This switch determines which of these digital inputs
will be used.
24. S/PDIF In/Out
This is a standard RCA S/PDIF Digital Audio
Input/Output that can be used with digital mixers,
DAT recorders, or any external device that uses
the RCA Digital interface format. Please use a
75 ohms coaxial cable with RCA plug when using
S/PDIF. The most common problems or glitches
incorporated with S/PDIF transfer are due to use of
improper analog cables. Users may also use these
inputs for high-speed S/PDIF devices when that
option is selected in the computer's Firefly mixer
software.
2
23
S/PDIF
IN
AES IN
2
This is a digital FireWire (or PC IEEE 1394) interface
that you can use to connect to your computer; use
it to send the audio your Firefly receives to your
computer, for recording, editing, mixing, and so
forth, in your favorite Digital Audio Workstation
Software.
You have two FireWire ports at your disposal;
however you need only connect one to your
computer. The second port will allow you to connect
a second Firefly 808, allowing twice the number of
inputs!
26. MIDI In/Out
These inputs will allow you to send 16 MIDI channels
through the FireWire interface to your computer,
as well as receive 16 back. These channels will
be present within the Firefly Control Software, and
available for use in most MIDI-enabled programs.
27. ADAT In/Out
This is a standard TOSlink ADAT optical interface
that you can use in the same way as you would use
your typical ADAT devices. This input can also be
used for SMUX inputs when this option is selected
in the computer's Firefly mixer software.
28. WCLK IN/OUT
These are BNC input/output connectors for
standard Word Clock Syncs, as are used in DVTRs
and other digital devices.
28
27
22
29. AC Power Input and Fuse Holder
Connect the supplied AC power cord to this
connector. The other end should be connected to
a suitable power supply. The power supply’s fuse
is located just below this connector.
If your fuse blows, remove the
fuse holder’s cover and replace
the fuse with another suitable fuse
(as indicated on the fuse-holder’s
cover).
29
FIREFLY 808
FireWire Interface
System Requirements
The following are the minimum required specifications for use with the Firefly 808. If your computer does not meet
these requirements, you will experience lagging of audio and possible freezing of your computer when attempting
to operate the mixer.
Windows
•
•
•
•
•
•
Microsoft® Windows® XP SP1 and SP2 / Vista®
Available FireWire port (suggested FireWire Interface: ADS Pyro 64 FireWire card with TI chip)
Intel Pentium® 4 processor or equivalent AMD Athlon processor
Motherboard with Intel or VIA chipset
5400 RPM or faster hard disk drive (7200 RPM or faster with 8 MB cache recommended)
512 MB or more of RAM (1 GB or more recommended)
Macintosh
• OS X 10.3.5 or later with native FireWire support
• G4 or newer processor
• 512 MB or more of RAM
Driver Installation
To use the Firefly 808 on a PC, it is important to install all the necessary drivers from the included CD (ASIO and
WDM drivers). It is important that users read all instructions carefully before continuing on to the each step of
installation, as users will be required to unplug and plug in their FireWire device. These drivers are not necessary
for Mac users.
Windows XP (with Service Pack 1 or 2) / Vista
1. It is recommended that you quit all applications before starting the installation process.
2. Ensure the Firefly is not yet connected to your Computer’s FireWire input.
3. Insert the installation CD included with your Firefly into the CD-ROM drive of your computer. If the CD does
not automatically start the installation process within a few moments, then navigate to “My Computer” g your
CD-ROM drive g “Drivers and Control Panel” g double-click “setup.exe” to begin the installation manually. The
Phonic FireWire Control Panel software and the Firefly 808 Mixer will also be installed at this time.
4. Follow the installation instructions.
Make sure no other programs are running on your PC and that the
Firefly 808 is not connected to your PC, then click “Next”.
FIREFLY 808
Read and accept the terms of the License Agreement and click “Yes” to continue.
Either select a new destination for the installation, or else click “Next” to accept the default directory.
Click “Next” to begin the installation.
10
FIREFLY 808
Connect the Firefly to the Computer and turn the power on or, if
the Firefly is already connected, turn it off and then on again.
If a message is displayed indicating that the software has not passed Windows Logo test,
click “Continue Anyway.”
After installation is complete, the FireWire control panel item will be visible
in the taskbar and users are free to use the device as they wish.
FIREFLY 808
11
Macintosh OS X (10.3.5 or later)
The Firefly 808 works with the primary audio drivers of Macintosh OS X 10.3.5 and later. First verify that you are
running Macintosh OS X 10.3.5 or above, then connect the Firefly to a FireWire port to the computer. To ensure
your Firefly is working, enter the Utilities folder and double-click the Audio MIDI Setup icon.
Enter the Audio Device’s section. From the “Properties for” pull-down tab, select Firefly 808. At the bottom of the
window, users can edit the setup of the Firefly 808. Properties such as sampling rate and clock source can be
altered and users may also opt to make the Firefly their default input and/or output device.
Mac users are able to use GarageBand Digital Audio Workstation Software, as well as a host of other programs, in
conjunction with the Firefly 808.
12
FIREFLY 808
Channel Assignment
Cubase LE
When using a Digital Audio Workstation on a PC, and
within the included Phonic FireWire control panel software, the following names have been attributed to the
input channels of the FireWire device. They can be
altered through the control panel software included
with the mixer.
Cubase LE is a fairly powerful program provided along
with the Firefly interface that allows users to record,
edit, delete, and alter their tracks. Please note that
only 8 tracks can be recorded at once with the version of Cubase included, and users must upgrade to
Cubase SX or find other suitable DAW software if they
choose to record more tracks.
FireWire Input Channel Name
Device Channel
Line[1] I L
Analog Input 1
Line[1] I R
Analog Input 2
Line[2] I L
Analog Input 3
Line[2] I R
Analog Input 4
Line[3] I L
Analog Input 5
Line[3] I R
Analog Input 6
Line[4] I L
Analog Input 7
Line[4] I R
Analog Input 8
SPDIF[1] I L
S/PDIF or AES In
SPDIF[1] I R
S/PDIF or AES In
TOS[1] I L
ADAT or SMUX In
TOS[2] I R
ADAT or SMUX In
MIDI I 1
MIDI In
FireWire Output Channel Name
Device Channel
Line[1] O L
Analog Output 1
Line[1] O R
Analog Output 2
Line[2] O L
Analog Output 3
Line[2] O R
Analog Output 4
Line[3] O L
Analog Output 5
Line[3] O R
Analog Output 6
Line[4] O L
Analog Output 7
Line[4] O R
Analog Output 8
SPDIF[1] O L
S/PDIF or AES Out
SPDIF[1] O R
S/PDIF or AES Out
TOS[1] O L
ADAT or SMUX Out
TOS[2] O R
ADAT or SMUX Out
MIDI O 1
MIDI Out
To alter an input channel’s name on your computer,
open the FireWire device control panel software. On
the left hand side of the control panel, users will find
the settings categories. By clicking “Input Channels”,
the main window will display the titles input channels.
You can then highlight the channel names and press
the “Edit Channel Name” button on the bottom of the
control window. A new window will appear that will allow users to adjust the channel name.
If you would like to use the Firefly as your default audio
output device on you PC, simply go into the Windows
control panel, and select “Sound and Audio Devices”.
Select the Audio tab, and use the pull-down menu to
select the Firefly 808 from the list of available output
devices. The Firefly can also be selected as the default output device for individual programs by editing
said programs’ settings / options.
FIREFLY 808
Installation
Insert the Cubase LE installation CD that came with
your mixer into the CD drive of your computer. Run
the installer. The serial number will be automatically
entered in when installing.
Setup
After successfully completing the installation process,
the following process must be followed to work efficiently with the Friefly.
1. Open the Cubase LE program.
2. Go to the ‘Devices’ pull-down menu and select ‘Device Setup’. On the left, select ‘VST Multitrack’.
3. From the ASIO Driver drop-down list select the
“Phonic ASIO Driver”. A pop-up box will ask you if
you want to switch the ASIO driver. Click ‘Switch’.
This completes the basic installation and setup.
4. Activating audio tracks received from the Firefly.
a. Go to the “devices” pull-down menu and select
‘VST Inputs’. This will display the various inputs (“Phonic FF808 Ch 1”, “Phonic FF808 Ch
2”, etc.)
b. Activate 8 of these channels by clicking the
“Active” button located next to each channel
name. Please note, only 8 input channels can
be activated at any one time. This is a limitation
of Cubase LE, and if more input channels are
needed, we suggest upgrading to a higher version of Cubase, or use other DAW software.
5. For further instructions on the operation of Cubase,
please consult the user manual by pressing F1
while the program is open.
If you wish to reset the Phonic ASIO driver, simply go
to the ‘devices’ pull-down menu and select ‘device
setup’. Simply click “reset” and select the “Phonic
ASIO Driver”. Click ‘ok’ to continue and the Firefly
808 should once again become functional.
13
FireWire Device Control Panel
The FireWire control panel can be accessed at any
time by entering choosing the shortcut from your Programs menu. This program will not only allow users
to alter their device and channel names and properties, but will also let them correct for latency issues,
change sampling rates, and so forth. When opening
the software, a number of options will be available for
users to select from, allowing them to adjust the available properties.
Output Channels
By entering the Output Channels section, users can
view and edit the names of the two output channels
from the computer to the Firefly 808.
Devices
In the Devices section, users are able to view and edit
the name of the Phonic FireWire Devices connected
to their computer.
Synchronization
In the Synchronization section, users can adjust the
sampling rate and other synchronization properties.
Many of these adjustable properties, as they are, are
set for optimum performance and, unless you are sure
of what you need to change, are probably best left
alone.
Input Channels
The Input Channels section allows users to view and
edit the name of the various input channels received
from the FireWire input. For a list of default channel
names, please consult the table on page 13.
First off, the synch mode can be altered, though making this alteration is not recommended for novice users. The synch mode is basically the way the computer determines what the ‘clock source’ (ie. device
that your computer will use to determine the timing of
all digital signals received) will be. The default setting for this feature is “CSP”, meaning the Firefly is
the “master” clock source of the device. The other
options allow users to make the FireWire follow the
“timing” of whichever device is the clock source. Having two clock sources has the potential to create very
undesireable audio, so it is best avoided. If the Firefly
is the only piece of digital audio equipment attached
to the computer, there is no reason this option should
be changed.
14
FIREFLY 808
Users are also able to change between automatic and
manual sampling rate settings. When the sampling
rate is manually set, users can select between sampling rates of 44.1, 48.0, 88.2, 96.0 and 128 kHz per
second for analog inputs and 176.4 and 192.0 kHz per
second for some digital devices. Many devices have
sampling rates that do not surpass 44.1 kHz per second, therefore, when using multiple digital devices,
users are advised not to exceed this level unless they
are sure the secondary device’s sampling rate can.
Settings
Users are able to adjust various buffer times in the
Settings section.
The Stream Buffer Depth is adjustable between 0.5
and 20 milliseconds. It adjusts the buffer used when
streaming a signal from the Firefly. If the depth is set
too high, an obvious latency will become evident. If the
depth is too low, various clicks and pops may become
obvious. It is best to set the Stream Buffer Depth to a
level that allows users to get the lowest latency, while
still maintaining an optimal performance. The default
settings are ideal for most computers.
FIREFLY 808
The ASIO Buffer Depth is adjustable between 4 and
40 milliseconds. This allows users to adjust the latency of the stream received by ASIO driver-based
software (including Steinberg Cubase LE).
The WDM (Windows Driver Model) Sound Buffer
Depth is adjustable between 4 and 40 milliseconds.
This allows users to adjust the latency of the stream
received by WDM based programs.
Also in this section, users are able to view their “drop
out statistics”, where the number of times the FireWire
connection has been interrupted can be viewed.
Streams
In the Streams section, the Firefly device properties
can be viewed. Each input and output stream can be
scrutinized, and the isochronous stream number and
its supported sampling rates can be viewed.
15
Firefly 808 Mixer Software
Outputs
Master 1/2
Input Monitor Mixer
Line1
1
M
S
Line2
Link
M
S
4
5
6
2
3
10
0.0 dB
0.0 dB
Disconnected
0.0 dB
7
When there is no digital audio workstation software
is in use, the Firefly 808 can be controlled using this
basic mixer which is included along with the driver
and control panel software. The signal from this mixing panel is able to be fed back to the Firefly 808 as
a stereo signal, routed to analog outputs 1 and 2 and
the headphones output.
Channel Inputs
1. Mute Button
Pushing this button will mute the corresponding channel, stopping it from being sent back to the Firefly.
2. Solo Button
Use this button to solo the corresponding channel
back to the Firefly allowing users to monitor the signal.
The soloed channels will be sent to analog outputs 1
and 2 and the headphones output on the Firefly 808.
3. Link Button
Pushing this button will enable a link function, allowing users to control two channels as if they were one
with the fader, mute and solo buttons being ‘linked’ to
two inputs.
4. Pan
Each of the Firefly’s inputs are set to either left or right
by default, with odd channels being set to the left, and
even channels being set to the right.
5. Fader
Click and hold the mouse button on the fader to adjust the volume of the signal coming into the computer
through the FireWire connection for each channel.
When in link mode, a single fader will control 2 channels simultaneously.
16
8
9
6. Level Meter
These two parts of the PC-based mixer give users an
idea of the input levels received through the FireWire
interface. The graphic bar will give visual representation of the level and users are able to read the exact
input level in decibels underneath the fader.
7. Channel Status (digital channels only)
This display window will show whether a digital device
is connected to or disconnected from the Firefly unit.
The status will be updated automatically when a digital device is connected to the correct inputs.
Output Channel
8. Balance
The balance control for the master output is set to the
center by default. Moving it to the left will attenuate the
right signal and intensify the left signal accordingly;
moving it to the right will do the opposite.
9. Fader
Click and hold the mouse button on the fader to adjust the volume of the stereo output signal being sent
through the FireWire connection to the Firefly. The
signal controlled by these controls is sent through the
Firefly’s analog outputs 1 and 2.
10. Level Meter
This gives users an idea of the output levels of both
channels sent through the FireWire interface. The
graphic bar will give visual representation of the level
and users are able to read the exact input level in
decibels underneath the fader.
FIREFLY 808
15. PC
This is the default option, and allows you to use the
PC as the sync source. When set to PC, the corresponding sync source LED on the front of the Firefly
808 will light up.
Sync Source
11
13
15
Device
12
Coax S/PDIF
ADAT
14
Note: If ADAT and S/PDIF devices are not set to the same sync
source, the user will be prompted to correct the problem.
Word Clock
PC
Digital I/O Select
16. S/PDIF
Selecting this option will allow you to use a S/PDIF or
AES enabled digital device with the Firefly 808.
Digital I/O Selection
16
18
17
SPDIF
ADAT
ADAT
19
HS-SPDIF
17. High Speed S/PDIF
If you connect a high speed S/PDIF product to the
S/PDIF connector on the rear of the Firefly 808, clicking this option will allow you to use the output signal
from this device.
( .1 / 8 kHz)
SMUX ( 88.2 / 96 kHz)
Sample Rate
20
.1 kHz
18. ADAT
Select this option to use the TOSlink ADAT inputs on
the rear of the Firefly 808.
set
Sync Source
11. Device
Pushing this will allow you to use the Firefly 808 as the
sync source for all your digital gear.
12. Coaxial S/PDIF
Selecting this option will activate any coaxial S/PDIF
device as the sync source for your digital gear. If no
device is connected to the S/PDIF input on the Firefly
808, the corresponding sync source LED on the face
of the device will flash briefly then return back to the
previously selected sync source.
13. Optical S/PDIF
Selecting this option will activate any optical S/PDIF
device as the sync source for your digital gear. If no
optical S/PDIF device is connected to the TOSlink
ADAT input on the rear of the Firefly 808, the corresponding sync source LED on the face of the device
will flash briefly then return back to the previously selected sync source.
14. Word Clock
This option will allow you to
use a word clock as your sync
source. If no word clock device is connected to the BNC
word clock input on the rear
of the Firefly, then the corresponding sync source LED
on the face of the mixer will
flash briefly and then return
back to the previously selected sync source. Please see
the diagram below for information on hooking up a world
clock as your sync source.
FIREFLY 808
Word Clock to Other Slave s
19. SMUX
By selecting SMUX as your digital input/output device,
you are able to connect a SMUX enabled product to
the ADAT TOSlink inputs of the Firefly. The SMUX
output signal is typically 8 channel, however if you set
the sampling rate to 96 kHz, this is reduced to 4 channels.
Other Features
20. Sampling Rate Selection
Here you can select the sampling rate of the signal
sent to the computer. For most applications, you will
be able to select between 44.1, 48, 88.2 and 96 kHz.
If you choose ADAT as your digital input selection,
then you are able to select 44.1 kHz or 48 kHz. When
using high speed S/PDIF devices, you are able to select between 176.4 and 192 kHz sampling rates. If the
192 kHz sampling rate is set, the Firefly’s level meter
will be disabled.
21. Crossfader
The mixing software’s crossfader allows users to adjust the signal returned to the computer’s analog 1
and 2 outputs. When centered, the signal will be a 5050 mix of the pure signal received by the Firefly 808
and the signal returned to the 808 from the computer.
When pulled to the left, the monitor signal from the
808 gradually becomes more dominant; when pulled
all the way to the left, this signal is the only signal
audible. If this control is pulled to the right, however,
the stereo signal from the mixing panel software will
become more dominant.
21
World Cloc k
IN
BNC T-Adapter
Cross Fader
Input Monitor Mixer
Main 1/2 - from PC
World Clock from Maste r
17
Stand-Alone Mode
The Firefly 808 can work independantly, without any
FireWire connection being established. The following
is just a couple of points of interest that you may need
to know to use the Firefly in stand-alone mode.
Firstly, whatever settings you have made in regards
to inputs, outputs and sampling rates while using the
Firefly 808’s mixer software will be kept even after
you restart the device and/or disconnect the FireWire
cable. This means whatever inputs and outputs you
have set will be activated/deactived as per your previous settings. The default sampling rate is 44.1 kHz,
and the default digital input/output is S/PDIF.
Also, the analog inputs are routed to their corresponding analog outputs, as well as a mix of these inputs
being sent through any digital outputs that have been
set (ADAT, S/PDIF, etcetera).
18
FIREFLY 808
APPLICATION
Recording vocals (multi-part harmonies, choirs, etc.) or speeches
HEADPHONE
MICROPHONE
MICROPHONE
DIGITAL MIXER
MULTI-TRACK RECORDER
COMPUTER
8 in, 8 out
S/PDIF
IN
AES IN
STUDIO MONITORS
FIREFLY 808
MICROPHONE
MICROPHONE
MICROPHONE
MICROPHONE
MICROPHONE
MICROPHONE
19
Making studio recordings (without the studio)
HEADPHONE
HEADPHOME AMP
HEADPHONE
MICROPHONE
MICROPHONE
HEADPHONE
HEADPHONE
HEADPHONES
KEYBOARD
HEADPHONES
HEADPHONES
HEADPHONES
HEADPHOME AMP HEADPHOME AMP HEADPHOME AMP HEADPHOME AMP
S/PDIF
IN
AES IN
GUITAR EFFECT
GUITAR EFFECT
MICROPHONE
DRUM MACHINE
GUITAR
20
MICROPHONE
BASS
FIREFLY 808
Getting 6.2 audio from your FireFly
SPEAKERS
(BACK)
COMPUTER
SPEAKERS
(MIDDLE)
SPEAKERS
(FRONT)
SUBWOOFER
8 in, 8 out
S/PDIF
IN
AES IN
STUDIO MONITORS
FIREFLY 808
21
DIMENSIONS
290.10/11.421
88.00/3.465
259.90/10.232
429.60/16.913
* All measurements are shown in mm/inches.
22
FIREFLY 808
SPECIFICATIONS
Frequency Response
Mic Input to Line Output (Gain @ unity):
+0.04, –0.26 dB, 20 Hz to 20 kHz
Mic Input to Digital Output (AES, 96 kHz sample rate):
+0, –0.2 dB, 20 Hz to 85 kHz
Distortion (THD & IMD)
Mic Input to Line Output (@ +4 dBu output):
THD+N: < 0.007%, 20 Hz to 20 kHz BW, 1 kHz input @ +4 dBu,
preamp at unity gain
Mic Input to Digital Output (AES, 48 kHz sample rate):
THD+N: < 0.004%, 10mV rms input, gain at –1 dB FS output
Dynamic Range
>110 dB (through A-to-D converters)
>120 dB (Mic In to Line Out)
Noise
Signal-to-Noise (A-weighted):
>100 dB (ref. +4 dBu, Mic In to Line Out, Gain @ unity)
Equivalent Input Noise (E.I.N.), 20 Hz to 20 kHz Bandwidth, 150Ω source impedance:
–129 dBu @ +60 dB gain
Residual Output Noise:
Line Out: < –100 dBu (Channel Gain at unity)
Digital Out (AES, 48 kHz): < –110 dB FS
Common Mode Rejection Ratio (CMRR)
Mic In: >60 dB @ 1 kHz, Gain @ maximum
Crosstalk (Mic Input to Line Output)
< –100 dB @ 1 kHz, +10 dBu signal on adjacent input, 150Ω
source impedance
Input Gain Control Range
Mic In: +10 dB to +50 dB
Line In: –10 dB to + 40 dB
Phantom Power
+48 VDC, individual switches
Rated Output
Line: +4 dBu
Maximum Input Levels
Mic Input: +12 dBu, Gain @ unity
Inst Input: +20 dBu, Gain @ –20 dB
Line Input: > +20 dBu, Gain @ 0 dB
Input Impedance
Ch 1 and 2 Mic Input
1.1 kΩ
Ch 3 through 8 Mic Input
1.1 kΩ
Inst Input
500 kΩ
Line Input
22 kΩ balanced, 11 kΩ unbalanced
Line out
100 Ω balanced
Signal Level LEDs
-40, -20, -10 dBu, 0 dBu (normal operating level), OL = 14 dBu
Sample Frequency Selections
44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, External
Input & Output connectors
Analog Input Connectors
Two combo jack; Six balanced XLR mic inputs
Two 1/4” TS high-impedance instrument inputs (through combo
jack)
Eight 1/4” TRS balanced line inputs
Analog Output Connectors
Thirteen 1/4” TRS outputs and one for headphones
Digital Input Connectors
RCA for S/PDIF, XLR for AES, BNC for external word clock and
Toslink Optical inputs
Digital Output Connectors
RCA for S/PDIF, XLR for AES, BNC for external word clock and
Toslink Optical outputs
Two Toslink Optical Connectors
Transmit channels 1-8 at 44.1/48 kHz operation
Transmits channels 1-4 at 88.2/96 kHz operation
AC Power Requirements
Power Consumption: 60 watts
Universal AC Power Supply: 100 VAC 240 VAC, 50-60 Hz
Dimensions
483 x 88 x 286 mm (19 x 3.5 x 11.25 in.)
Weight
5 kg (11 lbs.)
FIREFLY 808
23
GLOBAL 48V
BLOCK DIAGRAM
24
FIREFLY 808
APPENDIX
Reference Books
Phonic recommends the following books for those
interested in advanced audio engineering and sound
system operation:
Sound System Engineering by Don and Carolyn
Davis, Focal Press, ISBN: 0-240-80305-1
Sound Reinforcement Handbook by Gary D.
Davis, Hal Leonard Publishing Corporation, ISBN:
0-88188-900-8
Audio System Design and Installation by Philip
Giddings, Focal Press, ISBN: 0-240-80286-1
Practical Recording Techniques by Bruce and
Jenny Bartlett, Focal Press, ISBN: 0-240-80306-X
Modern Recording Techniques by Huber &
Runstein, Focal Press, ISBN: 0-240-80308-6
Sound Advice – The Musician’s Guide to the
Recording Studio by Wayne Wadham, Schirmer
Books, ISBN: 0-02-872694-4
Anatomy of a Home Studio: How Everything
Really Works, from Microphones to Midi by Scott
Wilkinson, Steve Oppenheimer, Mark Isham. Mix
Books, ISBN: 091837121X
Live Sound Reinforcement: A Comprehensive
Guide to P.A. and Music Reinforcement Systems
and Technology by Scott Hunter Stark. Mix Books,
ISBN: 0918371074
Audiopro Home Recording Course Vol 1: A
Comprehensive Multimedia Audio Recording Text
by Bill Gibson. Mix Books, ISBN: 0918371104
Audiopro Home Recording Course Vol. 2: A
Comprehensive Multimedia Audio Recording Text
by Bill Gibson. Mix Books, ISBN:
Professional Microphone Techniques by David
Mills Huber, Philip Williams. Hal Leonard Publishing
Corporation, ISBN: 0-87288-685-9
FIREFLY 808
25
6103 Johns Road #7
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
