Clarion Co., Ltd.
50 Kamitoda, Toda-shi, Saitama 335-8511 Japan
Service Dept.: 5-66 Azuma , Kitamoto-shi, Saitama 364-0007 Japan
Tel: +81-48-541-2335 / 2432 FAX: +81-48-541-2703
Published by Service Dept.
298-6229-00 Mar.2005 X
Printed in Japan

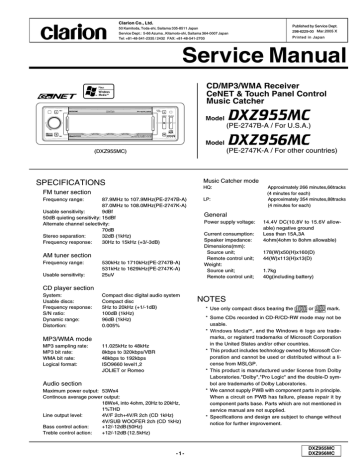

Service Manual
CD/MP3/WMA Receiver
CeNET & Touch Panel Control
Music Catcher
Model
(PE-2747B-A / For U.S.A.)
Model
(PE-2747K-A / For other countries)
(DXZ955MC)
Music Catcher mode
SPECIFICATIONS
HQ:
FM tuner section
Frequency range:
87.9MHz to 107.9MHz(PE-2747B-A)
87.0MHz to 108.0MHz(PE-2747K-A)
Usable sensitivity:
9dBf
50dB quieting sensitivity: 15dBf
Alternate channel selectivity:
70dB
Stereo separation:
32dB (1kHz)
Frequency response:
30Hz to 15kHz (+3/-3dB)
AM tuner section
Frequency range:
Usable sensitivity:
530kHz to 1710kHz(PE-2747B-A)
531kHz to 1629kHz(PE-2747K-A)
25uV
LP:
Approximately 266 minutes,66tracks
(4 minutes for each)
Approximately 354 minutes,88tracks
(4 minutes for each)
General
Power supply voltage:
Current consumption:
Speaker impedance:
Dimensions(mm):
Source unit;
Remote control unit;
Weight:
Source unit;
Remote control unit;
14.4V DC(10.8V to 15.6V allowable) negative ground
Less than 15A,3A
4ohm(4ohm to 8ohm allowable)
178(W)x50(H)x160(D)
44(W)x113(H)x13(D)
1.7kg
40g(including battery)
CD player section
System:
Usable discs:
Frequency response:
S/N ratio:
Dynamic range:
Distortion:
Compact disc digital audio system
Compact disc
5Hz to 20kHz (+1/-1dB)
100dB (1kHz)
96dB (1kHz)
0.005%
MP3/WMA mode
MP3 sampling rate:
MP3 bit rate:
WMA bit rate:
Logical format:
11.025kHz to 48kHz
8kbps to 320kbps/VBR
48kbps to 192kbps
ISO9660 level1,2
JOLIET or Romeo
Audio section
Maximum power output: 53Wx4
Continous average power output:
18Wx4, into 4ohm, 20Hz to 20kHz,
1%THD
Line output level:
4V/F 2ch+4V/R 2ch (CD 1kHz)
4V/SUB WOOFER 2ch (CD 1kHz)
Bass control action:
+12/-12dB(50Hz)
Treble control action:
+12/-12dB (12.5kHz)
-1-
NOTES
* Use only compact discs bearing the
or
mark.
* Some CDs recorded in CD-R/CD-RW mode may not be
usable.
, and the Windows logo are trade*
marks, or registerd trademarks of Microsoft Corporation
in the United States and/or other countries.
* This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from MSLGP.
* This product is manufactured under license from Dolby
Laboratories."Dolby","Pro Logic" and the double-D symbol are trademarks of Dolby Laboratories.
* We cannot supply PWB with component parts in principle.
When a circuit on PWB has failure, please repair it by
component parts base. Parts which are not mentioned in
service manual are not supplied.
* Specifications and design are subject to change without
notice for further improvement.
DXZ955MC
DXZ956MC
* This Main PWB adjustment is made to install the exclusive
software for adjustment in a personal computer, the CeNET
analyzer and a SSG with personal computer of
exclusive use required.
To engineers in charge of repair or
inspection of our products.
* This DSP IC SAF7730HV(051-6706-10) of main PWB is exposed
die soldering pad type. The middle of this IC package is soldered
with the main PWB, and it cannot remove in an ordinary
soldering iron. Please use special removal JIG at the time of IC
exchange.
* If you purchased a replacement DCP, an electrical adjustment is
necessary. Please refer to the adjustment of this service manual
for the V-COM-DC adjustment.
* MUSIC CATCHER for recording CD-DA.
In the MUSIC CATCHER mode, the files recorded in the
built-in flash memory are played back.
Recordable media are CD-DAs only.
Discs(CD-R/CD-RW) created by copying on a music recorder
cannot be recorded.
MP3/WMA discs cannot be recorded.
Before repair or inspection, make sure to follow the
instructions so that customers and Engineers in
charge of repair or inspection can avoid suffering
any risk or injury.
1. Use specified parts.
The system uses parts with special safety features against
fire and voltage. Use only parts with equivalent characteristics when replacing them.
The use of unspecified parts shall be regarded as remodeling for which we shall not be liable. The onus of product
liability (PL) shall not be our responsibility in cases where
an accident or failure is as a result of unspecified parts
being used.
2. Place the parts and wiring back in their original positions
after replacement or re-wiring.
For proper circuit construction, use of insulation tubes,
bonding, gaps to PWB, etc, is involved. The wiring con-
COMPONENTS
PE-2747B-A,PE-2747K-A
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
10-1.
10-2.
10-3.
10-4.
*B-A:
Main unit
Rmote controller unit
Battery(CR2025)
Mounting bracket
Universal MTG-bracket
DCP case
Outer escutcheon
RCA PIN CORD
Extension lead
Parts bag
Removal key
Screw(M5x8)
Pad screw(M1.7x6)(*B-A)
Rubber part
----------RCB-172-600
----------300-4976-00
300-7742-00
335-5734-30
370-6148-00
855-5519-51
854-6433-50
----------331-2497-00
716-0496-01
716-0872-11
345-3799-20
1
1
1
1
1
1
1
1
1
1
2
1
1
8
3.
4.
For DXZ955MC (PE-2747B-A)
CAUTIONS
Use of controls, adjustment or performance of procedures
other than those specified herein, may result in hazardous
radiation exposure.
The COMPACT DISC player should not be adjusted or repaired by anyone except properly qualified service personnel. (for PE-2747B-A)
5.
6.
7.
8.
Bottom view
DXZ955MC
DXZ956MC
-2-
nection and routing to the PWB are specially planned using
clamps to keep away from heated and high voltage parts.
Ensure that they are placed back in their original positions
after repair or inspection.
If extended damage is caused due to negligence during
repair, the legal responsibility shall be with the repairing
company.
Check for safety after repair.
Check that the screws, parts and wires are put back securely in their original position after repair. Ensure for safety
reasons there is no possibility of secondary ploblems
around the repaired spots.
If extended damage is caused due to negligence of repair,
the legal responsibility shall be with the repairing company.
Caution in removal and making wiring connection to the
parts for the automobile.
Disconnect the battery terminal after turning the ignition
key off. If wrong wiring connections are made with the
battery connected, a short circuit and/or fire may occur. If
extensive damage is caused due to negligence of repair,
the legal responsibility shall be with the repairing company.
Cautions regarding chips.
Do not reuse removed chips even when no abnormality is
observed in their appearance. Always replace them with
new ones. (The chip parts include resistors, capacitors,
diodes, transistors, etc). The negative pole of tantalum
capacitors is highly susceptible to heat, so use special care
when replacing them and check the operation afterwards.
Cautions in handling flexible PWB
Before working with a soldering iron, make sure that the
iron tip temperature is around 270 C. Take care not to apply the iron tip repeatedly(more than three times)to the
same patterns. Also take care not to apply the tip with force.
Turn the unit OFF during disassembly and parts replacement. Recheck all work before you apply power to the unit.
Cautions in checking that the optical pickup lights up.
The laser is focused on the disc reflection surface through
the lens of the optical pickup. When checking that the laser optical diode lights up, keep your eyes more than 30cms
away from the lens. Prolonged viewing of the laser within
30cms may damage your eyesight.
9. Cautions in handling the optical pickup
The laser diode of the optical pickup can be damaged by
electrostatic charge caused by your clothes and body. Make
sure to avoid electrostatic charges on your clothes or body,
or discharge static electricity before handling the optical
pickup.
9-1. Laser diode
The laser diode terminals are shorted for transportation in order to prevent electrostatic damage. After
replacement, open the shorted circuit. When removing the pickup from the mechanism, short the termi-
SYSTEM CHECK
nals by soldering them to prevent this damage.
9-2. Actuator
The actuator has a powerful magnetic circuit. If a
magnetic material is put close to it. Its characteristics will change. Ensure that no foreign substances
enter through the ventilation slots in the cover.
9-3. Cleaning the lens
Dust on the optical lens affects performance. To
clean the lens, apply a small amount of isopropyl
alcohol to lens paper and wipe the lens gently.
CODEMATIC
This function prevents persons who do not know the touch
sequence from easily operating this unit. The Touch Code
display appears when DCP is attached and the power is
turned ON with "CODEMATIC" set to "ON".
The function allows you to perform a system check when
an external equipment is connected to this unit or the"SPEAKER SELECT" is changed.
1. Press the [ADJ] button to set to the adjust mode.
2. Touch [SETTING].
3. Touch
on the left of the display to select "SYSTEM CHECK".
ADJ
CODEMATIC
SETTING
OFF
RT N
If you touch the display in this screen in the preset order,
"SUCCESSFUL" is displayed and the power is turned OFF.
When the power is next turned ON, the Touch Code display
does not appear, and the main display in the radio mode or
CD mode is displayed.
4. Touch [START]. The confirmation display appears.
5. Touch [OK].
When the system check is complete, "SPEAKER SELECT"
screen appears.Select the apeaker system. After this operation, the diaplay returns to the original mode.
ADJUSTMENT
Main section
Item
PRN file
read-in
BUS Tuner
adjustment
Measuring
instrument
Procedure
File PRN (PE2747YADP0001) is write in EEP-ROM IC(IC602).
At this moment you must confirm that "OK"display when writing or reading.
When "CS ERROR" is displayed, it writes it in eeprom again and "OK" display.
SG
1. FM IF adjust
Input 98.1MHz/60dBu and measure with CW, the adjustment value is written in EEP-ROM IC.
Personal computer
CeNET analyzer
Exclusive software
(adjustable tolerance +3/-3 KHz)
2. FM S-meter adjust
Input 98.1MHz/65dBu/35dBu and measure with modulation (1KHz/30%), the calculated offset
value and inclination are written in EEP-ROM IC. (adjustable tolerance +3/-3 KHz)
3. AM IF adjust
PRN file
(PE2747YADP0001
or PRN File
used with QC6822B)
Input 1000kHz/60dBu and measure with CW, the adjustment value is written in EEP-ROM IC.
(adjustable tolerance +1/-1 KHz)
4. AM S-meter adjust
Input 1000kHz/70dBu/40dBu and measure with modulation (1KHz/30%), the calculated offset
value and inclination are written in EEP-ROM IC. (adjustable tolerance +3/-3 KHz)
-3-
DXZ955MC
DXZ956MC
DCP section
Item
Measuring
instrument
Procedure
V-COM-DC 1. In the test mode, it makes it for V-COM-DC adjustment to the display of 16 step monochrome screen.
At this moment please select the ILLUMI side of DIMMER so that DIMMER can't be locked.
¡úThe method of display 16 step monochrome screen for adjustment.
Press the [ADJ] button and "SYSTEM CHECK" appears in the display, touch the second from the
left of the four touch buttons which under the display screen and it will change into the color belt and
adjust it from left to right or from up to down, it will display 16 step monochrome screen as following
A figure.
Screen for V-COM adjustment (A figure)
2. Press the [
] button to open the control panel.
( Note: If the control panel is left open more than 30 seconds, it will close automatically.)
3. Through the hole in the rear cover of DCP (C figure) use adjust stick to adjust the half fixation
VR (VR701) on switch PWB and adjust the screen to the minimum flicker.
On the adjustment screen use the magnifier to show the 7th block to 9th block which account
from the left of upper part, do the same thing from 8th block to 10th block of below part and
adjustment can be done intelligibly.
In the screen you can see the wave screen from up to down or from down to up.
Adjust the adjust stick until the screen is stable. At this moment if you used magnifier you can enlarge
the dot maximal of LCD to visible status and adjustment can be done intelligibly.
Figure of adjustment point (B figure)
Adjustment
point
Position of half fixation VR for adjustment (C figure)
Figure shows the other side of DCP
4. Next, you must confirm that there is no flicker in a right and left dot part of normal screen (D figure)
and a right and left adjustment screen of ADJ, SOUND etc. (E figure)
Also when there is big flicker, it returns to No.1 and it readjusts.
(D figure)
Right and left dot part
(E figure)
Right and left
5. If there is no problem, the hole for the adjustment of the rear cover of DCP is closed with the film
(347-7745-00).
Closed hole
DXZ955MC
DXZ956MC
-4-
Adjust stick
magnifier
ERROR DISPLAYS
DVD changer
CD changer
M.CATCHER
CD/MP3/WMA
Error Display
Measure
Cause
ERROR 2
A DISC is caught inside the CD deck and is not ejected.
This is a failure of CD deck's mechanism.
ERROR 3
A DISC cannot be played due to scratches,etc.
Replace with a non-scratched,non-warped-disc.
ERROR 6
A DISC is loaded upside-down inside the CD deck and does not
play.
Eject the disc then reload it properly.
ERROR 7
The format of the flash memory is damaged.
Execute ALL ERASE on the flash memory,
and the problem is solved.
ERROR 8
There is a failure with the flash memory.
Turn POWER/ACC off and then turn it on
again, and the problem is solved.
ERROR 9
An error during recording, scratch on the
disc, or error due to sound skips
Turn POWER/ACC off and then turn it on
again, or eject the CD. The problem is solved.
ERROR 2
A DISC inside the CD changer is not loaded.
This is a failure of CD changer's mechanism.
ERROR 3
A DISC inside the CD changer cannot be played due to scratches,
etc.
Replace with a non-scratched, non-warped disc.
ERROR 6
A DISC inside the CD changer cannot be played because it is
loaded upside-down.
Eject the disc then reload it properly.
ERROR 2
A DISC inside the DVD changer cannot be played.
This is a failure of DVD mechanism.
ERROR 3
A DISC cannot be played due to scratches,etc.
Retry or replace with a non-scratched, non-warped-disc.
ERROR 6
A DISC inside the DVD changer cannot be played because it is
loaded upside-down.
Eject the disc then reload it properly.
ERROR P
Parental level error
Set the correct Parental level.
ERROR R
Region code error
Eject the disc and replace correct region code disc.
If an error display other than the ones described above appears, turn off the power,
then press the [ RELEASE ] button and remove the DCP.
And press the reset button for about 2 seconds with a thin rod.
-5-
Reset button
DXZ955MC
DXZ956MC
EXPLANATION OF IC
Main section
051-3351-90
P-GND 4 24
Diagnostics 25
MUTE 22
-OUT 4 23
Vcc 20
+OUT 4 21
+OUT 3 17
P-GND 3 18
-OUT 3 19
AC GND 16
IN 4 14
IN 3 15
SVR 10
IN 1 11
-
8
9
6
7
Vcc
-OUT 1
P-GND 1
+OUT 1
IN 2 12
S-GND 13
L = Mute ON
L = Clipping
BA033CC0FP-E2 Positive Voltage Regurator (3.3V)
GROUND
051-6080-00
-
H = Power ON
+
+
TAB 1
P-GND 2 2
-OUT 2 3
STNBY 4
+OUT 2 5
Quad Bridge Audio Amplifier
+
TB2913HQ
+
051-2056-00
3
OUTPUT
2
1
N.C.
VCC
LZ9FD51A
Terminal Description
pin 1: D CLK
TFT LCD Controller
pin 36: LP
: O : The output terminal of the data transmission signal for the source driver.
pin 37: Clock Out
: O : Clock Out.
pin 38: GND
: - : Ground.
pin 39: O BLUE 5
: O : The blue signal output.
pin 40: O BLUE 4
: O : The blue signal output.
pin 41: O BLUE 3
: O : The blue signal output.
pin 42: O BLUE 2
: O : The blue signal output.
pin 43: O BLUE 1
: O : The blue signal output.
pin 44: O BLUE 0
: O : The blue signal output.
pin 45: VDD
: - : Positive voltage supply.
pin 46: GND
: - : Ground.
pin 47: O GREEN 5
: O : The green signal output.
pin 48: O GREEN 4
: O : The green signal output.
pin 49: O GREEN 3
: O : The green signal output.
pin 50: O GREEN 2
: O : The green signal output.
pin 51: O GREEN 1
: O : The green signal output.
pin 52: O GREEN 0
: O : The green signal output.
pin 53: GND
: - : Ground.
pin 54: O RED 5
: O : The red signal output.
pin 55: O RED 4
: O : The red signal output.
pin 56: O RED 3
: O : The red signal output.
pin 57: O RED 2
: O : The red signal output.
pin 58: O RED 1
: O : The red signal output.
pin 59: O RED 0
: O : The red signal output.
pin 60: GND
: - : Ground.
: IN : The data clock pulse input.
pin 61: CLS
: O : The clock pulse output for the gate driver.
pin
2: TEST
: O : For the test.
pin 62: SPS
pin
3: RED 0
: O : The red signal input.
: O : The starting pulse output for the gate driver.
pin
4: RED 1
: O : The red signal input.
pin 63: VDD
: - : Positive voltage supply.
pin
5: RED 2
: O : The red signal input.
pin 64: GND
: - : Ground.
pin
6: RED 3
: O : The red signal input.
pin 65: UBL
pin
7: RED 4
: O : The red signal input.
: O : The output terminal of signal that controls
vertical reversing display for the gate driver.
pin
8: RED 5
: O : Parallel Red data output.
pin 66: V RVE
: IN : The vertical reversing setting terminal.
pin
9: GND
: - : Ground.
pin 67: MODE
: O : The output terminal to set the gate driver's
output mode.
: - : Not in use.
pin 10: VDD
: - : Positive voltage supply.
pin 11: GREEN 0
: IN : The green signal input.
pin 68: NU
pin 12: GREEN 1
: IN : The green signal input.
pin 69: TEST
: IN : For the test.
pin 13: GREEN 2
: IN : The green signal input.
pin 70: REM
pin 14: GREEN 3
: IN : The green signal input.
: IN : The reset signal input terminal to make the
mode signal.
pin 15: GREEN 4
: IN : The green signal input.
pin 71: HS
: IN : The horizontal sync counter.
: IN : The green signal input.
pin 72: VS
: IN : The input terminal of the vertical synchronizing signal.
pin 16: GREEN 5
pin 17: TEST
: IN : For the test.
pin 18: BLUE 0
: IN : The blue signal input.
pin 19: BLUE 1
: IN : The blue signal input.
pin 20: BLUE 2
: IN : The blue signal input.
pin 21: BLUE 3
: IN : The blue signal input.
pin 22: BLUE 4
: IN : The blue signal input.
pin 23: BLUE 5
: IN : The blue signal input.
pin 24: TEST CK
: IN : The clock pulse input for the test.
pin 25: H RVE
: IN : The horizontal reversing setting terminal.
pin 26: ENAB
: IN : The horizontal display beginning position
setting terminal.
pin 27: VDD
: - : Positive voltage supply.
pin 28: GND
: - : Ground.
pin 29: TSTR
: IN : The initial reset input.
pin 30: REV 1
: O : The signal output terminal for the common
electrode signal making.
pin 31: REV V 0
: O : The output terminal for the reference voltage making.
pin 32: GND
: - : Ground.
pin 33: SPR
: O : The start signal output terminal for the
source driver.
pin 34: LBR
: O : The output terminal of signal that controls
the horizontal reversing display.
pin 35: SPL
: O : The starting signal output to the source
driver.
DXZ955MC
DXZ956MC
Table 1. The horizontal scanning setting
H RVE input
( pin 25 )
SPR output
( pin 33 )
SPL output
( pin 35 )
LBR output
( pin 34 )
High voltage
High-Z
start pulse
H
Low voltage
start pulse
High-Z
L
Table 2. The vertical scanning setting
V RVE input
( pin 66 )
UBL output
( pin 65 )
High voltage
H
Low voltage
L
051-7107-90
TC4S81F-TE85L,F
1
2
GND 3
-6-
Single 2-inputs AND GATE
5 VDD
4
uPD703275YGJ-503-UEN
Terminal Description
pin 1: A Vref 0
8 GND
9
10
7
11
6
12
Hex Inverter
5
NC 13
4
14
3
2
1 VCC
052-3400-00
15
CD74HC4049PWR
NC 16
051-7287-90
System Controller
: - : Reference voltage for the internal ADC.
pin 46: OSD CD 3
:I/O: The parallel data input/output for the on
screen display.
pin 47: OSD CD 4
:I/O: The parallel data input/output for the on
screen display.
pin 48: OSD CD 5
:I/O: The parallel data input/output for the on
screen display.
pin 49: OSD CD 6
:I/O: The parallel data input/output for the on
screen display.
pin 50: OSD CD 7
:I/O: The parallel data input/output for the on
screen display.
pin 51: OSD RD
: O : The read command output for the on
screen display IC.
pin 52: OSD WR
: O : The write command output for the on
screen display IC.
pin 53: REMOCON IN
: IN : The input terminal of the internal ADC for
the remote controller.
pin 54: OSD CS
: O : The chip select signal output to the on
screen display IC.
pin
2: A VSS
: - : Negative voltage supply for analog section.
pin 55: OSD PS 2
: O : On screen display port select.
pin
3: SYS ACC
: O : ACC detect signal output.
pin 56: OSD PS 1
: O : On screen display port select.
pin
4: SYS MUTE
: O : System muting signal output.
pin 57: OSD PS 0
: O : On screen display port select.
pin
5: A Vref 1
: - : Reference voltage for the internal ADC.
pin 58: OSD RST
pin
6: RDS CLK
: IN : RDS clock pulse input.
: O : The reset pulse output for the on screen
display IC.
pin 59: TP RX
: IN : The serial data input from the touch panel
micro computer.
pin 60: TP TX
: O : The serial data output to the touch panel
micro computer.
pin
7: NU
: IN : Not in use.
pin
8: FLASH MD 0
: IN : H = The flash memory writing.
pin
9: VDD
: - : Positive voltage supply.
pin 10: REG C
: - : The capacitor connection.
pin 11: VSS
: - : Negative voltage supply.
pin 12: X 1
: - : The crystal connection.
pin 13: X 2
: IN : The crystal connection.
pin 14: RESET
: IN : Reset signal input.
pin 15: XT 1
: - : Crystal connection.
pin 16: XT 2
: - : Crystal connection.
pin 17: ILL DET
: IN : Illumination ON signal input.
pin 18: B/U DET 2
: IN : The backup voltage detect pulse input.
pin 19: B/U DET
: IN : Backup voltage ON signal input.
pin 61: E VOL DATA
: O : The serial data output to the volume IC.
pin 62: E VOL CLK
: O : The clock pulse output to the volume IC.
pin 63: MP3 SRQ
: IN : MP3 request signal input.
pin 64: MP3 CS
: O : MP3 chip selection signal output.
pin 65: MP3 WP
: O : MP3 wakeup signal output.
pin 66: MP3 RESET
: O : MP3 reset signal output.
pin 67: BEEP
: O : Beep out.
pin 68: MP3 SI
: IN : MP3 serial data input.
pin 69: MP3 SO
: O : MP3 serial data output.
pin 70: MP3 SCK
: O : MP3 clock output.
pin 20: NU
: IN : Not in use.
pin 21: ACC IN
: IN : ACC ON flag input.
pin 22: TUN SDA
:I/O: I2BUS serial data input/output for the tuner pack.
pin 73: AMP MUTE
pin 23: TUN SCL
: O : I2BUS serial clock output for the tuner
pack.
pin 74: KEY INT
: IN : Key interrupting signal input.
pin 75: OSD INT 0
: IN : The interrupt signal (vertical) input for the
on screen display.
pin 76: NU
: IN : Not in use.
pin 71: EXT AMP REM : O : ON signal output to the external Amplifier.
pin 72: INT AMP REM : O : ON signal output to the internal Amplifier.
pin 24: TP REQ
: IN : The request signal from the touch panel
micro computer.
pin 25: FLASH TX
: O : The serial data output for the flash memory.
: O : Muting signal output to the Audio Power
Amplifier.
pin 26: FLASH RX
: IN : The serial data input for the flash memory.
pin 27: TP RESET
: O : The reset pulse output to the touch panel.
pin 77: TFT DD F SW 1 : O:
The DC-DC-converter-control-signal outputterminal for the TFT driving. When theswitching-frequency is out of the standard
frequency range, this terminal outputs L.
pin 28: NU
: IN : Not in use.
pin 78: DD F SW
: O : The frequency control signal output for
DC_DC_Converter.
pin 79: REM +5V
: O : Power supply circuit control signal. "H"=
ON.
pin 29: SPEED PULSE : IN : The speed pulse input.
pin 30: NU
: IN : Not in use.
pin 31: IE BUS TX
: O : IE Bus serial data output.
pin 32: IE BUS RX
: IN : IE Bus serial data input.
pin 33: E VSS
: - : Ground.
pin 34: E VDD
: - : The positive supply voltage.
pin 35: T-DSP SDA
:I/O: I2BUS serial data input/output for the Radio-Audio-DSP.
pin 36: T-DSP SCL
: O : I2BUS serial clock output for the RadioAudio-DSP.
pin 85: EEP DO
: O : The serial data output to the EEP-ROM.
pin 86: CLK out
: O : Clock pulse output.
pin 37: MOTOR+
: O : The control signal output to the motor.
pin 87: EEP SCK
: O : The clock pulse output to the EEP-ROM.
pin 38: MOTOR-
: O : The control signal output to the motor.
pin 88: EEP CEO
pin 39: LCD ILL REM
: O : H = LCD back light ON.
: O : The chip enable signal output to the EEPROM.
pin 40: DISP 5V
: O : The power supply ON signal output for the
LCD driver.
pin 89: EEP DI
: IN : The serial data input from the EEP-ROM.
pin 90: NU
: IN : Not in use.
pin 41: OFFSET DET
: IN : The emergency signal input from the power IC.
pin 91: DSP 2 Request : O : The request signal output to DSP-2.
pin 42: OSD WAIT
: IN : The wait signal input for the on screen display IC.
pin 93: DSP 2 SO
: O : The serial data output to DSP-2.
pin 94: NU
: IN : Not in use.
pin 95: DSP 2 RDY
: IN : The ready signal input to DSP-2.
pin 80: MAIN
0
BIT
: O : H = 0 bit muting active.
pin 81: NU
: IN : Not in use.
pin 82: NU
: IN : Not in use.
pin 83: NU
: IN : Not in use.
pin 84: NU
: IN : Not in use.
pin 92: DSP 2 SCK
: O : The clock pulse output to DSP-2.
pin 43: OSD CD 0
:I/O: The parallel data input/output for the on
screen display.
pin 44: OSD CD 1
:I/O: The parallel data input/output for the on
screen display.
pin 96: DSP 2 RESET : O : The reset pulse output to DSP-2.
pin 45: OSD CD 2
:I/O: The parallel data input/output for the on
screen display.
pin 98: NU
-7-
pin 97: DSP 2 INI RST : O : The initial reset signal output to DSP-2.
: IN : Not in use.
DXZ955MC
DXZ956MC
pin 99: NU
: IN : Not in use.
pin100: NU
: IN : Not in use.
pin101: NU
: IN : Not in use.
pin102: NU
: IN : Not in use.
pin103: B VSS
: - : Ground for the bus interface section.
pin
2: MAIN RX
: IN : Serial data input from the micro computer.
pin104: B VDD
: - : Positive voltage supply for the bus interface
section.
pin
3: CLR / BRT
pin105: KEY ILL REM
: O : Key illumination ON signal output.
: O : When pin 13 is low voltage ( Audio ), this
terminal outputs the color adjustment signal.
pin106: CATS LED
: O : CATS LED drive output.
pin107: NU
: IN : Not in use.
pin108: NU
: IN : Not in use.
pin
4: CN VSS
pin109: NU
: IN : Not in use.
pin
pin110: NU
: IN : Not in use.
pin111: NU
: IN : Not in use.
5: MD2 / JOGCW :I/O: When pin 13 is low voltage ( Audio ), this
terminal is the pulse input from the rotary
encoder.
pin112: DSP RESET
: O : Reset signal output to the DSP IC.
pin113: DSP INIT
: IN : The initial finished signal input from the
Radio-Audio-DSP.
pin114: DSP SAMPLE
: IN : SAMPLE input.
pin115: NU
: O : Not in use.
052-7066-10
M30102M2-597FP
Terminal Description
pin 1: MAIN REQ
Touch Panel Controller
: O : REQ output to the main controller.
And when pin 13 is high voltage ( AVN ),
this terminal outputs the brightness adjustment signal.
pin116: FM/AM 8V
: O : The 8V power supply ON signal output.
pin117: RDS DATA
: IN : RDS serial data input.
: IN : Connect to VSS.
And when pin 13 is high voltage ( AVN ),
this terminal outputs the wide-mode-selection signal.
pin
6: MD1 / JOGCCW:I/O: When pin 13 is low voltage ( Audio ), this
terminal is the pulse input from the rotary
encoder.
And when pin 13 is high voltage ( AVN ),
this terminal outputs the wide-mode-selection signal.
pin118: FM/AM 5V
: O : The 5V power supply ON signal output.
pin
7: RESET
: IN : Reset signal input.
pin119: NU
: IN : Not in use.
pin
8: X out
: O : Crystal connection.
pin120: NU
: IN : Not in use.
pin
9: VSS
pin121: NU
: IN : Not in use.
pin 10: X IN
: IN : Crystal connection.
pin122: NU
: IN : Not in use.
pin 11: VCC
: - : Positive voltage supply.
pin123: NU
: IN : Not in use.
pin 12: CLAMP
pin124: NU
: IN : Not in use.
: O : Clamp control output.
L = VTR/DVD, H = TV/RGB.
pin125: NU
: IN : Not in use.
pin 13: INTIAL
: IN : The initial setting terminal.
pin126: NU
: IN : Not in use.
pin127: NU
: IN : Not in use.
pin128: NU
: IN : Not in use.
pin129: FAN +B
: O : The power supply ON signal output for the
fan. H = ON.
When you use this IC for Audio, set this
terminal to low voltage.
When you use this IC for AVN, set this
terminal to high voltage.
pin130: FAN TEMP DET : IN : The input terminal of the internal ADC to
detect the temperature.
pin131: OPEN POSI
: IN : The open position detect signal input.
pin132: CLOSE POSI
: IN : The close position detect signal input.
pin133: TFT DD F SW 2 : O:
The DC-DC-converter-control-signal outputterminal for the TFT driving. When theswitching-frequency is out of the standard
frequency range, this terminal outputs L.
pin134: INIT 1
pin135: INIT 2
: - : Negative voltage supply.
pin 14: POWER KEY
: IN : Power key input.
pin 15: KO 3
: O : Key scan output terminal.
pin 16: KI 3 / A-dimmer : IN : When pin 13 is low voltage ( Audio ), this
terminal is the input terminal of the internal ADC to detect the automatic dimmer
signal.
And when pin 13 is high voltage ( AVN ),
this terminal is the Key scan signal input.
pin 17: KO 2
: O : Key scan output terminal.
pin 18: NU
: - : Not in use.
: IN : The destination setting input. Refer Table
1.
pin 19: KO 1
: O : Key scan output terminal.
pin 20: KI 2
: IN : Key scan signal input.
: IN : The destination setting input. Refer Table
1.
pin 21: KI 1
: IN : Key scan signal input.
pin 22: KI 0
: IN : Key scan signal input.
pin 23: KO 0
: O : Key scan output terminal.
pin136: NU
: IN : Not in use.
pin137: KEY A/D
: IN : The input terminal of the internal ADC for
key judgement.
pin 24: VIDEO / RGB
: O : L = VIDEO , H = RGB.
: IN : Remote controller signal input terminal.
pin138: NU
: IN : Not in use.
pin 25: REMOCON
pin139: PHONE INT
: IN : The telephone interrupt signal input.
pin140: NU
: IN : Not in use.
pin 26: HUE / P-dimmer : O : When pin 13 is low voltage ( Audio ), this
terminal outputs PWM-signal for dimmer.
pin141: AMP REM DT
: IN : Remote controller wire short detection.
And when pin 13 is high voltage ( AVN ),
this terminal outputs PWM-signal for the
hue-adjustment.
pin142: NU
: IN : Not in use.
pin143: AUTO ANT
: O : Motor antenna control signal output.
pin 27: NU
: - : Not in use.
pin144: NU
: IN : Not in use.
pin 28: TPW
: IN : Touch panel wake input.
pin 29: PA
: O : When this IC perceives the touch panel
operated, this terminal is made high impedance.
pin 30: CHK
: O : When this IC checks the resistance, this
terminal outputs the low voltage.
pin 31: VCC
: - : Positive voltage supply.
Table 1. The destination setting input
USA
Japan
Asia
INIT 1 ( pin 134 )
L
H
H
INIT 2 ( pin 135 )
L
H
L
DXZ955MC
DXZ956MC
pin 32: BRT
: O : BRT level control. PWM output.
pin 33: GND
: - : Ground.
pin 34: V MUTE
: O : Image signal muting ON command output.
pin 35: IVCC
: - : Smoothing capacitor connection.
pin 36: Y R IN
: IN : Touch panel co-ordinates input.
pin 37: X R IN
: IN : Touch panel co-ordinates input.
pin 38: Y G IN
: IN : Touch panel co-ordinates input.
pin 39: X G IN
: IN : Touch panel co-ordinates input.
pin 40: Vref
: - : Reference voltage.
-8-
pin 41: NU
: - : Not in use.
pin 42: NU
: - : Not in use.
pin 43: NU
: - : Not in use.
pin 44: Y+
: O : Touch panel co-ordinates output.
pin 45: X+
: O : Touch panel co-ordinates output.
pin 46: Y-
: O : Touch panel co-ordinates output.
pin 47: X-
: O : Touch panel co-ordinates output.
pin 48: MAIN TX
: O : Serial data output to the micro computer.
CD mechanism section: 929-0601-81
052-5056-01
Cinema
Normal
Wide
Full wide
MD 2 ( pin 5 )
L
H
L
H
MD 1 ( pin 6 )
L
L
H
H
MBM29F016A-90PFTN
Terminal Description
pin 1: NU
16M bit Memory
: - : Not in use.
pin
2: NU
: - : Not in use.
pin
3: A 19
: IN : Address input.
pin
4: A 18
: IN : Address input.
pin
5: A 17
: IN : Address input.
pin
6: A 16
: IN : Address input.
pin
7: A 15
: IN : Address input.
pin
8: A 14
: IN : Address input.
pin
9: A 13
: IN : Address input.
pin 10: A 12
: IN : Address input.
pin 11: CE_
: IN : Chip enable signal input. Negative logic.
pin 12: VCC
: - : Positive supply voltage.
pin 13: NU
: - : Not in use.
pin 14: RESET_
: IN : Reset signal input. Negative logic.
pin 15: A 11
: IN : Address input.
pin 16: A 10
: IN : Address input.
pin 17: A 9
: IN : Address input.
pin 18: A 8
: IN : Address input.
pin 19: A 7
: IN : Address input.
pin 20: A 6
: IN : Address input.
pin 21: A 5
: IN : Address input.
pin 22: A 4
: IN : Address input.
pin 23: NU
: - : Not in use.
pin 24: NU
: - : Not in use.
pin 25: NU
: - : Not in use.
pin 26: NU
: - : Not in use.
pin 27: A 3
: IN : Address input.
pin 28: A 2
: IN : Address input.
pin 29: A 1
: IN : Address input.
pin 30: A 0
: IN : Address input.
pin 31: DQ 0
:I/O: Data input / output.
pin 32: DQ 1
:I/O: Data input / output.
pin 33: DQ 2
:I/O: Data input / output.
pin 34: DQ 3
:I/O: Data input / output.
pin 35: VSS
: - : Negative supply voltage.
pin 36: VSS
: - : Negative supply voltage.
pin 37: VCC
: - : Positive supply voltage.
pin 38: DQ 4
:I/O: Data input / output.
pin 39: DQ 5
:I/O: Data input / output.
pin 40: DQ 6
:I/O: Data input / output.
pin 41: DQ 7
:I/O: Data input / output.
pin 42: RY/BY_
: O : Ready / Busy_
pin 43: OE_
: IN : Output enable signal input. Negative logic.
pin 44: WE_
: IN : Wright enable signal input terminal. Negative logic.
pin 45: NU
: - : Not in use.
pin 46: A 20
: IN : Address input.
pin 47: NU
: - : Not in use.
pin 48: NU
: - : Not in use.
Mechanism Controller
1.Terminal Description
Table 1. The wide-mode-selection
052-7076-00
MN102H60KCK1
-9-
pin
pin
pin
pin
pin
pin
pin
pin
pin
1
2
3
4
5
6
7
8
9
: MODE SEL
: OUT ENABLE
: BYTE
: WRITE ENBL
: CHIP SEL
: NU
: NU
: CS 3
: TR A
: IN
: O
: O
: O
: O
: : : O
: IN
pin 10 : TR B
: IN
pin 11
pin 12
pin 13
pin 14
pin 15
pin 16
pin 17
pin 18
pin 19
pin 20
pin 21
pin 22
pin 23
pin 24
pin 25
pin 26
pin 27
pin 28
pin 29
pin 30
pin 31
pin 32
pin 33
pin 34
pin 35
pin 36
pin 37
pin 38
pin 39
pin 40
pin 41
pin 42
pin 43
pin 44
pin 45
pin 46
pin 47
pin 48
pin 49
pin 50
pin 51
pin 52
pin 53
pin 54
pin 55
pin 56
pin 57
pin 58
pin 59
pin 60
pin 61
pin 62
pin 63
pin 64
pin 65
pin 66
pin 67
pin 68
pin 69
pin 70
pin 71
pin 72
pin 73
pin 74
pin 75
: O
: : : O
: O
: O
: : O
: : IN
: O
: : IN
: O
: IN
: O
: O
: O
: O
: : : : : : : : : : O
: O
: O
: O
: : O
: O
: : O
: : : O
: IN
: IN
: O
: : IN
: O
: O
: IN
: O
: IN
: : O
: O
: O
: IN
: : IN
: IN
: O
: IN
: O
: O
: IN
: IN
: IN
: LATCH
: GND
: NU
: M DR MUTE
: M DR CONT
: M DR LD
: VDD
: CK OUT
: VSS
: SB CLK In
: SB CLK Out
: VDD
: OSC IN
: OSC OUT
: CN VCC
: M CLK
: M DATA
: M LD O
: M RESET
: NU
: NU
: NU
: NU
: A VDD
: NU
: NU
: NU
: NU
: Address 16
: Address 17
: Address 18
: Address 19
: VREF: H CNTL 0
: H CNTL 1
: NU
: HRW
: NU
: NU
: SBCK
: SUBC
: HRDY
: SQCK
: VREF+
: SUB Q
: TRESET
: SYS P 1
: LIMIT
: LDRCTL
: SENSE
: A VSS
: SYS P 3
: CSRQ
: 0BMUTE
: CHUCK
: VDD
: CSCK
: CMSI
: CMSO
: STAT
: RWSEL
: SYS P 2
: PUR1
: PUR2
: NMI
: Selection signal input V-Bus or Jig.
: The output enable command output.
: The strobe pulse output for HPI.
: The write enable signal output.
: The chip select signal output.
: Not in use.
: Not in use.
: The chip select signal output.
: Photo sensor signal input from the CD
mechanism.
: Photo sensor signal input from the CD
mechanism.
: The latch pulse output.
: Ground.
: Not in use.
: The "mute" signal output to the motor driver.
: The "control" signal output to the motor driver.
: The "load" signal output to the motor driver.
: Positive supply voltage.
: Clock output.
: Negative supply voltage.
: Sub clock.
: Sub clock.
: Positive supply voltage.
: Oscillation input.
: Oscillation output.
: Connect to VCC.
: The clock puse output to the CD IC.
: The command data output to the CD IC.
: Load command output to CD-IC.
: The reset pulse output to CD-IC.
: Not in use.
: Not in use.
: Not in use.
: Not in use.
: Positive supply voltage for the Analog section.
: Not in use.
: Not in use.
: Not in use.
: Not in use.
: Address output.
: Address output.
: Address output.
: Address output.
: Negative reference voltage.
: TI DSP H CNTL 0
: TI DSP H CNTL 1
: Not in use.
: TI DSP HR/W
: Not in use.
: Not in use.
: CD DSP SBCK.
: CD DSP SUBC.
: TI DSP HRDY.
: CD DSP SQCK.
: Positive reference voltage.
: Sub Q data input from the CD IC.
: TI DSP RESET.
: System power supply control signal output.
: Inside limit switch signal input for the pickup.
: LDRCTL
: CD DSP SENSE
: Analog ground.
: System power supply control signal output.
: VBUS SRQ
: 0BIT MUTE
: CD MECHA CHUCK
: Positive supply voltage.
: VBUS SCK
: VBUS MSI
: VBUS MSO
: The status data input from the CD IC.
: RF RWSEL
: System power supply control signal output.
: For flash memory.
: For flash memory.
: Connect to VDD.
DXZ955MC
DXZ956MC
pin 76
pin 77
pin 78
pin 79
pin 80
pin 81
pin 82
pin 83
pin 84
pin 85
pin 86
pin 87
pin 88
: BLKCK
: CCS
: DQSY
: WUP
: HINT
: ADSEP
: RESET
: VDD
: Address/Data 0
: Address/Data 1
: Address/Data 2
: Address/Data 3
: Address/Data 4
: IN : The sub code block clock input.
: IN : VBUC CS
: IN : CD DSP DQSY
: IN : VBUS WUP
: IN : TI DSP HINT
: IN : GND
: IN : Reset signal input.
: - : Positive supply voltage.
: I/O : Address / Data bus.
: I/O : Address / Data bus.
: I/O : Address / Data bus.
: I/O : Address / Data bus.
: I/O : Address / Data bus.
pin 89 : Address/Data 5
pin 90 : Address/Data 6
pin 91 : Address/Data 7
pin 92 : VSS
pin 93 : Address/Data 8
pin 94 : Address/Data 9
pin 95 : Address/Data10
pin 96 : Address/Data11
pin 97 : Address/Data12
pin 98 : Address/Data13
pin 99 : Address/Data14
pin100 : Address/Data15
BLOCK DIAGRAM
CD mechanism section:929-0601-81
DXZ955MC
DXZ956MC
- 10 -
: I/O : Address / Data bus.
: I/O : Address / Data bus.
: I/O : Address / Data bus.
: - : Negative supply voltage.
: I/O : Address / Data bus.
: I/O Address / Data bus.
: I/O : Address / Data bus.
: I/O : Address / Data bus.
: I/O : Address / Data bus.
: I/O : Address / Data bus.
: I/O : Address / Data bus.
: I/O : Address / Data bus.
- 11 -
MEMORY
CARD
COLOR
LEVEL
SHIFT & INVERSE
Switch PWB
WHT
KEY-IILUME
BACK LIGHT
CIRCUIT
SENSOR
IR
RECEIVE
ROTARY
VOLLUME
KEY MATRIX
TOUCH PANEL
U-COM
TEMPERATURE
VOL
DET
CONTROLLER
TFT
VOL REGULATOR
DET
DET
MASTER
uPD703275YGJ-503-UEN
LCD BACK LIGHT
TFT
INCH
DET
POWER
CONVERTOR
1
AUDIO
MOTOR
DRIVER
ILL
ILL
DET
AUDIO
CONVERTOR
2
Slot PWB
DRIVER
RECEIVE
RECEIVE
BUILT-IN
SLOPE MECH
SP OUT
RCA NON
FADER
RC A
REAR
RC A
FRONT
Main section
TOUCH PANEL
DXZ955MC
DXZ956MC
EXPLODED VIEW / PARTS LIST
DCP section
1-6
1-28
1-30
1-23
1-30
1-22
1-1
1-18
1-2
1-31
1-56
1-3
1-27
1-26
1-29
1-8
1-10
1-33
1-7
1-32 1-16
1-12
1-13
1-5
1-20
1-34
1-31
1-19
1-31
1-56
1-22
1-24
1-36
1-58
1-53
1-59
1-55
1-60
1-50
1-51
1-37
1-11
1-27
1-9
1-21
1-52
1-15
1-17
1-52
1-14
1-28
1-49
1-1
1-2
1-3
1-4
1-5
1-6
1-7
1-8
1-9
1-10
1-11
1-12
1-13
1-14
1-15
1-16
1-17
1-18
1-19
1-20
1-21
1-22
1-23
1-24
1-25
1-26
1-27
1-28
PART NO.
1-59
1-46
1-47
Q'TY
1
1
370-6147-01 ESCUTCHEON
1
373-1052-01 DIAL-CVR(U)(PE-2747B-A)
1
1
373-1052-02 DIAL-CVR(U)(PE-2747K-A)
373-1053-00 DIAL-CVR(L)
1
371-5806-01 FACE PANEL(R)(PE-2747B-A) 1
371-5806-00 FACE PANEL(R)(PE-2747K-A) 1
371-5807-00 FACE PANEL(L)
1
335-7405-00 REAR-CVR
1
380-5617-00 KNOB
1
345-5506-00 RUBBER RING
1
335-7406-00 ILLUMI PLATE(R)
1
335-7407-00 ILLUMI PLATE(L)
1
335-7408-00 ILLUMI PALTE
1
382-7335-00 BUTTON(ADJ)
1
382-7336-00 BUTTON(SRC)
1
382-7337-00 BUTTON(EJ/M)
1
382-7338-01 BUTTON(SND/ISR)
1
335-7409-00 IR-FILTER
1
335-7410-00 LENS
1
347-7550-00 DOUBLE FACE(DIAL-UP)
1
347-7551-00 DOUBLE FACE(DIAL-LW)
1
347-7552-00 DOUBLE FACE
2
347-7556-01 SHADE
1
347-7553-00 DOUBLE FACE
2
347-7554-00 CUSHION
2
816-3005-50 FLAT WIRE(TO LCD PWB)
1
060-4011-80 PHOTO-TR
1
347-7557-00 SHADE
1
716-0872-01 PAD SCREW(M1.7x6)
2
716-0872-12 PAD SCREW(M1.7x8)
4
DXZ955MC
DXZ956MC
1-42
1-41
1-44
1-43
1-40
1-4
DESCRIPTION
1-36
1-59
1-25
1-60
1-57
1-39
DCP-517-600 DCP-ASSY(PE-2747B-A)
DCP-538-800 DCP-ASSY(PE-2747K-A)
1-35
1-59
1-48
1-38
1-45
NO.
1
1-50
1-54
NO.
1-29
1-30
1-31
1-32
1-33
1-34
1-35
1-36
1-37
1-38
1-39
1-40
1-41
1-42
1-43
1-44
1-45
1-46
1-47
1-48
1-49
1-50
1-51
1-52
1-53
1-54
1-55
1-56
1-57
1-58
1-59
1-60
- 12-
PART NO.
380-5618-00
347-7572-00
347-7558-00
382-7384-00
347-7200-00
778-6019-00
074-1158-54
347-7570-00
013-9713-00
347-7561-00
331-3947-00
379-0466-00
347-7559-00
335-7412-00
347-7560-00
335-7411-00
347-7563-00
347-7564-00
347-7562-00
------------001-7078-90
074-1239-80
074-1189-00
345-5576-00
331-3948-00
016-9900-96
076-0647-00
347-7624-00
------------060-4017-90
013-6302-50
001-7040-91
1
DESCRIPTION
INNER KNOB
COVER-FILM
SHADE
RELEASE BUTTON
DOUBLE FACE
SPECIAL SCREW(M1.7x6)
OUTLET SOCKET(4P)
BLACK-FILM
TOUCH PANEL
BLACK FILM
LCD-CVR
TFT
LCD FILM
LCD ILLUMI
REFLECTOR
LCD HOLDER
PROTECT SHEET
LCD FILM
PROTECT SHEET
LCD PWB
DIODE
OUTLET SOCKET(30P)
OUTLET SOCKET(50P)
CUSHION
VOL-HOLDER
VR W/SHAFT
PLUG(16P)
DOUBLE FACE
SWITCH PWB
IR-RECIEVER
SWITCH
DIODE
Q'TY
1
2
4
1
1
2
1
2
1
1
1
1
1
1
1
1
1
1
1
1
12
2
1
2
1
1
2
4
1
1
6
4
Inner escutcheon section
A
Grease
application
30
35
37
Grease
application
36
43
35
31
22
Finished figure
40
20
34
35
B
26
Grease
application
24
17 1
Grease
application
28
29
40
B
29
B
39
A B
33
B
41
32
31
29
Grease
application
16
15
27
D
29
28
21
42
31
6
8
7
25
D
D
19
40
Grease
application
40
31
45
4
3
40
D
38
11
8
2
9
10
40
18
31
42
5
23
44
12
3
12
NO.
1
2
3
4
PART NO.
370-6146-00
074-1278-01
347-7598-00
039-2683-00
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
331-3941-00
341-1818-00
716-1872-00
335-6499-00
335-7397-00
716-1694-00
346-0114-01
716-3444-00
335-7398-00
750-6786-00
341-1814-00
335-7399-00
750-6787-00
331-3942-00
331-3938-00
331-3939-00
331-3940-00
716-1758-00
38
31
14
40
Grease
application
13
15
4
2
DESCRIPTION
INNER ESCUTCHEON
OUTLET SOCKET(16P)
INSULATER
INNER ES FPC
(WITHOUT COMPONENT)
DCP HOLDER
ROLLER(STOPPER)
SCREW(M2x0.4)
CN-CVR
STOPPER
SCREW(M1.7x0.35)
LEATHER SHEET
SCREW(M1.7x0.35)
HOOK(R)
SPRING(R)
SHAFT
HOOK(L)
SPRING(L)
LEVER-UP(R)
LEVER-LO(R)
LEVER-UP(L)
LEVER-LO(L)
PAD SCREW(pin2x5)
31
Note: Grease uses FLOIL G-31SB
Q'TY
1
2
2
2
1
1
1
2
1
2
1
4
1
1
2
1
1
1
1
1
1
2
- 13-
NO.
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
PART NO.
750-3304-20
750-3303-20
335-7400-00
341-1740-00
309-0808-00
716-0872-00
716-1468-20
854-4380-01
716-3555-00
613-0719-00
750-3432-00
613-0733-00
746-0768-20
613-0717-00
634-0024-00
738-1722-17
347-6275-00
341-1817-00
946-0079-01
345-5560-00
947-0513-02
345-5558-00
345-5559-00
DESCRIPTION
SPRING(GEAR)
SPRING(ARM)
ILLUMI PLATE
ROLLER(ARM)
FRONT PLATE
PAD SCREW(M1.7x5)
SCREW(M2x2.5)
EXTENSION LEAD
SCREW(M2x0.4)
ARM GEAR
SPRING(MOTOR)
HUS-GEAR
WASHER(1.0x0.5)
INPUT-GEAR
MOTOR ASSY
Q'TY
1
1
1
1
1
4
5
1
7
1
1
1
4
1
1
PRECISION SCREW(1.7x2.2) 2
FILM
1
ROLLER
7
GEAR BOX ASSY
1
CUSHION
2
T-LIM GEAR ASSY
1
CUSHION
1
CUSHION
1
DXZ955MC
DXZ956MC
Main section
31
57
63
63
71
70
68
68
63
50
44
53
42
63
74
51
32
62
Inner escutcheon
43
35
63
60
61
56
34
36
28
46
76
54
72
68
4
67
67
66
69
40
It attaches in
the open position.
66
65
2 58
78
18
38
33
75
30
14
17
6
3
64
80
9
11
7 84
20
83
82 28
59
7 24 77
31
47
82
12 27
16
22
8
81 26
84 59
19
41
73
15
49
PART NO.
347-7584-00
347-7571-00
013-7206-50
880-2091A
347-7587-00
013-7106-00
042-1596-00
013-6103-00
074-1194-00
074-1214-00
076-0312-02
076-0312-06
076-0368-16
076-0438-02
347-7586-00
------------331-3378-00
305-0336-00
305-0337-00
307-0708-00
331-3954-00
313-1924-00
076-6003-18
001-7048-91
092-2215-50
335-3700-00
DXZ955MC
DXZ956MC
29
21
10
13 23
1
79
48
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
77
25
55
37
39
28 52
45
5
DESCRIPTION
Q'TY
INSULATOR
2
COVER-FILM(V)
1
DETECTOR SWITCH
1
TUNER
1
PROTECT SHEET
1
DETECTOR SWITCH
1
DOUBLE-LAYER-C
2
TACT SWITCH
1
OUTLET SOCKET(CeNET)
1
OUTLET SOCKET(PWR/16P) 1
PLUG(2P)
1
PLUG(6P)
1
PLUG(16P)
1
PLUG(2P)
1
INSULATOR
1
MAIN PWB
1
SW-HOLDER
1
SIDE-CVR(L)
1
SIDE-CVR(R)
1
REAR-CVR
1
IC-HOLDER
1
HEAT SINK
1
PLUG(18P)
1
DIODE
1
ANT-RECEPT
1
MINI-SADDLE
1
NO.
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
- 14-
PART NO.
714-3005-81
714-3006-81
731-3006-80
076-3008-90
345-5582-00
------------347-7588-00
074-8001-00
073-0762-90
074-1158-57
076-0488-06
345-8701-00
816-2639-00
854-4581-50
304-0483-00
303-0490-00
331-3949-00
331-3950-00
313-1923-00
331-3953-00
331-3955-00
286-6604-00
286-6629-00
347-7578-01
347-7579-00
020-3050-00
DESCRIPTION
MACHINE SCREW(M3x 5)
MACHINE SCREW(M3x6)
TAPTIGHT
PLUG
GASKET(PE2747BA)
Slot PWB
SPACER
OUTLET SOCKET(SD)
TERMINAL
OUTLET SOCKET(7P)
PLUG(6P)
CUSHION
FLAT WIRE(SLOT - CD)
EXTENSION LEAD
LOWER-CVR
UPPER-CVR
MECH-BRKT(F)
MECH-BRKT(R)
HEAT SINK
FAN HOLDER
SHIELD CASE(F)
SETPLATE(PE-2747-BA)
SETPLATE(PE-2747-KA)
INSULATOR
INSULATOR
DC-MOTOR
27
68
Q'TY
4
2
1
1
2
1
1
1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
NO.
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
PART NO.
331-4073-00
331-3699-00
331-3700-01
347-7582-00
347-7583-00
290-8507-00
347-7589-00
347-6215-00
347-6536-00
780-2612-00
347-7017-00
714-2603-80
074-0898-16
331-3952-00
716-0717-10
716-0878-00
731-3006-80
DESCRIPTION
STOPPER
SD-LOW-CASE
SD-UP-CASE
CUSHION
INSULATOR
LABEL
SPACER
SPACER-FILM
PROTECT SHEET
SCREW(M2.6x1.2)
DOUBLE FACE
MACHINE SCREW(M2.6x3)
OUTLET SOCKET(16P)
SHIELD CASE(UP)
STEEL SCREW(M2.3x3)
IT-SCREW(M2.6x5)
TAPTIGHT(M3x6)
Q'TY
1
1
1
1
1
1
1
2
1
2
1
7
1
1
2
4
7
NO.
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
PART NO.
780-2005-00
816-2626-50
929-0601-81
948-0688-01
948-0688-00
347-7580-00
347-7581-00
074-3008-90
------------347-7590-00
------------331-3951-00
051-2056-00
074-1138-70
125-4015-90
101-0941-00
074-1198-68
DESCRIPTION
SCREW(M2x5)
FLAT WIRE(MAIN - CD)
CD MECHANISM
SD-CARD
SD-CARD
SHADE
CUSHION
OUTLET SOCKET(40P)
DD PWB
DOUBLE FACE
VIDEO PWB
SHIELD CASE(LO)
IC
OUTLET SOCKET(CD)
TRANSISTOR
TRANSISTOR
OUTLET SOCKET(18P)
Q'TY
2
1
1
1
1
1
2
1
1
2
1
1
1
1
3
1
2
Q'TY
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
NO.
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
PART NO.
621-0621-20
621-1726-20
621-0623-23
621-0624-22
816-2593-00
816-2624-50
716-3473-00
621-0709-20
621-0711-20
345-5476-20
622-1660-20
624-0018-01
629-0086-20
629-0087-20
714-2003-81
716-1507-00
716-1733-00
716-3469-00
716-3446-00
750-3465-21
750-3466-20
750-3467-21
750-3468-20
750-3469-20
750-3470-20
816-2592-00
750-3472-21
750-3473-20
750-3474-20
750-3475-21
716-1670-00
620-1023-23
620-1721-20
621-0708-20
621-0626-21
621-0627-21
750-3471-20
DESCRIPTION
THREAD GEAR B
ROLLER SLEEVE
LS-HOLDER
GUIDE RAIL
LEAD WIRE (PUR)
FLAT WIRE (10P)
IT SCREW (M2x3)
SH-BASE
LOADING ROLLER
CUSHION RUBBER
ROLLER SHAFT
LEAD SCREW
DAMPER F
DAMPER R
MACHINE SCREW (M2x3)
SCREW (M2x3)
SCREW (M1.7x2.3)
SPECIAL SCREW (3x4)
SCREW (M1.4x2.5)
ROLLER SPRING L
ROLLER SPRING R
SHIFT SPRING
RACK SPRING
CLAMPER SPRING
ID-LOCK SPRING
LEAD WIRE (BLU)
DR-SPRING F
DR-SPRING RA
DR-SPRING RB
DR-SPRING C
SCREW (M2x4)
CLAMPER PLATE
SENSOR ARM
CLAMPER RING
STOPPER LINK
DISC STOPPER
SENSOR SPRING
Q'TY
1
2
1
1
1
1
2
1
2
1
1
1
2
1
2
7
2
2
2
1
1
1
1
1
1
1
2
1
1
1
2
1
1
1
1
1
1
CD mechanism section: 929-0601-81
the EXPLODED VIEW on the next page
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
PART NO.
966-0595-26
969-0071-31
--------------------SMA-182-100
SMA-183-100
620-1022-26
803-4906-60
816-2591-00
620-1025-22
620-1026-21
620-1585-21
620-1028-24
966-1722-20
621-0598-27
621-0718-21
621-0600-26
621-1735-20
621-0602-22
621-0603-25
621-0724-21
621-0605-22
621-1719-20
816-2590-00
621-0608-21
621-0609-20
621-0610-20
621-0611-20
621-0612-21
621-0719-20
621-0720-20
621-0721-20
621-0616-20
621-0617-20
621-0618-20
621-0619-20
621-0620-20
DESCRIPTION
DRIVE PLATE ASSY
PICK UP UNIT
LED PWB
CD PWB
MOTOR ASSY(SPINDLE)
MOTOR ASSY(SLED)
CLAMPER LINK
VINYL COAT WIRE(ORG)
LEAD WIRE(YEL)
ID-LOCK PLATE
SPRING PLATE
LOWER CHASSIS
UPPER CHASSIS
SH-RACK ASSY
UPPER GUIDE
ROLLER GUIDE
SHIFT LEVER
RACK
LOCK ARM L
LOCK ARM R
GEAR BASE
GEAR COVER
IDLE CASE
VINYL COAT WIRE(GRN)
SECOND GEAR
BASE GEAR
IDLE GEAR A
IDLE GEAR B
ROLLER GEAR A
ROLLER GEAR B
ROLLER GEAR C
ROLLER GEAR D
POWER GEAR A
POWER GEAR B
POWER GEAR C
POWER GEAR D
THREAD GEAR A
- 15-
DXZ955MC
DXZ956MC
CD mechanism section:929-0601-81
52
H3
H1
H2
19
52
A4
15
57
13
3
44
B2
A6
44
A7
D1
31
F1
A5
G13
20
16
32
B1
E2
39
46
46
H1
42
H2
G14
54
E2
1
B1
63
G5
G16
G15
G2
41
54
G13
G14 G5
H6
H7
H4 H5
5
G12
G6
H8
G6
A3
3
6
50
A1
C6
C7
G2
56
A3
G11 G10
G8
G9
G8
M1
53
L2
37
25
64
G3
A7
D1
A2
50
A5
C3
I2
4
55
45
I2
34
33
F1
28
C4
C3
D2
60
36
29
66
12
64
17
C5
18
C1
L1
A8
G4
G11
59
35
30
47
G9
G7 G10
21
11
51
A4
G7
C7
53
56
65
A6
61
E1
C6
H6
H7
53
7
73
G3
C2
A2
H5
H4
I1
40
G1
G4
A8
14
26
G1
27
49
2
22
H8
53
53
23
38
68
43
DXZ955MC
DXZ956MC
I1
70
E1
G15
67
A1
24
10
G16
8
H3
69
62
48
B2
9
74
D2
58
39
71
M1
G12
72
68
- 16-
C2
ELECTRICAL PARTS LIST
Main PWB (B1) section
REF No.
ANT1
BL1
C2
C3
C4
C5
C6
C7
C8
C9
C 10
C 11
C 12
C 13
C 14
C 15
C 101
C 102
C 103
C 104
C 105
C 106
C 107
C 108
C 109
C 110
C 111
C 112
C 113
C 114
C 115
C 116
C 117
C 118
C 119
C 120
C 121
C 122
C 123
C 124
C 125
C 126
C 127
C 128
C 129
C 130
C 133
C 134
C 201
C 202
C 203
C 204
C 205
C 206
C 207
C 208
C 209
C 211
C 212
C 213
C 214
C 215
C 216
C 217
C 218
C 219
C 220
PART No.
092-2215-50
880-2091A
166-2201-50
042-1631-50
168-1032-55
168-2232-55
166-1011-50
168-1022-55
187-4763-15
168-1042-78
168-1042-78
166-1511-50
166-1011-50
166-1011-50
168-1022-55
043-0552-90
042-1545-00
172-1041-15
043-0541-00
178-4742-78
043-0541-00
043-0541-00
043-0541-00
043-0541-00
043-0541-00
163-2253-65
166-4711-50
168-1032-55
168-1032-55
166-4711-50
178-4742-78
178-4742-78
166-4711-50
166-4711-50
163-1053-65
163-1063-35
166-4711-50
166-4711-50
166-4711-50
166-4711-50
168-1042-78
166-4711-50
166-4711-50
166-4711-50
166-4711-50
168-1032-55
168-1032-55
178-4742-78
043-0542-00
043-0542-00
042-1563-71
042-0560-63
168-4732-78
168-1042-78
043-0542-00
043-0542-00
043-0542-00
168-1042-78
042-0643-51
042-0643-55
042-0643-50
042-0560-58
163-1073-35
166-3311-50
168-2222-55
163-1073-35
163-2263-55
DESCRIPTION
ANT-RECEPT
TUNER
22pF CH
10V 100uF
0.01uF K
0.022uF K
100pF CH
1000pF K
6.3V 47uF
16V 0.1uF
16V 0.1uF
150pF CH
100pF CH
100pF CH
1000pF K
6.3V 47uF M
16V 2200uF
0.1uF
6.3V 22uF
0.47uF
6.3V 22uF
6.3V 22uF
6.3V 22uF
6.3V 22uF
6.3V 22uF
50V 2.2uF
470pF CH
0.01uF K
0.01uF K
470pF CH
0.47uF
0.47uF
470pF CH
470pF CH
50V 1uF
16V 10uF
470pF CH
470pF CH
470pF CH
470pF CH
16V 0.1uF
470pF CH
470pF CH
470pF CH
470pF CH
0.01uF K
0.01uF K
0.47uF
25V 4.7uF
25V 4.7uF
16V 100uF
16V 22uF
0.047uF K
16V 0.1uF
25V 4.7uF
25V 4.7uF
25V 4.7uF
16V 0.1uF
16V 100uF
35V 4.7uF
35V 22uF
16V 10uF
16V 100uF
330pF CH
2200pF K
16V 100uF
35V 22uF
Note)Some parts depend on each model. The model name is specified in the description.
PE2747BA : PE-2747B-A , PE2747KA : PE-2747K-A
REF No.
C 221
C 222
C 223
C 224
C 225
C 226
C 227
C 228
C 229
C 230
C 231
C 232
C 241
C 242
C 244
C 245
C 247
C 301
C 302
C 303
C 304
C 305
C 306
C 307
C 308
C 309
C 310
C 311
C 312
C 313
C 314
C 315
C 316
C 317
C 320
C 321
C 322
C 323
C 324
C 325
C 326
C 327
C 329
C 330
C 331
C 332
C 333
C 334
C 335
C 336
C 337
C 338
C 340
C 341
C 342
C 343
C 344
C 345
C 346
C 347
C 349
C 350
C 351
C 355
C 356
C 357
C 358
PART No.
163-2263-55
042-0560-84
168-2232-55
172-4731-15
042-0560-84
168-2232-55
172-4731-15
163-2263-55
166-1011-50
042-1631-50
168-1822-55
166-1011-50
163-1063-35
163-1063-35
042-1334-82
168-1042-78
042-1563-71
168-1032-55
043-0540-00
168-1032-55
166-1011-50
166-1011-50
043-0540-00
043-0540-00
043-0540-00
043-0540-00
178-1052-78
168-1022-55
168-1022-55
168-1022-55
043-0540-01
166-1011-50
166-1011-50
166-1011-50
168-1042-78
166-1011-50
043-0540-00
168-1042-78
168-1042-78
043-0552-90
042-1505-80
168-4732-78
043-0540-00
168-4732-78
043-0552-90
163-2273-25
168-1042-78
166-1007-50
168-4732-78
168-2232-55
166-1011-50
166-1011-50
166-4711-50
168-2232-55
168-2232-55
166-1007-50
043-0540-02
166-4701-50
168-2232-55
166-4711-50
166-1011-50
043-0540-00
166-4711-50
168-1042-78
168-1022-55
166-1811-50
043-0551-90
-17-
DESCRIPTION
35V 22uF
16V 47uF
0.022uF K
0.047uF
16V 47uF
0.022uF K
0.047uF
35V 22uF
100pF CH
10V 100uF
1800pF K
100pF CH
16V 10uF
16V 10uF
16V 100uF
16V 0.1uF
16V 100uF
0.01uF K
6.3V 10uF
0.01uF K
100pF CH
100pF CH
6.3V 10uF
6.3V 10uF
6.3V 10uF
6.3V 10uF
1uF
1000pF K
1000pF K
1000pF K
10V 2.2uF
100pF CH
100pF CH
100pF CH
16V 0.1uF
100pF CH
6.3V 10uF
16V 0.1uF
16V 0.1uF
6.3V 47uF M
25V 1uF
0.047uF K
6.3V 10uF
0.047uF K
6.3V 47uF M
10V 220uF
16V 0.1uF
10pF CH
0.047uF K
0.022uF K
100pF CH
100pF CH
470pF CH
0.022uF K
0.022uF K
10pF CH
16V 1uF
47pF CH
0.022uF K
470pF CH
100pF CH
6.3V 10uF
470pF CH
16V 0.1uF
1000pF K
180pF CH
6.3V 4.7uF M
REF No.
C 359
C 360
C 361
C 362
C 364
C 365
C 366
C 367
C 368
C 369
C 370
C 372
C 373
C 374
C 377
C 382
C 383
C 384
C 385
C 386
C 387
C 401
C 402
C 403
C 404
C 405
C 406
C 407
C 408
C 409
C 410
C 411
C 412
C 413
C 414
C 415
C 416
C 501
C 502
C 503
C 504
C 505
C 506
C 507
C 509
C 510
C 511
C 512
C 513
C 514
C 515
C 516
C 517
C 518
C 519
C 520
C 521
C 522
C 523
C 524
C 525
C 526
C 527
C 528
C 529
C 530
C 531
PART No.
043-0551-90
166-2201-50
043-0540-00
043-0551-90
168-3332-78
168-1042-78
166-1011-50
168-1032-55
168-1042-78
043-0551-90
043-0540-00
043-0540-00
168-1042-78
043-0552-90
168-1042-78
168-3322-55
168-3322-55
168-3322-55
168-3322-55
168-3322-55
168-3322-55
043-0540-00
168-6822-55
168-1042-78
168-1042-78
168-1042-78
168-1042-78
168-1042-78
043-0540-00
168-1042-78
043-0540-00
168-1042-78
168-1042-78
043-0540-00
168-1042-78
168-1042-78
168-1032-55
043-0540-00
043-0540-00
043-0540-00
043-0540-00
043-0540-00
043-0540-00
043-0540-00
166-5611-50
166-5611-50
043-0264-63
043-0264-63
166-5611-50
166-5611-50
043-0264-63
043-0540-00
043-0540-00
166-5611-50
166-5611-50
166-5611-50
166-5611-50
043-0264-63
043-0264-63
043-0264-63
043-0264-63
043-0540-00
043-0540-00
043-0540-00
043-0540-00
043-0540-00
043-0540-00
DESCRIPTION
6.3V 4.7uF M
22pF CH
6.3V 10uF
6.3V 4.7uF M
0.033uF K
16V 0.1uF
100pF CH
0.01uF K
16V 0.1uF
6.3V 4.7uF M
6.3V 10uF
6.3V 10uF
16V 0.1uF
6.3V 47uF M
16V 0.1uF
3300pF K
3300pF K
3300pF K
3300pF K
3300pF K
3300pF K
6.3V 10uF
6800pF K
16V 0.1uF
16V 0.1uF
16V 0.1uF
16V 0.1uF
16V 0.1uF
6.3V 10uF
16V 0.1uF
6.3V 10uF
16V 0.1uF
16V 0.1uF
6.3V 10uF
16V 0.1uF
16V 0.1uF
0.01uF K
6.3V 10uF
6.3V 10uF
6.3V 10uF
6.3V 10uF
6.3V 10uF
6.3V 10uF
6.3V 10uF
560pF CH
560pF CH
0.01uF
0.01uF
560pF CH
560pF CH
0.01uF
6.3V 10uF
6.3V 10uF
560pF CH
560pF CH
560pF CH
560pF CH
0.01uF
0.01uF
0.01uF
0.01uF
6.3V 10uF
6.3V 10uF
6.3V 10uF
6.3V 10uF
6.3V 10uF
6.3V 10uF
DXZ955MC
DXZ956MC
REF No.
C 532
C 533
C 534
C 535
C 536
C 537
C 538
C 539
C 540
C 541
C 542
C 543
C 547
C 548
C 549
C 550
C 551
C 552
C 553
C 554
C 600
C 601
C 602
C 603
C 604
C 605
C 606
C 607
C 608
C 609
C 610
C 611
C 612
C 613
C 614
C 615
C 616
C 617
C 618
C 619
C 620
C 621
C 622
C 623
C 624
C 625
C 628
C 629
C 630
C 631
C 632
C 633
C 634
C 635
C 636
C 637
C 638
C 639
C 640
C 641
C 642
C 643
C 644
C 645
C 646
C 647
C 648
C 649
C 650
C 651
C 652
PART No.
043-0264-63
043-0264-63
166-5611-50
166-5611-50
043-0264-63
166-5611-50
166-5611-50
043-0264-63
043-0264-63
043-0540-00
043-0540-00
043-0540-00
043-0540-00
043-0540-00
043-0540-00
043-0540-00
043-0540-00
043-0540-00
042-0560-84
042-0560-84
043-0552-90
168-1042-78
168-1042-78
043-0540-00
168-1032-55
166-2201-50
168-1042-78
043-0551-90
163-3363-45
043-0540-00
178-1052-78
168-2232-55
168-1032-55
168-1032-55
168-1022-55
178-1052-78
163-4763-15
168-1032-55
168-1042-78
042-1596-00
178-1052-78
166-2701-50
168-1042-78
168-1042-78
043-0540-00
168-1032-55
043-0540-00
042-1596-00
168-1042-78
168-1042-78
168-1042-78
166-2201-50
166-2201-50
166-2201-50
166-2201-50
166-2201-50
166-2201-50
166-2201-50
166-2201-50
166-2201-50
166-2201-50
166-2201-50
166-2201-50
166-2201-50
166-2201-50
168-1032-55
043-0551-90
168-1022-55
168-1032-55
168-1042-78
043-0552-90
DXZ955MC
DXZ956MC
DESCRIPTION
0.01uF
0.01uF
560pF CH
560pF CH
0.01uF
560pF CH
560pF CH
0.01uF
0.01uF
6.3V 10uF
6.3V 10uF
6.3V 10uF
6.3V 10uF
6.3V 10uF
6.3V 10uF
6.3V 10uF
6.3V 10uF
6.3V 10uF
16V 47uF
16V 47uF
6.3V 47uF M
16V 0.1uF
16V 0.1uF
6.3V 10uF
0.01uF K
22pF CH
16V 0.1uF
6.3V 4.7uF M
25V 33uF
6.3V 10uF
1uF
0.022uF K
0.01uF K
0.01uF K
1000pF K
1uF
6.3V 47uF
0.01uF K
16V 0.1uF
5.5V 0.33uF
1uF
27pF CH
16V 0.1uF
16V 0.1uF
6.3V 10uF
0.01uF K
6.3V 10uF
5.5V 0.33uF
16V 0.1uF
16V 0.1uF
16V 0.1uF
22pF CH
22pF CH
22pF CH
22pF CH
22pF CH
22pF CH
22pF CH
22pF CH
22pF CH
22pF CH
22pF CH
22pF CH
22pF CH
22pF CH
0.01uF K
6.3V 4.7uF M
1000pF K
0.01uF K
16V 0.1uF
6.3V 47uF M
REF No.
C 801
C 802
C 803
C 808
C 809
CCT101
CCT102
CCT103
CCT104
CCT401
CCT402
CCT403
CCT404
CCT405
CCT406
D1
D 101
D 102
D 103
D 104
D 130
D 201
D 202
D 203
D 204
D 205
D 206
D 209
D 210
D 211
D 212
D 213
D 214
D 215
D 218
D 219
D 220
D 221
D 222
D 401
D 500
D 501
D 502
D 601
D 602
D 603
D 604
D 607
D 608
D 801
FIL401
FIL404
IC 1
IC 101
IC 202
IC 203
IC 204
IC 205
IC 301
IC 401
IC 402
IC 501
IC 503
IC 504
IC 505
IC 601
PART No.
163-2273-25
187-2273-15
042-1631-50
168-1042-78
043-0505-50
050-0140-52
050-0140-52
050-0140-52
050-0140-52
010-3042-54
010-3042-54
010-3042-54
010-3042-54
010-3042-54
010-3042-54
001-1310-00
001-0592-61
001-0466-91
001-1310-00
001-1310-00
001-1310-00
001-1310-00
001-0504-45
001-0504-47
001-0422-39
001-0608-90
001-1310-00
001-0504-45
001-1310-00
001-1310-00
001-1310-00
001-1310-00
001-1310-00
001-0504-39
001-0466-91
001-1310-00
001-1310-00
001-1310-00
001-1310-00
001-0584-16
001-0627-90
001-0627-90
001-0627-90
001-7048-91
001-1310-00
001-2601-90
001-0529-26
001-1310-00
001-0529-29
001-0466-90
060-3115-51
060-3115-51
051-1905-91
051-2056-00
051-3335-90
051-1905-93
051-1014-08
051-3913-90
051-6706-10
051-6705-00
051-9109-40
051-5034-90
051-3026-90
051-3026-90
051-3026-90
052-3400-00
IC 602
IC 603
IC 604
IC 605
051-9402-68
051-5408-08
051-3406-90
051-5440-08
DESCRIPTION
10V 220uF
6.3V 220uF
10V 100uF
16V 0.1uF
6.3V 2.2uF K
1/32W 100 ohm x4J
1/32W 100 ohm x4J
1/32W 100 ohm x4J
1/32W 100 ohm x4J
BLA3216A601SG4T1
BLA3216A601SG4T1
BLA3216A601SG4T1
BLA3216A601SG4T1
BLA3216A601SG4T1
BLA3216A601SG4T1
KDS160-RTK
1N5404
S5688G
KDS160-RTK
KDS160-RTK
KDS160-RTK
KDS160-RTK
HZS9B1L
HZS9B3L
MTZJ39
D1FS4
KDS160-RTK
HZS9B1L
KDS160-RTK
KDS160-RTK
KDS160-RTK
KDS160-RTK
KDS160-RTK
HZS7B2L
S5688G
KDS160-RTK
KDS160-RTK
KDS160-RTK
KDS160-RTK
MA8039
U1BC44
U1BC44
U1BC44
RFR1112H-22 RED
KDS160-RTK
MA728-TX
MA8047-M
KDS160-RTK
MA8051-M
S5688B
CKD310JB1C224ST
CKD310JB1C224ST
AN77L05M
TB2913H
AN77L04M
AN77L06M
TA7291F
NJM2368E
SAF7730HV
AK7720A
BS62LV256TI-70
BD3813KS
NJM4580V
NJM4580V
NJM4580V
uPD703275YGJ503-UEN
BR93L56F-W
S-80921CNMC
NJM2078M
S-80931CNMC
-18-
REF No.
IC 606
IC 801
J 101
J 102
J 201
J 202
J 602
J 603
J 604
J 606
J 801
J 802
L1
L2
L3
L 101
L 102
L 103
L 104
L 105
L 106
L 107
L 206
L 207
L 208
L 209
L 210
L 211
L 303
L 305
L 306
L 308
L 310
L 312
L 313
L 401
L 402
L 403
L 404
L 405
L 407
L 408
L 409
L 410
L 411
L 412
L 413
L 414
L 415
L 416
L 417
L 421
L 422
L 423
L 424
L 425
L 428
L 429
L 432
L 601
L 602
L 603
L 801
L 802
P 602
Q2
Q3
Q4
Q5
Q 101
Q 102
PART No.
051-6600-58
051-3325-90
074-1214-00
076-6003-18
076-0312-02
076-0368-16
074-1198-68
074-1198-68
076-3008-90
074-1194-00
076-0312-06
074-1138-70
010-2003-04
010-2279-50
010-2279-50
010-8038-00
010-3103-64
010-3103-64
010-3103-64
010-3103-64
010-3103-64
010-3103-64
010-3406-74
010-3406-74
010-3406-74
010-3057-90
010-3057-90
010-3057-90
010-3105-62
010-3105-62
010-3105-62
010-3103-64
010-3103-64
010-3103-64
010-3103-64
010-3103-64
010-3103-64
010-3103-64
010-3103-64
010-3103-64
010-3103-64
010-3103-64
010-3103-64
010-3103-64
010-3103-64
010-3103-64
010-3103-64
010-3103-64
010-3103-64
010-3103-64
010-3103-64
010-3103-64
010-3103-64
010-3103-64
010-3103-64
010-3103-64
010-3103-64
010-3103-64
010-3103-64
010-6009-80
010-2279-50
010-2279-50
010-3406-54
010-6009-69
076-0438-02
125-3007-90
125-2199-96
125-2199-96
125-3004-90
125-4012-90
125-4012-90
DESCRIPTION
HA12187FP
NJM2880U33
16P
18P
2P
16P
18P
18P
40P
13P
6P
20P
30uH
4.7uH
4.7uH
COIL
1.5k ohm/100MHz
1.5k ohm/100MHz
1.5k ohm/100MHz
1.5k ohm/100MHz
1.5k ohm/100MHz
1.5k ohm/100MHz
NLV25 100uH J
NLV25 100uH J
NLV25 100uH J
100uH
100uH
100uH
1k ohm/100MHz
1k ohm/100MHz
1k ohm/100MHz
1.5k ohm/100MHz
1.5k ohm/100MHz
1.5k ohm/100MHz
1.5k ohm/100MHz
1.5k ohm/100MHz
1.5k ohm/100MHz
1.5k ohm/100MHz
1.5k ohm/100MHz
1.5k ohm/100MHz
1.5k ohm/100MHz
1.5k ohm/100MHz
1.5k ohm/100MHz
1.5k ohm/100MHz
1.5k ohm/100MHz
1.5k ohm/100MHz
1.5k ohm/100MHz
1.5k ohm/100MHz
1.5k ohm/100MHz
1.5k ohm/100MHz
1.5k ohm/100MHz
1.5k ohm/100MHz
1.5k ohm/100MHz
1.5k ohm/100MHz
1.5k ohm/100MHz
1.5k ohm/100MHz
1.5k ohm/100MHz
1.5k ohm/100MHz
1.5k ohm/100MHz
47uH J
4.7uH
4.7uH
NLV25 2.2uH J
5.6uH J
2P
KTA1298
KRC106S
KRC106S
KTA1504S
KTD1304
KTD1304
REF No.
Q 103
Q 104
Q 105
Q 106
Q 108
Q 109
Q 201
Q 202
Q 203
Q 204
Q 205
Q 206
Q 208
Q 209
Q 210
Q 211
Q 212
Q 213
Q 214
Q 215
Q 216
Q 217
Q 218
Q 219
Q 220
Q 221
Q 222
Q 223
Q 224
Q 225
Q 226
Q 227
Q 228
Q 229
Q 230
Q 231
Q 232
Q 233
Q 234
Q 235
Q 236
Q 237
Q 301
Q 601
Q 602
Q 603
Q 604
Q 605
Q 606
Q 607
Q 608
Q 609
Q 610
Q 612
Q 613
Q 690
R3
R4
R5
R6
R7
R8
R9
R 10
R 11
R 101
R 102
R 103
R 106
R 107
R 108
PART No.
125-4012-90
125-4012-90
125-4012-90
125-4012-90
125-2199-93
125-0199-96
125-4015-90
198-0302-50
192-2873-00
125-2199-93
125-2199-93
193-1863-50
125-4015-90
125-2199-93
125-3007-90
125-2199-96
125-2199-96
125-2199-96
125-3004-90
125-2199-96
125-4014-90
125-2199-93
125-0199-92
125-3007-90
131-1260-00
125-3007-90
125-3004-90
125-2199-93
101-0941-00
125-3004-90
125-4010-90
125-4015-90
125-2199-93
131-1260-00
125-3004-90
125-3004-90
125-3004-90
125-3004-90
125-4010-90
125-0199-93
125-2199-93
125-2199-93
125-7005-90
125-4010-90
125-3004-90
125-2199-93
125-4010-90
125-4010-90
125-3004-90
125-2199-93
125-4010-90
125-3007-90
125-2199-93
125-3007-90
125-2199-93
125-2199-92
119-1041-15
119-0000-05
119-0000-05
119-1031-15
119-1031-15
119-1031-15
119-1021-15
119-1021-15
119-1031-15
119-1031-15
119-4731-15
119-1021-15
119-0000-05
119-0000-05
119-4721-15
DESCRIPTION
KTD1304
KTD1304
KTD1304
KTD1304
KRC103S
KRA106S
KTC2026
2SK302 Y.GR
2SC2873
KRC103S
KRC103S
2CD1863 Q,R
KTC2026
KRC103S
KTA1298
KRC106S
KRC106S
KRC106S
KTA1504S
KRC106S
KSD2020D
KRC103S
KRA102S
KTA1298
2SB1260
KTA1298
KTA1504S
KRC103S
2SB941
KTA1504S
KTC3875S
KTC2026
KRC103S
2SB1260
KTA1504S
KTA1504S
KTA1504S
KTA1504S
KTC3875S
KRA103S
KRC103S
KRC103S
PHK04P02T
KTC3875S
KTA1504S
KRC103S
KTC3875S
KTC3875S
KTA1504S
KRC103S
KTC3875S
KTA1298
KRC103S
KTA1298
KRC103S
KRC102S
1/10W 100k ohm
1/10W 0 ohm JW
1/10W 0 ohm JW
1/10W 10k ohm
1/10W 10k ohm
1/10W 10k ohm
1/10W 1k ohm
1/10W 1k ohm
1/10W 10k ohm
1/10W 10k ohm
1/10W 47k ohm
1/10W 1k ohm
1/10W 0 ohm JW
1/10W 0 ohm JW
1/10W 4.7k ohm
REF No.
R 109
R 110
R 111
R 112
R 113
R 114
R 115
R 116
R 117
R 118
R 119
R 120
R 121
R 122
R 123
R 124
R 125
R 126
R 127
R 128
R 135
R 203
R 204
R 205
R 206
R 207
R 208
R 209
R 210
R 211
R 212
R 213
R 214
R 215
R 216
R 219
R 220
R 221
R 222
R 223
R 224
R 225
R 226
R 227
R 228
R 229
R 230
R 231
R 232
R 238
R 241
R 242
R 243
R 244
R 245
R 246
R 247
R 248
R 249
R 250
R 251
R 252
R 254
R 258
R 259
R 260
R 261
R 262
R 263
R 264
R 265
PART No.
119-8221-15
119-1021-15
119-1021-15
119-1021-15
119-3311-15
119-3311-15
119-3311-15
119-3311-15
119-3311-15
119-3311-15
119-2231-15
119-2231-15
119-4711-15
119-4711-15
119-4711-15
119-4711-15
119-2231-15
119-2231-15
119-2231-15
119-2231-15
032-0140-50
119-6841-15
119-3311-15
119-2731-15
119-6841-15
119-1841-15
119-1001-15
119-1021-15
119-3921-15
119-0000-05
119-0000-05
119-1521-15
032-0140-54
032-0140-55
032-0140-55
119-1031-15
119-1031-15
119-3921-15
119-1031-15
119-1031-15
116-1591-15
116-1591-15
119-1801-15
119-3321-15
119-3321-15
116-1591-15
119-2231-15
116-1591-15
116-1221-15
119-1031-15
116-4711-15
116-4711-15
119-2231-15
116-4711-15
119-1031-15
119-1031-15
119-1011-15
119-1031-15
116-1221-15
119-1031-15
116-1221-15
116-1521-15
116-4711-15
119-1031-15
119-4731-15
119-1031-15
119-1031-15
119-1031-15
119-1021-15
119-1031-15
119-1021-15
-19-
DESCRIPTION
1/10W 8.2k ohm
1/10W 1k ohm
1/10W 1k ohm
1/10W 1k ohm
1/10W 330 ohm
1/10W 330 ohm
1/10W 330 ohm
1/10W 330 ohm
1/10W 330 ohm
1/10W 330 ohm
1/10W 22k ohm
1/10W 22k ohm
1/10W 470 ohm
1/10W 470 ohm
1/10W 470 ohm
1/10W 470 ohm
1/10W 22k ohm
1/10W 22k ohm
1/10W 22k ohm
1/10W 22k ohm
1/10W 10k ohm F
1/10W 680k ohm
1/10W 330 ohm
1/10W 27k ohm
1/10W 680k ohm
1/10W 180k ohm
1/10W 10 ohm
1/10W 1k ohm
1/10W 3.9k ohm
1/10W 0 ohm JW
1/10W 0 ohm JW
1/10W 1.5k ohm
1/10W 22k ohm F
1/10W 4.7k ohm F
1/10W 4.7k ohm F
1/10W 10k ohm
1/10W 10k ohm
1/10W 3.9k ohm
1/10W 10k ohm
1/10W 10k ohm
1/4WS 1.5 ohm
1/4WS 1.5 ohm
1/10W 18 ohm
1/10W 3.3k ohm
1/10W 3.3k ohm
1/4WS 1.5 ohm
1/10W 22k ohm
1/4WS 1.5 ohm
1/4WS 1.2k ohm
1/10W 10k ohm
1/4WS 470 ohm
1/4WS 470 ohm
1/10W 22k ohm
1/4WS 470 ohm
1/10W 10k ohm
1/10W 10k ohm
1/10W 100 ohm
1/10W 10k ohm
1/4WS 1.2k ohm
1/10W 10k ohm
1/4WS 1.2k ohm
1/4WS 1.5k ohm
1/4WS 470 ohm
1/10W 10k ohm
1/10W 47k ohm
1/10W 10k ohm
1/10W 10k ohm
1/10W 10k ohm
1/10W 1k ohm
1/10W 10k ohm
1/10W 1k ohm
REF No.
R 266
R 267
R 301
R 302
R 303
R 304
R 306
R 307
R 309
R 310
R 311
R 313
R 314
R 315
R 316
R 317
R 318
R 320
R 322
R 323
R 324
R 325
R 326
R 327
R 328
R 329
R 330
R 331
R 332
R 334
R 335
R 336
R 337
R 338
R 339
R 340
R 341
R 342
R 343
R 344
R 345
R 346
R 347
R 349
R 350
R 351
R 353
R 354
R 355
R 357
R 358
R 359
R 360
R 361
R 362
R 363
R 365
R 366
R 367
R 368
R 369
R 370
R 371
R 372
R 373
R 374
R 375
R 402
R 403
R 404
R 405
PART No.
119-1031-15
119-4731-15
119-0000-05
119-1031-15
119-1011-15
119-1031-15
119-3331-15
119-1831-15
119-0000-05
119-1831-15
119-1831-15
119-3331-15
119-4721-15
119-1011-15
119-4721-15
119-1011-15
119-0000-05
119-1011-15
119-1001-15
119-3331-15
119-4721-15
119-1831-15
119-0000-05
119-3331-15
119-1011-15
119-0000-05
119-0000-05
119-1831-15
119-0000-05
119-1031-15
119-1031-15
119-1011-15
119-1041-15
119-1021-15
119-0000-05
119-1031-15
119-1041-15
119-1831-15
119-1031-15
119-1031-15
119-1031-15
119-1031-15
119-0000-05
119-0000-05
119-0000-05
119-0000-05
119-0000-05
119-0000-05
119-1021-15
119-0000-05
119-0000-05
119-0000-05
119-0000-05
119-1021-15
119-0000-05
119-1011-15
119-1011-15
119-0000-05
119-1011-15
119-1011-15
119-1011-15
119-1011-15
119-0000-05
119-0000-05
119-0000-05
119-0000-05
119-0000-05
119-4711-15
119-5611-15
119-0000-05
119-0000-05
DESCRIPTION
1/10W 10k ohm
1/10W 47k ohm
1/10W 0 ohm JW
1/10W 10k ohm
1/10W 100 ohm
1/10W 10k ohm
1/10W 33k ohm
1/10W 18k ohm
1/10W 0 ohm JW
1/10W 18k ohm
1/10W 18k ohm
1/10W 33k ohm
1/10W 4.7k ohm
1/10W 100 ohm
1/10W 4.7k ohm
1/10W 100 ohm
1/10W 0 ohm JW
1/10W 100 ohm
1/10W 10 ohm
1/10W 33k ohm
1/10W 4.7k ohm
1/10W 18k ohm
1/10W 0 ohm JW
1/10W 33k ohm
1/10W 100 ohm
1/10W 0 ohm JW
1/10W 0 ohm JW
1/10W 18k ohm
1/10W 0 ohm JW
1/10W 10k ohm
1/10W 10k ohm
1/10W 100 ohm
1/10W 100k ohm
1/10W 1k ohm
1/10W 0 ohm JW
1/10W 10k ohm
1/10W 100k ohm
1/10W 18k ohm
1/10W 10k ohm
1/10W 10k ohm
1/10W 10k ohm
1/10W 10k ohm
1/10W 0 ohm JW
1/10W 0 ohm JW
1/10W 0 ohm JW
1/10W 0 ohm JW
1/10W 0 ohm JW
1/10W 0 ohm JW
1/10W 1k ohm
1/10W 0 ohm JW
1/10W 0 ohm JW
1/10W 0 ohm JW
1/10W 0 ohm JW
1/10W 1k ohm
1/10W 0 ohm JW
1/10W 100 ohm
1/10W 100 ohm
1/10W 0 ohm JW
1/10W 100 ohm
1/10W 100 ohm
1/10W 100 ohm
1/10W 100 ohm
1/10W 0 ohm JW
1/10W 0 ohm JW
1/10W 0 ohm JW
1/10W 0 ohm JW
1/10W 0 ohm JW
1/10W 470 ohm
1/10W 560 ohm
1/10W 0 ohm JW
1/10W 0 ohm JW
DXZ955MC
DXZ956MC
REF No.
R 406
R 407
R 409
R 410
R 412
R 414
R 415
R 416
R 422
R 423
R 424
R 425
R 501
R 502
R 503
R 504
R 506
R 507
R 508
R 509
R 510
R 511
R 513
R 514
R 515
R 516
R 517
R 518
R 519
R 520
R 521
R 522
R 524
R 525
R 526
R 527
R 528
R 529
R 530
R 533
R 534
R 536
R 537
R 539
R 544
R 545
R 546
R 548
R 549
R 550
R 551
R 552
R 553
PART No.
119-0000-05
119-0000-05
119-5611-15
119-5621-15
119-4711-15
119-3311-15
119-3311-15
119-0000-05
119-0000-05
119-0000-05
119-0000-05
119-0000-05
032-0140-56
032-0140-50
032-0140-50
032-0140-56
032-0140-56
032-0140-56
032-0140-50
032-0140-50
032-0140-56
032-0140-56
032-0140-98
032-0140-98
032-0140-98
032-0140-98
032-0140-98
032-0140-98
032-0140-50
032-0140-98
032-0140-50
032-0140-98
032-0140-50
032-0140-56
032-0140-56
032-0140-56
032-0140-50
032-0140-50
032-0140-56
032-0140-98
032-0140-98
032-0140-98
032-0140-50
032-0140-50
032-0140-56
032-0140-98
032-0140-50
119-4721-15
119-4721-15
119-4731-15
119-4731-15
119-4731-15
119-4731-15
DESCRIPTION
1/10W 0 ohm JW
1/10W 0 ohm JW
1/10W 560 ohm
1/10W 5.6k ohm
1/10W 470 ohm
1/10W 330 ohm
1/10W 330 ohm
1/10W 0 ohm JW
1/10W 0 ohm JW
1/10W 0 ohm JW
1/10W 0 ohm JW
1/10W 0 ohm JW
1/10W 12k ohm F
1/10W 10k ohm F
1/10W 10k ohm F
1/10W 12k ohm F
1/10W 12k ohm F
1/10W 12k ohm F
1/10W 12k ohm F
1/10W 12k ohm F
1/10W 12k ohm F
1/10W 12k ohm F
1/10W 330 ohm F
1/10W 330 ohm F
1/10W 330 ohm F
1/10W 330 ohm F
1/10W 330 ohm F
1/10W 330 ohm F
1/10W 10k ohm F
1/10W 330 ohm F
1/10W 10k ohm F
1/10W 330 ohm F
1/10W 10k ohm F
1/10W 12k ohm F
1/10W 12k ohm F
1/10W 12k ohm F
1/10W 10k ohm F
1/10W 10k ohm F
1/10W 12k ohm F
1/10W 330 ohm F
1/10W 330 ohm F
1/10W 330 ohm F
1/10W 10k ohm F
1/10W 10k ohm F
1/10W 12k ohm F
1/10W 330 ohm F
1/10W 10k ohm F
1/10W 4.7k ohm
1/10W 4.7k ohm
1/10W 47k ohm
1/10W 47k ohm
1/10W 47k ohm
1/10W 47k ohm
REF No.
R 554
R 555
R 556
R 601
R 602
R 603
R 604
R 605
R 606
R 607
R 608
R 609
R 610
R 611
R 612
R 613
R 614
R 615
R 616
R 617
R 618
R 619
R 620
R 621
R 622
R 623
R 624
R 625
R 626
R 627
R 628
R 629
R 630
R 631
R 632
R 633
R 634
R 635
R 636
R 637
R 638
R 639
R 640
R 641
R 642
R 643
R 644
R 645
R 646
R 647
R 648
R 649
R 650
PART No.
119-4731-15
119-4731-15
032-0140-56
119-1041-15
119-1031-15
119-0000-05
119-0000-05
119-0000-05
119-1031-15
119-1031-15
119-1031-15
119-0000-05
119-1031-15
032-0140-03
119-1031-15
119-1031-15
119-4741-15
119-1051-15
119-4731-15
119-1031-15
119-1031-15
119-1031-15
119-1031-15
116-6801-15
119-1041-15
119-1041-15
119-4721-15
032-0140-03
032-0140-66
119-1031-15
119-1031-15
119-1031-15
119-4711-15
119-4731-15
119-4721-15
119-1031-15
032-0140-56
032-0140-03
032-0140-67
119-1531-15
119-3321-15
119-0000-05
119-1041-15
119-0000-05
119-1021-15
119-1041-15
032-0140-52
119-1811-15
119-1031-15
119-0000-05
119-1031-15
119-1031-15
119-0000-05
REF No.
C 710
C 711
C 712
C 713
C 714
C 715
C 716
C 717
C 718
C 719
PART No.
168-1022-55
168-1022-55
168-1022-55
168-1042-78
043-0540-01
043-0542-00
043-0542-00
043-0542-00
043-0542-00
043-0541-00
DESCRIPTION
1/10W 47k ohm
1/10W 47k ohm
1/10W 12k ohm F
1/10W 100k ohm
1/10W 10k ohm
1/10W 0 ohm JW
1/10W 0 ohm JW
1/10W 0 ohm JW
1/10W 10k ohm
1/10W 10k ohm
1/10W 10k ohm
1/10W 0 ohm JW
1/10W 10k ohm
1/10W 220k ohmF
1/10W 10k ohm
1/10W 10k ohm
1/10W 470k ohm
1/10W 1M ohm
1/10W 47k ohm
1/10W 10k ohm
1/10W 10k ohm
1/10W 10k ohm
1/10W 10k ohm
1/4WS 68 ohm
1/10W 100k ohm
1/10W 100k ohm
1/10W 4.7k ohm
REF No.
R 651
R 652
R 653
R 654
R 655
R 656
R 657
R 658
R 659
R 660
R 661
R 662
PART No.
119-0000-05
119-0000-05
119-0000-05
119-0000-05
119-0000-05
119-0000-05
119-0000-05
119-1031-15
119-1031-15
119-0000-05
119-2231-15
119-1031-15
R 663
119-1031-15
R 665
R 666
R 667
R 673
R 675
R 676
R 677
R 678
R 679
R 680
R 681
R 682
1/10W 220k ohmF R 683
1/10W 220 ohm F R 684
1/10W 10k ohm
R 685
1/10W 10k ohm
R 686
1/10W 10k ohm
R 687
1/10W 470 ohm
R 688
1/10W 47k ohm
R 689
1/10W 4.7k ohm R 690
1/10W 10k ohm
R 691
1/10W 12k ohm F R 692
1/10W 220k ohmF R 693
1/10W 3.3k ohm F R 694
1/10W 15k ohm
R 695
1/10W 3.3k ohm R 801
1/10W 0 ohm JW S 601
1/10W 100k ohm S 602
1/10W 0 ohm JW S 603
1/10W 1k ohm
SUP1
1/10W 100k ohm T 202
1/10W 33k ohm F TH601
1/10W 180 ohm
X 301
1/10W 10k ohm
X 601
1/10W 0 ohm JW X 602
1/10W 10k ohm
X 603
1/10W 10k ohm
PWB
1/10W 0 ohm JW
119-1031-15
119-0000-05
119-0000-05
119-0000-05
119-1031-15
119-1021-15
119-1031-15
119-1531-15
119-1011-15
119-1011-15
119-1011-15
119-1011-15
119-0000-05
119-4731-15
119-0000-05
119-0000-05
119-0000-05
119-0000-05
119-0000-05
116-1221-15
119-0000-05
119-0000-05
119-1041-15
119-0000-05
119-0000-05
119-1021-15
013-6103-00
013-7106-00
013-7206-50
060-8046-90
007-1175-90
002-0315-00
061-3537-90
061-1056-00
060-1541-90
060-0100-51
039-2677-00
DESCRIPTION
1000pF
1000pF
1000pF
16V 0.1uF
10V 2.2uF
25V 4.7uF
25V 4.7uF
25V 4.7uF
25V 4.7uF
6.3V 22uF
PART No.
043-0541-00
043-0542-00
168-1032-55
001-1310-00
001-1310-00
001-0367-91
001-0367-91
001-0367-91
001-0367-91
001-7040-91
DESCRIPTION
1/10W 0 ohm JW
1/10W 0 ohm JW
1/10W 0 ohm JW
1/10W 0 ohm JW
1/10W 0 ohm JW
1/10W 0 ohm JW
1/10W 0 ohm JW
1/10W 10k ohm
1/10W 10k ohm
1/10W 0 ohm JW
1/10W 22k ohm
1/10W 10k ohm
(PE2747KA)
1/10W 10k ohm
(PE2747BA)
1/10W 10k ohm
1/10W 0 ohm JW
1/10W 0 ohm JW
1/10W 0 ohm JW
1/10W 10k ohm
1/10W 1k ohm
1/10W 10k ohm
1/10W 15k ohm
1/10W 100 ohm
1/10W 100 ohm
1/10W 100 ohm
1/10W 100 ohm
1/10W 0 ohm JW
1/10W 47k ohm
1/10W 0 ohm JW
1/10W 0 ohm JW
1/10W 0 ohm JW
1/10W 0 ohm JW
1/10W 0 ohm JW
1/4WS 1.2k ohm
1/10W 0 ohm JW
1/10W 0 ohm JW
1/10W 100k ohm
1/10W 0 ohm JW
1/10W 0 ohm JW
1/10W 1k ohm
SWITCH
TKR00120670MM
SPPB530701
CSA30-141N-T
OUTPUT TRANS
TN10-3U153JT
41.6MHz
32.768K
3.14MHz
BUZZER
PWB(WITHOUT
COMPONENT)
Switch PWB (B2) section
REF No.
C 700
C 701
C 702
C 703
C 704
C 705
C 706
C 707
C 708
C 709
PART No.
043-0540-00
043-0541-00
043-0541-00
043-0540-00
168-1032-55
168-1042-78
168-1042-78
168-1022-55
168-1032-55
168-1032-55
DXZ955MC
DXZ956MC
DESCRIPTION
6.3V 10uF
6.3V 22uF
6.3V 22uF
6.3V 10uF
0.01pF
16V 0.1uF
16V 0.1uF
1000pF
0.01pF
0.01pF
-20-
REF No.
C 720
C 721
C 722
D 700
D 701
D 702
D 703
D 704
D 705
D 706
DESCRIPTION
6.3V 22uF
25V 4.7uF
0.01pF
KDS160
KDS160
1SS226
1SS226
1SS226
1SS226
NSCW100
REF No.
D 707
D 708
D 709
D 716
D 717
D 718
D 719
D 720
D 721
D 722
D 723
D 724
D 725
D 726
D 727
D 728
D 729
D 730
D 731
D 732
D 733
D 734
IC 701
IR 700
J 701
J 702
J 703
PART No.
001-7040-91
001-7040-91
001-7040-91
001-0529-30
001-0529-30
001-0529-30
001-0529-30
001-0529-30
001-0529-30
001-0529-30
001-0529-30
001-0529-30
001-0529-30
001-0529-30
001-0529-30
001-0529-30
001-0529-30
001-0529-30
001-0529-41
001-0529-41
001-0529-41
001-0529-41
052-7066-10
060-4017-90
074-1158-54
076-0647-00
076-0647-00
DESCRIPTION
NSCW100
NSCW100
NSCW100
MA8051H
MA8051H
MA8051H
MA8051H
MA8051H
MA8051H
MA8051H
MA8051H
MA8051H
MA8051H
MA8051H
MA8051H
MA8051H
MA8051H
MA8051H
MA8075M
MA8075M
MA8075M
MA8075M
M30102M2-597FP
RS-671
4P
16P
16P
REF No.
J 704
L 701
L 702
L 703
Q 700
Q 701
Q 702
Q 703
Q 704
Q 705
Q 706
Q 707
R 700
R 701
R 702
R 703
R 704
R 705
R 706
R 707
R 708
R 709
R 710
R 711
R 712
R 713
R 714
PART No.
074-1239-80
010-2275-50
010-2275-50
010-2275-57
060-4011-80
125-2199-95
125-2199-95
125-0199-95
125-0199-95
125-4010-90
125-2199-93
125-3007-90
119-1011-15
119-3921-15
119-1041-15
119-6811-15
119-1051-15
119-4731-15
119-4731-15
119-4731-15
119-2211-15
119-1041-15
119-4731-15
119-3321-15
119-1021-15
119-1021-15
119-1021-15
DESCRIPTION
30P
33uH
33uH
10uH
CPT-182S-C
KRC105S
KRC105S
KRA105S
KRA105S
KTC3875S
KRC103S
KTA1298
1/10W 100 ohm
1/10W 3.9k ohm
1/10W 100k ohm
1/10W 680 ohm
1/10W 1m ohm
1/10W 47k ohm
1/10W 47k ohm
1/10W 47k ohm
1/10W 220 ohm
1/10W 100k ohm
1/10W 47k ohm
1/10W 3.3k ohm
1/10W 1k ohm
1/10W 1k ohm
1/10W 1k ohm
REF No.
R 715
R 716
R 717
R 718
R 719
R 720
R 721
R 723
R 724
R 725
R 726
R 727
R 728
R 731
R 732
S 701
S 702
S 703
S 704
S 705
S 706
VR 700
VR 701
X 701
PWB
PART No.
119-1021-15
119-4721-15
119-4721-15
119-2211-15
119-2211-15
119-2211-15
119-2211-15
119-1031-15
119-1521-15
119-1011-15
119-1011-15
119-1011-15
119-1011-15
119-1531-15
119-4721-15
013-6302-50
013-6302-50
013-6302-50
013-6302-50
013-6302-50
013-6302-50
016-9900-96
012-6009-56
060-1531-90
039-2678-00
DESCRIPTION
1/10W 1k ohm
1/10W 4.7k ohm
1/10W 4.7k ohm
1/10W 220 ohm
1/10W 220 ohm
1/10W 220 ohm
1/10W 220 ohm
1/10W 10k ohm
1/10W 1.5k ohm
1/10W 100 ohm
1/10W 100 ohm
1/10W 100 ohm
1/10W 100 ohm
1/10W 15k ohm
1/10W 4.7k ohm
SWITCH
SWITCH
SWITCH
SWITCH
SWITCH
SWITCH
VR W/SHAFT
10k
4.91MHz
PWB(WITHOUT
COMPONENT)
REF No.
D 805
D 806
D 807
D 808
D 809
D 810
D 811
D 812
IC 800
IC 801
IC 802
IC 803
IC 804
IC 807
J 800
J 801
L 800
L 801
Q 800
Q 801
R 800
R 801
R 802
R 803
R 804
R 805
R 806
R 807
R 808
R 809
R 810
R 811
R 812
R 813
R 815
R 817
R 821
R 822
PART No.
001-7078-90
001-7078-90
001-7078-90
001-7078-90
001-7078-90
001-7078-90
001-7078-90
001-0584-14
051-6080-00
051-3019-90
051-7107-90
125-9020-90
051-7510-08
051-3016-90
074-1239-80
074-1189-00
010-3103-64
010-2198-56
125-4010-90
125-4010-90
119-3901-15
119-3901-15
119-3901-15
119-3901-15
119-3901-15
119-3901-15
119-3901-15
119-3901-15
119-3901-15
119-3901-15
119-3901-15
119-3901-15
119-1811-15
119-1041-15
119-3321-15
032-0140-50
119-1001-15
119-1001-15
DESCRIPTION
NSCW505T
NSCW505T
NSCW505T
NSCW505T
NSCW505T
NSCW505T
NSCW505T
MA8033
LZ9FD51A
NJM2060V
TC4S81F
SI5504DC
REF No.
R 823
R 841
R 842
R 851
R 852
R 853
R 854
R 855
R 856
R 857
R 858
R 859
SN74LV4053APWR R 860
NJM2904V
R 861
30P
R 862
50P
R 863
1.5k ohm 100MHz R 864
2.2uH
R 865
KTC3875S
R 866
KTC3875S
R 869
1/10W 39 ohm
R 870
1/10W 39 ohm
R 874
1/10W 39 ohm
R 875
1/10W 39 ohm
R 876
1/10W 39 ohm
R 877
1/10W 39 ohm
R 878
1/10W 39 ohm
R 879
1/10W 39 ohm
R 880
1/10W 39 ohm
R 881
1/10W 39 ohm
R 882
1/10W 39 ohm
R 883
1/10W 39 ohm
R 884
1/10W 180 ohm
R 885
1/10W 100k ohm R 886
1/10W 3.3k ohm R 887
1/10W 10k ohm F R 888
1/10W 10 ohm
PWB
1/10W 10 ohm
PART No.
032-0140-50
119-1001-15
119-1001-15
119-3301-15
119-3301-15
119-3301-15
119-3301-15
119-3301-15
119-3301-15
119-3301-15
119-3301-15
119-3301-15
119-3301-15
119-3301-15
119-3301-15
119-3301-15
119-3301-15
119-1041-15
119-6821-15
119-6821-15
119-9121-15
032-0140-55
032-0140-89
032-0140-89
032-0140-79
032-0140-51
032-0140-52
032-0140-52
032-0140-51
032-0140-51
119-3931-15
032-0140-50
119-3931-15
119-1021-15
119-4791-15
119-4791-15
039-2679-00
DESCRIPTION
1/10W 10kohm F
1/10W 10 ohm
1/10W 10 ohm
1/10W 33 ohm
1/10W 33 ohm
1/10W 33 ohm
1/10W 33 ohm
1/10W 33 ohm
1/10W 33 ohm
1/10W 33 ohm
1/10W 33 ohm
1/10W 33 ohm
1/10W 33 ohm
1/10W 33 ohm
1/10W 33 ohm
1/10W 33 ohm
1/10W 33 ohm
1/10W 100k ohm
1/10W 6.8k ohm
1/10W 6.8k ohm
1/10W 9.1k ohm
1/10W 4.7k ohm F
1/10W 47k ohm F
1/10W 47k ohm F
1/10W 2.7k ohm F
1/10W 15k ohm F
1/10W 33k ohm F
1/10W 33k ohm F
1/10W 15k ohm F
1/10W 15k ohm F
1/10W 39k ohm
1/10W 10kohm F
1/10W 39k ohm
1/10W 1k ohm
1/10W 4.7 ohm
1/10W 4.7 ohm
PWB(WITHOUT
COMPONENT)
LCD PWB (B3) section
REF No.
C 800
C 801
C 802
C 803
C 804
C 805
C 806
C 807
C 812
C 813
C 814
C 815
C 817
C 818
C 819
C 820
C 822
C 824
C 825
C 826
CCT802
CCT803
CCT804
CCT805
CCT806
CCT807
CCT808
CCT820
CCT821
CCT822
CCT823
CCT824
CCT825
D 800
D 801
D 802
D 803
D 804
PART No.
168-1042-78
168-1042-78
168-1042-78
168-1042-78
168-1042-78
168-1042-78
043-0542-00
168-1042-78
166-4701-50
043-0542-00
168-1042-78
043-0552-90
043-0541-00
043-0542-00
043-0542-00
043-0542-00
043-0540-01
043-0540-01
043-0541-00
168-1042-78
010-3042-54
010-3042-54
010-3042-54
010-3042-54
010-3042-54
010-3042-54
010-3042-54
050-0140-70
050-0140-70
050-0140-70
050-0140-70
050-0140-70
050-0140-70
001-7078-90
001-7078-90
001-7078-90
001-7078-90
001-7078-90
DESCRIPTION
16V 0.1uF
16V 0.1uF
16V 0.1uF
16V 0.1uF
16V 0.1uF
16V 0.1uF
25V 4.7uF
16V 0.1uF
50V 47pF CH
25V 4.7uF
16V 0.1uF
6.3V 47uF
6.3V 22uF
25V 4.7uF
25V 4.7uF
25V 4.7uF
10V 2.2uF
10V 2.2uF
6.3V 22uF
16V 0.1uF
BLA3216A601SG4
BLA3216A601SG4
BLA3216A601SG4
BLA3216A601SG4
BLA3216A601SG4
BLA3216A601SG4
BLA3216A601SG4
1/32W 10 ohmx 4J
1/32W 10 ohmx 4J
1/32W 10 ohmx 4J
1/32W 10 ohmx 4J
1/32W 10 ohmx 4J
1/32W 10 ohmx 4J
NSCW505T
NSCW505T
NSCW505T
NSCW505T
NSCW505T
-21-
DXZ955MC
DXZ956MC
VIDEO PWB (B4) section
REF No.
C 901
C 902
C 903
C 910
C 911
C 912
C 913
C 914
C 915
C 916
C 917
C 920
C 921
C 922
C 923
C 924
C 925
C 926
CCT901
CCT902
CCT903
CCT904
CCT907
PART No.
168-1042-78
043-0540-00
166-4701-50
168-1042-78
168-1042-78
043-0540-00
043-0552-90
168-1042-78
168-1042-78
168-1042-78
168-1042-78
168-1042-78
043-0540-00
166-1201-50
168-1042-78
166-1201-50
168-1042-78
168-1042-78
050-0140-63
050-0140-63
050-0140-58
050-0140-58
050-0140-58
DESCRIPTION
16V 0.1uF
6.3V 10uF
50V 47pF CH
16V 0.1uF
16V 0.1uF
6.3V 10uF
6.3V 47uF
16V 0.1uF
16V 0.1uF
16V 0.1uF
16V 0.1uF
16V 0.1uF
6.3V 10uF
50V 12pF
16V 0.1uF
50V 12pF
16V 0.1uF
16V 0.1uF
1/32W 47k ohm x4J
1/32W 47k ohm x4J
1/32W 470 ohm x4J
1/32W 470 ohm x4J
1/32W 470 ohm x4J
REF No.
CCT908
CCT909
CCT910
CCT911
CCT912
CCT913
CCT914
CCT915
CCT916
CCT917
CCT918
CCT919
CCT920
CCT921
CCT922
CCT923
CCT924
CCT925
CCT926
CCT927
CCT928
CCT929
PART No.
050-0140-58
050-0140-58
050-0140-58
050-0140-58
050-0140-58
050-0140-58
050-0140-58
050-0140-58
050-0140-58
050-0140-58
050-0140-58
050-0140-58
050-0140-58
050-0140-58
050-0140-58
050-0140-58
010-3042-54
010-3042-54
010-3042-54
010-3042-54
010-3042-54
010-3042-54
REF No.
D 207
D 208
D 217
FIL 201
FIL 202
FIL 203
IC 201
IC 206
L 201
L 203
L 204
L 205
P 201
Q 204
Q 205
Q 206
Q 207
R 211
PART No.
001-0507-90
001-0608-90
001-0627-90
060-3116-55
060-3115-52
060-3115-52
051-3921-90
051-3351-90
010-2275-50
010-3109-65
010-3041-90
010-3108-53
074-0898-16
125-2199-93
125-2199-93
125-3004-90
125-3010-90
119-5631-15
REF No.
R 292
R 293
R 294
R 295
R 296
R 297
PART No.
119-4731-15
119-4731-15
119-4731-15
119-4731-15
119-4731-15
119-1011-15
DESCRIPTION
1/32W 470 ohm x4J
1/32W 470 ohm x4J
1/32W 470 ohm x4J
1/32W 470 ohm x4J
1/32W 470 ohm x4J
1/32W 470 ohm x4J
1/32W 470 ohm x4J
1/32W 470 ohm x4J
1/32W 470 ohm x4J
1/32W 470 ohm x4J
1/32W 470 ohm x4J
1/32W 470 ohm x4J
1/32W 470 ohm x4J
1/32W 470 ohm x4J
1/32W 470 ohm x4J
1/32W 470 ohm x4J
BLA3216A601SG4
BLA3216A601SG4
BLA3216A601SG4
BLA3216A601SG4
BLA3216A601SG4
BLA3216A601SG4
REF No.
CCT930
CCT931
IC 903
IC 904
PART No.
010-3042-54
010-3042-54
051-6437-00
052-7076-00
DESCRIPTION
IC 905
IC 906
IC 907
J 900
L 901
L 902
L 903
L 910
L 911
L 912
R 900
R 901
R 910
R 911
X 901
PWB
051-7285-08
051-7285-08
051-7287-90
074-3008-90
010-3103-64
010-3103-64
010-3103-64
010-3103-64
010-2279-50
010-2279-50
119-4711-15
119-1511-15
119-4711-15
119-1051-15
061-3544-90
039-2680-00
CD74HC4050PWR
CD74HC4050PWR
CD74HC4049PWR
REF No.
R 212
R 213
R 214
R 215
R 216
R 217
R 218
R 232
R 233
R 236
R 237
R 239
R 245
R 246
R 247
T 201
PWB
PART No.
119-1031-15
119-1031-15
119-2221-15
119-1031-15
119-1031-15
119-1041-15
119-1051-15
119-3301-15
032-0164-50
032-0164-50
119-1001-15
032-0140-53
032-0140-85
119-1031-15
119-1011-15
007-1176-00
039-2682-00
DESCRIPTION
1/10W 10k ohm
1/10W 10k ohm
1/10W 2.2k ohm
1/10W 10k ohm
1/10W 10k ohm
1/10W 100k ohm
1/10W 1m ohm
1/10W 33 ohm
1/10W 0.1 ohm F
1/10W 0.1 ohm F
1/10W 10 ohm
REF No.
R 298
R 299
TM 901
TM 902
PWB
PART No.
119-4701-15
119-1011-15
073-0762-90
073-0762-90
039-2681-00
BLA3216A601SG4
BLA3216A601SG4
YGV608-F
MBM29F016-90
PFTN
40P
1.5k ohm 100MHz
1.5k ohm 100MHz
1.5k ohm 100MHz
1.5k ohm 100MHz
4.7uH
4.7uH
1/10W 470 ohm
1/10W 150 ohm
1/10W 470 ohm
1/10W 1m ohm
16.0MHz
PWB(WITHOUT
COMPONENT)
DD PWB (B5) section
REF No.
C 210
C 231
C 232
C 233
C 234
C 235
C 236
C 237
C 238
C 239
C 240
C 243
C 246
C 248
C 260
C 261
D 204
D 205
PART No.
042-0560-84
043-0510-51
043-0510-51
168-1042-78
168-1032-55
168-2232-55
166-1511-50
168-1022-55
168-1042-78
168-4732-78
168-1042-78
168-1022-55
042-0560-63
042-1697-00
172-3341-11
042-0671-02
001-0529-45
001-0608-90
DESCRIPTION
16V 47uF
25V 10uF
25V 10uF
16V 0.1uF
0.01pF
25V 0.022uF
50V 150pF
1000pF
16V 0.1uF
25V 0.047uF
16V 0.1uF
1000pF
16V 22uF
10V 680uF
0.33uF
10V 22uF
MA8082H
D1FS4
DESCRIPTION
DAP202K
D1FS4
U1BC44
CKD510JB1H102ST
CKD310JB1C474ST
CKD310JB1C474ST
MD1423N
BA033CCOFP
33uH
2k ohm 100MHz
10uH
330 ohm 100MHz
16P
KRC103S
KRC103S
KTA1504S
KTA1666
1/10W 56k ohm
1/10W 2.2k ohm F
1/10W 2.4k ohm F
1/10W 10k ohm
1/10W 100 ohm
SRW13EPC
PWB(WITHOUT
COMPONENT)
Slot PWB(B6) section
REF No.
C 290
D 290
J 901
J 902
P 901
R 291
PART No.
168-1032-55
001-2601-90
074-8001-00
074-1158-57
076-0488-06
119-4731-15
DESCRIPTION
0.01uF
MA728-TX
9P
7P
6P
1/16W 47k ohm
DESCRIPTION
1/16W 47k ohm
1/16W 47k ohm
1/16W 47k ohm
1/16W 47k ohm
1/16W 47k ohm
1/16W 100 ohm
INNER ES FPC(B7) section
REF No. PART No.
DESCRIPTION
J 1000 074-1278-01 SOCKET(16P)
J 1001 074-1278-01 SOCKET(16P)
DXZ955MC
DXZ956MC
-22-
DESCRIPTION
1/16W 47 ohm
1/16W 100 ohm
TERMINAL
TERMINAL
PWB(WITHOUT
COMPONENT)
CD PWB (B8) section: 929-0601-81
REF No. PART No.
C1
168-4732-78
C2
046-3922-58
C3
046-3332-78
C4
045-2201-50
C5
045-3901-50
C6
168-4732-78
C7
045-2096-50
C8
042-0416-52
C9
042-0416-52
C 10
046-5622-58
C 11
178-1052-78
C 12
163-1073-05
C 13
178-1052-78
C 14
168-1045-56
C 15
046-6822-58
C 16
046-3332-78
C 17
178-2242-78
C 18
168-4732-78
C 19
045-1511-50
C 20
046-2212-58
C 21
178-1052-78
C 22
046-4722-58
C 23
163-1073-05
C 30
168-1045-56
C 31
163-1073-05
C 32
046-1032-78
C 33
046-1032-78
C 34
168-1045-56
C 35
168-1045-56
C 36
046-1022-58
C 37
042-0416-52
C 38
046-4722-58
C 39
178-2242-78
C 40
168-1045-56
C 41
046-2232-78
C 42
046-6812-58
C 43
046-1022-58
C 50
168-1045-56
C 51
045-1011-50
C 52
046-1522-58
C 53
046-1522-58
C 54
046-6812-58
C 55
163-1073-35
C 56
168-1045-56
C 57
046-1022-58
C 60
045-1801-50
C 61
045-1801-50
C 62
046-1032-78
C 63
168-1045-56
C 64
168-1045-56
C 65
168-1045-56
C 66
046-1032-78
C 67
168-1045-56
C 68
046-1032-78
C 70
168-1045-56
C 71
168-1045-56
C 72
168-1045-56
C 75
046-1032-78
C 76
168-1045-56
C 77
163-2273-05
DESCRIPTION
0.047uF
3900pF
0.033uF
22pF
39pF
0.047uF
2pF
10V10uF TAN
10V10uF TAN
5600pF
1uF
4V100uF
1uF
0.1uF
6800pF
0.033uF
0.22uF
0.047uF
150pF
220pF
1uF
4700pF
4V100uF
0.1uF
4V100uF
0.01uF
0.01uF
0.1uF
0.1uF
1000pF
10V10uF TAN
4700pF
0.22uF
0.1uF
0.022uF
680pF
1000pF
0.1uF
100pF
1500pF
1500pF
680pF
16V100uF
0.1uF
1000pF
18pF
18pF
0.01uF
0.1uF
0.1uF
0.1uF
0.01uF
0.1uF
0.01uF
0.1uF
0.1uF
0.1uF
0.01uF
0.1uF
4V 220uF
REF No. PART No.
C 78
168-1045-56
C 80
168-1045-56
C 81
168-1045-56
C 82
178-1052-78
C 83
046-4722-58
C 84
178-1052-78
C 85
046-1032-78
C 86
168-1045-56
C 87
168-1045-56
C 88
045-1011-50
C 89
045-1011-50
C 90
046-1032-78
C 91
046-1032-78
C 92
168-1045-56
C 93
046-1032-78
C 95
168-1045-56
C 96
163-4763-05
C 97
042-0416-52
C 98
168-1045-56
C 99
046-1032-78
CCT1 050-0145-54
CCT2 050-0145-54
CCT3 050-0146-53
CCT4 050-0146-53
CCT5 050-0146-55
CCT6 050-0145-54
CCT8 050-0146-53
CCT9 050-0145-54
D1
001-2610-90
D2
001-2610-90
D3
001-0367-91
D4
001-2610-90
IC 1
051-5709-90
IC 2
051-6393-00
IC 3
051-6062-08
IC 4
051-7221-58
IC 5
052-5056-00
IC 6
051-6372-00
IC 7
051-3314-90
IC 8
051-3315-90
IC 9
051-5442-08
IC 10
051-9814-00
IC 11
051-7519-08
IC 12
051-7519-08
IC 13
051-7239-38
IC 14
051-9330-00
IC 15
051-7518-08
IC 16
051-7203-48
IC 17
051-3263-90
IC 18
051-7222-48
J1
074-1138-65
J2
074-1138-60
J3
074-1237-70
J4
074-1138-57
Q1
125-0002-92
Q2
125-2004-92
Q3
131-1188-50
Q4
190-1586-50
Q5
125-2004-92
Q 50
125-2004-92
DESCRIPTION
0.1uF
0.1uF
0.1uF
1uF
4700pF
1uF
0.01uF
0.1uF
0.1uF
100pF
100pF
0.01uF
0.01uF
0.1uF
0.01uF
0.1uF
4V 47uF
10V 10uF TAN
0.1uF
0.01uF
1/10W 47k ohm x4
1/10W 47k ohm x4
1/10W 100k ohm x2
1/10W 100k ohm x2
1/10W 68k ohm x2
1/10W 47k ohm x4
1/10W 100k ohm x2
1/10W 47k ohm x4
RB480KTL
RB480KTL
1SS226
RB480KTL
AN8399SA-E1
MN6627482WB
BA5996FM-E2
SN74AHC1G04HD
MN102H60KCK
TMS320DA150P
TA48S033F
TPS76316DBVR
BD4826G
REF No. PART No.
R1
033-3341-15
R2
033-4741-15
R3
033-1521-15
R4
033-3321-15
R5
033-4721-15
R6
117-1001-15
R7
033-2251-15
R8
033-6831-15
R9
033-1021-15
R 10
033-3331-15
R 11
033-1231-15
R 12
033-1231-15
R 14
033-6831-15
R 17
033-1811-15
R 30
033-1011-15
R 31
033-6811-15
R 32
033-6811-15
R 33
033-2211-15
R 35
033-3311-15
R 36
033-5631-15
R 37
033-8231-15
R 38
033-5631-15
R 39
033-3331-15
R 40
033-8221-15
R 41
033-1031-15
R 42
033-2731-15
R 43
033-1031-15
R 44
033-1531-15
R 45
033-5621-15
R 46
033-4741-15
R 47
033-1541-15
R 48
033-2241-15
R 50
117-6811-15
R 51
033-1031-15
R 52
033-1031-15
R 53
033-1031-15
R 54
033-1031-15
R 55
033-8221-15
R 56
033-1041-15
R 57
033-1011-15
R 62
033-1041-15
MBM29DL800BA-90PFTN R 63
033-1041-15
SN74LV273APWR
R 66
119-4741-15
SN74LV273APWR
R 71
033-0000-05
SN74AHCT08PWR
R 72
033-0000-05
K4S641632F-TC60
R 73
033-0000-05
SN74LV139APWR
R 82
033-0000-15
SN74LV74APW
R 83
033-1211-15
NJU7200U33
R 84
033-0000-05
SN74AHC1G08D
R 94
033-1041-15
15P
R 95
033-2231-15
10P
R 96
033-1021-15
20P
R 97
033-4721-15
7P
TM 1
073-0768-90
RN2402
X1
060-1535-90
RN1402
X2
060-1535-90
2SB1188PQR
PWB
039-2439-20
2SA1586Y,G
RN1402
RN1402
REF No. PART No.
Q1
060-4015-90
Q2
060-4015-90
S1
013-7414-50
DESCRIPTION
PS1192H
PS1192H
CHUCKING
DESCRIPTION
1/10W 330k ohm
1/10W 470k ohm
1/10W 1.5k ohm
1/10W 3.3k ohm
1/10W 4.7k ohm
1/8W 10 ohm
1/10W 2.2M ohm
1/10W 68k ohm
1/10W 1k ohm
1/10W 33k ohm
1/10W 12k ohm
1/10W 12k ohm
1/10W 68k ohm
1/10W 180 ohm
1/10W 100 ohm
1/10W 680 ohm
1/10W 680 ohm
1/10W 220 ohm
1/10W 330 ohm
1/10W 56k ohm
1/10W 82k ohm
1/10W 56k ohm
1/10W 33k ohm
1/10W 8.2k ohm
1/10W 10k ohm
1/10W 27k ohm
1/10W 10k ohm
1/10W 15k ohm
1/10W 5.6k ohm
1/10W 470k ohm
1/10W 150k ohm
1/10W 220k ohm
1/8W 680 ohm
1/10W 10k ohm
1/10W 10k ohm
1/10W 10k ohm
1/10W 10k ohm
1/10W 8.2k ohm
1/10W 100k ohm
1/10W 100 ohm
1/10W 100k ohm
1/10W 100k ohm
1/10W 470k ohm
1/10W 0 ohm
1/10W 0 ohm
1/10W 0 ohm
1/10W 0 ohm
1/10W 120 ohm
1/10W 0 ohm
1/10W 100k ohm
1/10W 22k ohm
1/10W 1k ohm
1/10W 4.7k ohm
TERMIMAL
16.934MHz
16.934MHz
PWB (WITHOUT
COMPONENT)
LED PWB (B9) section: 929-0601-81
REF No. PART No.
DESCRIPTION
D1
001-7058-90 AN1105W-RR
D2
001-7058-90 AN1105W-RR
J1
074-1138-60 10P
-23-
REF No. PART No.
DESCRIPTION
S2
013-7413-50 LIMIT
PWB
039-1944-21 PWB (WITHOUT
COMPONENT)
DXZ955MC
DXZ956MC
PRINTED WIRING BOARD 1/6
Switch PWB (B2) section
Q
IC
Q
IC
25
37
13
To Touch panel
16
1
4
To J1000 of INNER ES FPC(B7) page 29
1
30
16
1
1
COMPONENT SIDE
DXZ955MC
DXZ956MC
Caution:
COMPONENT SIDE: Parts on the component side seen
from the component side are indicated.
SOLDER SIDE: Parts on the solder side seen
from the solder side are indicated.
- 24 -
SOLDER SIDE
To J1001 of INNER ES FPC(B7) page 29
FLAT WIRE
816-3005-50
To J800 of LCD PWB(B3) page 25
1
PRINTED WIRING BOARD 2/6
LCD PWB (B3)\VIDEO PWB (B4) section
Q
IC
LCD PWB (B3)
1
1
To TFT
5
1
5
50
1
1
8
9
FLAT WIRE
816-3005-50
30
1
19
37
To J704 of Switch
PWB(B2) page 24
Caution:
COMPONENT SIDE: Parts on the
component side seen from the
component side are indicated.
1
55
SOLDER SIDE: Parts on the solder side
seen from the solder side are indicated.
COMPONENT SIDE
SOLDER SIDE
VIDEO PWB (B4)
Q
IC
Q
IC
21
25
51
1
1
71
To J604 of Main
PWB(B1) page 29
1
39
9
2
1
40
9
9
1
1
- 25 -
DXZ955MC
DXZ956MC
PRINTED WIRING BOARD 3/6
DD PWB(B5) /Slot PWB(B6) section
COMPONENT SIDE
IC
SOLDER SIDE
DD PWB (B5)
17
1
5
10
6
2
1
16
15
To J202 of Main
PWB(B1) page 29
1
Caution:
COMPONENT SIDE: Parts on the component side seen
from the component side are indicated.
SOLDER SIDE: Parts on the solder side seen
from the solder side are indicated.
COMPONENT SIDE
SOLDER SIDE
Slot PWB (B6)
To J4 of
CD PWB(B8) page 28
87 6 5 4 3 2 1 9
7
1
FLAT WIRE
816-2639-00
EXTENSION LEAD
854-4581-50
6
6
1
7
9
1
1
Q
To J801 of
Main PWB(B1) page 29
DXZ955MC
DXZ956MC
- 26 -
1 2 3 4 5 6 78
CIRCUIT DIAGRAM 1/12
DD PWB(B5) section
Slot PWB(B6) section
3.3V
3.2V or 0V at the AM mode
according to the frequency
DD PWB (B5)
To J202 of Main PWB(B1) page 35
To J801
of Main PWB(B1) page 31
To MEMORY CARD
To J4 of
CD PWB(B8) page 40
Slot PWB (B6)
MEMORY CARD
SLOT
- 27 -
DXZ955MC
DXZ956MC
PRINTED WIRING BOARD 4/6
CD PWB(B8) / LED PWB(B9) section CD MECHANISM
To J902 of Slot
PWB(B6) page 26
FLAT WIRE 816-2624-50
To J802 of Main PWB(B1)
PAGE 29
FLAT WIRE
816-2626-50
FLAT WIRE
816-2639-00
CD PWB(B8)
COMPONENT SIDE
SOLDER SIDE
LED PWB-B(B9)
BLU
YEL
SOLDER SIDE
LED PWB-A(B9)
PUR
SOLDER SIDE
DXZ955MC
DXZ956MC
- 28 -
Red
Blue
Purple
Yellow
Black
Green
Caution:
COMPONENT SIDE:Part on the component side seen
from the component side are indicated.
Orange
Caution:
SOLDER SIDE:Parts on the soider side seen
from the solder side are indicated.
O N
M L
H
G
E
F
K
J
I
D C
B
A
J101
LINE COLOR
BLACK
YELLOW
ORANGE/WHITE
BLUE/WHITE
BLUE
RED
BROWN
GREEN/BLACK
YELLOW
PURPLE/BLACK
PURPLE
GRAY/BLACK
GRAY
WHITE
WHITE/BLACK
GREEN
2
2 4 6 8 10 12 14 16 18
25
16
2
15
1
3
5
7
2
4
6
8 10 12 14 16 18
4
5
1
8
4
5
WHITE/BLACK
GREEN/BLACK
GREEN
WHITE
1
8
29
4
5
43
28
73
72
15
56
76
100
1
1
75
14
1
L
K
J
J102
3
28
No.
1
2
3
4
5
6
Description
N.C
N.C
GND
N.C
N.C
S-GND(L)
No.
10
11
12
13
14
15
AUX-L
S-GND(R)
16 S-GND
17 FRONT-L
15
7
8
9
AUX-R
18 REAR-L
1
25
37
144
51
50
26
1
36
8
39
1
5
6
5
2
4
4
40
To J900 of VIDEO
PWB(B4) page 25
4
3
5
1
1
20
16
EXTENSION LEAD
854-4581-50
I
72
Extension Lead
(854-6433-50)
37
36
73
8
9
INNER ES FPC(B7)
1
J1000
1
108
To J703 of Switch PWB(B2) page 24
109
1
1
144
1
18
18
4
8
5
FLAT WIRE
816-2626-50
INNER ES FPC(B7)
To J3 of CD PWB(B8)
page 28
J1001
To J702 of Switch PWB(B2) page 24
Inner escutcheon section
MOTOR ASSY
- 29-
WHT
8
RED
1
BLU/PUR
NON-FADER
/RIGHT
NON-FADER
/LEFT
AUX IN/RIGHT
A
1
M
RED
GRY
B
1
N
11
WHT
D C
BROWN
GRAY
BLUE
GRAY/BLACK
BLUE/WHITE
PURPLE
ORANGE/WHITE
FUSE(3A) 120-0030-00
RED
YELLOW
BLACK
PURPLE/BLACK
YELLOW
FUSE(15A) 120-0150-00
12
FRONT/REFT
F
17
O
1
6 5 4 3
10 9 8 7
RED
G
8
P
18P RCA connector
(855-5519-51)
1
14
B A
13
R-CH(+)
FRONT/RIGHT
I
1
C
11
RED
J
109
D
3
BLK
H
E
K
108
E
8 7
WHT
N M L
BLK
F
9
REAR/LEFT
O
1
G
10
3
P
DC MOTOR FAN
H
4
2
9 11 13 15 17
1
42
ANT LEAD
5
12
24
1
1
6
REAR/RIGHT
NOTE
GND
BACK UP(BUS)
ILLUMI
REMOTE
AUTO ANT
ACC
PHONE INT
SP R/L
BACK UP
SP R/R
SP R/R
SP F/R
SP F/R
SP F/L
SP F/L
SP R/L
2 13
1 3 5 7 9 11 13 15 17
DXZ955MC
DXZ956MC
To P901 of Slot PWB(B6) page 26
Port No.
P
O
N
M
L
K
J
I
H
G
F
E
D
C
B
A
To P201 of DD
PWB(B5) page 26
WHT
P
AUX IN/LEFT
INNER ES FPC(B7) section
J606
R-CH(-)
GND
BACK UP 14V
SYS-ACC
L-CH(+)
BUS(-)
L-CH(-)
N.C
N.C
ILLUMI
BUS(+)
N.C
13P(Ce NET)
RED
Main PWB(B1) section 1/2
18P RCA connector
(855-5519-51)
16P OUTLET SOCKET
PRINTED WIRING BOARD 5/6
Description
S-GND
N-FAD(R)
N-FAD(L)
S-GND
FRONT-R
REAR-R
PRINTED WIRING BOARD 6/6
Main PWB(B1) section 2/2
1
13
2
5 6
7 8 9 10
12
11
3 4
17
1
18
2
2
16
1
15
(PE2747BA)
(PE2747KA)
SOLDER SIDE
Caution:
SOLDER SIDE: Parts on the solder side seen
from the solder side are indicated.
- 30-
DXZ955MC
DXZ956MC
5
4
8
1
I
J
K
L
M
N
O
P
A
B
C
D E
F
G
H
To 6/6 page 35
To 6/6 page 35
To J702 of Switch PWB(B2) page 36
INNER ES FPC(B7) SOCKET J1001
To J703 of Switch PWB(B2) page 36
INNER ES FPC(B7) SOCKET J1000
To 5/6 page 34
To J3 of CD PWB(B8) page 40
To P901of Slot
PWB(B6) page 27
To J900 of VIDEO
PWB(B4) page 38
To 2/6 page 32
CIRCUIT DIAGRAM 2/12
Main PWB(B1) section 1/6
INNER ES FPC(B7) setion
BACK UP 14V
NC.
NC.
- 31 NC.
To 3/6
page 33
To 2/6 page 32
To 4/6
page 33
To 5/6
page 34
To 6/6 page 35
To 2/6
page 32
(PE2747BA)
DXZ955MC
DXZ956MC
(PE2747KA)
To 6/6
page 35
To 5/6 page 34
CIRCUIT DIAGRAM 3/12
Main PWB(B1) section 2/6
To 5/6 page 34
To 1/6 page 31
To 5/6 page 34
To 3/6 page 33
To 6/6 page 35
To 5/6 page 34
To 1/6 page 31
To 1/6 page 31
- 32 -
DXZ955MC
DXZ956MC
CIRCUIT DIAGRAM 4/12
CIRCUIT DIAGRAM 5/12
Main PWB(B1) section 3/6
Main PWB(B1) section 4/6
To 2/6 page 32
To 5/6 page 34
To 5/6 page 34
To 1/6 page 31
To 6/6 page 35
To 6/6 page 35
To 1/6 page 31
- 33 -
DXZ955MC
DXZ956MC
CIRCUIT DIAGRAM 6/12
To 4/6 page 33
Main PWB(B1) section 5/6
FRONT-R
REAR-R
FRONT-L
To 2/6 page 32
REAR-L
To 6/6 page 35
To 2/6 page 32
To 1/6 page 31
I
A
J
B
K
C
L
D
M
E
N
F
O
G
P
H
To 1/6 page 31
To 6/6 page 35
To 3/6 page 33
To 2/6 page 32
To 6/6 page 35
To 3/6 page 33
- 34 -
DXZ955MC
DXZ956MC
CIRCUIT DIAGRAM 7/12
To 1/6 page 31
Main PWB(B1) section 6/6
To 4/6
page 33
To 2/6
page 32
To 5/6 page 34
To 3/6
page 33
To 1/6 page 31
To 1/6 page 31
To P201 of DD PWB(B5) page 27
To 5/6
page 34
INNER ESCUTCHEON section
To 5/6 page 34
- 35 -
DXZ955MC
DXZ956MC
To J800 of LCD
PWB(B3) page 37
CIRCUIT DIAGRAM 8/12
Switch PWB(B2) section
it changes the voltage by the bright adjustment
2.3V to 3.4V
To Touch panel
usually 5V
pulse when
touching
usually 5V
pulse when
touching
usually 5V
pulse when
touching
To J1000 of Inner ES FPC(B7) page 31
usually 0V
pulse when
touching
To J1001 of Inner ES FPC(B7) page 31
in the VOL operation 5.0V or 0 V
pulse output
DIMMER ON: pulse
in 1.4V or less
AUTO-DIMMER ON
in 2.4V or more
AUTO-DIMMER OFF
- 36 -
DXZ955MC
DXZ956MC
DIMMER Off: 5.0V
CIRCUIT DIAGRAM 9/12
LCD PWB(B3) section
To TFT
To J704 of Switch PWB(B2) page 36
it changes by the bright setting
2.3V to 3.4V
it changes by the bright setting
4.7V to 6.8V
PULSE
- 37 -
DXZ955MC
DXZ956MC
CIRCUIT DIAGRAM 10/12
VIDEO PWB(B4) section
To J604 of Main PWB(B1) page 31
- 38 -
DXZ955MC
DXZ956MC
CIRCUIT DIAGRAM 11/12
CD PWB (B8) section 1/2
LED PWB(B9) section CD MECHANISM
OTHER
CD PWB (B8)
LED PWB-B(B9)
OTHER
LED PWB-A(B9)
To CD PWB(B8) 2/2 page 40
TO PICK UP UNIT
FLAT WIRE
816-2624-50
-39-
DXZ955MC
DXZ956MC
CIRCUIT DIAGRAM 12/12
To J902 of Slot
PWB(B6) page 27
CD PWB(B8) section 2/2 CD MECHANISM
TO CD PWB(B8) 1/2
PAGE 39
D-OUT
LRCK
BCLK
To J802 of Main PWB(B1) 1/6 page 31
To CD PWB(B8)
Page 39
-40-
DXZ955MC
DXZ956MC
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
