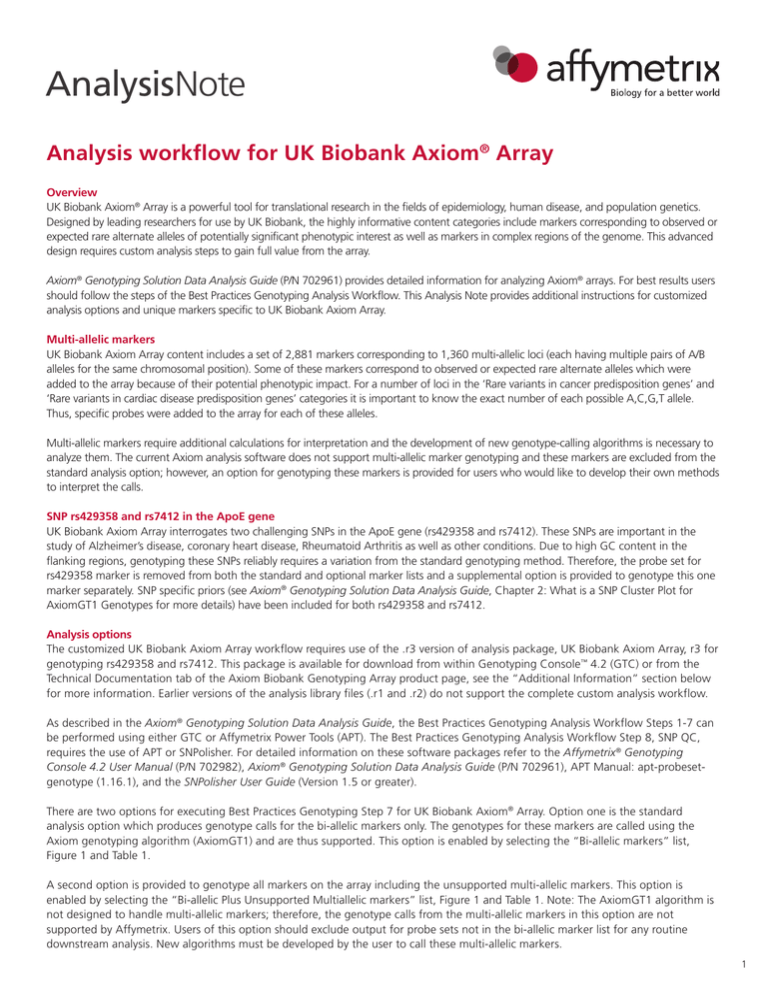

Analysis workflow for UK Biobank Axiom® Array
Overview
UK Biobank Axiom® Array is a powerful tool for translational research in the fields of epidemiology, human disease, and population genetics.
Designed by leading researchers for use by UK Biobank, the highly informative content categories include markers corresponding to observed or
expected rare alternate alleles of potentially significant phenotypic interest as well as markers in complex regions of the genome. This advanced
design requires custom analysis steps to gain full value from the array.
Axiom® Genotyping Solution Data Analysis Guide (P/N 702961) provides detailed information for analyzing Axiom® arrays. For best results users
should follow the steps of the Best Practices Genotyping Analysis Workflow. This Analysis Note provides additional instructions for customized
analysis options and unique markers specific to UK Biobank Axiom Array.
Multi-allelic markers
UK Biobank Axiom Array content includes a set of 2,881 markers corresponding to 1,360 multi-allelic loci (each having multiple pairs of A/B
alleles for the same chromosomal position). Some of these markers correspond to observed or expected rare alternate alleles which were
added to the array because of their potential phenotypic impact. For a number of loci in the ‘Rare variants in cancer predisposition genes’ and
‘Rare variants in cardiac disease predisposition genes’ categories it is important to know the exact number of each possible A,C,G,T allele.
Thus, specific probes were added to the array for each of these alleles.
Multi-allelic markers require additional calculations for interpretation and the development of new genotype-calling algorithms is necessary to
analyze them. The current Axiom analysis software does not support multi-allelic marker genotyping and these markers are excluded from the
standard analysis option; however, an option for genotyping these markers is provided for users who would like to develop their own methods
to interpret the calls.
SNP rs429358 and rs7412 in the ApoE gene
UK Biobank Axiom Array interrogates two challenging SNPs in the ApoE gene (rs429358 and rs7412). These SNPs are important in the
study of Alzheimer’s disease, coronary heart disease, Rheumatoid Arthritis as well as other conditions. Due to high GC content in the
flanking regions, genotyping these SNPs reliably requires a variation from the standard genotyping method. Therefore, the probe set for
rs429358 marker is removed from both the standard and optional marker lists and a supplemental option is provided to genotype this one
marker separately. SNP specific priors (see Axiom® Genotyping Solution Data Analysis Guide, Chapter 2: What is a SNP Cluster Plot for
AxiomGT1 Genotypes for more details) have been included for both rs429358 and rs7412.
Analysis options
The customized UK Biobank Axiom Array workflow requires use of the .r3 version of analysis package, UK Biobank Axiom Array, r3 for
genotyping rs429358 and rs7412. This package is available for download from within Genotyping Console™ 4.2 (GTC) or from the
Technical Documentation tab of the Axiom Biobank Genotyping Array product page, see the “Additional Information” section below
for more information. Earlier versions of the analysis library files (.r1 and .r2) do not support the complete custom analysis workflow.
As described in the Axiom® Genotyping Solution Data Analysis Guide, the Best Practices Genotyping Analysis Workflow Steps 1-7 can
be performed using either GTC or Affymetrix Power Tools (APT). The Best Practices Genotyping Analysis Workflow Step 8, SNP QC,
requires the use of APT or SNPolisher. For detailed information on these software packages refer to the Affymetrix® Genotyping
Console 4.2 User Manual (P/N 702982), Axiom® Genotyping Solution Data Analysis Guide (P/N 702961), APT Manual: apt-probesetgenotype (1.16.1), and the SNPolisher User Guide (Version 1.5 or greater).
There are two options for executing Best Practices Genotyping Step 7 for UK Biobank Axiom® Array. Option one is the standard
analysis option which produces genotype calls for the bi-allelic markers only. The genotypes for these markers are called using the
Axiom genotyping algorithm (AxiomGT1) and are thus supported. This option is enabled by selecting the “Bi-allelic markers” list,
Figure 1 and Table 1.
A second option is provided to genotype all markers on the array including the unsupported multi-allelic markers. This option is
enabled by selecting the “Bi-allelic Plus Unsupported Multiallelic markers” list, Figure 1 and Table 1. Note: The AxiomGT1 algorithm is
not designed to handle multi-allelic markers; therefore, the genotype calls from the multi-allelic markers in this option are not
supported by Affymetrix. Users of this option should exclude output for probe sets not in the bi-allelic marker list for any routine
downstream analysis. New algorithms must be developed by the user to call these multi-allelic markers.
1
A complete list of markers is included in the annotation file (Axiom_UKB_WCSG.na34.annot.db). The identity of probe sets associated
with multi-allelic markers is also provided.
Note: There are 267 bi-allelic markers whose “best” probe set (selected by the SNPolisher Classification step) may change between
the Bi-allelic markers and Bi-allelic Plus Unsupported Multiallelic markers options.
Complete instructions for executing the Best Practices Workflow are detailed in the Axiom® Genotyping Solution Data Analysis Guide
(P/N 702961) for GTC (Chapter 7) and APT (Chapter 8). Genotyping fewer than 96 unique individuals requires the use of SNP specific
priors; select the appropriate options in Table 1, section “LessThan96”, when genotyping fewer than 96 unique samples. Select the
appropriate options in Table 1, section “96orMore”, when genotyping 96 or more unique samples.
Figure 1. Genotyping Analysis Options in GTC. Analysis configuration options available for genotyping various marker lists in
GTC. Marker lists are available for QC genotyping (Step1) and sample genotyping (Step2). Sample genotyping includes options for
Bi-allelic markers only, Bi-allelic Plus Unsupported Multiallelic markers, and Supplemental Analysis (for genotyping rs429358).
Best Practices Genotyping Analysis Workflow for UK Biobank Axiom® Array
The steps listed below can be applied to analysis performed in GTC or APT. Refer to the Axiom® Genotyping Solution Data Analysis Guide
(P/N 702961); see Chapter 3: Best Practices Genotyping Analysis Workflow for a description of each step. An example workflow is provided in
Figure 2. Table 1 lists the files used by each software package. Ensure the correct sample size option is also selected. There are no changes from
the instructions provided in the Axiom® Genotyping Solution Data Analysis Guide (P/N 702961) for Steps 1 – 6.
Step 1: Group samples plates into batches
Step 2: Generate sample Dish QC (DQC) values
Step 3: QC the samples based on DQC values. Genotyping is performed on passing samples.
Step 4: Generate sample QC call rates (Step1.AxiomGT1), see Table 1 for file names.
Step 5: QC samples based on QC call rate
Step 6: QC the plates based on sample pass rate and average QC call rate of passing samples
2
Step 7: Genotype passing samples and plates.
A marker list must be selected to perform sample
genotyping. It is recommended to select the “Bi-allelic
markers” list unless you have developed advanced
algorithms to handle the multi-allelic markers in the
“Bi-allelic Plus Unsupported Multiallelic markers” list.
Select one of the following two marker list options; see
Table 1 for file names:
Figure 2 Example analysis workflow for UK Biobank Axiom®
Array. Boxes enclose GTC and APT genotyping steps (file names
required for each Best Practices Workflow step are detailed in
Table 1), circles enclose output genotypes, and curved arrows
indicate output files to be appended before executing SNP QC.
A. Bi-allelic markers (recommended)
B. Bi-allelic Plus Unsupported Multiallelic markers
(requires user developed advanced algorithm)
The genotype output includes all markers in the selected
option, except ApoE SNP rs429358. To genotype this
SNP, select the appropriate Supplemental Analysis file,
Table 1. The genotype output from Supplemental
Analysis includes only ApoE SNP rs429358.
Manually append the output files from Supplemental
Analysis to the corresponding output files from the
selected marker list (Bi-allelic markers or Bi-Allelic Plus
Unsupported Multiallelic markers) to produce genotypes
for all selected markers. This must be done for each of
the following output files: AxiomGT1.calls.txt,
AxiomGT1.confidences.txt, AxiomGT1.snp-posteriors.txt,
and AxiomGT1.summary.txt. To append the files, remove
the header lines (those that begin with “#”) from the
appropriate output file produced by the Supplemental
Analysis step. After header removal, append the file to
the file with same name produced by the Step 7
genotyping (Bi-allelic markers or Bi-allelic Plus
Unsupported Multiallelic markers).
Step 8: Execute SNP QC on the appended output file including
all markers. Refer to the Axiom® Genotyping Solution
Data Analysis Guide (P/N 702961) for details on SNP QC
when genotyping in GTC (Chapter 7) and APT
(Chapter 8).
3
Table 1. Files used in GTC and APT for QC and sample genotyping.
Batch size
Step
GTC
APT
< 96 samples
Step 4
LessThan96_Step1_AxiomGT1
Axiom_UKB_WCSG_LessThan96_Step1.r3.aptprobeset-genotype.AxiomGT1
Step 7:
Bi-allelic markers only
LessThan96_Step2_AxiomGT1:
Bi-allelic markers
Axiom_UKB_WCSG_LessThan96_Step2_Biallelic.r3.apt-probeset-genotype.AxiomGT1.xml
Step 7:
Bi-allelic + multiallelic markers
LessThan96_Step2_AxiomGT1:
Bi-allelic Plus Unsupported Multiallelic markers
Axiom_UKB_WCSG_LessThan96_Step2_Bi-alle
licPlusUnsupportedMultiallelic.r3.apt-probesetgenotype.AxiomGT1.xml
Step 7:
Supplemental Analysis
LessThan96_Step2_AxiomGT1:
Supplemental Analysis
Axiom_UKB_WCSG_LessThan96_Step2_
Supplemental_Analysis.r3.AxiomGT1.xml
Step 4
96orMore_Step1_AxiomGT1
Axiom_UKB_WCSG_96orMore_Step1.r3.aptprobeset-genotype.AxiomGT1
Step 7:
Bi-allelic markers only
96orMore_Step2_AxiomGT1:
Bi-allelic markers
Axiom_UKB_WCSG_96orMore_Step2_Bi-allelic.
r3.apt-probeset-genotype.AxiomGT1.xml
Step 7:
Bi-allelic + multiallelic markers
96orMore_Step2_AxiomGT1:
Bi-allelic Plus Unsupported Multiallelic markers
Axiom_UKB_WCSG_96orMore_Step2_Bi-allel
icPlusUnsupportedMultiallelic.r3.apt-probesetgenotype.AxiomGT1.xml
Step 7:
Supplemental Analysis
96orMore_Step2_AxiomGT1:
Supplemental Analysis
Axiom_UKB_WCSG_96orMore_Step2_
Supplemental_Analysis.r3.AxiomGT1.xml
≥ 96 samples
Support
Users should contact their local Affymetrix Field Application Specialist or send an email to [email protected]
Additional information
For more information about UK Biobank Axiom® Array and Axiom Genotyping Solution data analysis, please consult the following
resources:
n
UK Biobank Axiom® Array Data Sheet, P/N GGNO03529
Genotyping Console™ 4.2 User Manual, P/N 702982
n
n
Axiom® Genotyping Solution Data Analysis Guide, P/N 702961
n
APT Manual: apt-probeset-genotype
n
Analysis library files are available on the Axiom® Biobank Genotyping Arrays product page, Technical Documentation tab:
UK Biobank Axiom® Array Analysis Files, r3
n UK Biobank Axiom® Array, Annotation Converter, r3
n
Affymetrix, Inc. Tel: +1-888-362-2447  Affymetrix UK Ltd. Tel: +44-(0)-1628-552550  Affymetrix Japan K.K. Tel: +81-(0)3-6430-4020
Panomics Solutions Tel: +1-877-726-6642 panomics.affymetrix.com  USB Products Tel: +1-800-321-9322 usb.affymetrix.com
www.affymetrix.com Please visit our website for international distributor contact information.
For Research Use Only. Not for use in diagnostic procedures.
P/N 703267 Rev. 1
©2014 Affymetrix, Inc. All rights reserved. Affymetrix®, Axiom®, Command Console®, CytoScan®, DMET™, GeneAtlas®, GeneChip®, GeneChip-compatible™, GeneTitan®, Genotyping Console™, myDesign™,
NetAffx®, OncoScan®, Powered by Affymetrix™, PrimeView®, Procarta®, and QuantiGene® are trademarks or registered trademarks of Affymetrix, Inc.
All other trademarks are the property of their respective owners.
