User`s Manual of SCP LS IS Series SS7

User`s Manual of SCP LS IS Series SS7

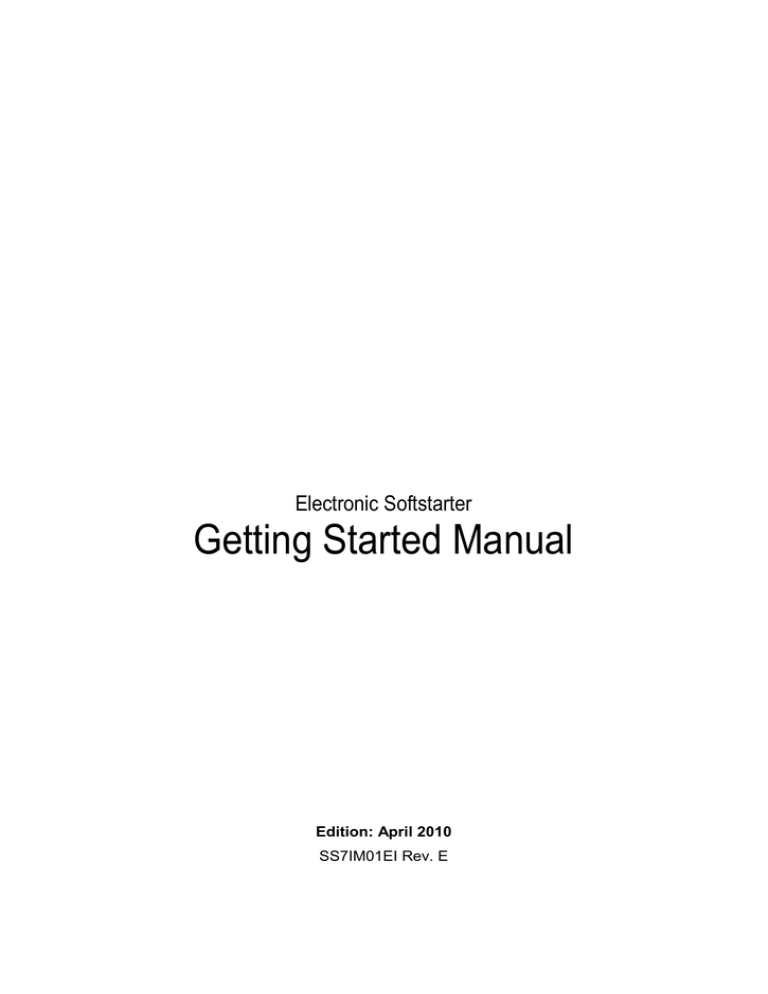

Electronic Softstarter

Getting Started Manual

Edition: April 2010

SS7IM01EI Rev. E

SS7 SERIES

LS

2

LS

SS7 SERIES

SAFETY SYMBOLS

Always follow safety instructions to prevent accidents and potential hazards from occurring.

WARNING

This symbol means improper operation may results in serious personal injury or death.

CAUTION

Identifies shock hazards under certain conditions. Particular attention should be given because dangerous voltage may be present. Maintenance operation should be done by qualified personnel

Identifies potential hazards under certain conditions. Read the message and follow the instructions carefully.

Identifies shock hazards under certain conditions. Particular attention should be given because dangerous voltage may be present.

Edition of September 2009

This publication could present technical imprecision or misprints. The information here included will be periodically modified and updated, and all those modifications will be incorporated in later editions.

To consult the most updated information of this product you might access through our website www.lsis.biz

where the latest version of this manual can be downloaded.

3

SS7 SERIES

Revisions

Date

April 2010

Revision

E

Description

Original version.

LS

4

LS

INDEX

SS7 SERIES

SAFETY INSTRUCTIONS ........................................................................................................... 7

1. INTRODUCTION .................................................................................................................. 9

1.1. Code Description........................................................................................................ 9

1.2. Description of the Equipment ..................................................................................... 10

2. INSTALLATION AND CONNECTION .................................................................................. 11

2.1. Environmental Conditions .......................................................................................... 11

2.2. Degree of Protection .................................................................................................. 11

2.3. Installation of the Softstarter ...................................................................................... 11

2.4. Power Loss Dissipation .............................................................................................. 12

2.5. Power Connections and Control Wiring ..................................................................... 12

2.6. Considerations before Commissioning the SS7 Softstarter ....................................... 17

3. POWER RANGE .................................................................................................................. 19

3.1. SS7 Standard Softstarter ........................................................................................... 19

3.2. SS7 Softstarter with Internal Bypass .......................................................................... 20

4. TECHNICAL CHARACTERISTICS ...................................................................................... 22

5. DIMENSIONS ....................................................................................................................... 23

5.1. Dimensions for Frames 1 and 2 ................................................................................. 23

5.2. Dimensions for Frames 3 and 4 ................................................................................. 24

5.3. Dimensions for Frame 5 ............................................................................................. 25

6. CONFORMITY DECLARATION ........................................................................................... 26

7. CONNECTION TERMINALS ................................................................................................ 27

7.1. Control Connection Drawing ...................................................................................... 27

7.2. Terminal Description .................................................................................................. 28

8. DISPLAY UNIT AND KEYPAD OPERATION ...................................................................... 29

8.1. LCD Display ............................................................................................................... 29

8.2. Control Keys .............................................................................................................. 29

8.3. Start and Stop-Reset / Slow Speed Buttons .............................................................. 30

9. STATUS MESSAGES .......................................................................................................... 31

10. GENERAL INFORMATION SCREENS ................................................................................ 33

11. PARAMETERS DESCRIPTION ........................................................................................... 34

11.1. Group 1 – G1: MENU OPTIONS ................................................................................ 34

11.2. Group 2 – G2: NAMEPLATE ...................................................................................... 35

11.3. Group 3 – G3: PROTECTIONS ................................................................................. 35

11.4. Group 4 – G4: ACCELERATION ............................................................................... 37

11.5. Group 5 – G5: DECELERATION ............................................................................... 39

11.6. Group 6 – G6: INPUTS .............................................................................................. 40

11.7. Group 7 – G7: OUTPUTS .......................................................................................... 42

11.8. Group 8 – G8: DUAL SETTING ................................................................................. 44

11.9. Group 9 – G9: COMPARATORS ............................................................................... 47

11.10. Group 10 – G10: FAULT HISTORY ........................................................................... 48

11.11. Group 11 – G11: STATISTICS ................................................................................... 49

11.12. Group 12 – G12: SLOW SPEED ................................................................................ 50

11.13. Group 13 – G13: DC BRAKE ..................................................................................... 51

11.14. Group 14 – G14: SERIAL COMMUNICATION ........................................................... 51

11.15. Group 15 – G15: AUTO RESET ................................................................................ 52

11.16. Group 16 – G16: PUMP CONTROL 1........................................................................ 52

INDEX

5

SS7 SERIES

12. FAULT MESSAGES. DESCRIPTION AND ACTIONS ........................................................ 54

13. COMMONLY USED CONFIGURATIONS ............................................................................ 58

13.1. Settings ...................................................................................................................... 58

13.2. Recommended Power Installation.............................................................................. 58

13.3. Operation Mode ......................................................................................................... 58

14. CONFIGURATION REGISTER ............................................................................................ 61

LS

6

INDEX

LS

SAFETY INSTRUCTIONS

SS7 SERIES

IMPORTANT!

 Read this manual carefully to maximise the performance of this product and to ensure its safe use.

 In this manual, safety messages are classified as follows:

WARNING

Do not remove the cover while the power is applied or the softstarter is in operation. Otherwise electric shock could occur.

Do not run the softstarter with the front cover removed. Otherwise you may get an electric shock due to the high voltage terminals or exposure of charged capacitors.

Do not remove the cover except for periodic inspections or wiring, even if the input power is not

applied. Otherwise you may access the charged circuits and get an electric shock.

Operate the switches with dry hands. Otherwise you may get an electric shock.

Do not use cables with damaged insulation. Otherwise you may get an electric shock.

Do not subject the cables to abrasions, excessive stress, heavy loads or pinching. Otherwise, you may get an electric shock.

CAUTION

Install the softstarter on a non-flammable surface. Do not place flammable material nearby. Otherwise fire could occur.

Disconnect the input power if the softstarter gets damaged. Otherwise it could result in a secondary accident or fire.

After the input power is applied or removed, the softstarter will remain hot for a couple of minutes.

Touching hot parts may result in skin burns.

Do not apply power to a damaged softstarter or to a softstarter with parts missing even if the

installation is complete. Otherwise you may get an electric shock.

Do not allow lint, paper, wood chips, dust, metallic chips or other foreign matter into the

softstarter. Otherwise fire or accident could occur.

SAFETY INSTRUCTIONS

7

SS7 SERIES

WARNINGS

RECEPTION

 The SS7 Softstarters are carefully tested and perfectly packed before leaving the factory.

 In the even of transport damage, please ensure that you notify the transport agency and LS

Industrial Systems: +82 2 2034 4870 or your nearest agent, within 24hrs from receipt of the goods.

LS

UNPACKING

 Make sure model and serial number of the softstarter are the same on the box, delivery note and unit.

 Each softstarter is supplied with a SS7 technical manual.

RECYCLING

 Packing of the equipments should be recycled. For this, it is necessary to separate different materials included (plastic, paper, cardboard, wood, ...) and deposit them on proper banks.

 Waste products of electric and electronic devices should be selectively collected for their correct environmental management.

SAFETY

 Before operating the softstarter, read this manual thoroughly to gain and understanding of the unit.

If any doubt exists then please contact LS Industrial Systems: +82 2 2034 4870 or your nearest agent.

 Wear safety glasses when operating the softstarter with power applied and the front cover is removed.

 Handle the softstarter with care according to its weight.

 Install the softstarter according to the instructions within this manual.

 Do not place heavy objects on the softstarter.

 Ensure that the mounting orientation is correct.

 Do not drop the softstarter or subject it to impact.

 The SS7 softstarters contain static sensitive printed circuits boards. Use static safety procedures when handling these boards.

 Avoid installing the softstarter in conditions that differ from those described in the Technical

Characteristics section.

CONNECTION PRECAUTIONS

 To ensure correct operation of the softstarter it is recommended to use a SCREENED CABLE for the control wiring.

 Do not disconnect motor cables if input power supply remains connected. The internal circuits of the

SS7 Series will be damaged if the incoming power is connected and applied to output terminals (U,

V, W).

 During acceleration and deceleration mode, it is recommended to unplug a capacitor battery.

 The SCR’s used at the power circuit are electronic switches therefore it is recommended to use the configurations as shown on Fig. 2.2 or Fig. 2.3 of this manual.

TRIAL RUN

 Verify all parameters before operating the softstarter. Alteration of parameters may be required depending on application and load.

 Always apply voltage and current signals to each terminal that are within levels indicated within this manual. Otherwise, damage to the softstarter may result.

8

SAFETY INSTRUCTIONS

LS

1. INTRODUCTION

1.1. Code Description

EXAMPLE

CODE: SS70275.6B

SS7 0275

SS7

Series

Output

Current

0275 275A

0330 330A

... ...

.6 B

SS7 SERIES

Input Voltage Internal Bypass

- 230-500V - NO Internal Bypass

.6 690V B WITH Internal Bypass

INTRODUCTION

9

SS7 SERIES

1.2. Description of the Equipment

SS7 Series is the 1 st

LS Softstarter generation. It is a new electronic softstarter that integrates most advanced control systems to assure a perfect motor operation at any industrial application.

Outstanding features:

Mounting simplicity and versatility.

Its cabinet format provides a fast installation and easy access to power and control terminals.

All SS7 Series incorporate a unique and common control board for all power ratings.

Control flexibility.

Commissioning is possible via local display unit or PC (PowerCOMS program).

It includes 2 analogue inputs and 5 digital inputs, 3 output relays and 1 analogue output, to provide user with plenty of control possibilities.

RS232/RS485 serial communications are built-in: compatible with communication protocols Modbus, Profibus-DP, DeviceNet, N2-Metasys, etc.

INTERNAL BYPASS.

The new SS7 models offer the Bypass contactors already built in, the need for additional external hardware will be significantly reduced with the result of consequent space savings ( an additional electrical cabinet is not needed). Additionally it reduces installation time and the wiring verification, thus avoiding possible errors in external wiring.

Also, heat dissipation during operation is much less, which effects the corresponding saving in ventilation components in the implemented electrical cabinets. The current measurement of the softstarter will not suffer any change and the internal protections will be completely active, thus ensuring the motor protection all the time.

The internal bypass is automatically switched on after the acceleration has been finished, bridging the internal SCRs but without interrupting the normal operation of the softstarter and the motor.

At the end, the connection of the equipment is easy, safe and effective.

LS

10

INTRODUCTION

LS

2. INSTALLATION AND CONNECTION

SS7 SERIES

2.1. Environmental Conditions

The maximum ambient/working temperature for the SS7 is 45ºC. The SS7 can be operated in a higher ambient temperature of up to 50ºC by de-rating the soft starter by 2% for every degree over

45ºC.

2.2. Degree of Protection

The SS7 soft starter ingress protection is IP20. This means that the soft starter is protected against finger contact with hazardous or moving parts inside the enclosure, and protection of against ingress of foreign objects with a diameter greater than 12mm.

2.3. Installation of the Softstarter

The SS7 soft starter is designed for vertical mounting.

Input bus bars are located in the top and motor bus bars must be connected at the bottom, except for models SS70009 to SS70090 where both, input and output must be connected at the bottom.

To improve heat dissipation, it is recommended to mount the soft starter on a metal gear plate.

In case of units are installed inside a cabinet, it is required to calculate the corresponding ventilation.

When installed within a cabinet, proper ventilation is to be provided. A minimum of 40mm side clearance and 150mm top and bottom distance is to be kept between soft starters and or side of the enclosure.

Do not install SS7 above any heat source, unless heat airflow is forced out of the cabinet.

Figure 2.1 Installation and minimum distance between SS7 units

INSTALLATION AND CONNECTION

11

SS7 SERIES

2.4. Power Loss Dissipation

The SS7 has a power loss of 3 watts per amp. For example this means that a SS70210 has a power loss of 630 watts at full load.

2.5. Power Connections and Control Wiring

2.5.1. Power Connections

Most electrical wiring regulations require a mains isolator on solid state equipment. The SS7 falls in to this category. This is to ensure there is an air break in the circuit as semiconductors cannot be relied upon to be safe isolation. There are many choices, the most common are thermal magnetic protection with a trip coil in conjunction with a contactor.

Magnetic protection is required to protect the SS7 from damage due in the event of a short circuit within the SS7 or on the output cabling or motor. When faster protection is desired, semiconductor fuses are recommended. The fuses should be mounted as close to the SS7 as possible. Power factor correction capacitors must not be connected after the fuses or on the output of the SS7.

The SS7 protects the motor with electronic overload sensing, so an external overload relay is not necessary. If multiple motors are connected, separate overloads are required for each motor.

An isolator can be fitted after the SS7 but is recommended for off load use only. Whilst a motor isolator is not necessary for the operation of the SS7, site standards or electrical wiring regulations may require this to be installed.

If a contactor is to be fitted, one of the SS7 output relays can be used to energise this on receiving an external start signal. (G7.1 Relay 1 = 11 Instantaneous).

Note: It is absolutely necessary that the installer guaranties the correct observance of the law and the regulations that are in force in those countries or areas where this device is going to be installed.

Recommended Configuration

Figure 2.2 Recommended power wiring

Note: RELAY 3 (Terminals 7 and 8) configured as GENERAL FAULT >> G7.3= 09

LS

12

INSTALLATION AND CONNECTION

LS

SS7 SERIES

Configuration with Supply Contactor

Figure 2.3 Line Contactor (CL) configuration

Note: RELAY 1 (Terminals 1 and 2) configured as INSTANTANEOUS) >> G7.1= 14

External Bypass Configuration

Figure 2.4 Power wiring configuration with External Bypass

Note: RELAY 2 (Terminals 4 and 5) must be configured as BYPASS / REACT >> G7.2= 15

Bypass contactor can be AC1 category.

INSTALLATION AND CONNECTION

13

SS7 SERIES

Internal Bypass Configuration

Figure 2.5 Power wiring configuration with Internal Bypass

Note: RELAY 2 (Terminals 4 and 5) is reserved for the activation of the Internal Bypass. It is configured as BYPASS / REACT >> G7.2= 15

Bypass contactor can be AC1 category.

Configuration for compensation capacitors.

LS

Figure 2.6 Configuration for compensation capacitors

Note: RELAY 2 (Terminals 4 and 5) must be configured as BYPASS / REACT >> G7.2= 15

To avoid damages do not connect capacitors at the output of the SS7.

This circuitry is only valid if compensation capacitors are operating for the motor connected to the SS7.

14

INSTALLATION AND CONNECTION

LS

SS7 SERIES

2.5.2. Control Wiring

For further information about control terminals, see section ‘7 CONNECTION TERMINALS’.

STANDARD CONTROL WIRING Configuration

24V/DC

Figure 2.7 Control wiring for standard equipment

Note:

-

-

Wiring distance

Control wiring should not be run in parallel with power input or output cables to the motor. There should be a minimum distance of 300mm between power and control cables, and should be crossed at right angles.

Input and Outputs

All signals do need to be screened when running in parallel with power cables.

INSTALLATION AND CONNECTION

15

SS7 SERIES

Configuration of CONTROL WIRING WITH INTERNAL BYPASS

24V/DC

Figure 2.8 Control wiring for equipment with Internal Bypass

Note:

-

-

Wiring distance

Control wiring should not be run in parallel with power input or output cables to the motor. There should be a minimum distance of 300mm between power and control cables, and should be crossed at right angles.

Input and Outputs

All signals do need to be screened when running in parallel with power cables.

LS

16

INSTALLATION AND CONNECTION

LS

SS7 SERIES

2.6. Considerations before commissioning the SS7 Softstarter

1. Check for foreign objects in the SS7 cabinet – particularly which left there from installation.

2. Check that the control board supply (L - N, 230VAC ±10%) is connected.

3. Check that the power supply is connected to the terminals L1, L2, L3 and the motor is connected to the terminals U, V, W. Confirm that the supply is according to the SS7 specifications. The motor current should not exceed the SS7 rating.

4. Check all control wiring, close SS7 cabinet and ensure the installation is electrically safe and that it is safe to run the motor.

5. It is recommended that all digital inputs are disconnected before applying voltage to the SS7 for the first time to prevent accidentally starting the motor. It is also recommended not to apply main voltage (3ph~) before commissioning the softstarter.

Note: SS7 Softstarter are configured with START, STOP, RESET from keypad by default.

6. Digital input status can be checked through screen G0: DIG INPUT= X 0 0 0 0 F.

X indicates this digital input is on, 0 indicates the digital input is off.

K indicates PTC input is not active. F indicates PTC input is active.

As default, the digital inputs are disabled G6.1 OPER MODE=1 (LOCAL). This means that the

SS7 start and stop can only be controlled via the display unit pushbuttons.

7. The default configuration for the digital outputs is as follows:

Relay 1: Instantaneous

(Switch ON = SS7 accelerates and Switch OFF= Deceleration of the SS7 is

finished).

Relay 2: Bypass

(Switch ON at end of ramp up and Switch OFF at start of ramp down).

Relay 3: Fault

(Energized on fault conditions).

8. Ensure the stop circuit is open before configuring the SS7 to work in 3-wire mode.

9. Set the motor (rated) nameplate and start/stop parameters, protection and user parameters.

10. Set jumpers as follows:

INSTALLATION AND CONNECTION

17

SS7 SERIES

Figure 2.7 Jumpers setting

DETAIL A:

Description

Function

Adjustment

VOLTAGE SELECTION JUMPER

Select motor voltage.

Set input supply voltage.

Position 1: 230V

Position 2: 400V

Position 3: 500V

Position 4: 690V

Note: 230V/400V/500V soft starter use control board with reference E001.

690V soft starter use control board with reference E002.

DETAIL B

Description

ANALOGUE INPUT FORMAT SELECTION JUMPER

Default value

Function

Adjustment

Select Analogue input formats.

AI1= (0-10V)

AI2= (0-20mA)

Set Analogue input operating formats.

Position A1: 0-20mA/ 4-20mA (Analogue input 1).

Position A2: 0-10V (Analogue input 1).

Position A3: 0-20mA/ 4-20mA (Analogue input 2).

Position A4: 0-10V (Analogue input 2).

Note: In order to select the analogue input, you must only configure the jumper in the corresponding position.

LS

18

INSTALLATION AND CONNECTION

LS

3. POWER RANGE

3.1. SS7 Standard Softstarter

SS7 SERIES

FRAME

1

2

3

4

5

CODE

SS70009

SS70017

SS70030

SS70045

SS70060

SS70075

SS70090

SS70110

SS70145

SS70170

SS70210

SS70250

SS70275

SS70330

SS70370

SS70460

SS70580

SS70650

SS70800

SS70900

SS71000

SS71200

SS71500

Rated

I(A)

9

17

30

45

60

75

90

110

145

170

210

250

275

330

370

460

580

650

800

900

1000

1250

1500

Motor Power (kW)

100

115

145

185

50

65

75

85

22

25

35

45

5

9

14

18

200

250

280

322

400

500

230V 400V 440V 500V

2 4

7

15

22

30

37

45

55

75

90

110

132

150

185

200

250

315

355

450

500

560

710

800

35

45

55

65

5

9

18,5

25

90

110

120

160

170

200

220

270

375

425

500

560

616

850

900

5,5

11

18,5

30

40

50

65

80

100

115

150

180

200

220

257

315

415

460

560

630

700

900

1100

Table 3.1 SS7 Standard Softstarter. Power and current value table

Power Ratings for

230-500VAC (-20% to +10%)

NOTES:

 The values of the tables are valid for 4pole AC motors.

 For current values which are not in accordance with the values in this tables, please contact with LS.

For higher power ratings, contact with

LS customer support.

for 230-500VAC

Power Ratings for

690VAC (-20% to +10%)

FRAME

1

2

3

4

5

CODE Rated I(A)

SS70009.6

SS70017.6

SS70030.6

SS70045.6

SS70060.6

SS70075.6

SS70090.6

SS70110.6

SS70145.6

SS70170.6

SS70210.6

SS70250.6

SS70275.6

SS70330.6

SS70370.6

SS70460.6

SS70580.6

SS70650.6

SS70800.6

SS70900.6

SS71000.6

SS71200.6

SS71500.6

145

170

210

250

275

330

370

460

60

75

90

110

9

17

30

45

580

650

800

900

1000

1250

1500

Table 3.2 SS7 Standard Softstarter. Power and current value table for 690VAC

Motor Power (kW) at 690V

140

160

200

230

250

315

355

450

7,5

15

30

45

60

75

90

110

560

630

800

900

960

1250

1500

NOTES:

 The values of the tables are valid for 4pole AC motors.

 For current values which are not in accordance with the values in this tables, please contact with LS.

For higher power ratings, contact with

LS customer support.

POWER RANGE

19

SS7 SERIES

3.2. SS7 Softstarter with Internal Bypass

LS

The norm IEC60947-4-2 describes classification for Electronic Softstarters.

According to this information, there are two utilisation categories for the Electronics Softstarters, described as follow:

 AC53a: Softstarters which support the nominal current through the SCRs during continuous operation.

 AC53b: Softstarters which support the starting current through the SCRs during the starting while the SCRs will be bypassed during steady status.

Basically, the capacity limitation of Softstarters is mainly thermal limitation. It is important to consider that there are five different factors which will affect to the internal temperature of thyristors: a) Starting Time b) Starting Current. c) Ambient Temperature d) Time at OFF status e) Number of Startings per Hour.

EXAMPLE

110 : AC53b 4.5 – 30 : 330

 

 

Rated Current of the Softstarter under the described conditions: In, (110 Amps)

The thyristors will be bypassed.

Starting Current, as multiple of the nominal current (In), that means: 4.5xIn

Starting Time, in seconds, (30s)

Seconds between the end of starting and the beginning of next starting (10 startings per hour)

AC53b 3.0-30:330 AC53b 4.0-30:330 AC53b 4.5-30:330

FRAME

1

2

3

4

CODE

SS70009B

14

SS70017B

26

SS70030B

45

SS70045B

68

SS70060B

90

SS70075B

113

SS70090B

135

SS70110B

165

SS70145B

218

SS70170B

255

SS70210B

315

SS70250B

375

SS70275B

412

SS70330B

495

SS70370B

555

SS70460B

690

SS70580B

870

SS70650B

975

SS70800B 1200

Rated

Pow. (kW)

I(A)

Motor at 400VAC

110

150

185

200

220

280

315

400

45

55

75

90

7,5

15

22

37

450

500

630

Rated

I(A)

164

192

237

281

310

370

416

518

68

85

101

140

10

19

34

51

650

731

900

Motor

Pow. (kW) at 400VAC

90

110

132

150

185

200

220

280

37

45

55

75

5,5

11

18,5

30

355

400

500

Rated

I(A)

145

170

210

250

275

330

370

460

60

75

90

110

9

17

30

45

580

650

800

Motor

Pow. (kW) at 400VAC

75

90

110

132

150

185

200

250

30

37

45

55

4

7,5

15

22

315

355

450

Table 3.3 SS7 Softstarter with Internal Bypass. Power and current value table for 400VAC

Power Ratings for

400VAC (-20% to +10%)

NOTE:

Rated powers and currents at 400VAC (-20% to +10%) for motors of 1500rpm.

20

POWER RANGE

LS

SS7 SERIES

AC53b 3.0-30:330 AC53b 4.0-30:330 AC53b 4.5-30:330

FRAME

1

2

3

4

CODE

SS70009B

14

SS70017B

26

SS70030B

45

SS70045B

68

SS70060B

90

SS70075B

113

SS70090B

135

SS70110B

165

SS70145B

218

SS70170B

255

SS70210B

315

SS70250B

375

SS70275B

412

SS70330B

495

SS70370B

555

SS70460B

690

SS70580B

870

SS70650B

975

SS70800B 1200

Rated

Pow. (kW)

I(A)

Motor at 500VAC

150

185

220

250

280

355

400

500

11

18,5

30

45

55

75

90

110

560

630

710

Rated

I(A)

164

192

237

281

310

370

416

518

68

85

101

140

10

19

34

51

650

731

900

Motor

Pow. (kW) at 500VAC

110

132

185

200

220

250

280

355

45

55

75

90

7,5

15

22

37

450

500

630

Rated

I(A)

145

170

210

250

275

330

370

460

60

75

90

110

9

17

30

45

580

650

800

Motor

Pow. (kW) at 500VAC

90

110

150

185

200

220

250

315

37

45

55

75

5,5

11

18,5

30

400

450

560

Table 3.4 SS7 Softstarter with Internal Bypass. Rated power and current value table for 500VAC

Power Ratings for

500VAC (-20% to +10%)

NOTE:

Rated power and currents at

500VAC (-20% to +10%) for motors of 1500rpm.

AC53b 3.0-30:330 AC53b 4.0-30:330 AC53b 4.5-30:330

FRAME

1

2

3

4

CODE

SS70009.6B

14

SS70017.6B

26

SS70030.6B

45

SS70045.6B

68

SS70060.6B

90

SS70075.6B 113

SS70090.6B 135

SS70110.6B 165

SS70145.6B 218

SS70170.6B 255

SS70210.6B 315

SS70250.6B 375

SS70275.6B 412

SS70330.6B 495

SS70370.6B 555

SS70460.6B 690

SS70580.6B 870

SS70650.6B 975

SS70800.6B 1200

Rated

Pow. (kW)

I(A)

Motor at 690VAC

15

22

45

75

90

110

132

150

200

250

315

355

400

450

500

630

800

900

1000

Rated

I(A)

164

192

237

281

310

370

416

518

68

85

101

124

10

19

34

51

650

731

900

Motor

Pow. (kW) at 690VAC

11

18,5

37

55

75

90

110

132

150

200

220

250

315

355

400

500

630

710

900

Rated

I(A)

145

170

210

250

275

330

370

460

60

75

90

110

9

17

30

45

580

650

800

Motor

Pow. (kW) at 690VAC

7,5

15

30

45

55

75

90

110

132

150

200

220

250

315

355

450

560

630

800

Table 3.5 SS7 Softstarter with Internal Bypass. Rated power and current value table for 690VAC

Power Ratings for

690VAC (-20% to +10%)

NOTE:

Rated power and currents at

690VAC (-20% to +10%) for motors of 1500rpm.

POWER RANGE

21

SS7 SERIES

4. TECHNICAL CHARACTERISTICS

INPUT

OUTPUT

ENVIRONMENTAL

PROTECTION

MOTOR

PROTECTIONS

SOFTSTARTER

PROTECTIONS

ADJUSTMENTS

INPUT SIGNALS

LED’S INDICATIONS

CERTIFICATION

OUTPUT SIGNALS

SERIAL

COMMUNICATIONS

DISPLAYED

INFORMATION

CONTROL SOURCES

Input voltage

Supply frequency

Control voltage

Output voltage

Output frequency

Efficiency at full load

Ambient temperature

Storage temperature

Ambient humidity

Altitude de-rating

Protection degree

Degree of Pollution

Input phase missing

High voltage

Low input voltage

Starting current limit

Rotor locked

Motor overload (thermal model)

Underload

Phase umbalance

Motor overtemperature (PTC, normal status 150R-2K7)

Shearpin current

Max. number of startings/hour

Thyristor fault

Softstarter overtemperature

Torque surge

Initial torque

Initial torque par

(3-Phase) 230-500V (-20% to +10%)

(3-Phase) 690V (-20% to +10%)

47 to 62 Hz

230VAC ±10%, others under demand

0 to 100% Input voltage

Same as the input

>99%

Minimum: -10ºC / Maximum: +50ºC

0ºC to +70ºC

<95%, non-condensing

>1000m, 1% per 100m; 3000m max.

IP20

Degree of Pollution 3

Acceleration time

Current limit: 1 to 5·In

Overload: 0.8 to 1.2·In, Overload slope: 0 to 10

Deceleration time / Freewheel stop

DC Braking

Slow speed (1/7 fundamental frequency)

Dual setting

Number of allowed startings/hour

Torque control

Water hammer surge control stop

2 Analogue Inputs programmable in voltage or current (0-10V, 0-20mA or 4-20mA)

5 programmable Digital Inputs

1 PTC input

1 Analogue Output 0-20mA or 4-20mA

3 changeover Output Relays (10A, 250VAC non inductive)

Physical level RS232 / RS485

Modbus communication industrial protocol

Profibus, DeviceNet and Johnson Control (Metasys) as option

Phase current

Supply voltage

Relays status

Digital inputs / PTC status

Analogue inputs value

Analogue output value

Overload status

Motor supply frequency

Motor power factor

Developed power. Motor shaft torque

Fault history (5 most recent faults)

Local via keypad

Remote via digital inputs

Serial Communications (Modbus, RS232/RS485)

LED1 Green, voltage present on control board

LED2 Orange. Blinking, motor accelerating/decelerating. On, motor running

LED3 Red, Fault present

CE, UL, cUL, cTick

22

TECHNICAL CHARACTERISTICS

LS

LS

5. DIMENSIONS

SS7 SERIES

5.1. Dimensions for Frames 1 and 2

FRAME

1

2

REFERENCE

SS70009 – SS70090

SS70009.6 – SS70090.6

SS70009B – SS70090B

SS70009.6B – SS70090.6B

SS70110 – SS70250

SS70110.6 – SS70250.6

SS70110B – SS70250B

SS70110.6B – SS70250.6B

H1

414

523

H2

396

506

DIMENSIONS (mm)

H3 W1 W2

347

457

226

314

Figure 5.1 Dimensions for Frame 1

D

120 230

160 260

Figure 5.2 Dimensions for Frame 2

Y1

-

-

WEIGHT

(kg)

11,6

11,6

12,1

12,1

19

19

21

21

DIMENSIONS

23

SS7 SERIES

5.2. Dimensions for Frames 3 and 4

FRAME

3

4

REFERENCE

SS70275 – SS70460

SS70275.6 – SS70460.6

SS70275B – SS70460B

SS70275.6B – SS70460.6B

SS70580 – SS71000

SS70580.6 – SS71000.6

SS70580B – SS71000B

SS70580.6B – SS71000.6B

H1 H2

DIMENSIONS (mm)

H3 W1 W2

791 771,5 705

926 906,5 840

580

640

Figure 5.3 Dimensions for Frame 3

D

349 309

480 324

Figure 5.4 Dimensions for Frame 4

Y1

-

-

WEIGHT

(kg)

53,6

53,6

60,6

60,6

77,6

77,6

86,6

86,6

LS

24

DIMENSIONS

LS

SS7 SERIES

5.3. Dimensions for Frame 5

FRAME

5

REFERENCE

SS71200 – SS71500

SS71200.6 – SS71500.6

H1 H2

DIMENSIONS (mm)

H3 W1 W2 D

1552 1533 1400 1084 928 475

Figure 5.5 Dimensions for Frame 5

Y1

135

WEIGHT

(kg)

300,0

300,0

DIMENSIONS

25

SS7 SERIES

6. CONFORMITY DECLARATION

Council Directive(s) to which conformity is declared :

72/23/EEC and 89/336/EEC

Units are certified for compliance with :

ELECTRICAL SECURITY STANDARDS

IEC 60947-4-2 (1999)

EN 50178 (1998)

Low voltages switchgear and control gear. Part 4-2 : Contactors and motor starters – AC semiconductor motor controller and starters.

Electronic equipment for use in power installations.

EN 60204-1 (1999)

Safety of machinery.

Electrical equipment for machines.

ELECTROMAGNETIC COMPATIBILITY STANDARDS

UNE–EN 60947-4-2 (1998)

Electromagnetic Compatibility.

Generic emission standard.

Part2 : Industrial environment.

UNE–EN 60947-4-2 (1998)

Electromagnetic Compatibility.

UNE–EN 50081-2 (1994)

Generic immunity standard.

Part2 : Industrial environment.

Electromagnetic Compatibility.

Generic emission standard.

Part2 : Industrial environment.

Type of Equipment :

Soft Starter(Power Conversion Equipment)

Model Name :

Trade Mark

:

Representative :

Address :

SS7 Series

LS Industrial Systems Co.,Ltd.

LS Industrial Systems Co.,Ltd.

LS Tower, Hogye-dong, Dongan-gu,

Manufacturer

:

Anyang-si, Gyeonggi-do 1026-6,

Korea

Address :

LS Industrial Systems Co.,Ltd.

181, Samsung-ri, Mokchon-Eup,

Chonan, Chungnam, 330-845,

Korea

We, the undersigned, hereby declare that equipment specified above conforms to the Directives and Standards mentioned.

Place :

Choan, Chungnam,

Korea

_______________________

(Signature/Date)

Mr. In Sik Choi / General Manager

(Full name / Position)

LS

26

CONFORMITY DECLARATION

LS

7. CONNECTION TERMINALS

SS7 SERIES

The next figure provides the electrical specification of all SS7 control inputs and outputs. Each input and output is individually described below:

 Analogue and digital inputs / outputs.

 Serial Communication (RS232/RS485).

7.1. Control Connection Drawing

Figure 7.1 Connection terminals description (SS7 Standard Softstarter)

CONNECTION TERMINALS

27

SS7 SERIES

7.2. Terminal Description

Control board supply voltage

Input terminals for control board supply voltage (230V +/-10%). Other voltage ratings are available on demand.

Note that the unused terminal between L and N is purely to ensure electrical clearances.

Terminals T1 to T9 / Programmable Output Relays

Selection of their function is made through Group 7 OUTPUTS. Avoid settings that cause relays to switch excessively as this will reduce their life expectancy.

The maximum allowable ratings for the relay outputs are 250V/AC / 10A or 30V/DC 10A.

Terminal T10 / 24VAC for Digital Inputs

This terminal provides the 24V supply for the 5 digital inputs at terminals T11 to T15. This terminal is fuse (E0141) protected (250V,1A) for overload/short-circuit protection. The fuse is located at the bottom right of the control board.

Terminals T11 to T15 / Digital Inputs

The function of the digital inputs can be programmed from the keyboard, at the group G6 INPUT.

Terminals T16 and T17 / Motor PTC Input

If the PTC value is

≥1K7, a fault is generated and will be not reset until the resistance value is below

260 ohms. On the other hand, if this value is below 100ohm, a fault is also generated and will be not reset until the resistance value is

≥160ohms.

Terminals T18 to T21 / Analogue Inputs

The function of the Analogue inputs can be programmed from the keyboard at the group G6 Inputs.

To select 4-20mA or 0-10V you have to switch the jumpers as described below. See section ‘2.6

Considerations before Commissioning the SS7 Softstarters’ for further information:

Analogue Input 1 (T18-T19)

Position A1: 0-20mA / 4-20mA.

Position A2: 0-10V

Analogue Input 2 (T20-T21)

Position A3: 0-20mA / 4-20mA.

Position A4: 0-10V

Terminals T22 and T23 / Analogue Output

This Analogue output can have its format and source configured. Formats can be 0-10V, 0-20mA or

4-20mA. Configuration is done from group G7 OUTPUTS.

Terminal T25 / Analogue 0V connection

This terminal is 0V connection for analogue signals.

Terminals T26 to T30 / RS485/RS232

These terminals are provided for serial communications connection.

Serial communications are optically isolated from SS7 control electronics in order to increase the immunity from noise in hostile installation sites.

LS

28

CONNECTION TERMINALS

LS

SS7 SERIES

8. DISPLAY UNIT AND KEYPAD OPERATION

LEDS INDICATORS

LCD DISPLAY

CONTROL KEYPAD

ON

RUN

FAU LT

The SS7 has tripped on fault protection.

STATUS LINE: (Top).

CONTROL LINE: (Bottom).

To unfold the screen groups.

STOP

RESET

Indicate power in the control board.

Flashing: Accelerating/Decelerating

Lighting: The motor is running at

nominal speed.

To scroll between screen groups.

To scroll between screen groups.

Motor Start.

Motor stop /reset.

R RUN 800A 400V

400V 400V 400V

STOP

RESET

DT0006

Figure 8.1 Display Unit

8.1. LCD Display

The SS7 has a sixteen character by two line (16x2) LCD display. Each line has a different function:

STATUS LINE (Upper line):

It is always present and shows SS7 status, phase current and supply voltage.

CONTROL LINE (Lower line):

It is used to view and/or adjust the SS7 commissioning parameters.

8.2. Control Keys

and These keys are used to scroll between groups.

and

and

This can be used to unfold a screen group.

or

Used to scroll between screens within the selected screen group.

Press at the same time to adjust the selected parameter.

Press to scroll back and return to screen group.

DISPLAY UNIT AND KEYPAD OPERATION

29

SS7 SERIES

CONTROL LINE

Adjust parameters.

Press to acces to the group screens.

G1 OPCIONES MENU

Press to acces to the group parameters.

Backward to the previous screens.

1 LOCK PARAM=NO

4 LANGUE=ENGLISH

G2 NAMEPLATE

3 V MOTOR=1

Forward.

Backward to group screen.

5 INITIALISE=NO

1 I STARTER=800A

2 I MOTOR=1400A

ENGLISH

SPANISH

Forward to the group screens.

Figure 8.2 Programming example

8.3. Start and Stop-Reset / Slow Speed Buttons

DT0025B

These pushbuttons enable starting and stopping of the motor from the display unit and also running at slow speed:

Start and Slow Speed +.

STOP

RESET

Stop and Reset and Slow Speed -.

LS

30

DISPLAY UNIT AND KEYPAD OPERATION

LS

9. STATUS MESSAGES

SS7 SERIES

1. Control mode indication: Local (L), Remote (R), Serial Comms (C), Jog (G),

Pump control (P).

2. SS7 status indication. See status message list. RDY = READY.

3. Average phase current.

4. Average input voltage.

Display Name

RDY

READY

ITQ

ACL

INITIAL TORQUE

ACCELERATING

RUN

DEC

HAM

LS+

LS-

DCB

UNV

OVV

OVL

UDL

PTC

OVT

RUNNING

DECELERATING

HAMMER

SLOW SPEED +

SLOW SPEED -

DC BRAKE

UNDERVOLTAGE

OVERVOLTAGE

OVERLOAD

UNDERLOAD

MOTOR PTC

SOFTSTARTER

OVERTEMPERATURE

Figure 9.1 Display. Status messages

Description

The SS7 is ready to run.

The SS7 is applying the Initial Torque specified at G4.4 Initial Torque for the time specified at G4.5 Initial Torque Time.

Motor is accelerating.

The motor runs at nominal Speed, after the acceleration ramp is finished

(Output voltage = Input voltage).

The Motor is decelerating.

Water Hammer algorithm is operating.

SS7 is applying Slow Speed + (CLOCKWISE).

SS7 is applying Slow Speed - (COUNTER-CLOCKWISE).

DC Brake current applied at the end of the ramp down.

Low mains supply.

High mains supply.

Overload condition.

Underload condition.

Motor PTC fault.

The temperature inside the softstarter is too high.

STATUS MESSAGES

31

SS7 SERIES

ILT

HIP

LOP

NOF

LWA

Display

SHP

ASY

FLT

STD

EXT

P/T

Name

SHEARPIN CURRENT

ASYMMETRIC

CURRENT

FAULT

START DELAY

EXTERNAL FAULT

TORQUE PULSE

CURRENT LIMIT

HIGH PRESSURE

LOW PRESSURE

NO FLOW

LOW WATER

Description

The shearpin function has switched off the softstarter.

Asymmetric current at the motor.

A fault has switched off the Softstarter.

The SS7 delays the start signal set in screen G4.1 Start delay.

Fault status is active due to an external fault command through one of the digital inputs.

The SS7 is applying torque pulse set in screen G4.2 moment during the time set in screen G4.3.

The SS7 has reached a maximum current level allowed in screen G4.7.

Current limit.

It warns during the time entered in screen G16.4.

It warns during the time entered in screen G16.5. and G16.6.

It warns during the time entered in screen G16.7 and G16.8.

It warns during the time entered in screen G16.9.

LS

32

STATUS MESSAGES

LS

10. GENERAL INFORMATION SCREENS

SS7 SERIES

The bottom line displays the General Information and parameter screens (G1 to G16).

The general information screens show information related to the motor and SS7 status:

Screen

800A 800A 800A

380V 380V 380V

Name / Description Range

L1, L2, L3 phase current

L1-L2, L2-L3, L1-L3

Line voltage

0 to 9999

0 to 999

Units Attribute

A

V

Function

Read only Supply voltage. Shows the line-to-line input voltage.

Supply frequency

50Hz Cos=0.85

450kW Pr=99%

RELAYS 1 2 3 0 0 0

O/L STATUS=0%

AI1=0.00mA = 0%

AI2=0.00mA = 0%

AO1=0.00mA =0%

S/W 2.1 H/W 2.0

Motor phi cosine

Active power

Motor torque

Status of relay 1, 2,

3.

Motor Overload status

Analogue input 1 value, value in user units.

Analogue input 2 status, value in user units.

Status of the

Analogue Output 1

Software and

Hardware revision.

0 to 99Hz

-

0 to 1

1 to 900kW

0 to 999%

0 – Open

X – Closed

-

-

Read only

The instantaneous kilowatts and percentage of nominal motor torque.

Note: This screen is only visible while the motor is running.

0 =open

X =closed

K = PTC ok

F = fault in

PTC wiring.

0 to 100%

-

-

Read only

Read only

The first five digits refer to the digital inputs and the sixth is for the

PTC temperature sensor.

Range Inputs

Digital Intput 1

Digital Intput 2

Digital Intput 3

Digital Intput 4

Digital Intput 5

Terminal

T11

T12

T13

T14

T15

0: open

X: closed

PTC Input T16-T17

K: OK

F: fault

When the motor current is lower than the overload current set at

G3.2, the overload status is 1%. As soon as the current increases above the overload current, the overload factor begins to increase, the more the difference is, the faster the overload factor grows, until this reaches 100%, when the soft starter will trip and show overload fault.

0 to 10V

4 to 20mA

0 to 20mA

0 to 10V

4 to 20mA

0 to 20mA

V or mA

User selectable units

V or mA

User selectable units

Read only

Read only

0 to 20mA

4 to 20mA mA or % Read only

Shows the value of analogue Input 1 (volts, mA) according to the option selected at G6.8, and the value in user units according to the option selected at G6.10 and with the scale selected at G6.9.

Shows the value at the Analogue Input 2 (volts, mA) according to the option selected at G6.11, and the value in user units according to the option selected at G6.13 and with the scale selected at G6.12.

Displays the absolute value of the Analogue output 1, in real units and percentage over the range of the Analogue output 1.The

Analogue output should be related to the source selected at G7.4

- - - Displays the actual software (S/W) and hardware (H/W) revision.

GENERAL INFORMATION SCREENS

33

SS7 SERIES

11. PARAMETERS DESCRIPTION

All those parameters displayed in the SS7 are organised in various groups (G1 to G16). By pressing the “*” key it is possible to open each individual screen group.

11.1. Group 1 – G1: MENU OPTIONS

Screen

2 PASSWORD= 0

5 INITIALISE=NO

Name /

Description

G1.2 / Password

G1.5 /

Initialization

Range

YES

NO

OFF,

0000

to 9999

000 to 9999

ENGLISH

ESPAÑOL

DEUTSCH

YES

NO

Default

Value

NO If this function is active a password is required to be written in screen G1.2.

0

0000

ENGLISH Determines the languages displayed by the SS7.

NO

Function

Allows the commissioning user to set a password to protect against unauthorised modification of the parameters.

Setting up: Once set to normal mode as described above, a password may be set up. Unfold screen Group 1 and scroll to screen 1; select: 1 LOCK

PARAM=YES.

PASSWORD=XXXX

To unlock the soft starter parameters the following steps are necessary:

Go to G1.1 1 LOCK PARAM= Yes and press (+).The screen 2

Password=xxxx appears, where the valid password must be entered.

This provides the required recovery information to unlock the soft starter, according to the expression:

PASSWORD = ( WRONG PW/2)-3

Initialise the SS7 parameters to default values.

YES

NO

YES

Activation or deactivation of the screen groups.

OPTION FUNCTION

COMMISSIONING=Yes

COMMISSIONING=No

It allows all parameter setting.

It does not permit parameter setting.

It permits parameter to be displayed.

LS

34

SCREEN DESCRIPTION

LS

SS7 SERIES

11.2. Group 2 – G2: NAMEPLATE

Screen

1 I STARTER = 900A

Name /

Description

G2.1 / Rated current of the softstarter

Range

7A

17A

30A

45A

...

1600A

Default

Value

In of SS7

Function

Calibrates the soft starter according to nominal current. This is necessary for correct soft starter protection.

Adjust : Leave as default setting. To modify nominal current push (*) key for 5 seconds. By that time the letter “I” will change to “I” and the current value can be modified.

2 I MOTOR=900A

3 V MOTOR=2

G2.2 / Rated motor current

G2.3 / Rated motor voltage

1 to 1600

1 to 4

*

2

Set the nominal current of the motor. This is necessary for correct motor protection.

Adjust: Set this value according to rated (nameplate) motor current.

Adjust nominal motor voltage.

OPT. DESCRIPTION

1

2

3

4

220-240V

380-440V

460-525V

660-690V

Adjust: Set this parameter according to input voltage at the soft starter input.

Make sure this value is also relevant for the rated (Nameplate) motor voltage.

4 P MOTOR =450kW

5 COS PHI M =85%

6 FREQ= 50Hz

G2.4 / Rated motor power

G2.5 / Motor power factor

G2.6 / Supply frequency

4 to 999kW

40 to 99%

50Hz

50/60Hz

*

85%

50Hz

Set the nominal motor power rating.

∗ This value depends on the rated current of the softstarter.

Set the rated (nameplate) motor cos phi to for calculating the instantaneous torque developed by the motor

Set the mains frequency.

Adjust: Where the mains frequency is 50Hz, leave as default. Where the mains frequency is unknown or different than 50Hz (60Hz) set 50/60Hz.

Nota: When you 50/60Hz the SS7 starts an algorithm to detect the mains frequency. This algorithm is off when setting 50Hz.

11.3. Group 3 – G3: PROTECTIONS

Screen

2 OV LOAD=800A

Name /

Description

1 PHASE SEQUEN=2

G3.1 / Phase sequence at the input of the softstarter

Range

1 to 3

G3.2 / Overload motor current.

(0.6 to 1.5)·

In of SS7

Default

Value

2

In of SS7

Function

This parameter sets the correct phase sequence at the input, when power on the SS7. It can happen that the soft starter tries to start with a phase sequence at the input different than the one which has been set. In this case the soft starter trips on F2 WRONG PH/SQ..

OPT. DESCRIPTION

1 NO SEQ PROTECT

L1 L2 L3 SEQ

Adjust:

2

3 3 INVERSED SEQ

Determine input phase sequence; adjust this parameter according to this sequence

Note: When operating at SLOW SPEED or DC BRAKE a phase sequence must be selected (L1 L2 L3 or Inverse Sequence). The option 1 NO SEQ

PROTECT is not allowed for these modes.

This parameter sets the overload motor current protection at nominal conditions. The time for this protection to trip depends on the actual current drawn by the motor and the parameter G3.3

Adjust: Enter the rated (nameplate) motor current value.

Note: See figure 11.1.

SCREEN DESCRIPTION

35

SS7 SERIES

Screen

LS

3 OV/LOAD T=5

4 OVL FAC=100%

5 MOTOR PTC=NO

6 UNLOAD=0.0A

7 UNLOAD T=OFF

Name /

Description

G3.3 / Overload curve

G3.4 Starting

Overload Factor 100 to 500%

G3.5 /

Enable/Disable

PTC motor option

G3.6 Under load current

(0 to 0.9)· In of SS7

G3.7 / Under load delay

Range

1 to 10

YES

NO

0 to 99s,

OFF

Default

Value

5

Function

The overload curve determines the response time under overload conditions.

There is a non-linear relation between the overload parameter (G3.2 OV

LOAD) and this parameter, in order to set the time required for tripping on F4

OVERLOAD. If 3 OV/LOAD T =1 is selected then the response time for an overload condition is almost immediate, but if OV/LOAD T=10 then takes the soft starter trips on F4 OVERLOAD after a time delay.

Adjust: If you need a fast response under overload conditions, please select

OV/LOAD T =1. If you need a slow response, then select OV/LOAD T =10.

For normal operation leave this value as default (OV/LOAD T =5).

The response time for the overload protection can be calculated from the following curve:

10

10

4

3

10

10

10

2

1

0

1 1.5

2 2.5

3

In x

3.5

4

Overload curve = 10

Overload curve= 5

Overload curve= 1

4.5

5 5.5

6

DT0026B

Figure 11.1 Overload curve.

100%

NO

0.0A

OFF

This parameter adjusts the OVERLOAD CURVE DURING ACCELERATION.

This parameter can be used to accelerate high inertia load. In case of pumps, fans (Torque = K x Speed^2) leave as default (100%).

This parameter is only active during acceleration and not at normal running conditions, where only

G3.2 & G3.3 are active.

Adjust: For low inertia applications like pumps, fans (Torque = K x Speed²) the default value (100%) active.

Mills, crushers and centrifuges (high inertia moment) will normally require a start with low starting overload factor (150%) and increase this value until the load accelerates without tripping on F4

OVERLOAD.

The soft starter allows the connection of a standard motor PTC

(Terminals T16-T17) to detect overheating of the motor. Every input resistance between 100ohm and 1.7kohms is taken as a correct value (OK) and every value found out of this range is taken as a fault

(FAULT). If the MOTOR PTC is set to “Yes” and the input resistance at terminals T16-T17 is out of the valid range, then the soft starter should trip on

F8 MOTOR PTC. To protect the motor after tripping due to PTC failure against further thermal overload, the PTC resistance must be less than 260 Ohms to reset the softstarter again. In case of a resistance below 100 Ohms the SS7 can be reset after the PTC has reached again a value of more than 160 Ohms.

Adjust: Depending on the availability of a valid Motor PTC, select Yes or No.

Under load current determines the current level the motor must not operate below.

Adjust: Usually leave as 50% of the nominal current of the motor

.

Applications: This protection helps to detect mechanical problems such as broken shafts, belts, ... when this occurs, the motor will run under no load conditions.

When working with pumps, this protection helps to detect no load pump operation, due to a lack of water or pump input pipe water position.

This parameter sets the maximum allowable operation time under load conditions before tripping.

Adjust: Depends on the application, but should be set to trip as soon as a condition occurs.

Applications: Pumps, fans.

36

SCREEN DESCRIPTION

LS

SS7 SERIES

Screen

8 SHRPIN=OFF

9 ASYM I ENB=Y

G3.8 / Shearpin current

(0.6 to

1.2)·In of

SS7, OFF

10 UNDER V=320V

UNDERVOLTAGE

DELAY

12 OVERVOLT=440V

13 O/V DELAY=5s

14 START LIMIT=3

G3.10 / voltage

Under

G3.11 Under voltage delay

G3.12 / Over voltage

G3.13 / Over voltage timeout

G3.14 /

Maximum number of starts

162 to 208V

@220V

280 to 360V

@400V

350 to 450V

@500V

508 to 653V

@690V

0 to 10s,

OFF

231 to 266V

@230V

400 to 460V

@400V

500 to 575V

@500V

726 to 835V

@690V

0 to 10s,

OFF

1 to 10

15 STR/INT=15Min

Name /

Description

G3.9 /

Asymmetrical current

G3.15 / Start interval

Range

Y

N

0 to 60Min,

OFF

Default

Value

OFF

Y

Function

The soft starter will stop immediately when the current drawn by the motor reaches this value during normal operation. This parameter is off during acceleration or deceleration. The stop should be done in a controlled way.

Adjust: Set current value for the SS7 to stop.

Application: Oversized electrical motors used for starting, but working under nominal conditions at running, may only reach the Shearpin current because of mechanical problems locked rotors, etc.

Enable/Disable the asymmetric current protection at the soft starter

OPTION FUNCTION

When enabled, the soft starter will trip on F3

Y=YES

N=NO

ASYM CURR if there is a current imbalance greater than 40%.

Protection disabled.

320V

5s

440V

5s

3

15Min

To protect the motor or other equipment from low mains voltage. Low voltage will usually increase the motor current

.

Adjust: Set the minimum tolerable level in conjunction with 11 Under voltage

Delay.

This parameter sets the maximum operation time for under voltage conditions before tripping.

Adjust:: Set to maximum under voltage operation time allowed

To protect the motor from high input voltage.

Adjust: Set the maximum level tolerable in conjunction with the 13 Over voltage timeout.

This parameter sets the maximum operation time during over voltage conditions before tripping.

Adjust: Set to maximum over voltage operation time allowed.

Establish the maximum number of starts allowed before tripping on F12

EXCESIV STR.

Adjust: Set maximum number of starts allowed for the specified time at 15:

START INTERVAL.

Establish the time allowed between the first and the last start in G3.14:

START LIMIT before tripping on F12 EXCESIV STR.

Adjust: Set the time limit for the maximum number of starts to occur.

Applications: Mills, crushers, and applications where an excessive number of starts could damage the motor due to very high current during acceleration.

11.4. Group 4 – G4: ACCELERATION

Screen

1 STR DELAY=0s

Name /

Description

G4.1 / Delay of the start

2 PULS TORQ =50%

G4.2 Torque

Pulse

3 PULS TQ T=OFF

G4.3 / Torque

Pulse Time

Range

0 to 600s

50 to 100%

OFF,

0.1 to 0.9s

Default

Value

0s

50%

Function

Sets the time the SS7 will wait after a start command has been provided and acceleration will start.

Adjust: This value needs to be set in accordance with the application.

Choose the torque pulse level applied to the motor for the time specified at

G4.3.

Adjust: This value needs to be set in conjunction with G4.3 to initiate a first move of the motor.

OFF Sets the time for the G4.2 PULS TORQ to be applied.

SCREEN DESCRIPTION

37

SS7 SERIES

Screen

4 INIT TORQ=35%

5 INIT TQ T=1s

LS

Name /

Description

G4.4 / Initial

Torque

G4.5 / Initial torque time

Range

30 to 99%

0 to 10s

Default

Value

35%

1s

Function

Establish the initial torque to be applied to the motor at the beginning of the ramp up.

Adjust: It is recommended to begin with a low initial torque value, normally default. Observe motor rotation immediately after start command. If the motor doesn’t spin, machine torque requirement may be higher, and it may be necessary to increase this until the motor starts to turn normal after a start command has been applied. If a very high current is noticed at the very beginning of starting process, this could be due to an initial torque setting that is too high - this must be decreased until a proper value is achieved.

Applications: For submerged pumps, generally a torque between 40% and

45% is required. For applications such as mills or crushers, the required torque is normally between 40% and 50%.

Note: These values are typical adjustments. Each application requires individual settings to achieve the best performance.

Set the time for 3 INITIAL TORQUE to be applied to the motor.

Adjust: When working with high inertia loads, increase this value in conjunction with parameter G4.4 INITIAL TORQUE, until the motor begins to turn. All other applications should leave this value as default.

Applications: In pumps a usual value is 0, and in heavy load machines it can vary between 1 and 3 seconds.

6 ACEL TIME=6s

7 I LIMIT=1400A

G4.6 /

Acceleration

Time

G4.7 / Current limit

0 to 180s

(1.5 to 5)·In of SS7

Figure 11.2 Pulse torque

6s

(3.5)·In

Adjusts the motor acceleration time from standstill to nominal speed, provided that no current limit occurs as that will cause a longer acceleration time.

Adjust: Depending on the application, the time set will vary in order to make sure no current limit takes place during acceleration. If this occurs, the acceleration time or acceleration current limit settings will need to be increased

Applications: In submerged pumps, the usual acceleration time is between 4 and 8 seconds. With very high inertial loads, that can vary between 20 and 60 seconds.

Note: These values are typical adjustments. Each application requires individual settings to achieve the best performance.

Maximum current a motor can draw during the acceleration/deceleration.

Adjust: Set the maximum current a motor can draw during the acceleration/deceleration of the motor. Typically set to 2.5 to 3x nominal current of the motor.

Values below 2 times of the motor rated current should be avoided. Under these conditions the resulting motor torque is normally insufficient to generate a successful start at full load; also the soft starter could trip on F4 Overload.

38

SCREEN DESCRIPTION

LS

SS7 SERIES

11.5. Group 5 – G5: DECELERATION

Screen

1 FREWEL STP=Y

2 DECL TIME=12s

G5.2 /

Deceleration

Time

V n

Name /

Description

G5.1 / Freewheel stop

Range

Y

N

1 to 180s

Default

Value

Y

12s

Function

Set the required stop mode. The stop could be controlled through a ramp down voltage or uncontrolled where the time to stop depends on the inertia of the load

OPTION

Y=YES

N=NO

FUNCTION

Freewheel stop enabled.

Adjust

Freewheel stop disabled.

: If a controlled stop is required select 1 FREWELSTOP=No, and 1

FREWELSTOP=Yes for a spinning stop.

Establish the required time for a controlled stop.

Adjust: Begin with a short time (10 or 15 seconds) and increase it until desired stop is achieved. If no satisfactorily results are obtained set hammer algorithm in G5.3.

End of ramp up

Input Voltage

Starting of ramp down

G4.4 Initial Torque

G4.6 Acceleration time

G5.2 Deceleration time

100

G4.4 Initial torque

Starting of ramp up

End of ramp down

3 DEC MD SEL=1

5 MINI TORQ=1%

G5.3 / Motor

Deceleration

Algorithm

G5.5 / Minimum torque

G4.6

1 to 2

1 to 99%

1 to 99%

G5.2

Time

DT0019D

Figure 11.3 Deceleration curve

1

75%

1%

In applications where it is necessary to avoid water hammer effect, select this algorithm. In other applications, the normal deceleration ramp is sufficient.

Adjust:

OPT. DESCRIPTION

1

2

NORMAL CURVE.

HAMMER PREVENT.

In applications with water hammer problems during deceleration, select the hammer algorithm. In other applications set normal deceleration algorithm.

When selecting the hammer algorithm for the deceleration, 2 parameters must be set to properly adjust the stop.

For correct adjustment of the deceleration time in applications with hammer problems it may be necessary to perform an interactive process by trial and error until the application is correctly commissioned.

Set the percentage of time for the hammer algorithm is to be active during deceleration

The minimum torque to be applied during deceleration (for Hammer

Algorithm).

SCREEN DESCRIPTION

39

SS7 SERIES

11.6. Group 6 – G6: INPUTS

Screen

Name /

Description

Range

1 OPER MODE=1

G6.1 / Control mode source

0 to 5

Y

N

Default

Value

1

Y

Function

Set the control mode of the soft starter

OPT. DESCRIPTION

0

Disable

FUNCTION

No control source enabled.

There is no way to Start/Stop-

Reset the SS7.

1

Local

Start/Stop-Reset enabled by keypad.

2

3

4

5

Remote

Serial Comms

Local Jog V/S

Pump ctrl-1

Start/Stop-Reset enabled by digital inputs.

Start/Stop-Reset enabled by serial comms.

Jog Slow Speed controlled by keypad.

Pump control 1 enable.

Enable local reset via keypad.

3 DINPUT1 SEL=4

4 DINPUT2 SEL=0

5 DINPUT3 SEL=0

6 DINPUT4 SEL=0

7 DINPUT5 SEL=0

G6.3 /

Multifunction 1 input

G6.4 /

Multifunction 2 input

G6.5 /

Multifunction 3 input

G6.6 /

Multifunction 4 input

G6.7

Multifunction 5 input

0 to 10

0 to 10

0 to 10

0 to 10

0 to 10

4

0

0

0

0

Select the task of the digital input once it is active (X).

OPT. MODE

0

1

2

3

4

5

6

Not active

Start

Stop

Stop-Reset

Start-Stop

Reset

Slow Speed +

FUNCTION

The input left without effect.

Start command given through pushbutton.

Stop command given through pushbutton.

Stop/Reset command given through pushbutton.

Start command when contact is closed and stop command when contact is opened.

The reset is done when the contact is closed.

Slow speed in + direction.

7

8

9

10

Slow Speed Slow speed in – direction.

DC Brake

Dual setting

External trip

Contact will be closed to apply

CC braking after deceleration.

Selection of the Second Setting at G8.

Fault will be generated when the contact is opened.

LS

40

SCREEN DESCRIPTION

LS

SS7 SERIES

Screen

8 ANI1 FORMAT =1

Name /

Description

G6.8 / Analogue

Input 1 Format

Range

0 to 2

Format 0-20mA

Rage 0-10bar

Sensor Output 0-20mA

Default

Value

1

Function

It configures the AI1 as voltage or current signal.

OPT. DESCRIPTION

0

1

2

0-20mA

4-20mA

0-10V

mA

Format 4-20mA

Range 0-10bar

Sensor Output 4-20mA

20mA

mA

20mA

12mA

0 bar

0%

6 bar

60%

10 bar

100%

bar

12mA

4mA

0 bar

0%

5 bar

50%

10 bar

100%

bar

9 AI1 RANGE 0_10

10 AI1 UNITS=OFF

DT0028C

G6.9 / Range of the Analogue

Input 1 in absolute units

G6.10 /

Analogue Input 1 units

Figure 11.4

Analogue input 1 scaled as 0-20mA / 4-20mA

0_0 to

0_999

OFF,

Bar

ºC

Mtr

0_10

OFF

Adjust : Set according to the range of the connected transducer.

When OFF, is displayed in %.

0 to 2 1

It configures the AI2 as voltage or current signal.

OPT. DESCRIPTION

0

1

2

0-20mA

4-20mA

0-10V

12 AI2 RANGE 0_10

G6.12 / Range of the Analogue

Input 2 in absolute units

13 AI2 UNITS=OFF

G6.13 /

Analogue Input 2 units

0_0 to

0_999

OFF,

Bar

ºC

Mtr

0_10

OFF

Adjust: Set according to the range of the connected transducer.

When OFF, is displayed in %.

SCREEN DESCRIPTION

41

SS7 SERIES

11.7. Group 7 – G7: OUTPUTS

Screen

Name /

Description

Range

1 REL1 SEL ON=14

G7.1 / Relay 1 control source selection

0 to 21

Default

Value

14

Function

Provides the ability to link each relay to one of the outputs shown below.

OPT. DESCRIPTION

0

Not active

FUNCTION

Relay is disabled, not used.

1 Active

2

3

4

5

6

7

8

Warning overload

Warning under load

Warning over voltage

Warning low voltage

Comparator 1

Comparator 2

Comparator 3

Note: See following page.

Relay is enabled.

The motor current exceeds the value adjusted in parameter G3.2

(OVERLOAD CURRENT).

The motor current is below the value adjusted in parameter G3.6

(UNDERLOAD CURRENT).

The mains voltage is equal or higher than G3.12

(OVERVOLTAGE).

The mains voltage is less or equal than G3.10

(UNDERVOLTAGE).

Relay enables when the value of the parameter set in screen G9.1 is above screen G9.2 value after time set in screen G9.4.

Relay disables when the value of the parameter set in screen G9.1 is below screen G9.3 value after time set in screen G9.5.

Relay enables when the value of the parameter set in screen G9.6 is above screen G9.7 value after time set in screen G9.9.

Relay disables when the value of the parameter set in screen G9.6 is below screen G9.8 value after time set in screen G9.10.

Relay enables when the value of the parameter set in screen

G9.11 is above screen G9.12 value after time set in screen

G9.14.

Relay disables when the value of the parameter set in screen

G9.11 is below screen G9.13 value after time set in screen

G9.15.

LS

42

SCREEN DESCRIPTION

LS

SS7 SERIES

Screen

2 REL2 SEL ON=15

G7.2 / Relay 2 control source selection

3 REL3 SEL ON=9

380V

0V

ON

OFF

Name /

Description

G7.3 / Relay 3 control source selection

INSTANTANEOUS

Range

0 to 21

0 to 21

380V

0V

ON

OFF

Default

Value

15

9

BY- PASS

Function

Note: Coming from previous page.

OPT. DESCRIPTION

9

10

General Fault

No fault

FUNCTION

Relay will be active a fault occurs.

Will be active if no faults are present (failsafe).

11 Thyristor fault

One or more thyristors are fault.

12 Autoreset Fault

Relay enables when screen

G15.2 Attempt number setting is

13

14

15

16

17

18

19

20

Ready

Run

Bypass/React

Delay

High pressure

Low pressure

No flow

Low water passed over.

The soft starter is ready to run the motor.

ON at the beginning of the ramp up /

OFF at the end of the ramp down.

ON at the end of the ramp up /

OFF at the beginning of the ramp down.

ON at the end of the ramp up /

OFF at the end of the ramp down.

The SS7 is running and the pressure switch opens for longer than the time entered in screen

G16.4

The SS7 is running and the pressure switch opens for longer than the time entered in screen

G16.5.

The flow switch is ignored for the time set in screen G16.6 on receipt of a valid start signal.

After this time the SS7 will trip if no flow is indicated for longer than the time set in screen

G16.7.

The well probe controller (or other level controller) detects a lack of water.

A fault from F24 to F27 and F5

21 Pump fault has occurred. Pump related faults.

__________

Note: Relay 3 can be configured the same as relay 1 and 2, with the 21 possible adjustments except if the EXTERNAL BRAKE option has been selected in screen G13.4. In that case, relay 3 will remain internally adjusted, for control of the EXTERNAL DC BRAKE and cannot be configured.

380V

0V

ON

OFF

DELAY

DT0033B

Figure 11.5 Relay’s switch on / off mode 14, 15 and 16.

SCREEN DESCRIPTION

43

SS7 SERIES

Screen

LS

4 ANALOG1 SEL=0

5 AO1 FORMAT=0 mA

20mA

Name /

Description

G7.4 / Analogue output source selection

G7.5 / Analogue output format

Range

0 to 7

0 to 1

Default

Value

Format

Lower limit

0-20mA

0%

Higher limit 100%/ 200%

0

0

Function

Provides the ability to select the driving source of the Analogue output, from the following list.

OPT. DESCRIPTION

0

5

6

7

3

4

1

2

UNUSED

MOTOR CURRENT

MOTOR POWER

MOTOR TORQUE

COSINUS PHI

INPUT VOLTAGE

ANALOG I 1 ECHO

ANALOG I 2 ECHO

Select the electrical format of the Analogue output.

OPT. DESCRIPTION

0

1

0-20mA

4-20mA

Note: To obtain an analogue output of 0-10V, you should configure the analogue output format as 0-20mA and connect a resistor of 500 Ω, ¼ W and

1% between terminals 22 and 23.

mA

Format

Lower limit

4-20mA

0%

Higher limit 100%/ 200%

20mA

12mA

13,6mA

8,7mA

4mA

0%

6 AO1 LOW=0%

7 AO1 HIGH=100%

60% 100% 200%

%

0% 60% 100% 200%

%

DT0034B

Figure 11.6 Analogue output 0-20mA and 4-20mA.

G7.6 Analogue

Output low set point

G7.7 / Analogue

Output high set point

0 to 500%

0 to 500%

0%

100%

It scales de Analogue Output in order to get a better reading.

11.8. Group 8 – G8: DUAL SETTING

Screen

1 DUALSETING=N

2 PLS TORQ2=50%

3 PLS TQ T2=OFF

Name /

Description

G8.1 / Dual

Setting.

Range

Y

N

G8.2 Dual setting

Torque Pulse

50 to 100%

G8.3 / Dual setting Pulse

Time.

OFF,

0.1 to 0.9s

Default

Value

N

50%

Function

Enable/Disable a second adjustment for G4 Acceleration, G5 Deceleration and for the overload curve (G3.3 Overload Curve).

OPTION

Y=YES

FUNCTION

Dual setting enabled.

N=NO Dual setting disabled.

Adjust: When a second parameter is required set select Dual Setting to Yes.

This second adjustment is activated by one of digital inputs.

Applications: Mills, crushers and any application that at a certain operation stage requires a harder/softer parameter set.

Choose the torque pulse level applied to the motor for the time specified at

G8.3

Adjust: Set this value in conjunction with G8.3 to initiate a first acceleration of the motor.

OFF Sets the time for the torque pulse (G8.2) to be applied.

44

SCREEN DESCRIPTION

LS

SS7 SERIES

Screen

4 INIT TRQ2 =30%

5 T PAR INI2=1s

6 ACC TIME2=12s

7 I LIMIT2 =2800A

8 FREWEL STP2=N

9 DEC TIME2=12s

10 DEC MD SEL2= 11

11 HAMR FAC2=75%

12 MINI TRQ2=1%

13 PHASE SEQ2=2

14 OV LOAD2=1200A

15 OV/LOAD T2=5

Name /

Description

G8.4 / Dual setting Initial

Torque

G8.5 / Dual setting Initial

Torque Time

Range

30 to 99%

0 to 10s

G8.6 / Dual setting

Acceleration time

G8.7 / Dual

Setting current limit

0 to 180s

(1.5 to 5)·In of SS7

G8.8 / Dual setting spin stop

G8.9 / Dual setting deceleration time

G8.10 / Dual setting deceleration mode select

G8.11 / Dual setting hammer factor

G8.12 / Dual setting minimum torque 2

G8.13 / Dual setting in phase sequence at the input of the soft starter

G8.14 / Dual setting of overload motor current

G8.15 / Dual setting of overload curve

Y

N

0 to 180s

1 to 2

1 to 99%

1 to 99% of

G8.11

1 to 3

(0.6 to

1.5)·In of

SS7

1 to 10

Default

Value

30%

1s

12s

3·In

N

12s

1

75%

1%

2

In of SS7

5

Function

Establish the initial torque to be applied to the motor at the beginning of the ramp up.

Adjust: Refer to parameter G4.4 for further information.

Set the time for the initial torque (G8.4) to be applied to the motor.

Adjust: Refer to parameter G4.5 for further information.

Adjust the motor acceleration time from standstill to nominal speed, provided that no current limit occurs as that will cause a longer acceleration time.

Adjust : The time setting depends on the application. Refer to parameter G4.6 for further information.

Maximum current a motor can draw during the acceleration/deceleration.

Adjust: Set to determine the maximum allowed current consumption during the acceleration/deceleration. Refer to parameter G4.7 for further information.

Set the required stop mode. The stop could be controlled through a ramp down voltage or uncontrolled where the time to stop depends on the inertia of the load (freewheel stop).

Adjust: If a controlled stop is required, set "N" for a spinning stop, set Y. Refer to parameter G5.1 for further information.

Establish the required time for a controlled stop.

Adjust: Begin with a short time and increase it until desired stop is achieved.

Refer to parameter G5.2 for further information.

In applications where it’s desired to avoid water hammer effect, select this algorithm. In other applications, the normal deceleration ramp is sufficient.

OPT. DESCRIPTION

1

2

NORMAL

HAMMER PREVENT

Adjust: In applications with water hammer problems during deceleration, select the hammer algorithm. In other applications set normal deceleration algorithm.

When selecting the hammer algorithm for the deceleration, 2 parameters must be set to properly adjust the stop.

Percentage of time the hammer algorithm is active during the deceleration time. Minimum torque the motor must deliver during the stop.

To correctly adjust the deceleration of such an application with hammer problems you may need to perform an interactive process by trial and error until the application is correctly commissioned.

Set the percentage of time for the hammer algorithm is to be active during deceleration.

Adjust: It is set in % of the deceleration time of the motor (G8.9).

Set the minimum torque to be applied during deceleration (for Hammer

Algorithm).

This parameter sets the correct phase sequence at the input, when starting the motor. It can happen that the soft starter tries to start with a phase sequence at the input different than the one we have set. In this case the soft starter trips on F2 WRONG PH/SQ.

OPT. DESCRIPTION

1 NO SEQ PROTECT

L1 L2 L3 SEQ

Adjust:

2

3 2 L1 L2 L3 seq

Determine your input phase sequence; adjust this parameter according to this sequence.

Note: When operating at SLOW SPEED or DC BRAKE you must always select a phase sequence (L1 L2 L3 or Inverse Sequence). The option 1 NO

SEQ PROTECT is not allowed for these modes.

This parameter sets the overload motor current protection at nominal conditions. The time for this protection to trip depends on the actual current drawn by the motor and the parameter G3.3.

Adjust: Enter the rated (nameplate) motor current value.

This parameter sets the overload motor current protection at nominal conditions. The time for this protection to trip depends on the actual current drawn by the motor and the parameter G3.3.

Adjust: If you need a fast response under overload conditions, please select

O OV/LOAD T =1. If you need a slow response, then select OV/LOAD T =10.

For normal operation leave this value as default (OV/LOAD T =5).

SCREEN DESCRIPTION

45

SS7 SERIES

Screen

Name /

Description

G8.16 Dual setting starting

Overload Factor

G8.17 / Dual setting

Enable/Disable

PTC motor option

G8.18 / Dual setting of under load current

G8.19 / Dual setting of under load delay

G8.20 Dual setting Shearpin current

Range

Y

N

(0 to 0.9)·In of SS7

0 to 99s,

OFF

(0.6 to

1.2)·In of

SS7, OFF

Default

Value

Function

16 OVL FAC2=100%

17 MTR PTC2=N

18 UNLOAD2=0.0A

19 UNLOAD T2=OFF

20 SHRPIN2=OFF

100 to 500% 100%

NO

0.0A

OFF

OFF

This parameter adjusts the OVERLOAD CURVE DURING ACCELERATION.

Use this parameter when trying to accelerate high inertia load. In case of pumps, fans (Torque = K x Speed²) leave as default (100%).

This parameter is only active during acceleration and not in normal running conditions, where only G3.2 & G3.3 are active.

For low inertia pumps, fans (Torque = K x Speed²) leave as default value

(100%).

For mills, crushes and centrifuges (high inertia moment) start with low starting overload factor (150%) and increase this value till we can accelerate this load without tripping on F4 OVERLOAD.

The soft starter allows for the connection of a standard motor PTC (Terminals

T16-T17) to detect overheating of the motor. Every input resistance between

150ohm and 2.7kohms is taken as a correct value (ok) and every value found out of this range is taken as a fault (fault). If you select MOTOR PTC =Yes and the input resistance at terminals T16-T17 is out of the valid range, then the soft starter should trip on F8 MOTOR PTC. To protect the motor after tripping due to PTC alarm against further thermal overload, the PTC resistance.

Adjust: Depending on availability of a valid Motor PTC, select Yes or No.

Under load current determines the current level the motor must not operate below.

Adjust : Usually leave as 50% of the nominal current of the motor.

Applications: This protection helps to detect mechanical problems such as broken shafts, belts, ... when this occurs, the motor will running under no load conditions.

When working with pumps, this protection help to detect no load pump operation, due to a lack of water or pump input pipe water position.

This parameter sets the maximum allowable operation time under load conditions before tripping.

Adjust: Depends on the application, but should be set to trip as soon as a condition occurs.

Applications: Pumps, fans.

The soft starter should stop immediately when the current drawn by the motor reaches this value during nominal conditions. This parameter is off during acceleration or deceleration. The stop should be done in a controlled way.

Adjust: Set current value for the SS7 to stop.

Application: Oversized electrical motors used for starting, but working under nominal conditions at running, it may only reach the Shearpin current due to mechanical problems like locked rotors, etc.

Enable/Disable the asymmetric current protection at the soft starter. When enabled, the soft starter will trip on F3 ASYMMETRIC CURRENT if there is a current imbalance greater than 40%.

21 ASYM I ENB2=N

22 I MTR2=30A

23 V MTR2=2

G8.21 / Dual setting of an asymmetrical current

G8.22 / Dual setting rated motor current

G8.23 / setting rated Motor

Voltage

Y

N

1 to 1200A

1 to 4

N

*

2

Set the nominal current of the motor. This is necessary for correct motor protection.

Adjust: Set this value according to rated (nameplate) motor current.

Adjust nominal motor voltage.

OPT. DESCRIPTION

1 220-240V

380-440V 2

3

4

460-525V

660-690V

Adjust: Set this parameter according to input voltage at the soft starter input.

Make sure this value is also relevant for the rated (Nameplate) motor voltage.

24 P MTR 2 =4.0kW

25 COS PHI 2 =85%

6 FREQ 2= 50Hz

G8.24 Dual setting rated motor power

G8.25 / Dual setting motor power factor

G8.26 / Dual setting supply frequency

4 to 999kW

40 to 99%

50Hz

50/60Hz

*

85%

50Hz

Set the nominal motor power rating.

∗ This value depends on the rated current of the softstarter.

Set the rated (nameplate) motor cos phi to for calculating the instantaneous torque developed by the motor.

Set the mains frequency.

Adjust: Where the mains frequency is 50Hz, leave as default. Where the mains frequency is unknown or different than 50Hz (60Hz) set 50/60Hz.

Note: When you set 50/60Hz the SS7 starts an algorithm to detect the mains frequency. This algorithm is off when setting 50Hz.

LS

46

SCREEN DESCRIPTION

LS

SS7 SERIES

11.9. Group 9 – G9: COMPARATOR

Screen

1 COMPR1 SEL=1

Name /

Description

G9.1 /

Comparator 1 source selection

2 COMP1 ON=100%

G9.2 /

Comparator 1

ON set point

3 COMP1 OFF=80%

4 T COMP1 ON=5s

G9.3

Comparator1

OFF set point

G9.4 /

Comparator 1

ON delay

Range

0 to 8

0 to 500%

0 to 500%

0 to 99s

Default

Value

1

100%

80%

5s

Function

Comparator 1 source selection.

OPT. DESCRIPTION

0

UNUSED

1

MOTOR CURRENT

2

MOTOR POWER

3

4

5

6

7

MOTOR TORQUE

COSINUS PHI

INPUT VOLTAGE

ANALOG INPUT 1

ANALOG INPUT 2

8

O/LOAD STATUS

Set the comparator ON set point. If the value of the source selected is higher than the ON set point for the time specified at G9.4, the output state of this comparator changes to ON. One of these relays must be selected as a comparator, see screens group G7.

Adjust: It sets in % of the selected source (G9.1).

Set the comparator OFF set point. If the value of the source selected is lower than this OFF set point for the time specified at G9.4 the output of this comparator changes to OFF. One of these relays must be selected as a comparator, see screen group G7.

Adjust: It sets in % of the selected source (G9.1).

Set the ON delay condition for the comparator

.

0 to 99s 5s Set the OFF delay condition for the comparator.

EXAMPLE: When motor current exceeds rated current a relay could be used to warn against motor overload.

G9.1 COMPR1 SEL= 1 (The selected source is motor current)

G9.2 COMP1 ON = 100%

G9.3 COMP1 OFF = 80%

G9.4 TCMP1 ON = 10s

G9.5 TCMP1 OFF = 10s

G7.1 REL1 SEL = 6 (Set as comparator 1)

% I motor

100%

80%

Motor current

0%

Relay

Status

ON

OFF

T >10s T >10s

Time

Figure 11.7 Comparator relay configuration.

DT0037B

SCREEN DESCRIPTION

47

SS7 SERIES

Screen

6 COMPR2 SEL=1

Name /

Description

G9.6 /

Comparator 2 source selection

Range

0 to 8

0 to 500%

8 COMP2 OFF=80%

G9.8 /

Comparator 2

OFF set point

9 T COMP2 ON=5s

10 TCMP2 OFF=5s

11 SELEC COMP3=1

G9.9 /

Comparator 2

ON delay

G9.10 /

Comparator 2

OFF delay

G9.11 /

Comparator 3 source selection

12 COMP3 ON=100%

G9.12 /

Comparator 3

ON set point

0 to 500%

0 to 99s

0 to 99s

0 to 8

0 to 500%

13 CMP3 OFF=80%

14 TCMP3 ON=5s

15 TCMP3 OFF=5s

G9.13 /

Comparator 3

OFF set point

G9.14 /

Comparator 3

ON delay

G9.15 /

Comparator 3

OFF delay

0 to 500%

0 to 99s

0 to 99s

Default

Value

1

100%

80%

5s

Function

See table in parameter G9.1.

Set the comparator ON set point. If the value of the source selected is higher than the ON set point for the time specified at G9.4, the output state of this comparator changes to ON. One of these relays must be selected as a comparator, see screens group G7.

Adjust It is set in % of the selected source (G9.6).

Set the comparator OFF set point. If the value of the source selected is lower than this OFF set point for the time specified at G9.10 the output of this comparator changes to OFF. One of these relays must be selected as a comparator, see screen group G7.

Adjust: It is set in % of the selected source (G9.6).

Set the ON delay condition for the comparator 2

5s

1

100%

80%

5s

5s

Set the OFF delay condition for the comparator 2.

See table in parameter G9.1.

Set the comparator ON set point. If the value of the source selected is higher than the ON set point for the time specified at G9.14, the output state of this comparator changes to ON. One of these relays must be selected as a comparator, see screens group G7.

Adjust: It is sets in % of the selected source (G9.11).

Set the comparator OFF set point. If the value of the source selected is lower than this OFF set point for the time specified at G9.14 the output of this comparator changes to OFF. One of these relays must be selected as a comparator, see screen group G7.

Adjust: It is sets in % of the selected source (G9.11).

Set the ON delay condition for the comparator 3.

Set the OFF delay condition for the comparator 3.

11.10. Group 10 – G10: FAULT HISTORY

Screen

1 NO FAULT

Name /

Description

G10.1 / Register

1 of fault history

Range

-

Default

Value

-

Function

The last fault will be displayed as following table indicates by pressing the “ * ” key.

Function: Shows the last fault the soft starter tripped on. When a fault occurs, the soft starter automatically shows this screen. At the same time, the fault led lights up. This fault may be reset by pressing the STOP-RESET button on the display unit (if enabled) or using an externally configured RESET input.

Example: When fault occurs led red will light and status line (upper line) will show FLT. The average current and voltage displayed are the values right when fault occurred.

Last line will show the fault name and the status of SS7 when the fault occurred separated by “/” in case automatic reset was no activated, or by “:” in case it was activated

If “*” key is pressed it will display the position of the fault in the history and the number related to it.

Note: See next page.

LS

48

SCREEN DESCRIPTION

LS

SS7 SERIES

Screen

1 NO FAULT

2 NO FAULT

3 NO FAULT

4 NO FAULT

5 NO FAULT

Name /

Description

G10.1 / Register

1 of fault history

G10.2 / Register

2 of fault history

G10.3 / Register

3 of fault history

G10.4 / Register

4 of fault history

G10.5 / Register

5 of fault history

Range

-

-

-

-

-

Y

N

Default

Value

-

-

-

-

-

N

Function

Note: Coming from previous page.

Next, the faults are listed:

COD FAULT

F0 NO FAULT

F1 PHA MISING

F2 WRONG PH/SQ

F3 ASYM CURR

F4 OVER LOAD

F5 UNDER LOAD

F6 PEAK CURR

F7 STARTER OT

F8 MOTOR PTC

F9 SHEAR PIN

F10 OVER VOLT

F11 UNDER VOLT

F12 EXCESIV STR

F13 MEMORY FLT

COD FAULT

F14 SCR1 FAULT

F15 SCR2 FAULT

F16 SCR3 FAULT

F17 SCR_S FLT

F18 EXCES T LS

F19 LS DISABLE

F20 COMS T/OUT

F21 EXTRN TRIP

F22 CUR FLT

F23 CUR FLT2

F24 HIGH PRESSURE

F25 LOW PRESSURE

F26 FLOW SWITCH

F27 DEEP WELL PROBE

Clear the fault history log which resets the above screens back to the default setting NO FAULTS.

Adjust:: Select YES (Y) to clear the fault history log. The screen will automatically reset back to the default value NO (N) once the fault history is cleared.

11.11. Group 11 – G11: STATISTICS

Screen

1 STARTS1 00000

2 STARTS2 00000

3 DEL STARTS2=NO

4 H1 =00000h:00m

5 H2= 00000h:00m

Name /

Description

G11.1 Total number of starts

G11.2 / Counter of starts 2

G11.3 Clears counter of starts

2

G11.4 / Total of working hours

G11.5 / Total of working hours

7 TOTAL FLT=00

8 FAULT 2=0

9 DEL FAULT2=NO

10 KWH=000000

G11.7 Total number of faults counter

G11.8 / Faults counter 2

G11.9 / Clear faults counter 2

G11.10 /

Total number of

KWH done by the SS7

Range

-

-

-

-

-

-

-

-

-

-

-

-

-

Default

Value

-

-

-

-

-

-

-

Function

Shows the total number of the SS7 starts. This record cannot be reset to zero.

Shows the number of the SS7 starts made after G11.3 has been cleared.

This parameter can be reset to zero.

It resets to 0 the number of starts displayed in G11.2.

Shows the total soft starter operation hours. This record cannot be reset to zero.

Shows the total soft starter operation hours. This record cannot be reset to zero.

Shows the number of the SS7 operations hours made G11.6 has been cleared.

Shows the total number where the SS7 has tripped due to faults.

Shows the number of faults occurred after G11.9 has been cleared. This parameter cannot be reset to zero

Resets to 0 the number of faults displayed in G11.8

Shows the total value of KWH done by the SS7. This parameter cannot be reset to zero.

.

SCREEN DESCRIPTION

49

SS7 SERIES

11.12. Group 12 – G12: SLOW SPEED

The SS7 can work at slow speed mode in three different ways:

1. From keypad: Set screen G6.1 to MODE 4 (LOCAL JOG-JOG+), by pressing START, the motor will turn at slow speed (+), and when pressing stop motor will turn at slow speed (-).

2. From digital inputs: Any of the digital inputs can be set to 6 for the motor to run at (+) slow speed or to option 7 for the motor to run at (-) slow speed.

3. Automatic: By this operation mode, when providing start command the SS7 will execute the following sequence. First it will turn at (+) slow speed during the time set in screen G12.4, then it will accelerated to nominal speed and after stop command it will run at (-) slow speed during the time set in screen G12.5 after deceleration.

Slow speed will be used only for short time motor positioning operation.

Screen

Name /

Description

1 L/S ACC-DEC =N

3 L.S MAX T =0s

4 L.S ACL T=0s

5 L.S DEC T=0s

G12.1 / Slow speed mode

G12.3 / Slow

Speed Timeout

G12.4 / Slow

Speed

Acceleration

Time

G12.5 / Slow speed

Deceleration

Time

M

99%

30%

Range

Y

N

30 to 99%

0 to 60s

0 to 60s,

OFF

Default

Value

NO

30%

0s

0s

Function

Enable/Disable slow speed during the acceleration/deceleration.

OPTION

Y=YES

N=NO

FUNCTION

Slow speed mode enabled.

Slow speed mode disabled.

Adjust: When slow speed is not required set to 0. Otherwise, set to 1.

Provides the torque applied to the motor during slow speed process.

Adjust: The level depends on the load. Start at low values and increase until the motor operates at slow speed mode

Timeout condition while working at slow speed. When exceeded, the soft starter will trip on F18 Timeout slow Speed.

Adjust: Therefore a maximum slow speed time operation must be set if slow speed is required, to protect both motor and soft starter and enabling tripping on F18.

Run time at slow speed before the ramp up starts.

Adjust: the required time for the motor to work at slow speed before accelerating.

0 to 60s,

OFF

G12.2

G12.4

G4.6

0s

Run time at slow speed after deceleration.

Adjust: the required time for the motor to work at slow speed after decelerating.

Nominal Voltage

G4.6 Acceleration time

G5.2 Deceleration time

G12.2 Slow speed torque

G12.4 Slow speed accel. time

G12.5 Slow speed decel. time

G5.2

G12.5

Time

DT0035D

Figure 11.8

Work at slow speed in auto mode

LS

50

SCREEN DESCRIPTION

LS

SS7 SERIES

11.13. Group 13 – G13: DC BRAKE

Screen

1 DC BRAK SEL=N

2 DC BRAK I=50%

3 DC BRAKE T =0s

4 EXTERNAL B=N

Name /

Description

G13.1 / DC

Brake selection

G13.2 / DC

Current injection 30 to 99%

G13.3 / DC

Brake time

G13.4 / Enables external Brake unit at output relay 3

Range

Y

N

0 to 99s

Y

N

Default

Value

N

50%

0s

N

Function

Enable/Disable DC brake. This option, will enable a continuous current to be applied for a determined torque (G13.2) and for a determined time

(G13.3).when the deceleration ramp is complete.

Applications: Ball mills, motor shaft positioning.

Note: high inertia applications, an external DC brake unit could be required.

Set the DC current to be applied to the motor. It must be considered that the brake energy dissipates entirely in the motor. A stop with high DC current or a stop that lasts for too long may cause overheating of the motor.

Adjust: It is sets in % of the achievable torque.

Sets the time for the DC current to be applied.

Adjust: The stopping rate of a motor using DC Brake current injection depends on the DC current applied (G13.2) for a preset time (G13.3).

The adjustments of these 2 variables and the inertia of the system will determine the deceleration time of the motor.

Applying an excessive brake current could cause overheating of the motor –

The same applies if the DC injection time is too long. However lower current or shorter time than necessary may not stop the motor as required

This Parameter sets the SS7 to work with an external brake unit. Relay 3 is dedicated to control the Brake Unit activation. See screen G7.3.

OPTION

Y=YES

N=NO

FUNCTION

External braking unit is used.

External braking unit is not used.

Applications: Mills, centrifuges and loads with big inertia.

Note: For applications with big inertia, it is probably the user must use the external braking unit.

11.14. Group 14 – G14: SERIAL COMMUNICATION

Screen

Name /

Description

Range

1 COM TIME O=OFF

G14.1 Serial

Communication

Timeout

OFF,

0 to 25s

Default

Value

OFF

10

Function

Timeout condition for serial communication. When the time without communication exceeds this parameter the soft starter will trip by F20

Communication Timeout..

Adjust: This timeout is used to detect the loss of this communication between master – slave. The SS7 stops the motor until the communication is reestablished and reset. In certain cases continuous communication is necessary.

It sets the Modbus address for the equipment into a network.

3 BAUD RATE=9600

G14.3 / Modbus

Communication

Baud Rate

0 to 240

OFF

1200

2400

4800

9600

9600

(Baudis) Set the baud rate for Serial Communication.

4 EVEN PARITY=N

G14.4 / Modbus communication parity

Y

N

N

Selects the parity fro serial communication.

OPTION

Y=YES

N=NO

FUNCTION

Even parity enabled.

No parity.

Adjust: Parity setting of the softstarter should match with the parity of the bus master into the network.

SCREEN DESCRIPTION

51

SS7 SERIES

11.15. Group 15 – G15: AUTO RESET

This group enables SS7 to be automatically reset. Once reset is done, the SS7 will start again in case the fault occurred during start command, acceleration and run. If the fault occurred in ready status “RDY” it will autoreset and comes back to “RDY” again.

Screen

Name /

Description

Range

Default

Value

YES

NO

Function

NO Enable / Disable SS7 automatic reset function.

2 ATTEMP NUMBR=5

3 R STR DEL=5s

4 RS COUNT=15Min

G15.2 Number of auto reset attempts before tripping due to fault

G15.3 / Delay time from fault event to auto reset

G15.4 / Time after the attempt counter will be reset

1 to 5

5 to 120s

5

5s

1 to 60Min 15Min

Provides the number of attempts to reset the SS7 before it trips.

Allows the user to select the period of time between the fault trip and the auto reset.

It allows to select the time the SS7 has to run without fault and after this the internal attempt counter will be reset.

5 F1 AUTO RST=0

G15.5 / Auto reset fault 1 selection

0 to 20 0

6 F2 AUTO RST=0

7 F3 AUTO RST=0

8 F4 AUTO RST=0

G15.6 / Auto reset fault 2 selection

G15.7 / Auto reset fault 3 selection

G15.8 / Auto reset fault 4 selection

0 to 20

0 to 20

0 to 20

0

0

0

It selects fault no1 for the auto reset mode.

FAULT FAULT LIST

0

7

8

5

6

9

10

3

4

1

2

NO AUTO RESET

PHAS MISING

WRONG PH/SQ

ASYM CURR

OVER LOAD

UNDER LOAD

STARTER OVT

MOTOR PTC

SHEAR PIN

OVER VOLT

UNDER VOLT

FAULT FAULT LIST

11

12

13

14

15

SCR_1 FAULT

SCR_2 FAULT

16

17

18

19

20

SCR_3 FAULT

SCR_S FLT

EXCESIV LS T

COMMS T/OUT

EXTERN TRIP

CUR FLT

CUR2 FLT

ALL THE FLTS

Note: Option 20 will automatically reset any of the above table faults.

11.16. Group 16 – G16: PUMP CONTROL 1

Screen

1 SET IT=000Hrs

2 I TIME=000Hrs

Name /

Description

G16.1 / Irrigation time adjustment

Range

0.0 to

60.0Hrs, INF

G16.2 / Irrigation time display

0.0 to

60.0Hrs, INF

Default

Value

INF

-

Function

Sets the time for the system to be irrigating.

Adjust: SS7 irrigation timer can be reset (G16.2 back to 0Hrs.) by decreasing

G16.1 to the same value than G16.2.

Displays the time the system has been irrigating.

Note: Read only screen.

LS

52

SCREEN DESCRIPTION

LS

SS7 SERIES

Screen

4 HI PR DEL=00s

5 L PR DEL=0000s

6 L PR BYP=0000s

7 FLO BYP=0000s

8 FLO DEB=00s

Name /

Description

Range

0 – 1

G16.4 / High pressure timeout 0 to 60s

G16.5 / Low pressure timeout 0 to 3600s

G16.6 / Low pressure start bypass time

G16.7 / No Flow

Start Bypass time

0 to 1800s

(30min)

0 to 1800s

G16.8 / No Flow

Debounce Delay 0 to 60s

Default

Value

0

0s

20s

10s

10s

10s

10s

Function

Selects the start mode of the system.

Adjust:

OPTION FUNCTION

Display unit: Enables the display unit for start stop control of the SS7. This is the only way in which the SS7 can be started or stopped. Digital inputs are preconfigured as follows:

0

D INPUT 1. High Pressure switch connection

(normally closed).

D INPUT 2. Low Pressure switch connection

(normally closed).

D INPUT 3 Flow switch connection (normally closed).

D INPUT 4 Deep well probe connection (normally closed).

1

D INPUT 5 Trip (normally closed).

Wire: (Face Plate stop button is Reset only).

Remaining digital inputs are preconfigured as follows:

D INPUT 1 High Pressure switch connection

(normally closed).

D INPUT 2 Low pressure switch connection

(normally closed).

D INPUT 3 Flow switch connection (normally closed).

D INPUT 4 Deep well probe connection (normally closed).

D INPUT 5 is configured for remote two wire start/stop. This input acts as a reset command on closing edge.

This is the time delay before the SS7 trips once the high pressure switch connection opens (D INPUT 1).

Note: SS7 ramps down to stop.

This is the time delay before the SS7 trips once the low pressure switch connection opens (D INPUT 2).

Note: SS7 ramps down to stop.

Sets the start bypass time, during which the SS7 starter ignores the Low

Pressure input (D INPUT 2).

Sets the time period for which the flow switch input is ignored following a start command (D INPUT 3).

Sets the delay period before the starter responds to a no flow signal when in normal run operation. (D INPUT 3).

Nota

SS7 ramps down to stop.

Sets the delay period before the starter stops after receiving a valid deep well probe signal. (D INPUT 4).

Note: SS7 ramps freewheel stops.

SCREEN DESCRIPTION

53

SS7 SERIES

12. FAULT MESSAGES. DESCRIPTION AND

ACTIONS

FAULT TRIPS

When a fault occurs, the SS7 will stop the motor and will display the fault that caused the trip. The red LED and fault message will remain until the fault has been removed and the soft starter is reset. To reset the

SS7 either press the (Stop/Reset) key or operate an external reset, by closing a normally open contact

(NO), configured to any of the digital inputs of the SS7.

Fault F0 NO FAULTS

Description

Possible Cause

Action

Fault

Description

Possible Cause

Action

Fault

Description

Possible Cause

Action

No fault detected.

Normal operation.

None required.

F1 PHA MISING

Supply phase loss.

Loss of phase, fuse failure, cable fault, motor winding fault.

Check supply, all cables, and motor.

If the problem persists, call LS or an authorised distributor.

F2 WRONG PH / SQ

Incorrect input supply phase sequence.

The mains phase sequence doesn't correspond to G3.1 (1 PHASE SEQUEN=2)

Swap two input phase over or change G3.1 Phase Sequence to suit supply phase seq uence.

Fault

Description

Possible Cause

Action

Fault

Description

Possible Cause

F3 ASYM CURR

Phase current imbalance.

There is a current imbalance higher than 40%.

Check the motor; check the load and the coupling between both. Check input power supply is always balanced. Check thyristors.

If the problem persists, call LS or an authorised distributor.

F4 OVER LOAD.

Action

Calculated motor overload has reached an unacceptable level.

Motor overload. If the trip is produced during start, it could be a mechanical problem. If it occurs when the motor is running at nominal speed, probable causes could be a wrong setting at G.3.2. screen or a change of the load conditions.

Wrong nameplate values.

Check that current from the G3.2 screen is the same as the motor. Check working conditions of motor. Check load. Check nameplates.

Fault

Action

Description

Possible Cause

If the trip is occurring during the start:

Check mechanical conditions. Check there is not a power input supply voltage drop greater than 10%.

Increase acceleration ramp (high inertia applications). Increase overload curve in

G3.3 screen. Increase current limit.

F5 UNDER LOAD.

Motor under load.

Motor current draw is lower than that set in G3.6 screen. Soft starter has been working during for longer than the one set in G3.7 screen.

Motor working with no load.

Wrong setting of under load conditions.

Check that mechanical parts coupled to the motor are ok and that the motor is not working unloaded. In case of pump application, check there is no air inside the pipe network and that the pump suction is not obstructed. Wrong adjustment, set again under load settings G3.6 and G3.7.

LS

54

FAULT MESSAGES. DESCRIPTION AND ACTIONS

LS

Fault

Description

Sense level

Possible Cause

Action

Fault

Description

Sense level

Possible Cause

Action

Fault

Description

Sense level

Possible Cause

Action

Fault

Description

Sense level

Possible Cause

Action

Fault

Description

Sense level

Possible Cause

Action

Fault

Description

Sense level

Possible Cause

Action

SS7 SERIES

F6 PEAK CURR

SS7 peak current output exceeded. The current is higher than six times nominal.

(6xIn). SS7 Rated Current.

Rotor locked. Short circuit in output circuit. SS7 current transformers failure.

Torque pulse setting too high.

Check cables and motor. Reduce Torque pulse setting.

If the problem persists, call LS or an authorised distributor.

F7 STARTER OT

Heat sink too hot (>85ºC).

(> 85°C).

Insufficient cooling.

Fan failure.

Ambient temperature too high (>45ºC).

The actual current is higher than the nominal.

Check fans and cooling paths. Check the ambient temperature during normal operation doesn't exceed 45ºC or 50ºC with re-rating. Check that correct re-rating has been applied if higher than 45ºC. Check that actual motor current is the same or smaller than the SS7 nominal current.

F8 MOTOR PTC .

External trip (Motor PTC) has operated (Terminals T16-T17).

150ohms<PTC <2.7kohms >>ok. other >> fault.

Motor over temperature. Fault in sensor wiring (open-circuit, short-circuit)

Check motor is not overloaded. Check PTC wiring, check PTC. If there is no PTC connected, select G3.5 MOTOR PTC=NO

F9 SHEARPIN

Shearpin current trip.

G3.8 Shearpin Current.

The motor has drawn a higher current than Shearpin protection setting at G3.8.

Rotor locked due to a mechanical obstruction.

Check if it’s possible that motor reaches the Shearpin current under normal operation, and if so, increase the value of that protection. Check motor, cables and load and the reason of the over current.

F10 OVER VOLT

High supply voltage for too long period.

The combination of parameters G3.12 OVERVOLTAGE and G3.13

OVERVOLTAGE DELAY.

Fluctuating power supply, wrong settings; the input voltage of each phase in parameter G3.12; and the time set in G3.13.

Check supply voltage and set G3.12 and G3.13. Check supply.

F11 UNDER VOLT

Low voltage supply for too long period.

The combination of parameters G3.10 UNDERVOLTAGE and G3.11

UNDERVOLTAGE DELAY.

Impedance of input power supply is too high. Excess current draw, weak supply.

Check the input voltage of each phase is higher than G3.10 parameter and during the time set in G3.11 parameter.

Check supply, check values at G3.10 and G3.11. Check supply.

FAULT MESSAGES. DESCRIPTION AND ACTIONS

55

SS7 SERIES

Fault

Description

Sense level

Possible Cause

Action

Fault

Description

Possible Cause

Action

Fault

Description

Possible Cause

Action

NOTE:

Fault

Description

Sense level

Possible Cause

Action

Fault

Description

Possible Cause

Action

Fault

Description

Possible Cause

Action

Fault

Description

Possible Cause

Action

F12 EXCESIV STR

Maximum number of starts exceeded.

Maximum number of starts set at G3.14 START LIMIT during time period set at

G3.15 SRT/INT.

Excessive number of starts/stop during the normal operation. Rotor locked or motor overloaded during the start so the ramp up couldn't be completed.

Check motor and load conditions. Check values of parameters G3.14, G3.15 are coherent with the application.

F13 MEMORY FLT

Fault reading SRAM.

Writing error, faulty memory.

Attempt to reinitialise the SS7 ( 1.5 INITIALISE ) .

If the problem persists, call LS or an authorised distributor.

F14 SCR1 FAULT

F15 SCR2 FAULT

F16 SCR3 FAULT

F17 SCR_S FLT

F14 Thyristor Fault L1, disconnected motor at L1.

F15 Thyristor Fault L2, disconnected motor at L2.

F16 Thyristor Fault L3, disconnected motor at L3.

F17 Thyristors Fault , disconnected motor.

Thyristor fault, motor disconnected, excessive number of starts, excessive temperature, over voltage.

Check motor, cables and fans. Check thyristors and excessive environmental temperature.

Check input supply voltage.

If the problem persists, call LS or an authorised distributor.

This fault can only be reset via the display unit.

F18 EXCES T LS

Slow speed working time exceeded.

G12.3 L.S MAX T.

Excessive running time at slow speed.

Check the control. Check value of parameter G12.3.

F19 LS DISABLE

Slow Speed not allowed.

Slow Speed mode is blocked if one of these 2 options are selected:

No phase sequence (G3.1 Phase Sequence) at the input. You need to select L1 L2 L3 or L2 L1 L3 sequence.

DC Brake stop selected (G13.1 DC Brake).

Set phase sequence at the input. Make sure no DC Brake is selected.

F20 COMS T/OUT

Serial communication Time Out exceeded.

No communication from the Master for the time specified at G14.1 CommTime

Out.

RS232/RS485 communication link fault.

Check if the Master is trying to communicate to slave at a rate higher than specified at G14.1 COM TIME O. Check the RS232/RS485 wiring. Check communi cation parameters.

F21 EXTRN TRIP

An exte rnal fault has occurred through a digital input.

There is a digital input activated and set as external fault.

Check configuration of digit al inputs. Check the status of the digital inputs for correctness.

LS

56

FAULT MESSAGES. DESCRIPTION AND ACTIONS

LS

Fault

Description

Possible Cause

Action

NOTE:

Fault

Description

Possible Cause

Action

Fault

Description

Possible Cause

Action

Fault

Description

Possible Cause

Action

Fault

Description

Possible Cause

Action

Fault

Description

Possible Cause

Action

SS7 SERIES

F22 CUR FLT

Large current unbalance is occurring among phases.

Large current unbalance occurs due to a sudden voltage drop in any of the SS7 input phases. Possible disconnection of one phase.

Check input power wiring. Check motor connection. Check supply voltage is correct.

In case of working with lamps for testing purposes at the output set the motor

current to 1 A to avoid this fault.

F23 CUR FLT 2

Large current unbalance is occurring among phases.

Large current unbalance occurs due to a sudden voltage rise in any of the SS7 input phases.

Check input power wiring. Check supply voltage is correct.

F24 HIGH PRESSURE

High pressure time protection.

The SS7 is running and the pressure switch opens for longer than the time entered in screen G16.4. Overpressure.

Check hydraulic installation. Check pressure switch. Check proper wiring from pressure switch to SS7 digital input 1. The SS7 will require resetting on the display or via D INPUT 5 if configured for 2 wire start/stop. Check parameter setting is done according to application requirements.

F25 LOW PRESSURE

Low pressure protection.

The SS7 is running and the pressure switch opens for longer than the time entered in screen G16.5.

Check hydraulic installation (broken pipes). Check pump has got water. Check pressure switch. Check proper wiring from pressure switch to SS7 digital input 2.

The SS7 will require resetting on the display or via D INPUT 5 if configured for 2 wire start/stop. Check parameter setting is done according to application requirements.

F26 FLOW SWITCH

No flow protection.

The flow switch is ignored for the time set in screen G16.7 on receipt of a valid start signal. After this time the SS7 will trip if no flow is indicated for longer than the time set in screen G16.8. No water in the pump.

Check proper pump water supply. Check flow switch. Check proper wiring form flow switch to SS7 digital input 3. The SS7 will require resetting on the display or via D INPUT 5 if configured for 2 wire start/stop. Check parameter setting is done according to application requirements.

F27 DEEP WELL PROBE

Low level protection

The well probe controller (or other level controller) detects a lack of water. The tank or pump has no water.

Check water level. Check hydraulic installation. Check level switch. Check proper wiring from deep well probe flow controller to SS7 digital input 4. The SS7 will not reset unless the low water fault has been cleared (D INPUT 4 closed). Check parameter setting is done according to application requirements.

FAULT MESSAGES. DESCRIPTION AND ACTIONS

57

SS7 SERIES

13. COMMONLY USED CONFIGURATIONS

LS

13.1. Settings

Load Type

G 3.2 (Overload)

G 3.3 (C.Over)

G3.4 (F.Over)

G4.4 (Init torq)

G4.5(Init tq t)

G4.6 (Acel time)

G4.7 (I Limit)

G5.1 (Stop Rot)

G5.2(Decel time)

Pumps

In Motor

5

100%

35%

0

3 – 5s

3.5 In

N

5 – 10s

Light

In Motor

5

100%

35%

0

4 – 6s

3 – 3.5 ·In

Y

-

13.2. Recommended Power Installation

Medium

In Motor

5

100%

40%

0

4 – 6s

3.5 – 4 ·In

Y

-

Heavy

In Motor

5

110%

50-60%

1

6 – 8s

4 – 5 · In

Y

-

Failure relay controls the coil connection of the circuit breaker, in case of equipment failure, the motor starter will disconnect the main power supply.

Figure 13.1 Recommended Power Installation

High inertia

In Motor

5

120%

40-50%

1

8 – 20s

2.5 – 3.5 · In

Y

-

58

COMMONLY USED CONFIGURATIONS

LS

SS7 SERIES

13.3. Operation Mode

Connection Drawing.

See section ‘7.1 Control Connection Drawing’.

Start and Stop from Display.

Screen 1 of group 6 must be adjusted in local. G6.1= LOCAL

With Star-pushbutton the motor will be started and with Stop/Reset-pushbutton the motor will be stopped.

LEDS INDICATORS

LCD DISPLAY

CONTROL KEYPAD

ON

RUN

FAU LT

STOP

RESET

Indicate power in the control board.

Flashing: Accelerating/Decelerating

Lighting: The motor is running at

nominal speed.

The SS7 has tripped on fault protection.

STATUS LINE: (Top).

CONTROL LINE: (Bottom).

To unfold the screen groups.

To scroll between screen groups.

To scroll between screen groups.

Motor Start.

Motor stop /reset.

Figure 13.2 Start and stop from Display

Start and stop using a free potential contact.

G6.1 = Remote.

R RUN 800A 400V

400V 400V 400V

STOP

RESET

DT0006

G6.3 = 3 DIGITAL INPUT1=4 / START / STOP (T11).

G6.4 = 4 DIGITAL INPUT2=5 / RESET (T12).

Figure 13.3 Start and stop using a free potential contact

COMMONLY USED CONFIGURATIONS

59

SS7 SERIES

Start and Stop using pushbuttons.

G6.1 = Remote.

G6.3 = 3 DIGITAL INPUT1=1 / START (T11).

G6.4 = 4 DIGITAL INPUT2=2 / STOP (T12).

G6.5 = 5 DIGITAL INPUT3=5 / RESET (T13).

Figure 13.4 Start and stop using pushbuttons

LS

60

COMMONLY USED CONFIGURATIONS

LS

14. CONFIGURATION REGISTER

G1 MENU OPTIONS

1 LOCK PARAM=

2 PASSWORD=

3 WRONG P/W=

4 LANGUE=

5 INITIALISE=

6 COMMISSION=

G2 NAMEPLATE

1 ISTARTER=

2 I MOTOR=

3 V MOTOR=

4 P MOTOR=

5 COS PHI M=

6 FREQ=

G3 PROTECTIONS

1 PHASE SEQUEN=

2 OV LOAD=

3 OV/LOAD T=

4 OVL FAC=

5 MOTOR PTC=

6 UNLOAD=

7 UNLOAD T=

8 SHRPIN=

9 ASYM I ENB=

10 UNDER V=

11 U/V DELAY=

12 OVERVOLT=

13 O/V DELAY=

14 START LIMIT=

15 STR/ INT=

G4 ACCELERATION

1 STR DELAY=

2 PULS TORQ=

3 PULS TQ T=

4 INIT TORQ=

5 INIT TQ T=

DIGITAL SOFT STARTER:

SS7

SERIAL Nº: SERIAL Nº:

APPLICATION : SERIE APPLICATION : SERIE

DATE: DATE:

CUSTOMER : CUSTOMER :

SCREENS RANGE DEFAULT RECORD 1

Yes/No

0000-9999

0000-9999

Span., Eng., D

Yes/No

Yes/No

9 - 1600

1 - 1600

1/2/3/4

4 - 999

40 – 99%

50/60

1/2/3

0,5-1,5 I

SS7

1-10

100-500%

Yes/No

0-0,8

0-99/Off

0,6-1,2/Off

Yes/No

162-450

0-10/Off

254-575

0-10/Off

1-10

0-60/Off

0-600

50-99%

0,1-0,9/Off

0-100%

0-99

N0

0

XXXX

ENGLISH

NO

YES

_ _ _A*

_ _ _A *

2*

_ _ _KW

85%

50Hz

2*

15Min

0s

50%

OFF

35%

1s

1 x I

5

100%

N

0.0A

OFF

OFF

YES

320V

5s

440V

5s

3

* See section ’11 SCREEN DESCRIPTION’.

SS7 SERIES

RECORD 2

CONFIGURATION REGISTER

61

SS7 SERIES

SCREENS

6 ACEL TIME=

7 I LIMIT=

G5 DECELERATION

1 FREWEL STP=

2 DECL TIME=

3 DEC MD SEL=

4 HAMR FACT=

5 MINI TORQ=

G6 INPUTS

1 OPER MODE=

2 LOCAL RESET=

3 DINPUT1 SEL=

4 DINPUT2 SEL=

5 DINPUT3 SEL=

6 DINPUT4 SEL=

7 DINPUT5 SEL=

8 ANI1 FORMAT=

9 AI1 RANGE=

10 AI1 UNITS=

11 ANI2 FORMAT=

12 AI2RANGE=

13 AI2 UNITS=

G7 OUTPUTS

1 REL1 SEL ON=

2 REL2 SEL ON=

3 REL3 SEL ON=

4 ANLOG1 SEL=

5 AO1 FORMAT=

6 AO1 LOW=

7 AO1 HIGH=

G8 DUAL SETTING

1 DUALSETING=

2 PLS TORQ2=

3 PLS TQ T2=

4 INIT TRQ2=

5 INIT TQ T2=

6 ACC TIME2=

7 I LIMIT2=

8 FREWEL STP2=

9 DEC TIME2=

10 DEC MD SEL2=

11 HAMR FAC2=

12 MINI TRQ2=

13 PHASE SEQ2=

* See section ’10 SCREEN DESCRIPTION’.

RANGE

0-180

1.5 - 5 x In

Yes/No

0-180

1/2

0-100%

0-80%

1/2/3/4/5

Yes/No

0-10

0-10

0-10

0-10

0-10

0/1/2

0-100

Off/Bar/°C/m

0/1/2

0-100

Off /Bar/°C/m

1-21

1-21

1-21

0-7

0/1

0-500

0-500

Yes/No

50-99%

0,1-0,9/Off

0-100%/Off

0-99

0-180

1-5 I

SS7

Yes/No

0-180

1/2

0-99

1-99%

1/2/3

DEFAULT

6s

2800A

YES

12s

1*

75%

1%

14*

15*

9*

0*

0*

0%

100%

0-10

OFF

1

0-10

OFF

0*

0*

0*

1

1*

Y

4*

0*

NO

50%

OFF

30%

1s

12s

2800A

N

12s

1

75

1%

2s

LS

RECORD 1

RECORD 2

62

CONFIGURATION REGISTER

LS

SCREENS

14 OV LOAD2=

15 OV/LOAD T2=

16 OVL FAC2=

17 MTR PTC2=

18 UNLOAD2=

19 UNLOAD T2=

20 SHRPIN2=

21 ASYM I ENB2=

22 I MTR2=

23 V MTR2=

24 P MTR2=

25 COS PHI 2=

26 FREQ 2=

G9 COMPARATORS

1 COMPR1 SEL=

2 COMP1 ON=

3 COMP1 OFF=

4 T COMP1 ON=

5 T COMP1 OFF=

6 COMPR2 SEL=

7 COMP2 ON=

8 COMP2 OFF =

9 T COMP2 ON=

10 TCMP2 OFF=

11 CMPR3 SEL=

12 CMP3 ON=

13 CMP3 OFF=

14 T CMP3 ON=

15 TCMP3 OFF=

G10 FAULT HISTORY

1 LAST FAULT

2 FOURTH FAULT

3 THIRD FAULT

4 SECOND FAULT

5 FIRST FAULT

6 DELET FAULTS=

G11 STATIST INFO

1 STARTS1=

2 STARTS2=

3 DEL STARTS2=

4 H1=

5 H2 =

6 DEL HOURS2=

7 TOTAL FLT=

8 FAULT2=

9 DEL FAULT2=

10 KWH =

SS7 SERIES

RANGE

DEFAULT

0,6-1,5 I

SS7

1-10

100-500%

Yes/No

800A

5

100%

N

0-0,9

0-99/Off

0,7-1,2/Off

Yes/No

9-1200

1/2/3/4

0-999

40-99%

50/60

0-8

0-100%

0-100%

0-100

0-100

0-8

0-100%

0-100%

0-100

0-100

0-8

0-100%

0-100%

0-100

0-100

0.0A

OFF

OFF

N

30A

2

4.0Kw

85%

50Hz

1*

100%

80%

5s

5s

1*

100%

80%

5s

5s

1*

100%

80%

5s

5s

F0

F0

F0

F0

F0

N

00000

00000

NO

00000h:00m

00000h:00m

NO

00

0

NO

000000

RECORD 1

RECORD 2

CONFIGURATION REGISTER

63

SS7 SERIES

SCREENS

G12 SLOW SPEED

1 L/S ACC-DEC =

2 L SPD TORQ =

3 L.S MAX T =

4 L.S ACL T=

5 L.S DEC T=

G13 DC BRAKE

1 DCBRAK SEL=

2 DC BRAK I=

3 DC BRAKE T=

4 EXTERNAL B=

G14 SERIAL COMM

1 COM TIME O=

2 COM ADRESS=

3 BAUD COM=

4 EVEN PARITY=

G15 AUTO RESET

1 AUTO RESET=

2 ATTEMP NUMBR=

3 R STR DEL=

4 RS COUNT=

5 F1 AUTO RST =

6 F2 AUTO RST =

7 F3 AUTO RST =

8 F4 AUTO RST =

G16 PUMP CONTROL 1

1 SET IT =

2 I TIME =

3 START MODE =

4 HI PR DEL =

5 L PR DEL=

6 L PR BYP =

7 FLO BYP =

8 FLO DEB =

9 LO WTR DEL =

RANGE

Yes/No

0-99%

0-99/Off

0-99/ Off

0-99/ Off

Yes/No

30-99%

0-99/ Off

Yes/No

0-25/ Off

0-240

1200/2400/

4800/9600/ Off

Yes/No

Yes/No

1-5

5-120

1-60

0-20

0-20

0-20

0-20

0-60/INF

0-60/INF

0/1

0-60

0-3600

1-1800

0-1800

0-60

0-60

DEFAULT

N

30%

0s

0s

0s

NO

50%

0s

NO

OFF

0

OFF

0

0

0

0

NO

NO

5

5s

15Min

000Hrs

000Hrs

0

00s

0000s

0000s

0000s

00s

00s

LS

RECORD 1

RECORD 2

64

CONFIGURATION REGISTER

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
