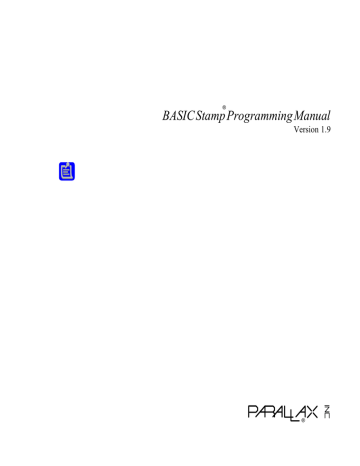

BASIC Stamp Programming Manual

BASIC Stamp Programming Manual

®

BASIC Stamp Programming Manual

Version 1.9

®

Warranty

Parallax warrants its products against defects in materials and workmanship for a period of 90 days. If you discover a defect, Parallax will, at its option, repair, replace, or refund the purchase price. Simply return the product with a description of the problem and a copy of your invoice (if you do not have your invoice, please include your name and telephone number). We will return your product, or its replacement, using the same shipping method used to ship the product to Parallax (for instance, if you ship your product via overnight express, we will do the same).

This warranty does not apply if the product has been modified or damaged by accident, abuse, or misuse.

14-Day Money-Back Guarantee

If, within 14 days of having received your product, you find that it does not suit your needs, you may return it for a refund. Parallax will refund the purchase price of the product, excluding shipping/handling costs. This does not apply if the product has been altered or damaged.

Copyrights and Trademarks

Copyright © 1998 by Parallax, Inc. All rights reserved. PBASIC is a trademark and Parallax, the Parallax logo, and

BASIC Stamp are registered trademarks of Parallax, Inc. PIC is a registered trademark of Microchip Technology, Inc.

Other brand and product names are trademarks or registered trademarks of their respective holders.

Disclaimer of Liability

Parallax, Inc. is not responsible for special, incidental, or consequential damages resulting from any breach of warranty, or under any legal theory, including lost profits, downtime, goodwill, damage to or replacement of equipment or property, and any costs or recovering, reprogramming, or reproducing any data stored in or used with Parallax produ cts.

Internet Access

We maintain Internet systems for your convenience. These may be used to obtain software, communicate with members of Parallax, and communicate with other customers. Access information is shown below:

E-mail:

Ftp:

Web: [email protected]

ftp.parallaxinc.com

http://www.parallaxinc.com

Internet BASIC Stamp Discussion List

We maintain an email discussion list for people interested in BASIC Stamps. The list works like this: lots of people subscribe to the list, and then all questions and answers to the list are distributed to all subscribers. It’s a fun, fast, and free way to discuss issues.

To subscribe to the Stamp list, send email to [email protected]

and write subscribe stamps in the body of the message.

This manual is valid with the following software and firmware versions:

BASIC Stamp I:

STAMP.EXE software version 2.1

Firmware version 1.4

BASIC Stamp II:

STAMP2.EXE software version 1.1

Firmware version 1.0

Newer versions will usually work, but older versions may not. New software can be obtained for free on our Internet web and ftp site. New firmware, however, must usually be purchased in the form of a new BASIC Stamp. If you have any questions about what you may need, please contact Parallax.

Contents

BASIC Stamp II:

Programming ................................................................ 198

System requirements and Packing list................................... 198

Connecting to the PC ............................................................... 199

Carrier Board Features .................................................... 199

BS2-IC Pinout ............................................................... 200

Using the Editor ............................................................ 201

Starting the editor .................................................................... 201

Entering and editing programs .............................................. 202

Editor function keys................................................................. 202

PBASIC Instruction Summary ............................................. 204

BS2 Hardware ............................................................... 207

Schematic .................................................................................. 207

PBASIC2 Interpreter Chip ....................................................... 208

Erasable Memory Chip ............................................................ 209

Reset Circuit ............................................................................. 209

Power Supply ........................................................................... 210

Serial Interface .......................................................................... 210

PC-TO-BS2 Connector Hookup .............................................. 212

Writing programs for the BASIC Stamp II ............................... 213

BS2 Memory Organization ..................................................... 213

Defining variables (VAR) ........................................................ 217

Aliases & Modifiers ................................................................. 221

Viewing the Memory Map ...................................................... 224

Defining constants (CON) ...................................................... 225

Defining data (DATA) ............................................................. 228

Run-time Math and Logic ....................................................... 231

Unary Operators ...................................................................... 236

Binary Operators ...................................................................... 239

PBASIC Instructions ....................................................... 247

BRANCH .................................................................................. 247

BUTTON ................................................................................... 249

COUNT ..................................................................................... 251

DEBUG ...................................................................................... 253

DTMFOUT ................................................................................ 257

END ........................................................................................... 260

FOR...NEXT .............................................................................. 261

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 3

Contents

FREQOUT ................................................................................. 264

GOSUB ...................................................................................... 266

GOTO ........................................................................................ 268

HIGH ......................................................................................... 269

IF...THEN .................................................................................. 270

INPUT ....................................................................................... 276

LOOKDOWN ........................................................................... 278

LOOKUP ................................................................................... 282

LOW .......................................................................................... 284

NAP ........................................................................................... 285

OUTPUT ................................................................................... 287

PAUSE ....................................................................................... 288

PULSIN ..................................................................................... 289

PULSOUT ................................................................................. 291

PWM .......................................................................................... 293

RANDOM ................................................................................. 296

RCTIME ..................................................................................... 298

READ......................................................................................... 302

RETURN ................................................................................... 304

REVERSE .................................................................................. 305

SERIN ........................................................................................ 307

SEROUT .................................................................................... 319

SHIFTIN .................................................................................... 330

SHIFTOUT ................................................................................ 334

SLEEP ........................................................................................ 336

STOP .......................................................................................... 338

TOGGLE ................................................................................... 339

WRITE ....................................................................................... 341

XOUT......................................................................................... 344

Stamp II Application Notes ............................................... 347

Note #1: Controlling lights with X-10 (XOUT) ................ 347

Note #2: Using SHIFTIN and SHIFTOUT ........................ 353

Note #3: Connecting to the telephone line ....................... 361

APPEDICES .................................................................. 365

A) ASCII Chart.......................................................................... 365

B) Reserved Words ................................................................... 367

C) BS1 to BS2 Conversion........................................................ 369

D) BS1 and BS2 Schematics .................................................... 450

INDEX ......................................................................... 455

Page 4

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

The following section deals with the BASIC Stamp II. In the following pages, you’ll find installation instructions, programming procedures,

PBASIC2 command definitions, and several application notes.

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 197

BASIC Stamp II

System Requirements

To program the BASIC Stamp II, you’ll need the following system:

• IBM PC or compatible computer

• 3.5-inch disk drive

• Parallel port

• 128K of RAM

• MS-DOS 2.0 or greater

If you have the BASIC Stamp II carrier board, you can use a 9-volt battery as a convenient means to power the BASIC Stamp. You can also use a 5-

15 (5-40 volts on BS2-IC rev. d) volt power supply, but you should be careful to connect the supply to the appropriate part of the BASIC Stamp.

A 5-volt supply should be connected directly to the +5V pin, but a higher voltage should be connected to the PWR pin. Connecting a high voltage

supply (greater than 6 volts) to the 5-volt pin can permanently damage the BASIC Stamp.

Packing List

If you purchased the BASIC Stamp Programming Package, you should have received the following items:

• BASIC Stamp manual (this manual)

• BASIC Stamp I programming cable (parallel port DB25-to-3 pin)

• BASIC Stamp II programming cable (serial port DB9-to-DB9)

• 3.5-inch diskette

If you purchased the BASIC Stamp II Starter Kit, you should have received the following items:

• BASIC Stamp Manual (this manual)

• BASIC Stamp II programming cable (serial port DB9-to-DB9)

• 3.5-inch diskette

• BS2-IC module

• BASIC Stamp 2 Carrier Board

If any items are missing, please let us know.

Page 198

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

RS-232

Serial

Port

BASIC Stamp II

Connecting to the PC

To program a BASIC Stamp II, you’ll need to connect it to your PC and then run the editor software. In this section, it’s assumed that you have a BS2-IC and its corresponding carrier board (shown below).

To connect the BASIC Stamp II to your PC, follow these steps:

1) Plug the BS2-IC onto the carrier board. The BS2-IC plugs into a 24-pin DIP socket, located in the center of the carrier. When plugged onto the board, the interpreter chip, the largest chip on the BS2-IC, should be furthest from the reset button.

2) In the BASIC Stamp Programming Package, you received a serial cable to connect the BASIC Stamp II to your PC. Plug the female end into an available serial port on your PC.

3) Plug the male end of the serial cable into the carrier board’s serial port.

4) Supply power to the carrier board, either by connecting a

9-volt battery or by providing an external power source.

BASIC Stamp II

TM

Prototyping

Area

9-volt

Battery

Clips

I/O

Header

Reset

Button

BS2-IC

Socket

2

I/O

Header

© 1995

REV A

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 199

BASIC Stamp II

10

11

12

7

8

9

4

5

6

1

2

3

P2

P3

P4

P5

P6

P7

TX

RX

ATN

GND

P0

P1

P13

P12

P11

P10

P9

P8

PWR

GND

RES

+5V

P15

P14

15

14

13

18

17

16

21

20

19

24

23

22

14

15

16

17

18

9

10

11

12

13

19

20

5

6

7

8

21

22

23

24

Pin

1

2

3

4

Name Description

TX

RX

ATN

GND

Comments

Serial output Connect to pin 2 of PC serial DB9 (RX) *

Serial input Connect to pin 3 of PC serial DB9 (TX) *

Active-high reset Connect to pin 4 of PC serial DB9 (DTR) *

Serial ground Connect to pin 5 of PC serial DB9 (GND) *

Each pin can source 20 ma and sink 25 ma.

P0

P1

P2

P3

P9

P10

P11

P12

P13

P4

P5

P6

P7

P8

P14

P15

I/O pin 0

I/O pin 1

I/O pin 2

I/O pin 3

I/O pin 4

I/O pin 5

I/O pin 6

I/O pin 7

I/O pin 8

I/O pin 9

I/O pin 10

I/O pin 11

I/O pin 12

I/O pin 13

I/O pin 14

I/O pin 15

+5V ** +5V supply

RES Active-low reset

GND System ground

PWR ** Regulator input

P0-P7 and P8-P15, as groups, can each source a total of 40 ma and sink 50 ma.

5-volt input or regulated output.

Pull low to reset; goes low during reset.

Voltage regulator input; takes 6-15 volts.

* For automatic serial port selection by the BASIC Stamp II software, there must also be a connection from DSR

(DB9 pin 6) to RTS (DB9 pin 7). This connection is made on the BASIC

Stamp II carrier board. If you are not using the carrier board, then you must make this connection yourself, or use the command-line option to tell the software which serial port to use.

** During normal operation, the BASIC

Stamp II takes about 7 mA. In various power-down modes, consumption can be reduced to about 50 µA.

Page 200

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

Starting the Editor

With the BASIC Stamp II connected and powered, insert the BASIC

Stamp diskette and then enter the BASIC Stamp II directory by typing the following command from the DOS prompt:

CD STAMP2

Once in the BASIC Stamp II directory, you can run the BASIC Stamp II editor/downloader software by typing the following command:

STAMP2

The software will start running after several seconds. The editor screen is dark blue, with one line across the top that indicates how to get onscreen editor help. Except for the top line, the entire screen is available for entering and editing PBASIC programs.

Command-line options:

There are several command-line options that may be useful when running the software; these options are shown below:

STAMP2 filename Runs the editor and loads filename.

STAMP2 /m Runs the editor in monochrome mode. May give a better display on some systems, especially laptop computers.

STAMP2 /n Runs the editor and specifies which serial port to use when downloading to the BASIC Stamp

II (note that n must be replaced with a serial port number of 1-4).

Normally, the software finds the BASIC Stamp II by looking on all serial ports for a connection between DSR and RTS (this connection is made on the carrier board). If the DSR-RTS connection is not present, then you must tell the software which port to use, as shown above.

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 201

BASIC Stamp II

Entering & Editing Programs

We’ve tried to make the editor as intuitive as possible: to move up, press the up arrow; to highlight one character to the right, press shift-

right arrow; etc.

Most functions of the editor are easy to use. Using single keystrokes, you can perform the following common functions:

• Load, save, and run programs.

• Move the cursor in increments of one character, one word, one line, one screen, or to the beginning or end of a file.

• Highlight text in blocks of one character, one word, one line, one screen, or to the beginning or end of a file.

• Cut, copy, and paste highlighted text.

• Search for and/or replace text.

• See how the BASIC Stamp II memory is being allocated.

• Identify the version of the PBASIC interpreter.

Editor Function Keys

The following list shows the keys that are used to perform various functions:

F1 Display editor help screen.

Alt-R

Alt-L

Alt-S

Alt-M

Alt-I

Alt-Q

Enter

Tab

Run program in BASIC Stamp II (download the

program on the screen, then run it)

Load program from disk

Save program on disk

Show memory usage maps

Show version number of PBASIC interpreter

Quit editor and return to DOS

Enter information and move down one line

Same as Enter

Page 202

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

Left arrow

Right arrow

Up arrow

Down arrow

Ctrl-Left

Ctrl-Right

Home

End

Page Up

Page Down

Ctrl-Page Up

Ctrl-Page Down

Shift-Left

Shift-Right

Shift-Up

Shift-Down

Shift-Ctrl-Left

Shift-Ctrl-Right

Shift-Home

Shift-End

Shift-Page Up

Shift-Page Down

Shift-Ctrl-Page Up

Shift-Ctrl-Page Down

Shift-Insert

ESC

Backspace

Delete

Shift-Backspace

Shift-Delete

Ctrl-Backspace

Alt-X

Alt-C

Alt-V

Alt-F

Alt-N

Move left one character

Move right one character

Move up one line

Move down one line

Move left to next word

Move right to next word

Move to beginning of line

Move to end of line

Move up one screen

Move down one screen

Move to beginning of file

Move to end of file

Highlight one character to the left

Highlight one character to the right

Highlight one line up

Highlight one line down

Highlight one word to the left

Highlight one word to the right

Highlight to beginning of line

Highlight to end of line

Highlight one screen up

Highlight one screen down

Highlight to beginning of file

Highlight to end of file

Highlight word at cursor

Cancel highlighted text

Delete one character to the left

Delete character at cursor

Delete from left character to beginning of line

Delete to end of line

Delete line

Cut marked text and place in clipboard

Copy marked text to clipboard

Paste (insert) clipboard text at cursor

Find string (establish search information)

Find next occurrence of string

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 203

BASIC Stamp II

The following list is a summary of the PBASIC instructions used by the BASIC Stamp II.

◆ This symbol indicates new or greatly improved instructions (compared to the BASIC Stamp I).

BRANCHING

IF...THEN

BRANCH

GOTO

GOSUB

RETURN

Compare and conditionally branch.

Branch to address specified by offset.

Branch to address.

Branch to subroutine at address. GOSUBs may be nested up to four levels deep, and you may have up to 255 GOSUBs in your program.

Return from subroutine.

LOOPING

FOR...NEXT

Establish a FOR-NEXT loop.

NUMERICS

LOOKUP Lookup data specified by offset and store in variable. This instruction provides a means to make a lookup table.

LOOKDOWN Find target’s match number (0-N) and store in variable.

RANDOM Generate a pseudo-random number.

DIGITAL I/O

INPUT

OUTPUT

REVERSE

LOW

HIGH

TOGGLE

PULSIN

Make pin an input

Make pin an output.

If pin is an output, make it an input. If pin is an input, make it an output.

Make pin output low.

Make pin output high.

Make pin an output and toggle state.

Measure an input pulse (resolution of 2 µs).

Page 204

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

PULSOUT

BUTTON

SHIFTIN

SHIFTOUT

COUNT

XOUT

SERIAL I/O

SERIN

SEROUT

Output a timed pulse by inverting a pin for some time (resolution of 2 µs).

Debounce button, perform auto-repeat, and branch to address if button is in target state.

Shift bits in from parallel-to-serial shift register.

Shift bits out to serial-to-parallel shift register.

Count cycles on a pin for a given amount of time

(0 - 125 kHz, assuming a 50/50 duty cycle).

Generate X-10 powerline control codes. For use with TW523 or TW513 powerline interface module.

Serial input with optional qualifiers, time-out, and flow control. If qualifiers are given, then the instruction will wait until they are received before filling variables or continuing to the next instruction. If a time-out value is given, then the instruction will abort after receiving nothing for a given amount of time. Baud rates of 300 - 50,000 are possible (0 - 19,200 with flow control). Data received must be N81 (no parity, 8 data bits, 1 stop bit) or E71 (even parity, 7 data bits, 1 stop bit).

Send data serially with optional byte pacing and flow control. If a pace value is given, then the instruction will insert a specified delay between each byte sent (pacing is not available with flow control). Baud rates of 300 - 50,000 are possible (0

- 19,200 with flow control). Data is sent as N81 (no parity, 8 data bits, 1 stop bit) or E71 (even parity, 7 data bits, 1 stop bit).

ANALOG I/O

PWM

RCTIME

Output PWM, then return pin to input. This can be used to output analog voltages (0-5V) using a capacitor and resistor.

Measure an RC charge/discharge time. Can be used to measure potentiometers.

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 205

2

BASIC Stamp II

SOUND

FREQOUT

DTMFOUT

Generate one or two sinewaves of specified frequencies (each from 0 - 32767 hz.).

Generate DTMF telephone tones.

EEPROM ACCESS

DATA

READ

WRITE

Store data in EEPROM before downloading

PBASIC program.

Read EEPROM byte into variable.

Write byte into EEPROM.

TIME

PAUSE Pause execution for 0–65535 milliseconds.

POWER CONTROL

NAP

SLEEP

END

Nap for a short period. Power consumption is reduced.

Sleep for 1-65535 seconds. Power consumption is reduced to approximately 50 µA.

Sleep until the power cycles or the PC connects.

Power consumption is reduced to approximately

50 µA.

PROGRAM DEBUGGING

DEBUG Send variables to PC for viewing.

Page 206

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

BS2 Hardware

Figure H-1 is a schematic diagram of the BASIC Stamp II (BS2). In this section we’ll describe each of the major components and explain its function in the circuit.

Figure H-1

V

DD

(21)

V

IN

U4

5V Reg.

S-81350HG

(24)

Vss

*V

SS

(23, 4)

*Also called “ground” throughout this document.

U2

2kB EEPROM

1

2

3

4

NC

NC

NC

Vss

VDD

8

WP

7

SCL

6

SDA 5

+5V

+5V

Power source for all

BS2 components

+

22

µ

F

10V

4.7k

+5V

+5V

4.7k

+5V

+5V

Vdd

U3

4V Reset

OUT

S-8054HN

Vss

U1

PBASIC2

1

2

3

4

RTCC

Vdd

NC

Vss

5 NC

6

RA0

7

8

RA1

RA2

9

10

RA3

RB0

11

RB1

12 RB2

13 RB3

14 RB4

MCLR 28

OSC1 27

OSC2 26

RC7 25

RC6 24

RC5

23

RC4

22

RC3

21

RC2

20

RC1

19

RC0

18

RB7 17

RB6 16

RB5 15

20-MHz

Ceramic

Resonator

Q2

4.7k

10k

10k

1/2 UMH11TN

(22)

R

ES

(3)

A

TN

S

IN

(2)

10k

10k

1/2 UMH11TN

+5V

4.7k

Q1

10k

10k

Q3

S

OUT

(1)

DTA114EETL

Input/Output Pins

Output: source 20mA each sink 25mA each

Input: leakage < 1

µ

A threshold 1.4V

2

N

OTES

1. This diagram depicts the DIP/SOIC version of the PBASIC2 interpreter chip, since users wishing to construct a BS2 from discrete components are most likely to use those parts.

Contact Parallax for a schematic depicting the SSOP (ultra-small surface mount) package used in the BS2-IC module.

2. Numbers in parenthesesÑ(#)Ñare pin numbers on the BS2-IC module. The BS2-IC has the form factor of a 24-pin, 0.6" DIP.

3. Q1, Q2 and Q3 are Rohm part numbers. Other components may be substituted in custom circuits, subject to appropriate design. Contact Parallax for design assistance.

4. U3 and U4 are Seiko part numbers. Other components may be substituted in custom circuits, subject to appropriate design. Contact Parallax for design assistance.

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 207

BASIC Stamp II

PBASIC2 Interpreter Chip (U1)

The brain of the BS2 is a custom PIC16C57 microcontroller (U1). U1 is permanently programmed with the PBASIC2 instruction set. When you program the BS2, you are telling U1 to store symbols, called tokens, in

EEPROM memory (U2). When your program runs, U1 retrieves tokens from memory (U2), interprets them as PBASIC2 instructions, and carries out those instructions.

U1 executes its internal program at 5 million instructions per second.

Many internal instructions go into a single PBASIC2 instruction, so

PBASIC2 executes more slowly—approximately 3000 to 4000 instructions per second.

The PIC16C57 controller has 20 input/output (I/O) pins; in the BS2 circuit, 16 of these are available for general use by your programs. Two others may also be used for serial communication. The remaining two are used solely for interfacing with the EEPROM and may not be used for anything else.

The general-purpose I/O pins, P0 through P15, can interface with all modern 5-volt logic, from TTL (transistor-transistor logic) through

CMOS (complementary metal-oxide semiconductor). To get technical, their properties are very similar to those of 74HCTxxx-series logic devices.

The direction—input or output—of a given pin is entirely under the control of your program. When a pin is an input, it has very little effect on circuits connected to it, with less than 1 microampere (µA) of current leaking in or out. You may be familiar with other terms for input mode like tristate, high-impedance, or hi-Z.

There are two purposes for putting a pin into input mode: (1) To passively read the state (1 or 0) of the pin as set by external circuitry, or (2)

To disconnect the output drivers from the pin. For lowest current draw, inputs should always be as close to +5V or ground as possible. They should not be allowed to float. Unused pins that are not connected to circuitry should be set to output.

Page 208

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

When a pin is an output, it is internally connected to ground or +5V through a very efficient CMOS switch. If it is lightly loaded (< 1mA), the output voltage will be within a few millivolts of the power supply rail (ground for 0; +5V for 1). Pins can sink as much as 25mA (outputting 0) and source up to 20 mA (outputting 1). Each of the two eightpin ports should not carry more than a total of 50mA (sink) or 40mA

(source). Pins P0 through P7 make up one port; P8 through P15 the other.

2048-byte Erasable Memory Chip (U2)

U1 is permanently programmed at the factory and cannot be reprogrammed, so your PBASIC2 programs must be stored elsewhere. That’s the purpose of U2, the 24LC16B electrically erasable, programmable read-only memory (EEPROM). EEPROM is a good medium for program storage because it retains data without power, but can be reprogrammed easily.

EEPROMs have two limitations: (1) They take a relatively long time

(as much as several milliseconds) to write data into memory, and (2)

There is a limit to the number of writes (approximately 10 million) they will accept before wearing out. Because the primary purpose of the BS2’s EEPROM is program storage, neither of these is normally a problem. It would take many lifetimes to write and download 10 million PBASIC2 programs! However, when you use the PBASIC2 Write instruction to store data in EEPROM space be sure to bear these limitations in mind.

Reset Circuit (U3)

When you first power up the BS2, it takes a fraction of a second for the supply to reach operating voltage. During operation, weak batteries, varying input voltages or heavy loads may cause the supply voltage to wander out of acceptable operating range. When this happens, normally infallible processor and memory chips (U1 and U2) can make mistakes or lock up. To prevent this, U1 must be stopped and reset until the supply stabilizes. That is the job of U3, the S-8045HN reset circuit. When the supply voltage is below 4V, U3 puts a logic low on

U1’s master-clear reset (MCLR) input. This stops U1 and causes all of its I/O lines to electrically disconnect. In reset, U1 is dormant; alive but inert.

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 209

BASIC Stamp II

When the supply voltage is above 4V, U3 allows its output to be pulled high by a 4.7k resistor to +5V, which also puts a high on U1’s MCLR input. U1 starts its internal program at the beginning, which in turn starts your PBASIC2 program from the beginning.

Power Supply (U4)

The previous discussion of the reset circuit should give you some idea of how important a stable power supply is to correct operation of the

BS2. The first line of defense against power-supply problems is U4, the

S-81350HG 5-volt regulator. This device accepts a range of slightly over

5V up to 15V and regulates it to a steady 5V. This regulator draws minimal current for its own use, so when your program tells the BS2 to go into low-power Sleep, End or Nap modes, the total current draw averages out to approximately 100 microamperes (µA). (That figure assumes no loads are being driven and that all I/O pins are at ground or +5V.)

When the BS2 is active, it draws approximately 8mA. Since U4 can provide up to 50mA, the majority of its capacity is available for powering your custom circuitry.

Circuits requiring more current than U4 can provide may incorporate their own 5V supply. Connect this supply to V

DD

and leave U4’s input

(VIN) open.

Note that figure H-1 uses CMOS terms for the power supply rails, V

DD for the positive supply and V

SS

for ground or 0V reference. These terms are correct because the main components are CMOS. Don’t be concerned that other circuits you may come across use different nomenclature; for our purposes, the terms V

DD

, V

CC

, and +5V are interchangeable, as are V

SS

, earth (British usage) and ground.

Serial Host Interface (Q1, Q2, and Q3)

The BS2 has no keyboard or monitor, so it relies on PC-based host software to allow you to write, edit, download and debug PBASIC2 programs. The PC communicates with the BS2 through an RS-232 (COM port) interface consisting of pins SIN, SOUT, and ATN (serial in, serial out, and attention, respectively).

RS-232 uses two signaling voltages to represent the logic states 0 and 1;

+12V is 0 and –12V is 1. When an RS-232 sender has nothing to say, it

Page 210

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II leaves its output in the 1 state (-12V). To begin a transmission, it outputs a 0 (+12V) for one bit time (the baud rate divided into 1 second; e.g., bit time for 2400 baud = 1/2400 = 416.6µs).

You can see how the BS2 takes advantage of these characteristics in the design of its serial interface. NPN transistor Q1 serves as a serial line receiver. When SIN is negative, Q1 is switched off, so the 4.7k resistor on its collector puts a high on pin RA2 of U1, the PBASIC2 interpreter chip. When SIN goes high, Q1 switches on, putting a 0 on RA2/U1.

SOUT transmits data from U1 to the PC. When SOUT outputs a 1, it borrows the negative resting-state voltage of SIN and reflects it back to

SOUT through a 4.7k resistor. When SOUT transmits a 0, it turns on

PNP transistor Q3 to put a +5V level on SOUT. In this way the BS2 outputs +5/–12V RS-232.

Of course, this method works only with the cooperation of the PC software, which must not transmit serial data at the same time the BS2 is transmitting.

The ATN line interfaces with the data-terminal ready (DTR) handshaking line of the PC COM port. Electrically, it works like the SIN line receiver, with a +12V signal at ATN turning on the Q2 transistor, pulling its collector to ground. Q2’s collector is connected to the MCLR

(reset) line of the PBASIC2 interpreter chip, so turning on Q2 resets

U1. During programming, the STAMP2 host program pulses ATN high to reset U1, then transmits a signal to U1 through SIN indicating that it wants to download a new program. Other than when it wants to initiate programming, the STAMP2 host program holds ATN at –12V, allowing U1 to run normally.

Your PBASIC2 programs may use the serial host interface to communicate with PC programs other than the STAMP2 host program. The only requirement is that ATN must be either disconnected or at less than +1V to avoid unintentionally resetting the BS2. See the Serin listing for further information.

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 211

BASIC Stamp II

PC-to-BS2 Connector Hookup

Figure H-2 shows how a DB9 programming connector for the BS2 is wired. This connector allows the PC to reset the BS2 for programming, download programs, and receive Debug data from the BS2. An additional pair of connections, pins 6 and 7 of the DB9 socket, lets the

STAMP2 host software identify the port to which the BS2 is connected.

If you plan to construct your own carrier board or make temporary programming connections to a BS2 on a prototyping board, use this drawing as a guide. If you also want to use this host interface connection to communicate between the BS2 and other PC programs, see the writeup in the Serin listing for suggestions.

Figure H-2

1 2 3 4 5

Rx

Tx

DTR

GND

BS2 Pin (#)

SOUT (1)

SIN (2)

ATN (3)

VSS (4)

DSR

6 7 8 9

RTS

Page 212

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

BS2 Memory Organization

The BS2 has two kinds of memory; RAM for variables used by your program, and EEPROM for storing the program itself. EEPROM may also be used to store long-term data in much the same way that desktop computers use a hard drive to hold both programs and files.

An important distinction between RAM and EEPROM is this:

• RAM loses its contents when the BS2 loses power; when power returns, all RAM locations are cleared to 0s.

• EEPROM retains the contents of memory, with or without power, until it is overwritten (such as during the program-downloading process or with a Write instruction.)

In this section, we’ll look at both kinds of BS2 memory, how it’s organized, and how to use it effectively. Let’s start with RAM.

BS2 Data Memory (RAM)

The BS2 has 32 bytes of RAM. Of these, 6 bytes are reserved for input, output, and direction control of the 16 input/output (I/O) pins. The remaining 26 bytes are available for use as variables.

The table below is a map of the BS2’s RAM showing the built-in PBASIC names.

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 213

BASIC Stamp II

Table M-1. BS2 Memory Map

B8

B9

B10

B11

B12

B13

B14

B15

B16

B17

B18

B19

B20

B21

B22

B23

B24

B25

B0

B1

B2

B3

B4

B5

B6

B7

Word Name Byte Name

INS

OUTS

INL

INH

OUTL

OUTH

DIRS DIRL

DIRH

W0

W1

W2

W3

W4

W5

W6

W7

W8

W9

W10

W11

W12

Stamp II I/O and Variable Space

Nibble Names Bit Names

INA, INB,

INC, IND

IN0 - IN7,

IN8 - IN15

Input pins; word, byte, nibble and bit addressable.

OUTA, OUTB, OUT0 - OUT7, Output pins; word, byte,

OUTC, OUTD OUT8 - OUT15 nibble and bit addressable.

DIRA, DIRB,

DIRC, DIRD

DIR0 - DIR7,

Special Notes

I/O pin direction control;

DIR8 - DIR15 word, byte, nibble and bit addressable.

General Purpose; word, byte, nibble and bit addressable.

General Purpose; word, byte, nibble and bit addressable.

General Purpose; word, byte, nibble and bit addressable.

General Purpose; word, byte, nibble and bit addressable.

General Purpose; word, byte, nibble and bit addressable.

General Purpose; word, byte, nibble and bit addressable.

General Purpose; word, byte, nibble and bit addressable.

General Purpose; word, byte, nibble and bit addressable.

General Purpose; word, byte, nibble and bit addressable.

General Purpose; word, byte, nibble and bit addressable.

General Purpose; word, byte, nibble and bit addressable.

General Purpose; word, byte, nibble and bit addressable.

General Purpose; word, byte, nibble and bit addressable.

The Input/Output (I/O) Variables

As the map shows, the first three words of the memory map are associated with the Stamp’s 16 I/O pins. The word variable INS is unique in that it is read-only. The 16 bits of INS reflect the bits present at Stamp

I/O pins P0 through P15. It may only be read, not written. OUTS con-

Page 214

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II tains the states of the 16 output latches. DIRS controls the direction

(input or output) of each of the 16 pins.

If you are new to devices that can change individual pins between input and output, the INS/OUTS/DIRS trio may be a little confusing, so we’ll walk through the possibilities.

A 0 in a particular DIRS bit makes the corresponding pin, P0 through

P15, an input. So if bit 5 of DIRS is 0, then P5 is an input. A pin that is an input is at the mercy of circuitry outside the Stamp; the Stamp cannot change its state. When the Stamp is first powered up, all memory locations are cleared to 0, so all pins are inputs (DIRS = %0000000000000000).

A 1 in a DIRS bit makes the corresponding pin an output. This means that the corresponding bit of OUTS determines that pin’s state.

Suppose all pins’ DIRS are set to output (1s) and you look at the contents of INS. What do you see? You see whatever is stored in the variable OUTS.

OK, suppose all pins’ DIRS are set to input (0s) and external circuits connected to the pins have them all seeing 0s. What happens to INS if you write 1s to all the bits of OUTS? Nothing. INS will still contain 0s, because with all pins set to input, the external circuitry is in charge.

However, when you change DIRS to output (1s), the bits stored in OUTS will appear on the I/O pins.

These possibilities are summarized in the Figure M-1 below. To avoid making the table huge, we’ll look at only one bit. The rules shown for a single bit apply to all of the I/O bits/pins. Additionally, the external circuitry producing the “external state” listed in the table can be overridden by a Stamp output. For example, a 10k resistor to +5V will place a 1 on an input pin, but if that pin is changed to output and cleared to

0, a 0 will appear on the pin, just as the table shows. However, if the pin is connected directly to +5V and changed to output 0, the pin’s state will remain 1. The Stamp simply cannot overcome a direct short, and will probably be damaged in the bargain.

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 215

BASIC Stamp II

Figure M-1. Interaction of DIRS, INS and OUTS

INS:

0 1 ?

0 1

OUTS:

X X X 0 1

DIRS:

0 0 0 1 1

I/O Pin:

0 1 ?

0 1

External

Circultry:

0 1 ?

X X

The DIRS register controls which I/O pins are inputs and which are outputs.

When set to input (0), the corresponding bit in the OUTS register is disconnected and ignored.

When set to output (1), the corresponding bit in the OUTS register is connected.

NOTE: “X” indicates state could be a 1 or a 0 and does not affect other elements.

“?” indicates state is unknown and could change erratically.

To summarize: DIRS determines whether a pin’s state is set by external circuitry (input, 0) or by the state of OUTS (output, 1). INS always matches the actual states of the I/O pins, whether they are inputs or outputs. OUTS holds bits that will only appear on pins whose DIRS bits are set to output.

In programming the BS2, it’s often more convenient to deal with individual bytes, nibbles or bits of INS, OUTS and DIRS rather than the entire 16-bit words. PBASIC2 has built-in names for these elements, listed below. When we talk about the low byte of these words, we mean the byte corresponding to pins P0 through P7.

Table M-2. Predefined Names for Elements of DIRS, INS and OUTS

DIRS INS OUTS The entire 16-bit word

DIRL

DIRH

DIRA

DIRB

DIRC

DIRD

DIR0

DIR15

INL

INH

INA

INB

OUTL

OUTH

OUTA

OUTB

INC

IND

OUTC

OUTD

IN0 OUT0

...(continues 1 through 14)...

IN15 OUT15

The low byte of the word

The high byte of the word

The low nibble of low byte

The high nibble of low byte

The low nibble of high byte

The high nibble of high byte

The low bit; corresponds to P0

Bits 1 - 14; corresponds to P1 through P14

The high bit; corresponds to P15

Page 216

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

Using the names listed above, you can access any piece of any I/O variables. And as we’ll see in the next section, you can use modifiers to access any piece of any variable.

Predefined “Fixed” Variables

As table M-1 shows, the BS2’s memory is organized into 16 words of

16 bits each. The first three words are used for I/O. The remaining 13 words are available for use as general purpose variables.

Just like the I/O variables, the user variables have predefined names:

W0 through W12 and B0 through B25. B0 is the low byte of W0; B1 is the high byte of W0; and so on through W12 (B24=low byte, B25=high byte).

Unlike I/O variables, there’s no reason that your program variables have to be stuck in a specific position in the Stamp’s physical memory.

A byte is a byte regardless of its location. And if a program uses a mixture of variables of different sizes, it can be a pain in the neck to logically dole them out or allocate storage.

More importantly, mixing fixed variables with automatically allocated variables (discussed in the next section) is an invitation to bugs. A fixed variable can overlap an allocated variable, causing data meant for one variable to show up in another!

We recommend that you avoid using the fixed variables in most situations. Instead, let PBASIC2 allocate variables as described in the next section. The host software will organize your storage requirements to make optimal use of the available memory.

Why have fixed variables at all? First, for a measure of compatibility with the BS1, which has only fixed variables. Second, for power users who may dream up some clever hack that requires the use of fixed variables. You never know...

Defining and Using Variables

Before you can use a variable in a PBASIC2 program you must declare it. “Declare” is jargon for letting the Stamp know that you plan to use a variable, what you want to call it, and how big it is. Although PBASIC

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 217

BASIC Stamp II does have predefined variables that you can use without declaring them first (see previous section), the preferred way to set up variables is to use the directive VAR. The syntax for VAR is:

VAR size symbol where:

Symbol is the name by which you will refer to the variable. Names must start with a letter, can contain a mixture of letters, numbers, and underscore (_) characters, and must not be the same as

PBASIC keywords or labels used in your program. Additionally, symbols can be up to 32 characters long. See Appendix B for a list of PBASIC keywords. PBASIC does not distinguish between upper and lower case, so the names MYVARIABLE, myVariable, and MyVaRiAbLe are all equivalent.

Size establishes the number of bits of storage the variable is to contain. PBASIC2 gives you a choice of four sizes: bit (1 bit) nib (nibble; 4 bits) byte (8 bits) word (16 bits)

Optionally, specifying a number within parentheses lets you define a variable as an array of bits, nibs, bytes, or words. We’ll look at arrays later on.

Here are some examples of variable declarations using VAR:

‘ Declare variables.

mouse var cat var dog rhino var var bit nib byte word

‘ Value can be 0 or 1.

‘ Value in range 0 to 15.

‘ Value in range 0 to 255.

‘ Value in range 0 to 65535.

A variable should be given the smallest size that will hold the largest value that might ever be stored in it. If you need a variable to hold the on/off status (1 or 0) of switch, use a bit. If you need a counter for a

FOR/NEXT loop that will count from 1 to 10, use a nibble. And so on.

Page 218

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

If you assign a value to a variable that exceeds its size, the excess bits will be lost. For example, suppose you use the nibble variable cat from the example above and write cat = 91 (%1011011 binary), what will cat contain? It will hold only the lowest 4 bits of 91—%1011 (11 decimal).

You can also define multipart variables called arrays. An array is a group of variables of the same size, and sharing a single name, but broken up into numbered cells. You can define an array using the following syntax: symbol VAR size(n) where symbol and size are the same as for normal variables. The new element, (n), tells PBASIC how many cells you want the array to have.

For example: myList var byte(10) ‘ Create a 10-byte array.

Once an array is defined, you can access its cells by number. Numbering starts at 0 and ends at n–1. For example: myList(3) = 57 debug ? myList(3)

The debug instruction will display 57. The real power of arrays is that the index value can be a variable itself. For example: myBytes index var var byte(10) nib

‘ Define 10-byte array.

‘ Define normal nibble variable.

For index = 0 to 9

myBytes(index)= index*13

Next

For index = 0 to 9

debug ? myBytes(index)

Next stop

‘ Repeat with index= 0,1,2...9

‘ Write index*13 to each cell of array.

‘ Repeat with index= 0,1,2...9

‘ Show contents of each cell.

If you run this program, Debug will display each of the 10 values stored in the cells of the array: myBytes(0) = 0*13 = 0, myBytes(0) = 1*13 = 13, myBytes(2) = 2*13 = 26...myBytes(9) = 9*13 = 117.

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 219

BASIC Stamp II

A word of caution about arrays: If you’re familiar with other BASICs and have used their arrays, you have probably run into the “subscript out of range” error. Subscript is another term for the index value. It’s

‘out of range’ when it exceeds the maximum value for the size of the array. For instance, in the example above, myBytes is a 10-cell array.

Allowable index numbers are 0 through 9. If your program exceeds this range, PBASIC2 will not respond with an error message. Instead, it will access the next RAM location past the end of the array. This can cause all sorts of bugs.

If accessing an out-of-range location is bad, why does PBASIC2 allow it? Unlike a desktop computer, the BS2 doesn’t always have a display device connected to it for displaying error messages. So it just continues the best way it knows how. It’s up to the programmer (you!) to prevent bugs.

Another unique property of PBASIC2 arrays is this: You can refer to the 0th cell of the array by using just the array’s name without an index value. For example: myBytes var myBytes(0) = 17 debug ? myBytes(0) debug ? myBytes byte(10) ‘ Define 10-byte array.

‘ Store 17 to 0th cell.

‘ Display contents of 0th cell.

‘ Also displays contents of 0th cell.

This works with the string capabilities of the Debug and Serout instructions. A string is a byte array used to store text. A string must include some indicator to show where the text ends. The indicator can be either the number of bytes of text, or a marker (usually a byte containing 0; also known as a null) located just after the end of the text.

Here are a couple of examples:

‘ Example 1 (counted string):

myText var byte(10) myText(0) = “H”:myText(1) = “E” myText(2) = “L”:myText(3) = “L” myText(4) = “0”:myText(9) = 5 debug str myText\myText(9)

‘ An array to hold the string.

‘ Store “HELLO” in first 5 cells...

‘ Put length (5) in last cell*

‘ Show “HELLO” on the PC screen.

Page 220

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

‘ Example 2 (null-terminated string):

myText var byte(10) myText(0) = “H”:myText(1) = “E” myText(2) = “L”:myText(3) = “L” myText(4) = “0”:myText(5) = 0 debug str myText

‘ An array to hold the string.

‘ Store “HELLO” in first 5 cells...

‘ Put null (0) after last character.

‘ Show “HELLO” on the PC screen.

(*Note to experienced programmers: Counted strings normally store the count value in their 0th cell. This kind of string won’t work with the STR prefix of Debug and Serout. STR cannot be made to start reading at cell 1; debug str myText(1) causes a syntax error. Since arrays have a fixed length anyway, it does no real harm to put the count in the last cell.)

Aliases and Variable Modifiers

An alias variable is an alternative name for an existing variable. For example: cat tabby var var nib cat

‘ Assign a 4-bit variable.

‘ Another name for the same 4 bits.

In that example, tabby is an alias to the variable cat. Anything stored in

cat shows up in tabby and vice versa. Both names refer to the same physical piece of RAM. This kind of alias can be useful when you want to reuse a temporary variable in different places in your program, but also want the variable’s name to reflect its function in each place. Use caution, because it is easy to forget about the aliases. During debugging, you’ll end up asking ‘how did that value get here?!’ The answer is that it was stored in the variable’s alias.

An alias can also serve as a window into a portion of another variable.

Here the alias is assigned with a modifier that specifies what part: rhino head tail var var var word rhino.highbyte

rhino.lowbyte

‘ A 16-bit variable.

‘ Highest 8 bits of rhino.

‘ Lowest 8 bits of rhino.

Given that example, if you write the value %1011000011111101 to rhino, then head would contain %10110000 and tail %11111101.

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 221

BASIC Stamp II

BIT3

BIT4

BIT5

BIT6

BIT7

BIT8

BIT9

BIT10

BIT11

BIT12

BIT13

BIT14

BIT15

NIB1

NIB2

NIB3

LOWBIT

HIGHBIT

BIT0

BIT1

BIT2

SYMBOL

LOWBYTE

HIGHBYTE

BYTE0

BYTE1

LOWNIB

HIGHNIB

NIB0

Table M-3 lists all the variable modifiers. PBASIC2 lets you apply these modifiers to any variable name, including fixed variables and I/O variables, and to combine them in any fashion that makes sense. For example, it will allow: rhino eye var var word rhino.highbyte.lownib.bit1

‘ A 16-bit variable.

‘ A bit.

Table M-3. Variable Modifiers

DEFINITION

‘low byte of a word

‘high byte of a word

‘byte 0 (low byte) of a word

‘byte 1 (high byte) of a word

‘low nibble of a word or byte

‘high nibble of a word or byte

‘nib 0 of a word or byte

‘nib 1 of a word or byte

‘nib 2 of a word

‘nib 3 of a word

‘low bit of a word, byte, or nibble

‘high bit of a word, byte, or nibble

‘bit 0 of a word, byte, or nibble

‘bit 1 of a word, byte, or nibble

‘bit 2 of a word, byte, or nibble

‘bit 3 of a word, byte, or nibble

‘bit 4 of a word or byte

‘bit 5 of a word or byte

‘bit 6 of a word or byte

‘bit 7 of a word or byte

‘bit 8 of a word

‘bit 9 of a word

‘bit 10 of a word

‘bit 11 of a word

‘bit 12 of a word

‘bit13 of a word

‘bit14 of a word

‘bit15 of a word

Page 222

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

The commonsense rule for combining modifiers is that they must get progressively smaller from left to right. It would make no sense to specify, for instance, the low byte of a nibble, because a nibble is smaller than a byte! And just because you can stack up modifiers doesn’t mean that you should unless it is the clearest way to express the location of the part you want get at. The example above might be improved: rhino eye var var word rhino.bit9

‘ A 16-bit variable.

‘ A bit.

Although we’ve only discussed variable modifiers in terms of creating alias variables, you can also use them within program instructions.

Example: rhino head var var rhino = 13567 debug ? head debug ? rhino.highbyte

stop word ‘ A 16-bit variable.

rhino.highbyte

‘ Highest 8 bits of rhino.

‘ Show the value of alias variable head.

‘ rhino.highbyte works too.

You’ll run across examples of this usage in application notes and sample programs—it’s sometimes easier to remember one variable name and specify parts of it within instructions than to define and remember names for the parts.

Modifiers also work with arrays; for example: myBytes var myBytes(0) = $AB byte(10) debug hex ? myBytes.lownib(0) debug hex ? myBytes.lownib(1)

‘ Define 10-byte array.

‘ Hex $AB into 0th byte

‘ Show low nib ($B)

‘ Show high nib ($A)

If you looked closely at that example, you probably thought it was a misprint. Shouldn’t myBytes.lownib(1) give you the low nibble of byte

1 of the array rather than the high nibble of byte 0? Well, it doesn’t. The modifier changes the meaning of the index value to match its own size.

In the example above, when myBytes() is addressed as a byte array, it has 10 cells numbered 0 through 9. When it is addressed as a nibble array, using myBytes.lownib() , it has 20 cells numbered 0 through 19.

You could also address it as individual bits using myBytes.lowbit() , in which case it would have 80 cells numbered 0 through 79.

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 223

BASIC Stamp II

What if you use something other than a “low” modifier, say myBytes.highnib() ? That will work, but its only effect will be to start the nibble array with the high nibble of myBytes(0) . The nibbles you address with this nib array will all be contiguous—one right after the other—as in the previous example.

myBytes var byte(10) myBytes(0) = $AB myBytes(1) = $CD debug hex ? myBytes.highnib(0) debug hex ? myBytes.highnib(1)

‘ Define 10-byte array.

‘ Hex $AB into 0th byte

‘ Hex $CD into next byte

‘ Show high nib of cell 0 ($A)

‘ Show next nib ($D)

This property of modified arrays makes the names a little confusing. If you prefer, you can use the less-descriptive versions of the modifier names; bit0 instead of lowbit, nib0 instead of low nib, and byte0 instead of low byte. These have exactly the same effect, but may be less likely to be misconstrued.

You may also use modifiers with the 0th cell of an array by referring to just the array name without the index value in parentheses. It’s fair game for aliases and modifiers, both in VAR directives and in instructions: myBytes zipBit var var debug ? myBytes.lownib

byte(10) myBytes.lowbit

‘ Define 10-byte array.

‘ Bit 0 of myBytes(0).

‘ Show low nib of 0th byte.

Memory Map

If you’re working on a program and wondering how much variable space you have left, you can view a memory map by pressing ALT-M.

The Stamp host software will check your program for syntax errors and, if the program’s syntax is OK, will present you with a color-coded map of the available RAM. You’ll be able to tell at a glance how much memory you have used and how much remains. (You may also press the space bar to cycle through similar maps of EEPROM program memory.)

Two important points to remember about this map are:

Page 224

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

(1) It does not correlate the names of your variables to their locations.

The Stamp software arranges variables in descending order of size, starting with words and working downward to bits. But there’s no way to tell from the memory map exactly which variable is located where.

(2) Fixed variables like B3 and W1 and any aliases you give them do not show up on the memory map as memory used. The Stamp software ignores fixed variables when it arranges automatically allocated variables in memory. Fixed and allocated variables can overlap. As we’ve said before, this can breed some Godzilla-sized bugs!

BS2 Constants and Compile-Time Expressions

Suppose you’re working on a program called “Three Cheers” that flashes LEDs, makes hooting sounds, and activates a motor that crashes cymbals together—all in sets of three. A portion of your PBASIC2 program might contain something like:

FOR count = 1 to 3

GOSUB makeCheers

NEXT

...

FOR count = 1 to 3

GOSUB blinkLEDs

NEXT

...

FOR count = 1 to 3

GOSUB crashCymbals

NEXT

The numbers 1 and 3 in the line FOR count = 1 to 3 ... are called constants. That’s because while the program is running nothing can happen to change those numbers. This distinguishes constants from variables, which can change while the program is running.

PBASIC2 allows you to use several numbering systems. By default, it assumes that numbers are in decimal (base 10), our everyday system of numbers. But you can also use binary and hexadecimal (hex) numbers by identifying them with prefixes. And PBASIC2 will automatically convert quoted text into the corresponding ASCII code(s).

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 225

BASIC Stamp II

For example:

99

%1010

$FE

“A” decimal binary hex

ASCII code for A (65)

You can assign names to constants using the CON directive. Once created, named constants may be used in place of the numbers they represent. For example: cheers con

FOR count = 1 to cheers

GOSUB makeCheers

NEXT

...

3 ‘ Number of cheers.

That code would work exactly the same as the previous FOR/NEXT loops. The Stamp host software would substitute the number 3 for the constant name cheers throughout your program. Note that it would not mess with the label makeCheers, which is not an exact match for cheers. (Like variable names, labels, and instructions, constant names are not case sensitive. CHEERS, and ChEErs would all be processed as identical to cheers.)

Using named constants does not increase the amount of code downloaded to the BS2, and it often improves the clarity of the program.

Weeks after a program is written, you may not remember what a particular number was supposed to represent—using a name may jog your memory (or simplify the detective work needed to figure it out).

Named constants have another benefit. Suppose the “Three Cheers” program had to be upgraded to “Five Cheers.” In the original example you would have to change all of the 3s to 5s. Search and replace would help, but you might accidentally change some 3s that weren’t numbers of cheers, too. A debugging mess! However, if you made smart use of a named constant; all you would have to do is change 3 to 5 in one place, the CON directive: cheers con 5 ‘ Number of cheers.

Page 226

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

Now, assuming that you used the constant cheers wherever your program needed ‘the number of cheers,’ your upgrade would be complete.

You can take this idea a step further by defining constants with expres-

sions—groups of math and/or logic operations that the Stamp host software solves (evaluates) at compile time (the time right after you press ALT-R and before the BS2 starts running your program). For example, suppose the “Cheers” program also controls a pump to fill glasses with champagne. The number of glasses to fill is always twice the number of cheers, minus 1. Another constant: cheers glasses con con

5 cheers*2-1

‘ # of cheers.

‘ # of glasses.

As you can see, one constant can be defined in terms of another. That is, the number glasses depends on the number cheers.

The expressions used to define constants must be kept fairly simple.

The Stamp host software solves them from left to right, and doesn’t allow you to use parentheses to change the order of evaluation. Only nine operators are legal in constant expressions as shown in Table M-4.

This may seem odd, since the BS2’s runtime math operations can be made quite complex with bushels of parentheses and fancy operators, but it’s the way things are. Seriously, it might not make sense to allow really wild math in constant expressions, since it would probably obscure rather than clarify the purpose of the constants being defined.

Table M-4. Operators Allowed in Constant Expressions

|

^

/

<<

>>

&

*

(all operations performed as 16-bit math)

+ add subtract multiply divide shift left shift right logical AND logical OR logical XOR

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 227

BASIC Stamp II

BS2 EEPROM Data Storage

When you press ALT-R (run), your program is loaded into the BS2’s

EEPROM starting at the highest address (2047) and working downward. Most programs don’t use the entire EEPROM, so PBASIC2 lets you store data in the unused lower portion of the EEPROM.

Since programs are stored from the top of memory downward, your data is stored in the bottom of memory working upward. If there’s an overlap, the Stamp host software will detect it and display an error message.

Data directives are used to store data in EEPROM, or to assign a name to an unused stretch of EEPROM (more on that later). For example: table data 72,69,76,76,79

That data directive places a series of numbers into EEPROM memory starting at address 0, like so:

Address:

Contents:

0 1 2 3 4

72 69 76 76 79

Data uses a counter, called a pointer, to keep track of available EEPROM addresses. The value of the pointer is initially 0. When PBASIC2 encounters a Data directive, it stores a byte at the current pointer address, then increments (adds 1 to) the pointer. The name that Data assigns (table in the example above) becomes a constant that is equal to the first value of the pointer; the address of the first of the series of bytes stored by that Data directive. Since the data above starts at 0, the constant table equals 0.

If your program contains more than one Data directive, subsequent

Datas start with the pointer value left by the previous Data. For example, if your program contains: table1 table2 data data

72,69,76,76,79

104,101,108,108,111

Page 228

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

The first Data directive will start at 0 and increment the pointer: 1, 2, 3,

4, 5. The second Data directive will pick up the pointer value of 5 and work upward from there. As a result, the first 10 bytes of EEPROM will contain:

Address:

0 1 2 3 4 5 6 7 8 9

Contents: 72 69 76 76 79 104 101 108 108 111

...and the constants table1 and table2 will be equal to 0 and 5, respectively.

A common use for Data is to store strings; sequences of bytes representing text. As we saw earlier, PBASIC2 converts quoted text like “A” into the corresponding ASCII character code (65 in this case). You can place quotes around a whole chunk of text used in a Data directive, and PBASIC2 will understand it to mean a series of bytes. The following three Data directives are equivalent: table1 table2 table3 data data data

72,69,76,76,79

“H”,”E”,”L”,”L”,”O”

“HELLO”

Data can also break word-sized (16-bit) variables into bytes for storage in the EEPROM. Just precede the 16-bit value with the prefix “word” as follows: twoPiece data word $F562 ‘ Put $62 in low byte, $F5 in high.

Moving the Data Pointer

You can specify a pointer address in your Data directive, like so: greet data @32,”Hello there”

The number following the at sign (@) becomes the initial pointer value, regardless of the pointer’s previous value. Data still automatically increments the pointer value as in previous examples, so Data directives that follow the example above will start at address 43.

Another way to move the pointer is to tell Data to set aside space for a particular number of bytes. For example:

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 229

BASIC Stamp II table1 table2 data data

13,26,117,0,19,56 ‘ Place bytes into EEPROM.

(20) ‘ Move pointer ahead by 20.

The value in parentheses tells Data to move its pointer, but not to store anything in those bytes. The bytes at the addresses starting at table2 could therefore contain leftover data from previous programs. If that’s not acceptable, you can tell Data to fill those bytes up with a particular value: table2 data 0(20) ‘ Fill 20 bytes with 0s.

The previous contents of those 20 EEPROM bytes will be overwritten with 0s.

If you are writing programs that store data in EEPROM at runtime, this is an important concept: EEPROM is not overwritten during programming unless it is (1) needed for program storage, or (2) filled by a Data directive specifying data to be written. A directive like Data

(20) does not change the data stored in the corresponding EEPROM locations.

Page 230

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

BS2 Runtime Math and Logic

The BS2, like any computer, excels at math and logic. However, being designed for control applications, the BS2 does math a little differently than a calculator or spreadsheet program. This section will help you understand BS2 numbers, math, and logic.

Number Representations

In your programs, you may express a number in various ways, depending on how the number will be used and what makes sense to you. By default, the BS2 recognizes numbers like 0, 99 or 62145 as being in our everyday decimal (base-10) system. However, you may also use hexadecimal (base-16; also called hex) or binary (base-2).

Since the symbols used in decimal, hex and binary numbers overlap

(e.g., 1 and 0 are used by all; 0 through 9 apply to both decimal and hex) the Stamp software needs prefixes to tell the numbering systems apart:

99

$1A6

Decimal (no prefix)

Hex

%1101 Binary

The Stamp also automatically converts quoted text into ASCII codes, and allows you to apply names (symbols) to constants from any of the numbering systems. Examples: letterA cheers hex128 fewBits con con con con

"A"

3

$80

%1101

' ASCII code for A (65).

For more information on constants, see the section BS2 Constants and

Compile-Time Expressions.

When is Runtime?

Not all of the math or logic operations in a BS2 program are solved by the BS2. Operations that define constants are solved by the Stamp host software before the program is downloaded to the BS2. This preprocessing before the program is downloaded is referred to as “compile time.” (See the section BS2 Constants and Compile-Time Expressions.)

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 231

BASIC Stamp II

After the download is complete and the BS2 starts executing your program—this is referred to as “runtime.” At runtime the BS2 processes math and logic operations involving variables, or any combination of variables and constants.

Because compile-time and runtime expressions appear similar, it can be hard to tell them apart. A few examples will help: cheers glasses oneNinety noWorkee b1 = glasses b0 = 99 + b1 w1 = oneNinety w1 = 100 + 90 con con con con

3 cheers*2-1

100+90

3*b2

' Compile time.

' Compile time.

' ERROR: no variables allowed.

' Same as b1 = 5.

' Run time.

' 100 + 90 solved at compile time.

' 100 + 90 solved at runtime.

Notice that the last example is solved at runtime, even though the math performed could have been solved at compile time since it involves two constants. If you find something like this in your own programs, you can save some EEPROM space by converting the run-time expression 100+90 into a compile-time expression like oneNinety con 100+90.

To sum up: compile-time expressions are those that involve only constants; once a variable is involved, the expression must be solved at runtime. That’s why the line “noWorkee con 3*b2” would generate an error message. The CON directive works only at compile time, so variables are not allowed.

Order of Operations

Let’s talk about the basic four operations of arithmetic: addition (+), subtraction (-), multiplication (*), and division (/).

You may recall that the order in which you do a series of additions and subtractions doesn’t affect the result. The expression 12+7-3+22 works out the same as 22-3+12+7. Howver, when multiplication or division are involved, it’s a different story; 12+3*2/4 is not the same as 2*12/

4+3. In fact, you may have the urge to put parentheses around portions of those equations to clear things up. Good!

Page 232

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

The BS2 solves math problems in the order they are written—from left to right. The result of each operation is fed into the next operation. So to compute 12+3*2/4, the BS2 goes through a sequence like this:

12 + 3 = 5

5 * 2 = 10

10 / 4 = 2 the answer is 2

Note that because the BS2 performs integer math (whole numbers only) that 10 / 4 results in 2, not 2.5. We’ll talk more about integers in the next section.

Some other dialects of BASIC would compute that same expression based on their precedence of operators, which requires that multiplication and division be done before addition. So the result would be:

3 * 2 = 6

6 / 4 = 1

12 + 1 = 13 the answer is 13

Once again, because of integer math, the fractional portion of 6 / 4 is dropped, so we get 1 instead of 1.5.

Given the potential for misinterpretation, we must use parentheses to make our mathematical intentions clear to the BS2 (not to mention ourselves and other programmers who may look at our program). With parentheses. Enclosing a math operation in parentheses gives it priority over other operations. For example, in the expression 1+(3*4), the

3*4 would be computed first, then added to 1.

To make the BS2 compute the previous expression in the conventional

BASIC way, you would write it as 12 + (3*2/4). Within the parentheses, the BS2 works from left to right. If you wanted to be even more specific, you could write 12 + ((3*2)/4). When there are parentheses within parentheses, the BS2 works from the innermost parentheses outward. Parentheses placed within parentheses are said to be nested.

The BS2 lets you nest parentheses up to eight levels deep.

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 233

BASIC Stamp II

Integer Math

The BS2 performs all math operations by the rules of positive integer math. That is, it handles only whole numbers, and drops any fractional portions from the results of computations. Although the BS2 can interpret two’s complement negative numbers correctly in Debug and Serout instructions using modifiers like SDEC (for signed decimal), in calculations it assumes that all values are positive. This yields correct results with two’s complement negative numbers for addition, subtraction, and multiplication, but not for division.

This subject is a bit too large to cover here. If you understood the preceding paragraph, great. If you didn’t, but you understand that handling negative numbers requires a bit more planning (and probably should be avoided when possible), good. And if you didn’t understand the preceding paragraph at all, you might want to do some supplemental reading on computer-oriented math.

Unary and Binary Operators

In a previous section we discussed the operators you’re already familiar with: +, - ,* and /. These operators all work on two values, as in 1 +

3 or 26*144. The values that operators process are referred to as arguments. So we say that these operators take two arguments.

The minus sign (-) can also be used with a single argument, as in -4.

Now we can fight about whether that’s really shorthand for 0-4 and therefore does have two arguments, or we can say that - has two roles: as a subtraction operator that takes two arguments, and as a negation operator that takes one. Operators that take one argument are called unary operators and those that take two are called binary operators.

Please note that the term “binary operator” has nothing to do with binary numbers—it’s just an inconvenient coincidence that the same word, meaning ‘involving two things’ is used in both cases.

In classifying the BS2’s math and logic operators, we divide them into two types: unary and binary. Remember the previous discussion of operator precedence? Unary operators take precedence over binary— the unary operation is always performed first. For example SQR is the unary operator for square root. In the expression 10 - SQR 16, the BS2 first takes the square root of 16, then subtracts it from 10.

Page 234

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

16-bit Workspace

Most of the descriptions that follow say something like ‘computes (some function) of a 16-bit value.’ This does not mean that the operator does not work on smaller byte or nibble values. It just means that the computation is done in a 16-bit workspace. If the value is smaller than 16 bits, the BS2 pads it with leading 0s to make a 16-bit value. If the 16-bit result of a calculation is to be packed into a smaller variable, the higherorder bits are discarded (truncated).

Keep this in mind, especially when you are working with two’s complement negative numbers, or moving values from a larger variable to a smaller one. For example, look what happens when you move a two’s complement negative number into a byte: b2 = -99 debug sdec ? b2 ' Show signed decimal result (157).

How did -99 become 157? Let’s look at the bits: 99 is %01100011 binary.

When the BS2 negates 99, it converts the number to 16 bits

%0000000001100011, and then takes the two’s complement,

%1111111110011101. Since we’ve asked for the result to be placed in an

8-bit (byte) variable, the upper eight bits are truncated and the lower eight bits stored in the byte: %10011101.

Now for the second half of the story. Debug’s SDEC modifier expects a

16-bit, two’s complement value, but has only a byte to work with. As usual, it creates a 16-bit value by padding the leading eight bits with

0s: %0000000010011101. And what’s that in signed decimal? 157.

Each of the instruction descriptions below includes an example. It’s a good idea to test your understanding of the operators by modifying the examples and seeing whether you can predict the results. Experiment, learn, and work the Debug instruction until it screams for mercy!

The payoff will be a thorough understanding of both the BS2 and computer-oriented math.

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 235

BASIC Stamp II

Unary (one-argument) Operators

Six Unary Operators are listed and explained below.

Operator

Table M-5. Unary Operators

Description

ABS

SQR

DCD

NCD

SIN

COS

Returns absolute value

Returns square root of value

2 n -power decoder

Priority encoder of a 16-bit value

Returns two’s compliment sine

Returns two’s compliment cosine

A B S

Converts a signed (two’s complement) 16-bit number to its absolute value. The absolute value of a number is a positive number representing the difference between that number and 0. For example, the absolute value of -99 is 99. The absolute value of 99 is also 99. ABS can be said to strip off the minus sign from a negative number, leaving positive numbers unchanged.

ABS works on two’s complement negative numbers. Examples of ABS at work: w1 = -99 debug sdec ? w1 w1 = ABS w1 debug sdec ? w1

' Put -99 (two's complement format) into w1.

' Display it on the screen as a signed #.

' Now take its absolute value.

' Display it on the screen as a signed #.

S Q R

Computes the integer square root of an unsigned 16-bit number. (The number must be unsigned, when you think about it, because the square root of a negative number is an ‘imaginary’ number.) Remember that most square roots have a fractional part that the BS2 discards in doing its integer-only math. So it computes the square root of 100 as 10 (correct), but the square root of 99 as 9 (the actual is close to 9.95). Example:

Page 236

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II debug SQR 100 debug SQR 99

' Display square root of 100 (10).

' Display of square root of 99 (9 due to truncation)

D C D

2 n -power decoder of a four-bit value. DCD accepts a value from 0 to

15, and returns a 16-bit number with that bit number set to 1. For example: w1 = DCD 12 debug bin ? w1

' Set bit 12.

' Display result (%0001000000000000)

N C D

Priority encoder of a 16-bit value. NCD takes a 16-bit value, finds the highest bit containing a 1 and returns the bit position plus one (1 through

16). If no bit is set—the input value is 0—NCD returns 0. NCD is a fast way to get an answer to the question “what is the largest power of two that this value is greater than or equal to?” The answer that NCD returns will be that power, plus one. Example: w1 = %1101 debug ? NCD w1

' Highest bit set is bit 3.

' Show the NCD of w1 (4).

-

Negates a 16-bit number (converts to its two’s complement).

w1 = -99 debug sdec ? w1 w1 = ABS w1 debug sdec ? w1

' Put -99 (two's complement format) into w1.

' Display it on the screen as a signed #.

' Now take its absolute value.

' Display it on the screen as a signed #.

~

Complements (inverts) the bits of a number. Each bit that contains a 1 is changed to 0 and each bit containing 0 is changed to 1. This process is also known as a “bitwise NOT.” For example: b1 = %11110001 debug bin ? b1 b1 = ~ b1 debug bin ? b1

' Store bits in byte b1.

' Display in binary (%11110001).

' Complement b1.

' Display in binary (%00001110).

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 237

BASIC Stamp II

S I N

Returns the two’s complement, 8-bit sine of an angle specified as an 8bit (0 to 255) angle. To understand the BS2 SIN operator more completely, let’s look at a typical sine function. By definition: given a circle with a radius of 1 unit (known as a unit circle), the sine is the y-coordinate distance from the center of the circle to its edge at a given angle.

Angles are measured relative to the 3-o'clock position on the circle, increasing as you go around the circle counterclockwise.

At the origin point (0 degrees) the sine is 0, because that point has the same y (vertical) coordinate as the circle center; at 45 degrees, sine is

0.707; at 90 degrees, 1; 180 degrees, 0 again; 270 degrees, -1.

The BS2 SIN operator breaks the circle into 0 to 255 units instead of 0 to

359 degrees. Some textbooks call this unit a binary radian or brad. Each brad is equivalent to 1.406 degrees. And instead of a unit circle, which results in fractional sine values between 0 and 1, BS2 SIN is based on a

127-unit circle. Results are given in two’s complement in order to accommodate negative values. So, at the origin, SIN is 0; at 45 degrees

(32 brads), 90; 90 degrees (64 brads), 127; 180 degrees (128 brads), 0;

270 degrees (192 brads), -127.

To convert brads to degrees, multiply by 180 then divide by 128; to convert degrees to brads, multiply by 128, then divide by 180. Here’s a small program that demonstrates the SIN operator: degr sine var var w1 w2 for degr = 0 to 359 step 45

sine = SIN (degr * 128 / 180)

' Define variables.

' Use degrees.

' Convert to brads, do SIN.

debug "Angle: ",DEC degr,tab,"Sine: ",SDEC sine,cr ' Display.

next

C O S

Returns the two’s complement, 8-bit cosine of an angle specified as an

8-bit (0 to 255) angle. See the explanation of the SIN operator above.

COS is the same in all respects, except that the cosine function returns the x distance instead of the y distance. To demonstrate the COS operator, use the example program from SIN above, but substitute COS for SIN.

Page 238

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

Binary (two-argument) Operators

Sixteen Binary Operators are listed and explaned below.

Operator

Table M-6. Binary Operators

Description

/

//

-

+ Addition

Subtraction

Division

Remainder of division

MAX

DIG

<<

>>

*

**

*/

MIN

|

^

REV

&

Multiplication

High 16-bits of multiplication

Multiply by 8-bit whole and 8-bit part

Limits a value to specified low

Limits a value to specified high

Returns specified digit of number

Shift bits left by specified amount

Shift bits right by specified amount

Reverse specified number of bits

Bitwise AND of two values

Bitwise OR of two values

Bitwise XOR of two values

+

Adds variables and/or constants, returning a 16-bit result. Works exactly as you would expect with unsigned integers from 0 to 65535. If the result of addition is larger than 65535, the carry bit will be lost. If the values added are signed 16-bit numbers and the destination is a

16-bit variable, the result of the addition will be correct in both sign and value. For example, the expression -1575 + 976 will result in the signed value -599. See for yourself:

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 239

BASIC Stamp II w1 = -1575 w2 = 976 w1 = w1 + w2 debug sdec ? w1

' Add the numbers.

' Show the result (-599).

-

Subtracts variables and/or constants, returning a 16-bit result. Works exactly as you would expect with unsigned integers from 0 to 65535. If the result is negative, it will be correctly expressed as a signed 16-bit number. For example: w1 = 1000 w2 = 1999 w1 = w1 - w2 debug sdec ? w1

' Subtract the numbers.

' Show the result (-999).

/

Divides variables and/or constants, returning a 16-bit result. Works exactly as you would expect with unsigned integers from 0 to 65535.

Use / only with positive values; signed values do not provide correct results. Here’s an example of unsigned division: w1 = 1000 w2 = 5 w1 = w1 / w2 debug dec ? w1

' Divide w1 by w2.

' Show the result (200).

A workaround to the inability to divide signed numbers is to have your program divide absolute values, then negate the result if one (and only one) of the operands was negative. All values must lie within the range of -32767 to +32767. Here is an example: sign w1 = 100 w2 = -3200 var sign = w1.bit15 ^ w2.bit15

w2 = abs w2 / abs w1 if sign = 0 then skip0

w2 = -w2 skip0: debug sdec ? w2 bit ' Bit to hold the sign.

' Sign = (w1 sign) XOR (w2 sign).

' Divide absolute values.

' Negate result if one of the

' arguments was negative.

' Show the result (-32)

Page 240

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

//

Returns the remainder left after dividing one value by another. Some division problems don’t have a whole-number result; they return a whole number and a fraction. For example, 1000/6 = 166.667. Integer math doesn’t allow the fractional portion of the result, so 1000/6 = 166.

However, 166 is an approximate answer, because 166*6 = 996. The division operation left a remainder of 4. The // (double-slash) returns the remainder of a given division operation. Naturally, numbers that divide evenly, such as 1000/5, produce a remainder of 0. Example: w1 = 1000 w2 = 6 w1 = w1 // w2 debug dec ? w1

' Get remainder of w1 / w2.

' Show the result (4).

*

Multiplies variables and/or constants, returning the low 16 bits of the result. Works exactly as you would expect with unsigned integers from

0 to 65535. If the result of multiplication is larger than 65535, the excess bits will be lost. Multiplication of signed variables will be correct in both number and sign, provided that the result is in the range -32767 to +32767.

w1 = 1000 w2 = -19 w1 = w1 * w2 debug sdec ? w1

' Multiply w1 by w2.

' Show the result (-19000).

**

Multiplies variables and/or constants, returning the high 16 bits of the result. When you multiply two 16-bit values, the result can be as large as 32 bits. Since the largest variable supported by PBASIC2 is 16 bits, the highest 16 bits of a 32-bit multiplication result are normally lost.

The ** (double-star) instruction gives you these upper 16 bits. For example, suppose you multiply 65000 ($FDE8) by itself. The result is

4,225,000,000 or $FBD46240. The * (star, or normal multiplication)

-instruction would return the lower 16 bits, $6240. The ** instruction returns $FBD4.

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 241

BASIC Stamp II w1 = $FDE8 w2 = w1 ** w1 debug hex ? w2

' Multiply $FDE8 by itself

' Return high 16 bits.

*/

Multiplies variables and/or constants, returning the middle 16 bits of the 32-bit result. This has the effect of multiplying a value by a whole number and a fraction. The whole number is the upper byte of the multiplier (0 to 255 whole units) and the fraction is the lower byte of the multiplier (0 to 255 units of 1/256 each). The */ (star-slash) instruction gives you an excellent workaround for the BS2’s integer-only math.

Suppose you want to multiply a value by 1.5. The whole number, and therefore the upper byte of the multiplier, would be 1, and the lower byte (fractional part) would be 128, since 128/256 = 0.5. It may be clearer to express the */ multiplier in hex—as $0180—since hex keeps the contents of the upper and lower bytes separate. An example: w1 = 100 w1 = w1 */ $0180 debug ? w1

' Multiply by 1.5 [1 + (128/256)]

' Show result (150).

To calculate constants for use with the */ instruction, put the whole number portion in the upper byte, then multiply the fractional part by

256 and put that in the lower byte. For instance, take Pi (

π

, 3.14159). The upper byte would be $03 (the whole number), and the lower would be

0.14159 * 256 = 36 ($24). So the constant Pi for use with */ would be

$0324. This isn’t a perfect match for Pi, but the error is only about 0.1%.

MIN

Limits a value to a specified 16-bit positive minimum. The syntax of

MIN is: value MIN limit

Where:

• value is value to perform the MIN function upon.

• limit is the minimum value that value is allowed to be.

Page 242

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

Its logic is, ‘if value is less than limit, then make value = limit; if value is greater than or equal to limit, leave value alone.’ MIN works in positive math only; its comparisons are not valid when used on two’s complement negative numbers, since the positive-integer representation of a number like -1 ($FFFF or 65535 in unsigned decimal) is larger than that of a number like 10 ($000A or 10 decimal). Use MIN only with unsigned integers. Because of the way fixed-size integers work, you should be careful when using an expression involving MIN 0. For example, 0-1 MIN 0 will result in 65535 because of the way fixed-size integers wrap around.

for w1 = 100 to 0 step -10

debug ? w1 MIN 50 next

MAX

' Walk value of w1 from 100 to 0.

' Show w1, but use MIN to clamp at 50.

Limits a value to a specified 16-bit positive maximum. The syntax of

MAX is: value MAX limit

Where:

• value is value to perform the MAX function upon.

• limit is the maximum value that value is allowed to be.

Its logic is, ‘if value is greater than limit, then make value = limit; if value is less than or equal to limit, leave value alone.’ MAX works in positive math only; its comparisons are not valid when used on two’s complement negative numbers, since the positive-integer representation of a number like -1 ($FFFF or 65535 in unsigned decimal) is larger than that of a number like 10 ($000A or 10 decimal). Use MAX only with unsigned integers. Also be careful of expressions involving MAX

65535. For example 65535 + 1 MAX 65535 will result in 0 because of the way fixed-size integers wrap around.

for w1 = 0 to 100 step 10

debug ? w1 MAX 50 next

' Walk value of w1 from 0 to 100.

' Show w1, but use MAX to clamp at 50.

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 243

BASIC Stamp II

D I G

Returns the specified decimal digit of a 16-bit positive value. Digits are numbered from 0 (the rightmost digit) to 4 (the leftmost digit of a 16bit number; 0 to 65535). Example: w1 = 9742 debug ? w1 DIG 2 for b0 = 0 to 4

debug ? w1 DIG b0 next

' Show digit 2 (7)

' Show digits 0 through 4 of 9742.

< <

Shifts the bits of a value to the left a specified number of places. Bits shifted off the left end of a number are lost; bits shifted into the right end of the number are 0s. Shifting the bits of a value left n number of times also has the effect of multiplying that number by two to the nth power. For instance 100 << 3 (shift the bits of the decimal number 100 left three places) is equivalent to 100 * 2 3 . Example: w1 = %1111111111111111 for b0 = 1 to 16

debug BIN ? w1 << b0 next

' Repeat with b0 = 1 to 16.

' Shift w1 left b0 places.

> >

Shifts the bits of a variable to the right a specified number of places.

Bits shifted off the right end of a number are lost; bits shifted into the left end of the number are 0s. Shifting the bits of a value right n number of times also has the effect of dividing that number by two to the nth power. For instance 100 >> 3 (shift the bits of the decimal number 100 right three places) is equivalent to 100 / 2 3 . Example: w1 = %1111111111111111 for b0 = 1 to 16

debug BIN ? w1 >> b0 next

' Repeat with b0 = 1 to 16.

' Shift w1 right b0 places.

Page 244

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

R E V

Returns a reversed (mirrored) copy of a specified number of bits of a value, starting with the rightmost bit (lsb). For instance, %10101101

REV 4 would return %1011, a mirror image of the first four bits of the value. Example: debug bin ? %11001011 REV 4 ' Mirror 1st 4 bits (%1101)

&

Returns the bitwise AND of two values. Each bit of the values is subject to the following logic:

0 AND 0 = 0

0 AND 1 = 0

1 AND 0 = 0

1 AND 1 = 1

The result returned by & will contain 1s in only those bit positions in which both input values contain 1s. Example: debug bin ? %00001111 & %10101101 ' Show AND result (%00001101)

|

Returns the bitwise OR of two values. Each bit of the values is subject to the following logic:

0 OR 0 = 0

0 OR 1 = 1

1 OR 0 = 1

1 OR 1 = 1

The result returned by | will contain 1s in any bit positions in which one or the other or both input values contain 1s. Example: debug bin ? %00001111 | %10101001 ' Show OR result (%10101111)

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 245

BASIC Stamp II

^

Returns the bitwise XOR of two values. Each bit of the values is subject to the following logic:

0 XOR 0 = 0

0 XOR 1 = 1

1 XOR 0 = 1

1 XOR 1 = 0

The result returned by ^ will contain 1s in any bit positions in which one or the other (but not both) input values contain 1s. Example: debug bin ? %00001111 ^ %10101001 ' Show XOR result (%10100110)

Page 246

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

Branch

BRANCH offset, [address0, address1, ...addressN]

Go to the address specified by offset (if in range).

Offset

is a variable/constant that specifies which of the listed address to go to (0—N).

Addresses

are labels that specify where to go.

Explanation

Branch is useful when you might want to write something like this: if b2 = 0 then case_0 if b2 = 1 then case_1 if b2 = 2 then case_2

' b2=0: go to label "case_0"

' b2=1: go to label "case_1"

' b2=2: go to label "case_2"

You can use Branch to organize this logic into a single statement:

BRANCH b2,[case_0,case_1,case_2]

This works exactly the same as the previous If...Then example. If the value isn’t in range—in this case, if b2 is greater than 2—Branch does nothing and the program continues execution on the next instruction after Branch.

Demo Program

This program shows how the value of the variable pick controls the destination of the Branch instruction.

pick

Branch.

var nib ' Variable to pick destination of for pick = 0 to 3

debug "Pick= ", DEC pick, cr

' Repeat with pick= 0,1,2,3.

' Show value of pick.

BRANCH pick,[zero,one,two] ' Branch based on pick.

debug "Pick exceeded # of items",cr,"in BRANCH list. Fell through!",cr nextPick: next stop zero:

debug "Branched to 'zero.'",cr,cr

goto nextPick one:

debug "Branched to 'one.'",cr,cr

goto nextPick

' Next value of pick.

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 247

BASIC Stamp II two:

debug "Branched to 'two.'",cr,cr

goto nextPick

Page 248

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

Button

BUTTON pin, downstate, delay, rate, bytevariable, targetstate, address

Debounce button input, perform auto-repeat, and branch to address if button is in target state. Button circuits may be active-low or active-high.

Pin

is a variable/constant (0–15) that specifies the I/O pin to use.

This pin will be made an input.

Downstate

is a variable/constant (0 or 1) that specifies which logical state occurs when the button is pressed.

Delay

is a variable/constant (0–255) that specifies how long the button must be pressed before auto-repeat starts. The delay is measured in cycles of the Button routine. Delay has two special settings: 0 and 255. If Delay is 0, Button performs no debounce or auto-repeat. If Delay is 255, Button performs debounce, but no autorepeat.

Rate

is a variable/constant (0–255) that specifies the number of cycles between autorepeats. The rate is expressed in cycles of the

Button routine.

Bytevariable

is the workspace for Button. It must be cleared to 0 before being used by Button for the first time.

Targetstate

is a variable/constant (0 or 1) that specifies which state the button should be in for a branch to occur. (0=not pressed,

1=pressed)

Address

is a label that specifies where to branch if the button is in the target state.

Explanation

When you press a button or flip a switch, the contacts make or break a connection. A brief (1 to 20-ms) burst of noise occurs as the contacts scrape and bounce against each other. Button’s debounce feature prevents this noise from being interpreted as more than one switch action. (For a demonstration of switch bounce, see the demo program for the Count instruction.)

Button also lets PBASIC react to a button press the way your computer keyboard does to a key press. When you press a key, a character immediately appears on the screen. If you hold the key down, there’s a delay, then

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 249

2

BASIC Stamp II a rapid-fire stream of characters appears on the screen. Button’s autorepeat function can be set up to work much the same way.

Button is designed to be used inside a program loop. Each time through the loop, Button checks the state of the specified pin. When it first matches

downstate, Button debounces the switch. Then, in accordance with

targetstate, it either branches to address (targetstate = 1) or doesn’t

(targetstate = 0).

If the switch stays in downstate, Button counts the number of program loops that execute. When this count equals delay, Button once again triggers the action specified by targetstate and address. Hereafter, if the switch remains in downstate, Button waits rate number of cycles between actions.

Button does not stop program execution. In order for its delay and autorepeat functions to work properly, Button must be executed from within a program loop.

Demo Program

Connect the active-low circuit shown in figure I-1 to pin P7 of the BS2.

When you press the button, the Debug screen will display an asterisk (*).

Feel free to modify the program to see the effects of your changes on the way

Button responds.

btnWk btnWk = 0 var byte ' Workspace for BUTTON instruction.

' Clear the workspace variable.

' Try changing the Delay value (255) in BUTTON to see the effect of

' its modes: 0=no debounce; 1-254=varying delays before autorepeat;

' 255=no autorepeat (one action per button press).

Loop:

BUTTON 7,0,255,250,btnWk,0,noPress ' Go to noPress UNLESS..

debug "* " noPress: goto loop

' ..P7 is 0.

' Repeat endlessly.

Figure I-1

+5V +5V

10k to I/O pin to I/O pin

10k active-high

(downstate = 1) active-low

(downstate = 0)

Page 250

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

Count

COUNT pin, period, variable

Count the number of cycles (0-1-0 or 1-0-1) on the specified pin during

period number of milliseconds and store that number in variable.

Pin

is a variable/constant (0–15) that specifies the I/O pin to use.

This pin will be placed into input mode by writing a 0 to the corresponding bit of the DIRS register.

Period

is a variable/constant (1 to 65535) specifying the time in milliseconds during which to count.

Variable

is a variable (usually a word) in which the count will be stored.

Explanation

The Count instruction makes a pin an input, then for the specified number of milliseconds counts cycles on that pin and stores the total in a variable.

A cycle is a change in state from 1 to 0 to 1, or from 0 to 1 to 0.

Count can respond to transitions as fast as 4 microseconds (µs). A cycle consists of two transitions (e.g., 0 to 1, then 1 to 0), so Count can respond to square waves with periods as short as 8 µs; up to 125 kilohertz (kHz) in frequency. For non-square waves (those whose high time and low time are unequal), the shorter of the high and low times must be greater than

4 µs.

If you use Count on slowly-changing analog waveforms like sine waves, you may find that the count value returned is higher than expected. This is because the waveform may pass through the BS2’s 1.5-volt logic threshold slowly enough that noise causes false counts. You can fix this by passing the signal through a Schmitt trigger, like one of the inverters of a 74HCT14.

Demo Program

Connect the active-low circuit shown in figure I-1 (Button instruction) to pin P7 of the BS2. The Debug screen will prompt you to press the button as quickly as possible for a 1-second count. When the count is done, the screen will display your “score,” the total number of cycles registered by count. Note that this score will almost always be greater than the actual number of presses because of switch bounce.

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 251

BASIC Stamp II cycles loop: var word ' Variable to store counted cycles.

debug cls,"How many times can you press the button in 1 second?",cr

pause 1000: debug "Ready, set... ":pause 500:debug "GO!",cr

count 7,1000,cycles

debug cr,"Your score: ", DEC cycles,cr

pause 3000

debug "Press button to go again." hold: if IN7 = 1 then hold goto loop

Page 252

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

Debug

DEBUG outputData{,outputData...}

Display variables and messages on the PC screen within the STAMP2 host program.

OutputData

consists of one or more of the following: text strings, variables, constants, expressions, formatting modifiers, and control characters

Explanation

Debug provides a convenient way for your programs to send messages to the PC screen during programming. The name Debug suggests its most popular use—debugging programs by showing you the value of a variable or expression, or by indicating what portion of a program is currently executing. Debug is also a great way to rehearse programming techniques.

Throughout this instruction guide, we use Debug to give you immediate feedback on the effects of instructions. Let’s look at some examples:

DEBUG "Hello World!" ' Test message.

After you press ALT-R to download this one-line program to the BS2, the

STAMP2 host software will put a Debug window on your PC screen and wait for a response. A moment later, the phrase "Hello World!" will appear. Pressing any key other than space eliminates the Debug window.

Your program keeps executing after the screen is gone, but you can’t see the Debug data. Another example: x

DEBUG dec x var byte: x = 65

' Show decimal value of x.

Since x = 65, the Debug window would display “65.” In addition to decimal, Debug can display values in hexidecimal and binary. See table

I-1 for a complete list of Debug prefixes.

Suppose that your program contained several Debug instructions showing the contents of different variables. You would want some way to tell them apart. Just add a question mark (?) as follows: byte: x = 65 x var

"

DEBUG dec ? x ' Show decimal value of x with label "x =

Now Debug displays “x = 65.” Debug works with expressions, too:

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 253

BASIC Stamp II x var

DEBUG dec ? 2*(x-1) byte: x = 65

' Show decimal result with "2*(x-1) = "

The Debug window would display "2*(x-1) = 128." If you omit the ?, the display would be just “128.” If you tell Debug to display a value without formatting it as a number, you get the ASCII character equivalent of the value: x var byte: x = 65

DEBUG x ' Show x as ASCII.

Since x = 65, and 65 is the ASCII character code for the letter A (see appendix), the Debug window would show A. Up to now, we’ve shown

Debug with just one argument, but you can display additional items by adding them to the Debug list, separated by commas: x var byte: x = 65

DEBUG "The ASCII code for A is: ", dec x ' Show phrase, x.

Since individual Debug instructions can grow to be fairly complicated, and since a program can contain many Debugs, you’ll probably want to control the formatting of the Debug screen. Debug supports six formatting characters:

Symbol

CLS

HOME

BELL

BKSP

TAB

CR

Value Effect

0

1

7

8

9 clear Debug screen home cursor to top left corner of screen beep the PC speaker back up one space tab to the next multiple-of-8 text column

13 carriage return to the beginning of the next line

Try the example below with and without the CR at the end of the first

Debug:

Debug "A carriage return",CR

Debug "starts a new line"

Technical Background

Debug is actually a special case of the Serout instruction. It is set for inverted (RS-232-compatible) serial output through the BS2 programming connector (SOUT on the BS2-IC) at 9600 baud, no parity, 8 data bits, and 1 stop bit. You may view Debug output using a terminal program set to these parameters, but you must modify either your carrier board or the

Page 254

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II serial cable to temporarily disconnect pin 3 of the BS2-IC (pin 4 of the DB-

9 connector). The reason is that the STAMP2 host software uses this line to reset the BS2 for programming, while terminal software uses the same line to signal “ready” for serial communication.

If you make this modification, be sure to provide a way to reconnect pin

3 of the BS2-IC to pin 4 of the DB-9 connector for reprogramming. With these pins disconnected, the STAMP2 host software will not be able to download new programs.

Demo Program

This demo shows the letters of the alphabet and their corresponding

ASCII codes. A brief pause slows the process down a little so that it doesn’t go by in a blur. You can freeze the display while the program is running by pressing the space bar.

letter var byte

Debug "ALPHABET -> ASCII CHART",BELL,CR,CR for letter = "A" to "Z"

Debug "Character: ", letter, tab, "ASCII code: ",dec letter, cr

pause 200 next

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 255

BASIC Stamp II

Modifier

ASC?

DEC {1..5}

SDEC {1..5}

HEX {1..4}

SHEX {1..4}

IHEX {1..4}

ISHEX {1..4}

BIN {1..16}

SBIN {1..16}

IBIN {1..16}

ISBIN {1..16}

STR bytearray

STR bytearray\n

REP byte\n

Table I-1. Debug Modifiers

Effect

Displays "variablename = 'character'" + carriage return; where character is an ASCII character.

Decimal text, optionally fixed for 1 to 5 digits

Signed decimal text, optionally fixed for 1 to 5 digits

Hexadecimal text, optionally fixed for 1 to 4 digits

Signed hex text, optionally fixed for 1 to 4 digits

Indicated hex text ($ prefix; e.g., $7A3), optionally fixed for 1 to 4 digits

Indicated signed hex text, optionally fixed for 1 to

4 digits

Binary text, optionally fixed for 1 to 16 digits

Signed binary text, optionally fixed for 1 to 16 digits

Indicated binary text (% prefix; e.g., %10101100), optionally fixed for 1 to 16 digits

Indicated signed binary text, optionally fixed for 1 to

16 digits

Display an ASCII string from bytearray until byte = 0.

Display an ASCII string consisting of n bytes from bytearray.

Display an ASCII string consisting of byte repeated n times (e.g., REP "X"\10 sends XXXXXXXXXX).

Notes

1

1, 2

1

1, 2

1

1, 2

1

1, 2

1, 2

1, 2

NOTES:

(1) Fixed-digit modifiers like DEC4 will pad text with leading 0s if necessary; e.g.,

DEC4 65 sends 0065. If a number is larger than the specified number of digits, the leading digits will be dropped; e.g., DEC4 56422 sends 6422.

(2) Signed modifiers work under two’s complement rules, same as PBASIC2 math.

Value must be no less than a word variable in size.

Page 256

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

DTMFout

DTMFOUT pin,{ontime,offtime,}{,tone...}

Generate dual-tone, multifrequency tones (DTMF, i.e., telephone “touch” tones).

Pin

is a variable/constant (0–15) that specifies the I/O pin to use.

This pin will be put into output mode temporarily during generation of tones. After tone generation is complete, the pin is left in input mode, even if it was previously an output.

Ontime

is an optional entry; a variable or constant (0 to 65535) specifying a duration of the tone in milliseconds. If ontime is not specified, DTMFout defaults to 200 ms on.

Offtime

is an optional entry; a variable or constant (0 to 65535) specifying the length of silent pause after a tone (or between tones, if multiple tones are specified). If offtime is not specified, DTMFout defaults to 50 ms off.

Tone

is a variable or constant (0—15) specifying the DTMF tone to send. Tones 0 through 11 correspond to the standard layout of the telephone keypad, while 12 through 15 are the fourth-column tones used by phone test equipment and in ham-radio applications.

0—9

10

11

12—15

Digits 0 through 9

Star (*)

Pound (#)

Fourth column tones A through D

Explanation

DTMF tones are used to dial the phone or remotely control certain radio equipment. The BS2 can generate these tones digitally using the DTMFout instruction. Figure I-2 shows how to connect a speaker or audio amplifier to hear these tones; figure I-3 shows how to connect the BS2 to the phone line. A typical DTMFout instruction to dial a phone through pin 0 with the interface circuit of figure I-3 would look like this:

DTMFOUT 0,[6,2,4,8,3,3,3] ' Call Parallax.

That instruction would be equivalent to dialing 624-8333 from a phone keypad. If you wanted to slow the pace of the dialing to accommodate a

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 257

BASIC Stamp II noisy phone line or radio link, you could use the optional ontime and

offtime values:

DTMFOUT 0,500,100,[6,2,4,8,3,3,3] ' Call Parallax, slowly.

In that instruction, ontime is set to 500 ms (1/2 second) and offtime to 100 ms (1/10th second).

Technical Background

The BS2’s controller is a purely digital device. DTMF tones are analog waveforms, consisting of a mixture of two sine waves at different audio frequencies. So how does a digital device generate analog output? The BS2 creates and mixes the sine waves mathematically, then uses the resulting stream of numbers to control the duty cycle of a very fast pulse-width modulation (PWM) routine. So what’s actually coming out of the BS2 pin is a rapid stream of pulses. The purpose of the filtering arrangements shown in the schematics of figures I-2 and I-3 is to smooth out the highfrequency PWM, leaving only the lower frequency audio behind.

Keep this in mind if you want to interface BS2 DTMF output to radios and other equipment that could be adversely affected by the presence of highfrequency noise on the input. Make sure to filter the DTMF output thoroughly. The circuits shown here are only a starting point; you may want to use an active low-pass filter with a roll-off point around 2 kHz.

Demo Program

This demo program is a rudimentary memory dialer. Since DTMF digits fit within a nibble (four bits), the program below packs two DTMF digits into each byte of three EEPROM data tables. The end of a phone number

Figure I-2

Driving an Audio Amplifier

I/O pin

1k

0.1

µ

F

1k

0.01

µ

F

Amplifier

(e.g., Radio Shack

277-1008C)

I/O pin

Driving a Speaker

+

C1

10

µ

F (both)

+

C2

40

Speaker

(or 8

in series with 33

resistor)

Notes:

C1 may be omitted for piezo speakers

C2 is optional, but reduces high-frequency noise

Page 258

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

Figure I-3

Interfacing to the Telephone Line

connect switch (or relay contacts)

600-600

Ω transformer

(JC: 117760)

1k 0.1

µ

F

I/O pin phone line

(red and green)

10

(both)

270V “Sidactor”

(DK: P3000AA61-ND

P3000AA61-ND)

Parts Sources

Digi-Key (DK), 1-800-344-4539 or 218-681-6674

3.9V zeners (both)

DK: 1N5228BCT-ND

Jameco (JC), 1-800-831-4242 or 415-592-8097

0.001

µ

F is marked by the nibble $F, since this is not a valid phone-dialing digit.

EEloc var

EEbyte var

DTdigit var phone var hiLo var byte byte

EEbyte.highnib

nib bit

' EEPROM address of stored number.

' Byte containing two DTMF digits.

' Digit to dial.

' Pick a phone #.

' Bit to select upper and lower nibble.

Scott

Chip

Info data $45,$94,$80,$2F ' Phone: 459-4802 data $19,$16,$62,$48,$33,$3F ' Phone: 1-916-624-8333 data $15,$20,$55,$51,$21,$2F ' Phone: 1-520-555-1212 for phone = 0 to 2

lookup phone,[Scott,Chip,Info],EEloc dial:

read EEloc,EEbyte

for hiLo = 0 to 1

if DTdigit = $F then done

DTMFout 0,[DTdigit]

EEbyte = EEbyte << 4

next

EEloc = EEloc+1

goto dial done:

pause 2000

Wait a couple of seconds.

next stop

' Dial each phone #.

' Get location of # in EEPROM.

' Retrieve byte from EEPROM.

' Dial upper and lower digits.

' Hex $F is end-of-number flag

' Dial digit.

' Shift in next digit.

' Next pair of digits.

' Keep dialing until done ($F in DTdigit).

' This number is done.

' Dial next phone number.

'

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 259

BASIC Stamp II

End

END

End the program, placing the BS2 in a low-power mode.

Explanation

End puts the BS2 into its inactive, low-power mode. In this mode the BS2’s current draw (exclusive of loads driven by the I/O pins) is approximately

50µA.

End keeps the BS2 inactive until the reset button is pushed or the power is cycled off and back on.

Just as during Sleep intervals, pins will retain their input or output settings after the BS2 is deactivated by End. So if a pin is driving a load when End occurs, it will continue to drive that load after End. However, at approximate 2.3-second intervals, output pins will disconnect (go into input mode) for a period of approximately 18 ms. Then they will revert to their former states.

For example, if the BS2 is driving an LED on when End executes, the LED will stay lit after end. But every 2.3 seconds, there will be a visible wink of the LED as the output pin driving it disconnects for 18 ms.

Page 260

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

For...Next

FOR variable = start to end {STEP stepVal} ... NEXT

Create a repeating loop that executes the program lines between For and

Next, incrementing or decrementing variable according to stepVal until the value of the variable passes the end value.

Variable

is a bit, nib, byte or word variable used as a counter.

Start

is a variable or constant that specifies the initial value of the variable.

End

is a variable or constant that specifies the end value of the variable. When the value of the variable passes end, the For...Next

loop stops executing and the program goes on to the instruction after Next.

StepVal

is an optional variable or constant by which the variable increases or decreases with each trip through the For/Next loop.

If start is larger than end, PBASIC2 understands stepVal to be negative, even though no minus sign is used.

Explanation

For...Next loops let your program execute a series of instructions for a specified number of repetitions. In simplest form: reps var nib

FOR reps = 1 to 3

debug "*"

NEXT

' Counter for the FOR/NEXT loop.

' Repeat with reps = 1, 2, 3.

' Each rep, put one * on the screen.

Each time the For...Next loop above executes, the value of reps is updated.

See for yourself: reps var nib

FOR reps = 1 to 10

debug dec ? reps

NEXT

' Counter for the FOR/NEXT loop.

' Repeat with reps = 1, 2... 10.

' Each rep, show values of reps.

For...Next can also handle cases in which the start value is greater than the end value. It makes the commonsense assumption that you want to count down from start to end, like so: reps var nib

FOR reps = 10 to 1

debug dec ? reps

NEXT

' Counter for the FOR/NEXT loop.

' Repeat with reps = 10, 9...1.

' Each rep, show values of reps.

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 261

2

BASIC Stamp II

If you want For...Next to count by some amount other than 1, you can specify a stepVal. For example, change the previous example to count down by 3:

' reps var nib

Counter for the FOR/NEXT loop.

FOR reps = 10 to 1 STEP 3

debug dec ? reps

NEXT

' Repeat with reps = 10, 7...1.

' Each rep, show values of reps.

Note that even though you are counting down, stepVal is still positive.

For...Next takes its cue from the relationship between start and end, not the sign of stepVal. In fact, although PBASIC2 won’t squawk if you use a negative entry for stepVal, its positive-integer math treats these values as large positive numbers. For example, –1 in two’s complement is 65535. So the following code executes only once: reps var word

FOR reps = 1 to 10 STEP -1

65535

debug dec ? reps

NEXT

' Counter for the FOR/NEXT loop.

' Actually FOR reps = 1 to 10 step

' Executes only once.

This brings up a good point: the instructions inside a For...Next loop always execute once, no matter what start, end and stepVal values are assigned.

There is a potential bug that you should be careful to avoid. PBASIC uses unsigned 16-bit integer math to increment/decrement the counter variable and compare it to the stop value. The maximum value a 16-bit variable can hold is 65535. If you add 1 to 65535, you get 0 as the 16-bit register rolls over (like a car’s odometer does when you exceed the maximum mileage it can display).

If you write a For...Next loop whose step value is larger than the difference between the stop value and 65535, this rollover will cause the loop to execute more times than you expect. Try the following example: reps var word

FOR reps = 0 to 65500 STEP 3000

debug dec ? reps

NEXT

' Counter for the loop.

' Each loop add 3000.

' Show reps in debug window.

' Again until reps>65500.

The value of reps increases by 3000 each trip through the loop. As it approaches the stop value, an interesting thing happens: 57000, 60000,

Page 262

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

63000, 464, 3464... It passes the stop value and keeps going. That’s because the result of the calculation 63000 + 3000 exceeds the maximum capacity of a 16-bit number. When the value rolls over to 464, it passes the test “Is w1 > 65500?” used by Next to determine when to end the loop.

Demo Program

Here’s an example that uses a For...Next loop to churn out a series of sequential squares (numbers 1, 2, 3, 4... raised to the second power) by using a variable to set the For...Next stepVal, and incrementing stepVal within the loop. Sir Isaac Newton is generally credited with the discovery of this technique.

square squares.

stepSize each loop.

var var byte byte

' For/Next counter and series of

' Step size, which will increase by 2 stepSize = 1: square = 1 for square = 1 to 250 step stepSize

debug dec ? square

stepSize = stepSize +2 next

' Show squares up to 250.

' Display on screen.

' Add 2 to stepSize

' Loop til square > 250.

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 263

BASIC Stamp II

Freqout

FREQOUT pin, duration, freq1{,freq2}

Generate one or two sine-wave tones for a specified duration.

Pin

is a variable/constant (0–15) that specifies the I/O pin to use.

This pin will be put into output mode during generation of tones and left in that state after the instruction finishes.

Duration

is a variable/constant specifying the length in milliseconds

(1 to 65535) of the tone(s).

Freq1

is a variable/constant specifying frequency in hertz (Hz, 0 to 32767) of the first tone.

Freq2

is a variable/constant specifying frequency (0 to 32767 Hz) of the optional second tone

Explanation

Freqout generates one or two sinewaves using fast PWM. The circuits shown in figure I-4 filter the PWM in order to play the tones through a speaker or audio amplifier. Here’s an example Freqout instruction:

FREQOUT 2,1000,2500

This instruction generates a 2500-Hz tone for 1 second (1000 ms) through pin 2. To play two frequencies:

FREQOUT 2,1000,2500,3000

The frequencies mix together for a chord- or bell-like sound. To generate a silent pause, specify frequency value(s) of 0.

Frequency Considerations

The circuits in figure I-4 work by filtering out the high-frequency PWM used to generate the sinewaves. Freqout works over a very wide range of frequencies from 0 to 32767 Hz, so at the upper end of its range, those PWM filters will also filter out most of the desired frequency. You may find it necessary to reduce values of the parallel capacitors shown in the circuit, or to devise a custom active filter for your application.

Demo Program

This program plays “Mary Had a Little Lamb” by reading the notes from a Lookup table. To demonstrate the effect of mixing sine waves, the first

Page 264

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

Figure I-4

I/O pin

Driving an Audio Amplifier

1k

0.1

µ

F

1k

0.01

µ

F

Amplifier

(e.g., Radio Shack

277-1008C)

I/O pin

Driving a Speaker

+

C1

10

µ

F (both)

+

C2

40

Speaker

(or 8

in series with 33

resistor)

Notes:

C1 may be omitted for piezo speakers

C2 is optional, but reduces high-frequency noise

E

G

R f i

C

D frequency is the musical note itself, while the second is 8 Hz lower. When sines mix, sum and difference frequencies are generated. The difference frequency imposes an 8-Hz quiver (vibrato) on each note. Subtracting 8 from the note frequency poses a problem when the frequency is 0, because the BS2’s positive-integer math wraps around to 65530. Freqout would ignore the highest bit of this value and generate a frequency of 32762 Hz rather than a truly silent pause. Although humans can’t hear 32762 Hz, slight imperfections in filtering will cause an audible noise in the speaker.

To clean this up we use the expression “(f-8) max 32768,” which changes

65530 to 32768. Freqout discards the highest bit of 32768, which results in 0, the desired silent pause.

var var con con con con con byte word

523

587

659

784

0

' Counter for position in tune.

' Frequency of note for Freqout.

' C note.

' D note

' E note

' G note

' Silent pause (rest).

for i = 0 to 28 ' Play the 29 notes of the Lookup table.

lookup i,[E,D,C,D,E,E,E,R,D,D,D,R,E,G,G,R,E,D,C,D,E,E,E,E,D,D,E,D,C],f

FREQOUT 0,350,f,(f-8) max 32768 next stop

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 265

BASIC Stamp II

Gosub

GOSUB addressLabel

Store the address of the next instruction after Gosub, then go to the point in the program specified by addressLabel.

AddressLabel

is a label that specifies where to go.

Explanation

Gosub is a close relative of Goto. After Gosub, the program executes code beginning at the specified address label. (See the entry on Goto for more information on assigning address labels) Unlike Goto, Gosub also stores the address of the instruction immediately following itself. When the program encounters a Return instruction, it interprets it to mean “go to the instruction that follows the most recent Gosub.”

Up to 255 Gosubs are allowed per program, but they may be nested only four deep. In other words, the subroutine that’s the destination of a

Gosub can contain a Gosub to another subroutine, and so on, to a maximum depth (total number of Gosubs before the first Return) of four. Any deeper, and the program will never find its way back to the starting point—the instruction following the very first Gosub.

When Gosubs are nested, each Return takes the program back to the instruction after the most-recent Gosub.

If a series of instructions is used at more than one point in your program, you can conserve program memory by turning those instructions into a subroutine. Then, wherever you would have had to insert that code, you can simply write Gosub label (where label is the name of your subroutine). Writing subroutines is like adding new commands to PBASIC.

You can avoid a potential bug in using subroutines by making sure that your program cannot wander into them without executing a Gosub. In the demo program, what would happen if the stop instruction were removed? After the loop finished, execution would continue in pickAnumber. When it reached Return, the program would jump back into the middle of the For...Next loop because this was the last return address assigned. The For...Next loop would execute indefinitely.

Page 266

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

Demo Program

This program is a guessing game that generates a random number in a subroutine called pickAnumber. It is written to stop after three guesses.

To see a common bug associated with Gosub, delete or comment out the line beginning with Stop after the For/Next loop. This means that after the loop is finished, the program will wander into the pickAnumber subroutine. When the Return at the end executes, the program will go back to the last known return address in the middle of the For/Next loop. This will cause the program to execute endlessly. Make sure that your programs can’t accidentally execute subroutines!

rounds numGen var var

(must be 16 bits).

myNum var nib word nib for rounds = 1 to 3

debug cls,"Pick a number from 1 to 10",cr

GOSUB pickAnumber

pause 2000

debug "My number was: ", dec myNum

pause 2000 next stop here.

' Number of reps.

' Random-number generator

' Random number, 1-10.

' Go three rounds.

' Get a random number, 1-10.

' Dramatic pause.

' Show the number.

' Another pause.

' When done, stop execution

' Random-number subroutine. A subroutine is just a piece of code

' with the Return instruction at the end. The proper way to use

' a subroutine is to enter it through a Gosub instruction. If

' you don't, the Return instruction won't have the correct

' return address, and your program will have a bug!

pickAnumber:

random numGen

myNum = numGen/6550 min 1 return here.

' Stir up the bits of numGen.

' Scale to fit 1-10 range.

' Go back to the 1st instruction

' after the GOSUB that got us

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 267

BASIC Stamp II

Goto

GOTO addressLabel

Go to the point in the program specified by addressLabel.

AddressLabel is a label that specifies where to go.

Explanation

Programs execute from the top of the page (or screen) toward the bottom, and from left to right on individual lines; just the same way we read and write English. Goto is one of the instructions that can change the order in which a program executes by forcing it to go to a labeled point in the program.

A common use for Goto is to create endless loops; programs that repeat a group of instructions over and over.

Goto requires an address label for a destination. A label is a word starting with a letter, containing letters, numbers, or underscore (_) characters, and ending with a colon. Labels may be up to 32 characters long.

Labels must not duplicate names of PBASIC2 instructions, or variables, constants or Data labels, refer to Appendix B for a list of reserved words.

Labels are not case-sensitive, so doItAgain, doitagain and DOitAGAIN all mean the same thing to PBASIC. Don’t worry too much about the rules for devising labels; PBASIC will complain with an error message at download time if it doesn’t like your labels.

Demo Program

This program is an endless loop that sends a Debug message to your computer screen. Although you can clear the screen by pressing a key, the BS2 program itself won’t stop unless you shut it off.

doItAgain:

debug "Looping...",cr

GOTO doItAgain

Page 268

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

High

HIGH pin

Make the specified pin output high (write 1s to the corresponding bits of both DIRS and OUTS).

Pin is a variable/constant (0–15) that specifies the I/O pin to use.

Explanation

In order for the BS2 to actively output a 1 (a +5-volt level) on one of its pins, two conditions must be satisfied:

(1) The corresponding bit of the DIRS variable must contain a 1 in order to connect the pin’s output driver.

(2) The corresponding bit of the OUTS variable must contain a 1.

High performs both of these actions with a single, fast instruction.

Demo Program

This program shows the bitwise state of the DIRS and OUTS variables before and after the instruction High 4. You may also connect an LED to pin P4 as shown in figure I-5 to see it light when the High instruction executes.

debug "Before: ",cr debug bin16 ? dirs,bin16 ? outs,cr,cr pause 1000

HIGH 4 debug "After: ",cr debug bin16 ? dirs,bin16 ? outs

Figure I-5

I/O pin

LED

220

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 269

BASIC Stamp II

If...Then

IF condition THEN addressLabel

Evaluate condition and, if true, go to the point in the program marked by addressLabel.

Condition is a statement, such as “x = 7” that can be evaluated as true or false.

AddressLabel is a label that specifies where to go in the event that the condition is true.

Explanation

If...Then is PBASIC’s decision maker. It tests a condition and, if that condition is true, goes to a point in the program specified by an address label. The condition that If...Then tests is written as a mixture of comparison and logic operators. The comparison operators are:

=

<>

>

<

>=

<= equal not equal greater than less than greater than or equal to less than or equal to

The values to be compared can be any combination of variables (any size), constants, or expressions. All comparisons are performed using unsigned, 16-bit math. An example: aNumber var byte aNumber = 99

IF aNumber < 100 THEN isLess debug "greater than or equal to 100" stop isLess: debug "less than 100" stop

When you run that code, Debug shows, “less than 100.” If...Then evaluated the condition “aNumber < 100” and found it to be true, so it

Page 270

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II redirected the program to the label after Then, “isLess.” If you change

“aNumber = 99” to “aNumber = 100” the other message, “greater than or equal to 100,” will appear instead. The condition “aNumber < 100” is false if aNumber contains 100 or more. The values compared in the

If...Then condition can also be expressions:

Number1

Number2

Number1 = 99

Number2 = 30 var var byte byte

IF Number1 = Number2 * 4 - 20 THEN equal debug "not equal" stop equal: debug "equal" stop

Since Number2 * 4 - 20 = (30 x 4) - 20 = 100, the message “not equal” appears on the screen, Changing that expression to Number2 * 4 - 21 would get the “equal” message.

Beware of mixing signed and unsigned numbers in If...Then comparisons. Watch what happens when we change our original example to include a signed number (–99):

IF -99 < 100 THEN isLess debug "greater than or equal to 100" stop isLess: debug "less than 100" stop

Although –99 is obviously less than 100, the program says it is greater.

The problem is that –99 is internally represented as the two’s complement value 65437, which (using unsigned math) is greater than 100.

Don’t mix signed and unsigned values in If...Then comparisons.

Logic Operators

If...Then supports the logical operators NOT, AND, OR, and XOR. NOT inverts the outcome of a condition, changing false to true, and true to

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 271

BASIC Stamp II false. The following If...Thens are equivalent:

IF x <> 100 THEN notEqual

IF NOT x=100 THEN notEqual

' Goto notEqual if x is not 100.

' Goto notEqual if x is not 100.

The operators AND, OR, and XOR join the results of two conditions to produce a single true/false result. AND and OR work the same as they do in everyday speech. Run the example below once with AND (as shown) and again, substituting OR for AND: b1 = 5 b2 = 9

IF b1 = 5 AND b2 = 10 THEN True debug "Statement was not true." stop

' Change AND to OR and see

' what happens.

True: debug "Statement was true." stop

The condition “b1 = 5 AND b2 = 10” is not true. Although b1 is 5, b2 is not 10. AND works just as it does in English—both conditions must be true for the statement to be true. OR also works in a familiar way; if one or the other or both conditions are true, then the statement is true. XOR

(short for exclusive-OR) may not be familiar, but it does have an English counterpart: If one condition or the other (but not both) is true, then the statement is true.

Table I-2 below summarizes the effects of the logical operators. As with math, you can alter the order in which comparisons and logical operations are performed by using parentheses. Operations are normally evaluated left-to-right. Putting parentheses around an operation forces

PBASIC2 to evaluate it before operations not in parentheses.

Page 272

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

Table I-2. Effects of the Logical Operators Used by If...Then

Condition A NOT A

false true true false

Condition A Condition B A AND B

false false false false true true true false true false false true

Condition A Condition B A OR B

false false false false true true true false true true true true

Condition A Condition B A XOR B

false false false false true true true false true true true false

Unlike some versions of the If...Then instruction, PBASIC’s If...Then can only go to a label as the result of a decision. It cannot conditionally perform some instruction, as in “IF x < 20 THEN y = y + 1.” The PBASIC version requires you to invert the logic using NOT and skip over the conditional instruction unless the condition is met:

IF NOT x < 20 THEN noInc

Don't increment y unless x < 20.

y = y + 1 noInc: ...

' Increment y if x < 20.

' Program continues.

'

You can also code a conditional Gosub, as in “IF x = 100 THEN GOSUB centennial.” In PBASIC:

IF NOT x = 100 then noCent

gosub centennial noCent: ...

' IF x = 100 THEN gosub centennial.

' Program continues.

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 273

BASIC Stamp II

Internal Workings and Potential Bugs

Internally, the BS2 defines “false” as 0 and “true” as any value other than 0. Consider the following instructions: flag flag = 1 var

IF flag THEN isTrue debug "false" stop bit isTrue: debug "true" stop

Since flag is 1, If...Then would evaluate it as true and print the message

“true” on the screen. Suppose you changed the If...Then instruction to read “IF NOT flag THEN isTrue.” That would also evaluate as true.

Whoa! Isn’t NOT 1 the same thing as 0? No, at least not in the 16-bit world of the BS2.

Internally, the BS2 sees a bit variable containing 1 as the 16-bit number

%0000000000000001. So it sees the NOT of that as %1111111111111110.

Since any non-zero number is regarded as true, NOT 1 is true. Strange but true.

The easiest way to avoid the kinds of problems this might cause is to always use a conditional operator with If...Then. Change the example above to read IF flag=1 THEN isTrue. The result of the comparison will follow If...Then rules. And the logical operators will work as they should;

IF NOT flag=1 THEN isTrue will correctly evaluate to false when flag contains 1.

This also means that you should only use the named logic operators

NOT, AND, OR, and XOR with If...Then. These operators format their results correctly for If...Then instructions. The other logical operators, represented by symbols ~ & | and ^ do not.

Demo Program

The program below generates a series of 16-bit random numbers and tests each to determine whether they’re divisible by 3. (A number is di-

Page 274

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II visible by another if the remainder from division, determined by the // operator, is 0.) If a number is divisible by 3, then it is printed, otherwise, the program generates another random number. The program counts how many numbers it prints, and quits when this number reaches 10.

sample samps var var mul3:

random sample word nib

IF NOT sample//3 = 0 THEN mul3

' Random number to be tested.

' Number of samples taken.

' Put a random number into sample.

' Not multiple of 3? Try again.

debug dec sample," is divisible by 3.",cr ' Print message.

samps = samps + 1 ' Count multiples of 3.

IF samps = 10 THEN done goto mul3

' Quit with 10 samples.

done: debug cr,"All done." stop

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 275

BASIC Stamp II

Input

INPUT pin

Make the specified pin an input (write a 0 to the corresponding bit of

DIRS).

Pin is a variable/constant (0–15) that specifies the I/O pin to use.

Explanation

There are several ways to make a pin an input. When a program begins, all of the BS2’s pins are inputs. Input instructions (Pulsin, Serin) automatically change the specified pin to input and leave it in that state.

Writing 0s to particular bits of the variable DIRS makes the corresponding pins inputs. And then there’s the Input instruction.

When a pin is an input, your program can check its state by reading the corresponding INS variable. For example:

INPUT 4

Hold: if IN4 = 0 then Hold ' Stay here until P4 is 1.

The program is reading the state of P4 as set by external circuitry. If nothing is connected to P4, it could be in either state (1 or 0) and could change states apparently at random.

What happens if your program writes to the OUTS bit of a pin that is set up as an input? The state is stored in OUTS, but has no effect on the outside world. If the pin is changed to output, the last value written to the corresponding OUTS bit will appear on the pin. The demo program shows how this works.

Demo Program

This program demonstrates how the input/output direction of a pin is determined by the corresponding bit of DIRS. It also shows that the state of the pin itself (as reflected by the corresponding bit of INS) is determined by the outside world when the pin is an input, and by the corresponding bit of OUTS when it’s an output. To set up the demo, connect a

10k resistor from +5V to P7 on the BS2. The resistor to +5V puts a high (1) on the pin when it’s an input. The BS2 can override this state by writing

Page 276

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II a low (0) to bit 7 of OUTS and changing the pin to output.

INPUT 7 debug "State of pin 7: ", bin IN7,cr

OUT7 = 0 debug "After 0 written to OUT7: ",bin IN7,cr output 7 debug "After pin 7 changed to output: ",bin IN7

' Make pin 7 an input.

' Write 0 to output latch.

' Make pin 7 an output.

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 277

BASIC Stamp II

Lookdown

LOOKDOWN value,{comparisonOp,}[value0, value1,...valueN],resultVariable

Compare a value to a list of values according to the relationship specified by the comparison operator. Store the index number of the first value that makes the comparison true into resultVariable. If no value in the list makes the comparison true, resultVariable is unaffected.

Value

is a variable or constant to be compared to the values in the list.

ComparisonOp

is optional and maybe one of the following:

=

<>

>

<

>=

<= equal not equal greater than less than greater than or equal to less than or equal to

If no comparison operator is specified, PBASIC2 uses equal (=).

Value0

,

value1

... make up a list of values (constants or variables) up to 16 bits in size.

ResultVariable

is a variable in which the index number will be stored if a true comparison is found.

Explanation

Lookdown works like the index in a book. You search for a topic and the index gives you the page number. Lookdown searches for a value in a list, and stores the item number of the first match in a variable. For example: value var byte result var nib value = 17 result = 15

LOOKDOWN value,[26,177,13,1,0,17,99],result debug "Value matches item ",dec result," in list"

Page 278

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

Debug prints, “Value matches item 5 in list” because the value (17) matches item 5 of [26,177,13,1,0,17,99]. Note that index numbers count up from 0, not 1; that is in the list [26,177,13,1,0,17,99], 26 is item 0. What happens if the value doesn’t match any of the items in the list? Try changing “value = 17” to “value = 2.” Since 2 is not on the list, Lookdown does nothing. Since result contained 15 before Lookdown executed,

Debug prints “Value matches item 15 in list.” Since there is no item 15, the program should look upon this number as a no-match indication.

Don’t forget that text phrases are just lists of byte values, so they too are eligible for Lookdown searches, as in this example: value result value = "f" result = 255 var var byte byte

LOOKDOWN value,["The quick brown fox"],result debug "Value matches item ",dec result," in list"

Debug prints, “Value matches item 16 in list” because the phrase “The quick brown fox” is a list of 19 bytes representing the ASCII values of each letter. A common application for Lookdown in conjunction with the Branch instruction, is to interpret single-letter instructions: cmd var byte cmd = "M"

LOOKDOWN cmd,["SLMH"],cmd

Branch cmd,[stop_,low_,medium,high_] debug "Command not in list": stop_: debug "stop": low_: medium: high_: debug "low": debug "medium": debug "high": stop stop stop stop stop

In that example, the variable cmd contains “M” (ASCII 77). Lookdown finds that this is item 2 of a list of one-character commands and stores 2 into cmd. Branch then goes to item 2 of its list, which is the program label

“medium” at which point the program continues. Debug prints “medium” on the PC screen. This is a powerful method for interpreting user input, and a lot neater than the alternative If...Then instructions.

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 279

BASIC Stamp II

Lookdown with Variables and Comparison Operators

The examples above show Lookdown working with lists of constants, but it also works with variables. Check out this example that searches the cells of an array: value result a value = 17 var var var byte nib byte(7) result = 15 a(0)=26:a(1)=177:a(2)=13:a(3)=1:a(4)=0:a(5)=17:a(6)=99

LOOKDOWN value,[a(0),a(1),a(2),a(3),a(4),a(5),a(6)],result debug "Value matches item ",dec result," in the list"

Debug prints, “Value matches item 5 in list” because a(5) is 17.

All of the examples above use Lookdown’s default comparison operator of = that searches for an exact match. But Lookdown also supports other comparisons, as in this example: value result value = 17 result = 15 var var byte nib

LOOKDOWN value,>[26,177,13,1,0,17,99],result debug "Value greater than item ",dec result," in list"

Debug prints, “Value greater than item 2 in list” because the first item that value (17) is greater than is 13, which is item 2 in the list. Value is also greater than items 3 and 4, but these are ignored, because Lookdown only cares about the first true condition. This can require a certain amount of planning in devising the order of the list. See the demo program below.

Lookdown comparison operators use unsigned 16-bit math. They will not work correctly with signed numbers, which are represented internally as two’s complement (large 16-bit integers). For example, the two’s complement representation of -99 is 65437. So although -99 is certainly less than 0, it would appear to be larger than zero to the Lookdown comparison operators. The bottom line is: Don’t used signed numbers with Lookdown comparisons.

Page 280

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

Demo Program

This program uses Lookdown to determine the number of decimal digits in a number. The reasoning is that numbers less than 10 have one digit; greater than or equal to 10 but less than 100 have two; greater than or equal to 100 but less than 1000 have three; greater than or equal to 1000 but less than 10000 have four; and greater than or equal to 10000 but less than 65535 (the largest number we can represent in 16-bit math) have five. There are two loopholes that we have to plug: (1) The number 0 does not have zero digits, and (2) The number 65535 has five digits.

To ensure that 0 is accorded one-digit status, we just put 0 at the beginning of the Lookdown list. Since 0 is not less than 0, an input of 0 results in 1 as it should. At the other end of the scale, 65535 is not less than

65535, so Lookdown will end without writing to the result variable, numDig. To ensure that an input of 65535 returns 5 in numDig, we just put 5 into numDig beforehand.

i numDig digits.

var var word nib

' Variable (0-65535).

' Variable (0-15) to hold # of for i = 0 to 1000 step 8

numDig = 5 ' If no 'true' in list, must be 65535.

LOOKDOWN i,<[0,10,100,1000,10000,65535],numDig

debug "i= ", rep " "\(5-numdig) ,dec i,tab,"digits=", dec numdig,cr

pause 200 next

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 281

BASIC Stamp II

Lookup

LOOKUP index, [value0, value1,...valueN], resultVariable

Look up the value specified by the index and store it in a variable. If the index exceeds the highest index value of the items in the list, variable is unaffected. A maximum of 256 values can be included in the list.

Index

is the item number (constant or variable) of the value to be retrieved from the list of values.

Value0

,

value1

... make up a list of values (constants or variables) up to 16 bits in size.

ResultVariable

is a variable in which the retrieved value will be stored (if found).

Explanation

Lookup retrieves an item from a list based on the item’s position (index) in the list. For example: index result index = 3 result = 255 var var nib byte

LOOKUP index,[26,177,13,1,0,17,99],result debug "Item ", dec index," is: ", dec result

Debug prints “Item 3 is: 1.” Note that Lookup lists are numbered from 0; in the list above item 0 is 26, item 1 is 177, etc. If the index provided to

Lookup is beyond the end of the list the result variable is unchanged. In the example above, if index were greater than 6, the debug message would have reported the result as 255, because that’s what result contained before Lookup executed.

Demo Program

This program uses Lookup to create a debug-window animation of a spinning propeller. The animation consists of the four ASCII characters

| / - \ which, when printed rapidly in order at a fixed location, appear to spin. (A little imagination helps a lot here.)

Page 282

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

i frame var var rotate:

for i = 0 to 3

LOOKUP i,["|/-\"],frame

debug cls,frame

pause 50

next goto rotate nib byte

BASIC Stamp II

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 283

BASIC Stamp II

Low

LOW pin

Make the specified pin output low (write 1 to the corresponding bit of

DIRS and 0 to the corresponding bit of OUTS).

Pin

is a variable/constant (0–15) that specifies the I/O pin to use.

Explanation

In order for the BS2 to actively output a 0 (a 0-volt level) on one of its pins, two conditions must be satisfied:

(1) The corresponding bit of the DIRS variable must contain a 1 in order to connect the pin’s output driver.

(2) The corresponding bit of the OUTS variable must contain a 0.

Low performs both of these actions with a single, fast instruction.

Demo Program

This program shows the bitwise state of the

DIRS and OUTS variables before and after the instruction Low 4. You may also connect an LED to pin P4 as shown in figure I-6 to see it light when the Low instruction executes.

+5V

LED

220

Dirs = % 10000 debug "Before: ",cr

' Initialize P4 to high debug bin16 ? dirs,bin16 ? outs,cr,cr pause 1000

I/O pin

Figure I-6

LOW 4 debug "After: ",cr debug bin16 ? dirs,bin16 ? outs

Page 284

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

Nap

NAP period

Enter sleep mode for a short period. Power consumption is reduced to about 50 µA assuming no loads are being driven.

Period

is a variable/constant that determines the duration of the reduced power nap. The duration is (2^period) * 18 ms. (Read that as “2 raised to the power period, times 18 ms.”) Period can range from 0 to 7, resulting in the following nap lengths:

Period

0

1

2

5

6

3

4

7

2period

1

2

4

8

16

32

64

128

Length of Nap

18

36

72

.

.

.

144

288

576

1152

2304 ms ms ms

.

.

.

.

.

ms ms ms ms (1.152 seconds) ms (2.304 seconds)

Explanation

Nap uses the same shutdown/startup mechanism as Sleep, with one big difference. During Sleep, the BS2 automatically compensates for variations in the speed of the watchdog timer oscillator that serves as its alarm clock. As a result, longer Sleep intervals are accurate to approximately ±1 percent. Nap intervals are directly controlled by the watchdog timer without compensation. Variations in temperature, supply voltage, and manufacturing tolerance of the BS2 interpreter chip can cause the actual timing to vary by as much as –50, +100 percent (i.e., a period-0

Nap can range from 9 to 36 ms). At room temperature with a fresh battery or other stable power supply, variations in the length of a Nap will be less than ±10 percent.

If your application is driving loads (sourcing or sinking current through output-high or output-low pins) during a Nap, current will be interrupted for about 18 ms when the BS2 wakes up. The reason is that the watchdog-timer reset that awakens the BS2 also causes all of the pins to switch to input mode for approximately 18 ms. When the PBASIC2 interpreter firmware regains control of the processor, it restores the

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 285

BASIC Stamp II

I/O direction dictated by your program.

If you plan to use End, Nap, or Sleep in your programs, make sure that your loads can tolerate these power outages. The simplest solution is often to connect resistors high or low (to +5V or ground) as appropriate to ensure a continuing supply of current during the reset glitch.

Figure I-7

+5V

LED

220

The demo program can be used to demonstrate the effects of the Nap glitch with an LED and resistor as shown in figure I-7.

I/O pin

Demo Program

The program below lights an LED by placing a low on pin 0. This completes the circuit from +5V, through the LED and resistor, to ground.

During the Nap interval, the LED stays lit, but blinks off for a fraction of a second. This blink is caused by the Nap wakeup mechanism described above. During wakeup, all pins briefly slip into input mode, effectively disconnecting them from loads.

low 0 snooze:

NAP 4 goto snooze

' Turn LED on.

' Nap for 288 ms.

Page 286

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

Output

OUTPUT pin

Make the specified pin an output (write a 1 to the corresponding bit of

DIRS).

Pin

is a variable/constant (0–15) that specifies the I/O pin to use.

Explanation

There are several ways to make a pin an output. When a program begins, all of the BS2’s pins are inputs. Output instructions (Pulsout, High, Low,

Serout, etc.) automatically change the specified pin to output and leave it in that state. Writing 1s to particular bits of the variable DIRS makes the corresponding pins outputs. And then there’s the Output instruction.

When a pin is an output, your program can change its state by writing to the corresponding bit in the OUTS variable. For example:

OUTPUT 4

OUT4 = 1 ' Make pin 4 high (1).

When your program changes a pin from input to output, whatever state happens to be in the corresponding bit of OUTS sets the state of the pin.

To simultaneously make a pin an output and set its state use the High and Low instructions.

Demo Program

This program demonstrates how the input/output direction of a pin is determined by the corresponding bit of DIRS. To set up the demo, connect a 10k resistor from +5V to P7 on the BS2. The resistor to +5V puts a high (1) on the pin when it’s initially an input. The BS2 then overrides this state by writing a low (0) to bit 7 of OUTS and executing Output 7.

input 7 debug "State of pin 7: ", bin IN7,cr

OUT7 = 0 debug "After 0 written to OUT7: ",bin IN7,cr

OUTPUT 7 debug "After pin 7 changed to output: ",bin IN7

' Make pin 7 an input.

' Write 0 to output latch.

' Make pin 7 an output.

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 287

BASIC Stamp II

Pause

PAUSE milliseconds

Pause the program (do nothing) for the specified number of milliseconds.

Milliseconds

is a variable/constant specifying the length of the pause in ms. Pauses may be up to 65535 ms (65+ seconds) long.

Explanation

Pause delays the execution of the next program instruction for the specified number of milliseconds. For example: flash:

low 0

PAUSE 100

high 0

PAUSE 100 goto flash

This code causes pin 0 to go low for 100 ms, then high for 100 ms. The delays produced by Pause are as accurate as the ceramic-resonator timebase, ±1 percent. When you use Pause in timing-critical applications, keep in mind the relatively low speed of the PBASIC interpreter; about 3000 instructions per second. This is the time required for the BS2 to read and interpret an instruction stored in the EEPROM.

Since the chip takes 0.3 milliseconds to read in the Pause instruction, and 0.3 milliseconds to read in the instruction following it, you can count on loops involving Pause taking almost 1 millisecond longer than the Pause period itself. If you’re programming timing loops of fairly long duration, keep this (and the 1-percent tolerance of the timebase) in mind.

Demo Program

This program demonstrates the Pause instruction’s time delays. Once a second, the program will put the debug message “paused” on the screen.

again:

PAUSE 1000

debug "paused",cr goto again

Page 288

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

Pulsin

PULSIN pin, state, resultVariable

Measure the width of a pulse in 2µs units.

Pin

is a variable/constant (0–15) that specifies the I/O pin to use.

This pin will be placed into input mode during pulse measurement and left in that state after the instruction finishes.

State

is a variable or constant (0 or 1) that specifies whether the pulse to be measured begins with a 0-to-1 transition (1) or a 1-to-0 transition (0).

ResultVariable

is a variable in which the pulse duration (in 2µs units) will be stored.

Explanation

You can think of Pulsin as a fast stopwatch that is triggered by a change in state (0 or 1) on the specified pin. When the state on the pin changes to the state specified in Pulsin, the stopwatch starts. When the state on the pin changes again, the stopwatch stops.

If the state of the pin doesn’t change–even if it is already in the state specified in the Pulsin instruction–the stopwatch won’t trigger. Pulsin waits a maximum of 0.131 seconds for a trigger, then returns with 0 in

resultVariable. If the pulse is longer than 0.131 seconds, Pulsin returns a

0 in resultVariable.

If the variable is a word, the value returned by Pulsin can range from 1 to

65535 units of 2 µs. If the variable is a byte, the value returned can range from 1 to 255 units of 2 µs. Regardless of the size of the variable, Pulsin internally uses a 16-bit timer. When your program specifies a byte variable, Pulsin stores the lower 8 bits of the internal counter into it. This means that pulse widths longer than 510 µs will give false, low readings with a byte variable. For example, a 512-µs pulse would return a Pulsin reading of 256 with a word variable and 0 with a byte variable.

Figure I-8 shows how the state bit controls triggering of Pulsin.

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 289

BASIC Stamp II

Figure I-8

PULSIN pin,0,variable triggered by 1-to-0 stopped by 0-to-1

PULSIN pin,1,variable triggered by 0-to-1 stopped by 1-to-0 measured in 2

µ s units and stored in variable

Demo Program measured in 2

µ s units and stored in variable

This program uses Pulsin to measure a pulse generated by discharging a 0.1µF capacitor through a 1k resistor as shown in figure I-9. Pressing the switch generates the pulse, which should ideally be approximately

120µs (60 Pulsin units of 2µs) long. Variations in component values may produce results that are up to 10 units off from this value. For more information on calculating resistor-capacitor timing, see the RCtime instruction.

time var again:

PULSIN 7,1,time

if time = 0 then again

debug cls,dec ? time goto again word

' Measure positive pulse.

' If 0, try again.

' Otherwise, display result.

' Do it again.

Figure I-9

+5V

100k

I/O pin

0.1

µ

F

1k

Page 290

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

Pulsout

PULSOUT pin, time

Output a pulse of 2µs to 131 ms in duration.

Pin

is a variable/constant (0-15) that specifies the I/O pin to use.

This pin will be placed into output mode immediately before the pulse and left in that state after the instruction finishes.

Time

is a variable/constant (0-65535) that specifies the duration of the pulse in 2µs units.

Explanation

Pulsout combines several actions into a single instruction. It puts the specified pin into output mode by writing a 1 to the corresponding bit of

DIRS; inverts the state of that pin’s OUTS bit; waits for the specified number of 2µs units; then inverts the corresponding bit of OUTS again, returning the bit to its original state. An example:

PULSOUT 5,50 ' Make a 100-us pulse on pin 5.

The polarity of the pulse depends on the state of the pin’s OUTS bit when the instruction executes. In the example above, if OUT5 = 0, then

Pulsout 5,50 produces a 100µs positive pulse. If the pin is an input, the

OUTS bit won’t necessarily match the state of the pin. What does Pulsout do then? Example: pin 7 is an input (DIR7 = 0) and pulled high by a resistor as shown in figure I-10a. Suppose that OUT7 is 0 when we execute the instruction:

PULSOUT 7,5' 10-us pulse on pin 7.

Figure I-10b shows the sequence of events as they would look on an oscilloscope. Initially, pin 7 is high. Its output driver is turned off (because it is in input mode), so the 10k resistor sets the state on the pin.

When Pulsout executes, it turns on the output driver, allowing OUT7 to control the pin. Since OUT7 is low, the pin goes low. After a few microseconds of preparation, Pulsout inverts OUT7. It leaves OUT7 in that state for 10µs, then inverts it again, leaving OUT7 in its original state.

This sequence of events is different from the original Basic Stamp I. The

Basic Stamp I does not have separate INS and OUTS registers; both functions are rolled into the pin variables, such as “pin7.” So in the

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 291

BASIC Stamp II situation outlined above and shown in figure I-10, the BS1 would produce a single negative pulse and leave the pin output high when done.

To make the BS2 work the same way, copy the state of the pin’s INS bit to

+5V

(instruction executes)

PULSOUT 7,5 10

µ s positive pulse

10k

a

pin 7 O-scope pin 7 connected to oscilloscope as shown

b

pin 7 in input mode

(DIR7 = 0,

OUT7 = 0) but held high by resistor to +5V pin changes to output (~6

µ s)

Figure I-10

its OUTS bit before Pulsout: pin remains output-low

(DIR7 = 1,

OUT7 = 0)

OUT7 = IN7 ' Copy input state to output driver.

PULSOUT 7,5' 10-us pulse on pin 7.

Now the instruction would pulse low briefly, then return output-high, just like the BS1. Of course, BS1 Pulsout works in units of 10µs, so you would have to adjust the timing to make an exact match, but you get the idea.

Demo Program

This program blinks an LED on for 10ms at 1second intervals. Connect the LED to I/O pin 0 as shown in figure I-11.

+5V

LED high 0 again:

pause 1000

PULSOUT 0,5000 goto again

' Set the pin high (LED off).

' Wait one second.

' Flash the LED for 10 ms.

' Repeat endlessly.

220

I/O pin

Figure I-11

Page 292

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

PWM

PWM pin, duty, cycles

Convert a digital value to analog output via pulse-width modulation.

Pin

is a variable/constant (0-15) that specifies the I/O pin to use.

This pin will be placed into output mode during pulse generation then switched to input mode when the instruction finishes.

Duty

is a variable/constant (0-255) that specifies the analog output level (0 to 5V).

Cycles

is a variable/constant (0-65535) specifying an approximate number of milliseconds of PWM output.

Explanation

Pulse-width modulation (PWM) allows the BS2—a purely digital device—to generate an analog voltage. The basic idea is this: If you make a pin output high, the voltage at that pin will be close to 5V. Output low is close to 0V. What if you switched the pin rapidly between high and low so that it was high half the time and low half the time? The average voltage over time would be halfway between 0 and 5V—2.5V. This is the idea of PWM; that you can produce an analog voltage by outputting a stream of digital 1s and 0s in a particular proportion.

The proportion of 1s to 0s in PWM is called the duty cycle. The duty cycle controls the analog voltage in a very direct way; the higher the duty cycle the higher the voltage. In the case of the BS2, the duty cycle can range from 0 to 255. Duty is literally the proportion of 1s to 0s output by the

PWM instruction. To determine the proportional PWM output voltage, use this formula: (duty/255) * 5V. For example, if duty is 100, (100/255)

* 5V = 1.96V; PWM outputs a train of pulses whose average voltage is

1.96V.

In order to convert PWM into an analog voltage we have to filter out the pulses and store the average voltage. The resistor/capacitor combination in figure I-12 will do the job. The capacitor will hold the voltage set by PWM even after the instruction has finished. How long it will hold the voltage depends on how much current is drawn from it by external circuitry, and the internal leakage of the capacitor. In order to hold the voltage relatively steady, a program must periodically

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 293

2

BASIC Stamp II repeat the PWM instruction to give the capacitor a fresh charge.

Just as it takes time to discharge a capacitor, it also takes time to charge it in the first place. The PWM instruction lets you specify the charging time in terms of PWM cycles. Each cycle is a period of approximately 1ms. So to charge a capacitor for 5ms, you would specify 5 cycles in the PWM instruction.

How do you determine how long to charge a capacitor? Use this rule-ofthumb formula: Charge time = 4 * R * C. For instance, figure I-12 uses a

10k (10 x 10

3

ohm) resistor and a 1µF (1 x 10

-6

F) capacitor: Charge time =

4 * 10 x 10

3

* 1 x 10

-6

= 40 x 10

-3

seconds, or 40ms. Since each cycle is approximately a millisecond, it would take at least 40 cycles to charge the capacitor. Assuming the circuit is connected to pin 0, here’s the complete PWM instruction:

PWM 0,100,40 ' Put a 1.96V charge on capacitor.

After outputting the PWM pulses, the BS2 leaves the pin in input mode

(0 in the corresponding bit of DIRS). In input mode, the pin’s output driver is effectively disconnected. If it were not, the steady output state of the pin would change the voltage on the capacitor and undo the voltage setting established by PWM.

PWM charges the capacitor; the load presented by your circuit discharges it. How long the charge lasts (and therefore how often your program should repeat the PWM instruction to refresh the charge) depends on how much current the circuit draws, and how stable the voltage must be.

You may need to buffer PWM output with a simple op-amp follower if your load or stability requirements are more than the passive circuit of figure I-12 can handle.

Figure I-12

I/O pin

10k

1

µ

F

+

Analog voltage

(0Ñ5Vdc)

Page 294

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

How PWM is Generated

The term “PWM” applies only loosely to the action of the BS2’s PWM instruction. Most systems that output PWM do so by splitting a fixed period of time into an on time (1) and an off time (0). Suppose the interval is 1 ms and the duty cycle is 100/255. Conventional PWM would turn the output on for 0.39 ms and off for 0.61 ms, repeating this process each millisecond. The main advantage of this kind of PWM is its predictability; you know the exact frequency of the pulses (in this case, 1kHz), and their widths are controlled by the duty cycle.

BS2 PWM does not work this way. It outputs a rapid sequence of on/off pulses as short as 4µs in duration whose overall proportion over the course of a full PWM cycle of approximately a millisecond is equal to the duty cycle. This has the advantage of very quickly zeroing in on the desired output voltage, but it does not produce the neat, orderly pulses that you might expect. The BS2 also uses this high-speed PWM to generate pseudo-sinewave tones with the DTMFout and Freqout instructions.

Demo Program

Connect a voltmeter (such as a digital multimeter set to its voltage range) to the output of the circuit shown in figure I-12. Connect BS2 pin 0 to point marked I/O pin. Run the program and observe the readings on the meter. They should come very close to 1.96V, then decrease slightly as the capacitor discharges. Try varying the interval between PWM bursts (by changing the Pause value) and the number of PWM cycles to see their effect.

again:

PWM 0,100,40

pause 1000 goto again

' 40 cycles of PWM at 100/255 duty

' Wait a second.

' Repeat.

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 295

BASIC Stamp II

Random

RANDOM variable

Generate a pseudo-random number.

Variable

is a byte or word variable whose bits will be scrambled to produce a random number.

Explanation

Random generates pseudo-random numbers ranging from 0 to 65535.

They’re called “pseudo-random” because they appear random, but are generated by a logic operation that always produces the same result for a given input. For example: w1 = 0

RANDOM w1 ' Generate "random" number.

debug dec ? w1

' Clear word variable w1 to 0.

' Show the result on screen.

In applications requiring more apparent randomness, it’s a good idea to seed Random’s wordvariable with a different value each time. For instance, in the demo program below, Random is executed continuously while the program waits for the user to press a button. Since the user can’t control the timing of button presses to the nearest millisecond, the results approach true randomness.

Demo Program

Connect a button to pin 7 as shown in figure I-13 and run the program below. The program uses Random to simulate a coin toss. After 100 trials, it reports the total number of heads and tails thrown.

flip coin number.

trials heads heads.

tails tails.

btn tion.

var var var var var var word flip.bit0

byte byte byte byte start:

debug cls, "Press button to start"

' The random number.

' A single bit of the random

' Number of flips.

' Number of throws that came up

' Number of throws that came up

' Workspace for Button instruc-

Page 296

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II for trials = 1 to 100 hold:

RANDOM flip randomize.

button 7,0,250,100,btn,0,hold

branch coin,[head,tail] head:

debug cr,"HEADS"

heads = heads+1

goto theNext

' 100 tosses of the coin.

' While waiting for button,

' Wait for button.

' If 0 then head; if 1 then tail.

' Show heads.

' Increment heads counter.

' Next flip.

tail:

debug cr,"TAILS"

tails = tails+1

' Show tails.

' Increment tails counter.

theNext: next

' Next flip.

' When done, show the total number of heads and tails.

debug cr,cr,"Heads: ",dec heads," Tails: ",dec tails

Figure I-13

+5V

10k pin 7

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 297

BASIC Stamp II

RCtime

RCTIME pin, state, resultVariable

Count time while pin remains in state—usually to measure the charge/ discharge time of resistor/capacitor (RC) circuit.

Pin

is a variable/constant (0–15) that specifies the I/O pin to use.

This pin will be placed into input mode and left in that state when the instruction finishes.

State

is a variable or constant (1 or 0) that will end the RCtime period.

ResultVariable

is a variable in which the time measurement (0 to

65535 in 2µs units) will be stored.

Explanation

RCtime can be used to measure the charge or discharge time of a resistor/capacitor circuit. This allows you to measure resistance or capacitance; use R or C sensors (such as thermistors or capacitive humidity sensors); or respond to user input through a potentiometer. In a broader sense, RCtime can also serve as a fast, precise stopwatch for events of very short duration (less than 0.131 seconds).

When RCtime executes, it starts a counter that increments every 2µs. It stops this counter as soon as the specified pin is no longer in state (0 or

1). If pin is not in state when the instruction executes, RCtime will return

1 in resultVariable, since the instruction requires one timing cycle to discover this fact. If pin remains in state longer than 65535 timing cycles of 2µs each (0.131 seconds), RCtime returns 0.

Figure I-14 shows suitable RC circuits for use with RCtime. The circuit in

I-14a is preferred, because the BS2’s logic threshold is approximately 1.5

volts. This means that the voltage seen by the pin will start at 5V then fall to 1.5V (a span of 3.5V) before RCtime stops. With the circuit of I-14b, the voltage will start at 0V and rise to 1.5V (spanning only 1.5V) before

RCtime stops. For the same combination of R and C, the circuit shown in

I-14a will yield a higher count, and therefore more resolution than I-14b.

Before RCtime executes, the capacitor must be put into the state specified

Page 298

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

Figure I-14

+5V

C

220

I/O pin

R

BASIC Stamp II

+5V

R

220

I/O pin

C

a

use with state = 1 (preferred—see text)

b

use with state = 0 in the RCtime instruction. For example, with figure I-14a, the capacitor must be discharged until both plates (sides of the capacitor) are at 5V. It may seem counterintuitive that discharging the capacitor makes the input high, but remember that a capacitor is charged when there is a voltage difference between its plates. When both sides are at +5V, the cap is considered discharged.

Here’s a typical sequence of instructions for I-14a (assuming I/O pin 7 is used): result var word high 7 pause 1

RCTIME 7,1,result debug ? result

' Word variable to hold result.

' Discharge the cap

' for 1 ms.

' Measure RC charge time.

' Show value on screen.

Using RCtime is very straightforward, except for one detail: For a given

R and C, what value will RCtime return? It’s easy to figure, based on a value called the RC time constant or tau (t) for short. Tau represents the time required for a given RC combination to charge or discharge by 63 percent of the total change in voltage that they will undergo. More importantly, the value t is used in the generalized RC timing calculation.

Tau’s formula is just R multiplied by C: t = R x C

The general RC timing formula uses t to tell us the time required for an

RC circuit to change from one voltage to another:

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 299

BASIC Stamp II

time = -

τττττ

ln

V final

V initial

In this formula ln is the natural logarithm; it’s a key on most scientific calculators. Let’s do some math. Assume we’re interested in a 10k resistor and 0.1µF cap. Calculate t: t = (10 x 10

3

) x (0.1 x 10

-6

) = 1 x 10

-3

The RC time constant is 1 x 10

-3

or 1 millisecond. Now calculate the time required for this RC circuit to go from 5V to 1.5V (as in figure I-14a):

In RCtime units of 2µs, that time (1.204 x 10

-3

) works out to 602 units. With a 10k resistor and 0.1µF cap, RCtime would return a value of approximately 600. Since Vinitial and Vfinal don’t change, we can use a simplified rule of thumb to estimate RCtime results for circuits like I-14a:

RCtime units = 600 x R (in k

) x C (in µF)

Another handy rule of thumb can help you calculate how long to charge/ discharge the capacitor before RCtime. In the example above that’s the purpose of the High and Pause instructions. A given RC charges or discharges 98 percent of the way in 4 time constants (4 x R x C). In figure

I-14a/b, the charge/discharge current passes through the 220

series resistor and the capacitor. So if the capacitor were 0.1µF, the minimum charge/discharge time should be:

Charge time = 4 x 220 x (0.1 x 10 -6 ) = 88 x 10 -6

So it takes only 88µs for the cap to charge/discharge, meaning that the 1 ms charge/discharge time of the example is plenty.

A final note about figure I-14: You may be wondering why the 220

Ω resistor is necessary at all. Consider what would happen if resistor R in

I-14a were a pot, and were adjusted to 0

. When the I/O pin went high to discharge the cap, it would see a short direct to ground. The 220

Ω series resistor would limit the short circuit current to 5V/220

= 23 milliamperes (mA) and protect the BS2 from damage. (Actual current would be quite a bit less due to internal resistance of the pin’s output driver, but you get the idea.)

Page 300

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

Demo Program 1

This program shows the standard use of the RCtime instruction—measuring an RC charge/discharge time. Use the circuit of figure I-14a, with

R = 10k pot and C = 0.1µf. Connect the circuit to pin 7 and run the program. Adjust the pot and watch the value shown on the Debug screen change.

result var word again:

high 7

pause 1

RCTIME 7,1,result

debug cls,dec result goto again

' Word variable to hold result.

' Discharge the cap

' for 1 ms.

' Measure RC charge time.

' Show value on screen.

Demo Program 2

Figure I-15

This program illustrates the use of RCtime as a sort of fast stopwatch. The program energizes a relay coil, then has RCtime measures how long it takes for the relay

+5V relay coil contacts to close. Figure I-15 shows the hookup. In a test run of the program with a storage oscilloscope independently timing the relay coil and contacts, we got the pin 6

10k

+5V

Relay: 5Vdc reed relay with 20mA coil, e.g., Radio

Shack 275-232 relay contacts pin 7 following results: RCtime result = 28 units

(56µs); Oscilloscope measurement: 270µs.

The 214µs difference is the time required for RCtime to set up and begin its measurement cycle. Bear this in mind— that RCtime doesn’t start timing instantly—when designing critical applications.

result var word again:

low 6

RCTIME 7,1,result

debug "Time to close: ", dec result,cr

high 6

pause 1000 goto again

' Energize relay coil.

' Measure time to contact closure.

' Release the relay.

' Wait a second.

' Do it again.

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 301

BASIC Stamp II

Read

READ location,variable

Read EEPROM location and store value in variable.

Location

is a variable/constant (0–2047) that specifies the EEPROM address to read from.

Variable

holds the byte value read from the EEPROM (0–255).

Explanation

The EEPROM is used for both program storage (which builds downward from address 2047) and data storage (which builds upward from address 0). The Read instruction retrieves a byte of data from any

EEPROM address. Although it’s unlikely that you would want to read the compressed tokens that make up your PBASIC2 program, storing and retrieving long-term data in EEPROM is a very handy capability.

Data stored in EEPROM is not lost when the power is removed.

The demo program below uses the Data directive to preload the EEPROM with a message; see the section BS2 EEPROM Data Storage for a complete explanation of Data. Programs may also write to the EEPROM; see

Write.

Demo Program

This program reads a string of data stored in EEPROM. The EEPROM data is downloaded to the BS2 at compile-time (immediately after you press ALT-R) and remains there until overwritten—even with the power off.

' Put ASCII characters into EEPROM, followed by 0,

' which will serve as the end-of-message marker.

Message data "BS2 EEPROM Storage!",0 strAddr char var var word byte strAddr = Message ' Set address to start of Message.

stringOut:

READ StrAddr,char

if char <> 0 then cont

Stop

' Get a byte from EEPROM.

' Not end? Continue.

'Stop here when done.

Page 302

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II cont:

debug char

strAddr = strAddr+1 goto stringOut

' Show character on screen.

' Point to next character.

' Get next character.

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 303

BASIC Stamp II

Return

RETURN

Return from a subroutine.

Explanation

Return sends the program back to the address (instruction) immediately following the most recent Gosub. If Return is executed without a prior

Gosub to set the return address, a bug will result. For more thorough coverage of Gosub...Return, see the Gosub writeup.

Demo Program

This program demonstrates how Gosub and Return work, using Debug messages to trace the program’s execution. For an illustration of the bug caused by accidentally wandering into a subroutine, remove the Stop instruction. Instead of executing once, the program will get stuck in an infinite loop.

debug "Executing Gosub...",cr gosub demoSub debug "Returned." stop demoSub:

debug "Executing subroutine.",cr

RETURN

Page 304

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

Reverse

REVERSE pin

Reverse the data direction of the specified pin.

Pin

is a variable/constant (0–15) that specifies the I/O pin to use.

This pin will be placed into the opposite of its current input/output mode by inverting the corresponding bit of the DIRS register.

Explanation

Reverse is convenient way to switch the I/O direction of a pin. If the pin is an input and you Reverse it, it becomes an output; if it’s an output,

Reverse makes it an input.

Remember that “input” really has two meanings: (1) Setting a pin to input makes it possible to check the state (1 or 0) of external circuitry connected to that pin. The state is in the corresponding bit of the INS register. (2) Setting a pin to input also disconnects the output driver

(corresponding bit of OUTS). The demo program below illustrates this second fact with a two-tone LED blinker.

Demo Program

Connect the circuit of figure I-16 to pin 0 and run the program below. The

LED will alternate between two states, dim and bright. What’s happening is that the Reverse instruction is toggling pin 0 between input and output states. When pin 0 is an input, current flows through R1, through the LED, through R2 to ground. Pin 0 is effectively disconnected and doesn’t play a part in the circuit. The total resistance encountered by current flowing through the LED is R1 + R2 = 440

. When pin 0 is

Reversed to output, current flows through R1, through the LED, and into pin 0 to ground (because of the 0 written to OUT0). The total resistance encountered by current flowing through the LED is R1, 220

. With only half the resistance, the LED glows brighter.

OUT0 = 0 again:

pause 200

REVERSE 0 goto again

' Put a low in the pin 0 output driver.

' Brief (1/5th second) pause.

' Invert pin 0 I/O direction.

' Repeat forever.

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 305

BASIC Stamp II

Figure I-16

pin 0

+5V

R1 220

LED

R2 220

Page 306

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

Serin

SERIN rpin{\fpin},baudmode,{plabel,}{timeout,tlabel,}[inputData]

Receive asynchronous (e.g., RS-232) data.

Rpin

is a variable/constant (0–16) that specifies the I/O pin through which the serial data will be received. This pin will switch to input mode and remain in that state after the instruction is completed. If Rpin is set to 16, the Stamp uses the dedicated serialinput pin (SIN), which is normally used by the STAMP2 host program.

Fpin

is an optional variable/constant (0–15) that specifies the

I/O pin to be used for flow control (byte-by-byte handshaking). This pin will switch to output mode and remain in that state after the end of the instruction.

Baudmode

is a 16-bit variable/constant that specifies serial timing and configuration. The lower 13 bits are interpreted as the bit period minus 20µs. Bit 13 ($2000 hex) is a flag that controls the number of data bits and parity (0=8 bits and no parity, 1=7 bits and even parity). Bit 14 ($4000 hex) controls polarity

(0=noninverted, 1=inverted). Bit 15 ($8000 hex) is not used by Serin.

Plabel

is an optional label indicating where the program should go in the event of a parity error. This argument may only be provided if baudmode indicates 7 bits, and even parity.

Timeout

is an optional variable/constant (0–65535) that tells

Serin how long in milliseconds to wait for incoming data. If data does not arrive in time, the program will jump to the address specified by tlable.

Tlabel

is an optional label which must be provided along with timeout, indicating where the program should go in the event that data does not arrive within the period specified by timeout.

InputData

is a list of variables and modifiers that tells Serin what to do with incoming data. Serin can store data in a variable or array; interpret numeric text (decimal, binary, or hex) and store the corresponding value in a variable; wait for a fixed or variable sequence of bytes; or ignore a specified number of bytes. These actions can be combined in any order in the inputData list.

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 307

2

BASIC Stamp II

Explanation

The BS2 can send and receive asynchronous serial data at speeds up to

50,000 bits per second. Serin, the serial-input instruction, can filter and convert incoming data in powerful ways. With all this power inevitably comes some complexity, which we’ll overcome by walking you through the process of setting up Serin and understanding its options.

Physical/Electrical Interface

Since the STAMP2 host software runs on a PC, we’ll use its RS-232 COM ports as a basis for discussion of asynchronous serial communication.

Asynchronous means “no clock.” Data can be sent using a single wire, plus ground.

The other kind of serial, synchronous, uses at least two wires, clock and data, plus ground. The Shiftin and Shiftout commands are used for a form of synchronous serial communication.

Figure I-17

RS-232 is the electrical specification for the signals that PC COM ports use.

Unlike normal logic, in which a 1 is represented by 5 volts and a 0 by 0 volts, RS-232 uses –12 volts for 1 and

+12 volts for 0.

Most circuits that receive RS-232 use a line receiver. This component does two things: (1) It converts the ±12 volts of

RS-232 to logic-compatible 0/5-volt levels. (2) It inverts the relationship of the voltage levels to corresponding bits, so that volts = 1 and 0 volts = 0.

Using the Carrier Board DB9 Connector with PC Terminal Programs

Option 1: Custom Software

Write custom software that uses the serial port with the

DTR line low. Under DOS, DTR is bit 0 of port $03FC or

$02FC (com 1 or 2, respectively). In QBASIC or

QuickBASIC, port locations are accessed using the INP and OUT instructions. HereÕs a QBASIC code fragment that clears the DTR bit on com 1: temp = INP(&H3FC)

OUT &H3FC,temp AND 254

However, even if this instruction is issued immediately after the com port is OPENed, DTR goes high for almost 100ms

(more on a slow PC). This will cause the BS2 to reset, unless the code runs before the BS2 is connected to the com port.

Do not consider the software approach unless you are an expert programmer able to go it alone, as there are no canned examples available.

Option 2: Capacitive Coupling of ATN

Insert the circuit below between the PCÕs DTR output and the BS2Õs ATN input. The series capacitor blocks

DTRÕs steady state (as set by a terminal program or other software), but passes the attention/programming pulse sent by the STAMP2 host software. The parallel cap soaks up noise that might be coupled into the line.

DTR

(DB9, pin 4)

ATN

(BS2, pin 3)

0.1

µ

F

(both)

The BS2 has a line receiver on its SIN pin (rpin = 16). See the BS2 hardware description and schematic. The SIN pin goes to a PC’s serial data-out pin on the DB9 connector built into BS2 carrier boards. The connector is wired to allow the STAMP2 host program to re-

Option 3: Switch in ATN

The simplest solution is to break the ATN line and insert a switch to let you conveniently connect and disconnect

DTR/ATN. When you want to program the BS2, close the switch; when you want to communicate with some other program, open the switch.

DTR

(DB9, pin 4) close to program

ATN

(BS2, pin 3)

Page 308

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II motely reset the BS2 for programming, so it may have to be modified before it can be used with other software; see figure I-17.

Figure I-18

Pinouts for Standard PC COM Port

Connectors with Serin Hookup

DB-9 Female

(SOLDER SIDE)

1 2 3 4 5

22k

I/O pin

The BS2 can also receive RS-232 data through any of its other 16 generalpurpose I/O pins (rpin = 0 through 15).

The I/O pins don’t need a line receiver, just a series resistor (we suggest 22k).

The resistor limits current into the I/O pins’ built-in clamp diodes, which keep input voltages within a safe range.

Figure I-18 shows the pinouts of the two styles of PC COM ports and how to connect them to the Stamp. The figure also shows loopback connections that defeat hardware handshaking used by some PC software.

6 7 8 9

DB-25 Male

(SOLDER SIDE)

13 12 11 10 9 8 7 6 5 4 3 2 1

22k

I/O pin

NOTE: Most DB25 sockets on

PCs are parallel, not serial, ports.

See your documentation!

25 24 23 22 21 20 19 18 17 16 15 14

Function

Protective Ground

Transmit Data (TD)

Receive Data

Request to Send (RTS)

Clear to Send (CTS)

Data Set Ready (DSR)

Signal Ground (SG)

Data Carrier Detect (DCD)

Data Terminal Ready (DTR)

Ring Indicator (RI)

DB9

1

4

9

8

6

5

2

7

Ð

3

DB25

8

20

22

5

6

7

3

4

1

2

NOTE: In the connector drawings above, several handshaking lines are shown connected together: DTR-DSR-DCD and RTS-CTS. This for the benefit of terminal programs that expect hardware handshaking. You may omit these connections if you’re using software that doesn’t expect handshaking, or if you’re writing your own software without handshaking.

Serial Timing and Mode (Baudmode)

Asynchronous serial communication relies on precise timing. Both the sender and receiver must be set for identical timing, usually expressed in bits per second (bps) and called baud.

Serin accepts a 16-bit value called baudmode that tells it the important characteristics of the incoming serial data—the bit period, data and parity bits, and polarity. Figure I-19 shows how baudmode is calculated and table I-3 shows common baudmodes for standard serial baud rates.

If you’re communicating with existing software, its speed(s) and mode(s) will determine your choice of baud rate and mode. In general, 7-bit/ even-parity (7E) mode is used for text, and 8-bit/no-parity (8N) for byteoriented data. Parity can detect some communication errors, but to use it you lose one data bit. This means that incoming data bytes transferred in

7E mode can only represent values from 0 to 127, rather than the 0 to 255 of 8N mode.

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 309

BASIC Stamp II

Table I-3

Common Data Rates and Corresponding Baudmode Values

D a t a S p e e d

B a u d R a te

3 0 0

6 0 0

1 2 0 0

2 4 0 0

4 8 0 0

9 6 0 0

1 9 2 0 0

D ir e c t C o n n e c t io n

( I n v e r t e d )

8 d a ta b it s , n o p a ri ty

7 d a ta b it s , e v e n p a ri ty

1 9 6 9 7

1 8 0 3 0

1 7 1 9 7

1 6 7 8 0

1 6 5 7 2

1 6 4 6 8

1 6 4 1 6

2 7 8 8 9

2 6 2 2 2

2 5 3 8 9

2 4 9 7 2

2 4 7 6 4

2 4 6 6 0

2 4 6 0 8

T h r o u g h L in e D r iv e r

( N o n in v e r t e d )

8 d a ta b it s , n o p a ri ty

7 d a ta b it s , e v e n p a ri ty

3 3 1 3

1 6 4 6

8 1 3

3 9 6

1 8 8

8 4

3 2

1 1 5 0 5

9 8 3 8

9 0 0 5

8 5 8 8

8 3 8 0

8 2 7 6

8 2 2 4

3 8 4 0 0 1 6 3 9 0 2 4 5 8 2 6 8 1 9 8

Note: If the dedicated serial port (rpin = 16) is used, all data is inverted regardless of the baudmode setting.

Simple Input and Numeric Conversions

Stripped to just the essentials, Serin can be as simple as:

Serin rpin,baudmode,[inputData]

For example, to receive a byte through pin 1 at 9600 bps, 8N, inverted: serData var

Serin 1,16468,[serData] byte

Serin would wait for and receive a single byte of data through pin 1 and store it in the variable serData. If the Stamp were connected to a PC running a terminal program set to the same baud rate and the user pressed the A key on the keyboard, after Serin the variable serData would contain 65, the ASCII code for the letter A. (See the ASCII character chart in the appendix.) If you wanted to let the user enter a decimal number at the keyboard and put that value into serData, the appropriate Serin would be: serData var byte

Serin 1,16468,[DEC serData]

The DEC modifier tells Serin to convert decimal numeric text into binary form and store the result in serData. Receiving “123” followed by a space or other non-numeric text results in the value 123 being stored in

Page 310

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

Table I-4 Numeric Conversion Modifiers Used by Serin

M o d ifie r

D E C

D E C 1 - D E C 5

S D E C

S D E C 1 - S D E C 5

H E X

H E X 1 - H E X 4

S H E X

S H E X 1 - S H E X 4

I H E X

I S H E X

I S H E X 1 - IS H E X 4

B IN

B IN 1 - B I N 1 6

S B I N

S B I N 1 - S B I N 1 6

I B I N

I B I N 1 - I B I N 1 6

I S B I N

I S B I N 1 - IS B IN 1 6

NOTES:

Ty p e o f N u m b e r

D e c im a l

1 to 5 d ig it d e c im a l

S ig n e d d e c im a l

1 to 5 d ig it s ig n e d d e c im a l

H e x a d e c im a l (h ex )

1 to 4 d ig it h e x a d e c im a l

S ig n e d h e x a d e c im a l

1 to 4 d ig it s ig n e d h e x a d e c im a l

I n d ic a te d h e x a d e c im a l

I n d ic a te d s ig n e d h e x a d e c im a l

1 to 4 d ig it in d ic a t e d s ig n e d h e x

B in a r y

1 to 1 6 d ig it b in a r y

S ig n e d b in a r y

1 to 1 6 d ig it s ig n e d b in a r y

I n d ic a te d b in a ry

1 to 1 6 d ig it in d ic a te d b in a ry

I n d ic a te d s ig n e d b in a r y

1 to 1 6 d ig it in d ic a te d s ig n e d b in a r y

N u m e r ic C h a r a c te r s

0 , 1 , 2 ,3 ,4 ,5 , 6 , 7 , 8 ,9

0 , 1 , 2 ,3 ,4 ,5 , 6 , 7 , 8 ,9

0 , 1 , 2 ,3 ,4 ,5 , 6 , 7 , 8 ,9 ,-

0 , 1 , 2 ,3 ,4 ,5 , 6 , 7 , 8 ,9 ,-

0 , 1 , 2 ,3 ,4 ,5 , 6 , 7 , 8 ,9 ,A , B , C ,D ,E , F

0 , 1 , 2 ,3 ,4 ,5 , 6 , 7 , 8 ,9 ,A , B , C ,D ,E , F

0 , 1 , 2 ,3 ,4 ,5 , 6 , 7 , 8 ,9 ,A , B , C ,D ,E , F

0 , 1 , 2 ,3 ,4 ,5 , 6 , 7 , 8 ,9 ,A , B , C ,D ,E , F, -

0 , 1 , 2 ,3 ,4 ,5 , 6 , 7 , 8 ,9 ,A , B , C ,D ,E , F, $

0 , 1 , 2 ,3 ,4 ,5 , 6 , 7 , 8 ,9 ,A , B , C ,D ,E , F, $ , -

0 , 1 , 2 ,3 ,4 ,5 , 6 , 7 , 8 ,9 ,A , B , C ,D ,E , F, $ , -

0 , 1

0 , 1

0 , 1 , -

0 , 1 , -

0 , 1 , %

0 , 1 , %

0 , 1 , % , -

0 , 1 , % , -

N o te s

1 , 3 , 4

1 , 2 , 3 ,4

1 , 2 , 3 ,4

1

1

1 , 2

1 , 2

1 , 4

1 , 2

1 , 2

1

1

1 , 3

1 , 3

1 , 2 , 3

1 , 2 , 3

1 , 4

2 , 4

2 , 4

(1) All numeric conversions will continue to accept new data until receiving either the specified number of digits (e.g., three digits for DEC3) or a non-numeric character.

(2) To be recognized as part of a number, the minus sign (-) must immediately precede a numeric character. The character occurring in non-numeric text is ignored, and any character (including a space) between a minus and a number causes the minus to be ignored.

(3) The hex modifiers are not case-sensitive; "a" through "f" may be substituted for "A" through "F."

(4) Indicated hex and binary modifiers ignore all characters, even valid numerics, until they receive the appropriate prefix ($ for hex, % for binary). The indicated modifiers can differentiate between text and hex numbers (e.g., "ABC" would be interpreted by HEX as a number; IHEX would ignore it unless expressed as $ABC). Likewise, the binary version can distinguish the decimal number "10" from the binary number "%10." A prefix occurring in non-numeric text is ignored, and any character (including a space) between a prefix and a number causes the prefix to be ignored.

Indicated-signed modifiers require that the minus sign come before the prefix, as in "-$1B45." serData. DEC is one of a family of conversion modifiers available with

Serin; see table I-4 for a list. All of the conversion modifiers work similarly: they receive bytes of data, waiting for the first byte that falls within the range of symbols they accept (e.g., “0” or “1” for binary, “0” to “9” for decimal, “0” to “9” and “A” to “F” for hex, and “+” or “-” for signed variations of any type). Once they receive a numeric symbol, they keep accepting input until a non-numeric symbol arrives or (in the case of the fixed length modifiers) the maximum specified number of digits arrives.

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 311

BASIC Stamp II

While very effective at filtering and converting input text, the modifiers aren’t completely foolproof. For instance, in the example above, Serin would keep accepting text until the first nonnumeric text arrived—even if the resulting value exceeded the size of the variable. After Serin, a byte variable would contain the lowest 8 bits of the value entered; a word would contain the lowest

16 bits. You can control this to some degree by using a modifier that specifies the number of digits, such as DEC2, which would accept values only in the range of

0 to 99.

Collecting Strings

Serin can grab sequences of incoming bytes and store them in array variables using the STR modifier. See table I-5. Here is an example that receives nine bytes through pin 1 at 2400 bps, N81/ inverted and stores them in a 10byte array:

Figure I-19

Calculating Baudmode for BS2 Serin

Step 1: Calculate the Bit Period (bits 0-12)

Step 1: Figure the Bit Period (bits 0Ñ12)

Bits 0 through 12 of the baudmode are the bit period, expressed in microseconds ( is always 20

µ

µ s). SerinÕs actual bit period s longer than specified. Use the following formula to calculate the baudmode bit period for a given baud rate:

INT

( 1,000,000 baud rate

)

Ð 20

(INT means ‘convert to integer;’ drop the numbers to the right of the decimal point.)

Step 2: Set Data Bits and Parity (bit 13)

Bit 13 lets you select one of two combinations of data bits and parity:

0

8192

= 8 bits, no parity

= 7 bits, even parity

Step 3: Select the Polarity of Serial Input (bit 14)

Bit 14 tells Serin whether the data is inverted (as when it comes directly from a standard COM port) or noninverted

(after passing through a line receiver):

0

16384

= noninverted

= inverted

Add your choice to the sum of steps 1 and 2. The result is the correct serial baudmode for use by Serin.

Serin through pin 16 (SIN) is always inverted, regardless of the polarity setting. However, polarity will still affect fpin, if used.

FYI: Bit Map of Serin Baudmode

If youÕre more comfortable thinking in terms of bits, hereÕs a bit map of SerinÕs baudmode:

Not used by Serin.

Polarity (0 = noninverted; 1 = inverted)

Data bits, parity

(0 = 8 bits, no parity; 1 = 7 bits, even parity

Bit period, 0 to 8191

µ s (+20

µ s)

x P d p

B B B B B B B B B B B B B

15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 serString var byte(10) serString(9) = 0

SERIN 1,16780,[STR serString\9] debug str serString

' Make a 10-byte array.

' Put 0 in last byte.

' Get 9-byte string.

' Display the string.

Why store only 9 bytes in a 10-byte array? We want to reserve space for the 0 byte that many BS2 string-handling routines regard as an end-ofstring marker. This becomes important when dealing with variable-length arrays. For example, the STR modifier can accept a second parameter telling it to end the string when a particular byte is received, or when the specified length is reached, whichever comes first. An example:

Page 312

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

Table I-5.

String Collection and Sequence Matching Modifiers Used By Serin

Modifier

STR bytearray \L {\E}

WAIT (value, value,...)

WAIT ("text")

WAITSTR bytearray

SKIP L

Action

Input a string of length L into an array. If specified, an end character E causes the string input to end before reaching length L. Remaining bytes are filled with 0s (zeros).

Wait for a sequence of bytes, which may be expressed as a quoted text string, up to six bytes (characters) long.

Wait for a sequence of bytes matching a string stored in an array. The end of the array-string is marked by a byte containing 0 (zero).

Ignore L bytes of serial input.

serString var byte(10) serString(9) = 0

SERIN 1,16780,[STR serString\9\"*"] debug str serString

' Make a 10-byte array.

' Put 0 in last byte.

' Stop at "*" or 9 bytes.

' Display the string.

If the serial input were “hello*” Debug would display “hello” since it collects bytes up to (but not including) the end character. It fills the unused bytes up to the specified length with 0s. Debug’s normal STR modifier understands a 0 to mean end-of-string. However, if you use Debug’s fixed-length string modifier STR bytearray\n you will inadvertently clear the Debug screen. The fixed-length specification forces Debug to read and process the 0s at the end of the string, and 0 is equivalent to Debug’s

CLS (clear-screen) instruction! Be alert for the consequences of mixing fixed- and variable-length string operations.

Matching a Sequence

Serin can compare incoming data with a predefined sequence of bytes using the Wait modifiers. The simplest form waits for a sequence of up to six bytes specified as part of the inputData list, like so:

SERIN 1,16780,[WAIT ("SESAME")] debug "Password accepted"

'Wait for word SESAME.

Serin will wait for that word, and the program will not continue until it is received. Since Wait is looking for an exact match for a sequence of bytes, it is case-sensitive—“sesame” or “SESAmE” or any other variation from “SESAME” would be ignored.

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 313

BASIC Stamp II

There are also Waitstr modifiers, which wait for a sequence that matches a string stored in an array variable. In the example below, we’ll capture a string with STR then have Waitstr look for an exact match:

' Make a 10-byte array.

' Put 0 in last byte.

serString var serString(9) = 0 byte(10) debug "Enter password ending in !",cr serin 1,16780,[str serString\9\"!"] debug "Waiting for: ",str serString,cr

SERIN 1,16780,[WAITSTR serString] debug "Password accepted.",cr

' Get the string.

' Wait for a match.

You can also use WAITSTR with fixed-length strings as in the following example: serString var byte(4) debug "Enter 4-character password",cr serin 1,16780,[str serString\4] debug "Waiting for: ",str serString\4,cr serin 1,16780,[WAITSTR serString\4] debug "Password accepted.",cr

' Make a 4-byte array.

' Get a 4-byte string.

' Wait for a match.

Building Compound InputData Statements

Serin’s inputData can be structured as a list of actions to perform on the incoming data. This allows you to process incoming data in powerful ways. For example, suppose you have a serial stream that contains “pos: xxxx yyyy” (where xxxx and yyyy are 4-digit numbers) and you want to capture just the decimal y value. The following Serin would do the trick: yOffset var word serin 1,16780,[wait ("pos: "), SKIP 4, dec yOffset] debug ? yOffset

The items of the inputData list work together to locate the label “pos: ”, skip over the four-byte x data, then convert and capture the decimal y data. This sequence assumes that the x data is always four digits long; if its length varies, the following code would be more appropriate: yOffset var word serin 1,16780,[wait ("pos: "), dec yOffset, dec yOffset] debug ? yOffset

The unwanted x data is stored in yOffset, then replaced by the desired y data. This is a sneaky way to filter out a number of any size without

Page 314

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II using an extra variable. With a little creativity, you can combine the inputData modifiers to filter and extract almost any data.

Using Parity and Handling Parity Errors

Parity is an error-checking feature. When a serial sender is set for even parity—the mode the BS2 supports—it counts the number of 1s in an outgoing byte and uses the parity bit to make that number even. For instance, if it is sending the seven bits %0011010, it sets the parity bit to

1 in order to make an even number of 1s (four).

The receiver also counts up the data bits to calculate what the parity bit should be. If it matches the parity bit received, the serial receiver assumes that the data was received correctly. Of course, this is not necessarily true, since two incorrectly received bits could make parity seem correct when the data was wrong, or the parity bit itself could be bad when the rest of the data was OK.

Many systems that work exclusively with text use (or can be set for) 7bit/even-parity mode. Table I-3 shows appropriate baudmode settings.

For example, to receive one data byte through pin 1 at 2400 baud, 7E, inverted: serData var

Serin 1,24972,[serData] byte

That instruction will work, but it doesn’t tell the BS2 what to do in the event of a parity error. Here’s an improved version that uses the optional

plabel: serData var byte

serin 1,24972,badData,[serData]

debug ? serData

Stop badData:

debug "parity error"

If the parity matches, the program continues at the Debug instruction after Serin. If the parity doesn’t match, the program goes to the label badData. Note that a parity error takes precedence over other inputData specifications; as soon as an error is detected, Serin aborts and goes to

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 315

BASIC Stamp II the plabel routine.

Setting a Serial Timeout

In the examples above, the only way to end the Serin instruction (other than RESET or power-off) is to give Serin the serial data it wants. If no serial data arrives, the program is stuck. However, you can tell the BS2 to abort Serin if it doesn’t receive data within a specified number of milliseconds. For instance, to receive a decimal number through pin 1 at 2400 baud, 8N, inverted and abort Serin after 2 seconds (2000 ms) if no data arrives: serin 1,16780,2000,noData,[DEC w1] debug cls, ? w1 stop noData:

debug cls, "timed out"

If no data arrives within 2 seconds, the program aborts Serin and continues at the label noData. This timeout feature is not picky about the kind of data Serin receives; any serial data stops the timeout. In the example above, Serin wants a decimal number. But even if Serin received letters

“ABCD...” at intervals of less than two seconds, it would not abort.

Combining Parity and Timeout

You can combine parity and serial timeouts. Here is an example designed to receive a decimal number through pin 1 at 2400 baud, 7E, inverted with a 10-second timeout: again:

serin 1,24972,badData,10000,noData,[DEC w1]

debug cls, ? w1 goto again noData:

debug cls, "timed out" goto again badData:

debug cls, "parity error" goto again

Page 316

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

Controlling Data Flow

When you design an application that requires serial communication between BS2s, you have to work within these limitations:

• When the BS2 is sending or receiving data, it can’t execute other instructions.

• When the BS2 is executing other instructions, it can’t send or receive data.

• The BS2 executes 3000 to 4000 instructions per second and there is not serial buffer in the BS2 as there is in PCs. At most serial rates, the BS2 cannot receive data via Serin, process it, and execute another Serin in time to catch the next chunk of data, unless there are significant pauses between data transmissions.

These limitations can be addressed by using flow control; the fpin option for Serin and Serout (at baud rates of up to 19200). Through fpin,

Serin can tell a BS2 sender when it is ready to receive data. (For that matter, fpin flow control follows the rules of other serial handshaking schemes, but most computers other than the BS2 cannot start and stop serial transmission on a byte-by-byte basis. That’s why this discussion is limited to BS2-to-BS2 communication.)

Here’s an example of a flow-control Serin (data through pin 1, flow control through pin 0, 9600 baud, N8, noninverted): serData var

Serin 1\0,84,[serData] byte

When Serin executes, pin 1 (rpin) is made an input in preparation for incoming data, and pin 0 (fpin) is made output low to signal “go” to the sender. After Serin finishes receiving, pin 0 goes high to tell the sender to stop. If an inverted baudmode had been specified, the fpin’s repsonses would have been reversed. Here’s the relationship of serial polarity to fpin states.

Inverted

Noninverted

Go

1

0

Stop

0

1

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 317

BASIC Stamp II

Here’s an example that demonstrates fpin flow control. It assumes that two

BS2s are powered up and connected together as shown in figure I-20.

' SENDER: data out pin 1, flow control pin 0

' Baudmode: 9600 N8 inverted

Serout 1\0,16468,["HELLO!"] ' Send the greeting.

' RECEIVER: data in pin 1, flow control pin 0

' Baudmode: 9600 N8 inverted letta var byte again:

Serin 1\0,16468,[letta]

debug letta

pause 1000 goto again

' Get 1 byte.

' Display on screen.

' Wait a second.

Without flow control, the sender would transmit the whole word

“HELLO!” in about 6ms. The receiver would catch the first byte at most; by the time it got back from the first 1-second Pause, the rest of the data would be long gone. With flow control, communication is flawless since the sender waits for the receiver to catch up.

In figure I-20, pin 0, fpin, is pulled to ground through a 10k resistor. This is to ensure that the sender sees a stop signal (0 for inverted comms) when the receiver is being programmed.

Demo Program

See the examples above.

Figure I-20

Host PC (for Debug) programming cable

P1

BS2 receiver

P0

10k

VSS

P1

P0

BS2 sender

VSS

Page 318

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

Serout

SEROUT tpin,baudmode,{pace,}[outputData]

SEROUT tpin\fpin,baudmode,{timeout,tlabel,}[outputData]

Transmit asynchronous (e.g., RS-232) data.

Tpin

is a variable/constant (0–16) that specifies the I/O pin through which the serial data will be sent. This pin will switch to output mode and will remain in that state after the instruction is completed. If Tpin is set to 16, the Stamp uses the dedicated serialoutput pin (SOUT), normally used by the STAMP2 host program.

Baudmode

is a 16-bit variable/constant that specifies serial timing and configuration. The lower 13 bits are interpreted as the bit period minus 20µs. Bit 13 ($2000 hex) is a flag that controls the number of data bits and parity (0=8 bits and no parity, 1=7 bits and even parity). Bit 14 ($4000 hex) controls the bit polarity

(0=noninverted, 1=inverted). Bit 15 ($8000 hex) determines whether the pin is driven to both states (0/1) or to one state and open in the other (0=both driven, 1=open).

Pace

is an optional variable/constant (0–65535) that tells Serout how long in milliseconds it should pause between transmitting bytes.

OutputData

is a list of variables, constants and modifiers that tells

Serout how to format outgoing data. Serout can transmit individual or repeating bytes; convert values into decimal, hex or binary text representations; or transmit strings of bytes from variable arrays.

Fpin

is an optional variable/constant (0–15) that specifies the

I/O pin to be used for flow control (byte-by-byte handshaking). This pin will switch to input mode and remain in that state after the instruction is completed.

Timeout

is an optional variable/constant (0–65535) used in conjunction with fpin flow control. Timeout tells Serout how long in milliseconds to wait for fpin permission to send. If permission does not arrive in time, the program will continue at tlabel.

Tlabel

is an optional label used with fpin flow control and timeout.

Tlabel indicates where the program should go in the event that

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 319

BASIC Stamp II permission to transmit data is not granted within the period specified by timeout.

Explanation

The BS2 can send and receive asynchronous serial data at speeds up to

50,000 bits per second. Serout, the serial-output instruction, can convert and format outgoing data in powerful ways. With all this power inevitably comes some complexity, which we’ll overcome by walking you through the process of setting up Serout and understanding its options.

For more information on serial-communication fundamentals, see the

Serin listing.

Physical/Electrical Interface

The BS2 can transmit data serially through any of its I/O pins (tpin =

0—15) or through the SOUT pin (tpin = 16) that goes to the DB9 programming connector on BS2 carrier boards. Most common serial devices use the RS-232 standard in which a 1 is represented by –12V and a 0 by

+12V. Serout through the I/O pins is limited to logic-level voltages of 0V and +5V; however, most RS-232 de-

Figure I-21

vices are designed with sufficient leeway to accept logic-level Serout trans-

Pinouts for Standard PC COM Port

Connectors with Serout Hookup missions, provided that they are inverted (see Serial Timing and Mode

DB-9 Female

(SOLDER SIDE)

I/O pin below).

1 2 3 4 5

6 7 8 9

Figure I-21 shows the pinouts of the two styles of PC com ports and how to connect them to receive data sent by

Serout through pins 0—15. The figure also shows loopback connections that defeat hardware handshaking used by some PC software.

The SOUT pin can comply with the

RS-232 electrical standard by stealing the negative signal voltage from an RS-

232 input at SIN. See the BS2 hardware description and schematic. In order for

SOUT to work at the proper voltage

DB-25 Male

(SOLDER SIDE)

I/O pin

13 12 11 10 9 8 7 6 5 4 3 2 1

NOTE: Most DB25 sockets on

PCs are parallel, not serial, ports.

See your documentation!

25 24 23 22 21 20 19 18 17 16 15 14

Function

Protective Ground

Transmit Data (TD)

Receive Data

Request to Send (RTS)

Clear to Send (CTS)

Data Set Ready (DSR)

Signal Ground (SG)

Data Carrier Detect (DCD)

Data Terminal Ready (DTR)

Ring Indicator (RI)

DB9

2

7

8

Ð

3

1

4

6

5

9

DB25

3

4

5

1

2

8

20

6

7

22

NOTE: In the connector drawings above, several handshaking lines are shown connected together: DTR-DSR-DCD and RTS-CTS. This for the benefit of terminal programs that expect hardware handshaking. You may omit these connections if you’re using software that doesn’t expect handshaking, or if you’re writing your own software without handshaking.

Page 320

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II levels, there must be an RS-232 output signal connected to SIN, and that signal must be quiet (not transmitting data) when data is being sent through SOUT.

For more information on using the carrier-board DB9 connector for serial communication, see the Serin listing and figure I-17.

Serial Timing and Mode

(Baudmode)

Asynchronous serial communication relies on precise timing.

Both the sender and receiver must be set for identical timing, usually expressed in bits per second (bps) and called baud.

Serout accepts a single 16-bit value called baudmode that specifies important characteristics of the serial transmission—the bit time, data and parity bits, polarity, and drive. Figure I-22 shows how

Serout baudmode is calculated and table I-6 shows common baudmodes for standard serial baud rates.

If you’re communicating with existing software, its speed(s) and mode(s) will determine your choice of baud rate and mode. In general, 7-bit/even-parity (7E) mode is used for text, and 8-bit/ no-parity (8N) for byte-oriented data. Parity can detect some communication errors, but to use it you lose one data bit. This means that incoming data bytes transferred in 7E mode can only represent values from 0 to 127, rather

Figure I-22

Calculating Baudmode for BS2 Serout

Step 1: Calculate the Bit Period (bits 0Ñ12)

Bits 0 through 12 of the baudmode are the bit period, expressed in microseconds (

µ s). SeroutÕs actual bit period is always 20

µ s longer than specified. Use the following formula to calculate the baudmode bit period for a given baud rate:

INT

(

1,000,000 baud rate

)

Ð 20

(INT means ‘convert to integer;’ drop the numbers to the right of the decimal point.)

Step 2: Set Data Bits and Parity (bit 13)

Bit 13 lets you select one of two combinations of data bits and parity:

0

8192

= 8 bits, no parity

= 7 bits, even parity

Step 3: Select the Polarity of Serial Output (bit 14)

Bit 14 tells Serout whether the data should be inverted

(as when sent directly to a standard COM port) or noninverted (to pass through a line driver):

0

16384

= noninverted

= inverted

Serout through pin 16 (SOUT) is always inverted, regardless of the polarity setting. However, polarity will still affect fpin, if used.

Step 4: Set Driven or Open Output (bit 15)

Bit 15 tells Serout whether to drive the output in both states (0 and 1), or drive to one state and leave open in the other. If you select open, the state that is driven is determined by polarity: with inverted polarity open modes drive to +5V only; noninverted open modes drive to ground (0V) only. Bit settings:

0

32768

= driven

= open

Add your choice to the sum of steps 1 through 3. The result is the correct serial baudmode for use by Serout.

FYI: Bit Map of Serout Baudmode

If youÕre more comfortable thinking in terms of bits, hereÕs a bit map of SeroutÕs baudmode:

Driven/open (0=driven; 1=open)

Polarity (0 = noninverted; 1 = inverted)

Data bits, parity

(0 = 8 bits, no parity; 1 = 7 bits, even parity

Bit period, 0 to 8191

µ s (+20

µ s)

D P d p

B B B B B B B B B B B B B

15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 321

BASIC Stamp II

Table I-6

Common Data Rates and Corresponding Baudmode Values

D a t a S p e e d

B a u d R a te

D ir e c t C o n n e c t i o n

( I n v e r t e d )

8 d a ta b i t s , n o p a ri ty

7 d a ta b i t s , e v e n p a ri ty

T h r o u g h L in e D r i v e r

( N o n in v e r t e d )

8 d a ta b i t s , n o p a ri ty

7 d a ta b i t s , e v e n p a ri ty

3 0 0

6 0 0

1 2 0 0

1 9 6 9 7

1 8 0 3 0

1 7 1 9 7

2 7 8 8 9

2 6 2 2 2

2 5 3 8 9

3 3 1 3

1 6 4 6

8 1 3

1 1 5 0 5

9 8 3 8

9 0 0 5

2 4 0 0

4 8 0 0

9 6 0 0

1 9 2 0 0

1 6 7 8 0

1 6 5 7 2

1 6 4 6 8

1 6 4 1 6

2 4 9 7 2

2 4 7 6 4

2 4 6 6 0

2 4 6 0 8

3 9 6

1 8 8

8 4

3 2

8 5 8 8

8 3 8 0

8 2 7 6

8 2 2 4

3 8 4 0 0 1 6 3 9 0 2 4 5 8 2 6 8 1 9 8

Note: For "open" baudmodes used in networking, add 32768 to values from the table above. If the dedicated serial port

(tpin=16) is used, the data is inverted and driven regardless of the baudmode setting.

than the 0 to 255 of 8E mode.

Serout’s “open” baudmodes are used only in special circumstances, usually networking applications. See the Network example below.

Simple Output and Numeric Conversions

Stripped to just the essentials, Serout can be as simple as:

Serout tpin,baudmode,[outputData]

For example, to send a byte through pin 1 at 9600 bps, 8N, inverted:

Serout 1,16468,[65] ' Send byte value 65 ("A") through pin 1.

When that Serout executes, it changes pin 1 to output and transmits the byte value 65 (%01000001 binary). If a PC terminal program was the receiver, the letter A would appear on the screen, since 65 is the ASCII code for A. (See the ASCII character chart in the appendix.) To send a number as text requires a modifier, as in this example:

Serout 1,16468,[DEC 65] ' Send text "65" through pin 1.

Page 322

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

The modifier DEC tells Serout to convert the value to its decimal-text equivalent before transmitting. Table I-7 lists the numeric-conversion modifiers that Serout understands. You can try these modifiers using

Debug (which is actually just a special case of Serout configured specifically to send data to the STAMP2 host program).

Literal Text and Compound OutputData

Serout sends quoted text exactly as it appears in the outputData list:

Serout 1,16468,["A"]

Serout 1,16468,["HELLO"]

' Send byte value 65 ("A").

' Send series of bytes, "HELLO".

Since outputData is a list, you may combine modifiers, values, text, strings and so on separated by commas: temp var byte temp = 96

Serout 1,16468,["Temperature is ", dec temp, " degrees F."]

Serout would send "Temperature is 96 degrees F."

Sending Variable Strings

A string is a byte array used to store variable-length text. Because the number of bytes can vary, strings require either an end-of-string marker

(usually the ASCII null character—a byte with all bits cleared to 0) or a variable representing the string’s length. PBASIC2 modifiers (shown in

Table I-8) for Serout supports both kinds of strings. Here’s an example of a null-terminated string: myText var byte(10) myText(0) = "H":myText(1) = "E" myText(2) = "L":myText(3) = "L" myText(4) = "0":myText(5) = 0

' An array to hold the string.

' Store "HELLO" in 1st 5 cells...

' Put null (0) after last character.

Serout 1,16468,[STR myText] ' Send "HELLO"

The other type of string—called a counted string—requires a variable to hold the string length. In most other BASICs, the 0th element of the byte array contains this value. Because PBASIC2 outputs the 0th array element, this is not the best way. It makes more sense to put the count in a

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 323

BASIC Stamp II

Table I-7. Numeric Conversion Modifiers Used by Serout

M o d i f i e r

A S C ?

D E C

D E C 1 - D E C 5

S D E C

S D E C 1 - S D E C 5

H E X

H E X 1 - H E X 4

S H E X

S H E X 1 - S H E X 4

I H E X

I S H E X

I S H E X 1 - I S H E X 4

B I N

B I N 1 - B I N 1 6

S B I N

S B I N 1 - S B I N 1 6

I B I N

I B I N 1 - I B I N 1 6

I S B I N

I S B I N 1 - I S B I N 1 6

NOTES:

E f f e c t

A S C I I v a lu e w i t h e q u iv a l e n t c h a r a c t e r ; e . g . , 6 5 = " A "

D e c im a l t e x t

1 t o 5 d ig it d e c im a l t e x t

S i g n e d d e c i m a l t e x t

1 t o 5 d ig it s i g n e d d e c i m a l t e x t

H e x a d e c i m a l ( h e x ) t e x t

1 t o 4 d ig it h e x a d e c i m a l t e x t

S i g n e d h e x a d e c im a l t e x t

1 t o 4 d ig it s i g n e d h e x a d e c im a l t e x t

I n d ic a t e d h e x a d e c im a l t e x t ( $ p r e f ix ; e . g . , $ 7 A 3

I n d ic a t e d s ig n e d h e x a d e c i m a l t e x t

1 t o 4 d ig it i n d i c a t e d s i g n e d h e x id e c im a l t e x t

B i n a r y t e x t

1 t o 1 6 d ig it b in a r y t e x t

S i g n e d b in a r y t e x t

1 t o 1 6 d ig it s ig n e d b i n a r y t e x t

I n d ic a t e d b in a r y t e x t ( % p r e f ix ; e . g . , % 1 0 1 0 1 1 0 0 )

1 t o 1 6 d ig it i n d ic a t e d b in a r y t e x t

I n d ic a t e d s ig n e d b i n a r y t e x t

1 t o 1 6 d ig it i n d ic a t e d s i g n e d b in a r y t e x t

N o t e s

1

2

1 , 2

1

2

1 , 2

2

1 , 2

1

2

1 , 2

1

2

1 , 2

(1) Fixed-digit modifiers like DEC4 will pad text with leading 0s if necessary; e.g., DEC4 65 sends 0065. If a number is larger than the specified number of digits, the leading digits will be dropped; e.g., DEC4 56422 sends 6422.

(2) Signed modifiers work under two's complement rules, same as PBASIC2 math.

separate variable, or in the last element of the array, as in this example: myText var byte(10) myText(0) = "H":myText(1) = "E" myText(2) = "L":myText(3) = "L" myText(4) = "0":myText(9) = 5

' An array to hold the string.

' Store "HELLO" in first 5 cells...

' Put length (5) in last cell.

Serout 1,16468,[STR myText\myText(9)] ' Send "HELLO"

Note that Serout’s string capabilities work only with strings in RAM, not EEPROM. To send a string from EEPROM you must either (1) Read it byte-by-byte into an array then output it using one of the STR modifiers,

Page 324

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

Table I-8. String Modifiers Used by Serout

Modifier Action

STR bytearray

STR bytearray\n

REP byte\n

Send a string from bytearray until byte = 0.

Send a string consisting of n bytes from bytearray.

Send a string consisting of byte repeated n times (e.g., REP

"X"\10 sends XXXXXXXXXX).

or (2) Read and output one byte at a time. Since either approach requires

Reading individual bytes, method (2) would be simpler. The demo program for the Read instruction gives an example; making it work with

Serout requires changing Debug...

debug char

...to Serout, as in this example:

Serout 1,16468,[char]

' Show character on screen.

' Send the character.

If you have just a few EEPROM strings and don’t need to manipulate them at runtime, the simplest method of all is to use separate Serouts containing literal text, as shown in the previous section.

Using the Pacing Option and a Serout/Debug Trick

Serout allows you to pace your serial transmission by inserting a time delay of 1 to 65535 ms between bytes. Put the pacing value between the baudmode and the outputData list, like so:

Serout 1,16468,1000,["Slowly"] ters.

' 1-sec delay between charac-

Suppose you want to preview the effect of that 1-second pacing without the trouble of booting terminal software and wiring a connector. You can use the BS2 Debug window as a receive-only terminal. Tell Serout to send the data through pin 16 (the programming connector) at 9600 baud:

Debug cls

Serout 16,84,1000,["Slowly"]

Serout to Debug screen.

' Open a cleared Debug window.

'

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 325

BASIC Stamp II

Controlling Data Flow

In all of the examples above, Serout sent the specified data without checking to see whether the receiving device was ready for it. If the receiver wasn’t ready, the data was sent anyway, and lost.

With flow control, the serial receiver can tell Serout when to send data.

BS2 flow control works on a byte-by-byte basis; no matter how many bytes Serout is supposed to send, it will look for permission to send before each byte. If permission is denied, Serout will wait until it is granted.

By permission we mean the appropriate state of the flow-control pin— fpin—specified in the Serout instruction. The logic of fpin depends on whether an inverted or non-inverted baudmode is specified:

Inverted

Noninverted

Go

1

0

Stop

0

1

Here’s an example that demonstrates fpin flow control. It assumes that two BS2s are powered up and connected together as shown in figure

I-20.

' SENDER: data out pin 1, flow control pin 0

' Baudmode: 9600 N8 inverted

Serout 1\0,16468,["HELLO!"]

Send the greeting.

'

' RECEIVER: data in pin 1, flow control pin 0

' Baudmode: 9600 N8 inverted letta again: var byte

Serin 1\0,16468,[letta]

debug letta

pause 1000 goto again

' Get 1 byte.

' Display on screen.

' Wait a second.

Without flow control, the sender would transmit the whole word

“HELLO!” in about 6ms. The receiver would catch the first byte at most; by the time it got back from the first 1-second Pause, the rest of the data would be long gone. With flow control, communication is flawless since the sender waits for the receiver to catch up.

Page 326

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

In figure I-20, pin 0, fpin, is pulled to ground through a 10k resistor. This is to ensure that the sender sees a stop signal (0 for inverted comms) when the receiver is being programmed.

Flow-control Timeout

Flow control solves one problem but can create another—if the receiver isn’t connected, Serout may never get permission to send. The program will be stuck in Serout indefinitely. To prevent this, Serout allows you to specify how long it should wait for permission, from 0 to 65535 ms. If the specified time passes without permission to send, Serout aborts, allowing the program to continue at tlabel. Here’s the previous example (just the Sender code) with a 2.5-second timeout:

Serout 1\0,16468,2500,noFlow["HELLO!"]

' ...instructions executed after a successful Serout stop noFlow:

' If Serout times-out waiting for flow-control permission,

' It jumps to this label in the program.

Networking with Open Baudmodes

The open baudmodes can be used to connect multiple BS2s to a single pair of wires to create a party-line network. Open baudmodes only actively drive the Serout pin in one state; in the other state they disconnect the pin. If BS2s in a network used the always-driven baudmodes, two

BS2s could simultaneously output opposite states. This would create a short circuit from +5V to ground through the output drivers of the BS2s.

The heavy current flow would likely damage the BS2s (and it would certainly prevent communication). Since the open baudmodes only drive in one state and float in the other, there’s no chance of this kind of short.

The polarity selected for Serout determines which state is driven and which is open, as follows:

State

0

1

— Polarity — Resistor

Inverted Noninverted Pulled to

open driven driven open

GND

+5V

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 327

BASIC Stamp II

Since open baudmodes only drive to one state, they need a resistor to pull the network into the other state, as shown in the table above and in figure I-23.

Open/Noninverted

Figure I-23

+5V

1k

Open baudmodes allow the BS2s to share a party line, but it is up to your program to resolve other networking issues, like who talks when and how to prevent, detect and fix data errors.

In the example shown in figure I-24 and the program listings below, two

BS2s share a party line. They monitor

I/O pin

Open/Inverted

I/O pin

BS2

BS2

Vss

(GND)

Vss

(GND)

I/O pin

I/O pin

BS2

1k

BS2

Vss

(GND)

Vss

(GND)

I/O pin

I/O pin

BS2

BS2

Vss

(GND)

Vss

(GND) the serial line for a specific cue (“ping” or “pong”), then transmit data. A PC may monitor net activity via a line driver or CMOS inverter as shown in the figure.

' Net #1: This BS2 sends the word "ping" followed by a linefeed

' and carriage return (for the sake of a monitoring PC). It

' then waits to hear the word "pong" (plus LF/CR), pauses

' 2 seconds, then loops.

b_mode con 32852

8N

' Baudmode: 9600 noninverted, open, again:

serout 0,b_mode,["ping",10,13]

serin 0,b_mode,[wait ("pong",10,13)]

pause 2000 goto again

Figure I-24

+5V

1k

CMOS Inverter or Serial Line Driver

PC: Receive

Data (RD)

PC: Signal

Ground (SG)

P0

BS2

#1

Vss

(GND)

P0

BS2

#2

Vss

(GND)

Page 328

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

' Net #2: This BS2 waits for the word "ping" (plus LF/CR)

' then pauses 2 seconds and sends the word "pong" (LF/CR)

' and loops.

b_mode con 32852

8N

' Baudmode: 9600 noninverted, open, again:

serin 0,b_mode,[wait ("ping",10,13)]

pause 2000

serout 0,b_mode,["pong",10,13] goto again

The result of the two programs is that a monitoring PC would see the words “ping” and “pong” appear on the screen at 2-second intervals, showing that the pair of BS2s is sending and receiving on the same lines.

This arrangement could be expanded to dozens of BS2s with the right programming.

Demo Program

See the examples above.

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 329

BASIC Stamp II

Shiftin

SHIFTIN dpin,cpin,mode,[result{\bits}{,result{\bits}...}]

Shift data in from a synchronous-serial device.

Dpin

is a variable/constant (0–15) that specifies the I/O pin that will be connected to the synchronous-serial device’s data output.

This pin’s I/O direction will be changed to input and will remain in that state after the instruction is completed.

Cpin

is a variable/constant (0–15) that specifies the I/O pin that will be connected to the synchronous-serial device’s clock input.

This pin’s I/O direction will be changed to output.

Mode

is a value (0—3) or 4 predefined symbols that tells Shiftin the order in which data bits are to be arranged and the relationship of clock pulses to valid data. Here are the symbols, values, and their meanings:

Symbol Value Meaning

MSBPRE 0 Data msb-first; sample bits before clock pulse

LSBPRE 1 Data lsb-first; sample bits before clock pulse

MSBPOST 2 Data msb-first; sample bits after clock pulse

LSBPOST 3 Data lsb-first; sample bits after clock pulse

(Msb is most-significant bit; the highest or leftmost bit of a nibble, byte, or word. Lsb is the least-significant bit; the lowest or rightmost bit of a nibble, byte, or word.)

Result

is a bit, nibble, byte, or word variable in which incoming data bits will be stored.

Bits

is an optional entry specifying how many bits (1—16) are to be input by Shiftin. If no bits entry is given, Shiftin defaults to 8 bits.

Explanation

Shiftin provides an easy method of acquiring data from synchronousserial devices. Synchronous serial differs from asynchronous serial (like

Serin and Serout) in that the timing of data bits is specified in relationship to pulses on a clock line. Data bits may be valid after the rising or falling edge of the clock line. This kind of serial protocol is commonly used by controller peripherals like ADCs, DACs, clocks, memory

Page 330

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II devices, etc. Trade names for synchronous-serial protocols include SPI and Microwire.

At their heart, synchronous-serial devices are essentially shift-registers— trains of flip-flops that pass data bits along in a bucket-brigade fashion to a single data-output pin. Another bit is output each time the appropriate edge (rising or falling, depending on the device) appears on the clock line. BS2 application note #2 explains shift-register operation in detail.

A single Shiftin instruction causes the following sequence of events:

Makes the clock pin (cpin) output low.

Makes the data pin (dpin) an input.

Copies the state of the data bit into the msb (lsb- modes) or lsb (msbmodes) either before (-pre modes) or after (-post modes) the clock pulse.

Pulses the clock pin high for 14µs.

Shifts the bits of the result left (msb- modes) or right (lsb-modes).

Repeats the appropriate sequence of getting data bits, pulsing the clock pin, and shifting the result until the specified number of bits is shifted into the variable.

Making Shiftin work with a particular device is a matter of matching the mode and number of bits to that device’s protocol. Most manufacturers use a timing diagram to illustrate the relationship of clock and data.

Figure I-25a shows Shiftin’s timing. For instance, we can use Shiftin to acquire the bits generated by a toggle flip-flop, as shown in figure I-25b.

This makes a good example because we know exactly what data this will give us; each bit will be the inverse of the previous one. If the first bit

a

Shiftin Timing Diagram

14

µ s

Clock

(cpin)

Ð46

µ sÐ

Data

(dpin)

-pre modes sample data before clock pulse

-post modes sample data after clock pulse

Figure I-25

Circuit for Shiftin Demo

+5V pin1

(cpin)

10k

11

CLK

9

D

14

Q

13

Q

12

7,8,10 pin0

(dpin)

b

IC = 1/2 of a 4013 dual D flip-flop wired as a toggle FF

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 331

BASIC Stamp II is 1, the sequence will be 10101010101... Connect the flip-flop as shown in figure I-25b and run the following program: setup:

if IN0 = 1 then continue

pulsout 1,10 continue:

SHIFTIN 0,1,msbpre,[b1]

debug "Pre-clock: ",bin8 b1,cr

SHIFTIN 0,1,msbpost,[b1]

Shiftin msb-first, post-clock.

debug "Post-clock: ",bin8 b1,cr

' Force FF to start

' sequence with data=1.

' Shiftin msb-first, pre-clock.

' Show the result in binary.

'

' Show the result in binary.

You can probably predict what this demonstration will show. Both Shiftin instructions are set up for msb-first operation, so the first bit they acquire ends up in the msb (leftmost bit) of the variable. Look at figure I-25a; the first data bit acquired in the pre-clock case is 1, so the pre-clock Shiftin returns %10101010. The data line is left with a 1 on it because of the final clock pulse.

The post-clock Shiftin acquires its bits after each clock pulse. The initial pulse changes the data line from 1 to 0, so the post-clock Shiftin returns

%01010101.

By default, Shiftin acquires eight bits, but you can set it to shift any number of bits from 1 to 16 with an optional entry following the variable name. In the example above, substitute this for the first Shiftin instruction:

' SHIFTIN 0,1,msbpre,[b1\4]

Shiftin 4 bits.

The debug window will display %00001010.

Some devices return more than 16 bits. For example, most 8-bit shift registers can be daisy-chained together to form any multiple of 8 bits; 16,

24, 32, 40... You can use a single Shiftin instruction with multiple variables. Each variable can be assigned a particular number of bits with the backslash (\) option. Modify the previous example:

Page 332

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

SHIFTIN 0,1,msbpre,[b1\5,b2] debug "1st variable: ",bin8 b1,cr debug "2nd variable: ",bin8 b2,cr

' 5 bits into b1; 8 bits into b2.

Demo Program

See listing 2 of BS2 application note #2 Using Shiftin and Shiftout, or try the example shown in the explanation above.

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 333

BASIC Stamp II

Shiftout

SHIFTOUT dpin,cpin,mode,[data{\bits}{,data{\bits}...}]

Shift data out to a synchronous-serial device.

Dpin

is a variable/constant (0–15) that specifies the I/O pin that will be connected to the synchronous-serial device’s data input.

This pin’s I/O direction will be changed to output and will remain in that sate after the instruction is completed.

Cpin

is a variable/constant (0–15) that specifies the I/O pin that will be connected to the synchronous-serial device’s clock input.

This pin’s I/O direction will be changed to outputand will remain in that sate after the instruction is completed.

Mode

is a value (0 or 1) or a predefined symbol that tells Shiftout the order in which data bits are to be arranged. Here are the symbols, values, and their meanings:

Symbol

LSBFIRST

Value Meaning

0 Data shifted out lsb-first.

MSBFIRST 1 Data shifted out msb-first.

(Msb is most-significant bit; the highest or leftmost bit of a nibble, byte, or word. Lsb is the least-significant bit; the lowest or rightmost bit of a nibble, byte, or word.)

Data

is a variable or constant containing the data to be sent.

Bits

is an optional entry specifying how many bits (1—16) are to be ouput. If no bits entry is given, Shiftout defaults to 8 bits.

Explanation

Shiftout provides an easy method of transferring data to synchronousserial devices. Synchronous serial differs from asynchronous serial (like

Serin and Serout) in that the timing of data bits is specified in relationship to pulses on a clock line. Data bits may be valid after the rising or falling edge of the clock line. This kind of serial protocol is commonly used by controller peripherals like ADCs, DACs, clocks, memory devices, etc. Trade names for synchronous-serial protocols include SPI and

Microwire.

At their heart, synchronous-serial devices are essentially shift-registers—

Page 334

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II trains of flip-flops that pass data bits along in a bucket-brigade fashion to a single data-output pin. Another bit is input each time the appropriate edge (rising or falling, depending on the device) appears on the clock line. BS2 application note #2 explains shift-register operation in detail.

A single Shiftout instruction causes the following sequence of events:

Makes the clock pin (cpin) output low.

Copies the state of the next data bit to be output (working from one end of the data to the other) to the dpin output latch (corresponding bit of the OUTS variable).

Makes the data pin (dpin) an output.

Pulses the clock pin high for 14µs.

Repeats the sequence of outputting data bits and pulsing the clock pin until the specified number of bits is shifted into the variable.

Figure I-26

Making Shiftout work with a particular device is a matter of matching the mode and number of bits to that device’s protocol. Most manufacturers use a timing diagram to illustrate the relationship of clock and data. Figure I-26 shows Shiftout’s timing, beginning at the moment the Shiftout instruction first executes. Timing values in the figure are rounded to the nearest microsecond.

Shiftout Timing Diagram

shiftout begins, makes cpin output low

Clock

(cpin)

Data

(dpin)

15

µ s

14

µ s

Ð46

µ sÐ

15

µ s

=previous state of pin (unknown)

30

µ s

Demo Program

See listing 1 of BS2 application note #2 Using Shiftin and Shiftout.

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 335

BASIC Stamp II

Sleep

SLEEP seconds

Put the BS2 into low-power sleep mode for a specified number of seconds.

Seconds

is a variable/constant (1-65535) that specifies the duration of sleep in seconds.

Explanation

Sleep allows the BS2 to turn itself off, then turn back on after a programmed period of time. The length of Sleep can range from 2.3 seconds to slightly over 18 hours. Power consumption is reduced to about 50 µA, assuming no loads are being driven.The resolution of the Sleep instruction is 2.304 seconds. Sleep rounds the specified number of seconds up to the nearest multiple of 2.304. For example, Sleep 1 causes 2.3 seconds of sleep, while Sleep 10 causes 11.52 seconds (5 x 2.304) of sleep.

Pins retain their previous I/O directions during Sleep. However, outputs are interrupted every 2.3 seconds during Sleep due to the way the chip keeps time.

The alarm clock that wakes the BS2 up is called the watchdog timer. The watchdog is a resistor/capacitor oscillator built into the PBASIC2 interpreter chip. During Sleep, the chip periodically wakes up and adjusts a counter to determine how long it has been asleep. If it isn’t time to wake up, the chip “hits the snooze bar” and goes back to sleep.

To ensure accuracy of Sleep intervals, PBASIC2 periodically compares the watchdog timer to the more-accurate resonator timebase. It calculates a correction factor that it uses during Sleep. As a result, longer

Sleep intervals are accurate to approximately ±1 percent.

If your application is driving loads (sourcing or sinking current through output-high or output-low pins) during Sleep, current will be interrupted for about 18 ms when the BS2 wakes up every 2.3 seconds. The reason is that the watchdog-timer reset that awakens the BS2 also causes all of the pins to switch to input mode for approximately 18 ms. When the PBASIC2 interpreter firmware regains control of the processor, it restores the I/O

Page 336

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II directions dictated by your program.

If you plan to use End, Nap, or Sleep in your programs, make sure that your loads can tolerate these periodic power outages. The simplest solution is often to connect resistors high or low (to +5V or ground) as appropriate to ensure a continuing supply of current during the reset glitch.

Demo Program

This program demonstrates both Sleep’s timing characteristics and the periodic glitch discussed above. Connect an LED to pin 0 as shown in figure I-27 and run the program. The LED will blink, then the BS2 will go to Sleep. During Sleep, the LED will remain on, but will wink out at intervals of approximately 2.3 seconds.

' Turn LED on.

' Wait 1 second.

Figure I-27

+5V low 0 pause 1000 again:

high 0

pause 1000

low 0

SLEEP 10 goto again

' LED off.

' Wait 1 second.

' LED back on.

' Sleep for 10 seconds.

LED

220

I/O pin

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 337

BASIC Stamp II

Stop

STOP

Stop program execution.

Explanation

Stop prevents the BS2 from executing any further instructions until it is reset. The following actions will reset the BS2: pressing and releasing the RESET button on the carrier board, taking the RES pin low then high, by downloading a new program, or turning the power off then on.

Stop differs from End in two respects:

• Stop does not put the BS2 into low-power mode. The BS2 draws just as much current as if it were actively running program instructions.

• The output glitch that occurs after a program has Ended does not occur after a program has Stopped.

Page 338

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

Toggle

TOGGLE pin

Invert the state of a pin.

Pin

is a variable/constant (0–15) that specifies the I/O pin to use.

The state of the corresponding bit of the OUTS register is inverted and the pin is put into output mode by writing a 1 the corresponding bit of the DIRS register.

Explanation

Toggle inverts the state of an I/O pin, changing 0 to 1 and 1 to 0. When the pin is intially in the output mode, Toggle has exactly the same effect as complementing the corresponding bit of the OUTS register. That is,

Toggle 7 is the same as OUT7 = ~OUT7 (where ~ is the logical NOT operator).

When a pin is initially in the input mode, Toggle has two effects; it inverts the output driver (OUTS bit) and changes the pin to output mode by writing a 1 to the pin’s input/output direction bit (the corresponding bit of the DIRS register).

In some situations Toggle may appear to have no effect on a pin’s state.

For example, suppose pin 2 is in input mode and pulled to +5V by a 10k resistor. Then the following code executes:

DIR2 = 0

OUT2 = 0 debug ? IN2

TOGGLE 2 debug ? IN2

' Pin 2 in input mode.

' Pin 2 output driver low.

' Show state of pin 2 (1 due to pullup).

' Toggle pin 2 (invert OUT2, put 1 in DIR2).

' Show state of pin 2 (1 again).

The state of pin 2 doesn’t change—it’s high (due to the resistor) before

Toggle, and it’s high (due to the pin being output high) afterward. The point of presenting this puzzle is to emphasize that Toggle works on the

OUTS register, which may not match the pin’s state when the pin is initially an input.

If you want to guarantee that the state of the pin actually changes, regardless of whether that pin starts as an input or output, just do this:

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 339

BASIC Stamp II

OUT2 = IN2

TOGGLE 2

' Make output driver match pin state.

' Then toggle.

If you change the previous example to copy IN2 to OUT2 before Toggling, you’ll see that the state of the pin does change.

Demo Program

Connect LEDs to pins 0 through 3 as shown in figure I-28 and run the program below. The Toggle instruction will treat you to a light show. You may also run the demo without LEDs. The debug window will show you the states of pins 0 through 3.

thePin again: var

for thePin = 0 to 3

TOGGLE thePin

debug cls,bin4 INA

pause 200

next goto again nib ' Variable to count 0-3.

' Pins 0 to 3 driving LEDs.

' Toggle each pin.

' No LEDs? Watch debug screen.

' Brief delay.

' Next pin

' Repeat endlessly.

Figure I-28

Pins

3

2

1

0

LED

220

LED

220

LED

220

LED

220

Page 340

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II

Write

WRITE address,byte

Write a byte of data to the EEPROM.

Address

is a variable/constant specifying the EEPROM address

(0—2047) to write to.

Byte

is a data byte to be written into EEPROM.

Explanation

The EEPROM is used for both program storage (which builds downward from address 2047) and data storage (which may use any EEPROM byte not used for program storage). Data may either be downloaded to the BS2 along with the program via the Data directive, or a running program may store data in EEPROM using the Write instruction.

EEPROM differs from RAM, the memory in which variables are stored, in several respects:

(1) Writing to EEPROM takes more time than storing a value in a variable. Depending on many factors, it may take several milliseconds for the EEPROM to complete a write. RAM storage is nearly instantaneous.

(2) The EEPROM can accept a finite number of Write cycles per byte before it wears out. At the time of this writing, each byte of the

EEPROM used in the BS2 was good for 10 million Write cycles, and an unlimited number of Reads. If a program frequently writes to the same EEPROM location, it makes sense to estimate how long it might take to exceed 10 million writes. For example, at one write per second (86,400 writes/day) it would take nearly 116 days of continuous operation to exceed 10 million.

(3) The primary function of the EEPROM is to store programs; data is stored in leftover space. If data overwrites a portion of your program, the program will most likely crash. Check the program’s memory map to determine what portion of memory is occupied by your program and make sure that EEPROM Writes cannot stray into this area. You may also use the Data directive to set aside

EEPROM space. For instance:

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 341

BASIC Stamp II name DATA (n)

This directive allocates n bytes of EEPROM starting at the address name and extending to address name + (n-1). If you restrict Writes to this range of addresses, you’ll be fine. If your program grows to the point that it overlaps the addresses allocated, the STAMP2 host program will generate an error message and refuse to download it. See the section BS2

EEPROM Data Storage for more information on the Data directive.

Demo Program

This program is the bare framework of a data logger—an application that gathers data and stores it in memory for later retrieval. To provide sample data, connect the circuit of figure I-14a (see RCtime) to pin 7. Use a 10k resistor and 0.1µF capacitor. Run the program and twiddle the pot to vary the input data. The program writes the data to EEPROM at 1second intervals, then reads it back from the EEPROM. If you plan to use

Write in a similar application, pay close attention to the way the program allocates the EEPROM with Data and uses constants to keep track of the beginning and ending addresses of the EEPROM space. Note that this program uses an unnecessarily large variable (a word) for the

EEPROM address. With only 10 samples and with EEPROM addresses that start at 0, we could have gotten away with just a nibble. However, real-world applications could expand to hundreds of samples, or be located much higher in EEPROM, so we used a word variable to set a good example.

result

EEaddr locations.

var var word word

' Word variable for RCtime result.

' Address of EEPROM storage samples log endLog con data con

10

(samples) log+samples-1

' Number of samples to get.

' Set aside EEPROM for samples.

' End of allocated EEPROM.

for EEaddr = log to endLog

high 7: pause 1

' Store each sample in EEPROM.

' Charge the cap.

rctime 7,1,result

result = result*42/100

' Measure resistance.

' Scale to fit one byte (0-255)

debug "Storing ", dec result,tab," at ", dec EEaddr,cr

WRITE EEaddr,result ' Store it in EEPROM

pause 1000 ' Wait a second.

Page 342

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II next pause 2000: debug cls

' Do until all samples done.

' Wait 2 seconds, then clear screen.

for EEaddr = log to endLog

EEPROM.

' Retrieve each sample from

read EEaddr,result ' Read back a byte

debug "Reading ", dec result,tab," at ", dec EEaddr,cr next stop

' Do until all samples retrieved.

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 343

BASIC Stamp II

Xout

XOUT mpin,zpin,[house\keyOrCommand{\cycles}{,house\keyOrCommand{\cycles}...}]

Send an X-10 powerline control command (through the appropriate powerline interface).

Mpin

is the I/O pin (0-15) that outputs X-10 signals (modulation) to the powerline-interface device. This pin is placed into output mode.

Zpin

is the I/O pin (0-15) that inputs the zero-crossing signal from the powerline-interface device. This pin will be placed into input mode.

House

is the X-10 house code (values 0-15 representing letters A through P).

KeyOrCommand

is a key on a manual X-10 controller (values

0-15 representing keys 1 through 16) or an X-10 control command listed in the table below. In Xout instructions you can use either the command value or the built-in Command constant.

Cycles

is an optional number of times to transmit a given key or command. If no cycles entry is used, Xout defaults to two. The cycles entry should be used only with the DIM and BRIGHT command codes.

Explanation

Xout lets you control appliances via signals sent through household AC wiring to X-10 modules. The appliances plugged into these modules can be switched on or off; lights may also be dimmed. Each module is assigned a house code and unit code by setting dials or switches on the module. To talk to a particular module, Xout sends the appropriate house code and unit code (key). The module with the corresponding codes then listens for its house code again and a command (on, off, dim, or bright).

Xout interfaces to the AC powerline through an approved interface device such as a PL-513 or TW-523, available from Parallax or X-10 dealers. The hookup requires a length of four-conductor phone cable and a

Page 344

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II standard modular phone-base connector (6P4C type). Connections are as follows:

PL-513 or TW-523

1

2

3

4

BS2

zPin*

GND

GND mPin

* This pin should also be connected to

+5V through a 10k resistor.

Here are the Xout command codes and their functions:

Command *Code

unitOn %10010 unitOff unitsOff

%11010

%11100

Function

Turn on the currently selected unit.

Turn off the currently selected unit.

Turn off all modules w/ this house code.

lightsOn dim

%10100

%11110

Turn on all lamp modules w/ this house code.

Reduce brightness of currently selected lamp.

bright %10110 Increase brightness of currently selected lamp.

*In most applications, it’s not necessary to know the code for a given X-

10 instruction. Just use the command constant (unitOn, dim, etc.) instead. But knowing the codes leads to some interesting possibilities.

For example, XORing a unitOn command with the value %1000 turns it into a unitOff command, and vice-versa. This makes it possible to write the equivalent of an X-10 “toggle” instruction.

Here is an example of the Xout instruction: zPin mPin houseA unit1 con con con con

0

1

0

0

' Zpin is P0.

' Mpin is P1.

' House code A = 0.

' Unit code 1 = 0.

XOUT mPin,zPin,[houseA\unit1]

XOUT mPin,zPin,[houseA\unitOn]

' Get unit 1's attention..

' ..and tell it to turn on.

You can combine those two Xout instructions into one like so:

XOUT mPin,zPin,[houseA\unit1\2,houseA\unitOn] ' Unit 1 on.

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 345

BASIC Stamp II

Note that to complete the attention-getting code houseA\unit1 we tacked on the normally optional cycles entry \2 to complete the command before beginning the next one. Always specify two cycles in multiple commands unless you’re adjusting the brightness of a lamp module.

Here is an example of a lamp-dimming instruction: zPin mPin houseA unit1 con con con con

0

0

0

1

' Zpin is P0.

' Mpin is P1.

' House code A = 0.

' Unit code 1 = 0.

XOUT mPin,zPin,[houseA\unit1] ' Get unit 1's attention..

XOUT mPin,zPin,[houseA\unitOff\2,houseA\dim\10] ' Dim halfway.

The dim/bright commands support 19 brightness levels. Lamp modules may also be turned on and off using the standard unitOn and unitOff commands. In the example instruction above, we dimmed the lamp by first turning it comletely off, then sending 10 cycles of the dim command.

This may seem odd, but it follows the peculiar logic of the X-10 system.

See the table in BS2 app note #1, X-10 Control, for complete details.

Demo Program

See the program listing accompanying BS2 app note #1, X-10 Control.

Page 346

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

1: X-10 Control

BASIC Stamp II Application Notes

Introduction.

This application note shows how to use the new Xout command to remotely control X-10

®

lamp and appliance modules.

Background.

Home automation—the management of lights and appliances with a computer—promises to increase security, energy efficiency, and convenience around the house. So why aren’t home-control systems more common? The answer is probably the wiring; it’s hard to think of a nastier job than stringing control wiring through the walls and crawlspaces of an existing home.

Fortunately, there’s a wireless solution for home control called X-10, a family of control modules that respond to signals sent through existing

AC wiring. The BASIC Stamp II has the built-in ability to generate X-10 control signals with the new Xout instruction.

How it works.

From the user’s standpoint, an X-10 system consists of a control box plugged into a wall outlet, and a bunch of modules plugged into outlets around the house. The appliances and lights to be controlled are plugged into the modules.

During the installation of the system, the user assigns two codes to each of the modules; a house code and a unit code. As the name suggests, the house code is usually common to all modules in a particular house.

There are 16 house codes, assigned letters A through P. The idea of the house code is to avoid interference between adjacent homes equipped with X-10 by allowing the owners to assign different codes to their modules. The control box must be assigned the same house codes as the modules it will control.

There are also 16 unit codes (numbered 1 through 16) that identify the modules within a particular house. If your needs expand beyond 16 modules, it’s generally safe to use another house code for the next group of 16, since few if any neighborhoods are so infested with X-10 controllers that all available house codes are taken. X-10 signals don’t propagate beyond the nearest utility transformer.

Once this simple setup is complete, the user controls the modules by pressing keys on the control box. Pressing “1 ON” turns module 1 on.

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 347

BASIC Stamp II Application Notes

From a more technical standpoint, X-10 signals are digital codes imposed on a 120-kHz carrier that is transmitted during zero crossings of the AC line. To send X-10 commands, a controller must synchronize to the AC line frequency with 50-microsecond precision, and transmit an

11-bit code sequence representing the button pressed.

A company named X-10 owns a patent on this system. To encourage others to use their technology without infringing their patent, X-10 sells a pair of modules that provide a relatively simple, safe, UL- and CSAapproved interface with the AC power line. These interfaces are the PL-

513 and TW-523. The PL-513 is a transmit-only unit; the TW-523 can be used to transmit and receive X-10 codes. The Stamp II presently supports only transmission of X-10 codes, but either of the interfaces may be used. The figure shows how they connect to the Stamp II.

A word of caution: The PL-513 or TW-523 provide a safe, opto-isolated interface through their four-pin modular connector. However, they derive power directly from the AC power line. Never open the cases of these devices to make connections or measurements. You’ll be exposing yourself to a severe—even deadly—shock hazard.

That said, connecting to the PL-513 or TW-523 is easy. They use a standard four-conductor modular phone base (not handset) connector.

Cutting a 12-foot phone cord in half yields two 6-foot X-10 cables. The

TW523 or PL513 powerline interface

1 2 3 4

+5

BS2 pin 0 pin 1

10k

4-conductor phone base

(not handset) cable

1

2

3

4

Schematic to accompany

X

10_

DEMO

.

B S

2

Page 348

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

1: X-10 Control

1: X-10 Control

BASIC Stamp II Application Notes color codes can vary in phone cables, so be sure to follow the numbers imprinted next to the modular jack on the PL-513 or TW-523 unit.

The program listing shows how to send X-10 commands through this hookup. The listing is self-explanatory, and the procedures are simple, as long as you keep some ground rules in mind:

• House codes A through P are represented as values from 0 to 15 in the Xout command.

• Unit codes 1 through 16 are represented as values from 0 to 15 in the Xout command.

• Every X-10 transmission must include a house code.

• Except for Dim and Bright, all codes are sent for a default of two cycles. You don’t have to specify the number of cycles for commands other than Dim and Bright, unless you are sending multiple codes in a single instruction. See the listing for examples.

• It takes 19 cycles for a lamp to go from fully bright to fully dim and vice versa. There’s also a peculiar logic to the operation of the Dim and Bright commands (see the table). To set a specific level of brightness, you should first reset the dimmer module by turning it off, then back on.

• In some homes, X-10 signals may not be able to reach all outlets without a little help. A device called an ACT CP000 Phase Coupler

(about $40 retail from the source below) installed on the electrical breaker box helps X-10 signals propagate across the phases of the

AC line. For larger installations, there are also amplifiers, repeaters, etc.

Sources.

X-10 compatible modules are available from many home centers, electrical suppliers, and electronics retailers, including Radio

Lamp is...

OFF/FULL

ON/FULL

OFF/DIM

ON/DIM

Operation of the Dim and Bright Commands

And you send...

OFF turns OFF/FULL turns OFF/FULL turns OFF/FULL turns ON/FULL no effect no effect no effect

BRIGHT turns ON/FULL turns ON/FULL dims no effect no effect dims brightens brightens

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 349

BASIC Stamp II Application Notes

Shack. However, relatively few of these carry the PL-513 and TW-523.

Advanced Services Inc., a home-automation outlet, sells every conceivable sort of X-10 hardware, including the PL-513 and TW-523 (starting at around $20 at the time of this writing). You may contact them at 800-

263-8608 or 508-747-5598.

Program listing.

This program may be downloaded from our Internet ftp site at ftp.parallaxinc.com. The ftp site may be reached directly or through our web site at http://www.parallaxinc.com.

' Program: X10_DEMO.BS2 (Demonstration of X-10 control using Xout)

' This program--really two program fragments--demonstrates the

' syntax and use of the new XOUT command. Basically, the command

' works like pressing the buttons on an X-10 control box; first you

' press one of 16 keys to identify the unit you want to control,

' then you press the key for the action you want that unit to

' take (turn ON, OFF, Bright, or Dim). There are also two group-action

' keys, Lights ON and All OFF. Lights ON turns all lamp modules on

' without affecting appliance modules. All OFF turns off all modules,

' both lamp and appliance types.

' Using XOUT requires a 4-wire (2-I/O pin) connection to a PL-513 or

' TW-523 X-10 module. See the application note for sources.

zPin con 0 ' Zero-crossing-detect pin from TW523 or PL513.

mPin con 1 ' Modulation-control pin to TW523 or PL513.

' X-10 identifies modules by two codes: a House code and a Unit code.

' By X-10 convention, House codes are A through P and Unit codes are

' 1 through 16. For programming efficiency, the Stamp II treats both

' of these as numbers from 0 through 15.

houseA con 0 ' House code: 0=A, 1=B... 15=P

Unit1

Unit2 con con

0

1

' Unit code: 0=1, 1=2... 15=16

' Unit code 1=2.

' This first example turns a standard (appliance or non-dimmer lamp)

' module ON, then OFF. Note that once the Unit code is sent, it

' need not be repeated--subsequent instructions are understood to

' be addressed to that unit.

xout mPin,zPin,[houseA\Unit1] ' Talk to Unit 1.

xout mPin,zPin,[houseA\uniton] ' Tell it to turn ON.

pause 1000 ' Wait a second.

xout mPin,zPin,[houseA\unitoff] ' Tell it to turn OFF.

' The next example talks to a dimmer module. Dimmers go from full

Page 350

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

1: X-10 Control

BASIC Stamp II Application Notes

' ON to dimmed OFF in 19 steps. Because dimming is relative to

' the current state of the lamp, the only guaranteed way to set a

' predefined brightness level is to turn the dimmer fully OFF, then

' ON, then dim to the desired level. Otherwise, the final setting of

' the module will depend on its initial brightness level.

xout mPin,zPin,[houseA\Unit2] ' Talk to Unit 2.

' This example shows how to combine X-10 instructions into a

' single line. We send OFF to the previously identified unit (Unit2)

' for 2 cycles (the default for non-dimmer commands). Then a comma

' introduces a second instruction that dims for 10 cycles. When you

' combine instructions, don't leave out the number of cycles. The

' Stamp may accept your instruction without complaint, but it

' won't work correctly--it may see the house code as the number of

' cycles, the instruction as the house code, etc.

xout mPin,zPin,[houseA\unitoff\2,houseA\dim\10]

' Just to reinforce the idea of combining commands, here's the

' first example again: xout mPin,zPin,[houseA\Unit1\2,houseA\uniton] ' Turn Unit 1 ON.

pause 1000 ' Wait a second.

xout mPin,zPin,[houseA\Unit1\2,houseA\unitoff] ' Turn Unit 1 OFF.

' End of program.

stop

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 351

BASIC Stamp II Application Notes

Page 352

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

2: Using Shiftin & Shiftout

BASIC Stamp II Application Notes

Introduction.

This application note shows how to use the new Shiftin and Shiftout instructions to efficiently interface the BASIC Stamp II to synchronous serial peripheral chips.

Background.

Many of the most exciting peripheral chips for microcontrollers are available only with synchronous-serial interfaces.

These go by various names, like SPI, Microwire, three- or four-wire interface, but they are essentially the same in operation. The BASIC

Stamp II takes advantage of these similarities to offer built-in instructions—Shiftout and Shiftin—that take most of the work out of communicating with synchronous-serial peripherals.

Before plunging into the nuts and bolts of using the new instructions, let’s discuss some fundamentals. First of all, how does a synchronousserial interface differ from a parallel one? Good question, since most synchronous-serial devices incorporate elements of both serial and parallel devices.

The building block of both parallel and serial interfaces is called a flipflop. There are several types, but we’re going to discuss the D-type or

Data flip-flop. A D-type flip-flop has two inputs (Data and Clock) and one output (typically called Q). When the logic level on the Clock input rises (changes from 0 to

1), the flip-flop stores a snapshot of the logic level at the Data input to the Q

Latch

Clock

D

FF0

CLK

Q output. It holds that bit on Q until the power is turned off, or until the opposite state is present on Data when Clock receives another 0-to-1 change. (For the sake of conversation, we call a 0to-1 transition a “rising edge” and 1-to-0 a “falling edge.”)

Parallel

Data In

D

FF1

Q

CLK

D

FF2

Q

CLK

D

FF3

Q

CLK

Parallel

Data Out

The action of a D-type flip-

Figure 1. Parallel latch.

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 353

BASIC Stamp II Application Notes flop is described as “latching” Data onto Q. Parallel latches, like the one shown in figure 1, allow several bits to be simultaneously latched onto a set of outputs. This is one of the ways that a computer addresses multiple devices on a single parallel data bus—it puts the data on the bus, then triggers one device’s Clock. The data is latched into the destination device only; other devices ignore the data until their Clock lines are triggered.

Serial

Data In

Shift

Clock

D

FF0

Q

CLK

D

FF1

Q

CLK

D

FF2

Q

CLK

Parallel

Data Out

D

FF3

Q

CLK

With different wiring, the parallel latch becomes a serial one, known

Figure 2. Ser ial shift register.

as a shift register (figure 2). See how this works: When a rising edge appears on the Clock input, all of the flip-flops latch their Data inputs to their Q outputs. Because they are wired in a chain with each Q output connected to the next flip-flop’s

Data input, incoming bits ripple down the shift register.

You can picture this process as working like a bucket brigade or a line of people moving sandbags. In perfect coordination, each person hands their burden to the next person in line and accepts a new one from the previous person.

Looking at this from the standpoint of the parallel output, there’s a potential problem. When data is being clocked into the shift register, the data at the output isn’t stable—it’s rippling down the line. The cure for this is to add the previously described parallel latch after the shift register, and clock it only when we’re finished shifting data in. That’s the arrangement shown in figure 3.

It isn’t too much of a stretch to imagine how this kind of circuit could be turned around and used as an input. Data would be grabbed in parallel by a latch, then transferred to a shift register to be moved one bit at a time to a serial data output.

2: Using Shiftin & Shiftout

Page 354

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

2: Using Shiftin & Shiftout

BASIC Stamp II Application Notes

Now you understand the communications hardware used in synchronous serial peripherals; it’s basically just a collection of shift registers, latches and other logic. The Stamp II’s built-in Shiftout and

Shiftin instructions provided general-purpose tools for working with this kind of hardware.

Let’s look at some examples.

Latch

Clock

Serial

Data In

Shift

Clock

D

FF0

Q

CLK

D

FF1

Q

CLK

D

FF2

Q

CLK

D

FF3

Q

CLK

D

FF0

Q

CLK

D

FF1

Q

CLK

D

FF2

Q

CLK

D

FF3

Q

CLK

Parallel

Data Out

Shift-Register Output with Shiftout.

The most basic use for Shiftout is to

Figure 3. A shift register plus a latch makes a ser ial-to-parallel converter.

add an output-only port based on a shift register/latch combination like the 74HC595 shown in figure 4. Listing 1 demonstrates how simple it is to send data to a device like this.

LEDs

470

(all)

1

2

3

4

5

6

7

8

QB

QC

QD

QE

QF

QG

QH

GND

16

VCC

15

QA

14

DATA IN

74HC

595

OE

LATCH

13

12

11

CLK

10

RESET

9

SQH

+5

BS2 pin 0

BS2 pin 2

+5

BS2 pin 1

2

Figure 4. Schematic to accompany 74

H C

595.

B S

2.

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 355

BASIC Stamp II Application Notes

Shiftout requires just five pieces of information to do its job:

• The pin number of the data connection.

• The pin number of the shift-clock connection.

• The order in which the bits should be sent—least-significant bit

(lsb) first or most-significant bit (msb) first. For the ’595, we chose msb first, since the msb of the output is farthest down the shift register from the data input. For other devices, the order of bits is prescribed by the manufacturer’s spec sheet.

• The variable containing the data to output.

• The number of bits to be sent. (If this entry is omitted, Shiftout will send eight bits).

Note that once the data is shifted into shift register, an additional program step—pulsing the Latch line—is required to move the data to the output lines. That’s because the 74HC595 is internally similar to the schematic in figure 3. The two-step transfer process prevents the outputs from rippling as the data is shifted.

The 74HC595 also has two control lines that are not used in our demonstration, but may prove useful in real-world applications. The

Reset line, activated by writing a 0 to it, simultaneously clears all of the shift register flip-flops to 0 without affecting the output latch. The

Output-enable (OE) line can effectively disconnect the output latch, allowing other devices to drive the same lines. A 0 on OE connects the outputs; a 1 disconnects them.

BS2 pin 0

1

CS Vcc

8

+5

2 7

Serial ADC with Shiftin.

Figure 5 and listing 2 demonstrate how to use Shiftin to obtain data from an 8-bit serial ana-

0Ð5V in

3

4

Vin(+)

Vin(Ð)

GND

ADC

0831

CLK

DO

Vref

6

5 log-to-digital converter, the

ADC0831.

BS2 pin 1

BS2 pin 2

Shiftin requires the same five pieces of information as

Figure 5. Schematic for

A D C

0 8 3 1 .

B S

2 .

Page 356

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

2: Using Shiftin & Shiftout

2: Using Shiftin & Shiftout

BASIC Stamp II Application Notes

Shiftout, plus one more, the relationship of valid data to clock pulses.

Some devices latch bits onto the serial data output on the rising edge of the clock line. Output bits remain valid until the next rising edge. In these cases, your program must specify post-clock input for the Shiftin mode. When bits are latched on the falling edge of the clock, specify preclock input.

With pre-clock input, we sometimes encounter a chicken-and-egg problem. How can the first bit be clocked out before the first clock pulse?

It can’t, of course. The simple solution is to specify one additional bit in the Shiftin instruction.

However, most serial peripherals require that some instructions be sent to them before they return any data. In this case, the falling edge of the last Shiftout clock cycle clocks the first bit of the following pre-clock

Shiftin instruction.

Serial ADC with Shiftout and Shiftin.

The third example (figure 6, listing 3) uses Shiftout and Shiftin to hold a two-way conversation with an LTC1298 ADC. An initial Shiftout sends configuration bits to the

LTC1298 to select channel and mode, then a Shiftin gets the 12-bit result of the conversion. The program listing concentrates on the mechanics of the Shift instructions; for more detailed information on the ADC itself, see Stamp Application Note #22 or the manufacturer’s spec sheet.

Variable Voltage

Source for Demo

+5

+5

5k pot

5k pot

0Ð5V in

1

CS

CH0 CLK

LTC1298

CH1 Dout

GND

Vcc

Din

1k

+

10

µ

F tantalum

2

BS2 pin 0

BS2 pin 2

BS2 pin 1

Figure 6. Schematic for

LTC

1298.

B S

2.

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 357

BASIC Stamp II Application Notes

Custom Shift Routines.

The key to successful use of the Shift instructions is obtaining, reading, and understanding the manufacturer’s specification sheets. In addition to providing the data required to fill in the parameters for the Shift instructions, the data sheets document configuration bits, operating modes, internal register arrangements, and lots of other valuable data.

Sources.

The components used in the example applications are available from Digi-Key, 710 Brooks Avenue South, P. O. Box 677, Thief River

Falls, MN 56701-0677; phone 1-800-344-4539. Packages of components, documentation, and source code listings for the Stamp I, Stamp II and

PIC microcontrollers are available from Scott Edwards Electronics; phone 520-459-4802, fax 520-459-0623. These packages, known as

AppKits, are available for the LTC1298 ADC, DS1620 digital thermometer, Xicor X25640 8-kB EEPROM, and others.

Program listings.

These programs may be downloaded from our

Internet ftp site at ftp.parallaxinc.com. The ftp site may be reached directly or through our web site at http://www.parallaxinc.com.

' LISTING 1. SHIFTOUT TO 74HC595

' Program: 74HC595.BS2 (Demonstrate 74HC595 shift register with Shiftout)

' This program demonstrates the use of the 74HC595 shift register as an

' 8-bit output port accessed via the Shiftout instruction. The '595

' requires a minimum of three inputs: data, shift clock, and latch

' clock. Shiftout automatically handles the data and shift clock,

' presenting data bits one at a time on the data pin, then pulsing the

' clock to shift them into the '595's shift register. An additional

' step—pulsing the latch-clock input—is required to move the shifted

' bits in parallel onto the output pins of the '595.

' Note that this application does not control the output-enable or

' reset lines of the '595. This means that before the Stamp first

' sends data to the '595, the '595's output latches are turned on and

' may contain random data. In critical applications, you may want to

' hold output-enable high (disabled) until the Stamp can take control.

DataP con 0

Clock con 1

' Data pin to 74HC595.

' Shift clock to '595.

Latch con 2 counter var byte

' Moves data from shift register to output latch.

' Counter for demo program.

' The loop below moves the 8-bit value of 'counter' onto the output

2: Using Shiftin & Shiftout

Page 358

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

2: Using Shiftin & Shiftout

BASIC Stamp II Application Notes

' lines of the '595, pauses, then increments counter and repeats.

' The data is shifted msb first so that the most-significant bit is

' shifted to the end of the shift register, pin QH, and the least-

' significant bit is shifted to QA. Changing 'msbfirst' to 'lsbfirst'

' causes the data to appear backwards on the outputs of the '595.

' Note that the number of bits is _not_ specified after the variable

' in the instruction, since it's eight, the default.

Again:

Shiftout DataP,Clock,msbfirst,[counter] ' Send the bits.

pulsout Latch,1 ' Transfer to outputs.

pause 50

counter = counter+1 goto Again

' Wait briefly.

' Increment counter.

' Do it again.

' LISTING 2. SHIFTIN FROM ADC0831

' Program: ADC0831.BS2

' This program demonstrates the use of the BS2's new Shiftin instruction

' for interfacing with the Microwire interface of the Nat'l Semiconductor

' ADC0831 8-bit analog-to-digital converter. It uses the same connections

' shown in the BS1 app note.

ADres

CS

AData

CLK high CS var con con con

1

2 byte

0

' A-to-D result: one byte.

' Chip select is pin 0.

' ADC data output is pin 1.

' Clock is pin 2.

' Deselect ADC to start.

' In the loop below, just three lines of code are required to read

' the ADC0831. The Shiftin instruction does most of the work. Shiftin

' requires you to specify a data pin and clock pin (AData, CLK), a

' mode (msbpost), a variable (ADres), and a number of bits (9). The

' mode specifies msb or lsb-first and whether to sample data before

' or after the clock. In this case, we chose msb-first, post-clock.

' The ADC0831 precedes its data output with a dummy bit, which we

' take care of by specifying 9 bits of data instead of 8.

again:

low CS ' Activate the ADC0831.

shiftin AData,CLK,msbpost,[ADres\9] ' Shift in the data.

high CS

debug ? ADres

' Deactivate '0831.

' Show us the conversion result.

pause 1000 goto again

' Wait a second.

' Do it again.

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 359

BASIC Stamp II Application Notes

' LISTING 3. BIDIRECTIONAL COMMUNICATION WITH LTC1298

' Program: LTC1298.BS2 (LTC1298 analog-to-digital converter)

' This program demonstrates use of the Shiftout and Shiftin instructions

' to communicate with an LTC1298 serial ADC. Shiftout is used to

' send setup data to the ADC; Shiftin to capture the results of the

' conversion. The comments in this program concentrate on explaining

' the operation of the Shift instructions. for more information on

' the ADC, see Stamp app note #22 or the Linear Tech spec sheets.

CS

CLK

DIO_n config

AD con con con var var

0

1

2 nib word

' Chip select; 0 = active

' Clock to ADC; out on rising, in on falling edge.

' Data I/O pin _number_.

' Configuration bits for ADC.

' Variable to hold 12-bit AD result.

startB sglDif var var oddSign var msbf var config.bit0

config.bit1

config.bit2

config.bit3

' Start bit for comm with ADC.

' Single-ended or differential mode.

' Channel selection.

' Output 0s after data xfer complete.

' This program demonstrates the LTC1298 by alternately sampling the two

' input channels and presenting the results on the PC screen using Debug.

high CS high DIO_n

' Deactivate ADC to begin.

' Set data pin for first start bit.

again:

for oddSign = 0 to 1

gosub convert

' Main loop.

' Toggle between input channels.

' Get data from ADC.

debug "channel ",DEC oddSign, ": ",DEC AD,cr ' Display data.

pause 500

next goto again

' Wait a half second.

' Change channels.

' Endless loop.

' Here's where the conversion occurs. The Stamp first sends the config

' bits to the 1298, then clocks in the conversion data. Note the use of

' the new BS2 instructions Shiftout and Shiftin. Their use is pretty

' straightforward here: Shiftout sends data bits to pin DIO and clock

' the CLK pin. Sending the least-significant bit first, it shifts out

' the four bits of the variable config. Then Shiftin changes DIO to

' input and clocks in the data bits—most-significant bit first, post

' clock (valid after clock pulse). It shifts in 12 bits to the variable AD.

convert:

config = config | %1011 ' Set all bits except oddSign.

low CS ' Activate the ADC.

shiftout DIO_n,CLK,lsbfirst,[config\4]' Send config bits.

shiftin DIO_n,CLK,msbpost,[AD\12] ' Get data bits.

high CS ' Deactivate the ADC.

return ' Return to program.

2: Using Shiftin & Shiftout

Page 360

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

3: Phoneline Interface

BASIC Stamp II Application Notes

Introduction.

This application note shows how to interface the BS2 to the phone line in applications that use the DTMFout instruction.

Background.

The BS2 instruction DTMFout generates dual-tone, multifrequency signals—the same musical beeps used to dial the phone, activate pagers, and access repeaters in ham-radio applications.

Commercial designs that interface electronic devices to the phone line normally require the approval of the Federal Communications Commission (FCC) to ensure the quality and reliability of telephone service.

Manufacturers of phone accessories often take the shortcut of using an off-the-shelf interface, known as a Data Access Arrangement (DAA).

Since the DAA has already been checked out by the FCC, it’s generally much easier to get a DAA-based design approved than a from-scratch circuit. Unfortunately, DAAs tend to be somewhat expensive in small quantities ($25+ each), and are sold primarily through high-volume distributors geared toward serving manufacturers.

Where does this leave experimenters, hobbyists, and one-off instrument makers? Pretty much on their own. For them, we present the circuit below. It’s not a full-blown DAA suitable for production designs, but it is a good starting point for prototype DTMF-transmit

2

Interfacing to the Telephone Line

connect switch (or relay contacts)

600-600

Ω transformer

(JC: 117760)

1k 0.1

µ

F

I/O pin phone line

(red and green)

10

(both)

0.001

µ

F

270V “Sidactor”

(DK: P3000AA61-ND

P3000AA61-ND)

Parts Sources

Digi-Key (DK), 1-800-344-4539 or 218-681-6674

3.9V zeners (both)

DK: 1N5228BCT-ND

Jameco (JC), 1-800-831-4242 or 415-592-8097

Schematic of the phone-line interface.

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 361

BASIC Stamp II Application Notes applications using the BS2. It’s based on a circuit presented in Encyclo-

pedia of Electronic Circuits, Volume 5, by Graf and Sheets (TAB/McGraw

Hill, 1995; ISBN 0-07-011077-8). We’ve filled in specific component values and sources, added parts for coupling the BS2, and tested the circuit’s ability to dial the phone.

How it works.

Starting at the phone-line end of the circuit, a doublepole single-throw (DPST) switch or set of relay contacts isolates the circuit from the phone line when the circuit is not in use. Closing the switch puts the phone into the “off-hook” condition, which causes the phone company to generate a dialtone. Although a single set of contacts would be sufficient to break the circuit, a tradition of robust design in phone circuits makes it normal for a hook switch to break both sides of the circuit.

After the switch, a Sidactor surge-protection device clips large voltage spikes that might result from nearby lightning strikes. Its voltage rating is selected to let it do its surge-protection job without interfering with relatively high ringing voltages or phone-company test voltages. Note that nothing can provide 100-percent lightning immunity, but the

Sidactor is cheap insurance against most routine surges.

A 600-to-600-ohm transformer isolates the BS2 from the line’s DC voltages. On the other side of the transformer, a pair of zener diodes clips any voltage over approximately 4.6 volts. The remaining resistors and capacitors couple the DTMF tones from the BS2 into the transformer. They also work together to smooth the ragged edges of the

DTMF tones, which are generated using fast pulse-width modulation

(PWM). Before filtering, these tones contain high-frequency components that can make them sound distorted or fuzzy. With the circuit shown, the tones come through crystal clear.

Programming.

You’ll be amazed at how easy it is to dial the phone with the DTMFout instruction. Suppose you want to dial 624-8333—one line will do the trick:

DTMFout 0,[6,2,4,8,3,3,3] where 0 is the pin number (0-15) connected to the interface and the

Page 362

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

3: Phoneline Interface

3: Phoneline Interface

BASIC Stamp II Application Notes numbers inside the square brackets are the numbers to dial. Values of

0-9 represent those same buttons on the phone keypad; 10 is the star (*) key; 11 is the pound sign (#); and 12 through 15 are additional tones that aren’t meant for phone-subscriber use. They’re included primarily for non-phone DTMF applications like remote controls and ham-radio purposes. You may specify values as literal numbers, as we did above, or as variables. Nibble-sized variables are perfect for holding DTMF digits.

For each digit in square brackets, DTMFout sends the corresponding tone for 200 milliseconds (ms), followed by a silent pause of 50 ms. This timing gives the phone company equipment plenty of time to recognize and respond to the tones. If you want some other timing scheme, you can place on and off times between the pin numbers and the tone list, like so:

DTMFout 0,1000,500,[6,2,4,8,3,3,3]

That instruction would transmit each tone for a full second (1000 ms), and pause in silence for a half second (500 ms) after each tone.

Sources.

Components needed for the simple phone-line interface are available from Digi-Key and Jameco; see the contact information in the schematic. For commercial applications, one manufacturer of DAAs is

Cermetek Microelectronics, 406 Pasman Drive, Sunnyvale, CA 94089; phone 800-882-6271; fax 408-752-5004.

2

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 363

BASIC Stamp II Application Notes

Page 364

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

Appendix A

ASCII Chart

Control Codes Printing Characters

Name/Function

null start of heading start of text end of text end of xmit enquiry acknowledge bell backspace horizontal tab line feed vertical tab form feed carriage return shift out shift in data line escape device control 1 device control 2 device control 3 device control 4 non acknowledge synchronous idle end of xmit block cancel end of medium substitute escape file separator group separator record separator unit separator

*Char

NAK

SYN

ETB

CAN

EM

SUB

ESC

FS

CR

SO

SI

DLE

DC1

DC2

DC3

DC4

GS

RS

US

NUL

SOH

STX

ETX

EOT

ENQ

ACK

BEL

BS

HT

LF

VT

FF

Code

25

26

27

28

21

22

23

24

17

18

19

20

13

14

15

16

29

30

31

9

10

11

12

5

6

7

8

0

1

2

3

4

Char

<space>

=

>

?

9

:

;

<

5

6

7

8

1

2

3

4

-

.

/

0

)

*

+

%

&

(

!

"

#

$

Code

57

58

59

60

53

54

55

56

49

50

51

52

45

46

47

48

61

62

63

41

42

43

44

37

38

39

40

32

33

34

35

36

Char

Y

Z

[

\

U

V

W

X

]

^

-

Q

R

S

T

M

N

O

P

I

J

K

L

E

F

G

H

@

A

B

C

D

* Note that the control codes have no standardized screen symbols. The characters listed for them are just names used in referring to these codes. For example, to move the cursor to the beginning of the next line of a printer or terminal often requires sending linefeed and carriage return codes. This common pair is referred to as “LF/CR.”

Code

89

90

91

92

85

86

87

88

81

82

83

84

77

78

79

80

93

94

95

73

74

75

76

69

70

71

72

64

65

66

67

68

Char

y z

{

| u v w x

}

~

<delete> q r s t m n o p i j k l e f g h

‘ a b c d

Code

117

118

119

120

121

123

124

125

109

110

111

112

113

114

115

116

126

127

128

96

97

98

99

100

101

102

103

104

105

106

107

108

A

Parallax, Inc. • BASIC Stamp Programming Manual 1.8 •

Page 365

Appendix A

Page 366

BASIC Stamp Programming Manual 1.8 • Parallax, Inc.

Reserved Words Appendix B

The following table shows the reserved words for each stamp module.

BASIC STAMP I

AND

B0..B13

BIT0..BIT15

BRANCH

BSAVE

BUTTON

DEBUG

DIR0..DIR7

DIRS

EEPROM

END

FOR

GOSUB

GOTO

HIGH

IF

INPUT

LET

LOOKDOWN

LOOKUP

LOW

MAX

MIN

N300

N600

N1200

N2400

NAP

NEXT

ON300

ON600

ON1200

ON2400

OR

OT300

OT600

OT1200

OT2400

OUTPUT

PAUSE

PIN0..PIN7

PINS

PORT

POT

PULSIN

PULSOUT

PWM

RANDOM

READ

REVERSE

SERIN

SEROUT

SLEEP

SOUND

STEP

SYMBOL

T300

T600

T1200

T2400

THEN

TOGGLE

W0..W6

WRITE

DIR0..DIR15

DIRA

DIRB

DIRC

DIRD

DIRH

DIRL

DIRS

DTMFOUT

END

FOR

FREQOUT

GOSUB

GOTO

HEX

HEX1..HEX4

HIGH

HIGHBIT

HIGHNIB

ABS

AND

ASC

BELL

BKSP

BIN

BIN1..BIN4

BIT

BIT0..BIT15

BRANCH

BRIGHT

BUTTON

BYTE

CLS

CON

COS

COUNT

CR

DATA

DCD

DEBUG

DEC

DEC1..DEC5

DIG

DIM

BASIC STAMP II

HOME

IHEX

IHEX1..IHEX4

IF

IN0..IN15

INA

INB

INC

IND

INH

INL

INPUT

INS

ISBIN

ISBIN1..ISBIN16

ISHEX

ISHEX1..ISHEX4

LIGHTSON

LOOKDOWN

LOOKUP

LOW

LOWBIT

LOWNIB

LSBFIRST

LSBPOST

LSBPRE

MAX

MIN

MSBFIRST

MSBPOST

MSBPRE

NAP

NCD

NEXT

NIB

NIB0..NIB3

NOT

OR

OUT0..OUT15

OUTA

OUTB

OUTC

OUTD

OUTH

SLEEP

STEP

STOP

STR

SQR

TAB

THEN

TO

TOGGLE

UNITOFF

UNITON

UNITSOFF

VAR

WAIT

WAITSTR

WORD

WRITE

XOR

XOUT

OUTL

OUTPUT

OUTS

PAUSE

RCTIME

REV

PULSIN

PULSOUT

PWM

RANDOM

READ

REP

REVERSE

SBIN

SBIN1..SBIN16

SDEC

SDEC1..SDEC5

SERIN

SEROUT

SHEX

SHEX1..SHEX4

SHIFTIN

SHIFTOUT

SIN

SKIP

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 367

B

Appendix B

Page 368

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

Appendix C

BASIC Stamp I and Stamp II Conversions

INTRODUCTION .................................................................... 373

TYPOGRAPHICAL CONVENTIONS ................................................ 373

HOW TO USE THIS APPENDIX .................................................... 376

COMMAND AND DIRECTIVE DIFFERENCES ..................................... 377

RAM SPACE AND REGISTER ALLOCATION ...................................... 378

BASIC Stamp I ................................................................................. 378

Stamp I I/O and Variable Space .................................................. 378

BASIC Stamp II ................................................................................ 379

Stamp II I/O and Variable Space ................................................. 379

BS1 to BS2 Register Allocation Conversion ............................... 383

BS2 to BS1 Register Allocation Conversion ............................... 383

BRANCH ............................................................................ 385

BASIC Stamp I ................................................................................. 385

BASIC Stamp II ................................................................................ 385

BSAVE ............................................................................. 386

BASIC Stamp I ................................................................................. 386

BASIC Stamp II ................................................................................ 386

BUTTON ............................................................................ 387

BASIC Stamp I ................................................................................. 387

BASIC Stamp II ................................................................................ 387

COUNT ............................................................................. 389

BASIC Stamp I ................................................................................. 389

BASIC Stamp II ................................................................................ 389

DEBUG ............................................................................. 390

BASIC Stamp I ................................................................................. 390

BASIC Stamp II ................................................................................ 390

DATA ............................................................................... 393

BASIC Stamp I ................................................................................. 393

BASIC Stamp II ................................................................................ 393

DTMFOUT.......................................................................... 396

BASIC Stamp I ................................................................................. 396

BASIC Stamp II ................................................................................ 396

EEPROM (See DATA) ............................................................ 395

C

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 369

BASIC Stamp I and Stamp II Conversions

END ................................................................................ 398

BASIC Stamp I ................................................................................. 398

BASIC Stamp II ................................................................................ 398

EXPRESSIONS ..................................................................... 399

BASIC Stamp I ................................................................................. 399

BASIC Stamp II ................................................................................ 399

FOR...NEXT........................................................................ 401

BASIC Stamp I ................................................................................. 401

BASIC Stamp II ................................................................................ 401

FREQOUT .......................................................................... 403

BASIC Stamp I ................................................................................. 403

BASIC Stamp II ................................................................................ 403

GOSUB ............................................................................. 405

BASIC Stamp I ................................................................................. 405

BASIC Stamp II ................................................................................ 405

GOTO ............................................................................... 406

BASIC Stamp I ................................................................................. 406

BASIC Stamp II ................................................................................ 406

HIGH................................................................................ 407

BASIC Stamp I ................................................................................. 407

BASIC Stamp II ................................................................................ 407

IF...THEN .......................................................................... 408

BASIC Stamp I ................................................................................. 408

BASIC Stamp II ................................................................................ 408

INPUT .............................................................................. 409

BASIC Stamp I ................................................................................. 409

BASIC Stamp II ................................................................................ 409

LET ................................................................................. 410

BASIC Stamp I ................................................................................. 410

BASIC Stamp II ................................................................................ 410

LOOKDOWN ........................................................................ 412

BASIC Stamp I ................................................................................. 412

BASIC Stamp II ................................................................................ 412

LOOKUP ............................................................................ 414

BASIC Stamp I ................................................................................. 414

BASIC Stamp II ................................................................................ 414

Page 370

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

Appendix C

LOW ................................................................................ 415

BASIC Stamp I ................................................................................. 415

BASIC Stamp II ................................................................................ 415

NAP ................................................................................ 416

BASIC Stamp I ................................................................................. 416

BASIC Stamp II ................................................................................ 416

OUTPUT ............................................................................ 417

BASIC Stamp I ................................................................................. 417

BASIC Stamp II ................................................................................ 417

PAUSE ............................................................................. 418

BASIC Stamp I ................................................................................. 418

BASIC Stamp II ................................................................................ 418

POT (See RCTIME)............................................................... 419

PULSIN ............................................................................. 420

BASIC Stamp I ................................................................................. 420

BASIC Stamp II ................................................................................ 420

PULSOUT .......................................................................... 422

BASIC Stamp I ................................................................................. 422

BASIC Stamp II ................................................................................ 422

PWM ............................................................................... 423

BASIC Stamp I ................................................................................. 423

BASIC Stamp II ................................................................................ 423

RANDOM ........................................................................... 425

BASIC Stamp I ................................................................................. 425

BASIC Stamp II ................................................................................ 425

RCTIME ............................................................................ 426

BASIC Stamp I ................................................................................. 426

BASIC Stamp II ................................................................................ 426

READ ............................................................................... 429

BASIC Stamp I ................................................................................. 429

BASIC Stamp II ................................................................................ 429

REVERSE .......................................................................... 430

BASIC Stamp I ................................................................................. 430

BASIC Stamp II ................................................................................ 430

C

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 371

BASIC Stamp I and Stamp II Conversions

SERIN .............................................................................. 431

BASIC Stamp I ................................................................................. 431

BASIC Stamp II ................................................................................ 431

SERIN Baudmode Conversion ................................................... 432

SEROUT ............................................................................ 435

BASIC Stamp I ................................................................................. 435

BASIC Stamp II ................................................................................ 435

SEROUT Baudmode Conversion ............................................... 436

SHIFTIN............................................................................ 439

BASIC Stamp I ................................................................................. 439

BASIC Stamp II ................................................................................ 439

SHIFTOUT ......................................................................... 441

BASIC Stamp I ................................................................................. 441

BASIC Stamp II ................................................................................ 441

SLEEP .............................................................................. 443

BASIC Stamp I ................................................................................. 443

BASIC Stamp II ................................................................................ 443

SOUND (See FREQOUT) .......................................................... 444

STOP ............................................................................... 445

BASIC Stamp I ................................................................................. 445

BASIC Stamp II ................................................................................ 445

TOGGLE ............................................................................ 446

BASIC Stamp I ................................................................................. 446

BASIC Stamp II ................................................................................ 446

WRITE ............................................................................. 447

BASIC Stamp I ................................................................................. 447

BASIC Stamp II ................................................................................ 448

XOUT ............................................................................... 448

BASIC Stamp I ................................................................................. 448

BASIC Stamp II ................................................................................ 448

X-10 Commands ......................................................................... 448

Page 372

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

Appendix C

INTRODUCTION

The BASIC Stamp I and BASIC Stamp II have many differences in both hardware and software. While it is trivial to recognize the differences in the Stamp hardware, the modifications to the PBASIC command structure are intricate and not always obvious. This appendix describes the Stamp I and Stamp II PBASIC differences in a detailed manner to aid in the conversion of programs between the two modules. This document may also serve to give a better understanding of how certain features of the two versions can be helpful in problem solving.

TYPOGRAPHICAL CONVENTIONS

This Appendix will use a number of symbols to deliver the needed information in a clear and concise manner. Unless otherwise noted the following symbols will have consistent meanings throughout this document.

TOPIC HEADING

Each discussion of a topic or PBASIC command will begin with a topic heading such as the one above.

M

ODULE

H

EADING

When separate discussion of a Stamp I or Stamp II module is necessary it will begin with a module heading such as this one.

Inside the module section bulleted items will precede information on the properties of various arguments for the indicated command.

C

ONVERSION

:

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

When conversion between the two versions of PBASIC are necessary, each set of steps will begin under the conversion heading as shown above. This header will always begin with the word “Conversion” and will indicate in which direction the conversion is taking place; i.e.

from BS1 to BS2 or from BS2 to BS1.

C

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 373

BASIC Stamp I and Stamp II Conversions

1. First do this...

2. Next do this...

The most important steps in conversion will be listed in a numeric sequence within the conversion section. The order of the numbered steps may be important in some situations and unimportant in others; it is best to follow the order as closely as possible.

Tips which are not vital to the conversion are listed within the conversion section and are preceded by bullets as shown above. These tips include additional information on valid argument types, properties of the command, etc. and may be used for further optimization of the code if desired.

As an example, using the above conventions, a typical section within this document will look like this:

SAMPLE COMMAND

BASIC S

TAMP

I

Command syntax line shown here

• Argument one is…

• Argument two is…

BASIC S

TAMP

II

Command syntax line shown here

• Argument one is...

• Argument two is...

C

ONVERSION

: BS1

_

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

1. First do this...

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

2. Next do this...

• You might like to know this...

• You might want to try this...

Page 374

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

Appendix C

C

ONVERSION

: BS1

`

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

1. First do this...

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

2. Next do this...

• You might like to know this...

• You might want to try this...

The following symbols appear within command syntax listings or within the text describing them.

UPPER CASE All command names will be shown is upper case lettering within the command syntax line. Argument names will be in upper case lettering outside of the command syntax line.

lower case All arguments within the command syntax line will be in lower case lettering.

( )

[ ]

Parentheses may appear inside a command syntax line and indicate that an actual parenthesis character is required at that location.

Brackets may appear inside a command syntax line and indicate that an actual bracket character is required at that location.

[ | ]

{ }

Brackets with an internal separator may appear in the text following a command syntax line and indicate that one, and only one, of the items between the separators may be specified.

Wavy brackets may appear inside a command syntax line and indicate that the items they surround are optional and may be left out of the command. The wavy bracket characters themselves should not be used within the command, however.

C

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 375

BASIC Stamp I and Stamp II Conversions

#..# Double periods between numbers indicate that a contiguous range of numbers are allowed for the given argument. Wherever a range of numbers are shown it usually indicates the valid range which a command expects to see. If a number is given which is outside of this range the Stamp will only use the lowest bits of the value which correspond to the indicated range. For example, if the range 0..7 is required (a 3 bit value) and the number 12 is provided, the Stamp will only use the lowest 3 bits which would correspond to a value of 4.

HOW TO USE THIS APPENDIX

This appendix should be used as a reference for converting specific commands, or other PBASIC entities, from one version of the Stamp to another. While this document will help to convert most of the programs available for the Stamp I and Stamp II, some programs may require logic changes to achieve correct results. The required logic changes are beyond the scope of this document.

In an effort to lessen the time spent in performing a code conversion the following routine should be followed in the order listed for each program.

1. Review the entire code briefly to familiarize yourself with how it functions and the types of commands and expressions which are used.

2. Consult the RAM SPACE AND REGISTER ALLOCATION section in this manual and go through the entire program carefully converting symbols, variables and expressions to the proper format.

3. Go through the code instruction by instruction, consulting the appropriate section in this document, and convert each one to the appropriate form.

4. Make any necessary circuit changes as required by the new stamp code.

Page 376

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

Appendix C

COMMAND AND DIRECTIVE DIFFERENCES

Many enhancements to the Stamp I command structure were made in the Stamp II. Commands have also been added, replaced or removed.

The following table shows the differences between the two modules.

BASIC Stamp I

BRANCH

BSAVE

BUTTON

BASIC Stamp II

BRANCH

Comments

Syntax Modifications

Removed

DEBUG

EEPROM

END

(Expressions)

FOR...NEXT

GOSUB

GOTO

HIGH

IF...THEN

INPUT

LET

LOOKDOWN

LOOKUP

LOW

NAP

OUTPUT

PAUSE

POT

PULSIN

PULSOUT

PWM

RANDOM

READ

(Register Allocation)

REVERSE

SERIN

SEROUT

SLEEP

SOUND

TOGGLE

WRITE

BUTTON

COUNT

DEBUG

DATA

DTMFOUT

END

(Expressions)

FOR...NEXT

GOSUB

GOTO

HIGH

IF...THEN

INPUT

(Expression)

LOOKDOWN

LOOKUP

LOW

NAP

OUTPUT

PAUSE

RCTIME

PULSIN

PULSOUT

PWM

RANDOM

READ

(Register Allocation)

REVERSE

SERIN

SEROUT

SHIFTIN

SHIFTOUT

SLEEP

FREQOUT

STOP

TOGGLE

WRITE

XOUT

New Command

Enhanced

Enhanced

New Command

Enhanced

Enhanced

Enhanced

Enhanced

Enhanced

Enhanced

Syntax Modifications

Enhanced

Enhanced

Enhanced

Enhanced

Enhanced

Enhanced

Enhanced

New Command

New Command

Enhanced

New Command

New Command

C

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 377

BASIC Stamp I and Stamp II Conversions

RAM SPACE AND REGISTER ALLOCATION

BASIC S

TAMP

I

The RAM space in the BASIC Stamp I consists of eight 16-bit words.

Each word has a unique, predefined name as shown in the table below.

Each word consists of two 8-bit bytes which have unique, predefined names. Additionally the first two words, PORT and W0, can be accessed as individual bits.

The first word, named PORT, is reserved to allow access and control over the 8 I/O pins on the Stamp I. This word consists of two bytes,

PINS and DIRS, which represent the status and the data direction of the pins.

The other seven words are general purpose registers for use by the

PBASIC program. They may be used via their direct name or by assigning symbols as aliases to specific registers.

To assign a symbol to a specific register, use the following format:

SYMBOL symbolname = registername

Example:

SYMBOL LoopCounter = W0

• SYMBOLNAME is a series of characters (letters, numbers and underscores but not starting with a number) up to 32 characters in length.

• REGISTERNAME is a valid bit, byte or word register name as shown in the table below.

You may assign a symbol to a constant value by using a similar format:

SYMBOL symbolname = constantvalue

Example:

SYMBOL MaxLoops = 100

• SYMBOLNAME is a series of characters (letters, numbers and underscores but not starting with a number) up to 32 characters in length.

Page 378

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

Appendix C

• CONSTANTVALUE is a valid number in decimal, hexidecimal, binary or ascii.

Stamp I I/O and Variable Space

Word Name Byte Name Bit Names Special Notes

PORT

W0

PINS

DIRS

PIN0 - PIN7

DIR0 - DIR7

I/O pins; bit addressable.

I/O pin direction control;

BIT0 - BIT7 bit addressable.

Bit addressable.

BIT8 - BIT15 Bit addressable.

W1

W2

W3

W4

W5

W6

B8

B9

B10

B11

B12

B13

B4

B5

B6

B7

B0

B1

B2

B3

Used by GOSUB instruction.

Used by GOSUB instruction.

BASIC S

TAMP

II

The RAM space of the BASIC Stamp II consists of sixteen words of 16 bits each. Each word and each byte within the word has a unique, predefined name similar to the Stamp I and shown in the table below.

The first three words, named INS, OUTS and DIRS, are reserved to allow access and control over the 16 I/O pins on the Stamp II. These reserved words represent the input states, output states and directions of the pins respectively and are the Stamp II version of the single control word, PORT, on the Stamp I. In comparison to the Stamp I, the control registers’ size has been doubled and the I/O register PINS has been split into two words, INS and OUTS, for flexibility. Each word consists of a predefined name for its byte, nibble and bit parts.

C

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 379

BASIC Stamp I and Stamp II Conversions

The other thirteen words are general purpose registers for use by the

PBASIC program. There are two methods of referencing these registers within the Stamp II as follows:

1. They may be referenced via their direct name or by defining symbols as aliases.

- OR -

2. They may be referenced by defining variables of specific types (byte, word, etc.). The software will automatically assign variables to registers in an efficient manner.

The first method is used in the Stamp I, and supported in the Stamp II, as a means of directly allocating register space. The second method was introduced with the Stamp II as a means of indirectly allocating register space and is the recommended method.

It is important to note that defining variables of specific types in the

Stamp II is not directly equivalent to assigning symbols to registers in the Stamp I. Defining variables of specific types on the Stamp II allows the software to efficiently and automatically organize variable space within the general purpose registers while assigning symbols to registers allows you to organize variable space yourself. While both methods of register allocation are legal in the Stamp II, care should be taken to implement only one method of register use within each program. Each PBASIC program should either reference all registers by their predefined names (or symbols assigned to them) or reference all registers by defining variables of specific types and let the software do the organization for you. If you use both methods within the same program, it is likely that variables will overlap and your program will behave erratically. The following diagram may serve to clarify the use of the register allocation methods within a single Stamp II program:

TheByte VAR B0

:

TheByte=25

B4=15

Using only method 1 within a program is safe.

TheByte VAR BYTE

:

TheByte=34

TheByte=10/7

TheByte VAR BYTE

:

TheByte=120

W0=2

B1=10

Using only method 2 within a program is safe.

Using both methods within a program leads to erratic execution.

Page 380

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

Appendix C

To define a variable of a specific type, use the following format.

variablename VAR [ type{(arraysize)} | previousvariable{.modifier{.modifier...}} ]

Example

:

LoopCounter

LoopCounter2

FirstBit

VAR WORD

VAR BYTE(2)

'defines LoopCounter as a word.

'defines LoopCounter2 as an array of

'two bytes.

VAR LoopCounter.LOWBIT 'defines FirstBit as the lowest bit

'within the variable LoopCounter.

• VARIABLENAME is a series of characters (letters, numbers and underscores but not starting with a number) up to 32 characters in length.

• TYPE is a valid variable type of BIT, NIB, BYTE or WORD.

• ARRAYSIZE is an optional constant value, in parentheses, specifying the number of elements of TYPE to define for the variable

VARIABLENAME.

• PREVIOUSVARIABLE is the name of a previously defined variable. This can be used to assign alias names to the same variable space.

• MODIFIER is an optional offset, preceded by a period ‘.’, which indicates which part of a previously defined variable to set

VARIABLENAME to. Valid modifiers are: LOWBYTE,

HIGHBYTE, BYTE0..1, LOWNIB, HIGHNIB, NIB0..3, LOWBIT,

HIGHBIT and BIT0..15.

You may define a constant by using a similar format: constantname CON constantexpression

C

Example

:

MaxLoops CON 100

MaxLoops2 CON 50 * 4 / 2

'defines MaxLoops as a constant

'equivalent to the number 100.

'also defines MaxLoops as a

'constant equivalent to the number 100.

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 381

BASIC Stamp I and Stamp II Conversions

• CONSTANTNAME is a series of characters (letters, numbers and underscores but not starting with a number) up to 32 characters in length.

• CONSTANTEXPRESSION is a numerical expression in decimal, hexidecimal, binary or ascii using only numbers and the +, -, *,

/, &, |, ^, << or >> operators. NOTE: Parentheses are not allowed and expressions are always computed using 16-bits.

Stamp II I/O and Variable Space

Word Name Byte Name Nibble Names Bit Names

INS

OUTS

DIRS

W0

W1

W2

W3

W4

W5

W6

W7

W8

W9

W10

W11

W12

B18

B19

B20

B21

B22

B23

B24

B25

B10

B11

B12

B13

B14

B15

B16

B17

B6

B7

B8

B9

B2

B3

B4

B5

INL

INH

OUTL

OUTH

DIRL

DIRH

B0

B1

Special Notes

INA, INB,

INC, IND

IN0 - IN7,

IN8 - IN15

Input pins; word, byte, nibble and bit addressable.

OUTA, OUTB, OUT0 - OUT7, Output pins; word, byte,

OUTC, OUTD OUT8 - OUT15 nibble and bit addressable.

DIRA, DIRB, DIR0 - DIR7, I/O pin direction control; word,

DIRC, DIRD DIR8 - DIR15 byte, nibble and bit addressable.

General Purpose; word, byte, nibble and bit addressable.

General Purpose; word, byte, nibble and bit addressable.

General Purpose; word, byte, nibble and bit addressable.

General Purpose; word, byte, nibble and bit addressable.

General Purpose; word, byte, nibble and bit addressable.

General Purpose; word, byte, nibble and bit addressable.

General Purpose; word, byte, nibble and bit addressable.

General Purpose; word, byte, nibble and bit addressable.

General Purpose; word, byte, nibble and bit addressable.

General Purpose; word, byte, nibble and bit addressable.

General Purpose; word, byte, nibble and bit addressable.

General Purpose; word, byte, nibble and bit addressable.

General Purpose; word, byte, nibble and bit addressable.

Page 382

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

Appendix C

S

YMBOL

C

ONVERSION

: BS1

_

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

1. Remove the ‘SYMBOL’ directive from variable or constant declarations.

2. On all variable declarations, replace the predefined register name, to the right of the ‘=’, with the corresponding variable type or register name according to the following table:

BS1 to BS2 Register Allocation Conversion

Stamp I Register Name

PORT

PINS or PIN0..PIN7

DIRS or DIR0..DIR7

W0..W6

B0..B13

BIT0..BIT15

Stamp II Variable Type / Register Name

NO EQUIVALENT*

INS / OUTS or IN0..IN7 / OUT0..OUT7**

DIRS or DIR0..DIR7

WORD

BYTE

BIT

* The PORT control register has been split into three registers, INS, OUTS and DIRS, on the Stamp II. There is no predefined name representing all registers as a group as in the Stamp I. Additional symbol and/or program structure and logic changes are necessary to access all three registers properly.

** The Stamp I PINS register has been split into two registers, INS and OUTS, in the

Stamp II. Each register now has a specific task, input or output, rather than a dual task, both input and output, as in the Stamp I. If the Stamp I program used the symbol assigned to PINS for both input and output, an additional symbol is necessary to access both functions. This may also require further changes in program structure and logic.

1. On all variable declarations, replace the equal sign, ‘=’, with ‘VAR’.

2. On all constant declarations, replace the equal sign, ‘=’, with ‘CON’.

V

ARIABLE OR

C

ONSTANT

C

ONVERSION

: BS1

`

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

1. Insert the ‘SYMBOL’ directive before the variable’s name or constant’s name in the declaration.

2. On all variable declarations, replace the variable type or register name, to the right of the ‘=’, with the corresponding, predefined register name according to the following table:

C

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 383

BASIC Stamp I and Stamp II Conversions

BS2 to BS1 Register Allocation Conversion

Stamp II Variable Type / Register Name Stamp I Register Name

INS

OUTS

PINS

PINS

DIRS

WORD

BYTE

NIB

BIT

DIRS

W0..W6

B0..B13

B0..B13*

BIT0..BIT15**

* There are no registers on the Stamp I which are nibble addressable. The best possible solution is to place one or two nibble variables within a byte register and modify the code accordingly.

** The only general purpose registers on the Stamp I which are bit addressable are B0 and B1. BIT0..BIT7 correspond to the bits within B0 and BIT8..BIT15

correspond to the bits within B1. If you have a set of bit registers in the

Stamp II program, you should reserve B0 and B1 for this bit usage; i.e.: do not assign any other symbols to B0 or B1.

3. On all variable and constant declarations, replace the variable or constant directive, ‘VAR’ or ‘CON’, with an equal sign, ‘=’.

A

SSIGNMENT

C

ONVERSION

: BS1

`

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

1. Remove the ‘LET’ command if it is specified.

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

2. If PINS or PIN0..PIN7 appears to the left, or to the left and right, of the equal sign, ‘=’, replace PINS with OUTS and PIN0..PIN7 with

OUT0..OUT7.

3. If PINS or PIN0..PIN7 appears to the right of the equal sign, ‘=’, replace PINS with INS and PIN0..PIN7 with IN0..IN7.

4. If PORT appears in an assignment, determine which byte (PINS or

DIRS) is affected and replace PORT with the corresponding Stamp

II symbol (INS, OUTS or DIRS). If both bytes are affected, separate assignment statements may be needed to accomplish the equivalent effect in the Stamp II.

Page 384

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

Appendix C

BRANCH

BASIC S

TAMP

I

BRANCH index,(label0, label1,... labeln)

• INDEX is a constant or a bit, byte or word variable.

• LABEL0..LABELN are valid labels to jump to according to the value of INDEX.

BASIC S

TAMP

II

BRANCH index,[label0, label1,... labeln]

• INDEX is a constant, expression or a bit, nibble, byte or word variable.

• LABEL0..LABELN are valid labels to jump to according to the value of INDEX.

C

ONVERSION

: BS1

_

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

1. Change open and close parentheses, “(“ and “)”, to open and close brackets, “[“ and “]”.

Example:

BS1: BRANCH B0, ( Loop1, Loop2, Finish )

BS2: BRANCH BranchIdx, [ Loop1, Loop2, Finish ]

C

C

ONVERSION

: BS1

`

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

1. Change open and close brackets, “[” and “]”, to open and close parentheses, “(“ and “)”.

Example:

BS2: BRANCH BranchIdx, [ Loop1, Loop2, Finish ]

BS1: BRANCH B0, ( Loop1, Loop2, Finish )

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 385

BASIC Stamp I and Stamp II Conversions

BSAVE

BASIC S

TAMP

I

BSAVE

• This is a compiler directive which causes the Stamp I software to create a file containing the tokenized form or the associated source code.

BASIC S

TAMP

II

NO EQUIVELANT COMMAND

C

ONVERSION

:

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

No conversion possible.

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

Page 386

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

Appendix C

BUTTON

BASIC S

TAMP

I

BUTTON pin, downstate, delay, rate, workspace, targetstate, label

• PIN is a constant or a bit, byte or word variable in the range 0..7.

• DOWNSTATE is a constant or a bit, byte or word variable in the range 0..1.

• DELAY is a constant or a bit, byte or word variable in the range

0..255.

• RATE is a constant or a bit, byte or word variable in the range

0..255.

• WORKSPACE is a byte or word variable.

• TARGETSTATE is a constant or a bit, byte or word variable in the range 0..1.

• LABEL is a valid label to jump to in the event of a button press.

BASIC S

TAMP

II

BUTTON pin, downstate, delay, rate, workspace, targetstate, label

• PIN is a constant, expression or a bit, nibble, byte or word variable in the range 0..15.

• DOWNSTATE is a constant, expression or a bit, nibble, byte or word variable in the range 0..1.

• DELAY is a constant, expression or a bit, nibble, byte or word variable in the range 0..255.

• RATE is a constant, expression or a bit, nibble, byte or word variable in the range 0..255.

• WORKSPACE is a byte or word variable.

• TARGETSTATE is a constant, expression or a bit, nibble, byte or word variable in the range 0..1.

C

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 387

BASIC Stamp I and Stamp II Conversions

• LABEL is a valid label to jump to in the event of a button press.

C

ONVERSION

: BS1

_

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

1. PIN may be a constant or a bit, nibble, byte or word variable in the range 0..15.

2. Any or all arguments other than LABEL may be nibble variables for efficiency.

Example:

BS1: BUTTON 0, 1, 255, 0, B0, 1, ButtonWasPressed

BS2: BUTTON 0, 1, 255, 0, WkspcByte, 1, ButtonWasPressed

C

ONVERSION

: BS1

`

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

1. PIN must be a constant or a bit, byte or word variable in the range

0..7.

2. No arguments may be nibble variables.

Example:

BS2: BUTTON 12, 1, 255, 0, WkspcByte, 1, ButtonWasPressed

BS1: BUTTON 7, 1, 255, 0, B0, 1, ButtonWasPressed

Page 388

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

Appendix C

COUNT

BASIC S

TAMP

I

NO EQUIVELANT COMMAND

BASIC S

TAMP

II

COUNT pin, period, result

• PIN is a constant, expression or a bit, nibble, byte or word variable in the range 0..15.

• PERIOD is a constant, expression or a bit, nibble, byte or word variable in the range 0..65535.

• RESULT is a bit, nibble, byte or word variable.

C

ONVERSION

:

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

No conversion possible.

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

C

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 389

BASIC Stamp I and Stamp II Conversions

DEBUG

BASIC S

TAMP

I

DEBUG outputdata{,outputdata...}

• OUTPUTDATA is a text string, bit, byte or word variable (no constants allowed).

• If no formatters are specified DEBUG defaults to “variablename = value” + carriage return.

FORMATTERS:

(The following formatting characters may precede the variable name)

# displays value in decimal followed by a space.

$ displays “variablename = $value ” + carriage return; where value is in hexidecimal.

% displays “variablename = %value ” + carriage return; where value is in binary.

@ displays “variablename = ‘character’ ” + carriage return; where character is an ascii character.

SPECIAL SYMBOLS:

(The following symbols can be included in the output data)

CLS causes the debug window to be cleared.

CR causes a carriage return in the debug window.

BASIC S

TAMP

II

DEBUG outputdata{,outputdata...}

• OUTPUTDATA is a text string, constant or a bit, nibble, byte or word variable.

• If no formatters are specified DEBUG defaults to ascii character display without spaces or carriage returns following the value.

FORMATTERS:

(The following formatting tokens may precede the data elements as indicated below)

Page 390

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

Appendix C

ASC?

STR

STR

REP

DEC{1..5}

SDEC{1..5} value

HEX{1..4} value bytearray bytearray\n Displays values as an ascii string for n bytes.

value\n value

Displays value n times.

Displays value in decimal, optionally limited or padded for 1 to 5 digits.

value

Displays “variablename = ‘character’ ”

+ carriage return; where character is an ascii character.

Displays values as an ascii string until a value of 0 is reached.

Displays value in signed decimal, optionally limited or padded for 1 to 5 digits. Value must not be less than a word variable.

Displays value in hexidecimal, optionally limited or padded for 1 to 4 digits.

SHEX{1..4} value

IHEX{1..4}

ISHEX{1..4}

BIN{1..16}

SBIN{1..16} value value value value

Displays value in signed hexidecimal, optionally limited or padded for 1 to 4 digits. Value must not be less than a word variable.

Displays value in hexidecimal preceded by a “$” and optionally limited or padded for 1 to 4 digits.

Displays value in signed hexidecimal preceded by a “$” and optionally limited or padded for 1 to 4 digits. Value must not be less than a word variable.

Displays value in binary, optionally limited or padded for 1 to 16 digits.

Displays value in signed binary, optionally limited or padded for 1 to 16 digits. Value must not be less than a word variable.

C

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 391

BASIC Stamp I and Stamp II Conversions

IBIN{1..16} value

ISBIN{1..16} value

Displays value in binary preceded by a

“%” and optionally limited or padded for 1 to 16 digits.

Displays value in signed binary preceded by a “%” and optionally limited or padded for 1 to 16 digits. Value must not be less than a word variable.

SPECIAL SYMBOLS:

(The following symbols can be included in the output data)

BELL

BKSP

CLS

CR

HOME

TAB

Causes the computer to beep.

Causes the cursor to backup one space.

Causes the debug window to be cleared.

Causes a carriage return to occur in debug window.

Causes the cursor in the debug window to return to home position.

Causes the cursor to move to next tab position.

C

ONVERSION

: BS1

_

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

1. Replace all ‘#’ formatters with ‘DEC’.

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

2. Replace all ‘$’ formatters with ‘HEX?’.

3. Replace all ‘%’ formatters with ‘BIN?’.

4. Replace all ‘@’ formatters with ‘ASC?’.

5. If variable has no formatters preceding it, add the ‘DEC?’ formatter before variable.

• Signs, type indicators, strings and digit limitation formatting options are available for more flexibility.

Example:

BS1: DEBUG #B0, $B1, %B2

BS2: DEBUG DEC AByte, HEX? AWord, BIN? ANibble

Page 392

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

Appendix C

C

ONVERSION

: BS1

`

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

1. Remove any ‘DEC?’ formatters preceding variables.

○ ○ ○ ○ ○ ○ ○ ○

2. Replace all ‘DEC’ formatters with ‘#’.

3. Replace all ‘HEX?’ formatters with ‘$’.

4. Replace all ‘BIN?’ formatters with ‘%’.

5. Replace all ‘ASC?’ formatters with ‘@’.

6. Delete any ‘?’ formatting characters.

7. Signs, type indicators, strings and digit limitation formatters are not available in the Stamp I. Manual formatting will have to be done (possibly multiple DEBUG statements) to accomplish the same formatting.

Example:

BS2: DEBUG DEC AByte, HEX? AWord, BIN? ANibble, CR

BS1: DEBUG #B0, $B1, %B2, CR

C

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 393

BASIC Stamp I and Stamp II Conversions

DATA

BASIC S

TAMP

I

EEPROM {location,}(data{,data...})

• LOCATION is in the range 0..255.

• DATA is a constant in the range 0..255. No variables are allowed.

BASIC S

TAMP

II

{pointer} DATA {@location,} {WORD} {data}{(size)} {, { WORD} {data}{(size)}...}

• POINTER is an optional undefined constant name or a bit, nibble, byte or word variable which is assigned the value of the first memory location in which data is written.

• @LOCATION is an optional constant, expression or a bit, nibble, byte or word variable which designates the first memory location in which data is to be written.

• WORD is an optional switch which causes DATA to be stored as two separate bytes in memory.

• DATA is an optional constant or expression to be written to memory.

• SIZE is an optional constant or expression which designates the number of bytes of defined or undefined data to write/reserve in memory. If DATA is not specified then undefined data space is reserved and if DATA is specified then SIZE bytes of data equal to

DATA are written to memory.

C

ONVERSION

: BS1

_

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

1. Replace the EEPROM directive with the DATA directive.

○ ○ ○ ○ ○

2. If LOCATION is specified, insert an at sign, ‘@’, immediately before it.

3. Remove the open and close parentheses, ‘(‘ and ‘)’.

• The POINTER constant and WORD and (SIZE) directives may be used for added flexibility.

Page 394

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

Appendix C

Example:

BS1:

BS2:

EEPROM 100, (255, 128, 64, 92)

DATA @100, 255, 128, 64, 92

C

ONVERSION

: BS1

`

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

1. If a POINTER constant is specified, remove it and set it equal to the value of the first location using a Stamp I assign statement.

2. Replace the DATA directive with the EEPROM directive.

3. If LOCATION is specified, remove the at sign, ‘@’, immediately before it.

4. If the WORD directive is given, remove it and convert the data element immediately following it, if one exists, into two bytes of low-byte, high-byte format. If no data element exists immediately following the WORD directive, (the (SIZE) directive must exist) insert zero data element pairs, ‘0, 0,’ for the number of elements given in (SIZE).

5. Add an open parenthesis, ‘(‘, just before the first data element and a close parenthesis, ‘)’, after the last data element.

6. If the (SIZE) directive is given, remove it and copy the preceding data element, if available, into the number of SIZE data elements.

If data was not given, insert SIZE data elements of zero, ‘0’, separated by commas.

Example:

BS2: MyDataPtr DATA @100, 255, 128(2), 64, WORD 920, (10)

BS1: SYMBOL MyDataPtr = 100

EEPROM MyDataPtr, (255, 128, 128, 64, 152, 3, 0, 0, 0, 0, 0, 0,

0, 0, 0, 0)

C

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 395

BASIC Stamp I and Stamp II Conversions

DTMFOUT

BASIC S

TAMP

I

NO EQUILEVANT COMMAND

BASIC S

TAMP

II

DTMFOUT pin, {ontime, offtime,}[key{,key...}]

• PIN is a constant, expression or a bit, nibble, byte or word variable in the range 0..15.

• ONTIME and OFFTIME are constants, expressions or bit, nibble, byte or word variables in the range 0..65535.

• KEY is a constant, expression or a bit, nibble, byte or word variable in the range 0..15.

C

ONVERSION

:

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

No conversion possible.

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

Page 396

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

EEPROM (See DATA)

Appendix C

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 397

C

BASIC Stamp I and Stamp II Conversions

END

BASIC S

TAMP

I

END

• 20uA reduced current (no loads).

BASIC S

TAMP

II

END

• 50uA reduced current (no loads).

C

ONVERSION

:

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

No conversion necessary.

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

Page 398

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

Appendix C

EXPRESSIONS

BASIC S

TAMP

I

{-} value ?? value {?? value...}

• Stamp I expressions are only allowed within an assignment statement. See the LET command for more detail.

• VALUE is a constant or a bit, byte or word variable.

• ?? is +,-,*,**,/,//,MIN,MAX,&,1,^,&/,|/,^/.

BASIC S

TAMP

II

{?} value ?? value {?? {?} value}

• Stamp II expressions are allowed in place of almost any argument in any command as well as within an assignment statement.

• ? is SQR, ABS, ~, -, DCD, NCD, COS, SIN.

• VALUE is a constant or a bit, nibble, byte or word variable.

• ?? is +,-,*,**,*/,/,//,MIN,MAX,&,|,^,DIG,<<,>>,REV.

• Parentheses may be used to modify the order of expression evaluation.

C

ONVERSION

: BS1

_

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

1. Remove the LET command. This is not allowed in the Stamp II.

○ ○

• VARIABLE and VALUE may be nibble variables for efficiency.

• The optional unary operator {-} may now also include SQR, ABS,

~, DCD, NCD, COS and SIN.

• The binary operators can now include */, DIG, <<, >> and REV.

Example:

BS1: LET b0 = -10 + 16

BS2: Result = -10 + 16

C

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 399

BASIC Stamp I and Stamp II Conversions

C

ONVERSION

: BS1

`

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

1. Remove any unary operator other than minus (-) and modify the equation as appropriate, if possible.

2. The binary operator can not be */, DIG, <<, >> or REV.

3. VARIABLE and VALUE must not be a nibble variable.

Example:

BS2: Result = ~%0001 + 16

BS1: b0 = %1110 + 16

Page 400

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

Appendix C

FOR...NEXT

BASIC S

TAMP

I

FOR variable = start TO end {STEP {-} stepval}...NEXT {variable}

• Up to 8 nested FOR...NEXT loops are allowed.

• VARIABLE is a bit, byte or word variable.

• START is a constant or a bit, byte or word variable.

• END is a constant or a bit, byte or word variable.

• STEPVAL is a constant or a bit, byte or word variable.

• VARIABLE (after NEXT) must be the same as VARIABLE

(after FOR).

BASIC S

TAMP

II

FOR variable = start TO end {STEP stepval}...NEXT

• Up to 16 nested FOR...NEXT loops are allowed.

• VARIABLE is a bit, nibble, byte or word variable.

• START is a constant, expression or a bit, nibble, byte or word variable.

• END is a constant, expression or a bit, nibble, byte or word variable.

• STEPVAL is an optional constant, expression or a bit, nibble, byte or word variable and must be positive.

C

ONVERSION

: BS1

_

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

1. Remove the minus sign “-“ from the step value if given. The Stamp

II dynamically determines the direction at run-time depending on the order of START and END. This allows for great flexibility in programming.

C

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 401

BASIC Stamp I and Stamp II Conversions

2. Remove the VARIABLE name after the NEXT statement if given.

The variable is always assumed to be from the most recent FOR statement and is not allowed in the Stamp II.

• VARIABLE, START, END and STEPVAL may be a nibble variable for efficiency.

• Up to 16 nested FOR...NEXT statements may be used.

Example:

BS1: FOR B0 = 10 TO 1 STEP -1

{code inside loop}

NEXT B0

BS2: FOR LoopCount = 10 TO 1 STEP 1

{code inside loop}

NEXT

C

ONVERSION

: BS1

`

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

1. VARIABLE, START, END and STEPVAL must not be a nibble.

○ ○

2. If negative stepping is to be done, a negative STEPVAL must be specified.

3. Must have no more than 8 nested FOR...NEXT loops.

Example:

BS2: FOR LoopCount = 100 TO 10 STEP 2

{code inside loop}

NEXT

BS1: FOR B0 = 100 TO 10 STEP -2

{code inside loop}

NEXT

Page 402

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

Appendix C

FREQOUT

BASIC S

TAMP

I

SOUND pin, (note, duration {,note, duration...})

• PIN is a constant or a bit, byte or word variable in the range of 0..7.

• NOTE is a constant or a bit, byte or word variable in the range of

0..255 representing frequencies in the range 94.8 Hz to 10,550 Hz.

• DURATION is a constant or a bit, byte or word variable in the range of 1..255 specifying the duration in 12 ms units.

BASIC S

TAMP

II

FREQOUT pin, milliseconds, freq1 {,freq2}

• PIN is a constant, expression or a bit, nibble, byte or word variable in the range of 0..15.

• MILLISECONDS is a constant, expression or a bit, nibble, byte or word variable.

• FREQ1 and FREQ2 are constant, expression or bit, nibble, byte or word variables in the range 0..32767 representing the corresponding frequencies. FREQ2 may be used to output 2 sine waves on the same pin simultaneously.

C

ONVERSION

: BS1

_

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

1. Change command name ‘SOUND’ to ‘FREQOUT’.

○ ○ ○ ○ ○ ○ ○ ○ ○

2. Remove the parentheses, ‘(‘ and ‘)’.

3. Swap the orientation of DURATION with NOTE and multiply DU-

RATION by 12.

4. (MILLISECONDS = DURATION * 12).

5. Calculate FREQ1 using the formula: FREQ1 = 1/(95 x 10 -6 + ((127 -

NOTE) * 83 x 10 -6 ).

5. Place successive NOTE and DURATION pairs into separate

FREQOUT commands.

C

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 403

BASIC Stamp I and Stamp II Conversions

• PIN may be in the range 0..15.

Example:

BS1: SOUND 1, (92, 128, 75, 25)

BS2: FREQOUT 1, 1536, 333

FREQOUT 1, 300, 226

C

ONVERSION

: BS1

`

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

1. Change command name ‘FREQOUT’ to ‘SOUND’.

○ ○ ○ ○ ○ ○ ○ ○ ○

2. PIN must be in the range 0..7.

3. Insert an open parenthesis just before the MILLISECONDS argument.

4. Swap the orientation of MILLISECONDS with FREQ1 and divide

MILLISECONDS by 12. (DURATION = MILLISECONDS / 12).

5. Calculate NOTE using the formula: NOTE = 127 - ((1/FREQ1) - 95 x 10

-6

) / 83 x 10

-6.

6. Successive FREQOUT commands may be combined into one

SOUND command by separating NOTE and DURATION pairs with commas.

7. Insert a close parenthesis, ‘)’, after the last DURATION argument.

• Notes can not be mixed as in the Stamp II

Example:

BS2: FREQOUT 15, 2000, 400

FREQOUT 15, 500, 600

BS1: SOUND 7, (98, 167, 108, 42)

Page 404

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

Appendix C

GOSUB

BASIC S

TAMP

I

GOSUB label

• Up to 16 GOSUBs allowed per program.

• Up to 4 nested GOSUBs allowed.

• Word W6 is modified with every occurrence of GOSUB.

BASIC S

TAMP

II

GOSUB label

• Up to 255 GOSUBs allowed per program.

• Up to 4 nested GOSUBs allowed.

C

ONVERSION

: BS1

_

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

• Up to 255 GOSUBs can be used in the program.

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

• No general purpose variables are modified with the occurrence of

GOSUB.

C

ONVERSION

: BS1

`

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

1. Only 16 GOSUBs can be used in the program.

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

• Word W6 is modified with every occurrence of GOSUB.

C

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 405

BASIC Stamp I and Stamp II Conversions

GOTO

BASIC S

TAMP

I

GOTO label

BASIC S

TAMP

II

GOTO label

C

ONVERSION

:

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

No conversion necessary.

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

Page 406

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

Appendix C

HIGH

BASIC S

TAMP

I

HIGH pin

• PIN is a constant, expression or a bit, byte or word variable in the range 0..7.

BASIC S

TAMP

II

HIGH pin

• PIN is a constant, expression or a bit, nibble, byte or word variable in the range 0..15.

C

ONVERSION

: BS1

_

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

• PIN may be a constant, expression or a bit, nibble, byte or word variable in the range 0..15.

C

ONVERSION

: BS1

`

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

• PIN must be a constant or a bit, byte or word variable in the range

0..7.

Example:

BS2: HIGH 15

BS1: HIGH 7

C

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 407

BASIC Stamp I and Stamp II Conversions

IF...THEN

BASIC S

TAMP

I

IF variable ?? value {AND/OR variable ?? value...} THEN label

• VARIABLE is a bit, byte or word variable. No constants are allowed.

• ?? is =, <>, >, <, >=, <=.

• VALUE is a constant or a bit, byte, or word variable.

• LABEL is a location to branch to if the result is true.

BASIC S

TAMP

II

IF conditionalexpression THEN label

• CONDITIONALEXPRESSION is any valid Boolean expression using the =, <>, >, <, >=, <=, conditional operators and the AND,

OR, NOT, and XOR logical operators.

• LABEL is a location to branch to if the result is true.

C

ONVERSION

: BS1

_

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

1. If VARIABLE is PINS or PIN0..PIN7 then replace in with INS or

IN0..IN7.

C

ONVERSION

: BS1

`

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

1. If the INS or OUTS symbol is specified to the left of the conditional operator, replace it with PINS.

2. If the logical operator NOT is specified, remove it and switch the conditional operator to negative logic.

3. If one of the values is an expression, you must perform the calculation in a dummy variable outside of the IF...THEN statement.

Example:

BS2: IF NOT FirstValue > LastValue * (2 + NextValue) THEN Loop

BS1: Temp = 2 + NextValue * LastValue

IF FirstValue <= Temp THEN Loop

Page 408

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

Appendix C

INPUT

BASIC S

TAMP

I

INPUT pin

• PIN is a constant, expression or a bit, byte or word variable in the range 0..7.

BASIC S

TAMP

II

INPUT pin

• PIN is a constant, expression or a bit, nibble, byte or word variable in the range 0..15.

C

ONVERSION

: BS1

_

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

• PIN may be a nibble variable in the range 0..15.

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

C

ONVERSION

: BS1

`

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

• PIN must not be a nibble variable and must be in the range 0..7

only.

Example:

BS2: INPUT 15

BS1: INPUT 7

C

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 409

BASIC Stamp I and Stamp II Conversions

LET

BASIC S

TAMP

I

{LET} variable = {-} value ?? value {?? value...}

• VARIABLE is a bit, byte or word variable.

• VALUE is a constant or a bit, byte or word variable.

• ?? is +,-,*,**,/,//,MIN,MAX,&,1,^,&/,|/,^/.

BASIC S

TAMP

II variable = {?} value ?? value {?? {?} value}

• VARIABLE is a bit, nibble, byte or word variable.

• ? is SQR, ABS, ~, -, DCD, NCD, COS, SIN.

• VALUE is a constant or a bit, nibble, byte or word variable.

• ?? is +,-,*,**,*/,/,//,MIN,MAX,&,|,^,DIG,<<,>>,REV.

• Parentheses may be used to modify the order of expression evaluation.

C

ONVERSION

: BS1

_

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

1. Remove the LET command. This is not allowed in the Stamp II.

○ ○

• VARIABLE and VALUE may be nibble variables for efficiency.

• The optional unary operator {-} may now also include SQR, ABS,

~, DCD, NCD, COS and SIN.

• The binary operators can now include */, DIG, <<, >> and REV.

Example:

BS1: LET b0 = -10 + 16

BS2: Result = -10 + 16

C

ONVERSION

: BS1

`

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

1. Remove any unary operator other than minus (-) and modify the equation as appropriate, if possible.

Page 410

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

Appendix C

2. The binary operator can not be */, DIG, <<, >> or REV.

3. VARIABLE and VALUE must not be a nibble variable.

Example:

BS2: Result = ~%0001 + 16

BS1: b0 = %1110 + 16

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 411

C

BASIC Stamp I and Stamp II Conversions

LOOKDOWN

BASIC S

TAMP

I

LOOKDOWN value, (value0, value1,... valueN), variable

• VALUE is a constant or a bit, byte or word variable.

• VALUE0, VALUE1, etc. are constants or a bit, byte or word variables.

• VARIABLE is a bit, byte or word variable.

BASIC S

TAMP

II

LOOKDOWN value, {??,} [value0, value1,... valueN], variable

• VALUE is a constant, expression or a bit, nibble, byte or word variable.

• ?? is =, <>, >, <, <=, =>. (= is the default).

• VALUE0, VALUE1, etc. are constants, expressions or bit, nibble, byte or word variables.

• VARIABLE is a bit, nibble, byte or word variable.

C

ONVERSION

: BS1

_

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

1. Change all parentheses, “(“ and “)”, to brackets, “[“ and “]”

○ ○ ○ ○

• Any or all arguments may be nibble variables for efficiency.

• The optional ?? operator may be included for flexibility.

Example:

BS1: LOOKDOWN b0, (“A”, “B”, “C”, “D”), b1

BS2: LOOKDOWN ByteValue, [“A”, “B”, “C”, “D”], Result

C

ONVERSION

: BS1

`

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

1. Change all brackets, “[“ and “]”, to parentheses, “(“ and “)”.

○ ○ ○ ○

2. Remove the “??,” argument if it exists and modify the list if possible. “=” is assumed in the Stamp I.

Page 412

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

• None of the arguments may nibble variables.

Example:

BS2: LOOKDOWN ByteValue, [1, 2, 3, 4], Result

BS1: LOOKDOWN b0, (1, 2, 3, 4), b1

Appendix C

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 413

C

BASIC Stamp I and Stamp II Conversions

LOOKUP

BASIC S

TAMP

I

LOOKUP index, (value0, value1,... valueN), variable

• INDEX is a constant or a bit, byte or word variable.

• VALUE0, VALUE1, etc. are constants or a bit, byte or word variables.

• VARIABLE is a bit, byte or word variable.

BASIC S

TAMP

II

LOOKUP index, [value0, value1,... valueN], variable

• INDEX is a constant, expression or a bit, nibble, byte or word variable.

• VALUE0, VALUE1, etc. are constants, expressions or bit, nibble, byte or word variables.

• VARIABLE is a bit, nibble, byte or word variable.

C

ONVERSION

: BS1

_

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

1. Change all parentheses, “(“ and “)”, to brackets, “[“ and “]”

○ ○ ○ ○

• Any or all arguments may be nibble variables for efficiency.

Example:

BS1: LOOKUP b0, (1, 2, 3, 4), b1

BS2: LOOKUP ByteValue, [1, 2, 3, 4], Result

C

ONVERSION

: BS1

`

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

1. Change all brackets, “[“ and “]”, to parentheses, “(“ and “)”

○ ○ ○ ○

• None of the arguments may nibble variables.

Example:

BS2: LOOKUP ByteValue, [1, 2, 3, 4], Result

BS1: LOOKUP b0, (1, 2, 3, 4), b1

Page 414

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

Appendix C

LOW

BASIC S

TAMP

I

LOW pin

• PIN is a constant or a bit, byte or word variable in the range 0..7.

BASIC S

TAMP

II

LOW pin

• PIN is a constant, expression or a bit, nibble, byte or word variable in the range 0..15.

C

ONVERSION

: BS1

_

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

• PIN may be a constant or a bit, nibble, byte or word variable in the range 0..15.

C

ONVERSION

: BS1

`

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

PIN must be a constant or a bit, byte or word variable in the range

0..7.

Example:

BS2: LOW 15

BS1: LOW 7

C

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 415

BASIC Stamp I and Stamp II Conversions

NAP

BASIC S

TAMP

I

NAP period

• PERIOD is a constant or a bit, byte or word variable in the range

0..7 representing 18ms intervals.

• Current is reduced to 20uA (assuming no loads).

BASIC S

TAMP

II

NAP period

• PERIOD is a constant, expression or a bit, nibble, byte or word variable in the range 0..7 representing 18ms intervals.

• Current is reduced to 50uA (assuming no loads).

C

ONVERSION

:

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

No conversion necessary.

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

Page 416

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

Appendix C

OUTPUT

BASIC S

TAMP

I

OUTPUT pin

• PIN is a constant or a bit, byte or word variable in the range 0..7.

BASIC S

TAMP

II

OUTPUT pin

• PIN is a constant, expression or a bit, nibble, byte or word variable in the range 0..15.

C

ONVERSION

: BS1

_

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

• PIN may be a constant or a bit, nibble, byte or word variable in the range 0..15.

C

ONVERSION

: BS1

`

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

1. PIN must be a constant or a bit, byte or word variable in the range

0..7.

Example:

BS2: OUTPUT 15

BS1: INPUT 7

C

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 417

BASIC Stamp I and Stamp II Conversions

PAUSE

BASIC S

TAMP

I

PAUSE milliseconds

• MILLISECONDS is a constant or a bit, byte or word variable in the range 0..65535.

BASIC S

TAMP

II

PAUSE milliseconds

• MILLISECONDS is a constant, expression or a bit, nibble, byte or word variable in the range 0..65535.

C

ONVERSION

:

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

No conversion necessary.

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

Page 418

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

POT (See RCTIME)

Appendix C

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 419

C

BASIC Stamp I and Stamp II Conversions

PULSIN

BASIC S

TAMP

I

PULSIN pin, state, variable

• PIN is a constant, expression or a bit, byte or word variable in the range 0..7.

• STATE is a constant, expression or a bit, byte or word variable in the range 0..1.

• VARIABLE is a bit, byte or word variable.

• Measurements are in 10uS intervals and the instruction will time out in 0.65535 seconds.

BASIC S

TAMP

II

PULSIN pin, state, variable

• PIN is a constant, expression or a bit, nibble, byte or word variable in the range 0..15.

• STATE is a constant, expression or a bit, nibble, byte or word variable in the range 0..1.

• VARIABLE is a bit, nibble, byte or word variable.

• Measurements are in 2uS intervals and the instruction will time out in 0.13107 seconds.

C

ONVERSION

: BS1

_

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

• Any or all arguments may be a nibble variable for efficiency.

○ ○ ○ ○

• PIN may be in the range 0..15.

• Returned value is 5 times less than in the Stamp I counterpart.

Page 420

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

Appendix C

C

ONVERSION

: BS1

`

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

• None of the arguments may be a nibble variable.

○ ○ ○ ○ ○ ○ ○ ○ ○ ○

• PIN must be in the range 0..7.

• Returned value is 5 times more than in the Stamp I counterpart.

Example:

BS2: PULSIN 15, 1, Result

BS1: PULSIN 7, 1, W0

C

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 421

BASIC Stamp I and Stamp II Conversions

PULSOUT

BASIC S

TAMP

I

PULSOUT pin, time

• PIN is a constant or a bit, byte or word variable in the range 0..7.

• TIME is a constant or a bit, byte or word variable in the range

0..65535 representing the pulse width in 10uS units.

BASIC S

TAMP

II

PULSOUT pin, period

• PIN is a constant, expression or a bit, nibble, byte or word variable in the range 0..15.

• PERIOD is a constant, expression or a bit, nibble, byte or word variable in the range 0..65535 representing the pulse width in 2uS units.

C

ONVERSION

: BS1

_

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

1. PERIOD = TIME * 5.

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

• PIN may be a nibble variable in the range 0..15.

Example:

BS1: PULSOUT 1, 10

BS2: PULSOUT 1, 50

C

ONVERSION

: BS1

`

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

1. TIME = PERIOD / 5.

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

• PIN must be in the range 0..7 and must not be a nibble variable.

Example:

BS2: PULSOUT 15, 25

BS1: PULSOUT 7, 5

Page 422

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

Appendix C

PWM

BASIC S

TAMP

I

PWM pin, duty, cycles

• PIN is a constant or a bit, byte or word variable in the range 0..7.

• DUTY is a constant or a bit, byte or word variable in the range

0..255.

• CYCLES is a constant or a bit, byte or word variable in the range

0..255 representing the number of 5ms cycles to output.

BASIC S

TAMP

II

PWM pin, duty, cycles

• PIN is a constant, expression or a bit, nibble, byte or word variable in the range 0..15.

• DUTY is a constant, expression or a bit, nibble, byte or word variable in the range 0..255.

• CYCLES is a constant, expression or a bit, nibble, byte or word variable in the range 0..255 representing the number of 1ms cycles to output.

C

C

ONVERSION

: BS1

_

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

1. CYCLES = CYCLES * 5.

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

• PIN may be a nibble variable in the range 0..15.

Example:

BS1: PWM 0, 5, 1

BS2: PWM 0, 5, 5

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 423

BASIC Stamp I and Stamp II Conversions

C

ONVERSION

: BS1

`

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

1. CYCLES = CYCLES / 5.

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

• PIN must be in the range 0..7 and must not be a nibble variable.

Example:

BS2: PWM 15, 5, 20

BS1: PWM 7, 5, 4

Page 424

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

Appendix C

RANDOM

BASIC S

TAMP

I

RANDOM variable

• VARIABLE is a byte or word variable in the range 0..65535.

BASIC S

TAMP

II

RANDOM variable

• VARIABLE is a byte or word variable in the range 0..65535.

C

ONVERSION

: BS1

_

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

• The numbers generated for any given input will not be the same on the Stamp II as in the Stamp I.

C

ONVERSION

: BS1

`

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

• The numbers generated for any given input will not be the same on the Stamp I as in the Stamp II.

C

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 425

BASIC Stamp I and Stamp II Conversions

RCTIME

BASIC S

TAMP

I

POT pin, scale, bytevariable

• PIN is a constant or a bit, byte or word variable in the range 0..7.

• SCALE is a constant or a bit, byte or word variable in the range

0..255.

• BYTEVARIABLE is a byte variable.

BASIC S

TAMP

II

RCTIME pin, state, variable

• PIN is a constant, expression or a bit, nibble, byte or word variable in the range 0..15.

• STATE is a constant, expression or a bit, nibble, byte or word variable in the range 0..1.

• VARIABLE is a bit, nibble, byte or word variable.

C

ONVERSION

: BS1

_

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

1. Modify the circuit connected to PIN to look similar to the following diagram. (Note, your values for the resistors and capacitor may be different).

+5

0.1uF

PIN

220

10 K (Pot)

2. Insert two lines before the POT command as follows:

HIGH pin ; where PIN is the same PIN in the POT command.

Page 426

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

Appendix C

PAUSE delay ; where DELAY is an appropriate time in milliseconds to allow the capacitor to; fully discharge. You may have to try different DELAY values to find an optimal

; value.

3. Change the command’s name from ‘POT’ to ‘RCTIME’.

4. Replace the SCALE argument with a STATE argument; our example requires a 1.

• PIN may be a nibble variable in the range 0..15.

C

ONVERSION

: BS1

`

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

1. Modify the circuit connected to PIN to look similar to the following diagram. (Note, your values for the resistor and capacitor may be different).

PIN

10 K (Pot)

0.1uF

2. Delete the code before the RCTIME command which discharges the capacitor. This code usually consists of two lines as follows:

HIGH pin ; where PIN is the same PIN in the RCTIME command.

PAUSE delay ; where DELAY is an appropriate time in milliseconds to allow the capacitor to; fully discharge.

3. Change the command’s name from ‘RCTIME’ to ‘POT’.

4. Use the ALT-P key combination to determine the appropriate scale factor for the POT you are using as described in the BASIC Stamp

I manual.

C

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 427

BASIC Stamp I and Stamp II Conversions

5. Replace the STATE argument with a SCALE argument.

6. Make VARIABLE a byte variable.

• PIN must be in the range 0..7 and must not be a nibble variable.

Page 428

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

Appendix C

READ

BASIC S

TAMP

I

READ location, variable

• LOCATION is a constant or a bit, byte or word variable in the range

0..255.

• VARIABLE is a bit, byte or word variable.

BASIC S

TAMP

II

READ location, variable

• LOCATION is a constant, expression or a bit, nibble, byte or word variable in the range 0..2047.

• VARIABLE is a bit, nibble, byte or word variable.

C

ONVERSION

: BS1

_

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

• LOCATION and VARIABLE may be a nibble variable for efficiency.

• LOCATION may be in the range 0..2047.

C

C

ONVERSION

: BS1

`

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

• LOCATION and VARIABLE must not be a nibble variable.

○ ○ ○ ○

• LOCATION must be in the range 0..255.

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 429

BASIC Stamp I and Stamp II Conversions

REVERSE

BASIC S

TAMP

I

REVERSE pin

• PIN is a constant or a bit, byte or word variable in the range 0..7.

BASIC S

TAMP

II

REVERSE pin

• PIN is a constant, expression or a bit, nibble, byte or word variable in the range 0..15.

C

ONVERSION

: BS1

_

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

• PIN may be a constant, expression or a bit, nibble, byte or word variable in the range 0..15.

C

ONVERSION

: BS1

`

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

• PIN must be a constant or a bit, byte or word variable in the range

0..7.

Example:

BS2: REVERSE 15

BS1: REVERSE 7

Page 430

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

Appendix C

SERIN

BASIC S

TAMP

I

SERIN pin, baudmode {,(qualifier {,qualifier...} ) } {,{#} variable...}

• PIN is a constant or a bit, byte or word variable in the range 0..7.

• BAUDMODE is a constant or a bit, byte or word variable in the range 0..7 or a symbol with the following format:

[T|N][2400|1200|600|300].

• QUALIFIERs are optional constants or a bit, byte or word variables which must be received in the designated order for execution to continue.

• VARIABLE is a bit, byte or word variable.

• # will convert ascii numbers to a binary equivalent.

BASIC S

TAMP

II

SERIN rpin{\fpin}, baudmode, {plabel,} {timeout, tlabel,} [inputdata]

• RPIN is a constant, expression or a bit, nibble, byte or word variable in the range 0..16.

• FPIN is a constant, expression or a bit, nibble, byte or word variable in the range 0..15.

• BAUDMODE is a constant, expression or a bit, nibble, byte or word variable in the range 0..65535.

• PLABEL is a label to jump to in case of a parity error.

• TIMEOUT is a constant, expression or a bit, nibble, byte or word variable in the range 0..65535 representing the number of milliseconds to wait for an incoming message.

• TLABEL is a label to jump to in case of a timeout.

• INPUTDATA is a set of constants, expressions and variable names separated by commas and optionally proceeded by the formatters available in the DEBUG command, except the ASC and REP

C

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 431

BASIC Stamp I and Stamp II Conversions formatters. Additionally, the following formatters are available:

STR bytearray\L{\E} input a string into bytearray of length L with optional endcharacter of E. (0’s will fill remaining bytes).

SKIP L

WAITSTR bytearray{\L}

WAIT (value {,value...}) input and ignore L bytes.

Wait for bytearray string (of

L length, or terminated by 0 if parameter is not specified and is 6 bytes maximum).

Wait for up to a six-byte sequence.

C

ONVERSION

: BS1

_

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

1. BAUDMODE is a constant or a bit, nibble, byte or word variable equal to the bit period of the baud rate plus three control bits which specify 8-bit/7-bit, True/Inverted and Driven/Open output. The following table lists the Stamp I baudmodes and the corresponding Stamp II baudmode:

6

7

4

5

2

3

0

1

SERIN Baudmode Conversion

Stamp I Baudmode Stamp II Baudmode

T2400

T1200

T600

T300

N2400

N1200

N600

N300

396

813

1646

3313

396 + $4000

813 + $4000

1646 + $4000

3313 + $4000

2. INPUTDATA includes QUALIFIERS and VARIABLES and must

Page 432

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

Appendix C be encased in brackets, “[“ and “]”. If QUALIFIERS are present, insert the modifier “WAIT” immediately before the open parenthesis before the first QUALIFIER.

3. Replace any optional “#” formatters with the equivalent “DEC” formatter.

• RPIN = PIN and may be in the range 0..16

• BAUDMODE may be any bit period in between 300 baud and 50000 baud and can be calculated using the following formula:

INT(1,000,000/Baud Rate) - 20.

• The optional formatter may include any formatter listed for

INPUTDATA above.

Example:

BS1: SERIN 0, 1, (“ABCD”), #B0, B1

BS2: SERIN 0, 813, [WAIT(“ABCD”), DEC FirstByte, SecondByte]

C

ONVERSION

: BS1

`

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

1. PIN = RPIN and must be in the range 0..7.

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

2. Remove the FPIN argument “\fpin” if it is specified. No flow control pin is available on the Stamp I.

3. BAUDMODE is a constant or a symbol or a bit, byte or word variable representing one of the predefined baudmodes. Refer to the

BAUDMODE Conversion table above for Stamp II baudmodes and their corresponding Stamp I baudmodes. While the Stamp II baudmode is quite flexible, the Stamp I can only emulate specific baud rates.

4. Remove the PLABEL argument if it is specified. No parity error checking is done on the Stamp I.

5. Remove the TIMEOUT and TLABEL arguments if they are specified. No timeout function is available on the Stamp I; the program will halt at the SERIN instruction until satisfactory data arrives.

6. Remove the brackets, “[“ and “]”.

C

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 433

BASIC Stamp I and Stamp II Conversions

7. If QUALIFIERS are specified within a WAIT modifier, remove the word “WAIT”.

8. IF QUALIFIERS are specified within a WAITSTR modifier, replace the word “WAITSTR” with an open parenthesis, “(“. Convert the bytearray into a constant text or number sequence separated by commas if necessary (remove the length specifier “\L” if one exists) and insert a close parenthesis, “)”, immediately afterward.

9. If a variable is preceded with a DEC formatter, replace the word

“DEC” with “#”.

10. Any formatter other than DEC and WAIT or WAITSTR has no direct equivalent in the Stamp I and must be removed. Additional variables or parsing routines will have to be used to achieve the same results in the Stamp I as with the Stamp II.

Example:

BS2: SERIN 15, 813, 1000, TimedOut, [WAIT(“ABCD”), DEC

FirstByte, SecondByte]

BS1: SERIN 7, 1, (“ABCD”), #B0, B1

Page 434

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

Appendix C

SEROUT

BASIC S

TAMP

I

SEROUT pin, baudmode, ( {#} data {, {#} data...} )

• PIN is a constant or a bit, byte or word variable in the range 0..7.

• BAUDMODE is a constant or a bit, byte or word variable in the range 0..15 or a symbol with the following format:

{O}[T|N][2400|1200|600|300].

• DATA is a constant or a bit, byte or word variable.

• # will convert binary numbers to ascii text equivalents up to 5 digits in length.

BASIC S

TAMP

II

SEROUT tpin{\fpin}, baudmode, {pace,} {timeout, tlabel,} [outputdata]

• TPIN is a constant, expression or a bit, nibble, byte or word variable in the range 0..16.

• FPIN is a constant, expression or a bit, nibble, byte or word variable in the range 0..15.

• BAUDMODE is a constant, expression or a bit, nibble, byte or word variable in the range 0..60657.

• PACE is a constant, expression or a bit, nibble, byte or word variable in the range 0..65535 specifying a time (in milliseconds) to delay between transmitted bytes. This value can only be specified if the FPIN is not specified.

• TIMEOUT is a constant, expression or a bit, nibble, byte or word variable in the range 0..65535 representing the number of milliseconds to wait for the signal to transmit the message. This value can only be specified if the FPIN is specified.

• TLABEL is a label to jump to in case of a timeout. This can only be specified if the FPIN is specified.

C

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 435

BASIC Stamp I and Stamp II Conversions

• OUTPUTDATA is a set of constants, expressions and variable names separated by commas and optionally proceeded by the formatters available in the DEBUG command.

C

ONVERSION

: BS1

_

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

1. BAUDMODE is a constant or a bit, nibble, byte or word variable equal to the bit period of the baud rate plus three control bits which specify 8-bit/7-bit, True/Inverted and Driven/Open output. The following table lists the Stamp I baudmodes and the corresponding Stamp II baudmode:

SEROUT Baudmode Conversion

Stamp I Baudmode Stamp II Baudmode

12

13

14

15

8

9

10

11

6

7

4

5

2

3

0

1

T2400

T1200

T600

T300

N2400

N1200

N600

N300

OT2400

OT1200

OT600

OT300

ON2400

ON1200

ON600

ON300

396

813

1646

3313

396 + $4000

813 + $4000

1646 + $4000

3313 + $4000

396 + $8000

813 + $8000

1646 + $8000

3313 + $8000

396 + $C000

813 + $C000

1646 + $C000

3313 + $C000

1. Replace the parentheses, “(“ and “)”, with brackets, “[“ and “]”.

2. Replace any optional “#” formatters with the equivalent “DEC” formatter.

Page 436

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

Appendix C

• TPIN = PIN and may be in the range 0..16.

• BAUDMODE may be any bit period in between 300 baud and 50000 baud and can be calculated using the following formula:

INT(1,000,000/Baud Rate) - 20.

• The optional formatter may include any valid formatter for the

DEBUG command.

Example:

BS1: SEROUT 3, T2400, (“Start”, #B0, B1)

BS2: SEROUT 3, 396, [“Start”, DEC FirstByte, SecondByte]

C

ONVERSION

: BS1

`

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

1. PIN = TPIN and must be in the range 0..7.

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

2. Remove the FPIN argument “\fpin” if it is specified. No flow control pin is available on the Stamp I.

3. BAUDMODE is a constant or a symbol or a bit, byte or word variable representing one of the predefined baudmodes. Refer to the

BAUDMODE Conversion table above for Stamp II baudmodes and their corresponding Stamp I baudmodes. While the Stamp II baudmode is quite flexible, the Stamp I can only emulate specific baud rates.

4. Remove the PACE argument if it is specified. No pace value is allowed on the Stamp I.

5. Remove the TIMEOUT and TLABEL arguments if they are specified. No timeout function is available on the Stamp I; the program will transmit data regardless of the status of the receiver.

6. Replace the brackets, “[“ and “]”, with parentheses, “(“ and “)”.

7. If a variable is preceded with a DEC formatter, replace the word

“DEC” with “#”.

8. Any formatter other than DEC has no direct equivalent in the Stamp

I and must be removed. Additional variables or constants will have to be used to achieve the same results in the Stamp I as with the Stamp II.

C

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 437

BASIC Stamp I and Stamp II Conversions

Example:

BS2: SEROUT 15, 3313, 1000, TimedOut, [“Start”, DEC FirstByte,

SecondByte]

BS1: SEROUT 7, T300, (“Start”, #B0, B1)

Page 438

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

Appendix C

SHIFTIN

BASIC S

TAMP

I

NO EQUIVELANT COMMAND

BASIC S

TAMP

II

SHIFTIN dpin, cpin, mode, [result{\bits} { ,result{\bits}... }]

• DPIN is a constant, expression or a bit, nibble, byte or word variable in the range 0..15 specifying the data pin.

• CPIN is a constant, expression or a bit, nibble, byte or word variable in the range 0..15 specifying the clock pin.

• MODE is a constant, symbol, expression or a bit, nibble, byte or word variable in the range 0..4 specifying the bit order and clock mode. 0 or MSBPRE = msb first, pre-clock, 1 or LSBPRE = lsb first, pre-clock, 2 or MSBPOST = msb first, post-clock, 3 or LSBPOST = lsb first, post-clock.

• RESULT is a bit, nibble, byte or word variable where the received data is stored.

• BITS is a constant, expression or a bit, nibble, byte or word variable in the range 1..16 specifying the number of bits to receive in

RESULT. The default is 8.

C

C

ONVERSION

: BS1

_

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

• Code such as the following:

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

SYMBOL Value = B0

SYMBOL Count = B1

SYMBOL CLK = 0

SYMBOL DATA = PIN1

'Result of shifted data

'Counter variable

'Clock pin is pin 0

'Data pin is pin 1

'Set Clock pin as output and Data pin as input DIRS = %00000001

FOR Count = 1 TO 8

PULSOUT CLK,1

Value = Value * 2 + DATA

NEXT Count

'Preclock the data

'Shift result left and grab next data bit

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 439

BASIC Stamp I and Stamp II Conversions

May be converted to the following code:

Value

CLK

DATA

VAR

CON

CON

BYTE

0

1

'Result of shifted data

'Clock pin is pin 0

'Data pin is pin 1

DIRS = %0000000000000001 as input

'Set Clock pin as output and Data pin

SHIFTIN DATA, CLK, MSBPRE, [Value\8]

C

ONVERSION

: BS1

`

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

• Code such as the following:

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

Value VAR BYTE 'Result of shifted data

DIRS = %0000000000000001 'Clock pin is 0 and Data pin is 1

SHIFTIN 1, 0, LSBPOST, [Value\8]

May be converted to the following code:

SYMBOL Value = B0

SYMBOL Count = B1

'Result of shifted data

'Counter variable

'Clock pin is 0 and Data pin is 1 DIRS = %00000001

FOR Count = 1 TO 8

Value = DATA * 256 + Value / 2

PULSOUT CLK,1

NEXT Count

'Shift grab next data bit and shift right

'Postclock the data

Page 440

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

Appendix C

SHIFTOUT

BASIC S

TAMP

I

NO EQUIVELANT COMMAND

BASIC S

TAMP

II

SHIFTOUT dpin, cpin, mode, [data{\bits} {, data{\bits}... }]

• DPIN is a constant, expression or a bit, nibble, byte or word variable in the range 0..15 specifying the data pin.

• CPIN is a constant, expression or a bit, nibble, byte or word variable in the range 0..15 specifying the clock pin.

• MODE is a constant, symbol, expression or a bit, nibble, byte or word variable in the range 0..1 specifying the bit order. 0 or

LSBFIRST = lsb first, 1 or MSBFIRST = msb first.

• DATA is a constant, expression or a bit, nibble, byte or word variable containing the data to send out.

• BITS is a constant, expression or a bit, nibble, byte or word variable in the range 1..16 specifying the number of bits of DATA to send. The default is 8.

C

ONVERSION

: BS1

_

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

Code such as the following:

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

SYMBOL Count = B1

SYMBOL CLK = 0

SYMBOL DATA = PIN1

'Counter variable

'Clock pin is pin 0

'Data pin is pin 1

'Set Clock and Data pins as outputs

'Value to be shifted out

DIRS = %00000011

B0 = 125

FOR Count = 1 TO 8

DATA = BIT7

PULSOUT CLK,1

B0 = B0 * 2

NEXT Count

'Send out MSB of B0

'Clock the data

'Shift the value left; note that this causes us

'to lose the value

'when we’re done shifting

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 441

C

BASIC Stamp I and Stamp II Conversions

May be converted to the following code:

Value

CLK

DATA

VAR

CON

CON

BYTE

0

1

DIRS = %0000000000000011

'Value to be shifted out

'Clock pin is pin 0

'Data pin is pin 1

'Set Clock and Data pins as

'outputs

Value = 125

SHIFTOUT DATA, CLK, MSBFIRST, [Value\8] 'Note that value is still intact

'after were done shifting

C

ONVERSION

: BS1

`

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

Code such as the following:

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

Value

CLK

DATA

VAR

CON

CON

BYTE

0

1

'Value to be shifted out

'Clock pin is pin 0

'Data pin is pin 1

DIRS = %0000000000000011 'Set Clock and Data pins as

'outputs

Value = 220

SHIFTOUT DATA, CLK, LSBFIRST, [Value\8] 'Note that value is still intact

'after were done shifting

May be converted to the following code:

SYMBOL Count = B1

SYMBOL CLK = 0

SYMBOL DATA = PIN1

DIRS = %00000011

'Counter variable

'Clock pin is pin 0

'Data pin is pin 1

'Set Clock and Data pins as

'outputs

'Value to be shifted out B0 = 220

FOR Count = 1 TO 8

DATA = BIT0

PULSOUT CLK,1

B0 = B0 / 2

NEXT Count

'Send out LSB of B0

'Clock the data

'Shift the value left; note that

'the value is lost after were

'done

'shifting

Page 442

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

Appendix C

SLEEP

BASIC S

TAMP

I

SLEEP seconds

• SECONDS is a constant or a bit, byte or word variable in the range

1..65535 specifying the number of seconds to sleep.

BASIC S

TAMP

II

SLEEP seconds

• SECONDS is a constant, expression or a bit, nibble, byte or word variable in the range 0..65535 specifying the number of seconds to sleep.

C

ONVERSION

:

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

No conversion necessary.

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

C

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 443

BASIC Stamp I and Stamp II Conversions

SOUND (See FREQOUT)

Page 444

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

Appendix C

STOP

BASIC S

TAMP

I

NO EQUIVELANT COMMAND

BASIC S

TAMP

II

STOP

• Execution is frozen, such as with the END command, however, low-power mode is not entered and the I/O pins never go into high impedance mode.

C

ONVERSION

: BS1

_

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

Code such as the following:

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

StopExecution: GOTO StopExecution

May be converted to the following code:

StopExecution: STOP

C

ONVERSION

: BS1

`

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

Code such as the following:

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

Quit: STOP

May be converted to the following code:

Quit: GOTO Quit

C

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 445

BASIC Stamp I and Stamp II Conversions

TOGGLE

BASIC S

TAMP

I

TOGGLE pin

• PIN is a constant or a bit, byte or word variable in the range 0..7.

BASIC S

TAMP

II

TOGGLE pin

• PIN is a constant, expression or a bit, nibble, byte or word variable in the range 0..15.

C

ONVERSION

: BS1

_

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

• PIN may be a nibble variable and may be in the range 0..15.

○ ○ ○ ○

C

ONVERSION

: BS1

`

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

• PIN must not be a nibble variable and must be in the range 0..7.

○ ○

Example:

BS2: TOGGLE 15

BS1: TOGGLE 7

Page 446

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

Appendix C

WRITE

BASIC S

TAMP

I

WRITE location, data

• LOCATION is a constant or a bit, byte or word variable in the range

0..255.

• DATA is a constant or a bit, byte or word variable.

BASIC S

TAMP

II

WRITE location, data

• LOCATION is a constant, expression or a bit, nibble, byte or word variable in the range 0..2047.

• DATA is a constant, expression or a bit, nibble, byte or word variable.

C

ONVERSION

: BS1

_

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

• LOCATION and DATA may be a nibble variable for efficiency.

○ ○

• LOCATION may be in the range 0..2047.

C

ONVERSION

: BS1

`

BS2

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

• LOCATION and DATA must not be a nibble variable.

○ ○ ○ ○ ○ ○ ○

• LOCATION must be in the range 0..255.

C

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 447

BASIC Stamp I and Stamp II Conversions

XOUT

BASIC S

TAMP

I

NO EQUIVELANT COMMAND

BASIC S

TAMP

II

XOUT mpin, zpin, [house\keyorcommand{\cycles}

{, house\keyorcommand{\cycles}... }]

• MPIN is a constant, expression or a bit, nibble, byte or word variable in the range 0..15 specifying the modulation pin.

• ZPIN is a constant, expression or a bit, nibble, byte or word variable in the range 0..15 specifying the zero-crossing pin.

• HOUSE is a constant, expression or a bit, nibble, byte or word variable in the range 0..15 specifying the house code A..P respectively.

• KEYORCOMMAND is a constant, expression or a bit, nibble, byte or word variable in the range 0..15 specifying keys 1..16 respectively or is one of the commands in the following table:

X-10 Commands

X-10 Command (symbol) Value

UNITON

UNITOFF

UNITSOFF

LIGHTSON

DIM

BRIGHT

%10010

%11010

%11100

%10100

%11110

%10110

• CYCLES is a constant, expression or a bit, nibble, byte or word variable in the range 2..65535 specifying the number of cycles to send. (Default is 2).

C

ONVERSION

:

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

No conversion possible.

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

Page 448

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

Appendix D

This appendix contains electrical and physical details and schematics of the BASIC Stamp I and BASIC Stamp II modules (BS1-IC and BS2-

IC). The schematics show interpreter chip connections for the SSOP package type only. When duplicating the BASIC Stamp module circuit using DIP or SOIC packaged interpreter chips, please consult the appropriate databook or call Parallax Technical Support for assistance.

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 449

D

BASIC Stamp II circuit in SMT

Page 452

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

Appendix D

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 453

D

Appendix D

Page 454

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II Index

- A -

ABS, 236

Accessing I/O pins, 214-217

Addition (+), 239-240

A/D converter (8-bit), Interfacing an, 356-359

A/D converter (12-bit), Interfacing an, 359-360

Aliases, 221-224

Analog I/O, 141-144, 205

PWM, 205, 293-295, 423-424

RCTIME, 205, 298-301

AND (logical) (&), 239, 245

Application notes, 347-363

A/D converter (8-bit), Interfacing an, 356-359

A/D converter (12-bit), Interfacing an, 359-360

Button, Using Instruction Effectively, 159-165

Networking Multiple Stamps, 135-139, 327-329

Phoneline Interface, 361-363

Pulse Measurements, Practical, 91-98

PWM for Analog Output, Using, 141-144

Servos, Controlling and Testing, 85-90

Shiftin and Shiftout, 353-360

X-10 Control, 347-351

Arrays, 219-221

ASCII chart, 365

- B -

BASIC Stamp II (schematic)

Components (DIP/SOIC), 207

Module (SSOP), 452

Baud mode conversion, 432, 436

Baud mode (table), 310, 312, 321, 322

Binary operators, 239-246

Addition (+), 239-240

AND (logical) (&), 239, 245

DIG, 239, 244

Division (/), 239, 240

Division (remainder) (//), 239, 241

MAX, 239, 243

MIN, 239, 242-243

Multiplication (*), 239, 241

Multiplication (high 16-bits) (**), 239, 241-242

Multiply by 8-bit whole/part (*/), 239, 242

Operators (table), 239

OR (logical), 239, 245

Order of evaluation, 232-233

REV, 239, 245

Shift left (<<), 239, 244

Shift right (>>), 239, 244

Subtraction (-), 239, 240

XOR (logical), 239, 246

Binary radian, 238

Brad, 238

BRANCH, 204, 247-248, 385

Branching, 204

BRANCH, 204, 247-248, 385

GOSUB, 204, 266-267, 405

GOTO, 204, 268, 406

IF...THEN, 204, 270-275, 408

RETURN, 204, 304

BS2-IC (schematic), 452

Bright, 349

Button debouncing, 159-165, 205

BUTTON, 159-165, 205, 249-250, 387-388

Button, Using instruction effectively, 159-165

- C -

Cable (connection to the PC), 199, 200, 210-212

Carrier board, 199

Command and directive differences, 377

Command-line options, 201

Comparison operators (table), 270, 273

Compliment (~), 237

Connecting to the PC (Cable), 199, 200, 210-212

Constants, 225-227

Conversion document, How to use, 376

Converting code between Stamps, 369-448

BRANCH, 385

BSAVE, 386

BUTTON, 387-388

COUNT, 389

DATA, 394-395

DEBUG, 390-393

DTMFOUT, 396

EEPROM, 397

END, 398

Expressions, 399-400

FOR…NEXT, 401-402

FREQOUT, 403-404

GOSUB, 405

GOTO, 406

HIGH, 407

IF…THEN, 408

INPUT, 409

LET, 410-411

LOOKDOWN, 412-413

LOOKUP, 414

LOW, 415

NAP, 416

OUTPUT, 417

PAUSE, 418

POT, 419

PULSIN, 420-421

PULSOUT, 422

PWM, 423-424

RANDOM, 425

RCTIME, 426-428

READ, 429

REVERSE, 430

SERIN, 431-434

I

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 459

BASIC Stamp II Index

SEROUT, 435-438

SHIFTIN, 439-440

SHIFTOUT, 441-442

SLEEP, 443

SOUND, 444

STOP, 445

Symbols/variables or constants, 383-384

TOGGLE, 446

WRITE, 447

XOUT, 448

COS, 236, 238

COUNT, 205, 251-252, 389

Counting pulses, 205, 251-252

Current limit, 200, 209

Cut, copy & paste, 203

- D -

DATA, 394-395

Data logger, 342-343

Data storage, 228-230, 302-303, 341-343

DCD, 236, 237

Debug formatters, 254-256, 390-393

DEBUG, 206, 253-256, 390-393

Debugging (table), 26, 30, 390-393

Symbols (table), 254, 256

Defining (symbols/variables), 217-221

DIG, 239, 244

Digital I/O, 204-205

BUTTON, 205, 249-250, 159-165, 387-388

COUNT, 205, 251-252

HIGH, 204, 269, 407

INPUT, 204, 276-277, 409

LOW, 204, 284, 415

OUTPUT, 204, 287, 417

PULSIN, 204, 289-290, 420-421

PULSOUT, 205, 291-292, 422

REVERSE, 204, 305-306, 430

SHIFTIN, 205, 330-333

SHIFTOUT, 205, 334-335

TOGGLE, 339-340, 446

XOUT, 344-346

Dim, 349

Direction (setting of I/O pins), 214-217

DIRS (register), 214-217

Components of (table), 216

DIRS (figure), 216

Division (/), 239, 240

Division (remainder) (//), 239, 241

DTMFOUT, 206, 257-259, 396

- E -

Editor, 201

Command-line options, 201

Cut, copy & paste, 203

Data storage, 228-230, 302-303, 341-343

Entering & editing programs, 202

Function keys, 202-203

Loading a program, 202

Memory map, 224-225

Memory map (table), 214

Monochrome mode, 201

Running, 201

Running a program, 202

Saving a program, 202

Serial port selection, 201

EEPROM

Chip, 209

DATA, 206, 213, 302-303, 341-343, 397

Lifetime rating, 209, 341

READ, 206, 302-303, 429

Size, 207, 209, 341, 397

WRITE, 341-343, 447

END, 206, 260, 398

Entering & editing programs, 202

Expressions (math), 225-227, 399-400

- F -

Flow control, 317-318, 326-327

FOR...NEXT, 204, 261-263, 401-402

FREQOUT, 403-404

Function keys (editor), 202-203

- G -

Generating pulses, 291-292

Generating random numbers, 204, 296-297, 425

GOSUB, 204, 266-267, 405

GOTO, 204, 268, 406

Hardware

Detailed, 207-212

General, 199-200

HIGH, 204, 269, 407

- H -

- I -

I/O Pins

Accessing, 214-217

Directions, 208

General, 208

Impedence, 208

Pin-out, 200

IF..THEN, 204, 270-275, 408

INPUT, 204, 276-277, 409

INS (register), 214-217

Components of (table), 216

INS (figure), 216

Instructions, 204-346, 385

BRANCH, 204, 247-248, 385

Page 460

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II Index

BUTTON, 205, 249-250, 159-165, 387-388

COUNT, 205, 251-252, 389

DATA, 206, 213, 302-303, 341-343, 394-395

DEBUG, 206, 253-256, 390-393

DTMFOUT, 206, 257-259, 396

END, 206, 210, 260, 398

FOR…NEXT, 204, 261-263, 401-402

FREQOUT, 206, 264-265, 403-404

GOSUB, 204, 266-267, 405

GOTO, 204, 268, 406

HIGH, 204, 269, 407

IF...THEN, 204, 270-275, 408

INPUT, 204, 276-277, 409

LOOKDOWN, 204, 278-281, 412-413

LOOKUP, 204, 282-283, 414

LOW, 204, 284, 415

NAP, 206, 210, 285-286, 416

OUTPUT, 204, 287, 417

PAUSE, 206, 288, 418

PULSIN, 204, 289-290, 420-421

PULSOUT, 205, 291-292, 422

PWM, 205, 293-295, 423-424

RANDOM, 204, 296-297, 425

RCTIME, 205, 298-301, 426-428

READ, 206, 302-303, 429

RETURN, 204, 304

REVERSE, 204, 305-306, 430

SERIN, 205, 307-318, 431-434

SEROUT, 205, 319-329, 435-438

SHIFTIN, 205, 330-333, 439-440

SHIFTOUT, 205, 334-335, 441-442

SLEEP, 206, 210, 336-337, 443

STOP, 338, 445

TOGGLE, 339-340, 446

WRITE, 341-343, 447

XOUT, 344-346, 448

Interfacing to

74HC595, 355-356, 358-359

A/D converter, 356-360

Buttons, 205, 159-165, 249-250, 387-388

Many switches with one pin, 155-158

Multiple Stamps, 327-329

Parallel Latch, 353-354

Phoneline, 361-363

Pulsing signals, 91-98, 204, 251-252, 289-290

Serial shift register, 354-355

Servos, 85-90

X-10 Devices, 347-351

Internet access, ii

Introduction, 5

- L -

Loading programs, 202

LOOKDOWN, 204, 278-281, 412-413

LOOKUP, 204, 282-283, 414

Looping, 204

FOR…NEXT, 204, 261-263, 401-402

Low current mode

END, 206, 210, 260, 398

NAP, 206, 210, 285-286, 416

SLEEP, 210, 443

LOW, 204, 206, 284, 415

- M -

Math

Addition (+), 239-240

AND (logical) (&), 239, 245

DIG, 239, 244

Division (/), 239, 240

Division (remainder) (//), 239, 241

Expressions, 225-227, 399-400

MAX, 239, 243

MIN, 239, 242-243

Multiplication (*), 239, 241

Multiplication (high 16-bits) (**), 239, 241-242

Multiply by 8-bit whole/part (*/), 239, 242

Number representations, 231

Operators, 227, 232-246

Operators in constants (table), 227

OR (logical) (|), 239, 245

Order of evaluation, 232-233

REV, 239, 245

Shift left (<<), 239, 244

Shift right (>>), 239, 244

Subtraction (-), 239, 240

Unary and binary operators, 234, 236-246

Unary operators, 236-238

Unary operators (table), 236

With integers, 234

Workspace, 235

XOR (logical) (^), 239, 246

MAX, 239, 243

Measuring pulses, 91-98, 204, 289-290

Memory

Accessing, 224-225

Map, 214-215

Map (table), 214

Size, 207, 209, 341

Modifiers (symbols), 222-224

Modifiers (symbols) (figure), 222

Modifiers (serial) (table), 311, 324

Monochrome mode (editor), 201

MIN, 239, 242-243

Multiplication (*), 239, 241

Multiplication (high 16-bits) (**), 239, 241-242

Multiply by 8-bit whole/part (*/), 239, 242

Musical notes, 206, 264-265

I

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 461

BASIC Stamp II Index

- N -

NAP, 206, 285-286, 416

NCD, 236, 237

Negation (-), 237

Networking Stamps, 135-139, 327-329

Networking Stamps (figure), 328

Numerics, 204

LOOKDOWN, 204, 278-281, 412-413

LOOKUP, 204, 282-283, 414

RANDOM, 204, 296-297, 425

Numeric Strings (serial comm.), 310-313, 322-325

- O -

Open signaling (serial comm.), 327,-329

Operators (table), 239

Operators in constants (table), 227

OR (logical), 239, 245

Order of evaluation, 232-233

OUTPUT, 204, 287, 417

OUTS (register), 214-217

Components of (table), 216

OUTS (figure), 216

- P -

Packing list, 198

Pacing, 325

Parallel Latch, Interfacing to a, 353-359

Parity and parity errors, 315-316

PAUSE, 206, 288, 418

PBASIC

Instruction speed, 208

Interpreter chip, 208-209

Phoneline interface, 361-363

Pin-out, 200

Reset pin, 200

I/O pins, 200

Power control, 206

END, 206, 210, 260, 398

NAP, 206, 210, 285-286, 416

SLEEP, 206, 210, 336-337, 443

Power supply, 198, 200, 210

END, 206, 210, 260, 398

NAP, 206, 210, 285-286, 416

Powering external circuits, 200

SLEEP, 206, 210, 336-337, 443

Powerline Interface (schematic), 348

Predefined variables, 217

Variables (tables), 214

Program Debugging, 206

DEBUG, 206, 253-256, 390-393

Programming Structures

Constants, 225-227

Symbols/value labels, 217-224

Programming connections, 199, 200, 210-212

Pulse measurements, Practical, 91-98

Pulses

Counting, 205, 251-252

Generating, 291-292

Reading, 206, 251-252, 289-290

PULSIN, 204, 289-290, 420-421

PULSOUT, 205, 291-292, 422

PULSIN, 204, 289-290, 420-421

PULSOUT, 205, 291-292, 422

PWM, 205, 293-295, 423-424

PWM for analog output, Using, 141-144

- Q -

Qualifiers (serial comm.), 313-314

- R -

Radian, binary, 238

RAM, 213-225, 378-384

RAM space and register allocation, 378-384

RANDOM, 204, 296-297, 425

RCTIME, 205, 298-301, 426-428

READ, 206, 302-303, 429

Reading data, 206, 213, 302-303, 341-343, 397

Reading potentiometers, 205, 298-301

Reading pulses, 289-290

Reset

Circuit, 209-210

Pin, 200

Voltage/threshold, 209-210

Reserved words, 367

RETURN, 204, 304

REV, 239, 245

REVERSE, 204, 305-306, 430

RS-232, 210, 308-309

Running a program, 202

Running the editor, 201

Run-time, 231-232

Run-time math and logic, 231-246

- S -

Saving programs, 202

Schematic

BASIC Stamp II components (DIP/SOIC), 207

BS2-IC module (SSOP), 452

Serial communication (asynchronous)

Baud mode (table), 310, 312, 321, 322

Flow control, 317-318, 326-327

From a PC (figure), 212, 309

I/O pins, 211, 308-309, 320-321

Modifiers (table), 311, 324

Networking, 327-329

Networking (figure), 328

Numeric Strings, 310-313, 322-325

Page 462

BASIC Stamp Programming Manual 1.9 • Parallax, Inc.

BASIC Stamp II Index

Open signaling, 327-329

Pacing, 325

Parity and parity errors, 315-316

Qualifiers, 313-314

RS-232, 210, 308-309

SERIN, 205, 307-318, 431-434

SEROUT, 205, 319-329, 435-438

Speed considerations, 309-310

Timeout, 316, 327

To a PC (figure), 212, 320

Serial communication (synchronous)

Application note, 353-360

SHIFTIN, 205, 330-333, 353-360

SHIFTOUT, 205, 334-335, 353-360

Serial I/O, 205, 210-212

SERIN, 205, 307-318, 431-434

SEROUT, 205, 319-329, 435-438

Serial port selection (editor), 201

Serial shift register, Interfacing to a, 354-355

SERIN, 205, 307-318, 431-434

Serin baudmode conversion, 432

SEROUT, 205, 319-329, 435-438

Serout baudmode conversion, 436

Servos, Controlling and testing, 85-90

74HC595, Interfacing to, 355-356, 358-359

SLEEP, 206, 210, 336-337, 443

Shift left (<<), 239, 244

Shift right (>>), 239, 244

SHIFTIN, 205, 330-333, 353-360, 439-440

SHIFTOUT, 205, 334-335, 353-360, 441-442

SIN, 236-238

Sine wave generation

DTMFOUT, 206, 257-259, 396

FREQOUT, 206, 264-265, 403-404

Sound, 444

DTMFOUT, 206, 257-259, 396

FREQOUT, 206, 264-265, 403-404

SQR, 236-237

Stamp list, ii

STOP, 338, 445

Stopping/halting execution

END, 206, 210, 260, 398

NAP, 206, 210, 285-286, 416

PAUSE, 206, 288, 418

SLEEP, 206, 210, 336-337, 443

Storing data, 206, 213, 302-303, 341-343

Subtraction (-), 239, 240

Symbols

Aliases, 221-224

Arrays, 219-221

Defining, 217-221

Modifiers, 221-224

Modifiers (figure), 222

Size, 218

Symbols/variables or constants, 383-384

System requirements, 198

- T -

Tables (creating)

LOOKDOWN, 204, 278-281, 412-413

LOOKUP, 204, 282-283, 414

Time, 206

PAUSE, 206, 288, 418

Timeout, 316, 327

TOGGLE, 339-340, 446

Tone generation

DTMFOUT, 206, 257-259, 396

FREQOUT, 206, 264-265, 403-404

- U -

Unary operators, 236-238

ABS, 236

COS, 236, 238

DCD, 236, 237

NCD, 236, 237

SIN, 236, 238

SQR, 236-237

- V -

Variables

Aliases, 221-224

Arrays, 219-221

Defining, 217-221

Modifiers, 222-224

Modifiers (figure), 222

Predefined, 217

Size, 218

Versions, ii

Warranty, ii

WRITE, 341-343, 447

- W -

- X -

X-10 Devices (interfacing to), 347-351

XOR (logical), 239, 246

XOUT, 344-346, 448

Symbol (table), 345

Parallax, Inc. • BASIC Stamp Programming Manual 1.9 •

Page 463

I

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
