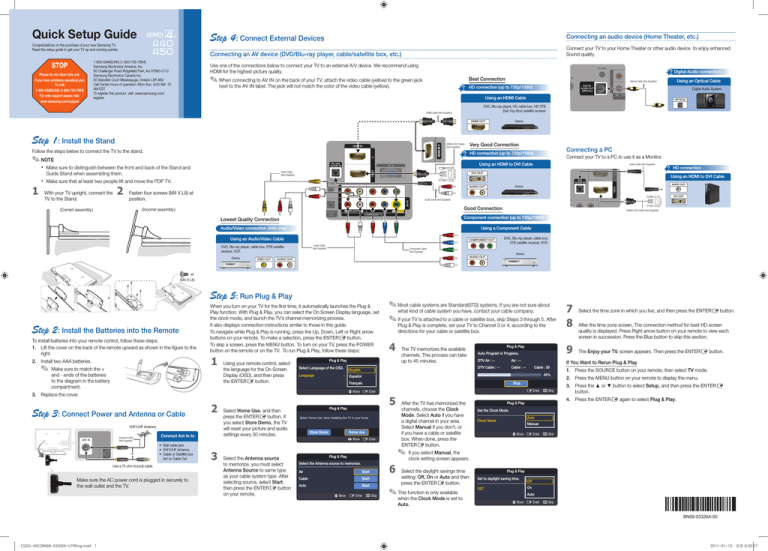

Quick Setup Guide
Step 4: Connect External Devices
Congratulations on the purchase of your new Samsung TV.
Read this setup guide to get your TV up and running quickly.
STOP
Please do not return this unit.
If you have problems operating your
TV, call:
1-800-SAMSUNG (1-800-726-7864)
For web support please visit:
www.samsung.com/support
Connecting an audio device (Home Theater, etc.)
Connect your TV to your Home Theater or other audio device to enjoy enhanced
Sound quality.
Connecting an AV device (DVD/Blu-ray player, cable/satellite box, etc.)
1-800-SAMSUNG (1-800-726-7864)
Samsung Electronics America, Inc.
85 Challenger Road Ridgefield Park, NJ 07660-2112
Samsung Electronics Canada Inc.
55 Standish Court Mississauga, Ontario L5R 4B2
Call Center hours of operation: Mon-Sun, 9:00 AM -12
AM EST.
To register this product, visit: www.samsung.com/
register.
Use one of the connections below to connect your TV to an external A/V device. We recommend using
HDMI for the highest picture quality.
Digital Audio connection
✎✎When connecting to AV IN on the back of your TV, attach the video cable (yellow) to the green jack
Best Connection
next to the AV IN label. The jack will not match the color of the video cable (yellow).
Device
HDMI OUT
HDMI IN 3
Step 1: Install the Stand
Follow the steps below to connect the TV to the stand.
✎✎NOTE
Very Good Connection
HDMI to DVI Cable
(Not Supplied)
Connecting a PC
HD connection (up to 720p/1080i)
Connect your TV to a PC to use it as a Monitor.
Using an HDMI to DVI Cable
Video Cable
(Not Supplied)
Guide Stand when assembling them.
Audio Cable (Not Supplied)
DVI OUT
1 With your TV upright, connect the 2 Fasten four screws (M4 X L8) at
HD connection
Using an HDMI to DVI Cable
xx Make sure that at least two people lift and move the PDP TV.
AUDIO OUT
Device
AUDIO OUT
DVI OUT
position.
Audio Cable (Not Supplied)
Good Connection
(Incorret assembly)
(Correct assembly)
OPTICAL
DVD, Blu-ray player, HD cable box, HD STB
(Set-Top-Box) satellite receiver
HDMI Cable (Not Supplied)
TV to the Stand.
Digital Audio System
Using an HDMI Cable
xx Make sure to distinguish between the front and back of the Stand and
Using an Optical Cable
Optical Cable (Not Supplied)
HD connection (up to 720p/1080i)
Lowest Quality Connection
Using a Component Cable
Audio/Video connection (480i only)
Using an Audio/Video Cable
COMPONENT OUT
Audio Cable
(Not Supplied)
DVD, Blu-ray player, cable box, STB satellite
receiver, VCR
Device
VIDEO OUT
HDMI to DVI Cable (Not Supplied)
Component connection (up to 720p/1080i)
DVD, Blu-ray player, cable box,
STB satellite receiver, VCR,
Component Cable
(Not Supplied)
Device
AUDIO OUT
AUDIO OUT
x4
(M4 X L8)
Step 5: Run Plug & Play
Step 2: Install the Batteries into the Remote
To install batteries into your remote control, follow these steps:
1. Lift the cover on the back of the remote upward as shown in the figure to the
right.
2. Install two AAA batteries.
✎✎ Make sure to match the +
When you turn on your TV for the first time, it automatically launches the Plug &
Play function. With Plug & Play, you can select the On Screen Display language, set
the clock mode, and launch the TV’s channel memorizing process.
It also displays connection instructions similar to those in this guide.
To navigate while Plug & Play is running, press the Up, Down, Left or Right arrow
buttons on your remote. To make a selection, press the ENTERE button.
To skip a screen, press the MENU button. To turn on your TV, press the POWER
button on the remote or on the TV. To run Plug & Play, follow these steps:
1 Using your remote control, select
the language for the On Screen
Display (OSD), and then press
the ENTERE button.
and - ends of the batteries
to the diagram in the battery
compartment.
P
Plug & Play
Select Language of the OSD.
Language
:
VHF/UHF Antenna
Antenna Cable
(Not Supplied)
or
Connect Ant In to
• Wall cable jack
• VHF/UHF Antenna
• Cable or Satellite box
Ant or Cable Out
Use a 75 ohm (round) cable.
Make sure the AC power cord is plugged in securely to
the wall outlet and the TV.
to memorize, you must select
Antenna Source to same type
as your cable system type. After
selecting source, select Start;
then press the ENTERE button
on your remote.
4 The TV memorizes the available
channels. This process can take
up to 45 minutes.
DTV Air : --
Air : --
DTV Cable : --
Cable : --
Plug & Play
Select ‘Home Use’ when installing this TV in your home.
Store Demo
Cable : 35
48%
Home Use
L Move E Enter
Stop
E Enter m Skip
5 After the TV has memorized the
channels, choose the Clock
Mode. Select Auto if you have
a digital channel in your area.
Select Manual if you don’t, or
if you have a cable or satellite
box. When done, press the
ENTERE button.
7 Select the time zone in which you live, and then press the ENTERE button.
8 After the time zone screen, The connection method for best HD screen
quality is displayed. Press Right arrow button on your remote to view each
screen in succession. Press the Blue button to skip this section.
9 The Enjoy your TV. screen appears. Then press the ENTERE button.
Plug & Play
Auto Program in Progress.
Français
2 Select Home Use, and then
3 Select the Antenna source
Plug & Play is complete, set your TV to Channel 3 or 4, according to the
directions for your cable or satellite box.
Español
U Move E Enter
press the ENTERE button. If
you select Store Demo, the TV
will reset your picture and audio
settings every 30 minutes.
what kind of cable system you have, contact your cable company.
✎✎If your TV is attached to a cable or satellite box, skip Steps 3 through 5. After
English
3. Replace the cover.
Step 3: Connect Power and Antenna or Cable
✎✎Most cable systems are Standard(STD) systems, If you are not sure about
If You Want to Rerun Plug & Play
1. Press the SOURCE button on your remote, then select TV mode.
2. Press the MENU button on your remote to display the menu.
3. Press the ▲ or ▼ button to select Setup, and then press the ENTERE
button.
4. Press the ENTERE again to select Plug & Play.
Plug & Play
Set the Clock Mode.
Auto
Clock Mode
Manual
U Move E Enter m Skip
✎✎ If you select Manual, the
Plug & Play
clock setting screen appears.
Select the Antenna source to memorize.
Air
Start
Cable
Start
Auto
Start
U Move E Enter m Skip
6 Select the daylight savings time
setting: Off, On or Auto and then
press the ENTERE button.
✎✎This function is only available
when the Clock Mode is set to
Auto.
Plug & Play
Set to daylight saving time.
DST
Off
On
Auto
U Move E Enter m Skip
BN68-03326A-00
[QSG-450]BN68-03326A-LPREng.indd 1
2011-01-13 오전 9:33:27
Step 6: Remote Control
Remote Control Buttons and Functions
Changing Channels and Adjusting the Volume
Adjust the volume by pressing the Volume button
on the remote.
Change the channels by pressing the Channel button on the remote.
✎✎If your TV is attached to a cable or satellite box, change the channel using
the box’s remote.
Displays and selects the available video sources.
Turns the TV on and off.
Selecting a Source
Changing the Picture Mode
Your TV has three preset Picture Modes with factory adjusted settings, each
designed to give you an excellent picture under specific conditions.
To change the Picture mode, press the P.MODE button on your remote. The first
time you press it, your TV displays the current setting. Thereafter, each time you
press the P.MODE button, you change the mode of the picture on the screen.
The Picture Modes are listed and described in the table below:
Changes channels.
To watch a movie on your Blu-ray player or watch
your favorite TV show, you must select the correct
A
B
C
D
source. A source is a device, such as a Blu-ray/DVD
S.MODE
SLEEP
player, a cable/satellite box, antenna or a cable TV
input. Sources can be connected to your TV through
P.MODE
P.SIZE
the HDMI, DVI, Component, Composite, or D-sub
connections, or through the Antenna or Cable In connections.
To view the signal from a source connected to the HDMI, DVI, Component,
Composite, or D-sub jack, press the SOURCE button on your remote. Each time
you press the SOURCE button, you change to a different source.
Displays the channel list on the screen.
Viewing the On Screen Menus
Displays Favorite Channel Lists on the screen.
To view the On Screen Menus, follow these steps:
1. With the power on, press the MENU button on
your remote. The main menu appears.
The menu’s left side has the following menu
options: Picture, Sound, Channel, Setup, Input, Application and Support.
Press to directly access channels.
Press to select additional channels (digital) being
broadcasted by the same station. For example, to select
channel “54-3”, press “54”, then press “-” and “3”.
Returns to the previous channel.
Cuts off the sound temporarily.
Adjusts the volume.
Brings up the OSD.
Displays Media Play (USB).
MEDIA.P
SLEEP
Quickly select frequently used functions.
Displays information on the TV screen.
Selects the on-screen menu items and changes the values
seen on the menu.
Returns to the previous menu.
Buttons used in the Channel list, Media Play (USB)
menu, etc.
Exits the menu.
A
B
C
P.SIZE
✎✎You can also change the channels by pressing the z button on the front panel of your TV and adjust the volume by pressing the y button.
D
Standard
Movie
2. Press the ▲ or ▼ button on your remote to select a menu option, and then
press the ENTERE button.
Description
Brightens picture. For a vibrant, enhanced image in brightly lit or
sunny room.
For a bright, detailed picture in a normally lit room.
For a studio quality cinema picture in a dimly lit or dark room.
To change the Picture Mode, follow these steps:
1. With the TV on, Press the MENU button on your remote, then select Picture.
2. Select Mode, then Press the ENTERE button.
3. On the Mode menu in Picture, use the ▼ or ▲ on your remote to select the
picture mode you want.
4. Press the ENTERE button to finish the change.
3. When done using the menu, press the EXIT button on your remote to exit.
A
B
C
D
A
B
C
D
S.MODE
Changing the Screen Size
MTS: Press to choose stereo, mono or Separate Audio
Program (SAP broadcast).
P.SIZE: Selects the picture size.
CC: Controls the caption decoder.
Mode
Dynamic
SLEEP
S.MODE
P.MODE
SLEEP
P.SIZE
P.MODE
P.SIZE
Your TV has several screen size options, each designed to work best with specific
types of video input. If you have a cable box or satellite receiver, it may have its own
set of screen sizes as well.
To change the screen size, press the P.SIZE button on your remote. The first time
you press it, your TV displays the current setting. Thereafter, each time you press
the P.SIZE button, you change the size of the picture on the screen.
The following sizes are available:
Setting the Clock
Before you can use your TV’s On/Off Timer, you must set the clock. To set the
clock, follow these steps:
1. Turn on your TV, press the MENU button on your remote, then select Setup →
Time.
2. Select Clock Mode, and then press the ENTERE button.
3. Choose Auto or Manual.
xx If you select Auto, the current time will be set automatically using the time
from a digital channel.
xx If you select Manual, you can set the Month, Day, Year, Hour, Minute
16:9 Wide screen
4:3 Standard screen
Wide Fit
and am/pm directly by pressing up, down, left and right arrow button on
your remote.
4. Press the RETURN button on your remote when done.
Connecting a USB Device for Media Play
Zoom 1
Zoom 2
Screen Fit
✎✎Screen Fit: Displays the full image without any cut-off when HDMI (720p /
1080i / 1080p) or Component (1080i / 1080p) signals are inputted.
You can enjoy photo and music
files stored on a USB device
by connecting it to the TV and
using the Media Play feature.
To connect a USB device
for Media Play, follow these
steps:
1. Turn on your TV.
SUM
307.2MB/973.7MB
Free
Music
L Move
Setup
E Enter
R Return
2. Connect a USB device
containing photo and/or music files to the USB jack on the side of the TV.
3. When the Input selection screen is displayed, press the  button to select
Media Play (USB), then press the ENTERE button.
[QSG-450]BN68-03326A-LPREng.indd 2
2011-01-13 오전 9:33:28
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
