IL-2000SA

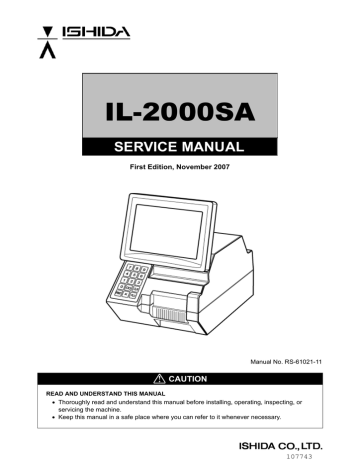

SERVICE MANUAL

First Edition, November 2007

Manual No. RS-61021-11

CAUTION

READ AND UNDERSTAND THIS MANUAL

• Thoroughly read and understand this manual before installing, operating, inspecting, or servicing the machine.

• Keep this manual in a safe place where you can refer to it whenever necessary.

107743

© 2007 ISHIDA Co., Ltd.

COPYRIGHT AND COPY PERMISSION

This manual shall not be copied without permission.

This manual is protected by copyright and is intended solely for use in conjunction with the machine.

Please notify us before copying or reproducing this manual in any manner, for any other purpose.

© ISHIDA CO., LTD., 2007

SAFETY PRECAUTIONS

SAFETY PRECAUTIONS

Those who handle the machine must be aware of the hazards involved. These dangers may not be obvious, so it is imperative to follow the instructions detailed in this manual when installing, operating, inspecting, or servicing the machine. Therefore, we recommend that you thoroughly read and understand this manual before installing, operating, inspecting, or servicing the machine.

ISHIDA is not liable for any damage, loss or injury that results from incorrect handling, insufficient caution, unauthorized modifications to the machine, or failure to follow the instructions contained in this manual.

In the recent weighing industry, the latent hazards involved with handling the machine have increased due to new materials, new processing methods, and higher processing speeds, and it is impossible to predict all of the possible dangers.

Likewise, there are far too many operations which cannot or should not be performed to fully describe all of them in the manual. Please assume that any operation not specifically described in this manual should never be performed.

Safety countermeasures should be carefully considered and implemented before performing any installation, operation, inspection, or maintenance procedure not specifically described in this manual or indicated on the machine itself.

Battery Disposal:

When replacing a battery, make sure that it is the same model or an equivalent. Dispose of used batteries according to the local regulations.

When replacing the board, follow local regulation on its disposal because the board contains lithium batteries.

IL-2000SA Service Manual i

MEANINGS OF SIGNAL WORDS

MEANINGS OF SIGNAL WORDS

This machine is manufactured for use according to proper procedures by a qualified person and only for the purposes described in this manual. The following conventions are used to indicate and classify precautions depending on the level of danger, or seriousness of potential injury. Always heed the information provided in this manual. Failure to heed precautions can result in personal injury or property damage.

The following signal words are used in this manual.

Indicates a potentially hazardous situation which, if not avoided, will result in minor or moderate injury, or may result in serious injury or death. Additionally, there may be significant property damage

Indicates a potentially hazardous situation where, if not avoided, may result in minor or moderate injury or in property damage.

Indicates a reminder or emphasis of information. ii IL-2000SA User’s Manual

TABLE OF CONTENTS

TABLE OF CONTENTS

Chapter 1 OUTLINE .......................................................................... 1-1

Chapter 2 INSTALLATION ................................................................ 2-1

2.2 CONTENTS OF THE PACKAGE ............................................................ 2-2

1. Items Required at the Delivery ................................................................... 2-2

1. Installation Conditions .................................................................................. 2-3

2. Connecting Options ...................................................................................... 2-3

Chapter 3 TEST MODE ..................................................................... 3-1

3.1 START UP OF TEST MODE ................................................................... 3-1

3.2 TEST MODE HIERARCHICAL CHART .................................................. 3-2

Chapter 4 SYSTEM SETTING MENU ............................................... 4-1

4.1 START UP OF SYSTEM SETTING MENU ............................................. 4-1

4.2 HIERARCHICAL CHART OF SYSTEM SETTING MENU ...................... 4-2

4.3 SALES MODE SETTING......................................................................... 4-3

4.4 MACHINE NUMBER SETTING ............................................................... 4-4

4.5 HOLD DATA SETTING ............................................................................ 4-5

IL-2000SA Service Manual iii

TABLE OF CONTENTS

4.6 AUTOMATIC UPDATE SETTING ........................................................... 4-7

Chapter 5 SET UP MENU ................................................................. 5-1

5.1 START-UP OF SET UP MENU ................................................................ 5-1

5.2 SET UP MENU 1 ..................................................................................... 5-2

1. Date/Time Setting ......................................................................................... 5-2

3. Password Setting.......................................................................................... 5-3

8. Cassette Link Setting .................................................................................... 5-7

10. Key Image Select ......................................................................................... 5-8

5.3 SET UP MENU 2 ..................................................................................... 5-9

3. Item Code Setting ....................................................................................... 5-11

7. Memory Card Setting .................................................................................. 5-13

2. Printer Unit ................................................................................................... 6-2

3. Display Unit .................................................................................................. 6-3 iv IL-2000SA Service Manual

Chapter 1

OUTLINE

CHAPTER

1

OUTLINE

1.1 OUTLINE

The IL-2000SA is a label printer that has the same functions as the SR-2000

α except for the weighing unit. The main board, printer board, and cassette of the IL-2000SA are common to the SR-2000

α.

1.2 SPECIFICATIONS

Items Descriptions

Model IL-2000SA

Operating conditions

Temperature: 32 to 104°F (0 to 40°C)

Outer dimensions

Operator display

Humidity: 20 to 85% (no condensation)

8.9 (W)

¯ 14.7(D) ¯ 12.9-14.2 (H) inch

225 (W) x 370 (D) x 330-360 (H) mm

7.7 inch STN LCD with back light, 640

¯ 480 dots

Preset keys 3960: 40 x 99 pages

Memory capacity

Communications

Interface

Printing method

Standard: 34 MB

TCP/IP 10/100 Base T Ethernet

Two PCMCIA slots

Direct thermal method

Thermal print head

Printing speed

Label size

Label roll

3 inches (76/mm)

4” (100 mm) per second

Label width: 1.5” - 3.1” (30 mm to 80 mm)

Label length: 1.2” – 7.9” (30 mm to 200 mm)

Inside diameter: 1.6” (40 mm)

Outside diameter: 3.9” (100 mm)

Width: Up to 3.3” (84 mm)

7 cassettes

Label backing paper

Number of label cassettes

Weight:

Power supply

Warranty

20.7 lb (9.4 kg)

AC 110 to 120 V, 60 Hz, 4A

One-year limited warranty

Power supply Canada: AC110 to 120[V] 60[Hz] 4[A]

New Zealand: 220 to 240[V] 50/60[Hz] 2[A]

IL-2000SA Service Manual 1-1

Chapter 1

OUTLINE

1.3 FEATURE

¡ Mechanical Components

(1) The machine height is lowered by sliding the thermal head forward.

The height is further lowered by adopting the prismatic reflection for the label sensor.

(2) The label adhesion is suppressed by applying the grain processing.

(3) The 3-inch wide label can be printed.

¡ Electric Components

(1) 7.7-inch color liquid crystal is adopted for the operator display. (640 dots

° 480 dots)

(2) 7.7-inch touch panel is adopted for operation panel.

(3) 3-inch thermal head is adopted.

IL-2000SA (3 inches)

(4) Printing speed becomes faster.

IL-2000SA (100 mm/second)

(5) 3-inch wide label can be printed.

The print effective width is as follows:

IL-2000SA (76 mm)

(6) The mechanism is simplified by adopting the prism for the label sensor (transparent type), and the machine height can be lowered.

(7) The micro step drive is adopted for the label feeding motor, therefore, smoother rotation becomes possible.

IL-2000SA (micro step drive)

(8) Modular connector is adopted for the I

2

NET communication.

1-2 IL-2000SA Service Manual

(9) The RS-232C port for general-purpose interlock is installed.

IL-2000SA (RS-232C port)

(10) The card slot (PCMCIA) port is provided.

IL-2000SA (PCMCIA port)

(11) CompactFlash/flash ROM is adopted for the program storage.

CompactFlash (32 Mbyte) .................. OS + Application program

Flash ROM (1 Mbyte) ......................... Boot program

Chapter 1

OUTLINE

IL-2000SA Service Manual 1-3

INSTALLATION

2.1 OUTER DIMENSIONS

Chapter 2

INSTALLATION

CHAPTER

2

Power supply cable (1.8m)

IL-2000SA Service Manual 2-1

Chapter 2

INSTALLATION

2.2 CONTENTS OF THE PACKAGE

Check that the following items are included in a package.

(1) IL-2000SA

(2) User

’s manual

(3) Head cleaning sheet (sheet wrapping film 68-5054-09)

1. Items Required at the Delivery

(2) C/F card adapter

2-2 IL-2000SA Service Manual

Chapter 2

INSTALLATION

2.3 INSTALLATION

Do not install the machine in the following types of places:

(1) Places exposed to direct sunlight

(2) Places where water or other liquids are easily spilled on the machine

(3) Places subject to a lot of dust or dirt

(4) Places subject to excessive vibration or unstable foundations

Other required conditions:

(1) Temperature range: 0 to 40

°C, humidity: 20 to 85 % (no condensation)

(2) Power supply voltage must be stable

Connecting wand scanner

Remove the cover at the lower part of the back of the display unit. Connect the scanner to the round shape DIN socket.

Specification of the power supply is provided on the specification plate. Make sure to use an appropriate power supply.

Power supply with noise or voltage drop may cause malfunction. Use a dedicated power supply.

Example

To avoid electric shock, make sure to connect the ground wire (at least third class grounding).

IL-2000SA Service Manual 2-3

Chapter 2

INSTALLATION

2.4 SETUP

Hardware setup

¾

Power activation

¾

Software setup

¾

Operation check

¾

Specification check

¾

Delivery

For details in each mode, see Chapter 3.

Follow the steps below to set up the software.

(1) Activate the test mode.

(2) Initialize the memory (clear the master data, initialize the system data).

( 3 )

Adjust the print (peel sensor level, printing density, label sensor distance, peel sensor distance).

(4) Activate the system menu.

(5) Set sale mode.

(6) Set a machine number.

(7) Set the holding data.

(8) Set the automatic update.

(9) Set the cassette.

(10) Set the label.

(11) Set the format.

(12) Set the printing item.

(13) Check the barcode.

(14) Check the file.

(15) Input/output the file.

(16) Activate the setting menu.

(17) Refer to the User

’s Manual to set necessary items.

(18) Activate the registration menu.

(19) Refer to the User

’s Manual to register the necessary items.

(20) Check the operation. (Perform production with user data.)

Give operating and handling instructions of the machine to users and check that the instructions are fully understood.

2-4 IL-2000SA Service Manual

Chapter 3 TEST MODE

CHAPTER

3

TEST MODE

3.1 START UP OF TEST MODE

z How to start Test Mode

Enter [4][9][5][3][4][4] and touch [TEST

MODE] to start the Test Menu. z How to advance each item

Press the touch key of the item to be selected on the screen. z How to return to the previous menu

Touch the [MENU] key to return the display to the previous menu screen.

IL-2000SA Service Manual 3-1

Chapter 3 TEST MODE

3.2 TEST MODE HIERARCHICAL CHART

The modes (All-diagnostic and Time/Date setting) described in the dotted line are only for the product check in the factory.

3-2 IL-2000SA Service Manual

Chapter 3 TEST MODE

3.3 KEY CHECK

1. Numeric Key Check

z Operation

Press each numeric key, then the corresponding screen key displays in reverse.

The left screen is an example when [8] key is pressed.

After a while, the reversed key on the screen is cleared.

IL-2000SA Service Manual 3-3

Chapter 3 TEST MODE

2. Touch Panel Adjustment

z Operation

Operate the machine according to the explanation on the screen.

‘Purpose

Memorize the positions of the color liquid crystal screen and the touch panel in the main body memory.

If this is poorly adjusted, the screen key position is misaligned.

Coordinates of the inputted touch panel are displayed at the bottom left corner of the screen.

If the screen key position misalignment occurs, perform the following key operation on the operating console while in the Main Menu to enter this mode.

3-4 IL-2000SA Service Manual

Chapter 3 TEST MODE

3.4 ALL DIAGNOSIS

This mode is used to test the machine in the factory. Note that all memories will be initialized when this mode is used. z Operation

When the [EXECUTE] key is touched, each test is carried out one by one.

Diagnostic Items Operation Contents Measures under Abnormal Conditions

SRAM read/write test SRAM reading and writing test

Test data setting Master registration for each test

(1) Defect of P-910

The display shows abnormality.

Head resistance setting

(initialization)

Automatic setting of head resistance

Head dot status check Thermal head failure check

(1) Defect of thermal head

(2) Defect of P-909

(3) Defect of harness “C2” thermal head

(63-5585-04)

(1) Defect of thermal head

(2) Defect of P-909

(3) Defect of harness “C2” thermal head

(63-5585-04)

RS-232C (D-sub) loop check

RS-232C hardware check

* The check cable is required.

(1) Defect of P-910

(2) Defect of P-907

(3) Defect of harness “C2” RS-232C

(63-8459-20)

(1) Defect of P-910 Card slot (upper) check PCMCIA (upper) hardware check

* The check cable is required.

Card slot (lower) check PCMCIA (lower) hardware check

* The check cable is required.

I

2

NET (ELAN) self check

I

2

NET (ELAN) hardware check

I

2

NET (ILAN) self check I

2

NET (ILAN) hardware check

Communication check

(ELAN→ILAN)

Communication check

(ILAN→ELAN)

I

2

NET loopback hardware check

* The check cable is required.

I

2

NET loopback hardware check

* The check cable is required.

(1) Defect of P-910

(1) Defect of P-910

(1) Defect of P-910

(1) Defect of P-910

(1) Defect of P-910

IL-2000SA Service Manual 3-5

Chapter 3 TEST MODE

3.5 MEMORY CLEAR

z Operation

When one of [CLEAR] [INITIALIZE]

[SET] keys is touched, each processing is carried out.

When the processing ends normally,

"OK" is displayed.

* If an error occurs, the defect of P-910 is assumed.

‘SRAM Clear

All masters are cleared except the system master.

‘System Data Initialization

The system master is returned to the initial values, and the system data is set to the initial values.

‘Test Data Setting

The master for test is set.

3-6 IL-2000SA Service Manual

3.6 DISPLAY CHECK

Chapter 3 TEST MODE z Operation

When one of [LENS&-BR] or [CSTM-ns] key is touched, each test is carried out.

‘ Horizontal/Vertical

Perform a visual check to confirm whether there is any missing dot on the operator display.

‘ Rear Display

Perform a visual check to confirm whether there is any missing dot on the customer display.

IL-2000SA Service Manual 3-7

Chapter 3 TEST MODE

3.7 PRINTER ADJUSTMENT

z Operation

Perform each setting related to the printer.

‘ Printer

Printer number: “1” (fixed).

‘Head Resistance

There are two setting methods:

<Method 1>

When the [SET] key of the Head

Resistance is touched, values set to the thermal head will be read and stored in the in the memory of the main body.

<Method 2>

Read the resistance described on the thermal head, and touch the [SET] key after entering the value using the numeric keys.

Enter the thermal head resistance →

[SET]

3-8 IL-2000SA Service Manual

Chapter 3 TEST MODE

¡Head Type

2: BHP4312 (fixed).

[2] → [SET]

0: LH4114

1: LH4116 Designed In consideration of future expansion.

2: BHP4312

¡Printer Usage Distance

Enter the head usage distance in the unit of 0.1 km. → [SET]

¡Printer Memory Initialization

The following five items are executed. x

Automatic setting of head resistance x

Head type (Set it to 2: BHP4312) x

Head usage distance (Set it to “0.0” km.) x

Initialization of the label sensor level x

Initialization of the peel sensor level

¡Head Status Check

The head failure check is executed.

The following causes are assumed when an error is displayed.

(1) Defect of the thermal head

(2) Defect of the P-909 board

(3) Defect of the harness “C2” thermal head

No

Head-up c c c c c c c z

1 z c c z c z c z

2

3 z z c z

4 c c z z

5 z c z z

6 c z z z

7 z Cassette Status

The contents detected by the cassette sensor are displayed. The z seals are affixed to the cassette to shield the light.

<Cassette No.>

Three sensors are in the state of light acceptance at the cassette “1”.

Seven cassette types (1-7) are available. c c c c

Cassette not inserted z z z z

Cassette half inserted

IL-2000SA Service Manual 3-9

Chapter 3 TEST MODE

¡ Label Sensor Level

1.

Label sensor (transmission sensor) mechanism

The label sensor has a mechanism as shown in the right figure.

The light emitted from the emitter

Passing the label and reflects the light in 90 degrees→90 degrees (180 degrees) with the prism.

The reflected light passes the label again, and receives the light at the receiver.

2.

Adjustment of the label sensor

(1) Peel off approximately 10 labels (approx. 30 cm) so that the label sensor can detect the label backing paper only, and insert the cassette. Do not care even if you rewind the paper when it is already wound up.

(2) Touch the [FEED] key twice to stretch the backing paper.

(3) The data field changes to green when the [LABEL

SENSOR LEVEL] button is touched.

(4) Touch

[▲][▼] keys to make the numeric value around “120”. This value is assumed as (Numeric value A).

(5) Touch the [FEED] key several times again to issue one label. At this time, the label sensor is detecting the label and the backing paper. This value is assumed as (Numeric value B).

(6) When the result of (Numeric value A) - (Numeric value B) is “60” or more, the adjustment is completed.

(Numeric value A) - (Numeric value B)

≥ 60

If the result is less than “60”, try to adjust from (1) again. Use the numeric value with (+10) added to the previous case.

This machine does not have the VR (volume) for the sensibility adjustment

.

The label sensor sensibility adjustment of the conventional model has been made by the VR

(volume). However, software adjustment can be performed by adopting the DPM (digital potentiometer) with this machine. Therefore, the VR (volume) adjustment by is unnecessary.

3-10 IL-2000SA Service Manual

Chapter 3 TEST MODE

¡ Peel Sensor Level

1. Adjustment of Peel Sensor

(1) Confirm that there is no label on the peel stand, and put into the state of light acceptance state.

(2) The data field changes to green when the [PEEL SENSOR LEVEL] button is touched.

(3) Touch [S][T] keys to make the numeric value around “100”.

(4) Touch the [FEED] key to issue one label.

At this time, confirm that the peel sensor is shielded by the label.

(5) Confirm that the numeric value of [PEEL SENSOR LEVEL] is “20” or less.

Note: If the value is more than “20”, adjust the optical axis by bending the steel plate of the emitting sensor bracket.

¡Printer Adjustment

Touch the [PAGE] key, and set each item to perform test print. Press the [PRINT] key to check whether the printing is normal.

IL-2000SA Service Manual 3-11

Chapter 3 TEST MODE

3.8 ROM VERSION

z Operation

Each software program can be confirmed on this screen.

Screen Example

3-12 IL-2000SA Service Manual

Chapter 3 TEST MODE

3.9 COMMUNICATION CHECK

z Operation

Touch the [EXECUTE] key of the corresponding check part. Connect the cable with each cable test referring to each connection method (1-4).

IL-2000SA Service Manual 3-13

Chapter 3 TEST MODE

I

2

NET

Check Items

ELAN loopback test

RS-232C

Operation Contents

Driver Æ receiver communication test

ELAN RAM test Communication buffer read/write test

ELAN cable test Main body Æ IF-21FD communication test

(Refer to connection method 1)

ILAN loopback test

Driver Æ receiver communication test

ILAN RAM test Communication buffer read/write test

ILAN cable test Main body Æ IF-21FD communication test

(Refer to connection method 2)

D-sub cable test D-sub (Refer to connection method 4)

Measures under Abnormal Conditions

(1) Defect of P-910

(1) Defect of P-910

(1) Defect of P-907

(2) Defect of P-910

(3) Defect of harness “C3” communication (63-8468-23)

(1) Defect of P-910

(1) Defect of P-910

(1) Defect of P-907

(2) Defect of P-910

(3) Defect of harness “C3” communication (63-8468-23)

(1) Defect of P-910

(2) Defect of P-907

(3) Defect of harness “C3” RS-232C

(63-8459-20)

3-14 IL-2000SA Service Manual

3.10 OPTION CHECK

Chapter 3 TEST MODE z Operation

Perform the operation test for each connected option.

<Scanner Read Data>

The result of reading the barcode is displayed.

<Slot 1 Check>

Insert the CF card into the slot 1, and touch the [EXECUTE] key.

<Slot 2 Check>

Insert the CF card into the slot 2, and touch the [EXECUTE] key.

<Drawer Open Check>

Connect the drawer and touch the

[EXECUTE] key to open the drawer.

IL-2000SA Service Manual 3-15

Chapter 3 TEST MODE

3.11 MEMORY DATA

Do not change the data. If the data is changed, the machine does not operate normally. z Operation

SRAM and FROM data can be confirmed.

3-16 IL-2000SA Service Manual

3.12 DATE SET

Chapter 3 TEST MODE z Operation

Same as the date/time setting of the setup mode. This mode is used for machine operation test at factory.

Date setting can also be performed in the

Set Mode.

IL-2000SA Service Manual 3-17

Chapter 4 SYSTEM SETTING MENU

CHAPTER

4

SYSTEM SETTING MENU

4.1 START UP OF SYSTEM SETTING MENU

z How to start System Setting Menu

While in the Main Menu, enter

[4][9][5][3][4][4] and press the [PLU] key on the operating console to enter the

System Setting Menu.

z How to advance each item

Press the touch key of the item you want to select. z How to return to the previous menu

Touch the [MENU] key to return the display to the previous menu.

IL-2000SA Service Manual 4-1

Chapter 4 SYSTEM SETTING MENU

4.2 HIERARCHICAL CHART OF SYSTEM SETTING MENU

4-2 IL-2000SA Service Manual

Chapter 4 SYSTEM SETTING MENU

4.3 SALE MODE SETTING

z Operation

Touch to select one of the keys to set whether the operator system is used or not.

IL-2000SA Service Manual 4-3

4-4

Chapter 4 SYSTEM SETTING MENU

4.4 MACHINE NUMBER SETTING

Perform settings suitable for the system referring to the figure below.

The department number is used when managing the master for each department with the personal computer connected

(Store in-line specification). z Selection

Touch one of the keys to select the desired function. z Setting

Enter the numeric value and touch the

SET key.

IL-2000SA Service Manual

Chapter 4 SYSTEM SETTING MENU

4.5 HOLD DATA SETTING

These settings are not used because they are used in Cash Register mode. z Selection

Touch one of the keys to select the desired function. z Setting

Enter the numeric value and touch the

SET key.

<Temporary Pack Date Hold>

[FIX]

After the power supply is turned ON, the clock date is printed. The date is maintained and printed when the pack date is changed.

[PLU]

The clock date and time at the time when the commodity is called is printed. When a temporary change is made, the changed date and time are printed. The date and time return the clock date and time when the next commodity is called.

[DATE]

The clock date and time are printed at the time when a label is issued.

<Reg hold>

[No]

The register code is not held.

[Yes]

The register code is held.

<PLU hold>

[No]

The PLU name is not held after the print ends in the manual mode.

[Yes]

The PLU name is held for the called PLU after the print ends.

<Forced customer selection>

[No]

Entry of a customer data is not forced.

[Yes]

Entry of a customer data is forced.

<Peel/mount hold>

[No]

Label issuing condition either peeled off or with backing paper is not held.

[Yes]

Label issuing condition either peeled off or with backing paper is held.

IL-2000SA Service Manual 4-5

Chapter 4 SYSTEM SETTING MENU

<Prohibition of quick fixed print>

[No]

Fixed price label issue is not prohibited at zero point.

[Yes]

Fixed price label issue is prohibited at zero point

<Total back time>

Timeout period setting for changing from the subtotal screen to the normal screen.

4-6 IL-2000SA Service Manual

Chapter 4 SYSTEM SETTING MENU

4.6 AUTOMATIC UPDATE SETTING

There are two pages for setting the automatic program. To change the page, touch the [PAGE] key. z Selection

Touch one of the keys to select the desired function.

[No]

The data which is temporarily changed in the operation mode is not reflected in the

PLU master.

[Yes]

The PLU master is updated automatically with the data temporarily changed in the operation mode.

When the RAM is cleared, everything is set to "No”.

IL-2000SA Service Manual 4-7

Chapter 4 SYSTEM SETTING MENU

4.7 OPTION SETTING

There are two pages for setting the options.

To change the page, touch the [PAGE] key.

z Selection

Touch one of the keys for each option to select the desired function.

<RESULT SAVE>

Set a medium to save the result in the CSV format.

[NONE]

Do not save.

[CF-2]

Insert the CF card into the bottom slot to save.

[SRAM-1]

Insert the S-RAM into the upper slot to save.

[SRAM-2]

Insert the S-RAM into the bottom slot to save.

<HOST LINKAGE>

NONE:

No linkage

Ethernet CARD:

Linking to PC via Ethernet

<Achieved Delete Msg.>

REGULAR:

Displayed at normal mode start. When there is record other than today’s, a message is displayed.

MEMO. SHORTAGE:

Displayed before memory becomes full.

NONE:

Daily total is automatically deleted.

4-8 IL-2000SA Service Manual

Chapter 4 SYSTEM SETTING MENU

<Normal Total Display>

STD.PRESET

: Standard preset

¥10.000 PRESET

: Preset for ten thousand Yen ticket

<Send Buzzer On OFF>

When receiving master from PC or performing master maintenance, one of the following takes place.

YES:

Buzzer sounds

NO:

No buzzer sounds

<Achieved FTP Send Time Set>

Set interval for record sending FTP.

[RS-232C(8Pin)]

Use this to connect a scanner.

[PRESET]

Select this to connect a preset key.

<Achieved Send Select>

[ALL TRANSACTION]:

All transaction data

[DIF.TRANSACTION]

Differential transaction data

[SUMMARY]

Summary data

<ResponseFile>

Response telegraphic message

NONE:

Do not add any control code.

[WITH ControlCD.]

Add control code.

<ID Control/Renewal Select>

Select a header unit of a CSV file.

[NO ID CONTROL/RENEW]

Do not use a control code ID.

Add #0 to 2 to control the update of each data.

#0: Rewrite

#1: Prioritize the internal master and do not rewrite.

#2: Rewrite only when the internal master is 0 (NULL).

[WITH ID CONT./NO RENEW]

Identify CSV data with the control code ID.

[NO ID CONTROL]

Do not use the control code ID.

<Master Letter Out>

Decide whether to add the control code to a string of the CSV file to be output.

[NO CONTROL CD.]

IL-2000SA Service Manual 4-9

Chapter 4 SYSTEM SETTING MENU

4.8 CASSETTE SETTING

A maximum of 7 cassettes (1-7) is available.

There are four pages for cassette settings.

To change the page, touch the [PAGE] key.

<Format No.>

Set the label format number to be printed.

<Label Spec>

Set the label specifications.

<Preset Page>

Set a page number of the default preset key.

<Individual/With backing paper>

Set whether the label is peeled off or issued with the backing paper.

<Manual/Auto>

Set whether the label is issued manually or automatically as a default data.

<Continuous>

Set whether the die-cut or continuous label is used.

<Shop/Address>

Set whether the shop name and address are printed on the label or not.

<Field title>

Set whether or not to print the field title on the label.

4-10 IL-2000SA Service Manual

Chapter 4 SYSTEM SETTING MENU

<Over-length flag>

Set whether or not to print the text that exceeds the specified length.

IL-2000SA Service Manual 4-11

Chapter 4 SYSTEM SETTING MENU

4.9 LABEL SETTING

Set the printing conditions for each label number.

<Label No.>

Enter a desired label number (1-99) and touch the Label Spec. field.

<Thermal paper type>

Select the desired paper type:

- Receipt

- Standard label (monochrome label)

- Incapable for two color label

<Label gap>

Set the label gap in units of 0.1mm. (Initial value: 2.0 mm)

<Preprint Feed>

Set the amount in the unit of 0.1mm. for the preprint feed. (Initial value: 7.5 mm)

<Print direction>

Normal direction Reverse direction

<Back Feed>

Used with [No].

IL-2000SA cannot be used with the back feeding ”Yes”. It is prepared in consideration of a future model development.

<Label Sensor>

Used with “Label Sensor”.

Ä Set as [No use] when the receipt is used and too thin to detect. The receipt end cannot be detected.

<Sensor Distance>

Set the print side line to be 7.5 mm from the label bottom.

<Print Speed>

Set [80/sec] or [100/sec].

4-12 IL-2000SA Service Manual

Chapter 4 SYSTEM SETTING MENU

<Print density (0-9)>

Usually, the density is optimum at [5]. If the density is too thin, adjust the thermal head position.

<Two color print density (0-9)> (Optional)

Two color print is incapable with this machine.

<Item No>

Set an item number for test printing.

<Format Information>

The set information is displayed.

IL-2000SA Service Manual 4-13

Chapter 4 SYSTEM SETTING MENU

4.10 FORMAT SETTING

There are two pages for format setting.

To change the page, touch the [PAGE] key.

This mode is used to create the label format.

Ä Refer to Appendix “Label Formatting” for more information.

4-14 IL-2000SA Service Manual

Chapter 4 SYSTEM SETTING MENU

4.11 UNIT SETTING

<Set Contents>

To edit a text of the Set Contents, touch the

EDIT key to display the edit screen.

<Value>

To set or change the value, enter the desired numeric value and touch the corresponding field.

<Unit Number>

Touch to select one of A to F buttons for

Unit No. 01.

4.12 PRINT SETTING

<5X7 Print Select>

Select the 5X7 print content.

<Register Code Select>

Decide whether to print either one of the register or the shop code.

<Markdown Price Print Select>

Select one of the three types.

<Comment Print Position Select>

Select column of the comment.

<POP Print Position Select>

Select column of POP name.

<Register Code Print Position Select>

Select the register code print position.

Print position changes for each print position selection of Comment, POP name, and Register code. Note that the display position does not change.

IL-2000SA Service Manual 4-15

Chapter 4 SYSTEM SETTING MENU

4.13 FILE CHECK

<Count>

The number of files is displayed.

<Master Initialization>

Select the master(s) by touching the one of

[SELECT] and [SELECT ALL] key, and initialize by touching the [EXECUTE] key.

Even if initialization is performed for all masters by touching [SELECT ALL] and [EXECUTE] keys, a part of basic master is written. Therefore, the PLU master conversion (number of files) does not become “0” because memory is partially used.

4-16 IL-2000SA Service Manual

4.14 FILE SAVE/LOAD

Chapter 4 SYSTEM SETTING MENU z Connecting Method

Connect the machine with the

DataRapid referring to the figure below. z Select the processing. x When writing the machine data in

the DataRapid

Select [Main→]. x When writing the DataRapid data in

the machine

Select [→Main]. x When deleting the files in the

DataRapid

Select [DELETE].

IL-2000SA Service Manual 4-17

Chapter 4 SYSTEM SETTING MENU

4.15 BARCODE CHECK

z Operation

Touch the [BARCODE] key on the

SYSTEM MENU screen. z Selection

Enter the desired starting number and ending number. z Print

Touch the [PRINT] key to print a barcode check label. Touch the

[CANCEL] key to stop printing. z Continue

Touch the [CONTINUE] key to keep printing.

4-18 IL-2000SA Service Manual

Chapter 5 SET UP MENU

CHAPTER

5

SET UP MENU

5.1 START-UP OF SET UP MENU

z How to start Set Up Menu screen

Touch the [SETUP] key on the Main

Menu to start the Set Up Menu. The Set

Up Menu screen appears.

IL-2000SA Service Manual z How to select the desired item

Press the touch key of the item you want to select on the screen. z How to display “Set Up Menu 2”

screen

To display “Set Up menu 2“ screen, enter

[9][9][9] and touch the [PAGE] key. z How to return the display to Main

Menu

To return the display to the Main Menu, touch the [MENU] key on the screen.

5-1

Chapter 5 SET UP MENU

5.2 SET UP MENU 1

5-2 z How to display this screen

Touch the [Date/time] key on the Set

Menu screen z How to set the date and time

Enter the desired date or time. For example, enter [10102007] to set the date as October 10, 2007. Then touch the [DATE] key to update the date. z How to return the display to Main

Menu

To return the display to the Main Menu, touch the [MENU] key on the screen.

IL-2000SA Service Manual

IL-2000SA Service Manual

Chapter 5 SET UP MENU

This function is not available with this machine, but provided for a future option. z How to display this screen

Touch the [Expiry date] key on the Set

Up Menu screen z How to set the Conversion Days

Enter the number of days and touch the

[SET] key. z How to select the desired field

Touch to select the desired field for

Expired Date Set Error. z How to edit the desired text

Touch to select the desired field and touch the [EDIT] key to access the edit screen. z How to return the display to Main

Menu

To return the display to the Main Menu, touch the [MENU] key on the screen.

z How to display this screen

Touch the PASSWORD SET key on the

Set Up Menu screen z How to set the password

Enter the desired password (6 digits) to be applied for the selected mode(s) and touch the corresponding SET key. z How to select the desired mode

Touch to select the desired mode(s). z How to return the display to Main Menu

To return the display to the Main Menu, touch the [MENU] key on the screen.

5-3

5-4

Chapter 5 SET UP MENU

4. Preset

z How to display this screen

Touch the [Preset] key on the Set Up

Menu screen z How to select the desired field

Touch to select the desired field for each reference data. z How to display the next page

To display the next page, touch the [PAGE] key. z How to return the display to Main Menu

To return the display to the Main Menu, touch the [MENU] key on the screen.

IL-2000SA Service Manual

5. Reference Data Setting

Chapter 5 SET UP MENU z How to display this screen

Touch the [Reference] key on the Set Up

Menu screen z How to select the desired field

Touch to select the desired field for each reference data. z How to set the desired numeric value

Enter the desired numeric value for each reference data and touch the corresponding SET key. z How to display the next page

To display the next page, touch the

[PAGE] key. z How to return the display to Main

Menu

To return the display to the Main Menu, touch the [MENU] key on the screen.

IL-2000SA Service Manual 5-5

Chapter 5 SET UP MENU

This function is not available with this machine, but provided when Cash Register mode will be used in future. z How to display this screen

Touch the TOTAL SET key on the Set Up

Menu screen. z How to select the desired field

Touch to select the desired field for each data. z How to set the desired numeric value

Enter the desired numeric value for each data and touch the corresponding SET key. z How to display the next page

To display the next page, touch the

[PAGE] key. z How to return the display to Main

Menu

To return the display to the Main Menu, touch the [MENU] key on the screen.

5-6 z How to display this screen

Touch the REPORT key on the Set Menu screen. z How to select Day Total or Total

Touch either [Day Total] or [Total] to select the desired report type. z How to select individual report or all

reports

Touch either [SELECT] or [ALL] to select individual or all reports. z How to preset individual report

Touch the corresponding SELECT field to preset to be printed. z How to return the display to Main

Menu

To return the display to the Main Menu, touch the [MENU] key on the screen.

IL-2000SA Service Manual

8. Cassette Link Setting

Chapter 5 SET UP MENU z How to display this screen

Touch the [Cassette lin] key on the Set

Up Menu screen z How to select the desired field

Touch to select the desired field for each reference data. z How to display the next page

To display the next page, touch the

[PAGE] key. z How to return the display to Main

Menu

To return the display to the Main Menu, touch the [MENU] key on the screen.

IL-2000SA Service Manual 5-7

Chapter 5 SET UP MENU

9. Date Display Setting

z How to display this screen

Touch the Date Disp key on the Set

Menu screen. z How to select Display or Date

Touch either [MM/DD/YYYY] or

[DD/MM/YYYY] to select the desired display type. z How to select the number of digits

Touch either [3 Digit] or [2 Digit] to select the number of digits to be displayed. z How to return the display to Main

Menu

To return the display to the Main Menu, touch the [MENU] key on the screen.

5-8

10. Key Image Select

This function is used to list images stored in the machine and select the desired image to be used. z How to display this screen

Touch the KEY IMAGE key on the Set Up

Menu screen z How to select the image

Touch to select the desired image area. z How to paste on the preset key

Touch the EXECUTE key to paste on the desired preset key. z How to return the display to Main

Menu

To return the display to the Main Menu, touch the [MENU] key on the screen.

IL-2000SA Service Manual

Chapter 5 SET UP MENU

5.3 SET UP MENU 2

To display the “Set Up menu 2“ screen, enter [9][9][9] and touch the [PAGE] key.

IL-2000SA Service Manual 5-9

Chapter 5 SET UP MENU z How to display this screen

Touch the SYS DATA SET key on the Set

Up Menu screen. z How to select the desired field

Touch to select the desired field for each data. z How to set the desired numeric value

Enter the desired numeric value for each data and touch the SET key. z How to display the next page

To display the next page, touch the [PAGE] key. z How to return the display to Main Menu

To return the display to the Main Menu, touch the [MENU] key on the screen.

5-10 IL-2000SA Service Manual

3. Item Code Setting

Chapter 5 SET UP MENU

Set the POS flag, default type, and UPC code. z How to display this screen

Touch the BARCODE SET key on the

Set Up Menu screen. z How to select the desired field

Touch to select the desired field for each data. z How to set the desired numeric value

Enter the desired numeric value for each data and touch the SET key. z How to select UPC and Barcode

formats

Touch the corresponding field to display a selection list. Then, touch to select the desired item field. z How to return the display to Main

Menu

To return the display to the Main Menu, touch the [MENU] key on the screen.

After selecting the code type, set the code digit, 4-digit classification code, and 8-digit

JAN code. z How to display this screen

Touch the ITEM CODE key on the Set

Up Menu screen. z How to select the desired field

Touch to select the desired field for each data. z How to return the display to Main

Menu

To return the display to the Main Menu, touch the [MENU] key on the screen.

IL-2000SA Service Manual 5-11

Chapter 5 SET UP MENU

5. Serial Number Setting

z How to display this screen

Touch the PLU UPDATE key on the Set

Up Menu screen. z How to set the desired numeric value

Enter the desired numeric value for each data and touch the corresponding field. z How to select the desired item

Touch the corresponding field to display a selection list. Then, touch to select the desired item field z How to return the display to Main

Menu

To return the display to the Main Menu, touch the [MENU] key on the screen. z How to display this screen

Touch the PLU UPDATE key on the Set

Up Menu screen. z How to set the desired numeric value

Enter the desired numeric value for each data and touch the corresponding field. z How to select the desired item

Touch the corresponding field to display a selection list. Then, touch to select the desired item field z How to return the display to Main

Menu

To return the display to the Main Menu, touch the [MENU] key on the screen.

5-12 IL-2000SA Service Manual

IL-2000SA Service Manual

Chapter 5 SET UP MENU z How to display this screen

Touch the PLU UPDATE key on the Set

Up Menu screen. z How to set the desired numeric value

Enter the desired numeric value for each data and touch the corresponding field. z How to select the desired item

Touch the corresponding field to display a selection list. Then, touch to select the desired item field z How to return the display to Main

Menu

To return the display to the Main Menu, touch the [MENU] key on the screen. z How to display this screen

Touch the PLU UPDATE key on the Set

Up Menu screen. z How to set the desired numeric value

Enter the desired numeric value for each data and touch the corresponding field. z How to select the desired item

Touch the corresponding field to display a selection list. Then, touch to select the desired item field z How to return the display to Main

Menu

To return the display to the Main Menu, touch the [MENU] key on the screen.

5-13

5-14

Chapter 5 SET UP MENU

8. Master Initial Value Setting

Set the default data to be used when a new

PLU is created. z How to display this screen

Touch the DEFAULT DATA key on the

Set Up Menu screen. z How to select the desired item

Touch one of yellow buttons to display a selection list. Then, touch to select the desired item field. z How to set the desired numeric value

For blue buttons, enter the desired numeric value and touch the corresponding field. z How to return the display to Main

Menu

To return the display to the Main Menu, touch the [MENU] key on the screen.

IL-2000SA Service Manual

Chapter 6 HARDWARE CONFIGURATION

CHAPTER

6

HARDWARE CONFIGURATION

6.1 MECHANICAL COMPONENTS

IL-2000SA Service Manual 6-1

Chapter 6 HARDWARE

CONFIGURATION

6-2

IL-2000SA Service Manual

Touch

Panel

LCD

Chapter 6 HARDWARE CONFIGURATION

Volume

Inverter

IL-2000SA Service Manual 6-3

Chapter 6 HARDWARE

CONFIGURATION

6.2 ELECTRICITY

6-4

IL-2000SA Service Manual

Chapter 6 HARDWARE CONFIGURATION

1) Main board (P-910)

When replacing the board, make sure to turn ON the battery switch.

IL-2000SA Service Manual 6-5

Chapter 6 HARDWARE

CONFIGURATION

z I/O signals

29 to

31

32

33

34 to

38

39

40

XJ1

No. Signal name Direction

1 to

28

I

I

RS-232C

2

2

NET(ELAN)

NET(ILAN)

Fluorescent indicator

DC+12[V]

VH

DC+24[V]

GND

Vcc

DC+5[V]

Æ

Æ

Æ

Æ

Other side

P-918

(XJ5,7)

XJ2

No. Signal name Direction

1 DC+5[V] Å

2 GND(DC+5[V]) Å

3 DC+12[V] Å

4 GND(DC+12[V]) Å

Other side

SW power supply

(CN7)

XJ3

A0 to

A60

No.

B0 to

B60

Signal name

Signal between

P-909 and P-910

Other side

P-909 (XJ1)

XJ5

No. Signal name Direction Other side

1 TXD

2 RTS

3 RXD

4 CTS

5 DC+5[V]

Æ

Æ

Å

Å

2

4

1

3

RS-232C

6 SG

7 −

XJ6

− 5

− −

No. Signal name Direction Other side

1 DC+24[V]

2 GND

Å

P-909

(XJ9)

XJ7

No. Signal name Direction

1 to

24

25 to

27

28 to

30

KEYBORD control signal

Vcc

DC+5[V]

GND

Æ

Other side

Keyboard

P-944

(XJ1)

XJ9

No. Signal name Direction

1 to

Data (LDO to

LD7)

8

9 Vcc(DC+5[V])

Æ

10 GND −

11 −

12 DC+34[V]

13 DC+34[V]

Æ

Æ

Æ 14 Vcont

XJ10

No. Signal name

Other side

Liquid crystal display

(Through

P-919)

Other side

1 to

15

Liquid crystal display control signal

Liquid crystal display

(Through P-919)

XJ11

No. Signal name Direction

1 DC+12[V]

2 GND

3

ON/OFF(buzzer on/off)

Æ

Other side

Back light inverter

(CN1)

6-6

IL-2000SA Service Manual

2) Thermal board (P-909)

Chapter 6 HARDWARE CONFIGURATION

Setting of DIP switch S1

1 ON

2 OFF

3 OFF

4 OFF

z I/O signals

XJ1

No.

A0 to

A60

B0 to

B60

Signal name

Signal between

P-909 and P-910

Other side

P-910 (XJ3)

XJ3

No. Signal name Direction

Æ 1

B

phase

2

B

phase

3

A

phase

4

A

phase

5 B

Æ

Æ

Æ

Other side

Stepping motor

XJ6

No. Signal name Direction

1, 3,

5, 7,

9

12,

13

GND

2, 4,

6, 8, V

H

(DC+24[V])

10

11 GND

V

CC

(DC+5[V])

14 to

34

Signal between thermal heads

P-909 -

Æ

Æ

Other side

Thermal head

IL-2000SA Service Manual 6-7

Chapter 6 HARDWARE

CONFIGURATION

XJ9

No. Signal name Direction Other side

1 DC+24[V]

2 GND

1 P-910

2

(XJ6)

XJ10

No. Signal name Direction

1 DC+24[V]

2 DC+24[V]

3 DC+24[V]

4 GND

5 GND

6 GND

Å

Å

Å

1

2

3

Other side

SW power

− 6

XJ11

No. Signal name Direction Other side

7 Head-up Æ

8 Head-up −

9 GND −

3) Power Supply Unit

Cassette sensor

XJ12

No.

Signal name

4

5

Sensor signal

(Receiver)

XJ13

No.

Signal name

4

Sensor signal

(Receiver)

Direction

Æ

Æ

Å

Å

Other side

Label sensor

Direction

Æ

Æ

Å

Other side

Peel sensor

z I/O signals

CN1

No. Signal name

1 AC100[V]

2 −

3 AC100[V]

Direction

Å

Å

Other side

Power supply plug

CN3

No.

Signal name

1 AC100[V]

2 AC100[V]

3 −

4 AC100[V]

5 AC100[V]

Direction

Æ

Å

Æ

Å

Other side

Power supply

SW

6-8

IL-2000SA Service Manual

CN6

No. Signal name Direction

1 DC24[V]

2 DC24[V]

3 DC24[V]

4 GND

5 GND

6 GND

Æ

Æ

Æ

1

2

3

Other side

P-909

− 5

− 6

Chapter 6 HARDWARE CONFIGURATION

CN7

No.

Signal name Direction

1 DC+5[V]

2 DC+12[V]

3 −

4 GND

5 GND

Æ

Æ

1

3

Other side

P-910

− 4

4) Operation Board (P-917-1)

XJ15

XJ5

XJ8

Buzzer

XJ1

XJ10

XJ12

XJ14

XJ9

XJ9

No. Signal name Direction

1 to 4

Touch panel signal

XJ7

XJ1

No. Signal name Direction

1 +12[V]

2 GND

Æ

Other side

Inverter

Other side

XJ11

XJ13

XJ13

No.

1, 3,

16, 18

Signal name Direction

DC+12[V]

Liquid crystal display signal

Å

Å

2, 8,

10, 17,

19, 25

GND −

Other side

P-919-1

(XJ2)

XJ12

No. Signal name Direction

1 to 4,

6, 8 to

15

Liquid crystal display signal

5, 7 GND

Æ

Other side

LCD indicator

XJ14

No.

1 to 8

Signal name Direction

Display signal

9 Vcc

10 GND

Æ

Æ

Other side

LCD indicator

XJ15

No. Signal name Direction Other side

1

LCD brightness adjustment

2 GND

LCD VR

IL-2000SA Service Manual 6-9

Chapter 6 HARDWARE

5) Relay Board (P-918A-1)

XJ10

XJ1

XJ2

XJ3

XJ4

XJ8

XJ6

XJ9

XJ5

XJ7

XJ11

XJ13

XJ14 XJ15

XJ12

XJ5

No.

9 to

12

13 to

16

17 to

20

21 to

24

I

I

2

2

Signal name Direction Other side

1 to 8 RS-232C

NET

NET

GND

Å

Å

Å

P-910

(XJ1)

XJ6

No. Signal name Direction Other side

1 D

2

D∗

3, 4 GND

Option display

XJ7

No.

1, 2

Signal name Direction Other side

GND

3 +24V

Æ

Option display

XJ11

No. Signal name Direction Other side

1 to 9 I

2

ILAN

XJ12

No. Signal name Direction Other side

1 to 9 I

2

ILAN

XJ13

No. Signal name Direction Other side

1 to 9 I

2

ELAN

XJ14

No. Signal name Direction Other side

1 to 9 I

2

ELAN

XJ15

No. Signal name Direction

1 to 9 RS-232C

Other side

RS-232C

6-10

IL-2000SA Service Manual

Chapter 6 HARDWARE CONFIGURATION

6) Display Relay Board (P-919-1)

XJ1

XJ6

XJ7

XJ3

XJ4

XJ2

XJ5

XJ1

No. Signal name

1, 3 to 6,

10 to

15

Display signal

2, 7 GND

Direction

Å

Other side

P-917

XJ4

No. Signal name

1 TxD

2 RTS

3 RxD

4 CTS

5 DC+5V

6 SG

7 FG

Direction

Å

Å

Æ

Æ

Other side

P-910

(XJ5)

RS-232C

XJ2

No. Signal name

Display Æ

GND

Direction Other side

P-917

(XJ13)

XJ3

No. Signal name Direction Other side

Display Å

9 Vcc

10 GND

12,13 +34V

Å

Å

P-910

XJ6

No. Signal name Direction

1 DC+12[V]

2 GND

3 ON/OFF

Other side

P-910

XJ7

No. Signal name

1 DC+12[V]

2 GND

Direction Other side

P-910

(XJ2)

IL-2000SA Service Manual 6-11

MAINTENANCE

7.1 DETACH OF PRINTER COVER

Cover

Chapter 7 MAINTENANCE

CHAPTER

7

1.

Printer cover is located at the right side of the front.

2.

Pull out the cassette.

3.

Lift the cover.

4.

Slide the right side of the cover to the rear.

(The cover will be damaged if the cover contacts the printer bracket.)

5.

Slide the left side to the rear to remove the cover.

IL-2000SA Service Manual 7-1

Chapter 7 MAINTENANCE

7.2 EXCHANGE OF THERMAL HEAD

Make sure to exchange the thermal head AFTER turning off the power supply.

Remove the printer cover

(Refer to 7.1).

Resistance value setting and running distance resetting are required to exchange the thermal head.

(Refer to page 3-7.)

1.

Lift the thermal head with the bracket and pull it with both hands.

2.

Remove the connector.

3.

Remove the thermal head out of the bracket, and mount a new thermal head.

4.

Mount the connector.

5.

Hold the thermal head with both hands to mount it on the printer.

7-2 IL-2000SA Service Manual

Chapter 7 MAINTENANCE

7.3 POSITIONING OF THE THERMAL HEAD

1. Preparation for positioning the head.

Confirm that the label cassette is in an appropriate condition. y Adjust the space to be “+0.2 to 1.0 mm” between the guide lever and the label width. y Adjust the space to be “+0.1 to 0.4 mm” between the guide and the label backing paper.

2. Remove the cover printer from the head section.

3. Load the cassette properly to the main body.

4. Select the Printer Adjustment screen, and set the head resistance.

5. Touch the [PAGE] key to set the label information, and touch the [FEED] key several times to feed the label.

6. Touch the [Checker Mark] key and press the [PRINT] three times to see the third or thereafter label. Check that there is no misalignment at the right or left and no irregular printing on the label.

7. Perform the following procedures when the print adjustment is necessary.

a. How to adjust the standard position.

Loosen the fixing screws ((1) in the figure), and adjust the front end of the printer bracket comes to the same end of the thermal head stay. Then, lightly tighten the screws. Try to perform test printing to decide the appropriate position. b. If printing is too light over the label

The cause can be assumed that the center line of the heating element of the thermal head and the center line of the print roller are misaligned to the front or back in parallel. Therefore, move the fixing screws ((1) in the figure), to the front or back and decide the positions so that the printing gets deeper. c. If the printing density is different at the left and the right

The cause of the lighter part can be assumed that the thermal head is misaligned to the front or back for the center line of the print roller. Therefore, loosen the fixing screws ((1) in the figure) and move them so that the left and right of the thermal head comes in parallel (both center lines are overlapped viewing from the above) to the center line of the print roller, then tighten the screws. d. If the print position is misaligned left or right

Loosen the fixing screws ((1) in the figure), and move the thermal head position in the reverse direction while keeping the above mentioned center lines in parallel, then tighten the screws.

IL-2000SA Service Manual 7-3

Chapter 7 MAINTENANCE

(1) Fixing screw

(2) Printer bracket

Front end of bracket

Front end of stay

(3) Thermal head stay

(4) Head bracket

Adjustment by moving the stay

Uneven printing

Misaligned printing

(left/right

)

Figure 1 Positioning of the thermal head

7-4 IL-2000SA Service Manual

Chapter 7 MAINTENANCE

7.4 EXCHANGE OF LABEL SENSOR

Remove the printer cover in advance.

(See

7.1 DETACH OF PRINTER COVER .

1.

Remove the screws for the thermal head.

Be careful not to lose the collars.

2.

Remove the bracket.

3.

Remove the label sensor.

4.

Replace the bell sensor.

5.

Check the sensor mounting side.

6.

Mount the bracket.

IL-2000SA Service Manual 7-5

Chapter 7 MAINTENANCE

7.5 EXCHANGE OF PEEL SENSOR

1.

There are two peel sensors. One is at the receiver side and another at the emitter side.

2.

Loosen the fixed screws to remove the sensor.

3.

Remove the connector to remove the sensor.

4.

Adjust the protrusion portions to the holes to mount.

5.

Do the same as 4 for other side.

7-6 IL-2000SA Service Manual

Chapter 7 MAINTENANCE

7.6 EXCHANGE OF CASSETTE SENSOR

1.

Pull out the cassette.

2.

The sensor is fixed by two screws.

3.

Remove the screws.

4.

Remove the connector out of the sensor.

IL-2000SA Service Manual 7-7

Chapter 7 MAINTENANCE

7.7 DETACH OF DISPLAY UNIT

Remove the truss that fixes the back cover, and remove the connection cable. Remove the four screws that fix the display unit. If a screwdriver cannot reach those screws, change the angle of the display unit.

Display unit

Remove these screws

7.8 DETACH OF TOP COVE

The top cover needs to be removed to remove the display unit. (Refer to 7.7.)

The top cover is fixed by seven screws.

2 screws

2 screws inside the cover.

7-8

1 screw

2 screws

IL-2000SA Service Manual

Chapter 7 MAINTENANCE

7.9 TROUBLESHOOTING

Problem 1

Power supply is not turned ON.

Screen is not displayed.

The printer stops while displaying “Wait” on the screen.

Unable to do numeric key entry.

Displacement of the touch panel keys

Display is dark.

The printer does not work.

Unable to print.

Print is light.

Problem 2 Causes or Remedies

Buzzer does not sound. x Check that the power plug and power cable are connected. x Check the voltage of the outlet (100 VAC). x Check the power supply unit (connector and harness).

Buzzer sounds but the screen is not displayed.

The printer stops in the middle of process, or displays an error.

Unable to do any or particular key entry.

Displacement of the display key buttons and touch input

Display is normal.

The printer normally works. x Check the volume of the right side of the screen. x Disconnection of the connector at the back of the display or contact failure. x Check the connections of XJ2, XJ5, XJ9,

XJ10, and XJ11 of P-910B-2. x Check the connector and harness of P-919. x Defect of the back light inverter x Defect of the inside the display unit of P-917 or LCD x Defect of P-910-2 x Defect of the CF card or contact failure of the socket x Disconnection of XJ7 of P-910B-2, or contact failure. x Defect of the numeric keypad x Adjust the touch panel of the test mode. x If the positioning cannot be recovered, replace the display unit. x Defect of the volume. x Defect of the back light. x Defect of the back light inverter board. x Check the connection of XJ1 and XJ5 of

P-910B-2. x Check the connection of XJ3, XJ9, and XJ10 of P-909C-1. x Defect of P-909C-1. x Defect of P-910B-2. x Defect of the power supply unit. x Defect of the gear. x Defect of the stepping motor. x Set the print density of the print adjustment of the test mode. x Adjust the position of the thermal head. x Check the connection of the thermal head. x Defect of the thermal head. x Defect of the label or receipt (not a thermal paper) x Check the connection of XJ5 of P-909C-1. x Defect of P-909C-1. x Clean the thermal head. x Adjust the location of the thermal head. x Defect of the label and receipt. x Defect of the power supply unit. x Defect of the printing roller.

IL-2000SA Service Manual 7-9

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
