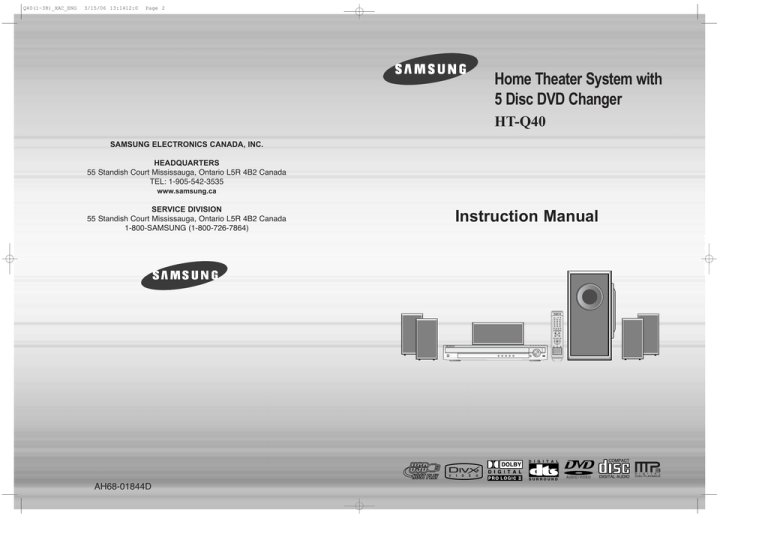

Home Theater System with
5 Disc DVD Changer
HT-Q40
SAMSUNG ELECTRONICS CANADA, INC.
HEADQUARTERS
55 Standish Court Mississauga, Ontario L5R 4B2 Canada
TEL: 1-905-542-3535
www.samsung.ca
SERVICE DIVISION
55 Standish Court Mississauga, Ontario L5R 4B2 Canada
1-800-SAMSUNG (1-800-726-7864)
Instruction Manual
COMPACT
DIGITAL AUDIO
AH68-01844D
Q40(1~38)_XAC_ENG
3/15/06 13:1412:0
Page 4
Safety Warnings
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE REAR COVER.
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
ENG
PREPARATION
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
PRODUCTO LASER CLASE 1
Precautions
Note to CATV system installer :
This reminder is provided to call the CATV system
installer’s attention to Section 820~40 of the NEC
which provides guidelines for proper grounding and,
in particular, specifies that the cable ground shall be
connected to the grounding system of the building,
as close to the point of cable entry as practical
CLASS 1 LASER PRODUCT
Ensure that the AC power supply in your house complies with the identification sticker located on the back of your player. Install your
player horizontally, on a suitable base (furniture), with enough space around it for ventilation (3~4inches). Make sure the ventilation
slots are not covered. Do not stack anything on top of the player. Do not place the player on modules or other equipment which may
become hot. Before moving the player, ensure the disc tray is empty. This player is designed for continuous use. Switching off the
Home Theater to the stand-by mode does not disconnect the electrical supply. In order to disconnect the player completely from the
power supply, remove the main plug from the wall outlet, especially when left unused for a long period of time.
This Compact Disc player is classified as a CLASS 1
LASER product.
Use of controls, adjustments or performance of
procedures other than those specified herein may result
in hazardous radiation exposure.
CAUTION-INVISIBLE LASER RADIATION WHEN OPEN
AND INTERLOCKS DEFEATED, AVOID
EXPOSURE TO BEAM.
During thunderstorms, disconnect AC main plug from the
wall outlet.
Voltage peaks due to lightning could damage the unit.
Do not expose the unit to direct sunlight or other heat
sources.
This could lead to overheating and malfunction of the unit.
This symbol indicates that dangerous voltage which can cause electric shock is present inside
this unit.
This symbol alerts you to important operating and maintenance instructions accompanying
the unit.
Phones
WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY
INSERT.
1
Protect the player from moisture(i.e. vases) , and excess heat
(e.g.fireplace) or equipment creating strong magnetic or electric fields
(i.e.speakers...). Disconnect the power cable from the AC supply if the
player malfunctions. Your player is not intended for industrial use.
Use of this product is for personal use only.
Condensation may occur if your player or disc has been stored in cold
temperatures.
If transporting the player during the winter, wait approximately 2 hours
until the unit has reached room temperature before using.
The batteries used with this product contain chemicals
that are harmful to the environment.
Do not dispose of batteries in the general household
trash.
2
Q40(1~38)_XAC_ENG
3/15/06 13:1412:0
Page 6
Features
Contents
ENG
Multi-Disc Playback & FM Tuner
USB Host Play
You can enjoy media files such as pictures, movies and tunes saved in an MP3 player, digital
camera or USB memory by connecting the storage device to the USB port of the home theater.
Dolby Pro Logic II
Dolby Pro Logic II is a new form of multi-channel audio signal decoding technology
that improves upon existing Dolby Pro Logic.
DTS (Digital Theater Systems)
DTS is an audio compression format developed by Digital Theater Systems Inc.
It delivers full-frequency 5.1 channel sound.
TV Screen Saver Function
The HT-Q40 automatically brightens and darkens your TV screen
after 3 minutes in the stop mode.
The HT-Q40 automatically switches itself into the power saving mode
after 20 minutes in the screen saver mode.
Power Saving Function
The HT-Q40 automatically shuts itself off after 20 minutes in stop mode.
Customized TV Screen Display
The HT-Q40 allows you to select your favorite image during JPEG, DVD or VCD
playback and set it as your background wallpaper.
AV SYNC Function
Video may lag behind the audio if the unit is connected to a digital TV.
To compensate for this, you can adjust the audio delay time to sync up with the video.
3
PREPARATION
SETUP
Safety Warnings .................................................................1
Precautions.........................................................................2
Features .............................................................................3
Notes on Discs ...................................................................5
Description..........................................................................7
Setting the Language .........................................................39
Setting TV Screen type ......................................................41
Setting Parental Controls (Rating Level)............................43
Setting the Password .........................................................44
Setting the Wallpaper .........................................................45
DVD Playback Mode ..........................................................47
Setting the Speaker Mode..................................................48
Setting the Delay Time .......................................................49
Setting the Test Tone..........................................................51
Setting the DRC (Dynamic Range Compression) ..............52
Setting the Audio ...............................................................53
AV SYNC Setup .................................................................55
Sound Field (DSP)/EQ Function ........................................56
Dolby Pro Logic II Mode.....................................................57
Dolby Pro Logic II Effect.....................................................58
CONNECTIONS
Connecting the Speakers ...................................................11
Connecting the Video Out to TV ........................................13
P.SCAN(Progressive Scan) Function .................................14
Connecting External Components......................................15
Connecting the FM Antenna...............................................16
OPERATION
Before Using Your Home Theater ......................................17
Disc Playback .....................................................................19
Selecting a Disc in the Disc changer .................................20
MP3/WMA-CD Playback ....................................................21
Displaying Disc Information................................................22
JPEG File Playback............................................................23
DivX Playback ....................................................................25
Checking the Remaining Time ...........................................27
Fast/Slow Playback ............................................................28
Skipping Scenes/Songs......................................................28
Repeat Playback ................................................................29
A-B Repeat Playback .........................................................30
Step Function .....................................................................31
Angle Function....................................................................31
Zoom (Screen Enlarge) Function .......................................32
EZ VIEW Function..............................................................32
Bonus Group / Navigating Pages.......................................33
Selecting Audio/Subtitle Language.....................................34
Playing Media Files using the USB HOST feature.............35
Moving Directly to a Scene/Song .......................................37
Using Disc Menu ................................................................38
Using the Title Menu...........................................................38
RADIO OPERATION
Listening to Radio...............................................................59
Presetting Stations .............................................................60
MISCELLANEOUS
Convenient Functions.........................................................61
Operating a TV with the Remote Control ...........................63
Before Calling for Service...................................................65
Cautions on Handling and Storing Discs............................67
Language Code List ...........................................................68
USB Host Feature Supported Products .............................69
Specifications .....................................................................70
4
PREPARATION
The HT-Q40 combines the convenience of multi-disc playback capability, including
DVD-AUDIO, DVD-VIDEO, VCD, CD, MP3-CD, WMA-CD, DivX, CD-R/RW, and DVD-R/RW,
with a sophisticated FM tuner, all in a single player.
Q40(1~38)_XAC_ENG
3/15/06 13:1412:0
Page 8
Notes on Discs
ENG
DVD (Digital Versatile Disc) offers fantastic audio and video, thanks to Dolby Digital
DVD players and the discs are coded by region. These regional codes must match in order
for the disc to play. If the codes do not match, the disc will not play.
The Region Number for this player is given on the rear panel of the player.
~ 6
This product does not support Secure (DRM) Media files.
CD-R Discs
• Some CD-R discs may not be playable depending on the disc recording device (CD-Recorder or PC) and the
•
(Your DVD player will only play DVDs that are labeled with identical region codes.)
•
•
Playable Discs
Disc Type
Mark (Logo)
Recorded Signals
Disc Size
5"
DVD-AUDIO
DVD-VIDEO
Audio + Video
3 1/2"
COMPACT
Audio + Video
VIDEO-CD
DIGITAL VIDEO
COMPACT
AUDIO-CD
Audio
DIGITAL AUDIO
Divx
MPEG4
MP3
Max. Playing Time
Approx. 240 min. (single-sided)
Approx. 480 min. (double-sided)
Approx. 80 min. (single-sided)
Approx. 160 min. (double-sided)
5"
74 min.
3 1/2"
20 min.
5"
74 min.
3 1/2"
20 min.
5"
74 min.
3 1/2"
20 min.
Do not use the following types of disc!
• LD, CD-G, CD-I, CD-ROM and DVD-ROM discs cannot be played on this player.
•
If such discs are played, a "WRONG DISC FORMAT" message appears on the TV screen.
DVD discs purchased abroad may not play on this player.
If such discs are played, a "WRONG REGION CODE" message appears on the TV screen.
Copy Protection
• Many DVD discs are encoded with copy protection. Because of this, you should only connect
•
5
your DVD player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD discs.
This product incorporates copyright protection technology that is protected by methods claims of certain
U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights
owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and
is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision
Corporation. Reverse engineering or disassembly is prohibited.
PREPARATION
surround sound and MPEG-2 video compression technology. Now you can enjoy these
realistic effects in the home, as if you were in a movie theater or concert hall.
VIDEO
1
Disc Recording Format
condition of the disc.
Use a 650MB/74 minute CD-R disc.
Do not use CD-R discs over 700MB/80 minute as they may not be played back.
Some CD-RW (Rewritable) media, may not be playable.
Only CD-Rs that are properly "closed" can be fully played. If the session is closed but the disc is left open, you
may not be able to fully play the disc.
CD-R MP3 Discs
• Only CD-R discs with MP3 files in ISO 9660 or Joliet format can be played.
• MP3 file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +).
• Use discs recorded with a compression/decompression data rate greater than 128Kbps.
• Only files with the ".mp3" and ".MP3" extensions can be played.
• Only a consecutively written Multisession disc can be played. If there is a blank segment in the Multisession disc,
the disc can be played only up to the blank segment.
• If the disc is not closed, it will take longer to begin playback and not all of the recorded files may be played.
• For files encoded in Variable Bit Rate (VBR) format, i.e. files encoded in both low bit rate and high bit rate
(e.g., 32Kbps ~ 320Kbps), the sound may skip during playback.
• A maximum of 500 tracks can be played per CD.
• A maximum of 300 folders can be played per CD.
CD-R JPEG Discs
• Only files with the ".jpeg" and ".JPEG" extensions can be played.
• If the disc is not closed, it will take longer to start playing and not all of the recorded files may be played.
• Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played.
• JPEG file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +).
• Only a consecutively written multisession disc can be played. If there is a blank segment in the multisession disc, the
disc can be played only up to the blank segment.
• A maximum of 9,999 images can be stored on a single CD.
• When playing a Kodak/Fuji Picture CD, only the JPEG files in the picture folder can be played.
• Picture discs other than Kodak/Fuji Picture CDs may take longer to start playing or may not play at all.
CD-R/RW DivX Discs
• Since this product only provides encoding formats authorized by DivX Networks, Inc., a DivX file created by the user
might not be played.
• Software update for unsupported formats is not supported.
(Example: QPEL, GMC, resolution higher than 720 x 480 pixels, etc.)
• Sections with high frame rate might not be played while playing a DivX file.
• For more information about the formats authorized by DivX Networks, Inc., visit "www.divxnetworks.net".
6
Q40(1~38)_XAC_ENG
3/15/06 13:1412:0
Page 10
Description
ENG
—Rear Panel—
PREPARATION
—Front Panel—
Video Output Connector
Tuning Up & Skip ( ) buttons
Tuning Down & Skip ( ) buttons
Connect the TV's video input jacks
(VIDEO IN) to the VIDEO OUT connector.
Disc Tray
Function button
Power (
) button
Headphone Jack
Play/Pause ( ) button
Stop (
USB port
FM Antenna Connector
Cooling Fan
5.1 Channel Speaker
Output Terminals
Accessories
STEREO indicator
REPEAT indicator
TUNED indicator
Remote Control
PBC indicator
DSP indicator
MPEG indicator
DVD AUDIO indicator
DOLBY PLll indicator
7
COMPONENT VIDEO OUTPUT
Connectors
Connect a TV with component video inputs
to these jacks.
) button
GROUP indicator
CHAPTER indicator
TRACK indicator
DOLBY DIGITAL indicator
PROGRAM indicator
LINEAR PCM indicator
P.SCAN
indicator TITLE
DTS
indicator
indicator
Use this to connect external equipment
capable of digital output.
Open/
Close button
Volume
Standby indicator
External Audio Input Connectors
Direct Play buttons
External Digital Optical
Input Connector
System Status Display
Video Cable
FM Antenna
User's Manual
DISC(1~5)
indicator
RADIO
FREQUENCY SPEAKER indicator
indicator
8
Q40(1~38)_XAC_ENG
3/15/06 13:1412:0
Page 12
Description
ENG
PREPARATION
—Remote Control—
Insert Remote Batteries
TV button
DVD Receiver button
DVD button
TUNER button
AUX button
USB button
OPEN/CLOSE button
POWER button
TV/VIDEO, DISC SKIP button
Number(0~9) buttons
REMAIN button
STEP button
SEARCH buttons
1 Remove the battery
cover on the back of
the remote by pressing
down and sliding the
cover in the direction of
the arrow.
2
Insert two 1.5V AAA
batteries, paying
attention to the correct
polarities (+ and –).
3
Replace the battery
cover.
CANCEL button
REPEAT button
Play/Pause button
Stop button
Tuning Preset/CD Skip button
VOLUME button
TUNING/CH button
Caution
MENU button
MUTE button
RETURN button
Cursor/Enter button
INFO button
PL II EFFECT button
PL II MODE button
TUNER MEMORY, P.SCAN button
ZOOM button
SLEEP button
SLOW, MO/ST button
DIMMER button
9
AUDIO button
SUB TITLE button
DSP/EQ button
TEST TONE button
SOUND EDIT button
Follow these precautions to avoid leaking or cracking cells:
• Place batteries in the remote control so they match the polarity:(+) to (+)and (–)to (–).
• Use the correct type of batteries.Batteries that look similar may differ in voltage.
• Always replace both batteries at the same time.
• Do not expose batteries to heat or flame.
Range of Operation of the Remote Control
The remote control can be used up to approximately 23 feet/7 meters in a straight line. It can also be
operated at a horizontal angle of up to 30° from the remote control sensor.
DIGEST button
LOGO button
SLIDE MODE button
EZ VIEW button
10
Q40(1~38)_XAC_ENG
3/15/06 13:1412:0
Page 14
Connecting the Speakers
ENG
Before moving or installing the product, be sure to turn off the power and disconnect the power cord.
Center Speaker
Rear Speaker (R)
Rear Speaker (L)
C
SW
L
R
CONNECTIONS
SL
SR
Front Speaker (L)
Front Speaker (R)
Position of the Home Theater
• Place it on a stand, cabinet shelf, or under the
TV stand.
Selecting the Listening Position
Subwoofer
The listening position should be located about 2.5 to 3
times the distance of the TV's screen size away from the
TV. Example: For 32" TVs 2~2.4m (6~8 feet)
For 55" TVs 3.5~4m (11~13 feet)
Front Speakers L R
• Place these speakers in front of your listening
•
•
position, facing inwards (about 45°) toward you.
Place the speakers so that their tweeters will be at
the same height as your ear.
Align the front face of the front speakers with the
front face of the center speaker or place them
slightly in front of the center speakers.
Rear Speakers SL SR
• Place these speakers behind your listening position.
• If there isn't enough room, place these speakers so they face each
speakers.
• You can also install it directly over or under the TV.
2
3
Insert the speaker cord.
1
2
Red
3
Black
Release your finger.
other.
slightly downward.
them all the time.
Subwoofer SW
• The position of the subwoofer is not so critical.
Place it anywhere you like.
11
Press and hold the terminal tab.
• Place them about 60 to 90cm (2 to 3feet) above your ear, facing
the front and center speakers, the rear speakers are used
* toUnlike
handle mainly sound effects and sound will not come from
Center Speaker C
• It is best to install it at the same height as the front
1
Caution
• Do not let children play with or near the speakers.
•
They could get hurt if a speaker falls.
When connecting the speaker wires to the speakers,
make sure that the polarity (+/–) is correct.
Note
• If you place a speaker near your TV set,
screen color may be distorted because of
the magnetic field generated by the
speaker. If this occurs, place the speaker
away from your TV set.
12
Note
Q40(1~38)_XAC_ENG
3/15/06 13:1412:0
Page 16
Connecting the Video Out to TV
P.SCAN(Progressive Scan) Function
Choose one of the two methods for connecting to a TV.
GB
Unlike regular Interlace Scan, in which two fields of picture information alternate to create the entire
picture (odd scan lines, then even scan lines), Progressive Scan uses one field of information (all lines
displayed in one pass) to create a clear and detailed picture without visible scan lines.
1
Press STOP button.
• If playing a disc, press the STOP button twice so that “STOP”, appears on the display.
2
Press and hold P.SCAN button on the remote control for over 5 seconds.
• Pressing and holding the button for over 5 seconds will select "Progressive Scan" and "Interlace Scan"
METHOD 1
• When you select P.SCAN, "P.SCAN" will appear on the display.
• To set P.Scan mode for DivX discs, press the P.SCAN button on the remote control for more than
5 seconds with no disc in the unit (“'NO DISC" on the display), then load the DivX disc and play.
What is Progressive (or Non-Interlaced) Scanning?
Interlaced Scan (1 FRAME = 2 FIELDS)
Progressive Scan (FULL FRAME)
METHOD 1 Composite Video ............... Good Quality
Connect the supplied video cable from the VIDEO OUT jack on the back panel of the
system to the VIDEO IN jack on your television.
METHOD 2 Component (Progressive Scan) Video ............... Best Quality
If your television is equipped with Component Video inputs, connect a component video
cable (not supplied) from the Pr, Pb and Y jacks on the back panel of the system to the
corresponding jacks on your television.
Note
• When the Progressive scan mode is selected, the VIDEO output (Yellow) does
In interlaced-scan video, a frame consists of two interlaced fields (odd and even), where each field contains
every other horizontal line in the frame.
The odd field of alternating lines is displayed first, and
then the even field is displayed to fill in the alternating
gaps left by the odd field to form a single frame.
One frame, displayed every 1/30th of a second, contains
two interfaced fields, thus a total of 60 fields are displayed every 1/60th of a second.
The interlaced scanning method is intended for capturing
a still object.
The progressive scanning method scans one full frame of
video consecutively down the screen, line by line.
An entire image is drawn at one time, as opposed to the
interlaced scanning process by which a video image is
drawn in a series of passes.
The progressive scanning method is desirable for dealing
with moving objects.
not output any signal.
Note
• This function works only on TVs equipped with component video inputs (Y, Pr, Pb) that support
•
13
Progressive Video. (It does not work on TVs with conventional component inputs, i.e., non-progressive
scan TVs.)
Depending on the capabilities of your TV, this function may not work.
14
CONNECTIONS
alternately.
METHOD 2
Q40(1~38)_XAC_ENG
3/15/06 13:1412:0
Page 18
Connecting External Components
Connecting the FM Antenna
GB
Connecting an External Digital / Analog Component
Example: Digital signal components such as a Set-Top Box or CD Recorder.
Analog signal components such as a VCR.
CONNECTIONS
FM Antenna (supplied)
Audio Cable
Optical Cable
(not supplied)
If the external analog
component has only one
Audio Out, connect either left
or right.
(not included)
1
Connect the Digital Input (OPTICAL) to the Digital Output on the external digital component.
2
Connect AUX (Audio) In on the Home Theater to Audio Out on the external analog
component.
1 Connect the FM antenna supplied to the FM 75Ω COAXIAL terminal.
2 Slowly move the antenna wire around until you find a location where reception is good, then fasten it to a wall or other rigid surface.
• Be sure to match connector colors.
Cooling Fan
3
The cooling fan supplies cool air to the unit to prevent overheating.
Press AUX on the remote control to select ‘DIGITAL IN / AUX1/AUX2’ input.
Please observe the following cautions for your safety.
• Each time the button is pressed, the selection changes as follows: AUX1 ➝ AUX2 ➝ DIGITAL IN
• You can also use the FUNCTION button on the main unit.
• Make sure the unit is well-ventilated. If the unit has poor ventilation, the temperature inside the unit could rise
and may damage it.
The mode switches as follows: DVD/CD ➝ DIGITAL IN ➝ AUX1➝ AUX2 ➝ USB ➝ FM
• Do not obstruct the cooling fan or ventilation holes. (If the cooling fan or ventilation holes are covered with a
newspaper or cloth, heat may build up inside the unit and fire may result.)
Note
15
• You can connect the Video Output jack on your VCR to the TV, and connect the Audio
Output jacks on the VCR to this product.
Notes
• This unit does not receive AM broadcasts.
16
Q40(1~38)_XAC_ENG
3/15/06 13:1412:0
Page 20
Before Using Your Home Theater
ENG
Disc terminology
Your Home Theater is capable of playing DVD, VCD, CD, MP3/WMA and JPEG discs.Depending on the disc you
are using, these instructions may vary slightly. Read the instructions carefully before using.
Groups and tracks (DVD-AUDIO)
• DVD-audio is divided into several large sections called "groups" and
smaller sections called "tracks". Numbers are allotted to these sections.
These numbers are called "group numbers" and "track numbers".
To Operate your Samsung TV and the Home Theater with the HT-Q40's Remote Control
GROUP 1
1
Plug the main unit's
power cord into the
AC power supply.
2
Press TV button to
set the remote to TV
mode.
3
Press the POWER
button to turn on your
Samsung TV with this
remote.
TRACK 1
TRACK 2
GROUP 2
TRACK 3
TRACK 1
TRACK 2
Titles and chapters (DVD-VIDEO)
• DVD-video is divided into several large sections called "titles" and smaller
sections called "chapters". Numbers are allotted to these sections.
These numbers are called "title numbers" and "chapter numbers".
TITLE 1
Press TV/VIDEO
button to select
VIDEO mode on
your TV.
4
5
Press DVD RECEIVER
button to switch to
DVD RECEIVER
mode.
6
Press FUNCTION button
on the main unit or DVD
button on the remote to
enable DVD/CD playback.
CHAPTER 2
CHAPTER 3
CHAPTER 1
OPERATION
CHAPTER 1
TITLE 2
CHAPTER 2
Tracks (Video and music CDs)
• Video and music CDs are divided into sections called "tracks".
Numbers are allotted to these sections. These numbers are called
"track numbers".
VIDEO
TRACK 1
TRACK 2
TRACK 3
TRACK 4
TRACK 5
Files (DivX)
• DivX is divided into sections called "files".
Numbers are allotted to these sections. These numbers are called
"file numbers".
Note
FILE 1
• Buttons Enabled for TV Operation: POWER, CHANNEL, VOLUME, TV/VIDEO, and Numeric (0-9) buttons.
• By default, the remote control is set to work with Samsung TVs.
FILE 2
See page 63 for more information about remote control operation with other manufacturer's TVs.
Note
17
• In this manual, the instructions marked with "DVD (
DVD )" are applicable
to DVD-VIDEO, DVD-AUDIO, and DVD-R/RW discs.
Where a particular DVD type is mentioned, it is indicated separately.
• Depending on the content of the disc, the initial screen may appear different.
18
Q40(1~38)_XAC_ENG
3/15/06 13:1412:0
Page 22
Disc Playback
Selecting a Disc in the Disc changer
ENG
The DVD/CD function is automatically selected when Disc Skip is pushed.
1
Press OPEN/CLOSE button to open the
disc tray.
2
Load a disc.
3
Press DISC SKIP button.
To select a specific disc, press the corresponding DIRECT PLAY
(1, 2, 3, 4, 5) buttons on the front panel or DISC SKIP on the
remote control, until the required disc indicator flashes.
• If the disc selected is not loaded, the next disc is played automatically.
• Place a disc gently into the tray with the disc’s label
facing up.
OPERATION
• Rotate the carousel tray so you can load the third, fourth,
and fifth discs.
To stop playback, press STOP during playback.
• If pressed once, “PRESS PLAY” is displayed and the stop position will be stored in memory.
4
Close the compartment by pressing the
OPEN/CLOSE button again.
DVD
VCD
If PLAY/PAUSE (
) button or ENTER button is pressed, playback resumes from the stop position.
(This function works only with DVDs.)
• If pressed twice, “STOP” is displayed, and if PLAY/PAUSE (
) button is pressed, playback starts from the
beginning.
CD
• Playback starts automatically.
To temporarily pause playback, press PLAY/PAUSE during playback.
• To resume playback, press PLAY/PAUSE (
Note
19
) button again.
• Depending on the content of the disc, the initial screen may appear different.
20
Q40(1~38)_XAC_ENG
3/15/06 13:1412:0
Page 24
MP3/WMA-CD Playback
Displaying Disc Information
Data CDs (CD-ROM, CD-R, CD-RW) encoded in MP3/WMA format can be played.
1
Press the
OPEN/CLOSE button
to open the disc tray,
and then load the
MP3/WMA disc.
• The MP3/WMA menu screen will appear
•
•
and playback will start.
The appearance of the menu depends
on the MP3/WMA disc.
WMA-DRM files cannot be played.
2
ENG
You can view disc playback information on the TV screen.
In Stop mode, use
to select
the album, and then
press the ENTER
button.
• Use
to select the track.
Press INFO button.
• Each time the button is pressed, the display changes as follows:
VCD
DVD
CD
MP3
DivX
DVD RECEIVER
JPEG
SMART NAVI
Something like you
Back for good
Love of my life
More than words
I
d
3
To change the album,
use
to
select another album
in Stop mode, and
then press the
ENTER button.
4
•
Press the STOP
button to stop
playback.
The information Display
disappears from the screen
•
format recorded on the disc.
• To play music files only, select the
• To view image files only, select the
• To view movie files only, select the
Icon.
• To select all files select the
21
Icon.
Icon.
Icon.
A section of tracks contained in a DVD-AUDIO disc.
• What is a Title?
•
A movie contained in a DVD-VIDEO disc.
Depending on the disc, the disc
information display may appear different.
Depending on the disc, you can also
select DTS, DOLBY DIGITAL, or PRO
LOGIC.
• What is a Chapter?
Each title on a DVD disc is divided into several smaller sections called
"chapters".
• What is a Track (File)?
A section of video or a music file recorded on a DVD-AUDIO, CD, or MP3-CD.
Screen Display
To play a file icon in the screen,
Press the
button when it is in stop
status and select a desired icon from the top
part of the menu.
• What is a Group?
Note
repeat Steps 2 and 3 above.
• Depending on the recording mode, some MP3/WMA-CDs may not play.
• Table of contents of a MP3-CD varies depending on the MP3/WMA track
appears on the TV screen!
If this symbol appears on the TV screen while buttons are being operated,
that operation is not possible with the disc currently being played.
• To select another album and track,
Note
The information Display
disappears from the screen
DVD display
• Music File Icon
• Image File Icon
• Movie File Icon
• All File Icon
VCD display
TITLE display
GROUP display
CD display
ELAPSED TIME display
STEREO (L/R) display
REPEAT PLAYBACK display
DOLBY DIGITAL display
AUDIO LANGUAGE display
ANGLE display
CHAPTER display
DVD DVD-AUDIO display
AUDIO
TRACK (FILE) display
SUBTITLE display
22
OPERATION
The information Display
disappears from the screen
Q40(1~38)_XAC_ENG
3/15/06 13:1412:0
Page 26
JPEG File Playback
JPEG
Images captured with a digital camera or camcorder, or JPEG files on a PC can be stored on a CD and then
played back with this Home Theater.
ENG
Digest Function
You can view 9 JPEG images on the TV screen.
1
Slide Mode
Press DIGEST
button during
playback.
2
• JPEG files will be shown in
• The selected image is played for 5 seconds before moving
9 windows.
1
Place the JPEG disc on the disc tray.
2
Press the OPEN/CLOSE button.
Press Cursor , , , buttons
to select the desired image and
then press ENTER button.
to the next image.
To view the previous or next image with 9 windows, press
.
OPERATION
Rotate/Flip Function
3
Press SLIDE MODE button.
Press Cursor
,
,
,
buttons during playback.
• Playback starts automatically.
• Each time the button is pressed, the image makes the transition as follows:
From top to bottom
button: Flip Vertically
From bottom to top
button: Rotate 90°
Counterclockwise
Rectangular shape in the center
button: Rotate 90° Clockwise
Original Image
Vertical blinds effect
T
(
T
T
button: Flip Horizontally
Each time a new image is displayed, slide modes
(1~11) will be applied randomly and automatically.
Cancels the slide mode.
Note
☞
• The maximum resolutions supported by this product are 5120 x 3480 (or 19.0 MPixel) for
standard JPEG files and 2048 x 1536 (or 3.0 MPixel) for progressive image files.
23
Press
to skip to the next slide.
• Each time the button is pressed, the slide moves backward or forward.
24
Q40(1~38)_XAC_ENG
3/15/06 13:1412:0
Page 28
DivX Playback
The functions on this page apply to DIVX disc playback.
Press the SUBTITLE button.
Skip Forward/Back
During playback, press the
button.
• Goes to the next file whenever you press
•
ENG
Subtitle Display
button, if there are over
2 files in the disk.
Goes to the previous file whenever you press
over 2 files in the disk.
button, if there are
• Each time you press the button, your selection will toggle between “SUBTITLE (1/1, 1/2 ...)” and “SUBTITLE OFF”.
• If the disc has only one subtitle file, it will be played automatically.
• See number 2 (Caption Function) below for more details concerning Subtitle usage with DIVX discs.
Audio Display
Press the AUDIO button.
• If there are multiple audio tracks on a disc, you can toggle between them.
• Each time you press the button, your selection will toggle between “AUDIO(1/1, 1/2 ...)” and
Fast playback
To play back the disc at a faster speed,
press
or
during playback.
follows:
2x ➞ 4x ➞ 8x ➞ 32x ➞ Normal.
•"
”.
" is displayed when there is one supported language in the disc.
DivX(Digital internet video eXpress)
DivX is a video file format developed by Microsoft and is based on MPEG4 compression technology
to provide audio and video data over the Internet in real-time.
MPEG4 is used for video encoding and MP3 for audio encoding so that the users can watch a movie
at near DVD-quality video and audio.
1. Supported Formats
• This product only supports the following media formats.If both video and audio formats are not
5 Minute Skip function
During playback, press the
,
supported, the user may experience problems such as broken images or no sound.
●
button.
• Playback skips 5 minutes forward whenever you press
• Playback skips 5 minutes back whenever you press
Format
Supported Versions
button.
button.
●
Press ZOOM
button.
2
Press Cursor , ,
, buttons to
move to the area
you want to enlarge.
your selection will toggle between
“ZOOM X2” and “ZOOM OFF”.
25
WMV
V1/V2/V3/V7
MP3
WMA
80~384kbps
56~128kbps
44.1khz
AC3
128~384kbps
44.1/48khz
DTS
1.5Mbps
44.1khz
• DivX files, including audio and video files, created in the DTS format can only support up to 6Mbps.
• Aspect Ratio: Although default DivX resolution is 640*480 pixels (4:3), this product supports up to
• Each time you press the button,
Note
AVI
DivX3.11 ~ 5.1
Supported Audio Formats
Format
Bit Rate
Sampling Frequency
Zoom Function
1
Supported Video Formats
• DIVX file can be zoomed only in ZOOM X2 mode.
• DivX files have .Avi file extensions, however, not all .Avi files are DivX
and may not be playable in this unit.
720*480 pixels (16:9). TV screen resolutions higher than 800 will not be supported.
• When you play a disc whose sampling frequency is higher than 48khz or 320kbps, you may
experience shaking on the screen during playback.
2. Caption Function
• You must have some experience with video extraction and editing in order to use this feature properly.
• To use the caption function, save the caption file (*.smi) in the same file name as that of the DivX
•
media file (*.avi) within the same folder.
Example. Root
Samsung_007CD1.avi
Samsung_007CD1.smi
Up to 60 alphanumeric characters or 30 East Asian characters (2 byte characters such as Korean and
Chinese) for the file name.
26
OPERATION
• Each time you press either button, the playback speed will change as
Note
“
Q40(1~38)_XAC_ENG
3/15/06 13:1512:0
Page 30
Checking the Remaining Time
Fast/Slow Playback
Fast Playback
DVD
VCD
Press
Press the REMAIN button.
• For checking the total and remaining time of a title or chapter
being played.
CD
ENG
Slow Playback
MP3
.
Press SLOW button.
• Each time the button is pressed during playback,
the playback speed changes as follows:
• Each time the button is pressed during playback,
the playback speed changes as follows:
DVD
VCD
DivX
Each time the REMAIN button is pressed
DVDAUDIO
TITLE ELAPSED
GROUP ELAPSED
TITLE REMAIN
GROUP REMAIN
CHAPTER ELAPSED
TRACK ELAPSED
Notes
• No sound is heard during slow
Note
• During fast playback of a CD or MP3-CD, sound is heard
CHAPTER REMAIN
TRACK REMAIN
only at 2x speed, and not at 4x, 8x, and 32x speeds.
playback and step motion playback.
• Reverse slow playback does not
work with VCD and DivX.
Skipping Scenes/Songs
Press
VCD
CD
MP3
.
• Each time the button is pressed briefly during playback, the previous or next chapter, track,
or directory (file) will be played.
• You cannot skip chapters consecutively.
TRACK ELAPSED
TRACK REMAIN
DVD
TRACK REMAIN
VCD
MP3
TRACK ELAPSED
TOTAL ELAPSED
TOTAL REMAIN
• When watching a VCD with a track
27
longer than 15 minutes, each time
is pressed, playback
will skip back or forward 5 minutes.
28
OPERATION
DVDVIDEO
Q40(1~38)_XAC_ENG
3/15/06 13:1512:0
Page 32
Repeat Playback
A-B Repeat Playback
Repeat playback allows you to repeatedly play a chapter, title, track (song), or directory (MP3 file).
DVD
VCD
CD
MP3
ENG
You can repeatedly play back a designated section of a DVD.
JPEG
DVD
Press REPEAT button.
• Each time the button is pressed during playback, the repeat playback mode changes as follows:
DVDVIDEO
DVDAUDIO
Repeat Playback Options
CHAPTER
Repeatedly plays the selected chapter.
1
VCD
Press INFO button
twice.
2
Press Cursor button
to move to REPEAT
PLAYBACK ( ) display.
4
Press ENTER
button at the end
of the desired
segment.
• For a VCD, press INFO button
once.
TITLE
Repeatedly plays the selected title.
GROUP
Repeatedly plays the selected group.
JPEG
VCD
CD
TRACK
Repeatedly plays the selected track.
DIR
Repeatedly plays all tracks in the selected folder.
3
Press Cursor , buttons
to select ‘A-’ and then press
ENTER button at the beginning
of the desired segment.
• When ENTER button is pressed,
the selected position will be stored
in memory.
To Select a Repeat Playback Mode in the Disc Information Screen
Note
• Repeat playback operation is
not possible with version 2.0
VCD discs if PBC is turned
on. To use Repeat Playback
on a VCD with PBC, you
should set the PBC to OFF in
the disc menu. (See page
38.)
29
1
2
Press INFO button twice.
DVD
Press Cursor button to
move to REPEAT
PLAYBACK ( ) display.
3
Press Cursor button
to select the desired
Repeat Playback mode.
4
Press ENTER button.
played repeatedly.
A-
DISC
Repeatedly plays the entire disc.
OFF
Cancels Repeat Playback.
• The specified segment will be
A-B
REPEAT : A—B
A -?
REPEAT : A—
To return to normal playback, press Cursor
buttons to select
OFF.
,
Note
VCD
CD
MP3 and JPEG discs, you cannot select Repeat
* For
Play from the information display screen.
• The A-B Repeat function does not operate with MP3, CD or JPEG discs.
30
OPERATION
MP3
RANDOM
Plays tracks in random order.
(A track that has already been played may be
played again.)
Q40(1~38)_XAC_ENG
3/15/06 13:1512:0
Page 34
Step Function
DVD
Zoom (Screen Enlarge) Function
VCD
This function allows you to enlarge a particular area of the displayed image.
DVD
ENG
VCD
Press STEP button.
• The picture moves forward one frame each time the button is pressed
1
during playback.
Press ZOOM
button.
2
Press Cursor , ,
, buttons to
move to the area
you want to enlarge.
3
Press ENTER
button.
• Each time the button is pressed, the
zoom level changes as follows:
SELECT ZOOM POSITION
Angle Function
DVD
This function allows you to view the same scene in different angles.
Press INFO button.
2
1/3
3
1/3
Press Cursor , or numeric buttons to
select the desired angle.
• Each time the button is pressed, the angle changes as follows:
1/3
Note
OPERATION
1
Press Cursor
button to move to
ANGLE ( ) display.
• When a DivX disc is being played, only the 2:1 zoom-in is available.
EZ VIEW Function
DVD
Press EZ VIEW button.
• Each time the button is pressed, the zoom function will switch between On
and Off.
• When a movie is played in Widescreen format, black bars at the top and
bottom of the TV screen can be removed by pressing the EZ VIEW button.
2/3
3/3
EZ VIEW
EZ VIEW OFF
Note
Note
31
• The Angle function works only with discs on which multiple
angles have been recorded.
• This function will not work if the DVD is recorded with multi-camera angle format.
• Black bars may not disappear because some DVD discs have a built-in horizontal to vertical ratio.
• This feature is not supported for DivX discs.
32
Q40(1~38)_XAC_ENG
3/15/06 13:1512:0
Page 36
Bonus Group / Navigating Pages
Bonus Group
Selecting Audio/Subtitle Language
Audio Language Selection Function
DVDAUDIO
Some DVD-Audio discs have an extra ‘bonus’ group that requires a 4-digit key
number to access. See the disc packaging for details and the-key number.
1
Press INFO button
twice.
When you play a DVD-Audio disc that has a
bonus group, the key number input screen
appears automatically.
2
ENG
DVD
Press Cursor ,
buttons or numeric
buttons to select the
desired audio language.
• Depending on the number of languages on a
DVD disc, a different audio language
(ENGLISH, SPANISH, FRENCH, etc.) is
selected each time the button is pressed.
SP 2/3
FR 3/3
BONUS GROUP
OPERATION
KEY NUMBER :
Subtitle Language Selection Function
Note
• If you eject the disc, switch the power off, or unplug the player, you will need to re-enter
1
Press INFO button
twice.
3
Press Cursor
button or numeric
buttons to select
the desired subtitle.
2
the key number.
Navigating Pages
DVD
Press Cursor
button to move to
SUBTITLE ( )
display.
DVDAUDIO
During playback, press the TUNING/CH button
on the remote control.
• You can select the desired image from a DVD-Audio disc containing still images.
• With some discs, you may not be able to select images.
EN 1/3
EN 01/ 03
SP 02/ 03
FR 03/ 03
Note
• To operate this function, you can also
OFF
•
press the Select AUDIO or Select
SUBTITLE buttons on the remote
control.
Depending on the disc, the Subtitle
and Audio Language functions may
not be available.
OFF / 03
33
34
Q40(1~38)_XAC_ENG
3/15/06 13:1512:0
Page 38
Playing Media Files using the USB HOST feature
ENG
You can enjoy media files such as pictures, movies and music saved in an MP3 player, USB memory or digital camera in high
quality video with 5.1 channel home theater sound by connecting the storage device to the USB port of the home theater.
1
Connect the USB
device to the USB
port on the rear of
the unit.
2
Compatible Devices
1. USB devices that support USB Mass Storage v1.0.
(USB devices that operate as a removable disk in Windows
(2000 or later) without additional driver installation.)
2. MP3 Player: HDD and flash type MP3 players.
3. Digital camera: Cameras that support USB Mass Storage v1.0.
• Cameras that operate as a removable disk in Windows (2000 or later) without additional driver installation.
4. USB HDD and USB Flash Drive: Devices that support USB2.0 or USB1.1.
• You may experience a difference in playback quality when you connect a USB1.1 device.
• For a USB HDD, make sure to connect an auxiliary power cord to the USB HDD for proper operation.
5. USB card Reader: One slot USB card reader and Multi slot USB card reader
• Depending on the manufacturer. the USB card reader may not be supported.
• If you install multiple memory devices into a multi card reader, you may experience problems.
6. If you use a USB extension cable, the USB device might not be recognized.
Press the FUNCTION
button on the main
unit or the USB button
on the remote control
to select the USB
mode.
• “USB” appears on the display screen
and then disappears.
• USB MENU screen appears on the TV
screen and the saved file is played.
Supported Formats
Still Picture
To stop playback, press the STOP (
) button.
Music
Safe USB Removal
Movie
To prevent damage to the memory stored in the USB device, perform safe removal
before disconnecting the USB cable.
(1) Press the Stop button twice in a row.
The display will show REMOVE ➞ USB.
•
•
button.
button, the next file is selected.
button, the previous file is selected.
To play back the disc at a faster speed, press
JPG .JPEG
.MP3
WMA
.WMA
56~128kbps
V8
–
44.1kHz
VCD
MPG.MPEG .DAT
1.5Mbps
VCD1.1,VCD2.0
320*480
44.1KHz
WMV
.WMV
4Mbps
V1,V2,V3,V7
720*480
44.1KHz~48KHz
DivX
.AVI,.ASF
4Mbps
DivX3.11~DivX5.1,Xvid
720*480
44.1KHz~48KHz
Pixel
–
–
640*480
–
80~384kbps
–
–
44.1kHz
• Some MP3 players, when connected to this product,may not operate depending
on the sector size of their file system.
• The USB HOST function is not supported if a product that transfers media files by
its manufacturer-specific program is connected.
or
• Each time you press either button, the playback speed will change as follows:
35
Sampling
Frequency
Version
• A device using NTFS file system is not supported.
(Only FAT 16/32 (File Allocation Table 16/32) file system is supported.)
Fast playback
2x ➞ 4x ➞ 8x ➞ 32x ➞ Normal.
JPG
MP3
Bit rate
• Digital Cameras that use PTP protocol or require additional program installation
when connected to a PC are not supported.
Skip Forward/Back
When there is more than one file, when you press the
When there is more than one file, when you press the
File
extension
• CBI (Control/Bulk/Interrupt) is not supported.
(2) Remove the USB cable.
During playback, press the
File name
during playback.
• Does not operate with Janus enabled MTP(Media Transfer Protocol) devices.
• The USB host function of this product does not support all USB devices.
For information on the supported devices, see pages 69.
36
OPERATION
●
Q40(1~38)_XAC_ENG
3/15/06 13:1512:0
Page 40
Moving Directly to a Scene/Song
Using Disc Menu
ENG
DVD
You can use the menus for the audio language, subtitle language, profile, etc.
DVD menu contents differ from disc to disc.
DVD
1
VCD
CD
Moving to a Title/Track
2
Press INFO button.
01/05
001/040
0:00:37
1/1
Press Cursor , buttons
or numeric buttons to select
the desired title/track and then
press ENTER button.
03/05
001/002
0:00:01
Moving to a Chapter
Press Cursor ,
buttons to move to
Chapter ( ) display.
3
1
In Stop mode,
press MENU
button.
• When playing a VCD (version 2.),
this toggles between PBC ON and
OFF.
1/1
01/05
001/040
0:00:01
Press Cursor ,
buttons or numeric buttons
to select the desired
chapter and then press
ENTER button.
01/05
025/040
0:00:01
5
1/1
Press Cursor ,
buttons to move to
time display.
01/05
025/040
1:17:30
Moving to a Specific Time
6
Press the numeric
buttons to select the
desired time and then
press ENTER button.
1/1
01/05
028/040
1:30:00
supported by the disc, the "This menu is not
supported" message appears on the screen.
• Press ENTER button.
1/1
ENTER
MOVE
EXIT
ENTER
EXIT
• Disc menu display may be different depending on the disc.
Note
PBC (Playback Control) Function
When playing a VCD (version 2.0), you can select and view various scenes according to the menu screen.
PBC ON: This VCD disc is version 2.0. The disc is played back according to the menu screen. Some functions may
be disabled. When some functions are disabled, select "PBC OFF" to enable them.
PBC OFF: This VCD disc is version 1.1. The disc is played back in the same way as with a music CD.
Using the Title Menu
DVD
For DVDs containing multiple titles, you can view the title of each movie.
Depending on the disc, the availability of this feature may vary.
MP3
1
JPEG
Press the numeric
buttons.
• The selected file will be played.
• When playing an MP3 or JPEG disc, you
cannot use
,
to move to a folder.
To move a folder, press (Stop) and
then press
, .
Note
In Stop mode,
press MENU
button.
2
Press Cursor ,
button to move to
‘Title Menu’.
• You can press
•
3
Press ENTER
button.
• The title menu appears.
on the
remote control to move directly to the
desired title, chapter, or track.
Depending on the disc, you may not
be able to move to the selected title
or time.
MOVE
ENTER
EXIT
MOVE
ENTER
EXIT
Press MENU button to exit the setup screen.
37
Note
• Title menu display may be different depending on the disc.
38
OPERATION
4
Moving to a Specific Time
• When you select Disc Menu and it is not
3
Press Cursor ,
, buttons to
select the desired
item.
1/1
MOVE
Moving to a Chapter
2
Press Cursor ,
buttons to move to
‘DISC MENU’ and then
press ENTER button.
Q40(39~72)_XAC_ENG
3/15/06 13:1912:0
Page 42
Setting the Language
ENG
OSD (On-Screen Display) language is set to English by default.
1
In Stop mode,
press MENU
button.
2
Press Cursor
button to move to
‘Setup’ and then
press ENTER button.
3
Select ‘Language’
and then press
ENTER button
4
Press Cursor ,
button to select ‘OSD
Language’ and then
press ENTER button.
5
Press Cursor ,
button to select the
desired language and then
press ENTER button.
• Once the setup is complete, the OSD will be
English if English has been selected as language.
MOVE
ENTER
EXIT
MOVE
ENTER
EXIT
MOVE
ENTER
RETURN
EXIT
MOVE
ENTER
RETURN
EXIT
MOVE
SELECT
RETURN
EXIT
VE
Press MENU button to exit the setup screen.
Note
• To select another language, select OTHER and enter the language code of your country.
(See page 68 for language codes)
AUDIO, SUB TITLE and DISC MENU language can be selected.
MOVE
ENTER
RETURN
Selecting the
OSD Language
MOVE
39
SELECT
RETURN
EXIT
EXIT
MOVE
ENTER
RETURN
EXIT
Selecting the
Audio Language
(recorded on the disc)
MOVE
ENTER
RETURN
EXIT
Selecting the
Subtitle Language
(recorded on the disc)
MOVE
ENTER
RETURN
EXIT
Selecting the Disc Menu
Language (recorded on the disc)
language you selected is
* Ifnottherecorded
on the disc, menu
language will not change even
if you set it to your desired
language.
40
SETUP
Press RETURN button to return to the previous level.
Q40(39~72)_XAC_ENG
3/15/06 13:1912:0
Page 44
Setting TV Screen type
ENG
Depending on your TV type (Wide Screen or conventional 4:3), you can select the TV's aspect ratio.
1
In Stop mode,
press MENU
button.
2
Press Cursor
button to move to
‘Setup’ and then
press ENTER button.
Adjusting the TV Aspect Ratio (Screen Size)
The horizontal to vertical screen size ratio of conventional TVs is 4:3, while that of widescreen and high
definition TVs is 16:9. This ratio is called the aspect ratio. When playing DVDs recorded in different
screen sizes, you should adjust the aspect ratio to fit your TV or monitor.
• For a standard TV, select either "4:3LB" or "4:3PS" option according to personal preference.
Select "16:9" if you have a widescreen TV.
WIDE
MOVE
3
ENTER
MOVE
EXIT
Press Cursor
button to move to ‘TV
DISPLAY’ and then
press ENTER button.
4
ENTER
• You can enjoy the widescreen aspect.
EXIT
Press Cursor ,
button to select the
desired item and then
press ENTER button.
• Once the setup is complete, you will
4:3LB
(4:3 Letterbox)
4:3PS
(4:3 Pan&Scan)
EXIT
MOVE
SELECT
RETURN
EXIT
SETUP
RETURN
: Select this to play a 16:9 picture in the pan & scan
mode on a conventional TV.
• You can see the central portion of the screen only (with the
sides of the 16:9 picture cut off).
Note
ENTER
: Select this to play a 16:9 picture in the letter box
mode on a conventional TV.
• Black bars will appear at the top and bottom of the screen.
be taken to the previous screen.
MOVE
: Select this to view a 16:9 picture in the full-screen
mode on your widescreen TV.
• If a DVD is in the 4:3 ratio, you cannot view it in widescreen.
• Since DVD discs are recorded in various image formats, they will look different depending on
the software, the type of TV, and the TV aspect ratio setting.
Press RETURN button to return to the previous level.
Press MENU button to exit the setup screen.
41
42
Q40(39~72)_XAC_ENG
3/15/06 13:1912:0
Page 46
Setting Parental Controls (Rating Level)
Use this to restrict playback of adult or violent DVDs you do not want children to view.
1
In Stop mode,
press MENU
button.
2
Setting the Password
You can set the password for the Parental (rating level) setting.
Press Cursor
button to move to
‘Setup’ and then
press ENTER button.
1
Press MENU button.
MOVE
MOVE
3
4
Press Cursor , button
to select the desired rating
level and then press
ENTER button.
• If you have selected Level 6, you
•
MOVE
EXIT
cannot view DVDs with Level 7 or
higher.
The higher the level, the closer the
content is to violent or adult material.
EXIT
ENTER
3
5
Enter the password
and then press
ENTER button.
Press Cursor button to
move to ‘PASSWORD’
and then press ENTER
button.
Note
RETURN
EXIT
MOVE
SELECT
RETURN
EXIT
Press ENTER
button.
EXIT
Enter the password
and then press
ENTER button.
password, and confirm new password.
• The password is set to "7890" by default.
• Once the setup is complete, you will be
taken to the previous screen.
INPUT NUMBER
RETURN
• This function works only if a DVD disc contains the rating level information.
ENTER
RETURN
EXIT
MOVE
SELECT
Press RETURN button to return to the previous level.
Press MENU button to exit the setup screen.
RETURN
EXIT
INPUT NUMBER
RETURN
EXIT
• The password is set to "7890" by default.
EXIT
If you have forgotten the rating level password, do the following:
• While the player is in the no disc mode, hold the main unit's
43
5
ENTER
• The setting is complete.
Note
ENTER
MOVE
EXIT
ENTER
• Enter the old password, a new
MOVE
MOVE
4
2
Press Cursor
button to move to
‘Setup’ and then
press ENTER button.
SETUP
Press Cursor
button to move to
‘PARENTAL’ and then
press ENTER button.
ENTER
ENG
on the display and all settings will return to the default values.
• Press the POWER button.
Using the RESET function will erase all stored settings.
Do not use this unless necessary.
button for longer than 5 seconds. “INITIALIZE” appears
44
Q40(39~72)_XAC_ENG
3/15/06 13:1912:0
Page 48
Setting the Wallpaper
JPEG
DVD
ENG
VCD
While watching a DVD, VCD or JPEG CD, you can set the image you like as background wallpaper.
Setting the Wallpaper
1
During playback, press
PLAY/PAUSE button
when an image you
like appears.
To select one of the 3 wallpaper settings you've made
Press LOGO
button.
2
1
In Stop mode,
press MENU
button.
2
Press Cursor
button to move to
‘Setup’ and then
press ENTER button.
3
Press Cursor
button to move to
‘LOGO’ and then
press ENTER button.
• “COPY LOGO DATA” will be
displayed on the TV screen.
COPY LOGO DATA
PAUSE
MOVE
3
The power will
turn off and then
back on.
4
•
Press to select
the desired ‘USER’,
and then press
ENTER.
5
ENTER
EXIT
MOVE
ENTER
RETURN
EXIT
Press MENU
button to exit the
setup screen.
SETUP
• The selected wallpaper will be
MOVE
EXIT
ENTER
• This selects one of the 3
displayed.
You can select up to 3 wallpaper
settings.
wallpaper screens
MOVE
SELECT
RETURN
EXIT
Press RETURN button to return to the previous level.
MOVE
45
SELECT
RETURN
EXIT
Select this to set the
Samsung Logo image as
your wallpaper.
MOVE
SELECT
RETURN
EXIT
Press MENU button to exit the setup screen.
Select this to set the desired
image as your wallpaper.
46
Q40(39~72)_XAC_ENG
3/15/06 13:1912:0
Page 50
DVD Playback Mode
Setting the Speaker Mode
Some DVD-Audio discs contain DVD-Video as well as DVD-Audio.
To play back the DVD-Video portion of the DVD-Audio disc, set the unit to DVD-Video mode.
1
Press the MENU
button while the
disc tray is open.
MOVE
2
Signal outputs and frequency responses from the speakers will automatically be adjusted according to your
speaker configuration and whether certain speakers are used or not.
Press Cursor
button to move to
‘Setup’ and then
press ENTER button.
MOVE
EXIT
ENTER
1
In Stop mode,
press MENU
button.
3
4
2
Press Cursor ,
button to move to
‘DVD VIDEO’ and then
press ENTER button.
3
EXIT
ENTER
In the Speaker
Setup, press the
ENTER button again.
• Set steps 1 ~ 4 again if you want to
MOVE
4
RETURN
MOVE
EXIT
SELECT
RETURN
is pressed, the mode switches
alternately as follows: SMALL ➝ NONE.
For L and R, the mode is set to SMALL.
EXIT
When Selecting DVD Play Mode:
Note
Press Cursor , ,
, buttons to move
to the desired
speaker and then
press ENTER button.
SETUP
•
ENTER
EXIT
ENTER
• For C, SL, and SR, each time the button
switch to DVD AUDIO Play mode.
MOVE
Press Cursor
button to move to
‘Audio’ and then
press ENTER button.
EXIT
ENTER
MOVE
Press Cursor
button to move to
‘DVD TYPE’ and then
press ENTER button.
ENG
MOVE
ENTER
RETURN
EXIT
MOVE
CHANGE
RETURN
EXIT
• DVD VIDEO : set to play the DVD video
• DVD Play mode is set to DVD Audio as
factory default setting.
• Powering off the main unit will automatically
switch to the DVD Audio mode.
•
contents contained on a
DVD audio disc.
DVD AUDIO : set to play the default
DVD audio.
SMALL : Select this when using the speakers.
NONE : Select this when no speakers are connected.
DivX (R) registration
• Please use the Registration code to register this
player with the DivX (R) video on demand
format. To learn more, go to www.divx.com/vod.
47
MOVE
ENTER
RETURN
EXIT
Note
• Depending on PRO LOGIC and STEREO settings, the speaker mode may vary (see page 57).
48
Q40(39~72)_XAC_ENG
3/15/06 13:1912:0
Page 52
Setting the Delay Time
ENG
If the speakers cannot be placed at equal distances from the listening position, you can adjust the delay time of
the audio signals from the center and rear speakers.
1
In Stop mode,
press MENU
button.
2
Press Cursor button
to move to ‘Audio’ and
then press ENTER
button.
3
Press Cursor button
to move to ‘DELAY
TIME’ and then press
ENTER button.
4
Press Cursor , ,
, buttons to move
to the desired speaker
and then press
ENTER button.
5
Press Cursor ,
to set the Delay
time.
• You can set the delay time for C
between 00 and 05mSEC and for
SL and SR between 00 and
15mSEC.
MOVE
ENTER
EXIT
MOVE
ENTER
EXIT
MOVE
ENTER
RETURN
EXIT
MOVE
SELECT
RETURN
EXIT
MOVE
CHANGE
RETURN
EXIT
SETUP
Setting up the Speaker Delay Time
When 5.1CH Surround Sound is played, you can enjoy the best sound if
the distance between you and each speaker is the same. Since the sounds
arrive at the listening position at different times depending on the
placement of speakers, you can adjust this difference by adding a delay
effect to the sound of the Center and Surround Speakers.
Note
(Dolby Pro Logic II), the delay time may be different for each mode.
• With
• With AC-3 and DTS, the delay time can be set between 00 and 15mSEC.
• The Center channel is only adjustable on 5.1 channel discs.
49
•Setting CENTER SPEAKER
If the distance of Dc is equal to or longer than the
distance of Df in the figure, set the mode as 0ms.
Otherwise, change the setting according to the table.
Distance between Df and Dc
0 inch
13.6 inches
27.2 inches
40.8 inches
4.5 feet
5.6 feet
Delay Time
0 ms
1 ms
2 ms
3 ms
4 ms
5 ms
•Setting REAR (SURROUND) SPEAKERS
If the distance of Df is equal to the distance of Ds
in the figure, set the mode as 0ms. Otherwise,
change the setting according to the table.
Distance between Df and Ds
0 inch
40.8 inches
6.7 feet
10.0 feet
13.4 feet
16.7 feet
Ideal CENTER
SPEAKER placement
Delay Time
0 ms
3 ms
6 ms
9 ms
12 ms
15 ms
Ideal
SURROUND
SPEAKER
placement
It is desirable to place all speakers within this circle.
Df: The distance from FRONT SPEAKER
Dc: The distance from CENTER SPEAKER
Ds: The distance from SURROUND SPEAKER
50
Q40(39~72)_XAC_ENG
3/15/06 13:1912:0
Page 54
Setting the Test Tone
Setting the DRC (Dynamic Range Compression)
Use the Test Tone feature to check the speaker connections.
1
In Stop or no
disc mode,
press MENU
button.
2
ENG
This feature balances the range between the loudest and quietist sounds.
You can use this function to enjoy Dolby Digital sound when watching movies at low volume at night.
Press Cursor
button to move to
‘Audio’ and then
press ENTER button.
3
Press Cursor button
to move to ‘TEST
TONE’ and then press
ENTER button.
1
In Stop or no disc
mode, press
MENU button.
2
• The test tone will be sent to L ➝ C ➝
Press Cursor
button to move to
‘Audio’ and then
press ENTER
button.
R ➝ SR ➝ SL ➝ SW in order.
If the ENTER button is pressed again
at this time, the test tone will stop.
MOVE
ENTER
EXIT
MOVE
ENTER
EXIT
MOVE
MOVE
ENTER
RETURN
3
Press RETURN button to return to the previous level.
STOP
ENTER
MOVE
EXIT
ENTER
EXIT
EXIT
EXIT
4
Press Cursor
, to adjust
the ‘DRC’.
• When the Cursor
button is pressed,
the effect is greater, and when the
Cursor button is pressed, the effect is
smaller.
Alternate method: press the TEST TONE button on the remote.
Press TEST TONE button.
• Test tone will be produced as follows:
When playing a DVD or CD, this will work only in Stop mode.
• Use this function to check that each speaker is correctly
L: Front Speaker (L)
R: Front Speaker (R)
C: Center Speaker
SL: Rear Speaker (L)
SW: Subwoofer
SR: Rear Speaker (R)
Multi-Channel Pro Logic Mode
MOVE
ENTER
RETURN
EXIT
CHANGE
RETURN
EXIT
connected and that there is no problem.
To end the test tone,
press TEST TONE button again.
Start
Press RETURN button to return to the previous level.
Press MENU button to exit the setup screen.
51
52
SETUP
Press MENU button to exit the setup screen.
Press Cursor
button to move to
‘DRC’ and then
press ENTER
button.
Q40(39~72)_XAC_ENG
3/15/06 13:1912:0
Page 56
Setting the Audio
ENG
You can adjust the balance and level for each speaker.
Method 1
1
In Stop mode,
press MENU
button.
MOVE
3
When adjusting the audio quality using the setup screen
ENTER
RETURN
EXIT
4
ENTER
CHANGE
Adjusting Front Speaker Balance
1
Press SOUND
EDIT button and
then press Cursor
, .
Adjusting Rear Speaker Balance
2
Press SOUND
EDIT button and
then press Cursor
, .
Adjusting Center Speaker Level
3
Press SOUND
EDIT button and
then press Cursor
, .
EXIT
Press Cursor ,
buttons to select and
adjust the desired item.
Press the , buttons
to adjust the settings.
MOVE
When manually adjusting with the SOUND EDIT button
RETURN
Adjusting Rear Speaker Level
4
Press SOUND
EDIT button and
then press Cursor
, .
Adjusting Subwoofer Speaker Level
5
Press SOUND
EDIT button and
then press Cursor
, .
SETUP
ENTER
MOVE
EXIT
Press Cursor button
to move to ‘SOUND
EDIT’ and then press
ENTER button.
MOVE
2
Press Cursor
button to move to
‘Audio’ and then press
ENTER button.
Method 2
EXIT
Note
Press RETURN button to return to the previous level.
Press MENU button to exit the setup screen.
53
Adjusting Front/Rear Speaker Balance
• You can select between 00 and –06 and OFF.
• The volume decreases as you move closer to –6.
Adjusting Center/Rear/Subwoofer Speaker Level
• The volume level can be adjusted in steps from +6dB to –6dB.
• The sound gets louder as you move closer to +6dB and quieter as you get closer to -6dB.
54
Q40(39~72)_XAC_ENG
3/15/06 13:1912:0
Page 58
AV SYNC Setup
Sound Field (DSP)/EQ Function
Video may look slower than the audio if it is connected to a digital TV.
If this occurs, adjust the audio delay time to to match the video.
1
Press the MENU button.
2
DSP(Digital Signal Processor) DSP modes have been designed to simulate different acoustic environments.
EQ: You can select ROCK, POP, or CLASSIC to optimize the sound for the genre of music you are playing
Press Cursor , buttons
to move to ‘Audio’ and then
press ENTER button.
3
ENTER
Press DSP/EQ button.
• "DSP" appears on the display panel.
• Each time the button is pressed, the selection changes as follows:
• Setup menu appears.
MOVE
MOVE
EXIT
4
ENTER
EXIT
Press Cursor
, buttons
to select the AV-SYNC Delay
Time and then press the
ENTER button.
SETUP
Press Cursor ,
buttons
to move to ‘AV-SYNC’ and
then press ENTER button.
• You can set the audio delay time between 0 ms
and 300 ms. Set it to the optimal status.
Note
• DSP/EQ function is only available in STEREO mode.
Press the
PL II mode button to show STEREO on the display.
• This feature works with CDs, MP3-CDs, 2 channel DVD-Audio,
DivX and Dolby Digital discs.
MOVE
ENTER
RETURN
EXIT
MOVE
SELECT
RETURN
EXIT
• When playing a DVD disc encoded with two or more channels,
multi-channel mode will be selected automatically and DSP/EQ
function does not work.
Press RETURN button to return to the previous level.
Press MENU button to exit the setup screen.
55
ENG
POP, JAZZ, ROCK: Depending on the genre of music, you can select POP, JAZZ, and ROCK.
STUDIO : Provides a sense of presence as if in a studio.
CLUB : Simulates the sound of a dance club with a throbbing bass beat.
HALL : Provides a clear vocal as if listening in a concert hall.
MOVIE: Provides the feeling of a movie theater.
CHURCH: Gives the feel of being in a grand church.
PASS: Select this for normal listening.
56
Q40(39~72)_XAC_ENG
3/15/06 13:1912:0
Page 60
Dolby Pro Logic II Mode
You can select the desired Dolby Pro Logic II audio mode.
Press
PL II MODE button.
• Each time the button is pressed, the mode changes as follows.
Dolby Pro Logic II Effect
ENG
This function works only in Dolby Pro Logic MUSIC mode.
1
Press
PL II MODE
button to select ‘MUSIC’
mode.
2
Press
PL II EFFECT button
to select Panorama, then press
Cursor , buttons to select
the desired effect setting.
• You can select either 0 or 1.
• This mode extends the front stereo image to
include the surround speakers for an exciting
"wraparound" effect with side wall imaging.
3
Press
PL II EFFECT button
to select C-Width, then press
Cursor , buttons to select
the desired effect setting.
• You can select between 0 and 7.
• This sets the width of the center image.
4
Note
• When selecting Pro Logic II mode, connect your external device to the
AUDIO INPUT jacks (L and R) on the player. If you connect to only one of
the inputs (L or R), you cannot listen to surround sound.
Note
• You can select between 0 and 6.
• Incrementally adjusts the sound field (DSP)from
the front or rear.
SETUP
The higher the setting, the less sound comes from
the center speaker.
Press
PL II EFFECT button
to select Dimension, then press
the Cursor , buttons to
select the desired setting.
• When playing a DVD disc encoded with two or more channels, multi-channel mode will be
selected automatically and
(Dolby Pro Logic II) button does not work.
PRO LOGIC II
• MUSIC: When listening to music, you can experience sound effects as if you are listening to the actual performance.
• CINEMA: Adds realism to the movie soundtrack.
• PRO LOGIC: You will experience a realistic multi-channel effect, as if using five speakers, while using just the front left
and right speakers.
MATRIX:
You
will hear 5.1 channel surround sound.
•
STEREO: Select this to listen to sound from the front left and right speakers and the subwoofer only.
57
58
Q40(39~72)_XAC_ENG
3/15/06 13:1912:0
Page 62
Listening to Radio
Remote Control Unit
Press the TUNER
button to select the
FM band.
1
Presetting Stations
ENG
Example: Presetting FM 89.1 in the memory
2
Tune in to the
desired station.
Automatic Tuning 1
Automatic Tuning 2
Manual Tuning
1
Press to TUNER
button and select the
FM band.
When
is pressed, a
preset broadcast station is
selected.
Press and hold TUNING/CH to
automatically search for active
broadcasting stations.
2
Press TUNING/CH
to select "89.10".
3
• Refer to Step 2 on page 59
Press the TUNER
MEMORY button.
• “PRGM” flashes in the display.
to
automatically or manually tune in
to a station.
• Each time the button
the band switches be
"FM".
Briefly press TUNING/CH to
increase or decrease the
frequency incrementally.
Main Unit
1
Press the
FUNCTION button to
select the FM band.
2
Select a broadcast
station.
Press the STOP ( )
button to select
PRESET and then press
button to select the preset station.
Automatic Tuning 1
Press
to select preset
number.
4
• You can select between 1 and
15 presels.
5
Press the TUNER
MEMORY button
again.
6
To preset another
station, repeat
steps 2 to 5.
• Press the TUNER MEMORY button before
‘PRGM’ disappears from the display.
• ‘PRGM’ disappears from the display and
the station is stored in memory.
Press STOP ( ) to select
MANUAL and then briefly
press
to tune in to a lower or
higher frequency.
RADIO OPERATION
the STOP ( )
Automatic Tuning 2 Press
button to select "MANUAL"
and then press and hold
button to automatically search the band.
Manual Tuning
Press MO/ST button to listen in Mono/Stereo.
(This applies only when listening to an FM station.)
59
• Each time the button is pressed, the sound switches between "STEREO" and "MONO".
• In a poor reception area, select MONO for a clear, interference-free broadcast.
Note
• This unit does not receive
AM broadcasts.
To tune in to a preset station, press
remote control to select a channel.
on the
60
Q40(39~72)_XAC_ENG
3/15/06 13:1912:0
Page 64
Convenient Functions
Sleep Timer Function
You can set the time that the Home Theater will shut itself off.
Press SLEEP button.
• "SLEEP" will be displayed. Each time the button is pressed, the preset
time changes as follows: 10 ➝ 20 ➝ 30 ➝ 60 ➝ 90 ➝ 120 ➝ 150 ➝ OFF.
ENG
Mute Function
This is useful when answering a doorbell or telephone call.
Press MUTE button.
• ‘MUTE ON’ appears in the display.
• To restore the sound, press the button again to
select ‘MUTE OFF’.
To confirm the sleep timer setting, press SLEEP button.
•The remaining time before the Home Theater will shut itself off is displayed.
•Pressing the button again changes the sleep time from what you have set earlier.
To cancel the sleep timer, press SLEEP button until
OFF appears on the display.
Using Headphones
Use headphones (not supplied) for private listening pleasure.
Connect the headphones to the PHONES jack for private listening.
Adjusting Display Brightness
You can adjust the brightness of the display on the main unit so it won't interfere
with your movie viewing.
Press DIMMER button.
DARK ➞ BRIGHT.
MISCELLANEOUS
• Each time the button is pressed, the brightness changes as follows:
Caution
• To prevent hearing damage, do not increase the
volume excessively when using headphones.
61
62
Q40(39~72)_XAC_ENG
3/15/06 13:1912:0
Page 66
Operating a TV with the Remote Control
ENG
TV Brand Code List
When operating a TV with the remote control
1
2
3
4
5
Press TV button to select TV mode.
Brand
Code
No.
Brand
1
Admiral (M.Wards)
056, 057, 058
44
MTC
018
2
A Mark
001, 015
45
NEC
018, 019, 020, 040, 059, 060
3
Anam
001, 002, 003, 004, 005, 006, 007, 008, 009, 010,
46
Nikei
003
011, 012, 013, 014
47
Onking
003
Code
4
AOC
001, 018, 040, 148
48
Onwa
003
5
Bell & Howell (M.Wards)
057, 058, 081
49
Panasonic
006, 007, 008, 009, 054, 066, 067, 073, 074
6
Brocsonic
059, 060
50
Penney
018
7
Candle
018
51
Philco
003, 015, 017, 018, 048, 054, 059, 062, 069, 090
8
Cetronic
003
52
Philips
015, 017, 018, 040, 048, 054, 062, 072
9
Citizen
003, 018, 025
53
Pioneer
063, 066, 080, 091
10
Cinema
097
54
Portland
015, 018, 059
11
Classic
003
55
Proton
040
12
Concerto
018
56
Quasar
006, 066, 067
13
Contec
046
57
Radio Shack
017, 048, 056, 060, 061, 075
14
Coronado
015
58
RCA/Proscan
018, 059, 067, 076, 077, 078, 092, 093, 094
15
Craig
003, 005, 061, 082, 083, 084
59
Realistic
003, 019
16
Croslex
062
60
Sampo
040
17
Crown
003
61
Samsung
000, 015, 016, 017, 040, 043, 046, 047, 048, 049,
18
Curtis Mates
059, 061, 063
19
CXC
003
62
Sanyo
019, 061, 065
20
Daewoo
002, 003, 004, 015, 016, 017, 018, 019, 020, 021, 022, 023, 024,
63
Scott
003, 040, 060, 061
025, 026, 028, 029, 030, 032, 034, 035, 036, 048, 059, 090
64
Sears
015, 018, 019
21
Daytron
040
65
Sharp
015, 057, 064
22
Dynasty
003
66
Signature 2000 (M.Wards)
057, 058
23
Emerson
003, 015, 040, 046, 059, 061, 064, 082, 083, 084, 085
67
Sony
050, 051, 052, 053, 055
• If the code matches the TV's code, the TV will be turned off.
• If there is more than one code listed for your TV in the table,
24
Fisher
019, 065
68
Soundesign
003, 040
25
Funai
003
69
Spectricon
001
enter one at a time to determine which code works.
Example: For a Samsung TV
While holding down POWER, use the number buttons to enter 000,
015, 016, 017 and 040.
26
Futuretech
003
70
SSS
018
27
General Electric (GE)
006, 040, 056, 059, 066, 067, 068
71
Sylvania
018, 040, 048, 054, 059, 060, 062
28
Hall Mark
040
72
Symphonic
061, 095, 096
29
Hitachi
015, 018, 050, 059, 069
73
Tatung
006
30
Inkel
045
74
Techwood
018
31
JC Penny
056, 059, 067, 086
75
Teknika
003, 015, 018, 025
Press POWER button to turn on the TV.
Point the remote control toward the TV.
While holding down POWER, enter the code
corresponding to your brand of TV.
059, 060, 098
32
JVC
070
76
TMK
018, 040
33
KTV
059, 061, 087, 088
77
Toshiba
019, 057, 063, 071
34
KEC
003, 015, 040
78
Vidtech
018
35
KMC
015
79
Videch
059, 060, 069
36
LG (Goldstar)
001, 015, 016, 017, 037, 038, 039, 040, 041, 042, 043, 044
80
Wards
015, 017, 018, 040, 048, 054, 060, 064
• You can use the TV POWER, VOLUME, CHANNEL, and Numeric
37
38
Luxman
018
81
Yamaha
018
LXI (Sears)
019, 054, 056, 059, 060, 062, 063, 065, 071
82
York
040
39
Magnavox
015, 017, 018, 048, 054, 059, 060, 062, 072, 089
83
Yupiteru
003
40
Marantz
040, 054
84
Zenith
058, 079
41
Matsui
054
85
Zonda
001
42
MGA
018, 040
86
Dongyang
003, 054
43
Mitsubishi/MGA
018, 040, 059, 060, 075
Note
• The remote control may not work on some brands of TVs. Also, some operations may not be
possible depending on your brand of TV.
• If you do not set the remote control with the code for your brand of TV, the remote control will
work on a Samsung TV by default.
MISCELLANEOUS
Point the remote control toward the TV and
press POWER. If the TV turns off or on,
the setting is complete.
buttons (0~9).
63
No.
64
Q40(39~72)_XAC_ENG
3/15/06 13:1912:0
Page 68
Before Calling for Service
ENG
Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below or
if the instruction below does not help, turn off the unit, disconnect the power cord, and contact the nearest authorized dealer
or Samsung Electronics Service Center.
Symptom
Disc tray does not open.
Playback does not start.
Check/Remedy
• Is the power cord plugged securely into the outlet?
• Turn off the power and then turn it back on.
• Check the region number of the DVD.
DVD discs purchased from abroad may not be playable.
Sound is not produced.
Theater.
Make sure that the rating level is correct.
• Are you using a deformed disc or a disc with scratches on
•
the surface?
Wipe the disc clean.
• No sound is heard during fast playback, slow playback, and step
motion playback.
• Are the speakers connected properly? Is the speaker setup
•
Sound can be heard only
from a few speakers and
not all six.
Picture does not appear, sound
is not produced, or the disc
tray opens 2 to 5 seconds later.
65
correctly customized?
Is the disc severely damaged?
• When listening to a CD or radio, sound is output to the front
•
•
speakers (L/R) only. Select "PRO LOGIC II" by pressing
(Dolby Pro Logic II) on the remote control to use all six speakers.
Make sure that the DVD disc is 5.1-CH compatible.
If you set C, SL, and SR to NONE in the speaker mode in the
audio setup of the setup screen, no sound is heard from the
center speaker and the front left and right speakers. Set C, SL,
and SR to SMALL.
• Was the Home Theater suddenly moved from a cold place to a
warm one? When condensation forms inside the player, remove the
disc and let the player stand for 1 or 2 hours with the power on.
(You can use the player again after condensation disappears.)
• Is there "Dolby Digital 5.1 CH" mark on the disc? Dolby Digital 5.1
•
CH Surround Sound is produced only if the disc is recorded with
5.1 channel sound.
Is the audio language correctly set to DOLBY DIGITAL 5.1-CH in
the information display?
Check/Remedy
• Is the TV power on?
• Are the video cables connected properly?
• Is the disc dirty or damaged?
• A poorly manufactured disc may not be playable.
• Is the remote control being operated within its operation range of
The remote control does not angle and distance?
• Are the batteries exhausted?
work.
• Have you selected the mode(TV/DVD) functions of the remote
control (TV or DVD) correctly?
Audio language and
subtitles do not work.
• Audio language and subtitles will not work for DVDs not containing
Menu screen does not appear even
when the menu function is selected.
• Are you using a disc that does not contain menus?
Aspect ratio cannot be
changed.
•The main unit is not working.
(Example: The power goes out or
strange noise is heard.)
• The Home Theater is not
working normally.
them. And depending on the disc, they may work differently.
• You can play 16:9 DVDs in 16:9 WIDE mode, 4:3 LETTER BOX
mode, or 4:3 PAN SCAN mode, but 4:3 DVDs can be seen in 4:3
ratio only. Refer to the DVD disc jacket and then select the
appropriate function.
• Turn off the power and hold the
button on the main unit for
longer than 5 seconds.
Using the RESET function will erase all stored settings.
Do not use this unless necessary.
• While “NO DISC” message appears on the display of main unit, hold
The password for rating
level has been forgotten.
the main unit's
button for longer than 5 seconds. “INITIALIZE”
appears on the display and all settings will return to the default values.
• Press the POWER button.
Using the RESET function will erase all stored settings.
Do not use this unless necessary.
Can't receive radio
broadcast.
• Is the antenna connected properly?
• If the antenna's input signal is weak, install an external FM
antenna in an area with good reception.
66
MISCELLANEOUS
Dolby Digital 5.1 CH
Surround Sound is not
produced.
• Disc is rotating but no
picture is produced.
• Picture quality is poor and
picture is shaking.
• CD-ROMs and DVD-ROMs cannot be played on this Home
•
Playback does not start
immediately when the
Play/Pause button is
Symptom
Q40(39~72)_XAC_ENG
3/15/06 13:1912:0
Page 70
Cautions on Handling and Storing Discs
Small scratches on the disc may reduce sound and picture quality or cause skipping.
Be especially careful not to scratch discs when handling them.
Handling discs
Do not touch the playback side of the disc. Hold
the disc by the edges so that fingerprints will not
get on the surface.
Do not stick paper or tape on the disc.
Disc Storage
Keep in a cool
ventilated area
Do not keep in
direct sunlight
Caution
Keep in a clean
Protection jacket.
Store vertically.
• Do not allow the discs to become contaminated with dirt.
• Do not load cracked or scratched discs.
Handling and Storing Discs
When you get fingerprints or dirt on the disc, clean it
with a mild detergent diluted in water and wipe with a
soft cloth.
• When cleaning, wipe gently from the inside to the outside of the disc.
• Condensation may form if warm air comes into contact with cold parts
ENG
Enter the appropriate code number for the initial settings “Disc Audio”, “Disc Subtitle”
and/or “Disc Menu” (See page 39).
Code
Language
Code
Language
Code
Language
Code
Language
1027
Afar
1181
Frisian
1334
Latvian, Lettish
1506
Slovenian
1028
Abkhazian
1183
Irish
1345
Malagasy
1507
Samoan
1032
Afrikaans
1186
Scots Gaelic
1347
Maori
1508
Shona
1039
Amharic
1194
Galician
1349
Macedonian
1509
Somali
1044
Arabic
1196
Guarani
1350
Malayalam
1511
Albanian
1045
Assamese
1203
Gujarati
1352
Mongolian
1512
Serbian
1051
Aymara
1209
Hausa
1353
Moldavian
1513
Siswati
1052
Azerbaijani
1217
Hindi
1356
Marathi
1514
Sesotho
1053
Bashkir
1226
Croatian
1357
Malay
1515
Sundanese
1057
Byelorussian
1229
Hungarian
1358
Maltese
1516
Swedish
1059
Bulgarian
1233
Armenian
1363
Burmese
1517
Swahili
1060
Bihari
1235
Interlingua
1365
Nauru
1521
Tamil
1069
Bislama
1239
Interlingue
1369
Nepali
1525
Tegulu
1066
Bengali; Bangla
1245
Inupiak
1376
Dutch
1527
Tajik
1067
Tibetan
1248
Indonesian
1379
Norwegian
1528
Thai
1070
Breton
1253
Icelandic
1393
Occitan
1529
Tigrinya
1079
Catalan
1254
Italian
1403
(Afan) Oromo
1531
Turkmen
1093
Corsican
1257
Hebrew
1408
Oriya
1532
Tagalog
1097
Czech
1261
Japanese
1417
Punjabi
1534
Setswana
1103
Welsh
1269
Yiddish
1428
Polish
1535
Tonga
1105
Danish
1283
Javanese
1435
Pashto, Pushto
1538
Turkish
1109
German
1287
Georgian
1436
Portuguese
1539
Tsonga
1130
Bhutani
1297
Kazakh
1463
Quechua
1540
Tatar
1142
Greek
1298
Greenlandic
1481
Rhaeto-Romance
1543
Twi
1144
English
1299
Cambodian
1482
Kirundi
1557
Ukrainian
1145
Esperanto
1300
Kannada
1483
Romanian
1564
Urdu
1149
Spanish
1301
Korean
1489
Russian
1572
Uzbek
1150
Estonian
1305
Kashmiri
1491
Kinyarwanda
1581
Vietnamese
1151
Basque
1307
Kurdish
1495
Sanskrit
1587
Volapuk
1157
Persian
1311
Kirghiz
1498
Sindhi
1613
Wolof
1165
Finnish
1313
Latin
1501
Sangro
1632
Xhosa
1166
Fiji
1326
Lingala
1502
Serbo-Croatian
1665
Yoruba
1171
Faeroese
1327
Laothian
1503
Singhalese
1684
Chinese
1174
French
1332
Lithuanian
1505
Slovak
1697
Zulu
inside the player. When condensation forms inside the player, the player
may not operate correctly. If this occurs, remove the disc and let the
player stand for 1 or 2 hours with the power on.
67
68
MISCELLANEOUS
Note
Language Code List
Q40(39~72)_XAC_ENG
3/15/06 13:1912:0
Page 72
USB Host Feature Supported Products
Digital Camera
Product
Finepix-A340
Finepix-F810
Finepix-F610
Finepix-f450
Finepix S7000
Finepix A310
KD-310Z
Finecam SL300R
Finecam SL400R
Finecam S5R
Finecam Xt
Dimage-Z1
Dimage Z1
Dimage X21
Coolpix4200
Coolpix4300
Coolpix 2200
Coolpix 3500
Coolpix 3700
Coolpix 4100
Coolpix 5200
Stylus 410 digital
300-digital
U300
X-350
C-760
C-5060
X1
U-mini
Lumix-FZ20
DMC-FX7GD
Lumix LC33
LUMIX DMC-F1
Optio-S40
Optio-S50
Optio 33LF
Optio MX
Digimax-420
Digimax-400
Sora PDR-T30
Coolpix 5900
Coolpix S1
Coolpix 7600
DMC-FX7
Dimage Xt
AZ-1
USB Flash Disk
Company
Type
Fuji
Fuji
Fuji
Fuji
Fuji
Fuji
Konica
Kyocera
Kyocera
Kyocera
Kyocera
Minolta
Minolta
Minolta
Nikon
Nikon
Nikon
Nikon
Nikon
Nikon
Nikon
Olympus
Olympus
Olympus
Olympus
Olympus
Olympus
Olympus
Olympus
Panasonic
Panasonic
Panasonic
Panasonic
Pentax
Pentax
Pentax
Pentax
Samsung
Samsung
Toshiba
Nikon
Nikon
Nikon
Panasonic
Minolta
Olympus
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Product
Cruzer Micro
Cruzer Mini
Cruzer Mini
SONY Micro Vault
FLEX DRIVE
AnyDrive
XTICK
Micro Mini
iFlash
LG
RiDATA
Company
Type
Sandisk
Sandisk
Sandisk
Sony
Serotech
A.L tech
LG
Iomega
Imation
XTICK(M)
EZDrive
USB 2.0 USB Flash Drive 128M
USB 2.0 128M
USB 2.0 256M
USB 2.0 64MB
USB 2.0 32MB
USB 2.0 128MB
USB 2.0 128M
USB 2.0 128M
USB 2.0 64M
USB 2.0 64M
USB 2.0 64M
MP3 Player
Product
Company
Type
Creative MuVo NX128M
Iriver H320
YH-920
YP-T7
YP-MT6
YP-T6
YP-53
YP-ST5
YP-T5
YP-60
YP-780
YP-35
YP-55
iAUDIO U2
iAUDIO G3
iAudio M3
SI-M500L
H10
YP-T5 VB
YP-53
Creative
Iriver
Samsung
Samsung
Samsung
Samsung
Samsung
Samsung
Samsung
Samsung
Samsung
Samsung
Samsung
Cowon
Cowon
Cowon
Sharp
Iriver
Samsung
Samsung
128 MB MP3 Player
20G HDD MP3 Player
20G HDD MP3 Player
MP3 Player
MP3 Player
MP3 Player
MP3 Player
MP3 Player
MP3 Player
MP3 Player
MP3 Player
MP3 Player
MP3 Player
MP3 Player
MP3 Player
HDD MP3 Player
256MB MP3 Player
MP3 Player
MP3 Player
256MB MP3 Player
Multi Card Reader
Product
UNICORN
USB 2.0 Card Reader
Company
Specifications
G
E
N
E
R
A
L
T
F U
N
M E
V
I
D
E
O
R
O
U
T
P
U
T
A
M
P
L
I
F
I
E
R
Power Consumption
Weight
Dimensions (W x H x D)
Operating Temperature Range
Operating Humidity Range
Usable Sensitivity
S/N Ratio
Distortion
Composite Video
Component Video
Front speaker output
Center speaker output
Rear speaker output
Subwoofer speaker output
Frequency range
S/N Ratio
Channel separation
Input sensitivity
Speaker system
S
P
E
A
K
E
R
Impedance
Frequency range
Output sound pressure level
Rated input
Maximum input
Dimensions (W x H x D)
Weights
Type
ENG
110W
11Ibs
17 x 3 x 17.1 inches
41°F ~ 95°F
10% ~ 75%
10dB
60dB
1%
1.0Vp-p(75Ω load)
Y:1.0Vp-p(75Ω load)
Pr:0.70Vp-p(75Ω load)
Pb:0.70Vp-p(75Ω load)
133W x 2(3Ω)
133W(3Ω)
133W x 2(3Ω)
135W(3Ω)
20Hz~20KHz
70dB
60dB
(AUX)400mV
5.1ch speaker system
Front/Center/Rear speaker
Subwoofer speaker
3Ω x 5
3Ω
145Hz~20KHz
35Hz~140Hz
85dB/W/M
85dB/W/M
133W
135W
266W
270W
Front/Rear
Center
Front/Rear
Center
3.5 x 5.9 x 3.5 inches
7.9 x 3.5 x 3.6 inches
1.3 Ibs/1.1 Ibs
1.4 Ibs
6.9 x 12.6 x 15 inches
11.3 Ibs
Unicorn
USB 2.0 7 IN 1 CARD READER UC-601R
Billionton(Taiwan) USB 2.0 Card Reader for SD/MMC/RS-MMC(3-in-1)
MISCELLANEOUS
USB External HDD
Product
CUTIE
MOMOBAY UX-2
69
Company
Type
Serotech
Dvico
POCKET HARD DISK DRIVE
USB 2.0
70
Q40(39~72)_XAC_ENG
3/15/06 13:1912:0
Page 74
Memo
Samsung Limited Warranty
Samsung Electronics Canada Inc. (SECA), warrants that this product is
free from defective material and workmanship.
SECA further warrants that if this product fails to operate properly within the
specified warranty period and the failure is due to improper workmanship or
defective material SECA will repair or replace the product at its option.
All warranty repairs must be performed by a SECA authorized service
centre. (The name and address of the location nearest you can be obtained by
calling toll free 1-800-726-7864 or visiting our web site at
www.samsung.ca)
Labour
one (1) year (carry-in)
Parts
one (1) year
On carry-in models, transportation to and from the service centre is the
customer’s responsibility.
The original dated sales receipt must be retained by the customer and is the
only acceptable proof of purchase. It must be presented to the authorized
service centre at the time service is requested.
Exclusions
This warranty does not cover damage due to accident, fire flood and/or other
acts of God; misuse, incorrect line voltage, improper installation, improper or
unauthorized repairs, commercial use, or damage that occurs in shipping.
Exterior and interior finish, lamps and glass are not covered under this
warranty. Customer adjustments which are explained in the instruction
manual are not covered under the terms of this warranty.
This warranty will automatically be voided for any unit found with a
missing or altered serial number. This warranty is valid only on products
purchased and used in Canada.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
