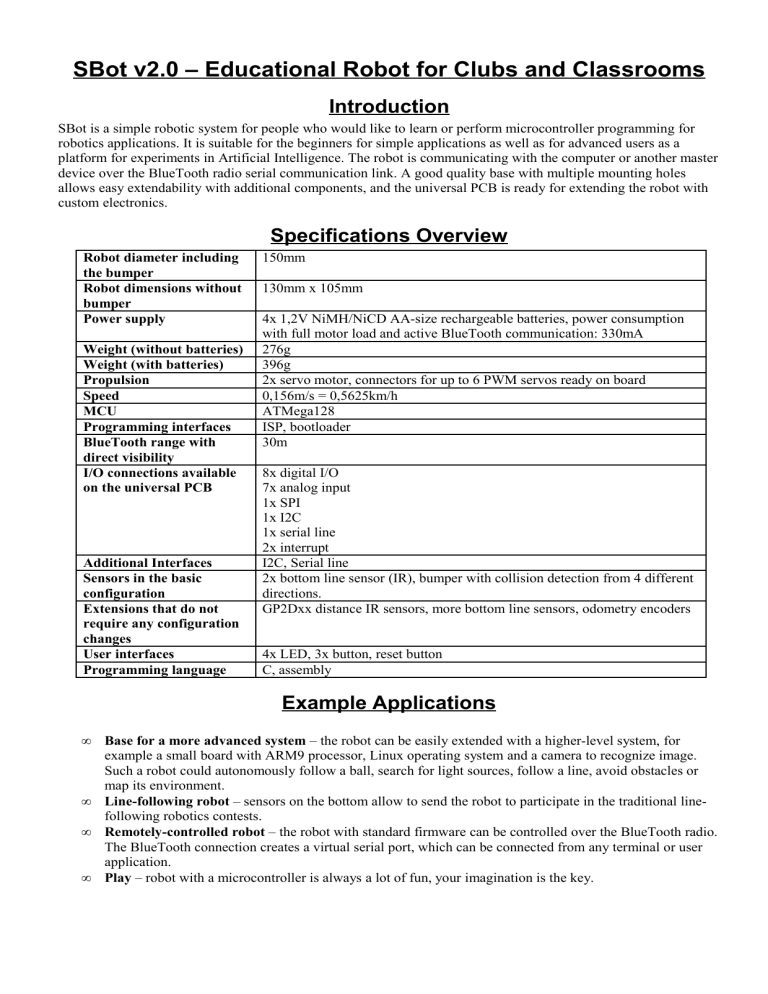

SBot is a simple robotic system for people who would like to learn or perform microcontroller programming for robotics applications. It is suitable for the beginners for simple applications as well as for advanced users as a platform for experiments in Artificial Intelligence. The robot is communicating with the computer or another master device over the BlueTooth radio serial communication link. A good quality base with multiple mounting holes allows easy extendability with additional components, and the universal PCB is ready for extending the robot with custom electronics.

Specifications Overview

Robot diameter including the bumper

Robot dimensions without bumper

150mm

130mm x 105mm

Power supply

4x 1,2V NiMH/NiCD AA-size rechargeable batteries, power consumption with full motor load and active BlueTooth communication: 330mA

Weight (without batteries)

276g

Weight (with batteries)

396g

Propulsion

Speed

2x servo motor, connectors for up to 6 PWM servos ready on board

0,156m/s = 0,5625km/h

MCU

Programming interfaces

BlueTooth range with direct visibility

I/O connections available on the universal PCB

ATMega128

ISP, bootloader

30m

Additional Interfaces

Sensors in the basic configuration

Extensions that do not require any configuration changes

User interfaces

Programming language

8x digital I/O

7x analog input

1x SPI

1x I2C

1x serial line

2x interrupt

I2C, Serial line

2x bottom line sensor (IR), bumper with collision detection from 4 different directions.

GP2Dxx distance IR sensors, more bottom line sensors, odometry encoders

4x LED, 3x button, reset button

C, assembly

Example Applications

Base for a more advanced system

– the robot can be easily extended with a higher-level system, for example a small board with ARM9 processor, Linux operating system and a camera to recognize image.

Such a robot could autonomously follow a ball, search for light sources, follow a line, avoid obstacles or map its environment.

Line-following robot

– sensors on the bottom allow to send the robot to participate in the traditional linefollowing robotics contests.

Remotely-controlled robot

– the robot with standard firmware can be controlled over the BlueTooth radio.

The BlueTooth connection creates a virtual serial port, which can be connected from any terminal or user application.

Play

– robot with a microcontroller is always a lot of fun, your imagination is the key.

Getting Started

Before using your robot, make sure that it is working correctly. Follow the following startup procedure:

1. Make sure the robot is OFF – the main switch is in the off position.

2. Insert charged NiMH batteries (note: do not use non-rechargeables as they have different voltage!) into the bottom battery holder. The robot has a protection against incorrect polarity, but it won't start if you insert batteries in a wrong direction.

3. When the batteries are properly inserted, you can turn the main switch to the ON position.

4. Robot will start – a correct startup will be indicated by the four LED on the side of the board flashing in a sequence for a short period. During the operation, the bottom LEDs in the front flash shortly after a regular time interval.

5. The robot is now ready to be connected from the computer. Its flash memory contains standard firmware that was loaded when the robot was produced. In the future use of your robot, you may want to replace this firmware with your own control program, or use this standard firmware for simple navigational remote control applications.

6. It is important that you do not hold all three switches pressed when powering the robot board. In such a case, the firmware will reset its BlueTooth module to the default configuration. You should also take care of the jumper, which should be open (otherwise, the bootloader will be started and the robot will expect a new firmware to be downloaded over the BlueTooth virtual serial port).

To connect the robot over the BlueTooth from your computer, make your operating system start searching for the BlueTooth devices. The name of the robot will be SBOTx (x is a number). If the computer asks for the PIN code, enter „1234“. The following figure shows this process in Windows.

Search for BlueTooth devices...

Click the context help balloon to enter the PIN code

After the device is found, click the right mouse button

Select „Pair device“

Enter

1234

Virtual serial port is established, you can doubleclick it to create the connection.

Connected. In this case, the port is COM4

(always notice which port is assigned to your robot).

After connecting the robot, we can verify the functionality of a robot with the standard firmware using the program SbotManager.exe, that you find on the CD. Alternately, you can use any terminal application that can connect to a serial port.

Robot States after Power-Up

State

If SBot has the standard firmware in its flash memory, on power-up, it enters one of the following states.

Description

LEDs on the board are

OFF and bottom LEDs flash occasionally

Normal operation – the robot is expecting remote commands over the BlueTooth. The

LEDs on the board can be controlled using a special command.

LEDs on the board are flashing fast and bottom

LEDs flash occasionally

LEDs on the board are

ON, ON, OFF, ON, and bottom LEDs are ON.

Low power. It is recommended that you turn off the robot immediately, and let your batteries get charged. The robot will operate from about 3.8V, but batteries could be harmed by extreme discharge.

Robot is in a bootloader mode.

Hardware

Board Circuit Schematics

All robot electronics is located on the main board. All devices – sensors, user interfaces, BlueTooth module are connected to the board using flat computer board connectors with standard 0.1” hole distance. The sensors, servo motors, and bumpers also contain electronic circuits.

Main Control Board

Kernel of the robot is formed by the main control board with ATMega128 microcontroller. Complete schematics is shown in

appendix 1

, this section explains the functionality and individual parts.

The board is divided into two parts: control electronics and universal board. The user can solder its own electronic circuits on the universal board – special sensors, LCD display, etc. The connecting holes on the shorter sides contain the power source, the longer side is connected to the individual signals of the microcontroller. The central part is left for the user. The connections are shown in the following layout.

Universal Board

The power sources available at the board are the battery source +5V, which may vary depending on the state of the batteries and the actual power demand, and the stabilized 3,3V that can supply up to 0,4A. The 5V source provides current up to 1A.

The analog inputs 0 – 6 are connected both to the

ADC connector pins and holes of the universal board. Thus each of the inputs can only be used in one of the two locations. The analog inputs recognize voltage from the interval 0 to Vref of the A/D converter, i.e. either the 5V

VCC or internal referential power source of 2,56V.

The digital I/O pins 0-7 represent the PORTC of the microcontroller. Each of these pins can operate in both input and output modes, independent on the direction of the remaining digital pins. Each pin can provide or sink up to

20mA when operating as output. When configured as input,

SPI bus for communication with advanced devices (such as serial memories, D/A converters, etc.) is also available.

Pin SPI CLOCK is shared with the programming interface, i.e. its state is undefined during the microcontroller programming.

internal pull-up resistor (of ca. 20 kOhm) can be enabled or disabled.

Two interrupt pins are available:

Interrupt A

(connected to the pin INT6) and

Interrupt B

(connected to the pin INT7). It is possible to provide an interrupt routine that is invoked each time the raising or falling edge, or level toggle of the signal is detected.

I2C bus that allows connecting to up to 127 devices is available. Both pins have external pull-up resistors of

5,6kOhm, the recommended communication speed is 400kbps.

The serial port is available, RxD pin transmits data to the microcontroller, while TxD pin transmits data from the microcontroller.

These pins are used during the ISP programming! Their state is undefined during the programming, and nothing should be connected to these pins while programming.

All digital I/O operates on standard TTL ( 0/5V ) level, except the I2C bus that is an open-collector. The specialized pins (such as SPI) can be configured as regular digital pins too.

Main Control Board –

Electronics

The schematics of the main control board is in

appendix 1

.

The placement of various devices is shown at the figure on the left. The square pad depicts

PIN1 of the specific connector.

Power connector

should be connected directly with the battery module. The polarity is important. Even though the robot is protected from reversing the polarity, it will work only when connected correctly (the red wire is +, black wire -). The power follows through the main switch and 3A fuse that recovers automatically after few minutes. The power is further connected to all the devices. Note there is no power regulator, it is assumed that the input power is at 5V. The power level can be measured using the A/D converter on channel 7. It is connected through a voltage divider. For measuring the power, the reference voltage of ADC should be switched to the internal 2,56V. More information in the section on ADC below. Pin layout: 1,2: +5V, 3,4: GND.

Servomotor connectors:

Up to six independent servomotors can be connected to the board. The connectors are arranged in two groups of three, each group as a whole can be programmatically disconnected from the power using MOSFETs with GATE connected to PB4 (motors 1-3) and PE2 (motors 4-6). When the

GATE is low, motors are powered, when the GATE is high, power is disconnected from the motors. The software framework has the macros

servo_123_on(); servo_456_on();

and

servo_123_off(); servo_456_off();

The PWM servo control signal is generated using the

Motor Pin

1

2

3

4

5

6

PORTB 5 – OC1A

PORTB 6 – OC1B

PORTB 7 – OC1C

PORTE 3 – OC3A

PORTE 4 – OC3B

PORTE 5 – OC3C

MCU timer hardware features, i.e. the MCU spends no cycles on motor control.

Direction can be controlled using the

set_servo(SERVO_NUMBER,

DIR);

macro, where SERVO_NUMBER is the motor number 1-6, and DIR is one of the predefined constants

SERVO_FW – servo forward, SERVO_BW – servo backward, more information in the section on software framework below. The table on the right shows the PWM servo signals MCU connections. The square pad (always pin 1) is the signal, where the signal servo wire should be connected (usually yellow or orange), black wire is usually ground, connected to the opposite end of the connector. Pin layout: 1: Signal 2: +5V – power , 3: GND

Bootloader Jumper Connector

can be shortcut using a jumper. After the robot is reset, it will enter the bootloader mode, programmable over the BlueTooth. More information on this in section on programming the robot.

4 LEDs

are connected to upper 4 bits of PORTA. Their state can be controlled using the macro

set_leds(LED_STATE)

, where LED_STATE is a bitwise sum of LED values. For instance, LED2 and LED3 will be ON, and other LEDs OFF after the command

set_leds(0x02 | 0x04)

.

Bumper connectors

are connected to lower 4 bits of

PORTA. Internal pull-up resistors are activated inside of the MCU. The state of the bumper can be obtained with

bumper_stat(BUMPER_NUMBER)

, where

BUMPER_NUMBER is in the interval 0-3. More information in the section on macros. The bumpers are locates as shown in the figure on the right. Bumper 0 is connected to PA0. When the bumper is pressed, the digital pin contains value 0.

Buttons

are connected to PD5 – PD7 (buttons 0-

3). Button states are obtainable with macro

button_pressed(BUTTON_NUMBER)

, where

BUTTON_NUMBER is

GP_BUTTON_0

,

GP_BUTTON_1

or

GP_BUTTON_2

. More information in the section on macros. The internal pull-up resistors of MCU should be used.

Analogue sensors connectors

are connected to respective A/D converter pin each. The connector also contains the pins with battery power supply and ground. Pin layout: 1: ADC signal, 2: GND, 3: +5V. The sensors should have the input impedance maximum 10kOhm, otherwise the measurement will be inaccurate. In the software framework, the firmware is continuouslyy scanning the ADC and the last raw sensor reading (0-1023) is always available in the global integer array

adc_vals[]

, where 0 corresponds to 0V on the respective channel and 1023 represents the power supply voltage. The formula for the values in adc_vals array is adc_vals = (U/UVcc)*1023 , where U is is the measured voltage and UVcc is the power supply voltage, or another reference voltage. The ADC can be configured for a stabilized reference power supply using the

adc_select_ref(REF)

macro, where REF is ADC_REF_VCC – to use the power supply voltage, or ADC_REF_256V, to use the internal reference voltage

2,56V. The battery voltage is available in adc_vals[7], and it is measured using the internal ADC_REF_256V. The real voltage of the battery can be computed using the formula

Ubat = [(adc_vals[7]/1023)*2,56V]* 3,127

Serial line connector

is dedicated to communication with external devices over a serial line. It is connected to the MCU's USART 0 serial line. When the ISP programming is used, the RxD and TxD pins of this connector will contain undefined values. Pin layout: 1: +5V (can vary depending on batteries), 2: RxD, input data to MCU, 3:

TxD, output from MCU, 4: GND.

I2C connector

allows connection to one or more I2C compatible devices, such as temperature sensors, D/A converters, or various intelligent devices. The connector provides the power supply for the devices, and pull-up resistors of 5,6kOhm. Pin layout: 1: +5V, 2: SDA – serial data, 3: SCL – serial clock, 4: GND.

ISP programming connector

can be used to upload a new firmware program to MCU. In order to use the ISP programming, a programming cable or device is required. See [6] with examples of ISP programming devices and construction manuals. Suitable programmers include AVR Dragon, or JTAG ICE

MkII of Atmel. Pin layout is shown on the figure right. The programming is described in more detail below in the section on programming the robot.

Remaining Parts of Main Control Board

The main board contains also a BlueTooth module, RESET button, main switch, bottom LEDs for flashing effects and applications, LED that indicates BlueTooth connection and 4 mounting holes.

RESET button

is connected directly to the RESET pin of the MCU. When pressed, the MCU will restart.

In case the bootloader jumper is applied, the MCU will enter the bootloader mode that allows programming without the need to use the ISP interface. More in the section on robot programming below.

Main power switch

disconnects the power from all electronics on the main board.

The two

bottom LEDs

are controlled using the PG1 pin and are ON when the pin contains logical 0. They can be operated with the macros

set_decoleds()

,

clear_decoleds()

and

toggle_decoleds()

. The macro

set_decoleds()

turns them ON,

clear_decoleds()

turns them OFF, and

toggle_decoleds()

negates the current state.

BlueTooth module

is a module of type ESD200 with a built-in antenna. It has a range of approximately

30m. It is powered from the 3.3V regulated supply on the board and its electronics operates at 3.3V logic, thus the inputs are behind a resistor voltage divider. The module supplies a transparent serial line, i.e. all data sent to the serial port are transmitted over to the virtual serial port on the remote master device (such as PC) and vice versa.

When connecting, the module sends status information. This can be easily ignored by reading the connection status pin that is connected on the MCU's PB0. Logical 0 indicates module is connected to a master. The information can be obtained using the macro

bluetooth_connection_established()

, which returns nonzero when the connection has been established. More in the section on macros and firmware. The module is sensitive and therefore it is not recommended to remove it from its socket. It communicates with the MCU on its USART1 serial line, i.e. pins PE0 and PE1. The reset pin of the BlueTooth module is also connected. When logical 0 is supplied, the module will reset to factory defaults.

Use only when you are sure you know what you are doing.

LED indicating connection

is connected on a pin of the BlueTooth module. It is ON when a master device is connected to the BlueTooth module and virtual serial line is established. It is OFF when no device is connected.

Mounting holes:

The board is mounted in the robot chassis using four screws through four holes of diameter 3,5mm. Instead of screws, hex standoffs are mounted so that the robot is easily extensible with a higher system. The distances are 96,5mm and 28mm in width and breadth dimensions.

Line Sensor

For line-following or surface pattern recognition, the robot is equipped with the sensor CNY70. It is suitable for perceiving objects in the proximity of

0 to 5mm. Sensor is installed as a simple electronic board that is easy to mount using a single screw. The board is powered with 5V and the analog output can be directly connected to an ADC of the MCU.

The sensor works as a standard reflecting light-sensor: it consists of a photo transistor and infrared LED.

The more light is reflected from the surface, the more current flows through the emitter and causes voltage drop that can be read through the ADC. The signal usually varies from 1V with white surface to 4.5V with black surface.

The board has a cable connection that can be plugged directly to the main board, the red wire connects to the pin 1.

Pin layout: 1: Output signal, green wire, 2: GND, black wire, 3: +5V – power supply, red wire.

Additional Electronics

In addition to the main board and sensors, the robot contains electronics circuits also inside of the servomotors, and bumpers. It also contains a battery module.

Servomotor

contains a module that receives a digital signal that decides how to drive the motor. The square digital pulse repeats with a fixed frequency. The length of the positive pulse varies and determines the direction of the rotation. The average value of about 1,5ms corresponds to a stopped engine. The motor is connected using a three-wire cable directly to the main board. Usually, the black wire is the GND signal, followed by power supply and signal. Pin layout: 1: Signal, 2: +5V, 3:GND.

Bumper

is mechanically connected with four switches so that the robot can determine in which direction a collision occurred. In case of the collision, the respective switch is pressed.

Batteries

are NiMH rechargeable batteries with the capacity of 2500mAh. When the voltage on a single cell falls below 1.2V, it should be recharged.

Mechanical Construction

The robot body is a standard differential drive with two wheels and one support point. The wheels are mounted directly on the axles of the motors. A single aluminum chassis holds the motors, main board and all the other parts. The wheels wear a rubber layer to achieve a better grip of the surface.

!

0

P

Robot Control over BlueTooth

The robot can be controlled using a supplied program SbotManager.exe, or using a terminal program using an arbitrary terminal program, such as Hyperterminal, or BrayTerminal. When the commands are entered manually, the following protocol is to abide (the protocol can be also deactivated for direct console Input/Output, see wiki.robotika.sk for more information).

Protocol Description

The robot can be controlled using a simple protocol. All commands have the following form:

!0pxxxxCC

Where the meaning of the individual parts is as follows:

Exlamation mark indicates the start of a new packet – the robot will erase its buffer and start receiving a new packet. Each packet must start with an exclamation mark.

Robot number – this number has no special meaning and is used to distinguish between multiple robots.

The name of the robot is SBOT0, SBOT1,..., SBOTA, SBOTZ, where the last character is the robot number (digit or letter). The robot number can be changed using a service command described below.

Default number is 1.

Command that is determined by this single character:

F

Forward – robot will start moving forward. Example:

!1F000056

B

Backward – robot will start moving backward. Example:

!1B000052

L

Left – robot will start rotating left. Example:

!1L00005C

R

Right – robot will start rotating right. Example:

!1R000042

f

Forward for – robot will start moving forward and stop after the time specified in hundreths of second. Example:

!1f01f425

– robot will move forward for 5 seconds.

b

Backward for – robot will start moving back and stop after the time specified in hundreths of second. Example:

!1b00FA75

– robot will move backward for 2.5 seconds.

l

Left for – robot will start rotating left and stop after the time specified in hundreths of second. Example:

!1l03E802

– robot will rotate left for 10 seconds.

r

Right for – robot will start rotating right and stop after the time specified in hundreths of second. Example:

!1r003263

– robot will rotate right for half a second.

S

Stop – robot will stop immediately. Example:

!1S000043 n

Rename the robot. The new name is specified using ASCII value of one character (from

'A' to 'Z', 'a' to 'z' or '0' to '9'). The robot will automatically disconnect from the BlueTooth and reset. It has to be paired as a new device. Example:

!1n004278

– rename SBOT1 to SBOTB

D

Set state of the LEDs. The parameter is a value 0 to 15. Example:

!1D000F22

– will turn ON all the LEDs. Reply packet:

!1O00005F –

is a confirmation of receipt.

A

Is Alive? - the robot replies with a packet with the firmware version.

Example:

!1A000051

Reply packet:

!1A000150

– robot has firmware version 1.

N

Number query – return robot number. This can be sent to all robots (number=*). Same response as to A packet. Example:

!*N000045

– all robots will reply with their number and firmware version.

j

Bumper status. Returns 1 if no collision, or 0 if there is a collision. The reply packet contains the binary value 0-15 with the state of all four bumpers:

value = ( (1 * bumperA) + (2 * bumperB) + (4 * bumperC) + (8 * bumperD))

.

The bumper layout is described in the section on bumper above. Example:

!1j00007a

. This packet replies with the state of the bumpers, i.e.

!1b000F04

- no collision this time.

a

Analog inputs. Returns the state of the specified analog sensor. Example:

!1a000776 –

read the battery voltage level, reply:

!1a724171

- value is 0x0241, i.e. battery is

4,515V, see the section on A/D converter with the corresponding formula.

xxxx

Command parameter – applies to specific commands as described above. Numbers are specified in hexadecimal number system. For example 1000 time units is specified as

03E8

. The number is always 4 digits long. The capitalization of the letters can be arbitrary (i.e. 'a' and 'A' are both OK).

When the parameter value is out of range, the reply packet will inform about it:

!1I000069.

CC

Checksum – to verify the correctness of the packet, each packet is appended with a checksum computed as:

Checksum = 0x00 XOR (1 st byte) XOR (2 nd byte) ...

The single-byte checksum is appended as two-digit hexadecimal number at the end of the packet. Example: packet

!1b000F

will have the following checksum:

Checksum = 0x00 XOR ‘!’ XOR ‘b’ XOR ‘0’ XOR ‘0’ XOR ‘0’ XOR ‘F’

Thus the resulting value is 4, and the complete packet is:

!1b000F04.

Packet termination (newline) is not considered to be part of the packet. Packets with incorrect checksum will not be accepted, but a reply packet with a correct checksum will be sent back from the robot. In this way, you can determine the checksum when entering the command manually. Example: A reply packet

!1B00XXcc

, means that the correct checksum that was to be used was XX.

Example of conversation:

To SBOT:

!1b005055

;move backward 80 time units (0.8 seconds)

From SBOT:

!1B007752

;wrong checksum reported, we should have used 0x77

To SBOT:

!1b005077

;resend the packet with the correct checksum

From SBOT:

!1O00005F

;confirmation that the command was accepted

Each packet is to be confirmed with a newline character – either 0x0D (CR) or 0x0A (LF). This character is not considered part of the packet.

!

0 p

The robot replies to the command packets with reply packets. They are sent only as a response to the packets sent down to the robot.

The reply packets have the form:

!0pxxxxCC

The meaning of the parts is as follows:

Same meaning as in command packet described above

Robot number, same as above

Type of reply – one of the following characters:

B

Bad checksum – the parameter is in the form 00xx, where xx is the correct expected checksum

Example:

!1B007257

– the previous packet received had an incorrect checksum, the correct checksum was 0x72

U

Unknown command. Example: To SBOT:

!1H000058

- H is not a recognized command, thus the SBOT replies:

!1U000045

I

Invalid parameter – the parameter was out of range of allowed values for the specified command.

Example: To SBOT:

!1n00237F

(change the name to '@', which is not allowed), reply packet:

!1I000059

O

OK – the command was accepted. This reply is returned for the following commands:

F, B, L,

R, f, b, r, l, S, D, n

- in case the command was accepted and had proper arguments.

a

State of the analog sensor – reply to the command to read from analog sensor, contains the value obtained from the sensor in the form

xyyy

, where x is the analog input number and yyy is a hexadecimal value read from the sensor 0x000 – 0V up to 0x3FF, reference voltage or higher.

Example:

!1a202F07.

The channel 2 of ADC has the value 0x02F, i.e. 0,11V, if the reference voltage is 2,56V.

b

Bumpers state reply. The reply has the form 000x , where x is a hexadecimal value 0 to 15

calculated :

value = ( (1 * bumperA) + (2 * bumperB) + (4 * bumperC) + (8 * bumperD) )

The state of the bumper is 1 when there is no collision, and 0 in case of collision.

A

Reply to ping. Follows after the commands

A

and

N

, the parameter xxxx, is a hexadecimal number – the firmware version.

xxxx

Parameter of the reply – depends on the reply packet type

CC

Checksum is calculated in the same way as in command packets described above

Same meaning as in command packets

The protocol has no timeouts, i.e. the commands can be supplied at any time.

Robot Programming

A user can upload a new program to the robot in two ways – using the

bootloader

or through the

ISP interface

.

The standard

ISP interface

allows further options in addition to downloading a new program to the MCU flash memory – one can setup the MCU fuses, block further programming, change the clock signal source, and other settings. The fuses and ISP programming is described in detail in the ATMega128 datasheet.

ISP connector uses the standard pin layout – see the section on main board above. The following programmer devices can be used AVR Dragon, JTAG ICE Mk2. AVR ONE, and others. A low-cost solution can be built based on the manual in [6].

Note:

The ISP interface is sharing some pins with the serial line 0. In consequence, no device should be connected to serial line 0 during the programming.

An alternative way to program the robot is using the

bootloader

. Bootloader is a small program stored at the end of the MCU's flash memory. Its purpose is to download programs over serial line from the master device to the

MCU memory. The advantage is that it does not require any additional hardware, the bootloader communicates directly with the master device over the BlueTooth. To program the robot, all you need to do is to add the

BlueTooth device on the PC, and use the program AVRDude to upload the program.

AVRDude is installed together with

WinAVR and is provided on the CD.

Before downloading, the robot must be switched to the bootloader mode:

1. Turn the robot OFF

2. Connect the pins of the

Bootloader jumper

3. Turn the robot ON

4. Connect the robot over BlueTooth as described in the getting started section above.

Now the bootloader process can be run. Start the Avrdude GUI application that is available on the CD.

The figure on the left shows a program screenshot, and the recommended settings.

Select ATMega128 MCU and STK500 as

programming protocol. Select proper serial port (COM7 on the figure – in case the number is higher than 8, please specify '\\.\COMxx' in the command line instead of COM8. Select the compiled hex-file that contains the program to upload. In case of EEPROM programming, be aware that the memory location at address 0x0 contains the ASCII value of the robot number. When ready, press the 'Execute' button.

Remove the bootloader jumper and reset the robot. The program is started.

The Firmware Framework

In order to make the robot programming more convenient and free the programmer from ardous setting of the flags, registers, and bits, the firmware framework provides a set of macros that cover the usual needs of a robot program. The basic framework supports the A/D converter, robot sensors, motors, etc.

Some functions can be further extended by the programmer. These locations are marked in the source-code by a specific comment. For instance, the timer interrupt that occurs every 0,01 seconds. The code in the interrupts should be as short/fast as possible.

A/D converter functions and macros – adc.c and adc.h

unsigned int adc_vals[8];

- Array of 8 integers that contain the last sensor readings from the A/D converter. All contain the 5V battery supply as the reference voltage, except of the last one, which measures the battery voltage and uses the internal 2,56V. Example:

if (adc_vals[7] < 500) set_leds(0x0F);

If the battery voltage is lower than the specified value, all LEDs will be turned ON.

start_adc();

- this macro starts the ADC conversion. The ADC conversion is started automatically from the interrupt, and thus normally, this macro should not be used.

adc_select_ref(unsigned char x);

- selects the reference voltage for the ADC conversion. The allowed values are

ADC_REF_256V

(the reference voltage 2,56V) or

ADC_REF_AVCC

(the battery power supply)

ISR(ADC_vect)

– this is a function that is called when the ADC conversion is complete and new value is available. Users can insert their own code in this function.

Timer functions and macros – timers.c and timers.h

unsigned int ticks_until_stop;

- this variable specifies the number of time units the robot is to continue moving in the specified direction. It is decremented automatically in the timer interrupt occuring every 0,01. When it falls back to 0, the servomotors are turned off. When this variable is equal to a special reserved value

TIMER_SERVO_CONTINUOUS_OPERATION

, the variable is not decremented, and the robot will move in the current direction infinitely. This variable should be set before we change the state of the motors. Example:

ticks_until_stop = 1000; set_servo(1,SERVO_FW); set_servo(4,SERVO_FW); servo_123_on(); servo_456_on();

The robot will be rotating right for 10 seconds.

ISR(TIMER0_COMP_vect)

– this interrupt occurs every 10 ms – 0,01 of second. It is possible to insert user code in this function, as long as it is always executed fast. The interrupt routine currently operates the bottom LEDs and timing of the servo motors

Motor functions and macros – servo.c and servo.h

void set_servo(unsigned char which, unsigned int value);

- this function sets the control value for the PWM signal of the specified servo motor. The first argument 1-6 specifies the motor, a special value 0 indicates all motors. The second argument can be a predefined value

SERVO_FW

, for foward movement,

SERVO_BW

for backward movement, and

SERVO_STOP

to stop. If the motor should stop, it is recommended to use the

servo_xyz_off()

macro so that it won't consume the power. The left motor is usually connected to port 1, and the right motor is connected to port 4. Values close to SERVO_STOP will cause the motor to rotate slowly in one or the other direction.

Note: The motors are automatically turned off by the timer. To prevent this from happening, the programmer may set the global variable

ticks_until_stop

to value

TIMER_SERVO_CONTINUOUS_ OPERATION

, see above. The variable

ticks_until_stop

can be read to determine whether the motor(s) have stopped.

Example:

ticks_until_stop = TIMER_SERVO_CONTINUOUS_ OPERATION; servo_123_on(); servo_456_on(); set_servo(1, SERVO_BW); set_servo(4, SERVO_FW);

The robot will move backwards until it will receive a new command.

servo_123_on(), servo_456_on(),servo_123_off(),servo_456_off()

– this macros connect or disconnect the groups of motors from the power. The groups are arranged in tripples – motors 1, 2, 3 and motors 4,

5, 6.

Input and output functions and macros stdout

– is a standard output. Usual printing functions such as printf() can be used to send output here. The standard output can be redirected to various ports as needed. In the standard setup, it is connected to the serial line

1, i.e. the BlueTooth virtual serial line. To redirect to a different device, use

FDEV_SETUP_STREAM

macro.

Example:

FILE usart1 = FDEV_SETUP_STREAM(usart1_putchar, NULL, _FDEV_SETUP_WRITE);

The above statement will create a file pointer that can be used as stdout. The first argument is a function that can output a character. The second argument could specify the function to read one character, if we were to use this device for both input and output. The third argument describes how the device is going to be used. Read more at: http://www.nongnu.org/avr-libc/user-manual/group__avr__stdio.html

.

Now, the following statement performs the redirection so that stdout will be redirected to the serial line 1 (BT):

stdout = &usart1;

The files usart0 and usart1 are defined, but the user is free to setup additional files.

int usart0_putchar(char c, FILE *stream) – for ser. line. 0 int usart1_putchar(char c, FILE *stream) – for ser. line. 1

This function sends one character over the respective serial line. The second argument can be ignored (0).Example:

usart0_putchar(‘a’, 0);

This line sends the character 'a' to the serial line 0. The function returns 0.

unsigned char usart1_getchar(void)

– for ser. line. 0

unsigned char usart0_getchar(void)

– for ser. line. 1

This function waits for a character from serial line 0 or 1, and returns it. Example:

if (usart1_getchar()==’a’) set_leds(0x0F);

This line reads a character. If it is 'a', the LEDs will be turned ON.

Source-code Files

The robot firmware is written in the language C and divided into parts, each responsible for certain robot functionality. The following is a list of files and their contents:

[1]

[2]

[3]

[4]

[5]

[6]

\Adc.c, adc.h

\Main.c, main.h

\Misc.c, misc.h

\Servo.c, servo.h

\Timers.c, timers.h

\Usart0.c, usart0.h

\Usart1.c, usart1.h

\Protokol_defs.h

A/D converter, interrupt of the A/D converter main() function, HW initialization, packet processing from master

Auxilliary functions, setting LEDs, waits, bumper state

Servomotor control

Timer interrupt with 10ms frequency

Serial line 0

Serial line 1 – used by BlueTooth module

Communication protocol definitions

\Makefile

\Sbot.aps, sbot.aws

Makefile – automatically generated by AVR Studio

AVRStudio project files

\default\sbot.hex

Resulting .hex file that is to be downloaded to the robot

\default\everything else

Auxilliary files of compilation process

Contents of the CD

The robot package contains a CD with the following software tools and documentation:

AVRStudio 4 and service packs

WinAVR

Datasheets for individual parts

Source code of the robot firmware and bootloader

Compiled hex files

SbotManager.exe – program for manual control of the robot

This documentation in Slovak and English

Useful Links

http://www.microstep-mis.com/ - producer of the robot http://www.robotika.sk/ - Slovak robotics portal http://gme.sk/ - Distributor of electronic parts in Slovakia http://atmel.com/ - Producer of the AVR MCUs http://winavr.sourceforge.net/ - C compiler for AVR MCUs http://www.lancos.com/prog.html

– simple programmer for AVR MCUs

A

C

D

BT_TXD

BT_RXD

BT_RESET

BT_CONNECTION

5

+3.3V

+3.3V

6

5

8

7

4

3

RXD

TXD

RTS

CTS

RESET

STATUS

2

1

VCC

GND

+3.3V

+3.3V

BLUETOOTH

4

B

DECO_LEDS

POWER_A

POWER_B

3

+BAT

1

2

3

4

S1

S2

S3

G

D1

D2

D3

D4

7

8

5

6

1

2

3

2

SERVO_SIG_0 SERVO_SIG_1 SERVO_SIG_2

1

2

3

1

2

3

1

2

3

SERVO_SIG_3 SERVO_SIG_4 SERVO_SIG_5

1

2

3

1

2

3

1

2

3

4

S1

S2

S3

G

D1

D2

D3

D4

7

8

5

6

SERVA A ICH SPINANIE

1

D

C

B

5

3

4

1

2

1

2

4

ZDROJ

+BAT

+

C5

VCC

BAT_MEASURMENT

1

VIN VOUT

3

+3.3V

+

C6

220uF/6.3V

3 2 1

A

BUMPER0

BUMPER1

BUMPER2

BUMPER3

GP_LED0

GP_LED1

GP_LED2

GP_LED3

2

1

2

1

2

1

2

1

1

A

B

ISP programming interface

ISP PROGRAMATOR

3 2

C

5

D

GP_BUTTON0

4

3

4

3

4

3

1

2

1

2

1

2

GP_BUTTON1

GP_BUTTON2

UZIVATELSKE TLACITKA

VCC

PROG_MISO/GEN_TXD

PROG_MOSI/GEN_RXD

PROG_SCK

RESET

2

6

1

4

3

5

MISO

MOSI

SCK

RESET

VCC

GND

1

1

RESET

2

2

4

VCC

VCC

1

20

PEN

RESET

24

XTAL1

23

XTAL2

21

52

64

VCC

VCC

AVCC

63

53

22

62

GND

GND

GND

AREF

PA0(AD0)

PA1(AD1)

PA2(AD2)

PA3(AD3)

PA4(AD4)

PA5(AD5)

PA6(AD6)

PA7(AD7)

PB0(SS)

PB1(SCK)

PB2(MOSI)

PB3(MISO)

PB4(OC0)

PB5(OC1A)

PB6(OC1B)

PB7(OC2/OC1C)

PC0(A8)

PC1(A9)

PC2(A10)

PC3(A11)

PC4(A12)

PC5(A13)

PC6(A14)

PC7(A15)

PD0(SCL/INT0)

PD1(SDA/INT1)

PD2(RXD1/INT2)

PD3(TXD1/INT3)

PD4(ICP1)

PD5(XCK1)

PD6(T1)

PD7(T2)

PE0(RXD0/PDI)

PE1(TXD0/PDO)

PE2(XCK/AIN0)

PE3(OC3A/AIN1)

PE4(OC3B/INT4)

PE5(OC3C/INT5)

PE6(T3/INT6)

PE7(ICP3/INT7)

29

30

31

32

25

26

27

28

PF0(ADC0)

PF1(ADC1)

PF2(ADC2)

PF3(ADC3)

PF4(ADC4/TCK)

PF5(ADC5/TMS)

PF6(ADC6/TDO)

PF7(ADC7/TDI)

PG0(WR)

PG1(RD)

PG2(ALE)

PG3(TOSC2)

PG4(TOSC1)

10

11

12

13

14

15

16

17

51

50

49

48

47

46

45

44

35

36

37

38

39

40

41

42

61

60

59

58

57

56

55

54

7

8

9

4

5

2

3

6

33

34

43

18

19

BUMPER0

BUMPER1

BUMPER2

BUMPER3

GP_LED0

GP_LED1

GP_LED2

GP_LED3

PROG_SCK

MOSI

MISO

SERVO_SIG_0

SERVO_SIG_1

SERVO_SIG_2

GPIO_DIGITAL_0

GPIO_DIGITAL_1

GPIO_DIGITAL_2

GPIO_DIGITAL_3

GPIO_DIGITAL_4

GPIO_DIGITAL_5

GPIO_DIGITAL_6

GPIO_DIGITAL_7

I2C_SCL

I2C_SDA

RXD_BLUETOOTH

TXD_BLUETOOTH

RESET_BLUETOOTH

GP_BUTTON0

GP_BUTTON1

GP_BUTTON2

PROG_MOSI/GEN_RXD

PROG_MISO/GEN_TXD

SERVO_SIG_3

SERVO_SIG_4

SERVO_SIG_5

INTERRUPT6

INTERRUPT7

GPIO_ANALOG_0

GPIO_ANALOG_1

GPIO_ANALOG_2

GPIO_ANALOG_3

GPIO_ANALOG_4

GPIO_ANALOG_5

GPIO_ANALOG_6

GPIO_ANALOG_7

1

BT_CONNECTION

SPI_CLOCK

SPI_MOSI

SPI_MISO

POWER_A

SERVO_SIG_0

SERVO_SIG_1

SERVO_SIG_2

DIG_0

DIG_1

DIG_2

DIG_3

DIG_4

DIG_5

DIG_6

DIG_7

I2C_SCL

I2C_SDA

BT_RXD

BT_TXD

BT_RESET

2

EXTRA_RXD

EXTRA_TXD

POWER_B

SERVO_SIG_3

SERVO_SIG_4

SERVO_SIG_5

INTA

INTB

AN0

AN1

AN2

AN3

AN4

AN5

AN6

BAT_MEASURMENT

DECO_LEDS

PROCESOR

5 4 3 2

LED DIODY A NARAZNIK

1

D

C

B

A

D

AN0

VCC

5

AN1

1

2

3

1

2

3

AN2

1

2

3

AN3

1

2

3

AN4

4

AN5

1

2

3

1

2

3

AN6

1

2

3

3

C

I2C_SDA

I2C_SCL

VCC

DIG_0

DIG_1

DIG_2

DIG_3

DIG_4

DIG_5

DIG_6

DIG_7

VCC

3

4

1

2

5

6

3

4

7

1

2

8

B

INTA

INTB

EXTRA_RXD

EXTRA_TXD

VCC

1

2

1

2

3

4

1

2

1

2

A

SPI_MISO

SPI_MOSI

SPI_CLOCK

1

2

3

5

UNIVERZALNA DOSKA

4

+3.3V

VCC +BAT

+3.3V VCC +BAT

6

7

4

5

8

1

2

3

9

10

11

12

5

6

3

4

7

1

2

8

9

10

11

12

3

2

2

1

1

D

C

B

A

D

C

B

A

5

Baterie

Spinace narazniku

4 3 2

Blokova schema robota

Hlavna doska

BlueTooth

Seriova linka 1

ISP programovacie rozhranie

Konektor na ser. linku 0 Seriova linka 0

Konektor na

I2C zbernicu

I2C

Zdroje

5V, 3.3V a GND

PWM riadiace signaly 1 - 3

Zapnut napajanie 1-3

Serva 1-3

Sig. pre servo 1

Lave servo

PWM riadiace signaly 4 - 6

Zapnut napajanie 4-6 Serva 4-6 Sig. pre servo 2 Prave servo

C

Analogove vstupy 0-7

SPI (SCK zdielany s ISP)

Prerusenia 6 a 7

1

D

Analog. 0

Pravy ciarovy senzor

Analog. 1 Lavy ciarovy senzor

B

Tlacitka a LED diody

Naraznik

Univerzalna doska

A

5 4 3 2 1

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
