Multimedia Processor for Mobile Applications (EMMA

Multimedia Processor for Mobile Applications (EMMA

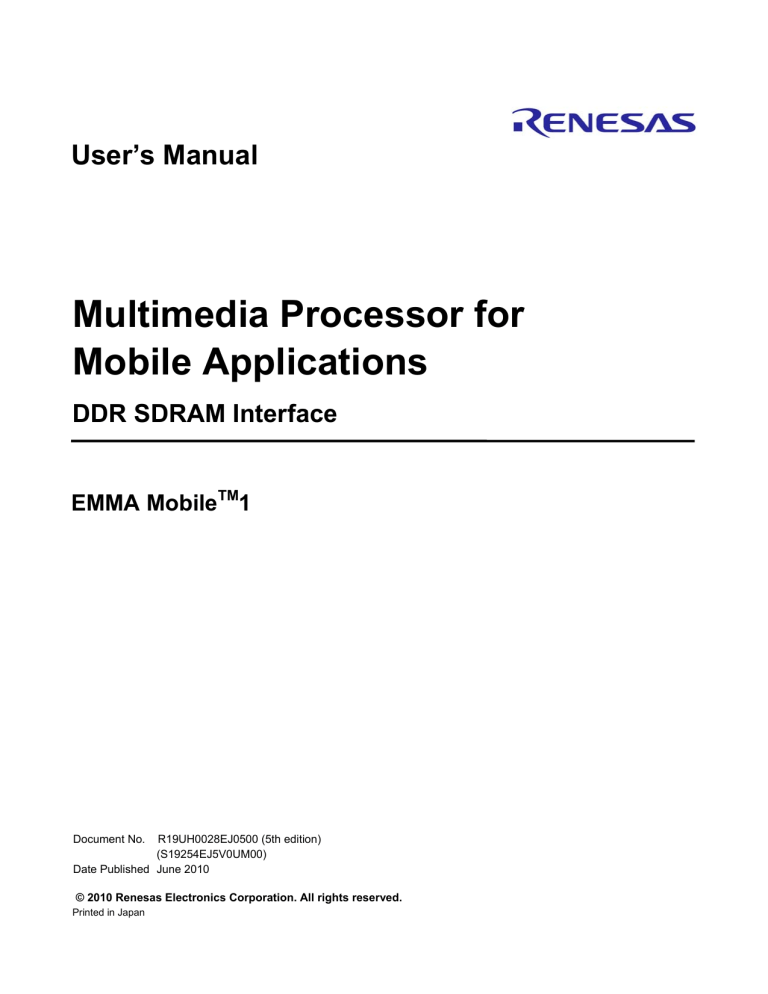

User’s Manual

Multimedia Processor for

Mobile Applications

DDR SDRAM Interface

EMMA Mobile

TM

1

Document No. R19UH0028EJ0500 (5th edition)

(S19254EJ5V0UM00)

Date Published June 2010

© 2010 Renesas Electronics Corporation. All rights reserved.

Printed in Japan

[MEMO]

2

User’s Manual R19UH0028EJ0500

Notice

1. All information included in this document is current as of the date this document is issued. Such information, however, is subject to change without any prior notice. Before purchasing or using any Renesas Electronics products listed herein, please confirm the latest product information with a Renesas Electronics sales office. Also, please pay regular and careful attention to additional and different information to be disclosed by Renesas Electronics such as that disclosed through our website.

2. Renesas Electronics does not assume any liability for infringement of patents, copyrights, or other intellectual property rights of third parties by or arising from the use of Renesas Electronics products or technical information described in this document.

No license, express, implied or otherwise, is granted hereby under any patents, copyrights or other intellectual property rights of Renesas Electronics or others.

3. You should not alter, modify, copy, or otherwise misappropriate any Renesas Electronics product, whether in whole or in part.

4. Descriptions of circuits, software and other related information in this document are provided only to illustrate the operation of semiconductor products and application examples. You are fully responsible for the incorporation of these circuits, software, and information in the design of your equipment. Renesas Electronics assumes no responsibility for any losses incurred by you or third parties arising from the use of these circuits, software, or information.

5. When exporting the products or technology described in this document, you should comply with the applicable export control laws and regulations and follow the procedures required by such laws and regulations. You should not use Renesas

Electronics products or the technology described in this document for any purpose relating to military applications or use by the military, including but not limited to the development of weapons of mass destruction. Renesas Electronics products and technology may not be used for or incorporated into any products or systems whose manufacture, use, or sale is prohibited under any applicable domestic or foreign laws or regulations.

6. Renesas Electronics has used reasonable care in preparing the information included in this document, but Renesas Electronics does not warrant that such information is error free. Renesas Electronics assumes no liability whatsoever for any damages incurred by you resulting from errors in or omissions from the information included herein.

7. Renesas Electronics products are classified according to the following three quality grades: “Standard”, “High Quality”, and

“Specific”. The recommended applications for each Renesas Electronics product depends on the product’s quality grade, as indicated below. You must check the quality grade of each Renesas Electronics product before using it in a particular application. You may not use any Renesas Electronics product for any application categorized as “Specific” without the prior written consent of Renesas Electronics. Further, you may not use any Renesas Electronics product for any application for which it is not intended without the prior written consent of Renesas Electronics. Renesas Electronics shall not be in any way liable for any damages or losses incurred by you or third parties arising from the use of any Renesas Electronics product for an application categorized as “Specific” or for which the product is not intended where you have failed to obtain the prior written consent of Renesas Electronics. The quality grade of each Renesas Electronics product is “Standard” unless otherwise expressly specified in a Renesas Electronics data sheets or data books, etc.

“Standard”: Computers; office equipment; communications equipment; test and measurement equipment; audio and visual equipment; home electronic appliances; machine tools; personal electronic equipment; and industrial robots.

“High Quality”: Transportation equipment (automobiles, trains, ships, etc.); traffic control systems; anti-disaster systems; anticrime systems; safety equipment; and medical equipment not specifically designed for life support.

“Specific”: Aircraft; aerospace equipment; submersible repeaters; nuclear reactor control systems; medical equipment or systems for life support (e.g. artificial life support devices or systems), surgical implantations, or healthcare intervention (e.g. excision, etc.), and any other applications or purposes that pose a direct threat to human life.

8. You should use the Renesas Electronics products described in this document within the range specified by Renesas Electronics, especially with respect to the maximum rating, operating supply voltage range, movement power voltage range, heat radiation characteristics, installation and other product characteristics. Renesas Electronics shall have no liability for malfunctions or damages arising out of the use of Renesas Electronics products beyond such specified ranges.

9. Although Renesas Electronics endeavors to improve the quality and reliability of its products, semiconductor products have specific characteristics such as the occurrence of failure at a certain rate and malfunctions under certain use conditions. Further,

Renesas Electronics products are not subject to radiation resistance design. Please be sure to implement safety measures to guard them against the possibility of physical injury, and injury or damage caused by fire in the event of the failure of a

Renesas Electronics product, such as safety design for hardware and software including but not limited to redundancy, fire control and malfunction prevention, appropriate treatment for aging degradation or any other appropriate measures. Because the evaluation of microcomputer software alone is very difficult, please evaluate the safety of the final products or system manufactured by you.

10. Please contact a Renesas Electronics sales office for details as to environmental matters such as the environmental compatibility of each Renesas Electronics product. Please use Renesas Electronics products in compliance with all applicable laws and regulations that regulate the inclusion or use of controlled substances, including without limitation, the EU RoHS

Directive. Renesas Electronics assumes no liability for damages or losses occurring as a result of your noncompliance with applicable laws and regulations.

11. This document may not be reproduced or duplicated, in any form, in whole or in part, without prior written consent of Renesas

Electronics.

12. Please contact a Renesas Electronics sales office if you have any questions regarding the information contained in this document or Renesas Electronics products, or if you have any other inquiries.

(Note 1) “Renesas Electronics” as used in this document means Renesas Electronics Corporation and also includes its majorityowned subsidiaries.

(Note 2) “Renesas Electronics product(s)” means any product developed or manufactured by or for Renesas Electronics.

General Precautions in the Handling of MPU/MCU Products

The following usage notes are applicable to all MPU/MCU products from Renesas. For detailed usage notes on the products covered by this manual, refer to the relevant sections of the manual. If the descriptions under

General Precautions in the Handling of MPU/MCU Products and in the body of the manual differ from each other, the description in the body of the manual takes precedence.

1. Handling of Unused Pins

Handle unused pins in accord with the directions given under Handling of Unused Pins in the manual.

The input pins of CMOS products are generally in the high-impedance state. In operation with an unused pin in the open-circuit state, extra electromagnetic noise is induced in the vicinity of LSI, an associated shoot-through current flows internally, and malfunctions occur due to the false recognition of the pin state as an input signal become possible. Unused pins should be handled as described under Handling of Unused Pins in the manual.

2. Processing at Power-on

The state of the product is undefined at the moment when power is supplied.

The states of internal circuits in the LSI are indeterminate and the states of register settings and pins are undefined at the moment when power is supplied.

In a finished product where the reset signal is applied to the external reset pin, the states of pins are not guaranteed from the moment when power is supplied until the reset process is completed.

In a similar way, the states of pins in a product that is reset by an on-chip power-on reset function are not guaranteed from the moment when power is supplied until the power reaches the level at which resetting has been specified.

3. Prohibition of Access to Reserved Addresses

Access to reserved addresses is prohibited.

The reserved addresses are provided for the possible future expansion of functions. Do not access these addresses; the correct operation of LSI is not guaranteed if they are accessed.

4. Clock Signals

After applying a reset, only release the reset line after the operating clock signal has become stable. When switching the clock signal during program execution, wait until the target clock signal has stabilized.

When the clock signal is generated with an external resonator (or from an external oscillator) during a reset, ensure that the reset line is only released after full stabilization of the clock signal. Moreover, when switching to a clock signal produced with an external resonator (or by an external oscillator) while program execution is in progress, wait until the target clock signal is stable.

5. Differences between Products

Before changing from one product to another, i.e. to one with a different part number, confirm that the change will not lead to problems.

The characteristics of MPU/MCU in the same group but having different part numbers may differ because of the differences in internal memory capacity and layout pattern. When changing to products of different part numbers, implement a system-evaluation test for each of the products.

PREFACE

Readers

This manual is intended for hardware/software application system designers who wish to understand and use the DDR SDRAM interface functions of EMMA Mobile1 (EM1), a multimedia processor for mobile applications.

Purpose

This manual is intended to explain to users the hardware and software functions of the DDR SDRAM interface of EM1, and be used as a reference material for developing hardware and software for systems that use EM1.

Organization

This manual consists of the following chapters.

Chapter 1

Chapter 2

Chapter 3

Chapter 4

Overview

Pin functions

Registers

Usage

How to Read This Manual

It is assumed that the readers of this manual have general knowledge of electricity, logic circuits, and microcontrollers.

To understand the functions of the DDR SDRAM interface of EM1 in detail

Read this manual according to the

CONTENTS

.

To understand the other functions of EM1

Refer to the user’s manual of the respective module.

To understand the electrical specifications of EM1

Refer to the Data Sheet.

Conventions

Data significance:

Note

:

Higher digits on the left and lower digits on the right

Footnote for item marked with

Note

in the text

Caution

: Information requiring particular attention

Remark

: Supplementary

Numeric representation:

Data type:

Binary ... xxxx or xxxxB or xxxb

Decimal ... xxxx

Hexadecimal ... xxxxH

Word … 32 bits

Halfword … 16 bits

Byte … 8 bits

All trademarks and registered trademarks are the property of their respective owners..

User’s Manual R19UH0028EJ0500

5

Related Documents

The related documents indicated in this publication may include preliminary versions.

However, preliminary versions are not marked as such.

MC-10118A Data sheet

Document Name

μ

PD77630A Data Sheet

User’s manual Audio/Voice and PWM Interfaces

DDR SDRAM Interface

I

2

C Interface

ITU-R BT.656 Interface

MICROWIRE

NAND Flash Interface

SPI

Image Processor Unit

System Control/General-Purpose I/O Interface

Timer

Terrestrial Digital TV Interface

SD Memory Card Interface

PDMA

One Chip (

μ

PD77630A)

Document No.

R19DS0008EJ

(S19657E)

S19686E

R19UH0027EJ

(S19253E)

This manual

S19255E

S19256E

S19257E

S19258E

S19259E

S19260E

S19261E

S19262E

S19263E

S19264E

R19UH0029EJ

(S19265E)

S19266E

S19267E

S19285E

S19359E

S19361E

S19373E

R19UH0030EJ

(S19598E)

R19UH0031EJ

(S19687E)

( ) : old number

Caution The related documents listed above are subject to change without notice. Be sure to use the latest version of each document when designing.

6

User’s Manual R19UH0028EJ0500

CONTENTS

CHAPTER 1 OVERVIEW..........................................................................................................................10

1.1

Features .....................................................................................................................................10

1.2

Block Diagram ...........................................................................................................................11

1.3

Terminology...............................................................................................................................11

CHAPTER 2 PIN FUNCTIONS ................................................................................................................12

2.1

DDR SDRAM Interface Pins .....................................................................................................12

CHAPTER 3 REGISTERS ........................................................................................................................13

3.1

Registers....................................................................................................................................13

3.1.1

Request control registers and system cache setting registers ......................................................13

3.1.2

Memory request scheduler setting registers .................................................................................13

3.1.3

External memory control registers ................................................................................................ 14

3.2

Register Functions ...................................................................................................................15

3.2.1

Cache/prefetch setting register ..................................................................................................... 15

3.2.2

Function disabling register ............................................................................................................ 16

3.2.3

ACPU interrupt status register ...................................................................................................... 17

3.2.4

ACPU interrupt raw status register................................................................................................ 18

3.2.5

ACPU interrupt enable set register ............................................................................................... 19

3.2.6

ACPU interrupt enable clear register ............................................................................................ 20

3.2.7

ACPU interrupt source clear register ............................................................................................ 21

3.2.8

Error master ID register ................................................................................................................ 22

3.2.9

Error address register ................................................................................................................... 23

3.2.10

Memory request scheduling mode register ...................................................................................24

3.2.11

Memory connection setting register .............................................................................................. 25

3.2.12

AC timing setting register 1 ........................................................................................................... 29

3.2.13

AC timing setting register 2 ........................................................................................................... 30

3.2.14

Software command issuance register 1 ........................................................................................32

3.2.15

Software command issuance register 2 ........................................................................................33

3.2.16

Refresh setting register 1 .............................................................................................................. 35

3.2.17

Refresh setting register 2 .............................................................................................................. 36

3.2.18

Refresh setting register 3 .............................................................................................................. 38

3.2.19

Automatic DQS timing adjustment register 1 ................................................................................39

3.2.20

Automatic DQS timing adjustment register 2 ................................................................................40

3.2.21

Automatic DQS timing adjustment register 3 ................................................................................41

3.2.22

Memory status check register ....................................................................................................... 42

CHAPTER 4 USAGE ................................................................................................................................43

4.1

External Memory Access Control............................................................................................43

4.1.1

External Memory Access .............................................................................................................. 43

4.1.2

External Memory Access .............................................................................................................. 44

4.1.3

Clock Phase Control ..................................................................................................................... 45

4.1.4

Arbitration...................................................................................................................................... 48

4.1.5

Refresh control.............................................................................................................................. 49

User’s Manual R19UH0028EJ0500

7

4.1.6

Software command control............................................................................................................50

4.1.7

Power on/off sequence..................................................................................................................51

8

User’s Manual R19UH0028EJ0500

LIST OF FIGURES

Title Figure No. Page

Figure 1-1. Block Diagram ...........................................................................................................................................11

Figure 3-1. External Memory Address Mapping...........................................................................................................27

Figure 4-1. Timing at Which MEMC_CLK Operating Frequency Is Switched ..............................................................45

Figure 4-2. Clock adjustment mechanism ....................................................................................................................45

Figure 4-3. Write phase adjustment .............................................................................................................................46

Figure 4-4. Read phase adjustment.............................................................................................................................46

Figure 4-5. Refresh Control Status Transitions ............................................................................................................49

Figure 4-6. DDR SDRAM Power On Timing ................................................................................................................51

LIST OF TABLES

Table No. Title Page

Table 3-1. Correspondence of CPU Address and External Memory Address (JEDEC)...............................................27

Table 3-2. DDR SDRAM (JEDEC) ...............................................................................................................................28

Table 4-1. Clock Counts Required for 16-Word Access (Burst Length = 8) .................................................................43

Table 4-2. DDR Module Priority in Processing.............................................................................................................48

Table 4-3. Software Commands ..................................................................................................................................50

User’s Manual R19UH0028EJ0500

9

CHAPTER 1 OVERVIEW

The Mobile DDR SDRAM interface (MEMC) controls access to DDR SDRAM.

1.1 Features

External memory access control

The MEMC has a timing controller for the external memory interface. The usable memory is Mobile DDR

SDRAM. The maximum operating frequency is 166 MHz.

The MEMC can generate refresh requests to execute refreshes required for DDR SDRAM.

For details about the following functions, see

CHAPTER 4 Usage

.

Supported

Mobile DDR SDRAM

32-bit data bus connection (one chip that has a 32-bit bus, or two chips that have 16-bit buses connected in parallel)

Operating frequency: 133/166 MHz (DDR266/DDR333)

CS0 and CS1 supported.

Maximum memory size per CS: 128 MB (1 Gb

1 chip)

16 MB (128 Mb

1 chip) to 256 MB (1 Gb

2 chips)

Main

Flexible address mapping

Entering and exiting auto self refresh mode

Command control via software

Low power consumption due to clock control and automatic frequency control

Request control

The MEMC controls requests sent from various macros so as to increase performance and decrease power consumption. The received read and write requests are held in queues in the MEMC, scheduled so as to enhance the memory usage efficiency, and issued to memory.

System cache (read cache)

The MEMC has a system cache for temporarily storing data read from memory. The read cache does not have dirty states. If a read request hits this cache, the request is not issued to memory. As a result, the latency while accessing memory is decreased and the number of memory accesses is reduced, which decreases power consumption.

10

User’s Manual R19UH0028EJ0500

CHAPTER 1 OVERVIEW

Figure 1-1. Block Diagram

System control

MEMC_CLK

MEMC_CLK270

MEMC_RCLK

External memory access control

System cache

DDR_MCLK

DDR_MCLKB

DDR_DQM[3:0]

DDR_DQS[3:0]

DDR_WEB

DDR_CKE[1:0]

DDR_CSB[1:0]

DDR_RASZ

DDR_CASZ

DDR_A[13:0]

DDR_BA[1:0]

DDR_DATA[31:0]

1.3 Terminology

MEMC:

IMC:

SHXB:

MHXB:

Mobile DDR SDRAM interface

Image composer

Slow master AHB-AXI bridge

Media master AHB-AXI bridge

DHXB: Display master AHB-AXI bridge

ADSPD: Data bus for ADSP application DSP (SPXK701)

ADSPI: Instruction bus for ADSP application DSP (SPXK701)

ACPU: Application CPU

ASMU: System management unit

User’s Manual R19UH0028EJ0500

11

CHAPTER 2 PIN FUNCTIONS

2.1 DDR SDRAM Interface Pins

Pin Name I/O After Reset

DDR_MCLK

DDR_MCLKB

DDR_DQM[3:0]

DDR_DQS[3:0]

DDR_WEB

DDR_CKE[1:0]

Note

DDR_CSB[1:0]

DDR_RASB

DDR_CASB

Output

Output

Output

I/O

Output

Output

Output

Output

Output

Function

32 kHz Clock signal output

Inverted 32 kHz Inverted clock signal output

1111B Write data mask

PD (in)

0

0

Data strobe

Write enable signal (low active)

Clock enable signal (low active)

00

0

0

Chip select signal (low active)

Row address strobe signal (low active)

Column address strobe signal (low active)

DDR_DATA[31:0] I/O

Data

Note

To keep the DDR_CKE pin level at 0 even if the MEMC is off, the output buffer is allocated in a separate power domain.

Remark

PD (in): Has a pull-down resistor (when in the input status)

12

User’s Manual R19UH0028EJ0500

CHAPTER 3 REGISTERS

3.1 Registers

The MEMC registers allow word access only.

Do not access reserved registers. An undefined value is returned for a read access.

Do not write any value other than 0 to reserved bits in each register.

3.1.1 Request control registers and system cache setting registers

Base address: C00A_0000H

Address Register Name Register Symbol

MEMC_CACHE_MODE

MEMC_DEGFUN

0000H Cache/prefetch setting register

0004H Reserved

0008H

000CH-

0010H

0014H

0018H

Function disabling register

Reserved

ACPU interrupt status register

ACPU interrupt raw status register

001CH

0020H

0024H

0028H-

0064H

ACPU interrupt enable set register

ACPU interrupt enable clear register

ACPU interrupt source clear register

Reserved

0068H

006CH

0070H-

0080H

Error master ID register

Error address register

Reserved

3.1.2 Memory request scheduler setting registers

Base address: C00A_0000H

Address Register Name

1000H Memory request scheduling mode register

R/W

R/W

R/W

After Reset

0000_0000H

0000_0000H

MEMC_INTRAWSTATUS_A R 0000_0000H

MEMC_INTENSET_A R/W 0000_0000H

MEMC_INTENCLR_A W

MEMC_INTFFCLR_A W

  

MEMC_ERRMID

Register Symbol

MEMC_REQSCH

R

R/W

R/W

0000_0000H

After Reset

0000_0000H

User’s Manual R19UH0028EJ0500

13

CHAPTER 3 REGISTERS

3.1.3 External memory control registers

Base address: C00A_0000H

Address Register Name

2000H Memory connection setting register

2004H AC timing setting register 1

2008H AC timing setting register 2

200CH Software command issuance register 1

2010H Software command issuance register 2

2014H Refresh setting register 1

2018H Refresh setting register 2

201CH Refresh setting register 3

2020H Automatic DQS timing adjustment register 1

2024H Automatic DQS timing adjustment register 2

2028H Automatic DQS timing adjustment register 3

202CH Memory status check register

Register Symbol

MEMC_DDR_CONFIGF

MEMC_DDR_CONFIGA1

MEMC_DDR_CONFIGA2

MEMC_DDR_CONFIGC1

MEMC_DDR_CONFIGC2

MEMC_DDR_CONFIGR1

MEMC_DDR_CONFIGR2

MEMC_DDR_CONFIGR3

MEMC_DDR_CONFIGT1

MEMC_DDR_CONFIGT2

MEMC_DDR_CONFIGT3

MEMC_DDR_STATE8

R/W

R/W

R/W

R/W

R/W

R/W

R/W

R/W

R/W

R/W

R/W

R/W

R/W

After Reset

0000_0808H

5444_3203H

00DA_0000H

4040_0003H

0000_03C0H

7FFF_7FFFH

1F5F_7C7CH

0000_3F3FH

0000_0003H

0000_0000H

0000_0000H

0000_0000H

14

User’s Manual R19UH0028EJ0500

CHAPTER 3 REGISTERS

3.2.1 Cache/prefetch setting register

This register (MEMC_CACHE_MODE: C00A_0000H) specifies whether to cache and prefetch data for each master device.

31 30 29 28 27 26 25 24

Reserved DIS_IMC

23 22 21 20 19 18 17 16

Reserved DIS_SHXB DIS_MHXB DIS_DHXB DIS_DSPD DIS_DSPI DIS_ACPU Reserved

15 14 13 12 11 10 9 8

Reserved PRE_IMC

7 6 5 4 3 2 1 0

Reserved PRE_SHXB PRE_DHXB PRE_DSPD PRE_DSPI PRE_ACPU Reserved

Reserved

DIS_IMC

Reserved

DIS_SHXB

DIS_MHXB

DIS_DHXB

DIS_DSPD

DIS_DSPI

DIS_ACPU

Reserved

PRE_IMC

Reserved

PRE_SHXB

PRE_MHXB

PRE_DHXB

PRE_DSPD

PRE_DSPI

PRE_ACPU

Reserved

R/W

R/W

R/W

R

R/W

R

R/W

R

R/W

R/W

R/W

R

R/W

R/W

R/W

R/W

R/W

R/W

R

19

18

17

16:9

8

31:25

24

23

22

21

20

7

6

5

4

3

2

1

0

0B

0B

0B

0H

0B

0H

0B

0B

0B

0B

0B

0B

0B

0B

0B

0B

0B

0B

0B

Function

Reserved. When these bits are read, 0 is returned for each bit.

0: Caches data read from the IMC, 1: Does not cache data

Reserved. When this bit is read, 0 is returned.

0: Caches data read from the SHXB, 1: Does not cache data

0: Caches data read from the MHXB, 1: Does not cache data

0: Caches data read from the DHXB, 1: Does not cache data

0: Caches data read from the ADSPD, 1: Does not cache data

0: Caches data read from the ADSPI, 1: Does not cache data

0: Caches data read from the ACPU, 1: Does not cache data

Reserved. When these bits are read, 0 is returned for each bit.

0: Does not prefetch data while reading data from the IMC.

1: Prefetches data while reading data from the IMC.

Reserved. When this bit is read, 0 is returned.

0: Does not prefetch data while reading data from the SHXB.

1: Prefetches data while reading data from the SHXB.

0: Does not prefetch data while reading data from the MHXB.

1: Prefetches data while reading data from the MHXB.

0: Does not prefetch data while reading data from the DHXB.

1: Prefetches data while reading data from the DHXB.

0: Does not prefetch data while reading data from the ADSPD.

1: Prefetches data while reading data from the ADSPD.

0: Does not prefetch data while reading data from the ADSPI.

1: Prefetches data while reading data from the ADSPI.

0: Does not prefetch data while reading data from the ACPU.

1: Prefetches data while reading data from the ACPU.

Reserved. When this bit is read, 0 is returned.

User’s Manual R19UH0028EJ0500

15

CHAPTER 3 REGISTERS

3.2.2 Function disabling register

This register (MEMC_DEGFUN: C00A_0008H) disables some of the MEMC functions.

31 30 29 28 27 26 25 24

Reserved

23 22 21 20 19 18 17 16

Reserved

15 14 13 12 11 10 9 8

Reserved

7 6 5 4 3 2 1 0

Reserved

DISCACHE

INORDER

R

R/W

31:2

1

R/W 0

0H

0B

0B

Function

Reserved. When these bits are read, 0 is returned for each bit.

Disables the system cache.

0: Enables use of the system cache.

1: Disables use of the system cache.

0: Issues read requests out-of-order.

1: Issues read requests in order.

16

User’s Manual R19UH0028EJ0500

CHAPTER 3 REGISTERS

3.2.3 ACPU interrupt status register

This register (MEMC_INTSTATUS_A: C00A_0014H) indicates the status of the interrupt sources for the ACPU.

31 30 29 28 27 26 25 24

Reserved

23 22 21 20 19 18 17 16

Reserved

15 14 13 12 11 10 9 8

Reserved

7 6 5 4 3 2 1 0

Reserved

ERR

SECERR

R

R

31:2

1

R 0

0H

0B

0B

Function

Reserved. When these bits are read, 0 is returned for each bit.

Indicates the status of error interrupts other than the security error interrupt.

0: No interrupt source

1: There is an interrupt source.

Indicates the status of the security error interrupt.

0: No interrupt source

1: There is an interrupt source.

User’s Manual R19UH0028EJ0500

17

CHAPTER 3 REGISTERS

3.2.4 ACPU interrupt raw status register

This register (MEMC_INTRAWSTATUS_A: C00A_0018H) indicates the status of the interrupt sources for the

ACPU. The bits corresponding to the interrupt sources are set regardless of the settings of the interrupt enable set register and the interrupt enable clear register.

31 30 29 28 27 26 25 24

Reserved

23 22 21 20 19 18 17 16

Reserved

15 14 13 12 11 10 9 8

Reserved

7 6 5 4 3 2 1 0

Reserved

RAWERR

SECRAWERR

R

R

R

Bit Reset

31:2

1

0H

0B

Function

Reserved. When these bits are read, 0 is returned for each bit.

Indicates the raw status of error interrupts other than the security error interrupt.

0: No interrupt source

1: There is an interrupt source.

0 0B Indicates the raw status of the security error interrupt.

0: No interrupt source

1: There is an interrupt source.

18

User’s Manual R19UH0028EJ0500

CHAPTER 3 REGISTERS

3.2.5 ACPU interrupt enable set register

This register (MEMC_INTSET_A: C00A_001CH) enables the issuance of interrupt requests for the ACPU.

Whether interrupt requests can be issued can be read from this register.

31 30 29 28 27 26 25 24

Reserved

23 22 21 20 19 18 17 16

Reserved

15 14 13 12 11 10 9 8

Reserved

7 6 5 4 3 2 1 0

Reserved

ERREN

SECERREN

R

W

31:2

R

W

R

0H

Function

Reserved. When these bits are read, 0 is returned for each bit. security error interrupt.

0: Ignored

1: Enables the interrupt.

Indicates whether the issuance of error interrupts other than the security error interrupt is enabled.

0: Disabled (masked)

1: Enabled

0: Ignored

1: Enables the interrupt.

Indicates whether the issuance of the security error interrupt is enabled.

0: Disabled (masked)

1: Enabled

User’s Manual R19UH0028EJ0500

19

CHAPTER 3 REGISTERS

3.2.6 ACPU interrupt enable clear register

This register (MEMC_INTENCLR_A: C00A_0020H) masks (disables) the issuance of interrupt requests for the

ACPU. Whether such issuance is masked can be determined by reading the MEMC_INTSET_A register.

31 30 29 28 27 26 25 24

Reserved

23 22 21 20 19 18 17 16

Reserved

15 14 13 12 11 10 9 8

Reserved

7 6 5 4 3 2 1 0

Reserved

ERRMASK

SECERRMASK

R

W

W

Bit Reset

31:2

1

0

0H

0B

0B

Function

Reserved. When these bits are read, 0 is returned for each bit.

Specifies whether to disable (mask) the issuance of error interrupts other than the security error interrupt.

0: Ignored

1: Disables the sources.

When read, 0 is returned.

Specifies whether to disable (mask) the issuance of the security error interrupt.

0: Ignored

1: Disables the sources.

When read, 0 is returned.

20

User’s Manual R19UH0028EJ0500

CHAPTER 3 REGISTERS

3.2.7 ACPU interrupt source clear register

This register (MEMC_INTFFCLR_A: C00A_0024H) clears interrupt sources for the ACPU.

31 30 29 28 27 26 25 24

Reserved

23 22 21 20 19 18 17 16

Reserved

15 14 13 12 11 10 9 8

Reserved

7 6 5 4 3 2 1 0

Reserved

ERRCLR

SECERRCLR

R

W

W

Bit Reset

31:2

1

0H

0B

0 0B

Function

Reserved. When these bits are read, 0 is returned for each bit.

Specifies whether to clear error interrupt sources other than the security error interrupt source.

0: Ignored

1: Clears the sources.

When read, 0 is returned.

Specifies whether to clear the security error interrupt source.

0: Ignored

1: Clears the sources.

When read, 0 is returned.

User’s Manual R19UH0028EJ0500

21

CHAPTER 3 REGISTERS

3.2.8 Error master ID register

This register (MEMC_ERRMID: C00A_0068H) retains the ID of a master whose request caused an error.

31 30 29 28 27 26 25 24

Reserved

23 22 21 20 19 18 17 16

Reserved

15 14 13 12 11 10 9 8

Reserved

7 6 5 4 3 2 1 0

MID

Reserved

MID

R

R

31:8

7:0

0

0

Function

Reserved. When these bits are read, 0 is returned for each bit.

Retains the ID (master ID + AXI ID) when an error has occurred.

These bits are not overwritten by the master ID of a new error until the current information is cleared by setting the CLEAR bit of

MEMC_ERRADR.

22

User’s Manual R19UH0028EJ0500

CHAPTER 3 REGISTERS

3.2.9 Error address register

This register (MEMC_ERRADR: C00A_006CH) retains the type of error and the address at which the error occurred.

31 30 29 28 27 26 25 24

CLEAR RDWT Reserved ADDR

23 22 21 20 19 18 17 16

ADDR

15 14 13 12 11 10 9 8

ADDR

7 6 5 4 3 2 1 0

ADDR ERR

Function

CLEAR W

0: Ignored.

1: Clears the address. If an error occurs after this, the new address is retained.

R

RDWT

Reserved

ADDR

ERR

R

R

R

R

30

29:28

27:3

2:0

0B

0B

0H

000B

Indicates whether a new error address can be retained.

0: A new address can be retained when an error occurs.

1: A valid address is retained, so a new address is not retained.

Indicates whether the request that caused an error was for a read or write.

0: Read

1: Write

Reserved. When this bit is read, 0 is returned.

The value of bits 28 to 3 of the address at which a request caused an error is retained.

Indicates what type of error a request caused.

000B: No error

011B: An address outside the mounted range was requested.

010B: Illegal burst size (A burst size larger than 64 bits was specified.)

011B: ARBURST and AWBURST are fixed or reserved.

100B: Illegal INCR burst (INCR burst in byte or halfword units)

101b: Illegal WRAP burst

User’s Manual R19UH0028EJ0500

23

CHAPTER 3 REGISTERS

3.2.10 Memory request scheduling mode register

This register (MEMC_REQSCH: C00A_1000H) specifies the schedule of requests for memory.

31 30 29 28 27 26 25 24

Reserved

23 22 21 20 19 18 17 16

Reserved

15 14 13 12 11 10 9 8

Reserved MXCSWN

7 6 5 4 3 2 1 0

MXCASWN MXWTWN MXRDWN WTDNUM

Reserved

MXCSWN

MXCASWN

MXWTWN

MXRDWN

MTDNUM

R

R/W

R/W

R/W

R/W

R/W

31:10

9:8

7:6

5:4

3:2

1:0

0H

00B

00B

00B

00B

00B

Function

Reserved. When these bits are read, 0 is returned for each bit.

Specifies the maximum number of times the same CS can be selected in a row.

00B: No specification, 01B: 2 times, 10B: 4 times, 11B: 6 times

Specifies the maximum number of times a CAS request can be selected in a row.

00B: Once (Performs execution immediately after receiving a CAS request), 01B: 2 times, 10B: 4 times, 11B: 6 times

Specifies the maximum number of times a write request can be selected in a row for a read request during a write drain.

00B: No specification, 01B: 2 times, 10B: 4 times, 11B: 6 times

Specifies the maximum number of times a read request can be selected in a row for a write request during a write drain.

00B: No specification, 01B: 2 times, 10B: 4 times, 11B: 6 times

Specifies the number of requests for starting a write drain.

00B: 2, 01B: 4, 10B: 6, 11B: 8

24

User’s Manual R19UH0028EJ0500

CHAPTER 3 REGISTERS

3.2.11 Memory connection setting register

This register (MEMC_DDR_CONFIGF: C00A_2000H) specifies the configuration for the external memory.

31 30 29 28 27 26 25 24

Reserved

23 22 21 20 19 18 17 16

Reserved

15 14 13 12 11 10 9 8

7 6 5 4 3 2 1 0

Reserved R

CS1_BANK_SPLIT R/W

31:16

15:14

Reserved

CS1_DOUBLE

CS1_DENSITY

R

R/W

13

12

R/W 11:10

CS1_JEDEC

CS1_ENABLE

R/W

R/W

9

8

CS0_BANK_SPLIT R/W 7:6

Reserved

CS0_DOUBLE

CS0_DENSITY

CS0_JEDEC

CS0_ENABLE

R

R/W

R/W

R/W

R/W

5

4

3:2

1

0

0H

00B

0H

0B

00B

0H

0B

00B

0H

0B

00B

0H

0B

Function

Reserved. When these bits are read, 0 is returned for each bit.

Specifies the number of banks for interleaving for CS1 (see

Figure 3-1

)

00B: 4-bank interleave

01B: 2-bank interleave

10B: No interleave

11B: Lower two banks interleaved, higher two banks not interleaved

Reserved. When this bit is read, 0 is returned.

Indicates whether two CS1 chips (16-bit bus chip

2) may be used.

0: Not used. (32-bit bus chip

1) 1: May be used (16-bit bus chip

2)

Specifies the memory size of CS1.

00B: 128 Mb, 01B: 256 Mb, 10B: 512 Mb, 11B: 1 Gb

0: Non-JEDEC, 1: JEDEC

Specifies whether to enable access to CS1 memory.

0: Disables access, 1: Enables access

Specifies the number of banks for interleaving for CS0 (see

Figure 3-1

)

00B: 4-bank interleave

01B: 2-bank interleave

10B: No interleave

11B: Lower two banks interleaved, higher two banks not interleaved

Reserved. When this bit is read, 0 is returned.

Indicates whether two CS0 chips (16-bit bus chip

2) may be used.

0: Not used. (32-bit bus chip

1) 1: May be used (16-bit bus chip

2)

Specifies the memory size of CS0.

00B: 128 Mb, 01B: 256 Mb, 10B: 512 Mb, 11B: 1 Gb

0: Non-JEDEC, 1: JEDEC

Specifies whether to enable access to CS0 memory.

0: Disables access, 1: Enables access

User’s Manual R19UH0028EJ0500

25

CHAPTER 3 REGISTERS

Bank addressing can be changed individually for CS0 and CS1. DDR SDRAM assigns bank addresses to column addresses consecutively and reads out up to 4 KB of data in succession. However, because memory is separated into banks, data cannot be read consecutively when using the partial refresh function (a function for retaining only specific data in memory), and consecutiveness in memory areas that must be maintained is not assured. Specify settings by using this register to avoid this problem. Table 3-1 shows an example of address assignment and Figure

3-1 shows an overview of the mapping.

CONFIG[7:0]

1Gb(16)Jx2

0x1F

0x5F

28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2

CPU

12 11 10 9 8 7 6 5 4 3 2 1 0 1 0 10 9 8 7 6 5 4 3 2 1 0

4Bank CS RAS BA CAS

2Bank CS BA

1 12 11 10 9 8 7 6 5 4 3 2 1 0 0 10 9 8 7 6 5 4 3 2 1 0

RAS BA CAS

1Gb(32)J or 512Mb(16)Jx2

0x0F 4Bank

0x4F 2Bank

1Gb(32)N or 512Mb(16)Nx2

0x0D or 0x19 4Bank

0x4D or 0x59 2Bank

512Mb(32)J or 256Mb(16)Jx2

0x15 4Bank

0x55 2Bank

512Mb(32)N or 256Mb(16)Nx2

0x09 4Bank

0x49 2Bank

256Mb(32)J or 128Mb(16)x2

0x11 4Bank

0x51 2Bank

256Mb(32)N

0x05

0x45

4Bank

2Bank

CS

12 11 10 9 8 7 6 5 4 3 2 1 0 1 0 9 8 7 6 5 4 3 2 1 0

RAS BA CAS

CS BA

1 12 11 10 9 8 7 6 5 4 3 2 1 0 0 9 8 7 6 5 4 3 2 1 0

RAS BA CAS

CS

13 12 11 10 9 8 7 6 5 4 3 2 1 0 1 0 8 7 6 5 4 3 2 1 0

RAS BA CAS

CS BA

1 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 8 7 6 5 4 3 2 1 0

RAS BA CAS

CS

12 11 10 9 8 7 6 5 4 3 2 1 0 1 0 8 7 6 5 4 3 2 1 0

RAS BA CAS

CS BA

1 12 11 10 9 8 7 6 5 4 3 2 1 0 0 8 7 6 5 4 3 2 1 0

RAS BA CAS

CS

13 12 11 10 9 8 7 6 5 4 3 2 1 0 1 0 7 6 5 4 3 2 1 0

RAS BA CAS

CS BA

1 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 7 6 5 4 3 2 1 0

RAS BA CAS

CS

11 10 9 8 7 6 5 4 3 2 1 0 1 0 8 7 6 5 4 3 2 1 0

RAS BA CAS

CS BA

1 11 10 9 8 7 6 5 4 3 2 1 0 0 8 7 6 5 4 3 2 1 0

RAS BA CAS

CS

12 11 10 9 8 7 6 5 4 3 2 1 0 1 0 7 6 5 4 3 2 1 0

RAS BA CAS

CS BA

1 12 11 10 9 8 7 6 5 4 3 2 1 0 0 7 6 5 4 3 2 1 0

RAS BA CAS

26

User’s Manual R19UH0028EJ0500

CHAPTER 3 REGISTERS

Table 3-1. Correspondence of CPU Address and External Memory Address (JEDEC)

Reg. setting

Memory Size Bank Interleave CS0[7:6]

4-bank

2-bank

256 Mb 0-bank

CS1[15:14] b'00 b'01 b'10

4-bank (BA1 = L) b'11

2-bank (BA1 = H

4-bank

2-bank b'00 b'01

512 Mb 0-bank b'10

4-bank (BA1 = L) b'11

2-bank (BA1 = H

4-bank

2-bank b'00 b'01

1 Gb 0-bank b'10

4-bank (BA1 = L) b'11

2-bank (BA1 = H

CPU Address

A27 A26 A25 A24 A23 A22 A21 A20 A19 A18 A17 A16 A15 A14 A13 A12 A11 A10 A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

DRAM Address

A11 A10 A9 A8 A7 A6 A5 A4 A3 A2 A1 A0 BA1BA0A8 A7 A6 A5 A4 A3 A2 A1 A0

BA1A11 A10 A9 A8 A7 A6 A5 A4 A3 A2 A1 A0 BA0A8 A7 A6 A5 A4 A3 A2 A1 A0

BA1BA0A11 A10 A9 A8 A7 A6 A5 A4 A3 A2 A1 A0 A8 A7 A6 A5 A4 A3 A2 A1 A0

BA1 = L A11 A10 A9 A8 A7 A6 A5 A4 A3 A2 A1 A0 BA1BA0A8 A7 A6 A5 A4 A3 A2 A1 A0

BA1 = HBA1A11 A10 A9 A8 A7 A6 A5 A4 A3 A2 A1 A0 BA0A8 A7 A6 A5 A4 A3 A2 A1 A0

A12 A11 A10 A9 A8 A7 A6 A5 A4 A3 A2 A1 A0 BA1BA0A8 A7 A6 A5 A4 A3 A2 A1 A0

BA1A12 A11 A10 A9 A8 A7 A6 A5 A4 A3 A2 A1 A0 BA0A8 A7 A6 A5 A4 A3 A2 A1 A0

BA1BA0A12 A11 A10 A9 A8 A7 A6 A5 A4 A3 A2 A1 A0 A8 A7 A6 A5 A4 A3 A2 A1 A0

BA1 = L A12 A11 A10 A9 A8 A7 A6 A5 A4 A3 A2 A1 A0 BA1BA0A8 A7 A6 A5 A4 A3 A2 A1 A0

BA1 = HBA1A12 A11 A10 A9 A8 A7 A6 A5 A4 A3 A2 A1 A0 BA0A8 A7 A6 A5 A4 A3 A2 A1 A0

A12 A11 A10 A9 A8 A7 A6 A5 A4 A3 A2 A1 A0 BA1BA0A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

BA1A12 A11 A10 A9 A8 A7 A6 A5 A4 A3 A2 A1 A0 BA0A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

BA1BA0A12 A11 A10 A9 A8 A7 A6 A5 A4 A3 A2 A1 A0 A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

BA1 = L A12 A11 A10 A9 A8 A7 A6 A5 A4 A3 A2 A1 A0 BA1BA0A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

BA1 = HBA1A12 A11 A10 A9 A8 A7 A6 A5 A4 A3 A2 A1 A0 BA0A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

Figure 3-1. External Memory Address Mapping

register set value

No bank division: 0x0 Dividing bank by 2: 0x1

partial refresh unit

Dividing bank by 4: 0x21 Dividing bank by 2: 0x3

COSMO partial refresh unit

Up to 4 KB units can be accessed sequentially

Up to 2 KB units can be accessed sequentially

Up to 1 KB units can be accessed sequentially

The division factor of banks can be individually specified for CS0 and CS1.

1 KB units can be accessed sequentially

2 KB units can be accessed sequentially

Banks 0 and 1:

2 KB units can be accessed sequentially

Banks 2 and 3:

1 KB unit can be accessed sequentially

Dividing bank by 2: 0x3

4 KB units can be accessed sequentially

No bank division: 0x0

User’s Manual R19UH0028EJ0500

27

CHAPTER 3 REGISTERS

32-bit bus chip

1

Size Word

256 Mb

512 Mb

8 M

16 M

1 Gb

16-bit bus chip

2

32 M

Size Word

128 Mb

256 Mb

512 Mb

1 Gb

8 M

16 M

32 M

64 M

Table 3-2. DDR SDRAM (JEDEC)

Bus Width

32

32

32

Bus Width

32

32

32

32

Row

A[11:0]

A[12:0]

A[12:0]

Row

A[11:0]

A[12:0]

A[12:0]

A[12:0]

Column

A[8:0]

A[8:0]

A[9:0]

Column

A[8:0]

A[8:0]

A[9:0]

A[10:0]

BA

BA[1:0]

BA[1:0]

BA[1:0]

BA

BA[1:0]

BA[1:0]

BA[1:0]

BA[1:0]

28

User’s Manual R19UH0028EJ0500

CHAPTER 3 REGISTERS

3.2.12 AC timing setting register 1

This register (MEMC_DDR_CONFIGA1: C00A_2004H) determines the AC timing of external memory.

31 30 29 28 27 26 25 24 tDCRRD tRRD tRP

23 22 21 20 19 18 17 16

15 14 13 12 11 10 9 8

Reserved tRWD Reserved tWRD

7 6 5 4 3 2 1 0

Reserved tRPD Reserved tWPD tDCRRD tRRD tRP tRCD

RCL

WCL

Reserved tRWD

Reserved tWPD

Reserved tRPD

R

R

R/W

R

R/W

31:30

R/W 29:27

R/W 26:24

R/W 23:20

R/W 19:18

R/W 17:16

R 15

R/W 14:12

11

10:8

7

6:4

01B

010B

100B

100B

01B

00B

0B

11B

0B

10B

0B

000B

Function

Specifies the number of cycles required from a read (write) command to a read

(write) command between chips.

Specifying 0 is prohibited.

Specifies the reference clock cycles between bank activating commands.

Specifies the reference clock cycles from a precharge command to a bank activating command.

Specifies the period from a bank activating command to a read command and a bank activating command to a write command.

0x3 at 166 MHz, 0x2 at 133 MHz, 0x1 at 100 MHz

RL = tRCD + RCL, W L = tRCD + WCL

1

Note 2

Specifies the read CAS latency.

00B: CL = 2, 01B: CL = 3, 10B: CL = 4, 11B: CL = 5

Specifies the write CAS latency.

00B: CL = 1, 01B: CL = 2, 10B: CL = 3, 11B: CL = 4

Reserved. When this bit is read, 0 is returned.

Specifies the period from a read command to a write command.

tRWD + 4

clock cycles

Reserved. When this bit is read, 0 is returned.

Specifies the period from a write command to a read command.

tWPD + 4

clock cycles

Reserved. When this bit is read, 0 is returned.

Specifies the period from a read command to a precharge command.

tRPD + 4

clock cycles

Reserved. When this bit is read, 0 is returned. Reserved R 3 0B tWPD R/W 2:0 011B Specifies the period from a write command to a precharge command.

tWPD + 4

clock cycles

Note

tRCDR = tRCDW + 1, RL = tRCDW + RCL, WL = tRCDW + WCL

1

Because the same AC parameters are applied to CS0 and CS1, devices whose AC timing specifications differ cannot be connected to CS0 and CS1 at the same time.

User’s Manual R19UH0028EJ0500

29

CHAPTER 3 REGISTERS

3.2.13 AC timing setting register 2

This register (MEMC_DDR_CONFIGA2: C00A_2008H) specifies the AC timing parameters for external memory and is used to expand some functions. tSREX tRFC

IO_HZ AutoPre CLK_MODE PstamblExt PreamblExt DBParkEna Reserved

Reserved

CS1H

CS0H

ADD_HZ

CMD_HZ tSREX tRFC

Reserved

LowFrqTyp

DQS_mask_Ext

DQS_mask

R

R/W

31:28

27

R/W 26

R/W 25

R/W 24

R/W 23:20

R/W 19:16

R

R/W

15:13

12

R/W 11

R/W 10:9

0H

0B

0B

0B

0B

DH

AH

0H

0B

0B

00B

(1/2)

Function

Reserved. When these bits are read, 0 is returned for each bit.

Forcibly sets CS1 to high level.

0: Active, 1: High level

Forcibly sets CS0 to high level.

0: Active, 1: High level

Specifies the state of the I/O buffer for address signals.

0: Active, 1: Hi-Z

Specifies the state of the I/O buffer for command signals.

0: Active, 1: Hi-Z

Specifies the period until returning from a self refresh.

[

(tSREX + 8)

1)

] clock cycles *

Note

Specifies the period until returning from an auto refresh.

tRFC + 8

clock cycles

Reserved. When these bits are read, 0 is returned for each bit.

Switches the frequency range in the low-frequency mode.

0: 30 MHz or less, 1: 30 MHz to 60 MHz

Specifies whether to delay the input DQS mask timing by 0.5 clock cycles.

0: Does not delay the timing.

1: Delays the period.

Specifies how much the input DQS mask timing is delayed.

00B: 2 clock cycles, 01B: 2.5 clock cycles, 10B: 3 clock cycles,

11B: Reserved

30

User’s Manual R19UH0028EJ0500

CHAPTER 3 REGISTERS

DQM_HZ

IO_HZ

AutoPre

CLK_MODE

PstamblExt

PreamblExt

DBParkEna

R/W

R/W

R/W

R/W

R/W

R/W

R/W

8

7

6

5:4

3

2

1

0B

0B

1B

00B

0B

0B

0B

(2/2)

Function

Specifies the state of the DQM signal for the I/O buffer.

0: Active, 1: Hi-Z

Specifies the state of the signal for the I/O buffer.

0: Active, 1: Hi-Z

Specifies whether to enable auto precharge.

0: Does not enable auto precharge, 1: Enables auto precharge

Specifies the timing at which read data is received.

00B: 2-clock cycle mode, 01B: 3-clock cycle mode,

10B: 1-clock cycle mode, 11B: Reserved

Specifies whether to extend the period for which the DQS postamble is output during a write by 0.5 clock cycles.

0: Does not extend the period, 1: Extend the period

Specifies whether to extend the period for which the DQS preamble is output during a write by 0.5 clock cycles.

0: Does not extend the period, 1: Extend the period

Specifies whether to drive DQ or DQS to low level while DDR SDRAM is in the Hi-Z state.

0: Hi-Z control

1: Drive to low level for periods other than the period when data is valid.

Reserved. When this bit is read, 0 is returned. Reserved R 0 0B

Remark

Because the same AC parameters are applied to CS0 and CS1, devices whose AC timing specifications differ cannot be connected to CS0 and CS1 at the same time.

Note

The maximum of tSREX which can be put at the time of DDR333 (166MHz) movement is 6ns

(15 + 8-1)=

132 ns. SDRAM with any more min standard can't be connected.

User’s Manual R19UH0028EJ0500

31

CHAPTER 3 REGISTERS

3.2.14 Software command issuance register 1

This register (MEMC_DDR_CONFIGC1: C00A_200CH) specifies addresses and data when the extended mode register is set up for external memory.

31 30 29 28 27 26 25 24

MODREG_EMRS

23 22 21 20 19 18 17 16

MODREG_EMRS

15 14 13 12 11 10 9 8

MODREG_MRS

7 6 5 4 3 2 1 0

MODREG_MRS

Function

MODREG_EMRS R/W 31:16 4040H Specifies register setting command issuance address 2

(DDR SDRAM: BA1, BA0, A[13:0])

MODREG_MRS R/W 15:0 0003H Specifies mode register setting command issuance address 1

(DDR SDRAM: BA1, BA0, A[13:0])

A command that sets up an extended mode register is issued for external memory based on the address specified for the MODREG_EMRS bit.

A command that sets up an extended mode register is issued for external memory based on the address specified for the MODREG_MRS bit. The address is fixed to 0xFF FFF0.

When setting up a mode register and issuing the Initialize, MRS, or EMRS command, set up this register as follows:

Initialize command MODREG_EMRS = {2’b10,

EMRS setting

}, MODREG_MRS = {2’b00,

MRS setting

}

MRS command

EMRS command

MODREG_EMRS = {2’b00,

MODREG_EMRS = {2’b10,

MRS setting

}, MODREG_MRS = {2’b00,

EMRS setting any value

}, MODREG_MRS = {2’b00,

}

any value

}

When issuing precharge commands, set up this register as follows:

All bank precharge MODREG_MRS[10] = 1’b1

Bank precharge MODREG_MRS[15:14] = Target bank address, MODREG_MRS[10] = 1’b0

Restriction and caution on command issuance:

Requests to issue commands are ignored when the CMD_STATE bit of the MEMC_DDR_CONFIGC2 register is set to 0 (busy).

32

User’s Manual R19UH0028EJ0500

CHAPTER 3 REGISTERS

3.2.15 Software command issuance register 2

This register (MEMC_DDR_CONFIGC2: C00A_2010H) specifies the settings for controlling command issuance for external memory.

31 30 29 28 27 26 25 24

Reserved

23 22 21 20 19 18 17 16

Reserved

15 14 13 12 11 10 9 8

Reserved CMD_STATE

(CS1)

CMD_STATE

(CS0)

7 6 5 4 3 2 1 0

CMD_REQ_

LOCK

CMD_

ENABLE

CS1_TARGET CS0_TARGET CMD_SET

Reserved

CMD_STATE(CS1)

CMD_STATE(CS0)

CMD_REQ_LOCK

CMD_ENABLE

CS1_TARGET

CS0_TARGET

R

R

R

R/W

R/W

R/W

R/W

31:10

9

8

7

6

5

4

0H

1B

1B

1B

1B

0B

0B

(1/2)

Function

Reserved. When these bits are read, 0 is returned for each bit.

Indicates the execution status of a command requested by CS.

0: Busy, 1: Standby

Indicates the execution status of a command requested by CS.

0: Busy, 1: Standby

Specifies the signal to lock any request other than for command issuance.

0: Lock, 1: Unlock

Specifies whether to issue a command request.

0: Requests command issuance.

This bit is automatically set to 1 during the next clock cycle.

Sets the command request flag for CS1.

0: Does not set the flag.

1: Sets the flag.

Sets the command request flag for CS0.

0: Does not set the flag.

1: Sets the flag.

User’s Manual R19UH0028EJ0500

33

CHAPTER 3 REGISTERS

(2/2)

CMD_SET R/W 3:0 0H

Function

Specifies the control command.

0111B: Disables the CKE signal.

1000B: Executes the DDR SDRAM initialization sequence.

1001B: Precharges all banks.

1010B: Executes a CBR refresh.

1011B: Shifts to the self refresh mode.

1100B: Shifts to the deep power down mode.

1101B: Enables the CKE signal.

1110B: Reads from the (extended) mode register.

1111B: Writes to the (extended) mode register.

The command specified by the CMD_SET bit can be issued if a command code is specified for the target memory at the same time as the CMD_ENABLE bit is set to 0 in this register.

The memory assigned to CS0 and CS1 can be specified as target memory at the same time.

Before setting the CMD_ENABLE bit, make sure that the CMD_STATE bit is set to 1.

No command requests are accepted if the CMD_STATE bit is set to 0 (busy) upon command issuance. After a command request is issued while the CMD_REQ_LOCK bit is set to 0 (locked), only requests for software commands are accepted.

When the deep power down mode is entered, cancel the auto self refresh and CBR refresh for the target CS.

34

User’s Manual R19UH0028EJ0500

CHAPTER 3 REGISTERS

3.2.16 Refresh setting register 1

This register (MEMC_DDR_CONFIGR1: C00A_2014H) individually specifies refresh cycles in external memory for

CS0 and CS1.

31 30 29 28 27 26 25 24

CS1_REF_

OVER

CS1_REF_STOCK CS1_CBR_

SREF

CS1_REF_COUNT

23 22 21 20 19 18 17 16

CS1_REF_COUNT

15 14 13 12 11 10 9 8

CS0_REF_

OVER

CS0_REF_STOCK CS0_CBR_

SREF

CS0_REF_COUNT

7 6 5 4 3 2 1 0

CS0_REF_COUNT

Name Function

CS1_REF_OVER

CS1_REF_STOCK

CS1_CBR_SREF

CS1_REF_COUNT

CS0_REF_OVER

CS0_REF_STOCK

CS0_CBR_SREF

CS0_REF_COUNT

R

R

R/W

R/W

R

R

R/W

R/W

31

30:28

27

26:16

15

14:12

11

10:0

0B

7H

1B

7FFH

0B

7H

1B

7FFH

Indicates whether the number of times refreshes for CS1 still needs to be executed exceeds the maximum.

Indicates the number of times refreshes for CS1 still needs to be executed.

Specifies whether to forcibly execute a CBR refresh at least once when

CS1 is in the self refresh mode.

Specifies the CS1 refresh timer counter value.

Refresh cycle = RCLK (refresh counter clock) cycles

specified value

Indicates whether the number of times refreshes for CS0 still needs to be executed exceeds the maximum.

Indicates the number of times refreshes for CS0 still needs to be executed

Specifies whether to forcibly execute a CBR refresh at least once when

CS0 is in the self refresh mode.

Specifies the CS0 refresh timer count value.

Refresh cycle = RCLK (refresh counter clock) cycles

specified value

The refresh counter is incremented during each refresh cycle by the REF_STOCK counter. A refresh is executed when the self refresh mode is entered or when the refresh counter reaches the threshold.

User’s Manual R19UH0028EJ0500

35

CHAPTER 3 REGISTERS

3.2.17 Refresh setting register 2

This register (MEMC_DDR_CONFIGR2: C00A_2018H) specifies the settings for a refresh in external memory.

31 30 29 28 27 26 25 24

Reserved STOCK_

DRAIN_TYP _RST

23 22 21 20 19 18 17 16

Reserved COUNT_

COMMON _RST

15 14 13 12 11 10 9 8

CS1_SREF_COUNT CS1_SREF_

AUTO

CS1_REF_

AUTO

7 6 5 4 3 2 1 0

CS0_SREF_COUNT CS0_SREF_

AUTO

CS0_REF_

AUTO

(1/2)

Reserved

STOCK_DRAIN_TYP

CS1_STOCK_DRAIN

CS1_STOCK_MAX

CS1_TIMER_RST

Reserved

COUNT_COMMON

CS0_STOCK_DRAIN

CS0_STOCK_MAX

R

R/W

R/W

R/W

R/W

R

R/W

R/W

R/W

Bit Reset

31

30

29:28

27:25

24

23

22

21:20

19:17

0B

0B

01B

7H

1B

0B

1B

01B

7H

Function

Reserved. When this bit is read, 0 is returned.

Specifies whether to decrement the refresh counter (whether to execute CBR) when no read request is being received and the number of write requests is the write buffer drain threshold value or lower.

Specifies how many times a refresh is executed before CS1 enters the self refresh mode.

Specifiable range: 1 to 3 (Specifying 0 is prohibited.)

Specifies the maximum number of refreshes for CS1.

Specifiable range: 1 to 7 (Specifying 0 is prohibited.)

Specifies whether to reset CS1_REF_COUNT, CS1_REF_STOCK, and

CS1_REF_OVER.

0: Reset

This bit is automatically set to 1 during the next clock cycle.

Reserved. When this bit is read, 0 is returned.

Specifies whether to apply the auto refresh cycle for CS0 to CS1.

(The counter for CS1 stops.)

Specifies how many times a refresh is executed before CS0 enters the self refresh mode.

Specifiable range: 1 to 3 (Specifying 0 is prohibited.)

Specifies the maximum number of refreshes for CS0.

Specifiable range: 1 to 7 (Specifying 0 is prohibited.)

36

User’s Manual R19UH0028EJ0500

CHAPTER 3 REGISTERS

(2/2)

Function

CS0_TIMER_RST R/W 16 1B Specifies whether to reset CS0_REF_COUNT, CS0_REF_STOCK, and

CS0_REF_OVER.

0: Reset

This bit is automatically set to 1 during the next clock cycle.

CS1_SREF_COUNT R/W 15:10 1FH Specifies

CS1_SREF_AUTO R/W 9 0B

Auto self refresh entry idle counter set value multiplied by 16.

Specifies whether to enable issuance of CS1 auto self refresh requests

(SREF).

0: Disable, 1: Enable

CS1_REF_AUTO R/W 8 0B

CS0_SREF_COUNT R/W 7:2 1FH Specifies

Auto self refresh entry idle counter set value multiplied by 16.

CS0_SREF_AUTO R/W 1 0B

Specifies whether to enable issuance of CS1 auto refresh requests (CBR).

0: Disable, 1: Enable

Specifies whether to enable issuance of CS0 auto self refresh requests

(SREF).

0: Disable, 1: Enable

CS0_REF_AUTO R/W 0 0B Specifies whether to enable issuance of CS0 auto refresh requests (CBR).

0: Disable, 1: Enable

1.

The refresh counter is incremented during each refresh cycle by the REF_STOCK counter. A refresh is executed when the self refresh mode is entered or when the refresh counter reaches the threshold. When the REF_STOCK counter exceeds the maximum value, the CS0/1_REF_OVER bits of the MEMC_DDR_CONFIGR1 register are set to

User’s Manual R19UH0028EJ0500

37

CHAPTER 3 REGISTERS

3.2.18 Refresh setting register 3

This register (MEMC_DDR_CONFIGR3: C00A_201CH) specifies the settings for a refresh in external memory.

31 30 29 28 27 26 25 24

Reserved

23 22 21 20 19 18 17 16

Reserved

15 14 13 12 11 10 9 8

AUTO

7 6 5 4 3 2 1 0

AUTO

Reserved R 31:16

CS1_APD_COUNT R/W 15:10

Reserved

CS1_APD_AUTO

Reserved

CS0_APD_AUTO

R

R/W

CS0_APD_COUNT R/W

R

R/W

7:2

1

0

9

8

0H

3FH

0B

0B

3FH

0B

0b

Function

Reserved. When these bits are read, 0 is returned for each bit.

Specifies the automatic CS1 power down counter value (the idle counter value).

Reserved. When this bit is read, 0 is returned.

Specifies whether to request an automatic CS1 power down.

0: Normal operation, 1: Requested

Specifies the automatic CS0 power down counter value (the idle counter value).

Reserved. When this bit is read, 0 is returned.

Specifies whether to request an automatic CS0 power down.

0: Normal operation, 1: Requested

When no received requests remain in the request queue, the counter is incremented up to the value set to the

CS0/1_APD_COUNT bits and then the corresponding CS automatically enters the power down mode (CKE = low level).

38

User’s Manual R19UH0028EJ0500

CHAPTER 3 REGISTERS

3.2.19 Automatic DQS timing adjustment register 1

This register (MEMC_DDR_CONFIGT1: C00A_2020H) specifies the adjustment of delays in external memory.

31 30 29 28 27 26 25 24

Reserved MCLK_DELAY

23 22 21 20 19 18 17 16

Reserved CLK270_DELAY

15 14 13 12 11 10 9 8

Reserved DQS_O_DELAY

7 6 5 4 3 2 1 0

Reserved CALIBRATE

_PAT

CALIBRATE

_STATE

AUTO_CALI

BRATE

Reserved

MCLK_DELAY

Reserved

CLK270_DELAY

Reserved

DQS_O_DELAY

Reserved

CALIBRATE_PAT

R 31:28

R/W 27:24

R 23:21

R/W 20:16

R 15:12

R/W 11:8

R

R/W

7:3

2

CALIBRATE_STATE R/W 1

AUTO_CALIBRATE R/W 0

0H

0H

0H

0B

0H

0H

0H

0H

1B

1B

Function

Reserved. When these bits are read, 0 is returned for each bit.

Adjusts the MCLK delay (delay 1).

Reserved. When these bits are read, 0 is returned for each bit.

Adjusts the CLK270 delay (delay 4).

Reserved. When these bits are read, 0 is returned for each bit.

Adjusts the delay of DQS output (delay 3).

Reserved. When these bits are read, 0 is returned for each bit.

Specifies the calibration pattern.

0: 0xFFFF

0x0000, 1: 0xAAAA

0x5555

Indicates the calibration status.

0: Busy, 1: Ready

Specifies the start of automatic calibration.

0: Calibration starts.

Delays can be added to each signal line by setting up this register.

The optimum delay values obtained by calibration are stored in the MEMC_DDR_CONFIGT3 register.

When the delay is adjusted using this register, set the MEMCCLK270_SEL bit of the MEMCCLK270_SEL register to 1 in the ASMU.

User’s Manual R19UH0028EJ0500

39

CHAPTER 3 REGISTERS

3.2.20 Automatic DQS timing adjustment register 2

This register (MEMC_DDR_CONFIGT2: C00A_2024H) specifies the automatic adjustment of delays in external memory.

31 30 29 28 27 26 25 24

Reserved DQS0_DELAY

23 22 21 20 19 18 17 16

Reserved DQS1_DELAY

15 14 13 12 11 10 9 8

Reserved DQS2_DELAY

7 6 5 4 3 2 1 0

Reserved DQS3_DELAY

Reserved

DQS0_DELAY

Reserved

DQS1_DELAY

Reserved

DQS2_DELAY

Reserved

DQS3_DELAY

R 31:30

R/W 29:24

R 23:22

R/W 21:16

R

R/W

R

R/W

15:14

13:8

7:6

5:0

0H

0H

0H

0H

0H

0H

0H

0H

Function

Reserved. When these bits are read, 0 is returned for each bit.

Optimizes the DQS0 delay.

Reserved. When these bits are read, 0 is returned for each bit.

Optimizes the DQS1 delay.

Reserved. When these bits are read, 0 is returned for each bit.

Optimizes the DQS2 delay.

Reserved. When these bits are read, 0 is returned for each bit.

Optimizes the DQS3 delay.

Delays can be added to each input DQS signal line by setting up this register.

40

User’s Manual R19UH0028EJ0500

CHAPTER 3 REGISTERS

3.2.21 Automatic DQS timing adjustment register 3

This register (MEMC_DDR_CONFIGT3: C00A_2028H) stores the result of adjustment for automatic calibration delays.

31 30 29 28 27 26 25 24

Reserved DQS0_DELAY_VAL

23 22 21 20 19 18 17 16

Reserved DQS1_DELAY_VAL

15 14 13 12 11 10 9 8

Reserved DQS2_DELAY_VAL

7 6 5 4 3 2 1 0

Reserved DQS3_DELAY_VAL

Reserved

DQS0_DELAY_VAL

Reserved

DQS1_DELAY_VAL

Reserved

DQS2_DELAY_VAL

Reserved

DQS3_DELAY_VAL

R

R

R

R

R

R

R

R

31:30

29:24

23:22

21:16

15:14

13:8

7:6

5:0

0H

0H

0H

0H

0H

0H

0H

0H

Function

Reserved. When these bits are read, 0 is returned for each bit.

Stores the result of adjusting the DQS0 delay.

Reserved. When these bits are read, 0 is returned for each bit.

Stores the result of adjusting the DQS1 delay.

Reserved. When these bits are read, 0 is returned for each bit.

Stores the result of adjusting the DQS2 delay.

Reserved. When these bits are read, 0 is returned for each bit.

Stores the result of adjusting the DQS3 delay.

The optimum delay values obtained by calibration are stored in the DQS0_DELAY_VAL to DQS3_DELAY_VAL bits.

When adjustment for automatic calibration is executed, set the MEMCCLK270_SEL bit of the MEMCCLK270_SEL register to 1 in the ASMU.

User’s Manual R19UH0028EJ0500

41

CHAPTER 3 REGISTERS

3.2.22 Memory status check register

This register (MEMC_DDR_STATE8: C00A_202CH) is used to monitor the status of CS0 and CS1.

31 30 29 28 27 26 25 24

CS1_STATE

23 22 21 20 19 18 17 16

CS1_STATE

15 14 13 12 11 10 9 8

CS0_STATE

7 6 5 4 3 2 1 0

CS0_STATE

CS1_STATE

CS0_STATE

R

R

31:16

15:0

0H

0H

Function

Indicates the status of the memory connected to CS1.

0x0: Idle

0x1: Extended mode register setting

0x3: Self refresh

0x5: Auto power down

0x6: Self refresh end

0x7: Deep power down

0x8: Bank precharge/all bank precharge

0xA: Read/write

0xC: Forced CBR refresh

0xE: CBR refresh

0xF: Mode register setting

Indicates the status of the memory connected to CS0.

0x0: Idle

0x1: Extended mode register setting

0x3: Self refresh

0x5: Auto power down

0x6: Self refresh end

0x7: Deep power down

0x8: Bank precharge/all bank precharge

0xA: Read/write

0xC: Forced CBR refresh

0xE: CBR refresh

0xF: Mode register setting

42

User’s Manual R19UH0028EJ0500

4.1 External Memory Access Control

CHAPTER 4 USAGE

DDR SDRAM can be connected as an external memory and can be read and written in 8-burst length. The DDR

SDRAM is divided into four banks. Consecutive reading access within a 1-KB consecutive address in the same bank

(CAS access) can be performed efficiently. However, access outside the 1-KB consecutive address (RAS access) is less efficient. Accessing a different bank is efficient. The DDR scheduler sorts requests in order to make access efficient.

Table 4-1. Clock Counts Required for 16-Word Access (Burst Length = 8)

Mode

Other bank (read

 read)

Same bank (read

CAS)

Same bank (read

RAS)

Other bank (read

 write)

Same bank (read

CAS)

Same bank (read

RAS)

Other bank (write

 read)

Same bank (write

CAS)

Same bank (write

RAS)

Other bank (write

 write)

Same bank (write

CAS)

Same bank (write

RAS)

Other chip (read

 read)

Other chip (read

 write)

Other chip (write

 read)

Other chip (write

 write)

Deep power down recovery

Number of DDR CLK Cycles

133 MHz 166 MHz

Auto Non-auto Auto Non-auto

15 15 15 15

22 15 22 15

22 22 22 22

21 21 21 21

25 21 25 21

25 25 25 25

17 17 17 17

25 17 25 17

25 25 25 25

18 18 18 18

28 18 28 18

28 28 28 28

16 16 16 16

21 21 21 21

20 20 20 20

18 18 18 18

88 88 81 81

16 16 20 20

15 15 18 18

84 84 77 77

User’s Manual R19UH0028EJ0500

43

CHAPTER 4 USAGE

The DDR module is controlled by two clock signals, MEMC_CLK and MEMC_CLK270, which are supplied by the

ASMU (system management unit). The frequency of MEMC_CLK is 133 or 166 MHz. MEMC_CLK270 is obtained by shifting the phase of MEMC_CLK by 270

. If there are no read/write requests in the request queue, DDR SDRAM enters the self refresh mode, in which no clock requests are issued. When a read or write request is queued, the

MEMC requests the issuance of a clock signal to the ASMU.

In normal mode, the maximum frequency of MEMC_CLK is 166 MHz and 133 MHz. When MEMC_CLK operating frequency is switched, a handshake with the ASMU occurs. Figure 4-1 shows the frequency switch timing. The AC parameters for the timing of exiting a refresh and starting an auto refresh are optimized according to the switched operating frequency.

When the operating clock is switched to the system clock generated by PLL3, the frequency is judged to be low by receiving the MEMC_CLK operating frequency recognition signal sent from the ASMU, and the AC parameters for

DDR SDRAM are adjusted to the low frequency mode.

The clock frequency is switched immediately if all chips have entered the self refresh mode when clock frequency switching is requested. (ACK is returned immediately.) When a request is being processed (DDR SDRAM is being accessed), the clock frequency is switched after the requested action is executed. (ACK is returned after execution.)

When a CBR refresh request is received, a CBR refresh is executed after the clock frequency is switched. When a clock frequency switch request is received while the MEMC is exiting the self refresh mode, the clock frequency is switched immediately after the self refresh mode is exited.

44

User’s Manual R19UH0028EJ0500

CHAPTER 4 USAGE

Figure 4-1. Timing at Which MEMC_CLK Operating Frequency Is Switched

Sequence for changing the clock frequency from high to low

T0 T1

MEMC_CLK

(DDR module clock)

T2 T3 T4 T5 T6 T7 T8 T9 T10 T11 T12

ASMU_CLKCH_REQ

(Switch request signal from ASMU)

DDR_CLKCH_ACK

(Switch enable signal from

DDR module)

ASMU_CLKFRQ

ASMU_CLKFRQA

(Normal/Half/Quarter recognition signal)

CKE

CLK_REQ

33 MHz or 66 MHz

Normal mode Half mode

Sequence for changing the clock frequency from low to high

T0 T1

MEMC_CLK

(DDR module clock)

T2 T3

ASMU_CLKCH_REQ

DDR_CLKCH_ACK

ASMU_CLKFRQ

ASMU_CLKFRQA

CKE

CLK_REQ

Low frequency

Quarter mode

T4 T5

Level before switching is maintained.

If low, DDR SDRAM is in self-refresh mode

(several hundred ns)

T6 T7 T8 T9 T10 T11 T12

133 MHz or 166 MHz

Normal mode

At least 1

 s is required in quarter mode

Level before switching is maintained.

(At least 800

 s is required when the main PLL is activated)

Addresses and commands are issued when MEMC_CLK is shifted by 180

. In read cycles, data is received

(latched) based on the DQS signal output from external memory, with delays added. In write cycles, data is output in synchronization with MEMC_CLK270.

Figure 4-2. Clock adjustment mechanism

User’s Manual R19UH0028EJ0500

45

CHAPTER 4 USAGE

MEMC Conposision (Clock adjustment mechanism)

MCLK_DELAY

CLK

CLK_270

CLK_DELAY_270

CLK_DELAY_270

Delay

DQS_O_DELAY

Delay

ASMU

DQS_O_DELAY

A/制御

DATA_O/

DQM

DQS_O

Delay

DATA_I

MCLK_DELAY

IO

MCLK/

MCLKB

LPDDR

IO

A/制御

IO

DATA/

DQM

IO

DQS

Delay

LOGIC

MEMC

MEMCIO

DQS[3:0]_DELAY

WRITE adjustment

Figure 4-3. Write phase adjustment

MCLK

MCLKB

Output MCLK is adjusted by changing

MCLK_DELAY

DQS

DATA

DQM

The phase of DQS is adjusted most suitably by changing DQS_DELAY.

The phase of DQ/DQS is adjusted by changing

CLK_DELAY_270.

Figure 4-4. Read phase adjustment

46

User’s Manual R19UH0028EJ0500

CHAPTER 4 USAGE

READ adjustment

The phase of most suitable DQS which calculates the most suitable DQS[0123]_DELAY value in calibration S/W and latches READ DATA by EM1, calculation/adjustment.

DQS

DATA

(fastest)

DATA

(slowest)

(DATA Window)

User’s Manual R19UH0028EJ0500

47

CHAPTER 4 USAGE

4.1.4 Arbitration

The DDR module arbitrates the following three instructions:

<1> Access instructions from the request queue (independent of read/write)

<2> Self refresh instructions from the IDLE/REF counter, or auto refresh instructions (2 types)

<3> Software command instructions (7 types)

The MEMC outputs the control signals for arbitration according to the priority shown in the following table.

Table 4-2. DDR Module Priority in Processing

<1> <2>

Access Self/Auto Refresh

<3>

Software command

48

User’s Manual R19UH0028EJ0500

CHAPTER 4 USAGE

To retain data, the MEMC refreshes DDR SDRAM at a constant interval. The self refresh mode is entered when no read or write request is being received after setting the CS0/1_REF_AUTO bits or CS0/1SREF_AUTO bits of the

MEMC_DDR_CONFIGR2 register. In other cases, the number of refreshes that has been executed is counted during each refresh cycle, and CBR refreshes are performed for the relevant number of times at a specific timing. For the catalogue value of DDR SDRAM whose row address is allocated in 16 M-word units, refreshes must be executed at least 8,192 times per 64 ms (once in 7 to 8

 s).

In EM1, the refresh cycle can be specified freely for the CS0/1_REF_COUNT bits of the MEMC_DDR_CONFIGR2 register. When operation enters a refresh cycle, the number of times refreshes still need to be executed is stored in the CS0/1_REF_STOCK bits of the MEMC_DDR_CONFIGR1 register. When this number reaches the specified value (the values of the CS0/1_STOCK_MAX bits of the MEMC_DDR_CONFIGR2 register), acceptance of requests from the request queue is forcibly suspended temporarily and a CBR refresh is executed once at the top priority.

While in the self refresh mode, the timer that counts the refresh cycles stops temporarily and resumes when the mode is exited.

If refreshes still need to be executed when the self refresh mode is entered, CBR refreshes are executed multiple times (up to the value specified by the CS0/1_STOCK_DRAIN bits of the MEMC_DDR_CONFIGR2 register) before a self refresh is executed. Figure 4-5 shows the processing from when shifting to CBR refresh execution and after shifting to the self refresh mode. Refresh operation is controlled individually for CS0 and CS1.

Figure 4-5. Refresh Control Status Transitions

IDLE IDLE

CS0_SREF_AUTO = 1

IDLE

Counter

ACT

CS0_SREF_AUTO = 0

CS0_REF_AUTO = 1

Refresh

Counter

ACT

CS0_REF

_AUTO = 0

CS0_MODE_SREF = 0

CS0_REF_AUTO = 0

Refresh

Counter

Suspend

CS0_MODE_SREF = 1

(Resume)

IDLE

(CS0_SREF_COUNT_VAL = CS0_SREF_COUNT) &&

(CS0_REF_STOCK = 0)

SREF

FIF_AVALID

= 1

CBR2

N

times

CBR1

User’s Manual R19UH0028EJ0500

49

CHAPTER 4 USAGE

4.1.6 Software command control

By using the MEMC_DDR_CONFIGC2 register, DDR SDRAM commands listed in Table 4-2 can be issued and refresh can be controlled.

When setting a (extended) mode register of DDR SDRAM:

Set the address of the command to be issued to DDR SDRAM by using the MEMC_DDR_CONFIGC1 register.

Set the CMD_SET bit of the MEMC_DDR_CONFIGC2 register to 1111B (to write the mode register).

Set the CMD_ENABLE bit to 0 at the same time; the command is then issued.

When issuing a precharge command

Set the target bank by using the MEMC_DDR_COFIGC1 register. To precharge all banks, set

MODEREG_MRS[10] to 1. To precharge selected banks, set MODEREG_MRS[10] to 0 and set the target bank address by using MODEREG_MRS[15:14].

Set the CMD_SET bit of the MEMC_DDR_CONFIGC2 register to 1001B (to precharge banks).

Set the CMD_ENABLE bit to 0 at the same time; the command is then issued.

When issuing other commands

Setting MEMC_DDR_CONFIG1 is unnecessary.

Set the corresponding command by using the CMD_SET bit of the MEMC_DDR_CONFIGC2 register.

Set the CMD_ENABLE bit to 0 at the same time; the command is then issued.

Remark

Commands are issued after processing of all requests. If the CMD_REQ_LOCK bit has been set when a command is issued, the subsequent requests other than those request for command issuance are held pending until the request lock is released with the CMD_REQ_LOCK bit. Whether a command has been executed can be checked with the CMD_STATE bit. When a software command is executed while the CMD_STATE bit is set to 0 (busy), the command is ignored. When a command to request that the

CKE signal be enabled is issued, a clock request is issued at the same time.

Table 4-3. Software Commands

Command Function

Initial Seq Auto Exec Executes initial sequence at power-on.

Processing

PALL

CBR

CBR

MRS

EMRS

Precharge Executes precharge. A10 = H for PALL, A10 = L and BA[10] = 11B for PRE

Auto refresh

Self refresh

Deep power down

Enabling CKE

Disabling CKE

Read mode register

Write mode register

Executes auto refresh.

Executes self refresh command.

Executed deep power down.

CKE pin control

CKE pin control

Read from mode register

Write to mode register

Issues a CBR command.

Issues an SREF command.

Issues a DPD command.

Enables controlling the CKE signal by the MEMC.

Disables controlling the CKE signal by the MEMC.

Issues an MRS/EMRS command.

50

User’s Manual R19UH0028EJ0500

CHAPTER 4 USAGE

4.1.7 Power on/off sequence

When the power is initially turned on, the DDR_RST signal is asserted after a clock signal is supplied. (This signal is controlled by the ASMU.) Immediately after a reset, first set up DDR registers such as MEMC_DDR_CONFIGF,

MEMC_DDR_CONFIGFA1, and MEMC_DDR_CONFIGA2. Next, individually execute the initialization sequence listed in the table below for CS0 and CS1 by using software commands. The sequence might differ depending on the connected DDR SDRAM. For details, see documents such as the data sheet for the device.

For safety, it is recommended to set the CMD_REQ_LOCK bit of the MEMC_DDR_CONFIGC2 register to 1 to lock any requests other than the command issuance. When issuing the last command, set the CMD_REQ_LOCK bit to 0 to release the locked state.

Figure 4-6. DDR SDRAM Power On Timing

Power on sequence for DDR SDRAM

T0 T1 T2 T3 T4 T5 T6

MEMC_CLK

(DDR module clock)

DDR_RST

T7

Software command issued

CMD_ENABLE

T11 T12

Software command issued

Initial sequence processing

External CKE/CE2 pin

(SDRAM/COSMO)

External CS/CE1 pin

Power down processing is always CS0,1, automatic power down request, the automatic self-refresh and the automatic refreshment request Disable. All Bank Precharge request-> issue confirmation-> CKE Enable issue request-> Issue confirmation-> Deep power down issue (CMD_REQ_LOCK = 1)-> Issue confirmation-> Do by an order of the end..

User’s Manual R19UH0028EJ0500

51

Revision History

February 10, 2009

April 27, 2009

June 12, 2009

September 30, 2009

June 30, 2010

1.0

2.0

3.0

4.0

5.0

Incremental update from comments to the 1.0.

Incremental update from comments to the 2.0.

Incremental update from comments to the 3.0.

Incremental update from comments to the 4.0.

52

User’s Manual R19UH0028EJ0500
