1SFC132081M0201 EN, Rev B

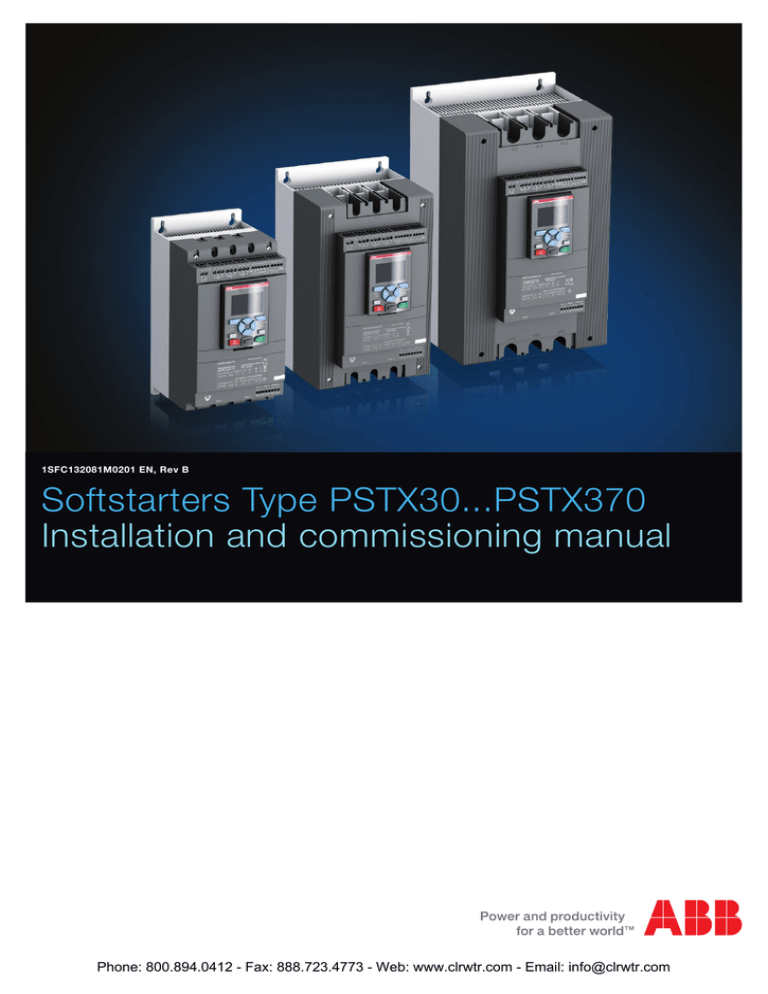

Softstarters Type PSTX30...PSTX370

Installation and commissioning manual

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Original instruction

This is the Installation and commissioning manual for Softstarters Type PSTX30…PSTX370.

Document number: 1SFC132081M0201

Revision: B

Issue date: 2014-09-19

Data can be changed without notice.

We reserve all rights to this document, even in the event that a patent is issued and a different commercial proprietary right is registered. Improper use, in particular reproduction and dissemination to third parties, is not permitted.

This document has been carefully checked. If the user detect an error, he or she is kindly asked to notify us as soon as possible.

The data contained in this manual is intended solely for the product description and is not to be deemed to be a statement of guaranteed properties. In the interests of our customers, we constantly seek to ensure that our products are developed to the latest technological standards. As a result, there may be some differences between the softstarter and the information in this manual.

Author’s address:

ABB AB

Control Products

Low Voltage Products

SE-721 61 VÄSTERÅS, Sweden

© Copyright 2014. All rights reserved. Data can be changed without notice.

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Read this first

Warning and saftey

Thank you for selecting this ABB PSTX softstarter.

Carefully read and make sure that you understand all instructions before you mount, connect, configure the softstarter.

This manual is intended for installation and advanced usage of the PSTX softstarter. For quick and easy installation, see 1SFC132082M9901 - Softstarters Type

PSTX30...PSTX370User Manual short form. The manual is available on ABB website.

When this manual refers to

ABB website Select the link

Control Products, continue to Softstarters and type in the specified reference in the search field.

• Only authorized and appropriately trained personnel are allowed to install and make the electrical connection of the softstarter in accordance with existing laws and regulations.

• Only authorized personnel are allowed to do service and repair on the softstarter.

• Unauthorized repair will effect the warranty.

• ABB personell have to obey the instructions in ABB

CISE 15.4.

• This manual is a part of the PSTX softstarter.

Always keep this manual available when working with the PSTX softstarter.

• Examine the softstarter and the package when you unpack your new PSTX softstarter. If there are damages, please contact the transportation company or the ABB reseller/office immediately.

• Do not lift the softstarter by the connection bars, as this can do damage to the softstarter.

Saftey notes

In this user manual, these symbols are used:

CAUTION

Caution symbol indicates the presence of a hazard which could result in personal injury.

WARNING

Warning symbol indicates the presence of a hazard which could result in damage to equipment or property.

INFORMATION

Information sign alerts the reader to relevant facts and conditions.

Modifications to data in this manual can be applied without notice.

General saftey information

CAUTION

Only authorized and appropriately trained personnel are allowed to install and make the electrical connection of the softstarter in accordance with existing laws and regulations.

WARNING

Examine the softstarter and the package when you unpack your new PSTX softstarter. If there are damages, please contact the transportation company or the ABB reseller/office immediately.

WARNING

Do not lift the softstarter by the connection bars, as this can damage the softstarter.

WARNING

Only authorized and appropriately trained service personnel are allowed to do service and repair on the softstarter. Note: unauthorized repair will effect the warranty.

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Softstarters Type PSTX

Installation and commissioning manual

1 Introduction

2 Quick start

3 Description

4 Mounting

5 Connection

6 Human machine interface (HMI)

7 Functions

8 Communication

9 Maintenance

10 Troubleshooting

11 Wiring diagrams

12 Revision

13 Index

9

10

11

12

5

6

7

8

11

2

3

4

13

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

1 Introduction

1.1 Documentation for softstarter PSTX30...PSTX370

1.1.1 Installation and commissioning manual

1.2 Intended audience

1.3 Revision notes and other documents

1.4 Acronyms and abbreviations

1.4 Acronyms and abbreviations

8

1

9

9

9

9

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

1

This chapter describes the softstarter documentation.

It describes manuals and its chapters, releases, intended audience and it explains concepts.

1.1 Documentation for softstarter

PSTX30...PSTX370

For the softstarter types PSTX30...PSTX370, the following manuals and catalogs are available:

1.1.1 Installation and commissioning manual

This manual, “Softstarters Type PSTX30...PSTX370

Installation and comissioning manual”, contains instructions on how to install, commission and maintain the softstarter. It covers procedures for mechanical and electrical installation, and installation of communication devices. It also covers energizing, settings and configuration.

To start quickly, see chapter 2 Quick start

or use the short form manual (1SFC132082M9901).

For chapter content, see Table 2 Chapter contents below:

1SFC132081M0201

This document. Installation and comissioning manual

(English version). See chapter 1.1.1 Installation and commissioning manual more information.

1SFC132082M9901

Installation and comissioning manual - Short form.

See chapter 1.1.2 Installation and commissioning manual - Short form for more information.

1SFC132009C0201

Catalog Softstarters Type PSTX and PSTB.

These documents are available online in PDF format.

A printed version of the “Installation and comissioning -

Short form” is included with the softstarter.

The following manuals will be available as online PDFfiles :

Table 1 Languages

Document ID

1SFC132081M1301

1SFC132081M2001

1SFC132081M4601

1SFC132081M0101

1SFC132081M0201

1SFC132081M0701

1SFC132081M1801

1SFC132081M0301

1SFC132081M0901

1SFC132081M3101

1SFC132081M4001

1SFC132081M1601

1SFC132081M1101

1SFC132081M3401

1SFC132081M1901

Language

AR Arabic

ZH Chinese

CS Czech

DE German

EN English

ES Spanish

FI Finnish

FR French

IT Italian

NL Dutch

PL Polish

PT Portuguese

RU Russian

SV

Swedish

TR

Turkish

Table 2 Chapters contents

Chapters Description

1. Introduction

2. Quick start

Introduces the reader to this manual.

Contains information on how to, in the quickest way, install the softstarter and get it into operation.

3. Description

4. Mounting

Describes the softstarter with specifications and list of functions.

Contains information of the delivery, how to unpack and mount the softstarter.

5. Connection

6. Human-Machine

Interface

7. Functions

Contains instructions on how to make the electrical connections, as well as connections for communication devices.

Describes the local Human-Machine

Interface, how it works and what it contains.

Describes all settings and how to navigate the menu systems.

Describes all functions included in the softstarter, with their minimum, maximum and default values. This chapter is intended for the experienced user.

8. Communication

9. Maintenance

Describes the communication ports of the softstarter.

Describes what maintenance is needed and how to do it.

10. Troubleshooting Contains instructions on how to quickly find and correct the most common faults.

11. Wiring diagrams Contains electrical and application diagrams for the softstarter.

12. Revision

13. Index

Shows all revisions of the manual

Index of the content of this manual.

These documents will be found at ABB website. Select the link Control Products on the site, and then continue to Softstarters.

1.1.2 Installation and commissioning manual - Short form

The “Softstarters Type PSTX30...PSTX370 Installation and comissioning manual - Short form” contains brief information about the softstarter:

-Installation

-Electrical connections

-Basic funtions

-Troubleshooting

The short form contains the languages shown in

Table 1 Languages. The short form has document ID

1SFC132082M9901.

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

1.2 Intended audience

1.2.1 General

The Installation and commissioning manual is intended for authorized installation, commissioning, and maintenance personnel.

1.2.2 Requirements for personnel

The installation personnel must have a basic knowledge in handling electric equipment. The commissioning and maintenance personnel must be well experienced in using electric equipment. ABB personell have to obey the instructions in ABB CISE 15.4.

1.3 Revision notes and other documents

For latest information on revisions and other documents related to the PSTX softstarters, please check ABB website. Select the link Control Products on the site, and then continue to Softstarters.

1.4 Acronyms and abbreviations

The acronyms and abbreviations described in Table 3

Acronyms and abbrevations are used in this manual.

Table 3 Acronyms and abbreviations

Acronym/ abbreviation

Description

BP

DOL

Bypass

Direct-on-line

Ie

IT

EOL

FB

FBP

HMI

Electronic overload

Fieldbus

Fieldbus Plug

Human-Machine Interface

Rated operational current

LED

PCBA

PLC

PTC

Information Technology

Light Emitting Diode

Printed Circuit Board Assembly

Programmable Logic Controller

SC

SCR

TOR

Uc

Positive Temperature Coefficient

Short Circuit

Silicon Controlled Rectifier (thyristor)

Top of Ramp (full voltage/Full-On)

Ue

Us

Rated control circuit voltage, used for controlling the softstarter. *

Rated operational voltage on the motor (three phase main voltage feeding the motor). *

Rated control supply voltage, feeding the electronics in the softstarter. *

*) For definition see IEC 60947-1 edition 5.0

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

1

1

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

2 Quick start

2.1 Connection

2.2 Configuration

2.2.1 Basic set-up

2.2.2 Application set-up

2.3 How to start/stop the motor

12

14

14

14

2

15

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

2

This chapter is a short guide on how to connect, configure and start the softstarter in an easy way.

This product has been carefully manufactured and tested, but there is a risk that damage can occur from abnormal handling during transportation. Therefore, the instructions below must be followed:

CAUTION

Hazardous voltage: Can cause death or serious injury. Always turn off and lock out all power that supply this device before you start to work on the equipment.

WARNING!

Mounting and fastening of electrical connections must be made by authorized personnel and in accordance with existing laws and regulations.

WARNING!

Before you connect the softstarters PSTX30...

PSTX170 to operational voltage for the first time, apply control supply voltage in order to open the

bypass relays. (see 2.1 Connection). Opening the

bypass relays is necessary to avoid unintentional starting of the equipment while it is being connected to operational voltage.

INFORMATION

ABB personell have to obey the instructions in

ABB CISE 15.4.

1

1

PSTX

2

PSTX

Figure 1: In Line (1) and Inside Delta (2) connection

2

1

3L2

5L3

1L1

Line side

2.1 Connection

1.

2.

3.

Mount the softstarter according to chapter 4

Mounting.

INFORMATION

PSTX softstarters can be connected both In Line

1

and Inside Delta

2

, see

Figure 1.

Connect the main circuit: terminals 1L1 - 3L2 -

5L3 to the line side

1

, and terminals 2T1 - 4T2

- 6T3 to the motor side

2

, see Figure 2. Use wire connection for PSTX30-105, see

Figure 2

and terminal connection for PSTX 142-370, see

Figure 3.

Connect the line side to terminals 1L1, 3L2, 5L3.

see

1

Figure 2 and 3. Connect the motor to terminals 2T1, 4T2, 6T3 on the motor side, see

2

Figure 2 and 3.

3

1

1L2

3L2

5L3

Line side

2

Figure 2: Terminal connection clamps

2T1

4T2

6T3

Motor side

INFORMATION

Use only wires of the same dimension when you connect 2 wires to each terminal. (Possible for

PSTX30...105 only).

2

2T1

4T2

6T3

Motor side

Figure 3: Terminal connection bars

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

4.

5.

Connect the control supply voltage (100-250V

50/60Hz) to terminal 1 and 2 .

Connect the functional earth (terminal 22), to an earthing point close to the softstarter, see

Figure 4.

INFORMATION

The earthing is not a protective earth, it is a functional earth. The earthing cable should be as short as possible. Maximum length is 0.5 m.

The earthing cable should be connected to the mounting pla te were the softstarter is mounted, which should also be earthed.

6.

Look at the diagram, see Figure 5, and connect the start/stop circuits: terminal 13, 14, 18, 19 and

20/21, with the internal 24V DC terminal. When using internal 24 V DC (terminals 20 or 21), the terminals 18 and 19 should be connected to each other. For external control circuit voltage,

see chapter 5.1.2.3 Start and Stop - terminals

13, 14, 18, 19, 20, 21.

WARNING

Use 24V DC only when you connect terminal 13, 14,

15, 16 and 17. Other voltages can cause damage to the softstarter and the warranty will no longer be valid. For more information about terminal 15, 16 and

17, see chapter 5.1.2.4 Programmable inputs - terminals 15, 16 and 17.

7.

8.

Connect terminals 4, 5, 6, 7, 8, 9, 10, 11 and 12 to use the signal output relays. These are potential free contacts for maximum 250 V AC, 1.5 A AC-15 and 30 V DC, 5 A DC-12. See

Figure 6.

Check that the operational voltage and control supply voltage corresponds to the softstarter ratings.

9.

Switch on the control supply voltage.

10.

The green “Ready” LED will flash on the HMI, see

Figure 7.

11.

After switching on the softstarter the language settings will appear on the display, choose your language and press selection softkey “OK”. The

HMI will now download language data from the softstarter. Which may take several minutes. When this is completed the HMI will switch to Home view.

12.

Configure applicable parameters as given in

chapter 7 Functions or use the assistants as

described in chapter 2.2 Configuration.

4

Figure 4: Functional earth, terminal 22

5

6

KM1

L2

N

L1

L2

L3

N

L N

Start

13 14

Star

Stop t

Stop

18 19 20 22

24 V DC

1L1 3L2 5L3 1 2 13 14 15 16 17 18 19 20 21 22

2T1 4T2 6T3

U V W

3

M

4 5 6 7 8 9 10 11 12

Figure 5: Circuit diagram PSTX30...PSTX370

(Fuse and contactor version)

L N

Start

13 14

Star

Stop t

Stop

18 19 20 22

24 V DC

1L1 3L2 5L3 1 2 13 14 15 16 17 18 19 20

2T1 4T2 6T3

U V W

3

M

L N

K4 K4 K4 Start Stop Reset In1 In2 DGND DND +24V GND

PSTX

4 5 6 7 8 9 10 11 12

Figure 6: Circuit diagram PSTX30...PSTX370 ( MCCB version)

7

2

Figure 7: Flashing “Ready” LED

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

2

2.2 Configuration

For a quick configuration of the softstarter, you can use the Assistants menu.

The Assistants menues are divided into:

• Basic set-up

- The Basic set-up menu is divided into four steps:

1. Language

2. Date and time

3. Motor data

4. System configuration

• Application set-up

- The Application set-up is divided into three steps:

1. Application set-up

2. Keep/Change values

3. Tune settings

2.2.1 Basic set-up

2.2.2

1.

2.

3.

4.

This set-up will automatically appear when you start the softstarter. It can be turned off so that it does not start automatically. See step 6 below.

1.

Find the Assistants menu by pressing “Menu” and then scroll to Assistants with the Navigation keys. Press menu.

“Select” to enter the Assistants

2.

3.

Scroll to the Basic set-up menu by using the

Navigation keys and then enter the menu by pressing “Select”.

The Basic set-up will start with step 1, Language.

Press “Edit” to change language. Use the

Navigation keys to select language and then press

“Save”.

4.

5.

5.

Press to enter step 2, Date and time. Press

“Edit” and use the Navigation keys to edit date and time, then press “Save”.

6.

Press to enter step 3, Motor data.

Press “Edit” to change the Motor rated current

Ie. Use the Navigation keys to change the value and then press “Save”.

6.

7.

Press to enter step 4, System configuration.

Here it is possible to set if the softstarter shall enter the Basic set-up at power on or not. Use the

Navigation keys to select Yes or No and then press

“Save”.

Press and then Press “Done” to finish the

Basic setup. For more settings, enter Application set-up.

Application set-up

Find the Assistants menu from the Home view by pressing “Menu” and scroll to Assistants with the Navigation keys. Press the Assistants menu.

“Select” to enter

Scroll to the Application set-up menu by using the Navigation keys and then enter the menu by pressing “Select”.

The Application set-up will start with step 1,

Application type. Scroll to the appropriate application type and then press “Select”. For

a full Application list, see chapter 7.22 Complete parameter list.

Press to enter step 2, Values. You can choose to “Keep actual values” or “Change to recommended values”. Scroll to the selection of your choice and Press “Select” to apply.

WARNING!

Note that previously saved parameter values will be lost if you select “Change to recommended values”.

Press to enter step 3, Tune settings. In most cases the recommended values work well, but sometimes fine tuning is needed. For fine tuning, press to set:

“Edit” and then use the navigation keys

-Start ramp time: 1 - 120s

-Stop ramp time: 1 - 120s

-Start ramp initial level: 10 - 99%

-Stop ramp end level: 10 - 99%

-Current limit level: 1.5 - 7.5 x Ie

-Start mode: Voltage ramp, Torque ramp or Full voltage start

-Stop mode: No ramp, Voltage ramp, Torque ramp,

DC brake or Soft brake

Press and then press “Done” to finish the

Application set-up. If needed, fine tuning can also be made in the Parameters menu.

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

2.3 How to start/stop the motor

CAUTION

Hazardous voltage: Can cause death or serious injury. Turn off and lock out all power that supply this device before you start work on the equipment.

WARNING!

Mounting and fastening of electrical connections must be made by authorized personnel and in accordance with existing laws and regulations.

WARNING!

Before you connect the softstarters PSTX30...

PSTX170 to operational voltage for the first time, apply control supply voltage in order to open the bypass relays. (See step 6 in chapter 2.1

Connection). Opening the bypass relays is necessary to avoid unintentional starting of the equipment while it is being connected to operational voltage.

INFORMATION

ABB personell have to obey the instructions in

ABB CISE 15.4.

1.

2.

3.

Switch on the operational voltage.

To start the softstarter from the keypad, press the R/L-key to select local control, then press the

Start key on the keypad. Press Stop to stop the softstarter

To start from hard wire control, press the R/L-key to select hard wire control, then press the remote

Start key. Press Stop to stop the softstarter.

2

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

2

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

3 Description

3.1 Overview

3.1.1 Operation functions

3.1.2 Protection functions

3.1.2.1 User defined protection

3.1.3 Warning functions

3.1.4 Fault detection functions

3.1.5 Softstarter overview

3.1.6 Type designation

3.1.7 Environmental influence

3.1.8 Specifications

3.2 Technical data

3.2.1 General

3.2.2 Technical data for external keypad

3.2.3 Semi-conductor fuses

3.2.4 Weights

3.2.5 Softstarter ratings

3.2.6 Dimensions

22

22

22

22

22

23

24

19

19

20

21

21

21

18

18

18

19

3

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

3

This chapter describes the softstarter in general, specifications as well as available accessories and spare parts.

• Kick start

• Slow speed

• Motor heating

• Sequence start

• Automatic restart

3.1 Overview

The PSTX softstarter is designed with the latest technology for soft start and soft stop of squirrel cage motors. The softstarter has several advanced motor protection features as standard.

Bypass

Softstarter range PSTX30...370 have integrated bypass components.

User interface

The keypad on the front is designed with Navigation keys,

Selection softkeys, Start and Stop keys, Local or Remote key, Information key and a clear information display. It is possible to choose between 15 different user languages.

The softstarter can be controlled in three different ways:

• Hardwire inputs control

• Keypad control (either attached to the softstarter front or detached and connected with the cable included)

• Fieldbus communication interface (by built in Modbus,

Anybus module or the FieldBusPlug with adapter)

Only one type of control method can be used to control the softstarter at the same time. Default selection is hardware input s control.

INFORMATION

Keypad control has the highest priority and overrides all other control methods.

Fans

The integrated fans for cooling are running only during ramping (start/stop) and when the heat sink temperature is above a certain level. The temperature is monitored by a thermistor.

3.1.1 Operation functions

3.1.2 Protection functions

The PSTX softstarter is equipped with a number of protection fun ctions to protect the softstarter, motor and other equipments. All protections can be set to have automatic reset or manual reset. Protection can be enabled or disabled by the user.

Available protections are listed below:

• EOL protection

• Locked rotor protection

• Phase reversal protection

• Current imbalance protection

• Over voltage protection

• Under voltage protection

• Earth fault protection

• Voltage imbalance protection

• Voltage outputs protection

• External thermal sensor - PT100 protection

• External thermal sensor - PTC protection

• Power factor underload protection

• Current underload protection

• User defined protection

• Too long current limit protection

• Bypass open protection

• Fieldbus failure protection

• Extension IO failure protection

• HMI failure protection

• Limit number of starts

Available functions are listed below:

• Voltage start ramp

• Voltage stop ramp

• Torque start ramp

• Torque stop ramp

• Full voltage start

• No ramp

• Stand still brak

• Current limit

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

3.1.2.1

User defined protection

3.1.4 Fault detection functions

Programmable digital input can be used in combination with external device/sensor to provide to the customer the possibility of handling own defined protection.

The protection is activated when the input signal reaches high level (fieldbus or physical I/O).

The softstarter is equipped with a number of fault detection functions to signal malfunctioning at softstarter, motor or power network level. The softstarter differentiates between external and internal faults. Fault detection functions can not be disabled by the user.

3.1.3 Warning functions

The softstarter is equipped with a number of warning functions that signal potential risks, before activating a protection.

The difference between a warning and a protection is that a warning can not stop the softstarter and that a reset of a warning is not necessary.

The warning level and other parameters needed to enable and configure the warning are settable. Warnings will be logged in the event list when it occurs.

Available warnings are listed below:

• Current imbalance warning

• Over voltage warning

• Under voltage warning

• EOL time-to-trip warning

• EOL warning

• Total Harmonic Distortion (THD) warning

• Voltage imbalance warning

• Power factor underload warning

• Current underload warning

• Faulty Fans warning

• Locked rotor warning

• Thyristor overload warning

• Short circuit warning

Available faults are listed below:

• Phase loss fault

• High current fault

• Low supply voltage fault

• Bad network fault

• Thyristor overload fault

• Short circuit fault

• Shunt fault

• Unspecified fault

• Heat sink overtemperarure fault

• Open circuit thyristor fault

• Faulty usage

• Faulty connection

3

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

3

3.1.5 Softstarter overview

Settings can be done via Keypad and Fieldbus communication.

With the keypad, settings can be set as individual parameter settings or as a selection of predefined parameters for different applications.

Most parameters have one possible setting, but some parameters have extra settings for sequence start. The default parameter settings are stored in the unit so that a reset to default can be done at any time.

When the fieldbus communication is selected, most parameters can also be modified from this interface.

Overview, See

Figure 8.

8

Supply voltage Us

Terminal marking of control circuits

Line side connection

1L1 3L2 5L3

L N

K4 K5 K6 Start Stop In0 In1 In2 DGND GND +24V

PSTX

Display

Order code

Anybus connection

(Com2)

Technical data accordning to

IEC 60 947-4-2

Technical data according to UL 508

Ready (Green)

Run (Green)

Ready

Run

Protection

Fault

Com1

2T1 4T2

Com2

6T3

Protection (Yellow)

Fault (Red)

Keypad

Mini USB

Country of origin

Utilization code

Approvals

Symbol for

Torque control

Fieldbus connection (Com1)

Motor side connection

Terminal marking of control circuits

Figure. 8: Softstarter overview

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

3.1.6 Type designation

Table 1 Type designation (See Figure 9.)

Designation

(i.e. PSTX370-600-70)

Desription

PSTX

370

Softstarter type

Current rating

370 = 370A

600 Main voltage

600 = 208 - 600V 50/60 Hz

690 = 400 - 690V 50/60 Hz

70 Supply Voltage

70 = 100 - 250V 50/60 Hz

9

PSTX-370-600-70

Supply Voltage

70 = 100 - 250V 50/60 Hz

Main voltage

600 = 208 - 600V 50/60 Hz

690 = 400 - 690V 50/60 Hz

Current rating

370 = 370A

Softstarter range

Figure. 9: Type designation

3.1.8 Specifications

Table 2 Specifications

General data

Degree of protection:

Main circuit

Description

PSTX30-105: IP10 PSTX142-370: IP00

Degree of protection:

Supply and control circuit

Operating position

PSTX30-105: IP20 PSTX142-370: IP20

Vertical at ± 30°

Ambient temperature Storage: -40 °C to +70 °C

(-104 °F to 140 °F)

Operation: -25 °C to +60 °C

(-77°F to 104 °F)

De-rating: + 40 °C to + 60 °C

(104° F to 140° F) with derating 0,6%/1° C

(0,33%/1grF)

Altitude 1000 m (3281 ft.) above sea level without derating. 1000 - 4000 m (3281 - 13123 ft.) with derating 0,7%/100 m (0,22%/100ft)

Pollution degree

Relative humidity

Standards

3

5 - 95% (non condensing)

IEC 60529

IEC 60947-1

IEC60947-4-2

Standards UL

PTC input

UL508

IEC 60947-8 Mark A detectors

DIN 44081 and DIN 44082

EMC

Marine approvals

IEC 60947-4-2 Class A

1

Contact your ABB sales office

1

The softstarter is designed for class A equipment.

Use of the product in domestic environments can cause radio interference. If so, it can be necessary to use more mitigation procedures.

3

3.1.7 Environmental influence

The product is designed to minimize the environmental affects during manufacturing and use of the product.

Most of the material s used are recyclable and shall be handled and recycled according to loca l laws.

Further information regarding used material and recycling of the product can be found at ABB website.

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

3

3.2 Technical data

3.2.3 Semi-conductor fuses

3.2.1 General

Table 3 General

General data

24 V output

Rated insulation voltage,

U i

Rated operational voltage, U e

Rated supply voltage,U s

Voltage tolerance

Rated frequency

Frequency tolerances

Rated impulse withstand voltage

Relay outputs

Number of controlled phases

Inputs

Outputs

Output relay preformance

Analog output

PTC input

Description

24 V ± 5% Max 250 mA

600 V / 690 V

208-600 / 690 V, 50 / 60 Hz

100-250 V, 50 / 60 Hz

+10% to -15%

50 / 60 Hz

± 10%

6 kV Operation circuit

4 kV Control and supply circuit

3 programmable

3

Start, stop, 3 programmable inputs

(Digital I/O: In0, IN1, IN2), temperature sensor input.

Relay outputs: K4 K5 K6.

250 V AC, Ith = 5A, Ie = 1.5A (AC-15)

Cooling system

Recommended fuse

Control supply circuit

Communication

Communication protocols

4-20 mA, 0-20 mA, 0-10 V, 0-10 mA

2825 ohm

±

20% switch off resistance

1200 ohm

±

20% switch on resistance

Fan

6 A Delayed

MCB use C characteristics

3 Fieldbus ports, Extension I/O

DeviceNet / Profibus DP / Modbus /

EtherNET/IP / Modbus TCP

3.2.4 Weights

3.2.2 Technical data for external keypad

Table 4 Technical data for external keypad

Display Display type

Status indicating LEDs Ready: Green

Run: Green

Protection: Yellow

Fault: Red

Ambient temperature Storage: -25 °C to +70 °C (-13 °F to 158 °F)

Operation: -25 °C to +60 °C

(-13 °F to 140 °F)

Degree of protection

UL approval

Marine approvals

IP66

Type 1

Type 4X

Type 12

Contact your ABB sales office

Table 6 Weights

Type

PSTX 30...105

PSTX 142...170

PSTX 210...370

WARNING!

Semiconductor fuses must be used to keep the warranty on the thyristors.

INFORMATION

To achive a type 2 coordination, semiconductor fuses must be used.

Table 5 Semiconductor fuses

Type Ue (V) Ie (A)

PSTX30

PSTX37

PSTX45

PSTX60

PSTX72

PSTX85

500-690

500-690

PSTX105 500-690

PSTX142 500-690

PSTX170 500-690

PSTX210 500-690

PSTX250 500-690

PSTX300 500-690

PSTX370 500-690

PSTX370 500

PSTX370

500-690

500-690

500-690

500-690

690

30

37

45

60

72

85

106

143

171

210

250

300

370

370

370

3

3

2

3

2

2

1*

2

000

000

000

000

Bussman Knife Fuses (DIN43 620)

Size A Type

000

000

100

125

170M1567

170M1568

160

160

250

315

170M1569

170M1569

170M1571

170M1572

400

500

630

630

700

800

900

2000

170M3819

170M5810

170M5812

170M5812

170M5813

170M6812

170M6813

170M6021

3 1600 170M6019

Weight in kg

6,1

9,6

12,7

Weight in lbs

13,5

21,2

27,9

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

3.2.5 Softstarter ratings

PSTX30…370

Temp ≤ + 40 °C (104 °F), 4 * Ie in 10 sec.

IEC

220-

230V

Motor power when connected In Line

380-

400V 500V 690V

220-

230V

Motor power when connected Inside Delta

380-

400V 500V 690V

Softstarter type

PSTX30-600-70

PSTX30-690-70

PSTX37-600-70

PSTX37-690-70

PSTX45-600-70

PSTX45-690-70

PSTX60-600-70

PSTX60-690-70 kW

7,5

9

12,5

15 kW

15

15

18,5

18,5

22

22

30

30 kW

18,5

18,5

22

22

25

25

37

37 kW

25

30

37

55 kW

12,5

15

25

30

30

30

37

37

55

55 kW

25

25

37

37

45

45

75

75 kW

30

30 kW

45

55

59

90

PSTX72-600-70

PSTX72-690-70

PSTX85-600-70

PSTX85-690-70

PSTX105-600-70

PSTX105-690-70

PSTX142-600-70

PSTX142-690-70

PSTX170-600-70

18,5

22

30

37

45

PSTX170-690-70

PSTX210-600-70

PSTX210-690-70

PSTX250-600-70

59

75

PSTX250-690-70

PSTX300-600-70 90

PSTX300-690-70

PSTX370-600-70 110

PSTX370-690-70

132

160

160

200

200

90

110

110

132

55

55

75

75

90

37

37

45

45

160

200

200

257

257

110

132

132

160

75

75

90

90

110

45

45

55

55

59

75

90

132

160

184

220

257

355

37

40

55

75

90

102

132

160

200

220

257

257

355

355

160

184

184

220

90

90

132

132

160

59

59

75

75

295

355

355

450

450

200

250

250

295

110

110

160

160

200

80

80

90

90

110

132

160

220

257

315

400

500

600

Rated current

Ie

In Line

Inside

Delta

37

37

45

45

60

60

A

30

30

250

300

300

370

370

171

210

210

250

106

106

143

143

171

72

72

85

85

A

52

52

64

64

76

76

106

106

430

515

515

640

640

300

360

360

430

181

181

245

245

300

124

124

147

147

Softstarter type

PSTX30-600-70

PSTX30-690-70

PSTX37-600-70

PSTX37-690-70

PSTX45-600-70

PSTX45-690-70

PSTX60-600-70

PSTX60-690-70

PSTX72-600-70

PSTX72-690-70

PSTX85-600-70

PSTX85-690-70

PSTX105-600-70

PSTX105-690-70

PSTX142-600-70

PSTX142-690-70

PSTX170-600-70

PSTX170-690-70

PSTX210-600-70

PSTX210-690-70

PSTX250-600-70

PSTX250-690-70

PSTX300-600-70

PSTX300-690-70

PSTX370-600-70

PSTX370-690-70

208V

Motor power when connected In Line

220-

240V

440-

480V

550-

600V hp

7,5 hp

10

10

10

20

20

25

30

40

50

60

75

100

125

10

15

20

25

30

40

50

60

75

100

100

150

25

25

30

30

40

40 hp

20

20

200

200

250

250

125

125

150

150

300

300

75

75

100

100

50

50

60

60

30

30

40

40

50

50 hp

25

25

250

250

300

300

150

150

200

200

350

350

100

100

125

125

60

60

75

75

PSTX30…370

Temp ≤ + 40 °C (104 °F), 4 * Ie in 10 sec.

Motor power when connected Inside Delta

208V

220-

240V

440-

480V

550-

600V hp

10 hp

15

15

20

30

30

40

60

75

75

100

150

150

200

20

25

40

40

50

60

75

100

125

150

200

250

40

40

50

50

75

75 hp

30

30

350

350

450

450

200

200

250

250

500

500

150

150

150

150

75

75

100

100 hp

40

40

50

50

60

60

100

100

450

450

500

500

250

250

300

300

600

600

100

100

125

125

150

150

200

200

Full load current

Max FLA

In Line

Inside

Delta

34

34

42

42

60

60

A

28

28

248

248

302

302

169

169

192

192

361

361

104

104

130

130

68

68

80

80

A

48

48

58

58

72

72

103

103

429

429

523

523

292

292

332

332

625

625

180

180

225

225

117

117

138

138

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

3

3

3.2.6 Dimensions

PSTX 30...105

-

1SFB536268G1010

10

30 mm (1,2 in) 4x

M6 (1/4 in)

13 mm (0,5 in) 6x

119 mm (4,7 in)

Figure 10: Dimensions PSTX30...105

PSTX 142...170 - 1SFB536268G1011

11

M6 (1/4 in)

7,5 mm (0,3 in)

35 mm (1,3 in) 4x

150 mm (5,9 in)

17,5 mm (0,7 in) 6x

199 mm (7,8 in)

165 mm (6,5 in)

Figure 11: Dimensions PSTX142...170

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

PSTX 210...370 - 1SFB536268G1012

12

43,7 mm (1,7 in) 4x

19,6 mm (0,8 in) 6x

10,5 mm (0,4 in)

200 mm (7,9 in)

258 mm (10,2 in)

Figure 12: Dimensions PSTX210..370

3

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

3

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

4 Mounting

4.1 Receive, unpack and check

4.2 Mount

4.2.1 Handling when mounting

4.2.2 Minimum distance to wall/front

4.2.3 Minimum enclosure size

4.2.4 Maximum mounting angle

4.2.5 Dimensions and drilling plan

4.2.6 Detachable keypad

4.2.6.1 Mounting Detachable HMI

28

29

29

29

30

30

30

30

31

4

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

This chapter contains instructions on how to receive the softstarter and how to mount it in a proper way.

WARNING

If you do not obey these instructions, it can cause the softstarter to become overheated or not operate correctly.

4

4.1 Receive, unpack and check

WARNING

Do not lift the softstarter by the connection bars, as this can damage the softstarter.

WARNING

Risk of damage to property. Make sure that no liquids, dust or conductive parts can go into the softstarter.

Check that the package is placed with the correct side up, see

Figure 13.

• Remove the transport casing.

• Check that the order code corresponds with the delivery documents.

• Check that all items are included, according to the delivery note. See Table 1 Delivery note.

• Check the softstarter as well as the packaging.

In case of damages, please contact the transport company or the ABB reseller/Office immediately.

• Until the softstarter is mounted it should be stored in its packaging.

13

Figure 13: Receiving, unpacking and checking

Table 1 Delivery note

Softstarter type

Items included with the softstarter

PSTX30...105

• 1SFB262001D1000 – HMI Mounting Kit

• 1SFC132082M9901 – PSTX Short Form Manual

PSTX142...170

• 1SFB262001D1000 – HMI Mounting Kit

• 1SFC132082M9901 – PSTX Short Form Manual

• 1SFA899221R1002 – Terminal Kit # PSLE-185

PSTX210...370

• 1SFB262001D1000 – HMI Mounting Kit

• 1SFC132082M9901 – PSTX Short Form Manual

• 1SFA899221R1003 – Terminal Kit # PSLE-300

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

4.2 Mount

The PSTX30...370 softstarters are available in three different physical sizes and all of them should be mounted with M6 bolts, or bolts with the same dimension and strength.

4.2.1 Handling when mounting

WARNING

Do not lift the softstarter by the connection bars, as this can damage the softstarter.

PSTX30...370 can be taken out of the package and be

mounted without lifting equipment. See chapter 3.2.4

Weights, for weights.

14

4.2.2 Minimum distance to wall/front

WARNING

Risk of damage to property. Ensure that no liquids, dust or conductive parts enter the softstarter.

WARNING

If you do not obey these instructions, this can cause the softstarter to become overheated or not operate correctly.

INFORMATION

Make sure that the distances to the surrounding walls are sufficient. For the minimum distance to front and wall, see

Figure 15 and Table 2.

To get suitable cooling, the softstarter has to be mounted vertically, and in such a way that the airways are not blocked, see Figure 14.

Figure 14: Flow of air for cooling purpose

15

B

A

A

B

Figure 15: Minimum distances to wall

Table 2 Minimum distance to wall/front

Softstarter type A B C

(mm) (mm) (mm)

PSTX30...105

PSTX142...170

PSTX210...370

100

100

100

10

10

10

35

35

35

A

(in)

B

(in)

C

(in)

3.94

0.39

1.38

3.94

0.39

1.38

3.94

0.39

1.38

16

C

4

Figure 16: Minimum distances to front

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

4

4.2.3 Minimum enclosure size

In applications where the softstarter is installed in an enclosure, the following minimum enclosure sizes are recommended. Sizes are according to Figure 17 and

Table 3 and 4.

Table 3 Minimum enclosure size (IEC)

IEC

Minimum enclosure sizes

Softstarter type W (mm)

PSTX30...105

508

PSTX142...170

PSTX210...370

508

762

H (mm)

508

508

914

Table 4 Minimum enclosure size (UL)

Minimum enclosure dimensions

D (mm)

305

305

305

Softstarter type W (in) H (in) D (in) Min number of latches

PSTX30...105

PSTX142...170

PSTX210...370

20

20

30

20

20

24

10

12

12

2

2

7

17

D

Figure 17: Minimum enclosure size

W

4.2.4 Maximum mounting angle

Make sure that the distances to the surrounding walls are sufficient. The mounting angle shall be within specifications shown in

Figure 18.

Maximum mounting angle for all PSTX softstarters is 30°, see

Figure 18.

18

30 O

30

O

H

30 O

30

O

4.2.5 Dimensions and drilling plan

For dimensions and drilling plan see chapter

3.2.6 Dimensions. Drilling plan is also printed on the box.

WARNING

Risk of damage to property. Ensure that no liquids, drilling swarf, dust or conductive parts enter the softstarter.

WARNING

Using a too small enclosure and/or not following the instructions in other ways may result in overheating of the softstarter and operational disturbances.

Figure 18: Maximum mounting angle

19

4.2.6 Detachable keypad

2

The PSTX keypad is detachable for i.e. door mounting.

Connect the keypad with the included 3 meter cable managing both serial communication and power supply.

The cable shall be connected to the network port on the front of the softstarter. Detach the keypad by pressing the lock with a screwdriver according to

Figure 19.

1 and

2

in

Figure. 19: Detach the keypad

1

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

4.2.6.1

Mounting Detachable HMI

20

INFORMATION

A cable is included in the shipment, but it is also possible to use your own RJ45 network cable.

The cable length should be max 3m long to minimize distortion of the communication.

1

Min. Ø25,5 (Ø 1,0”)

Max. Ø28 (Ø 1,1”)

INFORMATION

The softstarter HMI is IP66 approved when mounted on the enclosure door.

The detachable HMI can also be used to copy parameters from one softstarter to another during commissioning

(temporarily handheld).

2 Nm (17,7 lb.in)

3

Ø26 (Ø 1.02”)

Figure 20: Drill a hole for the detachable keypad

2

Included with the softstarter comes:

• Rubber gasket

• Plastic screw-nut

• RJ45 Network cable

21

5

1.

2.

3.

4.

5.

Remove the detachable HMI from the softstarter by unsnapping the plastic latch under the detachable

HMI, see 1 and 2 in

Figure 20.

Drill a hole were the detachable HMI is to be mounted. Maximum size of the hole is Ø26

(Ø 1.02”), see 1 in Figure 20. Put the rubber packing around the threaded network connector on the detachable HMI, see

2

in Figure 20. Press the the threaded network connector through the drilled hole.

See 3 in Figure 20. Fasten the plastic screw-nut on the threaded network connector, with 2 Nm

(17.7 lb/in).

Remove the RJ45 plug see 4 . Connect one end of the network cable to the network port on the front of the softstarter 5 in

Figure 21.

Connect the other end of the network cable to the network port on the back of the detachable HMI, see 6 in

Figure 22.

Make sure that the network cable is properly inserted into both ports. Roll the rest of the hanging cable so it will not get clamped by the door, see

7

in Figure 23. Close the door of the enclosure and switch on the operational voltage to control that the external HMI is working.

Figure 21: Connect one end of the network cable

22

6

4

Figure 22: Connect the other end of the network cable

23

4

7

Figure 23: Roll the rest of the hanging cable

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

4

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

5 Connection

5.1 Electrical connection

5.1.1 Main circuit

5.1.1.1 Tightening torques and cable dimensions

5.1.2 Control supply and control circuit

5.1.2.1 Control supply voltage - terminals 1 and 2

5.1.2.2 Functional earth - terminal 22

5.1.2.3 Start and Stop - terminals 13, 14, 18, 19, 20, 21

5.1.2.4 Programmable inputs - terminals 15, 16 and 17

5.1.2.6 Programmable output relay - K4, terminals 4, 5 and 6

5.1.2.7 Programmable output relay - K5, terminals 7, 8 and 9

5.1.2.8 Programmable output relay - K6, terminals 10, 11 and 12

5.1.2.9 PTC/PT100 input

5.1.2.10 Analog output

5.1.3 Optional accessories

36

36

37

39

34

34

35

36

42

44

45

41

41

41

5

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

5

This chapter describes the electrical connections as well as connections for communication devices that can be connected to the softstarter.

WARNING

Mounting and electrical connections of the softstarter shall be made in accordance with local laws and regulations and be performed by authorized personnel.

CAUTION

Hazardous voltage. Can cause death or serious injury. Turn off and lock out all power supplying this device before any work on the softstarter.

WARNING!

Apply the control supply voltage to make sure that the bypass relays are in open position before you connect the softstarters PSTX30...PSTX170 to operational voltage for the first time. If not, the equipment can start accidentally. This is necessary to avoid unintentional starting of the equipment during the connection.

INFORMATION

ABB personell have to obey the instructions in

ABB CISE 15.4.

For basic connection, see chapter 2 Quick start.

For wiring diagrams, see chapter 11 Wiring diagrams.

24

1

PSTX

25

1

3L2

5L3

1L1

Line side

2

PSTX

Figure 24: In line (1) and inside delta (2) connection

5.1 Electrical connection

WARNING

Capacitors for power factor compensation are not allowed in between the softstarter and the motor, since this can cause current peaks which can burn the thyristors in the softstarter. If such capacitors are to be used, they should be connected on the line side of the softstarter.

2

2T1

4T2

6T3

Motor side

26

Terminal connection clamps

3L2

1L2

1

Line side

5.1.1 Main circuit

INFORMATION

The voltage dips may not be more than 5% between softstarter and motor. The cable lenght does not matter.

Softstarters PSTX30...PSTX370 can be connected both

In Line, see

1

Figure 24, and Inside Delta, see 2

Figure 24.

Use wire connection for PSTX30-105 see

Figure 25

and terminal connection for PSTX 142-370 see

Figure

26.

• Connect the line side to terminals 1L1, 3L2, 5L3, see

1

in Figure 25 and 26.

• Connect the motor to terminals 2T1, 4T2, 6T3 on the motor side, see

2

in Figure 25 and 26.

The terminal marking is printed on the front of the softstarter. For tightening torques and cable thickness, see

chapter 5.1.1.1 Tightening torques and cable dimensions.

Figure 26: Terminal connection bars

2

2T1

4T2

6T3

Motor side

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

5.1.1.1

Tightening torques and cable dimensions

PSTX18...105

1L1 3L2 5L3

M8

8 Nm - 71 Ib.in

AWG6 .. 2/0

Cu 75°C only

Rigid: 10 ... 95 mm²

Flexible: 10 ... 70 mm²

Rigid/flexible: 2x6 ... 2x35 mm²

2T1 4T2 6T3

PSTX142...170

1L1 3L2 5L3

11/6-16 UNF-2A

Using connection module

ATK185: AWG4 to 300kcmil

AI Cu 75°C only

2T1 4T2 6T3

275 lb.in

PSTX210...370

1L1 3L2 5L3

3/4-16 UNF-2A

2T1 4T2 6T3

375 lb.in

Using connection module

ATK300: AWG4 to 400kcmil

ATK300/2: AWG4 to 500kcmil or

2xAWG4 to 2x500kcmil

AI Cu 75°C only

M8

18 Nm - 160 lb.in

M10

28 Nm - 240 lb.in

Using connection bars max

24 mm

(0.945 in)

Using connection bars max

30 mm

(1.181 in) max

22 mm

(0.866 in) max

8 mm

(0.315 in) max

30 mm

(1.181 in) max

10 mm

(0.394 in)

5

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

5.1.2 Control supply and control circuit

Wires in industrial control applications are divided into three groups: main power supply, control supply and control circuit.

Main power supply (1L1, 3L2, 5L3, 2T1, 4T2, 6T3)

Control supply voltage (terminals 1 and 2)

Control circuit (terminals 13 - 21).

5.1.2.1

Control supply voltage - terminals 1 and 2

Connect neutral and phase to terminal 1 and 2.

See

Figure 27.

INFORMATION

Check that you have the correct supply voltage

U s

. See chapter 3.2.1 General.

5

Tightening torques and cable dimensions.

L N

K4 K5 K6 Start Stop In0 In1 In2 GND +24V

27

Figure 27: Supply voltage and control circuit.

M3,5

0,5 Nm

4,3 lb.in

3,5 x 0,6 mm

(0.138 x 0.024 in)

AWG 12 ... 24

0,2 .. 2,5 mm

2

2x0,2 .. 1,5 mm

2

0,2 .. 2,5 mm

2

2x0,2 .. 1,5 mm

2

5.1.2.2

Functional earth - terminal 22

28

Softstarters type PSTX85...PSTX370 should be earthed using the terminals as shown in Figure 28 (one connection is sufficient). Connect the cable to an earthing point close to the softstarter. The cable should be as short as possible. A suitable earthing point is next to the softstarter on the mounting plate, which should also be earthed.

INFORMATION

This is not a protective earth, it is a function earth. The earthing cable should be as short as possible. Maximum length 0,5m.

Figure 28: Functional earth, terminal 22

INFORMATION

Do not use functional earth in IT-networks, commonly found in for instance marine applications.

Tightening torques and cable dimensions.

M3

3,5 x 0,6 mm

(0.138 x 0.024 in)

L N

K4 K5 K6 Start Stop In0 In1 In2 DGND GND +24V

0,5 Nm

4,3 lb.in

AWG 12 ... 24

0,2 .. 2,5 mm

2

2x0,2 .. 1,5 mm

2

0,2 .. 2,5 mm

2

2x0,2 .. 1,5 mm

2

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

5.1.2.3

Start and Stop - terminals 13, 14, 18, 19,

20, 21

Internal control voltage

The PSTX Softstarter has a built-in holding circuit and does not require sustained signals on start input. Use internal control supply voltage from terminals 20 or 21.

Connect start and stop terminals using conventional circuit with push buttons. See Figure 29 and 30.

29

Tightening torques and cable dimensions.

L N

K4 K5 K6 Start Stop In0 In1 In2 GND +24V

Figure 29: Start and Stop, terminals 13, 14, 18, 19, 20, 21

M3

0,5 Nm

4,3 lb.in

3,5 x 0,6 mm

(0.138 x 0.024 in)

AWG 12 ... 24

0,2 .. 2,5 mm

2

2x0,2 .. 1,5 mm

2

0,2 .. 2,5 mm

2

2x0,2 .. 1,5 mm

2

30

STOP

START

5

Tightening torques and cable dimensions.

L N

K4 K5 K6 Start Stop In0 In1 In2 GND +24V

L N

K4 K5 K6 Start Stop In0 In1 In2 DGND GND +24V

PSTX

Figure 30: Holding circuit (pulse for start is enough)

M3

3,5 x 0,6 mm

(0.138 x 0.024 in)

0,5 Nm

4,3 lb.in

AWG 12 ... 24

0,2 .. 2,5 mm

2

2x0,2 .. 1,5 mm

2

0,2 .. 2,5 mm

2

2x0,2 .. 1,5 mm

2

A conventional circuit with auxiliary relay is also possible.

See

Figure 31.

31

L

STOP

START

N

SPARE

Tightening torques and cable dimensions.

L N

K4 K5 K6 Start Stop In0 In1 In2 GND +24V

L N

50/60 Hz K4 K5 K6 Start Stop In0 In1 In2 DGND GND +24V

PSTX

Figure 31: Conventional circuit (maintained start signal requierd)

M3

0,5 Nm

4,3 lb.in

3,5 x 0,6 mm

(0.138 x 0.024 in)

AWG 12 ... 24

0,2 .. 2,5 mm

2

2x0,2 .. 1,5 mm

2

0,2 .. 2,5 mm

2

2x0,2 .. 1,5 mm

2

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

5

External control voltage

The softstarter can, if required, also be controlled with an external 24 V DC source from a PLC or similar.

Connect the cables according to Figure 32 or Figure 33 depending on which type of control method is used.

WARNING

Terminal 13, 14 ,15, 16 and 17 should be connected using 24V DC only. Other voltages may damage the softstarter and the warranty may no longer be valid.

32

+ -

DC

L N

K4 K5 K6 Start Stop In0 In1 In2 DGND GND +24V

PSTX

Figure 32: Holding circuit with external control voltage

(pulse for start is enough)

33

STOP

START

N

Tightening torques and cable dimensions.

L N

K4 K5 K6 Stop In0 In1 In2 GND +24V

L N

K4 K5 K6 Start Stop

In0

In1 In2 DGND GND +24V

PSTX

Figure 33: Conventional circuit with external control voltage

(maintained start signal is requierd)

M3

0,5 Nm

4,3 lb.in

3,5 x 0,6 mm

(0.138 x 0.024 in)

AWG 12 ... 24

0,2 .. 2,5 mm

2

2x0,2 .. 1,5 mm

2

0,2 .. 2,5 mm

2

2x0,2 .. 1,5 mm

2

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

5.1.2.4

Programmable inputs - terminals 15, 16 and 17

34

WARNING

Terminal Terminal 13, 14 ,15, 16 and 17 should be connected using 24V DC only. Other voltages may damage the softstarter and the warranty may no longer be valid.

The softstarter has three programmable inputs.

• In0, default reset event.

• In1, default none

• In2, default none

Figure 34: Terminals 16 and 17

For programming the softstarter inputs, see chapter 7.13

Inputs/outputs.

Connect the cables according to

Figure 34, 35 or 36 depending on whether internal or external source is used.

INFORMATION

Wiring for sequence start, see 5.1.2.5

Programmable inputs (Sequence start)

35

L N

50/60 Hz K4 K5 K6 Start Stop In0 In1 In2 DGND GND +24V

PSTX

Figure 35: Programmable inputs, terminals 15, 16 and 17

Tightening torques and cable dimensions.

L N

50/60 Hz K4 K5 K6 Start Stop In0 In1 In2 GND +24V

0,5 Nm

4,3 lb.in

36

M3

3,5 x 0,6 mm

(0.138 x 0.024 in)

AWG 12 ... 24

0,2 .. 2,5 mm

2

2x0,2 .. 1,5 mm

2

0,2 .. 2,5 mm

2

2x0,2 .. 1,5 mm

2

+

DC

-

5

Tightening torques and cable dimensions.

L N

K4 K5 K6 Start Stop In0 In1 In2 GND +24V

L N

K4 K5

Figure 36: External control voltage

K6 Start Stop In0 In1 In2 DGND GND +24V

M3

0,5 Nm

4,3 lb.in

3,5 x 0,6 mm

(0.138 x 0.024 in)

AWG 12 ... 24

0,2 .. 2,5 mm

2

2x0,2 .. 1,5 mm

2

0,2 .. 2,5 mm

2

2x0,2 .. 1,5 mm

2

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

5

5.1.2.5

Programmable inputs (Sequence start)

The softstarter can start up to three individual motors used in different applications with different parameter sets. The parameter set is chosen via input signals to the softstarter.

See Figure 37, Sequentiel start of motors using a softstarter.

If the softstarter trips for any reason, and the trip is supposed to stop the motor, all motors will be stopped.

When sequence start is going to be used, the wiring should be according to Figure 38 or Figure 39.

The start command (terminal 13, 14, 16 and 17) must be maintained during operation, otherwise a direct stop will be performed.

Soft stop can only be performed for the motor currently fed by the softstarter, and will be achieved by giving a stop command (terminal 4).

37

Q 1

KM 1

KM 1

K 25, 27, 29

K 26, 28, 30

FR 1, 2, 3

Q 1

Main contactor

Starting contactor

Run contactor

Overload relay

Softstarter

K 25

K 26

K 28 K 30

FR 1

M

K 27

FR 2

K 29

FR 3

M

M

Figure 37: Sequential start of motors using a softstarter

38

2ⁿᵈ Start seq. 3ʳᵈ Start seq.

DC

+

-

Tightening torques and cable dimensions.

L N

K4 K5 K6 Start Stop In0 In1 In2 GND +24V

L N

K4 K5 K6 Start Stop In0 In1 In2 DGND GND +24V

PSTX

Fig. 38: External control voltage

M3

0,5 Nm

4,3 lb.in

3,5 x 0,6 mm

(0.138 x 0.024 in)

AWG 12 ... 24

0,2 .. 2,5 mm

2

2x0,2 .. 1,5 mm

2

0,2 .. 2,5 mm

2

2x0,2 .. 1,5 mm

2

39

2ⁿᵈ Start seq. 3ʳᵈ Start seq.

Tightening torques and cable dimensions.

L N

K4 K5 K6 Start Stop In0 In1 In2 GND +24V

L N

50/60 Hz K4 K5 K6 Start Stop In0 In1 In2 DGND GND +24V

PSTX

Figure 39: Internal control voltage

M3

3,5 x 0,6 mm

(0.138 x 0.024 in)

0,5 Nm

4,3 lb.in

AWG 12 ... 24

0,2 .. 2,5 mm

2

2x0,2 .. 1,5 mm

2

0,2 .. 2,5 mm

2

2x0,2 .. 1,5 mm

2

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

5.1.2.6

Programmable output relay - K4, terminals 4, 5 and 6

The output relay gives a signal depending on the selected function.

Default: Run

See chapter 7.13 Inputs/outputs for programming.

Connect the cables to terminal 4, 5 and 6.

See

Figure 40.

Recommended to control line contactor.

40

Figure 40: Programmable output relay K4, terminals 4, 5 and 6

Tightening torques and cable dimensions.

L N

50/60 Hz K4 K5 K6 Start Stop In0 In1 In2 GND +24V

5.1.2.7

Programmable output relay - K5, terminals 7, 8 and 9

The output relay gives a signal depending on the selected function.

Default: Top of ramp

See Chapter 7.13 Inputs/outputs for programming.

Connect the cables to terminal 7, 8 and 9.

See

Figure 41.

41

M3,5

0,5 Nm

4,3 lb.in

3,5 x 0,6 mm

(0.138 x 0.024 in)

AWG 12 ... 24

0,2 .. 2,5 mm

2

2x0,2 .. 1,5 mm

2

0,2 .. 2,5 mm

2

2x0,2 .. 1,5 mm

2

5

Tightening torques and cable dimensions.

L N

K4 K5 K6 Start Stop In0 In1 In2 GND +24V

5.1.2.8

Programmable output relay - K6, terminals 10, 11 and 12

The output relay gives a signal depending on the selected function.

Default: Event

See chapter 7.13 Inputs/outputs for programming.

Connect the cables to terminal 10, 11 and 12.

See Figure 42.

42

Figure 41: Programmable output relay K5, terminals 7, 8 and 9

M3,5

0,5 Nm

4,3 lb.in

3,5 x 0,6 mm

(0.138 x 0.024 in)

AWG 12 ... 24

0,2 .. 2,5 mm

2

2x0,2 .. 1,5 mm

2

0,2 .. 2,5 mm

2

2x0,2 .. 1,5 mm

2

Figure 42: Programmable output relay K6, terminals 10, 11 and 12

Tightening torques and cable dimensions.

L N

K4 K5 K6 Start Stop In0 In1 In2 GND +24V

M3

0,5 Nm

4,3 lb.in

3,5 x 0,6 mm

(0.138 x 0.024 in)

AWG 12 ... 24

0,2 .. 2,5 mm

2

2x0,2 .. 1,5 mm

2

0,2 .. 2,5 mm

2

2x0,2 .. 1,5 mm

2

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

5.1.2.9

PTC/PT100 input

If the motor is equipped with PTC or PT100 elements, the cables shall be connected to terminals 25, 26 and 27.

See chapter 7.13 Inputs/outputs for programming.

43

3-wire measurement for PT100

To minimize the influence of the wire resistance, a three-wire connection is usually used. By means of the additional wire, two measuring circuits are created. One of these two circuits is used for reference. This way, the tripping device can calculate and take into account the wire resistance automatically. See

Figure 43.

PT 100 - 3 wire

Figure 43: PT100 - 3 wire

5

Tightening torques and cable dimensions.

Com 3

+(B) -(A)

Temp In

T1 T2 T3

Analog out

+24V + GND

23 24 25 26 27 28 29 30

2-wire measurement for PT100

When using 2-wire temperature sensors, the sensor resistance and the wire resistance are added together.

The resulting systematic errors must be taken into account when adjusting the tripping device. A jumper must be connected between the terminals 26 and 27.

Table 1 Temperature errors in C°/K can be used for

PT100 sensors to determine the temperature errors caused by the line length. See

Figure 44.

44

M3

0,5 Nm

4,3 lb.in

3,5 x 0,6 mm

(0.138 x 0.024 in)

PT 100 - 2 wire

Com 3

+(B) -(A)

Temp In

T1 T2 T3

Analog out

+24V + GND

23 24 25 26 27 28 29 30

AWG 12 ... 24

0,2 .. 2,5 mm

2

2x0,2 .. 1,5 mm

2

0,2 .. 2,5 mm

2

2x0,2 .. 1,5 mm

2

Com 3

+(B) -(A)

Temp In

T1 T2 T3

Analog out

+24V + GND

23 24 25 26 27 28 29 30

Tightening torques and cable dimensions.

Com 3

+(B) -(A)

Temp In

T1 T2 T3

Analog out

+24V + GND

23 24 25 26 27 28 29 30

Figure 44: PT100 - 2 wire

M3

0,5 Nm

4,3 lb.in

3,5 x 0,6 mm

(0.138 x 0.024 in)

AWG 12 ... 24

0,2 .. 2,5 mm

2

2x0,2 .. 1,5 mm

2

0,2 .. 2,5 mm

2

2x0,2 .. 1,5 mm

2

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

2-wire measurement for PTC

When using 2-wire temperature sensors, the sensor resistance and the wire resistance are added together.

The resulting systematic errors must be taken into account when adjusting the tripping device. A jumper must be connected between the terminals 26 and 27.

Table 1 Temperature errors in C°/K can be used for

PTC100 sensors to determine the temperature errors caused by the line length. See

Figure 45.

45

PTC 100 - 2 wire

Tightening torques and cable dimensions.

Com 3

+(B) -(A)

Temp In

T1 T2 T3

Analog out

+24V + GND

23 24 25 26 27 28 29 30

Error caused by the line

The error resulting from the line resistance amounts to approx. 2.5 Kelvin/Ohm. If the resistance of the line is not known and it is not possible to measure, the error caused by the line can be estimated using the following table.

Temperature errors in °C / K

The table below shows temperature errors, at an ambient temperature of 20° C, depending on the line length and conductor cross section for PT100 sensors.

Table 1 Temperature errors in C°/K

Line length in m Wire size mm 2

10

25

0.50

1.8

4.5

1.2

3.0

0.75

50

75

100

200

500

9.0

13.6

18.1

39.3

91.6

6.0

9.0

12.1

24.2

60.8

0.9

2.3

4.5

6.8

9.0

18.1

45.5

1

0.6

1.5

3.0

4.5

6.0

12.1

30.2

1.5

Figure 45: PTC 100 - 2 wire

M3

0,5 Nm

4,3 lb.in

3,5 x 0,6 mm

(0.138 x 0.024 in)

Com 3

+(B) -(A)

Temp In

T1 T2 T3

Analog out

+24V + GND

23 24 25 26 27 28 29 30

AWG 12 ... 24

0,2 .. 2,5 mm

2

2x0,2 .. 1,5 mm

2

0,2 .. 2,5 mm

2

2x0,2 .. 1,5 mm

2

5

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

5

5.1.2.10

Analog output

The softstarter has one output for a configurable analog output signal (terminals 29 and 30). The load resistance is maximum 500 ohm for current output, and minimum

500 ohm for voltage output.

The output signal ranges available are 0-10 V, 0 – 20mA or 4-20mA. The default setting is 4-20mA.

The analog output can be selected to show:

I (A), U (V), P (kW), P (Hp), Q (kVAr), S (kVA), cos Phi, Motor temp, SCR temp and Energy (kWh).

If the analog output is used, the cables shall be connected to terminals 29 and 30. See

Figure 46.

See chapter 7.13 Inputs/outputs for programming.

46

Figure 46: Analog output

Tightening torques and cable dimensions.

Com 3

+(B) -(A)

Temp In

T1 T2 T3

Analog out

+24V + GND

23 24 25 26 27 28 29 30

M3

0,5 Nm

4,3 lb.in

3,5 x 0,6 mm

(0.138 x 0.024 in)

Com 3

+(B) -(A)

Temp In

T1 T2 T3

Analog out

+24V + GND

23 24 25 26 27 28 29 30

A

AWG 12 ... 24

0,2 .. 2,5 mm

2

2x0,2 .. 1,5 mm

2

0,2 .. 2,5 mm

2

2x0,2 .. 1,5 mm

2

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

5.1.3 Optional accessories

If more inputs and outputs are needed, connect accessorie:

• ABB Stotz DX1xx-FBP extension module

This will give additional:

• 8 digital input

• 4 ouput relay

• 1 analog output

The cables shall be connected to terminals 23,24, 29 and

30. See

Figure 47.

See chapter 8 Communication for communication

accessories.

47

Figure 47: Optional accessories

Com 3

+(B) -(A)

Temp In

T1 T2 T3

Analog out

+24V + GND

23 24 25 26 27 28 29 30

A

Tightening torques and cable dimensions.

Com 3

+(B) -(A)

Temp In

T1 T2 T3

Analog out

+24V + GND

23 24 25 26 27 28 29 30

M3

0,5 Nm

4,3 lb.in

3,5 x 0,6 mm

(0.138 x 0.024 in)

AWG 12 ... 24

0,2 .. 2,5 mm

2

2x0,2 .. 1,5 mm

2

0,2 .. 2,5 mm

2

2x0,2 .. 1,5 mm

2

5

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

5

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

6 Human machine interface (HMI)

6.1 Navigation Overview

6.1.1 LED indicators

6.1.2 Keypad

6.1.3 Navigation screen

6.1.3.1 Edit parameter values

6.1.4 How to set a parameter

6.1.4.1 Changing the Rated motor current

(Setting Ie).

6.2 Local control from keypadkeypad

6.2.1 Start key

6.2.2 Stop key

6.2.3 R\L-key

6.2.4 Motor jog

6.3 Options screen

6.3.1 Overview

6.3.2 Edit home view

6.3.2.1 Add information screens to home view

6.3.2.2 Edit information screens in home view

6.3.2.3 Display slot

6.3.2.4 Scale value range

6.3.3 Active faults/protections and warnings

6.4 Menu screen

6.4.1 Parameters

6.4.1.1 Complete list

6.4.1.2 Favorites

6.4.1.3 Modified

6.4.2 Assistants

6.4.3 Event log

6.4.4 Backup handling

6.4.4.1 Create backup

6.4.4.2 Uploading of parameters

6.4.5 System info

6.4.6 Settings

6.4.6.1 Language

6.4.6.2 Date and time

6.4.6.3 Display settings

6.4.6.4 Reset to defaults

54

54

43

54

54

54

55

55

52

52

52

52

53

6

59

60

61

61

61

62

62

62

64

64

65

56

56

56

58

58

48

48

49

50

50

51

51

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

This chapter describes how the Human-machine interface

(keypad and display) works. For detailed description of each function, see

chapter 7 Functions.

6

6.1 Navigation Overview

The Human-machine interface, HMI is used for several purposes such as programming the softstarter, e.g. setup of inputs and outputs, protections, warnings, and communications. The HMI is also used for monitoring, local control and status information of the softstarter. See

Figure 48.

48

The HMI contains of:

• Display

• Selection and Navigation keys

• Mini USB port

• LED status indicators

6.1.1 LED indicators

The LED status indicators work as in Table 1 LED status:

Table 1 LED status

LED Color

Ready

1

Run

2

Protection

3

Green

Green

Yellow

Description

Off: When control supply voltage Us is off or unconnected.

Flashing light: When control supply voltage Us is On and operational voltage

Ue is Off.

Steady light: When control supply voltage Us is On, and operational voltage

Ue is On.

Off: When the motor is not running.

Flashing light: When softstarter is controlling operational voltage Ue during start or stop ramp.

Steady light: When full operational voltage Ue is on at Top of Ramp.

Off: When the softstarter has not tripped on any protection

Flashing light: The protection has tripped and reset is possible.

Steady light: The protection has tripped and reset is not possible.

Fault

4

Red •

See Figure. 48: LED status.

Off: When the softstarter has not tripped on any fault

Flashing light: Fault has occurred and reset is possible.

Steady light: Fault has occurred and reset is not possible.

When fault or protection LED is activated, the display will show the actual fault or protection as an event code and an indication text. Press information-key for further information.

See chapter 10 Troubleshooting for description of fault, protections

and warnings.

Figure 48: HMI

49

L N

K4 K4 K4 Start Stop Reset In1 In2 DGND DND +24V GND

PSTX

Figure 49: LED status

Stop

1

2

Start

PSTX

3

4

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

6.1.2 Keypad

The softstarter has 10 keys on the keypad, see

Figure 50. This chapter describes the function of each key.

50

Options

L N

K4 K4 K4 Start Stop Reset In1 In2 DGND DND +24V GND

PSTX

Selection softkeys

The Selection softkeys normally have more than one function, such as selecting, exiting, changing and storing, depending on present dialogue. The display above the key shows the current softkey function. See 1

in Figure

50.

Navigation keys

The Navigation keys are used for navigating in the menu and change the parameter values. A menu/value that are highlighted black in the display can be changed or scrolled. When selecting from a list, the scrolling is done in a closed loop. See

2

in Figure 50.

Figure 50: Keypad

R\L-key

R\L-key stands for Remote or Local. This key gives you the option to switch the control of the softstarter between local control from the HMI and remote control from hardwire input or fieldbus. See

3 in Figure 50.

i-key

The i-key is an information key for the HMI, and provides context related information about the softstarter status and settings.

Press this key for help and general information about the current setting in the HMI. See

4

in Figure 50.

Table 2 Keypad, Figure 46

Position Key

1

Selection softkeys

2

3

4

5

6

Navigation keys

R\L-key i-key

Stop key

Start key

3

5

Stop

Stop key

The Stop key is the stop switch for the softstarter.

By pressing this key the motor will stop according to set parameters. It is possible to press stop command during the start ramp if required. (Only active in local control mode). See

5

in Figure 50.

Start key

The Start key is the start switch for the softstarter.

By pressing this key the motor will start and operate according to the set parameters. (Only active in local control mode). See

6

in Figure 50.

1

2

Menu

1

4

Start

6

6

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

6

6.1.3 Navigation screen

51

With the keypad, settings can be set individualy or as a selection of predefined parameters for different applications. The default parameter set is stored in the unit for a possible reset to default values. When the fieldbus communication is selected, parameters can also be modified from this interface.

Press “Menu“ to go to the menu and then use and to navigate. Press the “Select“ to make your selection.

See

Figure 51.

Local

Menu

PSTX30

Backup handling

System info

Settings

Exit

12:00

Figure 51: Navigation screen

6.1.3.1

Edit parameter values

52

The numerical setting

Use the numerical setting when a numerical value is to be set in the softstarter. Use and on the Navigation keys to select number, the selected number is highlighted black. Then Press or to change the value of the selected number. Press “Save” to save.

See Figure 52.

Local PSTX30

Motor rated current Ie

30.

0

A

0.0

Cancel

12:00

Select

30.0

Save

Figure 52: Numeral setting

On/off switch

Use or to navigate and or to change the value of the selected switch, (1=on, 0=off).

Press “Save” to save. See

Figure 53.

53

Local PSTX30

Shunt fault event mask

0

0

0

1

0

Cancel

Event group 0

Event group 1

Event group 2

Event group 3

Event group 4

12:00

Figure 53: Switch setting

Selection list

Use the Navigation keys to navigate up and down in the lists. The selected option is highlighted black. Press

“Save” to save.

See Figure 54.

54

Local PSTX30

Current limit type

Off

Normal

Dual

Ramp

Cancel

12:00

Save

Save

Figure 54: Selection list

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

6.1.4 How to set a parameter

This chapter shows some examples of parameters that can be set on the PSTX softstarter.

2.

3.

4.

6.1.4.1

Changing the Rated motor current

(Setting Ie).

Path in menu:

Menu u

Parameters

u

Complete list u

01 Motor rated current Ie

For more information about Motor Current Ie, see

chapter 7 Functions.

1.

5.

6.

The Home view is the top level. Press “Menu” to enter the menu. The display now appears as in

Figure 55.

Press

Press

“Select“ to select Parameters menu.

“Select“ to select Complete list.

Press current Ie.

“Select“ to select 01 Motor rated

Press “Edit“ to edit the rated current in Motor rated current Ie.

Use the Navigation keys to set the rated current.

Use and to select number, the current selected number is highlighted black. Then press

or to change the value of the selected number. Save the new setting by selecting

“Save”.

See Figure 55. If you want to quit, you select

“Cancel”.

55

Local PSTX30

Motor rated current Ie

0.0

Cancel

Figure 55: Motor current Ie

30.

0

A

12:00

30.0

Save

6

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

6.2 Local control from keypad

CAUTION

When you switch from local control to remote control the setting will apply immediately. If the remote setting has direct motor start it could start the motor automatically and can cause personal injury.

INFORMATION

When you switch from remote control to Local control the softstarter remains in present state.

This chapter describes how the Local control interface works. The Local control is used to start and stop the motor from the keypad. When Local control is selected, the softstarter can only be controlled by the keypad.

6

Table 3 Local control from keypad

Function Description

Start/stop

R\L

Motor Jog *

Start and stop the motor with the keypad.

Switch between local and remote control

Run the motor as long as Jog is pressed.

* For intormation about Motor jog see chapter 6.2.4 Motor jog.

To reach the Motor Jog, follow this path in menu:

Menu u Motor jog

6.2.1 Start key

The start key is the start switch for the softstarter.

By pressing this key the motor will start and operate according to the set parameters. See

1

in Figure 56.

56

L N

K4 K4 K4 Start Stop Reset In1 In2 DGND DND +24V GND

PSTX

6.2.2 Stop key

The stop key is the stop switch for the softstarter.

By pressing this key the motor will stop according to set parameters. It is possible to press stop command during the start ramp if required. See 2

in Figure 56.

Stop

6.2.3 R\L-key

R\L-key stands for Remote or Local control.

This key gives you the option to control the softstarter remote from digital input, fieldbus or local from the HMI.

See 3

in Figure 56.

Figure 56: Local control

Start

4

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

6.2.4 Motor jog

Path in menu:

Menu u

Motor jog

For navigation see Figure 57.

For Motor jog parameter settings,

see chapter 7.9 Slow speed.

Jog is an slow speed drive function to drive the motor with low voltage output. This feature can be useful to position for example a conveyor belt.

The jog has three predefined speeds:

• Fast Jog

• Jog

• Creep

The speeds can be adjusted with separate parameters.

For example: Fast jog backward and jog forward. This function can be operated via the HMI, I/O or Fieldbus.

Press

“Menu” to enter the Motor jog menu and then select Motor Jog. Use and to jog forward or backwards. See

4 in Figure 58. The motor will start and accelerate to the rated speed according to the set parameters as long as the Jog command is activated.

The motor stops immediately when the push button,

and is released.

MENU

Parameters

Assistants

Motor jog

Event log

Backups handling

System info

Settings J

og

Figure 57: Motor jog navigation .

58

Local

Motor Jog

PSTX HMI

Exit

14:30

Figure 58: Motor jog

It is possible to run the motor both in the forward and reverse direction with three different speeds.

6

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

6

6.3 Options screen

6.3.2.3

Display slot

60

6.3.1 Overview

In Options screen, it is possible to change the apperence of the Home view of the softstarter and access Active faults/ protections and Active warnings.

Option screen includes the following menues:

• Edit home view

• Active faults/ protections

• Active warnings

Press “Options” to enter the Options screen.

6.3.2 Edit home view

Path in menu:

Options u

Edit home view

For navigation, see

Figure 59.

Options

Edit home view

Active faults

Active warnings

Local PSTX HMI

Motor current

0.0

Motor voltage

0.0

Options

12:00

V

A

Menu

Figure 59: Edit home view navigation .

Use Edit home view to change the appearance of the home view of the softstarter.

6.3.2.1

Add information screens to home view

1.

Press “Options” to select Edit home view.

2.

3.

Use the Navigation keys to determine were you want to add an information screen.

Press “Add” to add the new information screen to the home view.

6.3.2.2

Edit information screens in home view

1.

Press view.

“Options” and then select Edit home

2.

3.

Use the Navigation keys to select the display slot you want to edit.

Press “Edit“ and enter the Display slot menu.

Refer to options in chapter 6.3.2.3 Display slot to

set the new screen in the Display slot menu.

1

Local

2

PSTX

Motor current

0.0

Motor voltage

0.0

Options

12:00

3

V

A

4

Menu

Figure 60: Display slot

In the Display slot menu, the new screen can be set according to the following options:

Signal

Press “Edit” to see the list of signals which can be shown in the home view. Use the Navigation keys and then press “Select” to select the signal. Selected signal is shown by

1

in Figure 60.

Choose between following signals:

• Empty

• Motor voltage

• Motor current

• Active power

• Active power (hp)

• Power factor

• Reactive power

• Apparent power

• Mains voltage

• Mains frequency

• Motor connection

• Phase sequence

• Phase L1 current

• Phase L2 current

• Phase L3 current

• L1L2 phase-to-phase voltage

• L2L3 phase-to-phase voltage

• L3L1 phase-to-phase voltage

• Thyristor temperature

• Motor temperature

• EOL time to trip

• EOL time to cool

• Active energy

• Active energy (resettable)

• Rective energy

• Rective energy (resettable)

• Voltage imbalance

• Mains voltage THD

• PT100 temperature

• PTC resistance

• Remaining time to start

• Number of starts (resettable)

• Number of starts

• Motor run time (resettable)

• Motor run time

• Thyristor run time (resettable)

• Thyristor run time

• Fans run time

• Pre-start function

• Start mode

• Stop mode

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Display style

Choose the display style for the home view. Selected display style is shown by

2

in Figure 60.

Choose between numeric, gauge or graph data:

• Numeric

• Gauge/bar

• Graph 15 minutes

• Graph 30 minutes

• Graph 1 hour

• Graph 24 hours

• N/A

Use the Navigation keys to select display style, press “Select” to set the parameter.

Display decimals

Choose the amount of decimals to be shown in the home view. It is possible to choose between 0 to 9 depending on parameter. Use the Navigation keys to change displayed decimals.

Press “Save” to save the value. Decimals are shown by

3

in Figure 60.

Display name

It is possible to change the name of the chosen signal.

The new name can be up to with 20 characters.

Use the Navigation keys to change the characters.

Press “Save” to save the display name. Display name is shown by 1 in Figure 60.

Signal min

Choose the minimum value to be shown in the Home view. Use the Navigation keys to change value.

Press “Save” to save the value. Value is shown by 3 in Figure 60.

Signal max

Choose the maximum value to be shown in the Home view. Use the Navigation keys to change value.

Press “Save” to save the value. Value is shown by

3 in Figure 60.

61

1

Local

2

Figure 61: Display slot

PSTX

Motor current

0.0

Motor voltage

0.0

Options

12:00

3

V

A

4

Menu

6.3.3 Active faults/protections and warnings

Path in menu:

Options u

Active faults / protections

Options u

Active warnings

Active faults/protections/warnings are also found in the Options menu. The menus contain information about faults and warnings that have occurred during operation, and what protections that are active.

Active faults/protections and warnings menus are highlighted black when a fault protection or warning has occurred.

For navigation see

Figure 62.

For more information about fault/warnings/protections,

see chapter 10 Troubleshooting.

6.3.2.4

Scale value range

Use Navigation keys to mark Scale value range and press

“Select” to enable Scale value range. Three more options will then illuminate in the display slotmenu:

• Display signal min as

• Display signal max as

• Display unit

Options

Edit home view

Active faults / protections

Active warnings

Faults

Protections

Display signal min as

- Press “Edit” to choose the scaled minimum value that is to be shown in the Home view. Use the Navigation keys to change value,

Press “Save” to save the value. See

3

in Figure 61.

Display signal max as

- Choose the scaled maximum value that is to be shown in the Home view. Use the

Navigation keys to change value,

Press “Save” to save the value. See

3

in Figure 61.

Display unit

- Type in the unit which is to be displayed in the Home view. It is possible to type a unit with up to

10 characters. Use the Navigation keys to change the characters. “Save” to save the Home view unit name.

See 4 in Figure 61.

Options

Edit home view

Active faults / protections

Active warnings

Warnings

Figure 62: Active fault/warnings/protections navigation

6

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

6

6.4

Menu screen

The menu screen contains seven submenues, described in the following chapters:

Table 4 Menu screen

Chapter

6.4.1 Parameters

6.4.2 Assistants

6.2.4 Motor jog

6.4.3 Event Log

6.4.4 Backup handling

6.4.5 System info

6.4.6 Settings

Description

Parameter settings for different types of softstarts.

Predefined parameters for common applications.

See chapter 6.2.4 Motor jog

Show the Event Log, Faults, Protections and Warnings.

Backup parameter settings.

Show product name, type,

Firmware version etc.

Softstarter settings such as

Language, Date and Display.

Use Navigation keys to navigate in the submenues.

Press “Select” to enter a menu. Press “Save” to save a new setting. Press “Cancel” to exit a setting without saving. Press “Back” to return to previous menu.

6.4.1 Parameters

Path in menu:

Menu u

Parameters

The parameter menu contains three submenues, described in the following chapters:

Table 5 Parameters screen

Chapter

6.4.1.1 Complete list

6.4.1.2 Favorites

Description

Shows all parameters for advanced setup

Choose favorite parameter functions for quick selection.

Shows modified parameters.

6.4.1.3 Modified

Use Navigation keys to navigate in the submenues.

Press “Select” to enter a menu. Press “Save” to save a new setting. Press “Cancel” to exit a setting without saving. Press “Back” to return to previous menu.

MENU

6.4.1.1

Complete list

Path in menu:

Menu u

Parameters

u

Complete list

The Complete list menu should be used if a more advanced parameter setup is required. The complete list menu contains groups of parameters arranged by functions, such as Start and Stop, Communication etc.

For navigation, see

Figure 63.

Use the Navigation keys to navigate the submenues.

Press “Select” to enter a menu. Press “Save” to save a new setting. Press “Cancel” to exit a setting without saving. Press “Back” to return to previous state. For function settings and full parameter list,

see chapter 7 Functions.

Parameters

Assistants

Motor jog

Event log

Backup handling

System info

Settings

Figure 63: Complete list navigation

Complete list

Favorites

Modified

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Complete list

01

Motor rated current Ie

02

Start and stop

03

Limit

04

Kick start

05

Slow speed

06

Motor heating

07

Motor braking

08

Sequence start

09

Automatic restart

10 Internal IO 11 External IO

12

Communication

13-19

Protections list 1-7

20-24

Warnings list 1-5

25

Internal faults

26

External faults

27

Presentation

28

Service

01 Motor rated current Ie

01.01 Motor rated current Ie

02 Start and stop

02.01 Start mode

02.02 Stop mode

02.03 Start ramp initial level

02.04 Start ramp time

02.05 Stop ramp end level

02.06 Stop ramp time

02.07 Pre-start function

02.08 Pre-start timea

03 Limit

03.01 Current limit type

03.02 Current limit level

03.03 2nd curr lim level

03.04 2nd curr lim time

03.05 Torque limit level

04 Kick start

04.01 Kick start

04.02 Kick start level

04.03 Kick start time

05 Slow speed

05.01 Slow speed forward

05.02 Slow speed fwd strength

05.03 Slow speed reverse

05.04 Slow speed rev strength

06 Motor heating

06.01 Motor heating capacity

07 Motor braking

07.01 Stand still brake strength

09 Automatic restart

09.01 Auto-reset delay time

09.02 Auto-restart

09.03 Auto-restart max attempts

10 Internal

10.03 In2 function

10.04 K4 function

10.05 K5 function

10.06 K6 function

10.07 AO reference

10.08 AO type

10.09 AO max value

10.10 AO min value

10.11 Ext therm sensor - ID

For full parameter list see chapter 7

Warnings list 20-24

20.01 EOL level

20.02 EOL out

20.03 EOL warning

20.04 Locked rotor level

20.05 Locked rotor init time

20.06 Locked rotor out

20.07 Locked rotor

20.08 Thyristor OL out

20.09 Thyristor OL

For full parameter list see chapter 7

27 Presentation

27.01 Language

27.02 Basic set-up at power on

08 Sequence start

08.01 Sequence mode

08.02 Ie seq 1

08.03 Start mode seq 1

08.04 Start ramp time seq 1

08.05 Start ramp init lvl seq 1

08.06 Curr lim level seq 1

08.07 Kick start seq 1

08.08 Kick start level seq 1

08.09 Kick start time seq 1

08.10 Torque lim lvl seq 1

08.11 Torque tune seq 1

08.12 Torque ctrl gain seq 1

For full parameter list see chapter 7

11 External IO

11.01 1DI0 function

11.02 1DI1 function

11.03 1DI2 function

11.04 1DI3 function

11.05 1DI4 function

11.06 2DI5 function

11.07 2DI6 function

11.08 2DI7 function

11.09 1DO0 function

For full parameter list see chapter 7

25 Internal faults

25.01 Shunt fault out

25.02 Shunt fault op

25.03 Short circuit out

25.04 Short circuit op

25.05 Open circuit thyr out

25.06 Open circuit thyr op

25.07 Thyristor OL out

25.08 Thyristor OL op

25.09 Heat sink over temp out

25.10 Heat sink over temp op

25.11 Unspecified fault out

25.12 Unspecified fault op

26 External faults

26.01 Phase loss out

26.02 Phase loss op

26.03 Bad network out

26.04 Bad network op

26.05 Low supply voltage out

26.06 Low supply voltage op

26.07 High current out

26.08 High current op

26.09 Faulty usage out

26.10 Faulty usage op

26.11 Faulty connection out

26.12 Faulty connection op

12 Communication

12.01 Com3 function

12.02 FB interface connector

12.03 Fieldbus control

12.04 Fieldbus address

12.05 Fieldbus IP address

12.06 Fieldbus IP gateway

12.07 Fieldbus IP netmask

12.08 Fieldbus IP DHCP client

12.09 FB baud rate

12.10 FB parity

12.11 FB stop bits

12.12 Fieldbus DI 1

For full parameter list see chapter 7

13-19 Protections list

13.01 EOL mode

13.02 EOL class

13.03 EOL dual class

13.04 EOL out

13.05 EOL operation

13.06 Locked rotor level

13.07 Locked rotor trip time

13.08 Locked rotor delay time

13.09 Locked rotor out

13.10 Locked rotor op

13.11 Max no of starts per hour

13.12 Max no of starts per hour out

13.13 Max no of starts per hour op

For full parameter list see chapter 7

28 Service

28.01 ID

28.02 Line contactor close time

28.03 TOR relay delay time

28.04 Start without start command

28.05 Step down level

28.06 Torque profile start

28.07 Torque finish

28.08 Torque tune

28.09 Torque ctrl gain

28.10 Torque PI intergration time

28.11 Torque slip

28.12 Torque diff

28.13 Torque filter time

For full parameter list see chapter 7

6

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

6

6.4.1.2

Favorites

Path in menu:

Menu u

Parameters u

Favorites

MENU

For navigation,

The Favorites menu makes it possible to add favorite parameters for quick selection. Choose between parameters such as Start and stop, Current limit, Kick start, Torque control, etc.

1.

2.

see Figure 64.

Parameters

Assistants

Motor jog

Event log

Backup handling

System info

Settings

Press then press

“Select” to enter the Favorites menu and

“Select” to edit the Favorites list.

Use the Navigation keys to select a parameter group. Press “Open” to open the group.

Figure 64: Favorites navigation

Complete list

s

Favorites

Modified

3.

Rress “Select” to select parameters.

A checkmark will be shown by the selected parameter, press “Unselect” to unselect the parameter. Press “Done” to save and exit.

See Figure 65.

65

4.

The selected Favorites will show directly in

Favorites menu for quick selection.

Press “Back” to return to previous menu.

Local PSTX

Edit favorites list

Clear all

Motor rated current Ie

Start and stop

Start mode

Stop mode

Done

12:00

Select

Favorites

Edit

Favorites

Motor rated current Ie

Start and stop

Limit

Kick start

Slow speed

Motor heating

Motor braking

Sequence start

Automatic restart

Internal IO

External IO

Communication

Protections list 1-7

Warnings list 1-5

Internal faults

External faults

Presentation

Service

Figure 65: Favorites menu

6.4.1.3

Modified

Path in menu:

Menu u

Parameters u

Modified

For navigation, see

Figure 66.

The Modified menu contains modified parameters that differs from defaults.

Press “Select” and then “Edit” to edit the parameter which differs from default. Press “Save” to save and return to previous menu. Or press “Cancel” to return to previous state without saving.

MENU

Parameters

Assistants

Motor jog

Event log

Backup handling

System info

Settings

Figure 66: Modified navigation

Complete list

Favorites

Modified

Modified

Modified parameters

List of parameters that differs from their default values.

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

6.4.2 Assistants

Path in menu:

Menu u

Assistants

For navigation, see Figure 67.

For more detailes on how to set Basic set-up and

Application set-up, see chapter 2 Quick start.

For more information about Assistants and Application

list, see chapter 7.21 Assistants.

The Assistants menu contains predefined settings and parameters. This should be used if an easy and quick setup is required. Only a few parameters have to be set before a start of the motor is possible. All necessary input data will show up in an automatic loop. The Assistants menu is divided in:

• Basic set-up

• Application set-up

INFORMATION

After selecting an application and performing the desired setting, the application should not be selected again. If this is done, all the settings will be reset to the default settings for the selected application.

MENU

Parameters

Assistants

Motor jog

Event log

Backup handling

System info

Settings

Basic set-up

Application set-up

Figure 67: Assistants navigation

Enter the Assistants menu

Find the Assistants menu by pressing “Menu” and select Assistants with the Navigation keys.

Press “Select” to enter the Assistants menu.

Basic set-up

Use the Navigation keys to select Basic set-up.

Press “Select” to enter the Basic set-up.

The Basic set-up menu is divided in 5 steps:

Language, Date and time, Motor data, System configuration and Setup complete.

Application set-up

The Application set-up are quick settings for Applications,

Values and Tune settings.

Use the Navigation keys to select Application set-up.

Press “Select” to enter the Application set-up.

Select what type of application the softstarter is used for by pressing “Select”.

See

Figure 68.

68

Local PSTX

Application set-up

Band saw

Bow thruster

Centrifugal pump

Circular saw

Conveyor belt short

Done

12:00

Figure 68: Application set-up

1(4)

Select

6 vent log

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

6

6.4.3 Event log

Path in menu:

Menu u

Event log

For navigation, see Figure 69.

The Event log menu checks the event log in the softstarter. When entering this menu the 100 latest events in the log are listed, in chronological order with the latest event as No. 1, the second latest as No. 2 etc.

The events are shown with “type of event” and date.

For details about all events press details.

Use navigation keys to view all entries in the event log.

The types of event logs are:

• Faults

• Protections

• Warnings

• Parameter changed

• Run

See

Figure 70.

Faults

Use the Navigation keys to select a Fault and press

“Details” to read details about the Faul t (Name, On time and Event count). Then press the i-key to see information about the Fault. Press “Back” to return to Faults log menu.

Protections

Use the Navigation keys to select a Protection and press “Details” to read details about the Protection

(Name, On time and Event count). Press the i-key to see information about the Protection. Press “Back” to return to Protections log menu.

Warnings

Use the Navigation keys to select a Warning and press

“Details” to read details about the Warning (Name,

On time and Event count). Then press the i-key to see further information about the Warning. Press “Back” to return to Warning log menu.

Parameter changed

Use the Navigation keys to select a parameter and press

“Details” to read details about the parameter which has been changed (Name, On time and Event count).

Press “Back” to return to Warning log menu.

Run

Use the Navigation keys to select a run event and press

“Details” to read details about the run event (Name,

On time and Event count). Press “Back” to return to

Warning log menu.

70

MENU

Parameters

Assistants

Motor jog

Event log

Backup handling

System info

Settings

Event logs

Faults

Protections

Warnings

Parameter changed

Run

Figure 69: Event log navigation

Local

Event logs

Run

Done

PSTX

Faults

Protections

Warnings

Parameter changed

12:00

Figure 70: Event log

Select

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

6.4.4 Backup handling

Path in menu:

Menu u

Backup handling

For navigation, see Figure 71.

The detachable keypad can be used to transfer parameters from one softstarter to another during commissioning.

Transfer of parameters

To transfer (or copy) parameters from one softstarter to another, connect the keypad to the chosen softstarter and follow the instructions in chapter 6.4.4.1 and chapter 6.4.4.2 below:

MENU

Parameters

Assistants

Motor jog

Event log

Backup handling

System info

Settings

Figure 71: Backups handling

Create backup

01.11.2014

6.4.4.1

Create backup

1.

Press menu.

“Select” to enter the Backups handling

2.

Press “Create backup” to create a backup.

3.

The download of parameters will show as in

Figure 72. The name of the backup file is displayed as the day, month and year it was created.

Replace backup

The softstarter can store two backups. Use the

Navigation keys to select a earlier backup and press

“Replace”, to replace a backup.

72

Local PSTX HMI

Back up parameters

Cancel

14:30

Fig. 72: Downloading parameters

0

6.4.4.2

Uploading of parameters

1.

After finishing the download of parameters, detach the HMI from the softstarter.

2.

Connect the HMI to the softstarter that is to receive the backup from the HMI.

3.

4.

Enter the Backup handling menu and use the

Navigation keys to select the backup.

Press “Select” to upload parameters. The upload of parameters will show as in

Figure 73.

73

Local PSTX HMI

Restoring parameters

Cancel

Fig. 73: Uploading parameters

14:30

0

6

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: in[email protected]

6

6.4.5 System info

Path in menu:

Menu u

System info

For navigation, see

Figure 74.

The System info menu contains system info such as

Firmware version and Serial number. In the System info menu it is possible to see system info of Softstarter and

HMI. Press “Select” to enter the System info menu.

Use the Navigation keys to make your selection.

Press “Back” to return to previous menu.

MENU

Parameters

Assistants

Motor jog

Event log

Backup handling

System info

Settings

Softstarter

FW version:

Softstarter

HMI

1.11.0

Serial number: 00000

Fig. 74: System info navigation

HMI

FW version: 1.5.0

Serial number: 00000

6.4.6 Settings

Path in menu:

Menu u

Settings

For navigation,

see Figure 75.

The settings menu contains softstarter set-up parameters.

The settings are described in the following chapters:

Table 6 Settings menues

Chapter

6.4.6.1 Language

6.4.6.2 Date and time

6.4.6.3 Display settings

6.4.6.4 Reset to defaults

Description

Change language of the HMI

Set date and time for the softstarter

Change Contrast, brightness etc.

Reset Home view layout

Will be available in a future release:

- Reset fault log

- Reset all parameters

Settings can be set with Keypad and Fieldbus communication.

MENU

Parameters

Assistants

Motor jog

Event log

Backup handling

System info

Settings

Settings

Language

Date and time

Display settings

Reset to defaults

Date and time

Date:

Time:

Show date as: day.month.year

Shoe time as: 24-hour

[ ] Show clock xx.xx.20xx

xx:xx:xx

Reset to defaults

Reset Home view layout

Language

Arabic

Czech

German

English

Spanish

Finnish

French

Italian

Dutch

Polish

Portuguese

Russian

Swedish

Turkish

Chinese

Display settings

Contrasts 80 %

Brightness 80 %

Powersave

[ ] White on black

Figure 75. Settings navigation

6.4.6.1

Language

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Path in menu:

Menu u

Settings u

Language

For navigation, see Figure 76.

The interface can be set to any of the following languages:

Table 7 Language

Language

Arabic

Czech

German

English

Spanish

Finnish

French

Italian

Dutch

Polish

Portuguese

Russian

Swedish

Turkish

Chinese (simplified chinese)

RU

SV

TR

ZH

IT

NL

PL

PT

Abbreviation on the display

AR

CS

DE

US/UK

ES

FI

FR

3.

4.

1.

2.

Follow the instructions below to access the language settings menu (start from Home view):

Press

“Select” once to enter the menu.

Use Navigation keys to navigate to the Settings menu. (The icon symbols a wrench).

5.

Press the “Select” to enter the Settings menu.

Highlight the first alternative and press

”Select” and then “Edit” to enter Language settings.

Use and to select language.

See Figure 77.

6.

Press “Save” to save the selected language.

Settings

MENU

Parameters

Assistants

Motor jog

Event log

Backup handling

System info

Settings

Language

Date and time

Display settings

Reset to defaults

Figure 76: Language navigation

77

Local

Language

English

Spanish

Finnish

French

Italian

Cancel

PSTX

12:00

Figure 77: Language menu

Save

Language

Arabic

Czech

German

English

Spanish

Finnish

French

Italian

Dutch

Polish

Portuguese

Russian

Swedish

Turkish

Chinese

6

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

6

6.4.6.2

Date and time

Path in menu:

Menu u

Settings u

Date and time

For navigation see

Figure 78.

Date and Time settings includes all date and time configurations for the softstarter.

To change the settings in the Date and Time menu, press “Edit” to enter the setting. Press “Save” to save the set value. See Figure 79.

Table 8 Date and time settings

Option Function

Date

Time

Set date: Day, month and year.

Set time: Hour, minutes and seconds.

Show date as The date can be displayed in three different ways, depending on the selected type. The following will be displayed at top level:

Show time as

Show clock

CE day . month . year

US month/day/Year

SO year–month–day

Set the time to be displayed in

12-hour or 24-hour

Show clock On / Off

MENU

Parameters

Assistants

Motor jog

Event log

Backup handling

System info

Settings

Figure 78: Date and time

79

Settings

Language

Date and time

Display settings

Reset to defaults

Real time clock

The Real time clock is the local time in the softstarter. The clock stays running 2 hours after control supply power has been turned off. Set date and time again if a longer power outage would occur.

When the configuration of the time setting is completed, it is possible to return to the Home view, top level, by pressing “ Back” 3 times.

Local

Date & Time

PSTX

Date

Time

Show date as

Show time as

Show clock

Back

12:00

27.06.2014

12:00:00 day.month.year

24-hour

Edit

Figure 79: Date and time menu

Date and time

Time: 12:00:00

Show date as: day.month.year

Shoe time as: 24-hour

[ ] Show clock

6.4.6.3

Display settings

Path in menu:

Menu u

Settings u

Display settings

For navigation, see Figure 80.

The Display settings includes all display configurations of the softstarter. To change the Display settings, Press

“Edit” to enter the setting level. Press “Save” to save the set value.

Table 9 Display settings

Option Function

Contrast

Brightness

Power save

White on black

Set the contrast intensity

0 ... 100%

Set the brightness intensity

0 ... 100%

This option turns off the display backlight after selected time.

You can set the Power save to start within 30 minutes, 1, 2, or 5 hours or Never

White on black display On / Off

MENU

Parameters

Assistants

Motor jog

Event log

Backup handling

System info

Settings

Figure 80: Display settings

Settings

Language

Date and time

Display settings

Reset to defaults

Display settings

Contrasts 80 %

Brightness 80 %

Powersave

[ ] White on black

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

6.4.6.4

Reset to defaults

Path in menu:

Menu u

Settings u

Reset to defaults

For navigation, see

Figure 81.

The Reset to defaults menu is used to reset home view layout, parameters or operating data back to factory default settings.

The real time clock, the hour run meter, the number of starts and the presentation language will not be affected by the reset.

1.

Press menu.

“Select” to enter the Reset to defaults

2.

3.

Use the Navigation keys to select between;

Home view layout

Parameters

Operating data

Press be reset.

“Select” to select the data which is to

4.

5.

Press cancel.

“Yes” to reset, or press “No” to

Confirmation of reset will be displayed as “Done” on the display.

MENU

Parameters

Assistants

Motor jog

Event log

Backup handling

System info

Settings

Figure 81: Reset to defaults

Settings

Language

Date and time

Display settings

Reset to defaults

Reset from defaults

Reset Home view layout

6

Reset operating data

Reset operating data is divided in:

• Active energy

• Rective energy

• Number of starts

• Motor run time

• Thyristor run time

Use the Navigation keys to select which data to reset.

Press “Reset” to reset, or press “Back” to return to Reset to defaults menu.

Confirmation of reset will be displayed as “Done” on the display.

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

6

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

7 Functions

7.1 Introduction

7.1.1 Setting parameters

7.1.2 Softstarter states

7.1.3 Motor Current Ie

7.2 Voltage ramp

7.2.1 Voltage start ramp

7.2.2 Voltage stop ramp

7.1.1 Setting parameters

7.3 Torque ramp

7.3.3 Torque start ramp

7.3.4 Torque stop ramp

7.4 Full voltage start

7.5 Direct stop

7.6 Stand still brake

7.7 Current limit

7.8 Kick start

7.9 Slow speed

7.10 Motor heating

7.11 Sequence start

7.12 Automatic restart

7.13 Inputs/outputs

7.13.5 Digital inputs (DI)

7.13.6 Relay outputs

7.13.7 Analog output

7.13.8 Temperature sensor

7.15 Event groups

7.16 Protections

7.17 Warnings

7.18 Faults

7.19 Special feature

7.20 Settings

7.21 Assistants

7.22 Complete parameter list

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

72

73

74

112

115

116

118

91

107

91

92

70

70

71

68

68

68

68

69

78

79

80

81

82

83

84

85

86

87

75

75

76

77

7

7

This chapter contains detailed descriptions of all the softstarter functions and the parameters for configuring them.

7.1

7.1.1

Introduction

Setting parameters

Set the parameters via HMI

With the HMI Keypad, parameters can be set as individual parameter settings, or as a selection of predefined parameters for different applications.

The HMI complete list consist of parameter groups that are displayed:

7.1.2 Softstarter states

The softstarter has several operational states, in which different functions are available.

Functions can be operational in one or more softstarter states. If a function is not operational in all states, this is noted in the respective function description.

The softstarter has the following states:

• Individual function

• Stand by

• Pre-start

• Start ramp

• TOR (Top of ramp)

• Stop ramp

Individual function

In Individual function state, the softstarter runs individual functions.

Individual functions are:

• Motor heating

• Stand still brake

• Slow speed forward

• Slow speed reverse

01 Motor rated current Ie

02 Start and stop

03 Limit

04 Kick start

05 Slow speed

06 Motor heating

07 Motor braking

08 Sequence start

09 Automatic restart

10 Internal IO

11 External IO

12 Communication

13 ... 19 Protections groups 0-7

20 ... 24 Warnings groups 0-4

25 Internal faults

26 External faults

27 Presentation

28 Service

For navigation sheets, see chapter 6.4.1 Parameters.

Set the parameters via Fieldbus/PLC

When Fieldbus is used, parameters can be modified from the PLC.

More details about parameter settings modified via

Fieldbus/ PLC are provided in a separate document specification,

see chapter 8 Communication.

Stand by

In Stand by state the softstarter runs no functions except diagnostics.

Pre-start

In Pre-start state the softstarter runs functions that are intended to run before the softstarter goes into Start ramp state. A pre start function runs during a configurable pre set time. Then the softstarter continues to Start ramp state:

Pre-start functions are:

• Motor heating

• Stand still brake

• Slow speed forward

• Slow speed reverse

The pre-start functions can also be run as individual functions.

Start ramp

In Start ramp state the softstarter runs different settable start functions to soft start a motor by controlling the output voltage or torque.

The Start ramp ends and goes into Top of ramp state when the output voltage reaches

100% voltage.

Settable start functions are:

• Voltage start ramp

• Tourqe start ramp

• Full voltage start ramp

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Top of ramp

When the motor reaches Top of ramp, (100% nominal speed) the softstarter closes the bypass and do not control the motor. In Top of ramp state the softstarter only runs diagnostics.

Stop ramp

In Stop ramp state the softstarter runs stop functions to soft stop a motor by controlling the output voltage or torque.

The stop ramp state ends and goes into stand by state when the output voltage reaches the pre-set Stop ramp end level.

Settable stop functions are:

• Voltage stop ramp

• Tourqe stop ramp

• No ramp

7.1.3 Motor Current Ie

Set the motor current before the softstarter is used for the first time.

The setting of this parameter shall be configured to the rated nominal current of the motor.

WARNING

All PSTX softstarters must be configured to the rated current of the motor.

Motor Current Ie is configured with the following parameters:

Parameter

01.01 Motor Current Ie

Description

Set the nominal current of the motor. For good performance it is important that it is set to the correct value. For Inside Delta connection, this parameter shall be set to 58% of the nominal motor current.

Setting range Default value

Individual (size related)

9.0 A...370.0 A, divided into 13 overlapping ranges

7

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

7.2 Voltage ramp

When using the Voltage ramp, the voltage increases linearly from Initial start level to full voltage during start, and decreases linearly from the Step down level to Stop end voltage level during stop, see

Figure 81.

Since the torque depends on both the voltage and the current, the torque will not always follow the voltage curve. This has the effect that the the torque will not increase or decrease linearly.

81

U

Start ramp Stop ramp Time

7

7.2.1 Voltage start ramp Figure 81: Start and stop ramp

When the softstarter is given a start signal, the softstarter quickly increases the voltage to the Initial voltage level to set Start ramp initial level. The softstarter then controls the output voltage in a start ramp.

When the output voltage reaches Top of ramp, the softstarter closes the bypass, see

Figure 82.

To reach Top of ramp the following conditions are needed:

• Pre-set Start ramp time have passed, i.e. 100% output voltage.

• The current is below 1.2 × nominal motor current.

The Start ramp time is the time it takes to go from Initial voltage level to full voltage. The actual time to reach the

Top of ramp state also depends on the current, which means that the time to reach Top of ramp can be longer than the set Voltage ramp time.

If the motor is to start with a very heavy load, the start ramp time can be longer than usual.

Exampel: If the Start ramp time is set to 2 seconds and the motor is supposed to start a heavy load. This can cause the output current to not go below set 120% of nominal motor current when the pre-set start ramp time is reached.

82

Nominal voltage 100 %

Start ramp initial level

U

Start ramp time

Figure 82: Voltage start ramp

Top of ramp

Time

Voltage start ramp is configured with the following parameters:

Parameter

02.01 Start mode

Description

Set the Start mode to Voltage ramp.

02.03 Start ramp Initial level Set the voltage level from where the start ramp initiates

Setting range Default value

Voltage ramp,

Torque ramp,

Full voltage ramp

Voltage ramp

10 ... 99% 30%

02.04 Start ramp time Set the effective time it takes for the voltage to reach

100%.

1 ... 120 s 10 s

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

7.2.2 Voltage stop ramp

When the softstarter is given a stop signal, the softstarter decreases the output voltage to the motor in a quick stop ramp, from full voltage down to set Step down voltage level.

For best performance the step down level shall be set to 80%.

When step down level is reached the softstarter controls the output voltage during pre set Stop ramp time to End voltage level and cuts the output voltage to the motor, see Figure 83.

83

U

100%

80%

30%

Figure 83: Voltage stop ramp

Stop ramp time

Step down voltage

End voltage

Time

Voltage stop ramp is configured with the following parameters:

Parameter

02.02 Stop mode

02.05 Stop ramp end level

02.06 Stop ramp time

28.05

Step down level

Description

Set to voltage ramp.

Setting range Default value

No ramp,Voltage ramp, Torque ramp, DC Brake,

Soft brake

No ramp

10 ... 99% 30% Sets the level from where the stop ramp ends and the power to the motor is cut (voltage level for Voltage stop and torque level for Torque stop).

Sets the effective time it takes for the voltage to reach end level.

Sets the level from where the stop ramp initiates.

0 ... 120 s

10 ... 100%

10 s

80%

7

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

7

7.3 Torque ramp

When using the Torque ramp, the output voltage is controlled, so that the output torque will follow a predefined optimal torque curve during start and stop ramp.

For Torque start ramp there is four different adjustable torque curves. See description of torque profile parameters for examples on when to use which curve.

The curves are:

• Constant

• Linear

• High inertia

• Progressive

When using the Torque start ramp, the accelaration is constant if the set torque curve corresponds to the actual load curve. The output voltage will not increase linearly, as when using the voltage start ramp, see Figure 84.

The Torque ramp gives a softer mechanical starting behaviour of the equipment, driven by the motor, than the

Voltage start ramp.

For Torque stop ramp there is one fixed torque curve.

This fixed torque curve is optmimized for pump applications.

84

rpm

U

Start

Start

Figure 84: Torque start ramp

Time

Time

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

7.3.3 Torque start ramp

When the softstarter is given a start signal, the softstarter makes a quick ramp to set Start ramp initital level. Then the softstarter controls the output voltage so that the output torque will follow a predefined optimal torque curve during pre-set time to 100% nominal torque.

When the output voltage reaches 100% nominal voltage

(Top of ramp), the softstarter closes the bypass.

To reach Top of ramp the following conditions need to be met:

• The output voltage reaches 100% nominal voltage.

• The current is below 1.2 × nominal motor current.

The time between the start signal and when nominal torque is reached is the start ramp time.

The start ramp time can be longer depending on if the motor is to start with a very heavy load.

Exampel: If the Start ramp time is set to 2 seconds and the motor is supposed to start with a heavy load. This can cause that the output current does not go below set 120% of nominal motor current when the pre-set start rampt time is reached.

Torque start ramp is configured with the following parameters:

Parameter Description

02.01 Start mode Set to Torque ramp.

Setting range Default value

Voltage ramp,

Torque ramp,

Full voltage start

10 ... 99%

Voltage ramp

30% 02.03 Start ramp Initial level Sets the torque level from where the start ramp initiates.

Sets the time it takes for the voltage to reach 100%. 02.04 Start ramp time

03.05 Torque limit level Sets the limit for the torque during soft start with torque control.

1 ... 120 s

20...200%

28.06

28.07

Torque profile start

Torque finish

Sets the shape of the torque ramp during start.

• Constant setpoint is for centrifuge

• Linear is for compressor

• High inertia pump is for long conveyor belts

• Progressive curve is for centrifugal pump

Sets the operational torque for Torque start ramp setting in percentage of base torque.

Sets the adjustment of resistive losses.

Constant setpoint,

Linear ramp,

Progressive curve, High inertia curve

30...500%

28.08

Torque tune

28.09 Torque ctrl gain Sets the speed of the voltage regulator during torque start and stop. It seldom needs to be changed, but if a dip occur in the torque curve during stop, increasing this value might solve it.

28.10

Torque PI intergration time Sets the integration time of PI controller.

28.11

28.12

28.13

Torque slip

Torque diff

Torque filter time

0...1000%

0.01 ... 10

Sets the slip difference from nominal to pull-out torque in percentage.

Sets the maximum desired difference between reference and actual torque in percentage.

Sets the Torque control filter time in seconds.

0.001 ... 10 s

0.1 ... 100%

0.1 ... 100%

0.01 ... 10 s

10 s

150%

Linear ramp

100%

100%

0.04

0.002 s

1.0%

2.0%

0.02 s

7

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

7.3.4 Torque stop ramp

When using the Torque stop ramp, the output voltage to the motor is controlled so that the torque will follow a predefined optimal curve from the Step down level to end voltage during stop. This has the benefit that the mechanical stopping behaviour of the equipment driven by the motor, will be much softer than when using voltage ramp. See

Figure 85.

This can be especially useful in pump applications where a sudden stop can cause water hammering and pressure surges.

85

U rpm

Stop Time

Stop Time

7

Figure 85: Torque stop ramp

Torque stop ramp is configured with the following parameters:

Parameter

02.02 Stop mode

02.05 Stop ramp end level

02.06 Stop ramp time

28.05

Step down level

Description

Set to Torque ramp.

Setting range Default value

No ramp,

Voltage stop ramp, Torque stop ramp

10 ... 99%

No ramp

30% Sets the level from where the stop ramp ends and the power to the motor is cut(voltage level for Voltage stop and torque level for Torque stop.

Sets the time it takes for the voltage to reach end level.

Sets the level from where the stop ramp initiates.

1 ... 120 s

10 ... 100%

10 s

80%

28.08

Torque tune

28.09

Torque ctrl gain

28.10

Torque PI intergration time

28.11

Torque slip

Sets the adjustment of resistive losses.

Sets the slip difference from nominal to pull-out torque in percentage.

0...1000%

Sets the speed of the voltage regulator during torque start and stop. It seldom needs to be changed, but if a dip occur in the torque curve during stop, increasing this value might solve it.

Sets the integration time of PI controller .

0.01 ... 10

0.001 ... 10 s

0.1 ... 100%

100%

0.04

0.002 s

1.0%

28.12

Torque diff

28.13

Torque filter time

Sets the maximum desired difference between reference and actual torque in percentage.

Sets the Torque control filter time in seconds.

0.1 ... 100%

0.01 ... 10 s

2.0%

0.02 s

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

7.4 Full voltage start

When using the full voltage start the softstarter shall ensure that the motor accelerates up to full speed as fast as possible. This is done by providing a full voltage start in which the motor voltage ramps up to full voltage in ½ seconds.

INFORMATION

Current limit is ignored for full voltage start.

Full voltage start is configured with the following parameters:

Parameter

02.01 Start mode

Description

Set to Full voltage start.

7.5

Direct stop

When using the Direct stop the output voltage to the motor is 0.

Direct stop is configured with the following parameters:

Parameter

02.02 Stop mode

Description

Set to No ramp.

Setting range Default value

Voltage ramp,

Torque ramp,

Full voltage ramp

Voltage ramp

Setting range Default value

No ramp,

Voltage stop ramp, Torque stop ramp

Voltage ramp

7

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

7

7.6 Stand still brake

The Stand still brake function brakes the motor. This can be used during pre-start to assure that the motor is standing still before Start ramp is initiated. Stand still brake can also be controlled from a digital I/O or a fieldbus.

WARNING

If the softstarter is connected inside-delta and using the Stand still brake, this could cause damage to the equipment.

WARNING

Because this function warms up the motor it is recommended to use a PTC or PT100 element for temperature monitoring.

The built-in EOL may not be accurate for this feature.

INFORMATION

Stand still brake is only working when the softstarter is connected in-line.

Stand still brake is configured with the following parameters:

Parameter

02.07 Pre-start function

Description

Set to Stand still brake.

02.08 Pre-start time

07.01 Stand still brake strength

Set the duration of the pre-start function.

Set the Braking strength 10-100%. Choose a suitable value for the application.

Setting range Default value

Off, Motor heating, Stand still brake, Jog forward, Jog backward

Off

0.0 ... 7200.0 s 10.0 s

10 ... 100% 50%

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

7.7 Current limit

Current limit sets a maximum value of the starting current output to the motor. The time it takes to reach full voltage can be longer than the set Start ramp Time when Current limit is enabled.

There are three different Current limit functions:

• Normal current limit

• Dual current limit

• Ramp current limit

WARNING

If the load is very heavy, current limit can prevent the current to decrease below the set current level and cause overheating.

Normal current limit

When using Normal current limit and the set current limit is reached, the output voltage stays stable until the current level falls below the set current limit. Then the start ramp continues.

86

U

100%

Current limit

Dual current limit

Dual current limit

Dual current level has two settable current limit levels.

When the Current limit is reached, the output voltage stay constant until the configured time expires or the current decreases. If the current decreases, the softstarter continues the voltage ramp. If the second current limit time expires and the current has not decreased, the softstarter increases the current to the Dual current limit. See Figure 86. When the current reaches the Dual current limit the softstarter will behave as for normal

Current limit.

Dual current limit can be used as a back-up function to prevent overheating.

30%

I

2nd current limit time

Time

Time

Ramp current limit

When the current reaches the first current limit level the output voltage restricts the current from increasing at a maximum linearly curve up to the second current limit.

The configured time determines the time it takes for the current limit to reach the second current level.

When the current reaches the second current limit, the softstarter will behave as for the normal current limit.

Ramp current limit can be used as a back-up function to prevent overheating.

Current limit is configured with the following parameters:

Parameter

03.01 Current limit type

03.02 Current limit level

Description

Set the Current limit type.

Figure 86: Dual current limit

Setting range Default value

Off, Normal,

Dual, Ramp

Normal

Sets the first level to which the current is limited during start.

1.5 ... 7.5 x Ie 4.0 x Ie

03.03 2nd curr lim level Sets the level of the second current limit.

03.04 2nd curr lim time Sets the time limit from the start signal when the second current limitation will be activated.

1.5 ... 7.5 x Ie

2 ... 120 s

7.0 x Ie

8 s

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

7

7

7.8 Kick start

Kick start function is a function to kick loose the motor initial friction during a set time and level.

If Kick start is enabled, the start ramp starts directly after

Kick start. See

figure 87.

INFORMATION

Current limit function will not work during kick start.

87

U

Kick Start level

Kick Start time

Time

Figure 87: Kick start

Kick start is configured with the following parameters:

Parameter

04.01 Kick start

Description

Enables a voltage peak at the beginning of the start ramp.

04.02 Kick start level

04.03 Kick start time

Setting range

On, Off

Default value

Off

Sets the level of the Kick start in percentage of rated voltage.

50 ... 100%

Sets the duration of the Kick start in seconds.

0.20 ... 2.00 s

70%

0.20 s

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

7.9 Slow speed

Slow speed is an individual function, or a pre-start function to run the motor with low voltage output. This feature can, for example, be used to position a traverse or millband.

This function can be operated via the HMI, IO or fieldbus.

Slow speed has four pre-defined speeds:

• Fast jog

• Jog

• Creep

The motor strength can be adjusted with separate parameters. Choose a suitable value for the application.

WARNING

The torque when using Slow speed will be maximum

⅓ of the full motor torque. This will be achieved when using Fast jog and the strength parameter set to 100%.

Too high value of the motor strength could cause oscillations and if set to too low value, the motor may not start.

WARNING

Because Slow speed function warms up the motor it is recommended to use a PTC or PT100 element for temperature monitoring.

The built-in EOL may not be accurate for this feature.

It is possible to run the motor in both the forward and reverse direction, with different slow speed speeds in both directions.

When a Slow speed signal is given, the motor will accelerate up to a constant speed that is slower than the nominal speed, for as long as the slow speed signal remains active. When the Slow speed signal is deactivated, the softstarter immediately cuts the voltage applied to the motor and the motor stops.

For navigation, see 6.2.4 Motor jog.

Slow speed is configured with the following parameters:

INFORMATION

Slow speed should not be used for more than 2 minutes, as this will cause the motor to heat up excessively.

INFORMATION

Slow speed is only working when the softstarter is connected in-line.

Parameter

02.07 Pre-start function

02.08 Pre-start time

06.01 Slow speed forward

06.02 Slow speed forward strenght

06.03 Slow speed reverse

06.04 Slow speed rev strength

Description

Set to Slow speed forward or Slow speed reverse.

Setting range Default value

Off, Motor heating, Stand still brake, Jog forward, Jog backward

Off

Sets the duration of the pre-start function.

Sets the Slow speed forward. Fast jog forward is 33%, Jog forward is 15% and Creep forward is 8% of the nominal motor speed.

Parameter related to the torque that is generated during Slow speed in the forward direction.

Sets the Slow speed reverse. Fast jog reverse is

33%, Jog reverse is 20% and Creep reverse is

9% of the nominal motor speed.

Parameter related to the torque that is generated during Slow speed in the reverse direction.

0.0 ... 7200.0 s 10.0 s

Fast jog, Jog,

Creep

Jog

10 ... 100%

Fast jog, Jog,

Creep

10 ... 100%

50%

Jog

50%

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

7

7

7.10 Motor heating

Motor heating can be used as a pre-start function to heat the motor before actual start without any rotation to the motor. It can also be used as an individual function operated from a digital input or fieldbus.

The softstarter supplies a current to the motor, without reaching the torque level that starts the motor. This w

WARNING

If the softstarter is connected inside-delta and using the Motor heating, this could cause damage to the equipment.

WARNING

Because Motor heating function warms up the motor it is recommended to use a PTC or PT100 element for temperature monitoring.

The built-in EOL may not be accurate for this feature.

INFORMATION

Motor heating is only working when the softstarter is connected in-line.

Motor heating is configured with the following parameters:

Parameter

02.07 Pre-start function

02.08 Pre-start time

06.01 Motor heating capacity

Description

Set to Motor heating.

Setting range

Off, Motor heating, Stand still brake, Jog forward, Jog backward

Default value

Off

Sets the duration of the pre-start function.

0.0 ... 7200.0 s

Sets the heating power to the motor. Choose a suitable value for the application.

10 ... 100000 W

10.0 s

10 W

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

7.11 Sequence start

The softstarter can start up to three different motors sequentially, sequence 1, 2 and 3. This is suitable when setting up the softstarter with different applications.

Choose the parameter set via input signal to the softstarter.

Parameter settings and physical connections for programmable inputs must correspond.

WARNING

EOL will not work during Sequence start.

Recommended to add separate overload protections for each motor.

For connections, see chapter 5.1.2.5 Programmable inputs (Sequence start).

Parameters set for sequence start 1, 2 and 3 are equal.

If the softstarter trips for any reason, and the trip is supposed to stop the motor, all motors will be stopped.

Sequence start is configured with the following parameters:

Parameter

08.01 Sequence mode

08.02 Ie seq 1

08.30 seq 2

08.60 seq 3

08.03 Start mode seq 1

08.31 seq 2

08.61 seq 3

Example: Start 1, (Start mode seq 1) is configured to Run 1 relay , (K4,K5 or K6) the relay closes when the startsignal is given, which leads to a power transfer. This can switch between softstarters and their specific parameter settings.

Description

Enable sequence start of motors.

Sets the nominal current for the motor. For good performance, it is important that the nominal current is set to the correct value.

For Inside Delta connection, this parameter shall be set to 58% of the nominal motor current.

Sets the desired start mode.

Setting range

Off, Start several motors individual

(depending on size)

Voltage start ramp,

Torque start ramp,

Full voltage ramp

Default value

Off

9.0 A...370.0 A, divided into 13 overlapping ranges

Voltage start ramp

08.04

Start ramp time seq 1

08.32 seq 2

08.62 seq 3

08.05 Start ramp init lev seq 1

08.33 seq 2

08.63 seq 3

08.06 Curr lim lev seq 1

08.34 seq 2

08.64 seq 3

08.07 Kick start seq 1

08.35 seq 2

08.65 seq 3

Sets the time it takes for the voltage to reach

100%.

1 ... 120 s

Sets the level from where the start ramp initiates (voltage level for Voltage start and torque level for Torque start).

Sets the level to which the current is limited during start.

10 ... 99%

0.5 ... 7.5 × Ie

Enables a voltage peak at the beginning of the start ramp.

Information: The funciton Current Limit is not activated during Kick start.

Sets the level of the Kick start in percentage of rated voltage.

Off, On

50 ... 100%

10 s

30%

7.0 × Ie

Off

70% 08.08 kick start level seq 1

08.36 seq 2

08.66 seq 3

08.09 Kick start lvl seq 1

08.37 seq 2

08.67 seq 3

08.06 Torque lim lvl seq 1

08.38 seq 2

08.68 seq 3

08.10 Torque tune seq 1

08.39 seq 2

08.69 seq 3

08.11 Torque ctrl gain seq 1

08.40 seq 2

08.70 seq 3

Sets the duration of the Kick start in seconds.

Sets the level to which the torque is limited during the start wih torque control.

Adjustment of resistive losses.

0.2 ... 2.0 s

20 ... 200%

0 ... 1000%

Sets the speed of the voltage regulator during torque start and stop. It seldom needs to be changed, but if a dip occur in the torque curve during stop, increasing this value might solve it.

0.01 ... 10.0

0.2 s

150%

100%

0.24

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

7

7

7.12 Automatic restart

The softstarter automatically restarts the motor after a fault has occurred.

INFORMATION

Automatic restart will only work for phase loss, bad network and low suppply voltage.

The primary requirement is that if a fault or protection has been asserted, the softstarter shall automatically restart the motor in order to ensure an uninterrupted process.

The event is reset only after the Auto-reset delay time has transpired. If Auto-restart is enabled, an internal start signal is given and the fault relay is not directly activated. This is because the fault relay can sometimes be connected to a breaker located upstream .

Until a successful start is carried out, several attempts to restart are made with a fixed time interval between each.

During the time between each restart, the start digital input signal is ignored.

I f the fault still remain by the time a restart is made, this will be seen as a failed restart attempt.

The fault relay will only be activated after the maximum number of restarts have failed.

If a stop signal is given, the auto-restart sequence is aborted and the fault re lay is not activated.

Automatic restart is configured with the following parameters:

Parameter

09.01

Auto-reset delay time

Description

Delay time after which the event is reset.

09.02

Auto-restart Enable auto-restart function.

09.03

Auto-restart max attempts Max number of auto-restart attempts.

Setting range

0 ... 3600 s

Off,On

1 ... 10

Default value

0 s

Off

5

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

7.13 Inputs/outputs

This chapter describes input and output signals (I/O) such as digital inputs, relay outputs, analog outputs, temperature inputs, and external digital inputs.

Chapter

7.12.1

7.12.2

7.12.3

7.12.4

Function

Digital inputs

Relay outputs

Analog outputs

Temperature sensor

Internal I/O

Internal I/O are the integrated signals to the softstarter.

The internal I/O provides the following:

• 5 Digital inputs

• 3 Relay output

• 1 Analog output

Extension I/O (Option)

The softstarter can be extended with more inputs and outpus by using the I/O Extension module. The I/O

Extension module provides the following:

• 8 Digital input

• 4 Relay output

• 1 Analog outpu t

To use an extension I/O provides the same possibilities to use all the softstarters functions as for the programmable internal I/O.

Available I/O Extensions. See chapter 5.1.3 Optional accessories.

For example, an extension I/O is useful when a sequence start is required.

Connect the I/O Extension

• Set parameter Com3 function (12.01) to the I/O

Extention.

• Connect the DX111 or the DX122 1Ca and 1Cb to

Com3 terminals.

• Use parameter group 11 to program the function of each DX111/DX122 input and output.

External digital inputs (extension I/O) is configured with the following parameters:

Parameter

12.01 Com3 function

Description

Set the function of the Com3 port to Extension IO.

Setting range

None, Test, Modbus RTU slave,

Extension IO.

Default value

Test

7

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

7

7.13.5 Digital inputs (DI)

The softstarter is equipped with five digital inputs for basic control of the unit.

The five digital inputs are terminal 13,14,15,16 and 17.

The inputs are named:

• Start

• Stop

• In0

• In1

• In2

Start and Stop inputs are fixed to start and stop function and can not be configured.

In0, In1 and In2 are programmable inputs. Functions can be related to the physical signal through a drop down menu on the HMI.

The inputs shall be used with 24 V and shall be of current sinking type, 10 mA. The digital input is isolated and can withstand up to 100 V in potential difference between the softstarter functional earth and the earth of the interconnected system. The inputs is be possible to use both with internal 24 V or external 24 V supply.

The digital input values for respective input voltage:

“0” = 0 – 5 V

“1” = 15 – 33 V

Maximum voltage input is 33 V and minimum is -0.5

V. Outside these voltage ranges the digital value is undefined and can be either “0” or “1”.

Internal digital Inputs (Internal I/O) is configured with the following parameters:

Parameter

10.01 In0 function

10.02 In1 function

10.03 In2 function

The programmable options are:

• None - No function on the digital input.

• Reset - Fault/protection reset.

• Enable - When In0=0, the softstarter stops immediately. When In0=1, the softstarter is in normal operation. Overrides all other inputs, except LOCAL

CONTROL.

• Slow speed forward - While the digital input is high, the motor will slowly move forward.

• Slow speed reverse - While the digital input is high, the motor will slowly move in the reverse direction.

• Motor heating - While the digital input is high, the motor heating is active.

• Stand still brake - While the digital input is high, the stand still brake is active.

• Start reverse - While the digital input is high, the softstarter will start in the reverse direction, using external reversing contactors.

• User defined protection - When activated (the protection can be programmed to be active low or high) the user defined protection will be activated.

• Fieldbus disable control - When the digital input is set high, the motor cannot be controlled from the fieldbus.

Instead the start/stop digital input must be used, or the

HMI.

• Start 1 - Start motor 1. See chapter 7.11 Sequence start.

• Start 2 - Start motor 2. See

start.

chapter 7.11 Sequence

• Start 3 - Start motor 3. See chapter 7.11 Sequence start.

Description

Function of programmable digital input.

Setting range

None, Reset, Enable, Slow speed forward,

Slow speed reverse, Motor heating, Stand still brake, Start reverse, User defined protection, Emergency mode, Fieldbus disable control, Start 1, Start 2, Start 3

Same as In0

Same as In0

Default value

Reset

None

None

External digital Inputs (extension I/O) is configured with the following parameters:

Parameter

11.01 1DI0 function

11.02 1DI1 function

11.03 1DI2 function

11.04 1DI3 function

11.05 1DI4 function

11.06 2DI5 function

11.07 2DI6 function

11.08 2DI7 function

Description

Function of programmable digital input.

None, Reset, Enable, Slow speed forward,

Slow speed reverse, Motor heating, Stand still brake, Start reverse, User defined protection, Emergency mode, Fieldbus disable control, Start 1, Start 2, Start 3

Same as 1DI0

Same as 1DI0

Same as 1DI0

Same as 1DI0

Same as 1DI0

Same as 1DI0

Same as 1DI0

Setting range

Same as 1DI0

Same as 1DI0

Same as 1DI0

Same as 1DI0

Same as 1DI0

Same as 1DI0

Same as 1DI0

Default value

Reset

None

None

Run

Top of ramp

Event group 0

0-10 mA

Motor Current, A

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

7.13.6 Relay outputs

The softstarter is equipped with three relay outputs for a configurable output signal depending of selected function.

The relay outputs are, K4, K5 and K6. The relays outputs are: 30VDC/250VAC Ith = 5A , Ie= 1,5Amp (AC-15).

The relay opens and closes depending on set configurations. All relay outputs are programmable.

Functions or an event group can be related to the physical signal through a drop down menu on the HMI.

The programmable options for each relays are:

• None – No function on the relay output.

• Run – Indicates when the softstarter gives voltage to the motor.

• Top of ramp (TOR) – Indicates that motor runs on full voltage.

• Event group (0-6) – Faults, protections, warning are all selectable by customer.

• Sequence 1-3 Run – Used to control the line contactors during sequence start.

• Sequence 1-3 TOR – Used to control the bypass contactors during sequence start.

• Run reverse – Used to close the reversing contactor.

As default K4 is configured to function Run, K5 to Top of ramp and K6 to Eventgroup 0.

Description of the relay terminals

Each relay has three terminals, one common terminal

(COM), one normally open terminal (NO) and one normally closed terminal (NC). See Figure 84.

Normally open – Circuit is open in normal mode (circuit is not shorted to common).

Normally closed – Circuit is in normal mode (the circuit is continuously shorted to common).

Internal relay outputs (internal I/O) is configured with the following parameters:

Parameter

10.04 K4 function

Description

Function of programmable output relay K4,

K5, K6.

10.05 K5 function

10.06 K6 function

Same as K4 function

Same as K4 function

84

Normally

Closed

Figure 84: A contactor may for example be connected (230 volts)

Setting range

Normally open

None, Run, Top of ramp,

Eventgroup 0 -6, Sequence 1-3

Run, Sequence 1-3 TOR, Run reverse

Same as K4 function

Same as K4 function

Contactor

Common

230V

Default value

Run

Top of ramp

Event group 0

External relay outputs (extension I/O) is configured with the following parameters:

Parameter

11.09 1DO0 function

Description

Function of programmable output relay

1DO0 (extension IO).

11.10 1DO1 function

11.11 2DO2 function

11.12 2DO3 function

Same as 1DO0

Same as 1DO0

Same as 1DO0

Setting range

None, Run, Top of ramp,

Eventgroup 0 -6, Sequence 1-3

Run, Sequence 1-3 TOR, Run reverse

Same as 1DO0

Same as 1DO0

Same as 1DO0

Default value

Run

Top of ramp

Event group 0

Motor Current, A

7

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

7

7.13.7 Analog output

The softstarter is equipped with one analog output for a configurable analog output signal to an analog meter, or the PLC.

The parameter analog output type, AO type, can be selected to show:

• Motor current, A

• Mains voltage, V

• Active power, kW

• Active power, HP

• Reactive power, kVar

• Apparent power, kVA

• Active energy, kWh

• Reactive energy, kVArh

• cos phi

• Motor temperature, %

• Thyristor temperature, %

• Motor voltage, %

• Mains frequency, Hz

• PT100 temperature, centigrade

• PTC resistance, Ohm

The voltage or current output can be set by a configuration parameter, AO reference in the softstarter.

The selection of voltage or current must be set to adapt to the analog meter or the PLC.

The settings are:

• 0-10 voltage output, V

• 0-10 current output, mA

• 0-20 current output, mA

• 4-20 current output, mA

AO is the referens to the output voltage in 0-100% of the set parameter AO max and AO min.

Internal Analog output is configured with the following parameters:

Parameter

10.07 AO reference

10.08 AO type

10.09 AO max value

10.10 AO min value

Example:

AO type is set to Motor current.

AO reference is set to 0-10 V

AO min to 0, and AO max to 3000.

This means that when the motor current is:

3000 A, the output voltage will be 10 V.

0 A, the output voltage will be 0 V.

1500 A, the output voltage will be 5 V.

Description Setting range

Sets the Analog output reference. 0-10 mA, 0-20 mA, 4-20 mA, 0-10 V

Sets the Analog output type.

Motor current, Mains voltage, Active power,

Active power, Reactive power, Apparent power,

Active energy,Reactive energy, cos fi, Motor temperature, Thyristor temperature, Motor voltage, Mains frequency, PT100 temperature,

PTC resistance

0,0 ... 1000000 Sets the max analog output value.

Sets the min analog output value.

0,0 ... 1000000

Default value

4-20 mA

Motor current, A

500

0

External Analog output (Extension I/O) is configured with the following parameters:

Description Description

11.13 1AO0 reference Sets the Analog output reference.

Setting range

0-10 mA, 0-20 mA, 4-20 mA, 0-10 V

11.14 1AO0 type Sets the Analog output type.

Motor current, Mains voltage, Active power, Active power, Reactive power, Apparent power, Active energy,Reactive energy, cos fi, Motor temperature,

Thyristor temperature, Motor voltage, Mains frequency, PT100 temperature, PTC resistance

0,0 ... 1000000 11.15 1AO0 max value

Sets the max Analog output value.

11.16 1AO0 min value Sets the min Analog output value.

0,0 ... 1000000

Default value

4-20 mA

Motor current, A

500

0

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

7.13.8 Temperature sensor

Temperature inputs

There is one temperature input. The user can set three different types of temperature sensors:

• PTC

• PT100

• Bi-metal switch

These can be connected to different protections.

A protection can be set to switch on if a particular temperature occurs.

PTC

The PTC temperature input can measure a motor temperature in the range of -25° to 250°. The PTC measuring shall follow the standard for a Mark-A detector according to IEC60947-8.

The temperature control system has a short circuit detector that will detect if the input resistance is less than

10 ohm. This detector will only work if the total length of the connected cable is less than 10 ohm i.e. about 140 m with 0,5 mm² cable, 240 m with 1,0 mm² cable and

440 m with 1,5 mm². If a short circuit is detected then the error is reported to the user. It is possible to detect if a sensor is connected to the softstarter. It is also possible to enable the temperature measurement and to manual reset, automatic reset or get indication only.

PT100

The softstarter has a 3-wire PT100 input that can be combined and share terminals with the PTC input.

The trip temperature is set by the user. The maximum trip temperature is 250° and lowest is -25°.

The PT100 measuring shall have an accuracy of +/-3° with three wires measuring if the three connecting cables have the same resistance.

If a short circuit is detected then the error is reported to the user. The softstarter is also be able to detect if a sensor is connected to the softstarter.

It is possible to enable the temperature measurement.

It is also possible to perform a manual reset, automatic reset or to indications only.

Bi-metal switch

This function will be implemented in next release.

It is possible to combine temperature input with bimetal switches for detecting over temperature. These temperature sensors behave like a switch that opens or close at the trip temperature. Both types (NO – normally open or NC – normally closed) is supported. The maximum current through the bi-metal switches is 100 mA.

Temperature sensor is configured with the following parameters: See chapter Temperature sensors 7.15.14

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

7

7

7.14 Fieldbus

PSTX has one Anybus port, one fieldbus plug adaptor port (FBPA), and one Modbus RTU port. Only one bus at the time can be used. i.e. the user cannot connect the softstarter to multiple fieldbuses.

The port used for Modbus RTU is a multifunction port that can also be used for connecting an Extension IO module.

If an Extension IO module is required it is not possible to use the port for Modbus RTU, use an Anybus Modbus

RTU module instead.

In the IP-based fieldbuses, such as Modbus TCP, the user have to specify IP address, gateway, subnet mask and DHCP client.

Fieldbus type

When fieldbus communication is used, the present type of fieldbus must be selected.The following fieldbus types are available in the softstarter:

• Modbus-TCP

• Modbus-RTU

• DeviceNet

• Profibus

• EtherNet/IP

Fieldbus control

If the softstarter is going to be used with fieldbus communication, the fieldbus interface must be set to on before any action can be taken.

Fieldbus address

If the softstarter is going to be used with fieldbus communication, set a fieldbus address for the softstarter.

Select a suitable, and unoccupied number as the address.

CAUTION

The motor may start unexpectedly if there is a start signal present when performing any of the actions listed below.

• Switching from one type of control to another (fieldbus control / hardwire control).

• Remember that when Fieldbus auto disable is active, this switch can be done automatically.

• Re-programming of the programmable inputs.

• Reset all Settings (programmable input set to Enable).

Fieldbus failure operation

See chapter 7.16.19 Fieldbus failure protection.

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Fieldbus Inputs/Outputs

Functions set in the softstarter as Fieldbus digital inputs

(DI) are in fact the digital inputs to the PLC i.e. the data flow from the softstarter through the network to the PLC.

Fieldbus digital outputs (DO) are not configurable. The output (DO) describes data flow from the network to the softstarter i.e. appears as an input, from the softstarter point of view.

Fieldbus communication is configured with the following parameters:

Parameter

12.01 Com3 function

12.02 FB interface connector

12.03 Fieldbus control

12.04 Fieldbus address

Description

Sets the function of the Com3 port.

Sets the Fieldbus interface selection.

Enables control from fieldbus.

Sets the Bus address.

Setting range

None, Test, Modbus RTU slave,

Extension IO

FbPlug, Modbus RTU, Anybus,

None

Off, On

0 ... 65535

Off

0

Default value

Test

None

12.05 Fieldbus ip address

12.06 Fieldbus ip gateway

12.07 Fieldbus ip netmask

12.08 Fieldbus ip dhcp client

12.09 FB baud rate*

12.10 FB parity

12.11 FB stop bits

12.12 Fieldbus DI 1

12.13 Fieldbus DI 2

12.14 Fieldbus DI 3

12.15 Fieldbus DI 4

12.16 Fieldbus DI 5

12.17 Fieldbus DI 6

12.18 Fieldbus DI 7

12.19 Fieldbus DI 8

12.20 Fieldbus DI 9

12.21 Fieldbus DI 10

Fieldbus IP: Sets the IPaddress.

Fieldbus IP: Sets the default gateway.

0.0.0.0 ... 255.255.255.255

0.0.0.0 ... 255.255.255.255

Fieldbus IP: Sets the netmask.

0.0.0.0 ... 255.255.255.255

0.0.0.0

0.0.0.0

255.255.255.0

Fieldbus IP: Enables dhcp.

Sets the baud rate of internal

Modbus-RTU interface,

Anybus DeviceNet and Anybus

Modbus-RTU.

Off, On Off

1200, 2400, 4800, 9600, 19200,

38400, 57600, 76800, 115200,

125000, 250000,500000, Auto

* There are restrictions on which baudrates that can be used for different protocols. See separate Table below.

No parity, Odd parity, Even parity Even parity Sets parity for Anybus Modbus-

RTU.

Select stop bits for Anybus

Modbus-RTU.

Sets the DI 1 programmable digital input signal.

Sets the DI 2 programmable digital input signal.

Sets the DI 3 programmable digital input signal.

Sets the DI 4 programmable digital input signal.

Sets the DI 5 programmable digital input signal.

Sets the DI 6 programmable digital input signal.

Sets the DI 7 programmable digital input signal.

Sets the DI 8 programmable digital input signal.

Sets the DI 9 programmable digital input signal.

Sets the DI 9 programmable digital input signal.

1 Stop bit, 2 Stop bits

Emergency mode feedback,

Event group 0 ... 6 status,

Fault reset feedback,

Line,

Motor heating feedback,

None,

Phase sequence,

Run reverse status,

Run status,

Sequnce 1 ... 3 Run status,

Sequence 1 ... 3 TOR status,

Slow speed rev feedback,

Slow speed forw feedback,

Stand still brake feedback,

Start 1 ... 3 feedback,

Start feedback,

Start reverse feedback,

Stop feedback,

TOR status,

User defined feedback

1 Stop bit

Line

Phase sequence

Event group 0 status

Eventgroup 1 status

Start feedback

Stop feedback

Eventgroup 2 status

Eventgroup 3 status

Eventgroup 4 status

Eventgroup 5 status

7

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Parameter

12.22 Fieldbus AI 1

12.23 Fieldbus AI 2

12.24 Fieldbus AI 3

12.25 Fieldbus AI 4

12.26 Fieldbus AI 5

12.27 Fieldbus AI 6

12.28 Fieldbus AI 7

12.29 Fieldbus AI 8

12.30 Fieldbus AI 9

12.31 Fieldbus AI 10

Description

Sets the AI 1 programmable analog input signal.

Sets the AI 2 programmable analog input signal.

Sets the AI 3 programmable analog input signal.

Sets the AI 4 programmable analog input signal.

Sets the AI 5 programmable analog input signal.

Sets the AI 6 programmable analog input signal.

Sets the AI 7 programmable analog input signal.

Sets the AI 8 programmable analog input signal.

Sets the AI 9 programmable analog input signal.

Sets the AI 10 programmable analog input signal.

Setting range

Phase L1, L2, L3 current,

Active energy (resettable),

Active power,

Active power (HP),

Apparent power,

EOL time to cool,

EOL time to trip,

Mains voltage,

Power factor,

Motor voltage,

Mains frequency,

Motor connection

Max phase current,

Motor current,

Motor current percent,

Motor run time (resetable),

Motor temperature,

Motor temperature percent,

None,

Number of starts (resettable),

Phase sequence,

PT100 temperature,

PTC resistance,

Reactive energy (resettable),

Reactive power,

Thyristor run time (resettable),

Remaining time to start,

Thyristor temperature,

Thyristor temperature percent,

Top event code

Default value

Motor connection

Phase L2 current

Phase L3 current

Max phase curent

Mains frequency

Motor voltage

Motor temperature

Number of starts

(resettable)

Motor run time

(resettable)

Top event code

7

* Restrictions on which baudrates that can be used for different protocols.

Baudrate Modbus RTU on Com 3 Modbus RTU Anybus Devicenet on Anybus

1200 x

2400

4800 x x x x

9600

19200

38400

57600

76800

115200

125000

250000

500000

Autobaud x x x x x x x x x x

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

7.15 Event groups

Event groups consists of supervision functions divided in seperat lists in the HMI.

Supervision functions are functions to indicate when an event occurrs to the motor.

There are three different types of supervision functions:

• Faults

• Warnings

• Protections

The supervision functions generate events based on different conditions in the motor and in the softstarter itself. Each individual event can be assigned to one or more Event groups. An Event group can be mapped to a relay output or/and a fieldbus signal.

For each supervision function there is a parameter for assigning the corresponding event to one or more Event groups.

In PSTX there are seven Event groups, numbered from 0 to 6. All event functions are set as default to one Event group.

There are seven event groups that can be used in whatever way appropriate to the user. Event groups

4-6 will be completely unassigned by default and are convenient to use for custom applications. The other groups will have (or may have in the future) events assigned to them by default.

Example:

TBD

7

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

7

7.16 Protections

The softstarter is equipped with a number of protection functions to protect the softstarter, motor and other equipments.

A protection can be completely turned off, configured to stop the motor, or indicate that the event has occurred.

There are two options if the protection shall stop the motor: either a manual reset is required, or the softstarter will automatically reset the protection when the protection goes inactive, i.e. when the conditions that triggered the event are gone.

In addition to the type of operations mentioned above, which are avilable for all protections, some protections have more options.

When the protection acts as a warning, it will indicate that something is wrong.

When the protection acts as a fault, it will stop the motor when fault occur (Direct stop).

Protections can be enabled or disabled by the user.

The protection parameters can only be configured if the protection is activated.

When any of the protections signals a risk of damage, the following basic actions will be performed:

- Protection LED will light up

- The type of event is displayed

- The type of event is logged on the event list

Protections can be set to have automatic reset or manual reset. For every protection, there is parameter options called Operation, which can be set as:

• Stop-Automatic – The engine stops and reset automatic after the fault condition has been corrected*.

• Stop-Manual – The engine stops and have to be reset manually after the fault condition has been corrected*.

• Off

• Indication

* You cannot reset a fault before the fault condition is corrected. Example: If stop-manual is set at EOL

Fault (engine is too warm) you can only reset the softstarter once the engine has cooled down to the right temperature.

Protections can be set to an Event group by a parameter option called

Out. The Event group can be configured for relay output to control other devices in an application.

As default all parameters are set to one Eventgroup.

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

7.16.1 EOL Protection

The motor has been overloaded because of too high current over a certain time. EOL protection can only be reset once the motor temperature has cooled down to

60% of EOL trip level.

EOL protection is configured with the following parameters:

Parameter

13.01 EOL mode

13.02 EOL class

13.03 EOL dual class

13.04 EOL out

13.05 EOL operation

Description

Set the EOL mode to Normal or Dual.

Sets the EOL trip class.

Setting range

Normal/ Dual

10 A, 10,

20, 30

Sets the protection class used when in top of ramp. This parameter is only applicable when EOL protection mode is set to dual.

Specifies the Event groups this protection belongs to.

Sets the operation of this protection.

10 A, 10,

20, 30

Eventgroup 0 ...6

Off, Stop-Manual,

Stop-Automatic,

Indication

Default value

Normal

10

10 A

2

Stop-Manual

7.16.2 Locked rotor protection

The motor is running stiff.

This protection is only operational in the Top of ramp state.

Locked rotor protection is configured with the following parameters:

Parameter

13.06 Locked rotor level

Description

Set the locked rotor trip level

13.07 Locked rotor trip time

13.08 Locked rotor delay time

13.09 Locked rotor out

13.10 Locked rotor op

Sets the time that the current has to be above the trip level to trip.

Sets the time after top of ramp that the protection is enabled.

Specifies the Event groups this protection belongs to.

Sets the operation of this protection.

Setting range

0.5 ... 8.0 x Ie

1.0 ... 30.0 s

0.2 ... 10.0 s

Eventgroup 0 ... 6

Off, Stop-Manual,

Stop-Automatic,

Indication

Default value

4.0 x Ie

1.0 s

5.0 s

2

Off

7.16.3 Max number of starts protection

Sets the limitation in number of starts per hour.

Max number of starts protection is configured with the following parameters:

Parameter

13.11 Max no of starts per hour

Description

Sets the limitation in number of starts per hour.

13.12 Max no of starts per hour out

13.13 Max no of starts per hour op

Specifies the Event groups this protection belongs to.

Sets the operation of this protection.

Setting range

1 ... 100

Eventgroup 0 ... 6

Off, Stop-Manual,

Stop-Automatic,

Indication

Default value

6

2

Off

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

7

7.16.4 Current underload protection

The motor current has fallen below the settable value.

The voltage to the softstarter is too low. The protection measures voltage and checks if the voltage is too low, if it is too low, the softstarter will trip.

This protection is only operational in the Top of ramp state.

Current underload protection is configured with the following parameters:

Parameter

14.01 Curr underload level

14.02 Curr underload trip time

Description

Sets the Current underload trip level.

Sets the time that the current has to be below the trip level to trip.

Setting range

0.3 ... 0.9 × Ie

0 ... 10 s

14.03 Curr underload delay time

14.04 Curr underload out

1

4.05 Curr underload op

Default value

0.3 × Ie

1 s

Sets the time after Top of ramp that the protection is enabled.

Specifies the Event groups this protection belongs to.

Sets the operation of this protection.

0 ... 30 s

Eventgroup 0 ... 6

Off, Stop manual,

Stop auto, Indication

10 s

2

Off

7

7.16.5 Power factor underload protection

The power factor has fallen below the normal level.

The Power factor underload protection can be used to supervise the load of the motor. If the load decreases the power factor will decrease as well.

This protection is only operational in the Top of ramp state.

Power factor underload protection is configured with the following parameters:

Parameter

14.06 Pwr factor underload level

14.07 Pwr factor underload trip time

14.08 Pwr factor underload delay time

14.09 Pwr factor underload out

14.10 Pwr factor underload op

Description

Sets the Power factor underload trip level.

Sets the time that the Power factor has to be below the trip level to trip.

Sets the time after Top of ramp that the protection is enabled.

Specifies the Event groups this protection belongs to.

Sets the operation of this protection.

Setting range

0.0 ... 1.0

0 ... 10 s

0 ... 30 s

Eventgroup 0 ... 6

Default value

0.7

1 s

10 s

2

Off, Stop manual,

Stop auto, Indication.

Off

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

7.16.6 Current imbalance protection

This protection detects if there is imbalance in the currents. Normally it should be same current amount in all three phases.

This protection is only operational in the Top of ramp state.

Current imbalance protection is configured with the following parameters:

Parameter

14.11 Curr imb level

14.12 Curr imb trip time

14.13 Curr imb delay time

14.14 Curr imb out

14.15 Curr imb operation

Description

Sets the allowed Current imbalance level between the phase with the highest currrent and the phase with the lowest current.

Sets the time that the Current imbalance has to be below the trip level to trip.

Sets the time after Top of ramp that the protection is enabled.

Specifies the Event groups this protection belongs to.

Sets the operation of this protection.

Setting range

10 ... 80%

1 ... 30 s

1 ... 30 s

Eventgroup 0 ...6

Off, Stop manual,

Stop auto, Indication.

Default value

80%

10 s

30 s

2

Off

7.16.7 Over voltage protection

This proection detects if the main voltage is too high.

This protection is not operational in the Standby state.

Over voltage protection is configured with the following parameters:

Parameter

15.01 Over voltage level

15.02 Over voltage trip time

15.03 Over voltage out

15.04 Over voltage op

Description

Sets the Over voltage trip level.

Sets the time that the voltage has to be above the trip level to trip.

Specifies the Event groups this protection belongs to.

Sets the operation of this protection.

Setting range

170 ... 850 V

0.1 ... 100.0 s

Eventgroup 0 ... 6

Off, Stop manual,

Stop auto, Indication.

Default value

850 V

1.0 s

2

Off

7.16.8 Under voltage protection

This protection detects if the main voltage is too low.

Under voltage protection is configured with the following parameters:

Parameter

15.05 Under voltage level

15.06 Under voltage trip time

15.07 Under voltage op

15.08 Under voltage out

Description

Sets the Under voltage trip level.

Sets the time that the voltage has to be below the trip level to trip.

Sets the operation of this protection.

Specifies the Event groups this protection belongs to.

Setting range

170 ... 850 V

0.1 ... 100.0 s

Off, Stop manual,

Stop auto, Indication.

Eventgroup 0 ... 6

Default value

208 V

1.0 s

Off

2

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

7

7.16.9 Voltage imbalance protection

This protection detects voltage imbalance. Normally there is the same voltage in all three phases. If the voltage is different in the phases, the engine can run bumpy.

Voltage imbalance protection is configured with the following parameters:

Parameter

15.09 Voltage imb level

15.10 Voltage imb out

15.11 Voltage imb op

Description

Sets the allowed Voltage imbalance level between the phase with the highest voltage and the phase with the lowest voltage.

Specifies the Event groups this protection belongs to.

Sets the operation of this protection.

Setting range

1 ... 100%

Eventgroup 0 ... 6

Default value

10%

0000010

Off, Stop manual,

Stop auto, Indication.

Off

7

7.16.10 Phase reversal protection

This protection detects if if the phases are connected incorrectly.

The order in which the phases are connected to the in-stream power has no effect on the softstarter, but it may be relevant to the motor, which is connected to the softstarter. The motor can for example run in the wrong direction if the phases are connected incorrectly. This protection detects if the phases are connected in the wrong order and then prevents the engine from starting.

Phase reversal protection is configured with the following parameters:

Parameter

16.01 Phase rev out

16.02 Phase rev operation

Description

Specifies the Event groups this protection belongs to.

Sets the operation of this protection.

Setting range

Eventgroup 0 ... 6

Default value

0000010

Off, Stop manual,

Stop auto, Indication.

Off

7.16.11 Frequence range protection

Sets the trip level for the frequency.

Frequnce range protection is configured with the following parameters:

Parameter

16.03 Freq range lower trip lvl

16.04 Freq range upper trip lvl

16.05 Freq range trip time

16.06 Freq range out

16.07 Freq range op

Description

Sets the lower trip level for the frequency.

Sets the upper trip level for the frequency.

Sets the time that the frequency has to be outside the trip range to trip.

Specifies the Event groups this protection belongs to.

Sets the operation of this protection.

Setting range

40 ...72 Hz

40 ...72 Hz

0 ... 60 s

Eventgroup 0 ... 6

Off, Stop manual,

Stop auto, Indication.

Default value

45 Hz

66 Hz

1 s

2

Off

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

7.16.12 Bypass open protection

This protection detects if the Bypass contactor or relay has not closed when Top of ramp is reached.

Contact ABB sales office for service.

Bypass open protection is configured with the following parameters:

Parameter

16.08 Bypass open out

16.09 Bypass open operation

Description

Specifies the Event groups this protection belongs to.

Sets the operation of this protection.

Setting range

Eventgroup 0 ... 6

Default value

2

Off, Stop manual,

Stop auto, Indication.

Off

7.16.13 Voltage outputs protection

This protection detects if the 24 V voltage outputs has been overloaded or shorted.

Voltage outputs protection is configured with the following parameters:

Parameter

16.10 Voltage outputs out

Description

Specifies the Event groups this protection belongs to.

16.11 Voltage outputs op Sets the operation of this protection.

Setting range

Eventgroup 0 ... 6

Default value

2

Off, Stop manual,

Stop auto, Indication.

Off

7

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

7

7.16.14 Temperature sensors

7.16.14.1

External thermal sensor - PTC protection

The external thermal sensor has detected a temperature higher than the trip level.

The softstarter has a temperature input where a PTC element can be connected.

This can be configured to trip if it goes above a certain temperature.

External thermal sensor - PTC protection is configured with the following parameters:

Parameter

10.11 Ext therm sensor - ID

Description

Sets the External thermal sensor modes.

17.01 PTC out

Setting range

No sensor, PTC,

PT100-3Wire,

PT100-2Wire,

Bi-metal switch.

Eventgroup 0 ... 6

17.02 PTC op

Specifies the Event groups this protection belongs to.

Sets the operation of this protection.

Default value

No sensor

2

Off, Stop manual,

Stop auto, Indication.

Off

7.16.14.2

External thermal sensor - PT100 protection

The external thermal sensor has detected a temperature higher than the trip level.

The softstarter has a temperature input where a PTC element can be connected. This can be configured to trip if it goes above a certain temperature.

External thermal sensor - PT100 protection is configured with the following parameters:

Parameter

10.11 Ext therm sensor - ID

17.03 PT100 2wire res

17.04 PT100 trip temp

17.05 PT100 PT100 reset temp

Description

Sets the External thermal sensor modes.

Setting range

No sensor, PTC,

PT100-3Wire,

PT100-2Wire,

Bi-metal switch.

0 ... 100 Ohm Sets the two wire resistance for

PT100.

Sets the PT100 trip temperature level.

-50° ... 250°

Sets the PT100 reset temperature.

-50° ... 250°

17.06 PT100 out

17.07 PT100 op

Specifies the Event groups this protection belongs to.

Sets the operation of this protection.

Default value

No sensor

100 Ohm

60°

40°

Eventgroup 0 ... 6 2

Off, Stop manual,

Stop auto, Indication.

Off

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

7.16.15 User defined protection

Programmable digital input can be used in combination with external device/sensor to provide to the customer the possibility of handling their own defined protection.

One example can be the xxxx earth fault sensor.

User defined protection is configured with the following parameters:

Parameter

18.01 User defined DI status

Description

Sets if the signal is active high or active low.

18.02 User defined trip time Sets the time to trip.

18.03 User defined out

18.04 User defined op

Specifies the Event groups this protection belongs to.

Sets the operation of this protection.

Setting range

0 ... 1

Default value

1

0.0 ... 60.0 s

Eventgroup 0 ... 6

1.0 s

2

Off, Stop manual,

Stop auto, Indication.

Off

7.16.16 Earth fault protection

This protection detects if the absolute value of the sum of the three line currents is too high, which indicates that there is an earth fault.

Note that the currents measurements in the softstarter is not accurate or fast enough to protect people. The only purpose of this function is to protected equipment.

Earth fault protection is configured with the following parameters:

Parameter

18.05 Earth fault trip time

Description

Sets the trip time for the earth fault protection.

18.06 Earth fault out

18.07 Earth fault op

Specifies the Event groups this protection belongs to.

Sets the operation of this protection.

Setting range

0.1 ... 1.0 s

Eventgroup 0 ... 6

Default value

0.5 s

2

Off, Stop manual,

Stop auto, Indication.

Off

7.16.17 Too long current limit protection

This protection detects if the current limit has exceeded the set trip time. The starting condition is too heavy for the set current limit.

Too long current limit protection is configured with the following parameters:

Parameter

18.08 Too long curr lim trip time

Description

Sets the trip time for the too long time at current limit protection.

18.09 Too long curr lim out

18.10 Too long curr lim op

Specifies the Event groups this protection belongs to.

Sets the operation of this protection.

Setting range

1 ... 600 s

Default value

10 s

Eventgroup 0 ... 6 2

Off, Stop manual,

Stop auto, Indication.

Off

7

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

7.16.18 HMI failure protection

This protection detects if there is communication disturbance between the softstarter and the HMI, while the softstarter is in local control.

If the communication with the HMI is lost for more than approximatlely 600 ms this protection is activated.

This protection has a special action in addition to the common types of operation:

Switch off HMI control - switch off the local control and switch to remote control i.e digital input or fieldbus.

HMI failure protection is configured with the following parameters:

Parameter

19.01 HMI failure out

Description

Specifies the Event groups this protection belongs to.

19.02 HMI failure op Sets the operation of this protection.

Setting range

Eventgroup 0 ... 6

Default value

2

Off, Stop-Manual,

Stop-Automatic,

Indication, Switch off

HMI control

Off

7

7.16.19 Fieldbus failure protection

This protection detects if there is a communication disturbance between the softstarter and the PLC, while the softstarter is controlled over the fieldbus.

This protection has a special action in addition to the common types of operation:

Switch to I/O control.

With the Switch to I/O control set to enable, the control of the softstarter will automatically switch over from the fieldbus to the hard wire inputs, if the fieldbus malfunctions. When the fieldbus starts working again, the control is automatically switched back to the fieldbus.

Fieldbus failure protection is configured with the following parameters:

Parameter

19.03 Fieldbus failure out

Description

Specifies the Event groups this protection belongs to.

19.04 Fieldbus failure op Sets the operation of this protection.

Setting range

Eventgroup 0 ... 6

Default value

2

Off, Stop-Manual,

Stop-Automatic,

Indication, Switch to

I/O control

Off

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

7.16.20 Extension I/O failure protection

This protection detacts if there is communication disturbance between the softstarter and the Extension I/O module.

Extension I/O failure protection is configured with the following parameters:

Parameter

19.05 Ext IO failure trip time

Description

Sets the trip time for extension IO failure protection.

19.06 Ext IO failure out

19.07 Ext IO failure op

Specifies the Event groups this protection belongs to.

Sets the operation of this protection.

Setting range

300 ... 30000 ms

Eventgroup 0 ... 6

Off, Stop-Manual,

Stop-Automatic,

Indication

Default value

1000 ms

2

Off

7

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

7.17 Warnings

The softstarter is equipped with a number of warning functions to signal malfunctioning or other potential risks, before asserting the protection or fault. The difference between a warning and a protection is that a warning cannot stop the softstarter and a reset of a warning is not necessary.The warning level and any other additional information needed to enable the warning can be set by the user.

A warning will be logged in the event list when it occurs.

Warnings can be Enable or Disable. There is also a percentage setting were the user can set at which percentage level the warning shall occur.

Warnings can be set to an Event group by a parameter option called Out. The Event group can be configured for relay output to control other devices in an application.

As default, all parameters are set to one Eventgroup.

Warnings are displayed on the HMI, but otherwise they do not affect the behaviour of the softstarter.

7

7.17.1 Electronic overload warning

A warning signal will be given if the motor temperature exceeds the settable warning level, % of max temperature.

Electronic overload warning is configured with the following parameters:

Parameter

20.01 EOL level

Description

Sets the EOL warning level.

20.02 EOL out

23.03 EOL warning

Specifies the Event groups this warning belongs to.

Enables EOL warning.

Setting range

40.0 ... 99.0%

Event group 0 ... 6

Off, On

Default value

90.0%

4

Off

7.17.2 Locked rotor warning

A warning signal will be given if the current exceeds the settable warning level.

The motor is running stiff.

Locked rotor warning is configured with the following parameters:

Parameter

20.04 Locked rotor level

Description

20.05 Locked rotor init time

20.06 Locked rotor out

Setting range

Sets the Locked rotor warning level.

0.2 ... 10.0 x Ie

Sets the time delay after top of ramp when the warning is enabled.

1.0 ... 30.0 s

Specifies the Event groups this warning belongs to.

Eventgroup 0 ... 6

20.07 Locked rotor Enables locked rotor warning.

Off, On

Default value

3.0 x Ie

1.0 s

4

Off

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

7.17.3 Thyristor overload warning

A warning signal will be given if the thyristor temperature exceeds 90 % of the trip level.

Thyristor overload warning is configured with the following parameters:

Parameter

20.08 Thyristor OL out

Description

Specifies the Event groups this warning belongs to.

20.09 Thyristor OL

Setting range

Eventgroup 0 ... 6

Enables thyristor overload warning.

Off, On

Default value

4

Off

7.17.4 Current underload warning

A warning signal will be given if the line current decreases below the settable value during continuous operation.

Current underload warning is configured with the following parameters:

Parameter

21.01 Curr underload level

Description

21.02 Curr underload trip time

21.03 Curr underload delay time

21.04 Curr underload out

21.05 Curr underload

Setting range

Sets the Current underload warning level.

Sets the time that the current has to be under the Warning level to trip.

0.4 ... 1.0 × Ie

0 ... 30 s

Sets the time delay after Top of ramp when the warning is enabled.

Specifies the Event groups this warning belongs to.

0 ... 10 s

Eventgroup 0 ... 6

Enables Current underload warning.

Off, On

1 s

4

Of

Default value

0.4 × Ie

5 s

7.17.5 Power factor underload warning

A warning signal will be given if the power factor is below the settable warning level.

Power factor underload warning is configured with the following parameters:

Parameter

21.06 Pwr factor underload level

21.07 Pwr factor underload trip time

21.08 Pwr factor underload delay time

21.09 Pwr factor underload out

21.10 Pwr factor underload

Description

Sets the Power factor underload limit.

Setting range

0.0 ... 1.0

The time it has to be below limit until trip in seconds.

The time until diagnoser starts to work in

Top of ramp.

Specifies the Event groups this warning belongs to.

0 ... 30 s

0 ... 10 s

Eventgroup 0 ... 6

Enables Power factor underload warning.

Off, On

1 s

4

Off

Default value

0.5

5 s

7

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

7.17.6 Current imbalance warning

A warning signal will be given if the phase imbalance between the currents is higher than the set value, The difference in current between phases is measured in %.

Current imbalance warning is configured with the following parameters:

Parameter

21.11 Current imb level

Description

21.12 Current imb out

21.13 Current imbalance

Sets the allowed Current imbalance warning level between the phase with the highest currrent and the phase with the lowest current.

Specifies the Event groups this warning belongs to.

Enables the Current imbalance warning.

Setting range

10 ... 80%

Eventgroup 0 ... 6

Off, On

Default value

70%

4

Off

7

7.17.7 Over voltage warning

A warning signal will be given if the voltage is higher than the set value.

Over voltage warning is configured with the following parameters:

Parameter

22.01 Over voltage level

Description

22.02 Over voltage trip time

User configured warning level in

Volts.

User configured time until warning in seconds.

22.03 Over voltage out

22.04 Over voltage

Specifies the Event groups this warning belongs to.

Parameter to enable Over voltage warning.

Setting range

208 ... 850 V

0.1 ... 100.0 s

Eventgroup 0 ... 6

Off, On

Default value

208 V

1.0 s

4

Off

7.17.8 Under voltage warning

A warning signal will be given if the main voltage is higher than the set warning level.

Under voltage warning is configured with the following parameters:

Parameter

22.05 Under voltage level

Description

User configured warning level in

Volts.

22.06 Under voltage trip time

22.07 Under voltage out

22.08 Under voltage

User configured time until warning in seconds.

Specifies the Event groups this warning belongs to.

Parameter to enable Under voltage warning.

Setting range

208 ... 850 V

0.1 ... 100.0 s

Eventgroup 0 ... 6

Off, on

Default value

208 V

1.0 s

4

Off

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

7.17.9 Voltage imbalance warning

A warning signal will be given if the voltage imbalance between the phases is higher than the set warning level.

Voltage imbalance warning is configured with the following parameters:

Parameter

22.09 Voltage imb level

Description

Sets the allowed Voltage imbalance level between the phase with the highest voltage and the phase with the lowest voltage.

22.10 Voltage imb out

22.11 Voltage imbalance

Specifies the Event groups this warning belongs to.

Enables Voltage imbalance warning.

Setting range

1 ... 100 %

Eventgroup 0 .. 6

Off, On

Default value

5 %

4

Off

7.17.10 Electronic overload time-to-trip warning

A warning signal will be given if the predicted time before

EOL trip has fallen below the set warning level. The predicted time to trip assumes that the current stays on existing level.

Electronic overlad time-to-trip warning is configured with the following parameters:

Parameter

23.01 EOL time-to-trip time

Description

Sets how long time before the

EOL protection trips the warning is activated.

23.02 EOL time-to-trip out

23.03 EOL time-to-trip

Specifies the Event groups this warning belongs to.

Enables EOL time to trip warning.

Setting range

1 ... 1000 s

Eventgroup 0 ... 6

Off, On

Default value

5 s

4

Off

7.17.11 Total Harmonic Distortion (THD) warning

A warning signal will be given if the actual power system voltage differ from the ideal sine wave. THD has exceeded the warning level.

Total Harmonic distortion (THD) warning is configured with the following parameters:

Parameter

23.04 THD(U) level

Description

Sets the warning level for Total

Harmonic Distortion (U).

23.05 THD(U) out

23.06 THD(U)

Specifies the Event groups this warning belongs to.

Enables Total Harmonic

Distortion warning.

Setting range

1 ... 100%

Eventgroup 0 ... 6

Off, On

Default value

10%

4

Off

7

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

7.17.12 Short circuit warning

A warning signal will be given if there is an internal short circuit and limp mode is enabled. If limp mode is set to off, a short circuit fault will be given instead.

Contact ABB sales office for service .

Short circuit warning is configured with the following parameters:

Parameter

23.07 Short circuit out

Description

23.08 Short circuit

Specifies the Event groups this warning belongs to.

Enables Short circuit warning.

Setting range

Eventgroup 0 ... 6

Off, On

Default value

4

Off

7

7.17.13 Number of starts limits

A warning signal will be given if the number of starts exceeds the configured trip level. The number of starts counter can be reset to zero from the HMI.

The purpose of the warning is to allow for planed maintenance of the equipment based on number of starts.

Number of starts limits warning is configured with the following parameters:

Parameter

24.01 Number of starts lim

Description

24.02 Number of starts out

Setting range

Sets the total number of starts that will activiate a warning. This can for example be used when identifying a need for service or maintanance.

1 ... 65535

Specifies the Event groups this warning belongs to. Eventgroup 0 ... 6

24.03 Number of starts Enables Number of starts limits warning level.

Off, On

Default value

65535

4

Off

7.17.14 Fans fault warning

A warning signal will be given if the fans are not working properly. There could be dust or other mechanical blocking in the softstarter fans. Risk of overheating.

Contact ABB sales office for service.

Fans fault warning is configured with the following parameters:

Parameter

25.04 Faulty fan out

Description

Specifies the Event groups this warning belongs to.

25.05 Faulty fan Enables Faulty fan warning.

Setting range

Eventgroup 0 ... 6

Off, On

Default value

4

Off

7.17.15 Modbus configuration warning

A warning signal will be given if the built-in Modbus RTU slave is enabled (parameter 12.02) but the Com3 function is not set to Modbus RTU slave. To use modbus RTU, the

RTU slave must be enabled and the Com3 port must be configured to be used for the Modbus RTU slave.

Modbus configuration warning is configured with the following parameters:

Parameter

25.06 Modbus_RTU w/o auxport out

Description

Specifies the Event groups this warning belong to.

Setting range

Eventgroup 0 ... 6

Default value

4

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

7.18 Faults

The softstarter is equipped with a number of fault detection functions to protect the softstarter.

Faults detection is always running as default and cannot be turned off by the user. If a signal is malfunctioning in the softstarter, the motor or in the power network level, a fault will occur. Supervised faults can be divided in internal and external faults.

Internal fault:

There has been a fault in the softstarter, see chapter

10 Troubleshooting, and contact ABB sales office if

necessary.

External fault:

There has been a fault in the equipment connected to the

softstarter, see chapter 10 Troubleshooting, and contact

ABB sales office if necessary.

3.

4.

1.

2.

When a fault occur, the type of fault will be described on the home screen and the red Fault LED light will illuminate.

When any of the faults are detected these basic actions will be performed:

Fault LED will light up

The type of event is displayed

The type of event is logged on the event list

The power supply to the motor which is connected to the softstarter will be turned off (Direct stop).

Faults can be set to have automatic reset or manual reset.

For every fault, there is parameter options called

Operation, which can be set as:

• Stop-Automatic – The engine stops and resets automatically after the fault condition has been corrected*.

• Stop-Manual – The engine stops and has to be reset manually after the fault condition has been corrected*.

• Indication – Emergency mode only, see chapter

7.19.1 Emergency mode.

* Faults cannot be reset before the fault condition is corrected.

Faults can be set to an Event group by a parameter option called Out. The Event group can be configured for relay output to control other devices in an application.

As default all parameters are set to one Eventgroup.

In addition to the basic actions, depending on the fault, further actions can be added or the basic actions can be modified. If several faults occur they are all stored in a sequence and an individual reset for each fault must be done if manual reset is selected.

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

7

7.18.1 Internal faults

7.18.1.1

Shunt fault

The softstarter has been shorted and can not stop the power down to the motor when it is connected in-line, the motor can not be turned off.

If the user puts shunt fault on one relay and connect it to a line contactor or a circuit breaker, the user can break off the motor.

Contact ABB sales office for service.

Shunt fault is configured with the following parameters:

Parameter

25.01 Shunt fault out

25.02 Shunt fault op

Description

Specifies the Event groups this fault belongs to.

Sets the operation of this fault.

Setting range

Eventgroup 0 ... 6

Stop manual, Stop auto.

Default value

1

Stop manual

7

7.18.1.2

Short circuit fault

The softstarter has a short circuit or bypass. The softstarter can run in Limp mode function, even if one phase become shorted.

INFORMATION

If Automatic restart is set to on, a short circuit fault will automatic restart the motor.

For more information about Automatic restart, see

chapter 7.12 Automatic restart.

If one or several thyristors are shorted, Contact ABB sales office for service.

Short circuit fault is configured with the following parameters:

Parameter

25.03 Short circuit out

25.04 Short circuit fault op

Description

Specifies the Event groups this fault belongs to.

Setting range

Eventgroup 0 ... 6

Sets the operation of this fault. Stop manual, Stop auto

Default value

1

Stop manual

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

7.18.1.3

Open circuit thyristor fault

The softstarter cannot close one or more thyristors.

INFORMATION

If Automatic restart is set to on, a short circuit fault will automatic restart the motor.

For more information about Automatic restart see chapter

7.12 Automatic restart.

Open circuit thyristor fault is configured with the following parameters:

Parameter

25.05 Open circuit thyr out

25.06 Open circuit thyr out

Description

Specifies the Event groups this fault belongs to.

Setting range

Eventgroup 0 ... 6

Sets the operation of this fault. Stop manual, Stop auto

Default value

1

Stop manual

7.18.1.4

Thyristor overload fault

The thyristors in the softstarter are overloaded.

If the estimated thyristor junction temperature exceeds the maximum allowed value, this fault is signaled, to protect thyristors from overheating.

INFORMATION

If Automatic restart is set to on, a short circuit fault will automatic restart the motor.

For more information about Automatic restart see chapter

7.12 Automatic restart.

Thyristor overload fault is configured with the following parameters:

Parameter

25.07 Thyristor OL out

25.08 Thyristor OL op

Description Setting range

Specifies the Event groups this fault belongs to.

Eventgroup 0 ... 6

Sets the operation of this fault. Stop manual, Stop auto

Default value

1

Stop manual

7.18.1.5

Heat sink over temperature fault

The sofstarter measures the heat sink temperature. If the temperature gets to high this fault is signaled. The purpose of the heat sink is to cool the thyristors.

Heat sink over temperature fault is configured with the following parameters:

Parameter

25.09

Heat sink over temp out

25.10

Heat sink over temp op

Description Setting range

Specifies the Event groups this fault belongs to.

Eventgroup 0 ... 6

Sets the operation of this fault. Stop manual, Stop auto

Default value

1

Stop manual

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

7

7.18.1.6

Unspecified fault

This fault is a grouping of several internal faults that are quite unlikely and does not need to specified as individual faults.

Unspecified fault is configured with the following parameters:

Parameter

25.11

Unspecified fault out

25.12

Unspecified fault op

Description

Specifies the Event groups this fault belongs to.

Set the operation of this fault.

Setting range

Eventgroup 0 .. 6

Stop manual, Stop auto

Default value

1

Stop manual

7

7.18.2 External faults

7.18.2.1

Phase loss fault

Voltage to one or more phases are missing.

For example, this detects an open line contactor.

Phase loss fault is configured with the following parameters:

Parameter

26.01 Phase loss out

Description

26.02 Phase loss op

Specifies the Event groups this fault belongs to.

Set the operation of this fault.

Setting range

Eventgroup 0 ... 6

Stop manual, Stop auto

Default value

1

Stop manual

7.18.2.2

Bad network fault

Bad network quality fault is signaled if there is too much frequency disturbance in the network. Then it will be too dificult to control the triggering of the thyristors in a safe way.

Bad network fault is configured with the following parameters:

Parameter

26.03

Bad network out

Description

26.04

Bad network op

Specifies the Event groups this fault belongs to.

Set the operation of this fault.

Setting range

Eventgroup 0 ... 6

Stop manual, Stop auto

Default value

1

Stop manual

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

7.18.2.3

Low supply voltage fault

Low supply voltage fault is signaled if the control supply voltage is too low.

The softstarter will stop the motor.

Low supply fault is configured with the following parameters:

Parameter

26.05 Low supply voltage out

26.06 Low supply voltage op

Description

Specifies the Event groups this fault belongs to.

Setting range

Eventgroup 0 ... 6

Sets the operation of this fault.

Stop manual, Stop auto

Default value

1

Stop manual

7.18.2.4

High current fault

A fault signal will be given if the motor current exceeds the fixed set level which is 8*Ir for the duration of the fixed set time which is 200 ms.

High current fault is configured with the following parameters:

Parameter

26.07

High current out

26.08

High current op

Description

Specifies the Event groups this fault belongs to.

Setting range

Eventgroup 0 ... 6

Sets the operation of this fault.

Stop manual, Stop auto

Default value

1

Stop manaul

7.18.2.5

Faulty usage fault

Faulty usage fault is activated if the user tries to use motor heating, stand still brake and slow speed functions when the motor is connected inside delta.

Faulty usage fault is configured with the following parameters:

Parameter

26.09

Faulty usage out

Description

26.10

Faulty usage op

Setting range

Specifies the Event groups this fault belongs to.

Eventgroup 0 ... 6

Sets the operation of this fault. Stop manual, Stop auto

Default value

1

Stop manaul

7.18.2.6

Connection fault

Connection fault signals a fault when a fault connection is detected for both type of connections, in line and inside delta

Connection fault is configured with the following parameters:

Parameter

26.11

Faulty connection out

26.12

Faulty connecion op

Description

Specifies the Event groups this fault belongs to.

Sets the operation of this fault.

Setting range

Eventgroup 0 ... 6

Stop manual, Stop auto

Default value

1

Stop manaul

7

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

7.19 Special feature

This chapter describes features that are available to all users, but beyond the normal range of use for the softstarter.

The features are:

• Emergency mode

• Line contactor close time

• Limp mode

• Start without start comand

• Step down level

• System mode

• TOR relay delay time

7

7.19.1 Emergency mode this function will be implemented in later release. info ruta.

The normal operation of the softstarter when a fault is detected is to do a direct stop.

A digital input can be configured to be in Emergency mode.

Then if a fault or protection is detected, the softstarter will try to run the motor according to the start and stop signals, ignore safety, and continue to run regardless of consequences.

The softstarter can manage to run the motor depending on what fault is detected.

CAUTION

Emergency mode will disable all protections and fault detection functions.

WARNING

The motor will not be protected from overheating.

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

7.19.2 Line contactor close time

This feature allow time for the line contactor to close before the softstarter assumes that it has correct three phase supply.

This is useful to avo id timing problems that can lead to unnecessary trips on for example Phase loss protection.

Line contactor close time is configured with the following parameters:

Parameter

28.02

Line contactor close time

Description

Allow time for line contactor to close. Sets the time between start signal and beginning of diagnostic measurements.

Setting range

0 ... 65535 ms

Default value

245 ms

7.19.3 Limp mode

This feature allow the PSTX to operate with only two controlled ph ases in case of short circuit of one set of thyristors. A warning will be activated (if the short circuit warning is enabled) and the thyristors should be replaced as soon as conveniently possible.

Limp mode is configured with the following parameters:

Parameter

28.41

Limp mode

Description

If this parameter is enabled and if a thyristor is shorted, there will be an automatic transition to limp mode.

Setting range

Off, On

Default value

Off

7

7.19.4 Start without start command

This feature could be used for a customer that would like to use the softstarter in the same way as a contactor is used, i.e. as soon as the control supply to the softstarter is turned on the softstarter will automatically start the motor. No wiring of start and stop signals is needed.

Start without start command is configured with the following parameters:

Parameter

28.04

Start without start command

Description

Starts the motor without needing an external start command.

Setting range

Off, On

Default value

Off

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

7.19.5 Step down level

When the softstarter is given a stop signal the softstarter first decreases the output voltage to the motor in a quick stop ramp, from full voltage down to set Step down voltage level. Then the softstarter controls the output voltage in a stop ramp.

It is only meaningful to adjust the step down level for torque control. When using voltage ramp it shall be set to 80%. Depending on the load it can be necessary to adjust the step down level.

Step down level is configured with the following parameters:

Parameter

28.05

Step down level

Description

Set the level from where the stop ramp initiates.

Setting range

10% ... 100%

Default value

80%

7

7.19.6 System mode

Select between:

• Normal mode

• Demo mode

• Small motor mode

Normal mode

Normal mode is the default setting and is used in all situations except the ones described below.

Demo mode

Demo is used mainly for training purposes to simulate a load condition without having the softstarter connected to main power.

CAUTION

when the softstarter is connected to a motor, do not select demo mode, a direct start will occur.

Small motor mode

Small motor mode is used for basic testing purposes, when using a smaller motor than the PSTX is specified for. The softstarter will be able to start the motor, but some functions and protections are disabled.

System mode is configured with the following parameters:

Parameter

28.40

System mode

Description

Sets the run mode.

Setting range

Normal, Demo, small motor

Default value

Normal

7.19.7 TOR relay delay time

Set the delay time from Top Of Ramp until the Top Of

Ramp relay is activated

TOR relay delay time is configured with the following parameters:

Parameter

28.03

TOR relay delay time

Description

Set the delay time from Top Of Ramp until the Top Of Ramp relay is activated

Setting range

0.0 ... 300.0 s

Default value

0.0 s

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

7.20 Settings

The settings menu contains folllowing softstarter set-up parameters:

• Language

• Date and time

• Display settings (for HMI)

• Reset from defaults

For settings and navigation, see chapter 6.4.6 Settings.

7

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

7.21 Assistants

The Assistants menu contains predefined settings and parameters. This should be used if a easy and quick setup is required. Only a few parameters have to be set before start of the motor is possible. All necessary input data will show up in an automatic loop. The Assistants menu is divided in:

• Basic set-up

• Application set-up

INFORMATION

After selecting an application and performing the desired tuning, the application should not be selected again. If this is done, all the tuning will be reset to the default settings for the selected application.

7

Enter the Assistants menu

Find the Assistants menu by pressing right Selection softkey “Menu” and select Assistants with the Navigation keypad. Press the right Selection softkey “Select” to enter the Assistants menu.

Basic set-up

The Basic set-up menu is divided in 5 steps:

Language, Date and time, Motor data and System configuration.

Application set-up

The Application set-up i quick settings for Applications,

Values and Tune settings. Select what type of application the softstarter is used for by pressing right Selection softkey “Select”.

For more detailes in how to set Basic set-up and

Application set-up see chapter 2 Quick start.

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

7.21.1 Table Application settings

Recommended basic setting

Band saw

Bow thruster

Centrifugal pump

Circular saw

Conveyor belt short

10

Cutter 10

Escalator

10

10

10

10

10 -

-

-

-

10

-

-

High pressure pump 10

Hydraulic pump 10

10

Lift/Elevator

Piston compressor

Scroll compressor

5

2

-

-

10

Axial fan

Conveyor belt long

10

10 -

-

-

-

Crusher

Centrifugal fan

Grinder

Mixer

10

10

10

10

-

-

-

-

30

40

50

50

40

30

30

30

30

40

30

30

30

30

30

30

30

30

4 Voltage ramp

3 Voltage ramp

4 Voltage ramp

4 Voltage ramp

3,5 Voltage ramp

4 Voltage ramp

3,5 Voltage ramp

4,5 Voltage ramp

3 Voltage ramp

3,5 Voltage ramp

3 Voltage ramp

3 Voltage ramp

4 Voltage ramp

3,5 Voltage ramp

4 Voltage ramp

4 Voltage ramp

4 Voltage ramp

3,5 Voltage ramp

30

30

30

30

30

30

30

30

30

30

30

30

30

30

30

30

30

30

Torque ramp

No ramp

No ramp

No ramp

No ramp

No ramp

No ramp

No ramp

No ramp

Torque ramp

No ramp

No ramp

No ramp

No ramp

No ramp

No ramp

No ramp

No ramp

Note: Use the parameter values above as guidance only.

Additional tuning can be necessary because of variations in load conditions.

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

7

7

7.22 Complete parameter list

08.02

08.03

08.04

08.05

08.06

08.07

08.08

08.09

05.04

06

06.01

07

07.01

08

08.01

08.10

08.11

08.12

08.30

08.31

08.32

08.33

08.34

08.35

08.36

02.08

03

03.01

03.02

03.03

03.04

03.05

04

04.01

04.02

04.03

05

05.01

05.02

05.03

Parameter number

01

01.01

02

02.01

02.02

02.03

02.04

02.05

02.06

02.07

Description

Motor rated current Ie

Motor rated current Ie

Start and stop

Start mode

Stop mode

Start ramp initial level

Start ramp time

Stop ramp end level

Stop ramp time

Pre-start function

Setting range

9.0 ... 1250.0 A

Voltage ramp, Torque ramp, Full voltage start

No ramp, Voltage ramp, Torque ramp

10 ... 99%

1 ... 120 s

10 ... 99%

1 ... 120 s

Pre start off, Motor heating, Stand still brake

Slow speed forward, Slow speed reverse

0.0 ... 7200.0 s Pre-start time

Limit

Current limit type

Current limit level

2nd curr lim level

2nd curr lim time

Torque limit level

Kick start

Kick start

Kick start level

Kick start time

Slow speed

Slow speed forward

Slow speed fwd strenght

Slow speed reverse

Slow speed rev strength

Motor heating

Motor heating capacity

Motor braking

Stand still brake strength

Sequence start

Sequence mode

Ie seq 1

Start mode seq 1

Start ramp time seq 1

Start ramp init lvl seq 1

Curr lim level seq 1

Kick start seq 1

Kick start level seq 1

Kick start time seq 1

Torque lim lvl seq 1

Torque tune seq 1

Torque ctrl gain seq 1

Ie seq 2

Start mode seq 2

Start ramp time seq 2

Start ramp init lvl seq 2

Curr lim level seq 2

Kick start seq 2

Kick start level seq 2

Off, Normal, Dual, Ramp

1.5 ... 7.5 x Ie

0.5 ... 7.5 x Ie

2 ... 120 s

20 ... 200%

On / Off

50 ... 100%

0.2 ... 2.0 s

Fast jog, Jog, Creep

10 ... 100%

Fast jog, Jog, Creep

10 ... 100%

10 ... 100000 W

10 ... 100

On / Off

9.0 ... 1250.0 A

Voltage ramp, Torque ramp, Full voltage start

1 ... 120 s

10 ... 99%

0.5 ... 7.5 x Ie

On / Off

50 ... 100%

0.20 ... 2.0 s

20 ... 200%

0 ... 1000%

0.01 ... 10.0

9.0 ... 1250.0 A

Voltage ramp, Torque ramp, Full voltage start

1 ... 120 s

10 ... 99%

0.5 ... 7.5 x Ie

On / Off

50 ... 100%

Number of decimals

Fieldbus

ID

Default value Actual setting

1

0

0

0

0

0

0

0

1

0

1

1

0

0

0

0

2

0

0

0

0

0

0

0

0

1

0

1

0

0

2

2

0

0

0

0

1

0

0

0

1

0

1

2

3

4

5

6

7

93

128

18

19

20

21

170

22

23

24

184

187

188

189

304

305

201

202

203

204

197

198

199

200

193

194

195

196

8

190

191

192

205

206

207

9.0 A

Voltage ramp

No ramp

30%

10 s

30%

10 s

Pre start off

10.0 s

Off

4.0 x Ie

7.0 x Ie

8 s

150%

Off

70%

0.2 s

Jog

50%

Jog

50%

10 W

50%

Off

9.0 A

Voltage ramp

10 s

30%

7.0 x Ie

Off

70%

0.20 s

150%

100%

0.02

9.0 A

Voltage ramp

10 s

30%

7.0 x Ie

Off

70%

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

08.63

08.64

08.65

08.66

08.67

08.68

08.69

08.70

09

09.01

09.02

09.03

10

10.01

Parameter number

08

08.37

08.38

08.39

08.40

08.60

08.61

08.62

Description

10.02

10.03

10.04

10.05

10.06

10.07

10.08

10.09

10.10

Setting range

Sequence start

Kick start time seq 2

Torque limit lvl seq 2

Torque tune seq 2

Torque ctrl gain seq 2

Ie seq 3

Start mode seq 3

Start ramp time seq 3

AO max value

AO min value

0.20 ... 2.00 s

20 ... 200%

0 ... 1000%

0.01 ... 10.00

9.0 ... 1250 A

Voltage ramp, Torque ramp, Full voltage start

1 ... 120 s

Start ramp init lvl seq 3

Curr lim level seq 3

Kick start seq 3

Kick start level seq 3

Kick start time seq 3

Torque limit lvl seq 3

Torque tune seq 3

Torque ctrl gain seq 3

10 ... 99%

0.5 ... 7.5 x Ie

On / Off

50 ... 100%

0.2 ... 2.00 s

20 ... 200%

0 ... 1000%

0.01 ... 10.0

Automatic restart

Auto-reset delay time

Auto-restart

0 ... 3600 s

On / Off

Auto-restart max attempts 1 ... 10

Internal IO

In0 function None, Reset, Enable, Slow speed forward,

Slow speed reverse, Motor heating, Stand still brake, Start reverse, User defined protection,

Emergency mode, Fieldbus disable control,

Start 1, Start 2, Start 3. *

In1 function

In2 function

K4 function

K5 function

K6 function

0 ... 15 *

0 ... 15 *

None, Run, Top of ramp, Event group 0, Event group 1, Event group 2, Event group 3, Event group 4, Event group 5, Event group 6,

Sequence 1 RUN, Sequence 2 RUN,

Sequence 3 RUN, Sequence 1 TOR, Sequence

2 TOR, Sequence 3 TOR,

Run reverse **

0 ... 17 **

None, Run, Top of ramp, Event group 0,

Event group 1, Event group 2, Event group 3,

Event group 4, Event group 5, Event group 6,

Sequence 1 Run, Sequence 2 Run,

Sequence 3 Run

AO reference

AO type

0-10 mA, 0-20 mA, 4-20 mA, 0-10 V

Motor current [A], Mains voltage [V], Active power [kW], Active power [HP], Reactive power

[kVAr], Apparent power [kVA], Active energy

[kWh], Reactive energy [kVArh], COS [ COS [Φ],

Motor temperature [%], Thyristor temperature

[%], Motor voltage [%]

Mains frequency [Hz], PT100 temperature

[centigrade], PTC resistance [Ω]

0.0 ... 1000000.0

0.0 ... 1000000.0

Number of decimals

Fieldbus

ID

2

0

0

2

1

0

0

0

1

0

0

2

0

0

2

0

0

0

0

0

0

0

0

0

0

0

0

0

223

224

225

130

131

132

133

134

135

137

138

139

140

219

220

221

222

215

216

217

218

208

209

210

211

212

213

214

Default value Actual setting

0 s

Off

5

30%

7.0 x Ie

Off

70%

0.2 s

150%

100%

0.02

0.20 s

150%

100%

0.02

9.0 A

Voltage ramp

10 s

Reset

None

None

Run

Top of ramp

Event group 0

4-20 mA

Motor current

[A]

500.0

0.0

7

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

7

11.15

11.16

12

12.01

12.02

12.03

12.04

12.05

12.06

12.07

12.08

12.09

10.11

Ext therm sensor - ID

Parameter number

11

11.01

Description

External IO

1DI0 function

No sensor, PTC element, Three-wire PT100,

Two-wire PT100, Bi-metal switch

Setting range

0 226

Number of decimals

Fieldbus

ID

No sensor

Default value Actual setting

11.02

11.03

11.04

11.05

11.06

11.07

11.08

11.09

11.10

11.11

11.12

11.13

11.14

12.10

12.11

Parameter number

12

1DI1 function

1DI2 function

1DI3 function

1DI4 function

2DI5 function

2DI6 function

2DI7 function

1DO0 function

1DO1 function

2DO2 function

2DO3 function

1AO0 reference

1AO0 type

1AO0 max value

1AO0 min value

Communication

Com3 function

FB interface connector

Fieldbus control

Fieldbus address

Fieldbus IP address

Fieldbus IP gateway

Fieldbus IP netmask

Fieldbus IP DHCP client

FB baud rate

FB parity

FB stop bits

Description

Communication

None, Reset, Enable, Slow speed forward,

Slow speed reverse, Motor heating, Stand still brake, Start reverse, User defined protection,

Emergency mode, Fieldbus disable control,

Start 1, Start 2, Start 3 ***

0 ... 15 ***

0 ... 15 ***

None, Reset, Enable, Slow speed forward,

Slow speed reverse, Motor heating, Stand still brake, Start reverse, User defined protection,

Emergency mode, Fieldbus disable control,

Start 1, Start 2, Start 3 ***

0 ... 15 ***

0 ... 15 ***

0 ... 15 ***

0 ... 15 ***

None, Run, Top of ramp, Event group 0,

Event group 1, Event group 2, Event group 3,

Event group 4, Event group 5, Event group 6,

Sequence 1 Run, Sequence 2 Run,

Sequence 3 Run, Sequence 1 TOR, Sequence

2 TOR, Sequence 3 TOR ****

0 ... 15 *** *

0 ... 15 *** *

0 ... 15 *** *

0-10 mA, 0-20 mA, 4-20 mA, 0-10 V

Motor current [A], Mains voltage [V], Active power [kW], Active power [HP], Reactive power

[kVAr], Apparent power [kVA], Active energy

[kWh], Reactive energy [kVArh], COS [

θ], Motor temperature [%], Thyristor temperature [%],

Motor voltage [%]

Mains frequency [Hz], PT100 temperature

[centigrade], PTC resistance [Ω]

0 ... 1000000

0 ... 1000000

None, Test, Modbus RTU slave. Extension I/O

FbPlug, Modbus RTU, Anybus, None

On / Off

0 ... 65535

000.000.000.000

000.000.000.000

255.255.255.000

On / Off

1200, 2400, 4800, 9600, 19200, 38400,

57600, 76800, 115200, 125000, 250000,

500000, auto

No parity, Odd parity, Even parity

1 Stop bit, 2 Stop bits

Setting range

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

26

32

45

51

58

59

83

92

185

None

None

None

None

None

None

None

None

4-20 mA

None

None

None

4-20 mA

Motor current

[A]

500

0

Test

None

Off

0

0

0

4294967040u

Off

19200

0

0

Number of decimals

136

141

Fieldbus

ID

Even parity

1 Stop bit

Default value Actual setting

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

12.13

12.13

12.14

12.15

12.16

12.17

12.18

12.19

12.20

12.21

12.22

12.23

12.24

12.25

12.26

12.27

12.28

12.29

12.30

Fieldbus DI 1

Fieldbus DI 2

Fieldbus DI 3

Fieldbus DI 4

Fieldbus DI 5

Fieldbus DI 6

Fieldbus DI 7

Fieldbus DI 8

Fieldbus DI 9

Fieldbus DI 10

Fieldbus AI 1

Fieldbus AI 2

Fieldbus AI 3

Fieldbus AI 4

Fieldbus AI 5

Fieldbus AI 6

Fieldbus AI 7

Fieldbus AI 8

Fieldbus AI 9

12.31

Fieldbus AI 10

Parameter number

13

Description

Protections list 1

None, Start feedback, Stop feedback, Fault reset feedback, Slow speed rev feedback,

Slow speed forw feedback, Start 1 feedback,

Start 2 feedback, Start 3 feedback, Motor heating feedback, User defined feedback,

Stand still brake feedback, Emergency mode feedback, Start reverse feedback, Run status,

TOR status, Line, Phase sequence, Event group 0 status, Event group 1 status, Event group 2 status, Event group 3 status, Event group 4 status, Event group 5 status, Event group 6 status, Sequence 1 Run status,

Sequence 2 Run status, Sequence 3 Run status, Sequence 1 TOR status, Sequence

2 TOR status, Sequence 3 TOR status, Run reverse status *** **

0 ... 32 *** **

0 ... 32 *** **

0 ... 32 *** **

0 ... 32 *** **

0 ... 32 *** **

0 ... 32 *** **

0 ... 32 *** **

0 ... 32 *** **

0 ... 32 *** **

None, Phase L1 current, Phase L2 current,

Active power (HP), Active power, Apparent power, Mains voltage, Power factor, Motor voltage, Active energy (resettable), EOL time to trip, Mains frequency, Max phase current,

Motor current, Motor run time (resettable),

Motor temperature, Motor temperature percent, Number of starts (resettable),

Phase sequence, PT100 temperature, PTC resistance, Reactive energy (resettable),

Reactive power, Remaining time to start,

Thyristor temperature, Thyristor temperature percent, EOL time to cool, Top event code,

Motor current percent, Thyristor run time

(resettable), Motor connection *** ***

0 ... 32 *** ***

0 ... 32 *** ***

0 ... 32 *** ***

0 ... 32 *** ***

0 ... 32 *** ***

0 ... 32 *** ***

0 ... 32 *** ***

0 ... 32 *** ***

0 ... 32 *** ***

Setting range

0

0

0

0

0

0

0

0

0

0

0

142

143

144

161

162

163

164

165

166

167

168

Line

Phase sequence

Event group 0 status

Event group 1 status

Start feedback

Stop feedback

Event group 2 status

Event group 3 status

Event group 4 status

Event group 5 status

Phase L1 current

0

0

0

0

0

0

0

0

0

169

172

174

177

178

179

180

183

186

Number of decimals

Fieldbus

ID

Phase L2 current

Phase L3 current

Max phase current

Mains frequency

Motor voltage

Motor temperature percent

Number of starts

(resettable)

Motor run time

(resettable)

Top event code

Default value Actual setting

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

7

7

14

14.01

14.02

14.03

14.04

14.05

14.06

14.07

13.01

13.02

13.03

13.04

13.05

13.06

13.07

13.08

13.09

13.10

13.11

13.12

13.13

14.08

15.02

15.03

15.04

15.05

15.06

15.07

15.08

15.09

15.10

15.11

16

16.01

16.02

14.09

14.10

14.11

14.12

14.13

14.14

14.15

15

15.01

16.03

16.04

16.05

16.06

16.07

16.08

16.09

Parameter number

16

EOL mode

EOL class

EOL dual class

EOL out

Normal, Dual

10A, 10, 20, 30

10A, 10, 20, 30

0 ... 127

EOL operation

Locked rotor level

Locked rotor trip time

Locked rotor delay time

Locked rotor out

Locked rotor op

Off, Stop-Manual, Stop-Automatic, Indication

0.5 ... 8.0 x Ie

0.2 ... 10.0 s

1.0 ... 30.0 s

0 ... 127

Off, Stop-Manual, Stop-Automatic, Indication

Max no of starts per hour 1 ... 100

0 ... 127 Max no of starts per hour out

Max no of starts per hour op

Off, Stop-Manual, Stop-Automatic, Indication

Protections list 2

Curr underload level

Curr underload trip time

0.3 ... 0.9 x Ie

0 ... 10 s

Curr underload delay time 0 ... 10 s

Curr underload out

Curr underload op

0 ... 127

Off, Stop-Manual, Stop-Automatic, Indication

Pwr factor underload level 0.0 ... 1.0

Pwr factor underload trip time

0 ... 10 s

Pwr factor underload delay time

0 ... 30 s

Pwr factor underload out

Pwr factor underload op

Curr imb level

Curr imb trip time

Curr imb delay time

Curr imb out

Curr imb operation

Protections list 3

Over voltage level

0 ... 127

Off, Stop-Manual, Stop-Automatic, Indication

10 ... 80%

1 ... 30 s

1 ... 30 s

0 ... 127

Off, Stop-Manual, Stop-Automatic, Indication

Over voltage trip time

Over voltage out

Over voltage op

Under voltage level

Under voltage trip time

Under voltage op

Under voltage out

Voltage imb level

Voltage imb out

Voltage imb op

Protections list 4

Phase rev out

Phase rev operation

170 ... 850 V

0.1 ... 100.0 s

0 ... 127

Off, Stop-Manual, Stop-Automatic, Indication

170 ... 850 V

0.1 ... 100.0 s

Off, Stop-Manual, Stop-Automatic, Indication

0 ... 127

1 ... 100%

0 ... 127

Off, Stop-Manual, Stop-Automatic, Indication

0 ... 127

Off, Stop-Manual, Stop-Automatic, Indication

Freq range lower trip lvl

Freq range upper trip lvl

Freq range trip time

Freq range out

Freq range operation

Bypass open out

Bypass open operation

Description

40 ... 72 Hz

40 ... 72 Hz

0.0 ... 60.0 s

0 ... 127

Off, Stop-Manual, Stop-Automatic, Indication

0 ... 127

Off, Stop-Manual, Stop-Automatic, Indication

Setting range

Protections list 4

0

0

0

0

0

1

2

2

0

0

0

0

0

1

0

0

0

0

2

0

0

0

0

0

0

0

0

0

0

1

0

0

0

1

0

0

0

0

0

55

56

57

84

227

54

53

52

85

228

229

230

231

232

233

234

87

235

236

237

238

86

239

61

63

62

64

60

67

65

68

66

71

69

70

72

77

78

76

Normal

10

10A

0000010

Stop-Manual

4.0 x Ie

1.00 s

5.00 s

0000010

Off

6

0000010

Off

0.3 x

1 s

10 s

0000010

Off

80%

10 s

30 s

0000010

Off

850 V

1.0 s

0000010

Off

170 V

1.0 s

Off

0000010

10%

0000010

Off

Ie

0000010

Off

0.70

1 s

10 s

0

0

1

0

0

0

0

0

0

Number of decimals

89

240

241

242

243

91

244

95

245

Fieldbus

ID

0000010

Off

45 Hz

66 Hz

1.0 s

0000010

Off

0000010

Off

Default value Actual setting

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

19.03

19.04

19.05

19.06

19.07

20

20.01

20.02

20.03

20.04

20.05

20.06

20.07

20.08

20.09

21

21.01

21.02

21.03

21.04

21.05

21.06

21.07

21.08

21.09

21.10

16.10

16.11

17

17.01

17.02

17.03

17.04

17.05

17.06

17.07

18

18.01

18.02

18.03

18.04

18.05

18.06

18.07

18.08

18.09

18.10

19

19.01

19.02

Voltage outputs out

Voltage outputs op

Protections list 5

PTC out

PTC op

PT100 2wire res

PT100 trip temp

PT100 reset temp

PT100 out

PT100 op

Protections list 7

HMI failure out

HMI failure op

Fieldbus failure out

Fieldbus failure op

0 ... 127

Off, Stop-Manual, Stop-Automatic, Indication

0 ... 127

Off, Stop-Manual, Stop-Automatic, Indication

0 ... 100.0 Ω

-50 ... 250 °C

-50 ... 250 °C

0 ... 127

Off, Stop-Manual, Stop-Automatic, Indication

Protections list 6

User defined DI status

User defined trip time

User defined out

User defined op

Earth fault trip time

Earth fault out

Earth fault op

Active low, Active high

0.0 ... 60.0 s

0 ... 127

Off, Stop-Manual, Stop-Automatic, Indication

0.1 ... 1.0 s

0 ... 127

Off, Stop-Manual, Stop-Automatic, Indication

Too long curr lim trip time 1 ... 600 s

Too long curr lim out

Too long curr lim op

0 ... 127

Off, Stop-Manual, Stop-Automatic, Indication.

Fast ramp

0 ... 127

Off, Stop-Manual, Stop-Automatic, Indication,

Switch of HMI control

0 ... 127

Off, Stop-Manual, Stop-Automatic, Indication,

Switch to I/O control

Ext IO failure trip time

Ext IO failure out

Ext IO failure op

Warnings list 1

EOL level

300 ... 30000 ms

0 ... 127

Off, Stop-Manual, Stop-Automatic, Indication

40.0 ... 99.0%

EOL out

EOL warning

Locked rotor level

Locked rotor init time

Locked rotor out

Locked rotor

Thyristor OL out

0 ... 127

On / Off

0.2 ... 10.0 x

Ie

1.0 ... 30.0 s

0 ... 127

On / Off

0 ... 127

Thyristor OL

Warnings list 2

Curr underload level

Curr underload trip time

On / Off

0.4 ... 1.0 x Ie

0 ... 30 s

Curr underload delay time 0 ... 10 s

Curr underload out 0 ... 127

Curr underload On / Off

Pwr factor underload level 0.0 ... 1.0

0 ... 30 s Pwr factor underload trip time

Pwr factor underload delay time

0 ... 10 s

Pwr factor underload out

Pwr factor underload

0 ... 127

On / Off

0

0

0

1

0

0

0

0

0

0

0

1

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

1

0

0

1

0

0

1

0

2

0

0

0

1

0

0

0

0

0000010

Off

0000010

Off

100.0 Ω

60 °C

40 °C

0000010

Off

Active high

1.0 s

0000010

Off

0.5 s

0000010

Off

10 s

0000010

Off

82

81

88

246

247

248

240

98

250

73

75

74

254

251

252

90

253

255

256

100

257

97

258

259

99

260

0000010

Off

0000010

Off

1000 ms

0000010

Off

264

265

266

126

267

268

269

270

127

271

262

125

263

124

122

181

123

182

261

90.0%

0000100

Off

3.0 x Ie

1.0 s

0000100

Off

0000100

Off

0.4 x Ie

5 s

1 s

0000100

Off

0.50

5 s

1 s

0000100

Off

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

7

7

25.09

25.10

25.11

25.12

26

26.01

26.02

26.03

26.04

25

25.01

25.02

25.03

25.04

25.05

25.06

25.07

25.08

26.05

26.06

26.07

26.08

26.11

26.12

27.01

Parameter number

22.03

22.04

22.05

22.06

22.07

22.08

22.09

22.10

22.11

23

23.01

21

21.11

21.12

21.13

22

22.01

22.02

23.02

23.03

23.04

23.05

23.06

23.07

23.08

24

24.04

24.05

24.06

Description

Warnings list 2

Current imb level

Current imb out

Current imbalance

Warnings list 3

Over voltage level

Over voltage trip time

Over voltage out

Over voltage

Under voltage level

Under voltage trip time

Under voltage out

Under voltage

Voltage imb level

Voltage imb out

Voltage imbalance

Warnings list 4

EOL time-to-trip time

EOL time-to-trip out

EOL time-to-trip

THD(U) level

THD(U) out

THD(U)

Short circuit out

Short circuit

Warnings list 5

Faulty fan out

Faulty fan

Modbus_RTU w/o auxport out

Internal faults

Shunt fault out

Shunt fault op

Short circuit out

Short circuit fault op

Open circuit thyr out

Open circuit thyr op

Thyristor OL out

Thyristor OL op

Heat sink over temp out

Heat sink over temp op

Unspecified fault out

Unspecified fault op

External faults

Phase loss out

Phase loss op

Bad network out

Bad network op

Low supply voltage out

Low supply voltage op

High current out

High current op

Faulty connection out

Faulty connection op

Language

27.02

Parameter number

Basic set-up at power on

Description

Setting range

10 ... 80%

0 ... 127

On / Off

208 ... 850 V

0.1 ... 100.0 s

0 ... 127

On / Off

208 ... 850 V

0.1 ... 100.0 s

0 ... 127

On / Off

1 ... 100

0 ... 127

On / Off

1 ... 1000 s

0 ... 127

On / Off

1 ... 100%

0 ... 127

On / Off

0 ... 127

On / Off

0 ... 127

On / Off

0 ... 127

0 ... 127

Stop-Manual, Stop-Automatic

0 ... 127

Stop-Manual, Stop-Automatic

0 ... 127

Stop-Manual, Stop-Automatic

0 ... 127

Stop-Manual, Stop-Automatic

0 ... 127

Stop-Manual, Stop-Automatic

0 ... 127

Stop-Manual, Stop-Automatic

0 ... 127

Stop-Manual, Stop-Automatic

0 ... 127

Stop-Manual, Stop-Automatic

0 ... 127

Stop-Manual, Stop-Automatic

0 ... 127

Stop-Manual, Stop-Automatic

0 ... 127

Stop-Manual, Stop-Automatic

English, Spanish, Finnish, French, Italian

Dutch, Polish, Portuguese, Russian, Swedish

Turkish, Chinese (simplified chinese), Arabic

Czech, German

Yes, No

Setting range

Number of decimals

Fieldbus

ID

Default value Actual setting

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

102

103

101

46

280

49

281

282

283

173

96

278

36

279

104

105

107

106

108

109

111

110

119

120

118

117

115

129

121

114

112

113

116

80

79

176

42

272

50

273

44

274

47

275

48

276

43

277

70%

0000100

Off

208 V

1.0 s

0000100

Off

208 V

1.0 s

0000100

Off

5

0000100

Off

5 s

0000100

Off

10%

0000100

Off

0000100

Off

0000100

Off

0000100

0000001

Stop-Manual

0000001

Stop-Manual

0000001

Stop-Manual

0000001

Stop-Manual

0000001

Stop-Manual

0000001

Stop-Manual

0000001

Stop-Manual

0000001

Stop-Manual

0000001

Stop-Manual

0000001

Stop-Manual

0000001

Stop-Manual

English

0

Number of decimals

284

Fieldbus

ID

Yes

Default value Actual setting

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

7

7

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

8 Communication

8.1 Built in modbus RTU

8.2 Anybus CompactCom (option)

8.3.1 Instructions

8.2.2 Required accessories

8.3 ABB Fieldbus plug interface (option)

8.3.1 Instructions

8.3.2 Required accessories

8.4 MINI USB interface

128

128

128

129

128

128

128

128

8

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

8.1 Built in modbus RTU 8.3 ABB Fieldbus plug interface

(option)

The PSTX Softstarter has an RS485 physical interface, com 3, to be able to support external devices that have support for RS485 based communication.

With this interface it is possible to control the softstarter, retreive status information, as well as upload and download parameters.

The softstarter has a Modbus RTU slave implemented via the RS485 interface.

8.1.1 Instructions

Instructions for the set-up of input and output telegrams, parameter settings, instructions, etc. are available at

ABB website.

• Built-in Modbus RTU 1SFC132089M0201

The PSTX Softstarter has an interface, com 2, on the front for connecting the ABB Fieldbus Plug Adapter

(FBPA) used for fieldbus communication.

With this interface it is possible to control the softstarter, retreive status information, as well as upload and download parameters.

The interface between the softstarter and the

FieldBusPlug is independent of the fieldbus protocol used. Independent of softstarter size or delivery date, it is possible to connect any of the available

Fieldbus protocols later on, since this is defined in the

FieldBusPlug itself.

The fieldbus communication plug shall be connected to the ABB Fielsbus Plug Adapter (FBPA).

Make sure that the plug is in correct position and tighten the screw with 0,8 Nm (7,1 lb in) and additional 1/4 turn.

8

8.2 Anybus CompactCom (option)

The PSTX Softstarter has an interface on the front, com 1, for connecting the Anybus CompactCom (CC) module, used for fieldbus communication. Through this interface it is possible to control the softstarter, retreive status information, as well as upload and download of parameters.

The following Fieldbus protocols are available:

• DeviceNet

• Profibus (DPV0/DPV1)

• Modbus RTU

8.3.1 Instructions

8.2.1 Instructions

Instructions for the set-up of input and output telegrams, parameter settings, instructions, etc. are available at

ABB website.

• DeviceNet 1SFC132084M0201

• Profibus (DPV1)

• Modbus RTU

1SFC132085M0201

1SFC132086M0201

• Modbus TCP

• EtherNet/IP

1SFC132087M0201

1SFC132088M0201

8.2.2 Required accessories

The following Anybus CC connection devices are available:

• DeviceNet

• Profibus (DPV1)

• Modbus RTU

• Modbus TCP

• EtherNet/IP

Instructions for the set-up of input and output telegrams, parameter settings, instructions, etc. are available at

ABB website.

• DeviceNet 1SFC132090M0201

• Profibus (DPV0/DPV1) 1SFC132091M0201

• Modbus RTU 1SFC132092M0201

8.3.2 Required accessories

To connect the PSTX Softstarter to a fieldbus system, the following accessories are required:

• ABB Fieldbus Plug Adapter, for presenting fieldbus protocol (check that the cable length is sufficient).

• Connectors for bus connection.

• End plug (some protocols).

• Software for PLC set-up.

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

8.4 MINI USB interface

The PSTX Softstarter has an USB interface, to be able to support communication with external devices such as PCs. The USB interface is located on the front of the detachable HMI.

With this interface it is possible to control the softstarter, retreive status information, as well as upload and download parameters.

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

8

8

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

9 Maintenance

9.1 Regular maintenance

9.2 Service and repair

132

133

9

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

This chapter describes basic maintenance for the PSTX

Softstarter.

CAUTION

Hazardous voltage: Can cause death or serious injury.

Make sure that the softstarter is de-energized before performing maintenance, service or repair.

Do not open the softstarter or touch any live parts when the main and supply voltage is connected.

INFORMATION

Service and repair should be performed by authorized personnel only. Note that unauthorized repair affects safety and warranty.

INFORMATION

ABB personell have to obey the instructions in

ABB CISE 15.4.

9

9.1 Regular maintenance

• Check that all mounting bolts/screws are fastened.

Tighten if necessary.

• Tighten the terminal screws and bolts on the connection bars, if needed.

For tightening torques, see chapter 5.1.1.1

Tightening torques and cable dimensions.

CAUTION

• Make sure that the softstarter is de-energized before tightening the bolts/ screws.

• Check that all connections of control- and supply circuits are fastened.

For tightening torques, see chapter 5.1.1.1

Tightening torques and cable dimensions.

• If the softstarter is mounted inside a cabinet, check external filters. Clean, if needed.

• Check that the cooling airways are free from dirt and dust.

WARNING

Do not use pressurized air to clean the softstarter.

• Check that the fan is working and rotating freely. The blades shall rotate without any resistance.

• Check the time of the softstarter and adjust if necessary.

• In case of a fault, or if a fault can not be reset, see

chapter 10 Troubleshooting.

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

9.2 Service and repair

In case the PSTX Softstarter has to be repaired, contact your ABB reseller/Office or contact ABB via website.

CAUTION

In the event of a short circuit on the load side of a softstarter, the device could be completely destroyed and cause danger to personnel.

By using a correctly rated short circuit protection device, e.g. a fuse or a circuit breaker, the damage will be limited to one of the two categories, defined in IEC 60947-4-2 and EN 60947-4-2:

Type 1: The softstarter might be damaged and some or all parts might need to be replaced.

Type 2: The device should be operable after the event of a short circuit.

Type 2: Coordination is achieved by using a semiconductor fuse. A coordination table is found in the catalogue and online via

ABB website.

To be able to claim warranty for any damage on the thyristors, the coordination type 2 must be achieved.

9

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

9

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

10 Troubleshooting

10.1 General

10.2 Troubleshooting

10.3 Overview of faults, protections and warnings

10.4 Protection indication shown on screen

10.5 Fault indication shown on screen

10.6 Warning indication shown on screen

136

136

139

140

141

143

10

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

10.1 General

This chapter is a guide that can be used in case problems would occur wit h the softstarter or the application.

CAUTION

Hazardous voltage: Can cause death or serious injury. Turn off and lock out all power that supply this device before you start work on the equipment.

CAUTION

Make sure that the softstarter is de-energized before performing maintenance.

Do not open the softstarter or touch any live parts when the main and supply voltage is connected.

INFORMATION

ABB personell have to follow the ABB CISE 15.4 instructions

The softstarter normally indicates a fault with LED Fault, and the display shows which type of fault that has occurred.

When a protection is activated it will be indicated with

LED Protection and the display shows which type of protection is active.

When a warning occurs, the type of warning will be shown in the display.

Issues like i.e. humming sounds which are not displayed by the softstarter can also be found in this chapter.

10

10.2 Troubleshooting

Table 1 Troubleshooting

Status

Motor humming / starts without given start signal.

Bad motor sound during start.

Possible cause

Bypass relay closed, due to inaccurate handling.

(PSTX30...170 only).

Bypass contactor/relay stuck in closed position.

Shorted thyristor.

The motor connection is not correct .

Solution

Switch off operational voltage, control supply voltage and remove USB cable from the computer if connected. Switch on voltage in correct succession.

1. Control supply voltage on terminals

1 and 2. See chapter 5.1.2 Control supply and control circuit.

2. Wait 4 seconds, and then switch on operational voltage on terminals

L1, L2 and L3.

If same fault remains, contact your

ABB Sales Office.

• Contact your ABB Sales Office.

Contact your ABB Sales Office.

Check and correct the wiring. Connect the control supply voltage according to the circuit diagram. See

chapter 11 Wiring diagrams.

Incorrect ramp time for start.

• Try different ramp times (some adjustments can be necessary for best result). See chapter 7 Functions.

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Status

Bad motor sound during start.

Bad motor sound during stop.

Possible cause

Incorrect Initial/End level.

Incorrect Current limit level or Torque limit level.

The motor is too small.

(Current is out of measuring range.)

Thyristor not conducting properly.

Solution

• Try different settings for the parameter Initial /End

Voltage. See chapter 7 Functions, or contact your

ABB Sales Office.

• Try different settings for the parameter Current limit level or Torque limit level. See chapter 7 Functions, or contact your ABB Sales Office.

Check that the softstarter corresponds to the motor size.

For test purposes it is possoble to use small motor mode. See chapter 7 Functions.

Contact your ABB Sales Office.

Incorrect ramp time for stop.

Motor does not start when given start command by the hardwire inputs.

Start and stop command given at the same time.

The Operational voltage is below

175 V.

Control wiring is not correct.

Start and stop command given at the same time.

Keypad is in Local control mode.

Motor does not start with fieldbus.

Softstarter has tripped on fault or protection.

Softstarter is in Local mode.

Fieldbus operation when fault parameter is set to Switch to I/O control.

Try differ ent ramp times for stop (some adjustments can be necessary for best result).

See chapter 7 Functions.

Check that start and stop command is not given at the same time.

Check the Operational voltage.

Check connections for start and stop.

Check that start and stop command is not given at the same time.

Check that the keypad is not in Local Control mode.

Press the R\L-key to change to Remote Control mode.

Check that parameter Fieldbus control is set to No.

Perform a reset on any active event.

Reset tripping events.

Perform a reset on any active event.

Reset tripping events.

Check that the Stop bit of the binary output telegram setting is set to 1.

Verify that parameters are matching between the PLC and the softstarter fieldbus documentation for the fieldbus protocol used.

Check that the Auto mode bit of the binary output telegram setting is set to 1.

Check if the HMI is set to remote mode.

Check that the Local Mode digital input on the ABB

FieldBusPlug adapter is set to Remote.

Check that Fieldbus disable control in DI is not connected.

Check that the Fieldbus control parameter is set to

On.

If the parameter Fieldbus failure op is set to Switch to I/O control when fault occurs, there will be a 10 seconds delay before it is possible to re-start after communication is re-established.

10

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

10

Status

Loading of parameters with fieldbus does not work properly.

Displayed phase currents in screen does not correspond to motor current.

Displayed current in screen is not stable.

Dark screen and LED is active

Blank screen and no LED is active

Possible cause

Fieldbus settings.

Inside Delta connection.

The motor is too small.

The load on the motor is too small.

(Current is out of measuring range.)

Power save mode.

Supply voltage is not connected.

The RJ45 plug is missing between the HMI and the softstarter.

Solution

Verify that parameters match between the PLC and the softstarter fieldbus documentation for the fieldbus protocol used.

Check that the Auto mode bit of the binary output telegram setting is 1.

Check if the HMI is set to remote control.

Check that the Local Mode digital input on the ABB

FieldBusPlug adapter is set to Remote.

Check that Fieldbus disable control in DI is not connected.

Check that the Fieldbus control parameter is set to

On.

If the softstarter is connected Inside Delta, the phase currents displayed are = 58% ( 1 /(√3)) of the motor current.

Check that the softstarter corresponds to the motor size.

Touch any key on the keypad.

Connect the Supply voltage according to the circuit diagram.

If problem stays, contact your ABB Sales Office.

Check the RJ45 plug.

Check the RJ45 Network cable

RJ45 Network cable is damaged.

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

10.3 Overview of faults, protections and warnings

This table shows in which state the different indications

for protections, faults and warnings may show up.

Motor control states *

EOL protection

Locked rotor protection

Phase reversal protection

Current imbalance protection

Over voltage protection

Under voltage protection

Earth fault protection

Voltage imbalance protection

Voltage outputs protection

External thermal sensor - PT100 protection

External thermal sensor - PTC protection

Power factor underload protection

Current underload protection

User defined protection

Too long current limit protection

Bypass open protection

Fieldbus failure protection

Extension IO failure protection

HMI failure protection

Limit number of starts

Phase loss fault

High current fault

Low supply voltage fault

Bad network fault

Thyristor overload fault

Short circuit fault

Shunt fault

Unspecified fault

Heat sink overtemperarure fault

Open circuit thyristor fault

Faulty usage

Faulty connection

Current imbalance warning

Over voltage warning

Under voltage warning

EOL time-to-trip warning

EOL warning

Total Harmonic Distortion (THD) warning

Voltage imbalance warning

Power factor underload warning

Current underload warning

Faulty Fans warning

Locked rotor warning

Thyristor overload warning

Short circuit warning

* For motor control states description, see chapter 7 Functions

X X X X X X

X X X X X X

X X X X X

X X X X X X

X X X X X X

X X X X X X

X X X X X X

X X X X X X

X X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X X X X X X

X X X X X X

X X X X

X

X X

X X X X

X X X X X X

X X X X X X

X

X

X X X

X X X X X X

X X X

X X

X X X

X X X X X X

X X X X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

10

10

10.4 Protection indication shown on screen

For Protections description, see chapter 7.19 Protections group 0-6.

Table 2 Protection indication

Status

EOL Protection

Locked rotor protection

Possible cause

The motor has been exposed to an overload condition because the current over a certain time is too high. (The load on the motor shaft is too high)

Solution

In Line / Inside Delta

At start

• Check starting conditions and EOL settings.

Check and correct the reason for the overload.

Check that Current limit level is not set too low.

Check that the ramp time for start is not too long.

Check that correct overload class is used.

Check that parameter Setting Ie is correct.

Continuous run

The motor is running stiff by some reason. A damaged bearing or a stucked load could be possible causes.

Check the rating of the plate for Ie.

Check operational voltage.

Chose a motor with more power, and a softstarter rated for higher current.

Check and correct the reason for the overload.

Check that correct EOL Class is used.

Check the bearings of the motor and load.

Check that the load is not running stiff.

Phase reversal protection

Current imbalance protection

Over voltage protection

Under voltage protection

Earth fault protection

Voltage imbalance protection

Voltage outputs protection

External thermal sensor

- PTC protection

- PT100 protection

Power factor underload protection

The phase sequence is not correct. Current imbalance between the phases.

Current imbalance between the phases.

The main voltage is to high.

The main voltage is to low.

Equipment protection. In a symmetrical three phase system, the sum of the instantaneous line currents is equal to zero. Earth fault indicates if the sum differs more than a settable value. This can indicate a serious condition of the motor.

Voltage imbalance between the phases.

The 24V voltage outputs has been overloaded or shorted.

The external thermal sensor has detected a temperature higher than the trip level in the motor or

PT100.

The power factor has fallen below the normal level.

Change the phase sequence on the line side to (L1-

L2-L3).

Restart the motor and check the main currents and voltage.

Restart the motor and check the main currents and voltage.

Check the main voltage.

Check the main voltage.

Check motor cables.

Check the motor.

Check the main voltage and restart the motor.

Check the connections.

Check the root cause of the over heating.

Check that the PTC or PT100 circuit is closed and that the inputs are connected.

Check and correct the reason for the over temperature.

Wait for the motor to cool sufficiently and restart.

Check and correct the reason for the underload.

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Status

Current underload protection

User defined protection

Too long current limit protection

Bypass open protection

Fieldbus failure protection

Extension I/O failure protection

HMI failure protection

Limit number of starts

Possible cause

The motor current has fallen below the settable value.

Programmable digital input can be used in combination with external device/sensor to provide to the user the possibility of handling own defined protection.

The time at current limit has exceeded the set value.

The starting condition is too heavy for the set current limit.

Bypass contactor or relay does not close when reached TOR.

There is a communication disturbance between the softstarter and PLC.

Solution

Check and correct the reason for the underload.

Check that the motor current parameter (Ie) is set correctly.

Set the programmable input signal to inactive state before resetting the protection event.

Check starting conditions and parameters.

Check and contact your ABB sales office.

Check that the fieldbusplug is connected correctly.

Check that correct type of fieldbusplug is used.

Check that the parameter Fieldbus Type is set according to the present fieldbus type.

Check and correct the connections.

There is communication disturbance between the softstarter and the extension I/O module.

There is communication disturbance between the softstarter and the HMI.

The HMI has been removed.

Check and correct the connections.

Place back the HMI again.

The softstarter has exceeded the pre-set limited number of starts.

• Wait for the next start interval.

For parameter setting, see chapter 7 Functions.

10.5 Fault indication shown on screen

For Faults description, see chapter 7.21 Faults (26) Internal faults (27) External faults

Table 3 Fault indication

Status

Phase loss fault

High current fault

Possible cause

Voltage to one or more phases is missing.

Fuse is blown.

Power loss on operational current for one or several phases.

The line contactor or circuit breaker is open.

Line contactor opens too quickly at stop.

Solution

• Check that the mains are connected and that no line contactor or breaker is open.

Check and replace fuses for all three phases.

Check and correct operational network supply.

Check and close contactor/breaker or any external switch device.

Control Line contactor with Run signal relay on

terminal 4. See chapter 5.1.2.6 Programmable output relay - K4, terminals 4, 5 and 6.

Add a time relay before contactor opens.

If Stop Ramp not is needed, set Stop mode to direct stop.

Check the circuits, including the motor for any insulation fault phase to phase or earth fault.

Low supply voltage fault

A fault current, higher than 8 times the softstarter rated current, has occurred.

The control supply voltage is too low on terminals 1 and 2.

Short power loss on the control supply network.

Check for voltage dips or interruptions and correct control supply voltage.

Check control supply network for short interruptions.

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

10

Status

Bad network fault

Thyristor overload fault

Short circuit fault

Shunt fault

Unspecified fault

Heat sink fault

10

Open circuit thyristor fault

Faulty usage

Faulty connection

Possible cause

Excessive disturbances in the operational supplying network.

Short power loss on all three phases in the operational network.

The thyristors are overheated.

One or several thyristors are shorted.

Solution

• Check for harmonics or frequency disturbancein the supply network and correct supplying operational network.

• Check and correct supplying operational network.

Check the starting conditions and the fans.

Decrease current limit if possible.

Let the thyristors cool down before restart.

Check and contact your ABB sales office for replacement kit.

The softstarter can not stop the motor due to internal short circuit.

Bypass relay closed, due to inaccurate handling.

(PSTX30...170 only).

N/A

The heat sink temperature is too high. If the fault remains after reset, the heat sink is too warm and needs to cool down.

One or several thyristors are not conducting.

The Operational voltage is below

175 V.

The motor is too small.

(Current is out of measuring range.)

Inside delta motor connection when trying to jog forward, jog backward, heat motor or doing stand still break.

Motor connection unknown when trying to start motor.

Contact ABB sales office for service.

Switch off operational voltage and control supply voltage. Switch on voltage in correct succession.

1. Control supply voltage on terminals

1 and 2. See chapter 5.1.2 Control supply and control circuit.

2. Wait 4 seconds, and then switch on operational voltage on terminals

L1, L2 and L3.

If same fault remains, contact your

ABB Sales Office.

Disconnect and reconnect the supply voltage (Us) and make a restart.

If same fault remains, contact your ABB sales office.

Check that the fans are working in a proper way.

Check that cooling airways are free from dirt and dust.

Check that the ambient temperature is not too high.

Contact your ABB sales office for service.

Check that the softstarter corresponds to the motor size.

For test purposes it is possoble to use small motor mode. See chapter 7 Functions.

Do not use named functions with Inside delta motor connection.

Check motor connection.

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

10.6 Warning indication shown on screen

For Warnings description, see chapter 7.20 Warnings group 0-4.

Table 4 Warning indication

Status

Current imbalance warning

Over voltage warning

Under voltage warning

EOL time-to-trip warning

EOL warning

Total Harmonic Distortion (THD(U)) warning

Voltage imbalance warning

Power factor underload warning

Current underload warning

Faulty fan warning

Cause/Possible cause

Current imbalance between the phases has exceeded the warning level.

The RMS phase to phase voltage has exceeded the adjustable value.

The RMS phase to phase voltage has decreased below the adjustable value.

The predicted time before EOL trip has reached the warning level.

The calculated motor temperature has exceeded the warning level.

THD(U) has exceeded the warning level. Check the quality of the network.

Voltage imbalance between the phases has exceeded the warning level.

The power factor has decreased below the adjustable value during continuous operation.

The motor current has fallen below the warning level.Check that the motor current parameter (Ie) is set correctly.

The fans are not working properly because dust or mechanical blocking

The sofstarter could be overheated.

Check that the fans are working and rotating freely. The blades shall rotate without any resistance.

CAUTION

The fans may only be checked when in voltage free state.

If the fault remains, contact ABB sales office.

Locked rotor warning

Thyristor overload warning

Short circuit warning

The motorcurrent has exceeded the warning level. A damaged bearing or a stuck load could be possible causes.

The calculated thyristor temperature has exceeded the warning level.

There is an internal short circuit and the softstarter is running in limp mode. See chapter 7 Functions.

10

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

10

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

11 Wiring diagrams

11.1 Circuit diagram PSTX

11.1.1 Circuit diagram PSTX30...PSTX370 (IEC version)

11.1.2 Circuit diagram PSTX30...PSTX370 (UL version)

146

146

146

11

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

11.1 Circuit diagram PSTX

11.1.1 Circuit diagram PSTX30...PSTX370

(IEC version)

CAUTION

Terminal 22 is a function earth, it is not a protective earth. It shall be connected to the mounting plate

Internal control voltage

19

18

Stop Start

20, 21

Internal control voltage

13

14

Stop Start

Internal control voltage

Stop Start

Internal control voltage

19

18

20, 21

13

14

External control voltage 24V DC

18

Stop Start

Stop Start

13

14

19

18

20, 21

13

14

12

11

10

16

15

14

13

19

18

17

22

21

20

19

18

20, 21

13

14

9

8

7

6

5

4

2

1

External control voltage 24V DC

18

13

14

Stop Start

2

1

6

5

4

9

8

12

11

10

16

15

14

13

+24V

GND

22

In2

21

20

19

18

+24V

K6

K5

DGND

In2

In1

In0

Stop

Start

K4

K6

K5

HMI

Low Voltage Board

HMI

23, 24

Modbus

Extension I/O

25, 26, 27 28

PTC

PT100

+24V Anybus

Anybus

100-250V

50/60 Hz

Anybus

Anybus

Fieldbus

29 30

Analog out GND

23, 24

Modbus

Extension I/O

25, 26, 27 28

PTC

PT100

+24V

Ct1

Ct2

Ct3

V1

V2

U V W

M

29 30

Analog out GND

V3

Ct1

Ct2

Ct3

V4

V1

V5

U V W

M

K2

V2

V6

V3

Internal

Bypass

Contactor

V4

V5

K2

V6

Internal

Bypass

Contactor

11

11.1.2 Circuit diagram PSTX30...PSTX370

(UL version)

CAUTION

Terminal 22 is a function earth, it is not a protective earth. It shall be connected to the mounting plate

OPTIONAL HOA WIRING

HAND

OFF

AUTO

23 24

13 14

OPTIONAL HOA WIRING

HAND

OFF

AUTO

23 24

13 14

INCOMING LINES

A B C

CHFU CHFU

H1 H2 H3 H4

CXFU

CCT

STOP

21 22

START

13 14

INCOMING LINES

L

1 2

N

13 14

CHFU CHFU

15 16

H1 H2 H3 H4

CXFU

17 18 19 20 21

CCT

100-250V 50/60 Hz

K4

Relay

4 5 6

K5

Relay

K6

Relay

7 8 9 10 11 12

Anybus

Anybus

21 22

Modbus

23

START

PTC

PT100

25, 26, 27

13 14

+24V

28

Analog out

29

GND

30

L1

T1

K1

L2

T2

K2

L3

T3

K3

A B C

MTR

MTR

L

1 13 14 15 16 17 18 19 20 21 22

L1

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

100-250V 50/60 Hz

K4

Relay

K5

Relay

K6

Relay

4 5 6 7 8 9 10 11 12

Anybus Fieldbus

Modbus

Extension I/O

23 24

PTC

PT100

25, 26, 27

+24V

28

Analog out

29

GND

30

T1

Anybus

K1

T2

L2

K2

T3

L3

K3

MTR

MTR

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

11

12 Revision

The following revisions is done on this document:

Document number

1SFC132081M0201

1SFC132081M0201

Revision

A

B

Chapter

-

4-11

5 -10

Description

First release

New numbering of images

Updated technical description

Date

2014-06-27

2014-09-19

12

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

12

13

13 Index

Symbols

2-wire measurement for PT100 42

2-wire measurement for PTC 43

3-wire measurement for PT100 42

A

ABB Fieldbus plug interface 128

Acronyms and abbreviations 9

Active faults/protections and warnings 55

Add information screens to home view 54

Analog output 44, 86

Anybus CompactCom 128

Application Setting 14, 59, 116

Application set-up 14, 59

Assistants 59, 116

• Application set-up 59

• Basic set-up 59

Automatic restart 82

Available faults 19

Available protections 18.

See also

 Protections

Available warnings 19.

See also

 Warnings

B

Backup handling 61

• Create backup 61

• Replace backup 61

• Uploading of parameters 61

Bad network fault 110

Basic set-up 14, 59

Bi-metal switch 87

Built in modbus RTU 128

Bypass 18

Bypass open protection 97

C

Changing the Rated motor current

(Setting Ie). 51

Communication 127

Communication protocols 22

Complete list 56

Complete parameter list 118

Configuration 14

Connection 12

Connection fault 111

Control circuit 9

Control supply and control circuit 36

Control supply voltage 9

Control supply voltage - terminals 1 and 2 36

Cooling 29

Cooling system 22

Create backup 61

Current 9

Current imbalance protection 95

Current imbalance warning 104

Current Lim

• Dual current limit 77

• Ramp current limit 77

Current limit 77

• Normal current limit 77

Current underload protection 94

Current underload warning 103

D

Date and time 64

Delivery note 28

Description 17

Detachable keypad 30

Digital inputs (DI) 84

Dimensions 24

Dimensions and drilling plan 30

Direct stop 75

Display decimals 55

Display name 55

Display settings 64

Display slot 54

Display style 55

Document number 2

Drilling plan 30

Dual current limit 77

E

Earth fault protection 99

Edit home view 54

Edit information screens in home view 54

Edit parameter values 50

Electrical connection 34

Electronic overload time-to-trip warning 105

Electronic overload warning 102

Emergency mode 112

Environmental influence 21

EOL 9

EOL Protection 93

Error caused by the line 43

Event groups 91

Event log

• Faults 60

• Parameter changed 60

• Protections 60

• Run 60

• Warnings 60

Extension I/O failure protection 101

Extension IO (Option) 83

External control voltage 38

External fault 107

External faults 110

External thermal sensor - PT100 protection 98

External thermal sensor - PTC protection 98

F

Fans fault warning 106

Fault 22

Fault detection functions 19

Faults 60, 107

• External fault 107

• Internal fault 107

Faults indication 141

Faulty usage fault 111

Favorites 58

Fieldbus 9, 88

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

• Fieldbus address 88

• Fieldbus control 88

• Fieldbus Inputs/Outputs 89

• Plug 9

Fieldbus address 88

Fieldbus control 88

Fieldbus failure operation 88.

See also

 Fieldbus failure protection

Fieldbus failure protection 100

Fieldbus Inputs/Outputs 89

Frequence range protection 96

Frequency

Full voltage 9

Full voltage start 75

Functional earth - terminal 22 36

Functions 67

H

Handling when mounting 29

Heat sink over temperature fault 109

High current fault 111

HMI 9

HMI failure protection 100

How to set a parameter 51

How to start/stop the motor 15

Human-Machine Interface 9

Humidity 21

I

Ie 9, 22

i-key 49

Individual function 68

Inputs/outputs 83

• Analog output 86

• Digital inputs (DI) 84

• Relay outputs 85

• Temperature sensor 87

Insulation 22

Internal fault 107

• Internal fault 107

Internal faults 108

Internal IO 83

K

Keypad 49

• i-key 49

• Navigation keys 49

• R\L-key 49

• Selection softkeys 49

• Start key 49

• Stop key 49

Kick start 78

L

Language 62

LED 9, 22, 48

LED indicators 48

LED status 48

Limp mode 113

Line contactor close time 113

Local control from keypad 52

• R\L-key 52

• Start key 52

• Stop key 52

Locked rotor protection 93

Locked rotor warning 102

Low supply voltage fault 111

M

Main circuit 34

Maintenance 131

Maximum mounting angle 30

Max number of starts protection 93

Menu screen 56

• Favorites 58

• Modified 58

• Parameters 56

Minimum distance to wall/fron 29

Minimum enclosure size 30

MINI USB interface 129

Modbus configuration warning 106

Motor Current Ie 69

Motor heating 80

Motor jog 53

Mount 29

Mounting Detachable HMI 31

N

Navigation keys 49

Navigation Overview 48

Navigation screen 50

Normal current limit 77

Number of starts limits 106

O

On/off switch 50

Open circuit thyristor fault 109

Optional accessories 45

Options screen 54

Output relays 22

Overview 18

Overview of faults, protections and warnings 139

Over voltage protection 95

Over voltage warning 104

P

Parameter changed 60

Parameters 56

• Complete list 56

Phase loss fault 110

Phase reversal protection 96

PLC 9

Pollution degree 21

Power factor underload protection 94

Power factor underload warning 103

Presentation settings 62

Pre-start 68

Programmable inputs

Programmable inputs (Sequence start) 40

Programmable inputs - terminals 15, 16 and 17 39

Programmable output relay - K4, terminals 4, 5 and 6 41

Programmable output relay - K5, terminals 7, 8 and 9 41

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

13

13

Programmable output relay - K6, terminals 10, 11 and 12 41

Protection 21

Protection functions 18

Protection indication 140, 143

Protection indication shown on screen 140

Protections 60, 92

PT100 87

PTC 87

PTC/PT100 input 42

Q

Quick start 11

R

Ramp current limit 77

Real time clock 64

Receive, unpack and check 28

Relay outputs 85

Replace backup 61

Reset operating data 65

Reset to defaults 65

R\L-key 49, 52

Run 60

S

Scale value range 55

Selection list 50

Selection softkeys 49

Semi-conductor fuses 22

Sequence start 81

Service and repair 133

Settings 62, 115

• Date and time 64

• Display settings 64

• Language 62

• Reset to defaults 65

Short circuit fault 108

Short circuit warning 106

Signal 54

Signal max 55

Signal min 55

Slow speed 79

Softstarter overview 20

Softstarter ratings 23

Softstarter states 68

• Individual function 68

• Pre-start 68

• Stand by 68

• Start ramp 68

• Stop ramp 69

• Top of ramp 69

Special feature 112

• Emergency mode 112

• Limp mode 113

• Line contactor close time 113

• Start without start command 113

• Step down level 114

• System mode 114

• TOR relay delay time 114

Specifications 21

Stand by 68

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

Stand still brake 76

Start and Stop - terminals 13, 14, 18, 19, 20, 21 37

Start key 49, 52

Start ramp 68

Start without start command 113

Step down level 114

Stop key 49, 52

Stop ramp 69

Storage 21, 22

System info 62

System mode 114

T

Table Application settings 117

Technical data 22

Technical data for external keypad 22

Temperature 9, 21, 22

Temperature errors in °C / K 43

Temperature sensor 87

• External thermal sensor - PT100 protection 98

• External thermal sensor - PTC protection 98

• PT100 87

• PTC 87

• Bi- metal switch 87

Temperature sensors 98

The numerical setting 50

Thyristor 9

Thyristor overload fault 109

Thyristor overload warning 103

Tightening torques and cable dimensions 35

Too long current limit protection 99

Top level 52

Top of ramp 69

Shunt fault TOR 9

Torque ramp 72

• Torque stop ramp 74

Torque start ramp 73

Torque stop ramp 74

TOR relay delay time 114

Total Harmonic Distortion (THD) warning 105

Troubleshooting 135

• Overview of faults, protections and warnings 139

• Protection indication shown on screen 140

Type designation 21

U

Uc 9

Ue 9

Under voltage protection 95

Under voltage warning 104

Unspecified fault 110

Uploading of parameters 61

Us 9

User defined protection 19, 99

User interface 18

V

Voltage imbalance protection 96

Voltage imbalance warning 105

Voltage outputs protection 97

Voltage ramp 70

• Voltage start ramp 70

• Voltage stop ramp 71

Voltage start ramp 70

Voltage stop ramp 71

W

Warning functions 19

Warnings 60, 102

Weights 22

Wiring diagrams 145

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]

13

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
