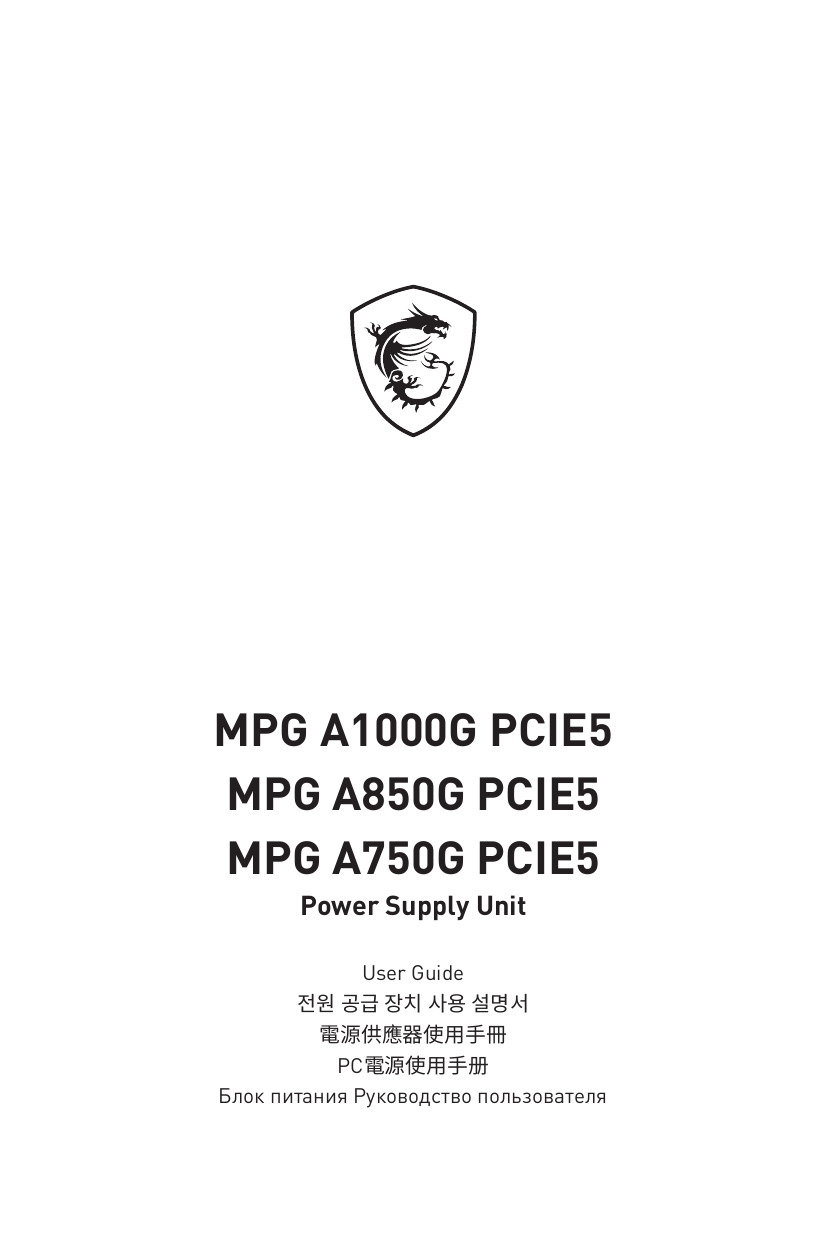

MPG A1000G PCIE5
MPG A850G PCIE5
MPG A750G PCIE5
Power Supply Unit
User Guide
전원 공급 장치 사용 설명서
電源供應器使用手冊
PC電源使用手册
Блок питания Руководство пользователя
12VHPWR (PCIe 5.0 16 Pin) Cable Installation
12VHPWR (PCIe 5.0 16 Pin) 線材安裝
Please fully insert the cable before use.
使用前請確實插好插頭。
未完全插入
Not Fully Inserted
完全插入
Fully Inserted
1
Specifications/ 사양/ 規格/ 规格/
Спецификация
Voltage
Max load
Min load
Combined power
(+5V&+3.3V)
Total Power
Regulation
Ripple & Noise
Voltage
Max load
Min load
Combined power
(+5V&+3.3V)
Total Power
Regulation
Ripple & Noise
Voltage
Max load
Min load
Combined power
(+5V&+3.3V)
Total Power
Regulation
Ripple & Noise
1000W
+5V
+3.3V
22.0A
0.0A
22.0A
120W
± 5%
30mVp-p
± 5%
30mVp-p
850W
+5V
+3.3V
22.0A
0.0A
22.0A
120W
± 5%
30mVp-p
± 5%
30mVp-p
+3.3V
22.0A
± 5%
0.0A
750W
+5V
0.0A
0.0A
22.0A
120W
30mVp-p
0.0A
± 5%
30mVp-p
2
+12V
-12V
+5Vsb
0.0A
0.0A
0.0A
83.5A
0.3A
3.0A
1000W
3.6W
15.0W
± 5%
± 5%
± 5%
1000W
50mVp-p
40mVp-p
40mVp-p
+12V
-12V
+5Vsb
0.0A
0.0A
0.0A
70.8A
0.3A
3.0A
850W
3.6W
15.0W
± 5%
± 5%
± 5%
850W
50mVp-p
40mVp-p
40mVp-p
+12V
-12V
+5Vsb
0.0A
0.0A
0.0A
62.5A
0.3A
3.0A
750W
3.6W
15.0W
± 5%
± 5%
± 5%
750W
50mVp-p
40mVp-p
40mVp-p
Dimensions/ 치수/ 外型尺寸/ Размеры
86mm
150mm
150mm
3
Detachable Connectors/ 분리 가능한 커넥터/
可拆卸接頭/ 可拆卸接头/ Кабельные
интерфейсы
CPU & PCI-E
ATX 24P
SATA & MOLEX
+12VHPWR
4
Number of Power Connectors/
전원 커넥터 수량/
電源接頭數量/ 电源接头数量/
Кол-во силовых соединителей
Power Connectors
A1000G PCIE5
A850G PCIE5
A750G PCIE5
ATX12V (Motherboard) 20+4 pin
1
1
1
12VHPWR 16pin
1
1
1
EPS12V (CPU) 4+4 pin
2
2
2
PCIe (VGA) 6+2 pin
6
6
6
SATA 15 pin
12
8
8
Peripheral (PATA) 4 pin
4
4
4
FDD 4 pin
1
1
1
5
Connectivity and Cable Lengths/
연결 및 케이블 길이/
連接頭和電纜長度/ 连接性和电缆长度/
Подключение и длина кабелей
600mm
ATX12V
20+4 pin
600mm
X1
12VHPWR
X1
16 pin
600mm
12VHPWR
16 pin
PCIe
6+2 pin
X1
PCIe
6+2 pin
X2
+12VHPWR 16 pin to PCIe 6+2 pin
600mm
150mm
6
700mm
500mm
EPS12V
4+4 pin
150mm
X1
SATA 15 pin
500mm
150mm
(A850G PCIE5)
(A750G PCIE5)
150mm
X2
SATA 15 pin
500mm
150mm
150mm
150mm
SATA 15 pin
500mm
150mm
150mm
150mm
PATA 4 pin
7
X2
(A850G PCIE5)
(A750G PCIE5)
X 3 (A1000G PCIE5)
150mm
FDD
4 pin
X1
KC인증서
MPG A1000G PCIE5
제품명: 컴퓨터용 전원공급장치
모델: MPG A1000G PCIE5
XU100111-22090B
R-R-MSI-MPGA1000G
A/S TEL: 1644-4038
제조자: Channel Well Technology (Guangzhou) Co., Ltd.
제조국가: 중국
MPG A850G PCIE5
제품명: 컴퓨터용 전원공급장치
모델: MPG A850G PCIE5
XU100111-22089B
R-R-MSI-MPGA1000G
A/S TEL: 1644-4038
제조자: Channel Well Technology (Guangzhou) Co., Ltd.
제조국가: 중국
MPG A750G PCIE5
제품명: 컴퓨터용 전원공급장치
모델: MPG A750G PCIE5
XU100111-22088B
R-R-MSI-MPGA750G
A/S TEL: 1644-4038
제조자: Channel Well Technology (Guangzhou) Co., Ltd.
제조국가: 중국
Model Number
Model No.: 7ZP7C, 7ZP7B, 7ZP7A
