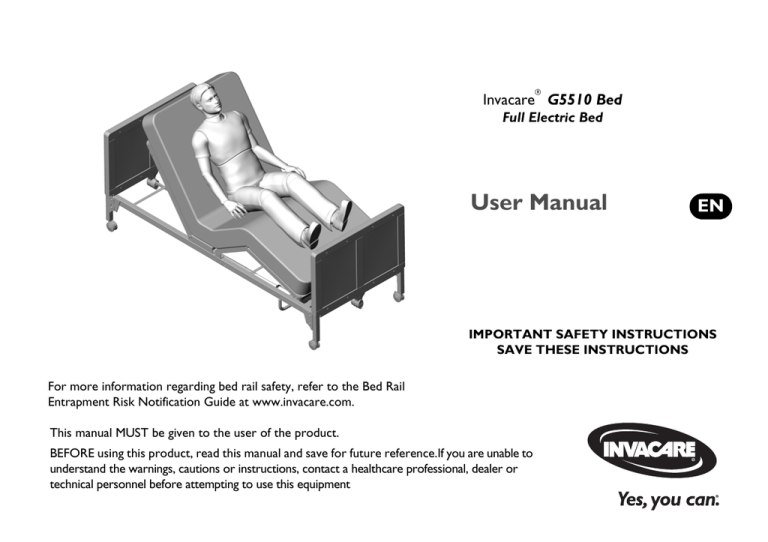

Invacare® G5510 Bed
Full Electric Bed
User Manual
EN
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
For more information regarding bed rail safety, refer to the Bed Rail
Entrapment Risk Notification Guide at www.invacare.com.
This manual MUST be given to the user of the product.
BEFORE using this product, read this manual and save for future reference.If you are unable to
understand the warnings, cautions or instructions, contact a healthcare professional, dealer or
technical personnel before attempting to use this equipment
Updated versions of this manual are available at www.invacare.com
© 2013 Invacare Corporation. All rights reserved. Republication, duplication or modification in whole or in part is prohibited without prior
written permission from Invacare. Trademarks are identified by ™ and ®. All trademarks are owned by or licensed to Invacare Corporation or
its subsidiaries unless otherwise noted.
Sherwin-Williams is a registered trademark of Sherwin-Williams.
Invacare® G5510 Bed
2
Part No 1180159
CONTENTS
1
GENERAL
2
Symbols .................................................................................................................................................................................................................................................... 5
Symbols Used on Bed ........................................................................................................................................................................................................................... 6
Symbols Used on Packaging................................................................................................................................................................................................................. 7
Limited Warranty .................................................................................................................................................................................................................................. 8
OVERVIEW
9
3
Label Locations....................................................................................................................................................................................................................................... 9
Typical Product Parameters .............................................................................................................................................................................................................. 11
Accessories and Accessory Weight ................................................................................................................................................................................................ 13
Optional Touch-up Paint.................................................................................................................................................................................................................... 14
SAFETY
15
4
General Guidelines .............................................................................................................................................................................................................................. 15
EMC INFORMATION
30
5
Electromagnetic Compatibility (EMC) Information .................................................................................................................................................................... 30
OPERATION
32
6
Operation Verification........................................................................................................................................................................................................................ 34
Operating the Bed ............................................................................................................................................................................................................................... 35
Operating the Locking Function on the Locking Caster ............................................................................................................................................................ 36
Electrical Connections ........................................................................................................................................................................................................................ 36
Installing/Removing Pendent and/or Port Cover.......................................................................................................................................................................... 37
Using the Emergency Crank.............................................................................................................................................................................................................. 39
Optional Bed Rails ............................................................................................................................................................................................................................... 40
DEALER SECTION - PACKAGING, HANDLING, AND SET-UP
41
Part No 1180159
5
3
Invacare® G5510 Bed
CONTENTS
Unpacking and Handling ..................................................................................................................................................................................................................... 41
Set-Up..................................................................................................................................................................................................................................................... 43
Assembling the Bed Ends ................................................................................................................................................................................................................... 48
Electrical Connections ........................................................................................................................................................................................................................ 53
Installing/Removing Mattress Keepers. ........................................................................................................................................................................................... 54
Connect Power Supply ............................................................................................................................................................................................ 55
7
Storing the Bed..................................................................................................................................................................................................................................... 56
TROUBLESHOOTING/MAINTENANCE - USER/DEALER
58
8
Troubleshooting Electrical................................................................................................................................................................................................................. 58
Troubleshooting Mechanical ............................................................................................................................................................................................................. 60
MAINTENANCE AND CLEANING
62
Maintenance Checklist ........................................................................................................................................................................................................................ 62
Cleaning the Beds ................................................................................................................................................................................................................................ 63
Invacare® G5510 Bed
4
Part No 1180159
1 GENERAL
1 General
1.1
Symbols
Warnings
Signal words are used in this manual and apply to hazards or unsafe practices which could result in personal injury or property damage. See the
information below for definitions of the signal words.
DANGER
Danger indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING
Warning indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION
Caution indicates a potentially hazardous situation which, if not avoided, may result in property damage or minor injury or
both.
IMPORTANT
Indicates a hazardous situation that could result in damage to property if it is not avoided.

Gives useful tips, recommendations and information for efficient, trouble-free use.
Part No 1180159
5
Invacare® G5510 Bed
1 GENERAL
1.2
Symbols Used on Bed
IP66
General Warning
Symbol
(ISO 7010-W001)
Flammable Material
Symbol (ISO 7010 W021)
EIP Pollution
Control Mark
(China RoHS)
Degree of
protection against
electrical shock.
Type BF
equipment.
International Protection
Code. Degree of
protection against solid
foreign objects and
ingress of water.
READ and
Understand the
User Manual before
using the bed.
(ISO 7010 - M002)
WEEE
Directive
2002/96/EC
Type of protection
against electrical
shock. Class II,
Double Insulation.
Explosive Material,
explosion hazard symbol
(ISO 7010 - W002)
General Mandatory
Action Symbol
(ISO 7010 - M001)
UL Recognized
Component in
U.S. and Canada
Alternating
Current
Safe Working Load
The combined weight of
the patient, visitors,
mattress, bedding and all
accessories MUST not
exceed rated capacity of
safe working load.
Maximum
Patient
Weight
EC Directive
Compliant
Protective
Conductor
Intertek’s ETL Listed
Mark for US. A product
bearing the ETL Listed
Mark is determined to
have met the minimum
requirements of
prescribed product
safety standards.
General
Prohibition Symbol
(ISO 7010 - P001)
C - Tick
(Australian
EMC)
Invacare® G5510 Bed
Terminal
6
IEC 60417 - 5957
For Indoor Use
Only
Part No 1180159
1 GENERAL
UP Button - Raises the
Head Section
UP Button - Raises the
Foot Section
Symbol for action to be made
to the Head section
Symbol for action to be made
to the Foot section.
DOWN Button - Lowers the
Head Section
DOWN Button - Lowers the
Foot Section
UP Button - Raises the entire
mattress support platform
Symbol for action to be made
raising the entire mattress support
platform
DOWN Button - Lowers the
entire mattress support platform.
1.3
Symbols Used on Packaging
MAX
0%
ISO 7000 - 0623
TOP
Part No 1180159
ISO 7000 - 0621
FRAGILE
ISO 7000 - 0626
KEEP DRY
ISO 7000 - 2403
DO NOT STACK OVER
2 HIGH
7
ISO 7000 - 0632
PERMITTED
TEMPERATURE
RANGE
ISO 7000 - 2620
PERMITTED
HUMIDITY AREA
Invacare® G5510 Bed
1 GENERAL
1.4
Limited Warranty
PLEASE NOTE: THE WARRANTY BELOW HAS BEEN DRAFTED TO COMPLY WITH FEDERAL LAW APPLICABLE TO PRODUCTS
MANUFACTURED AFTER JULY 4, 1975.
This warranty is extended only to the original purchaser who purchases this product when new and unused from Invacare or a dealer. This warranty is
not extended to any other person or entity and is not transferable or assignable to any subsequent purchaser or owner. Coverage under this warranty
will end upon any such subsequent sale or other transfer of title to any other person.
This warranty gives you specific legal rights and you may also have other legal rights which vary from state to state.
Invacare warrants the mechanical and electrical components of this product when purchased new and unused to be free from defects in materials
and workmanship for a period of two years from date of purchase from Invacare or a dealer, with a copy of the seller’s invoice required for coverage
under this warranty. Invacare warrants all welds of this product when purchased new and unused to be free from defects in materials and
workmanship for a period of five years from date of purchase from Invacare or a dealer, with a copy of the seller’s invoice required for coverage
under this warranty. If within such warranty period any such product shall be proven to be defective, such product shall be repaired or replaced, at
Invacare's option, with refurbished or new parts. This warranty does not include any labor or shipping charges incurred in replacement part
installation or repair of any such product. Product repairs shall not extend this warranty - coverage for repaired product shall end when this
limited warranty terminates. Invacare's sole obligation and your exclusive remedy under this warranty shall be limited to such repair and/or
replacement.
For warranty service, please contact the dealer from whom you purchased your Invacare product. In the event you do not receive satisfactory warranty
service, please write directly to Invacare at the address on the back cover, provide dealer's name, address, and the date of purchase, indicate nature of
the defect and, if the product is serialized, indicate the serial number. Do not return products to our factory without our prior consent.
LIMITATIONS AND EXCLUSIONS: THE FOREGOING WARRANTY SHALL NOT APPLY TO SERIAL NUMBERED PRODUCTS IF THE SERIAL
NUMBER HAS BEEN REMOVED OR DEFACED, PRODUCTS SUBJECTED TO NEGLIGENCE, ACCIDENT, IMPROPER OPERATION,
MAINTENANCE OR STORAGE, PRODUCTS MODIFIED WITHOUT INVACARE'S EXPRESS WRITTEN CONSENT (INCLUDING, BUT NOT
LIMITED TO, MODIFICATION THROUGH THE USE OF UNAUTHORIZED PARTS OR ATTACHMENTS; PRODUCTS DAMAGED BY
REASON OF REPAIRS MADE TO ANY COMPONENT WITHOUT THE SPECIFIC CONSENT OF INVACARE, OR TO A PRODUCT DAMAGED
BY CIRCUMSTANCES BEYOND INVACARE'S CONTROL, AND SUCH EVALUATION WILL BE SOLELY DETERMINED BY INVACARE. THE
WARRANTY SHALL NOT APPLY TO NORMAL WEAR AND TEAR OR FAILURE TO ADHERE TO THE PRODUCT INSTRUCTIONS.
THE FOREGOING EXPRESS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTIES WHATSOEVER, WHETHER EXPRESS
OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, AND THE
SOLE REMEDY FOR VIOLATIONS OF ANY WARRANTY WHATSOEVER, SHALL BE LIMITED TO REPAIR OR REPLACEMENT OF THE
DEFECTIVE PRODUCT PURSUANT TO THE TERMS CONTAINED HEREIN. THE APPLICATION OF ANY IMPLIED WARRANTY
WHATSOEVER SHALL NOT EXTEND BEYOND THE DURATION OF THE EXPRESS WARRANTY PROVIDED HEREIN. INVACARE SHALL
NOT BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES WHATSOEVER.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGE, OR LIMITATION OF
HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE EXCLUSION AND LIMITATION MAY NOT BE APPLICABLE.
THIS WARRANTY SHALL BE EXTENDED TO COMPLY WITH STATE/PROVINCIAL LAWS AND REQUIREMENTS.
Invacare® G5510 Bed
8
Part No 1180159
2 OVERVIEW
2 Overview
2.1
Label Locations
The bed MUST be in its
lowest position when the
patient is left unattended.
p/n 1180195 Rev D
p/n 1180195 Rev D
(Located on both bed ends)
DO NOT use bed with
flammable gases.
Explosion may occur.
Only use nasal or mask
oxygen delivery equipment.
Otherwise, fire can occur.
p/n 1171783 Rev E
C
p/n 1180180 Rev C
p/n 1171783 Rev D
p/n 1180206 Rev B
p/n 1180206 Rev B
Close cover when not
in use. Otherwise,
personal injury
may occur.
Before using the bed, read and
understand the User Manual. The
user manual provides proper
operation and safe practices.
Documentation can be obtained at:
• www.invacare.com
• ph (440) 329-6000
• One Invacare Way, Elyria OH 44036-2125
P/N 1180192
Rev B
SAFE WORKING LOAD
=
MAX PATIENT WEIGHT
700 lbs
(317 kg)
Duty Cycle: Max 10%,
max 2min/18min
600 lbs
= (272 kg)
IP66
The combined
weight of the
patient, mattress,
and accessories
must not exceed
safe working load.
DANGER: RISK OF INJURY OR DEATH
Bed accessories designed by other
manufacturers have NOT been tested by
Invacare. Use of NON-Invacare bed
accessories may result in injury or
death.Use ONLY Invacare rails,
mattresses, bed extenders, and other
accessories with Invacare bed products.
p/n 1180137 Rev D
p/n 1180137 Rev D
p/n 1180192 Rev B
Part No 1180159
p/n 1180201 Rev C
9
Invacare® G5510 Bed
2 OVERVIEW
These labels are located on the power supply.
These labels are located on the pendent cord.
p/n 1180193 Rev B
1. Débrancher le produit avant de le nettoyer.
2. S'assurer que toutes les pièces électriques ne sont
pas endommagées et que tous les ports des
connexions sont fermés.
3. Désinfecter et nettoyer toutes les composantes.
4. NE PAS utiliser d'appareil de nettoyage sous
pression ou à vapeur. Utiliser l'eau de la maison.
5. Rincer à fond avec de l'eau [empérature
maximale de 110° F (43° C)]
6. Sécher toutes les composantes avant d'entreposer.
Refer to opposite side of label for English.
P/N 1171789 Rev C
p/n 1180199 Rev A
Before operating the
bed, detach power
supply from the slat
located under the bed.
DO NOT place power
supply or other
objects under the bed.
Remove pendent
when not in use
and store out of
reach of children.
p/n 1171778 Rev B
p/n 1180191 Rev C
p/n 1171778 Rev B
Keep all electrical
cords clear of
moving parts.
Otherwise, damage
may occur.
Before using the
emergency crank on
the bed, disconnect
the pendent from the
bed. Otherwise,
damage to the
actuator may occur.
INSTRUCTIONS POUR LE NETTOYAGE
Se référer au manuel de l'utilisateur
CLEANING INSTRUCTIONS
See Owner's Manual
Before using the
emergency crank on
the bed, disconnect
the pendent from the
bed. Otherwise,
damage to the
actuator may occur.
Keep all electrical
cords clear of
moving parts.
Otherwise, damage
may occur.
p/n 1180191 Rev C
* p/n 1180191 Rev C
Remove pendent
when not in use
and store out of
reach of children.
Before operating the
bed, detach power
supply from the slat
located under the bed.
DO NOT place power
supply or other
objects under the bed.
p/n 1180199 Rev A
p/n 1171778 Rev B
p/n 1180199 Rev A
* This label is also located on the
emergency crank.
Invacare® G5510 Bed
p/n 1180193 Rev B
p/n 1180193 Rev B
1. Unplug product before washing.
2. Make sure all electrical parts are not damaged
and that all connection ports are plugged.
3. Disinfect and wash all components.
4. DO NOT power wash or steam clean.
Use household water pressure.
5. Rinse thoroughly with water [maximum
temperature 110° F (43° C)].
6. Dry all components before storing.
Consulter la panneau opposé pour la version
en français canadien.
P/N 1171789
Rev D
p/n 1171789 Rev D
10
Part No 1180159
2 OVERVIEW
2.2
Typical Product Parameters
Description........................................................................ Full Electric Bed
Electrical Requirements ............................................. 120 VAC, 60 Hz
Shipping Weight................................................................ 183 lbs (83 kg)
Rated Current Input......................................... 2.6 A max (full system)
Total Product Weight .................................................177 lbs (80.3 kg)
Head Section Weight..........................................................43 lbs (19.5 kg)
Foot Section Weight...........................................................57 lbs (25.8 kg)
Bed End Weight ...................................................................77 lbs (34.9 kg)
Duty Cycle............................................................ 10%, max 2 min/18 min
Safe Working Load.........................................................450 lbs (204 kg)
Maximum Patient Weight..........................................350 lbs (159 kg)
Electrical Components ..................................... Type BF Components
IP66 min.
Overall Length................................................................ 88 in. (223.5 cm)
Results of Acoustic Testing.............................................. Under 75 db
Overall Width................................................................... 36 in. (91.4 cm)
Head Angle Range............................................... 0 to 70° (+0° to -10°)
Under bed clearance (at center of bed) ............ 7.5 in. (19.0 cm)
Foot Angle Range ................................................ 0 to 20° (+0° to -10°)
Adjustment Range
Deck......................................................................15.25 to 32.25 in. ± 2 in.
......................................................................... (38.73 to 81.91 cm ± 5 cm)
Bed End (G53) ..................................................................... 35.0 to 52.0 in.
(88.9 to 132.1 cm)
Recommended Storage and
Shipping Temperature................................................... -22°F to 158°F
(-30°C to 70°C)
(up to 93% relative humidity, non condensing)
Head Section (G50)......................................................... 43 in. (109.2 cm)
Foot Section (G54).......................................................... 45 in. (114.3 cm)
Recommended Operating Temperature................41°F to 104°F
(5°C to 40°C)
(15% to 93% relative humidity, non condensing)
Recommended Atmospheric
Pressure...................................................................... 700 hpa to 1060 hpa
Part No 1180159
11
Invacare® G5510 Bed
2 OVERVIEW
Regulatory Listing: ANSI/AAMI 60601-1 3rd Edition, ANSI/AAMI 60601-11, IEC 60601-2-52
Application Environment 3-LTC - Long term care in a medical area where medical supervision is required and monitoring is provided, if necessary,
and medical electrical equipment used in medical procedures may be provided to help maintain or improve the condition of the patient.
Application Environment 4 - Domestic - Care provided in a domestic area where medical electrical equipment is used to alleviate or compensate for
an injury, disability, or disease.
Product Description
The G5510 bed is a steel framed medical bed that allows for deck height adjustability and mattress deck articulation through the use of electronic
actuators.
The G5510 bed is for assisting in diagnosis, monitoring, prevention, treatment, alleviation of disease, or compensation for an injury or disability in an
indoor environment.
Interaction of Patient with Bed
Invacare® G5510 Bed
12
Part No 1180159
2 OVERVIEW
2.3
Accessories and Accessory Weight
DANGER!
Risk of Injury or Damage
Improper use of this product may cause injury or damage.
- If you are unable to understand the warnings, cautions, or instructions, contact a healthcare professional, dealer or
technical personnel before attempting to use this equipment.
- DO NOT use this product or any available optional equipment without first completely reading and understanding these
instructions and any additional instructional material such as user manuals, service manuals or instruction sheets supplied with
this product or optional equipment..
The accessories in this table have
been tested with the bed to
meet the international bed
standard IEC 60601-2-52:
DESCRIPTION
MODEL NUMBER
WEIGHT
BED RAIL, FULL LENGTH
G29
26 lbs (11.8 kg)
MATTRESS
SPS1080
23 lbs (10.4 kg)
TRAPEZE
G7740CS
25 lbs (11.3 kg)
G30
29 lbs (13.1 kg)
BED RAIL, HALF
LENGTH
Part No 1180159
13
Invacare® G5510 Bed
2 OVERVIEW
The accessories in this table have not been tested to the international bed standard IEC 60601-2-52. They have
been tested to comply with Invacare standards.
DESCRIPTION
MODEL NUMBER
WEIGHT
5180
20 lbs (9.1 kg)
5184
26 lbs (11.8 kg)
5185
30 lbs (13.6 kg)
5185XL
30 lbs (13.6 kg)
Solace Series,
23 - 31 lbs (10.4 - 14.1 kg) varies depending on model
microAir Series
17 - 56 (7.7 - 25.4 kg) varies depending on model
5142
8 lbs (3.6 kg)
MATTRESS
STOR A BED
2.4
Optional Touch-up Paint
Sherwin-Williams®
5A-58147 00(A)
CODE 82X
WHITE BIRCH
2nd Dimension 5.0 Acrylic Enamel
This product can be purchased at Sherwin Williams Automotive paint branches only.
Invacare® G5510 Bed
14
Part No 1180159
3 SAFETY
3 Safety
The Safety section contains important information for the safe operation and use of this product.
3.1
General Guidelines
DANGER
Risk of Injury or Death
Bed accessories designed by other manufacturers have NOT been tested by Invacare.
Use of NON-Invacare bed accessories may result in injury or death.
- Use ONLY Invacare rails, mattresses, bed extenders and other accessories with Invacare bed
products.
WARNING!
Risk of Injury or Damage
Improper use of this product may cause injury or damage.
- If you are unable to understand the warnings, cautions, or instructions, contact a healthcare professional, dealer or
technical personnel before attempting to use this equipment.
- DO NOT use this product or any available optional equipment without first completely reading and understanding these
instructions and any additional instructional material such as user manuals, service manuals or instruction sheets supplied with
this product or optional equipment..
To avoid injury or product damage:
Set-up and Assembly instructions MUST be performed by a qualified technician only. “Qualified Technician Only” sections
are marked accordingly.
Part No 1180159
15
Invacare® G5510 Bed
3 SAFETY
WARNING!
Risk of Injury or Damage
Continued use of the bed with damaged parts could lead to the bed malfunctioning, causing injury to the user and/or
caregiver.
- Check all bed components and carton for damage, and test components before using. In case of damage, or if the bed is
not working properly, contact a qualified technician or Invacare for repair.
The Invacare G5510 Bed has been engineered to provide reliable operation. The bed has been thoroughly tested and
inspected prior to shipment.
Conditions such as restlessness, mental deterioration and dementia or seizure disorders (uncontrolled body movement),
sleeping problems, and incontinence can also significantly impact a patient's risk of entrapment. Pediatric patients or patients
with small body size may also have an increased risk of entrapment.
- Monitor patients with these conditions frequently.
The expected useful life of the G5510 bed is 5 years.
Mattress platform, bed ends, pendent, and accessories are APPLIED PARTS.
NOTICE
THE INFORMATION CONTAINED IN THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE.
Invacare® G5510 Bed
16
Part No 1180159
3 SAFETY

The slats may take a relaxed position over time. This is normal and there is no compromise to the bed's structure. This is
not a warranty issue.
The slats are designed as part of an integral sleep surface. Be careful not to stand on individual slats or drop on rigid objects
as localized bending may occur.
DO NOT use the slats as a hand hold to assemble/disassemble or move the bed, otherwise the slats may bend resulting in
permanent damage.
Disposal of Equipment and Accessories
Follow local governing ordinances and recycling plans regarding disposal of the device or components normally used in
operation. The device does not generate waste or residue in operation. Any accessories not part of the device MUST be
handled in accordance with the individual product marking for disposal.
Part No 1180159
17
Invacare® G5510 Bed
3 SAFETY
Electrical
DANGER
Risk of Death, Injury, or Damage
Shock hazards and risk of fire exist due to use of improper extension cord and use of three prong adapters.
- To avoid injury or product damage, when using an extension cord, use only an extension cord having at least 16 AWG
(American Wire Gauge) wire and the same or higher electrical rating as the device being connected.
To reduce the risk of electric shock, this furnishing has a polarized plug (one blade is wider than the other). This plug will fit
in a polarized outlet only one way.
- If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the
proper outlet.
- DO NOT change the plug in any way
Protection to the user against electrical shock hazard is provided by using double insulated construction. Servicing a
double-insulated product requires extreme care and knowledge of the system, and is to be done only by qualified service
personnel. Replacement parts for a double-insulated product must be identical to the parts they replace. A double-insulated
product is marked with the words “DOUBLE INSULATION” or “DOUBLE INSULATED”. The symbol (
be marked on the product.
Invacare® G5510 Bed
18
) is also able to
Part No 1180159
3 SAFETY
Electrical
WARNING
Risk of Injury or Damage
To avoid serious injury or product damage due to tripping hazards, strangulation hazards, and/or entangled, pinched, or
severed cords:
- Ensure that all cord(s) are routed and secured properly.
To avoid injury or product damage:
- DO NOT open assemblies such as the motors, pendant, junction boxes or gear boxes. No user serviceable parts are
inside. Contact dealer or Invacare for repair/replacement.
- Unplug the power cord from its power source before performing any maintenance on the electric bed.
WARNING
Risk of Injury or Damage
To avoid injury or damage from misuse:
- ALWAYS position bed so that power cord is easy to access.
- DO NOT unplug the power cord from the power supply. Damage to cord will result. Refer servicing to qualified personnel
only.
Part No 1180159
19
Invacare® G5510 Bed
3 SAFETY
CAUTION
Risk of Damage
To avoid damage to the power supply or the bed malfunctioning
- To prevent overheating, the power supply MUST not be covered during bed operation (i.e. pillows, blankets, etc.).
Entrapment Warning
WARNING
Risk of Injury or Damage
Proper patient assessment and monitoring, and proper maintenance and use of equipment is required to reduce the risk of
entrapment.Variations in bed rail dimensions, and mattress thickness, size or density could increase the risk of
entrapment.
- Visit the FDA website at http://www.fda.gov to learn about the risks of entrapment. Review “A Guide to Bed Safety”,
published by the Hospital Bed Safety Workgroup, located at www.invacare.com. Use the link located under each bed rail
product entry to access this bed’s safety guide.
Operating Information
WARNING
Risk of Injury or Damage
To avoid electrical damage, product damage, shock and/or personal injury:
- Keep all bed components and accessories a minimum of 12 inches away from hot or heated surfaces.
Invacare® G5510 Bed
20
Part No 1180159
3 SAFETY
Operating Information
WARNING
Risk of Injury or Damage
Continued use of the bed with damaged parts could lead to the bed malfunctioning, causing injury to the user and/or
caregiver.
- Check ALL bed components and carton for damage, and test components before use. In case of damage, or if the bed is
not working properly, sontact a qualified technician or Invacare for repair.
- Before operating the bed, detach power supply from the slat located under the bed. Keeping the power supply attached
to the slat may cause overheating resulting in the bed malfunctioning.
WARNING
Risk of Injury or Damage
To avoid pinching, crush and collapse hazards from bed deck contact with objects under the bed:
- Do not place any objects or let any individual underneath the bed or in between the raised bed frame components at any
time.
To avoid choking from small detachable parts contained underneath the bed:
- Closely supervise children, pets, or people with physical/mental disabilities.
Part No 1180159
21
Invacare® G5510 Bed
3 SAFETY
Operating Information
WARNING
Risk of Injury or Damage
To reduce the risk of electrical shock:
- When bed is not to be used for an extended period, unplug electric bed from the wall outlet.
- If a liquid is spilled in or around the electric bed, unplug the electric bed before cleaning. Clean up the spill and allow the
electric bed or the area around the electric bed to dry thoroughly before using the electric controls again.
- If the unit is not working properly or is inoperable, call a qualified technician to examine the unit and repair it.
This bed is NOT designed to be used as a patient transport.
- When transporting a patient, use an approved patient transport.
Invacare® G5510 Bed
22
Part No 1180159
3 SAFETY
Operating Information
WARNING
Risk of Injury or Damage
To avoid injury or damage when operating or moving the bed:
- Bed is only meant to be moved about patient room for cleaning or access purposes.
- Only use bed indoors
- DO NOT use near explosive gases
- ALWAYS ensure that the individual utilizing the bed is positioned properly within the confines of the bed. DO NOT let any
extremities protrude over the side or between the bed rails when performing these functions.
- Make sure head and foot sections are connected securely to the bed ends before use.
- The bed is equipped with locking casters. When transferring into or out of the bed, ALWAYS lock all 4 locking casters.
Inspect the wheel locks for correct locking action before actual use. Even with casters properly locked, some flooring
surfaces such as tile or wood, will allow the bed to move under some conditions. Use on surfaces such as these MUST be
evaluated by the care provider
To avoid injury or damage from emergency crank when motor is on:
- ALWAYS remove emergency crank(s) before performing electronic functions.
Part No 1180159
23
Invacare® G5510 Bed
3 SAFETY
WARNING
Risk of Injury or Damage
To avoid bed collapse and resulting injury or damage:
- NEVER permit more than one person on the manual/electric bed at any time.
- Evenly distribute body weight over the surface of the manual/electric bed.
- DO NOT lay, sit or lean in such a way that your entire body weight is placed only on raised head or foot sections of the
bed. This includes when repositioning or transferring into or out of bed.
- DO NOT push on raised head or foot sections of the bed.
- After this bed has been assembled, ALWAYS test to make sure that all sections of the bed are properly and securely in
place before using.
To avoid injury or damage from entanglement with bed components or bed collapse:
- Keep all moving parts, including the main frame, mattress deck, and all drive shafts, free of obstruction (i.e. blankets/sheets,
tubing, wiring, cords, etc) during operation of the bed.
Invacare® G5510 Bed
24
Part No 1180159
3 SAFETY
Pendent Operation
WARNING
Risk of Injury or Damage
A safety feature of this product includes protection against overheating caused by excessive or extended periods of
operation. Depending on the duration, this includes multiple or repeated adjustments or the use of multiple functions at
one time.
- To assure trouble free operation, ALWAYS allow a slight pause between multiple adjustments and avoid pressing more
than one function button at a time.
- If thermal protection activation should occur, the bed will not respond to pendent commands. Given this situation,
release the pendent button and allow the bed unit to sit for several minutes. This will allow the protection function time to
reset and restore bed function. Depending on the severity of the initial overheating, this could take up to 30 minutes.

Pendent is constructed of latex-free materials.
Part No 1180159
25
Invacare® G5510 Bed
3 SAFETY
Repair or Service Information
WARNING
Risk of Injury or Damage
To avoid injury or damage:
DO NOT open assemblies such as the motors, pendent, power supply or gear boxes. No user serviceable parts are inside.
Only qualified technicians are permitted to repair these parts. If unqualified individuals perform any work on these beds, the
warranty is void.
Make sure connector locking caps are properly positioned and locked to the bus cable. Otherwise, spilled liquid may get
into the electrical connection causing malfunctions to the electrical system.
DO NOT force the connector together, otherwise - injury or damage may occur.
Inspect the covering of the bed’s power supply and the patient pendent to assure that the covering is not cracked or
damaged.
After any adjustments, repair or service and before use, make sure all attaching hardware is tightened securely. Unsecured
parts could vibrate loose causing bed components to disengage causing injury and/or damage to the bed.
Replacement Parts/Accessories
DANGER
Risk of Injury or Damage
To avoid electrical shock, product damage and personal injury:
- Use masked or nasal type oxygen administering equipment only in conjunction with the electric bed. The use of
ANYother type of oxygen administering equipment can result in a fire hazard.
- Equipment not suitable for use in the presence of flammable mixtures.
Invacare® G5510 Bed
26
Part No 1180159
3 SAFETY
WARNING
Risk of Injury or Damage
ALWAYS test to make sure that the bed rails are properly and securely in place before using the bed.
DO NOT use the bed rails as push handles for moving the bed.
WARNING
Risk of Injury or Damage
- When used with an Invacare G5510 Bed, the bed rails DO NOT fall under any weight limitations. Bed rails can be
deformed or broken if excessive side pressure is exerted on the bed rails. The bed rail is not an assist rail for getting into or
out of bed. These bed rails are used for the purpose of preventing an individual from inadvertently rolling out of bed. The
bed rails are NOT intended nor may be used for restraint purposes. If an individual is capable of injuring himself/herself, a
physician or a healthcare professional should be consulted for alternative means of safe restraint.
- When using nasal or masked type oxygen administering equipment, the oxygen or air tubing MUST be routed and
secured properly to ensure that the tubing does not become entangled and/or severed during normal operation of the bed.
- Invacare recommends that the mattress be centered on the bed frame. Otherwise, individuals may become entangled
between the bed rail and the bed frame.
- Physically challenged individuals who cannot prevent themselves from rolling/climbing out of the bed may require
alternative safe means of restraint.
- Once patient assessment concludes that the patient’s condition increases the chance of entrapment, the bed MUST be in
the flat position when left unattended. The bed should be left in its lowest position when patient is left unattended in order
to reduce the risk of injury due to falls while getting into or out of bed, or while lying on the bed.
- Trapeze units MUST be positioned on a bed end as near as possible to the center point of the bed end. The trapeze is to
be used only in assisting the patient in repositioning or transferring into or out of the bed.
- NEVER allow patients to use trapeze or traction units as a total individual weight support.
Part No 1180159
27
Invacare® G5510 Bed
3 SAFETY
Weight Limitations
WARNING
Risk of Injury or Damage
To avoid injury or damage from bed collapse:
- The combined weight of the patient {350 lb. (159 kg) max patient weight}, mattress, bedding and all accessories MUST not
exceed safe working load of 450 pounds (204 kg.).
Invacare® G5510 Bed
28
Part No 1180159
3 SAFETY
Using Lifts with the G 5510 Bed
WARNING
Risk of Injury or Damage
To avoid injury or damage from crush hazard:
- Caregivers MUST be aware of the bed-floor clearance when using lifts or any other device that assists the bed user that
enters between the lowest component of the bed and the floor.
6.0 inches
Floor
Part No 1180159
Bottom of Motor Guard
29
Invacare® G5510 Bed
4 EMC INFORMATION
4 EMC Information
4.1
Electromagnetic Compatibility (EMC) Information

Medical Electrical Equipment needs special precautions regarding EMC and needs to be installed and put into service
according to the EMC information provided in this manual.
Radio Frequency Interference
WARNING
Risk of Injury or Damage
Electronic equipment may be influenced by Radio Frequency Interference (RFI).
- Caution should be exercised with regard to the use of portable communications equipment in the area around such
equipment.
- If RFI causes erratic behavior, unplug the electric bed IMMEDIATELY. Leave unplugged while transmission is in progress.
WARNINGS
Risk of Injury or Damage
The use of accessories, tranducers, and cables other than those specified by the manufacturer, may result in increased
emissions or decreased immunity of this bed.
- This bed should not be used adjacent to or stacked with other equipment and that if adjacent or stacked use is necessary,
this bed should be observed to verify normal operation in the configuration in which it will be used.
Invacare® G5510 Bed
30
Part No 1180159
4 EMC INFORMATION
Recommended separation distances between portable and mobile RF communications equipment and
the G 5510 Bed
The G 5510 Bed is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the
G 5510 Bed can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment
(transmitters) and the G 5510 Bed as recommended below, according to the maximum output power of the communications equipment.
Rated maximum output power of
transmitter
W
Separation distance according to frequency of transmitter
m
150 kHz to 80 MHz
d=1.2
80 MHz to 800 MHz
d=1.2
P
P
800 MHz to 2,5 GHz
d=2.3
0.01
.12
.12
.23
0.1
.38
.38
.73
1
1.2
1.2
2.3
10
3.8
3.8
7.3
100
12
12
23
P
For transmitters rated at a maximum output power not listed above, the recommended separation distance d in metres (m) can be estimated using the
equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) according to the
transmitter manufacturer.
NOTE 1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and
people.
Part No 1180159
31
Invacare® G5510 Bed
5 OPERATION
5 Operation
Bed End
Bed Operation and Component Overview
Head Section
Slat
Bed End
Locking Caster
Bed Frame
Foot Section
Refer to Using the Emergency Crank
on page 39
Invacare® G5510 Bed
32
Refer to Operating the
Bed on page 35
Part No 1180159
5 OPERATION
WARNING
Risk of Injury or Damage
To avoid unintentionally pressing the pendent buttons and causing injury or damage.
- DO NOT place pendent under or between objects.
WARNING
Risk of Injury or Damage
To avoid serious injury or product damage due to tripping hazards, strangulation hazards, and/or entangled, pinched, or
severed cords:
- Ensure that all cords are routed and secured properly.
WARNING
Risk of Injury or Damage
To avoid pinching, crush and collapse hazards from bed deck contact with objects under the bed:
- DO NOT place any objects or let any individual underneath the bed or in between the raised bed frame components at
anytime.
Part No 1180159
33
Invacare® G5510 Bed
5 OPERATION
CAUTION
Risk of Damage
To avoid damage from misuse:
- Bed operation is intended for a duty cycle not to exceed max 10%, max 2 min./18 min.
- Allow a slight pause between adjustments and avoid pressing multiple buttons at the same time. If pendent buttons are
depressed too rapidly or multiple buttons are pressed at the same time, the desired feature may not activate. Simply release
the pendent button, permit a slight pause and then activate the next operation.
- If a button on the pendent does not release or sticks, the bed section will not stop moving. If this occurs or any other
malfunction, unplug the bed from the electrical wall outlet.
5.1
Operation Verification

Before placing any bed into use, test it by operating it through all phases of its operation.
If any problems arise during the test, recheck all electrical connections and mechanical hook ups.
This bed uses a six function pendent for all bed operations.
This bed is equipped with an emergency crank to allow operation in the event of a power outage.
Keep power supply as close to the electrical outlet as possible.
Invacare® G5510 Bed
34
Part No 1180159
5 OPERATION
5.2
Operating the Bed

For this procedure, refer to FIGURE 1 on page 35.
To disable operation of the electric bed, lift connector cap and unplug the pendent cable from the bus cable port.
To cut power to the bed, remove the power cord plug from the electrical outlet.
Raising and Lowering the Entire Bed
•
To raise the entire bed, press the "Bed Up" button.
•
To lower the entire bed, press the "Bed Down" button.
Raising and Lowering the Head and Foot Sections
•
To raise the head of the bed, press the "Head Up" button; To lower the head of the bed, press the "Head Down" button.
•
To raise the foot of the bed, press the "Foot Up" button; To lower the foot of the bed, press the "Foot Down" button.
Head Up
Button
Head Down
Button
Bed Up
Button
Head Section
Foot Up
Button
Foot Down
Button
Bed Down
Button
Foot Section
FIGURE 1 Operating the Bed
Part No 1180159
35
Invacare® G5510 Bed
5 OPERATION
5.3
Operating the Locking Function on the Locking Caster

Locking the casters may not prevent the bed from moving on slick or slippery surfaces.
•
LOCK - Push down on the lever.
•
UNLOCK - Pull up on the lever.
Unlocked Position
Locking Caster
Locked Position
FIGURE 2 Operating the Locking Function on the Locking Caster
5.4
Electrical Connections

When installing/removing pendent cable, port cover, or power supply to bus cable, ensure that flat edge of each connector is
aligned with the flat edge of the corresponding connector.
Pendent
Connector
Pendent/Port
Cover Connection
Port Cover
Flat Edge
Invacare® G5510 Bed
Flat Edge of
Port Cover
FIGURE 3 Electrical Connections
36
Flat Edge of Pendent
Connector
Pendent
Connector
Part No 1180159
5 OPERATION
5.5
Installing/Removing Pendent and/or Port Cover

For this procedure, refer to FIGURE 4 on page 38.
Installing Pendent
1.
Plug pendent cable into bus cable port located on either right or left side (Detail “A”).

2.
Ensure connection between pendent cable and bus cable port is tight, otherwise, connector cap will not lock in place (Detail
“B”).
Lower connector cap to lock the connection in place (Detail “C”).
Removing Pendent

To disable the operation of electric beds, these models have pendents that can be removed and stored in a secure place.
1.
To disable operation of the electric bed, lift the connector cap (Detail “B”).
2.
Unplug the pendent cable from the bus cable port (Detail “A”).
Installing Port Cover
There is a port on each side of the bed for the pendent to be plugged in to that allows the pendent to be located on either side of the bed. The port
that is not being used MUST be covered using the provided port cover.
1.
In the unused port of the bus cable, install port cover (Detail “D).

2.
Ensure connection between the bus cable and port cover is tight, otherwise, connector cap will not lock in place (Detail
“E”).
Lower connector cap to lock the connection in place (Detail “F).
Removing Port Cover
1.
To remove the port cover, lift the port cover cap (Detail “E) and remove the port cover from the bus cable port.
Part No 1180159
37
Invacare® G5510 Bed
5 OPERATION
Pendent Cable
and Bus Cable
Port
PORT COVER
PENDENT
Unused Port
Bus Cable
Connector Cap
Detail “A”
Bus Cable Port
Unused Port
Detail “D”
Connector Cap
Port Cover
Pendent Cable
Detail “B”
Connector Cap
Connection MUST be
tight
Detail “C”
Detail “E”
Connector Cap
Pendent Cable Cap
Pendent Cable
Connection MUST be
tight
Bus Cable Port
Detail “F”
Connector Cap
Bus Cable Port
Port Cover
FIGURE 4 Installing/Removing Pendent and/or Port Cover
Invacare® G5510 Bed
38
Part No 1180159
5 OPERATION
5.6
Using the Emergency Crank

If the bed needs to be adjusted manually due to a power outage or an electronic malfunction, use the emergency crank to make
the adjustments.You should find the emergency crank attached to the slats. If you do not find the crank, contact your dealer.
1.
Disconnect the pendent from the bus cable.
•
Shaft of head actuator to raise/lower head section
2.
Remove the emergency crank.
•
Shaft of Gearbox to raise/lower head section
3.
Locate the exposed shaft end according to the function you want to
perform. Refer to FIGURE 5.
•
Shaft of foot actuator to raise/lower foot section.
4.
5.
Attach the emergency crank to one of the following:
Push in the emergency crank while turning it the desired direction.
Turn clockwise to raise. Turn counterclockwise to lower.
-
Emergency Crank
Foot
End
Shaft of Head Actuator
to Raise/Lower the
Head Section
To Raise/Lower
the Entire Bed
To Raise/Lower the
Foot Section
FIGURE 5 Using the Emergency Crank
Part No 1180159
39
Invacare® G5510 Bed
5 OPERATION
5.7
Optional Bed Rails
WARNING
Risk of Injury or Damage
Proper patient assessment and monitoring, and proper maintenance and use of equipment is required to reduce the risk of
entrapment. Variations in bed rail dimensions, and mattress thickness, size or density could increase the risk of entrapment.
- Visit the FDA website at http://www.fda.gov to learn about the risks of entrapment. Review “A Guide to Bed Safety”,
published by the Hospital Bed Safety Workgroup, located at www.invacare.com. Use the link located under each bed rail
product entry to access this bed’s safety guide.
Invacare® G5510 Bed
40
Part No 1180159
6 DEALER SECTION - PACKAGING, HANDLING, AND SET-UP
6 Dealer Section - Packaging, Handling, and Set-Up
WARNING
Risk of Injury or Damage
The procedures in this section MUST be performed by a qualified technician.
Any modifications to the G5510 bed are strictly prohibited.
6.1
Unpacking and Handling
CAUTION
•
Four Locking Casters
•
One Drive Shaft Assembly in two pieces.
Risk of Injury or Damage
Casters
Packaging
To avoid injury or damage from electrical shock or
misuse:
Drive Shaft
DO NOT plug the power cord into a power
source until assembly is complete. To do so could
result in damage or personal injury.
Bed
Ends
DO NOT attempt to operate bed controls prior to
completion of assembly, otherwise damage to bed
components may occur.
Carton
Unpacking the Bed Ends
1.
Remove any loose packing from the carton.
2.
Bed End carton includes:
•
Two Bed Ends - Any surface of the bed ends may be gripped
for handling except the gear box.
Part No 1180159
FIGURE 1 Unpacking the Bed Ends
41
Invacare® G5510 Bed
6 DEALER SECTION - PACKAGING, HANDLING, AND SET-UP
Unpacking Foot and Head Sections
1.
Remove any loose packing from the carton.
2.
Foot Section carton includes: One Foot End Section (electric beds include pendent, power supply with power cord, and head, foot and hi/lo
motors with cables), and one emergency crank handle. Only frame members should be gripped on the foot section for handling.
3.
Head Section carton includes: One Head End Section. Any part of the head section may be gripped for handling.
Shipping Carton
Head End
Section
Foot End Section
Insert
Shipping
Carton
Insert
Inserts
Insert
Power Supply
Pendent Cable
Insert
FIGURE 2 Unpacking Foot and Head Sections
Invacare® G5510 Bed
42
Part No 1180159
6 DEALER SECTION - PACKAGING, HANDLING, AND SET-UP
6.2
Set-Up
Assembling the Head and Foot Sections

For this procedure, refer to Assembling the Head and Foot Sections on page 44.
WARNING
DO NOT attempt to operate bed controls prior to completion of assembly as damage to bed components or personal
injury may occur.
CAUTION
DO NOT use the slats as a hand hold to assemble/disassemble or move the bed, otherwise the slats may bend resulting in
permanent damage.
1.
Remove the head section (G50) and foot section (G54) of the bed from their packing cartons.
2.
Place the head section on its side to your left so the center mounting latches are on the right.
3.
Open the head section to a 45° to 90° angle for support.
4.
Place foot section on its side to your right with the head section pull tube at the top of the assembly. The center mounting rivets should be on
the left.
Part No 1180159
43
Invacare® G5510 Bed
6 DEALER SECTION - PACKAGING, HANDLING, AND SET-UP
Head Section Pull Tube
Head Section
Foot Section
45°-90°
Center
Mounting
Rivet
Center Mounting Latch
FIGURE 3 Assembling the Head and Foot Sections

For set-up purposes, the motors on the foot section as well as the crank handles should be on your right.
5.
Place the head and foot sections approximately 90° from each other.
6.
Hook the bottom head section center mounting latch to the bottom foot section center mounting rivet (FIGURE 4).
7.
Hook the top head section center mounting latch to the top foot section center mounting rivet (FIGURE 4).

It may be necessary to lift the head section or foot section slightly to secure the mounting latches and rivets.
Invacare® G5510 Bed
44
Part No 1180159
6 DEALER SECTION - PACKAGING, HANDLING, AND SET-UP
Center Mounting
Latch
Center Mounting Latch
Center
Mounting
Rivet
Center Mounting
Rivet
FIGURE 4 Set-Up - Assembling the Head and Foot Sections
8.
After head and foot sections are connected, push the sections into a horizontal (straight) position while keeping the sections on their sides.
9.
Align mounting holes near rivet and install hex bolt and locknut. Securely tighten. Repeat for opposite side (FIGURE 5).
Foot Section
Hex Bolt
Head Section
Head Section
Foot Section
Center Mounting
Rivet
Center Mounting
Latch
Locknut
Center Mounting Rivet
Locknut
Hex Bolt
Center Mounting
Latch
FIGURE 5 Securing Head and Foot Sections Together
Part No 1180159
45
Invacare® G5510 Bed
6 DEALER SECTION - PACKAGING, HANDLING, AND SET-UP
Adjusting and Reconnecting the Head Section Pull Tube

1.
For this procedure, refer to FIGURE 6 on page 47.
To disconnect the head pull tube assembly from the side frame of the foot sections, remove the hitch pin, grommet/washer from the clevis pin
(Detail "A").
2.
Extend the inner pull tube shaft manually until the sections button "clicks" into the adjustment hole of the outer pull tube.
3.
Connect the pull tube end assembly to the lift arm of the head section as follows (Detail "B"):
A.
Insert the clevis pin into the lift arm slot.
B.
Replace the grommet/washer.
C.
Secure with hitch pin.
Invacare® G5510 Bed
46
Part No 1180159
6 DEALER SECTION - PACKAGING, HANDLING, AND SET-UP
Grommet/
Washer
Hitch Pin
DETAIL "A"
Clevis Pin
Side Frame
Hitch Pin
Head Section Pull Tube
Grommet/Washer
Outer Pull Tube Adjusting Hole
Inner Pull Tube
DETAIL “B”
Lift-Arm Slot
Clevis Pin
Nylon Washer
FIGURE 6 Adjusting and Reconnecting the Head Section Pull Tube
Part No 1180159
47
Invacare® G5510 Bed
6 DEALER SECTION - PACKAGING, HANDLING, AND SET-UP
6.3 Assembling the Bed Ends
Installing the Casters
WARNING
2.
Insert the shaft of a locking caster assembly into the caster socket
in the leg of one of the bed ends.
3.
To prevent excess movement of the bed during assembly, lock the
caster. Refer to Operating the Locking Function on the Locking
Caster on page 36
4.
Repeat STEPS 1-3 for the remaining casters.
Risk of Injury or Damage
Ensure that all four casters are locked and that the
bed does not move before transferring.
Bed End
- DO NOT transfer occupant to the bed if bed is
not stable.

1.
Shaft
Locking Caster
Floor
For this procedure, refer to FIGURE 7 on page 48.
Caster Socket
Lay the bed end flat on the floor.
FIGURE 7 Assembling the Bed Ends
Installing/Removing the Bed Ends
Installing

For this procedure, refer to FIGURE 8 on page 49.
1.
Stand one bed end as close to the head section as possible (Detail “A”).
2.
Grasp the head section, by the side, and raise it until the rivets on the corner plates of the section are high enough to place into the corner locks
on the bed end (Detail “A”).
Invacare® G5510 Bed
48
Part No 1180159
6 DEALER SECTION - PACKAGING, HANDLING, AND SET-UP
WARNING
Risk of Injury or Damage
To avoid injury or damage from crush hazard:
DO NOT place your hand between the section and the bed end while assembling the bed ends.
3.
Tilt the bed end toward the head section and place the rivets into the corner locks (Detail “A”).
4.
Return the bed end to its full upright position. The head section rivets will lock into place (Detail “A”).
5.
Repeat the same procedure for other bed end (Detail “B”).
Removing
1.
While holding the bed end at the foot of the bed, lift up on the foot section and disengage the rivets out of the corner locks (Detail “B”).
2.
Place the bed end and foot section on the ground.
3.
While holding the bed end at the head of the bed, lift up on the head section and disengage the rivets out of the corner locks (Detail “A”).
DETAIL “A”
Bed End
DETAIL “B”
Bed End
Foot Section
Head Section
Rivets
Rivets
Corner Locks
Corner Locks
FIGURE 8 Installing/Removing the Bed Ends
Part No 1180159
49
Invacare® G5510 Bed
6 DEALER SECTION - PACKAGING, HANDLING, AND SET-UP
Assembling the Drive Shaft
WARNING
Risk of Injury or Damage
DO NOT attempt to operate bed controls prior to completion of assembly as damage to bed components or personal
injury may occur.
Close the gearbox shaft covers over all gearbox shafts not in use, before placing the bed in service. Otherwise damage or
injury may occur.

For this procedure, refer to FIGURE 9 on page 51 and FIGURE 10 on page 52.
The drive shaft for the Hi/Lo function consists of two sections that are shipped unassembled. The inner shaft has a
positioning spring button, and the outer shaft has three positioning holes, one storage position hole and a telescoping end.
1.
Remove the plastic caps from each end of the drive shaft.
2.
Press spring button on the inner shaft and insert the inner shaft into the outer shaft.
3.
Engage the spring button into the third positioning hole.

A common gear box is used on both bed ends. The bottom output shaft is used at the head end and the top output shaft is
used at the foot end of the bed.
4.
Attach the inner shaft to the bottom gear box output shaft on the head end of the bed.
5.
Push in on the spring loaded end of the drive shaft and attach to the foot end of the bed as follows:
•
Attach drive shaft to the Hi/Lo motor output shaft facing head end of bed.
Invacare® G5510 Bed
50
Part No 1180159
6 DEALER SECTION - PACKAGING, HANDLING, AND SET-UP
Foot End
Head End
Head End Gear Box
Foot End Gear
Box
Drive Shaft
Positioning Holes
Inner
Shaft
First Second
Third
Spring loaded End
Storage
Spring Button
Plastic Cap
Plastic Cap
FIGURE 9 Assembling the Drive Shaft
•
Attach the Hi/Lo Motor to the foot end gear box as follows:
i.

Locate the Hi/Lo motor output shaft spring-loaded coupler.
If necessary, shift bed end to right or left to align the Hi/Lo motor output shaft spring-loaded coupler with the foot end gear box.
ii.
Ensure the Hi/Lo motor output shaft spring-loaded coupler is properly aligned with the foot end gear box as shown in Detail “A” of
FIGURE 10 on page 52.
iii.
Release the Hi/Lo motor output shaft spring-loaded coupler by pushing in against the Hi/Lo motor output shaft spring-loaded coupler
and turning clockwise.
iv.
The coupling will release and engage the foot end top gear box output shaft cross pins.
v.
Ensure that all components are securely installed.
Part No 1180159
51
Invacare® G5510 Bed
6 DEALER SECTION - PACKAGING, HANDLING, AND SET-UP
DETAIL “A”
Bed End
Hi/Lo Motor Output
Shaft Spring-Loaded Coupler
Top Gear Box
Output Drive Shaft
OUTPUT SIDE
LOCKED POSITION
Top Gear Box
Output Drive Shaft
Hi/Lo Motor Output Shaft
Drive Shaft
Drive Shaft Cover
UNLOCKED POSITION
Hi/Lo Motor
D
T EN
FOO
END
D
A
HE
INPUT SIDE
Hi/Lo Motor Output Shaft
Drive
Shaft
Gear
Box
Bottom Gear Box
Output Drive Shaft (Covered)
Hi/Lo Motor Output Shaft
Spring-Loaded Coupler
Drive Shaft Cover
Hi/Lo Motor
Output Shaft
Spring-Loaded
Coupler Shaft
Gear
Box
Input Drive Shaft
(Covered)
FIGURE 10 Assembling the Drive Shaft
Invacare® G5510 Bed
52
Part No 1180159
6 DEALER SECTION - PACKAGING, HANDLING, AND SET-UP
Inspecting the Bed
WARNING
Risk of Injury or Damage
When installing any connectors into the bus cable, be sure the connector locking cap is secure after installation - otherwise,
injury or damage may occur.

1.
All motors, power supply, connectors and wiring are located on the foot section.
Connect power supply and pendent. Each connector is labeled with its specific function.
Inspect the power supply cord and motor cables for cuts or damage to the cord and/or plug.
2.
Inspect the power supply for any damage to the connectors.
3.
Ensure that all cable plugs are connected securely.
4.
Make sure all cables are routed properly.
5.
If damage is found, contact an Invacare Customer Service Representative to report the damaged items and request appropriate replacement parts
or products
6.
Make all the electrical connections. Refer to Electrical Connections on page 36.
6.4
Electrical Connections

When installing/removing pendent cable, port cover, or power supply to bus cable, ensure that flat edge of each connector is
aligned with the flat edge of the corresponding connector.
Part No 1180159
53
Invacare® G5510 Bed
6 DEALER SECTION - PACKAGING, HANDLING, AND SET-UP
Pendent
Connector
Flat Edge
Pendent/Port
Cover Connection
Port Cover
Flat Edge of Port Cover
Flat Edge of Pendent Connector
Pendent
Connector
FIGURE 11 Electrical Connections
6.5
Installing/Removing Mattress Keepers.

Recommended location for mattress keepers in on the end slat on both sides.
Installing
1.
Position mattress keeper over end slat as shown in Detail “B”.
2.
Slide mattress keeper back until tab locks onto side rail as shown in Detail “C”.
Removing
1.
Grasp mattress keeper and lift tab up to release from side rail (Detail “B”).
2.
Slide mattress keeper off of end slat (Detail “B”).
Invacare® G5510 Bed
54
Part No 1180159
6 DEALER SECTION - PACKAGING, HANDLING, AND SET-UP
Detail “A” - Location
Detail “B”
Mattress Keeper
Mattress Keeper
Detail “C”
Mattress Keeper
Mattress Keeper
Mattress Keeper
End Slat
End Slat
Tab
End Slat
FIGURE 12 Installing/Removing Mattress Keepers.
6.6 Connect Power Supply
1.
Plug power supply into bus cable port marked power.
Power Supply
Part No 1180159
55
Bus Cable
Invacare® G5510 Bed
6 DEALER SECTION - PACKAGING, HANDLING, AND SET-UP
FIGURE 13 Connect Power Supply
6.7
Storing the Bed

For this procedure, refer to FIGURE 14 on page 57.
It is not necessary to disconnect power supply and pendent from the bus cable for storage.
If bed is not being assembled immediately, retain the cartons and packaging for storage until ready for assembly.
Store the Invacare homecare bed in a dry area.
WARNING
Risk of Injury or Damage
To avoid injury or damage from falling objects and/sor moving parts:
DO NOT place other objects on top of the cartons.
DO NOT leave pendent or power supply in the stored position (strapped to the bed) during operation.
CAUTION
Risk of Damage
To avoid damage during transport:
Power supply and pendent are intended to be stored onto slat located under support brace for protection during
transportation

1.
When performing STEP 1, the preferable slat to secure the pendent/power supply for storage is directly above the support brace.
See Detail “B” in FIGURE 14.
Coil up pendent cable and power supply cable and secure with hook and loop provided to the underside of the slat located above the support
brace bed.
Invacare® G5510 Bed
56
Part No 1180159
6 DEALER SECTION - PACKAGING, HANDLING, AND SET-UP
DETAIL “A”
Power Supply Cable
Pendent Cable
DETAIL “B”
Power Supply
Preferable location to secure power supply is this
slat above the support brace
Pendent
Support Brace
FIGURE 14 Storing the Bed
Part No 1180159
57
Invacare® G5510 Bed
7 TROUBLESHOOTING/MAINTENANCE - USER/DEALER
7 Troubleshooting/Maintenance - User/Dealer
7.1
Troubleshooting Electrical
SYMPTOM
• Electric functions do not move.
Invacare® G5510 Bed
PROBABLE CAUSE
USER SOLUTIONS
DEALER SOLUTIONS
• End of stroke reached.
• Operate opposite button.
• Operate opposite button.
• Bed not plugged in.
• Ensure power cord is plugged into
power source.
• Ensure power cord is plugged into
power source.
• Ensure motor and power supply
are plugged into bus cable.
• Pendent not functioning.
• Ensure Pendent cable not
entangled/pinched.
• Ensure Pendent cable not
entangled/pinched.
• Ensure pendent is correctly
connected to power supply. Refer
to Electrical Connections on
page 54
• Cables
• Ensure cables are not
entangled/pinched.
• Call the dealer for
repair/replacement of cables
and/or motors.
• Ensure motor cable(s) and power
supply are correctly connected.
Refer to Assembling the Drive
Shaft on page 50.
• Ensure cables are not
entangled/pinched.
• Call Invacare for instructions to
repair/replacement of cables
and/or motors.
• Household fuse or breaker
blown.
• Check household fuse/breaker
box.
N/A
58
Part No 1180159
7 TROUBLESHOOTING/MAINTENANCE - USER/DEALER
SYMPTOM
• Bed section does not move.
PROBABLE CAUSE
USER SOLUTIONS
DEALER SOLUTIONS
• Broken connector cap.
Call Dealer
• Call Invacare for instructions to
replace connector cap.
• Motors are not functioning.
• Call dealer.
• Check to make sure nothing is
blocking actuator.
• Hi/Lo Motor not
functioning.
• Ensure cables are not entangled or
pinched.
• Call dealer.
• Ensure cables are not entangled or
pinched.
• Ensure Drive shaft is correctly
installed.
• Ensure Hi/Lo motor cable is
correctly connected. Refer to
Assembling the Drive Shaft on
page 50.
• Thermal Protection
Activated.
• Allow bed unit to sit for up to 30
minutes and retry.
• Allow bed unit to sit for 30
minutes and retry.
• Bed section does not stop
moving.
• Pendent
• Check for depressed/stuck
buttons. If button is stuck, call
dealer for repair. Unplug power
cord from the wall.
• Replace pendent. Refer to
Electrical Connections on page 54.
• Bed Hi/Lo movement does not
stop.
• Defective Pendent
• Damaged Cables
• Check cables, if damaged call
dealer.
• Check cables, if damaged, replace.
Refer to Assembling the Drive
Shaft on page 50.
Part No 1180159
59
Invacare® G5510 Bed
7 TROUBLESHOOTING/MAINTENANCE - USER/DEALER
SYMPTOM
PROBABLE CAUSE
USER SOLUTIONS
• Bed is producing unusual sounds,
burning odors, or movement
deviations observed in the
controls, motors, or the limits
switch functions.
• Electrical Component Error
• Unplug power cord from the wall.
Call Dealer.
• Call Invacare for instructions.
• Intermittent motor operation
• Pushing button too quickly
• Allow a slight pause between
adjustments and avoid pressing
multiple buttons at the same time.
If pendent buttons are depressed
too rapidly or multiple buttons are
pressed at the same time, the
desired feature may not activate.
Simply release the pendent button,
permit a slight pause and then
activate the next operation.
• Call Invacare for instructions.
7.2
DEALER SOLUTIONS
Troubleshooting Mechanical
SYMPTOM
• Bed does not stay in place.
Invacare® G5510 Bed
PROBABLE CAUSE
USER SOLUTIONS
DEALER SOLUTIONS
• Casters unlocked.
• Lock Casters.
• Lock Casters.
• Locking Caster not installed
properly.
• Call Dealer
• Ensure locking casters are
installed properly. Refer to
Assembling the Bed Ends on
page 48.
60
Part No 1180159
7 TROUBLESHOOTING/MAINTENANCE - USER/DEALER
SYMPTOM
PROBABLE CAUSE
USER SOLUTIONS
DEALER SOLUTIONS
• Bed sections do not move.
• Pull tube.
• Check pull tube(s) for binding. Call
dealer for repairs.
• Ensure pull tubes are properly
connected. Refer to Adjusting
and Reconnecting the Head
Section Pull Tube on page 46.
• Bed ends move in opposite
directions.
• Drive Shaft connected to
wrong gear box shaft.
• Call dealer.
• Reinstall drive shaft. Refer to
Assembling the Drive Shaft on
page 50.
• Hi/Lo function does not work.
• Drive shaft disconnected.
• Call dealer.
• Reinstall Drive shaft. Refer to
Assembling the Drive Shaft on
page 50.
• Pressing function on pendent
results in motion other than that
intended.
• Motor cable connections are
incorrect.
• Call dealer.
• Verify Connections. Refer to
Inspecting the Bed on page 53.

Part No 1180159
For access to part numbers, see online parts book at www.invacare.com or call Invacare.
61
Invacare® G5510 Bed
8 MAINTENANCE AND CLEANING
8 Maintenance and Cleaning
WARNING
Risk of Injury or Damage
To avoid injury or damage from misuse:
- Read all general guidelines, warnings and cautions before performing any repair/maintenance on the bed.
- All repair and maintenance on the bed should be performed by a qualified technician.
Invacare recommends the following maintenance/cleaning procedures be conducted initially, between users or as needed. This form is provided as a
guide to help with documentation
8.1
Maintenance Checklist
Mechanical Inspection and Maintenance
Electrical Inspection and Maintenance
❑ Inspect rail latches. Ensure that all rails engage and lock as specified. ❑ Inspect for damaged or loose wiring. Have a qualified technician
replace any frayed or damaged cords.
❑ Lubricate rail pivot points and all mechanical hinge points, bushings,
and surface contact points as needed with white lithium grease.
❑ Inspect all electrical bed components for damage or excessive wear
(i.e. cracked or broken housings, or worn components).
❑ Inspect bed, rails, assist rails, or assist bars for the presence of
tubing end caps and replace as required.
❑ Check pendent, power and motor cords for chafing, cuts or excessive
wear.
❑ Inspect all bed components (i.e. rails, clevis pins, hitch pins, etc...)
for damage or excessive wear and replaced as necessary
❑ Make sure all plugs are fully attached and free of damage.
❑ Visually examine all welds for cracks.
❑ Make sure all connectors are properly positioned and locked
❑ Inspect the head and foot sections for bending, warping or damage. ❑ Check all functions: Head raises and lowers properly, Foot raises and
lowers properly, Bed Ends raise and lower properly.
Invacare® G5510 Bed
62
Part No 1180159
8 MAINTENANCE AND CLEANING
Mechanical Inspection and Maintenance
Electrical Inspection and Maintenance
❑ Inspect all bolts and rivets to ensure that they are securely tightened
and functioning properly.
❑ Check sleep surfaces to ensure all slats are intact.
❑ Check casters to ensure they lock, if applicable, and roll properly.
Pass/Fail
❑ PASS: Bed and all components have passed all of the above inspection criteria and the bed is ready for placement into a client’s home.
❑ FAIL: Bed, or any component, has failed any of the above inspection criteria. Tag the bed or component with a complete description of the
failure(s) and have the bed serviced.
8.2
Cleaning the Beds
WARNING
Risk of Injury or Damage
To avoid injury or damage from liquid ingress during maintenance:
- DO NOT spray water into any power supply connection ports.
- The electronic motors, power supply and pendents are protected against the entrance of dust and water when properly
attached.
- Before disassembling or washing an electric bed, disconnect the power supply from the electrical outlet.
Part No 1180159
63
Invacare® G5510 Bed
8 MAINTENANCE AND CLEANING
Washing the Bed
Connector Cap
1.
Before cleaning the bed, perform the following:
•
Ensure that the pendent cable, port cover, motor, actuators, and power supply are securely connected
to the bus cable.
•
Ensure connector cap on all connections is lowered to lock connection in place.
Connection MUST be tight
Invacare® G5510 Bed
2.
Disconnect the power supply of the bed from the electrical outlet before washing.
3.
Make sure all electrical parts are not damaged and that all connection ports are plugged.
4.
Remove the head and foot boards. Refer to Installing/Removing the Bed Ends on page 48.
5.
Inspect bed components for any exposed metal. To prevent rusting, Invacare recommends covering those
areas with touch-up paint.
6.
Disinfect and wash all components and exterior surfaces using a mild soap/detergent and soft bristle brush or
sponge. DO NOT submerge the bed frame or electrical parts.
64
Part No 1180159
8 MAINTENANCE AND CLEANING
7.
Using household water pressure only, rinse thoroughly with water (maximum temperature 110° F or 43° C).
DO NOT power wash or steam clean. DO NOT use solvents, bleach, alcohol, petroleum products, caustic
agents, or highly alkaline or acidic agents to clean the bed.
Drying the Bed
CAUTION
Risk of Damage
Dirty water may damage or stain flooring. Grease leaks can lead to a fall or fire.
- Ensure bed ends are completely drained and dry before placing on flooring.
- Inspect bed ends for leaking grease. Contact service provider if grease or other residue is detected.

Part No 1180159
1.
Tip the bed from side to side to allow any collected or trapped water to drain.
2.
3.
Thoroughly towel dry bed and all components.
Repeat drying process until all components are dry
Ensure that the bed is completely dry before storing.
65
Invacare® G5510 Bed
Usability Survey
Please complete the survey below to evaluate this manual. Your participation in the evaluation assists in the
development of effective and usable manuals for our customers. The survey is also available online:
http://www.invacare.com/TechnicalDocumentSurvey.
1.
2.
3.
Please indicate your primary involvement with the product
(Choose one):
5.
 Product User/Owner
 User Assistant
 Product Dealer
Is anything hard to locate/follow?
Are any headings missing/confusing?
Are there too many headings?
Should any material be a bulleted list or checklist instead of numbered
steps or a paragraph?
Is there material that might be clarified by a visual?
YES NO
 Product Service Technician
 Health Care Provider
 Other (Please specify):
____________________________________________________________
Please indicate which product manual you are evaluating:
____________________________________________________________
Evaluate the content:


















YES NO
Are the illustrations useful?
Do the illustrations need more or less detail?
Is the number/size of illustrations adequate?






Explain:
____________________________________________________________
____________________________________________________________
7.
Do you have suggestions for other ways of making this document easier to
use?
Explain:
____________________________________________________________
____________________________________________________________
4.
Evaluate the Warnings/Cautions:
Yes 
No 
Explain:
____________________________________________________________
Thank you for completing this survey. If you have any questions or we may be of
assistance to you, please feel free to contact us. Send your survey to:
Invacare Technical Writing Department
Invacare Corporation
One Invacare Way
Elyria, OH 44035
[email protected], FAX 440-329-6975
YES NO
Are there any warnings/cautions that you do not understand?

Are there too many warnings/cautions?

Are there warnings/cautions that you feel do not apply to this product? 




Explain:
____________________________________________________________
____________________________________________________________
6.
Evaluate the illustrations:
YES NO
After reading this document, do you have a better understanding of
how to use the product?
Do you have a better understanding of any limitations on the use of
this product?
Is there any irrelevant information?
Is the Table of Contents useful?
Does any information seem inaccurate/misleading?
Do you understand that misuse of the product can cause injury or
damage?
Evaluate the style:



Explain:
____________________________________________________________
____________________________________________________________
66
NOTES
67
Invacare Corporation
Making Life’s Experiences Possible™
USA
One Invacare Way
Elyria, Ohio USA
44036-2125
800-333-6900
www.invacare.com
Part No 1180159
Rev A - 11/15/13
Canada
570 Matheson Blvd E
Unit 8
Mississauga Ontario
L4Z 4G4 Canada
800-668-5324
Was this manual useful for you? yes no
