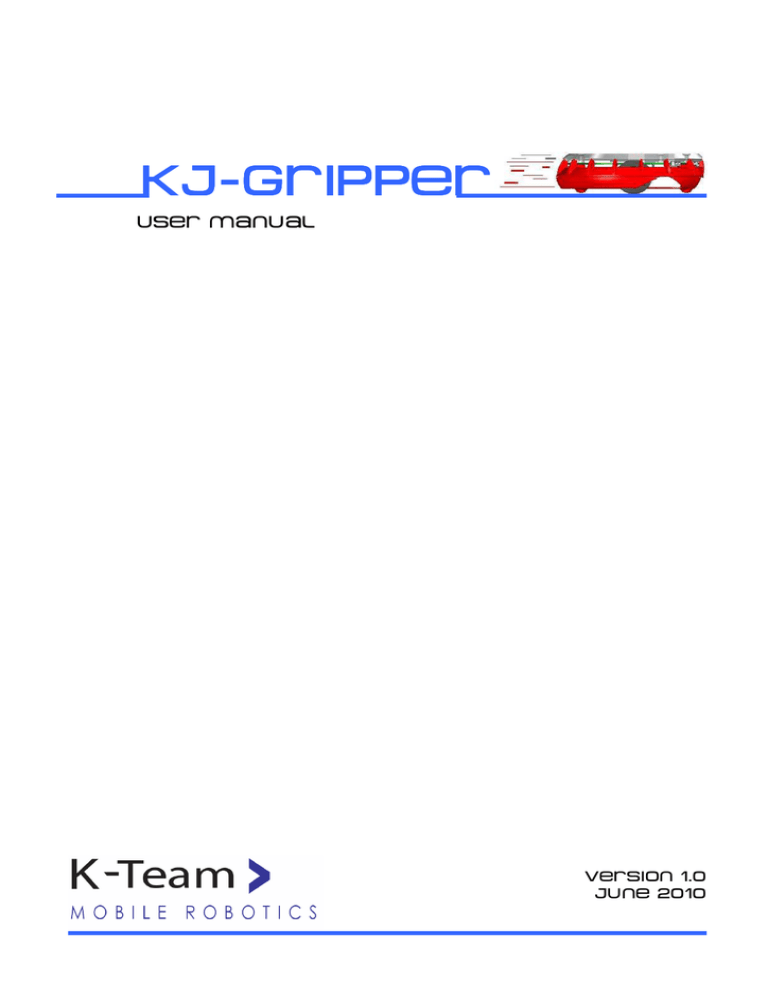

KJ-Gripper
Gripper
User manual
Version 1.0
June 2010
K-Junior Gripper User Manual rev 1.0
2
Documentation Author
Frederic Lambercy
K-Team S.A.
Rue Galilee 9, Y-Park
1400 Yverdon-les-Bains
Switzerland
Email: [email protected]
Url: www.k-team.com
Trademark Acknowledgements:
IBM PC: International Business Machines Corp.
Macintosh: Apple Corp.
SUN Sparc-Station: SUN Microsystems Corp.
LabVIEW: National Instruments Corp.
Matlab: MathWorks Corp.
K-Junior: K-Team.
LEGAL NOTICE:
•
•
•
The contents of this manual are subject to change without notice
All efforts have been made to ensure the accuracy of the content of this manual.
However, should any error be detected, please inform K-Team.
The above notwithstanding, K-Team can assume no responsibility for any error in this
manual.
K-Junior Gripper User Manual rev 1.0
3
TABLE OF CONTENTS
1
INTRODUCTION ................................................................................................. 5
1.1
1.2
1.3
1.4
2
THE K-JUNIOR GRIPPER ................................................................................. 7
2.1
2.2
2.3
2.4
2.5
2.6
3
ASSEMBLING ............................................................................................................. 11
DISASSEMBLING ........................................................................................................ 12
GRIPPER USE .................................................................................................... 13
4.1
4.2
A
OVERVIEW .................................................................................................................. 7
ARM ............................................................................................................................ 8
GRIPPER ...................................................................................................................... 8
BATTERY ..................................................................................................................... 9
I2C ADDRESS ............................................................................................................... 9
I2C REGISTER .............................................................................................................. 9
CONNECTIONS ................................................................................................. 11
3.1
3.2
4
HOW TO USE THIS HANDBOOK ..................................................................................... 5
SAFETY PRECAUTIONS ................................................................................................. 6
UNPACKING AND INSPECTION ...................................................................................... 6
RECYCLING ................................................................................................................. 6
PROGRAMMING IN C LANGUAGE ............................................................................... 13
SERIAL REMOTE CONTROL ........................................................................................ 16
TECHNICAL SPECIFICATION ...................................................................... 17
K-Junior Gripper User Manual rev 1.0
4
1 INTRODUCTION
The hardware of K-Junior is based on a modular concept. The Gripper is a turret that
can be plugged on the basic configuration making object manipulation possible. Due to
the configuration of this turret, other turrets can be plugged on the top of it, but can't be
under the Gripper. The gripper must be the first turret plugged on the K-Junior in order to
keep mechanical fixings accessible.
In order to match which each configuration, the K-Junior Gripper is available in two
different versions.
The K-Junior gripper has an additional Battery (1350mAh) to keep the autonomy of
the K-Junior unchanged when used with the Gripper (up to 3h). The charger is on board,
an external power supply is provided with the Gripper. The monitoring of the battery is
made by the CPU.
A microcontroller installed in the gripper manages local functionalities: position and
speed control of the arm and gripper, battery management and communication with the KJunior. A I2C network connects this local microcontroller to the K-Junior processor. Some
registers accessible by the I2C bus allows to control the Gripper from the main processor,
where the high level control structure can be implemented.
1.1
How to use this handbook
This manual is organised into four chapters and an appendix. To learn how to make
the best use of your gripper turret you are urged to read all of chapters 2 to 4. The
appendix can be referred to as necessary.
• Unpacking and Inspection: K-Junior Gripper’s package description and first start-up
• The K-Junior Gripper: Description of all the gripper’s functionalities
• Connections: Explanation on how to connect (or disconnect) the gripper to the robot
• Gripper use: Instructions to program the gripper using the high level function or
access directly to the gripper registers.
K-Junior Gripper User Manual rev 1.0
5
1.2
Safety precautions
Here are some recommendations on how to correctly use the K-Junior Robot:
• Don't force mechanical movements of the gripper! Movements of the gripper
mechanical parts have to be controlled ONLY by software. Forcing arm or gripper
(open or close) movements can damage the gripper mechanics!
• Keep out from the wet places! A contact with water can made a short circuit and
damage the electronics.
• Use only the official charger or the cable which is delivered with the Gripper.
Do not try to use another charger; this can cause irreversible damage to the battery.
• Don't plug or unplug any connector or turret when the robot is powered! All
connections and turret insertions must be made when the robot and the interface
are switched OFF. Otherwise damages can occur.
• Never leave the K-Junior powered when it is unused. When you have finished
working with K-Junior, turn it off. It will save the battery life
1.3
Unpacking and inspection
Please check that you have a complete package. You should find:
• Documentation
• The Gripper Turret with a Battery pack
• External power supply to charge the onboard battery
• Two screws to fix the Gripper on the K-Junior
1.4
Recycling
Think about the end of life of your robot! Parts of the robot can be recycled and it is
important to do so. It is for instance important to keep batteries out of the solid waste
stream. When you throw away a battery, it eventually ends up in a landfill or municipal
incinerator. These batteries, which contain Lithium Polymer, can contribute to the toxicity
levels of landfills or incinerator ash. By recycling the batteries through recycling
programs, you can help to create a cleaner and safer environment for generations to come.
For those reasons please take care to the recycling of your robot at the end of its life cycle,
for instance sending back the robot to the manufacturer or to your local dealer.
Thanks for your contribution to a cleaner environment!
K-Junior Gripper User Manual rev 1.0
6
2 The K-Junior Gripper
2.1
Overview
Figure 2.1: Overview of the Gripper turret layout
Make an external inspection of the turret. Note the location of the following parts:
1.
Main Support
2.
Screws to fix on the robot
3.
Power input connector
4.
Charge Led
5.
Additional battery
6.
Extension connectors
7.
Power on Led
8.
ON/OFF switch
9.
Reset button
10.
Arm
11.
Gripper
12.
Foam grip
K-Junior Gripper User Manual rev 1.0
7
2.2
Arm
The arm makes the displacement of the gripper possible. The movement of the arm
allows to grab object in front of the Robot, and takes it above. This allows the Robot to
keep its mobility and all sensors free of obstacle.
The arms is moved by a DC servo motor which is control by a local microcontroller to
allows the user to set every position he wants. The movement can be done at the
maximum speed, or with a speed regulation to avoid the lurching of the Robot. Different
speed can be adjust to match with the application. When you have a heavy load, you must
set a slower speed to avoid the lurching of the robot.
The maximum load that can carry the gripper is approximately 30g. The arm can be
moved between the position 0 "LOW position"(arm in the lowest position to grab object)
and 7000 "TOP position"(arm above the robot against the end stop).
A special mode (active by default) turn off the servo of the arm when it reach the TOP
position (between 5600-7000) or the LOW position (0-250). This will increase the battery
autonomy when the arm is in stable position.
2.3
Gripper
The gripper is installed at the end of the arm with two foam grip which allows to grab
different size and form of object. The user can choose the exact position of the gripper
between the maximal open position (5100 = where the gripper will form a angle of 180
degrees) and the closest position (0 = where each foam will touch the other). The maximal
size of an object is about 70mm, and the minimal size is about 1mm.
The user can know the exact position of the gripper only when there's no object
grabbed. When you grab an object, the servo will try to reach the closed position but
cannot reach it (because of the object between the two foam). This will make the
tightening.
If you know the size of your object, you can adjust the closed position to the object
size. This will allows you to limit the tightening torque, and then limit the current in the
motor (to increase the battery autonomy).
A special mode (active by default) turn off the servo of the Gripper when it reach the
Open position (between 2300-5100). This will increase the battery autonomy when the
Gripper is open.
K-Junior Gripper User Manual rev 1.0
8
2.4
Battery
An additional battery is included in the Gripper to increase the autonomy of the
Gripper and the K-Junior. This is a LiPol Battery with a capacity of 1350mAh . A external
power supply adapter (5V - 1.4A) is deliver with the Deluxe package to charge the gripper
Battery. A complete charge take approximately 3 hours. Please be sure that the gripper
and the K-Junior are turn off. Otherwise, the charge process can be much longer.
2.5
I2C Address
The K-Junior Robot control the Gripper through an I2C bus. The turret address is
defined by 7 bits + 1 bit for the mode selection "write" or "read"
1 0 0 1 0 1 1 R/W
The Gripper I2C address is 0x97 in "read" mode and 0x96 in "write mode".
2.6
I2C Register
Many different register allows the user to configure and use the Gripper
I2C Address
Reading
Writing
0x30
0x31
0x32
0x33
0x34
0x35
0x36
0x37
0x38
0x39
Firmware Version
Read the position of the Arm
0x3A
Read the Gripper speed value
0x3B
Read the Arm turn off flag
0x3C
Read the Gripper turn off flag
0x3D
0x3E
0x3F
Read the Battery voltage
Do Nothing, read only
Set the Arm position without speed control
(0-7000)
Set the Gripper position without speed control
(0-5100)
Set the Arm consign to reach a position
with speed control
Set the Gripper consign to reach a position
with speed control
Set the Arm speed value for speed control
(0-255)
Set the Gripper speed value for speed control
(0-255)
Configure the Arm turn off mode
(0 = disable, 1 = active)
Configure the Gripper turn off mode
(0 = disable, 1 = active)
Do Nothing, read only
Read the Battery remaining capacity
Do Nothing, read only
Read the position of the Gripper
Read the order of the Arm
Read the order of the Gripper
Read the Arm speed value
All the 16bits register (Position, Consign, Voltage,...) must be read or write through
the LSB byte first.
K-Junior Gripper User Manual rev 1.0
9
2.6.1 Firmware Version register
This register return the version and revision of the Gripper turret
2.6.2 Position Register (Arm and Gripper)
Reading: This register return the real position of the Arm (or the gripper). The returned
value is proportional to the angle of the Arm (or the Gripper). Where 0 is the "LOW position"
for the Arm and "closed position" for the Gripper. And the maximum position is 7000 for the
Arm and 5100 for the Gripper.
Writing: Setting this register will change the position of the Arm or the Gripper. The servo
will immediately move to the position without speed control. Warning, move too fast can
make the K-Junior lurching.
2.6.3 Order register (Arm and Gripper)
Reading: This register return the previous order of position value which was set by the
user.
Writing: Setting this register will told to the turret to move the Arm or the Gripper to the
desired position with a speed control (see Speed Register).
2.6.4 Speed Register
Reading: Read the value of the desired speed of the Arm or the Gripper. 0 is the slowest
and 255 the fastest.
Writing: Configure the speed to reach when a move is made with speed control.
2.6.5 Voltage Register
Read the value of the battery voltage (only Deluxe version, return 0 on LE version). This
value must be converted as following to obtain the real voltage value:
Voltage Re gister
Voltage[V ] =
•5
1024
2.6.6 Available Remaining Capacity
Return the Available Remaining Capacity in percent of the battery (only Deluxe version).
The calculation of this value is made on the voltage of the battery, so this value is not
guarantee to be exact. This is just an evaluation of the battery.
K-Junior Gripper User Manual rev 1.0
10
3
Connections
Assembling and disassembling additional turret is a delicate operation. Try to avoid it as
much as possible and perform it carefully. Please follow the following instructions to avoid
damage to your modules. K-Team can assume no responsibility for any damage caused by
improper manipulation
3.1
Assembling
Assembling is quite easy, but it also necessary to perform it carefully:
• First of all choose the parameters of the K-Junior robot and set the switches if
necessary.
• Assemble the Gripper turret on the K-Junior directly in two steps: First, place the
module on the extension connector checking that all pins are seated correctly.
Second, apply force to insert the turret into the extension connector.
• Screw the two screws provided with the gripper on the fixings (see number 8 fig
2.1)
• If you have any other extension, plug it on the Gripper as usual.
• Turn on the Gripper switch and finally turn on the K-Junior
Figure 3.1: Gripper mounted on the K-Junior.
DO NOT try to connect the Gripper on other connector or in another position. This
could damage the Gripper turret and the K-Junior.
K-Junior Gripper User Manual rev 1.0
11
3.2
Disassembling
For the disassembling, be careful that the Gripper and the Robot must be turned OFF.
• Unscrew the two fixing screws.
• Then take the robot with one hand and the gripper with the other, and pull vertically to
avoid to twist the connector pins and broke the connector.
K-Junior Gripper User Manual rev 1.0
12
4
Gripper Use
There's two different way to control the Gripper on the K-Junior Robot :
• Programming the K-Junior in C language, using the library of the KJiOs
• Serial remote control (using labview, MatLab, or any other application with a serial
protocol).
4.1
Programming in C language
To program the K-Junior with the C language, you must have the CCS compiler. You can
buy directly at K-Team a limited version of the compiler to use only with the microcontroller
of the K-Junior. Please read first the K-Junior Os manual (http://ftp.k-team.com/KJunior/KJOSManual.doc ) to find all necessary information about the installation of CCS and
the use of the KJOs.
• Download now the last version of the KJiOS and the Gripper Library on our website.
• Open the KJOs project with CCS
4.1.1 void HemGripper_Init(void)
Function :
Gripper Initialization. This function must be called at the beginning of each
program using the Gripper.
Example :
HemGripperInit();
4.1.2 char HemGripper_Read_Version(void)
Function :
Read the firmware version.
Example :
char Version; Version = HemGripperReadVersion();
4.1.3 unsigned int16 HemGripper_Read_Arm_Position(void)
Function :
read the position of the Arm (0-7000)
Example :
unsigned int16 ArmPosition; ArmPosition = HemGripperReadArmPosition();
4.1.4 unsigned int16 HemGripper_Read_Gripper_Position(void)
Function :
read the position of the Gripper (0-5100)
Example :
unsigned int16 GripperPosition; GripperPosition =
HemGripperReadGripperPosition();
4.1.5 unsigned int16 HemGripper_Read_Arm_Consign(void)
Function :
Read the position Consign of the Arm
Example :
unsigned int16 ArmConsign; ArmConsign = HemGripperReadArmConsign();
K-Junior Gripper User Manual rev 1.0
13
4.1.6 unsigned int16 HemGripper_Read_Gripper_Consign(void)
Function :
Read the position Consign of the Gripper
Example :
unsigned int16 GripperConsign; GripperConsign =
HemGripperReadGripperConsign();
4.1.7 unsigned char HemGripper_Read_Arm_Speed(void)
Function :
Read the speed for the Arm movement
Example :
unsigned char ArmSpeed; ArmSpeed = HemGripperReadArmSpeed();
4.1.8 unsigned char HemGripper_Read_Gripper_Speed(void)
Function :
Read the speed for the Gripper movement
Example :
unsigned char GripperSpeed; GripperSpeed = HemGripperReadGripperSpeed();
4.1.9 unsigned char HemGripper_Read_Arm_Disable(void)
Function : Read the flag which indicate if the Arm servo must be turn off or not when it
reached a stable position
Example :
unsigned char ArmDisableFlag; ArmDisableFlag =
HemGripperReadArmDisable();
4.1.10 unsigned char HemGripper_Read_Gripper_Disable(void)
Function : Read the flag which indicate if the Gripper servo must be turn off or not when it
reached a stable position
Example :
unsigned char GripperDisableFlag; GripperDisableFlag =
HemGripperReadGripperDisable();
4.1.11 unsigned int16 HemGripper_Read_Battery_Voltage(void)
Function :
Read the value of the battery voltage
Example :
unsigned int16 BatteryVoltage BatteryVoltage =
HemGripperReadBatteryVoltage();
4.1.12 unsigned char HemGripper_Read_Battery_Capacity(void)
Function :
Read the value of the available remaining capacity of the battery
Example :
unsigned char Capacity Capacity = HemGripperReadBatteryCapacity();
4.1.13 void HemGripper_Set_Arm_Position( unsigned int16 value )
Function : Set the new position of the arm. The servo will reach this position as fast as
possible
Example :
HemGripperSetArmPosition(3500);
K-Junior Gripper User Manual rev 1.0
14
4.1.14 void HemGripper_Set_Gripper_Position(unsigned int16 value)
Function : Set the new position of the gripper. The servo will reach this position as fast as
possible
Example :
HemGripperSetGripperPosition(100);
4.1.15 void HemGripper_Set_Arm_Consign( unsigned int16 value )
Function :
Set the consign of the arm. The Arm will reach this position with the defined
speed
Example :
HemGripperSetArmConsign(2000);
4.1.16 void HemGripper_Set_Gripper_Consign( unsigned int16 value )
Function :
Set the consign of the Gripper. The Gripper will reach this position with the
defined speed
Example :
HemGripperSetGripperConsign(4000);
4.1.17 void HemGripper_Set_Arm_Speed( unsigned char value )
Function :
Set the speed consign for the movement of the arm.
Example :
HemGripperSetArmSpeed(100);
4.1.18 void HemGripper_Set_Gripper_Speed( unsigned char value )
Function :
Set the speed consign for the movement of the Gripper.
Example :
HemGripperSetGripperSpeed(100);
4.1.19 void HemGripper_Arm_Disable( unsigned char value )
Function :
Configure if the Arm must turn off its motors once a stable position is reached.
Example :
HemGripperArmDisable(1);
4.1.20 void HemGripper_Gripper_Disable( unsigned char value )
Function :
Configure if the Gripper must turn off its motors once a stable position is
reached.
Example :
HemGripperGripperDisable(0);
Remember : to use these functions, you must first include the Gripper library in the
beginning of your source code: #include "HemGripper.h" (the file must be in the same
directory of course)
K-Junior Gripper User Manual rev 1.0
15
4.2
Serial Remote Control
From the K-Junior firmware version A-01, you can access to the I2C modules through the
serial protocol. If you have an older version of firmware, you can update it by downloading
the last version on our website. Please have a look at the last K-Junior User Manual to learn
more about the serial protocol. Example :
•
R,97,00 : Read the Gripper Firmware version
This property can be use with any software which have a serial communication protocol,
like sysquake, Matlab,...
K-Junior Gripper User Manual rev 1.0
16
A
Technical Specification
•
•
•
•
•
•
Weight : 200 [g]
Power Supply : 5 [V]
Maximum payload: 30[g]
Minimum object size: 1[mm]
Maximum object size: 70[mm]
Autonomy: up to 3 hours
K-Junior Gripper User Manual rev 1.0
17
K-Junior Gripper User Manual rev 1.0
18
K-Junior Gripper User Manual rev 1.0
19
K-Team S.A.
Rue Galilee 9
1400 Yverdon-les-bains
Switzerland
K-Junior Gripper User Manual rev 1.0
20
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
