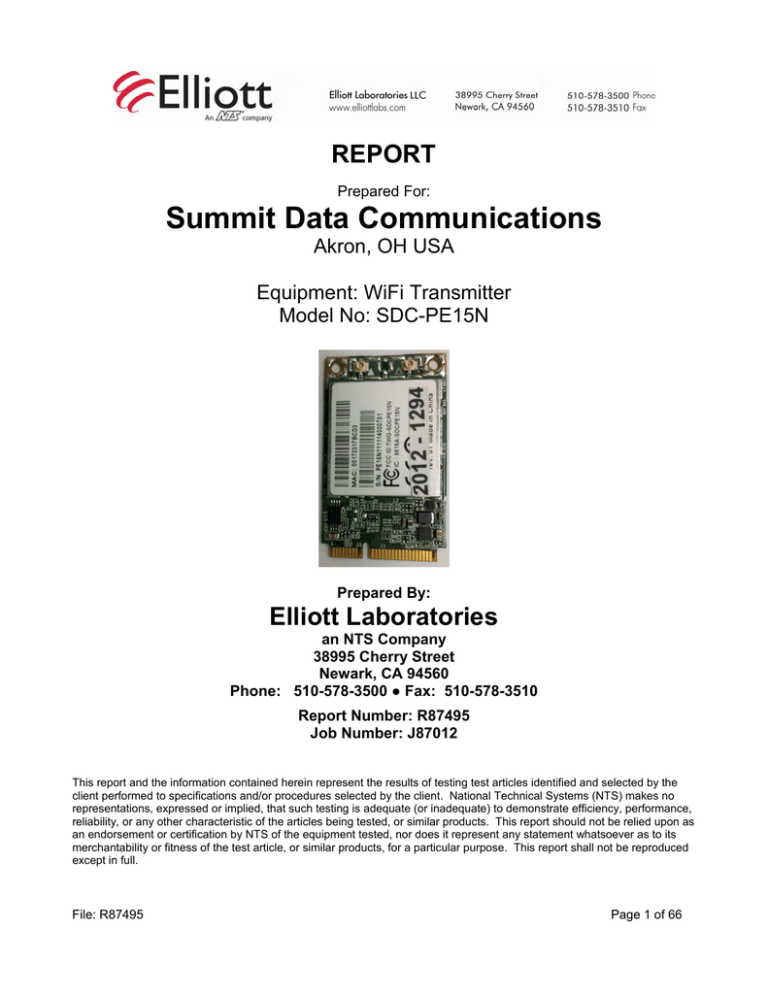

REPORT

Prepared For:

Summit Data Communications

Akron, OH USA

Equipment: WiFi Transmitter

Model No: SDC-PE15N

Prepared By:

Elliott Laboratories

an NTS Company

38995 Cherry Street

Newark, CA 94560

Phone: 510-578-3500 ● Fax: 510-578-3510

Report Number: R87495

Job Number: J87012

This report and the information contained herein represent the results of testing test articles identified and selected by the client performed to specifications and/or procedures selected by the client. National Technical Systems (NTS) makes no representations, expressed or implied, that such testing is adequate (or inadequate) to demonstrate efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article, or similar products, for a particular purpose. This report shall not be reproduced except in full.

File: R87495 Page 1 of 66

Elliott Laboratories an NTS Company Report Date:

June 4, 2012

EUT: Summit Data Communications SDC-PE15N

TABLE OF CONTENTS

Table of Contents _______________________________________________________________________ 2

REVISION SUMMARY ___________________________________________________________________ 3

REPORT SUMMARY

____________________________________________________________________ 4







FINDINGS SUMMARY

___________________________________________________________________ 6

EVALUATION CHECKLIST

_______________________________________________________________ 7

TEST REPORT __________________________________________________________________ 8

IEC 60950-1 Information technology equipment – Safety – _________________________________ 8









ATTACHMENTS

_______________________________________________________________________ 52

PHOTOGRAPHS

________________________________________________________________ 56

AGENCY APPROVAL LICENSES AND COMPONENT SPECIFICATIONS

___________________ 58

INSTALLATION INSTRUCTIONS

___________________________________________________ 59









SCHEMATIC DIAGRAMS AND SPECS

______________________________________________ 61

APPENDICES

_________________________________________________________________________ 62

APPENDIX A - CE MARK REQUIREMENTS

__________________________________________ 63

APPENDIX B - SAMPLE DECLARATION OF CONFORMITY

_____________________________ 64







APPENDIX C - SAMPLE RESOLUTION OF NON-COMPLIANCES

_________________________ 65

END OF REPORT _____________________________________________________________________ 66







File: R87495 Page 2 of 66

Elliott Laboratories an NTS Company Report Date:

June 4, 2012

EUT: Summit Data Communications SDC-PE15N

REVISION SUMMARY

The following is a list of revisions that have been made to the report.

Document History

Revision Issue Date

June 4, 2012

Affected Pages Description Of Modifications

Initial Release

Revised By

NOTE: Latest revisions to report are identified by Bold Double Underlined Font.

File: R87495 Page 3 of 66

Elliott Laboratories an NTS Company

EUT: Summit Data Communications SDC-PE15N

Report Date:

June 4, 2012

REPORT SUMMARY

PREPARED FOR

Summit Data Communications

Akron, OH

USA

STANDARD

TITLE

EN 60950-1: 2006

+A11:2009 & A1:2010

Job Number: J87012

Report Number: R87495

Information Technology Equipment – Safety – Part 1: General

Requirements

Date of Issue: June 4, 2012

Revision Date: N/A

TESTING LABORATORY’S INFORMATION TEST LOCATION INFORMATION

Name:

Address:

Phone:

Fax:

Elliott Laboratories, LLC

38995 Cherry Street

Elliott Laboratories, LLC

38995 Cherry Street

Newark, CA 94560 Newark, CA 94560

510-578-3500 510-578-3500

510-578-3510 510-578-3510

Test Engineer

Product Safety Engineer

Reviewed By:

___________________________ ___________________________

Noel Lovato Roberto Pasos

Product Safety Engineer

___________________________

Gary Izard

Quality Assurance Representative

MANUFACTURER’S INFORMATION

Name:

Address:

Summit Data Communications

526 South Main St, Suite 805

Akron, OH 44311

USA

Equipment:

Model Name:

WiFi Transmitter

SDC-PE15N

Contact:

Phone:

Fax:

Sue White

330-434-7929

330-434-7931

File: R87495 Page 4 of 66

Elliott Laboratories an NTS Company Report Date:

June 4, 2012

EUT: Summit Data Communications SDC-PE15N

Overview

The Summit Data Communications models SDC-PE15N is a Wi-Fi transmitter designed to transmit data signals between various electronic products. The EUT would typically be connected to a portable data device.

Model Similarities and Differences

NA

Ratings:

Model

Electrical Ratings:

Volts Amps Hz

Dimensions:

(L x W x H cm)

Equipment

Mobility:

SDC-PE15N 3.3 - - 5.0 x 3.0 x .3 For building in

Operating

Condition:

Protection

Class:

Enclosure

Protection

Rating:

External Power Supply

Electrical Ratings:

Volts Amps Hz

Continuous

GENERAL INFORMATION REGARDING THE REPORT FORMAT

Non-compliance: A summary of non-compliances identified in this report is located in the Findings

Summary section of this report.

Resolution of Non-compliance: All resolutions to the non-compliances listed in this report are to be

addressed by the manufacturer and included as part of the technical file maintained for this product.

CONCLUSION

The purpose of this report is to demonstrate compliance with accepted standards for product safety and as proof of compliance to the EU’s Low Voltage Directive. Subsequent pages give the details of this investigation.

This report is based on the following standards: EN 60950-1:2006 A11:2009 A1:2010. The wording of the requirements listed in this test report are provided for reference and informational purposes only and should not be considered a precise transcription of the standard as adopted by CENELEC. In case of doubt, reference should be made to the aforementioned standard.

File: R87495 Page 5 of 66

Elliott Laboratories an NTS Company

EUT: Summit Data Communications SDC-PE15N

Report Date:

June 4, 2012

FINDINGS SUMMARY

The Findings Summary is a summary of the discrepancies and non-compliances to the aforementioned standard(s). The requirement and its section number corresponding to the standard are given for each item. The Observations include a brief description of why we believe the product is not in compliance as well as recommendations on how to rectify the issue(s).

Item No. Section Requirements & Observations

1.

File: R87495 Page 6 of 66

Elliott Laboratories an NTS Company

EUT: Summit Data Communications SDC-PE15N

Report Date:

June 4, 2012

EVALUATION CHECKLIST

File: R87495 Page 7 of 66

Elliott Laboratories an NTS Company Report Date:

June 4, 2012

EUT: Summit Data Communications SDC-PE15N

Test Report issued under the responsibility of:

Elliott Laboratories

TEST REPORT

EN 60950-1

Information technology equipment – Safety –

Part 1: General requirements

Report Number. .............................. : R87495

Date of issue .................................... : June 4, 2012

Total number of pages ...................... 66

CE Testing Laboratory .................. : Elliott Laboratories an NTS Company

Address ............................................ : 38995 Cherry Street, Newark, CA 94560

Applicant’s name ........................... : Summit Data Communications

Address ............................................ : 526 South Main St, Suite 805, Akron, OH 44311

Address ............................................ : 526 South Main St, Suite 805, Akron, OH 44311

Test specification:

Standard .......................................... : EN 60950-1:2006 (2nd Edition); A11:2009 & A1:2010

Test procedure ................................. : CE Scheme

Non-standard test method…………..: N/A

Test Report Form No. .................... : IEC60950_1B

Test Report Form(s) Originator ........ : SGS Fimko Ltd

Master TRF ...................................... : Dated 2010-04

Copyright © 2010 Worldwide System for Conformity Testing and Certification of Electrotechnical

Equipment and Components (IECEE), Geneva, Switzerland. All rights reserved.

This publication may be reproduced in whole or in part for non-commercial purposes as long as the IECEE is acknowledged as copyright owner and source of the material. IECEE takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context.

If this Test Report Form is used by non-IECEE members, the IECEE/IEC logo and the reference to the CB

Scheme procedure shall be removed.

This report is not valid as a CB Test Report unless signed by an approved CB Testing Laboratory and appended to a CB Test Certificate issued by an NCB in accordance with IECEE 02.

Test item description ..................... :

WiFi Transmitter

Trade Mark ....................................... :

Manufacturer .................................... : Summit

Model/Type reference ...................... : SDC-PE15N

Ratings ............................................. : 3.3 V DC

File: R87495 Page 8 of 66

Elliott Laboratories an NTS Company

EUT: Summit Data Communications SDC-PE15N

Testing procedure and testing location:

CE Testing Laboratory: NTS

Testing location/ address ........................... : 38995 Cherry Street

Newark CA 94560

USA

Associated CB Laboratory:

Testing location/ address ........................... :

Tested by (name + signature) .......... :

Approved by (name + signature) ...... :

Testing location/ address ........................... :

Tested by (name + signature) .......... :

Approved by (name + signature) ...... :

Testing location/ address ........................... :

Tested by (name + signature) .......... :

Witnessed by (name + signature) .... :

Approved by (name + signature) ...... :

Testing location/ address ........................... :

Tested by (name + signature) .......... :

Approved by (name + signature) ...... :

Supervised by (name + signature) ... :

Testing location/ address ........................... :

Tested by (name + signature) .......... :

Approved by (name + signature) ...... :

Supervised by (name + signature) ... :

Report Date:

June 4, 2012

File: R87495 Page 9 of 66

Elliott Laboratories an NTS Company Report Date:

June 4, 2012

EUT: Summit Data Communications SDC-PE15N

List of Attachments (including a total number of pages in each attachment):

Summary of testing:

CE Report No. R77970 (EN60950-1 2001) was provided for review. The test data was reviewed for compliance with new requirements and noted in this report.

Tests performed (name of test and test clause):

4.5 Heating

Testing location:

Elliott Labs

684 W Maude Ave

Sunnyvale CA 94585

USA

Summary of compliance with National Differences

List of countries addressed:

NA

The product fulfils the requirements of EN60950-1:2006 + A11:2009 & A1: 2010.

File: R87495 Page 10 of 66

Elliott Laboratories an NTS Company Report Date:

June 4, 2012

EUT: Summit Data Communications SDC-PE15N

Copy of marking plate

The artwork below may be only a draft. The use of certification marks on a product must be authorized by the respective NCBs that own these marks.

(Additional requirements for markings. See 1.7 NOTE)

Test item particulars .................................................. :

Equipment mobility .................................................... :

[] movable [] hand-held [] transportable

[] stationary [x] for building-in [] direct plug-in

Connection to the mains ........................................... : [] pluggable equipment [] type A [] type B

[] permanent connection

[] detachable power supply cord

[] non-detachable power supply cord

[x] not directly connected to the mains

Operating condition ................................................... : [x] continuous [] rated operating / resting time:

Access location ........................................................ : [x] operator accessible [] restricted access location

Over voltage category (OVC) ................................... : [] OVC I [] OVC II [] OVC III [] OVC IV [x] other:

Mains supply tolerance (%) or absolute mains supply values ....................................................................... :

N/A

Tested for IT power systems .................................... : [] Yes [x] No

IT testing, phase-phase voltage (V) ......................... : N/A

Class of equipment .................................................. : [] Class I [] Class II [x] Class III [] Not classified

Considered current rating of protective device as part of the building installlation (A) .................................. :

N/A

Pollution degree (PD) ............................................... : [] PD 1 [x] PD 2 [] PD 3

IP protection class .................................................... : NA

Altitude during operation (m) .................................... : 0-2000

Altitude of test laboratory (m) ................................... : 4

Mass of equipment (kg) ............................................ : <.05

Possible test case verdicts:

- test case does not apply to the test object ................. : NA (or N)

File: R87495 Page 11 of 66

Elliott Laboratories an NTS Company

EUT: Summit Data Communications SDC-PE15N

Report Date:

June 4, 2012

Testing .......................................................................... :

Date of receipt of test item ............................................ : 04/04/2012

Date(s) of performance of tests .................................... : NA

General remarks:

The test results presented in this report relate only to the object tested.

This report shall not be reproduced, except in full, without the written approval of the Issuing testing laboratory.

"(see Enclosure #)" refers to additional information appended to the report.

"(see appended table)" refers to a table appended to the report.

Throughout this report a comma / point is used as the decimal separator.

Manufacturer’s Declaration per sub-clause 6.2.5 of IECEE 02:

The application for obtaining a CB Test Certificate includes more than one factory location and a declaration from the Manufacturer stating that the samples submitted for evaluation are representative of the products from each factory has been provided ...... :

Yes

Not applicable

When differences exist; they shall be identified in the General product information section.

Conditions of Acceptability

• The input power to be provided by an SELV source.

• A suitable enclosure to be provided.

Name and address of factory (ies) ........................... :

526 South Market, Suite 407

Akron, OH USA

General product information:

The Summit Data Communications models SDC-PE15N is a Wi-Fi transmitter designed to transmit data signals between various electronic products. The device would typically be connected to a portable data device.

Abbreviations used in the report:

- normal conditions

- functional insulation

NC

OP

- double insulation DI

- between parts of opposite polarity BOP

Indicate used abbreviations (if any)

- single fault conditions

- basic insulation

- reinforced insulation

- supplementary insulation

SFC

BI

SI

RI

File: R87495 Page 12 of 66

Elliott Laboratories an NTS Company

EUT: Summit Data Communications SDC-PE15N

Clause Requirement + Test

1 GENERAL

Report Date:

Result - Remark

June 4, 2012

Verdict

1.5 Components

1.5.1 General

Comply with IEC60950-1 or relevant component standard

1.5.2

1.5.3

1.5.4

1.5.5

Evaluation and testing of components

Thermal controls

Transformers

Interconnecting cables

1.5.6

1.5.7

1.5.7.1

1.5.7.2

1.5.7.3

1.5.8

Capacitors bridging insulation

Resistors bridging insulation

Resistors bridging functional, basic or supplementary insulation

Resistors bridging double or reinforced insulation between AC mains and other circuits

Resistors bridging double or reinforced insulation between AC mains and antenna or coaxial cable

Components in equipment for IT power systems

1.5.9.1 General

1.5.9.2

1.5.9.3

1.5.9.4

1.5.9.5

Protection of VDRs

Bridging of functional insulation by a VDR

Bridging of basic insulation by a VDR

Bridging of supplementary, double or reinforced insulation by a VDR

(see appended tables 1.5.1)

None used

No transformers used

No interconnecting cables

None used

None used

P

P

P

P

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

1.6.1

1.6.2

1.6.3

AC power distribution systems

Input current

Voltage limit of hand-held equipment

Not mains powered

SELV consideration

To be considered in end product

Not mains connected

P

NA

P

NA

1.6.4

1.7

1.7.1

Neutral conductor

Marking and instructions

Power rating and identification markings

NA

P

NA Not required. Information for reference only

NA

File: R87495 Page 13 of 66

Elliott Laboratories an NTS Company

EUT: Summit Data Communications SDC-PE15N

Report Date:

June 4, 2012

Clause Requirement + Test Result - Remark Verdict

1.7.3

1.7.4

1.7.5

1.7.6

Multiple mains supply connections..........................:

Rated voltages or voltage ranges (V) ................... :

Symbol for nature of supply, for DC only ............... :

Rated frequency or rated frequency range (Hz) ... :

Manufacturer’s name or trade-mark or identification mark:

Model identification or type reference ................... :

Symbol for Class II equipment only ...................... :

1.7.2

Other markings and symbols ................................ :

Safety instructions and marking

1.7.2.1 General

1.7.2.3

1.7.2.4

1.7.2.5

Overcurrent protective device

IT power distribution systems

Operator access with a tool

1.2.7.6 Ozone

Short duty cycles

Supply voltage adjustment ................................... :

Methods and means of adjustment; reference to installation instructions ......................................... :

Power outlets on the equipment .......................... :

Fuse identification (marking, special fusing characteristics, cross-reference) .......................... :

NA

NA

NA

NA

NA

P

P

Not class II

P

NA

Stated in user manual

NA

P

NA

NA

Not for IT power distribution systems

NA

NA

NA

NA

Not for short duty cycles NA

NA

NA

None provided NA

NA

1.7.7.1

1.7.7.2

1.7.7.3

1.7.8.2

1.7.8.3

1.7.8.4

Protective earthing and bonding terminals .......... :

Terminals for AC mains supply conductors

Terminals for DC mains supply conductors

Colours ................................................................ :

Symbols according to IEC 60417 ........................ :

Markings using figures ....................................... :

No controls or indicators relied upon

NA

NA

NA

NA

NA

NA

NA

NA

NA

File: R87495 Page 14 of 66

Elliott Laboratories an NTS Company

EUT: Summit Data Communications SDC-PE15N

Clause

1.7.9

1.7.10

1.7.12

1.7.14

2

2.1

2.1.1

2.1.1.1

2.1.1.2

2.1.1.3

2.1.1.4

Requirement + Test

Isolation of multiple power sources ..................... :

Thermostats and other regulating devices ......... :

1.7.11 Durability

Removable parts

Equipment for restricted access locations ........... :

PROTECTION FROM HAZARDS

Protection from electric shock and energy hazards

Protection in operator access areas

Access to energized parts

Test by inspection ................................................. :

Test with test finger (Figure 2A) ............................ :

Test with test pin (Figure 2B) ................................ :

Test with test probe (Figure 2C) ........................... :

Battery compartments

Access to ELV wiring

Working voltage (Vpeak or Vrms); minimum distance through insulation (mm)

Access to hazardous voltage circuit wiring

Report Date:

June 4, 2012

Result - Remark

No removable parts

Not for restricted access locations

NA

NA

NA Class III equipment. No hazardous voltage within equipment.

Internally mounted, no access NA

NA

No batteries used

No ELV NA

NA

NA

NA

NA

Verdict

NA

NA

NA

NA

NA

NA

2.1.1.6

2.1.1.7

2.1.1.8

2.1.2

2.1.3

File: R87495

Manual controls

Discharge of capacitors in equipment

Measured voltage (V); time-constant (s) ................ :

Energy hazards – DC mains supply a) Capacitor connected to the DC mains supply ....... : b) Internal battery connected to the DC mains supply :

Protection in service access areas

Protection in restricted access locations

Class III equipment

No energy hazards

No manual controls

NA

NA

NA

NA

Not mains connected

NA

NA

NA

None used NA

NA

NA

P

Page 15 of 66

Elliott Laboratories an NTS Company

EUT: Summit Data Communications SDC-PE15N

Clause Requirement + Test

2.2.2

2.2.3

2.2.4

2.3.1

2.3.2

2.3.2.2

2.3.2.3

2.3.2.4

2.3.4

Voltages under normal conditions (V) ................... :

Voltages under fault conditions (V) ....................... :

Connection of SELV circuits to other circuits ...... :

Limits

Type of TNV circuits............................................... :

Separation from other circuits and from accessible parts

Protection by basic insulation

Protection by earthing

Protection by other constructions ......................... :

Connection of TNV circuits to other circuits

Report Date:

Result - Remark

Only SELV to SELV

No TNV used

June 4, 2012

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

Verdict

P

P

P

P

2.3.5 Test for operating voltages generated externally

2.4

2.4.1

Limited current circuits

General requirements

2.4.3

2.5

File: R87495

Measured circuit capacitance (nF or µF) ............... :

Connection of limited current circuits to other circuits

Limited power sources (see appended table 2.5) a) Inherently limited output b) Impedance limited output c) Regulating network limited output under normal operating and single fault condition d) Overcurrent protective device limited output

Max output voltage (V), max output current (A), max apparent power (VA) .............................................. :

Not a limited current circuit

NA

NA

NA

NA

Not a limited power source

NA

NA

NA

NA

NA

Page 16 of 66

Elliott Laboratories an NTS Company

EUT: Summit Data Communications SDC-PE15N

Clause Requirement + Test

Current rating of overcurrent protective device (A) .:

Use of integrated circuit (IC) current limiters

Report Date:

Result - Remark

(See Annex CC)

June 4, 2012

Verdict

2.6

2.6.3

2.6.3.2

2.6.3.3

Provisions for earthing and bonding

Protective earthing and protective bonding conductors

2.6.3.1 General

Size of protective earthing conductors

Rated current(A), cross-sectional area(mm

2

), AWG:

Size of protective bonding conductors

Rated current(A), cross-sectional area(mm

2

), AWG:

Class III equipment

NA

NA

NA

NA

NA

NA

NA

Protective current rating (A), cross-sectional area

(mm

2

), AWG ........................................................... :

2.6.3.4

2.6.3.5

Resistance of earthing conductors and their terminations; resistance (

Ω), voltage drop (V), test current (A), duration (min) ......................................................... :

Colour of insulation ................................................ :

2.6.4 Terminals

NA

NA

NA

2.6.4.1 General

2.6.4.2 Protective earthing and bonding terminals

2.6.4.3

NA

NA

Rated current (A), type, nominal thread diameter (mm):

Separation of the protective earthing conductor from protective bonding conductors

NA

2.6.5

2.6.5.1

2.6.5.2

Integrity of protective earthing

Interconnection of equipment

Components in protective earthing conductors and protective bonding conductors

NA

NA

NA

2.6.5.3

2.6.5.4

Disconnection of protective earth

Parts that can be removed by an operator

NA

NA

2.6.5.5 Parts removed during servicing NA

NA

NA 2.6.5.7 Screws for protective bonding

2.6.5.8 Reliance on telecommunication network or cable distribution system

NA

2.7

File: R87495

Overcurrent and earth fault protection in primary circuits

NA

Page 17 of 66

Elliott Laboratories an NTS Company

EUT: Summit Data Communications SDC-PE15N

Report Date:

June 4, 2012

Clause Requirement + Test

2.7.2

2.7.4

2.7.5

2.7.6

Result - Remark

Instructions when protection relies on building installation

Faults not simulated in 5.3.7

Number and location of protective devices ........... :

Protection by several devices

Warning to service personnel ................................ :

No primary circuits

Verdict

NA

NA

NA

NA

NA

NA

NA

2.8.1 General principles

Protection against extreme hazard

2.8.6 Overriding

2.8.7 Switches, relays and their related circuits

2.8.7.1 Separation distances for contact gaps and their related circuits (mm) ......................................................... :

None used

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

2.8.7.4 Electric strength test

NA

NA

NA

NA

2.9.1

2.9.3

Properties of insulating materials

Relative humidity (%), temperature (°C) ............... :

Grade of insulation

Certified materials used

NA

NA

NA

NA

NA

2.10 Clearances, creepage distances and distances through insulation

2.10.1 General

File: R87495

Degree 2 used

P

P

NA

P

Page 18 of 66

Elliott Laboratories an NTS Company

EUT: Summit Data Communications SDC-PE15N

Report Date:

June 4, 2012

Clause Requirement + Test Result - Remark Verdict

2.10.1.3

2.10.3.3

2.10.3.4

2.10.3.5

Reduced values for functional insualtion

2.10.1.5 Insulation with varying dimensions

2.10.1.6 Special separation requirements

2.10.1.7

2.10.2

Insulation in circuits generating starting pulses

Determination of working voltage

2.10.2.1 General

2.10.2.2 RMS working voltage

2.10.2.3

2.10.3

Peak working voltage

Clearances

2.10.3.1 General

2.10.3.2 Mains transient voltages a) AC mains supply ............................................... : b) Earthed DC mains supplies .............................. : c) Unearthed DC mains supplies .......................... : d) Battery operation .............................................. :

Clearances in primary circuits

Clearances in secondary circuits

Clearances in circuits having starting pulses

No special requirements

No starting pulses

SELV source with no upconverting transformers in use

Only functional required

Only functional required

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

P

NA

NA

NA

NA

NA

NA

NA

NA

2.10.3.6 Transients from AC mains supply ......................... :

2.10.3.7 Transients from DC mains supply ......................... :

Not mains connected

Not mains connected

NA

NA

2.10.3.8 Transients from telecommunication networks and cable distribution systems .............................................. :

NA

2.10.3.9 Measurement of transient voltage levels a) Transients from a mains suplply

2.10.4

For an AC mains supply ....................................... :

For a DC mains supply ......................................... : b) Transients from a telecommunication network :

Creepage distances Functional used

NA

NA

NA

NA

NA

NA

2.10.4.1 General

2.10.4.2 Material group and caomparative tracking index

NA

NA

: to be used

2.10.4.3 Minimum creepage distances

File: R87495

No mimimum distances

NA

Page 19 of 66

Elliott Laboratories an NTS Company

EUT: Summit Data Communications SDC-PE15N

Report Date:

June 4, 2012

Clause Requirement + Test Result - Remark Verdict

2.10.5.1 General

2.10.5.2

2.10.5.3

2.10.5.5. Cemented joints

2.10.5.6 Thin sheet material – General

2.10.5.7 Separable thin sheet material

Number of layers (pcs)........................................... :

2.10.6

2.10.6.1

2.10.6.2

Distances through insulation

Insulating compound as solid insulation

- Basic insulation not under stress ........................ :

- Supplemetary, reinforced insulation ................... :

Construction of printed boards

Uncoated printed boards

Coated printed boards

No minimum requried for functional

None used

Not used

Not used

NA

NA

NA

2.10.5.8 Non-separable thin sheet material

2.10.5.9 Thin sheet material – standard test procedure

Electric strength test

Not used NA

NA

Electric strength test

2.10.5.11 Insulation in wound components

2.10.5.12 Wire in wound components

Wound components not used a) Basic insulation not under stress ...................... : b) Basic, supplemetary, reinforced insulation ....... :

Two wires in contact inside wound component; angle between 45

° and 90° ............................................ :

NA

2.10.5.13 Wire with solvent-based enamel in wound components Solvent-based enamel not used NA

Electric strength test

NA

NA

NA

NA

NA

NA

NA

Routine test

2.10.5.14 Additional insulation in wound components Not used

Certified boards used

Coated boards not used

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

File: R87495 Page 20 of 66

Elliott Laboratories an NTS Company

EUT: Summit Data Communications SDC-PE15N

Report Date:

June 4, 2012

Clause Requirement + Test Result - Remark Verdict

2.10.6.3

Insulation between conductors on the same inner surface of a printed board

2.10.6.4 Insulation between conductors on different layers of a printed board

Distance through insulation

2.10.7

2.10.8

Number of insulation layers (pcs) .......................... :

Component external terminations

Tests on coated printed boards and coated components

2.10.8.1 Sample preparation and preliminary inspection

2.10.8.3 Electric strength test

2.10.8.4 Abrasion resistance test

2.10.9 Thermal cycling

2.10.10

Test for Pollution Degree 1 environment and insulating compound

2.10.11 Tests for semiconductor devices and cemented joints

2.10.12 Enclosed and sealed parts

NA

NA

No external terminations

No coated boards used

No thermal cycling

Not degree 1

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

No enclosed / sealed parts used NA

3 WIRING, CONNECTIONS AND SUPPLY

3.1 General

3.1.1

3.1.2

Current rating and overcurrent protection

Protection against mechanical damage

3.1.3

3.1.4

3.1.5

3.1.6

3.1.7

3.1.8

3.1.9

Securing of internal wiring

Insulation of conductors

Beads and ceramic insulators

Screws for electrical contact pressure

Insulating materials in electrical connections

Self-tapping and spaced thread screws

Termination of conductors

10 N pull test

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

3.2

3.2.1

3.2.1.1

3.2.1.2

File: R87495

Connection to a mains supply

Means of connection

Connection to an AC mains supply

Connection to a DC mains supply

NA

No connection to mains supply NA

NA

NA

Page 21 of 66

Elliott Laboratories an NTS Company

EUT: Summit Data Communications SDC-PE15N

Report Date:

Clause Requirement + Test

3.2.2

3.2.3

3.2.5

3.2.5.1

Result - Remark

Multiple supply connections

Permanently connected equipment

Number of conductors, diameter of cable and conduits

(mm) ...................................................................... :

Power supply cords

AC power supply cords

June 4, 2012

Verdict

NA

NA

3.2.5.2

3.2.6

3.2.7

3.2.9

Rated current(A), cross-sectional area(mm

DC power supply cords

Cord anchorages and strain relief

Diameter or minor dimension D(mm); test mass(g):

Radius of curvature of cord (mm) .......................... :

Supply wiring space

2

), AWG:

Mass of equipment (kg), pull (N) .......................... :

Protection against mechanical damage

NA

NA

NA

NA

NA

NA

NA

NA

3.3

3.3.1

3.3.2

3.3.4

3.3.5

3.3.6

3.3.7

3.4

3.4.1

Wiring terminals for connection of external conductors

Wiring terminals

Connection of non-detachable power supply cords

No external conductors

NA

NA

NA

NA

NA

Conductor sizes to be connected

Rated current (A), cord/cable type, cross-sectional area (mm

2

) ............................................................. :

Wiring terminal sizes

Rated current(A), type, nominal thread diameter(mm)

Wiring terminal design

Grouping of wiring terminals

Disconnection from the mains supply

General requirement

NA

NA

NA

NA

NA

No connection to mains supply NA

NA

File: R87495 Page 22 of 66

Elliott Laboratories an NTS Company

EUT: Summit Data Communications SDC-PE15N

Clause Requirement + Test

3.4.3

3.4.4

3.4.5

3.4.6

3.4.7

3.4.8

3.4.9

Permanently connected equipment

Parts which remain energized

Switches in flexible cords

Number of poles - single-phase and DC equipment

Number of poles - three-phase equipment

Switches as disconnect devices

Plugs as disconnect devices

3.4.11

3.5

3.5.1

3.5.2

3.5.3

3.5.4

Multiple power sources

Interconnection of equipment

General requirements

Types of interconnection circuits .......................... :

ELV circuits as interconnection circuits

Data ports for additional equipment

4.1 Stability

Angle of 10

°

Test force (N) ........................................................ :

4.2.1

4.2.2

4.2.3

4.2.4

General

Rack-mounted equipment.

Steady force test, 10 N

Steady force test, 30 N

Steady force test, 250 N

4.2.6

4.2.7

4.2.8

4.2.9

File: R87495

Drop test; height (mm) .......................................... :

Stress relief test

Cathode ray tubes

Picture tube separately certified ........................... :

High pressure lamps

Report Date:

June 4, 2012

Result - Remark Verdict

NA

NA

NA

NA

NA

NA

NA

NA

NA

No interconnection

NA

NA

NA

NA

NA

NA

NA

NA

NA

No enclosure provided

Not rack mounted

None used

No high pressure lamps

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

Page 23 of 66

Elliott Laboratories an NTS Company

EUT: Summit Data Communications SDC-PE15N

Report Date:

June 4, 2012

Clause Requirement + Test

4.2.10

4.2.11

Wall or ceiling mounted equipment; force (N) ...... :

Rotating solid media

Test to cover on the door…………………………….:

Result - Remark Verdict

NA

NA

NA

4.3

4.3.1

4.3.2

4.3.3

4.3.4

4.3.5

4.3.6

Design and construction

Edges and corners

Handles and manual controls; force (N) ............. :

Adjustable controls

Securing of parts

Connection by plugs and sockets

Direct plug-in equipment

None provided

No adjustable controls

NA

NA

NA

NA

P

NA

NA

4.3.7

Compliance with the relevant mains plug standard:

Heating elements in earthed equipment None used

NA

NA

4.3.8 Batteries

4.3.9

4.3.10

4.3.11

- Overcharging of a rechargeable battery

- Unintentional charging of a non-rechargeable battery

- Reverse charging of a rechargeable battery

- Excessive discharging rate for any battery

Oil and grease

Dust, powders, liquids and gases

Containers for liquids or gases

None used

Quantity of liquid (l) .............................................. :

Flash point (

4.3.13.1 General

°C) .................................................... :

4.3.13 Radiation

NA

NA

NA

No oil or grease exposure

No such exposure

No containers used

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

Measured focus voltage (kV) ............................... :

CRT markings ...................................................... :

4.3.13.3 Effect of ultraviolet (UV) radiation on materials No ultraviolet used

NA

File: R87495 Page 24 of 66

Elliott Laboratories an NTS Company

EUT: Summit Data Communications SDC-PE15N

Clause Requirement + Test

Part, property, retention after test, flammability classification ......................................................... :

4.3.13.4 Human exposure to ultraviolet (UV) radiation ...... :

4.3.13.5 Lasers (including laser diodes) and LEDs

Report Date:

Result - Remark

June 4, 2012

Verdict

NA

4.3.13.5.2 Light emitting diodes (LEDs)

4.3.13.6 Other types .......................................................... :

No lasers used

NA

NA

NA

NA

4.4

4.4.1

4.4.2

4.4.3

4.4.4

4.4.5

Protection against hazardous moving parts

General

Protection in operator access areas .................... :

Household and home/office document/media shredders

Protection in restricted access locations ............. :

Protection in service access areas

Protection against moving fan blades

4.4.5.1 General

Not considered to cause pain or injury. a)………….:

Is considered to cause pain, not injury. b) …………:

Considered to cause injury. c) …………:

4.4.5.2 Protection for users

Use of symbol or warning ……………………………:

Use of symbol or warning ……………………………:

No moving parts

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

4.5.1 General

4.5.3

4.5.4

4.5.5

4.6.1

File: R87495

Normal load condition per Annex L ...................... :

Temperature limits for materials

Touch temperature limits

Resistance to abnormal heat ............................... :

Top and side openings

Dimensions (mm) ................................................. :

(see appended table 4.5)

P

NA

NA

P

P

P

NA

NA

Page 25 of 66

Elliott Laboratories an NTS Company

EUT: Summit Data Communications SDC-PE15N

Report Date:

June 4, 2012

Clause Requirement + Test

4.6.2

4.6.3

4.6.4

4.6.4.1

4.6.4.2

4.6.4.3

4.6.5

Bottoms of fire enclosures

Construction of the bottomm, dimensions (mm) .. :

Doors or covers in fire enclosures

Openings in transportable equipment

Constructional design measures

Dimensions (mm) ................................................. :

Evaluation measures for larger openings

Use of metallized parts

Adhesives for constructional purposes

Conditioning temperature (

°C), time (weeks) ....... :

Result - Remark

No enclosure provided

Verdict

NA

NA

NA

NA

NA

NA

NA

4.7

4.7.1

Resistance to fire

Reducing the risk of ignition and spread of flame

Method 1, selection and application of components wiring and materials

Method 2, application of all of simulated fault condition tests

4.7.2

4.7.2.1

Conditions for a fire enclosure

Parts requiring a fire enclosure

4.7.2.2 Parts not requiring a fire enclosure

4.7.3 Materials

4.7.3.1 General

4.7.3.2 Materials for fire enclosures

4.7.3.3

4.7.3.4

Materials for components and other parts outside fire enclosures

Materials for components and other parts inside fire enclosures

4.7.3.5

4.7.3.6

Materials for air filter assemblies

Materials used in high-voltage components

P

P

P

NA

To be evaluated in end product NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

5

5.1

ELECTRICAL REQUIREMENTS AND SIMULATED ABNORMAL CONDITIONS

Touch current and protective conductor current

5.1.1 General No mains connection or protective conductor used

5.1.2

5.1.2.1

Configuration of equipment under test (EUT)

Single connection to an a.c. mains supply

NA

NA

NA

NA

NA

File: R87495 Page 26 of 66

Elliott Laboratories an NTS Company

EUT: Summit Data Communications SDC-PE15N

Report Date:

June 4, 2012

Clause Requirement + Test Result - Remark Verdict

5.1.2.2

5.1.2.3

5.1.4

Redundant multiple connections to an AC mains supply

Simultaneous multiple connections to an AC mains supply

Application of measuring instrument

Supply voltage (V) ................................................ :

Measured touch current (mA) .............................. :

Measured protective conductor current (mA) ...... :

Max. allowed protective conductor current (mA) .. :

NA

NA

NA

NA

NA

NA

5.1.7 Equipment with touch current exceeding 3,5 mA

5.1.7.1 General ................................................................ :

5.1.7.2 Simultaneous multiple connections to the supply

5.1.8 Touch currents to telecommunication networks and cable distribution systems and from telecommunication networks

NA

NA

NA

NA

5.1.8.1 Limitation of the touch current to a telecommunication network or to a cable distribution system

Supply voltage (V) ................................................ :

NA

5.1.8.2

Measured touch current (mA) .............................. :

NA Summation of touch currents from telecommunication networks a) EUT with earthed telecommunication ports ..... : b) EUT whose telecommunication ports have no reference to protective earth

NA

NA

5.2.1 General

To be evaluated in end product

NA

NA

NA

5.3

5.3.1

Abnormal operating and fault conditions

NA

Protection against overload and abnormal operation

To be evaluated in end product

NA

5.3.2 Motors

5.3.3 Transformers

NA

NA

File: R87495 Page 27 of 66

Elliott Laboratories an NTS Company

EUT: Summit Data Communications SDC-PE15N

Report Date:

June 4, 2012

Clause Requirement + Test Result - Remark Verdict

5.3.7 Simulation of faults

NA

NA

NA

NA

NA

NA 5.3.9

5.3.9.1

5.3.9.2

Compliance criteria for abnormal operating and fault conditions

During the tests

After the tests

NA

NA

6

6.1

6.1.1

6.1.2

CONNECTION TO TELECOMMUNICATION NETWORKS

Protection of telecommunication network service persons, and users of other equipment connected to the network, from hazards in the equipment

Protection from hazardous voltages

Separation of the telecommunication network from earth

6.1.2.1 Requirements

Supply voltage (V) ................................................ :

Current in the test circuit (mA) ........................... :

6.1.2.2 Exclusions ............................................................ :

NA

NA

NA

NA

NA

NA

6.2

6.2.1

6.2.2

Protection of equipment users from overvoltages on telecommunication networks

Separation requirements

Electric strength test procedure

No connection to TNV

Protection of the telecommunication wiring system from overheating

Max. output current (A) ........................................ : No TNV connection

NA

NA

NA

NA

NA

NA

6.3

NA

7 CONNECTION TO CABLE DISTRIBUTION SYSTEMS

7.1 General Not for cable distribution system

7.2

NA

NA

NA

7.3

Protection of cable distribution system service persons, and users of other equipment connected to the system, from hazardous voltages in the equipment

Protection of equipment users from overvoltages on the cable distribution system

NA

File: R87495 Page 28 of 66

Elliott Laboratories an NTS Company

EUT: Summit Data Communications SDC-PE15N

Clause Requirement + Test

7.4

Insulation between primary circuits and cable distribution systems

7.4.1 General

7.4.2 Voltage surge test

A

A.1

A.1.2

A.1.3

A.1.4

A.2

A.2.2

A.2.3

A.2.4

Report Date:

Result - Remark

June 4, 2012

Verdict

NA

NA

NA

NA

ANNEX A, TESTS FOR RESISTANCE TO HEAT AND FIRE

Flammability test for fire enclosures of movable equipment having a total mass exceeding 18 kg, and of stationary equipment (see 4.7.3.2)

No enclosure evaluation

Wall thickness (mm) .............................................. :

NA

NA

NA

Conditioning of samples; temperature (

°C) ......... :

Mounting of samples ............................................ :

Test flame (see IEC 60695-11-3)

Flame A, B, C or D ............................................... :

Sample 1 burning time (s) ..................................... :

NA

NA

NA

NA

Sample 2 burning time (s) ..................................... :

Sample 3 burning time (s) ..................................... :

Flammability test for fire enclosures of movable equipment having a total mass not exceeding 18 kg, and for material and components located inside fire enclosures (see

4.7.3.2 and 4.7.3.4)

NA

Wall thickness (mm) .............................................. :

Conditioning of samples; temperature (°C) ......... :

Mounting of samples ............................................ :

Test flame (see IEC 60695-11-4)

Flame A, B or C ................................................... :

Sample 1 burning time (s) ..................................... :

Sample 2 burning time (s) ..................................... :

Sample 3 burning time (s) ..................................... :

NA

NA

NA

NA

NA

File: R87495 Page 29 of 66

Elliott Laboratories an NTS Company

EUT: Summit Data Communications SDC-PE15N

Clause Requirement + Test

A.2.7

A.3

A.3.1

Alternative test acc. to IEC 60695-11-5, cl. 5 and 9

Sample 1 burning time (s) ..................................... :

Sample 2 burning time (s) ..................................... :

Sample 3 burning time (s) ..................................... :

Hot flaming oil test (see 4.6.2)

Mounting of samples

Report Date:

Result - Remark

June 4, 2012

Verdict

NA

NA

NA

NA

NA

B

B.1

B.4

B.6

B.6.1 General

B.6.3

B.6.4

ANNEX B, MOTOR TESTS UNDER ABNORMAL CONDITIONS (see 4.7.2.2 and 5.3.2)

General requirements No motors

Position ................................................................ :

Rated values ....................................................... :

Running overload test

Electric strength test: test voltage (V) .................. :

Running overload test for DC motors in secondary circuits

Alternative test procedure

Electric strength test; test voltage (V) .................. :

B.7 Locked-rotor overload test for DC motors in secondary circuits

B.7.1 General

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

B.7.3

B.7.4

B.8

B.9

Alternative test procedure

Electric strength test; test voltage (V) ................. :

Test for motors with capacitors

Test for three-phase motors

NA

NA

NA

NA

NA

NA

File: R87495 Page 30 of 66

Elliott Laboratories an NTS Company

EUT: Summit Data Communications SDC-PE15N

Clause

B.10

C

Requirement + Test

Test for series motors

ANNEX C, TRANSFORMERS (see 1.5.4 and 5.3.3)

Position ................................................................ :

Rated values ....................................................... :

Method of protection ............................................. :

Report Date:

Result - Remark

No transformers used

June 4, 2012

C.2 Insulation

Protection from displacement of windings ............ :

D

D.1

D.2

ANNEX D, MEASURING INSTRUMENTS FOR TOUCH-CURRENT TESTS (see 5.1.4)

Measuring instrument

Alternative measuring instrument

No touch current tested

Verdict

NA

NA

NA

NA

NA

NA

NA

NA

E

F

ANNEX E, TEMPERATURE RISE OF A WINDING (see 1.4.13)

ANNEX F, MEASUREMENT OF CLEARANCES AND CREEPAGE DISTANCES

(see 2.10 and Annex G)

NA

NA

G

G.1

ANNEX G, ALTERNATIVE METHOD FOR DETERMINING MINIMUM CLEARANCES

Clearances

G.1.1 General

G.1.2 Summary of the procedure for determining minimum clearances

Alternative method not used

NA

NA

NA

NA

G.2

G.2.1

G.2.2

Determination of mains transient voltage (V)

AC mains supply .................................................. :

Earthed DC mains supplies ................................. :

NA

NA

NA

G.2.3

G.2.4

G.3

G.4

G.4.1

G.4.2

Unearthed DC mains supplies ............................. :

Battery operation .................................................. :

Determination of telecommunication network transient voltage (V) ............................................................ :

Determination of required withstand voltage (V)

Mains transients and internal repetitive peaks .... :

Transients from telecommunication networks ..... :

NA

NA

NA

NA

NA

NA

File: R87495 Page 31 of 66

K

K.1

K.2

K.3

K.4

K.5

K.6

H

J

G.4.4

G.5

G.6

Elliott Laboratories an NTS Company

EUT: Summit Data Communications SDC-PE15N

Clause Requirement + Test

Report Date:

Transients from cable distribution systems

Measurement of transient voltages (V) a) Transients from a mains supply

For an AC mains supply

For a DC mains supply b) Transients from a telecommunication network

Determination of minimum clearances ................ :

Result - Remark

ANNEX H, IONIZING RADIATION (see 4.3.13)

ANNEX J, TABLE OF ELECTROCHEMICAL POTENTIALS (see 2.6.5.6)

Metal(s) used ....................................................... :

June 4, 2012

Verdict

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

ANNEX K, THERMAL CONTROLS (see 1.5.3 and 5.3.8)

Making and breaking capacity No thermal controls

Thermostat reliability; operating voltage (V) ........ :

Thermostat endurance test; operating voltage(V) :

Temperature limiter endurance; operating voltage(V):

Thermal cut-out reliability

Stability of operation

NA

NA

NA

NA

NA

NA

NA

L

L.1

L.2

ANNEX L, NORMAL LOAD CONDITIONS FOR SOME TYPES OF ELECTRICAL

BUSINESS EQUIPMENT (see 1.2.2.1 and 4.5.2)

Typewriters

Adding machines and cash registers

L.3 Erasers

Not such a device

L.5 Duplicators and copy machines

L.7 Other business equipment

M ANNEX M, CRITERIA FOR TELEPHONE RINGING SIGNALS (see 2.3.1)

M.1 Introduction

M.2 Method A

File: R87495

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

Page 32 of 66

Elliott Laboratories an NTS Company

EUT: Summit Data Communications SDC-PE15N

Clause Requirement + Test

M.3.1.1 Frequency (Hz) .................................................... :

M.3.1.4 Single fault current (mA) ...................................... :

M.3.2 Tripping device and monitoring voltage ............... :

M.3.2.1 Conditions for use of a tripping device or a monitoring voltage

Report Date:

June 4, 2012

Result - Remark Verdict

NA

NA

NA

NA

NA

N

N.1

N.2

P

Q

ANNEX N, IMPULSE TEST GENERATORS (see 1.5.7.2, 1.5.7.3, 2.10.3.9, 6.2.2.1,

7.3.2, 7.4.3 and Clause G.5)

ITU-T impulse test generators

IEC 60065 impulse test generator

No impulses generated

ANNEX P, NORMATIVE REFERENCES

ANNEX Q, Voltage dependent resistors (VDRs) (see 1.5.9.1)

a) Preferred climatic categories ........................... : NOT USED c) Pulse current .................................................... :

R

R.1

R.2

S

ANNEX R, EXAMPLES OF REQUIREMENTS FOR QUALITY CONTROL PROGRAMS

Minimum separation distances for unpopulated coated printed boards (see 2.10.6.2)

Reduced clearances (see 2.10.3)

Not relied upon

ANNEX S, PROCEDURE FOR IMPULSE TESTING (see 6.2.2.3)

Examples of waveforms during impulse testing S.3

T ANNEX T, GUIDANCE ON PROTECTION AGAINST INGRESS OF WATER (see 1.1.2)

See separate test report

U ANNEX U, INSULATED WINDING WIRES FOR USE WITHOUT INTERLEAVED

INSULATION (see 2.10.5.4)

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

File: R87495 Page 33 of 66

Elliott Laboratories an NTS Company

EUT: Summit Data Communications SDC-PE15N

Report Date:

Clause Requirement + Test Result - Remark

V ANNEX V, AC POWER DISTRIBUTION SYSTEMS (see 1.6.1)

V.1 Introduction Not for power distribution systems

V.2 TN power distribution systems

June 4, 2012

Verdict

NA

NA

NA

W

W.1

X

X.1

X.2

Y

Y.2

ANNEX W, SUMMATION OF TOUCH CURRENTS

Touch current from electronic circuits

W.2 Interconnection of several equipments

W.2.1 Isolation

W.2.2

W.2.3

Common return, isolated from earth

Common return, connected to protective earth

ANNEX X, MAXIMUM HEATING EFFECT IN TRANSFORMER TESTS (see clause C.1)

Determination of maximum input current

Overload test procedure

No touch currents in systems

No transformers

ANNEX Y, ULTRAVIOLET LIGHT CONDITIONING TEST (see 4.3.13.3)

No ultraviolet used

Mounting of test samples ..................................... :

Y.4

Z

AA

Xenon-arc light exposure apparatus .................... :

ANNEX Z, OVERVOLTAGE CATEGORIES (see 2.10.3.2 and Clause G.2)

ANNEX AA, MANDREL TEST (see 2.10.5.8)

NA

NA

BB ANNEX BB, CHANGES IN THE SECOND EDITION

CC ANNEX CC, Evaluation of integrated circuit (IC) current limiters

CC.1 General

CC.2

CC.3

Test program 1……………………………………….:

Test program 2……………………………………….:

NA

NA

NA

NA

DD

DD.1

DD.2

DD.3

File: R87495

ANNEX DD, Requirements for the mounting means of rack-mounted equipment

General Not rack mounted

Mechanical strength test, variable N………………..:

Mechanical strength test, 250N, including end stops:

NA

NA

NA

NA

Page 34 of 66

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

Elliott Laboratories an NTS Company

EUT: Summit Data Communications SDC-PE15N

Report Date:

EE.3

EE.4

EE.5

Clause Requirement + Test Result - Remark

DD.4 Compliance……………………………………………:

EE

EE.1

EE.2

ANNEX EE, Household and home/office document/media shredders

General Not such a device

Markings and instructions

Use of markings or symbols…………………………:

Information of user instructions, maintenance and/or servicing instructions…………………………:

Inadvertent reactivation test…………………………:

Disconnection of power to hazardous moving parts:

Use of markings or symbols…………………………:

Protection against hazardous moving parts

Test with test finger (Figure 2A) ……………………:

Test with wedge probe (Figure EE1 and EE2) ……:

June 4, 2012

Verdict

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

File: R87495 Page 35 of 66

Elliott Laboratories an NTS Company Report Date:

June 4, 2012

EUT: Summit Data Communications SDC-PE15N

1.5.1 TABLE: List of critical components

Object/part No. Manufacturer/ trademark

Type/model

- Description:

Technical data Standard

(Edition / year)

P

Mark(s) of conformity

1

) minimum 94V-1

UL94 UL

Supplementary information:

1)

Provided evidence ensures the agreed level of compliance. See OD-CB2039.

1.5.1 TABLE: Opto Electronic Devices

Manufacturer ................................................ :

Type ............................................................. :

Separately tested ......................................... :

Bridging insulation ........................................ :

External creepage distance ......................... :

Internal creepage distance .......................... :

Distance through insulation ......................... :

Tested under the following conditions ......... :

Input ............................................................. :

Output .......................................................... : supplementary information

NA

1.6.2

U (V)

TABLE: Electrical data (in normal conditions)

I (A) Irated (A)

Supplementary information:

P (W) Fuse # Ifuse (A) Condition/status

NA

File: R87495 Page 36 of 66

Elliott Laboratories an NTS Company

EUT: Summit Data Communications SDC-PE15N

Report Date:

June 4, 2012

2.1.1.5 c) 1) TABLE: max. V, A, VA test

NA

Voltage (rated)

(V) supplementary information:

Current (rated)

(A)

Voltage (max.)

(V)

Current (max.)

(A)

VA (max.)

(VA)

2.1.1.5 c) 2) TABLE: stored energy

NA

Capacitance C (µF) supplementary information:

Voltage U (V) Energy E (J)

2.2 TABLE: evaluation of voltage limiting components in SELV circuits

Component (measured between) max. voltage (V)

(normal operation)

V peak V DC

NA

Voltage Limiting Components

Fault test performed on voltage limiting components Voltage measured (V) in SELV circuits

(V peak or V DC) supplementary information:

File: R87495 Page 37 of 66

Elliott Laboratories an NTS Company

EUT: Summit Data Communications SDC-PE15N

Report Date:

June 4, 2012

2.5 TABLE: limited power sources

Circuit output tested:

Measured Uoc (V) with all load circuits disconnected:

NA

Single fault: …..

Single fault: …..

Single fault: ….. supplementary information:

Sc=Short circuit, Oc=Open circuit

2.10.2

Location

Table: working voltage measurement

I sc

(A) VA

Meas. Limit Meas. Limit

RMS voltage (V) Peak voltage (V) Comments

NA supplementary information:

File: R87495 Page 38 of 66

Elliott Laboratories an NTS Company

EUT: Summit Data Communications SDC-PE15N

2.10.3 and

2.10.4

TABLE: Clearance and creepage distance measurements

Clearance (cl) and creepage distance (cr) at/of/between:

Functional:

U peak

(V)

U r.m.s.

(V)

Required cl

(mm) cl

(mm)

Basic/supplementary:

Reinforced:

Supplementary information:

Report Date:

Required cr

(mm)

June 4, 2012

2.10.5 TABLE: Distance through insulation measurements

Distance through insulation (DTI) at/of: U peak

(V)

U rms

(V)

Test voltage

(V)

Supplementary information:

Required DTI

(mm)

NA cr

(mm)

NA

DTI

(mm)

File: R87495 Page 39 of 66

Elliott Laboratories an NTS Company

EUT: Summit Data Communications SDC-PE15N

Report Date:

June 4, 2012

NA

The tests of 4.3.8 are applicable only when appropriate battery data is not available

Is it possible to install the battery in a reverse polarity position?

Non-rechargeable batteries

Discharging

Meas. current

Manuf.

Specs.

Unintentional charging

Charging

Meas. current

Manuf.

Specs.

Rechargeable batteries

Discharging Reversed charging

Meas. current

Manuf.

Specs.

Meas. current

Manuf.

Specs.

Max. current during normal condition

Max. current during fault condition

Test results:

- Chemical leaks

- Explosion of the battery

- Emission of flame or expulsion of molten metal

- Electric strength tests of equipment after completion of tests

Supplementary information:

Verdict

NA

Battery category .......................................... : (Lithium, NiMh, NiCad, Lithium Ion …)

Manufacturer ................................................ :

Type / model ................................................ :

Voltage ......................................................... :

Capacity ....................................................... : mAh

Tested and Certified by (incl. Ref. No.) ....... :

Circuit protection diagram:

File: R87495 Page 40 of 66

Elliott Laboratories an NTS Company

EUT: Summit Data Communications SDC-PE15N

Report Date:

June 4, 2012

MARKINGS AND INSTRUCTIONS (1.7.12, 1.7.15)

Location of replaceable battery

Language(s) …………………………………….:

Close to the battery …………………………….:

In the servicing instructions……………………:

In the operating instructions …………………..:

4.5 TABLE: Thermal requirements

NA

........................... ⎯

Ambient T min

(

°C) ............................. :

Ambient T max

(

°C) ............................ :

Maximum measured temperature T of part/at::

T (

°C)

Allowed

T max

(

°C)

Supplementary information: Test data provided in attachment section from testing dated January 26,

2010.

Temperature T of winding: t

1

(°C)

R

1

(

Ω) t

2

(°C)

R

2

(

Ω)

T (

°C) Allowed

T max

(

°C)

Insulatio n class

Supplementary information:

4.5.5

Part

TABLE: Ball pressure test of thermoplastic parts

Allowed impression diameter (mm) .................... :

≤ 2 mm

NA

Test temperature

(

°C)

Impression diameter

(mm)

Supplementary information:

4.7

Part

TABLE: Resistance to fire

Manufacturer of material

Supplementary information:

File: R87495

Type of material Thickness

(mm)

Flammability class

NA

Evidence

Page 41 of 66

Elliott Laboratories an NTS Company Report Date:

June 4, 2012

EUT: Summit Data Communications SDC-PE15N

5.1 TABLE: touch current measurement

Measured between: Measured

(mA)

Limit

(mA)

Comments/conditions

NA supplementary information:

5.2 TABLE: Electric strength tests, impulse tests and voltage surge tests

Test voltage applied between: Voltage shape

(AC, DC, impulse, surge)

Test voltage

(V)

Functional:

NA

Breakdo wn

Yes / No

Basic/supplementary:

Reinforced:

Supplementary information:

5.3 TABLE: Fault condition tests

Ambient temperature (

°C) ................................... :

Component

No.

Power source for EUT: Manufacturer, model/type, output rating ........................................................ :

Fault Supply voltage

(V)

Test time

Fuse # Fuse current

(A)

File: R87495

Supplementary information:

Observation

NA

Page 42 of 66

Elliott Laboratories an NTS Company

EUT: Summit Data Communications SDC-PE15N

Loc. Tested insulation

Loc. Tested insulation supplementary information:

Working voltage peak / V

(2.10.2)

Working voltage rms / V

(2.10.2)

Transformer

Report Date:

June 4, 2012

Required electric strength

(5.2)

Test voltage/ V

Required clearance

/ mm

(2.10.3)

Measured clearance

/ mm

Required creepage distance / mm

(2.10.4)

Measured creepage dist./ mm

NA

Required distance thr. insul.

(2.10.5)

Measured distance thr. insul. / mm; number of layers

NA

File: R87495 Page 43 of 66

Elliott Laboratories an NTS Company

EUT: Summit Data Communications SDC-PE15N

List of test equipment used: NA

Clause

Measurement /

testing

Testing / measuring equipment /

- -

material used

-

Report Date:

June 4, 2012

Range used Calibration date

- -

File: R87495 Page 44 of 66

Elliott Laboratories an NTS Company

EUT: Summit Data Communications SDC-PE15N

Report Date:

June 4, 2012

EN 60950-1:2006 – CENELEC COMMON MODIFICATIONS

Contents Add the following annexes:

Annex ZA (normative) Normative references to international publications with their corresponding European publications

Annex ZB (normative) Special national conditions

Annex ZC (informative) A-deviations

General

1.3.Z1

Delete all the “country” notes in the reference document according to the following list:

1.4.8 Note 2

1.5.8 Note 2

2.2.3

2.3.2.1 Note 2

2.7.1 Note

3.2.1.1 Note

4.3.6 Note 1 & 2

4.7.3.1 Note 2

6

7.1

Note

Note 2 & 5

6.2.2 Note 6.

Note 3

G.2.1 Note 2

1.5.1

2.2.4

2.3.4

3.2.4

4.7

Note 2 & 3

1.5.9.4 Note

Note

Note 2

2.10.3.2 Note 2

Note 3.

Note 4

5.1.7.1 Note 3 & 4

6.1.2.1 Note 2

2.2.1

7.2

Note 2

Note

Annex H Note 2

1.5.7.1 Note

1.7.2.1 Note 4, 5 & 6

2.3.2 Note

2.6.3.3 Note 2 & 3

2.10.5.13 Note 3

2.5.1 Note 2

4.7.2.2 Note

5.3.7 Note 1

6.1.2.2 Note

6.2.2.2 Note

7.3 Note 1 & 2

Add the following subclause:

1.3.Z1 Exposure to excessive sound pressure

The apparatus shall be so designed and constructed as to present no danger when used for its intended purpose, either in normal operating conditions or under fault conditions, particularly providing protection against exposure to excessive sound pressures from headphones or earphones.

NOTE Z1 A new method of measurement is described in EN 50332-1, Sound system equipment:

Headphones and earphones associated with portable audio equipment - Maximum sound pressure level measurement methodology and limit considerations - Part 1: General method for

“one package equipment”, and in EN 50332-2, Sound system equipment: Headphones and earphones associated with portable audio equipment - Maximum sound pressure level measurement methodology and limit considerations - Part 2: Guidelines to associate sets with headphones coming from different manufacturers.

1.5.1

1.7.2.1

Add the following NOTE:

NOTE Z1 The use of certain substances in electrical and electronic equipment is restricted within the EU: see Directive 2002/95/EC

Add the following NOTE:

NOTE Z1 In addition, the instructions shall include, as far as applicable, a warning that excessive sound pressure from earphones and headphones can cause hearing loss

Verdict

NA

NA

NA

NA

NA

File: R87495 Page 45 of 66

Elliott Laboratories an NTS Company

EUT: Summit Data Communications SDC-PE15N

Report Date:

June 4, 2012

2.7.1

2.7.2

3.2.3

Replace the subclause as follows:

Basic requirements

To protect against excessive current, short-circuits and earth faults in primary circuits, protective devices shall be included either as integral parts of the equipment or as parts of the building installation, subject to the following, a), b) and c): a) except as detailed in b) and c), protective devices necessary to comply with the requirements of 5.3 shall be included as parts of the equipment; b) for components in series with the mains input to the equipment such as the supply cord, appliance coupler, r.f.i. filter and switch, short-circuit and earth fault protection may be provided by protective devices in the building installation; c) it is permitted for pluggable equipment Type B or permanently connected equipment, to rely on dedicated overcurrent and short-circuit protection in the building installation, provided that the means of protection, e.g. fuses or circuit breakers, is fully specified in the installation instructions.

If reliance is placed on protection in the building installation, the installation instructions shall so state, except that for pluggable equipment Type A the building installation shall be regarded as providing protection in accordance with the rating of the wall socket outlet.

This subclause has been declared ‘void’.

Delete the note in Table 3A, and delete also in this table the conduit sizes in parentheses.

3.2.5.1

3.3.4

Replace “60245 IEC 53” by “H05 RR-F”;

“60227 IEC 52” by “H03 VV-F or H03 VVH2-F”;

“60227 IEC 53” by “H05 VV-F or H05 VVH2-F2”.

In Table 3B, replace the first four lines by the following:

| Up to and including 6

| (0,75) b)

| 0,75 a)

| Over 6 up to and including 10 |

1,0 | Over 10 up to and including 16 | (1,0) c)

1,5 |

In the conditions applicable to Table 3B delete the words “in some countries” in condition a)

.

In NOTE 1, applicable to Table 3B, delete the second sentence.

In Table 3D, delete the fourth line: conductor sizes for 10 to 13 A, and replace with the following:

| Over 10 up to and including 16 | 1,5 to 2,5

Delete the fifth line: conductor sizes for 13 to 16A.

| 1,5 to 4 |

4.3.13.6 Add the following NOTE:

NOTE Z1 Attention is drawn to 1999/519/EC: Council Recommendation on the limitation of exposure of the general public to electromagnetic fields 0 Hz to 300 GHz. Standards taking into account this Recommendation which demonstrate compliance with the applicable EU Directive are indicated in the OJEC.

Annex H Replace the last paragraph of this annex by:

At any point 10cm from the surface of the operator access area, the dose rate shall not exceed 1μSv/h (0,1 mR/h) (see NOTE). Account is taken of the background level.

Replace the notes as follows:

NOTE These values appear in Directive 96/29/Euratom.

Delete NOTE 2.

Bibliography Additional EN standards.

Verdict

NA

NA

NA

NA

NA

NA

NA

File: R87495 Page 46 of 66

Elliott Laboratories an NTS Company

EUT: Summit Data Communications SDC-PE15N

Report Date:

June 4, 2012

Verdict

ZA NORMATIVE REFERENCES TO INTERNATIONAL PUBLICATIONS WITH THEIR

CORRESPONDING EUROPEAN PUBLICATIONS

ZB

1.2.4.1

1.5.7.1

1.5.8

1.5.9.4

1.7.2.1

1.7.5

SPECIAL NATIONAL CONDITIONS

In Denmark, certain types of Class I appliances (see 3.2.1.1) may be provided with a plug not establishing earthing conditions when inserted into Danish socket-outlets.

In Finland, Norway and Sweden, resistors bridging basic insulation in Class I pluggable equipment Type A must comply with the requirements in 1.5.7.2.

In Norway, due to the IT power system used (see annex V, Figure V.7), capacitors are required to be rated for the applicable line-to-line voltage (230 V).

In Finland, Norway and Sweden, the third dashed sentence is applicable only to equipment as defined in 6.1.2.2 of this annex.

In Finland, Norway and Sweden, Class I pluggable equipment Type A intended for connection to other equipment or a network shall, if safety relies on connection to protective earth or if surge suppressors are connected between the network terminals and accessible parts, have a marking stating that the equipment must be connected to an earthed mains socket-outlet.

The marking text in the applicable countries shall be as follows:

In Finland: "Laite on liitettävä suojamaadoituskoskettimilla varustettuun pistorasiaan"

In Norway: “Apparatet må tilkoples jordet stikkontakt”

In Sweden: “Apparaten skall anslutas till jordat uttag”

In Denmark, socket-outlets for providing power to other equipment shall be in accordance with the Heavy Current Regulations, Section 107-2-D1, Standard Sheet

DK 1-3a, DK 1-5a or DK 1-7a, when used on Class I equipment. For stationary equipment the socket-outlet shall be in accordance with Standard Sheet DK 1-1b or

DK 1-5a.

NA

NA

NA

NA

NA

NA

NA

2.3.2 In Finland, Norway and Sweden there are additional requirements for the insulation.

See 6.1.2.1 and 6.1.2.2 of this annex.

NA

NA

NA

2.6.3.3 In NA

2.7.1 NA In the United Kingdom, to protect against excessive currents and short-circuits in the primary circuit of direct plug-in equipment, tests according to 5.3 shall be conducted, using an external protective device rated 30A or 32A. If these tests fail, suitable protective devices shall be included as integral parts of the direct plug-in equipment, so that the requirements of 5.3 are met.

2.10.5.13 In Finland, Norway and Sweden, there are additional requirements for the insulation, see 6.1.2.1 and 6.1.2.2 of this annex.

NA

File: R87495 Page 47 of 66

Elliott Laboratories an NTS Company

EUT: Summit Data Communications SDC-PE15N

3.2.1.1

3.2.1.1

3.2.1.1

3.2.1.1

3.2.1.1

3.2.5.1

Report Date:

June 4, 2012

In Switzerland, supply cords of equipment having a rated current not exceeding 10A shall be provided with a plug complying with SEV 1011 or IEC 60884-1 and one of the following dimension sheets:

SEV 6532-2.1991

SEV 6533-2.1991

SEV 6534-2.1991

Plug Type 15 3P+N+PE

Plug Type 11 L+N

Plug Type 12 L+N+PE

250/400 V, 10 A

250 V, 10 A

250 V, 10 A

In general, EN 60309 applies for plugs for currents exceeding 10 A. However, a 16 A plug and socket-outlet system is being introduced in Switzerland, the plugs of which are according to the following dimension sheets, published in February 1998:

SEV 5932-2.1998

SEV 5933-2.1998

SEV 5934-2.1998

Plug Type 25 3L+N+PE

Plug Type 21 L+N

Plug Type 23 L+N+PE

230/400 V, 16 A

250 V, 16 A

250 V, 16 A

In Denmark, supply cords of single-phase equipment having a rated current not exceeding13 A shall be provided with a plug according to the Heavy Current

Regulations, Section 107-2-D1.

Class I equipment provided with socket-outlets with earth contacts or which are intended to be used in locations where protection against indirect contact is required according to the wiring rules shall be provided with a plug in accordance with standard sheet DK 2-1a or DK 2-5a.

If poly-phase equipment and single-phase equipment having a rated current exceeding

13 A is provided with a supply cord with a plug, this plug shall be in accordance with the Heavy Current Regulations, Section 107-2-D1 or EN 60309-2.

In Spain, supply cords of single-phase equipment having a rated current not exceeding 10 A shall be provided with a plug according to UNE 20315:1994.

Supply cords of single-phase equipment having a rated current not exceeding 2,5 A shall be provided with a plug according to UNE-EN 50075:1993.

Class I equipment provided with socket-outlets with earth contacts or which are intended to be used in locations where protection against indirect contact is required according to the wiring rules, shall be provided with a plug in accordance with standard

UNE 20315:1994.

If poly-phase equipment is provided with a supply cord with a plug, this plug shall be in accordance with UNE-EN 60309-2.

In the United Kingdom, apparatus which is fitted with a flexible cable or cord and is designed to be connected to a mains socket conforming to BS 1363 by means of that flexible cable or cord and plug, shall be fitted with a ‘standard plug’ in accordance with

Statutory Instrument 1768:1994 - The Plugs and Sockets etc. (Safety) Regulations

1994, unless exempted by those regulations.

NOTE ‘Standard plug’ is defined in SI 1768:1994 and essentially means an approved plug conforming to BS 1363 or an approved conversion plug.

In Ireland, apparatus which is fitted with a flexible cable or cord and is designed to be connected to a mains socket conforming to I.S. 411 by means of that flexible cable or cord and plug, shall be fitted with a 13 A plug in accordance with Statutory Instrument

525:1997 - National Standards Authority of Ireland (section 28) (13 A Plugs and

Conversion Adaptors for Domestic Use) Regulations 1997.

Verdict

NA

NA

NA

NA

NA

In the United Kingdom, a power supply cord with conductor of 1,25 mm2 is allowed for equipment with a rated current over 10 A and up to and including 13 A.

NA

NA

File: R87495 Page 48 of 66

Elliott Laboratories an NTS Company

EUT: Summit Data Communications SDC-PE15N

3.3.4

4.3.6

4.3.6

5.1.7.1

Report Date:

June 4, 2012

In the United Kingdom, the range of conductor sizes of flexible cords to be accepted by terminals for equipment with a rated current of over 10A up to and including 13A is:

• 1,25 mm

2

to 1,5 mm

2

nominal cross-sectional area.

In the United Kingdom, the torque test is performed using a socket outlet complying with BS 1363 part 1:1995, including Amendment 1:1997 and Amendment 2:2003 and the plug part of direct plug-in equipment shall be assessed to BS 1363: Part 1, 12.1,

12.2, 12.3, 12.9, 12.11, 12.12, 12.13, 12.16 and 12.17, except that the test of 12.17 is performed at not less than 125 °C. Where the metal earth pin is replaced by an

Insulated Shutter Opening Device (ISOD), the requirements of clauses 22.2 and 23 also apply.

In Ireland, direct plug-in equipment is known as plug similar devices. Such devices shall comply with Statutory Instrument 526:1997 - National Standards Authority of

Ireland (Section 28) (Electrical plugs, plug similar devices and sockets for domestic use) Regulations, 1997.

In Finland, Norway and Sweden touch current measurement results exceeding 3,5 mA r.m.s. are permitted only for the following equipment:

• STATIONARY PLUGGABLE EQUIPMENT TYPE A that

○ is intended to be used in a restricted access location where equipotential

bonding has been applied, for example, in a telecommunication centre; and

○ has provision for a permanently connected protective earthing conductor

○ is provided with instructions for the installation of that conductor by a

service person;

• STATIONARY PLUGGABLE EQUIPMENT TYPE B;

• STATIONARY PERMANENTLY CONNECTED EQUIPMENT.

Verdict

NA

NA

NA

NA

File: R87495 Page 49 of 66

Elliott Laboratories an NTS Company

EUT: Summit Data Communications SDC-PE15N

6.1.2.1

6.1.2.2

7.2

7.3

Report Date:

June 4, 2012

-

-

In Finland, Norway and Sweden, add the following text between the first and second paragraph of the compliance clause:

If this insulation is solid, including insulation forming part of a component, it shall at least consist of either two layers of thin sheet material, each of which shall pass the electric strength test below, or one layer having a distance through insulation of at least 0,4 mm, which shall pass the electric strength test below.

-

If this insulation forms part of a semiconductor component (e.g. an optocoupler), there is no distance through insulation requirement for the insulation consisting of an insulating compound completely filling the casing, so that clearances and creepage distances do not exist, if the component passes the electric strength test in accordance with the compliance clause below and in addition passes the tests and inspection criteria of 2.10.11 with an electric strength test of 1,5 kV multiplied by 1,6 (the electric strength test of 2.10.10 shall be performed using 1,5 kV), and

-

-

- is subject to ROUTINE TESTING for electric strength during manufacturing, using a test voltage of 1,5 kV.

It is permitted to bridge this insulation with a capacitor complying with

EN 132400:1994, subclass Y2.

-

A capacitor classified Y3 according to EN 132400:1994, may bridge this insulation under the following conditions: the insulation requirements are satisfied by having a capacitor classified Y3 as defined by EN 132400, which in addition to the Y3 testing, is tested with an impulse test of 2,5 kV defined in EN 60950-1:2006, 6.2.2.1; the additional testing shall be performed on all the test specimens as described in EN 132400; the impulse test of 2,5 kV is to be performed before the endurance test in

EN 132400, in the sequence of tests as described in EN 132400.

In Finland, Norway and Sweden, the exclusions are applicable for permanently connected equipment, pluggable equipment Type B and equipment intended to be used in a restricted access location where equipotential bonding has been applied, e.g. in a telecommunication centre, and which has provision for a permanently connected protective earthing conductor and is provided with instructions for the installation of that conductor by a service person.

In Finland, Norway and Sweden, for requirements see 6.1.2.1 and 6.1.2.2 of this annex.

The term TELECOMMUNICATION NETWORK in 6.1.2 being replaced by the term

CABLE DISTRIBUTION SYSTEM.

In Norway and Sweden, there are many buildings where the screen of the coaxial cable is normally not connected to the earth in the building installation.

Verdict

NA

NA

NA

NA

NA

1.5.1

NA

NA Sweden (Ordinance 1990:944)

Add the following:

NOTE In Sweden, switches containing mercury are not permitted.

File: R87495 Page 50 of 66

Elliott Laboratories an NTS Company

EUT: Summit Data Communications SDC-PE15N

1.5.1

1.7.2.1

1.7.2.1

1.7.5

1.7.13

5.1.7.1

Report Date:

June 4, 2012

Switzerland (Ordinance on environmentally hazardous substances SR 814.081,

Annex 1.7, Mercury - Annex 1.7 of SR 814.81 applies for mercury.)

Add the following:

NOTE In Switzerland, switches containing mercury such as thermostats, relays and level controllers are not allowed.

Denmark (Heavy Current Regulations)

Supply cords of Class I equipment, which is delivered without a plug, must be provided with a visible tag with the following text:

Vigtigt!

Lederen med grøn/gul isolation må kun tilsluttes en klemme mærket

eller

If essential for the safety of the equipment, the tag must in addition be provided with a diagram, which shows the connection of the other conductors, or be provided with the following text:

“For tilslutning af de øvrige ledere, se medfølgende installationsvejledning.”

Germany (Gesetz über technische Arbeitsmittel und Verbraucherprodukte (Geräte- und Produktsicherheitsgesetz – GPSG) [Law on technical labour equipment and consumer products], of 6th January 2004, Section 2, Article 4, Clause (4), Item 2).

If for the assurance of safety and health certain rules during use, amending or maintenance of a technical labour equipment or readymade consumer product are to be followed, a manual in German language has to be delivered when placing the product on the market.

Of this requirement, rules for use even only by service persons are not exempted.

Denmark (Heavy Current Regulations)

With the exception of Class II equipment provided with a socket outlet in accordance with the Heavy Current Regulations, Section 107-2-D1, Standard Sheet DK 1-4a,

Class II equipment shall not be fitted with socket-outlets for providing power to other equipment.

Switzerland (Ordinance on chemical hazardous risk reduction SR 814.81, Annex 2.15

Batteries)

Annex 2.15 of SR 814.81 applies for batteries.

Denmark (Heavy Current Regulations, Chapter 707, clause 707.4)

Touch current measurement results exceeding 3,5 mA r.m.s. are permitted only for permanently connected equipment and pluggable equipment Type B.

Verdict

NA

NA

NA

NA

NA

NA

File: R87495 Page 51 of 66

Elliott Laboratories an NTS Company

EUT: Summit Data Communications SDC-PE15N

ATTACHMENTS

Report Date:

June 4, 2012

File: R87495 Page 52 of 66

Elliott Laboratories an NTS Company

EUT: Summit Data Communications SDC-PE15N

Report Date:

June 4, 2012

File: R87495 Page 53 of 66

Elliott Laboratories an NTS Company

EUT: Summit Data Communications SDC-PE15N

Report Date:

June 4, 2012

File: R87495 Page 54 of 66

Elliott Laboratories an NTS Company

EUT: Summit Data Communications SDC-PE15N

Report Date:

June 4, 2012

File: R87495 Page 55 of 66

Elliott Laboratories an NTS Company

EUT: Summit Data Communications SDC-PE15N

PHOTOGRAPHS

Report Date:

June 4, 2012

File: R87495 Page 56 of 66

Elliott Laboratories an NTS Company

EUT: Summit Data Communications SDC-PE15N

Photo 1

Report Date:

June 4, 2012

Photo 1: Overall front view of system.

Photo 2

File: R87495

Photo 2: Overall rear view of system.

Page 57 of 66

Elliott Laboratories an NTS Company Report Date:

June 4, 2012

EUT: Summit Data Communications SDC-PE15N

AGENCY APPROVAL LICENSES AND

COMPONENT SPECIFICATIONS

Component No. of Pages

N/A

File: R87495 Page 58 of 66

Elliott Laboratories an NTS Company Report Date:

June 4, 2012

EUT: Summit Data Communications SDC-PE15N

INSTALLATION INSTRUCTIONS

File: R87495 Page 59 of 66

Elliott Laboratories an NTS Company

EUT: Summit Data Communications SDC-PE15N

Report Date:

June 4, 2012

File: R87495 Page 60 of 66

Elliott Laboratories an NTS Company

EUT: Summit Data Communications SDC-PE15N

Report Date:

June 4, 2012

SCHEMATIC DIAGRAMS AND SPECS

SMT-WPEB-109N_schem_v03 was provided for review at time of evaluation

File: R87495 Page 61 of 66

Elliott Laboratories an NTS Company

EUT: Summit Data Communications SDC-PE15N

APPENDICES

Report Date:

June 4, 2012

File: R87495 Page 62 of 66

Elliott Laboratories an NTS Company Report Date:

June 4, 2012

EUT: Summit Data Communications SDC-PE15N

APPENDIX A - CE MARK REQUIREMENTS

The amendments of Directive 93/68/EEC contain clear instructions on the use of the CE marking. Application of the

CE marking indicates compliance with all applicable product Directives. During the transition period associated with many Directives, a manufacturer may find itself complying with some EC Directives, but on others, complying with preexisting national laws. In this case, the documentation supplied with the equipment must make the basis on which conformity is declared clear by listing the Directives for which the CE marking signifies compliance.

The format of the mark is regulated. The letters "CE" are drawn from two circles, laid out according to Figure 1.

The vertical size may not be less than 5 mm. Normally, the mark will be placed in a visible spot on the outside of the equipment, but in cases where that is impractical, it may be included on the packaging and/or documentation.

It is important to note, that in addition to the mark itself, some Directives require that additional information accompany the mark or the Declaration of Conformity. Depending on the quality assurance module chosen, the identification number of the notified body responsible for EC surveillance of the quality system may have to be added.

The Low Voltage Directive, amended, does not require that the mark be accompanied by any additional information.

However, the declaration of conformity must include the following items:

• name and address of party responsible for conformity

• description of the electrical equipment

• reference to the harmonized standards used

• where appropriate, reference to specifications with which conformity is claimed

• last two digits of the year in which the CE marking was affixed

Figure 1 - CE Mark Diagram:

File: R87495 Page 63 of 66

Elliott Laboratories an NTS Company Report Date:

June 4, 2012

EUT: Summit Data Communications SDC-PE15N

APPENDIX B - SAMPLE DECLARATION OF

CONFORMITY

Declaration of Conformity

Manufacturer’s Name:

Summit Data Communications

Manufacturer’s Address:

526 South Main St, Suite 805

Standard(s):

Product Name(s):

Akron, OH 44311

Application of Council Directives: Low Voltage

EMC

Safety

EMC

SDC-PE15N

- 2006/95/EC

- 2004/108/EC

- EN 60950-1:2006

-

Product Model Number(s):

SDC-PE15N

Year in which conformity is declared: 2012

I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s).

Location: ______________________ Signature: ______________________

Date: ______________________ Full Name: ______________________

Position: _________________________

File: R87495 Page 64 of 66

Elliott Laboratories an NTS Company Report Date:

June 4, 2012

EUT: Summit Data Communications SDC-PE15N

APPENDIX C - SAMPLE RESOLUTION OF NON-

COMPLIANCES

Resolution of Non-Compliances

Item No./Letter

Date

1.

6.

7.

8.

4.

5.

2.

3.

9.

10.

Method of Correction

The equipment, with the non-compliances corrected as indicated above, meets the applicable requirements of the standard.

Non-compliances verified by:_____________________________________________________

Print

Signature _____________________________ Date _________________

File: R87495 Page 65 of 66

Elliott Laboratories an NTS Company

EUT: Summit Data Communications SDC-PE15N

END OF REPORT

Report Date:

June 4, 2012

File: R87495 Page 66 of 66

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
