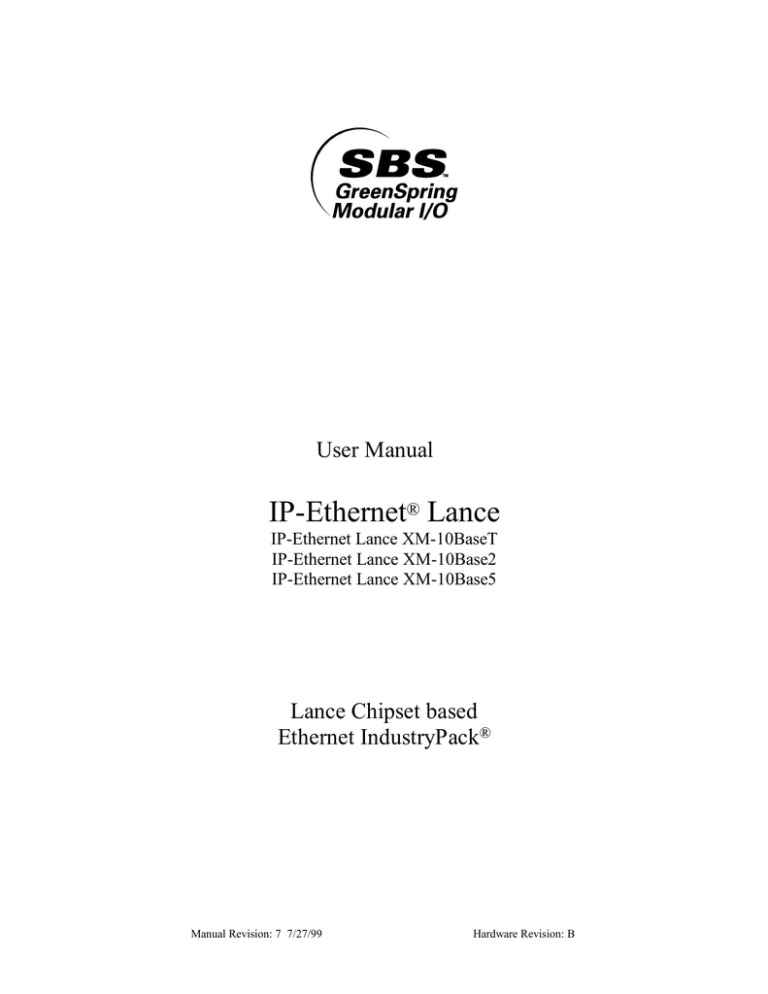

User Manual

IP-Ethernet

®

Lance

IP-Ethernet Lance XM-10BaseT

IP-Ethernet Lance XM-10Base2

IP-Ethernet Lance XM-10Base5

Lance Chipset based

Ethernet IndustryPack

®

Manual Revision: 7 7/27/99 Hardware Revision: B

IP-Ethernet [Lance]

802.3,

Coax: 10Base2,

Twisted Pair: 10BaseT,

AUI: 10Base5

IndustryPack and

Transition Module

This document contains information of proprietary interest to GreenSpring Computers. It has been supplied in confidence and the recipient, by accepting this material, agrees that the subject matter will not be copied or reproduced, in whole or in part, nor its contents revealed in any manner or to any person except to meet the purpose for which it was delivered.

GreenSpring Computers has made every effort to ensure that this manual is accurate and complete.

Still, the company reserves the right to make improvements or changes in the product described in this document at any time and without notice.

Furthermore, GreenSpring Computers assumes no liability arising out of the application or use of the device described herein.

The electronic equipment described herein generates, uses, and can radiate radio frequency energy. Operation of this equipment in a residential area is likely to cause radio interference, in which case the user, at his own expense, will be required to take whatever measures may be required to correct the interference.

GreenSpring’s products are not authorized for use as critical components in life support devices or systems without the express written approval of the president of GreenSpring Computers, Inc.

This product has been designed to operate with

IndustryPack carriers and compatible user-provided equipment. Connection of incompatible hardware is likely to cause serious damage.

GreenSpring Computers

1204 O'Brien Drive

Menlo Park, CA 94025

(415) 327-1200

(415) 327-3808 FAX

©1993 by GreenSpring Computers, Inc.

IndustryPack is a registered trademark of GreenSpring Computers.

Macintosh is a registered trademark of Apple Computers.

Ethernet is a registered trademark of Xerox Corporation.

Other trademarks and registered trademarks or owned by their respective manufactures.

Table of Contents

Product Description............................................................................................................5

VMEbus Addressing ...........................................................................................................9

Nubus Addressing ............................................................................................................ 10

ISA (PC-AT) Bus Addressing............................................................................................ 11

Installation ....................................................................................................................... 12

Theory Of Operation ........................................................................................................ 14

LAN Overview ..................................................................................................... 14

Media .................................................................................................................. 15

Functional Description ......................................................................................... 17

LANCE Controller ................................................................................... 17

Serial Interface Adapter (SIA) ................................................................. 17

Transceiver ............................................................................................. 17

RAM ....................................................................................................... 18

Arbiter ..................................................................................................... 18

Interrupts................................................................................................. 18

Interface Logic ........................................................................................ 18

Programming ................................................................................................................... 20

Control and Status Register ................................................................................. 20

Vector Register.................................................................................................... 21

RAM .................................................................................................................... 21

Register Data Port [RDP]..................................................................................... 22

Register Address Port [RAP]................................................................................ 22

IndustryPack I/O Interface Pin Assignment ...................................................................... 23

IndustryPack Logic Interface Pin Assignment ................................................................... 24

Transition Module Pin Assignments.................................................................................. 25

IP Interface.......................................................................................................... 25

Attachment Unit Interface .................................................................................... 26

Coax Interface ..................................................................................................... 26

Twisted Pair Interface .......................................................................................... 26

ID PROM ......................................................................................................................... 27

User Options (jumpers) .................................................................................................... 28

Construction and Reliability.............................................................................................. 29

Warranty and Repair ........................................................................................................ 30

Specifications................................................................................................................... 31

Order Information............................................................................................................. 35

Schematics ...................................................................................................................... 36

List of Figures

Figure 1 Typical Arrangement of IP, Carrier Board, and Transition Module ....................5

Figure 2 Block Diagram of IP Portion of IP-Ethernet .....................................................6

Figure 3 IP-Ethernet Transition Module XM-10Base2 (Coax)..........................................7

Figure 4 IP-Ethernet Transition Module XM-10BaseT (Twisted Pair) ..............................8

Figure 5 Address Map of IP-Ethernet, on VMEbus ........................................................9

Figure 6 Address Map of IP-Ethernet, on Nubus.......................................................... 10

Figure 7 Address Map of IP-Ethernet, on ISA (PC-AT) Bus ......................................... 11

Figure 8 10Base2 Attachment Scheme ........................................................................ 12

Figure 9 10Base5 Attachment Scheme ........................................................................ 13

Figure 10 10BaseT Attachment Scheme ........................................................................ 13

Figure 11 Control and Status Register............................................................................ 21

Figure 12 IP Interface to Transition Module Pin Assignment........................................... 23

Figure 13 Logic Interface Pin Assignment ...................................................................... 24

Figure 14 Transition Module IP Interface Pin Assignment .............................................. 25

Figure 15 XM-10Base2 Transition Module AUI Interface Pin Assignment ....................... 26

Figure 16 XM-10BaseT Transition Module Twisted Pair Interface Pin Assignment ......... 26

Figure 17 ID PROM Data ............................................................................................... 27

4

Product Description

The IP-Ethernet® is part of the IndustryPack® family of modular I/O components. It provides modular Ethernet and IEEE 802.3 compatibility to a diverse number of host computer platforms through utilization of the IndustryPack Logic Interface.

Features:

Am79C90 Local Area Network Controller for Ethernet (LANCE)

Supports 10Base5 Type A ("Ethernet"); 10Base2 Type B ("Cheapernet"); and

10BaseT (Twisted Pair) network configurations.

Sixteen Kbytes dual ported RAM for packet transfer.

Sixteen bit IP data bus access to RAM.

On-board DMA and buffer management, 48 byte FIFO.

Network and packet error reporting.

Back to back packet reception with as little as 4.1 µsec. interpacket gap time.

Built in diagnostic support including: internal/external loopback; CRC logic check; time domain reflectometer.

Manchester encoder / decoder at 10 Mhz.

Guaranteed carrier and collision detection squelch threshold limits: carrier / collision detected for inputs > -275 mV; no carrier/collision for inputs < -175 mV.

The IP-Ethernet is a two-board set consisting of a single-wide IndustryPack and one of three available transition modules. Interconnection between the two boards is accomplished by a 50-pin ribbon cable. Figure 1 below illustrates the typical arrangement of IP, Carrier board and transition module.

Figure 1 below shows the typical arrangement of IP, Carrier board, and Transition

Module. The ribbon cable is a 50-pin cable and can be a maximum of six feet in length.

IP-Ethernet

Ribbon

Cable

IP Carrier

Transition

Module

Figure 1 Typical Arrangement of IP, Carrier Board, and Transition Module

The IP portion of IP-Ethernet contains three principle elements plus driver / receiver circuitry. A block diagram of the IP is shown in Figure 2.

The "core" element of the IP, the LANCE chip, is a 48-pin VLSI CMOS device which provides a complete interface module enabling the host to access the Ethernet network.

Specific functions provided by the LANCE, applicable to IP-Ethernet include slave parallel bus interface, serial I/O interface, station address detection, on-board DMA, advanced buffer management, error reporting and retry, and diagnostics.

16 Kbytes of static RAM is provided for storage of send and receive packets.

5

Logic

Interface

74ACT245

8

LCA

XC3030

LANCE

AM7990

SRAM

16 KB

Rx

RClk

Tx

TClk

Figure 2 Block Diagram of IP Portion of IP-Ethernet

A field programmable Xilinx XC3030 Logic Cell Array (LCA) contains the IP interface logic as well as other miscellaneous control functions. A control and status register is provided for interrupt processing and transition module identification. An eight-bit interrupt vector register stores the pointer to the interrupt service routine. The standard

IP ID PROM is also implemented in the LCA. Two additional registers are included for programming the LANCE chip.

The IP-Ethernet Transition Module (XM) comes in three versions. Connectability to

10Base5 (Ethernet) is provided by the IP-Ethernet XM-10Base5 (AUI) transition module.

Connectability to 10Base2 (Cheapernet) networks is provided by the IP-Ethernet XM-

10Base2 transition module (Figure 3). Connectability to 10-BaseT(Twisted Pair) networks is provided by the IP-Ethernet XM-10BaseT transition module (Figure 4).

All versions of transition modules contain an Am7992 Serial Interface Adapter (SIA). The

Am7992 provides three basic functions. It is a Manchester Encoder/line driver in the transmit path, a Manchester Decoder with noise filtering and quick lock-on characteristics in the receive path, and a signal detect /converter (10 Mhz. differential to

TTL) in the collision path. In addition, the SIA provides the interface between the TTL logic environment of the IP and the differential signaling environment in the network cable.

6

Rx

RClk

Tx

TClk

SIA

Rcv +

Rcv -

Coll +

Coll -

Xmit +

Xmit -

Am7992B

DI +

DI -

CI +

CI -

DO +

DO -

XCVR

Am7996

Coax

Intfc

Figure 3 IP-Ethernet Transition Module XM-10Base2 (Coax)

The IP-Ethernet XM-10Base2 supports one network attachment configurations,

10-Base2(Cheapernet) . It contains an Am7996 IEEE 802.3/Ethernet/Cheapernet

Transceiver. When used in a 10-Base2(Cheapernet) configuration, this device performs transmit, receive, and collision detect functions at the coaxial media interface and provides translation to differential signals which are coupled to the Am7992 SIA interface through isolation transformers. The network interface of the Am7996 connects externally through an RG58 coaxial BNC connector.

The 10-Base5(Ethernet) transition module does not use the Am7996. The function provided by the Am7996 is provided by a Medium Attachment Unit(MAU) which is external to the transition module. Access to the MAU occurs over an Attachment Unit

Interface(AUI) cable, one end of which connects to a 15 pin D shell connector mounted on the transition module. The connector is connected on the transition module directly to the Am7992 SIA, creating a bypass around the on-board isolation transformers and

Am7996. In this configuration, isolation from the network is provided by the MAU.

7

Rx

RClk

Tx

TClk

SIA

Rcv +

Rcv -

Coll +

Coll -

Xmit +

Xmit -

Am7992B Am7998

XCVR

RxD+

RxD-

TxD+

TxD-

RD+

RD-

TD+

TD-

Twisted Pair

Interface

Figure 4 IP-Ethernet Transition Module XM-10BaseT (Twisted Pair)

The IP-Ethernet XM-10BaseT supports the 10-BaseT(Twisted Pair) configuration. It contains an Am79C98 Twisted Pair Ethernet Transceiver(TPEX). This device provides

Twisted Pair driver and receiver circuits including on-board transmit digital pre-distortion and receiver squelch. The TPEX is interfaced directly to the Am7992 Serial Interface

Adapter. Twisted Pair Receive Polarity Detection and Automatic Polarity Reversal and

Link Status Indication is also provided. LEDs are connected to these pins. The network transmit path includes a discrete resistor circuit, filter, and pulse transformer. The network receive path consists of pulse transformer, filter, and termination resistor. The differential transmit and receive signals connect externally through an RJ45 connector.

This transition module does not support an MAU/AUI configuration.

Caution: The transition module provides the clock to the Lance chip. If no transition module is installed, then the RDP and RAP registers in the Lance chip are not functional and a bus error is likely to result. To avoid this error, check the [3..2] bits in the Status

Register prior to accessing the RDP or RAP.

8

VMEbus Addressing

The address map for IP-Ethernet is shown below in Figure 5. Both 16-bit word and 8-bit byte accesses are supported. Byte accesses are mapped to data line D0..D7. This is the odd byte in 68K family host architectures and the even byte in Intel host architectures.

Addresses are not fully decoded. Only the addresses shown should be accessed or data may appear in more than one place in the address space.

I/O Space

Register

RDP Register

RAP Register

Vector Register

Status Register

Control Register

Memory Space

RAM

RAM start

RAM end

I/O

Offset

$00

$02

$41

$43

$43

Memory

Offset

$0000 to

$3FFF

Mode

R/W

R/W

R/W

R

W

Mode

R/W

Width

word word byte byte (4 bits) byte (2 bits)

Width

byte or word

Notes

In Lance chip

In Lance chip

Note 1

Note 1

Note 1

Notes

Memory

Space

Note 1: The Vector Register must be initialized prior to normal operation. The Status and Control Register must be accessed each time by the interrupt service routine to clear each interrupt. The Status Register should be checked on system initialization to verify that a transition module is correctly connected.

Figure 5 Address Map of IP-Ethernet, on VMEbus

Note that previously existing Ethernet software drivers that use the Lance chip have to be modified slightly for the specifics of this address map and interrupt control bits in the

Control Register. The Control Register must be accessed once per interrupt service routine to clear the pending interrupt.

9

Nubus Addressing

NuBus addressing requires computing the address from the addresses given above under VMEbus addressing. The formulas are:

NuBus byte address = (VMEbus byte address * 2) + 1

NuBus word address = (VMEbus word address * 2) + 2

The address map for IP-Ethernet is shown below in Figure 6. Both 16-bit word and 8-bit byte accesses are supported. Byte accesses are mapped to data line D0..D7; word data is mapped to data lines D0..D15.

Addresses are not fully decoded. Only the addresses shown should be accessed or data may appear in more than one place in the address space. Interrupt mapping is a function of the selected carrier board. See your IP carrier board User Manual for more information.

I/O Space

Register

RDP Register

RAP Register

Vector Register

Status Register

Control Register

Memory Space

RAM

RAM start

RAM end

I/O

Offset

$02

$06

$83

$87

$87

Memory

Offset

$0000 to

$7FFF

Mode

R/W

R/W

R/W

R

W

Mode

R/W

Width

word word byte byte (4 bits) byte (2 bits)

Width

byte or word

Notes

In Lance chip

In Lance chip

Note 1

Note 1

Note 1

Notes

Memory

Space

Note 1: The Vector Register must be initialized prior to normal operation. The Status and Control Register must be accessed each time by the interrupt service routine to clear each interrupt. The Status Register should be checked on system initialization to verify that a transition module is correctly connected.

Figure 6 Address Map of IP-Ethernet, on Nubus

Note that previously existing Ethernet software drivers that use the Lance chip have to be modified slightly for the specifics of this address map and interrupt control bits in the

Control Register. The Control Register must be accessed once per interrupt service routine to clear the pending interrupt.

10

ISA (PC-AT) Bus Addressing

ISA (PC-AT) addressing requires computing the address from the addresses given above under VMEbus addressing. The formulas are:

ISA Bus byte address = VMEbus byte address - 1

The address map for IP-Ethernet is shown below in Figure 7. Both 16-bit word and 8-bit byte accesses are supported. Byte accesses are still mapped to data line D0..D7. There is no change to word data address mapping.

Addresses are not fully decoded. Only the addresses shown should be accessed or data may appear in more than one place in the address space. Interrupt mapping is a function of the selected carrier board. See your IP carrier board User Manual for more information.

I/O Space

Register

RDP Register

RAP Register

Vector Register

Status Register

Control Register

Memory Space

RAM

RAM start

RAM end

I/O

Offset

$00

$02

$40

$42

$42

Memory

Offset

$0000 to

$3FFF

Mode

R/W

R/W

R/W

R

W

Mode

R/W

Width

word word byte byte (4 bits) byte (2 bits)

Width

byte or word

Notes

In Lance chip

In Lance chip

Note 1

Note 1

Note 1

Notes

Memory

Space

Note 1: The Vector Register must be initialized prior to normal operation. The Status and Control Register must be accessed each time by the interrupt service routine to clear each interrupt. The Status Register should be checked on system initialization to verify that a transition module is correctly connected.

Figure 7 Address Map of IP-Ethernet, on ISA (PC-AT) Bus

Note that previously existing Ethernet software drivers that use the Lance chip have to be modified slightly for the specifics of this address map and interrupt control bits in the

Control Register. The Control Register must be accessed once per interrupt service routine to clear the pending interrupt.

11

Installation

The IndustryPack operates with one of two transition modules (XM). The Selected transition module connects to the IP via a standard 50-pin ribbon cable to the IP carrier board. This cable may be any length up to six feet. This permits mounting the transition module wherever convenient for the OEM or systems integrator. It does not have to reside in a VME slot, although a VME front panel is provided with the XM for convenience.

A transition module and 50-pin data cable is provided with each IP-Ethernet ordered.

Transition modules may be mounted in 3U or 6U VMEbus slot. No backplane connection is required, so the module is often mounted in the VME cardcage past the end of the backplane, so that it does not take up a relatively expensive backplane position. The module may be removed from the front panel provided for easy mounting elsewhere in the OEM's system. The XM modules are designed to be built with either straight or right-angle connectors to permit more mounting options, such as flush to a panel. Contact GreenSpring Computers for more information about mounting options and custom transition modules.

The transition modules for the IP-Ethernet provide the main clock to the Lance chip on the IndustryPack. NOTE: If a transition module is not installed (or it is not

connected to the IP carrier board) then the registers on the Lance chip are not accessible to the host, and a "bus error" may result.

The XM-10Base2 transition module allows attachment to a coax Ethernet system. The

XM-10Base2 features the BNC connector , see Figure 8 used for a direct coax connection.

For DB15 connector for AUI and thick wire implementations, see Figure 9.

IP Carrier

IP-Ethernet

Ribbon

Cable

XM 10Base 2

TransitionModule

RG58 Coax

RG58

BNC "T"

Figure 8 10Base2 Attachment Scheme

12

IP Carrier

IP-Ethernet

Ribbon

Cable

XM 10Base 2

TransitionModule

AUI

Cable

Hot

Tap

Ethernet

Coax

Figure 9 10Base5 Attachment Scheme

The XM-10BaseT transition module permits attachment to a twisted-pair Ethernet LAN.

The XM-10BaseT features an industry standard modular connector for ease of use. See

Figure 14.

XM 10Base T

Transition Module

Twisted

Pair

IP Carrier

IP-Ethernet

Ribbon

Cable

Figure 10 10BaseT Attachment Scheme

13

Theory Of Operation

This section contains a discussion of Local Area Network (LAN) technology in general, including background information relating specifically to Ethernet/IEEE 802.3. The various media supported by Ethernet and how those are each addressed by the

GreenSpring IP-Ethernet module set are then discussed. Finally, the functional characteristics specific to the GreenSpring IP-Ethernet module set are described in detail.

LAN Overview

A local area network (LAN) is a data communication facility providing high-speed switched connections between processors, peripherals, and terminals within a single building or campus. Historically, LANs have evolved from the data processing or office processing industry where economics suggest relatively expensive storage devices and printers should be shared by multiple computers. Thus, LANs have evolved partly in response to the emergence of low-cost computing and it's need for high-cost peripherals.

Indeed, the first generation LANs were actually one form of distributed computer systems using proprietary high-speed data links between processing nodes and peripheral equipment. The capabilities of a typical LAN represent a compromise between long distances and wide bandwidth.

IEEE 802.3 is an international standard for local area networks which specifies the carrier sense multiple access with collision detection (CSMA/CD) access method and physical layer. It includes specific media attachment types 10Base5, 10Base2, and

10BaseT among others.

Ethernet, a registered trademark of the Xerox Corporation, is defined by IEEE 802.3 as media type 10Base5. It represents the first major product offering with non-proprietary communications interfaces and protocols. The architecture is based in concept on that of a satellite communications network which allows multiple distributed devices to communicate with each other over a single radio channel using a satellite as a transponder. One station communicates with another by waiting until the radio channel is idle (determined by carrier sensing) and then sending a packet of data with a destination address, source address, and redundant check bits to detect transmission errors. All idle stations continuously monitor incoming data and accept those packets with their address and valid check sums. Whenever a station receives a new packet, the receiving station returns an acknowledgment to the source. If an originating station receives no acknowledgment within a specified time interval, it re-transmits the packet under the assumption that the previous packet was interfered with by noise or by a transmission from another station at the same time. (The latter situation is referred to as a collision.)

The Ethernet employs the same basic system concept using coaxial cable or twisted pair distribution throughout a building or campus.

The transmission media of the Ethernet is a coaxial or twisted pair cable using baseband transmission at 10 Mbs. Baseband transmission implies data is transmitted without the use of a carrier and with only one channel defined in the system. Data is encoded using a Manchester code. This code provides a strong timing component for clock recovery because a timing transition always occurs in the middle of every bit. The Manchester line code has the additional property of always maintaining equal amounts of positive and negative voltages. This prevents the build-up of a DC component which simplifies the implementation of decision thresholds in the data detectors.

14

Although the data is not transmitted with a carrier per se, the continuous transitions of the Manchester code provide the equivalent of a carrier so the channel is easily monitored for activity by the equivalent of a carrier sense. Multiple access to the coaxial cable is provided by passive taps, thereby allowing station connections to be added or removed without disrupting traffic in the system.

Another requirement of the transmission link and it's associated access electronics is that, while transmitting, a transceiver must be capable of detecting the existence of another active transmitter. This is referred to as collision detection. Thus, the three basic steps for accessing an Ethernet are denoted CSMA/CD for: Carrier Sense, Multiple

Access with Collision Detection.

The ability to detect collisions allows colliding stations to release the channel after using it for only a short period of time. Because carrier presence is checked before transmitting, collisions occur only if two stations begin transmitting within a time interval equal to the propagation delay between two stations. By restricting the maximum distance between transceivers to 2500 meters, the collision window is limited to 23 µsec including amplifier delays.

Once a station begins transmitting, it can be sure that no collision will occur if none is detected within a round-trip propagation time of 46.4 µsec. Since one bit time is 100 ns at 10 Mbs, the collision detection decision is made within 464 bit times. The maximum length of a frame is 12,144 bits, thus the collision detection feature will detect a collision very early in the frame to save significant transmission time that would be wasted if the entire frame were transmitted before detection.

Whenever a collision occurs, all colliding stations detect the condition and wait individually random amounts of time before retrying the transmission. By waiting random amounts of time before transmitting, the probability of repeated collisions is reduced. In heavy traffic conditions, the average delay before re-transmission begins to increase after 10 unsuccessful attempts. After 16 collisions, no further attempts are made to transmit that message and the station is notified of the error by the transceiver.

Media

The original Ethernet configuration consisted of multiple distributed devices (DTE's) communicating over single 0.4 inch "thickwire" coaxial cable "media" distributed throughout a building or campus. Access by DTE's to the coaxial cable is provided by

Media Attachment Unit (MAU) modules which physically mount directly on the cable.

The modules consist of transceiver circuits, collision detection circuits, "Jabber" controllers which prevent the DTE from transmitting excessively, and isolating pulse transformers which connect directly to the Attachment Unit Interface (AUI) cable connector. The AUI cable has 15-pin D-shell connectors (MIL-C-24308 or equivalent) at each end. The tap has a male connector while the DTE station apparatus has a female connector, thus the interconnecting cable must have one of each type. The pin assignments are:

5.

6.

7.

1.

2.

3.

4.

Shield 8.

Collision Presence + 9.

Transmit +

Reserved

10.

11.

Receive +

Power Return

Reserved

12.

13.

14.

15.

Reserved

Collision Presence–

Transmit–

Reserved

Receive–

Power

Reserved

Reserved

15

This configuration is now referred to as 10Base5 (Ethernet) and is supported by IP-

Ethernet. It requires a user provided AUI and IP-Ethernet (LANCE)-AUI must be specified when ordering.

A second coaxial cable configuration, 10Base2 - "cheapernet", emerged which uses

RG58 type cable, a much more common and less expensive cable technology than the original "thickwire". In cheapernet applications, the Media Attachment Unit typically resides inside the DTE with its signals to the DTE isolated and the (0.2" diameter ) media directly connected to the DTE. This configuration is supported by IP-Ethernet. Specify

IP-Ethernet (LANCE)-TPair when ordering.

Transceiver power and ground in both applications are isolated from that of the DTE.

The Ethernet/IEEE 802.3 10BaseT standard provides for attachment to Twisted Pair

Medium. A network based on this standard can use unshielded twisted pair cables, thus providing an economical solution to networking by allowing the use of existing telephone wiring. 10BaseT standard supports a star-wired physical network configuration rather than the traditional multidrop topology. As such, all DTE's connect point-to-point to a central Repeater which performs arbitration and node connection. In Twisted Pair applications, the Media Attachment Unit may reside inside the DTE or may be accessed remotely by way of an Attachment Unit Interface cable. The IP-Ethernet only supports configurations in which the MAU resides inside the DTE.

16

Functional Description

IP-Ethernet consists of the following functional blocks:

LANCE Controller

Serial Interface Adapter (SIA)

Transceiver

RAM

Arbiter

Interrupt Logic

IP Interface Logic

These blocks combine to provide full DTE functionality for all supported configurations.

Additionally, for 10Base2 and 10BaseT configurations they provide MAU functionality as well.

Function select logic, arbiter, interrupt logic and IP interface logic is all located in a 100pin Xilinx programmable logic cell array (LCA). There are also two registers in the Xilinx

LCA. One register is used for control and status and the other is an eight-bit interrupt vector register.

Controller

The basic operation of the LANCE consists of two distinct modes: transmit and receive.

In the transmit mode the LANCE chip directly accesses data in a transmit buffer in RAM.

It prefaces the data with a preamble, sync pattern, and calculates and appends a 32-bit

CRC. On transmission, the first byte of data loads into a 48-byte FIFO. The LANCE then begins to transmit the preamble while simultaneously loading the rest of the packet into the FIFO for transmission.

In the receive mode, packets are sent via the SIA to the LANCE. The packets are loaded into the 48-byte FIFO for preparation of automatic downloading into a receive buffer located in RAM. A CRC is calculated and compared with the CRC appended to the data packet. If the calculated checksum doesn't agree with the packet CRC, an error bit is set.

Serial Interface Adapter (SIA)

The Serial Interface Adapter has three basic functions. It is a Manchester Encoder/line driver in the transmit path, a Manchester Decoder with noise filtering and quick lock-on characteristics in the receive path, and a signal detect/converter (10 Mhz. differential to

TTL) in the collision path. In addition, the SIA provides the interface between the TTL logic environment of the LANCE and the differential signaling environment in the transceiver cable.

The transmit section encodes separate clock and NRZ data input signals meeting specific set-up and hold time requirements into a standard Manchester II serial bit stream.

In the receive path, the SIA signals the LANCE that there is information on the receive signal pair, and separates the incoming Manchester-encoded data into clock and NRZ data.

Transceiver

Four functions are provided by the transceiver. When transmitting it receives signals from the SIA and sends them to the coaxial or twisted pair medium. When receiving it

17

obtains data from the media and sends it to the SIA. It also provides Collision Detect capability in which it notifies the SIA if a collision has occurred on the media. In addition, it provides Jabber protection by guarding the medium from transmissions which are excessive in length.

RAM

Dual port static RAM is provided for storage of send and receive packets. RAM capacity is 16 Kbytes. Transfer of data between the memory and the SIA is under control of a

DMA controller located internally on the LANCE chip.

RAM can also be accessed by the host processor from the IP Logic Interface. The arbiter selects between the host and the Lance for access to the RAM at a given time. The host and Lance bus response signals are delayed until the arbiter grants access to that memory port. There are a variable number of IP wait states for the host port. The maximum delay is set by the Lance, about one microsecond.

The host places a message to be transmitted into the RAM and sets the Lance protocol flags. The Lance polls the memory and determines that the message to be transmitted is present, begin to read the message into the Lance and prepare for transmission. The host will have previously set-up the message passing memory organization through a series of descriptor words located in the RAM and pointed to by the Lance control registers. Please refer to the AMD Lance data book contained in GreenSpring

Computer's Engineering Kit for more information.

Arbiter

The RAM interface is controlled by the ARBITER which is an XABLE logic block. The

Arbiter is a one-bit implementation which looks at requests from the Host and from the

Lance and determines which port has access to the memory. The request from the

Lance is asynchronous to the IP Clock. The Arbiter double clocks the request from the

Lance to make sure that the Arbiter is not operating on a metastable condition. Enable A is the enable to the host port and is active any time that the Lance is not the master or requester. Enable B is the grant to the Lance and is active when the Lance requests the memory and the Host is not already using it.

Interrupts

All IndustryPack interrupts use a vector. The vector from the IP-Ethernet comes from a vector register loaded as part of the initialization process. The vector register can be programmed to any 8 bit value. The default value is $FF which is usually not a valid user vector. The software is responsible for choosing a valid user vector.

Interrupts can be generated from a number of causes. The Lance chipset provides a global interrupt enable bit. As part of the interrupt service routine the status register is read to determine the cause of the interrupt. The Lance provides six types [causes] of interrupt. The interrupts can occur in parallel -- more than one source at a time. All of the interrupt types should be tested as a part of each interrupt service routine. The

Lance can generate interrupts to indicate that a message has been sent [TINT], received

[RINT], Transmitter time-out error [BABL], Memory time-out error [MERR], Missed packet [MISS], and Initialization Done [IDON], Please refer to the Lance data book for more information.

A second source of interrupts is used for test purposes. The control register contains an

INTSET bit which creates an interrupt request when set to one. The interrupt request

18

remains enabled until the INTSET bit is rewritten to zero.

Interface Logic

The interface logic on the IP-Ethernet consists of the ID PROM, decoder and some control logic. This logic implements the address map for the I/O Space resources including the RDP Register, RAP Register, Vector Register, and Control and Status

Register; and provides chip select to the dual port RAM when a memory select is detected from the host.. It generates the necessary control signals on the IP. It generates zero or multiple wait states as required during accesses. All of these functions are implemented in a single Xilinx logic cell array (LCA).

19

Programming

Control and Status Register

The control and status register is the same register. It is called the Control Register for write operations, where there are two effective bits. It is called the Status Register for read operation, where there are four effective bits.

The two bits in the Control Register control the interrupt from the IP. This Register must be initialized prior to interrupt operation and must also be written to every interrupt to clear the pending interrupt. The six high order bits are "don't care" on writes, but setting these bits to zero is recommended for consistency. These two bits read back as written in the Status Register. They are cleared to zero on Reset.

Bit [0] must be set to one to enable interrupts. It must be toggled to zero then back to one by the interrupt service routine to clear each pending interrupt.

Bit [1] must be set to zero for normal operation. Setting this bit to one will force an interrupt, even if bit [0] is at zero. This feature may be used to test interrupts without involving the Lance chip or any network interaction.

There are four effective bits in the Status Register. The two low bits read back as written from the Control Register. Bits [3.2] provide a static code that indicates which, if any, transition module is installed. These bits should be checked during system initialization and an appropriate error message generated if they are not set as expected.

High order bits [7..4] do not read back predictably and should be masked off and ignored by the programmer.

Caution: The transition module provides the clock to the Lance chip. If no transition module is installed, then the RDP and RAP registers in the Lance chip are not functional and a bus error is likely to result. To avoid this error, check the [3..2] bits in the Status

Register prior to accessing the RDP or RAP.

The control port is read-writable. The control port, when written to, controls the interrupt enable and interrupt set bits. The read operation accesses the interrupt control bits plus the connection status from the expansion boards. The port is initialized to 0 with reset.

The Control and Status Register is implemented internally within the Xilinx LCA.

20

Bit

[0]

[1]

[3..2]

Function

Interrupt enable

0 = interrupt disabled

1 = interrupt enabled

Interrupt Force

0 = normal operation

1 = force interrupt on

00 = Coax TM installed

01 = (spare)

10 = Twisted Pair TM installed

11 = no transition module installed

Note: Bit [0] should be toggled 1 -> 0 ->1 by the interrupt service routine to clear each pending interrupt.

Note: Mask off high order bits when reading. Bits [7..2] are "don't care" on writes.

Figure 11 Control and Status Register

Vector Register

The 8-bit Vector Register is used by the software to store the pointer to the interrupt service routine associated with the IP-Ethernet's driver. The interrupt vector is set to

$FF during Reset. This host software must initialize this register prior to enabling interrupts. The vector register is read-writable in the I/O space. The vector register is implemented within the Xilinx LCA..

RAM

The IP-Ethernet provides 16 Kbytes of static RAM for storage of send and receive packets. This RAM should generally be initialized (or cleared) following Reset by the driver software to assure consistent operation.

The most common packet size on TCP/IP 802.1 networks is 1K bytes. The dual-port memory is thus large enough for 16 of these common packets. However, it is necessary to use some of the memory capacity for overhead, therefore, taking this into account, actual packet capacity would be limited to fifteen packets. In most implementations the host software will not use this memory for long term packet storage but will load and unload packets expeditiously.

The Lance chip has an internal DMA controller for transferring data to and from the memory on the IP during transmission.

The host will place a message to be transmitted into the RAM and set the Lance protocol flags. The Lance will poll the memory and determine that the message to be transmitted is present, begin to read the message into the Lance and prepare for transmission. The host will have previously set-up the message passing memory organization through a series of descriptor words located in the RAM and pointed to by the Lance control registers. Please refer to the AMD Lance data book contained in GreenSpring

Computer's Engineering Kit for more information.

21

The host can read or write to the RAM at any time because the Xilinx device contains an arbiter to select between the host and the Lance for ownership of the RAM at a given time. The host and Lance have their bus response signals delayed until the arbiter grants access to that memory port. There are a variable number of IP wait states for the host port. The maximum delay is set by the Lance, about one microsecond.

Register Data Port [RDP]

The Lance chipset is programmed through the Register Data Port (RDP). There are four control and status ports accessed through the RDP. The RAP selects which CSR the

RDP will access. CSR 0 is the general control port with control over interrupt generation, initialization, and status from the interrupt and error sources. CSR 1 contains the address in RAM of the initialization block. CSR2 contains the upper 8 addresses of the initialization block. CSR3 contains a four bit port to define the type of Bus Master interface is to be implemented.

Please refer to the AMD handbook on the Lance chip-set for more information. A copy is contained in the IP-Ethernet Engineering Kit from GreenSpring Computers.

Register Address Port [RAP]

The Register Address Port (RAP) is utilized to select which CSR that the RDP points to.

The Lance uses a windowing scheme to interface the CPU to the internal registers. The

RAP controls the window.

Please refer to the AMD handbook on the Lance chip-set for more information. A copy is contained in the IP-Ethernet Engineering Kit from GreenSpring Computers.

22

IndustryPack I/O Interface Pin Assignment

The figure below gives the pin assignments for the IndustryPack I/O Interface from the

IP to the Transition Module. Users do not normally have to be concerned with this interface unless they are designing their own transition module. See the section on

Installation for more information about wiring to the user network.

GND

GND

Rx

GND

GND

Rclk

GND

GND

Tx

GND

GND

Tclk

GND

GND

CLSN

GND

GND

TENA

-12V

-12V

-12V

-12V

+12V

+12V

GND

GND

+5V

+5V

+5V

+5V

GND

GND

B0

GND

B1

GND

Reset*

GND

GND

GND

GND

GND

GND

GND

GND

RENA

GND

+12V

+12V

GND

1

3

5

7

9

11

13

15

17

19

21

23

2

4

6

8

10

12

14

16

18

20

22

24

25

Figure 12 IP Interface to Transition Module Pin Assignment

26

28

30

32

34

36

38

40

42

44

46

48

50

27

29

31

33

35

37

39

41

43

45

47

49

23

IndustryPack Logic Interface Pin Assignment

The figure below gives the pin assignments for the IndustryPack Logic Interface on the

IP-Ethernet Pins marked n/c below are defined by the specification, but not used on the

IP-Ethernet See also the User Manual for your carrier board for more information.

D5

D6

D7

D8

D9

D10

D11

D12

D1

D2

D3

D4

GND

CLK

Reset*

D0

D13

D14

D15

BS0*

BS1*

–12V

+12V

+5V

GND

GND

+5V

R/W*

IDSel* n/c

MEMSel* n/c

INTSel* n/c

A2 n/c

A3 n/c

IOSel* n/c

A1

INTReq0*

A4 n/c

A5 n/c

A6

Ack* n/c

GND

9 34

10

11 36

12

13 38

14

15 40

16

1

2

3 28

4

5 30

6

7 32

8

17 42

18

19 44

20

21 46

22

23 48

24

25 50

26

27

29

31

33

35

37

39

41

43

45

47

49

Note 1: The no-connect signals above are defined by the IndustryPack Logic Interface

Specification, but not used by this IP. See the Specification for more information.

Note 2: The layout of the pin numbers in this table corresponds to the physical placement of pins on the IP connector. Thus this table may be used to easily locate the physical pin corresponding to a desired signal. Pin 1 is marked with a square pad on the IndustryPack.

Figure 13 Logic Interface Pin Assignment

24

Transition Module Pin Assignments

IP Interface

The figure below gives the transition module pin assignments for the I/O Interface from the IP to the transition module. More specifically, it is the signal interface between the

7990 LANCE chip on the IP and the 7992 Serial Interface Adapter chip on the transition module. It applies to both the XM-10Base2 and XM-10BaseT transition modules.

Pin

15

16

17

18

11

12

13

14

7

8

9

10

3

4

5

6

1

2

19

20

21

22

23

24

25

Signal Name

GND

GND

Rx

GND

GND

Rclk

GND

GND

Tx

GND

GND

Tclk

GND

GND

CLSN

GND

GND

TENA

–12V

–12V

–12V

–12V

+12V

+12V

GND

Pin

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

Signal Name

Notes:

1. All signals are standard TTL logic voltage levels.

2. This signal is not used on XM-10Base2.

GND

+5V

+5V

+5V

+5V

GND

GND

B0

GND

B1

GND

Reset* (note 2)

GND

GND

GND

GND

GND

GND

GND

GND

RENA

GND

+12V

+12V

GND

Figure 14 Transition Module IP Interface Pin Assignment

25

Attachment Unit Interface

The Attachment Unit Interface (AUI) is only provided on the XM-10Base2 Transition

Module and only applies to 10Base5 configurations. This interface provides for connection to a user provided Media Attachment Unit (MAU) which has been mounted directly to an Ethernet "thickwire" coax.

Pin

3

4

5

1

2

6

7

8

Signal Name

GND

Clsn+

Tx+

GND

Rx+

GND n/c

GND

Notes:

1. This voltage is fused.

Pin

9

10

11

12

13

14

15

Signal Name

Clsn–

Tx–

GND

Rx–

+12V (Note 1)

GND

GND

Figure 15 XM-10Base2 Transition Module AUI Interface Pin Assignment

Coax Interface

The Coax Interface is only provided on the XM-10Base2 Transition Module and only applies to XM-10Base2 "cheapernet" configurations. This interface provides for a "T" connection to an RG58 BNC "T" adapter.. The board mounted connector is a standard coaxial BNC female connector with the center conductor going to both receive data and transmit data pins on the 7996 transceiver chip. The outer conductor goes to an isolated shield circuit.

Twisted Pair Interface

The Twisted Pair Interface is only provided on the XM-10BaseT Transition Module and only applies to 10BaseT twisted pair configurations. This interface provides for a point to point connection to a twisted pair hub.. The board mounted connector is an RJ45 eight position connector. Pin assignments are as indicated in the figure below.

Pin

3

4

1

2

Signal Name

TD+

TD–

RD+ n/c

Pin

7

8

5

6

Signal Name

n/c

RD– n/c n/c

.

Figure 16 XM-10BaseT Transition Module Twisted Pair Interface Pin Assignment

The five LEDs on the transition module provide the following status.

LED 1, Collision - The IP-Ethernet was transmitting data at the same time data was being received.

LED 2, Receive - The IP-Ethernet is receiving data.

LED 3, Transmit - The IP-Ethernet is transmitting data.

26

LED 4, Link Polarity - If this LED is ON the Link Polarity is correct otherwise the

Link Polarity is reversed indicating that there is a wiring error.

LED 5, Link Status - If this LED is ON the Link is up and functional.

27

ID PROM

Every IP contains an IP PROM, whose size is at least 32 x 8 bits. The ID PROM aids in software auto configuration and configuration management. The user's software, or a supplied driver, may verify that the device it expects is actually installed at the location it expects, and is nominally functional. The ID PROM contains the manufacturing revision level of the IP. If a driver requires that a particular revision be present, it may check for it directly.

As with all Ethernet controllers, each IP-Ethernet LANCE has a unique destination address associated with it. This 48-bit number provides a mechanism for routing packets to the appropriate node on a LAN.

The ID PROM of the IP-Ethernet LANCE is large enough to conveniently support only 32 bits of this 48-bit address. Fortunately, the remaining 16 bits of the address are constant, since they comprise part of the unchanging manufacturers code. Therefore, by knowing this invariant part of the address and combining it with the unique information in the ID PROM, the full Ethernet address may be obtained. Refer to the

IndustryPack Specification for more information about the ID Space, and to the documentation for your carrier board for information concerning the starting address for this Space.

The Ethernet address is typically written as a 12-digit hexadecimal number. The first four digits of this number for all Ethernet products manufactured by GreenSpring

Computers are 2E45. This is the invariant portion of the address that does not appear in the ID PROM. It is typically hard coded into any drivers for the IP-Ethernet LANCE.

The remaining eight hexadecimal digits are stored in the ID PROM as binary numbers.

The next two digits after 2E45 are stored in the byte at offset $19 (on VMEbus carrier boards) from the beginning of the ID PROM. Again, this is an unsigned binary number, and not an ASCII representation of the hex digits. The next two digits are at offset $1B, the next two at $1D, and the final digits are at offset $1F from the beginning of the ID

PROM.

The following table shows how the example Ethernet address 2E45 EFF9 D744 would be stored in the IP-Ethernet LANCE:

Ethernet Node Address

2E <47:40>

45 <39:32>

EF <31:24>

F9 <23:16>

D7 <15:08>

44 <07:00>

Storage Location in ID PROM

None (Implied)

None (Implied)

ID PROM Base Address + $19

ID PROM Base Address + $1B

ID PROM Base Address + $1D

ID PROM Base Address + $1F

Note that the ID PROM CRC and Size fields do reflect the presence of the addressing information stored in the ID PROM.

28

Data in the ID PROM, including the variable 32-bit portion of the Ethernet address, is shown below. For more information on IP ID PROMs refer to the IndustryPack® Logic

Interface Specification, available from GreenSpring Computers and other sources.

The ID PROM used is internal to the Xilinx logic device on the IP-Ethernet [Lance].

3F

09

07

05

03

01

11

0F

0D

0B

19

17

15

13

21

1F

1D

1B

Ethernet Address bits <07:00>* (44)

Ethernet Address bits <15:08>* (D7)

Ethernet Address bits <23:16>* (F9)

Ethernet Address bits <31:24>* (EF)

CRC

No of bytes used

Driver ID, high byte

Driver ID, low byte

Figure 17 ID PROM Data

(0C) reserved

Revision

(00)

(A1)

Model No IP-Ethernet (35)

Manufacturer ID GreenSpring (F0)

ASCII "C"

ASCII "A"

ASCII "P"

ASCII "I"

(43)

(41)

(50)

(49)

* NOTE: These fields are variable for each IP; the values shown here are for illustration purposes only.

The below example represents how the contents of the above example ID PROM might appear when displayed by a debugger.

RomBug: d ffd080

0x00FFD080 - FF49FF50 FF41FF43 FFF0FF35 FFA1FF00

0x00FFD090 - FF00FF00 FF10FFC3 FF EFFFF9 FFD7FF44

29

User Options (jumpers)

This section describes the shunts (jumpers) that are on the two transition modules.

There are no shunts on the IP.

Shunts for XM-10BaseT (Twisted Pair)

E1

E2

E3

E4

Test input to 7992.

TSEL input to 7992

Test input to 79C98

SqeTest input to 79C98

Normal = shunt out

Normal = shunt n

Normal = shunt in

Normal = shunt out

Shunts for XM-10Base2 (Coax)

E1 TSEL input to 7992

E2

E3

Test input to 7992

SqeTest input to 7996

Normal = shunt out

Normal = shunt out

Normal = shunt out

Shunts for XM-10Base5 (AUI)

E1

E2

TSEL input to 7992

Test input to 7992

Normal = shunt out

Normal = shunt out

Logic level low is achieved by installing a shunt.

Logic level high is achieved by removing a shunt.

TSEL [Transmit Mode Select] During idle transmit state with TSEL low transmit + is positive with respect to transmit -. With TSEL high the transmit + is equal to transmit -

"zero" differential to operate transformer coupled loads.

Test [7992] high for normal operation, and low for testing of the receive path threshold and RCLK output high parameters.

Test [79C98] High for loopback test mode. SqeTest determines type of loopback. Low for normal operation.

SqeTest [Signal Quality Error Test (Heartbeat) Enable. When low (Station MAU), TPEX transfers data independently from D0 to the TXD/TXP circuit and from RXD to the DI circuit. If High (Repeater MAU) then data on the RXD circuit is transmitted back onto the

TXD/TCP circuit and data on the DO circuit is transmitted onto the DI pair.

30

Construction and Reliability

IndustryPacks were conceived and engineered for rugged industrial environments. The

IP-Counter is constructed out of 0.062 inch thick FR4 V0 material. The four copper layers consist of two signal layers and two power and ground planes.

Through hole and surface mounting of components is used. IC sockets are screwmachined pins, gold plated. High insertion and removal forces are required, which assists in keeping components in place. If the application requires unusually high reliability or is in an environment subject to high vibration, the user may solder the four corner pins of each socketed IC into the socket, using a grounded soldering iron.

The IndustryPack connectors are keyed, shrouded and gold plated on both contacts and receptacles. They are rated at 1 Amp per pin, 200 insertion cycles minimum. These connectors make consistent, correct insertion easy and reliable.

The IP is secured to the carrier with four metric M2 stainless steel screws. The heads of the screws are countersunk into the IP. The four screws provide significant protection against shock, vibration, and incomplete insertion. For most applications they are not required.

The IndustryPack provides a low temperature coefficient of 0.89 W/°C for uniform heat.

This is based on the temperature coefficient of the base FR4 material of .31 W/m-°C, and taking into account the thickness and area of the IP. This coefficient means that if

0.89 Watts is applied uniformly on the component side, that the temperature difference between the component and the solder side is one degree Celsius.

31

Warranty and Repair

GreenSpring Computer warrants this product to be free from defects in workmanship and materials under normal use and service and in its original, unmodified condition, for a period of one year from the time of purchase. If the product is found to be defective within the terms of this warranty, GreenSpring Computer's sole responsibility shall be to repair, or at GreenSpring Computer's sole option to replace, the defective product. The product must be returned by the original customer, insured, and shipped prepaid to

GreenSpring Computers. All replaced products become the sole property of GreenSpring

Computers.

GreenSpring Computer's warranty of and liability for defective products is limited to that set forth herein. GreenSpring Computers disclaims and excludes all other product warranties and product liability, expressed or implied, including but not limited to any implied warranties of merchandisability or fitness for a particular purpose or use, liability for negligence in manufacture or shipment of product, liability for injury to persons or property, or for any incidental or consequential damages.

GreenSpring’s products are not authorized for use as critical components in life support devices or systems without the express written approval of the president of GreenSpring

Computers, Inc.

Service Policy

Before returning a product for repair, verify as well as possible that the suspected unit is at fault. Then call the Customer Service Department for a RETURN MATERIAL

AUTHORIZATION (RMA) number. Carefully package the unit, in the original shipping carton if this is available, and ship prepaid and insured with the RMA number clearly written on the outside of the package. Include a return address and the telephone number of a technical contact. For out-of-warranty repairs, a purchase order for repair charges must accompany the return. GreenSpring Computers will not be responsible for damages due to improper packaging of returned items. For service on GreenSpring

Products not purchased directly from GreenSpring Computers contact your reseller.

Products returned to GreenSpring Computers for repair by other than the original customer will be treated as out-of-warranty.

Out of Warranty Repairs

Out of warranty repairs will be billed on a material and labor basis. The current minimum repair charge is $100. Customer approval will be obtained before repairing any item if the repair charges will exceed one half of the quantity one list price for that unit. Return transportation and insurance will be billed as part of the repair and is in addition to the minimum charge.

For Service Contact:

Customer Service Department

GreenSpring Computers

1204 O’Brien Drive

Menlo Park, CA 94025

(415) 327-1200

(415) 327-3808 fax

32

Specifications

Logic Interface:

Media Interface:

Software Interface:

Initialization:

Access Modes:

Wait States:

Interrupt:

DMA:

Isolation Voltage

Onboard Options:

Interface Options:

Dimensions:

IndustryPack® Logic Interface 0.7.1 Compatible

10Base2 (thin), 10Base5 (thick), 10BaseT (twisted pair),

Control and Status Register

Vector Register

ID PROM

RAM

Lance Registers: RDP and RAP

Hardware Reset forces all registers to zero except vector register which is initialized to $FF.

Word or Byte in I/O Space (see memory map)

Word or Byte in ID Space

Byte in I/O Space to Lance Registers

Vectored interrupts

Word or Byte in Memory space

Zero

1

Multiple interrupts associated with the Lance and one for hardware and software debugging created through the control register.

DMA is supported between the Lance chip and the internal RAM.

10Base2:

10Base5:

10BaseT:

2000 VAC rms

Not Applicable

2

500 VAC rms

All IP-Ethernet Options are Software Programmable

The Twisted pair and Coax expansion modules have jumpers to select modes of operation..Please refer to the Appendix for a list of options.

50 pin flat cable to interconnect the IP-Ethernet Lance to one of the Transition Modules. Coax [BNC, RG58]or

Twisted pair [RJ-45] to connect to the Ethernet LAN

Standard Single IndustryPack.

1.8 x 3.9 x .344 (max) inches

Transition Modules

2.65 x 3.9 x .344(max) inches

(See drawing, last page this section.)

1

The RAM access time may require wait-states if the RAM is being accessed by the network when the Host begins a transfer cycle.

2

Isolation is provided by Media Attachment Unit (MAU) which in this configuration is userprovided.

33

Construction:

Temperature

Power:

Conformal Coated FR4 4 Layer Printed Circuit,

Through Hole and Surface Mount Components.

Programmable parts are socketed.

Coefficient: .89 W/oC for uniform heat across IP

+5V @ 450 mA max [300 typ.], -12V @ 155 mA max.

34

.227

2.650

2.370

.342

3.934

3.480

1.500

.250

.534

.088

.590

XM-ENET 10baseT

3.250

1.000

.190

0.100 dia

4 holes

.500

.140

0.375 dia

.500

1.000

.935

0.100 dia

4 holes

.335

XM-ENET 10base2

GreenSpring Computers, Inc.

Menlo Park, CA

IP-Ethernet Lance

Transition Modules

35

36

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
