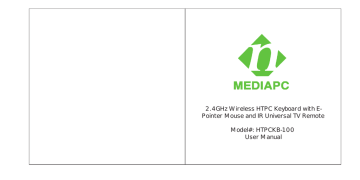

2.4GHz Wireless HTPC Keyboard with EPointer Mouse and IR Universal TV Remote
Model#: HTPCKB-100
User Manual
Thank you for choosing our 2.4GHz Wireless Keyboard with E-Pointer Mouse and
IR Universal TV Remote. This unique HTPCKB-100 Keyboard combo will bring you
and your families the excellent experience with the most advanced technologies –
Radio Frequency (RF) 2.4GHz Wireless KB + Infrared (IR) TV Remote, It is user
friendly; compact and it will be the best choice for your Home Theater PC setup.
This manual will quickly guide you through how to use this outstanding product.
Product Highlights:
• The first RF Wireless KB that bundles with an IR Universal TV Remote in a 10 feet
Home Theater environment
• Long Range 30 feet wireless and E-Pointer 3D wheel mouse functionalities for an
excellent HTPC KB Input Device
• Slim-line design but with the robust functions like Media Center Navigation and
Hotkeys; Gaming and Internet Browsing Zoom in and out
• USB Charging capability to make the energy saving easy. (Chargeable Batteries
are not included)
Left Handle Bar
• Frontend Software Navigation: Up Arrow; Left Arrow; Right Arrow: Down Arrow
and OK key
• Media Player Navigation: Back; MCE Home; Play/Pause; Mute; Volume Up;
Volume Down; Forward and Backward
Center Top
• Universal TV Remote: TV Volume Up; Volume Down; Mute; TV Power Button and
TV Input
• Email Hotkey; PC Power (Sleep/Restart/Shut Down depending on setting); Battery
Charging LED and Low Battery LED
Center Bottom
• Keyboard Input Keys
• MCE Hot Keys (FN Key Activated): My TV; My Video; My Music; My Photo; DVD
Menu; Record; Replay & Skip
• Gaming Hot Key (FN Key Activated): Change left mouse click to constant shoot
FN Keys and functions: (mainly design for Microsoft Media Center Edition (MCE)
& PC Gaming Constant Shoot)
System Requirements:
• IBM or compatible PC systems
• Microsoft Windows 7 /Vista /XP /2000
• Linux and Mac PC
• Internet Explorer 7.0 or above
Section 1: Product Features
Right Handle Bar
• Mouse – E-Pointer (Patent Pending)
• Left Click; Right Click and Scroll Wheel
• Internet Explorer Launcher & Close (Existing) Application Key
• Web Browsing (not for OS and other applications) Zoom In & Out in your TV for
easy navigation in the 10 feet environment
Section 2: Activation
2.4GHz Wireless Keyboard
. Insert Batteries (come with the regular AAA batteries (non-chargeable) x 2) into
battery compartment
1
2
. Plug the USB Receiver (Dongle) into your PC USB port; Device should be automatically detected; and your Operating System should load and install driver
automatically and indicate device is ready to be used
. KB should be instantly plug-n-play; same as when you replace battery, no activation
or re-activation needed
. ID Connection (tiny button on the back) ONLY applies when you believe you have
a serious RF signal interference (chance will be minimum to none); follow ID
changing process list in below References section to change the RF ID (Channel)
Universal TV Remote Activation
(Picture A)
(Picture B)
Manual Code Set
1 Turn on TV
2 See the TV IR Code table below in the Reference section and look for your TV
IR code
3 Press and keep holding "SET" key for 3-5 seconds until the LED indicator lights
up(Picture A)
4 Press the number button(s) to enter the TV code(3 digits)(Picture A)TV
remote activation is completed
5 Use TV Power Button to turn on the TV and check functions of other keys to see
if they are working correctly
6 If not, return to step 2 to re-enter the next TV IR code again until all TV IR keys
are functioning
3
Auto Code Search
1 Turn on your TV
2 Turn the KB up-side-down, press and keep holding “SET” key for 3-5 seconds
until the LED indicator lights up (Picture A)
3 Press and release “TV Power” button, the remote will enter the status of Auto
Search ( Picture B)
4 SET LED will constantly blinking until the code is found, this process will take
4-8 minutes to complete
5 When the remote has searched the right code successfully, the TV will be
turned off automatically
6 Then press “SET” key to save the code and leave Auto Search. The LED indicator
will be off (Picture A)
7 Turn on the TV again, and now use the IR keys to test the functions to see if
t hey are working correctly. If not, return to step 1 to re-start the Auto Code Search
again.
Note: Keep the TV remote in safe place for future use after successfully activation.
During the setting, if you want to stop and not save the code, please press the
“SET” key any time and the LED will be off. Remote will quit form setting mode
in 15 sec. if no any input
Battery
When the wireless keyboard low battery indicator lights (flashing):
• If the original assembly is 2 AAA alkaline (non chargeable) batteries, replace the
two AAA alkaline batteries
• If you use the AAA rechargeable batteries:
• Use USB cable to connect the keyboard to your PC USB
Port
• Charging Light will be turned on (flashing) and it starts
charging the battery
Un-plug the USB cable until the charging LED lights
constantly on to indicate finish charging
Section 3 References:
4
• ZOOM in and out key not working – These two keys are for Internet (Web) Browsing
ONLY; not for Operating System and other applications. And for Internet Explorer,
it is compactable for Microsoft Internet Explorer 7.0 and or above. Other browser
is not tested and considered not support. Try search the below KB Hot keys to see
if they will work for your application or web browser:
. ZOOM In = CTRL + +(plus)
. ZOOM Out = CTRL + 0
• The E-Pointer is so slow; and or it is so fast that I don’t have good control experience
TV IR Code Table:
on it – Open Control Panel and Click on Mouse to adjust the Pointer Speed in Mouse
to the best fit speed
• My KB stops functioning suddenly – Check battery and replace with new to test.
Battery life may go out during unattended time
TV Universal IR Remote
• In auto search mode, IR keys not working – Be patient, this process may take 48 minutes to search the code depend on the TV brand and model
• In manual code entry, my remote not working – Repeat the steps by using the
next code until the remote fully function. Be Patient
• How can I change TV Input – Press the INPUT key again, and it will switch to the
next input. In small percentage of the TV, you may need to use the TV up/down/
ok key to switch input, but the chance will be minimum
How do I use the other TV keys – Due to the compact design, we only select the
HTPC most used buttons: Mute/Vol+/Vol-/Input/Power & #s (back)
Note: Above code is applicable for most popular TV band on market, later TV or
band code may not be included; Code may result in improper function for some
keys on the IR portion; change the next code until they are fully function.
Keyboard
• PC power button not working – You need to press and hold 2 seconds to shut
down PC; intention is to avoid accidently shut down; This RF KB button cannot
turn on the system due to its PC nature
• MCE/HOME; Back Key; Media Playing and MCE FN Hotkey not working on other
front end (software/application) – These keys are designed for Microsoft Media
Center Edition and Media Player. They are hot-coded and cannot be programmed
for third party application
ID (CONNECT) Setting:
The frequency is pre-set in the factory, there is no need set ID setting unless you
believe there is a serious interference with other RF device that is nearby.
Note: For optimal performance, please place the USB dongle receiver 20cm away
form the other RF interference devices such as Computer monitors and speakers.
To reset the product ID (CONNECT), follow these steps;
(1) Remove the receiver from the PC; and re-plug it in
(2) Press the ID Connect key on the back of the KB for 30 seconds
(3) ID (CONNECT) setup process is completed
(4) If the above steps do not complete the band change, please follow these steps
to clear ID (CONNECT):
1 Remove the battery from the keyboard
2 Press and hold the button on the frequency
3 Insert the batteries into the keyboard
4 Release of the band button, complete the ID (CONNECT) cleared
5
6
Trouble Shooting
Was this manual useful for you? yes no
Thank you for your participation!
