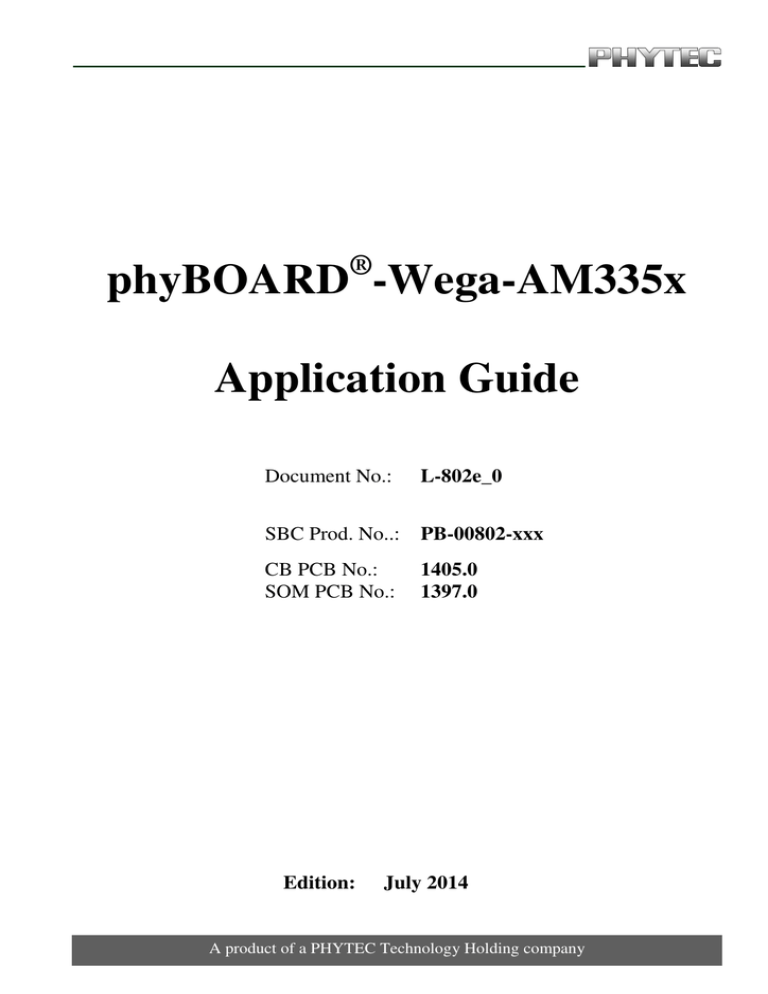

phyBOARD-Wega WEC2013
®
phyBOARD -Wega-AM335x
Application Guide
Document No.:
L-802e_0
SBC Prod. No..:
PB-00802-xxx
CB PCB No.:
SOM PCB No.:
1405.0
1397.0
Edition:
July 2014
A product of a PHYTEC Technology Holding company
phyBOARD-Wega-AM335x [PB-00802-xxx]
Copyrighted products are not explicitly indicated in this manual. The absence of the trademark (, or
®) and copyright (©) symbols does not imply that a product is not protected. Additionally, registered
patents and trademarks are similarly not expressly indicated in this manual.
The information in this document has been carefully checked and is considered to be entirely reliable.
However, PHYTEC Messtechnik GmbH assumes no responsibility for any inaccuracies. PHYTEC
Messtechnik GmbH neither gives any guarantee nor accepts any liability whatsoever for consequential
damages resulting from the use of this manual or its associated product. PHYTEC Messtechnik GmbH
reserves the right to alter the information contained herein without prior notification and accepts no
responsibility for any damages that might result.
Additionally, PHYTEC Messtechnik GmbH offers no guarantee nor accepts any liability for damages
arising from the improper usage or improper installation of the hardware or software. PHYTEC
Messtechnik GmbH further reserves the right to alter the layout and/or design of the hardware without
prior notification and accepts no liability for doing so.
 Copyright 2013 PHYTEC Messtechnik GmbH, D-55129 Mainz.
Rights - including those of translation, reprint, broadcast, photomechanical or similar reproduction and
storage or processing in computer systems, in whole or in part - are reserved. No reproduction may
occur without the express written consent from PHYTEC Messtechnik GmbH.
Address:
EUROPE
NORTH AMERICA
PHYTEC Messtechnik GmbH
Robert-Koch-Str. 39
D-55129 Mainz
GERMANY
PHYTEC America LLC
203 Parfitt Way SW, Suite G100
Bainbridge Island, WA 98110
USA
Ordering
+49 (6131) 9221-32
Information: [email protected]
1 (800) 278-9913
[email protected]
Technical
Support:
+49 (6131) 9221-31
[email protected]
1 (800) 278-9913
[email protected]
Fax:
+49 (6131) 9221-33
1 (206) 780-9135
Web Site:
http://www.phytec.de
http://www.phytec.eu
http://www.phytec.com
Preliminary Edition Juli 2014
 PHYTEC Messtechnik GmbH 2013
L-802e_0
Contents
List of Figures ..............................................................................................................................iii
List of Tables................................................................................................................................iii
Conventions, Abbreviations and Acronyms .............................................................................iv
Preface .........................................................................................................................................vii
1
Introduction .......................................................................................................................11
1.1 Hardware Overview ....................................................................................................11
1.1.1 Features of the phyBOARD-Wega-AM335x ................................................11
1.1.2 View of the phyBOARD-Wega-AM335x .....................................................12
1.1.3 Block Diagram...............................................................................................13
1.2 Software Overview .....................................................................................................14
1.2.1 Visual Studio 2012 ........................................................................................14
1.2.2 Windows Embedded Compact 2013 .............................................................14
2
Getting Started...................................................................................................................15
2.1 Installing the Phytec tool DVD for phyBOARD-WEGA...........................................15
2.2 Working with Visual Studio 2012 ..............................................................................18
2.2.1.1 Work with the demo project...........................................................18
2.2.1.2 Creating a New Project...................................................................22
3
Accessing the phyBOARD-Wega Interfaces ...................................................................27
3.1 Concept of the phyBOARD-Wega .............................................................................27
3.2 Overview of the phyBOARD-Wega Peripherals........................................................28
3.2.1 Connectors and Pin Header ...........................................................................28
3.2.2 LEDs ..............................................................................................................29
3.3 Functional Components on the phyBOARD-Wega Board.........................................30
3.3.1 Power Supply.................................................................................................30
3.3.1.1 Power Connectors (X67 and X72) .................................................30
3.3.1.2 Power LED D58 .............................................................................32
3.3.1.3 VBAT and RTC..............................................................................32
3.3.2 RS-232 Connectivity (X66) ..........................................................................33
3.3.2.1 Software Implementation ...............................................................34
3.3.3 Ethernet Connectivity (X16 and X17)...........................................................34
3.3.3.1 Software Implementation ...............................................................35
3.3.4 USB Connectivity (X15 and X42).................................................................35
3.3.4.1 Software Implementation ...............................................................35
3.3.5 Audio Interface (X55 and X73).....................................................................37
3.3.5.1 Software Implementation ...............................................................38
CAN Connectivity ......................................................................................................38
3.3.5.2 Software Implementation ...............................................................39
3.3.6 Audio/Video connectors (X70 and X71).......................................................40
3.3.7 Expansion connector (X69) ...........................................................................40
3.3.8
Secure Digital Memory Card/ MultiMedia Card (X11) ...............................40
3.3.8.1 Software Implementation ...............................................................41
3.3.9 Boot Mode ....................................................................................................42
3.3.10 System Reset Button (S2)..............................................................................42
4
Advanced Information ......................................................................................................43
4.1 About this Section.......................................................................................................43
4.2 Software Overview .....................................................................................................43
4.3 Getting Started with the BSP ......................................................................................43
 PHYTEC Messtechnik GmbH 2013
L-802e_0
i
phyBOARD-Wega-AM335x [PB-00802-xxx]
4.3.1 Working with Platform Builder .....................................................................43
4.3.2 Writing the OS Image into the Target’s Flash...............................................48
4.4 Updating the software .................................................................................................50
4.4.1 Creating a bootable SD card ..........................................................................50
4.4.2 Flashing the Bootloader .................................................................................50
4.4.3 Writing NK.bin to the Nand Flash.................................................................54
4.5 System Level Hardware Information..........................................................................56
4.5.1 Audio/Video connectors ................................................................................56
4.5.2 Software Implementation...............................................................................59
4.5.3 Audio I2S........................................................................................................59
4.5.4 I2C Connectivity ............................................................................................59
4.5.5 Expansion connector......................................................................................60
4.5.5.1 Software Implementation ...............................................................62
4.5.6 SPI Connectivity ............................................................................................62
4.5.7 User programmable GPIOs............................................................................62
4.5.7.1 Software Implementation ...............................................................62
5
Revision History.................................................................................................................63
Index ............................................................................................................................................64
ii
 PHYTEC Messtechnik GmbH 2013
L-802e_0
Contents
List of Figures
Figure 1:
View of the phyBOARD-Wega-AM335x................................................................12
Figure 2:
Block Diagram of the phyBOARD-Wega-AM335x................................................13
Figure 3:
Power Supply Connectors ........................................................................................30
Figure 4:
RS-232 Interface Connector X66 .............................................................................33
Figure 5:
RS-232 Connector Signal Mapping..........................................................................33
Figure 6:
Ethernet Interfaces at Connectors X16 and X17 ......................................................34
Figure 7:
Components supporting the USB Interfaces ............................................................35
Figure 8:
Audio Interfaces at Connectors X55 and X73..........................................................37
Figure 9:
Components supporting the CAN Interface .............................................................38
Figure 10: CAN Connector Signal Mapping .............................................................................39
Figure 11: SD / MM Card interface at connector X11 ..............................................................40
Figure 12: System Reset Button S2 ...........................................................................................42
List of Tables
Table 1:
Abbreviations and Acronyms used in this Manual.....................................................v
Table 2:
phyBOARD-Wega Connectors and Pin Headers .....................................................28
Table 3:
phyBOARD-Wega LEDs Descriptions ....................................................................29
Table 4:
Pin Assignment of the 2-pole PHOENIX Connector at X67 ..................................31
Table 5:
Pin Assignment of the 6-pole WAGO Connector at X67 .......................................32
Table 6:
Pin Assignment of RS-232 Connector X66..............................................................33
Table 7:
Pin Assignment of CAN Connector X65 .................................................................38
Table 8:
PHYTEC A/V connector X70 ..................................................................................57
Table 9:
PHYTEC A/V connector X71 ..................................................................................58
Table 10:
I2C Connectivity .......................................................................................................59
Table 11:
I2C Addresses in Use ................................................................................................60
Table 12:
PHYTEC Expansion Connector X69 .......................................................................62
 PHYTEC Messtechnik GmbH 2013
L-802e_0
iii
phyBOARD-Wega-AM335x [PB-00802-xxx]
Conventions, Abbreviations and Acronyms
This hardware manual describes the PB-00802-xxx Singe Board Computer (SBC) in the
following referred to as phyBOARD-Wega-AM335x. The manual specifies the
phyBOARD-Wega-AM335x's design and function. Precise specifications for the Texas
Instruments AM335x microcontrollers can be found in the Texas Instrumenten’s
AM335x Data Sheet and Technical Reference Manual.
Conventions
The conventions used in this manual are as follows:
Signals that are preceded by an "n", "/", or “#”character (e.g.: nRD, /RD, or #RD), or
that have a dash on top of the signal name (e.g.: RD) are designated as active low
signals. That is, their active state is when they are driven low, or are driving low.
A "0" indicates a logic zero or low-level signal, while a "1" represents a logic one or
high-level signal.
The hex-numbers given for addresses of I2C devices always represent the 7 MSB of
the address byte. The correct value of the LSB which depends on the desired
command (read (1), or write (0)) must be added to get the complete address byte. E.g.
given address in this manual 0x41 => complete address byte = 0x83 to read from the
device and 0x82 to write to the device.
Tables which describe jumper settings show the default position in bold, blue text.
Text in blue italic indicates a hyperlink within, or external to the document. Click
these links to quickly jump to the applicable URL, part, chapter, table, or figure.
Abbreviations and Acronyms
Many acronyms and abbreviations are used throughout this manual. Use the table below
to navigate unfamiliar terms used in this document.
iv
 PHYTEC Messtechnik GmbH 2013
L-802e_0
Conventions, Abbreviations and Acronyms
Abbreviation
A/V
BSP
CB
DFF
DSC
EMB
EMI
GPI
GPIO
GPO
IRAM
J
JP
NC
PCB
PDI
PEB
PMIC
PoE
PoP
POR
RTC
SBC
SMT
SOM
Sx
Sx_y
VSTBY
Table 1:
Definition
Audio/Video
Board Support Package (Software delivered with the Development
Kit including an operating system (Windows, or Linux) preinstalled
on the module and Development Tools).
Carrier Board; used in reference to the phyBOARD-Wega
Development Kit Carrier Board.
D flip-flop.
Direct Solder Connect
External memory bus.
Electromagnetic Interference.
General purpose input.
General purpose input and output.
General purpose output.
Internal RAM; the internal static RAM on the Texas Instruments
AM335x microcontroller.
Solder jumper; these types of jumpers require solder equipment to
remove and place.
Solderless jumper; these types of jumpers can be removed and placed
by hand with no special tools.
Not Connected
Printed circuit board.
PHYTEC Display Interface; defined to connect PHYTEC display
adapter boards, or custom adapters
PHYTEC Extension Board
Power management IC
Power over Ethernet
Package on Package
Power-on reset
Real-time clock.
Single Board Computer; used in reference to the PBA-CD-02
/phyBOARD-Wega-AM335x module
Surface mount technology.
System on Module; used in reference to the PCL-051
/phyCORE-AM335x module
User button Sx (e.g. S1, S2) used in reference to the available user
buttons, or DIP-Switches on the CB.
Switch y of DIP-Switch Sx; used in reference to the DIP-Switch on
the carrier board.
SOM standby voltage input
Abbreviations and Acronyms used in this Manual
 PHYTEC Messtechnik GmbH 2013
L-802e_0
v
phyBOARD-Wega-AM335x [PB-00802-xxx]
At this icon you might leave the path of this Application Guide.
This is a warning. It helps you to avoid annoying problems.
You can find useful supplementary information about the topic.
At the beginning of each chapter you can find information about the
time required to read the following chapter.
You have successfully completed an important part of this Application
Guide.
You can find information to solve problems.
Note: The BSP delivered with the phyBOARD-Wega-AM335x usually includes drivers
and/or software for controlling all components such as interfaces, memory, etc.
Therefore programming close to hardware at register level is not necessary in most cases.
For this reason, this manual contains no detailed description of the controller's registers.
Please refer to the AM335x Technical Reference Manual, if such information is needed
to connect customer designed applications.
vi
 PHYTEC Messtechnik GmbH 2013
L-802e_0
Preface
Preface
As a member of PHYTEC's new phyBOARD® product family the
phyBOARD-Wega-AM335x is one of a series of PHYTEC System on Modules (SBCs)
that offers various functions and configurations. PHYTEC supports a variety of 8-/16and 32-bit controllers in two ways:
(1)
as the basis for Rapid Development Kits which serve as a reference and evaluation
platform
(2)
as insert-ready, fully functional phyBOARD® OEM modules, which can be
embedded directly into the user’s peripheral hardware design.
Implementation of an OEM-able SBC subassembly as the "core" of your embedded
design allows you to focus on hardware peripherals and firmware without expending
resources to "re-invent" microcontroller circuitry. Furthermore, much of the value of the
phyBOARD® SBC lies in its layout and test.
PHYTEC's new phyBOARD® product family consists of a series of extremely compact
embedded control engines featuring various processing performance classes.
Production-ready Board Support Packages (BSPs) and Design Services for our hardware
will further reduce your development time and risk and allow you to focus on your
product expertise. Take advantage of PHYTEC products to shorten time-to-market,
reduce development costs, and avoid substantial design issues and risks. With this new
innovative full system solution you will be able to bring your new ideas to market in the
most timely and cost-efficient manner.
For more information go to:
http://www.phytec.de/de/leistungen/entwicklungsunterstuetzung.html
www.phytec.eu/europe/oem-integration/evaluation-start-up.html
 PHYTEC Messtechnik GmbH 2013
L-802e_0
or
vii
phyBOARD-Wega-AM335x [PB-00802-xxx]
Ordering Information
Ordering numbers:
phyBOARD-Wega-AM335x Development Kit:
phyBOARD-Wega-AM335x SBC:
KPB-00802-xxx
PB-00802-xxx
In order to receive product specific information on changes and updates in the best way
also in the future, we recommend to register at
http://www.phytec.de/de/support/registrierung.html or
http://www.phytec.eu/europe/support/registration.html
For technical support and additional information concerning your product, please visit
the support section of our web site which provides product specific information, such as
errata sheets, application notes, FAQs, etc.
http://www.phytec.de/de/support/faq/faq-phyBOARD-Wega-AM335x.html or
http://www.phytec.eu/europe/support/faq/faq-phyBOARD-Wega-AM335x.html
Declaration of Electro Magnetic Conformity of the PHYTEC
phyBOARD-Wega-AM335x
PHYTEC Single Board Computers (henceforth products) are designed for installation in
electrical appliances or as dedicated Evaluation Boards (i.e.: for use as a test and
prototype platform for hardware/software development) in laboratory environments.
Caution:
PHYTEC products lacking protective enclosures are subject to damage by ESD and,
hence, may only be unpacked, handled or operated in environments in which sufficient
precautionary measures have been taken in respect to ESD-dangers. It is also necessary
that only appropriately trained personnel (such as electricians, technicians and engineers)
handle and/or operate these products. Moreover, PHYTEC products should not be
operated without protection circuitry if connections to the product's pin header rows are
longer than 3 m.
PHYTEC products fulfill the norms of the European Union’s Directive for Electro
Magnetic Conformity only in accordance to the descriptions and rules of usage indicated
in this hardware manual (particularly in respect to the pin header row connectors, power
connector and serial interface to a host-PC).
Implementation of PHYTEC products into target devices, as well as user modifications
and extensions of PHYTEC products, is subject to renewed establishment of conformity
to, and certification of, Electro Magnetic Directives. Users should ensure conformance
following any modifications to the products as well as implementation of the products
into target systems.
viii
 PHYTEC Messtechnik GmbH 2013
L-802e_0
Preface
Product Change Management and information in this manual on parts populated
on the SOM / SBC
When buying a PHYTEC SOM / SBC, you will, in addition to our HW and SW
offerings, receive a free obsolescence maintenance service for the HW we provide.
Our PCM (Product Change Management) Team of developers, is continuously
processing, all incoming PCN's (Product Change Notifications) from vendors and
distributors concerning parts which are being used in our products.
Possible impacts to the functionality of our products, due to changes of functionality or
obsolesce of a certain part, are being evaluated in order to take the right masseurs in
purchasing or within our HW/SW design.
Our general philosophy here is: We never discontinue a product as long as there is
demand for it.
Therefore we have established a set of methods to fulfill our philosophy:
Avoiding strategies
•
•
•
Avoid changes by evaluating long-livety of parts during design in phase.
Ensure availability of equivalent second source parts.
Stay in close contact with part vendors to be aware of roadmap strategies.
Change management in case of functional changes
•
•
•
Avoid impacts on product functionality by choosing equivalent replacement parts.
Avoid impacts on product functionality by compensating changes through HW
redesign or backward compatible SW maintenance.
Provide early change notifications concerning functional relevant changes of our
products.
Change management in rare event of an obsolete and non replaceable part
•
•
Ensure long term availability by stocking parts through last time buy management
according to product forecasts.
Offer long term frame contract to customers.
Therefore we refrain from providing detailed part specific information within this
manual, which can be subject to continuous changes, due to part maintenance for
our products.
In order to receive reliable, up to date and detailed information concerning parts
used for our product, please contact our support team through the contact
information given within this manual.
 PHYTEC Messtechnik GmbH 2013
L-802e_0
ix
phyBOARD-Wega-AM335x [PB-00802-xxx]
x
 PHYTEC Messtechnik GmbH 2013
L-802e_0
Getting Started
1
Introduction
1.1
Hardware Overview
The phyBOARD-Wega for phyCORE-AM335x is a low-cost, feature-rich software
development platform supporting the Texas Instruments AM335x microcontroller.
Moreover, due to the numerous standard interfaces the phyBOARD-Wega-AM335x can
serve as bedrock for your application. At the core of the phyBOARD-Wega is the
PCL-051/phyCORE-AM335x System On Module (SOM) in a direct solder form factor,
containing the processor, DRAM, NAND Flash, power regulation, supervision,
transceivers, and other core functions required to support the AM335x processor.
Surrounding the SOM is the PBA-CD-002/phyBOARD-Wega carrier board, adding
power input, buttons, connectors, signal breakout, and Ethernet connectivity amongst
other things.
The PCL-051 System On Module is a connector-less, BGA style variant of the
PCM-051/phyCORE-AM335x SOM. Unlike traditional PHYTEC SOM products that
support high density connectors, the PCL-051 SOM is directly soldered down to the
phyBOARD-Wega using PHYTEC's Direct Solder Connect technology. This solution
offers an ultra-low cost Single Board Computer for the AM335x processor, while
maintaining most of the advantages of the SOM concept.
Adding the phyCORE-AM335x SOM into your own design is as simple as ordering the
connectored version (PCM-051) and making use of our phyCORE Carrier Board
(PCM-953) reference schematics.
1.1.1
Features of the phyBOARD-Wega-AM335x
The phyBOARD-Wega-AM335x supports the following features :
•
•
•
•
•
•
•
•
•
•
PHYTEC’s phyCORE-AM335x SOM with Direct Solder Connect (DSC)
Pico ITX standard dimensions (100 mm × 72 mm)
Boot from MMC or NAND Flash
Max. 1 GHz core clock frequency
Three different power supply options (5 V only with 3.5 mm combicon or micro
USB connector; external power module e.g. 12 V – 24 V input voltage)
Two RJ45 jacks for 10/100 Mbps Ethernet
One USB Host interface brought out to an upright USB Standard-A connector or at
the expansion connector
One USB OTG interface available at an USB Micro-AB connector at the back side
One Secure Digital / Multi Media Memory Card interface brought out to a Micro-SD
connector at the back side
CAN interface at 5×2 pin header 2.54 mm
 PHYTEC Messtechnik GmbH 2013
L-802e_0
11
phyBOARD-Wega-AM335x [PB-00802-xxx]
• Audiocodec with Stereo Line In and Line Out (3×2 pin header 2.54 mm) and mono
speaker (2-pole Molex)
• RS-232 transceiver supporting UART1 incl. handshake signals with data rates of up
to 1 Mbps (5×2 pin header 2.54 mm)
• Reset-Button
• Audio/Video (A/V) connectors
• Expansion connector
• Backup battery supply for RTC with Goldcap (lasts approx. 17 ½ days)
1.1.2
View of the phyBOARD-Wega-AM335x
optional
.
Figure 1:
12
View of the phyBOARD-Wega-AM335x
 PHYTEC Messtechnik GmbH 2013
L-802e_0
Getting Started
1.1.3
Figure 2:
Block Diagram
Block Diagram of the phyBOARD-Wega-AM335x
 PHYTEC Messtechnik GmbH 2013
L-802e_0
13
phyBOARD-Wega-AM335x [PB-00802-xxx]
1.2
1.2.1
Software Overview
Visual Studio 2012
Visual Studio 2012 or Visual Studio 2013, as the main populated development IDE by
Microsoft, is used to developing applications, drivers and board support packages for
Windows Embedded Compact 2013 (WEC2013). You will find a trial version of
VS2012/2013 on the following links:
Visual Studio 2012 Professional Trial:
http://www.microsoft.com/en-us/download/details.aspx?id=30682
Visual Studio 2013 Professional Trial:
http://www.microsoft.com/en-us/download/details.aspx?id=40763
Please install only one of the Visual Studio first. In the following chapters is Visual
Studio 2012 used. If you decide to use VS 2013 you have to build your own Software
Development KIT (SDK) which is needed to build Applications for WEC2013. After
the installation you need the Application Builder for Windows Embedded Compact
2013. The application builder is needed to develop applications for WEC2013 devices:
Application Builder for Windows Embedded Compact 2013:
http://www.microsoft.com/en-us/download/details.aspx?id=38819
It could be that some of the upper links are not up-to-date. Therefore you have to use
Google to find the development tools by your own.
1.2.2
Windows Embedded Compact 2013
Windows Embedded Compact 2013 is a plugin for Visual Studio to build and develop a
board support package (BSP) for a target device like the phyBOARD-WEGA. If you
have the tendency to compile a WEC2013 BSP by yourself, you have to install
WEC2013. Otherwise if you decided to develop applications for WEC2013 only then it
is not necessary to install WEC2013. In the further chapters are described both
development practice.
Windows Embedded Compact 2013 Trial:
http://www.microsoft.com/windowsembedded/en-us/downloads.aspx
14
 PHYTEC Messtechnik GmbH 2013
L-802e_0
Getting Started
2
Getting Started
During this chapter you will learn how to build your own C++ application for the
target with Visual Studio.
We establish that you have first step through our Quickstart Guide.
2.1
Installing the Phytec tool DVD for phyBOARD-WEGA
In this section you will find a description of the phyBOARD-WEGA tool DVD setup.
This steup will install the following tools and programs:
• SDK for phyBOARD-WEGA WEC2013
• A binary BSP for the phyBOARD-WEGA and a project to build an new image
• Example demo for Visual Studio 2012
• Digital versions hardware manuals for the phyBOARD-WEGA
The phyBOARD-WEGA SDK for WEC2013 is needed for writing target-oriented
applications. It will integrate in the Visual Studio IDE, offering a new target device for
code generation.
Insert the DVD “Tool DVD – phyBOARD-WEGA-AM335x” in your CDROM/DVD
drive and start setup.exe.
 PHYTEC Messtechnik GmbH 2013
L-802e_0
15
phyBOARD-Wega-AM335x [PB-00802-xxx]
Click “Next” to choose your installation path for the Tool DVD. It is recommended
to set the installation path as default “C:\Phytec”, because the default path is used in the
following chapter in the Application Guide.
Click “Next” to continue for selecting the installation path for the BinaryBSP.
It is absolutely important to select the correct path for the Binary BSP
installation. The right path is where your Platform Builder installation
was installed in the previous chapter. In example C:\WINCE800.
Otherwise the BSP will not be able to build correctly.
16
 PHYTEC Messtechnik GmbH 2013
L-802e_0
Getting Started
In the next step you could choose where the Tool DVD takes place in the Program
folder in Windows.
Now the Setup starts to copy the files to your path selection. After finishing, the sdk
setup will be started.
Let all settings default during the installation. The setup is now finished and you will be
 PHYTEC Messtechnik GmbH 2013
L-802e_0
17
phyBOARD-Wega-AM335x [PB-00802-xxx]
able to go on with the next chapter to program your first application for Windows
Embedded Compact 2013.
2.2
Working with Visual Studio 2012
Now we start developing our own applications with the help of VS2012. First we will
open and compile a demo application which put out some serial messages through the
COM interface. After the successful start of the demo application we step deeper to
develop your own application and debugging over Ethernet.
2.2.1.1
Work with the demo project
Open the demo application project in the following path:
C:\PHYTEC\phyBOARD-WEGA\BSP\PD14.1.1\Demo\HelloWorld\HelloWorld.sln
On the left site expand the Solution Explorer and Double Click on HelloWorld.cpp.
18
 PHYTEC Messtechnik GmbH 2013
L-802e_0
Getting Started
Open a Telnet program of your choice and connect to the IP Address 192.168.3.15
Following screen should appear.
To execute the demo application over Ethernet, you have to start two debug services
on the device. Type the following commandos in your telnet program:
o start conmanclient3.exe
o start cmaccept3.exe
NOTE: If you boot up the device, you have to start the
conmanclient3.exe once. The service cmaccept3.exe needs to
before you will deploy or debug your application. The
cmaccept3.exe is closed automatically after 3 minutes. Be
connect your application with the device during this time
Otherwise you have to start the cmaccept3.exe again.
 PHYTEC Messtechnik GmbH 2013
L-802e_0
service
be start
service
sure to
period.
19
phyBOARD-Wega-AM335x [PB-00802-xxx]
You are now able to start the demo application.
Back to Visual Studio select “Windows Embedded Compact Debugger” and type
the IP address of the device in the pop-up window.
20
 PHYTEC Messtechnik GmbH 2013
L-802e_0
Getting Started
Click “OK” and the application starts compiling and will be automatically deploy
and execute on the device.
You should now see the following output on the serial terminal program if you have
connected a serial cable to the PEB-EVAL-01 board.
If you like to use the second serial port on the phyBOARD-WEGA, you have to
change the parameter 1 of the “CreateFile” function to “COM2:”
You have successfully passed the first steps with the demo application
and Visual Studio 2012. You are now able to develop and debug your
own application by using Visual Studio 2012.
 PHYTEC Messtechnik GmbH 2013
L-802e_0
21
phyBOARD-Wega-AM335x [PB-00802-xxx]
2.2.1.2
Creating a New Project
In this section you will learn how to create a new project with Visual Studio 2012 and
how to debug your application over Ethernet.
Open Visual Studio 2012
Select “New Project” on the start screen.
A new dialog opens
22
 PHYTEC Messtechnik GmbH 2013
L-802e_0
Getting Started
Select “Templates -> Visual C++ -> Windows Embedded Compact -> phyCOREAM335x WEC2013” on the left site
On the right site select “Win32 Console Application” and type “myHelloWorld” as
project name.
Enter “OK” to start the wizard creating your application environment.
Open “Solution Explorer” on the left site and open the myHelloWorld.cpp file.
 PHYTEC Messtechnik GmbH 2013
L-802e_0
23
phyBOARD-Wega-AM335x [PB-00802-xxx]
Edit the source code like the following screen:
24
 PHYTEC Messtechnik GmbH 2013
L-802e_0
Getting Started
Open a telnet program of your choice and connect to the IP address 192.168.3.15
Type the following commandos in your telnet program:
o start conmanclient3.exe
o start cmaccept3.exe
NOTE: If you boot up the device, you have to start the
conmanclient3.exe once. The service cmaccept3.exe needs to
before you will deploy or debug your application. The
cmaccept3.exe is closed automatically after 3 minutes. Be
connect your application with the device during this time
Otherwise you have to start the cmaccept3.exe again.
service
be start
service
sure to
period.
Back to Visual Studio 2012 set the cursor to line 11 an press F9 on your keyboard to
enable a breakpoint.
Click on “Windows Embedded Compact Debugger” to start the debug on the
device.
Enter the IP address 192.168.3.15 in the pop up window.
The application should start and stop on the enabled breakpoint.
Right-Click on the integer variable “i” and select “Add watch” to add the variable to
the watch window.
 PHYTEC Messtechnik GmbH 2013
L-802e_0
25
phyBOARD-Wega-AM335x [PB-00802-xxx]
Press F10 to step further during the runtime of the application. If the “for” loop
reaches the second time, the integer variable “i” should be increase and red
highlighted.
Click on the Value field and change the value to “5”. Step further in the debug
process and have a look at the command line window which output was generated.
You have successfully created your first own project with Visual Studio.
You have configured the project to create an application for your target
platform.
You are now ready prepared to start your project. The following section
will give you detailed information on the different features and interfaces
of the phyBOARD-Wega and how to use them within your application.
If your project is more complex, or if you crave more information about
working with the BSP, continue with chapter 4. Chapter 4ff inlcude step
by step instructions on how to modify and download the BSP using
Platform Builder.
26
 PHYTEC Messtechnik GmbH 2013
L-802e_0
Accessing the phyBOARD-Wega Interfaces
3
Accessing the phyBOARD-Wega Interfaces
PHYTEC phyBOARD-Wega is fully equipped with all mechanical and electrical
components necessary for the speedy and secure start-up and subsequent
communication to and programming of applicable PHYTEC System on Module (SOM)
modules. phyBOARD-Wega Boards are designed for evaluation, testing and
prototyping of PHYTEC System on Module in laboratory environments prior to their
use in customer designed applications.
3.1
Concept of the phyBOARD-Wega
The phyBOARD-Wega provides a flexible development platform enabling quick and
easy start-up and subsequent programming of its soldered phyCORE-AM335x System
on Module. The carrier board design allows easy connection of additional extension
boards featuring various functions that support fast and convenient prototyping and
software evaluation. The carrier board is compatible with phyCORE-AM335x only.
This modular development platform concept includes the following components:
•
the phyCORE-AM335x module populated by default with the AM3354 processor
and all applicable SOM circuitry such as DDR SDRAM, Flash, PHYs, and
transceivers to name a few.
•
the phyBOARD-Wega which offers all essential components and connectors for
start-up including: A power socket which enables connection to an external power
adapter, interface connectors such as DB-9, USB and Ethernet allowing for use of
the SOM's interfaces with standard cable.
The following sections contain specific information relevant to the operation of the
phyCORE-AM335x mounted on the phyBOARD-Wega Carrier Board.
 PHYTEC Messtechnik GmbH 2013
L-802e_0
27
phyBOARD-Wega-AM335x [PB-00802-xxx]
3.2
Overview of the phyBOARD-Wega Peripherals
The phyBOARD-Wega is depicted in Figure 1. It features many different interfaces and
is equipped with the components as listed in Table 2, and Table 3. For a more detailed
description of each peripheral refer to the appropriate chapter listed in the applicable
table.Figure 1 highlights the location of each peripheral for easy identification.
3.2.1
Connectors and Pin Header
Table 2 lists all available connectors on the phyBOARD-Wega. Figure 1 highlights the
location of each connector for easy identification.
Reference
Designator
X11
X15
X16
X17
X42
X55
X65
X66
X67
X69
X70
X71
X72
X73
Table 2:
Description
Secure Digital / Multi Media Card (Micro-slot)
USB Host connector (USB 2.0 Standard-A)
Ethernet 0 connector (RJ45 with speed and link LED)
Ethernet 1 connector (RJ45 with speed and link LED)
USB On-The-Go connector (USB Micro-AB)
Mono Speaker output (2-pole Molex)
CAN connector (5×2 pin header)
RS-232 with RTS and CTS (UART1 5×2 pin header)
Power supply 5 V only (via 6-pole WAGO male header, or
2-pole PHOENIX base strip)
Expansion connector (2×30 socket connector)
A/V connector #1 (2×20 socket connector)
A/V connector #2 (2×8 socket connector)
Optional 5 V power supply via USB Micro-AB connector
Stereo Line Out and Line In connector
(2×3 pin header)
See
Section
3.3.8
3.3.4
3.3.3
3.3.3
3.3.4
3.3.5
0
3.3.2
3.3.1.1
3.3.7
3.3.6
3.3.6
3.3.1.1
3.3.5
phyBOARD-Wega Connectors and Pin Headers
Note:
Ensure that all module connections are not to exceed their expressed maximum voltage
or current. Maximum signal input values are indicated in the corresponding controller
User's Manual/Data Sheets. As damage from improper connections varies according to
use and application, it is the user‘s responsibility to take appropriate safety measures to
ensure that the module connections are protected from overloading through connected
peripherals.
28
 PHYTEC Messtechnik GmbH 2013
L-802e_0
Accessing the phyBOARD-Wega Interfaces
3.2.2
LEDs
The phyBOARD-Wega is populated with three LEDs to indicate the status of the USB
VBUS voltages, as well as of the power supply voltage.
Figure 1 shows the location of the LEDs. Their function is listed in the table below:
LED Color
Description
D7
green
Indicates presence of VBUS1 at the USB Host interface
See
Section
3.3.4
D8
green
Indicates presence of VBUS0 at the USB OTG interface
3.3.4
D58
red
3.3 V voltage generation of the phyBOARD-Wega
Table 3:
3.3.1.2
phyBOARD-Wega LEDs Descriptions
Note:
Detailed descriptions of the assembled connectors, jumpers and switches can be found
in the following chapters.
 PHYTEC Messtechnik GmbH 2013
L-802e_0
29
phyBOARD-Wega-AM335x [PB-00802-xxx]
3.3
Functional Components on the phyBOARD-Wega Board
This section describes the functional components of the phyBOARD-Wega. Each
subsection details a particular connector/interface and associated jumpers for
configuring that interface.
3.3.1
Power Supply
Caution:
Do not change modules or jumper settings while the phyBOARD-Wega is supplied
with power!
3.3.1.1
Power Connectors (X67 and X72)
The phyBOARD-Wega is available with three different power supply connectors.
Depending on your order you will find one of the following connectors on your SBC:
1. a 2-pole PHOENIX base strip 3.5 mm connector suitable for a single 5 V supply
voltage, or
2. an USB Micro-AB connector to connect a standard 5 V USB power supply, or
3. a 6-pole WAGO male header to attach the Power Module for phyBOARD-Wega
(PEB-POW-01) which provides connectivity for 12 V – 24 V
The required current load capacity for all power supply solutions depends on the
specific configuration of the phyCORE mounted on the phyBOARD-Wega the
particular interfaces enabled while executing software as well as whether an optional
expansion board is connected to the carrier board. A 5 V adapter with a minimum
supply of 1.5 A is recommended.
PHOENIX base strip
Figure 3:
30
WAGO male header 6-pole
Power Supply Connectors
 PHYTEC Messtechnik GmbH 2013
L-802e_0
Accessing the phyBOARD-Wega Interfaces
3.3.1.1.1 PHOENIX 2-pole Base Strip
The permissible input voltage is +5 V DC if your SBC is equipped with a 2-pole
PHOENIX connector.
Figure 3 and the following table show the pin assignment.
Pin
Signal
Description
1
VCC5V_IN
+5V power supply
2
GND
Ground
Table 4:
Pin Assignment of the 2-pole PHOENIX Connector at X67
3.3.1.1.2 USB Micro-AB
If your board provides an USB Micro-AB female connector at the upper side of the
board a standard USB Micro power supply with +5 V DC can be used to supply the
phyBOARD-Wega.
Caution!
Do not confuse the USB Micro connector on the upper side of the board with the one on
the back side of the board which provides USB OTG connectivity. The USB Micro
connector on the upper side is exclusively used for power supply and has no other USB
functionality!
3.3.1.1.3 WAGO 6-pole Male Header
If a WAGO 6-pole male header is mounted on your board (see Figure 1 and Figure 3)
your board is prepared to connect to a phyBOARD-Wega Power Module
(PEB-POW-01), or a custom power supply circuitry. The mating connector from
WAGO has the EAN 4045454120610.
Use of the 6-pole connector has the following advantages:
•
•
•
Higher and wider operate range of the input voltage
External scaling potential to optimize the electrical output current
5 V, 3.3 V and backlight power supply
 PHYTEC Messtechnik GmbH 2013
L-802e_0
31
phyBOARD-Wega-AM335x [PB-00802-xxx]
Pin assignment of the 6 –pole WAGO connector:
Pin
Signal
Description
1
VCC5V_IN
+5 V power supply
2
GND
Ground
3
VCC3V3_PMOD
+3.3 V power supply
4
VCC_BL
Backlight power supply
5
PMOD_PWRGOOD
Power good signal (connected to reset
nRESET_IN)
6
PMOD_PWRFAIL
Power fail signal
Table 5:
Pin Assignment of the 6-pole WAGO Connector at X67
A detailed description of the Power Module for phyCORE-Wega can be found in the
Application Guide for phyBOARD-Wega-AM335x Expansion Boards (L-793e_0).
3.3.1.2
Power LED D58
The red LED D58 right next to the power connector (see Figure 1) indicates the
presence of the 3.3 V supply voltage generated from the 5 V input voltage.
3.3.1.3
VBAT and RTC
On the phyBOARD-Wega the internal RTC of the AM335x is used for real-time or
time-driven applications. To backup the RTC on the module, a goldcap (C339) is
placed on the phyBOARD-Wega. This voltage source supplies the backup voltage
domain VBAT of the AM335x which supplies the RTC and some critical registers
when the primary system power, VCC5V_IN, is removed. The backup supply lasts
approximately 17 ½ days.
32
 PHYTEC Messtechnik GmbH 2013
L-802e_0
Accessing the phyBOARD-Wega Interfaces
3.3.2
RS-232 Connectivity (X66)
Figure 4:
RS-232 Interface Connector X66
Pin header connector X66 located next to the USB host connector (see Figure 1)
provides the UART1 signals of the AM335x at RS-232 level. The serial interface is
intended to be used as data terminal equipment (DTE) and allows for a 5-wire
connection including the signals RTS and CTS for hardware flow control. Table 6
below shows the signal mapping of the RS-232 level signals at connector X66.
Pin
Signal
Pin
Signal
1
NC
2
NC
3
UART1_RXD_RS232 4
UART1_RTS_RS232
5
UART1_TXD_RS232 6
UART1_CTS_RS232
7
NC
8
NC
9
GND
10
NC
Table 6:
Pin Assignment of RS-232 Connector X66
An adapter cable is included in the phyBOARD-Wega-Am335x Kit to facilitate the use
of the UART1 interface. The following figure shows the signal mapping of the adapter.
1
6
2
7
3
8
4
9
5
Figure 5:
Pin 2:
Pin 7:
Pin 3:
Pin 8:
RxD-RS232
RTS-RS232
TxD-RS232
CTS-RS232
Pin 5:
GND
RS-232 Connector Signal Mapping
Note:
The UART0 interface which is required for debugging is routed to expansion connector
X69. The Evaluation Board (PEB-EVAL-01) delivered with the kit allows easy use of
this interface. Please find additional information on the Evaluation Board in Application
Guide for phyBOARD-Wega-AM335x Expansion Boards (L-793e_0)
 PHYTEC Messtechnik GmbH 2013
L-802e_0
33
phyBOARD-Wega-AM335x [PB-00802-xxx]
3.3.2.1
Software Implementation
See the previous chapters which describes the usage of the serial port in the DEMO
Application.
3.3.3
Ethernet Connectivity (X16 and X17)
The Ethernet interfaces of the phyBOARD-Wega are accessible at two RJ45 connectors
(X16 and X17) on the board.
Figure 6:
Ethernet Interfaces at Connectors X16 and X17
Ethernet 0 interface is available at X16, while Ethernet 1 interface is brought out at
X17.
Both Ethernet interfaces are configured as 10/100Base-T networks. The LEDs for
LINK (green) and SPEED (yellow) indication are integrated in the connector. Both
LAN8710AI Ethernet transceivers support HP Auto-MDIX technology, eliminating the
need for the consideration of a direct connect LAN cable, or a cross-over path cable.
They detect the TX and RX pins of the connected device and automatically configure
the PHY TX and RX pins accordingly.
34
 PHYTEC Messtechnik GmbH 2013
L-802e_0
Accessing the phyBOARD-Wega Interfaces
3.3.3.1
Software Implementation
Only one 10/100 Mbit Ethernet interface is currently implemented. The default IP
address is 192.168.3.15.
The interface offer a standard Windows network port which can be programmed using
the NDIS socket interface.
3.3.4
USB Connectivity (X15 and X42)
The phyBOARD-Wega provides one USB Host and one USB OTG interface.
USB0 is accessible at connector X42 (USB Micro-AB) located at the back side of the
phyBOARD-Wega. It is configured as USB OTG. USB OTG devices are capable to
initiate a session, control the connection and exchange host and peripheral roles
between each other. This interface is compliant with USB revision 2.0.
USB1 is accessible on the top at connector X15 (USB Standard-A) and is configured as
USB Host.
Figure 7:
Components supporting the USB Interfaces
LED D8 displays the status of USB0_VBUS and LED D7 the status of USB1_VBUS.
For later expansion boards the USB1 interface can be routed to the expansion connector
(X69) by populating J72 and J73 (2+3).
3.3.4.1
Software Implementation
3.3.4.1.1 USB Host
The AM335x CPU embeds a USB 2.0 EHCI controller that is also able to handle low
and full speed devices (USB 1.1).
The BSP includes support for mass storage devices and keyboards. Other USB related
device drivers must be enabled in the kernel configuration on demand.
 PHYTEC Messtechnik GmbH 2013
L-802e_0
35
phyBOARD-Wega-AM335x [PB-00802-xxx]
Due to udev, connecting various mass storage devices get unique IDs and can be found
in /dev/disk/by-id. These IDs can be used in /etc/fstab to mount different USB memory
devices in a different way.
3.3.4.1.2 USB OTG
Currently not supported.
36
 PHYTEC Messtechnik GmbH 2013
L-802e_0
Accessing the phyBOARD-Wega Interfaces
3.3.5
Audio Interface (X55 and X73)
The audio interface provides a method of exploring AM335x’s audio capabilities. The
phyBOARD-Wega is populated with an audio codec at U35. The audio codec is
connected to the AM335x’s McASP0 interface to support stereo line input and stereo
line output at connector X73. In addition to that the phyBOARD-Wega has one direct
mono speaker output (2 × 1 W) at the Molex connector X55.
X73:
X55:
Line In
Line Out
Speaker
Figure 8:
Audio Interfaces at Connectors X55 and X73
Pin assignment at X73
Pin
Signal
Pin
Signal
1
LINE_IN_L
2
LINE_IN_R
3
AGND
4
AGND
5
LINE_OUT_L
6
LINE_OUT_R
Pin assignment at X55
Pin
Signal
Description
1
SPOP
Class-D positive differential output
2
SPOM Class-D negative differential output
For additional audio applications the McASP0 interface of the AM335x including the
signals X_MCASP0_AHCLKX, X_I2S_CLK, X_I2S_FRM, X_I2S_ADC and
X_I2S_DAC are routed to the A/V connector X71 (please refer to section 4.5.1 for
additional information on the A/V connector).
Please refer to the audio codec’s reference manual for additional information regarding
the special interface specification.
 PHYTEC Messtechnik GmbH 2013
L-802e_0
37
phyBOARD-Wega-AM335x [PB-00802-xxx]
3.3.5.1
Software Implementation
Currently not supported.
CAN Connectivity
The CAN1 interface of the phyBOARD-Wega-AM335x is accessible at connector X65
(2×5 2.54 mm pin header).
Jumper JP3 can be installed to add a 120 Ohm termination resistor across the CAN data
lines if needed.
Figure 9:
Components supporting the CAN Interface
Table 7 below shows the signal mapping of the CAN1 signals at connector X65.
Pin
Signal
Pin
Signal
1
NC
2
GND
3
X_CANL
4
X_CANH
5
GND
6
NC
7
NC
8
NC
9
Shield
10
NC
Table 7:
38
Pin Assignment of CAN Connector X65
 PHYTEC Messtechnik GmbH 2013
L-802e_0
Accessing the phyBOARD-Wega Interfaces
An adapter cable is included in the phyBOARD-Wega-Am335x Kit to facilitate the use
of the CAN interface. The following figure shows the signal mapping of the adapter.
1
6
2
7
3
8
4
9
5
Figure 10:
3.3.5.2
Pin 6:
Pin 2:
Pin 7:
Pin 3:
GND
X_CANL
X_CANH
GND
Pin 5:
Shield
CAN Connector Signal Mapping
Software Implementation
Currently not supported.
 PHYTEC Messtechnik GmbH 2013
L-802e_0
39
phyBOARD-Wega-AM335x [PB-00802-xxx]
3.3.6
Audio/Video connectors (X70 and X71)
The Audio/Video (A/V) connectors X70 and 71 provide an easy way to add typical A/V
functions and features to the phyBOARD-Wega. Standard interfaces such as parallel
display, I²S and I2C as well as different supply voltages are available at the two A/V
female dual entry connectors. Special feature of these connectors are their connectivity
from the bottom or the top.
For further information of the A/V connectors see chapter 4.5.1. Information on the
expansion boards available for the A/V Connecctors can be found in the Application
Guide for phyBOARD-Wega Expansion Boards (L-793e_0).
3.3.7
Expansion connector (X69)
The expansion connector X69 provides an easy way to add other functions and features
to the phyBOARD-Wega. Standard interfaces such as JATG, UART, MMC2, SPI and
I2C as well as different supply voltages and some GPIOs and Analog Inputs are
available at the expansion female connector. The pinout of the expansion connector is
shown in Secure Digital Memory Card/ MultiMedia Card (X11)
.
For further information of the expansion connector see see chapter 4.5.5. Information
on the expansion boards available for the expansion connecctor can be found in the
Application Guide for phyBOARD-Wega Expansion Boards (L-793e_0)
3.3.8
Figure 11:
Secure Digital Memory Card/ MultiMedia Card (X11)
SD / MM Card interface at connector X11
The phyBOARD-Wega provides a standard microSDHC card slot at X11 for
connection to SD/MMC interface cards. It allows easy and convenient connection to
peripheral devices like SD- and MMC cards. Power to the SD interface is supplied by
inserting the appropriate card into the SD/MMC connector, who features a card
detection, a lock mechanism and a smooth extraction function by Push-in /-out of card.
40
 PHYTEC Messtechnik GmbH 2013
L-802e_0
Accessing the phyBOARD-Wega Interfaces
The AM335x processor on the phyBAORD-Wega can boot from this interface.
3.3.8.1
Software Implementation
The phyBOARD-Wega supports a slot for Micro Secure Digital Cards and Micro Multi
Media Cards to be used as storage device in the WEC2013 file system.
After inserting an MMC/SD card, it should be accessible via the root file system under
the name “Storage_Card”.
 PHYTEC Messtechnik GmbH 2013
L-802e_0
41
phyBOARD-Wega-AM335x [PB-00802-xxx]
3.3.9
Boot Mode
The pyhBOARD-Wega has a defined boot sequence:
1. NAND
2. SD/MMC
The exact choosen boot mode in the processor is SYSBOOT[4:0] = 10011b : NAND,
NANDI2C, MMC0, UART0
3.3.10
System Reset Button (S2)
The phyBOARD-Wega is equipped with a system reset button at S2. Pressing this
button will toggle the X_nRESET_IN pin (X64A11) of the phyCORE SOM low,
causing the module to reset. Additionally, a reset is generated on nRESET_OUT to
reset peripherals.
Figure 12:
42
System Reset Button S2
 PHYTEC Messtechnik GmbH 2013
L-802e_0
Advanced Information
4
Advanced Information
4.1
About this Section
This Section addresses advanced developers who want to configure, build and install a
new OS image for WEC2013
Step by step instructions on how to configure, build and install a new OS image using
Visual Studio 2012 and Platform Builder.
A description how to update the Bootloader and how to write OS image into the
Flash with the help of VS2012
4.2
Software Overview
In the chapter 2 you have learned how to work with Visual Studio 2012. The following
section shows you how to work with the Platform Builder.
Platform Builder is an Plugin for Visual Studio 2012 which will be autamtically
integrated in the VS IDE after installing Windows Embedded Compact 2013. Within the
Plugin you could generate your own OS image or to modify or implement drivers to the
BSP.
4.3
Getting Started with the BSP
In this chapter you will go through some software topics. First you will configure and
compile your own OS image. With the help of Platform Builder you can add additional
features, or disable them if they are not needed. After compiling the new images, you will
learn how to write the newly created OS image into target’s flash memory and how to
start from.
4.3.1
Working with Platform Builder
In this part you will learn how to configure and build a new OS image with the help of
Visual Studio 2012 and the integrated Platform Builder. Then you will downloading and
executing the new OS image. After that, you will learn how to configure the new OS
image as an NAND-Flash image to store it on the device.
 PHYTEC Messtechnik GmbH 2013
L-802e_0
43
phyBOARD-Wega-AM335x [PB-00802-xxx]
Let us start:
Open the Example Project for the binary BSP in the following path:
o ..\WINCE800\OSDesigns\phyBoardWEGA\phyBoardWEGA.sln
NOTE: You will find the WINCE800 folder, where you have chosen it
during the Windows Embedded Compact 2013 installation. For default
it is C:\WINCE800. In this folder you will find other example BSPs for
Freescale and TI processors.
Be sure to select the build configuration like the following screen.
o The differences between the three configurations (Checked/Debug/Release)
is the among of debug output which should be enabled during startup.
o Checked/Debug build put all available debug messages out for each driver.
o Release build is the cleanest message output.
For our example it is enough to decide to build the Release configuration.
44
 PHYTEC Messtechnik GmbH 2013
L-802e_0
Advanced Information
In the Visual Studio 2012 menu bar select “Build –> Build phyBoardWEGA” to start
compiling and generating your first OS image.
It depends on which development PC you have how long it take to build a full OS
image. Round about 10-15 minutes.
During the build phase, we could have a look of the possibilities to create a customized
OS image.
On the left site you will find the Catalog Item View. If not got to the menu bar “View
-> Other Windows -> Catalog Items View”.
In the following screen you will see the Core OS features which comes from
Microsoft. You have the option to select or deselect the features of your choice. In
example the .Net Compact Framework.
 PHYTEC Messtechnik GmbH 2013
L-802e_0
45
phyBOARD-Wega-AM335x [PB-00802-xxx]
On the bottom of the Catalog Items View you will find under “Third Party -> BSP ->
PHYTEC_AM335x_BSP:ARMV7 -> Drivers” the set of drivers which are available
in the current BSP.
46
 PHYTEC Messtechnik GmbH 2013
L-802e_0
Advanced Information
After studying the Catalog Items View for long time, the OS image should be finished.
Now you are able to download your OS image. Select “Target –> Attach Device” in
the menu bar.
A pop-up window should appear which is waiting for the device to attach.
Please power up the baseboard and press space to enter in the bootloader main menu.
Press “2” to enter the boot selection menu and press “1” to configure the bootloader
to download the OS image over Ethernet.
Please be sure that the bootloader ip address matches the ip range of your
workstation.
o Press “4” for Network settings
o Press “1” to get an overview of the settings. If it is not matching your IP
range, change the IP by pressing “6”.
Back to main menu, press “0” to start receive requests from bootloader.
Switch back to Visual Studio. Following content should appear in the pop-up
window.
 PHYTEC Messtechnik GmbH 2013
L-802e_0
47
phyBOARD-Wega-AM335x [PB-00802-xxx]
Press “Apply” and the download should start directly. After a while, the OS image
should boot up and you should see the WEC2013 startup screen.
4.3.2
Writing the OS Image into the Target’s Flash
In this section you will find a description on how to write the newly created OS image
into the phyBOARD-Wega-AM335x’s flash memory. Before the OS image can be
written into the flash, you have to modify one project setting in the Example Project of
the Binary BSP.
In Visual Studio go to “Project -> phyBoardWEGA Properties -> Configuration
Properties –> Environment”
Press “New” and input following Environment Variable
48
 PHYTEC Messtechnik GmbH 2013
L-802e_0
Advanced Information
Apply with “OK”. You should see the created environment variable in the
Environment window.
Press “OK” to save the configuration in your project.
Go to “Build –> Make Run-Time Image” to generate a new image with the possibility
to flash it into NANDFlash.
Download the image like in the previous steps described. After downloading, the OS
image will be automatically program into flash and executed directly from flash.
All files are also downloadable from our ftp server or you can find them on
our
WEC2013-phyBOARD-Wega-AM335x-Kit-DVD
under
/PHYTEC/BSP/. If you want other versions check our ftp server too:
ftp://ftp.phytec.de/pub/Products/
In this section you learned how to download OS image with the help of
Visual Studio into the RAM of the target. Also, you have learned how to
build a OS image for the NAND Flash.
 PHYTEC Messtechnik GmbH 2013
L-802e_0
49
phyBOARD-Wega-AM335x [PB-00802-xxx]
4.4
Updating the software
If you found a newer BSP on our ftp server ftp://ftp.phytec.de/pub/Products and want to
flash it, this chapter shows how to do. Also in case that your phyBOARD-WegaAM335x doesn’t start anymore because you damaged its software during the previous
chapter, you’re right here, too. In the latter case you’ll find all needed original images on
the DVD under /phyBOARD-WEGA/BSP.
4.4.1
Creating a bootable SD card
In case that your phyBOARD-Wega doesn’t start anymore due to a damaged bootloader,
you need to boot from an SD card. The SD card must be formatted with a tool which you
will find on the DVD or in the path where you have installed the tool DVD:
\phyBOARD-WEGA\BSP\PD14.1.1\Tools
Please run the batch-file in the windows command line like described below:
Prepsd.bat G:
“G:” has to be changed to the drive letter where you SD-card is mounted.
After your SD-card was formatted successfully, you have to copy the following. You
find the files on the DVD or in the path where you have installed the tool DVD:
\phyBOARD-WEGA\BSP\PDxx.x.x\Bootloader\SD\MLO
\phyBOARD-WEGA\BSP\PDxx.x.x\Bootloader\SD\EBOOTSD.nb0
\phyBOARD-WEGA\BSP\PDxx.x.x\Bootloader\NAND\XLDRNAND.bin
\phyBOARD-WEGA\BSP\PDxx.x.x\Bootloader\NAND\EBOOTND.bin
\phyBOARD-WEGA\BSP\PDxx.x.x\Image\NAND\NK.bin
4.4.2
Flashing the Bootloader
Insert the bootable SD-card in the micro SDHC slot on the phyBOARD-WEGA.
You need to switch the boot jumper on the board. You will find the boot jumper
under the PEB-AV-Adapter board. To boot from SD-card it is necessary to set the
boot jumper to “ON”.
Before powering-up the phyBOARD, please open a terminal program to see the
output messages from the bootloader.
Now power-up the phyBOARD. If you see the message “Hit space to enter
configuration menu” press space on the keyboard to get in the bootloader menu.
Following screen should appear:
50
 PHYTEC Messtechnik GmbH 2013
L-802e_0
Advanced Information
Note: It could be that it takes a while to see the message during the first boot, because the
bootloader format the NAND Flash and create some partitions.
Now you are able to flash the bootloader to NAND-Flash.
Press “5” to get in the SDCard Settings menu. Following screen should appear:
Press “2” to enter the filename, which should program into flash.
 PHYTEC Messtechnik GmbH 2013
L-802e_0
51
phyBOARD-Wega-AM335x [PB-00802-xxx]
Press “ENTER” to save the filename. Type “0” to leave the SDCard settings menu.
Now you are back in the main menu. Press “2” to select the boot device.
Type “2” to set the boot device to “SDCard”. Now you are back in the main menu
and you have to start downloading the typed file after press “0”.
52
 PHYTEC Messtechnik GmbH 2013
L-802e_0
Advanced Information
If the upper message appear, you have successful written the XLDR first stage
bootloader into the nand flash. Please power off and on the phyBOARD to go on to
program the next file into the nand flash.
Hit space to enter the main menu, again. Type “5” to enter the SDCard settings menu.
Press “2” to enter the next file name for flashing.
Press enter and select the boot device by type “2” to enter the boot device menu and
press “2” to select the SDCard as boot device.
Now press “0” again to start the flash programming.
 PHYTEC Messtechnik GmbH 2013
L-802e_0
53
phyBOARD-Wega-AM335x [PB-00802-xxx]
You have successfully program the bootloader (fist stage and second stage
bootloader) into the nand flash. Please switch back the boot jumper to boot from nand
flash. Please let the SDCard in the slot, you will need it in the next chapter again.
4.4.3
Writing NK.bin to the Nand Flash
You should now able to boot the bootloader from NAND Flash. After the first boot from
NAND-Flash, the bootloader create a boot partition for the OS image. This step is
necessary to program the OS image into the nand flash.
After creating boot partition you should able to enter the boot main menu again. If so,
please power off the phyBOARD and switch the boot jumper back to boot from SDCard.
This is currently a workaround, because the SDCard bootloader could not create a
partition for the OS image.
Power on the phyBOARD and hit space to enter the main menu.
Press “5” to enter SDCard settings menu and press “2” to enter the file name “nk.bin”
which should program into flash.
54
 PHYTEC Messtechnik GmbH 2013
L-802e_0
Advanced Information
Press Enter to confirm the file name and type “0” to go back to the main menu.
Back in the main menu press “2” twice to configure the bootloader to boot from
SDCard.
Press “9” and be sure to disable OAL Retail Messages. Note: This step is necessary to
boot the OS correctly. If the Retail Messages are enabled, it prevents the OS image to
boot. The OS try to initialize the Serial COM Interface and if the OAL Retail
Messages are enabled its locked the Serial COM driver.
Press “a” to select the correct display. (“[5] 7in EMERGING ETM07”)
Press “0” to start downloading and flashing NK.bin.
 PHYTEC Messtechnik GmbH 2013
L-802e_0
55
phyBOARD-Wega-AM335x [PB-00802-xxx]
Now you have finished programming bootloader and image to the phyBOARD.
Power off the phyBOARD, switch the boot jumper back to start from Nand Flash.
Power on and hit space to enter main menu.
Press “2” and “2” to configure the bootloader to boot NK image from flash.
Press “8” to disable the OAL Retail Messages.
Press “7” to save your settings.
Press “0” to execute OS image from flash.
4.5
4.5.1
System Level Hardware Information
Audio/Video connectors
The Audio/Video (A/V) connectors X70 and 71 provide an easy way to add typical A/V
functions and features to the phyBOARD-Wega. Standard interfaces such as parallel
display, I²S and I2C as well as different supply voltages are available at the two A/V
female dual entry connectors. Special feature of these connectors are their connectivity
from the bottom or the top. The pinout of the A/V connectors are shown in Table 8 and
Table 9.
Pin #
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
56
Signal Name
GND
X_LCD_D21
X_LCD_D18
X_LCD_D16
X_LCD_D0
GND
X_LCD_D1
X_LCD_D2
X_LCD_D3
X_LCD_D4
GND
X_LCD_D22
X_LCD_D19
X_LCD_D5
X_LCD_D6
GND
X_LCD_D7
X_LCD_D8
X_LCD_D9
Description
Ground
LCD D21
LCD D18
LCD D16
LCD D0
Ground
LCD D1
LCD D2
LCD D3
LCD D4
Ground
LCD D22
LCD D19
LCD D5
LCD D6
Ground
LCD D7
LCD D8
LCD D9
 PHYTEC Messtechnik GmbH 2013
L-802e_0
Advanced Information
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
Table 8:
Pin #
1
2
3
4
5
6
7
8
9
10
11
12
13
X_LCD_D10
GND
X_LCD_D23
X_LCD_D20
X_LCD_D17
X_LCD_D11
GND
X_LCD_D12
X_LCD_D13
X_LCD_D14
X_LCD_D15
GND
X_LCD_PCLK
X_LCD_BIAS_EN
X_LCD_HSYNC
X_LCD_VSYNC
GND
GND
X_PWM1_OUT
VCC_BL
VCC5V
LCD D10
Ground
LCD D23
LCD D20
LCD D17
LCD D11
Ground
LCD D12
LCD D13
LCD D14
LCD D15
Ground
LCD Pixel Clock
LCD BIAS
LCD Horizontal Synchronisation
LCD Vertical Synchronisation
Ground
Ground
Pulse Wide Modulation
Backlight power supply
5 V power supply
PHYTEC A/V connector X70
Signal Name
X_I2S_CLK
X_I2S_FRM
X_I2S_ADC
X_I2S_DAC
X_AV_INT_GPIO1_30
X_MCASP0_AHCLKX
GND
nRESET_OUT
TS_X+
TS_XTS_Y+
TS_YVCC3V3
 PHYTEC Messtechnik GmbH 2013
Description
I²S Clock
I²S Frame
I²S Analog-Digital converter (microfone)
I²S Digital-Analog converter (speaker)
A/V interrupt; GPIO1_30
McASP0 high frequency clock
Ground
Reset
Touch X+
Touch XTouch Y+
Touch Y3.3 V power supply
L-802e_0
57
phyBOARD-Wega-AM335x [PB-00802-xxx]
14
15
16
Table 9:
58
GND
X_I2C0_SCL
X_I2C0_SDA
Ground
I²C Clock
I²C Data
PHYTEC A/V connector X71
 PHYTEC Messtechnik GmbH 2013
L-802e_0
Advanced Information
4.5.2
Software Implementation
4.5.3
Audio I2S
Audio support on the module is done via the I2S interface and controlled via I2C.
On the phyBOARD-Wega the audio codec's registers can be accessed via the I2C0
interface at address 0x18 (7-bit MSB addressing).
As of the printing of this manual the BSP delivered with the phyCARD-Wega-Am335x
does not support the audio interfaces. Please visit the PHYTEC website for a road map of
the BSP.
4.5.4
I2C Connectivity
The I2C interface of the AM335x is available at different connectors on the
phyBOARD-Wega. The following table provides a list of the connectors and pins with
I2C connectivity.
Connector
Expansion connector X69
A/V connector X71
Table 10:
Location
pin 11 (I2C_SDA);
pin 13 (I2C_SCL)
pin 16 (I2C_SDA);
pin 15 (I2C_SCL)
I2C Connectivity
To avoid any conflicts when connecting external I2C devices to the phyBOARD-Wega
the addresses of the on-board I2C devices must be considered. Table 11 lists the
addresses already in use. The table shows only the default address.
 PHYTEC Messtechnik GmbH 2013
L-802e_0
59
phyBOARD-Wega-AM335x [PB-00802-xxx]
Board
Prod. No.
Device
phyCORE-AM335x
PCL-051
phyBOARD-Wega
PBA-CD-02
AV-Adapter HDMI
PEB-AV-01
AV-Adapter Display
Evaluation Board
PEB-AV-02
PEB-EVAL-01
M2M Board
PEB-C-01
Table 11:
4.5.5
EEPROM
RTC
PMIC
Audio
HDMI Core
CEC Core
GPIO Expander
EEPROM
GPIO Expander
GPIO Expander
GPIO Expander
Address used
(7 MSB)
0x52
0x68
0x2D, 0x12
0x18
0x70
0x34
0x41
0x56
0x20
0x21
0x22
I2C Addresses in Use
Expansion connector
The expansion connector X69 provides an easy way to add other functions and features
to the phyBOARD-Wega. Standard interfaces such as UART, SPI and I2C as well as
different supply voltages and some GPIOs are available at the expansion female
connector. The pinout of the expansion connector is shown in Secure Digital Memory
Card/ MultiMedia Card (X11)
.
Pin
#
1
2
3
4
5
6
7
8
9
10
11
12
60
Signal Name
Description
VCC3V3
VCC5V
VDIG1_1P8V
GND
X_SPI0_CS0
X_SPI0_MOSI
X_SPI0_MISO
X_SPI0_CLK
GND
X_UART0_RXD
X_I2C0_SDA
X_UART0_TXD
3.3 V power supply
5 V power supply
1.8 V power supply
Ground
SPI 0 chip select 0
SPI 0 master output/slave input
SPI 0 master input/slave output
SPI 0 clock output
Ground
UART 0 receive data (standard debug interface)
I²C 0 Data
UART 0 transmit data (standard debug interface)
 PHYTEC Messtechnik GmbH 2013
L-802e_0
Advanced Information
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
X_I2C0_SCL
GND
X_JTAG_TMS
X_nJTAG_TRST
X_JTAG_TDI
X_JTAG_TDO
GND
X_JTAG_TCK
X_USB1_DP_EXP
X_USB1_DM_EXP
nRESET_OUT
GND
X_MMC2_CMD
X_MMC2_DAT0
X_MMC2_CLK
X_MMC2_DAT1
GND
X_MMC2_DAT2
X_UART2_RX_GPIO3_9
X_MMC2_DAT3
X_UART2_TX_GPIO3_10
GND
X_UART3_RX_GPIO2_18
X_UART3_TX_GPIO2_19
X_INTR1_GPIO0_20
X_GPIO0_7
X_AM335_EXT_WAKEUP
X_INT_RTCn
GND
X_GPIO3_7
nRESET_IN
X_GPIO3_8
X_AM335_NMIn
GND
X_AIN4
 PHYTEC Messtechnik GmbH 2013
L-802e_0
I²C 0 Clock
Ground
JTAG Chain Test Mode Select signal
JTAG Chain Test Reset
JTAG Chain Test Data Input
JTAG Chain Test Data Output
Ground
JTAG Chain Test Clock signal
USB1 data plus
USB1 data minus
Reset
Ground
MMC command
MMC data 0
MMC clock
MMC data 1
Ground
MMC data 2
UART 2 receive data; GPIO3_19
MMC data 3
UART 2 transmit data; GPIO3_10
Ground
UART 3 receive data; GPIO2_18
UART 3 transmit data; GPIO2_19
Interrupt 1; GPIO0_20
GPIO0_7
External wakeup
Interrupt from the RTC
Ground
GPIO3_7; Caution: Also connected to power fail
signal through R415!
Push-button reset
GPIO 3_8; Caution: Also connected to power
down circuit through R412!
AM335x non-maskable interrupt
Ground
Analog input 4
61
phyBOARD-Wega-AM335x [PB-00802-xxx]
48
49
50
51
52
53
54
55
56
57
58
59
60
Table 12:
4.5.5.1
4.5.6
X_AIN5
X_AIN6
X_AIN7
GND
X_USB1_DRVVBUS
X_USB1_ID
USB1_VBUS
X_USB1_CE
GND
X_PMIC_POWER_EN
X_PB_POWER
GND
VCC5V_IN
Analog input 5
Analog input 6
Analog input 7
Ground
USB 1 bus control output
USB 1 port identification
USB 1 bus voltage
USB 1 charger enable
Ground
Enable Power Management IC for AM335x
Power On for Power Management IC for
AM335x
Ground
5 V input supply voltage
PHYTEC Expansion Connector X69
Software Implementation
SPI Connectivity
Not implemented yet.
4.5.7
User programmable GPIOs
There are different User programmable GPIOs available. The signals are available on the
expansion connector or the corresponding expansion-boards like PEB-EVAL-01. For
more information look at Application Guide for the Expansion Boards or section
“Expansion connector” in the System Guide.
4.5.7.1
Software Implementation
Please ask our support for example code how to communicate with the GPIO driver
interface.
62
 PHYTEC Messtechnik GmbH 2013
L-802e_0
Revision History
