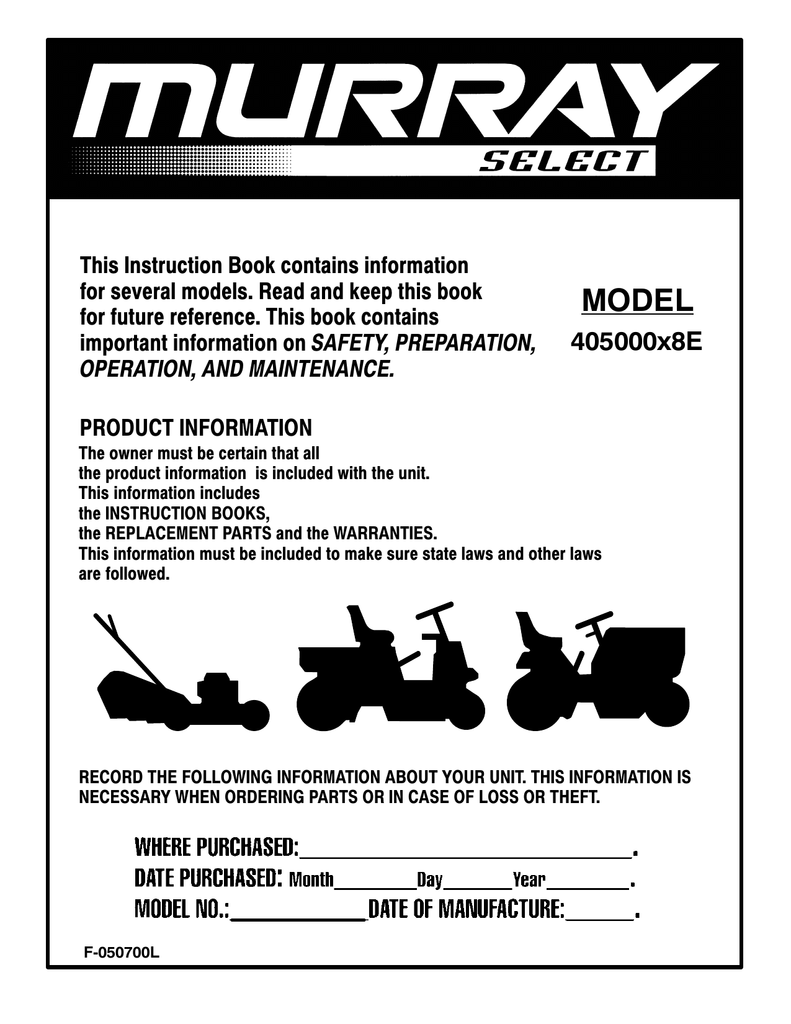

Murray 405000x8E Operating instructions

This Instruction Book contains information for several models. Read and keep this book for future reference. This book contains important information on SAFETY, PREPARATION,

OPERATION, AND MAINTENANCE.

MODEL

405000x8E

PRODUCT INFORMATION

The owner must be certain that all the product information is included with the unit.

This information includes the INSTRUCTION BOOKS, the REPLACEMENT PARTS and the WARRANTIES.

This information must be included to make sure state laws and other laws are followed.

RECORD THE FOLLOWING INFORMATION ABOUT YOUR UNIT. THIS INFORMATION IS

NECESSARY WHEN ORDERING PARTS OR IN CASE OF LOSS OR THEFT.

F-050700L

TABLE OF CONTENTS

WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

RESPONSIBILITY OF THE OWNER . . . . . . . . . . . . . . . . .

SAFETY RULES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

INTERNATIONAL PICTORIALS . . . . . . . . . . . . . . . . . . . . .

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

PARTS BAG - CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

HOW TO INSTALL THE SEAT . . . . . . . . . . . . . . . . . . . . . . . . . . .

HOW TO ASSEMBLE THE STEERING WHEEL . . . . . . . . . . . .

MAINTENANCE FREE BATTERY . . . . . . . . . . . . . . . . . . . . . . . .

HOW TO INSTALL THE BATTERY CABLES . . . . . . . . . . . . . .

IMPORTANT! BEFORE YOU START MOWING . . . . . . . . . . . .

HOW TO PREPARE THE ENGINE . . . . . . . . . . . . . . . . . . . . . . .

CHECK THE LEVEL OF THE MOWER HOUSING . . . . . . . . . .

CHECK THE TIRES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

LOCATION OF CONTROLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

ATTACHMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

ELECTRICAL SAFETY SYSTEM . . . . . . . . . . . . . . . . . . . . . . . .

HOW TO OPERATE THE IGNITION KEY SWITCH . . . . . . . . .

HOW TO USE THE THROTTLE CONTROL . . . . . . . . . . . . . . . .

HOW TO USE THE BLADE ROTATION CONTROL . . . . . . . . .

HOW TO USE THE SHIFT LEVER . . . . . . . . . . . . . . . . . . . . . . .

HOW TO SET THE PARKING BRAKE . . . . . . . . . . . . . . . . . . . .

HOW TO CHANGE THE CUTTING HEIGHT

HOW TO STOP THE UNIT

. . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

HOW TO TRANSPORT THE UNIT . . . . . . . . . . . . . . . . . . . . . . . .

HOW TO OPERATE WITH THE MOWER HOUSING

HOW TO OPERATE THE UNIT ON HILLS

. . . . . . . .

. . . . . . . . . . . . . . . . .

BEFORE STARTING THE ENGINE

HOW TO START THE ENGINE

. . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . .

OPERATING TIPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

MOWING AND BAGGING TIPS . . . . . . . . . . . . . . . . . . . . . . . . . .

MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

MAINTENANCE CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

HOW TO CHECK THE MUFFLER . . . . . . . . . . . . . . . . . . . . . . . .

HOW TO REMOVE AND INSTALL THE BLADE . . . . . . . . . . .

HOW TO SHARPEN THE BLADE . . . . . . . . . . . . . . . . . . . . . . . .

HOW TO ADJUST THE BLADE ROTATION CONTROL . . . . .

HOW TO CHECK AND ADJUST THE DRIVE BRAKE . . . . . . .

HOW TO CHECK AND ADJUST THE CLUTCH . . . . . . . . . . . .

HOW TO ADJUST THE SHIFT LEVER

MAINTENANCE FREE BATTERY

. . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . .

HOW TO CHARGE THE BATTERY

WHERE TO LUBRICATE

. . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

HOW TO CHECK THE FUEL FILTER

CHECK THE TIRES

. . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

HOW TO REMOVE THE MOWER HOUSING

HOW TO INSTALL THE MOWER HOUSING

. . . . . . . . . . . . . .

. . . . . . . . . . . . . . .

HOW TO LEVEL THE MOWER HOUSING . . . . . . . . . . . . . . . .

HOW TO REPLACE THE MOTION DRIVE BELT . . . . . . . . . . .

HOW TO REPLACE THE MOWER DRIVE BELT

HOW TO INSTALL THE WHEELS

. . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . .

HOW TO REPLACE THE FUSE . . . . . . . . . . . . . . . . . . . . . . . . . .

HOW TO REPLACE THE LIGHT BULB . . . . . . . . . . . . . . . . . . .

HOW TO CLEAN THE MOWER HOUSING . . . . . . . . . . . . . . . .

STORAGE (OVER 30 DAYS) . . . . . . . . . . . . . . . . . . . . . . . . . . . .

TROUBLE SHOOTING CHART . . . . . . . . . . . . . . . . . . . . .

HOW TO ORDER REPAIR PARTS . . . . . . . . . . . . . . . . . . .

PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SLOPE GUIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

INDEX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

LAWN TRACTOR ACCESSORIES . . . . . . . . . . . . . . . . . .

MURRAY, INC.

Two Year Limited Warranty

Murray, Inc. warrants to the original purchaser that this unit shall be free from defects in material and workmanship under normal use and service for a period of Two (2) Years from the date of purchase; however, this warranty does not cover engines, accessories (such as snow blowers, snow blades, grass baggers and plows), transmissions, batteries and Normal Wear Parts

(except as noted below) or transaxles as the companies that manufacture these items furnish their own warranties and provide service through their authorized field service facilities. For additional information, see the warranties covering these particular parts. If you are uncertain whether your unit contains or is equipped with one or more of these parts, consult your dealer prior to purchase. Subject to the terms and conditions noted in this Limited Warranty, we shall, at our option, repair or replace at no cost to the original purchaser any part covered by this Limited Warranty during the applicable warranty period.

In the event the battery proves defective within ninety (90) days from the date of purchase, we will replace it without charge. If the battery proves defective after (90) days but within one hundred twenty (120) days from the date of purchase, we will replace it for a charge of one half (1/2) of the retail price of the battery in effect at the time of return.

Normal Wear Parts are defined as belts, blades, blade adapters, pneumatic tires, headlights and seat covers. These parts are warranted to be free from defects in material and workmanship as delivered with the product. Any claim for repair or replacement of Normal Wear Parts must be made within thirty (30) days of the date of purchase. No claims involving damage caused from material use, abuse or misuse will be honored.

This Murray, Inc. Two (2) Year Limited Warranty is your exclusive remedy; however, this warranty is void or does not apply to any unit that has been tampered with, altered, misused, abused or used for rental or other commercial and/or professional

(non-homeowner) uses. Your warranty does not cover minor mechanical adjustments which are not due to any defect in material or workmanship. For assistance in making such adjustments, consult your Instruction Book.

To make a claim under this Murray, Inc. Two (2) Year Limited Warranty, return the unit (or if authorized in advance, the defective part) along with your proof of purchase to an Authorized Service Center near you. To locate the nearest Authorized Service

Center, call the Central Parts Distributor for your area shown in the list provided with your unit or check the Yellow Page listings in your local telephone directory. If you return the entire unit, we will repair the unit. If we authorize the return of the defective part only, we will either replace or repair the part. In the case of a defect in a transmission or differential (as distinguished from a transaxle), the entire transmission or differential must be returned since they do not include user serviceable parts.

This Murray, Inc. Two (2) Year Limited Warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

This Limited Warranty is given in lieu of all other expressed and implied warranties including the

implied warranty of merchantability and warranty of fitness for a particular purpose. If you need additional information on this written warranty or assistance in obtaining service, write or call: MURRAY, INC., Outdoor Power Equipment, Customer

Service Department, P.O. Box 268, Brentwood, Tennessee 37027. (1-800-251-8007)

F-050700L 2

OWNER’S INFORMATION

This instruction book is for several different models. The instructions are written for a person with some mechanical ability. Like most service books, not all the steps are described. Steps on how to loosen or tighten fasteners are steps anyone can follow with some mechanical ability. Read and follow these instructions before you use the unit.

Know your product: If you understand the unit and how the unit operates, you will get the best performance. As you read this manual, compare the illustrations to the unit. Learn the location and the function of the controls. To help prevent an accident, follow the operating instructions and the safety rules. Keep this manual for future reference.

IMPORTANT: Many units are not assembled and are sold in cartons. It is the responsibility of the owner to make sure the assembly instructions in this manual are exactly followed. Other units are purchased in an assembled condition. On assembled units, it is the responsibility of the owner to make sure the unit is correctly assembled. The owner must carefully check the unit according to the instructions in this manual before it is first used.

Engine Exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Battery posts, terminals and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. WASH HANDS AFTER HANDLING.

RESPONSIBILITY OF THE OWNER

The responsibility of the owner is to follow the instructions below.

Environmental Awareness

1. Carefully read and follow the rules for safe operation.

2. Follow all the assembly instructions.

D Do not fill the engine’s fuel tank completely full.

D Drain fuel for off-season storage.

3. Inspect the unit.

4. Make sure that the operator of the unit knows how to correctly use all standard and accessory equipment.

5. Operate the unit only with guards, shields, and other safety items in place and working correctly.

6. Correctly adjust the unit.

7. Service the unit only with authorized or approved replacement parts.

8. Complete all maintenance on the unit.

D Use only unleaded gasoline.

D Service the air cleaner regularly.

D Change oil regularly. Use 10W-30 oil in summer.

D Tune-up the engine regularly.

D Keep equipment in efficient operating condition.

D Dispose of used engine oil properly.

SAFETY RULES

Safe Operation Practices for Ride-on Mowers

WARNING: This cutting machine is capable of amputating hands and feet and throwing objects. Failure to observe the following safety instructions could result in serious injury or death.

I. General operation

1. Read, understand and follow all instructions in the Instruction Book, on the machine, the engine and with any attachments before starting.

2. Only allow responsible adults, who are familiar with the instructions, to operate the machine.

3. Clear the area of objects such as rocks, toys, wire, etc., which could be picked up and thrown by the blade.

4. Be sure the area is clear of other people before mowing. Stop the machine if anyone enters the area.

5. Never carry passengers.

6. Turn off power to the blades or any attachments before backing up. Do not mow in reverse unless absolutely necessary. Always look down and behind before and while backing.

7. Be aware of the mower discharge direction and do not point it at anyone. Do not operate the mower without either the entire grass bagger or the mower guard in place.

8. Slow down before turning.

9. Never leave a machine unattended with the engine running. Always turn off the blade(s), set the parking brake, stop the engine and remove the key before dismounting.

10. Turn off power to attachment(s) when transporting or not in use. Turn off the blade(s) when not mowing.

11. Stop the engine before removing the grass bagger or unclogging the chute.

12. Mow only in daylight or good artificial light.

13. Do not operate the machine while under the influence of alcohol or drugs or when very tired.

14. Watch for traffic when operating near or crossing roadways.

15. Use extra caution when loading or unloading the machine into a trailer or truck.

16. Always wear goggles, safety glasses, or an eye shield when you operate the unit to protect your eyes from foreign objects that can be thrown from the unit. Always wear eye protection when you make an adjustment or repair to the machine.

17. Use care when pulling loads or using heavy equipment.

a. Use only approved drawbar hitch points.

b. Limit loads to those you can safely control.

F-050700L 3

OWNER’S INFORMATION c. Do not turn sharply. Use care when backing.

d. Use counterweights or wheel weights when suggested in the Instruction Book.

18. Do not operate this machine if you are taking drugs or other medication which can cause drowsiness or affect your ability to operate this machine.

19. Do not use this machine if you are mentally or physically unable to operate this machine safely.

20. Data indicates that operators, age 60 years and above, are involved in a large percentage of riding mower related injuries. These operators should evaluate their ability to operate a riding mower safely enough to protect themselves and others from serious injury.

II. Slope operation

Slopes and rough terrain are major factors related to loss-of-control and tip-over accidents, which can result in severe injury or death. ALL slopes require extra caution. If you cannot back up the slope or if you feel uneasy on the slope, do not mow it. See the “Slope Guide” in the back of this book to check for safe operation.

DO

1. Mow up and down slopes, not across.

2. Remove obstacles such as rocks, limbs, etc...

3. Watch for holes, ruts or bumps. Uneven terrain could overturn the machine. Tall grass can hide obstacles.

4. Follow the manufacturer’s recommendations for wheel weights or counterweights to improve stability.

5. Use extra care with grass baggers or other attachments, they can change the stability of the machine.

6. Keep all movement on the slopes slow and gradual. Do not make sudden changes in speed or direction.

7. Avoid starting or stopping on a slope. If tires lose traction, turn off the blades and proceed slowly straight down the slope.

DO NOT

1. Do not turn on slopes unless absolutely necessary, then only turn slowly and gradually downhill, if possible.

2. Do not mow drop-offs, ditches or embankments. A wheel over the edge or an edge caving in could cause a sudden overturn and an injury or death.

3. Do not mow on wet grass. Reduced traction could cause sliding.

4. Do not try to stabilize the machine by putting your foot on the ground.

5. Do not use a grass bagger or other rear mounted accessories on steep slopes (greater than 10 degrees).

III. Children

Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the machine and the mowing activity. NEVER assume that children will remain where you last saw them.

1. Keep children out of the mowing area and in the watchful care of another responsible adult.

2. Be alert and turn the engine off if children enter the area.

3. Before and when backing, look behind and down for small children.

4. Never carry children or any passengers, even with the blades off. They may fall off and be seriously injured or interfere with the safe operation of the machine.

5. Never allow children to operate the machine. Instruct children in the potential dangers of the machine.

6. Use extra care when approaching blind corners, shrubs, trees or other objects that may obscure vision.

IV. Service

1. Use extra care when handling gasoline and other fuels. Fuels are flammable and the vapors are explosive.

a. Use only an approved container.

b. Never remove the gas cap or add fuel with the engine running. Allow the engine to cool for several minutes before refueling. Do

not smoke.

c. Never refuel the machine indoors.

d. Never store the machine with fuel in the tank or fuel container inside where there is an open flame, such as a water heater.

2. Never start or run the engine inside a closed area.

3. Keep all nuts and bolts, especially the blade attachment nuts tight. Frequently check the blade(s) for wear or damage such as cracks and nicks. A blade that is bent or damaged must be immediately replaced with an original equipment blade from an authorized service dealer. For safety, replace the blade every two years. Keep the equipment in good condition.

4. Never tamper with the safety devices. Check their proper operation regularly.

5. To reduce fire hazards, keep the machine free of grass, leaves or other debris build-up. Clean up oil or fuel spills. Allow the machine to cool before storing.

6. Stop and inspect the equipment if you strike an object. Repair, if necessary, before restarting.

7. Never make adjustments or repairs with the engine running. The carburetor can be adjusted with the engine running. Do not change the engine governor settings or over-speed the engine.

8. Grass bagger components are subject to wear, damage and deterioration, which could expose moving parts or allow objects to be thrown. For storage, always make sure the grass bag is empty. Frequently check components and replace with manufacturer’s recommended parts when necessary.

9. Mower blade(s) are sharp and can cut. Wrap the blade(s) or wear gloves and use extra caution when servicing them or the blade housing area.

10. Check the brake operation frequently. Adjust and service as required.

11. Wait for all movement to stop before servicing any part of the unit.

Look for this symbol to indicate important safety precautions. This symbol indicates: “Attention!

Become Alert! Your Safety Is At Risk.”

F-050700L 4

Each person that operates power equipment must learn to use correct and safe mowing procedures. To help you learn, carefully read the following

pages. Most of the time the operator was not correctly shown or did not read the instructions on the unit or in the Instruction

Book before using the unit. Also, some operators do not have enough experience.

The result is unsafe use, endangering the operator, bystanders and the equipment.

Another result can be a poor appearance of the area mowed.

Read this book. Read the instructions on the unit. Operate the mower according to the Safe Mowing Guide. Follow all safety rules, cautions or warnings in this book and on the unit. Make sure anyone that uses the unit reads the instructions and is told how to safely operate the mower.

SAFE MOWING GUIDE controls and how they work. In an emergency, how fast you can stop the blade is important. Learn how to control the mower at all times.

Many engines are started by hand. When you use a pull start or rope start, place your feet apart and away from the blade(s).

Hold the rope handle tight. Never wrap the rope around your arm or fingers for a

“better grip”. To start the engine, follow the instructions on the mower, in this book and in the engine operating instructions.

For electric start engines, sit in the seat to start the engine. The battery can be dangerous. Follow the instructions on the battery, the acid container, and in this book when working with the battery. Even small batteries have enough voltage to cause an injury. Always be careful.

The mower is designed to be operated by one person. Never let another person ride with you on the unit or on any accessories.

A passenger will make the unit harder to control, block the visibility or distract the operator and is dangerous to the operator, the passenger and the equipment. Without a passenger seat, the passenger can fall from the mower or contact dangerous parts. A mower is not a toy for showing off or for giving rides.

The blade of a power mower rotates very fast. It can discharge rocks and other objects over a long distance which can be dangerous. The force of the objects can break windows, cause injuries or even put an eye out. Most of the time the injury is to a person, like a child. Keep every person completely away from the area to be mowed. Make sure the grass is not discharged toward anyone. Planning your mowing pattern has a double advantage. It can decrease the possibility of an injury and make the clean up after mowing easier.

The mower will give you good service and durability, if operated in normal conditions.

If the mower is not correctly serviced or is used where the terrain is rough or unsuitable, product performance and safety will be decreased.

Correct clothing is an important part of safe mowing. Safety glasses will protect the eyes from objects discharged by the mower. Safety shoes with steel plates can protect a foot from injury by the blade. For protection from objects discharged from the mower, wear clothing that will cover the arms and legs.

Before you start cutting the grass, practice using the mower in a large open and level area. Learn the location of the controls on the mower. Know the purpose of the

F-050700L

Never cut a wet lawn. Wet grass can cause an accident, affect mower performance and can cause problems with future lawn growth and appearance. Wet grass is slippery and can cause the mower to slip. Someone can get injured by touching the blade(s). Wet grass tends to clog the mower, causing poor discharge.

Cut wet grass will collect on the lawn, retarding the growth of the grass. Also, getting the mower wet will cause parts to rust and decrease the life of the unit.

When you look over the lawn, remember obstacles that cannot be removed, like pipes, stumps or rocks. Keep away from these obstacles that can cause damage to the mower or injury to the operator or a person near the mower. Clear the area of rocks, toys, wire or other loose objects.

These items can damage the mower or can be discharged by the mower blade.

Check the terrain of the area to be mowed.

Mow in a pattern that will keep you away from dangerous areas. Check the distance you need to stop and the distance available to turn. Slopes and rough terrain must be mowed carefully and some areas must not be mowed at all. With riding mowers, mow up and down the hill. When you must mow rough terrain or on slopes, never change directions or change gears and stop in these areas only in an emergency. Before you ride up or down a slope, try to back straight up the slope. Do not ride up or down a slope that is too steep to back straight up. See the “Guide” in the back of this Instruction Book to check any slopes.

Before you start cutting, make sure the mower was completely assembled according to the Instruction Book. If the

mower was completely assembled at the store, you must still check the mower according to the assembly instructions.

Make sure the mower is correctly assembled and that all fasteners are tight.

Make sure the engine has the correct amount of oil. Check these items often during the life of the mower.

Your mower has a gasoline engine.

Gasoline is a dangerous fuel. Keep gasoline only in an approved safety gasoline container. Do not keep large amounts of gasoline. When you add gasoline to the fuel tank, do not smoke.

Store the gasoline container and the mower in an area that has good ventilation.

Also, keep the gasoline away from any flames like the pilot light of a furnace or any other source of ignition. If the mower is to be stored for more than a few weeks, remove the gasoline from the fuel tank.

When inside an enclosure, do not add gasoline to the fuel tank. Before you add gasoline, move the mower outside and add gasoline carefully. Before you start the engine, remove any gasoline from the outside of the fuel tank or from the mower.

Warm gasoline will expand. Leave some space in the fuel tank for the gasoline to expand. Also, the fuel cap has a vent hole for fuel vapors. Always use the correct fuel cap. Failure to follow safety rules about gasoline will cause fires and explosions, injury to you and damage to the equipment and other property.

SAFE MOWING GUIDE of the mower. Stop the engine. Let the engine and transmission cool before servicing the mower. Remember, exhaust fumes are dangerous. Never operate the engine inside a building.

When you get a new mower, it can be a new experience for the family. Tell each person how a mower can be dangerous.

Remember, a mower is not a toy. A mower is not to be used by children or anyone not old enough, strong enough or that does not have experience.

If the mower is not correctly assembled, not operated correctly, or not regularly serviced, the mower can be dangerous.

The most important rule to follow is always use good judgement and common sense.

Mow safely and carefully.

When you mow, remember that children are attracted to the mower. Always use caution when mowing around obstacles like trees or shrubs or when moving backward. Only mow in a forward direction if possible. Your visibility is decreased when you mow backward. Also, the blades are made to cut while the unit is moving forward. If you mow backward, the cutting performance decreases.

Your mower will easily cut thick grass.

Fingers, feet and other parts can also be cut by the blade. Injuries occur when the operator does not think and reaches into the chute opening. Always operate the mower as if the blade is rotating. Do not service or make an adjustment, except to the carburetor, while the engine is running.

Before you leave the mower, stop the engine. Remove the key. Disengage and lower any attachment. Set the parking brake. Never mount or dismount from the seat while the engine is running. An accident can occur if you touch the brake, shift lever, throttle, clutch or blade control while the engine is running. Mount and dismount from the seat on the side of the unit that is marked ENTER-EXIT.

If you add gasoline to an engine that is running or hot, the result can be an explosion. Before you add gasoline, stop the engine and let the engine cool for several minutes. Remove dry grass and other debris from the mower. Keep the mower clean to improve the performance, help the engine and transmission run cooler, extend the life of moving parts, and decrease the danger of a fire.

Fires and explosions are not the only dangers when working around a mower.

The engine, transmission, and the muffler will get hot in several minutes when the engine is running. Do not touch these parts

F-050700L

Use only accessories that are factory approved for your mower. The wrong accessory can decrease the safety of the mower and can even damage the unit.

Read and follow the instructions included with the accessory and the mower.

Use only original equipment or replacement parts that are factory approved for service. If you need service, select an Authorized Service Center for your mower. If you do the work on the unit, follow the instructions in the Instruction

Book.

Make sure you are in good condition when you mow. When you mow for several hours your reflexes will decrease and your mind will not be as alert. Take a short break or an accident can occur. If the temperature is hot, use caution to prevent dehydration. If you are tired, angry or not completely alert, do not operate the mower. If you use alcohol, medication or drugs, do not use the mower or any type of power equipment.

Engine speed is a key to safe mowing and to a good looking lawn. The maximum speed of the engine was set at the factory.

Do not change the setting of the engine governor.

Select the maximum engine and ground speed that is right for the terrain and the height of the grass. The blade cuts best when the engine is operating at maximum speed. The engine and transmission will also run cooler at maximum engine speed.

Also, the grass bagger will function better when the engine is operating at maximum speed. On slopes, decrease the ground speed and use care making sure the mower feels safe to operate.

If the weather conditions are bad, do not mow. If weather conditions become bad, stop cutting and finish later. It is dangerous to cut grass in the rain. Always find protection in an electrical storm. If the weather conditions are extra dry, protect your eyes with safety glasses from the dust and from the objects discharged by the mower. Also, a dust or a pollen mask can help.

Your mower is equipped with a number of safety devices which are important to the safety of the operator and bystanders and must never be changed or removed from the mower. If a safety device is lost, damaged or no longer functions, repair or replace the device before you operate the mower.

It is best to mow during the day. If you must mow at night, make sure there is enough light for safe operation.

Your mower will require regular maintenance and service. The maintenance schedule depends on the hours of use. Also, mowing conditions can change the schedule. Check the

Instruction Book for more information.

Correct maintenance will help the mower function safely.

Do not service the mower (except for the carburetor adjustment) while the engine is running. Before you service the unit, even with the engine stopped, always disconnect the wire from the spark plug to prevent the engine from starting.

If you hit a large object during operation, stop the engine. Remove the wire from the spark plug. Carefully inspect the mower for damage. Before you start the engine again, make the necessary repairs. If you

SAFE MOWING GUIDE feel new or excessive vibration, immediately stop the engine and check for the problem. Vibration can be a warning of a problem. Keep all nuts, bolts and screws tight.

The blade is the most dangerous part of the mower. Frequently check the blade and the blade mounting fasteners. Keep the fasteners tight. If the blade hits a solid object, stop the engine. Remove the wire from the spark plug. Check for a blade that is bent, cracked or for other damages.

Before you start the engine, replace a damaged blade(s). For safety, replace the blade every two years.

A sharp blade decreases the workload on the engine and more evenly cuts grass.

Frequently sharpen the blade for a better looking cut. Use the left side of the mower housing to trim near an object.

A grass bagger is a good accessory for your mower. For best performance and safety, make sure the grass bagger is approved for use with your mower. Follow the assembly and operation instructions included with the grass bagger.

Some grass baggers require a special blade for best performance. Before you attach, check, or empty the grass bagger, always stop the engine. Before each use of the grass bagger, check for cracks, wear or deterioration. Before you use the grass bagger, replace a damaged part with a replacement part approved by the factory.

For you to have a good green lawn, follow the mowing procedures below. Do not cut the grass too short. If you cut the grass too short you can cause the grass to become yellow or make the lawn look brown. Use a lower height of cut in cool months when the grass is thicker. Raise the height of cut in hot dry periods. If you cut the grass with a blade that is not sharp or at a slow engine speed you can damage the grass.

Move the throttle control to the FAST position when mowing and using the grass bagger. Also, use a slower ground speed when using the grass bagger.

If you change the direction or pattern of cut slightly every time you mow will make the grass grow stronger and thicker. Do not add oil or gasoline to the mower while on the lawn. Spilled oil or gasoline can kill the grass. In high or thick grass, do not try to cut all the grass the first time. Raise the height of cut on the first cutting and lower the height for the next cutting. Another way is to cut only part of the width of the mower and decrease your ground speed (not the engine) to move more slowly so that the mower can discharge the grass as it moves forward.

Understand the controls and how they work. Learn the ground speed(s) of your mower. Check the stopping distance required at different travel speeds. Check the turning radius of the mower. The controls on your riding mower are different from an automobile. The throttle is operated by hand and holds the engine speed constant until it is changed. The location of the shift lever and the shift pattern is different from that of an automobile. Also, the brake and clutch systems are different. Remember the procedures to follow in an emergency.

Remember, turning off the engine ignition switch will stop the blade and the drive mechanism. If the traction of the wheels is lost or does not feel safe, disengage all systems and stop the engine. Dismount from the mower. Push the unit to a safe place before you begin mowing again.

Your unit has an electrical system that includes an operator presence switch in the seat. The operator presence switch detects if the operator is sitting on the seat.

The engine will stop if the operator leaves the seat when the blade engagement control is engaged. This operator presence switch is a safety device only. It must not regularly be used to stop the engine or the blade. There are other control systems on the mower for this purpose. Always keep the operator presence switch and other safety devices and controls in place and operating for your protection.

Remember, your mower is a tool that can be dangerous if it is not correctly used.

Follow the instructions in this Instruction

Book. Safe and careful use of the mower will give you many safe hours of problem free use.

F-050700L 7

STEPS TO FOLLOW

BEFORE MOWING

F Be sure to dress correctly. Wear hard shoes, not sandals or tennis shoes.

F Examine the blade. A blade that is bent, cracked, or damaged must be replaced with a factory replacement blade.

F Fill the fuel tank outside. Clean off spilled fuel.

F Read and follow the Owner’s Manual, the instructions with the engine, and the instructions with any attachments. Owner’s Manual instructions are for your safety and the safety of others.

F Exhaust fumes are dangerous. Start the engine outside.

F Make sure all safety devices are in place and working correctly.

F Operation of the mower is only for a person that has experience.

F Wet grass can be dangerous. Let the grass dry.

F Clear children and others from the property and instruct them to stay away.

F Never cut the grass without good light.

F Pick up loose objects. Remove them from the mowing area.

WHILE MOWING

F Do not allow children and others in the mowing area. Watch for children and others.

F Watch for fixed objects and avoid them. They can damage the mower or cause injury.

F A hot engine, muffler, and transmission will cause a burn. Do not touch.

F Inclines and slopes must be carefully mowed. See the “Guide” in the back of this book to check a slope.

F Lack of daylight or good artificial light is cause to stop mowing.

F Examine the mower, the blade, and other parts for damage after hitting a foreign object or if the unit vibrates excessively.

F Do not make adjustments or repairs without stopping the engine. Disconnect the spark plug wire.

F On or near roads, watch out for traffic. Direct discharge away from roads.

F When mowing, avoid areas where traction is unsure. Look back before changing direction of travel. Look down and behind before and while backing.

F In heavy grass, raise the cutting height. Cut slower. Stop the engine to remove clogged grass from the mower.

F Never remove any safety related parts.

F Do not pour gasoline into a engine that is hot or running.

AFTER MOWING

F Always let the mower cool before storing in an enclosed area.

F Foreign material on the mower is dangerous. Clean off grass, leaves, grease and oil before storing.

F Tighten all loose nuts, bolts and screws before you use the unit.

F Empty and clean any grass catcher or other accessory.

F Remove the key or disconnect the spark plug wire to prevent unauthorized use.

F Make sure the mower is not kept near a source of ignition. Gas fumes can cause an explosion.

F Only original parts or factory approved substitutes can be used to service the mower.

F When storing the mower for an extended period, remove the fuel from the fuel tank.

F Instruct children to leave the mower alone. It is not a toy.

F Never keep gasoline near a source of ignition. Always use an approved container. Keep gasoline away from children.

F Lubricate according to the Instruction Book. See “Lubrication”.

IMPORTANT--Read the Instruction Book. Keep this book for future use and reference.

WARNING: Look for this symbol to point out important safety precautions. It means: “Attention! Become Alert!

Your Safety Is Involved.”

F-050700L 8

INTERNATIONAL PICTORIALS

INTERNATIONAL PICTORIALS

IMPORTANT: Some of the following pictorials are located on your unit or on literature supplied with the product. Before you operate the unit, learn and understand the purpose for each pictorial.

Safety Warning Pictorials

1 Warning

2 Shield Eyes. Explosive Gases Can

Cause Blindness Or Injury.

3 No Sparks, Flames or Smoking.

4 Sulphuric Acid Can Cause Blindness

Or Severe Burns

5 Flush Eyes Immediately With Water.

Get Medical Help Fast.

6 IMPORTANT: Read Owner’s Manual

Before Operating This Machine.

7 WARNING: Thrown Objects. Keep

Bystanders Away. Read User

Instructions Before Operating This

Machine.

8 WARNING: Do Not Use This Machine

On Slopes Greater Than 15 Degrees.

9 DANGER: Keep People, Especially

Children, Away From Unit.

10 DANGER: No Step.

11 DANGER: Keep Feet And Hands

Away From Rotating Blade.

12 DANGER: Keep Hands Away From

Rotating Blade.

13 DANGER: Disconnect Spark Plug

Wire Before Servicing Unit.

14 WARNING: Hot Surface.

15 WARNING: Use Caution When

Connecting Or Disconnecting

Accessories.

16 WARNING: Crushed Fingers.

1 2 3 4 5 6

8 9 10 11

Control And Operating Pictorials

1 Engine Start

2 Lights

3 Engine Stop

4 Select Reverse

5 Engine Run

6 Engine Start

7 Brake

8 Parking Brake

9 Clutch

10 Slow

11 Fast

1 2 3 4 5 6

12 Choke

13 Oil

14 Blade Rotation Control

15 Raise

16 Fuel

7 8

F-050700L

10 11 12

13 14 15 16

ASSEMBLY

ASSEMBLY

Read and follow the assembly and adjustment instructions for your mower. All fasteners are in the parts bag. Do not discard any parts or material until the unit is assembled.

WARNING: Before doing any assembly or maintenance to the mower, remove the wire from the spark plug.

NOTE: In this instruction book, left and right describe the location of a part with the operator on the seat.

PARTS BAG - CONTENTS

The fasteners and other loose parts are shown below. The fasteners are shown full size. The quantity is shown in brackets ( ).

2x82

(2) Carriage Bolt

14x79

(2) Wing Nut

25x3

(1) Bolt

1001054

(2) Knob

17x47

(2) Washer

17x146

(1) Washer

095338

(1) Hub Cover

20729

(1) Keys & Ring *

* On some models, the keys are attached to the seat spring.

F-050700L 10

ASSEMBLY

HOW TO INSTALL THE SEAT

1. Carefully remove the plastic bag from the seat.

Use the fasteners shown below to install the seat. The fasteners are shown at full size.

3. Check the operating position of the seat. If the seat needs to be adjusted, loosen the two wing bolts. Slide the seat forward or backward along the seat adjusting holes as shown. Tighten the wing bolts (A).

Seat

Seat Hinge

(A)

1001054

(B)

17x47

Seat

Adjusting Hole

NOTE: Fasteners may be attached to seat for shipping purposes, if so remove fasteners before proceeding.

2. Align the holes in the seat hinge to the holes in the seat

(Figure 1). Fasten the seat to the seat hinge with the fasteners as shown.

HOW TO ASSEMBLE THE STEERING WHEEL

Attach the steering wheel as follows:

Hub

Cover

Figure 1

(A)

25x3

(C)

17x146

1. Make sure the front wheels point forward.

2. Slide the cover over the steering post (Figure 2).

NOTE: Before attachment of the steering wheel, make sure that the front wheels point forward and are straight. For proper alignment of the steering wheel, see Figure 2.

3. Slide the steering wheel onto the steering post.

4. Use the fasteners shown above to secure the steering wheel.

The fasteners are shown at full size. Tighten the screw. DO

NOT over tighten.

5. Remove adhesive backing from hub cover (found in parts bag) and place hub cover over hub.

F-050700L 11

Cover

Steering Post

Straight

Steering Wheel

Figure 2

MAINTENANCE FREE BATTERY

ASSEMBLY

IMPORTANT: Before you attach the battery cables to the battery, check the battery date. The battery date tells if the battery must be charged.

3. Use a 12 volt battery charger to charge the battery. Charge at a rate of 6 amperes for one hour. If you do not have a battery charger, have an authorized service center charge the battery.

4. Install the battery and battery tray. Make sure the positive (+)

terminal is on the left side.

1. Check the top and the side of the battery for the location of the

battery date (Figure 3).

HOW TO INSTALL THE BATTERY CABLES

2. If the battery is put into service before the battery date, the

battery cables can be attached without charging the battery.

See “How To Install The Battery Cables”.

3. If the battery is put into service after the battery date, the

battery must be charged. See “How To Charge The

Maintenance Free Battery”.

WARNING: To prevent sparks, fasten the red cable to the positive (+) terminal before you connect the black cable.

Use the fasteners shown below to install the battery cables. The fasteners are shown at full size.

HOW TO CHARGE

THE MAINTENANCE FREE BATTERY

WARNING: When you charge the battery, do not smoke. Keep the battery away from any sparks. The fumes from the battery acid can cause an explosion.

1. Remove the battery and battery tray.

2. Remove the protective caps from the battery terminals.

(A)

2x82

(B)

14x79

1. Remove the protective caps from the battery terminals.

2. Fasten the red cable to the positive (+) terminal with the fasteners as shown (Figure 3).

3. Fasten the black cable to the negative (-) terminal with the fasteners as shown.

Positive (+)

Terminal

Red Cable

F-050700L

Black Cable

Battery Tray

Battery

Figure 3

ASSEMBLY

IMPORTANT! BEFORE YOU START MOWING

- Check the engine oil.

- Fill the fuel tank with gasoline.

- Check the air pressure of the tires.

- Check the level of the mower housing.

- Make sure the battery cables are attached.

- Make sure the wire is attached to the spark plug.

WARNING: Before doing any assembly or maintenance to the mower, remove the wire from the spark plug.

NOTE: In this instruction book, left and right describe the location of a part with the operator on the seat.

HOW TO PREPARE THE ENGINE

NOTE: The engine was shipped from the factory filled with oil.

Check the level of the oil. Add oil as needed.

NOTE: The operation of a new engine will sometimes result in a slight amount of smoke. This smoke is caused by paint or oil on or around the muffler. This is normal and only expected during initial operation.

A separate engine manual is also included with the unit. See this engine manual for the manufacturer’s instructions for the type of gasoline and oil to use. Before you use the unit, read the information on safety, operation, maintenance, and storage.

WARNING: Follow the engine manufacturer’s instructions for the type of gasoline and oil to use.

Always use a safety gasoline container. Do not smoke when adding gasoline to the engine. When inside an enclosure, do not fill with gasoline. Before you add gasoline, stop the engine. Let the engine cool for several minutes.

IMPORTANT: This unit is equipped with an internal combustion engine and must not be used on or near any unimproved forest-covered, brush-covered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrester meeting applicable local or state laws (if any). If a spark arrester is used, it must be maintained in effective working order by the operator.

In the State of California the above is required by law (Section

4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands.

See an Authorized Service Center for a spark arrester for the muffler.

In some areas, local law requires the use of a resistor spark plug to control the ignition signals. See an Authorized Service

Center for a resistor spark plug for the engine.

NOTE: Actual sustained horsepower will likely be lower due to operating limitations and environmental factors.

CHECK THE TIRES

NOTE: The tires were over inflated for shipment. The correct air pressure is shown on the side of the tire.

Check the air pressure in the tires. Tires with too much air pressure will cause the unit to ride rough. Also, the wrong air pressure will keep the mower housing from cutting level. The correct air pressure is shown on the side of the tire.

CHECK THE LEVEL OF THE MOWER HOUSING

Make sure the level of cut is still correct. After you mow a short distance, look at the area that was cut. If the mower housing does not cut level, see the instructions on “How To Level The Mower

Housing” in the Maintenance section of this instruction book.

F-050700L 13

OPERATION

Blade Rotation

Control

Throttle Control

Lever

Clutch / Brake

Pedal

Shift Lever

Lift

Lever

Figure 4

LOCATION OF CONTROLS

BLADE ROTATION CONTROL:

Use the blade rotation control to start and stop the rotation of the blade and also to control various accessories, such as a snow thrower.

CLUTCH / BRAKE PEDAL:

The pedal has two functions.

The first function is a clutch. The second function is a brake. Use the brake pedal to quickly stop the forward or reverse motion of the unit.

HEADLIGHT SWITCH:

There is not a separate headlight switch. As with many newer automobiles, the headlights are automatically on whenever the engine runs.

IGNITION KEY SWITCH:

Use the ignition key switch to start and stop the engine. When you start the engine and release the ignition key, the ignition key switch will automatically default to the recommended RUN-MOW position for normal mowing.

SHIFT LEVER:

Use the shift lever to change the speed of the unit.

LIFT LEVER:

Use the lift lever to change the height of cut.

PARKING BRAKE LEVER:

Use the parking brake lever to engage the brake when you leave the unit.

THROTTLE CONTROL LEVER:

Use the throttle control lever to increase or decrease the speed of the engine.

F-050700L 14

OPERATION

ATTACHMENTS

This unit can use many different attachments. See the attachment page in this book. This unit can pull attachments like a lawn sweeper, a lawn aerator, a hopper spreader or a small trailer. This unit can not use attachments that engage the ground like a plow, a disk harrow, or a cultivator.

For all pull-behind attachments or trailers, the maximum gross weight is 250 pounds. Gross weight is the weight of the attachment or trailer and any load that might be on or in it.

Do not operate on a slope that is greater than 10 degrees when using a pull-behind attachment or trailer. We have included a slope guide in this book to help you determine the slope on which you will be operating your unit. Never allow someone to stand or ride on or in an attachment or trailer.

ELECTRICAL SAFETY SYSTEM

The electrical system has two primary components, an Operator

Presence System and a Select Reverset system.

Operator Presence System (Seat)

The seat has an Operator Presence System to shut off the engine when the operator leaves the seat. This system is not intended for regular use in stopping the engine or the blade(s). Before leaving the seat, move the blade rotation control to the DISENGAGE position, shift to neutral, set the parking brake and stop the engine.

Select Reverset System

The Select Reverset system will allow the mower blade(s) to continue to rotate when traveling in reverse. See “How To Operate

The Ignition Key Switch” and “How To Start The Engine” for further details.

HOW TO OPERATE THE IGNITION KEY SWITCH

START - Use this position to start the engine.

RUN-MOW - When you start the engine and release the ignition key, the ignition key switch will automatically default to the recommended RUN-MOW position for normal mowing. In the

RUN-MOW position, the system will stop the engine and the blade(s) when the speed control pedal/shift lever is put in the reverse position.

SELECT REVERSE t - The optional Select Reverset position will allow the mower blade(s) to continue to rotate when traveling in reverse. Always go back to the recommended

RUN-MOW position for normal mowing when operation in Select

Reverset is not absolutely necessary. NEVER use the Select

Reverset option if children are on or near the property.

WARNING: Operators are strongly discouraged from using this option unless the operator decides such operation is absolutely necessary and that safe precautions are taken. Never use the Select Re-

verset option if children are on or near the property. Always look down and behind before and while backing. After using

the Select Reverset position, move the ignition key back to the RUN-MOW position.

STOP - Use this position to stop the engine.

Ignition

Key Switch

Figure 5

HOW TO USE THE THROTTLE CONTROL

Use the throttle control to increase or decrease the speed of the engine.

CAUTION: Always operate the engine with the throttle control in the FAST position. If the engine runs for several minutes at slower than the FAST position, the engine and transmission will overheat and can be damaged.

1. The FAST position is marked with a detent. For normal operation and when using a grass bagger, move the throttle control

F-050700L 15 to the FAST position. For maximum charging of the battery and for a cooler running engine and transmission, operate the engine in the FAST position.

2. For transport and to tow pull behind attachments, move the throttle control to the SLOW position.

3. The engine governor is set at the factory for maximum performance. Do not adjust the governor to increase the speed of the engine.

OPERATION

HOW TO USE

THE BLADE ROTATION CONTROL

The blade rotation control is next to the steering wheel (Figure 6).

Use the blade rotation control to engage the blade(s) or to operate a snow thrower attachment.

1. Before you start the engine, make sure the blade rotation con-

trol is in the DISENGAGE position.

2. Move the blade rotation control to the ENGAGE position to rotate the blade(s).

Note: If the engine stops when you engage the blade(s), the transmission is in reverse.

3. Move the blade rotation control to the DISENGAGE position to stop the blade(s). Before you leave the operator’s position, make sure the blade(s) has stopped rotating.

4. Before you ride the unit across a sidewalk or a road, move the

blade rotation control to the DISENGAGE position.

5. Before operating in reverse, move the blade rotation control to the DISENGAGED position. If the blade rotation control is not in the DISENGAGED position, the engine will stop when the speed control pedal/shift lever is moved to REVERSE position.

Disengage

Position

WARNING: Always keep your hands and feet away from the blade, deflector opening, and the mower housing when the engine runs.

Blade Rotation Control

Engage Position

Figure 6

HOW TO USE THE SHIFT LEVER

To change the forward speed or the direction of the unit, follow the steps below.

CAUTION: Before you move the shift lever, completely push the clutch/brake pedal forward to stop the unit. If the unit is not stopped, the gearbox can be damaged.

1. Completely push the clutch/brake pedal forward to stop the unit. Keep your foot on the pedal.

2. Move the throttle control lever to the SLOW position.

3. To go forward, move the shift lever to a forward speed setting.

4. To go backward, move the shift lever to reverse. Always disengage blades and look down and behind before and while backing.

5. Slowly release the clutch/brake pedal. Do not keep your foot on the pedal.

6. Move the throttle control to the FAST position.

FUNCTION

Trimming

Snow Thrower

Bagging Grass

Mulching Grass

Normal Mowing

Easy Mowing

Snow Blade

Transport

Attachments

SHIFT LEVER

5−6 Speeds

THROTTLE

1 or 2

2 or 3

3 or 4

5-6

CHOKE

FAST

SLOW

THROTTLE

* See the Instruction Book for the Attachment.

F-050700L 16

OPERATION

HOW TO SET THE PARKING BRAKE

1. Completely push the clutch/brake pedal forward.

2. Lift the parking brake lever (Figure 7).

3. Remove your foot from the clutch/brake pedal and then release the parking brake lever. Make sure the parking brake will hold the unit.

4. To release the parking brake, completely push the clutch/brake

pedal forward. The parking brake will automatically release.

WARNING: Before you leave the operator’s position, move the shift lever to the neutral (N) position. Set the parking brake. Move the blade rotation control to the

DISENGAGE position. Stop the engine and remove the ignition key.

Parking

Brake

HOW TO CHANGE THE CUTTING HEIGHT

To change the cutting height, raise or lower the lift lever as follows.

1. Move the lift lever forward to lower the mower housing and back to raise the mower housing (Figure 8).

2. When you ride on a sidewalk or road, move the lift lever to the highest position and move the blade rotation control to the

DISENGAGE position.

Lift Lever

Figure 7

Figure 8

HOW TO STOP THE UNIT

1. Completely push the clutch/brake pedal forward to stop the unit. Keep your foot on the pedal.

2. Move the blade rotation control to the DISENGAGE position.

3. Move the shift lever to the NEUTRAL position.

4. Set the parking brake.

WARNING: Make sure the parking brake will hold the unit.

5. Move the throttle control to the SLOW position.

6. To stop the engine, turn the ignition key to the STOP position. Remove the key.

HOW TO TRANSPORT THE UNIT

To transport the unit, follow the steps below.

1. Move the blade rotation control to the DISENGAGE position

2. Raise the lift lever to the highest position.

F-050700L

3. Move the throttle control to a position between SLOW and

FAST.

4. To go faster, move the shift lever to a faster speed.

OPERATION

HOW TO OPERATE WITH THE MOWER HOUSING

WARNING: The deflector is a safety device. Do not remove the deflector. The deflector forces the discharged material toward the ground. Always keep the deflector in the down position. If the deflector is damaged, replace the deflector with an original equipment part from an authorized service center.

IMPORTANT: When you operate with the mower housing, always operate with the throttle control in the FAST position.

1. Start the engine.

2. Move the lift lever to a height of cut position. In high or thick grass, cut the grass in the highest position first and then lower the mower housing to a lower position.

CAUTION: Do not operate with the mower housing in the

LEVEL ADJUSTMENT position. If you operate in the

LEVEL ADJUSTMENT position, the mower housing and blades can be damaged.

3. Move the throttle control to the SLOW position.

4. Slowly move the blade rotation control to the ENGAGE position.

5. Push the clutch/brake pedal completely forward.

6. Move the shift lever to one of the speed settings.

NOTE: When you mow in heavy grass or mow with a bagger, put the shift lever in the slowest speed.

7. Slowly release the clutch/brake pedal.

8. Move the throttle control to the FAST position. If you need to go faster or slower, stop the unit and move the shift lever to another speed setting.

9. Make sure the level of cut is still correct. After you mow a short distance, look at the area that was cut. If the mower housing does not cut level, see the instructions on “How To Level The

Mower Housing” in the Maintenance section.

WARNING: For better control of the unit, always select a safe speed.

HOW TO OPERATE THE UNIT ON HILLS

WARNING: Do not ride up or down slopes that are too steep to back straight up. Never ride the unit across a slope. See the “Slope Guide” in the back of this book for information on how to check slopes.

1. Before you ride up or down a hill, move the shift lever to the slowest speed.

2. Do not stop or change speed settings on a hill. If you must stop, quickly push the clutch/brake pedal forward and set the parking brake.

3. To start again, make sure the shift lever is in the slowest speed.

Move the throttle control to the SLOW position. Slowly release the pedal.

4. If you must stop or start on a hill, always have enough space for the unit to roll when you release the brake and engage the clutch.

5. Be very careful when you change directions on a hill. When on a slope or in a turn on a hill, move the throttle control to the

SLOW position to help prevent an accident.

F-050700L 18

BEFORE STARTING THE ENGINE

OPERATION

CHECK THE OIL

NOTE: The engine was shipped from the factory filled with oil.

Check the level of the oil. Add oil as needed. See the engine manufacturer’s instructions for the type of gasoline and oil to use.

CAUTION: A mixture of alcohol (ethanol or methanol) and gasoline (called gasohol), will attract moisture and cause acid deposits during storage. While the unit is in storage, the acids in the fuel can damage the fuel system.

To prevent engine problems with the fuel system, empty the fuel system before storage of 30 days or longer as follows.

1. Drain the fuel tank.

1. Make sure the unit is level.

NOTE: Do not check the level of the oil while the engine runs.

2. Start the engine. Let the engine run until the fuel lines and the carburetor are empty.

2. Check the oil. Follow the procedure in the engine manufacturer’s instructions.

3. After storage, make sure you use fresh fuel. See the storage instructions for additional information.

3. If necessary, add oil until the oil reaches the FULL mark on the dipstick. The quantity of oil needed from ADD to FULL is shown on the dipstick. Do not add too much oil.

4. Never use engine cleaner or carburetor cleaner in the fuel tank or permanent damage can occur.

ADD GASOLINE

WARNING: Always use a safety gasoline container.

Do not smoke when adding gasoline to the fuel tank.

Do not add gasoline when you are inside an enclosure. Before you add gasoline, stop the engine and let the engine cool for several minutes.

Fill the fuel tank with regular unleaded gasoline. Do not use premium unleaded gasoline.

Make sure the gasoline is fresh and clean. Leaded gasoline will increase deposits and shorten the life of the valves.

Full

Fuel Tank

CARBURETOR

The factory settings for the carburetor are for most conditions. If the engine is operated under the following conditions, you can adjust the carburetor mixture. To adjust the carburetor, see the engine manufacturer’s instructions.

1. The engine has a loss of power or does not run smooth.

2. A change from summer to winter operation.

3. A 40 degree change in the operation temperature. The carburetor was adjusted at 80 degrees at the factory.

4. The engine is operated above 4,000 feet.

HOW TO START THE ENGINE

WARNING: The electrical system has two primary components, an operator presence system and a Se-

lect Reverset system. The operator presence system determines if the operator is sitting on the seat.

This system will stop the engine when the operator

leaves the seat. The Select Reverset system gives the operator the ability to temporarily mow in reverse if he decides such operation is absolutely necessary and safe operating precautions are taken. For your protection, always make sure these systems operate correctly.

3. Make sure the blade rotation control is in the DISENGAGE position. If the blade rotation control is not in the DISENGAGE position, the engine will not start.

4. Move the throttle control completely forward to the CHOKE or

FAST position. Some models have a separate choke knob. Pull the choke knob to the full CHOKE position.

5. Turn the ignition key to the START position. Release the key when the engine starts. The ignition key switch will automatically default to the recommended RUN-MOW position for normal mowing. See “How To Operate The Ignition Key Switch” in the Operation Section.

NOTE: The engine will not start unless you depress the clutch/brake pedal or engage the parking brake and move the blade rotation control to the DISENGAGE position.

NOTE: If the engine does not start after four or five tries, see the TROUBLE SHOOTING CHART.

2. Move the shift lever to the neutral (N) position.

F-050700L

6. Slowly move the throttle control to the SLOW position.

1. Push the clutch/brake pedal completely forward. Keep your foot on the pedal.

7. Let a cold engine run for several minutes. Begin work when the engine is warm. To start a hot engine, move the throttle control to a position between FAST and SLOW.

OPERATION

OPERATING TIPS

1. Check the blade rotation control for correct adjustment. For the blade(s) to disengage correctly, the adjustment must be correct.

2. Before you use the unit, check the oil in the engine and add oil if necessary.

3. If the engine will not start, first make sure the wire is attached to the spark plug.

4. Make sure all the belts are inside all the belt guides. See the instructions on how to remove and install the motion drive and mower drive belts.

5. Before you make an inspection, adjustment (except for the carburetor) or repair, make sure the wire from the spark plug is disconnected.

6. For longer life of the battery on electric start models, charge the battery every three months.

7. Use the shift lever to change the ground speed, not the throttle control.

8. Belt noise can occur when the blade or clutch is engaged. This noise is normal and does not affect the operation of the unit.

MOWING AND BAGGING TIPS

1. For a lawn to look better, check the cutting level of the mower housing. See “How To Level The Mower Housing” in the Maintenance section.

2. For the mower housing to cut level, make sure the tires have the correct amount of air pressure and use slow ground speeds when turning.

3. Every time you use the unit, check the blade. If the blade is bent or damaged, immediately replace the blade. Also, make sure the nut for the blade is tight.

4. Keep the blade(s) sharpened. Worn blades will cause the ends of the grass to turn brown.

5. Do not cut or bag grass that is wet. Wet grass will not discharge correctly. Let the grass dry before cutting.

6. Use the left side of the mower housing to trim near an object.

7. Discharge the cut grass onto the mowed area. The result is a more even discharge of cut grass.

8. When you mow large areas, start by turning to the right so that the cut grass will discharge away from shrubs, fences, driveways, etc. After one or two rounds, mow in the opposite direction making left turns until finished (Figure 9).

9. Use a mowing pattern that eliminates reverse travel as much as possible.

10. If the grass is very high, cut two times to decrease the load on the engine. First cut with the mower housing in the highest position and then lower the mower housing for the second cut.

11. For better engine performance and an even discharge of the cut grass, always operate the engine with the throttle in FAST position.

12. When you use a bagger, operate the engine with the throttle in

FAST position and the shift lever in first or second gear.

13. For better cutting performance and a quality cut, mow with the shift lever in one of the slower speeds.

14. After each use, clean the bottom and top of the mower housing for better performance. Also, a clean mower housing will help prevent a fire.

Figure 9

F-050700L 20

PROCEDURE

Blade, Inspect and Sharpen

Blade Rotation Control, Check

M

Brake, Check

O

Clutch, Check

Tires, Check

R

Battery, Check and Charge

Battery, Clean

Lubrication *

* Dusty conditions every 25 hours.

MAINTENANCE

MAINTENANCE CHART

EACH

USE

FIRST

HOURS

EVERY

HOURS

√

EVERY

HOURS

√

EVERY

100

HOURS

BEFORE

STORAGE

√

GENERAL RECOMMENDATIONS

1. The owner’s responsibility is to maintain this product. This will extend the life of the product and is also necessary to maintain warranty coverage.

2. Check the spark plug, drive brake, lubricate the unit, and clean the air filter once a year.

3. Check the fasteners. Make sure all fasteners are tight.

4. Follow the Maintenance section to keep the unit in good operating condition.

WARNING: Before you make an inspection, adjustment, or repair to the unit, disconnect the wire to the spark plug. Remove the wire from the spark plug to prevent the engine from starting by accident.

NOTE: Torque is measured in foot pounds (metric Nm). This measurement describes how tight a nut or bolt must be. The torque is measured with a torque wrench.

HOW TO CHECK THE MUFFLER

Check the muffler every 50 hours. Make sure the muffler is correctly mounted and is not loose. If the muffler is worn or burnt, replace with a new muffler. A worn muffler is a fire hazard and can also damage the engine.

If you mount a spark arrester to the muffler, also check the spark arrester when you check the muffler. If the spark arrester is worn or damaged, replace it with a new spark arrester. See your nearest authorized service center for a spark arrester.

F-050700L 21

MAINTENANCE

INSPECT BLADE

WARNING: Before you inspect or remove the blade, disconnect the wire to the spark plug. If the blade hits an object, stop the engine. Check the unit for damage. The blade has sharp edges. When you hold the blade, use gloves or cloth material to protect your hands.

If you keep the blade sharp and inspect the blade for damage, the blade will cut better and be more safe to operate. Frequently check the blade for excessive wear, cracks, or other damage. Frequently check the nut that holds the blade. Keep the nut tight. If the blade hits an object, stop the engine. Disconnect the wire to the spark plug.

See if the blade is bent or damaged. Check the blade adapter for damage. Before you operate the unit, replace damaged parts with original equipment parts. See the authorized service center in your area. Every three years, have an authorized service person inspect the blade or replace the old blade with an original equipment part.

9. Tighten the nut that holds the blade to a torque of 35 foot pounds (47,5 N-m).

10. Install the mower housing. See “How To Install The Mower

Housing”.

Blade Adapter

Belleville Washer

(Outside rim must be against the blade.)

Blade

Washer

Nut

Figure 11

HOW TO REMOVE AND INSTALL THE BLADE

1. Remove the mower housing. See the instructions on “How To

Remove The Mower Housing”.

2. Use a piece of wood to keep the blade from rotating.

3. Remove the nut that holds the blade (Figure 10).

Hi-Lift

Edge Up

Blade

Belleville Washer

Nut

Mandrel

Blade Adapter

Washer

Figure 10

HOW TO SHARPEN THE BLADE

WARNING: Vibration can be caused if the blade is not correctly balanced or if the blade is damaged. A blade that is damaged with cracks can break and cause an accident.

Keep a sharp edge on the blade. A blade that is not sharp will cause the tips of the grass to become brown.

1. Sharpen the blade two times a year or every 25 hours.

2. Remove the blade according to the instructions in “How To Remove And Install The Blade”.

3. Clean the blade with a brush, soap and water. Check the

blade. Look for cracks, nicks, or other damage. Replace a badly worn or damaged blade with an original equipment blade.

See an authorized service center in your area.

4. Sharpen the blade with a file (Figure 12). Make sure you keep the original bevel angle.

5. Make sure the blade is balanced. Use a screwdriver and hold the blade parallel to the ground (Figure 12). A blade that is balanced will stay parallel to the ground. If the blade is not balanced, the heavy end will rotate toward the ground. Sharpen the heavy end until the blade is balanced.

6. A new blade will cut better than a badly worn blade. Every three years, have an authorized service person inspect the blade or replace the old blade with an original equipment blade.

7. Assemble the blade according to the instructions “How To Remove And Install The Blade”.

4. Check the blade and the blade adapter according to the instructions for “Inspect Blade”. Replace a badly worn or damaged blade with an original equipment blade. See an authorized service center in your area.

5. Clean the top and bottom of the mower housing. Remove all the grass and debris.

6. Mount the blade and blade adapter on the mandrel

(Figure 10).

7. Mount the blade so that the hi-lift edges are up. If the blade is upside down, the blade will not cut correctly and can cause an accident.

8. Fasten the blade with the original washers and nut. Make sure the outside rim of the Belleville washer is against the blade

(Figure 11).

Screwdriver

Blade

File

Blade is balanced when parallel to the ground.

WARNING: Always keep the nut tight that holds the blade. A loose nut or blade can cause an accident.

Ground

Figure 12

F-050700L 22

MAINTENANCE

HOW TO ADJUST THE BLADE ROTATION CONTROL

6. Attach the wire to the spark plug. Mow for a short distance and again check the quality of cut. If necessary, move the blade

drive spring to the bottom hole.

WARNING: To prevent an injury, the blade rotation control must operate correctly.

In normal usage, the blade rotation control will not require an adjustment. However, if the cutting performance decreases or the quality of cut is poor, make the following changes.

7. Again check the quality of cut. If the quality of cut has not improved, replace the mower drive belt. See “How To Replace

The Mower Drive Belt”. If replacing the belt does not correct the problem, take the unit to an authorized service center.

1. When you mow, make sure the throttle control in in the FAST position.

2. Move the blade rotation control to the DISENGAGE position

(Figure 13).

3. Stop the engine. Disconnect the wire from the spark plug.

8. Move the blade rotation control to the DISENGAGE posi-

tion. Stop the engine. Disconnect the wire from the spark plug.

Check the operation of the blade brake. Rotate the pulleys with your hand. Make sure the brake pads are pressed tightly against the pulleys (Figure 15).

WARNING: If the brake pads do not press tightly against the pulleys, take the unit to an authorized service center.

Disengage

Position

Blade Rotation Control

Engage Position

Blade Brake

Brake Pad

Against Pulley

Figure 13

4. Check the blade(s). Keep a sharp edge on the blade(s). A blade that is not sharp will cause the tips of the grass to become brown.

5. Disconnect the blade drive spring from the blade control

rod. Move the blade drive spring to the middle hole

(Figure 14). This will increase the tension on the mower drive

belt.

DISENGAGE POSITION

Figure 15

9. Move the blade rotation control to the ENGAGE position.

Check the pads for the blade brake. If the pads are excessively worn or damaged, replace the brake pad assemblies. Correct replacement parts and assistance are available from an authorized service center.

10. Attach the wire to the spark plug. Mow for a short distance and again check the operation of the blade rotation control.

F-050700L

Blade

Control Rod

Blade Drive Spring

Top Hole (New Belt)

Middle Hole

Bottom Hole

11. When you move the blade rotation control to the

DISENGAGE position, all movement will stop within five seconds. If there is movement of the belt or the blades continue to rotate, engage and disengage the blade rotation control five times to remove any excess rubber from a new mower

drive belt. If you need assistance, take the unit to an authorized service center.

Figure 14

12. If you replace the mower drive belt, move the blade drive

spring to the top hole (Figure 14).

MAINTENANCE

HOW TO CHECK AND ADJUST THE DRIVE BRAKE

Completely push the clutch/brake pedal forward. Set the parking brake. Move the shift lever to the neutral (N) position. Push the unit.

If the rear wheels rotate, adjust or replace the brake pads. Adjust the

drive brake as follows.

1. The location of the drive brake is on the right side of the

gearbox (Figure 16).

2. Make sure the parking brake is set and the shift lever is in neutral (N). Turn the hex nut in a clockwise direction until the rear wheels do not turn when the unit is pushed forward.

3. Release the parking brake and push the unit. If the unit does not roll, turn the hex nut in a counterclockwise direction until the unit rolls.

4. Set the parking brake. Push the unit. If the rear wheels do not turn, the drive brake is correctly adjusted. Release the parking brake.

WARNING: If you cannot correctly adjust the drive brake, replace the brake pads. Correct replacement parts and assistance are available from an authorized service center.

Gearbox

Drive Brake

Hex Nut

Figure 16

HOW TO CHECK AND ADJUST THE CLUTCH

If the motion drive belt is loose, the clutch will slip when; (1) going up a hill, (2) pulling a heavy load, or (3) the unit will not move forward.

Adjust the clutch as follows.

8. If the belt still slips after the clutch has been adjusted, then the motion drive belt is worn or damaged and must be replaced.

See “How To Replace The Motion Drive Belt”.

1. Check the routing of the motion drive belt. Make sure the belt is installed correctly and is inside all the belt guides.

2. Remove the cotter pin, washer, and brake spring from the

adjustable nut (Figure 17).

3. Disconnect the adjustable nut from the brake lever assembly and the parking brake latch.

4. Align the hole in the brake lever with the hole in the frame. Hold the brake lever in place with a 1/4 inch (6 mm) pin or bolt

(Figure 17).

5. Pull the clutch rod forward until tight. Turn the adjustable nut until the nut will fit through the hole in the brake lever.

6. Assemble the adjustable nut to the parking brake latch,

brake lever and brake spring. Fasten with the washer and

cotter pin.

7. Remove the 1/4 inch (6 mm) pin or bolt.

F-050700L 24

Brake Spring

Washer

Cotter Pin

Pin or Bolt

Parking Brake

Latch

Brake Lever

Assembly

Clutch Rod

Adjustable Nut

Figure 17

HOW TO ADJUST THE SHIFT LEVER

MAINTENANCE

If the NEUTRAL position on the shift lever does not match neutral on the gearbox, adjust the shift lever as follows.

Shift Lever

1. Stop the engine.

2. Disconnect the adjuster nut from the shifter bracket

(Figure 18).

3. Make sure the shift lever is in the NEUTRAL position.

4. Push the unit forward. Make sure the gearbox is in neutral.

5. To align the adjuster nut with the hole in the shifter bracket, turn the adjuster nut.

6. Connect the adjuster nut to the shifter bracket.

7. Make sure the NEUTRAL position on the shift lever matches neutral on the gearbox.

Motion Drive Belt

Shift

Link

Adjuster Nut

Shifter

Bracket

Hair

Figure 18

MAINTENANCE FREE BATTERY

HOW TO REMOVE THE BATTERY

To charge or clean the battery, remove the battery from the unit as follows.

WARNING: To prevent sparks, disconnect the black battery cable from the negative (-) terminal before you disconnect the red cable.

WARNING: The battery contains sulfuric acid which is harmful to the skin, eyes and clothing. If the acid gets on the body or clothing, wash with water.

1. Disconnect the black cable from the negative (-) terminal

(Figure 19).

2. Disconnect the red cable from the positive (+) terminal.

3. Lift the battery tray and the battery out of the unit.

HOW TO CLEAN THE BATTERY

1. Remove the battery.

2. Wash the battery with a solution of one gallon of water and four tablespoons of baking soda (sodium bicarbonate). Make sure the solution does not get into the battery cells.

3. Clean the terminals and the ends of the cables with a wire brush.

4. Install the battery.

5. To prevent corrosion, apply grease to the battery terminals.

HOW TO CHARGE THE BATTERY

WARNING: When you charge the battery, do not smoke. Keep the battery away from any sparks. The fumes from the battery acid can cause an explosion.

F-050700L 25

1. Before you charge the battery, remove the battery.

2. To charge the battery, use a 12 volt battery charger. Charge at a rate of 6 amperes for 1 hour.

3. Install the battery.

WARNING: To prevent sparks, fasten the red cable to the positive (+) terminal before you connect the black cable.

4. Fasten the red cable to the positive (+) terminal with the fasteners as shown.

5. Fasten the black cable to the negative (-) terminal with the fasteners as shown.

Wing Nut

Black Cable

Positive (+)

Terminal

Red Cable

Carriage Bolt

Battery Tray

Carriage Bolt

Battery

Figure 19

MAINTENANCE

WHERE TO LUBRICATE

Apply grease with a brush to the areas shown.

Lubricate the areas shown with engine oil.

NOTE: Apply grease to the steering gear assembly.

CAUTION: If the unit is operated in dry areas that have sand, use a dry graphite spray to lubricate the unit.

Figure 20

HOW TO CHECK THE FUEL FILTER

NOTE: Before you replace the fuel filter or the fuel line, the fuel tank must be empty.

If the fuel filter is dirty, the engine will run rough and have less performance. Remove the old filter (Figure 21). Replace the old filter with a new filter. Use an original equipment part. See an authorized service dealer in your area.

Fuel Line

Clips

Fuel Filter

Figure 21

CHECK THE TIRES

F-050700L 26

HOW TO REMOVE THE MOWER HOUSING

1. Move the blade rotation control to the DISENGAGE position.

2. Move the lift lever to the level adjustment position (Figure 22).

WARNING: The lift lever

is spring loaded. Make sure the lift lever is locked in the LEVEL ADJUST-

MENT position.

3. Remove the hair pins and the washers from the adjuster

arms (Figure 23). See illustrations “C” and “D”.

4. Remove the hair pins and washers from the suspension links.

See illustrations “A” and “B”.

Level Adjustment

Position Figure 22

5. Disconnect the extension spring from the blade control rod.

See illustration “E”.

6. Disconnect the front hanger from the axle support. See illustration “F”.

7. Remove the mower drive belt from the stack pulley.

8. Pull the mower housing away from the right side of the unit.

9. To operate without the mower housing, move the lift lever to the

TOP position.

MAINTENANCE

HOW TO INSTALL THE MOWER HOUSING

1. Push the mower housing under the right side of the unit.

2. Put the mower drive belt around the stack pulley. Make sure the “V” side of the mower drive belt is against the stack pulley.

Also, make sure the mower drive belt is not twisted.

3. Attach the front hanger to the axle support with the hanger

rod. Fasten with the fasteners as shown. See illustration “F”.

4. Make sure the mower drive belt is between the stack pulley and the two belt guides. See illustration “G”.

5. Attach the suspension links to the lifter assembly. Fasten with the washers and hair pins. See illustrations “A” and “B”.

6. Attach the right and the left adjuster arms to the suspension brackets. Fasten with the washers and hair pins. See illustrations “C” and “D”.

7. Attach the extension spring to the blade control rod. See illustration “E”.

8. Move the blade rotation control to the ENGAGE position.

Make sure the mower drive belt is inside all the belt guides.

9. Make sure the mower housing is level. See the instructions on

“How To Level The Mower Housing”.

10. Check the operation of the blade rotation control. See the instructions on “How To Adjust The Blade Rotation Control”.

Lift Lever

Stack Pulley

Suspension

Link

Blade Rotation

Control

Belt

Guide

Mower Drive Belt

Belt

Guide

Lifter

Assembly

Suspension

Link

Adjuster Arm

Blade

Control Rod

Adjuster

Arm

Extension

Spring

F-050700L

Mower Drive Belt

Front Hanger

Hanger Rod Figure 23

MAINTENANCE

HOW TO LEVEL THE MOWER HOUSING

If the mower housing is level, the blade will cut easier and the lawn will look better.

WARNING: Before you make an inspection, adjustment, or repair to the unit, disconnect the wire to the spark plug. Remove the spark plug wire to prevent the engine from starting by accident.

Lift Lever

1. Make sure the unit is on a hard flat surface.

2. Check the air pressure in the tires. If the air pressure is incorrect, the mower housing will not cut level. The correct air pressure is shown on the side of the tire.

IMPORTANT: On models equipped with gauge wheels, the gauge wheels must be removed to correctly adjust the level of the mower housing.

3. Some models have gauge wheels on the mower housing. If equipped, remove the gauge wheels.

4. Open the cover.

5. Move the lift lever to the LEVEL ADJUSTMENT position

(Figure 24).

WARNING: The lift lever is spring loaded. Make sure the lift lever is locked in the LEVEL ADJUSTMENT position.

6. Loosen the left and right adjuster knobs (Figure 25). Push down on each side of the mower housing. Make sure both sides of the mower housing are setting on a flat surface. Also, make sure the lift links are loose and can easily move up or down.

Cover

7. Push down on the lift links and tighten the left and right adjust-

er knobs (Figure 25). Make sure the adjuster knobs are tight.

If necessary, use a wrench to tighten the adjuster knobs. For plastic adjuster knobs, tighten to a torque of 7 foot pounds (9,5

N-m). For metal adjuster knobs, tighten to a torque of 10 foot pounds (13,5 N-m).

8. Raise the lift lever from the LEVEL ADJUSTMENT position to a CUTTING HEIGHT position (Figure 26).

9. Close the cover.

10. If equipped, install the gauge wheels.

11. Mow for a short distance. If the height of cut is not level, repeat the above steps.

CAUTION: Do not operate with the mower housing in the

LEVEL ADJUSTMENT position. If you operate in the LEVEL

ADJUSTMENT position, the mower housing and blades can be damaged.

F-050700L 28

Cover

Cutting Height Positions

Level Adjustment Position

Figure 24

Lift Link

Adjuster Knobs

Lift Lever

Figure 25

Cutting Height Positions

Figure 26

MAINTENANCE

HOW TO REPLACE

THE MOTION DRIVE BELT

REMOVAL

1. Remove the mower housing. See the instructions on “How To

Remove The Mower Housing”.

2. Completely push the pedal forward and engage the parking brake.

3. Remove the idler pulley (Figure 27).

Motion

Drive Belt

Idler Pulley

Loosen The

Belt Guides

Shift

Link

Adjuster Nut

Shifter

Bracket

Hair

Drive Pulley

Motion Drive Belt

Figure 29

8. To remove the motion drive belt from the stack pulley, pull the front end of the belt under the stack pulley and then back between the stack pulley and the steering plate (Figure 30).

FRONT

Stack Pulley

Steering

Plate

Figure 27

4. To access the belt guides, remove the battery and battery tray.

See “How To Remove The Battery”.

5. Loosen the belt guides at the drive pulley (Figure 28).

Motion

Drive

Belt

Belt Guides

Figure 30

9. Remove the access panel (Figure 31).

10. Remove the two screws that attach the steering shaft

assembly (Figure 31). Raise the steering wheel and steering

shaft assembly. Pull the motion drive belt under the steering

shaft assembly.

Screw

Seat Spring

Steering Shaft

Assembly

Belt Guides Figure 28

6. Remove the motion drive belt from the drive pulley

(Figure 27).

7. Remove the adjuster nut from the shifter bracket (Figure 29).

Pull the motion drive belt over the shifter bracket.

Motion Drive

Belt

Access Panel Figure 31

11. Remove the motion drive belt. A correct replacement part or assistance is available from an Authorized Service Center in your area.

F-050700L 29

MAINTENANCE

INSTALLATION

1. Slide the motion drive belt between the stack pulley and the

belt guides (Figure 30). Install the motion drive belt on the top pulley of the stack pulley. Make sure the “V” side of the belt is against the pulley.

2. Push the motion drive belt through the opening between the steering plate and the engine plate.

3. Install the end of the motion drive belt around the drive pulley

(Figure 27).

Stack Pulley

4. Tighten the belt guides at the drive pulley (Figure 28).

5. Put the belt around the idler pulley (Figure 27, Figure 32).

Assemble the idler pulley. Fasten the idler pulley with the hex nut. Make sure the flat side of the belt is against the idler pulley.

Also, make sure the belt is not twisted.

6. Make sure the motion drive belt is inside all the belt guides

(Figure 27, Figure 28).

7. Attach the adjuster nut and shift link to the adjuster bracket with a hair pin (Figure 29). See “How To Adjust The Shift

Lever”.

8. Attach the steering shaft assembly to the steering plate with two screws (Figure 31).

9. Attach the access panel (Figure 31).

10. Check the routing of the motion drive belt. Make sure the

motion drive belt is installed correctly on the idler pulley.

Make sure the steering shaft assembly in inside the motion

drive belt (Figure 32).

11. Install the battery.

12. Before you use the unit, check the adjustment of the clutch. See the instructions “How To Check And Adjust The Clutch”.

13. Install the mower housing. See the instructions “How To Install

The Mower Housing”.

Steering Shaft

Assembly

Motion Drive

Belt

Idler Pulley

Figure 32

F-050700L 30

MAINTENANCE

HOW TO REPLACE THE MOWER DRIVE BELT

6. Pull the belt retainer away from the left mandrel pulley. Put the belt around the left mandrel pulley.

1. Remove the mower housing. See the instructions on “How To

Remove The Mower Housing”.

2. Pull the belt retainer away from the idler pulley and remove the mower drive belt (Figure 33).

3. Pull the belt retainer away from the right mandrel pulley and remove the mower drive belt.

4. Pull the belt retainer away from the left mandrel pulley and remove the mower drive belt.

NOTE: Replace the mower drive belt with an original equipment belt from an authorized service center.

5. Install the new mower drive belt. Pull the belt retainer away from the right mandrel pulley. Put the belt around the right mandrel pulley.

7. Pull the belt retainer away from the idler pulley. Put the flat side of the mower drive belt around the idler pulley.

8. Make sure the “V” side of the mower drive belt is against the mandrel pulleys as shown.

9. Install the mower housing. See the instructions on “How To

Install The Mower Housing”.

10. Before you mow, check the blade rotation control. See the instructions on “How To Adjust The Blade Rotation Control”.

Right Mandrel Pulley

Belt Retainer

Left Mandrel Pulley

Belt Retainer

F-050700L 31

Idler Pulley

Mower Drive Belt

Figure 33

MAINTENANCE

HOW TO INSTALL THE WHEELS

If the wheels must be removed for service, make sure they are installed as follows.

Hub Cap

Cotter Pin

Front Wheel

1. Make sure the valve stem is to the outside of the tractor. Slide the front wheel on the spindle (See Figure 34).

2. Fasten the front wheel with washer and cotter pin. Bend the ends of the cotter pin apart to keep the front wheel on the spindle.

3. If your model has hub caps, install the hub caps. Make sure the washer hold the hub caps in place.

Rear Wheel

1. Install the washers and spacer onto the axle as shown in

Figure 35.

2. Mount the square key in the key slot (See Figure 35).

3. Make sure the valve stem is to the outside of the tractor. Align the slot in the rear wheel with the square key. Slide the rear

wheel on the axle.

4. Fasten the rear wheel with washer and e-ring .

5. If your model has hub caps, install the hub caps. Make sure the washer hold the hub caps in place.

Valve Stem

Rear Wheel

Hub Cap

E-Ring

Washer

Valve Stem

Washer

Spindle

Washer

Front Wheel

Figure 34

Square Key

Key Slot

Spacer

Axle

Figure 35

F-050700L 32

MAINTENANCE

HOW TO REPLACE THE FUSE

If the fuse is blown, the engine will not start. The location of the fuse is next to the battery. Remove the fuse and replace with a automotive fuse (Figure 36).

3. Install a new light bulb. Align the light socket with the notches in the bezel and turn the light socket to lock in position.

Automotive Fuse

Bezel

Figure 36

HOW TO REPLACE THE LIGHT BULB

1. Raise the tractor hood.

2. Turn the light socket until the tabs on the socket align with the notches in the bezel (Figure 37). Remove the light socket.

Turn the light bulb and remove the bulb.

Light Socket

Light Bulb

Figure 37

HOW TO CLEAN THE MOWER HOUSING

WARNING: Before you clean the mower housing, stop the engine and disconnect the wire to the spark plug.

Grass and other debris on top of the mower housing can keep the belt from working correctly. For safety and correct operation, frequently clean the top of the mower housing. Remove grass and debris from around the pulleys and other moving parts.

1. Move the lever for the blade rotation control to the ENGAGE position.

2. Clean the top of the mower housing.

3. Move the lever for the blade rotation control to the

DISENGAGE position.

4. Again clean the top of the mower housing.

5. After you cut the grass, clean the bottom of the mower housing.

STORAGE (over 30 days)

At the end of each year, prepare the unit for storage as follows.

THE ENGINE

For storage information, see the the engine manufacturer’s instructions.

1. Start the engine.

2. Run the engine until the fuel tank and the carburetor are out of fuel and the engine stops.

3. Do not leave fuel in the fuel tank or the carburetor. The fuel can damage the function of the fuel system. Some models have a

fuel drain (Figure 38). Hold a cloth under the fuel drain. Push the fuel drain until the carburetor is empty.

4. After storage, make sure you use fresh fuel.

THE BATTERY

1. Remove the battery.

2. Clean the battery terminals of any deposits.

3. Charge the battery. See the instructions on “How To Prepare

And Charge The Battery”.

4. Store the battery in a cool, dry place.

NOTE: After a long time in storage, charge the battery.

Fuel Drain

THE FUEL SYSTEM

F-050700L

WARNING: Do not drain the gasoline inside a building or near a fire. Do not smoke because the fumes from the fuel can cause an explosion.

CLEAN THE UNIT

1. Clean the dirt and grass from the engine.

2. Clean the mower housing.

LUBRICATE THE UNIT

See the “Lubrication” instructions in this book.

Figure 38

TROUBLE SHOOTING CHART

PROBLEM: The engine will not start.

1. Follow the steps, “How To Start The Engine” in this book.

2. Electric-Start Models: Clean the battery terminals. Tighten the cables.

3. Drain the fuel tank. Clean the fuel line. Replace the fuel filter.

4. Remove the spark plug(s). Move the throttle to the SLOW position. Turn the ignition key to the ON position. Try to start the engine several times. Install the spark plug.

5. Replace the spark plug.

6. Adjust the carburetor.

PROBLEM: The engine will not turn over.

1. Follow the steps, “How To Start The Engine” in this book.

2. Electric-Start Models: Check the level of the acid in the battery.

If needed, add water. Charge the battery.

3. Replace the fuse.

4. Check the wiring harness for damage or a loose connection.

Repair the damaged wire.

5. Electric-Start Models: replace the solenoid. Recoil-Start Models: replace the module.

PROBLEM: The engine is difficult to start.

1. Adjust the carburetor.

2. Replace the spark plug.

3. Replace the fuel filter.

PROBLEM: Excessive vibration.

1. Replace the blade.

2. Check for loose engine bolts.

3. Decrease the air pressure in the tires.

4. Adjust the carburetor.

5. Check for a damaged belt or damaged pulley. Replace the damaged parts.

PROBLEM: The grass does not discharge correctly.

1. Stop the engine. Clean the mower housing.

2. Raise the height of cut.

3. Replace or sharpen the blade(s).

4. Move the shift lever to a slower speed.

5. Move the throttle control to the FAST position.

6. Replace the spring for the blade idler.

PROBLEM: The mower housing does not cut level.

1. Check the air pressure in the tires.

2. Adjust the level of the mower housing.

3. Check the front axle. If the front axle does not freely pivot, loosen the axle bolt(s).

PROBLEM: The mower blades will not rotate.

1. Check the mower drive belt. Make sure the belt is installed correctly.

2. Replace the mower drive belt.

PROBLEM: The engine does not run smooth or has a loss of power.

1. Check the oil.

2. Clean the air filter.

3. Clean the air screen.

4. Replace the spark plug.

5. The engine is working too hard. Use a lower gear.

6. Adjust the carburetor.

7. Replace the fuel filter.

PROBLEM: The engine does not run smooth at fast speed.

1. Replace the spark plug.

2. Adjust the throttle control.

3. Clean the air filter.

4. Replace the fuel filter.

PROBLEM: The unit will not move when the clutch is engaged.

1. Check the motion drive belt. Make sure the belt is installed correctly.

2. Adjust the clutch.

3. Replace the motion drive belt.

PROBLEM: The unit moves slower or stops when the clutch is engaged.

1. Adjust the clutch.

2. Replace the motion drive belt.

PROBLEM: The engine stops when the blades are engaged.

1. To activate the seat sensor, always sit in the middle of the seat.

2. Check the wiring harness for damage or a loose connection.

Repair the damaged wire.

3. Transmission is in reverse. Before operating in reverse, move the blade rotation control to the DISENGAGED position.

PROBLEM: On slopes, the engine stops.

1. Mow up and down slopes. Never mow across a slope.

2. To activate the seat sensor, always sit in the middle of the seat.

PROBLEM: The engine will not idle.

1. Replace the spark plug.

2. Clean the air filter.

3. Adjust the carburetor.

4. Adjust the throttle control.

5. Drain the fuel tank. Clean the fuel line. Replace the fuel filter.

PROBLEM: A hot engine causes a decrease in power.

1. Clean the air screen.

2. Check the oil.

3. Adjust the carburetor.

4. Replace the fuel filter.

F-050700L

PROBLEM: When the clutch/brake pedal is released, belt noise can be heard.

1. Temporary belt noise does not change the operation of the unit.

If belt noise is continuous, check the routing of the belt. Make sure the belt is inside all belt guides.

2. If the noise is continuous, adjust the clutch.

PROBLEM: The rear wheels spin over uneven terrain.

1. Check the front axle. If the front axle does not freely pivot, loosen the axle bolt(s).

PROBLEM: The engine stops when the operator leaves the seat.

1. This is normal. The operator presence system is designed to allow operation only if the operator is in the seat.

PROBLEM: The engine stops when selecting reverse travel.

1. Before selecting reverse travel, move the blade rotation control to the DISENGAGE position. See the Operation section for details.

PROBLEM: The transaxle is difficult to shift between gears with the engine running and the clutch depressed.

1. Check the clutch adjustment to make sure the belt stops when the clutch pedal is depressed with the transaxle in (N) neutral.

2. Check the belt guides around the transaxle drive pulley. Make sure the belt guides do not touch the pulley.

Only use a factory repair part. Repair parts, except for the engine or the transmission, are available from the store where the unit was purchased, a service shop recommended by the store, or an authorized service shop found in the yellow pages of the telephone directory.

If you cannot get a repair part or service as described above, call or write to the Central Parts Distributor shown below. When you order, include the following information: (1) Complete Model Number (see nameplate), (2) Date of Manufacture, (3) Complete Part Number, (4)

Description, (5) Quantity. Repair parts for the engine or the transmission are available from the manufacturer’s authorized service center found in the yellow pages of the telephone directory. See the individual engine or transmission warranties.

If you are unable to obtain parts or service in the manner outlined above, then contact:

USA

MURRAY, INC., Outdoor Power Equipment, Customer Service Dept., P.O. Box 268, Brentwood, TN 37027 (1-800-251-8007)

CANADA

MURRAY CANADA, INC., Factory Customer Service, 1195 Coutneypark Drive East, Mississauga, Ont. L5T-1R1 (1-800-661-6662)

MURRAY, INC. LAWN MOWER CENTRAL PARTS DISTRIBUTORS

BILLIOU’S, INC.

1343 South Main St.

Porterville, CA. 93257

(559) 784−4102

FAX 1−800−226−7337

1−877−245−5468 www.billious.com

Arizona, California, Hawaii, Nevada

BROWN & WISER, INC.

9991 S.W. Avery Street

Tualatin, OR. 97062

(503) 692−0330

FAX (503) 691−2041

1−800−882−4782

Alaska, Idaho (counties Ada, Adams,

Benewah, Boise, Bonner, Boundry, Canyon,

Clearwater, Elmore, Gem, Idaho, Kooten,

Latah, Lewis, Nez Perce, Owyee, Payette,

Ravalli, Shoshone, Valley, Washington),

Montana (counties Flathead, Lake, Lincoln,

Mineral, Missoulo, Ravalli, Sanders), Oregon,

Washington

CPT CANADA POWER

TECHNOLOGY LIMITED

Mississauga

161 Watline Avenue

Mississauga, Ontario

L4Z−1P2

(905) 890−6900 1−800−861−9559

FRANK EDWARDS CO.

3626 Parkway Blvd.

West Valley, UT 84120

1−800−318−0201

FAX 1−801−736−8067

Colorado, Idaho (counties Bannock Bearlake,

Bingham, Blaine, Booneville, Butte, Camas,

Caribou, Cassia, Custer, Franklin, Fremont,

Gooding, Jefferson, Jerome, Lemhi, Lincoln,

Madison, Minidoka, Oneida, Power, Teton,

Twin Falls) Montana (all counties except

Flathead, Lake, Lincoln, Mineral, Missoulo,

Ravalli, and Sanders), Utah, Wyoming

GARDNER, INC.

3641 Interchange Road

Columbus, OH. 43204

1−800−848−8946

FAX 1−800−626−4735

Alabama, Connecticut, Delaware, District of

Columbia, Florida, Georgia, Illinois,

Indiana, Kentucky, Louisiana, Maine,

Maryland, Massachusetts, Michigan (except upper Peninsula), Mississippi, New

Hampshire, New Jersey, New York, North

Carolina, Ohio, Pennsylvania, Rhode Island,

South Carolina, Tennessee, Vermont,

Virgina, West Virginia

Puerto Rico

GULF COAST ENGINE, INC.

4202 Russell Dr.

Corpus Christi, TX. 78408

1−800−825−6999

FAX 1−888−888−7036

New Mexico, Oklahoma, Texas,

Mexico

OSCAR WILSON ENGINE &

PARTS, INC. ENGINE, INC.

826 Lone Star Drive.

O’Fallon, MO 63366

1−800−873−6722 or 1−634−978−1313

FAX: 1−800−873−6720

Arkansas, Iowa, Kansas, Missouri,

Nebraska

WISCONSIN MAGNETO, INC.

1000 W. Donges Bay Road

Suite 100

Milwaukee, WI. 53209−5920

1−800−733−7388

FAX 1−800−733−0127

Michigan (upper Peninsula), Minnesota,

North Dakota, South Dakota, Wisconsin

Edmonton

101−10411−178th Street

Edmonton, Alberta

T5S 1R5

(780) 453−5791 1−800−861−9559

Ville St−Laurent

234 Migneron Street

Ville St−Laurent, Quebec

H4T 1Y7

(514) 731−3559

Canada

1−800−861−9559

F-050700L 35

MODEL 405000x8E

11 10

REPAIR PARTS

CHASSIS & HOOD

25 31

16 39

F-050700L 36

MODEL 405000x8E

F-050700L

Key

No.

Part No.

690566

028x23

094057

26x229

1001054

Description

Seat

Cap, Push 0n

Spring

Screw

Bolt, Wing

017x47 Z

009x56

Washer

Bolt, Shoulder

094154E700 Support, Seat

094156 Z Rod, Pivot

1001648E700 Bracket, Pivot

001x45

015x89

Bolt

Nut

009x55

094155 Z

164x31

26x249

Bolt, Shoulder

Washer

Spring

Screw

26x263

164x30

Screw

Spring

1001987E700 Deck, Seat

15x123 Nut

094151E701 Plate, Index

009x47

1001582

Screw

Mat, Left

1001578 Mat, Right

1001538E700 Hood

1001531E700 Grille

1001546 Lens, Left

1001544E700 Housing, Left Headlamp

1001545 Lens, Right

1001543E700 Housing, Right Headlamp

REPAIR PARTS

CHASSIS & HOOD

Key

No.

Part No.

26x270

Description

Screw

26x238

1001491

Screw

Bearing, Steering

1001584E701 Dash

26x201 Screw

093007E701 Panel, Access

095318E701 Support, Dash

1001270E701 Bracket, Rear Hanger

094085E700 Support, Left Grille

094007E701 Axle, Hanger

094084E700 Support, Right Grille

009x58 Bolt, Shoulder

015x81

15x124

094610

1001540

0193x1

1001652

1001653

1001755

1001928E701 Frame, Right

1001927E701 Frame, Left

690424 Container, Battery

1001002E701 Plate, Hitch

690434E701 Panel, Rear

690482E701 Support, Battery

26x277 Screw

1001542

1001433

F-050700L

Nut

Cover, Lift Detent

Insert, Grille

Fastener, Panel

Trim, Hood (3.75”)

Trim, Hood (6.5”)

Grommet, Parking Brake

Holder, Cup

Parts Bag, Assembly

Instruction Book & Parts List

MODEL 405000x8E

2 3

REPAIR PARTS

MOTION DRIVE

40 40

F-050700L

MODEL 405000x8E REPAIR PARTS

MOTION DRIVE

Key

No.

Part No.

009x39

015x89

690173 Z

094041 Z

015x79

17x102

092697

030x20

094043 Z

017x47 Z

094044 Z

021920 Z

091079

1001245 Z

094815 Z

1001303 Z

Description

Bolt, Shoulder

Nut, Hex

Arm, Idler

Rod, Clutch

Nut

Washer

Grip

Pin, Cotter

Lever, Shift

Washer

Link, Shift

Nut, Adjuster

Grip

Rod, Parking Brake

Nut, Adjuster

Bracket, Shift Pivot

Key

No.

Part No.

017x38

690369

06x105

†

015x88

020697

01x155

095094

021553

17x160

1401103 Z

024373

Description

Washer

Spacer

Bolt

Transaxle, DANA †

Nut

Key, Woodruff

Bolt

094008E701 Bracket, Transaxle

690409 Pulley

094433E700 Bracket, Transaxle Support

0011x7 E-Ring

Pulley, Drive

Key, Square

Washer

Spacer, Transaxle

Stem, Valve

26x249

015x84

094042 Z

009x54

165x116

Screw

Nut

Mount, Stud Spring

Bolt, Shoulder

Spring, Extension

1001978E701 Bracket, Right Shifter

1001928E701 Frame, Right

002x53 Bolt, Carriage

1001927E701 Frame, Left

094045 Z

021544

Latch, Parking Brake

Pedal

094038E700 Lever, Brake/Clutch

091923

407049

092288-601 Wheel & Tire Assembly

17x195

0011x3

094618

093349

0031x4

165x115

165x92

26x216

17x148

Tire *

Tube

Washer

E-Ring

Hub Cap

Guide, Belt

Pin, Hair

Spring, Extension

Screw

Washer

015x98

037x87

1001825 YZ

0031x6

Nut

Belt, Motion Drive

Yoke, DANA Shift

Pin, Hair

26x267

17x169

17x165

Screw

Washer

* When you order a tire, make sure to give the brand name of the tire so that the tread pattern on the tire will match.

† For information on Replacement Parts contact the transaxle manufacturer.

F-050700L 39

MODEL 405000x8E REPAIR PARTS

STEERING

F-050700L

36 35

MODEL 405000x8E

Key

No.

Part No.

095336

690337

095338

094124

15x111

009x57

1001893

011x25

094121

094123

001x84

Description

Wheel, Steering

Post, Steering

Cap, Steering Wheel

Bearing †

Nut, Flange †

Bolt, Shoulder

Gear, Pinion †

Ring, Snap †

Gear, Sector

Bearing

Bolt

1001121E701 Plate, Steering

094006E700 Plate, Engine

015x88 Nut, Flange

15x118 Nut, Flange

1001270E700 Bracket, Hanger

94007E701

01x146

030x49

Axle, Hanger

Bolt

Pin, Cotter

690150 Bearing

094576E701 Spindle Assembly, Left

01x111 Bolt

REPAIR PARTS

STEERING

Key

No.

Part No.

17x104

017x53 Z

Description

Washer

015x84 Nut, Flange

690210E701 Axle Assembly

095329E701 Drag Link, Left

094575E701 Spindle Assembly, Right

095328E701 Drag Link, Right

26x249 Screw

091334

024373

091912

Bearing, Wheel

Stem, Valve

Tire *

407924 Tube

1001840-601 Wheel andTire Assembly

17x195 Washer

17x192

17x113

094618

26x267

092059

0025x3

17x146

Washer

Hub Cap

Screw

Bellows

Bolt

Washer

* When you order a tire, make sure to give the brand name of the tire so that the tread pattern on the tire will match.

† These parts are included when ordering Key number 2.

F-050700L 41

MODEL 405000x8E

REPAIR PARTS

MOWER HOUSING SUSPENSION

15 13

5 24

24 43

32 45

F-050700L 42

MODEL 405000x8E

Key

No.

Part No.

092698

094157 Z

094022 Z

0025x3

092697

166x40

17x103

690533

094017 Z

009x39

030x20

017x57

094004 Z

015x84

26x249

166x39

Nut, Flange

Screw

Spring

094018E701 Bracket, PTO

165x119 Spring

690394E701 Crank, PTO

690212E701 Link, Lift

690122E701 Link, Lift Handle

Description

Grip

Handle

Pad, Switch

Bolt

Grip

Spring

Washer

Handle, Lift

Lever, PTO

Bolt, Shoulder

Pin, Cotter

Washer

Link, PTO

REPAIR PARTS

MOWER HOUSING SUSPENSION

Key

No.

Part No.

17x168

017x57

0031x4

017x91 Z

Description

Washer

Pin, Hair

Washer

002x85 Bolt, Carriage

1001111E701 Lever Assembly, Lift

094067 Pin

094055E701 Bracket, Rear Suspension

690151 Spacer, Lifter

009x53 Bolt, Shoulder

094015E700 Bracket, Pivot

17x191 Washer

015x84 Nut, Flange

165x131

015x68

Spring

Nut, Flange

094005E700 Bracket, PTO

094027E701 Hanger, Left Deck

094026E701 Hanger, Right Deck

094158 Z Rod, Hanger

690539E701 Bracket, Suspension

1001098E701 Plate, Stiffening

F-050700L 43

MODEL 405000x8E REPAIR PARTS

MOWER HOUSING

4 53

5 47

18 51

F-050700L

MODEL 405000x8E

Key

No.

Part No.

092851

15x140

037x62

690387

015x84

1001197

690212E701 Link, Lift

094137

009x52

094055E701 Bracket, Suspension

094049E701 Pad Assembly, Left Brake

094068

009x51

094128E700 Plate, Suspension

166x43

015x79

094143E700 Bracket, Suspension

095194

017x91

0031x4

0025x7

Description

Pulley, Jackshaft

Nut, Hex

Belt, Mower Drive

Pulley, Idler

Nut, Flange

Spacer, Pulley

Pad, Friction

Bolt, Shoulder

Knob

Bolt, Shoulder

Spring

Nut, Flange

Pin, Hanger

Washer

Pin, Cotter

Bolt

094051E701 Cover, Pulley

009x39 Bolt, Shoulder

690408E701 Arm, Idler

166x41 Spring

094047E701 Pad Assembly, Right Brake

094145E701 Bracket Assembly, Brake

* Includes Key No. 17, 18, 30, 31, 32, 33, 45, 46, 47 and 51.

REPAIR PARTS

MOWER HOUSING

Key

No.

Part No.

166x42

Description

Spring

094142E700 Bracket, Suspension

091770E700 Plate

015x88 Nut, Flange

002x53

1001200

Bolt, Carriage

Mandrell (Includes Key No. 6)

690539E701 Bracket, Suspension

690411 Adapter, Blade

095103E701 Blade

17x166 Washer

17x165

15x100

Washer

Nut

0166x4

028x23

094957 Z

Spring

Cap, Push On

Rod, Pivot

094707 Deflector Assembly

094956E701 Bracket, Deflector

094144E700 Bracket, Front Hanger

017x45 Z Washer

094781 Guide, Belt

094681E700 Bracket, Support

26x249

165x119

Screw

Spring, Extension

690369 Spacer

094141E701 Housing, Blade *

015x98

1-55 7601044

Nut, Flange

Complete Mower Housing Assy

F-050700L 45

MODEL 405000x8E

REPAIR PARTS

ENGINE MOUNT

32 30

F-050700L

MODEL 405000x8E

F-050700L

REPAIR PARTS

ENGINE MOUNT

Key

No.

092378

0025x7

690439 Z

019x35

01x140

17x170

26x249

094384

015x79 Z

094066

26x253

1001744

26x263

06x104

Part No.

092317

690280

095197

7601033

095197

26x201

Description

Fuel Cap †

Fuel Tank

Hose Clamp †

Fuel Line (Must cut to length) †

Hose Clamp †

Screw

094006E700 Plate, Engine

092371 Throttle Control

* Engine, BRIGGS & STRATTON

1001720

091309

1001737

06x103

009x59

Muffler

Gasket, Muffler

Adapter, Muffler

Screw, Adapter

Bolt, Muffler

Lock, Screw

Bolt, Engine Mount

Stack Pulley Assembly

Lockwasher

Bolt, Hex

Washer

Screw

Guide, Belt

Nut, Flange

Guide, Belt

Screw

Shield, Heat

Screw

* For information on Replacement Parts contact the engine manufacturer.

† These parts are included with Key number 2.

MODEL 405000x8E REPAIR PARTS

ELECTRICAL SYSTEM

F-050700L 48

MODEL 405000x8E REPAIR PARTS

ELECTRICAL SYSTEM

Key

No.

Part No.

250x92

1001716

090084

250x138

1001993

020729

091489

091488

094136

302031

407078

094613

26x229

15x116

024x32

26x229

021075

002x82

014x79

250x139

094159

024x31

1001575

Description

Harness, Light Wire

Socket, Light

Bulb, Light

Harness, Chassis Wire

Switch, Ignition

Key, Ignition

Nut, Hex

Cap, Ignition

Switch, Limit (PTO)

Fuse

Holder, Fuse

Solenoid

Screw, Mounting

Locknut

Cable, Battery Ground

Screw, Ground Cable

Battery

Bolt, Carriage

Wingnut

Harness, Seat Switch Wire

Switch, Seat Sensor

Cable

Switch, Select Reverset / Clutch Brake

F-050700L 49

F-050700L 50

Adjustments

Blade Rotation Control, 23

Clutch, 24

Drive Brake, 24

Mower Housing, Level, 28

Shift Lever, 25

Attachments, 15, 52

Battery

Charge, 25

Check, 12

Clean, 25

Install, 12

Removal, 25

Storage, 33

Belt

Motion Drive

Adjust, 24

Replace, 29

Mower Drive

Adjust, 23

Replace, 31

Blade

Inspect, 22

Remove And Install, 22

Sharpen, 22

Blade Rotation Control

Adjust, 23

Location, 14

Operation, 16

Clutch

Adjust, 24

Check, 24

Clutch / Brake Pedal, Location, 14

Controls, Location, 14

Cutting Height

Adjust, 28

Change, 17

Drive Brake

Adjust, 24

Check, 24

Electrical Safety System, 15

Engine

Fuel, 13, 19

Oil, 13, 19

Preparation, 13

Spark Arrester, 13, 21

Starting, 19

Storage, 33

F-050700L

INDEX

Throttle Control, 15

Filter, Fuel, 26

Fuel, Type, 19

Fuse, 33

Headlight, Replace Light Bulb, 33

Headlight Switch, Location, 14

Ignition Key Switch, Operation, 15

Ignition Switch, Location, 14

Lift Lever

Location, 14

Operation, 17

Lubrication, Mower, 26

Maintenance

Battery

Charge, 25

Clean, 25

Belt

Motion Drive, 29

Mower Drive, 31

Blade, 22

Blade Rotation Control, 23

Clutch, 24

Drive Brake, 24

Filter, Fuel, 26

Fuse, 33

Headlight, 33

Install, Wheels, 32

Lubrication, 26

Mower Housing

Clean, 33

Install, 27

Level, 28

Remove, 27

Muffler, 21

Storage, 33

Maintenance Chart, 21

Motion Drive Belt

Adjust, 24

Replace, 29

Mower Drive Belt

Adjust, 23

Replace, 31

Mower Housing

Clean, 33

Cutting Height, 17

Install, 27

Level Adjustment, 28

Operation, 18

Remove, 27

Muffler, 21

Spark Arrester, 21

Oil

Check, 19

Type, 19

Operation

Attachments, 15

Blade Rotation Control, 14, 16

Clutch / Brake Pedal, 14

Headlight Switch, 14

Ignition Key Switch, 15

Ignition Switch, 14

Lift Lever, 14, 17

Location Of Controls, 14

Mower Housing, 18

Mowing And Bagging, 20

Operate On Hills, 18

Parking Brake, 14, 17

Shift Lever, 14, 16

Start The Engine, 19

Stop The Unit, 17

Throttle Control, 14, 15

Transport, 17

Parking Brake

Location, 14

Operation, 17

Parts Bag, 10

Safety Rules

American National Standard

Institute, 3–4

Safe Mowing Guide, 5–7

Seat, Install, 11

Shift Lever

Adjust, 25

Location, 14

Operation, 16

Slope Guide, 50

Spark Arrester, 13, 21

Steering Wheel, 11

Storage, 33

Throttle Control

Location, 14

Operation, 15

Tire Pressure, 13, 26

Trouble Shooting Chart, 34

Warranty, 2

LAWN TRACTOR ACCESSORIES

Make your Lawn Tractor do more than you ever imagined.

The accessories shown on this page can be used on your Lawn Tractor. See the Store or Dealer where you purchased your Lawn Tractor. If you are unable to obtain the necessary information, contact the

Central Parts Distribution Center for your area as listed in your Repair Parts Book.

LAWN SWEEPER

Model No. 24720

SNOW BLADE

Model No. 24478

SNOW THROWER

Model No. 24583

F-050700L

GRASS BAGGER

Model No. 24767

9 Bushel Capacity

(For 42” and 46”)

38” MULCHER KIT

Model No. 24750

40” MULCHER KIT

Model No. 24755

42” MULCHER KIT

Model No. 24758

TIRE CHAINS

Model No. 24530

(For 18x8.5 inch tire)

Model No. 24538

(For 18x9.5 inch tires)

Model No. 24525

(For 20x8 inch tire)

Model No. 24515

(For 20x10 inch tire)

Model No. 24539

(For 23x9.5 inch tire)

REAR WHEEL WEIGHTS

Model No. 24003

(For 18x9.5 inch tires)

(For 20x8 inch tires)

Model No. 24630

(For 23 inch tires)

GARDEN TILLER

Model No. 13460

GRASS BAGGER

Model No. 24744

7 Bushel Capacity

(For 38”, 40”, and 42”)

Made in U.S.A.

Thank you for your participation!

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project

Download PDF
