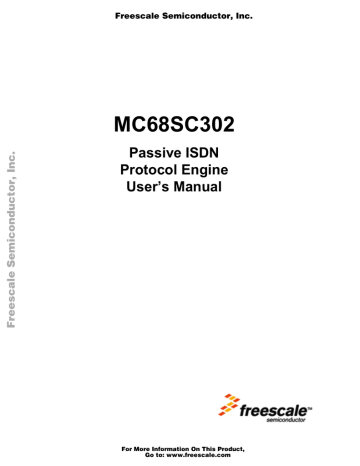

MC68SC302
Passive ISDN
Protocol Engine
User’s Manual
 1997 Motorola, Inc. All Rights Reserved
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc...
Freescale Semiconductor, Inc.
Home Page:
www.freescale.com
email:
[email protected]
USA/Europe or Locations Not Listed:
Freescale Semiconductor
Technical Information Center, CH370
1300 N. Alma School Road
Chandler, Arizona 85224
(800) 521-6274
480-768-2130
[email protected]
Europe, Middle East, and Africa:
Freescale Halbleiter Deutschland GmbH
Technical Information Center
Schatzbogen 7
81829 Muenchen, Germany
+44 1296 380 456 (English)
+46 8 52200080 (English)
+49 89 92103 559 (German)
+33 1 69 35 48 48 (French)
[email protected]
Japan:
Freescale Semiconductor Japan Ltd.
Headquarters
ARCO Tower 15F
1-8-1, Shimo-Meguro, Meguro-ku
Tokyo 153-0064, Japan
0120 191014
+81 2666 8080
[email protected]
Asia/Pacific:
Freescale Semiconductor Hong Kong Ltd.
Technical Information Center
2 Dai King Street
Tai Po Industrial Estate,
Tai Po, N.T., Hong Kong
+800 2666 8080
[email protected]
For Literature Requests Only:
Freescale Semiconductor
Literature Distribution Center
P.O. Box 5405
Denver, Colorado 80217
(800) 441-2447
303-675-2140
Fax: 303-675-2150
LDCForFreescaleSemiconductor
@hibbertgroup.com
ii
Information in this document is provided solely to enable system and software
implementers to use Freescale Semiconductor products. There are no express or
implied copyright licenses granted hereunder to design or fabricate any integrated
circuits or integrated circuits based on the information in this document.
Freescale Semiconductor reserves the right to make changes without further notice to
any products herein. Freescale Semiconductor makes no warranty, representation or
guarantee regarding the suitability of its products for any particular purpose, nor does
Freescale Semiconductor assume any liability arising out of the application or use of
any product or circuit, and specifically disclaims any and all liability, including without
limitation consequential or incidental damages. “Typical” parameters which may be
provided in Freescale Semiconductor data sheets and/or specifications can and do
vary in different applications and actual performance may vary over time. All operating
parameters, including “Typicals” must be validated for each customer application by
customer’s technical experts. Freescale Semiconductor does not convey any license
under its patent rights nor the rights of others. Freescale Semiconductor products are
not designed, intended, or authorized for use as components in systems intended for
surgical implant into the body, or other applications intended to support or sustain life,
or for any other application in which the failure of the Freescale Semiconductor product
could create a situation where personal injury or death may occur. Should Buyer
purchase or use Freescale Semiconductor products for any such unintended or
unauthorized application, Buyer shall indemnify and hold Freescale Semiconductor
and its officers, employees, subsidiaries, affiliates, and distributors harmless against all
claims, costs, damages, and expenses, and reasonable attorney fees arising out of,
directly or indirectly, any claim of personal injury or death associated with such
unintended or unauthorized use, even if such claim alleges that Freescale
Semiconductor was negligent regarding the design or manufacture of the part.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Information in this document is provided solely to enable system and software
implementers to use Freescale Semiconductor products. There are no express or
implied copyright licenses granted hereunder to design or fabricate any integrated
circuits or integrated circuits based on the information in this document.
Freescale Semiconductor reserves the right to make changes without further notice to
any products herein. Freescale Semiconductor makes no warranty, representation or
guarantee regarding the suitability of its products for any particular purpose, nor does
Freescale Semiconductor assume any liability arising out of the application or use of
any product or circuit, and specifically disclaims any and all liability, including without
limitation consequential or incidental damages. “Typical” parameters which may be
provided in Freescale Semiconductor data sheets and/or specifications can and do
vary in different applications and actual performance may vary over time. All operating
parameters, including “Typicals” must be validated for each customer application by
customer’s technical experts. Freescale Semiconductor does not convey any license
under its patent rights nor the rights of others. Freescale Semiconductor products are
not designed, intended, or authorized for use as components in systems intended for
surgical implant into the body, or other applications intended to support or sustain life,
or for any other application in which the failure of the Freescale Semiconductor product
could create a situation where personal injury or death may occur. Should Buyer
purchase or use Freescale Semiconductor products for any such unintended or
unauthorized application, Buyer shall indemnify and hold Freescale Semiconductor
and its officers, employees, subsidiaries, affiliates, and distributors harmless against all
claims, costs, damages, and expenses, and reasonable attorney fees arising out of,
directly or indirectly, any claim of personal injury or death associated with such
unintended or unauthorized use, even if such claim alleges that Freescale
Semiconductor was negligent regarding the design or manufacture of the part.
Freescale Semiconductor, Inc.
PREFACE
The complete documentation package for the MC68SC302 consists of the MC68SC302
Passive ISDN Protocol Engine User’s Manual, and the MC68SC302/D, MC68SC302 Passive ISDN Protocol Engine Product Brief.
The MC68SC302 Passive ISDN Protocol Engine User’s Manual describes the programming, capabilities, registers, and operation of the MC68SC302; and the MC68SC302 Passive ISDN Protocol Engine Product Brief provides a brief description of the MC68SC302
capabilities.
Freescale Semiconductor, Inc...
This user’s manual is organized as follows:
Section 1
Section 2
Section 3
Section 4
Section 5
Section 6
Section 7
Section 8
Introduction
Signal Description
Interrupts and Timer
Communications Processor (CP)
ISA Plug And Play Interface
PCMCIA Interface
Electrical Characteristics
Mechanical Data And Ordering Information
ELECTRONIC SUPPORT:
Internet access is provided through the World Wide Web at http://www.mot.com/netcomm.
— Sales Offices —
For questions or comments pertaining to technical information, questions, and applications,
please contact one of the following sales offices nearest you.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
UNITED STATES
Freescale Semiconductor, Inc...
ALABAMA, Huntsville
ARIZONA, Tempe
CALIFORNIA, Agoura Hills
CALIFORNIA, Los Angeles
CALIFORNIA, Irvine
CALIFORNIA, Rosevllle
CALIFORNIA, San Diego
CALIFORNIA, Sunnyvale
COLORADO, Colorado Springs
COLORADO, Denver
CONNECTICUT, Wallingford
FLORIDA, Maitland
FLORIDA, Pompano Beach/
Fort Lauderdal
FLORIDA, Clearwater
GEORGlA, Atlanta
IDAHO, Boise
ILLINOIS, Chicago/Hoffman Estates
INDlANA, Fort Wayne
INDIANA, Indianapolis
INDIANA, Kokomo
IOWA, Cedar Rapids
KANSAS, Kansas City/Mission
MARYLAND, Columbia
CANADA
BRITISH COLUMBIA, Vancouver
ONTARIO, Toronto
ONTARIO, Ottawa
QUEBEC, Montreal
(305) 486-9776
(813) 538-7750
(404) 729-7100
(208) 323-9413
(708) 490-9500
(219) 436-5818
(317) 571-0400
(317) 457-6634
(319) 373-1328
(913) 451-8555
(410) 381-1570
(604) 293-7605
(416) 497-8181
(613) 226-3491
(514) 731-6881
INTERNATIONAL
AUSTRALIA, Melbourne
AUSTRALIA, Sydney
BRAZIL, Sao Paulo
CHINA, Beijing
FINLAND, Helsinki
Car Phone
FRANCE, Paris/Vanves
GERMANY, Langenhagen/ Hanover
GERMANY, Munich
GERMANY, Nuremberg
GERMANY, Sindelfingen
GERMANY,Wiesbaden
HONG KONG, Kwai Fong
Tai Po
INDIA, Bangalore
ISRAEL, Tel Aviv
ITALY, Milan
JAPAN, Aizu
JAPAN, Atsugi
JAPAN, Kumagaya
JAPAN, Kyushu
JAPAN, Mito
JAPAN, Nagoya
JAPAN, Osaka
JAPAN, Sendai
JAPAN, Tachikawa
JAPAN, Tokyo
JAPAN, Yokohama
KOREA, Pusan
KOREA, Seoul
iv
(205) 464-6800
(602) 897-5056
(818) 706-1929
(310) 417-8848
(714) 753-7360
(916) 922-7152
(619) 541-2163
(408) 749-0510
(719) 599-7497
(303) 337-3434
(203) 949-4100
(407) 628-2636
(61-3)887-0711
(61(2)906-3855
55(11)815-4200
86 505-2180
358-0-35161191
358(49)211501
33(1)40 955 900
49(511)789911
49 89 92103-0
49 911 64-3044
49 7031 69 910
49 611 761921
852-4808333
852-6668333
(91-812)627094
972(3)753-8222
39(2)82201
81(241)272231
81(0462)23-0761
81(0485)26-2600
81(092)771-4212
81(0292)26-2340
81(052)232-1621
81(06)305-1801
81(22)268-4333
81(0425)23-6700
81(03)3440-3311
81(045)472-2751
82(51)4635-035
82(2)554-5188
MASSACHUSETTS, Marborough
MASSACHUSETTS, Woburn
MICHIGAN, Detroit
MINNESOTA, Minnetonka
MISSOURI, St. Louis
NEW JERSEY, Fairfield
NEW YORK, Fairport
NEW YORK, Hauppauge
NEW YORK, Poughkeepsie/Fishkill
NORTH CAROLINA, Raleigh
OHIO, Cleveland
OHIO, Columbus Worthington
OHIO, Dayton
OKLAHOMA, Tulsa
OREGON, Portland
PENNSYLVANIA, Colmar
Philadelphia/Horsham
TENNESSEE, Knoxville
TEXAS, Austin
TEXAS, Houston
TEXAS, Plano
VIRGINIA, Richmond
WASHINGTON, Bellevue
Seattle Access
WISCONSIN, Milwaukee/Brookfield
MALAYSIA, Penang
MEXICO, Mexico City
MEXICO, Guadalajara
Marketing
Customer Service
NETHERLANDS, Best
PUERTO RICO, San Juan
SINGAPORE
SPAIN, Madrid
or
SWEDEN, Solna
SWITZERLAND, Geneva
SWITZERLAND, Zurich
TAlWAN, Taipei
THAILAND, Bangkok
UNITED KINGDOM, Aylesbury
(508) 481-8100
(617) 932-9700
(313) 347-6800
(612) 932-1500
(314) 275-7380
(201) 808-2400
(716) 425-4000
(516) 361-7000
(914) 473-8102
(919) 870-4355
(216) 349-3100
(614) 431-8492
(513) 495-6800
(800) 544-9496
(503) 641-3681
(215) 997-1020
(215) 957-4100
(615) 690-5593
(512) 873-2000
(800) 343-2692
(214) 516-5100
(804) 285-2100
(206) 454-4160
(206) 622-9960
(414) 792-0122
60(4)374514
52(5)282-2864
52(36)21-8977
52(36)21-9023
52(36)669-9160
(31)49988 612 11
(809)793-2170
(65)2945438
34(1)457-8204
34(1)457-8254
46(8)734-8800
41(22)7991111
41(1)730 4074
886(2)717-7089
(66-2)254-4910
44(296)395-252
FULL LINE REPRESENTATIVES
COLORADO, Grand Junction
Cheryl Lee Whltely
(303) 243-9658
KANSAS, Wichita
Melinda Shores/Kelly Greiving
(316) 838 0190
NEVADA, Reno
Galena Technology Group
(702) 746 0642
NEW MEXICO, Albuquerque
S&S Technologies, lnc.
(505) 298-7177
UTAH, Salt Lake City
Utah Component Sales, Inc.
(801) 561-5099
WASHINGTON, Spokane
Doug Kenley
(509) 924-2322
ARGENTINA, Buenos Aires
Argonics, S.A.
(541) 343-1787
HYBRID COMPONENTS RESELLERS
Elmo Semiconductor
(818) 768-7400
Minco Technology Labs Inc.
(512) 834-2022
Semi Dice Inc.
(310) 594-4631
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
TABLE OF CONTENTS
Paragraph
Number
Title
Page
Number
Freescale Semiconductor, Inc...
PREFACE
ELECTRONIC SUPPORT:......................................................................... iii
— Sales Offices —..................................................................................... iii
1.1
1.2
1.3
1.4
1.5
Section 1
MC68SC302 Overview
MC68SC302 Key Features ..................................................................... 1-1
MC68SC302 Overview............................................................................ 1-4
Reference Designs.................................................................................. 1-5
MC68SC302 Application Development System...................................... 1-7
ADS Features.......................................................................................... 1-7
2.1
2.1.1
2.1.1.1
2.1.1.2
2.1.2
2.1.2.1
2.1.2.2
2.1.3
2.1.3.1
2.1.3.2
2.1.3.3
2.1.3.4
2.1.3.5
2.1.3.6
2.1.3.7
2.1.3.8
2.1.3.9
2.1.3.10
2.1.3.11
2.1.3.12
2.1.4
2.1.4.1
2.1.4.2
2.1.5
Section 2
Signal Description and Pin Control
Host Interface Pins – ISA Mode .............................................................. 2-3
Address Bus Pins.................................................................................... 2-4
Latched Address Bus Pins (LA23—LA17) .............................................. 2-4
Static Address Bus Pins (SA16—SA0) ................................................... 2-4
Data Bus Pins (SD15—SD0) .................................................................. 2-4
Low Data Bus Pins (SD7–SD0) .............................................................. 2-4
High Data Bus Pins (SD15—SD8) .......................................................... 2-4
Bus Control Pins ..................................................................................... 2-4
AEN—Address Enable pin ...................................................................... 2-4
BALE—Bus Address Latch Enable ......................................................... 2-4
SBHE—System Bus High Enable ........................................................... 2-4
MEMR—Memory Read ........................................................................... 2-5
MEMW—Memory Write .......................................................................... 2-5
IOR—I/O Read........................................................................................ 2-5
IOW/PC_Mode—I/O Write and PC_Mode .............................................. 2-5
MEMCS16—Memory Cycle Select is 16 Bit ........................................... 2-5
IOCS16—I/O Cycle Select is 16 Bi ......................................................... 2-5
IOCHRDY—I/O Channel Ready ............................................................. 2-5
REF—Refresh......................................................................................... 2-5
RESET — Reset ..................................................................................... 2-5
Interrupt Out Pins .................................................................................... 2-6
IRQ9, 10, 11, 12, 15 — Dedicated mode ................................................ 2-6
IRQO, IRQSEL3–IRQSEL0 — Encoded Mode....................................... 2-6
Clock Pins ............................................................................................... 2-6
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Table of Contents
Freescale Semiconductor, Inc...
Paragraph
Number
2.1.5.1
2.1.5.2
2.1.5.3
2.2
2.2.1
2.2.1.1
2.2.1.2
2.2.2
2.2.2.1
2.2.3
2.2.3.1
2.2.3.2
2.2.3.3
2.2.3.4
2.2.3.5
2.2.3.6
2.2.3.7
2.2.3.8
2.2.3.9
2.2.3.10
2.2.3.11
2.2.3.12
2.2.4
2.2.4.1
2.2.4.2
2.2.4.3
2.3
2.3.1
2.3.1.1
2.3.1.2
2.3.1.3
2.3.1.4
2.3.1.5
2.3.1.6
2.3.2
2.3.2.1
2.3.2.2
2.3.2.3
2.3.2.4
2.3.2.5
2.3.2.6
2.3.2.7
2.3.2.8
Freescale Semiconductor, Inc.
Title
Page
Number
EXTAL—External Clock/Crystal Input......................................................2-6
XTAL— Crystal Output ............................................................................2-6
CLKO— Clock Out...................................................................................2-7
Host Interface Pins - PCMCIA Mode .......................................................2-7
Address Bus Pins.....................................................................................2-8
PC_A[21:17]/IRQIN[5:1]/PA[15:12]—PCMCIA Address Bus...................2-8
Address Bus Pins. PC_A[16:0]–PCMCIA Address Bus...........................2-8
Data Bus Pins ..........................................................................................2-8
PC_D[15:0]—PCMCIA Data Bus .............................................................2-8
Bus Control Pins ......................................................................................2-8
PC_MODE—PCMCIA Mode....................................................................2-8
PC_E2E—PCMCIA Serial EEPROM mode.............................................2-8
PC_CE1 and PC_CE2— PCMCIA Card Enables 1 and 2.......................2-8
PC_OE—PCMCIA Output Enable ...........................................................2-8
PC_WE—PCMCIA Write Enable .............................................................2-8
PC_A25—PCMCIA Address Bus bit 25...................................................2-8
PC_CISCS—PCMCIA CIS Chip Select ...................................................2-8
PC_STSCHG—PCMCIA Status Changed (Replace BVD1)....................2-8
PC_WAIT—PCMCIA Wait .......................................................................2-9
PC_REG—PCMCIA Attribute Memory Select .........................................2-9
RESET— Hard System Reset Input ........................................................2-9
IRQ3/PC_READY/IREQ— Ready or Interrupt Request Out Pin .............2-9
Clock Pins ................................................................................................2-9
EXTAL—External Clock/Crystal Input......................................................2-9
XTAL— Crystal Output ............................................................................2-9
CLKO— Clock Out...................................................................................2-9
Peripheral Pins.......................................................................................2-10
ISDN Pins ..............................................................................................2-10
L1RXD—Layer-1 Receive Data .............................................................2-10
L1TXD—Layer-1 Transmit Data ............................................................2-11
L1CLK—Layer-1 Clock ..........................................................................2-11
L1SYNC—Layer-1 Sync ........................................................................2-11
L1GRNT / PSYNC —Layer-1 Grant / PCM SYNC.................................2-11
L1RQ / GCIDCL—Layer-1 Request / GCI Clock Out.............................2-11
NMSI Pins ..............................................................................................2-11
RXD—SCC Receive Data Pin ...............................................................2-11
TXD—SCC Transmit Data Pin...............................................................2-11
TCLK / MCLK —SCC Transmit Clock Pin / Codec Main Clock .............2-11
RCLK / SCLK / IRQIN1 —SCC2 Receive Clock / Codec Serial Clock /
Interrupt Request In 1 Pin ......................................................................2-11
SDS1 / FSYN / IRQIN2—Serial Data Strobe 1 / Codec Frame Sync /
Interrupt Request In 2 Pin .....................................................................2-11
SDS2 / IRQIN3—Serial Data Strobe 2 / Interrupt Request In 3 Pin.......2-12
NMSICS—NMSI Chip Select Pin...........................................................2-12
RI / IRQIN4—Ring Indicate / Interrupt Request In 4 Pin........................2-12
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
Freescale Semiconductor, Inc...
Paragraph
Number
Title
Table of Contents
Page
Number
2.3.3
2.3.3.1
2.3.3.2
2.3.3.3
2.3.3.4
2.3.3.5
2.3.4
2.3.4.1
2.3.4.2
2.3.4.3
2.3.4.4
2.3.4.5
2.3.4.6
SCP Pins ............................................................................................... 2-12
SPRXD—SCP Receive Serial Data Pin ................................................ 2-12
SPTXD—SCP Transmit Serial Data Pin ............................................... 2-12
SPCLK—SCP Clock Pin ....................................................................... 2-12
E2EN—EEPROM Enable Pin ............................................................... 2-12
SCPEN1-3 —SCP Slave Enable 1-3 Pins ............................................ 2-12
Multi-Function I/O Pins .......................................................................... 2-12
PORT A ................................................................................................. 2-13
Port A Registers .................................................................................... 2-14
Port A SCP Enable Control ................................................................... 2-15
Multi-Function Pins................................................................................ 2-15
Pin Multi-Function Select Register (PMFSR) ........................................ 2-16
Special Pin Function in 8-Bit Mode ....................................................... 2-16
3.1
3.1.1
3.1.2
3.1.3
3.1.4
3.1.5
3.1.6
3.1.7
3.1.8
3.1.8.1
3.1.8.2
3.1.8.3
3.2
Section 3
Interrupt, Timer, and Power Control
Interrupt Controller .................................................................................. 3-1
Interrupt Controller Overview .................................................................. 3-1
Masking Interrupt Sources and Events ................................................... 3-1
Interrupt Handling Procedure .................................................................. 3-2
Wake Up On Interrupt ............................................................................. 3-2
Global Interrupt Mode Register (GIMR) .................................................. 3-3
Interrupt Pending Register (IPR) ............................................................. 3-3
Interrupt Mask Register (IMR) ................................................................. 3-4
Periodic Interrupt Timer........................................................................... 3-4
Overview ................................................................................................. 3-4
Periodic Timer Period Calculation ........................................................... 3-4
Periodic Interrupt Timer Register (PITR)................................................. 3-5
ISA Power Control Registers................................................................... 3-5
4.1
4.2
4.2.1
4.3
4.3.1
4.3.2
4.3.3
4.3.4
4.4
4.4.1
4.4.2
4.5
4.5.1
4.5.2
Section 4
Communications Processor (CP)
Main Controller ........................................................................................ 4-1
Command Set ......................................................................................... 4-2
Command Execution Latency ................................................................. 4-4
Serial Channels Physical Interface.......................................................... 4-4
IDL Interface............................................................................................ 4-5
GCI Interface ........................................................................................... 4-7
PCM Highway Mode................................................................................ 4-9
Nonmultiplexed Serial Interface (NMSI) ................................................ 4-12
Serial Interface Registers ...................................................................... 4-12
Serial Interface Mode Register (SIMODE) ............................................ 4-12
Serial Interface Mask Register (SIMASK) ............................................. 4-14
Serial Communication Controllers (SCC).............................................. 4-15
SCC Features........................................................................................ 4-16
SCC Mode Register (SCM) ................................................................... 4-16
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Table of Contents
Freescale Semiconductor, Inc...
Paragraph
Number
4.5.3
4.5.4
4.5.5
4.5.5.1
4.5.5.2
4.5.5.3
4.5.5.4
4.5.5.5
4.5.5.6
4.5.5.7
4.5.5.8
4.5.5.9
4.5.6
4.5.7
4.5.8
4.5.9
4.5.10
4.5.10.1
4.5.10.2
4.5.10.3
4.5.10.4
4.5.10.5
4.5.10.6
4.5.10.7
4.5.10.8
4.5.10.9
4.5.10.10
4.5.10.11
4.5.11
4.5.11.1
4.5.11.2
4.5.11.3
4.5.11.4
4.5.11.5
4.5.11.6
4.5.11.7
4.5.11.8
4.5.11.9
4.5.11.10
4.5.12
4.5.12.1
4.5.12.2
4.5.12.3
4.6
4.6.1
Freescale Semiconductor, Inc.
Title
Page
Number
SCC Transmit Buffer Descriptors...........................................................4-18
SCC Receive Buffer Descriptors............................................................4-19
SCC Parameter RAM.............................................................................4-23
RX BD Table Pointer (RBASE) ..............................................................4-23
RX Chunk Length (RLEN)......................................................................4-23
RX Interrupt Threshold (RTHRSH) ........................................................4-23
CPU First Not Handled BD (RNH) .........................................................4-23
RX Time-OUT(RTO) ..............................................................................4-23
Maximum Receive Buffer Length Register (MRBLR) ............................4-24
RX Current BD (RCBD) .........................................................................4-24
TX BD Table Pointer (TBASE)...............................................................4-24
Transmitter Buffer Descriptor Pointer (TBPTR) .....................................4-24
SCC Event Register (SCCE) .................................................................4-25
SCC Mask Register (SCCM) .................................................................4-25
SCC Status Register (SCCS) ................................................................4-26
Disabling the SCCs................................................................................4-26
HDLC Controller.....................................................................................4-27
HDLC Channel Frame Transmission Processing ..................................4-28
HDLC Channel Frame Reception Processing .......................................4-29
HDLC Memory Map ...............................................................................4-29
HDLC Programming Model....................................................................4-30
HDLC Command Set .............................................................................4-30
HDLC Address Recognition ...................................................................4-31
HDLC Error-Handling Procedure ...........................................................4-31
HDLC Receive Buffer Descriptor (Rx BD) .............................................4-32
HDLC Transmit Buffer Descriptor (TxBD)..............................................4-33
HDLC Event Register.............................................................................4-35
HDLC Mask Register .............................................................................4-36
Transparent Controller ...........................................................................4-36
Transparent Channel Buffer Transmission Processing .........................4-36
Transparent Channel Buffer Reception Processing...............................4-37
Transparent Memory Map......................................................................4-38
Transparent Commands ........................................................................4-38
Transparent Synchronization .................................................................4-39
Transparent Error-Handling Procedure..................................................4-39
Transparent Receive Buffer Descriptor (RxBD).....................................4-40
Transparent Transmit Buffer Descriptor (TxBD) ....................................4-41
Transparent Event Register ...................................................................4-42
Transparent Mask Register....................................................................4-43
SCC2/3 Clocking in NMSI mode............................................................4-43
SCC2/3 NMSI Interface .........................................................................4-43
SCC2/3 CODEC Interface .....................................................................4-43
Configuration Register (SCON) .............................................................4-44
Serial Communication Port (SCP) .........................................................4-47
SCP Programming Model ......................................................................4-47
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
Freescale Semiconductor, Inc...
Paragraph
Number
Title
Table of Contents
Page
Number
4.6.2
4.6.3
4.6.3.1
4.6.3.2
4.6.3.2.1
4.6.3.2.2
4.6.3.2.3
4.7
4.7.1
4.7.1.1
4.7.2
4.7.3
4.7.4
4.7.4.1
4.7.4.2
4.7.4.3
4.7.4.4
4.7.5
4.8
SCP Clock and Data Relationship......................................................... 4-49
SCP Transmit/Receive Buffer Descriptor .............................................. 4-49
SCP Data Transmit/Receive Processing............................................... 4-50
SCP - Serial EEPROM interface ........................................................... 4-50
16- Bit Address EEPROM ..................................................................... 4-50
8-Bit Address EEPROM ........................................................................ 4-51
Mixed Address EEPROM ...................................................................... 4-52
Serial Management Controllers (SMCs)................................................ 4-52
SMC Overview ...................................................................................... 4-52
Using GCI with the SMCs...................................................................... 4-52
SMC Programming Model ..................................................................... 4-54
SMC Commands ................................................................................... 4-54
SMC Memory Structure and Buffers Descriptors .................................. 4-54
SMC1 Receive Buffer Descriptor .......................................................... 4-55
SMC1 Transmit Buffer Descriptor ......................................................... 4-56
SMC2 Receive Buffer Descriptor .......................................................... 4-56
SMC2 Transmit Buffer Descriptor ......................................................... 4-57
SMC Interrupt Requests........................................................................ 4-57
Revision Number................................................................................... 4-58
5.1
5.2
5.3
5.3.1
5.3.1.1
5.3.1.2
5.3.2
5.3.3
5.3.3.1
5.3.3.2
5.3.3.3
5.4
5.4.1
5.4.2
5.4.3
5.4.4
5.4.5
5.4.6
5.4.7
5.4.8
5.5
5.6
5.7
5.7.1
Section 5
ISA Plug and Play Interface
Introduction.............................................................................................. 5-1
Main Features ......................................................................................... 5-1
ISA Memory Map..................................................................................... 5-1
ISA I/O Address Space ........................................................................... 5-2
DPR Addressing...................................................................................... 5-4
CCR Addressing...................................................................................... 5-4
ISA Memory Address Space ................................................................... 5-4
CCMR Structure ...................................................................................... 5-4
DPR......................................................................................................... 5-5
Parameter RAM....................................................................................... 5-5
CCR Register Map .................................................................................. 5-5
ISA-PNP Configuration Programming ..................................................... 5-7
Resource Data Layout in a Byte Serial Device ....................................... 5-7
Reading Resource Data .......................................................................... 5-9
I/O Configuration ................................................................................... 5-10
Memory Configuration ........................................................................... 5-11
IRQ Configuration.................................................................................. 5-12
Resource Management ......................................................................... 5-12
Logical Device ID .................................................................................. 5-13
Unsupported Resources........................................................................ 5-13
ISA-PNP Card Level Control Registers................................................. 5-13
Logical Device Control Registers .......................................................... 5-19
ISA-PNP Configuration Registers ......................................................... 5-20
Access to Inactive Registers ................................................................. 5-25
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Table of Contents
Paragraph
Number
Freescale Semiconductor, Inc...
5.8
5.9
5.10
5.11
5.12
5.13
5.14
5.14.1
5.14.2
5.14.3
5.15
Freescale Semiconductor, Inc.
Title
Page
Number
ISA-PNP Control Registers Summary ...................................................5-26
ISA-PNP Configuration Registers Summary..........................................5-28
Card Configuration and Control Register Map (CCR)............................5-30
Host Interface Control Register Map (HCR) ..........................................5-33
ISA-PNP Physical Interface BAckground...............................................5-37
Initiation Key ..........................................................................................5-38
Isolation Protocol ...................................................................................5-38
General ..................................................................................................5-38
The Protocol...........................................................................................5-39
Timing Issues Related to Serial Isolation...............................................5-40
Run-Time Access to ISA-PNP ...............................................................5-41
6.4.2
6.4.3
6.4.4
6.4.5
6.5
6.5.1
6.5.1.1
6.5.1.2
6.5.2
6.6
6.6.1
6.6.2
6.7
6.7.1
6.7.1.1
6.7.1.2
6.7.1.3
6.7.2
6.7.3
6.7.4
Section 6
PCMCIA Interface
Introduction ..............................................................................................6-1
PCMCIA Controller Key Features ............................................................6-1
PCMCIA Interface Functional Overview ..................................................6-1
PCMCIA Memory Map .............................................................................6-3
Accessing the HCR Region (Both Serial and Parallel Cis EEPROM
Mode ........................................................................................................6-3
Accessing the CCMR Region in Serial CIS EEPROM Mode...................6-3
Accessing the CCMR in Parallel CIS EEPROM mode ............................6-4
Accessing the External Chip Select Space..............................................6-5
Accessing Host Interface Control Registers (HCR) .................................6-5
CCMR Memory Space .............................................................................6-6
Dual Ported RAM (DPR) ..........................................................................6-6
System RAM ............................................................................................6-7
Parameter RAM .......................................................................................6-7
CCR Register Map...................................................................................6-7
Host Interface Control registers (HCR) ....................................................6-8
PCMCIA Function Configuration Registers (FCR)...................................6-9
68SC302 Specific HCR Registers .........................................................6-11
PCMCIA bus Accesses..........................................................................6-16
SC302 Power Management...................................................................6-17
Enter Low Power....................................................................................6-17
Wake Up ................................................................................................6-17
READY...................................................................................................6-17
PCMCIA Host Interrupts ........................................................................6-18
Unimplemented PCMCIA Signals ..........................................................6-18
PCMCIA EEPROM Format ....................................................................6-18
7.1
7.2
7.3
Section 7
Electrical Characteristics
Maximum Ratings ....................................................................................7-1
Thermal Characteristics ...........................................................................7-1
Power Considerations..............................................................................7-2
6.1
6.2
6.3
6.4
6.4.1
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
Freescale Semiconductor, Inc...
Paragraph
Number
Title
Table of Contents
Page
Number
7.4
7.5
7.6
7.6.1
7.6.2
7.6.2.1
7.6.2.2
7.6.2.3
7.6.2.4
7.6.2.5
7.6.3
7.6.3.1
7.6.3.2
7.6.3.3
7.6.4
7.6.4.1
7.6.4.2
7.6.4.3
7.6.4.4
7.6.4.5
7.6.4.6
Power Dissipation.................................................................................... 7-2
DC Electrical Characteristics................................................................... 7-2
AC Electrical Specifications..................................................................... 7-4
CLKOUT Timing Specifications............................................................... 7-4
ISA Host Interface Timing Specifications ................................................ 7-6
ISA Reset Timing Specifications ............................................................. 7-6
ISA IO Space Read Access .................................................................... 7-7
IO Space Write Access ......................................................................... 7-13
Memory Space Read Access ................................................................ 7-16
Memory Space Write Access ................................................................ 7-19
PCMCIA Host Interface Timing Specifications ...................................... 7-22
PCMCIA Read Access with/without Wait States ................................... 7-22
PCMCIA Write Access with/without Wait States ................................... 7-24
PCMCIA Reset Timing Specifications .................................................. 7-26
Serial Interface Timing Specifications ................................................... 7-27
SCP Timing Specifications .................................................................... 7-27
SERIAL EEPROM Timing Specifications .............................................. 7-28
IDL Timing Specifications...................................................................... 7-31
GCI Timing Specifications ..................................................................... 7-33
PCM Timing Specifications ................................................................... 7-35
NMSI Timing Specifications .................................................................. 7-37
8.1
8.1.1
8.2
8.2.1
8.3
Section 8
Mechanical Data and Ordering Information
Pin Assignments...................................................................................... 8-1
Surface Mount (TQFP ) ........................................................................... 8-1
Package Dimensions............................................................................... 8-2
Surface Mount (TQFP) ............................................................................ 8-2
Ordering Information ............................................................................... 8-3
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
LIST OF FIGURES
Freescale Semiconductor, Inc...
Figure
Number
Figure 1-1.
Figure 1-2.
Figure 1-3.
Figure 1-4.
Figure 1-5.
Figure 1-6.
Title
Page
Number
Section 1
MC68SC302 Overview
MC68SC302 Block Diagram ......................................................................... 1-4
Passive NT1 TA Block Diagram.................................................................... 1-5
Passive NT1 TA Block Diagram with S/T Interface....................................... 1-6
NT1 TA Block Diagram with POTS Interface and Datapump ....................... 1-6
PC Card TA................................................................................................... 1-7
ADS Block Diagram ...................................................................................... 1-8
Section 2
Signal Description and Pin Control
Figure 2-1. Functional Signal Groups Description (82 Pin) ............................................. 2-2
Figure 2-2. Parallel I/O Port A Registers ....................................................................... 2-14
Section 3
Interrupt, Timer, and Power Control
Section 4
Communications Processor (CP)
Figure 4-1. Serial Channels Physical Interface Block Diagram....................................... 4-5
Figure 4-2. Two PCM Sync Methods ............................................................................ 4-11
Figure 4-3. PCM Channel Assignment on a T1/CEPT Line .......................................... 4-11
Figure 4-4. SCC Block Diagram .................................................................................... 4-16
Figure 4-5. Transmit BD ................................................................................................ 4-19
Figure 4-7. Receive BD ................................................................................................. 4-19
Figure 4-6. SCC Transmit Memory Structure................................................................ 4-20
Figure 4-8. Rx Channel Memory Chunk........................................................................ 4-22
Figure 4-9. Typical HDLC Frame .................................................................................. 4-27
Figure 4-10. HDLC Address Recognition Examples ....................................................... 4-31
Figure 4-11. HDLC Receive Buffer Descriptor ................................................................ 4-32
Figure 4-12. HDLC Transmit Buffer Descriptor ............................................................... 4-34
Figure 4-13. Transparent Receive Buffer Descriptor....................................................... 4-40
Figure 4-14. Transparent Transmit Buffer Descriptor...................................................... 4-41
Figure 4-15. Codec Interface........................................................................................... 4-44
Figure 4-16. FSYN Timing............................................................................................... 4-44
Figure 4-17. SCC Baud Rate Generator ......................................................................... 4-46
Figure 4-18. SCP Clock and Data Relationship .............................................................. 4-49
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Table of Contents
Figure
Number
Freescale Semiconductor, Inc.
Title
Page
Number
Freescale Semiconductor, Inc...
Figure 4-19. 16-Bit EEPROM Addressing....................................................................... 4-51
Figure 4-20. 8-Bit EEPROM Addressing......................................................................... 4-51
Figure 4-21. Mixed Address EEPROM Addressing ........................................................ 4-52
Section 5
ISA Plug and Play Interface
Figure 5-1. SC302 Memory Spaces and Decoding Methods......................................... 5-2
Figure 5-2. HCR Access in ISA Mode............................................................................ 5-3
Figure 5-3. CCMR Addressing in ISA I/O Space ........................................................... 5-3
Figure 5-4. DPR Addressing .......................................................................................... 5-5
Figure 5-5. ISA-PNP Resource Data Layout in a Byte Serial EEPROM Device............. 5-9
Figure 5-6. Internal I/O Space Structure ...................................................................... 5-11
Figure 5-7. PNP - ISA Interconnection.......................................................................... 5-38
Figure 5-8. The LFSR Key Sequence ........................................................................... 5-38
Figure 5-9. Shifting of Serial Identifier........................................................................... 5-39
Figure 5-10. Isolation State Transitions .......................................................................... 5-41
Figure 6-1.
Figure 6-2.
Figure 6-3.
Figure 6-4.
Figure 6-5.
Figure 6-6.
Section 6
PCMCIA Interface
Parallel EPROM Configuration ..................................................................... 6-2
Serial EEPROM Configuration...................................................................... 6-2
68SC302 PCMCIA Address Map in Serial CIS EEPROM Mode .................. 6-4
68SC302 PCMCIA Address Map in Parallel CIS PROM Mode .................... 6-5
DPR Addressing ........................................................................................... 6-6
RI to STSCHG Path.................................................................................... 6-11
Section 7
Electrical Characteristics
Figure 7-1. CLKOUT Timing Specifications .................................................................... 7-4
Figure 7-2. CLKOUT Timing for CDIV 1-0=00 in CLKCNT ............................................ 7-5
Figure 7-3. CLKOUT Timing for CDIV 1-0=10 in CLKCNT ............................................ 7-5
Figure 7-4. CLKOUT Timing for CDIV 1-0=01 in CLKCNT ............................................ 7-5
Figure 7-5. ISA Reset Timing Specifications.................................................................. 7-6
Figure 7-6. IO Space Read Access without Wait States for PnP and Internal Space..... 7-8
Figure 7-7. IO Space Read Access without Wait States (PnP and Internal Space) the Special Case of Coupled Accesses........................................................ 7-9
Figure 7-8. IO Space Read Access without Wait States (Internal Space) .................... 7-10
Figure 7-9. IO Space Read Access without Wait States (Internal Space) the Special Case of Coupled Read Accesses ............................................ 7-11
Figure 7-10. IO Space Read Access with Wait States................................................... 7-12
Figure 7-11. IO Space Write Access without Wait states (PnP and Internal Space) .... 7-14
Figure 7-12. IO Space Write Access with Wait States - Internal Space......................... 7-15
Figure 7-13. Memory Space Read Access without Wait States..................................... 7-17
Figure 7-14. Memory Space Read Access with Wait States........................................... 7-18
Figure 7-15. Memory Space Write Access without Wait States...................................... 7-20
Figure 7-16. Memory Space Write Access with Wait States........................................... 7-21
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
Freescale Semiconductor, Inc...
Figure
Number
Title
Table of Contents
Page
Number
Figure 7-17. PCMCIA Read Access with/without Wait States......................................... 7-23
Figure 7-18. PCMCIA Write Access with/without Wait States ......................................... 7-25
Figure 7-19. PCMCIA Reset Timing Specifications....................................................... 7-26
Figure 7-20. SCP Timing (cp=0, Reset Value) ............................................................... 7-27
Figure 7-21. SCP Timing (cp=1)..................................................................................... 7-28
Figure 7-22. Serial EEPROM (SCP Type) Timing Specifications (with Initial Reset
Value of spmode) ........................................................................................ 7-29
Figure 7-23. Serial EEPROM (93C46 TYPE) Timing Specifications (With Initial
Reset Value of spmode).............................................................................. 7-30
Figure 7-24. IDL Timing Specifications............................................................................ 7-32
Figure 7-25. GCI Timing Specifications........................................................................... 7-34
Figure 7-26. PCM Timing Diagram (SYNC Envelopes Data) .......................................... 7-36
Figure 7-27. PCM Timing Diagram (SYNC Prior to 8-bit Data) ....................................... 7-36
Figure 7-28. NMSI Timing Specifications ........................................................................ 7-38
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
LIST OF TABLES
Freescale Semiconductor, Inc...
Table
Number
Title
Page
Number
Table 2-1
Table 2-2
Table 2-3
Table 2-4
Table 2-5
Section 2
Signal Description and Pin Control 2-1
MC68SC302 ISA Mode Signal Functional Groups ...................................... 2-3
PCMCIA Mode Signals ................................................................................ 2-7
Peripheral Pins .......................................................................................... 2-10
Multi-Function I/O Pin Function ................................................................. 2-14
Port A Pin Function.................................................................................... 2-16
Table 3-1
Table 3-2
Table 3-3
Table 3-4
Table 3-5
Table 3-6
Section 4
Communications Processor (CP) 4-1
ISDN Pin Functions in PCM Highway Mode ............................................... 4-9
Sync Signal Functions in PCM Highway Mode ......................................... 4-10
SCC Parameter RAM ............................................................................... 4-23
HDLC-Specific Parameter RAM ................................................................ 4-30
Transparent-Specific Parameter RAM ...................................................... 4-38
Clock Source Configuration Set Up .......................................................... 4-45
Table 5-1
Table 5-2
Table 5-3
Table 5-4
Table 5-5
Table 5-6
Table 5-7
Table 5-8
Table 5-9
Table 5-10
Table 5-11
Table 5-12
Table 5-13
Table 5-14
Section 5
ISA Plug and Play Interface 5-1
SC302 Parameter RAM .............................................................................. 5-5
CCR Register Map ...................................................................................... 5-6
Resource Data Layout ................................................................................ 5-7
Card Level Control Registers Summary ................................................... 5-26
Logical Device Control Registers Summary ............................................. 5-27
Memory Space Configuration Summary ................................................... 5-28
I/O Configuration Summary ...................................................................... 5-29
Interrupt Configuration Summary .............................................................. 5-29
DMA Configuration Registers Summary ................................................... 5-29
32-Bit Memory Space Configuration Summary ........................................ 5-29
Reserved and Vendor Defined Configuration Registers ........................... 5-30
Reserved Registers .................................................................................. 5-30
ISA-PNP Card Ports ................................................................................. 5-37
Serial Isolation Delays ............................................................................... 5-40
Table 6-1
Table 6-2
Table 6-3
Section 6
PCMCIA Interface 6-1
Host Interface Control Registers.................................................................. 6-6
SC302 PARAMETER RAM ........................................................................ 6-7
CCR Register Map...................................................................................... 6-8
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Table of Contents
Freescale Semiconductor, Inc...
Table
Number
Freescale Semiconductor, Inc.
Title
Page
Number
Table 6-4
Table 6-5
Table 6-6
Table 6-7
Table 6-8
Table 6-9
Table 6-10
Table 6-11
Table 6-12
Table 6-13
Attribute Memory Read Access ................................................................ 6-16
Attribute Memory Write Access ................................................................ 6-16
Attribute CIS and HCR/FCR Accesses ..................................................... 6-16
CIS Locations ........................................................................................... 6-16
Common Memory Read Accesses ........................................................... 6-16
Common Memory Write Accesses ........................................................... 6-17
Low Power Modes .................................................................................... 6-17
Unmplemented PCMCIA Signals ............................................................. 6-18
16-Bit Address Serial EEPROM Format (93xxx) ....................................... 6-18
8-Bit Address Serial EEPROM Format (25xxx or 95xxx) ......................... 6-19
Table 7-1
Table 7-2
Table 7-3
Table 7-4
Table 7-5
Table 7-6
Table 7-7
Table 7-8
Table 7-9
Table 7-10
Table 7-11
Table 7-12
Table 7-13
Table 7-14
Table 7-15
Table 7-16
Table 7-17
Table 7-18
Table 7-19
Section 7
Electrical Characteristics 7-1
DC Electrical Characteristics (VCC = 5.0V ±5% ) ....................................... 7-2
CLKOUT Timing Specifications ................................................................... 7-4
ISA Reset Timing Specifications ................................................................ 7-6
IO Address Space Read Access (Internal Space) ...................................... 7-7
PnP Address Space Read Access ............................................................. 7-7
IO Address Space Write Access (Internal Space) .................................... 7-13
PnP Address Space Write Access ........................................................... 7-13
Memory Space Read Access ................................................................... 7-16
Memory Space Write Access ................................................................... 7-19
PCMCIA Read Access with/without Wait States ...................................... 7-22
PCMCIA Write Access with/without Wait States ...................................... 7-24
PCMCIA Reset Timing Specifications ..................................................... 7-26
SCP Timing Specifications ....................................................................... 7-27
SERIAL EEPROM Timing Specifications ................................................. 7-28
IDL Timing Specifications ......................................................................... 7-31
GCI Timing Specifications ........................................................................ 7-33
PCM Timing .............................................................................................. 7-35
NMSI Timing Specifications (External Clock) ........................................... 7-37
NMSI Timing Specifications (Internal Clock) ............................................ 7-37
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
Freescale Semiconductor, Inc...
SECTION 1
MC68SC302 OVERVIEW
The MC68SC302 ISDN Passive ISDN Protocol Engine (PIPE) is an ISA Plug and Play/PC
Card ISDN communication controller optimized for ISDN passive cards. The MC68SC302
is a descendant of the popular MC68302 Integrated Multiprotocol Processor. The
microcoded RISC communications processor from the 68302 was modified to form the core
of the 68SC302. The 68000 core and many related system integration features were
removed to further optimize the device for passive ISDN card applications. The serial
communication channels (SCC) have been optimized for supporting a full ISDN basic rate
interface. The three SCCs support two 64kbit per second B-channels and one 16kbit per
second D-channel. The 68SC302 connects gluelessly to Motorola’s MC145572 U
transceiver or MC145574 S/T transceiver and, as an added bonus, eliminates the need for
a second oscillator for the transceiver chip.
1.1 MC68SC302 KEY FEATURES
• ISA Bus Interface
— ISA Plug and Play
— Glueless Connections to ISA
— 24ma Buffers for ISA Bus Pins
— Full Support of Plug and Play Standard
— All Chip Registers Accessed from ISA Bus.
— Support for 8 or 16 bit I/O or Memory ISA Cycles
— 11 Selectable Interrupt Output Pins to ISA Bus.
— Additional Chip Select Allows Another Device to Be Accessed from the ISA Bus.
— Plug and Play Register Settings Stored in External Low Cost E2PROM.
• PCMCIA Interface
— PC Card 95 Compatible
— Two CIS Storage Options:
• CIS stored in Serial E2PROM and Downloaded At Runtime to Internal Dual Port
RAM
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
MC68SC302 Overview
Freescale Semiconductor, Inc.
• CIS Optionally Stored in Parallel E2PROM on the PC Card Bus with Dedicated
Chip Select, Saving Dual Port RAM Buffer Space and Always Available for PC
Accesses.
— Memory Mode Accesses Supported (I/O Not Supported)
— Supports 8/16 bit Memory Cycles
— Supports Ring Detect through Status Change Pin
— Additional Chip Select Allows Another Device to Be Address Mapped on the PC
Card Bus.
• ISDN Communications Processor
Freescale Semiconductor, Inc...
— Requires No External (Local) RAM
— Flexible Channel Handling
— RISC Processor Decreases CPU Load with Flexible Buffer Descriptor Structure and
HDLC Capability. (UART Mode Not Supported)
— Totally Independent Programming for Rx/Tx for each of the B and D Channels
— Supports Any Sub-Channeling for Each of the B Channels
— Enables a Concatenation of 2 B Channels (or Any Selected Bits) to a SuperChannel
— HDLC with Retry Capability for the D Channel
— Allows Dynamic Connection/Disconnection for each of the B Channels
— Total 1536KB Dual Port RAM Divided into Parameter and Data Buffer RAM
— 256 Byte Parameter RAM (As in PM302)
— 1280 Byte Data RAM with Efficient FIFO Organization and Flexible Buffer Size
— Independent Programmable Channel FIFO Length, if Split Equallyy:
• 4 x 256 Bytes FIFO for B1 and B2 Channel (Rx/Tx)
• 2 x 64 Bytes FIFO for D Channel (Rx/Tx)
— Glueless Interface to Motorola and Other Popular ISDN S/T and U Interface Chips
— Supports Motorola Interchip Digital Link (IDL)
— Supports General Circuit Interface (GCI), Also Known as IOM-2TM
TM
IOM-2 is a trademark of Siemens Corporation.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
MC68SC302 Overview
— Includes Serial Communication Port (SCP) for Synchronous Communication
— Includes one SMC That Can Support Both the C/I and Monitor Channel of GCI
— Two Strobes Support Time-Slot Assignment of Non-Intelligent Peripherals
— Only One Crystal Required for TA Application.
— Clock Output (CLKO) Generation from a Crystal. CLKO Can Be Connected to S/T
XTAL Input.
— Clock Input for U-Chip (MC145572) Can Be Used to Drive SC302
Freescale Semiconductor, Inc...
• Other System Integration Features
— Gluelessly Connects to Serial E2PROM via SCP Port for Plug and Play ISA ID and
CIS Storage.
— 25XXX Series or 93XX Series E2PROMs Supported.
— Flexible Pin Configuration Allows Trade-Offs Between 16-Bit Wide ISA/PC Card
Interface and Extra I/O Pins.
• Up to 16 Parallel I/O Pins for Controlling Other Functions.
— On-Chip Interrupt Controller
• 8 Internal Interrupt Sources
• 7 External Pin Sources for External Devices.
— 2 Low-Power Modes
• Wait - Oscillator Keeps Running ~5 mA
• Stop - Oscillator Stops - <100uA
— Operating Speed: 0-20.48 Mhz
— Operating Voltage: 5V
— 100 pin TQFP (14mm x 14mm)
The block diagram for the MC68SC302 is shown in Figure 1-1. The MC68SC302
architecture is based on a microcoded RISC communications processor that services the
three main high speed serial channels (SCC), two serial management channels (SMC) and
a serial communications port (SCP). The three SCC channels support simultaneous
operation of the three channels specified by the ISDN basic rate interface (2B+D). Each
SCC can support onboard HDLC processing as well as totally transparent operation. The
dual-port RAM provides 1536 bytes of memory. A maximum of 1280 bytes can be allocated
for serial channel buffer space, which, when allocated evenly for a basic rate interface,
allows 256 bytes per B channel per direction and 64 bytes per direction for the D channel.
This provides 32msec worth of basic rate data to be stored in the buffers, allowing ample
interrupt latency time for host platform operating systems. The IDL or GCI interface provides
direct connection to the Motorola MC145572 U interface transceiver, the MC145574 S/T
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
MC68SC302 Overview
Freescale Semiconductor, Inc.
interface transceiver, and other popular ISDN transceivers. A non-multiplexed serial
interface (NMSI) is also provided for SCC2.
1.2 MC68SC302 OVERVIEW
PIO AND INTERRUPT PINS
PIO AND INT I/F
Freescale Semiconductor, Inc...
SCC1
ISA PnP
1536 BYTE
RAM
COMMUNICATIONS
PROCESSOR
PCMCIA
ISA PnP/
PCMCIA
INTERFACE
INTERFACE
SCC2
SCC3
2 SMCs
SCP
IDL/GCI INTERFACE
NMSI I/F
SCP/E2 PROM INTERFACE
NMSI PINS
IDL/GCI PINS
Figure 1-1. MC68SC302 Block Diagram
The MC68SC302 has an ISA Plug and Play interface which supports the ISA Plug and Play
specification version 1.0a. The ISA bus interface can be configured for either I/O mode
accesses or memory mode accesses. The ISA interface can be either an 8- or 16- bit wide
data bus allowing pin usage trade-offs to be made. I/O mode accesses are based on a selfincrementing pointer, allowing the PC to write or read data from a fixed ISA I/O address.
Memory mode access allows the PC to write or read data into a predefined ISA window. In
addition to supporting access to the internal MC68SC302 register and memory map, an
additional chip-select is provided for an external device, and can be programmed for
memory/IO and 8/16 bit bus independent of internal space.
The MC68SC302 can also be configured to provide a PC Card interface based on the PC
Card 95 specification. Either 8- or 16-bit wide memory cards can be implemented. There are
two options available for supporting the Card Information Structure (CIS): 1)The CIS can
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
MC68SC302 Overview
be stored in external serial EEPROM which is downloaded on reset into the Dual Port RAM
(DPRAM) space, 2) To save DPRAM space, the CIS can be stored in a parallel EEPROM
on the external PCMCIA bus. An additional chip select is provided to support access to an
external device from the PC Card interface.
The MC68SC302 also has up to 12 general purpose I/O pins to connect to external circuits.
Five external chip interrupts can be brought in and routed through a built-in interrupt
controller to any one of 11 ISA interrupts (or to the PC Card interface interrupt). The
MC68SC302 can be clocked at the same rate as the physical layer transceiver clock which
eliminates the need for a dedicated oscillator or crystal.
Freescale Semiconductor, Inc...
1.3 REFERENCE DESIGNS
Figure 1-2 shows the 68SC302 in an NT1 terminal adaptor (TA) application using the
MC68SC302. The TA supports a basic rate interface (BRI). The 68SC302 is connected
gluelessly to the ISA bus connector and performs the Plug and Play interface using the serial
EEPROM for storage of non-volatile Plug and Play data. Data and control accesses from
the PC to the MC68SC302 can be selectively memory or I/O mapped. Only one clock source
(crystal or oscillator) is needed for a simple terminal adaptor.
20.048 MHZ
SERIAL
EEPROM
IDL OR GCI BUS
MC68SC302
20.048 MHZ CLOCK
145572 U
I/F
LINE I/F
ISA BUS
Figure 1-2. Passive NT1 TA Block Diagram
Figure 1-3 shows a basic rate terminal adaptor with the 4-wire S/T interface. This
architecture is almost identical to the U interface TA with the exception that the TA clock
source is provided to the S/T transceiver from the MC68SC302.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
MC68SC302 Overview
Freescale Semiconductor, Inc.
SERIAL
EEPROM
IDL OR GCI BUS
MC68SC302
15.36 MHZ CLOCK
145574 S/T
I/F
LINE I/F
15.36 MHZ
Freescale Semiconductor, Inc...
ISA BUS
Figure 1-3. Passive NT1 TA Block Diagram with S/T Interface
Figure 1-4 shows a more full featured terminal adaptor. The two added features are the
“Plain Old Telephone” (POTs) interface and a optional modem datapump. Up to two POTs
interfaces can be added on the board to support simultaneous B channel voice call. The ISA
interface provides a separate chip select for an external data pump which uses an
MC145480 to produce an 8khz PCM output that can be directly connected to the IDL or GCI
bus.
20.048 MHZ
SERIAL
EEPROM
MC68SC302
LINE I/F
20.048 MHZ CLOCK
145572 U
IDL OR GCI BUS
I/F
LINE I/F
PIO
DATAPUMP
MC145480
POTS
I/F
ISA BUS
Figure 1-4. NT1 TA Block Diagram with POTS Interface and Datapump
Figure 1-5 shows a PC Card TA based on the SC302.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
MC68SC302 Overview
20.048 MHZ
SERIAL
EEPROM
IDL OR GCI BUS
PCMCIA
MC68SC302
20.048 MHZ CLOCK
145572 U
I/F
LINE I/F
Freescale Semiconductor, Inc...
Figure 1-5. PC Card TA
1.4 MC68SC302 APPLICATION DEVELOPMENT SYSTEM
The MC68SC302 Application Development System (ADS) is a platform for developing a
passive terminal adaptor using the MC68SC302. In addition to being an ISA half-card form
factor plug-in card, the MC68SC302 can also be plugged into a PC card slot for
development of PC card applications. The board includes both an MC145572 U interface
transceiver and an MC145574 S/T interface transceiver along with the associated line
interface circuitry. A 128-pin expansion connector is onboard for customer specific circuits
such as a POTs interface or a modem datapump. Logic analyzer connectors provide
convenient access to ISA and PCMCIA bus signals.
1.5 ADS FEATURES
• MC68SC302 operating @20.48Mhz.
• ISA half-card form factor modified with PCMCIA extender card.
• Host PC connection via either ISA Bus or PCMCIA bus.
• ISA Plug and Play Interface.
• Powered by the ISA or PCMCIA connectors with option to power from bench supply.
• The U interface transceiver MC145572 configurable to either NT or LT mode.
• The S/T interface transceiver MC145574 configurable to either TE or NT mode.
• Options to communicate with U and S/T transceivers via either the IDL/SCP bus or the
GCI bus.
• Logic analyzer connectors to probe MC68SC302 and ISA/PCMCIA bus activity.
• 128-pin expansion connector providing access to the SC302 pins for customer
daughter cards. This includes access to the ISA/PCMCIA bus pins.
• Options for three types of serial EEPROM for the PCMCIA or ISA Configuration.
Figure 1-6 shows the ADS block diagram.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
MC68SC302 Overview
4 WIRE
S/T INTERFACE
2 WIRE
U INTERFACE
CIS/PnP
EEPROM
X25080
SOCKET
CIS/PnP
EEPROM
ST95020
SOCKET
CIS/PnP
EEPROM
93C46
SOCKET
Freescale Semiconductor, Inc...
SCP
MOTOROLA MC145572
U INTERFACE
MOTOROLA MC145574
S/T INTERFACE
128-PIN EXPANSION
CONNECTOR
IDL/GCI
SCP
LOGIC
ANALYZER
CONNECTORS
MC68SC302
PCMCIA BUS
CONNECTOR
Figure 1-6. ADS Block Diagram
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
ISA BUS
CONNECTOR
Freescale Semiconductor, Inc.
Freescale Semiconductor, Inc...
SECTION 2
SIGNAL DESCRIPTION AND PIN CONTROL
This section defines the MC68SC302 pinout. The input and output signals of the
MC68SC302 are organized into two main groups, the host bus interface pins and the
peripheral pins. The host bus interface has two groups, the ISA interface and the PCMCIA
interface. All groups are then organized into functional groups and described in the following
sections. For more detail on each signal, refer to the paragraph named for that signal.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale
Signal Description and Pin Control
Semiconductor, Inc.
.
CLOCKS
EXTAL
XTAL
ISDN
CLKOUT
L1RXD
L1TXD
17
SA[16:0] / PC_A[16:0]
L1CLK
2
LA[18:17] / PC_A[18:17]
L1SYNC
LA19 / PC_A19 / IRQIN1
PSYNC / L1GRNT
4
L1RQ/GCIDCL
Freescale Semiconductor, Inc...
ADDRESS BUS
8
SCP
LA[23:20] / PC_A[23:20] / IRQIN[5:2] / PA[15:12]
DATA BUS
SD[7:0] / PC_D[7:0]
3
SCPRXD
SD[10:8] / PC_D[10:8] / IRQ[5,6,14]
5
SCPTXD
SD[15:11] / PC_D[15:11]
SCPCLK
BUS CONTROL
MC68SC302
E2EN / PA[0]
IOR / PC_E2E
IRQIN5 / SCPEN1 / PA[1]
IOW / PC_MODE
IRQIN6 / SCPEN2 / PA[2]
MEMR / PC_OE
SCPEN3 / PA[3]
MEMW / PC_WE
IRQ3 / PC_READY/ PC_IREQ
NMSI
IRQ4/ IOCS16 / PC_STSCHG
RXD / PA[4]
IRQ5 / IOCHRDY / PC_WAIT
TXD / PA[5]
IRQ7 / MEMCS16 / PC_CISCS
MCLK / CLKTx / PA[6]
4
IRQ[9,10,11,12] / IRQSEL[3:0]
IRQIN1 / SCLK / CLKRx / PA[7]
IRQIN2 / FSYN / SDS1 / PA[8]
IRQIN3 / SDS2 / PA[9]
IRQIN4 / RI / PA[10]
NMSICS / PA[11]
IRQ15 / IRQO
SBHE / PC_CE2
REF / PC_REG
AEN / PC_A25
BALE / PC_CE1
RESET
Figure 2-1. Functional Signal Groups Description (82 Pin)
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor,
Inc.
Signal
Description and Pin Control
2.1 HOST INTERFACE PINS – ISA MODE
The following paragraphs describe the MC68SC302 signals in ISA mode only. The ISA
interface is enabled by strapping the IOW/PC_MODE pin high during reset.
The input and output signals of the MC68SC302 are organized into functional groups as
shown in the following tables, named for each mode of the MC68SC302.
Table 2-1. MC68SC302 ISA Mode Signal Functional Groups
GROUP
SIGNAL NAME
MNEMONIC
I/O
SECTION
SA16-SA0
I
2.1.1.2 Static Address Bus Pins
(SA16—SA0)
Latched Address Bus /
Interrupt Request Inputs 1, 2, 3, 4, 5 /
Parallel Port A
LA23-LA17 /
IRQIN[5:1] /
PA[15:12]
I
I
I/O
2.1.1 Address Bus Pins
Data Bus 15-0 /
Interrupt Request Outputs 5, 6, 14
SD15-SD0 /
IRQ[5,6,14]
I/O
O
2.1.2 Data Bus Pins (SD15—SD0)
AEN
I
2.1.3.1 AEN—Address Enable pin
Static Address Bus
Freescale Semiconductor, Inc...
Address
Data
Address Enable
Bus Address Latch Enable
BALE
I
2.1.3.2 BALE—Bus Address Latch
Enable
System Bus High Enable
SBHE
I
2.1.3.3 SBHE—System Bus High Enable
Memory Read
MEMR
I
2.1.3.4 MEMR—Memory Read
Memory Write
MEMW
I
2.1.3.5 MEMW—Memory Write
IOR
I
2.1.3.6 IOR—I/O Read
IOW/PC_MODE
I
2.1.3.7 IOW/PC_Mode—I/O Write
and PC_Mode
MEMCS16 /
IRQ7
O
O
2.1.3.8 MEMCS16—Memory Cycle
Select is 16 Bit
IO Cycle Select 16 /
Interrupt Request 4
IOCS16 /
IRQ4
O
O
2.1.3.9 IOCS16—I/O Cycle Select is
16 Bi
IO Channel Ready /
Interrupt Request 5
IOCHRDY /
IRQ5
O
O
2.1.3.10 IOCHRDY—I/O Channel
Ready
REF
I
2.1.3.11 REF—Refresh
RESET
I
2.1.3.12 RESET — Reset
IO Read
IO Write/PC_MODE
Bus
Control
Memory Cycle Select is 16 bit /
Interrupt Request 7
Refresh
Reset
Interrupt Request Outputs 9, 10, 11, 12 /
Interrupt Request Select Level
Interrupt Request Outputs 15 /
Interrupt Request Out
Interrupt Request Output 3
Clock
Crystal Oscillator
Clock Out
Power
System Power Supply and Return
IRQ[9,10,11,12] / O 2.1.4.1 IRQ9, 10, 11, 12, 15 — Dedicated mode
IRQSEL[3:0]
O
IRQ15 /
IRQO
O 2.1.4.1 IRQ9, 10, 11, 12, 15 — Dedicated mode
O
IRQ3
O
2.2.3.12 IRQ3/PC_READY/IREQ—
Ready or Interrupt Request Out Pin
EXTAL,
XTAL
I
O
2.2.4 Clock Pins
CLKOUT
O
VCC, GND
I
All pins except EXTAL and CLKOUT support TTL levels. EXTAL, when used as an input
clock, requires CMOS levels. CLKOUT supplies a CMOS level output.
All ISA output pins (except CLKOUT) can drive up to 120pF with 24mA IOL. All peripheral
output pins can drive up to 100pF. CLKOUT is designed to drive up to 50pF.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale
Signal Description and Pin Control
Semiconductor, Inc.
2.1.1 Address Bus Pins
LA23–LA17 combined with SA16-SA0, form a 24-bit address bus.
These lines, when used as address lines, are always inputs to the MC68SC302.
LA23-LA19 have multiple functionality if they are not used for address pins:
• IRQIN5-IRQIN1 - Interrupt Request pins [1-5]
• PA15-PA12 - Parallel IO Port A
When these pins are not used as address pins, their internal value is 0.
Freescale Semiconductor, Inc...
2.1.1.1 LATCHED ADDRESS BUS PINS (LA23—LA17). These lines are the higher bits
of the ISA address bus, used for memory cycles. They are presented only at the beginning
of a cycle, therefore they are latched by the MC68SC302 with the trailing edge of BALE.
2.1.1.2 STATIC ADDRESS BUS PINS (SA16—SA0). These lines are the lower bits of the
ISA address bits, used for memory or I/O cycles. They are valid throughout the bus command cycle.
2.1.2 Data Bus Pins (SD15—SD0)
SD15-SD8 and SD7-SD0 are the ISA data bus pins. In 16-bit ISA mode SD16-SD0 pins are
used, while in 8-bit ISA mode, only SD7-SD0 pins are used. These lines are input on write
cycles, and output on read cycles.
SD11-SD8 have multiple functionality if they are not used for data pins, i.e. operating in 8bit mode:
• IRQ5, IRQ6, IRQ14 - Interrupt Request Outputs [5,6,14]
2.1.2.1 LOW DATA BUS PINS (SD7–SD0). These lines are the low 8 bits of the data bus.
8-bit devices use these lines to transfer data. 16-bit devices use these pins to transfer the
low half of a data word when the address line SA0 is low.
2.1.2.2 HIGH DATA BUS PINS (SD15—SD8). These lines are the high 8 bits of the 16-bit
data bus. 16-bit devices use these lines to transfer the high half of a data word when
SBHE is asserted.
2.1.3 Bus Control Pins
2.1.3.1 AEN—ADDRESS ENABLE PIN. This input signal, when negated (low), indicates
to the MC68SC302 that it may respond to addresses and I/O commands on the bus.
2.1.3.2 BALE—BUS ADDRESS LATCH ENABLE. This input signal indicates, when high,
that a valid latched address is presented on the LA lines. The MC68SC302 uses this pin
to latch the LA23-LA17 pins with a transparent latch, on the trailing edge.
2.1.3.3 SBHE—SYSTEM BUS HIGH ENABLE. This input signal controls the flow of data
on the data bus. When the MC68SC302 is used in a 16-bit data bus mode, this pin, when
low, enables driving data on the high half of the data bus. When the MC68SC302 is used
in 8-bit data bus mode, this pin should be left floating.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor,
Inc.
Signal
Description and Pin Control
2.1.3.4 MEMR—MEMORY READ. This input line is asserted by the ISA bus master to indicate that a memory read cycle is in progress and the ISA memory slave should drive the
data. The MC68SC302 decodes the address lines, and if a match occurs, the data bus is
driven.
2.1.3.5 MEMW—MEMORY WRITE. This input line is asserted by the ISA bus master to indicate that a memory write cycle is in progress and the ISA memory slave may latch the
data from the data to the selected address. The MC68SC302 decodes the address lines,
and if a match occurs, the data bus is latched to the addressed location.
Freescale Semiconductor, Inc...
2.1.3.6 IOR—I/O READ. This input line is asserted by the ISA bus master to indicate that
an I/O read cycle is in progress and the ISA I/O slave should drive the data. The
MC68SC302 decodes the address lines, and if a match occurs, the data bus is driven.
2.1.3.7 IOW/PC_MODE—I/O WRITE AND PC_MODE. This input line is asserted by the
ISA bus master to indicate that an I/O write cycle is in progress and the ISA I/O slave may
latch the data from the data to the selected address. The MC68SC302 decodes the address lines and if a match occurs, the data bus is latched to the addressed location.
This pin is read during reset to configure the chip for either PCMCIA mode or ISA mode.
Placing a pull up on this pin will initialize the chip in ISA mode. This pin should be connected to ground to to initialize the chip in PCMCIA mode.
2.1.3.8 MEMCS16—MEMORY CYCLE SELECT IS 16 BIT. This open drain output line is
asserted by the MC68SC302 in 16-bit-mode, to indicate that a memory cycle is capable
of transferring 16 bits of data at once.
This pin has multiple functionality if it is not used for MEMCS16:
• IRQ7 - Interrupt Request Output 7
2.1.3.9 IOCS16—I/O CYCLE SELECT IS 16 BI. This open drain output line is asserted by
the MC68SC302 in 16-bit-mode, to indicate that an I/O cycle is capable of transferring 16
bits of data at once.
This pin has multiple functionality if it is not used for IOCS16:
• IRQ4 - Interrupt Request Output 4
2.1.3.10 IOCHRDY—I/O CHANNEL READY. This open drain output signal indicates is asserted (low) by the MC68SC302 to lengthen the bus cycle. In a system without wait states
(e.g. ISA in memory mode with 20Mhz crystal or ISA in I/O mode with 15Mhz crystal) this
signal can be configured as IRQ5.
2.1.3.11 REF—REFRESH. This input signal indicates, when low, that a refresh cycle is in
progress. The MC68SC302 uses this signal to disable any possibility of driving the data
bus.
2.1.3.12 RESET — RESET. This active high input pin starts an initialization sequence that
resets the entire device with all internal peripherals. The on-chip system RAM is not ini-
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale
Signal Description and Pin Control
Semiconductor, Inc.
tialized during reset except for several locations initialized by the CP. The RESET pin
should be connected to the RESDRV signal of the ISA bus. Note that there is no RESET
OUT pin for external devices, but a parallel I/O port can be used for that purpose, controlled by software.
During a total system reset, all pins are three-stated.
2.1.4 Interrupt Out Pins
Freescale Semiconductor, Inc...
The interrupt out pins can be used as dedicated interrupt pins or as encoded level with one
interrupt out pin:
2.1.4.1 IRQ9, 10, 11, 12, 15 — DEDICATED MODE. These output signals are the interrupt request outputs of the MC68SC302. Only one of them will be asserted by the
MC68SC302 when any of the internal peripheral or external devices requests an interrupt
service from the host.
The interrupt active level (high or low) and type (edge or level triggered) can be programmed with the interrupt request type select 0 register. (See 5.7 ISA-PNP Configuration Registers.)
2.1.4.2 IRQO, IRQSEL3–IRQSEL0 — ENCODED MODE. The IRQSEL3-IRQSEL0 output
pins indicate the encoded priority level of the IRQO output pin. The IRQO pin is asserted
by the MC68SC302 when any of the internal peripheral or external devices requests an
interrupt service from the host. IRQSEL3-0 should be connected to an external encoder
which maps the IRQO pin to the selected interrupt on the ISA bus.
2.1.5 Clock Pins
2.1.5.1 EXTAL—EXTERNAL CLOCK/CRYSTAL INPUT. This input provides two clock
generation options: crystal and external clock. EXTAL may be used (with XTAL) to connect an external crystal to the on-chip oscillator and a clock generator. If an external clock
is used, the clock source should be connected to EXTAL, and XTAL should be left unconnected. The frequency of EXTAL may range from 0 MHz to 20.48 MHz (or the maximum
rated frequency, whichever is higher). When an external clock is used, it must provide a
CMOS level at this input frequency.
NOTE
The input high voltage and input low voltage for EXTAL and the
values for power are specified in Section 7 Electrical
Characteristics. A valid clock signal oscillates between a low
voltage of between GND – 0.3 and 0.6 volts and a high voltage
of between 4.0 and VCC volts.
2.1.5.2 XTAL— CRYSTAL OUTPUT. This output connects the on-chip oscillator output to
an external crystal. If an external clock is used, XTAL should be left unconnected.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor,
Inc.
Signal
Description and Pin Control
2.1.5.3 CLKO— CLOCK OUT. This output clock signal is derived from the on-chip clock
oscillator. The frequency of the CLKO signal is programmable and also can be disabled.
CLKO supports both CMOS and TTL output levels.
2.2 HOST INTERFACE PINS - PCMCIA MODE
The following paragraphs describe the MC68SC302 signals in PCMCIA mode only. The
PCMCIA interface is enabled by strapping the IOW/PC_MODE pin low during reset.
These pins are muxed with the ISA bus pins and therefore replace the description of those
pins in the previous paragraphs.
Freescale Semiconductor, Inc...
NOTE
The PCMCIA pins are denoted in the pinout diagrams as PC_SIGNALNAME.
Table 2-2. PCMCIA Mode Signals
GROUP
SIGNAL NAME
Address Bus
MNEMONIC I/O
PC_A[16:0]
I
SECTION
2.2.1.2 Address Bus Pins. PC_A[16:0]–PCMCIA
Address Bus
Address
Address Bus/
PC_A[23:17]/ I
Interrupt Request Inputs 1, 2, 3, 4, 5 / IRQIN[5:1] / I 2.2.1.1 PC_A[21:17]/IRQIN[5:1]/PA[15:12]—PCMCIA Address Bus
Parallel Port A
PA[15:12] I/O
Data
Data Bus 15-0
PC_D[15:0] I/O
PCMCIA MODE enable
PC_MODE
Bus Control
PC_E2E
I 2.2.3.2 PC_E2E—PCMCIA Serial EEPROM mode
Card Enable 1
PC_CE1
I
2.2.3.3 PC_CE1 and PC_CE2— PCMCIA Card
Enables 1 and 2
Card Enable 2
PC_CE2
I
2.2.3.3 PC_CE1 and PC_CE2— PCMCIA Card
Enables 1 and 2
Memory Read
PC_OE
I
2.2.3.4 PC_OE—PCMCIA Output Enable
Memory Write
PC_WE
I
2.2.3.5 PC_WE—PCMCIA Write Enable
Address Bus bit No. 25
PC_A25
I
2.2.3.6 PC_A25—PCMCIA Address Bus bit 25
PC_CISCS
O
2.2.3.7 PC_CISCS—PCMCIA CIS Chip Select
External ROM-CIS Chip Select
Status Changed
PC_STSCHG O 2.2.3.8 PC_STSCHG—PCMCIA
(Replace BVD1)
IO Channel Ready
PC_WAIT
O
2.2.3.9 PC_WAIT—PCMCIA Wait
Attribute Memory Enable
PC_REG
I
2.2.3.10 PC_REG—PCMCIA Attribute Memory
Select
Card Is Ready (Memory mode) /
Interrupt request in Memory+IO mode
PC_RDY
IREQ
O
O
2.2.3.12 IRQ3/PC_READY/IREQ— Ready or Interrupt Request Out Pin
RESET
I
2.1.3.12 RESET — Reset
Reset
Parallel Port Select Pins [3-0]
Power
2.2.3.1 PC_MODE—PCMCIA Mode
PCMCIA EEPROM mode Enable
Status Change
Clock
I
2.2.2.1 PC_D[15:0]—PCMCIA Data Bus
IRQSEL[3:0] O
Crystal Oscillator
EXTAL,
XTAL
O
Clock Out
CLKOUT
O
VCC, GND
I
System Power Supply and Return
2.1.4.2 IRQO, IRQSEL3–IRQSEL0 — Encoded
Mode
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
2.2.4 Clock Pins
Freescale
Signal Description and Pin Control
Semiconductor, Inc.
2.2.1 Address Bus Pins
2.2.1.1 PC_A[21:17]/IRQIN[5:1]/PA[15:12]—PCMCIA ADDRESS BUS. This group of
pins can be set for address bus input function, parallel IO function, or Interrupt request in
function. The address input value for a non-address pin is zero (0).
2.2.1.2 ADDRESS BUS PINS. PC_A[16:0]–PCMCIA ADDRESS BUS. These lines are
the lower bits of the PCMCIA address bits, used for memory or I/O cycles.
2.2.2 Data Bus Pins
2.2.2.1 PC_D[15:0]—PCMCIA DATA BUS. PCMCIA bidirectional data bus.
Freescale Semiconductor, Inc...
2.2.3 Bus Control Pins
2.2.3.1 PC_MODE—PCMCIA MODE. This pin selects the PCMCIA mode during reset. If
this input pin is sampled low at the end of system reset, the MC68SC302 PCMCIA mode
is enabled. This pin is automatically muxed with ISA IOW signal. In PCMCIA mode, this
signal can be simply grounded.
2.2.3.2 PC_E2E—PCMCIA SERIAL EEPROM MODE. This pin enables the PCMCIA serial EEPROM mode. If PCMCIA mode is enabled, and this input pin is sampled high at the
end of system reset, the PCMCIA serial EEPROM mode is enabled.
2.2.3.3 PC_CE1 AND PC_CE2— PCMCIA CARD ENABLES 1 AND 2. Active low, card
enable PCMCIA card interface input signals.
2.2.3.4 PC_OE—PCMCIA OUTPUT ENABLE. This input is used by the MC68SC302 to
gate memory access data to the data bus.
2.2.3.5 PC_WE—PCMCIA WRITE ENABLE. The MC68SC302 uses this input to strobe
memory space write data into the part.
2.2.3.6 PC_A25—PCMCIA ADDRESS BUS BIT 25. This input signal is used either as a
CS input from external glue logic, or directly connected to the A25 PCMCIA address pin.
The MC68SC302 recognizes only accesses in which A25=1, either to its internal memory
space or external CS. The only exception to the above rule is accesses to a CIS ROM. In
this case, A25 must be zero for the PC_CISCS to be asserted. For accesses to the internal attribute space, A25 must be set to one.
2.2.3.7 PC_CISCS—PCMCIA CIS CHIP SELECT. This output is asserted by the
MC68SC302 if it is configured at parallel CIS mode (as opposed to serial EEPROM mode)
and the external CIS is accessed. For details, please refer to the PCMCIA interface definition.
memory
2.2.3.8 PC_STSCHG—PCMCIA STATUS CHANGED (REPLACE BVD1). In
mode, this output is high. In memory+IO mode (selected in the COR), this output can be
programmed to indicate changes in the RDY/BSY pin or in the ring indication input. For
more details, please refer to the PCMCIA interface definition.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor,
Inc.
Signal
Description and Pin Control
2.2.3.9 PC_WAIT—PCMCIA WAIT. This output pin is asserted on every PCMCIA access
to the MC68SC302, except an access to the asynchronous registers (FCRs).
2.2.3.10 PC_REG—PCMCIA ATTRIBUTE MEMORY SELECT. When this input is asserted, common memory access is disabled. When negated, attribute memory access is disabled. Must be asserted for attribute memory accesses.
2.2.3.11 RESET— HARD SYSTEM RESET INPUT. This input pin is used to reset the
MC68SC302. It has the same function as in ISA mode.
Freescale Semiconductor, Inc...
2.2.3.12 IRQ3/PC_READY/IREQ— READY OR INTERRUPT REQUEST OUT PIN. In
memory-only configuration, this signal provides the READY function. In this mode, the
signal is asserted whenever the MC68SC302 cannot accept any access. Please refer to
the PCMCIA interface definition for details.
In Memory+IO mode, this signal provides the IREQ function. In this mode, any
MC68SC302 interrupt event which is enabled is reported to the host by the assertion of
this pin.
In ISA mode, this pin functions as IRQ3.
2.2.4 Clock Pins
These pins have the same function as in ISA mode.
2.2.4.1 EXTAL—EXTERNAL CLOCK/CRYSTAL INPUT. This input provides two clock
generation options: crystal and external clock. EXTAL may be used (with XTAL) to connect an external crystal to the on-chip oscillator and a clock generator. If an external clock
is used, the clock source should be connected to EXTAL, and XTAL should be left unconnected. The frequency of EXTAL may range from 0 MHz to 20.48 MHz (or the maximum
rated frequency, whichever is higher). When an external clock is used, it must provide a
CMOS level at this input frequency.
NOTE
The input high voltage and input low voltage for EXTAL and the
values for power are specified in Section 7 Electrical
Characteristics. A valid clock signal oscillates between a low
voltage of between GND – 0.3 and 0.6 volts and a high voltage
of between 4.0 and VCC volts.
2.2.4.2 XTAL— CRYSTAL OUTPUT. This output connects the on-chip oscillator output to
an external crystal. If an external clock is used, XTAL should be left unconnected.
2.2.4.3 CLKO— CLOCK OUT. This output clock signal is derived from the on-chip clock
oscillator. The frequency of the CLKO signal is programmable and also can be disabled.
CLKO supports both CMOS and TTL output levels.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale
Signal Description and Pin Control
Semiconductor, Inc.
2.3 PERIPHERAL PINS
Table 2-3. Peripheral Pins
GROUP
ISDN
SIGNAL NAME
MNEMONIC
I/O
Layer 1 Receive data
L1RXD
I
Layer 1 Transmit data
L1TXD
O
Layer 1 Clock
L1CLK
I
Layer 1 Sync
L1SYNC
I
L1GRNT /
PSYNC
I
I
L1RQ /
GCIDCL
I
O
Receive Data /
Port A
RXD /
PA4
I
I/O
Transmit Data /
Port A
TXD /
PA5
O
I/O
Transmit Clock /
Codec Main Clock /
Port A
TCLK /
MCLK /
PA6
I/O
O
I/O
Receive Clock /
Codec Serial Clock /
Interrupt Request Input 1 /
Port A
RCLK /
SCLK /
IRQIN1 /
PA7
I/O
I
I
I/O
Serial Data Strobe 1 /
Codec Frame Sync /
Interrupt Request Input 2 /
Port A
SDS1 /
FSYN /
IRQIN2 /
PA8
O
I
I
I/O
Ring Indication /
Interrupt Request Input 4 /
Port A
RI /
IRQIN4 /
PA10
I
I
I/O
External NMSI Chip Select /
Port A
NMSICS /
PA11
O
I/O
Layer 1 Grant /
PCM SYNC
Freescale Semiconductor, Inc...
Layer 1 Request /
GCI Divided Clock Out
NMSI
SCP
SCP Receive Serial Data
SPRXD
I
SCP Transmit Serial Data
SPTXD
O
SCP Clock
SPCLK
O
EEPROM Enable /
Port A
E2EN /
PA0
O
I/O
Interrupt Request Input 5 /
SCP Slave Enable 1 /
Port A
IRQIN5 /
SCPEN1 /
PA1
I
O
I/O
Interrupt Request Input 6 /
SCP Slave Enable 2 /
Port A
IRQIN6 /
SCPEN2 /
PA2
I
O
I/O
SCP Slave Enable 3 /
Port A
SCPEN3 /
PA3
O
I/O
SECTION
2.3.1 ISDN Pins
2.3.2 NMSI Pins
2.3.3 SCP Pins
2.3.3 SCP Pins
2.3.1 ISDN Pins
2.3.1.1 L1RXD—LAYER-1 RECEIVE DATA. This input pin is used as the receive data input in IDL and GCI modes.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor,
Inc.
Signal
Description and Pin Control
2.3.1.2 L1TXD—LAYER-1 TRANSMIT DATA. This output pin is used as the transmit data
output in IDL and GCI modes. L1TXD is a three-state output in IDL mode and it is a threestate output in GCI mode.
2.3.1.3 L1CLK—LAYER-1 CLOCK. This input pin is used as an input clock in IDL and GCI
modes.
2.3.1.4 L1SYNC—LAYER-1 SYNC. This input pin is used as an L1SYNC signal in IDL and
GCI modes.
Freescale Semiconductor, Inc...
2.3.1.5 L1GRNT / PSYNC —LAYER-1 GRANT / PCM SYNC. This input is the grant signal in the IDL and GCI mode or the second SYNC input in PCM mode. If this pin is not
used as a grant signal in GCI mode, it should be connected to VCC.
If the L1GRNT pin has changed for more than one transmit clock cycle, the MC68SC302
asserts the appropriate bit in the SCC event register and optionally, if L1GRNT is negated
(low), aborts the transmission of that frame.
2.3.1.6 L1RQ / GCIDCL—LAYER-1 REQUEST / GCI CLOCK OUT. This output pin is the
IDL D-channel request signal in IDL mode, or the GCI data clock output in GCI mode.
In IDL mode, L1RQ is asserted when the D-channel SCC has data or flags to transmit.
In GCI mode this pin is used to output the GCI data clock. GCIDCL is half the L1CLK frequency synchronized to the GCI frame.
2.3.2 NMSI Pins
All the NMSI pins have multiple functions. Each pin also has a parallel I/O function in
addition to the following description.
2.3.2.1 RXD—SCC RECEIVE DATA PIN. This input is the SCC2 or SCC3 receive data input pin.
2.3.2.2 TXD—SCC TRANSMIT DATA PIN. This output is the SCC2 or SCC3 transmit data
output pin.
2.3.2.3 TCLK / MCLK —SCC TRANSMIT CLOCK PIN / CODEC MAIN CLOCK. This bidirectional signal is used as the SCC clock pin in NMSI mode or the MCLK output for a
Codec.
2.3.2.4 RCLK / SCLK / IRQIN1 —SCC2 RECEIVE CLOCK / CODEC SERIAL CLOCK /
INTERRUPT REQUEST IN 1 PIN. This bidirectional signal is used as the SCC clock pin
when used in NMSI mode or the Codec serial clock input, or an Interrupt Request 1 input.
2.3.2.5 SDS1 / FSYN / IRQIN2—SERIAL DATA STROBE 1 / CODEC FRAME SYNC /
INTERRUPT REQUEST IN 2 PIN. This bidirectional signal is used as the ISDN serial data
strobe output or a Codec frame synchronization signal, or an interrupt request 2 input.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale
Signal Description and Pin Control
Semiconductor, Inc.
In IDL/GCI modes, the SDS1 output may be used to route the B1 and/or B2 channels to
devices that do not support the IDL or GCI buses. This is configured in the serial interface
mode (SIMODE) and serial interface mask (SIMASK) registers.
2.3.2.6 SDS2 / IRQIN3—SERIAL DATA STROBE 2 / INTERRUPT REQUEST IN 3 PIN.
This bidirectional signal is used as the ISDN serial data strobe output or an interrupt request 3 Input.
Freescale Semiconductor, Inc...
In IDL/GCI modes, the SDS2 output may be used to route the B1 and/or B2 channels to
devices that do not support the IDL or GCI buses. This is configured in the serial interface
mode (SIMODE) and serial interface mask (SIMASK) registers
2.3.2.7 NMSICS—NMSI CHIP SELECT PIN. This active-low output signal functions as a
chip select pin for an external device. It may be used to connect an additional peripheral
to the MC68SC302.
2.3.2.8 RI / IRQIN4—RING INDICATE / INTERRUPT REQUEST IN 4 PIN. This input signal is used as the ring indicate interrupt pin in PCMCIA mode or an interrupt request 4
input.
2.3.3 SCP Pins
The SCP is a four-wire common serial connection. The fourth slave select pin uses the
general parallel I/O pins, but for the EEPROM, select E2EN pin should be used.
2.3.3.1 SPRXD—SCP RECEIVE SERIAL DATA PIN. This input is the SCP receive data
input pin.
2.3.3.2 SPTXD—SCP TRANSMIT SERIAL DATA PIN. This output is the SCP transmit
data output pin.
2.3.3.3 SPCLK—SCP CLOCK PIN. This output signal is used as the SCP clock output pin.
2.3.3.4 E2EN—EEPROM ENABLE PIN. This output signal is used as the SCP EEPROM
select pin. During reset, E2EN samples its own input value, and this determines what the
inactive EEPROM level will be. For example, this pin must be pulled low during reset for
the 93C46 EEPROM, since it has an active high enable.
2.3.3.5 SCPEN1-3 —SCP SLAVE ENABLE 1-3 PINS. These output signals are used as
the SCP slave select pins for selecting external devices. They are enabled/disabled by
the host software, but also negated automatically when an EEPROM access is in
progress.
2.3.4 Multi-Function I/O Pins
The SC302 has many multi-function I/O pins.These pins function varies according to the selected operation mode, i.e. PCMCIA or ISA in addition to programming in the control registers. Some pins have a parallel I/O port capability, so they can be used as general-purpose
I/O pins or as dedicated peripheral interface pins.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor,
Inc.
Signal
Description and Pin Control
2.3.4.1 PORT A
Each pin is independently configured as a general-purpose I/O pin if the corresponding port
control register (PACNT) bit is cleared. Port A pins are configured as dedicated on-chip peripheral pins if the corresponding PACNT bit is set.
Freescale Semiconductor, Inc...
When acting as a general-purpose I/O pin, the signal direction for that pin is determined by
the corresponding control bit in the port A data direction register (PADDR). The port I/O pin
is configured as an input if the corresponding PADDR bit is cleared; it is configured as an
output if the corresponding PADDR bit is set. All PACNT bits and PADDR bits are cleared
on total system reset, configuring all port A pins as general-purpose input pins.
If a port A pin is selected as a general-purpose I/O pin, it may be accessed through the port
data register (PADAT). Data written to the PADAT is stored in an output latch. If a port A pin
is configured as an output, the output latch data is gated onto the port pin. In this case, when
the PADAT is read, the contents of the output latch associated with the output port pin are
read. If a port A pin is configured as an input, data written to PADAT is still stored in the output latch but is prevented from reaching the port pin. In this case, when PADAT is read, the
state of the port pin is read.
If a port A pin is selected as a dedicated on-chip peripheral pin (PACNT bit is set), the corresponding bit in the PADDR is ignored, and the direction of the pin is determined by the
operating mode of the on-chip peripheral. If a pin has more then one dedicated function,
then the pin multi-function select register (PMFSR) bits determine the function of that pin. In
dedicated mode, the PADAT contains the current state of the peripheral's input pin or output
driver.
Certain pins may be selected as general-purpose I/O pins, even when other pins related to
the same on-chip peripheral are used as dedicated pins. If an input pin to a peripheral is
used as a general-purpose I/O pin, then the input to the peripheral is automatically connected internally to VCC or GND, based on the pin's function. This does not affect the operation
of the port pins in their general-purpose I/O function.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale
Signal Description and Pin Control
Semiconductor, Inc.
Table 2-4. Multi-Function I/O Pin Function
PIN FUNCTION WHEN PACNT BIT = 1 AND
Freescale Semiconductor, Inc...
REGISTER PIN FUNCTION WHEN
BIT #
PACNT BIT = 0
PMFSR BIT = 0
INPUT TO
PERIPHERAL
PMFSR BIT = 1
0
PA0
E2EN
-
1
PA1 / SCPEN1
IRQIN5
IRQIN5=1
2
PA2 / SCPEN2
IRQIN6
IRQIN6=1
3
PA3 / SCPEN3
PA3
-
4
PA4
RXD
RXD=1
5
PA5
TXD
-
6
PA6
7
PA7
IRQIN1
CLKRx
IRQIN1 =1 , CLKRx =0
8
PA8
IRQIN2
SDS1/FSYN
IRQIN2=1
9
PA9
IRQIN3
SDS2
IRQIN3=1
IRQIN4
RI
IRQIN4 =1 , RI =1
CLKTx
0
10
PA10
11
PA11
12
PA12
IRQIN2
A20
IRQIN2 =1 , A20=0
13
PA13
IRQIN3
A21
IRQIN3 =1 , A21=0
14
PA14
IRQIN4
A22
IRQIN4 =1 , A22=0
15
PA15
IRQIN5
A23
IRQIN5 =1 , A23=0
-
NMSICS
2.3.4.2 Port A Registers
Each bit in the following registers description is linked to the pin marked as PA[n].
PACNT
$81E
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
PA15
PA14
PA13
PA12
PA11
PA10
PA9
PA8
PA7
PA6
PA5
PA4
PA3
PA2
PA1
PA0
0 = I/O
1 = Peripheral
This register is set at reset to $F000 when PC_E2E is high, and to $F001 otherwise.
PADDR
$820
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
PA15
PA14
PA13
PA12
PA11
PA10
PA9
PA8
PA7
PA6
PA5
PA4
PA3
PA2
PA1
PA0
0 = Input
1 = Output
This register is cleared at reset (all input pins).
PADAT
$822
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
PD15
PD14
PD13
PD12
PD11
PD10
PD9
PD8
PD7
PD6
PD5
PD4
PD3
PD2
PD1
PD0
Figure 2-2. Parallel I/O Port A Registers
PACNT is set to $F001 and the PADDR register is cleared when the RESET pin is active.
This configures all PA[x] pins to be input pins. If a serial EPROM is present in the system,
then PA[0] pin is automatically configured to be an output pin (E2EN) driving low, within 3
clocks from RESET deactivation.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale
Signal Description and Pin Control
Semiconductor, Inc.
2.3.4.3 Port A SCP Enable Control
PA1-PA3 can be used to control external SCP slave devices connected to the SCP interface, when their PACNT bit is cleared. If an SCP enable (SCPENx) bit is set in the SCP
enable control register (PENCR), then the corresponding PAx pin is used to control an
SCP slave. The slave device connected to that pin will be selected by writing the select
level to the corresponding PADATx bit. When the serial EEPROM is accessed, the
EEPROM enable (E2EN) pin will be automatically activated (low), and the SCPENx pin will
be driven to the SCP negate level (SPNL) as programmed in the SCP enable control register (PENCR). At the end of the EEPROM access, the pin will return automatically to its
PADATx level.
Port A SCP Enable Control (PENCR)
Freescale Semiconductor, Inc...
7
6
5
SPNL3 SPNL2 SPNL1
X
0
0
4
RSVD
0
3
2
1
SCPEN3 SCPEN2 SCPEN1
0
0
$826
0
RSVD
X
0
SPNL—SCP Negation Level
0 = Low negation level (active high)
1 = High negation level (active low)
SCPEN—SCP Enable
0 = The pin is used as a general purpose I/O pin without automatic negation control.
1 = The pin is used for SCP enable, with automatic negation control. This function is
enabled only if the pin is programmed as a general purpose output pin.
2.3.4.4 Multi-Function Pins
Pins that have more then one dedicated function are controlled by the pin multi-function
select register (PMFSR) bits at address $826.
Parallel I/O port A pins from 7 to 15 are controlled by the PMFSR register (bits 7-15) only if
the corresponding PACNT bit is set.
Other pins that are not muxed with parallel I/O pins are controlled by the PMFSR 0-6 bits.
Their functionality is described in the following table.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale
Signal Description and Pin Control
Semiconductor, Inc.
Table 2-5. Port A Pin Function
PIN FUNCTION IN ISA MODE
PMFS BIT = 0
PMFSR BIT = 1
PMFSR BIT = 0
PMFS BIT = 1
INPUT TO
PERIPHERAL
0
A19
IRQIN1
A19
IRQIN1
A19=0, IRQIN1 =1
1
IRQ3
PC_RDY or IREQ **
-
2
IOCS16
IRQ4
PC_STSCHG
-
3
IOCHRDY
IRQ5
PC_WAIT
-
4
MEMCS16
IRQ7
PC_CISCS
-
IRQSEL[3:0] with IRQO
-
with
IRQ[9,10,11,12,15] IRQSEL[3:0]
IRQO
5
6
Freescale Semiconductor, Inc...
PIN FUNCTION IN PCMCIA MODE
REGISTER
BIT #
Reserved
Reserved
-
7*
IRQIN1
CLKRx
IRQIN1
CLKRx
IRQIN1 =1, CLKRx =0
8*
IRQIN2
SDS1
IRQIN2
SDS1/FSYN***
IRQIN2=1
9*
IRQIN3
SDS2
IRQIN3
SDS2
IRQIN3=1
10*
IRQIN4
RI
IRQIN4
RI
IRQIN4, RI =1
11*
NMSICS
NMSICS
-
12*
IRQIN2
A20
IRQIN2
A20
IRQIN2 =1, A20=0
13*
IRQIN3
A21
IRQIN3
A21
IRQIN3 =1, A21=0
14*
IRQIN4
A22
IRQIN4
A22
IRQIN4 =1, A22=0
15*
IRQIN5
A23
IRQIN5
A23
IRQIN5 =1, A23=0
* This row is valid only if the corresponding PACNT bit is set
** The selection between the PCRDY and IREQ is done in the COR Register.
** The selection between the SDS1 and FSYN is done in the SCON Register. If CODS bit is set then PA[8]
operates as FSYN otherwise, SDS1.
NOTE
The IRQIN[1-5] pins may be configured on two different pins. In
that case, an interrupt is generated by the logical OR function of
both pins. This enables the user to connect more interrupt
sources to the SC302.
2.3.4.5 Pin Multi-Function Select Register (PMFSR)
Pin Multi-Function Select Register (PMFSR)
$824
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
PA15
PA14
PA13
PA12
PA11
PA10
PA9
PA8
PA7
PA6
PA5
PA4
PA3
PA2
PA1
PA0
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
2.3.4.6 Special Pin Function in 8-Bit Mode
Three of the upper data bus pins D[10:8] operate as interrupt outputs when the SC302 is
configured to operate in 8-bit ISA mode. No special programming, other than the 8-bit configuration selection, is needed for enabling the IRQ[5,6,14] pin function. This function is not
enabled in PCMCIA mode.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
SECTION 3
INTERRUPT, TIMER, AND POWER CONTROL
3.1 INTERRUPT CONTROLLER
The on-chip interrupt controller has the following features:
Freescale Semiconductor, Inc...
• 14 Interrupt Sources (Internal and External)
• Up to 11 Interrupt Out Pins
• Edge or Level Interrupt Output
• Up to 6 Pins for External Interrupt Sources
• Edge or Level Sensitive External Interrupt Sources
• Wake-Up from Low Power Mode On Interrupt Assertion
3.1.1 Interrupt Controller Overview
The interrupt controller receives interrupts from internal sources such as the Periodic
Interrupt Timer (PIT), Serial Communication Controllers (SCCs), Serial Management
Channels (SMCs), Serial Control Port (SCP) and from the external IRQIN pins. The interrupt
controller allows masking of each interrupt source. When multiple events within an internal
peripheral can cause the interrupt, each event is also maskable in a register in that
peripheral.
The IRQIN pins may be edge-triggered or level-triggered.
The IRQOUT can be programmed to be on one of 6 or 11 IRQOUT pins (depending on
system configuration) or an encoded interrupt mode can be chosen (where the interrupt pin
number appears at IRQSEL[3:0] and interrupt indication on IRQO pin). The mode is selected
during the PNP configuration process.
The IRQOUT can be programmed to be edge- or level-active as determined in the PNP
configuration registers.
3.1.2 Masking Interrupt Sources and Events
The user may mask every interrupt to prevent an interrupt request from reaching the host.
Interrupt masking is accomplished by programming the Interrupt Mask Register (IMR). Each
bit in the IMR corresponds to one of the interrupt sources.
When a masked interrupt source has a pending interrupt request, the corresponding bit is
set in the Interrupt Pending Register (IPR), even though the interrupt will not reach the host.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Interrupt, Timer, and Power Freescale
Control
Semiconductor, Inc.
By masking all interrupt sources using the IMR, the user may implement a polling interrupt
servicing scheme for interrupts.
When an internal interrupt source from an on-chip peripheral has multiple interrupt events,
the user can individually mask these events by programming that peripheral's mask register.
In this case, when a masked event occurs, an interrupt request is not generated for the
associated interrupt source, and the corresponding bit in the IPR is not set. If the
corresponding bit in the IPR is already set, then masking the event in the peripheral mask
register causes the IPR bit to be cleared. To determine the cause of a pending interrupt
when an interrupt source has multiple interrupt events, the user interrupt service routine
must read the event register within that on-chip peripheral. By clearing all unmasked bits in
the event register, the IPR bit is also cleared.
Freescale Semiconductor, Inc...
3.1.3 Interrupt Handling Procedure
In order to process all interrupts by the host PC properly, the following procedure should be
followed for both edge and level triggered interrupts. When an interrupt is recognized by the
host CPU:
1. The host should clear the Mask All (MALL) bit in the IMR to mask all the interrupt
sources.
2. The host should read the IPR register and check which IPR bits are set, i.e., the source
that generated the interrupt. If more than one bit is set, then the host should process
the interrupts according to a user-defined priority.
3. The host should clear the IPR bit for the interrupt that was processed (by writing a “1”
to the IPR bit with all other bits set to “0” for the interrupt sources that do not have an
event register, or clearing the EVENT register bits in the same way).
4. The host should read the IPR register. If one or more bits are set, then it continues
from step #2 until all bits are cleared.
5. The host should clear the corresponding bit in the PC interrupt controller (PIC).
6. When all IPR bits are cleared, the host should set the MALL bit of the IMR and execute
a return from interrupt instruction immediately following the IMR update.
NOTE
If the return from interrupt is not executed immediately following
the IMR write, interrupt nesting may occur.
3.1.4 Wake Up On Interrupt
Wake up on interrupt is possible for the RI interrupt input only. When this functionality of the
pin IRQIN4/RI is selected by properly programming the Port A control registers, a rising
edge on the RI wakes up the SC302 from any of the low power modes. In PCMCIA mode,
the PC_STSCHG pin does the same if selected and enabled. In ISA mode, an interrupt is
generated to the PC after clock recovery.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor,
Inc.Timer, and Power Control
Interrupt,
3.1.5 Global Interrupt Mode Register (GIMR)
The GIMR is initially $00 and is reset only on a total system reset.
Global Interrupt Mode Register (GIMR)
7
OD
Freescale Semiconductor, Inc...
0
6
5
MD6[1] MD6[0]
0
0
$812
4
3
2
1
0
ET5
ET4
ET3
ET2
ET1
0
0
0
0
0
OD—Open Drain IRQOUT Pin Drive
0 = IRQOUT pin is fully driven.
1 = IRQOUT pin is an open drain output i.e. driven low only. An external pull up resistor
is needed on the pin. This mode should be selected if the interrupt pin is used by
other sources as well.
MD6[1:0]—IRQIN6 mode
00 = Level-triggered. An interrupt is made pending when IRQIN6 is low.
01 = Falling edge-triggered. An interrupt is made pending when IRQIN6 changes from
one to zero (falling edge).
10 = Rising edge-triggered. An interrupt is made pending when IRQIN6 changes from
zero to one (rising edge).
11 = Every edge-triggered. An interrupt is made pending when IRQIN6 changes from
one to zero (falling edge) or zero to one (rising edge).
ETx—IRQINx Edge/Level-Triggered
0 = Level-triggered. An interrupt is made pending when IRQINx is low.
1 = Edge-triggered. An interrupt is made pending when IRQINx changes from one to
zero (falling edge).
3.1.6 Interrupt Pending Register (IPR)
Each bit in the 16-bit IPR corresponds to an interrupt source. When an interrupt is received,
the interrupt controller sets the corresponding bit in the IPR.
The host must read the IPR in the interrupt handler routine. When a pending interrupt is
handled, the user should clear the corresponding bit in the IPR by writing a one to that bit.
(If an event register exists, the unmasked event register bits should be cleared instead,
causing the IPR bit to be cleared.) Since the user can only clear bits in this register, the bits
that are written as zeros will not be affected. The IPR is cleared at reset.
Interrupt Pending Register (IPR)
15
14
13
12
11
SCC1 SCC2 SCC3 SMC1 SMC2
0
0
0
0
0
$814
10
9
8
SCP
PIT
RI
0
0
0
7
6
5
4
3
2
1
SCC1 IRQIN6 IRQIN5 IRQIN4 IRQIN3 IRQIN2 IRQIN1
0
0
0
0
0
0
0
0
0
The selected IRQOUT line will be asserted whenever the IPR register ANDed with the IMR
register has a non-zero value.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Interrupt, Timer, and Power Freescale
Control
Semiconductor, Inc.
3.1.7 Interrupt Mask Register (IMR)
Each bit in the 16-bit IMR corresponds to an interrupt source. The user masks an interrupt
source by clearing the corresponding bit in the IMR. When an unmasked interrupt occurs,
the corresponding bit in the IPR is set and interrupt is generated. If an interrupt source is
requesting interrupt service when the user clears the IMR bit, if in level mode, the IPR bit
remains set and the interrupt will be generated when the corresponding interrupt is enabled.
The IMR, which can be read by the user at any time, is cleared by reset.
NOTE
Freescale Semiconductor, Inc...
To clear bits that were set by multiple interrupt events, the user
should clear all the unmasked events in the corresponding onchip peripheral's event register.
Interrupt Mask Register (IMR)
15
14
13
12
11
SCC1 SCC2 SCC3 SMC1 SMC2
0
0
0
0
0
$816
10
9
8
7
SCP
PIT
RI
-
0
0
0
0
6
5
4
3
2
1
IRQIN6 IRQIN5 IRQIN4 IRQIN3 IRQIN2 IRQIN1
0
0
0
0
0
0
0
MALL
0
MALL - Mask All bit.
0 = All the interrupt sources are masked.
1 = Regular behavior: bits of the IMR mask the corresponding bits of the IPR.
3.1.8 Periodic Interrupt Timer
The SC302 provides a timer to generate periodic interrupts for use with a real-time operating
system or application software. The periodic interrupt time period can vary. This function can
be disabled.
3.1.8.1 OVERVIEW. The Periodic Interrupt Timer (PIT) consists of an 11-bit modulus
counter that is loaded with the value contained in the Periodic Interrupt Timer Register
(PITR). The modulus counter is clocked by the clock signal derived from the EXTAL pin.
The clock source is divided by four before driving the modulus counter. When the modulus
counter value reaches zero, an interrupt request signal is generated to the interrupt
controller.
The value of bits 11–1 in the PITR is then loaded again into the modulus counter, and the
counting process starts over. A new value can be written to the PITR only when the PIT is
disabled.
3.1.8.2 PERIODIC TIMER PERIOD CALCULATION. The period of the periodic timer can
be calculated using the following equation:
PITR count value+1
periodic interrupt timer period = --------------------------------------------------( ( EXTAL ) ⁄ 1or512 )
--------------------------------------------------(4)
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor,
Inc.Timer, and Power Control
Interrupt,
This gives an interrupt every 0.1ms to ~200ms in 0.1ms resolution, when using a 20.48MHz
system clock with prescaler enabled, which is good for PC timing applications.
3.1.8.3 PERIODIC INTERRUPT TIMER REGISTER (PITR). The PITR contains control for
prescaling the periodic timer as well as the count value for the periodic timer. This register
can be read or written only during normal operational mode. Bits 14–13 are not implemented
and always return a zero when read. A write does not affect these bits.
Periodic Interrupt Timer Register (PITR)
15
14
13
12
PTEN
0
0
PTP
0
0
0
0
11
10
9
$802
8
7
6
PITR10 PITR9 PITR8 PITR7 PITR6 PITR5
0
0
0
0
0
5
4
3
2
1
0
PITR4
PITR3
PITR2
PITR1
PITR0
RSVD
0
0
0
0
0
0
0
Freescale Semiconductor, Inc...
Read/Write
PTEN—Periodic Timer Enable
This bit contains the enable control for the periodic timer.
0 = Periodic timer is disabled
1 = Periodic timer is enabled
PTP—Periodic Timer Prescaler Control
This bit contains the prescaler control for the periodic timer.
0 = Periodic timer clock is not prescaled
1 = Periodic timer clock is prescaled by a value of 512
PITR10–0—Periodic Interrupt Timer Register Bits
These bits of the PITR contain the remaining bits of the PITR count value for the periodic
timer. These bits may be written only when the PIT is disabled (PTEN=0) to modify
the PIT count value.
3.2 ISA POWER CONTROL REGISTERS
The ISA Power Down Register (IPRDN) contains the PWRDN bit, used to reduce power
consumption in the MC68SC302.
ISA Power Down Register (IPRDN)
$800
7
6
5
4
3
2
1
0
X
RSVD
RSVD
RSVD
RSVD
PWRDN
X
RSVD
X
0
0
0
0
0
X
0
PWRDN—Power down
0 = Wake-up mode
1 = Power-down mode
The RI Event Indication Register (IOER) contains the RIEVT bit, used to detect a ring event
and generate an interrupt.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Interrupt, Timer, and Power Freescale
Control
Semiconductor, Inc.
RI Event Indication Register (IOER)
$804
7
6
5
4
3
2
1
0
RSVD
RSVD
RSVD
RIEVT
RSVD
RSVD
RSVD
RSVD
0
0
0
0
0
0
0
0
RIEVT—Ring event
0 = No ring event is detected
1 = Ring event is detected
Freescale Semiconductor, Inc...
Ring event is a status bit. Writing a one to it clears the bit, writing a zero has no effect.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
SECTION 4
COMMUNICATIONS PROCESSOR (CP)
The CP includes the following modules:
• Main Controller (RISC Processor)
Freescale Semiconductor, Inc...
• A Command Set Register
• Serial Channels Physical Interface Including:
—
—
—
—
Motorola Interchip Digital Link (IDL)
General Circuit Interface (GCI), also known as IOM-2
Pulse Code Modulation (PCM) Highway Interface
Nonmultiplexed Serial Interface (NMSI)
• Three Independent Full Duplex Serial Communication Controllers (SCCs) Supporting
the Following Protocols:
— High-Level/Synchronous Data Link Control (HDLC/SDLC)
— Transparent
• Serial Communication Port (SCP) for Synchronous Communication and EEPROM
interface
• Two Serial Management Controllers (SMCs) to Support the GCI Management
Channels
4.1 MAIN CONTROLLER
The CP main controller is a RISC processor that services the three SCCs, the SCP, and the
SMCs. Its primary responsibilities are to work with the serial channels to implement the userchosen protocol.
The operation of the main controller is transparent to the user, executing microcode located
in a private internal ROM. Commands may be explicitly written to the main controller by the
host through the CP command register. Additionally, commands and status are exchanged
between the main controller and the host through the buffer descriptors of the serial
channels. Also, a number of protocol-specific parameters are exchanged through several
parameter RAM (PRAM) areas in the internal dual-port RAM.
The RISC controller uses the peripheral bus to communicate with all its peripherals. Each
SCC has a separate transmit and receive FIFO. Each SCC is configured by parameters
written to the dual-port RAM and by SCC hardware registers that are written by the host.
The SCC hardware register that configures each SCC is the SCC Mode Register (SCM).
There are three of these registers, one for each SCC. The serial channels physical interface
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Communications ProcessorFreescale
(CP)
Semiconductor, Inc.
is configured by the system through the Serial Interface Mode and Mask registers (SIMODE
and SIMASK).
Simultaneous access of the dual-port RAM by the RISC controller and the external
processor is prevented by the main controller being delayed one clock cycle, at most, in
accessing the dual-port RAM.
The main controller has a priority scheduler that determines which microcode routine is
called when more than one internal request is pending. Requests are serviced in the following order:
1. CP or System Reset
2. Commands Issued to the Command Register
Freescale Semiconductor, Inc...
3. SCC1 Receive Channel
4. SCC1 Transmit Channel
5. SCC2 Receive Channel
6. SCC2 Transmit Channel
7. SCC3 Receive Channel
8. SCC3 Transmit Channel
9. SMC1 Receive Channel
10. SMC1 Transmit Channel
11. SMC2 Receive Channel
12. SMC2 Transmit Channel
13. SCP Receive Channel
14. SCP Transmit Channel
4.2 COMMAND SET
The external processor issues commands to the CP by writing to the CP Command Register
(CR). Only one CR exists on the SC302. The host should set the least significant bit (FLG)
of the CR when it issues commands. The CP clears FLG after completing the command to
indicate to the host that it is ready for the next command. Subsequent commands to the CR
may be given only after FLG is cleared. The software reset (issued with the RST bit)
command may be given regardless of the state of FLG, but the host should still set FLG
when setting RST.
The CR, an 8-bit, memory-mapped, read-write register, is cleared by reset.
Command Register (CR)
15
14
RST
GCI
0
0
13
$861
12
11
OPCODE
—
CH. NUM.
0
0
0
0
10
9
0
8
FLG
0
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor,Communications
Inc.
Processor (CP)
GCI-OPCODE—GCI Commands and Command Opcodes
When the GCI bit is zero, the commands are as follows:
Freescale Semiconductor, Inc...
OPCODE—Command Opcode
These bits are set by the host to define the specific SCC command. The precise meaning
of each command below depends on the protocol chosen.
00 = STOP TRANSMIT Command
01 = RESTART TRANSMIT Command
10 = ENTER HUNT MODE Command
11 = INITIALIZE RX Command
When GCI is set in conjunction with the opcode bits, the two GCI commands (ABORT REQUEST and TIMEOUT) are generated. The accompanying CH. NUM. bits should be 10,
and FLG should be set.
OPCODE—Command Opcode (GCI Mode Only)
These bits are set by the host to define the specific GCI command.
00 = TRANSMIT ABORT REQUEST; the GCI receiver sends an abort request on the
A bit.
01 = TIMEOUT Command
10 = Reserved
11 = Reserved
Bit 3—Reserved bit; should be set to zero.
CH. NUM.—Channel Number
These bits are set by the host to define the specific SCC channel that the command is to
operate upon.
00 = Reserved
01 = SCC1
10 = SCC2
11 = SCC3
FLG—Command Semaphore Flag
The bit is set by the host and cleared by the CP.
0 = The CP is ready to receive a new command.
1 = The CR contains a command that the CP is currently processing. The CP clears
this bit at the end of command execution. Note that the execution of the STOP
TRANSMIT or RESTART TRANSMIT commands may not affect the TXD pin until
many clocks after the FLG bit is cleared by the CP, due to the transmit FIFO
latency.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Communications ProcessorFreescale
(CP)
Semiconductor, Inc.
4.2.1 Command Execution Latency
Commands are executed at a priority higher than the SCCs. The longest command, the ENTER HUNT MODE command, executes in 41 clocks. All other commands execute in less
than 20 clocks. The maximum command latency is calculated as follows:
• Command execution time (41 or 20) + (165 clocks if any SCC is enabled with
Transparent or 0).
4.3 SERIAL CHANNELS PHYSICAL INTERFACE
The serial channels physical interface joins the physical layer serial lines to the three SCCs
and the two SMCs.
Freescale Semiconductor, Inc...
The SC302 supports four different external physical interfaces from the SCCs:
1. NMSI—Nonmultiplexed Serial Interface
2. PCM—Pulse Code Modulation Highway
3. IDL—Interchip Digital Link
4. GCI—General Circuit Interface
The non-multiplexed serial interface (NMSI) is available for SCC2 and SCC3. It consists of
four signals: TXD, CLKTx, RXD and CLKRx. No modem signals are supported for that SCC.
The SCC clocking may be external, using the CLKRx and CLKTx pins, the baud rate
generator output or from the CODEC interface clocking circuit. SCC2 pins are multiplexed
with parallel I/O pins. The user may choose which NMSI pins are used by SCC2 and which
are used as parallel I/O.
The other three physical interfaces, PCM, IDL, and GCI here are called multiplexed
interfaces since they allow data from one, two, or all three SCCs to be time multiplexed
together on the same pins. Note that if a multiplexed mode is chosen, SCC1 must use that
mode since the three multiplexed modes share pins with SCC1.
The PCM highway interface is a flexible time-division multiplexed interface. It allows the
SC302 to connect to popular time-slot interfaces such as T1 and CEPT as well as userdefined time-slot interfaces.
The IDL and GCI (IOM-2) interfaces are used to connect to semiconductor devices that
support Integrated Services Digital Network (ISDN). IDL and GCI allow the SC302 to
communicate over any of the 2B + D ISDN basic rate channels.
When using the IDL or GCI buses, additional control functions in the frame structure are
required. These functions are supported in the SC302 through two SMC channels: SMC1
and SMC2.
The serial interface also supports two testing modes: echo and loopback. Echo mode
provides a return signal from the physical interface by retransmitting the signal it has
received. The physical interface echo mode differs from the individual SCC echo mode in
that it can operate on the entire multiplexed signal rather than just on a particular SCC
channel (which may further have particular bits masked). Loopback mode causes the
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor,Communications
Inc.
Processor (CP)
physical interface to receive the same signal it is transmitting. The physical interface
loopback mode checks more than the individual SCC loopback mode; it checks the physical
interface and the internal channel routes.
Refer to Figure 4-1 for the serial channels physical interface block diagram.
DATA BUS
SIMASK
MASK REGISTER
TO SMC2
TO SCC1
TO SCC2
MUX
MUX
TO SCC3
CLOCKS
RTS
TIME-SLOT
ASSIGNER
L1SYNC,
PSYNC
L1RQ
L1GRNT
L1RXD
LAYER-1 BUS
INTERFACE
L1CLK
CTS
RXD
TXD
PHYSICAL INTERFACE BUS
L1TXD
Freescale Semiconductor, Inc...
TO SMC1
SIMODE
MODE REGISTER
SCC2
ISDN INTERFACE OR SCC1
Figure 4-1. Serial Channels Physical Interface Block Diagram
4.3.1 IDL Interface
The IDL interface is a full-duplex ISDN interface used to interconnect a physical layer device
(such as the Motorola ISDN S/T transceiver MC145474 or MC145574 and ISDN U
MC145472 or MC145572) to the SC302. Data on five channels (B1, B2, D, A, and M) is
transferred in a 20-bit frame every 125 µs, providing 160-kbps full-duplex bandwidth. The
SC302 is an IDL slave device that is clocked by the IDL bus master (physical layer device).
The SC302 provides direct connections to the MC145472, MC145572, MC145474 and
MC145574.
NOTE
The SC302 supports 10-bit IDL; it does not support 8-bit IDL.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Communications ProcessorFreescale
(CP)
Semiconductor, Inc.
An application of the IDL interface is to build a basic rate ISDN terminal adaptor. In such an
application, the IDL interface is used to connect the 2B + D channels between the SC302,
CODEC, and S/T or U transceivers. One of the SC302 SCCs would be configured to HDLC
mode to handle the D channel; another SC302 SCC would be used to rate adapt the PC
data stream over the B channel. The second B channel could be routed to the CODEC as a
digital voice channel, if desired. The SCP is used to send initialization commands and
periodically check status from the S/T or U transceivers.
The SC302 has two output data strobe lines (SDS1 and SDS2) for selecting either or both
the B1 and B2 channels. These signals are used for interfacing devices that do not support
the IDL bus. These signals, configured by the SIMASK register, are active only for bits that
are not masked.
Freescale Semiconductor, Inc...
The IDL signals are as follows:
L1CLK
IDL clock; input to the SC302.
L1TXD
L1RXD
L1SYNC
L1RQ
L1GRNT
SDS1
SDS2
IDL transmit data; output from the SC302. Valid only for the bits
that are supported by the IDL; three-stated otherwise.
IDL receive data; input to the SC302. Valid for the 20 bits of the
IDL; ignored for other signals that may be present.
IDL SYNC signal; input to the SC302. This signal indicates that
the 20 clock periods following the pulse designate the IDL frame.
Request permission to transmit on the D channel; output from the
SC302.
Grant permission to transmit on the D channel; input to the
SC302.
Serial data strobe 1; output from the SC302.
Serial data strobe 2; output from the SC302.
NOTE
The IDL bus signals, L1TXD and L1RXD, require pull-up
resistors in order to insure proper operation with transceivers.
In addition to the 144-kbps ISDN 2B + D channels, IDL provides channels for maintenance
and auxiliary bandwidth. The IDL bus has five channels:
B1
B2
D
M
A
64-kbps Bearer Channel
64-kbps Bearer Channel
16-kbps Signaling Channel
8-kbps Maintenance Channel (not required by IDL and not supported by the SC302)
8-kbps Auxiliary Channel (not required by IDL and not supported
by the SC302)
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor,Communications
Inc.
Processor (CP)
Freescale Semiconductor, Inc...
The SC302 supports the 2B+D channels of the IDL bus. The following table shows where
each channel can be routed. The two B channels can be concatenated and routed to the
same SCC channel.
IDL CHANNEL
SERIAL CONTROLLERS
D
B1
B2
SCC1, SCC2, SCC3
SCC1, SCC2, SCC3
SCC1, SCC2, SCC3
The SC302 supports the request-grant method for contention detection on the D channel.
When the SC302 has data to transmit on the D channel, it asserts L1RQ. The physical layer
device monitors the physical layer bus for activity on the D channel and indicates that the
channel is free by asserting L1GRNT. The SC302 samples the L1GRNT signal when
L1SYNC is asserted. If L1GRNT is high (active), the SC302 transmits the first zero of the
opening flag in the first bit of the D channel. If a collision is detected on the D channel, the
physical layer device negates L1GRNT. The SC302 then stops its transmission and
retransmits the frame when L1GRNT is asserted again. This is handled automatically for the
first two buffers of the frame.
The IDL interface supports the CCITT I.460 recommendation for data rate adaptation. The
IDL interface can access each bit of the B channel as an 8-kbps channel. A serial interface
mask register (SIMASK) for the B channels specifies which bits are supported by the IDL
interface. The receiver will support only the bits enabled by SIMASK. The transmitter will
transmit only the bits enabled by the mask register and will three-state L1TXD otherwise.
4.3.2 GCI Interface
The normal mode of the GCI (also known as ISDN-Oriented Modular rev 2.2 (IOM2)) ISDN
bus is fully supported by the SC302. The SC302 also supports channel 0 of the Special
Circuit Interface T (SCIT) interface, and in channel 2 of SCIT, supports the D channel access
control for S/T interface terminals, using the command/indication (C/I) field. The SC302
does not support the Telecom IC (TIC) bus.
The GCI bus consists of four lines: two data lines, a clock, and a frame synchronization line.
Usually an 8-kHz frame structure defines the various channels within the 256-kbps data rate.
However, the interface can also be used in a multiplexed frame structure on which up to
eight physical layer devices multiplex their GCI channels. L1SYNC must provide the
channel synchronization. In this mode, the data rate would be 2048 kbps.
The GCI clock rate is twice the data rate. The clock rate for the SC302 must not exceed the
ratio of 1:2.5 serial clock to parallel clock. Thus, for a 20.48MHz system clock, the serial
clock rate must not exceed 8.19MHz.
The SC302 also supports another line for D-channel access control—the L1GRNT line. This
signal is not part of the GCI interface definition and may be used in proprietary interfaces.
NOTE
When the L1GRNT line is not used, it should be pulled high.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Communications ProcessorFreescale
(CP)
Semiconductor, Inc.
The SC302 has two data strobe lines (SDS1 and SDS2) for selecting either or both of the
B1 and B2 channels and the data rate clock (L1CLK). These signals are used for interfacing
devices that do not support the GCI bus. They are configured with the SIMASK register and
are active only for bits that are not masked.
The GCI signals are as follows:
L1CLK
L1TXD
L1RXD
L1SYNC
SDS1
SDS2
GCI clock; input to the SC302.
GCI transmit data; open drain output.
GCI receive data; input to the SC302.
GCI SYNC signal; input to the SC302.
Grant permission to transmit on the D channel; input to the
SC302.
Serial data strobe 1; output from the SC302.
Serial data strobe 2; output from the SC302.
GCIDCL
GCI interface data clock; output from the SC302.
Freescale Semiconductor, Inc...
L1GRNT
NOTE
The GCI bus signals, L1TXD and L1RXD, require pull-up
resistors in order to insure proper operation with transceivers.
The GCI bus has five channels. In addition to the 144-kbps ISDN 2B + D channels, GCI
provides two channels for maintenance and control functions:
B1
B2
M
D
C/I, A, E
64-kbps Bearer Channel (8 bits)
64-kbps Bearer Channel (8 bits)
64-kbps Monitor Channel (8 bits)
16-kbps Signaling Channel (2 bits)
48-kbps Command/Indication Channel (6 bits)
The monitor channel is used to transfer data between layer-1 devices and the control unit
(i.e., the host). The command/indication channel is used to control activation/deactivation
procedures or for the switching of test loops by the control unit.
The SC302 supports all five channels of the GCI channel 0. The following table shows where
each channel can be routed. The two B channels can be concatenated and routed to the
same SCC channel.
GCI CHANNEL 0 SERIAL CONTROLLERS
D
B1
B2
M
C/I
SCC1, SCC2, SCC3
SCC1, SCC2, SCC3
SCC1, SCC2, SCC3
SMC1
SMC2
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor,Communications
Inc.
Processor (CP)
Freescale Semiconductor, Inc...
The GCI interface supports the CCITT I.460 recommendation for data rate adaptation. The
GCI interface can access each bit of the B channel as an 8-kbps channel. The mask register
(SIMASK) for the B channels specifies which bits are supported by the GCI interface. The
receiver will receive only the bits that are enabled by SIMASK; the transmitter will transmit
only the bits that are enabled by SIMASK and will not drive the L1TXD pin otherwise (L1TXD
in GCI mode is an open-drain output).
The SC302 supports contention detection on the D channel. When the SC302 has data to
transmit on the D channel, it checks bit 4 of the SCIT C/I channel 2. The physical layer
device monitors the physical layer bus for activity on the D channel and indicates with this
bit that the channel is free. If a collision is detected on the D channel, the physical layer
device sets bit 4 of C/I channel 2 to logic high. The SC302 then aborts its transmission and
retransmits the frame when this bit is asserted again. This procedure is handled
automatically for the first two buffers of a frame. The L1GRNT line may also be used for
access to the S interface D channel. This signal is checked by the SC302, and the physical
layer device should indicate that the S interface D channel is free by asserting L1GRNT.
In the deactivated state, the clock pulse is disabled, and the data line is a logic one. The
layer-1 device activates the SC302 by enabling the clock pulses and by an indication in the
channel 0 C/I channel. The SC302 will then report to the host by a maskable interrupt that
a valid indication is in the SMC2 receive buffer descriptor.
When the host activates the line, it sets SETZ in the serial interface mode (SIMODE)
register, causing the data output from L1TXD to become a logic zero. Code 0 (command
timing TIM) will be transmitted on channel 0 C/I channel to the layer-1 device until the SETZ
is reset. The physical layer device will resume transmitting the clock pulses and will give an
indication in the channel 0 C/I channel. The host should reset SETZ to enable data output.
4.3.3 PCM Highway Mode
In PCM highway mode, one, two, or all three SCCs can be multiplexed together to support
various time-division multiplexed interfaces. PCM highway supports the standard T1 and
CEPT interfaces as well as user-defined interfaces. In this mode, the ISDN pins have new
names and functions (see Table 4-1).
Table 4-1. ISDN Pin Functions in PCM Highway Mode
SIGNAL
L1RXD
DEFINITION
FUNCTION
Receive Data
Input
L1TXD
Transmit Data
Output
L1CLK
Receive and Transmit Clock
Input
L1SYNC
Sync Signal 0
Input
PSYNC
Sync Signal 1
Input
L1RQ
SCC1 Request-to-Send Signals
Outputs
L1CLK is always an input to the SC302 in PCM highway mode and is used as both a receive
and transmit clock. Thus, data is transmitted and received simultaneously in PCM highway
mode. (If receive data needs to be clocked into the SC302 at a different time or speed than
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Communications ProcessorFreescale
(CP)
Semiconductor, Inc.
transmit data is being clocked out, then NMSI mode should be used instead of PCM
highway.)
The two sync signals, L1SYNC and PSYNC, are also inputs to the SC302. They select one
of three PCM channels to which data is routed or select no channel (see Table 4-2).
Freescale Semiconductor, Inc...
Table 4-2. Sync Signal Functions in PCM Highway Mode
L1SYNC
PSYNC
SELECTION
0
0
No Channel Selected
0
1
PCM Channel 1 Selected
1
0
PCM Channel 2 Selected
1
1
PCM Channel 3 Selected
A PCM channel is not an SCC channel. A PCM channel is an intermediate internal channel
that can be routed to any SCC, as selected in the SIMODE register. This extra layer of
indirection keeps the hardware (which must generate L1SYNC and PSYNC signals
externally) from having to be modified if a change in the SCC data routing is required.
The routing of each channel is determined in the SIMODE register by the DRB-DRA bits for
channel 1, the B1RB–B1RA bits for channel 2, and the B2RB–B2RA bits for channel 3. Once
the routing of a PCM channel is selected, data is transmitted from the selected SCC
transmitter over the physical interface using the L1CLK pin. At the same time, data is
received from the physical interface and routed to the selected SCC receiver. When no sync
is asserted, the L1TXD pin is three-stated, and the L1RXD pin is ignored.
Two different methods exist for using the L1SYNC–PSYNC pins: one-clock-prior mode and
envelope mode (see Figure 4-2). In one-clock-prior mode, the sync signals should go active
for a single clock period prior to an 8-bit time slot. In envelope mode, the sync signals should
go active on the first bit of the time slot and stay active the entire time slot. The envelope
mode is more general, allowing a time slot to be from one to N bits long.
An example of the use of the L1SYNC and PSYNC sync signals in the envelope mode is
shown in Figure 4-3. The three PCM channels defined in the figure show some of the
flexibility available in the PCM highway envelope mode. As shown, PCM channel time slots
do not have to be contiguous in the PCM highway, but rather can be separated by other time
slots. Also, PCM channel time slots need not be an even multiple of eight bits in envelope
mode. Although not shown in the figure, it is also possible to route multiple PCM channels
to a single SCC, causing the SCC to process one higher speed data stream.
The PCM highway interface also supports the RTS signal for SCC1. It will be asserted when
SCC1 desires to transmit over the PCM highway and will stay asserted until the entire frame
is transmitted (regardless of how many time slots that takes).
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor,Communications
Inc.
Processor (CP)
1 CLOCK
CYCLE SYNC PRIOR
PSYNC
L1SYNC
8-BIT ENVELOPE
PSYNC
Freescale Semiconductor, Inc...
L1SYNC
DATA ROUTING
CH-1
CH-2
CH-3
Figure 4-2. Two PCM Sync Methods
1
L1TXD
L1RXD
2
3
4
5
6
7
8
9
24 OR 32
8 BITS 8 BITS 8 BITS
8 BITS
L1CLK
(CLOCK NOT TO SCALE)
PSYNC
L1SYNC
PCM CHANNEL 3 CONTAINS 10
BITS AND CAN BE ROUTED TO
ANY SCC.
PCM CHANNEL 2 CONTAINS TWO 8-BIT TIME
SLOTS AND CAN BE ROUTED TO ANY SCC.
PCM CHANNEL 1 CONTAINS 8 BITS
AND CAN BE ROUTED TO ANY SCC.
NOTE: Whenever the syncs are active, data from that SCC is transmitted and received using L1CLK edges.
Figure 4-3. PCM Channel Assignment on a T1/CEPT Line
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Communications ProcessorFreescale
(CP)
Semiconductor, Inc.
4.3.4 Nonmultiplexed Serial Interface (NMSI)
The SC302 supports the NMSI mode for SCC2/3. In this case, the serial interface connects
the serial lines of the NMSI interface (RXD, TXD, CLKRx and CLKTx) directly to the SCC2/
3 controller. These pins can be used as desired or left as general-purpose I/O port pins.
4.4 SERIAL INTERFACE REGISTERS
There are two serial interface registers: SIMODE and SIMASK. The SIMODE register is a
16-bit register used to define the serial interface operation modes. The SIMASK register is
a 16-bit register used to determine which bits are active in the B1 and B2 channels of ISDN.
Freescale Semiconductor, Inc...
4.4.1 Serial Interface Mode Register (SIMODE)
If the IDL or GCI mode is used, this register allows the user to support any or all of the ISDN
channels independently. An extra SCC channel can then be used for other purposes in
NMSI mode. The SIMODE register is a memory-mapped read-write register cleared by
reset.
Serial Interface Mode Register (SIMODE)
15
14
13
12
11
10
9
$8B4
8
7
6
SYNC
SETZ
SDIAG1 SDIAG0 SDC2 SDC1 B2RB B2RA B1RB B1RA
/SCIT
0
0
0
0
0
0
0
0
0
0
5
4
3
2
1
0
DRB
DRA
MSC3
MSC2
MS1
MS0
0
0
0
0
0
0
SETZ—Set L1TXD to Zero (valid only for the GCI interface)
0 = Normal operation
1 = L1TXD output set to a logic zero (used in GCI activation, refer to 4.3.2 GCI
Interface)
SYNC/SCIT—SYNC Mode/SCIT Select Support
SYNC is valid in PCM mode.
0 = One pulse wide prior to the 8-bit data.
1 = N pulses wide and envelopes the N-bit data.
The SCIT (Special Circuit Interface T) interface mode is valid only in GCI mode.
0 = SCIT support disabled
1 = SCIT D-channel collision enabled. Bit 4 of channel 2 C/I used by the SC302 for
receiving indication on the availability of the S interface D channel.
SDIAG1–SDIAG0—Serial Interface Diagnostic Mode (NMSI Pins Only)
00 = Normal operation
01 = Automatic echo
The channel automatically retransmits the received data on a bit-by-bit basis. The
receiver operates normally, but the transmitter can only retransmit received data.
In this mode, L1GRNT is ignored.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor,Communications
Inc.
Processor (CP)
Freescale Semiconductor, Inc...
10 = Internal loopback
The transmitter output (L1TXD) is internally connected to the receiver input
(L1RXD). The receiver and the transmitter operate normally. Transmitted data
appears on the L1TXD pin, and any external data received on L1RXD pin is
ignored. In this mode, L1RQ is asserted normally, and L1GRNT is ignored.
11 = Loopback control
In this mode, the transmitter output (L1TXD) is internally connected to the receiver
input (L1RXD). The L1TXD and TXD pins will be high, but L1TXD will be threestated in IDL mode. This mode may be used to accomplish multiplex mode
loopback testing without affecting the multiplexed layer 1 interface. It also
prevents an SCC's individual loopback (configured in the SCM) from affecting the
pins of its associated NMSI interface.
SDC2—Serial Data Strobe Control 2
0 = SDS2 signal is asserted during the B2 channel
1 = SDS1 signal is asserted during the B2 channel
SDC1—Serial Data Strobe Control 1
0 = SDS1 signal is asserted during the B1 channel
1 = SDS2 signal is asserted during the B1 channel
B2RB, B2RA—B2 Channel Route in IDL/GCI Mode
00 = Channel not supported
01 = Route channel to SCC1
10 = Route channel to SCC2 (if MSC2 is cleared)
11 = Route channel to SCC3 (if MSC3 is cleared)
B1RB, B1RA—B1 Channel Route in IDL/GCI Mode
00 = Channel not supported
01 = Route channel to SCC1
10 = Route channel to SCC2 (if MSC2 is cleared)
11 = Route channel to SCC3 (if MSC3 is cleared)
DRB, DRA—D-Channel Route in IDL/GCI Mode
00 = Channel not supported
01 = Route channel to SCC1
10 = Route channel to SCC2 (if MSC2 is cleared)
11 = Route channel to SCC3 (if MSC3 is cleared)
MSC3—SCC3 Connection
0 = SCC3 is connected to the multiplexed serial interface (IDL, or GCI) chosen in MS1–
MS0. NMSI pins are all available for other purposes.
1 = SCC3 is not connected to a multiplexed serial interface but is either connected
directly to the NMSI pins or not used. The choice of general-purpose I/O port pins
versus SCC3 functions is made in the port A registers.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Communications ProcessorFreescale
(CP)
Semiconductor, Inc.
MSC2—SCC2 Connection
0 = SCC2 is connected to the multiplexed serial interface (IDL, or GCI) chosen in MS1–
MS0. NMSI pins are all available for other purposes.
1 = SCC2 is not connected to a multiplexed serial interface but is either connected
directly to the NMSI pins or not used. The choice of general-purpose I/O port pins
versus SCC2 functions is made in the port A registers.
Freescale Semiconductor, Inc...
NOTE
The MSC2 and MSC3 bits should not be set simultaneously
MS1-MS0—Mode Supported
00 = SI Disable Mode
When the SI is disabled, it is not connected to the ISDN pins but SCC1 is
connected directly to the ISDN pins. In that case SCC1 should not be used. SCC2
functions can be routed to port A as NMSI functions or configured instead as
general purpose I/O pins.
In SI Disabled mode, the MSC2 or MSC3 bit must be set if SCC2 or SCC3 is
connected to the NMSI pins. The choice of general-purpose I/O port pins versus
SCC2 functions is made in the port A registers.
01 = PCM Mode
When working in PCM mode, each of the three multiplexed channels CH-1, CH2, and CH-3 can be routed independently to each of the three SCCs. This
connection is determined by the DRB, DRA, B1RB, B1RA, B2RB, and B2RA bits.
SCC2/3 can be connected directly to its NMSI pins (if they are not needed for the
PCM channels) as determined by the MSC2/3 bits. The MSC2/3 bit override the
PCM routing for SCC2/3.
10 = IDL Mode
When working in IDL/GCI mode, each ISDN channel (D, B1, and B2) can be
routed independently to each of the three SCCs. This connection is determined
by the DRB, DRA, B1RB, B1RA, B2RB, and B2RA bits. SCC2/3 can be
connected directly to its respective NMSI pins (if they are not needed for ISDN
channels) determined by the MSC2/3 bit.
11 = GCI Interface
Refer to the GCI mode description.
4.4.2 Serial Interface Mask Register (SIMASK)
The SIMASK register, a memory-mapped read-write register, is set to all ones by reset.
SIMASK is used in IDL and GCI to determine which bits are active in the B1 and B2
channels. Any combination of bits may be chosen. A bit set to zero is not used by the SC302.
A bit set to one signifies that the corresponding B channel bit is used for transmission and
reception on the B channel. Note that the serial data strobes, SDS1 and SDS2, are asserted
for the entire 8-bit time slot independent of the setting of the bits in the SIMASK register
Serial Interface Mask Register (SIMASK)
15
14
13
12
11
10
9
8
$8B2
7
6
5
4
B2
0
0
0
0
3
2
1
0
0
0
0
0
B1
0
0
0
0
0
0
0
0
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor,Communications
Inc.
Processor (CP)
NOTE
Bit 0 of this register is the first bit transmitted or received on the
IDL/GCI B1 channel.
4.5 SERIAL COMMUNICATION CONTROLLERS (SCC)
Freescale Semiconductor, Inc...
The SC302 contains three independent SCCs each of which can implement different
protocols. Each protocol-type implementation uses identical buffer structures to simplify
programming. Each protocol can be implemented with IDL, GCI, PCM, or NMSI physical
layer interfaces (see Serial Channels Physical Interface on page 4) and can be configured
to operate in either echo or loopback mode. Echo mode provides a return signal from an
SCC by retransmitting the received signal. Loopback mode is a local feedback connection
allowing an SCC to receive the signal it is transmitting. (Echo and loopback mode for
multiplexed interfaces are discussed in 4.3 Serial Channels Physical Interface).
The RISC controller transfers data between the SCCs and the on-chip dual-port RAM. This
function is transparent to the user, being enabled and controlled according to the
configuration of each SCC channel.
SCC2 can be clocked by either an external source (with the clock pins RCLK or TCLK) or
by an internal source through a baud rate generator for each SCC channel. The baud rate
generator derives its clock from the main SC302 clock. The SCC transmitter and receiver
sections are independent and may be clocked at different rates.
The SCC clocks must not exceed a ratio of 1:2.5 serial clock (RCLK or TCLK) to parallel
clock (EXTAL). Thus, for a 20.48MHz system clock frequency, the serial clock must not
exceed 8.19MHz.
To provide modem serial output lines, the user must define I/O port pins as outputs in the
port data direction register and write to the port A/B data register to cause the state of the
pin to change.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Communications ProcessorFreescale
(CP)
Semiconductor, Inc.
SYSTEM BUS
SCC STATUS
REGISTER
SCC EVENT
REGISTER
SCC MODE
REGISTER
SCC MASK
REGISTER
Freescale Semiconductor, Inc...
PERIPHERAL BUS
DATA
REGISTER
DATA
REGISTER
RECEIVER
CONTROL
TRANSMITTER
CONTROL
DELIMITER
SHIFTER
SHIFTER
RXD
TXD
Figure 4-4. SCC Block Diagram
4.5.1 SCC Features
Each SCC channel has the following features:
• HDLC or Transparent Modes
• Full-Duplex Operation
• Echo Mode
• Local Loopback Mode
4.5.2 SCC Mode Register (SCM)
Each SCC has a mode register. The functions of bits 5–0 are common to each mode. The
function of the specific mode bits varies according to the mode selected by the MODE bit.
They are described in the relevant sections for each mode. Each SCM is a 16-bit, memorymapped, read-write register. The SCMs are cleared by reset.
SCC1, SCC2, SCC3 Mode Register (SCM1, SCM2, SCM3)
15
14
13
NOF3 NOF2 NOF1
0
0
0
$884, $894,$8A4
12
11
10
9
8
7
6
5
4
3
2
1
0
NOF0
C32
FSE
RVD
RTE
FLG
ENC
DIAG1
DIAG0
ENR
ENT
0
MODE
0
0
0
0
0
0
0
0
0
0
0
0
0
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor,Communications
Inc.
Processor (CP)
NOF3–NOF0—One’s Complement of the Number of Flags between Frames or before
Frames (0 to 15 Flags)
If NOF3–NOF0 = 1111, then no flags will be inserted between frames. Thus, the closing
flag of one frame will be followed immediately by the opening flag of the next frame in the
case of back-to-back frames.
Freescale Semiconductor, Inc...
C32—CRC16/CRC32
0 = 16-bit CCITT CRC
1 = 32-bit CCITT CRC
FSE—Flag Sharing Enable
0 = Normal operation
1 = If NOF3–NOF0 = 0000, then a single shared flag is transmitted between back-toback frames. Other values of NOF3–NOF0 are decremented by one when FSE is
set.
RVD—Reverse Data.
When this bit is set, the receiver and transmitter will reverse the character bit order, transmitting the most significant bit first. In HDLC mode this bit should be zero.
RTE—Retransmit Enable
0 = No automatic retransmission will be performed.
1 = Automatic retransmit enabled
Automatic retransmission occurs if the grant was negated on the first or second buffer of
the frame. This bit should be set to zero in transparent mode.
FLG—Transmit Flags/Idles between Frames
0 = Send ones between frames. L1RQ is negated between frames. If NOF3–NOF0 is
greater than zero, L1RQ will be nega
ted for a multiple of eight transmit clocks. The HDLC controller can transmit ones
in both the NRZ and NRZI data encoding formats. The CP polls the Tx BD ready
bit every 16 transmit clocks.
1 = Send flags between frames. L1RQ is always asserted. The CP polls the Tx BD
ready bit every eight transmit clocks.
NOTE
This bit may be dynamically modified. If toggled from a one to a
zero between frames, a maximum of two additional flags will be
transmitted before the idle condition will begin. Toggling FLG will
never result in partial flags being transmitted.
ENC—Data Encoding Format
0 = Non-return to zero (NRZ). A one is a high level; a zero is a low level.
1 = Non-return to zero inverted (NRZI). A one is represented by no change in the level;
a zero is represented by a change in the level. The receiver decodes NRZI, but a
clock must be supplied. The transmitter encodes NRZI. During an idle condition,
with the FLG bit cleared, the line will be forced to a high state.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc...
Communications ProcessorFreescale
(CP)
Semiconductor, Inc.
DIAG1–DIAG0—Diagnostic Mode
00 = Normal operation
When the SCC is used for the D-channel, request/grant mechanism is supported.
Otherwise, reception and transmission are always enabled.
01 = Loopback mode
In this mode, the transmitter output is internally connected to the receiver input
while the receiver and the transmitter operate normally.
10 = Automatic echo
In this mode, the channel automatically retransmits the received data on a bit-bybit basis. The receiver operates normally, but the transmitter simply retransmits
the received data. The data is echoed out the TXD pin with a few nanosecond
delay from RXD. No transmit clock is required, and the ENT bit in the SCC mode
register does not have to be set.
11 = Software operation
In this mode, the GRANT is just input to the SCC event (SCCE) and status
(SCCS) registers. The SCC controller does not use this line to enable/disable
transmission, but leaves low (i.e., active) in this mode.
ENR—Enable Receiver
When ENR is set, the receiver is enabled. When it is cleared, the receiver is disabled, and
any data in the receive FIFO is lost. If ENR is cleared during data reception, the receiver
aborts the current character. ENR may be set or cleared regardless of whether serial
clocks are present. To restart reception, the ENTER HUNT MODE command should be
issued before ENR is set again.
ENT—Enable Transmitter
When ENT is set, the transmitter is enabled; when ENT is cleared, the transmitter is disabled. If ENT is cleared, the transmitter will abort any data transmission, clear the transmit
data FIFO and shift register, and force the TXD line high (idle). Data already in the transmit shift register will not be transmitted. ENT may be set or cleared regardless of whether
serial clocks are present.
The STOP TRANSMIT command additionally aborts the current frame and would normally be given to the channel before clearing ENT. The command does not clear ENT automatically. In a similar manner, to restart transmission, the user should issue the
RESTART TRANSMIT command and then set ENT. The specific actions taken with each
command vary somewhat according to protocol and are discussed in each protocol section.
MODE—Channel Mode
0 = HDLC
1 = Totally Transparent
4.5.3 SCC Transmit Buffer Descriptors
Data associated with each SCC channel is stored in buffers, which can be located anywhere
inside the internal RAM. Each buffer is referenced by a BD, which also may be located
anywhere in internal RAM.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor,Communications
Inc.
Processor (CP)
The BD table forms a circular queue with a programmable length. The user can program the
start address of each transmit channel BD table in the internal memory. The user is allowed
to allocate the parameter area of an unused channel to the other used channels as BD
tables or as actual buffers.
The format of the transmit BDs is the same for each SCC mode of operation - HDLC and
Transparent. The first word in each BD determines the data length referenced to this BD and
contains status and control bits. Only this field (containing the status and control bits) differs
for each protocol. The second word in the BD contain the 16-bit address pointer that points
to the actual buffer in memory.
15
0
Freescale Semiconductor, Inc...
STATUS and CONTROL
DATA LENGTH
DATA BUFFER POINTER
OFFSET + 0
OFFSET + 2
Figure 4-5. Transmit BD
For frame-oriented protocols, a message may reside in as many buffers as necessary. The
CP does not assume that all buffers of a single frame are currently linked to the BD table; it
does assume, however, that the unlinked buffers will be provided by the host in time to be
transmitted. Failure to do so will result in an underrun error being reported by the CP.
The CP processes the transmit BDs in a straightforward fashion. Once the transmit side of
an SCC is enabled, it starts with the first BD in that SCC's transmit BD table, periodically
checking a bit to see if that BD is “ready”. Once it is ready, it will process that BD, reading a
word at a time from its associated buffer, doing certain required protocol processing on the
data, and moving resultant data to the SCC transmit FIFO. When the first buffer has been
processed, the CP moves on to the next BD, again waiting for that BD's “ready” bit to be set.
Thus, the CP does no look-ahead BD processing, nor does it skip over BDs that are not
ready. When the CP sees the “wrap” bit set in a BD, it goes back to the beginning of the BD
table, after processing of this BD is complete. After using a BD, the CP sets the “ready” bit
to not-ready; thus, the CP will never use a BD twice until the BD has been confirmed by the
host.
4.5.4 SCC Receive Buffer Descriptors
For each SCC, the user can allocate a memory chunk in the Dual Port RAM, with a
programmable length. This chunk will include the receive BDs and the receive buffers.
Each BD is followed by its buffer, and the next BD is written right after that when opened, so
there is no wasted space when buffers are closed earlier then expected, or when buffers are
not used.
15
0
STATUS and CONTROL
DATA LENGTH
Figure 4-7. Receive BD
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
OFFSET + 0
Communications ProcessorFreescale
(CP)
Semiconductor, Inc.
Dual Port RAM
SCC1 Tx Buffers
Descriptors
Table Pointer
Freescale Semiconductor, Inc...
Tx Data Buffer
Tx Buffer Descriptors
SCC1 Tx Buffers
Descriptors
Table
Frame Status
Data Length
Data Pointer
Figure 4-6. SCC Transmit Memory Structure
The RISC fills the RAM and closes the buffer if a frame was completely received or if the
maximum receive buffer length (MRBLR) was exceeded. When closing the buffer, the RISC
writes the length of the buffer, sets the status bits, sets the E bit in the word following the
buffer (the next BD), and resets the E bit in the current BD.
The RISC can generate an interrupt request in the SCC Event Register (SCCE) whenever
the number of valid bytes in the chunk exceeds the interrupt threshold (RTH). The RISC
does not close a buffer when it reaches the interrupt threshold. The host can read data only
from buffers that were closed, i.e., with E=0.
In HDLC mode an interrupt can be generated after each Frame Reception (RXF in SCCE).
In transparent mode an interrupt is generated after each buffer reception.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor,Communications
Inc.
Processor (CP)
The RISC can set the BSY interrupt when it has no place to write new data, or when it has
no place to open a new BD for new incoming data. When BSY is set, the RISC stops
receiving new data from the SCC. The user can read from the RAM the data received until
the busy condition occurred. The host should then give the INITIALIZE RX command to the
CR. This command initializes the PRAM receive section, clears the SCC Rx memory chunk
and forces the SCC to enter the hunt mode. The next HDLC frame will be written to the first
address in the Rx memory chunk.
Freescale Semiconductor, Inc...
The host holds a pointer to the first not handled buffer, RNH in SCCE. RNH is a pointer
which always points to the next BD to be handled by the CPU. Initially, after reset and before
SCC is enabled, the user must initialize RNH to the same value as RBASE, since the first
Rx BD will be located at the address pointed to by RBASE.
During interrupt request handling, the CPU updates RNH after reading an Rx data buffer. Its
new value is the address of the next BD to be handled by the CPU. It is computed by adding
the length of the previous data buffer to the previous RNH. When interrupted, the host
should check the E bit in this BD. If E=0, the host can read the buffer. After reading the
buffer, the host then checks the next BD. If E=0, it can read this buffer also, and so on. After
reading all the ready buffers, the host should update the CPU first not handled parameter to
point to the next BD, and clear the RTH/TO bit in the SCC event register.
While reading the ready buffers, the host may update the CPU first not handled parameter
to point where it has not read yet. This will free a space for the RISC, and reduce the chance
of a BSY condition. (The CPU first not handled parameter should always be even.)
In the HDLC mode, there could be a case where a frame is received, and after that, flags/
idles or frames without address match are not received for a long time. If the number of bytes
in the chunk is less than RTH, and the RXF bit of the event register is masked, the host will
not be interrupted. To solve this problem a time-out mechanism is used: The RISC counts
the number of octets (8 serial clocks) received in a channel. If this number exceeds the timeout parameter RTO and there is data in the RAM, it can generate an interrupt (TO) to the
host.
A BD always starts at an even address. If a buffer length is odd, the byte after the last buffer
byte is “garbage” and the next BD starts at the next even address. The host should consider
this when calculating the next BD address.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Semiconductor, Inc.
BD Status
Programmable Base
+
Data Length
DATA
AREA
BD Status
Data Length
Freescale Semiconductor, Inc...
DATA
AREA
BD Status
Data Length
DATA
AREA
Figure 4-8. Rx Channel Memory Chunk
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Programmable Length
Communications ProcessorFreescale
(CP)
Freescale Semiconductor,Communications
Inc.
Processor (CP)
4.5.5 SCC Parameter RAM
Table 4-3. SCC Parameter RAM
Freescale Semiconductor, Inc...
Address
Name
Width
Description
SCC Base #
RBASE
Word
Rx Base address
SCC Base +2 #
RLEN
Word
Rx Chunk Length
SCC Base +4 #
RTHRSH
Word
Rx Interrupt Threshold
SCC Base +6 #
RNH *
Word
CPU First Not Handled Rx BD
SCC Base +8 #
RTO
Word
Rx Time-out
SCC Base +A
RTOC
Word
Rx Time-out Counter
SCC Base +C #
MRBLR
Word
Maximum Rx Buffer Length
SCC Base +E
Word
Rx Internal Byte Count
SCC Base +10
Word
Rx Internal state
SCC Base +12 #
RCBD *
Word
Rx Current BD Pointer
SCC Base +14 #
RPTR *
Word
Rx Internal Data Pointer
SCC Base +16 #
TBASE
Word
Tx BD Base Address
SCC Base +18
Word
Tx Internal state
SCC Base +1A #
TBPTR *
Word
Tx BD Pointer
SCC Base +1C
Word
Reserved
SCC Base +1E
Word
Tx Internal Data Pointer
SCC Base +20
Word
Tx Internal Byte Count
SCC Base +22
Word
Tx Temp
SCC Base + 24 to SCC Base + 38 are protocol specific (HDLC or Transparent) parameter RAM
# Initialized by the user (host).
* should be initialized to TBASE/RBASe before enabling the SCC.
4.5.5.1 RX BD TABLE POINTER (RBASE). The RBASE is a pointer to the starting
location of the SCC receive chunk, which includes the receive buffer descriptors and the
receive buffers.
NOTE
RBASE and TBASE should always have an even value.
4.5.5.2 RX CHUNK LENGTH (RLEN). Length (in bytes) of the SCC receive chunk. It
should always have an even value.
4.5.5.3 RX INTERRUPT THRESHOLD (RTHRSH). Number of data bytes written before
an interrupt to the host can be generated. RTHRSH should be even, and less than RLEN.
4.5.5.4 CPU FIRST NOT HANDLED BD (RNH). The address of the first BD which is not
handled by CPU in its interrupt service routine.
4.5.5.5 RX TIME-OUT(RTO). If the actual number of octets received exceeds this number
and there is a valid data in the Rx chunk, an interrupt can be generated.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Communications ProcessorFreescale
(CP)
Semiconductor, Inc.
4.5.5.6 MAXIMUM RECEIVE BUFFER LENGTH REGISTER (MRBLR). Each SCC has
one MRBLR that is used to define the receive buffer length for that SCC. The MRBLR
defines the maximum number of bytes that the SC302 will write to a receive buffer on that
SCC before moving to the next buffer. The SC302 may write fewer bytes to the buffer than
MRBLR if a condition such as an error or end of frame occurs, but it will never write more
bytes than the MRBLR value.
The transmit buffers for an SCC are not affected in any way by the value programmed into
MRBLR. Transmit buffers may be individually chosen to have varying lengths, as needed.
The number of bytes to be transmitted is chosen by programming the data length field in the
Tx BD.
Freescale Semiconductor, Inc...
NOTE
The following requirements should be met on MRBLR, RTHRSH and RLEN:
• MRBLR should be even.
• 0xFE >= MRBLR > 0
• MRBLR <= RTHRSH -2
• RTHRSH should be even.
• RTHRSH <= RLEN -4
• RLEN should be even.
4.5.5.7 RX CURRENT BD (RCBD). A pointer to the current BD handled by the RISC.
4.5.5.8 TX BD TABLE POINTER (TBASE). TBASE defines the starting location in the
dual-port RAM for the set of BDs for transmit functions of the SCC. This provides a great
deal of flexibility in how BDs for an SCC are partitioned. By selecting TBASE entry for all
SCCs, and by setting the W-bit in the last BD in each BD list, the user may select how many
BDs to allocate for the transmit side of every SCC. The user must initialize these entries
before enabling the corresponding channel. Furthermore, the user should not configure BD
tables of two enabled SCCs to overlap, or erratic operation will occur.
4.5.5.9 TRANSMITTER BUFFER DESCRIPTOR POINTER (TBPTR).
The transmitter buffer descriptor pointer (TBPTR) for each SCC channel points to the next
BD that the transmitter will transfer data from when it is in IDLE state, or to the current BD
during frame transmission. After a reset, the user has to write the TBPTR to be equal to the
TBASE entry. When the end of a BD table is reached, the CP initializes this pointer to the
value programmed in the TBASE entry. Although TBPTR need never be written by the user
in most applications (except after reset), it may be modified by the user when the transmitter
is disabled, or when the user is sure that no transmit buffer is currently in use (e.g., after
STOP TRANSMIT command is issued, and the frame completes its transmission).
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor,Communications
Inc.
Processor (CP)
.
Example:
Rx Channel Memory Chunk
RBASE
Freescale Semiconductor, Inc...
DATA
AREA
(cont)
RNH
BD Status
50 bytes
Data Length
DATA
AREA
100 bytes
RCBD
BD Status
Data Length
DATA
AREA
RTHRSH = 150
A threshold interrupt can be generated when there are 150 valid bytes in the memo
chunk.
The second buffer continues at the beginning of the memory chunk.
4.5.6 SCC Event Register (SCCE)
This 8-bit register is used to report events recognized by any of the SCCs. On recognition
of an event, the SCC will set its corresponding bit in the SCC event register (regardless of
the corresponding mask bit in the SCC mask register). The SCC event register is a memorymapped register that may be read at any time. A bit is cleared by writing a one (writing a
zero does not affect a bit's value).
4.5.7 SCC Mask Register (SCCM)
This 8-bit read-write register allows enabling or disabling interrupt generation by the CP for
specific events in each SCC channel. An interrupt will only be generated if the SCC
interrupts for this channel are enabled in the IMR in the interrupt controller.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Communications ProcessorFreescale
(CP)
Semiconductor, Inc.
If a bit in the SCC mask register is zero, the CP will not proceed with its usual interrupt
handling whenever that event occurs. Any time a bit in the SCC mask register is set, a one
in the corresponding bit in the SCC event register will cause the SCC event bit in the IPR to
be set.
The bit locations in the SCC mask register are identical to those in the SCC event register.
SCCM is cleared upon reset.
4.5.8 SCC Status Register (SCCS)
SCC Status Register
SCCS1 IS AT ADDRESS $88D
7
6
Freescale Semiconductor, Inc...
SCCS2 IS AT ADDRESS $89D
SCCS3 IS AT ADDRESS $8AD
5
4
$8xD
3
RESERVED
0
0
0
0
0
2
1
0
ID
–
GRANT
0
0
0
Bits 7–3—Reserved for future use.
ID—Idle status on the receiver line
GRANT—Grant status on the channel.
4.5.9 Disabling the SCCs
If an SCC transmitter or receiver is not needed for a period of time or a mode change is
required, then it may be disabled and re-enabled later.
For the SCC transmitter, the sequence is as follows:
• STOP TRANSMIT command
• Wait for the FIFO to empty
• Clear ENT (The SCC transmitter is now disabled)
• RESTART TRANSMIT Command
• Set ENT
For the SCC receiver, the sequence is as follows:
• Clear ENR (The SCC receiver is now disabled)
• ENTER HUNT MODE command
• Set ENR
This sequence assures that any buffers in use will be properly closed and that new data will
be transferred to/from a new buffer.
While an SCC is disabled the SCM register may be modified. Changes to the SCC protocol,
or diagnostic mode may then be made. Such parameters cannot be modified “on-the-fly.”
The SCC should be disabled and then re-enabled if any change is made to the SCC's
parallel I/O or serial channels physical interface configuration. The SCC does not need to
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor,Communications
Inc.
Processor (CP)
be disabled if only a change to a parameter RAM value is made. See Table 4-3 for a
description of which parameter RAM values may be modified.
To save power, the SCCs may simply be disabled. Clearing the enable transmitter (ENT) bit
in the SCC mode register causes the SCC transmitter to consume the least possible power;
clearing the ENR bit causes a similar action for the SCC receiver.
4.5.10 HDLC Controller
Freescale Semiconductor, Inc...
Layer 2 of the seven-layer OSI model is the data link layer. One of the most common layer
2 protocols is HDLC. Many other common layer 2 protocols are heavily based on HDLC,
particularly its framing structure, namely: SDLC, SS#7, LAPB, and LAPD. The framing
structure of HDLC is shown in Figure 4-9.
OPENING
FLAG
8 BITS
ADDRESS
CONTROL
16 BITS
8 BITS
INFORMATION
(OPTIONAL)
8N BITS
CRC
16 BITS
CLOSING
FLAG
8 BITS
Figure 4-9. Typical HDLC Frame
HDLC uses a zero insertion/deletion process (commonly known as bit-stuffing) to ensure
that the bit pattern of the delimiter flag does not occur in the fields between flags. The HDLC
frame is synchronous and therefore relies on the physical layer to provide a method of
clocking and synchronizing the transmitter and receiver.
Since the layer 2 frame can be transmitted over a point-to-point link, a broadcast network,
or packet and circuit-switched systems, an address field is needed to carry the frame's
destination address. The length of this field is commonly 0, 8, or 16 bits, depending on the
data link layer protocol. For instance, SDLC and LAPB use an 8-bit address. SS#7 has no
address field at all because it is always used in point-to-point signaling links. LAPD further
divides its 16-bit address into different fields to specify various access points within one
piece of equipment. It also defines a broadcast address. Some HDLC-type protocols also
allow for extended addressing beyond 16-bits.
The 8- or 16-bit control field provides a flow control number and defines the frame type
(control or data). The exact use and structure of this field depends upon the protocol using
the frame.
Data is transmitted in the data field, which can vary in length depending upon the protocol
using the frame. Layer 3 frames are carried in the data field.
Error control is implemented by appending a cyclic redundancy check (CRC) to the frame,
which is 16-bits long in most protocols, but may be 32-bits long in some.
When the MODE bit of an SCC mode register (SCM) selects HDLC mode, then that SCC
functions as an HDLC controller. The HDLC controller handles the basic functions of the
HDLC/SDLC protocol on either the D channel, a B channel, or from a multiplexed serial
interface (IDL or GCI (IOM-2)). When the HDLC controller is used to support the B or D
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Communications ProcessorFreescale
(CP)
Semiconductor, Inc.
channel of the ISDN, the SCC outputs are internally connected to the physical layer serial
interface.
NOTE
SDLC is fully supported, but the SDLC loop mode (ring
configuration) is not supported.
Freescale Semiconductor, Inc...
When an SCC in HDLC mode is used with a nonmultiplexed interface, then the SCC outputs
are connected directly to the external pins. In this case, the serial interface uses four
dedicated pins: transmit data (TXD), receive data (RXD), receive clock (RCLK), and transmit
clock (TCLK). Other modem signals may be supported through the parallel I/O pins.
The HDLC controller consists of separate transmit and receive sections whose operations
are asynchronous with the chip clock and may be either synchronous or asynchronous with
respect to the other SCCs. When the HDLC controller is connected to one of the multiplexed
physical interface options (IDL or GCI), the receive and transmit clocks are identical and are
supplied externally by the physical layer.
The HDLC controller key features are as follows:
• Flexible Data Buffers with Multiple Buffers per Frame Allowed
• Separate Interrupts for Frames (Receive)
• Separate Interrupts for Buffers (Transmit)
• Four Address Comparison Registers with Mask
• Flag/Abort/Idle Generation/Detection
• Zero Insertion/Deletion
• NRZ/NRZI Data Encoding
• 16-Bit or 32-Bit CRC-CCITT Generation/Checking
• Detection of Non-Octet Aligned Frames
• Programmable Flags (0–15) between Successive Frames
• Automatic Retransmission in Case of Collision
4.5.10.1 HDLC CHANNEL FRAME TRANSMISSION PROCESSING. The HDLC
transmitter is designed to work with almost no intervention from the host. When the host
enables one of the transmitters, it will start transmitting flags or idles as programmed in the
HDLC mode register. The HDLC controller will poll the first buffer descriptor (BD) in the
transmit channel's BD table. When there is a frame to transmit, the HDLC controller will fetch
the data from memory and start transmitting the frame (after first transmitting the userspecified minimum number of flags between frames). When the end of the current BD has
been reached and the last buffer in the frame bit is set, the cyclic redundancy check (CRC),
if selected, and the closing flag are appended.
Following the transmission of the closing flag, the HDLC controller writes the frame status
bits into the BD and clears the ready bit. When the end of the current BD has been reached,
and the last bit is not set (working in multibuffer mode), only the ready bit is cleared. In either
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor,Communications
Inc.
Processor (CP)
mode, an interrupt is issued according to the interrupt bit in the BD. The HDLC controller will
then proceed to the next BD in the table. In this way, the user may be interrupted after each
buffer, after a specific buffer has been transmitted, or after each frame.
Freescale Semiconductor, Inc...
To rearrange the transmit queue before the SC302 has completed transmission of all
buffers, issue the STOP TRANSMIT command. This technique can be useful for
transmitting expedited data before previously linked buffers or for error situations. When
receiving the STOP TRANSMIT command, the HDLC controller will abort the current frame
being transmitted and start transmitting idles or flags. When the HDLC controller is given the
RESTART TRANSMIT command, it resumes transmission.
4.5.10.2 HDLC CHANNEL FRAME RECEPTION PROCESSING. The HDLC receiver is
also designed to work with almost no intervention from the host. The HDLC receiver can
perform address recognition and CRC checking. The received frame (all fields between the
opening and closing flags) is made available to the user for performing any HDLC-based
protocol.
When the host enables one of the receivers, the receiver waits for an opening flag character.
When the receiver detects the first byte of the frame, the HDLC controller will compare the
frame address against the user-programmable addresses. The user has four 16-bit address
registers and an address mask available for address matching. The HDLC controller will
compare the received address field to the user-defined values after masking with the
address mask. The HDLC controller can also detect broadcast (all ones) addressed frames,
if one address register is written with all ones.
If a match is detected, the HDLC controller will open a new BD (if there is free place in the
Rx chunk) and will start to transfer the incoming frame to the BD's associated data buffer
starting with the first address byte. When the data buffer has been filled, the HDLC controller
clears the empty bit in the BD. If the incoming frame exceeds the length of the data buffer,
the HDLC controller will open the next BD right after the previous buffer and will continue to
transfer the rest of the frame to this BD's associated data buffer.
When the frame ends, the CRC field is checked against the recalculated value and is written
to the data buffer starting with the first address byte. The HDLC controller then sets the last
buffer in frame bit, writes the frame status bits into the BD, and clears the empty bit. The
HDLC controller next generates a maskable interrupt, indicating that a frame has been
received and is in memory. The HDLC controller then waits for a new frame. Back-to-back
frames may be received with only a single shared flag between frames. Also, flags that
share a zero will be recognized as two consecutive flags.
4.5.10.3 HDLC MEMORY MAP. When configured to operate in HDLC mode, the SC302
overlays the structure shown in Table 4-4 onto the protocol-specific area of that SCC
parameter RAM. Refer to Table 4-3 for the placement of the SCC parameter RAM areas and
the other protocol specific parameter RAM values.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Communications ProcessorFreescale
(CP)
Semiconductor, Inc.
NOTE
An incorrect initialization of C_MASK may be used to force
receive CRC errors for software testing purposes. The transmit
CRC will not be affected.
Freescale Semiconductor, Inc...
Table 4-4. HDLC-Specific Parameter RAM
ADDRESS
NAME
WIDTH
DESCRIPTION
SCC Base + 24
SCC Base + 26
SCC Base + 28 #
SCC Base + 2A #
SCC Base + 2C
SCC Base + 2E
RCRC_L
RCRC_H
C_MASK_L
C_MASK_H
TCRC_L
TCRC_H
Word
Word
Word
Word
Word
Word
Temp Receive CRC Low
Temp Receive CRC High
Constant ($F0B8 16-Bit CRC, $DEBB 32-Bit CRC)
Constant ($XXXX 16-Bit CRC, $20E3 32-Bit CRC)
Temp Transmit CRC Low
Temp Transmit CRC High
SCC Base + 30 #
SCC Base + 32 #
SCC Base + 34 #
SCC Base + 36 #
SCC Base + 38 #
HMASK
HADDR1
HADDR2
HADDR3
HADDR4
Word
Word
Word
Word
Word
User-Defined Frame Address Mask
User-Defined Frame Address
User-Defined Frame Address
User-Defined Frame Address
User-Defined Frame Address
# Initialized by the user (host).
4.5.10.4 HDLC PROGRAMMING MODEL. The host configures each SCC to operate in
one of two protocols by the MODE bit in the SCC mode register (SCM). MODE = 0 selects
HDLC mode. The data structure supports multibuffer operation and address comparisons.
The receive errors (overrun, nonoctet aligned frame, aborted frame, and CRC error) are
reported through the receive BD. The transmit errors (underrun and GRANT lost) are
reported through the transmit BD. An indication about the status of the lines (idle and
GRANT) is reported through the SCC status register (SCCS), and a maskable interrupt is
generated upon a status change in any one of those lines.
4.5.10.5 HDLC COMMAND SET. The following commands are issued to the command
register.
STOP TRANSMIT Command
This command disables the transmission of frames on the transmit channel and the current frame transmission is aborted. The TxBD# is not advanced and no New BD is accessed.The channel will resume data transmission after the RESTART TRANSMIT command
is issued.
RESTART TRANSMIT Command
This command re-enables transmission of data on the transmit channel.Transmission will
resume from the current TxBD# in the channels transmit BD table.
ENTER HUNT MODE Command
This command forces the Receiver to abort reception of the current frame, close a buffer
(if opened), and scan the input data stream for a FLAG sequence. No interrupt is generated on the closing of this BD. Further receptions will use a new BD.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor,Communications
Inc.
Processor (CP)
INITIALIZE RX Command
This command initializes the Rx parameter RAM, clears the Rx memory chunk and forces
the SCC to enter the hunt mode. This command is expected in initialization before ENR
is set, and when busy interrupt is set.
Freescale Semiconductor, Inc...
4.5.10.6 HDLC ADDRESS RECOGNITION. Each HDLC controller has five 16-bit registers
for address recognition: one mask register and four address registers (HMASK, HADDR1,
HADDR2, HADDR3, and HADDR4). The HDLC controller reads the frame's address from
the HDLC receiver, checks it against the four address register values, and then masks the
result with the user-defined HMASK. A one in HMASK represents a bit position for which
address comparison should occur; a zero represents a masked bit position. Therefore, to
receive all frames, set HMASK to $0000. Upon an address match, the address and the data
following are written into the data buffers.
NOTE
For 8-bit addresses, mask out the eight high-order bits in the
HMASK register.
Examples of 16- and 8-bit HDLC address recognition are shown in Figure 4-10
16-BIT ADDRESS RECOGNITION
FLAG
$7E
ADDRESS ADDRESS CONTROL
$68
$AA
$44
8 BIT ADDRESS RECOGNITION
ETC.
HMASK
$FFFF
HADDR1
$AA68
HADDR2
$FFFF
$AA68
HADDR3
$AA68
HADDR4
RECOGNIZES ONE 16-BIT ADDRESS (HADDR1) AND
THE 16-BIT BROADCAST ADDRESS (HADDR2)
FLAG
$7E
ADDRESSCONTROL
$55
$44
ETC.
HMASK
$00FF
HADDR1
$XX55
$XX55
HADDR2
$XX55
HADDR3
$XX55
HADDR4
RECOGNIZES A SINGLE 8-BIT ADDRESS
(HADDR1)
Figure 4-10. HDLC Address Recognition Examples
4.5.10.7 HDLC ERROR-HANDLING PROCEDURE. The HDLC controller reports frame
reception and transmission error conditions using the channel BDs and the HDLC event
register. The modem interface lines can also be directly monitored in the SCC status
register.
Transmission Errors:
1. Transmitter Underrun. When this error occurs, the channel terminates buffer transmission, closes the buffer, sets the underrun (UN) bit in the BD, and generates the TXE
interrupt (if enabled). The channel will resume transmission after the reception of the
RESTART TRANSMIT command. The transmit FIFO size is four words.
2. GRANT Lost (Collision) During Frame Transmission. When this error occurs and the
channel is not programmed to control this line with software, the channel terminates
buffer transmission, closes the buffer, sets the Collision (COL) bit in the BD, and gen-
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Communications ProcessorFreescale
(CP)
Semiconductor, Inc.
erates the TXE interrupt (if enabled). The channel will resume transmission automatically if the RTE bit is set, or after the RESTART TRANSMIT command is given if the
RTE bit is cleared.
Reception Errors:
Freescale Semiconductor, Inc...
1. Overrun Error. The HDLC controller maintains an internal three-word FIFO for receiving data. The CP begins processing the data and updating the CRC when the first
word is received in the FIFO. When a receive FIFO overrun occurs, the channel writes
the received data byte to the internal FIFO over the previously received byte. The previous data byte and the frame status are lost. Then the channel closes the buffer with
the overrun (OV) bit in the BD set and generates the RXF interrupt (if enabled). The
receiver then enters the hunt mode.
2. Abort Sequence. An abort sequence is detected by the HDLC controller when seven
or more consecutive ones are received while receiving a frame. When this error occurs, the channel closes the buffer by setting the Rx abort sequence (AB) bit in the BD
and generates the RXF interrupt (if enabled). The receiver then enters hunt mode immediately. The CRC and nonoctet error status conditions are not checked on aborted
frames.
3. Nonoctet Aligned Frame. When this error occurs, the channel writes the received data
to the data buffer, closes the buffer, sets the Rx nonoctet aligned frame (NO) bit in the
BD, and generates the RXF interrupt (if enabled). The CRC error status should be disregarded on nonoctet frames. After a nonoctet aligned frame is received, the receiver
enters hunt mode (an immediately following back-to-back frame will be received). The
nonoctet data may be derived from the last word in the data buffer as follows:
MSB
LSB
1
0
•••
1
0
LEADING ZEROS
VALID DATA
NOT VALID DATA
Consistent with other HDLC operation, the MSB is the first bit received in this word,
and the low-order valid data bit is the last.
4. CRC Error. When this error occurs, the channel writes the received CRC to the data
buffer, closes the buffer, sets the CR bit in the BD, and generates the RXF interrupt (if
enabled). After receiving a frame with a CRC error, the received enters hunt mode (An
immediately following back-to-back frame will be received). CRC checking cannot be
disabled, but the CRC error may be ignored if checking is not required.
4.5.10.8 HDLC RECEIVE BUFFER DESCRIPTOR (RX BD). The HDLC controller uses
the Rx BD to report information about the received data for each buffer. The Rx BD is shown
in Figure 4-11.
15
E
14
L
13
F
12
NO
11
AB
10
CR
9
OV
8
-—
7
6
5
4
3
DATA LENGTH
Figure 4-11. HDLC Receive Buffer Descriptor
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
2
1
0
Freescale Semiconductor,Communications
Inc.
Processor (CP)
Freescale Semiconductor, Inc...
E—Empty
0 = The data buffer associated with this BD has been filled with received data, or data
reception has been aborted due to an error condition. The host is free to examine
or write to any fields of the BD.
1 = The data buffer associated with the BD is empty. This bit signifies that the BD and
its associated buffer are available to the HDLC controller. The host should not write
to any fields of this BD when this bit is set. The empty bit will remain set while the
HDLC controller is currently filling the buffer with received data.
L—Last in Frame
This bit is set by the HDLC controller when this buffer is the last in a frame. This implies
the reception of a closing flag or reception of an error, in which case one or more of the
CD, OV, and AB bits are set. The HDLC controller will write the number of last buffer octets to the data length field.
0 = This buffer is not the last in a frame.
1 = This buffer is the last in a frame.
F—First in Frame
This bit is set by the HDLC controller when this buffer is the first in a frame.
0 = The buffer is not the first in a frame.
1 = The buffer is the first in a frame.
NO—Rx Nonoctet Aligned Frame
A frame that contained a number of bits not exactly divisible by eight was received.
AB—Rx Abort Sequence
A minimum of seven consecutive ones was received during frame reception.
CR—Rx CRC Error
This frame contains a CRC error.
OV—Overrun
A receiver overrun occurred during frame reception.
DATA LENGTH
The data length is the number of octets written to this BD's data buffer by the HDLC controller. It is written by the CP once as the BD is closed.
4.5.10.9 HDLC TRANSMIT BUFFER DESCRIPTOR (TXBD). Data is presented to the
HDLC controller for transmission on an SCC channel by arranging it in buffers referenced
by the channel's TxBD table. The HDLC controller confirms transmission (or indicates error
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Communications ProcessorFreescale
(CP)
Semiconductor, Inc.
conditions) using the BDs to inform the host that the buffers have been serviced. The TxBD
is shown in Figure 4-12.
OFFSET + 0
OFFSET + 2
15
14
13
12
11
10
9
8
R
-
W
I
L
TC
UN
COL
7
6
5
4
3
2
1
0
DATA LENGTH
TX BUFFER POINTER
Figure 4-12. HDLC Transmit Buffer Descriptor
Freescale Semiconductor, Inc...
The first word of the TxBD contains status and control bits. Bits 15–10 are prepared by the
user before transmission; bits 9–8 are set by the HDLC controller after the buffer has been
transmitted. Bit 15 is set by the user when the buffer and BD have been prepared and is
cleared by the HDLC controller after the frame has been transmitted.
R—Ready
0 = This buffer is not currently ready for transmission. The user is free to manipulate
this BD (or its associated buffer). The HDLC controller clears this bit after the buffer
has been fully transmitted or after an error condition has been encountered.
1 = The data buffer, which has been prepared for transmission by the user, has not yet
transmitted. No fields of this BD may be written by the user once this bit is set.
W—Wrap (Final BD in Table)
0 = This is not the last BD in the TxBD table.
1 = This is the last BD in the TxBD table. After this buffer has been used, the HDLC
controller will transmit data from the first BD in the table (the BD pointed to by the
TBASE).
I—Interrupt
0 = No interrupt is generated after this buffer has been serviced.
1 = Either TXB or TXE in the HDLC event register will be set when this buffer has been
serviced by the HDLC controller, which can cause an interrupt.
L—Last
0 = This is not the last buffer in the frame.
1 = This is the last buffer in the current frame.
TC—Tx CRC
This bit is valid only when the last (L) bit is set.
0 = Transmit the closing flag after the last data byte. This setting can be used for
testing purposes to send a “bad” CRC after the data.
1 = Transmit the CRC sequence after the last data byte.
UN—Underrun
The HDLC controller encountered a transmitter underrun condition while transmitting the
associated data buffer.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor,Communications
Inc.
Processor (CP)
COL—Collision (GRANT Lost)
L1GRNT (layer-1 grant) in IDL/GCI mode was lost during frame transmission. If data from
more than one buffer is currently in the FIFO when this error occurs, this bit will be set in the
TxBD that is currently open.
DATA LENGTH
The data length is the number of octets the HDLC controller should transmit from this BD's
data buffer. It is never modified by the CP. The value of this field should be greater than
zero.
Freescale Semiconductor, Inc...
TX BUFFER POINTER
The transmit buffer pointer, which contains the address of the associated data buffer, may
be even or odd.
4.5.10.10 HDLC EVENT REGISTER. The SCC event register (SCCE) is called the HDLC
event register when the SCC is operating as an HDLC controller. It is an 8-bit register used
to report events recognized by the HDLC channel and to generate interrupts. Upon
recognition of an event, the HDLC controller sets its corresponding bit in the HDLC event
register. Interrupts generated by this register may be masked in the HDLC mask register.
The HDLC event register is a memory-mapped register that may be read at any time. A bit
is cleared by writing a one; writing a zero does not affect a bit's value. More than one bit may
be cleared at a time. All unmasked bits must be cleared before the CP will clear the internal
interrupt request. This register is cleared at reset.
HDLC Event Register
15
14
13
12
11
10
9
8
SCCE1 AT ADDRESS $889
GRANT
—
IDL
TXE
RXF
BSY
TXB
RTH/TO
SCCE2 AT ADDRESS $899
0
0
0
0
0
0
0
0
SCCE3 AT ADDRESS $8A9
GRANT—GRANT Status Changed
A change in the status of the channel GRANT was detected on the HDLC channel. The
SCC status register may be read to determine the current status.
IDL—IDLE Sequence Status Changed
A change in the status of the serial line was detected on the HDLC channel. The SCC status register may be read to determine the current status.
TXE—Tx Error
An error (GRANT lost or underrun) occurred on the transmitter channel.
RXF—Rx Frame
A complete frame has been received on the HDLC channel. This bit is set no sooner than
two receive clocks after receipt of the last bit of the closing flag.
BSY—Busy Condition
A frame was received and discarded due to lack of space in the receive chunk.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Communications ProcessorFreescale
(CP)
Semiconductor, Inc.
TXB—Tx Buffer
A buffer has been transmitted on the HDLC channel. This bit is set no sooner than when
the second-to-last bit of the closing flag begins its transmission, if the buffer is the last in
the frame. Otherwise, it is set after the last byte of the buffer has been written to the transmit FIFO.
Freescale Semiconductor, Inc...
RTH/TO—Receiver Threshold or Time Out
The receive memory chunk has been filled with RTHRSH bytes, or the receive memory
chunk has valid data, and the time (measured in RCLK octets) have reached RTO.
4.5.10.11 HDLC MASK REGISTER. The SCC mask register (SCCM) is referred to as the
HDLC mask register when the SCC is operating as an HDLC controller. It is an 8-bit readwrite register that has the same bit formats as the HDLC event register. If a bit in the HDLC
mask register is a one, the corresponding interrupt in the event register will be enabled. If
the bit is zero, the corresponding interrupt in the event register will be masked. Unused/
reserved bits must be masked. This register is cleared upon reset.
HDLC Mask Register
15
14
13
12
11
10
9
8
SCCM1 AT ADDRESS $88B
GRANT
—
IDL
TXE
RXF
BSY
TXB
RTH/TO
SCCM2 AT ADDRESS $89B
0
0
0
0
0
0
0
0
SCCM3 AT ADDRESS $8AB
4.5.11 Transparent Controller
The transparent controller allows transmission and reception of serial data over an SCC
without any modification to that data stream. Transparent mode provides a clear channel on
which no bit-level manipulation is performed by the SCC. Any protocol run over transparent
mode is performed in software. The job of an SCC in transparent mode is to function simply
as a high-speed serial-to-parallel and parallel-to-serial converter. This mode is also referred
to as totally transparent or promiscuous operation.
The SCC in transparent mode can work with IDL, GCI (IOM-2), or NMSI interfaces. When
the SCC in transparent mode is used in NMSI, the SCC outputs are connected directly to
the external pins without any synchronization.
The main transparent controller features are as follows:
• Flexible Data Buffers
• Internal byte Synchronization from SI
• Reverse Data Mode
• Interrupts on Buffers Transmitted or Received
• Three Commands
4.5.11.1 TRANSPARENT CHANNEL BUFFER TRANSMISSION PROCESSING. When
the host enables the transparent transmitter, it will start transmitting ones. The transparent
controller then polls the first BD in the transmit channel's BD table approximately every 16
transmit clocks. When there is a buffer to transmit, the transparent controller will fetch the
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor,Communications
Inc.
Processor (CP)
data from memory and start transmitting the buffer. Transmission will not begin until the
internal transmit FIFO is preloaded and the SCC achieves synchronization if using the SI.
When a BD's data is completely transmitted, the last bit (L) is checked in the BD. If the L bit
is cleared, then the transmitter moves immediately to the next buffer to begin its
transmission, with no gap on the serial line between buffers. Failure to provide the next
buffer in time results in a transmit underrun, causing the TXE bit in the transparent event
register to be set.
Freescale Semiconductor, Inc...
If the L bit is set, the frame ends, and the transmission of ones resumes until a new buffer
is made ready. The next buffer will not begin transmission until achieving synchronization if
using the SI.
The transmit buffer length and starting address may be even or odd; however, since the
transparent transmitter reads a word at a time, better performance can be achieved with an
even buffer length and starting address. For example, if a transmit buffer begins on an oddbyte boundary and is 10 bytes in length (the worst case), six word reads will result, even
though only 10 bytes will be transmitted.
Any whole number of bytes may be transmitted. If the REVD bit in the transparent mode
register is set, each data byte will be reversed in its bit order before transmission.
If the interrupt (I) bit in the TxBD is set, then the TX bit will be set in the transparent event
register following the transmission of the buffer. The TX bit can generate a maskable
interrupt.
4.5.11.2 TRANSPARENT CHANNEL BUFFER RECEPTION PROCESSING. When the
host enables the transparent receiver, it will enter hunt mode. In this mode, if using the SI,
it waits to achieve synchronization before receiving data.
Once data reception begins, the transparent receiver begins moving data from the receive
FIFO to the receive buffer, always moving a 16-bit word at a time. The transparent receiver
continues to move data to the receive buffer until the buffer is completely full, as defined by
the byte count in MRBLR. The receive buffer length (stored in MRBLR) and starting address
must always be even, so the minimum receive buffer length must be 2.
After a buffer is filled, the transparent receiver moves to the next RxBD in the table and
begins moving data to its associated buffer.
If there is no place in the memory chunk for a new word, a busy condition is signified by the
setting of the BSY bit in the transparent event register, which can generate a maskable
interrupt.
Received data is always packed into memory a word at a time, regardless of how it is
received. For example, in NMSI mode, the first word of data will not be moved to the receive
buffer until after the sixteenth receive clock occurs.
Once synchronization is achieved for the receiver, the reception process continues
unabated until a busy condition occurs or a receive overrun occurs. The busy condition error
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Communications ProcessorFreescale
(CP)
Semiconductor, Inc.
should be followed by an ENTER HUNT MODE command to the channel. In both error
cases, the reception process will not proceed until synchronization has once again been
achieved.
If the REVD bit in the transparent mode register is set, each data byte will be reversed in its
bit order before it is written to memory.
4.5.11.3 TRANSPARENT MEMORY MAP. When configured to operate in transparent
mode, the SC302 overlays the structure illustrated in Table 4-5 onto the protocol specific
area of that SCC parameter RAM. Refer to Table 4-3 for the placement of the three SCC
parameter RAM and for the protocol specific parameter RAM values.
Table 4-5. Transparent-Specific Parameter RAM
Freescale Semiconductor, Inc...
ADDRESS
NAME
WIDTH
DESCRIPTION
SCC BASE + 24
RES
WORD
Reserved
SCC BASE + 26
RES
WORD
Reserved
SCC BASE + 28
RES
WORD
Reserved
SCC BASE + 2A
RES
WORD
Reserved
SCC BASE + 2C
RES
WORD
Reserved
SCC BASE + 2E
RES
WORD
Reserved
ZERO
WORD
Reserved
SCC BASE + 32
RES
WORD
Reserved
SCC BASE + 34
RES
WORD
Reserved
SCC BASE + 36
RES
WORD
Reserved
SCC BASE + 38
RES
WORD
Reserved
SCC BASE + 30 #
# Must be Initialized by the user (host) to zero.
The only Transparent-specific parameter RAM that must be initialized by the user is the
ZERO register. The general SCC parameter RAM must also still be initialized.
The transparent controller uses the same basic data structure as the other protocol
controllers. Receive and transmit errors are reported through receive and transmit BDs. The
status of the line is reflected in the SCC status register, and a maskable interrupt is
generated upon each status change.
4.5.11.4 TRANSPARENT COMMANDS. The following commands are issued to the
command register.
STOP TRANSMIT Command
After a hardware or software reset and the enabling of the channel using the SCC mode
register, the channel is in the transmit enable mode and starts polling the first BD in the
table approximately every 16 transmit clocks.
The STOP TRANSMIT command aborts transmission. If this command is received by the
transparent controller during a buffer transmission, transmission of that buffer is aborted
after the FIFO contents (up to four words) are transmitted. The TBD# is not advanced.
Ones are continuously transmitted until transmission is re-enabled by issuing the RESTART TRANSMIT command.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor,Communications
Inc.
Processor (CP)
The STOP TRANSMIT command must be issued before the SCC mode register is used
to disable the transmitter if the transmitter is to be re-enabled at a later time.
Freescale Semiconductor, Inc...
RESTART TRANSMIT Command
The RESTART TRANSMIT command is used to begin or resume transmission from the
current Tx BD number (TBD#) in the channel's Tx BD table. When this command is received by the channel, it will start polling the ready bit in this BD. This command is expected by the transparent controller after a STOP TRANSMIT command, after a STOP
TRANSMIT command and the disabling of the channel in its mode register, or after a
transmitter error (underrun or CTS lost occurs).
If the transmitter is being re-enabled, the RESTART TRANSMIT command must be used
and should be followed by the enabling of the transmitter in the SCC mode register.
ENTER HUNT MODE Command
After a hardware or software reset and the enabling of the channel in the SCC mode register, the channel is in the receive enable mode and will use the first BD in the table.
The ENTER HUNT MODE command is used to force the transparent controller to abort
reception of the current block, generate an RX interrupt (if enabled) as the buffer is closed,
and enter the hunt mode. In the hunt mode, the transparent controller waits for a synchronization to occur on the SCC (see 4.5.11.5 Transparent Synchronization). After receiving
the ENTER HUNT MODE command, the current receive buffer is closed. Reception continues using the next BD.
If an enabled receiver has been disabled (by clearing ENR in the SCC mode register), the
ENTER HUNT MODE command must be given to the channel before setting ENR again.
INITIALIZE RX Command
This command initializes the Rx parameter RAM, clears the Rx memory chunk and forces
the SCC to enter the hunt mode. This command is expected in initialization before ENR
is set, and when busy interrupt is set.
4.5.11.5 TRANSPARENT SYNCHRONIZATION. Once the SCC is enabled for transparent
operation in the SCM and the transmit and receive buffer descriptors are made ready for the
SCC, the transmission and reception of data starts.There is no data synchronization while
in transparent mode except when working in non-NMSI with the SI.
With the physical interface configured for IDL or GCI mode, and the DIAG1–DIAG0 bits set
to either software operation or normal operation, the data will be byte-aligned to the B or D
channel time slots.
Once synchronization is achieved for the transmitter, it will remain in effect until an error
occurs, a STOP TRANSMIT command is given, or a buffer has completed transmission with
the TxBD last (L) bit set. Once synchronization is achieved for the receiver, it will remain in
effect until an error occurs or the ENTER HUNT MODE command is given.
4.5.11.6 TRANSPARENT ERROR-HANDLING PROCEDURE. The transparent controller
reports message reception and transmission error conditions using the channel BDs and the
transparent event register.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Communications ProcessorFreescale
(CP)
Semiconductor, Inc.
Transmission Errors:
1. Transmitter Underrun—When this error occurs, the channel terminates buffer transmission, closes the buffer, sets the underrun (UN) bit in the BD, and generates the
TXE interrupt (if enabled). The channel resumes transmission after the reception of
the RESTART TRANSMIT command. Underrun can occur after a transmit frame for
which the L bit in the TxBD was not set. In this case, only the TXE bit is set. The FIFO
size is four words in transparent mode.
Freescale Semiconductor, Inc...
2. GRANT Lost During Message Transmission—When this error occurs and the channel
is programed to be the D-channel and is not programmed to control this line with software, the channel terminates buffer transmission, closes the buffer, sets the GRANT
lost (COL) bit in the BD, and generates the TXE interrupt (if enabled). The channel will
resume transmission after the reception of the RESTART TRANSMIT command.
Reception Errors:
1. Overrun Error—The transparent controller maintains an internal three-word FIFO for
receiving data. If a FIFO overrun occurs, the transparent controller writes the received
data word to the internal FIFO over the previously received word. The previous word
is lost. Next, the channel closes the buffer, sets the overrun (OV) bit in the BD, and
generates the RX interrupt (if enabled). The receiver then enters hunt mode immediately.
2. Busy Condition—If the RISC controller tries to move a word to the Rx channel chunk
which is full, the busy condition is encountered. No data is received and the current
RxBD is NOT closed! After the host reads the chunk and frees space for the channel,
the user should issue the ENTER HUNT MODE command.
4.5.11.7 TRANSPARENT RECEIVE BUFFER DESCRIPTOR (RXBD). The CP reports
information about the received data for each buffer using BD. The RxBD is shown in Figure
4-13. The CP closes the current buffer, generates a maskable interrupt, and starts to receive
data into the next buffer after one of the following events:
• Detecting an overrun error.
• Detecting a full receive buffer
• Issuing the ENTER HUNT MODE command
15
E
14
-—
13
-—
12
-—
11
-—
10
-—
9
OV
8
-—
7
6
5
4
3
DATA LENGTH
2
1
0
Figure 4-13. Transparent Receive Buffer Descriptor
The first word of the RxBD contains control and status bits, and also the data length.
E—Empty
0 = The data buffer associated with this BD has been filled with received data, or data
reception has been aborted due to an error condition. The host is free to examine
or write to any fields of this BD.
1 = The data buffer associated with this BD is empty. This bit signifies that the BD and
its associated buffer are available to the CP. The host should not write to any fields
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor,Communications
Inc.
Processor (CP)
of this BD when this bit is set. The empty bit will remain set while the CP is currently
filling the buffer with received data.
OV—Overrun
A receiver overrun occurred during reception.
Freescale Semiconductor, Inc...
DATA LENGTH
The data length is the number of octets that the CP has written into this BD's data buffer.
It is written only once by the CP as the buffer is closed.
4.5.11.8 TRANSPARENT TRANSMIT BUFFER DESCRIPTOR (TXBD). Data is
presented to the CP for transmission on an SCC channel by arranging it in buffers
referenced by the channel's TxBD table. The CP confirms transmission (or indicates error
conditions) using the BD to inform the processor that the buffers have been serviced. The
TxBD is shown in Figure 4-14.
OFFSET + 0
OFFSET + 2
15
14
13
12
11
10
9
8
R
-
W
I
L
TC
UN
COL
7
6
5
4
3
2
1
0
DATA LENGTH
TX BUFFER POINTER
Figure 4-14. Transparent Transmit Buffer Descriptor
The first word of the TxBD contains the data length, and status and control bits. These bits
are prepared by the user before transmission and are set by the CP after the buffer has been
transmitted.
R—Ready
0 = This buffer is not currently ready for transmission. The user is free to manipulate
this BD (or its associated buffer). The CP clears this bit after the buffer has been
fully transmitted or after an error condition has been encountered.
1 = The data buffer has been prepared for transmission by the user (but not yet
transmitted). No fields of this BD may be written by the user once this bit is set.
W—Wrap (Final BD in TxBD Table)
0 = This is not the last BD in the TxBD table.
1 = This is the last BD in the TxBD table. After this buffer has been used, the CP will
transmit data from the first BD in the table.
I—Interrupt
0 = No interrupt is generated after this buffer has been serviced.
1 = When this buffer is serviced by the CP, the TX or TXE bit in the transparent event
register will be set, which can cause an interrupt.
L—Last in Message
0 = The last byte in the buffer is not the last byte in the transmitted block. Data from the
next transmit buffer (if ready) will be transmitted immediately following the last byte
of this buffer.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Communications ProcessorFreescale
(CP)
Semiconductor, Inc.
1 = The last byte in the buffer is the last byte in the transmitted block. After this buffer
is transmitted, the transmitter will require synchronization before the next buffer
can be transmitted.
TC—Tx CRC
This bit is valid only when the last (L) bit is set.
0 = Normal operation.
1 = Transmit CRC sequence after the last data byte.
Freescale Semiconductor, Inc...
The following status bits are written by the CP after it has finished transmitting the
associated data buffer.
UN—Underrun
The transparent controller encountered a transmitter underrun condition while transmitting the associated data buffer.
COL—GRANT Lost (Collision)
L1GRNT in IDL/GCI mode was lost during frame transmission.
DATA LENGTH
The data length is the number of octets that the CP should transmit from this BD's data
buffer. The data length, which should be greater than zero, may be even or odd. This value is never modified by the CP.
Tx Buffer Pointer
The transmit buffer pointer, which always points to the first byte of the associated data
buffer, may be even or odd.
4.5.11.9 TRANSPARENT EVENT REGISTER. The SCC event register (SCCE) is referred
to as the transparent event register when the SCC is programmed as a transparent
controller. It is an 8-bit register used to report events recognized by the transparent channel
and to generate interrupts. On recognition of an event, the transparent controller sets the
corresponding bit in the transparent event register. Interrupts generated by this register may
be masked in the transparent mask register.
The transparent event register is a memory-mapped register that may be read at any time.
A bit is cleared by writing a one (writing a zero does not affect a bit's value). More than one
bit may be cleared at a time. All unmasked bits must be cleared before the CP will negate
the internal interrupt request signal. This register is cleared at reset.
Transparent Event Register
15
14
13
12
11
10
9
8
SCCE1 AT ADDRESS $889
GRANT
-—
-—
TXE
RX
BSY
TX
RTH
SCCE2 AT ADDRESS $899
0
0
0
0
0
0
0
0
SCCE3 AT ADDRESS $8A9
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor,Communications
Inc.
Processor (CP)
GRANT—GRANT Status Changed
A change in the status of the Grant line was detected on the transparent channel. The
SCC status register may be read to determine the current status.
Bits 5,6—Reserved for future use.
TXE—Tx Error
An error (GRANT lost or underrun) occurred on the transmitter channel.
Freescale Semiconductor, Inc...
RX—Rx Buffer
A complete buffer has been received on the transparent channel. RX is set no sooner than
10 serial clocks after the last bit of the last byte in the buffer is received on the RXD pin.
BSY—Busy Condition
A word was received and discarded due to lack of free space in the memory chunk. The
receiver will resume reception after an ENTER HUNT MODE command.
TX—Tx Buffer
A buffer has been transmitted. If the L bit in the TxBD is set, TX is set no sooner than on
the second-to-last bit of the last byte being transmitted on the TXD pin. If the L bit in the
Tx BD is cleared, TX is set after the last byte was written to the transmit FIFO.
RTH—Receiver Threshold
The receive memory chunk has been field with RTHRSH bytes.
4.5.11.10 TRANSPARENT MASK REGISTER. The SCC mask register (SCCM) is
referred to as the transparent mask register when the SCC is operating as a transparent
controller. It is an 8-bit read-write register that has the same bit format as the transparent
event register. If a bit in the transparent mask register is a one, the corresponding interrupt
in the event register will be enabled. If the bit is zero, the corresponding interrupt in the event
register will be masked. This register is cleared at reset.
Transparent Mask Register
15
14
13
12
11
10
9
8
SCCM1 AT ADDRESS $88B
GRANT
-—
-—
TXE
RX
BSY
TX
RTH
SCCM2 AT ADDRESS $89B
0
0
0
0
0
0
0
0
SCCM3 AT ADDRESS $8AB
4.5.12 SCC2/3 Clocking in NMSI mode
4.5.12.1 SCC2/3 NMSI INTERFACE. SCC2 and SCC3 can be configured to operate in non
multiplexed mode (NMSI) in which its clock source can come from three different sources:
internal baud rate generator (BRG), external pins (CLKTx, CLKRx) or from the CODEC
Interface. When operating from the internal BRG, it can also drive the BRG output clock to
the external pins.
4.5.12.2 SCC2/3 CODEC INTERFACE. SCC2 and SCC3 can be configured to interface to
some popular CODECs (like the MC145554), as determined by the PACNT and SCON
registers. The SC302 can generate the MCLK clock, needed for the CODEC sampling logic,
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Communications ProcessorFreescale
(CP)
Semiconductor, Inc.
using the internal BRG. It also uses the Frame Sync (FSYN) and Serial Clock (SCLK)
signals, generated by the CODEC, for data transfer between SCC2/3 and the CODEC.
Figure 4-6 shows the interconnections.
Freescale Semiconductor, Inc...
CODEC
RXD
PA[4]
TXD
PA[5]
MCLK
PA[6]
SCLK
PA[7]
FSYN
PA[8]
SC302
Figure 4-15. Codec Interface
The interface uses FSYN (Figure 4-6) to transfer 16 bits of Information (data or command)
on each frame. Command and data bits are controlled by software. The CODEC hardware
control pins may be controlled by using SC302 parallel I/O pins.
FSYN
SCLK
TXD
Data Word
RXD
Data Word
Figure 4-16. FSYN Timing
4.5.12.3 CONFIGURATION REGISTER (SCON). The SCC2 and SCC3 controllers have a
common configuration register that controls its operation and selects its clock source and
baud rate.The SCON is a 16-bit, memory-mapped, read-write register.
SCC2 Configuration Register (SCON2)
15
14
WOMS CODS
0
0
$892
13
12
11
10
9
8
7
6
5
4
3
2
1
0
TCS
RCS
CD10
CD9
CD8
CD7
CD6
CD5
CD4
CD3
CD2
CD1
CD0
DIV4
0
0
0
0
0
0
0
0
0
0
0
1
0
0
WOMS—Wired-OR
When WOMS is set, the TXD driver is programmed to function as an open-drain output
and may be externally wired together with other TXD pins in an appropriate bus configu-
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor,Communications
Inc.
Processor (CP)
ration. In this case, an external pullup resistor is required. When WOMS is cleared, the
TXD pin operates normally with an active internal pullup.
NOTE
This bit is valid only in NMSI mode.
Freescale Semiconductor, Inc...
CODS—CODEC Interface Select
The CODS bit selects a CODEC Interface on PA6-PA8 or CLKTx, CLKRx and SDS1 function. If CODS = 0, the pins are used as parallel I/O pins (if PACNT bits are cleared) or as
CLKTx, CLKRx and SDS1 (if PACNT bits are set). If CODS = 1 (and TCS=0), the pins are
used as MCLK, SCLK and FSYN (if PACNT bits are set). In the CODEC interface configuration, MCLK output is generated by the internal BRG and SCLK, FSYN are inputs.
TCS—Transmit Clock Source
The TCS bit selects either the baud rate generator output (TCS = 0), if the SCC is operated in NMSI mode (MSCx bit in SIMODE register is set), or the TCLK pin (TCS = 1) for
the transmitter clock. If TCS = 0, then the baud rate generator output is driven onto the
TCLK pin (if selected in the parallel I/O). This bit should be programmed to one if a multiplexed mode is chosen for the SCC. This bit should be programmed to zero if the Codec
Interface (CODS =1) is chosen for the SCC.
RCS—Receive Clock Source
The RCS bit selects either the baud rate generator output (RCS = 0), if the SCC is operated in NMSI mode (MSCx bit in SIMODE register is set), or the RCLK pin (RCS = 1) for
the receiver clock. If RCS = 0, then the baud rate generator output is driven onto the RCLK
pin (if selected in the parallel I/O). This bit should be programmed to one if a multiplexed
mode or the Codec interface are chosen for the SCC.
Table 4-6. Clock Source Configuration Set Up
CODS BIT
TCS BIT
RCS BIT
0
0
0
0
0
1
0
1
0
0
1
1
1
0
0
1
0
1
1
1
x
*PA(6) PIN
BRG (O)
CLKTx (I)
*PA(7) PIN
*PA(8] PIN
BRG (O)
CLKRx (I)
BRG (O)
SCC TX
CLOCK
SOURCE
BRG**
SDS1 (O)
CLKTx
CLKRx (I)
SCC RX
CLOCK
SOURCE
BRG**
CLKRx
BRG**
CLKRx
Reserved
MCLK (O)
(BRG out)
SCLK (I)
FSYN (I)
SCLK
Reserved
* This column is valid only if the corresponding PACNT bit is set.
** The BRG is selected only if the corresponding MSCx bit In the SIMODE register is set.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
SCLK
Communications ProcessorFreescale
(CP)
SYSTEM
CLOCK
Semiconductor, Inc.
DIV4
BIT
CD[10:0]
BITS
PRESCALER
DIVIDE BY 4
11 BIT
COUNTER
CLKRX/SCLK
PA[7]
Freescale Semiconductor, Inc...
TCS
BIT
0
1
RCS
BIT
MUX
CLKTX/MCLK
PA[6]
0
1
MUX
FSYN
PA[8]
CODEC,
16 CLOCKS
GENERATOR
0
1
MUX
TO SCC2/3
TX CLOCK
CODS
BIT
0
1
MUX
TO SCC2/3
RX CLOCK
Figure 4-17. SCC Baud Rate Generator
CD10–CD0—Clock Divider
The clock divider bits and the prescaler determine the baud rate generator output clock
rate. CD10–CD0 are used to preset an 11-bit counter that is decremented at the prescaler
output rate. The counter is not otherwise accessible to the user. When the counter reaches zero, it is reloaded with the clock divider bits. Thus, a value of $7FF in CD10–CD0 produces the minimum clock rate (divide by 2048); a value of $002 produces the maximum
clock rate (divide by 3).
NOTE
Because of SCC clocking restrictions, the maximum baud rate
that may be used to clock an SCC is divide by 3.
When dividing by an odd number, the counter ensures a 50% duty cycle by asserting the
terminal count once on a clock high and next on a clock low. The terminal count signals the
counter expiration and toggles the clock.
DIV4—SCC Clock Prescaler Divide by 4
The SCC clock prescaler bit selects a divide-by-1 (DIV4 = 0) or divide-by-4 (DIV4 = 1)
prescaler for the clock divider input. The divide-by-4 option is useful in generating very slow
baud rates.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor,Communications
Inc.
Processor (CP)
4.6 SERIAL COMMUNICATION PORT (SCP)
The SCP is a full-duplex, synchronous, character-oriented channel that provides a threewire interface (receive, transmit, and clock). The SCP consists of independent transmitter
and receiver sections and a common clock generator. The transmitter and receiver sections
use the same clock, which is derived from the main clock by a separate on-chip baud rate
generator. Since the SC302 is an SCP master for this serial channel, it generates both the
enable and the clock signals.
Freescale Semiconductor, Inc...
The SCP allows the SC302 to exchange status and control information with a variety of
serial devices, using a subset of the Motorola Serial Peripheral Interface (SPI). The SCP is
compatible with SPI slave devices. These devices include industry-standard CODECs as
well as other microcontrollers and peripherals.
The SCP also allows the SC302 to load data from a serial EEPROM to its internal registers
or RAM. Three common types of serial EEPROMs are supported by the SCP.
The SCP enable signals, which can be implemented using the general-purpose I/O pins
(SCPENx), are used to enable one of several potential SCP slave devices. An additional
special enable signal (E2EN) is used to connect the serial EEPROM to the SCP. The clock
signal (SPCLK) shifts the received data (SPRXD) in and shifts the transmitted data (SPTXD)
out. The clock is gated: it operates only while data is being transferred and is idle otherwise.
Two successive byte transmissions over the SCP cannot occur immediately back-to-back.
A minimum delay of two to eight bit times is imposed by the SCP, depending on the SCP
clock rate (communication processor priorities and software handling of interrupts may
contribute extra delays). Higher SCP clock rates give higher minimum delay.
The SCP can be configured to operate in a local loopback mode, which is useful for local
diagnostic functions.
Note that the least significant bit of the SCP is labeled as data bit 0 on the serial line,
whereas other devices, such as the MC145554 CODEC, may label the most significant bit
as data bit 0. The SC302 SCP bit 7 (most significant bit) is shifted out first.
The SCP key features are as follows:
• Three-Wire Interface (SPTXD, SPRXD, and SPCLK)
• Full-Duplex Operation
• Programmable Clock Generator
• Large number of Device Enable signals (implemented as Parallel I/O)
• Local Loopback Capability for Testing
4.6.1 SCP Programming Model
The SCP mode register consists of the upper nine bits of SPMODE. The SCP mode register,
an internal read-write register that controls both the SCP operation mode and clock source,
is initialized to ENabled with divide ratio of 4*11=44 (decimal) to enable the SC302 to access
the serial EEPROM after reset.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Communications ProcessorFreescale
(CP)
Semiconductor, Inc.
SPMODE
$8B0
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
STR
LOOP
CI
PM3
PM2
PM1
PM0
EN
CP
0
0
SMD
0
LOOP
EN2
EN1
0
0
0
1
0
1
0
1
0
0
0
0
0
0
0
0
Freescale Semiconductor, Inc...
STR—Start Transmit
When set, this bit causes the SCP controller to transmit eight bits from the SCP transmit/
receive buffer descriptor (BD) and to receive eight bits of data in this same BD. This bit is
cleared automatically after one system clock cycle.
LOOP—Loop Mode
When set, the loop mode bit selects local loopback operation. The ones complement of
the transmitter output is internally connected to the receiver input; the receiver and transmitter operate normally except that SCPRXD is ignored. When cleared, this bit selects
normal operation.
CI—Clock Invert
When set, the CI bit inverts the SCP clock polarity. When CI is zero, transmitted data bits
shift on rising clock edges, and received bits are sampled on falling edges. When the SCP
is idle, the clock is low. While CI is one, transmitted data bits are shifted on falling edges,
and received bits are sampled on rising edges. In this case, when the SCP is idle, the
clock is high.
PM3–PM0—Prescale Modulus Select
The prescale modulus select bits specify the divide ratio of the prescale divider in the SCP
clock generator. The divider value is 4*(PM3–PM0 + 1) giving a clock divide ratio of 4 to
64 in multiples of 4. With a 16.384MHz system clock, the maximum SCP clock is 4.096
MHz.
EN—Enable SCP
When set, this bit enables the SCP operation and connects the external pins to the SCP.
When cleared, the SCP is put into a reset state consuming minimal power.
CP—Clock Phase
When set, the SCPCLK begins toggling at the beginning of data transfer.
When cleared, the SCPCLK begins toggling at the middle of the data transfer.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Communications ProcessorFreescale
(CP)
Semiconductor, Inc.
4.6.2 SCP Clock and Data Relationship
The CP and CI bits control the SCP clock and data relationship. Both bits are initialized to
zero at reset.
SCPCLK(CI=0)
SCPCLK(CI=1)
SCPTxD
MSB
LSB
Freescale Semiconductor, Inc...
(From Master)
SCPRxD
(From Slave)
MSB
LSB
X
SCPENx
SCP Transfer Format With CP = 0
SCPCLK(CI=0)
SCPCLK(CI=1)
MSB
SCPTxD
LSB
(From Master)
SCPRxD
(From Slave)
X
MSB
LSB
SCPENx
SCP Transfer Format With CP = 1
X
Undefined Signal
Figure 4-18. SCP Clock and Data Relationship
4.6.3 SCP Transmit/Receive Buffer Descriptor
The transmit/receive BD contains the data to be transmitted (written by the host) and the
received data (written by the SCP) from/to the SCP slaves. The done (D) bit indicates that
the received data is valid. It is set by the host software and is cleared by the RISC controller
(For buffer descriptor addresses, see Table 5-1 for ISA or Table 6-2 for PCMCIA.).
Data loading from the serial EEPROM is not being done through the buffer descriptor but
through the host bus interface.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Communications ProcessorFreescale
(CP)
Semiconductor, Inc.
SCP Rx/Tx Buffer Descriptor
15
D
14
$74E
8
7
RESERVED
0
DATA
Freescale Semiconductor, Inc...
4.6.3.1 SCP DATA TRANSMIT/RECEIVE PROCESSING. The SC302 SCP always
functions in the master mode. Thus, in a typical exchange of messages, the SC302
transmits a message to an external peripheral (SCP slave) which, in turn, sends back a
reply. When the SC302 works with more than one slave, it can use the general-purpose
parallel I/O pins as enable (select) signals. To begin the data exchange, the host writes the
data to be transmitted into the transmit/receive BD, and sets the done bit. The host should
then set the start transmit (STR) bit in the SPMODE register to start transmission of data.
STR is cleared by hardware after one system clock cycle.
Upon recognizing the STR bit, the SCP also begins receiving eight bits of data. It writes the
data into the transmit/receive BD, clears the done bit, and issues a maskable interrupt to the
SC302 interrupt controller. When working in a polled environment, the done bit being set by
the host before setting the STR bit allows easy recognition of received replies by the host
software.
4.6.3.2 SCP - SERIAL EEPROM INTERFACE. When configured in an ISA PNP system,
the RISC controller uses the SCP, immediately after reset, to load data from the EEPROM
to the PNP registers. For this purpose the E2EN pin (EEPROM SELECT pin) becomes
active after reset. In a PCMCIA system with a serial EEPROM used for CIS, the RISC uses
the SCP to load data from the EEPROM to the internal RAM.
The SC302 supports 3 types of serial EEPROMs that differ in their data access formats:
• 16-bit address EEPROM
• 8-bit address EEPROM
• Mixed address EEPROM
After reset, the SC302 checks the type of EEPROM connected to it and uses the appropriate
data transfer protocol to read data from it. After loading the data from the serial EEPROM,
the SCP is free to be used for data communication with other SCP slave devices. Host
software should assert one of the SCPENx signals by writing to the PENCR register to
enable the slave device serial port. When the communications processor accesses PNP
resource data from the EEPROM, when requested by the host PNP driver, all the SCPENx
signals will be automatically changed to the value programmed in the PADAT register (this
is done on byte boundaries only). The SCPENx bits will be returned to their original value at
the end of the PNP EEPROM access. The SCP can also be used to program the PNP
EEPROM using normal SCP accesses.
4.6.3.2.1 16- Bit Address EEPROM. In 16-bit address EEPROMs, a 1-byte read OP-Code
(011 bin) precedes the 16 address bits. Data from the EEPROM appears on the byte
following the address.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Communications ProcessorFreescale
(CP)
0
1
2
3
4
5
6
7
Semiconductor, Inc.
8
9
23 24 25 26 27 28 29 30 31
SCPCLK
op-code
16 bit address
15 14
0
SCPTXD
high impedance
SCPRXD
7
6
data out
5 4 3
2
1
0
E2EN
Freescale Semiconductor, Inc...
Figure 4-19. 16-Bit EEPROM Addressing
The EEPROM must also meet the following requirements:
• Support for positive clock SPI mode (i.e., data changes from falling edge of SCPCLK,
and is stable at the rising edge of SCPCLK).
• Support for continuous read mode (i.e., data from the next consecutive address is
shifted out immediately after the data byte from the first address with no need to send
the address after each consecutive read).
The XICOR X25080 is an example for this type of EEPROM.
4.6.3.2.2 8-Bit Address EEPROM. For this type of EEPROM, the most significant bits of
the address proceed the 3 bit read OP-Code (011 Bin) with the 8 least significant address
bits following the op-code. Data from the EEPROM appears immediately after the address.
0
1
2
3
4
5
6
7
8
9
15 16 17 18 19 20 21 22 23
SCPCLK
SCPTXD
SCPRXD
op-code
A11 A10 A9 A8
high impedance
8 lsb address
A7 A6
A0
7
6
data out
5 4 3
2
1
0
E2EN
Figure 4-20. 8-Bit EEPROM Addressing
The EEPROM must also meet the following requirements:
• Supports positive clock SPI mode (i.e. data changes on the falling edge of SCPCLK,
and is stable during the rising edge of SCPCLK).
• Supports continuous read mode (i.e. data from the next consecutive address is shifted
out immediately after the data byte from the first address with no need to send the
address after each consecutive read).
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Communications ProcessorFreescale
(CP)
Semiconductor, Inc.
• The SGS-THOMSON ST95080 is an example for this type of EEPROM.
4.6.3.2.3 Mixed Address EEPROM. For this type of EEPROM, the address bits follow the
3 bit read OP-Code (110 bin). Data from the EEPROM appears on the following 8 clocks
immediately after the address bits.
SCPCLK
op-code
SCPTXD
Freescale Semiconductor, Inc...
SCPRXD
7 lsb address
A6 A5
A1 A0
high impedance
X 7
6
data out
2 1
0
E2EN
Figure 4-21. Mixed Address EEPROM Addressing
For PCMCIA application, the EEPROM should also support continuous read mode.
The 93C46 in the “by 8” organization is an example of this type of EEPROM.
NOTE
In a system, where the SCP is used to load data from the serial
EEPROM, the SCP mode register should not be changed by the
user software. All devices that are controlled by the SCP must
have the same clocking setup as used for the EEPROM.
4.7 SERIAL MANAGEMENT CONTROLLERS (SMCS)
The SMC operating in GCI (IOM-2) mode key features are as follows:
• SMC1 supports the monitor channel and SMC2 supports the C/I
channel of the GCI (IOM-2)
• Full-Duplex Operation
• Local Loopback Capability for Testing
4.7.1 SMC Overview
The SMCs are two synchronous, full-duplex Serial Management Control (SMC) ports. The
SMC ports may be configured to operate in General Circuit Interface (GCI) mode. GCI is
also known as ISDN oriented modular 2 (IOM-2). See 4.3 Serial Channels Physical Interface
for the details of configuring the GCI interface. The SMC ports are used only when the
physical serial interface is configured for GCI mode.
4.7.1.1 USING GCI WITH THE SMCS. In this mode, SMC1 controls the GCI monitor
channel.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc...
Communications ProcessorFreescale
(CP)
Semiconductor, Inc.
SMC1 Transmission
The monitor channel is used to transfer commands to the layer-1 component. The host
writes the data byte into the SMC1 Tx BD. SMC1 will transmit the data on the monitor
channel.
The SMC1 channel transmitter can be programmed to work in one of two modes:
Transparent Mode
— In this mode, SMC1 transmits the monitor channel data and the A and E control bits
transparently into the channel. When the host has not written new data to the buffer,
the SMC1 transmitter will retransmit the previous monitor channel data and the A
and E control bits.
Monitor Channel Protocol
— In this mode, SMC1 transmits the data and handles the A and E control bits
according to the GCI monitor channel protocol. When using the monitor channel
protocol, the user may issue the TIMEOUT command to solve deadlocks in case of
bit errors in the A and E bit positions on data line. The SC302 will transmit an abort
on the E bit.
SMC1 Reception
The SMC1 receiver can be programmed to work in one of two modes:
Transparent Mode
— In this mode, SMC1 receives the data, moves the A and E control bits transparently
into the SMC1 receive BD, and generates a maskable interrupt. The SMC1 receiver
discards new data when the host has not read the receive BD.
Monitor Channel Protocol
— In this mode, SMC1 receives data and handles the A and E control bits according
to the GCI monitor channel protocol. When a received data byte is stored by the CP
in the SMC1 receive BD, a maskable interrupt is generated.
— When using the monitor channel protocol, the user may issue the TRANSMIT
ABORT REQUEST command. The SC302 will then transmit an abort request on
the A bit.
SMC2 Controls the GCI Command/Indication (C/I) Channel
SMC2 Transmission
— The host writes the data byte into the SMC2 Tx BD. SMC2 will transmit the data
continuously on the C/I channel to the physical layer device.
SMC2 Reception
— The SMC2 receiver continuously monitors the C/I channel. When a change in data
is recognized and this value is received in two successive frames, it will be
interpreted as valid data. The received data byte is stored by the CP in the SMC2
receive BD, and a maskable interrupt is generated.
— The receive and transmit clocks are derived from the same physical clock (L1CLK)
and are only active while serial data is transferred between the SMC controllers and
the serial interface.
— When SMC loopback mode is chosen, SMC transmitted data is routed to the SMC
receiver. Transmitted data appears on the L1TXD pin, unless the SDIAG1–SDIAG0
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Communications ProcessorFreescale
(CP)
Semiconductor, Inc.
bits in the SIMODE register are programmed to “loopback control” (see 4.3 Serial
Channels Physical Interface).
4.7.2 SMC Programming Model
The operating mode of both SMC ports is defined by SMC mode, which consists of the lower
seven bits of SPMODE. As previously mentioned, the upper nine bits program the SCP.
Freescale Semiconductor, Inc...
SPMODE
$8B0
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
STR
LOOP
CI
PM3
PM2
PM1
PM0
EN
CP
0
0
SMD
0
LOOP
EN2
EN1
0
0
1
1
0
1
0
1
0
0
0
0
0
0
0
0
SMD—SMC Mode Support
0 = GCI—The monitor channel is not used.
1 = GCI—The monitor channel data and the A and E control bits are internally
controlled according to the monitor channel protocol.
LOOP—Local Loopback Mode
0 = Normal mode
1 = Local loopback mode. EN1 and EN2 must also be set.
EN2—SMC2 Enable
0 = Disable SMC2
1 = Enable SMC2
EN1—SMC1 Enable
0 = Disable SMC1
1 = Enable SMC1
4.7.3 SMC Commands
The following commands issued to the CP command register (see 4.2 Command Set) are
used only when GCI is selected for the serial channels physical interface.
TRANSMIT ABORT REQUEST Command
This receiver command may be issued when the SC302 implements the monitor channel
protocol. When issued, the SC302 sends an abort request on the A bit.
TIMEOUT Command
This transmitter command may be issued when the SC302 implements the monitor channel protocol. It is issued because the device is not responding or because GCI A bit errors
are detected. When issued, the SC302 sends an abort request on the E bit.
4.7.4 SMC Memory Structure and Buffers Descriptors
The CP uses several memory structures and memory-mapped registers to communicate
with the host. All the structures detailed in the following paragraphs reside in the parameter
RAM of the SC302. The SMC buffer descriptors allow the user to define one data byte at a
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Communications ProcessorFreescale
(CP)
Semiconductor, Inc.
time for each transmit channel and receive one data byte at a time for each receive channel
(For buffer descriptor addresses, see Table 5-1 for ISA or Table 6-2 for PCMCIA.).
4.7.4.1 SMC1 RECEIVE BUFFER DESCRIPTOR. The CP reports information about the
received byte using this (BD).
Freescale Semiconductor, Inc...
SMC1 RxBD
$73A
15
14
13
12
E
L
ER
MS
11
10
—
9
8
AB
EB
7
0
DATA
E—Empty
0 = This bit is cleared by the CP to indicate that the data byte associated with this BD
is now available to the host.
1 = This bit is set by the host to indicate that the data byte associated with this BD is
empty.
In GCI mode, when the SC302 implements the monitor channel protocol, the SC302 will wait
until this bit is set by the host before acknowledging the monitor channel data. In other
modes (transparent GCI), additional received data bytes will be discarded until the empty bit
is set by the host.
L—Last (End Of Message)
This bit is valid only in GCI mode when the SC302 implements the monitor channel protocol. This bit is set when the End Of Message (EOM) indication is received on the E bit.
NOTE
When this bit is set, the data byte is not valid.
ER—Error Condition
This bit is valid only in GCI mode when the SC302 implements the monitor channel protocol and the L bit is set. This bit is set when an error condition occurs on the monitor channel protocol. A new byte is transmitted before the SC302 acknowledges the previous byte.
MS—Data Mismatch
This bit is valid only in GCI mode when the SC302 implements the monitor channel protocol. This bit is set when two different consecutive bytes are received and is cleared
when the last two consecutive bytes match. The SC302 waits for the reception of two
identical consecutive bytes before writing new data to the receive BD.
Bits 11–10—Reserved for future use.
AB—Received A Bit
This bit is valid only in GCI mode when the monitor channel is in transparent mode.
EB—Received E Bit
This bit is valid only in GCI mode when the monitor channel is in transparent mode.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Communications ProcessorFreescale
(CP)
Semiconductor, Inc.
DATA—Data Field
The data field contains the byte of data received by SMC1.
4.7.4.2 SMC1 TRANSMIT BUFFER DESCRIPTOR. The CP reports information about this
transmit byte through the BD.
Freescale Semiconductor, Inc...
SMC1 TxBD
$73C
15
14
13
R
L
AR
12
10
—
9
8
AB
EB
7
0
DATA
R—Ready
0 = This bit is cleared by the CP after transmission. The Tx BD is now available to the
host.
1 = This bit is set by the host to indicate that the data byte associated with this BD is
ready for transmission.
In GCI mode, when the SC302 implements the monitor channel protocol, it will clear this bit
after receiving an acknowledgment on the A bit. When the SMC1 data should be transmitted
and this bit is cleared, the channel will retransmit the previous data until new data is provided
by the host.
L—Last (End Of Message)
This bit is valid only in GCI mode when the SC302 implements the monitor channel protocol. When this bit is set, the SMC1 channel will transmit the buffer's data and then the
End Of Message (EOM) indication on the E bit.
AR—Abort Request
This bit is valid only in GCI mode when the SC302 implements the monitor channel protocol. This bit is set by the SC302 when an abort request was received on the A bit. The
SMC1 transmitter will transmit EOM on the E bit.
Bits 12–10—Reserved for future use.
AB—Transmit A Bit Value
This bit is valid only in GCI mode when the monitor channel is in transparent mode.
EB—Transmit E Bit Value
This bit is valid only in GCI mode when the monitor channel is in transparent mode.
DATA—Data Field
The data field contains the data to be transmitted by SMC1.
4.7.4.3 SMC2 RECEIVE BUFFER DESCRIPTOR. In the GCI mode, SMC2 is used to
control the C/I channel. (For buffer descriptor address, see Table 5-1 for ISA or Table 6-2
for PCMCIA.)
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Communications ProcessorFreescale
(CP)
Semiconductor, Inc.
SMC2 RxBD
15
$73E
14
E
6
5
RESERVED
2
C/I
1
0
0
0
E—Empty
0 = This bit is cleared by the CP to indicate that the data bits associated with this BD
are now available to the host.
1 = This bit is set by the host to indicate that the data bits associated with this BD have
been read.
NOTE
Freescale Semiconductor, Inc...
Additional data received will be discarded until the empty bit is
set by the host.
Bits 14–6—These bits are reserved and should be set to zero by the host.
C/I—Command/Indication Channel Data
Bits 1-0—The CP always writes these bits with zeros.
4.7.4.4 SMC2 TRANSMIT BUFFER DESCRIPTOR. In the GCI mode, SMC2 is used to
control the C/I channel. (For buffer descriptor address, see Table 5-1 for ISA or Table 6-2
for PCMCIA.
SMC2 TxBD
15
R
$740
14
6
5
RESERVED
2
C/I
1
0
0
0
R—Ready
0 = This bit is cleared by the CP after transmission to indicate that the BD is now
available to the host.
1 = This bit is set by the host to indicate that the data associated with this BD is ready
for transmission.
Bits 14–6—Reserved for future use; should be set to zero by the user.
C/I—Command/Indication channel data
Bits 1–0—These bits should be written with zeros by the host.
4.7.5 SMC Interrupt Requests
SMC1 and SMC2 send individual interrupt requests to the SC302 interrupt controller when
one of the respective SMC receive buffers is full or when one of the SMC transmit buffers is
empty. Each of the two interrupt requests from each SMC is enabled when its respective
SMC channel is enabled in the SPMODE register. Interrupt requests from SMC1 and SMC2
can be masked in the interrupt mask register. See Interrupt Controller for more details.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Communications ProcessorFreescale
(CP)
Semiconductor, Inc.
4.8 REVISION NUMBER
Freescale Semiconductor, Inc...
The revision number of the part can be read at $73A. This is shared with the SMC1 RxBd,
so the revision number is only valid after reset and before the SMC is used.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Semiconductor, Inc.
Freescale Semiconductor, Inc...
Communications ProcessorFreescale
(CP)
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Semiconductor, Inc.
Freescale Semiconductor, Inc...
Communications ProcessorFreescale
(CP)
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
SECTION 5
ISA PLUG AND PLAY INTERFACE
5.1 INTRODUCTION
Freescale Semiconductor, Inc...
The ISA Plug and Play (ISA-PNP) interface is intended to support the Plug and Play ISA
Specification, Version 1.0a, May 5, 1994. All the changes specified in Clarification to the
Plug and Play ISA Specification, Version 1.0a, December 10, 1994, are included.
5.2 MAIN FEATURES
The ISA PNP bus interface supports either I/O or memory mode accesses. It can be
configured in either 8-bit mode or 16-bit mode. The PNP interface only supports 1 logical
device. The internal chip addressable space accessed by a descriptor and an extra external
chip select is supported with another. Enabling memory automatically disables I/O accesses
to the related region. Only one IRQ descriptor is supported, and both the SC302 interrupt
and the external chip select interrupt must share the same interrupt. DMA resources are not
supported. Maximum length of the resource data in a byte serial device is 256 bytes (first 16
bytes are allocated to vendor defined information).
The resource data layout was changed to allow loading of implementation specific
configuration information at reset (software, however, always reads resource data from the
first bit of Vendor ID). See 5.4 ISA-PNP Configuration Programming for more details.
ISA mode is enabled by connecting a pullup to IOW/PC_MODE during system reset.
5.3 ISA MEMORY MAP
The SC302’s memory map for ISA is composed of two main parts:
1. Host Interface Control Registers (HCR) which in ISA mode are the Plug and Play registers.The HCR’s are allocated as ISA PNP configuration and control registers by selecting ISA mode during hard system reset.
2. Communication Controller Memory and Registers (CCMR’s) which includes the Communication Controller Registers (CCR) and the Dual Ported RAM (DPR).
In ISA mode, the CCMR can be allocated either in memory address space or in I/O address
space.
The DPR is further partitioned to a system RAM region and a parameter RAM region. These
regions are shown in Figure 5-1.
System RAM size is 1280 decimal bytes ($500 bytes). The Rx FIFO buffers and RxBDs, the
TxBD table and Tx data buffers, are all contained in this portion of the DPR.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
ISA Plug and Play Interface
Freescale Semiconductor, Inc.
The parameter RAM portion of the DPR contains all parameters required by the three
SCC’s. It consists of 3 pages, $100 bytes each.
The CCR contains all the communication controller’s internal status, event and control
registers.
A CCMR access utilizes three methods of address decoding. When the CCMR is mapped
in ISA memory space, access address is interpreted as an offset relative to a base address.
When the CCMR is mapped into ISA I/O space, access address is contained within a
pointer. When a portion of the CCMR is defined as CIS, this portion can be accessed by an
absolute address decoding, as depicted in Figure 5-1.
CCMR
Freescale Semiconductor, Inc...
DPR
BASE*
0
SYSTEM
RAM
POINTER*
4FF
HOST
INTERFACE
CONTROL
REGISTERS
500
PARAMETER
RAM
7FF
CCR
(HCR)
800
INTERNAL
REGISTERS
HARD-WIRED
DECODING
FFF
* USED IN I/O MODE
Figure 5-1. SC302 Memory Spaces and Decoding Methods
5.3.1 ISA I/O Address Space
In ISA mode, the HCR region is allocated as ISA PNP configuration and control registers.
The access to this region is done in I/O space via three constant-addressed data structures:
ADDRESS pointer, WRITE_DATA port, and READ_DATA port. This is shown in Figure 52. For further details, please refer to the ISA PNP interface definition.
NOTE
Accesses to the HCR are always 8 bits with no wait states.
Therefore, the MC68SC302 system clock (EXTAL) must be
7.61MHz or greater for 8.33MHz ISA.
In addition, the CCMR can be mapped within ISA I/O address space. This is done by
properly programming entry #0x0F in the serial EEPROM device. This entry is loaded
immediately following hard system reset to the Implementation Specific Information (ISI)
register in the HCR. See ISA PNP Interface definition for details.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
ISA Plug and Play Interface
Using 16-bit address decoding, the CCMR I/O space fully supports Windows 95
requirements for PNP systems. Data bus width may be either 8- or 16-bits.
NOTE
Because of ISA bus timing limitations the MC68SC302 system
clock (EXTAL) must be at least 15MHz (all zero wait states) with
16-bit 8.33MHz ISA I/O space accesses.
SET_READ_DATA
SA[15:0]
ADDRESS
279
HCR’S
Freescale Semiconductor, Inc...
REGISTERS
WRITE_DATA
A79
SET_READ_DATA
READ_DATA
Figure 5-2. HCR Access in ISA Mode
CCMR addressing in ISA I/O space is shown in Figure 5-3. The I/O base address is loaded
by the operating system during BOOT into the BASE register. This 16-bit register points to
a 4-byte space in the ISA I/O address space. The first word location in this 4-byte space is
occupied by ADPTR—the I/O space address pointer. The second word location is occupied
by DPORT—the I/O space data port.
0
1
1
BASE
+2
0
ADPTR
3
2
DPORT
CCMR
HCR
FFF
FFE
16
Figure 5-3. CCMR Addressing in ISA I/O Space
Following ADPTR high byte (byte 1) loading, an automatic read operation is done from the
CCMR location pointed to by ADPTR. A 16-bit data word is loaded into DPORT. This data
can be read either as two bytes in 8-bit data mode, or as a word in 16-bit data mode (if the
master is making 8-bit transfers, the SC302 must be configured as an 8-bit slave).
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
ISA Plug and Play Interface
Freescale Semiconductor, Inc.
NOTE
When ADPTR is written by two byte accesses (either in 8-bit ISA
or as two individual accesses of 16-bit ISA) the low byte of
ADPTR must be written first. In 16-bit mode, ADPTR can be
written within one ISA access.
The next stage of operation depends on which CCMR address region is accessed.
Freescale Semiconductor, Inc...
5.3.1.1 DPR ADDRESSING. A speculative read mechanism is used in the DPR region of
the CCMR. This is done as follows:
After an access (read or write) to the odd byte of DPORT (either by accessing it directly or
by accessing a 16-bit aligned operand), the value of ADPTR is increased by 2. An automatic
read access is then generated, and DPORT is loaded from the next DPR location. The
conditions for speculative read execution are:
• CCMR is allocated in ISA I/O address space
• ADPTR points to DPR region
• No wait states are programmed in BUSCNT (see ISA PNP Interface definition)
• The odd byte of DPORT is accessed
NOTE
If wait state is enabled, the address in ADPTR is incremented by
2 after DPORT odd byte access, but no speculative read is
performed. This enables the software to access a FIFO buffer in
a consecutive manner, without changing the value in ADPTR
prior to each access.
5.3.1.2 CCR ADDRESSING. The speculative read policy does not apply within the CCR
region. The value of ADPTR is not changed after access completion to this address space
($800-$FFF). ADPTR must be reloaded prior to each access. However, if bus wait states
are disabled, an automatic read operation is performed after ADPTR is loaded with the new
address.
5.3.2 ISA Memory Address Space
The CCMR can be mapped in ISA memory space by setting bit 7 (I_I/M bit) in the ISI register
(See ISA PNP Interface definition for further explanation).
The memory base address is loaded into the memory base address register by the operating
system during BOOT. This 12-bit register points to a 4kbyte space within ISA memory
address space. Any location within the CCMR can be randomly accessed. The value loaded
into the base address register is 4kb aligned.
5.3.3 CCMR Structure
Byte addressing of the CCMR is little endian (Intel convention).
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
ISA Plug and Play Interface
5.3.3.1 DPR. The DPR is accessible by both the communication controller and the host. It
is composed of system memory and parameter RAM, shown in Figure 5-4.
8
15
1
SYSTEM
7
0
0
RAM
4FF
4FE
501
500
Freescale Semiconductor, Inc...
PARAMETER RAM
7FE
7FF
Figure 5-4. DPR Addressing
5.3.3.2 PARAMETER RAM. The parameter RAM is composed of three (3) parameter
pages. The first page, addressed at $500-$5FF, is the SCC1 page parameter. The second
page, at the address interval of $600-$6FF, is SCC2 parameter area. The third page, at the
address interval of $700-$7FF, holds the parameters for SCC3, the SMCs, and the SCP.
Table 5-1 shows the memory map of the parameter RAM region.
Table 5-1. SC302 Parameter RAM
ADDRESS
WIDTH
500
538
BLOCK
SCC1
53A
5FF
SCC2
63A
6FF
SCC2 PARAMETER RAM
Reserved
700
738
754
7FF
SCC1 PARAMETER RAM
Reserved
600
638
73A
73C
73E
740
742
74E
750
752
DESCRIPTION
SCC3
Word
Word
Word
Word
6 Word
Word
3 Word
Word
SMC1, Rev No
SMC1
SMC2
SMC2
SMC1-2
SCP
SCP
CP
SCC3 PARAMETER RAM
RxBD, MC68SC302 revision number (until SMC is used)
TxBD
RxBD
TxBD
Internal use
Rx/TxBD
Internal use
SC302 Revision Number
Reserved
For detailed description of page parameter contents either for HDLC or TRANSPARENT
protocols, please refer to CP definition.
5.3.3.3 CCR REGISTER MAP. The CCR register map is described in Table 5-2. The term
CCMR address refers to the offset from the beginning of the CCMR.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
ISA Plug and Play Interface
Freescale Semiconductor, Inc.
Freescale Semiconductor, Inc...
Table 5-2. CCR Register Map
RESET
CCMR
ADDRESS
NAME
0800
IPRDN
8
0802
PITR
16
0804
IOER
8
0812
GIMR
16
IC
Reserved
Global Interrupt Mode Register
0000
3.1.4Wake Up On Interrupt
0814
IPR
16
IC
Interrupt Pending Register
0000
3.1.6Interrupt Pending Register (IPR)
0816
IMR
16
IC
Interrupt Mask Register
Reserved
0000
3.1.7Interrupt Mask Register (IMR)
081E
PACNT
16
PIO
Port A Control Register
F001/
F000
2.3.4.2 Port A Registers
0820
PADDR
16
PIO
Port A Data Direction Register
0000
2.3.4.2 Port A Registers
0822
PADAT
16
PIO
Port A Data Register
XXXX
2.3.4.2 Port A Registers
0824
PENCR
8
CP
Port A Enable Pins Control Register
00
2.3.4.3 Port A SCP Enable Control
0826
PMFSR
16
PIO
Pin Multifunction Select Register
F000
2.3.4.6 Special Pin Function in 8-Bit
Mode
0861
CR
8
CP
00
4.2 Command Set
0884
SCM1
16
SCC1
0000
4.5.2SCC Mode Register (SCM)
0889
SCCE1
8
SCC1
00
4.5.10.10 HDLC Event Register
088B
SCCM1
8
SCC1
Reserved
Command Register
Reserved
SCC1 Mode Register
Reserved
SCC1 Event Register
Reserved
SCC1 Mask Register
00
4.5.10.11 HDLC Mask Register
088D
SCCS1
8
SCC1
SCC1 Status Register
00
4.5.5.9 Transmitter Buffer Descriptor
Pointer (TBPTR)
0892
SCON2
16
SCC2
Reserved
SCC2 Configuration Register
0894
SCM2
16
SCC2
0899
SCCE2
8
089B
SCCM2
8
WIDTH BLOCK
DESCRIPTION
VALUE
PWRDWN ISA Power Down Register
PIT
Periodic Interrupt Timer Register
RI logic RI Event Indication for ISA mode
0000
LOCATION OF REGISTER DESCRIPTION IN
MANUAL
3.2 ISA Power Control Registers
Timer Register
0004 3.1.8.3 Periodic Interrupt
(PITR)
0000
5.10 Card Configuration and Control
Register Map (CCR)
0004 4.5.12.3 Configuration Register (SCON)
0000
4.5.2SCC Mode Register (SCM)
SCC2
SCC2 Mode Register
Reserved
SCC2 Event Register
00
4.5.10.10 HDLC Event Register
SCC2
SCC2 Mask Register
00
4.5.10.11 HDLC Mask Register
00
4.5.5.9 Transmitter Buffer Descriptor
Pointer (TBPTR)
0000
4.5.2SCC Mode Register (SCM)
00
4.5.10.10 HDLC Event Register
089D
SCCS2
8
SCC2
SCC2 Status Register
08A4
SCM3
16
SCC3
08A9
SCCE3
8
SCC3
Reserved
SCC3 Mode Register
Reserved
SCC3 Event Register
08AB
SCCM3
8
SCC3
SCC3 Mask Register
00
4.5.10.11 HDLC Mask Register
00
4.5.5.9 Transmitter Buffer Descriptor
Pointer (TBPTR)
4.6.1SCP Programming Model
08AD
SCCS3
8
SCC3
SCC3 Status Register
08B0
SPMODE
16
SCM
Reserved
SCP, SMC Mode and Control Register
1500
08B2
SIMASK
16
SI
Serial Interface Mask Register
Mask Register (SIFFFF 4.4.2Serial Interface
MASK)
08B4
SIMODE
16
SI
Serial Interface Mode Register
Mode Register (SI0000 4.4.1Serial Interface
MODE)
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
ISA Plug and Play Interface
5.4 ISA-PNP CONFIGURATION PROGRAMMING
If the ISA-PNP configuration process is managed by the MC68SC302, the resource data is
stored in a byte serial device (serial EPROM). Figure 5-5 describes the resource data layout.
The exact format of resource data is described in the Plug and Play ISA Specification.
Freescale Semiconductor, Inc...
The resource data describes how many logical devices are on the card and the resource
requirements of the logical devices. The chip is intended to support one logical device,
therefore one set of logical device configuration registers is defined. During system
configuration, the software reads resource data of each card, performs arbitration and
assigns resources to cards writing configuration registers for IRQ, I/O, memory and DMA
resources. It is the responsibility of software to ensure that every resource requested by
hardware is programmed, even if the resource is not assigned.
The following types of resources must be requested and programmed for the SC302 chip:
• 1 IRQ descriptor
• 1 I/O or memory descriptor for the internal space
• 1 I/O or memory descriptor for CS0
Because of register sharing (I/O and memory configuration registers are shared) I/O and
memory modes for a particular descriptor cannot be enabled simultaneously. However one
descriptor can be set-up for I/O mode while the other descriptor can be set up for memory
mode. This allows the internal MC68SC302 space to be, say, I/O mode while the external
chip select space can be mapped as a memory space. If a mode is disabled, the reads from
the related configuration registers will return 0. The mode programming is performed
through the byte serial device’s byte 0x07. See 5.4.1Resource Data Layout in a Byte Serial
Device for more information.
5.4.1 Resource Data Layout in a Byte Serial Device
There is a predefined layout for the ISA-PNP resource data, illustrated in Figure 5-5.
In the EEPROM, resource data starts from 0x00 with the first byte of Vendor ID. To the host
PC, however, the first byte of Vendor ID is located at 0x08. ISA-PNP hardware performs
address translation on every access to the resource data.
The range of EEPROM addresses from 0x00 to 0x07 is allocated to vendor defined
configuration information (Table 5-3).
Table 5-3. Resource Data Layout
ADDRESS
NAME
REGISTER-DESTINATION
0x00-01
Serial EEPROM Type/Mode
-
0x02-06
Reserved for future use. Must be programmed to 0
-
0x07
Implementation Specific Information
0x22
0x08
First byte of Standard Resource Data
-
The first two bytes are used to define EEPROM type and enforce debug mode.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
ISA Plug and Play Interface
Freescale Semiconductor, Inc.
Freescale Semiconductor, Inc...
Table 5-4. Specifying SE2PROM
ADDRESS
16-BIT ADDRESS SE2PROM
8-BIT ADDRESS SE2PROM
ISA-93C46 SE2PROM
0x00
0(d)000010
0x00
0(d)000010
0x01
0x00
0(d)000011
0xFF
0x02
0x00
0x00
0x00
0x03
0x00
0x00
0x00
0x04
0x00
0x00
0x80
(d)–Debug mode bit.
1 = Enter debug mode after reset. The ISA interface enters configuration state directly.
0 = Regular operation.
NOTE
If no EEPROM is found at reset (when in ISA mode), debug
mode is enforced.
The information from 0x07 in a byte serial device is loaded into the ISA-PNP register located
at 0x22 during reset (RESET_DRV) or if the reset command is issued; the internal pointer
to byte serial device is moved to 0x08.
The Implementation Specific Information byte is defined in the following way:
Bit 7—Internal space I/O-memory selector.
1 = Internal space is in memory mode
0 = Internal space is in I/O mode
Bit 6—CS0 I/O-memory selector.
1 = CS0 is in memory mode
0 = CS0 is in I/O mode
Bit 5—Internal space I/O data width
1 = 16-bit data width
0 = 8-bit data width
Bit 4—CS0 space I/O data width
1 = 16-bit data width
0 = 8-bit data width
Bit 3—Reserved.
Bit 2–bit 0—The length of I/O range length masking pattern for CS0.
See definition of bit 2–bit 0 in the Implementation Specific Information (ISI) register.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
ISA Plug and Play Interface
NOTE
SEPROM Type (Byte 0)
SEPROM Type (Byte 1)
Reserved: 0x00
Reserved: 0x00
ISI
07
08
Vendor ID
Byte 0
One logical device
is defined for this
application.
IMPLEMENTATION SPECIFIC BYTE
Byte 1
Serial Number
Byte 3
Byte 0
Byte 1
Serial ID
Byte 2
Byte 2
Byte 3
Checksum
Byte 0
PNP Version and Card String ID
Logical Dev ID 0
Resources for ID 0
Byte 0
Byte 1
Device 0 Resources
Freescale Semiconductor, Inc...
Reserved: 0x00
CS range length
EEPROM Address
00
EEPROM Specific
The range length declared here should be consistent with the
value in the related resource data descriptor.
0xFF
Checksum of the End-tag Byte m
Figure 5-5. ISA-PNP Resource Data Layout in a Byte Serial EEPROM Device
5.4.2 Reading Resource Data
There are two registers dedicated to resource data reading: resource data and status, both
active only in the configuration state.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
ISA Plug and Play Interface
Freescale Semiconductor, Inc.
NOTE
Only one card at a time can be in the configuration state,
therefore only the resource data of this one card can be
accessed.
To read the resource data the following sequence of operations should be performed:
Freescale Semiconductor, Inc...
— Poll bit 0 of the status register.
— When status register bit 0 is one, read the resource data registers.
— Repeat.
The ISA-PNP hardware detects read access to the status registers, fetches 8 bits from its
byte serial device to the resource data register and sets bit 0 in the status register. After the
read of the resource data register completes, the status bit is cleared, the next 8 bits are
fetched from the serial EPROM and the status bit is set again.
If the configuration state is entered by writing CSN after winning serial isolation, the first byte
of the logical device 0 resource information (ISA-PNP version, see Figure 5-5) is returned
on the first read from the resource data register. Otherwise, byte 9 of the serial ID must be
read first to access the resource information (checksum is not valid in this case).
Every time the resource data pointer is reset, it points to 0x08 of the byte serial device.
5.4.3 I/O Configuration
If the I/O configuration option is chosen, I/O resources must be requested by the card’s
resource data and configured by the operating system. First I/O descriptor (descriptor 0) is
assigned to the internal space. I/O descriptor 1 is assigned to CS0.
The descriptors should be programmed in the following way:
Byte 0: I/O port descriptor tag (value = 01000111B)
Byte 1: (information): SC302 supports 16-bit address decoding, therefore bit 0 = 1, bit 7–bit
1 are reserved and must be 0.
Byte 2-3: minimum base address. Minimum base address must be aligned on the boundary
specified by the alignment field.
Byte 4-5: maximum base address. There are no special restrictions on the value of this field.
Byte 6: base alignment in 1-byte blocks. The base alignment of the internal space must be
greater than or equal to 4 bytes.
Byte 7: range length. For internal space it must be programmed to 4 bytes. For CS0 it should
be programmed to the length of the related I/O region.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
ISA Plug and Play Interface
15
0
IO_ADDRESS
I/O base
IO_DATA
I/O base + 2
Figure 5-6. Internal I/O Space Structure
Freescale Semiconductor, Inc...
Note, that in internal space, I/O base points to the IO_address port (Figure 5-6).
In addition to the standard set of configuration registers (which are programmed by the
software), the Implementation Specific Information (ISI) register is defined in SC302. Its
initial value is loaded during reset from a byte serial device (See 5.4.1Resource Data Layout
in a Byte Serial Device).
The I/O configuration option becomes active when the active PNP register is set.
5.4.4 Memory Configuration
If the memory configuration option is chosen, memory resources should be requested
(implying that the related configuration registers must be programmed by the software). Two
memory descriptors can be supported (both are 24-bit memory descriptors). The first
memory range descriptor corresponds to the internal space.
The internal memory range descriptor must be programmed in the following way:
Byte 0: 100000012 (memory range descriptor’s tag).
Bytes 1-2: 0x90 (bits[7:0],[15:8] of the descriptor’s length).
Byte 3: 0_0_0_1_0_0_0_1 (information field: [Reserved]_[Not Expansion ROM]_[Not
shadowable]_[8/16-bit supported]_[Decode support Range Length]_[Noncachable]_[Writable]).
Bytes 4-5: range minimum base address.
NOTE
The minimum base address must be aligned on the boundary
specified by the alignment field.
Bytes 6-7: range maximum base address.
Bytes 8-9: base alignment = 4kbyte-range length of the internal memory space.
Bytes 10-11: 16 256-byte blocks (=4kbyte-range length of the internal memory space).
The memory descriptor related to the CS0 (the second memory descriptor) is programmed
in the same way. Its fields have to reflect the properties of the CS0 memory region.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
ISA Plug and Play Interface
Freescale Semiconductor, Inc.
5.4.5 IRQ Configuration
One IRQ select is defined (select 0) and should be programmed.
Bytes 1-2 of the IRQ[15:0] descriptor is a mask: a bit set in the mask indicates that the card
can drive an interrupt on the corresponding IRQ pin.
Byte 3 is programmed to the required interrupt type.
Freescale Semiconductor, Inc...
NOTE
The chip can drive an interrupt on one of its IRQ pins: IRQ3,
IRQ4, IRQ5, IRQ6, IRQ7, IRQ9, IRQ10, IRQ11, IRQ12, IRQ14,
IRQ15. For correct function, the MC68SC302’s IRQ pins must
be connected to the corresponding ISA-IRQ pins: IRQ3 to ISAIRQ3, IRQ4 to ISA-IRQ4, etc.
5.4.6 Resource Management
As mentioned above, byte 0x07 of a byte serial device must be programmed to choose
between I/O and memory modes in the internal space and CS0.
After power up (or reset command) all the resources are disabled, that is I/O base addresses
(or memory base address and range length - depending on configuration chosen) are set to
0x0000; IRQ mask is cleared (0x00).
To enable a resource it should be configured through the ISA-PNP interface: the resource’s
descriptor has to appear in the resource data structure, the software reads it and programs
the resource. The enabling of a memory (I/O) range disables I/O (memory) accesses to the
corresponding range (related configuration registers return 0 on reads). NULL descriptors
can be used through the resource definition.
NOTE
The following NULL descriptors for the resources are defined by
the “Clarification to the Plug and Play ISA Specification, Version
1.0a”:
NULL IRQ-descriptor: IRQ mask bits are set to all zero. The
software writes 0x00 to the type registers and 0x2 to the type
registers.
NULL memory-descriptor: range length is set to 0x0000. The
software writes 0x00 to the related configuration registers (0x4041, 0x43-44, for example).
NULL I/O-descriptor: I/O base address is set to 0x0000. The
software writes 0x00 to the related configuration registers.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
ISA Plug and Play Interface
5.4.7 Logical Device ID
Bytes 5-6 of the logical device ID reflects the commands (control registers) implemented in
the region 0x31-0x3F: byte 5:8’B0000_0000 and byte 6:8’B0000_0000. See 5.8 ISA-PNP
Control Registers Summary for details.
5.4.8 Unsupported Resources
DMA resources are not supported and should not be requested.
5.5 ISA-PNP CARD LEVEL CONTROL REGISTERS
Freescale Semiconductor, Inc...
Set RD_DATA Port
Address Port Value: 0x00
7
6
5
4
3
2
1
0
RDA[9]
RDA[8]
RDA[7]
RDA[6]
RDA[5]
RDA[4]
RDA[3]
RDA[2]
RESET VALUE:UNDEFINED
Write only.
The register is active in the isolation state.
RDA[9:2]—READ_DATA port address bits[9:2].
NOTE
Bits[1:0] of the READ_DATA port address are always equal to
11. Bits[11:10] are always equal to 00. The register should be
initialized by the user before issuing isolation sequence. See
5.14 Isolation Protocol for more details.
Serial Isolation
Address Port Value: 0x01
7
6
5
4
3
2
1
0
1/0
0/1
1/0
0/1
1/0
0/1
1/0
0/1
RESET VALUE: UNDEFINED
Read only
The register is active in the isolation state only. A pair of reads from this registers causes
the chip to shift out one bit from its serial ID. If the shifted bit is 1, these two subsequent
reads from the serial isolation register will return 0x55 and then 0xAA. Otherwise, the ISAdata bus is not driven. For more details, see 5.14 Isolation Protocol.
Configuration Control
Address Port Value: 0x02
7
6
5
4
3
2
1
0
0
0
0
0
0
RST_CSN
WAIT_KEY
RESET
0
0
0
0
0
0
0
0
Write only.
The register is active in sleep, isolation and configuration states.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
ISA Plug and Play Interface
Freescale Semiconductor, Inc.
RST_CSN—Reset CSN to 0
Setting this bit resets CSN of all the cards.
WAIT_KEY—Return to the wait for key state.
Setting this bit causes all the cards to transition to the wait for key state.
RESET—Reset logical device (the chip).
Setting this bit causes the reset of the logical device and restores the contents of configuration registers to the default state. The CSN and the state are preserved.
Freescale Semiconductor, Inc...
Bits[7:3] are reserved and should be programmed to zero.
NOTE
These bits are automatically reset to 0 by the hardware after the
command execution completes.
The software must delay 2+ ms after setting RESET bit to 1
before accessing ISA-PNP ports.
Wake (CSN)
Address Port Value: 0x03
7
6
5
4
3
2
1
0
WCSN[7]
WCSN[6]
WCSN[5]
WCSN[4]
WCSN[3]
WCSN[2]
WCSN[1]
WCSN[0]
RESET VALUE: UNDEFINED
Write only.
The register is active in the sleep, isolation and configuration states.
WCSN[7:0]—Card Select Number for Wake[CSN] command.
The result of writing to this register depends on the value stored in the card’s CSN register
and the card’s state. If the card is in the sleep state and (WCSN == CSN) and (CSN <>0),
the card transitions to the configuration state. If the card is in the sleep state with no CSN
assigned (CSN == 0) and (WCSN == 0), the card transitions to the isolation state. If the
card is in the configuration state and (WCSN <> CSN), the card transitions to the sleep
state. If the card is in the isolation state and (WCSN <> 0), the card transitions to the sleep
state. The other combinations do not change the card’s state.
NOTE
If Wake[0] is issued, the card is in the configuration state and its
CSN is equal to 0 (as a result of the Reset CSN command), the
PNP hardware will transition to the isolation state.
NOTE
The command always resets the pointer to the byte serial device
(Serial EPROM). If Wake[0] was issued when a card is in the
isolation state, the software must wait 1+ ms before beginning
the next 72 pairs of serial isolation read cycles.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
ISA Plug and Play Interface
Resource Data
Address Port Value: 0x04
7
6
5
4
3
2
1
0
RD[7]
RD[6]
RD[5]
RD[4]
RD[3]
RD[2]
RD[1]
RD[0]
RESET VALUE: UNDEFINED
Read only.
The register is active in the configuration state only.
Freescale Semiconductor, Inc...
RD[7:0]—Byte from the Resource Data.
A read from this register returns next byte of the chip’s resource data. Prior to reading the
resource data register, the software should poll status registers.
NOTE
Reading the register invalidates the data (that is the Status bit in
the status registers is set).
Status
Address Port Value: 0x05
7
6
5
4
3
2
1
0
0
0
0
0
0
0
0
STS
0
0
0
0
0
0
0
0
Read only
The register is active in the configuration state.
Bits[7:1]—reserved.
On read these bits return zero.
STS—Status bit.
This bit indicates the status of data in the resource data register. 1 = data is valid, 0 = data
is invalid.
Card Select Number
Address Port Value: 0x06
7
6
5
4
3
2
1
0
CSN[7]
CSN[6]
CSN[5]
CSN[4]
CSN[3]
CSN[2]
CSN[1]
CSN[0]
0
0
0
0
0
0
0
0
Read/write
This register is active in the configuration state and at the end of isolation.
CSN[7:0]—Card Select Number bits[7:0].
The register can be written if the isolation has successfully completed. Writing the register
causes a transition to the configuration state. The CSN can be reassigned in the configuration state.
NOTE
RESET_DRV (ISA-bus signal) and Reset CSN command reset
CSN. A CSN value of 0x00 corresponds to an uninitialized CSN.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
ISA Plug and Play Interface
Freescale Semiconductor, Inc.
Logical Device Number
Address Port Value: 0x07
7
6
5
4
3
2
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
Read only.
This register is active in the configuration state only.
The chip is designed to support one logical device, thus the logical device number register
is read only and always returns 0x00 on a read access.
Freescale Semiconductor, Inc...
Card Level Reserved
Address Port Value: 0x08-0x1F
The registers in this range are unimplemented. On reads they return 0.
BUSCNT (Card Level Vendor Defined 1)
7
6
5
Address Port Value: 0x20
4
3
2
1
0
ERMU
-
-
-
-
-
ICHRDY
ECHRDY
0
X
X
X
X
X
1
1
Read/write.
Bus Control register. The register is active in the configuration state only.
ERMU—Enable RAM Ucode.
This bit is written by the software and enables the RISC controller to run microcode loaded
to the dual ported RAM.
ICHRDY—Internal IOCHRDY enable.
This bit is written by the software and defines whether or not the chip drives the IOCHRDY
pin on an ISA bus access to its internal space.
1 = Driving IOCHRDY is enabled.
0 = Driving IOCHRDY is disabled.
NOTE
On an ISA-bus memory read access to the internal space with
EXTAL frequency F, the following formula defines delay to data
valid on the external pins:
T(MemRd-to-DataValid) = 2.5/F + 20ns.
For I/O access to the internal space, time from the previous
access termination to data of the next access is 3.5/F + 20ns.
In other words, for 8.33 MHz ISA, for frequencies less than
18MHz, MEM space ICHRDY must be set.
For 8.33 MHz ISA, for frequencies less than 15MHz, I/O space
ICHRDY must be set
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
ISA Plug and Play Interface
ECHRDY—External (CS0) IOCHRDY enable.
This bit is written by the software and defines whether or not the chip drives the IOCHRDY
pin on an ISA bus access to a CS0-related region.
1 = Driving IOCHRDY is enabled.
0 = Driving IOCHRDY is disabled.
CLKCNT (Card Level Vendor Defined 2)
Address Port Value: 0x21
7
6
5
4
3
2
1
0
-
-
PMOD1
PMOD0
CDIV0
CDIV1
STP
LPEN
-
-
0
0
0
0
0
0
Freescale Semiconductor, Inc...
Read/write
The register is active in the configuration state.
PMOD1-PMOD0—Clock Out.
00 = CLKO enabled, full strength of output buffer.
01 = CLKO enabled, 2/3 strength of output buffer.
10 = CLKO enabled, 1/3 strength of output buffer.
11 = CLKO disabled, CLKO is driven to 1 by internal pull up.
CDIV1-0—Clock Out DIvision.
00 = CLKO equals frequency of EXTAL (reset value).
01 = CLKO equals 3/4 frequency of Extal clock.
10 = CLKO equals 1/2 frequency of Extal clock.
11 = CLKO is disabled.
STP—Stop bit.
1 = Clock oscillator is stopped following PwrDwn setting.
0 = Clock oscillator is not stopped following PwrDwn setting.
LPEN —Low Power Enable bit.
1 = Internal clocks are disabled following PwrDwn setting. Low Power mode is
enabled.
0 = Low power mode is disabled. Internal clocks are not disabled following PwrDwn
setting.
ISI (Card Level Vendor Defined 3)
Address Port Value: 0x22
7
6
5
4
3
2
1
0
I_M/I
CS_M/I
I_DW
CS_DW
-
CS_RL[2]
CS_RL[1]
CS_RL[0]
LOADED FROM 0X11 IN
BYTE SERIAL DEVICE
Read/write
Implementation Specific Information register. The register is active in the configuration state.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
ISA Plug and Play Interface
Freescale Semiconductor, Inc.
NOTE
In ISA memory mode the MC68SC302 will respond to 8- or 16bit accesses regardless of the settings in the ISI register. The ISI
register only sets the width of the access in I/O mode.
I_M/I—Internal space memory - I/O selector.
0 = Internal space is in I/O mode
1 = Internal space is in memory mode
Freescale Semiconductor, Inc...
CS_M/I —CS0 Memory - I/O selector.
0 = CS0 is in I/O mode
1 = CS0 is in memory mode
I_DW—Internal space I/O data width
1 = 16-bit data width
0 = 8-bit data width
CS_IDW—CS0 space I/O data width
1 = 16-bit data width
0 = 8-bit data width
CS_RL[2:0]—the length of I/O Range Length masking pattern for CS0.
CS_RL[2:0] =
0 - 8 byte Range Length
1 - 32 byte
2 - 64 byte
3 - 128 byte
4 - 256 byte
5 - 1kbyte
6 - 4kbyte
7 - 8kbyte
The corresponding masks are:
0 - 1111111111111000
1 - 1111111111100000
2 - 1111111111000000
3 - 1111111110000000
4 - 1111111100000000
5 - 1111110000000000
6 - 1111000000000000
7 - 1110000000000000
A bit set in the range length mask indicates that the corresponding bit in the I/O address
is used in the CS0’s address comparator.
The register is loaded at reset (or reset command) from the corresponding fields of 0x07 of
a byte serial device.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
ISA Plug and Play Interface
Card Level (Vendor Defined
Address Port Values: 0x23-2F
The registers in this range are unimplemented. On reads return 0.
5.6 LOGICAL DEVICE CONTROL REGISTERS
Active
Address Port Value: 0x30
7
6
5
4
3
2
1
0
0
0
0
0
0
0
0
ACTV
0
0
0
0
0
0
0
0
Read/write.
Freescale Semiconductor, Inc...
The register is active in the configuration state only.
Bits[7:1] — these bits are reserved.
On read return zero.
ACTV — Active Bit.
1 = Indicates that the device is active on the ISA-bus.
0 = The chip does not respond to the ISA-bus cycles.
I/O Range Check
Address Port Value: 0x31
7
6
5
4
3
2
1
0
0
0
0
0
0
0
CHECK_EN
RVL
0
0
0
0
0
0
0
0
Read/write.
The register is active in the configuration state only.
Bits[7:2] — Reserved bits.
Return 0 on reads.
CHECK_EN — I/O range check enable.
1 = I/O range check is enabled. The bit is valid only if the logical device is inactive.
0 = I/O range check is disabled.
RVL — Returned value bit.
1 = If the device is inactive and CHECK_EN = 1, reads of the logical device’s assigned
I/O range return 0x55.
0 = If the device is inactive and CHECK_EN = 1, reads of the logical device’s assigned
I/O range return 0xAA.
Logical Device Control Reserved
Address Port Value: 0x32-37
The registers are unimplemented. On a read access return 0x00.
Logical Device Vendor Defined
Address Port Value: 0x38-3F
The registers are unimplemented. On a read access return 0x00.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
ISA Plug and Play Interface
Freescale Semiconductor, Inc.
5.7 ISA-PNP CONFIGURATION REGISTERS
IBARH (Memory Base Address[23:16], Descriptor 0)
Address Port Value: 0x40
7
6
5
4
3
2
1
0
BAR[23]
BAR[22]
BAR[21]
BAR[20]
BAR[19]
BAR[18]
BAR[17]
BAR[16]
X
X
X
X
X
X
X
X
Read/write.
The register is active in the configuration state only.
BAR[23:16] — Base Address bits[23:16].
The internal memory space base address bits[23:16].
Freescale Semiconductor, Inc...
IBARL (Memory Base Address[15:8], Descriptor 0)
Address Port Value: 0x41
7
6
5
4
3
2
1
0
BAR[15]
BAR[14]
BAR[13]
BAR[12]
0
0
0
0
X
X
X
X
X
X
X
X
Read/write.
The register is active in the configuration state only.
BAR15–BAR12 — Base address bits 15 through 12.
The internal memory space consists of base address bits 15–8.
Bits3≠0 — Base Address bits 11–8.
Because of the 4kbyte alignment (see 5.4.4Memory Configuration), these bits should be
written with 0.
NOTE
Bits 7–0 of the BAR are always zero.
IMCNT (Memory Control, Descriptor 0)
Address Port Value: 0x42
7
6
5
4
3
2
1
0
0
0
0
0
0
0
DATA_SZ
DEC=0
0
0
0
0
0
0
0
0
Read/write
The register is active in the configuration state.
Bits 7–2 — Reserved.
On read return zero. The bits are read only.
DATA_SZ—Data Size.
1 = The corresponding memory is 16-bit (data width).
0 = The memory is 8-bit.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
ISA Plug and Play Interface
DEC — Decoding Options.
0 = The next two registers (0x43-44) contain the memory range length.
1 = The next two registers contain the upper limit of the memory range.
This bit is read only.
IMRNGH-IMRNGL (Range Length[23:8], Descriptor 0)
7
6
5
4
3
Address Port Values: 0x43-44
2
1
0
RL[23]=RL[12] RL[22]=RL[12] RL[21]=RL[12] RL[20]=RL[12] RL[19]=RL[12] RL[18]=RL[12] RL[17]=RL[12] RL[16]=RL[12]
0
0
0
7
6
5
RL[15]=RL[12] RL[14]=RL[12] RL[13]=RL[12]
Freescale Semiconductor, Inc...
0
0
0
0
0
0
0
0
4
3
2
1
0
RL[12]
RL[11]=0
RL[10]=0
RL[9]=0
RL[8]=0
0
0
0
0
0
The registers are active in the configuration state.
RL23–RL8 — Range length.
If memory control register bit DEC is set, RL23–RL8 corresponds to bit 23–bit 8 of memory range length. Otherwise, RL23–RL8 correspond to bit 23–bit 8 of the upper limit of
memory range. Bit7–bit 0 are always zero. RL11–RL8 and RL23–RL13 of the range
length are read only. RL12 is read/write and used as an enable bit for internal memory
range.
RL12
1 = Internal memory (4kbyte) is enabled. On reads from the range length, returned
value indicates 4kbyte memory range (even if a larger value was written by the
software).
0 = Internal memory (4kbyte) is disabled; I/O accesses to the internal space are
possible if the related I/O base address is not 0. On reads from the range length, 0
is returned.
NOTE
Memory range length is defined as a mask of address bit 23–
address bit 8. If a bit in the mask is set, then the corresponding
bit in the address is used in a comparator to determine address
match. Memory upper limit is defined as being one byte greater
then the memory resource assigned.
Filler (filler 0)
Unimplemented. On reads return 0.
Address Port Values: 0x45-47
CSBARH-CSBARL (CS0 Memory Base[23–8], Descriptor 1) Address Port Value: 0x48-49
7
6
5
4
3
2
1
0
CSBAR[23]
CSBAR[22]
CSBAR[21]
CSBAR[20]
CSBAR[19]
CSBAR[18]
CSBAR[17]
CSBAR[16]
0
0
0
0
0
0
0
0
7
6
5
4
3
2
1
0
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
ISA Plug and Play Interface
Freescale Semiconductor, Inc.
CSBAR[15]
CSBAR[14]
CSBAR[13]
CSBAR[12]
CSBAR[11]
CSBAR[10]
CSBAR[9]
CSBAR8]
0
0
0
0
0
0
0
0
Read/write
The registers are active in the configuration state.
CSBAR23–CSBAR8 — Chip Select Base Address.
Bits[23:8] of CS0 Base Address. Bits[7:0] are 0x00.
Freescale Semiconductor, Inc...
CSCNT (CS0 Memory Control, Descriptor 1)
Address Port Value: 0x4A
7
6
5
4
3
2
1
0
0
0
0
0
0
0
DATA_SZ
DEC=0
0
0
0
0
0
0
X
0
Read/write
The register is active in the configuration state.
Bit7–bit2 —reserved.
On read return zero.
DATA_SZ — Data Size.
0 = Memory is 8-bit (data)
1 = Memory is 16-bit (data)
This bit is read/write.
DEC — Decoding Options.
0 = Range length is used for decoding
1 = Range length is not used for decoding
The bit is read only.
CSRNGH-CSRNGL (CS0 Range Length[23:8], Descriptor 1)
Address Port Values: 0x4B-4C
7
6
5
4
3
2
1
0
RL[23]
RL[22]
RL[21]
RL[20]
RL[19]
RL[18]
RL[17]
RL[16]
0
0
0
0
0
0
0
0
7
6
5
4
3
2
1
0
RL[15]
RL[14]
RL[13]
RL[12]
RL[11]
RL[10]
RL[9]
RL[8]
0
0
0
0
0
0
0
0
Read/write
The registers are active in the configuration state.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
ISA Plug and Play Interface
RL23–RL8 — Range length of the corresponding memory space (corresponding to CS0).
NOTE
Freescale Semiconductor, Inc...
If the I/O configuration is chosen for a region, all the related
memory configuration registers are read only. The returned
value is 0.
Filler (Filler 1)
Unimplemented. On reads return 0.
Address Port Values: 0x4D-4F
Memory Descriptors 2 and 3
Unimplemented. On reads return 0.
Address Port Values: 0x50-54, 0x58-5C
Filler (Filler 2)
Unimplemented. On reads return 0.
Address Port Values: 0x55-57
I/O Internal Space Base Address
Address Port Values: 0x60-61
7
6
5
4
3
2
1
0
I_BASE[15]
I_BASE[14]
I_BASE[13]
I_BASE[12]
I_BASE[11]
I_BASE[10]
I_BASE[9]
I_BASE[8]
X
X
X
X
X
X
X
X
7
6
5
4
3
2
1
0
I_BASE[7]
I_BASE[6]
I_BASE[5]
I_BASE[4]
I_BASE[3]
I_BASE[2]
0
0
X
X
X
X
X
X
X
X
Read/write.
The registers are active in the configuration state only.
I_BASE15–I_BASE2—Internal I/O base address bits[15:0].
I/O base address points to the I/O address register (the address of the next I/O access).
I/O base + 2 points to the I/O data register. (See 5.4.3I/O Configuration). Bits[1:0] of the
internal base address are set to 0, implying 4-byte base alignment (minimum).
NOTE
0x0000 in the I/O base address register disables the I/O space.
I/O CS0 Base Address
7
6
Address Port Values: 0x62-63
5
4
3
2
1
0
CS_BASE[15] CS_BASE[14] CS_BASE[13] CS_BASE[12] CS_BASE[11] CS_BASE[10] CS_BASE[9] CS_BASE[8]
0
0
0
0
0
0
0
0
7
6
5
4
3
2
1
0
CS_BASE[7] CS_BASE[6] CS_BASE[5] CS_BASE[4] CS_BASE[3] CS_BASE[2] CS_BASE[1] CS_BASE[0]
0
0
0
0
0
0
Read/write.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
0
0
ISA Plug and Play Interface
Freescale Semiconductor, Inc.
The registers are active in the configuration state only.
CS_BASE15–CS_BASE0—CS0 I/O base address bits15–0.
NOTE
If the memory configuration is chosen for a region, all the related
I/O configuration registers are read only. The returned value is 0.
I/0 Port Configuration (Descriptors 5-7)
Unimplemented. On read return 0.
Address Port Value: 0x64-6F
Freescale Semiconductor, Inc...
Interrupt Request Level Select 0
Address Port Value: 0x70
7
6
5
4
3
2
1
0
0
0
0
0
IRQL[3]
IRQL[2]
IRQL[1]
IRQL[0]
0
0
0
0
0
0
0
0
Read/write.
The register is active in the configuration state.
IRQL3–IRQL0 — Interrupt Request Level 0.
Indicates ISA-IRQ-pin number (0-15) for interrupt request at level 0. The chip can drive an
interrupt on one of its IRQ pins: IRQ3, IRQ4, IRQ5, IRQ6, IRQ7, IRQ9, IRQ10, IRQ11,
IRQ12, IRQ14, IRQ15. For proper function, the SC302’s IRQ pins must be connected to
the corresponding ISA-IRQ pins.
NOTE
Writing 0x00 to the interrupt request level register disables all
the interrupts.
Interrupt Request Type Select 0
Address Port Value: 0x71
7
6
5
4
0
0
0
0
0
0
0
0
3
2
1
0
0
0
LVL
TP
0
0
0
0
Read/write.
The register is active in the configuration state.
LVL — Interrupt request active level.
1 = High
0 = Low
TP — Interrupt request type.
1 = Level sensitive
0 = Edge sensitive
Bits[7:2] —Reserved
On reads return 0
Interrupt Request Select 1
Address Port Values: 0x72-73
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
ISA Plug and Play Interface
Unimplemented. On reads return 0.
DMA Request Configuration
Address Port Values: 0x74-75
Unimplemented. On read return 0x04 (corresponds to the value written by the software if a
NULL DMA descriptor occurs in the resource data).
32-Bit Memory Space Configuration
Unimplemented. On reads return 0.
Reserved and Vendor Defined registers
Unimplemented. On reads return 0.
Address Port Values: 0x76-A8
Address Port Values: 0xA9-0xFF
Freescale Semiconductor, Inc...
5.7.1 Access to Inactive Registers
On a read from a register that is not active in the current state (for example, read access to
the CSN register in the isolation state) the ISA-data bus remains in a high impedance state.
Write accesses are ignored.
Write accesses to read-only registers are ignored (and read accesses to write-only
registers) are ignored as well.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
ISA Plug and Play Interface
Freescale Semiconductor, Inc.
5.8 ISA-PNP CONTROL REGISTERS SUMMARY
Table 5-5. Card Level Control Registers Summary
ADDRESS
PORT VALUE
DESCRIPTION
ACTIVE IN THE
FOLLOWING
STATES
Set RD_DATA port
0x00
Writing this location modifies the READ_DATA port address. Bits[7:0] become bits[9:2] of the address. Bits[1:0]
of the address set 2’b11. The register is write only.
Isolation,
Configuration
Serial Isolation
0x01
See 5.14 Isolation Protocol. The register is read only.
0x02
Bit[2] - Reset CSN to 0 (all the cards)
Bit[1] - Return to the Wait for Key state (always active, all
the cards)
Bit[0] - Reset all the logical devices and restore the con- In any state, except
Wait for Key.
tents of configuration registers to their default state. CSN
is preserved. The software must delay 2+ ms after issuing Reset command before accessing ISA-PNP ports.
The register is write-only. The Bits[7:3] are reserved.
Wake[CSN]
0x03
If WRITE_DATA[7:0] == card’s CSN, then goto from
Sleep to Configuration (if CSN <> 0) or goto Isolation (if
CSN == 0). If (WRITE_DATA[7:0]<> 0) and
(WRITE_DATA[7:0] <> CSN) and the card is in the con- Sleep, Isolation,
figuration state, it transitions to the Sleep state. Pointer to
Configuration
Serial EPROM (or another byte serial device) is always
reset. The register is write-only. If the card is in the Isolation State, Wake[0] will leave the card in the Isolation
state.
Resource Data
0x04
A read from this register returns next byte from Serial
EPROM. Bit[0] of the status register must be polled before the read. The register is read only.
Configuration
Status
0x05
1’b1 in Bit[0] of this register is set, the Resource Data
contains a valid byte. Bits[7:1] are reserved and return
7b’000_0000. The register is read only.
Configuration
Card Select Number
0x06
The numbers 1-255 are valid (0 indicates un-isolated
card). writing this register at the end of Isolation, causes End of Isolation, Contransition to the Configuration State. The register resets
figuration
at RESET_DRV and Reset CSN command. The register
is read/write.
Logical Device Number
0x07
The number (0-255) in this register points to the Logical
Device, next commands will operate on. The chip is intended to support 1 logical device, so this register is
read-only and returns 0x00 on a read access.
Configuration
0x08-0x1F
Reserved for future use (unimplemented). On reads return 0.
Configuration
BUSCNT
0x20
ICHRDY-enables wait states on ISA-bus accesses to the
Internal space.
ECHRDY-the same for CS0.
SCP_BS-indicates that the access to SCP is prohibited.
Configuration
CLKCNT
0x21
CLKCNT (Clock Control): controls power management
functions.
The rest of bits are unimplemented and on reads return
0.
Configuration
0x22
The initial values of these register is loaded from 0x07 of
a byte serial device.
Bits[7:6] - I/O Memory configuration selectors for Internal
space (bit[7]) and CS0 (bit[6]).1=Memory mode; 0=I/O
mode.
Bits[5:4] - If the I/O mode is chosen these bits are valid
and indicate the data width of Internal space (bit[5]) and
CS0 space (bit[4]).1=16-bit data width; 0=8-bit data
width.
Bits[2:0] - Encoded Range Length Mask. See ISI register
definition for details.
Configuration
Unimplemented. On reads return 0.
Configuration
NAME
Freescale Semiconductor, Inc...
Configuration Control
Card Level Reserved
ISI (Implementation
Specific Information)
Card Level Vendor Defined Registers
0x23-2F
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Isolation
Freescale Semiconductor, Inc.
ISA Plug and Play Interface
Table 5-6. Logical Device Control Registers Summary
NAME
Active
Freescale Semiconductor, Inc...
I/O range check
ADDRESS
PORT VALUE
DESCRIPTION
ACTIVE IN THE
FOLLOWING
STATES
0x30
The bits[7:1] are reserved and return 0 on a read
access. Bit[0], if set, activates the chip and it responds to the ISA bus cycles. If reset, the chip is
inactive. The register is read/write.
Configuration
0x31
Bits[7:2] of the register are reserved, on reads return 0.
Bit[1]- if set, enables I/O range check. The bit is
valid if the device is inactive.
Bit[0] - if the I/O range check is enabled and the device is inactive, the bit defines which value will be
returned by subsequent reads from the I/O space
assigned to the device: “0” - 0x55; “1” - 0xAA.
Configuration
Logical Device Control Reserved
0x32-0x37
Reserved for future use (unimplemented). On
reads return 0.
Configuration
Logical Device Control Vendor Defined
0x38-0x3F
Vendor Defined registers (unimplemented). On
reads return 0.
Configuration
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
ISA Plug and Play Interface
Freescale Semiconductor, Inc.
5.9 ISA-PNP CONFIGURATION REGISTERS SUMMARY
Table 5-7. Memory Space Configuration Summary
NAME
IMBARH
(Memory base address
bits[23:16] descriptor 0)
DESCRIPTION
ACTIVE IN THE
FOLLOWING
STATES
0x40
BAR bits[23:16]. The register is read/write.
Configuration
0x41
BAR bits[15:8]. Bits[10:8] of the register must be set
to 0. The rest of bits are read/write. Bits[7:0] of the
BAR are always 0.
If I/O configuration option is chosen for the Internal
Space, the registers located at 0x41-44 are read
only and return 0 on reads.
Configuration
0x42
If Bit[1] is set, the memory is 16-bit (data), otherwise
- 8-bit.
Bit[0](=0), if set, indicates the next field is upper limit
for the address, otherwise - the next field is the
range length. Bit[0] is read only. Bits[7:2] are reserved and return 0.
Configuration
0x43
If the “Decode Range Length” option was chosen in
the Information field of the related memory descriptor, the registers corresponds to the range length
bits[23:16]. The register is read only (0xff).
If I/O configuration option is chosen for the Internal
Space, the registers located at 0x41-44 are read
only and return 0 on reads.
Configuration
0x44
If the “Decode Range Length” option was chosen in
the Information field of the corresponding memory
descriptor, the registers corresponds to the range
length bits[15:8]. Bit[4] is read/write. If set, enables
4kbyte of the internal memory space.
Configuration
Filler
0x45-47
Reserved for future use (unimplemented). On reads
return 0.
Configuration
Memory descriptor 1
(CSBARH,CSBARL,
CSCNT, CSRNGL, CSRNGH)
0x48-4C
CS0 description.
If I/O configuration option is chosen for CS0, the
registers located at 0x48-4C are read only and return 0 on reads.
Configuration
Filler
0x4D-4F
Reserved for future use(unimplemented) On reads
return 0.
Configuration
Memory descriptor 2
0x50-54
Memory base, control and length descriptor 2 (unimplemented)
Configuration
Filler
0x55-57
Reserved (unimplemented). On reads return 0.
Configuration
Memory descriptor 3
0x58-5C
Memory base, control and length descriptor 3 (unimplemented). On reads return 0.
Configuration
Filler
0x5D-5F
Reserved (unimplemented). On reads return 0.
Configuration
IBARL
(Memory base address
bits[15:8] descriptor 0)
Freescale Semiconductor, Inc...
ADDRESS
PORT
VALUE
IMCNT
(Memory control descriptor
0)
IMRNGH
(Range Length bits[23:16])
IMRNGL
(Range Length bits[15:8])
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
ISA Plug and Play Interface
Table 5-8. I/O Configuration Summary
ADDRESS
PORT
VALUE
Freescale Semiconductor, Inc...
NAME
DESCRIPTION
ACTIVE IN THE
FOLLOWING
STATES
Base address[15:8] for internal I/O space. If memory con-
I/O port base address
bits[15:8] descriptor 0
0x60
figuration option is chosen for the Internal Space, the
registers located at 0x60-61 are read only and return
0 on reads.
Configuration
I/O port base address
bits[7:0] descriptor 0
0x61
Base address[7:0] for internal I/O space
Configuration
I/O port base address descriptor 1
0x62-63
CS0 base address. If memory configuration option is
chosen for the Internal Space, the registers located
at 0x62-63 are read only and return 0 on reads.
Configuration
I/O descriptors 2-7
0x64-6F
Unimplemented. On reads return 0.
Configuration
Table 5-9. Interrupt Configuration Summary
NAME
ADDRESS
PORT
VALUE
DESCRIPTION
ACTIVE IN THE
FOLLOWING
STATES
Interrupt request level select 0
0x70
Bits[3:0] select interrupt level for IRQ select 0. The
register is read/write.
Bits[7:4] are reserved.
Configuration
Interrupt request type select 0
0x71
Interrupt type for select 0:
Bit[1]: Level, 1 = high, 0 = low
Bit[0]: Type, 1= level, 0 = edge
Bits[7:2] are reserved. The register is read/write.
Configuration
Interrupt request level
select 1
0x72
Unimplemented. On reads return 0.
Configuration
Interrupt request type
select 1
0x73
Unimplemented. On reads return 0.
Configuration
Table 5-10. DMA Configuration Registers Summary
NAME
ADDRESS
PORT
VALUE
DMA requests configuration
0x74-75
DESCRIPTION
ACTIVE IN THE
FOLLOWING
STATES
Channel selects 0 and 1 (unimplemented). On
reads return 0x4.
Configuration
Table 5-11. 32-Bit Memory Space Configuration Summary
NAME
ADDRESS
PORT
VALUE
DESCRIPTION
ACTIVE IN THE
FOLLOWING
STATES
32-bit memory configuration
0x76-A8
Configuration register for 32-bit address memory
(unimplemented). On reads return 0.
Configuration
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
ISA Plug and Play Interface
Freescale Semiconductor, Inc.
Table 5-12. Reserved and Vendor Defined Configuration Registers
NAME
ADDRESS
PORT
VALUE
DESCRIPTION
ACTIVE IN THE
FOLLOWING
STATES
Logical Device Configuration reserved and vendor
defined
0xA9-0xFE
0xa9-0xef - Reserved for future use; 0xf0-0xfe Vendor Defined registers (both ranges are unimplemented).On reads return 0.
Configuration
Freescale Semiconductor, Inc...
Table 5-13. Reserved Registers
NAME
ADDRESS
PORT
VALUE
Reserved
0xFF
ACTIVE IN THE
FOLLOWING
STATES
DESCRIPTION
Reserved for future use (unimplemented). On
reads return 0.
Configuration
5.10 CARD CONFIGURATION AND CONTROL REGISTER MAP (CCR)
ISA Power Down Register (IPRDN)
$800
7
6
5
4
3
2
1
0
X
RSVD
RSVD
RSVD
RSVD
PWRDN
X
RSVD
X
0
0
0
0
0
X
0
Periodic Interrupt Timer Register (PITR)
15
14
13
PTEN
0
0
0
0
0
12
11
10
9
$802
8
7
6
5
4
3
2
1
PTP PITR10 PITR9 PITR8 PITR7 PITR6 PITR5 PITR4 PITR3 PITR2 PITR1 PITR0 RSVD
0
0
0
0
0
0
0
0
0
0
0
0
RI Event Indication Register (IOER)
7
6
RSVD RSVD
0
0
7
OD
6
5
4
3
2
1
0
RSVD
RIEVT
RSVD
RSVD
RSVD
RSVD
0
0
0
0
0
0
5
MD6[1] MD6[0]
13
12
11
10
SCC1 SCC2 SCC3 SMC1 SMC2 SCP
0
0
0
0
0
0
$812
4
3
2
1
0
ET5
ET4
ET3
ET2
ET1
0
0
0
0
0
0
0
0
7
6
5
4
3
2
1
IRQI4
IRQI3
0
0
Interrupt Pending Register (IPR)
14
0
$804
Global Interrupt Mode Register (GIMR)
15
0
$814
9
8
PIT
RI
0
0
SCC1 IRQI6 IRQI5
0
0
0
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
IRQI2 IRQIN1
0
0
0
0
Freescale Semiconductor, Inc.
ISA Plug and Play Interface
Interrupt Mask Register (IMR)
15
14
13
12
11
$816
10
SCC1 SCC2 SCC3 SMC1 SMC2 SCP
0
0
0
0
0
0
9
8
7
PIT
RI
-
0
0
0
6
5
IRQI6 IRQI5
0
4
3
IRQI4
IRQI3
0
0
0
2
1
0
IRQI2 IRQIN1 MALL
0
0
0
Port A Control Register (PACNT)
15
14
13
12
PA15
PA14
PA13
PA12
0 = I/O
11
PA11
$81E
10
9
PA10
8
PA9
PA8
7
6
5
4
3
2
1
0
PA7
PA6
PA5
PA4
PA3
PA2
PA1
PA0
1 = Peripheral
After reset, the register is set to F000 when PC_E2E is high, and to F001 otherwise.
Freescale Semiconductor, Inc...
Port A Data Direction Register (PADDR)
$820
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
PA15
PA14
PA13
PA12
PA11
PA10
PA9
PA8
PA7
PA6
PA5
PA4
PA3
PA2
PA1
PA0
0 = Input
1 = Output
Port A Data Register (PADAT)
$822
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
PD15
PD14
PD13
PD12
PD11
PD10
PD9
PD8
PD7
PD6
PD5
PD4
PD3
PD2
PD1
PD0
Pin Multi-Function Select Register (PMFSR)
$824
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
PA15
PA14
PA13
PA12
PA11
PA10
PA9
PA8
PA7
PA6
PA5
PA4
PA3
PA2
PA1
PA0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
Port A SCP Enable Control (PENCR)$826
7
6
5
SPNL3 SPNL2 SPNL1
X
Command Register (CR)
15
14
0
GCI
0
0
13
RSVD
0
3
2
1
SCPEN3 SCPEN2 SCPEN1
0
0
0
X
11
10
9
14
OPCODE
—
CH. NUM.
0
0
0
13
12
NOF3 NOF2 NOF1 NOF0
0
0
0
0
RSVD
0
8
FLG
0
0
SCC1 Mode Register (SCM1)
15
0
$861
12
0
0
4
$884
11
10
9
8
7
C32
FSE
RVD
RTE
FLG
0
0
0
0
0
SCC1 Event Register (SCCE1)
6
5
4
ENC DIAG1* DIAG0
0
0
0
$889
15
14
13
12
11
10
9
8
SCE7
SCE6
SCE5
SCE4
SCE3
SCE2
SCE1
SCE0
0
0
0
0
0
0
0
0
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
3
2
1
0
ENR
0
ENT
0
MODE
0
0
0
ISA Plug and Play Interface
Freescale Semiconductor, Inc.
SCC1 Mask Register (SCCM1)
7
6
SCM7 SCM6
0
0
$88B
5
4
3
2
1
0
SCM5
SCM4
SCM3
SCM2
SCM1
SCM0
0
0
0
0
0
0
SCC1 Status Register (SCCS1)
7
6
5
4
3
RESERVED
$88D
2
1
0
ID
–
GRANT
0
0
0
0
0
0
0
0
Freescale Semiconductor, Inc...
SCC2 Configuration Register (SCON2)
$892
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
WOMS
CODS
TCS
RCS
CD10
CD9
CD8
CD7
CD6
CD5
CD4
CD3
CD2
CD1
CD0
DIV4
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
SCC2 Mode Register (SCM2)
15
14
13
12
NOF3 NOF2 NOF1 NOF0
0
0
0
0
$894
11
10
9
8
7
6
5
4
3
2
1
0
C32
FSE
RVD
RTE
FLG
ENC
DIAG1
DIAG0
ENR
ENT
0
MODE
0
0
0
0
0
0
0
0
0
0
0
0
SCC2 Event Register (SCCE2)
15
14
13
12
11
10
$899
9
8
SCE7 SCE6 SCE5 SCE4 SCE3 SCE2 SCE1 SCE0
0
0
0
0
0
0
0
0
SCC2 Mask Register (SCCM2)
7
6
SCM7 SCM6
0
0
$89B
5
4
3
2
1
0
SCM5
SCM4
SCM3
SCM2
SCM1
SCM0
0
0
0
0
0
0
SCC2 Status Register (SCCS2)
7
6
5
4
3
RESERVED
0
0
0
0
0
$89D
2
1
0
ID
–
GRANT
0
0
0
SCC3 Mode Register (SCM3)
15
14
13
12
NOF3 NOF2 NOF1 NOF0
0
0
0
0
$8A4
11
10
9
8
7
C32
FSE
RVD
RTE
FLG
0
0
0
0
0
SCC3 Event Register (SCCE3)
15
14
13
12
11
10
6
5
4
ENC DIAG1* DIAG0
0
0
0
$8A9
9
8
SCE7 SCE6 SCE5 SCE4 SCE3 SCE2 SCE1 SCE0
0
0
0
0
0
0
0
0
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
3
2
1
0
ENR
ENT
0
MODE
0
0
0
0
Freescale Semiconductor, Inc.
ISA Plug and Play Interface
SCC3 Mask Register (SCCM3)
7
6
SCM7 SCM6
0
$8AB
5
4
3
2
1
0
SCM5
SCM4
SCM3
SCM2
SCM1
SCM0
0
0
0
0
0
0
0
SCC3 Status Register (SCCS3)
7
6
5
4
3
RESERVED
0
0
$8AD
2
1
0
ID
–
GRANT
0
0
0
0
0
0
5
4
3
2
1
0
Freescale Semiconductor, Inc...
SCP, SMC, Mode and Control Register (SPMODE)
$8B0
15
14
13
12
11
10
9
8
7
6
STR
LOOP
CI
PM3
PM2
PM1
PM0
E
N
CP
0
SMD
0
LOOP
EN2
EN1
0
0
1
1
0
1
0
1
0
0
0
0
0
0
0
0
Serial Interface Mask Register (SIMASK)
15
14
13
12
$8B2
11
10
9
8
7
6
5
4
3
2
1
0
0
0
0
0
0
0
0
0
0
0
0
0
B2
0
0
0
0
Serial Interface Mode Register (SIMODE)
15
14
13
12
11
10
9
$8B4
8
7
6
SYNC/
SETZ
SDIAG1 SDIAG0 SDC2 SDC1 B2RB B2RA B1RB B1RA
SCIT
0
0
0
0
0
0
0
0
0
5
4
3
2
1
0
DRB
DRA
MSC3
MSC2
MS1
MS0
0
0
0
0
0
0
0
5.11 HOST INTERFACE CONTROL REGISTER MAP (HCR)
Set RD_DATA Port
7
6
5
Address Port Value: $00
4
3
2
1
0
RDA[9] RDA[8] RDA[7] RDA[6] RDA[5] RDA[4] RDA[3] RDA[2]
X
X
X
X
Write only
Serial Isolation
Address Port Value: $01
15
14
13
12
11
10
9
8
1/0
0/1
1/0
0/1
1/0
0/1
1/0
0/1
X
X
X
X
X
X
X
X
Read only
Wake (CSN)
15
14
Address Port Value: $03
13
12
11
10
9
8
WCSN WCSN WCSN WCSN WCSN WCSN WCSN WCSN
[7]
[6]
[5]
[4]
[3]
[2]
[1]
[0]
X
X
X
X
X
X
X
X
Write only
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
X
X
X
X
ISA Plug and Play Interface
Freescale Semiconductor, Inc.
Resource Data
7
6
5
RD[7] RD[6] RD[5]
X
Address Port Value: $04
X
4
3
2
1
0
RD[4]
RD[3]
RD[2]
RD[1]
RD[0]
X
X
X
X
X
X
Read only
Status
Address Port Value: $05
15
14
13
12
11
10
9
8
0
0
0
0
0
0
0
STS
R0
0
0
0
0
0
0
0
Freescale Semiconductor, Inc...
Read only
Card Select Number
7
6
5
Address Port Value: $06
4
3
2
1
0
CSN[7] CSN[6] CSN[5] CSN[4] CSN[3] CSN[2] CSN[1] CSN[0]
0
0
0
0
0
0
0
0
Read/write
Logical Device Number
Address Port Value: $07
15
14
13
12
11
10
9
8
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
Read only
Card Level Reserved
Address Port Value: $08-0x1F
The registers in this range are unimplemented. On reads return 0.
BUSCNT (Card Level Vendor Defined 1)
Address Port Value: $20
7
6
5
4
3
2
ERMU
-
-
-
-
-
0
X
X
X
X
X
Read/write
CLKCNT (Card Level Vendor Defined 2)
Address Port Value: $21
15
14
-
-
-
-
13
12
11
10
PMOD1 PMOD0 CDIV0 CDIV1
0
0
0
0
9
8
STP
LPEN
0
0
Read/write
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
1
0
ICHRDY ECHRDY
1
1
Freescale Semiconductor, Inc.
ISA Plug and Play Interface
SI (Card Level Vendor Defined 3)
Address Port Value: $22
7
6
5
4
3
I_M/I CS_M/I I_DW CS_DW
2
-
1
0
CS_RL[2] CS_RL[1] CS_RL[0]
*
Read/write
*Bit 6 reset value is loaded from 0x11 in byte serial
device
Freescale Semiconductor, Inc...
Active
Address Port Value: $30
7
6
5
4
3
2
1
0
0
0
0
0
0
0
0
ACTV
0
0
0
0
0
0
0
0
Read/write
I/O Range Check
Address Port Value: $31
15
14
13
12
11
10
9
8
0
0
0
0
0
0
CHECK_EN
RVL
0
0
0
0
0
0
0
0
Read/write
Logical Device Control ReservedAddress Port
Value: $32-37
The registers are unimplemented. On a read access return 0x00.
Logical Device Vendor Defined
Address Port Value: $38-3F
The registers are unimplemented. On a read access return 0x00.
IBARH (Memory Base Address(23:16), Descriptor 0)
Address Port Value: $40
7
6
5
4
3
2
1
0
BAR[23] BAR[22] BAR[21] BAR[20] BAR[19] BAR[18] BAR[17] BAR[16]
X
X
X
X
Read/write
IBARL (Memory Base Address[15:8],
Descriptor 0)
Address Port Value: $41
15
14
13
12
BAR[15] BAR[14] BAR[13] BAR[12]
X
X
X
X
11
10
9
8
0
0
0
0
X
X
X
X
Read/write
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
X
X
X
X
ISA Plug and Play Interface
Freescale Semiconductor, Inc.
IMCNT (Memory Control, Descriptor 0)
Address Port Value: $42
7
6
5
4
3
2
0
0
0
0
0
0
0
0
0
0
0
0
1
0
DATA_SZ DEC=0
0
0
Read/write
IMRNGH-IMRNGL (Range Length[23:8], Descriptor 0)
15
14
13
12
11
10
9
8
7
Address Port Values: $43-44
6
5
4
3
2
1
0
RL[23] RL[22] RL[21] RL[20] RL[19] RL[18] RL[17] RL[16] RL[15] RL[14] RL[13]
RL[11] RL[10] RL[9]= RL[8]=
=
=
=
=
=
=
=
=
=
=
=
RL[12]
=0
=0
0
0
RL[12] RL[12] RL[12] RL[12] RL[12] RL[12] RL[12] RL[12] RL[12] RL[12] RL[12]
Freescale Semiconductor, Inc...
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
Read/write
Filler (filler 0)
Unimplemented. On reads return 0.
Address Port Values: $45-47
CSBARH-CSBARL (CS0 Memory Base23–8, Descriptor 1)Address Port Value: $48-49
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
CSBA CSBA CSBA CSBA CSBA CSBA CSBA CSBA CSBA CSBA CSBA CSBA CSBA CSBA CSBA CSBA
R(23] R[22] R[21] R[20] R[19] R[18] R[17] R[16] R[15] R[14] R[13] R[12] R[11] R[10] R[9] R(8]
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
Read/write
CSCNT (CS0 Memory Control, Descriptor 1)
Address Port Value: $4A
7
6
5
4
3
2
0
0
0
0
0
0
0
0
0
0
0
0
1
0
DATA_SZ DEC=0
X
0
Read/write
CSRNGH-CSRNGL (CS0 Range Length[23:8], Descriptor 1)
Address Port Values: $4B-4C
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
RL[23] RL[22] RL[21] RL[20] RL[19] RL[18] RL[17] RL[16] RL[15] RL[14] RL[13] RL[12] RL[11] RL[10] RL[9] RL[8]
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
Read/write
Filler (Filler 1)Address Port Values: $4D-4F
Unimplemented. On reads return 0.
Memory Descriptors 2 and 3
Unimplemented. On reads return 0.
Address Port Values: $50-54, $58-5C
Filler (Filler 2)
Unimplemented. On reads return 0.
Address Port Values: $55-57
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
ISA Plug and Play Interface
I/O Internal Space Base Address
15
14
13
12
11
10
Address Port Values: $60-61
9
8
7
6
5
4
3
2
I_BAS I_BAS I_BAS I_BAS I_BAS I_BAS I_BAS I_BAS I_BAS I_BAS I_BAS I_BAS I_BAS I_BAS
E[15] E[14] E[13] E[12] E[11] E[10] E[9]
E[8]
E[7]
E[6]
E[5]
E[4]
E[3]
E[2]
0
0
0
0
0
0
0
0
0
0
0
11
10
9
8
7
6
5
0
0
0
1
0
0
0
0
0
Read/write
I/O CS0 Base Address
15
14
13
12
Address Port Values: $62-63
4
3
2
1
0
CS_BA CS_BA CS_BA CS_BA CS_BA CS_BA CS_BA CS_BA CS_BA CS_BA CS_BA CS_BA CS_BA CS_BA CS_BA CS_BA
SE[15] SE[14] SE[13] SE[12] SE[11] SE[10] SE[9] SE[8] SE[7] SE[6] SE[5] SE[4] SE[3] SE[2] SE[1] SE[0]
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
Freescale Semiconductor, Inc...
Read/write
Interrupt Request Level Select 0
Address Port Value: $70
7
6
5
4
0
0
0
0
0
0
0
0
3
2
1
0
IRQL[3] IRQL[2] IRQL[1] IRQL[0]
0
0
0
0
Read/write
Interrupt Request Type Select 0
Address Port Value: $71
15
14
13
12
11
10
9
8
0
0
0
0
0
0
LVL
TP
0
0
0
0
0
0
0
0
Read/write
5.12 ISA-PNP PHYSICAL INTERFACE BACKGROUND
All ISA-PNP cards in a system use the same three 8-bit ports listed in Table 5-14. The ports
use 12-bit address decoding. The READ_DATA port is relocatable.
Table 5-14. ISA-PNP Card Ports
PORT NAME
ADDRESS
WRITE_DATA
READ_DATA
I/O LOCATION
0X0279
0X0A79
RELOCATABLE: 0X0203: 0X03FF
TYPE
WRITE-ONLY
WRITE-ONLY
READ-ONLY
The connection between the ISA-PNP hardware and ISA-bus is shown in Figure 5-7. The
decoder detects ISA-bus accesses to the ISA-PNP hardware. The LFSR block protects the
ISA-PNP configuration data from accidental damage. To enable access to the ISA-PNP
hardware, software should first perform a predefined series of 32 write cycles to the address
port (key transmission).
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
ISA Plug and Play Interface
Freescale Semiconductor, Inc.
CARD
CONTROL
LOGICAL
DEVICE
CONTROL
WRITE_DATA PORT
LOGICAL
DEVICE
CONFIGURATION
ADDRESS
REGISTER
SELECT
ADDR[11:0]
ADDRESS
DECODER
LFSR
KEY
CONTROL
ADDRESS PORT
ADDRESS PORT
ENABLE
Freescale Semiconductor, Inc...
ISA BUS
READ_DATA PORT
OUTPUT
ENABLE
Figure 5-7. PNP - ISA Interconnection
5.13 INITIATION KEY
Before any PNP commands are issued, the driver must first send the LFSR sequence to
wake up the PNP circuitry. The LFSR is active in the wait for key state only.
Upon detection of the initiation key, the LFSR enables the rest of the ISA-PNP hardware.
6A, B5, DA, ED, F6, FB,7D, BE,
DF, 6F, 37, 1B, 0D, 86, C3, 61,
B0, 58, 2C, 16, 8B, 45, A2, D1,
E8, 74, 3A, 9D, CE, E7, 73, 39
Figure 5-8. The LFSR Key Sequence
5.14 ISOLATION PROTOCOL
5.14.1 General
Upon detection of the initiation key, the ISA-PNP hardware enters the isolation state. The
isolation is based on the uniqueness of a Vendor ID and a card’s serial number. These data
reside in a byte serial device (serial EPROM). Storage format is shown in Figure 5-9.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
ISA Plug and Play Interface
Checksum
Vendor ID
3
1
0
3
1
0
Shift out
Freescale Semiconductor, Inc...
BYTE
Figure 5-9. Shifting of Serial Identifier
For more details see 5.4.1Resource Data Layout in a Byte Serial Device.
5.14.2 The Protocol
This is typically performed by the operating system.
In order to isolate a card, the host performs 72 pairs of reads from the serial isolation
register. To access an ISA-PNP register, the host writes the register’s address to the
address port and reads its value from the READ_DATA port. Two read cycles are performed
per bit in the serial identifier.
After entering serial isolation, the host:
• Sets the READ_DATA port’s address using the following sequence:
— Issues Initiation Key
— Sends Wake[0] command (to send all the cards with no CSN assigned to the
isolation state
• Sends Set READ_DATA Port command
For every bit in the serial identifier the host:
• Reads READ_DATA port twice
• If the obtained values are 0x55 and 0xAA, assigns 1 to this position in the serial
identifier, otherwise zero is assigned.
• The result of the decision is used for the 8-bit checksum generation (as described in
Appendix B of the Plug and Play ISA Specification).
• On the last 8 bits of the serial identifier (checksum) performs comparison of the values
read from the READ_DATA port and the values generated by the HOST’s checksum
generator1.
1. It
should be noted (by software designer) that the check-sum bits are valid only during the serial isolation
and are not valid if the resource data is accessed in the configuration state
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
ISA Plug and Play Interface
Freescale Semiconductor, Inc.
• If the check-sum fails or no (0x55, 0xAA) is detected2 the host assumes that there is a
conflict on the READ_DATA port and relocates it. The following sequence of operations
is performed:
— Wake[0] command is issued to cause all the cards in the isolation state to reset their
serial id/resource data pointer while remaining in the isolation state. The software
must delay 1ms before beginning the next 72 pairs of serial isolation read cycles.
— READ_DATA port relocated using set READ_DATA port command.
• Else the host assumes that a card has been isolated. Isolated card remains in the
isolation state, while losers (those who failed during the serial isolation) return to the
sleep state.
Freescale Semiconductor, Inc...
• Software writes the card’s CSN to the card select number register and the card
transitions to the configuration state.
• It is the responsibility of software to count read cycles of the serial isolation sequence
(check for a total of 72 pairs of read cycles).
• Figure 5-10 summarizes the process.
5.14.3 Timing Issues Related to Serial Isolation
• The ISA-PNP hardware does not drive IOCHRDY (ISA-bus signal) during Serial
Isolation. ISA-PNP hardware may be configured to drive IOCHRDY at any other time (if
the CHRDY bit in the BUSCNT register is set, see BUSCNT register definition).
• The software must delay at least 1 ms before the first pair of the serial isolation read
cycles and 250µs between every subsequent pair of read cycles (from the serial
isolation register)
• If a conflict is detected, the Wake[0] is issued and the ISA-PNP interface remains in the
isolation state until the beginning of the next trial of serial isolation.
Table 5-15. Serial Isolation Delays
2. Serial
DELAY
STATE
1+ ms
1) After entering Isolation State - before the first read from
the Serial Isolation register.
2) If a conflict was detected and the Isolation state was reentered using Wake[0] command: before the first read from
Serial Isolation register.
2+ ms
1) After RESET_DRV - before the first access to ISA-PNP
ports.
2) After Reset command was issued - before the first access
to ISA-PNP ports.
250 µs
1) Between subsequent pairs of read cycles from the Serial
Isolation Register.
Id of 0x0000_0000 is invalid
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
ISA Plug and Play Interface
Isolation
State
Host: Read from the DATA port
Host: read from Serial Isolation Reg.
Card: Get one bit from its Serial Id.
Freescale Semiconductor, Inc...
Y
ID Bit = “1H”
N
Card: Listen to
D[1:0].
N
SD[1:0]=”01”
Y
Wait for the next read from the serial isolation register
Card: Drive “AAH”
Card: Drive SD[1:0]
on SD[7:0]
Card: Listen to
D[1:0].
High Impedance
N
N
SD[1:0]=”10”
72 reads?
Y
end
Host: Another
card’s
Sleep
ID = 1,
State
this card’s
ID = 0
Y
One Card Isolated
Figure 5-10. Isolation State Transitions
5.15 RUN-TIME ACCESS TO ISA-PNP
After the RESET_DRV is asserted or after Wait for Key command is issued, the ISA-PNP
hardware transitions to the Wait for Key state. There are no commands active in this state.
The HOST must delay 2 +ms prior to accessing ISA-PNP ports after RESET_DRV or Reset
command is issued. The initiation key sequence should be issued to activate the ISA-PNP
interface. Read access to the ISA-PNP hardware does not impact the functionality of the
card.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
ISA Plug and Play Interface
Freescale Semiconductor, Inc.
Write access is allowed but is not recommended. The logical device must be deactivated
before changing the value of any registers.
The Reset command resets logical device registers to their default state. The CSN,
READ_DATA port and the PNP-state are preserved. All the devices, except those in the
Wait for Key state, respond to the command.
NOTE
Freescale Semiconductor, Inc...
The resource data is accessed through the SCP interface,
therefore on every access to the Resource Data bit SCP_BS in
the BUSCNT register is asserted. An access to the SCP is not
allowed if the SCP_BS bit is asserted.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
SECTION 6
PCMCIA INTERFACE
6.1 INTRODUCTION
6.2 PCMCIA CONTROLLER KEY FEATURES
Freescale Semiconductor, Inc...
• Direct Connection to PCMCIA Bus
• Supports 5 PCMCIA Configuration Registers: COR, PRR, CCSR, SCR and IOER
• Supports 2 Low Power Modes: Stand By and STOP
• Supports PCMCIA Attribute and Common Memory Accesses
• 64 Megabytes of Attribute Memory Space Addressing
• Chip Select for External Device Such As a Modem Datapump.
• Glueless Connection of CIS ROM in Parallel PROM Configuration
• Glueless Connection to Serial EEPROM CIS in Serial EEPROM Configuration with
Programmable CIS Size
• Direct Asynchronous Access to Internal Configuration Registers (PCMCIA FCRs)
• Supports READY Functionality either as a Pin or as a Status Bit
• Ring Indication Support
6.3 PCMCIA INTERFACE FUNCTIONAL OVERVIEW
The PCMCIA controller supports PC Card 95 standard. It is enabled during power on reset
by pulling down the IOW/PC_MODE pin. The value of this pin is sampled at the rising edge
of the RESET signal. After configuration in PCMCIA mode, the SC302 checks the PC_E2E
pin and configures itself into one of two CIS storage options:
1. When IOR / PC_E2E is pulled up during reset, the serial CIS EEPROM configuration
(shown in Figure 6-1) is enabled. The CIS information resides in a serial EEPROM.
This is used in typical PCMCIA systems in which CIS size is small (less than 256
bytes). This is the lowest cost option. After system reset, the SC302 creates a CIS
shadow within the DPR. This DPR portion is dedicated to CIS information. Thus a
trade-off between interrupt latency and CIS size must be considered in this mode. In
serial EEPROM mode, CIS access is not supported in low power mode.
2. When IOR / PC_E2E is pulled down during reset, the parallel CIS EEPROM configuration (shown in Figure 6-1) is enabled. In the parallel PROM configuration (shown in
Figure 6-1), the card information structure (CIS) information resides in a PROM which
is connected to the PCMCIA bus and is selected by a chip select output, PC_CISCS.
This option allows larger CIS memory spaces to be implemented without penalizing
system performance by using too much Dual Ported RAM.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
PCMCIA Interface
CIS
ROM
D[0:7]
ADDRESS
PCMCIA
BUS
DATA[15:0]
PC_CISCS
SC302
PCMCIA
Freescale Semiconductor, Inc...
COMMON
CONFIG
MEMORY
REGISTERS
Figure 6-1. Parallel EPROM Configuration
CIS
ROM
ADDRESS
PCMCIA
BUS
DATA[15:0]
SC302
SCP
COMMON
MEMORY
PCMCIA
CONFIG
REGISTERS
Figure 6-2. Serial EEPROM Configuration
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
PCMCIA Interface
6.4 PCMCIA MEMORY MAP
The SC302’s memory resource is composed of two main parts (refer to Figure 6-3):
1. Host Interface Control Registers (HCR) which include the function control registers as
specified by the PCMCIA specification, and other vendor specific registers implemented in
the 68SC302. This area is located within PCMCIA attribute memory space.
Freescale Semiconductor, Inc...
2. The Communication Controller Memory and Registers (CCMR) which include the Dual
Ported RAM (DPR) and Communication Controller registers (CCR). The addressing method
to this area depend on the CIS storage option selected. If parallel CIS PROM mode is
selected, refer to 6.4.3 Accessing the CCMR in Parallel CIS EEPROM mode for addressing
details. If serial CIS EEPROM mode is selected, refer to 6.4.2 Accessing the CCMR Region
in Serial CIS EEPROM Mode for addressing details.
The DPR is further partitioned to system RAM and parameter RAM regions (Figure 6-3).
System RAM size is 1280 bytes ($500 bytes). The Rx FIFO buffers and BDs, the Tx BD table
and Tx data buffers are contained in this portion of the DPR. In PCMCIA serial EEPROM
mode, a pre-defined portion of the system RAM contains the CIS.The parameter RAM
portion of the DPR contains all parameters required by the three SCC’s. It consists of 3
pages, $100 bytes each.
The CCR contains all of the communication controller’s internal status, event and control
registers.
6.4.1 Accessing the HCR Region (Both Serial and Parallel CIS EEPROM Mode)
In PCMCIA mode, the HCR region is allocated as function configuration registers (FCR’s).
To access the HCR, A25 must be a one, so the HCR starting location in PCMCIA attribute
address space is $2000000. The SC302 drives the data bus as long as an attribute address
space in the interval $2000000, $20000FF is accessed. For addresses above $20000FF in
the attribute space, the data bus will not be driven. A detailed list of the FCR’s can be found
in Table 6-1.
6.4.2 Accessing the CCMR Region in Serial CIS EEPROM Mode
In serial CIS EEPROM mode, the lowest addresses of system memory in the DPR will
contain the CIS. The remainder of the CCMR is also mapped in attribute space. The CCMR
address is the absolute address as shown in Table 6-2 and Table 6-3. For example, referring
to Table 6-3, the Periodic Interrupt Timer Register (PITR) in this mode would be located at
$802 in attribute memory space.The data bus is driven for any attribute memory access in
the interval $0, $FFF.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
PCMCIA Interface
NOTE
There is no write protection for the CIS area in the DPR. Care
must be taken to avoid overwriting CIS locations.
ATTRIBUTE MEMORY
SPACE
ATTRIBUTE MEMORY SPACE
DPR
CIS
Freescale Semiconductor, Inc...
PCMCIA
FUNCTION
CONTROL
REGISTERS
(FCR)
HOST
INTERFACE
CONTROL
REGISTERS
(STARTING AT
$2000000)
000
SYSTEM
RAM
4FF
PARAMETER
RAM
500
7FF
CCR
800
INTERNAL
REGISTERS
HCR
FFF
CCMR
Figure 6-3. 68SC302 PCMCIA Address Map in Serial
CIS EEPROM Mode
6.4.3 Accessing the CCMR in Parallel CIS EEPROM mode
When in parallel EEPROM mode, the CCMR is allocated in common memory address
space. In addition, to select the CCMR space, A25 must be one so the CCMR starts at
address $2000000+IMBARH concatenated with IMBARL (A24 is don’t care).
The CCMR base address location is xprogrammed in the IMBARH and IMBARL within the
HCR register space. Only bits 23 to 12 of access address are compared to the contents of
the IMBAR register as shown in the register description on page 13. The ACTV bit in the
ACTIVE register must also be set to enable the IMBARs.
So for example, say we want to map the CCMR to a PCMCIA common memory address
starting at $2345000:
1. Set ACTV bit in the ACTIVE register to enable the IMBARs.
2. We will write a $34 for IMBARH and a $50 to IMBARL.
3. A25 must be one, so our host driver will always write to common memory address
$2000000+IMBAR to access address zero of the CCMR.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
PCMCIA Interface
Referring to Table 6-3, the Periodic Interrupt Timer Register at CCMR address $802 in this
mode would be located at $2345802 in common memory space.
The data size of PCMCIA common memory space is 16 bits.
ATTRIBUTE MEMORY
SPACE
IMBARL || IMBARH
Freescale Semiconductor, Inc...
PCMCIA
FUNCTION
CONTROL
REGISTERS
(FCR)
HOST
INTERFACE
CONTROL
REGISTERS
(STARTING AT
$2000000)
HCR
COMMON MEMORY SPACE
DPR
2000000
SYSTEM
RAM
20004FF
PARAMETER
2000500
RAM
20007FF
CCR
2000800
INTERNAL
REGISTERS
2000FFF
CCMR
Figure 6-4. 68SC302 PCMCIA Address Map in Parallel
CIS PROM Mode
6.4.4 Accessing the External Chip Select Space
The external chip select (NMSICS) is asserted in an asynchronous manner when
PC_REG=1, A25=1, A24=X, A23-A8=CSBAR (see CSBARH-CSBARL on page 14)
according to CSRNG if either OE or WE is asserted. The actual PCMCIA data bus portion
which is involved in read/write accesses within common memory space and its dependency
on PC_CE1, PC_CE2, and A0 are shown in Table 6-8.
6.4.5 Accessing Host Interface Control Registers (HCR)
Table 6-1 shows the host interface control registers that are accessed in attribute space with
A25 high ($2000000). The shaded areas show asynchronous FCR’s as specified by the PC
Card 95 standard. Access to the FCR registers is allowed during STOP low power mode.
The unshaded registers are 68SC302 specific registers and are not asynchronous - the
system clock must be running to access them.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
PCMCIA Interface
Freescale Semiconductor, Inc.
Freescale Semiconductor, Inc...
Table 6-1. Host Interface Control Registers
ADDRESS
DESCRIPTION
2000000
COR
2000002
CSR
2000004
PRR
2000006
SCR
2000008
IOER
2000040
BUSCNT
2000042
CLKCNT
2000044
ISI
2000060
ACTIVE
2000080
IBARL
2000082
IBARH
2000084
IMCNT
2000086
IMRNGL
2000088
IMRNGH
2000090
CSBARL
2000092
CSBARH
2000094
CSCNT
2000096
CSRNGL
2000098
CSRNGH
6.5 CCMR MEMORY SPACE
Byte addressing of the CCMR is little endian (Intel convention).
6.5.1 Dual Ported RAM (DPR)
The DPR is accessible by both the communication controller and the host. It is composed
of system memory, and parameter RAM. The DPR is shown in Figure 6-5.
1
15
8 7
0
0
CIS*
SYSTEM
RAM
4FE
4FF
501
500
PARAMETER RAM
7FF
7FE
*Serial EEPROM mode only
Figure 6-5. DPR Addressing
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
PCMCIA Interface
6.5.1.1 SYSTEM RAM. The system RAM size is 1280 bytes ($500 bytes). The Rx FIFO
buffers and BDs, the Tx BD table and Tx data buffers are contained in this portion of the
DPR. In PCMCIA serial EEPROM mode, the lower portion of the system RAM contains the
CIS.
6.5.1.2 PARAMETER RAM. The parameter RAM is composed of three (3) parameter
pages. The first page, addressed at $500-$5FF is SCC1 page parameter. The second page,
at the address interval of $600-$6FF is SCC2 parameter area. The third page, at the
address interval of $600-$6FF, holds the parameters for SCC3, for the SMCs and the SCP.
Table 6-2 shows the memory map of the parameter RAM region. The CCMR address is the
offset from the beginning of the CCMR.
Table 6-2. SC302 PARAMETER RAM
Freescale Semiconductor, Inc...
CCMR ADDRESS
WIDTH
500
.
538
BLOCK
SCC1
53A
.
5FF
SCC1 PARAMETER RAM
Reserved
600
.
638
SCC2
63A
.
6FF
SCC2 PARAMETER RAM
Reserved
700
.
738
73A
73C
73E
740
742
74E
750
DESCRIPTION
SCC3
Word
Word
Word
Word
6 Word
Word
3 Word
754
.
7FF
SMC1
SMC1, Rev No
SMC2
SMC2
SMC1-2
SCP
SCP
SCC3 PARAMETER RAM
Rx BD
Tx BD, SC302 Revision Number (Before SMC1 is used)
Rx BD
Tx BD
Internal use
Rx/Tx BD
Internal use
Reserved
For detailed description of page parameter contents either for HDLC or transparent
protocols, please refer to Section 4 Communications Processor (CP).
6.5.2 CCR Register Map
The CCR register map is shown in Table 6-3. The CCMR address is the offset from the
beginning of the CCMR.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
PCMCIA Interface
Freescale Semiconductor, Inc...
Table 6-3. CCR Register Map
CCMR
ADDRESS
NAME
WIDTH
800
IPRDN
8
802
PITR
16
PIT
804
IOER
8
RI logic
812
GIMR
16
814
IPR
816
BLOCK
DESCRIPTION
PWRDWN ISA Power Down Register
RESET
VALUE
LOCATION OF REGISTER
DESCRIPTION IN MANUAL
0000
3.2 ISA Power Control Registers
Periodic Interrupt Timer Register
0004
3.1.8.3 Periodic Interrupt Timer
Register (PITR)
0000
3.2 ISA Power Control Registers
IC
RI event indication for ISA mode
Reserved
Global Interrupt Mode Register
0000
3.1.4 Wake Up On Interrupt
16
IC
Interrupt Pending Register
0000
3.1.6 Interrupt Pending Register
(IPR)
IMR
16
IC
0000
3.1.7 Interrupt Mask Register (IMR)
81E
PACNT
16
PIO
Interrupt Mask Register
Reserved
Port A Control Register
F001/F000
2.3.4.2 Port A Registers
820
PADDR
16
PIO
Port A Data Direction Register
0000
2.3.4.2 Port A Registers
822
PADAT
16
PIO
Port A Data Register
XXXX
2.3.4.2 Port A Registers
824
PENCR
8
CP
Port A Enable Pins Control Register
00
2.3.4.3 Port A SCP Enable Control
826
PMFSR
16
PIO
Pin Multifunction Select Register
F000
2.3.4.6 Special Pin Function in 8-Bit
Mode
861
CR
8
CP
00
4.2 Command Set
884
SCM1
16
SCC1
0000
4.5.2 SCC Mode Register (SCM)
889
SCCE1
8
SCC1
Reserved
Command Register
Reserved
SCC1 Mode Register
Reserved
SCC1 Event Register
00
4.5.10.10 HDLC Event Register
88B
SCCM1
8
SCC1
SCC1 Mask Register
00
4.5.10.11 HDLC Mask Register
88D
SCCS1
8
SCC1
SCC1 Status Register
00
4.5.5.9 Transmitter Buffer Descriptor Pointer (TBPTR)
Reserved
892
SCON2
16
SCC2
SCC2 Configuration Register
0004
4.5.12.3 Configuration Register
(SCON)
894
SCM2
16
SCC2
0000
4.5.2 SCC Mode Register (SCM)
899
SCCE2
8
SCC2
SCC2 Mode Register
Reserved
SCC2 Event Register
00
4.5.10.10 HDLC Event Register
89B
SCCM2
8
SCC2
SCC2 Mask Register
00
4.5.10.11 HDLC Mask Register
89D
SCCS2
8
SCC2
SCC2 Status Register
00
4.5.5.9 Transmitter Buffer Descriptor Pointer (TBPTR)
8A4
SCM3
16
SCC3
0000
4.5.2 SCC Mode Register (SCM)
8A9
SCCE3
8
SCC3
Reserved
SCC3 Mode Register
Reserved
SCC3 Event Register
00
4.5.10.10 HDLC Event Register
8AB
SCCM3
8
SCC3
SCC3 Mask Register
00
4.5.10.11 HDLC Mask Register
8AD
SCCS3
8
SCC3
SCC3 Status Register
00
4.5.5.9 Transmitter Buffer Descriptor Pointer (TBPTR)
8B0
SPMODE
16
SCM
Reserved
SCP, SMC Mode and Control Register
1500
4.6.1 SCP Programming Model
8B2
SIMASK
16
SI
Serial Interface Mask Register
FFFF
4.4.2 Serial Interface Mask Register (SIMASK)
8B4
SIMODE
16
SI
Serial Interface Mode Register
0000
4.4.1 Serial Interface Mode Register (SIMODE)
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
PCMCIA Interface
6.6 HOST INTERFACE CONTROL REGISTERS (HCR)
The HCRs consist of the PCMCIA Function Configuration Registers and the MC68SC302
specific registers. Both sets of registers are described in the following paragraphs.
6.6.1 PCMCIA Function Configuration Registers (FCR)
There are five FCR registers specified by the PC Card 95 Standard that are supported by
the 68SC302. These registers are located in attribute memory space starting at address
$2000000 (A25 must be high). These registers are asynchronous to the 68SC302 system
clock and can be accessed when the 68SC302 is in power down mode.
Freescale Semiconductor, Inc...
CONFIGURATION OPTION REGISTER (COR)
7
6
SRESET
LEVIREQ
5
4
Attribute address $2000000
3
2
1
0
CONFIGURATION INDEX
SRESET—Set reset
0 = Produces the same result as system reset.
1 = Places the card in the reset state, equivalent to the assertion of PC_RESET,
except that this bit is not cleared, and can be written by the host.
This bit is cleared by PC_RESET. After clearing this bit in software, the SC302 is
in the same state as after hard system reset. Following SRESET, the READY
signal is negated, and then asserted again automatically.
LEVIREQ—Level Mode Interrupts
0 = Pulse mode interrupt selected
1 = Level mode interrupt selected
Configuration Index
This field is written with the index number of the entry in the card’s configuration table, corresponding to the configuration the system chooses for the card. When the configuration
index is 0, external pins are configured at memory mode pinout.
CARD CONFIGURATION AND STATUS REGISTER (CSR) Attribute address $2000002
7
6
5
4
3
2
1
0
CHANGED
SIGCHG
RSVD
RINGEN
RSVD
PWRDWN
INTR
RSVD
Changed—Certain bit values have changed
0 = No change in relevant bit state.
1 = Either the CREADY bit in PRR is set to one or the RIEVT bit in IOER is set to one,
if the RIENA bit in IOER is high. When this bit is set, the STSCHG signal is asserted
if SIGCHG is high and the SC302 is configured as MEMORY+I/O device.
SIGCHG—Signal change
0 = The STSCHG signal is always non-active (high).
1 = The STSCHG signal represents the value of the CHANGED bit.
This bit is set/reset by the host. If RINGEN=0 (Disabled), it determines if the value of the
CHANGED bit is transferred to the STSCHG signal.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
PCMCIA Interface
RINGEN—Ring enable
0 = The value of the pin STSCHG is controlled by the SIGCHG and CHANGE bits in
CSR.
1 = STSCHG is asserted (low-0) if the RI input is low (0).
This bit is set/reset by the host. It determines if the signal STSCHG reflects the Ring Indication (RI) input.
Freescale Semiconductor, Inc...
PWRDWN—Power Down
0 = Exit Low Power Mode. As a result of clearing this bit, READY might be asserted.
1 = Enter Low Power Mode as defined by CLKCNT.
This bit might be set/cleared by the host. It is also cleared if RI is asserted. When set or
cleared, the SC302 enters or exits low power mode.
NOTE
After entering one of the low power modes, software must clear
the PwrDwn bit in the PRR before any access to the part, unless
it was cleared by a rising edge of the RI pin.
Intr—Interrupt request
This bit is read only. It represents the state of the interrupt requests which are enabled. It
remains true until all interrupt sources are cleared by software.
PIN REPLACEMENT REGISTER ORGANIZATION (PRR)
Attribute address $2000004
7
6
5
4
3
2
1
0
RSVD
RSVD
CREADY
RSVD
RSVD
RSVD
RREADY
RSVD
CREADY
This bit is set when READY changes state. It can also be written by host. In order to write
to this bit, bit 1 of the data bus (RREADY) must be set to 1.
RREADY
When PRR is read, this bit represents the value of the RREADY signal. When PRR is written, this bit is “Write Enable” to the CREADY bit.
SOCKET AND COPY REGISTER (SCR)
7
6
5
4
Attribute address $2000006
3
2
1
0
RSVD
This register is user defined. It is a R/W asynchronous register.
IO EVENT REGISTER (IOER)
Attribute address $2000008
7
6
5
4
3
2
1
0
RSVD
RSVD
RSVD
RIEVT
RSVD
RSVD
RSVD
RIENA
This register can be read or written by the host.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
PCMCIA Interface
RIEVT—Ring Indicate Event.
0 = No rising edge has occurred on the RI input.
1 = A rising edge has occurred on the RI input.
Freescale Semiconductor, Inc...
If RIENA is high, the CHANGED bit in the CSR register is also set to one. If SIGCHG in
the CSR is high, the STSCHG pin will be asserted (driven low). RIEVT setting, CHANGED
setting, and the assertion of the STSCHG pin are all asynchronous and thus can be used
to transfer ring indication to the host when the device is in STOP mode. A visual description of the bits RIEVT, RIENA, CHANGED, SIGCCHG, RINGEN and STSCHG pin is given in Figure 6-6.
RIENA—Ring Indicate Enable
0 = A rising edge on the RI input does not set the CHANGED bit in the CSR register.
1 = A rising edge on the RI input sets the CHANGED bit in the CSR register.
MUX
RI
STSCHG
CHANGE
RIEVT
RIENA
SIGCHG
RINGEN
Figure 6-6. RI to STSCHG Path
6.6.2 68SC302 Specific HCR Registers
BUSCNT
Attribute address $2000040
7
6
5
4
3
2
1
0
ERMU
-
-
-
-
-
RES
RES
0
X
X
X
X
X
1
1
Read/write.
ERMU—Enable RAM Ucode.
This bit is written by the software and enables the RISC controller to run microcode loaded
to the dual ported RAM.
CLKCNT
Attribute address $2000042
7
6
5
4
3
2
1
0
-
-
PMOD1
PMOD0
CDIV0
CDIV1
STP
LPEN
-
-
0
0
0
0
0
0
Read/write
The register is active in the configuration state.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
PCMCIA Interface
PMOD1-PMOD0—Clock Out.
00 = CLKO enabled, full strength of output buffer.
01 = CLKO enabled, 2/3 strength of output buffer.
10 = CLKO enabled, 1/3 strength of output buffer.
11 = CLKO disabled, CLKO is driven to 1 by internal pull up.
Freescale Semiconductor, Inc...
CDIV1-0—Clock Out Division.
00 = CLKO equals frequency of EXTAL (reset value).
01 = CLKO equals 3/4 frequency of Extal clock.
10 = CLKO equals 1/2 frequency of Extal clock.
11 = CLKO is disabled.
STP—Stop bit.
1 = Clock oscillator is stopped following PwrDwn setting.
0 = Clock oscillator is not stopped following PwrDwn setting.
LPEN —Low Power Enable bit.
1 = Internal clocks are disabled following PwrDwn setting. Low Power mode is
enabled.
0 = Low power mode is disabled. Internal clocks are not disabled following PwrDwn
setting.In PCMCIA mode, the ISI register defines address spaces and data bus
width. It is a read only register, and is written once in RESET.
ISI
PCMCIA Address: 0x2000044
7
6
5
4
3
2
1
0
I_I/M
CS_I/M
I_DW
CS_DW
CS_RL[3]
CS_RL[2]
CS_RL[1]
CS_RL[0]
1
1
0
0
0
0
0
RESET
VALUE:
1
Read only.
This register should be left in its reset value for normal operation. It is not necessary to write
to this register in PCMCIA mode.The reset value of the register defines the external Chip
Select address space to be mapped within PCMCIA common memory space, and defines
internal space data width to be 16 bits.
The external CS (NMSICS) is asserted in an asynchronous manner when PC_REG=1,
A25=1, A24=X, A23-A8=CSBAR according to CSRNG if either OE or WE is
asserted. The actual PCMCIA data bus portion which is involved in read/write
accesses within common memory space and its dependency on PC_CE1,
PC_CE2, and A0 are shown in Table 6-8 and Table 6-9.
Active
Attribute address $2000008
7
6
5
4
3
2
1
0
0
0
0
0
0
0
0
ACTV
0
0
0
0
0
0
0
0
Read/write.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
PCMCIA Interface
The register is active in the configuration state only.
Bits[7:1] — these bits are reserved.
On read return zero.
ACTV — Active Bit.
1 = Indicates that the device is active on the ISA-bus.
0 = The chip does not respond to the ISA-bus cycles.
Freescale Semiconductor, Inc...
IMBARH (Memory Base Address[23:16])
Attribute address $2000082
7
6
5
4
3
2
1
0
BAR[23]
BAR[22]
BAR[21]
BAR[20]
BAR[19]
BAR[18]
BAR[17]
BAR[16]
X
X
X
X
X
X
X
X
Read/write.
BAR[23:16] — Base Address bits[23:16].
The internal memory space base address bits[23:16].
IMBARL (Memory Base Address[15:8])
Attribute address $2000080
7
6
5
4
3
2
1
0
BAR[15]
BAR[14]
BAR[13]
BAR[12]
0
0
0
0
X
X
X
X
X
X
X
X
Read/write.
BAR15–BAR12 — Base address bits 15 through 12.
The internal memory space consists of base address bits 15–8.
Bits3–0 — Base Address bits 11–8.
Because of the 4kbyte alignment (see 5.4.4 Memory Configuration), these bits should be
written with 0.
NOTE
Bits 7–0 of the BAR are always zero.
IMCNT (Memory Control)
Attribute address $2000084
7
6
5
4
3
2
1
0
0
0
0
0
0
0
DATA_SZ
RES
0
0
0
0
0
0
0
0
Read/write.
Bits 7–2 — Reserved.
On read return zero. The bits are read only.
DATA_SZ—Data Size.
1 = The corresponding memory is 16-bit (data width).
0 = The memory is 8-bit.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
PCMCIA Interface
IMRNGH
Attribute address $2000088
7
6
5
4
3
2
1
0
RL[23]=RL[12]
RL[22]=RL[12]
RL[21]=RL[12]
RL[20]=RL[12]
RL[19]=RL[12]
RL[18]=RL[12]
RL[17]=RL[12]
RL[16]=RL[12]
0
0
0
0
0
0
0
0
7
6
5
4
3
2
1
0
RL[15]=RL[12]
RL[14]=RL[12]
RL[13]=RL[12]
RL[12]
RL[11]=0
RL[10]=0
RL[9]=0
RL[8]=0
0
0
0
0
0
0
0
0
IMRNGL
Attribute address $2000086
Freescale Semiconductor, Inc...
The registers are active in the configuration state.
RL23–RL8 — Range length.
If memory control register bit DEC is set, RL23–RL8 corresponds to bit 23 through bit 8
of memory range length. Otherwise, RL23–RL8 corresponds to bit 23 through bit 8 of the
upper limit of memory range. Bit7–bit 0 are always zero. RL11–RL8 and RL23–RL13 of
the range length are read only. RL12 is read/write and used as an enable bit for internal
memory range.
RL12
1 = Internal memory (4kbyte) is enabled. On reads from the range length, returned
value indicates 4kbyte memory range (even if a larger value was written by the
software).
0 = Internal memory (4kbyte) is disabled; I/O accesses to the internal space are
possible if the related I/O base address is not 0. On reads from the range length, 0
is returned.
NOTE
Memory range length is defined as a mask of address bit 23–
address bit 8. If a bit in the mask is set, then the corresponding
bit in the address is used in a comparator to determine address
match. Memory upper limit is defined as being one byte greater
then the memory resource assigned.
CSBARH-CSBARL (CS0 Memory Base23–8)
Attribute address $2000092-90
7
6
5
4
3
2
1
0
CSBAR[23]
CSBAR[22]
CSBAR[21]
CSBAR[20]
CSBAR[19]
CSBAR[18]
CSBAR[17]
CSBAR[16]
0
0
0
0
0
0
0
0
7
6
5
4
3
2
1
0
CSBAR[15]
CSBAR[14]
CSBAR[13]
CSBAR[12]
CSBAR[11]
CSBAR[10]
CSBAR[9]
CSBAR8]
0
0
0
0
0
0
0
0
Read/write
The registers are active in the configuration state.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
CSBAR23–CSBAR8 — Chip Select Base Address.
Bits[23:8] of CS0 Base Address. Bits[7:0] are 0x00.
CSCNT (CS0 Memory Control)
PCMCIA Interface
Attribute address $2000094
7
6
5
4
3
2
1
0
0
0
0
0
0
0
DATA_SZ
DEC=0
0
0
0
0
0
0
X
0
Read/write
The register is active in the configuration state.
Freescale Semiconductor, Inc...
Bit7–bit2 —reserved.
On reads, return zero.
DATA_SZ — Data Size.
0 = Memory is 8-bit (data)
1 = Memory is 16-bit (data)
This bit is read/write.
DEC — Decoding Options.
0 = Range length is used for decoding
1 = Range length is not used for decoding
This bit is read only.
CSRNGH-CSRNGL (CS0 RANGE LENGTH[23:8])
Attribute address $2000098-96
7
6
5
4
3
2
1
0
RL[23]
RL[22]
RL[21]
RL[20]
RL[19]
RL[18]
RL[17]
RL[16]
0
0
0
0
0
0
0
0
7
6
5
4
3
2
1
0
RL[15]
RL[14]
RL[13]
RL[12]
RL[11]
RL[10]
RL[9]
RL[8]
0
0
0
0
0
0
0
0
Read/write
The registers are active in the configuration state.
RL23–RL8 — Range length of the corresponding memory space (corresponding to CS0).
NOTE
If the I/O configuration is chosen for a region, all the related
memory configuration registers are read only. The returned
value is 0.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
PCMCIA Interface
6.7 PCMCIA BUS ACCESSES.
Table 6-4. Attribute Memory Read Access
FUNCTION
PC_REG PC_CE2 PC_CE1
MODE
PC_A0
PC_OE
PC_WE
PC_D[15:8]
PC_D[7:0]
Standby
Mode
x
H
H
x
x
x
High-Z
High-Z
Byte Access
L
L
H
H
L
L
L
H
L
L
H
H
High-Z
High-Z
Even- Byte
Not Valid
Word Access
L
L
L
x
L
H
Not Valid
Even-Byte
Odd Byte
Only Access
L
L
H
x
L
H
Not Valid
High-Z
Freescale Semiconductor, Inc...
Table 6-5. Attribute Memory Write Access
FUNCTION
MODE
PC_REG PC_CE2 PC_CE1
PC_A0
PC_OE
PC_WE
PC_D[15:8]
PC_D[7:0]
Standby
Mode
x
H
H
x
x
x
xxx
High-Z
Byte Access
L
L
H
H
L
L
L
H
H
H
L
L
xxx
xxx
Even- Byte
xxx
Word Access
L
L
L
x
H
L
xxx
Even-Byte
Odd Byte
Only Access
L
L
H
x
H
L
xxx
xxx
Table 6-6. Attribute CIS and HCR/FCR Accesses
PC_CE1
PC_REG
L
L
PC_A25
SELECTED REGISTER
OR SPACE
PC_OE
PC_WE
PC_A0
L
L
H
L
L
CIS Memory Read
L
H
L
L
L
CIS Memory Write
L
L
L
H
H
L
HCR Read
L
L
H
L
H
L
HCR Write
Table 6-7. CIS LOCATIONS
MODE
CIS LOCATION
REMARKS
Parallel PROM
$0-1FFFFFF
PC_CISCS is asserted
Serial EEPROM
$0-7FE
Internal memory space (DPR) is accessed
Serial EEPROM
$800H-1FFFFFF
Three-state data bus
Table 6-8. Common Memory Read Accesses
FUNCTION
MODE
PC_REG
PC_CE2
PC_CE1
PC_A0
Standby Mode
x
H
H
x
x
x
High-Z
High-Z
Byte Access
H
H
H
H
L
L
L
H
L
L
H
H
High-Z
High-Z
Even- Byte
Odd-Byte
Word Access
H
L
L
x
L
H
Odd-Byte Even-Byte
Odd Byte Only
Access
H
L
H
x
L
H
Odd-Byte High-Z
PC_OE PC_WE
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
PC_D15PC_D7-PC_D0
PC_D8
Freescale Semiconductor, Inc.
PCMCIA Interface
6.7.1 SC302 Power Management
Table 6-9. Common Memory Write Accesses
FUNCTION
MODE
PC_REG PC_CE2 PC_CE1
PC_A0
PC_OE
PC_WE
PC_D15PC_D7-PC_D0
PC_D8
Standby Mode
x
H
H
x
x
x
xxx
xxx
Byte Access
H
H
H
H
L
L
L
H
H
H
L
L
xxx
xxx
Even- Byte
Odd-Byte
Word Access
H
L
L
x
H
L
OddByte
Even-Byte
Odd Byte Only
Access
H
L
H
x
H
L
OddByte
XXX
Freescale Semiconductor, Inc...
The SC302 supports three power modes, as described in Table 6-10.
Table 6-10. Low Power Modes
MODE
STP
LPEN
FUNCTIONAL DESCRIPTION
Full Power
0
0
PwrDwn has no effect. Low Power Disabled
Low Power: Stand By
0
1
Following PwrDwn setting, the clock oscillator is enabled, but the
internal clocks are disabled.
Low Power: Stop
1
1
Following PwrDwn setting, the clock oscillator is stopped.
STP (STOP bit) and LPEN (Low Power Enable bit) are located in the CLKCNT (clock
control) register within the configuration space.
6.7.1.1 ENTER LOW POWER. The following steps are performed in order to enter either
STAND-BY or STOP low power modes:
• Setting LPEN in CLKCNT
• Programming STP in CLKCNT
• Set PwrDwn in the CSR configuration register
6.7.1.2 WAKE UP. The SC302 exits from any of the low power modes (either STOP or
STAND BY) if one of the following events occurs:
• The host clears the PwrDwn bit.
• A rising edge is detected at the RI input. This rising edge clears the PwrDwn bit.
6.7.1.3 READY.
• Will not be changed when host sets PwrDwn.
• Cleared (Indicates “BUSY”) if the SC302 wakes up from low power mode before internal
system clock is recovered. During this period, access to on-chip resources is not
allowed.
• Is set (indicating “READY”) once clock restarted after exiting from low power mode.
• Cleared (Indicates “BUSY”) while the CIS information is loaded from EEPROM in serial
EEPROM mode. This happens either after system hard reset or after soft reset
command (assertion of the SRESET bit in COR register).
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
PCMCIA Interface
• Set (Indicates “READY”) once the CIS shadow RAM setup is completed in serial
EEPROM mode.
• Cleared (Indicating “Busy”) when soft reset is issued by software. This will prevent
additional accesses until reset process is finished. The READY is set (indicating
“Ready”) again when the reset routine is finished. The READY is set automatically,
regardless of whether the user had cleared the SRESET (COR register) or not.
6.7.2 PCMCIA Host Interrupts
• When configured in IO+MEMORY mode, the IREQ pin, which is the READY in
MEMORY mode, generates an interrupt to the PCMCIA master if:
Freescale Semiconductor, Inc...
— IRQIN1-IRQIN6 are asserted, enabled and properly programmed.
— The CPM asserts one of its interrupts (SCC interrupts).
• No interrupts are generated in memory mode. Rather, the INTR bit in the CSR register
can be read by the host.
6.7.3 Unimplemented PCMCIA Signals
Unimplemented PCMCIA signals are summarized in Table 6-11.
Table 6-11. Unmplemented PCMCIA Signals
NAME
DESCRIPTION
Address bus
A[24]
A[24] is not an input to the SC302. In order to decode
this bit, external glue logic is needed.
Write Protect
WP
This output reflects card’s write protect switch.
IO Bus Width 16 bit
IO16
PCMCIA IO space is not supported in the SC302
Input Acknowledge
INPACK
PCMCIA IO space is not supported in the SC302
Audio Digital Waveform
SPKR
Carries binary audio signal
PC_STSCHG
The PC_STSCHG signal reflects the value of the CHANGED bit in the CSR register, if enabled, or the value of the RI pin, if enabled. For details see Figure 6-6, card configuration
and status register, and I/O Event Register.
6.7.4 PCMCIA EEPROM Format
In mode E2E, the CIS is loaded from a serial EEPROM into the DPR. The EEPROM formats
which are supported are shown in Table 6-12 and Table 6-13.
Table 6-12. 16-Bit Address Serial EEPROM Format (93xxx)
DATA BITS [7:0]
byte #0
$02
byte #1
CIS size (MSB)
byte #2
CIS size (LSB)
byte #3 and on
CIS data
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
PCMCIA Interface
Freescale Semiconductor, Inc.
Table 6-13. 8-Bit Address Serial EEPROM Format (25xxx or 95xxx)
DATA BITS [7:0]
byte #0
Reserved
$02
byte #2
CIS size (MSB)
byte #3
CIS size (LSB)
byte #4 and on
CIS data
Freescale Semiconductor, Inc...
byte #1
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
Freescale Semiconductor, Inc...
PCMCIA Interface
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
SECTION 7
ELECTRICAL CHARACTERISTICS
7.1 MAXIMUM RATINGS
Freescale Semiconductor, Inc...
Rating
Symbol
Value
Unit
Supply Voltage
VDD
– 0.3 to + 7.0
V
Input Voltage
Vin
– 0.3 to + 7.0
V
Operating Temperature Range
TA
0 to 70
°C
Storage Temperature Range
Tstg
MC68302
– 55 to + 150
°C
This device contains circuitry to
protect the inputs against damage
due to high static voltages or electric fields; however, it is advised
that normal precautions be taken
to avoid application of any voltage
higher than maximum-rated voltages to his high impedance circuit.
Reliability of operation is enhanced
if unused inputs are tied to an appropriate logic voltage level (e.g.,
either GND or VDD)
NOTES:
1.
Permanent damage can occur if maximum ratings are exceeded. Exposure to voltages or currents in excess of
recommended values affects device reliability. Device modules may not operate normally while being exposed
to electrical extremes.
2.
Although sections of the device contain circuitry to protect against damage from high static voltages or
electrical fields, take normal precautions to avoid exposure to voltages higher than maximum-rated voltages.
7.2 THERMAL CHARACTERISTICS
Characteristic
Thermal Resistance for TQFP
Symbol
Value
Unit
θJA
52.8
°C/W
θJC
10.4
°C/W
TJ = TA + (PD ⋅ θJA)
PD = (VDD ⋅ IDD) + PI/O
where:
PI/O is the power dissipation on pins.
For TA = 70°C and PI/O = 0 W, 20.48 MHz, 5.25 V, and TQFP
package, the worst case value of TJ is:
TJ = 70°C + (5.25 V ⋅ 30 mA ⋅ 52.8°C/W) = 78.3C
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Electrical Characteristics
Freescale Semiconductor, Inc.
7.3 POWER CONSIDERATIONS
The average chip-junction temperature, TJ, in °C can be obtained from:
=
TA + (PD • θJA)(1)
TJ
where:
Freescale Semiconductor, Inc...
TA
θJA
PD
PINT
PI/O
=
=
=
=
=
Ambient Temperature, °C
Package Thermal Resistance, Junction to Ambient, °C/W
PINT + PI/O
IDD x VDD, Watts—Chip Internal Power
Power Dissipation on Input and Output Pins—User Determined
For most applications PI/O < 0.3 • PINT and can be neglected.
If PI/O is neglected, an approximate relationship between PD and TJ is
=
K ÷ (TJ + 273°C)(2)
PD
Solving equations (1) and (2) for K gives:
K
=
PD • (TA + 273°C) + θJA • PD2(3)
where K is a constant pertaining to the particular part. K can be determined from equation
(3) by measuring PD (at equilibrium) for a known TA. Using this value of K, the values of PD
and TJ can be obtained by solving equations (1) and (2) iteratively for any value of TA.
7.4 POWER DISSIPATION
Characteristic
Symbol
Typ
Max
Unit
Power Dissipation at 20.48 MHz
IDD
30
60
mA
Power Dissipation: WAIT Mode
IDD
5
mA
Power Dissipation: STOP Mode
IDD
100
µA
NOTES:
1.Values measured with maximum loading of 130 pF on all output pins. Typical means 5.0 V at 25°C. Maximum
means guaranteed maximum over maximum temperature (70°C) and voltage (5.25 V).
7.5 DC ELECTRICAL CHARACTERISTICS
Table 7-1. DC Electrical Characteristics (VCC = 5.0V ±5% )
Characteristic
Symbol
Min
Max
Unit
Input High Voltage for non-Schmitt Trigger Input
Pins (Except for EXTAL)
VIH
2.0
VDD
V
Input Low Voltage (Except for RESET, PIO[15:0],
LA(23:20), L1RXD, L1CLK, L1SYNC, L1GRNT,
SCPRXD and EXTAL)
VIL
VSS–0.3
0.8
V
Input High Voltage for pins that have Schmitt trigger.
(RESET, PIO[15:0], LA(23:20), L1RXD, L1CLK,
L1SYNC, L1GRNT, SCPRXD)
VIH
2.2
VDD
V
Input Low Voltage for pins that have Schmitt trigger
inputs (RESET, PIO[15:0], LA(23:20), L1RXD,
L1CLK, L1SYNC, L1GRNT, SCPRXD)
VIL
VSS–0.3
0.8
V
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.Electrical Characteristics
Table 7-1. DC Electrical Characteristics (VCC = 5.0V ±5% )
Input High Voltage (EXTAL)
VCIH
0.8*VDD
VDD+0.3
V
Input Low Voltage (EXTAL)
VCIL
VSS–0.3
0.6
V
-
–
–0.8
V
Input Leakage Current
IIN
–
20
µA
Input Capacitance All Pins
CIN
–
20
pF
Three-State Leakage Current, including Open Drain
outputs when not driving Low level.
ITSL
-
20
µA
Output High Voltage (IOH=–400[µA])
VOH
2.4
-
V
VOL
-
0.5
VOL
VOL
VOL
-
0.5
0.6
0.5
VOL
-
Output Drive CLKO
Output Drive All Other Pins
OCLK
OALL
-
50
100
pF
pF
Power
VDD
4.75
5.25
V
Common
VSS
0
0
V
Freescale Semiconductor, Inc...
Input Undershoot Voltage
Output Low Voltage
(IOL=3.2 mA) PA[0–15],
SCPTxD,SCPCLK,
L1GRNT,L1RQ,CLKO
(IOL=5.0 mA) L1TxD,TxD
(IOL=7.0 mA) L1TxD,TxD
(IOL=9.0 mA) PCMCIA mode:
PC_D[0–15],
IRQSEL,IRQO,PC_IREQ
PC_STSCHG,PC_WAIT,PC_CISCS
(IOL=24.0 mA) ISA mode:
SD[0–15],
IRQSEL,IRQO,IRQ3
IOCS16,IOCHRDY,MEMCS16
-
V
0.5
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Electrical Characteristics
Freescale Semiconductor, Inc.
7.6 AC ELECTRICAL SPECIFICATIONS
7.6.1 CLKOUT Timing Specifications
Table 7-2. CLKOUT Timing Specifications
15.36MHZ
PARAMETER
UNITS
MIN
Freescale Semiconductor, Inc...
20.48MHZ
CHARACTERISTICS
MAX
MIN
MAX
tclk1
EXTAL Period
tclk2
EXTAL Duty Cycle
49
51
49
51
%
tclk3
EXTAL Duty Cycle
49
51
49
51
%
tclk4
CLKOUT to EXTAL Delay
10
31
–
0
ns
tclk5
CLKOUT High Width for CLKOUT=EXTAL cycle
31.5
33.5
23.5
25.5
ns
tclk6
CLKOUT Low Width for CLKOUT=EXTAL cycle
31.5
33.5
23.5
25.5
ns
tclk7
CLKOUT Period for CDIV=00
65
65
48
48.8
ns
tclk8
CLKOUT to EXTAL Delay
13.5
40
–
0
ns
tclk9
CLKOUT High Width for CLKOUT=EXTAL/2 Cycle
(CDIV=10)
63.5
66.5
48
50
ns
tclk10
CLKOUT Low Width for CLKOUT=EXTAL/2 Cycle (CDIV=10)
65.5
66.5
48
50
ns
tclk11
CLKOUT Period for CDIV=10
130
130.5
97.6
98
ns
tclk12
CLKOUT Low Width for a Deleted CLKOUT High Cycle
70.5
76.5
ns
65.1
48.8
Midpoint=VDD/2
EXTAL
tclk2
tclk3
tclk1
Figure 7-1. CLKOUT Timing Specifications
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
ns
Freescale Semiconductor, Inc.Electrical Characteristics
EXTAL
tclk4
tclk5
tclk6
CLKOUT
Freescale Semiconductor, Inc...
tclk7
Figure 7-2. CLKOUT Timing for CDIV 1-0=00 in CLKCNT
EXTAL
tclk8
tclk9
tclk10
CLKOUT
tclk11
Figure 7-3. CLKOUT Timing for CDIV 1-0=10 in CLKCNT
EXTAL
tclk4
tclk5
tclk4
tclk6
CLKOUT
tclk12
Figure 7-4. CLKOUT Timing for CDIV 1-0=01 in CLKCNT
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Electrical Characteristics
Freescale Semiconductor, Inc.
7.6.2 ISA Host Interface Timing Specifications
7.6.2.1 ISA RESET TIMING SPECIFICATIONS.
Table 7-3. ISA Reset Timing Specifications
15.36MHZ
Freescale Semiconductor, Inc...
PARAMETER
20.48MHZ
CHARACTERISTICS
UNITS
MIN
MAX
MIN
MAX
tirst1
RESET pulse width
9
-
9
-
µs
tirst2
RESET inactive to first WRITE access
setup time
2
-
2
-
ms
tirst3
IOW inactive to RESET inactive setup
time
1
-
1
-
µs
tirst4
RESET inactive to first READ access setup time
2
-
2
-
ms
tirst5
IOR inactive to RESET inactive setup time
1
-
1
-
µs
tirst6
0.9 VCC to reset inactive setup
9
-
9
-
µs
tirst6
VCC
(input)
tirst1
RESET
(input)
tirst3
tirst2
IOW
(input)
tirst5
tirst4
IOR
(input)
Figure 7-5. ISA Reset Timing Specifications
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.Electrical Characteristics
7.6.2.2 ISA IO SPACE READ ACCESS.
Table 7-4. IO Address Space Read Access (Internal Space)
15.36MHZ
PARAMETER
UNITS
MIN
Freescale Semiconductor, Inc...
20.48MHZ
CHARACTERISTICS
MAX
MIN
MAX
tir1
SA[15:0], AEN, SBHE to IOR active setup
22
22
ns
tir2
SA[15:0], AEN, SBHE hold from IOR inactive
25
25
ns
tir3
IOR active to inactive
98
75
ns
tir4
IOW / IOR to IOR delay, No Wait States (Special case: Coupled
Accesses)
131
tir5
IOW / IOR to Data Valid, No Wait States (Special case: Coupled Accesses)
tir6
Data Hold time from IOR rising edge
tir7
IOCS16 Active from SA[15:0], AEN and SBHE valid
42
42
ns
tir8
IOR active to data out valid
50
50
ns
tir9
IOW / IOR to IOR delay for non Coupled Accesses, No Wait
States
tir10
IOR active to IOCHRDY falling edge (Inactive)
tir11
IOCHRDY inactive (Low) pulse width
tir12
IOR active (Low) hold from IOCHRDY active (High)
tir13
Valid read data from IOCHRDY active (Rising edge)
tir14
IOW/IOR to IOR delay, with Wait States
tir15
IOR active or inactive to NMSICS active or inactive delay
202
100
252
0
145
ns
195
ns
0
202
ns
145
ns
42
160
200
42
ns
120
ns
0
ns
0
0
0
70
50
ns
ns
40
40
ns
Table 7-5. PnP Address Space Read Access
15.36MHZ
PARAMETER
20.48MHZ
CHARACTERISTICS
UNITS
MIN
MAX
MIN
MAX
tpnpr1
SA[15:0], AEN, SBHE to IOR active setup
22
22
ns
tpnpr2
SA[15:0], AEN, SBHE hold from IOR inactive
25
25
ns
tpnpr3
IOR active to inactive
98
75
ns
tpnpr4
IOW to IOR delay (Special case: Coupled Accesses)
98
tpnpr5
IOW to Data Valid (Special case: Coupled Accesses)
tpnpr6
Data Hold time from IOR rising edge
tpnpr8
IOR active to data out valid
tpnpr9
IOW to IOR delay for non Coupled Accesses
150
75
195
0
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
ns
155
ns
0
45
140
110
ns
45
100
ns
ns
Electrical Characteristics
Freescale Semiconductor, Inc.
tpnpw2
tiw2
SA[15:0],AEN,SBHE
(input)
address-port
tpnpr2
tir2
data-port
tpnpw1
tiw1
tpnpr1
tir1
Freescale Semiconductor, Inc...
IOW
(input)
tpnpw3
tiw3
tpnpr9
tir9
tpnpr3
tir3
IOR
(input)
tiw11
tiw11
tir15
tir15
NMSICS
(output)
tiw6
tir7
IOCS16
(output)
tpnpw4
tiw4
SD[15:0]
tpnpw5
tiw5
input
tpnpr6
tir6
output
tpnpr8
tir8
Figure 7-6. IO Space Read Access without Wait States for PnP and Internal Space
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.Electrical Characteristics
tpnpr2
tir2
write address port
SA[15:0],AEN,SBHE
(input)
address-port
data-port
tpnpr1
tir1
Freescale Semiconductor, Inc...
IOW
(input)
tpnpr4
tir4
tpnpr3
tir3
IOR
(input)
tiw11
tiw11
tir15
tir15
NMSICS
(output)
tiw6
tir7
IOCS16
(output)
tpnpr5
tir5
SD[15:0]
input
tpnpr6
tir6
output
Figure 7-7. IO Space Read Access without Wait States (PnP and Internal
Space) - the Special Case of Coupled Accesses
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Electrical Characteristics
Freescale Semiconductor, Inc.
tir2
SA[15:0],AEN,SBHE
(input)
data-port
tir2
data-port
tir1
tir1
Freescale Semiconductor, Inc...
tir3
tir3
IOR
(input)
tir15
tir15
tir15
NMSICS
(output)
tir9
tir7
tir7
IOCS16
(output)
tir6
SD[15:0]
tir8
output
tir6
output
Figure 7-8. IO Space Read Access without Wait States (Internal Space)
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.Electrical Characteristics
tir2
SA[15:0],AEN,SBHE
(input)
data-port
data-port
tir1
tir1
tir3
Freescale Semiconductor, Inc...
tir2
tir3
IOR
(input)
tir15
tir15
tir15
NMSICS
(output)
tir4
tir7
tir7
IOCS16
(output)
tir6
tir5
SD[15:0]
output
tir6
output
Figure 7-9. IO Space Read Access without Wait States (Internal Space) - the
Special Case of Coupled Read Accesses
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Electrical Characteristics
Freescale Semiconductor, Inc.
SA[15:0],AEN,SBHE
(input)
tir1
tir2
IOR
(input)
tir14
Freescale Semiconductor, Inc...
tir15
tir15
NMSICS
(output)
tir7
IOCS16
(output)
SD[15:0]
(output)
valid
tir6
tir13
IOCHRDY
(output)
tir10
tir12
tir11
Figure 7-10. IO Space Read Access with Wait States
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.Electrical Characteristics
7.6.2.3 IO SPACE WRITE ACCESS.
Table 7-6. IO Address Space Write Access (Internal Space)
15.36MHZ
PARAMETER
UNITS
MIN
Freescale Semiconductor, Inc...
20.48MHZ
CHARACTERISTICS
MAX
MIN
MAX
tiw1
SA[15:0], AEN, SBHE to IOW active setup
22
22
ns
tiw2
SA[15:0], AEN, SBHE hold from IOW inactive
25
25
ns
tiw3
IOW active to inactive
98
75
ns
tiw4
Data valid setup to IOW rising edge (Inactivation)
40
40
ns
tiw5
Data hold time from IOW rising edge (Inactivation)
15
15
ns
tiw6
IOCS16 Active from SA[15:0], AEN and SBHE valid
tiw7
IOW inactive time
tiw8
IOW active (Low) hold from IOCHRDY active (High)
tiw9
IOW active to IOCHRDY falling edge (Inactive)
tiw10
IOCHRDY inactive (Low) pulse width
tiw11
IOW active or inactive to NMSICS active or inactive delay
42
42
ns
131
100
ns
0
0
ns
42
42
120
ns
160
ns
40
40
ns
Table 7-7. PnP Address Space Write Access
15.36MHZ
PARAMETER
20.48MHZ
CHARACTERISTICS
UNITS
MIN
MAX
MIN
MAX
tpnpw1
SA[15:0], AEN, SBHE to IOW active setup
22
22
ns
tpnpw2
SA[15:0], AEN, SBHE hold from IOW inactive
25
25
ns
tpnpw3
IOW active to inactive
98
75
ns
tpnpw4
Data valid setup to IOW rising edge (Inactivation)
40
40
ns
tpnpw5
Data hold time from IOW rising edge (Inactivation)
15
15
ns
tpnpw7
IOW inactive time
98
75
ns
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Electrical Characteristics
Freescale Semiconductor, Inc.
tpnpw1
tiw1
tpnpw2
tiw2
SA[15:0],AEN,SBHE
(input)
Freescale Semiconductor, Inc...
tpnpw3
tiw3
tpnpw7
tiw7
IOW
(input)
tiw11
tiw11
NMSICS
(output)
tiw6
IOCS16
(output)
tpnpw4
tiw4
tpnpw5
tiw5
SD[15:0]
(input)
Figure 7-11. IO Space Write Access without Wait states (PnP
and Internal Space)
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.Electrical Characteristics
tiw1
tiw2
SA[15:0],AEN,SBHE
(input)
tiw7
Freescale Semiconductor, Inc...
IOW
(input)
tiw11
tiw11
NMSICS
(output)
tiw6
IOCS16
(output)
SD[15:0]
(input)
tiw4
tiw5
IOCHRDY
(output)
tiw9
tiw8
tiw10
Figure 7-12. IO Space Write Access with Wait States - Internal Space
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Electrical Characteristics
Freescale Semiconductor, Inc.
7.6.2.4 MEMORY SPACE READ ACCESS.
Table 7-8. Memory Space Read Access
15.36MHZ
PARAMETER
UNITS
MIN
Freescale Semiconductor, Inc...
20.48MHZ
CHARACTERISTICS
MAX
MIN
MAX
tmr1
LA[23:17] setup to BALE inactive (Falling edge)
50
50
ns
tmr2
BALE Active to Inactive (Assertion length)
35
35
ns
tmr3
LA[23:17] hold from BALE inactive (Falling edge)
10
10
ns
tmr4
LA[23:17] setup to MEMR active (Falling edge)
50
50
ns
tmr5
MEMCS16 valid from LA[23:17]
tmr6
MEMCS16 valid hold from LA[23:17] nonvalid
0
0
ns
tmr7
SA[16:0], SBHE to MEMR active setup time
22
22
ns
tmr8
MEMR active to inactive (Assertion length)
200
170
ns
tmr9
SA[16:0], SBHE to BALE inactive (Falling edge)
25
25
ns
tmr10
Data out valid from MEMR active (Falling edge)
tmr11
MEMR inactive to active (Rising to falling edge delay), no
wait states
tmr12
50
50
203
162
ns
ns
100
75
ns
Data out hold time from MEMR negation (Rising edge)
0
0
ns
tmr13
BALE active from MEMR inactive (Rising edge)
40
40
ns
tmr14
REF setup to MEMR active (Falling edge)
60
60
ns
tmr15
REF hold from MEMR inactive (Rising Edge)
10
10
ns
tmr16
REF setup to BALE inactive (Falling edge)
25
25
ns
tmr17
SA[16:0], SBHE hold from MEMR inactive
25
25
ns
tmr18
MEMR active to IOCHRDY falling edge (Inactive)
tmr19
IOCHRDY inactive (Low) pulse width
tmr20
MEMR active (Low) hold from IOCHRDY active (High)
tmr21
Valid read data from IOCHRDY active (Rising edge)
tmr22
MEMR active or inactive to NMSICS active or inactive delay
tmr23
MEMR inactive to active (Rising to falling edge delay) with
wait states
45
45
ns
120
120
ns
0
0
ns
0
0
ns
42
42
ns
70
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
50
ns
Freescale Semiconductor, Inc.Electrical Characteristics
cycle-length
tmr2
tmr13
BALE
(input)
tmr16
tmr14
tmr15
Freescale Semiconductor, Inc...
REF
(input)
tmr1
tmr3
LA23–LA17
(input)
tmr9
tmr17
SA15–SA0, SBHE
(input)
tmr5
tmr6
MEM CS16
(output)
tmr7
tmr8
tmr11
MEMR
(input)
tmr22
tmr22
NMSICS
(output)
tmr10
D15–D0
(output)
tmr12
VALID
accessed resource
tmr4
Figure 7-13. Memory Space Read Access without Wait
States
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Electrical Characteristics
Freescale Semiconductor, Inc.
cycle-length
tmr2
tmr13
BALE
(input)
tmr16
tmr14
tmr15
REF
(input)
Freescale Semiconductor, Inc...
tmr1
LA23–LA17
(input)
tmr3
tmr9
tmr17
SA15–SA0,
SBHE (input)
tmr5
tmr6
MEM CS16
(output)
tmr7
tmr23
MEMR
(input)
tmr22
tmr22
NMSICS
(output)
tmr21
D15–D0
(output)
tmr12
accessed resource
VALID
tmr4
IOCHRDY
(output)
tmr18
tmr19
tmr20
Figure 7-14. Memory Space Read Access with Wait
States
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.Electrical Characteristics
7.6.2.5 MEMORY SPACE WRITE ACCESS .
Table 7-9. Memory Space Write Access
15.36MHZ
PARAMETER
UNITS
MIN
Freescale Semiconductor, Inc...
20.48MHZ
CHARACTERISTICS
MAX
MIN
MAX
tmw1
LA[23:17] setup to BALE inactive (Falling edge)
50
50
ns
tmw2
BALE Active to Inactive (Assertion length)
35
35
ns
tmw3
LA[23:17] hold from BALE inactive (Falling edge)
10
10
ns
tmw4
LA[23:17] setup to MEMW active (Falling edge)
50
50
ns
tmw5
MEMCS16 valid from LA[23:17]
tmw6
MEMCS16 valid hold from LA[23:17] nonvalid
0
0
ns
tmw7
SA[16:0], SBHE to MEMW active setup time
22
22
ns
tmw8
MEMW active to inactive (Assertion length)
200
150
ns
tmw9
SA[16:0], SBHE to BALE inactive (Falling edge)
25
25
ns
tmw10
Data setup to MEMW rising edge (Inactivation)
40
40
ns
tmw11
MEMW inactive to active (Rising to falling edge delay) no
wait states
100
75
ns
tmw12
Data in hold time from MEMW negation (Rising edge)
7
7
ns
tmw13
BALE active from MEMW inactive (Rising edge)
40
40
ns
tmw14
REF setup to MEMW active (Falling edge)
60
60
ns
tmw15
REF hold from MEMW inactive (Rising Edge)
10
10
ns
tmw16
REF setup to BALE inactive (Falling edge)
25
25
ns
tmw17
SA[16:0], SBHE hold from MEMW inactive
25
25
ns
tmw18
MEMW active to IOCHRDY falling edge (Inactive)
tmw19
IOCHRDY inactive (Low) pulse width
tmw20
MEMW active (Low) hold from IOCHRDY active (High)
tmw21
MEMW active or inactive to NMSICS active or inactive delay
tmw22
MEMW inactive to active (Rising to falling edge delay) with
wait states
50
50
45
45
ns
ns
120
120
ns
0
0
ns
43
70
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
43
50
ns
ns
Electrical Characteristics
Freescale Semiconductor, Inc.
cycle-length
tmw2
tmw13
BALE
(input)
tmw16
tmw14
tmw15
Freescale Semiconductor, Inc...
REF
(input)
tmw1
tmw3
LA23–LA17
(input)
tmw9
tmw17
SA15–SA0,SBHE
(input)
tmw5
tmw6
MEM CS16
(output)
tmw7
tmw8
tmw11
MEMW
(output)
tmw4
tmw21
tmw21
NMSICS
(output)
tmw10
D15–D0
(input)
tmw12
VALID
Figure 7-15. Memory Space Write Access without Wait
States
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.Electrical Characteristics
cycle-length
tmw2
BALE
(input)
tmw16
tmw14
REF
(input)
tmw1
Freescale Semiconductor, Inc...
tmw13
tmw15
tmw3
LA23–LA17
(input)
tmw9
tmw17
SA15–SA0,SBHE
(input)
tmw5
tmw6
MEM CS16
(output)
tmw7
MEMW
(output)
tmw22
tmw4
tmw21
tmw21
NMSICS
(output)
tmw10
D15–D0
(input)
tmw12
VALID
IOCHRDY
(output)
tmw18
tmw19
tmw20
Figure 7-16. Memory Space Write Access with Wait
States
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Electrical Characteristics
Freescale Semiconductor, Inc.
7.6.3 PCMCIA Host Interface Timing Specifications
7.6.3.1 PCMCIA READ ACCESS WITH/WITHOUT WAIT STATES.
Table 7-10. PCMCIA Read Access with/without Wait States
15.36MHZ
PARAMETER
UNITS
MIN
Freescale Semiconductor, Inc...
20.48MHZ
CHARACTERISTICS
MAX
MIN
MAX
tpr1
Read Cycle Length (Without wait states)
200
150
ns
tpr2
Address and REG Hold time from OE negation (Rising
edge)
15
15
ns
tpr3
CE1 and CE2 to OE assertion setup time
0
0
ns
tpr4
Address and REG valid to OE assertion (Falling edge) setup
25
25
ns
tpr5
Data Valid from OE assertion (Falling edge) delay (WAIT
negated)
tpr6
CE1 and CE2 from OE negation (Rising edge) hold time
tpr7
WAIT valid from OE assertion (Falling edge) delay
tpr8
WAIT pulse width
tpr9
OE negation (Rising edge) hold time from WAIT negation
0
0
ns
tpr10
Data valid to WAIT negation (Rising edge) setup time
0
0
ns
tpr11
Data valid from OE negation (Rising edge) hold time
0
0
ns
tpr12
CISCS from OE delay
40
40
ns
tpr13
NMSICS from OE delay
42
42
ns
45
15
45
15
35
160
200
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
120
ns
ns
35
ns
150
ns
Freescale Semiconductor, Inc.Electrical Characteristics
tpr1
tpr2
A[25:0],REG
(input)
tpr3
Freescale Semiconductor, Inc...
CE
(input)
tpr4
tpr6
OE
(input)
tpr13
tpr13
NMSICS
(output)
tpr12
tpr12
PC_CISCS
(output)
tpr7
tpr8
tpr9
WAIT
(output)
tpr5
D[15:0]
(output)
tpr10
tpr11
DATA-Valid
Figure 7-17. PCMCIA Read Access with/without Wait
States
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Electrical Characteristics
Freescale Semiconductor, Inc.
7.6.3.2 PCMCIA WRITE ACCESS WITH/WITHOUT WAIT STATES.
Table 7-11. PCMCIA Write Access with/without Wait States
15.36MHZ
PARAMETER
UNITS
MIN
Freescale Semiconductor, Inc...
20.48MHZ
CHARACTERISTICS
MAX
MIN
MAX
tpw1
Write Cycle Length (Without wait states)
200
150
ns
tpw2
CE1 and CE2 to WE assertion setup time
0
0
ns
tpw3
CE1 and CE2 from WE negation (Rising edge) hold time
15
15
ns
tpw4
Address and REG valid to WE assertion (Falling edge) setup
25
25
ns
tpw5
Write pulse width
135
100
ns
tpw6
Address and REG Hold time from WE negation (Rising edge)
15
15
ns
tpw7
WAIT valid from WE assertion (Falling edge) delay
tpw8
WAIT pulse width
tpw9
WE (Rising edge) hold time from WAIT negation
0
0
ns
tpw10
OE high hold time from WE rising edge
25
25
ns
tpw11
OE high to WE active setup time
10
10
ns
tpw12
Data Valid to WE negation setup time
50
50
ns
tpw13
Data Valid from WE negation hold time
25
25
ns
tpw14
CISCS from WE delay
40
40
ns
tpw15
NMSICS from WE delay
43
43
ns
35
160
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
200
120
35
ns
150
ns
Freescale Semiconductor, Inc.Electrical Characteristics
tpw1
A[25:0],REG
(input)
tpw3
tpw2
CE
(input)
Freescale Semiconductor, Inc...
tpw4
tpw6
OE
(input)
tpw5
tpw11
tpw10
WE
(input)
tpw15
tpw15
tpw14
tpw14
NMSICS
(output)
PC_CISCS
(output)
tpw7
tpw9
tpw8
WAIT
(output)
tpw12
D[15:0]
(input)
tpw13
data–input-established
Figure 7-18. PCMCIA Write Access with/without Wait States
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Electrical Characteristics
Freescale Semiconductor, Inc.
7.6.3.3 PCMCIA RESET TIMING SPECIFICATIONS.
Table 7-12. PCMCIA Reset Timing Specifications
15.36MHZ
Freescale Semiconductor, Inc...
PARAMETER
20.48MHZ
CHARACTERISTICS
UNITS
MIN
MAX
MIN
MAX
tprst1
RESET pulse width
9
-
9
-
µs
tprst2
Mode from RESET pulse inactive hold time
1
-
1
-
µs
tprst3
Mode to RESET inactive setup time
1
-
1
-
µs
tprst4
RESET inactive to first access setup time
18
-
18
-
ms
tprst5
E2E from RESET inactive hold time
1
-
1
-
µs
tprst6
E2E to RESET inactive setup time
1
-
1
-
µs
tprst7
0.9 VCC to reset inactive setup
9
-
9
-
µs
tprst7
VCC
(input)
tprst1
RESET
(input)
tprst3
tprst2
PC_MODE
(input)
tprst6
tprst5
PC_E2E
(input)
tprst4
OE, WE
(input)
Figure 7-19. PCMCIA Reset Timing Specifications
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.Electrical Characteristics
7.6.4 Serial Interface Timing Specifications
7.6.4.1 SCP TIMING SPECIFICATIONS.
Table 7-13. SCP Timing Specifications
15.36MHZ
Freescale Semiconductor, Inc...
PARAMETER
20.48MHZ
CHARACTERISTICS
UNITS
MIN
MAX
MIN
MAX
tscp1
Scpclk Clock Output Period
4
64
4
64
Clks
tscp2
Scpclk Clock High or Low Time
2
32
2
32
Clks
tscp3
ScpRxD Data Setup Time
30
-
30
-
ns
tscp4
ScpRxD Data Hold Time
8
-
8
-
ns
tscp5
ScpTxD Data Valid (after clk Edge)
0
30
0
30
ns
tscp7
Scpclk Rise Time
0
15
0
15
ns
tscp8
Scpclk Fall Time
0
15
0
15
ns
tscp1
tscp8
tscp2
SCPCLK-(ci=0)
(reset value)
(output)
tscp7
tscp2
tscp8
SCPCLK–(ci=1)
(output)
tscp4
tscp3
SCPRxD
(input)
MSB-IN
tscp7
DATA
LSB-IN
MSB-IN
tscp5
SCPTxD
(output)
"1"
MSB-OUT
DATA
LSB-OUT
Figure 7-20. SCP Timing (cp=0, Reset Value)
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
"1"
MSB-OUT
Electrical Characteristics
Freescale Semiconductor, Inc.
tscp1
tscp8
tscp2
tscp7
SCPCLK-(ci=0)
(output)
tscp2
tscp8
SCPCLK-(ci=1)
(output)
tscp4
Freescale Semiconductor, Inc...
tscp3
SCPRxD
(input)
MSB-IN
tscp7
DATA
LSB-IN
MSB-IN
tscp5
SCPTxD
(output)
"1"
MSB-OUT
DATA
"1"
LSB-OUT
MSB-OUT
Figure 7-21. SCP Timing (cp=1)
7.6.4.2 SERIAL EEPROM TIMING SPECIFICATIONS.
Table 7-14. SERIAL EEPROM Timing Specifications
15.36MHZ
PARAMETER
20.48MHZ
CHARACTERISTICS
UNITS
MIN
MAX
MIN
MAX
te2p1
Scpclk Clock Output Period
44
44
Clks
te2p2
Scpclk Clock High or Low Time
20
20
Clks
te2p3
ScpRxD Setup Time
30
30
ns
te2p4
ScpRxD Hold Time
8
8
ns
te2p5
ScpTxD Data Valid (after scpclk Edge)
0
30
0
30
ns
te2p7
Scpclk Rise Time
0
15
0
15
ns
te2p8
Scpclk Fall Time
0
15
0
15
ns
te2p9
E2EN Negation After Last Scpclk Edge
1
1
Clks
te2p10
E2EN and ScpEN3–1 Assert/Negate to
Scpclk Edge
22
22
Clks
te2p11
ScpTxD First Bit Valid to Scpclk Edge
20
20
Clks
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.Electrical Characteristics
te2p10
te2p2
te2p8
te2p7
te2p1
SCPCLK
(output)
te2p9
Freescale Semiconductor, Inc...
te2p2
E2EN
(output)
te2p6
SCPEN3–1
(output)
te2p11
SCPTxD
(output)
Address
MSB/0
te2p5
A7/
A15
A0
te2p4
te2p3
SCPRxD
(input)
D7
Figure 7-22. Serial EEPROM (SCP Type) Timing
Specifications (with Initial Reset Value of spmode)
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
D0
Electrical Characteristics
Freescale Semiconductor, Inc.
te2p2
te2p8
te2p7
te2p1
SCPCLK
(output)
te2p2
Freescale Semiconductor, Inc...
te2p10
te2p9
E2EN
(output)
SCPEN3–1
(output)
te2p11
SCPTxD
(output)
te2p5
opcode opcode
te2p5
A6
A0
te2p3
SCPRxD
(input)
te2p4
D7
Figure 7-23. Serial EEPROM (93C46 TYPE) TIMING
SPECIFICATIONS (With Initial Reset Value of spmode)
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
D0
Freescale Semiconductor, Inc.Electrical Characteristics
7.6.4.3 IDL TIMING SPECIFICATIONS.
Table 7-15. IDL Timing Specifications
15.36MHZ
Freescale Semiconductor, Inc...
PARAMETER
20.48MHZ
CHARACTERISTICS
UNITS
MIN
MAX
MIN
MAX
tidl1
L1CLK(idl clock) Frequency (see Note 1)
-
6
-
6
MHz
tidl2
L1CLK width Low
60
-
60
-
ns
tidl3
L1CLK width High (see Note 3)
p+10
-
p+10
-
ns
tidl4
L1TxD,L1RQ,SDS1–SDS2 Rising/Falling
time
-
17
-
17
ns
tidl5
L1SYNC setup Time (to L1CLK Falling
Edge)
25
-
25
-
ns
tidl6
L1SYNC Hold Time (from L1CLK Falling
Edge)
40
-
40
-
ns
tidl7
L1SYNC Inactive Before 4th L1CLK
0
-
0
-
ns
tidl8
L1TxD Active Delay (from L1CLK Rising
Edge)
0
65
0
65
ns
tidl9
L1TxD to High Impedance (from L1CLK
Rising Edge) (see Note 2)
0
50
0
50
ns
tidl10
L1RxD Setup Time (to L1CLK Falling
Edge)
42
-
42
-
ns
tidl11
L1RxD Hold Time (from L1Clk Falling
Edge)
42
-
42
-
ns
tidl12
Time Between Successive IDL syncs
20
-
20
-
L1CLK
tidl13
L1RQ Setup Time (to L1SYNC Falling
Edge)
1
-
1
-
L1CLK
tidl14
L1GRNT Setup Time (to L1SYNC Falling
Edge)
42
-
42
-
ns
tidl15
L1GRNT Hold Time (from L1SYNC Falling
Edge)
42
-
42
-
ns
tidl16
SDS1–SDS2 Active Delay from L1CLK
Rising Edge
10
65
10
65
ns
tidl17
SDS1–SDS2 Inactive Delay from L1CLK
Falling Edge
10
65
10
65
ns
NOTES:
1. The ratio EXTAL/L1CLK must be greater then 2.5/1.
2. High impedance is measured at the 30% and 70% of VDD points, with the line at VDD/2
through 10k in parallel with 130 pF.
3. Where P=1/EXTAL Thus, for a 20.48-MHz EXTAL rate, P=48.8 ns.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc...
Electrical Characteristics
7-32
tidl12
tidl7
tidl6
L1SYNC
(input)
tidl1
L1CLK
(input)
1
2
3
4
tidl2
tidl8
L1TxD
(output)
B17 B16 B15
B10 D1
A
B17 B16 B15
B10 D1
tidl10
tidl17
SDS1–SDS2
(output)
tidl13
L1RQ
(output)
tidl15
tidl14
MOTOROLA
L1GRNT
(input)
B21 B20 D2
tidl9
tidl11
L1RxD
(input)
tidl3
A
B27
tidl16
M
tidl4
B21 B20 D2
M
Freescale Semiconductor, Inc.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Figure 7-24. IDL Timing Specifications
tidl5
Freescale Semiconductor, Inc.Electrical Characteristics
7.6.4.4 GCI TIMING SPECIFICATIONS.
Table 7-16. GCI Timing Specifications
15.36MHZ
PARAMETER
L1CLK(gci clock) Frequency (Normal
Mode) (see Note 1)
Freescale Semiconductor, Inc...
20.48MHZ
CHARACTERISTICS
UNITS
MIN
MAX
MIN
MAX
-
512
-
512
KHz
1800
2100
1800
2100
ns
tgci1n
L1CLK Clock Period Normal Mode (see
Note 1)
tgci2n
L1CLK width Low Normal Mode
840
1450
840
1450
ns
tgci3n
L1CLK width High Normal Mode
840
1450
840
1450
ns
L1CLK(gci clock) Period (Mux Mode) (see
Note 1)
-
6
-
6
MHz
tgci1m
L1CLK Clock Period Mux Mode (see Note
1)
175
-
175
-
ns
tgci2m
L1CLK width Low Mux Mode
75
-
75
-
ns
tgci3m
L1CLK width High Mux Mode
p+10
-
p+10
-
ns
tgci4
L1SYNC setup Time (to L1CLK Falling
Edge)
25
-
25
-
ns
tgci5
L1SYNC Hold Time (from L1CLK Falling
Edge)
42
-
42
-
ns
tgci6
L1TxD Active Delay (from L1CLK Rising
Edge)
0
100
0
100
ns
tgci7
L1TxD Active Delay (from L1SYNC Rising
Edge) (see Note 2)
0
100
0
100
ns
tgci8
L1RxD Setup Time (to L1CLK Rising
Edge)
17
-
17
-
ns
tgci9
L1RxD Hold Time (from L1Clk Rising
Edge)
42
-
42
-
ns
tgci10
Time Between Successive L1SYNC in
Normal SCIT Mode
64
192
-
64
192
-
L1CLK
L1CLK
tgci11
SDS1–SDS2 Active Delay from L1CLK
Rising Edge (see Note 3)
10
75
10
75
ns
tgci12
SDS1–SDS2 Active Delay from L1SYNC
Rising Edge (see Note 3)
10
75
10
75
ns
tgci13
SDS1–SDS2 Inactive Delay from L1CLK
Falling Edge
10
75
10
75
ns
tgci14
GCIDCL (gci Data Clock) Active Delay
0
42
0
42
ns
NOTES:
1. The ratio CLKO/L1CLK must be greater than 2.5/1.
2. Condition CL=150 pF
L1TxD becomes valid after the L1CLK rising edge or L1SYNC, whichever is later.
3. SDS1–SDS2 becomes valid after the L1CLK rising edge or L1SYNC, whichever is later.
4. Where P=1/CLKO. Thus, for a 20.48 MHz CLKO rate, P=48.8 ns.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Electrical Characteristics
Freescale Semiconductor, Inc.
tgci3n
tgci3m
tgci2n
tgci2m
L1CLK
(input)
tgci5
tgci4
Freescale Semiconductor, Inc...
tgci10
L1SYNC
(input)
tgci7
tgci12
L1TxD
(output)
tgci6
tgci9
tgci8
L1RxD
(input)
tgci13
tgci11
SDS1–SDS2
(output)
tgci14
GCIDCL
(output)
Figure 7-25. GCI Timing Specifications
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
tgci1n
tgci1m
Freescale Semiconductor, Inc.Electrical Characteristics
7.6.4.5 PCM TIMING SPECIFICATIONS.
Table 7-17. PCM Timing
15.36MHZ
PARAMETER
UNITS
MIN
Freescale Semiconductor, Inc...
20.48MHZ
CHARACTERISTICS
tpcm0
L1CLK (PCM Clock) Frequency (see Note
1)
tpcm1
L1clk Width Low
tpcm1a
L1CLK Width High (see Note 4)
tpcm2
MAX
MIN
6
MAX
6
MHz
55
-
55
-
ns
p+10
-
p+10
-
ns
L1SYNC/PSYNC Setup Time to L1clk Rising Edge
20
-
20
-
ns
tpcm3
L1SYNC/PSYNC Hold Time from L1clk
Falling Edge
40
-
40
-
ns
tpcm4
L1SYNC/PSYNC Width Low
1
-
1
-
L1CLK
tpcm5
Time Between Successive Sync Signals
(Short Frame)
8
-
8
-
L1CLK
tpcm6
L1TxD Data Valid after L1CLK Rising
Edge (see Note 2)
0
70
0
70
ns
tpcm7
L1TxD to High Impedance (from L1CLK
Rising Edge)
0
50
0
50
ns
tpcm8
L1RxD Setup Time (to L1CLK Falling
Edge) (see Note 3)
20
-
20
-
ns
tpcm9
L1RxD Hold Time (from L1CLK Falling
Edge) (see Note 3)
50
-
50
-
ns
NOTES:
1. The ratio CLK/L1CLK must be greater than 2.5/1.
2. L1TxD becomes valid after the L1CLK rising edge or the sync enable, whichever is later,
if long frames are used. This note should only be used if the user can guarantee that only
one sync pin (L1SYNC and PSYNC) is changed simultaneously in the selection and
deselection of the desired PCM channel time slot. A safe example of this is using only
PCM CH-1. Another example is using CH-1 and CH-2 only, where CH-1 and CH-2 are
not contiguous on the PCM highway.
3. Specification valid for both sync methods.
4. Where p=1/CLKO. Thus, for a 20.48-MHz CLKO rate, p=48.8 ns.
5. If L1SYNC/PSYNC is guaranteed to make a smooth low to high transition (no spikes)
while L1CLK is high, setup time can be measured to L1CLK falling edge.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Electrical Characteristics
Freescale Semiconductor, Inc.
tpcm0
tpcm1a
L1CLK
(input)
1
2
3
4
tpcm1
n-1
n
tpcm3
tpcm2
tpcm2
L1SYNC/PSYNC
(input)
Freescale Semiconductor, Inc...
tpcm6
tpcm7
L1TxD
(output)
1
2
n-1
n
3
n-1
n
tpcm9
tpcm8
L1RxD
(input)
3
1
2
Figure 7-26. PCM Timing Diagram (SYNC Envelopes Data)
tpcm1a
L1CLK
(input)
1
2
3
4
tpcm1
5
6
7
8
tpcm3
tpcm2
tpcm4
L1SYNC/PSYNC
(input)
tpcm5
tpcm7
tpcm6
L1TxD
(output)
1
3
4
5
6
7
8
3
4
5
6
7
8
tpcm9
tpcm8
L1RxD
(input)
2
1
2
Figure 7-27. PCM Timing Diagram (SYNC Prior to 8-bit Data)
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.Electrical Characteristics
7.6.4.6 NMSI TIMING SPECIFICATIONS.
Table 7-18. NMSI Timing Specifications (External Clock)
15.36MHZ
PARAMETER
UNITS
MIN
Freescale Semiconductor, Inc...
20.48MHZ
CHARACTERISTICS
MAX
tnm-ext1
CLKRX and CLKTX Frequency (see Note1)
tnm-ext2
CLKRX and CLKTX Low (see Note 2)
p+10
-
tnm-ext3
CLKRX and CLKTX High (see Note 2)
p+10
tnm-ext4
CLKRX and CLKTX Rise/Fall Time
tnm-ext5
TXD Active Delay from CLKTX Falling Edge
tnm-ext6
tnm-ext7
MIN
6.14
MAX
6.14
MHz
p+10
-
ns
-
p+10
-
ns
-
-
-
-
ns
0
70
0
70
ns
RXD Setup Time to CLKRX Rising Edge
10
-
10
-
ns
RXD Hold Time from CLKRX Rising Edge
50
-
50
-
ns
Table 7-19. NMSI Timing Specifications (Internal Clock)
15.36MHZ
PARAMETER
20.48MHZ
CHARACTERISTICS
UNITS
MIN
MAX
tnm-int1
CLKRX and CLKTX Frequency (see Note1)
tnm-int2
CLKRX and CLKTX Low (see Note 2)
p+10
-
tnm-int3
CLKRX and CLKTX High (see Note 2)
p+10
tnm-int4
CLKRX and CLKTX Rise/Fall Time
tnm-int5
MIN
5.13
MAX
6.83
MHz
p+10
-
ns
-
p+10
-
ns
-
20
-
20
ns
TXD Active Delay from CLKTX Falling Edge
0
40
0
40
ns
tnm-int6
RXD Setup Time to CLKRX Rising Edge
50
-
50
-
ns
tnm-int7
RXD Hold Time from CLKRX Rising Edge
10
-
10
-
ns
NOTES:
1.The ratio CLKO/CLKTX and CLKO/CLKRX must be greater than or equal to 2.5/1 for
external clock. The input clock to the baud rate generator may be either an internal clock
or TIN1, and may be faster as EXTAL. However, the output of the baud rate generator
must provide a CLKO/CLKTX and CLKO/CLKRX ratio greater than or equal to 3/1.
2.Where p=1/CLKO. Thus, for a 20.48-MHz CLKO rate, p=48.8 ns.
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Electrical Characteristics
Freescale Semiconductor, Inc.
tnm-int4
tnm-ext4
tnm-int4
tnm-ext4
tnm-int3
tnm-ext3
tnm-int1
tnm-ext1
CLKTx
Freescale Semiconductor, Inc...
tnm-int5
tnm-ext5
tnm-int2
tnm-ext2
TxD
(output)
tnm-int4
tnm-ext4
tnm-int4
tnm-ext4
tnm-int3
tnm-ext3
tnm-int1
tnm-ext1
CLKRx
tnm-int7
tnm-ext7
tnm-int6
tnm-ext6
tnm-int2
tnm-ext2
RxD
(input)
Figure 7-28. NMSI Timing Specifications
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
SECTION 8
MECHANICAL DATA AND ORDERING INFORMATION
8.1 PIN ASSIGNMENTS
1
REF
IOR
IOW
AEN
BALE
LA19
LA18
LA17
SA16
SA15
SA14
SA13
VCC
CLKOUT
GND
XTAL
EXTAL
RESET
SA12
SA11
SA10
SA9
SA8
SA7
SA6
SA5
76
75
100
IRQ15
SA4
IOCHRDY
SA3
IRQ11
SA2
IRQ10
SA1
IRQ9
SA0
GND
SBHE
GND
MEMR
VCC
MEMW
IRQ12
VCC
MEMCS16
MC68SC302PU
Top View
GND
SD8
SD9
SD10
IOCS16
IRQ3
VCC
GND
SD11
SD0
GND
SD1
GND
SD2
VCC
SD3
SD12
GND
SD13
GND
SD14
VCC
SD15
SD4
LA23
SD5
LA22
SD6
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
IRQIN6
SCPTXD
SCPRXD
SCPCLK
IRQIN5
L1SYNC
L1TXD
L1RXD
L1CLK
L1GRNT
L1RQ
E2EN
PA3
RXD
TXD
CLKTX
VCC
GND
GND
CLKRX
SDS1
SDS2
51
50
RI
25
26
NMSICS
LA21
LA20
Freescale Semiconductor, Inc...
8.1.1 Surface Mount (TQFP )
SD7
Freescale
Mechanical Data and Ordering
Information
Semiconductor, Inc.
8.2 PACKAGE DIMENSIONS
8.2.1 Surface Mount (TQFP)
4X
% 4X 25 TIPS
Freescale Semiconductor, Inc...
–L–
–M–
B V
3X VIEW Y
B1
!%$
$! %!# "# $
* ! %#! $! %#
%& $ !% % !%%! ! $ ! % (% % (# %
)%$ % "$% !* % % !%%!
! % "#% %&$ %! %# % %& $! $ $ ' %! %# %
$% " %
$! $ ! !% & !
"#!%#&$! !( "#!%#&$! $
"# $ $! $ !
& ! $% #
%# % %& $! !$ !% & #
"#!%#&$! # "#!%#&$! $
!% &$ % (% %! ) & $" %( "#!%#&$!
% !# "#!%#&$! V1
–N–
A1
S1
A
S
2X 02
C
%
–H–
–T–
θ
θ
θ
θ
$
$
$
$
$
#
$
$
$
$
#
#
$
$
$
$
$
#
$
$
$
$
#
#
2X 03
$% " VIEW AA
$
$%
W
F
Θ1
2XR
R1
G
J
C2
" K
E
C1
Z
D
"% AB
Θ
U
–X–
)
% $
$
AB
SECTION AB–AB
#!%%°!($
VIEW Y
VIEW AA
CASE 983-01
ISSUE A
DATE 07/14/94
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor,
MechanicalInc.
Data and Ordering Information
8.3 ORDERING INFORMATION
PACKAGE TYPE
TEMPERATURE
ORDER NUMBER
20.48
0°C to 70°C
MC68SC302PU20
Freescale Semiconductor, Inc...
Surface Mount TQFP 100-Pin
(PU Suffix)
FREQUENCY
(MHZ)
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Semiconductor, Inc.
Freescale Semiconductor, Inc...
Freescale
Mechanical Data and Ordering
Information
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
INDEX
Freescale Semiconductor, Inc...
A
A23–LA17 2-4
A25 6-3, 6-9
ADS Block Diagram 1-8
ADS Features 1-7
AEN 2-4
Attribute CIS and HCR/FCR Accesses 6-16
Attribute Memory Read Access 6-16
Attribute Memory Space 6-9
Attribute Memory Write Access 6-16
Automatic Echo 4-18
Auxiliary Channel 4-6
B
B Channels, Concatenated 4-8
BALE 2-4
Buffer 4-24
SCC Buffer Descriptors 4-18, 4-23
Transmit BDs 4-19
C
C/I Channel 4-53
Card Configuration and Status Register
(CSR) 6-9
CCMR 6-3, 6-6
CCR 6-3
CCR Register Map 5-5
CEPT 4-11
Chip Select 6-15
CIS 6-3, 6-18
CIS Locations 6-16
CIS ROM 2-8
CLKO 2-7
Clock
CLKO 2-7, 2-9
Clock Divider 4-46
Clock Control 6-17
Clock Divider 4-46
Command 4-2
ENTER HUNT MODE Command 4-38, 439
RESTART TRANSMIT Command 4-30,
4-32, 4-39
STOP TRANSMIT COMMAND 4-26
STOP TRANSMIT Command 4-29, 4-30,
4-38, 4-39
TIMEOUT Command 4-54
TRANSMIT ABORT REQUEST
Command 4-54
Command Execution Latency 4-4
Command Opcode 4-3
Command Register 4-2
Command/Indication Channel 4-8
Common Memory Read Accesses 6-16
Common Memory Write Accesses 6-17
Communications Processor 4-1
Configuration Index 6-9
Contention Detection, D Channel 4-7, 4-9
CP 4-1
CP Command Register 4-2
CR 4-2
CSBAR 6-14
D
D Channel 4-7
Data Strobe Lines (SDS1 and SDS2) 4-6
D-Channel Access Control 4-7
Deactivated State 4-9
Dedicated Mode 2-6
Disabled 4-26
Disabling the SCCs 4-26
DPR 5-5, 6-6
DPR Addressing 5-4
DRB-DRA 4-10
Dual-Port RAM
SCC Buffer Descriptors 4-18, 4-23
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
Freescale Semiconductor, Inc...
Index
E
H
E2EN 2-12
Echo Mode 4-4
Enable Receive 4-18
Enable Receiver 4-18
Enable Transmitter 4-18
Encoded Mode 2-6
ENTER HUNT MODE 4-3, 4-30
ENTER HUNT MODE Command 4-3, 4-26,
4-30, 4-39
Enter STAND-BY 6-17
Enter STOP 6-17
Envelope Mode 4-10
EXTAL 2-6, 2-9
Frequency 2-6
Range 2-6
External Chip Select 6-5
External SCP Slave Devices 2-15
Hard Reset 6-17
HCR 6-3, 6-5, 6-8
HCR Registers 6-11
HDLC 4-1, 4-36
Abort Sequence 4-32
Clear-To-Send Lost 4-31
CRC 4-28
CRC Error 4-32
CRC16 4-17
FIFO 4-31, 4-32
Flag Sharing 4-17
Flags between Frames 4-17
HDLC Address Recognition 4-31
HDLC Event Register 4-34, 4-35
HDLC Frame 4-27
HDLC Mask Register 4-36
HDLC Memory Map 4-29
HDLC Receive Buffer Descriptor (Rx
BD) 4-32
HDLC Transmit Buffer Descriptor
(TxBD) 4-33
HMASK 4-31
Idles between Frames 4-17
Nonoctet Aligned Frame 4-32
NRZI 4-17
Overrun Error 4-32
RESTART TRANSMIT Command 4-32
Retransmission 4-17
RTS 4-17
Rx BD 4-32
RXF 4-32, 4-35
SCCE 4-35
SCCM 4-36
STOP TRANSMIT Command 4-29, 4-30
Transmitter Underrun 4-31
Tx BD 4-33
TXB 4-34
TXE 4-31, 4-32, 4-34, 4-35
F
FCR 6-5, 6-9
FCR’s 6-3
FIFO 4-1
G
GCI 4-1, 4-4, 4-7
C/I Channel 4-53
Interface 4-7
IOM2 4-7
Monitor Channel Protocol 4-53
SCIT 4-7, 4-9, 4-12
SDS1 4-8
SIMASK 4-14
SIMODE 4-12
SMC Channels 4-4
TIC 4-7
TIMEOUT Command 4-54
TRANSMIT ABORT REQUEST
Command 4-54
Transparent Mode 4-53
GCI Bus 4-7
GCI Clock Rate 4-7
GCI Command 4-3
GCI Interface 4-7
I
I/O Configuration 5-10
IDL 4-1, 4-4, 4-5
ISDN Terminal Adaptor 4-6
SDS1 4-6
Signals 4-6
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc...
Freescale Semiconductor, Inc.
SIMASK 4-14
SIMODE 4-12
SMC Channels 4-4
IDL Bus 4-6
IDL Interface 4-5
IDL Signals 4-6
IDL, 10-bit 4-5
IDL, 8-bit 4-5
Idle Status 4-26
INITIALIZE RX 4-31
INITIALIZE RX Command 4-39
INPACK 6-18
Integrated Services Digital Network (ISDN)
4-4
Internal Loopback 4-13
Internal ROM 4-1
Interrupt
IPR 3-2, 3-3
SCCM 4-25
Interrupt Controller 3-1
Features 3-1
Interrupt Controller Overview 3-1
Interrupt Handling Procedure 3-2
Interrupt Mask Register (IMR) 3-1
Interrupt Out Pins 2-6
Interrupt Pending Register (IPR) 3-1, 3-2, 3-3
IO16 6-18
IOCHRDY 2-5
Wait States 2-5
IOCS16 2-5
IOM2 4-7
IOR 2-5
IOW/PC_MODE 6-1
IOW/PC_mode 2-5
IRQ5 2-5
ISA
Communication Controller Memory and
Registers (CCMR’s) 5-1
Communication Controller Registers
(CCR) 5-1
Host Interface Control Registers (HCR)
5-1
ISA PNP Bus Interface 5-1
LFSR Key Sequence 5-38
Serial Isolation Delays 5-40
ISA 32-Bit Memory Space Configuration
Summary 5-29
Index
ISA Bus Interface 1-1, 1-4
ISA Card Configuration and Control
Register Map 5-30
ISA Card Level Control Registers Summary
5-26
ISA DMA Configuration Registers Summary
5-29
ISA I/O Configuration 5-22
ISA I/O Configuration Summary 5-29
ISA I/O Space 5-3
ISA Initiation Key 5-38
ISA Interrupt Configuration Summary 5-29
ISA IRQ Configuration 5-12
ISA Logical Device ID 5-13
ISA Memory Configuration 5-11
ISA Memory Descriptors 5-11
ISA Memory Mode 5-18
ISA Memory Range Length 5-21
ISA Memory Space Configuration Summary
5-28
ISA Power Down Register (IPRDN) 3-5
ISA Reserved and Vendor Defined
Configuration Registers 5-30
ISA Reserved Registers 5-30
ISA Resource Management 5-12
ISA-PNP Configuration 5-7
ISA-PNP Resource Data 5-7
ISDN Communications Processor 1-2
ISDN Terminal Adaptor 4-6
L
L1CLK 2-11
L1GRNT 4-7
L1GRNT / PSYNC 2-11
L1RQ 4-7
L1RQ / GCIDCL 2-11
L1SY0 4-10
L1SYNC 2-11
L1SYNC and PSYNC, Envelope Mode 4-10
L1SYNC–PSYNC, One-Clock-Prior Mode
4-10
L1TXD 2-11
LAPB 4-27
LAPD 4-27
Level Mode Interrupts 6-9
Loopback Control 4-13
Loopback Mode 4-4, 4-18, 4-47
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
Index
Internal Loopback 4-13
Loopback Control 4-13
Low Power 6-17
Low Power Modes 6-10
Freescale Semiconductor, Inc...
M
Main Controller 4-1
Maintenance Channel 4-6
Mask All (MALL) 3-2
MC145474 4-5
MC145572 4-5
MC145574 4-5
MC68SC302 Block Diagram 1-4
MC68SC302 Key Features 1-1
MEMCS16 2-5
MEMR 2-5
MEMW 2-5
Modem Signals 4-12
Monitor Channel 4-8
Monitor Channel Protocol 4-53
MRBLR 4-24
Multi-Function I/O Pins 2-12
Multi-Function Pins 2-15
Multiplexed Interfaces 4-4
N
NMSI 4-1, 4-4, 4-12
Modem Signals 4-12
SIMODE 4-12
NMSICS 2-12
NT1 TA Block Diagram with POTS Interface
and Datapump 1-6
O
One-Clock-Prior Mode 4-10
Open Drain IRQOUT 3-3
Ordering Information 8-3
P
Package Dimensions 8-2
Package, TQFP 8-1
PACNT 2-13, 2-14
PADAT 2-13, 2-14
PADDR 2-14
Parallel CIS EEPROM 6-4
Parallel CIS EEPROM Configuration 6-1
Parallel CIS Mode 2-8
Parallel I/O Port
Port A
Control Register 2-13
Data Direction Register (PADDR) 213
Parameter RAM 5-5, 6-3, 6-7
Passive NT1 TA Block Diagram 1-5
Passive NT1 TA Block Diagram with S/T
Interface 1-6
PC Card TA 1-7
PC_A25 2-8
PC_CE1 2-8
PC_CE2 2-8
PC_CISCS 2-8
PC_E2E 2-8
PC_MODE 2-8
PC_OE 2-8
PC_READY/IREQ 2-9
PC_REG 2-9
PC_STSCHG 2-8, 3-2, 6-18
PC_WAIT 2-9
PC_WE 2-8
PCM 4-1, 4-4
PCM Channel 4-10
PCM Highway
Envelope Mode 4-10
L1SY0 4-10
One-Clock-Prior Mode 4-10
PCM Channel 4-10
PCM Highway Mode 4-9
RTS 4-10
SIMODE 4-12
Time Slots 4-10
PCM Highway Interface, RTS 4-10
PCM Highway Mode 4-9
PCMCIA Address Bus 2-8
PCMCIA Address Map 6-4
PCMCIA Controller Features 6-1
PCMCIA Data Bus 2-8
PCMCIA EEPROM Format 6-18
PCMCIA Interface 1-1, 2-7
Enabling 2-7
PCMCIA Memory Map 6-3
PCMCIA Mode Signals 2-7
Periodic Interrupt Timer 3-4
Peripheral Input Pin Used As General-
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc...
Freescale Semiconductor, Inc.
Purpose I/O 2-13
Physical Interface 4-5
Pin Assignments 8-1
Pin Multi-Function Select Register 2-16
Pin Replacement Register Organization
(PRR) 6-10
PIT
Period Calculation 3-4
PITR 3-5
PMFSR 2-13, 2-15, 2-16
PNP - ISA Interconnection 5-38
PORT A 2-13
Dedicated On-Chip Peripheral Pins 2-13
General-Purpose I/O 2-13
Output 2-13
Signal Direction 2-13
Total System Reset 2-13
Port A Registers 2-14
Port A SCP Enable Control 2-15
Power Dissipation 7-2
R
RCLK / SCLK / IRQIN1 2-11
READY 6-9, 6-17
READY Signal 6-9
REF 2-5
Reference Designs 1-5
Registers
Interrupt Pending (IPR) 3-3
Port A
Control (PACNT) 2-13
Data Direction (PADDR) 2-13
TBASE 4-24
RESET 2-5, 2-9
Reset 4-2
SMC Interrupt Requests 4-57
SMC Loopback 4-53
SMC Memory Structure 4-54
TIMEOUT Command 4-54
TRANSMIT ABORT REQUEST
Command 4-54
Resource Data Reading 5-9
RESTART TRANSMIT 4-3, 4-30, 4-39
RESTART TRANSMIT Command 4-3, 4-30
RI / IRQIN4 2-12
RI Event Indication Register (IOER) 3-5
RI Interrupt 3-2
Index
RI Pin 6-10
RISC Processor 4-1
RTS 4-10
RXD 2-11
S
SA16-SA 2-4
SCC
Clock Divider 4-46
Disabled 4-26
Enable Receiver 4-18
Idle Status 4-26
MRBLR 4-24
Promiscuous Operation 4-36
SCCM 4-25
SCCS 4-26
SCM 4-26
SCON 4-43, 4-44, 4-46
Software Operation 4-18
STOP TRANSMIT Command 4-26
Totally Transparent 4-36
SCC Buffer Descriptors 4-18, 4-23
SCC Event Register (SCCE) 4-20, 4-25
SCC Mask Register (SCCM) 4-25
SCC Mode Register 4-16
SCC Parameter RAM 4-23
SCC Status Register (SCCS) 4-26
SCC Status Register (SCCs) 4-26
SCCM 4-25
SCCS 4-26
SCCs 4-1, 4-15
SCIT 4-7, 4-9, 4-12
SCM 4-1, 4-26
SCON 4-43, 4-44, 4-46
SCP 4-1
Enable Signals 4-47
Loopback Mode 4-47
SCP Master 4-47
Serial Communication Port 4-47
SPCLK 4-47
SPI Slave 4-47
SPRXD 4-47
SPTXD 4-47
SCP Enable 2-15
SCP Mode Register 4-47
SCP Negation Level 2-15
SCPEN1-3 2-12
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc...
Index
Freescale Semiconductor, Inc.
SD15—SD0 2-4
SD7–SD0 2-4
SDLC 4-27
SDS1 4-8
SDS1 / FSYN / IRQIN2 2-11
SDS2 4-6
SDS2 / IRQIN3 2-12
Select 16 Bit Memory Cycle 2-5
Serial Channels Physical Interface 4-4
Serial CIS EEPROM 6-3
Serial CIS EEPROM Configuration 6-1
Serial Communication Controllers 4-15
Serial Communication Port 4-47
Serial EEPROM 6-18
Serial Interface Mask register (SIMASK) 4-2
SETZ 4-9
Signaling Channel 4-8
Signals
CLKO 2-7, 2-9
EXTAL 2-6, 2-9
L1SY0 4-10
RTS 4-10, 4-17
SDS1 4-6, 4-8
SPCLK 4-47
SPRXD 4-47
SPTXD 4-47
XTAL 2-6, 2-9
SIMASK 4-6, 4-12, 4-14
SIMODE 4-12
SMC 4-52
Monitor Channel Protocol 4-53
Serial Management Controllers 4-52
Transparent Mode 4-53
Using GCI 4-52
SMC Buffer Descriptors 4-54
SMC Channels 4-4
SMC Commands 4-54
SMC Interrupt Requests 4-57
SMC Loopback 4-53
SMC Memory Structure 4-54
SMC Mode 4-54
SMCs 4-1
Software Operation 4-18
SPCLK 2-12, 4-47
Special Pin Function in 8-Bit Mode 2-16
Speculative Read Mechanism 5-4
SPI Slave 4-47
SPKR 6-18
SPRXD 2-12, 4-47
SPTXD 2-12, 4-47
SRESET 6-9, 6-17
SS#7 4-27
STOP 6-5, 6-17
STOP TRANSMIT 4-30
STOP TRANSMIT Command 4-3, 4-26, 4-38
System RAM 6-3
System RAM Size 6-7
T
T1 4-11
TBASE 4-24
TCLK / MCLK 2-11
Thermal Characteristics 7-1
TIC 4-7
Time Slots 4-10
TIMEOUT Command 4-3, 4-54
Timer
PIT 3-4
TRANSMIT ABORT REQUEST Command
4-54
Transmit BDs 4-19
Transmit/Receive BD 4-49
Transparent 4-1
Busy Condition 4-40
Clear-To-Send Lost 4-40
ENTER HUNT MODE Command 4-38, 439
FIFO 4-40
GCI 4-39
IDL 4-39
Promiscuous Operation 4-36
RESTART TRANSMIT Command 4-39
REVD 4-17
RXBD 4-40
SCCE 4-42
SCCM 4-43
STOP TRANSMIT Command 4-38, 4-39
Totally Transparent 4-36
Transmitter Underrun 4-40
Transparent Event Register 4-41
Transparent Mask Register 4-43
Transparent Memory Map 4-38
Transparent Synchronization 4-39
Tx BD 4-41
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
Transparent Commands 4-38
Transparent Controller 4-36
Transparent Event Register 4-42
Transparent Mask Register 4-43
Transparent Mode 4-53
Transparent Receive Buffer Descriptor
(RxBD) 4-40
Transparent Transmit Buffer Descriptor
(TxBD) 4-41
TXD 2-11
Freescale Semiconductor, Inc...
U
Unimplemented PCMCIA signals 6-18
Using GCI 4-52
W
Wake Up 3-2, 6-17
Wired-OR 4-44
WP 6-18
X
XTAL 2-6, 2-9
Z
ZERO Register 4-38
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
Index
Freescale Semiconductor, Inc.
Freescale Semiconductor, Inc...
Index
MC68SC302 USER’S MANUAL
For More Information On This Product,
Go to: www.freescale.com
