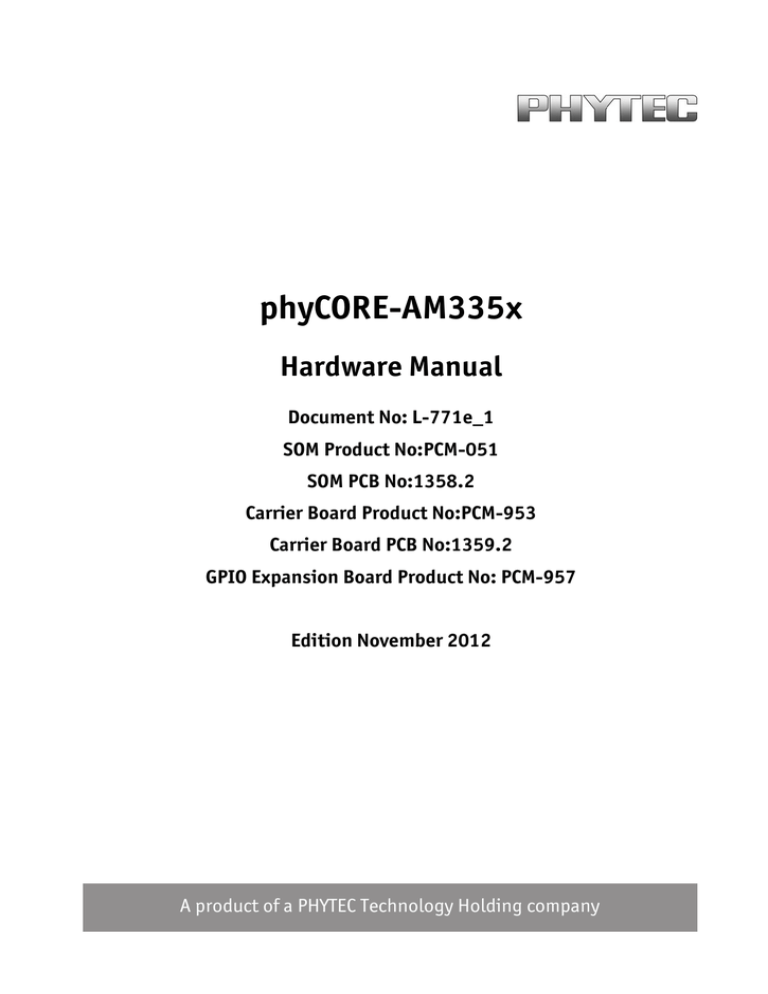

phyCORE-AM335x

phyCORE-AM335x
phyCORE-AM335x
Hardware Manual
Document No: L-771e_1
SOM Product No:PCM-051
SOM PCB No:1358.2
Carrier Board Product No:PCM-953
Carrier Board PCB No:1359.2
GPIO Expansion Board Product No: PCM-957
Edition November 2012
A product of a PHYTEC Technology Holding company
phyCORE-AM335x
In this manual are descriptions for copyrighted products that are not explicitly indicated as such. The absence
of the trademark (™), registered trademark (®) and copyright (©) symbols does not imply that a product is not
protected. Additionally, registered patents and trademarks are similarly not expressly indicated in this manual.
The information in this document has been carefully checked and is believed to be entirely reliable. However,
PHYTEC Messtechnik GmbH assumes no responsibility for any inaccuracies. PHYTEC Messtechnik GmbH neither
gives any guarantee nor accepts any liability whatsoever for consequential damages resulting from the use of
this manual or its associated product. PHYTEC Messtechnik GmbH reserves the right to alter the information
contained herein without prior notification and accepts no responsibility for any damages which might result.
Additionally, PHYTEC Messtechnik GmbH offers no guarantee nor accepts any liability for damages arising from
the improper usage or improper installation of the hardware or software. PHYTEC Messtechnik GmbH further
reserves the right to alter the layout and/or design of the hardware without prior notification and accepts no
liability for doing so.
© Copyright 2012 PHYTEC Messtechnik GmbH, D-55129 Mainz.
Rights - including those of translation, reprint, broadcast, photomechanical or similar reproduction and storage or processing in computer systems, in whole or in part - are reserved. No reproduction may occur without
the express written consent from PHYTEC Messtechnik GmbH.
EUROPE
NORTH AMERICA
Address:
PHYTEC Messtechnik GmbH
Robert-Koch-Str. 39
D-55129 Mainz
GERMANY
PHYTEC America LLC
203 Parfitt Way SW, Suite G100
Bainbridge Island, WA 98110
USA
Ordering Information:
+49 (6131) 9221-32
[email protected]
1 (800) 278-9913
[email protected]
Technical Support:
+49 (6131) 9221-31
[email protected]
1 (800) 278-9913
[email protected]
Fax:
+49 (6131) 9221-33
1 (206) 780-9135
Web Site:
www.phytec.de
www.phytec.eu
www.phytec.com
First Edition November 2012
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Table of content
Table of Contents
1
Conventions, Abbreviations and Acronyms .............................................. 1
2
Preface............................................................................................... 4
3
Part I: PCM-051/phyCORE-AM335x System on Module ............................... 8
3.1 Introduction ................................................................................. 8
3.1.1Block Diagram .......................................................................10
3.1.2Component Placement Diagram ................................................11
3.1.3Minimum Requirements to Operate the phyCORE-AM335x...............13
3.2 Pin Description .............................................................................14
3.3 Jumpers......................................................................................25
3.4 Power .........................................................................................30
3.4.1Primary System Power (VDD_5V_IN) ..........................................30
3.4.2Backup Power (VBAT_IN_4RTC).................................................30
3.4.3Power Management IC (U4)......................................................30
3.4.3.1 Power Domains............................................................31
3.4.3.2 Real Time Clock (RTC)....................................................32
3.4.3.3 Power Management ......................................................33
3.4.3.4 External Battery Charging..............................................33
3.4.4Reference Voltages.................................................................33
3.5 Real-Time Clock Options (RTC) .........................................................34
3.5.1PMIC RTC ..............................................................................34
3.5.2External RTC..........................................................................34
3.5.3AM335x RTC ..........................................................................34
3.5.4Power-On Wake .....................................................................34
3.6 System Configuration and Booting ...................................................35
3.7 System Memory ............................................................................37
3.7.1DDR3-SDRAM (U7, U9) ............................................................37
3.7.2NAND Flash Memory (U10) .......................................................37
3.7.2.1 NAND Flash Lock Control (J2) .........................................38
3.7.3I2C EEPROM (U6) ...................................................................38
3.7.3.1 Setting the EEPROM Lower Address Bits (J7, J8).................39
3.7.3.2 EEPROM Write Protection Control (J9) ..............................39
3.7.4SPI Flash Memory (U5) ............................................................40
3.7.4.1 SPI Write-Protect Control (J4) ........................................40
3.7.4.2 SPI Hold Control (J3)....................................................40
3.7.5Memory Model.......................................................................40
L-771e_1 © PHYTEC Messtechnik GmbH 2012
Table of content
phyCORE-AM335x
3.8 SD / MMC Card Interfaces................................................................ 41
3.9 Serial Interfaces ........................................................................... 42
3.9.1Universal Asynchronous Receiver/Transmitter Interfaces (UARTs) ... 42
3.9.2USB OTG Interface.................................................................. 43
3.9.3Ethernet Interfaces ................................................................ 44
3.9.3.1 Ethernet1 .................................................................. 44
3.9.3.1.1 Configuring the Ethernet1 Interface Mode ................. 45
3.9.3.2 Ethernet 2.................................................................. 46
3.9.4Profibus............................................................................... 47
3.9.5I2C Interface ........................................................................ 48
3.9.6SPI Interfaces ....................................................................... 48
3.9.7Controller Area Network (CAN) Interfaces ................................... 49
3.9.8Multichannel Audio Serial Ports (McASP) .................................... 50
3.10 General Purpose I/Os..................................................................... 51
3.11 Analog Inputs .............................................................................. 52
3.12 Debug Interface (X2) ..................................................................... 53
3.13 Display Interface .......................................................................... 55
3.13.1Parallel Display Interface....................................................... 55
3.13.2Touch Screen Controller ........................................................ 56
3.14 Technical Specifications ................................................................. 57
3.15 Hints for Integrating and Handling the phyCORE-AM335x ..................... 59
3.15.1Integrating the phyCORE-AM335x ........................................... 59
3.15.2Handling the phyCORE-AM335x .............................................. 61
4
Part II: PCM-953 / phyCORE-AM335x Carrier Board ..................................62
4.1 Introduction................................................................................ 62
4.1.1Concept of the phyCORE-AM335x Carrier Board ............................ 63
4.2 Overview of the phyCORE-AM335x Carrier Board Peripherals .................. 64
4.2.1Connectors and Pin Headers..................................................... 65
4.2.2Switches .............................................................................. 66
4.2.3LEDs ................................................................................... 68
4.2.4Jumpers .............................................................................. 70
4.2.5Carrier Board Bus Enable Decoder ............................................. 75
4.3 Functional Components of the phyCORE-AM335x Carrier Board .............. 78
4.3.1phyCORE-AM335x SOM Connectivity (X1 and X2) .......................... 78
4.3.2Power.................................................................................. 80
4.3.2.1 Wall Adapter Input (X3) ................................................ 81
4.3.2.2 Power Management...................................................... 82
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Table of content
4.3.2.3 VBAT .........................................................................82
4.3.3Ethernet Connectivity .............................................................82
4.3.3.1 Ethernet 1 (X12)..........................................................83
4.3.3.2 Ethernet 2 (X9)............................................................84
4.3.4EtherCAT (X10 and X11)...........................................................85
4.3.5Profibus (X19).......................................................................86
4.3.6RS-232 (X18) ........................................................................87
4.3.7CAN (X13) ............................................................................88
4.3.8Universal Serial Bus (USB) (X7 and X8).......................................89
4.3.8.1 USB0 (X7) ..................................................................89
4.3.8.2 USB1 (X8) ..................................................................90
4.3.9I2C......................................................................................91
4.3.10SPI (X5) .............................................................................92
4.3.11JTAG (X21)..........................................................................93
4.3.12Display / Touch (X4 and X31) ..................................................94
4.3.12.1PHYTEC Display Interface (PDI) Data Connector (X4) ..........96
4.3.12.2PHYTEC Display Interface (PDI) Power Connector (X31).......99
4.3.12.3AM335x LCD Interface Display (X40) ............................. 100
4.3.12.4Touch Screen Connectivity .......................................... 100
4.3.13Secure Digital Memory (SD) / MultiMedia Card (MMC) Slot (X20) .. 101
4.3.14Audio (X14, X15, X16, X17) .................................................. 102
4.3.15WiFi (X27)......................................................................... 103
5
Part III: PCM-957 GPIO Expansion Board ..............................................106
5.1 GPIO Expansion Board Analog Signals ............................................. 106
5.2 GPIO Expansion Board Control Signals............................................. 107
5.3 GPIO Expansion Board GPIO Signals ................................................ 108
5.4 GPIO Expansion Board GPMC Signals ............................................... 109
5.5 GPIO Expansion Board Power Signals .............................................. 109
5.6 GPIO Expansion Board Serial Interfaces ........................................... 110
5.7 Signals Not Connected to the GPIO Expansion Board .......................... 111
L-771e_1 © PHYTEC Messtechnik GmbH 2012
phyCORE-AM335x
List of tables
List of Tables
Table 1:
Abbreviations and Acronyms used in this Manual .................................................. 2
Table 2:
Types of Signals ............................................................................................. 3
Table 3:
Pinout of the phyCORE-Connector X3, Row A .......................................................16
Table 4:
Pinout of the phyCORE-Connector X3, Row B .......................................................18
Table 5:
Pinout of the optional phyCORE-Connector X1, Row A ...........................................20
Table 6:
Pinout of the optional phyCORE-Connector X1, Row B ...........................................23
Table 7:
SOM Jumper Settings .....................................................................................27
Table 8:
External Supply Voltages.................................................................................31
Table 9:
PMIC Generated Voltages ................................................................................31
Table 10:
Power Management Signals .............................................................................33
Table 11:
Boot Device Order of AM335x Module ................................................................36
Table 12:
NAND GPMC Signal Map...................................................................................37
Table 13:
NAND Flash Lock Control via J2.........................................................................38
Table 14:
U6 EEPROM I2C Address via J7 and J8 ................................................................39
Table 15:
EEPROM Write Protection States Via J9...............................................................39
Table 16:
SPI Flash Write-Protection via J4 ......................................................................40
Table 17:
SPI Hold Control via J3 ...................................................................................40
Table 18:
SD / MMC0 Interface Signal Locations................................................................41
Table 19:
UART Signal Locations ....................................................................................42
Table 20:
USB OTG Signal Locations................................................................................43
Table 21:
Ethernet1 Signal Locations..............................................................................44
Table 22:
Ethernet1 TTL Signal Locations.........................................................................45
Table 23:
Jumper Configurations for MII and RMII modes ...................................................45
Table 24:
Resistor Configurations for MII and RMII modes...................................................46
Table 25:
Crystal Configurations for MII and RMII modes ....................................................46
Table 26:
Ethernet 2 Signal Locations .............................................................................47
Table 27:
Profibus Signal Location Options ......................................................................47
Table 28:
I2C Interface Signal Locations..........................................................................48
Table 29:
I2C Addresses in Use ......................................................................................48
Table 30:
SPI0 Interface Signal Locations ........................................................................48
Table 31:
DCAN0 and DCAN1 Signal Locations...................................................................49
Table 32:
McASP Signal Locations ..................................................................................50
L-771e_1 © PHYTEC Messtechnik GmbH 2012
phyCORE-AM335x
Table 33:
Dedicated GPIO Signal Locations ......................................................................51
Table 34:
Analog Input Signals......................................................................................52
Table 35:
JTAG Connector X2 Signal Assignment ...............................................................54
Table 36:
Location of the JTAG Signals on the optional phyCORE-Connector X1 .......................54
Table 37:
Parallel Display Interface Signal Locations..........................................................55
Table 38:
AIN[3:0] Signal Locations ...............................................................................56
Table 39:
phyCORE-AM335x Carrier Board Connectors and Pin Headers ..................................65
Table 40:
phyCORE-AM335x Carrier Board push-buttons Descriptions....................................67
Table 41:
Carrier Board Boot Configuration Switch S5 ........................................................68
Table 42:
phyCORE-AM335x Carrier Board LEDs Descriptions................................................69
Table 43:
phyCORE-AM335x Carrier Board Jumper Descriptions............................................72
Table 44:
Interfaces Enabled with JP3 and JP4 .................................................................77
Table 45:
Bus Switch Enable Status LEDs .........................................................................77
Table 46:
Specifically used Pins on the phyCORE-Connector.................................................79
Table 47:
VCC_3V3 Jumper Settings................................................................................81
Table 48:
Voltage Domains on the Carrier Board................................................................81
Table 49:
JP3 and JP4 settings ......................................................................................82
Table 50:
JP3 and JP4 settings ......................................................................................86
Table 51:
Profibus Jumpers ..........................................................................................87
Table 52:
USB Connectors for Different Operating Modes ....................................................90
Table 53:
I2C Interface Signals......................................................................................91
Table 54:
I2C0 Reserved Addresses.................................................................................92
Table 55:
JTAG Connector X1 Pin Descriptions ..................................................................94
Table 56:
JP3 and JP4 settings ......................................................................................96
Table 57:
PDI Data Connector X4 Signal Description...........................................................97
Table 58:
Auxiliary Interfaces at PDI Data Connector X4......................................................98
Table 59:
PDI Power Connector X31 Signal Description .......................................................99
Table 60:
AM335x LCD Interface Display Connector X40 .................................................... 100
Table 61:
Audio Connectors ........................................................................................ 103
Table 62:
JP3 and JP4 settings .................................................................................... 104
Table 63:
WiFi Module Signals (X27) ............................................................................. 104
Table 64:
GPIO Expansion Board Analog Signal Map......................................................... 106
Table 65:
GPIO Expansion Board Control Signal Map ........................................................ 107
Table 66:
GPIO Expansion Board GPIO Signal Map............................................................ 108
L-771e_1 © PHYTEC Messtechnik GmbH 2012
phyCORE-AM335x
Table 67:
GPIO Expansion Board GPMC Signal Map ...........................................................109
Table 68:
GPIO Expansion Board Power Signal Map ..........................................................109
Table 69:
GPIO Expansion Board Serial Interfaces Signal Map ............................................110
Table 70:
AM335x SOM Signals Not Routed to the GPIO Expansion Connector X5 ....................111
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
List of figures
List of Figures
Figure 1:
Block Diagram of the phyCORE-AM335x..............................................................10
Figure 2:
phyCORE-AM335x Component Placement (top view) .............................................11
Figure 3:
phyCORE-AM335x Component Placement (bottom view) ........................................12
Figure 4:
Pinout of the phyCORE-Connector (top view, with cross section insert).....................15
Figure 5:
Typical Jumper Pad Numbering Scheme..............................................................25
Figure 6:
SOM Jumper Locations (top view) .....................................................................26
Figure 7:
Power Supply Diagram ....................................................................................32
Figure 8:
JTAG Interface at X2 (top view) ........................................................................53
Figure 9:
Physical Dimensions.......................................................................................57
Figure 10: Footprint of the phyCORE-AM335x ....................................................................60
Figure 11: phyCORE-AM335x Carrier Board Overview of Connectors and Buttons (top view).........64
Figure 12: Carrier Board Buttons.....................................................................................66
Figure 13: Switch S5 Location ........................................................................................67
Figure 14: Carrier Board LEDs .........................................................................................69
Figure 15: Jumper Numbering Scheme .............................................................................70
Figure 16: Carrier Board Jumper Locations........................................................................71
Figure 17: Bus Enable Jumpers and LEDs ..........................................................................76
Figure 18: phyCORE-AM335x SOM Connectivity to the Carrier Board .......................................78
Figure 19: +5 VDC Power Input Connector .........................................................................80
Figure 20: Ethernet1 Connector ......................................................................................83
Figure 21: Ethernet 2 Connector .....................................................................................84
Figure 22: EtherCAT Connectors ......................................................................................85
Figure 23: Profibus Connector ........................................................................................86
Figure 24: RS-232 Connector..........................................................................................87
Figure 25: CAN Connector and Jumpers ............................................................................88
Figure 26: USB Connectors and Jumpers...........................................................................89
Figure 27: X5 GPIO Expansion Board Connectors ................................................................92
Figure 28: JTAG Connector.............................................................................................93
Figure 29: Display Connectors ........................................................................................95
Figure 30: SD / MMC Connector (X20) ............................................................................ 101
Figure 31: Audio Connectors (X14, X15, X16, X17)............................................................ 102
Figure 32: WiFi Connector............................................................................................ 103
L-771e_1 © PHYTEC Messtechnik GmbH 2012
Conventions, Abbreviations and Acronyms
phyCORE-AM335x
1 Conventions, Abbreviations and Acronyms
This hardware manual describes the PCM-051 System on Module in the following referred to as
phyCORE-AM335x. The manual specifies the phyCORE-AM335x's design and function. Precise specifications for
the Texas Instruments AM335x microcontrollers can be found in Texas Instrument's AM335x Data Sheet and
Technical Reference Manual.
Note:
We refrain from providing detailed part specific information within this manual, which can be subject to
continuous changes, due to part maintenance for our products. Please read the paragraph "Product Change
Management and information in this manual on parts populated on the SOM" within the Section 2.
Note:
The BSP delivered with the phyCORE-AM335x usually includes drivers and/or software for controlling all
components such as interfaces, memory, etc.. Therefore programming close to hardware at register level is
not necessary in most cases. For this reason, this manual contains no detailed description of the controller's
registers, or information relevant for software development. Please refer to the AM335x Reference Manual, if
such information is needed to connect customer designed applications.
Conventions
The conventions used in this manual are as follows:
•
Signals that are preceded by a "n", "/", or “#” character (e.g.: nRD, /RD, or #RD), or that have a dash on
top of the signal name (e.g.: RD) are designated as active low signals. That is, their active state is when they
are driven low, or are driving low.
•
A "0" indicates a logic zero or low-level signal, while a "1" represents a logic one or high-level signal.
•
The hex-numbers given for addresses of I2C devices always represent the 7 MSB of the address byte.
The correct value of the LSB which depends on the desired command (read (1), or write (0)) must be added
to get the complete address byte. E.g. given address in this manual 0x41 => complete address byte = 0x83
to read from the device and 0x82 to write to the device
•
Tables which describe jumper settings show the default position in bold, blue text
•
Text in blue italic indicates a hyperlink within, or external to the document. Click these links to quickly jump
to the applicable URL, part, chapter, table, or figure.
•
References made to the phyCORE-Connector always refer to the high density Samtec connectors on the
undersides of the phyCORE-AM335x
1
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Conventions, Abbreviations and Acronyms
Abbreviations and Acronyms
Many acronyms and abbreviations are used throughout this manual. Use the table below to navigate unfamiliar
terms used in this document.
Abbreviation Definition
BSP
Board Support Package (Software delivered with the Development Kit including an operating
system (Windows or Linux) preinstalled on the module and Development Tools).
CB
Carrier Board; used in reference to the phyCORE-AM335x Development Kit Carrier Board.
DFF
D flip-flop
EMB
External memory bus
EMI
Electromagnetic interference
GPI
General purpose input
GPIO
General purpose input and output
GPO
General purpose output
IRAM
Internal RAM; the internal static RAM on the Texas Instruments AM335x microcontroller
J
Solder jumper; these types of jumpers require solder equipment to remove and place
JP
Solderless jumper; these types of jumpers can be removed and placed by hand with no special
tools
PCB
Printed circuit board
PDI
PHYTEC Display Interface; defined to connect PHYTEC display adapter boards, or custom
adapters
PEB
PHYTEC Extension Board
PMIC
Power management IC
PoE
Power over Ethernet
PoP
Package on Package
POR
Power-on reset
RTC
Real-time clock
SMT
Surface mount technology
SOM
System on Module; used in reference to the PCM-051 / phyCORE-AM335x System on Module
Sx
User button Sx (e.g. S1, S2, etc.) used in reference to the available user buttons, or DIP
switches on the carrier board
Sx_y
Switch y of DIP switch Sx; used in reference to the DIP switch on the carrier board
VBAT
SOM standby voltage input
Table 1: Abbreviations and Acronyms used in this Manual
L-771e_1 © PHYTEC Messtechnik GmbH 2012
2
Conventions, Abbreviations and Acronyms
phyCORE-AM335x
Different types of signals are brought out at the phyCORE-Connector. The following table lists the abbreviations
used to specify the type of a signal.
Type of Signal
Description
Abbr.
Power
Supply voltage
PWR
Ref-Voltage
Reference voltage
REF
USB-Power
USB voltage
USB
Input
Digital input
IN
Output
Digital output
OUT
Input with pull-up
Input with pull-up, must only be connected to GND
(jumper or open-collector output).
IPU
Input / output
Bidirectional input / output
IO
5 V Input with pull-down
5 V tolerant input with pull-down
5V_PD
5 V Input with pull-up
5 V tolerant input with pull-up
5V_PU
LVDS
Differential line pairs 100 Ohm LVDS Pegel
LVDS
Differential 90 Ohm
Differential line pairs 90 Ohm
DIFF90
Differential 100 Ohm
Differential line pairs 100 Ohm
DIFF100
Analog
Analog input or output
Analog
Table 2: Types of Signals
3
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Preface
2 Preface
As a member of PHYTEC's phyCORE product family the phyCORE-AM335x is one of a series of PHYTEC System on
Modules (SOMs) that can be populated with different controllers and, hence, offers various functions and
configurations. PHYTEC supports a variety of 8-/16- and 32-bit controllers in two ways:
1. as the basis for Rapid Development Kits which serve as a reference and evaluation platform
2. as insert-ready, fully functional phyCORE OEM modules, which can be embedded directly into the user’s
peripheral hardware design
Implementation of an OEM-able SOM subassembly as the "core" of your embedded design allows you to focus
on hardware peripherals and firmware without expending resources to "re-invent" microcontroller circuitry.
Furthermore, much of the value of the phyCORE module lies in its layout and test.
Production-ready Board Support Packages (BSPs) and Design Services for our hardware will further reduce your
development time and risk and allow you to focus on your product expertise. Take advantage of PHYTEC products
to shorten time-to-market, reduce development costs, and avoid substantial design issues and risks. With this
new innovative full system solution you will be able to bring your new ideas to market in the most timely and
cost-efficient manner.
For more information go to:
www.phytec.de/de/leistungen/entwicklungsunterstuetzung.html, or
www.phytec.eu/europe/oem-integration/evaluation-start-up.html
L-771e_1 © PHYTEC Messtechnik GmbH 2012
4
Preface
phyCORE-AM335x
Ordering Information
The part numbering of the phyCORE has the following structure1:
1.
The structure shows the ordering options available as of the printing of this manual. Additional ordering options may have been
added. Please contact our sales team to ´get an update on the ordering options available.
5
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Preface
In order to receive product specific information on changes and updates in the best way also in the future, we
recommend to register at
www.phytec.de/de/support/registrierung.html, or
www.phytec.eu/europe/support/registration.html
For technical support and additional information concerning your product, please visit the support section of
our web site which provides product specific information, such as errata sheets, application notes, FAQs, etc.
www.phytec.de/de/support/faq/faq-phycore-AM335x.html, or
www.phytec.eu/europe/support/faq/faq-phycore-AM335x.html
Declaration of Electro Magnetic Conformity of the PHYTEC phyCORE-AM335x
PHYTEC System on Modules (henceforth products) are designed for installation in electrical appliances or as
dedicated Evaluation Boards (i.e.: for use as a test and prototype platform for hardware/software development)
in laboratory environments.
Caution:
PHYTEC products lacking protective enclosures are subject to damage by ESD and, hence, may only be
unpacked, handled or operated in environments in which sufficient precautionary measures have been taken
in respect to ESD-dangers. It is also necessary that only appropriately trained personnel (such as electricians,
technicians and engineers) handle and/or operate these products. Moreover, PHYTEC products should not be
operated without protection circuitry if connections to the product's pin header rows are longer than 3 m.
PHYTEC products fulfill the norms of the European Union’s Directive for Electro Magnetic Conformity only in
accordance to the descriptions and rules of usage indicated in this hardware manual (particularly in respect to
the pin header row connectors, power connector and serial interface to a host-PC).
Caution:
Implementation of PHYTEC products into target devices, as well as user modifications and extensions of
PHYTEC products, is subject to renewed establishment of conformity to, and certification of, Electro Magnetic
Directives. Users should ensure conformance following any modifications to the products as well as implementation of the products into target systems.
L-771e_1 © PHYTEC Messtechnik GmbH 2012
6
Preface
phyCORE-AM335x
Product Change Management and information in this manual on parts populated on the SOM
When buying a PHYTEC SOM, you will, in addition to our HW and SW offerings, receive a free obsolescence
maintenance service for the HW we provide.
Our PCM (Product Change Management) Team of developers is continuously processing all incoming PCN's
(Product Change Notifications) from vendors and distributors concerning parts which are being used in our
products.
Possible impacts to the functionality of our products, due to changes of functionality or obsolesce of a certain
part, are being evaluated in order to take the right masseurs in purchasing or within our HW/SW design.
Our general philosophy here is: We never discontinue a product as long as there is demand for it.
Therefore we have established a set of methods to fulfill our philosophy:
Avoiding strategies
•
Avoid changes by evaluating long-livety of a parts during design in phase
•
Ensure availability of equivalent second source parts
•
Stay in close contact with part vendors to be aware of roadmap strategies
Change management in case of functional changes
•
Avoid impacts on Product functionality by choosing equivalent replacement parts
•
Avoid impacts on Product functionality by compensating changes through HW redesign or backward
compatible SW maintenance
•
Provide early change notifications concerning functional relevant changes of our Products
Change management in rare event of an obsolete and non replaceable part
•
Ensure long term availability by stocking parts through last time buy management according to product
forecasts
•
Offer long term frame contract to customers
Therefore we refrain from providing detailed part specific information within this manual, which can be
subject to continuos changes, due to part maintenance for our products.
In order to receive reliable, detailed and up-to-date information concerning parts used for our product,
please contact our support team for through the given contact information within this manual.
7
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Part I: PCM-051/phyCORE-AM335x System on Module
3 Part I: PCM-051/phyCORE-AM335x System on Module
Part I of this three part manual provides detailed information on the phyCORE-AM335x System on Module (SOM)
designed for custom integration into customer applications. The information in the following chapters is applicable to the 1358.2 PCB revision of the phyCORE-AM335x SOM.
3.1 Introduction
The phyCORE-AM335x belongs to PHYTEC’s phyCORE System on Module family. The phyCORE SOMs represent the
continuous development of PHYTEC System on Module technology. Like its mini-, micro- and nanoMODUL
predecessors, the phyCORE boards integrate all core elements of a microcontroller system on a subminiature
board and are designed in a manner that ensures their easy expansion and embedding in peripheral hardware
developments.
As independent research indicates that approximately 70% of all EMI (Electro Magnetic Interference) problems
stem from insufficient supply voltage grounding of electronic components in high frequency environments, the
phyCORE board design features an increased pin package. The increased pin package allows dedication of
approximately 20% of all connector pins on the phyCORE boards to ground. This improves EMI and EMC characteristics and makes it easier to design complex applications meeting EMI and EMC guidelines using phyCORE
boards even in high noise environments.
phyCORE boards achieve their small size through modern SMD technology and multi-layer design. In accordance
with the complexity of the module, 0402-packaged SMD components and laser-drilled microvias are used on the
boards, providing phyCORE users with access to this cutting edge miniaturization technology for integration
into their own design.
The phyCORE-AM335x is a subminiature (44 mm x 50 mm) insert-ready System on Module populated with the
Texas Instruments AM335x microcontroller. Its universal design enables its insertion in a wide range of
embedded applications. All controller signals and ports extend from the controller to high-density pitch
(0.5 mm) connectors aligning two sides of the board, allowing it to be plugged like a "big chip" into a target
application.
Precise specifications for the controller populating the board can be found in the applicable controller Technical
Reference Manual or datasheet. The descriptions in this manual are based on the Texas Instruments AM335x.
No description of compatible microcontroller derivative functions is included, as such functions are not relevant
for the basic functioning of the phyCORE-AM335x.
The phyCORE-AM335x offers the following features:
•
Insert-ready, sub-miniature (44 mm x 50 mm) System on Module (SOM) subassembly in low EMI design,
achieved through advanced SMD technology
•
Populated with the Texas Instruments AM335x microcontroller (ZCZ 324-pin PBGA package)
•
Max. 720 MHz core clock frequency
•
Boot from NAND Flash or SPI Flash
•
Controller signals and ports extend to two high-density (0.5 mm) Samtec connectors aligning two sides of
the board, enabling it to be plugged like a "big chip" into target application
•
Single supply voltage of 5 V (max. 600 mA) with on-board power management
•
All controller required supplies generated on board
•
Improved interference safety achieved through multi-layer PCB technology and dedicated ground pins
L-771e_1 © PHYTEC Messtechnik GmbH 2012
8
Part I: PCM-051/phyCORE-AM335x System on Module
phyCORE-AM335x
•
General-Purpose Memory Controller Bus (GPMC): flexible 8/16-bit asynchronous memory interface with up
to 7 chip-select signals.
•
128 MB (up to 512 MB) on-board NAND Flash1
•
8 MB (up to 32 MB) on-board SPI Flash1
•
256 MB (up to 1 GB) DDR3 SDRAM1
•
4 kB (up to 32 kB) I2C EEPROM1
•
One serial interface (TTL)
•
Two High-Speed USB OTG interfaces
•
One 10/100 MBit Ethernet interface. Either with Ethernet transceiver on the phyCORE-AM335x allowing for
direct connection to an existing Ethernet network, or without on-board transceiver and provision of the
RMII signals at TTL-level at the phyCORE-Connector instead2
•
One 10/100/1000 RGMII Ethernet interface. The TTL-level inteface is available at the optional phyCORE
connector.
•
One I2C interface
•
One SPI interface
•
Up to two CAN interfaces
•
LCD Interface Display Driver with an integrated touch interface and up to 24 data bits
•
Up to two multichannel audio serial interfaces (McASP)
•
Support of standard 20 pin debug interface through JTAG connector2
•
One SD/MMC card interfaces
•
On-board power management IC with integrated RTC
•
Real-Time Clock2
Caution:
Samtec connectors guarantee optimal connection and proper insertion of the phyCORE-AM335x. Please make
sure that the phyCORE-AM335x is fully plugged into the matting connectors of the carrier board. Otherwise
individual signals may have bad, or no contact.
1.
2.
9
The maximum memory size listed is as of the printing of this manual. Please contact PHYTEC for more information about additional,
or new module configurations available.
Please refer to the order options described in the Preface, or contact PHYTEC for more information about additional module
configurations.
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Part I: PCM-051/phyCORE-AM335x System on Module
3.1.1 Block Diagram
Figure 1: Block Diagram of the phyCORE-AM335x
L-771e_1 © PHYTEC Messtechnik GmbH 2012
10
Part I: PCM-051/phyCORE-AM335x System on Module
phyCORE-AM335x
3.1.2 Component Placement Diagram
Figure 2: phyCORE-AM335x Component Placement (top view)
11
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Part I: PCM-051/phyCORE-AM335x System on Module
Figure 3: phyCORE-AM335x Component Placement (bottom view)
L-771e_1 © PHYTEC Messtechnik GmbH 2012
12
Part I: PCM-051/phyCORE-AM335x System on Module
phyCORE-AM335x
3.1.3 Minimum Requirements to Operate the phyCORE-AM335x
Basic operation of the phyCORE-AM335x requires only supply of a +5.0 V input voltage with minimum 2.0 A
capacity and the corresponding GND connections.
These supply pins are located at the phyCORE-Connector X3:
VCC_5V0:
Connector: X3
Pins: 1B, 2B, 3B, 5B
Connect all 5 V input pins to your power supply and at least the matching number of GND pins.
Corresponding GND:
Connector: X3
Pins: 1A, 4A, 8A, 4B, 7B
Please refer to Section 3.2 for information on additional GND Pins located at the phyCORE-Connector X3.
Caution:
We recommend connecting all available 5 V input pins to the power supply system on a custom carrier board
housing the phyCORE-AM335x and at least the matching number of GND pins neighboring the 5 V pins.
In addition, proper implementation of the phyCORE-AM335x module into a target application also requires
connecting all GND pins neighboring signals that are being used in the application circuitry. Please refer to
Section 3.4 for more information.
13
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Part I: PCM-051/phyCORE-AM335x System on Module
3.2 Pin Description
Please note that all module connections are not to exceed their expressed maximum voltage or current.
Maximum signal input values are indicated in the corresponding controller manuals/data sheets. As damage
from improper connections varies according to use and application, it is the user's responsibility to take appropriate safety measures to ensure that the module connections are protected from overloading through
connected peripherals.
All controller signals extend to surface mount technology (SMT) connectors (0.5 mm) lining two sides of the
module (referred to as the phyCORE-Connector). This allows the phyCORE-AM335x to be plugged into any target
application like a "big chip".
The numbering scheme for the phyCORE-Connector is based on a two dimensional matrix in which column
positions are identified by a letter and row position by a number. Pin A1, for example, is located in the upper
left hand corner of the matrix looking down through the top of the SOM. The pin numbering values increase
moving down on the board. Lettering of the pin connector rows progresses alphabetically from left to right for
each connector (refer to Figure 4 ).
The numbered matrix can be aligned with the phyCORE-AM335x (viewed from above; phyCORE-Connector
pointing down) or with the socket of the corresponding phyCORE Carrier Board/user target circuitry. The upper
left-hand corner of the numbered matrix (pin 1A) is thus covered with the corner of the phyCORE-AM335x
marked with a triangle. The numbering scheme is always in relation to the PCB as viewed from above, even if all
connector contacts extend to the bottom of the module.
The numbering scheme is thus consistent for both the module’s phyCORE-Connector as well as the mating
connector on the phyCORE-AM335x Carrier Board or target hardware, thereby considerably reducing the risk of
pin identification errors.
Since the pins are exactly defined according to the numbered matrix previously described, the phyCOREConnector is usually assigned a single designator for its position (X1 for example). In this manner the phyCOREConnector comprises a single, logical unit regardless of the fact that it could consist of more than one physical
socketed connector.
The following figure illustrates the numbered matrix system. It shows a phyCORE-AM335x with SMT phyCOREConnectors on its underside (defined with dotted lines) mounted on a carrier board. In order to facilitate
understanding of the pin assignment scheme, the diagram presents a cross-view of the phyCORE-module
showing these phyCORE-Connectors mounted on the underside of the module’s PCB.
L-771e_1 © PHYTEC Messtechnik GmbH 2012
14
Part I: PCM-051/phyCORE-AM335x System on Module
phyCORE-AM335x
Figure 4: Pinout of the phyCORE-Connector (top view, with cross section insert)
Table 3 provides an overview of the pinout of the phyCORE-Connector with signal names and descriptions
specific to the phyCORE-AM335x. It also provides the appropriate signal level interface voltages listed in the SL
(Signal Level) column and the signal direction.
Caution:
Most of the controller pins have multiple multiplexed functions. Because most of these pins are connected
directly to the phyCORE-Connector the functions are also available there. Signal names and descriptions in
Table 3 however, are in regard to the specification of the phyCORE-AM335x and the functions defined therein.
Please refer to the AM335x datasheet, or the schematic to to get to know about alternative functions. In order
to utilize a specific pin's alternative function the corresponding registers must be configured within the
appropriate driver of the BSP. To support all features of the phyCORE-AM335x Carrier Board a few changes
have been made in the BSP delivered with the module.
Table 33 lists all pins with functions different from what is described in Table 3.
The Texas Instruments AM335x is a multi-voltage operated microcontroller and as such special attention should
be paid to the interface voltage levels to avoid unintentional damage to the microcontroller and other on-board
components. Please refer to the Texas Instruments AM335x Reference Manual for details on the functions and
features of controller signals and port pins.
Note:
SL is short for Signal Level (V) and is the applicable logic level to interface a given pin.
15
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Part I: PCM-051/phyCORE-AM335x System on Module
Pin Row X3A
Pin #
Signal
Type
SL
Description
1A
GND
-
-
Ground 0 V
2A
VBAT_IN_4RTC
PWR
3V-5V
Optional always-on power for the Real-Time
Clock (RTC). If a backup batter is not used,
connect this pin to the primary 5V supply.
3A
VDIG1_1P8V
REF
1.8 V
1.8 V reference voltage out
4A
GND
-
-
Ground 0 V
5A
X_AM335_NMIn
IPU
3.3 V
Non-maskable interrupt to the AM335x
processor
6A
X_ETH1_RXn
IO
3.3 V
Ethernet PHY data minus
7A
X_ETH1_RXp
IO
3.3 V
Ethernet PHY data plus
8A
GND
-
-
Ground 0 V
9A
X_ETH1_TXn
IO
3.3 V
Ethernet PHY data minus
10A
X_ETH1_TXp
IO
3.3 V
Ethernet PHY data plus
11A
X_PB_RESETn
IN
3.3 V
Push-button reset
12A
GND
-
-
Ground 0 V
13A
X_ETH_LED2 / INTSELn
IO
3.3 V
Ethernet configuration input and speed LED
control output. For Ethernet configuration, this
signal should be pulled HIGH until system reset
is deasserted.
14A
X_ETH_LED1 / REGOFF
IO
3.3 V
Ethernet configuration input and activity LED
control output. For Ethernet configuration, this
signal should be pulled LOW until system reset is
deasserted.
15A
X_SPI0_SCLK
OUT
3.3 V
Serial Peripheral Interface 0 clock.
16A
GND
-
-
Ground 0 V
17A
X_SPI0_CS0
OUT
3.3 V
Serial Peripheral Interface 0 chip select 0.
This signal is not externally available in the
default SOM configuration as it connectes to a
SPI Flash.
18A
X_SPI0_CS1 / MMC0_SDCD
IO
3.3 V
Serial Peripheral Interface 0 chip select 1 or
MMC/SD0 Card Detect
19A
X_I2C0_SCL
IO
3.3 V
I²C bus 0 clock. Some I2C0 address are reserved.
See Section 3.9.5
20A
X_I2C0_SDA
IO
3.3 V
I²C bus 0 data.
21A
GND
-
-
Ground 0 V
22A
X_MCASP0_AXR0
IO
3.3 V
Multi-channel Audio Serial Port 0 data 0
23A
X_GPIO_3_17
IO
3.3 V
AM335x GPIO3_17
Table 3: Pinout of the phyCORE-Connector X3, Row A
L-771e_1 © PHYTEC Messtechnik GmbH 2012
16
Part I: PCM-051/phyCORE-AM335x System on Module
phyCORE-AM335x
Pin Row X3A
Pin #
Signal
Type
SL
Description
24A
X_MII1_TXD2
IN
3.3 V
Ethernet 1 MII transmit data
25A
X_MII1_TXD3
OUT
3.3 V
Ethernet 1 MII transmit data
26A
GND
-
-
Ground 0 V
27A
X_MCASP0_AHCLKX
IO
3.3 V
Multi-channel Audio Serial Port 0 Tx bit clock
28A
X_MCASP0_AXR1
IO
3.3 V
Multi-channel Audio Serial Port 0 data 1
29A
X_MCASP0_FSX
IO
3.3 V
Multi-channel Audio Serial Port 0 Tx frame sync
30A
X_PORZ
OUT
3.3 V
Power-on reset (low-true)
31A
GND
-
-
Ground 0 V
32A
X_UART0_TXD
OUT
3.3 V
UART0 Tx data from AM335x
33A
X_UART0_RXD
IN
3.3 V
UART0 Rx data to AM335x
34A
X_SPI0_D0
IN
3.3 V
Serial Peripheral Interface 0 Master-In-SlaveOut (MISO) data
35A
X_SPI0_D1
OUT
3.3 V
Serial Peripheral Interface 0 Master-Out-SlaveIn (MOSI) data
36A
GND
-
-
Ground 0 V
37A
X_LCD_D3 / P_MII0_TXD2
IO
3.3 V
LCD data 3 or PRU Ethernet 0 Tx data 2
38A
X_LCD_D2 / P_MII0_TXD3
IO
3.3 V
LCD data 2 or PRU Ethernet 0 Tx data 3
39A
X_LCD_D4 / P_MII0_TXD1
IO
3.3 V
LCD data 4 or PRU Ethernet 0 Tx data 1
40A
X_LCD_D5 / P_MII0_TXD0
IO
3.3 V
LCD data 5 or PRU Ethernet 0 Tx data 0
41A
GND
-
-
Ground 0 V
42A
X_LCD_D0 / P_MII0_MT_CLK
IO
3.3 V
LCD data 0 or PRU Ethernet 0 Tx clock
43A
X_LCD_D1 / P_MII0_TXEN
OUT
3.3 V
LCD data 1 or PRU Ethernet 0 Tx enable
44A
X_LCD_D13 / P_MII0_RXER
IO
3.3 V
LCD data 13 or PRU Ethernet 0 Rx error
45A
X_LCD_HSYNC
OUT
3.3 V
LCD horizontal sync
46A
GND
-
-
Ground 0 V
47A
X_USB0_DM
DIFF1 3.3 V
00
USB 0 data minus
48A
X_USB0_DP
DIFF1 3.3 V
00
USB 0 data plus
49A
X_LCD_D12 / P_MII0_RXLINK
IO
3.3 V
LCD data 12 or PRU Ethernet 0 Rx link
50A
X_LCD_BIAS_EN / P_MII1_CRS IO
3.3 V
LCD AC bias enable or PRU Ethernet 1 carrier
sense
51A
GND
-
-
Ground 0 V
52A
X_LCD_D8 / P_MII0_RXD3
IO
3.3 V
LCD data 8 or PRU Ethernet 0 Rx data 3
Table 3: Pinout of the phyCORE-Connector X3, Row A
17
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Part I: PCM-051/phyCORE-AM335x System on Module
Pin Row X3A
Pin #
Signal
53A
Type
SL
Description
X_LCD_D14 / P_MII0_MR_CLK IO
3.3 V
LCD data 14 or PRU Ethernet 0 Rx clock
54A
X_LCD_D15 / P_MII0_RXDV
IO
3.3 V
LCD data 15 or PRU Ethernet Rx data valid
55A
X_LCD_D6
OUT
3.3 V
LCD data
56A
GND
-
-
Ground 0 V
57A
X_LCD_D7
OUT
3.3 V
LCD data
58A
X_LCD_D9 / P_MII0_RXD2
IO
3.3 V
LCD data 9 or PRU Ethernet 0 Rx data 2
59A
X_LCD_D10 / P_MII0_RXD1
IO
3.3 V
LCD data 10 or PRU Ethernet 0 Rx data 1
60A
X_UART2_RX
IN
3.3 V
UART 2 Rx data to AM335x
Table 3: Pinout of the phyCORE-Connector X3, Row A
Pin Row X3B
Pin #
Signal
Type
SL
Description
1B
VDD_5V_IN
PWR
5.0 V
3.6 V - 5 V power input
2B
VDD_5V_IN
PWR
5.0 V
3.6 V - 5 V power input
3B
VDD_5V_IN
PWR
5.0 V
3.6 V - 5 V power input
4B
GND
-
-
Ground 0 V
5B
VDD_5V_IN
PWR
5.0 V
3.6 V - 5 V power input
6B
VAUX2_3P3V
REF
3.3 V
3.3 V reference Voltage
7B
GND
-
-
Ground 0 V
8B
X_UART1_CTS
IN
3.3 V
UART1 clear to send
9B
X_UART1_RTS
OUT
3.3 V
UART1 ready to send
10B
X_UART1_TX / P_UART0_TX
OUT
3.3 V
UART 1 Tx data or PRU UART0 Tx data
11B
X_UART1_RX / P_UART0_RX IN
3.3 V
UART 1 Rx data or PRU UART0 Rx data
12B
GND
-
-
Ground 0 V
13B
X_RESET_OUTn
OUT
3.3 V
Reset output
14B
X_PB_POWER
IN
5.0 V
Push-button power control. Behavior is configurable. See Section 3.4.3.3
15B
GPIO_3_19
IO
3.3 V
AM335x GPIO_3_19
16B
X_MCASP0_ACLKX
IO
3.3 V
Multi-channel Audio Serial Port 0 Tx bit clock
17B
GND
-
-
Ground 0 V
18B
X_USB1_DP
DIFF10 3.3 V
0
USB 1 data plus
19B
X_USB1_DM
DIFF10 3.3 V
0
USB 1 data minus
Table 4: Pinout of the phyCORE-Connector X3, Row B
L-771e_1 © PHYTEC Messtechnik GmbH 2012
18
Part I: PCM-051/phyCORE-AM335x System on Module
phyCORE-AM335x
Pin Row X3B
Pin #
Signal
Type
SL
Description
20B
GND
-
-
Ground 0 V
21B
X_USB1_DRVVBUS
OUT
3.3 V
USB 1 VBUS control output
22B
X_USB1_VBUS
USB
5.0 V
USB 1 bus voltage
23B
X_USB1_ID
IN
1.8 V
USB 1 port identification. 1.8 V logic.
24B
X_USB1_CE
OUT
3.3 V
USB 1 port charger enable
25B
GND
-
-
Ground 0 V
26B
X_ECAP0_IN_PWM0_OUT
IO
3.3 V
Enhanced Capture 0 input or Auxiliary Pulse-Width
Modulated 0 output
27B
GNDA_ADC
-
-
Analog Ground 0 V
28B
X_AIN7
analog 1.8 V
AM335x analog input 7
29B
X_AIN6
analog 1.8 V
AM335x analog input 6
30B
GNDA_ADC
-
Analog Ground 0 V
31B
X_AIN5
analog 1.8 V
AM335x analog input 5
32B
X_AIN4
analog 1.8 V
AM335x analog input 4
33B
GNDA_ADC
-
Analog Ground 0 V
34B
X_AIN2
analog 1.8 V
AM335x analog input 2 / Touch Y+
35B
X_AIN3
analog 1.8 V
AM335x analog input 3 / Touch Y-
36B
GNDA_ADC
-
Analog Ground 0 V
37B
X_AIN1
analog 1.8 V
AM335x analog input 1 / Touch X-
38B
X_AIN0
analog 1.8 V
AM335x analog input 0 / Touch X+
39B
X_AM335_EXT_WAKEUP
IN
1.8 V
AM335x processor external wakeup
40B
GND
-
-
Ground 0 V
41B
X_USB0_VBUS
IN
5.0 V
USB 0 bus voltage
42B
X_USB0_DRVVBUS
OUT
3.3 V
USB 0 VBUS control output
43B
X_USB0_ID
IN
1.8 V
USB 0 port identification. 1.8 V logic
44B
X_USB0_CE
OUT
3.3 V
USB 0 charger enable
45B
GND
-
-
Ground 0 V
46B
X_LCD_PCLK / P_MII0_CRS
IO
3.3 V
LCD pixel clock or PRU Ethernet 0 carrier sense
47B
X_LCD_VSYNC
OUT
3.3 V
LCD vertical sync
48B
GND
-
-
Ground 0 V
49B
X_LCD_D11 / P_MII0_RXD0
IO
3.3 V
LCD data 11 or PRU Ethernet 0 Rx data 0
50B
X_GPIO_1_9
IO
3.3 V
AM335x GPIO_1_9
51B
X_GPIO_1_8
IO
3.3 V
AM335x GPIO_1_8
-
-
-
Table 4: Pinout of the phyCORE-Connector X3, Row B
19
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Part I: PCM-051/phyCORE-AM335x System on Module
Pin Row X3B
Pin #
Signal
Type
SL
Description
52B
GND
-
-
Ground 0 V
53B
X_MMC0_CLK
IO
3.3 V
MMC / SDIO 0 clock
54B
X_MMC0_CMD
IO
3.3 V
MMC / SDIO 0 command
55B
X_MMC0_D0
IO
3.3 V
MMC / SDIO 0 data 0
56B
X_MMC0_D1
IO
3.3 V
MMC / SDIO 0 data 1
57B
GND
-
-
Ground 0 V
58B
X_MMC0_D2
IO
3.3 V
MMC / SDIO 0 data 2
59B
X_MMC0_D3
IO
3.3 V
MMC / SDIO 0 data 3
60B
X_UART2_TX
OUT
3.3 V
UART 2 Tx data to Carrier Board
Table 4: Pinout of the phyCORE-Connector X3, Row B
Pin Row X1A (Optional Connector)
Pin #
Signal
Type SL
Description
1A
X_RMII_RXER / MCASP1_FSX
IO
3.3 V
Ethernet1 RMII Rx error or Multichannel Audio Serial Port1 Tx frame
sync
2A
GND
-
-
Ground 0 V
3A
X_RMII1_RXD0 / GPIO_2_21
IO
3.3 V
Ethernet1 RMII Rx data 0 or AM335x
GPIO_2_21
4A
X_RMII1_RXD1 / GPIO_2_20
IO
3.3 V
Ethernet1 RMII Rx data 1 or AM335x
GPIO_2_20
5A
-
-
-
Reserved, no-connect
6A
-
-
-
Reserved, no-connect
7A
GND
-
-
Ground 0 V
8A
X_UART3_RX
IN
3.3 V
UART3 Rx data
9A
X_UART3_TX
OUT
3.3 V
UART3 Tx data
10A
X_RMII1_TXEN / MCASP1_AXR0
IO
3.3 V
Ethernet1 RMII Tx enable or Multichannel Audio Serial Port 1 data 0
11A
X_RMII1_TXD0 / GPIO_0_28
IO
3.3 V
Ethernet1 RMII Tx data 0 or AM335x
GPIO_0_28
12A
GND
-
-
Ground 0 V
13A
X_RMII1_TXD1 / GPIO_0_21
IO
3.3 V
Ethernet1 RMII Tx data 1 or AM335x
GPIO_0_21
14A
X_MII1_COL / MCASP1_AXR2
IO
3.3 V
Ethernet1 MII collision detect or Multichannel Audio Serial Port 1 data 2
Table 5: Pinout of the optional phyCORE-Connector X1, Row A
L-771e_1 © PHYTEC Messtechnik GmbH 2012
20
Part I: PCM-051/phyCORE-AM335x System on Module
phyCORE-AM335x
Pin Row X1A (Optional Connector)
Pin #
Signal
Type SL
Description
15A
X_RMII1_CRS / MCASP1_ACLKX
IO
3.3 V
Ethernet1 RMII carrier sense or Multichannel Audio Serial Port 1 Tx bit
clock
16A
X_GPMC_AD1
IO
3.3 V
General Purpose Memory Controller
interface Address/Data
17A
GND
-
-
Ground 0 V
18A
RMII1_REFCLK / GPIO_0_29
IO
3.3 V
Ethernet1 RMII reference clock
19A
-
-
-
Reserved, no-connect
20A
-
-
-
Reserved, no-connect
21A
-
-
-
Reserved, no-connect
22A
GND
-
-
Ground 0 V
23A
X_GPMC_AD0
IO
3.3 V
General Purpose Memory Controller
interface Address/Data
24A
X_GPMC_AD2
IO
3.3 V
General Purpose Memory Controller
interface Address/Data
25A
X_GPMC_AD4
IO
3.3 V
General Purpose Memory Controller
interface Address/Data
26A
X_GPMC_AD5
IO
3.3 V
General Purpose Memory Controller
interface Address/Data
27A
GND
-
-
Ground 0 V
28A
X_GPMC_AD3
IO
3.3 V
General Purpose Memory Controller
interface Address/Data
29A
X_GPMC_AD6
IO
3.3 V
General Purpose Memory Controller
interface Address/Data
30A
X_GPMC_AD7
IO
3.3 V
General Purpose Memory Controller
interface Address/Data
31A
-
-
-
Reserved, no-connect
32A
GND
-
-
Ground 0 V
33A
X_GPMC_ADVn_ALE
OUT
3.3 V
General Purpose Memory Controller
interface address valid / address latch
enable
34A
X_GPMC_BE0n_CLE
OUT
3.3 V
General Purpose Memory Controller
interface byte enable 0 / command
latch enable
35A
X_RGMII2_RCTL / MMC2_DAT0 / P_MII1_TXD3 IO
3.3 V
Ethernet 2 RGMII Rx control or MMC/
SDIO 2 data 2 or PRU Ethernet1 Tx data 3
Table 5: Pinout of the optional phyCORE-Connector X1, Row A
21
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Part I: PCM-051/phyCORE-AM335x System on Module
Pin Row X1A (Optional Connector)
Pin #
Signal
Type SL
Description
36A
X_RGMII2_TD3 / MMC2_DAT1 / P_MII1_TXD2
IO
3.3 V
Ethernet 2 RGMII Tx data 3 or MMC/SDIO
2 data 1 or PRU Ethernet1 Tx data 2
37A
GND
-
-
Ground 0 V
38A
X_RMII2_CRS_DV
IO
3.3 V
Ethernet 2 RMII CRS/DV signal.
This signal can replace the NAND
Ready/Busy signal to AM335x pin T17.
See section Section 3.9.3.2
39A
X_RGMII2_TD2 / MMC2_DAT2 / P_MII1_TXD1
IO
3.3 V
Ethernet 2 RGMII Tx data 2 or MMC/SDIO
2 data 2 or PRU Ethernet1 Tx data 1
40A
X_RGMII2_TD0 / P_MII1_RXD3
IO
3.3 V
Ethernet 2 RGMII Tx data 0 or PRU
Ethernet1 Rx data 3
41A
X_RGMII2_TCLK / MMC2_DAT4 / P_MII1_RXD2 IO
3.3 V
Ethernet 2 RGMII transmit clock or
MMC2 data 4 or PRU Ethernet1 Rx data 2
42A
GND
-
-
Ground 0 V
43A
X_RGMII2_RCLK / MMC2_DAT5 /
P_MII1_RXD1
IO
3.3 V
Ethernet 2 RGMII Rx clock or MMC/
SDIO 2 data 5 or PRU Ethernet1 Rx
data 1
44A
X_RGMII2_RD2 / MMC2_DAT7 /
P_MII1_MR1_CLK
IO
3.3 V
Ethernet 2 RGMII Rx data 2 or MMC/
SDIO 2 data 7 or PRU Ethernet1 Rx
clock
45A
X_RGMII2_RD1 / P_MII1_RXDV
IO
3.3 V
Ethernet 2 RGMII Rx data 1 or PRU
Ethernet1 Rx data valid
46A
X_RGMII2_RD0 / P_MII1_RXER
IO
3.3 V
Ethernet 2 RGMII Rx data 0 or PRU
Ethernet1 Rx error
47A
GND
-
-
Ground 0 V
48A
X_MMC2_CLK / P_MDIO_MDCLK
IO
3.3 V
MMC/SDIO 2 clock or PRU Ethernet1
MDIO clock
49A
-
-
-
Reserved, no-connect
50A
-
-
-
Reserved, no-connect
Table 5: Pinout of the optional phyCORE-Connector X1, Row A
L-771e_1 © PHYTEC Messtechnik GmbH 2012
22
Part I: PCM-051/phyCORE-AM335x System on Module
phyCORE-AM335x
Pin Row X1B (Optional Connector)
Pin #
Signal
Type SL
Description
1B
X_SPI_WPn
IPU
3.3 V
SPI FLASH write-protect (low-true)
2B
X_MDIO_DATA
IO
3.3 V
Ethernet MDIO interface data
3B
X_MDIO_CLK
OUT
3.3 V
Ethernet MDIO interface clock
4B
GND
-
-
Ground 0 V
5B
X_GPIO_3_18
IO
3.3 V
AM335x GPIO_3_18
6B
X_MII1_RCTL / GPIO_3_4
IO
3.3 V
Ethernet MII1 Rx control or AM335x
GPIO_3_4
7B
X_TDI
IN
3.3 V
JTAG data in
8B
X_TCK
IN
3.3 V
JTAG clock
9B
GND
-
-
Ground 0 V
10B
X_TDO
OUT
3.3 V
JTAG data out
11B
X_TRSTn
IN
3.3 V
JTAG reset (low-true)
12B
X_TMS
IN
3.3 V
JTAG mode select
13B
-
-
-
Reserved, no-connect
14B
GND
-
-
Ground 0 V
15B
X_INTR1
IPU
3.3 V
AM335x Interrupt 1
16B
X_INT_RTCn
OUT
3.0 V
External RTC interrupt (low-true)
17B
X_GPMC_WEn
OUT
3.3 V
General Purpose Memory Controller
write enable
18B
X_GPIO_3_8
IO
3.3 V
AM335x GPIO_3_8
19B
GND
-
-
Ground 0 V
20B
X_GPIO_3_7
IO
3.3 V
AM335x GPIO_3_7
21B
X_GPMC_CS0n
OUT
3.3 V
General Purpose Memory Controller
write enable
22B
X_GPMC_OEN_REn
OUT
3.3 V
General Purpose Memory Controller
output enable / read enable
23B
X_GPMC_WAIT / P_MII0_COL
IO
3.3 V
General Purpose Memory Controller
WAIT / PRU Ethernet0 collision
24B
GND
-
-
Ground 0 V
25B
X_PMIC_POWER_EN
IN
5V_PU PMIC power enable.
26B
X_LCD_D21
OUT
3.3 V
LCD data
27B
X_LCD_D23
OUT
3.3 V
LCD data
28B
X_LCD_D22 / P_MII0_COL
IO
3.3 V
LCD data / PRU Ethernet0 collision
detect
Table 6: Pinout of the optional phyCORE-Connector X1, Row B
23
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Part I: PCM-051/phyCORE-AM335x System on Module
Pin Row X1B (Optional Connector)
Pin #
Signal
Type SL
Description
29B
GND
-
-
Ground 0 V
30B
X_LCD_D20
OUT
3.3 V
LCD data
31B
X_LCD_D19
OUT
3.3 V
LCD data
32B
X_LCD_D18
OUT
3.3 V
LCD data
33B
X_P_MII1_TXEN
OUT
3.3 V
PRU Ethernet 1 MII Tx enable
34B
GND
-
-
Ground 0 V
35B
X_GPIO_CKSYNC
IO
3.3 V
PMIC clock-sync input or PMIC
General-Purpose-Input-Output
36B
LCD_D16
OUT
3.3 V
LCD data
37B
X_RGMII2_INT / MMC2_DAT3 / P_MII1_RXLINK IO
3.3 V
Ethernet 2 Rx data 3 or MMC/SDIO 2
data 6 or PRU Ethernet 1 Rx data 0
38B
X_LCD_D17
OUT
3.3 V
LCD data
39B
GND
-
-
Ground 0 V
40B
X_RGMII2_RD3 / MMC2_DAT6 / P_MII1_RXD0
IO
3.3 V
Ethernet2 Rx data 3 or MMC/SDIO2
data 6 or PRU Ethernet1 Rx data 0
41B
X_RGMII2_TD1 / P_MMI1_TXD0
IO
3.3 V
Ethernet2 Tx data 1 or PRU
Ethernet1 Tx data 0
42B
X_RGMII2_TCTL / P_MII1_MT_CLK
IO
3.3 V
Ethernet2 Tx control or PRU
Ethernet1 Tx clock
43B
-
-
-
Reserved, no-connect
44B
GND
-
-
Ground 0 V
45B
X_CLKOUT1
OUT
3.3 V
AM335x CLKOUT1, 25 MHz
46B
X_MMC2_CMD / P_MDIO_DATA
IO
3.3 V
MMC/SDIO2 command or PRU MDIO
data
47B
X_GPIO_1_30
IO
3.3 V
AM335x GPIO_1_30
48B
X_GPIO_1_31
IO
3.3 V
AM335x GPIO_1_31. Selects which
signal routes to AM335x pin T17.
0 = X_RMII2_CRS_DV. 1 = NAND
Ready/Busy
49B
GND
-
-
Ground 0 V
50B
-
-
-
Reserved, no-connect
Table 6: Pinout of the optional phyCORE-Connector X1, Row B
L-771e_1 © PHYTEC Messtechnik GmbH 2012
24
Part I: PCM-051/phyCORE-AM335x System on Module
phyCORE-AM335x
3.3 Jumpers
For configuration purposes, the phyCORE-AM335x has ten solder jumpers. These have been installed prior to
delivery.
Figure 5 depicts the jumper pad numbering scheme for reference when altering jumper settings on the board.
The beveled edge in the silkscreen around the jumper indicates the location of pin 1. Figure 6 indicates the
location of the solder jumpers on the board with pin 1 shown in green.
Table 7 below provides a functional summary of the solder jumpers which can be changed to adapt the
phyCORE-AM335x to your needs. It shows their default positions, and possible alternative positions and
functions. A detailed description of each solder jumper can be found in the applicable section listed in the table.
Figure 5: Typical Jumper Pad Numbering Scheme
25
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Part I: PCM-051/phyCORE-AM335x System on Module
Figure 6: SOM Jumper Locations (top view)
If manual jumper modification is required please ensure that the board as well as surrounding components and
sockets remain undamaged while de-soldering. Overheating the board can cause the solder pads to loosen,
rendering the module inoperable. Carefully heat neighboring connections in pairs. After a few alternations,
components can be removed with the solder-iron tip. Alternatively, a hot air gun can be used to heat and loosen
the bonds.
Please pay special attention to the "TYPE" column to ensure you are using the correct type of jumper (0 Ohm,
10 kOhms, etc.). The jumpers are either 0805 package or 0402 package with a 1/8 W or better power rating.
L-771e_1 © PHYTEC Messtechnik GmbH 2012
26
Part I: PCM-051/phyCORE-AM335x System on Module
phyCORE-AM335x
The jumpers on the AM335x SOM have the following functions:
Jumper
Setting
J1
Description
Type
J1 routes CLKOUT1 to either the phyCORE-Connector or to the Ethernet1
transceiver's clock input.
CLKOUT1 can be used for the Ethernet
refereence clock if the Ethernet1 interface is running in MII mode.
Use J1 together with J5 to select the
clock for the Ethernet 1 interface
0R (0805)
1+2
CLKOUT1 connects to the phyCORE for
use on the Carrier Board
2+3
CLKOUT1 connects to the Ethernet1
transceiver's clock input. Make sure
jumper J5 is set to (1+2) and XT3 is not
populated.
Table 23
J2 connects the low-true write-protect 0R (0402)
input of the NAND-Flash (U10) to either
the power-on reset signal or to GND.
On many NAND memory devices this pin
enables or disables the activation of the
lock function.
It is not guaranteed that the standard
NAND memory populating the phyCOREAM335x will have this lock function.
Please refer to the corresponding NAND
memory data sheet for more detailed
information.
J2
1+2
The NAND is locked
2+3
The NAND is not locked.
J3
J3 asserts the low-true HOLD input of
the SPI Flash (U5).
The HOLD function disables the SPI
Flash.
1+2
The SPI Flash is disabled, in HOLD.
2+3
The SPI Flash works normally.
Chapter
Section 3.7.2
0R (0805)
Section 3.7.4
Table 7: SOM Jumper Settings
27
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Jumper
Setting
Part I: PCM-051/phyCORE-AM335x System on Module
Description
Type
J4 connects the low-true write-protect 0R (0805)
input of the SPI-Flash (U5) to one of
three signals:
1. the power-on reset signal, X_PORZ.
This prevents data corruption during
power-up.
2. GND. This write-protects the Flash.
3. the SPI write-protect signal from the
Carrier Board, X_SPI_WPn.
Please refer to the corresponding memory data sheet for more information
about using the write-protect function.
J4
1+2
The SPI Flash's write-protect input is
controlled with the SPI Flash write-protect signal from the Carrier Board,
X_SPI_WPn
2+3
The SPI Flash is write-protected.
2+4
The SPI Flash is writable.
Jumper J5 is used together with jumper 0R (0402)
J1 to select the clock for the Ethernet1
transceiver.
To run RMII at 10M, the
AM335x_RMII1_REFCLK signal can be
used for the transceiver's clock input: J1
to (1+2) and J5 to (2+3).
To run RMII at 100M, populate a 50 MHz
crystal at XT3 for the clock input. This is
a SOM ordering option. Set jumpers J1
and J5 both to (1+2).
To run MII mode, set jumpers J1 and J5
so that CLKOUT1 routes to the transceiver's clock input: J1 to (2+3) and J5 to
(1+2).
J5
1+2
RMII1_REFCLK/GPIO0_29 routes to
the phyCORE connector. Use when the
Ethernet1 interface is running in MII
mode, or in RMII mode at 100M.
2+3
RMII1_REFCLK routes to the transceiver
clock input. Use when the Ethernet1
interface is running in RMII mode at
10M. Make sure jumper J1 is set to (1+2)
Chapter
Section 3.7.4
Table 23
Table 7: SOM Jumper Settings
L-771e_1 © PHYTEC Messtechnik GmbH 2012
28
Part I: PCM-051/phyCORE-AM335x System on Module
Jumper
Setting
J6
phyCORE-AM335x
Description
Type
Selects the COL/CRS signal for the
Ethernet1 transceiver depending on
whether it is running in MII or RMII
mode.
0R (0402)
1+2
Selects the COL/CRS signal for RMII
mode
2+3
Selects the COL/CRS signal for MII mode.
Table 23
J7 and J8 define the slave addresses (A1 0R (0805)
and A2) of the serial memory I²C EEPROM
(U6) on the I2C0 bus. In the high-nibble
of the address, I2C memory devices have
the slave ID 0xA. The low-nibble is built
from A2, A1, A0 and the R/W bit. A0 is set
to low.
J7, J8
J7.1+2
J8.2+3
other settings
J9
open
Please refer toTable 14to find alternative addresses resulting from other
combinations of jumpers J7 and J8.
0R (0805)
Section 3.7.3.2
I²C EERPROM is writable
I²C EEPROM is write-protected
J10 connects the PMICs VBACKUP pin to 0R (0805)
either the main system power,
VDD_5V_IN, or to the backup battery
power supply, VBAT_IN_4RTC
When the PMIC's VBACKUP pin connects
to the backup battery, the PMIC's RTC
can run when the main system power is
off and the PMIC can charge the backup
battery when the main system power is
on.
J10
Table 14
A1 = 1
A2 = 0
J9 connects the write-protection input
pin of the I²C EEPROM (U6) to GND.
On many memory devices this pin
enables or disables the activation of a
write protect function.
closed
Chapter
1+2
The backup battery does not connect to
the PMIC.
2+3
The backup battery connects to the PMIC
Section 3.4.3
Table 7: SOM Jumper Settings
29
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Part I: PCM-051/phyCORE-AM335x System on Module
3.4 Power
The phyCORE-AM335x operates off of a single 5.0 V system power supply.
The following sections of this chapter describe the power design of the phyCORE-AM335x.
3.4.1 Primary System Power (VDD_5V_IN)
The phyCORE-AM335x operates off of a primary voltage supply with a nominal value of +5.0 V. On-board switching regulators generate the 1.1 V, 1.5 V, 1.8 V and 3.3 V voltage supplies required by the AM335x processor and
on-board components from the primary 5.0 V supplied to the SOM.
For proper operation the phyCORE-AM335x must be supplied with a voltage source of 5.0 V ± 5% with at least
1.0 A capacity at the VCC pins on the phyCORE-Connector X3.
VDD_5V_IN:
X3
1B, 2B, 3B, 5B
Connect all +5 V VCC input pins to your power supply and at least the matching number of GND pins.
Corresponding GND:
X3
1A, 4A, 8A, 4B, 7B
Please refer to Section 3.2 for the location of additional GND pins located on the phyCORE-Connector X3.
Caution:
As a general design rule we recommend connecting all GND pins neighboring signals which are being used in
the application circuitry. For maximum EMI performance all GND pins should be connected to a solid ground
plane.
3.4.2 Backup Power (VBAT_IN_4RTC)
To backup the RTC on the module, a secondary voltage source of 3 V can be attached to the phyCORE-AM335x at
pin X3.A2. This voltage source supplies the backup voltage domain VBACKUP of the phyCORE-AM335x which
supplies the RTC (either the RTC integrated in the PMIC or the external RTC) and some critical registers when the
primary system power (VCC_5V_IN) is removed.
Applications not requiring a backup mode should connect the VBAT pin to the primary system power supply,
VDD_5V_IN.
3.4.3 Power Management IC (U4)
The phyCORE-AM335x provides an on-board Power Management IC (PMIC), Texas Instruments TPS65910A3, at
position U4 to source the different voltages required by the processor and on-board components.
Figure 7 presents a graphical depiction of the SOM powering scheme.
The PMIC supports many functions including an integrated RTC and different power management functions.
It is connected to the AM335x via the I2C0 interface. The I2C0 addresses of the Power Management IC is 0x2D.
The smart reflex address is 0x12 (7 MSB addressing).
Please refer to the Power Management IC's Datasheet and User Guide for further information.
L-771e_1 © PHYTEC Messtechnik GmbH 2012
30
Part I: PCM-051/phyCORE-AM335x System on Module
phyCORE-AM335x
3.4.3.1 Power Domains
The PMIC has two input voltage rails VDD_5V_IN and VBAT_IN_4RTC, as can be seen in Figure 7 .
VDD_5V_IN is supplied from the primary voltage input pins VDD_5V_IN of the phyCORE-AM335x.
VBAT_IN_4RTC may optionally be supplied to the PMIC from the secondary voltage input pin X3.A3 through
jumper J10.
The following tables summarize the relation between the different voltage rails and the devices on the
phyCORE-AM335x:
External Voltage Name
in Schematics
Description
Goes to
VDD_5V_IN
5 V main system power supply
U4 PMIC
VBAT_IN_4RTC
3 V optional backup battery supply
U4 PMIC. if jumper J10 is installed at (2+3)
U11 power switch
Table 8: External Supply Voltages
PMIC Output
Name in Schematics
Voltage
Goes to
VDD1
VDD1_1P1V
1.1 V
AM335x MPU
VDD2
VDD_CORE_1P1V
1.1 V
AM335x Core
VIO
VDDR_1P5V
1.5 V
AM335x SDRAM and SDRAM devices
VDIG1
VDIG1_1P8V
1.8 V
phyCORE connector
VDIG2
VDIG2_1P8V
1.8 V
AM335x PLLs and oscillator
VAUX1
VAUX1_1P8V
1.8 V
AM335x USB
VAUX2
VAUX2_3P3V.
3.3 V
phyCORE connector and AM335x VDDSHV2, VDDSHV3
and VDDSHV4
VAUX33
VAUX33_3P3V
3.3 V
AM335x USB
VDAC
VDAC_1P8V
1.8 V
AM335x VDDS
VPLL
VPLL_1P8V
1.8 V
AM335x Analog/Digital Converter (ADC)
VMMC
VMMC_3P3V
3.3 V
AM335x VDDSHV1, VDDSHV5, VDDSHV6 and digital
devices
VRTC
VRTC_1P8V
1.8 V
PMIC BOOT1 pin
Table 9: PMIC Generated Voltages
31
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Part I: PCM-051/phyCORE-AM335x System on Module
Figure 7: Power Supply Diagram
3.4.3.2 Real Time Clock (RTC)
The PMIC, which is populated on the module, provides a real time clock (RTC) with alarm and timekeeping
functions. The RTC is supplied by the backup voltage VBAT_IN_4RTC when the main power supply VDD_5V_IN is
not applied if jumper J10 is installed at (2+3).
The RTC stores the time (seconds / minutes / hours) and date (day / month / year / day of the week) information
in binary-coded decimal (BCD) code up to year 2099. It can generate two programmable interrupts. The timer
interrupt is a periodically generated interrupt (1 second / 1 minute / 1 hour / 1 day period), while the alarm
interrupt can be generated a precise time of the day to initiate a wake-up of the platform.1
1.
All special functions of the PMIC such as RTC interrupts, use of power groups, etc. require the PMIC to be programmed via I2C interface. At the time of delivery only the generation of the required voltages is implemented. Please refer to the Power Management
IC's User Guide. for more information on how to program the PMIC.
L-771e_1 © PHYTEC Messtechnik GmbH 2012
32
Part I: PCM-051/phyCORE-AM335x System on Module
phyCORE-AM335x
3.4.3.3 Power Management
The PMIC provides different power management functions. Two signals to control the power-on/off state of the
system (X_PB_POWER and X_PMIC_POWER_EN) are available.
The following table shows the power management signals and their functions.
Pin #
Signal name
Connected to
Description
X3B14
X_PB_POWER
phyCORE-Connector (X3) External switch-on control (ON button).
The PMIC's response to this signal can be
configured in the PMIC registers. See the
PMIC's User Guide for more information.
X1B25
X_PMIC_POWER_EN
phyCORE-Connector (X1) Switch-on/-off control signal. The PMIC's
response to this signal can beconfigured in
the PMIC registers. See the PMIC's User
Guide for more information.
Table 10: Power Management Signals
3.4.3.4 External Battery Charging
The Power Management IC is able to charge the VBACKUP battery when the main system power is on if jumper
J10 is installed at pins (2+3). Enabling and configuring the battery charger is done through the PMIC's control
registers. Please see the PMIC's User Guide for detailed information.
3.4.4 Reference Voltages
The voltage level of the phyCOREs logic circuitry is 3.3 V with a few exceptions. All of the signals with their
interface voltages are listed in Table 3. In order to allow external devices to avoid driving interface signals into
the SOM before it is powered, a reference voltage, VAUX2_3P3V, is brought out at pin X3.B6 of the phyCOREConnector. This voltage should be used to determine when the SOM voltages are on, and so signals can be driven
to the SOM without damaging any devices.
Use of level shifters supplied with VAUX2_3P3V allows converting the signals according to the needs on the
custom target hardware. Alternatively signals can be connected to an open drain circuitry with a pull-up resistor
attached to VAUX2_3P3V.
A second voltage supplied by the SOM is VDIG1_1P8V.
VDIG1_1P8V is provided for customer use. The VDIG1_1P8V voltage is brought out at pin X3.A3.
Please take care not to load the reference voltages too heavily to avoid any disfunction or damage of the
module. The following maximum loads are allowed:
•
VDIG1_1P8V (1.8 V): 300 mA
•
VAUX2_3P3V (3.3 V): 150 mA
33
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Part I: PCM-051/phyCORE-AM335x System on Module
3.5 Real-Time Clock Options (RTC)
There are three options for an RTC on the AM335x-SOM.
3.5.1 PMIC RTC
The default RTC is the one integrated in the Power Management IC at U4. This RTC includes alarm and
timekeeping functions. The RTC is supplied by the main system power when it is on, and by the backup battery
voltage VBAT_IN_4RTC, if present, when the main system power is off and the jumper J10 has been moved from
its default position of (1+2) to position (2+3).
3.5.2 External RTC
The SOM also provides an ordering option to populate an additional, external RTC at U2. This external RTC uses
less power than the RTC integrated in the PMIC, and it could be used where very-low battery power is important.
The external RTC typically uses 350 nA. For comparison, the PMIC's RTC typically uses 6 uA. When using the
external RTC, a low-power supervisory device must be populated at U11. The supervisor supplies the power to
the external RTC from the system when the system is on, or from the VBAT_IN_4RTC backup battery supply when
the system is off, using very low operating current.
3.5.3 AM335x RTC
The AM335x processor also includes an integrated RTC. However, the RTC integrated in the AM335x uses significantly more power than the RTC in the PMIC. Because of this power disadvantage, the SOM has not been
designed to support the AM335x RTC with backup power.
3.5.4 Power-On Wake
Two signals, the interrupts from the external RTC (X_INT_RTCn) and from the PMIC's RTC
(X_MII1_RCTL/_GPIO3_4 ), are provided at the phyCORE connector to drive an external power wake circuit not
provided on the SOM, allowing the RTCs to wake the system from sleep at a specified time.
L-771e_1 © PHYTEC Messtechnik GmbH 2012
34
Part I: PCM-051/phyCORE-AM335x System on Module
phyCORE-AM335x
3.6 System Configuration and Booting
Although most features of the AM335x microcontroller are configured or pro­grammed during the initialization
routine, other features which impact program execution must be configured prior to initialization via pin
termination.
The system start-up configuration includes:
•
Clock configuration
•
Boot configuration
During the power-on reset cycle the operational system boot mode of the AM335x processor is determined by
the configuration of 16 SYSBOOT pins SYS_BOOT[15:0]. These are multiplexed onto the LCD_DATA[15:0] pins.
Pins SYS_BOOT[4:0] are used to select interfaces or devices for the booting list. Pin SYS_BOOT[5] enables or
disables the master oscillator clock out signal, CLKOUT1. Pins SYS_BOOT[7:6] set the PHY mode for booting from
Ethernet. Pin SYS_BOOT[8] identifies the boot device as having 8- or 16-bit bus width. Pin SYS_BOOT[9]
determines whether ECC is handled by the ROM or by the NAND Flash. Pins SYS_BOOT[15:14] set the master
oscillator frequency. All 16 pins are sampled and latched into the SYS_BOOT register bit field on the rising edge
of the power-on reset signal, X_PORZ.
The internal ROM code is the first code executed during the initialization process of the AM335x after power-on
reset. Besides the other configurations, the ROM code detects which boot devices the controller has to check by
using the SYS_BOOT[4:0] pin configuration. For peripheral boot devices, the ROM code polls the communication
interface selected, initiates the download of the code into the internal RAM and triggers its execution from
there. Peripheral booting is normally not applicable only after a warm reset. For memory booting, the ROM code
finds the bootstrap in permanent memories such as NAND-Flash or SD-Cards and executes it. Memory booting is
normally applicable after a cold or a warm reset. Please refer to the AM335x Technical Reference Manual for
more information.
Configuration circuitry (pull-up and pull-down resistors connected to SYS_BOOT[15:0]) is located on the
phyCORE module, so no further settings are necessary. The boot configuration of pins SYS_BOOT[4:0] on the
standard module with 512 MB NAND Flash is ‘0b10011’. Consequently, the system tries to boot from NANDFlash first, and, in case of a failure, successively from NANDI2C, MMC0 and UART0.
The on-board configuration circuitry of SYS_BOOT[15:0] can be overridden by pull-up, or pull-down resistors
connected to the boot configuration pins X_LCD_D[15:0] of the phyCORE-AM335x.
The following tables show the different boot device orders, which can be selected by configuring the five bootorder configuration pins, X_LCD_D[4:0] of the phyCORE-AM335x. Please note that only a subset of possible
configurations are listed in the tables. For a complete list of the AM335x boot modes please refer to the Texas
Instruments AM335x Technical Reference Manual.
35
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Boot Mode Selection X_LCD_D[4:0]
Part I: PCM-051/phyCORE-AM335x System on Module
Booting Device Order
1st
2nd
3rd
4th
00010
UART0
SPI0
NAND
NANDI2C
00110
EMAC1
SPI0
NAND
NANDI2C
01011
USB0
NAND
SPI0
MMC0
10010
NAND
NANDI2C
USB0
UART0
10011
NAND
NANDI2C
MMC0
UART0
10100
NAND
NANDI2C
SPI0
EMAC1
10110
SPI0
MMC0
UART0
EMAC1
10111
MMC0
SPI0
UART0
USB0
11000
SPI0
MMC0
USB0
UART0
11001
SPI0
MMC0
EMAC1
UART0
11100
MMC1
MMC0
UART0
USB0
Table 11: Boot Device Order of AM335x Module1
1.
Defaults are in bold blue text
L-771e_1 © PHYTEC Messtechnik GmbH 2012
36
Part I: PCM-051/phyCORE-AM335x System on Module
phyCORE-AM335x
3.7 System Memory
The phyCORE-AM335x provides four types of on-board memory:
•
DDR3 SDRAM
•
NAND Flash
•
SPI Flash
•
I2C-EEPROM
These following sections of this chapter detail each memory type used on the phyCORE-AM335x.
3.7.1 DDR3-SDRAM (U7, U9)
The RAM memory of the phyCORE-AM335x is comprised of two 8-bit wide DDR3-SDRAM chips at U7 and U9.
The effective bus is 16-bits wide. The chips are connected to the dedicated DDR interface called the Extended
Memory Interface (EMIF) of the AM335x processor.
The DDR3-SDRAM memory is accessed via the EMIF0 port starting at 0x8000 0000.
Typically the DDR3-SDRAM initialization is performed by a boot loader or operating system following a
power-on reset and must not be changed at a later point by any application code. When writing custom code
independent of an operating system or boot loader, SDRAM must be initialized through the appropriate SDRAM
configuration registers on the AM335x controller. Refer to the AM335x Technical Reference Manual about
accessing and configuring these registers.
3.7.2 NAND Flash Memory (U10)
The use of NAND flash as non-volatile memory on the phyCORE-AM335x provides an easily reprogrammable
means of code storage.
The NAND Flash memory is connected to the AM335x GPMC interface with a bus-width of 8-bits on its CS0
chip-select signal. The full GPMC interface is available on the phyCORE connectors. See the AM335x datasheet
for the pin-multiplexing options. The locations of the subset of the GPMC interface used for the NAND flash is
shown in Table 12.
Signal
SOM pin
GPIO ExpanType
sion Board Pin
SL
Description
X_GPMC_AD0
X1A23
3A
IO
3.3 V
Address / Data 0
X_GPMC_AD1
X1A16
2A
IO
3.3 V
Address / Data 1
X_GPMC_AD2
X1A24
5A
IO
3.3 V
Address / Data 2
X_GPMC_AD3
X1A28
6A
IO
3.3 V
Address / Data 3
X_GPMC_AD4
X1A25
8A
IO
3.3 V
Address / Data 4
X_GPMC_AD5
X1A26
9A
IO
3.3 V
Address / Data 5
X_GPMC_AD6
X1A29
11A
IO
3.3 V
Address / Data 6
X_GPMC_AD7
X1A30
12A
IO
3.3 V
Address / Data 7
X_GPMC_ADVn_ALE
X1A33
14A
IO
3.3 V
Address Latch Enable
X_GPMC_BE0n_CLE
X1A34
15A
IO
3.3 V
Byte 0 Enable
Table 12: NAND GPMC Signal Map
37
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Part I: PCM-051/phyCORE-AM335x System on Module
Signal
SOM pin
GPIO ExpanType
sion Board Pin
SL
Description
X_GPMC_CS0n
X1B21
17A
IO
3.3 V
Chip select 0
X_GPMC_OEn_REn
X1B22
18A
IO
3.3 V
Output enable / Read enable
X_GPMC_WEn
X1B17
19A
IO
3.3 V
Write enable
Table 12: NAND GPMC Signal Map
The Flash device is programmable with 3.3 V. No dedicated programming voltage is required.
As of the printing of this manual NAND Flash devices generally have a life expectancy of at least 100,000 erase/
program cycles and a data retention rate of 10 years.
3.7.2.1 NAND Flash Lock Control (J2)
Jumper J2 controls the block lock feature of the NAND Flash (U10). Setting this jumper to position (1 + 2)
enables the block lock commands and protects or locks all blocks of the device, while position (2 + 3) will disable
the block lock commands. The block lock feature can only be enabled or disabled at power-on of the NAND Flash
device. The following configurations are possible:
NAND Flash Lock State
J2
Block lock commands disabled
2+3
Block lock commands enabled
1+2
Table 13: NAND Flash Lock Control via J21
1.
Defaults are in bold blue text
3.7.3 I2C EEPROM (U6)
The phyCORE-AM335x can be populated with a non-volatile 4 KB EEPROM with an I2C interface as an ordering
option. This memory can be used to store configuration data or other general purpose data. This device is
accessed through I2C port 0 on the AM335x.
Two solder jumpers are provided to set two of the lower address bits: J7 and J8. Refer to Section 3.7.3.1 for
details on setting these jumpers.
Write protection to the device is accomplished via jumper J9. Refer to Section 3.7.3.2 for details on setting this
jumper.
L-771e_1 © PHYTEC Messtechnik GmbH 2012
38
Part I: PCM-051/phyCORE-AM335x System on Module
phyCORE-AM335x
3.7.3.1 Setting the EEPROM Lower Address Bits (J7, J8)
The I²C EEPROM populating U6 on the phyCORE-AM335x SOM allows the user to configure the lower address bits
A0, A1, and A2. The four upper address bits of the 7-bit address are fixed at ‘1010’. On the SOM, A0 is tied to
GND. J7 sets address bit A1. And J8 sets address bit A2.
Table 14 below shows the resulting seven bit I2C device address for the four possible jumper configurations.
U6 I2C Device Address
J8
J7
1010 000x
2+3
2+3
1010 010x
2+3
1+2
1010 100x
1+2
2+3
1010 110x
1+2
1+2
Table 14: U6 EEPROM I2C Address via J7 and J81
1.
The default address is shown is bold blue text
3.7.3.2 EEPROM Write Protection Control (J9)
Jumper J9 controls write access to the EEPROM (U6) device. Closing this jumper allows write access to the
device, while removing this jumper will cause the EEPROM to enter write protect mode, thereby disabling write
access to the device.
The following configurations are possible:
EEPROM Write Protection State
J9
Write access allowed
closed
Write protected
open
Table 15: EEPROM Write Protection States Via J91
1.
39
Defaults are in bold blue text
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Part I: PCM-051/phyCORE-AM335x System on Module
3.7.4 SPI Flash Memory (U5)
The phyCORE-AM335x can be populated with a SPI Flash memory device as an ordering option. This would be
suitable for applications which require a small code footprint or small RTOSes.
Using a SPI Flash can eliminate the need to install NAND Flash memory on the SOM. This could reduce BOM costs,
free up the NAND signals for other devices on the AM335x GPMC interface, and remove the need for doing the
bad block management that is required when using NAND Flash.
3.7.4.1 SPI Write-Protect Control (J4)
The SPI Flash includes a write-protect feature. Jumper J4 provides the option to use the SPI flash normally, to
write-protect it, or to allow a signal from the carrier board (X_SPI_WPn) to control the SPI Flash's write-protection. These options are listed in Table 16
SPI Flash Write-Protection
J4
SPI Flash is writeable
2+4
SPI Flash is write-protected
2+3
SPI Flash write-protection is controlled by signal X_SPI_WPn from the carrier board
2+1
1
Table 16: SPI Flash Write-Protection via J4
1.
Defaults are in bold blue text
3.7.4.2 SPI Hold Control (J3)
The SPI Flash includes a hold feature which disables the SPI Flash. The hold feature is controlled with jumper J3.
In the default configuration, jumper J3 is installed at (2+3) and the SPI Flash operates normally on SPI0 chip
select 0.
When jumper J3 is installed at (1+2), the SPI Flash is in hold and SPI0 chip select 0 is available for another
device.
These options are listed in Table 17.
SPI Flash Hold State
J3
SPI Flash works normally
2+3
SPI Flash is in hold
1+2
Table 17: SPI Hold Control via J31
1.
Defaults are in bold blue text
3.7.5 Memory Model
There is no special address decoding device on the phyCORE-AM335x, which means that the memory model is
given according to the memory mapping of the AM335x. Please refer to the AM335x Technical Reference Manual
for the memory map.
L-771e_1 © PHYTEC Messtechnik GmbH 2012
40
Part I: PCM-051/phyCORE-AM335x System on Module
phyCORE-AM335x
3.8 SD / MMC Card Interfaces
The phyCORE-AM335x includes three SD / MMC Card interfaces: MMC0, MMC1 and MMC2. Table 18 shows the
location of the MMC0 interface signals identified on the phyCORE-Connector.
Pin #
Signal
Type
SL
Description
X3B54
X_MMC0_CMD
IO
3.3 V
SD / MMC0 command
X3B53
X_MMC0_CLK
OUT
3.3 V
SD / MMC0 clock
X3B55
X_MMC0_DAT0
IO
3.3 V
SD / MMC0 data bit 0
X3B56
X_MMC0_DAT1
IO
3.3 V
SD / MMC0 data bit 1
X3B58
X_MMC0_DAT2
IO
3.3 V
SD / MMC0 data bit 2
X3B59
X_MMC0_DAT3
IO
3.3 V
SD / MMC0 data bit 3
X3A18
X_MMC0_SDCD
IN
3.3 V
SD / MMC0 card detect
Table 18: SD / MMC0 Interface Signal Locations
41
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Part I: PCM-051/phyCORE-AM335x System on Module
3.9 Serial Interfaces
The phyCORE-AM335x provides numerous serial interfaces, some of which are equipped with a transceiver to
allow direct connection to external devices:
1. Up to four high speed Universal Asynchronous Receiver/Transmitter (UART) interfaces with up to 3.6 Mbps
at TTL level. These support IrDA and CIR modes, and RTS and CTS flow control. One of them, UART1, which
provides full modem control, is intended to be used for CAN, or Profibus connectivity.
2. Two high speed Universal Serial Bus On-The-Go (USB OTG) interfaces with integrated transceivers
3. One two-port 10/100/1000 Ethernet Media Access Controller (EMAC) in the MCU which supports MII, RMII
and RGMII Ethernet modes. The phyCORE-AM335x includes a 10/100 Ethernet transceiver on the Ethernet0
port.
4. One two-port 10/100 Ethernet Media Access Controller (EMAC) in the PRU which supports EtherCAT
5. One Profibus interface
6. OneInter-Integrated Circuit (I²C) interfaces
7. One Serial Peripheral Interface (SPI) interfaces
8. Up to two Controller Area Network (CAN) interfaces
9. Up to two Multichannel Audio Serial Port (McASP) interfaces
The following sections of this section detail each of these serial interfaces.
Caution:
Please pay special attention to the Signal Level (SL) column in the following tables. Most, but not all, of the
serial interfaces signal level is 3.3 V.
3.9.1 Universal Asynchronous Receiver/Transmitter Interfaces (UARTs)
The phyCORE-AM335x provides ´four high speed universal asynchronous interface with up to 3.6 Mbps.
These are part of the AM335x MPU. All of these UARTs support IrDA and CIR modes and hardware flow control
with RTS and CTS signals. One of them, UART1, supports full modem control.
The following table shows the location of the UART signals which are identified by name on the phyCORE
connectors.
Pin #
Signal
Type
SL
Description
X3A32
X_UART0_TXD
OUT
3.3 V
UART 0 transmit data
X3A33
X_UART0_RXD
IN
3.3 V
UART 0 receive data
X3B10
X_UART1_TXD
OUT
3.3 V
UART 1 transmit data
X3B11
X_UART1_RXD
IN
3.3 V
UART 1 receive data
X3B8
X_UART1_CTS
IN
3.3 V
UART 1 clear to send
X3B9
X_UART1_RTS
OUT
3.3 V
UART 1 request to send
X3B60
X_UART2_TX
OUT
3.3 V
UART 2 transmit data 1
X3A60
X_UART2_RX
IN
3.3 V
UART 2 receive data 1
X1A9
X_UART3_TX
OUT
3.3 V
UART 3 transmit data 1
X1A8
X_UART3_RX
IN
3.3 V
UART 3 receive data 1
Table 19: UART Signal Locations
1. These UART2 and UART3 signals are not available if the Ethernet1 interface is configured for MII mode. Please see the AM335x
Datasheet for pin options.
L-771e_1 © PHYTEC Messtechnik GmbH 2012
42
Part I: PCM-051/phyCORE-AM335x System on Module
phyCORE-AM335x
3.9.2 USB OTG Interface
The phyCORE-AM335x provides two high speed USB OTG interfaces which use the AM335x embedded HS
USB-OTG PHY. An external USB Standard-A (for USB host), USB Standard-B (for USB device), or USB mini-AB
(for USB OTG) connector is all that is needed to inteface the phyCORE-AM335x USB OTG functionality. The applicable interface signals can be found on the phyCORE-Connector as shown in Table 20.
Caution:
Note the voltage level on the USB ID signals, X_USB0_ID and X_USB1_ID, is 1.8 V. Steady state voltages above
2.1 V applied to either of these signals may damage the AM335x.
Pin #
Signal
Type
SL
Description
X3A48
X_USB0_DP
IO
3.3 V
USB0 data plus
X3A47
X_USB0_DM
IO
3.3 V
USB0 data minus
X3B43
X_USB0_ID
IN
1.8 V
USB0 connector identification signal
X3B41
X_USB0_VBUS
IN
5.0 V
USB0 VBUS detection input
X3B42
X_USB0_DRVVBUS OUT
3.3 V
USB0 VBUS control output
X3B44
X_USB0_CE
OUT
3.3 V
USB0 charger enable
X3A23
X_GPIO3_17
IN
3.3 V
USB0 over-current detection, low true
X3B18
X_USB1_DP
IO
3.3 V
USB1 data plus
X3B19
X_USB1_DM
IO
3.3 V
USB1 data minus
X3B23
X_USB1_ID
IN
1.8 V
USB1 connector identification signal
X3B22
X_USB1_VBUS
IN
5.0 V
USB1 VBUS detection input
X3B21
X_USB1_DRVVBUS OUT
3.3 V
USB1 VBUS control output
X3B24
X_USB1_CE
OUT
3.3 V
USB1 charger enable
X1B5
X_GPIO3_18
IN
3.3 V
USB1 over-current detection, low true
Table 20: USB OTG Signal Locations
43
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Part I: PCM-051/phyCORE-AM335x System on Module
3.9.3 Ethernet Interfaces
Connection of the phyCORE-AM335x to the world wide web or a local area network (LAN) is possible using the
AM335x processor's integrated 10/100/1000 Ethernet switch. The switch has two ports: Ethernet1 and
Ethernet2. The phyCORE-AM335x provides access to both of these ports.
3.9.3.1 Ethernet1
With an Ethernet tranceiver mounted at U3 the phyCORE-AM335x has been designed for use in 10Base-T and
100Base-T networks. The 10/100Base-T interface with its LED signals extends to phyCORE-Connector X3.
X3 Pin #
Signal
Type
SL
Description
X3A10
X_ETH_TX+
DIFF100
3.3 V
Ethernet transmit positive output
X3A9
X_ETH_TX-
DIFF100
3.3 V
Ethernet transmit negative output
X3A13
X_ ETH_LED2
OUT
3.3 V
Ethernet Speed Indicator (open drain)
X3A7
X_ETH_RX+
DIFF100
3.3 V
Ethernet receive positive input
X3A6
X_ETH_RX-
DIFF100
3.3 V
Ethernet receive negative input
X3A14
X_ETH_LED1
OUT
3.3 V
Ethernet link indicator (open drain)
Table 21: Ethernet1 Signal Locations
The LAN8710AI Ethernet tranceiver supports HP Auto-MDIX technology, eliminating the need for the consideration of a direct connect LAN cable, or a cross-over patch cable. It detects the TX and RX pins of the connected
device and automatically configures the PHY TX and RX pins accordingly. The interrupt signal of the LAN8710AI
connects to the AM335x interrupt 1 signal (X_INTR1) if resistor R55 is installed. Resistor R55 is not installed by
default.
Connecting the phyCORE-AM335x to an existing 10/100Base-T network involves adding an RJ45 and appropriate magnetic devices in your design. The required 50 Ohm +/-1 % termination resistors on the analog signals
(ETH_RX±, ETH_TX±) are already populated on the module. Connection to an external Ethernet magnetics
should be done using short signal traces. The TX+/TX- and RX+/RX- signals should be routed as 100 Ohm
differential pairs. The same applies for the signal lines after the transformer circuit. The carrier board layout
should avoid any other signal lines crossing the Ethernet signals.
The two LED control output signals for the Ethernet1 interface are also configuration inputs for the Ethernet
transceiver on the SOM. To ensure the transceiver powers up into the planned configuration, with its internal
voltage regulator and interrupt signal enabled, the X_ETH_LED2/_INTSELn signal should connect on the GND
side of its LED, and the X_ETH_LED1/_REGOFF signal should connect on the power side of its LED. Please consult
the phyCORE-AM335x Carrier Board schematics or the SMSC LAN8710A datasheet for a reference circuit.
Caution:
Please see the datasheet of the SMSC LAN8710A Ethernet controller when designing the Ethernet transformer
circuitry.
L-771e_1 © PHYTEC Messtechnik GmbH 2012
44
Part I: PCM-051/phyCORE-AM335x System on Module
phyCORE-AM335x
The AM335x Ethernet1 MII/RMII signals also route to the phyCORE connectors. This provides the option to not
populate the Ethernet transceiver (U3) on the SOM, to use these signals for other purposes.
Pin #
Signal
Type
SL
Description
X1B3
X_MDIO_CLK
OUT
3.3 V
Ethernet MDIO inteface clock
X1B2
X_MDIO_DATA
IO
3.3 V
Ethernet MDIO interface data
X3B60
X_UART2_TX
IO
3.3 V
MII/RMII Rx clock
X1B6
X_MII1_RCTL/_GPIO3_4
IO
3.3 V
MII Rx data valid
X1A1
X_RMII1_RXER_/MCASP1_FSX
IO
3.3 V
RMII Rx error
X1A3
X_RMII1_RXD0/_GPIO2_21
IO
3.3 V
RMII/MII Rx data 0
X1A4
X_RMII1_RXD1/_GPIO2_20
IO
3.3 V
RMII/MII Rx data 1
X1A9
X_UART3_TX
IO
3.3 V
MII Rx data 2
X1A8
X_UART3_RX
IO
3.3 V
MII Rx data 3
X3A60
X_UART2_RX
IO
3.3 V
MII/RMII Tx clock
X1A10
X_RMII1_TXEN/_MCASP1_AXR0 IO
3.3 V
MII/RMII Tx enable
X1A11
X_RMII1_TXD0/_GPIO0_28
IO
3.3 V
RMII/MII Tx data 0
X1A13
X_RMII1_TXD1/_GPIO0_21
IO
3.3 V
RMII/MII Tx data 1
X3A24
X_DCAN0_RX
IO
3.3 V
MII Tx data 2
X3A25
X_DCAN0_TX
IO
3.3 V
MII Tx data 3
X1A14
X_MII1_COL/MCASP1_AXR2
IO
3.3 V
MII COL
X1A15
X_RMII1_CRS/_MCASP1_ACLKX
IO
3.3 V
MII CRS / RMII CRS_DV
Table 22: Ethernet1 TTL Signal Locations
3.9.3.1.1 Configuring the Ethernet1 Interface Mode
The phyCORE-AM335x design allows the transceiver on the Ethernet1 interface to run in either RMII or MII
mode. The RMII mode has the advantage that it uses fewer signals than MII mode, freeing up some signals to be
used for other uses, including UART2, UART3 and DCAN0. However, an AM335x silicon errata with the RMII
reference clock prevents the interface from running at the 100 Mbit/s transfer rate in RMII mode unless an
additional crystal is added. This can be added as an ordering option, but it does add cost.
The phyCORE-AM335x hardware configurations for MII and RMII modes are shown in the tables below.
Jumper
MII
RMII
J1
2+3
1+2
J5
1+2
1+2
J6
2+3
1+2
Table 23: Jumper Configurations for MII and RMII modes
45
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Part I: PCM-051/phyCORE-AM335x System on Module
Resistor
MII
RMII
Package
R4
do not install
10 kOhm
0402
R30
100 Ohm
do not install
0402
R31
100 Ohm
do not install
0402
R32
10 kOhm
do not install
0402
R50
do not install
0 Ohm
0402
R108
do not install
10 kOhm
0402
R134
100 Ohm
do not install
0402
R138
100 Ohm
do not install
0402
R139
100 Ohm
do not install
0402
R140
100 Ohm
do not install
0402
R141
100 Ohm
do not install
0402
R143
100 Ohm
do not install
0402
Table 24: Resistor Configurations for MII and RMII modes
Crystal Oscillator
MII (10/100M)
RMII (10M)
RMII (100M)
Package
XT3
do not install
do not install
50.000 MHz 1
J032
Table 25: Crystal Configurations for MII and RMII modes
1.
SOM ordering option
3.9.3.2 Ethernet 2
The AM335x Ethernet2 interface signals can connect to any industry-standard Ethernet tranceiver or they can
be used for other purposes. The AM335x processor supports MII, RMII and RGMII modes on this interface. It does
not support GMII mode.
It is strongly recommended to place the Ethernet PHY on the Carrier Board close to the pins of the SOM's
Ethernet interface to achieve a trace length of less than 100 mm.
The Ethernet2 interface signals are available on the phyCORE connector on the pins listed in Table 26. All of
these pins connect directly to the AM335x processor except for X_RMII2_CRS_DV. X_RMII2_CRS_DV shares a pin
on the AM335x processor through a multiplexor with the NAND flash READY/BUSY signal, which is needed for
the processor to boot from NAND flash. After the processor boots, its memory controller can be configured to
access the NAND with wait cycles instead of by using the READY/BUSY signal, and the multiplexor can be set to
connect the X_RMII2_CRS_DV signal to the processor by configuring GPIO1_31 as an output and driving it low.
L-771e_1 © PHYTEC Messtechnik GmbH 2012
46
Part I: PCM-051/phyCORE-AM335x System on Module
phyCORE-AM335x
Pin#
Signal name
Type
SL
Description
X1B42
X_RGMII2_TCTL
OUT
3.3 V
RGMII or RMII transmit control, MII transmit
enable
X1A41
X_RGMII2_TCLK
OUT
3.3 V
RGMII or MII transmit clock
X1A36
X_RGMII2_TD3
OUT
3.3 V
RGMII or MII transmit data bit 3
X1A39
X_RGMII2_TD2
OUT
3.3 V
RGMII or MII transmit data bit 2
X1B41
X_RGMII2_TD1
OUT
3.3 V
RGMII, MII or RMII transmit data bit 1
X1A40
X_RGMII2_TD0
OUT
3.3 V
RGMII, MII or RMII transmit data bit 0
X1A38
X_RMII2_CRS_DV
IN
3.3 V
RMII carrier sense or data valid.
Note that on the AM335x processor, this
signal pin is shared with the WAIT0 signal,
which is needed for booting from NAND flash.
X1A35
X_RGMII2_RCTL
IN
3.3 V
RGMII receive control or MII receive data valid
X1A43
X_RGMII2_RCLK
IN
3.3 V
RGMII or MII receive clock
X1B40
X_RGMII2_RD3
IN
3.3 V
RGMII or MII receive data bit 3
X1A44
X_RGMII2_RD2
IN
3.3 V
RGMII or MII receive data bit 2
X1A45
X_RGMII2_RD1
IN
3.3 V
RGMII, MII or RMII receive data bit 1
X1A46
X_RGMII2_RD0
IN
3.3 V
RGMII, MII or RMII receive data bit 0
X1B37
X_RGMII2_INT
IN
3.3 V
Ethernet interrupt
X1B3
X_MDIO_CLK
OUT
3.3 V
Control interface clock
X1B2
X_MDIO_DATA
IO
3.3 V
Control interface data
Table 26: Ethernet 2 Signal Locations
3.9.4 Profibus
The Profibus interface is available on the AM335x Programmable Real-Time Unit (PRU) UART0 signals. This UART
is in addition to the six high-speed UARTs mentioned above, which are part of the AM335x MPU.
The PRU UART0 / Profibus signals are available on either UART1 or SPI0 pins as signal multiplexing options.
Table 27 lists the signal locations on the phyCORE connectors.
Pin#
Signal
Type
SL
Description
X3B10
X_UART1_TXD/_P_UART0_TXD
OUT
3.3 V
Profibus Tx (option 1)
X3B11
X_UART1_RXD/_P_UART0_RXD
IN
3.3 V
Profibus Rx (option 1)
X3A17
X_SPI0_CS0
OUT
3.3 V
Profibus Tx (option 2)
X3A35
X_SPI0_D1
IN
3.3 V
Profibus Rx (option 2)
Table 27: Profibus Signal Location Options
47
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Part I: PCM-051/phyCORE-AM335x System on Module
3.9.5 I2C Interface
The Inter-Integrated Circuit (I2C) interface is a two-wire, bi-directional serial bus that provides a simple and
efficient method for data exchange among devices. The AM335x contains three identical and independent I2C
modules. Even though the signals of all three I2C modules are available on the phyCORE connector only I2C0 is
intended to be used as I2C interface. I2C module IC0 connects also to the on-board EEPROM (refer to Section
3.7.3), to the PMIC (refer to Section 3.4.3), and to the optional RTC device at U2 (refer to Section 3.5).
The following table lists the I2C ports on the phyCORE-Connector.
Pin #
Signal
Type SL
Description
X3A19
X_I2C0_SCL
OUT
3.3 V I2C0 clock (open drain with pull-up resistor on the SOM)
X3A20
X_I2C0_SDA
IO
3.3 V I2C0 data (open drain with pull-up resistor on the SOM)
Table 28: I2C Interface Signal Locations
To avoid any conflicts when connecting external I2C devices to the I2C0 interface of the AM335x, the addresses
of the on-board I2C devices must be considered. Table 29 lists the addresses already in use. The address of the
EEPROM can be configured by jumpers. The table shows only the default addresses. Please refer to Section
3.7.3.1 for alternative address settings.
I2C
Address
(7 MSB)
Connected Devices
Maximum
Speed
Section
0x12
PMIC's (U4) SmartReflex (SR-I²C) control interface
3.4 Mbps
Section 3.4.3
0x2D
PMIC's (U4) general-purpose serial control (CTL-I²C)
inteface
3.4 Mbps
Section 3.4.3
0x52
I²C EEPROM (U6)
400 kbps
Section 3.7.3.1
Optional Real-Time Clock (U2).
400 kbps
Section 3.5.2
0x68
Table 29: I
2C Addresses in Use
3.9.6 SPI Interfaces
The Serial Peripheral Interface (SPI) is a four-wire, bidirectional synchronous serial bus that provides a simple
and efficient method for data exchange among devices. The AM335x includes two SPI modules. These modules
are Master/Slave configurable and each support up to two devices. The interface signals of the first module
(SPI0) are identified on the phyCORE-Connector. If there is a SPI Flash installed on the SOM, it connects to
SPI1_CS0.
Table 30 lists the SPI signals which are identified by name on the phyCORE-Connector:
Pin #
Signal
Type
SL
Description
X3A17
X_SPI0_CS0
OUT
3.3 V
SPI0 chip select 0 (used by SPI Flash U5 if installed)
X3A35
X_SPI0_D1
OUT
3.3 V
SPI0 master output / slave input (MOSI) data
X3A34
X_SPI0_D0
IN
3.3 V
SPI0 master input / slave output (MISO) data
X3A15
X_SPI0_CLK
OUT
3.3 V
SPI0 clock
Table 30: SPI0 Interface Signal Locations
L-771e_1 © PHYTEC Messtechnik GmbH 2012
48
Part I: PCM-051/phyCORE-AM335x System on Module
phyCORE-AM335x
3.9.7 Controller Area Network (CAN) Interfaces
The Controller Area Network (CAN) is a serial communications protocol which efficiently supports distributed
real time control with a high level of security.
The AM335x includes two CAN interfaces, DCAN0 and DCAN1. These support bitrates up to 1 MBit/s and are
compliant to the CAN 2.0B protocol specification. Each of the two CAN interfaces has three different pin
multiplexing options out of the AM335x processor. These signal options are listed in Table 31.
Signal
PhyCORE
Pin
Schematic Signal Name
SL
Availability Notes
DCAN0_RX
X3A24
X_DCAN0_RX
3.3 V
Not available for CAN if the Ethernet1 PHY
on the SOM is configured for MII mode
X3A32
X_UART0_TXD
3.3 V
Available, routes directly to the phyCORE
connector
X3B9
X_UART1_RTS
3.3 V
Available, routes directly to the phyCORE
connector
X3A25
X_DCAN0_TX
3.3 V
Not available for CAN if the Ethernet1 PHY
on the SOM is configured for MII mode
X3A33
X_UART0_RXD
3.3 V
Available, routes directly to the phyCORE
connector
X3B8
X_UART1_CTS
3.3 V
Available, routes directly to the phyCORE
connector
X3B54
X_MMC0_CMD
3.3 V
Available, routes directly to the phyCORE
connector
X3B50
X_GPIO_1_9
3.3 V
Available, routes directly to the phyCORE
connector
X3B10
X_UART1_TXD_/_P_UART0_TXD
3.3 V
Available, routes directly to the phyCORE
connector
X3B53
X_MMC0_CLK
3.3 V
Available, routes directly to the phyCORE
connector
X3B51
X_GPIO_1_8
3.3 V
Available, routes directly to the phyCORE
connector
X3B11
X_UART1_RXD_/_P_UART0_RXD 3.3 V
Available, routes directly to the phyCORE
connector
DCAN0_TX
DCAN1_RX
DCAN1_TX
Table 31: DCAN0 and DCAN1 Signal Locations
49
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Part I: PCM-051/phyCORE-AM335x System on Module
3.9.8 Multichannel Audio Serial Ports (McASP)
The two multichannel audio serial port (McASP) interfaces of the phyCORE-AM335x are general audio serial
ports optimized for the requirements of various audio applications. The McASP is useful for intercomponent
digital audio interface transmission (DIT). The McASP interfaces support many audio formats including SPDIF,
IEC60958-1, AES-3, TDM, I2S and similar formats.
The McASP0 signals which are used on the PHYTEC Carrier Board are listed in Table 32. See Texas Instrument's
AM335x Data Sheet for all of the pin-multiplexing options for the two McASP interface signals.
Pin #
Signal
Type
SL
Description
X3A22
X_McASP0_AXR0
IO
3.3 V
McASP0 serial data
X3A29
X_McASP0_FSX
IO
3.3 V
McASP0 frame synchronization transmit
X3A27
X_McASP0_AHCLKX
IO
3.3 V
McASP0 high frequency clock
X3A28
X_McASP0_AXR1
IO
3.3 V
McASP0 serial data
X3B16
X_McASP0_ACLKX
IO
3.3 V
McASP0 transmit bit clock
X1A1
X_RMII1_RXER/_MCASP1_FSX
IO
3.3 V
McASP1 frame synchronization transmit
X1A10
X_RMII1_TXEN/_MCASP1_AXR0 IO
3.3 V
McASP1 serial data
X1A14
X_MII1_COL/_MCASP1_AXR2
IO
3.3 V
McASP1 serial data
X1A15
X_RMII1_CRS/_MCASP1_ACLKX IO
3.3 V
McASP1 transmit bit clock
Table 32: McASP Signal Locations
L-771e_1 © PHYTEC Messtechnik GmbH 2012
50
Part I: PCM-051/phyCORE-AM335x System on Module
phyCORE-AM335x
3.10 General Purpose I/Os
The phyCORE-AM335x provides seven GPIOs1. Beside these seven GPIOs, most of the pins of the
phyCORE-AM335x which are connected directly to the AM335x can be configured to act as GPIOs, due to the
function multiplexing at most controller pins. The GPIO pins can be used as data input with an optional and
configurable debounce cell or data output. Furthermore many of the pins support an interrupt generation in
active mode and wake-up request generation in idle mode upon the detection of external events. With the pad
configuration feature of the AM335x, you can also configure the GPIO to optionally have a pull-up or pull-down.
Pin #
Signal
Type
SL
Description
X1B20
X_GPIO_3_7
IN
3.3 V
Button 1 status
X1B18
X_GPIO_3_8
IN
3.3 V
Button 2 status
X3A23
X_GPIO_3_17
IN
3.3 V
USB0 over-current detection
X1B5
X_GPIO_3_18
IN
3.3 V
USB1 over-current detection
X3B15
X_GPIO_3_19
OUT
3.3 V
Profibus transceiver drive-enable
X3B47
X_GPIO_1_30
OUT
3.3 V
LED1 control
X3B48
X_GPIO_1_31
OUT
3.3 V
LED2 control
Table 33: Dedicated GPIO Signal Locations
As can be seen in Table 33, the voltage level is 3.3 V. To avoid driving signals into the SOM when it is not
powered, external devices connected to these pins should be supplied by the reference voltage VAUX2_3P3V, or
by a supply which is enabled by this voltage. Alternatively an open drain circuit with a pull-up resistor attached
to VAUX2_3P3V can be connected to the GPIOs of the phyCORE-AM335x.
Caution:
Please take care to not load the reference voltage VAUX2_3P3V too heavily to avoid any disfunction or damage
of the module. Its maximum load is 150 mA.
1.
51
To support all features of the phyCORE-AM335x Carrier Board special functions have been assigned to the GPIOs in the BSP delivered
with the module. In order to otherwise utilize the GPIOs the software must be changed. Table 33 lists the functions assigned to the
GPIO pins.
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Part I: PCM-051/phyCORE-AM335x System on Module
3.11 Analog Inputs
The phyCORE-AM335x provides eight analog input signals. Table 34 lists the functions assigned to the analog
input signals.
Note:
To support the display touch-control feature of the phyCORE-AM335x Carrier Board, the touch-control
function has been assigned to the four analog input signals X_AIN0 to X_AIN3 in the BSP delivered with the
module. In order to otherwise utilize these signals, the software must be changed.
Pin #
Signal
Type
SL
Description
X3B38
X_AIN0
IN
1.8 V
Display touch X+
X3B37
X_AIN1
IN
1.8 V
Display touch X-
X3B34
X_AIN2
IN
1.8 V
Display touch Y+
X3B35
X_AIN3
IN
1.8 V
Display touch Y-
X3B32
X_AIN4
IN
1.8 V
Analog input
X3B31
X_AIN5
IN
1.8 V
Analog input
X3B29
X_AIN6
IN
1.8 V
Analog input
X3B28
X_AIN7
IN
1.8 V
Analog input
Table 34: Analog Input Signals
L-771e_1 © PHYTEC Messtechnik GmbH 2012
52
Part I: PCM-051/phyCORE-AM335x System on Module
phyCORE-AM335x
3.12 Debug Interface (X2)
The phyCORE-AM335x is equipped with a JTAG interface for downloading program code into the external flash,
internal controller RAM or for debugging programs which are executing. The JTAG interface connects to a
2.54 mm pitch pin header at X2 on the edge of the module PCB and also to the optional phyCORE-Connector X1.
Figure 8 shows the position of the debug interface connector X2 on the phyCORE-AM335x. Even numbered pins
are on the top of the module, starting with 2 on the right to 20 on the left, while odd number pins are on the
bottom, starting from (as viewed from the top) 1 on the right to 19 on the left.
Figure 8: JTAG Interface at X2 (top view)
53
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Part I: PCM-051/phyCORE-AM335x System on Module
The JTAG edge card connector X2 provides an easy means of debugging the phyCORE-AM335x in your target
system via an external JTAG probe.
Note:
The JTAG connector X2 only populates phyCORE-AM335x modules with order code PCM-051-xxxxxxxJxx.
This version of the phyCORE module must be special ordered. The JTAG connector X2 is not populated on
phyCORE modules included in the Rapid Development Kit. All JTAG signals are accessible from the carrier
board. The JTAG signals are also accessible at the optional phyCORE-Connector X1 (Samtec connectors).
We recommend integration of a standard (2.54 mm pitch) pin header connector in the user target circuitry to
allow easy program updates via the JTAG interface. See Table 36 for details on the JTAG signal pin assignment.
Table 35 shows the pin assignment of the JTAG connector X2. The location of the JTAG signals on the optional
phyCORE-Connector X1 is shown in Table 36.
Pin Row1
Signal
Signal
A
B
VMMC_3P3V
2
1
JTAG_TREF (3.3 V via 100 Ohm)
GND
4
3
X_TRSTn
GND
6
5
X_TDI
GND
8
7
X_TMS
GND
10
9
X_TCK
GND
12
11
X_TCK
GND
14
13
X_TDO
GND
16
15
X_RESET_OUTn
GND
18
17
no-connect
GND
20
19
no-connect
Table 35: JTAG Connector X2 Signal Assignment
1.
Note: Row A is on the controller side of the module and Row B is on the connector side of the module
Pin #
Signal
Type
SL
Description
X1B10
X_TDO
OUT
3.3 V
JTAG test data output
X1B12
X_TMS
OUT
3.3 V
JTAG test mode select
X1B8
X_TCK
OUT
3.3 V
JTAG test clock input
X1B11
X_TRSTn
IN
3.3 V
JTAG test reset
X1B7
X_TDI
IN
3.3 V
JTAG test data input
Table 36: Location of the JTAG Signals on the optional phyCORE-Connector X1
L-771e_1 © PHYTEC Messtechnik GmbH 2012
54
Part I: PCM-051/phyCORE-AM335x System on Module
phyCORE-AM335x
3.13 Display Interface
The phyCORE-AM335x provides a configurable parallel display interface with up to 24 data bits and backlight
and touch-screen control.
3.13.1 Parallel Display Interface
The 24-bit integrated LCD Interface Display Driver (LIDD) of the AM335x is directly connected to the phyCOREConnector. The location of the applicable interface signals can be found in the table below. In addition, signal
X_ECAP0_IN_PWM0_OUT can be used as PWM output to control the display brightness. .
Pin #
Signal
X3B26
Type
SL
Description
X_ECAP0_IN_PWM0_OUT OUT
3.3 V
PWM output, can be used for display brightness
control
X1B27
X_LCD_DATA23
OUT
3.3 V
LCD data bit 23
X1B28
X_LCD_DATA22
OUT
3.3 V
LCD data bit 22
X1B26
X_LCD_DATA21
OUT
3.3 V
LCD data bit 21
X1B30
X_LCD_DATA20
OUT
3.3 V
LCD data bit 20
X1B31
X_LCD_DATA19
OUT
3.3 V
LCD data bit 19
X1B32
X_LCD_DATA18
OUT
3.3 V
LCD data bit 18
X1B38
X_LCD_DATA17
OUT
3.3 V
LCD data bit 17
X1B36
X_LCD_DATA16
OUT
3.3 V
LCD data bit 16
X3A54
X_LCD_DATA15
OUT
3.3 V
LCD data bit 15
X3A53
X_LCD_DATA14
OUT
3.3 V
LCD data bit 14
X3A44
X_LCD_DATA13
OUT
3.3 V
LCD data bit 13
X3A49
X_LCD_DATA12
OUT
3.3 V
LCD data bit 12
X3B49
X_LCD_DATA11
OUT
3.3 V
LCD data bit 11
X3A59
X_LCD_DATA10
OUT
3.3 V
LCD data bit 10
X3A58
X_LCD_DATA9
OUT
3.3 V
LCD data bit 9
X3A52
X_LCD_DATA8
OUT
3.3 V
LCD data bit 8
X3A57
X_LCD_DATA7
OUT
3.3 V
LCD data bit 7
X3A55
X_LCD_DATA6
OUT
3.3 V
LCD data bit 6
X3A40
X_LCD_DATA5
OUT
3.3 V
LCD data bit 5
X3A39
X_LCD_DATA4
OUT
3.3 V
LCD data bit 4
X3A37
X_LCD_DATA3
OUT
3.3 V
LCD data bit 3
X3A38
X_LCD_DATA2
OUT
3.3 V
LCD data bit 2
X3A35
X_LCD_DATA1
OUT
3.3 V
LCD data bit 1
X3A34
X_LCD_DATA0
OUT
3.3 V
LCD data bit 0
X3A45
X_LCD_HSYNC
OUT
3.3 V
LCD horizontal synchronization
Table 37: Parallel Display Interface Signal Locations
55
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Part I: PCM-051/phyCORE-AM335x System on Module
Pin #
Signal
Type
SL
Description
X3B46
X_LCD_PCLK
OUT
3.3 V
LCD pixel clock
X3B47
X_LCD_VSYNC
OUT
3.3 V
LCD vertical synchronization
X3A50
X_LCD_BIAS_EN
OUT
3.3 V
LCD AC bias enable
Table 37: Parallel Display Interface Signal Locations
3.13.2 Touch Screen Controller
The AM335x processor includes an integrated touch screen controller for connection to a resistive touch panel
such as is typically integrated in a LCD panel.
The AM335x’s eight analog signals, AIN[7:0], are routed to the primary phyCORE connector, X3. Some or all of
these can be connected to a resistive touch panel. The PHYTEC carrier board connects four of these signals to a
touch screen integrated in a LCD display. These signals are mapped as follows:
AIN0 = TOUCH_X+
AIN1 = TOUCH_XAIN2 = TOUCH_Y+
AIN3 = TOUCH_YCare should be taken in carrier board layout to isolate these analog signals from noise such as from power
supplies or digital signals.
Pin #
Signal
Type
SL
Description
X3B38
X_AIN0
IN
1.8 V
AM335x analog input (TOUCH_X+)
X3B37
X_AIN1
IN
1.8 V
AM335x analog input (TOUCH_X-)
X3B34
X_AIN2
IN
1.8 V
AM335x analog input (TOUCH_Y+)
X3B35
X_AIN3
IN
1.8 V
AM335x analog input (TOUCH_Y-)
Table 38: AIN[3:0] Signal Locations
L-771e_1 © PHYTEC Messtechnik GmbH 2012
56
Part I: PCM-051/phyCORE-AM335x System on Module
phyCORE-AM335x
3.14 Technical Specifications
The physical dimensions of the phyCORE-AM335x are represented in Figure 9 . The module's profile is
max. 5.0 mm thick, with a maximum component height of 1.5 mm on the bottom (connector) side of the PCB
and approximately 2.0 mm on the top (microcontroller) side. The board itself is approximately 1.5 mm thick.
Figure 9: Physical Dimensions
57
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Part I: PCM-051/phyCORE-AM335x System on Module
Additional specifications:
Dimensions:
44 mm x 50 mm
Weight:
Approximately 16 g with all optional components mounted on the circuit
board
Storage temperature:
-40 °C to +125 °C
Operating temperature:
0 °C to +70 °C (commercial) -40 °C to +85 °C (industrial)1
Humidity:
95 % r.F. not condensed
Operating voltage:
VCC 5.0 V
Power consumption:
VCC 5.0 V / 0.4 A / 2 Watts typical
Maximum 3 Watts
Conditions:
512 MB DDR3-SDRAM, 512 MB NAND Flash, Ethernet, 600 MHz CPU frequency,
20 °C
1.
In order to guarantee reliable functioning of the SOM up to the maximum temperature appropriate cooling measures must be
provided. Use of the SOM at high temperature impacts the SOM's life span.
These specifications describe the standard configuration of the phyCORE-AM335x as of the printing of this
manual.
Connectors on the phyCORE:
X1 Manufacturer:
Samtec
Number of pins per contact Rows:
100 (2 Rows of 50 pins each)
Samtec part number (lead free):
BSH-050-01-L-D-A (receptacle)
Mating connector:
BTH-050-01-L-D-A (header)
Mated height:
5 mm
X3 Manufacturer:
Samtec
Number of pins per contact Rows:
120 (2 Rows of 60 pins each)
Samtec part number (lead free):
BSH-060-01-L-D-A (receptacle)
Mating connector:
BTH-060-01-L-D-A (header)
Mated height:
5 mm
Different heights are offered for the receptacle sockets that correspond to the connectors populating the
underside of the phyCORE-AM335x. The given connector height indicates the distance between the two
connected PCBs when the module is mounted on the corresponding carrier board. In order to get the exact
spacing, the maximum component height (1.5 mm) on the bottom side of the phyCORE must be subtracted.
Please refer to the corresponding datasheets and mechanical specifications provided by Samtec
(www.samtec.com).
L-771e_1 © PHYTEC Messtechnik GmbH 2012
58
Part I: PCM-051/phyCORE-AM335x System on Module
phyCORE-AM335x
3.15 Hints for Integrating and Handling the phyCORE-AM335x
3.15.1 Integrating the phyCORE-AM335x
Successful integration in user target circuitry greatly depends on the adherence to the layout design rules for
the GND connections of the phyCORE module. As a general design rule we recommend connecting all GND pins
neighboring signals which are being used in the application circuitry. Just for the power supply of the module
at least 10 GND pins corresponding to the VCC pins must be connected (refer to Section 3.1.3). For maximum
EMI performance all GND pins should be connected to a solid ground plane.
Besides this hardware manual much information is available to facilitate the integration of the
phyCORE-AM335x into customer applications.
•
the design of the standard phyCORE carrier board can be used as a reference for any customer application
•
many answers to common questions can be found at
www.phytec.de/de/support/faq/faq-phycore-AM335x.html, or
www.phytec.eu/europe/support/faq/faq-phycore-AM335x.html
•
the link "Carrier Board" within the category Dimensional Drawing leads to the layout data as shown in
Figure 10 . It is available in different file formats.
•
different support packages are available to support you in all stages of your embedded development.
Please visit www.phytec.de/de/support/support-pakete.html, or
www.phytec.eu/europe/support/support-packages.html, or contact our sales team for more details.
59
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Part I: PCM-051/phyCORE-AM335x System on Module
Figure 10: Footprint of the phyCORE-AM335x
L-771e_1 © PHYTEC Messtechnik GmbH 2012
60
Part I: PCM-051/phyCORE-AM335x System on Module
phyCORE-AM335x
3.15.2 Handling the phyCORE-AM335x
Removal of various components, such as the microcontroller and the standard quartz, is not advisable given the
compact nature of the module. Should this nonetheless be necessary, please ensure that the board as well as
surrounding components and sockets remain undamaged while de-soldering. Overheating the board can cause
the solder pads to loosen, rendering the module inoperable. Carefully heat neighboring connections in pairs.
After a few alternations, components can be removed with the solder-iron tip. Alternatively, a hot air gun can
be used to heat and loosen the bonds.
Caution:
If any modifications to the module are performed, regardless of their nature, the manufacturer guarantee is
voided.
61
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Part II: PCM-953 / phyCORE-AM335x Carrier Board
4 Part II: PCM-953 / phyCORE-AM335x Carrier Board
Part 2 of this three part manual provides detailed information on the phyCORE-AM335x Carrier Board and its
usage with the phyCORE-AM335x SOM. The information and all board images in the following chapters are
applicable to the 1359.2 PCB revision of the phyCORE-AM335x Carrier Board.
The carrier board can also serve as a reference design for development of custom target hardware in which the
phyCORE SOM is deployed. Carrier Board schematics with BoM are available under a Non Disclosure Agreement
(NDA). Re-use of carrier board circuitry likewise enables users of PHYTEC SOMs to shorten time-to-market,
reduce development costs, and avoid substantial design issues and risks.
4.1 Introduction
PHYTEC phyCORE-AM335x Carrier Boards are fully equipped with all mechanical and electrical components
necessary for the speedy and secure start-up and subsequent communication to and programming of applicable
PHYTEC System on Module (SOM) modules. phyCORE-AM335x Carrier Boards are designed for evaluation, testing
and prototyping of PHYTEC System on Modules in laboratory environments prior to their use in customer
designed applications.
The phyCORE-AM335x Carrier Board provides a flexible development platform enabling quick and easy start-up
and subsequent programming of the phyCORE-AM335x System on Module. The carrier board design allows easy
connection of additional expansion boards featuring various functions that support fast and convenient
prototyping and software evaluation.
The phyCORE-AM335x Carrier Board has the following features for supporting the phyCORE-AM335x modules:
•
Power supply circuits to supply the phyCORE-AM335x and the peripheral devices of the carrier board
•
RS-232 transceiver supporting UART0 of the phyCORE-AM335x with data rates of up to 1 Mbps and RS-232
connector
•
One USB OTG interface brought out to a USB Standard-A connector
•
One USB OTG interface brought out to a USB Mini-AB connector
•
RJ45 jack for 10/100 Mbps Ethernet
•
10/100/1000 Mbps Ethernet PHY and RJ-45 jack
•
Two EtherCAT transceivers with RJ-45 jacks
•
CAN transceiver and male DB9 connector
•
Profibus transceiver and female DB9 connector
•
Audio codec and jacks for microphone input and audio output
•
PHYTEC Display Interface connector with touch support
•
Secure Digital Memory Card / MultiMedia Card Interface (SD / MMC)
•
Connector for a WiFi / Bluetooth module
•
Expansion board connectors
•
Jumpers to configure interface options
•
Switch to configure the boot order of the AM335x processor
•
Backup battery to power the SOM Real-Time Clock (RTC)
L-771e_1 © PHYTEC Messtechnik GmbH 2012
62
Part II: PCM-953 / phyCORE-AM335x Carrier Board
phyCORE-AM335x
4.1.1 Concept of the phyCORE-AM335x Carrier Board
The phyCORE-AM335x Carrier Board provides a flexible development platform enabling quick and easy start-up
and programming of the phyCORE System on Module. The carrier board design allows easy connection of
additional expansion boards featuring various functions that support fast and convenient prototyping and
software evaluation
This modular development platform concept includes the following components:
•
the phyCORE-AM335x System on Module populated with the AM335x processor and all applicable SOM
circuitry such as DDR3 SDRAM, Flash, and an Ethernet tranceiver to name a few
•
the phyCORE-AM335x Carrier Board which offers all essential components and connectors for start-up
including a power socket which enables connection to an external power adapter, interface connectors such
as RS-232, USB, CAN and Ethernet, allowing for use of the SOM's interfaces with standard cables
The following sections contain information specific to the operation of the phyCORE-AM335x mounted on the
phyCORE-AM335x Carrier Board.
63
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Part II: PCM-953 / phyCORE-AM335x Carrier Board
4.2 Overview of the phyCORE-AM335x Carrier Board Peripherals
The phyCORE-AM335x Carrier Board is depicted in Figure 11 . It is equipped with the components and
peripherals listed in Table 39, Table 40, Table 42 and Table 43. For a more detailed description of each
peripheral, refer to the appropriate chapter listed in the applicable table. Figure 11 highlights the location of
each peripheral for easy identification.
Figure 11: phyCORE-AM335x Carrier Board Overview of Connectors and Buttons (top view)
L-771e_1 © PHYTEC Messtechnik GmbH 2012
64
Part II: PCM-953 / phyCORE-AM335x Carrier Board
phyCORE-AM335x
4.2.1 Connectors and Pin Headers
Table 39 lists all available connectors on the phyCORE-AM335x Carrier Board. Figure 11 highlights the location
of each connector for easy identification.
Reference
Designator
Description
See Section
X1
phyCORE connector #2, 2x50 pins
Section 3.2
X2
phyCORE connector #1, 2x60 pins
Section 3.2
X3
Wall adapter input power jack to supply main board power (+5 V)
Section 4.3.2
X4
PHYTEC Display Interface data
Section 4.3.12
X5
Expansion connector
Section 5
X7
USB0 On-The-Go connector (USB Mini-AB)
Section 4.3.8
X8
USB1 Host connector (USB 2.0 Standard-A)
Section 4.3.8
X9
Ethernet 2 RJ45 gigabit ethernet connector
Section 4.3.3.2
X10
EtherCAT 0 RJ45 jack
Section 4.3.4
X11
EtherCAT 1 RJ45 jack
Section 4.3.4
X12
Ethernet 1 RJ45 jack
Section 4.3.3.1
X13
CAN DB9-Male
Section 4.3.7
X14
Microphone input connector (3.5 mm audio jack)
Section 4.3.14
X15
Headphone output connector (3.5 mm audio jack)
Section 4.3.14
X16
Mono audio output (3.5 mm audio jack)
Section 4.3.14
X17
Loudspeaker output (3.5 mm audio jack)
Section 4.3.14
X18
RS-232 DB9-Female
Section 4.3.6
X19
Profibus DB9-Female
Section 4.3.5
X20
Secure Digital Memory / MultiMedia Card slot
Section 4.3.13
X21
JTAG pin header
Section 4.3.11
X27
WiFi module pin header
Section 4.3.15
X29
3.3 V power supply connection
Section 4.3.2
X31
PHYTEC Display Interface power
Section 4.3.12
Table 39: phyCORE-AM335x Carrier Board Connectors and Pin Headers
Note:
Ensure that all module connections are not to exceed their expressed maximum voltage or current.
Maximum signal input values are indicated in the corresponding controller User's Manual/Data Sheets.
As damage from improper connections varies according to use and application, it is the user‘s responsibility
to take appropriate safety measures to ensure that the module connections are protected from overloading
through connected peripherals.
65
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Part II: PCM-953 / phyCORE-AM335x Carrier Board
4.2.2 Switches
The phyCORE-AM335x Carrier Board is populated with four push-button switches which are essential for the
operation of the phyCORE-AM335x module on the carrier board. Figure 12 shows the location of the pushbuttons.
Figure 12: Carrier Board Buttons
It is generally recommended to debounce all signals from buttons which route to the phyCORE connectors. It is
required to debounce the reset signal to the phyCORE-AM335x. The AM335x reset input does not provide
adequate debounce time to stabilize an external push-button circuit. And so without signal debouncing, the
processor could potentially start running while external components are still in reset.
L-771e_1 © PHYTEC Messtechnik GmbH 2012
66
Part II: PCM-953 / phyCORE-AM335x Carrier Board
phyCORE-AM335x
Button
Description
See Section
S1 (SOM ON/OFF)
Control switch for the PMIC on the SOM.
Section 3.4.3.3
S6 (Reset)
System Reset Button – issues a system warm reset, must
include a debounce circuit
Section 3.6
S7 (Power)
Power Button – issues a system power on/off event to the
Section 3.4.3.3
PMIC on the SOM
S8 (Button1)
User button BTN1 - Toggles AM335x GPIO_3_7 signal if
jumper JP18 is installed on the Carrier Board.
Section 3.3, Section 3.10
S9 (Button2)
User button BTN2 - Toggles AM335x GPIO_3_8 signal if
jumper JP19 is installed on the Carrier Board.
Section 3.3, Section 3.10
Table 40: phyCORE-AM335x Carrier Board push-buttons Descriptions
Figure 13: Switch S5 Location
Additionally a DIP switch is available at S5. The DIP switch provides a way to override the booting device order
of the AM335x which is defined by a resistor network on the phyCORE-AM335x. The default booting device order
is 1st: NAND, 2nd: NANDI2C, 3rd: MMC0, 4th: UART0 (please refer to Section 3.6 for more information).
67
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Part II: PCM-953 / phyCORE-AM335x Carrier Board
DIP switch S5 on the Carrier Board is shown in Figure 13 .
Setting switch S5_1 to ON enables switches S5_2 - S5_7 to control the SOM's SYSBOOT[6, 4:0] signals until the
AM335x latches these signals on the rising edge of the power-on reset signal, X_PORZ. SYSBOOT[4:0] determine
the processor's boot order. SYSBOOT[6] selects between MII and RMII mode for the Ethernet1 interface.
Setting switch S5_1 to OFF, disables switches S5_2 - S5_7. So the processor boots following the default boot
configuration which is set with resistors on the SOM. See Table 11.
S5 switch
Setting Description
Signal Name on phyCORE Connector
1
ON to enable switches 2-6
n.a.
2
SYSBOOT0: ON = 1, OFF = 0
X_LCD_D0
3
SYSBOOT1: ON = 1, OFF = 0
X_LCD_D1
4
SYSBOOT2: ON = 1, OFF = 0
X_LCD_D2
5
SYSBOOT3: ON = 1, OFF = 0
X_LCD_D3
6
SYSBOOT4: ON = 1, OFF = 0
X_LCD_D4
7
SYSBOOT6: ON = 1, OFF = 0
X_LCD_D6
Table 41: Carrier Board Boot Configuration Switch S5
4.2.3 LEDs
The phyCORE-AM335x Carrier Board is populated with numerous LEDs to indictate the status of various
interfaces as well as the input power supply. Figure 14 shows the location of the LEDs. Their functions are listed
in Table 42.
L-771e_1 © PHYTEC Messtechnik GmbH 2012
68
Part II: PCM-953 / phyCORE-AM335x Carrier Board
phyCORE-AM335x
Figure 14: Carrier Board LEDs
LED
Label
Color
Description
See Section
D2
Power
red
+5 VDC input power
Section 3.4
D9
ECAT
green
EtherCAT interfaces are enabled
D10
WIFI
green
WiFi interface is enabled
D11
RGMII2
green
Ethernet 2 interface is enabled
D12
LCD
green
LCD Display is enabled
D13
ETH1
green
Ethernet 1 interface is enabled
D14
LED1
green
User LED 1 / AM335x_GPIO1_30
D15
LED2
yellow
User LED 2 / AM335x_GPIO1_31
Section 4.2.5
Section 5.3
Table 42: phyCORE-AM335x Carrier Board LEDs Descriptions
Note:
Detailed descriptions of the assembled connectors, jumpers and switches can be found in the following
chapters.
69
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Part II: PCM-953 / phyCORE-AM335x Carrier Board
4.2.4 Jumpers
The phyCORE Carrier Board comes pre-configured with some removable jumpers (JP) and several solder jumpers
(J). The jumpers allow the user flexibility of configuring a limited number of features for development purposes.
Table 43 below lists the jumpers, their default positions, and their functions in each position. Figure 15 depicts
the jumper pad numbering scheme for reference when altering jumper settings on the development board.
Figure 16 provides a detailed view of the phyCORE-AM335x Carrier Board jumpers and their default settings.
In this diagrams a beveled edge indicates the location of pin 1.
Before making connections to peripheral connectors, consult the applicable sections in this manual for setting
the associated jumpers.
Figure 15: Jumper Numbering Scheme
Table 43 provides a comprehensive list of all carrier board jumpers. The table provides only a concise summary
of jumper descriptions. For a detailed description of each jumper see the applicable chapter listed in the right
hand column of the table.
Note:
Jumpers not listed should not be changed as they are installed with regard to the configuration of the
phyCORE-AM335x.
If manual modification of the solder jumpers is required, please ensure that the board as well as surrounding
components and sockets remains undamaged while de-soldering. Overheating the board can cause the solder
pads to loosen, rendering the board inoperable. Carefully heat neighboring connections in pairs. After a few
alternations, components can be removed with the solder-iron tip. Alternatively, a hot air gun can be used to
heat and loosen the bonds.
L-771e_1 © PHYTEC Messtechnik GmbH 2012
70
Part II: PCM-953 / phyCORE-AM335x Carrier Board
phyCORE-AM335x
Figure 16: Carrier Board Jumper Locations
The following conventions were used in the Jumper column of the jumper table (Table 43).
• J = solder jumper
• JP or X = removable jumper
71
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Part II: PCM-953 / phyCORE-AM335x Carrier Board
Jumper Setting
Description
JP1
Jumper JP1 disables the 3 VCC_3V3_3000mA supply from
voltage regulator U24, for when the system uses the
other 3.3 V supply instead. Use with X29.
open
The VCC_3V3_3000mA supply is enabled
closed
The VCC_3V3_3000mA supply is disabled
JP2
Section 4.3.2
Jumper JP2 connects the optional backup battery to the
phyCORE connector
1+2
The backup battery connects to the phyCORE.
2+3
The backup battery does not connect to the phyCORE.
JP3
JP4
See Section
Section 4.3.2
Jumpers JP3 and JP4 control inputs to a logic decoder
which enables some of the interfaces on the carrier
board. Jumper JP3 controls input A and jumper JP4
controls input B of the decoder.
open
Decoder input A is HIGH
1+2
Decoder input A follows GPIO1_8
2+3
Decoder input B is LOW
open
Decoder input B is HIGH
1+2
Decoder input B follows GPIO1_9
2+3
Decoder input B is LOW
JP5
Section 4.2.5
Jumper JP5 selects the Audio Codec's MICN input
1+2
2+3
JP6
U20 WM8974 Audio Codec's MICN input connects to
X14 MIC IN connector pin "T".
Section 4.3.14
U20 WM8974 Audio Codec's MICN input connects to X14
MIC IN connector pin "R"
Jumper JP6 selects the Audio Codec's MCLK input
1+2
2+3
JP7 and
JP8
U20 WM8974 Audio Codec's MCLK input connects to
oscillator OZ1.
Section 4.3.14
U20 WM8974 Audio Codec's MCLK input connects to
signal X_MCASP0_AHCLKX from the SOM
Jumpers JP7 and JP8 connect the UART1_Tx/Rx signals to
the Wifi, CAN or Profibus connector.
1+2
UART1_Tx/Rx connects to the WiFi connector
3+4
UART1_Tx/Rx connects to the CAN connector
5+6
UART1_Tx/Rx connects to the Profibus connector
Section 4.3.5
Section 4.3.7
Section 4.3.15
Table 43: phyCORE-AM335x Carrier Board Jumper Descriptions1
L-771e_1 © PHYTEC Messtechnik GmbH 2012
72
Part II: PCM-953 / phyCORE-AM335x Carrier Board
phyCORE-AM335x
Jumper Setting
Description
See Section
JP9
Jumper JP9 connects a differential termination across
the CAN signals
open
CAN differential termination at connector X13 is
disconnected
closed
CAN differential termination at connector X13 is
connected
JP10
Section 4.3.7
Jumper JP10 selects the amount of capacitance on the
USB0_VBUS line.
JP10 should be set for 4.7 uF (OPEN) when jumper JP12 is
OPEN, for OTG mode.
JP10 should be set for 155 uF (CLOSED) when jumper
Section 4.3.8.1
JP12 is CLOSED, for host mode.
open
USB0_VBUS signal has specified capacitance for OTG
mode.
closed
USB0_VBUS signal has specified capacitance for host
mode.
JP11
Jumper JP11 sets the USB1 ID pin for host mode or OTG
mode.
open
USB1_ID is configured for OTG mode.
closed
USB1_ID is configured for host mode
JP12
Section 4.3.8.2
Jumper JP12 sets the USB0 ID pin for host mode or OTG
mode. Use jumper JP12 together with jumper JP10.
open
USB0_ID is configured for OTG mode.
closed
USB0_ID is configured for host mode.
JP13
Section 4.3.8.1
Jumper JP13 selects the logic input of the WM8974 (U20)
Audio Codec's CSB/GPIO pin as HIGH or LOW. This pin's
function is configurable with registers in the WM8974.
open
U20 WM8974 Audio Codec's CSB/GPIO pin is HIGH.
closed
U20 WM8974 Audio Codec's CSB/GPIO pin is LOW.
JP17
Jumper JP17 connects the SPI0 interface chip select 0 to
the PDI connector. This is to support displays which use a
SPI communication interface. The display which comes
with the PHYTEC kit does not use SPI.
open
The LCD display is not accessible via SPI0
closed
The LCD display is accessible via SPI0 at device 0 (if the
display includes a SPI interface)
Section 4.3.14
Section 4.3.12.1
Table 43: phyCORE-AM335x Carrier Board Jumper Descriptions1
73
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Part II: PCM-953 / phyCORE-AM335x Carrier Board
Jumper Setting
Description
JP18
Jumper JP18 connects X_GPIO3_7 to user button 1 (S8),
enabling the AM335x to read the button's state.
open
Button 1 (S8) is not connected to X_GPIO3_7.
closed
Button 1 (S8) is connected to X_GPIO3_7
JP19
Section 4.2.2
Jumper JP19 connects X_GPIO3_8 to user button 2 (S9),
enabling the AM335x to read the button's state.
open
Button 2 (S9) is not connected to X_GPIO3_8.
closed
Button 2 (S9) is connected to X_GPIO3_8
JP20
JP21
See Section
Section 4.2.2
Jumpers JP20 and JP21 connects the power pins of the
Profibus connector (X19) to the carrier board's +5 V
supply and to GND. This is to provide +5 V to the Profibus
interface.
If the Profibus interface already has +5 V supplied, then
the carrier board's 5 V supply should not connect to it.
The profibus signals will translate into the carrier board's
power domain through the RS-485 transceiver at U13.
open
The power pin of the Profibus connector does not connect Section 23
to the carrier board's +5 V supply.
closed
The power pin of the Profibus connector connects to
the carrier board's +5 V supply
open
The GND pin of the Profibus connector does not connect
to the carrier board's ground (GND) .
closed
The GND pin of the Profibus connector connects to the
carrier board's ground (GND)
JP22
Jumper JP22 enables the write-protect function of the
SPI Flash if the SOM is configured to use the SPI writeprotect signal from the carrier board to control this funcSection 3.7.4
tion, so if jumper J4 on the SOM is installed at (1+2).
open
SPI Flash on SOM is not write-protected
closed
The SPI Flash on the SOM is write-protected.
JP23
Jumper JP23 connects the interrupt from the SOM's
external RTC, X_INT_RTCn, to the AM335x interrupt1
input, X_INTR1.
open
The SOM's external RTC interrupt signal does not
connect to the AM335x interrupt1 input
closed
The SOM's external RTC interrupt signal connects to the
AM335x interrupt1 input.
Section 3.5
Table 43: phyCORE-AM335x Carrier Board Jumper Descriptions1
L-771e_1 © PHYTEC Messtechnik GmbH 2012
74
Part II: PCM-953 / phyCORE-AM335x Carrier Board
phyCORE-AM335x
Jumper Setting
Description
JP24
Jumper JP24 connects the Shutdown input of the
FLATLINK™ transmitter at U3 to reset, or GND
1+2
2+3
X29
See Section
The X_RESET_OUTn signal of the phyCORE-AM335x
shuts down the FLATLINK™ transmitter to avoid bad
display signals during reset
Section 4.3.12.1
The Shutdown input of the FLATLINK™ transmitter is
connected to GND in order to disable the device
Jumpers on X29 select the source for the VCC_3V3 supply
from one of two voltage regulators on the carrier board.
If VCC_3V3_800mA is selected, disable VCC_3V3_3000mA
Section 4.3.2
by installing JP1.
1+2 & 3+4
VCC_3V3 is supplied by VCC_3V3_800mA
5+6 & 7+8
VCC_3V3 is supplied by VCC_3V3_3000mA
J1
Jumpers J1 and J2 configure the connection of the
AM335x AIN1 and AIN2 signals to two of the analog
touch-screen interface signals.
J2
1+2
The touchscreen TOUCH_Y+ signal connects to AIN2
2+3
The touchscreen TOUCH_Y+ connects to AIN1
1+2
The touchscreen TOUCH_X- connects to AIN1
2+3
The touchscreen TOUCH_X- connects to AIN2
J3
Section 4.3.12
Jumper J3 selects which clock edge clocks the display
data into the LVDS transmitter U3.
1+2
The falling clock edge clocks the display data
2+3
The rising clock edge clocks the display data
Section 4.3.12.1
Table 43: phyCORE-AM335x Carrier Board Jumper Descriptions1
1.
Defaults are in bold blue text
4.2.5 Carrier Board Bus Enable Decoder
The Carrier Board includes support for several interfaces which share some pins on the AM335x processor, so
they are not all available from the processor at the same time. Several bus switches were added to the carrier
board to optimize the routing of these interfaces. The interfaces on the Carrier Board which are enabled through
these bus switches are:
1 Ethernet1
2 Ethernet2
3 EtherCAT
4 LCD Display
5 WiFi
75
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Part II: PCM-953 / phyCORE-AM335x Carrier Board
The enable signals for these interfaces are controlled by a logic decoder. The decoder disables all of the
interfaces during sytem power-on reset, so while the X_PORZ signal is asserted. After the reset, the decoder
asserts the interface enable signals to the bus-switches and to status LEDs according to the settings of jumpers
JP3 and JP4.
Jumpers JP3 and JP4 and the LED locations are shown in Figure 17 . The jumper settings are explained in
Table 44.
Figure 17: Bus Enable Jumpers and LEDs
L-771e_1 © PHYTEC Messtechnik GmbH 2012
76
Part II: PCM-953 / phyCORE-AM335x Carrier Board
phyCORE-AM335x
JP4 Signal
JP3 Signal
Enable Signals Activated Enabled Interfaces
(logic input B) (logic input A)
1+2
1+2
-
Interfaces can be selected by software via
GPIOs X_GPIO1_8 (logic input A) and
X_GPIO1_9 (logic input B)
2+3 (logic low) 2+3 (logic low) CHOOSE_ECAT_OE
CHOOSE_ETH1_OE
EtherCAT
Ethernet1
2+3 (logic low) OPEN (logic
high)
LCD
WiFi
CHOOSE_LCD_OE
CHOOSE_WIFI_OE
OPEN (logic
high)
2+3 (logic low) CHOOSE_ETH1_OE
CHOOSE_GMII_OE
CHOOSE_LCD_OE
Ethernet1
Ethernet2
LCD
OPEN (logic
high)
OPEN (logic
high)
Ethernet1
LCD
CHOOSE_ETH1_OE
CHOOSE_LCD_OE
Table 44: Interfaces Enabled with JP3 and JP4
The LEDs in Table 45 indicate which of the interfaces are enabled.
LED
Enabled Interfaces
D9
EtherCAT
D10
WiFi
D11
Ethernet2
D12
LCD Display
D13
Ethernet1
Table 45: Bus Switch Enable Status LEDs
77
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Part II: PCM-953 / phyCORE-AM335x Carrier Board
4.3 Functional Components of the phyCORE-AM335x Carrier Board
This section describes the functional components of the phyCORE-AM335x Carrier Board supporting the
phyCORE-AM335x. Each subsection details a particular connector/interface and associated jumpers for configuring the interface.
4.3.1 phyCORE-AM335x SOM Connectivity (X1 and X2)
Connectors X1 and X2 on the carrier board provide the phyCORE System on Module connectivity. The connectors
are keyed for proper insertion of the SOM. Figure 18 above shows the location of the connectors X1 and X2,
along with the pin numbering scheme as described in Figure 4 . Please refer to Section 3.14 for information on
manufacturer, part number and ordering.
Figure 18: phyCORE-AM335x SOM Connectivity to the Carrier Board
To support all features of the phyCORE-AM335x Carrier Board the BSP provided assigns functions different from
what is described in Table 3 to some pins of the phyCORE-AM335x. Table 46 lists all pins with functions different
from what is described in Table 3. Use of these pins in their original function described in Section 3 of this
manual requires changing the BSP.
L-771e_1 © PHYTEC Messtechnik GmbH 2012
78
Part II: PCM-953 / phyCORE-AM335x Carrier Board
phyCORE-AM335x
Pin # at phyCORE- Signal
Connector
Type (from the
SL
SOM's perspective)
Description
X2B51
X_GPIO1_8
OUT
3.3 V
If jumper JP3 is installed at (1+2), then
X_GPIO1_8 controls input A of the busenable decoder. See Section 4.2.5
X2B50
X_GPIO1_9
OUT
3.3 V
If jumper JP4 is installed at (1+2), then
X_GPIO1_9 controls input B of the busenable decoder. See Section 4.2.5
X2A23
X_GPIO3_17
IN
3.3 V
X_GPIO3_17 is used for over-current
detection for the USB0 interface.
See Section 4.3.8.1
X1B5
X_GPIO3_18
IN
3.3 V
X_GPIO3_18 is used for over-current
detection for the USB1 interface.
See Section 4.3.8.2
X1B15
X_GPIO3_19
OUT
3.3 V
X_GPIO3_19 controls the drive-enable
(DE) input of the RS-485 transceiver
(U13) for the Profibus interface.
See Section 4.3.5
X1B47
X_GPIO1_30
OUT
3.3 V
X_GPIO1_30 controls LED1. LED1 is on
when X_GPIO1_30 is high.
See Section 4.2.3
X1B48
X_GPIO1_31
OUT
3.3 V
X_GPIO1_31 controls LED2. LED2 is on
when X_GPIO1_31 is high.
See Section 4.2.3
On the SOM, X_GPIO1_31 controls
which signal routes to AM335x pin T17.
0=X_RMII2_CRS_DV. 1=NAND Ready/
Busy.
Table 46: Specifically used Pins on the phyCORE-Connector
79
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Part II: PCM-953 / phyCORE-AM335x Carrier Board
4.3.2 Power
Figure 19: +5 VDC Power Input Connector
The primary input power of the phyCORE-AM335x Carrier Board comes from the wall adapter jack X3 (+5 V).
The red LED, D2, on the Carrier Board lights when the main supply voltage from the wall adapter, VCC_5V0, is on.
Switching regulators on the phyCORE-AM335x Carrier Board generate two different voltages, 1.2 V and 3.3 V, to
supply components on the carrier board.
The carrier board's 1.2 V and 3.3 V local power supplies are enabled by the VAUX2_3P3V reference voltage from
the SOM rather than powering up immediately with the VCC_5V0 main system supply. This is to prevent the
carrier board from driving signals into the AM335x processor while the SOM's power supplies are off.
There are two options for supplying the VCC_3V3 domain. These are:
1. VCC_3V3_800mA, from U15, and
2. VCC_3V3_3000mA, from U24.
Select the supply for VCC_3V3 at connector X29 as shown in Table 47.
Either the 800 mA supply or the 3000 mA supply can run the carrier board interfaces. The 3000 mA option is
provided in order to also supply possible future circuits on the GPIO Expansion Board. If it is not used, U24
should be shut off by installing jumper JP1. The settings for selecting the 3.3 V source with X29 and JP1 are
described in Table 47.
L-771e_1 © PHYTEC Messtechnik GmbH 2012
80
Part II: PCM-953 / phyCORE-AM335x Carrier Board
phyCORE-AM335x
VCC_3V3 source
JP1 Setting
X29 Setting
VCC_3V3_800mA, U15
(1+2)
(1+2) and (3+4)
VCC_3V3_3000mA, U24
OPEN
(5+6) and (7+8)
Table 47: VCC_3V3 Jumper Settings
The following table lists the Carrier Board's voltage domains and their uses.
Voltage domain
Description
VCC_5V0
Main supply voltage from wall adapter input at X3.
VCC_5V0 powers the SOM, the other supplies on the carrier board, and also various
interfaces which use 5 V, such as USB and Profibus.
VCC_3V3
3.3 V voltage domain required for various interfaces such as the LCD transceiver,
Ethernet ports, etc.
VCC_1V2
1.2 V voltage domain required for the Ethernet2 transceiver, U14.
VBAT
3 V backup battery supplying the RTC on the SOM if jumper JP2 is installed.
Table 48: Voltage Domains on the Carrier Board
Caution:
Only one 3.3 V power supply, 800 mA or 3000 mA can be enabled at a time.
4.3.2.1 Wall Adapter Input (X3)
Caution:
Do not use a laboratory adapter to supply power to the carrier board! Power spikes during power-on could
destroy the phyCORE module mounted on the carrier board! Do not change modules or jumper settings while
the carrier board is supplied with power!
Permissible input voltage at X3: +5 V DC.
The required current load capacity of the power supply depends on the specific configuration of the phyCORE
mounted on the carrier board, the particular interfaces enabled while executing software as well as whether an
optional expansion board is connected to the carrier board. An adapter with a minimum supply of 1.5 A is
recommended.
Note:
For powering up the phyCORE the following action has to be done:
Plug in the power supply connector
» The red power LED D2 should light up and the phyCORE sends serial data from UART0 to the DB9 connector
X18.
81
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Part II: PCM-953 / phyCORE-AM335x Carrier Board
4.3.2.2 Power Management
Two signals on the phyCORE-AM335x Carrier Board support the features of the Power Management IC on the
phyCORE-AM335x. They connect to pins X3.B14 (X_PB_POWER) and X1.B25 (X_PMIC_POWER_EN) at the
phyCORE-Connector. Please refer to Section 3.4.3.3 to learn more about the power management available on
the phyCORE-AM335x.
Signal X_PB_POWER connects to switch S7 on the carrier board. Pressing this switch toggles the X_PB_POWER
signal of the PMIC LOW.1
Signal X_PMIC_POWER_EN connects to switch S1 on the carrier board. Setting this switch ON or OFF sets the
X_PMIC_POWER_EN signal HIGH or LOW.
4.3.2.3 VBAT
To backup the RTC on the module, a secondary voltage source of 3 V can be attached to the phyCORE-AM335x at
pin X2A2. This voltage source supplies the backup voltage domain VBAT of the AM335x which supplies the RTC
and some critical registers when the primary system power, VDD_3V3, is removed.
Install jumper JP2 at (1+2) to connect the VBAT supply to the phyCORE-AM335x.
4.3.3 Ethernet Connectivity
The carrier board’s bus enable decoder must be configured with jumpers JP3 and JP4 to enable the Ethernet
interfaces. See Table 49 for information on setting the jumpers. LED D13 is lit when the Ethernet1 interface is
enabled and LED D11 is lit with Ethernet2.
JP4 Signal (logic input B)
JP3 Signal (logic input A)
Enabled Interfaces
1+2
1+2
Selected by software, see Section
4.2.5 for detailed information.
2+3 (logic low)
2+3 (logic low)
EtherCAT
Ethernet1
2+3 (logic low)
OPEN (logic high)
LCD
WiFi
OPEN (logic high)
2+3 (logic low)
Ethernet1
Ethernet2
LCD
OPEN (logic high)
OPEN (logic high)
Ethernet1
LCD
Table 49: JP3 and JP4 settings
1.
All special functions of the PMIC such as its response to this power management input signal, etc. require the PMIC to be
programmed via I2C interface. At the time of delivery only the generation of the required voltages is implemented . Please refer to
the TPS65910A3 User Guide for more information on how to program the PMIC.
L-771e_1 © PHYTEC Messtechnik GmbH 2012
82
Part II: PCM-953 / phyCORE-AM335x Carrier Board
phyCORE-AM335x
4.3.3.1 Ethernet 1 (X12)
Figure 20: Ethernet1 Connector
The Ethernet1 interface of the phyCORE is accessible at an RJ-45 connector (X12) on the carrier board. The LEDs
for LINK (green) and SPEED (yellow) indication are integrated in the connector. The required termination
resistors for the Ethernet interface are assembled on the phyCORE-AM335x.
This Ethernet tranceiver on the SOM supports the HP Auto-MDIX function, eliminating the need for considerations of a direct connect LAN cable or a cross-over patch cable. The tranceiver detects the TX and RX signals of
the connected device and automatically configures its TX and RX pins accordingly.
Note:
Ensure the routing distance between the phyCORE connector and the Ethernet connector is as short as
possible.
Note:
Ethernet1 cannot be used at the same time as WiFi.
83
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Part II: PCM-953 / phyCORE-AM335x Carrier Board
4.3.3.2 Ethernet 2 (X9)
Figure 21: Ethernet 2 Connector
The Ethernet2 interface of the phyCORE is accessible at an RJ-45 connector (X9) on the carrier board. The LEDs
for LINK (green) and SPEED (yellow) indication are integrated in the connector.
The single-ended Ethernet 2 RGMII signals from the AM335x route through the phyCORE connector to an RGMII
Ethernet transceiver at U14. The differential pairs from the transceiver route through a gigabit magnetics
module to the RJ-45 Ethernet jack.
L-771e_1 © PHYTEC Messtechnik GmbH 2012
84
Part II: PCM-953 / phyCORE-AM335x Carrier Board
phyCORE-AM335x
4.3.4 EtherCAT (X10 and X11)
Figure 22: EtherCAT Connectors
The EtherCAT interfaces of the phyCORE are accessible at RJ-45 Ethernet jacks with integrated magnetics (X10
and X11) on the carrier board. The LEDs for LINK (green) and SPEED (yellow) indication are integrated in the
connectors.
The single-ended MII EtherCAT signals from the AM335x route through the phyCORE connector to two EthernCAT
transceivers (U33 and U34). The differential pairs from the transceivers route to the two RJ-45 Ethernet jacks.
The carrier board’s bus enable decoder must be configured with jumpers JP3 and JP4 to enable the EtherCAT
interface. See Table 50 for information on setting the jumpers. LED D9 is lit when the EtherCAT interface is
enabled.
85
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Part II: PCM-953 / phyCORE-AM335x Carrier Board
JP4 Signal (logic input B)
JP3 Signal (logic input A)
Enabled Interfaces
1+2
1+2
Selected by software, see Section
4.2.5 for detailed information.
2+3 (logic low)
2+3 (logic low)
EtherCAT
Ethernet1
2+3 (logic low)
OPEN (logic high)
LCD
WiFi
OPEN (logic high)
2+3 (logic low)
Ethernet1
Ethernet2
LCD
OPEN (logic high)
OPEN (logic high)
Ethernet1
LCD
Table 50: JP3 and JP4 settings
4.3.5 Profibus (X19)
Figure 23: Profibus Connector
L-771e_1 © PHYTEC Messtechnik GmbH 2012
86
Part II: PCM-953 / phyCORE-AM335x Carrier Board
phyCORE-AM335x
The Profibus interface is accessible at the DB9 connector X19.
The Carrier Board uses the AM335x UART1_TXD/RXD pins for the Profibus interface. These signals route from the
phyCORE connector through jumpers JP7 and JP8 to a RS-485 transceiver at U13. The signals out of the
transceiver route to the DB9 connector. See Table 51 for information on setting the jumpers.
Because the Profibus interface shares some signals with the WiFi module, the carrier board was designed so that
installing the WiFi module onto the carrier board disables the Profibus transceiver.
Jumper
Setting to enable Profibus
JP7
5+6
JP8
5+6
Table 51: Profibus Jumpers
4.3.6 RS-232 (X18)
Figure 24: RS-232 Connector
The DB-9 connector X18 provides the UART0 signals of the AM335x at RS-232 level. A RS-232 transceiver at U28
converts the TTL level signals from the phyCORE-AM335x to RS-232 level signals. The AM335x can boot from this
interface.
This interface does not include the AM335x's UART0_ RTS and UART0_CTS signals for flow control.
87
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Part II: PCM-953 / phyCORE-AM335x Carrier Board
4.3.7 CAN (X13)
Figure 25: CAN Connector and Jumpers
The CAN interface is accessible at the DB9 connector X13.
The PHYTEC carrier board provides access to the CAN0 signals which are multiplexed onto the AM335x UART1_TX
and UART1_RX pins. These signals route from the phyCORE connector through jumpers JP7 and JP8 to a CAN
transceiver at U23. The signals out of the transceiver route to X13.
The CAN signals on the carrier board share the UART1_TX/RX signals with the Profibus inteface and with the WiFi
module. Jumpers JP7 and JP8 must be installed at pins (1+2) to select CAN rather than Profibus. If a WiFi module
is installed at connector X27 then both the CAN and Profibus transceivers are disabled.
Jumper JP9 can be installed to add a 120 Ohm termination resistor across the CAN data lines if needed.
L-771e_1 © PHYTEC Messtechnik GmbH 2012
88
Part II: PCM-953 / phyCORE-AM335x Carrier Board
phyCORE-AM335x
4.3.8 Universal Serial Bus (USB) (X7 and X8)
Figure 26: USB Connectors and Jumpers
The USB interfaces are accessible at connectors X7 (USB Mini-AB) and X8 (USB Standard-A). Both USB
interfaces of the AM335x are On-The-Go (OTG). USB OTG devices are capable to initiate a session, control the
connection and exchange host and peripheral roles between each other. The AM335x USB interfaces are
compliant with USB revision 2.0.
4.3.8.1 USB0 (X7)
Two jumpers control the configuration of the USB0 OTG interface.
Jumper J12 configures the interface's operating mode with the USB0_ID signal. By default this jumper is open,
which leaves the ID pin floating, and thus configures the interface mode as OTG. Alternatively this jumper can
be closed, connecting the ID signal to GND, and configuring the interface mode as host.
Typically the configuration of a connecting device as host or slave is done automatically via the USB cable.
However, given the limited number of OTG enabled devices in the embedded market, this jumper is provided to
either simulate an OTG cable, or force the OTG interface into host mode when OTG operation is not required.
Jumper J10 connects the bus voltage signal (X_USB0_VBUS) to an additional 150 uF of capacitance. This is to
meet the capacitance requirements when the interface is used in dedicated host mode. See Table 52.
89
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Part II: PCM-953 / phyCORE-AM335x Carrier Board
4.3.8.2 USB1 (X8)
One jumper controls the configuration of the USB1 OTG interface.
The USB1 interface of the AM335x is an OTG interface. But its default configuration on the the carrier board is
as a dedicated host.
Jumper J11 connects the ID signal (X_USB1_ID) to GND. By default the jumper is closed, which configures the
interface mode as a host. Alternatively this jumper can be open, leaving the ID signal floating, and configuring
the interface mode as OTG.
The carrier board's USB1 interface always has 150 uF on its bus voltage (X_USB1_VBUS). This amount of
capacitance is appropriate for its default configuration as a USB host. It is above the capacitance specification
for an OTG interface.
Table 52 details the applicable connectors for the different USB operating modes.
Note:
The AM335x ID signals are in a 1.8 V power-domain. Steady state voltages above 2.1 V on the ID signals can
cause permanent damage to the AM335x. Any pull-ups on the USB_ID signals should connect to 1.8 V.
Please see the PHYTEC Carrier Board schematics for a reference implementation.
Note:
A USB interface is required to supply 8 mA of current at 5 V to a connecting device on the port’s bus voltage
(VBUS) signal when it runs in host mode.
The phyCORE-AM335x VBUS pin is not capable of supplying bus voltage. But the phyCORE-AM335x does
provide a control signal for enabling a power distribution switch to supply the bus voltage for each USB
interface. These control signals are named X_USB0_DRVVBUS and X_USB1_DRVVBUS in the phyCORE-AM335x
carrier board schematics. Please see the phyCORE-AM335x Carrier Board schematics for a reference circuit.
Operating
Mode
Applicable
Connectors
ID Signal on Carrier Board
VBUS Capacitance
Host
Standard-A
grounded
at least 120 uF
Mini-A
grounded
Device / Periph- Standard-B
eral
Mini-B
floating
OTG
floating, the USB cable may ground it
Mini-AB
1 uF - 10 uF
floating
1 uF - 10 uF
Table 52: USB Connectors for Different Operating Modes
L-771e_1 © PHYTEC Messtechnik GmbH 2012
90
Part II: PCM-953 / phyCORE-AM335x Carrier Board
phyCORE-AM335x
4.3.9 I2C
The I2C interfaces of the phyCORE-AM335x are available on several signals on the phyCORE-AM335x Carrier
Board. The following table lists the I2C interfaces, signals these can be multiplexed onto, the signal level, and
where they are located on the GPIO Expander Board connector X5.
I²C Interface
Interface Signal
Schematic Signal Name
SL
Connector X5 pin
I2C0
SCL
X_I2C0_SCL
3.3 V
SDA
X_I2C0_SDA
3.3 V
35C
36C
SCL
X_SPI0_CS0
3.3 V
39C
X_UART0_RTSn
3.3 V
-
X_UART1_TXD
3.3 V
37X
X_RMII1_RXER
3.3 V
-
X_SPI0_D1
3.3 V
41C
X_UART0_CTSn
3.3 V
-
X_UART1_RXD
3.3 V
38D
X_MII1_CRS
3.3 V
-
X_SPI0_D0
3.3 V
40C
X_UART0_TXD
3.3 V
40D
X_UART1_RTS
3.3 V
36D
X_SPI0_SCLK
3.3 V
38C
X_UART0_RXD
3.3 V
41D
X_UART1_CTS
3.3 V
35D
I2C1
SDA
I2C2
SCL
SDA
Table 53: I2C Interface Signals
To avoid any conflicts when connecting external I2C devices to the phyCORE-AM335x Carrier Board the
addresses of the on-board I2C devices must be considered. Some of the addresses can be configured.
Table 54 lists the addresses already in use by default on the PHYTEC kit. These addresses are all on the I2C0
interface.
91
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Part II: PCM-953 / phyCORE-AM335x Carrier Board
I2C0 Address
(7 MSB)
Device
Device
Section
Location
0x12
TPS65910A3 PMIC (U4) SmartReflex (SR-I²C) control
interface
SOM
Section 3.4.3
0x2D
TPS65910A3 PMIC (U4) general-purpose serial control SOM
(CTL-I²C) inteface
Section 3.4.3
0x52
I²C EEPROM (U6). This address can be modified
Section 3.7.3.1
0x68
External Real-Time Clock (U2). This RTC is an ordering SOM
option, not installed by default
Section 3.5.2
0x1A
WM8974 Audio Codec (U20).
Section 4.3.14
SOM
Carrier
Board
Table 54: I2C0 Reserved Addresses
4.3.10 SPI (X5)
Figure 27: X5 GPIO Expansion Board Connectors
The two SPI interfaces from the AM335x are accessible on the phyCORE-Connectors. They are both master/slave
interfaces. Each SPI interface supports up to two peripherals.
L-771e_1 © PHYTEC Messtechnik GmbH 2012
92
Part II: PCM-953 / phyCORE-AM335x Carrier Board
phyCORE-AM335x
The SPI0 chip select 0 (X_SPI0_CS0) is not available for use on the GPIO Expansion Board if the SPI Flash is
installed on the SOM unless the SPI Flash is disabled. The SPI Flash on the SOM can be disabled without
physically removing it by installing jumper J3 on the SOM. See section Section 3.7.4.2.
The SPI signals available on the GPIO Expansion Board are listed in Table 69.
4.3.11 JTAG (X21)
Figure 28: JTAG Connector
The JTAG interface of the phyCORE-AM335x is accessible at connector X21 on the carrier board. This interface is
compliant with JTAG specification IEEE 1149.1 or IEEE 1149.7. No jumper settings are necessary for using the
JTAG port. The following table describes the signal configuration at X21. When referencing contact numbers
note that pin 1 is located at the angled corner. Pins towards the label "JTAG" are odd numbered.
93
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Part II: PCM-953 / phyCORE-AM335x Carrier Board
Pin #
Signal
Type
SL
Description
1, 2
VCC_3V3
REF
3.3 V
JTAG Chain Reference Voltage
3
X_TRSTn
IN
3.3 V
JTAG Chain Test Reset
4, 6, 8, 10, 12, GND
14, 18, 20
-
-
Ground
5
X_TDI
IN
3.3 V
JTAG Chain Test Data Input
7
X_TMS
IN
3.3 V
JTAG Chain Test Mode Select signal
9
X_TCK
IN
3.3 V
JTAG Chain Test Clock signal
11
X_RTCK
OUT
3.3 V
JTAG Chain Return Test Clock signal
13
X_TDO
OUT
3.3 V
JTAG Chain Test Data Output
15
X_SRST
IN
3.3 V
System Reset
Table 55: JTAG Connector X1 Pin Descriptions
4.3.12 Display / Touch (X4 and X31)
The phyCORE-AM335x Carrier Board supports the LCD interface display and touch-screen interfaces provided by
the phyCORE-AM335x. The LCD interface display signals are converted into LVDS and are available at the PHYTEC
Display-Interface (PDI), data connector X4, along with the touch signals. In addition, the parallel display
interface is available at pin header X40.
The PHYTEC Carrier Board swaps some of the display data signals from the SOM before connecting them to the
display interface to work around an errata in the AM335x processor.
L-771e_1 © PHYTEC Messtechnik GmbH 2012
94
Part II: PCM-953 / phyCORE-AM335x Carrier Board
phyCORE-AM335x
Figure 29: Display Connectors
The various performance classes of the phyCORE family allow to attach a large number of different displays
varying in resolution, signal level, type of the backlight, pinout, etc. In order not to limit the range of displays
connectable to the phyCORE, the phyCORE-AM335x Carrier Board has no special display connector suitable only
for a small number of displays. The new concept intends the use of an adapter board (e.g. PHYTECs LCD display
adapters LCD-014 and LCD-017) to attach a special display, or display family to the phyCORE. A new PHYTEC
Display-Interface (PDI) was defined to connect the adapter board to the phyCORE-AM335x Carrier Board.
It consists of two universal connectors which provide the connectivity for the display adapter. They allow easy
adaption also to any customer display adapter. One connector (40 pin FCC connector 0.5mm pitch) at X4 is
intend for connecting all data signals to the display adapter. It combines various interface signals like LVDS,
SPI, I2C, etc. required to hook up a display. The second connector of the PDI (AMP microMatch 8-338069-2) at
X31 provides all supply voltages needed to supply the display and the brightness control.
The carrier board’s bus enable decoder must be configured with jumpers JP3 and JP4 to enable the Ethernet 1
interface. See Table 56 for information on setting the jumpers. LED D12 is lit when the display interface is
enabled.
95
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Part II: PCM-953 / phyCORE-AM335x Carrier Board
JP4 Signal (logic input B)
JP3 Signal (logic input A)
Enabled Interfaces
1+2
1+2
Selected by software, see Section
4.2.5 for detailed information.
2+3 (logic low)
2+3 (logic low)
EtherCAT
Ethernet1
2+3 (logic low)
OPEN (logic high)
LCD
WiFi
OPEN (logic high)
2+3 (logic low)
Ethernet1
Ethernet2
LCD
OPEN (logic high)
OPEN (logic high)
Ethernet1
LCD
Table 56: JP3 and JP4 settings
The following sections contain specific information on each connector.
4.3.12.1 PHYTEC Display Interface (PDI) Data Connector (X4)
PDI data connector X4 provides display data from the LCD Interface Display Driver of the AM335x after the
signals have been converted to LVDS.
The LCD interface display signals are converted into LVDS by the Texas Instruments SN65LVDS93 FlatLink™
transmitter at U3. The transmitter contains four 7-bit parallel-load serial-out shift registers with LVDS output
drivers. Jumper J3 allows to select either rising, or falling edge strobe for the input clock signal of the FlatLink™
transmitter. The default configuration selects rising edge strobe (see Table 43 for details). Removing jumper
JP1 enables the transmitter.
The AM335x LCD interface display signals are also available at pin header X40 to enable design of a custom
specific display interface. Please refer to Section 4.3.12.3.
Note:
If the LCD interface of the phyCORE-AM335x is intended to be used with custom hardware connected to pin
header X40 closing jumper JP24 at position 2+3 shuts down the FlatLink™ transmitter. This allows to avoid
signal conflicts and to reduce disturbances.
On custom carrier boards, it is strongly recommended to include 50 Ohm series resistors on each of the LCD
interface signals out of the phyCORE-AM335x to limit overshoot.
In addition other useful interfaces such as SPI and I2C are available at PDI data connector X4. Table 58 lists the
miscellaneous signals available on the AM335x Carrier Board PDI connector and gives detailed explanations.
L-771e_1 © PHYTEC Messtechnik GmbH 2012
96
Part II: PCM-953 / phyCORE-AM335x Carrier Board
phyCORE-AM335x
The following table shows the pinout of the PDI's display data connector at X4.
Pin #
Signal
Type
SL
Description
1
X_SPI0_SCLK
OUT
3.3 V
SPI 0 clock
2
X_SPI0_D0
IN
3.3 V
SPI 0 master data in; slave data out
3
X_SPI0_D1
OUT
3.3 V
SPI 0 master data out; slave data in
4
X_SPI0_CS0
OUT
3.3 V
SPI 0 chip select display adapter
5
X_INTR1
IN
3.3 V
Interrupt
6
VCC_3V3
OUT
3.3 V
Logic supply voltage1
7
X_I2C0_SCL
IO
3.3 V
I2C clock signal
8
X_I2C0_SDA
IO
3.3 V
I2C data signal
9
GND
-
-
Ground
10
X_ECAP0_IN_PWM0_OUT OUT
3.3 V
PWM brightness control
11
VCC_3V3
OUT
3.3 V
Logic supply voltage1
12
n.c.
-
-
not connected
13
CHOOSE_LCD_OEn
OUT
3.3 V
Display enable signal
14
n.c.
-
-
not connected
15
GND
-
-
Ground
16
n.c.
-
-
not connected
17
n.c.
-
-
not connected
18
GND
-
-
Ground
19
LVDS_Y1M
LVDS
3.3 V
LVDS data channel 0 negative output
20
LVDS_Y1P
LVDS
3.3 V
LVDS data channel 0 positive output
21
GND
-
-
Ground
22
LVDS_Y2M
LVDS
3.3 V
LVDS data channel 1 negative output
23
LVDS_Y2P
LVDS
3.3 V
LVDS data channel 1 positive output
24
GND
-
-
Ground
25
LVDS_Y3M
LVDS
3.3 V
LVDS data channel 2 negative output
26
LVDS_Y3P
LVDS
3.3 V
LVDS data channel 2 positive output
27
GND
-
-
Ground
28
LVDS_Y4M
LVDS
3.3 V
LVDS data channel 3 negative output
29
LVDS_Y4P
LVDS
3.3 V
LVDS data channel 3 positive output
30
GND
-
-
Ground
31
LVDS_CLKOUTM
LVDS
3.3 V
LVDS clock channel negative output
Table 57: PDI Data Connector X4 Signal Description
97
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Part II: PCM-953 / phyCORE-AM335x Carrier Board
Pin #
Signal
Type
SL
Description
32
LVDS_CLKOUTP
LVDS
3.3 V
LVDS clock channel positive output
33
GND
-
-
Ground
34
TOUCH_X+
Analog
3.3 V
Touch
35
TOUCH_X-
Analog
3.3 V
Touch
36
TOUCH_Y+
Analog
3.3 V
Touch
37
TOUCH_Y-
Analog
3.3 V
Touch
38
n.c.
-
-
not connected
39
GND
-
-
Ground
40
n.c.
-
-
not connected
Table 57: PDI Data Connector X4 Signal Description
1.
Provided to supply any logic on the display adapter.
The table below describes the auxiliary interfaces at display data connector X4.
Interface or Signal
Description
I2C0
I2C interface for a optional EEPROM, or other I2C devices. Additional information on the I2C interfaces can be found in Section 3.9.5.
SPI0
SPI interface to connect optional SPI slave. Jumper JP17 must be closed to use
the SPI interface, which is addressable at SPI0 device 0. The LCD from PHYTEC
does not include a SPI interface.
CHOOSE_LCD_OEn
Can be used to enable or disable the display. CHOOSE_LCD_OEn is driven by a
logic decoder which is controlled with jumpers JP3 and JP4.
See section Section 4.2.5
X_ECAP0_IN_PWM0_OUT
PWM output from the AM335x to control the brightness of a display's backlight
(0% = dark, 100% = bright).
TOUCH
Analog touch-screen interface signals. These TOUCH signals connect to the
AIN[3:0] signals of the AM335x.
Table 58: Auxiliary Interfaces at PDI Data Connector X4
L-771e_1 © PHYTEC Messtechnik GmbH 2012
98
Part II: PCM-953 / phyCORE-AM335x Carrier Board
phyCORE-AM335x
4.3.12.2 PHYTEC Display Interface (PDI) Power Connector (X31)
The display power connector X31 (AMP microMatch 8-338069-2) provides supply voltages and brightness
control.
Pin #
Signal
Type
SL
Description
1
GND
-
-
Ground
2
VCC_3V3
PWR
3.3 V
3.3 V power supply display
3
GND
-
-
Ground
4
VCC_5V
PWR
5.0 V
5 V power supply display
5
GND
-
-
Ground
6
VCC_5V
PWR
5.0 V
5 V power supply display
7
GND
-
-
Ground
8
VCC_5V
PWR
5.0 V
5 V power supply display
9
GND
-
-
Ground
10
X_ECAP0_IN_PWM0_OUT
OUT
3.3 V
PWM brightness output1
11
n.c.
-
-
Not connected
12
n.c.
-
-
Not connected
Table 59: PDI Power Connector X31 Signal Description
1.
(refer to Table 58 for detailed information)
Caution:
There is no protective circuitry for the display power connector. The output for the display supply voltage
connects directly to the main power input at X3. Thus the main supply voltage must match the input voltage
of your backlight power circuitry.
99
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Part II: PCM-953 / phyCORE-AM335x Carrier Board
4.3.12.3 AM335x LCD Interface Display (X40)
The AM335x LCD interface display signals are available at pin header X40 to enable design of a custom display
interface. If using the interface at X40, disable the LVDS transmitter by installing jumper JP1.
Pin #
Signal
Pin #
Signal
1
LCD_D22
2
LCD_D15
3
X_LCD_D21
4
LCD_D2
5
X_LCD_D20
6
LCD_D0
7
X_LCD_D19
8
LCD_D1
9
X_LCD_D18
10
LCD_D3
11
X_LCD_D17
12
LCD_D4
13
X_LCD_D23
14
LCD_D5
15
LCD_D10
16
X_LCD_D6
17
LCD_D11
18
X_LCD_D7
19
LCD_D12
20
X_LCD_HSYNC
21
LCD_D8
22
X_LCD_VSYNC
23
LCD_D9
24
LCD_AC_BIAS_EN
25
LCD_D13
26
X_LCD_D16
27
LCD_D14
28
LCD_PCLK
29
GND
30
GND
Table 60: AM335x LCD Interface Display Connector X40
4.3.12.4 Touch Screen Connectivity
As many smaller applications need a touch screen user interface, provisions are made to connect 4-wire resistive
touch screens to the PDI data connector X12 (pins 34 - 37, refer to Table 57). The signals from the touch screen
panel are processed by a touch panel controller which is integrated in the AM335x.
L-771e_1 © PHYTEC Messtechnik GmbH 2012
100
Part II: PCM-953 / phyCORE-AM335x Carrier Board
phyCORE-AM335x
4.3.13 Secure Digital Memory (SD) / MultiMedia Card (MMC) Slot (X20)
Figure 30: SD / MMC Connector (X20)
The phyCORE Carrier Board provides a standard Secure Digital Memory SDHC card slot at X20 for connection to
SD / MMC interface cards. It allows easy and convenient connection to peripheral devices such as SD- and MMC
cards. Power to the SD interface is supplied by inserting the appropriate card into the SD / MMC connector.
The AM335x processor on the SOM can boot from this interface.
101
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Part II: PCM-953 / phyCORE-AM335x Carrier Board
4.3.14 Audio (X14, X15, X16, X17)
Figure 31: Audio Connectors (X14, X15, X16, X17)
The audio interface provides a method of exploring the AM335x's audio capabilities. The phyCORE-AM335x
Carrier Board is populated with a Wolfson Microelectronics WM8974 audio codec at U20. The WM8974 is
connected to the AM335x's McASP0 interface to support stereo microphone input, stereo headphone output,
mono output, and direct speaker output.
The phyCORE-AM335x accesses the WM8974 registers via the I2C0 interface at address 0x1A (7-bit MSB
addressing). Audio devices can be connected at X14, X15, X16 and X17.
The carrier board's audio interface includes three hardware configuration jumpers: JP5, JP6 and JP13.
These are described in paragraphs below. The audio connectors are listed in Table 61.
Jumper JP5 selects the source for the audio codec's microphone input from connector X14. The default
configuration (1+2) connects the microphone input to X14's "R" signal. If JP5 is set to (2+3) then the
microphone input connects to X14's "T" signal.
Jumper JP6 allows flexible control over the audio codec's master clock source (MCLK). The audio codec's master
clock can range from 12.288 MHz to 50 MHz. In the default position (2+3) the codec is clocked from the
module's X_MCASP0_AHCLKX clock signal. If J6 is set to (1+2) the clock is generated by a crystal oscillator
(12.2880 MHz) at OZ1 on the carrier board.
L-771e_1 © PHYTEC Messtechnik GmbH 2012
102
Part II: PCM-953 / phyCORE-AM335x Carrier Board
phyCORE-AM335x
Jumper JP13 selects whether the audio codec's GPIO pin is HIGH or LOW. The codec's behavior for either level
is configurable through registers in the WM8974 via I2C0.
Connector
Audio Feature
X14
microphone in
X15
headphones out
X16
mono out
X17
speakers out
Table 61: Audio Connectors
4.3.15 WiFi (X27)
Figure 32: WiFi Connector
A WiFi / Bluetooth module, such as the PHYTEC PCM-958, can connect to the Carrier Board’s pin header at X27.
The WiFi connector and associated jumpers are shown in Figure 32 .
The Carrier Board’s logic decoder must be configured with jumpers JP3 and JP4 to enable the WiFi interface
signals. See Section 4.2.5 for information about enabling different interfaces with the logic decoder.
Jumpers JP7 and JP8 must also be installed at (1+2) to connect the UART1_Tx/Rx signals to the WiFi connector.
103
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Part II: PCM-953 / phyCORE-AM335x Carrier Board
The carrier board’s bus enable decoder must be configured with jumpers JP3 and JP4 to enable the WiFi
interface. See Table 62 for information on setting the jumpers. LED D10 is lit when the WiFi interface is enabled.
JP4 Signal (logic input B) JP3 Signal (logic input A)
Enabled Interfaces
1+2
1+2
Selected by software, see Section 4.2.5 for
detailed information.
2+3 (logic low)
2+3 (logic low)
EtherCAT
Ethernet1
2+3 (logic low)
OPEN (logic high)
LCD
WiFi
OPEN (logic high)
2+3 (logic low)
Ethernet1
Ethernet2
LCD
OPEN (logic high)
OPEN (logic high)
Ethernet1
LCD
Table 62: JP3 and JP4 settings
The WiFi module requires signals from several of the AM335x interfaces. The signals used for the WiFi module
are listed in Table 63.
Signal Type
Signal
SL
Description
X27 Pin
Audio
MCASP1_FSX
3.3 V
Audio frame
1
MCASP1_AXR0
3.3 V
Audio data
3
MCASP1_AXR2
3.3 V
Audio data
20
MCASP1_ACLKX
3.3 V
Audio clock
5
X_UART1_TXD
3.3 V
UART transmit data
9
X_UART1_RXD
3.3 V
UART receive data
22
X_UART1_CTS
3.3 V
UART clear to send
24
X_UART1_RTS
3.3 V
UART request to send 11
MMC2_DAT0
3.3 V
MMC data
29
MMC2_DAT1
3.3 V
MMC data
27
MMC2_DAT2
3.3 V
MMC data
25
MMC2_DAT3
3.3 V
MMC data
21
MMC2_DAT4
3.3 V
MMC data
17
MMC2_DAT5
3.3 V
MMC data
13
MMC2_DAT6
3.3 V
MMC data
19
MMC2_DAT7
3.3 V
MMC data
28
MMC2_CLK
3.3 V
MMC clock
32
MMC2_CMD
3.3 V
MMC command
30
UART
SD / MMC
Table 63: WiFi Module Signals (X27)
L-771e_1 © PHYTEC Messtechnik GmbH 2012
104
Part II: PCM-953 / phyCORE-AM335x Carrier Board
Signal Type
Signal
phyCORE-AM335x
SL
Description
X27 Pin
Module Detect WIFI_DETECT
3.3 V
Low-true detect signal
2
Power
VCC_3V3
-
3.3 V supply
10, 12, 14, 16
VDIG1_1P8V
-
1.8 V supply
4. 6
GND
-
Ground
7, 8, 15, 18, 23, 26, 31
Table 63: WiFi Module Signals (X27)
WiFi shares the UART1 interface signals with the Profibus and CAN interfaces. When the WiFi module is installed,
the Profibus and CAN tranceivers are automatically disabled with the WiFi module detect signal.
105
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Part III: PCM-957 GPIO Expansion Board
5 Part III: PCM-957 GPIO Expansion Board
Part III of this three part manual provides detailed information on the signals available at the GPIO Expansion
Connectors X5 and their use on the GPIO Expansion Board (part # PCM-957).
The GPIO Expansion Connectors at X5 on the Carrier Board provide access to many of the phyCORE-AM335x SOM
signals.
As an accessory, a GPIO Expansion Board (part # PCM-957) is made available through PHYTEC to connect to the
X5 GPIO Expansion Connectors. This Expansion Board provides a patch field for easy access to all of the signals
and additional board space for testing and prototyping. A summary of the signal mapping between the phyCORE
connectors and the patch field on the GPIO Expansion Board is provided in the tables below.
5.1 GPIO Expansion Board Analog Signals
The analog signals on the GPIO Expansion Board are shown in Table 64 below.
Signal
SOM Pin
GPIO Expansion
Board Pin
Type
SL
Description
X_AIN0
X3B38
13D
IO
1.8 V
analog input / TOUCH_X+
X_AIN1
X3B37
14D
IO
1.8 V
analog input / TOUCH_X-
X_AIN2
X3B34
16D
IO
1.8 V
analog input / TOUCH_Y+
X_AIN3
X3B35
17D
IO
1.8 V
analog input / TOUCH_Y-
X_AIN4
X3B32
19D
IO
1.8 V
analog input
X_AIN5
X3B31
20D
IO
1.8 V
analog input
X_AIN6
X3B29
22D
IO
1.8 V
analog input
X_AIN7
X3B28
23D
IO
1.8 V
analog input
Table 64: GPIO Expansion Board Analog Signal Map
L-771e_1 © PHYTEC Messtechnik GmbH 2012
106
Part III: PCM-957 GPIO Expansion Board
phyCORE-AM335x
5.2 GPIO Expansion Board Control Signals
The control signals on the GPIO Expansion Board are shown in Table 65 below.
Signal
SOM Pin
GPIO
Expansion
Board Pin
Type
SL
Description
X_AM335_NMIn
X3A5
2C
IN
3.3 V
AM335x non-maskable interrupt
X_PB_RESETn
X3A11
3C
IN
3.3 V
Push-button reset
X_RESET_OUTn
X3B13
2D
OUT
3.3 V
Warm reset
X_AM335x_EXT_WAKEUP
X3B39
3D
IN
3.3 V
External wakeup
X_INTR1
X1B15
4D
IN
3.3 V
Interrupt 1
X_SPI_WPn
X1B1
6D
IN
3.3 V
SPI write-protect
X_INT_RTCn
X1B16
7D
IN
3.3 V
Interrupt from the external RTC
X_PMIC_POWER_EN
X1B25
8D
IN
3.3 V
PMIC power enable
X_GPIO_CKSYNC
X1B35
9D
IO
3.3 V
PMIC GPIO / clock-sync
Table 65: GPIO Expansion Board Control Signal Map
107
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Part III: PCM-957 GPIO Expansion Board
5.3 GPIO Expansion Board GPIO Signals
The GPIO signals on the GPIO Expansion Board are shown in the Table 66 below.
Signal
SOM pin
GPIO
Type
Expansion
Board Pin
SL
Notes
X_GPIO3_18
X1B5
5B
IO
3.3 V
Used for USB1 over-current
detection
X_GPIO3_17
X3A23
6B
IO
3.3 V
Used for USB0 over-current
detection
X_GPIO3_8
X1B18
7B
IO
3.3 V
Used for User button 1
X_GPIO3_7
X1B20
9B
IO
3.3 V
Used for User button 2
X_GPIO1_31
X1B48
10B
IO
3.3 V
Used for User LED 2
X_GPIO1_30
X1B47
11B
IO
3.3 V
Used for User LED 1
X_RMII1_RXD0/_GPIO2_21
X1A3
13B
IO
3.3 V
Available on the Expansion Board
only when the logic decoder
enables the WiFi interface
X_RMII1_RXD1/_GPIO2_20
X1A4
14B
IO
3.3 V
Available on the Expansion Board
only when the logic decoder
enables the WiFi interface
X_RMII1_TXD0/_GPIO0_28
X1A11
15B
IO
3.3 V
Available on the Expansion Board
only when the logic decoder
enables the WiFi interface
X_RMII1_TXD1/_GPIO0_21
X1A13
17B
IO
3.3 V
Available on the Expansion Board
only when the logic decoder
enables the WiFi interface
X_RMII1_REFCLK/_GPIO0_29 X1A18
18B
IO
3.3 V
Available on the Expansion Board
only when the logic decoder
enables the WiFi interface
X_MII1_RCTL/_GPIO3_4
19B
IO
3.3 V
Available on the Expansion Board
only when the logic decoder
enables the WiFi interface
X1B6
Table 66: GPIO Expansion Board GPIO Signal Map
L-771e_1 © PHYTEC Messtechnik GmbH 2012
108
Part III: PCM-957 GPIO Expansion Board
phyCORE-AM335x
5.4 GPIO Expansion Board GPMC Signals
The GPMC signals on the GPIO Expansion Board are shown in Table 67 below.
Signal
SOM pin
GPIO ExpanType
sion Board Pin
SL
Description
X_GPMC_AD0
X1A23
3A
IO
3.3 V
Address / Data 0
X_GPMC_AD1
X1A16
2A
IO
3.3 V
Address / Data 1
X_GPMC_AD2
X1A24
5A
IO
3.3 V
Address / Data 2
X_GPMC_AD3
X1A28
6A
IO
3.3 V
Address / Data 3
X_GPMC_AD4
X1A25
8A
IO
3.3 V
Address / Data 4
X_GPMC_AD5
X1A26
9A
IO
3.3 V
Address / Data 5
X_GPMC_AD6
X1A29
11A
IO
3.3 V
Address / Data 6
X_GPMC_AD7
X1A30
12A
IO
3.3 V
Address / Data 7
X_GPMC_ADVn_ALE
X1A33
14A
IO
3.3 V
Address Latch Enable
X_GPMC_BE0n_CLE
X1A34
15A
IO
3.3 V
Byte 0 Enable
X_GPMC_CS0n
X1B21
17A
IO
3.3 V
Chip select 0
X_GPMC_OEn_REn
X1B22
18A
IO
3.3 V
Output enable / Read enable
X_GPMC_WEn
X1B17
19A
IO
3.3 V
Write enable
Table 67: GPIO Expansion Board GPMC Signal Map
5.5 GPIO Expansion Board Power Signals
The power signals on the GPIO Expansion Board are shown in Table 68 below.
Carrier Board Signal
phyCORE Pin
GPIO Expansion Board Pin
GPIO Expansion Board
Signal
VAUX2_3P3V
X3B6
47C, 48C, 47D, 48D
VCCIO1
VCC_1V2
-
49C, 50C, 51, 49D, 50D, 51D
VCC4
VDIG1_1P8V
X3A3
52C, 53C, 54C, 52C, 53D, 54D
VCC3
VCC_3V3
-
55C, 56C, 57C, 55D, 56D, 57D VCC2
VCC_5V0
-
58C,59C,60,58D,59D,60D
VCC1
Table 68: GPIO Expansion Board Power Signal Map
109
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Part III: PCM-957 GPIO Expansion Board
5.6 GPIO Expansion Board Serial Interfaces
The serial interfaces on the GPIO Expansion Board are shown in Table 69 below.
Signal
SOM Pin
GPIO
Type
Expansion
Board Pin
SL
Description
X_USB1_DRVVBUS
X3B21
5C
OUT
3.3 V
USB1 VBUS control
X_USB1_CE
X3B24
6C
OUT
3.3 V
USB1 charger enable
X_USB1_VBUS
X3B22
7C
IO
5V
USB1 bus voltage
X_USB0_DRVVBUS
X3B42
9C
OUT
3.3 V
USB0 VBUS control
X_USB0_CE
X3B44
10C
OUT
3.3 V
USB0 charger enable
X_I2C0_SCL
X3A19
35C
OUT
3.3 V
I2C0 clock
X_I2C0_SDA
X3A20
36C
IO
3.3 V
I2C0 data
X_SPI0_SCLK
X3A15
38C
OUT
3.3 V
SPI0 clock
X_SPI0_CS0
X3A17
39C
OUT
3.3 V
SPI0 chip select 0
X_SPI0_D0
X3A34
40C
IN
3.3 V
SPI0 Master-In-Slave-Out
(MISO) data
X_SPI0_D1
X3A35
41C
OUT
3.3 V
SPI0 Master-Out-Slave-In
(MOSI) data
X_DCAN0_RX
X3A24
26D
IN
3.3 V
DCAN0 receive data
X_DCAN0_TX
X3A25
27D
OUT
3.3 V
DCAN0 transmit data
X_UART3_TX
X1A9
29D
OUT
3.3 V
UART3 transmit data
X_UART3_RX
X1A8
30D
IN
3.3 V
UART3 receive data
X_UART2_TX
X3B60
32D
OUT
3.3 V
UART2 transmit data
X_UART2_RX
X3A60
33D
IN
3.3 V
UART2 receive data
X_UART1_CTS
X3B8
35D
IN
3.3 V
UART1 clear to send
X_UART1_RTS
X3B9
36D
OUT
3.3 V
UART1 request to send
X_UART1_TXD / P_UART0_TXD
X3B10
37D
OUT
3.3 V
UART1 transmit data
X_UART1_RXD / P_UART0_RXD X3B11
38D
IN
3.3 V
UART1 receive data
Table 69: GPIO Expansion Board Serial Interfaces Signal Map
L-771e_1 © PHYTEC Messtechnik GmbH 2012
110
Part III: PCM-957 GPIO Expansion Board
phyCORE-AM335x
Signal
SOM Pin
GPIO
Type
Expansion
Board Pin
SL
Description
X_UART0_TXD
X3A32
40D
OUT
3.3 V
UART0 transmit data
X_UART0_RXD
X3A33
41D
IN
3.3 V
UART0 receive data
X_MDIO_CLK
X1B3
2B
OUT
3.3 V
MDIO clock
X_MDIO_DATA
X1B2
3B
IO
3.3 V
MDIO data
Table 69: GPIO Expansion Board Serial Interfaces Signal Map
5.7 Signals Not Connected to the GPIO Expansion Board
Some of the AM335x SOM signals do not connect to the GPIO Expansion Connector for signal integrity reasons.
Table 70 below lists the signal groups which are not routed to the GPIO Expansion Connector. It also provides
references to where these signals are located on the Carrier Board and the chapter for the interface in which
each signal is used.
Signal Group
Routes through
Routes to
Chapter
EtherCAT0
U6 bus switch
U33 EtherCAT0 PHY
Section 4.3.4
EtherCAT1
U18 bus switch
U34 EtherCAT1 PHY
Section 4.3.4
Ethernet1
direct connection
X12 Ethernet1 connector
Section 4.3.3.1
Ethernet2
U16 bus switch
U14 Ethernet2 PHY
Section 4.3.3.2
JTAG
direct connection
X21 pin header
Section 4.3.11
LCD
U4 bus switch
X40 pin header
Section 4.3.12
MCASP0
resistors
U20 audio codec
Section 4.3.7
MCASP1
U9 bus switch
X27 header for WiFi module Section 4.3.14
MMC0
resistors
X20 SD / MMC connector
MMC2
U9 bus switch
X27 header for WiFi module Section 4.3.13
USB0 data
D16
U7 USB0 connector
Section 4.3.8.1
USB0 ID
JP12
U7 USB0 connector
Section 4.3.8.1
USB1 data
D17
U8 USB1 connector
Section 4.3.8.2
USB1 ID
JP11
U8 USB1 connector
Section 4.3.8.2
Section 4.3.13
Table 70: AM335x SOM Signals Not Routed to the GPIO Expansion Connector X5
111
© PHYTEC Messtechnik GmbH 2012 L-771e_1
phyCORE-AM335x
Revision History
6 Revision History
Date
Version numbers
Changes in this manual
June 14, 2012
Hardware Manual PCM-051
Preliminary documentation.
Describes the phyCORE-AM335x
with phyCORE-AM335x Carrier
Board.
November 26, 2012
Version 1
Updated for .2 version of the SOM
and the Carrier Board
L-771e_1 © PHYTEC Messtechnik GmbH 2012
