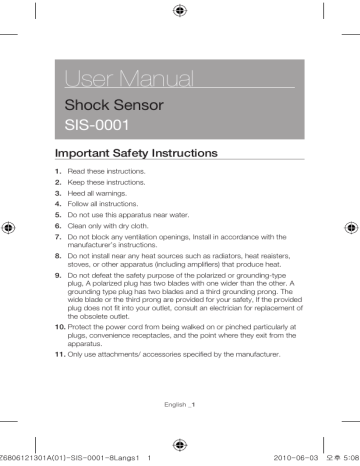

User Manual
Shock Sensor
SIS-0001
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings, Install in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat reaisters,
stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type
plug, A polarized plug has two blades with one wider than the other. A
grounding type plug has two blades and a third grounding prong. The
wide blade or the third prong are provided for your safety, If the provided
plug does not fit into your outlet, consult an electrician for replacement of
the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
11. Only use attachments/ accessories specified by the manufacturer.
Z6806121301A(01)-SIS-0001-8Langs1 1
English _1
2010-06-03 오후 5:08
5:08:
12. Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with the
apparatus. When a cart is used. Use caution when
moving the cart/apparatus combination to avoid
injury from tip-over.
13. Unplug this apparatus during lighting storms or when
unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as powersupply cord or plug is damaged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO
NOT EXPOSE THIS PROCUCT TO RAIN OR MOISTURE.
DO NOT INSERT ANY METALLIC OBJECT THROUGH THE
VENTILATION GRILLS OR OTHER OPENNINGS ON THE
EQUIPMENT.
Apparatus shall not be exposed to dripping or splashing and that
no objects filled with liquids, such as vases, shall be placed on
the apparatus
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
Z6806121301A(01)-SIS-0001-8Langs2 2
English _2
2010-06-03 오후 5:08
5:08:
EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol, within
an equilateral triangle, is intended to alert the user
to the presence of “dangerous voltage” within
the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral triangle
is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
product.
Class construction
An apparatus with CLASS construction shall be connected to a
MAINS socket outlet with a protective earthing connection.
Battery
Batteries(battery pack or batteries installed) shall not be exposed
to excessive heat such as sunshine, fire or the like.
Disconnection Device
Disconnect the main plug from the apparatus, if it’s defected.
And please call a repair man in your location.
When used outside of the U.S., it may be used HAR code
with fittings of an approved agency is employed.
CAUTION
These servicing instructions are for use by qualified service
personnel only.
To reduce the risk of electric shock do not perform any servicing
other than that contained in the operating instructions unless
you are qualified to do so.
Z6806121301A(01)-SIS-0001-8Langs3 3
English _3
2010-06-03 오후 5:08
5:08:
Please read the following recommend safety precautions
carefully.
y Do not Place this apparatus on an uneven surface.
y Do not install on a surface where it is exposed to direct
sunlight, near heating equipment or heavy cold area.
y Do not place this apparatus near.
y Do not attempt to service this apparatus yourself.
y Do not place a glass of water on the product.
y Do not install near any magnetic sources.
y Do not block any ventilation openings.
y Do not place heavy items on the product.
User’s Manual is a guidance book how to use the products
The meaning of the using sign in the book is following
y Reference: in case of providing information for helping of
product’s usages
y Notice: If there’s any possibility to occur any damages for the
goods and human caused by not following the instruction
Ú Please read this manual for the safety before using of goods
and keep it in the safe place.
Z6806121301A(01)-SIS-0001-8Langs4 4
English _4
2010-06-03 오후 5:08
5:08:
Shock Sensor at a Glance
Alarm LED
Fixing Bolt
N.C in normal state
N.O in sensing
What’s Included
Screw (x2)
Z6806121301A(01)-SIS-0001-8Langs5 5
User Manual/
Warranty Card
English _5
2010-06-03 오후 5:08
5:08:
Installation (using the glass shock sensor)
Attached on the inner
window frame
Attached on the glass
Attached on the window
frame
Sensor
Sensor
Glass Window
Sensor
Checking the PCB operation
Sensitivity Setting
LED Display
Factory Default: medium
Decrease
Increase
Standby
Green
Start the counting
Red
Sound an alarm
Terminal
Count
Z6806121301A(01)-SIS-0001-8Langs6 6
Light Out
VCC
GND
OUTPUT
COM
English _6
2010-06-03 오후 5:09
5:09:
Specifications & Appearance
Specifications
Item
Input Voltage
Current Consumption
Installation Site
Alarm Out
Alarm Output Point of Contact
Capacity
Count
Alarm Operating Time
LED Status
Temperature
Humidity
Dimension
Weight
Description
DC 12V (±15%)
Max. 14mA
Window frame, Wall
N.C
1000mA (16V)
1, 2, 3 times
Less than 2 seconds
Red: Lights up when an alarm occurs
Green: Lights up when counting
(if set to 3 times: In the order of green – green – red)
-20˚C ~ 50˚C
Max. 95%
28mm x 88mm x 20.5mm
26g
Appearance
Z6806121301A(01)-SIS-0001-8Langs7 7
Unit: mm
English _7
2010-06-03 오후 5:09
5:09:
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection
systems)
This marking on the product, accessories or literature indicates that the product and its electronic
accessories (e.g. charger, headset, USB cable) should not be disposed of with other household
waste at the end of their working life. To prevent possible harm to the environment or human
health from uncontrolled waste disposal, please separate these items from other types of waste
and recycle them responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or
their local government office, for details of where and how they can take these items for
environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase
contract. This product and its electronic accessories should not be mixed with other commercial
wastes for disposal.
