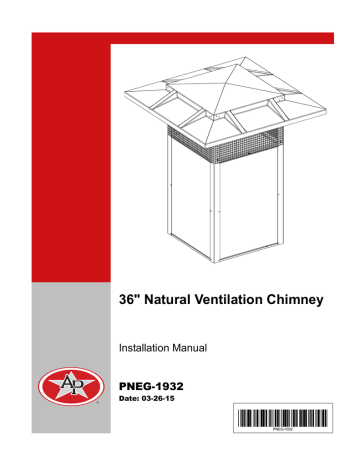

36" Natural Ventilation Chimney

Installation Manual

PNEG-1932

Date: 03-26-15

PNEG-1932

2

All information, illustrations, photos and specifications in this manual are based on the latest information available at the time of publication. The right is reserved to make changes at any time without notice.

PNEG-1932 36" Natural Ventilation Chimney Installation Instructions

Table of Contents

Contents

Chapter 1 Safety .....................................................................................................................................................4

Cautionary Symbols Definitions .............................................................................................................4

General Safety Statement ......................................................................................................................5

User’s Manual ........................................................................................................................................5

Correct Use of the Natural Ventilation Chimney ....................................................................................5

Safety in Handling the Natural Ventilation Chimney ..............................................................................5

Safety in Maintenance ............................................................................................................................5

Installation Notes ....................................................................................................................................5

Chapter 2 Assembly ..............................................................................................................................................6

Assembly Chamber with Damper ...........................................................................................................6

Attach Pulley Bracket Assembly ............................................................................................................7

Attach Cables to the Damper .................................................................................................................8

Attach Bird Screen .................................................................................................................................9

Attach Closure Door (If Used) ..............................................................................................................10

Install Chimney in Roof ........................................................................................................................11

Attach Cap to Chamber ........................................................................................................................12

Attach Damper Cables to Master Cable ...............................................................................................14

Optional Bird Protection Installation Instructions ..................................................................................15

Chapter 3 Parts List .............................................................................................................................................18

36" Natural Ventilation Chimney - Bird Wire Screen Package .............................................................18

36" Natural Ventilation Chimney - Bird Plastic Spikes Package ..........................................................19

Chapter 4

Warranty ..............................................................................................................................................21

PNEG-1932 36" Natural Ventilation Chimney Installation Instructions

3

4

1. Safety

Cautionary Symbols Definitions

Cautionary symbols appear in this manual and on product decals. The symbols alert the user of potential safety hazards, prohibited activities and mandatory actions. To help you recognize this information, we use the symbols that are defined below.

DANGER

This symbol indicates an imminently hazardous situation which, if not avoided, will result in serious injury or death.

WARNING

This symbol indicates a potentially hazardous situation which, if not avoided, may result in serious injury or death.

CAUTION

This symbol indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE

This symbol is used to address practices not related to personal injury.

This symbol indicates a general hazard.

This symbol indicates a prohibited activity.

This symbol indicates a mandatory action.

PNEG-1932 36" Natural Ventilation Chimney Installation Instructions

1. Safety

General Safety Statement

Thank you for choosing a Natural Ventilation Chimney. It is designed to give excellent performance and service for many years. Our foremost concern is your safety and the safety of others associated with swine equipment. We want to keep you as a customer. This manual is to help you understand safe operating procedures and some problems which may be encountered by the operator and other personnel.

As owner and/or operator, you are responsible to know what requirements, hazards, and precautions exist and inform all personnel associated with the equipment or in the area. Safety precautions may be required from the personnel. Avoid any alterations to the equipment, which may produce a very dangerous situation, where SERIOUS INJURY or DEATH may occur.

User’s Manual

This manual contains information and instructions essential to the safe installation and use of the Natural

Ventilation Chimney. Read this manual thoroughly before attempting any installation or use of the

Chimney. Keep this manual with the Natural Chimney or in a location where it can be readily accessed.

Failure to read this manual and its safety instructions is a misuse of the equipment.

Correct Use of the Natural Ventilation Chimney

In the installation, maintenance and use of the Natural Chimney, only genuine AP parts are to be used.

Use of other non-genuine parts is a misuse of the system and may lead to dangerous situations risking the safety and health of you and others.

Safety in Handling the Natural Ventilation Chimney

Some components of the Natural Ventilation Chimney require manual handling during installation.

To prevent injury, seek assistance where necessary.

Some items may have sharp, rough or abrasive edges. To prevent injury, use suitable hand protection when manually handling the components of this system.

Safety in Maintenance

While the Natural Ventilation Chimney is designed to keep maintenance to a minimum, some repairs will be necessary in the course of the life of the machine. Do not attempt any repairs on the machine unless you are competent to do so. Never attempt any work on the Chimney without first isolating it from the linear actuator.

Installation Notes

To ensure the safety during installation, make all electrical connections to the linear actuator as the final step of installation. This should be done only when the Chimney has been fully installed. Electrical connection should be carried out only by a qualified electrical installer and should be to the relevant rules and directives in force in your region.

For guidance or assistance on any issues relating to the safe use of the Natural Ventilation Chimney,

Contact

The GSI Group

1004 E. Illinois St.

Assumption, IL. 62510

Phone: 1-217-226-4421

PNEG-1932 36" Natural Ventilation Chimney Installation Instructions

5

2. Assembly

Assembly Chamber with Damper

1. Attach the laminated foam sheets (H) to the “C” channels by using the self-drilling screws.

2. While lining up the pivot knobs on the damper (A) with the holes in the main side assemblies (C), slide laminated foam sheets (H) into the slots on the main side assemblies.

3. Bolt chamber together. In the top holes, use four (4) 1/4" x 2-1/2" carriage bolts (D), four (4) nylon washers (E) and four (4) 1/4" nylock nuts (F) (washers and nuts go on the inside). In the middle holes, use four (4) 1/4" x 2-1/2" carriage bolts (D), four (4) aluminum stops (B) and four (4) 1/4" lock nuts (F).

4. The aluminum stops (B) stop the damper in its closed position. The direction they are installed is

important. They must be installed oriented as shown in

Figure 2A

.

NOTE: Bolts in the bottom of the chamber will be put in later with other components.

NOTE: The cable pull location is determined from the tabs orientation.

6

Figure 2A

Ref #

A

B

C

D

Part #

AP-5153 Damper

AP-5172 Aluminum Stop

Description

AP-5147 Main Side

S-10021 Carriage Bolts 1/4"-20 x 2-1/4" ZN Grade 2

Ref #

E

F

G

H

Part # Description

S-8542 Nylon Washer 1/4" x 1-1/4" x 1/16"

S-7025 Nylock Nut 1/4"-20 ZN grade 5

Aluminum Angle

Laminated Sheet

PNEG-1932 36" Natural Ventilation Chimney Installation Instructions

2. Assembly

Attach Pulley Bracket Assembly

1. Bolt pulley bracket assembly (B) to the bottom of the chamber (A) on one of the two (2) sides that does not have the pivot of the damper in it. Use two (2) 1/4" x 1-3/4" carriage bolts and 1/4" lock nuts.

(See Figure 2B.)

Figure 2B

Ref #

A Chamber

B

Description

Pulley Bracket Assembly

PNEG-1932 36" Natural Ventilation Chimney Installation Instructions

7

2. Assembly

Attach Cables to the Damper

1. Connect the two (2) cable assemblies (D) to the damper by putting each eye bolt through one of the holes in the damper (A) with a nylon washer on each side of the damper and securing with a lock nut on the other side. It does not matter which assembly goes in which hole.

2. Slip each of the loose ends of the cable assemblies through one of the outside pulleys (C) on the

pulley bracket assembly.

(See Figure 2C.)

NOTE: The holes in the damper are offset to align better with the outside pulleys. Make sure each

cable assembly uses the pulley on its side.

8

Figure 2C

Ref #

A

B

C

D

Description

Damper

Cable Assembly with Chain and Spring

Outside Pulley

Cable Assembly

PNEG-1932 36" Natural Ventilation Chimney Installation Instructions

2. Assembly

Attach Bird Screen

1. Install the bird screen (A) as shown in

Figure 2D

. Use four (4) retaining lids (B) and self-drilling screws (C) in the corners to attach the screen to the aluminum channels (D).

Figure 2D

Ref #

A

B

C

D

Description

Bird Screen

Retaining Lids (4)

Self-Drilling Screws

Aluminum Channels

PNEG-1932 36" Natural Ventilation Chimney Installation Instructions

9

2. Assembly

Attach Closure Door (If Used)

1. Bolt the closure door (B) to the bottom of the chamber (A) or extension on the opposite side as the pulley bracket assembly using two (2) 1/4" x 2-1/2" carriage bolts and 1/4" lock nuts.

2. Thread the cord through the middle pulley on the pulley bracket assembly.

3. The long cords can be tied off to hold the door in either the closed or open position.

(See Figure 2E.)

NOTE: This pivoting closure door cannot be used in a flat ceiling application.

10

Figure 2E

Ref #

A Chamber

B Closure Door

Description

PNEG-1932 36" Natural Ventilation Chimney Installation Instructions

2. Assembly

Install Chimney in Roof

1. Construct a framed opening using 2" x 6" wood framing through the roof (A) that is 36-1/2" by

36-1/2". The framing is to be constructed from good quality construction lumber, southern pine, douglas fir larch or a wood species with the same or better dowel bearing strength. Consult with your building engineer to determine proper framing support and to verify structural strength of building is adequate for the addition of this Chimney.

2. Hoist the chamber up through the opening until the top of the chamber (B) extends above the roof

18" (D).

3. Connect the chamber to the framed opening using 5/16" lag bolts (not supplied) (E) that go through the aluminum angles (C) at the corners of the chamber. Of course, holes through the angle and foam must be drilled first for the lag bolts. Two (2) lag bolts per corner for a total of eight (8) lag bolts must be used. The lag bolts are to be attached through the vertical centers of the 2" x 6" framing.

(See Figure 2F.)

Figure 2F

Ref #

A

B

C

D

E

Description

Roof

Chamber

Aluminum Angle

18"

5/16" Lag Bolts (Not Supplied) - Two (2) per corner, two (2) per side through the aluminum angle and middle of the 2" x 6" framing.

PNEG-1932 36" Natural Ventilation Chimney Installation Instructions

11

2. Assembly

Attach Cap to Chamber

1. Bolt the cap (A) to the top of the outside aluminum angles (B) on the chamber (C) using sixteen (16)

5/16" x 1-1/4" bolts, sixteen (16) 5/16" lock nuts, sixteen (16) fender washers and sixteen (16) flat washers. The fender washers and the heads of the bolts go on the outside of the cap.

(See Figure 2G.)

12

Figure 2G

Ref #

A

B

C

Description

Cap

Aluminum Angle

Chamber

PNEG-1932 36" Natural Ventilation Chimney Installation Instructions

Attach Cap to Chamber (Continued)

2. Assembly

Figure 2H

Figure 2I

PNEG-1932 36" Natural Ventilation Chimney Installation Instructions

13

2. Assembly

Attach Damper Cables to Master Cable

1. After installing the linear actuator and master cable, put the linear actuator (C) in the closed position.

2. If building does not have a ceiling, attach 1-7/8" pulleys (D) to a horizontal truss member directly

below the pulley assembly in the chamber using eye screws provided. If the truss has a vertical

member directly in the center, the horizontal truss member can be connected to the bottom of the

truss with a hole in the bottom cord (G) of the truss for the master cable/rod (B).

(See Figure 2J.)

3. Pull on the cable assembly with the chain and spring (A) until the damper hits the stops in the closed position. The stops may need to be rotate to be in the proper position for this to happen.

4. Connect the cable assembly with the chain and spring to the master cable in the direction of the linear actuator using a cable clamp after running the cable through one of the pulleys or through one of the pulleys in the ceiling bracket pulley assembly.

5. Connect the other cable assembly to the master cable in the opposite direction in the same way.

14

Figure 2J

Ref #

A

B

E

F

C

D

G

H

Description

Chain and Spring

Master Cable/Rod

To Linear Actuator

1-7/8" Pulley

Truss Structure

Spring

Cord

Closure Door

PNEG-1932 36" Natural Ventilation Chimney Installation Instructions

2. Assembly

Optional Bird Protection Installation Instructions

The bird protection for the 36" Natural Ventilation Chimney uses bird spikes in one foot (1') sections attached and centered on the top of each aluminum channel of the four (4) sides of the Chimney. Each

Chimney uses ten (10) of the one foot (1') bird spike sections. It will be necessary to cut two (2) of the one foot (1') bird spike sections into 6" pieces.

After the two (2) sections are cut into four (4) 6" sections, begin assembling the bird spikes to the top of the side channels as shown in

Figure 2K

. The spikes are to be centered on each side channel and attached using the self-drilling screws included. Repeat for all four (4) sides. The finished product should

look like

Figure 2L on Page 16

.

Figure 2K Bird Plastic Spikes - Detail View

Ref #

A

B

Description

6" Section (One per Side)

12" Sections (Two (2) per Side)

PNEG-1932 36" Natural Ventilation Chimney Installation Instructions

15

2. Assembly

Optional Bird Protection Installation Instructions (Continued)

16

Figure 2L Bird Plastic Spikes - Assembled View

PNEG-1932 36" Natural Ventilation Chimney Installation Instructions

2. Assembly

Optional Bird Protection Installation Instructions (Continued)

Install the bird screen as shown in

Figure 2M

and

Figure 2N

. Use four (4) retaining lids and self-drilling screws in the corners to attach the screen to the aluminum channels. Note the square cutout in the screen is to be located directly below the pulleys on the pulley bracket assembly.

Figure 2M Bird Wire Screen

Figure 2N Bird Wire Screen

PNEG-1932 36" Natural Ventilation Chimney Installation Instructions

17

3. Parts List

36" Natural Ventilation Chimney - Bird Wire Screen Package

18

6

7

4

5

Ref #

1

2

3

Part #

AP-5152

AP-5148

AP-5147

AP-2904

AP-5163

AP-5153

AP-5172

Description

36" Natural Chimney Vent Canopy

36" Natural Chimney Short Side with Channel and Holes

36" Natural Chimney Side with Angles

Pulley and Bracket Assembly Natural Chimney

36" Natural Chimney Closure Door (Option)

36" Natural Chimney Damper Assembly

36" Natural Chimney Baffle Stop

PNEG-1932 36" Natural Ventilation Chimney Installation Instructions

3. Parts List

36" Natural Ventilation Chimney - Bird Plastic Spikes Package

Ref #

1

2

5

6

3

4

7

8

Part #

AP-5152

AP-5148

AP-5147

AP-2904

AP-2879

AP-5153

AP-5172

AP-5163

Description

36" Natural Chimney Vent Canopy

36" Natural Chimney Short Side with Channel and Holes

36" Natural Chimney Side with Angles

Pulley and Bracket Assembly Natural Chimney

Bird Guard with Break Natural Chimney

36" Natural Chimney Damper Assembly

36" Natural Chimney Baffle Stop

36" Natural Chimney Closure Door (Option)

PNEG-1932 36" Natural Ventilation Chimney Installation Instructions

19

NOTES

20

PNEG-1932 36" Natural Ventilation Chimney Installation Instructions

4. Warranty

GSI Group, LLC Limited Warranty

The GSI Group, LLC (“GSI”) warrants products which it manufactures to be free of defects in materials and workmanship under normal usage and conditions for a period of 12 months after sale to the original end-user or if a foreign sale,

14 months from arrival at port of discharge, whichever is earlier. The end-user’s sole remedy (and GSI’s only obligation) is to repair or replace, at GSI’s option and expense, products that in GSI’s judgment, contain a material defect in materials or workmanship. Expenses incurred by or on behalf of the end-user without prior written authorization from the GSI

Warranty Group shall be the sole responsibility of the end-user.

Warranty Extensions:

The Limited Warranty period is extended for the following products:

AP Fans and Flooring

AP and Cumberland

Cumberland

Feeding/Watering

Systems

Grain Systems

Grain Systems

Farm Fans

Zimmerman

Product

Performer Series Direct Drive Fan Motor

All Fiberglass Housings

All Fiberglass Propellers

Flex-Flo/Pan Feeding System Motors

Feeder System Pan Assemblies

Feed Tubes (1-3/4" and 2.00")

Centerless Augers

Watering Nipples

Grain Bin Structural Design

Portable and Tower Dryers

Portable and Tower Dryer Frames and

Internal Infrastructure †

Warranty Period

3 Years

Lifetime

Lifetime

2 Years

5 Years **

10 Years *

10 Years *

10 Years *

5 Years

2 Years

5 Years

* Warranty prorated from list price:

0 to 3 years - no cost to end-user

3 to 5 years - end-user pays 25%

5 to 7 years - end-user pays 50%

7 to 10 years - end-user pays 75%

** Warranty prorated from list price:

0 to 3 years - no cost to end-user

3 to 5 years - end-user pays 50%

† Motors, burner components and moving parts not included.

Portable dryer screens included.

Tower dryer screens not included.

GSI further warrants that the portable and tower dryer frame and basket, excluding all auger and auger drive components, shall be free from defects in materials for a period of time beginning on the twelfth (12 th

) month from the date of purchase and continuing until the sixtieth (60 th

) month from the date of purchase (extended warranty period). During the extended warranty period, GSI will replace the frame or basket components that prove to be defective under normal conditions of use without charge, excluding the labor, transportation, and/or shipping costs incurred in the performance of this extended warranty.

Conditions and Limitations:

THERE ARE NO WARRANTIES THAT EXTEND BEYOND THE LIMITED WARRANTY DESCRIPTION SET FORTH

ABOVE. SPECIFICALLY, GSI MAKES NO FURTHER WARRANTY OF ANY KIND, EXPRESS OR IMPLIED,

INCLUDING, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR

PURPOSE OR USE IN CONNECTION WITH: (I) PRODUCT MANUFACTURED OR SOLD BY GSI OR (II) ANY ADVICE,

INSTRUCTION, RECOMMENDATION OR SUGGESTION PROVIDED BY AN AGENT, REPRESENTATIVE OR

EMPLOYEE OF GSI REGARDING OR RELATED TO THE CONFIGURATION, INSTALLATION, LAYOUT, SUITABILITY

FOR A PARTICULAR PURPOSE, OR DESIGN OF SUCH PRODUCTS.

GSI shall not be liable for any direct, indirect, incidental or consequential damages, including, without limitation, loss of anticipated profits or benefits. The sole and exclusive remedy is set forth in the Limited Warranty, which shall not exceed the amount paid for the product purchased. This warranty is not transferable and applies only to the original end-user. GSI shall have no obligation or responsibility for any representations or warranties made by or on behalf of any dealer, agent or distributor.

GSI assumes no responsibility for claims resulting from construction defects or unauthorized modifications to products which it manufactured. Modifications to products not specifically delineated in the manual accompanying the equipment at initial sale will void the Limited Warranty.

This Limited Warranty shall not extend to products or parts which have been damaged by negligent use, misuse, alteration, accident or which have been improperly/inadequately maintained. This Limited Warranty extends solely to products manufactured by GSI.

Prior to installation, the end-user has the responsibility to comply with federal, state and local codes which apply to the location and installation of products manufactured or sold by GSI.

9101239_1_CR_rev8.DOC (revised January 2014)

PNEG-1932 36" Natural Ventilation Chimney Installation Instructions

21

This equipment shall be installed in accordance with the current installation codes and applicable regulations, which should be carefully followed in all cases. Authorities having jurisdiction should be consulted before installations are made.

1004 E. Illinois St.

Assumption, IL 62510-0020

Phone: 1-217-226-4421

Fax: 1-217-226-4420 www.gsiag.com

AP is a part of GSI, a worldwide brand of AGCO Corporation

Copyright © 2015 by The GSI Group, LLC

Printed in the USA

CN-317212

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
