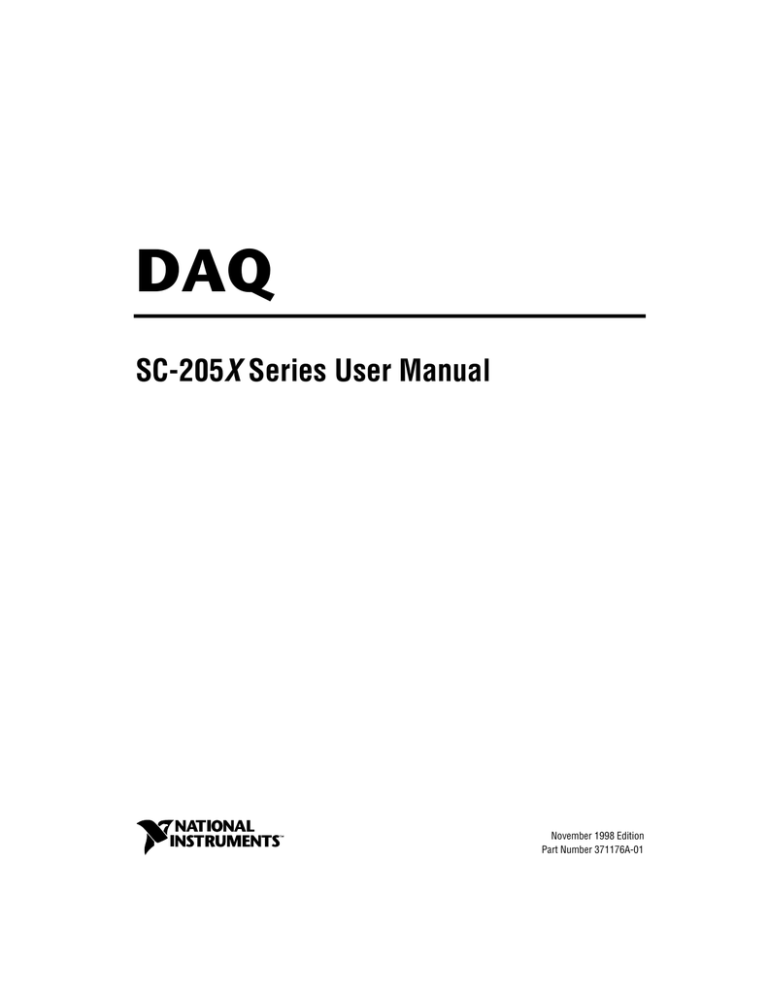

SC-205X Series User Manual

SC-205X Series User Manual
DAQ
SC-205X Series User Manual
SC-205X Series User Manual
November 1998 Edition
Part Number 371176A-01
Internet Support
E-mail: [email protected]
FTP Site: ftp.natinst.com
Web Address: http://www.natinst.com
Bulletin Board Support
BBS United States: 512 794 5422
BBS United Kingdom: 01635 551422
BBS France: 01 48 65 15 59
Fax-on-Demand Support
512 418 1111
Telephone Support (USA)
Tel: 512 795 8248
Fax: 512 794 5678
International Offices
Australia 03 9879 5166, Austria 0662 45 79 90 0, Belgium 02 757 00 20, Brazil 011 288 3336,
Canada (Ontario) 905 785 0085, Canada (Québec) 514 694 8521, Denmark 45 76 26 00, Finland 09 725 725 11,
France 01 48 14 24 24, Germany 089 741 31 30, Hong Kong 2645 3186, Israel 03 6120092, Italy 02 413091,
Japan 03 5472 2970, Korea 02 596 7456, Mexico 5 520 2635, Netherlands 0348 433466, Norway 32 84 84 00,
Singapore 2265886, Spain 91 640 0085, Sweden 08 730 49 70, Switzerland 056 200 51 51, Taiwan 02 377 1200,
United Kingdom 01635 523545
National Instruments Corporate Headquarters
6504 Bridge Point Parkway Austin, Texas 78730-5039
USA Tel: 512 794 0100
© Copyright 1989, 1998 National Instruments Corporation. All rights reserved.
Important Information
Warranty
The SC-205X Series boards are warranted against defects in materials and workmanship for a period of one year from the
date of shipment, as evidenced by receipts or other documentation. National Instruments will, at its option, repair or
replace equipment that proves to be defective during the warranty period. This warranty includes parts and labor.
The media on which you receive National Instruments software are warranted not to fail to execute programming
instructions, due to defects in materials and workmanship, for a period of 90 days from date of shipment, as evidenced
by receipts or other documentation. National Instruments will, at its option, repair or replace software media that do not
execute programming instructions if National Instruments receives notice of such defects during the warranty period.
National Instruments does not warrant that the operation of the software shall be uninterrupted or error free.
A Return Material Authorization (RMA) number must be obtained from the factory and clearly marked on the outside
of the package before any equipment will be accepted for warranty work. National Instruments will pay the shipping costs
of returning to the owner parts which are covered by warranty.
National Instruments believes that the information in this manual is accurate. The document has been carefully reviewed
for technical accuracy. In the event that technical or typographical errors exist, National Instruments reserves the right to
make changes to subsequent editions of this document without prior notice to holders of this edition. The reader should
consult National Instruments if errors are suspected. In no event shall National Instruments be liable for any damages
arising out of or related to this document or the information contained in it.
EXCEPT AS SPECIFIED HEREIN, NATIONAL INSTRUMENTS MAKES NO WARRANTIES, EXPRESS OR IMPLIED, AND SPECIFICALLY DISCLAIMS
ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. CUSTOMER’S RIGHT TO RECOVER DAMAGES CAUSED
BY FAULT OR NEGLIGENCE ON THE PART OF NATIONAL INSTRUMENTS SHALL BE LIMITED TO THE AMOUNT THERETOFORE PAID BY THE
CUSTOMER. NATIONAL INSTRUMENTS WILL NOT BE LIABLE FOR DAMAGES RESULTING FROM LOSS OF DATA, PROFITS, USE OF PRODUCTS,
OR INCIDENTAL OR CONSEQUENTIAL DAMAGES, EVEN IF ADVISED OF THE POSSIBILITY THEREOF. This limitation of the liability of
National Instruments will apply regardless of the form of action, whether in contract or tort, including negligence.
Any action against National Instruments must be brought within one year after the cause of action accrues. National
Instruments shall not be liable for any delay in performance due to causes beyond its reasonable control. The warranty
provided herein does not cover damages, defects, malfunctions, or service failures caused by owner’s failure to follow
the National Instruments installation, operation, or maintenance instructions; owner’s modification of the product;
owner’s abuse, misuse, or negligent acts; and power failure or surges, fire, flood, accident, actions of third parties,
or other events outside reasonable control.
Copyright
Under the copyright laws, this publication may not be reproduced or transmitted in any form, electronic or mechanical,
including photocopying, recording, storing in an information retrieval system, or translating, in whole or in part, without
the prior written consent of National Instruments Corporation.
Trademarks
CVI™, DAQCard™, DAQPad™, LabVIEW™, NI-DAQ™, and SCXI ™ are trademarks of National Instruments
Corporation.
Product and company names listed are trademarks or trade names of their respective companies.
WARNING REGARDING MEDICAL AND CLINICAL USE OF NATIONAL INSTRUMENTS PRODUCTS
National Instruments products are not designed with components and testing intended to ensure a level of reliability
suitable for use in treatment and diagnosis of humans. Applications of National Instruments products involving medical
or clinical treatment can create a potential for accidental injury caused by product failure, or by errors on the part of the
user or application designer. Any use or application of National Instruments products for or involving medical or clinical
treatment must be performed by properly trained and qualified medical personnel, and all traditional medical safeguards,
equipment, and procedures that are appropriate in the particular situation to prevent serious injury or death should always
continue to be used when National Instruments products are being used. National Instruments products are NOT intended
to be a substitute for any form of established process, procedure, or equipment used to monitor or safeguard human health
and safety in medical or clinical treatment.
Contents
About This Manual
Organization of This Manual .........................................................................................xi
Conventions Used in This Manual.................................................................................xii
National Instruments Documentation ............................................................................xiii
Related Documentation..................................................................................................xiv
Customer Communication .............................................................................................xiv
Chapter 1
Introduction
About the SC-205X Series .............................................................................................1-1
What You Need to Get Started ......................................................................................1-3
Unpacking ......................................................................................................................1-4
Software Programming Choices ....................................................................................1-4
Optional Equipment .......................................................................................................1-4
Chapter 2
SC-2050
SC-2050 Connection......................................................................................................2-3
Connectors.......................................................................................................2-3
Mounting........................................................................................................................2-7
Cabling...........................................................................................................................2-7
Chapter 3
SC-2051
SC-2051 Connection......................................................................................................3-3
Connectors.......................................................................................................3-3
Mounting........................................................................................................................3-7
Cabling...........................................................................................................................3-7
Chapter 4
SC-2052
SC-2052 Connection......................................................................................................4-3
Connectors.......................................................................................................4-3
Mounting........................................................................................................................4-7
Cabling...........................................................................................................................4-8
© National Instruments Corporation
v
SC-205X Series User Manual
Contents
Chapter 5
SC-2053
SC-2053 Connection ..................................................................................................... 5-3
Connectors ...................................................................................................... 5-3
Mounting ....................................................................................................................... 5-7
Cabling .......................................................................................................................... 5-8
Chapter 6
SC-2054
SC-2054 Connection ..................................................................................................... 6-2
Connectors ...................................................................................................... 6-3
Mounting ....................................................................................................................... 6-9
Cabling .......................................................................................................................... 6-9
Chapter 7
SC-2055
SC-2055 Connection ..................................................................................................... 7-2
Connectors ...................................................................................................... 7-2
Mounting ....................................................................................................................... 7-6
Cabling .......................................................................................................................... 7-7
Chapter 8
SC-2056
SC-2056 Connection ..................................................................................................... 8-2
Connectors ...................................................................................................... 8-3
Mounting ....................................................................................................................... 8-16
Cabling .......................................................................................................................... 8-17
Chapter 9
SC-2057
SC-2057 Connection ..................................................................................................... 9-2
Connectors ...................................................................................................... 9-3
Mounting ....................................................................................................................... 9-12
Cabling .......................................................................................................................... 9-13
SCXI-1348 Cable Adapter Installation ........................................................... 9-13
SC-205X Series User Manual
vi
© National Instruments Corporation
Contents
Chapter 10
Installation and Operation
Hardware Installation.....................................................................................................10-1
Rack Mounting ................................................................................................10-1
Shield Selection ...............................................................................................10-3
SC-2056 ............................................................................................10-4
SC-2057 ............................................................................................10-5
Signal Conditioning Accessory Installation ....................................................10-6
Rack-Mount Chassis Cover Attachment .........................................................10-6
Cable Connections .........................................................................................................10-6
Appendix A
Specifications
Appendix B
Customer Communication
Glossary
Index
Figures
Figure 2-1.
Figure 2-2.
Figure 2-3.
Figure 2-4.
Figure 2-5.
Figure 2-6.
SC-2050 Parts Locator Diagram ...........................................................2-2
SC-2050 Connections............................................................................2-4
Pin Assignments for SC-2050 I/O Connectors J1 and J2......................2-5
Pin Assignments for SC-2050 Analog Input Connector J3...................2-6
Pin Assignments for SC-2050 Analog I/O Connector J4......................2-6
Pin Assignments for SC-2050 Digital I/O Connector J5 ......................2-7
Figure 3-1.
Figure 3-2.
Figure 3-3.
Figure 3-4.
Figure 3-5.
Figure 3-6.
SC-2051 Parts Locator Diagram ...........................................................3-2
SC-2051 Connections............................................................................3-4
Pin Assignments for SC-2051 I/O Connectors J1 and J2......................3-5
Pin Assignments for SC-2051 I/O Connector J3...................................3-6
Pin Assignments for SC-2051 I/O Connector J4...................................3-6
Pin Assignments for SC-2051 I/O Connector J5...................................3-7
Figure 4-1.
Figure 4-2.
Figure 4-3.
SC-2052 Parts Locator Diagram ...........................................................4-2
SC-2052 Connections............................................................................4-4
Pin Assignments for SC-2052 I/O Connectors J1 and J2......................4-5
© National Instruments Corporation
vii
SC-205X Series User Manual
Contents
Figure 4-4.
Figure 4-5.
Figure 4-6.
Figure 4-7.
Pin Assignments for SC-2052 I/O Connector J3 .................................. 4-6
Pin Assignments for SC-2052 I/O Connector J4 .................................. 4-6
Pin Assignments for SC-2052 I/O Connector J5 .................................. 4-7
Pin Assignments for SC-2052 I/O Connector J6 .................................. 4-7
Figure 5-1.
Figure 5-2.
Figure 5-3.
Figure 5-4.
Figure 5-5.
Figure 5-6.
Figure 5-7.
SC-2053 Parts Locator Diagram ........................................................... 5-2
SC-2053 Connections ........................................................................... 5-4
Pin Assignments for SC-2053 I/0 Connectors J1 and J2 ...................... 5-5
Pin Assignments for SC-2053 I/O Connector J3 .................................. 5-6
Pin Assignments for SC-2053 I/O Connector J4 .................................. 5-6
Pin Assignments for SC-2053 I/O Connector J5 .................................. 5-7
Pin Assignments for SC-2053 I/O Connector J6 .................................. 5-7
Figure 6-1.
Figure 6-2.
Figure 6-3.
Figure 6-4.
Figure 6-5.
Figure 6-6.
Figure 6-7.
SC-2054 Parts Locator Diagram ........................................................... 6-2
SC-2054 Connections ........................................................................... 6-4
Pin Assignments for SC-2054 I/O Connectors J1 and J2 ..................... 6-6
Pin Assignments for SC-2054 I/O Connectors J3 and J7 ..................... 6-7
Pin Assignments for SC-2054 I/O Connectors J4 and J8 ..................... 6-8
Pin Assignments for SC-2054 I/O Connectors J5 and J9 ..................... 6-8
Pin Assignments for SC-2054 I/O Connectors J6 and J10 ................... 6-9
Figure 7-1.
Figure 7-2.
Figure 7-3.
Figure 7-4.
Figure 7-5.
Figure 7-6.
Figure 7-7.
SC-2055 Parts Locator Diagram ........................................................... 7-1
SC-2055 Connections ........................................................................... 7-3
Pin Assignments for SC-2055 I/O Connectors J1 and J2 ..................... 7-4
Pin Assignments for SC-2055 Analog Input Connector J3 .................. 7-5
Pin Assignments for SC-2055 Analog I/O Connector J4 ..................... 7-5
Pin Assignments for SC-2055 Digital Input Connector J5 ................... 7-6
Pin Assignments for SC-2055 Digital Output Connector J6 ................ 7-6
Figure 8-1.
Figure 8-2.
Figure 8-3.
Figure 8-4.
Figure 8-5.
Figure 8-6.
Figure 8-7.
Figure 8-8.
Figure 8-9.
Figure 8-10.
Figure 8-11.
Figure 8-12.
Figure 8-13.
SC-2056 Parts Locator Diagram ........................................................... 8-2
SC-2056 Connections ........................................................................... 8-4
Pin Assignments for SC-2056 I/O Connector J1 .................................. 8-7
Pin Assignments for SC-2056 I/O Connector J2 .................................. 8-8
Pin Assignments for SC-2056 I/O Connector J3 .................................. 8-9
Pin Assignments for SC-2056 I/O Connector J4 .................................. 8-10
Pin Assignments for SC-2056 I/O Connector J5 .................................. 8-11
Pin Assignments for SC-2056 I/O Connector J6 .................................. 8-12
Pin Assignments for SC-2056 I/O Connector J7 .................................. 8-13
Pin Assignments for SC-2056 I/O Connector J8 .................................. 8-14
Pin Assignments for SC-2056 I/O Connector J9 .................................. 8-14
Pin Assignments for SC-2056 I/O Connector J10 ................................ 8-15
Pin Assignments for SC-2056 I/O Connector J11 ................................ 8-15
SC-205X Series User Manual
viii
© National Instruments Corporation
Contents
Figure 8-14.
Figure 8-15.
Pin Assignments for SC-2056 I/O Connector J12.................................8-16
Pin Assignments for SC-2056 I/O Connector J13.................................8-16
Figure 9-1.
Figure 9-2.
Figure 9-3.
Figure 9-4.
Figure 9-5.
Figure 9-6.
Figure 9-7.
Figure 9-8.
Figure 9-9.
Figure 9-10.
Figure 9-11.
Figure 9-12.
SC-2057 Parts Locator Diagram ...........................................................9-2
Output Connections with the SCXI-1163/R..........................................9-4
Output Connections with the ER-16 .....................................................9-5
Output Connections with the 32 Channel SSR Backplane....................9-5
Output Connections with the SC-2061/2, ER-8,
or 8-Channel SSR Backplane ................................................................9-6
Input Connections with the SCXI-1162/HV .........................................9-7
Input Connections with the 32-Channel SSR Backplane......................9-7
Input Connections with SC-2060 and 8-channel SSR Backplane.........9-8
Pin Assignments for SC-2057 I/O Connector P1 and P2......................9-10
Pin Assignments for SC-2057 I/O Connector J1...................................9-11
Pin Assignments for SC-2057 I/O Connector J2...................................9-12
Connecting the SCXI-1348 to the SC-2057 and SCXI Module............9-13
Figure 10-1.
Figure 10-2.
Figure 10-3.
Figure 10-4.
Figure 10-5.
Figure 10-6.
Figure 10-7.
Figure 10-8.
SC-2056 Adapter Mounted in a 19-in. Rack.........................................10-2
Attaching a Mountable Board to a Chassis ...........................................10-2
Shield Jumper Location.........................................................................10-3
Ground Settings for Jumper W1............................................................10-3
SC-2056 Shield Jumper Location..........................................................10-4
Ground Settings for SC-2056 Jumper W1 ............................................10-4
SC-2057 Shield Jumper Location..........................................................10-5
Ground Settings for SC-2057 Jumper W1 ............................................10-6
Tables
Table 1-1.
DAQ Hardware Used with the SC-205X Series Adapters ....................1-2
Table 2-1.
SC-2050 Connectors..............................................................................2-4
Table 3-1.
SC-2051 Connectors..............................................................................3-4
Table 4-1.
SC-2052 Connectors .............................................................................4-4
Table 5-1.
SC-2053 Connectors..............................................................................5-4
Table 6-1.
SC-2054 Connectors .............................................................................6-4
Table 7-1.
SC-2055 Connectors..............................................................................7-3
Table 8-1.
SC-2056 Connectors .............................................................................8-5
© National Instruments Corporation
ix
SC-205X Series User Manual
Contents
Table 9-1.
Table 9-2.
SC-205X Series User Manual
SC-2057 Connectors ............................................................................. 9-9
SCXI-1348 Pin Translations ................................................................. 9-15
x
© National Instruments Corporation
About This Manual
This manual describes the mechanical and electrical aspects of the
SC-205X Series adapters and contains information about installing and
operating the adapters.
Organization of This Manual
The SC-205X Series User Manual is organized as follows:
•
Chapter 1, Introduction, introduces the SC-205X Series adapters;
describes the SC-2050, SC-2051, SC-2052, SC-2053, SC-2054,
SC-2055, SC-2056, and SC-2057 kits; describes the optional
equipment, signal conditioning accessories, and software support; and
explains how to unpack your SC-205X Series adapter.
•
Chapter 2, SC-2050, describes the SC-2050 adapter in detail, including
function, connection, mounting, and cabling.
•
Chapter 3, SC-2051, describes the SC-2051 adapter in detail, including
function, connection, mounting, and cabling.
•
Chapter 4, SC-2052, describes the SC-2052 adapter in detail, including
function, connection, mounting, and cabling.
•
Chapter 5, SC-2053, describes the SC-2053 adapter in detail, including
function, connection, mounting, and cabling.
•
Chapter 6, SC-2054, describes the SC-2054 adapter in detail, including
function, connection, mounting, and cabling.
•
Chapter 7, SC-2055, describes the SC-2055 adapter in detail, including
function, connection, mounting, and cabling.
•
Chapter 8, SC-2056, describes the SC-2056 adapter in detail, including
function, connection, mounting, and cabling.
•
Chapter 9, SC-2057, describes the SC-2057 adapter in detail, including
function, connection, mounting, and cabling.
•
Chapter 10, Installation and Operation, describes the installation and
operation of your SC-205X adapter, including configuration and cable
connections.
•
Appendix A, Specifications, lists the specifications for the SC-205X
Series adapters.
© National Instruments Corporation
xi
SC-205X Series User Manual
About This Manual
•
Appendix B, Customer Communication, contains forms you can use to
request help from National Instruments or to comment on our
products.
•
The Glossary contains an alphabetical list and description of terms in
this manual, including abbreviations, acronyms, metric prefixes,
mnemonics, and symbols.
•
The Index contains an alphabetical list of key terms and topics in this
manual, including the page where you can find each one.
Conventions Used in This Manual
The following conventions are used in this manual.
This icon to the left of bold italicized text denotes a note, which alerts you
to important information.
!
This icon to the left of bold italicized text denotes a caution, which advises
you of precautions to take to avoid injury, data loss, or a system crash.
This icon to the left of bold italicized text denotes a warning, which advises
you of precautions to take to avoid being electrically shocked.
bold
Bold text denotes the names of menus, menu items, parameters, dialog
boxes, dialog box buttons or options, icons, windows, Windows 95 tabs,
or LEDs.
bold italic
Bold italic text denotes a note, caution, or warning.
DIO-24
Refers to the PC-DIO-24, PC-DIO-24PnP, and DAQCard-DIO-24.
DIO-32
Refers to the AT-DIO-32F, AT-DIO-32HS, PCI-DIO-32HS,
DAQCard-6533, PXI-6533.
DIO-96
Refers to the PC-DIO-96, PC-DIO-96PnP, PCI-DIO-96.
E Series device
These are MIO and AI devices; for example, AT-MIO-16E-10, PCI-6031E,
DAQPad-MIO-16XE-50, and DAQCard-AI-16XE-50.
italic
Italic text denotes emphasis, a cross reference, or an introduction to a key
concept.
Lab/1200
Refers to the DAQCard-1200, DAQPad-1200, Lab-PC+, Lab-PC-1200,
Lab-PC-1200AI, PCI-1200.
SC-205X Series User Manual
xii
© National Instruments Corporation
About This Manual
SC-205X
Refers to the SC-2050, SC-2051, SC-2052, SC-2053, SC-2054, SC-2055,
SC-2056, and SC-2057 adapters.
National Instruments Documentation
The SC-205X Series User Manual is one piece of the documentation set for
your data acquisition or SCXI system. You could have any of several types
of documents, depending on the hardware and software in your system. Use
the documents you have as follows:
•
Getting Started with SCXI—If you are using SCXI, this is the first
manual you should read. It gives an overview of the SCXI system and
contains the most commonly needed information for the modules,
chassis, and software.
•
Your SCXI hardware user manuals—If you are using SCXI, read these
manuals next for detailed information about signal connections and
module configuration. They also explain in greater detail how the
module works and contain application hints.
•
Your DAQ hardware manuals—These manuals have detailed
information about the DAQ hardware that plugs into or is connected to
your computer. Use these manuals for hardware installation and
configuration instructions, specification information about your DAQ
hardware, and application hints.
•
Software documentation—Examples of software documentation you
may have are the LabVIEW and LabWindows/CVI documentation sets
and the NI-DAQ documentation. After you set up your hardware
system, use either the application software (LabVIEW or
LabWindows/CVI) or the NI-DAQ documentation to help you write
your application. If you have a large, complicated system, it is
worthwhile to look through the software documentation before you
configure your hardware.
•
Accessory installation guides or manuals—If you are using accessory
products, read the terminal block and cable assembly installation
guides or accessory board user manuals. They explain how to
physically connect the relevant pieces of the system. Consult these
guides when you are making your connections.
•
SCXI Chassis User Manual—If you are using SCXI, read this manual
for maintenance information on the chassis and for installation
instructions.
© National Instruments Corporation
xiii
SC-205X Series User Manual
About This Manual
Related Documentation
The following documentation from National Instruments contains
information that may be helpful as you read this manual:
•
SC-2042-RTD User Manual
•
SC-2043-SG User Manual
•
SC-206X Series User Manual
•
SC-207X Series User Manual
•
5B Series User Manual
•
AMUX-64T User Manual
Customer Communication
National Instruments wants to receive your comments on our products
and manuals. We are interested in the applications you develop with our
products, and we want to help if you have problems with them. To make it
easy for you to contact us, this manual contains comment and configuration
forms for you to complete. These forms are in Appendix B, Customer
Communication, at the end of this manual.
SC-205X Series User Manual
xiv
© National Instruments Corporation
1
Introduction
This chapter introduces the SC-205X Series adapters; describes the
SC-2050, SC-2051, SC-2052, SC-2053, SC-2054, SC-2055, SC-2056, and
SC-2057 kits; describes the optional equipment, signal conditioning
accessories, and software support; and explains how to unpack your
SC-205X Series adapter.
About the SC-205X Series
The SC-205X Series consists of cable adapters that interface signal
conditioning accessories to National Instruments DAQ devices. The
SC-205X Series adapters convert cables from the various DAQ devices to
standard pin connections that match the SC-206X Series, 5B Series, SSR
Series, and ER 8/16 signal conditioning accessories. Table 1-1 lists the
National Instruments DAQ devices that you can use with the SC-205X
Series adapters.
© National Instruments Corporation
1-1
SC-205X Series User Manual
DAQ Hardware Family
E Series
SC-2051
AT-MIO-16E-10
AT-MIO-16DE-10
AT-MIO-16E-2
AT-MIO-16E-1
AT-MIO-16E-3
AT-MIO-16XE-50
AT-MIO-16XE-10
AT-AI-16XE-10
PCI-MIO-16E-4
PCI-MIO-16E-1
PCI-MIO-16XE-10
PCI-MIO-16XE-50
PCI-6023E
PCI-6024E
PCI-6052E
PCI-6025E
PCI-6032E
PXI-6030E
PXI-6040E
PXI-6070E
PCI/PXI-6031E
PCI-6033E
PCI/PXI-6071E
DAQPad-MIO-16XE-50
DAQPad-6020E
DAQCard-AI-16E-4
DAQCard-AI-16XE-50
AT-MIO-16D
AT-MIO-16DE-10
PCI-6503
PC-DIO-24/PnP
DAQCard-DIO-24
SC-2052
SC-2053
SC-2054
SC-2055
SC-2056
SC-2057
AT-MIO-64E-3
PCI/PXI-6071E
PCI/PXI-6031E,
PCI-6033E
VXI-MIO-64XE-10
VXI-MIO-64E-1
AT-DIO-32F
AT-DIO-32HS
PCI-DIO-32HS
DAQCard-6533
PXI-6533
PC-DIO-24/PnP
PC-DIO-96/PnP
PCI-DIO-96
PXI-6508
DAQPad-6508
© National Instruments Corporation
Lab/1200
Lab-PC-1200/AI
PCI-1200
DAQPad-1200
DAQCard-1200
Low Cost
Lab-PC+
Introduction
1-2
DIO
SC-2050
VXI-DIO-128
DAQCard-700
PC-LPM-16/PnP
Chapter 1
SC-205X Series User Manual
Table 1-1. DAQ Hardware Used with the SC-205X Series Adapters
Chapter 1
Introduction
The SC-205X Series adapters link the National Instruments DAQ devices
and the signal conditioning accessories. You can configure any usual
combination of signal conditioners (for example, solid-state relays, optical
isolators, electromechanical relays, or analog signal conditioning modules)
quickly and easily by connecting the SC-205X Series adapter designed for
that device.
When a DAQ device is connected to its SC-205X Series adapter, you can
connect each digital port (8 lines) or analog port (16 lines) to a signal
conditioning accessory. Changing accessories for a port only requires
changing the connector between the SC-205X Series adapter and
the accessory. In this way, you can use the same signal conditioning
accessory with any of the supported DAQ devices by connecting it with the
appropriate SC-205X Series adapter.
What You Need to Get Started
The cable you need to connect your DAQ device to an SC-205X adapter
depends upon both the DAQ device and the SC-205X adapter you are using.
Cables and adapters are available separately. See the National Instruments
catalogue or contact National Instruments for cabling details.
Certain common combinations of cable and adapter are available as kits.
The SC-2050, SC-2051, SC-2053, and SC-2055 are available in kits with a
0.5 m or 1.0 m type NB1 cable, for use with 50-pin DAQ boards (not
including DAQCards). The SC-2054 adapter is available in kits with NB5
cables. The NB5 cable is for use with PC-DIO-96/PnP boards only; it
cannot be used with other boards, such as the PCI-DIO-96 or 6508 family.
The SC-2054 with NB5 kits are available in one-adapter, 48-channel and
two-adapter, 96-channel versions.
To set up and use your SC-205X Series adapters, you will need the
following:
❑ An SC-205X adapter
❑ SC-205X Series User Manual
❑ The appropriate cable to connect your SC-205X board to your DAQ
device. See the National Instruments catalogue or contact National
Instruments for details.
© National Instruments Corporation
1-3
SC-205X Series User Manual
Chapter 1
Introduction
❑ Your DAQ device
❑ Your computer
Detailed specifications for the SC-205X Series adapters are in Appendix A,
Specifications.
Unpacking
Your SC-205X adapter is shipped in an antistatic package to prevent
electrostatic damage to the adapter. Electrostatic discharge can damage
several components on the adapter. To avoid such damage in handling the
adapter, take the following precautions:
•
Ground yourself via a grounding strap or by holding a grounded object.
•
Touch the antistatic package to a metal part of your computer chassis
before removing the adapter from the package.
•
Remove the device from the package and inspect the adapter for loose
components or any other sign of damage. Notify National Instruments
if the device appears damaged in any way. Do not install a damaged
adapter into your computer.
Never touch the exposed pins of connectors.
Software Programming Choices
The SC-205X Series adapters, except the SC-2056, are invisible to the host
computer and require no additional software beyond the software you are
using to control your DAQ device.
Optional Equipment
National Instruments offers a variety of products to use with your SC-205X
Series adapter, including cables, connector blocks, rack-mount kits, and
other accessories.
For more specific information about these products, refer to your National
Instruments catalogue or call the office nearest you.
SC-205X Series User Manual
1-4
© National Instruments Corporation
2
SC-2050
This chapter describes the SC-2050 adapter in detail, including function,
connection, mounting, and cabling. Refer to Chapter 10, Installation and
Operation to install and use your adapter.
The SC-2050 converts E Series connector signals to standard pin
connections for signal conditioning accessories. The SC-2050 can be used
with E Series devices such as the AT-MIO-16E-10, PCI-6031E, and
DAQPad-MIO-16XE-50. See Table 1-1 for a complete list of DAQ devices
that you can use with the SC-2050.
© National Instruments Corporation
2-1
SC-205X Series User Manual
Chapter 2
SC-2050
Figure 2-1 shows the SC-2050 parts locator diagram.
1
2
3
6
4
5
1
2
3
Product Name, Assembly Number, Revision Letter,
and Serial Number
Shield Jumper
To E Series device (MIO-16, etc.)
4
5
6
To SC-207X, AMUX-64T, or CB-50
To SC-206X Series or SSR Series
To 5B Series
Figure 2-1. SC-2050 Parts Locator Diagram
SC-205X Series User Manual
2-2
© National Instruments Corporation
Chapter 2
SC-2050
SC-2050 Connection
Connect your SC-2050 to the DAQ device via an SH6850 cable or
PSHR68-50 cable (for DAQCards). Connect the SC-2050 to the 100-pin
AT-MIO-16DE-10 and PCI-6071E via a 100-pin R1005050 cable,
available separately. Make this connection with the host computer powered
off. Connect one end of the ribbon cable to the SC-2050 at either connector
J1 or J2. Connect the other end to the DAQ device installed in your
computer.
Warning
Do not connect the SC-2050 to a board for which it is not designed. Such
connection can damage the SC-2050 and any or all boards/accessories connected
to the SC-2050 and host computer. National instruments is NOT liable for any
damages resulting from incorrect connections.
To connect your SC-2050 to the signal conditioning accessories, use a type
NB7, 26-pin ribbon cable. This cable connects the SC-2050 to any of the
SC-206X Series boards or to the 5B Series backplane. An 8-channel SSR
Series backplane with a 26-conductor ribbon cable is also available for
connection to the SC-2050. For instructions on making these connections
to the proper signal conditioning accessories, refer to Cable Connections in
Chapter 10, Installation and Operation.
Connectors
The SC-2050 has two 50-pin ribbon cable connectors that are connected
pin-by-pin to each other. You can use either of these connectors to attach
the SC-2050 to the DAQ device via a cable. You can daisy-chain the
second connector to other 50-pin accessories.
The SC-2050 also has three 26-pin ribbon cable connectors that you can use
to connect to the signal conditioning accessories. The analog ports have pin
connections that are compatible with the 5B Series of analog signal
conditioning modules. The digital ports are compatible with the SC-206X
Series digital signal conditioners as well as with the 8-channel SSR Series
solid-state relay board.
Figure 2-2 illustrates the connections between the SC-2050 and the
necessary accessories and devices.
© National Instruments Corporation
2-3
SC-205X Series User Manual
Chapter 2
SC-2050
J3
5B Series
PUT
G IN
E Series
J1
LO
ANA
SC-2050
J2
ANALOG I/O
DIG
ITAL
I/O
J4
5B Series
J5
SC-2070,
AMUX-64T,
or CB-50
SC-206X Series or
8-Channel SSR Series
Figure 2-2. SC-2050 Connections
Table 2-1 describes the connectors on the SC-2050.
Table 2-1. SC-2050 Connectors
Connectors
J1, J2
Connection
Description
50-pin male ribbon cable
connectors; E Series
connection
Attach J1 or J2 to the DAQ device. The other
connector can attach to the SC-2070,
AMUX-64T, or CB-50. The connections at each
connector are identical so that you can
daisy-chain the E Series signals.
J3
26-pin male connector; 5B
Series analog input connection
Attach J3 to the 5B Series backplane. This
connection takes analog input lines 0–15 on the
E Series to channels 0–15 of the 5B Series
backplane, in sequential order.
J4
26-pin male connector; 5B
Series analog I/O connection
Attach J4 to the 5B Series backplane. This
connection takes analog input channels 0–13 on
the E Series to channels 0–3 of the 5B Series
backplane, in sequential order. It also connects
the voltage output signal DAC0OUT from the
E Series to channel 14 of the 5B Series and
DAC1OUT to channel 15.
J5
26-pin male connector; digital
I/O connection
Attach J5 to the SC-206X Series or SSR
8-channel boards. This connection takes the
eight digital I/O lines from the E Series to a
digital signal conditioning accessory with
compatible pin connections, such as the
SC-2060, SC-2061, SC-2062, or the 8-channel
SSR Series backplane.
SC-205X Series User Manual
2-4
© National Instruments Corporation
Chapter 2
SC-2050
Figures 2-3 through 2-6 show the pin assignments for each I/O connector
on the SC-2050.
AIGND
ACH0
ACH1
ACH2
ACH3
ACH4
ACH5
ACH6
ACH7
AISENSE
DAC1OUT1
AOGND
DIO0
DIO1
DIO2
DIO3
DGND
+5 V
EXSTROBE*
PFI1/TRIG2
PFI3/GPCTR1_SOURCE
GPCTR1_OUT
PFI6/WFTRIG
PFI8/GPCTR0_SOURCE
GPCTR0_OUT
1
1
3
5
7
9
11
13
15
2
4
6
8
10
12
14
16
AIGND
17
19
21
23
25
27
29
31
33
35
37
39
41
43
45
47
49
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
ACH15
ACH8
ACH9
ACH10
ACH11
ACH12
ACH13
ACH14
DAC0OUT1
EXTREF1
DGND
DIO4
DIO5
DIO6
DIO7
+5 V
SCANCLK
PFI0/TRIG1
PFI2/CONVERT*
PFI4/GPCTR1_GATE
PFI5/UPDATE*
PFI7/STARTSCAN
PFI9/GPCTR0_GATE
FREQ_OUT
Not available on all boards. Check your board's
documentation for these signals.
Figure 2-3. Pin Assignments for SC-2050 I/O Connectors J1 and J2
© National Instruments Corporation
2-5
SC-205X Series User Manual
Chapter 2
SC-2050
ACH0
AIGND
ACH1
ACH2
AIGND
ACH3
ACH4
AIGND
ACH5
ACH6
AIGND
ACH7
AISENSE
1
3
5
7
9
11
13
15
17
19
21
23
25
2
4
6
8
10
12
14
16
18
20
22
24
26
ACH8
ACH9
AIGND
ACH10
ACH11
AIGND
ACH12
ACH13
AIGND
ACH14
ACH15
AIGND
NC
Figure 2-4. Pin Assignments for SC-2050 Analog Input Connector J3
ACH0
AOGND
ACH1
ACH2
AOGND
ACH3
ACH4
AOGND
ACH5
ACH6
AOGND
ACH7
AISENSE
1
3
5
7
9
11
13
15
17
19
21
23
25
2
4
6
8
10
12
14
16
18
20
22
24
26
ACH8
ACH9
AOGND
ACH10
ACH11
AOGND
ACH12
ACH13
AOGND
DAC0OUT
DAC1OUT
AOGND
NC
Figure 2-5. Pin Assignments for SC-2050 Analog I/O Connector J4
SC-205X Series User Manual
2-6
© National Instruments Corporation
Chapter 2
+5 V
+5 V
+5 V
+5 V
DIO7
DIO6
DIO5
DIO4
DIO3
DIO2
DIO1
DIO0
+5 V
1
3
5
7
9
11
13
15
17
19
21
23
25
2
4
6
8
10
12
14
16
18
20
22
24
26
SC-2050
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
Figure 2-6. Pin Assignments for SC-2050 Digital I/O Connector J5
Mounting
The SC-2050 adapter is equipped with metal standoffs so it can sit on a
workbench close to the host computer. A rack-mount chassis is also
available and can be fitted with a flat acrylic plastic cover, or a metal
wraparound cover. To ground the SC-2050 adapter to the chassis, set the
jumper on the adapter as described in Chapter 10, Installation and
Operation.
Cabling
You need a 50-pin ribbon cable to connect the SC-2050. Connections to the
SC-206X Series boards require a 26-pin ribbon cable. A 26-conductor
ribbon cable is needed for the 8-channel SSR backplane. Additional cables
are available from National Instruments for connection to other
accessories.
© National Instruments Corporation
2-7
SC-205X Series User Manual
3
SC-2051
This chapter describes the SC-2051 adapter in detail, including function,
connection, mounting, and cabling. Refer to Chapter 10, Installation and
Operation to install and use your adapter.
The SC-2051 converts 24 digital I/O signals to standard pin connections for
signal conditioning accessories. You can use the SC-2051 with DIO-24 and
6503 type devices. You can also use the SC-2051 with MIO devices having
24 additional digital channels, such as the AT-MIO-16DE-10. See
Table 1-1 for a complete list of DAQ devices that you can use with the
SC-2051.
© National Instruments Corporation
3-1
SC-205X Series User Manual
Chapter 3
SC-2051
Figure 3-1 shows the SC-2051 parts locator diagram.
1
2
3
5
4
1
2
3
Product Name, Assembly Number, Revision Letter, and Serial Number 4
Shield Jumper
5
To DAQ device
To CB-50
To SC-206X Series or SSR Series
Figure 3-1. SC-2051 Parts Locator Diagram
SC-205X Series User Manual
3-2
© National Instruments Corporation
Chapter 3
SC-2051
SC-2051 Connection
Connect your SC-2051 to a 50-pin DAQ board via a type NB1, 50-pin
ribbon cable. To connect the SC-2051 to the AT-MIO-16D or
AT-MIO-16DE-10, you will need a type NB5 cable; use a PR50-50F cable
for the DAQCard-DIO-24. Make this connection with the host computer
powered off. Connect one end of the ribbon cable to the SC-2051 at either
connector J1 or J2. Connect the other end to the DAQ device installed in
your computer.
Warning
Do not connect the SC-2051 to a board for which it is not designed. Such
connection can damage the SC-2051 and any or all boards/accessories connected
to the SC-2051 and host computer. National instruments is NOT liable for any
damages resulting from incorrect connections.
To connect your SC-2051 to the signal conditioning accessories, use a type
NB7, 26-pin ribbon cable. This cable connects the SC-2051 to any of the
SC-206X Series boards or to the 5B Series backplane. An 8-channel SSR
Series backplane with a 26-conductor ribbon cable is also available for
connection to the SC-2051. For instructions on making these connections
to the proper signal conditioning accessories, refer to Cable Connections in
Chapter 10, Installation and Operation.
Connectors
The SC-2051 has two 50-pin ribbon cable connectors that are connected
pin-by-pin to each other. You can use either of these connectors to attach
the SC-2051 to the DAQ device via a cable. You can daisy-chain the
second connector to other 50-pin accessories.
The SC-2051 also has three 26-pin ribbon cable connectors that you can use
to connect to the signal conditioning accessories. The digital ports are
compatible with the SC-206X Series digital signal conditioners as well as
with the 8-channel SSR Series solid-state relay board.
© National Instruments Corporation
3-3
SC-205X Series User Manual
Chapter 3
SC-2051
Figure 3-2 illustrates the connections between the SC-2051 and the
necessary accessories and devices.
J3
RT C
DIO-24 or 6503
J1
SC-2051
J2
PO
PORT B
POR
TA
J4
J5
CB-50
SC-206X Series or
8-Channel SSR Series
SC-206X Series or
8-Channel SSR Series
SC-206X Series or
8-Channel SSR Series
Figure 3-2. SC-2051 Connections
Table 3-1 describes the connectors on the SC-2051.
Table 3-1. SC-2051 Connectors
Connectors
J1, J2
Connection
Description
50-pin male connectors; 24
DIO channel connection
Attach J1 or J2 to the DAQ device. The other
connector can daisy-chain the board signals to
other 50-pin accessories such as a CB-50.
J3
26-pin male connector; port C,
or 2, digital I/O connection
J4
26-pin male connector; port B,
or 1, digital I/O connection
Attach each of these connectors to an SC-206X
Series board or to an 8-channel SSR Series
backplane. Connect the eight digital lines of the
port corresponding to the label below the
connector to the digital lines of the accessory.
J5
26-pin male connector; port A,
or 0, digital I/O connection
SC-205X Series User Manual
3-4
© National Instruments Corporation
Chapter 3
SC-2051
Figures 3-3 through 3-6 show the pin assignments for each I/O connector
on the SC-2051.
PC7
PC6
PC5
PC4
PC3
PC2
PC1
PC0
PB7
PB6
PB5
PB4
PB3
PB2
PB1
PB0
PA7
PA6
PA5
PA4
PA3
PA2
PA1
PA0
+5 V
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
43
45
47
49
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
Figure 3-3. Pin Assignments for SC-2051 I/O Connectors J1 and J2
© National Instruments Corporation
3-5
SC-205X Series User Manual
Chapter 3
SC-2051
+5 V
+5 V
+5 V
+5 V
PC7
PC6
PC5
PC4
PC3
PC2
PC1
PC0
+5 V
1
3
5
7
9
11
13
15
17
19
21
23
25
2
4
6
8
10
12
14
16
18
20
22
24
26
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
Figure 3-4. Pin Assignments for SC-2051 I/O Connector J3
+5 V
+5 V
+5 V
+5 V
PB7
PB6
PB5
PB4
PB3
PB2
PB1
PB0
+5 V
1
3
5
7
9
11
13
15
17
19
21
23
25
2
4
6
8
10
12
14
16
18
20
22
24
26
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
Figure 3-5. Pin Assignments for SC-2051 I/O Connector J4
SC-205X Series User Manual
3-6
© National Instruments Corporation
Chapter 3
+5 V
+5 V
+5 V
+5 V
PA7
PA6
PA5
PA4
PA3
PA2
PA1
PA0
+5 V
1
3
5
7
9
11
13
15
17
19
21
23
25
2
4
6
8
10
12
14
16
18
20
22
24
26
SC-2051
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
Figure 3-6. Pin Assignments for SC-2051 I/O Connector J5
Mounting
The SC-2051 adapter is equipped with metal standoffs so it can sit on a
workbench close to the host computer. A rack-mount is also available and
can be fitted with a flat acrylic plastic cover or metal wraparound cover. To
ground the SC-2051 adapter to the chassis, set the jumper on the adapter as
described in Chapter 10, Installation and Operation.
Cabling
You need a 50-pin ribbon cable to connect the SC-2051 to a DAQ device;
the cable needed depends on the DAQ device. Connections to the SC-206X
Series boards require a 26-pin ribbon cable. A 26-conductor ribbon cable is
needed for the 8-channel SSR backplane. Additional cables are available
from National Instruments for connection to other accessories.
© National Instruments Corporation
3-7
SC-205X Series User Manual
4
SC-2052
This chapter describes the SC-2052 adapter in detail, including function,
connection, mounting, and cabling. Refer to Chapter 10, Installation and
Operation to install and use your adapter.
The SC-2052 converts 32 digital I/O signals to standard pin connections for
signal conditioning accessories. You can use the SC-2052 with DIO-32 and
6533 type devices. See Table 1-1 for a complete list of DAQ devices that
you can use with the SC-2052.
© National Instruments Corporation
4-1
SC-205X Series User Manual
Chapter 4
SC-2052
Figure 4-1 shows the SC-2052 parts locator diagram.
1
2
3
5
4
1
2
3
Product Name, Assembly Number, Revision Letter, and Serial Number 4
Shield Jumper
5
To DIO-32 and 6533 devices
To CB-50
To SC-206X Series or SSR Series
Figure 4-1. SC-2052 Parts Locator Diagram
SC-205X Series User Manual
4-2
© National Instruments Corporation
Chapter 4
SC-2052
SC-2052 Connection
Connect your SC-2052 to the DAQ device via an R6850-D1 or a type NB1,
50-pin ribbon cable (for the AT-DIO-32F). Make this connection with the
host computer powered off. Connect one end of the ribbon cable to the
SC-2052 at either connector J1 or J2. Connect the other end to the DAQ
device installed in your computer.
Warning
Do not connect the SC-2052 to a board for which it is not designed. Such
connection can damage the SC-2052 and any or all boards/accessories connected
to the SC-2052 and the host computer. National instruments is NOT liable for any
damages resulting from incorrect connections.
To connect your SC-2052 to the signal conditioning accessories, use a type
NB7, 26-pin ribbon cable. This cable connects the SC-2052 to any of the
SC-206X Series boards. An 8-channel SSR Series backplane with a
26-conductor ribbon cable is also available for connection to the SC-2052.
For instructions on making these connections to the proper signal
conditioning accessories, refer to Cable Connections in Chapter 10,
Installation and Operation.
Connectors
The SC-2052 has two 50-pin ribbon cable connectors that are connected
pin-by-pin to each other. You can use either of these connectors to attach
the SC-2052 to the DAQ device via a cable. You can daisy-chain the
second connector to other 50-pin accessories.
The SC-2052 also has four 26-pin ribbon cable connectors that you can
connect to the signal conditioning accessories. The digital ports are
compatible with the SC-206X Series digital signal conditioners as well as
with the 8-channel SSR Series solid-state relay board.
The SC-2052 has 2-pin screw terminals which are connected to auxiliary
digital input lines and digital output lines of the DAQ device. You can use
these screw terminals to attach these lines to appropriate external circuitry.
Figure 4-2 illustrates the connections between the SC-2052 and the
necessary accessories and devices.
© National Instruments Corporation
4-3
SC-205X Series User Manual
Chapter 4
SC-2052
Digital I/O
DIO-32 or 6533
J1
D
RT
PO
C
PORT
SC-2052
J2
PORT
B
PO
RT
A
J3
J4
J5
J6
CB-50
SC-206X Series or
8-Channel SSR Series
SC-206X Series or
8-Channel SSR Series
SC-206X Series or
8-Channel SSR Series
SC-206X Series or
8-Channel SSR Series
Figure 4-2. SC-2052 Connections
Table 4-1 describes the connectors on the SC-2052.
Table 4-1. SC-2052 Connectors
Connectors
J1, J2
Connection
Description
50-pin male connectors; DIO-32,
6533 connection
Attach J1 or J2 to the DAQ device. The other connector can
daisy-chain the DAQ device signals to other 50-pin accessories
such as a CB-50.
J3
26-pin male connectors; port D, or 3,
digital I/O connection
J4
26-pin male connectors; port C, or 2,
digital I/O connection
You can attach each of these connectors to an SC-206X Series
board or to an 8-channel SSR Series backplane. Connectors J3,
J4, J5, and J6 connect the eight digital lines of the port
corresponding to the label below the connector to the digital
lines of the accessory.
J5
26-pin male connectors; port B, or 1,
digital I/O connection
J6
26-pin male connectors; port A, or 0,
digital I/O connection
J7
Two-position screw terminal block;
grounded
J8
Two-position screw terminal block;
digital lines STOPTRIG2 (IN2) and
PCLK2 (OUT2)
J9
Two-position screw terminal block;
digital lines STOPTRIG1 (IN1) and
PCLK1(OUT1)
SC-205X Series User Manual
Screw terminals J8 and J9 are connected to the two auxiliary
digital input lines STOPTRIG1 (IN1) and STOPTRIG2 (IN2)
and two auxiliary digital output lines PCLK1(OUT1) and
PCLK2 (OUT2) of your DAQ device. You can insert wires in
the screw terminals to attach these lines to appropriate external
circuitry. Consult the user manual for your DAQ device for
further details on the correct connection of these lines.
4-4
© National Instruments Corporation
Chapter 4
SC-2052
Figures 4-3 through 4-7 show the pin assignments for each I/O connector
on the SC-2052.
DIOD1
DIOD3
DIOD6
DIOD2
DIOC5
DIOC3
DIOC2
DIOC6
GND
GND
GND
GND
GND
ACK1
STOPTRIG1 (IN1)
PCLK1 (OUT1)
REQ1
DIOA4
DIOA0
DIOA1
DIOA7
DIOB5
DIOB7
DIOB0
DIOB4
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
43
45
47
49
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
DIOD4
DIOD0
DIOD7
DIOD5
DIOC7
DIOC1
DIOC0
DIOC4
ACK2
STOPTRIG2 (IN2)
PCLK2 (OUT2)
REQ2
GND
GND
GND
GND
GND
DIOA6
DIOA2
DIOA3
DIOA5
DIOB2
DIOB6
DIOB3
DIOB1
Figure 4-3. Pin Assignments for SC-2052 I/O Connectors J1 and J2
© National Instruments Corporation
4-5
SC-205X Series User Manual
Chapter 4
SC-2052
NC
NC
NC
NC
DIOD7
DIOD6
DIOD5
DIOD4
DIOD3
DIOD2
DIOD1
DIOD0
NC
1
3
5
7
9
11
13
15
17
19
21
23
25
2
4
6
8
10
12
14
16
18
20
22
24
26
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
Figure 4-4. Pin Assignments for SC-2052 I/O Connector J3
NC
NC
NC
NC
DIOC7
DIOC6
DIOC5
DIOC4
DIOC3
DIOC2
DIOC1
DIOC0
NC
1
3
5
7
9
11
13
15
17
19
21
23
25
2
4
6
8
10
12
14
16
18
20
22
24
26
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
Figure 4-5. Pin Assignments for SC-2052 I/O Connector J4
SC-205X Series User Manual
4-6
© National Instruments Corporation
Chapter 4
NC
NC
NC
NC
DIOB7
DIOB6
DIOB5
DIOB4
DIOB3
DIOB2
DIOB1
DIOB0
NC
1
3
5
7
9
11
13
15
17
19
21
23
25
2
4
6
8
10
12
14
16
18
20
22
24
26
SC-2052
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
Figure 4-6. Pin Assignments for SC-2052 I/O Connector J5
NC
NC
NC
NC
DIOA7
DIOA6
DIOA5
DIOA4
DIOA3
DIOA2
DIOA1
DIOA0
NC
1
3
5
7
9
11
13
15
17
19
21
23
25
2
4
6
8
10
12
14
16
18
20
22
24
26
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
Figure 4-7. Pin Assignments for SC-2052 I/O Connector J6
Mounting
The SC-2052 adapter is equipped with metal standoffs so it can sit on a
workbench close to the host computer. A rack-mount is also available and
can be fitted with a flat acrylic plastic cover or metal wraparound cover. To
ground the SC-2052 adapter to the chassis, set the jumper on the adapter as
described in Chapter 10, Installation and Operation.
© National Instruments Corporation
4-7
SC-205X Series User Manual
Chapter 4
SC-2052
Cabling
You need an R6850-D1 ribbon cable to connect the SC-2052 to a 68-pin
DAQ device. Connections to the SC-206X Series boards require a 26-pin
ribbon cable. A 26-conductor ribbon cable is needed for the 8-channel SSR
backplane. Additional cables are available from National Instruments for
connection to other accessories.
SC-205X Series User Manual
4-8
© National Instruments Corporation
5
SC-2053
This chapter describes the SC-2053 adapter in detail, including function,
connection, mounting, and cabling. Refer to Chapter 10, Installation and
Operation to install and use your adapter.
The SC-2053 converts the Lab/1200 Series board I/O connector signals to
standard pin connections for signal conditioning accessories. You can use
the SC-2053 with the Lab/1200 devices. See Table 1-1 for a complete list
of DAQ devices that you can use with the SC-2053.
© National Instruments Corporation
5-1
SC-205X Series User Manual
Chapter 5
SC-2053
Figure 5-1 shows the SC-2053 parts locator diagram.
1
2
3
6
5
4
1
2
3
Product Name, Assembly Number, Revision Letter, and Serial Number 4
Shield Jumper
5
6
To Lab-NB, Lab-PC, or 1200 device
To CB-50 or SC-2701
To SC-206X Series or SSR Series
To 5B Series
Figure 5-1. SC-2053 Parts Locator Diagram
SC-205X Series User Manual
5-2
© National Instruments Corporation
Chapter 5
SC-2053
SC-2053 Connection
Connect your SC-2053 to the DAQ device via a type NB1, 50-pin ribbon
cable. Make this connection with the host computer powered off. Connect
one end of the ribbon cable to the SC-2053 at either connector J1 or J2.
Connect the other end to the DAQ device installed in your computer or to
the DAQPad-1200.
Warning
Do not connect the SC-2053 to a board for which it is not designed. Such
connection can damage the SC-2053 and any or all boards/accessories connected
to the SC-2053, and host computer. National instruments is NOT liable for any
damages resulting from incorrect connections.
To connect your SC-2053 to the signal conditioning accessories, use a type
NB7, 26-pin ribbon cable. This cable connects the SC-2053 to any of the
SC-206X Series boards or to the 5B Series backplane. An 8-channel SSR
Series backplane with a 26-conductor ribbon cable is also available for
connection to the SC-2053. For instructions on making these connections
to the proper signal conditioning accessories, refer to Cable Connections in
Chapter 10, Installation and Operation.
Connectors
The SC-2053 has two 50-pin ribbon cable connectors that are connected
pin-by-pin to each other. You can use either of these connectors to attach
the SC-2053 to the DAQ device via a cable. You can daisy-chain the
second connector to other 50-pin accessories.
The SC-2053 also has four 26-pin ribbon cable connectors that you can use
to connect to the signal conditioning accessories. The analog ports have pin
connections that are compatible with the 5B Series of analog signal
conditioning modules. The digital ports are compatible with the SC-206X
Series digital signal conditioners as well as with the 8-channel SSR Series
solid-state relay board.
Figure 5-2 illustrates the connections between the SC-2053 and the
necessary accessories and devices.
© National Instruments Corporation
5-3
SC-205X Series User Manual
Chapter 5
SC-2053
Analog I/O
J3
5B Series
Digital I/O
Lab/1200
J1
SC-2053
J2
TA
POR
PORT B
POR
TC
J4
J5
J6
SC-2071
or CB-50
SC-206X Series or
8-Channel SSR Series
SC-206X Series or
8-Channel SSR Series
SC-206X Series or
8-Channel SSR Series
Figure 5-2. SC-2053 Connections
Table 5-1 describes the connectors on the SC-2053.
Table 5-1. SC-2053 Connectors
Connectors
J1, J2
Connection
Description
50-pin male connectors;
Lab/1200 connection
Attach J1 or J2 to the DAQ device. The other
connector can daisy-chain the DAQ device
signals to other 50-pin accessories such as a
CB-50 or SC-2071.
J3
26-pin male connector; 5B
Series analog I/O connection
Attach J3 to the 5B Series backplane. This
connection takes analog input channels 0–7 on
the DAQ device to channels 0–7 of the 5B Series
backplane in sequential order. The voltage output
signal DAC0OUT from the DAQ device is
connected to channel 8 of the 5B Series and
DAC1OUT is connected to channel 9.
J4
26-pin male connector; port A
digital I/O connection
J5
26-pin male connector; port B
digital I/O connection
Attach each of these connectors to an SC-206X
Series board or to an 8-channel SSR Series
backplane. Connectors J4, J5, and J6 connect the
eight digital lines of the port corresponding to the
label below the connector to the digital lines of
the accessory.
J6
26-pin male connector; port C
digital I/O connection
SC-205X Series User Manual
5-4
© National Instruments Corporation
Chapter 5
SC-2053
Figures 5-3 through 5-7 show the pin assignments for each I/O connector
on the SC-2053.
ACH0
ACH2
ACH4
ACH6
AIGND
AOGND
DGND
PA1
PA3
PA5
PA7
PB1
PB3
PB5
PB7
PC1
PC3
PC5
PC7
EXTUPDATE
OUT0
OUT1
CLK1
GAT2
+5 V
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
43
45
47
49
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
ACH1
ACH3
ACH5
ACH7
DAC0OUT
DAC1OUT
PA0
PA2
PA4
PA6
PB0
PB2
PB4
PB6
PC0
PC2
PC4
PC6
EXTRIG
EXTCONV
GAT0
GAT1
OUT2
CLK2
DGND
Figure 5-3. Pin Assignments for SC-2053 I/0 Connectors J1 and J2
© National Instruments Corporation
5-5
SC-205X Series User Manual
Chapter 5
SC-2053
ACH0
AOGND
ACH1
ACH2
AIGND
ACH3
ACH4
AOGND
ACH5
ACH6
AOGND
ACH7
AISENSE
1
3
5
7
9
11
13
15
17
19
21
23
25
2
4
6
8
10
12
14
16
18
20
22
24
26
DAC0OUT
DAC1OUT
AOGND
NC
NC
AOGND
NC
NC
AOGND
NC
NC
AOGND
NC
Figure 5-4. Pin Assignments for SC-2053 I/O Connector J3
+5 V
+5 V
+5 V
+5 V
PA7
PA6
PA5
PA4
PA3
PA2
PA1
PA0
+5 V
1
3
5
7
9
11
13
15
17
19
21
23
25
2
4
6
8
10
12
14
16
18
20
22
24
26
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
Figure 5-5. Pin Assignments for SC-2053 I/O Connector J4
SC-205X Series User Manual
5-6
© National Instruments Corporation
Chapter 5
+5 V
+5 V
+5 V
+5 V
PB7
PB6
PB5
PB4
PB3
PB2
PB1
PB0
+5 V
1
3
5
7
9
11
13
15
17
19
21
23
25
2
4
6
8
10
12
14
16
18
20
22
24
26
SC-2053
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
Figure 5-6. Pin Assignments for SC-2053 I/O Connector J5
+5 V
+5 V
+5 V
+5 V
PC7
PC6
PC5
PC4
PC3
PC2
PC1
PC0
+5 V
1
3
5
7
9
11
13
15
17
19
21
23
25
2
4
6
8
10
12
14
16
18
20
22
24
26
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
Figure 5-7. Pin Assignments for SC-2053 I/O Connector J6
Mounting
The SC-2053 adapter is equipped with metal standoffs so it can sit on a
workbench close to the host computer. A rack-mount chassis is also
available and can be fitted with a flat acrylic plastic cover or metal
wraparound cover. To ground the SC-2053 adapter to the chassis, set the
jumper on the adapter as described in Chapter 10, Installation and
Operation.
© National Instruments Corporation
5-7
SC-205X Series User Manual
Chapter 5
SC-2053
Cabling
You need a 50-pin ribbon cable to connect the SC-2053. Connections to the
SC-206X Series boards and 5B Series backplane require a 26-pin ribbon
cable. A 26-conductor ribbon cable is needed for the 8-channel SSR
backplane. Additional cables are available from National Instruments for
connection to other accessories.
SC-205X Series User Manual
5-8
© National Instruments Corporation
6
SC-2054
This chapter describes the SC-2054 adapter in detail, including function,
connection, mounting, and cabling. Refer to Chapter 10, Installation and
Operation to install and use your adapter.
The SC-2054 converts half of the 96 digital I/O connector signals from a 96
digital channel device to standard pin connections for signal conditioning
accessories.
You can use the SC-2054 with DIO-96 and 6508 devices. The SC-2054 also
works with DIO-24 devices; however, the SC-2051 is a more appropriate
solution. See Table 1-1 for a complete list of DAQ devices that you can use
with the SC-2054.
© National Instruments Corporation
6-1
SC-205X Series User Manual
Chapter 6
SC-2054
Figure 6-1 shows the SC-2054 parts locator diagram.
4
5
3
6
2
1
2
3
1
Product Name, Assembly Number, Revision Letter, and Serial
Number
Shield Jumper
To DAQ Device
4
5
6
To CB-50
To 16-Channel or 24-Channel SSR
To SC-206X Series or 8-Channel
SSR
Figure 6-1. SC-2054 Parts Locator Diagram
SC-2054 Connection
Your SC-2054 is connected to the 96-channel DAQ device via a type NB5,
100-pin ribbon cable or R1005050 ribbon cable depending on the device.
Make this connection with the host computer powered off. Connect one of
the 50-pin connector ends of the cable to the SC-2054 at connector J1.
Connect the 100-pin connector end of the cable to the DAQ device installed
in your computer.
Warning
Do not connect the SC-2054 to a board for which it is not designed. Such
connection can damage the SC-2054 and any or all boards/accessories connected
to the SC-2054 and host computer. National instruments is NOT liable for any
damages resulting from incorrect connections.
SC-205X Series User Manual
6-2
© National Instruments Corporation
Chapter 6
SC-2054
Connect your SC-2054 to the signal conditioning accessories via a type
NB7, 26-pin ribbon cable. This cable connects the SC-2054 to any of the
SC-206X Series boards. An 8-channel SSR Series backplane with a
26-conductor ribbon cable is available for connection to the SC-2054.
A 50-pin cable is also available to connect the SC-2054 to a 16-channel or
24-channel SSR Series backplane. For instructions on making these
connections to the proper signal conditioning accessories, refer to Cable
Connections in Chapter 10, Installation and Operation.
Connectors
The SC-2054 has four 50-pin ribbon cable connectors. The first two are
connected pin-by-pin to each other. You can use either of the first two
connectors to attach the SC-2054 to the DAQ device via a type NB5 or
R1005050 cable. You can daisy-chain the second connector to 48-channel
digital I/O signals and other 50-pin accessories. Each of the other two
50-pin connectors has 24-channel digital I/O signals in a DIO-24-style
connector.
The SC-2054 also has six 26-pin ribbon cable connectors that you can use
to connect to the signal conditioning accessories. The digital ports are
compatible with the SC-206X Series digital signal conditioners as well as
with the 8-channel SSR Series solid-state relay board.
Figure 6-2 illustrates the connections between the SC-2054 and the
necessary accessories and devices.
Note
A single SC-2054 adapter has signal-conditioning compatible pin connections for
only half of the signals on a 96-channel DAQ device. Two SC-2054 adapters with
a type NB5 or R1005050 cable have signal-conditioning compatible pin
connections for all 96 signals on the DAQ device.
© National Instruments Corporation
6-3
SC-205X Series User Manual
Chapter 6
SC-2054
CB-50
J1 or J2
SC-2054
J1 or J2
DIO-96 or 6508
PPI A/C
Type NB5 Cable
or R1005050
Port C
J4
SC-206X Series or
8-Channel SSR Series
Port B
J5
SC-206X Series or
8-Channel SSR Series
Port A
J6
SC-206X Series or
8-Channel SSR Series
Port C
J8
SC-206X Series or
8-Channel SSR Series
Port B
J9
SC-206X Series or
8-Channel SSR Series
Port A
J10
SC-206X Series or
8-Channel SSR Series
SC-2054
PPI B/D
J3/J7
CB-50,
16-Channel or
24-Channel
SSR Series
Figure 6-2. SC-2054 Connections
Table 6-1 describes the connectors on the SC-2054.
Table 6-1. SC-2054 Connectors
Connectors
Connection
Description
J1, J2
50-pin male connectors
Attach J1 or J2 to the DAQ device via a type NB5
or R1005050 cable. The other connector can
daisy-chain the 48-channel digital I/O signals to
other 50-pin accessories such as a CB-50.
J3, J7
50-pin male connectors
Connect J3 or J7 to any DIO-24 accessories or
daisy-chain the 24-channel digital I/O signals to
other 50-pin accessories such as a CB-50 or a
16-channel or 24-channel SSR Series board.
J3 is tied to PPI A (ports 0 to 2)
or PPI C (ports 6 to 8),
depending on which half of the
type NB5 or R1005050 cable is
attached to J1. J7 is tied to
PPI B (ports 3 to 5) or PPI D
(ports 9 to 11), depending on
which half of the type NB5
cable is attached to J1.
SC-205X Series User Manual
6-4
© National Instruments Corporation
Chapter 6
SC-2054
Table 6-1. SC-2054 Connectors (Continued)
Connectors
J4, J8
Connection
26-pin male connectors
Port C digital I/O connection.
J4 is tied to port C of PPI A or
C (port number 2 or 8),
depending on which half of the
type NB5 cable is attached to
J1. J8 is tied to port C of PPI B
or D (port number 5 or 11),
depending on which half of the
type NB5 cable is attached to
J1.
J5, J9
26-pin male connectors
Port B digital I/O connection.
J5 is tied to port B of PPI A or
C (port number 1 or 7),
depending on which half of the
type NB5 cable is attached to
J1. J9 is tied to port B of PPI B
or D (port number 4 or 10),
depending on which half of the
type NB5 cable is attached to
J1.
J6, J10
26-pin male connectors
Port A digital I/O connection.
J6 is tied to port A of PPI A or
C (port number 0 or 6),
depending on which half of the
type NB5 cable is attached to
J1. J10 is tied to port A of
PPI B or D (port number 3 or
9), depending on which half of
the type NB5 cable is attached
to J1.
© National Instruments Corporation
Description
Attach J4 or J8 connectors to an SC-206X Series
board or to an 8-channel SSR Series backplane.
The eight digital lines of the port corresponding
to the label below the connector are connected to
the digital lines of the accessory.
Attach J5 or J9 connectors to an SC-206X Series
board or to an 8-channel SSR Series backplane.
The eight digital lines of the port corresponding
to the label below the connector are connected to
the digital lines of the accessory.
Attach J6 or J10 connectors to an SC-206X
Series board or to an 8-channel SSR Series
backplane. The eight digital lines of the port
corresponding to the label below the connector
are connected to the digital lines of the accessory.
6-5
SC-205X Series User Manual
Chapter 6
SC-2054
Figures 6-3 through 6-7 show the pin assignments for each I/O connector
on the SC-2054.
APC7
APC6
APC5
APC4
APC3
APC2
APC1
APC0
APB7
APB6
APB5
APB4
APB3
APB2
APB1
APB0
APA7
APA6
APA5
APA4
APA3
APA2
APA1
APA0
+5 V
1
3
5
7
9
11
13
15
2
4
6
8
10
12
14
16
BPC7
CPC7
BPC6
CPC6
BPC5
CPC5
BPC4
CPC4
BPC3
CPC3
BPC2
CPC2
BPC1
CPC1
BPC0
CPC0
17
19
21
23
25
27
29
31
33
35
37
39
41
43
45
47
49
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
BPB7
CPB7
BPB6
CPB6
BPB5
CPB5
BPB4
CPB4
BPB3
CPB3
BPB2
CPB2
BPB1
CPB1
BPB0
CPB0
BPA7
CPA7
BPA6
CPA6
BPA5
CPA5
BPA4
CPA4
BPA3
CPA3
BPA2
CPA2
BPA1
CPA1
BPA0
CPA0
GND
+5 V
a. Type NB5 or R1005050 cable
connector labeled pins 1-50
is attached to J1 or J2.
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
43
45
47
49
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
DPC7
DPC6
DPC5
DPC4
DPC3
DPC2
DPC1
DPC0
DPB7
DPB6
DPB5
DPB4
DPB3
DPB2
DPB1
DPB0
DPA7
DPA6
DPA5
DPA4
DPA3
DPA2
DPA1
DPA0
GND
b. Type NB5 or R1005050 cable
connector labeled pins 51-100
is attached to J1 or J2.
Figure 6-3. Pin Assignments for SC-2054 I/O Connectors J1 and J2
SC-205X Series User Manual
6-6
© National Instruments Corporation
Chapter 6
PC7
PC6
PC5
PC4
PC3
PC2
PC1
PC0
PB7
PB6
PB5
PB4
PB3
PB2
PB1
PB0
PA7
PA6
PA5
PA4
PA3
PA2
PA1
PA0
+5 V
1
3
5
7
9
11
13
15
17
19
21
2
4
6
8
10
12
14
16
18
20
22
GND
23
25
27
29
31
33
35
37
39
41
43
45
47
49
24
26
28
30
32
34
36
38
40
42
44
46
48
50
GND
SC-2054
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
Figure 6-4. Pin Assignments for SC-2054 I/O Connectors J3 and J7
© National Instruments Corporation
6-7
SC-205X Series User Manual
Chapter 6
SC-2054
+5 V
+5 V
+5 V
+5 V
PC7
PC6
PC5
PC4
PC3
PC2
PC1
PC0
+5 V
1
3
5
7
9
11
13
15
17
19
21
23
25
2
4
6
8
10
12
14
16
18
20
22
24
26
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
Figure 6-5. Pin Assignments for SC-2054 I/O Connectors J4 and J8
+5 V
+5 V
+5 V
+5 V
PB7
PB6
PB5
PB4
PB3
PB2
PB1
PB0
+5 V
1
3
5
7
9
11
13
15
17
19
21
23
25
2
4
6
8
10
12
14
16
18
20
22
24
26
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
Figure 6-6. Pin Assignments for SC-2054 I/O Connectors J5 and J9
SC-205X Series User Manual
6-8
© National Instruments Corporation
Chapter 6
+5 V
+5 V
+5 V
+5 V
PA7
PA6
PA5
PA4
PA3
PA2
PA1
PA0
+5 V
1
3
5
7
9
11
13
15
17
19
21
23
25
2
4
6
8
10
12
14
16
18
20
22
24
26
SC-2054
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
Figure 6-7. Pin Assignments for SC-2054 I/O Connectors J6 and J10
Mounting
The SC-2054 adapter has metal standoffs so it can sit on a workbench close
to the host computer. A rack-mount is also available and can be fitted with
a flat acrylic plastic cover or metal wraparound cover. To ground the
SC-2054 adapter to the rack, set the jumper on the adapter as described in
Chapter 10, Installation and Operation.
Cabling
You need an NB5 or R1005050 ribbon cable to connect the SC-2054 to a
96-channel DAQ device, depending on the device. Connections to the
SC-206X Series boards require a 26-pin ribbon cable. A 26-conductor
ribbon cable is needed for the 8-channel SSR backplane. Additional cables
are available from National Instruments for connection to other
accessories.
© National Instruments Corporation
6-9
SC-205X Series User Manual
7
SC-2055
This chapter describes the SC-2055 adapter in detail, including function,
connection, mounting, and cabling. Refer to Chapter 10, Installation and
Operation to install and use your adapter.
The SC-2055 converts the DAQCard-700 and PC-LPM-16/PnP I/O
connector signals to standard pin connections for signal conditioning
accessories. See Table 1-1 for a complete list of DAQ devices that you can
use with the SC-2055.
Figure 7-1 shows the SC-2055 parts locator diagram.
1
2
3
6
1
2
3
Shield Jumper
PC-LPM-16/PnP or DAQCard-700
To CB-50 or SC-2702
5
4
4
5
6
Serial Number
Assembly Number and Revision Letter
Product Name
Figure 7-1. SC-2055 Parts Locator Diagram
© National Instruments Corporation
7-1
SC-205X Series User Manual
Chapter 7
SC-2055
SC-2055 Connection
Connect your SC-2055 to the DAQ device via a type NB1, 50-pin ribbon
cable. Make this connection with the host computer powered off. Connect
one end of the ribbon cable to the SC-2055 at either connector J1 or J2.
Connect the other end to the DAQ device installed in your computer.
Warning
Do not connect the SC-2055 to a board for which it is not designed. Such
connection can damage the SC-2055 and any or all boards/accessories connected
to the SC-2055 and host computer. National instruments is NOT liable for any
damages resulting from incorrect connections.
To connect your SC-2055 to the signal conditioning accessories, use a type
NB7, 26-pin ribbon cable. This cable connects the SC-2055 to any of the
SC-206X Series boards or to the 5B Series backplane. An 8-channel SSR
Series backplane with a 26-conductor ribbon cable is also available for
connection to the SC-2055. For instructions on making these connections
to the proper signal conditioning accessories, refer to Cable Connections in
Chapter 10, Installation and Operation.
Connectors
The SC-2055 has two 50-pin ribbon-cable connectors that are connected
pin-by-pin to each other. You can use either of these connectors to attach
the SC-2055 to the DAQ device via a cable. You can daisy-chain the
second connector to other 50-pin accessories.
The SC-2055 also has four 26-pin ribbon-cable connectors that you can use
to connect to the signal conditioning accessories. The analog ports have pin
connections compatible with the 5B Series of analog signal conditioning
modules. The digital ports are compatible with the SC-206X Series digital
signal conditioners and with the 8-channel SSR Series solid-state relay
board.
Figure 7-2 illustrates the connections between the SC-2055 and the
necessary accessories and devices.
SC-205X Series User Manual
7-2
© National Instruments Corporation
Chapter 7
J3 Analog Input
J4 Analog I/O
DAQCard 700/
PC-LPM-16/PnP
J1
SC-2055
J2
J5 Digital Input
J6 Digital Output
SC-2055
5B Series
5B Series
5B Series
SC-2061, SC-2062
SSR Series backplane
SC-2072
or CB-50
Figure 7-2. SC-2055 Connections
Table 7-1 describes the connectors on the SC-2055.
Table 7-1. SC-2055 Connectors
Connectors
Connection
Description
J1, J2
50-pin male ribbon cable connectors;
DAQCard-700 or PC-LPM-16/PnP
connection
Attach J1 or J2 to the DAQ device. You can attach the other
connector to the SC-2070 or CB-50. The connections at J1 and
J2 are identical so you can daisy-chain to the DAQ device
signals.
J3
26-pin male connector; 5B Series
analog input connection
Attach J3 to the 5B Series backplane. This connection takes
analog input lines 0–15 on the DAQCard-700 or
PC-LPM-16/PnP to channels 0–15 of the 5B Series backplane,
in sequential order.
J4
26-pin male connector; 5B Series
analog I/O connection; pin 20 is
connected to channel 14 of the 5B
Series; pin 21 is connected to channel
15 of the 5B Series
Attach J4 to the 5B Series backplane. This connection takes
analog input lines 0–13 on the DAQCard-700 or
PC-LPM-16/PnP to channels 0–13 of the 5B Series backplane,
in sequential order. Pin 20 of the DAQCard-700 or
PC-LPM-16/PnP is connected to channel 14 of the 5B Series
and pin 21 is connected to channel 15.
J5
26-pin male connector; digital input
connection
Attach J5 only to the SC-2060. This connection takes the eight
digital input lines from a DAQCard-700 or PC-LPM-16/PnP to
a digital signal conditioning accessory with a compatible pin
assignment, such as the SC-2060.
J6
26-pin male connector; digital output
connection
Attach J6 to the SC-2061, SC-2062, or 8-channel SSR Series
backplane. This connects the eight digital output lines from the
DAQCard-700 or PC-LPM-16/PnP to a digital signal
conditioning accessory with a compatible pin connections.
© National Instruments Corporation
7-3
SC-205X Series User Manual
Chapter 7
!
SC-2055
Caution
If you are using a PC-LPM-16/PnP, do not use 5B Series analog output modules
in the last two slots of the 5B backplane connected to the connector because the
±12 VDC supply is routed to those slots. Doing so can damage the modules and
the PC-LPM-16/PnP.
Figures 7-3 through 7-7 show the pin assignments for each connector on
the SC-2055.
AIGND
ACH0
ACH1
ACH2
ACH3
ACH4
ACH5
ACH6
ACH7
DGND
NC*
DIN1
DIN3
DIN5
DIN7
DOUT1
DOUT3
DOUT5
DOUT7
EXTINT*
OUT0
OUT1
CLK1
GATE2
VCC
1
3
5
7
2
4
6
8
AIGND
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
43
45
47
49
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
ACH11
ACH8
ACH9
ACH10
ACH12
ACH13
ACH14
ACH15
NC*
DIN0
DIN2
DIN4
DIN6
DOUT0
DOUT2
DOUT4
DOUT6
OUT1*
EXTCONV*
GATE0
GATE1
OUT2
CLK2
DGND
* PC-LPM pin 20 is –12 V and pin 21 is +12 V.
* DAQCard-700 pins 20 and 21 are not connected.
Figure 7-3. Pin Assignments for SC-2055 I/O Connectors J1 and J2
SC-205X Series User Manual
7-4
© National Instruments Corporation
Chapter 7
ACH0
AIGND
ACH1
ACH2
AIGND
ACH3
ACH4
AIGND
ACH5
ACH6
AIGND
ACH7
AIGND
1
3
5
7
9
11
13
15
17
19
21
23
25
2
4
6
8
10
12
14
16
18
20
22
24
26
SC-2055
ACH8
ACH9
AIGND
ACH10
ACH11
AIGND
ACH12
ACH13
AIGND
ACH14
ACH15
AIGND
NC
Figure 7-4. Pin Assignments for SC-2055 Analog Input Connector J3
ACH0
AIGND
ACH1
ACH2
AIGND
ACH3
ACH4
AIGND
ACH5
ACH6
AIGND
ACH7
AIGND
1
3
5
7
9
11
13
15
17
19
21
23
25
2
4
6
8
10
12
14
16
18
20
22
24
26
ACH8
ACH9
AIGND
ACH10
ACH11
AIGND
ACH12
ACH13
AIGND
ACH14
DAC0
DAC1
NC
Figure 7-5. Pin Assignments for SC-2055 Analog I/O Connector J4
© National Instruments Corporation
7-5
SC-205X Series User Manual
Chapter 7
SC-2055
VCC
VCC
VCC
VCC
DIN7
DIN6
DIN5
DIN4
DIN3
DIN2
DIN1
DIN0
VCC
1
3
5
7
9
11
13
15
17
19
21
23
25
2
4
6
8
10
12
14
16
18
20
22
24
26
DGND
DGND
DGND
DGND
DGND
DGND
DGND
DGND
DGND
DGND
DGND
DGND
DGND
Figure 7-6. Pin Assignments for SC-2055 Digital Input Connector J5
VCC
VCC
VCC
VCC
DOUT7
DOUT6
DOUT5
DOUT4
DOUT3
DOUT2
DOUT1
DOUT0
VCC
1
3
5
7
9
11
13
15
17
19
21
23
25
2
4
6
8
10
12
14
16
18
20
22
24
26
DGND
DGND
DGND
DGND
DGND
DGND
DGND
DGND
DGND
DGND
DGND
DGND
DGND
Figure 7-7. Pin Assignments for SC-2055 Digital Output Connector J6
Mounting
The SC-2055 adapter has metal standoffs so it can sit on a workbench close
to the host computer. A rack-mount chassis is also available and can be
fitted with a flat acrylic plastic cover or metal wraparound cover. To ground
the SC-2055 adapter to the chassis, set the jumper on the adapter as
described in Chapter 10, Installation and Operation.
SC-205X Series User Manual
7-6
© National Instruments Corporation
Chapter 7
SC-2055
Cabling
You need a 50-pin ribbon cable to connect the SC-2055. Connections to the
SC-206X Series boards and 5B backplanes require a 26-pin ribbon cable. A
26-conductor ribbon cable is needed for the 8-channel SSR backplane.
Additional cables are available from National Instruments for connection
to other accessories.
© National Instruments Corporation
7-7
SC-205X Series User Manual
8
SC-2056
This chapter describes the SC-2056 adapter in detail, including function,
connection, mounting, and cabling. Refer to Chapter 10, Installation and
Operation to install and use your adapter.
The SC-2056 converts 64-channel E Series device I/O connector signals to
standard pin assignments for signal conditioning accessories. You can use
the SC-2056 with E Series devices such as the AT-MIO-64E-3 and
VXI-MIO-64E-1. See Table 1-1 for a complete list of DAQ devices that
you can use with the SC-2056.
© National Instruments Corporation
8-1
SC-205X Series User Manual
Chapter 8
SC-2056
1
3
2
4
5
6
8
1
2
3
4
To MIO (or other 64-channel E Series device)
To SC-2042, SC-2043, SC-2070, CB-50, or BNC-2080
Jumper W1
To SC-206X Series or 8-Channel SSR Series
5
6
7
8
7
To 5B Series
Serial Number
Assembly Number
Product Name
Figure 8-1. SC-2056 Parts Locator Diagram
SC-2056 Connection
Connect your SC-2056 to the DAQ device via an SH100100, R1005050, or
SH96-100 cable, available separately. Make this connection with the host
computer or VXI chassis powered off. Connect one end of the cable to the
SC-2056 at either connector J1, J2, or J3. Connect the other end to the
DAQ device installed in your host computer or VXI chassis.
Warning
Do not connect the SC-2056 to a board for which it is not designed. Such
connection can damage the SC-2056 and any or all boards/accessories connected
to the SC-2056 and host computer. National instruments is NOT liable for any
damages resulting from incorrect connections.
SC-205X Series User Manual
8-2
© National Instruments Corporation
Chapter 8
SC-2056
To connect your SC-2056 to the signal conditioning accessories, use a type
NB7, 26-pin ribbon cable. This cable connects the SC-2056 to any of the
SC-206X Series boards or to the 5B Series backplane. An 8-channel SSR
Series backplane with a 26-conductor cable is also available for connection
to the SC-2056 board. For instructions on making these connections to the
proper signal conditioning accessories, refer to Cable Connections in
Chapter 10, Installation and Operation.
Connectors
The SC-2056 has two 50-pin ribbon cable connectors (for use with the
R1005050 cable), and a 100-pin connector (for use with the SH100100 or
SH96-100 cable) that are used to connect the DAQ device to the SC-2056.
You can use either of these connectors to attach the SC-2056 to the DAQ
device via a cable. There are also four other 50-pin ribbon cable connectors
that are used to connect to other 50-pin accessories. These four connectors
have a standard MIO pin connector with analog channels 0–15, 16–31,
32–47, and 48–63 available for the 50-pin accessories.
Note
Because the four connectors’ digital signals are available, it is possible to double
drive these signals; that is, you can connect more than one digital output to the
same digital input of the DAQ device, which can damage the digital output source.
The SC-2056 also has six 26-pin ribbon cable connectors that you can use
to connect to the signal conditioning accessories. The five analog port
connectors have pin assignments that are compatible with the 5B Series of
analog signal conditioning modules. The digital port connector is
compatible with the SC-206X Series digital signal conditioners as well as
with the 8-channel SSR Series solid-state relay board.
© National Instruments Corporation
8-3
SC-205X Series User Manual
Chapter 8
SC-2056
Figure 8-2 illustrates the connections between the SC-2056 and the
necessary accessories and devices.
J2
J1
AT-MIO-64E-3
SC-2056
J3
R1005050 Cable
ANALOG I/O
J13
ANALOG IN CH 0-15
J12
ANALOG IN CH 16-31
J11
ANALOG IN CH 32-47
J10
ANALOG IN CH 48-63
J9
DIGITAL I/O
J8
J4 ANALOG IN CH 0-15
SH100100 or SH96-100 Cable
J5 ANALOG IN CH 16-31
J6
J7
ANALOG IN CH 32-47
ANALOG IN CH 48-63
5B Series*
5B Series*
5B Series*
SC-2042, SC-2043,
SC-2070, CB-50,
or BNC-2080
5B Series*
SC-2042, SC-2043,
SC-2070, CB-50,
or BNC-2080
5B Series*
SC-2042, SC-2043,
SC-2070, CB-50,
or BNC-2080
SC-206X Series
or 8-Channel
SSR Series
SC-2042, SC-2043,
SC-2070, CB-50,
or BNC-2080
* Connectors J9–J12 are used with 5B Series analog input modules only.
Connector J13 is used with analog input and output modules.
Figure 8-2. SC-2056 Connections
Note
When using an SC-2040 or SC-2043, you must apply external power to the
SC-204X Series boards.
You can use up to four SC-2042 or SC-2043 boards, but do not use both adapters
simultaneously while using the SC-2056.
SC-205X Series User Manual
8-4
© National Instruments Corporation
Chapter 8
SC-2056
Table 8-1 describes the connectors on the SC-2056.
Table 8-1. SC-2056 Connectors
Connectors
Connection
Description
J1
100-pin female ribbon cable
shielded connector; DAQ
device connection
Attach J1 to the DAQ device when using the
SH100-100 or SH96-100 cable.
J2
50-pin male ribbon cable
connector; DAQ device
connection (pins 1–50)
Attach J2 to the DAQ device pins 1–50 when
using the R1005050 cable.
J3
50-pin male ribbon cable
connector; DAQ device
connection (pins 51–100)
Attach J3 to the DAQ device pins 51–100 when
using the R1005050 cable.
J4
50-pin male ribbon cable
connector; analog input
channels 0–15
Attach J4 to the 50-pin accessories as shown in
Figure 8-2.
J5
50-pin male ribbon cable
connector; analog input
channels 16–31
Attach J5 to the 50-pin accessories as shown in
Figure 8-2. 50-pin accessories are labeled
channels 0–15. This connector uses channels
16–31 of the DAQ device.
J6
50-pin male ribbon cable
connector; analog input
channels 32–47
Attach J6 to the 50-pin accessories as shown in
Figure 8-2. 50-pin accessories are labeled
channels 0-15. This connector uses channels
32–47 of the DAQ device.
J7
50-pin male ribbon cable
connector; analog input
channels 48–63
Attach J7 to the 50-pin accessories as shown in
Figure 8-2. 50-pin accessories are labeled
channels 0–15. This connector uses channels
48-63 of the DAQ device.
J8
26-pin male ribbon cable
connector; digital I/O
connection
Attach J8 to the SC-206X Series or SSR
8-channel boards. This connection takes the
eight digital I/O lines from the DAQ device to a
digital signal conditioning accessory with
compatible pin connections, as shown in Figure
8-2.
© National Instruments Corporation
8-5
SC-205X Series User Manual
Chapter 8
SC-2056
Table 8-1. SC-2056 Connectors (Continued)
Connectors
Connection
Description
J9
26-pin male ribbon cable
connector; 5B Series analog
input connection; channels
48–63
Attach J9 to the 5B Series backplane. This
connection takes analog input channels 48–63 on
the DAQ device to channels 0–15 of the 5B
Series backplane in sequential order.
J10
26-pin male ribbon cable
connector; 5B Series analog
input connection; channels
32–47
Attach J10 to the 5B Series backplane. This
connection takes analog input channels 32–47 on
the DAQ device to channels 0–15 of the 5B
Series backplane in sequential order.
J11
26-pin male ribbon cable
connector; 5B Series analog
input connection; channels
16–31
Attach J11 to the 5B Series backplane. This
connection takes analog input channels 16–31 on
the DAQ device to channels 0–15 of the 5B
Series backplane in sequential order.
J12
26-pin male ribbon cable
connector; 5B Series analog
input connection; channels
0–15
Attach J12 to the 5B Series backplane. This
connection takes analog input channels 0–15 on
the DAQ device to channels 0–15 of the 5B
Series backplane in sequential order.
J13
26-pin male ribbon cable
connector; 5B Series analog
I/O connection
Attach J13 to the 5B Series backplane. This
connection takes analog input channels 0–13 on
the DAQ device to channels 0–13 of the 5B
Series backplane in sequential order. It also
connects the voltage output signal DAC0OUT
from the DAQ device to channel 14 of the 5B
Series, and DAC1OUT to channel 15.
SC-205X Series User Manual
8-6
© National Instruments Corporation
Chapter 8
SC-2056
Figures 8-3 through 8-15 show the pin assignments for each I/O connector
on the SC-2056.
AIGND
AIGND
AIGND
ACH0
ACH1
ACH9
ACH2
ACH10
ACH3
ACH11
ACH4
ACH12
ACH5
ACH13
ACH6
ACH14
ACH7
ACH15
AISENSE
DAC0OUT
DAC1OUT
EXTREF
AOGND
DGND
DIO0
DIO4
DIO1
DIO5
DIO2
DIO6
DIO3
DIO7
DGND
+5 V
+5 V
SCANCLK
EXSTROBE*
PFI0/TRIG1
PFI1/TRIG2
PFI2/CONV*
PFI3/GPCTR1SOURCE
PFI4/GPCTR1GATE
GPCTR1OUT
PFI5/UPDATE*
PFI6/WFTRIG
PFI7/STARTSCAN
PFI8/GPCTR0SOURCE
PFI9/GPCTR0GATE
GPCTR0OUT
FOUT
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
ACH16
ACH24
ACH17
ACH25
ACH18
ACH26
ACH19
ACH27
ACH20
ACH28
ACH21
ACH29
ACH22
ACH30
ACH23
ACH31
ACH32
ACH40
ACH33
ACH41
ACH34
ACH42
ACH35
ACH43
AISENSE2
AIGND
ACH36
ACH44
ACH37
ACH45
ACH38
ACH46
ACH39
ACH47
ACH48
ACH56
ACH49
ACH57
ACH50
ACH58
ACH51
ACH59
ACH52
ACH60
ACH53
ACH61
ACH54
ACH62
ACH55
ACH63
Figure 8-3. Pin Assignments for SC-2056 I/O Connector J1
© National Instruments Corporation
8-7
SC-205X Series User Manual
Chapter 8
SC-2056
AIGND
ACH0
ACH1
ACH2
ACH3
ACH4
ACH5
ACH6
ACH7
AISENSE
DAC1OUT
AOGND
DIO0
DIO1
DIO2
DIO3
DGND
+5 V
EXSTROBE*
PFI1/TRIG2
PFI3/GPCTR1SOURCE
GPCTR1OUT
PFI6/WFTRIG
PFI8/GPCTR0SOURCE
GPCTR0OUT
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
43
45
47
49
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
AIGND
ACH8
ACH9
ACH10
ACH11
ACH12
ACH13
ACH14
ACH15
DAC0OUT
EXTREF
DGND
DIO4
DIO5
DIO6
DIO7
+5 V
SCANCLK
PFI0/TRIG1
PFI2/CONV*
PFI4/GPCTR1GATE
PFI5/UPDATE*
PFI7/STARTSCAN
PFI9/GPCTR0GATE
FOUT
Figure 8-4. Pin Assignments for SC-2056 I/O Connector J2
SC-205X Series User Manual
8-8
© National Instruments Corporation
Chapter 8
ACH16
ACH17
ACH18
ACH19
ACH20
ACH21
ACH22
ACH23
ACH32
ACH33
ACH34
ACH35
AISENSE2
ACH36
ACH37
ACH38
ACH39
ACH48
ACH49
ACH50
ACH51
ACH52
ACH53
ACH54
ACH55
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
43
45
47
49
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
SC-2056
ACH24
ACH25
ACH26
ACH27
ACH28
ACH29
ACH30
ACH31
ACH40
ACH41
ACH42
ACH43
AIGND
ACH44
ACH45
ACH46
ACH47
ACH56
ACH57
ACH58
ACH59
ACH60
ACH61
ACH62
ACH63
Figure 8-5. Pin Assignments for SC-2056 I/O Connector J3
© National Instruments Corporation
8-9
SC-205X Series User Manual
Chapter 8
SC-2056
AIGND
ACH0
ACH1
ACH2
ACH3
ACH4
ACH5
ACH6
ACH7
AISENSE
DAC1OUT
AOGND
DIO0
DIO1
DIO2
DIO3
DIGGND
+5 V
EXSTROBE*
PFI1/TRIG2
PFI3/GPCTR1SOURCE
GPCTR1OUT
PFI6/WFTRIG
PFI8/GPCTR0SOURCE
GPCTR0OUT
1
3
5
7
9
11
13
15
17
19
21
2
4
6
8
10
12
14
16
18
20
22
AIGND
23
25
27
29
31
33
35
37
39
41
43
45
47
49
24
26
28
30
32
34
36
38
40
42
44
46
48
50
DGND
ACH8
ACH9
ACH10
ACH11
ACH12
ACH13
ACH14
ACH15
DAC0OUT
EXTREF
DIO4
DIO5
DIO6
DIO7
+5 V
SCANCLK
PFI0/TRIG1
PFI2/CONV*
PFI4/GPCTR1GATE
PFI5/UPDATE*
PFI7/STARTSCAN
PFI9/GPCTR0GATE
FOUT
Figure 8-6. Pin Assignments for SC-2056 I/O Connector J4
SC-205X Series User Manual
8-10
© National Instruments Corporation
Chapter 8
AIGND
ACH16
ACH17
ACH18
ACH19
ACH20
ACH21
ACH22
ACH23
AISENSE
DAC1OUT
AOGND
DIO0
DIO1
DIO2
DIO3
DGND
+5 V
EXSTROBE*
PFI1/TRIG2
PFI3/GPCTR1SOURCE
GPCTR1OUT
PFI6/WFTRIG
PFI8/GPCTR0SOURCE
GPCTR0OUT
1
3
5
7
9
11
13
15
17
19
21
2
4
6
8
10
12
14
16
18
20
22
AIGND
23
25
27
29
31
33
35
37
39
41
43
45
47
49
24
26
28
30
32
34
36
38
40
42
44
46
48
50
DGND
SC-2056
ACH24
ACH25
ACH26
ACH27
ACH28
ACH29
ACH30
ACH31
DAC0OUT
EXTREF
DIO4
DIO5
DIO6
DIO7
+5 V
SCANCLK
PFI0/TRIG1
PFI2/CONV*
PFI4/GPCTR1GATE
PFI5/UPDATE*
PFI7/STARTSCAN
PFI9/GPCTR0GATE
FOUT
Figure 8-7. Pin Assignments for SC-2056 I/O Connector J5
© National Instruments Corporation
8-11
SC-205X Series User Manual
Chapter 8
SC-2056
AIGND
ACH32
ACH33
ACH34
ACH35
ACH36
ACH37
ACH38
ACH39
AISENSE
DAC1OUT
AOGND
DIO0
DIO1
DIO2
DIO3
DIGGND
+5 V
EXSTROBE*
PFI1/TRIG2
PFI3/GPCTR1SOURCE
GPCTR1OUT
PFI6/WFTRIG
PFI8/GPCTR0SOURCE
GPCTR0OUT
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
43
45
47
49
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
AIGND
ACH40
ACH41
ACH42
ACH43
ACH44
ACH45
ACH46
ACH47
DAC0OUT
EXTREF
DGND
DIO4
DIO5
DIO6
DIO7
+5 V
SCANCLK
PFI0/TRIG1
PFI2/CONV*
PFI4/GPCTR1GATE
PFI5/UPDATE*
PFI7/STARTSCAN
PFI9/GPCTR0GATE
FOUT
Figure 8-8. Pin Assignments for SC-2056 I/O Connector J6
SC-205X Series User Manual
8-12
© National Instruments Corporation
Chapter 8
AIGND
ACH48
ACH49
ACH50
ACH51
ACH52
ACH53
ACH54
ACH55
AISENSE
DAC1OUT
AOGND
DIO0
DIO1
DIO2
DIO3
DIGGND
+5 V
EXSTROBE*
PFI1/TRIG2
PFI3/GPCTR1SOURCE
GPCTR1OUT
PFI6/WFTRIG
PFI8/GPCTR0SOURCE
GPCTR0OUT
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
43
45
47
49
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
SC-2056
AIGND
ACH56
ACH57
ACH58
ACH59
ACH60
ACH61
ACH62
ACH63
DAC0OUT
EXTREF
DIGGND
DIO4
DIO5
DIO6
DIO7
+5 V
SCANCLK
PFI0/TRIG1
PFI2/CONV*
PFI4/GPCTR1GATE
PFI5/UPDATE*
PFI7/STARTSCAN
PFI9/GPCTR0GATE
FOUT
Figure 8-9. Pin Assignments for SC-2056 I/O Connector J7
© National Instruments Corporation
8-13
SC-205X Series User Manual
Chapter 8
SC-2056
+5 V
+5 V
+5 V
+5 V
DIO7
DIO6
DIO5
DIO4
DIO3
DIO2
DIO1
DIO0
+5 V
1
3
5
7
9
11
13
15
17
19
21
23
25
2
4
6
8
10
12
14
16
18
20
22
24
26
DGND
DGND
DGND
DGND
DGND
DGND
DGND
DGND
DGND
DGND
DGND
DGND
DGND
Figure 8-10. Pin Assignments for SC-2056 I/O Connector J8
ACH48
AIGND
ACH49
ACH50
AIGND
ACH51
ACH52
AIGND
ACH53
ACH54
AIGND
ACH55
AISENSE2
1
3
5
7
9
11
13
15
17
19
21
23
25
2
4
6
8
10
12
14
16
18
20
22
24
26
ACH56
ACH57
AIGND
ACH58
ACH59
AIGND
ACH60
ACH61
AIGND
ACH62
ACH63
AIGND
NC
Figure 8-11. Pin Assignments for SC-2056 I/O Connector J9
SC-205X Series User Manual
8-14
© National Instruments Corporation
Chapter 8
ACH32
AIGND
ACH33
ACH34
AIGND
ACH35
ACH36
AIGND
ACH37
ACH38
AIGND
ACH39
AISENSE2
1
3
5
7
9
11
13
15
17
19
21
23
25
2
4
6
8
10
12
14
16
18
20
22
24
26
SC-2056
ACH40
ACH41
AIGND
ACH42
ACH43
AIGND
ACH44
ACH45
AIGND
ACH46
ACH47
AIGND
NC
Figure 8-12. Pin Assignments for SC-2056 I/O Connector J10
ACH16
AIGND
ACH17
ACH18
AIGND
ACH19
ACH20
AIGND
ACH21
ACH22
AIGND
ACH23
AIGND
1
3
5
7
9
11
13
15
17
19
21
23
25
2
4
6
8
10
12
14
16
18
20
22
24
26
ACH24
ACH25
AIGND
ACH26
ACH27
AIGND
ACH28
ACH29
AIGND
ACH30
ACH31
AIGND
NC
Figure 8-13. Pin Assignments for SC-2056 I/O Connector J11
© National Instruments Corporation
8-15
SC-205X Series User Manual
Chapter 8
SC-2056
ACH0
AIGND
ACH1
ACH2
AIGND
ACH3
ACH4
AIGND
ACH5
ACH6
AIGND
ACH7
AIGND
1
3
5
7
9
11
13
15
17
19
21
23
25
2
4
6
8
10
12
14
16
18
20
22
24
26
ACH8
ACH9
AIGND
ACH10
ACH11
AIGND
ACH12
ACH13
AIGND
ACH14
ACH15
AIGND
NC
Figure 8-14. Pin Assignments for SC-2056 I/O Connector J12
ACH0
AOGND
ACH1
ACH2
AOGND
ACH3
ACH4
AOGND
ACH5
ACH6
AOGND
ACH7
AOGND
1
3
5
7
9
11
13
15
17
19
21
23
25
2
4
6
8
10
12
14
16
18
20
22
24
26
ACH8
ACH9
AOGND
ACH10
ACH11
AOGND
ACH12
ACH13
AOGND
DAC0OUT
DAC1OUT
AOGND
NC
Figure 8-15. Pin Assignments for SC-2056 I/O Connector J13
Mounting
The SC-2056 adapter is equipped with metal standoffs so it can sit on a
workbench close to the host computer. A rack-mount chassis is also
available and can be fitted with a flat acrylic plastic cover or metal
wraparound cover. To ground the SC-2056 adapter to the chassis, set the
jumper on the adapter as described in Chapter 10, Installation and
Operation.
SC-205X Series User Manual
8-16
© National Instruments Corporation
Chapter 8
SC-2056
Cabling
You need an R1005050 ribbon cable, SH100100 shielded cable, or
SH96-100 shielded cable to connect to the SC-2056. Connections to the
SC-206X Series boards and 5B backplane require a 26-pin ribbon cable. A
26-conductor ribbon cable is needed for the 8-channel SSR backplane.
Additional cables are available from National Instruments for connection
to other accessories.
© National Instruments Corporation
8-17
SC-205X Series User Manual
9
SC-2057
This chapter describes the SC-2057 adapter in detail, including function,
connection, mounting, and cabling. Refer to Chapter 10, Installation and
Operation to install and use your adapter.
The SC-2057 converts VXI-DIO-128 I/O connector signals to AT-DIO-32F
connectors, which can connect to standard signal conditioning accessories.
You can use the SC-2057 with the National Instruments VXI-DIO-128
board. See Table 1-1 for a complete list of DAQ devices that you can use
with the SC-2057.
Note
The two 50-pin connectors on the SC-2057 are standard AT-DIO-32F pin
connectors WITHOUT the two sets of handshaking lines.
© National Instruments Corporation
9-1
SC-205X Series User Manual
Chapter 9
SC-2057
5
3
4
2
1
6
7
8
9
10
1
2
3
4
5
To VXI-DIO-128
Jumper W1
To SC-206X, SCXI-116X, SSR Series, or ER-8/16
To SC-206X, SCXI-116X, SSR Series, or ER-8/16
Product Name
6
7
8
9
10
Assembly Number
+24 V, 0.5 A Source
+12 V, 0.5 A Source
+5 V, 1 A Source
Serial Number
Figure 9-1. SC-2057 Parts Locator Diagram
SC-2057 Connection
Connect the SC-2057 to the VXI-DIO-128 via a SH96-96, available
separately. Make this connection with the VXI-DIO-128 powered off.
Connect one end of the SH96-96 to either of the 96-pin connectors, P1 or
P2, on the SC-2057 and connect the other end to one of the 96-pin
connectors on the VXI-DIO-128.
The VXI-DIO-128 has a 96-pin connector labeled OUTPUT. The digital
lines from this connector are digital outputs. The VXI-DIO-128 has a
96-pin connector labeled INPUT. The digital lines from this connector are
digital inputs.
SC-205X Series User Manual
9-2
© National Instruments Corporation
Chapter 9
SC-2057
If the SC-2057 is connected to the VXI-DIO-128 connector labeled INPUT,
the accessories connected to the SC-2057 will need to supply only digital
inputs. If the SC-2057 is connected to the VXI-DIO-128 connector labeled
OUTPUT, the accessories connected to the SC-2057 will need to accept a
digital input from the VXI-DIO-128 board.
Use a type NB1 cable to connect the SC-2057 and your signal conditioning
accessories. When using SCXI modules with the SC-2057, you will need
to use the SCXI-1348 cable adapter in addition to the type NB1 cable. See
the SCXI-1348 Cable Adapter Installation section for specific information
on using the SCXI-1348 cable adapter.
Connect one end of the type NB1 or SCXI-1348 cable to one of the 50-pin
connectors on the SC-2057; the other end will be connected to the signal
conditioning accessory. Make this connection with the VXI-DIO-128 and
the signal conditioning accessories powered off, see Figures 9-2
through 9-8.
Warning
Do not connect the SC-2057 to a board for which it is not designed. Such
connection can damage the SC-2057 and any or all boards/accessories connected
to the SC-2057 and VXI-DIO-128. National instruments is NOT liable for any
damages resulting from incorrect connections.
Connectors
The SC-2057 has two 96 pin connectors, P1 and P2, that you can use to
connect the VXI-DIO-128 to the SC-2057. Only one connector is needed
to connect the SC-2057 to the VXI-DIO-128; the other connector is a
feedthrough of the signals from the VXI-DIO-128. You can use this
feedthrough connector to access data lines not being used by the
accessories connected to the SC-2057.
The SC-2057 has two 50-pin ribbon cable connectors that you can use to
connect with signal conditioning accessories. The first 50-pin connector,
J1, provides ports 0–3 or 8–11 from the VXI-DIO-128, depending on which
96-pin connector on the VXI-DIO-128 is connected to the SC-2057. The
second 50-pin connector, J2, provides ports 4–7 or 12–15 from the
VXI-DIO-128, depending on which 96-pin connector on the VXI-DIO-128
is connected to the SC-2057.
J1 and J2 are set up with a DIO-32F pin connector, which allows the
VXI-DIO-128 to be connected to the same signal conditioning accessories
available to the DIO-32F boards, provided that no handshaking is needed
between the VXI-DIO-128 and the accessory.
© National Instruments Corporation
9-3
SC-205X Series User Manual
Chapter 9
SC-2057
If the SH96-96 is connected to the VXI-DIO-128 connector labeled
INPUT, the SC-2057 will provide access to ports 0–7. If the SH96-96 cable
is connected to the VXI-DIO-128 connector labeled OUTPUT, the
SC-2057 will provide access to ports 8–15.
Note
The two 50-pin connectors on the SC-2057 do NOT supply the two sets of
handshaking lines normally found on a DIO-32F connector. The VXI-DIO-128
board does not have the handshaking circuitry that is available on the DIO-32F
boards. Therefore, these lines are NOT provided by the SC-2057. Any accessories
needing these handshaking lines will NOT work connected to the VXI-DIO-128 via
the SC-2057.
There are also four voltage supply connectors on the SC-2057: J3, a +24 V
connector, which can supply +24 V ±10% at 0.5 A; J4, a +12 V connector,
which can supply +12 V at 0.5 Amps, and J5 and J6, two +5 V connectors,
which can supply +5 V at 1 Amp. The total current draw from either or
both of the +5 V connectors must not exceed 1 A.
Warning
Under no circumstances should you connect these +5 V, +12 V, or +24 V pins
directly to ground or to any other voltage source on the VXI-DIO-128, SC-2057,
or any other device. Doing so can damage the VXI-DIO-128, SC-2057, and your
VXIbus system. National Instruments is NOT liable for damage resulting from such
a connection.
Figures 9-2 through 9-5 illustrate the output connections of the signal
conditioning accessories to the VXI-DIO-128 and SC-2057 and the
necessary cables and accessories.
J1 Ports 8–11
VXI-DIO-128
OUTPUT
SC-2057
SCXI-1163 (R)*
J2 Ports 12–15
SCXI-1163 (R)*
SH96-96
SCXI-1348
Figure 9-2. Output Connections with the SCXI-1163/R
For output connections with the SCXI-1163, SCXI boards must be in
parallel mode to operate with the VXI-DIO-128.
SC-205X Series User Manual
9-4
© National Instruments Corporation
Chapter 9
SC-2057
J5 or J6 +5 V, 1 A
ER-16
J1 Ports 8–11
VXI-DIO-128
OUTPUT
ER-16
Ports 10–11
SC-2057
Ports 14–15
J2 Ports 12–15
ER-16
ER-16
SH96-96
NB 1
NB 7
+5 V, 2 A
Figure 9-3. Output Connections with the ER-16
The VXI-DIO-128 can power a maximum of 16 ER channels. The
VXI-DIO-128 supplies +5 V to these ER channels via the +5 V connectors
(J5 or J6). Set the power source switch for the ER-16 that is connected to
J5 or J6 to external. Also, set the power source switches for the ER-16
boards connected to ports 10–11 and 12–15 to external, and externally
supply them with +5 V. The ER-16 connected to ports 14–15 needs to have
its power source switch set to internal. This board is supplied +5 V through
the NB7 cable.
J1 Ports 8–11
VXI-DIO-128
OUTPUT
SSR Series *
(32 Channel)
SC-2057
J2 Ports 12–15
J5 or J6
SSR Series *
(32 Channel)
NB1
SH96-96
+5 V Supply *
Figure 9-4. Output Connections with the 32 Channel SSR Backplane
* An external power supply is needed if more than 1 A of current is required
to power the SSR backplanes. The current requirements for the SSR
modules are as follows: SSR-OAC-5: 18 mA, SSR-OAC-5A: 19 mA, and
SSR-ODC-5: 16 mA.
© National Instruments Corporation
9-5
SC-205X Series User Manual
Chapter 9
SC-2057
Port 8
SC-2061 *
SC-2062 *
ER- 8*
SSR Series
(8 channel)
Port 9
Port 10
J1 Ports 8–11
SC-2061 *
SC-2062 *
ER-8 *
SSR Series
(8 channel)
SC-2052
Port 11
VXI-DIO-128
OUTPUT
SC-2057
J2 Ports12–15
Port 12
SC-2052
Port 13
J5 or J6
NB1
SH96-96
SC-2061 *
SC-2062 *
ER-8 *
SSR Series
(8 channel)
+5 V Supply
Port 14
SC-2061 *
SC-2062 *
ER-8 *
SSR Series
(8 channel)
Port 15
SC-2061 *
SC-2062 *
ER- 8*
SSR Series
(8 channel)
SC-2061 *
SC-2062 *
ER-8 *
SSR Series
(8 channel)
SC-2061 *
SC-2062 *
ER-8 *
SSR Series
(8 channel)
SC-2061 *
SC-2062 *
ER-8 *
SSR Series
(8 channel)
NB7
(NB8 for SSR Series)
Figure 9-5. Output Connections with the SC-2061/2, ER-8,
or 8-Channel SSR Backplane
* The VXI-DIO-128 supplies 1 A of current. If the combination of boards
or SSR modules attached to the SC-2052 adapters require more than 1 A,
use an external power supply. Set the power source switch on these boards
to external. The board current requirements are as follows: SC-2061:
130 mA, SC-2062: 630 mA, and ER-8: 500 mA. The current
requirements for the SSR modules are as follows: SSR-OAC-5: 18 mA,
SSR-OAC-5A: 19 mA, and SSR-ODC-5: 16 mA.
SC-205X Series User Manual
9-6
© National Instruments Corporation
Chapter 9
SC-2057
Figures 9-6 through 9-8 illustrate the input connections of the signal
conditioning accessories to the VXI-DIO-128 and SC-2057 and the
necessary cables and accessories.
J1 Ports 0–3
VXI-DIO-128
INPUT
SCXI-1163/HV*
SC-2057
J2 Ports 4–7
SCXI-1163/HV*
SCXI-1348
SH96-96
Figure 9-6. Input Connections with the SCXI-1162/HV
* For input connections with the SCXI-1163/HV, SCXI modules must be
in parallel mode to operate with the VXI-DIO-128.
J1 Ports 0–3
VXI-DIO-128
INPUT
SSR Series *
(32 Channel)
SC-2057
J2 Ports 4–7
SSR Series *
(32 Channel)
J5 or J6
NB1
SH96-96
+5 V Supply *
Figure 9-7. Input Connections with the 32-Channel SSR Backplane
* If more than 1 A of current is required to power the SSR backplanes, an
external power supply is needed, see Figure 9-7. The current
requirements for the SSR modules are as follows: SSR-IAC-5: 16 mA,
SSR-IAC-5A: 16 mA, and SSR-IDC-5: 16 mA.
© National Instruments Corporation
9-7
SC-205X Series User Manual
Chapter 9
SC-2057
SC-2060
SSR Series
(8 channel)
Port 0
Port 1
Port 2
J1 Ports 0–3
VXI-DIO-128
INPUT
SC-2052
SC-2060
SSR Series
(8 channel)
SC-2060
SSR Series
(8 channel)
Port 3
SC-2060
SSR Series
(8 channel)
SC-2057
J2 Ports 4–7
Port 4
SC-2052
Port 5
J5 or J6
SH96-96
SC-2060
SSR Series
(8 channel)
NB1
+5 V Supply*
SC-2060
SSR Series
(8 channel)
Port 6
SC-2060
SSR Series
(8 channel)
SC-2060
SSR Series
(8 channel)
Port 7
NB7
(NB8 for SSR Series)
Figure 9-8. Input Connections with SC-2060 and 8-channel SSR Backplane
The VXI-DIO-128 can supply 1 A of current. If the combination of boards
or SSR modules attached to the SC-2052 boards require more than 1 A, use
an external power supply. The board current requirement is 210 mA for the
SC-2060. The current requirements for the SSR modules are as follows:
SSR-IAC-5: 18 mA, SSR-IAC-5A: 19 mA, and SSR-IDC-5: 16 mA. Set
the power switch on the SC-2060 boards to external.
SC-205X Series User Manual
9-8
© National Instruments Corporation
Chapter 9
SC-2057
Table 9-1 describes the connectors on the SC-2057.
Table 9-1. SC-2057 Connectors
Connectors
Connection
Description
P1
96-pin male DIN connector;
VXI-DIO-128 connection
Attach P1 or P2 to VXI-DIO-128.
P2
96-pin male DIN connector;
VXI-DIO-128 connection
Attach P1 or P2 to VXI-DIO-128.
J1
50-pin male ribbon cable connector;
Digital Ports 0–3 or 8–11
Attach J1 to 50-pin accessories as
shown in Figure 9-2.
J2
50-pin male ribbon cable connector;
Digital Ports 4–7 or 12–15
Attach J2 to 50-pin accessories as
shown in Figure 9-2.
J3
2-position terminal block; +24 V at
0.5 A connection
Use J3 when +24 V is needed.
J4
2-position terminal block; +12 V at
0.5 A connection
Use J4 when +12 V is needed.
J5
2-position terminal block; +5 V at 1 A
connection
Attach J5 to accessories if possible or
when +5 V is needed.
J6
2-position terminal block; +5 V at 1 A
connection
Attach J6 to accessories if possible or
when +5 V is needed.
© National Instruments Corporation
9-9
SC-205X Series User Manual
Chapter 9
SC-2057
Figures 9-9 through 9-11 show the pin assignments for each I/O connector
on the SC-2057.
GND
GND
Port 0/8_Line0
Port 0/8_Line3
Port 0/8_Line6
Port 1/9_Line1
Port 1/9_Line4
Port 1/9_Line7
GND
GND
Port 2/10_Line0
Port 2/10_Line3
Port 2/10_Line6
Port 3/11_Line1
Port 3/11_Line4
Port 3/11_Line7
GND
GND
Port 4/12_Line0
Port 4/12_Line3
Port 4/12_Line6
Port 5/13_Line1
Port 5/13_Line4
Port 5/13_Line7
GND
GND
Port 6/14_Line0
Port 6/14_Line3
Port 6/14_Line6
Port 7/15_Line1
Port 7/15_Line4
Port 7/15_Line7
A
B
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
GND
GND
+5 V
Port 0/8_Line2
Port 0/8_Line5
Port 1/9_Line0
Port 1/9_Line3
Port 1/9_Line6
GND
GND
+24 V
Port 2/10_Line2
Port 2/10_Line5
Port 3/11_Line0
Port 3/11_Line3
Port 3/11_Line6
GND
GND
+12 V
Port 4/12_Line2
Port 4/12_Line5
Port 5/13_Line0
Port 5/13_Line3
Port 5/13_Line6
GND
GND
+5 V
Port 6/14_Line2
Port 6/14_Line5
Port 7/15_Line0
Port 7/15_Line3
Port 7/15_Line6
9
8
7
6
5
4
3
2
1
C
GND
GND
GND
Port 0/8_Line1
Port 0/8_Line4
Port 1/9_Line7
Port 1/9_Line2
Port 1/9_Line5
GND
GND
GND
Port 2/10_Line1
Port 2/10_Line4
Port 2/10_Line7
Port 3/11_Line2
Port 3/11_Line5
GND
GND
GND
Port 4/12_Line1
Port 4/12_Line4
Port 4/12_Line7
Port 5/13_Line2
Port 5/13_Line5
GND
GND
GND
Port 6/14_Line1
Port 6/14_Line4
Port 6/14_Line7
Port 7/15_Line2
Port 7/15_Line5
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
Figure 9-9. Pin Assignments for SC-2057 I/O Connector P1 and P2
SC-205X Series User Manual
9-10
© National Instruments Corporation
Chapter 9
Port 3/11_Line1
Port 3/11_Line3
Port 3/11_Line6
Port 3/11_Line2
Port 2/10_Line5
Port 2/10_Line3
Port 2/10_Line2
Port 2/10_Line6
GND
GND
GND
GND
GND
NC
NC
NC
NC
Port 0/8_Line4
Port 0/8_Line0
Port 0/8_Line1
Port 0/8_Line7
Port 0/9_Line5
Port 1/9_Line7
Port 1/9_Line0
Port 1/9_Line4
1
3
5
7
9
11
13
15
17
19
21
2
4
6
8
10
12
14
16
18
20
22
Port 3/11_Line4
23
25
27
29
31
33
35
37
39
41
43
45
47
49
24
26
28
30
32
34
36
38
40
42
44
46
48
50
NC
SC-2057
Port 3/11_Line0
Port 3/11_Line7
Port 3/11_Line5
Port 2/10_Line5
Port 2/10_Line1
Port 2/10_Line0
Port 2/10_Line4
NC
NC
NC
GND
GND
GND
GND
GND
Port 0/8_Line6
Port 0/8_Line2
Port 0/8_Line3
Port 0/8_Line5
Port 1/9_Line2
Port 1/9_Line6
Port 1/9_Line3
Port 1/9_Line1
Figure 9-10. Pin Assignments for SC-2057 I/O Connector J1
© National Instruments Corporation
9-11
SC-205X Series User Manual
Chapter 9
SC-2057
Port 7/15_Line1
Port 7/15_Line3
Port 7/15_Line6
Port 7/15_Line2
Port 6/14_Line5
Port 6/14_Line3
Port 6/14_Line2
Port 6/14_Line6
GND
GND
GND
GND
GND
NC
NC
NC
NC
Port 4/12_Line4
Port 4/12_Line0
Port 4/12_Line1
Port 4/12_Line7
Port 5/13_Line5
Port 5/13_Line7
Port 5/13_Line0
Port 5/13_Line4
1
3
5
7
9
11
13
15
17
19
21
23
2
4
6
8
10
12
14
16
18
20
22
24
Port 7/15_Line4
25
27
29
31
33
35
37
39
41
43
45
47
49
26
28
30
32
34
36
38
40
42
44
46
48
50
GND
Port 7/15_Line0
Port 7/15_Line7
Port 7/15_Line5
Port 6/14_Line5
Port 6/14_Line1
Port 6/14_Line0
Port 6/14_Line4
NC
NC
NC
NC
GND
GND
GND
GND
Port 4/12_Line6
Port 4/12_Line2
Port 8/4_Line3
Port 4/12_Line5
Port 5/13_Line2
Port 5/13_Line6
Port 5/13_Line3
Port 5/13_Line1
Figure 9-11. Pin Assignments for SC-2057 I/O Connector J2
Mounting
The SC-2057 adapter is equipped with metal standoffs so it can sit on a
workbench close to the host computer. A rack-mount chassis is also
available and can be fitted with a flat acrylic plastic cover. To rack mount
your SC-2057, see the Rack Mounting section in Chapter 10, Installation
and Operation. To ground the SC-2057 adapter to the chassis, set the
jumper on the adapter as described in Chapter 10, Installation and
Operation.
SC-205X Series User Manual
9-12
© National Instruments Corporation
Chapter 9
SC-2057
Cabling
You need an SH96-96 shielded cable to connect to the SC-2057.
Connections to the signal conditioning accessories require an NB1 50-pin
ribbon cable. In addition to an NB1 cable, you will need an SCXI-1348
cable adapter to connect to SCXI modules. Additional adapters and cables
may be required for certain accessories.
SCXI-1348 Cable Adapter Installation
This section gives instructions for installing the SCXI-1348 cable adapter.
Figure 9-12 shows how to connect the SCXI-1348 to the SC-2057 and
SCXI module.
1
2
J2 J1
J2
J1
4
3
1
2
SCXI-1348 cable adapter
NB1 ribbon cable
3
4
SC-2057
SCXI chassis
Figure 9-12. Connecting the SCXI-1348 to the SC-2057 and SCXI Module
© National Instruments Corporation
9-13
SC-205X Series User Manual
Chapter 9
SC-2057
Perform the following steps to install the SCXI-1348 cable adapter:
SC-205X Series User Manual
1.
Turn off the power to the VXI Chassis and the SCXI chassis.
2.
Install your SCXI module in the SCXI chassis, following the
instructions in your module user manual.
3.
Plug the front connector of the SCXI-1348 into the rear signal
connector of the SCXI module. A corner of the adapter board will enter
the upper board guide of the chassis.
4.
Secure the SCXI-1348 adapter board by screwing the two screws
through the rear panel of the adapter board and into the threaded strips
in the rear of the SCXI chassis.
5.
Connect one end of the 50-pin ribbon cable to the adapter board rear
connector.
6.
Connect the loose end of the ribbon cable to either of the 50-pin
connectors, J1 or J2, on the SC-2057.
9-14
© National Instruments Corporation
Chapter 9
SC-2057
Table 9-2 explains the way the SCXI-1348 translates pins from the
SC-2057 to the SCXI module.
Table 9-2. SCXI-1348 Pin Translations
SC-2057 Connector Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17, 19*
21, 23*
25, 26*
28, 30*
32, 34*
18
20
22
24
27
29
31
33
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
SC-2057 Signal Name
Module Connector Pin
Port 3/7_Line1
Port 3/7_Line4
Port 3/7_Line3
Port 3/7_Line0
Port 3/7_Line6
Port 3/7_Line7
Port 3/7_Line2
Port 3/7_Line5
Port 2/6_Line5
Port 2/6_Line7
Port 2/6_Line3
Port 2/6_Line1
Port 2/6_Line2
Port 2/6_Line0
Port 2/6_Line6
Port 2/6_Line4
GND
GND
GND
GND
GND
NC
NC
NC
NC
NC
NC
NC
NC
Port 0/4_Line4
Port 0/4_Line6
Port 0/4_Line0
Port 0/4_Line2
Port 0/4_Line1
Port 0/4_Line3
Port 0/4_Line7
Port 0/4_Line5
Port 1/5_Line5
Port 1/5_Line2
Port 1/5_Line7
Port 1/5_Line6
Port 1/5_Line0
Port 1/5_Line3
Port 1/5_Line4
Port 1/5_Line1
46
40
42
48
36
34
44
38
5
1
9
13
11
15
3
7
2, 4*
6, 8*
10, 12*
14, 16*
50*
26
28
30
32
18
20
22
24
39
35
47
43
45
41
33
37
21
27
17
19
31
25
23
29
*All GND pins are connected to each other on the SCXI-1348 adapter board.
© National Instruments Corporation
9-15
SC-205X Series User Manual
Installation and Operation
10
This chapter describes the installation and operation of your SC-205X
adapter, including configuration and cable connections.
Hardware Installation
The following are general instructions for installing your SC-205X Series
adapter in your DAQ system. Consult your computer user manual or
technical reference manual for specific instructions and warnings. Notice
that the installation instructions are the same for each SC-205X Series
adapter.
Note
Turn off the host computer before making any connections.
1.
Mount your board in the 19-in. rack (optional).
2.
Set the shield selection jumper for appropriate grounding.
3.
Install the signal conditioning accessories you are using with your
SC-205X Series adapter.
4.
Connect your SC-205X Series adapter to the accessories and to the host
computer DAQ device using the appropriate cables.
5.
Attach the appropriate cover on the rack (optional).
6.
Turn on the computer.
The sections that follow explain each step in more detail.
Rack Mounting
You can mount all of your SC-205X Series adapters in a 19-in. rack but you
must mount your SC-2056 at the far left or far right of the rack to facilitate
cable entry at the side of the chassis, as shown in Figure 10-1.
When using the SC-2057, you cannot route the SH96-96 cable through the
cable access slots in the sides of the rack-mount kit. The SH96-96 will have
to be routed from the top or bottom of the 19-in. rack. Since the SH96-96
cable will need to be routed from the top or bottom of the rack, the metal
wraparound cover cannot be used with the SC-2057.
© National Instruments Corporation
10-1
SC-205X Series User Manual
Chapter 10
Installation and Operation
The acrylic plastic cover can be used with SC-2057 in a single-height
rack-mount kit (not the double-height rack-mount kit) because it allows
access through the top and bottom of the kit.
Figure 10-1. SC-2056 Adapter Mounted in a 19-in. Rack
Mount the SC-205X Series adapter in the chassis by unscrewing the screws
on the bottoms of the standoffs attached to the adapter and using those same
screws to attach the adapter to the mounting rack. Be sure to put the
washers around the screws when attaching your adapter to the rack, as
shown in Figure 10-2.
Top Washer and Screw
Metal Standoff
Circuit Board
Mounting Rack Mount
Washer
Screw
Figure 10-2. Attaching a Mountable Board to a Chassis
SC-205X Series User Manual
10-2
© National Instruments Corporation
Chapter 10
Installation and Operation
Shield Selection
The SC-2050, SC-2051, SC-2052, SC-2053, SC-2054, and SC-2055
adapters have one jumper, W1, shown in Figure 10-3, for an optional
connection from the board ground to the rack-mount chassis.
J1
J2
SHLD
W1
Shield Jumper
Figure 10-3. Shield Jumper Location
Setting jumper W1 to the position labeled SHLD connects the SC-2050,
SC-2051, SC-2052, SC-2053, SC-2054, and SC-2055 ground to the four
metal standoffs. If the adapter is installed in the 19-in. rack, this setting
grounds the adapter to the rack. Setting jumper W1 away from the position
labeled SHLD disconnects shielding and isolates the ground from the rack.
The SC-2050, SC-2051, SC-2052, SC-2053, SC-2054, and SC-2055 are
shipped from the factory with the jumper W1 set to the position away from
SHLD, so shielding is disabled. Jumper W1 settings are shown in
Figure 10-4.
SHLD
Shield Disconnected
SHLD
Shield Connected
Figure 10-4. Ground Settings for Jumper W1
© National Instruments Corporation
10-3
SC-205X Series User Manual
Chapter 10
Installation and Operation
SC-2056
The SC-2056 has one jumper, W1, shown in Figure 10-5. Jumper W1
connects the shield of the SH100100 cable to the mounting rack or the
digital ground of the AT-MIO-64E-3 to the mounting rack.
Shield Jumper
Figure 10-5. SC-2056 Shield Jumper Location
Setting jumper W1 to the position between the two labels SH100100
CABLE SHIELD and CHASSIS GROUND connects the shield of the
SH100100 cable to the four metal standoffs. If the adapter is installed in the
19-in. rack, this setting grounds the shield of the SH100100 to the rack. If
jumper W1 is positioned between the two labels CHASSIS GROUND and
MIO DIGITAL GROUND, the digital ground of the AT-MIO-64 E-3 is
connected to the four metal standoffs. If the adapter is installed in the 19-in.
rack, this setting grounds the digital ground of the AT-MIO-64 E-3 to the
rack. If the jumper W1 is removed, the shield of the SH100100 and the
digital ground of the AT-MIO-64 E-3 from the rack are isolated.
The SC-2056 is shipped from the factory with jumper W1 set to the position
between the MIO DIGITAL GROUND and CHASSIS GROUND.
Figure 10-6 shows the ground settings for SC-2056 jumper W1.
SH100100 Cable Shield
SH100100 Cable Shield
Chassis Ground
Chassis Ground
MIO Digital Ground
MIO Digital Ground
Factory Default
Figure 10-6. Ground Settings for SC-2056 Jumper W1
SC-205X Series User Manual
10-4
© National Instruments Corporation
Chapter 10
Installation and Operation
SC-2057
The SC-2057 has one jumper, W1, shown in Figure 10-5. Jumper W1
connects the shield of the SH96-96 cable to the mounting rack or the digital
ground of the VXI-DIO-128 to the mounting rack.
Shield Jumper
Figure 10-7. SC-2057 Shield Jumper Location
Setting jumper W1 to the position between the two labels CABLE SHIELD
and CHASSIS GND connects the shield of the SH96-96 cable to the four
metal standoffs. If the board is installed in the 19-in. rack, this setting
grounds the shield of the SH96-96 to the rack. If jumper W1 is positioned
between the two labels CHASSIS GND and DIGITAL GND, the digital
ground of the VXI-DIO-128 is connected to the four metal standoffs. If the
adapter is installed in the 19-in. rack, this setting grounds the digital ground
of the VXI-DIO-128 to the rack. Removing jumper W1 will isolate the
shield of the SH96-96 and the digital ground of the VXI-DIO-128 from the
rack.
The SC-2057 is shipped from the factory with the jumper W1 set to the
position between the CABLE SHIELD and CHASSISGND. Figure 10-8
shows the ground settings for SC-2057 jumper W1.
© National Instruments Corporation
10-5
SC-205X Series User Manual
Chapter 10
Installation and Operation
CABLE SHIELD
CABLE SHIELD
CABLE SHIELD
CHASSIS GND
CHASSIS GND
CHASSIS GND
DIGITAL GND
DIGITAL GND
DIGITAL GND
SH9696 Shield
Connected to Rack
VXI-DIO-128 Digital Ground
Connected to Rack
VXI-DIO-128 Digital Ground
SH9696 Shield not
Connected to Rack
Figure 10-8. Ground Settings for SC-2057 Jumper W1
Signal Conditioning Accessory Installation
Consult the signal conditioning accessory user manual for instructions on
accessory installation. The National Instruments SC-206X Series signal
conditioning accessory boards work with your SC-205X Series adapter and
have the convenience of sharing space in the rack with, and the ease of
direct connection to, your SC-205X adapter. For more details, consult the
SC-206X Series User Manual.
Additional hardware for double-height mounting within a single rack for
four or more SC Series boards is available from National Instruments.
Rack-Mount Chassis Cover Attachment
The optional 19-in. rack-mount accessory includes a flat, acrylic plastic
cover that you can install with the four screws supplied in the kit.
Cable Connections
Pin assignments for the cable connectors on your SC-205X Series adapter
are illustrated in the specific chapter for your adapter. On the SC-2050,
SC-2051, SC-2052, SC-2053, and SC-2055 connectors, J1 and J2 are
connected pin-by-pin and, for 50-pin DAQ devices, have exactly the same
pin assignment as the host device for which the signal conditioning
accessory was designed. Use one connector to connect the SC-205X
adapter to the DAQ device. You can connect the remaining connector via a
cable to the SC-207X Series boards, the AMUX-64T, or to a CB-50
terminal block. On the SC-2054, the pin assignments on J1 and J2 are the
same as those on the type NB5 or R1005050 cable connecting the SC-2054
to the 96-channel digital board.
SC-205X Series User Manual
10-6
© National Instruments Corporation
Chapter 10
Installation and Operation
On the SC-2056, J1 connector has the same pin assignment as the DAQ
device. Connectors J2 and J3 are used with the R1005050 cable to connect
the SC-2056 to the DAQ device. On the SC-2057 the pin assignments on J1
and J2 have the same pin assignment as the AT-DIO-32F without the
handshaking lines. Connectors P1 and P2 are connected pin-by-pin and
have exactly the same pin assignment as the DAQ device. Use one
connector to connect the SC-2057 to the VXI-DIO-128. You can connect
the remaining connector via a cable to a terminal block or other accessories.
The 26-pin connectors J3, J4, J5, and J6 on the SC-2052 and SC-2053,
connect to SC-206X Series adapters or 5B Series signal conditioning
boards with type NB7 cable, or to 8-channel SSR Series backplane with
26-conductor cabling. The 26-pin connectors J4, J5, J6, J8, J9, and J10 on
the SC-2054 are for connection to SC-206X Series adapters. The 26-pin
connectors J8, J9, J10, J11, J12, and J13 on the SC-2056 are for connection
to SC-206X Series, SSR Series, and 5B Series boards. You must make these
connections with the host computer powered off.
Warning
Do not attempt to connect any SC-205X adapter to any board for which it was not
designed. Such connection can result in damage to the SC-205X adapter and any
or all boards connected to the SC-205X adapter and the host computer. National
Instruments is NOT liable for any damages resulting from incorrect connections.
For additional information concerning the connection of these signals on
the accessory boards, consult the SC-206X Series User Manual, the
5B Series User Manual, the SC-207X Series User Manual, the AMUX-64T
User Manual, or the user manuals for your SSR Series backplane and
CB-50 terminal block.
© National Instruments Corporation
10-7
SC-205X Series User Manual
A
Specifications
This appendix lists the specifications for the SC-205X Series adapters.
These specifications are typical at 25° C unless otherwise noted.
Physical
Dimensions (including standoffs)
SC-2050, SC-2051, SC-2052,
SC-2053, SC-2055, SC-2057.......... 13.2 by 12.4 by 4.8 cm
(5.2 by 4.9 by 1.9 in.)
SC-2054, SC-2056 .......................... 20.1 by 12.4 by 4.8 cm
(7.9 by 4.9 by 1.9 in.)
I/O
Connectors
50-pin
Male
26-pin
Male
Screw
Terminals
100-Pin
Female
96-Pin
Male
SC-2050
2
3
0
0
0
SC-2051
2
3
0
0
0
SC-2052
2
4
6
0
0
SC-2053
2
4
0
0
0
SC-2054
4
6
0
0
0
SC-2055
2
4
0
0
0
SC-2056
6
6
0
1
0
SC-2057
2
0
4
0
2
Environment
Operating temperature............................ 0° to 70° C
Storage temperature ............................... –55° to 150° C
Relative humidity ................................... 5% to 90% noncondensing
© National Instruments Corporation
A-1
SC-205X Series User Manual
Customer Communication
B
For your convenience, this appendix contains forms to help you gather the information necessary
to help us solve your technical problems and a form you can use to comment on the product
documentation. When you contact us, we need the information on the Technical Support Form and
the configuration form, if your manual contains one, about your system configuration to answer your
questions as quickly as possible.
National Instruments has technical assistance through electronic, fax, and telephone systems to quickly
provide the information you need. Our electronic services include a bulletin board service, an FTP site,
a fax-on-demand system, and e-mail support. If you have a hardware or software problem, first try the
electronic support systems. If the information available on these systems does not answer your
questions, we offer fax and telephone support through our technical support centers, which are staffed
by applications engineers.
Electronic Services
Bulletin Board Support
National Instruments has BBS and FTP sites dedicated for 24-hour support with a collection of files
and documents to answer most common customer questions. From these sites, you can also download
the latest instrument drivers, updates, and example programs. For recorded instructions on how to use
the bulletin board and FTP services and for BBS automated information, call 512 795 6990. You can
access these services at:
United States: 512 794 5422
Up to 14,400 baud, 8 data bits, 1 stop bit, no parity
United Kingdom: 01635 551422
Up to 9,600 baud, 8 data bits, 1 stop bit, no parity
France: 01 48 65 15 59
Up to 9,600 baud, 8 data bits, 1 stop bit, no parity
FTP Support
To access our FTP site, log on to our Internet host, ftp.natinst.com, as anonymous and use
your Internet address, such as [email protected], as your password. The support files and
documents are located in the /support directories.
© National Instruments Corporation
B-1
SC-205X Series User Manual
Fax-on-Demand Support
Fax-on-Demand is a 24-hour information retrieval system containing a library of documents on a wide
range of technical information. You can access Fax-on-Demand from a touch-tone telephone at
512 418 1111.
E-Mail Support (Currently USA Only)
You can submit technical support questions to the applications engineering team through e-mail at the
Internet address listed below. Remember to include your name, address, and phone number so we can
contact you with solutions and suggestions.
[email protected]
Telephone and Fax Support
National Instruments has branch offices all over the world. Use the list below to find the technical
support number for your country. If there is no National Instruments office in your country, contact
the source from which you purchased your software to obtain support.
Country
Telephone
Fax
Australia
Austria
Belgium
Brazil
Canada (Ontario)
Canada (Québec)
Denmark
Finland
France
Germany
Hong Kong
Israel
Italy
Japan
Korea
Mexico
Netherlands
Norway
Singapore
Spain
Sweden
Switzerland
Taiwan
United Kingdom
United States
03 9879 5166
0662 45 79 90 0
02 757 00 20
011 288 3336
905 785 0085
514 694 8521
45 76 26 00
09 725 725 11
01 48 14 24 24
089 741 31 30
2645 3186
03 6120092
02 413091
03 5472 2970
02 596 7456
5 520 2635
0348 433466
32 84 84 00
2265886
91 640 0085
08 730 49 70
056 200 51 51
02 377 1200
01635 523545
512 795 8248
03 9879 6277
0662 45 79 90 19
02 757 03 11
011 288 8528
905 785 0086
514 694 4399
45 76 26 02
09 725 725 55
01 48 14 24 14
089 714 60 35
2686 8505
03 6120095
02 41309215
03 5472 2977
02 596 7455
5 520 3282
0348 430673
32 84 86 00
2265887
91 640 0533
08 730 43 70
056 200 51 55
02 737 4644
01635 523154
512 794 5678
SC-205X Series User Manual
B-2
© National Instruments Corporation
Technical Support Form
Photocopy this form and update it each time you make changes to your software or hardware, and use
the completed copy of this form as a reference for your current configuration. Completing this form
accurately before contacting National Instruments for technical support helps our applications
engineers answer your questions more efficiently.
If you are using any National Instruments hardware or software products related to this problem,
include the configuration forms from their user manuals. Include additional pages if necessary.
Name __________________________________________________________________________
Company _______________________________________________________________________
Address ________________________________________________________________________
_______________________________________________________________________________
Fax ( ___ ) ________________Phone ( ___ ) __________________________________________
Computer brand____________ Model ___________________ Processor_____________________
Operating system (include version number) ____________________________________________
Clock speed ______MHz RAM _____MB
Mouse ___yes ___no
Display adapter __________________________
Other adapters installed _______________________________________
Hard disk capacity _____MB Brand_________________________________________________
Instruments used _________________________________________________________________
_______________________________________________________________________________
National Instruments hardware product model _____________ Revision ____________________
Configuration ___________________________________________________________________
National Instruments software product ___________________ Version _____________________
Configuration ___________________________________________________________________
The problem is: __________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
List any error messages: ___________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
The following steps reproduce the problem: ___________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
SC-205X Series Hardware and Software
Configuration Form
Record the settings and revisions of your hardware and software on the line to the right of each item.
Complete a new copy of this form each time you revise your software or hardware configuration, and
use this form as a reference for your current configuration. Completing this form accurately before
contacting National Instruments for technical support helps our applications engineers answer your
questions more efficiently.
National Instruments Products
Hardware revision _______________________________________________________________
Interrupt level of hardware _________________________________________________________
DMA channels of hardware ________________________________________________________
Base I/O address of hardware _______________________________________________________
Programming choice _____________________________________________________________
National Instruments software ______________________________________________________
Other boards in system ____________________________________________________________
Base I/O address of other boards ____________________________________________________
DMA channels of other boards _____________________________________________________
Interrupt level of other boards ______________________________________________________
Other Products
Computer make and model ________________________________________________________
Microprocessor __________________________________________________________________
Clock frequency or speed __________________________________________________________
Type of video board installed _______________________________________________________
Operating system version __________________________________________________________
Operating system mode ___________________________________________________________
Programming language ___________________________________________________________
Programming language version _____________________________________________________
Other boards in system ____________________________________________________________
Base I/O address of other boards ____________________________________________________
DMA channels of other boards _____________________________________________________
Interrupt level of other boards ______________________________________________________
Documentation Comment Form
National Instruments encourages you to comment on the documentation supplied with our products.
This information helps us provide quality products to meet your needs.
Title:
SC-205X Series User Manual
Edition Date:
November 1998
Part Number:
371176A-01
Please comment on the completeness, clarity, and organization of the manual.
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
If you find errors in the manual, please record the page numbers and describe the errors.
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
Thank you for your help.
Name _________________________________________________________________________
Title __________________________________________________________________________
Company _______________________________________________________________________
Address ________________________________________________________________________
_______________________________________________________________________________
E-Mail Address __________________________________________________________________
Phone ( ___ ) __________________________ Fax ( ___ ) _______________________________
Mail to: Technical Publications
National Instruments Corporation
6504 Bridge Point Parkway
Austin, Texas 78730-5039
Fax to:
Technical Publications
National Instruments Corporation
512 794 5678
Glossary
Prefix
Meanings
Value
p-
pico
10 –12
n-
nano-
10 –9
µ-
micro-
10 – 6
m-
milli-
10 –3
k-
kilo-
10 3
M-
mega-
10 6
G-
giga-
10 9
t-
tera-
10 12
Numbers/Symbols
°
degrees
Ω
ohms
/
per
%
percent
±
plus or minus
+5 V
+5 V signal
A
A
amperes
AC
alternating current
ACH#
analog channel
A/D
analog-to-digital
© National Instruments Corporation
G-1
SC-205X Series User Manual
Glossary
ADC
A/D converter
AGND
analog ground signal
AIGND
analog input ground signal
AISENSE
analog input sense signal
AO
analog output
AOGND
analog output ground signal
C
C
Celsius
CLK#
clock signal
D
D
data bit
D/A
digital-to-analog
DAC
D/A converter
DAC#OUT
voltage output signal
DAC1UNI/B1*
DAC1 unipolar/bipolar bit
DAQ
data acquisition
DC
direct current
DIGGND/DGND
digital ground signal
DIN
digital input signal
DIO
digital I/O
DLL
dynamic link library
DMA
direct memory access
SC-205X Series User Manual
G-2
© National Instruments Corporation
Glossary
E
EISA
Extended Industry Standard Architecture
EXTCONV
external convert signal
EXTREF
external reference signal
EXTSTROBE
external strobe signal
EXTUPDATE
external update signal
F
FOUT
frequency output signal
G
GATE#
gate signal
GND
ground signal
H
hex
hexadecimal
Hz
hertz
I
IDE
Integrated Development Environment
in.
inch
IN#
input signal
INL
integral nonlinearity
I/O
input/output
ISA
Industry Standard Architecture
© National Instruments Corporation
G-3
SC-205X Series User Manual
Glossary
L
LED
light-emitting diode
M
m
meter
MB
megabytes of memory
N
NC
not connected (signal)
O
OUT
output signal
P
PA
port A
PB
port B
PC
port C
PPI
Programmable Peripheral Interface
PPM
parts per million
R
rms
root mean square
S
S
samples
s
seconds
SC-205X Series User Manual
G-4
© National Instruments Corporation
Glossary
SCANCLK
scan clock signal
SCLK
serial clock bit
SCXI
Signal Conditioning eXtensions for Instrumentation
SDK
Software Development Kit
SOURCE#
source signal
SSR
solid-state relay
STARTSCAN
startscan signal
STOPTRIG
stop trigger signal
T
TRIG#
trigger signal
TPCX
Turbo Pascal Compiler
U
UPDATE
update signal
V
V
volts
VCC
positive supply voltage from the PCMCIA bus (usually +5V)
VDC
volts, direct current
W
WFTRIG
waveform trigger signal
WRTPRT
write protect bit
© National Instruments Corporation
G-5
SC-205X Series User Manual
Index
B
E
bulletin board support, B-1
electronic support services, B-1 to B-2
e-mail support, B-2
environment specifications, A-1
equipment, optional, 1-4
C
cable connections, 10-6 to 10-7
cabling
SC-2050 adapter, 2-7
SC-2051 adapter, 3-7
SC-2052 adapter, 4-8
SC-2053 adapter, 5-8
SC-2054 adapter, 6-9
SC-2055 adapter, 7-7
SC-2056 adapter, 8-17
SC-2057 adapter, 9-13 to 9-15
connections
SC-2050 adapter, 2-3 to 2-7
SC-2051 adapter, 3-3 to 3-7
SC-2052 adapter, 4-3 to 4-7
SC-2053 adapter, 5-2 to 5-7
SC-2054 adapter, 6-2 to 6-9
SC-2055 adapter, 7-2 to 7-6
SC-2056 adapter, 8-2 to 8-16
SC-2057 adapter, 9-2 to 9-12
customer communication, xiv, B-1 to B-2
F
fax and telephone support numbers, B-2
Fax-on-Demand support, B-2
FTP support, B-1
I
installation
cable connections, 10-6 to 10-7
rack mounting, 10-1 to 10-2
rack-mount chassis cover attachment, 10-6
shield selection, 10-3 to 10-6
SC-2056, 10-4
SC-2057, 10-5 to 10-6
signal conditioning accessory, 10-6
steps for hardware installation, 10-1
unpacking SC-205X Series adapters, 1-4
J
D
jumper W1
ground settings
SC-2056 (figure), 10-4
SC-2057 (figure), 10-6
shield selection (figure), 10-3
shield selection, 10-3
DAQ hardware used with SC-205X Series
adapters (table), 1-2
documentation
conventions used in manual, xii-xiii
National Instruments documentation, xiii
organization of manual, xi-xii
related documentation, xiv
© National Instruments Corporation
I-1
SC-205X Series User Manual
Index
M
SC-2050 adapter
cabling, 2-7
connections, 2-3
connectors, 2-3 to 2-7
illustration, 2-4
J1 and J2 connector pin assignments
(figure), 2-5
J1 through J5 connections (table), 2-4
J3 connector pin assignments
(figure), 2-6
J4 connector pin assignments
(figure), 2-6
J5 connector pin assignments
(figure), 2-7
mounting, 2-7
overview, 2-1
parts locator diagram, 2-2
SC-2051 adapter
cabling, 3-7
connections, 3-3
connectors, 3-3 to 3-7
illustration, 3-4
J1 and J2 connector pin assignments
(figure), 3-5
J1 through J5 connections (table), 3-4
J3 connector pin assignments
(figure), 3-6
J4 connector pin assignments
(figure), 3-6
J5 connector pin assignments
(figure), 3-7
mounting, 3-7
overview, 3-1
parts locator diagram, 3-2
SC-2052 adapter
cabling, 4-8
connections, 4-3
connectors, 4-3 to 4-7
illustration, 4-4
J1 and J2 connector pin assignments
(figure), 4-5
manual. See documentation.
mounting
SC-2050 adapter, 2-7
SC-2051 adapter, 3-7
SC-2052 adapter, 4-7
SC-2053 adapter, 5-7
SC-2054 adapter, 6-9
SC-2055 adapter, 7-6
SC-2056 adapter, 8-16
SC-2057 adapter, 9-12
P
parts locator diagram
SC-2050, 2-2
SC-2051 adapter, 3-2
SC-2052 adapter, 4-2
SC-2053 adapter, 5-2
SC-2054 adapter, 6-2
SC-2055 adapter, 7-1
SC-2056 adapter, 8-2
SC-2057 adapter, 9-2
physical specifications, A-1
R
rack mounting, 10-1 to 10-2
rack-mount chassis cover attachment, 10-6
requirements for getting started, 1-3 to 1-4
S
SC-205X Series adapters
additional software not required, 1-4
DAQ hardware used with (table), 1-2
optional equipment, 1-4
overview, 1-1 to 1-3
requirements for getting started, 1-3 to 1-4
software programming choices, 1-4
unpacking, 1-4
SC-205X Series User Manual
I-2
© National Instruments Corporation
Index
J3 and J7 connector pin assignments
(figure), 6-7
J4 and J8 connector pin assignments
(figure), 6-8
J5 and J9 connector pin assignments
(figure), 6-8
J6 and J10 connector pin assignments
(figure), 6-9
mounting, 6-9
overview, 6-1
parts locator diagram, 6-2
SC-2055 adapter
cabling, 7-7
connections, 7-2
connectors, 7-2 to 7-6
illustration, 7-3
J1 and J2 connector pin assignments
(figure), 7-4
J1 through J6 connections (table), 7-3
J3 connector pin assignments
(figure), 7-5
J4 connector pin assignments
(figure), 7-5
J5 connector pin assignments
(figure), 7-6
J6 connector pin assignments
(figure), 7-6
mounting, 7-6
overview, 7-1
parts locator diagram, 7-1
SC-2056 adapter
cabling, 8-17
connections, 8-2 to 8-3
connectors, 8-3 to 8-16
illustration, 8-4
J1 pin assignments (figure), 8-7
J1 through J13 connections (table),
8-5 to 8-6
J2 connector pin assignments
(figure), 8-8
J1 through J9 connections (table), 4-4
J3 connector pin assignments
(figure), 4-6
J4 connector pin assignments
(figure), 4-6
J5 connector pin assignments
(figure), 4-7
J6 connector pin assignments
(figure), 4-7
mounting, 4-7
overview, 4-1
parts locator diagram, 4-2
SC-2053 adapter
cabling, 5-8
connections, 5-3
connectors, 5-3 to 5-7
illustration, 5-4
J1 and J2 connector pin assignments
(figure), 5-5
J1 through J6 connections (table), 5-4
J3 connector pin assignments
(figure), 5-6
J4 connector pin assignments
(figure), 5-6
J5 connector pin assignments
(figure), 5-7
J6 connector pin assignments
(figure), 5-7
mounting, 5-7
overview, 5-1
parts locator diagram, 5-2
SC-2054 adapter
cabling, 6-9
connections, 6-2 to 6-3
connectors, 6-3 to 6-8
illustration, 6-4
J1 and J2 connector pin assignments
(figure), 6-6
J1 through J10 connectors (table), 6-4
to 6-5
© National Instruments Corporation
I-3
SC-205X Series User Manual
Index
P1 and P2 connectors (table), 9-9
P1 and P2 pin assignments
(figure), 9-10
input connections, 9-7 to 9-8
32 channel SSR backplane
(figure), 9-7
SC-2060 and 8-channel SSR
backplane (figure), 9-8
SCXI-1163/R (figure), 9-7
mounting, 9-12
output connections, 9-4 to 9-6
32 channel SSR backplane
(figure), 9-5
ER-16 (figure), 9-5
SC-2061/2, ER-8, or 8-channel SSR
backplane (figure), 9-6
SCXI-1163/R (figure), 9-4
overview, 9-1
parts locator diagram, 9-2
shield selection, 10-5 to 10-6
jumper W1 ground settings
(figure), 10-6
shield jumper location (figure), 10-5
SCXI-1348 cable adapter
installation, with SC-2057 adapter,
9-13 to 9-14
pin translations (table), 9-15
shield selection, 10-3 to 10-6
ground settings for jumper W1
(figure), 10-3
SC-2056, 10-4
SC-2057, 10-5 to 10-6
shield jumper location (figure), 10-3
signal conditioning accessory
installation, 10-6
specifications
environment, A-1
physical, A-1
J3 connector pin assignments
(figure), 8-9
J4 connector pin assignments
(figure), 8-10
J5 connector pin assignments
(figure), 8-11
J6 connector pin assignments
(figure), 8-12
J7 connector pin assignments
(figure), 8-13
J8 connector pin assignments
(figure), 8-14
J9 connector pin assignments
(figure), 8-14
J10 connector pin assignments
(figure), 8-15
J11 connector pin assignments
(figure), 8-15
J12 connector pin assignments
(figure), 8-16
J13 connector pin assignments
(figure), 8-16
mounting, 8-16
overview, 8-1
parts locator diagram, 8-2
shield selection, 10-4
jumper W1 ground settings
(figure), 10-4
shield jumper location (figure), 10-4
SC-2057 adapter
cabling, 9-13 to 9-15
SCXI-1348 cable adapter
installation, 9-13 to 9-14
SCXI-1348 pin translations
(table), 9-15
connections, 9-2 to 9-3
connectors, 9-3 to 9-12
J1 connector pin assignments
(figure), 9-11
J1 through J6 connectors (table), 9-9
J2 connector pin assignments
(figure), 9-12
SC-205X Series User Manual
I-4
© National Instruments Corporation
Index
T
technical support, B-1 to B-2
telephone and fax support numbers, B-2
