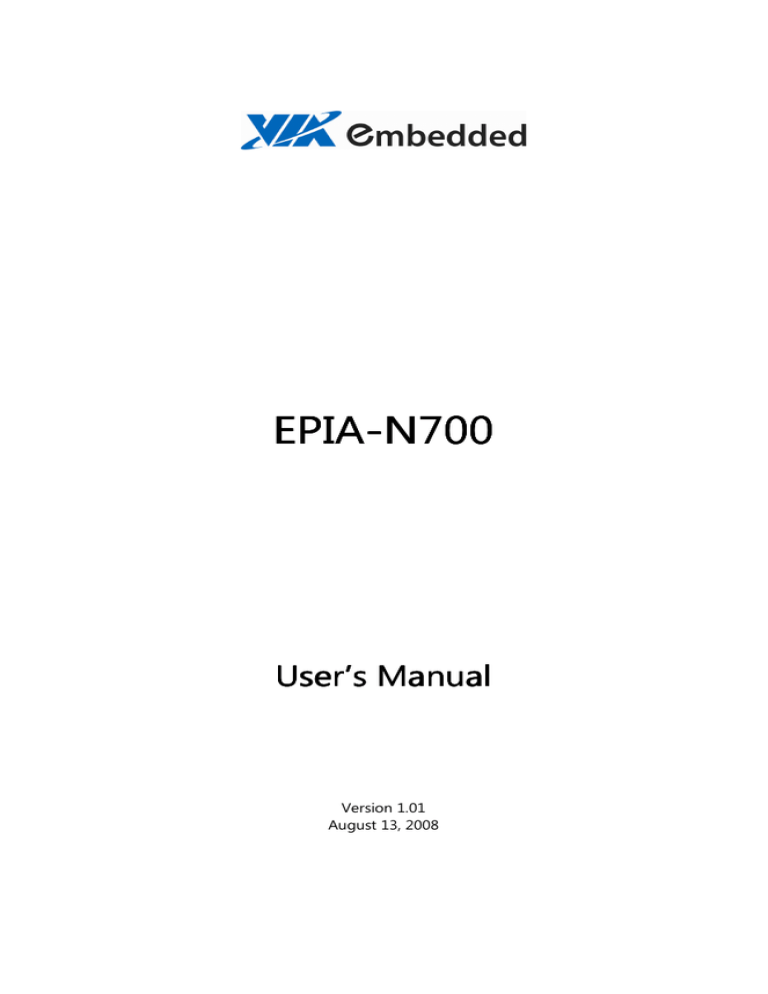

EPIA-N700
EPIAEPIA-N700
User’s Manual
Version 1.01
August 13, 2008
Copyright
Copyright © 2008 VIA Technologies Incorporated. All rights reserved.
No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or
translated into any language, in any form or by any means, electronic, mechanical, magnetic, optical,
chemical, manual or otherwise without the prior written permission of VIA Technologies, Incorporated.
Trademarks
All trademarks are the property of their respective holders. PS/2 is a registered trademark of IBM
Corporation.
Disclaimer
No license is granted, implied or otherwise, under any patent or patent rights of VIA Technologies. VIA
Technologies makes no warranties, implied or otherwise, in regard to this document and to the products
described in this document. The information provided in this document is believed to be accurate and
reliable as of the publication date of this document. However, VIA Technologies assumes no responsibility
for the use or misuse of the information in this document and for any patent infringements that may arise
from the use of this document. The information and product specifications within this document are subject
to change at any time, without notice and without obligation to notify any person of such change.
FCCFCC-B Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to
part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference, in which case the user will be required to correct the
interference at his personal expense.
Notice 1
The changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
Notice 2
Shielded interface cables and A.C. power cord, if any, must be used in order to comply with the emission
limits.
Tested To Comply
With FCC Standards
FOR HOME OR OFFICE USE
ii
SAFETY INSTRUCTIONS
Always read the safety instructions carefully.
Keep this User's Manual for future reference.
Keep this equipment away from humidity.
Lay this equipment on a reliable flat surface before setting it up.
The openings on the enclosure are for air convection hence protects the
equipment from overheating. Do not cover the openings.
Make sure the voltage of the power source and adjust properly 110/220V
before connecting the equipment to the power inlet.
Place the power cord in such a way that people cannot step on it. Do not
place anything over the power cord.
Always unplug the power cord before inserting any add-on card or module.
All cautions and warnings on the equipment should be noted.
Never pour any liquid into the opening. Liquid can cause damage or
electrical shock.
If any of the following situations arises, get the equipment checked by a
service personnel:
The power cord or plug is damaged.
Liquid has penetrated into the equipment.
The equipment has been exposed to moisture.
The equipment has not worked well or you cannot get it work
according to User's Manual.
The equipment has dropped and damaged.
If the equipment has obvious sign of breakage.
Do not leave this equipment in an environment unconditioned or in a
storage temperature above 60oC (140oF). The equipment may be damaged.
Caution:
Only use the appropriate battery specified for this product.
Do not reuse, recharge, or reheat an old battery.
Do not attempt to force open the battery.
Do not discard used batteries with regular trash.
Discard used batteries according to local regulations.
iii
TABLE OF CONTENTS
Safety Instructions ........................................................................................................... iii
Table of Contents............................................................................................................. iv
C
C
Chhhaaapppttteeerrr 111 Specifications................................................................................................. 1
Mainboard Specifications .........................................................................................2
Mainboard Layout .......................................................................................................4
Back Panel Layout ........................................................................................................5
C
C
Chhhaaapppttteeerrr 222 Installation ...................................................................................................... 7
CPU ....................................................................................................................................8
CPU Fan and System Fan: CPU_FAN and SYS_FAN ..................................8
Memory Module Installation...................................................................................9
Memory Slot: DDR2 SODIMM SDRAM..........................................................9
DDR2 SDRAM Module Installation Procedures .........................................9
Available DDR2 SDRAM Configurations .................................................... 10
Power Connectors..................................................................................................... 11
ATX 4-Pin Power Connector: DC12V ........................................................... 11
SATA Power: S-Power ........................................................................................ 11
External CMOS Battery Connector: BAT1................................................... 12
Back Panel Ports ........................................................................................................ 13
VGA Port.................................................................................................................. 13
COM (Serial) Port ................................................................................................. 13
USB Ports................................................................................................................. 13
RJ-45 LAN Port...................................................................................................... 13
Connectors................................................................................................................... 14
IDE Connector: IDE .............................................................................................. 14
SATA Ports .............................................................................................................. 15
USB Pin Connector: USB 2/3 ........................................................................... 15
Front Panel: F_Panel............................................................................................ 15
KB/MS Connector ................................................................................................ 16
Digital I/O: DIO ..................................................................................................... 16
SPI (Serial Peripheral Interface): JSPI ........................................................... 16
Front Panel Audio: F_Audio ............................................................................. 17
Serial Port: COM2/COM3/COM4 .................................................................. 17
LVDS Panel Connector....................................................................................... 18
LVDS Inverter Connector: INVERTER ........................................................... 18
System Management Bus: SMBus ................................................................ 19
System Temperature Sensor: SEN ................................................................ 19
Jumpers ......................................................................................................................... 20
Clear CMOS ............................................................................................................ 20
CF Master Select: MS_CF_SEL.......................................................................... 20
AT/ATX Power ....................................................................................................... 21
iv
Panel Power Selector: PVDD_SEL .................................................................. 21
Inverter Selector: IVDD_SEL ............................................................................. 21
COM2 Power Select: J3...................................................................................... 22
RS232/RS422/RS485 Select ............................................................................. 22
Slots ................................................................................................................................ 23
Mini Peripheral Component Interconnect: MiniPCI .............................. 23
PCI Interrupt Request Routing ....................................................................... 23
Compact Flash Type I Connector: CF........................................................... 23
C
C
Chhhaaapppttteeerrr 333 BIOS Setup....................................................................................................25
Entering the BIOS Setup Menu ........................................................................... 26
Control Keys ................................................................................................................ 27
Navigating the BIOS Menus ................................................................................. 28
Getting Help................................................................................................................ 29
Main Menu................................................................................................................... 30
Standard CMOS Features ................................................................................. 30
Advanced BIOS Features................................................................................... 30
Advanced Chipset Features ............................................................................. 30
Integrated Peripherals ....................................................................................... 30
Power Management Setup .............................................................................. 30
PnP/PCI Configurations..................................................................................... 30
PC Health Status................................................................................................... 31
Frequency/Voltage Control ............................................................................. 31
Load Optimized Defaults.................................................................................. 31
Set Supervisor Password................................................................................... 31
Set User Password ............................................................................................... 31
Save & Exit Setup................................................................................................. 31
Exit Without Saving............................................................................................. 31
Standard CMOS Features ...................................................................................... 32
Date ........................................................................................................................... 32
Time........................................................................................................................... 32
Video......................................................................................................................... 32
Halt On ..................................................................................................................... 32
IDE Drives ..................................................................................................................... 33
IDE Channel 0 Master......................................................................................... 33
IDE Channel 0 Slave ............................................................................................ 33
IDE Channel 1 Master......................................................................................... 34
IDE Channel 1 Slave ............................................................................................ 34
Advanced BIOS Features........................................................................................ 36
Virus Warning........................................................................................................ 36
CPU L1 & L2 Cache ............................................................................................. 36
CPU L2 Cache ECC Checking........................................................................... 36
Quick Power On Self-Test ................................................................................ 37
First/Second/Third Boot Device..................................................................... 37
v
Boot Other Device ............................................................................................... 37
Boot Up NumLock Status ................................................................................. 37
Typematic Rate Setting ..................................................................................... 37
Typematic Rate (Chars/Sec)............................................................................. 38
Typematic Delay (Msec).................................................................................... 38
Security Option..................................................................................................... 38
MPS Version Control for OS............................................................................ 38
OS Select for DRAM > 64MB.......................................................................... 38
HDD S.M.A.R.T Capability ................................................................................. 38
Video BIOS Shadow ............................................................................................ 38
Full Screen Logo Show ...................................................................................... 38
Summary Screen Show...................................................................................... 39
CPU Features............................................................................................................... 40
Delay Prior to Thermal....................................................................................... 40
Thermal Management ....................................................................................... 40
Hard Disk Boot Priority ........................................................................................... 41
Advanced Chipset Features .................................................................................. 42
Memory Hole......................................................................................................... 42
System BIOS Cacheable .................................................................................... 42
Video RAM Cacheable ....................................................................................... 42
AGP Fast Write ...................................................................................................... 42
Select Display Device ......................................................................................... 42
Panel Type............................................................................................................... 42
Internal VGA Control ............................................................................................... 43
AGP 3.0 Calibration Cycle................................................................................. 43
VGA Share Memory Size................................................................................... 43
Direct Frame Buffer ............................................................................................. 43
Outport Port........................................................................................................... 43
Dithering.................................................................................................................. 43
CPU & PCI Bus Control ........................................................................................... 44
PCI Master 0 WS Write ...................................................................................... 44
PCI Delay Transaction ........................................................................................ 44
VIA PWR Management...................................................................................... 44
Integrated Peripherals............................................................................................. 45
OnChip IDE Channel 1 ....................................................................................... 45
IDE HDD Block Mode ......................................................................................... 45
SATA Controller .................................................................................................... 45
Azalia HDA Controller ........................................................................................ 45
Onboard LAN Boot ROM.................................................................................. 45
VIA Wireless LAN Support ............................................................................... 45
Super IO Device ......................................................................................................... 46
Onboard Serial Port 1 ........................................................................................ 46
Onboard Serial Port 2 ........................................................................................ 46
vi
Onboard Serial Port 3 ........................................................................................ 46
Onboard Serial Port 4 ........................................................................................ 46
WatchDog Support ............................................................................................. 46
VIA OnChip IDE Device........................................................................................... 47
IDE Prefetch Mode .............................................................................................. 47
CF Card UDMA66................................................................................................. 47
IDE DMA Transfer Access ................................................................................. 47
Secondary Master PIO ....................................................................................... 47
Secondary Slave PIO........................................................................................... 47
Secondary Master UDMA................................................................................. 47
Secondary Slave UDMA .................................................................................... 47
USB Device Setting................................................................................................... 48
USB 1.0 Controller ............................................................................................... 48
USB 2.0 Controller ............................................................................................... 48
USB Operation Mode ......................................................................................... 48
USB Keyboard Function .................................................................................... 48
USB Mouse Function .......................................................................................... 49
USB Storage Function ........................................................................................ 49
Power Management Setup ................................................................................... 50
ACPI Suspend Type............................................................................................. 50
Power Management Option............................................................................ 50
HDD Power Down................................................................................................ 50
Suspend Mode...................................................................................................... 51
Video Off Option.................................................................................................. 51
Video Off Method................................................................................................ 51
Soft-Off by PWRBTN .......................................................................................... 51
Run VGABIOS if S3 Resume............................................................................. 51
AC Loss Auto Restart.......................................................................................... 51
Wakeup Event Detect.............................................................................................. 52
PS2KB Wakeup Select ........................................................................................ 52
PS2KB Wakeup Key Select ............................................................................... 52
PS2MS Wakeup Key Select .............................................................................. 52
PS2 Keyboard Power On................................................................................... 52
PS2 Mouse Power On ........................................................................................ 53
USB Resume from S3 ......................................................................................... 53
Wakeup On GPI .................................................................................................... 53
PowerOn by PCI Card......................................................................................... 53
RTC Alarm Resume.............................................................................................. 53
Date (of Month).................................................................................................... 53
Resume Time (hh : mm : ss)............................................................................. 53
PnP/PCI Configurations .......................................................................................... 54
Init Display First .................................................................................................... 54
PNP OS Installed .................................................................................................. 54
vii
Reset Configuration Data ................................................................................. 54
Resources Controlled By................................................................................... 55
PCI/VGA Palette Snoop ..................................................................................... 55
Assign IRQ for VGA............................................................................................. 55
Assign IRQ for USB.............................................................................................. 55
Maximum Payload Size ..................................................................................... 55
PC Health Status........................................................................................................ 56
Frequency/Voltage Control .................................................................................. 57
DRAM Frequency ................................................................................................. 57
DRAM Channel Mode ........................................................................................ 57
DDR CAS Latency Control ................................................................................ 57
DDR Burst Length ................................................................................................ 57
DDR 1T Command Rate .................................................................................... 57
DRDY Table............................................................................................................. 57
ODT............................................................................................................................ 57
Spread Spectrum ................................................................................................. 58
Load Optimized Defaults ....................................................................................... 59
Set Supervisor/User Password............................................................................. 60
Set Supervisor ....................................................................................................... 60
User Password....................................................................................................... 60
Save & Exit Setup...................................................................................................... 62
Exit Without Saving .................................................................................................. 63
C
C
Chhhaaapppttteeerrr 444 Driver Installation.......................................................................................65
Driver Utilities ............................................................................................................. 66
Getting Started ..................................................................................................... 66
Running the Driver Utilities CD...................................................................... 67
CD Content .................................................................................................................. 68
viii
EPIA-N700 User’s Manual
CHHAAPPTTEERR 1
SPECIFICATIONS
The ultra-compact and highly integrated VIA EPIA-N700 uses the NanoITX mainboard form-factor developed by VIA Technologies, Inc. as part
of the company’s open industry-wide total connectivity initiative. The
mainboard enables the creation of an exciting new generation of small,
ergonomic, innovative and affordable embedded systems. Through a
high level of integration, the Nano-ITX occupy 50% of the size of a MiniATX mainboard form factor. The mainboard comes with a VIA C7
NanoBGA2 Processor, boasting of ultra-low power consumption, cool
and quiet operation.
1
EPIA-N700 User’s Manual
Mainboard Specifications
CPU
•
VIA C7 1.5GHz NanoBGA2 processor
Chipset
•
VIA VX800 advanced all-in-one system processor
Graphics
•
Integrated VIA Chrome9™ HC Integrated Graphics 3D/2D and
Unified Video Decoding Accelerator
Audio
•
VIA VT1708B High Definition Audio Codec
Memory
•
1 x DDR2 667/533 SODIMM slot (up to 2 GB)
Expansion Slot
•
1 x MiniPCI slot
IDE
•
1 x UltraDMA 133/100/66/33 pin header
•
1 x VIA VT6130 PCIe Gigabit Ethernet Controller
LAN
Onboard I/O Connectors
•
1 x USB pin header for 2 additional USB 2.0 ports
•
1 x Dual-channel LVDS panel connector
•
1 x Backlight control connector for inverter power and
brightness control
•
1 x CF (Compact Flash) type I connector (shared with IDE)
•
1 x KB/MS pin header
•
3 x Serial port header (RS-232) with one 5V/12V select jumper
•
1 x Digital I/O pin header
•
1 x SPI pin header
•
1 x Front Panel pin header
•
1 x Front-audio pin header
•
1 x SMBus pin header
•
2 x SATA port connectors
•
2 x Fan connectors for CPU and System fans
•
1 x System temperature reading pin header
•
2 x +5V Power header for 2.5” SATA HDD
•
1 x +12V Power connector
•
1 x Power mode select connector (AT, ATX)
2
EPIA-N700 User’s Manual
Back Panel I/O Ports
•
1 x Serial port
•
1 x RJ45 LAN port
•
1 x VGA port
•
2 x USB 2.0 ports
BIOS
•
Award BIOS with SPI 4/8Mbit flash memory capacity
Form Factor
•
Nano-ITX
•
12cm X 12cm
3
EPIA-N700 User’s Manual
Mainboard Layout
(Top View)
(Bottom View)
4
EPIA-N700 User’s Manual
Back Panel Layout
5
EPIA-N700 User’s Manual
This page is intentionally left blank.
6
EPIA-N700 User’s Manual
CHHAAPPTTEERR 2
INSTALLATION
This chapter provides you with information about hardware installation
procedures. It is recommended to use a grounded wrist strap before
handling computer components. Electrostatic discharge (ESD) can
damage some components.
7
EPIA-N700 User’s Manual
CPU
The VIA EPIA-N700 mainboard is packaged with a standard VIA C7 1.5
GHz NanoBGA2 processor. The processor requires a heatsink with fan to
provide sufficient cooling.
CPU Fan and System Fan: CPU_FAN and SYS_FAN
The CPU_FAN (CPU fan) and SYS_FAN (system fan) run on +12V and
maintain system cooling. When connecting the wire to the connectors,
always be aware that the red wire (positive wire) should be connected to
the +12V. The black wire is Ground and should always be connected to
GND.
Pin
1
2
3
Signal
F_IO2
+12V
GND
Pin
1
2
3
Signal
F_IO1
+12V
GND
1
SYS_FAN
1
CPU_FAN
8
EPIA-N700 User’s Manual
Memory Mod
Module Installation
Memory Slot: DDR2 SODIMM SDRAM
The VIA EPIA-N700 mainboard provide one 200-pin SODIMM slot for
DDR2 667/533 SDRAM memory modules and supports memory sizes up
to 2GB.
DDR2 SDRAM Module Installation Procedures
Step 1
Locate the SODIMM slot in the mainboard.
Step 2
Align the notch on the SODIMM with the memory slot.
Step 3
Inset the SODIMM module at a 45 degree angle.
1
2
Step 4
Then push the SODIMM down until it snaps into the locking mechanism.
9
EPIA-N700 User’s Manual
Available DDR2 SDRAM Configurations
Refer to the table below for available DDR2 SDRAM configurations on
the mainboard.
Slot
Module Size
SODIMM 64MB, 128MB, 256MB, 512MB, 1GB, 2GB
Maximum supported system memory
Total
64MB - 2GB
2GB
10
EPIA-N700 User’s Manual
Power Connectors
The VIA EPIA-N700 mainboard supports a 4-pin ATX power connector
for the system power input. Before inserting the power supply connector,
always make sure that all components are installed correctly to ensure
that no damage will be caused.
ATX 4-Pin Power Connector: DC12V
To connect the power supply, make sure the power plug is inserted in
the proper orientation and the pins are aligned. Then push down the
plug firmly into the connector.
1
Pin
Signal
1
2
3
4
GND
GND
DC_12V
DC_12V
SATA Power: S-Power
The mainboard supports two 3-pin SATA power connectors for SATA
power cable. Plug the SATA power cable into the SATA power connector.
Make sure the power plug is inserted in the proper orientation.
Pin
Pin
Signal
1
2
3
GND
+5V
+5V
1
1
11
EPIA-N700 User’s Manual
External CMOS Battery Connector: BAT1
The mainboard comes with external CMOS battery connector. This 2-pin
connector used to connect the external cable battery.
Pin
Signal
1
2
A3V (+3.0V)
GND
1
12
EPIA-N700 User’s Manual
Back Panel Ports
The back panel has the following ports:
VGA Port
The VGA port allows you to connect any analog VGA monitor.
COM (Serial) Port
The 9-pin COM port is for pointing devices or other serial devices.
USB Ports
Two standard USB 2.0 ports are provided on the back panel. These ports
are used to connect the USB2.0 devices.
RJ-45 LAN Port
The board provides a standard RJ-45 (Gigabit Ethernet). This port allows
the connection to a Local Area Network (LAN) through a network hub.
13
EPIA-N700 User’s Manual
Connectors
IDE Connector: IDE
The mainboard has an Ultra DMA 133/100/66/33 controller. You can
connect up to two IDE devices in any combination.
Pin
Signal
Pin
Signal
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
43
#IDERST
PDD7
PDD6
PDD5
PDD4
PDD3
PDD2
PDD1
PDD0
GND
PDDREQ
#PDIOW
#PDIOR
PIORDY
#PDDACK
IRQ15
PDA1
PDA0
#PDCS1
#HD_LED1
+5V
GND
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
GND
PDD8
PDD9
PDD10
PDD11
PDD12
PDD13
PDD14
PDD15
KEY
GND
GND
GND
GND
GND
NC
GPI0
PDA2
#PDCS3
GND
+5V
NC
44
43
2
1
If two drives are connected to a single cable, the jumper on the second
drive must be set to slave mode. Refer to the drive documentation
supplied by the vendor for the jumper settings.
14
EPIA-N700 User’s Manual
SATA Ports
These next generation connectors support the thin SATA cables for
primary internal storage devices. The current SATA interface allows up to
300MB/s data transfer rate, faster than the standard parallel ATA with
133 MB/s (UltraDMA).
Port 2
Port 1
USB Pin Connector: USB 2/3
The mainboard provides 2 USB ports and one USB pin header (allowing
up to two additional USB 2.0 ports). Therefore mainboard can support
up to four USB 2.0 ports. These ports can be used to connect highspeed USB interface peripherals such as USB HDD, digital cameras, MP3
12
2
players, printers, modem and the like.
Pin
Signal
Pin
Signal
1
3
5
7
9
11
VUSB
USBD_T0USBD_T0+
GND
Key
GND
2
4
6
8
10
12
VUSB
USBD_T1USBD_T1+
GND
NC
GPO9
1
11
Front Panel: F_Panel
The F_Panel pin header allows you to connect the power switch, reset
switch, power LED, HDD LED and the case speaker.
Pin
Signal
Pin
Signal
1
3
5
7
9
11
+PWR_LED
+PWR_LED
-PWR_LED
SPEAK+
Key
SPEAK-
2
4
6
8
10
12
+HD_LED
-HD_LED
PW_BN
GND
RST_SW
GND
1
2
11
12
15
EPIA-N700 User’s Manual
KB/MS Connector
The mainboard provides a PS2 pin header to attach a PS2 keyboard and mouse.
Pin
Signal
Pin
Signal
1
3
5
7
9
+5VDUAL
KB_CLK
EKBCLK
MS_CLK
EMSCLK
2
4
6
8
10
GND
KB_DATA
EKBDATA
MS_DATA
EMSDATA
2
10
1
9
Note:
When the pin header is not in use. Please short pin 3&5, pin 4&6,
pin 7&9 and pin 8&10.
Digital I/O: DIO
General purpose digital input and output.
Pin
Signal
Pin
Signal
1
3
5
7
9
11
+5V_DIO
GPO_21
GPO_22
GPO_32
GPO_33
GND
2
4
6
8
10
12
+12V_DIO
GPI_44
GPI_45
GPI_46
GPI_47
GND
12
11
2
1
SPI (Serial Peripheral Interface): JSPI
This pin header is used to connect with SPI BIOS programming fixture.
Pin
Signal
Pin
Signal
1
3
5
7
SPI_VCC
SPI_SS0
SPI_DI
Key
2
4
6
8
GND
SPI_CLK
SPI_DO
RST_SW
8
2
1
16
EPIA-N700 User’s Manual
Front Panel Audio: F_Audio
This pin header is an interface for the VIA front panel audio cable that
allow convenient connection and control of audio devices.
Pin
Signal
Pin
Signal
1
3
5
7
9
11
13
SPDIF_OUT
AGND
LINE_OUT_R
LINEIN_R
MIC1_RE_R
Key
AGND
2
4
6
8
10
12
14
+5V
Key
LINEOUT_R
LINEOUT_L
MIC1_RE_L
NC
AGND
2
14
1
13
Note:
If you don’t want to connect to the front audio header, pins 5 & 6, 9
& 10 have to be jumpered in order to have signal output directed to
the rear audio ports. Otherwise, the Line-Out connector on the back
panel will not function.
Serial Port: COM2/COM3/COM4
COM pin headers can be used to attach an additional port for serial devices.
Pin
Signal
Pin
Signal
1
3
5
7
9
DCD
SOUT
GND
RTS
RI
2
4
6
8
10
SIN
DTR
DSR
CTS
Key
9
9
1
2
1
2
1
2
9
17
EPIA-N700 User’s Manual
LVDS Panel Connector
The LVDS Panel connector allows you to connect the panel’s LVDS cable
directly to support LVDS panel.
Pin
Signal
Pin
Signal
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
-A4_L
A4_L
GND
-A5_L
A5_L
GND
-A6_
A6_L
GND
-CLK2_L
CLK2_L
GND
-A7_L
A7_L
NC
NC
NC
NC
NC
NC
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
PVDD
PVDD
GND
GND
-A0_L
A0_L
GND
-A1_L
A1_L
GND
-A2_L
A2_L
GND
-CLK1_L
CLK1_L
GND
-A3_L
A3_L
SPCLK
SPD
LVDS Inverter Connector: INVERTER
The mainboard provides an inverter for supplying power to the
backlight of the LCD panel.
1
Pin
Signal
1
2
3
4
5
6
7
8
VCC
VCC
BAKLITE
NC
BAKLITE
SMBUS OUT
GND
GND
18
EPIA-N700 User’s Manual
System Management Bus: SMBus
This pin header allows you to connect SMBus (System Management Bus)
devices. Devices communicate with a SMBus host and/or other SMBus
devices using the SMBus interface.
Pin
Signal
1
2
3
SMBCK
SMBDT
GND
1
System Temperature Sensor: SEN
This pin header allows you to connect the system temperature reading
device.
Pin
Signal
1
2
3
REMOTE1+
REMOTE1+
REMOTE1-
1
19
EPIA-N700 User’s Manual
Jumpers
The mainboard provides jumpers for setting some mainboard functions.
This section will explain how to change the settings of the mainboard
functions using the jumpers.
Clear CMOS
The onboard CMOS RAM stores system configuration data and has an
onboard battery power supply. To reset the CMOS settings, set the
jumper on pins 1 and 2 while the system is off. Return the jumper to
pins 2 and 3 afterwards. Setting the jumper while the system is on will
1
damage the mainboard.
Normal
Clear
3
1
1
2
3
Normal Operation
Clear CMOS setting
ON
OFF
ON
ON
OFF
ON
1
2
Setting
2
3
Caution:
Caution:
Except when clearing the RTC RAM, never remove the cap on
CLEAR_CMOS jumper default position. Removing the cap will cause
system boot failure. Avoid clearing the CMOS while the system is on;
it will damage the mainboard.
CF Master Select: MS_CF_SEL
This jumper determines the working state of the CF connector. The
default value is Master.
1
Master
Slave
1
1
2
2
3
3
Setting
1
2
3
Master
Slave
OFF
ON
ON
ON
ON
OFF
20
EPIA-N700 User’s Manual
AT/ATX Power
This pin header is use for AT/ATX power mode select.
1
2
1
AT
ATX
ATX
1
3
Setting
ATX
AT
2
3
1
2
3
ON
OFF
ON
ON
OFF
ON
Panel Power Selector: PVDD_SEL
PVDD is the VCC selector jumper to determine the LVDS panel’s signal
voltage.
1
+3.3V
3.3V
1
2
Setting
+3.3V
+5V
+5V
3
1
2
3
1
2
3
ON
OFF
ON
ON
OFF
ON
Inverter Selector: IVDD_SEL
IVDD is the VCC selector jumper to determine the input voltage of the
panel inverter for panel’s back-light.
1
+5V
+12V
1
1
2
2
3
3
Setting
+5V
+12V
1
2
3
ON
OFF
ON
ON
OFF
ON
21
EPIA-N700 User’s Manual
COM2 Power Select: J3
J3 is a VCC selector jumper to determine the input voltage for COM2
connector.
1
+5V
1
2
+12V
1
3
Setting
+5V
+12V
3
2
1
2
3
ON
OFF
ON
ON
OFF
ON
RS232/RS422/RS485 Select
This pin header allows you to select between RS232, RS422 or RS485
mode for COM1 port.
Pin
Signal
Pin
Signal
1
3
5
7
9
11
RXD_1
RXD_1
RXD_1
IC_DCD1
COM_DCD1
1-RS485RS422_-TX
IC_TXD1
COM_TXD1
1-RS422_RX
2
4
6
8
10
12
RXD_232-1
RXD_422-1
RXD_485-1
IC_RXD1
COM_RXD1
1-RS485RS422_TX
IC_DTR1
COM_DTR1
1-RS422_-RX
13
15
17
14
16
18
17
1
18
2
Jumper Settings
RS232
RS422
RS485
22
EPIA-N700 User’s Manual
Slots
Mini Peripheral Component Interconnect: MiniPCI
The miniPCI slot allows you to insert a miniPCI expansion card. When
adding or removing expansion card, unplug first the power supply.
Read the documentation for the expansion card to see if any changes to
the system are necessary.
PCI Interrupt Request Routing
The IRQ (interrupt request line) are hardware lines over which devices
can send interrupt signals to the microprocessor. The “PCI & LAN” IRQ
pins are typically connected to the PCI bus INT A# ~ INT D# pins as
follows:
MiniPCI Slot
Order 1
INT B#
Order 2
INT C#
Order 3
INT D#
Order 4
INT A#
Compact Flash Type I Connector: CF
This CF connector allows you to connect to a passive 50-pin Type I
adapter.
23
EPIA-N700 User’s Manual
This page is intentionally left blank.
24
EPIA-N700 User’s Manual
CHHAAPPTTEERR 3
BIOS SETUP
This chapter gives a detailed explanation of the BIOS setup functions.
25
EPIA-N700 User’s Manual
Entering the BIOS Setup Menu
Power on the computer and press <Delete
Delete>
Delete during the beginning of the
boot sequence to enter the BIOS setup menu. If you missed the BIOS
setup entry point, restart the system and try again.
26
EPIA-N700 User’s Manual
Control Keys
Keys
Description
Move to the previous item
Move to the next item
Move to the item in the left side
Move to the item in the right side
Select the item
Enter
Esc
Page
Up
Page
Down
Jumps to the Exit menu or returns to the
main menu from a submenu
Increase the numeric value or make changes
Decrease the numeric value or make changes
Increase the numeric value or make changes
Decrease the numeric value or make changes
F1
General help, only for Status Page Setup
Menu and Option Page Setup Menu
F5
Restore the previous CMOS value from
CMOS, only for Option Page Setup Menu
F6
F7
F10
Load the default CMOS value from Fail-Safe
default table, only for Option Page Setup
Menu
Load Optimized defaults
Save all the CMOS changes and exit
27
EPIA-N700 User’s Manual
Navigating the BIOS Menus
The main menu displays all the BIOS setup categories. Use the
<Left
Left>/<Right
Right>
Up>/<Down
Down>
Left
Right and <Up
Up
Down arrow keys to select any item or
sub-menu. Descriptions of the selected/highlighted category are
displayed at the bottom of the screen.
An arrow symbol next to a field indicates that a sub-menu is available
(see figure below). Press <Enter
Enter>
Enter to display the sub-menu. To exit the
sub-menu, press <Esc
Esc>.
Esc
28
EPIA-N700 User’s Manual
Getting Help
The BIOS setup program provides a “General
General Help”
Help screen. You can
display this screen from any menu/sub-menu by pressing <F1
F1>.
F1 The
help screen displays the keys for using and navigating the BIOS setup.
Press <Esc
Esc>
Esc to exit the help screen.
29
EPIA-N700 User’s Manual
Main Menu
The Main Menu contains twelve setup functions and two exit choices.
Use arrow keys to select the items and press <Enter
Enter>
Enter to accept or enter
Sub-menu.
Standard CMOS Features
Use this menu to set basic system configurations.
Advanced BIOS Features
Use this menu to set the advanced features available on your system.
Advanced Chipset Features
Use this menu to set chipset specific features and optimize system
performance.
Integrated Peripherals
Use this menu to set onboard peripherals features.
Power Management Setup
Use this menu to set onboard power management functions.
PnP/PCI Configurations
Use this menu to set the PnP and PCI configurations.
30
EPIA-N700 User’s Manual
PC Health Status
This menu shows the PC health status.
Frequency/Voltage Control
Use this menu to set the system frequency and voltage control.
Load Optimized Defaults
Use this menu option to load BIOS default settings for optimal and high
performance system operations.
Set Supervisor Password
Use this menu option to set the BIOS supervisor password.
Set User Password
Use this menu option to set the BIOS user password.
Save & Exit Setup
Save BIOS setting changes and exit setup.
Exit Without Saving
Discard all BIOS setting changes and exit setup.
31
EPIA-N700 User’s Manual
Standard CMOS Features
Date
The date format is [Day, Month Date, Year]
Time
The time format is [Hour : Minute : Second]
Video
Settings: [EGA/VGA, CGA 40, CGA 80, MONO]
Halt On
Set the system’s response to specific boot errors. Below is a table that
details the possible settings.
Settings
Description
All Errors
No Errors
All, But Keyboard
System halts when any error is detected
System does not halt for any error
System halts for all non-key errors
32
EPIA-N700 User’s Manual
IDE Drives
IDE Channel 0 Master
IDE Channel 0 Slave
33
EPIA-N700 User’s Manual
IDE Channel 1 Master
IDE Channel 1 Slave
34
EPIA-N700 User’s Manual
The specifications of your drive must match with the drive table. The
hard disk will not work properly if you enter incorrect information in this
category. Select “Auto
Auto”
Manual”,
Auto whenever possible. If you select “Manual
Manual
make sure the information is from your hard disk vendor or system
manufacturer. Below is a table that details required hard drive
information when using the “Manual
Manual”
Manual mode.
Settings
Description
IDE Channel
The name of this match the name of the menu.
Settings: [None, Auto, Manual]
Settings: [CHS, LBA, Large, Auto]
Formatted size of the storage device
Number of cylinders
Number of heads
Write precompensation
Cylinder location of the landing zone
Number of sectors
Access Mode
Capacity
Cylinder
Head
Precomp
Landing Zone
Sector
35
EPIA-N700 User’s Manual
Advanced BIOS Features
Virus Warning
Allows you to choose the VIRUS warning feature for IDE Hard Disk boot
sector protection.
Settings
Description
Enabled
Disabled
Turns on hard disk boot sector virus protection
Turns off hard disk boot sector virus protection
Note:
If this function is enabled and someone attempt to write data into
this area, BIOS will show a warning message on the screen and alarm
beep.
CPU L1 & L2 Cache
Settings
Description
Disabled
Enabled
Turns off CPU L1 & L2 cache
Turns on CPU L1 & L2 cache
CPU L2 Cache ECC Checking
Settings: [Enabled, Disabled]
36
EPIA-N700 User’s Manual
Quick Power On Self-Test
Shortens Power On Self-Test (POST) cycle to enable shorter boot up time.
Settings
Description
Disabled
Enabled
Standard Power On Self Test (POST)
Shorten Power On Self Test (POST) cycle and boot up time
First/Second/Third Boot Device
Set the boot device sequence as BIOS attempts to load the disk operating
system.
Settings
Description
LS120
Hard Disk
CDROM
ZIP100
USB-FDD
USB-ZIP
USB-CDROM
Legacy LAN
Disabled
Boot from LS-120 drive
Boot from the HDD
Boot from CDROM
Boot from ATAPI ZIP drive
Boot from USB Floppy drive
Boot from USB ZIP drive
Boot from USB CDROM
Boot from network drive
Disable the boot device sequence
Boot Other Device
Enables the system to boot from alternate devices if the system fails to
boot from the “First/Second/Third Boot Device” lists.
Settings
Description
Disabled
Enabled
No alternate boot device allowed
Enable alternate boot device
Boot Up NumLock Status
Set the NumLock status when the system is powered on.
Settings
Description
Settings
Off
On
Forces keypad to behave as arrow keys
Forces keypad to behave as 10-key
Typematic Rate Setting
Enables “Typematic Rate” and “Typematic Delay” functions.
Settings: [Disabled, Enabled]
37
EPIA-N700 User’s Manual
Typematic Rate (Chars/Sec)
This item sets the rate (characters/second) at which the system retrieves
a signal from a depressed key.
Settings: [6, 8, 10, 12, 15, 20, 24, 30]
Typematic Delay (Msec)
This item sets the delay between, when the key was first pressed and
when the system begins to repeat the signal from the depressed key.
Settings: [250, 500, 750, 1000]
Security Option
Selects whether the password is required every time the System boots,
or only when you enter Setup.
Settings
Description
Setup
System
Password prompt appears only when end users try to run BIOS
Setup
Password prompt appears every time when the computer is
powered on and when end users try to run BIOS Setup
MPS Version Control for OS
Settings: [1.1, 1.4]
OS Select for DRAM > 64MB
Select OS2 only if you are running OS/2 operating system with greater
than 64MB of RAM on the system.
Settings: [Non-OS2, OS2]
HDD S.M.A.R.T Capability
Settings: [Disabled, Enabled]
Video BIOS Shadow
Enabled copies Video BIOS to shadow RAM Improves performance.
Settings: [Disabled, Enabled]
Full Screen Logo Show
Show full screen logo during BIOS boot up process.
Settings: [Disabled, Enabled]
38
EPIA-N700 User’s Manual
Summary Screen Show
Show summary screen.
Settings: [Disabled, Enabled]
39
EPIA-N700 User’s Manual
CPU Features
Delay Prior to Thermal
Settings: [4 Min, 8 Min, 16 Min, 32 Min]
Thermal Management
This item sets CPU’s thermal control rule to protect CPU from overheat.
Settings
Description
Thermal Monitor 1
Thermal Monitor 2
On-die throtting
Ratio & VID transition
40
EPIA-N700 User’s Manual
Hard Disk Boot Priority
This is for setting the priority of the hard disk boot order when the
“Hard Disk” option is selected in the “[First/Second/Third] Boot Device”
menu item.
41
EPIA-N700 User’s Manual
Advanced Chipset Features
Caution:
Caution:
The Advanced Chipset Features menu is used for optimizing the
chipset functions. Do not change these settings unless you are
familiar with the chipset.
Memory Hole
Settings: [Disabled, 15M – 16M]
System BIOS Cacheable
Settings: [Disabled, Enabled]
Video RAM Cacheable
Settings: [Disabled, Enabled]
AGP Fast Write
Settings: [Disabled, Enabled]
Select Display Device
Settings: [CRT, LCD, CRT+LCD]
Panel Type
Key in a HEX number.
Settings: [Min = 0000, Max = 000F]
42
EPIA-N700 User’s Manual
Internal VGA Control
AGP 3.0 Calibration Cycle
Settings: [Disabled, Enabled]
VGA Share Memory Size
This setting allows you to select the amount of system memory that is
allocated to the integrated graphics processor.
Settings: [Disabled, 64M, 128M, 256M]
Direct Frame Buffer
Settings: [Disabled, Enabled]
Outport Port
Settings: [DI0, DI1]
Dithering
Settings: [Disabled, Enabled]
43
EPIA-N700 User’s Manual
CPU & PCI Bus Control
PCI Master 0 WS Write
Settings: [Enabled, Disabled]
PCI Delay Transaction
Settings: [Disabled, Enabled]
VIA PWR Management
Settings: [Disabled, Enabled]
44
EPIA-N700 User’s Manual
Integrated Peripherals
OnChip IDE Channel 1
Settings: [Disabled, Enabled]
IDE HDD Block Mode
Settings: [Disabled, Enabled]
SATA Controller
Settings: [Disabled, Enabled]
Azalia HDA Controller
Settings: [Auto, Disabled]
Onboard LAN Boot ROM
Settings: [Enabled, Disabled]
VIA Wireless LAN Support
Settings: [Enabled, Disabled]
45
EPIA-N700 User’s Manual
Super IO Device
Onboard Serial Port 1
Settings: [Disabled, 3F8/IRQ4, 2F8/IRQ4, 3E8/IRQ4, 2E8/IRQ4]
Onboard Serial Port 2
Settings: [Disabled, 3F8/IRQ4, 2F8/IRQ4, 3E8/IRQ4, 2E8/IRQ4]
Onboard Serial Port 3
Settings: [Disabled, 3F8/IRQ4, 2F8/IRQ4, 3E8/IRQ4, 2E8/IRQ4]
Onboard Serial Port 4
Settings: [Disabled, 3F8/IRQ4, 2F8/IRQ4, 3E8/IRQ4, 2E8/IRQ4]
WatchDog Support
Settings: [Enabled, Disabled]
46
EPIA-N700 User’s Manual
VIA OnChip IDE Device
IDE Prefetch Mode
Settings: [Disabled, Enabled]
CF Card UDMA66
Settings: [Disabled, Enabled]
IDE DMA Transfer Access
Settings: [Disabled, Enabled]
Secondary Master PIO
Settings: [Auto, Mode 0, Mode 1, Mode 2, Mode 3, Mode 4]
Secondary Slave PIO
Settings: [Auto, Mode 0, Mode 1, Mode 2, Mode 3, Mode 4]
Secondary Master UDMA
Settings: [Disabled, Auto]
Secondary Slave UDMA
Settings: [Disabled, Auto]
47
EPIA-N700 User’s Manual
USB Device Setting
USB 1.0 Controller
Enable or disable Universal Host Controller Interface for Universal Serial Bus.
Settings: [Disabled, Enabled]
USB 2.0 Controller
Enable or disable Enhanced Host Controller Interface for Universal Serial Bus.
Settings: [Disabled, Enabled]
USB Operation Mode
Auto decide USB device operation mode.
Settings
Description
Full/Low Speed
High Speed
All of USB Device operated on full/low speed mode
If USB device was high speed device, then it operated on
high speed mode.
USB Keyboard Function
Enable or disable Legacy support of USB Keyboard.
Settings: [Disabled, Enabled]
48
EPIA-N700 User’s Manual
USB Mouse Function
Settings: [Disabled, Enabled]
USB Storage Function
Enable or disable Legacy support of USB Mass Storage.
Settings: [Disabled, Enabled]
49
EPIA-N700 User’s Manual
Power Management Setup
ACPI Suspend Type
Settings
Description
S1(POS)
S1/Power On Suspend (POS) is a low power state. In this
state, no system context (CPU or chipset) is lost and
hardware maintains all system contexts.
S3/Suspend To RAM (STR) is a power-down state. In this
state, power is supplied only to essential components such
as main memory and wakeup-capable devices. The system
context is saved to main memory, and context is restored
from the memory when a "wakeup" event occurs.
Depends on the OS to select S1 or S3.
S3(STR)
S1 & S3
Power Management Option
Settings: [User Define, Min Saving, Max Saving]
HDD Power Down
Set the length of time for a period of inactivity before powering down the
hard disk.
Settings: [Disable, 1 Min, 2 Min, 3 Min, 4 Min, 5 Min, 6 Min, 7 Min, 8 Min,
9 Min, 10 Min, 11 Min, 12 Min, 13 Min, 14 Min, 15 Min]
50
EPIA-N700 User’s Manual
Suspend Mode
Sets the length of time for a period of inactivity before entering suspend
mode.
Settings: [Disable, 1 Min, 2 Min, 4 Min, 6 Min, 8 Min, 10 Min, 20 Min, 30
Min, 40 Min, 1 Hour]
Video Off Option
Select whether or not to turn off the screen when system enters power
saving mode, ACPI OS such as Windows XP will override this option.
Settings
Description
Always On
Screen is always on even when system enters power
saving mode
Screen is turned off when system enters power saving mode
Suspend -> Off
Video Off Method
Settings: [Blank Screen, V/H SYNC+Blank, DPMS Support]
Soft-Off by PWRBTN
This field configures the power button on the chassis.
Settings
Description
Delay 4 Sec
System is turned off if power button is pressed for more
than four seconds.
Power button functions as a normal power-on/-off button.
Instant-Off
Run VGABIOS if S3 Resume
Select whether to run VGA BIOS if resuming from S3 state. This is only
necessary for older VGA drivers.
Settings: [Auto, Yes, No]
AC Loss Auto Restart
The field defines how the system will respond after an AC power loss
during system operation.
Settings
Description
Off
On
Former-Sts
Keeps the system in an off state until the power button is pressed
Restarts the system when the power is back
Former-Sts
51
EPIA-N700 User’s Manual
Wakeup Event Detect
PS2KB Wakeup Select
When selecting “Password”, press <Page Up> or <Page Down> to
change password. The maximum number of characters is eight. “PS2MS
Wakeup from S3/S4/S5” and “PS2KB Wakeup from S3/S4/S5” will be
disabled while changing the password.
Settings: [Hot Key, Password]
PS2KB Wakeup Key Select
Sets a Hot Key to restore the system from the power saving mode to an
active state.
Settings: [Ctrl+F1, Ctrl+F2, Ctrl+F3, Ctrl+F4, Ctrl+F5, Ctrl+F6, Ctrl+F7,
Ctrl+F8, Ctrl+F9, Ctrl+F10, Ctrl+F11, Ctrl+F12, Power, Wake, Any Key]
PS2MS Wakeup Key Select
Enables any mouse activity to restore the system from the power saving
mode to an active state.
Settings: [Any Button, Left Button, Right Button]
PS2 Keyboard Power On
Settings: [Disabled, Enabled]
52
EPIA-N700 User’s Manual
PS2 Mouse Power On
Settings: [Disabled, Enabled]
USB Resume from S3
Settings: [Disabled, Enabled]
Wakeup On GPI
Settings: [Disabled, Enabled]
PowerOn by PCI Card
Enables activity detected from any PCI card to power up the system or
resume from a suspended state. Such PCI cards include LAN, onboard
USB ports, etc.
Settings: [By OS, Enabled]
RTC Alarm Resume
Set a scheduled time and/or date to automatically power on the system.
Settings: [Disabled, Enabled]
Date (of Month)
The field specifies the date for “RTC Alarm Resume”.
Key in a DEC number.
Settings: [Min = 0, Max = 31]
Resume Time (hh : mm : ss)
The field specifies the time for “RTC Alarm Resume”.
Key in a DEC number.
Settings: [Min = 0, Max = 23]
53
EPIA-N700 User’s Manual
PnP/PCI Configurations
Note:
This section covers some very technical items and it is strongly
recommended to leave the default settings as is unless you are an
experienced user.
Init Display First
Settings: [PCI Slot, Onboard, AGP, PCIEx]
PNP OS Installed
Settings
Description
No
Yes
BIOS will initialize all the PnP cards
BIOS will only initialize the PnP cards used for booting
(VGA, IDE, SCSI). The rest of the cards will be initialized by
the PnP operating system
Reset Configuration Data
Settings
Description
Disabled
Enabled
Default setting
Resets the ESCD (Extended System Configuration Data)
after exiting BIOS Setup if a newly installed PCI card or the
system configuration prevents the operating system from
loading
54
EPIA-N700 User’s Manual
Resources Controlled By
Enable the BIOS to automatically configure all the Plug-and-Play
compatible devices.
Settings
Description
Auto(ESCD)
BIOS will automatically assign IRQ, DMA and memory base
address fields
Unlocks “IRQ Resources” for manual configuration
Manual
PCI/VGA Palette Snoop
Some non-standard VGA display cards may not show colors properly. This
field allows you to set whether MPEG ISA/VESA VGA Cards can work with
PCI/VGA or not. When enabled, a PCI/VGA can work with a MPEG
ISA/VESA VGA card. When disabled, a PCI/VGA cannot work with a MPEG
ISA/VESA Card.
Settings: [Disabled, Enabled]
Assign IRQ for VGA
Assign IRQ for VGA devices.
Settings: [Disabled, Enabled]
Assign IRQ for USB
Assign IRQ for USB devices.
Settings: [Disabled, Enabled]
Maximum Payload Size
Set maximum TLP payload size for the PCI Express devices. The unit is byte.
Settings: [128, 256, 512, 1024, 2048, 4096]
55
EPIA-N700 User’s Manual
PC Health Status
The PC Health Status displays the current status of all of the monitored
hardware devices/components such as CPU voltages, temperatures and
fan speeds.
56
EPIA-N700 User’s Manual
Frequency/Voltage Control
DRAM Frequency
Settings: [DDR2-400, DDR2-533, DDR-667, SPD]
DRAM Channel Mode
Settings: [Channel A, Channel A&B, Channel A&C]
DDR CAS Latency Control
Settings: [2T, 3T, 4T, 5T, 6T, SPD]
DDR Burst Length
Settings: [4, 8, SPD]
DDR 1T Command Rate
Settings: [Disabled, Enabled]
DRDY Table
Settings: [Slowest, Optimize]
ODT
Settings: [Disabled, Enabled]
57
EPIA-N700 User’s Manual
Spread Spectrum
When the mainboard's clock generator pulses, the extreme values (spikes)
of the pulses create EMI (Electromagnetic Interference). The Spread
Spectrum function reduces the EMI generated by modulating the pulses
so that the spikes of the pulses are reduced to flatter curves.
Settings: [Disabled, +/- 0.1%, +/- 0.2%, +/- 0.3%, +/- 0.4%, +/- 0.5%, +/0.6%, +/- 0.7%, +/- 0.8%, +/- 0.9%]
58
EPIA-N700 User’s Manual
Load Optimized Defaults
This option is for restoring all the default optimized BIOS settings. The
default optimized values are set by the mainboard manufacturer to
provide a stable system with optimized performance.
Entering “Y
Y” and press <Enter
Enter>
Enter to load the default optimized BIOS values.
Entering ”N
N” will cancel the load optimized defaults request.
59
EPIA-N700 User’s Manual
Set Supervisor/User Password
Set Supervisor
User Password
This option is for setting a password for entering BIOS Setup. When a
password has been set, a password prompt will be displayed whenever
BIOS Setup is run. This prevents an unauthorized person from changing
any part of your system configuration.
60
EPIA-N700 User’s Manual
There are two types of passwords you can set. A supervisor password
and a user password. When a supervisor password is used, the BIOS
Setup program can be accessed and the BIOS settings can be changed.
When a user password is used, the BIOS Setup program can be accessed
but the BIOS settings cannot be changed.
To set the password, type the password (up to eight characters in length)
and press <Enter>. The password typed now will clear any previously
set password from CMOS memory. The new password will need to be
reentered to be confirmed. To cancel the process press <Esc>.
To disable the password, press <Enter
Enter>
Enter when prompted to enter a new
password. A message will show up to confirm disabling the password.
To cancel the process press <Esc
Esc>.
Esc
Additionally, when a password is enabled, the BIOS can be set to
request the password each time the system is booted. This would
prevent unauthorized use of the system. See “Security Option” in the
“Advanced BIOS Features” section for more details.
61
EPIA-N700 User’s Manual
Save & Exit Setup
Entering “Y
Y” saves any changes made, and exits the program.
Entering “N
N” will cancel the exit request.
62
EPIA-N700 User’s Manual
Exit Without Saving
Entering “Y
Y’ discards any changes made and exits the program.
Entering “N
N” will cancel the exit request.
63
EPIA-N700 User’s Manual
This page is intentionally left blank.
64
EPIA-N700 User’s Manual
CHHAAPPTTEERR 4
DRIVER INSTALLATION
This chapter gives you brief descriptions of each mainboard driver and
application. You must install the VIA chipset drivers first before installing
other drivers such as VGA drivers. The applications will only function
correctly if the necessary drivers are already installed.
65
EPIA-N700 User’s Manual
Driver Utilities
Getting Started
The mainboard includes a Driver Utilities CD that contains the drivers
and software for enhancing the performance of the mainboard. If the CD
is missing from the retail box, please contact the local dealer for the CD.
Note:
The driver utilities and software are updated from time to time. The
latest updated versions are available at http://www.viaembedded.com/
66
EPIA-N700 User’s Manual
Running the Driver Utilities CD
To start using the CD, insert the CD into the CD-ROM or DVD-ROM
drive. The CD should run automatically after closing the CD-ROM or
DVD-ROM drive. The driver utilities and software menu screen should
then appear on the screen. If the CD does not run automatically, click on
the “Start” button and select “Run…” Then type: "D:\Setup.exe".
For Linux drivers, click the right button on mouse and click open. Linux
drivers are located in the "Driver" folder.
Note:
D: might not be the drive letter of the CD-ROM/DVD-ROM in your
system.
67
EPIA-N700 User’s Manual
CD Content
VIA 4in1 Drivers:
Contains VIA ATAPI Vendor Support Driver (enables the
performance enhancing bus mastering functions on ATAcapable Hard Disk Drives and ensures IDE device compatibility),
AGP VxD Driver (provides service routines to your VGA driver
and interface directly to hardware, providing fast graphical
access), IRQ Routing Miniport Driver (sets the system's PCI IRQ
routing sequence) and VIA INF Driver (enables the VIA Power
Management function).
Includes V-RAID and RAID tools.
VIA Graphics Driver:
Enhances the onboard VIA graphic chip.
VIA Audio Driver:
Enhances the onboard VIA audio chip.
VIA USB 2.0 Driver:
Enhances VIA USB 2.0 ports.
VIA
VIA LAN Driver:
Enhances the onboard VIA VT6130 PCIe Gigabit Ethernet chip.
VIA RAID Driver:
Support for RAID devices.
68
